Form No. 3352-565 Rev A

22" Recycler ®

Lawn Mower

Model No. 20017mSerial No. 250000001 and Up

Operator's Manual

introduction

Read this manual carefully to learn how to operate

and maintain your product properly and to avoid injury

and product damage. You are responsible for

operating the product properly and safely.

You may contact Toro directly at www.Toro.com for

product and accessory information, help finding a

dealer, or to register your product.

Whenever you need service, genuine Toro parts, or

additional information, contact an Authorized Service

Dealer or Toro Customer Service and have the model

and serial numbers of your product ready. The

illustrationbelow identifies the location of the model

and serial numbers on the product. Write the numbers

in the space provided below:

Model #:

Serial #:

m-5607

This manual identifies potential hazards and has

safety messages identified by the following words:

• Danger signals an extreme hazard that will

cause serious injury or death if you do not follow

the recommended precautions.

•Warning signals a hazard that may cause

serious injury or death if you do not follow the

recommended precautions.

•Caution signals a hazard that may cause minor

or moderate injury if you do not follow the

recommended precautions.

This manual uses two other words to highlight

information. Important: calls attention to special

mechanical information and Note: emphasizes

general information worthy of special attention.

The engine exhaust from this product contains

chemicals known to the State of California to

cause cancer, birth defects, or other reproductive

harm.

Important: This engine is not equipped with a spark

arrester muffler. It is a violation of California Public

Resource Code Section 4442 to use or operate this

engine on any forest-covered, brush-covered or

grass-covered land. Other states or federal areas

may have similar laws.

This spark ignition system complies with Canadian

ICES-002.

The enclosed Engine Owner's Manual is supplied for

information regarding The U.S. Environmental

Protection Agency (EPA) and the California Emission

Control Regulation of emission systems, maintenance

and warranty. Replacements may be ordered through

the engine manufacturer.

The engine manufacturer has specified the rated

engine gross horsepower based on SAE

standards/procedures (J1940 and J1995). As

configured to meet safety, emission, and operating

requirements, the actual engine horsepower on this

class of lawn mower will be significantly lower. Do not

tamper with the engine controls or alter the governor

speed; doing so may create an unsafe condition

resulting in personal injury.

Safety

This lawn mower meets or exceeds the CPSC blade

safety requirements for walk-behind rotary lawn

mowers and the B71.1 specifications of the American

National Standards Institute in effect at the time of

production.

Read and understand the contents of this manual

before the engine is ever started.

Z_ This is the safety alert symbol, it is used to

alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol

to avoid possible injury or death.

Improperly using or maintaining this mower

could result in injury or death. To reduce this

potentiam, comply with the following safety

instructions.

The following instructions have been adapted from

the ANSI/OPEl standard B71.1--2003.

This cutting machine is capable of amputating hands

and feet and throwing objects. Failure to observe the

following safety instructions could result in serious

injury or death.

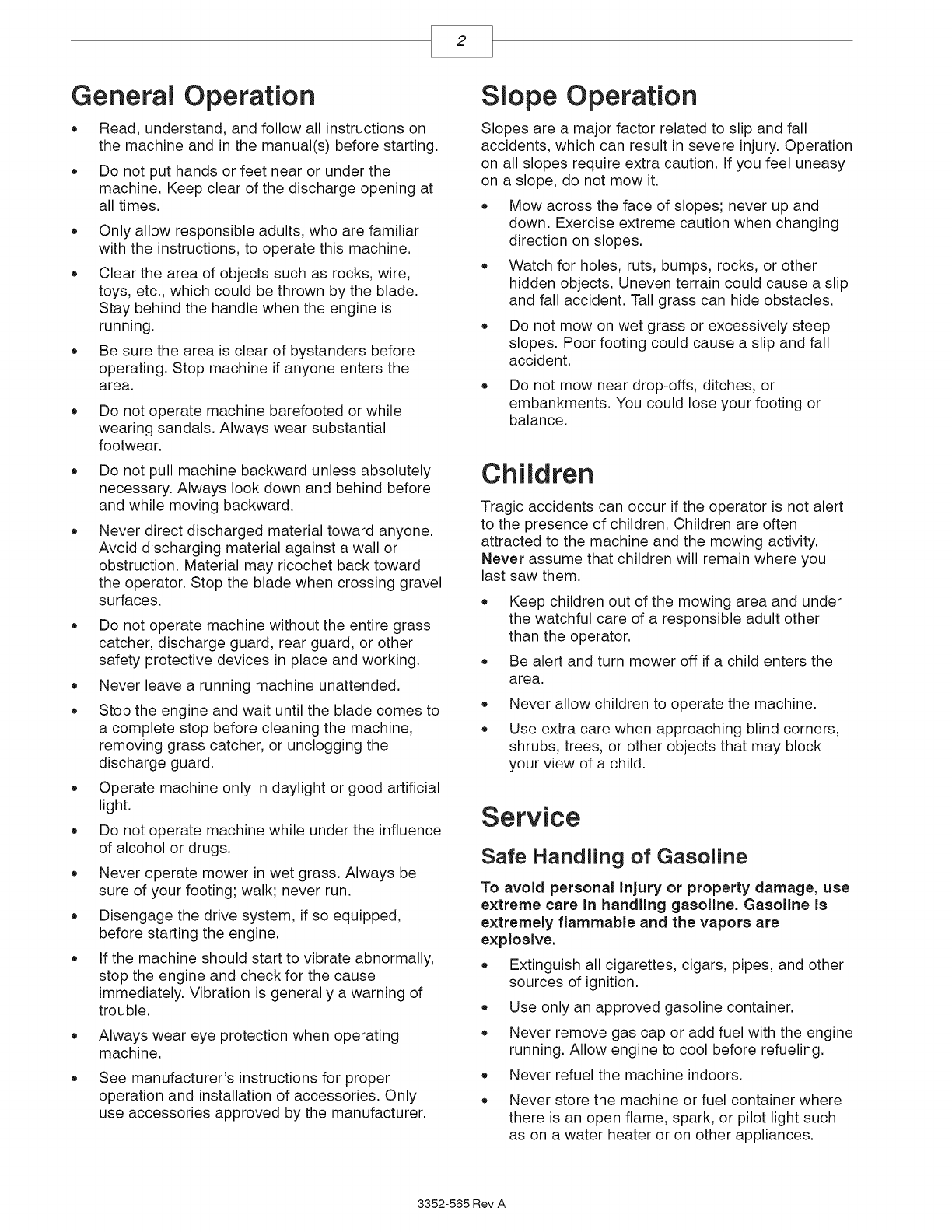

General

Operation

Read, understand, and follow all instructions on

the machine and in the manual(s) before starting.

Do not put hands or feet near or under the

machine. Keep clear of the discharge opening at

all times.

• Only allow responsible adults, who are familiar

with the instructions, to operate this machine.

• Clear the area of objects such as rocks, wire,

toys, etc., which could be thrown by the blade.

Stay behind the handle when the engine is

running.

• Be sure the area is clear of bystanders before

operating. Stop machine if anyone enters the

area.

• Do not operate machine barefooted or while

wearing sandals. Always wear substantial

footwear.

Do not pull machine backward unless absolutely

necessary. Always look down and behind before

and while moving backward.

Never direct discharged material toward anyone.

Avoid discharging material against a wall or

obstruction. Material may ricochet back toward

the operator. Stop the blade when crossing gravel

surfaces.

• Do not operate machine without the entire grass

catcher, discharge guard, rear guard, or other

safety protective devices in place and working.

• Never leave a running machine unattended.

• Stop the engine and wait until the blade comes to

a complete stop before cleaning the machine,

removing grass catcher, or unclogging the

discharge guard.

• Operate machine only in daylight or good artificial

light.

• Do not operate machine while under the influence

of alcohol or drugs.

• Never operate mower in wet grass. Always be

sure of your footing; walk; never run.

• Disengage the drive system, if so equipped,

before starting the engine.

• If the machine should start to vibrate abnormally,

stop the engine and check for the cause

immediately. Vibration is generally a warning of

trouble.

• Always wear eye protection when operating

machine.

• See manufacturer's instructionsfor proper

operation and installation of accessories. Only

use accessories approved by the manufacturer.

Slope Operation

Slopes are a major factor related to slip and fall

accidents, which can result in severe injury. Operation

on all slopes require extra caution. If you feel uneasy

on a slope, do not mow it.

• Mow across the face of slopes; never up and

down. Exercise extreme caution when changing

direction on slopes.

• Watch for holes, ruts, bumps, rocks, or other

hidden objects. Uneven terrain could cause a slip

and fall accident. Tall grass can hide obstacles.

• Do not mow on wet grass or excessively steep

slopes. Poor footing could cause a slip and fall

accident.

• Do not mow near drop-offs, ditches, or

embankments. You could lose your footing or

balance.

Children

Tragic accidents can occur if the operator is not alert

to the presence of children. Children are often

attracted to the machine and the mowing activity.

Never assume that children will remain where you

last saw them.

• Keep children out of the mowing area and under

the watchful care of a responsible adult other

than the operator.

• Be alert and turn mower off if a child enters the

area.

Never allow children to operate the machine.

Use extra care when approaching blind corners,

shrubs, trees, or other objects that may block

your view of a child.

Service

Safe Handling of Gasoline

To avoid personal injury or property damage, use

extreme care in handling gasoline. Gasoline is

extremely flammable and the vapors are

explosive.

• Extinguish all cigarettes, cigars, pipes, and other

sources of ignition.

• Use only an approved gasoline container.

• Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling.

• Never refuel the machine indoors.

• Never store the machine or fuel container where

there is an open flame, spark, or pilot light such

as on a water heater or on other appliances.

3352-565 Rev A

• Never fill containers inside a vehicle or on a truck

or trailer bed with a plastic liner. Always place

containers on the ground away from your vehicle

before filling.

• Remove gas-powered equipment from the truck

or trailer and refuel it on the ground. If this is not

possible, then refuel such equipment with a

portable container, rather than from a gasoline

dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times until fueling

is complete. Do not use a nozzle lock-open

device.

• If fuel is spilled on clothing, change clothing

immediately.

• Never overfill fuel tank. Replace gas cap and

tighten securely.

Exhaust contains carbon monoxide, an odorless,

deadly poison that can kill you.

Do not run the engine indoors or in an enclosed

area,

General Service

• Never operate machine in a closed area.

• Keep all nuts and bolts tight to be sure the

equipment is in safe working condition.

• Never tamper with safety devices. Check their

proper operation regularly.

• Keep machine free of grass, leaves, or other

debris build-up. Clean up oil or fuel spillage and

remove any fuel-soaked debris. Allow machine to

cool before storing.

• If you strike a foreign object, stop and inspect the

machine. Repair, if necessary, before starting.

• Never make any adjustments or repairs with the

engine running. Disconnect the spark plug wire

and ground against engine to prevent unintended

starting.

• Check grass catcher components and the

discharge guard frequently and replace with

manufacturer's recommended parts, when

necessary.

• Mower blades are sharp. Wrap the blade or wear

gloves, and use extra caution when servicing

them.

• Do not change the engine governor setting or

overspeed the engine.

• Maintain or replace safety and instruction labels,

as necessary.

Safety/Instruction Decals

Important: Safety and instruction decals are located near areas of potential danger. Replace damaged decals.

m i DANGERm []

105=1295

105=6838

3352-565 Rev A

roduct

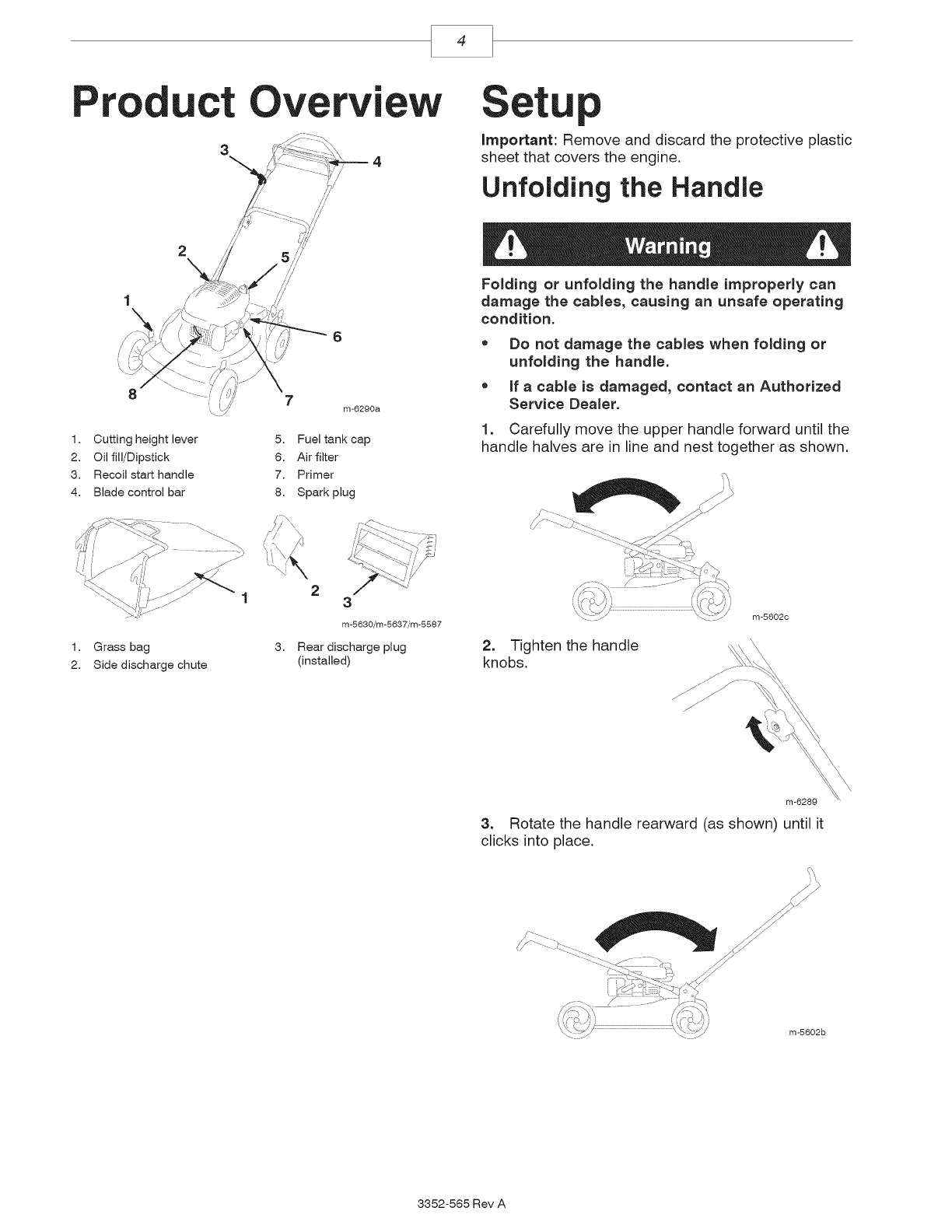

1. Cutting height lever

2. Oil fill/Dipstick

3. Recoil start handle

4. Blade control bar

1. Grass bag

2. Side discharge chute

Overview

7m-6290a

5. Fuel tank cap

6. Air filter

7. Primer

8. Spark plug

m-5630/m-5637/m-5587

Rear discharge plug

(installed)

etup

Important: Remove and discard the protective plastic

sheet that covers the engine.

Unfolding the Handle

Folding or unfolding the handle improperly can

damage the cables, causing an unsafe operating

condition.

e Do not damage the cables when folding or

unfolding the handle.

e If a cable is damaged, contact an Authorized

Service Dealer.

1. Carefully move the upper handle forward until the

handle halves are in line and nest together as shown.

2. Tighten the handle

knobs.

m-5602c

m-6289

3. Rotate the handle rearward (as shown) until it

clicks into place.

m-5602b

3352-565 Rev A

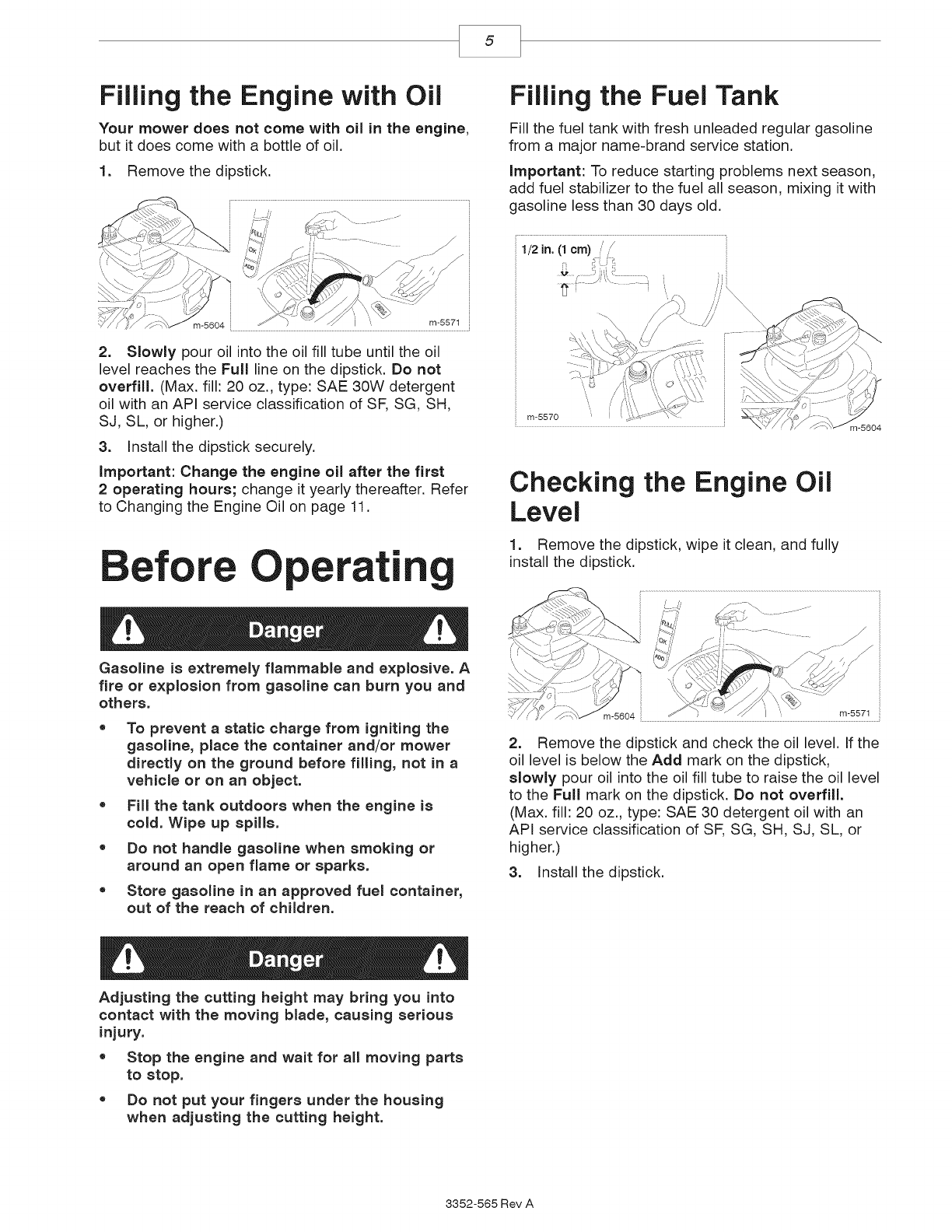

Filling the Engine with Oil

Your mower does not come with oil in the engine,

but it does come with a bottle of oil.

1. Remove the dipstick.

2. Slowly pour oil into the oil fill tube until the oil

level reaches the Full line on the dipstick. Do not

overfill. (Max. fill: 20 oz., type: SAE 30W detergent

oil with an API service classification of SF, SG, SH,

SJ, SL, or higher.)

3. Install the dipstick securely.

Important: Change the engine oil after the first

2operating hours; change it yearly thereafter. Refer

to Changing the Engine Oil on page 11.

efore Operating

Gasoline is extremely flammable and explosive. A

fire or explosion from gasoline can burn you and

others.

®To prevent a static charge from igniting the

gasoline, place the container and/or mower

directly on the ground before filling, not in a

vehicle or on an object.

, Fill the tank outdoors when the engine is

cold. Wipe up spills.

e Do not handle gasoline when smoking or

around an open flame or sparks.

® Store gasoline in an approved fuel container,

out of the reach of children.

Filling the Fuel Tank

Fill the fuel tank with fresh unleaded regular gasoline

from a major name-brand service station.

Important: To reduce starting problems next season,

add fuel stabilizer to the fuel all season, mixing it with

gasoline less than 30 days old.

m15570

m-5604

Checking the Engine Oil

Level

1. Remove the dipstick, wipe it clean, and fully

install the dipstick.

2. Remove the dipstick and check the oil level. If the

oil level is below the Add mark on the dipstick,

slowly pour oil into the oil fill tube to raise the oil level

to the Full mark on the dipstick. Do not overfill.

(Max. fill: 20 oz., type: SAE 30 detergent oil with an

API service classification of SF, SG, SH, SJ, SL, or

higher.)

3. Install the dipstick.

Adjusting the cutting height may bring you into

contact with the moving blade, causing serious

injury.

*Stop the engine and wait for all moving parts

to stop.

e Do not put your fingers under the housing

when adjusting the cutting height.

3352-565 Rev A

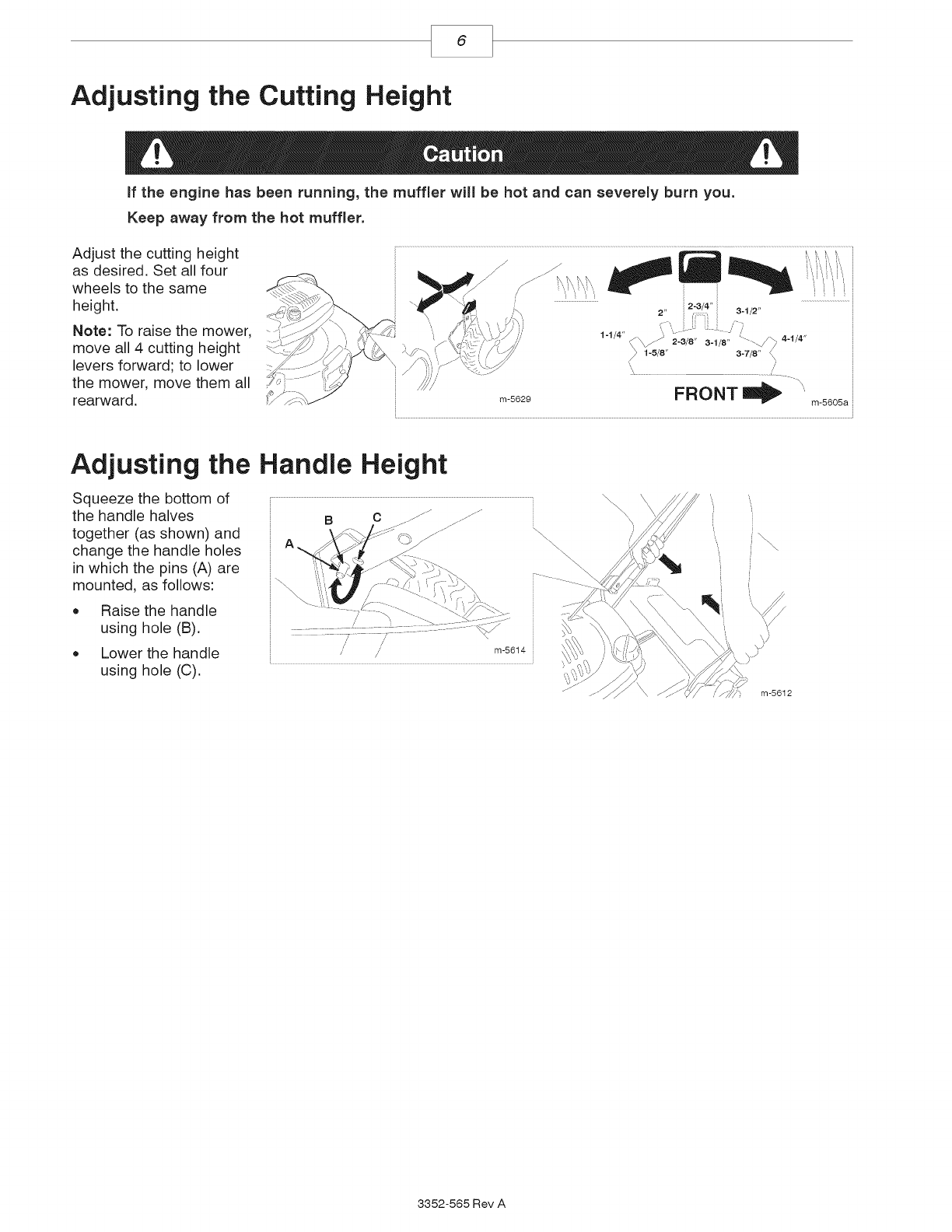

Adjusting the Cutting Height

If the engine has been running, the muffler will be hot and can severely burn you.

Keep away from the hot muffler.

Adjust the cutting height

as desired. Set all four

wheels to the same

height.

Note: To raise the mower,

move all 4 cutting height

levers forward; to lower

the mower, move them all

rearward. m-5629

1-1/4" _2-3/8" 3-1/8" "'_' 4-1/4"

1-5/8" 3-7/8"

:......................... /.....

FRONT _ _'' m-5605a

Adjusting the Handle Height

Squeeze the bottom of

the handle halves

together (as shown) and

change the handle holes

in which the pins (A) are

mounted, as follows:

• Raise the handle

using hole (B).

• Lower the handle

using hole (0).

B C

// /

/' m-5614

//// m-5612

3352-565 Rev A

Operation

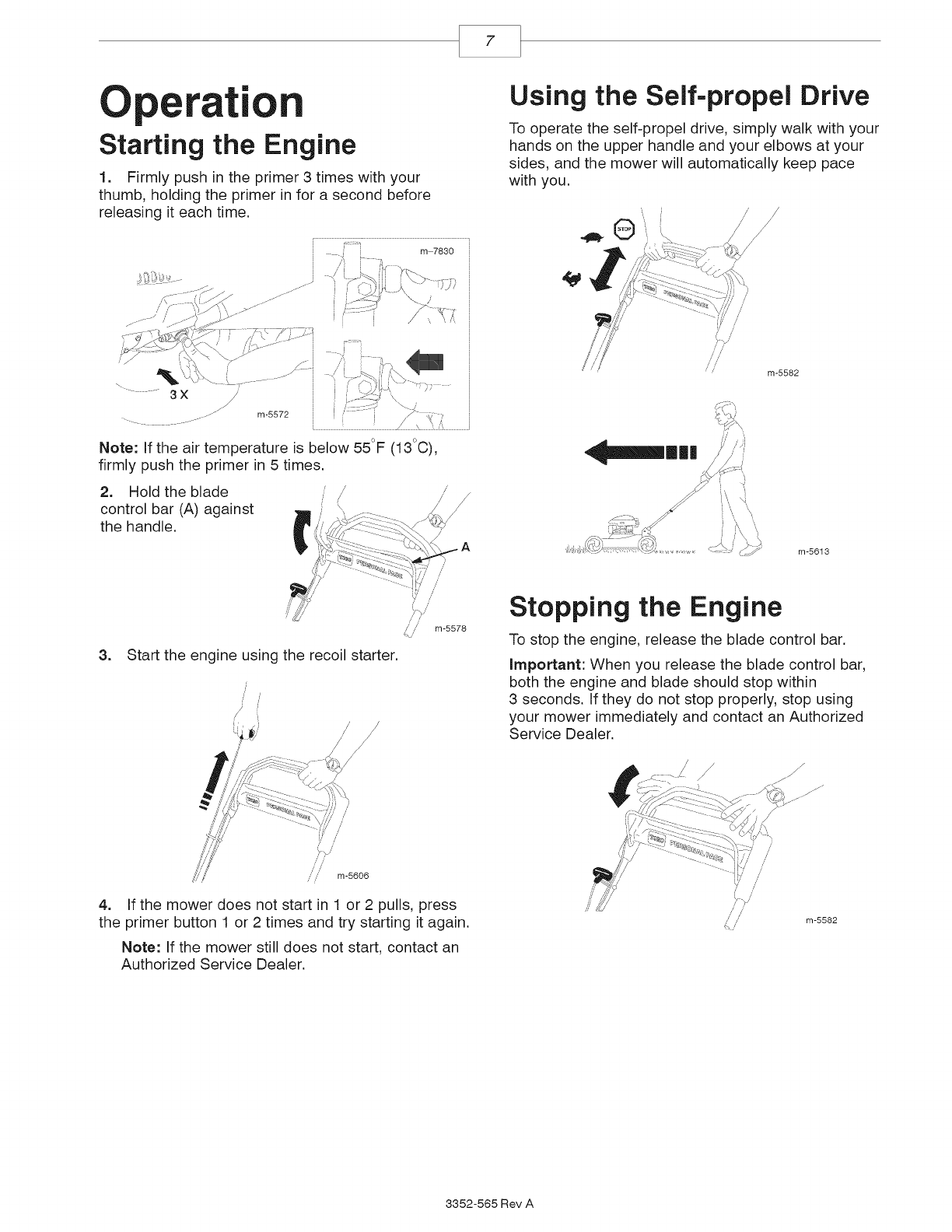

Starting the Engine

1. Firmly push in the primer 3 times with your

thumb, holding the primer in for a second before

releasing it each time.

Note: If the air temperature is below 55°F (13°C),

firmly push the primer in 5 times.

2. Hold the blade

control bar (A) against

the handle.

3. Start the engine using the recoil starter.

Using the Self-propel Drive

To operate the self-propel drive, simply walk with your

hands on the upper handle and your elbows at your

sides, and the mower will automatically keep pace

with you.

// /

//i /

m-5582

_f:?:::\,,

m-5613

Stopping the Engine

To stop the engine, release the blade control bar.

important: When you release the blade control bar,

both the engine and blade should stop within

3 seconds. If they do not stop properly, stop using

your mower immediately and contact an Authorized

Service Dealer.

//////' m-5606

4. If the mower does not start in 1 or 2 pulls, press

the primer button 1 or 2 times and try starting it again.

Note: If the mower still does not start, contact an

Authorized Service Dealer.

i /

Y_J

/ i

/ /

t/ m-5582

3352-565 Rev A

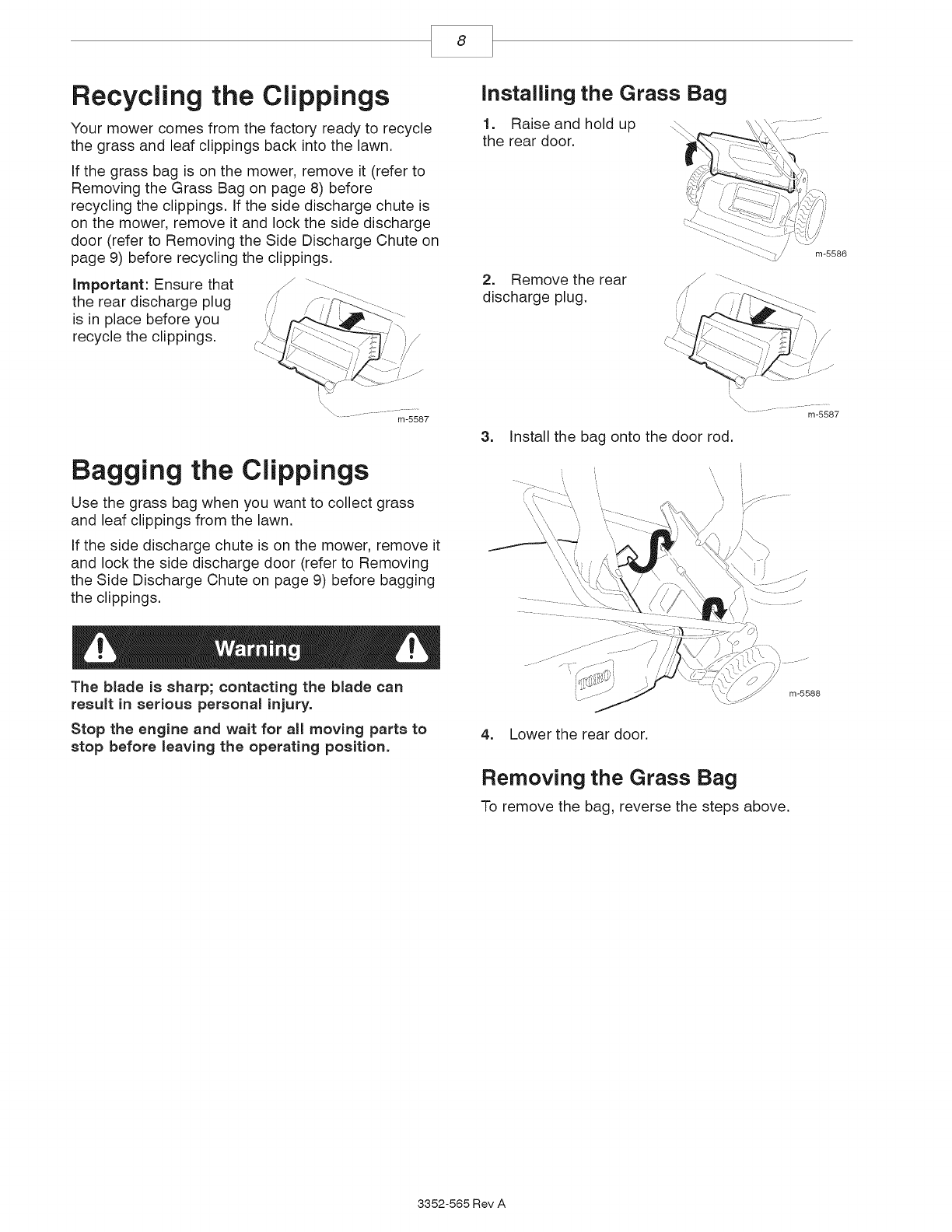

Recycling the Clippings

Your mower comes from the factory ready to recycle

the grass and leaf clippings back into the lawn.

If the grass bag is on the mower, remove it (refer to

Removing the Grass Bag on page 8) before

recycling the clippings. If the side discharge chute is

on the mower, remove it and lock the side discharge

door (refer to Removing the Side Discharge Chute on

page 9) before recycling the clippings.

important: Ensure that ...............

the rear discharge plug ....// _-....

is in place before you

recycle the clippings.

.... J

m-5587

Bagging the Clippings

Use the grass bag when you want to collect grass

and leaf clippings from the lawn.

If the side discharge chute is on the mower, remove it

and lock the side discharge door (refer to Removing

the Side Discharge Chute on page 9) before bagging

the clippings.

installing the Grass Bag

1. Raise and hold up

the rear door.

2. Remove the rear

discharge plug. ,I

3. Install the bag onto the door rod.

The blade is sharp; contacting the blade can

result in serious personal injury.

Stop the engine and wait for all moving parts to

stop before leaving the operating position. 4. Lower the rear door.

Removing the Grass Bag

To remove the bag, reverse the steps above.

3352-565 Rev A

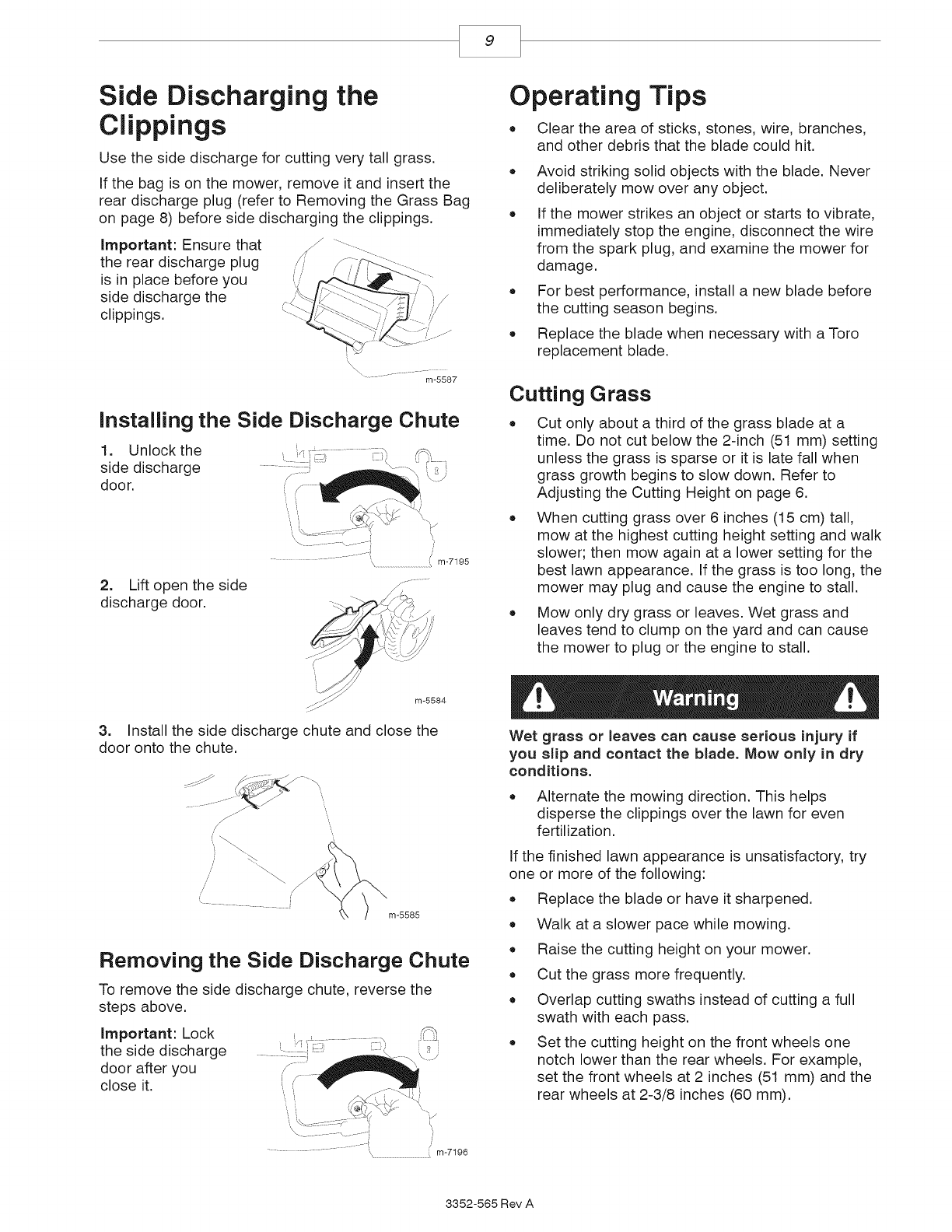

Side Discharging the

Clippings

Use the side discharge for cutting very tall grass.

If the bag is on the mower, remove it and insert the

rear discharge plug (refer to Removing the Grass Bag

on page 8) before side discharging the clippings.

important: Ensure that Y ...............

the rear discharge plug ---.....

is in place before you

side discharge the /

clippings.

ij.z

..........................m-5587

Installing the Side Discharge Chute

1. Unlock the

side discharge _,

door.

2. Lift open the side

discharge door.

.............................."\...............................................i m-7195

Operating Tips

• Clear the area of sticks, stones, wire, branches,

and other debris that the blade could hit.

• Avoid striking solid objects with the blade. Never

deliberately mow over any object.

• If the mower strikes an object or starts to vibrate,

immediately stop the engine, disconnect the wire

from the spark plug, and examine the mower for

damage.

• For best performance, install a new blade before

the cutting season begins.

• Replace the blade when necessary with a Toro

replacement blade.

Cutting Grass

* Cut only about a third of the grass blade at a

time. Do not cut below the 2-inch (51 mm) setting

unless the grass is sparse or it is late fall when

grass growth begins to slow down. Refer to

Adjusting the Cutting Height on page 6.

, When cutting grass over 6 inches (15 cm) tall,

mow at the highest cutting height setting and walk

slower; then mow again at a lower setting for the

best lawn appearance. If the grass is too long, the

mower may plug and cause the engine to stall.

, Mow only dry grass or leaves. Wet grass and

leaves tend to clump on the yard and can cause

the mower to plug or the engine to stall.

3. Install the side discharge chute and close the

door onto the chute.

m-5585

Removing the Side Discharge Chute

To remove the side discharge chute, reverse the

steps above.

important: Lock

the side discharge

door after you

close it.

.......... i

............................. I ..................................................!i m-7196

Wet grass or leaves can cause serious injury if

you slip and contact the blade. Mow only in dry

conditions.

• Alternate the mowing direction. This helps

disperse the clippings over the lawn for even

fertilization.

If the finished lawn appearance is unsatisfactory, try

one or more of the following:

• Replace the blade or have it sharpened.

• Walk at a slower pace while mowing.

• Raise the cutting height on your mower.

• Cut the grass more frequently.

• Overlap cutting swaths instead of cutting a full

swath with each pass.

• Set the cutting height on the front wheels one

notch lower than the rear wheels. For example,

set the front wheels at 2 inches (51 mm) and the

rear wheels at 2-3/8 inches (60 mm).

3352-565 Rev A

Cutting Leaves

• After cutting the lawn, ensure that half of the lawn

shows through the cut leaf cover. You may need

to make more than one pass over the leaves.

• If there are more than 5 inches (13 cm) of leaves

on the lawn, set the front cutting height one or

two notches higher than the rear cutting height.

Slow down your mowing speed if the mower does

not cut the leaves finely enough.

aintenance

Note: Determine the left and right sides of the mower by standing in the operating position.

Recommended Maintenance Schedule

important: Refer to your engine operator's manual for additional maintenance procedures.

Maintenance Service Maintenance Procedure

interval

Each Use

1 Year (25 Hours) 1

4 Years (100 Hours) 1 o

Annual Storage o

Check the engine oil level.

Remove grass clippings and dirt from under the housing.

Replace the air filter; replace it more frequently in dusty operating conditions.

Change the engine oil. 2

Replace the blade or have the blade sharpened; replace it or have it sharpened

more frequently if the edge dulls quickly.

Lubricate the wheel gears.

Replace the spark plug (refer to your engine operator's manual).

Clean the cooling system (refer to your engine operator's manual).

Empty the fuel tank before repairs as directed or before annual storage.

1Whichever comes first

2Change the engine oil after the first 2 operating hours.

Preparing for Maintenance

1. Stop the engine and wait for all moving parts to

stop.

2. Disconnect the

spark plug wire from the

spark plug and hook it

onto the retaining post

(A) before performing

any maintenance

procedure.

m-5589

3. After performing the maintenance procedure(s),

connect the spark plug wire to the spark plug.

Note: Before tipping the mower to change the oil or

replace the blade, allow the fuel tank to run dry

through normal usage. If you must tip the mower prior

to running out of fuel, use a hand fuel pump to

remove the fuel. Always tip the mower onto its side

(with the air filter up).

Tipping the mower may cause the fuel to leak.

Gasoline is flammable, explosive and can cause

personal injury.

Run the engine dry or remove the gasoline with a

hand pump; never siphon.

3352-565 Rev A

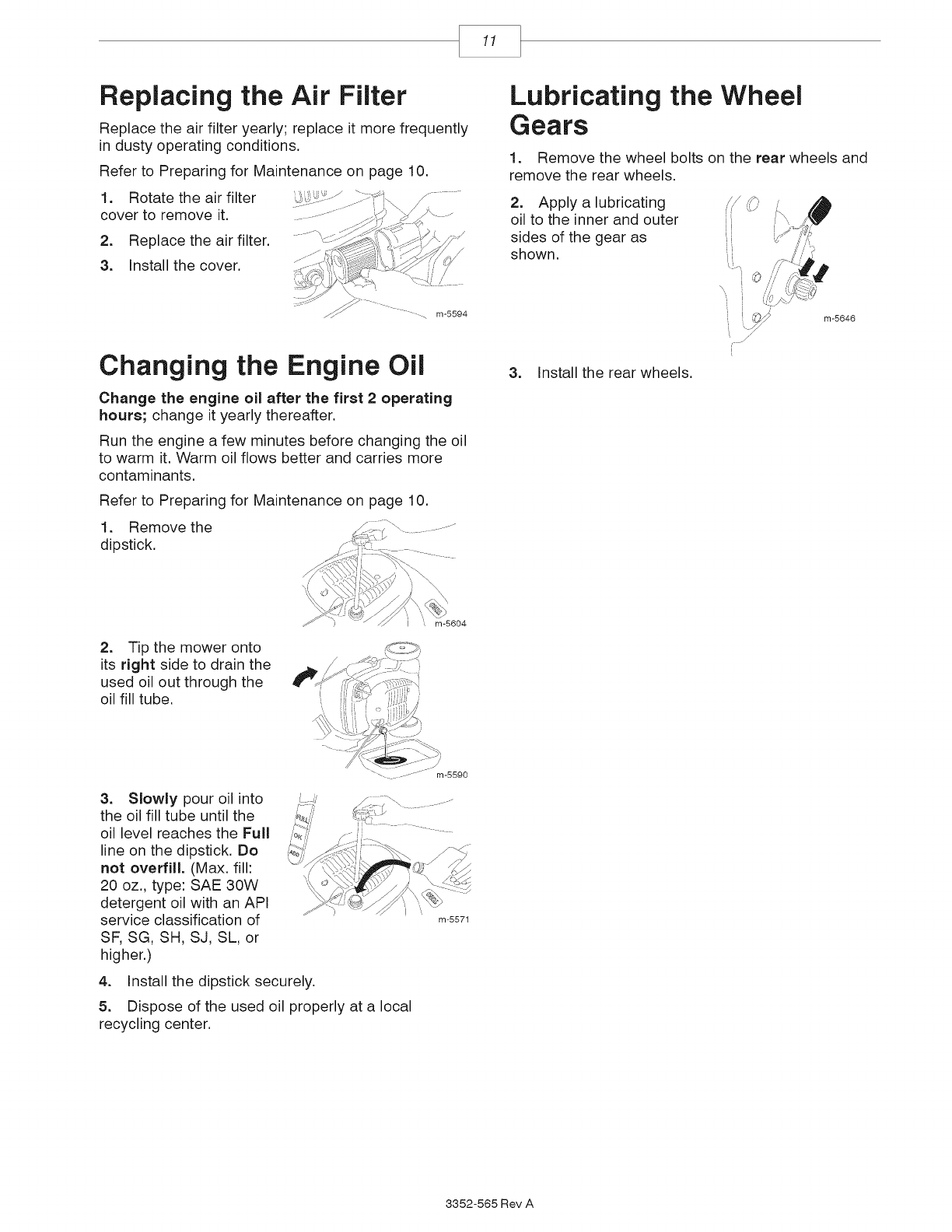

Replacing the Air Filter

Replace the air filter yearly; replace it more frequently

in dusty operating conditions.

Refer to Preparing for Maintenance on page 10.

1. Rotate the air filter

cover to remove it.

2. Replace the air filter.

3. Install the cover.

Changing the Engine Oil

Change the engine oil after the first 2operating

hours; change it yearly thereafter.

Run the engine a few minutes before changing the oil

to warm it. Warm oil flows better and carries more

contaminants.

Refer to Preparing for Maintenance on page 10.

1. Remove the

dipstick.

Lubricating the Wheel

Gears

1. Remove the wheel bolts on the rear wheels and

remove the rear wheels.

2. Apply a lubricating ,,//._;

oil to the inner and outer _;

sides of the gear as

shown.

m-5646

3. Install the rear wheels.

2. Tip the mower onto

its right side to drain the

used oil out through the

oil fill tube.

m-5604

3. Slowly pour oil into

the oil fill tube until the

oil level reaches the Full

line on the dipstick. Do

not overfill. (Max. fill:

20 oz., type: SAE 30W

detergent oil with an API

service classification of

SF, SG, SH, SJ, SL, or

higher.)

4. Install the dipstick securely.

5. Dispose of the used oil properly at a local

recycling center.

........ J

_J m-5590

m-5571

3352-565 Rev A

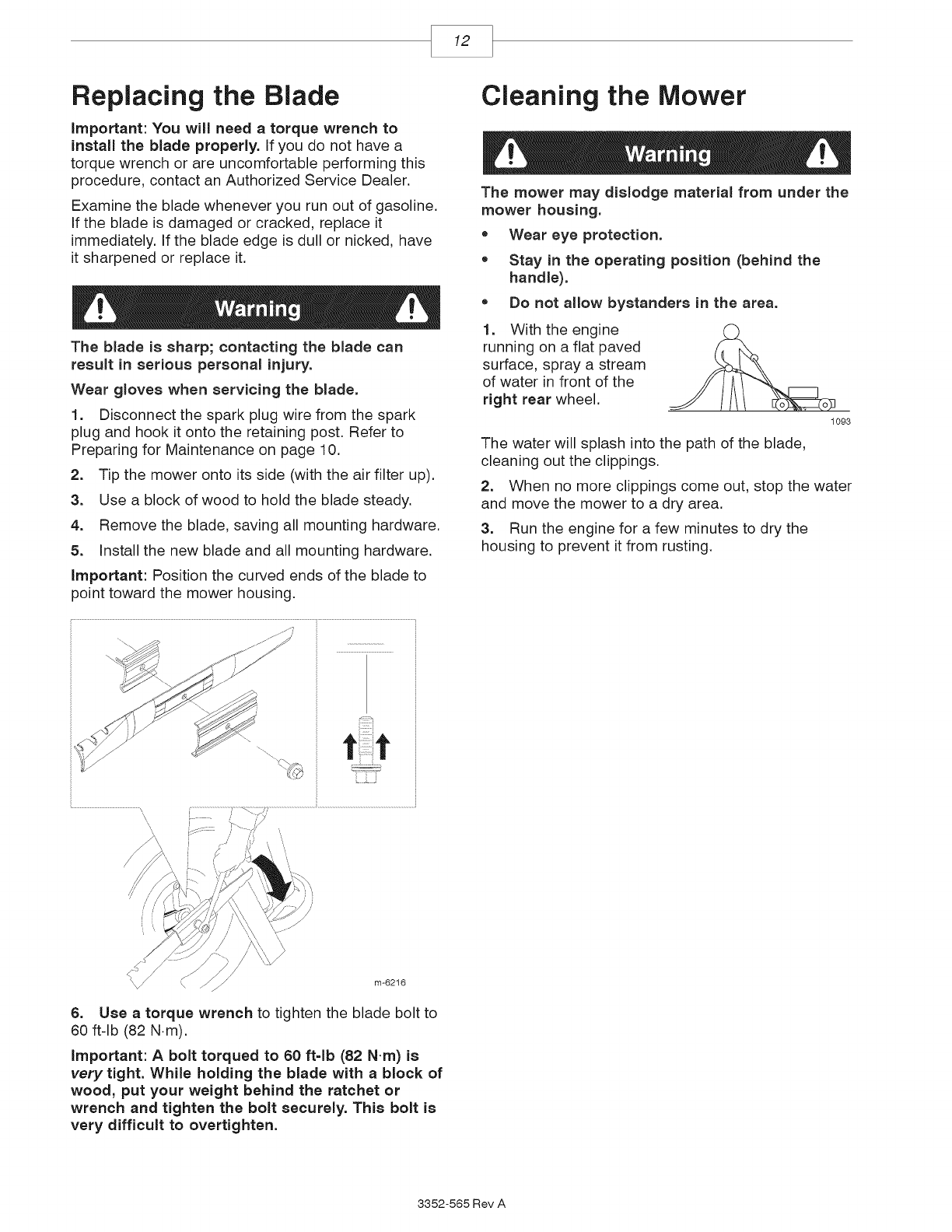

Replacing the Blade

Important: You will need a torque wrench to

install the blade properly, if you do not have a

torque wrench or are uncomfortable performing this

procedure, contact an Authorized Service Dealer.

Examine the blade whenever you run out of gasoline.

if the blade is damaged or cracked, replace it

immediately, if the blade edge is dull or nicked, have

it sharpened or replace it.

The blade is sharp; contacting the blade can

result in serious personal injury.

Wear gloves when servicing the blade.

1. Disconnect the spark plug wire from the spark

plug and hook it onto the retaining post. Refer to

Preparing for Maintenance on page 10.

2. Tip the mower onto its side (with the air filter up).

3. Use a block of wood to hold the blade steady.

4. Remove the blade, saving all mounting hardware.

5. install the new blade and all mounting hardware.

important: Position the curved ends of the blade to

point toward the mower housing.

Cleaning the Mower

The mower may dislodge material from under the

mower housing.

* Wear eye protection.

*Stay in the operating position (behind the

handle).

* Do not allow bystanders in the area.

1. With the engine

running on a flat paved

surface, spray a stream

of water in front of the

right rear wheel.

1093

The water will splash into the path of the blade,

cleaning out the clippings.

2. When no more clippings come out, stop the water

and move the mower to a dry area.

3. Run the engine for a few minutes to dry the

housing to prevent it from rusting.

m-6216

6. Use atorque wrench to tighten the blade bolt to

60 ft-lb (82 Nm).

important: A bolt torqued to 60 ft-lb (82 Nora) is

very tight. While holding the blade with a block of

wood, put your weight behind the ratchet or

wrench and tighten the bolt securely. This bolt is

very difficult to overtighten.

3352-565 Rev A

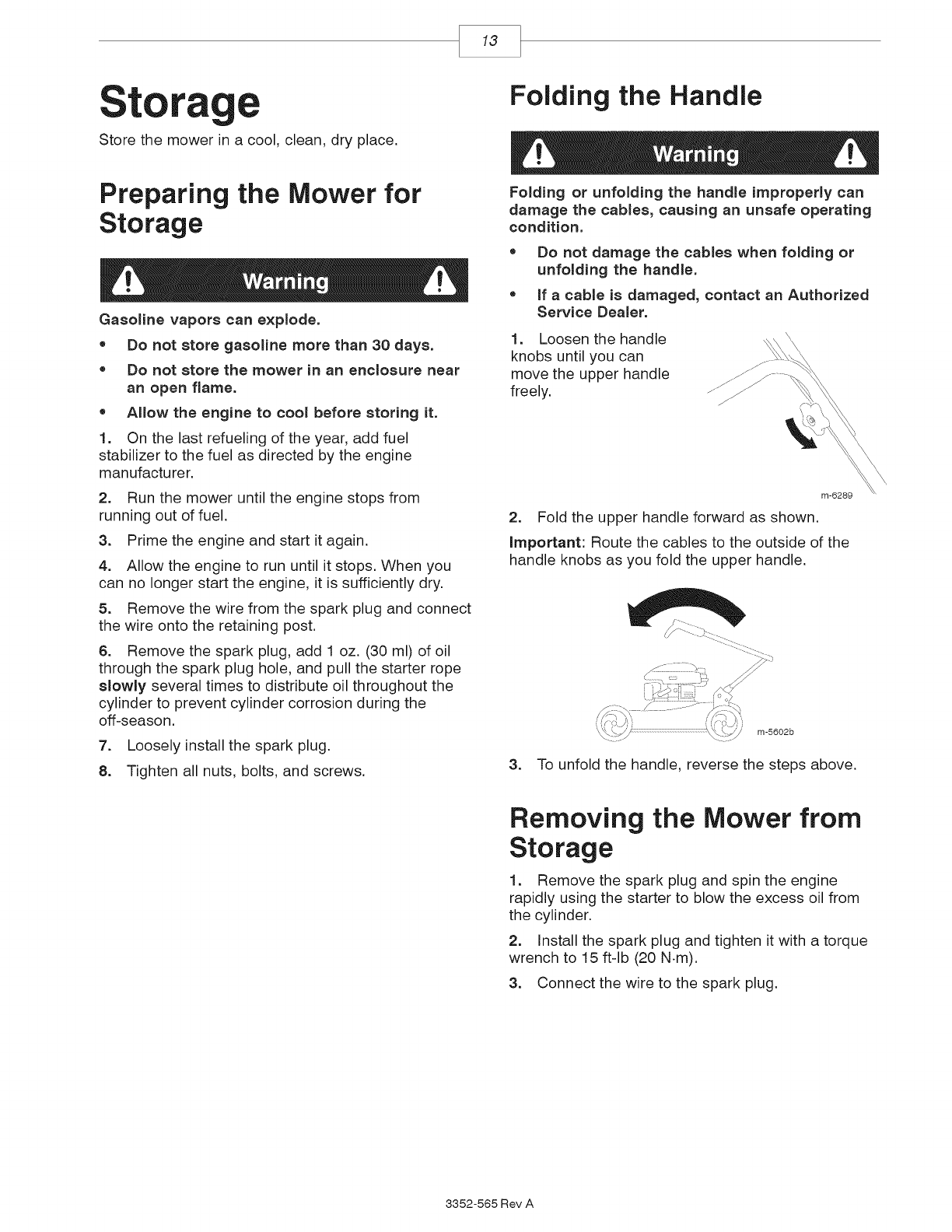

Storage

Store the mower in a cool, clean, dry place.

Folding the Handle

Preparing the Mower for

Storage

Gasoline vapors can explode.

® Do not store gasoline more than 30 days.

® Do not store the mower in an enclosure near

an open flame.

, Allow the engine to cool before storing it.

1. On the last refueling of the year, add fuel

stabilizer to the fuel as directed by the engine

manufacturer.

2. Run the mower until the engine stops from

running out of fuel.

3. Prime the engine and start it again.

4. Allow the engine to run until it stops. When you

can no longer start the engine, it is sufficiently dry.

5. Remove the wire from the spark plug and connect

the wire onto the retaining post.

6. Remove the spark plug, add 1 oz. (30 ml) of oil

through the spark plug hole, and pull the starter rope

slowly several times to distribute oil throughout the

cylinder to prevent cylinder corrosion during the

off-season.

7. Loosely install the spark plug.

8. Tighten all nuts, bolts, and screws.

Folding or unfolding the handle improperly can

damage the cables, causing an unsafe operating

condition.

® Do not damage the cables when folding or

unfolding the handle.

® If a cable is damaged, contact an Authorized

Service Dealer,

1. Loosen the handle

knobs until you can

move the upper handle

freely.

m-6289

2. Fold the upper handle forward as shown.

Important: Route the cables to the outside of the

handle knobs as you fold the upper handle.

m-5602b

3. To unfold the handle, reverse the steps above.

Removing the Mower from

Storage

1. Remove the spark plug and spin the engine

rapidly using the starter to blow the excess oil from

the cylinder.

2. Install the spark plug and tighten it with a torque

wrench to 15 ft-lb (20 N.m).

3. Connect the wire to the spark plug.

3352-565 Rev A

3352-565RevA

3352-565 Rev A

The Toro Total Coverage Guarantee

and

The Toro Starting Guarantee on GTS=2 (Guaranteed to Start) Engines

A Full Two-Year Warranty (Limited Warranty for Commercial Use)

Conditions and Products Covered under The Toro Total Coverage Guarantee

The Toro Company and its affiliate, Toro Warranty Company, promise to repair any Toro Product used for residential purposes* if defective in materials or

workmanship or if it stops functioning due to the failure of a component. The following time periods apply from the date of purchase:

Products Warranty Period

• Recycler _ Walk Mowers 2 year full warranty

• Batteries 1 year full warranty

This warranty covers the cost of parts and labor, but you must pay transportation costs. This warranty applies to all steel deck Toro Recycler Walk Mowers.

Conditions and Products Covered under The Toro Starting Guarantee

The Toro Company and its affiliate, Toro Warranty Company, guarantee that your Toro GTS-2 Engine, when used for residential purposes*, will start on the first

or second pull for two years from the date of purchase, if you provide the routine maintenance it requires, or we will fix it free of charge.

This warranty covers the cost of parts and labor, but you must pay transportation costs. This warranty applies to all steel deck Toro Recycler Walk Mowers.

Limited Warranty for Commercial Use

Toro Recycler Walk Mowers used for commercial, institutional, or rental use are warranted for 45 days against defects in materials or workmanship.

Components failing due to normal wear are not covered by this warranty. The Toro Starting Guarantee does not apply when the product is used commercially.

items and Conditions Not Covered

There is no other express warranty. This express warranty does not cover the following:

• Cost of regular maintenance service or parts, such as filters, fuel, lubricants, oil changes, spark plugs, air filter, blade sharpening, worn blade, cable/linkage

adjustments, or brake and clutch adjustments

• Any product or part which has been altered or misused or required replacement or repair due to accidents or lack of proper maintenance

• Repairs necessary due to improper battery care, electrical supply irregularities, or failure to properly prepare the mower prior to any period of non-use over

three months

• Pickup and delivery charges

• Operational misuse, neglect, or accidents

• Repairs or attempted repairs by anyone other than a Toro Service outlet

• Repairs or adjustments to correct starting difficulties due to the following:

- failure to follow proper maintenance procedures

- rotary mower blade striking an object

- contaminants in the fuel system

- improper fuel or fuel/oil mixture (consult your Operator's Manual if in doubt)

- failure to drain the fuel system prior to any period of non-use over three months

• Special operational conditions where starting may require more than two pulls:

- first time starts after extended period of non-use over three months or seasonal storage

- cool temperature starts such as those found in early spring and late autumn

- improper starting procedures

If you are having difficulty starting your unit, please check the Operator's Manual to ensure that you are using the correct starting procedures. This can save an

unnecessary visit to a Service Dealer.

Owner Responsibilities

You must maintain your Toro Product by following the maintenance procedures described in the Operator's Manual. Such routine maintenance, whether

performed by a dealer or by you, is at your expense.

instructions for Obtaining Warranty Service

If you think that your Toro Product contains a defect in materials or workmanship, or if a normal, able-bodied adult can no longer start your product's engine in

one or two pulls, follow this procedure:

1. Contact any Toro Authorized or Master Service Dealer to arrange service at their dealership. To locate a dealer convenient to you, refer to the Yellow Pages

of your telephone directory (look under "Lawn Mowers") or access our website at www.Toro.com. U.S. Customers may also call 800-421-9684 to use our

24-hour Toro dealer Iocator system.

2. Bring the product and your proof of purchase (sales receipt) to the Service Dealer.

3. If for any reason you are dissatisfied with the Service Dealer's analysis or with the assistance provided, contact us at: Customer Care Department,

Consumer Division, Toro Warranty Company, 8111 Lyndale Avenue South, Bloomington, MN 55420-1196; or call us toll free at 866-214-9807 (U.S.

customers) or 866-214-9808 (Canada customers).

General Conditions

All repairs covered by these warranties must be performed by an Authorized or Master Toro Service Dealer using Toro approved replacement parts. Repair by a

Toro Service Dealer is your sole remedy under these warranties.

Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental, or consequential damages in connection with the use of the Toro

Products covered by these warranties, including any cost or expense of providing substitute equipment or service during reasonable periods of malfunction or

non-use pending completion of repairs under these warranties.

Some states do not allow exclusions of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions and

limitations may not apply to you.

Countries Other than the United States or Canada

Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee

policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee

information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.

Part No. 374 0052 Re_

* Residential purposes means use of the product on the same lot as your home. Use at more than one location is considered commercial use, and the

commercial use warranty would apply.

Toro 20017 User Manual MOWER Manuals And Guides L0904581

TORO Walk Behind Lawnmower, Gas Manual L0904581 TORO Walk Behind Lawnmower, Gas Owner's Manual, TORO Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
