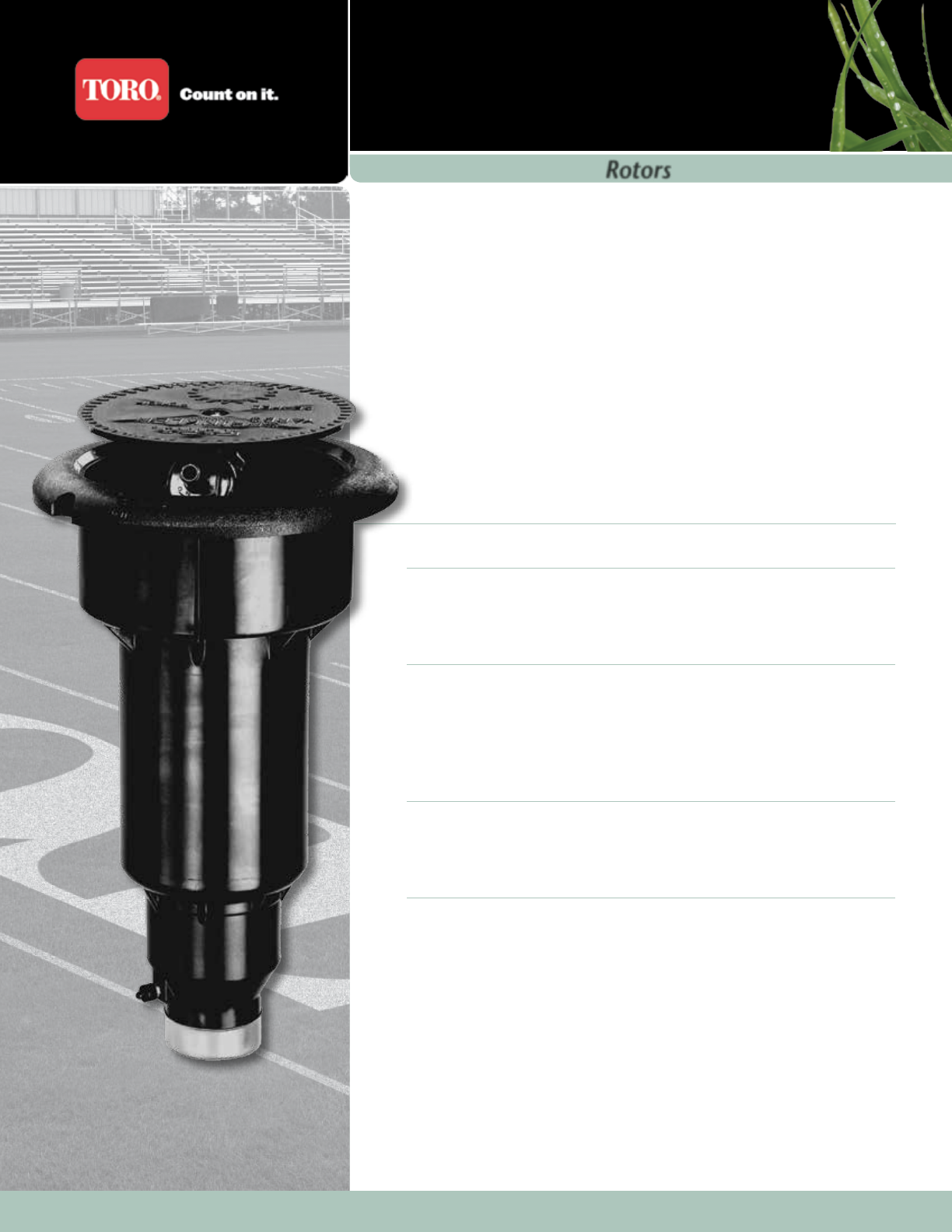

690 Series

Rotors

Features & Benefits

ARTIFICIAL PLAYING SURFACES

Radius and flow capabilities are perfect for cooling and rinsing

artificial playing surfaces such as football fields.

ELECTRIC VALVE IN HEAD MODELS

Electric valve in head models provide individual head control that

ensures run times can match differing soil, turf and terrain watering

requirements, pressure regulation to ensure all nozzles perform at the

same pressure and manual ON-OFF-auto control at the head.

FIXED ARC DRIVES

Nine fixed arc drive assemblies ensure positive retention of the

coverage area with no arc drift

BALANCED APPLICATION RATE

Used in single or double row applications these sprinklers operate at

a slower speed over the non-overlap area and a faster speed over the

overlapped areas to provide a balanced application rate.

For nearly 40 years the 690 series has set the standard for

durability and reliability in commercial applications. Extremely

rugged, the 690 Series is constructed of brass, stainless steel

and engineering plastics for unmatched performance in the

most demanding environments. The two-speed models

provide improved performance and lower the system cost for

larger radius applications.

www.toro.com • The Toro Company • Irrigation Division

5825 Jasmine St. • Riverside, CA • 92504 • 877-345-8676

Specifications subject to change without notice. For more

information, contact your local Toro distributor.

P/N 13-1081-IRC

©2013 The Toro Company. All rights reserved.

690 Series

690 Series Performance Chart

Base

Pressure

Nozzle Set

90

Nozzle Set

91

Nozzle Set

92

psi Radius GPM Radius GPM Radius GPM

80 87 51.0 96 61.2 100 74.0

100 90 57.1 100 73.5 108 82.2

Radius shown in feet.

Sprinkler radius of throw per ASAE standard S398.1.

Specifying Information—690

69X-0X-XXX

Arc Valve-In-Head Type Nozzle Pressure

Regulation*

69X0XXX X

1—90°

2—180°

4—Full-circle

6—Full-circle, 2-speed

(60°–120°)

8—Full-circle, 2-speed

(180°–180°)

1—Normally Open

Hydraulic

2—Check-O-Matic

6—Electric

90

91

92

8—80 psi

1—100 psi

Example: When specifying a 690 Series Sprinkler with a 180° arc, electric valve-in-head,

#91 nozzle, and pressure regulation at 80 psi, you would specify: 692-06-918

*Electric models only.

Specifications

Dimensions

• Body diameter: 10”

• Body height: 16”

• Weight: 5.6 lbs.

Operating Specifications

• Radius: 87’ – 108’

• Flow Rate: 51.0 – 82.2 GPM

• Operating Pressure: 80-100 psi (Max=150psi, Min=40psi)

• Pop-up height to nozzle: ¾”

• Inlet: 1 ½” NPT

• Check-O-Matic: Maintains 37’ of elevation

• Electric Valve-in-head Solenoid: 24V ac, 50/60 Hz

- Inrush: 60 Hz, 0.30 amps

- Holding: 60 Hz, 0.20 amps

• All internal components serviceable from the top

Warranty

• Three years

Model Description

• 691

• 692

• 694

• 696

• 698

90° Part-circle sprinkler

180° Part-circle sprinkler

Full-circle sprinkler

2-speed (60°-120°) sprinkler

2-speed (180°-180°) sprinkler
