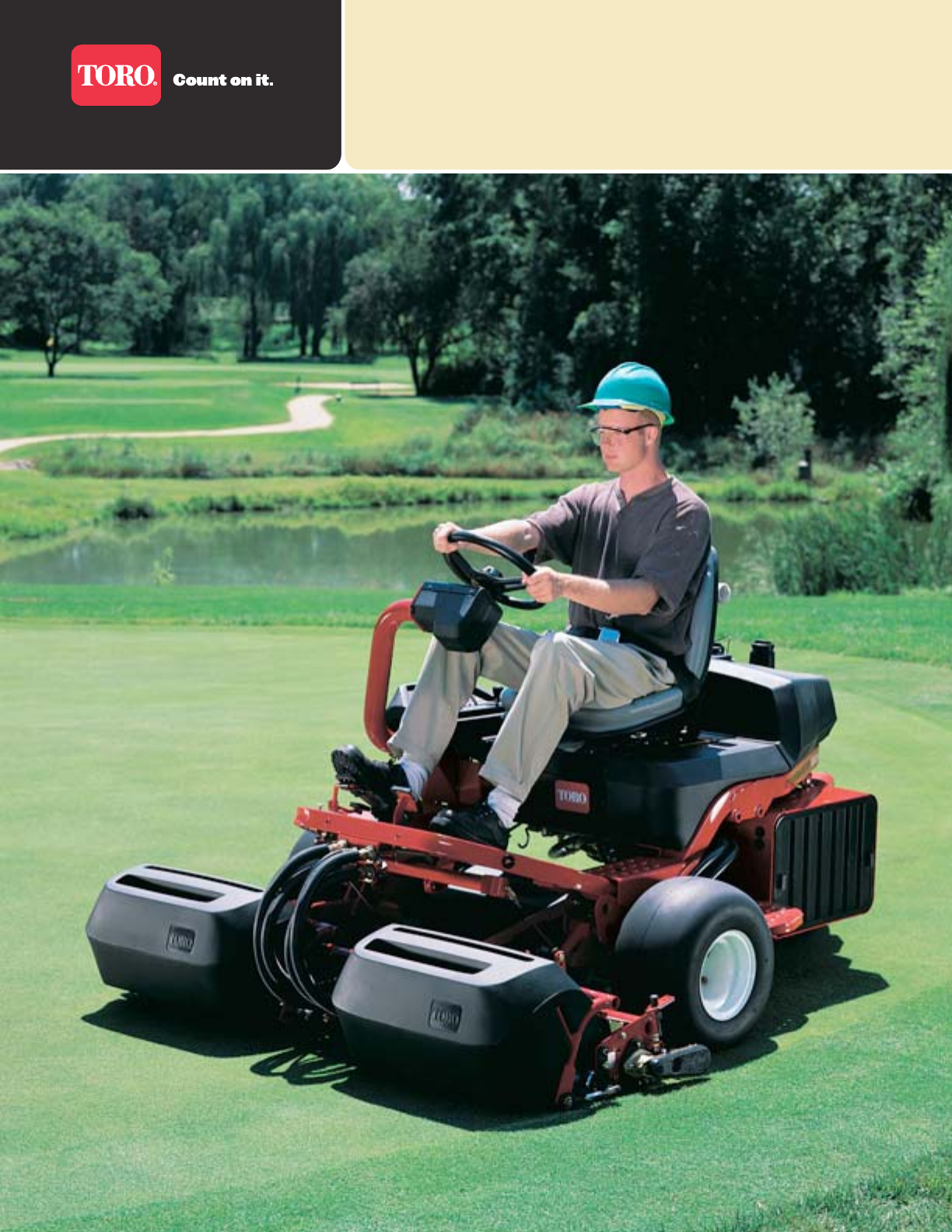

Greensmaster®3100/3150/3250-D

Unrivaled cutting performance from the world’s

most popular riding greensmowers.

GREENSMASTER

®3100/3150/3250-D

Superior quality of cut for the most

consistent and truest ball roll.

Superior quality of cut for the most

consistent and truest ball roll.

Greensmaster 3150

• 18 hp Briggs & Stratton Vanguard engine

• All-new hydraulic system

• Standard leak detector

• Optional 3-wheel drive

Greensmaster 3250-D

• 21 hp Briggs & Stratton/Daihatsu®Diesel engine

• Optional 3-wheel drive

• Optional leak detector

Greensmaster 3100

• 18 hp Briggs & Stratton®Vanguard®engine

• Low compaction

• Legendary design

The industry’s finest aftercut appearance

and best playing surface from an all-new

cutting unit.

Proven performance from the legendary

Toro®triplex design.

Long-lasting, powerful performance

with minimal engine noise.

Easy maintenance with a new cutting

unit and fewer service points.

Reduced turf compaction resulting

from flexible, 2-ply floatation tires.

Operator productivity enhanced

thanks to numerous driver station

conveniences.

As the acclaimed leader in riding greensmowers,

The Toro Company takes great pride in offering

the highest quality products that are on the

cutting edge of technology.

And when it comes to a smooth cutting

surface, no product matches the beauty and

consistency achieved with the new Riding

Greensmaster Cutting Unit from Toro.

GREENSMASTER

®3100/3150/3250-D

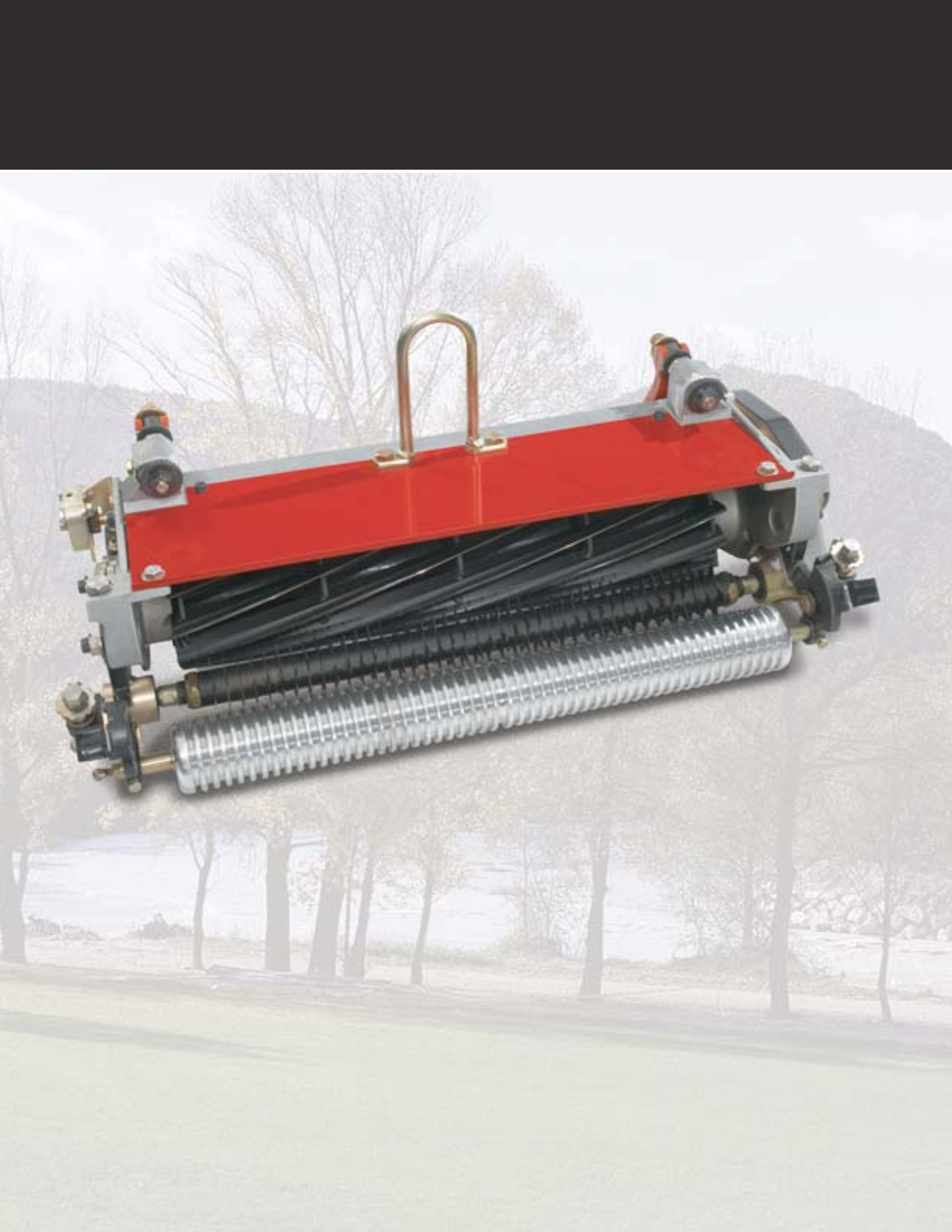

DUAL POINT ADJUSTMENT

The dual point adjustment (DPA) simplifies the bedknife-to-reel

alignment process. A clicking dial on each side of the cutting unit

adjusts and holds the bedknife in exact increments. It’s fast, easy

and requires no special tools. The bedknife maintains a consistent

angle throughout the life of the reel, providing the same quality

of cut every time out.

REDUCED MAINTENANCE

Daily maintenance on the new cutting unit has never been

easier. Sealed bearings are maintenance-free and eliminate spills

on greens due to over-greasing. The precisely manufactured

rollers remain level without adjustments and the bedknife

removes easily for sharpening. This all accounts for fewer

human errors and greater time savings.

QUALITY DESIGN

Unlike any other cutting unit available today, the new

Greensmaster Cutting Unit design features a die-cast

aluminum frame. This increases the torsional strength of

the cutting unit and protects against corrosion. Every part is

precisely manufactured for perfect alignment to provide the

highest quality cut. Both the 8 and 11-blade reels are made

from harder steel for a longer life. Grass baskets are mounted

independent of the cutting units to ensure that the varying

weight of the basket does not affect the cutting performance.

MADE TO FIT

The revolutionary new Riding Greensmaster Cutting Unit

fits all present and past Toro riding greensmowers.

CUTTING UNITS

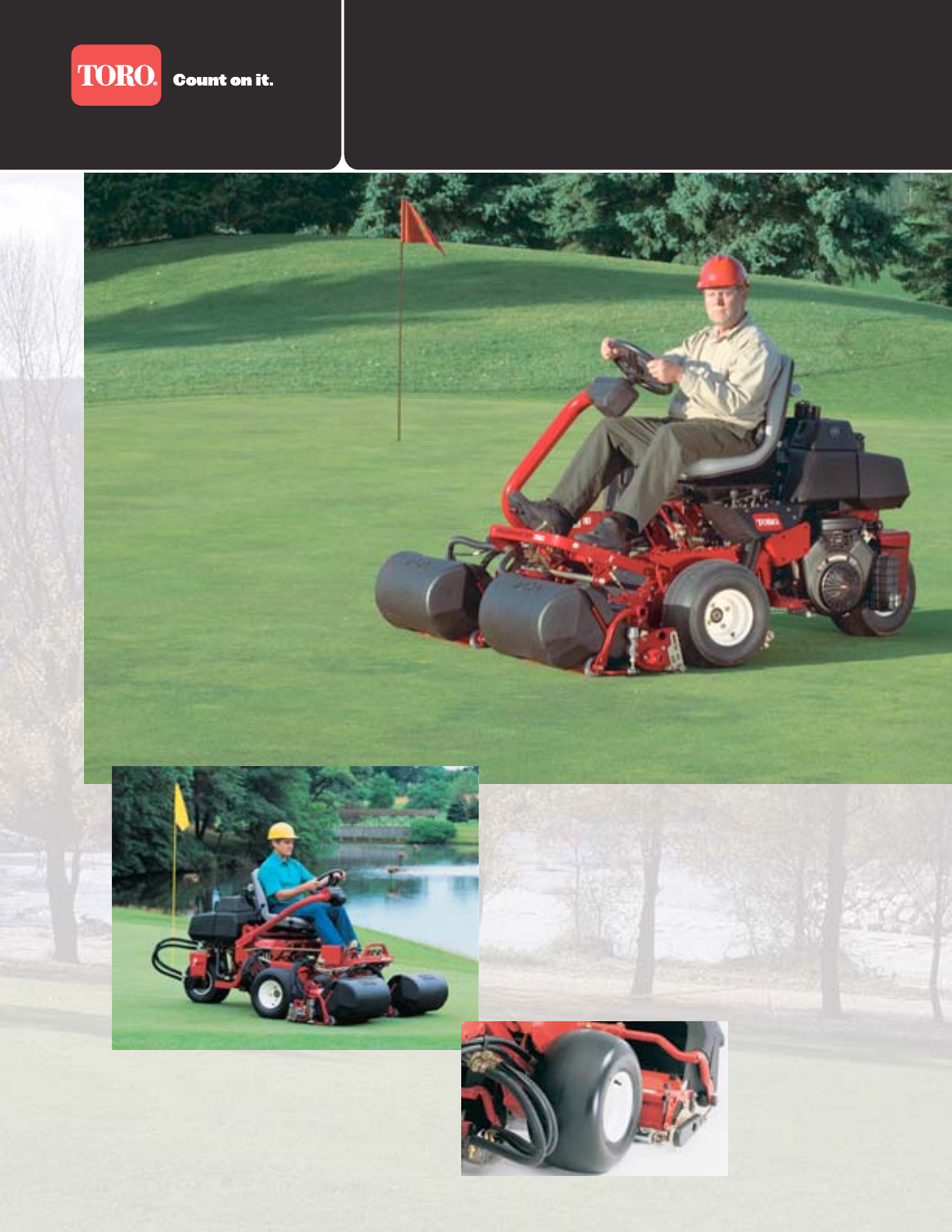

LEGENDARY

ENVIED DESIGN The legendary Toro triplex design, with its

unique placement of the cutting units, offers numerous advantages,

including the easy-empty center basket. Rear-wheel tracking within

the radius of the front wheels helps keep operators out of trouble in

sharp turns. The low-mounted engine and hydraulic components

provide exceptional hillside stability. This configuration also

improves service and maintenance accessibility.

SAFER HYDRAULICS Leak prevention is critical on and

around the greens. We completely overhauled the hydraulic

system on the 3150 to further prevent damaging leaks. The

result is a mono-valve block design that requires no

camshaft or detents and 17% fewer hydraulic

connections. The Toro Guardian®Leak Detector

is standard on the 3150 and optional

on the 3250-D.

ALWAYS ON THE JOB

Mechanics and superintendents

alike appreciate the service-friendly

design of the Toro Greensmaster. The

new cutting unit virtually eliminates

daily maintenance, and an available onboard

backlapping kit helps keep the blades sharp. Service points are

readily accessible and designed for quick adjustments without special tools.

LOW IMPACT Large floatation tires disperse the

weight of the mower for a lighter footprint that is

gentler on turf. The softer, two-ply sidewalls flex

through the turns to reduce scuffing and compaction.

SAFER HYDRAULICS

ENVIED DESI

LOW IMPACT

GREENSMASTER

®3100/3150/3250-D

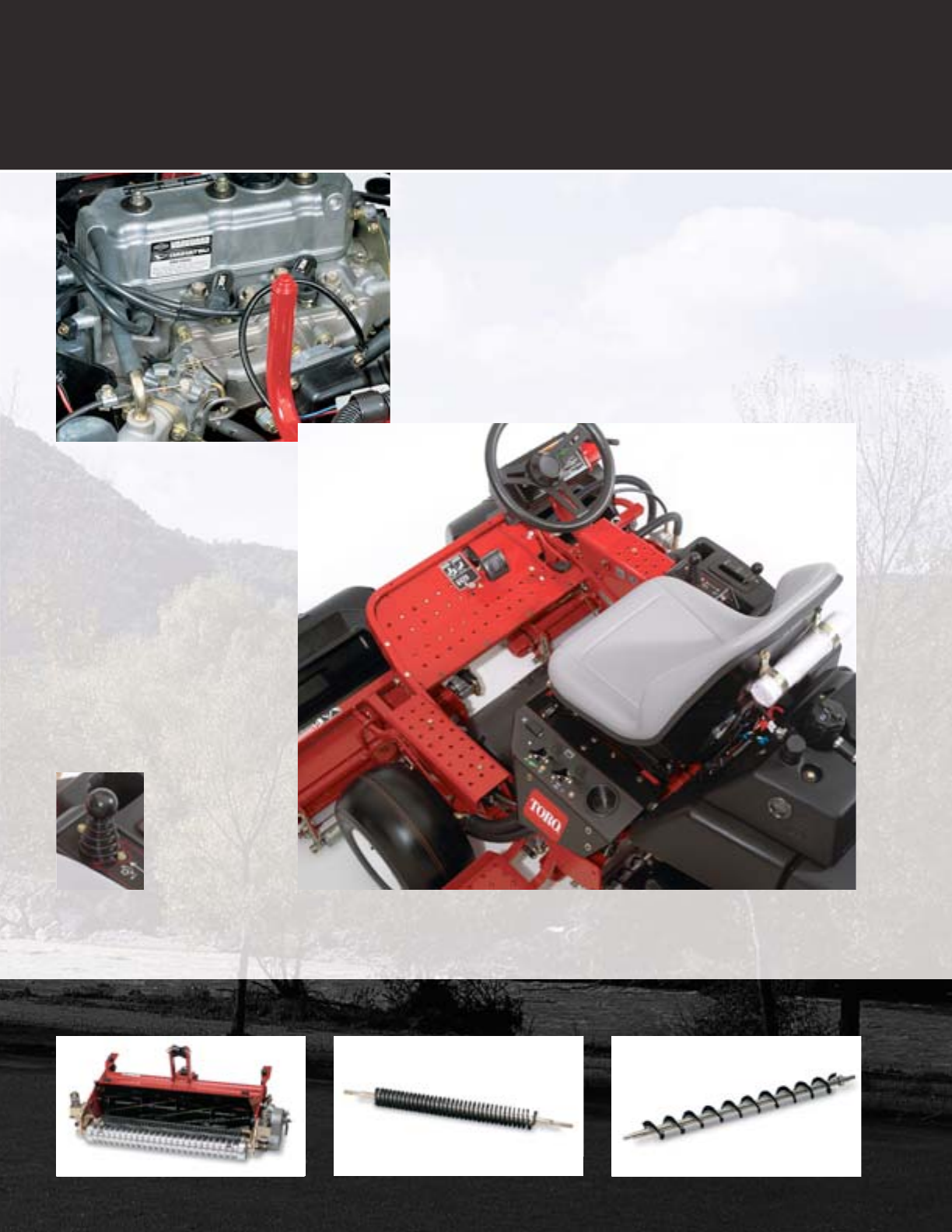

POWER OPTIONS Choose from three different models to deliver the

performance you demand. The 18 hp Briggs & Stratton®Vanguard®V-twin

engine on the 3100 and 3150 is a strong performer with plenty of torque

at low RPMs. This reduces engine noise and vibration for increased

operator comfort and longer engine life. A powerful, 21 hp Briggs &

Stratton/Daihatsu Diesel engine provides ample reserve power on the

3250-D. Hydrostatic drive helps reduce brake wear, while available 3-wheel

drive on the 3150 and 3250-D provide superior traction when needed.

GN

POWER OPTIONS

A JOY TO RUN

Grooming reel Grooming brush Rear roller brush

3100/3150/3250-D ATTACHMENTS

A JOY TO RUN Operator

comfort is a key component to

the Toro Greensmaster series. An

ergonomic bucket seat, adjustable

steering arm and a quiet engine keep

the driver productive. Controls are

easy to operate and located for driver

convenience. A single joystick on

the 3150 and 3250-D controls the

cutting units, making operation more

precise and easier to

master. Additional

safety features

include a rollover

protection system

on optional 3-wheel

drive models.

GREENSMASTER

®3100/3150/3250-D

SPECIFICATIONS

Engine

Fuel Capacity

Traction Drive

Ground Speed

Turf Compaction

Implement Drive

Steering

Electrical Features

Controls/Gauges

Tires

Leak Detection

Sound Level

Dimensions

Width of Cut

Warranty

18 hp (13.4 kW), Briggs & Stratton®

Vanguard®V-Twin cylinder, OHV,

air-cooled gasoline engine.

7.5 gallon (28.4 liter).

All hydraulic drive, consisting of

multiple stack pump, valve, and

two motors.

Forward — 1st, mow: 3.8 mph (6.1

km/h); 2nd, transport: 8.1 mph (13

km/h). Reverse — 1.9 mph (3 km/h).

8-10 psi (dependent on tire pressure)

with operator and cutting units down.

Hydraulic drive, individual pump and

valve sections operating 3 reel motors.

Power steering. No-tool quick adjust

steering arm and adjustable tilt.

12 volt battery. 16 amp alternator.

Ignition switch/key. Seat switch, mow

and traction drive & parking brake,

interlock switches.

Hand operated choke, throttle and gear

selection. Foot operated traction drive,

brakes, and mow/lift pedal for starting

or stopping of implements. Hour meter

and volt meter.

Three 18 x 9.5-8, 2-ply pneumatic

tubeless, demountable and

interchangeable. Smooth tread.

Optional. Manufactured by B.H. Sales.

82 dB(A) at operator’s ear under

normal operation.

Wheel Tread: 49.5" (126 cm)

Wheelbase: 47" (119 cm)

Length: 90" (229 cm)

Width w/reels: 69.75" (177 cm)

Height: 48.5" (123 cm)

Wet Weight (without reels):

940 lbs. (427 kg)

59" (150 cm)

Two year limited warranty. Refer to the

Operator’s Manual for further details.

18 hp (13.4 kW), Briggs & Stratton

Vanguard V-Twin cylinder, OHV,

air-cooled gasoline engine.

7 gallon (26.5 liter).

Hydrostatic piston pump, closed loop

system. Foot pedal forward and

reverse; infinitely variable.

Forward — 1st, mow: 3.8 mph (6.1

km/h); 2nd, transport: 8.1 mph (13

km/h). Reverse — 1.9 mph (3 km/h).

8-10 psi (dependent on tire pressure)

with operator and cutting units down.

Single pump, mono valve block, series

reel drive to 3 reel motors.

Power steering. Adjustable steering

wheel tilt and a 5-position steering

arm tilt.

12 volt battery. 16 amp alternator.

Ignition switch/key. Seat switch. Harness

terminals and fuse slot available for

optional lights installation.

Raise/lower-mow joystick. Functional

control lever (neutral, mow, transport).

Foot operated traction drive and

brakes. Hour meter. Hand operated

throttle and choke. Mechanical engine

speed control.

Three 18 x 9.5-8, 2-ply pneumatic

tubeless, demountable and

interchangeable. Smooth tread.

Equipped with Turf Guardian™

.

83 dB(A) at operator’s ear under

normal conditions.

Wheel Tread: 49.5" (149.9 cm)

Wheelbase: 46.87" (119 cm)

Length: 90" (229 cm)

Width w/reels: 69.75" (177 cm)

Height: 48.5" (123 cm)

Wet Weight (without reels):

970 lbs. (440 kg)

59" (150 cm)

Two year limited warranty. Refer to the

Operator’s Manual for further details.

21 hp (15.7 kW) Briggs &

Stratton/Daihatsu®850D 3-cylinder,

water-cooled diesel engine.

6 gallon (22.7 liter).

Hydrostatic piston pump, closed loop

system. Foot pedal forward and

reverse; infinitely variable.

Forward — variable from 2-5 mph

(3.2-8 km/h); transport: 8.8 mph (14.1

km/h); Reverse — 2.5 mph (4.0 km/h).

10 psi (dependent on tire pressure),

with operator and cutting units down.

Single pump, mono valve block, series

reel drive to 3 reel motors.

Power steering. No-tool quick adjust

steering arm and adjustable tilt.

12 volt battery. 40 amp alternator.

Ignition switch/key. Seat switch. High

temperature engine kill override switch.

Harness terminals, fuse slot, and

console switch location available for

optional lights installation.

Raise/lower-mow joystick. Functional

control lever (neutral, mow, transport).

Foot operated traction drive and

brakes. Hour meter and 4 bulb warning

cluster. Hand operated throttle.

Mechanical engine speed control.

Water in fuel warning light.

Three 19 x 10.5-8, 2-ply pneumatic

tubeless, demountable and

interchangeable. Smooth tread.

Turf Guardian optional.

84 dB(A) at operator’s ear under

normal conditions.

Wheel Tread: 50.5" (128 cm)

Wheelbase: 48.6" (123 cm)

Length w/baskets: 93.9" (238 cm)

Width: 68.0" (173 cm)

Height: 50.5" (128 cm)

Net Weight (without reels):

1,108 lbs. (503 kg)

59" (150 cm)

Two year limited warranty. Refer to the

Operator’s Manual for further details.

Greensmaster 3100 Greensmaster 3150 Greensmaster 3250-D

Model 04356 Model 04357 Model 04383

Greensmaster 3100/3150/3250-D

SPECIFICATIONS

Riding Greensmaster Cutting Units with Dual Point Adjustment (DPA)

8-Blade: DPA, 04610; 11-Blade: DPA, 04611

Tractor

These cutting units will mount on any Toro riding Greensmaster.

Height of Cut

Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is .062-.297"

(1.6-7.5 mm). With high HOC kit, range is .285-1" (7.3-25.4 mm). Effective HOC may vary depending on turf conditions and

bedknife installed.

Reel Weldment

Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. High carbon steel blades are welded to 5 stamped steel spiders, and heat

treated to RC 48-54 hardness. The reel is ground for diameter and concentricity, and backgrind.

Reel Bearings

Two double row, self-aligning ball bearings, 30 +/-.1 mm inside diameter slip fit onto reel shaft with lock nut. Multiple seal barriers on

both sides of bearing for added protection. Reel position maintained by a wave washer with no adjusting nut.

Maintenance

No grease zerks, sealed bearing design eliminates daily maintenance.

Reel Drive

The reel weldment shaft is a 1.375" (35 mm) diameter tube with drive inserts permanently pressed in both ends. A replaceable floating

coupler with an internal eight tooth spline is factory installed on the right end, and held in place by a snap ring. The floating coupler

may be moved to the other end when the cutting unit is used on the GR3250-D front right position.

Frame

Precision machined, die-cast aluminum cross member with two bolt-on die-cast aluminum side plates.

Aggressiveness

Aggressiveness stays constant throughout the life of the reel. Patented design.

Bedknife

Replaceable single edged, high carbon steel bedknife austempered to RC 48-55, fastened to a machined cast iron bedbar with

13 screws. Tournament bedknife is standard.

Bedknife Adjustment

Dual screw, indexed “click” adjustment to the reel; detents corresponding positively to .0007" (.018 mm) bedknife movement for

each position.

Front and Rear Rollers

Front: Aluminum Wiehle

®

, 2.5" (6.4 cm) diameter with sealed bearings and through-shaft. Option between full, narrow-spaced

and wide-spaced roller.

Rear: Steel full, 2" (5.1 cm) diameter with sealed bearings and through-shaft.

Grass Shield

Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.

Total Weight

8-blade: 72 lbs. (32.7 kg) with aluminum Wiehle roller.

11-blade: 75 lbs. (34.1 kg) with aluminum Wiehle roller.

DPA Cutting Unit Options

Service Bedknives

Part No. Description Height of Cut Range (recommended)

93-4262 Micro-Cut Bedknife .062-.188" (1.6-4.8 mm)

94-4263 Tournament Bedknife .125-.375" (3.2-9.5 mm)

93-4264 Lo-Cut Bedknife (1/8) .188-1.00" (4.8-25.4 mm)

94-6392 Hi-Cut Bedknife .312-1.00" (7.9-25.4 mm)

63-8600 Fairway Bedknife .375-1.00" (9.5-25.4 mm)

Full Roller

Model 04620. Set of three (3) 2.5" +/-.03" (6.35 cm) diameter, with sealed bearings and through-shaft (steel tube).

Narrow-Spaced Wiehle

Model 04621. Set of three (3) 2.5" +/-.03" (6.35 cm) diameter, .20" +/-.03" spacing with sealed bearings and through-shaft (aluminum).

Wide-Spaced Wiehle

Model 04622. Set of three (3) 2.5" +/-.03" (6.35 cm) diameter, .93" +/-.03" spacing with sealed bearings and through-shaft (aluminum).

Groomer

Includes a set of three (3) grooming reels, 2.375" (6.03 cm) diameter, .028" (.71 mm) thick heat treated spring steel, operating at 3,000

RPM. Powered by a six (6) rib Poly-V-Belt.

Model 04630. Kit contains three (3) left-hand side drive assemblies for GR3050/3100/3150.

Model 04631. Kit contains two (2) left-hand drive assemblies and one (1) right-hand side drive assembly for GR3250-D.

Powered Rear

Model 04640. Includes three (3) brush assemblies. Fits GR3050/3100/3150 cutting units.

Roller Brush

Model 04641. Includes three (3) brush assemblies. Fits GR3250-D cutting units.

Roller Scraper Kits

P/N 106-4661. One (1) front Wiehle scraper (narrow-spaced Wiehle).

P/N 106-4662. One (1) wide Wiehle roller scraper (wide-spaced Wiehle).

P/N 106-4663. One (1) full roller scraper (smooth).

Model 04646. Set of three (3) spring-loaded rear roller scrapers.

High Height of Cut Kit

P/N 106-4699. For one (1) cutting unit. Adjustable up to 1" HOC.

5-Blade Heavy Duty Reel

P/N 106-2626. One (1) reel weld assembly.

Groomer Brush Assy.

P/N 106-2616. One (1) brush.

Products depicted in this brochure are for demonstration purposes only.

Actual products offered for sale may vary.

©2003 The Toro Company, 8111 Lyndale Ave. S., Bloomington, MN 55420-1196

Part No. 03-051-T. Printed in U.S.A. www.toro.comwww.toro.com

SPECIFICATIONS

Greensmaster®3050/3100/3150 Cutting Units

8-Blade: 04404, 04408, 04468; 11-Blade: 04406, 04450

Type of Cutter

Three 21" (53 cm) reels.

Height of Cut

HOC range: 1

/8-3/4" (3.2-19 mm). Effective HOC may vary depending upon turf conditions and bedknife installed.

Optional Bedknives

Bedknife Blade Thickness

Micro-Cut Bedknife 5/64" (2.0 mm)

Tournament Bedknife (SPA std.) 3/32" (2.4 mm)

Lo-Cut Bedknife (04408 & 04406 std.) 1

/8" (3.2 mm)

High-Cut Bedknife 3/16" (4.8 mm)

Fairway Bedknife (04404 std.) 1/4" (6.4 mm)

HOC and Roller

Front Roller: Micrometer hand adjustment; 1 turn = .025" (.6 mm) HOC change.

Adjustment

Rear Roller SPA Cutting Units: 4 fixed hole positions. Left-hand shoulder bolt has eccentric to provide rear roller leveling.

Rear Roller 4-Bolt Adjustment: Cutting Units: adjustable swing arm to also provide for rear roller leveling.

Reel/Frame

Reels are 5" (13 cm) diameter. High carbon steel blades, RC-42-48. Reel blades are welded to 5 stamped steel spiders. Welded cutting

unit frame.

Bedknife and Bedbar

Single Point Adjustment (SPA) Models: Replaceable single edged, high carbon steel bedknife austempered to RC 48-55, fastened to

a machined cast iron bedbar. The bedbar pivots on 4 rubber bushings. The left end has an eccentric pivot bolt for leveling.

4-Bolt Adjustment Models: Opposed screw adjustment, replaceable bedknife.

Clip Frequency and

Model Inches (max.) Cuts per Meter Optimum HOC Range

Optimum HOC Range

11-Blade: 04406, 04450 .18" (4.6 mm) 217 1

/8-7

/32" (3.2-5.6 mm)

8-Blade: 04404, 04408 and 04468 .25" (6.4 mm) 158 1

/8-7

/32" (3.2-5.6 mm)

Bedknife to Reel

SPA Models: Bedknife adjusts against reel with a single point control knob containing detents of .001" (.025 mm) bedknife movement for

Adjustment

each indexed position. 4-Bolt Models: Opposed screw adjusts bedknife to reel.

Reel Drive

Each reel is powered by a quick disconnect gear type motor with displacement of .43 cu. in./rev. (7 cc).

Rollers

Front and rear rollers are 2" (5.1 cm) diameter with regreaseable water pump type bearings. Front rollers must be ordered separate

(see Accessory Matrix at www.Toro.com).

Greensmaster 3200/3250-D Cutting Units

8-Blade: 4-Bolt, 04470, or Single Point Adjustment, 04472; 11-Blade: 4-Bolt, 04471, or Single Point Adjustment, 04473

Height of Cut

Cutting height is adjusted on rear roller by two vertical screws and held by two locking cap screws. Bench HOC range is 3/32 - 1.03"

(2.4-26.2 mm). Higher heights may require changing the front roller bracket aggressiveness setting. Effective HOC may vary depending

on turf conditions and bedknife installed.

Reel Weldment

Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. High-carbon steel blades are welded to 5 stamped steel spiders, and heat treated

to RC 48-54 hardness.

Reel Bearings

Two double row ball bearings, 30 mm inside diameter press to fit onto reel shaft. Inverted seal pressed onto reel shaft. Bearing side-load

maintained by wave washer.

Reel Drive

The reel weldment shaft is a 1.375" diameter tube with drive inserts permanently pressed in both ends. A replaceable floating coupler with

an internal eight tooth spline is factory installed on the right end, and held in place by a snap ring. The floating coupler may be moved to

the other end when the cutting unit is used on the 3200’s front right position.

Cutting Unit Attitude

Front roller bracket has four positions that allows the user to change the cutting unit attitude and behind center distance of bedknife from

reel centerline. Varying settings will significantly alter the cutting unit’s aggressiveness and amount of grass removed.

Bedknife

Replaceable single edged, high carbon steel bedknife austempered to RC 48-55, fastened to a machined cast iron bedbar. 4-bolt and SPA

models both use 13 screw bedknives. Extended tournament bedknife is standard.

Bedknife Adjustment

4-Bolt Models: Two opposed screws on each end of bedbar to level and regulate bedknife to reel contact. SPA Models: Two rubber

bushings as pivots and a centered lever arm to regulate knife to reel contact. A single screw has detents corresponding to .0007" (.018 mm)

bedknife movement for each indexed position. A linear adjustment on the bedbar left end allows leveling of bedknife to reel blades.

Clip Frequency and

Dependent on mowing ground speed, reel rpm and number of reel blades. Example below assumes a 3.8 mph (6.1 km/h) ground speed:

Optimum HOC Range

Model Inches (max.) Cuts per Meter Optimum HOC Range

11-Blade: 04471 or 04473 .18" (4.6 mm) 217 1

/8-7

/32" (3.2-5.6 mm)

8-Blade: 04470 or 04472 .25" (6.4 mm) 158 1

/8-9

/32" (3.2-7.1 mm)

Front and Rear Rollers

Standard Wiehle Front Roller: 2" (5.2 cm) diameter. Right bracket has an eccentric shoulder bolt to provide leveling. A second eccentric

may be added to the left bracket for increased leveling range. Roller has a regreaseable water pump type bearing.

Standard Smooth Rear Roller: 2" (5.2 cm) diameter. Roller has a through shaft with greaseable ball bearings.

Counterbalance Weight

The cutting unit left end weight seals the bearing area and balances the reel motor’s weight during cutting.
