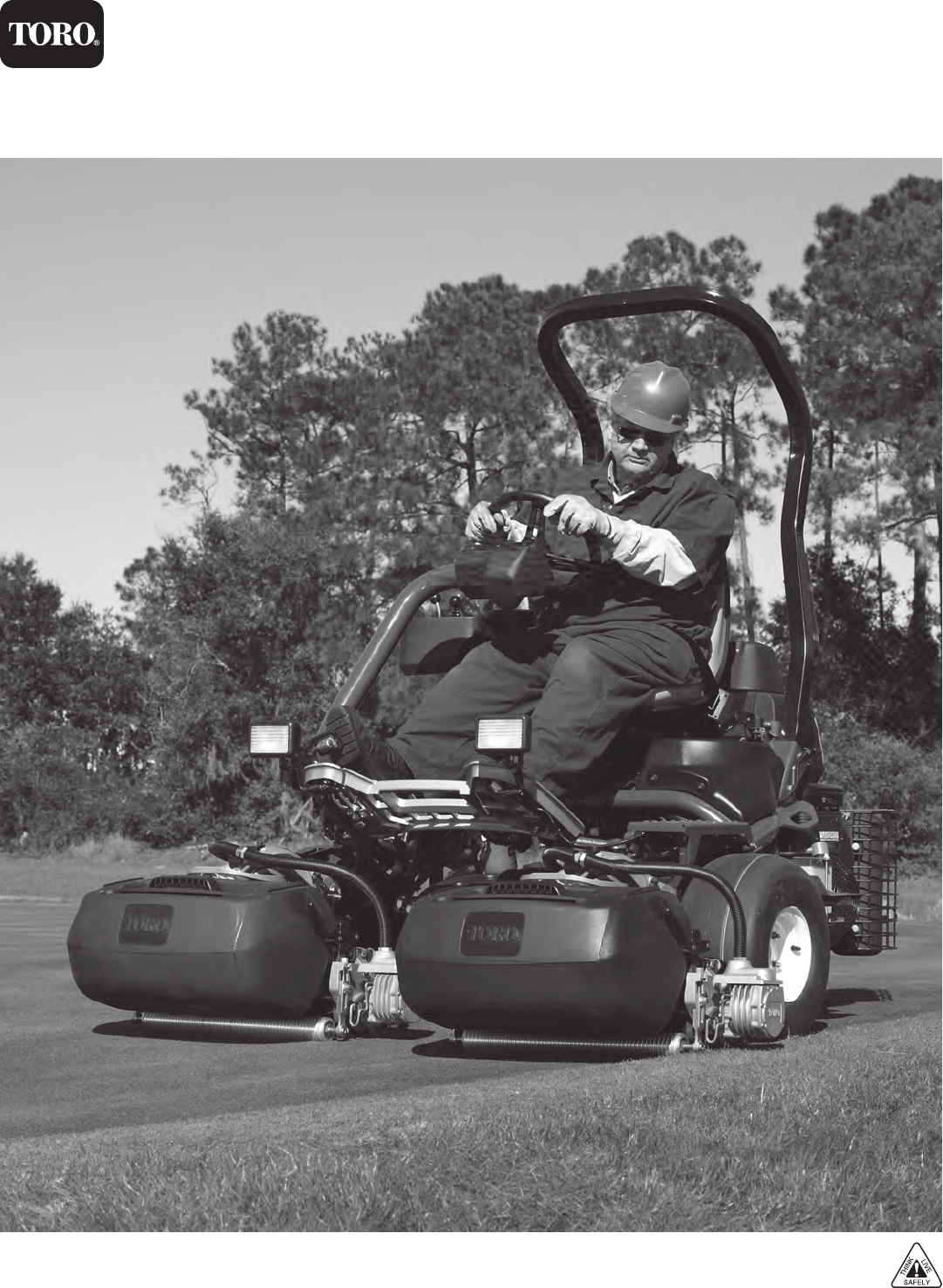

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

Greensmaster® TriFlex™

3300/3320 Hybrid 3400/3420 Hybrid

The next generation of the world’s favorite riding greensmower.

56

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

Greensmaster® TriFlexTM 3300/3320/3400/3420

Specifications*

The Greensmaster® TriFlexTM is manufactured in

Tomah, WI ISO 9002 Certified Plant.

GREENSMASTER 3300

TriFlex, MODEL 04510

GREENSMASTER 3320

TriFlex Hybrid, MODEL 04530

GREENSMASTER 3400

TriFlex, MODEL 04520

GREENSMASTER 3420

TriFlex Hybrid, MODEL 04540

ENGINE

Briggs & Stratton® Vanguard®, 21 HP (13.4 kW) @ 3600 rpm, 2-cylinder,

air cooled, gasoline engine, governed to 2920 high idle, 1650 rpm low idle.

Displacement: 38.3 cu-in. (627 cc)

Kubota® D902, Tier 4i, 24.8 HP (18.5 kW) @ 3600 rpm, 3-cylinder, liquid cooled,

diesel engine, governed to 2880 high idle, 1560 rpm low idle. Displacement:

55.0 cu-in. (902 cc) Radiator: cooled with a 12-volt electric fan

FUEL CAPACITY

6 gallons (22.7 liter) capacity. 6 gallons (22.7 liter) capacity. Biodiesel ready up to B20

TRACTION DRIVE

2WD parallel hydrostatic or 3WD series-parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.

GROUND SPEED

Forward-mowing speed is variable from 0-5 mph (0-8 km/h), adjusted by stop on pedal mechanism. Mow speed setting does not affect transport speed. Maximum

Greensmaster TriFlex transport speed is 10 mph (16.1 km/h), may be reduced by adjusting stop in footrest pan without affecting mow speeds. Reverse is 3 mph (4.8

km/h) maximum.

CUTTING UNIT DRIVE

Single gear pump, valve block, series

reel drive to 3 reel motors.

48V-5400 watt air-cooled brushless

permanent magnet generator

in parallel with 48V 9Ah battery

set powers three 48V- 1100 watt

brushless permanent magnet reel

motors.

Single gear pump, valve block, series

reel drive to 3 reel motors.

48V-5400 watt air-cooled brushless permanent

magnet generator in parallel with 48V 9Ah battery

set powers three 48V- 1100 watt brushless

permanent magnet reel motors.

STEERING

Power steering. No-tool quick adjust steering arm position with power assist, with arm motion allowing a wide range of operator sizes. Steering cylinder has a

through shaft design for accurate straight line steering.

ELECTRICAL SYSTEM

12-volt lead acid, group size U1, with 300 minimum cold cranking amps at 0° F

and 34 minutes reserve capacity at 85° F/25 ampsdraw.

50 amp alternator. Ignition switch/key. Seat switch. Harness terminals and fuse

slot available for optional lights installation.

Maintenance-free 12-volt battery with 585 minimum cold cranking amps at

0° F (-17.7° C) and 95 minutes minimum reserve capacity at 85° F (29.4° C)

60 amp alternator, circuit fused at 60 amps. Ignition switch/key. Seat switch.

High temperature engine shut down. Harness terminals, fuse slot, and console

switch location available for optional lights installation.

48-VOLT SYSTEM FOR

ELECTRIC REELS

N/A

4-12V 9Ah sealed, maintenance-free,

VRLA batteries. 48-volt system is

isolated from 12-volt including the

frame/chassis.

N/A

4-12V 9Ah sealed, maintenance-free, VRLA batteries.

48-volt system is isolated from 12-volt including the

frame/chassis.

CONTROLS

Ignition: Off/Run/Start. Throttle: Low - High Idle. Choke (AC only): Open /Closes choke plate. Parking Brake: Off - On. Traction Pedal: Rev/Neutral/Forward

Joystick: Raises/lowers reels also tap off feature for clean up pass. Functional Control Lever sets neutral/mow/transport limits for traction pedal.

Diagnostic Light: Indicates system faults to assist in resolving issues (04510 & 04520). InfoCenterTM Diagnostics (04530 & 04540).

GAUGES

Fuel and hydraulic sight gauges,

hour meter. Low oil pressure warning

light.

Fuel and hydraulic sight gauges.

InfoCenter™: Onboard LCD display

shows gauges, alerts/faults, service

reminders, electrical system

diagnostics, low oil pressure,

alternator, engine hours, engine rpm,

voltage, functional control status,

parking brake applied, reel speed

setting, backlap control.

Fuel and hydraulic sight gauges,

hour meter. Low oil pressure warning

light, alternator warning light (on if

not charging), glow plug indicator,

high engine temperature.

Fuel and hydraulic sight gauges.

InfoCenter™: Onboard LCD display shows

gauges, alerts/faults, service reminders,

electrical system diagnostics, low oil

pressure, alternator, engine hours, engine

rpm, voltage, functional control status,

parking brake applied, reel speed setting,

backlap control.

TIRES/WHEELS/PRESSURE

Three, 19 x 10.5 x 8, 4-ply rating pneumatic tubeless and demountable. Smooth tread. Tire pressure recommended: 12 - 18 psi front and rear.

BRAKES

Hand-actuated parking brake lever with two 6” (15.2 cm) diameter drum brakes mounted on the front wheel motors.

HYDRAULIC OIL

6.8 gallon (25.7 liter) tank 5.5 gallon (20.8 liter) tank 6.8 gallon (25.7 liter) tank 5.5 gallon (20.8 liter) tank

LEAK DETECTION

Equipped with Turf GuardianTM Leak

Detection System. System sounds an

alarm and turns on a warning light

with the loss of 3 to 5 ounces of

hydraulic oil.

Optional

SOUND LEVEL

80 dB(A) at operator’s ear under normal conditions. 84 dB(A) at operator’s ear under normal conditions.

OVERALL DIMENSIONS

Wheel Tread: 50.5" (128.3 cm)

Wheel Base: 47" (119 cm) Length:

98" (249 cm)

Width: 70.62" (179 cm) w/reels

Height: 80.83" (205 cm)

Wheel Tread: 50.5” (128.3 cm)Wheel

Base: 47” (119 cm)Length: 98”

(249 cm)

Width: 70.84” (180 cm) w/reels

Height: 80.83” (205 cm)

Wheel Tread: 50.5” (128.3 cm) Wheel

Base: 48.6” (123 cm) Length: 98”

(249 cm)

Width: 70.62” (179 cm) w/reels

Height: 80.83” (205 cm)

Wheel Tread: 50.5” (128.3 cm)Wheel

Base: 48.6” (123 cm)Length: 98”

(249 cm)

Width: 70.84” (180 cm) w/reels

Height: 80.83” (205 cm)

WEIGHT

1161 lbs. (526 kg) 1257 lbs. (570 kg) 1286 lbs. (586 kg) 1406 lbs. (638 kg)

WIDTH OF CUT

59" (150 cm)

GROUND CLEARANCE

4.5” (11.4 cm)

CUTTING UNIT SUSPENSION

Double A-arm suspension utilizing sealed ball joints allows free cutting unit motion in pitch, roll, and yaw. The basket is directly mounted to the cutting unit

displacing weight evenly over both cutting unit rollers eliminating the carrier frame, roller and pull links.

QUICK CONNECT CUTTING

UNITS

Quick connect/disconnect feature for both the reel drive motor and cutting unit. No tools required.

REEL SPEED

Approximately 2050 RPM at 2850 engine RPM. Adjustable.

BACKLAPPING

Standard equipment.

OPTIONAL ACCESSORIES

Canopy, verticutters, greens rollers, dethatchers, dew whip holder, oil cooler.

CERTIFICATION

Certified to meet ANSI specification B71.4 - 2004 and European CE standards.

WARRANTY

Two-year limited warranty. Refer to the Operator’s Manual for further details.

* Specifications and design subject to change without notice. Products depicted in this literature are for

demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments

and safety features. Consult your local Toro Distributor.

57

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

Greensmaster® TriFlexTM 3300/3320/3400/3420

Accessories*

The Greensmaster® TriFlexTM is manufactured in

Tomah, WI ISO 9002 Certified Plant.

8-BLADE DPA CUTTING UNITS, 04613 11-BLADE DPA CUTTING UNITS, 04614 14-BLADE CUTTING UNITS, 04615

DPA CUTTING UNITS

These cutting units will fit on the Greensmaster TriFlex Series.

HEIGHT OF CUT

(HOC) RANGE

Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is .062"-.297" (1.6-7.5 mm). With high HOC kit,

range is .285-1" (7.3-25.4 mm). Effective HOC may vary depending on turf conditions and bedknife installed.

REEL WELDMENT

Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. High carbon steel blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for

diameter and concentricity, and relief grind.

REEL BEARINGS

Two stainless steel ball bearings, 30 mm inside diameter slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added

protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.

MAINTENANCE

No grease zerks, sealed bearing design eliminates daily maintenance.

REEL DRIVE

The reel weldment shaft is a 1.375" (35 mm) diameter tube with internally splined threaded insert.

FRAME

Precision machined, die-cast aluminum cross member with two bolt-on die-cast aluminum side plates.

AGGRESSIVENESS

Aggressiveness stays constant throughout the life of the reel. Patented design.

BEDKNIFE

Replaceable single edged, EdgeMaxTM Microcut Bedknife is standard on all cutting units.

BEDKNIFE ADJUSTMENT

Dual screw, indexed “click” adjustment to the reel; detents correspond to .0007" (.018 mm) bedknife movement for each position.

FRONT & REAR ROLLERS

Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller.

Rear: Steel full, 2" (5.1 cm) diameter with sealed bearings and through-shaft.

GRASS SHIELD

Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.

TOTAL WEIGHT

8-blade: 80 lbs. (30.4 kg) with aluminum Wiehle Roller. 11-blade: 83 lbs. (37.7 kg) with aluminum Wiehle Roller.

14-blade: 86 lbs. (39 kg) with aluminum Wiehle Roller.

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products

offered for sale may vary in use, design, required attachments and safety features. Consult your local Toro Distributor.

58

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

Greensmaster® TriFlexTM 3300/3320/3400/3420

Accessories*

The Greensmaster® TriFlexTM is manufactured in

Tomah, WI ISO 9002 Certified Plant.

TRIFLEX DPA CUTTING UNITS

04613 8-Blade Cutting Unit

04614

11-Blade Cutting Unit

04615

14-Blade Cutting Unit

GREENSMASTER TRIFLEX ACCESSORIES

OPTIONAL TRIFLEX ACCESSORIES

04720 Thatching Reel - TriFlex (set of 1)

119-1128

Individual dynaBLADE, 2mm thickness

117-6824

Individual dynaBLADE, 1.2mm thickness

117-6839

Replacement dynaBLADE kit, 1.2mm

thickness (36 blades)

117-6840

Replacement dynaBLADE kit, 2mm

thickness (36 blades)

121-6674

Individual Spring Steel Blade

121-6675

Replacement Spring Steel Blade Kit (36

pcs)

04722

Greens Tri-Roller - TriFlex (set of 1)

04723

Greens Spiker - TriFlex (set of 1)

TOOLS

04399 Turf Evaluator

125-5610

Paper – Reel

125-5611

Shim – Reel

94-9010

Height of Cut Bar Assembly

TRIFLEX SERVICE KITS

30042 400 hour filter Maintenance Kit -

Greensmaster TriFlex 3300 / 3320

30043 400 hour filter Maintenance Kit -

Greensmaster TriFlex 3400 / 3420

TRIFLEX DPA CUTTING UNIT ROLLER SCRAPERS /

BRUSHES / COMBS

04646

Rear Roller Scraper (Spring Loaded)

125-3503

Front Wiehle Roller Scraper - Narrow

125-3504

Front Wiehle Roller Scraper - Wide

125-3505

Front Roller Scraper - Full

115-7377

Front Wiehle Roller Scraper Brush - Narrow

115-7378

Front Wiehle Roller Scraper Brush - Wide

115-7379

Front Roller Scraper Brush - Full

115-7380

Front Wiehle Roller Scraper Comb - Narrow

115-7381

Front Wiehle Roller Scraper Comb - Wide

115-7382

Front Roller Scraper Comb - Full

107-9561

Anti Bobbing Roller - Scraper Kit (Front and Rear)

121-2260 Rear Roller Scraper - Adjustable

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products

offered for sale may vary in use, design, required attachments and safety features. Consult your local Toro Distributor.

TRIFLEX TRACTION UNIT ACCESSORIES

04714 3WD Kit

04730 Leak Detector

04554 Light Kit

04718 Seat Kit, Standard

04719 Seat Kit, Premium

92-7307 Armrest Kit - Standard

119-7105 Armrest Kit - Premium

119-1691 Hydraulic Oil Cooler Kit (Gas)

117-9314 Hydraulic Oil Cooler Kit (Diesel)

119-7129

2WD Weight Kit (Gas) (ANSI compliant)

121-6665

2WD Weight Kit (Diesel) (ANSI compliant)

120-5750

3WD Weight Kit (Gas) (ANSI compliant)

104-6540 Spark Arrestor Kit (Gas)

120-1951 Spark Arrestor Kit (Diesel)

119-7138 Dew Whip Holder

115-4510 Canopy

119-1715 Utility Bag Kit

115-4754 Wireless Hour Meter

BIO-HYDRAULIC FLUID / HYDRAULIC FLUID / OIL

119-2157 Bio-Hydraulic Fluid, 5 gal. (18.9 L)

119-2158 Bio-Hydraulic Fluid, 55 gal. (208.2 L)

108-1178

Premium Hydraulic Fluid, 5 gal. (18.9 L)

108-1177

Premium Hydraulic Fluid, 55 gal. (208.2 L)

121-6393

Premium Engine Oil SAE 30, 5 gal. (18.9 L)

121-6392

Premium Engine Oil SAE 30, 55 gal. (208.2 L)

TRIFLEX DPA CUTTING UNIT ROLLERS

04625 Full Roller DPA

04626 Narrow Wiehle Roller DPA

04627 Wide Wiehle Roller DPA

04249 Full Split Roller

04250 Wiehle Split Roller

04628

Solid Steel Roller Kit (Front Wide Wiehle, Rear Full)

04629

Anti Bobbing Roller - DPA (Front and Rear)

71-1550 2” Rear Wiehle Roller (cast iron)

125-5180 Rear Roller Extension Kit

120-9600 High Height of Cut Kit (.35 - .94)

04258 Extended Wiehle Roller

04267 Narrow Wiehle Roller (for paspalum)

TRIFLEX DPA CUTTING UNIT ACCESSORIES

04710 Groomer Drive, Forward

04260 Groomer Drive, Counter Rotating

04711 Groomer Reel, Carbide

04712 Groomer Reel, Spring Steel

04713 Groomer Brush, Spiral

04274 Greens Perfection Brush, Soft

04275 Greens Perfection Brush, Stiff

04724 Rotating Rear Roller Brush – RH

04744 Grooming Reel, Thin Blade (set of 1)

115-1880 EdgeMaxTM Microcut Bedknife

115-1881 EdgeMaxTM Tournament Bedknife

93-4262

Microcut Bedknife

(HOC Range 1.58mm - 3.18mm)

93-4263

Tournament Bedknife

(HOC Range 3.2mm - 6.35mm)

93-4264

Low Cut Bedknife

(HOC Range 6.35mm and higher)

94-6392 Bedknife – High Cut

108-4303 Extended Microcut Bedknife

108-4302 Extended Tournament Bedknife

63-8600 Bedknife – Fairway

99-3794-03 DPA Bedbar, Aggressive (optional)

106-2648-01

DPA Bedbar, Less Aggressive (standard

equipment)

112-7475 EdgeMaxTM Fairway Bedknife
