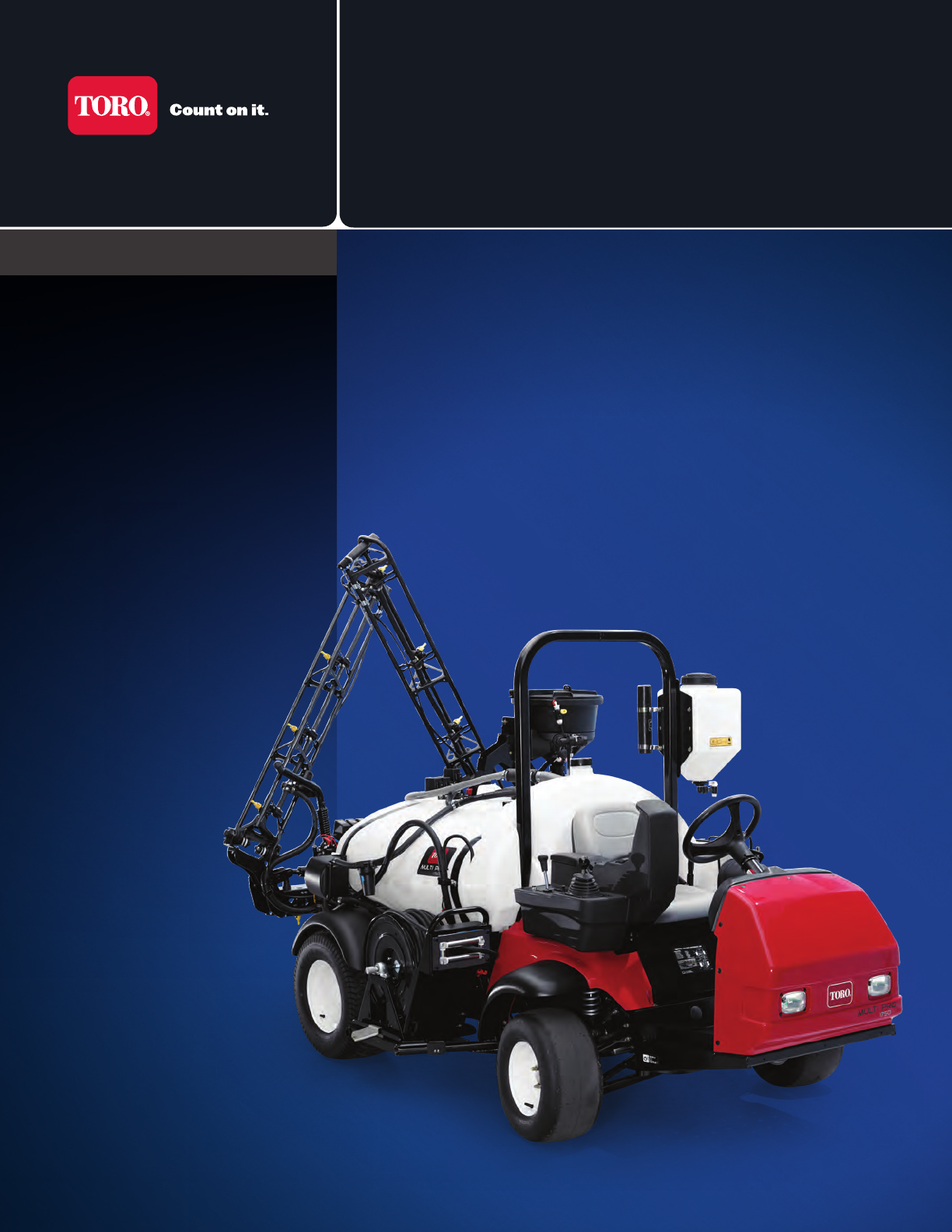

Multi Pro® 1750
FEATURES
Precise spray control on
a dedicated, small platform.
Earning the market leader position in turf vehicle sprayers comes from listening
to what your customers truly want in a sprayer. Toro’s new 175-gallon dedicated
vehicle sprayer is the culmination of hundreds of hours of insightful customer
input. This totally new sprayer uses the advanced spray system design of
Toro’s extremely successful Multi Pro 5800, 300-gallon sprayer, combined
with cutting-edge sprayer controls and productive vehicle features to create
the most advanced, efficient and accurate 175 gallon sprayer on the market.
From aggressive agitation, faster response, consistent and accurate application
rates, and intuitive rate set up, to precise vehicle control, this sprayer has it all.
• Six Diaphragm Pump – An Industry
Exclusive – this oversized pump
satisfies the highest spray rates while
simultaneously supplying generous
agitation flow
• 175 gal (662 L) Elliptical Chemical Tank –
This completely redesigned Polyethylene
tank has no shelves or corners for chemical
to stick on, which helps ensure a 99%
spray out of chemical.
• Sprayer Control Console – InfoCenter,TM
pressure gauge and sprayer control
switches are all located in a unique
console featuring Toro’s exclusive ‘Quick
Find™’ feature which intuitively helps
the operator find boom and actuator
switches on the console without
looking at them.
• Rugged Triangular Spray Boom –
Three section, 18.5’ (5.6 m)
boom width provides fore and
aft breakaway on impact
while protecting nozzles.
Raises into a crisscross
position for storage and
transportation.
Call your Toro distributor at 800-803-8676
©2013 The Toro Company
All rights reserved.
8111 Lyndale Ave. S.
Bloomington, MN 55420-1196
Printed in the U.S.A. Rev. 9/13
Multi Pro® 1750 Specifications*
*Specifications subject to change. Please contact your Toro distributor for details.
A Safety Reminder: Prior to any application, know the chemical content and the manufacturer’s
recommendation for protective clothing. Always wear proper clothing and mask when applying chemicals.
OPEN BOOM (STANDARD)
BOOM ASSEMBLY 18.5’ (5.6 m) three section, triangular truss-style open booms.
BOOM ACTUATORS Heavy-duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4” (4.4 cm) Bore x 10.06” (25.6 cm) Stroke
SPRAY NOZZLES Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves.
MULTI PRO 1750 ACCESSORIES
CLEANLOADTM EDUCTOR This on-board mixing station allows rapid and safe loading of any chemical without the need to first mix into a slurry. Incorporates a built-in bottle wash nozzle and has an
optional suction lance to pull in powered to liquid products from their container. Stores within the width of the spray vehicle.
FRESH WATER RINSE KIT Simplifies and automates the triple-rinse process, saving hours and hours of clean-up time.
ELECTRIC HOSE REEL 150’ (45.7 m) of hose for hand or walk spraying applications. Convenient electric powered rewind. Spray gun has an adjustable nozzle from stream to fan.
PRO FOAMTM MARKING KIT Foam dollops ensure accurate parallel path tracking. Select foam for either boom or both.
ULTRA SONIC BOOMTM KIT New sonar sensors automatically maintain proper spray height over undulating turf.
COVERED BOOM KIT Extends 12” (30.5 cm) below the boom to minimize chemical drift in breezy conditions while retaining full boom system functionality.
AIR INDUCTION TURBO
TWIN JET NOZZLES Exclusive to Toro in the 0.8 gpm (3.02 lpm), 1.0 gpm (3.79 lpm) and 1.5 gpm (5.68 lpm) sizes, for exceptional contact coverage.
CONTACT & SYSTEMIC NOZZLES
See complete nozzle listing in the Multi Pro® Nozzle Selection Brochure – available for download on toro.com
MULTI PRO 1750, MODEL 41188
ENGINE Kohler,® CH740 Command Series, twin-cylinder, air-cooled, 4-cycle, 27 hp (20 kW) gross.
TRACTION SYSTEM Kanzaki / Tuff Torq 3-speed (forward). 1-speed (reverse), mechanical transaxle with differential lock.
GROUND SPEEDS Forward: 0 – 11.5 mph (0 – 18.5 kph). Reverse: 0 – 2.5 mph (0 – 4 kph).
TIRES Front: Kenda K404 smooth (treadless); 20x10-10. Rear: Kenda turf tread; 24x13-12.
BRAKES Four wheel hydraulic disc, 2-piston calipers; Front: 7.5” (19 cm) diameter rotor Rear: 9.5” (24 cm) diameter rotor.
MAIN FRAME High-strength, formed steel rear frame channels welded to steel tubular crossmembers and upper/lower steel tubular structure, ROPS standard.
SUSPENSION Front suspension – coil over shock; Rear suspension – rigid; rubber tires.
STEERING Fully hydraulic: steering wheel turns, lock to lock: 3.5
GAUGES/INDICATORS Multi-function display (Mini InfoCenterTM), Pressure Gauge, Mechanical Fuel Gauge.
VEHICLE CONTROLS Ignition key switch, Choke, Headlight Switch. Optional Wireless Hour Meter. Speed Lock.
SEAT Single, high back cushion seat standard with manual position adjustment w/seatbelts.
WEIGHT 2200 lbs. (998 kg) shipping weight
DIMENSIONS
Measurements with spray system: Length = 140” (3.56 m) (w/booms folded in cradles) Width = 70” (1.78 m) (w/booms folded in cradles) Height = 97” (2.4 m) (w/booms folded in cradles)
WARRANTY Two-year limited warranty. Refer to Operator’s Manual for further details.
SPRAYER SPECIFICATIONS
SOLUTION TANK High density, impact resistant polyethylene with large 16” (41cm) fill well; tapered bottom and sump with drain.
RATED CAPACITY 175 gallons (662 liters)
SPRAY PUMP Hardi 363/5.5, 6-diaphragm positive displacement w/1” (2.5cm) input shaft; input speed 300~1150 rpm, Flow rate of 41gpm (155 lmp) @ 40psi (860 rpm).
AGITATOR 3, side-mounted jet agitation nozzles for full tank agitation.
CONTROLS
Spray pump control switch, agitator jet switch, rate switch, individual boom On/Off switches, boom actuator switches, indicator lights on pump, agitation and boom switches, throttle lock.
