Reelmaster® 7000-D

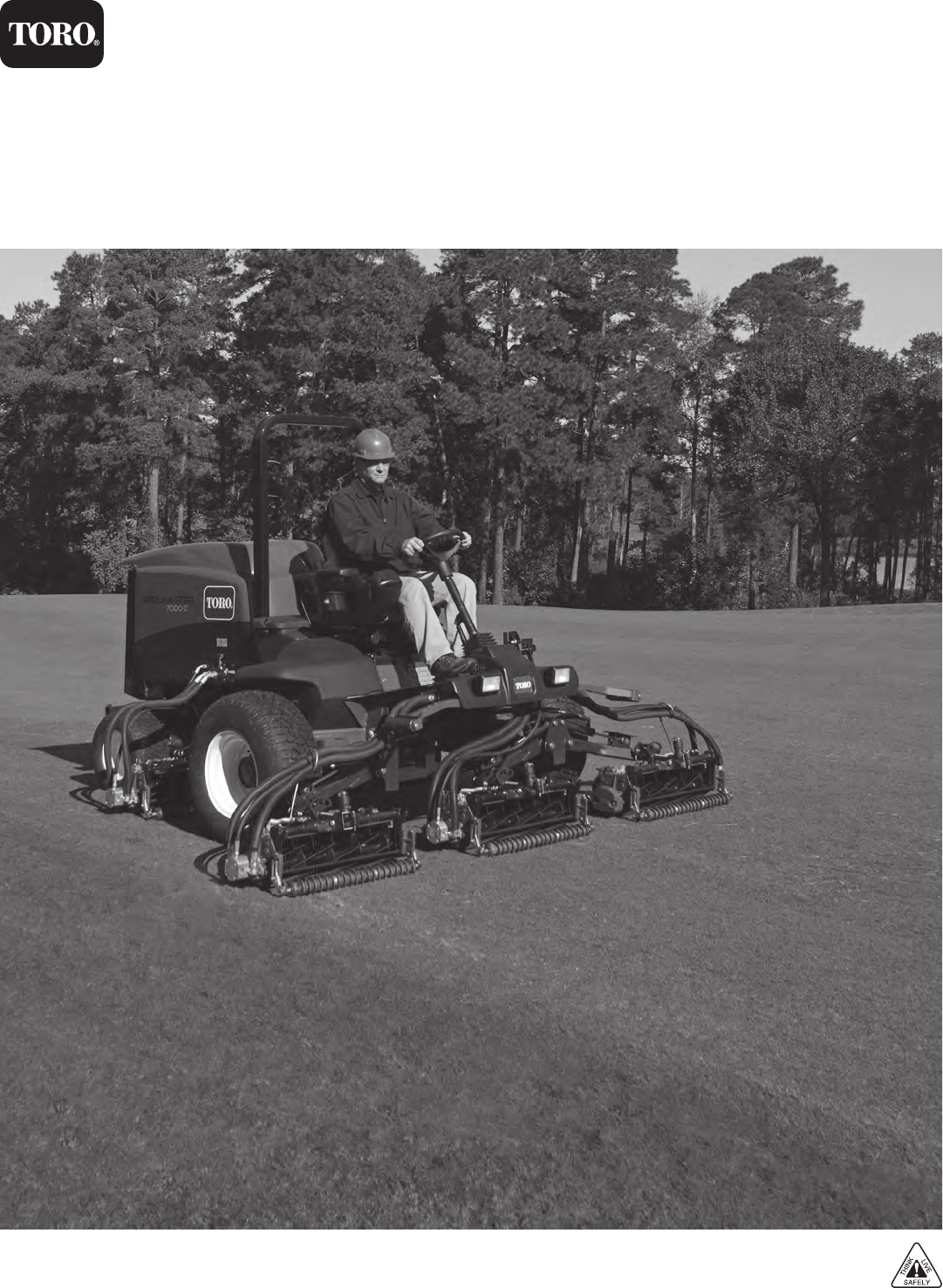

The Reelmaster 7000-D is a multi-use, heavy-duty reel mower designed for productivity and performance in the most

extreme fairway and rough conditions. We started with patented DPA cutting units that manicure your turf and save you time

with easy set-up and long-lasting adjustments. Then, we added a 55 horsepower Yanmar® diesel engine, high-torque reel

motors, and the SmartCool™ auto-reversing fan system so southern grasses and high heat don’t stand a chance. Finally,

we combined it all with a whopping 126” width-of-cut! This mower has it all – power, productivity, and superior aftercut

appearance. By the way, it’s also an overseeding monster!

78

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

Cutting Units: 27” 8-BLADE, MODEL 03710 27” 11-BLADE, MODEL 03711 32” 8-BLADE, MODEL 03712

TYPE

5-plex, hydraulically driven, with adjustable rear weight transfer spring. Interchangeable to all positions with rear throw capability.

SIZE

7” (17.8 cm) diameter, 27" (68.6 cm) wide, 8 & 11" blade cutting units and 32” (81.3 cm) 8-blade cutting units.

WIDTH OF CUT

121” (307 cm) or 126” (320 cm)

HOC RANGE

0.25" - 2.50" (6.35 - 63.5 mm)

REEL SPEED

Manually controlled, variable reel speed, incrementally adjustable between 200-1,650 rpm with a backlap speed of 200 rpm.

BEDKNIFE ADJUSTMENT

Dual Precision Adjustment (DPA), bedknife to reel.

ROLLERS

3" (7.6 cm) diameter, deep groove plastic front Wiehle roller. 3.0" (7.6 cm) diameter steel rear roller (other roller configurations optional).

Reelmaster® 7000-D Specifications*

REELMASTER 7000-D, MODEL 03780

ENGINE

Tier 4 emission compliant Yanmar® 4-cylinder, liquid-cooled diesel engine, 55 hp (41 kW)

LUBRICATION

6-Quarts (5.7 liters)

AIR CLEANER

Dry, replaceable primary and safety elements.

ENGINE COOLING

Rear-mount, aluminum, 6 fins per inch, 9 quart (8.5 liters) capacity.

FUEL TANK CAPACITY

22 gallons (83 liters) diesel fuel. Biodiesel-Ready for use up to B-20 (20% biodiesel and 80% petrol blend).

HYDRAULICS/COOLING

8.25 gallon (31.3 liter) capacity with 10 micron remote spin-on filter, aluminum side-mounted cooler. Variable speed hydraulic fan drive with automatic (based on

coolant and oil temps) and manual reversing capabilities.

MAIN FRAME

All welded formed-steel frame with integral tie-down anchors.

TRACTION DRIVE

Full-time, bi-directional, hydrostatic, closed-loop, 4WD transmission. Optional 4WD Flow Divider Kit, model 30876

GROUND SPEED

Transport: 0-14 mph (0-22.5 km/h) forward, 0-7 mph (0-11 km/h) reverse. Mow: 0-7 mph (0-11 km/h) forward.

TIRES

Front: 31x13.5-15, 4-ply turf tire. Rear: 20 x 12-10, 4-ply multi-trac tread. 12-15 PSI recommended range.

BRAKES

Mechanically actuated, internal wet disc brakes. Individual foot-operated steering brake control of left and right wheel or lock pedals together.

STEERING

Power steering with dedicated power source, tilt steering.

GAUGES/INDICATORS

Onboard LCD InfoCenter display shows alerts, faults, service reminders, electrical systems diagnostics, coolant temp., low oil pressure, alternator, engine hours,

engine rpm, voltage, reel speed, backlap speed, glow indicator, lift/lower indicator.

SEAT

Premium air ride suspension seat with full range of adjustments; retractable seat belt.

CONTROLS

Ignition switch, hand-operated throttle, foot-operated traction pedal, joystick for cutting unit lift, mow/transport selector switch, lockable individual brake pedals,

park brake.

ELECTRICAL & INTERLOCKS

12-volt, 650 CCA battery, 80 amp alternator. Overload protection with automotive type fuses. Interlocks for: starting, operator presence, mowing, transport and parking brake.

DIAGNOSTICS

Diagnostics pressure test ports: forward and reverse traction, cutting unit circuit 1 & 2, lift, steering, traction charge and fan

REEL OPTIONS

DIMENSIONS

WITH CUTTING UNITS

All 27” CUs or 32” in the rear All 32” CUs

Overall length w/cutting units down 146" (371 cm) 146" (371 cm)

Transport width 94" (239 cm) 94" (239 cm)

Mow width 136” (345 cm) 141” (358 cm)

Height w/2-post ROPS 87" (220 cm) 87" (220 cm)

WEIGHT

3,470 lbs. (1574 kg) - with full fluids, no cutting units. 4,270 lbs (1937 kg) - with full fluids and 27” 8-blade cutting units.

SAFETY CERTIFICATION

Complies with American National Standards Institute (ANSI B71.4-2012) and applicable CE (EN ISO 5395) requirements.

WARRANTY

Two-year limited warranty. Refer to the Operator’s Manual for further details.

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.

Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.

The Reelmaster 7000-D is manufactured

in Tomah, WI ISO 9002 Certified Plant.

79

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

Reelmaster® 7000-D Accessories*

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.

Actual products offered for sale may vary in design, required attachments and safety features. Consult your Toro Distributor.

TRACTION UNIT ACCESSORIES

30349 Universal Mount Sunshade – White

30552 Universal Mount Sunshade – Red

110-8804 Operator Fan Kit

119-0020 2-Post ROPS Extension

119-9440 Windscreen Kit for ROPS Extension

(requires 119-0020)

OTHER ACCESSORIES

117-0975 Rear Bearing Installation Tool

108-6715 HOC Gauge Bar

29-9100 Backlap Brush and Handle

04399 Turf Evaluator

BEDKNIFE OPTIONS

114-9388 27” Standard (Production)

114-9389 32” Standard (Production)

114-9390 27” Heavy-Duty Fairway

114-9391 32” Heavy-Duty Fairway

120-1641 27” Ext. Low Cut Fairway

120-1642 32” Ext. Low Cut Fairway

112-8910 27” EdgeMaxTM

112-8956 32” EdgeMaxTM

CUTTING UNITS

03710 27" - 8-Blade DPA Cutting Unit

03711 27" - 11-Blade DPA Cutting Unit

127-2093 27" - 5-Blade Service Reel

03712 32” – 8-Blade DPA Cutting Unit

127-2104 32” - 5-Blade Service Reel

03716 27” Verticutter Cutting Unit

ROLLERS

114-9383 27" Full Front Roller

114-9384 32" Full Front Roller

119-0630 27" Shouldered Wiehle Roller

119-0640 32" Shouldered Wiehle Roller

119-4286 27” Short Rear Roller

119-4288 32” Short Rear Roller

CUTTING UNIT ACCESSORIES

03186 27” Rear Roller Brush Kit (up to 2”

HOC only)

03187 32” Rear Roller Brush Kit (up to 2”

HOC only)

115-0838 27” Roller Brush (High HOC > 1” on

03186)

115-0849 32” Roller Brush (High HOC > 1” on

03187)

03713 & 03714 27” Groomer Kit – 3x 03713 (LH) & 2x

03714 (RH)

119-4294 27” Broomer Kit

119-0649 27" Collar Kit for Wiehle Roller (6)

119-0649 32" Collar Kit for Wiehle Roller (6)

110-4086 Rear Roller Brush / Groomer Rebuild Kit

114-5430 Roller Rebuild Kit

115-0803 Roller Rebuild Tool Kit

SCRAPER OPTIONS

114-9372-03 27” Wiehle Roller

114-9373-03 32” Wiehle Roller

114-9386-03 27” Full Front Roller

114-9387-03 32” Full Front Roller

114-9381-03 27” Shouldered Wiehle Roller

114-9382-03 32” Shouldered Wiehle Roller

114-9368 27” - Rear Roller Scraper Kit

114-9369 32” - Rear Roller Scraper Kit

114-9376 27” - Front Roller Comb/Scraper Kit

114-9377 32” - Front Roller Comb/Scraper Kit

The Reelmaster 7000-D is manufactured

in Tomah, WI ISO 9002 Certified Plant.
