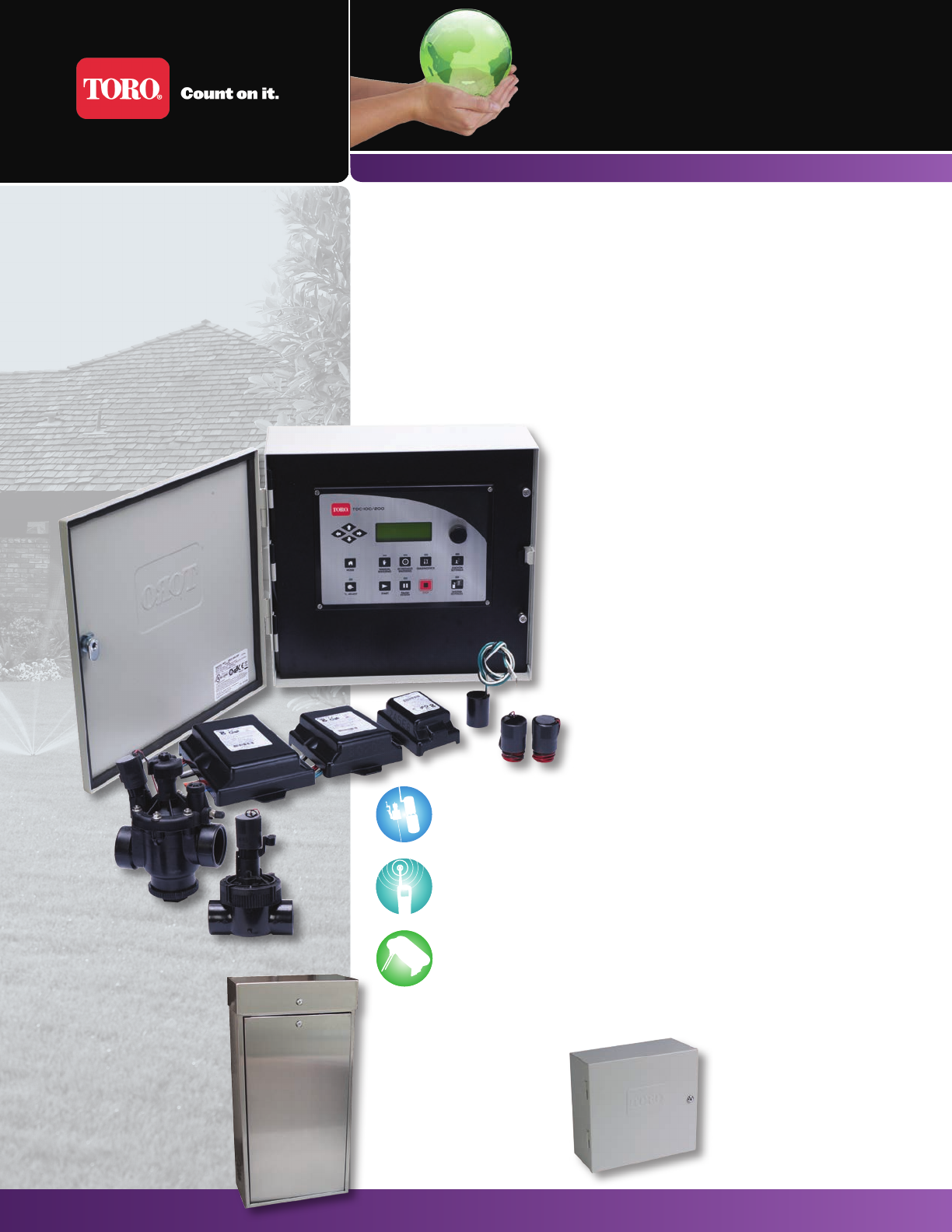

TDC Series

2-Wire System

Features & Benefits

New ISP Decoders

Industry leading surge protections up to

20 KV means less grounding in the field

than competitive products.

Advanced Diagnostics

The TDC systems provide true two-way

communication with each decoder in

the field, thus providing communication

verification to decoders in the field, as well

as shorted or open solenoid conditions,

making troubleshooting a breeze.

Low-Power Operating Costs

The TDC Decoders operate DC Latching

Solenoids which utilize no power when

valves are in operation.

Water Budget

Water budget by controller, by program

and by station (Season Adjust) 0 to 250%

in 1% increments.

Simple, Intuitive Programming

Installation and future servicing are quick

and simple thanks to the large LCD display

and the industry’s most intuitive interface.

For an energy efficient, highly cost-effective way to irrigate large

commercial installations, you’ll want the TDC Series from Toro®.

Using a two-wire path to communicate to buried decoders, the

TDC system eliminates high costs associated with traditional valve

wiring, trenching and trouble-shooting. This proven aerospace

technology allows for longer wire runs, smaller-gauge wire sizes

and control of up to 200 stations. TDC systems are upgradeable to

Sentinel® Central Control and the intuitive interface is the best on

the market for simple and straightforward use.

Controllers

Rain

Sensor

Compatible

TMR-1

Compatible

PSS-KIT

Compatible

Key-locking

Metal Cabinet

TDC offers a key-locking cabinet

in both the outdoor and indoor

model controllers. Constructed

from heavy-duty powder-coated

metal, this is a wall-mount cabinet

that provides superior weather

and vandalism resistance.

Stainless Steel

Pedestal Option

With Toro’s EICON Special

Build division, TDC units

may be ordered with a

stainless steel pedestal.

To order please specify

CDEC-PED-50, -100 or -200.

TDC Series 2-Wire System

Specifications

Dimensions

• Cabinet: 14” W x 13” H x 6” D (356 x 330 x 152mm)

Electrical Specifications

• Input Power: 120 VAC or 220/240 VAC (50/60 Hz)

• Station Output Power: Up to 38 VAC maximum; 3 amps

maximum output

• Wiring-two wire path: Jacketed, twisted pair 14 AWG to 15,000 ft.

• Wiring-two wire path: Jacketed, twisted pair 16 AWG to 8.450 ft.

• Wiring-decoder to solenoid: Standard pair 14 AWG to 400 ft.

Operating Specifications

• 20 KV surge protection with proper grounding of 10 Ohms

or less at the controller

• 10 independent irrigation programs

• Six start times per program

• Day of the week programming, odd/even, interval (1-31 days)

• 0-255% adjust by controller, by program, by station

• Day Exclusion (remove a day from standard program)

• Programmable master valve and pump start, by station

• Manual start of each station or entire program

• Non-volatile memory retains programming

• Self-diagnostics circuit breaker skips shorted/open stations

• Two-way confirmation of decoder activation

• Activate up to 20 solenoids at up to 2.8 miles away

• Programmable rain delay up to 31 days

• Water window calculator

• 10-digit alpha-numeric zone identification

• Remote-Ready and RainSensor-compatible

• Upgradeable to Sentinel® Central Control

• Utilizes DC latching solenoids for valve control

Optional Accessories

• PSS-KIT

•

DEG-SG-LINE

• TRS

• 53853

•

TWRS/TWRFS

• TMR-1-KIT

Precision™ Soil Sensor Kit

Decoder, Line Surge Protector

Wired RainSensor

Wired Rain/Freeze Sensor

Wireless RainSensor or Wireless Rain/Freeze Sensor

Toro Maintenance Remote

Warranty

• Five years

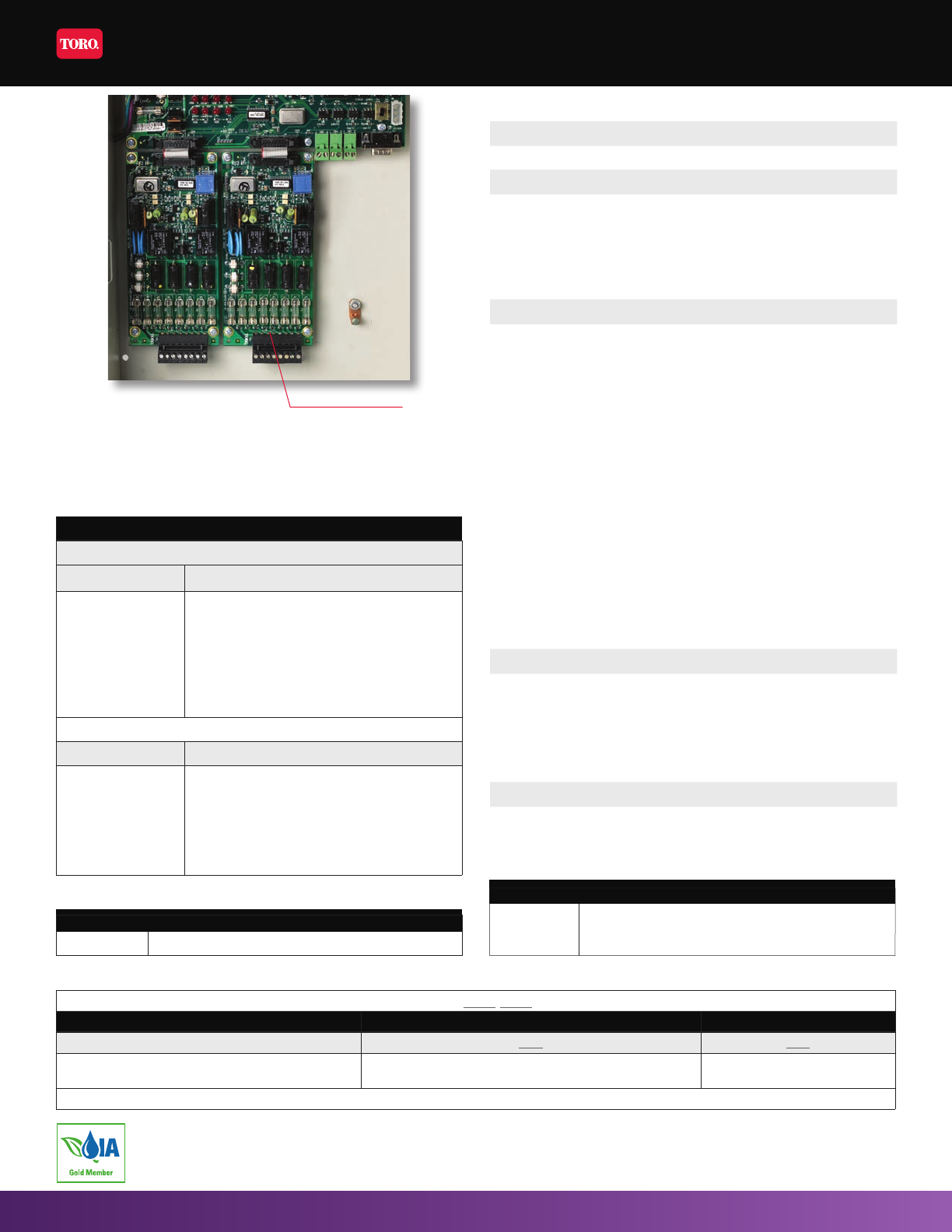

Modular Design

The base model of the TDC offers 50 stations with capability to

easily add another module allowing up to 200-station control. This is

ideal for phased projects. Independently fused wire paths (4 per 100

stations = 8 for 200 stations) provide protection to the controller in

the event of a short in field wiring.

Upgrade Module

www.toro.com • The Toro Company • Irrigation Division • 5825 Jasmine St. • Riverside, CA • 92504 • 877-345-8676

Specifications subject to change without notice. For more information, contact your local Toro distributor.

©2014 The Toro Company. All rights reserved. P/N 14-1054-IRC

Model Description

CDEC-ISP-1 Single Station Decoder w/integrated surge protection

CDEC-ISP-2 Two Station Decoder w/integrated surge protection

CDEC-ISP-4 Four Station Decoder w/integrated surge protection

Specifying Information—Decoders

Specifying Information-TDC

CDEC-XXX-XXX

Model Cabinet Description

CDEC XXX XXX

CDEC—2-wire Controller w/remote hook up SA—Wall Mount Metal Cabinet

PED—Stainless Steel Pedestal*

100—100 Stations

200—200 stations

Example: A TDC Controller with 200 stations would be specified as: CDEC-SA-200

*Order through EICON

TDC Series Model List

Metal Pedestal Mount

Model Description

• CDEC-SA-100

• CDEC-SA-200

• CDEC-PED-100

• CDEC-PED-200

100-station, w/remote connection

200-station, w/remote connection

100-station, Two-wire controller on

stainless steel pedestal*

200-station, Two-wire controller on

stainless steel pedestal*

* Order through EICON Special Build

Two-Wire Station Decoders

Model Description

• CDEC-ISP-1

• CDEC-ISP-2

• CDEC-ISP-4

1-station w/integrated surge protection

(Operates up to two solenoids)

2-station w/integrated surge protection

(Operates up to four solenoids)

4-station w/integrated surge protection

(Operates up to eight solenoids)

Specifying Information—DEC

Model Description

DEC-SG-LINE Decoder, line surge protector*

*One per 1500 Feet
