2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

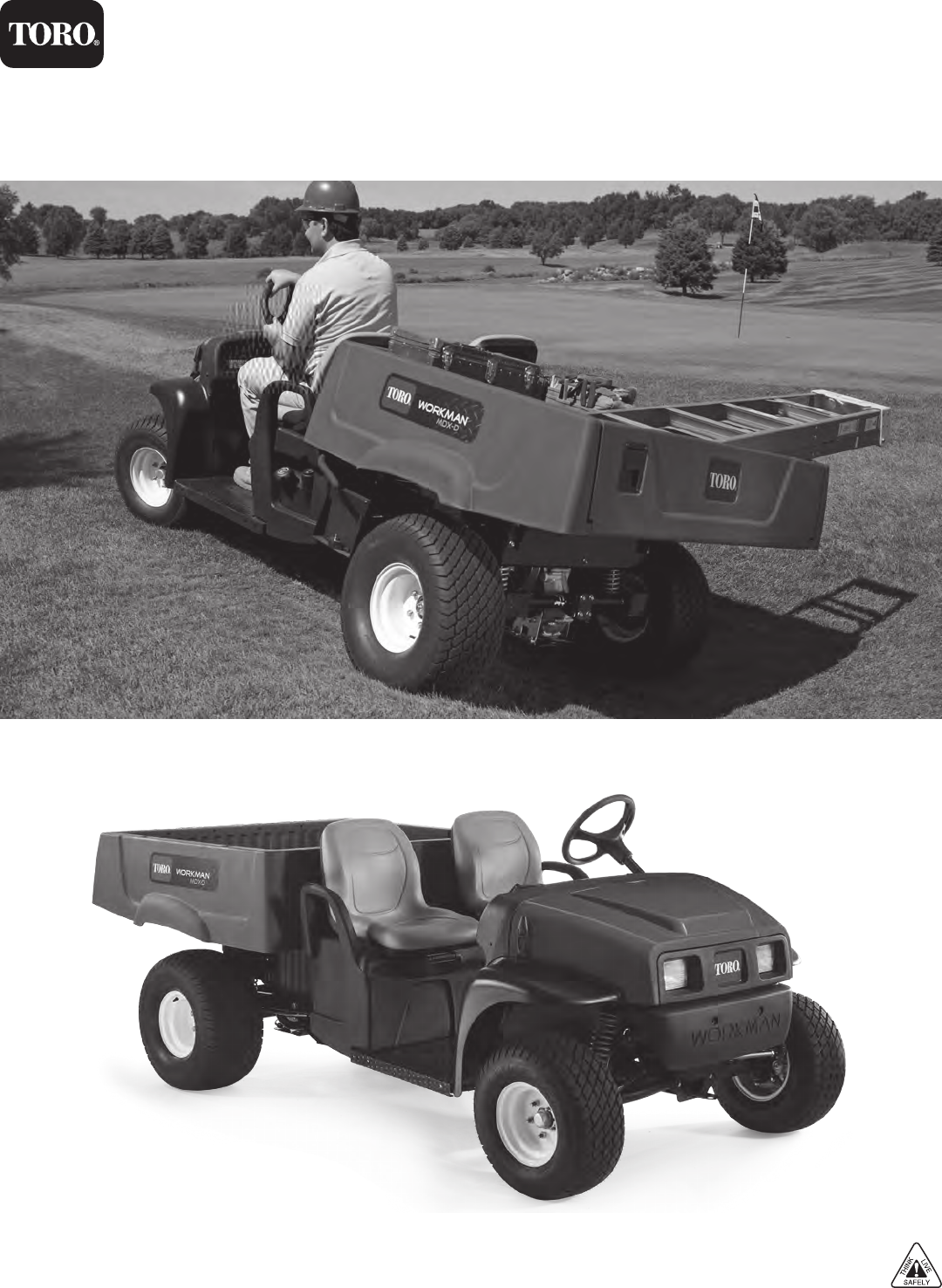

Workman® MD/MDX/MDX-D

A series of gasoline & diesel utility vehicles featuring the Toro® SRQTM suspension system for superior ride quality that

delivers extraordinary stability, traction and operator comfort. SRQ combines with hefty payload and towing capacities to

provide enhanced productivity to tackle the toughest jobs.

83

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

The Workman MD/MDX/MDX-D are manufactured in Tomah,

WI ISO 9002 Certified Plant.

Workman® MD/MDX/MDX-D Specifications*

WORKMAN MD

MODEL 07279 / 07266TC

WORKMAN MDX

MODEL 07273 / 07273TC

WORKMAN MDX-D

MODEL 07359 / 07359TC

ENGINE

357 cc, air-cooled, single-cylinder, Yamaha®.

Meets 2011 EPA & CARB exhaust & evaporative

emissions regulations.

480 cc, air-cooled, two-cylinder, Briggs &

Stratton® Vanguard®. Meets 2011 EPA & CARB

exhaust & evaporative emissions regulations.

600 cc, liquid-cooled, 2-cylinder, Kubota® diesel.

Biodiesel ready for use up to B-20 (20% biodiesel

and 80% petroleum blend).

SRQTM SYSTEM

Active In-Frame™ twister pivot joint, front and rear suspension.

FRONT SUSPENSION

Independent "A"- Frame with coil over shock absorbers.

REAR SUSPENSION

Trailing arm with coil over shock absorbers.

GROUND SPEED

16 mph (25.6 km/h) governed. Optional 20 mph (32 km/h) requires ROPS and seatbelts.

BRAKES

Front wheel hydraulic disc. Rear wheel hydraulic drum.

FRAME

Welded steel channel and tube in body construction. Frame surfaces are dipped e-coat. Body and bed constructed of dent and corrosion-resistant polyethylene.

GROUND CLEARANCE

Front: 10" (25.4 cm), Rear: 7" (18 cm)

TIRES

Front: 22 x 9.5-10, 4-ply,

Rear: 22 x 9.5-10, 4-ply. Front: 22 x 9.5-10, 4-ply, Rear: 24 x 12-10, 4-ply. Optional all-terrain tires

FUEL CAPACITY

6.5 gallons (24.6 liters)

DIMENSIONS

Width Length Wheel Base

59" (150 cm) 117.75" (299 cm) 81" (205.7 cm)

TURNING CLEARANCE CIRCLE

Inside rear tire: 87" (221), outside front tire: 257" (653 cm).

INSTRUMENTATION

Hour meter, low oil pressure warning light, accessory power port.

Dash has 2 cup holders, radio holder and glove box storage.

Hour meter, oil pressure, glow plug, coolant

temperature, battery charge indicator lights and

accessory power port. Dash has 2 cup holders,

radio holder and glove box storage.

STARTING

Pedal start (optional key start) Key start

CARGO BED SIZE

Length: 44.5" (113 cm), Width: 49" (125 cm), Height: 10.25" (26 cm), LLDPE resin.

TOTAL VEHICLE CAPACITY

1,250 lbs. (567 kg) 1,650 lbs. (750 kg)

CARGO BED

PAYLOAD CAPACITY

850 lbs. (386 kg) 1,250 lbs. (567 kg)

TRAILER TOWING

CAPACITY

400 lbs. (182 kg) trailer, 50 lbs. (23 kg) tongue

weight with standard hitch.

800 lbs. (363 kg) trailer, 100 lbs. (45 kg) tongue

weight with heavy-duty tow hitch.

400 lbs. (182 kg) trailer, 50 lbs. (23 kg) tongue weight with standard hitch.

1,200 lbs. (545 kg) trailer, 100 lbs. (45 kg) tongue weight with heavy-duty tow hitch.

OPTIONAL ACCESSORIES

Canopy, Solid Folding Windshield, Electric Bed Lift, HD Bumper, Brush Guard, ROPS, Brake/Tail/Signal Light Kit, Deluxe Hard Cab, Snow Plow, Portable Refreshment

Center, Heater Kit, HD Trailer Hitch.

WARRANTY

Two-year or 1500 hour limited warranty. Refer to the Operator’s Manual for further details.

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.

Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.

84

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

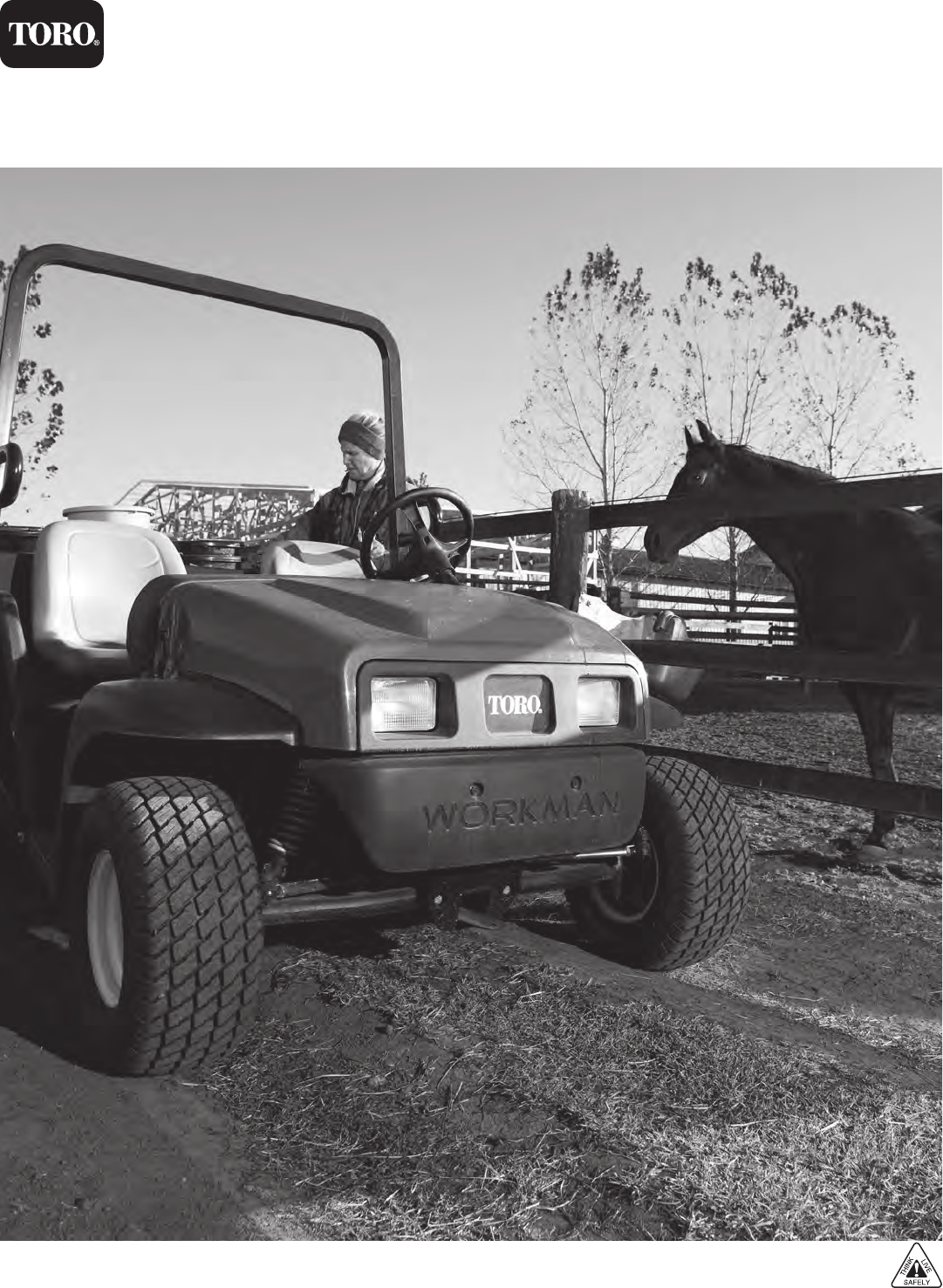

Workman® MDE

A quiet, electric utility vehicle featuring the Toro® SRQTM suspension system for superior ride quality that delivers extraordinary

stability, traction and operator comfort. SRQ combines with a powerful 500-amp drive train to provide enhanced productivity

through hefty payload and towing capacities.

85

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

Workman® MDE Specifications*

WORKMAN MDE, MODEL 07299 / 07299TC

MOTOR

48 volt DC motor with external fan.

SRQTM SYSTEM

Active In-Frame™ twister joint, front suspension.

FRONT SUSPENSION

Independent "A"-Frame with coil over shock absorbers.

MAX SPEED

16 mph (25.6 km/h) with fully charged batteries. Economy/supervisor mode limits maximum speed to 12 mph (19.2 km/h).

BRAKES

Front wheel: hydraulic disc, Rear wheel: hydraulic drum. Complemented with regenerative motor braking.

TRANSAXLE

16.99 to 1 ratio with helical gears. Direct drive double reduction with differential.

GROUND CLEARANCE

Front: 10" (25.4 cm). Rear: 7" (18 cm).

TIRES

Front: 22.5 x 9.5-10, 4-ply. Rear: 22 x 9.5-10, 4-ply

BATTERIES

Eight 6 volt heavy-duty T145. 145 min. @ 75 amps.

CONTROLLER

500 amps max. 48 volt with regenerative motor braking, includes roll away indicator, thermal cutback, sealed/potted, status indicator light.

CHARGER

Remote charger with drive inhibit on AC connect. 115 volt AC +/- 10% input, 48 volt DC (nominal) 17 amp output. 230 volt AC input for Europe, 48 volt DC (nominal)

17 amp output.

INSTRUMENTS/DASH

Battery discharge indicator, hour meter, headlight switch, on/off ignition key switch, accessory power port, supervisor speed selector switch. The dash has 2 cup

holders, radio holder and glove box storage area.

DIMENSIONS

Width Length Wheel Base Height

59" (150 cm) 119.75" (304 cm) 83" (211 cm) 50" (127 cm)

STEERING

Manual, pinion and sector gear system with ergonomically positioned non-adjustable column. Steering wheel has

3 turns lock-to-lock and 17.2 to 1 ratio with a 13.75" (34.93 cm) diameter wheel.

TURNING CLEARANCE CIRCLE

Inside rear tire: 83" (211 cm), outside front tire: 260" (660 cm).

FRAME

Welded steel channel and tube in body construction. Frame surfaces are dipped e-coat. Body and bed constructed of dent and corrosion resistant polyethylene.

CARGO BED SIZE

Length: 44.5" (113 cm), Width: 49" (125 cm), Height: 10.25" (26 cm), reinforced co-polymer.

TOTAL VEHICLE CAPACITY

1,200 lbs. (545 kg).

CARGO BED

PAYLOAD CAPACITY

800 lbs. (363 kg)

TRAILER TOWING

CAPACITY

400 lbs. (182 kg) trailer, 50 lbs. (23 kg) tongue weight with standard hitch.

800 lbs. (363 kg) trailer, 100 lbs. (45 kg) tongue weight with heavy-duty tow hitch.

OPTIONAL ACCESSORIES

48-Volt Electric Bed Lift, Canopy, Solid Folding Windshield, Electric Bed Lift, HD Bumper, Brush Guard, 12-Volt Adapter Kit, ROPS, Brake/Tail/Signal Light Kit, Deluxe

Hard Cab, Snow Plow, Portable Refreshment Center, Heater Kit, HD Trailer Hitch.

WARRANTY

Two-year or 1,500 hour limited warranty. Refer to the Operator’s Manual for further details. Battery warranty through battery manufacturer.

The Workman utility vehicle is manufactured

in Tomah, WI ISO 9002 Certified Plant.
