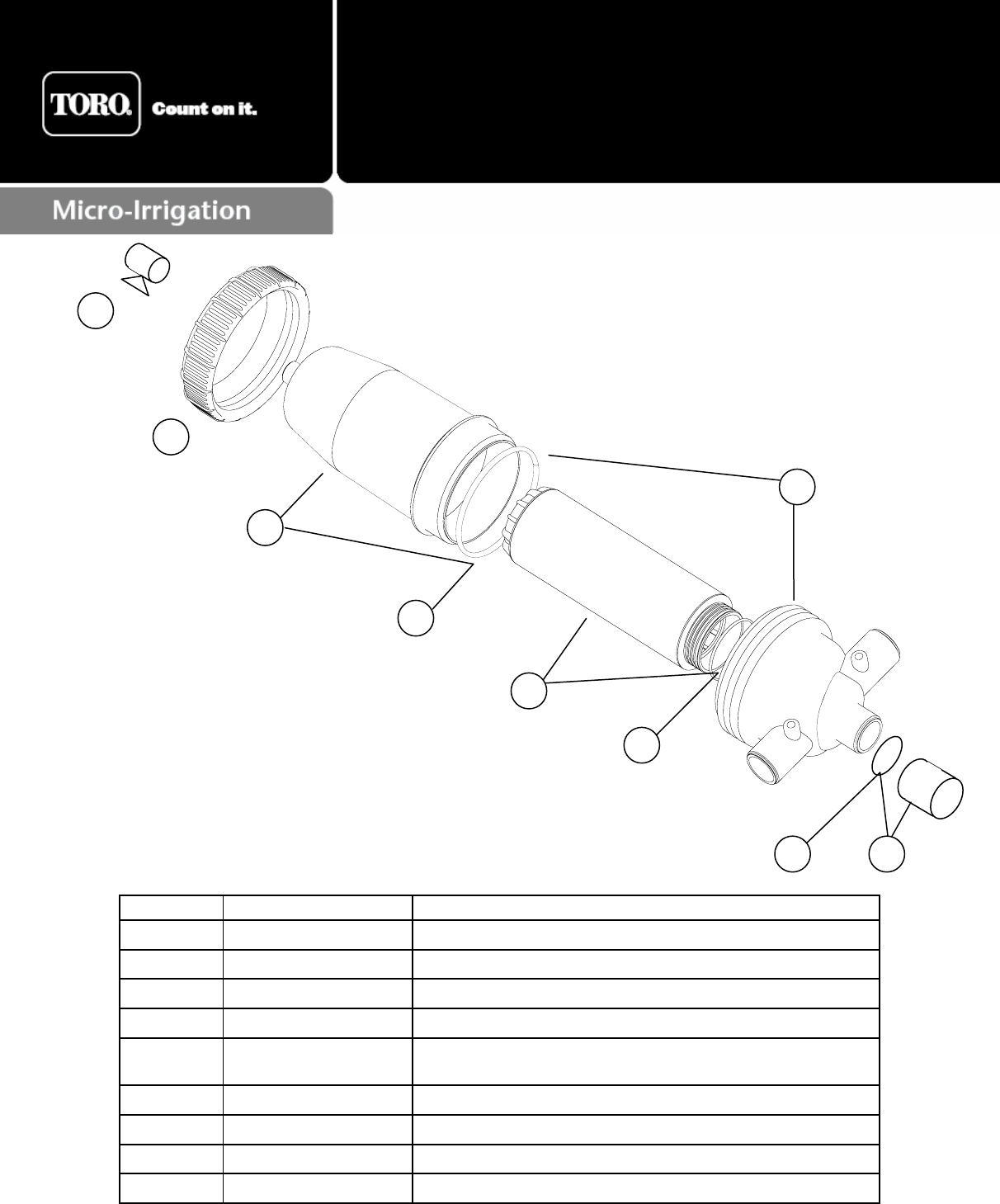

Parts Breakout

Ref. No. Part Number. Description

1 IT-VBP025-N 1” FNPT (Flush) Ball Valve

2 IT-ATP1330 Locking Ring

3 IT-AMPX0302 Filter Bonnet with O’Ring

4 IT- ATP1313 O’Ring for Filter Bonnet

5 IT-AMPX0304-xxx Disc Cartridge with O’Ring (50, 85, 120, 150 & 200

Mesh Available)

6 IT- ATP1314 O’Ring for Disc Cartridge

7 IT-AMPX0301-N 3” MNPT Filter Body with O’Ring

8 IT-ATP1317 O’Ring for 3” Cap

9 IT-AMPX0303-N 3” FNPT Threaded Cap with O’Ring

Note: xxx denotes filter mesh size. Substitute xxx, with 050; 085; 120; 150 or 200 size mesh required.

1

2

4

3

9

8

7

5

6

3” NPT XD Series Disc Filter
