Micro-Irrigation

2" & 3" Plastic Disc Filters

Application:

• Designed for use as a primary or secondary filter

• Can be installed upright or downward

• For use with water containing high amounts of organic or

inorganic matter

Disc Characteristics:

• The specially designed two-sided disc ring features:

– On one side, a sinusoidal ( ) disc pattern

– And on the other side, grooves in concentric ( )circles

• Both sides working together gives a surface area that is

unachievable by any other standard disc ring. This results

in longer periods between cleanings, less filter maintenance

and prolonged product life.

• Available in 50, 85, 120, 150, and 200 mesh.

Features Benefits

Body constructed of glass

reinforced Nylon.

Provides durability/reliability that will

extend product life.

Two downstream exit ports.

Filter can be installed in a angle or

globe configuration, reducing the

need to re-do piping.

Specially designed disc rings.

(XD Models)

Provides greater surface area

resulting in a longer time between

cleanings, less filter maintenance and

extended product life.

O-ring between cover and body. Prevents leakage.

Easy to tighten Ring-Nut. Saves time and provides a tight seal.

Pre-molded threaded holes for

pressure gauges.

Location to install pressure gauges to

read up and downstream pressures.

Disc Filtration Flow

XD Disc Rings

Disc Characteristics:

• Narrowing, cross-hatched grooves trap particles and debris

between and on the outside of the disc rings:

– Each side of the standard disc ring has opposite running

tapered grooves, thereby creating an interweaving labyrinth

among the discs.

• The standard disc rings press together and utilize the cross-

hatched groove design, allowing only clean water to flow through.

• Available in 120 and 150 mesh.

SD Disc Rings

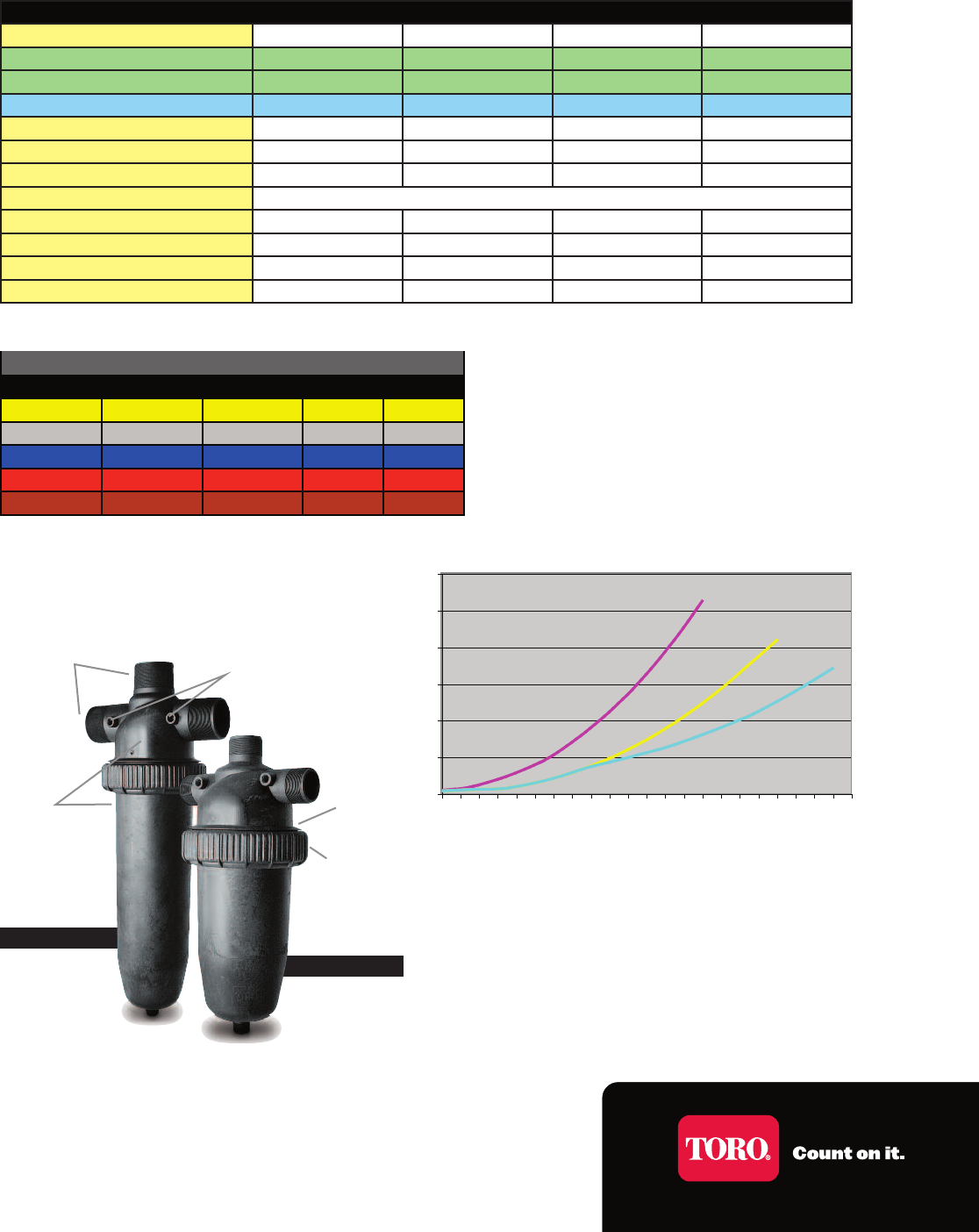

Head Loss Chart - XD & SD Filters

0

1

2

3

4

5

6

0.00

0.07

0.14

0.21

0.28

0.34

0.48

10 30 50 70 90 110 130 150 170 190 210 230

2711 16 20 25 30

2"

3" Compact

3"

34 39 43 48 52

Flow Rate (gpm)

Flow Rate (m3/h)

Pressure Loss (psi)

Pressure Loss (bar)

Pre-molded

female threads for

pressure gauges

Small Body Filter

Large Body Filter

Two

downstream

exit ports

Nut-ring

Strong

Body

& Cap

construction

O-ring

Disc Ring Color

Color Mesh Micron XD SD

Yellow 50 297 ✓–

Gray 85 170 ✓–

Blue 120 125 ✓ ✓

Red 150 100 ✓ ✓

Brown 200 75 ✓–

Note: To order, insert required mesh size in place of xx in Part Number: 50 mesh = 50; 85 mesh = 85; 120 mesh = 12; 150 mesh = 15; 200 mesh = 20

Filter Body Parts:

©2012 The Toro Company

Micro-Irrigation Business

1588 N. Marshall Avenue, El Cajon, CA 92020-1523, USA

Tel: +1 (800) 333-8125 or +1 (619) 562-2950

Fax: +1 (800) 892-1822 or +1 (619) 258-9973

toro.com

ALT103 08/09

2" & 3" Plastic Disc Filters

Part Numbers & Specifications

Description 2" Short Body Filter 2" Long Body Filter 3" Short Body Filter 3" Long Body Filter

XD Filter Part Number (NPT Thread) IT-ABF50xx-3X-N IT-ABF50xx-3XLN IT-ABF75xx-3XSN IT-ABF75xx-3X-N

XD Filter Part Number (BSP Thread) IT-ABF50xx-3X N/A IT-ABF75xx-3XS IT-ABF75xx-3X

SD Filter Part Number (NPT Thread) IT-ABF50xx-3SN IT-ABF50xx-3SLN IT-ABF75xx-3SSN IT-ABF75xx-3SN

XD Filtration Area 1,674 in2(10,800 cm2) 2,790 in2(18,000 cm2) 1,674 in2(10,800 cm2) 2,790 in2(18,000 cm2)

SD Filtration Area 186 in2(1,200 cm2) 310 in2(2,000 cm2) 186 in2(1,200 cm2) 310 in2(2,000 cm2)

Maximum Flow Rate 110 gpm (25 m3/h) 110 gpm (25 m3/h) 170 gpm (32 m3/h) 220 gpm (50 m3/h)

Maximum Pressure 145 psi (10 bars)

Connection Size 2 in. ( 50 mm) 2 in. ( 50 mm) 3 in. (76 mm) 3 in. (76 mm)

Height 18.5 in. (470 mm) 30.9 in. (785 mm) 18.5 in. (470 mm) 30.9 in. (785 mm)

Width 10.8 in. (274 mm) 12.6 in. (320 mm) 10.8 in. (274 mm) 12.6 in. (320 mm)

Weight 14.1 lbs (6.4 kgs) 14.8 lbs (6.7 kgs) 15.0 lbs (6.8 kgs) 18.1 lbs ( 8.2 kgs)
