TOSHIBA

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_........

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALI-

FIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle is intended to alert the user to the

presence of uninsulated dangerous voltage within the

product's enclosure that may be of sufficient magnitude

to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC

Rules could void the user's authority to operate this equipment.

WARNING: TO PREVENT FIRE OR SHOCK DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE,

HAZARD,

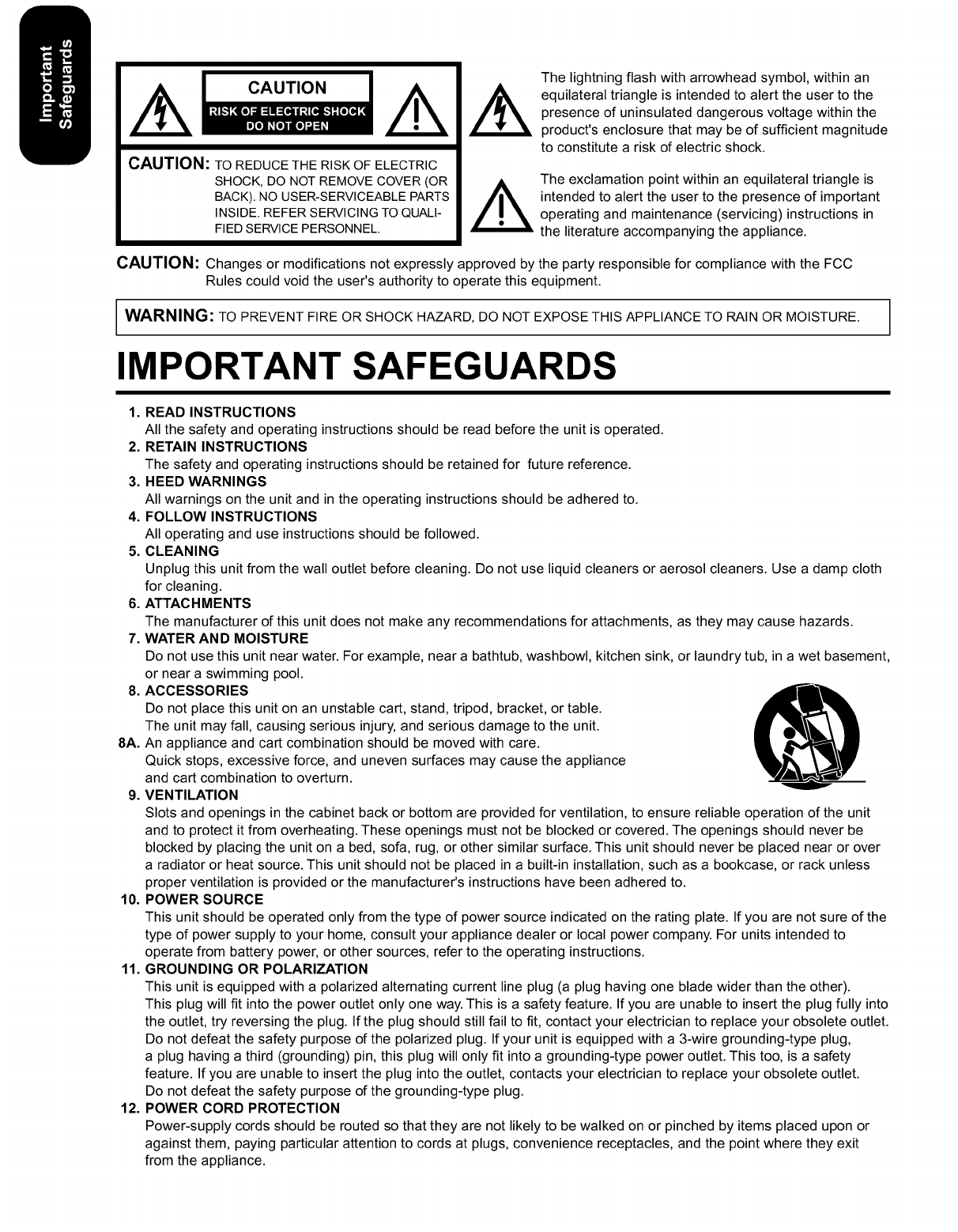

IMPORTANT SAFEGUARDS

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5. CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth

for cleaning.

6. ATTACHMENTS

The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards.

7. WATER AND MOISTURE

Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement,

or near a swimming pool.

8. ACCESSORIES

Do not place this unit on an unstable cart, stand, tripod, bracket, or table.

The unit may fall, causing serious injury,and serious damage to the unit.

8A. An appliance and cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the appliance

and cart combination to overturn.

9. VENTILATION

Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit

and to protect it from overheating. These openings must not be blocked or covered. The openings should never be

blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over

a radiator or heat source. This unit should not be placed in a built-in installation, such as a bookcase, or rack unless

proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. POWER SOURCE

This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the

type of power supply to your home, consult your appliance dealer or local power company. For units intended to

operate from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternating current line plug (a plug having one blade wider than the other).

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into

the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet.

Do not defeat the safety purpose of the polarized plug. If your unit is equipped with a 3-wire grounding-type plug,

a plug having a third (grounding) pin, this plug will only fit into a grounding-type power outlet. This too, is a safety

feature. If you are unable to insert the plug into the outlet, contacts your electrician to replace your obsolete outlet.

Do not defeat the safety purpose of the grounding-type plug.

12. POWER CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or

against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit

from the appliance.

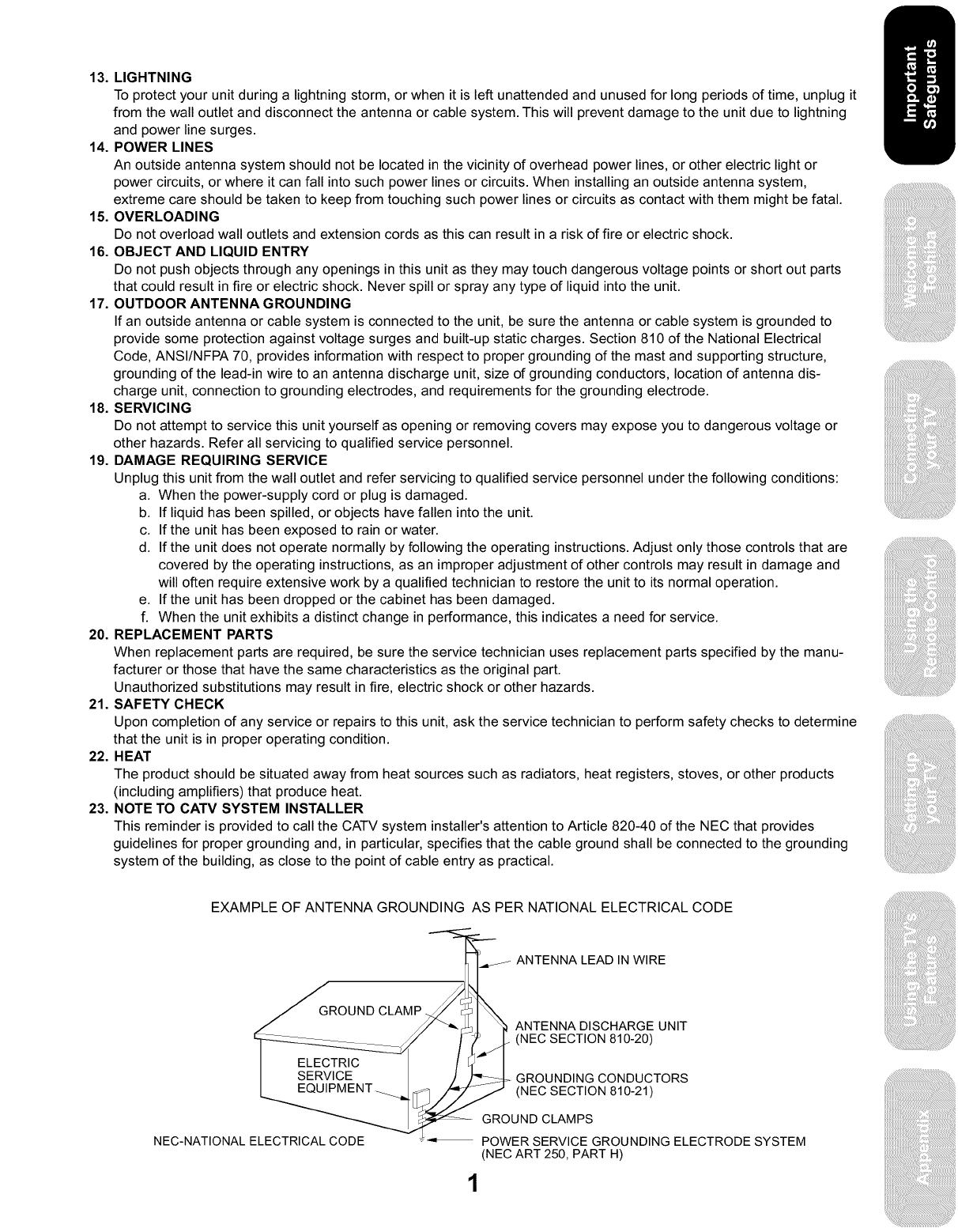

13.LIGHTNING

Toprotectyourunitduringalightningstorm,orwhenitisleftunattendedandunusedforlongperiodsoftime,unplugit

fromthewalloutletanddisconnecttheantennaorcablesystem.Thiswillpreventdamagetotheunitduetolightning

andpowerlinesurges.

14.POWERLINES

Anoutsideantennasystemshouldnotbelocatedinthevicinityofoverheadpowerlines,orotherelectriclightor

powercircuits,orwhereitcanfallintosuchpowerlinesorcircuits.Wheninstallinganoutsideantennasystem,

extremecareshouldbetakentokeepfromtouchingsuchpowerlinesorcircuitsascontactwiththemmightbefatal.

15.OVERLOADING

Donotoverloadwalloutletsandextensioncordsasthiscanresultinariskoffireorelectricshock.

16.OBJECTANDLIQUIDENTRY

Donotpushobjectsthroughanyopeningsinthisunitastheymaytouchdangerousvoltagepointsorshortoutparts

thatcouldresultinfireorelectricshock.Neverspillorsprayanytypeofliquidintotheunit.

17.OUTDOORANTENNAGROUNDING

Ifanoutsideantennaorcablesystemisconnectedtotheunit,besuretheantennaorcablesystemisgroundedto

providesomeprotectionagainstvoltagesurgesandbuilt-upstaticcharges.Section810oftheNationalElectrical

Code,ANSI/NFPA70,providesinformationwithrespecttopropergroundingofthemastandsupportingstructure,

groundingofthelead-inwiretoanantennadischargeunit,sizeofgroundingconductors,locationofantennadis-

chargeunit,connectiontogroundingelectrodes,andrequirementsforthegroundingelectrode.

18.SERVICING

Donotattempttoservicethisunityourselfasopeningorremovingcoversmayexposeyoutodangerousvoltageor

otherhazards.Referallservicingtoqualifiedservicepersonnel.

19. DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the unit.

c. If the unit has been exposed to rain or water.

d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are

covered by the operating instructions, as an improper adjustment of other controls may result in damage and

will often require extensive work by a qualified technician to restore the unit to its normal operation.

e. If the unit has been dropped or the cabinet has been damaged.

f. When the unit exhibits a distinct change in performance, this indicates a need for service.

20. REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the manu-

facturer or those that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

21. SAFETY CHECK

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine

that the unit is in proper operating condition.

22. HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products

(including amplifiers) that produce heat.

23. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides

guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding

system of the building, as close to the point of cable entry as practical.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

NEC-NATIONAL ELECTRICAL CODE

ANTENNA DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250, PART H)

Important Safeguards .................................................................................. Inside front cover

Welcome to Toshiba ............................................................................................................. 3

Exploring your new TV ................................................................................................................................. 3

Selecting a location for the TV ..................................................................................................................... 3

Connecting your TV ............................................................................................................ 4

Connecting a VCR ....................................................................................................................................... 4

Connecting a cable converter box ............................................................................................................... 5

Connecting a DVD player/satellite receiver and a VCR ............................................................................... 6

Connecting a DVD player with ColorStream ®and a VCR ........................................................................... 6

Connecting two VCRs .................................................................................................................................. 7

Connecting a camcorder ............................................................................................................................. 7

Connecting an audio amplifier ..................................................................................................................... 7

Using the remote control .................................................................................................... 8

Preparing the remote control for use ........................................................................................................... 8

Installing the remote control batteries ......................................................................................................... 8

Using the remote control with a VCR or a cable TV converter .................................................................... 8

Programming the remote control for use with a VCR or a cable TV converter ........................................... 9

VCR and cable TV converter codes ............................................................................................................ 9

Learning about the remote control ............................................................................................................ 10

Setting up your TV ............................................................................................................. 11

Changing the on-screen display language ................................................................................................ 11

Adding channels to the TV's memory ........................................................................................................ 12

Programming channels automatically ................................................................................................ 12

Adding and erasing channels manually ............................................................................................. 12

Changing channels .................................................................................................................................... 12

Using the TV's features ..................................................................................................... 13

Adjusting the channel settings ................................................................................................................... 13

Switching between two channels ....................................................................................................... 13

Programming your favorite channels .................................................................................................. 13

Using theV-Chip (parental control) feature ................................................................................................ 14

Selecting a PIN code .......................................................................................................................... 14

Blocking programs by ratings ............................................................................................................. 15

Blocking unrated movies or programs ................................................................................................ 18

Using the LOCK menu ............................................................................................................................... 18

Locking channels ................................................................................................................................ 18

Locking video input ............................................................................................................................. 19

Setting the game timer .............................................................................................................................. 19

Labeling channels ...................................................................................................................................... 20

Adjusting the picture .................................................................................................................................. 21

Adjusting the picture quality ............................................................................................................... 21

Watching video input ................................................................................................................................. 21

Selecting the ColorStream mode .............................................................................................................. 21

Displaying on-screen information .............................................................................................................. 21

Setting the sleep timer ............................................................................................................................... 22

Using the closed caption feature ............................................................................................................... 22

Adjusting the sound ................................................................................................................................... 23

Muting the sound ................................................................................................................................ 23

Selecting stereo/SAP broadcasts ....................................................................................................... 23

Adjusting the sound quality ................................................................................................................ 24

Using the StableSound TM feature ....................................................................................................... 24

Auto power off ............................................................................................................................................ 25

Understanding the Power Return feature .................................................................................................. 25

Appendix ............................................................................................................................ 26

Cleaning and care ..................................................................................................................................... 26

Troubleshooting ......................................................................................................................................... 26

Specifications ............................................................................................................................................. 27

Limited United States Warranty ................................................................................................................. 28

Limited Canada Warranty .......................................................................................................................... 30

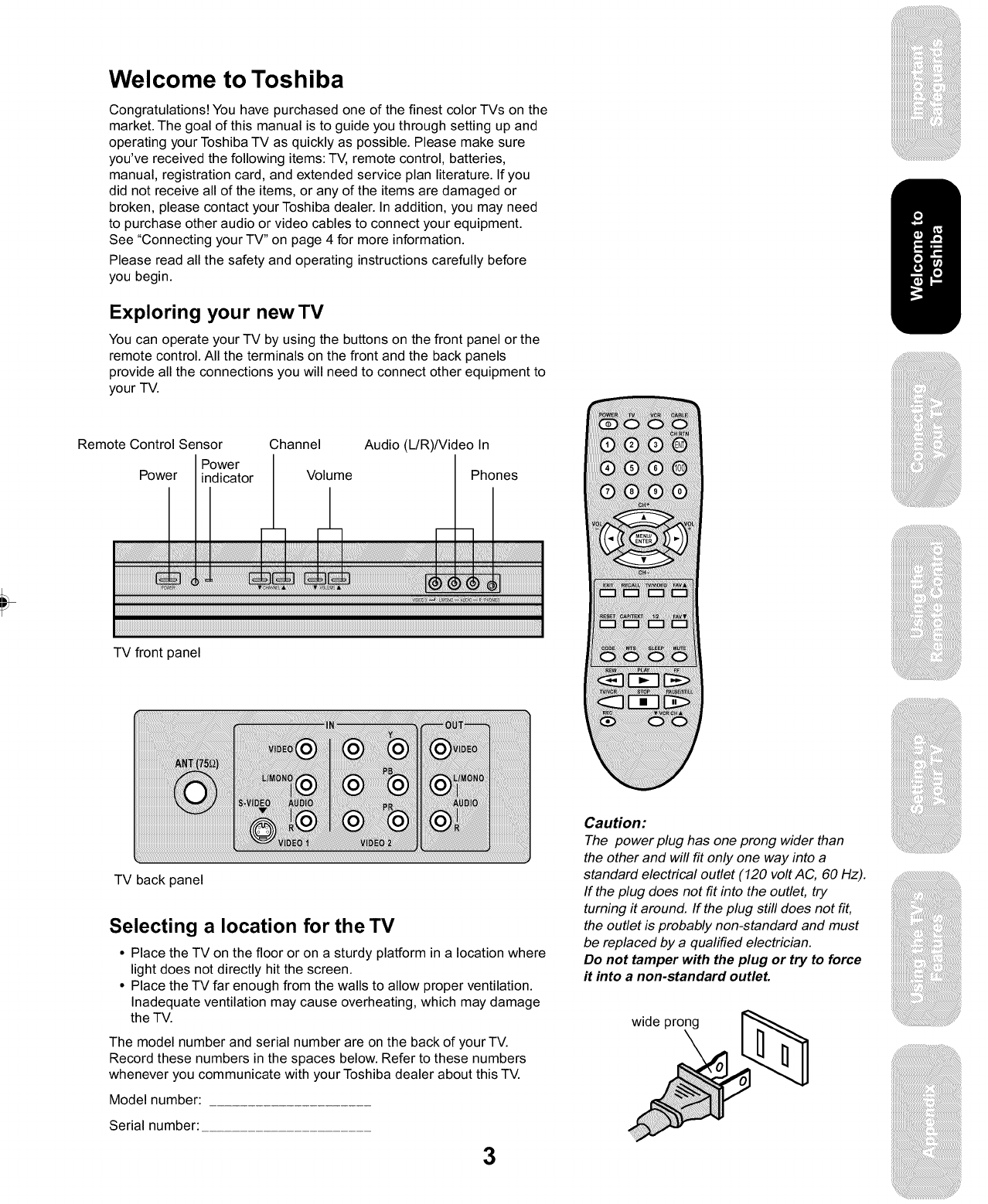

Welcome to Toshiba

Congratulations! You have purchased one of the finest color TVs on the

market. The goal of this manual is to guide you through setting up and

operating your Toshiba TV as quickly as possible. Please make sure

you've received the following items: TV, remote control, batteries,

manual, registration card, and extended service plan literature. If you

did not receive all of the items, or any of the items are damaged or

broken, please contact your Toshiba dealer. In addition, you may need

to purchase other audio or video cables to connect your equipment.

See "Connecting your TV" on page 4 for more information.

Please read all the safety and operating instructions carefully before

you begin.

Exploring your new TV

You can operate your TV by using the buttons on the front panel or the

remote control. All the terminals on the front and the back panels

provide all the connections you will need to connect other equipment to

your TV.

Remote Control Sensor Channel Audio (L/R)/Video In

Power

Power indicator Volume Phones

TV front panel

TV back panel

Selecting a location for the TV

• Place the TV on the floor or on a sturdy platform in a location where

light does not directly hit the screen.

• Place the TV far enough from the walls to allow proper ventilation.

Inadequate ventilation may cause overheating, which may damage

the TV.

The model number and serial number are on the back of your TV.

Record these numbers in the spaces below. Refer to these numbers

whenever you communicate with your Toshiba dealer about this TV.

Model number:

Serial number:

Caution:

The power plug has one prong wider than

the other and will fit only one way into a

standard electrical outlet (120 volt AC, 60 Hz).

If the plug does not fit into the outlet, try

turning it around. If the plug still does not fit,

the outlet is probably non-standard and must

be replaced by a qualified electrician.

Do not tamper with the plug or try to force

it into a non-standard outlet.

wide prong

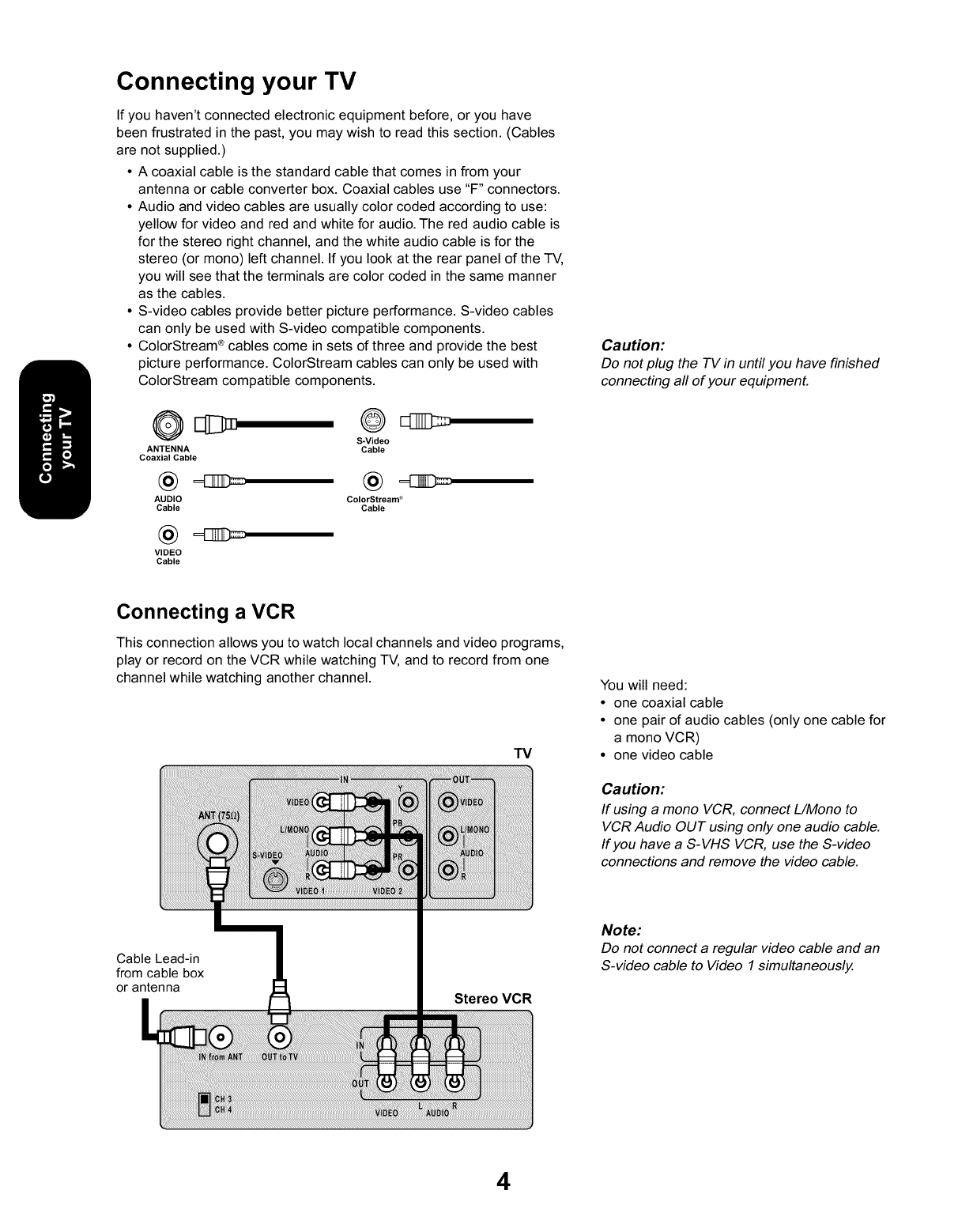

Connecting your TV

If you haven't connected electronic equipment before, or you have

been frustrated in the past, you may wish to read this section. (Cables

are not supplied.)

•A coaxial cable is the standard cable that comes in from your

antenna or cable converter box. Coaxial cables use "F" connectors.

• Audio and video cables are usually color coded according to use:

yellow for video and red and white for audio. The red audio cable is

for the stereo right channel, and the white audio cable is for the

stereo (or mono) left channel. If you look at the rear panel of the TV,

you will see that the terminals are color coded in the same manner

as the cables.

• S-video cables provide better picture performance. S-video cables

can only be used with S-video compatible components.

• ColorStream ®cables come in sets of three and provide the best

picture performance. ColorStream cables can only be used with

ColorStream compatible components.

S-Video

ANTENNA Cable

Coaxial Cable

AUDIO ColorStream _

Cable Cable

VIDEO

Cable

Caution:

Do not plug the TV in until you have finished

connecting all of your equipment.

Connecting a VCR

This connection allows you to watch local channels and video programs,

play or record on the VCR while watching TV, and to record from one

channel while watching another channel.

Cable Lead-in

from cable box

or antenna Stereo VCR

You will need:

• one coaxial cable

• one pair of audio cables (only one cable for

a mono VCR)

• one video cable

Caution:

If using a mono VCR, connect L/Mono to

VCR Audio OUT using only one audio cable.

If you have a S-VHS VCR, use the S-video

connections and remove the video cable.

Note:

Do not connect a regular video cable and an

S-video cable to Video I simultaneously.

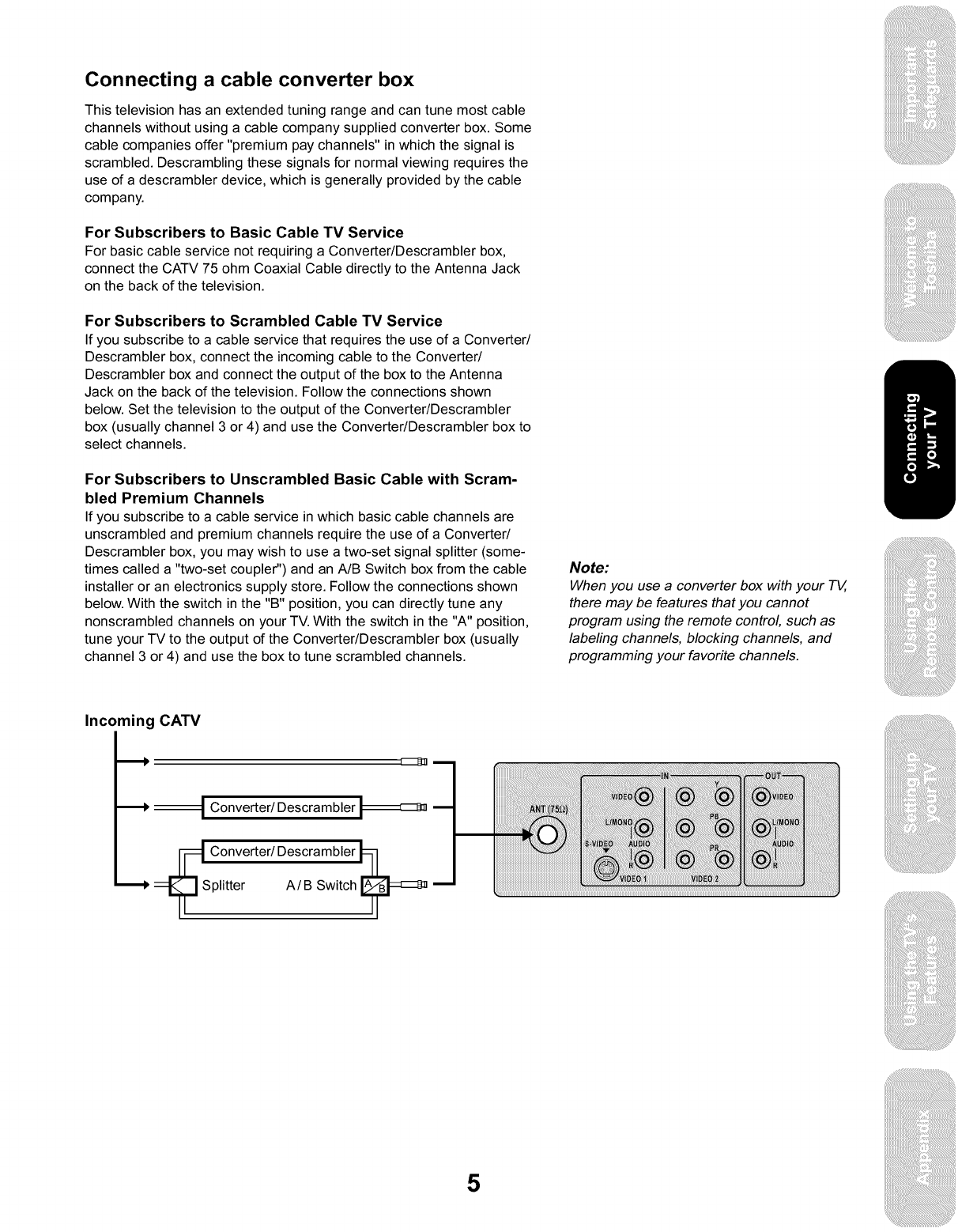

Connecting a cable converter box

This television has an extended tuning range and can tune most cable

channels without using a cable company supplied converter box. Some

cable companies offer "premium pay channels" in which the signal is

scrambled. Descrambling these signals for normal viewing requires the

use of a descrambler device, which is generally provided by the cable

company.

For Subscribers to Basic Cable TV Service

For basic cable service not requiring a Converter/Descrambler box,

connect the CATV 75 ohm Coaxial Cable directly to the Antenna Jack

on the back of the television.

For Subscribers to Scrambled Cable TV Service

If you subscribe to a cable service that requires the use of a Converter/

Descrambler box, connect the incoming cable to the Converter/

Descrambler box and connect the output of the box to the Antenna

Jack on the back of the television. Follow the connections shown

below. Set the television to the output of the Converter/Descrambler

box (usually channel 3 or 4) and use the ConverteriDescrambler box to

select channels.

For Subscribers to Unscrambled Basic Cable with Scram-

bled Premium Channels

If you subscribe to a cable service in which basic cable channels are

unscrambled and premium channels require the use of a Converter/

Descrambler box, you may wish to use a two-set signal splitter (some-

times called a "two-set coupler") and an A/B Switch box from the cable

installer or an electronics supply store. Follow the connections shown

below. With the switch in the "B" position, you can directly tune any

nonscrambled channels on your TV. With the switch in the "A" position,

tune your TV to the output of the Converter/Descrambler box (usually

channel 3 or 4) and use the box to tune scrambled channels.

Incoming CATV

Note:

When you use a converter box with your TV,

there may be features that you cannot

program using the remote control, such as

labeling channels, blocking channels, and

programming your favorite channels.

:_ Converter/Descrambler

,_[_ Converter/Descrambler

=_ Splitter A /B Switch _

Connecting a DVD player/satellite receiver and

aVCR

This connection allows you to watch DVD/satellite, video and TV

programs. You can record from the DVD player/satellite receiver and TV,

as well as record one TV channel while watching another channel.

Tosatellite DVD player/Satellite Receiver

You will need:

• one coaxial cable

• three pairs of audio cables (two pairs and

one single audio cable for a mono VCR)

• two video cables

• one S-video cable

Caution:

You can use a video cable instead of the

S-video cable, but the picture quality will

decrease. If you use an S-video cable

between the TV and DVD player/satellite

receiver, make the audio connections only

and remove the video connection.

To antenna

Connecting a DVD player with ColorStream ®

(Component video) and a VCR

This connection allows you to watch DVD, video tape, or TV programs

and record DVD or TV programs. You can record from one source

while watching a program from another source. Your TV is capable of

using ColorStream (component video). Connecting your TV to a

component video compatible DVD player, such as a Toshiba DVD

player with ColorStream ®,can greatly enhance picture quality and

performance.

DVD player with ColorStream ®

To antenna Stereo VOR

You will need:

• one coaxial cable

• three pairs of audio cables (two pairs and

one single audio cable for a mono VCR)

• two video cables

• one set of ColorStream video cables

Caution:

For better picture quality, use ColorStream

connections. To record from the DVD player,

the DVD player and TV must select Video.

The ColorStream selection in the OPTION

menu should be DVD mode. See "Selecting

the ColorStream mode" on page 21.

The unauthorized recording, use, distribu-

tion or revision of television programs,

videotapes, DVDs, and other materials is

prohibited under the Copyright Laws of the

United States and other countries, and may

subject you to civil and criminal liability.

Connecting two VCRs

This connection allows you to record from one VCR to another VCR

while watching a video program. You will also be able to record from

one TV channel while watching another channel.

Stereo VCR /Playback

To antenna

Stereo VCR/Recordin

You will need:

• one coaxial cable

• two pairs of audio cables (two single audio

cables for mono VCRs)

• two video cables

Caution:

Do not connect one VCR to the output and

input jacks on the TV at the same time. If you

are using an S-VHS VCR, use the S-video

connections and remove the video cable.

Connecting a camcorder

This connection allows you to watch video materials recorded on a

camcorder.

Camcorder

Front Panel of TV

Connecting an audio amplifier

This connection allows you to use an audio amplifier to enjoy a high-

quality sound. This also allows you to use external speakers.

To control the audio, turn on the TV and the stereo amplifier.

Audio Amplifier

To cable,

cable box

or antenna

You will need:

• one pair of audio cables

• one video cable

Caution:

If you are using an S-VHS camcorder with

S-video output, use the Video I jacks on the

back of the TV.

You will need:

• one pair of audio cables

The unauthorized recording, use, distribu-

tion or revision of television programs,

videotapes, DVDs, and other materials is

prohibited under the Copyright Laws of the

United States and other countries, and may

subject you to civil and criminal liability.

Using the remote control

Preparing the remote control for use

With the remote control, you can operate your TV, most VCR models,

and cable TV converters together, even if they are different brands. If

you will be using your TV with a Toshiba VCR, your remote control is

already programmed and ready to use. If you own different brands of

VCRs and/or converters, you first have to program your remote control.

(See "Programming the remote control for use with a VCR or a cable

TV converter" on page 9.)

Installing the remote control batteries

To install the batteries:

1. Open the battery cover on the back of the remote control.

Note:

This remote control's functions may or may

not operate your VCR or cable TV converter.

Refer to the owner's manuals supplied with

the equipment to see which features are

available. In addition, the original controllers

may have features not available on this

remote control If you would fike to continue to

use these features, you may want to use the

original remote control

2. Install two "AAA" size batteries. Match the + and - signs on the

batteries to the signs on the battery compartment.

Caution:

•Dispose of batteries in a designated

disposal area. Do not throw batteries into a

fire.

• Do not mix battery types or combine used

batteries with new ones.

• Remove dead batteries immediately to

prevent battery acid from leaking into the

battery compartment.

• If you do not intend to use the remote control

for a long time, remove the batteries.

3. Close the battery cover on the remote control until the lock snaps.

Using the remote control with a VCR or a cable TV converter

To control a Toshiba

VCR:

Press the VCR button

first. The buttons

shown to the right will

then control the VCR.

The rest of the buttons

will operate the TV as

usual.

Ent_

Channel

Numbers

To control a cable TV

converter:

Program the remote

control to recognize the

brand of your converter

(see "Programming the

remote control for use

with a VCR or cable TV

converter", on page 9).

The buttons shown on

the right will control the

cable TV converter. Press

the CABLE button first.

Channel

Numbers

Channel +/--

Fast Forward

PIm

Rewind

TV/VCR

Record

Stop

VCR CH A/V

Pause/Still --

Programming the remote control for use with

a VCR or a cable TV converter

This remote control is pre-programmed to operate Toshiba VCRs. To

use VCRs or cable converters other than Toshiba models, you must

follow the steps below before you operate your remote control.

1. Press the CODE button and the VCR or the CABLE button you

want to program at the same time.

2. Enter the 2-digit code listed below using the Direct Channel

Selection buttons (0-9) within 10 seconds.

3. Point the remote control at the VCR or converter and press

POWER to test the code.

If the VCR or converter turns on, you have entered the right code.

If the VCR or converter does not respond to the remote control,

you may have entered the wrong code. Repeat steps 1-2 with

another code.

For future reference, write down the codes you used:

VCR code

Cable TV converter code

Note:

•When shipped from the factory, the remote

control is set to operate your TV.

• If you do not enter the code within 10

seconds from step 1 or if you enter a code

not listed below, this operation is canceled.

• Each time you replace the batteries, you

must reprogram the remote control.

• Some newer VCRs are capable of working

on either of two remote codes. These VCRs

have a switch labeled "VCR 1/VCR2".

If your VCR has this kind of switch, and

does not respond to any of the codes for

your VCR, set the switch to the other

position (VCR 1 or VCR2) and reprogram

the remote control.

VCR and cable TV converter codes

Admiral 08, 61 Multi Tech 39

Adventura 31 NEC 02, 18

Aiwa 31 Orion 33, 50

Akai 23, 38, 41 Panasonic 14, 51, 59

Audio Dynamics 02, 18 Pentax 15

Bell & Howell 06, 47 Philco 07, 14

aroksonic 21, 26, 33, 50, 55 Philips 07, 14, 27

Canon 14 Pioneer 10, 15

Citizen 09 Portland 46

Craig 12 Pro Scan 16, 60

Curtis Mathes 14, 59 Quasar 14, 59

Uaewoo 44, 46, 48, 54 RCA 15, 16, 20, 27, 40, 42, 60

Uaytron 36, 46 Realistic 06, 08, 12, 14, 31

uax 02, 18 Samsung 20, 30

Emerson 03, 21 23, 26, 33, 35, 43, 50 Sansui 39

Fisher 11, 12, 13, 47 Sanyo 06, 12, 47

Funai 31 Scott 04, 05, 33, 43

General Electric 14, 16, 20 Sears 06, 09, 11, 12, 15

Goldstar 09 Sharp 08, 61

Go Video 56, 62, 63 Shintom 39

Hitachi 15, 57 Signature 2000 08, 14, 16, 19, 31, 49

Instant Replay 14, 27 Sony 17, 32, 37

J.C. Penney 14, 15, 18, 27 Sylvania 07, 14, 27

JVC 02, 25, 58 Symphonic 31

Kenwood 02 Tashiko 09

hogik 39 Tatung 02

hXl og, 31 Teac 02, 31

Magnavox 07, 14, 31 Teknika 34

Marantz 07, 18 Toshiba 05, 15

Marta og XalO00 39

Memorex 06, 12, 14, 31, 33 Vector Research 04, 18

Mitsubishi 04, 22, 52, 64 Yamaha 02, 18

Montgomery Ward 08, 14, 16, 19, 31, 49 Zenith 01, 24, 25, 29, 37

_BLE C V ERTE'R

Allegro 58, 62 RCA DSS 73

Allegro A/B Switch

Gemini

General Electric

General Instrument

Hamlin

Jerrold

Kale Vision

Macom

Magnavox

NSC

Oak

Panasonic

Paragon

Philips

Pioneer

05, 31, 38

05, 06

02, 03, 45, 65, 66

04, 07, 08, 09, 10, 18, 60, 63

14, 21

35, 39, 68, 69, 70

11, 32, 42

13, 20

47, 50, 52, 54, 55

15, 43

Regency

Samsung

Scientic Atlanta

Sprucer

Standard Comp

Texscan

Tocom

Unika

United Satellite

Universal

Vid Tech

Video Way

Viewstar

Zenith

Zenith Satellite

16, 23, 36, 64

39, 56, 71

17, 18, 46

48, 62

58, 62

54, 55, 72

01, 53, 74

12, 28, 30, 51

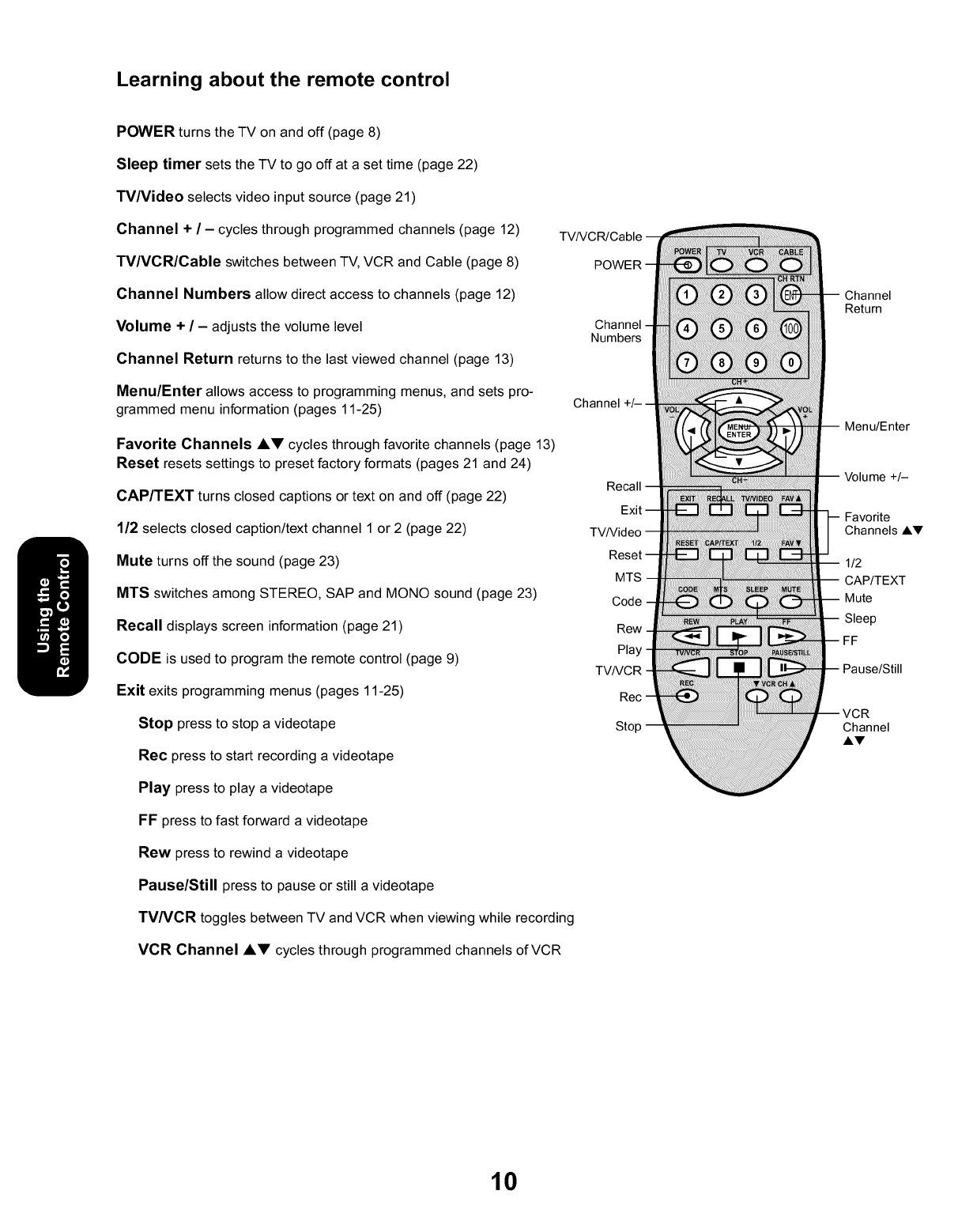

Learning about the remote control

POWER turns the TV on and off (page 8)

Sleep timer sets the TV to go off at a set time (page 22)

TV/Video selects video input source (page 21)

Channel ÷ /- cycles through programmed channels (page 12)

TM/VCR/Cable switches between TV, VCR and Cable (page 8)

Channel Numbers allow direct access to channels (page 12)

Volume ÷ /- adjusts the volume level

Channel Return returns to the last viewed channel (page 13)

Menu/Enter allows access to programming menus, and sets pro-

grammed menu information (pages 11-25)

Favorite Channels AV cycles through favorite channels (page 13)

Reset resets settings to preset factory formats (pages 21 and 24)

CAP/TEXT turns closed captions or text on and off (page 22)

1/2 selects closed caption/text channel 1 or 2 (page 22)

Mute turns off the sound (page 23)

MTS switches among STEREO, SAP and MONO sound (page 23)

Recall displays screen information (page 21)

CODE is used to program the remote control (page 9)

Exit exits programming menus (pages 11-25)

Stop press to stop a videotape

Rec press to start recording a videotape

Play press to play a videotape

FF press to fast forward a videotape

Rew press to rewind a videotape

Pause/Still press to pause or still a videotape

TMNCR toggles between TV and VCR when viewing while recording

VCR Channel AV cycles through programmed channels of VCR

Numbers

MTS

Code

Rew

Play

TV/VCR

Rec

Sto

Channel

Return

Menu/Enter

Volume +/-

Favorite

Channels AV

1/2

CAP/TEXT

Mute

Sleep

Pause/Still

Channel

Setting up your TV

After you've installed the batteries and programmed the remote

control, you need to set some preferences on the TV using the menu.

You can access the menu with the buttons on the remote control.

• When you make a menu selection, your changes occur immedi-

ately.You do not have to press MENU or EXIT to see your

changes.

• After fifteen seconds, the menu screen will automatically disappear

if you do not make a selection. Your changes will still be saved.

• When you are finished programming the menus, press EXIT.

Changing the on-screen display language

You can choose from three different languages (English, French and

Spanish) for the on-screen displays. Adjustment menus and messages

will appear in the language of your choice.

To select a language:

1. Press MENU, then press • or • until the OPTION menu appears.

LANGUAGE ENGLISH

CH LABEL START•

FAVORITE CH START •I

V-CHIP START •I

LOCK START • I

COLORSTREAM DVD I

SELECT AV ADJUST '_ I_ /

)

V-CHIP START •

LOCK START •

COLORSTREAM DVD

SELECT AV ADJUST '_ I_

2. Press • or •to highlight LANGUAGE.

3. Press • or • to highlight your desired language.

Av<I_

Exit

Adding channels to the TV's memory

Your TV will stop on specific channels that are stored in the TV's

channel memory when you press Channel + or -. Use the steps below

to set all active channels in your area automatically.

Programming channels automatically

Your TV can automatically detect all active channels and store them in

its memory. After the TV has stored the channels in its memory auto-

matically, you can add or erase channels manually.

To add channels automatically:

1. Press MENU, then press • or • to display the SET UP menu.

2. Press • or •until the TV/CABLE

selection is highlighted.

3. Press • or • to highlight either

TV or CABLE, depending on

which you use.

If you use an antenna, choose TV.

If you use cable, choose CABLE.

Ji ¸

__V CABLE

CH PROGRAM

SELECT AV ADJUST _11_

4. Press • to select CH PROGRAM.

5. Press • or • to start channel programming. The TV will automati-

cally cycle through all the TV or Cable channels (depending on

which you selected), and store all active channels in the channel

memory.

While the TV is cycling through the channels, the message

"PROGRAMMING NOW PLEASE WAIT" appears.

6. When channel programming iscomplete, the message "COMPLETED

(channel or cable number)" appears.

7. Press Channel • or • to view the programmed channels.

Channel +/-

Av<l_

Exit

Adding and erasing channels manually

After you have programmed the channels automatically, you can add or

erase specific channels manually.

To add or erase channels manually:

1. Select the channel you want to add or erase.

If adding channels, you must select the channel to add using the

Channel Number buttons.

2. Press MENU, then press • or •

to display the SET UP menu.

3. Press • or • to highlight ADD/

ERASE.

4. Press • or • to select ADD or

ERASE, whichever function you

want to perform.

5. Repeat steps 1-4 for other

channels you want to add or erase.

TV/CABLE TV

CH PROGRAM START I_,

ill _ __ i _iii _ _ii_ i

SELECT AV ADJUST 4I_

Changing channels

To change the channel, you can:

• change the programmed channels using the remote control

• select a channel directly using the remote control

• scan the channels using the TV buttons

To change to the next programmed channel:

Press Channel + or - on the TV or remote control.

To change to a specific channel (programmed or unprogrammed):

Press the Channel Number buttons (0-9 and 100).

For example, to select channel 125, press the 100 button, the 2

button, and the 5 button.

Channel

Numbers

Channel +/-

Av<P,

Exit

Using the TV's features

Adjusting the channel settings

Switching between two channels

You can switch between two channels without entering an actual

channel number each time.

To switch between two channels:

1. Select the first channel you want to view.

2. Select a second channel using the Channel Number buttons (0-9,

100).

3. Press CH RTN. The previous channel will be displayed.

Each time you press CH RTN, the TV will switch back and forth

between the two channels.

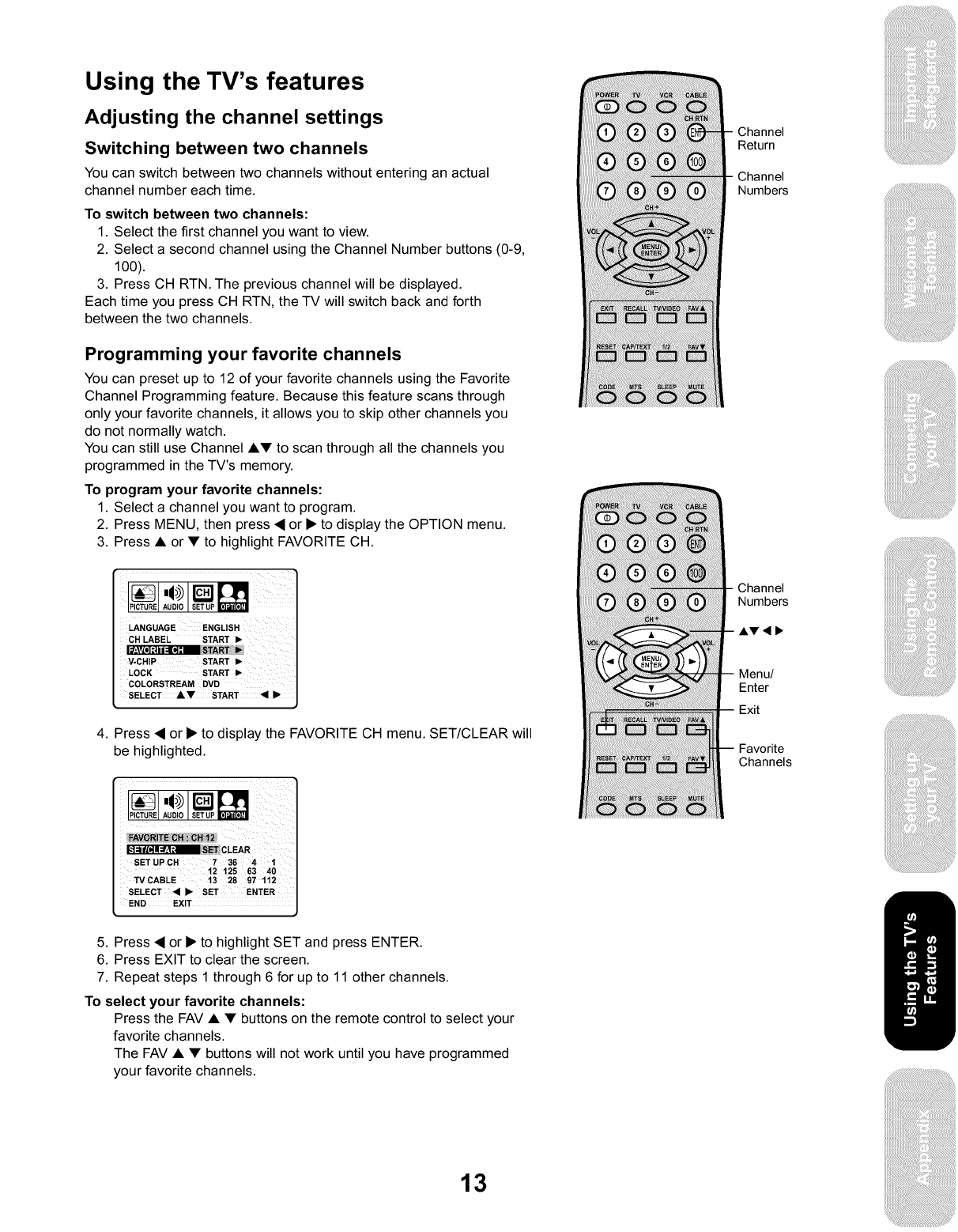

Programming your favorite channels

You can preset up to 12 of your favorite channels using the Favorite

Channel Programming feature. Because this feature scans through

only your favorite channels, it allows you to skip other channels you

do not normally watch.

You can still use Channel •V to scan through all the channels you

programmed in the TV's memory.

To program your favorite channels:

1. Select a channel you want to program.

2. Press MENU, then press • or • to display the OPTION menu.

3. Press • or •to highlight FAVORITE CH.

LANGUAGE ENGLISH

OH LABEL START •

__TART i_:

V-CHIP START •

LOCK START •

COLORSTREAM DVD

SELECT AV START <1 •

4. Press • or • to display the FAVORITE CH menu. SET/CLEAR will

be highlighted.

Channel

Return

Channel

Numbers

Channel

Numbers

Av<•

Menu/

Enter

Exit

Favorite

Channels

_S_TCLEAR

SET UP OH 73641

12125 63 40

TVCABLE 13 28 97112

SELECT 4 • SET ENTER

END EXIT

5. Press •or • to highlight SET and press ENTER.

6. Press EXIT to clear the screen.

7. Repeat steps 1 through 6 for up to 11 other channels.

To select your favorite channels:

Press the FAV • • buttons on the remote control to select your

favorite channels.

The FAV • • buttons will not work until you have programmed

your favorite channels.

To clear your favorite channels:

1. Select a channel you want to clear.

2. Press MENU, then press • or • to display the OPTION menu.

3. Press • or •to highlight FAVORITE CH.

4. Press • or • to display the FAVORITE CH menu. SET/CLEAR will

be highlighted.

ii_!_i_i_i_ii_ ¸

_;SET CLEAR

SET UPCH 7 36 4 1

12 125 63 40 I

TVCABLE 13 28 97 1t2 I

SELECT • • SET ENTER

END EXT J

5. Press the • or • to highlight CLEAR.

Menu/

Enter

Exit

[

SET CLEAR ]

SET UPCH 11

12 125 63 40 I

TVCABLE 13 28 97 I

SELECT • •CLEAR ENTE R I

END EXIT J

6. Press ENTER until "0" replaces the channel number you want to

erase.

7. Press EXIT to clear the screen.

8. Repeat steps 1 through 6 for the other channels.

Using the V-Chip (parental control) feature

You can prevent others from viewing certain programs or channels by

blocking them using the V-Chip feature.

Selecting a PIN code

Before you can block programs and channels, you must select a

personal identification number (PIN) code. The PIN code you select

prevents others from changing the rating limits you set.

To select your PIN code and access the V-Chip menus:

1. Press MENU, then press • or • to highlight the OPTION menu.

2. Press • or • to highlight V-CHIP.

iii i _iii_i_!_iiiiI

LANGUAGE ENGLISH

CH LABEL START •

FAVORITE CH START •

COLORSTREAM DVD

SELECT AV START• •

Note:

This selected PIN code is also used in the LOCK menu; see pages 18-

19.

Channel

Numbers

-Av<I_

Menu/

Enter

Exit

3. Press •or • to display the V-CHIP menu.

.,cT0...00,os.T0.

SELECT [0-9] SET ENTER

END EXIT

4. Use the Channel Number buttons (0-9) to enter your PIN code.

If you are accessing the V-Chip menus for the first time, select a

four-digit number to be your PIN code. Press ENTER. The

BLOCKING menu appears.

Note:

If you forget your PIN code, press RECALL

four times within five seconds from the V-CHIP

menu. This allows you to proceed to the

BLOCKING menu and resets your PIN code.

I=1_r-'1:]| =11:]EeI_][410[_1 _N OFF J

SET RATING sTART •I

BLOCKING OPTION START •I

NEW P! N COD ESTAR]" •I

SELECT ADJUST 4I_ J

5. You may now enable blocking. See "Blocking programs by ratings"

(below), "Locking channels" (page 18), "To change your PIN code"

(below), or "Blocking unrated movies or programs" (page 18).

To change your PIN code:

1. Press MENU, then press • or • to display the OPTION menu.

2. Press • or •to highlight V-CHIP.

3. Press • or • to display the V-CHIP menu.

4. Use the Channel Number buttons (0-9) to enter your PIN code.

If you are accessing the V-Chip menus for the first time, select a

four-digit number to be your PIN code. Press ENTER. The

BLOCKING menu appears.

5. Press • or • to highlight NEW PIN CODE and press • or • to

display the NEW PIN CODE menu.

6. Use the Channel Number buttons (0-9) to enter a new code. Press

ENTER.

7. Press EXIT to return to the normal viewing.

Blocking programs by ratings

The Motion Picture Association of America (MPAA) uses a rating

system to qualify motion picture content. Television broadcasters

employ a rating system to qualify the content of television programs, as

well. The MPAA, Youth TV and TV ratings work with the V-Chip feature

and allow you to block out programming above the rating limits you

determine.

Channel

Numbers

Av<I_

Menu/

Enter

Exit

MPAA Ratings

X For adults only.

NCl 7 Not intended for anyone 17 or under.

R Restricted. Under 17 requires an accompanying

parent or adult guardian.

PG13 Parents strongly cautioned. Some material may be

inappropriate for children under 13.

PG Parental guidance suggested. Some material may

not be appropriate for children.

G General audience. Appropriate for all ages.

Youth TV Ratings

Y7FV, Y7,Y Directed to older children. This program is designed

for children age 7 and above. Programs in which

fantasy violence may be more intense or combative

than other programs in this category are designated

TV-Y7-FV.

Y All children. This program is designed to be appropri-

ate for all children.

TV Ratings

MA Mature audience only. This program is specifically

designed to be viewed by adults and therefore may

be unsuitable for children under 17.

Language

Sex

Violence

Crude or indecent language.

Explicit sexual activity.

Graphic violence.

14 Parents strongly cautioned. This program contains

some material that many parents would find unsuit-

able for children under 14 years of age.

Dialog Intensely suggestive dialog.

Language Strong, coarse language.

Sex Intense sexual situations.

Violence Intense violence.

PG Parental guidance suggested. This program contains

material that parents may find unsuitable for younger

children.

Dialog Some suggestive dialog.

Language Infrequent coarse language.

Sex Some sexual situations.

Violence Moderate violence.

GGeneral audience. Most parents would find this

program suitable for all ages.

No DLSV Programs without any Dialog, Language, Sex or

Violence ratings.

Note:

To see the rating of the program you are

viewing, press RECALL at any time.

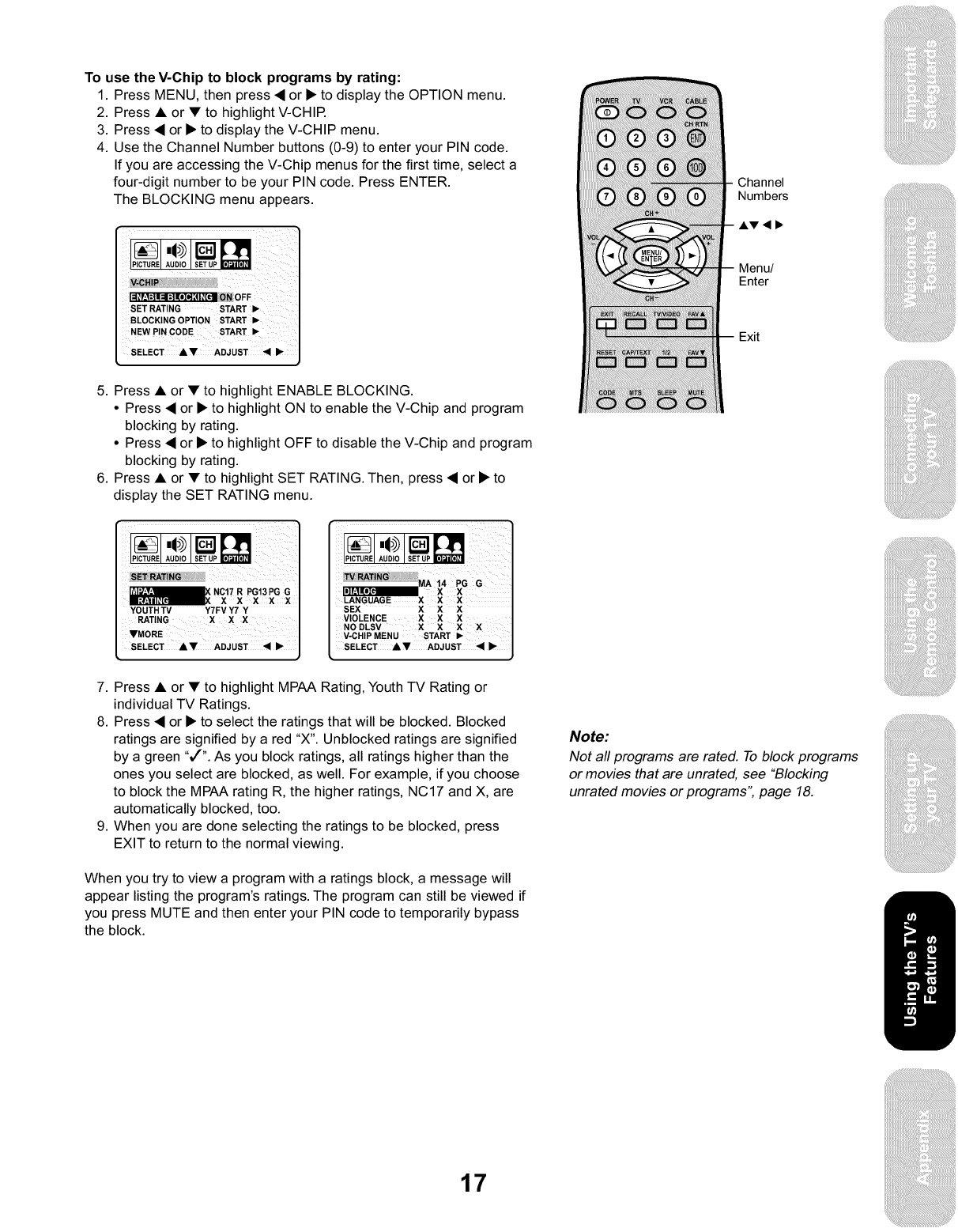

To use the V-Chip to block programs by rating:

1. Press MENU, then press • or • to display the OPTION menu.

2. Press • or •to highlight V-CHIP.

3. Press • or • to display the V-CHIP menu.

4. Use the Channel Number buttons (0-9) to enter your PIN code.

If you are accessing the V-Chip menus for the first time, select a

four-digit number to be your PIN code. Press ENTER.

The BLOCKING menu appears.

I _1_r;1t,t 11:1110[l_ _4I_[_!1_OI;,I OFF I

SET_TING START• I

BLOGKINGOPTION START • J

NEWPJNCODESTART• J

SELECT ADJUST '_ I_ J

5. Press • or • to highlight ENABLE BLOCKING.

•Press •or • to highlight ON to enable the V-Chip and program

blocking by rating.

• Press •or • to highlight OFF to disable the V-Chip and program

blocking by rating.

6. Press • or • to highlight SET RATING. Then, press • or • to

display the SET RATING menu.

:SE RATi_

I_T_J_x NC17 R PG13PG G

"' _XX XXX

YOUTH TV Y7FV Y7 Y

RATING X X X

VMORE

SELECT ADJUST _111_

SEX X X X

VIOLENCE X X X

NO DLSV XX X X

V-CHIP MENU START •

SELECT AV ADJUST 4I_

7. Press • or • to highlight MPAA Rating, Youth TV Rating or

individual TV Ratings.

8. Press • or • to select the ratings that will be blocked. Blocked

ratings are signified by a red "X". Unblocked ratings are signified

by a green "J'". As you block ratings, all ratings higher than the

ones you select are blocked, as well. For example, if you choose

to block the MPAA rating R, the higher ratings, NC17 and X, are

automatically blocked, too.

9. When you are done selecting the ratings to be blocked, press

EXIT to return to the normal viewing.

When you try to view a program with a ratings block, a message will

appear listing the program's ratings. The program can still be viewed if

you press MUTE and then enter your PIN code to temporarily bypass

the block.

Channel

Numbers

AV,9 I,

Menu/

Enter

Exit

Note:

Not all programs are rated. To block programs

or movies that are unrated, see "Blocking

unrated movies or programs", page 18.

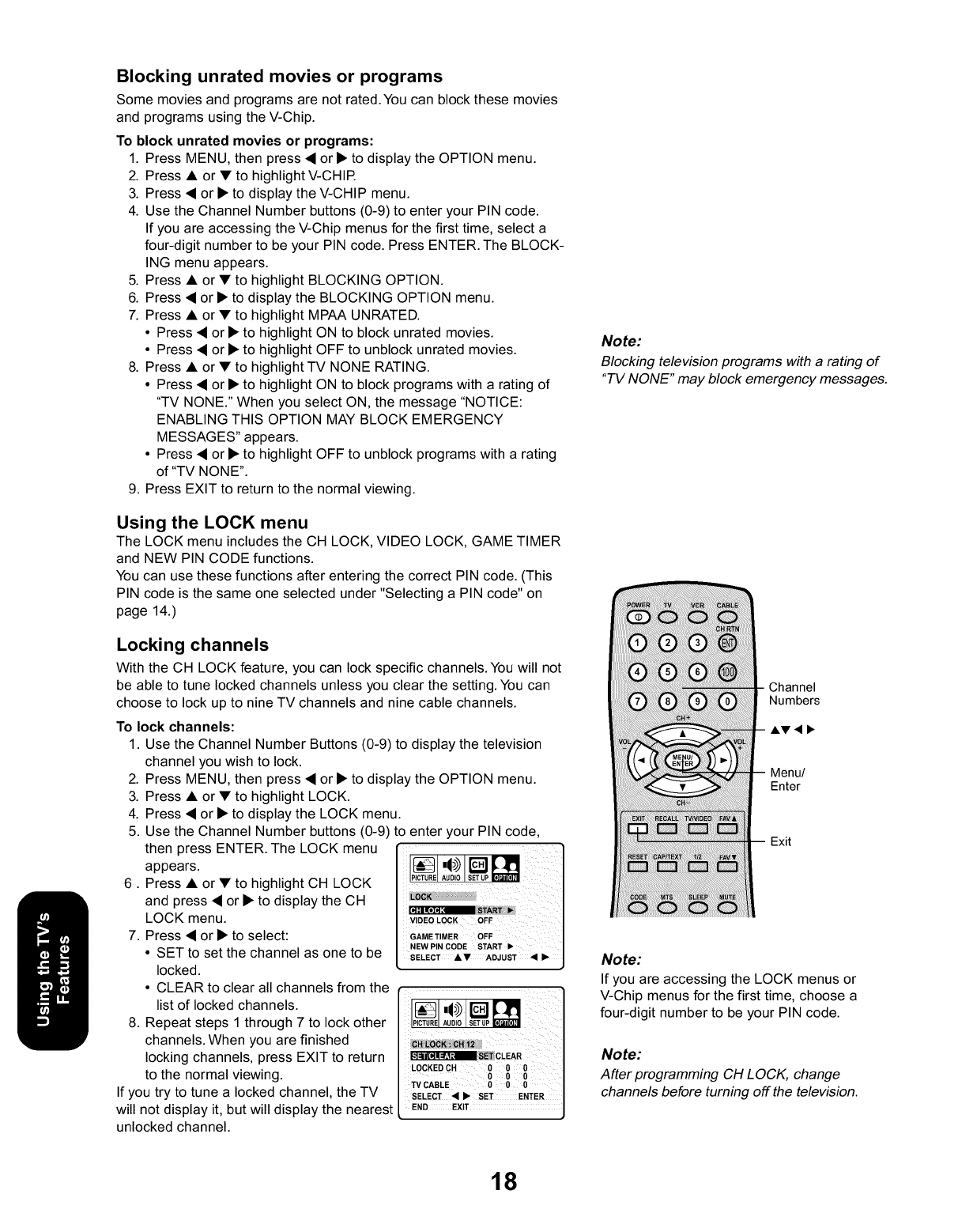

Blocking unrated movies or programs

Some movies and programs are not rated. You can block these movies

and programs using the V-Chip.

To block unrated movies or programs:

1. Press MENU, then press • or • to display the OPTION menu.

2. Press • or •to highlight V-CHIP.

3. Press • or • to display the V-CHIP menu.

4. Use the Channel Number buttons (0-9) to enter your PIN code.

If you are accessing the V-Chip menus for the first time, select a

four-digit number to be your PIN code. Press ENTER. The BLOCK-

ING menu appears.

5. Press • or • to highlight BLOCKING OPTION.

6. Press • or • to display the BLOCKING OPTION menu.

7. Press • or • to highlight MPAA UNRATED.

• Press • or • to highlight ON to block unrated movies.

• Press • or • to highlight OFF to unblock unrated movies.

8. Press • or • to highlight TV NONE RATING.

• Press • or • to highlight ON to block programs with a rating of

"TV NONE." When you select ON, the message "NOTICE:

ENABLING THIS OPTION MAY BLOCK EMERGENCY

MESSAGES" appears.

• Press • or • to highlight OFF to unblock programs with a rating

of "TV NONE".

9. Press EXIT to return to the normal viewing.

Using the LOCK menu

The LOCK menu includes the CH LOCK, VIDEO LOCK, GAME TIMER

and NEW PIN CODE functions.

You can use these functions after entering the correct PIN code. (This

PIN code is the same one selected under "Selecting a PIN code" on

page 14.)

Locking channels

With the CH LOCK feature, you can lock specific channels. You will not

be able to tune locked channels unless you clear the setting. You can

choose to lock up to nine TV channels and nine cable channels.

To lock channels:

1. Use the Channel Number Buttons (0-9) to display the television

channel you wish to lock.

2. Press MENU, then press • or • to display the OPTION menu.

3. Press • or • to highlight LOCK.

4. Press • or • to display the LOCK menu.

5. Use the Channel Number buttons (0-9) to enter your PIN code,

then press ENTER. The LOCK menu

appears.

6. Press • or • to highlight CH LOCK

and press • or • to display the CH

LOCK menu.

7. Press • or • to select:

• SET to set the channel as one to be

locked.

• CLEAR to clear all channels from the

list of locked channels.

8. Repeat steps 1 through 7 to lock other

channels. When you are finished

locking channels, press EXIT to return

to the normal viewing.

If you try to tune a locked channel, the TV

will not display it, but will display the nearest

unlocked channel.

VIDEO LOCK OFF

GAMETIMER OFF

NEW PiN CODE START •

SELECT _I,V ADJUST 41 •

LOCKED CH 0 0 0

0 0 0

TV CABLE 0 0 0

SELECT _ • SET ENTER

END EXIT

Note:

Blocking television programs with a rating of

"TV NONE" may block emergency messages.

Channel

Numbers

Av._ P_

Menu/

Enter

Exit

Note:

If you are accessing the LOCK menus or

V-Chip menus for the first time, choose a

four-digit number to be your PIN code.

Note:

After programming CH LOCK, change

channels before turning off the television.

To unlock channels:

1. Press MENU, then press • or • to display the OPTION menu.

2. Press • or •to highlight LOCK and then press • or • to display

the LOCK menu.

3. Use the Channel Number buttons (0-9) to enter your PIN code,

then press ENTER. The LOCK menu appears.

4. Press • or • to highlight CH LOCK and press • or • to display

the CH LOCK menu.

5. Press • or • to highlight CLEAR and clear all channels from the

list of locked channels. Press ENTER.

6. Press EXIT to return to the normal viewing.

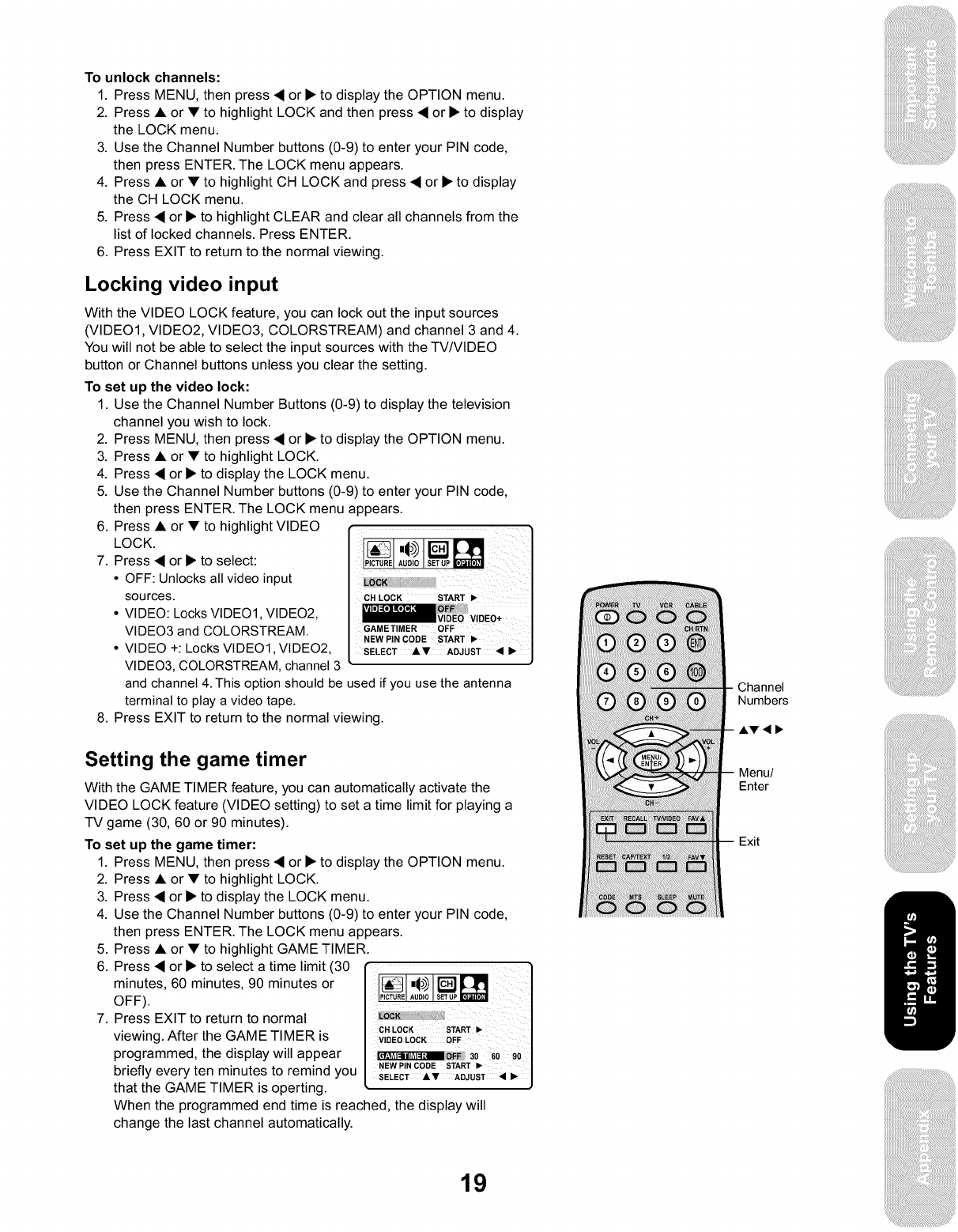

Locking video input

With the VIDEO LOCK feature, you can lock out the input sources

(VIDEO1, VIDEO2, VIDEO3, COLORSTREAM) and channel 3 and 4.

You will not be able to select the input sources with the TV/VIDEO

button or Channel buttons unless you clear the setting.

To set up the video lock:

1. Use the Channel Number Buttons (0-9) to display the television

channel you wish to lock.

2. Press MENU, then press • or • to display the OPTION menu.

3. Press • or • to highlight LOCK.

4. Press • or • to display the LOCK menu.

5. Use the Channel Number buttons (0-9) to enter your PIN code,

then press ENTER. The LOCK menu appears.

6. Press • or • to highlight VIDEO

LOCK.

7. Press • or • to select:

• OFF: Unlocks all video input

sources.

• VIDEO: Locks VIDEO1, VIDEO2,

VIDEO3 and COLORSTREAM.

• VIDEO +: Locks VIDEO1, VIDEO2,

VIDEO3, CQLORSTREAM, channel 3

CHLOCK START

SELECT ADJUST _1 I•

and channel 4. This option should be used if you use the antenna

terminal to play a video tape,

8. Press EXIT to return to the normal viewing.

Setting the game timer

With the GAME TIMER feature, you can automatically activate the

VIDEO LOCK feature (VIDEO setting) to set a time limit for playing a

TV game (30, 60 or 90 minutes).

To set up the game timer:

1. Press MENU, then press • or •to display the OPTION menu.

2. Press •or •to highlight LOCK.

3. Press •or •to display the LOCK menu.

4. Use the Channel Number buttons (0-9) to enter your PIN code,

then press ENTER. The LOCK menu appears.

5. Press • or • to highlight GAME TIMER.

6. Press • or • to select a time limit (30

minutes, 60 minutes, 90 minutes or

OFF).

7. Press EXIT to return to normal

viewing. After the GAME TIMER is

programmed, the display will appear

briefly every ten minutes to remind you

that the GAME TIMER is operting.

PICTURE AUD0 SETUP

CH LOCK START •I

V,DEOLOCK OfF 30 60 90 I

NEWPINCODE START •

SELECT AV ADJUST 41 I_

When the programmed end time is reached, the display will

change the last channel automatically.

Channel

Numbers

AV<b

Menu/

Enter

Exit

Labeling channels

Channel labels will appear over the channel number display each time

you turn on the TV, select a channel, or press the Recall button.You

can choose any four characters to identify the channels.

To create channel labels:

1. Select a channel you want to label.

2. Press MENU then press • or • until the OPTION menu appears.

3. Press • or •to highlight CH LABEL.

4. Press • to display the CH LABEL menu. SET/CLEAR will be

highlighted.

]

LANGUAGE ENGLISH I

_:START

FAVORITE CH START • [

V.CH=P START•

LOCK START •I

COLORSTREAM DVD I

SELECT AV J

5. Press • or • to highlight SET.

_S_ CLEAR

Menu/

Enter

Exit

END EXIT

6. Press • or • to highlight LABEL.

7. Press •or • to enter a character in

the first space. Press the button

repeatedly until the character you want

appears on the screen. Press ENTER.

8. Repeat step 7 to enter the rest of the

characters.

If you would like a blank space in the

label name, you must choose an

SET/CLEAR SET

SELECT 4 • SET ENTER

END EXIT

empty space from the list of characters. Otherwise, a dash will

appear in that space.

9. Repeat steps 1 through 8 for other channels. You can assign a

label to each channel.

10. Press EXIT to clear the screen.

To erase channel labels:

1. Select a channel with a label.

2. Press MENU then press • or • until the OPTION menu appears.

3. Press • or • to highlight CH LABEL.

4. Press • or • to display the CH LABEL menu.

SET/CLEAR will be highlighted.

5. Press • or • to highlight CLEAR.

6. Press ENTER.

7. Repeat steps 1 through 6 to erase other channel labels.2O

Note:

The character will change as below.

- <'_ "--I_ 0 <'-- "--I_... <'_ "--I_ 9 <'_ "--I_ A <1"_"--I_ • • •

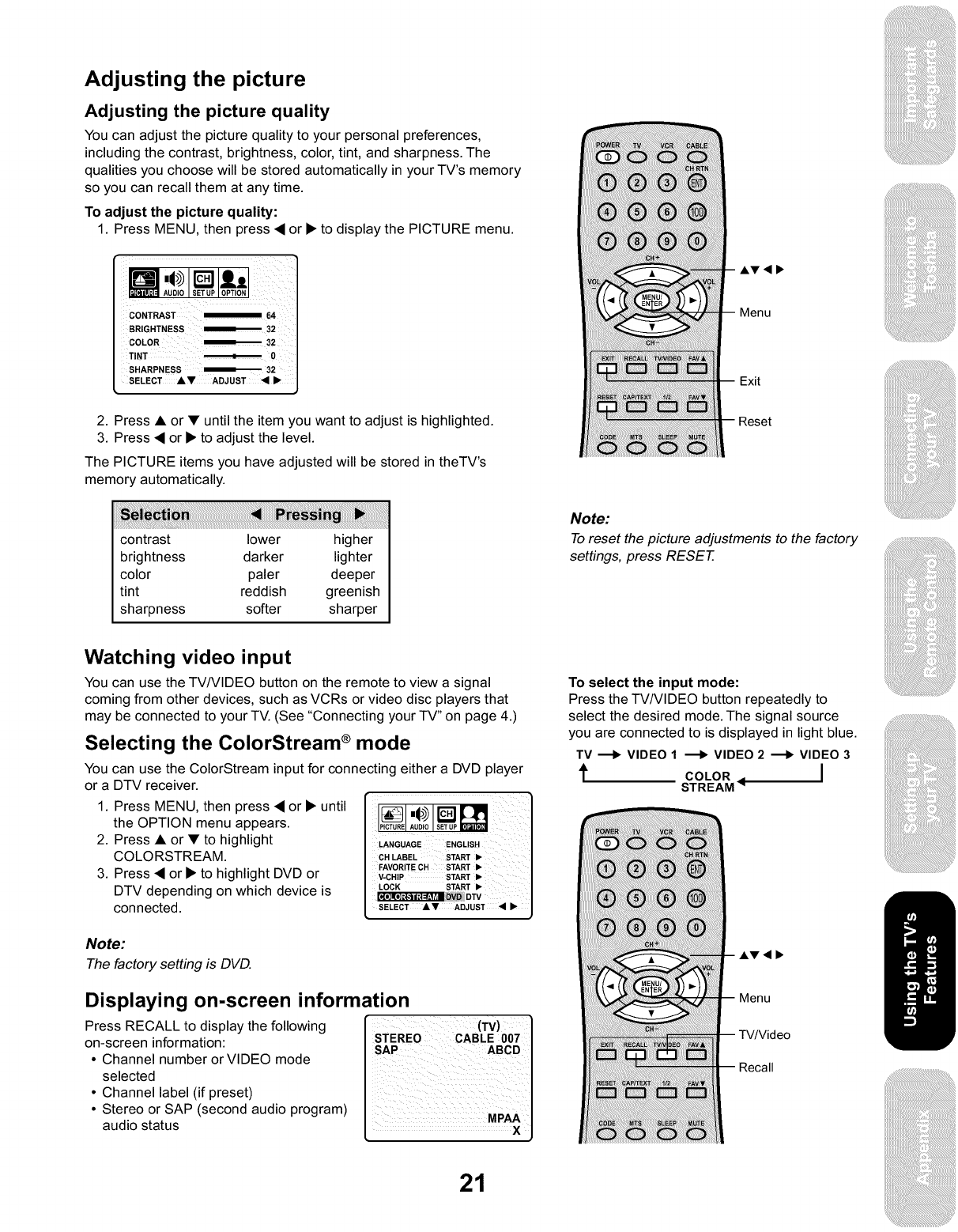

Adjusting the picture

Adjusting the picture quality

You can adjust the picture quality to your personal preferences,

including the contrast, brightness, color, tint, and sharpness. The

qualities you choose will be stored automatically in your TV's memory

so you can recall them at any time.

To adjust the picture quality:

1. Press MENU, then press • or • to display the PICTURE menu.

i i i

CONTRAST 64

BRIGHTNESS 32

COLOR 32

TINT 0

SHARPNESS _32

SELECT AV ADJUST _11_

2. Press • or •until the item you want to adjust is highlighted.

3. Press • or • to adjust the level.

The PICTURE items you have adjusted will be stored in theTV's

memory automatically.

contrast lower higher

brightness darker lighter

color paler deeper

tint reddish greenish

sharpness softer sharper

Watching video input

You can use the TV/VIDEO button on the remote to view a signal

coming from other devices, such as VCRs or video disc players that

may be connected to your TV. (See "Connecting your TV" on page 4.)

Selecting the ColorStream ®mode

You can use the ColorStream input for connecting either a DVD player

or a DTV receiver.

1. Press MENU, then press • or • until

the OPTION menu appears.

2. Press • or • to highlight

COLORSTREAM.

3. Press • or • to highlight DVD or

DTV depending on which device is

connected.

OH!'I

PCTURE AUDO SETUP [#_l[#l_

LANGUAGE ENGLISH I

CH LABEL START• I I

FAVORITE € H START •I

V-CHIP START •I

LOCK START •

SELECT AV ADJUST < I_ /

)

Note:

The factory setting is DVD.

Displaying on-screen information

Press RECALL to display the following

on-screen information:

• Channel number orVlDEO mode

selected

• Channel label (if preset)

• Stereo or SAP (second audio program)

audio status

(TV) i

MPAA

Av<l,

Exit

Note:

To reset the picture adjustments to the factory

settings, press RESET.

To select the input mode:

Press the TV/VIDEO button repeatedly to

select the desired mode. The signal source

you are connected to is displayed in light blue.

TV _ VIDEO1 _ VIDEO2 _ VIDEO3

t COLOR I

STREAM _

Setting the sleep timer

You can set the TV so it turns off automatically.

To set the sleep timer:

Repeatedly press the SLEEP button on the remote control. The clock

will count down 10 minutes for each press of the SLEEP button (120,

110 .... 10, 0). After the sleep time is programmed, the display will

appear briefly every ten minutes to remind you that the sleep timer is

operating.

To confirm the sleep timer setting:

Press the SLEEP button and the remaining time will be momen-

tarily displayed.

To cancel the sleep timer:

Repeatedly press the SLEEP button until the display turns to 0.

Using the closed caption feature

You have two options with the closed caption feature: captions or text.

A caption is a printed version of the dialogue, narration and/or sound

effects of a TV program. Text is information not related to the program

that appears on half of the TV screen.

To view captions or text:

1. Select the desired program. The captioned programs are usually

marked in your local TV listing by "CC".

2. Press CAP/TEXT repeatedly to select caption or text mode.

3. Press 1/2 to select the caption or text channel.

4. To turn off the closed-captioned feature, press CAP/TEXT

repeatedly until the normal TV viewing appears on the screen.

Av,9 I,

Closed

Caption

Sleep

Note:

A dosed caption signal may not be decoded

in the following situations:

•when a video tape has been dubbed

• when the signal reception is weak

• when the signal reception is non-standard

When you choose a closed captioned channel

and the text mode, the text screen always

appears as a black box. When there is no

signal, however, the text screen will not

display text characters. Repeatedly press

CAP/TEXT until the box disappears.

Adjusting the sound

Muting the sound

Press MUTE to temporarily turn offthe sound. While the sound is off,

the screen will display the word MUTE in the lower right-hand corner.

To restore the sound, press MUTE again.

Selecting stereo/SAP broadcasts

You can enjoy watching TV while you listen to high-fidelity stereo

sound with the Multi-channel TV Sound (MTS) feature. MTS can also

transmit a second audio program (SAP) containing a second language

or other audio information.

When the TV receives a stereo or SAP broadcast, the word STEREO

or SAP appears on-screen every time the TV is turned on, the chanel is

changed, or the RECALL button is pressed.

The MTS feature is not available while in the VIDEO mode.

When you are watching a stereo broadcast, the word STEREO is

displayed in light blue. You can leave your TV in STEREO mode

because it will automatically output stereo or monaural sound, depend-

ing on the broadcast type. If the stereo sound is noisy, select MONO to

reduce the noise. The word STEREO or SAP is displayed in light blue

when the TV receives the signal.

To select desired sound

Pressthe MTS button to select the desired sound.

Recall

M ute

MTS

MONO+SAP broadcasting

MAINSOUNDI_(MONO) SAPSOUND _[

MAIN + SAP SOUND /

(MONO) J

STEREO+SAP broadcasting

MAIN SOUND

(STEREO)

MAIN SOUND

(MONO)

SAP SOUND

MAIN + SAP SOUND

(MONO)

Adjusting the sound quality

You can change the sound quality of your TV by adjusting the bass,

treble, and balance.

To adjust the sound quality:

1. Press MENU, then press • or • until the AUDIO menu appears.

BASS 32

TREBLE 32 I

BALANCE 0 I

STABLE SOUND ON

SELECT "I t"

2. Press • or • to highlight the item you want to adjust.

3. Press • or • to adjust the level.

Av.9 I,

• • makes the sound quality weaker or decreases the balance in

the right channel, depending on the item selected.

• • makes the sound quality stronger or decreases the balance in

the left channel, depending on the item selected.

Using the StableSound TM feature

The StableSound TM feature limits the highest volume level to prevent

extreme changes in volume.

To turn on the StableSound TM feature:

1. Press MENU, then press •or • until the AUDIO menu appears.

2. Press • or • to highlight STABLE SOUND.

3. Press • or • to highlight ON.

Note:

To reset the audio adjustments to the factory

settings, press RESET.

To turn off the StableSound TM feature:

Choose OFF in step 3 above.

Auto power off

The TV will automatically turn itself off after approximately 15 minutes if

it is tuned to a vacant channel or if a station completes its broadcast for

the day and stops broadcasting on that channel. This feature does not

work in VIDEO mode.

Understanding the Power Return feature

If the power is cut off while you are viewing the TV and the power is

resupplied, the Power Return feature will turn the TV on automatically.

If the power is going to be off for a long time or you are going to be

away from home for a long time, remove the power plug from the wall

outlet to prevent the TV from turning on in your absence.

Appendix

Cleaning and care

WARNING:

TV sets use high voltage. Do not try to remove the cabinet back. Refer servicing to qualified service technicians.

To clean theTV screen:

1. Unplug the TV to avoid possible shock hazard.

2. Use a clean, dry cellulose sponge or chamois cloth to wipe the TV screen and trim.

Caution:

Never use strong solvents such as thinner, benzene, or other chemicals on or near the cabinet. These chemicals can

damage the finish of the cabinet.

Troubleshooting

Before calling a service technician, please check the following table for a possible cause of the problem and some solutions.

Problem

TV will not turn on

No picture, no sound

No sound, picture OK

Poor sound, picture OK

Poor picture, sound OK

Poor reception of broadcast channels

Cannot receive above channel 13

Solution

• Make sure the power cord is plugged in, then press POWER.

• The remote control batteries may be dead. Replace the batteries.

• Check the antenna/cable connections.

• The sound may be muted. Press VOLUME.

• The station may have broadcast difficulties. Try another channel.

• Check the antenna connections.

• The station may have broadcast difficulties. Try another channel.

• Adjust the PICTURE menu.

• The station may have broadcast difficulties. Try another channel.

• Check the antenna connections.

• If you are using a VCR, make sure the TV/VCR button is set correctly.

• Make sure TV/CABLE is set to CABLE mode.

Unable to select a certain channel

Cannot access signal input sources (Video1,

Video2, Video3 and ColorStream) and/or

Channels 3 and 4

• The channel may be blocked by the V-Chip feature or CH LOCK

feature, or erased with the add/erase feature.

•Check the VIDEO LOCK feature.

Multiple images

Poor color or no color

No stereo or SAP sound from a

known MTS broadcast

• The station may have broadcast difficulties. Try another channel.

• Use a highly directional outdoor antenna.

The station may have broadcast difficulties. Try another channel.

Adjust the TINT and/or COLOR in the PICTURE menu.

If you change the direction of the TV while it is turned on, the picture

could suffer from color shading. If so, turn off the TV and allow it to cool

for several hours before turning it on again.

• Make sure the MTS feature is set properly.

The V-Chip PIN code does not work

The remote control does not operate

Change or reset your PIN code (page 14 and 15).

Make sure the TV/VCR/CABLE mode is set properly.

Remove all obstruction between the remote control and the remote

control sensor.

The remote control batteries may be dead. Replace the batteries.

Specifications

Picture Tube

Television system

Channel coverage

Power source

Power consumption

Audio power

Speaker type

Video/Audio terminals

Dimensions

Weight

Supplied accessories

Type 14 (357 mm diagonal)

NTSC standard

VHF: 2 ~ 13

UHF: 14 ~ 69

Cable TV: 4A, A-5 ~ A-l, A-I,

J ~ W, W+I ~ W+48

120V AC, 60 Hz

80 W

2.5W + 2.5W

1-5/8 x 2-13/16 inches (41 x 71 mm) x 2 pcs.

S-VIDEO INPUT

Y-INPUT: 1V (p-p), 75 ohm, negative sync.

C-INPUT: 0.286V (p-p) (burst signal), 75 ohm

VIDEO/AUDIO INPUT

VIDEO: 1V (p-p), 75 ohm, negative sync.

AUDIO: 150 mV (rms) (30% modulation equivalent, 47k ohm)

ColorStream TM (component video) INPUT

Y : 1V (p-p), 75 ohm

PR : 0.7V (p-p), 75 ohm

PB : 0.7V (p-p), 75 ohm

VIDEO/AUDIO OUTPUT

VIDEO: 1V (p-p), 75 ohm, negative sync.

AUDIO: 150 mV (rms) (30% modulation equivalent, 47k ohm)

Width: 17 inches (432 mm)

Height: 13-9/16 inches (344.5 mm)

Depth: 15-3/16 inches (386 mm)

24.3 Ibs. (11 kg)

Remote control with two size "AAA" batteries

Design and specifications are subject to change without notice.

Limited United States Warranty

For 24" FST PURE ®and All SmallerTelevision Models

Toshiba America Consumer Products, Inc. ("TACP") and Toshiba Hawaii, Inc. ("THI") make the following limited warranties to

original consumers in the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PUR-

CHASER OR ANY PERSON RECEIVING THIS TELEVISION AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER

AND TO NO OTHER PURCHASER OR TRANSFEREE.

PRODUCTS PURCHASED IN THE U.S.A. AND USED IN CANADA ARE NOT COVERED BY THESE WARRANTIES.

PRODUCTS PURCHASED IN CANADA AND USED IN THE U.S.A. ARE NOT COVERED BY THESE WARRANTIES.

Limited Ninety (90) Day Warranty on Labor*

TACP/THI warrant this television and its parts against defects in materials or workmanship for a period of ninety (90) days after

the date of original retail purchase. DURING THIS PERIOD, TACP/THI WILL, AT TACP/THI'S OPTION, REPAIR OR RE-

PLACE A DEFECTIVE PART WITH A NEW OR REFURBISHED PARTWITHOUT CHARGE TOYOU FOR PARTS OR LABOR.

YOU MUST DELIVER THE ENTIRE TELEVISION TO AN AUTHORIZED TACP/THI SERVICE STATION. YOU MUST PAY

FOR ALL TRANSPORTATION AND INSURANCE CHARGES FOR THE TELEVISION TO AND FROM THE SERVICE STA-

TION.

Limited One (1) Year Warranty on Parts*

TACP/THI further warrant the parts in this television against defects in materials or workmanship for a period of one (1) year

after the date of original retail purchase. DURING THIS PERIOD, TACP/THI WILL, AT TACP/THI'S OPTION, REPAIR OR

REPLACE A DEFECTIVE PART WITH ANEW OR REFURBISHED PART WITHOUT CHARGE TO YOU FOR THE PART,

PROVIDED THAT IF A DEFECTIVE PART IS REPAIRED OR REPLACED AFTER NINETY (90) DAYS FROM THE DATE OF

ORIGINAL RETAIL PURCHASE,YOU MUST PAYALL LABOR CHARGES INVOLVED IN THE REPAIR OR REPLACEMENT.

YOU MUST DELIVER THE ENTIRE TELEVISION TO AN AUTHORIZED TACP/THI SERVICE STATION. YOU MUST PAY

FOR ALL TRANSPORTATION AND INSURANCE CHARGES FOR THE TELEVISION TO AND FROM THE SERVICE STA-

TION.

Limited Two (2) Year Warranty on Picture Tube*

TACP/THI further warrant the picture tube in this television against defects in materials or workmanship for a period of two (2)

years after the date of original retail purchase. DURING THIS PERIOD, TACP/THI WILL, AT TACP/THI'S OPTION, REPAIR

OR REPLACE A DEFECTIVE PICTURE TUBE WITH A NEW OR REFURBISHED PICTURE TUBE WITHOUT CHARGE TO

YOU, EXCEPT THAT IF A DEFECTIVE PICTURE TUBE IS REPAIRED OR REPLACED AFTER NINETY (90) DAYS FROM

THE DATE OF THE ORIGINAL RETAIL PURCHASE, YOU MUST PAY ALL LABOR CHARGES INVOLVED IN THE REPAIR

OR REPLACEMENT. YOU MUST DELIVER THE ENTIRE TELEVISION TO AN AUTHORIZED TACP/THI SERVICE STA-

TION.YOU MUST PAY FOR ALL TRANSPORTATION AND INSURANCE CHARGES FOR THE TELEVISION TO AND FROM

THE SERVICE STATION.

Rental Units

The warranty for rental units begins with the first rental or thirty (30) days from the date of shipment to the rental firm,

whichever comes first.

*Commercial Units

Televisions sold and used for commercial purposes have a limited ninety (90) day warranty for all parts, labor and picture tube.

Owner's Manual and Demographic Card

You should read this owner's manual thoroughly before operating this television. You should complete and mail the enclosed

Demographic card within ten days after you, orthe person who has given you this product as a gift, purchased this television.

This is one way to enable TACP/THI to provide you with better customer service and improved product. Failure to return the

Demographic card will not affect your rights under this warranty.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING CONDITIONS:

(1) You must provide your bill of sale or other proof of purchase.

(2) All warranty servicing of this television must be made by an Authorized TACP/THI Service Station.

(3) The warranties from TACP and THI are effective only if the television is purchased and operated in the U.S.A. or Puerto

Rico.

(4) Labor service charges for set installation, set up, adjustment of customer controls and installation or repair of antenna

systems are not covered by these warranties. Reception problems caused by inadequate antenna systems are your responsibility.

(5) Warranties extend only to defects in materials or workmanship as limited above and do not extend to any television or

parts which have been lost or discarded by you or to damage to television or parts caused by misuse, accident, Acts of

God, such as lightning or fluctuations in electric power, improper installation, improper maintenance or use in violation

of instructions furnished by TACP/THI; or to units which have been modified or had the serial number removed, altered,

defaced or rendered illegible.

How to Obtain Warranty Services

If, after following all of the operating instructions in this manual and checking the section "Troubleshooting", you find that service is

needed:

(1)To find the nearest TACP/THI Authorized Service Station:

For televisions purchased in the United States, except Hawaii, visit TACP's web site at www.toshiba.com/tacp/cus svc.html,

or call toll free 1-800-631-3811.

For televisions purchased in Hawaii, contact Toshiba Hawaii, Inc., 327 Kamakee Street, Honolulu, HI 96814, (808) 591-9281.

(2) Present your bill of sale or other proof of purchase to the Authorized Service Station. You must deliver the entire televi-

sion to an Authorized TACP/THI Service Station. You must pay for all transportation and insurance charges for the

television to and from the Service Station.

For additional information,

visit TACP's web site:

www.toshiba.com/tacp.

ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A., INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY LIMITED TO THE DURATION OF

THE LIMITED WARRANTIES SET FORTH ABOVE. WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY THE LAW

OF ANY STATE OF THE U.S.A. AS HEREBY LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF

ALL OTHER WARRANTIES, GUARANTEES, AGREEMENTS AND SIMILAR OBLIGATIONS OF TACP OR THI WITH RE-

SPECT TO THE REPAIR OR REPLACEMENT OF ANY PARTS. IN NO EVENT SHALL TACP OR THI BE LIABLE FOR

CONSEQUENTIAL OR INCIDENTAL DAMAGES.

No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in

any manner whatsoever. The time within which action must be commenced to enforce any obligation of TACP or THI arising

under this warranty or under any law of the United States or of any state thereof is hereby limited to 90 days from the date you

discover or should have discovered, the defect. This limitation does not apply to implied warranties arising under the law of any

state of the U.S.A.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY

VARY FROM STATE TO STATE IN THE U.S.A. SOME STATES OF THE U.S.A. DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, WHEN AN ACTION MAY BE BROUGHT, OR THE EXCLUSION OR LIMITATION

OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY

TOYOU UNDER SUCH CIRCUMSTANCES.

FST PURE ® is a registered trademark of Toshiba America Consumer Products, Inc.

Limited Canada Warranty

For 24" FST PURE ®and All SmallerTelevision Models

Toshiba of Canada Limited ("TC_') makes the following limited warranties to original consumers in Canada. THESE LIMITED

WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS TELEVI-

SION AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.

PRODUCTS PURCHASED IN THE U.S.A. AND USED IN CANADA ARE NOT COVERED BY THESE WARRANTIES.

PRODUCTS PURCHASED IN CANADA AND USED IN THE U.S.A. ARE NOT COVERED BY THESE WARRANTIES.

Limited Ninety (90) Day Warranty on Labor*

TCL warrants this television and its parts against defects in materials or workmanship for a period of ninety (90) days after the

date of original retail purchase. DURING THIS PERIOD, TCL WILL, AT TCl2S OPTION, REPAIR OR REPLACE A DEFEC-

TIVE PART WITH A NEW OR REFURBISHED PART WITHOUT CHARGE TO YOU FOR PARTS OR LABOR. YOU MUST

DELIVER THE ENTIRE TELEVISION TO AN AUTHORIZED TCL SERVICE STATION.YOU MUST PAY FOR ALL TRANS-

PORTATION AND INSURANCE CHARGES FOR THE TELEVISION TO AND FROM THE SERVICE STATION.

Limited One (1) Year Warranty on Parts*

TCL further warrants the parts in this television against defects in materials or workmanship for a period of one (1) year after

the date of original retail purchase. DURING THIS PERIOD, TCL WILL, AT TCl2S OPTION, REPAIR OR REPLACE A DEFEC-

TIVE PART WITH A NEW OR REFURBISHED PART WITHOUT CHARGE TO YOU FOR THE PART, PROVIDED THAT IF A

DEFECTIVE PART IS REPAIRED OR REPLACED AFTER NINETY (90) DAYS FROM THE DATE OF ORIGINAL RETAIL

PURCHASE, YOU MUST PAY ALL LABOR CHARGES INVOLVED IN THE REPAIR OR REPLACEMENT. YOU MUST DE-

LIVER THE ENTIRE TELEVISION TO AN AUTHORIZED TCL SERVICE STATION.YOU MUST PAY FOR ALL TRANSPOR-

TATION AND INSURANCE CHARGES FOR THE TELEVISION TO AND FROM THE SERVICE STATION.

Limited Two (2) Year Warranty on Picture Tube*

TCL further warrants the picture tube in this television against defects in materials or workmanship for a period of two (2) years

after the date of original retail purchase. DURING THIS PERIOD, TCL WILL, AT TC_S OPTION, REPAIR OR REPLACE A

DEFECTIVE PICTURE TUBE WITH A NEW OR REFURBISHED PICTURE TUBE WITHOUT CHARGE TO YOU, EXCEPT

THAT IF A DEFECTIVE PICTURE TUBE IS REPAIRED OR REPLACED AFTER NINETY (90) DAYS FROM THE DATE OF

THE ORIGINAL RETAIL PURCHASE, YOU PAY ALL LABOR CHARGES INVOLVED IN THE REPAIR OR REPLACEMENT.

YOU MUST DELIVER THE ENTIRE TELEVISION TO AN AUTHORIZED TCL SERVICE STATION.YOU MUST PAY FOR ALL

TRANSPORTATION AND INSURANCE CHARGES FOR THE TELEVISION TO AND FROM THE SERVICE STATION.

Rental Units

The warranty for rental units begins with the first rental or thirty (30) days from the date of shipment to the rental firm,

whichever comes first.

*Commercial Units

Televisions sold and used for commercial purposes have a limited ninety (90) day warranty for all parts, labor and picture tube.

Owner's Manual

You should read this owner's manual thoroughly before operating this television.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING CONDITIONS:

(1) You must provide your bill of sale or other proof of purchase.

(2) All warranty servicing of this television must be made by an Authorized TCL Service Station.

(3) The warranties from TCL are effective only if the television is purchased in Canada from an authorized TCL dealer and

operated in Canada.

(4) Labor service charges for set installation, set up, adjustment of customer controls and installation or repair of antenna

systems are not covered by these warranties. Reception problems caused by inadequate antenna systems are your

responsibility.

(5) Warranties extend only to defects in materials or workmanship as limited above and do not extend to any television or

parts which have been lost or discarded by you or to damage to television or parts caused by misuse, accident, Acts of

God, such as lightning or fluctuations in electric power, improper installation, improper maintenance or use in violation

of instructions furnished by TCL; or to units which have been modified or had the serial number removed, altered,

defaced or rendered illegible.

How to Obtain Warranty Services

If, after following all of the operating instructions in this manual and checking the section "Troubleshooting", you find that

service is needed:

(1) To find the nearest TCL Authorized Service Station visit TC!Js web site at www.toshiba.ca

(2) Present your bill of sale or other proof of purchase to the Authorized Service Station. You must deliver the entire television

to an Authorized TCL Service Station. You must pay for all transportation and insurance charges for the television to and

from the Service Station.

For additional information,

visit TCL's web site:

www.toshiba.ca

ALL WARRANTIES IMPLIED BY THE LAW OF ANY PROVINCE OF CANADA, INCLUDING THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY LIMITED TO THE DURATION

OF THE LIMITED WARRANTIES SET FORTH ABOVE. WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY THE

LAW OF ANY PROVINCE OF CANADA AS HEREBY LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE AND IN

LIEU OF ALL OTHER WARRANTIES, GUARANTEES, AGREEMENTS AND SIMILAR OBLIGATIONS OF TCL WITH RE-

SPECT TO THE REPAIR OR REPLACEMENT OF ANY PARTS. IN NO EVENT SHALL TCL BE LIABLE FOR CONSEQUEN-

TIAL OR INCIDENTAL DAMAGES.

No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in

any manner whatsoever. The time within which action must be commenced to enforce any obligation of TCL arising under this

warranty or under any law of Canada or of any province thereof, is hereby limited to 90 days from the date you discover or

should have discovered, the defect. This limitation does not apply to implied warranties arising under the law of any province

of Canada.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY

VARY FROM PROVINCE TO PROVINCE IN CANADA. SOME PROVINCES OF CANADA DO NOT ALLOW LIMITATIONS

ON HOW LONG AN IMPLIED WARRANTY LASTS, WHEN AN ACTION MAY BE BROUGHT, OR THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY

NOT APPLY TOYOU UNDER SUCH CIRCUMSTANCES.

FST PURE ®is a registered trademark of Toshiba America Consumer Products, Inc.

TOSHIBA AMERICA CONSUMER PROOUCTS, INC.

Head Office

82 Totowa Road, Wayne, NJ 07470

Factory Service Center

1420B Toshiba Drive, Lebanon, TN 37087

TOSHIBA HAWAII, INC

Head Office

327 Kamakee Street, Honolulu, HI 96814

TOSHIBA CANAOA LIMITED

191 McNabb Street

Markham, Ontario L3R 8H2

PRINTED IN THAILAND TOSHIBA

3L00301B ro-]

02/04

Toshiba 14AF42 User Manual TV Manuals And Guides L0209141

TOSHIBA Direct View/Digital 26 and under TV Manual L0209141 TOSHIBA Direct View/Digital 26 and under TV Owner's Manual, TOSHIBA Direct View/Digital 26 and under TV installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
