TOSHIBA

_.¢ _ H.._=ml,_ _o_ _!_o_

HIGH-DEHNI ION_L_VISION _HIGH-DEFINITION MULTIMEDIA INTERFACE V I D E O _ [__

D I G I T A L Digital0ut

19/22-inch* Diagonal LCD TV/DVD

COMBINATION

19LV505

19LV506

22LV505

Introduction

Connections

Basic setup

TV operation

Basic playback

Advanced playback

OWNER'S MANUAL

Others

Illustration of 19LV505

@2008 Toshiba Corporation

Before operating the unit, please read this manual thoroughly.

*Screen size is approximate.

Owner's Record

The model number and serial number

are on the back of your TV/DVD.

Record these numbers in the spaces

below. Refer to these numbers

whenever you communicate with your

Toshiba dealer about this TV/DVD.

Model number:

Serial number:

J50S0101A.indb 1 _/ 08.1.9 4:44:32PM

Dear Customer,

Thank youfor purchasing this ToshibaLCDTV or TV/DVD

Combination television.

This manualwill help you use the many exciting features of

your new LCDTV. Beforeoperating your LCDTV or TV/DVD

Combination, pleaseread this manualcompletely,and keep it

nearby for future reference.

Safety Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

WARNING

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to

the presence of uninsulated "dangerous voltage"

within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral triangle,

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

appliance.

CAUTION: To reduce the risk of electric shock,

do not use the polarized plug with an extension

cord, receptacle, or other outlet unless the blades

can be inserted completely to prevent blade

exposure.

WARNING: If you decide to wall mount this television,

always use a UL Listed wall bracket appropriate for the

size and weight of this television. The use of any wall bracket

other than a UL Listed wall bracket appropriate for the size

and weight of this television for wall mounting this television

cou d resu t in serious bodi y injury and/or property damage.

ENERGY STAR _ qualified TV. Products that earn

the ENERGY STAR prevent green house gas

emissions by meeting strict energy efficiency

guidelines set by the U.S. Environmental

Protection Agency and the U.S. Department of

Energy. ENERGY STAR and the ENERGY STAR

mark are registered U.S. marks.

NOTETOCATVINSTALLERS

This is a reminder to call tile CATV system installer's attention

to Article 820-40 of the NEC, which provides guidelines for proper

grounding and, in particular, specifies that the cable ground shall be

connected to grounding system of the building, as close to the point of

cable entry as practical. For additional antenna grounding information,

see item 27 on page 5.

Child Safety

It Makes A Difference

Where Your TV Stands

Congratulationson your purchase!

As youenjoy your new TV, keep these safetytips in mind:

The lssue

If you are like mostconsumers, you have a TV in your home. Many homes,

in fact, have more than one TV.

The home theater entertainment experience isa growing trend, and larger

TVsare popular purchases; however,they are not always supported on

the proper TV stands.

I3 Sometimes TVs are improperly secured or inappropriately

situated on dressers, bookcases, shelves, desks,audio

speakers, chests, or carts. As a result, TVsmay fall over,

causing unnecessary injury.

Toshiba Cares!

Theconsumer electronics industry is corrmlitted to

home entertainment enjoyable and safe.

g3TheConsumer ElectronicsAssociation formed the

Home Entertainment Support Safety Committee,

comprised of TV and consumer electronics furniture

manufacturers, to advocate children's safety and educate

consumers and their families about television safety.

Tune Into Safety

One size does NOTfit all! Useappropriate furniture large enough to

support the weight of your TV (and other electronic components).

Use appropriate angle braces,straps, and anchors to secure your furniture

to the wall (but never screw anything directly into the TV).

I3 Carefully read and understand the other enclosed instructions for proper

use of this product.

D Do not allow children to climb on or play with furniture andTVs.

D Avoid placing any item on top of yourTV (such asa VCR,remote control,

or toy) that a curious child may reach for.

Remember that children can become excited while watching a program

and can potentially push or pull aTV over.

Share our safety messageabout this hidden hazard of the home with

your family and friends. Thank you!

2500 Wilson Blvd.

Arlington, VA 22201 U.S.A.

www.CE.org

CEAis the Sponsor, Producer and

onsumerElectronicsAssociation Manager of the International CES_°

_l_J;l;[rk,J,3q;1;t

J5OSOIO1Aindb 2 _mL 08.1.9 4:44:39 PM

FCC compliance information

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE

OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

FOC Declaration of Conformity Compliance Statement (Part 15):

The Toshiba 19LV505, 19LV506, 22LV505, LCD TV/DVD Combination complies with Part 15 of the FCC rules. Operation is

subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

The party responsible for compliance to these rules is:

Toshiba America Consumer Products, L.LC.

82 Totowa Rd. Wayne, NJ 07470.

Ph: (800) 631-3811 or visit TACP's website at www.tacp.Toshiba.com

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by removing and applying power to the equipment, the user is encouraged to

try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radioFFV technician for help.

CAUTION: Changes or modifications to this equipment not expressly approved by Toshiba could void the user's authority to operate this

equipment.

=--2

Q..

£,

CAUTION:

THIS DIGITAL VIDEO PLAYER EMPLOYSA LASER SYSTEM.

TO ENSURE PROPERUSE OF THIS PRODUCT,PLEASE READ

THIS OWNER'S MANUAL CAREFULLYAND RETAIN FOR

FUTUREREFERENCE. SHOULDTHE UNIT REQUIRE

MAINTENANCE,CONTACTAN AUTHORIZED SERVICE

LOCATION.

USE OF CONTROLS, ADJUSTMENTSOR THE PERFORMANCE

OF PROCEDURESOTHER THAN THOSE SPECIFIED HEREIN

MAYRESULTIN HAZARDOUS RADIATIONEXPOSURE.

TO PREVENTDIRECT EXPOSURETO LASERBEAM, NEVER

OPEN THE ENCLOSURE.VISIBLE LASER RADIATIONMAY BE

PRESENTWHENTHE ENCLOSUREIS OPENED. NEVERSTARE

INTO BEAM.

Location of the required Marking

The rating sheet and the safety caution are the rear of the unit.

Illustration of

19LV505

CERTIFICATION: COMPLIES WITH FDA RADIATION

PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J.

ON DISPOSAL

The lamp(s) inside this product contain mercury. Disposal may be regulated due to environmental

considerations. For disposal or recycling information, contact your local authorities or the

Electronic Industries Alliance (www.eiae.org).

J50S0101A.indb 3 ,_lw/ 3I

08.1.9 4:44:41 PM

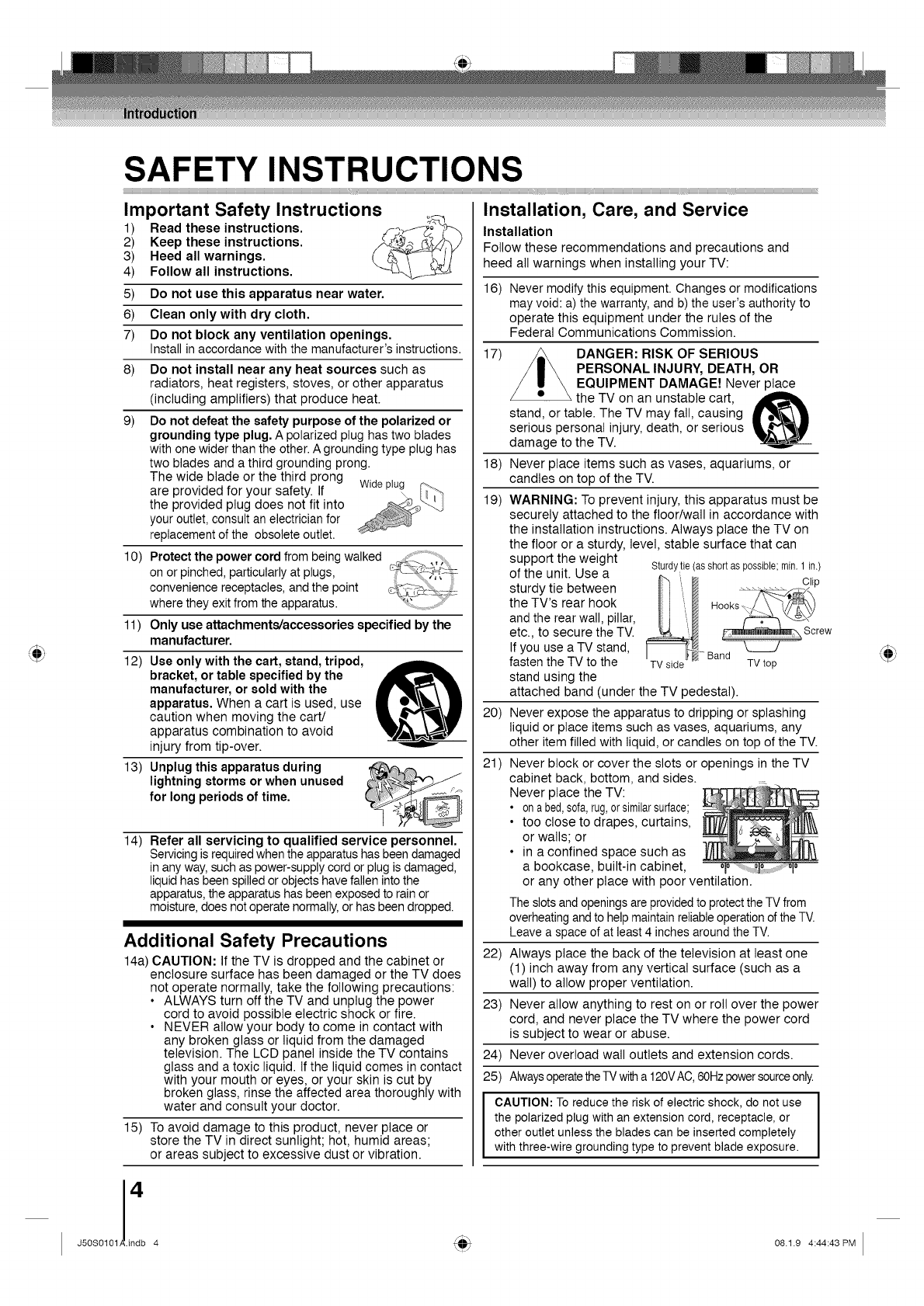

SAFETY INSTRUCTIONS

Important Safety Instructions

1Read these instructions.

2Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5Do not use this apparatus near water.

6Clean onlywith drycloth.

7 Do not block any ventilation openings.

Install in accordance withthe manufacturer's instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding type plug, A polarized plug hastwo blades

with one wider than the other.A grounding type plug has

two blades and a third grounding prong.

The wide blade or the third prong

are provided for your safety. If Wideptug

the provided plug does not fit into

your outlet, consultan electricianfor

replacementof the obsoleteoutlet.

Protect the power cord from being walked _p

on or pinched,particularlyat plugs, :_

conveniencereceptacles,andthe point

wherethey exit from theapparatus.

10)

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the

apparatus. When a cart is used, use

caution when moving the cart/

apparatus combination to avoid

injury from tip-over.

Unplug this apparatus during

lightning storms or when unused

for long periodsof time.

13)

14) Refer all servicing to qualified service personnel,

Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged,

liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

Additional Safety Precautions

14a) CAUTION: If the TV is dropped and the cabinet or

enclosure surface has been damaged or the TV does

not operate normally, take the following precautions:

• ALWAYS turn off the TV and unplug the power

cord to avoid possible electric shock or fire.

• NEVER allow your body to come in contact with

any broken glass or liquid from the damaged

television. The LCD panel inside the TV contains

glass and a toxic liquid, tf the liquid comes in contact

with your mouth or eyes, or your skin is cut by

broken glass, rinse the affected area thoroughly with

water and consult your doctor.

15) To avoid damage to this product, never place or

store the TV in direct sunlight; hot, humid areas;

or areas subject to excessive dust or vibration.

Installation, Care, and Service

Installation

Follow these recommendations and precautions and

heed all warnings when installing your TV:

16)

17)

Never modify this equipment. Changes or modifications

mayvoid: a) the warranty,and b)the user's authority to

operate this equipment under the rules of the

Federal Communications Commission.

DANGER: RISK OF SERIOUS

PERSONAL INJURY, DEATH, OR

EQUIPMENT DAMAGE! Never place

the TV on an unstable cart,

stand, or table. The TV may fall, causing

serious personal injury, death, or serious

damage to the TV.

18) Never place items such as vases, aquariums, or

candies on top of the TV.

19) WARNING: To prevent injury, this apparatus must be

securely attached to the floor/wall in accordance with

the installation instructions. Always place the TV on

the floor or a sturdy, level, stable surface that can

support the weight

of the unit. Use a

sturdy tie between

the TV's rear hook

and the rear wall, pillar,

etc., to secure the TV.

If you use a TV stand,

fasten the TV to the

stand using the

Sturdy,tie(as short as possible; min.1 in.)

Hooks __. _i p

rew

ga_

TV side TV top

attached band (under the TV pedestal).

20) Never expose the apparatus to dripping or splashing

liquid or place items such as vases, aquariums, any

other item filled with liquid, or candles on top of the TV.

21) Never block or cover the slots or openings in the TV

cabinet back, bottom, and sides ....

Never place the TV:

• on a bed, sofa,rug,or similarsurface;

• too close to drapes, curtains,

or wails; or

• in a confined space such as

a bookcase, built-in cabinet,

or any other place with poor ventilation.

The slots and openings are provided to protect the TV from

overheating and to help maintain reliable operation of the TV.

Leave a space of at least 4 inches around the TV.

22) Always place the back of the television at least one

(1) inch away from any vertical surface (such as a

wall) to allow proper ventilation.

23) Never allow anything to rest on or roll over the power

cord, and never place the TV where the power cord

is subject to wear or abuse.

24) Never overload wall outlets and extension cords.

25) Alwaysoperate the TV with a 120VAC, 60Hz power source only.

CAUTION: To reduce the risk of electric shock, do not use

the polarized plug with an extension cord, receptacle, or

other outlet unless the blades can be inserted completely

with three-wire grounding type to prevent blade exposure.

J50S0101A indb 4 08.1.9 4:44:43 PM

SAFETY INSTRUCTIONS (Continued)

Installation (cont. from previous page)

26) Always make sure the antenna system is properly

grounded to provide adequate protection against

voltage surges and built-up static charges (see

Section 810 of the National Electric Code.)

_' Antenna

_ lead-in wire

J Ground clamp _ i_._.

_'/___ _'_'_'i}]t, _[ Antenna dischargeunit

ectlc-s--ervce:-: _ /-_:--[- (NEC Section 810-20)

' e ui ment I /)IGrounding conductors

L_ menI -_]____- (NEC Section 810-21)

_ Ground clamps

Power service grounding _

electrode system

(NEC Art 250 Part H)

27) DANGER: RISK OF SERIOUS

PERSONAL INJURY OR DEATH!

• Use extreme care to make sure you

are never in a position where your body

(or any item you are in contact with,

such as a ladder or screwdriver) can

accidentally touch overhead power lines.

Never locate the antenna near overhead

power lines or other electrical circuits.

• Never attempt to install any of the following during

lightning activity: a) an antenna system; or b) cables,

wires, or any home theater component connected

to an antenna or phone system.

Care

For better performance and safer operation of your

TOSHIBATV, follow these recommendations and precautions:

28) Always unplug the TV before cleaning.

Wipe the display panel surface P

gently using only a soft cloth _._ _'%_

(supplied.) A hard cloth may _

damage the surface of the

panel. Avoid contact with

alcohol, thinner, benzene,

acidic or and alkaline solvent

cleaners, abrasivecleaners, or chemical cloths, as the

surface may be impaired.

29) /=\ WARNING: RISK OF ELECTRIC SHOCK!

Never spill liquids or push objects of

any kind into the TV cabinet slots.

30) While it is thundering, do not touch the connecting

cables or apparatus.

31) For added protection of your TV from lightning and

power surges, always unplug the power cord and

disconnect the antenna from the TV if you leave the

TV unattended or unused for long periods of time.

32) During normal use, the TV may make occasional snap

ping or popping sounds. This is normal, especially when

the unit is being turned on or off. If these sounds become

frequent or continuous, unplug the power cord and

contact a Toshiba Authorized Service Center.

Care (cont. from previous column)

33) Keep your fingerswell clear of the disc slot as it is closing.

Failure to do so may cause serious personal injury.

34) When you use headphones, keep the volume at a

moderate level. Using headphones continuously

at a high volume may cause hearing damage.

35) NEVER took directly into the disc slot or ventilation

slots at the source of the laser beam. Doing so

may cause sight damage.

36) NEVER use a cracked, deformed, or repaire disc.

Such discs are easily broken and may cause serious

personal injury or product damage. SUCH DAMAGE

IS NOT COVERED UNDER YOUR WARRANTY.

37) WARNING: RISK OF SERIOUS PERSONAL

INJURY OR EQUIPMENT DAMAGE!

• Never strike the screen with a sharp or heavy

object.

• Never touch, press, or place anything on the

LCD screen. These actions will damage the LCD

screen If you need to clean the LCD screen,

follow the instructions in item 28 on this page.

Service

38) /X WARNING:RISK OF ELECTRICSHOCK!

Never attempt to service the TV

yourself.

Opening and removing the covers may

expose you to dangerous voltage or other hazards.

Referall servicingto a ToshibaAuthorizedService Center.

39) If you have the TV serviced:

• Ask the service technician to use only replacement

parts specified by the manufacturer.

• Upon completion of service, ask the service

technician to perform routine safety checks to

determine that the TV is in safe operating condition.

40) When the TV reaches the end of its useful life,

ask a qualified service technician to properly

dispose of the TV.

J50S0101A.indb 5 _) sI

08.1.9 4:44:45 PM

• Retractable pedestal stand and locating the LCD TV

Observe the following safety precautions:

1) Ensure that unpacking and transfer of the unit is carried out by

two or more people.

2) Put the LCD TV on a large level area in a recumbent posture.

3) Grab the pedestal stand and lift the display up. Confirm the pivot

is locked.

4) Place the TV on a sturdy, level surface that

can support the weight of the TV.

5) Be sure to secure the TV to a wall, pillar,

surface, or other immovable structure.

To secure the TV in this manner, use the

included strap located at the rear of

pedestal stand. (see item 19, page 4).

•To fold the pedestal stand

1) Slide the lever on the back side of the pedestal stand to the left.

2) Lay the display down.

Slide the lever to the left

Back side of the pedestal stand

NOTE: Do not operate the LCD TV while the pedestal stand

is folded.

•To Display your LCD TV using a Wall Bracket:

If you decide to wall mount your LCD TV, always use a UL Listed

wall bracket appropriate for the size and weight of the LCD TV (see

page 2):

1) CAUTION: Two people are required for installation.

2) Unplug and remove any cables and/or other component

connectors from the rear of the TV.

3) Follow the instructions provided with your wall bracket.

Before proceeding, make sure the appropriate bracket(s) are

attached to the wall and the back of the TV as described in the

instructions provided with the wall bracket.

4) After attaching the appropriate bracket(s) to the wall and the back

of the TV, remove the pedestal stand from the TV as described

below.

Removing the Pedestal Stand

Carefully lay the front of the unit face down on a flat, cushioned

surface such as a quilt or blanket. Leave the stand protruding

over the edge of the surface.

NOTE: Extreme care should always be used when removing

the pedestal stand to avoid damage to the LCD panel.

2) Remove the two screws shown in the diagram below.

This will allow removal of the pedestal stand.

3) Once you have removed all two screws holding the pedestal

stand in place, remove the pedestal stand from the TV by sliding

the pedestal stand away from the TV.

The following symptoms are technical limitations of LCD

Display technology and are not an indication of malfunction;

therefore, Toshiba is not responsible for perceived defects

resulting from these symptoms.

1) An after image (ghost) may appear on the screen if a fixed,

non-moving image is displayed for a long period of time.

The after image is not permanent and will disappear in a short

period of time.

2) The LCD panel contained in this TV is manufactured using an

extremely high level of precision technology; however, there may

be an occasional pixe! (dot of light) that does not operate properly

(does not light, remains constantly lit, etc.). This is a structural

property of LCD technology, is not a sign of malfunction, and is

not covered under your warranty. Such pixels are not visible

when the picture is viewed from a normal viewing distance.

Note: Interactive video games that involve shooting a "gun" type

of joystick at an on-screen target may not work on this TV.

• Do not subject the LCD panel to physical shock, such as dropping

it. It may cause unit damage and malfunction.

• When shipping the unit, the original shipping carton and packing

materials come in handy. For fully protection, repack the unit as it

was originally packed at the factory.

• Do not use volatile liquids, such as insecticide, near the unit.

Do not leave rubber or plastic products in contact with the unit for

prolonged periods of time.

Doing so will leave marks on the finish.

• The top and rear panels of the unit may become warm after a long

period of use. This is not a malfunction.

• When the unit is not in use, always remove the disc and turn off

the power.

• When you place this unit near a TV, radio, or VCR, the playback

picture may become poor and the sound may be distorted. In this

case, place the unit away from the TV, radio, or VCR.

• To avoid damage to this product, never place or store the

TV/DVD in direct sunlight; hot, humid areas; or areas subject to

excessive dust or vibration.

Two screws

J50S0101A indb 63/ 08.1.9 4:44:46 PM

autions (Continued)Motes on discs

[

Moisture condensation damages the unit. Please

read the following carefully,

Moisture condensation occurs, for example, when you

pour a cold drink into a glass on a warm day and drops

of water form on the outside of the glass. In the same

way, moisture may condense on this unit's internal optical

pick-up lens, one of the most crucial internal parts of the unit.

• Do not touch the playback side of the disc.

For example, handle the disc so that it is shown in

figure below.O

-- Playback side

• Do not attach paper or tape to discs.

Q..

•Moisture condensation may occur in the following

situations:

• When you move the unit from a cold area to a warm area.

• When you use the unit in a room in which the heat

was just turned on.

• When you use the unit in an area where cold air from

an air conditioner directly hits the unit.

• When you use the unit in a humid area.

• Fingerprints and dust on the disc cause picture and

sound deterioration. Wipe the disc from the center

outwards with a soft cloth. Always keep the disc

clean.

©x

• Do not use any type of solvent such as thinner,

benzine, commercially available cleaners or antistatic

spray for vinyl LPs. It may damage the disc.

• Do not store discs in a place subject to direct sunlight

or near heat sources.

• Do not store discs in places subject to moisture and

dust such as a bathroom or near a humidifier.

• Store discs vertically in a case. Stacking or placing

objects on discs outside of their case may cause

warping.

•Never use the unit when moisture condensation

may occur

Using the unit when moisture condensation exists may

damage discs and internal parts. Connect the power

cord of the unit to the wall outlet, turn on the unit,

remove the disc, and leave it for two or three hours.

After two or three hours, the unit will have warmed up

and evaporated any moisture. Leaving the TV

connected to the wall outlet will help prevent moisture

condensation in the TV or DVD Player.

Wall outlet

J50S0101A.indb 7

Normally, DVD video discs are divided into titles, and

the titles are sub-divided into chapters. Video CDs and

Audio CDs are divided into tracks.

DVD video disc DVDvideo disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2

m M I I Chapter 3

Video CD/Audio CD

+" Video CD/Audio CD

k_ Traik 2 Trick 3 Track 4 Track 5

I I

Each title, chapter or track is assigned a number, which

is called "title number", "chapter number" or "track

number" respectively.

There may be discs that do not have these numbers.

,_w/ 08.1.9 4:44:50 PM

on discs (Continued)

The unauthorized recording, use, distribution, or revision

of copyrighted materials including, without limitation,

television programs, videotapes, and DVDs, is prohibited

under the Copyright Laws of the United States and other

countries, and may subject you to civil and criminal liability.

This product incorporates copyright protection technology

that is protected by method claims of certain U.S. patents

and other intellectual property rights owned by Macrovision

Corporation and other rights owners. Use of this copyright

protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited

viewing uses only unless otherwise authorized by

Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

This owner's manual explains the basic instructions of this

unit. Some DVD video discs are produced in a manner

that allows specific or limited operation during playback. As

such, the unit may not respond to all operating command.

This is not a defect in the unit. Refer to instruction notes of

discs.

The following symbol may appear on the TV screen during

operation.

( × }

Itmeans that the operation is not permitted by the TV/DVD

or the disc.

For example, sometimes it is unable to stop the playback

of copyright message of the disc when the STOP (I)

button is pressed. Alternatively, this symbol may also

indicate that the feature is not available for the disc.

The region number of this unit is 1. If region numbers,

which stand for their playable area, are printed on your

DVDvideo disc and you do not find _ or _, disc

playback will not be allowed by the player. (In this case,

the unit will display a message on-screen.)

Some DVDs that have no region code label may still be

subject to area restrictions and therefore not playable.

This unit supports Video CDs equipped with the PBC

(Version 2.0) function. (PBC is the abbreviation of

Playback Control.) You can enjoy two playback variations

depending on types of discs.

• Video CD not equipped with PBC function (Version 1.1)

Sound and movie can be played on this unit in the same

way as a DVD.

• Video CD equipped with PBC function (Version 2.0)

in addition to operation of a Video CD not equipped with

the PBC function, you can enjoy playback of interactive

software with search function by using the menu

displayed on the TV screen (Menu Playback). Some of

the functions described in this owner's manual may not

work with some discs.

J5OSOIO1A indb 8 3/

This unit can play the following discs.

Disc Mark

DVD V I D E O

video

discs

,,Oeo

CDs IDIGITALVlDEOI

DIGITAL AUDIO

DivX '_

Disc Maximum

Contents Size playback time

Approx. 4 hours

(single sided disc)

Audio t2crn Approx. 8 hours

+ (double sided disc)

Video

(moving Approx. 80 minutes

(single sided disc)

pictures) 8cm

Approx. 160 minutes

(double sided disc)

Audio t2crn Approx. 74 minutes

+ (single sided disc)

Video

(moving 8cm Approx. 20 minutes

pictures) (single sided disc)

t2crn Approx. 74 minutes

(single sided disc)

Audio

8cm Approx. 20 minutes

(single sided disc)

Audio t2crn

+ It depends on DivX_:

Video quality

(moving 8cm

pictures)

The following discs are also available.

• DVD-R/RW discs of DVD video format

• CD-R/CD-RW discs of CD-DA, Video CD, MP3, WMA,

JPEG or DivX'_format

• Kodak Picture CD and FUJICOLOR CD format

Some of these discs may be incompatible.

• You cannot play discs other than those listed above.

• You cannot play discs of DVD-RAM, DVD-ROM, CD-

ROM, Photo CD, etc., or non standardized discs even

if they may be labeled as above.

• Some CD-R/RWs cannot be played back depending

on the recording conditions.

• This unit uses the NTSC color system, and cannot

play DVD video discs recorded in any other color

system (PAL, SECAM, etc.).

• This unit can play an 8cm disc. Please do not use a

disc adapter. It may cause trouble.

• Please do not insert any disc of an irregular shape into

the unit, as it may interfere with the function of the unit.

You may not be able to remove it.

• Please do not use after market accessories, such as a

ring protector, as this may cause trouble with the

operation of the unit.

Because of problems and errors that can occur during the

creation of DVD and CD Software and/or the manufacture

of DVD and CD discs, Toshiba cannot assure that the

DVD player contained in this TV will successfully play

every disc bearing the DVD and CD Iogos.

If you happen to experience any difficulty playing a DVD

and/or CD disc on the DVD player contained in this TV,

please contact Toshiba Customer Service.

is a trademark of DVD Format/Logo Licensing

Corporation.

08.1.9 4:44:50 PM

Introduction

SAFETY INSTRUCTIONS ................................ 4

Precautions ....................................................... 6

Notes on discs .................................................. 7

Contents ........................................................... 9

Identification of controls .................................. 10

Connections

Antenna connections ...................................... 14

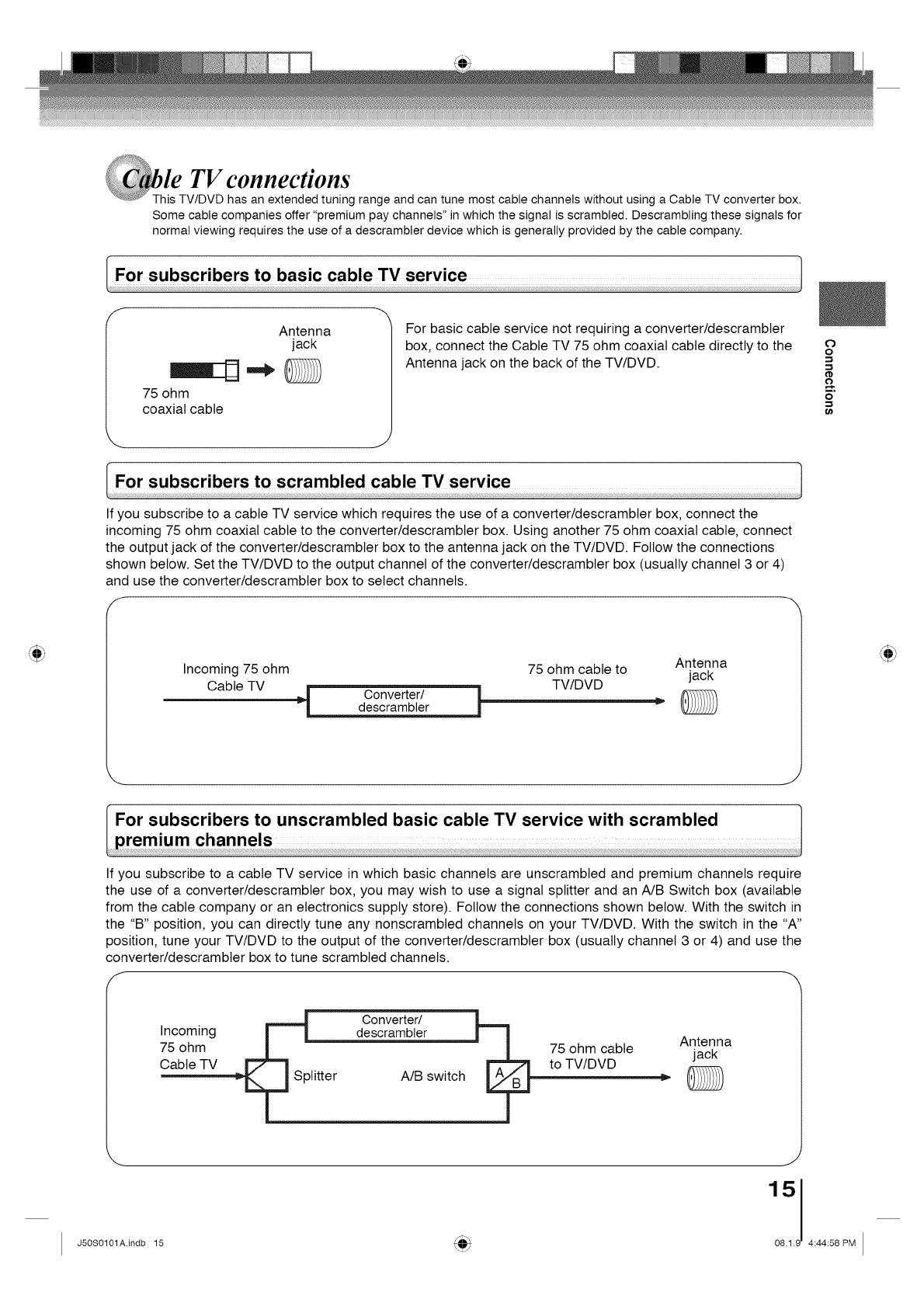

Cable TV connections .................................... 15

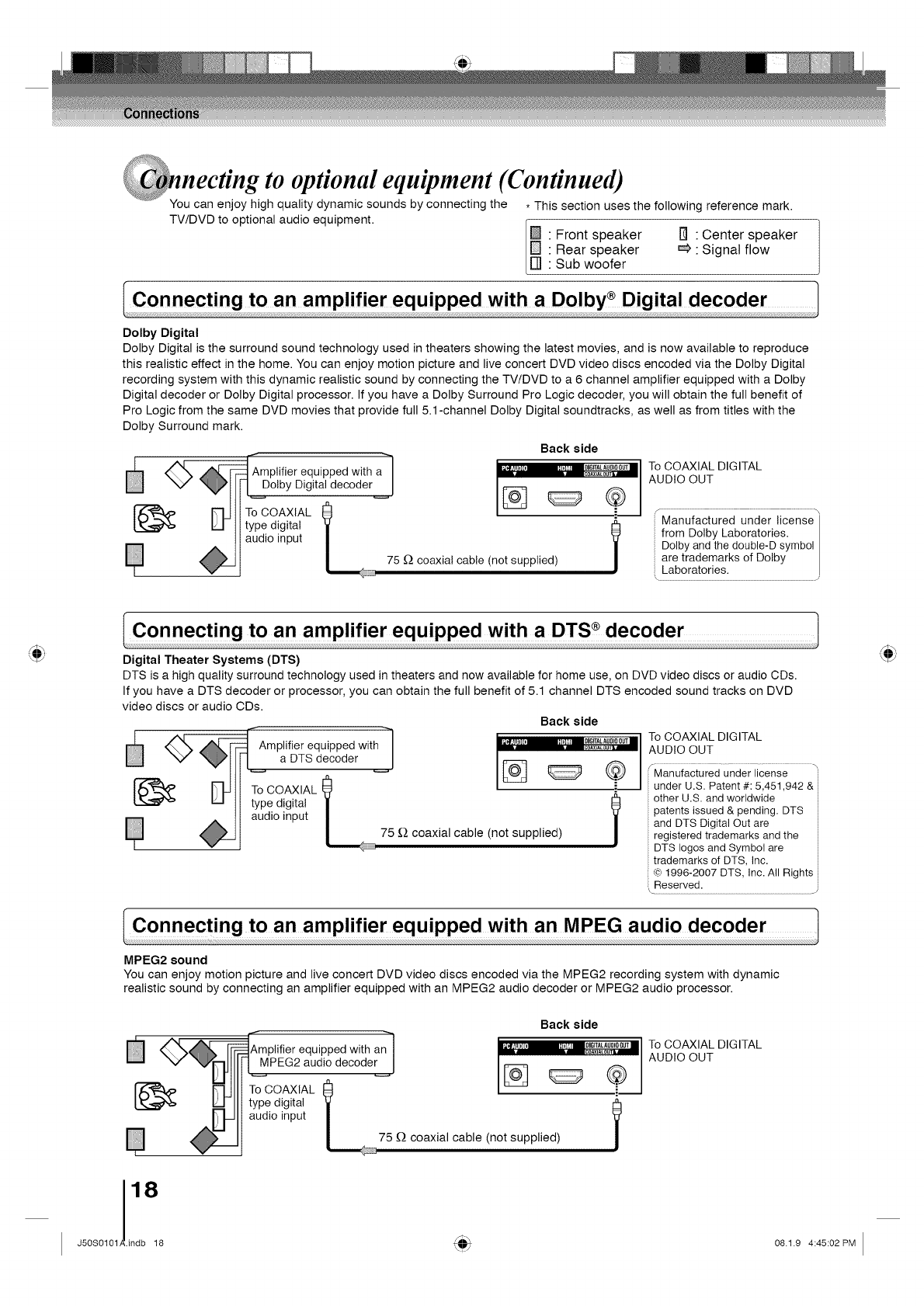

Connecting to optional equipment .................. 16

Power source .................................................. 20

Basic setup

Auto setup ...................................................... 21

Setting the language ....................................... 22

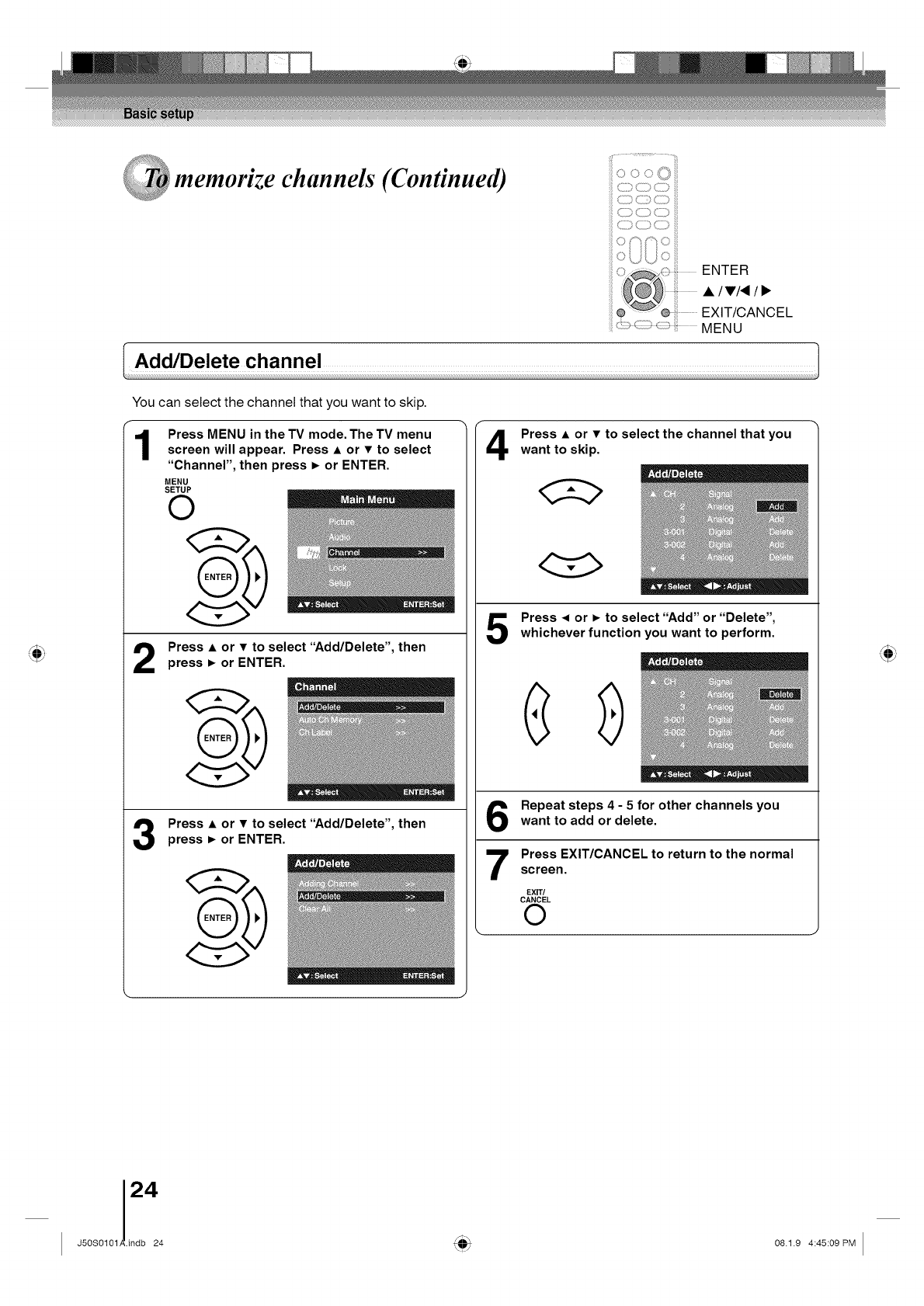

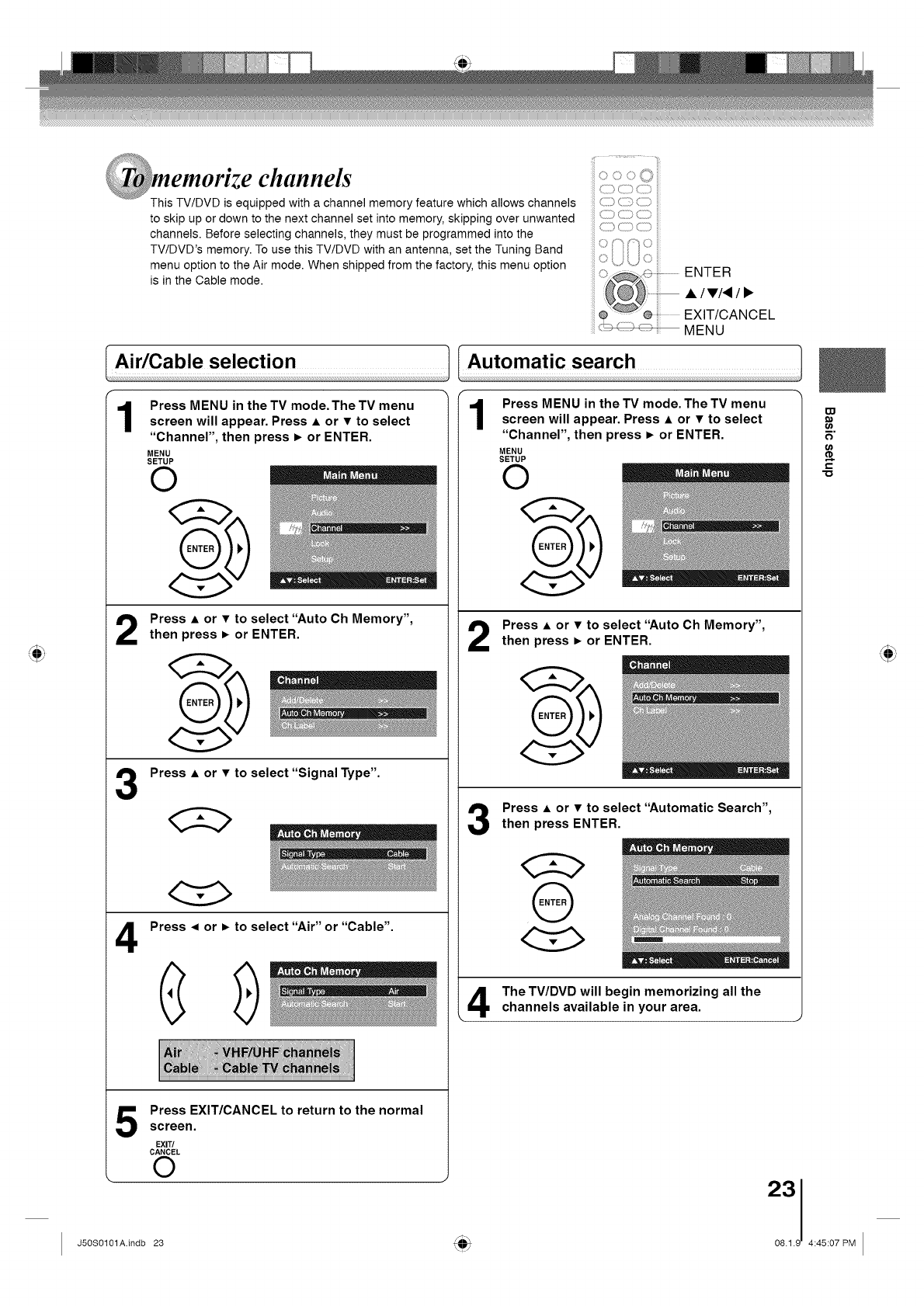

To memorize channels .................................... 23

TV operation

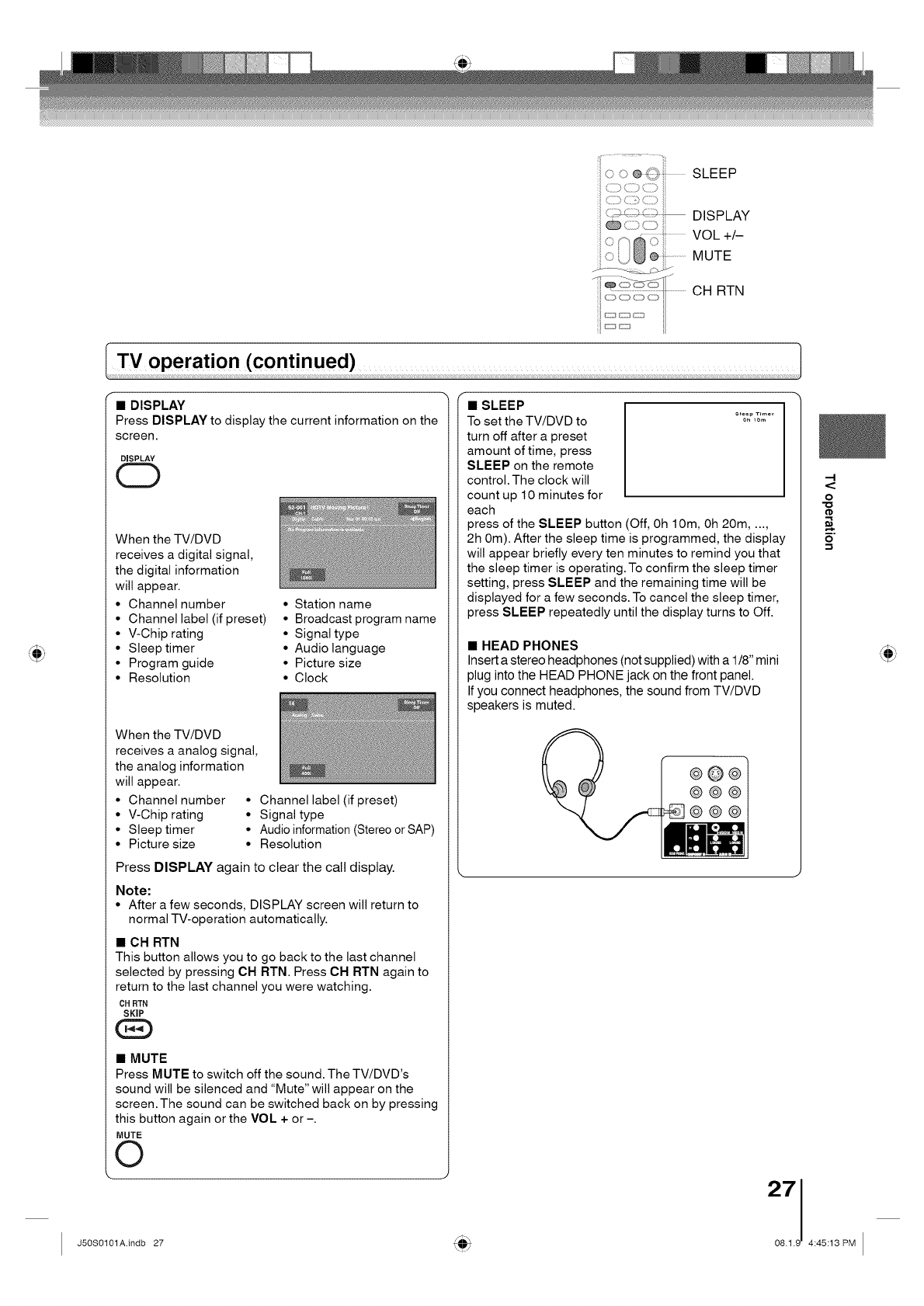

TV operation ................................................... 26

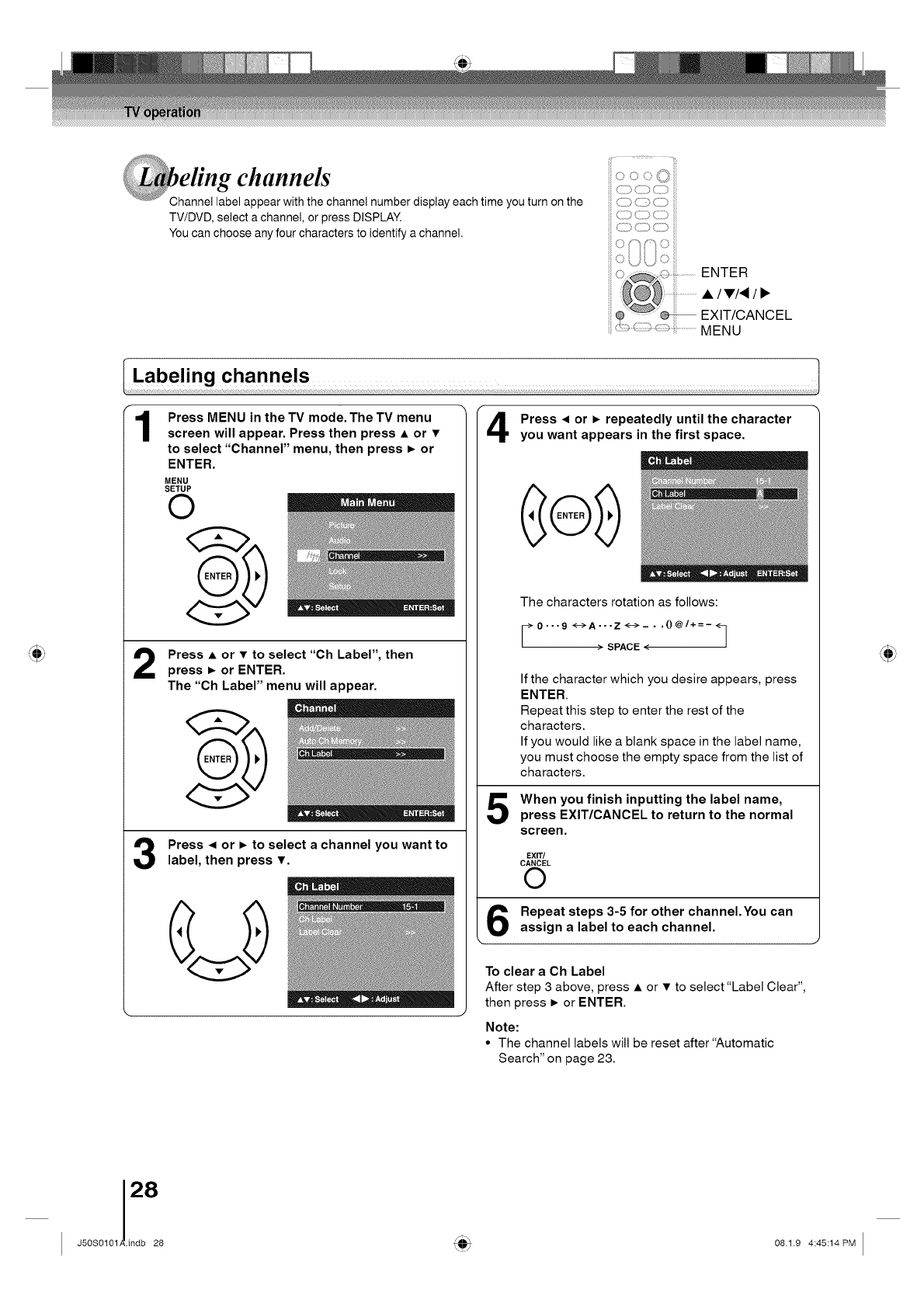

Labeling channels ........................................... 28

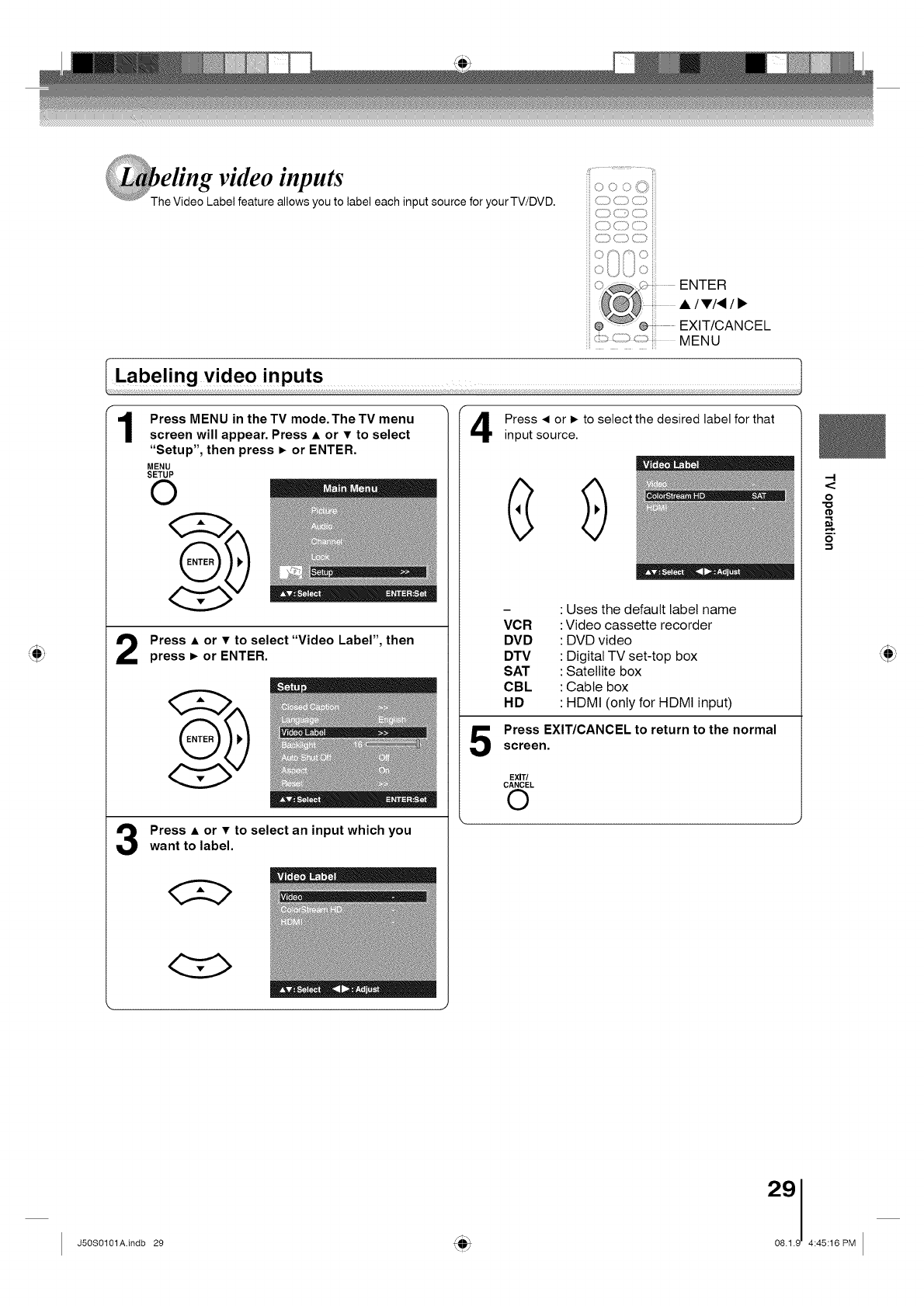

Labeling video inputs...................................... 29

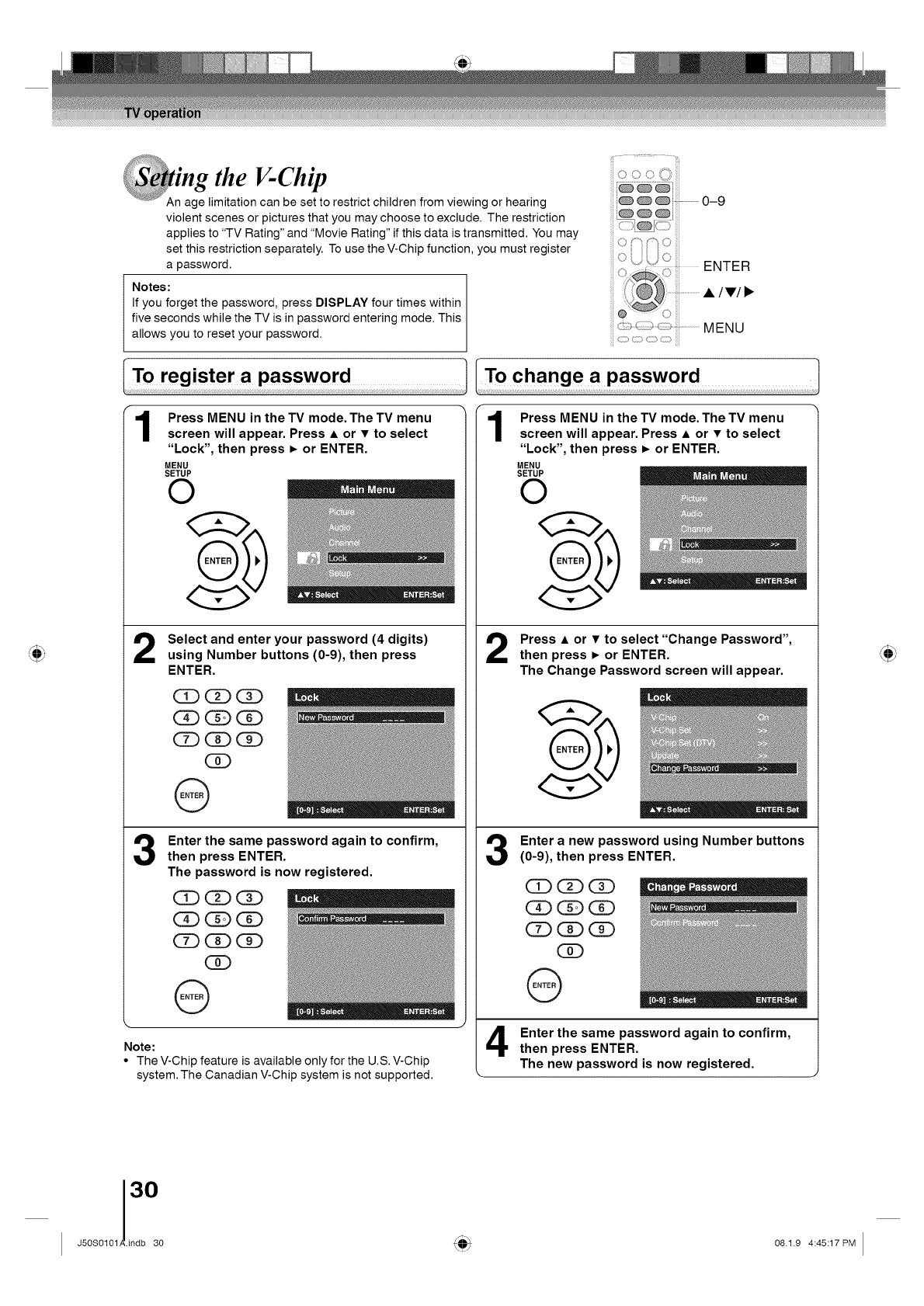

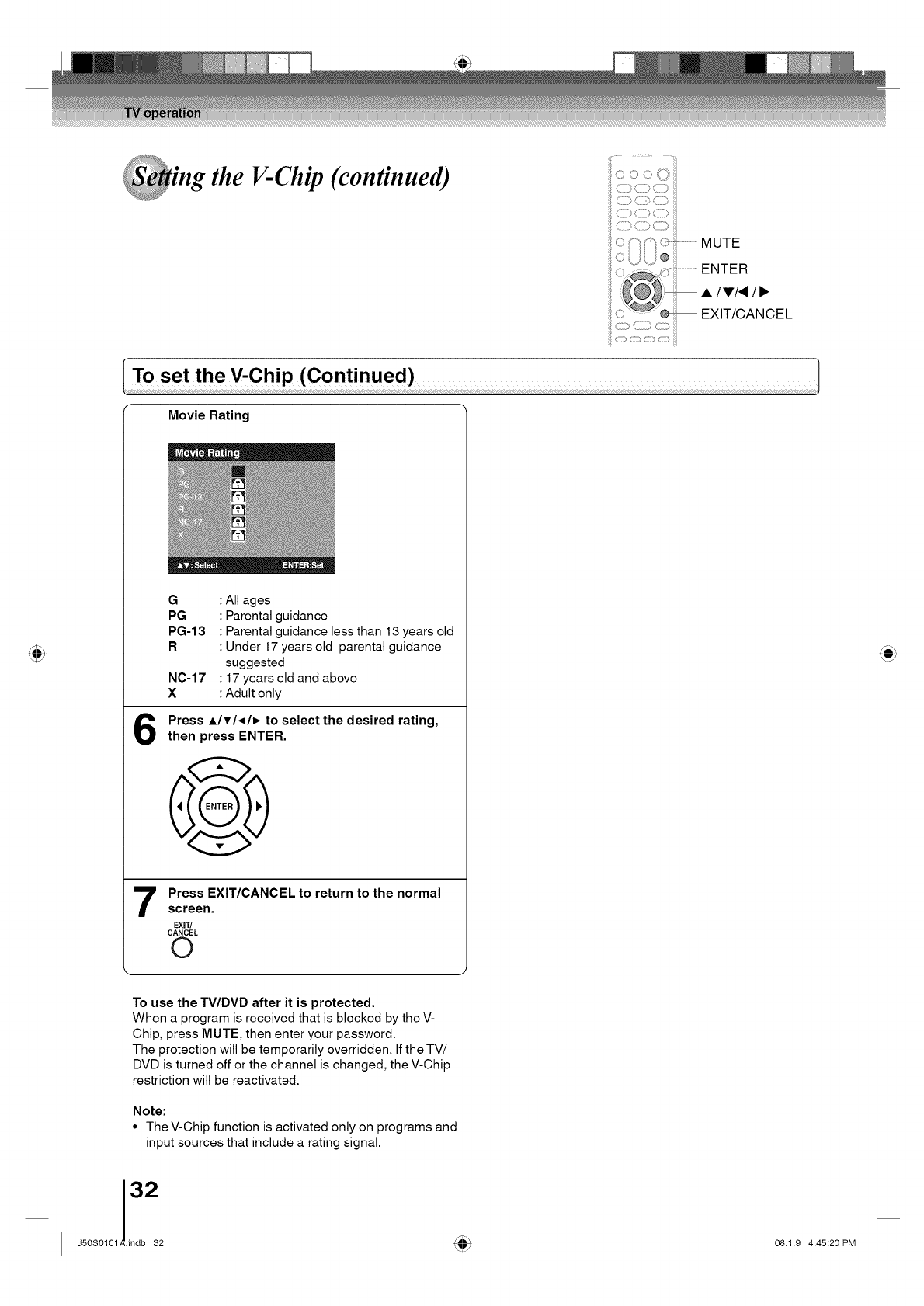

Setting the V-Chip ........................................... 30

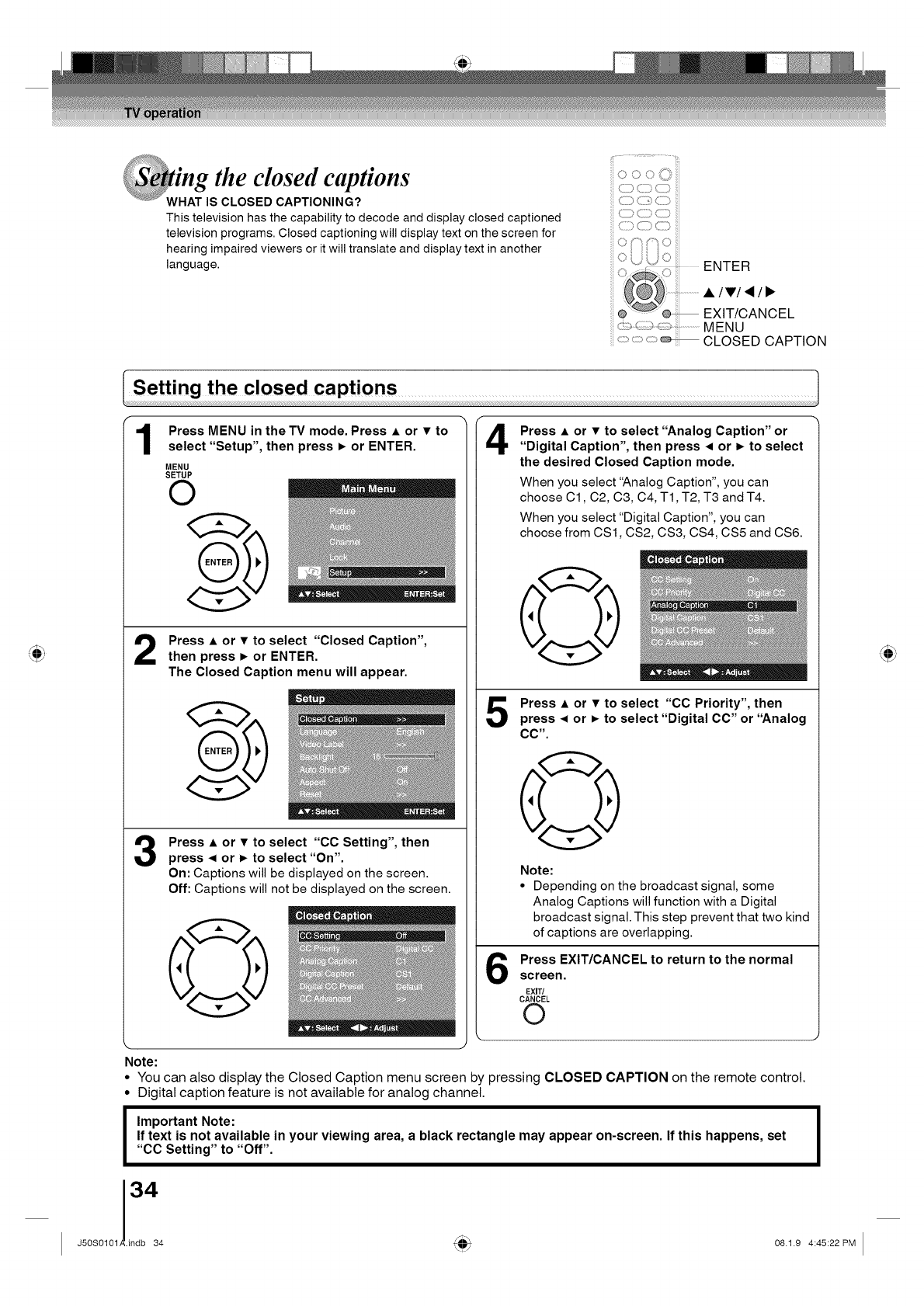

Setting the closed captions ............................. 34

CC advanced .................................................. 35

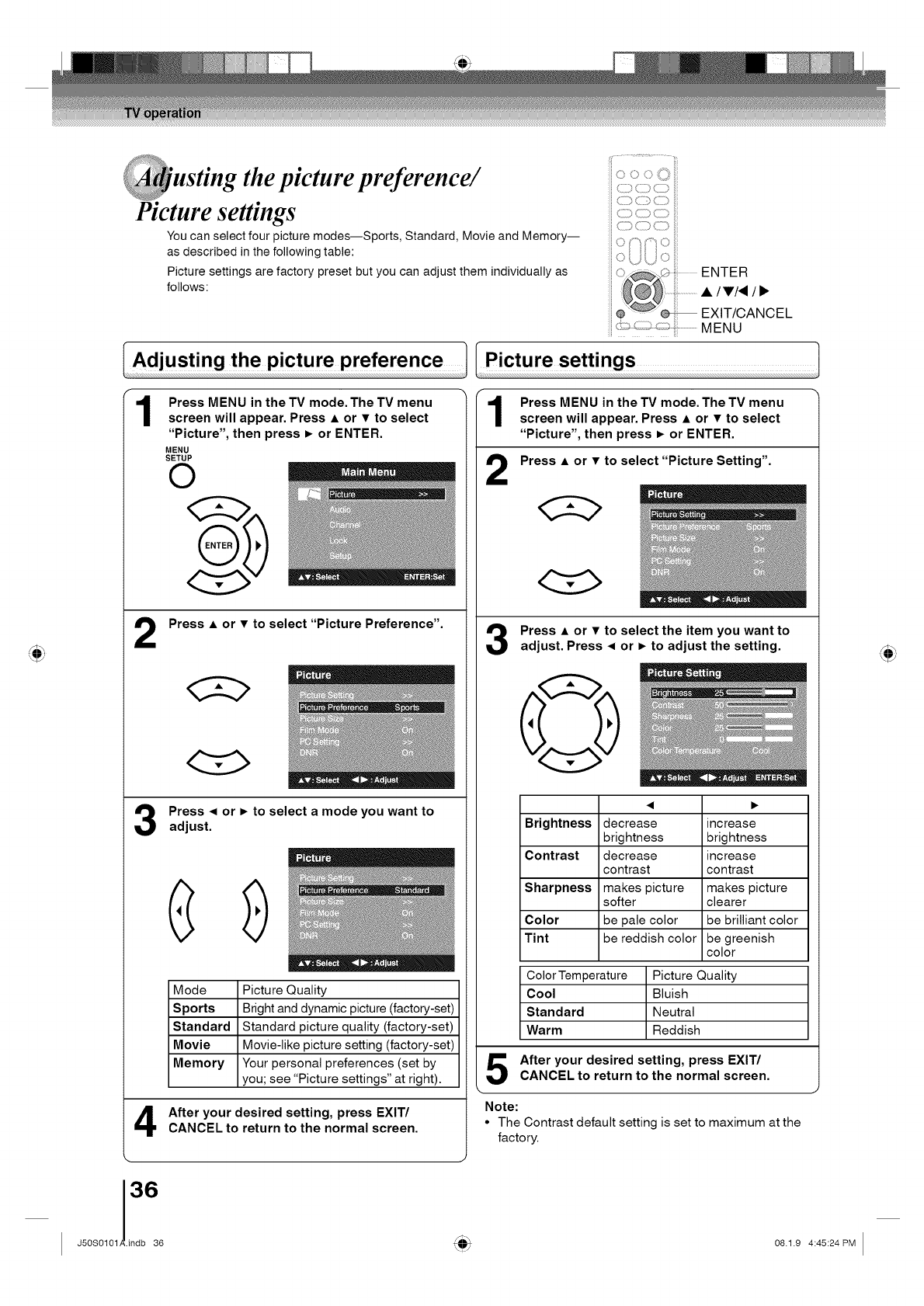

Adjusting the picture preference ..................... 36

Picture settings ............................................... 36

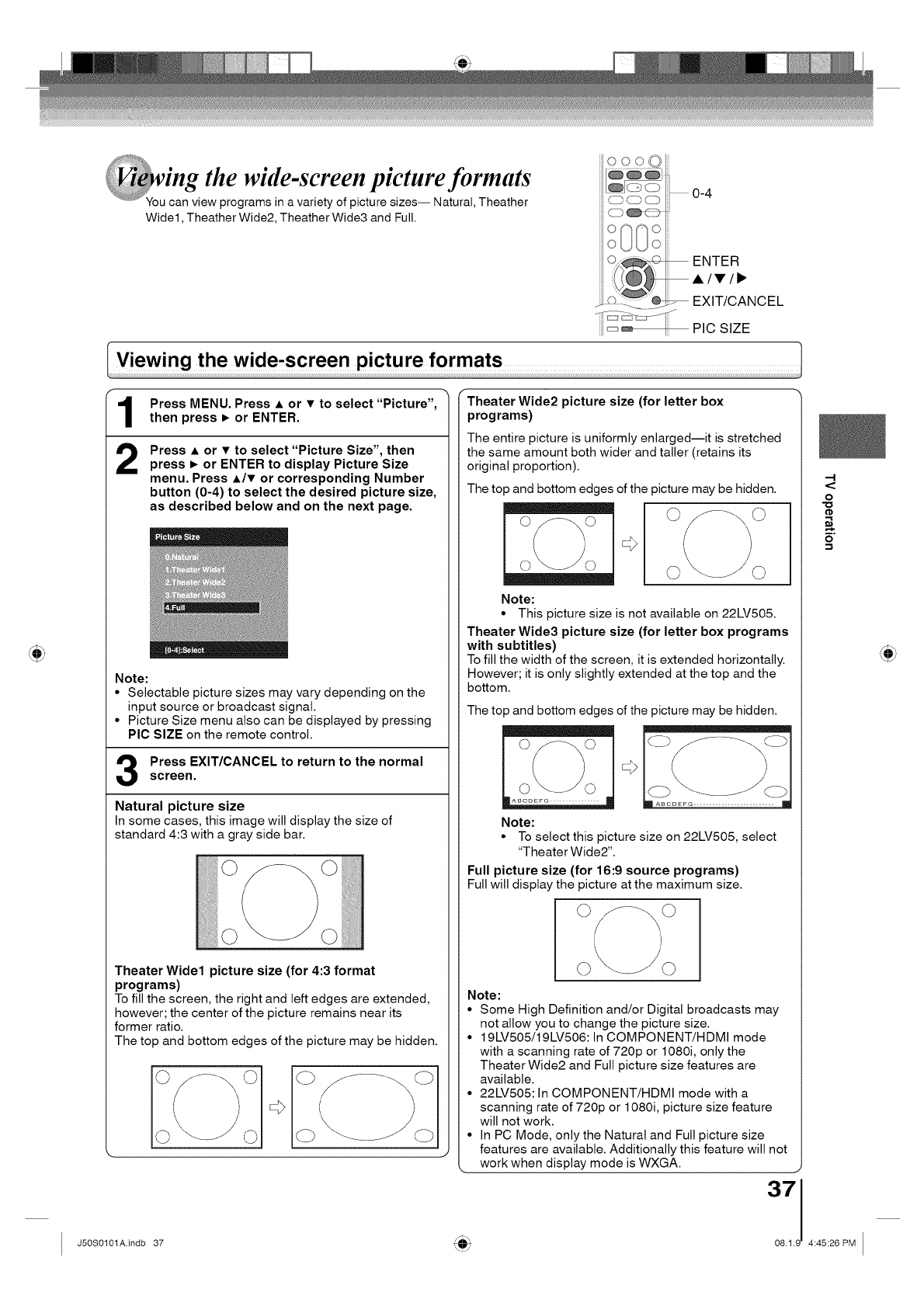

Viewing the wide-screen picture formats ........ 37

Film Mode ....................................................... 38

DNR ................................................................ 38

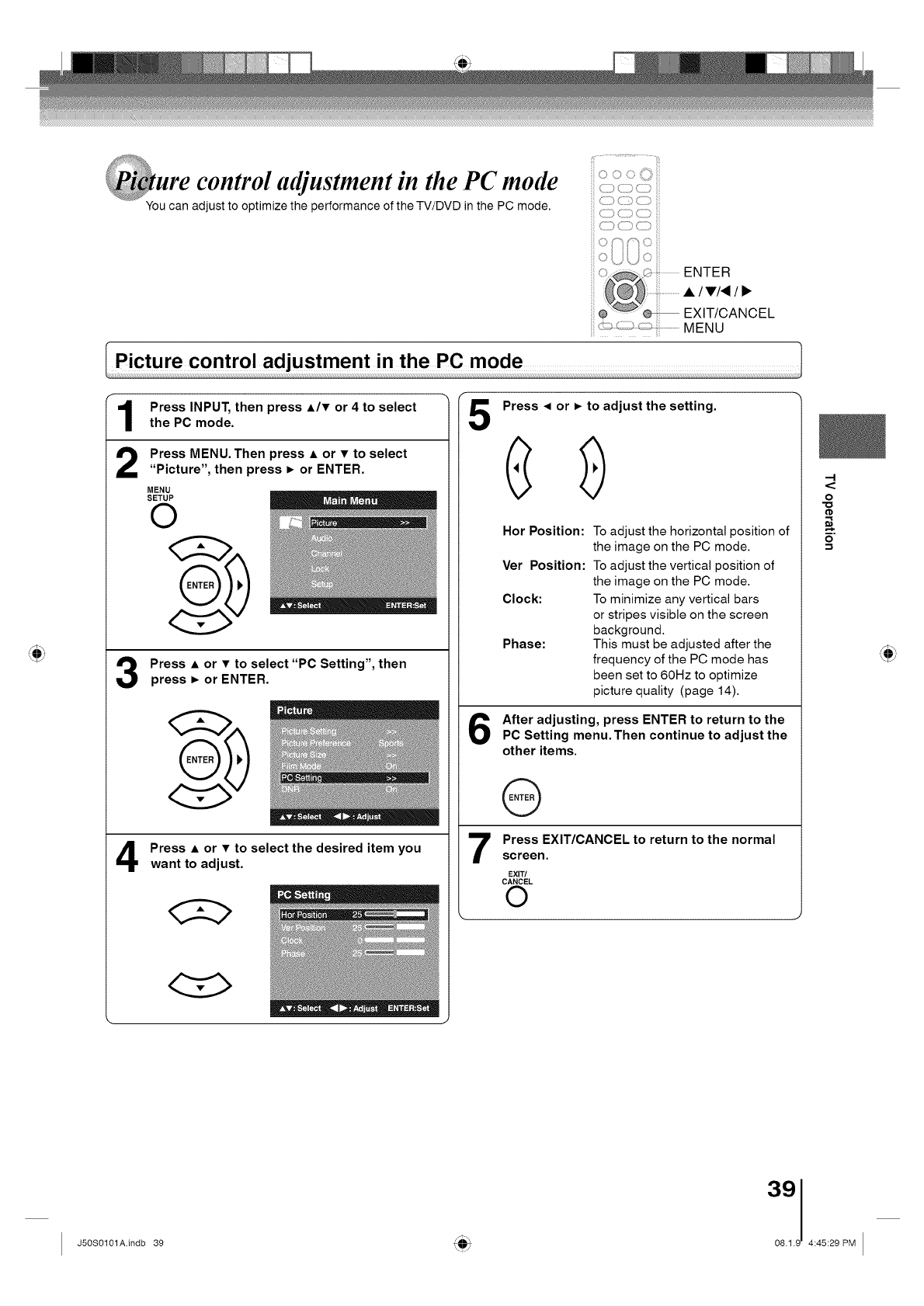

Picture control adjustment in the PC mode .... 39

Sound control adjustment ............................... 40

Selecting Stereo/Second Audio Program (SAP) .... 40

Selecting the audio language ......................... 41

Selecting the HDMI audio input source .......... 41

Using the aspect feature ................................. 42

Adjusting the back lighting .............................. 42

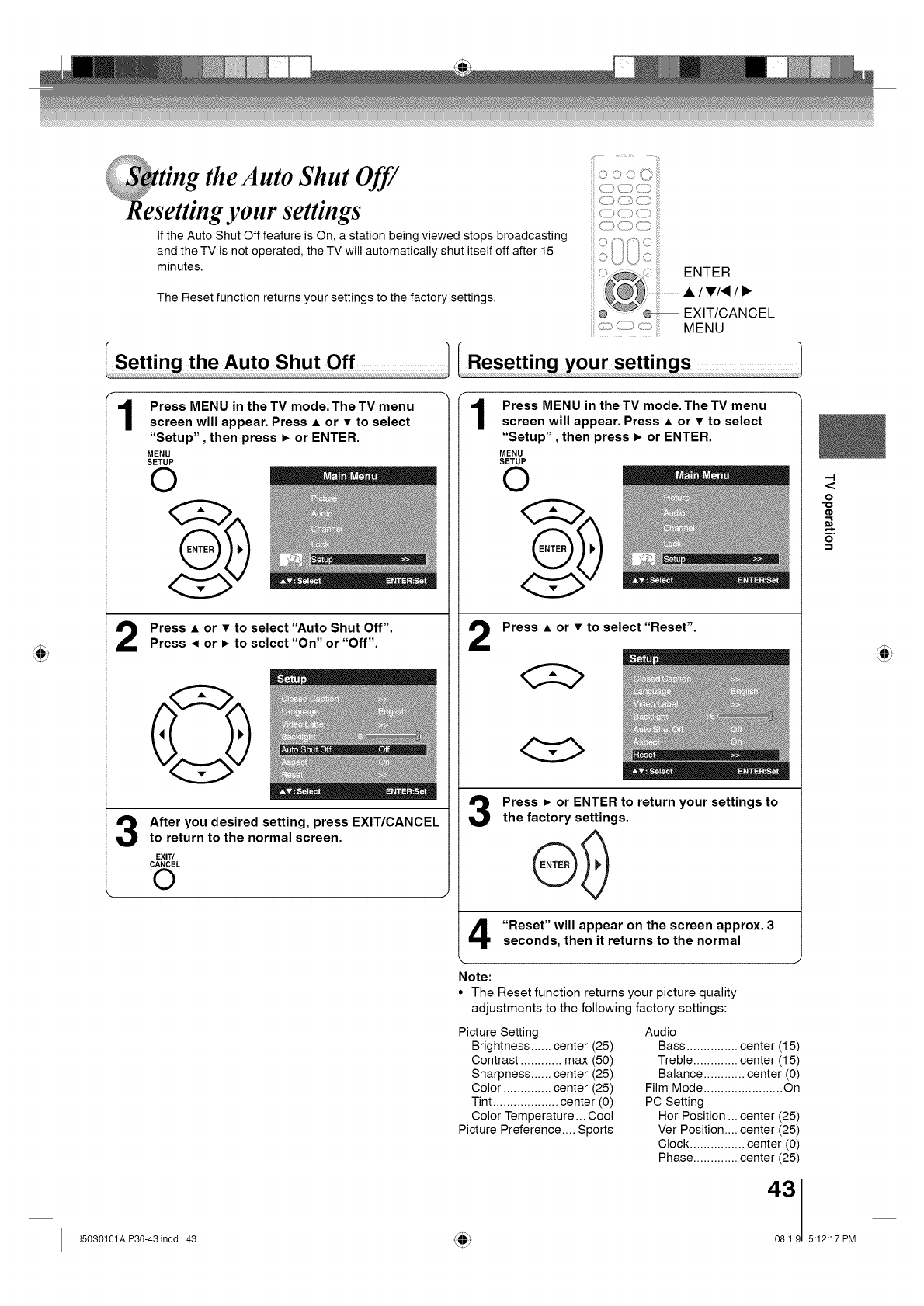

Setting the Auto Shut Off ................................ 43

Resetting your settings ................................... 43

Basic playback

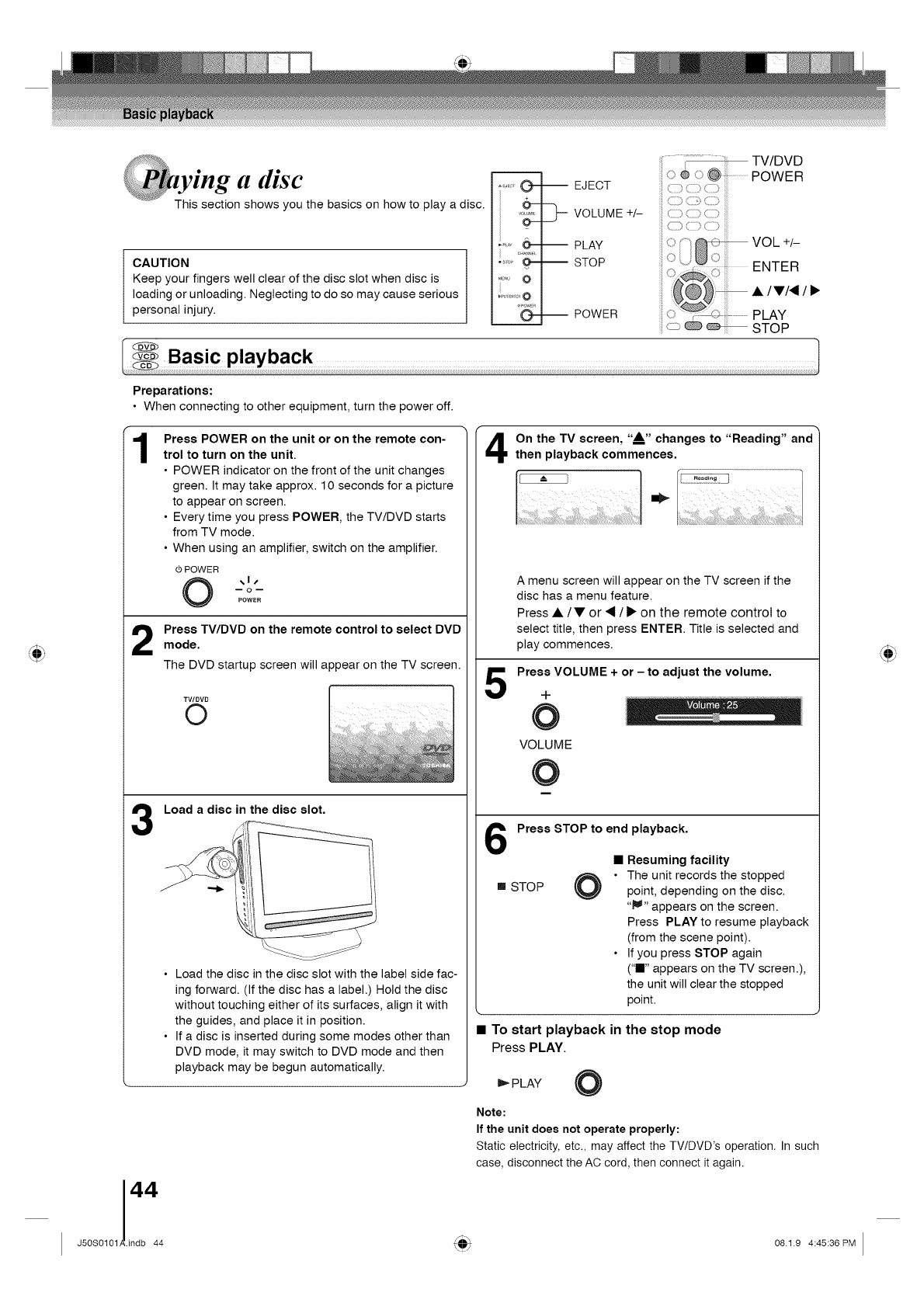

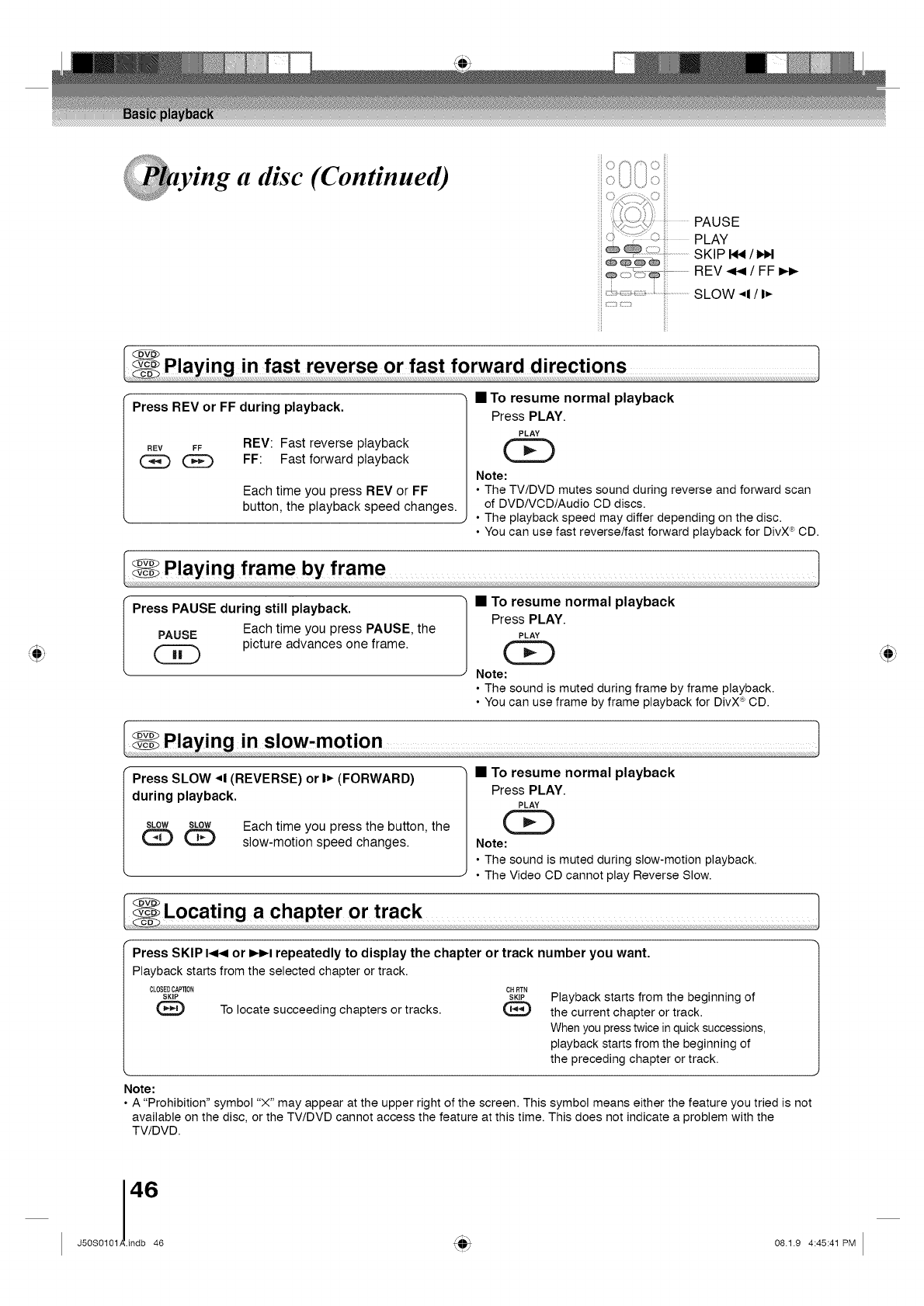

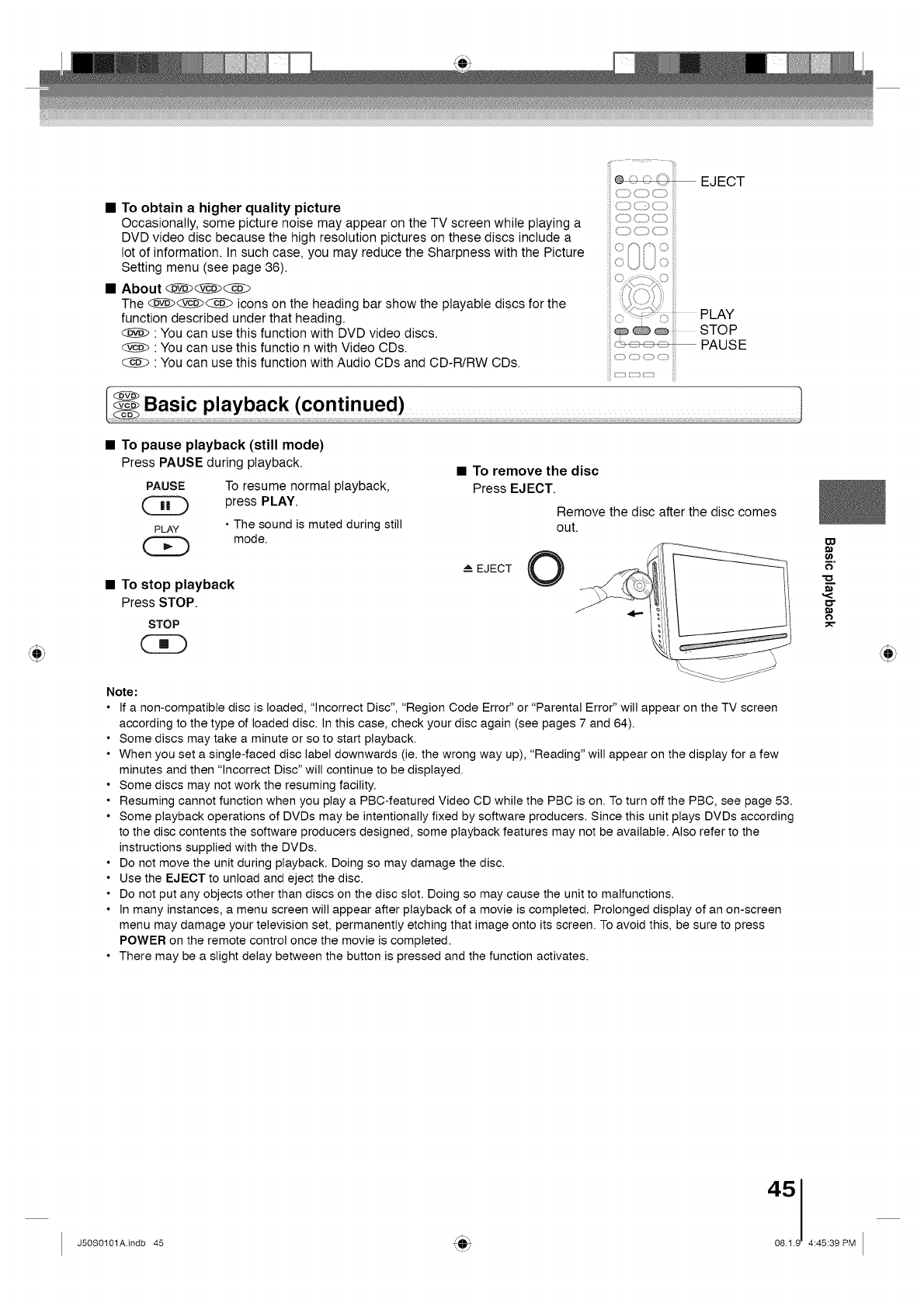

Playing a disc ................................................. 44

Advanced playback

Zooming .......................................................... 47

Locating desired scene ................................... 47

Marking desired scenes .................................. 48

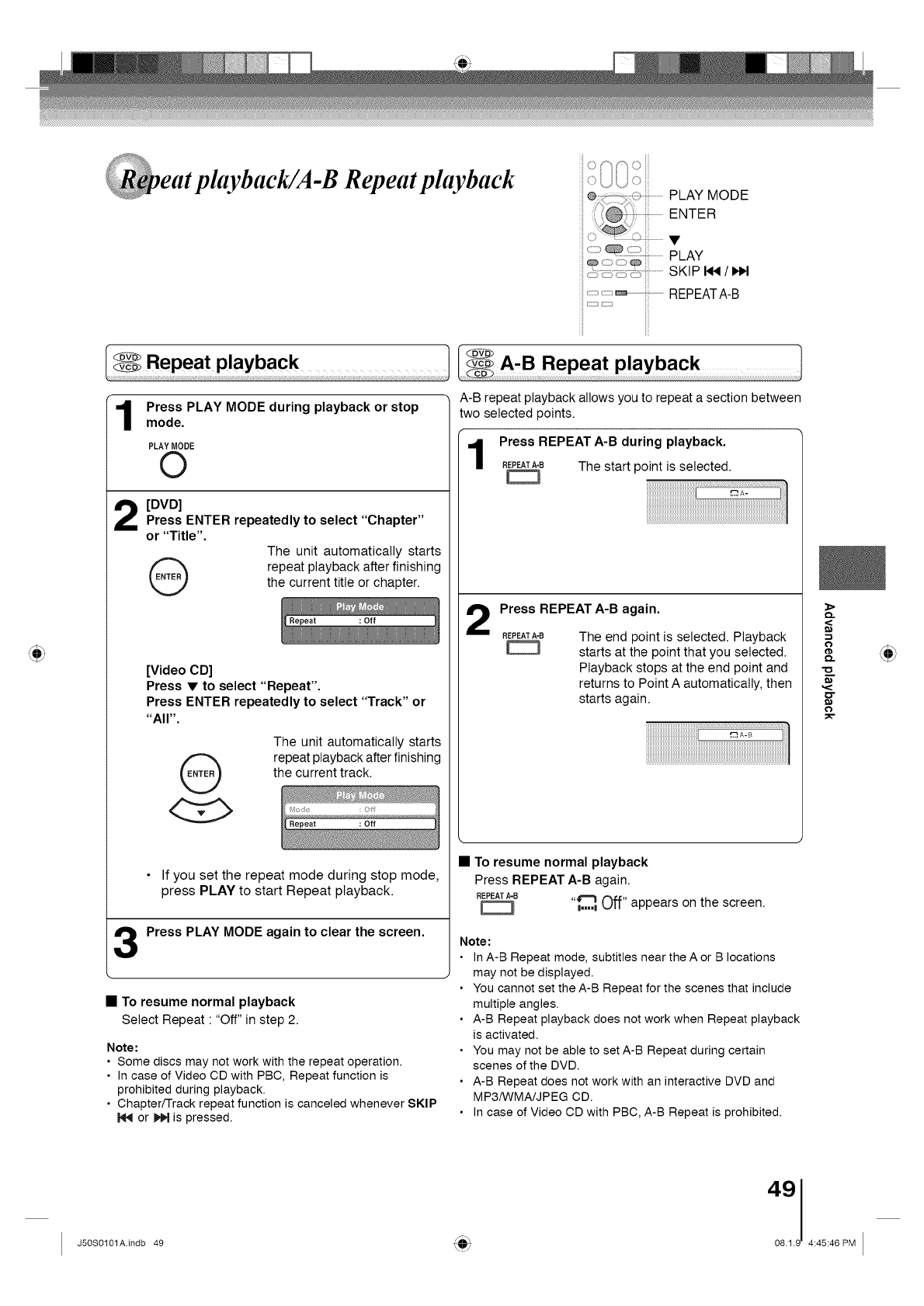

Repeat playback ............................................. 49

A-B Repeat playback ...................................... 49

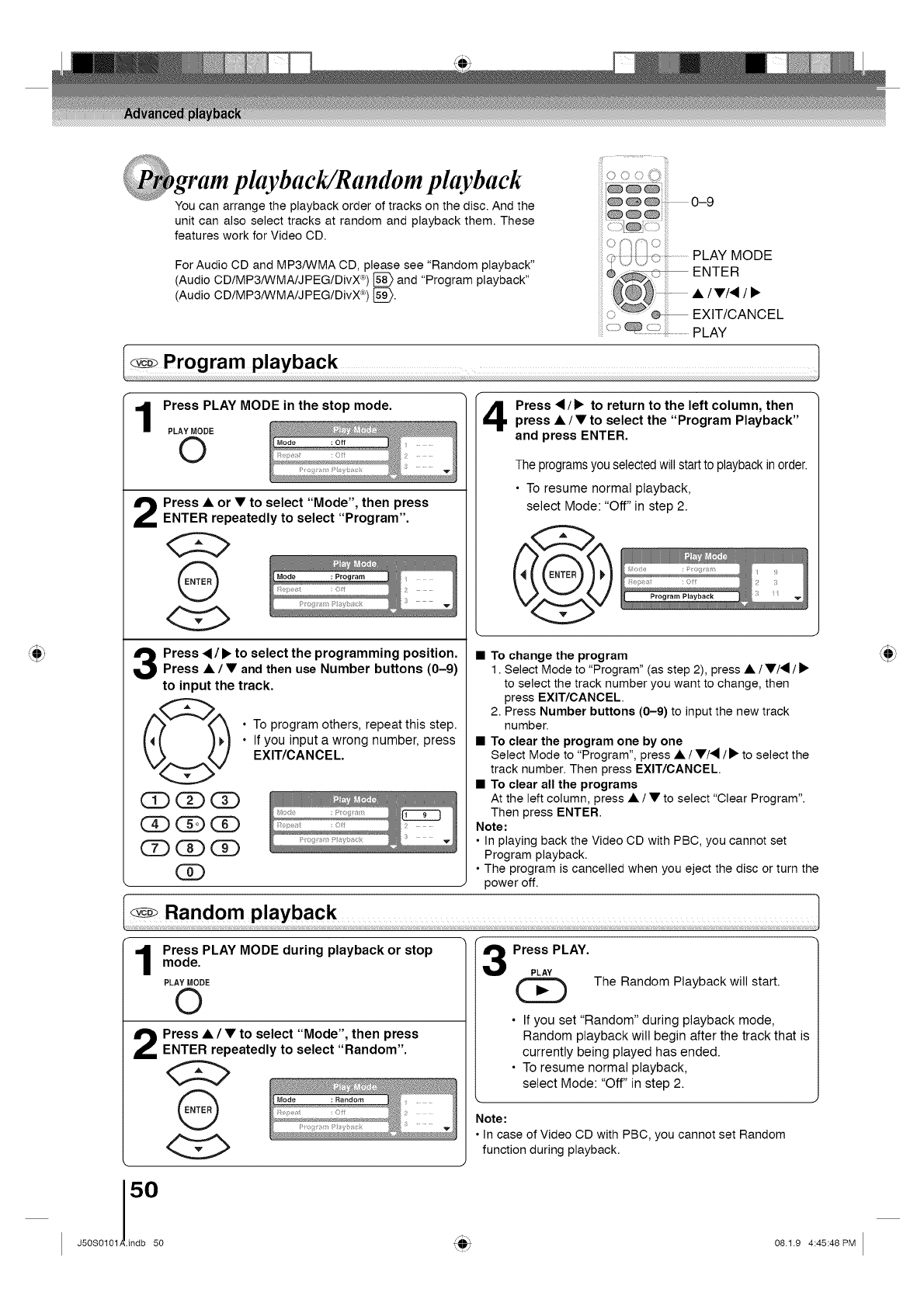

Program playback ........................................... 50

Random playback ........................................... 50

Changing angles .............................................. 51

Title selection ................................................... 51

DVD menu ....................................................... 51

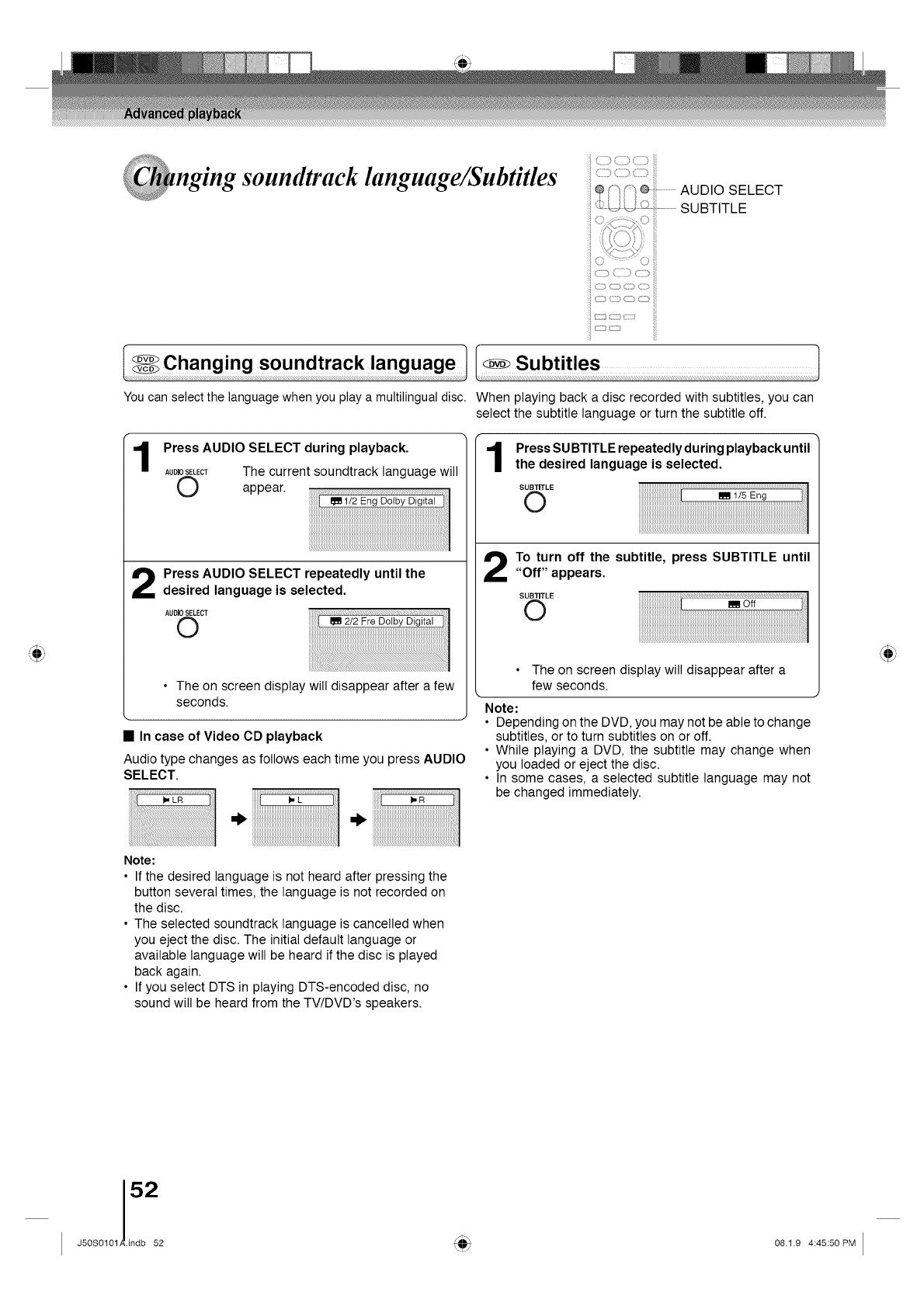

Changing soundtrack language ....................... 52

Subtitles ........................................................... 52

Disc status ....................................................... 53

To turn off the PBC .......................................... 53

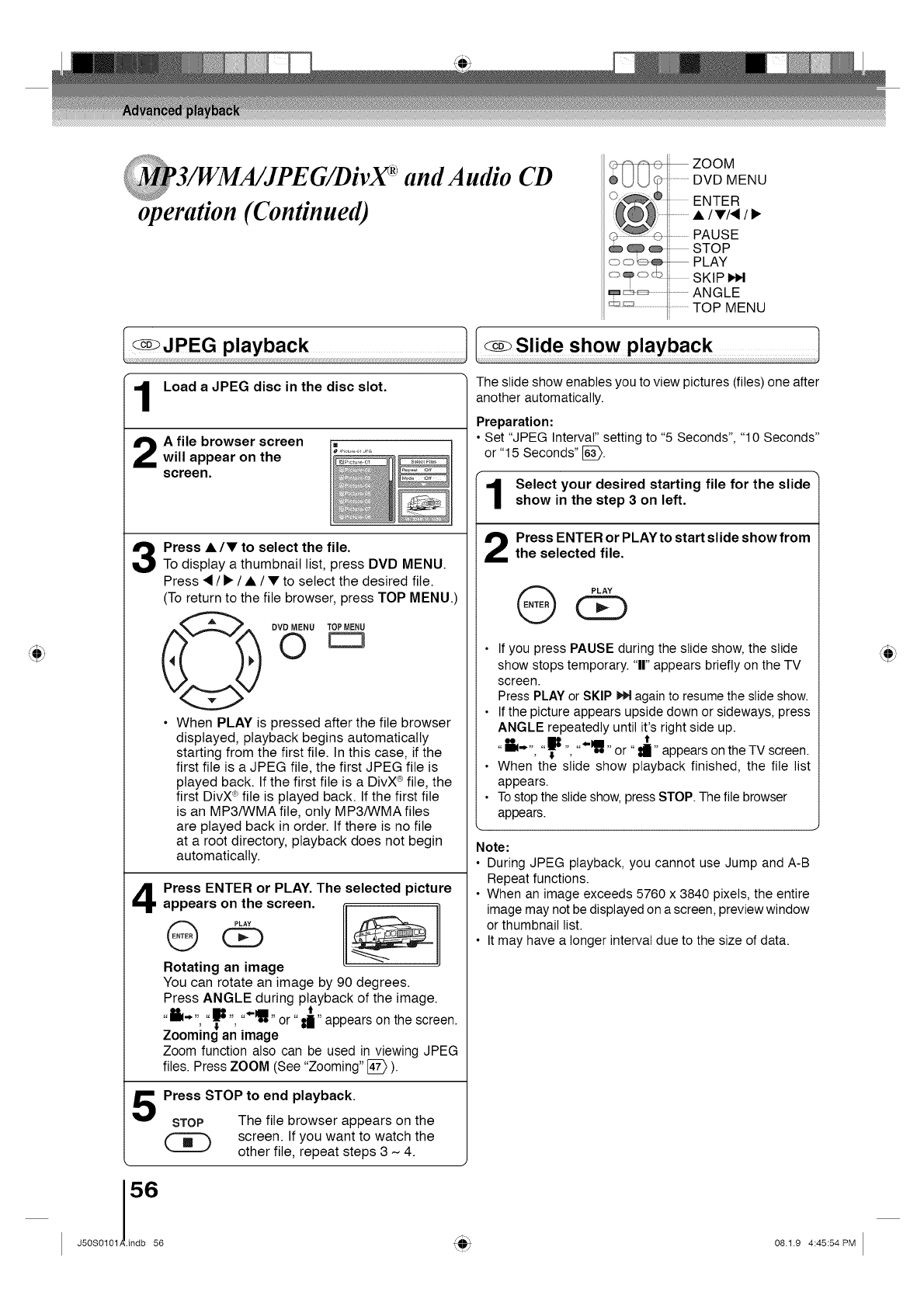

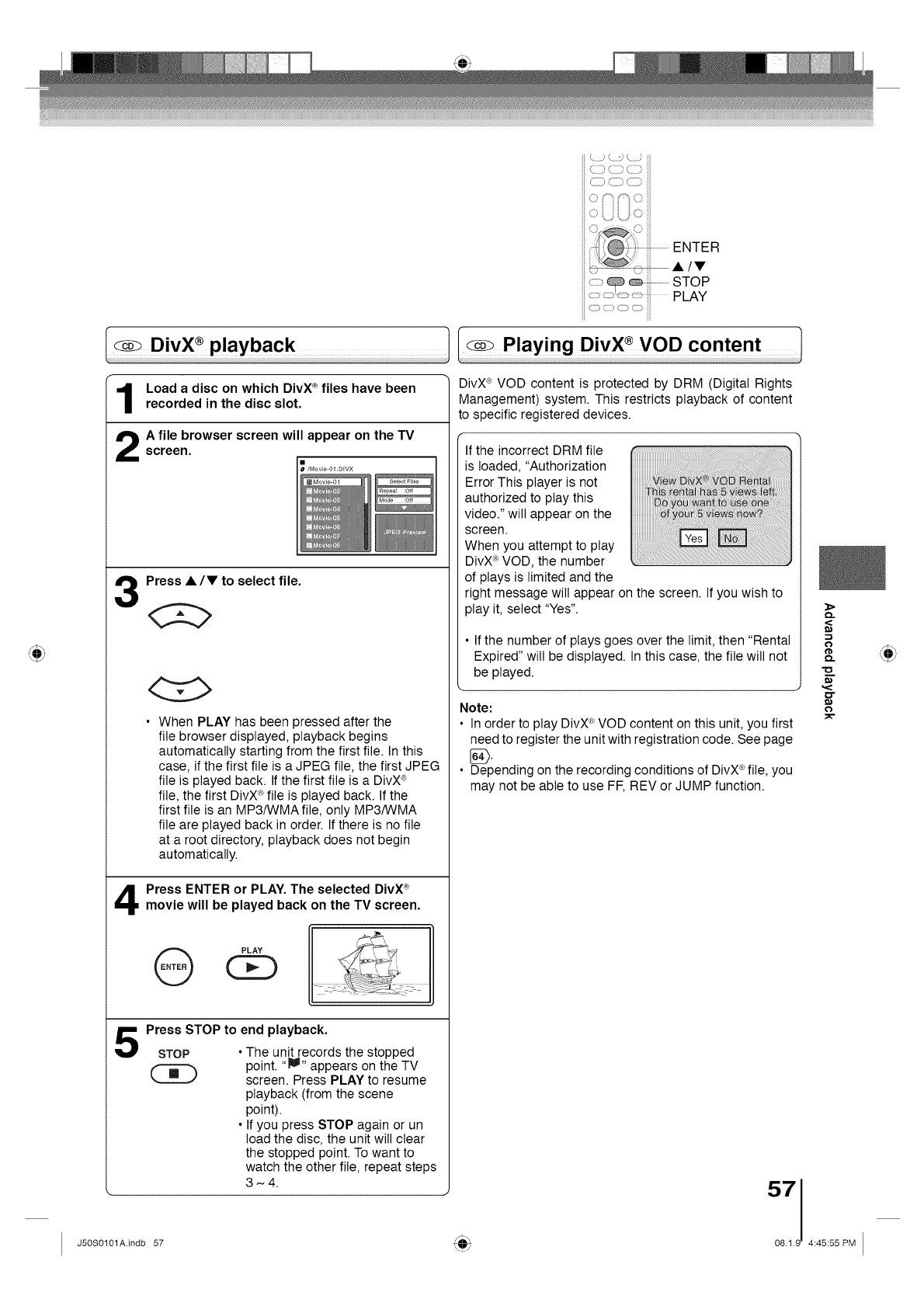

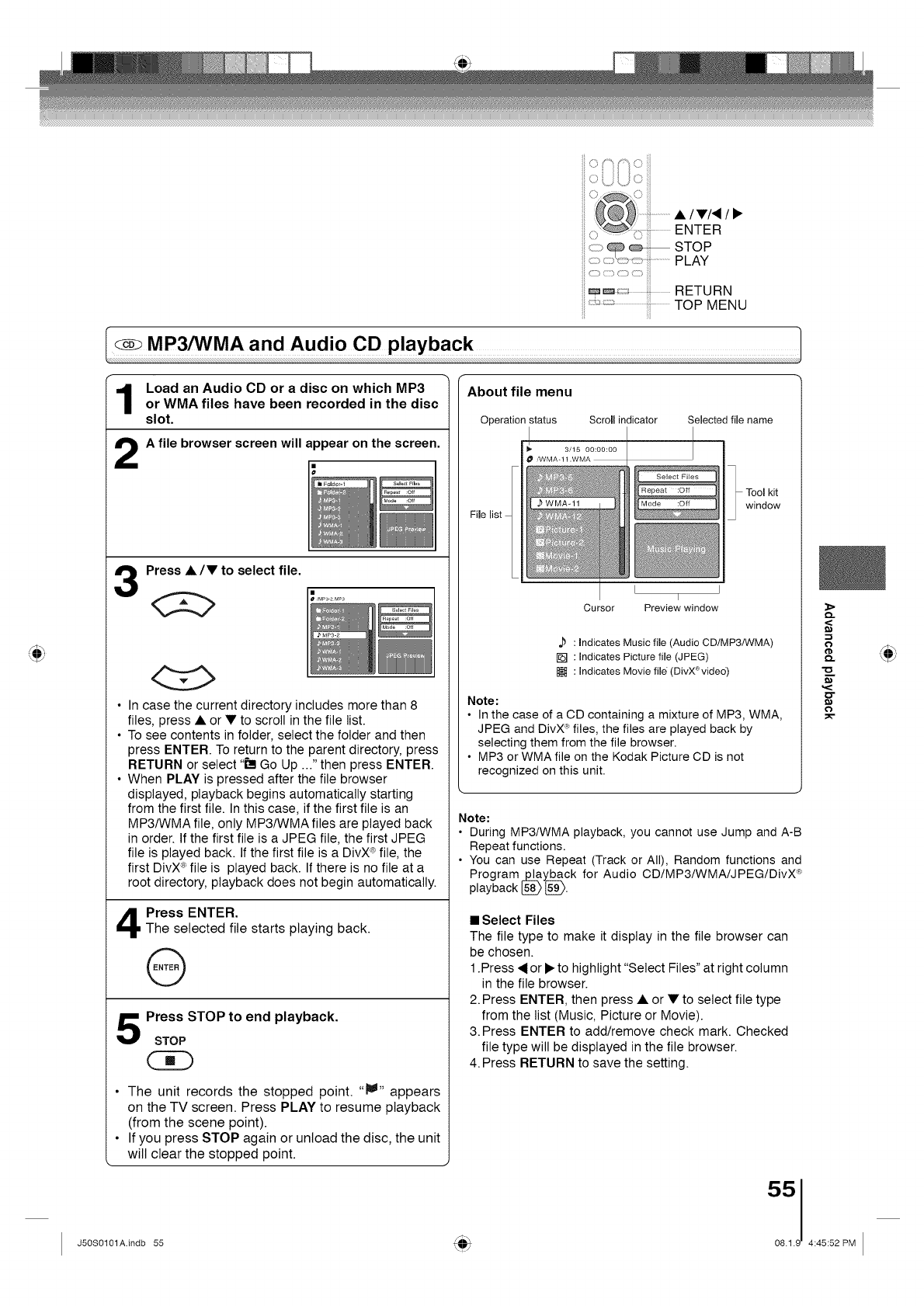

MP3/W MA/J PEG/DivX _

and Audio CD operation .................................. 54

Repeat, random and program playback

using file browser ............................................. 58

Function setup

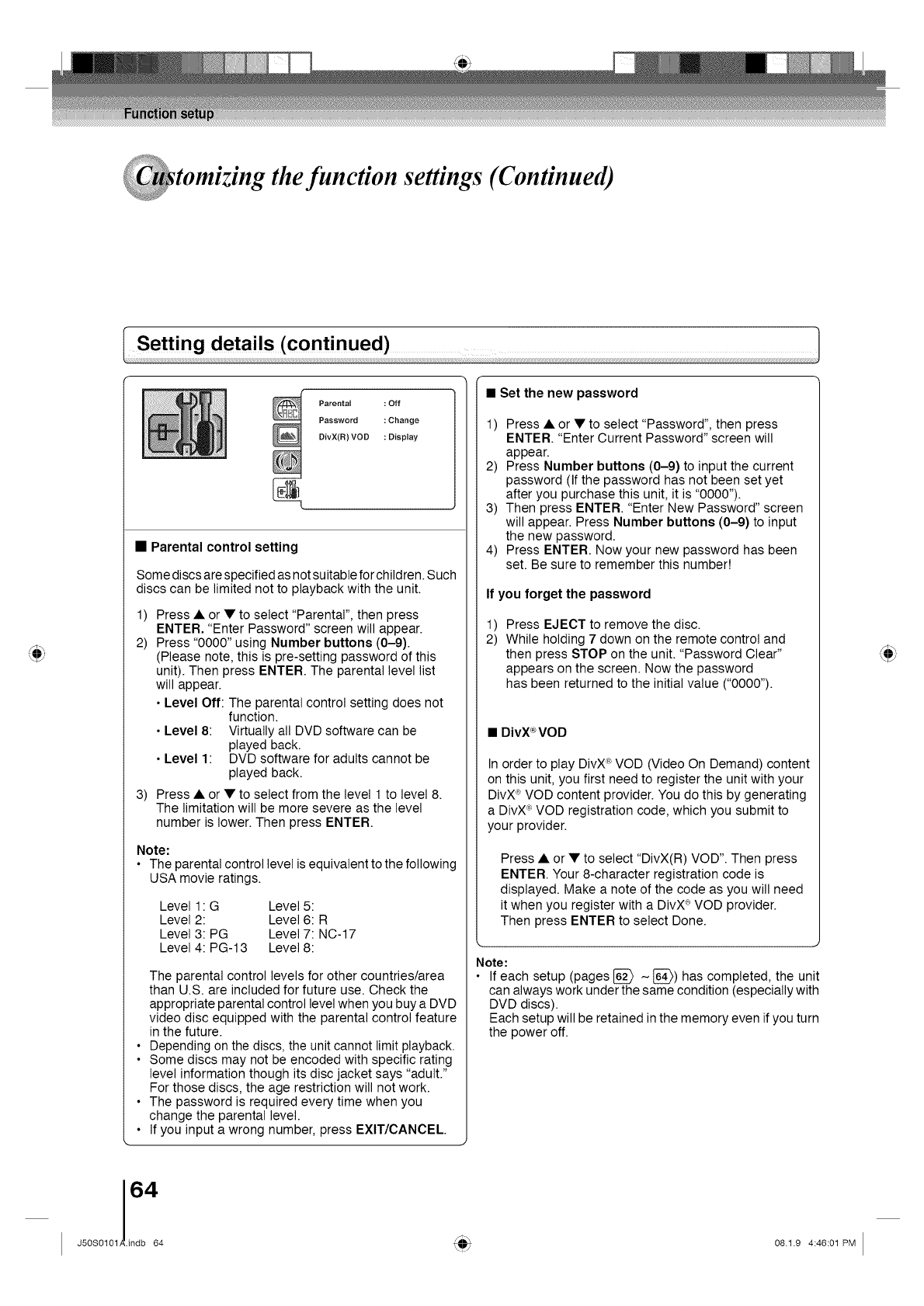

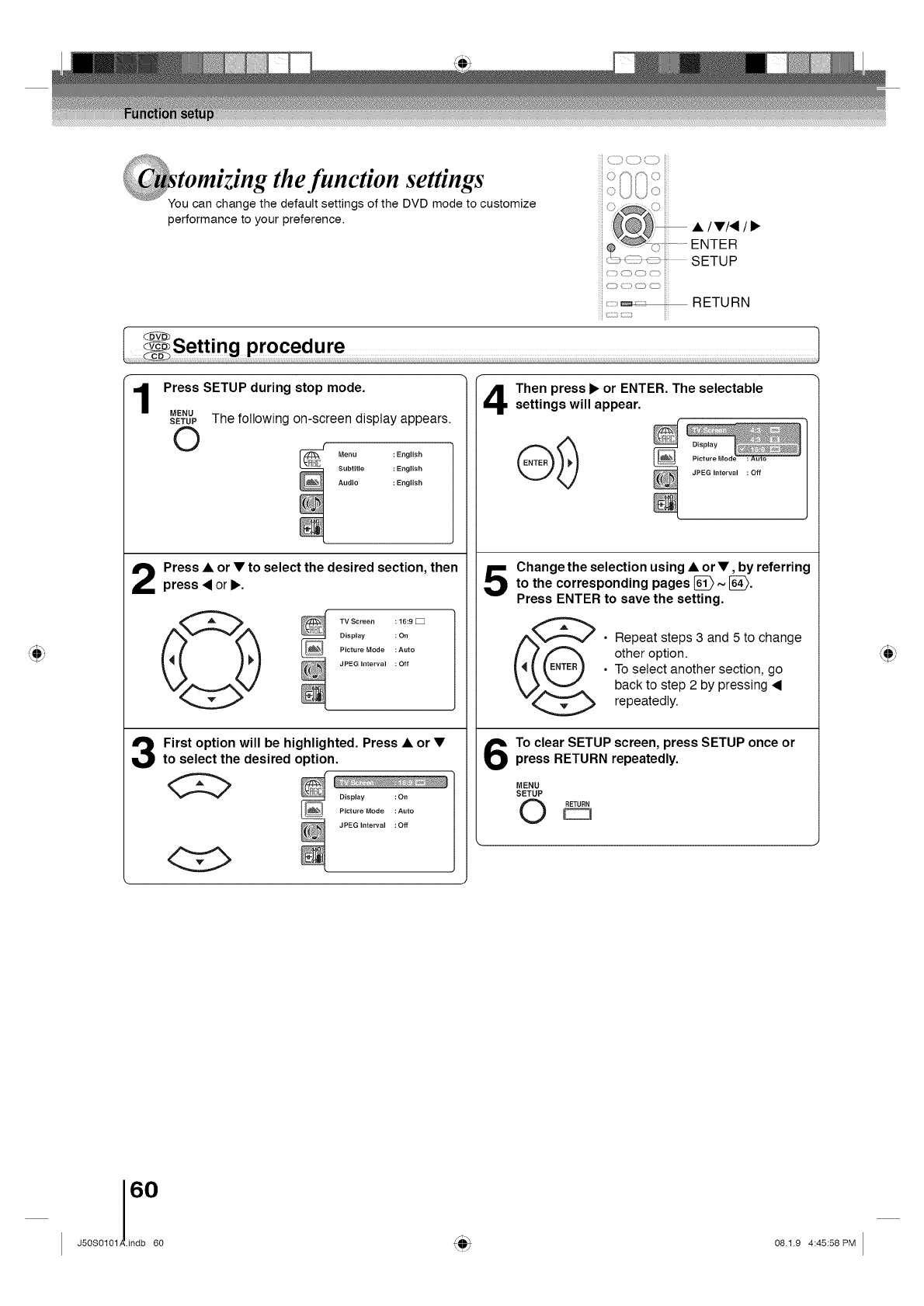

Customizing the function settings .................... 60

Temporary cancel the rating level

by DVD disc ..................................................... 65

Others

Understanding the Power Return feature ........ 66

Troubleshooting ............................................... 66

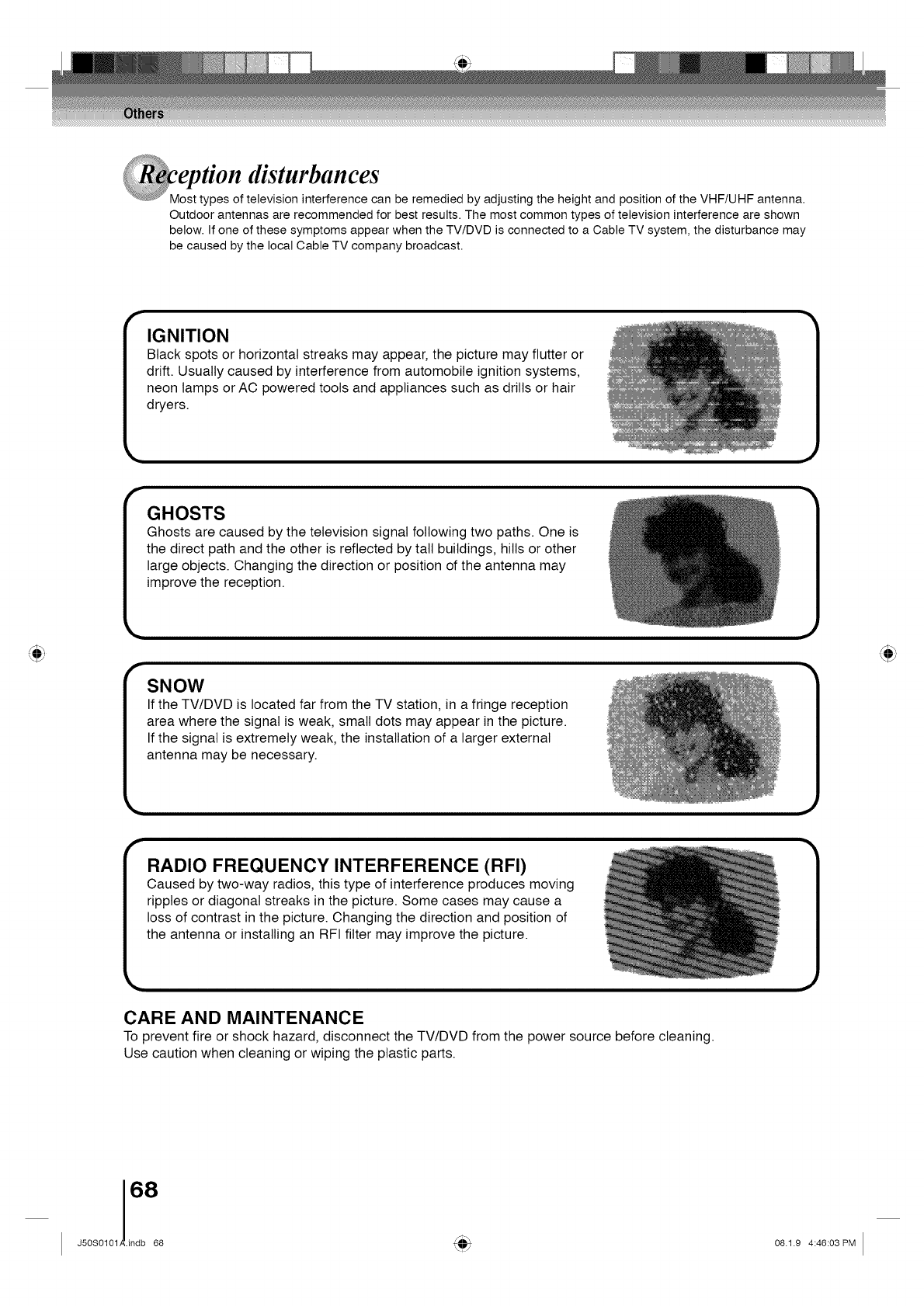

Reception disturbances ................................... 68

Language code list .......................................... 69

Specifications .................................................. 70

Limited United States Warranty ....................... 71

=--j

Q..

J50S0101A.indb 9 9I

08.1.9 4:44:51 PM

of controls

Speaker

Remote sensor [_

POWER indicator [_ Illustration of 19LV505

Disc slot

J50S01011 .indb 10

Left Side

EJECT

VOLUME

0__

-PLAY

CHANNEL

i STOP

_E.u

POWER

O-

Adjusting the angle of the base

Approx. 10° Approx. 3°

-- A EJECT button [_

-- (+/-) [_

VOLUME buttons

CHANNEL A [j_

I_ PLAY button [_

CHANNELV [_

• STOP button [_

"-----"MENU button [_[_

------INPUT/ENTER button [_

4) POWER button [_

You can adjust the

angle of the

TV-screen for 3 °

forward or for 10°

backward from

vertical angle.

Hold the base of the

TV while adjusting

the angle.

Illustration of 19LV505

08.1.9 4:44:52 PM

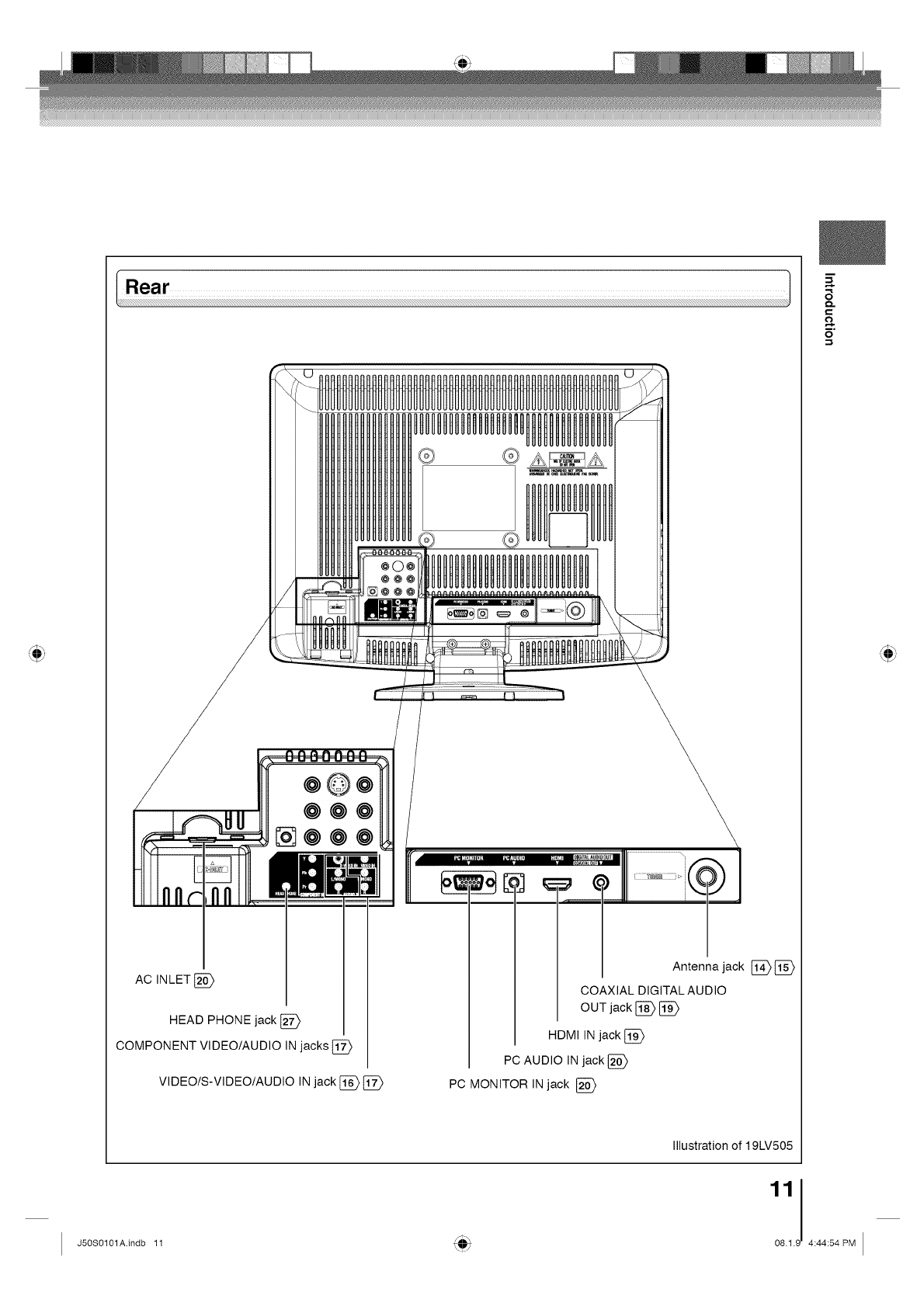

tt11111t111ttt11111

AC INLET [_

HEAD PHONE jack [_

COMPONENT VIDEO/AUDIO IN jacks [_

VIDEO/S-VIDEO/AUDIO IN jack [_ [_

Antenna jack [_ [_

COAXIAL DIGITAL AUDIO

OUT jack [_ [_

HDMI IN jack [_

PC AUDIO IN jack [_

PC MONITOR IN jack [_

Illustration of 19LV505

=--j

J50S0101A.indb 11 "1

08.1.9 4:44:54 PM

of controls (Continued)

The instructions in this manual describe the function on the remote control. See the page in [_ for details.

EJECT button [_

TV/DVD button [_

Direct channel selection

buttons (0-9)

Numbered buttons (0-9) [_

DISPLAY button [_ [_

OH A/V button [_

SUBTITLE button [_ m

INPUT button [_ m

ZOOM button [_

PLAY MODE button [_ [_[_ --

PLAY button [_

MENU button [_

SETUP button [_

PAUSE button []_ --

CH RTN button [_

SKIP (l_e!)button [_ --

REV button [_ --

FF button I]_

SLOW (-,I) button [_

TOP MENU button [_ --

RETURN button [_ I_

GAME button [_

*DVD MENU button

Use the DVD MENU button to

display the menu included on

many DVD video discs.

To operate a menu, follow the

instructions in "DVD menu." [_

PLAY MODE DVD MENU

,L_

SLOW ANGLE MARKER

cgcpo@

TOSHIBA

SE R0305

POWER button [_

SLEEP button [_

JUMP button [_

Direct channel selection button (m)

AUDIO SELECT button [_

-- VOL +/- button [_

MUTE button [_

*DVD MENU button [_

ENTER button [_

Direction buttons (_-/'_/4/_) [_

EXIT/CANCEL button

STOP button [_

-- CLOSED CAPTION button [_

SKIP (l_l)button [_

-- SLOW (t,-) button I]_

MARKER button [_

-- ANGLE button

REPEAT A-B button [_

PIG SIZE button [_

J50S01011 .indb 12 08.1.9 4:44:56 PM

Open the battery compartment 2

cover in the direction of the

arrow.

Install two "R03/AAA" batteries

(supplied), paying attention to

the polarity indicated in the

battery compartment.

Replace the compartment

cover.

Aim the remote control at the remote sensor and press control buttons to operate.

Operate the remote control within 30° angle on either side of the remote sensor, up to a distance of approx. 5 meters.

Approx. 5 meters

Caution:

Never throw batteries into a fire.

Note:

Be sure to use AAA size batteries.

Dispose of batteries in a designated disposal area.

Batteries should always be disposed of with the environment in mind. Always dispose of batteries in accordance with

applicable laws and regulations.

If the remote control does not operate correctly, or if the operating range becomes reduced, replace batteries with

new ones.

When necessary to replace batteries in the remote control, always replace both batteries with new ones.

Never mix battery types or use new and used batteries in combination.

Always remove batteries from remote control if they are dead or if the remote control is not to be used for an extended

period of time. This will prevent battery acid from leaking into the battery compartment.

J50S0101A.indb 13 ,_w/ ,3I

08.1.9 4:44:57 PM

0 ,oowtheo tructoo eowth tcorres oodto our oteoo s ste

If you are using a cable TV service (CABLE), see page 15 for Cable TV connections.

Antenna Antenna

jack jack

75 ohm coaxial cable

(not supplied)

300-75 ohm matching

transformer (not supplied)

Connect the 75 ohm cable from the combination

VHF/UHF antenna to the antenna jack on the back

of the TV/DVD.

If your combination VHF/UHF antenna has a 300

ohm twin-lead wire, use the 300-75 ohm matching

transformer (not supplied).

if.

Antenna

jack 300-75 ohm matching

transformer (not supplied)

oo ,

(not supplied)

UHF 300 ohm .... 300 ohm

twin-lead wire .... twin-lead wire

(notsupplied) (not supplied)

Connect the UHF 300 ohm twin-lead wire to the

combiner (not supplied). Connect the VHF 300 ohm

twin-lead wire to the 300-75 ohm matching transformer

(not supplied). Attach the transformer to the combiner,

then attach the combiner to the antenna jack on the

back of the TV/DVD.

J50S01011 .indb 14

Antenna

jack

(not supplied) "___

UHF 300 ohm "-

twin-lead wire

(notsupplied)

Connect the VHF 75 ohm cable and UHF 300 ohm

twin-lead wire to the combiner (not supplied).

Attach the combiner to the antenna jack on the back

of the TV/DVD.

08.1.9 4:44:57 PM

le TV connections

This TV/DVD has an extendedtuning range and can tune most cable channelswithout using a Cable TV converter box.

Some cable companies offer "premium pay channels" in which the signal is scrambled. Descrambling these signals for

normal viewing requiresthe use of a descrambler device which is generally providedby the cable company.

Antenna

jack

75 ohm

coaxial cable 1

For basic cable service not requiring a converter/descrambter

box, connect the Cable TV 75 ohm coaxial cable directly to the

Antenna jack on the back of the TV/DVD.

6')

If you subscribe to a cable TV service which requires the use of a converter/descrambter box, connect the

incoming 75 ohm coaxial cable to the converter/descrambter box. Using another 75 ohm coaxial cable, connect

the output jack of the converter/descrambter box to the antenna jack on the TV/DVD. Follow the connections

shown below. Set the TV/DVD to the output channel of the converter/descrambter box (usually channel 3 or 4)

and use the converter/descrambter box to select channels.

f-m

Antenna

Incoming 75 ohm 75 ohm cable to jack

Cable TV j Converter/ _. TV/DVD

qdescrambler _

If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require

the use of a converter/descrambter box, you may wish to use a signal splitter and an A/B Switch box (available

from the cable company or an electronics supply store). Follow the connections shown below. With the switch in

the "B" position, you can directly tune any nonscrambted channels on your TV/DVD. With the switch in the "A"

position, tune your TV/DVD to the output of the converter/descrambter box (usually channel 3 or 4) and use the

converter/descrambter box to tune scrambled channels.

Converter/

Incoming descrambler Antenna

75 ohm 75 ohm cable jack

to TV/DVD

Cable TV litter A/B switch ,_

J50S0101A.indb 15 3/¸ 08.1.9 4:44:58 PM

necting to optional equipment

Youcan enjoy VCR,camcorder or TV game with connectionto external input.

0-5

CH ^/V

INPUT

GAME

Press INPUT to view a signal from another device connected to your TV/DVD, such

as a VCR player. You can select TV, Video, ColorStream HD, HDMI or PC depending

on which input jacks you used to connect your devices.

Press INPUT on the remote control to display the current signal source.

To change the input source, press INPUT again or press 0-4. (5 is for selection DVD

mode.)

To playback from the VCR, connect the VCR to the TV/DVD as shown.

Select the "Video" by pressing INPUT repeatedly.

4 Signal flow /\VCR (yellow),_. Back side

(white) _-_ _,_

/ --= I (red) \r_,_ I @ @ :9

ttt ToAudio/VideoOUT I

AudioNideocable (notsupplied) l

IConnecting to a camcorder

To playback from the camcorder, connect the camcorder to the TV/DVD as shown.

Select the "Video" by pressing INPUT repeatedly.

" Signal flow c__ (yellow)_ Back side

_ Camcordertt t(white).,_(re_ ,_@f__._._.,._ '@

ToAudio/VideoOUtI

AudioNideo cable(not supplied) /

To VIDEO/AUDIO(L/R) IN

You can enjoy playing a TV game on the screen by adjusting to the suitable brightness for your eyes.

1. Connect a TV Game to the TV/DVD.

2. Select the Game mode by pressing GAME. The Game mode screen appears.

• If GAME is pressed during standby mode, the unit turns on automatically and the Game mode screen

appears on the screen.

4 Signal flow IBack side

Note:

TV GAME ](yellow)

(white)

ttt

W To Audio/Video OU z (red[_

udioNideo cable(not supplied)/

To VIDEO/AUDIO(L/R) IN

J50S01011 .indb 16 '_lw/ 08.1.9 4:44:59 PM

• You can also change the TV/DVD screen to the desired mode by pressing the CH ^ /V.

• The TV/DVD can also be used as a display device for many video games. However, due to the wide variety of

different types of signal generated by these devices and subsequent hook-up variations required, they have not all

been included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual

for additional information.

• Interactive video games that involve shooting a "gun" type of joystick at on-screen target may not work on this

TV/DVD.

IfyouconnectaVCRwithanS-VideocabletotheS-VIDEOINjackontheleftsideoftheTV/DVD,youmust

alsoconnecttheaudiocablestotheAUDIOINjacksasshownbelow.TheS-Videocableonlycarriesthevideo

signal.Theaudiosignalisseparated.

Selectthe"Video"bypressingINPUTrepeatedly.

4 Signalflow

To S-VIDEO OUT t t t

To S-VIDEOtN_\ Back aide

(white)_ _ _-_

-o

Ex. VCR with S-Video ToAUDIO(L/R) IN _ I "_ _ @

(playback) :: _ _ _ _

i!!d)

ToAudio (L/R)OUT ToS-VIDEO/AUDIO(L/R)IN

S-Videocable (not supplied)

Audiocable(not supplied)

Note:

• When the S-Video cable and the standard video cable are connected atthe same time, the S-video cabletakes

precedence.

Your TV/DVD is capable of using CotorStream ®(component video). Connecting your TV/DVD to a component

video compatible DVD player, such as a Toshiba DVD player with CotorStream <°_can greatly enhance picture

quality and performance.

Select the "CotorStream HD" by pressing INPUT repeatedly.

Ex. DVD player with Component video

"Signal flow ['_ooooo ToCOMPONENT(y,PB.PR)IN

To udi°' ' 'OUTtl

Note:

Back side

'1' t t To Component Video OUT

_ _ _ Cemponentvideecable

(not supplied) (white) .... _ ....(red)

Audio cable (not supplied) =7" To COMPONENT

AUDIO (L/R)IN

• The ColorStream _ (COMPONENT) inputs on this unit are for use with devices that output 480i, 1080i inter-

laced signals and 480p, 720p progressive signals.

• Refer to the owner's manual of the connected equipment as well.

• When you connect the unit to other equipment, be sure to turn off the power and unplug all of the equipment

from the wall outlet before making any connections.

• If you place the unit near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the

unit away from the tuner and radio.

J50S0101A.indb 17 ,_lw/ 08.1.9 4:45:00 PM

necang to opaonal equtpment (Conanued)

You can enjoy high quahty dynamic sounds by connecting the * This section uses the following reference mark.

TV/DVD to optional audio equipment.

Front speaker D "Center speaker

Rear speaker _ Signal flow

Sub woofer

Dolby Digital

Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce

this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs encoded via the Dolby Digital

recording system with this dynamic realistic sound by connecting the TV/DVD to a 6 channel amplifier equipped with a Dolby

Digital decoder or Dolby Digital processor. If you have a Dolby Surround Pro Logic decoder, you will obtain the full benefit of

Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the

Dolby Surround mark.

Amplifier equipped with a"]

Dolby Digital decoder J

To COAXIAL t_

type digital

audio input

Back side

75 _ coaxial cable (not supplied)

To COAXIAL DIGITAL

AUDIO OUT

f .....

Manufactured under license

from Dolby Laboratories.

Dolby and the double-D symbol

are trademarks of Dolby

Laboratories.

\ J

Digital Theater Systems (DTS)

DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs.

If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 channel DTS encoded sound tracks on DVD

video discs or audio CDs.

[_] 4_ __F Amplifier equipped with _']

I aDTSdecoder J

Back side

l[i]?i]l [DIGITALAUOiO0_

ICOAX_r_

To COAXIAL L i

type digital

audio input

75 _ coaxial cable (not supplied)

To COAXIAL DIGITAL

AUDIO OUT

_Manufactured under license "

under U.S. Patent #: 5,451,942 &

other U.S. and worldwide

patents issued & pending. DTS

and DTS Digital Out are

registered trademarks and the

DTS Iogosand Symbol are

trademarks of DTS, inc.

Reserved.

MPEG2 sound

You can enjoy motion picture and live concert DVD video discs encoded via the MPEG2 recording system with dynamic

realistic sound by connecting an amplifier equipped with an MPEG2 audio decoder or MPEG2 audio processor.

Amplifier equipped with an"]

MPEG2 audio decoder I

Back side

[_ To COAXIAL L l

type digital

audio input

75 _ coaxial cable (not supplied)

To COAXIAL DIGITAL

AUDIO OUT

J50S01011 .indb 18 08.1.9 4:45:02 PM

2 channel digital stereo

You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifier equipped with a digital audio inputand speaker

system (right and left front speakers).

Note: PCM audio is limited to DVD or CD playback.

I_O_iALOUt]_

Note:

-q

Amplifier equipped with a I

Digital audio input |

To COAXIAL L

type digital

audio input

Back side

75 _ coaxial cable (not supplied) I_

To COAXIAL DIGITAL

AUDIO OUT

• DO NOT connect the COAXIAL DIGITAL AUDIO OUT jack of the TV/DVD to the AC-3 RF input of a Dolby Digital Receiver.

This input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the COAXIAL DIGITAL AUDIO OUT jack

of the TV/DVD.

• Connect the COAXIAL DIGITAL AUDIO OUT jack of the TV/DVD to the "COAXIAL" input of a Receiver or Processor.

• Refer to the owner's manual of the connected equipment as well.

• When you connect the TV/DVD to other equipment, be sure to turn off the power and unplug all of the equipment from the wal! outlet

before making any connections.

• The output sound of the TV/DVD has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate listening level.

Otherwise, the speakers and your hearing may be damaged by a sudden high volume sound.

• Turn off the amplifier before you connect or disconnect the TV/DVD's power cord. Ifyou leave the amplifier's power on, the speakers

may be damaged.

About HDMI

HDMI (High Definition Multimedia Interface) supports both video

and audio on a single digital connection for use with DVD players,

DTV, set-top boxes, and other AV devices. HDMI was developed

to provide the technologies of High Bandwidth Digital Content

Protection (HDCP) as well as Digital Visual Interface (DVI) in one

specification. HDCP is used to protect digital content transmitted

and received by DVI-compliant or HDMI-compliant displays.

HDMI has the capability to support standard, enhanced, or high-

definition video plus standard to multi-channel surround-sound

audio. HDMI features include uncompressed digital video, a

bandwidth of up to 2.2 gigabytes per second (with HDTV signals),

one connector (instead of several cables and connectors), and

communication between the AV source and AV devices such as

DTVs.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI licensing LLC.

Back side

lCOAXiALBUT]_I

Note:

DVI device

HDMI device

To DVI output To PC AUDIO IN

Audio cord (not supplied)

HDMI - to - DVI adapter cable

(HDMI type A connector)

or (not supplied)

HDMI cable (type A connector)

ToLL_"HDMIout (not supplied)

To HDMI IN

You must select the corresponding audio input source (HDMI or DVI) on the menu screen (see "Selecting the HDMI audio

input source" on page 41). Otherwise you will only see the image with no sound.

J50S0101A.indb 19 ,_lw/ ,9I

08.1.9 4:45:03 PM

necting to optional equipment (Continued)/

Power source

Before you connect this TV/DVD to your PC, change the adjustment of your PC's Resolution and Refresh rate (60 Hz).

Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA connector PC

MONITOR on the rear of the TV/DVD. Attach the connectors firmly with the screws on the plug. In case of a Multimedia computer,

connect the audio cord to the audio output of your Multimedia computer and to the AUDIO connector of the PC AUDIO IN jack of

the TV/DVD.

Select "PC" by pressing INPUT repeatedly.

Switch on the computer. The TV/DVD can operate as the computer monitor

Back side

ICOAXIAL OUT]LII

PC AUDIO IN jack

Audio cord (not supplied)

FoPC

Monitor Display modes

MODE Resolution Refresh rate

VGA 640x480 60Hz

VGA 720x400 70Hz

SVGA 800x600 60Hz

XGA 1024x768 60Hz

WXGA 1280x768 60Hz

WXGA 1280x720 60Hz

WXGA 1360x768 60Hz

VGA cable (not supplied) To return to normal mode

Note: Press INPUT again.

• The on-screen displays will have a different appearance in PC mode than in TV mode.

• If there is no video signal from the PC when the unit is in PC mode, "No signal" will appear on the TV/DVD-screen.

To use AC power source

1. Connect the AC cord plug into this TV/DVD's AC INPUT jack.

2. Connect the AC cord into an AC outlet.

Illustration of

19 LV505

AC Outlet

AC 120V, 60Hz

AC cord (supplied)

Note:

• Never connect the AC line cord plug to other than the specified voltage (120V 60Hz). Use the attached power cord only.

• If the polarized AC cord does not fit into a non-polarized AC outlet, do not attempt to file or cut the blade, tt is the user's

responsibility to have an electrician replace the obsolete outlet.

• If you cause a static discharge when touching the unit and the unit fails to function, simply unplug the unit from the AC outlet

and plug it back in. The unit should return to normal operation.

• If the AC cord plug is plugged in for the first time, wait for approx. 5 seconds before pressing POWER.

J50S01011_indb 20 08.1.9 4:45:03 PM

Setup

e Auto Setup function helps to install your TV/DVD easily.

It leads you the Language selection, Air/Cable selection and Automatic

channel search.

IMPORTANT: Make sure that the antenna or cable TV system

connection is made!

ooo0

CC CD CD

(C>CTDCD

(/_ CD (:Z;

CD C_} CD

0 K_S(-"]0

'_ kJ %) _-_

POWER

.............ENTER

•/v/< /•

EXIT/CANCEL

To turn on the TV/DVD, press POWER.

•POWER indicator on the front of the unit

changes green. It may take approx. 10 seconds

for a picture to appear on screen.

POWER _ IS

O _0_

POWER

Auto Setup menu appears on the screen.

Press •or • to select "Language", then

press < or •to select your desired language.

Press •or •to select "Signal Type", thenpress < or •to select "Air" or "Cable".

Press •or •to select "Automatic Search",

then press ENTER.

Now the "Automatic Search" starts.

• If you press EXIT/CANCEL, the Automatic

Search stops and changes to the TV screen.

• After the starting setup is completed, the TV

channel appears on the screen.

• Note:

• The Auto Setup function will work only when you

press POWER for the first time.

• The process of "Automatic Search" may take 15 to

30 minutes to complete, depending on your regional

cable service.

1')

J50S0101A.indb 21 _mL 2,I

08.1.9 4:45:05 PM

'/ii@ °ng the language

This TV/DVD can display the on screen language in English, French or

Spanish.

Select the language you prefer first, then proceed with the other menu options.

00()_

t_) CD C)

o (::)o

(::::)o o

o F] ¢] o

....... / J_,.? --=

cz) (_} (z)

POWER

ENTER

•/v/< /•

EXIT/CANCEL

To turn on the TV/DVD, press POWER.

• POWER indicator on the front of the unit

changes green. It may take approx. 10 seconds

for a picture to appear on screen.

POWEn _ I

O _o_

POWER

Press MENU, The TV menu screen will

appear, Press •or •to select "Setup", then

press •or ENTER,

SETUP

Press •or •to select "Language".

Press •or •to select the desired language:

English, French (Fran£ais) or Spanish

(Espafiol).

Press EXIT/CANCEL to return to the normal

screen.

EXIT/

CANCEL

Note:

•If the unit does not operate properly, or No key

operation (by the unit and/or the remote control):

Static electricity, etc., may affect the TV/DVD's

operation. In such case, disconnect the AC cord once,

then connect it again.

• If no buttons are pressed for more than about 60

seconds, the MENU screen will return to normal

operation automatically.

J50S0101/_ indb 22 08.1.9 4:45:06 PM

channels

This TV/DVD is equipped witha channelmemoryfeature which allowschannels

to skip up or downto the next channelset into memory,skipping over unwanted

channels. Before selectingchannels, they must be programmedinto the

TV/DVD's memory.Touse this TV/DVD with an antenna, set the Tuning Band

menu option to theAir mode. When shippedfrom the factory,this menuoption

is in the Cablemode. ENTER

•/V/4 /•

EXIT/CANCEL

1Press MENU in the TV mode. The TV menu

screen will appear. Press • or •to select

"Channel", then press •or ENTER.

SETUP

Press •or •to select"Auto Ch Memory",

then press •or ENTER.

3Press •or •to select "Signal Type".

4Press •or •to select "Air" or "Cable".

Press EXIT/CANCEL to return to the normalscreen.

EXIT/

CANCEL

J50S0101A.indb 23

1Press MENU in the TV mode. The TV menu

screen will appear. Press •or •to select

"Channel", then press •or ENTER.

SETUP

Press •or •to select "Auto Ch Memory",

then press •or ENTER.

Press •or •to select "Automatic Search",

then press ENTER.

The TV/DVD will begin memorizing all the

channels available in your area.

O')

¢)

4:45:07 PM

memorize channels (Continued)

You can select the channel that you want to skip.

Press MENU in the TV mode. The TV menu

screen will appear. Press • or •to select

"Channel", then press •or ENTER.

SETUP

Press •or •to select "Add/Delete", then

press •or ENTER.

Press •or •to select "Add/Delete", then

press •or ENTER.

Press •or •to select the channel that you

want to skip.

Press •or •to select "Add" or "Delete",

whichever function you want to perform.

Repeat steps 4 - 5 for other channels you

want to add or delete.

Press EXIT/CANCEL to return to the normalscreen.

EXIT/

CANCEL

J5OSOlOll_indb 24 08.1.9 4:45:09 PM

(Z)L-) (Z)

C7_CZ)Cb

(E)_Z-)C-)

ENTER

A/V/I_

EXIT/CANCEL

If you find a new channel unregistered, you can add the

new channel into the channel memory.

All channels are deleted from the channel memory.

Tune in the new channel.

Press MENU. The TV menu screen will appear.

Press •or • to select "Channel", then press

• or ENTER.

SETUP

Press •or • to select"Add/Delete", thenpress •or ENTER.

Press •or • to select"Adding Channel",

then press •or ENTER. The new channel will

be added into the channel memory.

Press EXIT/CANCEL to return to the normal

screen.

EXIT/

CANCEL

J50S0101A.indb 25 _mL

Press MENU in the TV mode.The TV menu

screen will appear. Press •or •to select

"Channel", then press •or ENTER.

SETUP

Press •or • to select"Add/Delete", thenpress •or ENTER.

Press •or • to select"Clear All", then press

• or ENTER.

Press EXIT/CANCEL to return to the normalscreen.

EXIT/

CANCEL

1,)

4:45:10 PM

}iii

To turn on the TV/DVD, press POWER.(POWER indicator on the front of the unit changes

green. It may take approx. 10 seconds for a picture

to appear on screen.)

PowE_ *_ I S

_o_

POWER

Adjust the volume level by pressing VOL + or -.

The volume level will be indicated on the screen

by blue bars. As the volume level increases, so do

the number of bars. If the volume decreases, the

number of blue bars also decreases.

Set the Signal Type option to the appropriate

position (see "Air/Cable selection" on page 23).

Press the Direct Channel Selection (0-9, -)buttons or CH A /V to select the channel.

(If you press only channel number, channel

selection will be delayed for a few seconds.)

(i) GZ)G:)

CDCDG?,

(D(E)

TO SELECT ANALOG CHANNELS

1-9: Press 1-9 as needed. Example, to

select channel 2, press 2.

10-99: Press the 2 digits in order. Example, to

select channel 12, press 1,2.

100-125: Press the 3 digits in order. Example, to

select channel 120, press 1,2, 0.

TO SELECT DIGITAL CHANNELS

Press the first 3 digits, then press the - button,

followed by the remaining number.

Example, to select channel 015-001, press 0, 1,

5,-,1.

• If a channel is selected with only audio content,

"Audio only" will be displayed on the screen.

• If a channel is selected with a weak digital

signal, "Digital channel signal strength is low"

will be displayed on the screen.

The same program may be available on either

an analog channel or a digital channel.You may

choose to watch either format.

• If a channel is selected to which you have not

subscribed, "Digital channel is encrypted" will

be displayed on the screen.

VHF/UHF/CABLE CHANNELS

CableAir

VHF

2-13

UHF

14-69

VHF

2-13

STD/H RC/I RC

14-36 (A) (W)

37-59 (AA) (WW)

60-85 (AAA) (ZZZ)

86-94 (86) (94)

95-99 (A-5) (A-1 )

100-125 (100) (125)

01 (5A)

Note:

• If a channel with no broadcast is selected, the sound

will automatically be muted.

• It may take a few seconds for a digital channel picture

to appear on screen after being selected.

J5OSOIO1A indb 26 _mL 08.1.9 4:45:12 PM

c ®€':_ SLEEP

* DISPLAY

@ i::::?_D

CH RTN

• DISPLAY

Press DISPLAY to display the current information on the

screen.

DISPLAY

When the TV/DVD

receives a digital signal,

the digital information

will appear.

• Channel number

• Channel label (if preset)

• V-Chip rating

• Sleep timer

• Program guide

• Resolution

• Station name

• Broadcast program name

• Signal type

• Audio language

• Picture size

• Clock

When the TV/DVD

receives a analog signal,

the analog information

will appear.

• Channel number • Channel label (if preset)

• V-Chip rating • Signal type

• Sleep timer • Audio information (Stereo or SAP)

• Picture size • Resolution

Press DISPLAY again to clear the call display.

Note:

• After a few seconds, DISPLAY screen will return to

normal TV-operation automatically.

• OH RTN

This button allows you to go back to the last channel

selected by pressing OH RTN. Press CH RTN again to

return to the last channel you were watching.

OH RTN

SKiP

•MUTE

Press MUTE to switch off the sound. The TV/DVD's

sound will be silenced and "Mute" will appear on the

screen.The sound can be switched back on by pressing

this button again or the VOL + or -.

MUTE

J50S0101A.indb 27

•SLEEP

oh lore

To set the TV/DVD to

turn off after a preset

amount of time, press

SLEEP on the remote

control. The clock will

count up 10 minutes for

each

press of the SLEEP button (Off, Oh 10m, Oh 20m .....

2h 0m). After the sleep time is programmed, the display

will appear briefly every ten minutes to remind you that

the sleep timer is operating.To confirm the sleep timer

setting, press SLEEP and the remaining time will be

displayed for a few seconds. To cancel the sleep timer,

press SLEEP repeatedly until the display turns to Off.

•HEAD PHONES

Inserta stereo headphones (not supplied) witha 1/8"mini

plug into the HEAD PHONE jack on the front panel.

If you connect headphones, the sound from TV/DVD

speakers is muted.

--I

4:45:13 PM

lo 11

eung channels

hannel label appear with the channel number display each time you turn on the

TV/DVD, select a channel, or press DISPLAY.

You can choose any four characters to identify a channel.

ENTER

A/V/</I_

EXIT/CANCEL

r1Press MENU in the TV mode. The TV menu

screen will appear, Press then press •or •

to select "Channel" menu, then press •or

ENTER,

SETUP

Press •or •to select "Ch Label", then

press •or ENTER.

The "Ch Label" menu will appear.

Press •or • to select a channel you want to

label, then press •.

Press •or •repeatedly until the character

you want appears in the first space.

The characters rotation as follows:

F0-.-9 <-->A.--Z .... 0 @1+=- <-]

>SPACE <

If the character which you desire appears, press

ENTER.

Repeat this step to enter the rest of the

characters.

If you would like a blank space in the label name,

you must choose the empty space from the list of

characters.

When you finish inputting the label name,

press EXIT/CANCEL to return to the normal

screen.

EXIT/

CANCEL

Repeat steps 3-5 for other channel.You can

assign a label to each channel.

To clear a Ch Label

After step 3 above, press • or • to select "Label Clear",

then press • or ENTER.

Note:

• The channel labels will be reset after "Automatic

Search" on page 23.

J50S01011_indb 28 08.1.9 4:45:14 PM

F ++ • •

eling v+deoinputs

eVideo Labelfeatureallowsyouto labeleachinputsourceforyourTV/DVD.

++_ _::++MENU

Press MENU in the TV mode. The TV menu

screen will appear. Press •or •to select

"Setup", then press •or ENTER,

SETUP

Press •or •to select"Video Label", then

press •or ENTER.

Press •or •to select an input which you

want to label.

Press • or • to select the desired label for that

input source.

- : Uses the default label name

VCR : Video cassette recorder

DVD : DVD video

DTV : Digital TV set-top box

SAT : Satellite box

CBL : Cable box

HD : HDMI (only for HDMI input)

Press EXIT/CANCEL to return to the normal

screen.

EXIT/

CANCEL

-t

(1)

J5OSOl01A.indb 29 4:45:16 PM

g the V-Chip

Anage limitation can be set to restrict children fromviewing or hearing

violent scenes or pictures that you maychoose to exclude. The restriction

applies to "TV Rating"and "Movie Rating"ifthis data is transmitted. You may

set this restriction separately. To use the V-Chipfunction, you must register

a password.

Notes:

If you forget the password, press DISPLAY four times within

five seconds while the TV is in password entering mode. This

allows you to reset your password.

To register a password

1Press MENU in the TV mode. The TV menu

screen will appear. Press • or •to select

"Lock", then press •or ENTER.

SETUP

2Select and enter your password (4 digits)

using Number buttons (0-9), then press

ENTER.

OQQ

(Z) Q(Z)

CD CD (Z)

(3D

Enter the same password again to confirm,

then press ENTER.

The password is now registered.

(3DGD CD

(3D(Z) (Z)

(3D

Note:

• The V-Chipfeature is available only for the U.S.V-Chip

system. The Canadian V-Chip system is not supported.

Press MENU in the TV mode. The TV menu

screen will appear. Press •or •to select

"Lock", then press •or ENTER.

SETUP

Press •or •to select "Change Password",

then press •or ENTER.

The Change Password screen will appear.

Enter a new password using Number buttons

(0-9), then press ENTER.

QQQ

CDQGD

(Z) CD (Z)

Enter the same password again to confirm,

then press ENTER.

The new password is now registered.

J50S0101/_ Jndb 30 08.1.9 4:45:17 PM

..................................if!

ENTER

A/V/'/"

To set the V-Chip

J50S0101A.indb 31

Press MENU in the TV mode. The TV menu

screen will appear. Press • or •to select

"Lock", then press •or ENTER.

SETUP

Use Number buttons (0-9) to enter your pass-

word, then press ENTER. Then Lock menu will

appear.

QQQ

CDGD G_

(Z3 (Z) CD

(3D

Press •or •to select"V-Chip", then press•or •to select "On".

Press •or •to select"V-Chip Set", then

press •or ENTER.

The V-Chip Set Menu appears.

Press •or •to select which rating will be

used, then press •or ENTER. Each rating

below will appear.

TV Rating

You can set the rating using age level and genre.

Age:

TV-Y : All children

TV-Y7 • 7 years old and above

TV-G : General audience

TV-PG : Parental guidance

TV-14 : 14 years old and above

TV-MA : 17 years old and above

Genre:

ALL : All

D : Dialogue

L : Language

S : Sex

V : Violence

FV : Fantasy Violence

--I

(1)

-.t

4:45:19 PM

ng the V-Chip (continued)

To set the V-Chip (Continued) .....l

Movie Rating

G: All ages

PG : Parental guidance

PG-13 : Parental guidance less than 13 years old

R :Under 17 years old parental guidance

suggested

NC-17 : 17 years old and above

X : Adult only

Press AITI_I_ to select the desired rating,

then press ENTER,

Press EXIT/CANCEL to return to the normal

screen,

EXIT/

CANCEL

To use the TV/DVD after it is protected,

When a program is received that is blocked by the V-

Chip, press MUTE, then enter your password.

The protection will be temporarily overridden. If the TV/

DVD is turned off or the channel is changed, the V-Chip

restriction will be reactivated.

Note:

• The V-Chip function is activated only on programs and

input sources that include a rating signal.

J5OSOlOll_indb 32 _mL 08.1.9 4:45:20 PM

As a supplement to the standard V-Chip rating system, your television will

be able to download an additional rating system, if such a system becomes

available in the future.

ENTER

•/V/•

_-, 4°-4 i

.................. ................MENU

To download the additional V-Chip rating system (when available)

Press MENU in the TV mode, The TV menu

screen will appear, Press • or •to select

"Lock", then press •or ENTER,

SETUP

Use Number buttons (0-9) to enter your pass-

word, then press ENTER, Then Lock menu will

appear,

C_Q(3_

QQ(Z)

(]D

Press •or •to select"V-Chip Set (DTV)",

then press •or ENTER.

If the TV/DVD is not storing the additional

rating system, the TV/DVD will begin down-

loading it, which may take some time to be

completed.

Set your preferred content rating limits for the

additional rating system,

You also need "Update" procedure to update

6rating information. }

Note:

• You can only download the additional V-Chip rating

system when your TV/DVD is receiving a digital signal.

• When you download the additional rating system, it

may take some time for the download to occur.

• The V-Chip rating information and system are not

determined or controlled by the TV/DVD.

• The standard V-Chip rating system is available

whether your TV/DVD is receiving a digital signal or

not, and will block both analog and digital programs.

To set the restriction level using the standard V-Chip

rating system, select "V-Chip Set" in step 3.

• The downloadable V-Chip rating system is an evolving

technology, and availability, content, and format may

vary.

• You cannot select this feature if the TV/DVD is not

receiving a digital signal for the current station.

--I

J50S0101A.indb 33 33I

08.1.9 4:45:21 PM

This television has the capability to decode and display closed captioned

television programs. Closed captioning will display text on the screen for

hearing impaired viewers or it will translate and display text in another

language.

o o ©

f 7 _:i)

(Z:>(:ii_Cb

o o

........ :_ ENTER

.................•/T/,4 /•

@'_v_ EXIT/CANCEL

.................M E N U

<:::,__::::'_ CLOSED CAPTION

Press MENU in theTV mode. Press •or •to

select "Setup", then press •or ENTER.

SETUP

Press •or •to select "Closed Caption",

then press •or ENTER.

The Closed Caption menu will appear.

Note:

Press •or •to select "CC Setting", then

press < or •to select "On".

On: Captions will be displayed on the screen.

Off: Captions will not be displayed on the screen.

4Press •or •to select "Analog Caption" or

"Digital Caption", then press < or •to select

the desired Closed Caption mode.

When you select "Analog Caption", you can

choose C1, C2, C3, C4, T1, T2, T3 and T4.

When you select "Digital Caption", you can

choose from CSl, CS2, CS3, CS4, CS5 and CS6.

Press •or •to select "CC Priority", then

press < or •to select "Digital CC" or "Analog

CC".

Note:

• Depending on the broadcast signal, some

Analog Captions will function with a Digital

broadcast signal. This step prevent that two kind

of captions are overlapping.

Press EXIT/CANCEL to return to the normal

screen.

EXIT/

CANCEL

• You can also display the Closed Caption menu screen by pressing CLOSED CAPTION on the remote control.

• Digital caption feature is not available for analog channel.

I mportant Note:

If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set

"CC Setting" to "Off". I

J50S01011_ indb 34 _mL 08.1.9 4:45:22 PM

advanced

hen you haveselected Custom as the display method, youcan adjustthe

various setting listed below as follows:

This feature is designed to customize Digital Captions only.

............

c o ,;:,0

<:_ __:_A ENTER

EXIT/CANOE'

.............M ENU

Press MENU in theTV mode. Press •or • to

select "Setup", then press •or ENTER.

SETUP

Press •or •to select "Closed Caption",

then press •or ENTER.

The Closed Caption menu will appear.

Press •or • to select "Digital CO Preset",

then press •or _to select "Custom".

Press •or •to select "CC Advanced", then

press •or ENTER.

The CC Advanced menu will appear.

Press •or •to select the desired item,

then press •or _to change the setting.

You can select from among the following items

and parameters.

Text Size: Auto, Small, Standard, Large

Text Type: Auto, Style1, Style2, Style&

Styte4, Styte5, Styte6, Style7

Text Edge: Auto, None, Raised, Depressed,

Uniform, Left Shadow, Right

Shadow

Text Color:

Text Opacity:

Background

Color:

Background

Opacity:

Auto, Black, White, Red, Green,

Blue, Yellow, Magenta, Cyan

Auto, Transparent, Translucent,

Solid, Flashing

Auto, Black, White, Red, Green,

Blue, Yellow, Magenta, Cyan

Auto, Transparent, Translucent,

Solid, Flashing

Press EXIT/CANCEL to return to the normal

screen.

EXIT/

CANCEL

Note:

• You cannnot select"CC Advanced" in the menu

before set "Digital CC preset" to "Custom".

• You cannot set the Closed Caption "Text Color" and

"Background Color" as the same color.

J50S0101A.indb 35 3sI

08.1.9

-"1

'-,1

4:45:23 PM

• •

usang the picture preference/

Picture settings

You can select four picture modes--Sports, Standard, Movie and Memory--

as described in the following table:

Picture settings are factory preset but you can adjust them individually as

follows: _: ENTER

•/V/_I/1_

EXIT/CANCEL: i _ :_i_,::::_................MENU

.....Adjustingt.epicturepreference[Picturesettings l

Press MENU in the TV mode. The TV menu

screen will appear. Press • or •to select

"Picture", then press •or ENTER.

SETUP

Press •or •to select "Picture Preference".

<:z>

Press •or •to select a mode you want to

adjust.

Mode Picture Quality

Sports Bright and dynamic picture (factory-set)

Standard Standard picture quality (factory-set)

Movie Movie-like picture setting (factory-set)

Memory Your personal preferences (set by

you; see "Picture settings" at right).

After your desired setting, press EXIT/

CANCEL to return to the normal screen.

Press MENU in the TV mode. The TV menu

screen will appear. Press •or •to select

"Picture", then press •or ENTER.

Press •or •to select "Picture Setting".

Press •or •to select the item you want to

adjust. Press •or •to adjust the setting.

Brightness decrease increase

brightness brightness

Contrast decrease increase

contrast contrast

Sharpness makes picture makes picture

softer clearer

Color be pale color be brilliant color

Tint be reddish color be greenish

color

Color Temperature Picture Quality

Cool Bluish

Standard Neutral

Warm Reddish

After your desired setting, press EXIT/

CANCEL to return to the normal screen.

Note:

• The Contrast default setting is set to maximum at the

factory.

J5OSOlOll_indb 36 3/ 08.1.9 4:45:24 PM

Wide1, Theather Wide2, Theather Wide3 and Full.

O 0 0 O

(/) C) C_)

o¢'_ f') o

0-4

ENTER

A/V/I_

EXIT/CANCEL

PIC SIZE

Viewing the wide.screen picture formats

Press MENU, Press •or •to select "Picture",

then press •or ENTER,

Press •or •to select "Picture Size", then

press •or ENTER to display Picture Size

menu. Press A/• or corresponding Number

button (0-4) to select the desired picture size,

as described below and on the next page.

Note:

• Selectable picture sizes may vary depending on the

input source or broadcast signal.

• Picture Size menu also can be displayed by pressing

PIC SIZE on the remote control.

Press EXIT/CANCEL to return to the normalscreen.

Natural picture size

In some cases, this image will display the size of

standard 4:3 with a gray side bar.

Theater Wide1 picture size (for 4:3 format

programs)

To fill the screen, the right and left edges are extended,

however; the center of the picture remains near its

former ratio.

The top and bottom edges of the picture may be hidden.

J5OSOlO1A.indb 37

Theater Wide2 picture size (for letter box

programs)

The entire picture is uniformly enlarged--it is stretched

the same amount both wider and taller (retains its

original proportion).

The top and bottom edges of the picture may be hidden.

Note:

• This picture size is not available on 22LV505.

Theater Wide3 picture size (for letter box programs

with subtitles)

To fill the width of the screen, it is extended horizontally.

However; it is only slightly extended at the top and the

bottom.

The top and bottom edges of the picture may be hidden.

Note:

• To select this picture size on 22LV505, select

"Theater Wide2".

Full picture size (for 16:9 source programs)

Full will display the picture at the maximum size.

Note:

• Some High Definition and!or Digital broadcasts may

not allow you to change the picture size.

• 19LV505/19LV506: In COMPONENT/HDMI mode

with a scanning rate of 720p or 1080i, only the

Theater Wide2 and Full picture size features are

available.

• 22LV505: In COMPONENT/HDMI mode with a

scanning rate of 720p or 1080i, picture size feature

will not work.

In PC Mode, only the Natural and Full picture size

features are available. Additionally this feature will not

work when display mode is WXGA.

08.1.9

--I

-,t

4:45:26 PM

Mode/DNR

smoother motion may be obtained by setting the Film Mode to "On" when

you view a DVD.

DNR (Digital Noise Reduction) can reduce the roughness of the picture.

(This function is available only for analog broadcast.) _:: ENTER

•IV/</1_

EXIT/CANCEL: i _ :_i_,::::_................MENU

f-,

Press MENU in the TV mode, The TV menu

screen will appear, Press • or •to select

"Picture", then press •or ENTER,

SETUP

Press •or •to select "Film Mode".

Press •or •to select "On" or "Off".

Press EXIT/CANCEL to return to the normal

screen.

EXIT/

CANCEL

Note:

• A smoother motion may be obtained by setting the Film

Mode to "On" when you view a DVD from the DVD player

connected with ColorStream (component video) inputs.

Note:

• The PC settings are not effective for other input

modes.

Press MENU in the TV mode. Then press •or

•to select "Picture", then press •or ENTER.

SETUP

Press •or •to select "DNR".

Press • or •to select "On" or "Off".

J50S01011_indb 38 08.1.9 4:45:27 PM

ure control adjustment in the PC mode

Youcan adjust to optimize the performance of theTV/DVD inthe PC mode.

c o _ 0 _

2_. ¢, ENTER

•/V/, /•

EXIT/CANCEL

:! .............MENU

Press INPUT, then press A/• or 4to select

the PC mode.

Press MENU. Then press •or •to select

"Picture", then press •or ENTER.

SETUP

Press •or •to select"PC Setting", then

press •or ENTER.

Press •or •to select the desired item you

want to adjust.

5Press •or •to adjust the setting.

Hot Position:

Vet Position:

Clock:

Phase:

To adjust the horizontal position of

the image on the PC mode.

To adjust the vertical position of

the image on the PC mode.

To minimize any vertical bars

or stripes visible on the screen

background.

This must be adjusted after the

frequency of the PC mode has

been set to 60Hz to optimize

picture quality (page 14).

After adjusting, press ENTER to return to the

PC Setting menu. Then continue to adjust the

other items.

Press EXIT/CANCEL to return to the normal

screen.

EXIT/

CANCEL

-t

(1)

J50S0101A.indb 39 3/ 4:45:29 PM

control adjustment/

SelectingStereo/SecondAudio Program (SAP)

The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound.

MTS also can transmit a second audio program (SAP) containing a second

language or other audio information.

When the TV/DVD receives a stereo or SAP broadcast, the word "Stereo" or

"SAP" displays on-screen every time you press DISPLAY.

(:::::__:_ (2:.)iii

_) ,,_-- _ ENTER

EXF,CANCEL

d:::_<:;) ...............M E N U

Press MENU in the TV mode. The TV menu

screen will appear. Press •or •to select

"Audio", then press •or ENTER.

SETUP

Press •or •to select the item you want to

adjust. Then press •or •to adjust each

setting.

Bass: Press • or • to adjust the bass sound.

Treble: Press • or • to adjust the treble

sound.

Balance: Press • or • to obtain an equal sound

level from both speakers.

After you desired setting, press EXIT/CANCEL

to return to the normal screen.

EXIT/

CANCEL

Press MENU in theTV mode. Press •or •to

select "Audio", then press •or ENTER.

SETUP

Press •or •to select"MTS", then press •or

•to select "Stereo".

Press EXIT/CANCEL to return to the normal

screen.

EXIT/

CANCEL

Note:

• Generally you can leave yourTV in stereo mode

because the TV automatically outputs the type of

sound being broadcast (stereo or mono).

• If the stereo sound is noisy, select "Mono" to reduce

the noise.

To listen to a second audio program (SAP)

Press • or • to select "SAP" in step 2 above.The TV

speakers will output the second audio program instead

of normal audio.

J50S0101A indb 40 _mL 08.1.9 4:45:30 PM

_3 yS;_!¸_¸I •

ecting the audio language/

Selecting the HDMI audio input source

Whentwo or more audiolanguagesare included in adigital signal, you can

select one of the audio language. (This function is available only for digital

broadcast.)

When you use PC AUDIO IN jacks with HDMI or DVI device, you must select

HDMI audio input source from "HDMI" or "DVI".

0-6

ENTER

•/V/4 /•

EXIT/CANCEL

Press MENU in the TV mode.Then press •or

•to select "Audio", then press •or ENTER.

SETUP

Press •or •to select"Audio Language",

then press •or ENTER to display the Audio

Language menu.

Press A/• or Number buttons (0-6) to select

your desired language.

<;z>

<z>

(Z) (D (Z)

QG_G_

(3D

After you desired setting, press EXIT/CANCEL

to return to the normal screen.

EXIT/

CANCEL

1Press MENU in the TV mode. The TV menu

screen will appear. Press •or •to select

"Audio", then press •or ENTER.

SETUP

Press •or •to select"HDMI Audio". Then

press < or •to select "HDMI" or "DVI".

HDMI:

DVI:

When you connect the HDMI device to

the TV, select this setting.

When you connect the DVI device to the

TV with analog audio cords, select this

setting.

Press EXIT/CANCEL to return to the normal

screen.

EXIT/

CANCEL

-t

(1)

J50S0101A P36-43.indd 41 J5:12:15 PM

ing_,:the aspectfeature/

Adjusting the back lighting

Whenthe Aspect feature is set toOn andthe TV receives a480i signal, the

picture size isautomatically selected (as described inthe following table).

C ENTER

The Backlight featureadjusts the screen brightnessfor improvedpicture

clarity. •/V/_l /I_

EXIT/CANCEL

1Press MENU in the TV mode. The TV menu

screen will appear. Press • or •to select

"Setup", then press •or ENTER.

SETUP

Press •or •to select"Aspect".

Press •or •to select "On" or "Off".

After you desired setting, press EXIT/CANCEL

to return to the normal screen.

EXIT/

CANCEL

Aspect ratio of signal Automatic aspect size

source (When Aspect is On)

4:3 Normal Natural

16:9 Full Full

4:3 Letter box Theater Wide2

Not defined User-set mode

Press MENU in the TV mode.The TV menu

screen will appear. Press •or •to select

"Setup", then press •or ENTER.

SETUP

Press •or •to select "Backlight".

Press • or •to adjust the setting.

After you desired setting, press EXIT/CANCEL

to return to the normal screen.

EXIT/

CANCEL

J50S0101/_indb 42 08.1.9 4:45:33 PM

If the Auto Shut Off feature is On, a station being viewed stops broadcasting

and the TV is not operated, the TV will automatically shut itself off after 15

minutes.

The Reset function returns your settings to the factory settings.

::,_::::_::::::

ENTER

:: • /T/, /•

EXIT/CANCEL

}

:::,,., M E N U

1Press MENU in the TV mode. The TV menu

screen will appear. Press • or •to select

"Setup", then press •or ENTER.

SETUP

Press •or •to select"Auto Shut Off".Press < or •to select "On" or "Off".

After you desired setting, press EXIT/CANCEL

to return to the normal screen.

EXIT/

CANCEL

J50S0101A P36-43.indd 43

1Press MENU in the TV mode. The TV menu

screen will appear. Press •or •to select

"Setup", then press •or ENTER.

SETUP

Press •or •to select"Reset".

3Press •or ENTER to return your settings to

the factory settings.

"Reset" will appear on the screen approx. 3

seconds, then it returns to the normal

Note:

• The Reset function returns your picture quality

adjustments to the following factory settings:

Picture Setting

Brightness ...... center (25)

Contrast ............ max (50)

Sharpness ...... center (25)

Color .............. center (25)

Tint ................... center (0)

Color Temperature... Cool

Picture Preference.... Sports

Audio

Bass ............... center (15)

Treble ............. center (15)

Balance ............ center (0)

Film Mode ....................... On

PC Setting

Her Position... center (25)

Ver Position.... center (25)

Clock ................ center (0)

Phase ............. center (25)

4_lrr

-,-I

5:12:17 PM

a disc

This section shows you the basics on how to play a disc.

CAUTION

Keep your fingers well clear of the disc slot when disc is

loading or unloading. Neglecting to do so may cause serious

personal injury.

JECT _-

so€ _ --

Eu _

0----

EJECT

_i- VOLUME +/-

PLAY

STOP

POWER

...... :............. TV/DVD

@ .......

..... ...............POWER

:::::)::: ::::::::

VOL +/-

, ENTER

A/'V/</1_

PLAY

Q _ STOP

Preparations:

• When connecting to other equipment, turn the power off.

Press POWER on the unit or on the remote con-

trol to turn on the unit.

• POWER indicator on the front of the unit changes

green. It may take approx. 10 seconds for a picture

to appear on screen.

• Every time you press POWER, the TV/DVD starts

from TV mode.

• When using an amplifier, switch on the amplifier.

d) POWER

,,Is

_o_

POWER

Press TV/DVD on the remote control to select DVD

mode.

The DVD startup screen will appear on the TV screen.

Load a disc in the disc slot.

Load the disc in the disc slot with the label side fac-

ing forward. (If the disc has a label.) Hold the disc

without touching either of its surfaces, align it with

the guides, and place it in position.

If a disc is inserted during some modes other than

DVD mode, it may switch to DVD mode and then

playback may be begun automatically.

J50S01011_indb 44

4On the TV screen, "A," changes to "Reading" and

then playback commences.

A menu screen will appear on the TV screen if the

disc has a menu feature.

Press •/V or <1 /I_ on the remote control to

select title, then press ENTER. Title is selected and

play commences.

Press VOLUME + or - to adjust the volume.

VOLUME

6Press STOP to end playback.

[] STOP O

•Resuming facility

• The unit records the stopped

point, depending on the disc.

,,IW,,appears on the screen.

Press PLAY to resume playback

(from the scene point).

• If you press STOP again

("I' appears on the TV screen.),

the unit will clear the stopped

point.

• To start playback in the stop mode

Press PLAY.

I_ PLAY 0

Note:

If the unit does not operate properly:

Static electricity, etc., may affect the TV/DVD's operation. In such

case, disconnect the AC cord, then connect it again.

08.1.9 4:45:36 PM

•To obtain a higher quality picture

Occasionally, some picture noise may appear on the TV screen while playing a

DVD video disc because the high resolution pictures on these discs include a

lot of information. In such case, you may reduce the Sharpness with the Picture

Setting menu (see page 36).

• About <_<2_<3_

The _@_> icons on the heading bar show the playable discs for the

function described under that heading.

: You can use this function with DVD video discs.

: You can use this function with Video CDs.

: You can use this function with Audio CDs and CD-R/RW CDs.

EJECT

PAUSE

• To pause playback (still mode)

Press PAUSE during playback.

PAUSE To resume normal playback,

press PLAY.

PLAY •The sound is muted during still

mode.

• To stop playback

Press STOP.

STOP

Note:

• To remove the disc

Press EJECT.

A EJECT

Remove the disc after the disc comes

out.

o ! ii

•If a non-compatible disc is loaded, "Incorrect Disc", "Region Code Error" or "Parental Error" will appear on the TV screen

according to the type of loaded disc. In this case, check your disc again (see pages 7 and 64).

• Some discs may take a minute or so to start playback.

• When you set a single-faced disc label downwards (ie. the wrong way up), "Reading" will appear on the display for a few

minutes and then "Incorrect Disc" will continue to be displayed.

• Some discs may not work the resuming facility.

• Resuming cannot function when you play a PBC-featured Video CD while the PBC is on. To turn off the PBC, see page 53.

• Some playback operations of DVDs may be intentionally fixed by software producers. Since this unit plays DVDs according

to the disc contents the software producers designed, some playback features may not be available. Also refer to the

instructions supplied with the DVDs.

• Do not move the unit during playback. Doing so may damage the disc.

• Use the EJECT to unload and eject the disc.

• Do not put any objects other than discs on the disc slot. Doing so may cause the unit to malfunctions.

• In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen

menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press

POWER on the remote control once the movie is completed.

• There may be a slight delay between the button is pressed and the function activates.

(/)

-u

J50S0101A.indb 45 ,_lw/ 4:45:39 PM

adisc (Continued)

Press REV or FF during playback.

REV _F REV: Fast reverse playback

(_D FF: Fast forward playback

Each time you press REV or FF

button, the playback speed changes.

• To resume normal playback

Press PLAY.

PLAY

Note:

• The TV/DVD mutes sound during reverse and forward scan

of DVD/VCD/Audio CD discs.

• The playback speed may differ depending on the disc.

• You can use fast reverse/fast forward playback for DivX _:CD.

Press PAUSE during still playback,

PAUSE Each time you press PAUSE, the

picture advances one frame.

Playing frame by frame ]

•To resume normal playback

Press PLAY.

PLAY

Note:

• The sound is muted during frame by frame playback.

• You can use frame by frame playback for DivX '_CD.

Press SLOW ,ql (REVERSE) or P- (FORWARD)

during playback.

Each time you press the button, the

slow-motion speed changes.

• To resume normal playback

Press PLAY.

PLAY

Note:

• The sound is muted during slow-motion playback.

• The Video CD cannot play Reverse Slow.

Locatmnga chapter or track

Press SKIP I<1_1or m_,-I repeatedly to display the chapter or track number you want.

Playback starts from the selected chapter or track.

CLOSEDOAP110N CH RTN

SKIP SKIP

To locate succeeding chapters or tracks. (_ Playback starts from the beginning of

the current chapter or track.

When you press twice in quick successions,

playback starts from the beginning of

the preceding chapter or track.

Note:

• A "Prohibition" symbol "X" may appear at the upper right of the screen. This symbol means either the feature you tried is not

available on the disc, or the TV/DVD cannot access the feature at this time. This does not indicate a problem with the

TV/DVD.

J50S01011_indb 46 08.1.9 4:45:41 PM

g/L gde

mm ocatm sired scene

is unit will allow you to zoom in on the frame image. You can then make

selections by switcHng the position of the frame.

Use the title, chapter and time recorded on the DVD disc to locate the

desired point to playback. In the case of VCD/Audio CD discs, time and

track are used to locate the desired point to playback.

To check the title/track, chapter/track and time, press DISPLAY.

0-9

JUMP

DISPLAY

ZOOM

ENTER

EXIT/CANCEL

1Press ZOOM during playback.

iNPUT

ZOOM

©The center part of the image will be

zoomed in.

Each press of ZOOM will change

the ZOOM O,1 (x 1.3), 0,2 (x 1.5)

and 0`3 (x 2.0).

Press i/•/,/l_ to view a different part of the

frame.

You may move the frame from

the center position to UP,DOWN,

LEFT or RIGHT direction.

tn the zoom mode, press ZOOM repeatedly to

return to a 1:1 view (0` Off).

Note:

iNPUT

ZOOM

You can select the Pause, Slow or Search playback in the

zoom mode.

Some discs may not respond to zoom feature.

Zoom function can be used for DivX _ CD.

1Press JUMPduring playback or resumestop mode.

JUMP IJump

Q Title --- J

Chapter ---

Time ": :"

Press •or • to select the "Title/Track', "Chap-

ter" or "Time".

<:z:>

Jump

Title ---

Chapter --- I

Time :" ":

3Press Number buttons (0-9) to input the number.

Q_Q Jump

Q Q (_ Title ---

Chapter 12 ]

Q Q Q Time ','':

(D • If you input a wrong number, press

EXIT/CANCEL

• Refer to the package supplied with

the disc to check the numbers.

Press ENTER. Playback starts.

• When you change the title,

playback starts from Chapter 1 of

the selected title.

• Some discs may not work in the

above operation.

Note:

• In case of the Audio CD and Video-CD, only Track and Time

can be selected.

• In case of the Video-CD playback with PBC, the JUMP does

not work. To turn off PBC, see page [_.

• Only Time search function can be used for DivX® CD.

:::3

J50S0101A P47-54.indd 47 4,I

08.1.9 5:13:04 PM

rking desired scenes

The unit stores the points that you want to watch again up to 3 points.

You can resume playback from each scene.

_:::::__ MARKER

3Marking the scenes [_ Returning to the scenes !

Press MARKER during playback.

MARKER

Select the blank Marker using •or V.

Then press ENTER to mark the desired scene.

Cz>

<:z:>

• Repeat this procedure to mark the

other 2 scenes.

Press MARKER to clear the display.

MARKER

Note:

• Some discs may not work with the marking operation.

• The marking is cancelled when you eject the disc or turn the

power off.

• Some subtitles recorded around the marker may fail to

appear.

• In case of Video CD with PBC, Marker function is prohibited.

Press MARKER during playback or stop mode.

MARKER

2Press •or •to select the Marker 1-3.

Press ENTER.

Playback starts from the marked

scene.

• To cancel the Marker

Followtheabove steps 1~2, thenpress EXIT/CANCEL.

J50S01011Eindb 48 08.1.9 4:45:45 PM

eatplayback/A-B Repeatplayback

Press PLAY MODE during playback or stop

mode,

PLAY MODE

[DVD]

Press ENTER repeatedly to select "Chapter"

or "Title".

The unit automatically starts

G repeat playback after finishingthe current title or chapter.

[Video CD]

Press •to select "Repeat",

Press ENTER repeatedly to select "Track" or

"All".

The unit automatically starts

repeat playback after finishing

the current track.

• If you set the repeat mode during stop mode,

press PLAY to start Repeat playback.

Press PLAY MODE again to clear the screen.

•To resume normal playback

Select Repeat •"Off" in step 2.

Note:

•Some discs may not workwiththerepeat operation.

• In case of Video CD with PBC, Repeat function is

prohibited during playback.

• Chapter/Track repeat function is canceled whenever SKIP

I_ or _ is pressed.

A-B repeat playback allows you to repeat a section between

two selected points.

Press REPEAT A-B during playback,

REP_ATA-R The start point is selected.

2Press REPEAT A-B again,

REPEAT A-B The end point is selected. Playback

starts at the point that you selected.

Playback stops at the end point and

returns to Point A automatically, then

starts again.

I!I!H!I!I!H!I!I!H!I!I!H!I!I!H!Iil,i,,i iiili,i,iii

• To resume normal playback

Press REPEAT A-B again.

R_PEATA-B ,,tin Off" appears on the screen.

I==nl

Note:

In A-B Repeat mode, subtitles near the A or B locations

may not be displayed.

You cannot set the A-B Repeat for the scenes that include

multiple angles.

A-B Repeat playback does not work when Repeat playback

is activated.

You may not be able to set A-B Repeat during certain

scenes of the DVD.

A-B Repeat does not work with an interactive DVD and

MP3/WMA/JPEG CD.

In case of Video CD with PBC, A-B Repeat is prohibited.

1:3

e.,,

,.<

J5OSOlO1A.indb 49 3/ 4:45:46 PM

am ack/Random ack

You can arrange the playback order of tracks on the disc. And the

unit can also select tracks at random and playback them. These

features work for Video CD.

For Audio CD and MP3/WMA CD, please see "Random playback"

(Audio CD/MP3/WMA/JPEG/DivX s) [_ and "Program playback"

(Audio CD/MP3/WMA/JPEG/DivX s) _.

..............PLAY MODE

ENTER

•/V/4 / •

_::_.... EXIT/CANCEL

................_..........PLAY

Press PLAY MODE in the stop mode,

PLAYMODE

Press •or •to select "Mode", then press

ENTER repeatedly to select "Program",

<z>

Press 4/• to select the programming position,

Press •/• and then use Number buttons (0-9)

to input the track,

C_:__) •To program others, repeat this step.

If you input a wrong number, press

EXIT/CANCEL.

G::)(Z) CD

Press 4/• to return to the left column, then

press •/•to select the "Program Playback"

and press ENTER,

The programsyouselectedwillstartto playbackinorder.

• To resume normal playback,

select Mode: "Off" in step 2.

.<"::>A

• To change the program

1. Select Mode to "Program" (as step 2), press • /•/4 /•

to select the track number you want to change, then

press EXIT/CANCEL.

2. Press Number buttons (0-9) to input the new track

number.

• To clear the program one by one

Select Mode to "Program", press • /•/4 /• to select the

track number. Then press EXIT/CANCEL

• To clear all the programs

At the left column, press •/• to select "Clear Program".

Then press ENTER.

Note:

• In playing back the Video CD with PBC, you cannot set

Program playback.

• The program is cancelled when you eject the disc or turn the

power off.

1Press PLAY MODE during playback or stop

mode,

PLAY MODE

Press •/• to select "Mode", then press

ENTER repeatedly to select "Random",

J50S0101/_ indb 50

Press PLAY,

PLAY

The Random Playback will start.

• If you set "Random" during playback mode,

Random playback will begin after the track that is

currently being played has ended.

• To resume normal playback,

select Mode: "Off" in step 2.

Note:

• In case of Video CD with PBC, you cannot set Random

function during playback.

08.1.9 4:45:48 PM

ngmg angles/Title selection/D VD menu

:: _ <_ PLAY

...... j ........

_" _ TOP MENU

When playing back a disc recorded with multi-angle facility,

Press ANGLE during playback,

The current angle will appear.

ANGLE

,oucan change the angle that you are viewing the scene from.

Press ANGLE repeatedly until the desired anc

is selected,

ANGLE

Note:

• Depending on the DVD, you may not be able to change the

angle even if multi-angles are recorded on the DVD.

Two or

Press TOP MENU during playback.

Title menu appears on the screen.

TOP MENU

more titles are recorded on some discs. If the title menu is recorded on the disc, you can select the desired title.

Press • IV/, / I_ to select the desired title.

Note:

Press ENTER or PLAY.

PLAY

The playback of the selected title will

start.

Depending on the DVD, you may not be able to select the title.

Depending on the DVD, a "title menu" may simply be called a

"menu" or "title" in the instructions supplied with the disc.

_DVD menu :1

Some DVDs allow you to select the disc contents using the menu.

When you playback these DVDs, you can select the subtitle language, soundtrack language, etc, using the menu.

Press DVD MENU during playback,

ovoMENU The DVD menu appears on the TV

screen.

• Press DVD MENU again to resume

playback at the scene when you

pressed DVD MENU.

Press •/V/<I/I_ to select the desired item,

Press ENTER.

@The menu continues to another

screen. Repeat steps 2 and 3 to set

the item completely.

Note:

• Depending on the DVD, you may not be able to resume

playback from the scene point when you press DVD MENU.

J50S0101A.indb 51 s,I

08.1.9

¢.)

¢1)

t.-,,

,.<

4:45:49 PM

nging soundtrack language/Subtitles

You can select the language when you play a multilingual disc. When playing back a disc recorded with subtitles, you can

select the subtitle language or turn the subtitle off.

_i ress AUDIO SELECT during playback,

AUD_OSELECTThe current soundtrack language will

O appear, iiiiiiiiiiiiiiiiii......... _ .....

___

Press AUDIO SELECT repeatedly until the

desired language is selected,

AUDIOSELECT

• The on screen display will disappear after a few

seconds.

• In case of Video CD playback

Audio type changes as follows each time you press AUDIO

SELECT.

Note:

• If the desired language is not heard after pressing the

button several times, the language is not recorded on

the disc.

• The selected soundtrack language is cancelled when

you eject the disc. The initial default language or

available language will be heard if the disc is played

back again.

• If you select DTS in playing DTS-encoded disc, no

sound will be heard from the TV/DVD's speakers.

PressSUBTITLE repeatedly during playback until

1the desired language is selected.

SUBTiTlE _

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

i_________________________________________________________________________________________________________________________________________________!

To turn off the subtitle, press SUBTITLE until

"Off" appears.

SUBTITLE

The on screen display will disappear after a

few seconds.

Note:

• Depending on the DVD, you may not be able to change

subtitles, or to turn subtitles on or off.

• While playing a DVD, the subtitle may change when

you loaded or eject the disc.

• In some cases, a selected subtitle language may not

be changed immediately.

J50S0101A indb 52 08.1.9 4:45:50 PM

_ _c status/To turn off the PBC o <>0

(YbCD (7)

(J) (l)

() KI) CD DISPLAY

PLAY MODE

A/V

ENTER

i¢<Z>()C:)

3Disc status @TO turn off the PBC {seepage7)

With press of DISPLAY, the status of the disc

will appear on the screen.

To cancel the display, press DISPLAY again.

DISPLAY

DVD ELAPSED TOTAL

DISC OPERATION TIME TIME

TITLE

ANGLE NO.

AUDIO LANGUAGE

Video CD

DISC OPERATION

TRACK NO.

CHAPTER

NO.

SUBTITLE LANGUAGE

A KIND OF AUDIO

ELAPSED TOTAL

TIME TIME

Press PLAY MODE in the stop mode.

PLAY MODE

Press A/V to select "Mode", then pressENTER repeatedly until "Off" appear.

Press PLAY MODE again to clear the screen.

PLAY MODE

•To turn on the PBC

Follow the above steps 1~2, then press ENTER repeatedly

until "PBC" appear.

t.s

,.<

¢3

J50S0101A.indb 53 k_lwi s3I

08.1.9 4:45:51 PM

G/Dw and Audio CD operation

This unit can playback the MP3/WMA/JPEG/DivX®-data which has been recorded on CD-R or CD-RW. To produce

the MP3/WMA/JPEG/DivX_Ldata, you need a Windows-PC with CD-RW drive and a MP3/WMA/JPEG/DivX®-encoding

Software (not supplied). The Apple-HFS-System cannot be played.

This player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality.

There are many different types of recordable disc formats (including CD-R containing MP3/WMA files). Not all recordable

discs will produce optimal playback quality. The technical criteria set forth in this owner's manual are meant only as a

guide. Use of CD-RW for MP3 files is not recommended.

You must obtain any required permission from copyright owners to download or use copyrighted content.

Toshiba cannot and does not grant such permission.

Limitations on MP3/WMA/JPEG/DivX ®CD playback

MP3/WMA/JPEG/DivX _ CD is the disc that is standardized by ISO9660, its file name must include 3-digits extension

letters, ".mp3", ".wma", ".jpg", ".div", ".divx", ".avr'.

MP3/WMA/JPEG/DivX _ CD must be correspond to the ISO standardized files.

This unit can read 2000 files per disc. If one disc has more than 2000 files, it reads up to 2000 files, the remaining files

will be omitted.

MP3/WMA/JPEG/DivX _ CDs cannot be used for the purpose of recording.

If the CD has both audio tracks and MP3/WMA/JPEG/DivX _ files, only audio tracks will be played.

It may take more than one minute for this unit to read MP3/WMA/JPEG/DivX _ files depending on its structure.

Music recorded by "Joliet Recording Specification" can be played back, the file name is displayed (within 15 letters) on

the screen. Long file names will be condensed.

The music files recorded by "Hierarchical File System" (HFS) cannot be played.

Limitations on display

The maximum number for display is 15 letters.

Available letters for display are the following:

capital or small alphabets of A through Z, numbers of 0 through 9, and _ (under score).

Other letters than those above are replaced in hyphen.

Notes on MP3/WMA/JPEG/DivX <°_files

To playback MP3/WMA/JPEG/DivX _ CD in the recorded order,

1. Use MP3/WMA/JPEG/DivX ®software that records data alphabetically or numerically.

2. Name each file including two-digit or three-digit number (ex. "01" "02" or "001" "002").

3. Refrain from making too many sub-folders.

CAUTION:

Some MP3/WMA/JPEG/DivX _CDs cannot be played back depending on the recording conditions.

The CD-R/RW that has no music data or non MP3/WMA/JPEG/DivX ®files cannot be played back.

Standard, sampling frequency and the bit rate:

MP3 CD

MPEG-1 Audio

32kHz, 44.1 kHz, 48kHz

32kbps ~ 320kbps (constant bit rate or variable bit rate)

The recommend recording setting for a high-quality sound is 44.1 kHz of sampling frequency and 128kbps of constant

bit rate.

WMA CD

WMA version 7 and 8

32kHz/48kbps, 44.1 kHz/48kbps~192kbps, 48kHz/128kbps~192kbps

The file recorded by mono, 48kHz, 48 kbps is not available to this unit.

DivX _;video

DivX ®version: DivX _ 3, 4, 5, and 6 (specifically 3.1.1,4.1.2, 5.0.2, 5.0.5, 5.1.1, 5.2.1,6.0 at Home Theater profile).

Audio format: MPEG1 Layer2 (MP2), MPEG1 Layer3 (MP3)

Sampling frequencies: 32kHz, 44.1 kHz, 48kHz

Bit rate: 32kbps ~ 320kbps

Resolution: Max 720 x 576 (at 25fps), Max 720 x 480 (at 30fps)

Microsoft, Windows Media, and Windows Logo are either registered trademarks or trademarks of Microsoft Corporation in the

United States and/or other countries.

DivX, DivX Certified, and associated Iogos are trademarks of DivX, Inc. and are used under license.

J50S0101/_indb 54 08.1.9 4:45:52 PM

L,,FL.,

@ ...................,,,,,,.,,,,.

ENTER

_ STOP

o :::::-: .............PLAY

_'_ ::::::_ RETURN

_'_ ' _ TOP MENU

Load an Audio CD or a disc on which MP3or WMA files have been recorded in the disc

slot.

Afile browser screen will appear on the screen.

<z>

In case the current directory includes more than 8

files, press • or •to scroll in the file list.

To see contents in folder, select the folder and then

press ENTER. To return to the parent directory, press

RETURN or select "m Go Up ..." then press ENTER.

When PLAY is pressed after the file browser

displayed, playback begins automatically starting

from the first file. In this case, if the first file is an

MP3/VVMAfile, only MP3/VVMAfiles are played back

in order. If the first file is a JPEG file, the first JPEG

file is played back. If the first file is a DivX_"file, the

first DivX _ file is played back. If there is no file at a

root directory, playback does not begin automatically.

Press ENTER.

The selected file starts playing back.

Press STOP to end playback.

STOP

• The unit records the stopped point. "_" appears

on the TV screen. Press PLAY to resume playback

(from the scene point).

• If you press STOP again or unload the disc, the unit

will clear the stopped point.

J50S0101A.indb 55

About file menu

Operation status

File

Scroll indicator

3/15 00:00:00 I

Selected file name

Tool kit

window

I I

Cursor Preview window

_b : Indicates Music file (Audio CD/MP3/WMA)

[] : Indicates Picture file (JPEG)

: Indicates Movie file (DivX_vide0)

Note:

• In the case of a CD containing a mixture of MP3, WMA,

JPEG and DivX _ files, the files are played back by

selecting them from the file browser.

• MP3 or WMA file on the Kodak Picture CD is not

recognized on this unit.

Note:

• During MP3/WMA playback, you cannot use Jump and A-B

Repeat functions.

• You can use Repeat (Track or All), Random functions and

Program playback for Audio CD/MP3/WMA/JPEG/DivX _

playback [_ _.

•Select Files

The file type to make it display in the file browser can

be chosen.

1.Press _ or • to highlight "Select Files" at right column

in the file browser.

2. Press ENTER, then press • or • to select file type

from the list (Music, Picture or Movie).

3. Press ENTER to add/remove check mark. Checked

file type will be displayed in the file browser.

4. Press RETURN to save the setting.

4:45:52 PM

G/Dw. and Audio CD

operation (Continued)

ZOOM

..........DVD MENU

ENTER

A/V/4/I_

..............PAUSE

STOP

PLAY

SKIP I_1

ANGLE

...............TOP MENU

JPEG playback

Load a JPEG disc in the disc slot.

Afile browser screen

will appear on the

screen.

3Press •/• to select the file.

To display a thumbnail list, press DVD MENU.

Press '4 /1_/•/• to select the desired file.

(To return to the file browser, press TOP MENU.)

C__ DVD MENU TOPMENU

•When PLAY is pressed after the file browser

displayed, playback begins automatically

starting from the first file. In this case, if the

first file is a JPEG file, the first JPEG file is

played back. If the first file is a DivX®file, the

first DivX_ file is played back. If the first file

is an MP3/VVMA file, only MP3/VVMA files

are played back in order. If there is no file

at a root directory, playback does not begin

automatically.

Press ENTER or PLAY. The selected picture

appears on the screen.

Rotating an image

You can rotate an image by 90 degrees.

Press ANGLE during PlaYback of the image.

,,IL ..... ll= ..... I" or "lint" appears on the screen.

Zooming an image

Zoom function also can be used in viewing JPEG

files. Press ZOOM (See "Zooming" [_ ).

5Press STOP to end playback.

STOP The file browser appears on the

screen. If you want to watch the

other file, repeat steps 3 - 4.

J50S0101/_indb 56

Slide s ho w play back!

The slide show enables you to view pictures (files) one after

another automatically.

Preparation:

• Set "JPEG Interval" setting to "5 Seconds", "10 Seconds"

or "15 Seconds" _.

Select your desired starting file for the slide

show in the step 3 on left.

Press ENTER or PLAY to start slide show fromthe selected file.

• If you press PAUSE during the slide show, the slide

show stops temporary. "11"appears briefly on the TV

screen.

Press PLAY or SKIP _ again to resume the slide show.

• If the picture appears upside down or sideways, press

ANGLE repeatedly until it's right side up.

it= ,$

..... F ,,, ,,-i_,, or "lll" appears on the TV screen.

• When the slide show playback finished, the file list

appears.

• Tostop the slide show, press STOP. The file browser

appears.

Note:

• During JPEG playback, you cannot use Jump and A-B

Repeat functions.

• When an image exceeds 5760 x 3840 pixels, the entire

image may not be displayed on a screen, preview window

or thumbnail list.

• It may have a longer interval due to the size of data.

08.1.9 4:45:54 PM

) ..........r........

..................

ENTER

,&/V

_ STOP

_* PLAY

DivX® playback ...................................................................Playing DivX VOD content

Load a disc on which DivX_°_files have beenrecorded in the disc slot.

Afile browser screen will appear on the TV

screen.

/Movie-01 .DIVX

Press A/V to select file.

When PLAY has been pressed after the

file browser displayed, playback begins

automatically starting from the first file. In this

case, if the first file is a JPEG file, the first JPEG

file is played back. If the first file is a DivX<_

file, the first DivX _ file is played back. If the

first file is an MP3/VVMAfile, only MP3/WMA

file are played back in order. If there is no file

at a root directory, playback does not begin

automatically.

Press ENTER or PLAY. The selected DivX_°_

movie will be played back on the TV screen,

G PLAY

Press STOP to end playback,

5STOP • The unit records the stopped

point. "_" appears on the TV

screen. Press PLAY to resume

playback (from the scene

point).

• If you press STOP again or un

load the disc, the unit will clear

the stopped point. To want to

watch the other file, repeat steps

3~4.

DivX®VOD content is protected by DRM (Digital Rights

Management) system. This restricts playback of content

to specific registered devices.

If the incorrect DRM file

is loaded, "Authorization

Error This player is not

authorized to play this

video." will appear on the

screen.

When you attempt to play

DivX_ VOD, the number

of plays is limited and the

right message will appear on the screen. If you wish to

play it, select "Yes".

• If the number of plays goes over the limit, then "Rental

Expired" will be displayed. In this case, the file will not

be played.

Note:

• In order to play DivX®VOD content on this unit, you first

need to register the unit with registration code. See page

• Depending on the recording conditions of DivX®file, you

may not be able to use FF, REV or JUMP function.

J50S0101A.indb 57 s,I

08.1.9

¢')

4:45:55 PM

eat, random and program playback

usingf!le browser

<::::::>_ PLAY

SKIP H_ /I,'H

In the file browser, press < /•/•/• to select

"Repeat" during stop mode.

Press ENTER repeatedly to select "Track" or

"All".

3Press PLAY.

The unit automatically starts repeat

playback after finishing the current

track.

In the file browser, press < /•/•/• to select

"Mode" during stop mode.

PLAY

• To resume normal playback

Select Repeat "Off" in step 2.

Note:

•The repeat function is cancelled when you eject the disc

or turn the power off.

• Track repeat function is canceled whenever SKIP _ or

is pressed.

• The function of A-B Repeat can be used for DivX '_CD. See

"A-B Repeat playback" [_.

Press ENTER to select "Random".

Press PLAY.

PLAY

bThe random playback will start.

• To resume normal playback

Select Mode "Off" in step 2.

Note:

•The random function is cancelled when you eject the disc

or turn the power off.

J50S0101/_ indb 58 06.1.9 4:45:56 PM

......._......._:::)iiiii

_::_:::o iiiii

oiJL)oiii

ENTER

i::i:i_ii

_::::::>,:_-':_-,:_-ii................PLAY

Program playback (Audio CD/MP3/WMA/JPE DivX®)

In the file browser, press </1_/A/V to select

"Edit Mode", then press ENTER.

When "Edit Mode" is black

color, you can mark the files

which you want to add into

Program list.

Press </I_/A/V to select file you want to

add into the program list.

MP3-1

Press ENTER. Selected file

was marked.

Repeat this procedure to

select the other files.

Press <I/I_/A/V to select "Add To Program".

Then press ENTER. All marked files are added

into the program list.

When you finish storing the files

which you want into the Program

list, select "Edit Mode" and press

ENTER to release edit mode.

Press A/V to select "Program View", then press

ENTER, Program View shows only the

programmed files that you have added in step 2,

Program View

Browser View

In the Program View, press PLAY, The filesstart to playback in programed order that were

added by you.

• To remove file from program list in stop mode

In the Edit Mode, switch to Program View. Select file

you want to remove, then press ENTER. Select "Clear

Program" and press ENTER. Marked file is removed

from program list.

Note:

• The program function is cancelled when you eject the disc

or turn the power off.

J50S0101A.indb 59 4:45:57 PM

/]+:++++++,

]• • •

tomtzmg the func#on settings

u can change the default settings of the DVD mode to customize

performance to your preference. +=+ E.TER

_*: ::: i SETUP

++ :::3( } + +++

::: _ ::::::: R ETU R N

c;;;

1Press SETUP during stop mode.

SETUP

Menu : English

Subtitle :English

Audio : English

Press • or •to select the desired section, then

press •or I_.

TV Screen :16:9 [_

Display : On

Picture Mode : Auto

JPEG Interval :Off

First option will be highlighted. Press •or •

to select the desired option.

Display :On

Picture Mode : Auto

JPEG IntervM :Off

Then press kor ENTER. The selectable

settings will appear.

Picture Mode : Auto

JPEG Interval :Off

Change the selection using •or •, by referringto the corresponding pages [_ ~ [_.

Press ENTER to save the setting.

.epeat steps 3 and 5 to change

other option.

To select another section, go

back to step 2 by pressing •

repeatedly.

To clear SETUP screen, press SETUP once or

press RETURN repeatedly.

SETUP

RETURN

J5OSOlOll_indb 60 3/ 08.1.9 4:45:58 PM

Details Page

Option

Subtitle

Audio

TV Screen

Display

Picture Mode

JPEG Interval

Night Mode

Digital Out

Parental

Password

DivX(R) VOD

To select the language of "Menu", "Subtitle" and "Audio"

if more than one language are available on the disc.

To select a picture size according to the aspect ratio of

your TV. [_

To turn On or Off the operational status display on the TV

screen.

To select a preferred picture mode from "Video", "Film" or

"Auto". [_

To select a preferred setting for the slide show playback.

To select On or Off for Night Mode. N)

To select a digital output sound format corresponding to

your system connection.

To select a preferred parental level for the parental setting.

change the password. [_

To display your 8-character registration code.

'11

J50S0101A.indb 61 4:45:59 PM

the function settings (Continued)

Menu : English

Subtitle : English

Audio : English

•Menu, Subtitle, Audio

You can select the language of "Menu", "Subtitle" and

"Audio" if more than one languages are recorded onto

the disc.

English, Francais, Espanoh

The selected language will be heard or seen.

Other:

Other language can be selected (see "Language

code list" [_).

Original (Audio):

The unit will select the first priority language of

each disc.

Off (Subtitle):

Subtitles do not appear.

Note:

• If the selected language is not recorded on the disc, the

first-priority language is selected.

• If you want to change the OSD language, you can perform

it by "Language" in the TV menu [_.

TV Screen :16:9 [Z]

Display :On

Picture Mode :Auto

JPEG Interval : Off

• TV Screen

You have the following screen sizes to choose from:

4:3 _ (Letter box):

When playing back a wide screen-DVD disc, it

displays the wide picture with black bands at the

top and bottom of screen.

4:3 | (Pan & scan):

It displays the wide picture on the whole screen

with left and right edges automatically cut off.

16:9 _ (Wide):

A wide screen picture is displayed full size.

Note:

• If the DVD disc is not formatted in the Pan & scan style, it

will display 4:3 style.

•Display

On screen display can be switched on or off when you

press any buttons.

Off: On screen displays do not appear when you

press any buttons.

On: On screen displays appear when you press

the buttons (factory setting).

J5OSOlOll_indb 62 08.1.9 4:46:00 PM

•Picture Mode

There are two types of source content in pictures

recorded in DVD video discs: film content (pictures

recorded from films at 24 frames per second) and

video content (video signals recorded at 30 frames per

second). Make this selection according to the type of

content being viewed.

Auto: Select this selection normally.

The DVD player automatically detects

source content, film or video of

playback source, and converts that

signal in an appropriate method.

Film: The DVD player converts film content

pictures appropriately. Suitable for

playback of film content pictures.

Video: The DVD player filters video signal and

converts it appropriately.

Suitable for playback of video content

pictures.

Note:

Depending on the disc, pictures may be cut off or

doubled. In this case, select "Video".

•JPEG Interval

You can continuously playback all JPEG files

automatically.

After the selection below, the disc will start playback on

JPEG files which have been recorded.

Off:

Plays back one file at a time.

5 Seconds:

Plays back images in the form of a slide show at

5 second intervals.

10 Seconds:

Plays back images in the form of a slide show at

10 second intervals.

15 Seconds:

Plays back images in the form of a slide show at

15 second intervals.

Night Mode : Off

Digital Out :Bitstream

•Night Mode

Night Mode enables you to control the dynamic range so as

to achieve a suitable sound for your equipment.

Off: It plays back at the recording level on the disc.

On" Loud sound such as explosion is toned down

slightly when played back. This is suitable when

it is connected to a stereo.

Note:

• This function works only when the disc recorded with

Dolby Digital is played back.

• The level of Night Mode may differ depending on DVD

video disc.

•Digital Out

You can select the digital output sound format corresponding

to your system connection.

Off:

There is no sound output from DIGITAL AUDIO OUT

jack.

PCM:

Change Dolby Digital to PCM for the output.

Select when connected to a 2 channel digital stereo

amplifier.

Bitstream:

Disc audio bitstream data will be output.

Note:

• Even if you select "Bitstream", MPEG Audio will be output

in PCM format.

'1"1

.-,t

J50S0101A.indb 63 4:46:00 PM

tomtzmg the function settings (Continued)

Parental :Off

Password :Change

DivX(R) VOD :Display

• Parental control setting

Somediscs are specified as not suitable for children. Such

discs can be limited not to playback with the unit.

Press • or • to select "Parental", then press

ENTER. "Enter Password" screen will appear.

Press "0000" using Number buttons (0-9).

(Please note, this is pre-setting password of this

unit). Then press ENTER. The parental level list

will appear.

• Level Off: The parental control setting does not

function.

• Level 8: Virtually all DVD software can be

played back.

• Level 1: DVD software for adults cannot be

played back.

Press •or • to select from the level 1 to level 8.

The limitation will be more severe as the level

number is lower. Then press ENTER.

Note:

• The parental control level isequivalent to the following

USA movie ratings.

Level 1: G Level 5:

Level 2: Level 6: R

Level 3: PG Level 7:NC-17

Level 4:PG-13 Level 8:

The parental control levels for other countries/area

than U.S. are included for future use. Check the

appropriate parental control level when you buy a DVD

video disc equipped with the parental control feature

in the future.

• Depending on the discs, the unit cannot limit playback.

• Some discs may not be encoded with specific rating

level information though its disc jacket says "adult."

For those discs, the age restriction will not work.

• The password is required every time when you

change the parental level.

• If you input a wrong number, press EXIT/CANCEL

•Set the new password

1) Press • or • to select "Password", then press

ENTER. "Enter Current Password" screen will

appear.

2) Press Number buttons (0-9) to input the current

password (If the password has not been set yet

after you purchase this unit, it is "0000").

3) Then press ENTER. "Enter New Password" screen

will appear. Press Number buttons (0-9) to input

the new password.

4) Press ENTER. Now your new password has been

set. Be sure to remember this number!

If you forget the password

1) Press EJECT to remove the disc.

2) While holding 7 down on the remote control and

then press STOP on the unit. "Password Clear"

appears on the screen. Now the password

has been returned to the initial value Coooo").

•DivX<"_VOD

In order to play DivX_ VOD (Video On Demand) content

on this unit, you first need to register the unit with your

DivX®VOD content provider. You do this by generating

a DivX_ VOD registration code, which you submit to

your provider.

Press • or • to select "DivX(R) VOD". Then press

ENTER. Your 8-character registration code is

displayed. Make a note of the code as you will need

it when you register with a DivX_'VOD provider.

Then press ENTER to select Done.

Note:

• If each setup (pages [_ ~ [_) has completed, the unit

can always work under the same condition (especially with

DVD discs).

Each setup will be retained in the memory even if you turn

the power off.

J50S01011_indb 64 3/ 08.1.9 4:46:01 PM

EJECT

that you have set.

It is up to you to decide whether to cancel the rating level or not.

iii iii

ENTER

RETURN

Load aDVDdisc.

If the DVD disc has been designed to

temporarily cancel the Rating level, the screen

which follows the "Reading" screen will

change, depending on which disc is played.

If you select "YES" with the ENTER key,

password input screen will then appear.

• If "NO" is selected, press EJECT to remove

the disc.

Enter the password with Number buttons (0-9).

Then press ENTER.

To exit from the entry, press

RETURN.

(Z> (D (D

(3DQ (Z)

Q RETURN

Playback will commence if the entered

password is correct.

Note:

• This temporary cancellation of rating level will be kept until

the disc is ejected.

When the disc is ejected, the original rating level will be

set again automatically.

'1"1

.-,t

J50S0101A.indb 65 4:46:01 PM

derstanding the Power Return feature

If the power is cut off while you are viewing the TV/DVD and the power is resupplied,the Power Returnfeature will

turn the TV/DVD on automatically. Ifthe power is going to be off for a long time or you are going to be away from the

TV/DVD for a longtime, unplugthe power cord from the wall outlet to prevent the TV/DVD from turning on in your

absence.

Use the following check list for troubleshooting when you have problems with your unit. Consult your local dealer or

service outlet if problems persist.

Be sure all connections are properly made when using with other units.

SYMPTOMS POSSIBLE SOLUTIONS PAGE

POWER

•Make sure the connection of AC cord is secured.

TV/DVD does not operate. • Try another AC outlet. 20

• Unplug unit, then plug it back in.

TV BROADCAST RECEPTION

Poor sound or No sound.

Poor picture or No picture.

Poor reception on some

channels.

Poor color or no color.

26, 27

14, 15

Picture wobbles or drifts.

14, 15

No CATV reception. 23

Horizontal or diagonal bars on 14, 15

screen. 68

No reception above channel 13. 23

TV shuts off. 27

Closed - Caption is not

activated.

• Station or Cable TV may have problems, try another station.

• Check Volume adjustments or mute.

• Check for sources of possible interference.

• Station or Cable TV may have problems, try another station.

• Check antenna or Cable TV connections, reorient antenna.

• Check for sources of possible interference.

• Check Picture setting.

• Station or Cable TV may have problems, try another station.

• Station signal is weak, reorient antenna to receive weaker station.

• Check for sources of possible interference.

• Station or Cable TV may have problems, try another station.

• Make sure channels are set into memory.

• Check Picture setting.

• Check antenna or Cable TV connections, reorient antenna.

• Check for sources of possible interference.

• Station or Cable TV may have problems, try another station.

• Make sure channels are set into memory.

• Cable TV company is scrambling signal.

• Check antenna or Cable TV connections, reorient antenna.

• Check all Cable TV connections.

• Set Air/Cable selection to the Cable position.

• Station or Cable TV system problems, try another station.

• Check antenna or Cable TV connections, reorient antenna.

• Check for sources of possible interference.

• Make sure Air/Cable selection is in the appropriate position.

• If antenna is used, check UHF antenna connections.

• Auto shut off feature worked.

• Sleep Timer is set.

• Power interrupted.

• TV station experiencing problems or program tuned is not closed

captioned. Try another channel.

• Check Cable TV connection or VHF/UHF antenna, reposition or

rotate antenna.

• Set "CC Setting" to "On" to turn on the closed caption decoder.

• Select proper language in the menu options.

Display is not shown in your

language.

14, 15

J50S01011_indb 66 3/ 08.1.9 4:46:02 PM

•SYMPTOMS POSSIBLE SOLUTIONS PAGE •

DVD

• No disc is loaded. 44

Playback doesn't start. • The disc may be dirty. Clean up the disc. 7

• The unit cannot play CD-ROMs, etc. 8

No picture. • TV/DVD selector is not set correctly. 44

• Check the input selector of the amplifier is set properly.

No sound. • The unit is in the special playback mode. 46

• Select the correct Audio Input/Output position on AV amplifier. 18, 19

Picture is distorted during fast • The picture will be distorted occasionally.

reverse/forward playback.

Stopping playback, search,

slowmotion play, repeat play, or •Some discs may not do some of the functions.

program play, etc. cannot be

performed.

No on-screen display. •Set Display to On. 62

The unit or remote operation key • Turn off the unit and unplug the AC power cord for several minutes,

is not functioning, then replug it.

Playback does not start when • Check the Parental setup. 64

the title is selected.

Audio soundtrack and/or subtitle

language is not changed when •Multilingual language is not recorded on the DVD disc. 52

you playback a DVD.

• Some discs have no subtitles.

No subtitle. 52

• Subtitles are cleared. Press SUBTITLE.

Angle cannot be changed. • Multi-angles are not recorded on the DVD disc. 51

"×" appears on the screen. • The function is prohibited with the unit or the disc. 46

REMOTE CONTROL

The remote control does not

function.

• Aim the remote control at the remote sensor.

• Operate within approx. 5 meters or reduce the light in the room.

• Clear the path of the beam.

• The batteries are weak. Replace the batteries.

• Check the batteries are inserted correctly.

O')

J50S0101A.indb 67 4:46:03 PM

eption disturbances

ost types of television interference can be remedied by adjusting the height and position of the VHF/UHF antenna.

Outdoor antennas are recommended for best results. The most common types of television interference are shown

below. If one of these symptoms appear when the TV/DVD is connected to a Cable TV system, the disturbance may

be caused by the local Cable TV company broadcast.

IGNITION

Black spots or horizontal streaks may appear, the picture may flutter or

drift. Usually caused by interference from automobile ignition systems,

neon lamps or AC powered tools and appliances such as drills or hair

dryers.

GHOSTS

Ghosts are caused by the television signal following two paths. One is

the direct path and the other is reflected by tall buildings, hills or other

large objects. Changing the direction or position of the antenna may

improve the reception.

rSNOW

If the TV/DVD is located far from the TV station, in a fringe reception

area where the signal is weak, small dots may appear in the picture.

If the signal is extremely weak, the installation of a larger external

antenna may be necessary.

RADIO FREQUENCY INTERFERENCE (RFI)

Caused by two-way radios, this type of interference produces moving

ripples or diagonal streaks in the picture. Some cases may cause a

loss of contrast in the picture. Changing the direction and position of

the antenna or installing an RFI filter may improve the picture.

CARE AND MAINTENANCE

To prevent fire or shock hazard, disconnect the TV/DVD from the power source before cleaning.

Use caution when cleaning or wiping the plastic parts.

J50S01011_indb 68 08.1.9 4:46:03 PM

ag de list

tl e CO

Enter the appropriate code number for the initial settings "Menu", "Subtitle" and/or "Audio" [_.

Language Name Code Language Name Code Language Name Code Language Name Code

Abkhazian 1112 Fiji 1620 Lingala 2224 Singhalese 2919

Afar 1111 Finnish 1619 Lithuanian 2230 Slovak 2921

Afrikaans 1116 French 1628 Macedonian 2321 Slovenian 2922

Albanian 2927 Frisian 1635 Malagasy 2317 Somali 2925

Amharic 1123 Galician 1722 Malay 2329 Spanish 1529

Arabic 1128 Georgian 2111 Malayalam 2322 Sundanese 2931

Armenian 1835 German 1415 Maltese 2330 Swahili 2933

Assamese 1129 Greek 1522 Maori 2319 Swedish 2932

Aymara 1135 Greenlandic 2122 Marathi 2328 Tagalog 3022

Azerbaijani 1136 Guarani 1724 Moldavian 2325 Tajik 3017

Bashkir 1211 Gujarati 1731 Mongolian 2324 Tamil 3011

Basque 1531 Hausa 1811 Nauru 2411 Tatar 3030

Bengali; Bangla 1224 Hebrew 1933 Nepali 2415 Telugu 3015

Bhutani 1436 Hindi 1819 Norwegian 2425 Thai 3018

Bihari 1218 Hungarian 1831 Oriya 2528 Tibetan 1225

Breton 1228 Icelandic 1929 Panjabi 2611 Tigrinya 3019

Bulgarian 1217 Indonesian 1924 Pashto, Pushto 2629 Tonga 3025

Burmese 2335 Interlingua 1911 Persian 1611 Turkish 3028

Byelorussian 1215 Irish 1711 Polish 2622 Turkmen 3021

Cambodian 2123 Italian 1930 Portuguese 2630 Twi 3033

Catalan 1311 Japanese 2011 Quechua 2731 Ukrainian 3121

Chinese 3618 Javanese 2033 Rhaeto-Romance 2823 Urdu 3128

Corsican 1325 Kannada 2124 Romanian 2825 Uzbek 3136

Croatian 1828 Kashmiri 2129 Russian 2831 Vietnamese 3219

Czech 1329 Kazakh 2121 Samoan 2923 Volap0k 3225

Danish 1411 Kirghiz 2135 Sanskrit 2911 Welsh 1335

Dutch 2422 Korean 2125 Scots Gaelic 1714 Wolof 3325

English 1524 Kurdish 2131 Serbian 2928 Xhosa 3418

Esperanto 1525 Laothian 2225 Serbo-Croatian 2918 Yiddish 2019

Estonian 1530 Latin 2211 Shona 2924 Yoruba 3525

Faroese 1625 Latvian, Lettish 2232 Sindhi 2914 Zulu 3631

J50S0101A.indb 69 3/ 4:46:05 PM

Model 119LV505 /19LV506 I22LV505

General

Power supply AC 120V 60Hz

Power consumption Operation: 60 W, Stand by: 1 W Operation: 65 W, Stand by: 1 W

Weight 11.5 Ibs (5.1 kg) 13.5 Ibs (6.1 kg)

Width: 18-9/16 inches (472 mm) Width: 21-1/8 inches (536.5 mm)

Dimensions Height: 15-13/16 inches (401 mm) Height: 17-5/16 inches (439.5 mm)

Depth: 8-1/8 inches (207 mm) Depth: 8-1/8 inches (207 mm)

Operating temperature 5°C-40°C (41 °F-104°F)

Operating humidity Less than 80% RH (No condensation)

Television

panel (Screen size is approximate.) 19-inch diagonal I 22-inch diagonal

LCD

Display method Color TFT LCD

Number of pixels 1440 (Horizontal) x 900 (Vertical) I 1680 (Horizontal) x 1050

(Vertical)

Television system NTSC standard, ATSC standard (8VSB), QAM

VHF: 2-13

Receiving channels UHF: 14-69

CATV: 1-125 (4A, A-5~A-1, A~l, J~W, W+I ~W+84)

Antenna input VHF/UHF 75 O

Speaker 1-3/16 x 2-13/16 inches (30.5 x 71.1 mm), 8 O x 2

Audio output power 1.5W + 1.5W

DVD/CD player

Signal system NTSC

1. DVD (12cm, 8cm)

Applicable disc 2. CD (12cm, 8cm)

Pickup 1-Lens, 2-Beams System

Input/Output

(Y) 1.0 V (p-p), 75 Q, negative sync., Mini DIN 4-pin x 1

S-Video input (C) 1.0 V (p-p), 75 O

ColorStream video input ((Y)I 0 v (pp)' 75 O' negative sync' pin jack x 1

PR) 0.7 V (p-p), 75 Q, pin jack x 2

Video input 1.0 V (p-p), 75 Q, negative sync., pin jack x 1

Audio input -8dBm, 50 kO, negative sync., pin jack (L/R) x 2

HDMI compliant (type A connector), HDCP compliant, E-EDID compliant

HDMI input Suggested scan rates: 1080i, 480p, 720p

HDMI Audio: 2-channel PCM, 32/44.1/48 kHz sampling frequency, 16/20/24 bits per

sample

PC input MONITOR: Mini-Dsub 15pin x 1, AUDIO: 3.50 mm Stereo jack x 1

Digital audio output (Coaxial) 0.5 V (p-p), 75 0, pin jack x 1

Headphone e3.5mm stereo mini jack x 1

Accessories

Remote control (SE-R0305) ......................................................... 1

Batteries (R03/AAA) .................................................................... 2

AC cord ........................................................................................ 1

Cleaning cloth .............................................................................. 1

Owner's manual (this booklet) ..................................................... 1

Quick setup guide (Spanish) ..................................................... 1

• This model complies with the above specifications.

• Designs and specifications are subject to change without notice.

• This model may not be compatible with features and/or specifications that may be added in the future.

J50S01011_indb 70 08.1.9 4:46:05 PM

Limited United States Warranty

LCD TV/DVD Combination - Depot Repair Warranty

Toshiba America Consumer Products, L.L.C. ("TACP") makes the following limited warrantiesto original

consumers in the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER

PURCHASER OR ANY PERSON RECEIVING THIS LCD TV/DVD COMBINATION AS A GIFT FROM THE

ORIGINAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.

LCD TV/DVD COMBINATIONS PURCHASED IN THE U.S.A. AND USED ANYWHERE OUTSIDE

OF THE U.S.A., INCLUDING, WITHOUT LIMITATION, CANADAAND MEXICO, ARE NOT COVERED

BY THESE WARRANTIES.

LCD TV/DVD COMBINATIONS PURCHASED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING,

WITHOUT LIMITATION, CANADAAND MEXICO, AND USED IN THE U.S.A., ARE NOT COVERED

BY THESE WARRANTIES.

Limited One (1) Year Warranty on Parts and Labor

TACP warrants this LCD TV/DVD Combination

and its parts against defects in materials or

workmanship for a period of one (1) year after

the date of original retail purchase. DURING

THIS PERIOD, TACP WILL, AT TACP'S OPTION,

REPAIR OR REPLACE A DEFECTIVE PART WITH

A NEW OR REFURBISHED PART WITHOUT

CHARGE TO YOU.

Rental Units

The warranty for LCD TV/DVD Combination rental

units begins on the date of the first rental or thirty

(30) days after the date of shipment to the rental

firm, whichever comes first.

Commercial Units

LCD TV/DVD Combinations sold and used for

commercial purposes have a limited warranty for all

parts and labor, which warranty begins on the date

of original retail purchase and ends on the date that

is ninety (90) days thereafter.

Owner's Manual and Product Registration Card

Read this owner's manual thoroughly before operating

this LCD TV/DVD Combination.

Complete and mail the enclosed product registration

card or register your LCD TV/DVD Combination

online at www.tacp.toshiba.com/service as soon as

possible. By registering your LCD TV/DVD

Combination you will enable TACP to bring you

new products specifically designed to meet your

needs and help us to contact you in the unlikely

event a safety notification is required under the

U.S. Consumer Product Safety Act. Failure to

complete and return the product registration card

does not diminish your warranty rights.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO

THE FOLLOWING CONDITIONS:

(1)

(2)

You must retain your bill of sale or provide

other proof of purchase.

All warranty servicing of this LCD TV/DVD

Combination must be made by the Depot

Warranty Repair Center specified by the TACP

Consumer Solutions Center.

(3) The warranties from TACP are effective only

if the LCD TV/DVD Combination is purchased

and operated in the Continental U.S.A. or

Puerto Rico.

(4) Labor service charges for set installation,

setup, adjustment of customer controls, and

installation or repair of antenna systems are not

covered by this warranty. Reception problems

caused by inadequate antenna systems are

your responsibility.

(5) Warranties extend only to defects in materials

or workmanship as limited above, and do not

extend to any LCD TV/DVD Combination or

parts that have been lost or discarded by you

or to damage to the LCD TV/DVD Combination

or parts caused by fires, misuse, accident,

Acts of God (such as lightning or fluctuations in

electric power), improper installation, improper

maintenance, or use in violation of instructions

furnished by TACP; use or malfunction

through simultaneous use of this LCD TV/DVD

Combination and connected equipment; or to

units that have been modified or had the serial

number removed, altered, defaced, or rendered

illegible.

O')

J50S0101A.indb 71 3/ 06.1.9 4:46:06 PM

How to Obtain Warranty Services

If, after following all of the operating instructions

in this manual and checking the section

"Troubleshooting," you find that service is needed:

(1)

(2)

For instructions on how to obtain warranty

service for your LCD TV/DVD Combination,

contact TACP's Consumer Solution Center toll

free at 1-800-631-3811.

You must include a copy or original bill of

sale or other proof of purchase along with

the entire LCD TV/DVD Combination to the

Depot Warranty Repair Center specified by

the TACP Consumer Solutions Center. You

are responsible for all inbound transportation

and insurance charges for the LCD TV/DVD

Combination to the Depot Warranty Repair

Center specified by the TACP Consumer

Solutions Center.

For additional information, visit TACP's website:

www.tacp.toshiba.com

ALL WARRANTIES IMPLIED BY THE LAW OF

ANY STATE OF THE U.S.A., INCLUDING THE

IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE,

ARE EXPRESSLY LIMITED TO THE DURATION

OF THE LIMITED WARRANTIES SET FORTH

ABOVE. WITH THE EXCEPTION OF ANY

WARRANTIES IMPLIED BY THE LAW OF ANY

STATE OF THE U.S.A. AS HEREBY LIMITED,

THE FOREGOING WARRANTY IS EXCLUSIVE

AND IN LIEU OF ALL OTHER WARRANTIES,

GUARANTEES, AGREEMENTS, AND SIMILAR

OBLIGATIONS OF TACP WITH RESPECT TO

THE REPAIR OR REPLACEMENT OF ANY

PARTS. IN NO EVENT SHALL TACP BE LIABLE

FOR CONSEQUENTIAL OR INCIDENTAL

DAMAGES (INCLUDING, BUT NOT LIMITED TO,

LOST PROFITS, BUSINESS INTERRUPTION, OR

MODIFICATION OR ERASURE OF RECORDED

DATACAUSED BY USE, MISUSE OR INABILITY

TO USE THIS LCD TV/DVD COMBINATION).

No person, agent, distributor, dealer, or company

is authorized to change, modify, or extend

the terms of these warranties in any manner

whatsoever. The time within which an action must

be commenced to enforce any obligation of TACP

arising under the warranty or under any statute

or law of the United States or any state thereof is

hereby limited to ninety (90) days from the date

you discover, or should have discovered, the

defect. This limitation does not apply to implied

warranties arising under state law.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS AND YOU MAY ALSO HAVE OTHER

RIGHTS WHICH MAY VARY FROM STATE TO

STATE IN THE U.S.A. SOME STATES OF THE

U.S.A. DO NOTALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, WHEN

AN ACTION MAY BE BROUGHT, OR THE

EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES, SO THE

ABOVE PROVISIONS MAY NOT APPLY TO YOU

UNDER SUCH CIRCUMSTANCES.

ColorStream is registered trademark of Toshiba America Consumer Products, L.L.C.

IIIIIIIIIIHIlUlIIIIIlUlIIIlIIIII

J50S0101A SH 08/02[N

J50S01011_indb 72 3/¸

Printed in Thailand

08.1.9 4:46:06 PM

Toshiba 19LV506 User Manual LCD TV/DVD Manuals And Guides L0901563

TOSHIBA TV/VCR or DVD Combo Manual L0901563 TOSHIBA TV/VCR or DVD Combo Owner's Manual, TOSHIBA TV/VCR or DVD Combo installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
