TOSHIBA E: ENGLISH

F: FRAN(_AIS

S: ESPANOL

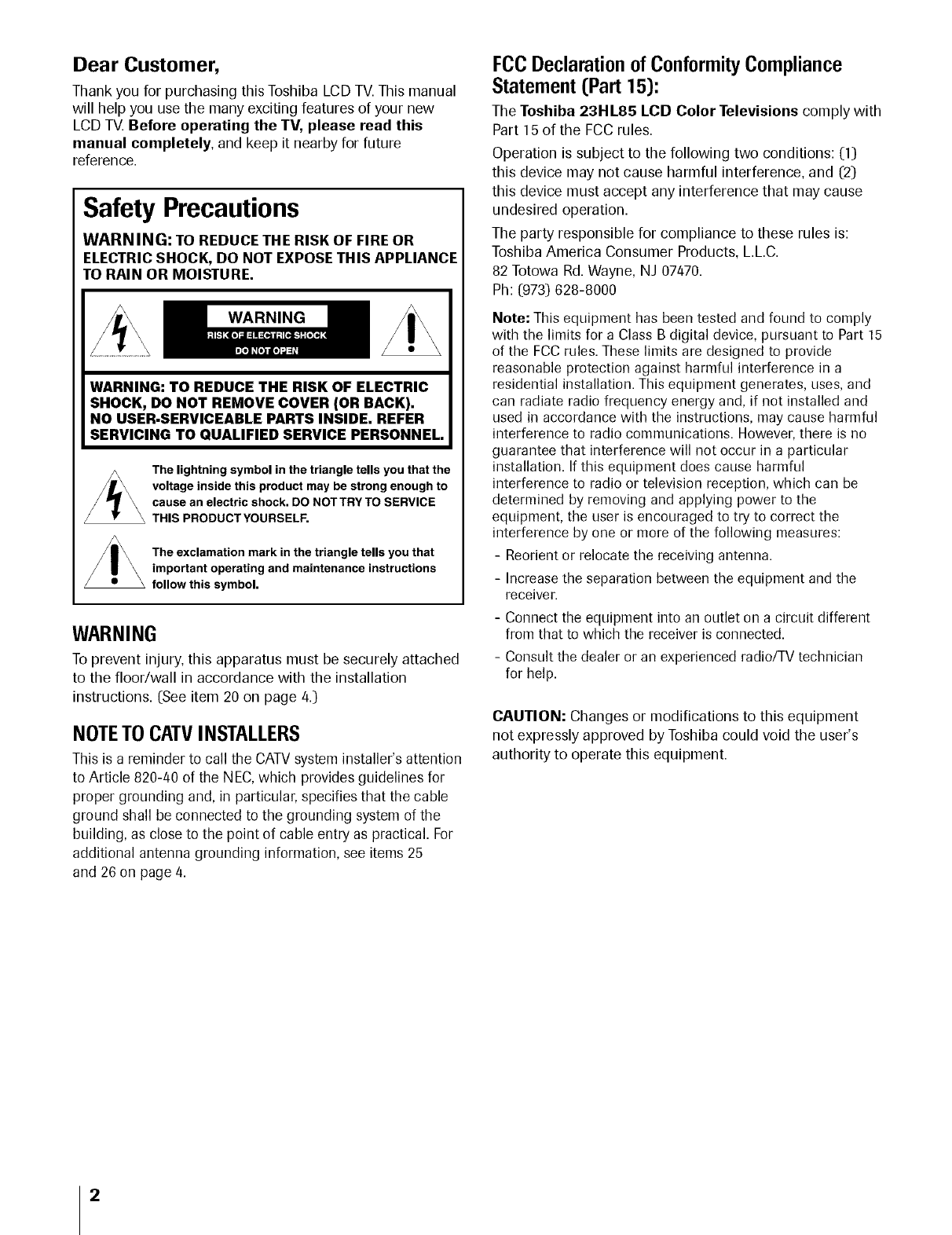

Dear Customer,

Thank you for purchasing this Toshiba LCD TV.This manual

will help you use the many exciting features of your new

LCD TV. Before operating the TV, please read this

manual completely, and keep it nearby for future

reference.

Safety Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

WARNING

WARNING: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning symbol in the triangle tells you that the

voltage inside this product may be strong enough to

cause an electric shock, DO NOTTRY TO SERVICE

THIS PRODUCT YOURSELF.

The exclamation mark in the triangle tells you that

important operating and maintenance instructions

follow this symbol.

WARNING

To prevent injury, this apparatus must be securely attached

to the floor/wall in accordance with the installation

instructions. (See item 20 on page 4.)

NOTETO CAW INSTALLERS

This is a reminder to call the CATVsystem installer's attention

to Article 820-40 of the NEC,which provides guidelines for

proper grounding and, in particular, specifies that the cable

ground shall be connected to the grounding system of the

building, as close to the point of cable entry as practical. For

additional antenna grounding information, see items 25

and 26 on page 4.

FCC Declaration of ConformityCompliance

Statement (Part 15):

The Toshiba 23HL85 LCD Color Televisions comply with

Part 15 of the FCC rules.

Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2)

this device must accept any interference that may cause

undesired operation.

The party responsible for compliance to these rules is:

Toshiba America Consumer Products, L.L.C.

82 Totowa Rd. Wayne, NJ 07470.

Ph: (973) 628-8000

Note: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by removing and applying power to the

equipment, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the

receiver.

- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician

for help.

CAUTION: Changes or modifications to this equipment

not expressly approved by Toshiba could void the user's

authority to operate this equipment.

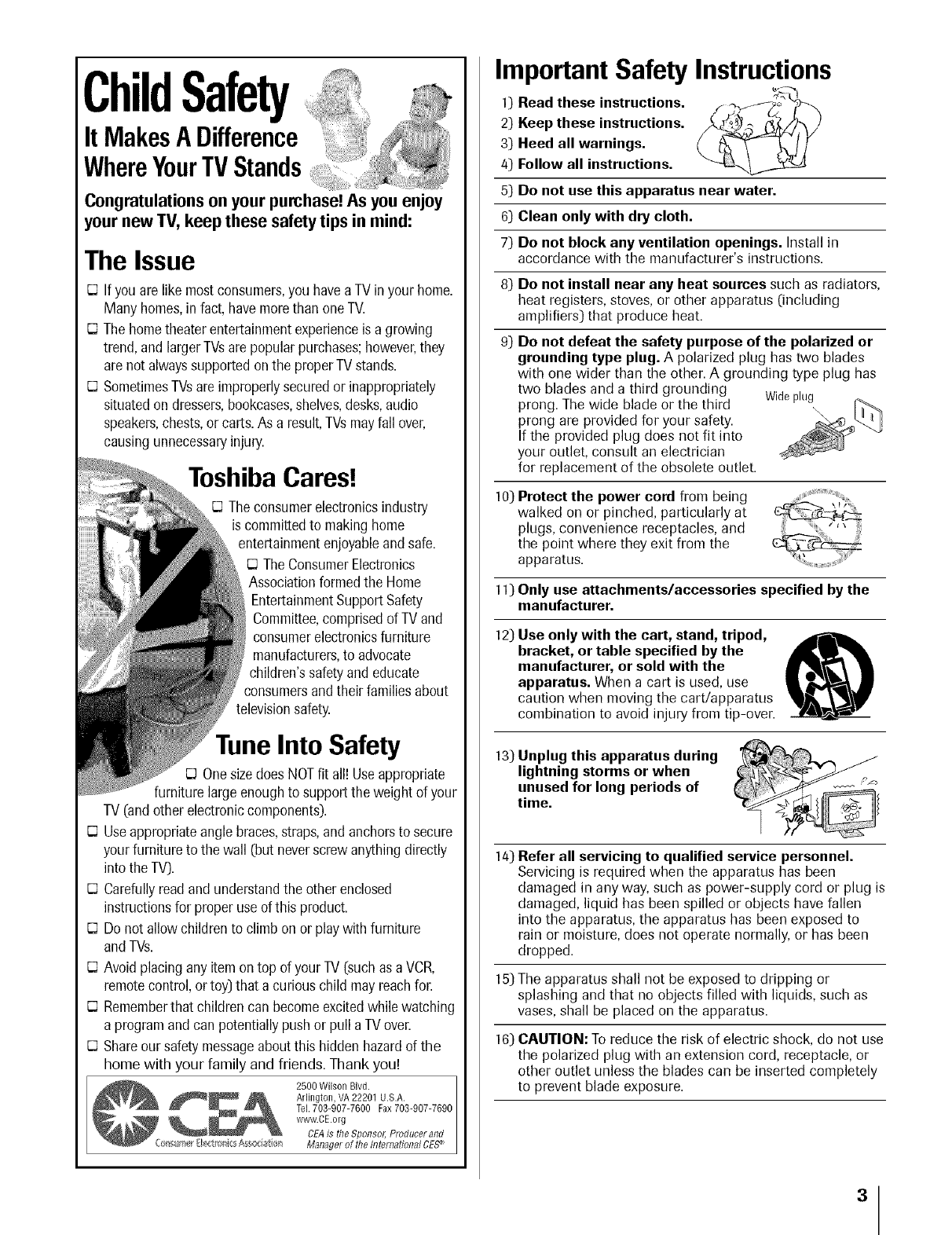

ChildSafety

It MakesADifference

iX' .... ....

WhereYourTVStands ......

Congratulationson your purchase!As you enjoy

your new TV, keep these safety tips in mind:

The Issue

If you are like most consumers, you have a TV in your home.

Many homes, in fact, have more than one TV.

I:3The home theater entertainment experience is a growing

trend, and larger TVs are popular purchases; however, they

are not always supported on the proper TV stands.

Sometimes TVsare improperly secured or inappropriately

situated on dressers, bookcases, shelves, desks, audio

speakers, chests, or carts. As a result, TVs may fall over,

causing unnecessary injury.

Toshiba Cares!

I:3Theconsumerelectronicsindustry

iscommittedto makinghome

entertainmentenjoyableandsafe.

I:3TheConsumerElectronics

Associationformedthe Home

EntertainmentSupportSafety

Committee,comprisedof TVand

consumerelectronicsfurniture

manufacturers,to advocate

children'ssafetyand educate

consumersandtheir familiesabout

televisionsafety.

TuneInto Safety

One size does NOT fit all! Use appropriate

furniture large enough to support the weight of your

TV (and other electronic components).

I:3 Use appropriate angle braces, straps, and anchors to secure

your furniture to the wall (but never screw anything directly

into the TV).

I:3 Carefully read and understand the other enclosed

instructions for proper use of this product.

Do not allow children to climb on or play with furniture

and TVs.

I:3Avoid placing any item on top of your TV (such as a VCR,

remote control, or toy) that a curious child may reach for.

I:3 Remember that children can become excited while watching

a program and can potentially push or pull a TV over.

Share our safety message about this hidden hazard of the

home with your family and friends. Thank you!

2500 Wilson Blvd.

Arlington, VA 22201 U.S.A.

Tel. 703-907-7600 Fax703-907-7690

www.CE.org

CEAis the Sponsor,Producerand

M3nager of the International CEE _

ImportantSafety Instructions

Readtheseinstr.ctions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has

two blades and a third grounding Wideplug

prong. The wide blade or the third

prong are provided for your safety.

If the provided plug does not fit into

your outlet, consult an electrician

for replacement of the obsolete outlet.

10) Protect the power cord from being

walked on or pinched, particularly at

plugs, convenience receptacles, and

the point where they exit from the

apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the

apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13) Unplug this apparatus during

lightning storms or when

unused for long periods of

time.

14)

15]

16)

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has been

dropped.

The apparatus shall not be exposed to dripping or

splashing and that no objects filled with liquids, such as

vases, shall be placed on the apparatus.

CAUTION: To reduce the risk of electric shock, do not use

the polarized plug with an extension cord, receptacle, or

other outlet unless the blades can be inserted completely

to prevent blade exposure.

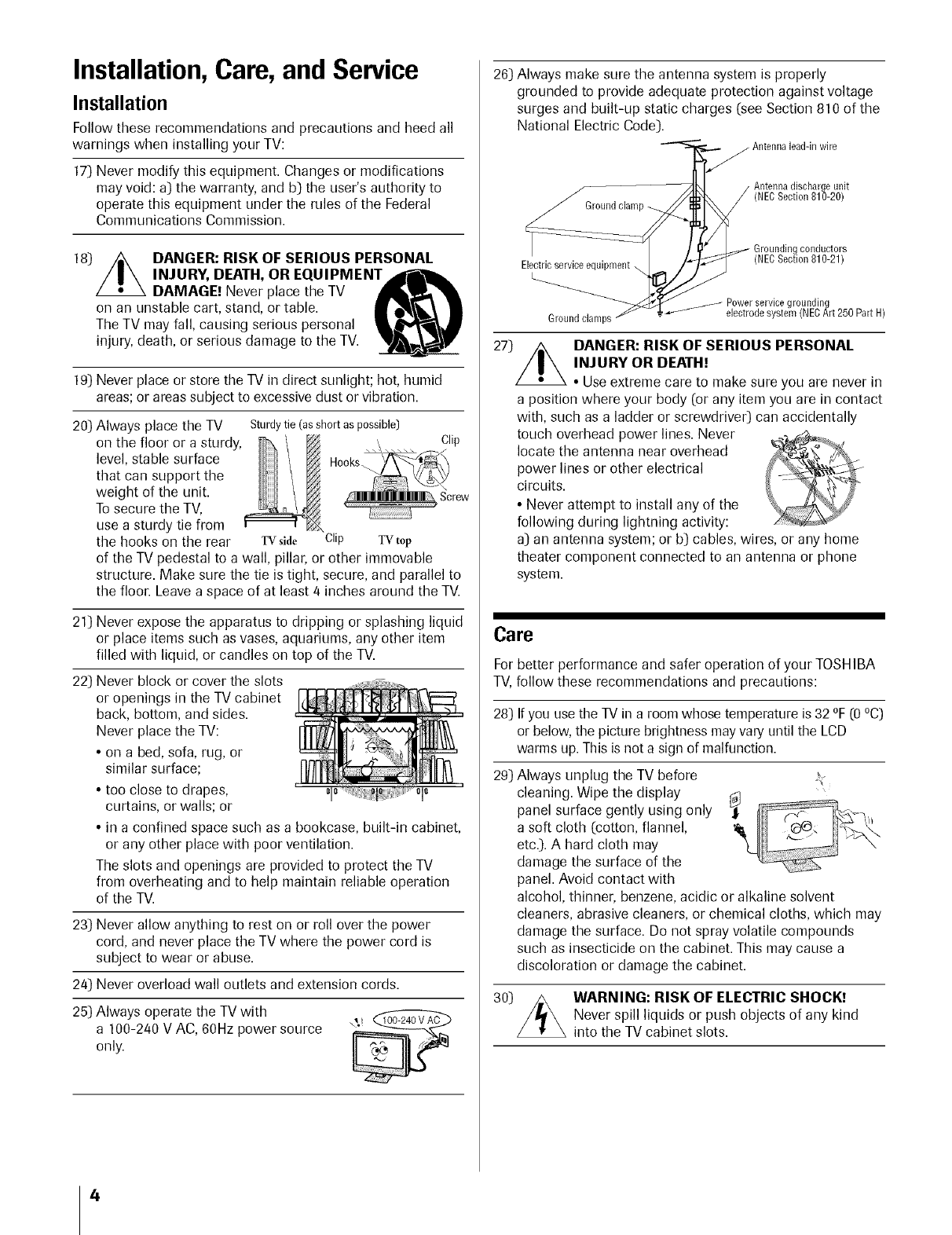

Installation,Care, and Service

Installation

Follow these recommendations and precautions and heed all

warnings when installing your TV:

17) Never modify this equipment. Changes or modifications

may void: a) the warranty, and b) the user's authority to

operate this equipment under the rules of the Federal

Communications Commission.

18) /_ DANGER: RISK OF SERIOUS PERSONAL

ZL.INJURY, DEATH, OR EQUIPMEN ,drA-,_

DAMAGE! Never place the TV

on an unstable cart, stand, or table.

The TV may fall, causing serious personal

injury, death, or serious damage to the TV.

19) Never place or store the TV in direct sunlight; hot, humid

areas; or areas subject to excessive dust or vibration.

20) Always place the TV Sturdy tie (as short as possible)

on the floor or a sturdy, Clip

level, stable surface

that can support the

weight of the unit.

To secure the TV,

use a sturdy tie from

the hooks on the rear TVside Clip TVtop

of the TV pedestal to a wall, pillar, or other immovable

structure. Make sure the tie is tight, secure, and parallel to

the floor. Leave a space of at least 4 inches around the TV.

21) Never expose the apparatus to dripping or splashing liquid

or place items such as vases, aquariums, any other item

filled with liquid, or candles on top of the TV.

22) Never block or cover the slots --

or openings in the TV cabinet

back, bottom, and sides.

Never place the TV:

• on a bed, sofa, rug, or

similar surface;

• too close to drapes,

curtains, or walls; or

• in a confined space such as a bookcase, built-in cabinet,

or any other place with poor ventilation.

The slots and openings are provided to protect the TV

from overheating and to help maintain reliable operation

of the TV.

23) Never allow anything to rest on or roll over the power

cord, and never place the TV where the power cord is

subject to wear or abuse.

24) Never overload wall outlets and extension cords.

25) Always operate the TV with

a 100-240 V AC, 60Hz power source _'_

only.

26) Always make sure the antenna system is properly

grounded to provide adequate protection against voltage

surges and built-up static charges (see Section 810 of the

National Electric Code).

lead-in wire

Ground clam

Antenna discharge unit

/(NECSection 810-20)

Electricservice equipment

Grounding conductors

(NECSection 810-21)

Ground clamps electrodes

27)/2, DANGER: RISK OF SERIOUS PERSONAL

INJURY OR DEATH!

• Use extreme care to make sure you are never in

a position where your body (or any item you are in contact

with, such as a ladder or screwdrive0 can accidentally

touch overhead power lines. Neverlocate the antenna near overhead

power lines or other electrical _._

circuits.

• Never attempt to install any of the

following during lightning activity:

a) an antenna system; or b) cables, wires, or any home

theater component connected to an antenna or phone

system.

Care

For better performance and safer operation of your TOSHIBA

TV, follow these recommendations and precautions:

28) If you use the TV in a room whose temperature is 32 °F (0 °C)

or below, the picture brightness may vary until the LCD

warms up. This is not a sign of malfunction.

29) Always unplug the TV before

cleaning. Wipe the display

panel surface gently using only _'

a soft cloth (cotton, flannel,

etc.). A hard cloth may

damage the surface of the

panel. Avoid contact with

alcohol, thinner, benzene, acidic or alkaline solvent

cleaners, abrasive cleaners, or chemical cloths, which may

damage the surface. Do not spray volatile compounds

such as insecticide on the cabinet. This may cause a

discoloration or damage the cabinet.

30) WARNING: RISK OF ELECTRIC SHOCK!

Never spill liquids or push objects of any kind

into the TV cabinet slots.

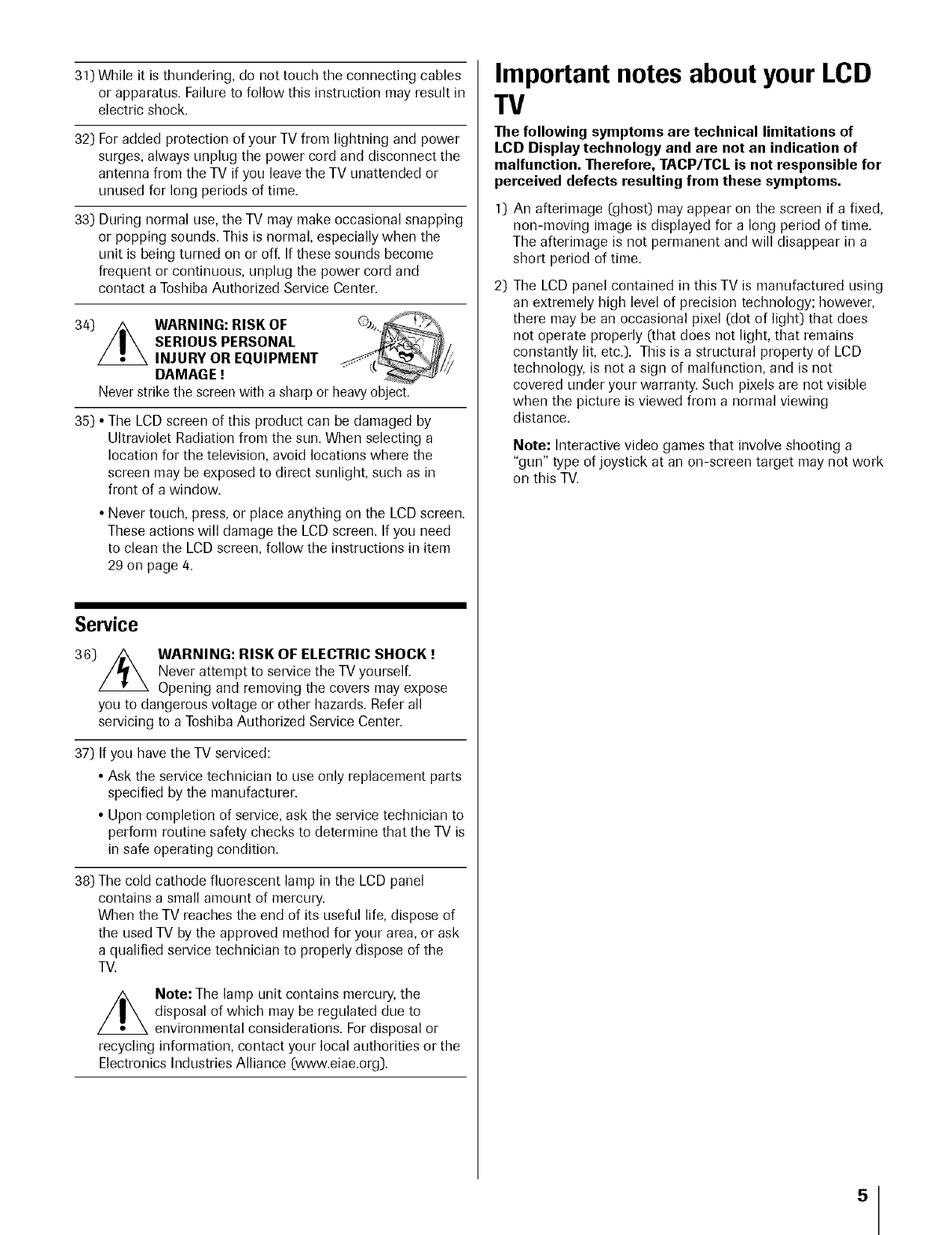

31) While it is thundering, do not touch the connecting cables

or apparatus. Failure to follow this instruction may result in

electric shock.

32) For added protection of your TV from lightning and power

surges, always unplug the power cord and disconnect the

antenna from the TV if you leave the TV unattended or

unused for long periods of time.

33) During normal use, the TV may make occasional snapping

or popping sounds. This is normal, especially when the

unit is being turned on or off. If these sounds become

frequent or continuous, unplug the power cord and

contact a Toshiba Authorized Service Center.

34)/2, WARNING: RISK OF

SERIOUS PERSONAL

INJURY OR EQUIPMENT

DAMAGE !

Never strike the screen with a sharp or heavy object.

35) •The LCD screen of this product can be damaged by

Ultraviolet Radiation from the sun. When selecting a

location for the television, avoid locations where the

screen may be exposed to direct sunlight, such as in

front of a window.

•Never touch, press, or place anything on the LCD screen.

These actions will damage the LCD screen. If you need

to clean the LCD screen, follow the instructions in item

29 on page 4.

Service

36) /_ WARNING: RISK OF ELECTRIC SHOCK !

Never attempt to service the TV yourself.

Opening and removing the covers may expose

you to dangerous voltage or other hazards. Refer all

servicing to a Toshiba Authorized Service Center.

37) If you have the TV serviced:

• Ask the service technician to use only replacement parts

specified by the manufacturer.

• Upon completion of service, ask the service technician to

perform routine safety checks to determine that the TV is

in safe operating condition.

38) The cold cathode fluorescent lamp in the LCD panel

contains a small amount of mercury.

When the TV reaches the end of its useful life, dispose of

the used TV by the approved method for your area, or ask

a qualified service technician to properly dispose of the

TV.

//_ Note: The lamp unit contains mercury, the

disposal of which may be regulated due to

environmental considerations. For disposal or

recycling information, contact your local authorities or the

Electronics Industries Alliance (www.eiae.org).

Important notesabout your LCD

The following symptoms are technical limitations of

LCD Display technology and are not an indication of

malfunction. Therefore, TACP/TCL is not responsible for

perceived defects resulting from these symptoms.

1) An afterimage (ghost) may appear on the screen if a fixed,

non-moving image is displayed for a long period of time.

The afterimage is not permanent and will disappear in a

short period of time.

2) The LCD panel contained in this TV is manufactured using

an extremely high level of precision technology; however,

there may be an occasional pixel (dot of light) that does

not operate properly (that does not light, that remains

constantly lit, etc.). This is a structural property of LCD

technology, is not a sign of malfunction, and is not

covered under your warranty. Such pixels are not visible

when the picture is viewed from a normal viewing

distance.

Note: Interactive video games that involve shooting a

"gun" type of joystick at an on-screen target may not work

on this TV.

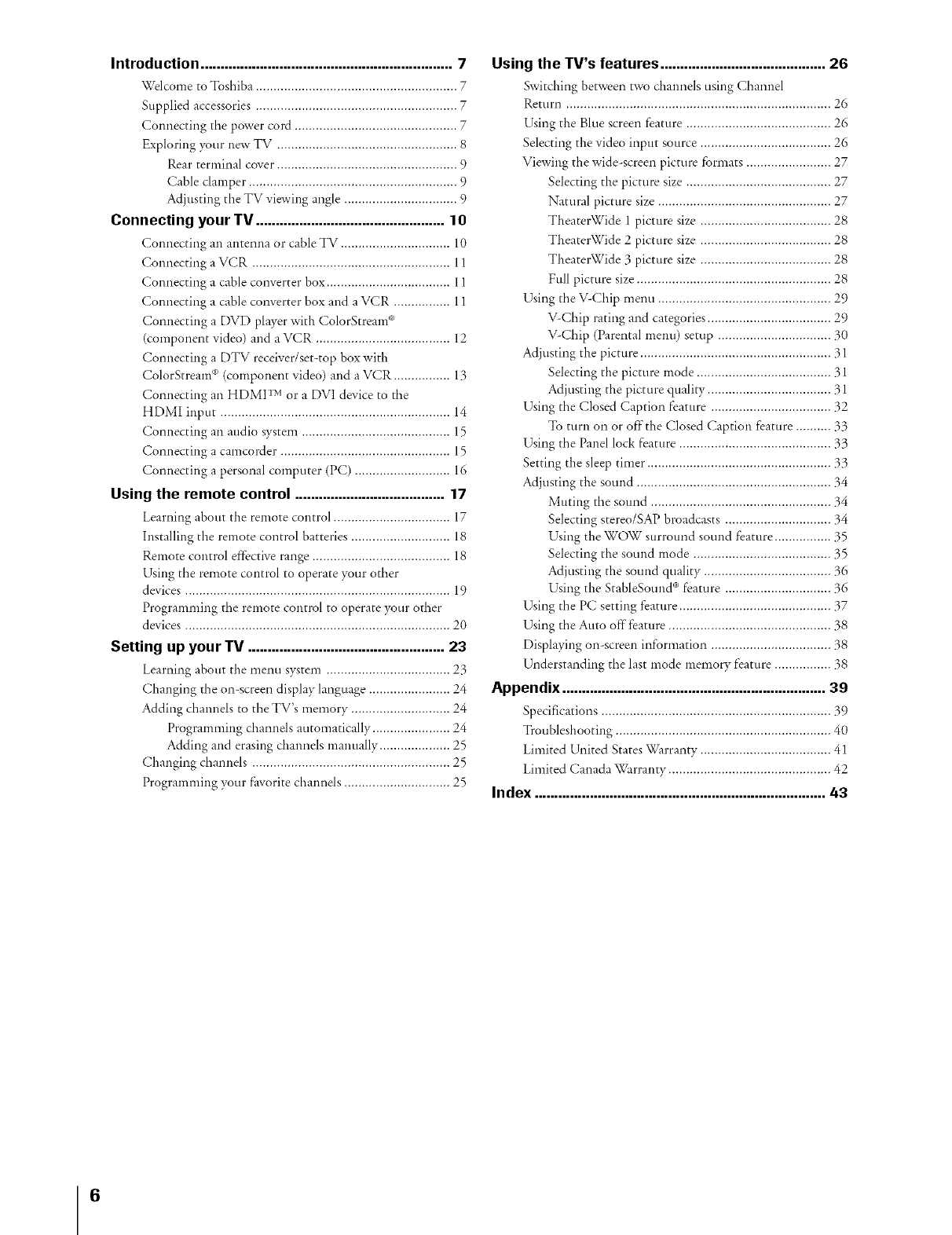

Introduction .............................. 7

X_relcome to Toshiba .............................................. 7

Supplied accessories ......................................................... 7

Connecting the power cord ........................................ 7

Exploring your new TV ................................................... 8

Rear terminal cover ............................................. 9

Cable clamper. ..................................................... 9

Adjusting tile TV viewing angle ................................ 9

Connecting your TV ................................................ 10

Connecting an antenna or cable TV ........................... 10

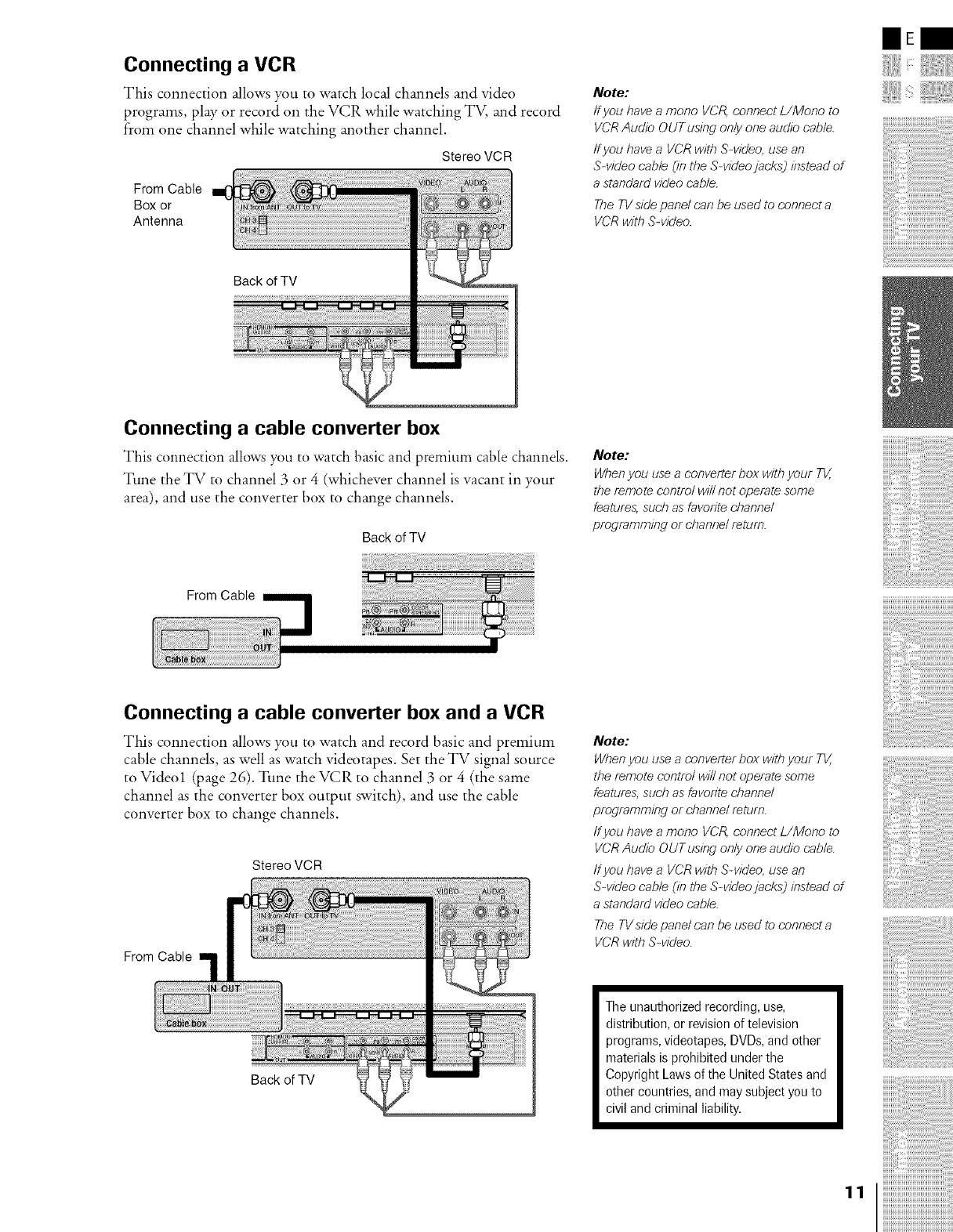

Connecting a VCR ............................................. 11

Connecting a cable converter box .............................. 11

Connecting a cable converter box and a VCR ................ 11

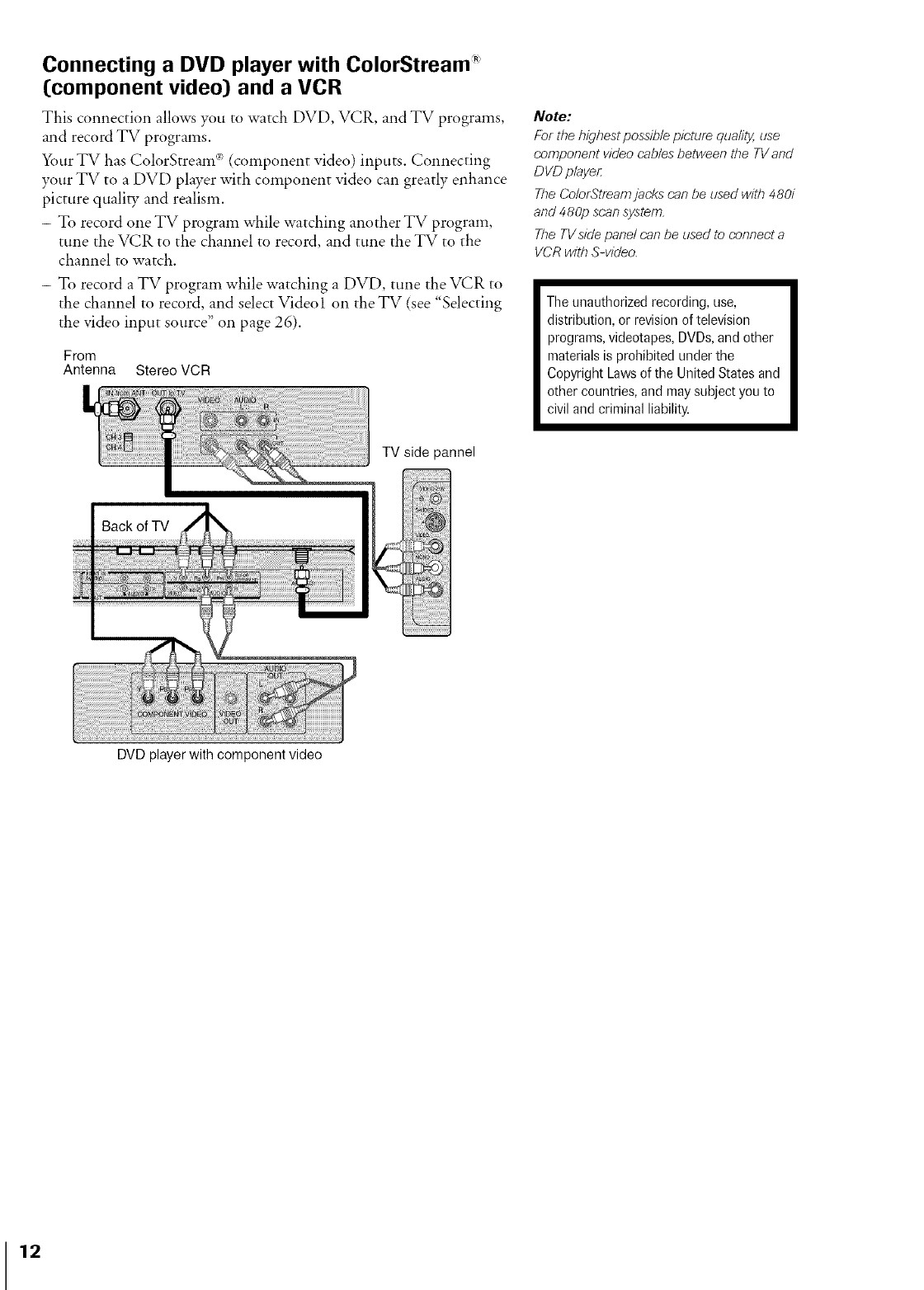

Connecting a DVD player with ColorStream ®

(component video) and a VCR ..................................... 12

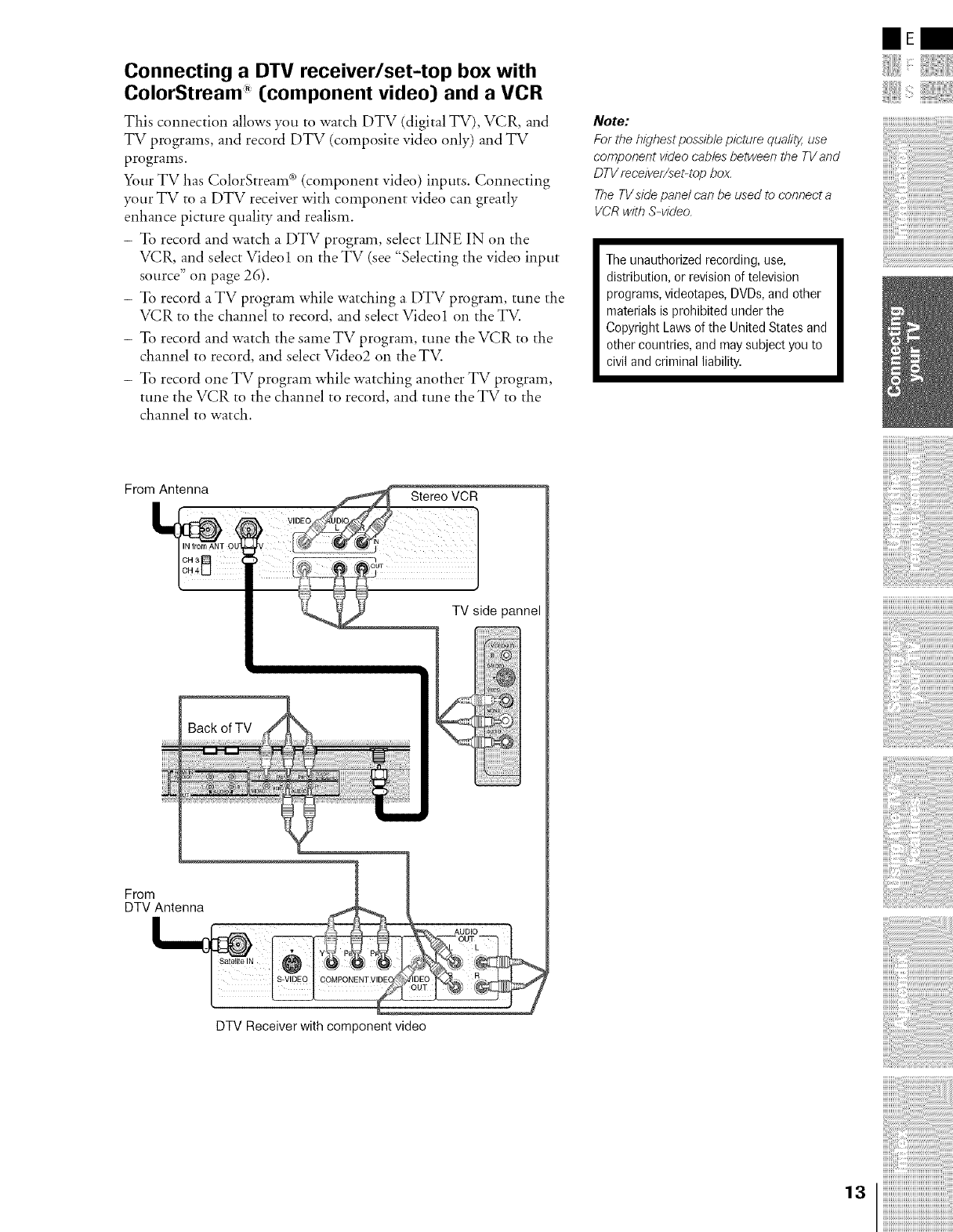

Connecting a DTV recdver/set-top box with

ColorStream c*(coInponent video) and a VCR ............... 13

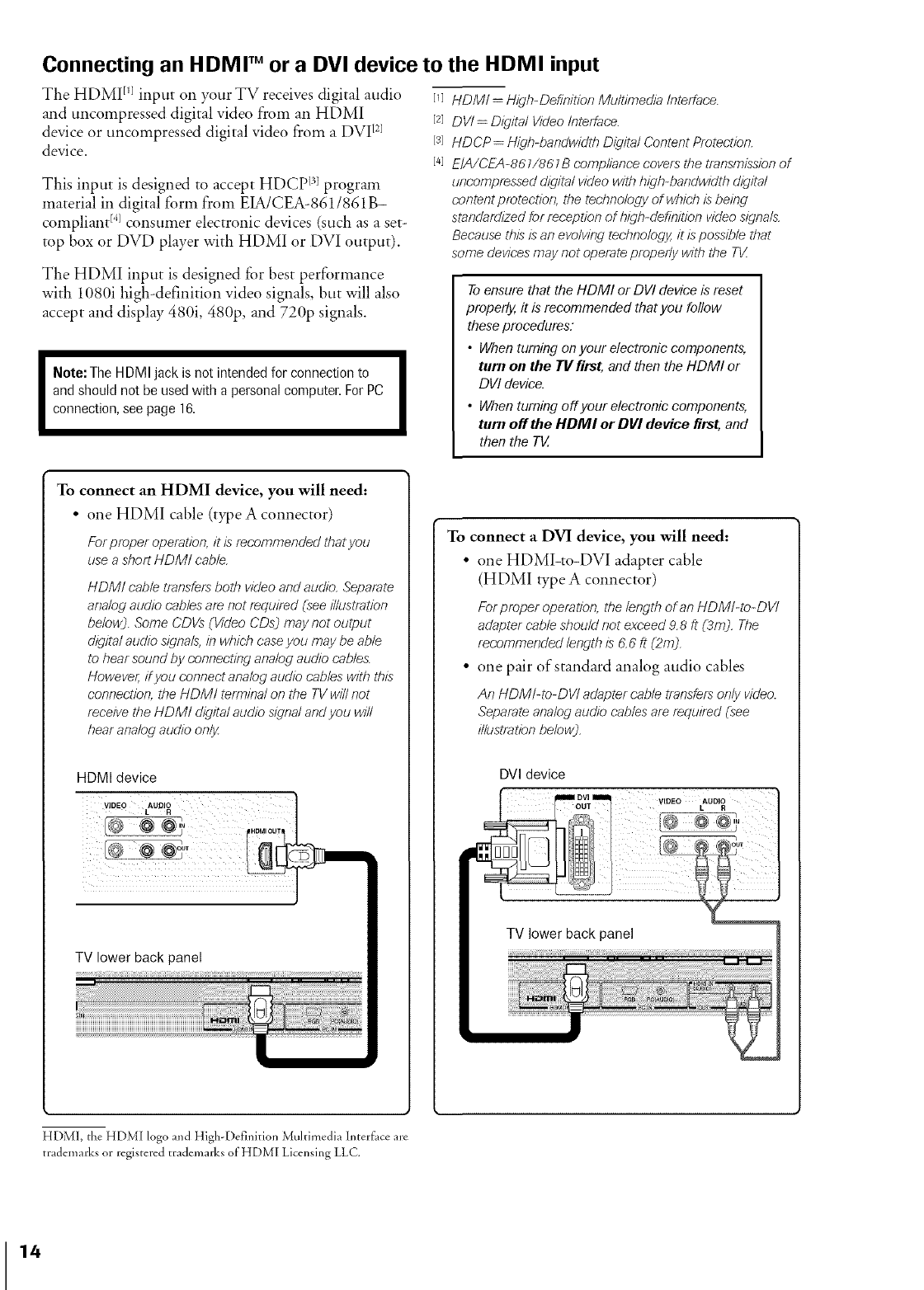

Connecting an HDMI TM or a DVI device to d_e

HDMI input ................................................................. 14

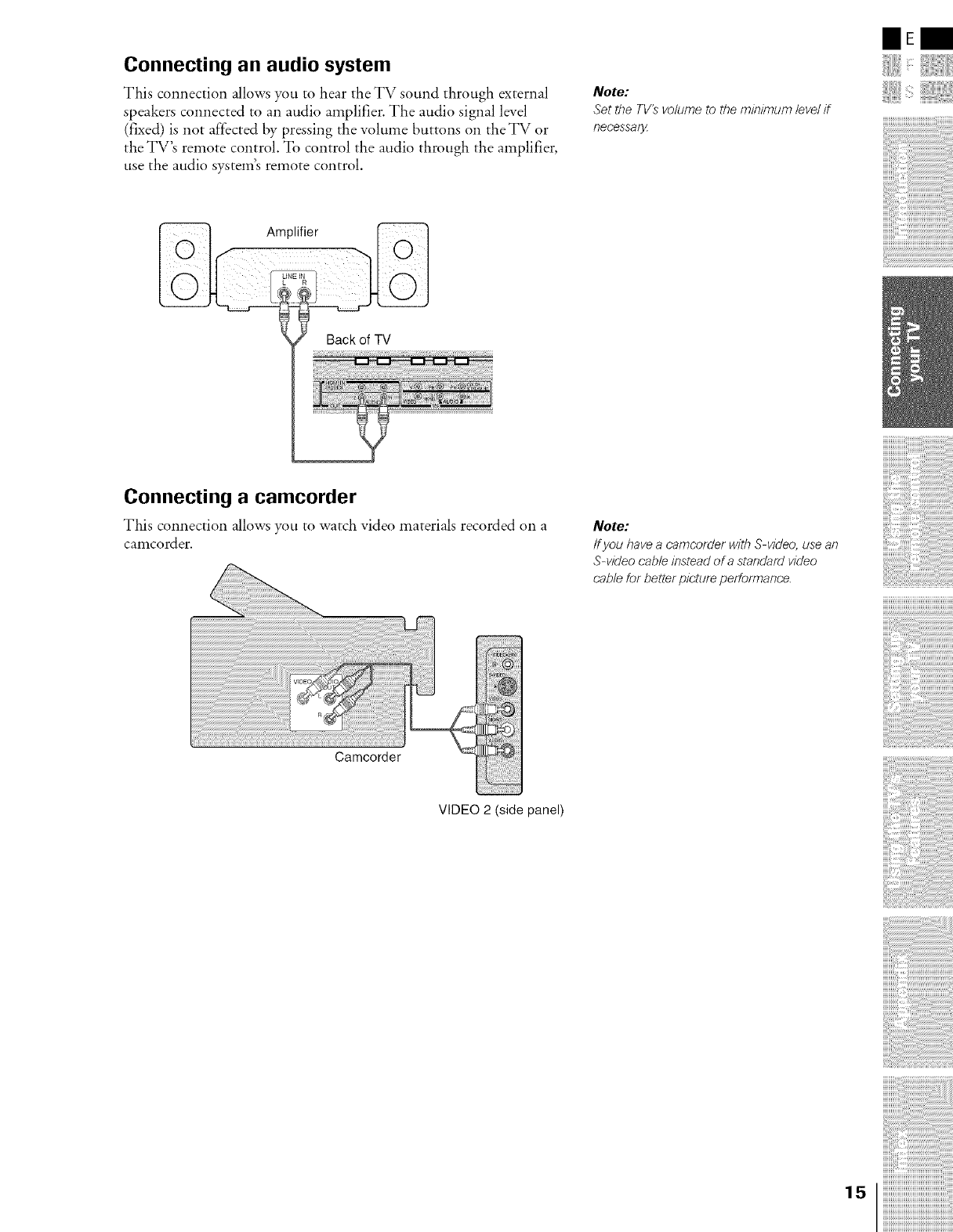

Connecting an audio system .................................. 15

Connecting a camcorder. ............................................... 15

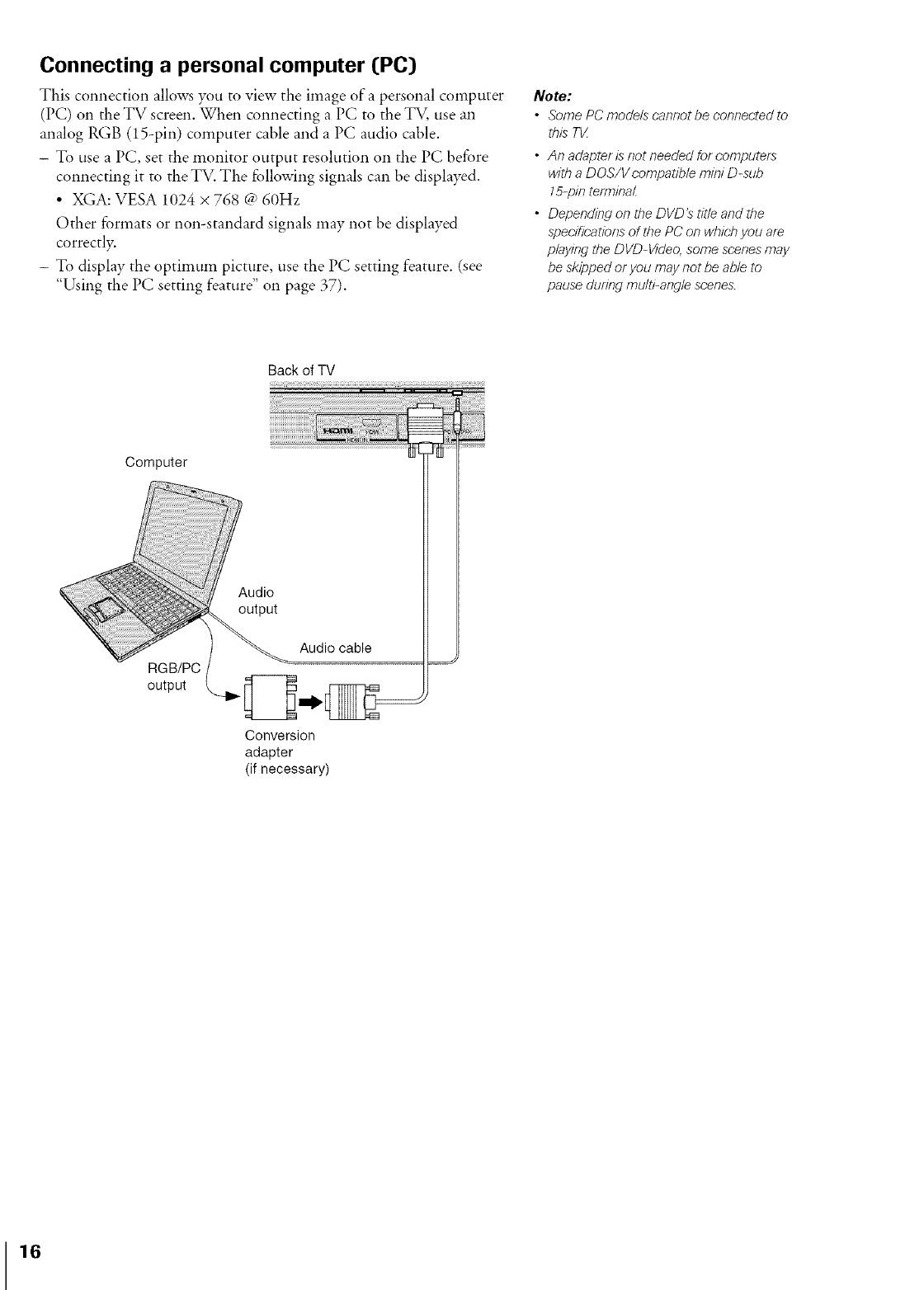

Connecting a personal computer (PC) ........................... 16

Using the remote control ...................................... 17

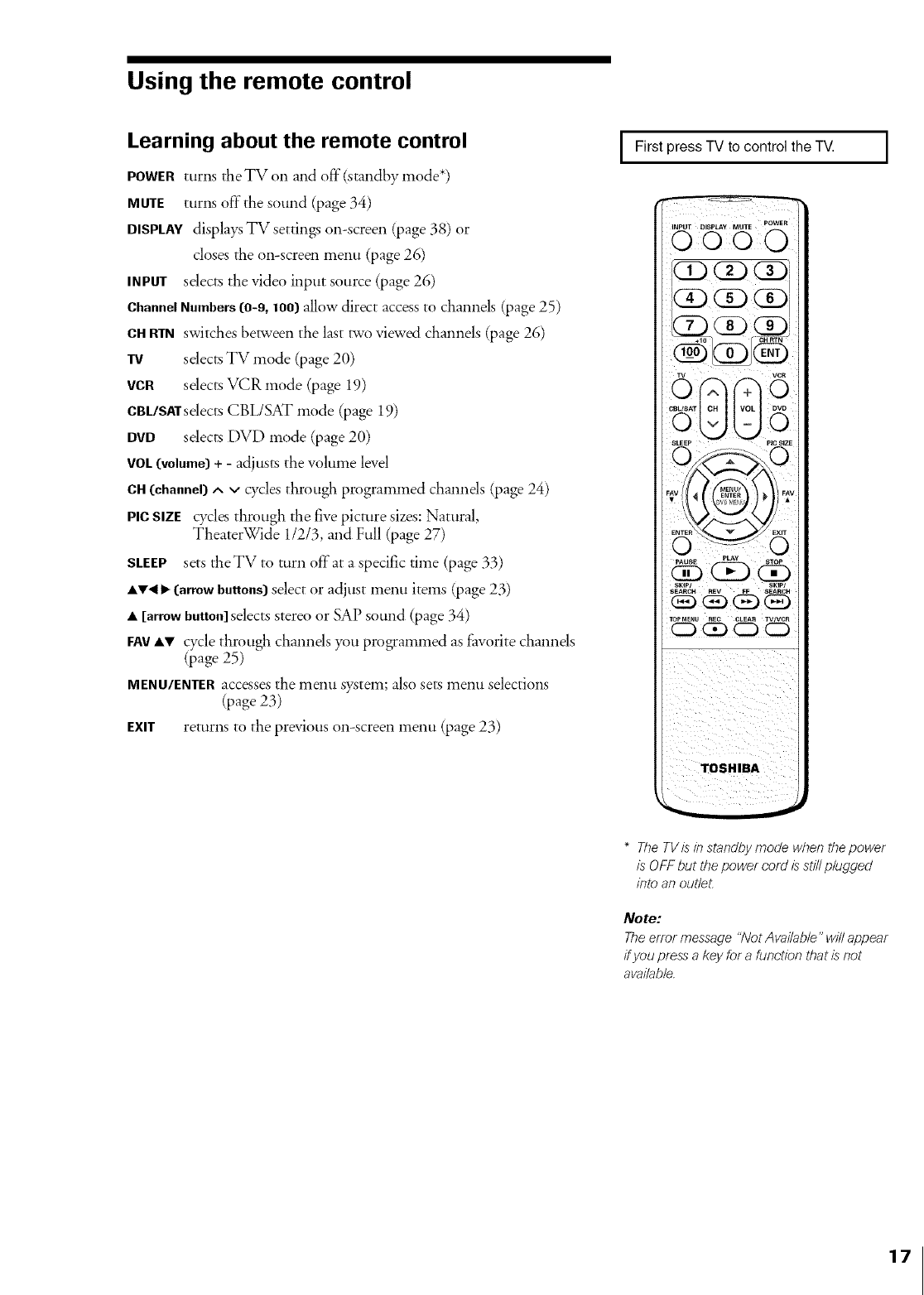

Learning about the reinote control ................................. 17

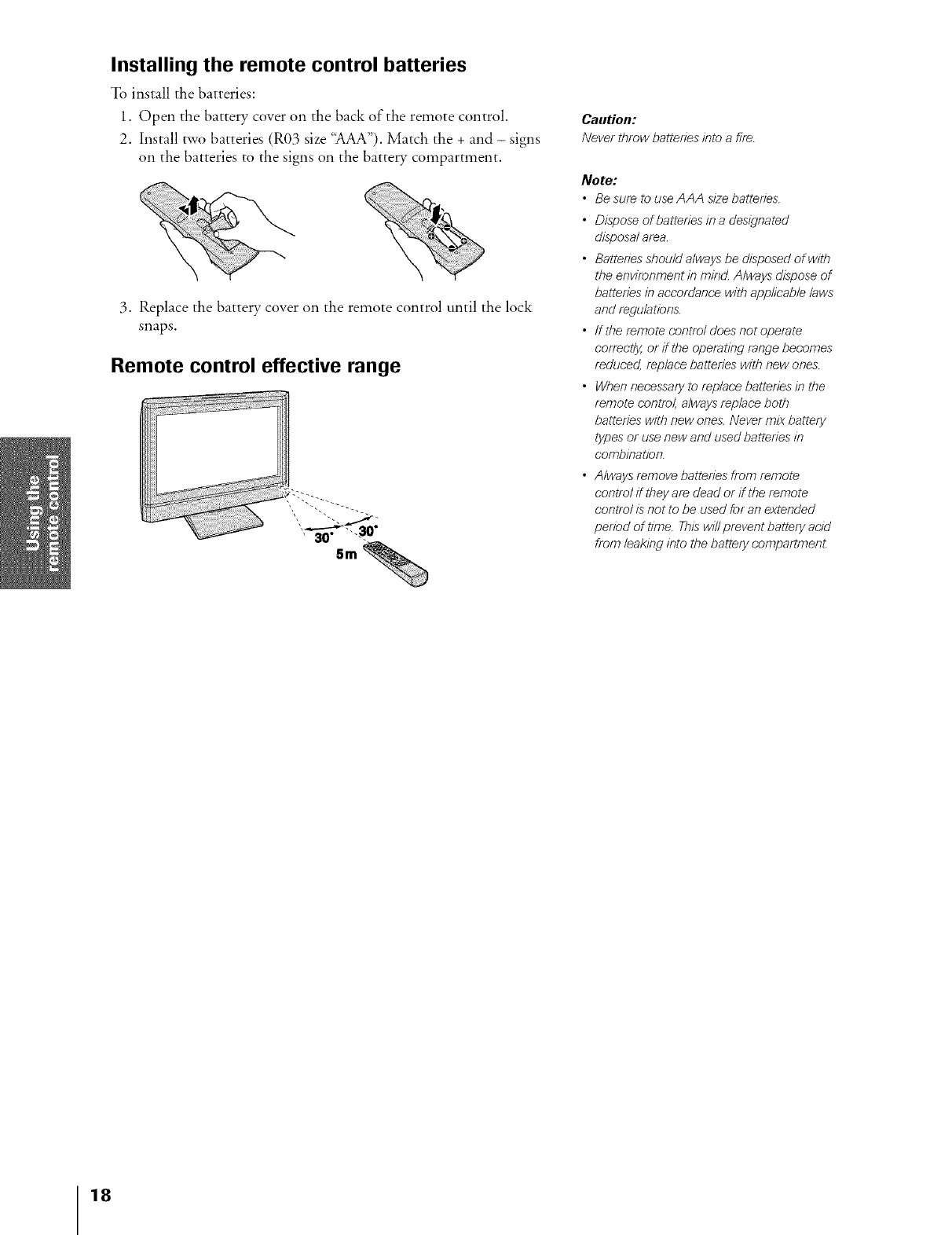

Installing tile remote control batteties ............................ 18

Remote control effective range ............................... 18

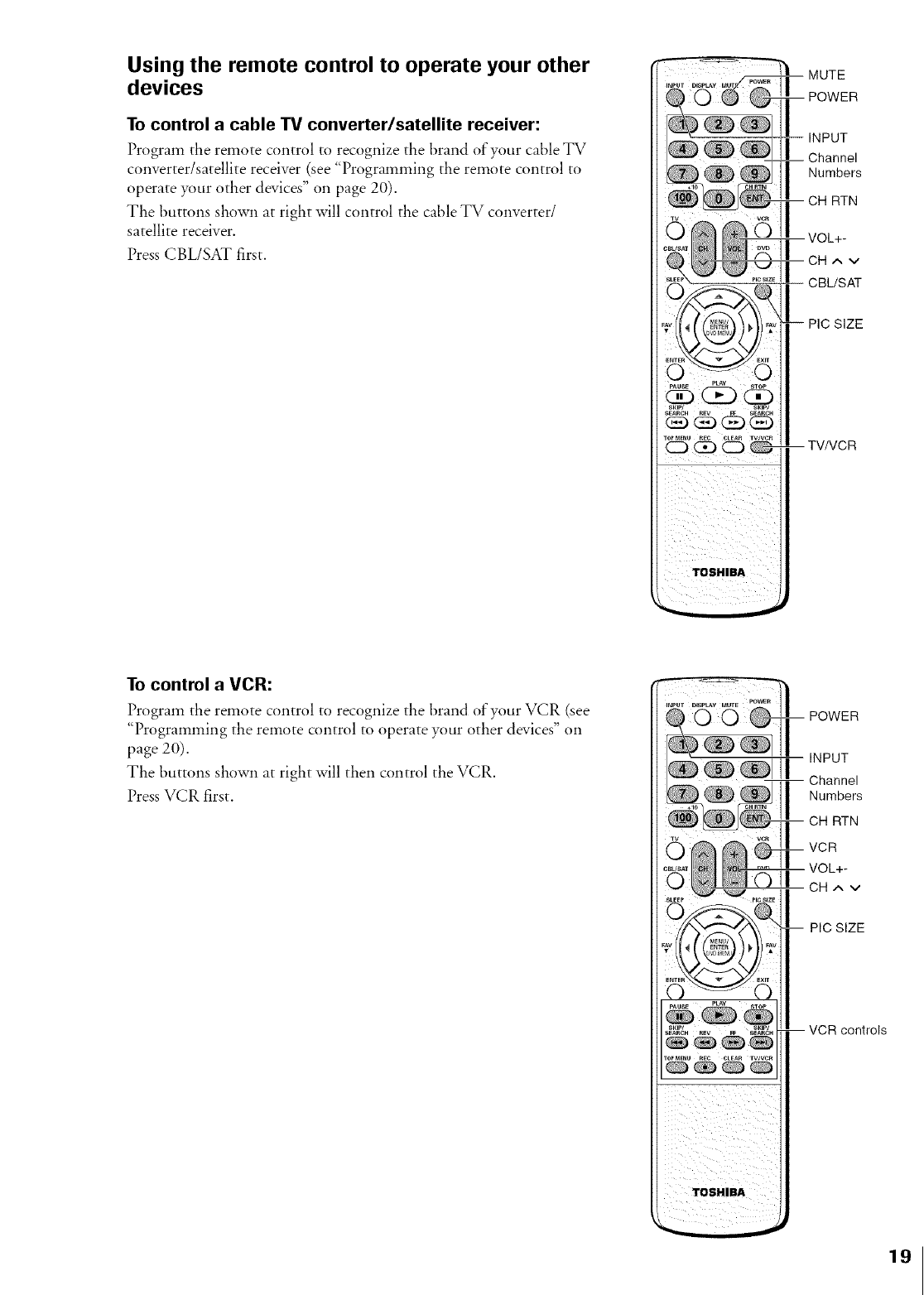

Using tile remote control to operate your other

devices ........................................................................... 19

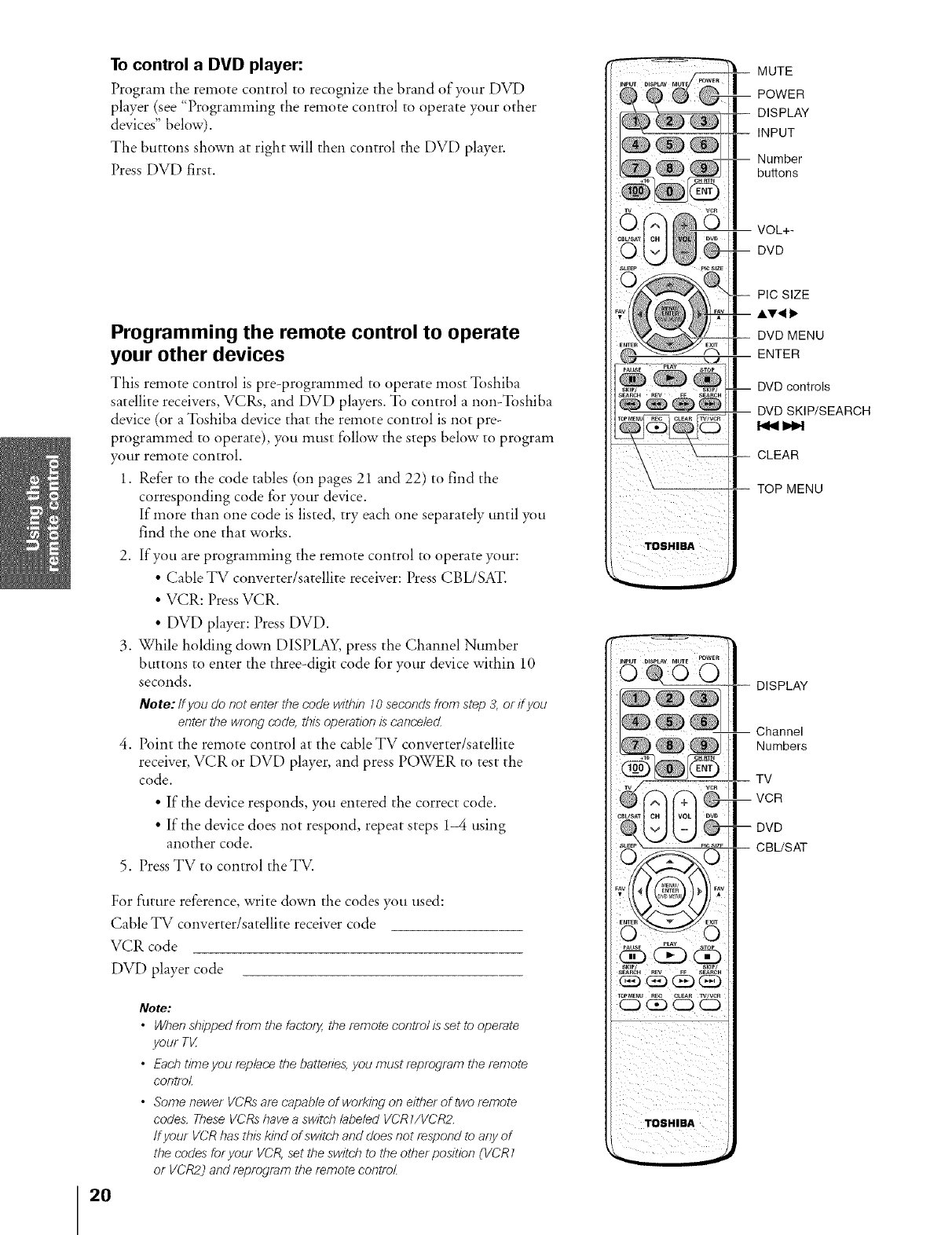

Programming tile reinote control to operate your other

devices ........................................................................... 20

Setting upyour TV..................................................23

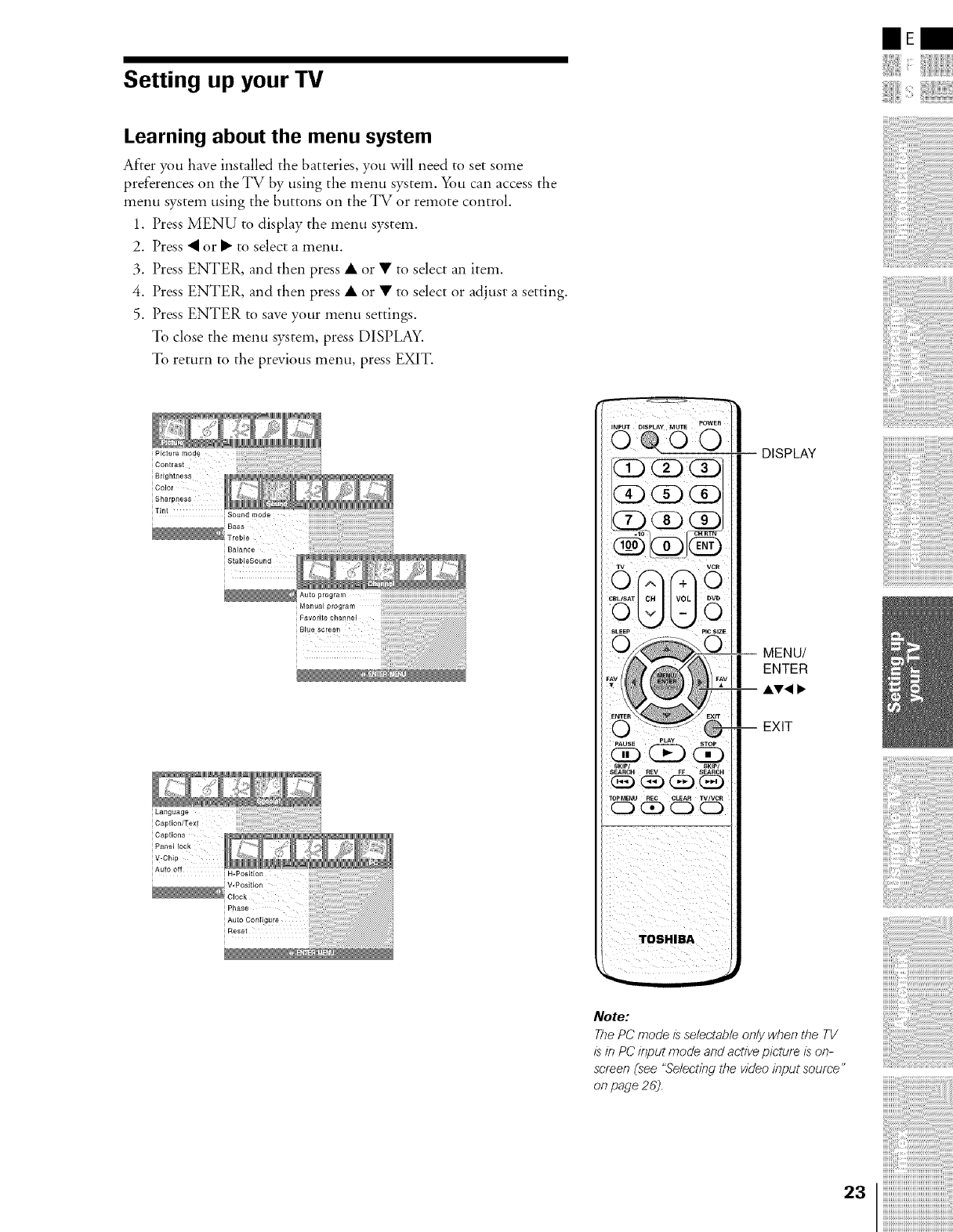

Learning about the menu system ................................... 23

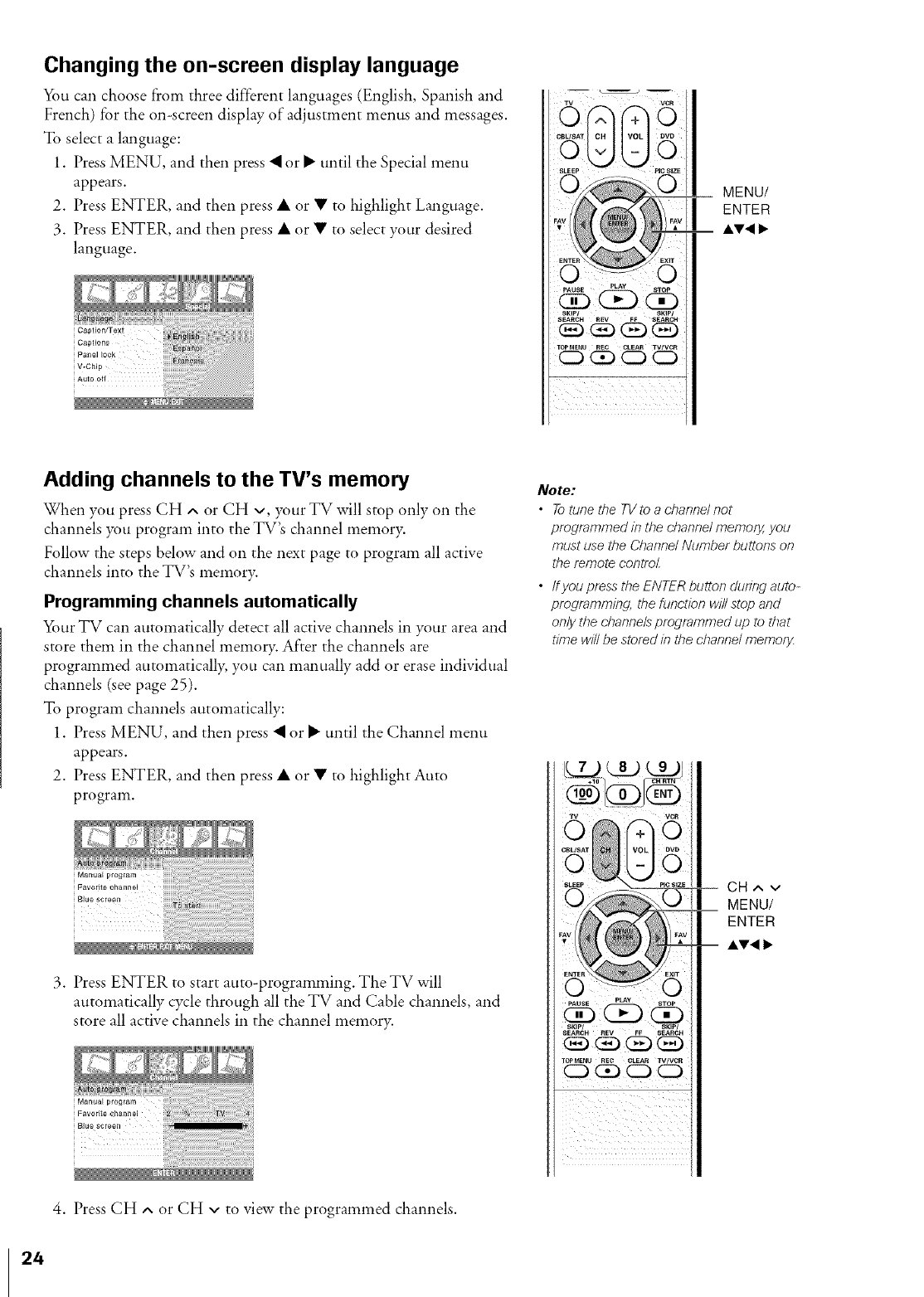

Changing tile on-screen display language ....................... 24

Adding channds m tile TV's memo U............................ 24

Programnfing &annals automatically ...................... 24

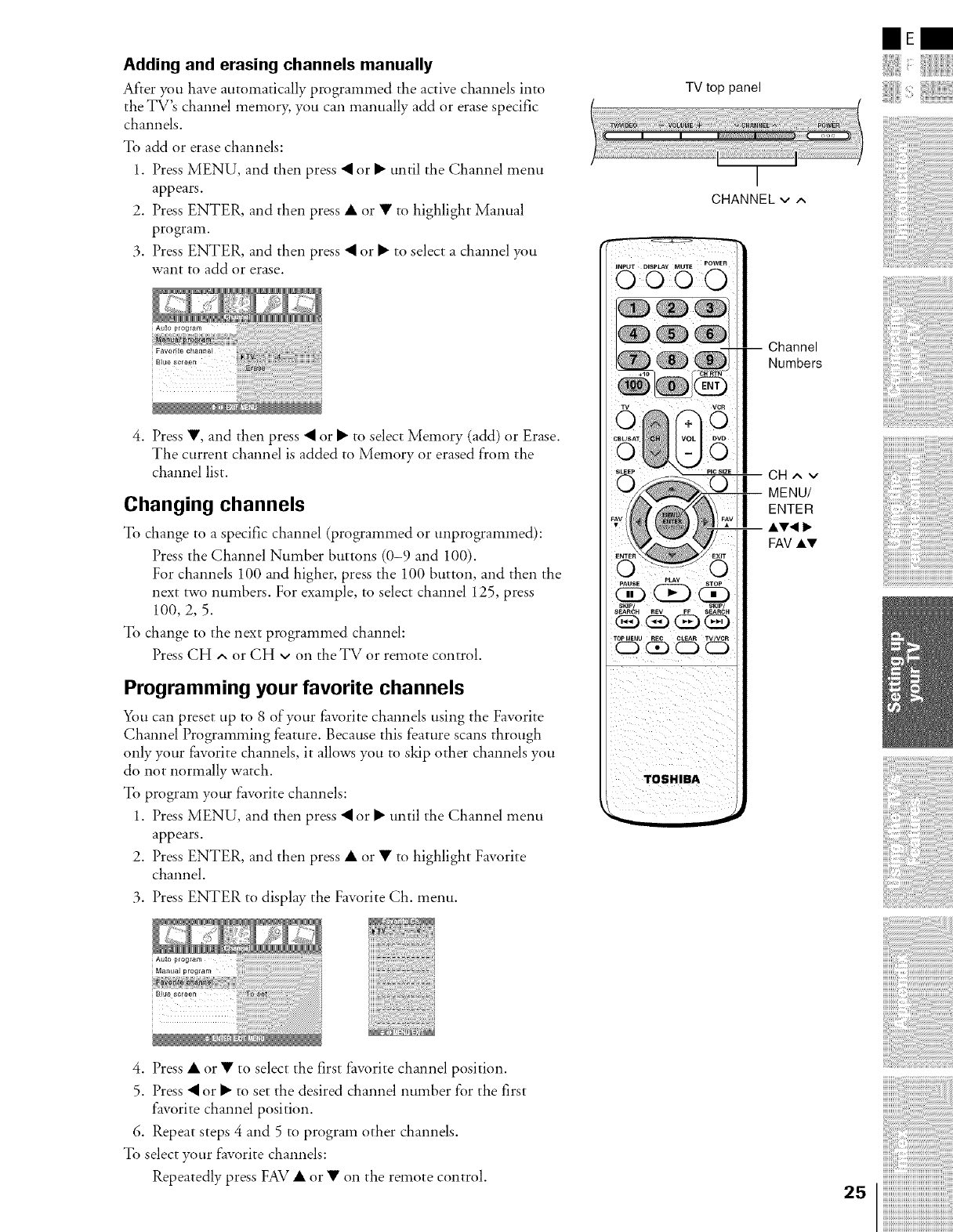

Adding and erasing channels inanually .................... 25

Changing channds ........................................................ 25

Programnfing your fhvorite channds .............................. 25

Using the TV's features ...................... 26

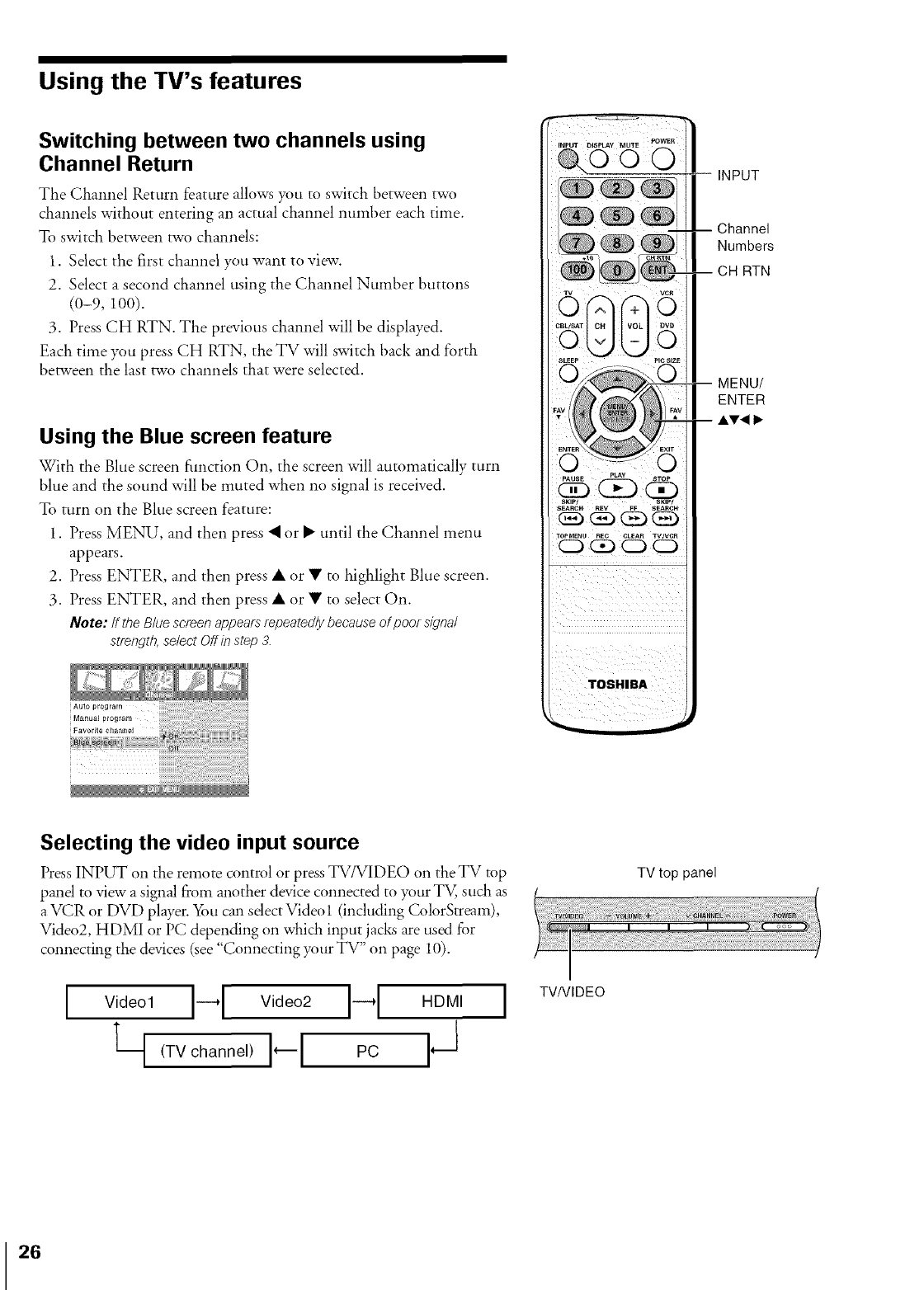

Switching between two channels using Channel

Return ................................................................. 26

Using the Blue screen feature ................................. 26

Selecting the video input source .................................. 26

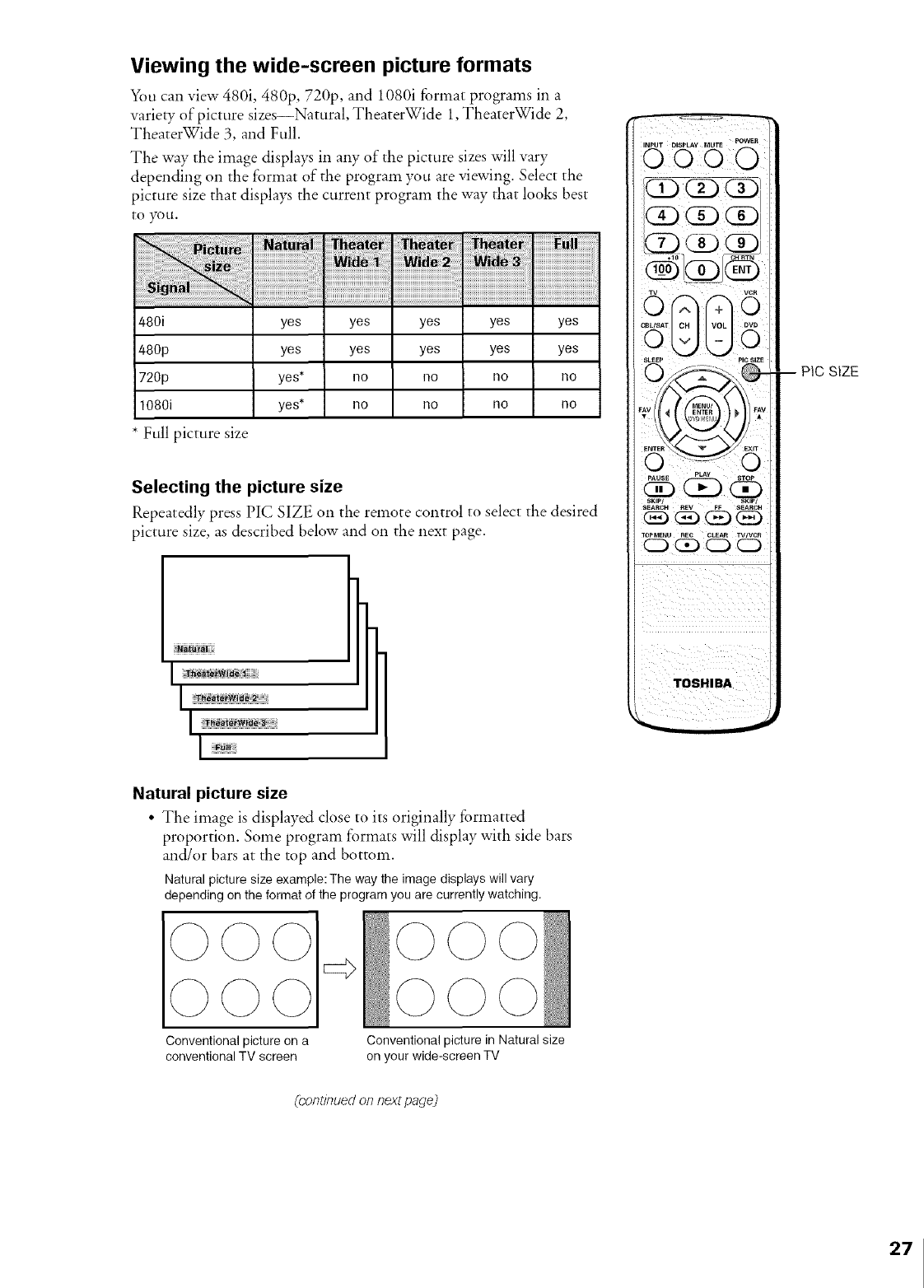

Viewing tile wide-screen picture formats .................... 27

Sdecting the picture dze ......................................... 27

Naural picture dze ........................................ 27

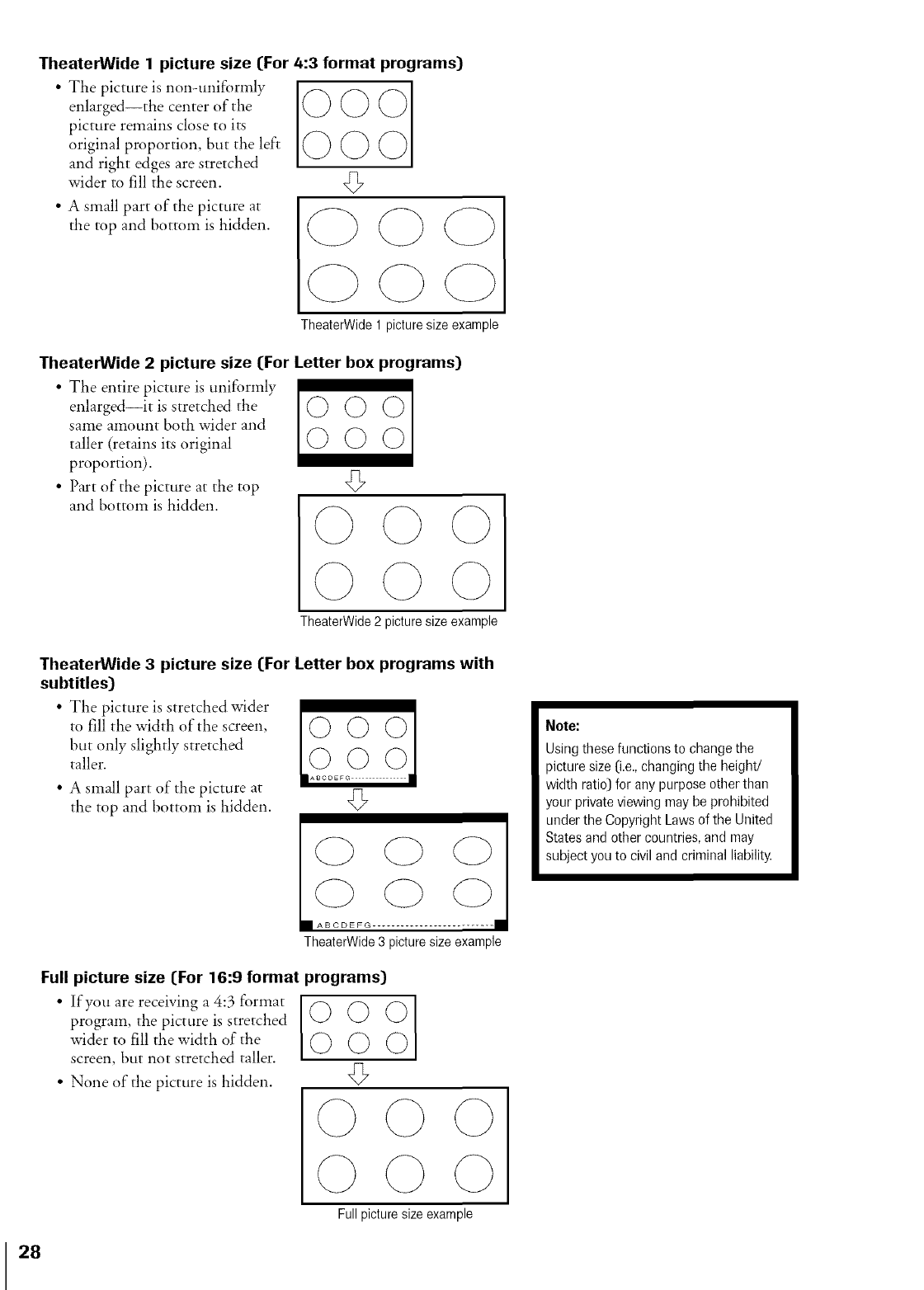

TheaterWide 1 picture dze .................................... 28

Theater\Vide 2 picture dze ................................... 28

Theater\Vide 3 picture size ................................... 28

Full picture dze ............................................. 28

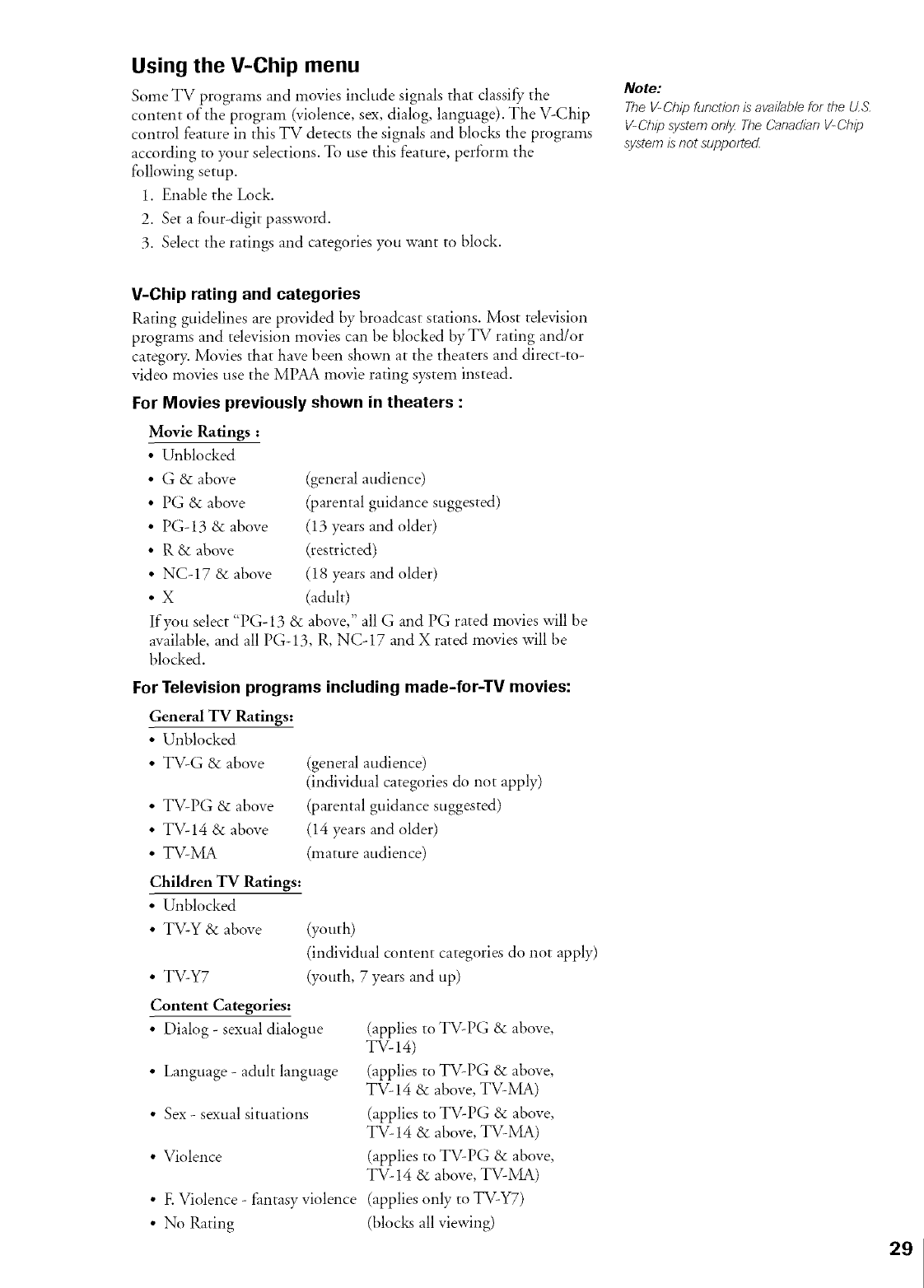

Using tile V-Chip menu ............................................ 29

V-Chip rating and categories ............................. 29

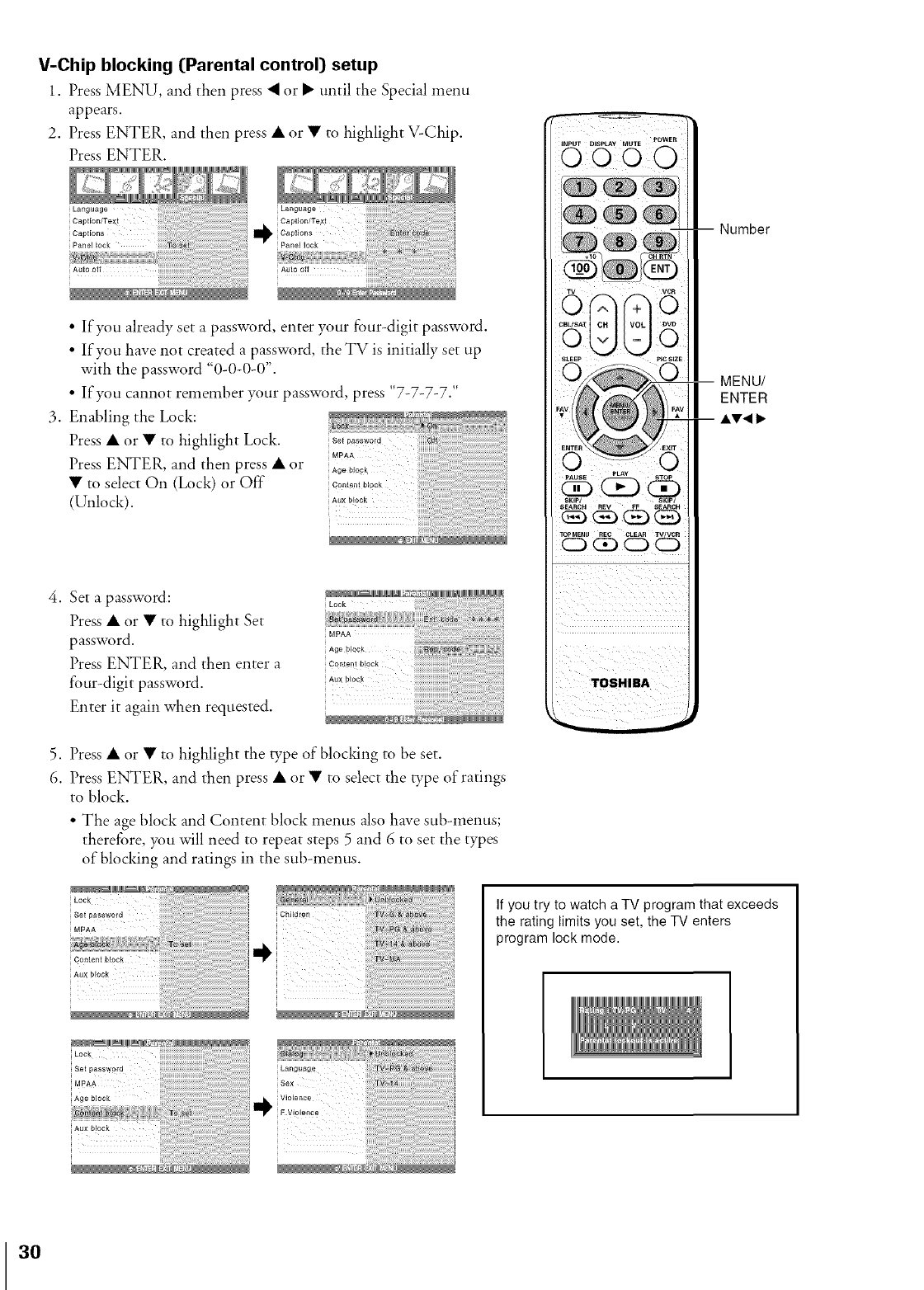

V-Chip (Parental menu) setup ............................... 30

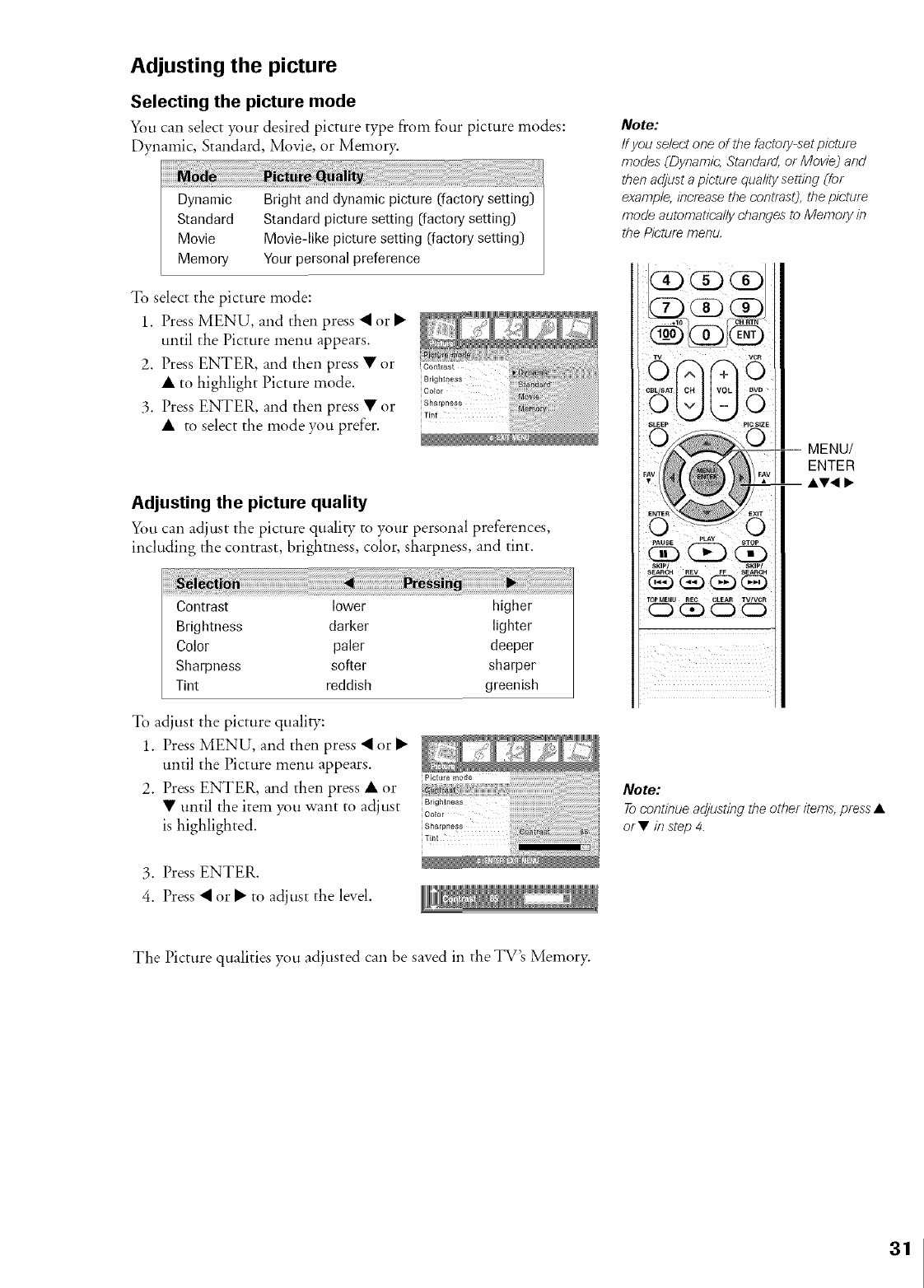

Adjusting the picture ............................................... 31

Selecting the picture mode .................................... 31

Adjusting the picture quality ................................... 31

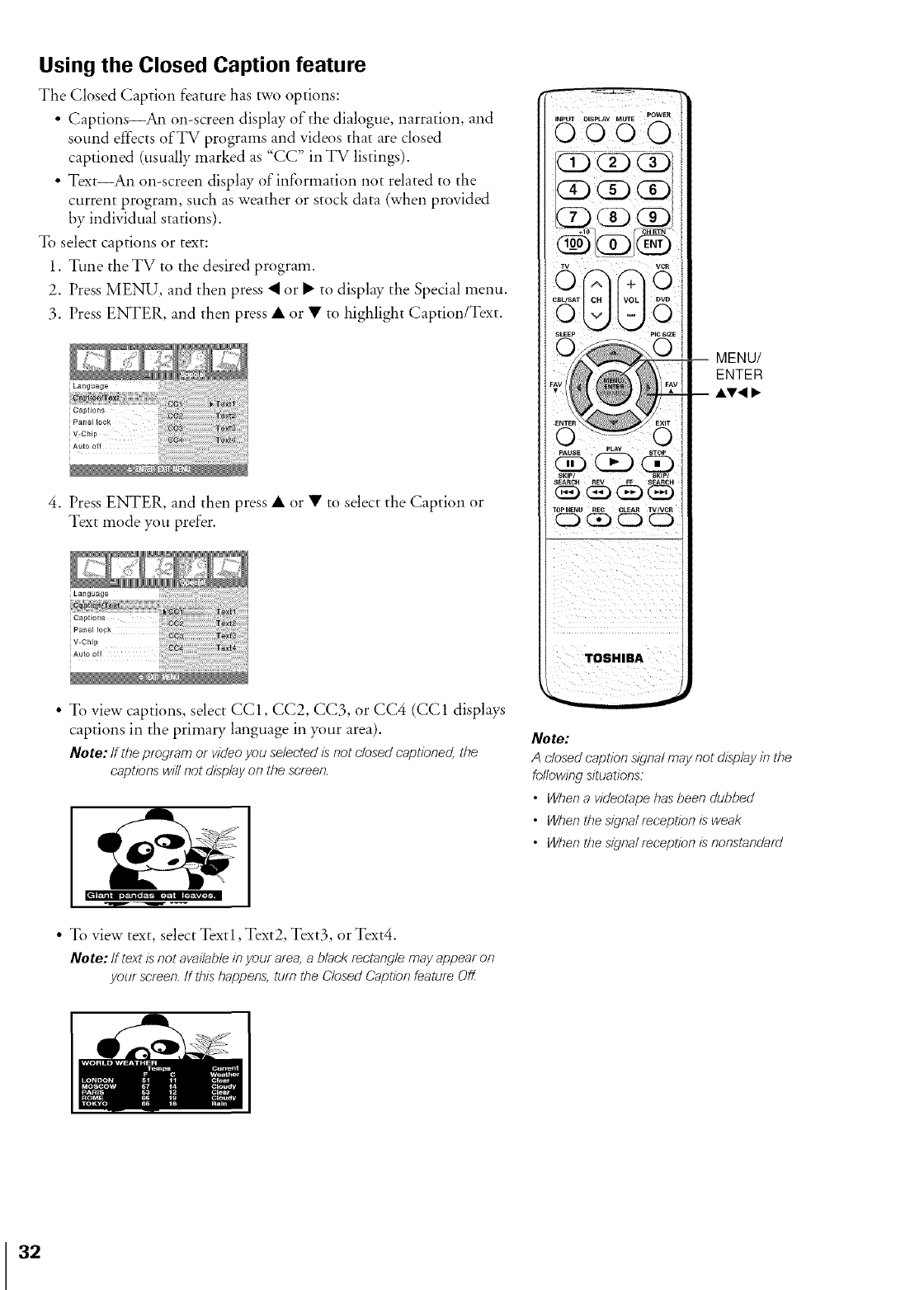

Udng tile Closed Caption feature .................................. 32

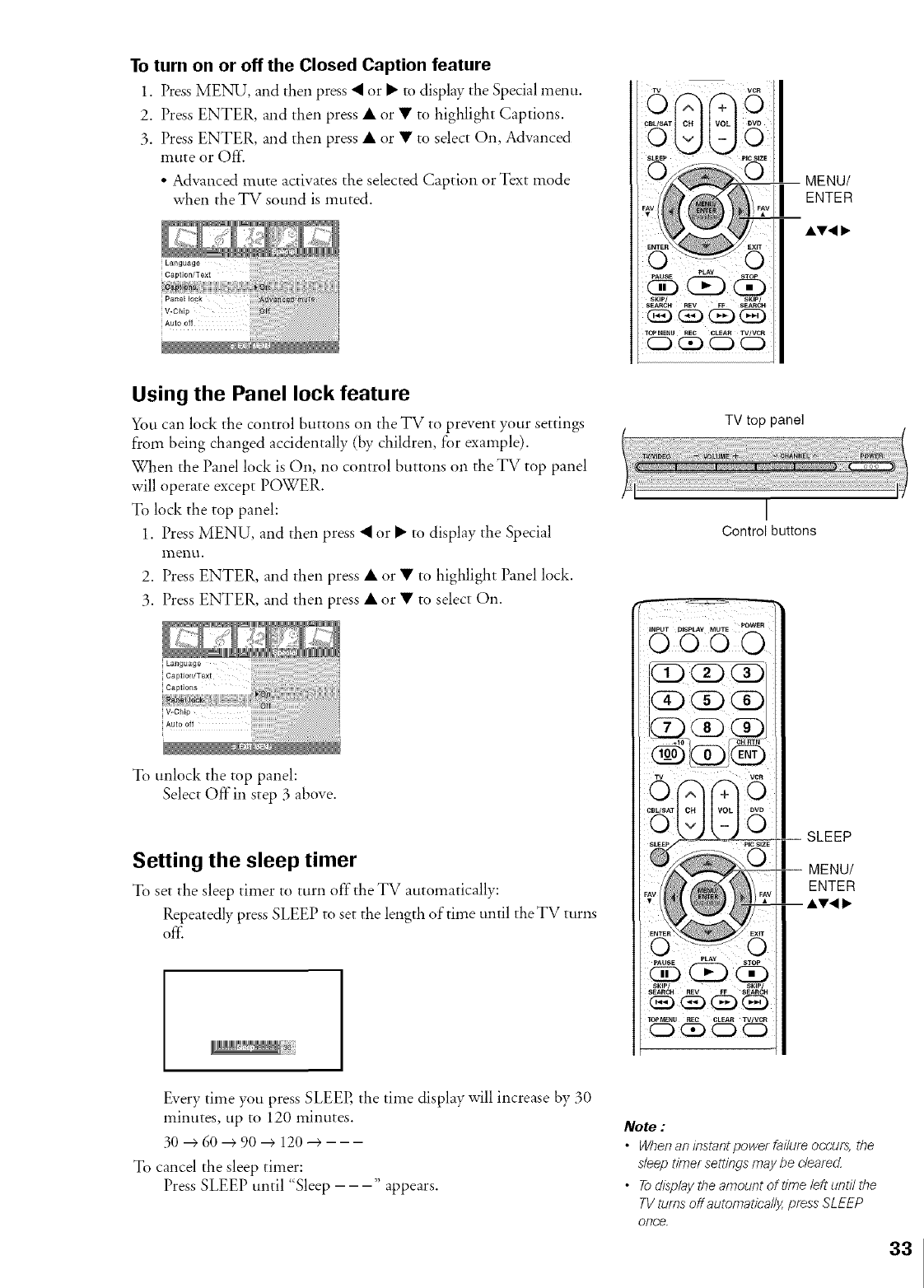

To turn on or offthe Closed Caption feature .......... 33

Ufing tile Panel lock feature ................................... 33

Setting the deep timer ................................................... 33

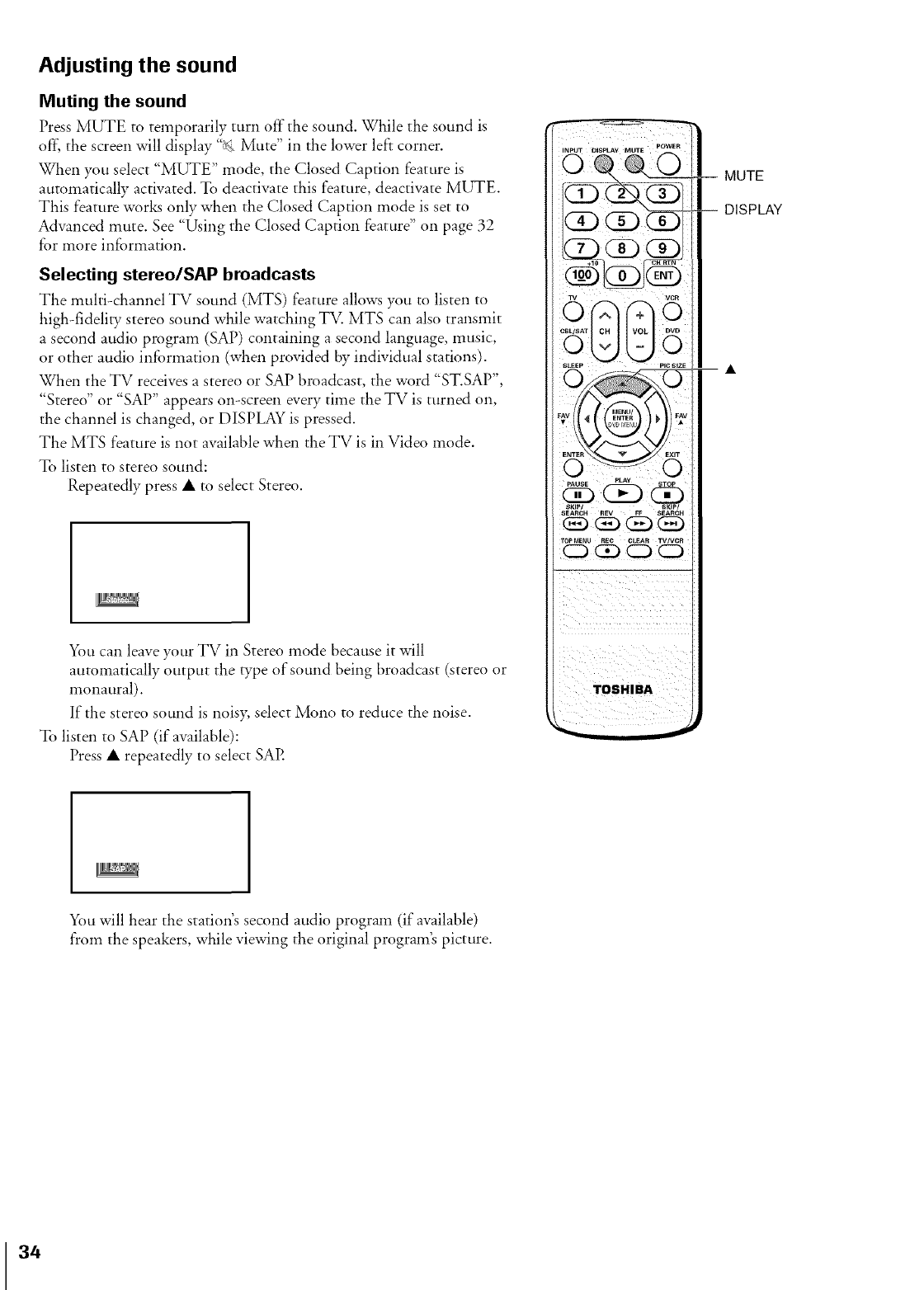

Adjusting the sound ............................................... 34

Muting tile sound .......................................... 34

Selecting stereo/SAP broadcasts ........................... 34

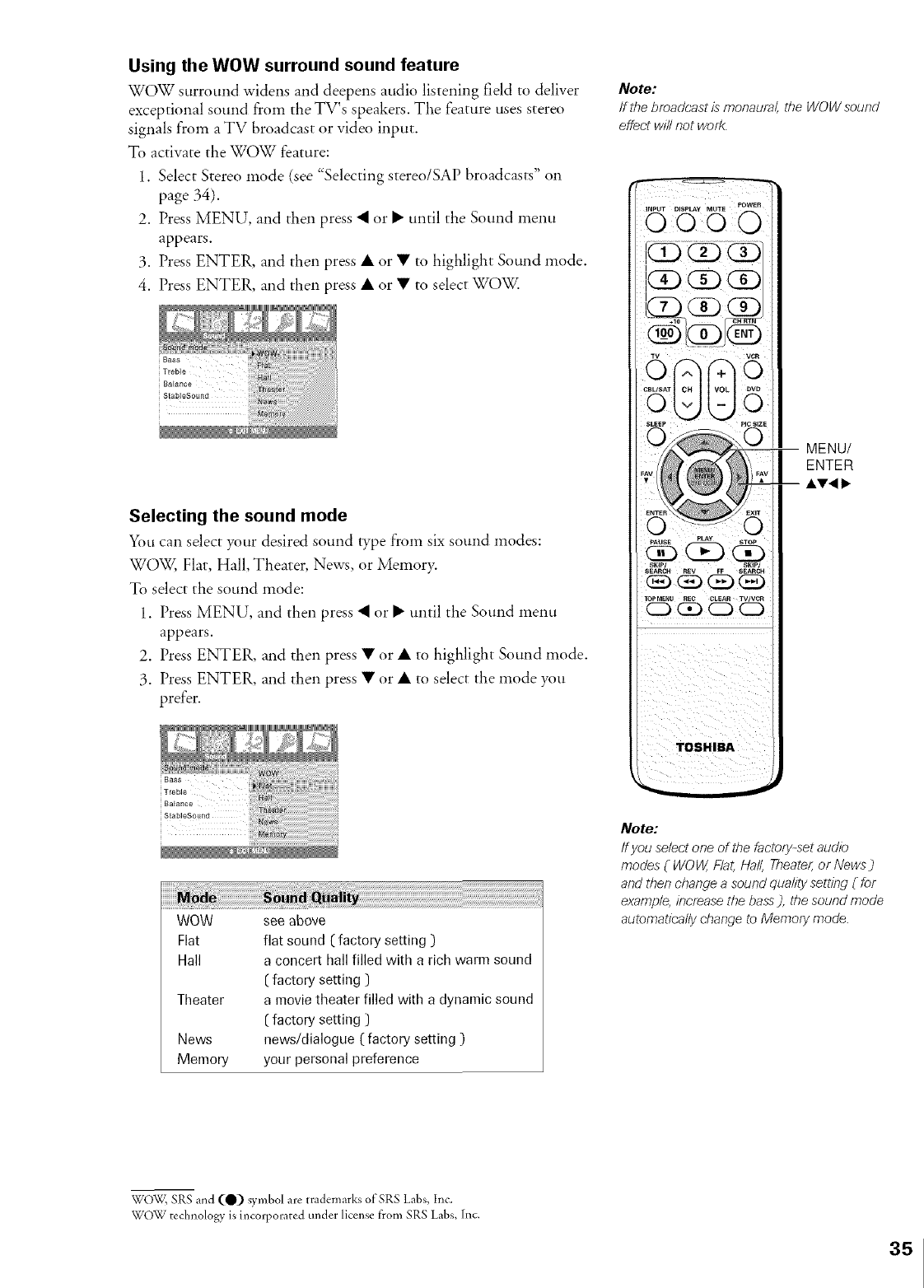

Using the WOW surround sound feature ............. 35

Selecting the sound mode ................................. 35

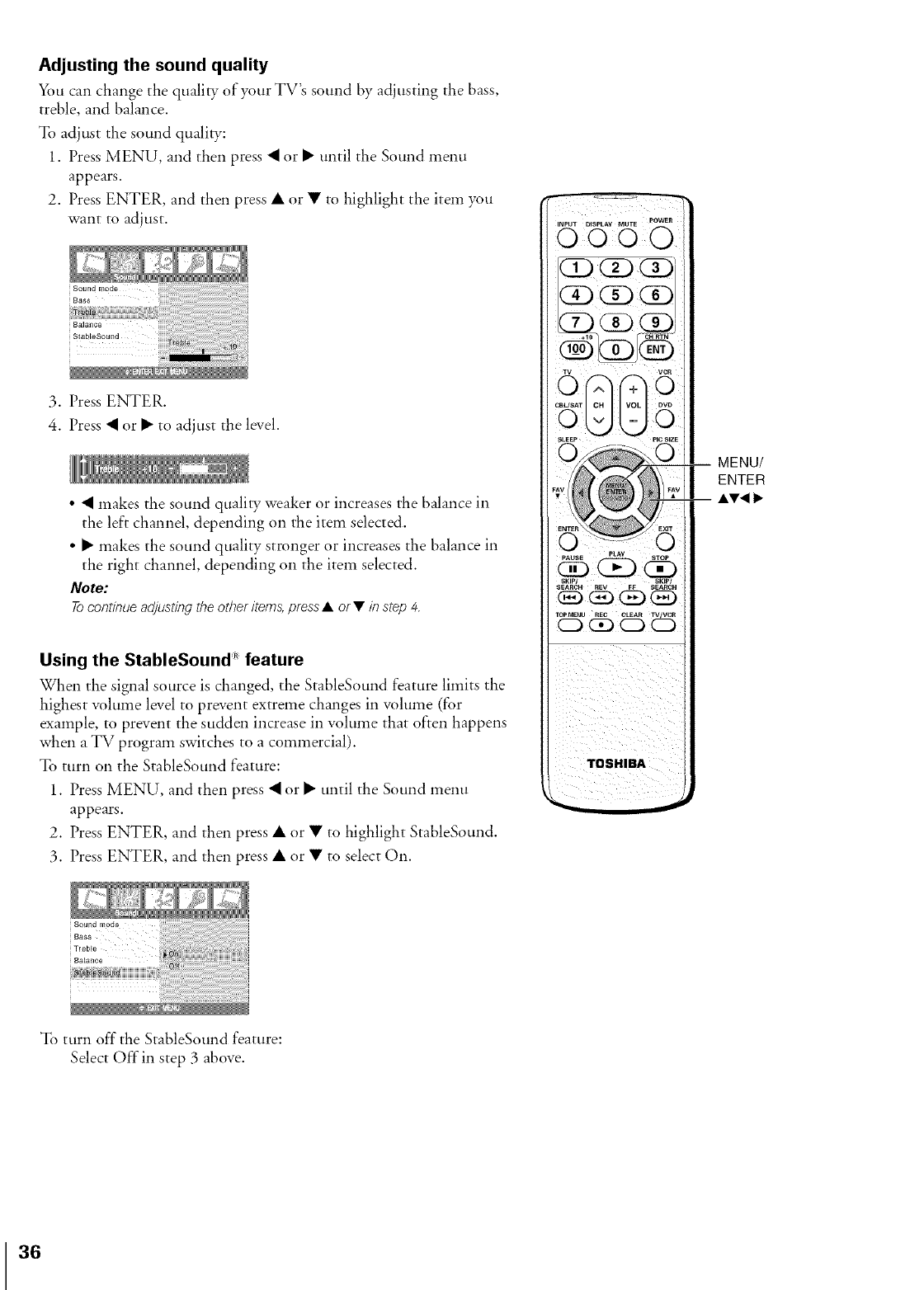

Adjusting the sound quality ................................ 36

Using the StableSound c*feature ............................. 36

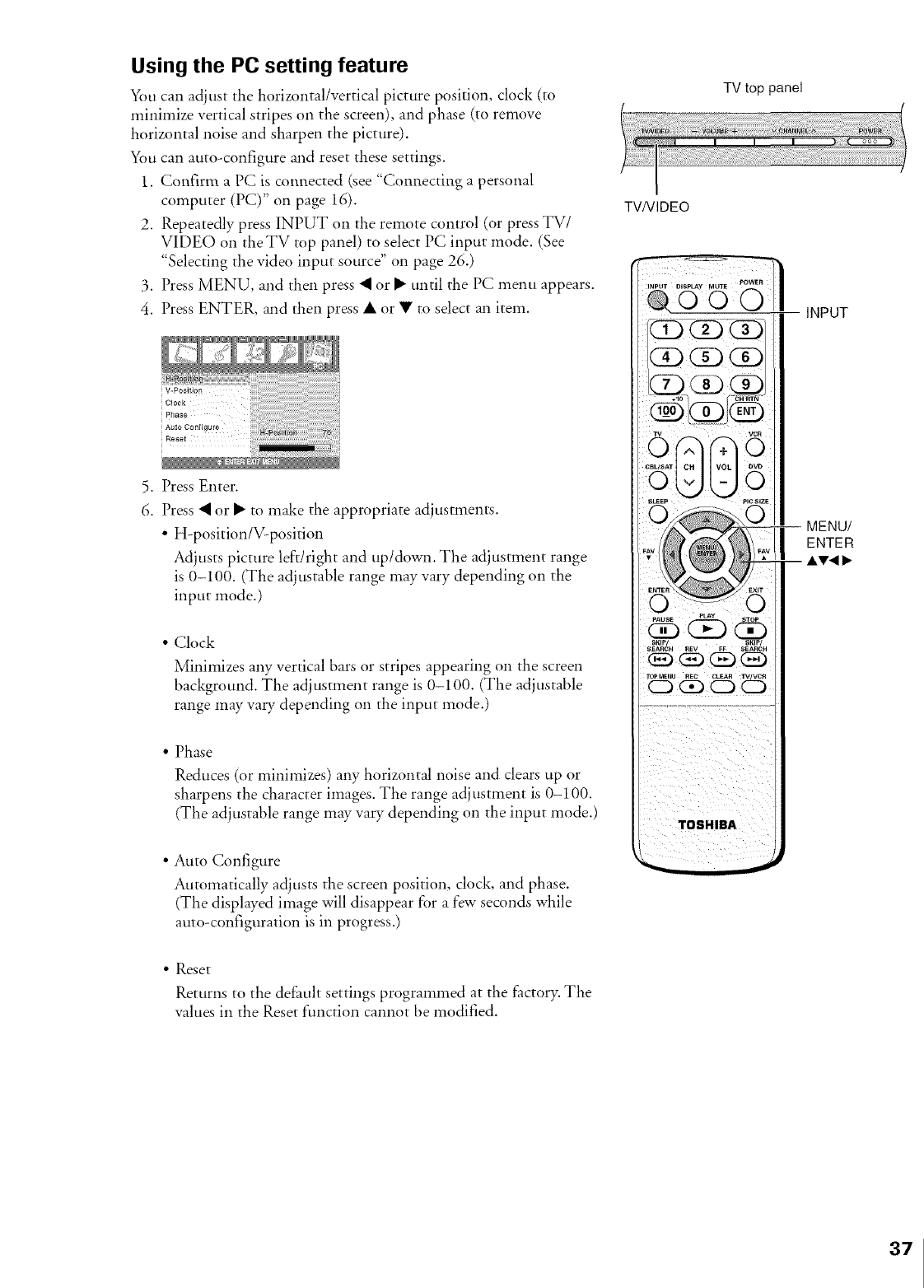

Udng tile PC setting feature ................................... 37

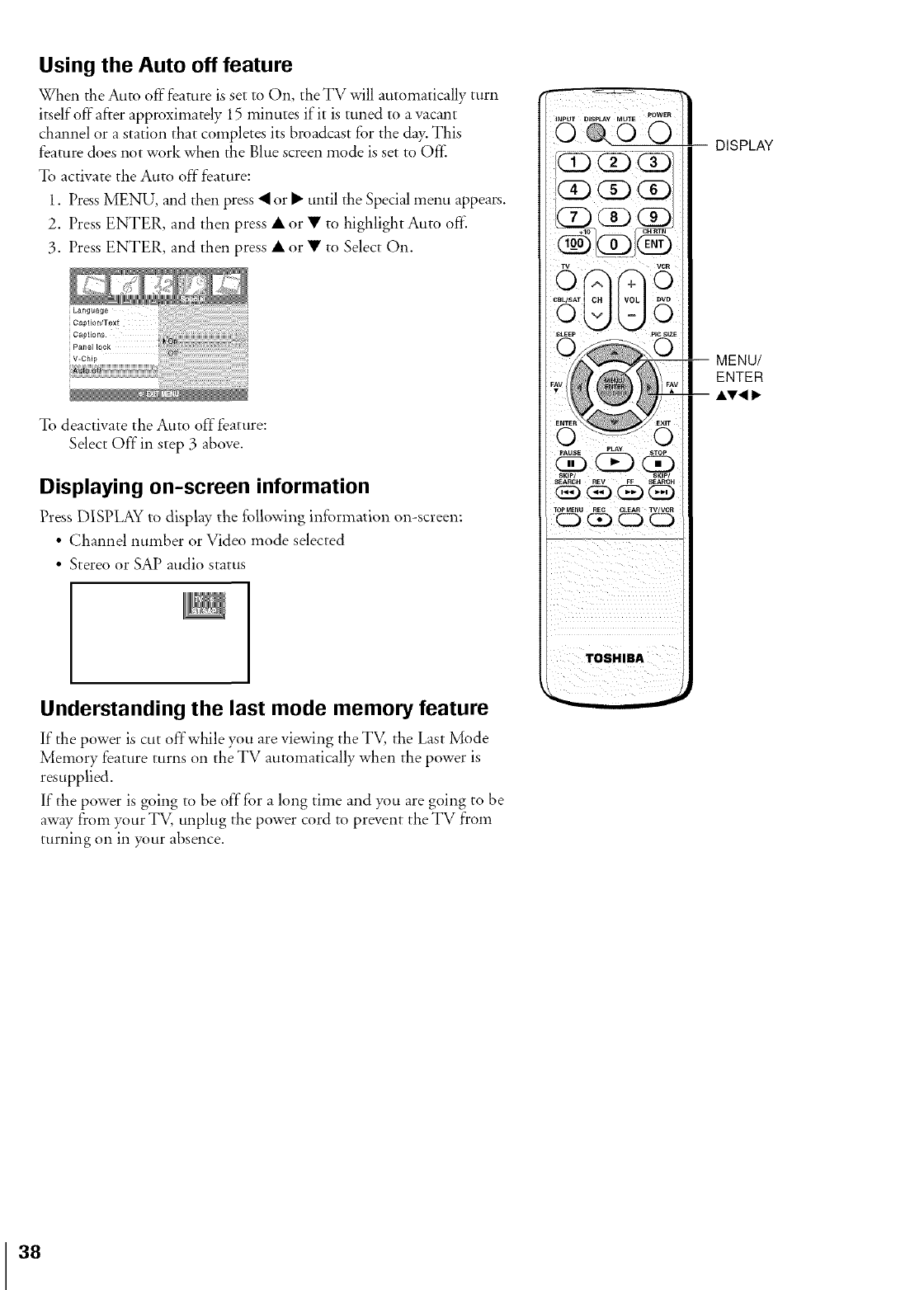

Using tile Aura off feature .............................................. 38

Displaying on-screen information .................................. 38

Understanding tile last mode inelllOr)/feature ................ 38

Appendix ................................................................... 39

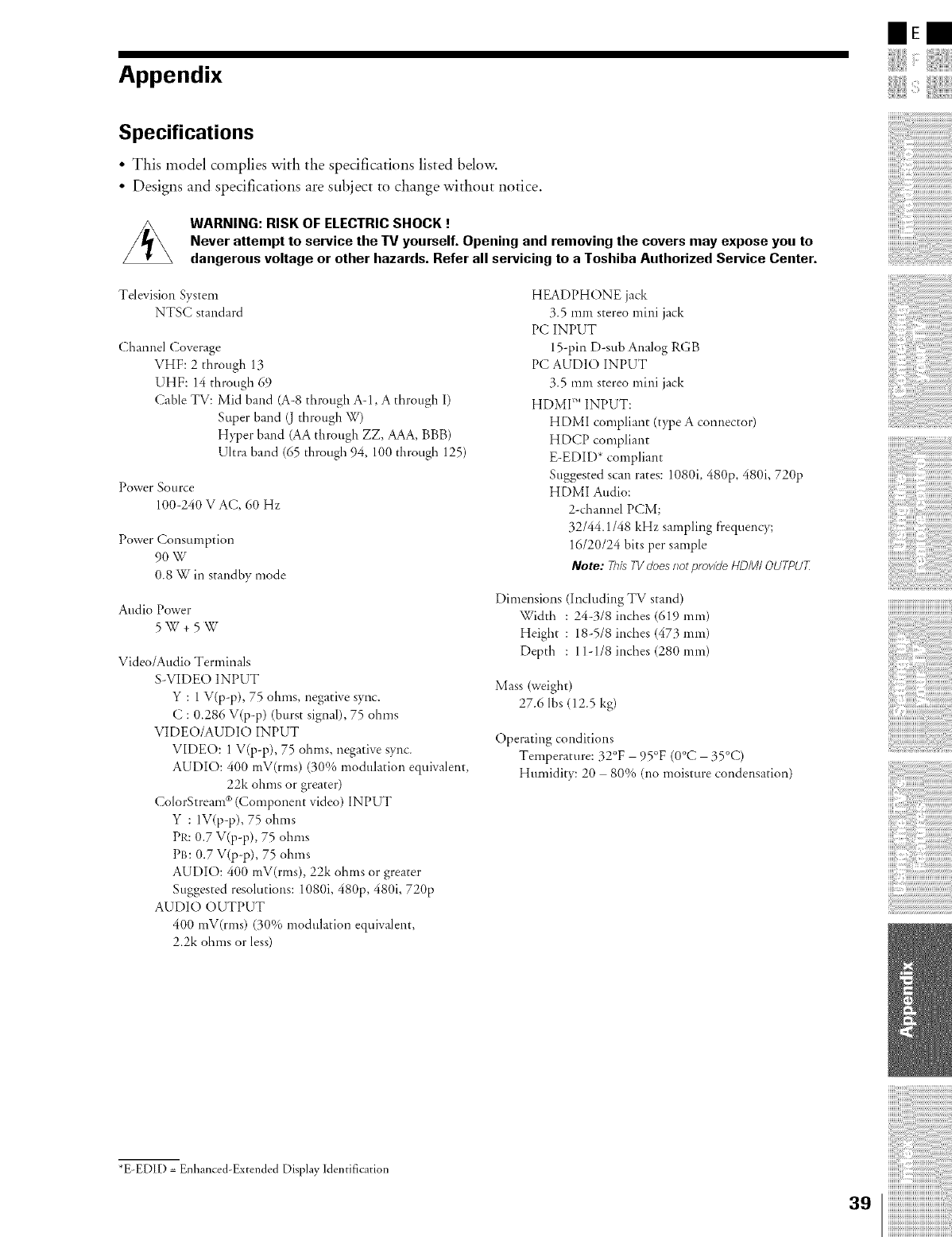

Specifications ...................................................... 39

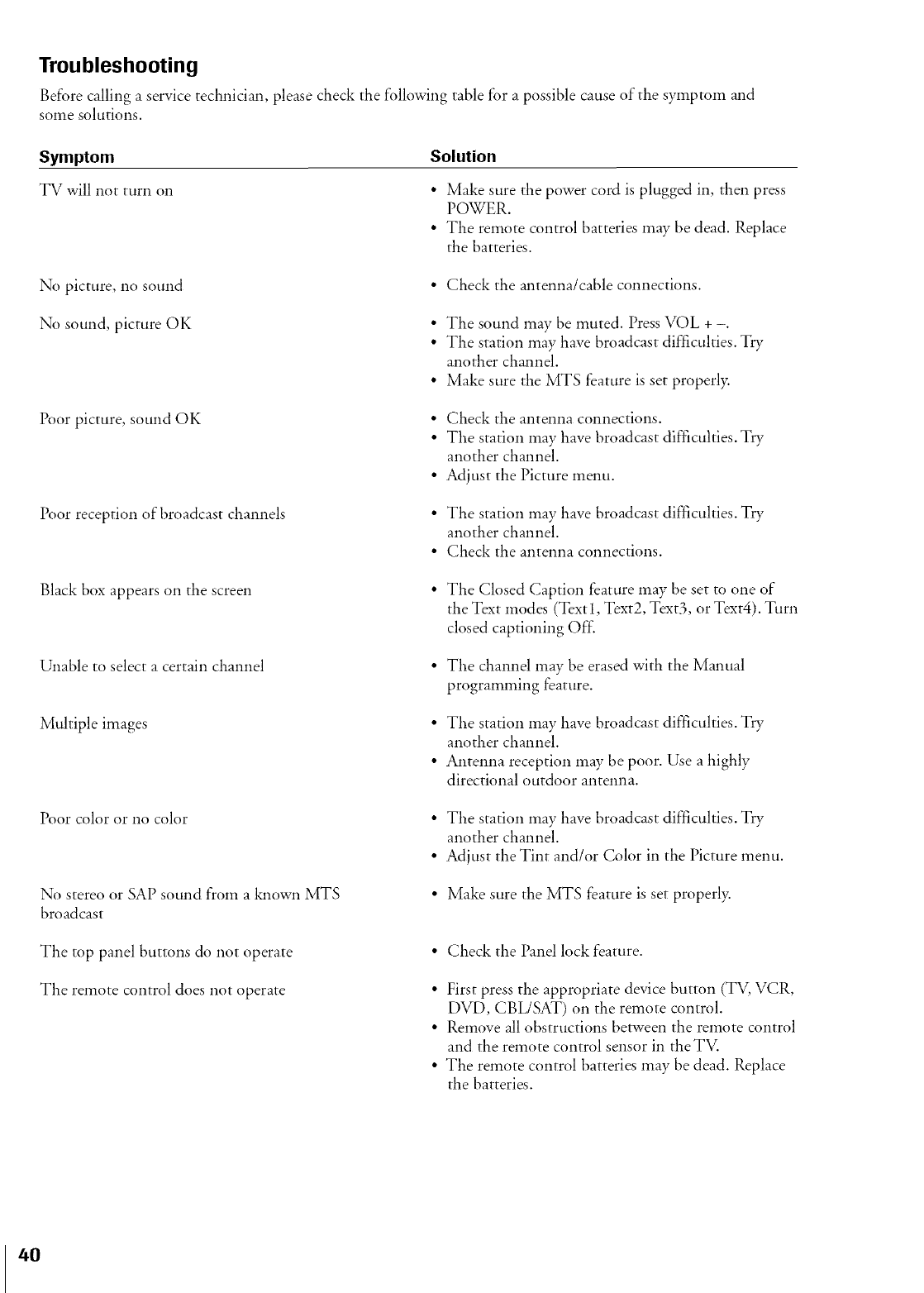

Troubleshooting .................................................. 40

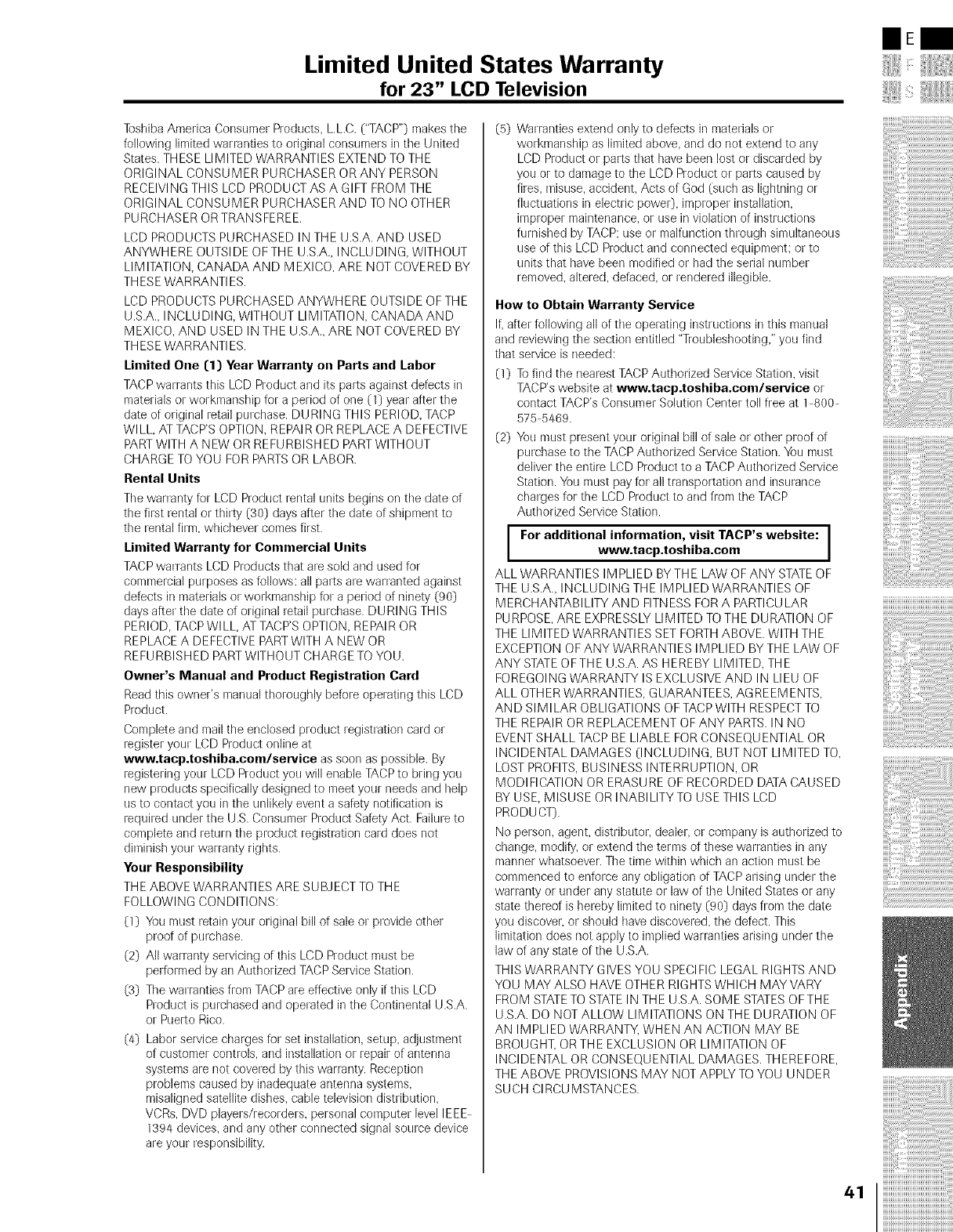

Linfited United States _¢_rranty .............................. 41

Linfited Canada x,Krarranty.............................................. 42

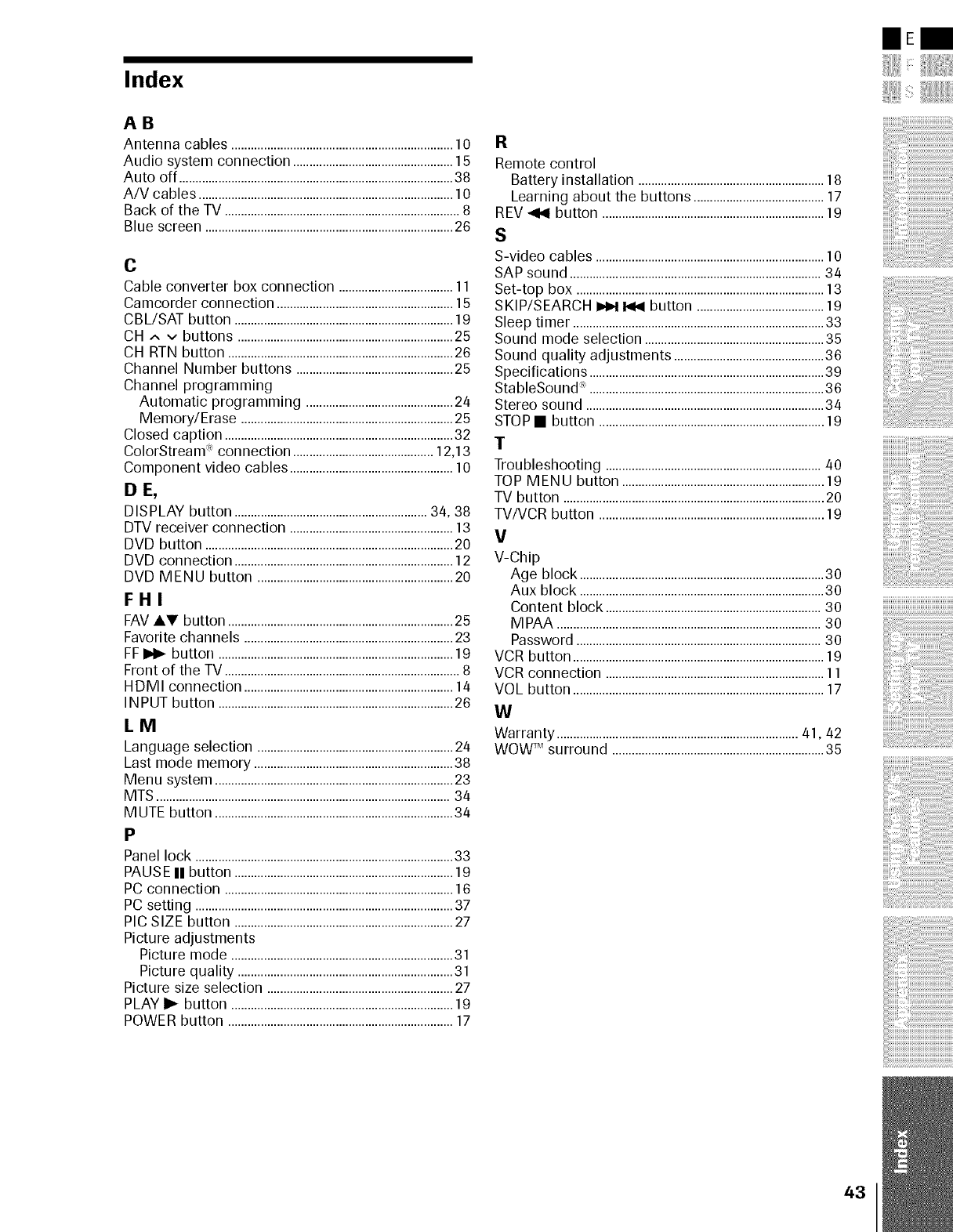

Index ............................................... 43

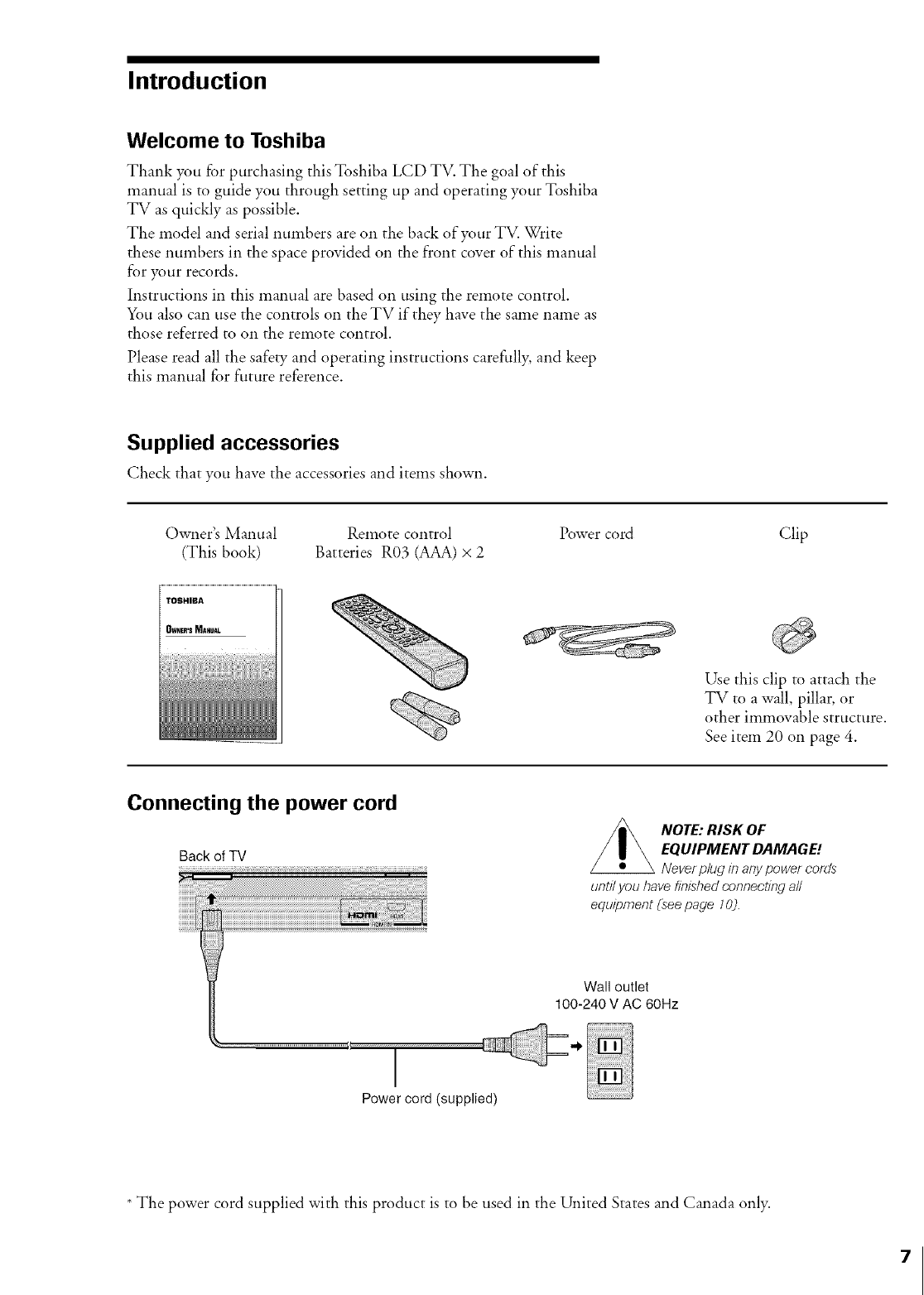

Introduction

Welcome to Toshiba

Thank you for purchasing this Toshiba LCD TV. The goal of this

manual is to guide you through setting up and operating your Toshiba

TV as quickly as possible.

The model and serial numbers are on the back of your TV. Write

these numbers in the space provided on the front cover of this manual

for your records.

Instructions in this manual are based on using the remote control.

You also can use the controls on the TV if they have the same name as

those referred to on the remote control.

Please read all the safety and operating instructions carefully, and keep

this manual for future reference.

Supplied accessories

Check that you have the accessories and items shown.

Owner's Manual Remote control Power cord

(This book) Batteries R03 (AAA) x 2

TOSHIBA

Clip

Use this clip to attach the

TV to a wall, pillar, or

other immovable structure.

See item 20 on page 4.

Connecting the power cord

Backof TV

NOTE: RISK OF

EQUIPMENT DAMAGE!

Never p/ug in arty power cords

until you have finished connecting a//

equipment (see page 10).

Wall outlet

100-240 V AC 60Hz

Power cord (supplied)

* The power cord supplied with this product is to be used in the United States and Canada only.

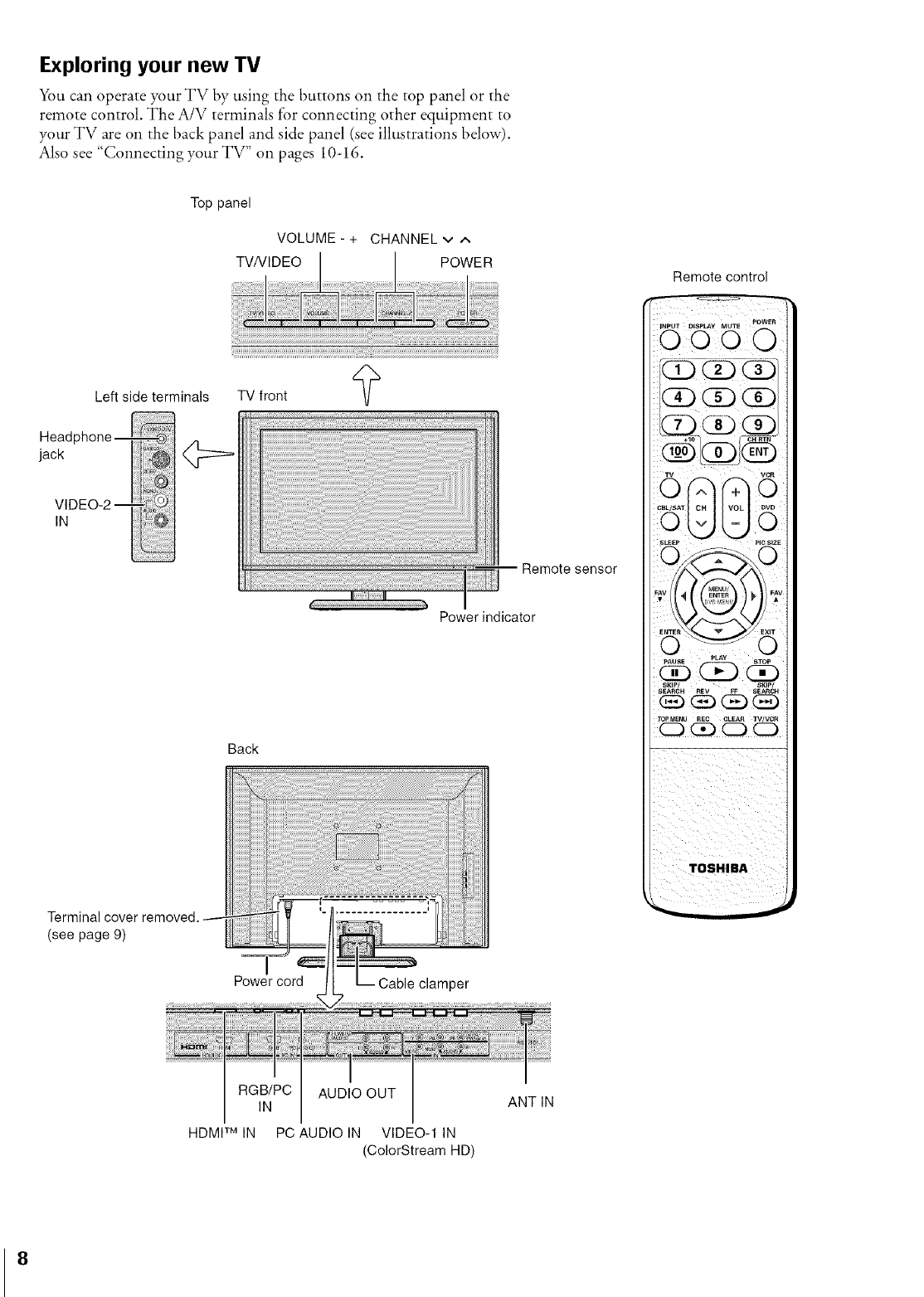

Exploring your new TV

_m can operate your TV by using the buttons on the top panel or the

remote control. The A/V terminals f'or connecting other equipment to

your TV are on the back panel and side panel (see illustrations below).

Also see "Connecting your TV" on pages 10-16.

Top panel

VOLUME - + CHANNEL v ,,.,

TVNIDEO POWER Remote control

-- Remote sensor

Power indicator

Back

Terminal cover removed.

(see page 9)

Power cord Cable clamper

RGB/PC AUDIO OUT

HDMI TM IN PC AUDIO IN VIDEO-1 IN

(ColorStream HD)

ANTIN

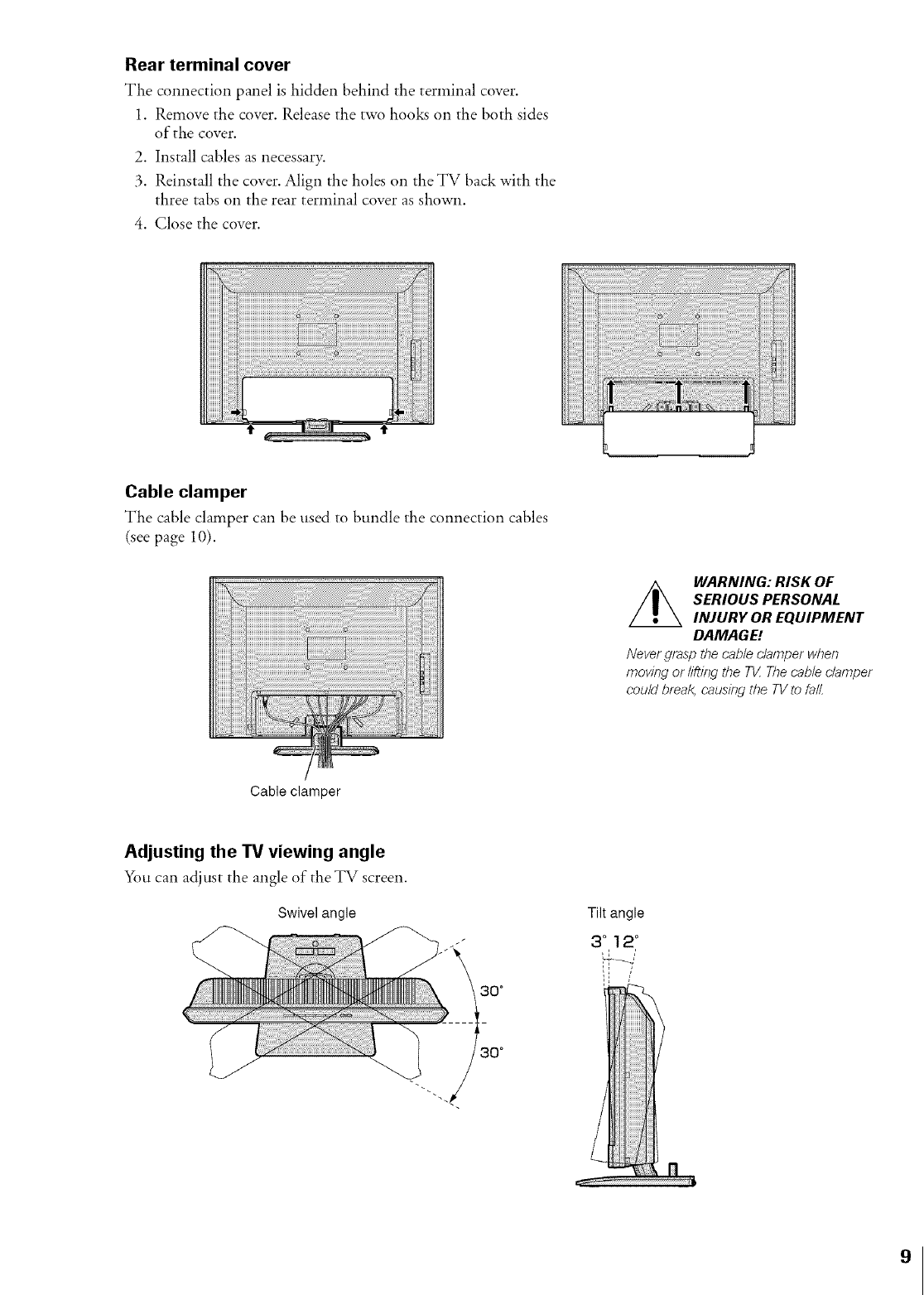

Rear terminal cover

The connection panel is hidden behind the terminal cover.

1. Remove the cover. Release the two hooks on the both sides

of the cover.

2. Install cables as necessary.

3. Reinstall the cover. Align the holes on the TV back with the

three tabs on the rear terminal cover as shown.

4. Close the cover.

Cable clamper

The cable clamper can be used to bundle the connection cables

(see page 10).

Cable clamper

WARNING: RISK OF

SERIOUS PERSONAL

INJURY OR EQUIPMENT

DAMAGE!

Nevergrasp the cable clamper wben

moving or lifting tbe T_ Thecable clamper

could break, causing tbe TVto fall.

Adjusting the "IV viewing angle

You can adjust the angle of the TV screen.

Swivel angle

30°

Tilt angle

3°12 °

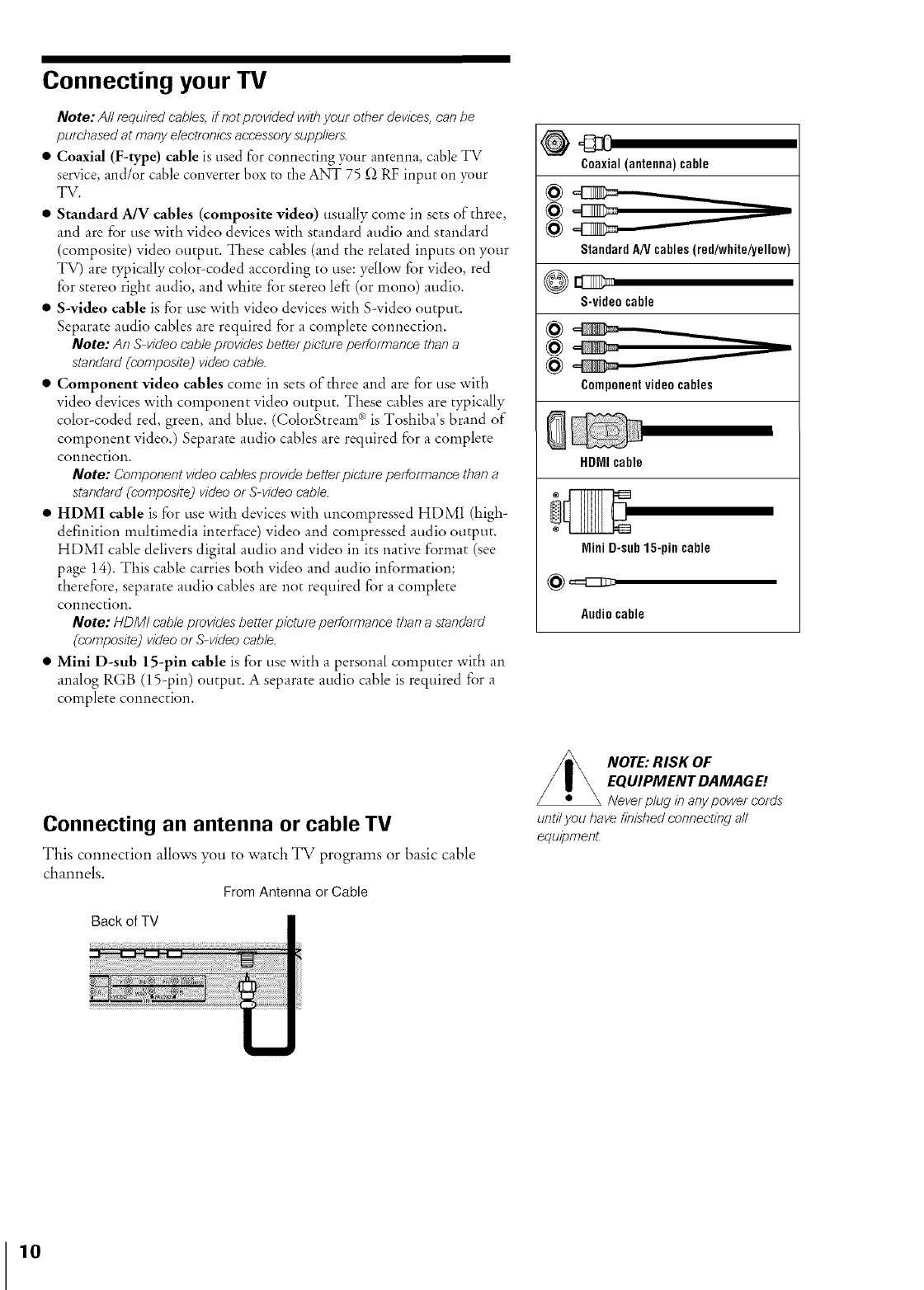

Connecting your TV

Note: All required cables,if notprovided withyour other devices,canbe

purchased at many electrenicsaccessorysuppliers.

•Coaxial (F-type) cable is used for connecting your antenna, cable TV

service, and/or cable converter box to the ANT 75 _ RF input on your

TV.

• Standard A/V cables (composite video) usually come in sets of three,

and are for use with video devices with standard audio and standard

(composite) video output. These cables (and the related inputs on your

TV) are typically color-coded according to use: yellow for video, red

for stereo right audio, and white for stereo left (or mona) audio.

• S-video cable is for use with video devices with S-video output.

Separate audio cables are required for a complete connection.

Note: An S-video cableprovides better picture performance than a

standard (composite] video cable.

•Component video cables come in sets of three and are fi_)ruse with

video devices with component video output. These cables are typically

color-coded red, green, and bhle. (ColorStream ®is Toshiba's brand of

component video.) Separate audio cables are required for a complete

connection.

Note: Component video cablesprovide better picture performance tban a

standard(composite] videoor S-video cable.

•HDMI cable is for use with devices with uncompressed HDM1 (high-

definition muhimedia inter£me) video and compressed audio output.

HDMI cable delivers digital audio and video in its native format (see

page 14). This cable carries both video and audio information;

therefore, separate audio cables are not required for a complete

connection.

Note: HDM! cable providesbetter picture performance tban a standard

(composite) videoor S-video cable.

•Mini D-sub 15-pin cable is for use with a personal computer with an

analog RGB (15-pin) output. A separate audio cable is required for a

complete connection.

Coaxial(antenna)cable

StandardAN cables(red/white/yellow)

S-videocable

Componentvideocables

HDMIcable

MiniD-sub15-piecable

Audiocable

Connecting an antenna or cable TV

This connection allows you to watch TV programs or basic cable

channels.

From Antenna or Cable

Back of TV

_OTE: RISK OF

EQUIPMENT DAMAGE!

Never plug in any power cords

untll you bave finished cor_r_ecting all

equipment.

Connecting a VCR

This connection allows you to watch local channels and video

programs, play or record on the VCR while watching TV, and record

from one channel while watching another channel.

Stereo VCR

From Cable

Box or

Antenna

Back of TV

Note:

/f you have amono VCR, connect L/Mono to

VCR Audio OUTusing only one audio cable.

ff you have a VCR with S-video, use an

S-video cable (in the S-video jacks) instead of

a standard video cable.

The TV side panel can be used to connect a

VCR with S-video.

!iiii iill, iiiiiii iiiii!iiiiiiii!i'!

Connecting a cable converter box

Tiffs connection allows you to watch basic and premium cable channels.

Tune the TV to channel 3 or 4 (whichever channel is vacant in your

area), and use the converter box to change channels.

Back of TV

From Cable

Connecting a cable converter box and a VCR

This connection allows you to watch and record basic and premium

cable channels, as well as watch videotapes. Set the TV signal source

to Videol (page 26). Tune the VCR to channel 3 or 4 (the same

channel as the converter box output switch), and use the cable

converter box to change channels.

Stereo VCR

From Cable

Note:

When you use a converter box witt_your TV,

the remote control will not operate some

features, such as favorite channel

programming or channel return.

Note:

When you use a converter box with your TV,

tt_e remote control will not operate some

features, such as favorite channel

programming or channel return.

ff you have a mono VCR, connect L/Mono to

VCR Audio OUTusing only one audio cable.

ff you have a VCR with S-video, use an

S-video cable (in the S-video jacks) instead of

a standard video cable.

The TVside panel can be used to connect a

VCR with S-video.

Back of TV

Theunauthorized recording, use,

distribution, or revisionof television

programs,videotapes,DVDs,and other

materials is prohibited under the

other countries, and may subject you to

civil and criminal liability.

!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

Connecting a DVD player with ColorStream _

Ccomponent video) and a VCR

This connection allows you to watch DVD, VCR, and TV programs,

and record TV programs.

X_)urTV has ColorStream _)(component video) inputs. Connecting

your TV to a DVD player with component video can greatly enhance

picture quality and realism.

- To record one TV program while watching another TV program,

tune the VCR to the channel to record, and tune the TV to the

channel to watch.

- To record a TV program while watching a DVD, tune the VCR to

the channel to record, and select Videol on the TV (see "Selecting

the video input source" on page 26).

From

Antenna Stereo VCR

TV side pannel

Note:

For the highest possible picture quality, use

component video cables between the TV and

DVD player:

The ColorStfeam jacks can be used with 480i

and 480p scan system.

The TVside panel can be used to connect a

VCR with S-video.

Theunauthorized recording, use,

distribution, or revision of television

programs,videotapes,DVDs,and other

materialsis prohibited under the

other countries, and maysubject you to

civil and criminal liability.

DVD player with component video

Connecting a DTV receiver/set-top box with

ColorStream _ [component video) and a VCR

This connection allows you to watch DTV (digital TV), VCR, and

TV programs, and record DTV (composite video only) and TV

programs.

Your TV has ColorStream _3(component video) inputs. Connecting

your TV to a DTV receiver with component video can greatly

enhance picture quality and realism.

- To record and watch a DTV program, select LINE IN on the

VCR, and select Videol on the TV (see "Selecting the video input

source" on page 26).

- To record aTV program while watching a DTV program, tune the

VCR to the channel to record, and select Videol on the TV.

- To record and watch the sameTV program, tune the VCR to the

channel to record, and select Video2 on the TV.

- To record one TV program while watching another TV program,

tune the VCR to the channel to record, and tune the TV to the

channel to watch.

From Antenna Stereo VCR

TV side pannel

From

DTV Antenna

AUDIO

Note:

For ttle highest possible picture quali_ use

component video cables between the TV and

DTV receiver/sebtop box.

The TVside panel can be used to connect a

VCR with S-video.

The unauthorized recording, use,

distribution, or revision of television

programs,videotapes, DVDs,and other

materials isprohibited under the

other countries, and maysubject you to

civil and criminal liability.

!iiii iill, iiiiiii iiiii!iiiiiiii!i'!

DTV Receiver with component video

Connecting an HDMI TM or a DVl device to the HDMI input

The HDMI rlJinput on your TV receives digital audio

and uncompressed digital video from an HDMI

device or uncompressed digital video from a DVI t2]

device.

This input is designed to accept HDCP >l program

material in digital form from EIA/CEA-8611861 B-

compliant E41consumer electronic devices (such as a set-

top box or DVD player with HDMI or DVI output).

The HDMI input is designed for best performance

with 1080i high-definition video signals, but will also

accept and display 480i, 480p, and 720p signals.

Note: The HDMI jack is not intended for connection to

and should not be used with a personal computer. ForPC

connection,seepage 16.

[q HDM/= High-Def/hition Multimedia Interface.

[2] DV! =Digital Video Interface.

[3] HDCP= High-bandwidth Dt_qital Content Protection.

[4] E/A/CEA-861/861B compliance covers tbe transmission of

uncompressed digital video with fwh-bandwidth digital

content protection, the technology of which is being

standardized for reception of high-definition video signals.

Because this is an evolving technology, it is possible that

some devices may not operate properly with the TV

To ensure that the HDMI or DVI device is reset

properly, it is recommended that you follow

these procedures:

•When turning on your electronic components,

turn on the TII first, and then the HDMI or

DVI device.

• When turning offyour electronic components,

turn off the HDMI or Dill device first, and

then the TV.

To connect an HDMI device, you will need:

•one HDMI cable (type A connector)

For proper operation, it is recommended that you

use a short HDMI cable.

HDM/ cable transfers both video and audio. Separate

analog audio cables are not required (see illustration

below). Some CDVs (Video CDs3 may not output

digital audio signals, in which case you may be able

to hear sound by connecting analog audio cables.

However, ff you connect analog audio cables with this

connection, the HDM! terminal on the TV will not

receive the HDMI digital audio signal and you will

bear analog audk) onl3z

HDMI device

TV lower back panel

To connect a DVI device, you will need:

• one HDMI-to-DVI adapter cable

(HDMI type Aconnector)

Forproper operation, the lengthof an HDMI-to-DV/

adapter cable should not exceed9.8 ft (3m). The

recommended lengthis 6.6 ft (2m).

• one pair of standard analog audio cables

Art HDM!-to-DVI adaptercable transfersonly video.

Separateanalog audio cablesare required (see

illustrationbelow).

DVl device

TV lower back panel

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

Connecting an audio system

This connection allows you to hear the TV sound through external

speakers connected to an audio amplifier. The audio signal level

(fixed) is not affected by pressing the vohnne buttons on the TV or

the TV's remote control. To control the audio through the amplifier,

use the audio system's remote control.

Note:

Set the TV's volume to the minimum/eve/if

i?ecessaly

!iiii iill, iiiiiii iiiii!iiii]iii!i'!

Amplifier [_

Connecting a camcorder

This connection allows you to watch video materials recorded on a

camcorder.

Camcorder

VIDEO 2 (side panel)

Note:

/f you /?ave acarbcorder with S-video, use aR

S-video cable instead of a standard video

cable for better picture performance.

Connecting a personal computer [PC}

This connection allows you to view the image of a personal computer

(PC) on the TV screen. When connecting a PC to the TV, use an

analog RGB (15-pin) computer cable and a PC audio cable.

- To use a PC, set the monitor output resolution on the PC before

connecting it to the TV. The following signals can be displayed.

• XGA: VESA 1024 × 768 @ 60Hz

Other formats or non-standard signals may not be displayed

correctly.

- To display the optimum picture, use the PC setting feature. (see

"Using the PC setting feature" on page 37).

Note:

•Some PC models cannot be connected to

this TV

• An adapter is not needed for computers

with a DOS/Vcompatible mini D-sub

15-pin terminal

• Depending on the DVD's title and the

specifications of the PC on which you are

playing the DVD-VIdeo, some scenes may

be skipped or you may not be able to

pause during multi-angle scenes.

Computer

RGB/PC

output

Audio

output

Backof TV

Audio cable

Conversion

adapter

(if necessary)

iiii i ii ii!ii!ii!ii!ii!ii!ii!i;! i!ii!i,i

Using the remote control

Learning about the remote control

POWERttlrns the TV on and off"(standby mode*)

MUTE turns off"the sound (page 34)

DISPLAYdisplays TV setdngs on-screen (page 38) or

closes the on-screen menu (page 26)

INPUT sdects the video input source (page 26)

ChannelNumbers (0-9, 1OO}allow direct access to channels (page 25)

CHRTNswitches between the last two viewed channels (page 26)

TV sdects TV mode (page 20)

VCR sdects VCR mode (page 19)

CBIJSATsdects CBL/SAT mode (page 19)

DVD selects DVD mode (page 20)

VOL(volume}+ - adjusts the volume level

CH(chaenel} ^ vcycles through programmed channds (page 24)

Pie SIZE cyclm through the five picture sizes: Natural,

TheaterWide 11213, and Full (page 27)

SLEEP sets theTV to turn off'at a spedfic time (page 33)

• _'< I_(arrow buttoes}select or adjust menu items (page 23)

• [arrow button]selects stereo or SAP sound (page 34)

FAY•V cycle through channds you programmed as favorite channds

(page 25)

MENU/ENTERaccesses the menu system; also sets menu selections

(page 23)

EXIT returns to the previous on-screen menu (page 23)

IFirst press TV to control the TV.

i _ / I i

o@@

TOSHIBA

*The TVis/n stand_ moGe when tbepower

SOFF but the power cord Sstillplugged

/bto an outleL

Note:

The error message "Not Available" will appear

if you press a key for a function that is not

availabb.

Installing the remote control batteries

To install the batteries:

1. Open the battery cover on the back of the remote control.

2. Install two batteries (R03 size '_AA"). Match the + and - signs

on the batteries to the signs on the batte W compartment.

3. Replace the battery, cover on the remote control until the lock

snaps.

Remote control effective range

Caution:

Never throw batteries into a fife..

Note:

•Be suf_ to use AAA size batteries.

• Dispose of batteries in a designated

disposal area.

• Batteries should always be disposed of with

the environment in mind. Always dispose of

batteries in accordance with applicable laws

and regulatiens.

• ffthe remote control does not operate

correctly, or if the operating range becomes

reduced, replace batteries with new ones.

• When necessary to replace batteries in the

remote control, always replace both

batteries with new ones. Never mix battery

types or use new and used batteries in

combinatien.

• Always remove batteries from remote

control if they af_ dead or if the remote

control is not to be used for an extended

period of tifbe. This will prevent battery acid

from leaking into the battery compartmen_

Using the remote control to operate your other

devices

To control a cable TV converter/satellite receiver:

Program the remote control to recognize the brand of your cable TV

converter/satellite receiver (see "Programming the remote control to

operate your other devices" on page 20).

The buttons shown at right will control the cable TV converter/

satellite receiver.

Press CBL/SAT first.

skip/ skip/

SE_CH REV ¢¢ SEARCH

TOSHIBA

MUTE

POWER

INPUT

-- Channel

PIC SIZE

-- TV/VCR

To control a VCR:

Program the remote control to recognize the brand of your VCR (see

"Programming the remote control to operate your other devices" on

page 20).

The buttons shown at right will then control the VCR.

Press VCR first.

III

TOrM_U REC CLEAR TVtVCR

i i iii

POWER

INPUT

Channel

Numbers

CH RTN

VCR

VOL+-

CH^ v

-- PIC SIZE

-- VCR controls

To control a DVD player:

Program the remote control to recognize the brand of your DVD

player (see "Programming the remote control to operate your other

devices" below).

The buttons shown at right will then control the DVD player.

Press DVD first.

Programming the remote control to operate

your other devices

This remote control is pre-programmed to operate most Toshiba

satellite receivers, VCRs, and DVD players. To control a non-Toshiba

device (or aToshiba device that the remote control is not pre-

programmed to operate), you must f'ollow the steps below to program

your remote control.

1. Refer to the code tables (on pages 21 and 22) to find the

corresponding code fbr your device.

If more than one code is listed, try each one separately until you

find the one that works.

2. If you are programming the remote control to operate your:

• Cable TV converter/satellite receiver: Press CBL/SAT.

• VCR: Press VCR.

• DVD player: Press DVD.

3. While holding down DISPLAY, press the Channel Number

buttons to enter the three-digit code for your device within 10

seconds.

Note: ffyou do not enter the code within 10 secondsfrom step 3, or ifyou

enter the wrong code, this operation is canceled.

4. Point the remote control at the cable TV converter/satellite

receiver, VCR or DVD player, and press POWER to test the

code.

• If the device responds, you entered the correct code.

• If the device does not respond, repeat steps 1-4 using

another code.

5. Press TV to control the TV.

For future reference, write down the codes you used:

Cable TV converter/satellite receiver code

VCR code

DVD player code

Note:

•When shipped frofR the facto_ the remote control is set to operate

your T_

• Each time you f_place the batteries, you must reprogram the remote

control.

• Some newer VCRs are capable of working on either of two remote

codes. These VCRs have a switch labeled VCR1/VCR2.

ff your VCR has this kind of switch and does not f_spond to any of

the codes for your VCR, set the switch to the other position (VCR1

or VCR2) and reprogram the remote control.

REV FF SEARCH

MUTE

POWER

DISPLAY

INPUT

Number

buttons

VOL+-

DVD

PIC SIZE

AT< 1_

DVD MENU

ENTER

-- DVD controls

DVD SKIP/SEARCH

!<,1111_t

-- CLEAR

TOP MENU

DISPLAY

Channel

Numbers

DVD

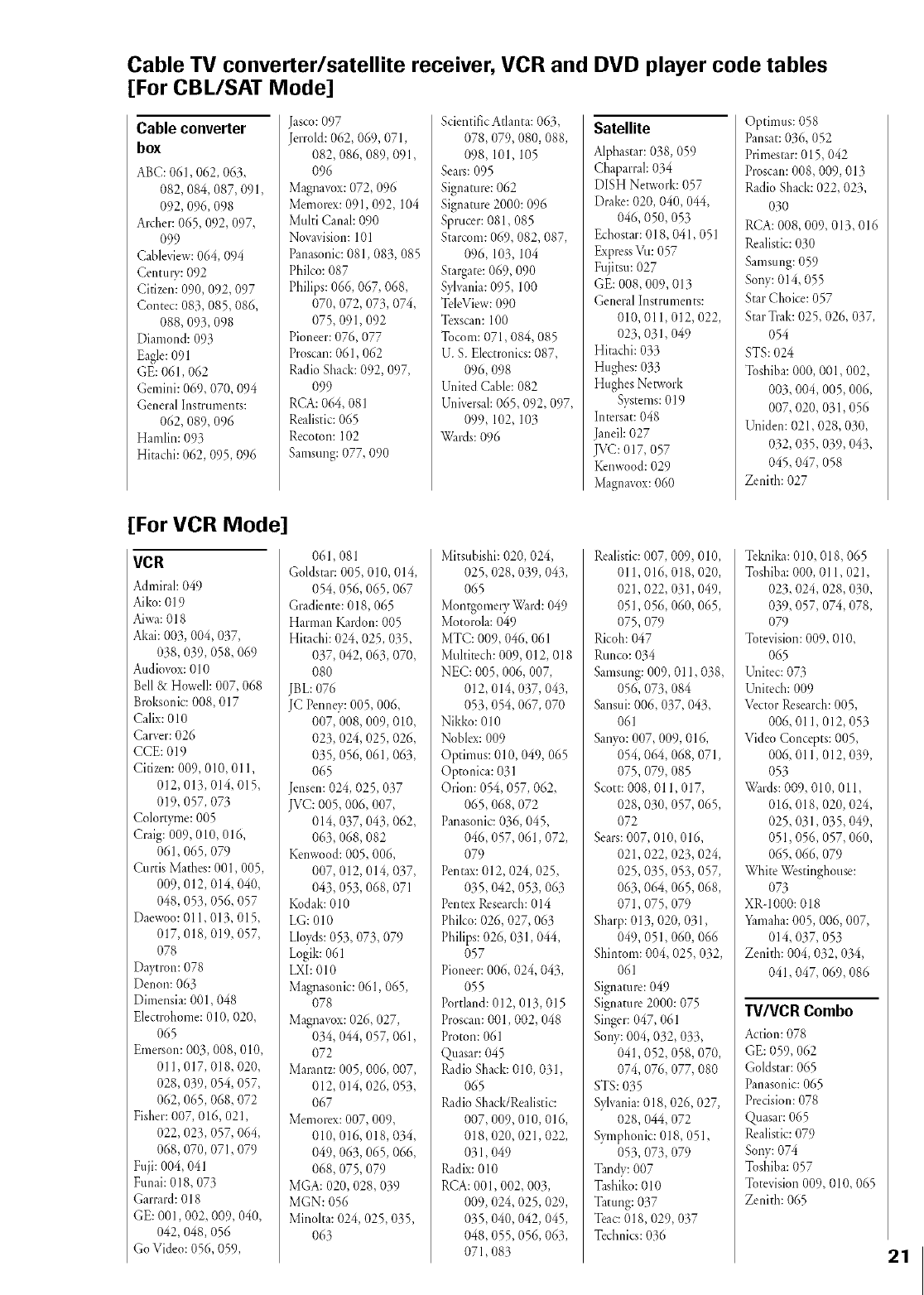

Cable TV converter/satellite receiver, VCR and DVD player code tables

[For CBL/SAT Mode]

Cable converter

box

ABC: 061,062,063,

082,084, 087, 091,

092,096,098

Archer:065,092,097,

099

Cableview:064, 094

Century: 092

Citizen: 090,092, 097

Contec: 083,085,086,

088, 093,098

Diamond: 093

Eagle:091

GE: 061,062

Gemini: 069,070, 094

General Instruments:

062, 089, 096

Hamlin: 093

Hitachi: 062,095,096

Jasco: 097

Jerrold: 062,069,071,

082,086,089,091,

096

Magnavox:072,096

Memorex:091,092, 104

Multi Canal:090

Novavision:101

Panasonic:081,083,085

Philco: 087

Philips: 066, 067, 068,

070,072,073,074,

075, 091,092

Pioneer: 076,077

Proscan:061,062

Radio Shack:092,097,

099

RCA: 064, 081

Realistic:065

Recoton: 102

Samsung:077, 090

ScientificAtlanta: 063,

078,079,080,088,

098, 101,105

Sears:095

Signature:062

Signature 2000:096

Sprucer:081,085

Starcom:069, 082, 087,

096, 103, 104

Stargate:069,090

Sylvania:095, 100

TeleView:090

Texscan:100

Tocom:071,084, 085

U. S. Electronics:087,

096,098

United Cable:082

Universal:065,092,097,

099, 102, 103

Wards:096

Satellite

Alphastar:038,059

Chaparral: 034

DISH Network: 057

[)rake:020, 040,044,

046, 050, O53

Echostar:018, 041,051

Express\'M: 057

Fujitsu:027

GE: 008,009,013

General Instruments:

010, 011,012,022,

023,031,049

Hitachi: 033

Hughes: 033

Hughes Network

Systems:019

Intersat:048

Janeil:027

JVC: 017, 057

Kenwood:029

Magnavox:060

Optimus: 058

Pansat:036, 052

Primestar:015,042

Proscan:008,009,013

RadioShack: 022, 023,

030

RCA:008,009,013,016

Realistic:030

Samsung:059

Sony:014, 055

StarChoice: 057

StarTrak: 025,026,037,

054

STS:024

Toshiba:000, 001,002,

003,004,005,006,

007, 020,031,056

Uniden: 021,028,030,

032, 035,039,043,

045,047,058

Zenith: 027

[For VCR Mode]

VCR

Admiral:049

Aiko:019

Aiwa:018

Akai: 003,004,037,

038,039,058,069

Audiovox:010

Bell & Howell: 007, 068

Broksonic:008,017

Calix: 010

Carver:026

CCE: 019

Citizen: 009,010, 011,

012,013,014, 015,

019,057, 073

Colortyme: 005

Craig: 009,010,016,

061,065,079

Curtis Mathes: 001,005,

009,012,014, 040,

048,053,056, 057

Daewoo:011,013,015,

017, 018,019,057,

078

Daytron: 078

Denon: 063

Dimensia:001,048

Electrohome:010, 020,

O65

Emerson: 003,008,010,

011,017, 018,020,

028,039,054, 057,

062,065,068,072

Fisher:007, 016,021,

022,023,057, 064,

068,070,071,079

Fuji: 004, 041

Funai: 018, 073

Garrard: 018

GE: 001,002, 009, 040,

042,048,056

Go Video: 056,059,

061,081

Goldstar: 005,010, 014,

054, 056,065,067

Gradiente: 018,065

Harman Kardon:005

Hitachi: 024, 025,035,

037, 042,063,070,

08O

JBL: 076

JC Penney:005,006,

007, 008, 009,010,

023, 024, 025,026,

035, 056,061,063,

065

Jensen: 024, 025,037

JVC: 005,006,007,

014, 037, 043,062,

063,068,082

Kenwood:005,006,

007, 012,014, 037,

043,053,068,071

Kodak: 010

LG: 010

Lloyds:053,073,079

Logik:061

LXI:010

Magnasonic:061,065,

078

Magnavox:026,027,

034, 044, 057, 061,

072

Marantz: 005,006, 007,

012,014, 026, 053,

067

Memorex:007, 009,

010,016, 018,034,

049,063,065,066,

068,075,079

MGA: 020,028,039

MGN: 056

Minolta: 024, 025,035,

063

Mitsubishi: 020, 024,

025, 028,039,043,

065

Montgomery Ward: 049

Motorola:049

MTC: 009,046, 061

Multitech: 009,012, 018

NEC: 005,006,007,

012,014, 037, 043,

053,054, 067, 070

Nikko: 010

Noble:<:009

Optimus: 010,049,065

Optonica: 031

Orion: 054, 057, 062,

065,068,072

Panasonic:036, 045,

046,057, 061,072,

079

Pentax:012,024, 025,

035,042, 053,063

Pentex Research:014

Philco: 026, 027, 063

Philips:026, 031,044,

057

Pioneer: 006,024, 043,

055

Portland: 012, 013,015

Proscan:001,002,048

Proton: 061

Quasar:045

Radio Shack:010, 031,

065

Radin Shack/Realistic:

007, 009,010,016,

018,020,021,022,

031, O49

Radix:010

RCA: 001,002, 003,

009, 024, 025,029,

035,040,042,045,

048,055,056, 063,

071,083

Realistic:007, 009,010,

011,016, 018, 020,

021,022,031,049,

051,056,060,065,

075,079

Ricoh:047

Runco:034

Samsung:009, 011,038,

056, O73,O84

Sansui: 006,037, 043,

061

Sanyo:007, 009,016,

054, 064, 068,071,

075,079, 085

Scott: 008, 011,017,

028,030,057, 065,

072

Sears:007, 010, 016,

021,022, 023,024,

025,035,053,057,

063,064, 065,068,

071,075,079

Sharp:013, 020, 031,

049,051,060, 066

Shintom: 004, 025,032,

061

Signature:049

Signature2000:075

Singer:047, 061

Sony: 004, 032,033,

041,052,058,070,

074, 076,077, 080

STS:035

Sylvania:018,026,027,

028,044, 072

Symphonic: 018, 051,

053,073,079

Tandy: 007

Tashiko:010

Tatung: 037

Teat: 018,029,037

Technics:036

Telalika:010, 018,065

Toshiba:000, 011,021,

023,024,028,030,

039, 057,074, 078,

079

Totevision:009, 010,

065

Unitec: 073

Unitech: 009

Vector Research:005,

006, 011,012,053

Video Concepts: 005,

006,011,012,039,

053

Wards:009, 010, 011,

016, 018,020, 024,

025,031,035,049,

051,056,057, 060,

065,066,079

White Westinghouse:

073

XR-1000:018

Yamaha:005,006, 007,

014, 037, 053

Zenith: 004, 032,034,

041,047, 069,086

TV/VCR Combo

Actinn:078

GE:059,062

Goldstar: 065

Panasonic:065

Precision:078

Quasar:065

Realistic:079

Sony:074

Toshiba:057

Totevision009,010, 065

Zenith: 065

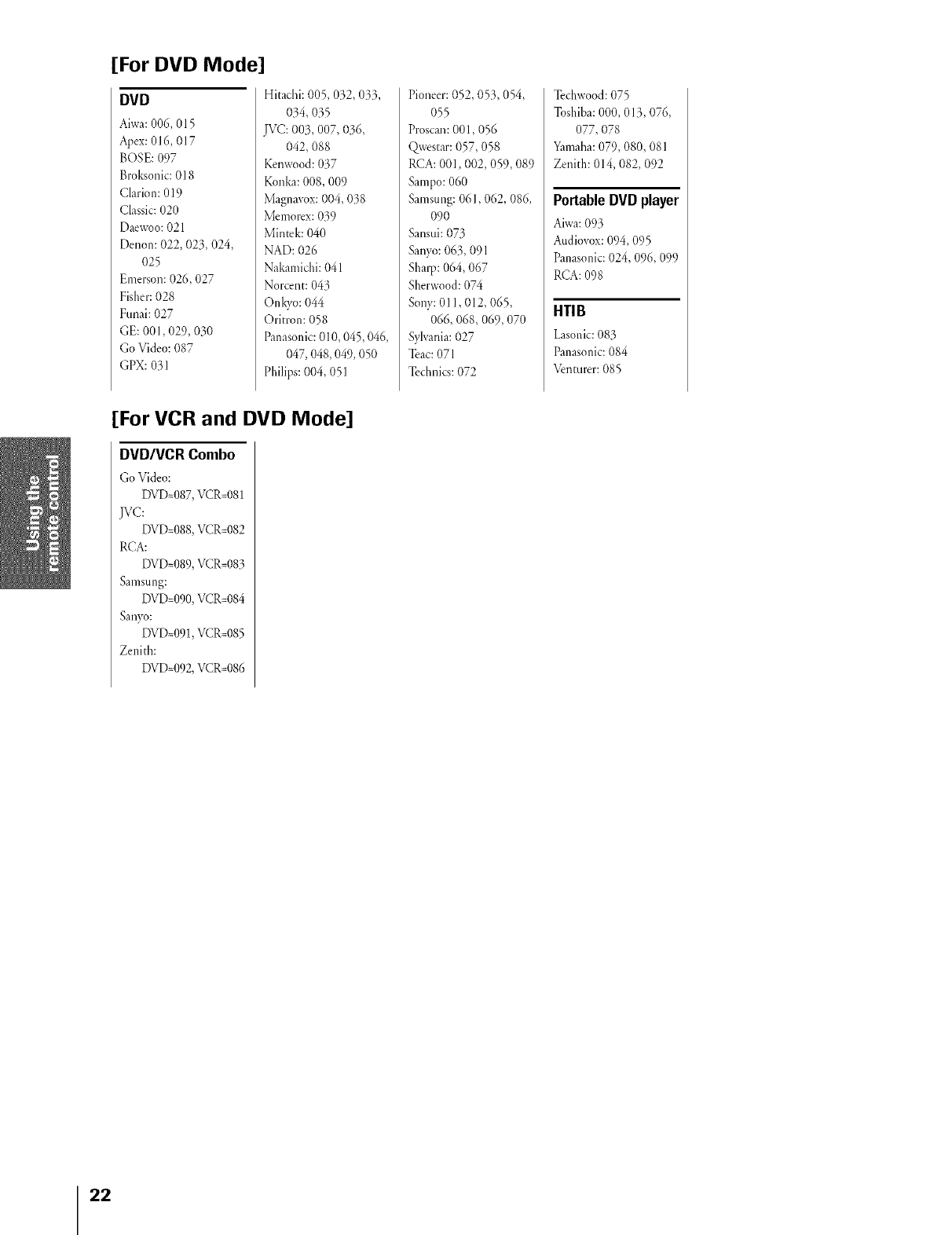

[For DVD Mode]

DVD

Aiwa:006,015

Apex:016,017

BOSE: 097

Broksonic:018

Clarion: 019

Classic:020

Daewoo:021

Denon: 022, 023,024,

025

Emerson:026,027

Fisher:028

Funai: 027

GE: 001,029,030

Go Video: 087

GPX: 031

Hitachi: 005,032,033,

034, O35

JVC: 003, 007, 036,

042, 088

Kenwood:037

Konka:008,009

Magnavox:004, 038

Memorex:039

Mint&: 040

NAD: 026

Nakamichi:041

Norcent: 043

Onkyo: 044

Oritron: 058

Panasonic:010,045,046,

047,048,049, 050

Philips:004, 051

Pioneer:052, 053,054,

055

Proscan:001,056

Qwestar:057,058

RCA:001,002,059,089

Sampo:060

Samsung:061,062,086,

090

Sansui:073

Sawo: 063,091

Sharp:064, 067

Sherwood:074

Sony:011,012, 065,

066, 068,069,070

Sylvania:027

Teat: 071

Technics:072

Techwood:075

Toshiba:000,013,076,

077, 078

Yamaha:079,080, 081

Zenith: 014, 082, 092

Portable DVD player

Aiwa:093

Audiovox:094, 095

Panasonic:024, 096,099

RCA: 098

HTI B

Lasonic:08:3

Panasonic:084

Venturer: 085

[For VCR and DVD Mode]

DVD/VCR Combo

Go Video:

DVD=087,VCR=081

JVC:

DVD=088,VCR=082

RCA:

DVD=089,VCR=083

Samsung:

DVD=090,VCR=084

Sanyo:

DVD=091,VCR=085

Zenith:

DVD=092,VCR=086

Setting up your TV

Learning about the menu system

After you have installed the batteries, you will need to set some

preferences on the TV by using the menu system. _t* can access the

menu system using the buttons on the TV or remote control.

1. Press MENU to display the menu system.

2. Press • or • to select a menu.

3. Press ENTER, and then press • or • to select all item.

4. Press ENTER, and then press • or • to select or adjust a setting.

5. Press ENTER to save your menu settings.

To close the menu system, press DISPLAY.

To return to the previous menu, press EXIT.

Picture moae

Contrast

Brightness

Colol

SharPness

Sound _oae

Ba_

Treble

Balance

StableSound

SKIP/

SEARCH BEY FF SEARCH

DISPLAY

MENU/

ENTER

,&V< I,"

EXIT

EEEEEEEEEEEEEEE_

Note:

The PC mode is seleetab/e only when the TV

is in PC input mode and active picture is on-

screen (see "Selecting the video input source"

on page 26).

Changing the on-screen display language

_m can choose from three different languages (English, Spanish and

French) for the on-screen display of adjustment menus and messages.

To select a language:

1. Press MENU, and then press • or • until the Special menu

appears.

2. Press ENTER, and then press • or • to highlight Language.

3. Press ENTER, and then press • or • to select your desired

language.

iO: v00

SKIP/ SKIP/

SEA_CH _EV FF SEARCH

i i ii ii ii ii ii ii ii ii ii

__ MENU/

ENTER

AV<

Adding channels to the TV's memory

When you press CH ^ or CH v, your TV will stop only on the

channels you program into the TV's channel memory.

Follow the steps below and on the next page to program all active

channels into the TV's memory.

Programming channels automatically

_)ur TV can automatically detect all active channels in your area and

store them in the channel memo U. After the channels are

programmed automaticall> you can manually add or erase individual

channels (see page 25).

To program channels automatically:

1. Press MENU, and then press • or • until the Channel menu

appears.

2. Press ENTER, and then press • or • to highlight Auto

program.

3. Press ENTER to start auto-programming. The TV will

automatically cycle through all the TV and Cable channels, and

store all active channels in the channel memory.

Note:

•To tune the TV to a channel not

programmed in the channel memory,, you

must use the Channel Number buttons on

the remote control.

• ffyou press the ENTER button during auto-

programming, the function will stop and

only the channels programmed up to that

time will be stored in the channel memor_

Ca^v

MENU/

ENTER

AV<

4. Press CH ^ or CH v to view the programmed channels.

Adding and erasing channels manually

After you have automatically programmed the active channels into

the TV's channel memor> you can manually add or erase specific

channels.

To add or erase channels:

1. Press MENU, and then press • or • until the Channel menu

appears.

2. Press ENTER, and then press • or • to highlight Manual

program.

3. Press ENTER, and then press • or • to select a channel you

want to add or erase.

i Blue sc_eer_

4. Press •, and then press • or • to select Memory (add) or Erase.

The current channel is added to Memory or erased from the

channel list.

Changing channels

To change to a specific channel (programmed or unprogrammed):

Press the Channel Number buttons (0-9 and 100).

For channels 100 and higher, press the 100 button, and then the

next two numbers. For example, to select channel 125, press

100,2, 5.

To change to the next programmed channel:

Press CH *,,or CH v on the TV or remote control.

Programming your favorite channels

You can preset up to 8 of your t_vorite channels using the Favorite

Channel Programming feature. Because this feature scans through

only your t_vorite channels, it allows you to skip other channels you

do not normally watch.

To program your favorite channels:

1. Press MENU, and then press • or • until the Channel menu

appears.

2. Press ENTER, and then press • or • to highlight Favorite

channel.

3. Press ENTER to display the Favorite Ch. menu.

Manual program

4. Press • or • to select the first f'avorite channel position.

5. Press • or • to set the desired channel number for the first

favorite channel position.

6. Repeat steps 4 and 5 to program other channels.

To select your favorite channels:

Repeatedly press FAV • or • on the remote control.

TV top panel

CHANNEL v ^

-- Channel

Numbers

Ca^v

MENU/

ENTER

A'V'_Ilb.

FAVA'T

Using the TV's features

Switching between two channels using

Channel Return

The Channel Return feature allows you to switch between two

channels without entering an actual channel number each time.

To switch between two channels:

1. Select the first channel you want to view.

2. Select a second channel using the Channel Number buttons

(0-9, 100).

3. Press CH RTN. The previous channel will be displayed.

Each time you press CH RTN, the TV will switch back and forth

between the last two channels that were selected.

Using the Blue screen feature

With the Blue screen function On, the screen will automatically turn

blue and the sound will be muted when no signal is received.

To turn on the Blue screen feature:

1. Press MENU, and then press • or • until the Cha*mel menu

appears.

2. Press ENTER, and then press • or • to highlight Blue screen.

3. Press ENTER, and then press • or • to select On.

Note: If the Blue screen appears repeatedly because of poor signal

strength, select Off in step 3.

Auto program

Manua_ program

Favorite channel

¸INPUT DISP_¥ MUTE

@0 0

,v O

o rqr

SLEEP PIC SIZE

TOP MENU REC CLEAR TV/VCII

CD _ C2) CD

-- INPUT

-- Channel

Numbers

-- CH RTN

--MENU/

ENTER

Selecting the video input source

Press INPUT on the remote control or press TV/VIDEO on theTV top

pand to view a signal from another device connected to your TV, such as

a VCR or DVD player. _fi_ucan sdect Video 1 (including ColorStream),

Video2, HDMI or PC depending on which input jacks are used for

connecting the devices (see "Connecting your TV" on page 10).

I Video1H Video2H HOM,

q,TVchanne,l--I Pc I

TV top panel

TVNIDEO

Viewing the wide-screen picture formats

You can view 480i, 480p, 720p, and 1080i format programs in a

variety of picture sizes--Natural, TheaterWide 1,TheaterWide 2,

TheaterWide 3, and Full.

The way the image displays in any of the picture sizes will vary

depending on the format of the program you are viewing. Select the

picture size that displays the current program the way that looks best

to you.

480i yes yes yes yes yes

480p yes yes yes yes yes

720p yes* no no no no

1080i yes* no no no no

*Full picture size

Selecting the picture size

Repeatedly press PIC SIZE on the remote control to select the desired

picture size, as described below and on the next page.

I ...........................................

Iii]__ _ _!iii_iiiiiiii

Natural picture size

• The image is displayed close to its originally formatted

proportion. Some program formats will display with side bars

and/or bars at the top and bottom.

Naturalpicturesizeexample:The way theimage displayswillvary

dependingon the format of the program youare currentlywatching.

TOSHIBA

PIC SIZE

Conventional picture on a

conventional TV screen

Conventional picture in Natural size

on your wide-screen TV

(continued on next page)

TheaterWide 1picture size (For 4:3 format programs)

• The picture is non-uniformly I("_

enlarged--the center of the 0 0

picture remains close to its

original proportion, but the left

and right edges are stretched

wider to fill the screen. @7

• A small part of the picture at

the top and bottom is hidden.

TheaterWide 1 picture size example

TheaterWide 2 picture size (For Letter box programs)

• The entire picture is uniformly

enlarged--it is stretched the ([D 0 0

same amount both wider and

taller (retains its original (_ (_ (_

proportion). v_

• Part of the picture at the top

and bottom is hidden.

TheaterWide 2 picture size example

TheaterWide 3 picture size (For Letter box programs with

subtitles)

• The picture is stretched wider

to fill the width of the screen,

but only slightly stretched

taller.

• A small part of the picture at

the top and bottom is hidden.

©O©

O©©

IASODSFC_ I

TheaterWide 3 picture size example

Full picture size (For 16:9 format programs)

program, the picture is stretched 0 0

wider to fill the width of the (_ ([_)

screen, but not stretched taller.

• None of the picture is hidden. 45

Note:

Using these functions to change the

picture size (i.e., changing the height/

width ratio) for any purpose other than

your private viewing may be prohibited

under the Copyright Laws of the United

States and other countries, and may

subject you to civil and criminal liability.

Full picture size example

Using the V-Chip menu

Some TV programs and movies include signals that classify"the

content of the program (violence, sex, dialog, language). The V-Chip

control feature in this TV detects the signals and blocks the programs

according to your selections. To use this feature, perform the

following setup.

1. Enable the Lock.

2. Set a four-digit password.

3. Select the ratings and categories you want to block.

Note:

Tke V-Cfl/p ftJnct/bn is avaffable for the U.S.

V-Chip system only The Car_adian V-Chip

system is not supported.

V-Chip rating and categories

Rating guidelines are provided by broadcast stations. Most tdevisio,1

programs and television movies can be blocked by TV rating and/or

category. Movies that have been shown at the theaters and direct-to-

video movies use the MICRA movie rating s)<steminstead.

For Movies previously shown in theaters :

Movie Ra6ngs :

• Unblocked

• G & above

• PG & above

• PG-13 & above

• R &above

• NC-17 & above

•X

(general audience)

(parental guidance suggested)

(13 years and older)

(restricted)

(18 years and older)

(adult)

If you select "PG-13 & above," all G and PG rated movies will be

available, and all PG-13, R, NC-17 and X rated movies will be

blocked.

For Television programs including made-for-TV movies:

General TV Ratings:

• Unblocked

• TV-G &above

• TV-PG &above

• TV-14 &above

• TV-MA

Children TV Ratings:

• Unblocked

• TV-Y &above

• TV-Y7

Content Categories:

• Dialog - sexual dialogue

• Language - adult language

• Sex - sexual situations

• Violence

• E Violence - fantasy violence

• No Rating

(general audience)

(individual categories do not apply)

(parental guidance suggested)

(14 years and older)

(mature audience)

(youth)

(individual content categories do not apply)

(youth, 7 years and up)

(applies to TV-PG &above,

TV- 14)

(applies to TV-PG &above,

TV-14 &above, TV-MA)

(applies to TV-PG &above,

TV-14 &above, TV-NLA)

(applies to TV-PG &above,

TV-14 &above, TV-MA)

(applies only to TV-Y7)

(blocks all viewing)

V-Chip blocking (Parental control) setup

1. Press MENU, and then press <or • until the Special menu

appears.

2. Press ENTER, and then press • or • to highlight V-Chip.

Press ENTER.

iLanguage

i Caption/Te×t

I_i Captions

iPane]lock

Auto of 1

•If you already set a password, enter your four-digit password.

• If you have not created a password, the TV is initially set up

with the password "0-0-0-0".

• If you cannot remember your password, press "7-7-7-7."

3. Enabling the Lock:

Press • or • to highlight Lock.

Press ENTER, and then press • or

• to select On (Lock) or Off"

(Unlock).

.Set a password:

Press • or • to highlight Set

password.

Press ENTER, and then enter a

four-digit password.

Enter it again when requested.

i Lock i!!!!!!!!i!!ili!iiiiiiiiiiiiiiiiiiiiiiiiiiiii!]

Content Mock

AuXb_ock iiii

5. Press • or • to highlight the type of blocking to be set.

6. Press ENTER, and then press • or • to select the type of ratings

to block.

• The age block and Content block menus also have sub-menus;

therefore, you will need to repeat steps 5 and 6 to set the types

of blocking and ratings in the sub-menus.

iLock

iSetpassword i

i MPAA i

Number

i!_i_i__iii_(__i__ii/_ii_i__i_i_ii_

MENU/

ENTER

AV< _,

If you try to watch a TV program that exceeds

the rating limits you set, the TV enters

program lock mode.

Adjusting the picture

Selecting the picture mode

You can select your desired picture type from four picture modes:

Dynamic, Standard, Movie, or Memory.

Dynamic

Standard

Movie

Memory

Bright and dynamic picture (factory setting)

Standard picture.,setting (factory setting)

Movie-like picture setting (factory setting)

Your personal preference

To select the picture mode:

1. Press MENU, and then press • or •

until the Picture menu appears.

2, Press ENTER, and then press • or

• to highlight Picture mode.

3. Press ENTER, and then press • or

• to select the mode you prefer.

_ _T/_

Adjusting the picture quality

You can adjust the picture quality to your personal preferences,

including the contrast, brightness, color, sharpness, and tint.

Contrast lower higher

Brightness darker lighter

Color paler deeper

Sharpness sorer sharper

Tint reddish greenish

To adjust the picture quality:

1. Press MENU, and then press • or • _"

until the Picture menu appears.

2. Press ENTER, and then press • or :::::::::::::::::::::::::::::::::::::::

• until the item you want to adjust g}ib,ii,;_;

¢o_or

is highlighted, sh_,_0_

Tint

3. Press ENTER.

4. Press • or • to adjust the level.

Note:

If you select one of the factory-set picture

modes (Dynamic, Standard. or Movie) and

then adjust a picture quality setting (for

exart_ple, increase the contrasO, the picture

mode automatically changes to Memory in

the Picture menu,

ii TV 0

i _i _i _i _i _i _

-- MENU/

ENTER

-- •v< 1,

Note:

Tocontinue adj_lsting the other items, press •

or •/?_ step 4.

The Picture qualities you adjusted can be saved in the TV_s Memory.

Using the Closed Caption feature

The Closed Caption feature has two options:

• Captions_ on-screen display of the dialogue, narration, and

sound effects of TV programs and videos that are closed

captioned (usually marked as "CC" in TV listings).

• Text An on-screen display of information not related to the

current program, such as weather or stock data (when provided

by individual stations).

To select captions or text:

1. Tune the TV to the desired program.

2. Press MENU and then press • or • to display the Special menu.

3. Press ENTER, and then press • or • to highlight Caption/Text.

4. Press ENTER, and then press • or • to select the Caption or

Text mode you prefer.

INI_UT DISPLAY _nUTE POWER I

0000

@(i3@

" O

ic SEE

,_ 'L( o_

.....) Q_.) CK)

smP!

TOSHIBA

MENU/

ENTER

A'V'< I_

• To view captions, select CC1, CC2, CC3, or CC4 (CC1 displays

captions in the primary language in your area).

Note: If ti_eprogram or videoyou selected is not closedcaptioned, ti_e

captionswill not display on the screen.

• To view text, select Textl, Text2, Text3, or Text4.

Note: If text is not ova/Table/b your area, a black rectangle may appear on

your screen. If this happens, turn the Closed Caption feature Off

Note:

A closed caption sfgna7 may not display in the

following situations:

•When a videotape has been dubbed

• When the signal reception is weak

• When the signal reception is nonstandard

To turn on or off the Closed Caption feature

1. Press MENU, and then press <or • to display the Special menu.

2. Press ENTER, and then press • or • to highlight Captions.

3. Press ENTER, and then press • or • to select On, Advanced

mute or Off:

• Advanced mute activates the selected Caption or Text mode

when the TV sound is muted.

MENU/

ENTER

AV< _,

Using the Panel lock feature

You can lock the control buttons on the TV to prevent your settings

from being changed accidentally (by children, for example).

When the Panel lock is On, no control buttons on the TV top panel

will operate except POWER.

To lock the top panel:

1. Press MENU, and then press • or • to display the Special

P_lei!"tl.

2. Press ENTER, and then press • or • to highlight Panel lock.

3. Press ENTER, and then press • or • to select On.

Language

Caption/Te×!

Captions

To unlock the top panel:

Select Offin step 3 above.

Setting the sleep timer

To set the sleep timer to turn off the TV automatically:

Repeatedly press SLEEP to set the length of time until theTV turns

off'.

TV top panel

Control buttons

TOPMENU R_C CLEAR TVt_CR

0 _ 0 0

SLEEP

--MENU/

ENTER

--AV<_

Every time you press SLEEP, the time display will increase by 30

minutes, up to 120 minutes.

30+60+90+ 120+---

To cancel the sleep timer:

Press SLEEP until "Sleep --- appears.

Note :

•When an instantpower failure occuf_, the

sleep timer settings may be cleared.

• To display the amount of time left until the

TV turns off automatically, press SLEEP

once.

Adjusting the sound

Muting the sound

Press MUTE to temporarily turn off the sound. While the sound is

off, the screen will display "_ Mute" in the lower left corner.

When you select "MUTE" mode, the Closed Caption feature is

automatically activated. To deactivate this feature, deactivate MUTE.

This feature works only when the Closed Caption mode is set to

Advanced mute. See "Using the Closed Caption feature" on page 32

for more information.

Selecting stereo/SAP broadcasts

The multi-channel TV sound (MTS) feature allows you to listen to

high-fidelity stereo sound while watching TV. MTS can also transmit

a second audio program (SAP) containing a second language, music,

or other audio information (when provided by individual stations).

When the TV receives a stereo or SAP broadcast, the word "ST.SAP",

"Stereo" or "SAP" appears on-screen every time the TV is turned on,

the channel is changed, or DISPLAY is pressed.

The MTS feature is not available when the TV is in Video ,node.

To listen to stereo sound:

Repeatedly press • to select Stereo.

You can leave your TV in Stereo *node because it will

automatically output the type of sound being broadcast (stereo or

monaural).

If the stereo sound is noisy, select Mono to reduce the noise.

To listen to SAP (if available):

Press • repeatedly to select SAP.

D'_¸

CD<D

0 ¸ ¸¸6¸¸

MUTE

DISPLAY

You will hear the statio,£s second audio program (if available)

from the speakers, while viewing the original program's picture.

Using the WOW surround sound feature

WOW surround widens and deepens audio listening field to deliver

exceptional sound from the TV's speakers. The feature uses stereo

signals from aTV broadcast or video input.

To activate the WOW feature:

1. Select Stereo mode (see '%electing stereo/SAP broadcasts" on

page 34).

2. Press MENU, and then press • or • until the Sound menu

appears.

3. Press ENTER, and then press • or • to highlight Sound mode.

4. Press ENTER, and then press • or • to select WOW.

Selecting the sound mode

You can select your desired sound type from six sound modes:

WOW, Flat, Hall, Theater, News, or Memory.

To select the sound mode:

1. Press MENU, and then press • or • until the Sound menu

appears.

2. Press ENTER, and then press • or • to highlight Sound *node.

3. Press ENTER, and then press • or • to select the *node you

prefer.

i Treble

iBa_ance

WOW

Flat

Hall

Theater

News

Memory

see above

flat sound ( factory setting )

a concert hall filled with a rich warm sound

( factory setting )

a movie theater filled with a dynamic sound

( factory setting )

news/dialogue ( factory setting )

your personal preference

Note:

If the broadcast is monaural, the WOW sound

effect will not work.

TOSHIBA

MENU/

ENTER

AV< I,

Note:

/f you select one of the factory-set audio

modes (WOW, Flat, Hall, Theater; or News )

and then change a sound quality setting (for

example, increase the bass), the sound mode

automatically change to Memory mode.

WOW, SRS and (Q) symbol are trademarks of SRS Labs, Inc.

WOW technology is incorporated under license ficomSRS Labs, Inc.

Adjusting the sound quality

x_m can change the quality of your TV's sound by adjusting the bass,

treble, and balance.

To adjust the sound quality:

1. Press MENU, and then press • or • until the Sound menu

appears.

2. Press ENTER, and then press • or • to highlight the item you

want to adjust.

3. Press ENTER.

4. Press • or • to adjust the level.

• • makes the sound quality weaker or increases the balance in

the left channel, depending on the item selected.

• • makes the sound quality stronger or increases the balance in

the right channel, depending on the item selected.

Note:

Tocontinueadjusting theotheritems, press•or•instep 4.

Using the StableSound" feature

When the signal source is changed, the StableSound feature limits the

highest volume level to prevent extreme changes in volume (for

example, to prevent the sudden increase in volume that often happens

when a TV program switches to a commercial).

To turn on the StableSound feature:

1. Press MENU, and then press • or • until the Sound menu

appears.

2. Press ENTER, and then press • or • to highlight StableSound.

3. Press ENTER, and then press • or • to select On.

,v 0

-- MENU/

ENTER

--AV_

To turn off the StableSound feature:

Select Offin step 3 above.

Using the PC setting feature

You can adjust the horizontal/vertical picture position, clock (to

minimize vertical stripes on the screen), and phase (to remove

horizontal noise and sharpen the picture).

You can auto-configure and reset these settings.

1. Confirm a PC is connected (see "Connecting a personal

computer (PC)" on page 16).

2. Repeatedly press INPUT on the remote control (or press TV/

VIDEO on theTV top panel) to select PC input mode. (See

"Selecting the video input source" on page 26.)

3. Press MENU, and then press • or • until the PC menu appears.

4. Press ENTER, and then press • or • to select an item.

Amo Conl_gure

Rooo

....................._ %T/

5. Press Enter.

6. Press • or • to make the appropriate adjustments.

• H-position/V-position

Adjusts picture left/right and up/down. The adjustment range

is 0-100. (The adjustable range may vary depending on the

input mode.)

TVNIDEO

TV top panel

Clock

Minimizes any vertical bars or stripes appearing on the screen

background. The adjustment range is 0-100. (The adjustable

range may vary depending on the input mode.)

Phase

Reduces (or minimizes) any horizontal noise and clears up or

sharpens the character images. The range adjustment is 0-100.

(The adjustable range may vary depending on the input mode.)

• Auto Configure

Automatically adjusts the screen position, clock, and phase.

(The displayed image will disappear for a few seconds while

auto-configuration is in progress.}

• Reset

Returns to the defimlt settings programmed at the factor> The

values in the Reset function cannot be modified.

Using the Auto off feature

When the Auto off feature is set to On, the TV will atttomatically turn

itself off"after approximately 15 minutes if it is tuned to a vacant

channel or a station that completes its broadcast for the day. This

feature does not work when the Blue screen mode is set to Off:

To activate the Auto off feature:

1. Press MENU, and then press • or • until the Special menu appears.

2. Press ENTER, and then press • or • to highlight Auto off

3. Press ENTER, and then press • or • to Select On.

To deactivate the Auto off"feature:

Select Offin step 3 above.

Displaying on-screen information

Press DISPLAY to display the following information on-screen:

•Channel number or Video mode selected

• Stereo or SAP audio status

Understanding the last mode memory feature

If the power is cut offwhile you are viewing the TV, the Last Mode

Memory feature turns on the TV automatically when the power is

resupplied.

If the power is going to be off"for a long time and you are going to be

away from your TV, unplug the power cord to prevent the TV from

turning on in your absence.

TOPM_NU REC CLEAR TV/V_

DISPLAY

MENU/

ENTER

Appendix

Specifications

•This model complies with the specifications listed below.

• Designs and specifications are subject to change without notice.

WARNING: RISK OF ELECTRIC SHOCK !

Never attempt to service the IV yourself. Opening and removing the covers may expose you to

dangerous voltage or other hazards. Refer all servicing to a Toshiba Authorized Service Center.

Television System

NTSC standard

Channel Coverage

VHF: 2 through 13

UHF: 14 through 69

Cable TV: Mid band (A-8 through A-I, A through I)

Super band (J through W)

H}_er band (AAthrough ZZ, AAA, BBB)

Ultra band (65 through 94, 100 through 125)

Power Source

100-240 V AC, 60 Hz

Power Consumption

90 W

0.8 W it: standby :lode

Audio Power

5W+5W

Video/Audio Terminals

S-VIDEO INPUT

Y: 1 V(p-p), 75 ohms, negative sync.

C : 0.286 V(p-p) (burst signal), 75 ohms

VIDEOZAUDIO INPUT

VIDEO: 1 V(p-p), 75 ohms, negative sync.

AUDIO: 400 mV(rms) (30% modulation equivalent,

22k ohms or greater)

ColorStream <_>(Component video) INPUT

Y: IV(p-p), 75 ohms

PR: 0.7 V(p-p), 75 ohms

PB: 0.7 V(p-p), 75 ohms

AUDIO: 400 IIlV(rIIlS), 22k ohIIlSor greater

Suggested resolutions: 1080i, 480p, 480i, 720p

AUDIO OUTPUT

400 mV(rms) (30% modulation equivalent,

2.2k ohms or less)

HEADPHONE jack

3.5 mm stereo mini jack

PC INPUT

15-pin D-sub Analog RGB

PC AUDIO INPUT

3.5 mm stereo mini jack

HDME " INPUT:

HDMI compliant (t?_e A connector)

HDCP compliant

E-EDID* compliant

Suggested scar: rates: 1080i, 480p, 480i, 720p

HDMI Audio:

2-channel PCM;

32/44.1/48 kHz sampling frequency;

16/20124 bits per sample

Note: ThisTVdoesnotprovideHDM/ OUTPUT

Dimensions (Including TV stand)

Width : 24-3/8 inches (619 ram)

Height : 18-5/8 inches (473 ram)

Depth : 11-1/8 inches (280 ram)

Mass (weight)

27.6 lbs (12.5 kg)

Operating conditions

Temperature: 32°F 95°F (0°C 35°(2)

Humidity: 20 80% (no moisture condensation)

|Era

*E-EDID = Enhanced-Extended Display Identification

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ii_

Troubleshooting

Before calling a service technician, please check the following table for a possible cause of the symptom and

some solutions.

Symptom

TV will not turn 0**

Solution

• Make sure the power cord is plugged in, the**press

POWER.

• The remote control batteries *nay lyedead. Replace

the batteries.

No picture, no sound

No sound, picture OK

• Check the antenna/cable connections.

• The sound *nay lyemuted. Press VOL + -.

• The station may have broadcast difficulties. Try

another channel.

• Make sure the MTS feature is set properly.

Poor picture, sound OK • Check the antenna connections.

• The station *nay have broadcast difficulties. Try

another channel.

• Adjust the Picture menu.

Poor reception of broadcast channels • The station *nay have broadcast difficulties. Try

another channel.

• Check the antenna connections.

Black box appears on the screen • The Closed Caption feature may be set to one of

the Text *nodes (Text 1, Text2, Text3, or Text4). Turn

closed captioning Off:

Unable to select a certain channel

Multiple images

• The channel *nay be erased with the Manual

programming feature.

• The station *nay have broadcast difficulties. Try

another channel.

• Antenna reception *nay lyepoor. Use a highly

directional outdoor antenna.

Poor color or no color • The station *nay have broadcast difficulties. Try

another channel.

• Adjust the Tint and/or Color in the Picture menu.

No stereo or SAP sound from a known MTS

broadcast

• Make sure the MTS feature is set properly.

The top panel buttons do not operate

The remote control does not operate

• Check the Panel lock feature.

• First press the appropriate device button (TV, VCR,

DVD, CBL/SAT) on the remote control.

• Remove all obstructions between the remote control

and the remote control sensor in the TV.

• The remote control batteries ,nay be dead. Replace

the batteries.

Limited United States Warranty

for 23" LCD Television

Toshiba America Consumer Products, L.L.C. ("TACP"} makes the

following limited warranties to original consumers in the United

States. THESE LIMITED WARRANTIES EXTEND TO THE

ORIGINAL CONSUMER PURCHASER OR ANY PERSON

RECEIVING THIS LCD PRODUCT AS A GIFT FROM THE

ORIGINAL CONSUMER PURCHASER AND TO NO OTHER

PURCHASER OR TRANSFEREE.

LCD PRODUCTS PURCHASED IN THE U.S.A. AND USED

ANYWH ERE OUTSI DE O FTHE LJ.S.A.,INCLU DIN G, WITH OUT

LIM ITATION, CANADA AND MEXICO, ARE NOT COVERED BY

TH ESEWARRANTIES.

LCD PRODUCTS PURCHASED ANYWHERE OUTSIDE OF THE

U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA AND

MEXICO, AND USED IN THE U.S.A., ARE NOT COVERED BY

TH ESEWARRANTIES.

Limited One [1) Year Warranty on Parts and Labor

TACP war-ants this LCD Product and its parts against defects in

materials or workmanship for a period of one (1) year after the

date of original retail purchase. DURING THIS PERIOD, TACP

WILL, AT TACP'S OPTION, REPAIR OR REPLACE A DEFECTIVE

PART WITH A NEW OR REFURBISH ED PART WITHOUT

CHARGE TO YOU FOR PARTS OR LABOR.

Rental Units

Tile warranty for LCD Product rental units begins on tile date of

the first rental or thirty (30) days after the date of shipment to

the rental firm, whichever comes first.

Limited Warranty for Commercial Units

TACP warrants LCD Products that ale sold and used for

commercial purposes as follows: all parts are warranted against

defects in materials or workmanship for a period of ninety (90}

days after the date of original retail purchase. DURING THIS

PERIOD, TACP WI LL, AT TACP'S OPTION, REPAIR OR

REPLACE A DEFECTIVE PART WITH A NEW OR

REFURBISHED PART WITHOUT CHARGE TO YOU.

Owner's Manual and Product Registration Card

Read this owner's manual thoroughly before operating this LCD

Product.

Complete and mail the enclosed product registration card or

www.tacp.toshiba.com/service as soon as possible. By

registering your LCD Product you will enable TACP to bring you

new products specifically designed to meet your needs and help

us to contact you in the unlikely event a safety notification is

required under the U.S. Consumer Product Safety Act. Failure to

complete and return the p_oduct registration card does not

diminish your warranty rights.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE

FOLLOWING CONDITIONS:

(1) You must retain your original bill of sale or provide other

proof of purchase.

(2) All warranty servicing of this LCD Product must be

performed by an Authorized TACP Service Station.

(3) The warranties from TACP are effective only if this LCD

Product is pulchased and operated in the Continental U.S.A.

or Puerto Rico.

(4) Labor service charges for set installation, setup, adjustment

of customer controls, and installation o_ repair of antenna

systems are not covered by this warranty. Reception

problems caused by inadequate antenna systems,

misaligned satellite dishes, cable television distribution,

VCRs, DVD players/recorders, personal computer level IEEE

1394 devices, and any other connected signal source device

ale your responsibility.

(5) Warranties extend only to defects in materials or

workmanship as limited above, and do not extend to any

LCD Product or parts that have been lost or discarded by

you or to damage to the LCD Roduct or parts caused by

fires, misuse, accident, Acts of God (such as lightning or

fluctuations in electnc power), imploper installation,

improper maintenance, or use in violation of instructions

furnished by TACP: use ol malfunction through simultaneous

use of this LCD Product and connected equipment; or to

units that have been modified or had the serial number

removed, altered, defaced, or rendered illegible.

How to Obtain Warranty Service

If, after following all of tile operating instructions in tills manual

and reviewing the section entitled "Troubleshooting," you find

that service is needed:

(1) ]b find the nearest TACP Authorized Service Station, visit

TACP's website at www.tacp.toshiba.com/service or

contact TACP's Consumer Solution Center toll free at 1 800

575 5469.

(2) You must present your original bill of sale or other proof of

purchase to the TACP Authorized Service Station. You must

deliver the entire LCD Product to a TACP Authorized Service

Station. You must pay for all transportation and insurance

charges for the LCD Roduct to and from the TACP

Authorized Service Station.

For additional information, visit TACP's website:

www.tacp.toshiba.com

ALL WARRANTIES IMPLIED BYTHE LAW OF ANY STATE OF

THE U.S.A., INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICU LAR

PURPOSE, ARE EXPRESSLY LIMITED TO THE DURATION OF

THE LIMITED WARRANTIES SET FORTH ABOVE. WITH THE

EXCEPTION OF ANY WARRANTIES IMPLIED BY THE LAW OF

ANY STATEOFTHE U.S.A. AS HEREBY LIMITED, THE

FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF

ALL OTHER WARRANTIES, GUARANTEES, AGREEMENTS,

AND SIMILAR OBLIGATIONS OF TACP WITH RESPECT TO

THE REPAIR OR REPLACEMENT OFANY PARTS. IN NO

EVENT SHALL TACP BE LIABLE FOR CONSEQUENTIAL OR

INCIDENTAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

LOST PROFITS, BUSINESS INTERRUPTION, OR

MODIFICATION OR ERASU RE OF RECORDED DATA CAUSED

BY USE, MISUSE OR INABILITY TO USE THIS LCD

PRODUCT).

No person, agent, distributor, dealer, or company is authorized to

change, modify, or extend the terms of these warranties in any

manner whatsoever. The time within which an action must be

commenced to enforce any obligation of TACP arising under the

warranty or under any statute or law of the United States or any

state thereof is hereby limited to ninety (90) days from the date

you discover, or should have discovered, the defect. This

limitation does not apply to implied warranties arising under the

law of any state of the U.S.A.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND

YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY

FROM STATETO STATE IN THE U.S.A. SOME STATES OFTHE

U.S.A. DO NOT ALLOW LIMITATIONS ON THE DURATION OF

AN IMPLIED WARRANTY, WHEN AN ACTION MAY BE

BROUGHT, ORTHE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE,

THE ABOVE PROVISIONS MAY NOT APPLY TO YOU UNDER

SUCH CIRCUMSTANCES.

!iiii iill i!iiiii/ iiii!iiiiii'iii

i'¸

ii!i}( !i!i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii

Limited Canada Warranty

for 23" LCD Television

Toshiba Canada Limited, ("TCE') makes the following limited

warranties to original consumers in Canada. THESE LIMITED

WARRANTIES EXTEND TO THE ORIGINAL CONSUMER

PURCHASER OR ANY PERSON RECEIVING THIS LCD

PRODUCT AS A GIFT FROM THE ORIGINAL CONSUMER

PURCHASER AND TO NO OTHER PURCHASER OR

TRANSFEREE.

LCD PRODUCTS PURCHASED IN CANADA AND USED

ANYWHERE OUTSIDE OF CANADA, INCLUDING, WITHOUT

LIMITATION, THE U.S.A. AND MEXICO, ARE NOT COVERED

BY THESE WARRANTIES.

LCD PRODUCTS PURCHASED ANYWHERE OUTSIDE OF

CANADA, INCLUDING, WITHOUT LIMITATION, THE U.S.A.

AND MEXICO, AND USED IN CANADA ARE NOT COVERED

BY THESE WARRANTIES.

Limited One (1} Year Warranty on Parts and Labour

TCL warrants this LCD Product and its parts against defects in

materials or workmanship for a period of one O} year after the

date of original retail purchase. DURING THIS PERIOD, TCL

WILL, AT TCES OPTION, REPAIR OR REPLACE A DEFECTIVE

PART WITH A NEW OR REFURBISHED PART WITHOUT

CHARGE TO YOU. YOU MUST DELIVER THE ENTIRE

TELEVISION TO AN AUTHORIZED TCL SERVICE DEPOT. YOU

MUST PAY FOR ALL TRANSPORTATION AND INSURANCE

CHARGES FOR THE TELEVISION TO AND FROM THE

SERVICE DEPOT.

Rental Units

The warranty for LCD Product rental units begins on tile date of

the first rental or thirty (30} days after the date of shipment to

the rental firm, whichever comes first.

Limited Warranty for Commercial Units

TCL warrants LCD Products that are sold and used for

commercial purposes as follows: all parts are warranted against

defects in materials or workmanship fol a period of ninety (90}

days after the date of original retail purchase. DURING THIS

PERIOD, TCL WILL AT TCES OPTION, REPAIR OR REPLACE A

DEFECTIVE PART WITH A NEW OR REFURBISHED PART

WITHOUT CHARGE TO YOU. YOU MUST DELIVER THE

ENTI RE TELEVISION TO AN AUTHORIZED TCL SERVICE

DEPOT. YOU MUST PAY FOR ALL TRANSPORTATION AND

INSURANCE CHARGES FOR THE TELEVISION TO AND FROM

THE SERVICE DEPOT.

Owner's Manual and Product Registration

Read this owner's manual thoroughly before operating this LCD

Product.

as possible. By registering your LCD Product you will enable TCL

to bring you new products specifically designed to meet your

needs and help us to contact you in the unlikely event a safety

notification is required. Failure to register your LCD Product does

not diminish your warranty rights.

Your Responsibility

THE ABOVE WARRANTIES ARE SU BJECT TO THE

FOLLOWING CONDITIONS:

(1} You must retain your original bill of sab or provide other

proof of purchase.

(2} All warranty servicing of this LCD Product must be made by

an Authorized TCL Service Depot.

(3} The warranties from TCL are effective only if this LCD

Product is purchased in Canada from an autholized TCL

dealer and operated in Canada.

(4} Labour service charges for set installation, setup, adjustment

of customer controls, and installation or repair of antenna

systems are not covered by this warranty. Reception

problems caused by inadequate antenna systems,

misaligned satellite dishes, cable tebvision distribution,

VCRs, DVD players/recorders, personal computer bvel IEEE

1394 devices, and any other connected signal source device

are your responsibility.

(5} Warranties extend only to defects in materials or

workmanship as limited above, and do not extend to any

LCD Product or parts that have been lost or discalded by

you or to damage to the LCD Product or parts caused by

fires, misuse, accident, Acts of God (such as lightning or

fluctuations in electric power), improper installation,

improper maintenance, or use in violation of instructions

furnished by TCL: use or malfunction through simultaneous

use of this LCD Product and connected equipment; or to

units that have been modified or had the serial number

removed, altered, defaced, or rendered illegible.

How to Obtain Warranty Service

If, after following all of the operating instructior_s in this manual

and reviewing the section entitled "Troubbshooting," you find

that service is needed:

(1} To find the nearest TCL Authorized Service Depot, visit TCEs

web site at www.toshiba.ca.

(2} You must include the original bill of sale (or a copy thereof} or

other proof of purchase along with the entire LCD Product to

the Authorized Service Depot. You are responsible for all

inbound transportation and insurance charges for the LCD

Product to the Authorized Service Depot.

For additional information, visit TCL's website:

www.toshiba.ca

ALL WARRANTIES IMPLIED BY THE LAW OF ANY PROVINCE

OF CANADA, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE EXPRESSLY LIMITED TO THE DURATION OF

THE LIMITED WARRANTIES SET FORTH ABOVE. WITH THE

EXCEPTION OF ANY WARRANTIES IMPLIED BY THE LAW OF

ANY PROVINCE OF CANADA AS HEREBY LIMITED, THE

FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF

ALL OTHER WARRANTIES, GUARANTEES, AGREEMENTS,

AND SIMILAR OBLIGATIONS OF TCL WITH RESPECT TO THE

REPAIR OR REPLACEMENT OFANY PARTS. IN NO EVENT

SHALL TCL BE LIABLE FOR CONSEQUENTIAL OR

INCIDENTAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

LOST PROFITS, BUSINESS INTERRUPTION, OR

MODIFICATION OR ERASURE OF RECORDED DATA CAUSED

BY USE, MISUSE, OR INABILITY TO USE THIS LCD

PRODUCT}.

No person, agent, distributor, dealer, or company is authorized to

change, modify, ol extend the terms of these warranties in any

manner whatsoever. The time within which an action must be

commenced to enforce any obligation of TCL arising under the

warranty or under any law of Canada or any province thereof is

heleby limited to ninety (90} days from the date you discover, or

should have discovered, the defect. This limitation does not apply

to implied warranties arising under the law of any province of

Canada.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND

YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY

FROM PROVINCE TO PROVINCE IN CANADA. SOME

PROVI NCES OF CANADA DO NOT ALLOW LIM ITATIONS ON

THE DURATION OF AN IMPLIED WARRANTY, WHEN AN

ACTION MAY BE BROUGHT, OR THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES. THEREFORE, THE ABOVE PROVISIONS MAY NOT

APPLY TO YOU UNDER SUCH CIRCUMSTANCES. [0305]

Index

Antenna cables ....................................................................10

Audio system connection .................................................15

Auto off ....................................................................................38

A/V cables ..............................................................................10

Back of the TV ........................................................................8

Blue screen ............................................................................26

Cable converter box connection ...................................l l

Camcorder connection ......................................................15

CBL/SAT button ...................................................................19

CH ^ v buttons ..................................................................25

CH RTN button .....................................................................26

Channel Number buttons ................................................25

Channel programming

Automatic programming .............................................24

Memory/Erase .................................................................25

Closed caption ......................................................................32

ColorStream _ connection ...........................................12,13

Component video cables ..................................................10

D E,

DISPLAY button ...........................................................34, 38

DTV receiver connection ..................................................13

DVD button ............................................................................20

DVD connection ...................................................................12

DVD MENU button ............................................................20

FHI

FAVAV button .....................................................................25

Favorite channels ................................................................23

FF_ button ........................................................................19

Front of the TV ........................................................................8

HDMI connection ................................................................14

IN PUT button ........................................................................26

Language selection ............................................................24

Last mode memory .............................................................38

Menu system .........................................................................23

MTS..........................................................................................34

MUTE button .........................................................................34

Panel lock ...............................................................................33

PAUSEII button ...................................................................19

PC connection ......................................................................16

PC setting ...............................................................................37

PIC SIZE button ...................................................................27

Picture adjustments

Picture mode ....................................................................31

Picture quality ..................................................................31

Picture size selection .........................................................27

PLAY I_ button ....................................................................19

POWER button .....................................................................17

Remote control

Battery installation .........................................................18

Learning about the buttons ........................................17

REV _ button ....................................................................19

S-video cables ......................................................................10

SAP sound .............................................................................34

Set-top box ............................................................................13

SKIP/SEARCH _ _ button .......................................19

Sleep timer .............................................................................33

Sound mode selection .......................................................35

Sound quality adjustments ..............................................36

Specifications ........................................................................39

StableSound _ ........................................................................36

Stereo sound .........................................................................34

STOP• button .....................................................................19

Troubleshooting ..................................................................40

TOP MENU button ..............................................................19

TV button ................................................................................20

TV/VCR button .....................................................................19

V-Chip

Age block ...........................................................................30

Aux block ...........................................................................30

Content block ..................................................................30

MPAA .................................................................................30

Password ...........................................................................30

VCR button .............................................................................19

VCR connection ...................................................................l l

VOL button .............................................................................17

Warranty ..........................................................................41,42

WOWTM surround .................................................................35

m E

i!i!i!i!iiiiiii:i!!i! !!i!i

TOSHIBA AMERICA CONSUMER PRODUCTS, L. L. C.

HEAD OFFICE:82 TOTOWA ROAD, WAYNE, NEW JERSEY 07470, U.S.A.

NATIONAL SERVICE DIVISION:1420B TOSHIBA DRIVE, LEBANON, TN. 37087, U.S.A.

TOSHIBA OF CANADA LTD.

HEAD OFFICE/191 McNABB STREET MARKHAM, ONTARIO L3R 8H2, CANADA TEL: (905) 470-5400

SERVICE CENTERS:

TORONTO: 191 McNABB STREET MARKHAM, ONTARIO L3R 8H2, CANADA TEL: (905) 470-5400

MONTREAL: 18050 TRANS CANADA, KIRKLAND, QUEBEC, H9J-4A1, CANADA TEL:(514)390-7766

VANCOUVER: 22171 FRASERWOOD WAY, RICHMOND, B.C. V6W 1J5, CANADA TEL: (604) 303-2500

ColorStream and StableSound are registered trademarks of Toshiba America Consumer Products, L.L.C.

TOSHIBA

(_)72742112

Toshiba 23HL85 User Manual LCD Manuals And Guides L0601276

TOSHIBA LCD Television Manual L0601276 TOSHIBA LCD Television Owner's Manual, TOSHIBA LCD Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
