TOSHIBA

Dear Customer,

Thank you for purchasing this Toshiba LCD TV. This manual

will help you use the many exciting features of your new LCD

TV. Before operating your LCD TV, please read this manual

completely, and keep it nearby for future reference.

Safety Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

WARNING: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated "dangerous voltage" within

the product's enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons,

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance,

WARNING

To prevent injury, this apparatus must be securely attached to

the floor/wall in accordance with the installation instructions.

See item 20 on page 3 and instructions on page 5.

WARNING:If you decide to wall mount this television,

always use a UL Listed wall bracket appropriate for the size

and weight of this television. The use of any wall bracket

other than a UL Listed wall bracket appropriate for the size

and weight of this television for wall mounting this television

could result in serious bodily injury and/or property damage.

See "Removing the Pedestal Stand" (_' page 5).

NOTETOCATVINSTALLERS

This is a reminder to call the CATV system installer's attention

to Article 820-40 of the U.S. NEC, which provides guidelines for

proper grounding and, in particular, specifies that the cable

ground shall be connected to the grounding system of the

building, as close to the point of cable entry as practical. For

additional antenna grounding information, see items 27 and 28

on page 4.

Congratulationsonyour purchase! Asyou enjoy your

new product, please keep these safety tips in mind:

The Issue

•Thehome theater entertainment experience is a growing trend

and larger flat panel displays are popular purchases. However,

flat panel displays are not always supported on the proper stands

or installed according to the manufacturer's recommendations.

• Flatpanel displays that are

inappropriately situated on dressers,

bookcases, shelves, desks,

speakers, chests or carts may fall

over and cause injury.

TOSHIBACares!

• The consumer electronics industry

is committed to making home

entertainment enjoyableand safe.

Tune Into Safety

• OnesizedoesNOTfit all.Followthe manufacturer'srecommendations

forthe safeinstallationanduse of your flat paneldisplay.

• Carefully read and understand all enclosed instructions for

proper useof this product.

• Don't allow children to climb on or play with furniture and

television sets.

• Don't place flat panel displays on

furniture that can easily be used as

steps, such as a chest of drawers.

• Remember that children can

become excited while watching a

program, especiallyon a "larger

than life" flat panel display. Care

should be taken to place or install

the display where it cannot be

pushed, pulled over, or knocked down.

• Careshould betaken to route all cords and

cablesconnected to the flat panel display so that they cannot be

pulled or grabbed by curious children.

Wall Mounting: If you decide to wall mount your

flat panel display, always:

• Usea mount that has been recommended by the display

manufacturer and/or listed by an independentlaboratory (such

as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount

manufacturers.

• If you haveany doubts about your ability to safely install your

flat panel display, contact your retailer about professional

installation.

• Make sure that the wall where you are mounting the display is

appropriate. Some wall mounts are not designed to bemounted

to walls with steel studs or old cinder block construction. If you

are unsure, contact a professional

installer.

• A minimum of two peopleare

required for installation. Flat panel

displays can be heavy, www.CE.org/safety

Consumer Elect_ Associa_

Important Safety Instructions

1)

2)

3)

4)

5)

6)

7)

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of Wideblade

the polarized or grounding type

plug. A polarized plug has two blades

with one wider than the other.

A grounding type plug has two blades

and a third grounding prong. The wide blade or the third

prong are provided for your safety. If the provided plug

does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked

on or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the

apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug

is damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has been

dropped.

Additional Safety Precautions

14a) CAUTION: If the TV is dropped and the cabinet or

enclosure surface has been damaged or the TV does not

operate normally, take the following precautions:

• ALWAYS turn off the TV and unplug the power cord to

avoid possible electric shock or fire.

• NEVER allow your body to come in contact with any

broken glass or liquid from the damaged television. The

LCD panel inside the TV contains glass and a toxic

liquid. If the liquid comes in contact with your mouth or

eyes, or your skin is cut by broken glass, rinse the

affected area thoroughly with water and consult your

doctor.

• ALWAYS contact a service technician to inspect the TV

any time it has been damaged or dropped.

15)

16)

CAUTION:

• To reduce the risk of electric shock, do not use the

polarized plug with an extension cord, receptacle, or

other outlet unless the blades can be inserted

completely to prevent blade exposure.

• To prevent electric shock, match wide blade of plug to

wide slot; fully insert.

WARNING:

To prevent the spread of fire, keep candles or other open

flames away from this product at all times.

Installation, Care, and Service

Installation

Follow these recommendations and precautions and heed all

warnings when installing your TV:

17) Never modify this equipment. Changes or modifications

may void: a) the warranty, and b) the user's authority to

operate this equipment under the rules of the Federal

Communications Commission.

18) DANGER: RISK OF

SERIOUS PERSONAL

INJURY, DEATH, OR

EQUIPMENT DAMAGE!

Never place the TV on an unstable cart,

stand, or table. The TV mayfall, causing

serious personal injury, death, or serious

damage to the TV.

19) To avoid damage to this product, never place or store the

TV in direct sunlight; hot, humid areas; or areas subject to

excessive dust or vibration.

20) Always place the TV on the floor or a sturdy, level, stable

surface that can support the weight of the unit. To secure the

TV, use a sturdy strap from the hooks on the rear of the TV

pedestal to a wall stud, pillar, or other immovable structure.

Make sure the strap is tight, secure, and parallel to the floor.

4" Sturdy strap (as short as possible)

Securement

Clip

TV side TV top

21) The apparatus shall not be exposed to dripping or

splashing and that no objects filled with liquids, such as

vases, shall be placed on the apparatus.

22) Never block or cover the slots or openings in the TV

cabinet back, bottom, and sides. Never place the TV:

• on a bed, sofa, rug, or similar

surface;

• too close to drapes, curtains, or

walls; or

• in a confined space such as a

bookcase, built-in cabinet, or any _ fl0

other place with poor ventilation.

The slots and openings are provided to protect the TV from

overheating and to help maintain reliable operation of the

TV. Leave a space of at least 4 (four) inches around the TV.

(continued)

23) Always place the back of the television at least four (4)

inches away from any vertical surface (such as a wall) to

allow proper ventilation.

24) Never allow anything to rest on or roll over the power cord,

and never place the TV where the power cord is subject to

wear or abuse.

25) Never overload wall outlets and extension cords.

26) Always operate this equipment from a 120 VAC, 60 Hz

power source only.

27) Always make sure the antenna system is properly

grounded to provide adequate protection against voltage

surges and built-up static charges (see Section 810 of the

National Electric Code).

J Ground clamp -_.

discharge unit

(NECSection 810-20)

Electricservice equipment

L

Ground clamps

Grounding conductors

(NECSection 810-21)

Power service grounding

electrodesystem (NECArt 250 Part-H)

28) DANGER: RISK OF SERIOUS

PERSONAL INJURY OR DEATH!

• Use extreme care to make sure you are never in a

position where your body (or any item you are in contact

with, such as a ladder or screwdriver) can accidentally

touch overhead power lines. Never locate the antenna

near overhead power lines or other electrical circuits.

• Never attempt to install any of the following during

lightning activity: a) an antenna system; or b) cables,

wires, or any home theater component connected to an

antenna or phone system.

[;are

For better performance and safer operation of your TOSHIBA

TV, follow these recommendations and precautions:

29) If you use the TV in a room whose temperature is 32 °F

(0 °C) or below, the picture brightness may vary until the

LCD warms up. This is not a sign of malfunction.

30) Always unplug the TV before

cleaning. Gently wipe the

display panel surface (the TV

screen) using a dry, soft cloth

only (cotton, flannel, etc.). A

hard cloth may damage the

surface of the panel. Avoid

contact with alcohol, thinner, benzene, acidic or alkaline

solvent cleaners, abrasive cleaners, or chemical cloths,

which may damage the surface. Never spray volatile

compounds such as insecticide on the cabinet. Such

products may damage or discolor the cabinet.

In addition, gently wipe the luster finishing portion of your

TV with the enclosed cleaning cloth after removing any dirt

or dust from the surface. Harsh rubbing or use of a dirty

cleaning cloth or stiff cloth will scratch your TV.

31)

Z_ WARNING:

RISK OF ELECTRIC SHOCK!

Never spill liquids or push objects of any kind into the TV

cabinet slots.

32)

33)

34)

While it is thundering, do not touch the connecting cables

or apparatus.

For added protection of your TV from lightning and power

surges, always unplug the power cord and disconnect the

antenna from the TV if you leave the TV unattended or

unused for long periods of time.

During normal use, the TV may make occasional snapping

or popping sounds. This is normal, especially when the

unit is being turned on or off. If these sounds become

frequent or continuous, unplug the power cord and contact

a Toshiba Authorized Service Center.

35)

36)

WARNING: RISK OF

SERIOUS PERSONAL

INJURY OR EQUIPMENT

DAMAGE!

Never strike the screen with a sharp

or heavy object.

• The LCD screen of this product can be damaged by

ultraviolet radiation from the sun. When selecting a

location for the television, avoid locations where the

screen may be exposed to direct sunlight, such as in

front of a window.

• Never touch, press, or place anything on the LCD

screen. These actions will damage the LCD screen. If

you need to clean the LCD screen, follow the

instructions in item 30 on this page.

Service

37)

_, WARNING:

RISK OF ELECTRIC SHOCK!

Never attempt to service the TV yourself. Opening and

removing the covers may expose you to dangerous

voltage or other hazards. Failure to follow this WARNING

may result in death or serious injury. Refer all servicing not

specified in this manual to a Toshiba Authorized Service

Center.

38)

39)

If you have the TV serviced:

• Ask the service technician to use only replacement

parts specified by the manufacturer.

• Upon completion of service, ask the service technician

to perform routine safety checks to determine that the

TV is in safe operating condition.

The cold cathode fluorescent lamp in the LCD panel

contains a small amount of mercury.

When the TV reaches the end of its useful life, dispose of

the used TV by the approved method for your area, or ask

a qualified service technician to properly dispose of the

TV.

Note: The lamp(s) inside this product contain

mercury. Disposal may be regulated due to

environmental considerations. For disposal or

recycling information, contact your local authorities or the

Electronics Industries Affiance (www.eiae.org).

Choosinga location for your LCDTV

To Displayyour LCDTV onthe included Pedestal

Stand:

Observe the following safety precautions:

1) Read and Follow the pedestal assembly instructions included

with the pedestal. (for 42XV540U only)

CAUTION: Before beginning pedestal assembly, carefully lay

the front of the LCD Panel face down on a fiat, cushioned

surface such as a quilt or blanket. Leave the bottom of the unit

protruding over the edge of the surface and assemble the

pedestal as indicated below.

Note: Extreme care should always be used when attaching

the pedestal stand to avoid damage to the LCD par?el.

2) Place the TV on a sturdy, level surface that can support the

weight of the TV.

3) Be sure to secure the TV to a wall stud, pillar, surface, or other

immovable structure. To secure the TV in this manner: (1)

attach the provided securement clip to an immovable structure,

then (2) pass a sturdy strap through the securement clip and

attach each end to the hooks located on the back of the TV. Be

sure to leave at least 4 inches between the TV and the wall or

similar structure for ventilation. See item 20, page 3 for

additional details.

To Displayyour LCDTV usinga Wall Bracket:

If you decide to wall mount your LCD TV, always use a UL-

listed wall bracket appropriate for the size and weight of the

LCD TV (_' page 2) :

l) CAUTION: Two people are required for installation.

2) Unplug and remove any cables and!or other component

connectors from the rear of the TV.

3) Follow the instructions provided with your wall bracket.

Before proceeding, make sure the appropriate bracket(s) are

attached to the wall and the back of the TV as described in the

instructions provided with the wall bracket.

4) After attaching the appropriate bracket(s) to the wall and the

back of the TV, remove the pedestal stand from the TV as

described below.

Removingthe Pedestal Stand

1) Carefully lay the front of the unit face down on a flat,

cushioned surface such as a quilt or blanket. Leave the stand

protruding over the edge of the surface.

Note: Extreme care should always be used when removing

the pedestal stand to avoid damage to the LCD par?el.

2) Remove the four screws shown in the diagram below. This will

allow removal of the pedestal stand.

3) Once you have removed all four screws holding the pedestal

stand in place, remove the pedestal stand from the TV by

sliding the pedestal stand away from the TV.

Fou r screws

FCCDeclaration of ConformitV

ComplianceStatement

(Fart15):

The Toshiba 42XV540U, 46XV540U, and 52XV540U

Televisions comply with Part 15 of the FCC rules.

Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that

may cause undesired operation.

The party responsible for compliance to these rules is:

Toshiba America Consumer Products, L.L.C.

82 Totowa Rd. Wayne, NJ 07470.

Ph: 1-800-631-3811

Note: This equipment has been tested and found to comply

with the fimits for a Class B digital device, pursuant to Part 15

of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

removing and applying power to the equipment, the user is

encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

Caution: Changes or modifications to this equipment not

expressly approved by Toshiba could void the user's authority

to operate this equipment.

m

Importantnotesabout yourLCD

The following symptoms are technical limitations of LCD

Display technology and are not an indication of malfunction;

therefore, Toshiba is not responsible for perceived issues

resulting from these symptoms.

1) An afterimage (ghost) ]nay appear on the screen if a fixed, non-

moving image is displayed for a long period of time. The

afterimage is not permanent and will disappear in a short period

of time.

2) The LCD panel contained in this TV is manufactured using an

extremely high level of precision technology; however, there

may be an occasional pixel (dot of light) that does not operate

properly (does not light, remains constantly lit, etc.). This is a

structural property of LCD technology, is not a sign of

malfunction, and is not covered under your warranty. Such

pixels are not visible when the picture is viewed from a normal

viewing distance.

Note: Interactive video games that involve shooting a "gun"

type of joystick at an on-screen target may not work with this

TV.

m

Trademark Informaffon

•Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby

Laboratories.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

• Deep Color is trademark of HDMI Licensing LLC.

• "x.v.Color" and the "x.v.Color" logo are trademarks of Sony

Corporation.

ImportantSafetyInstructions.......................................... 3

Installation,Care,andService........................................ 3

Chapter1:Introduction............................ g

Features of your new TV ............................ 9

Overview of steps for installing, setting up, and using

your new TV .................................. 9

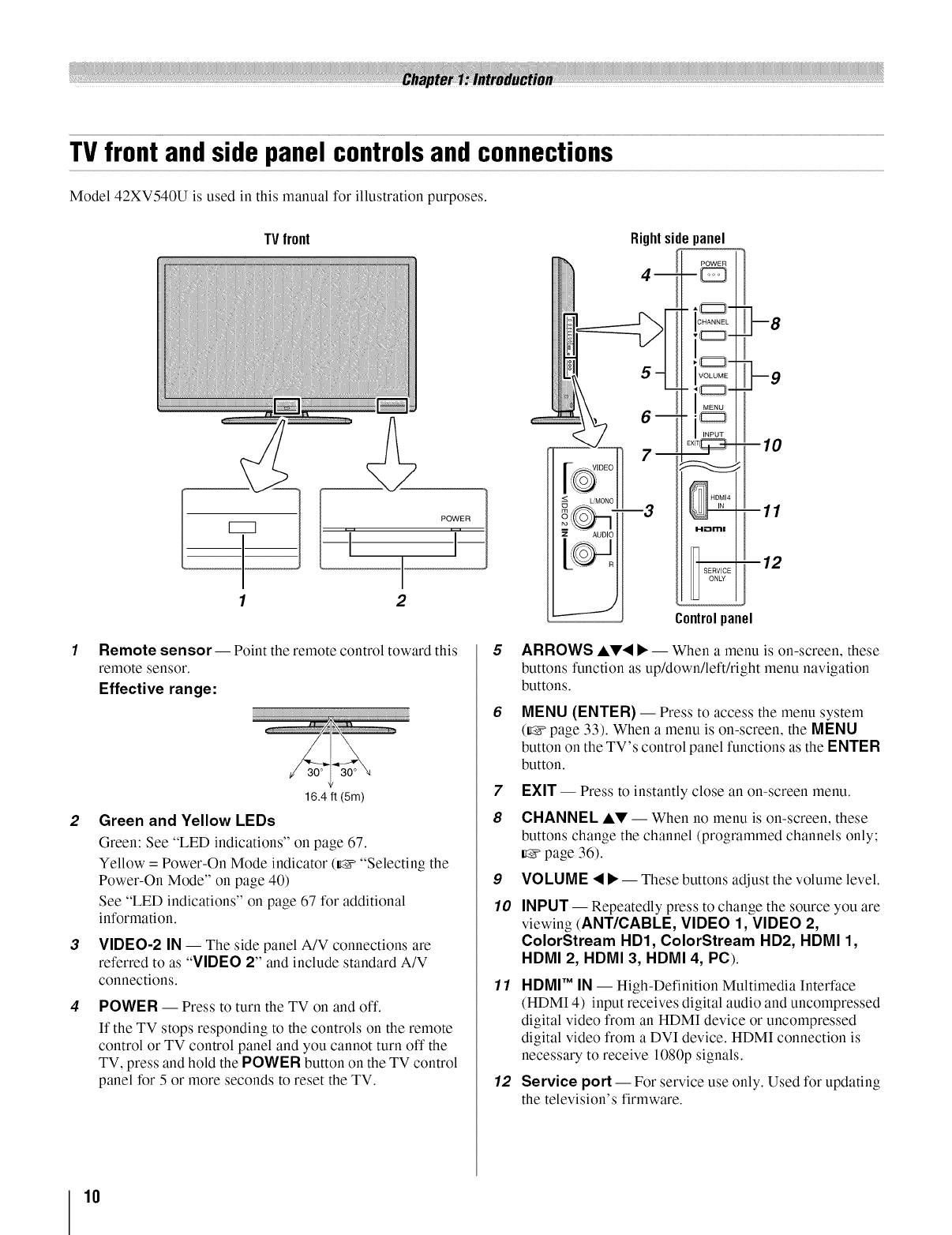

TV fiont and side panel controls and connections ........ 10

TV back panel connections .......................... 11

Chapter2: ConnectingyourIV ....................... 12

Overview of cable types ............................ 12

About the connection illustrations .................... 12

Connecting a VCR (or a VCR with S-video) and antenna,

Cable TV or Camcorder ......................... 13

Connecting a DVD player with ColorStream °° (component

video), a VCR, and a satellite receiver .............. 14

Connecting a device to the IR OUT infiared terminal

using the IR blaster cable for IR pass-through device

control ...................................... 15

Connecting an HDMI _' or DVI device to the HDMI

input ........................................ 16

REGZA-LINK connection .......................... 17

Connecting a digital audio system .................... 18

Connecting an audio system ......................... 18

Connecting a personal computer (PC) ................. 19

Chapter3: Usingtheremotecontrol ................... 20

Preparing the remote control for use ................... 20

Installing the remote control batteries ................. 20

Learning about the remote control .................... 21

Remote Control functional key chart .................. 22

Using the remote control to operate your other devices .... 24

Programming the remote control to operate your other

devices ...................................... 24

Device code setup ............................. 24

Searching and sampling the code of a device (8500)... 25

Using the volume lock feature (8000) .............. 25

Operational feature reset (8900) ................... 25

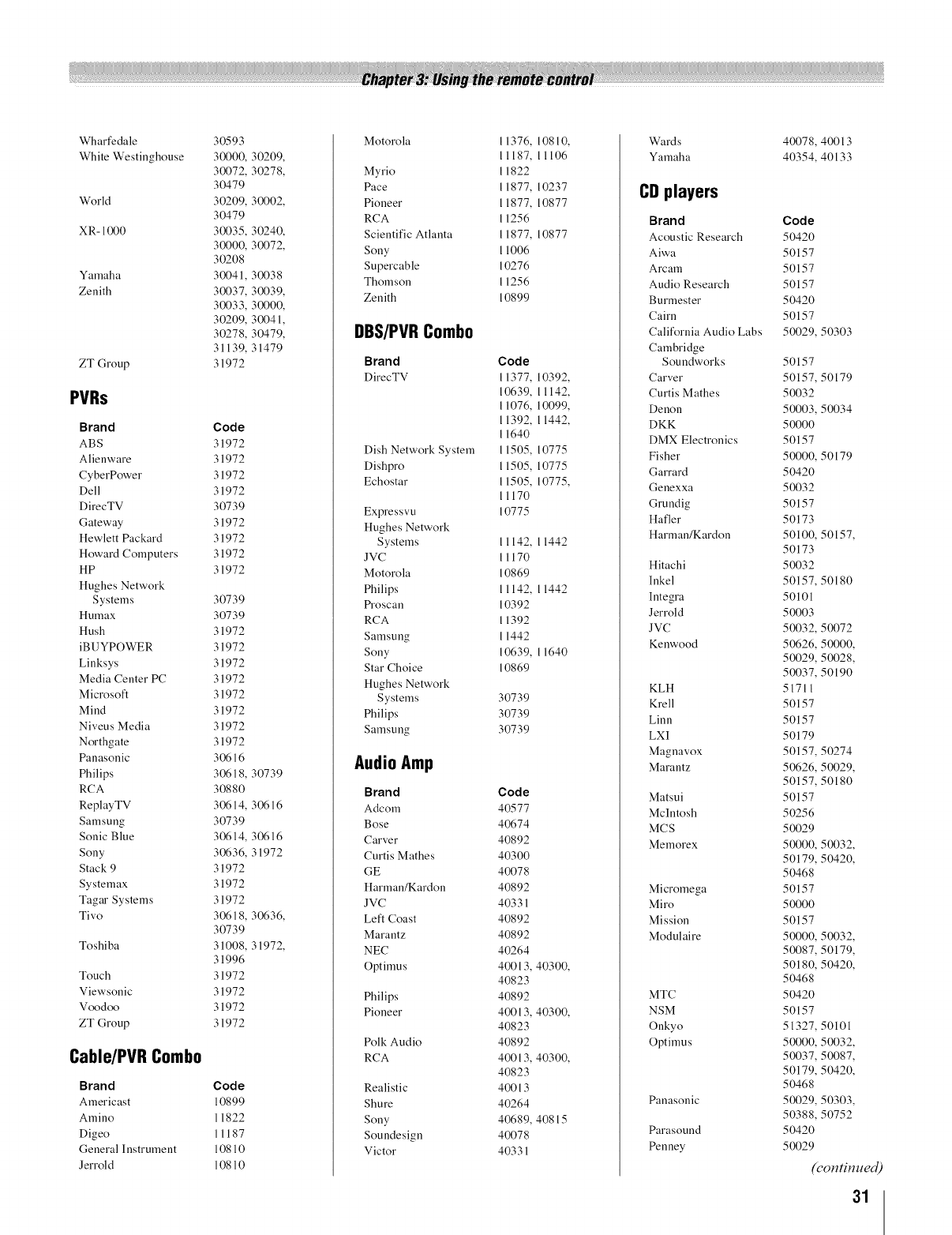

Multi-brand remote control device codes ............... 26

Chapter4: Menulayoutandnavigation................. 33

Main menu layout ................................. 33

Setup/Installation menu layout ....................... 33

THINC r'' menu ................................... 33

Navigating the menu system ......................... 34

Chapter5: SettingupyourTV........................ 35

Setting the Demo Mode ............................ 35

Selecting the menu language ........................ 35

Configuring the input source for the

ANT/CABLE tenuinal .......................... 36

Programming channels into the TV's channel memory .... 36

Programming channels automatically .............. 36

Manually adding and deleting channels in the channel

memory .................................. 37

Setting the Auto Input feature ........................ 37

Labeling channels ................................. 38

Setting the HDMI _' audio mode ...................... 39

Viewing the digital signal meter ...................... 39

Setting the time zone ............................... 39

Viewing the system status ........................... 40

Selecting the Power-On Mode ....................... 40

Selecting the Demo Mode ........................... 40

Chapter6: UsingtheTV'sfeatures .................... 41

Selecting the video input source to view ............... 41

Labeling the video input sources ..................... 41

Tuning channels .................................. 42

Tuning channels using the Channel Browser '_' ....... 42

Setting the Channel Tuning Mode ................. 44

Tuning to the next programmed channel ............ 44

Tuning to a specific channel (programmed or

unprogmmmed) ............................ 44

Switching between two channels using Channel

Return ................................... 45

Switching between two channels using SurfLock '_'.... 45

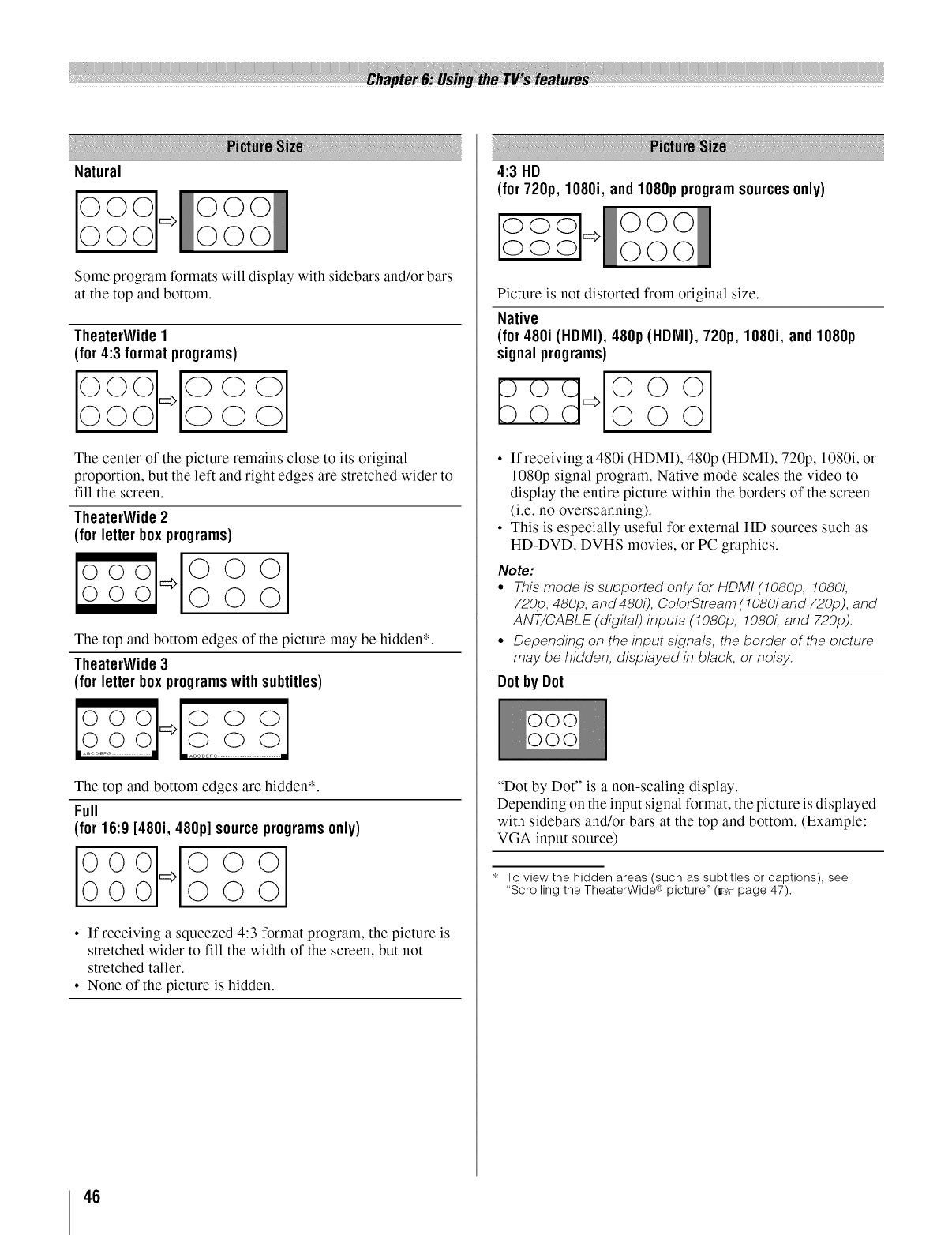

Selecting the picture size ........................... 45

Scrolling the TheaterWide ® picture

(TheaterWide 2 and 3 only) ...................... 47

Using the auto aspect ratio feature .................... 47

Using the FREEZE feature .......................... 48

Adjusting the picture ............................... 48

Selecting the picture mode ....................... 48

Adjusting the picture quality ..................... 48

Using the TheaterLock '_' feature ...................... 49

Using the closed caption mode ....................... 49

Base closed captions ........................... 49

Digital CC Settings ............................ 50

CC Selector .................................. 50

Using the Closed Caption button on the remote

control ................................... 50

Adjusting the audio ................................ 50

Muting the sound .............................. 50

Using the digital audio selector ................... 51

Selecting stereo/SAP broadcasts .................. 51

Adjusting the audio quality ...................... 51

Using the StableSound ® feature ................... 52

Selecting the optical audio output fonuat ........... 52

Using the Dolby ® Digital Dynamic Range Control

feature ................................... 52

Using the Locks menu ............................. 52

Entering the PIN code .......................... 52

If you cannot remember your PIN code ............. 53

Changing your PIN code ........................ 53

Blocking TV programs and movies

by rating (V-Chip) .......................... 53

Downloading an additional rating system for blocking

TV programs and movies .................... 54

Blocking channels ............................. 55

Unlocking programs temporarily .................. 55

Using the input lock feature ...................... 55

Using the GameTimer _ ......................... 55

Using the control panel lock feature ............... 56

Using the PC settings feature ........................ 56

Setting the PC Audio .............................. 57

Setting the sleep timer .............................. 57

Using REGZA-LINK .............................. 57

REGZA-LINK playback device (HD DVD player, etc.)

control ................................... 57

REGZA-LINK input source selection .............. 58

VOLUME and MUTE controls of Audio Receiver .... 58

Other REGZA-LINK functions ................... 58

Using the HDMI settings feature ..................... 59

Displaying TV status infonuation ..................... 60

Understanding the auto power off feature .............. 60

Understanding the last mode memory feature ........... 60

(continuecl)

7

Chapter7: UsingtheTV'sadvancedfeatures............. 61

Using the advanced picture settings features ............ 61

Using dynamic contrast ......................... 61

Using the static gamma feature ................... 61

Selecting the color temperature ................... 61

Selecting the cinema mode (480i and 1080i signals)... 62

Using the ClearFrame '_' feature ................... 62

Using the Fihn Stabilization feature ............... 62

Using CableClear _ digital noise reduction .......... 62

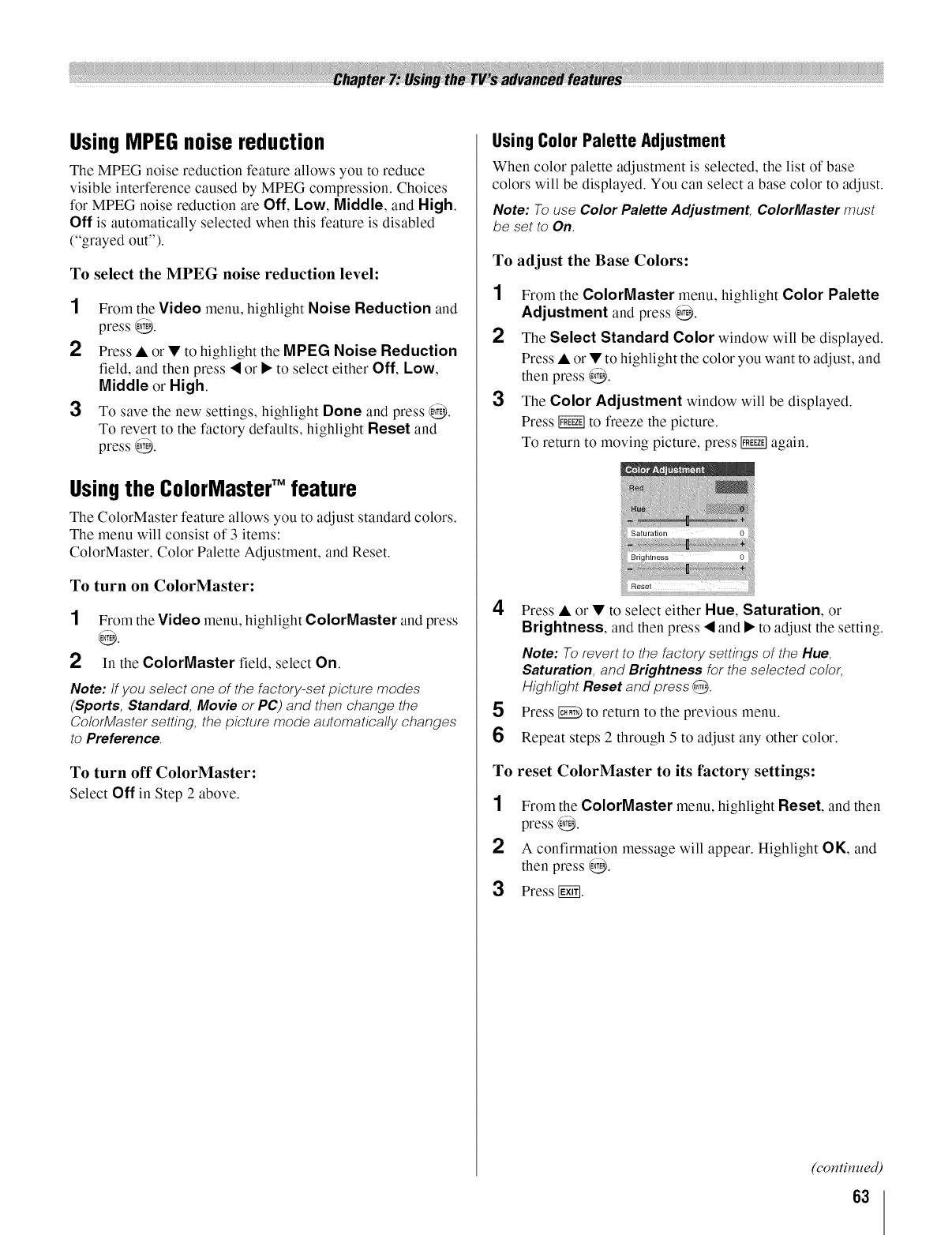

Using MPEG noise reduction ..................... 63

Using the ColorMaster '_' feature .................. 63

Using x.v.Color Selection feature ................. 64

Using the Game Mode feature .................... 64

Using the advanced audio settings features ............. 64

Using the surround sound features ................. 64

Chapter8:Troubleshooting......................... 65

General troubleshooting ............................ 65

LED indications .................................. 67

Chapterg:Appendix.............................. 68

Specifications .................................... 68

Acceptable signal t_nnats

for PC IN and HDMI tenninals ................... 69

Limited United States Warranty

for LCD Televisions 26" and Larger ............... 70

Limited Canadian Warranty

for Toshiba Brand Flat Panel Televisions ........... 71

Index........................................ 73

Features of your new TV

The following are just a few of the many exciting features of

your new Toshiba widescreen, integrated HD, LCD TV:

• Integrated digital tuning (SVSB ATSC and QAM)

eliminates the need for a separate digital converter set-top

box (in most cases).

•1080p output resolution.

•Four HDMI '_' digital, high-definition multimedia

interfaces with 1080p input support (_ page 16).

•HDMI capabilities

Lip-Sync Latency feature activates an auto audio/video

display timing adjustment function that allows HDMI

source devices to accurately perform synchronization

automatically.

Deep Color feature allows the HDMI source to increase the

available colors bits within the boundaries defined by the

RGB or YCbCr color space.

x.v.Color feature expands the acceptable color range

(limits) in HDMI signals and allows for sending of wider

color signals from HDMI.

• REGZA-LINK allows control of external devices from the

TV remote via HDMI connection (_ page 57).

• Two sets of ColorStream ®HD high-resolution component

video inputs (_ page 14).

• Digital Audio Out optical audio connection with Dolby ®

Digital optical output format (_ page 52).

•CableClear ®digital picture noise reduction

(_ page 62).

• PC IN (Analog RGB) computer terminal (_ page 19).

•Channel Labeling allows you to put the Call Letters (e.g.

ABC, HBO, etc.) on the screen along with the station

numbers, so you always know what you're watching

(_ page 38).

• IR OUT infrared terminal using the IR blaster cable for IR

pass-through device control (_ pages 12 and 15).

•ColorMaster'" allows you to adjust the TV's standard

colors. The menu for this feature has a unique "black"

design to enhance contrast while you're adjusting the color

(_ page 63).

•ClearFrame*" 120Hz anti-blur feature (_ page 62).

•Channel Browser'" allows you to easily navigate between

all channels and inputs (_ page 42).

• Favorites Browser allows you to easily navigate between

your favorite channels and inputs (_ page 42).

•Channel Tuning Mode allows you to choose how tuning

will be handled for over-the-air analog and digital channels

(_ page 44).

•GameTimer ®allows you to set a time limit for input source

access (_ page 55).

Overviewof steps for installing,

setting up, and usingyour new TV

Follow these steps to set up your TV and begin using its many

exciting features.

1Observe the following when choosing a location for the

TV:

• Read "Important notes about your LCD TV"

(_ page 6).

• Place the TV in a proper location (_ pages 2-5)

2Do not plug in any power cords until AFTER you have

connected all cables and devices to your TV.

3BEFORE connecting cables or devices to the TV, learn

the functions of the TV's connections and controls

(_ pages 10-11).

4 Connect your other electronic device(s) to the TV

(_ pages 12-19).

5See "Chapter 3: Using the remote control" (_ page 20)

for an overview of the buttons on the remote control,

install the batteries and prepare to operate your other

device(s).

6AFTER connecting all cables and devices, plug in the

)ower cords for your TV and other devices.

7

8

9

10

11

Note: After you turn on the TV, the Menu

Language selection and Demo Mode selection

menus appear automatically by default.

You can turn off the On-Screen demonstration

mode by setting the Demo Mode to Off.

(_ page 35).

See "Menu layout and navigation" for a quick overview of

navigating the TV's menu system (_ page 33).

Program channels into the TV's channel memory

(_ page 36).

For details on using the TV's features, see Chapters 6

and 7.

For help, refer to the Troubleshooting Guide, see

Chapter 8.

For technical specifications and warranty information, see

Chapter 9.

TV front and side panel controlsand connections

Model 42XV540U is used in this manual for illustration purposes.

TVfront

1

Remote sensor-- Point the remote control toward this

remote sensor.

Effective range:

16.4 ft (5m)

Green and Yellow LEDs

Green: See "LED indications" on page 67.

Yellow = Power-On Mode indicator (_g:""Selecting the

Power-On Mode" on page 40)

See "LED indications" on page 67 for additional

information.

VIDEO-2 IN -- The side panel A/V connections are

referred to as "VIDEO 2" and include standard A/V

connections.

POWER -- Press to turn the TV on and off.

If the TV stops responding to the controls on the remote

control or TV control panel and you cannot turn off the

TV, press and hold the POWER button on the TV control

panel for 5 or more seconds to reset the TV.

Rightsidepanel

POWER

-D

_8

--10

--11

12

5

6

7

8

9

10

11

12

Controlpanel

ARROWS Ay• • -- When a menu is on-screen, these

buttons function as up/down/left/right menu navigation

buttons.

MENU (ENTER) -- Press to access the menu system

(_ page 33). When a menu is on-screen, the MENU

button on the TV's control panel functions as the ENTER

button.

EXIT -- Press to instantly close an on-screen menu.

CHANNEL Al!' -- When no menu is on-screen, these

buttons change the channel (programmed channels only;

page 36).

VOLUME • • -- These buttons adjust the volume level.

INPUT -- Repeatedly press to change the source you are

viewing (ANT/CABLE, VIDEO 1, VIDEO 2,

ColorStream HD1, ColorStream HD2, HDMI 1,

HDMI 2, HDMI 3, HDMI 4, PC).

HDMI TM IN -- High-Definition Multimedia Interface

(HDMI 4) input receives digital audio and uncompressed

digital video from an HDMI device or uncompressed

digital video from a DVI device. HDMI connection is

necessary to receive 1080p signals.

Service port -- For service use only. Used for updating

the television's firmware.

10

TV back panel connections

For an explanation of cable types and connections, see pages 12-19.

[,oO,%T>]

HDMI IN --

Haml

1 2 3_

I

r- OUT--1

5 6 7 8

TVback

®

ANT/C

9

Power cord

Cable Strap

3

4

5

DIGITAL AUDIO OUT-- Optical audio output in Dolby

Digital or PCM (pulse-code modulation) format for

connecting an external Dolby Digital decoder, amplifier,

A/V receiver, or home theater system with optical audio

input.

HDMF' IN -- High-Definition Multimedia Interface

input receives digital audio and uncompressed digital

video from an HDMI device or uncompressed digital

video from a DVI device. HDMI connection is necessary

to receive 1080p signals.

PC IN -- For use when connecting a personal computer.

PC/HDMI 1 (AUDIO) IN -- PC audio input terminal is

shared with HDMI 1 analog audio input terminal, and its

use can be configured in the Audio Setup menu

(_ page 57).

COLORSTREAM HD1 and COLORSTREAM HD2

-- Two sets of ColorStream ®high-definition component

video inputs (with standard stereo audio inputs) for

connecting devices with component video output, such as

a Toshiba DVD player with ColorStream ®.

Note: Component video cables carry only video

information; separate audio cables are required for a

complete connection.

6

8

9

VIDEO 1IN -- Standard (composite) video and standard

audio inputs plus optional S-video inputs for connecting

devices with composite video or S-video output.

Note: Standard (composite) video and S-video cables

carry only video information; separate audio cables are

required for a complete connection.

FIXED AUDIO OUT -- Analog audio outputs for

connecting an audio amplifier.

IR OUT -- For controlling infrared remote-controlled

devices through the TV. You can connect up to two

devices with an optical IR blaster cable (_g:"page 12), and

then control the devices using the TV's IR pass-through

features.

ANT/CABLE -- RF input that supports analog (NTSC)

and digital (ATSC) off-air antenna signals and analog and

digital Cable TV (QAM) signals.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby

Laboratories.

11

Overviewof cable types

Cables can be purchased from most stores that sell audio/video

devices. Before purchasing any cables, be sure of connector

types required by your devices and the length of each cable.

Coaxial (F-type) cable

Coaxial (F-type) cable is used for connecting your antenna,

cable TV service, and/or cable converter box to the ANT/

gABLE input on your TV.

Standard A/V cables (red/white/yellow)

@

Standard A/V cables (composite video) usually come in sets of

three, and are for use with video devices with analog audio and

composite video output. These cables (and the related inputs

on your TV) are typically color-coded according to use: yellow

for video, red for stereo right audio, and white for stereo left

(or mono) audio.

S-video cable

S-video cable is for use with video devices with S-video

output. Separate audio cables are required for a complete

connection.

Note: An S-video cable provides better picture performance

than a composite video cable. Ifyou connect an S-video cable,

be sure to disconnect the standard (composite) video cable or

the picture performance will be unacceptable.

Componentvideo cables (red/green/blue)

,_,

Component video cables come in sets of three and are for use

with video devices with component video output.

(ColorStream 0_is Toshiba's brand of component video.) These

cables are typically color-coded red, green, and blue. Separate

audio cables are required for a complete connection.

Note: Component video cables provide better picture

performance than a standard (composite) video or S-video

cable.

HDMrMcable (with HDMI Logo"HDmI")

HDMI (High-Definition Multimedia Interface) cable is for use

with devices with an HDMI output. An HDMI cable delivers

digital audio and video in its native format. This cable carries

both video and audio information; therefore, separate audio

cables are not required for a complete HDMI device

connection (_ pages 16, 17 and 19).

Note: HDMI cable provides better picture performance than a

standard (composite) video or S-video cable.

Dual-wand IR blaster cable

Dual-wand IR blaster cable is for use with video devices with

IR (infrared) remote control. This cable can be used with the

TV's IR pass-through feature (_ page 15).

To obtain IR blaster cable:

Visit http://ceaccessories.toshiba.com/

Optical audio cable

Optical audio cable is for connecting receivers with Dolby

Digital or PCM (pulse-code modulation) optical audio input to

tile TV's DIGITAL AUDIO OUT terminal (_ page 18).

AnalogRGB(15-pin) computercable

Analog RGB (15-pin) computer cable is for connecting a PC to

the TV's PC IN terminal (_ page 19).

Note: Separate audio cables are required for a complete

connection.

Aboutthe connection illustrations

You can connect different types and brands of devices to your

TV in several different configurations. The connection

illustrations in this manual are representative of typical device

connections only. The input/output terminals on your devices

may differ from those illustrated herein. For details on

connecting and using your specific devices, refer to each

device's owner's manual.

12

Connectinga VCR(or a VCRwith S-video)andantenna, Cable TV or

Camcorder

Camcorder

[ Ago'T°.....

_VIDEO2 inputs

onTVrightsidepanel

£oEol

TVupperbackpanel

/

TVlowerbackpanel

S-video cable

or

Standard

AA/cable

Audio cable

From Cable TV

or antenna

Stereo VCR

From Cable TV

Cable box i

iCH3IN CH4_ OUT

I

I

,|

You will need:

•coaxial cables

• standard A/V cables

-For better picture performance, if your VCR has S-video,

use an S-video cable (plus the audio cables) instead of

the standard video cable.

-For better picture performance, if your camcorder has

S-video, connect an S-video cable (plus the audio cables)

to VIDEO 1on the TV back instead of the VIDEO 2on the

TV right side pane/.

-If you have a mono VCR, connect I./MONO on the TV to

your VCR's audio out terminal using the white audio cable

only.

• S-video cable (if your VCR or camcorder has S-video)

-Do not connect both types of video cable to VIDEO 1 at

the same time or the picture performance will be

unacceptable.

• standard audio cables (if your VCR or camcorder has

S-video)

Note: When you use a Cable box, you may not be able to use

the remote control to program or access certain features on the

TX

To view the antenna or Cable signal:

Select the ANT/CABLE video input source on the TV.*

To view basic and premium Cable channels:

Turn OFF the VCR. Select the ANT/CABLE video input

source on the TV.* Tune the TV to channel 3 or 4 (whichever

channel the Cable box output is set to). Use the Cable box

controls to change channels.

To view the VCR:

Turn ON the VCR. Select the VIDEO 1 video input source on

the TV.*

To view the camcorder video:

Select the VIDEO 2 video input source on the TV.*

* To select the video input source, press INPUT on the remote control

(E_ page 21 ). To program the TV remote control to operate other

devices, see Chapter 3.

The unauthorized recording, use, distribution, or revision of

television programs, videotapes, DVDs, and other materials is

prohibited under the Copyright Laws of the United States and

other countries, and may subject you to civil and criminal

liability.

13

inga DVD......... iorst VideO),a VCR,...........................................

and a satellite receiver

Your TV has two sets of ColorStream ®(component video) inputs.

0+-,

@

COMPONENTVIDEO S-VIDEO VIDEO

OUT OUT

DVDplayer with componentvideo

TVupperbackpanel

_L_mu

From satellite dish

Satellitereceiverwithcomponentvideo TVlowerhackpanel

Stereo VCR

From antenna

You will need:

coaxial cables

standard A/V cables

-For better picture performance, if your VCR has S-video,

use an S-video cable (plus the audio cables) instead of

the standard video cable. Do not connect both types of

video cable to VIDEO 1 at the same time or the picture

performance will be unacceptable.

-If you have a mono VCR, connect L/MONO on the TV to

your VCR's audio out terminal using the white audio cable

only.

standard audio cables

component video cables

-You can connect the component video cables (plus audio

cables) from the DVD player or satetfite receiver to either

set of ColorStream terminals on the TV (HD 1or HD2). The

ColorStream HD1 and HD2 terminals can be used to

display Progressive (480p, 720p) and Interlaced (480L

1080i). Please check the Owner's Manual of the DVD

player or satellite in order to determine the best output

signal available (1080[) is not supported).

-If your DVD player or satellite receiver does not have

component video, connect a standard A/V cable to

VIDEO 2 on the side panel. If your DVD player has HDMI

video, see page 16.

To view antenna or Cable channels:

Select the ANT/CABLE video input source on the TV.*

To view the DVD player:

Turn ON the DVD player. Select the ColorStream HD1

video input source on the TV.*

14

To view satellite programs using the component video

connections:

Turn on the satellite receiver. Select the ColorStream HD2

video input source on the TV.*

To view the VCR or view and record antenna

channels:

Turn ON the VCR. Tune the VCR to the channel you want to

watch. Select the VIDEO 1 video input source on the TV.*

To record a TV program while watching a DVD:

Turn ON the VCR. Tune the VCR to the channel to record.

Select the ColorStream HD1 video input source on the TV*

to view the DVD.

* To select the video input source, press INPUT on the remote control

(_+ page 21 ). To program the TV remote control to operate other

devices, see Chapter 3.

The unauthorized recording, use, distribution, or revision of

television programs, videotapes, DVDs, and other materials is

prohibited under the Copyright Laws of the United States and

other countries, and may subject you to civil and criminal

liability.

Connectinga device to the IR OUT

infrared terminal usingthe IR

blaster cable for IR pass-through

device control

You can use the TV's IR OUT terminal (infrared pass-

through) to remotely operate (through the TV) many infrared

remote-controlled devices (such as Toshiba infrared remote-

controlled VCRs or DVD players) enclosed within an

entertainment center or similar cabinet. Without the IR OUT

connection, the device typically would need to be visible to

operate it remotely.

You will need:

• dual-wand IR blaster cable (_g:"page 12)

• other audio/video cables as required to connect the device(s)

to the TV (_g:"pages 13-17)

Frontof IR-controlled DVD player (for example)

Frontof IR-controlledaudio device(for example)

Infrared

sensor

[

,,€

IR blaster cable wand

(approx.1 inch from device)

TV upperbackpanel

I:> QI ol

I l®l ®l(©l

OUT,_

To connect the IR blaster cable:

1

2

Locate the infrared sensor on the front of your device.

This sensor is marked on some devices.*

Align one of the IR blaster cable's wands about 1 inch

away from the infrared sensor on the front of the device

and attach it using double-sided mounting tape. If you

have a second device, attach the second wand in a similar

manner. (See illustration.)

Note: Ifyou do not have a second device, coil the second

wand with a rubber band and leave it behind the TV.

3Plug the IR blaster cable's plug into the TV's IR OUT

terminal.

To control the device(s):

Point either the device's remote control or the TV remote

control (that you previously programmed to operate the

device; _ Chapter 3) toward the front of the TV and press the

button for the desired function. The signal passes from the

remote control through the TV to the device via the IR blaster

cable.

Note:

•If you use the device's remote control to operate the device,

you also will need to use the TV's remote control to operate

the T_/

• The IR pass-through feature does not support all

In-controlled devices; satisfactory performance may not be

attainable with certain devices.

""If

1

2

3

4

5

you cannot locate the device's infrared sensor:

Turn OFF the device.

Starting at the lower left corner of the device, place the

end of the device's remote control (with the infrared

emitter) so it touches the front of the device and press

POWER. (Do not use the TV's remote control for this

step.)

If the device turns on, the point at which the remote

control touched the device is the location of the sensor.

If the device does not turn on, move the remote control

slightly to the right and press POWER again.

Repeat step 4 until you locate the device's infrared

sensor.

15

inganHDM 0r Dvidevice

to the HDMIinput

The HDMI input on your TV receives digital audio and

uncompressed digital video from an HDMI source device, or

uncompressed digital video from a DVI (Digital Visual

Interface) source device.

This input is designed to accept HDCP (High-Bandwidth

Digital-Content Protection) program material in digital form

from EIA/CEA-861 -D-compliantI_ Iconsumer electronic

devices (such as a set-top box or DVD player with HDMI or

DVI output).

The HDMI input can accept and display VGA, SVGA, XGA,

WXGA, SXGA, 480i (60Hz), 480p (60Hz), 72% (60Hz),

1080i (60Hz), and 1080p (24Hz/60Hz) signal formats. For

detailed signal specifications, see page 69.

Supported Audio format: Linear PCM, sampling rate 32/44.1/

48 kHz

Note:

•To connect a PC to the HDMI input, see page 19.

• Some of legacy HDMI sources may not work properly with

your latest HDMI TV, due to new standard adoption. Please

try setting the following three options (Lip-Sync Latency,

Deep Color, x. v.Color) to Off. Your legacy HDMI source

should operate properly with your TV. See page 69.

• Supported Audio format : Linear PCM, sampfing rate 32/

44.1/48kHz

To connect an HDMI device, you will need:

•one HDMI cable (type A connector) per HDMI device

-For proper operation, it is recommended that you use an

HDMI cable with the HDMI Logo (H.-trnl ).

-To display an 1080p/6OHz signal format, you will need a

High Speed HDMI cable. Conventional HDMI/DVI cable

may not work properly.

-HDMI cable transfers both video and audio. Separate

analog audio cables are not required (see illustration).

-See "Setting the HDMI TMaudio mode" (=r_,,page 39).

TVupperbackpanel TVrightsidepanel

I

"DML2vice.....

_@)................. i _,= _.......

To view the HDMI device video:

Select the HDMI 1, HDMI 2, HDMI 3, or HDMI 4 video input

source on the TV.*

* To select the video input source, press INPUT on the remote control

(r_ page 21 ). To program the TV remote control to operate other

devices, see Chapter 3.

To connect a DVI device, you will need:

• one HDMI-to-DVI adapter cable (HDMI type A connector)

per DVI device

-For proper operation, the length of an HDMI-to-DV/

adapter cable should not exceed 9.8 ft (3m). The

recommended length is 6.6 ft (2m).

• one pair of standard analog audio cables per DVI device

-An HDMI-to-DVI adapter cable transfers video only.

Separate analog audio cables are required (see

illustration).

-See "Setting the HDMf _audio mode" (_," page 39).

TVupperbackpanel

IN IN _IN

'®,¢

.... I I

DVI dev!ce .... ZF ======__

® ®--

Note: To ensure that the HDMI or DVI device is reset properly,

it is recommended that you follow these procedures:

• When turning on your electronic components, turn on the

TV first, and then the HDMI or DVI device.

• When turning off your electronic components, turn off the

HDMI or DVI device first, and then the TV.

[1] EIA/CEA-861-D compliance covers the transmission of

uncompressed digital video with high-bandwidth digital content

protection, which is being standardized for reception of high-

definition video signals. Because this is an evolving technology, it

is possible that some devices may not operate properly with the TV.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

16

REGZA-LINKconnection

You can control the basic functions of connected audio/video devices using the TV's remote control if you connect a

REGZA-LINK compatible audio receiver or playback device. For an explanation of setup and operations, see pages 57 and 58.

TVupperbackpanel

Audioreceiver

HDMI IN

IN N

TVrightside panel

Playbackdevice

(REGZA-LINKHDDVDplayer,etc.)

.......................I

Playbackdevice

(REGZA-LINKHDDVDplayer,etc.)

To connect an Audio Receiver and Playback Devices,

you will need:

• HDMI cables (_g:" page 16)

Note:

•if several devices are connected, REGZA-L/NK feature may

not operate properly.

• For proper operation, it is recommended that you use HDMI

cables with the HDMI Logo (H;_ml).

Before controlling the device(s):

• After completing the above connections, set the REGZA-

LINK Setup menu as you desire (_ page 59).

• The connected devices must also be set. For details, see the

operation manual for each device.

• The REGZA-LINK feature uses the CEC technology as

regulated by the HDMI standard.

• This feature is limited to models incorporating Toshiba's

REGZA-LINK. However, Toshiba is not liable for those

operations. Refer to the individual instruction manuals for

compatibility information.

17

Connectinga digital audio system

The TV's DIGITAL AUDIO OUT terminal outputs a Dolby ®_

Digital u,u_ or 2-channel down-mixed PCM (pulse-code

modulation) signal for use with an external Dolby <'_Digital

decoder or other external audio system with optical audio

input.

You will need:

•optical audio cable (Use an optical audio cable that has the

larger "TosLink" connector and not the smaller "mini-

optical" connector.)

TVupperbackpanel_

To control the audio:

1Turn on the TV and the digital audio device.

2Press _ on the TV's remote control and open the

Audio menu.

3Highlight Audio Setup and press _.

4In the Optical Output Format field, select either

Dolby Digital or PCM, depending on your device

(_:_ "Selecting the optical audio output format" on

page 52).

HDMI 1 Audio Auio ................................

Language

Dolby Digital Compressed

Note:

•Some audio systems may not be compatible with Do/by

Digital bitstream signals. Older audio systems that are not

compatible with standard optical out signals may not work

properly, creating a high noise level that may damage

speakers or headphones. THIS DAMAGE IS NOT COVERED

BY YOUR WARRANTX

• The DIGITAL AUDIO OUT terminal may not output some

digital audio sources because of copy restrictions.

_',_Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby

Laboratories.

Connectingan audiosystem

This connection allows you to use external speakers with an

external analog audio amplifier to adjust the sound level.

You will need:

• standard audio cables

TVupperbackpanel

To control the audio:

1Turn on the TV and the stereo amplifier.

2Minimize the sound volume from the TV's built-in

speakers and control the volume level using the

amplifier's remote control.

18

Connectinga personalcomputer

(PC)

With either the PC IN or HDMI connection, you can watch

your computer's display on the TV and hear the sound from the

TV' s speakers.

To connect a PC to the PC IN terminal on the TV:

When connecting a PC to the PC IN terminal on the TV, use an

analog RGB (15-pin) computer cable and a PC audio cable.

TVupperbackpanel

'fE,

IN IN _IN

I V_i_1 "

o¢

®

iL_I_ I_'_

Computer

Conversion adapter

(if necessary)

•To use a PC, set the monitor output resolution on the PC

before connecting it to the TV. The PC IN terminal can

accept and display VGA, SVGA, XGA, WXGA, and SXGA

signal formats. For detailed signal specifications, see page

69.

•To display the optimum picture, use the PC setting feature

(_ "Using the PC settings feature" on page 56).

Note:

•The PC audio input terminal on the TV is shared with the

HDMI 1 analog audio input terminal (r_" page 57).

• Some PC models cannot be connected to this TV.

• An adapter is not needed for computers with a compatible

mini D-sub 15-pin terminal.

• Depending on the DVD's title and the specifications of the

PC on which you are playing the DVD-Video, some scenes

may be skipped or you may not be able to pause during

multi-angle scenes.

Signal names for mini D-sub 15-pin connector

1 R

2 G

3 B

4 NC *

5 NC

•NC=Not connected

6 Ground 11 NC

7 Ground 12 NC

8 Ground 13 H-sync

9 NC 14 V-sync

10 Ground 15 NC

To connect a PC to the HDMI terminal on the TV:

When connecting a PC to the HDMI terminal on the TV, use

an HDMI-to-DV 1 adapter cable and an analog audio cable.

If connecting a PC with an HDMI terminal, use an HDMI cable

(type A connector). Separate PC audio cable is not necessary

(r_ page 16).

TVupperbackpanel

iD2

I I :lXI_

_l PC audio

cable

Computer

PC audio

output

The HDMI input can accept and display VGA, SVGA, XGA,

WXGA, SXGA, 480i (60Hz), 480p (60Hz), 72% (60Hz),

108@ (60Hz), and 1080p (24Hz/60Hz) signal formats. For

detailed signal specifications, see page 69.

Note:

• The edges of the images may be hidden.

• If receiving a 480i (HDMI), 480p (HDMI), 720p, 1080i, or

1080[) signal program, Native mode scales the video to

display the entire picture within the borders of the screen

(i. e. no overscanning).

19

Preparingthe remote control

for use

Your TV remote control can operate your TV and many other

devices such as cable converter boxes, satellite receivers,

VCRs, DVD players, and HTIBs (home theater in a box), even

if they are different brands.

If you have a Toshiba device:

Your TV remote control is preprogrammed to operate most

Toshiba devices (_ page 24).

If you have a non-Toshiba device or a Toshiba device

that the remote control is not preprogrammed to

operate:

You can program the TV remote control so it will operate the

other device (_ pages 22-32).

Installing the remote control

batteries

1Slide the battery cover off the back of the remote control.

2Install two "AA" size alkaline batteries. Match the + and

- symbols on the batteries to the symbols on the battery

compartment.

3Slide the battery cover on to the remote control until the

lock snaps.

Caution: Batteries must not be exposed to excessive heat

such as sunshine, fire or the like.

Note:

•Be sure to use AA size alkaline batteries.

• Dispose of batteries in a designated disposal area.

• Batteries should always be disposed of with the

environment in mind. Always dispose of batteries in

accordance with appficable laws and regulations.

• If the remote control does not operate correctly, or if the

operating range becomes reduced, replace batteries with

new ones.

• When necessary to replace batteries in the remote control,

always replace both batteries with new ones. Never mix

battery types or use new and used batteries in combination.

• Always remove batteries from the remote control if they are

dead or if the remote control is not to be used for an

extended period of time. This will prevent battery acid from

leaking into the battery compartment.

2O

Learningabout the remote control

The buttons used for operating the TV only are described here.

For the REGZA-LINK remote control functions, see the

section "Using REGZA-LINK" (_ page 57). For a complete

list of the remote control's functions, see the remote control

functional key chart (_ pages 22-23).

2

3

m4

6

9

13--

16

+10

DVDRTN

IIII 5

7

--10

11, 12

14

15

--18 19

22 I_ _ .... 23

TOSHIBA

CT-90303

Note: The error message "Not Availab/e" may appear if you

press a key for a function that is not available.

1SLEEP accesses the sleep timer (_' page 57).

2POWER turns the TV on and off. When the TV is on, the

green LED indicator on the TV front will be illuminated.

4

MODE SELECT sets the five remote control device modes:

TV, CABLE/SAT, HD DVD, DVD, and VCR/PVR. Press

TV until the keypad blinks 3 times to control the TV.

The selected MODE key blinks each time any key is pressed.

(_' page 24). When the Auto Input feature is set, these keys

can also be used to change inputs on the TV (_'_v'page 37).

Channel Numbers (0-9, -1100) directly tune

channels. The @ button is used to tune digital channels

(_' page 44) or to edit the Favorite List (_' page 42).

5INPUT selects the video input source (_' page 41).

6FAV BROWSER accesses the Favorites List in the

Channel Browser'" (_' page 42).

8

9

10

11

12

MENU accesses the main TV menu system (_' pages 33

and 34).

ENTER activates highlighted items in the main menu system.

THINC accesses the THINC menu (_' page 33).

PAGE + / - are used for paging up and down in channel

lists.

i_ </_i • While watching TV, these buttons open the

Channel Browser '_'and tune to the previous/next channel

in the channel history (_ page 43). (Also see "Arrow

buttons.")

Arrow buttons (AV< •) When a menu is on-screen,

these buttons select or adjust programming menus. (Also

see i_ • /_i •.)

13 VOL + -adjusts the volume level.

14 CH At' cycles through programmed channels when no

menu is on-screen (_' page 36).

15

16

EXIT closes on-screen menus.

INFO displays TV status information as well as program

details, when available (_ page 60).

17 MUTE reduces or turns off the sound (u_:"page 50).

18 OH RTN returns to the last viewed channel or source

(_ page 45).

19 RECALL displays TV status information (_ page 60).

20 C.CAPTION opens the closed caption/audio selector

screen. (The audio selector is not available for analog

channels.) (_ page 49.)

21 PIG MODE selects the picture mode (_ page 48).

22 FREEZE freezes the picture. Press again to restore the

moving picture.

23 PIG SIZE cycles through the picture sizes: Natural,

TheaterWide 1/2/3, Full, 4:3 HD, Native, and Dot by

Dot (_' page 45).

21

RemoteControlfunctional key chart

.... ti

in!"'i t¸¸I

K_i!lliiIiiiiiii/i!!

.....!!!_ ,,,,,,!.......

_i!i!i_i_!iiiiiiii_iili!iiiii!ii';iiii

....!_,,,!!!i!!!_!,,,!i!,,i,,_,!,,!!_,....

i!!!!_!,ili!!i!!!!!!!_!!!'i!!_i!!!,_i!!,!i!_,!!!!!!,!!!!!!!!!!....

,i!_,,i,,!_!!!!!!!!!!_!,,!!!!!!!!!!!:!....

,N!!:!!!!!!!!!!!_!!!!_,!_!!_!!!,!i!,,!,,!!!!!!!!!!!i!!!!!!,!!,!,

i i!!!i,!_,!!,!_,!!!,!!!!!!!!....

,,_!!!!!!,,!!!!!!!!!_:!!!!,!,!!,,!!!!!!!!!!

.....!!!_!!!!i!_:!!!:!!i! !

i i iiiiil,!iii_i!i,i_,i_,iii,i_,ii!!

....

iiii_iiiii!!iiiiii_i_i!!i_iIiiiiiIiiiii!!iii;_ii_iiiiiii_iiiiiiiiiiiii_iiiiiiii!!!ii_i_iiii

iiiiii_iiii_iiiiiii!iiHi!iiit!_iil!_i!;iiii/iiiiiii_i

iii_¸_¸__ _i i

iiiiii_iiii_iii1i!_{iiiiii1ii!i_iiii}_ii!iiiiii_iii1ii!!i!{!{ii!!iiiiiiiiiIi_iiiiiiiIiiiiiiiiii_{ii_i1i_iii1iiiiii{ii_iiiii!i!!!iii!i!!iiiiiii}_iiii_ii:_i_iiiiiiiii ..........................................................................

(TV) Sleep (TV) Sleep (TV) Sleep (TV) Sleep (TV) Sleep (TV) Sleep (TV) Sleep (TV) Sleep (TV) Sleep

Remote control device mode selection

Power

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Digit 0

- (digital

separator)

(TV) Input

Menu

select up

Menu

select

down

Menu select

leftMght/

"&Back

_;;Next

Enter

FAV

BROWSER

Power

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Digit 0

(TV) Input

Menu

select up

Menu

select

down

Menu select

lefl/right

Enter

Power

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Digit 0

- (sub CH)

(TV) Input

Menu

select up

Menu

select

down

Menu select

left/right

Select/

Enter

Power

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Digit 0

10

(TV) Input

Menu

select up

Menu

select

down

Menu select

lefl/right

Power

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Digit 0

10

(TV) Input

Menu

select up

Menu

select

down

Menu select

leflMght

Enter

Power

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Digit 0

- (digital

separator)

(TV) Input

Menu

select up

Menu

select

down

Menu select

lefl/right

Action,

lilenu

THINC

SAT Guide

Guide page

up/down

Volume

up/down*l

Channel

up/down

Exit

Mute*l

Info

(TV)

Display

Enter

DVD setup

DVD menu

Top menu

Page up/

down

(TV)

Volume

up/down

DVD setup

DVD menu

Top menu

Enter

DVDsetup

Power

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Digit 0

- (digital

separator)

(TV) Input

Menu

select up

Menu

select

down

Menu select

lefl/right

Enter

DVDsetup

Power

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Digit 0

100

(TV) Input

Power

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Digit 0

(TV) Input

Menu

select up

Menu

select

down

Menu select

lefl/right

Enter

iiii iiiiiW iiiiiii!l iiliiiilMenu DVDmenuDVDmenu

iii_@ THINC Topmenu Topmenu

Cable

lnenu

THINC

Cable

Guide

Cable page

up/down

Volume

up/down*_

DVD TV

Guide

Guide page

up/down

DVD TV

Guide

Guide page

up/down

iiii_ii_ii_ii{{_i_:i:iii_ii!ii!i_ii_i_i!_ii_i!_i_iiiIii_ii_i_iii_!!iIg_iiiiiiiii_i_i_

iiiii:!i_ (TV) Volume Volume

Volume up/down. _ up/down. _

____________________________________________________________________________________________________________.... up/down

Guide

Page up/

down

Volume

up/down*_

Channel

up/down

Channel

up/down

DVD

Channel

up/down

DVD

Channel

up/down

Channel

up/down

Exit Exit DVD clear DVD clear

DVD clear

(TV)

Mute*_

Display

(TV)

Display

Mute*_

Guide hffo

Display

THINC

Volume

up/down*_

Channel

up/down

Mute*_

(TV)

Display

Mute*3

InIi_

(TV)

Display

Mute*_

Display

(TV)

Display

DVD clear

(WV)

Mute*_

Display

(TV)

Display

Mute*3

Display

(TV)

Display

Menu

THINC

Guide

Volume

up/down*_

Channel

up/down

Exit

Mute*_

InIi_

(TV)

Display

22

ii_iN!_ii_!iNi iiiii _I

_E

Last

Channel

N@N

!?:::)??: Pause

Play

stop

SkipREW/

....................................................................................................................Day-

SkipFWD/

....................................................................................................................Day +

Rewind

FF

cC.Caption

ii 2RUGmenu

click)

@

N:

ii :ii ;:

??)

N:

Last

Channel

Cable

Pause

Cable Play

Cable Stop

Cable SAT

Rewind Rewind

Cable FF SAT FF

Last

Channel

SAT Pause

SAT Play

SAT Stop

DVD RTN

Pause/Step

Play

Stop

Skip REW

Skip FWD

Rewind

Fast FWD

DVD RTN DVD RTN

Pause

Play

Stop

Skip REW

Skip FWD

Rewind

Fast FWD

Pause

Play

Stop

Skip REW

Skip FWD

Rewind

FWD

TV/VCR.... TV/SAT

Cable SAT Record Record

Record Record .... (Double (Double

(Double (Double click) click)

click) click)

Resume Resume

Play Play

Slow/Dir + .......... Slow FWD Slow FWD Slow FWD

(TV) (TV) (TV) (TV) (TV) (TV)

Picture Picture Picture Picture Picture Picture

mode mode mode mode mode mode

(YV) (YV) (YV) (YV) (YV) (YV)

Freeze Freeze Freeze Freeze Freeze Freeze

(YV) (YV) (YV) (YV) (YV) (YV)

Picture size Picture size Picture size Picture size Picture size Picture size

....................... DVD/VCR

DVD RTN

Pause

Play

Stop

Skip REW

Skip FWD

Rewind

FWD

DVD

Record

(Double

click)*a

Slow FWD

(TV)


mode

(YV)

Freeze

(YV)

Picture size

Pause Pause

Play Play

Stop Stop

Rewind Rewind

FWD FWD

TV/VCR Reverse

Record Record

(Double (Double

click) click)

Slow FWD Slow FWD

(TV) (TV)

Picture Picture

mode mode

(YV) (YV)

Freeze Freeze

(YV) (YV)

Picture size Picture size

..... Replay

Note:

• "---" =key does not send a signal in that remote control mode.

*_ Volume will affect the TV by default. When the volume is unlocked, all the devices will have their own volume if their ID has volume data. See

"Using the volume lock feature" (r_ page 25).

*2 DVD : REC is only for DVD Recorder, no function is picked for DVD Player.

23

Usingthe remote controlto operate

your other devices

Your TV remote control has one dedicated TV mode and four

programmable multi-brand modes: CABLE/SAT, HD DVD,

DVD, and VCR/PVR. The default device modes and

programmable device modes are listed below.

Note: The TV remote control is preprogrammed to operate

most Toshiba devices. To operate a non-Toshiba device or a

Toshiba device that the remote control is not preprogrammed

to operate, you will need to program the remote control. See

"Programming the remote control to operate your other

devices" (at right).

TV Toshiba TV

CABLE/SAT Toshiba Satellite receiver

HD DVD Toshiba HD DVD Player

DVD Orion DVD

VCR/PVR Toshiba VCR

TV Toshiba TV

CABLE/SAT

HD DVD Multi-brand video/audio devices

DVD

VCR/PVR

Note: Although your new TV's remote control includes codes

for many devices, it may not include codes for some or all of

the features on certain devices you wish to control. If you are

unable to program the TV's remote control to operate your

device or some of the features on that device, use the device's

remote control or the controls on the device.

Programmingthe remote controlto

operate your other devices

Device code setup

1

2

3

4

Find the code for your device brand in the remote control

device code table on pages 26-32.

If more than one code is listed, try each one separately

until you find one that works.

Press the applicable mode select button (CABLE/SAT,

HD DVD, DVD, or VCR/PVR), until the mode select

button blinks 3 times.

While holding down @, press the five-digit device code

for your device.

• If a valid code is entered, the mode select button will

blink twice.

• If an invalid code is entered, the mode select button will

blink one long blink.

Point the remote control at the device and press P%ERto test

the code.

• If the device responds to the remote control, you have

entered the correct code.

• If the device does not respond to the remote control,

repeat steps 3 and 4 using another code.

Note: After programming the remote control, make sure

all necessary keys on the TVremote control (in addition to

P_E,)operate your device. If some keys are not

operational, repeat the device code setup using another

code (if other codes are listed for your device). If, after

trying all listed codes, the necessary keys do not operate

your device, use the device's original remote control.

5To control the TV, press the "TV" mode select button.

Note:

• Although the TV remote control includes codes for many

devices, it may not include codes for some or all of the

features on certain devices you want to control. If you are

unable to program the TV remote control to operate your

device or some of the features on that device, use the

device's original remote control (or the control buttons on

the device).

• Every time you change the batteries you will need to

reprogram the remote control.

• Some newer VCRs respond to either of two codes. These

VCRs have a switch labeled "VCR 1/VCR2." If your VCR has

this kind of switch and does not respond to the codes for

your VCR brand, set the switch to the other position ("VCR 1"

or "VCR2") and reprogram the remote control.

24

Searching and sampling the code of a

device(8500)

If you do not know tile device code for a particular device, you

can cycle the remote control through the available codes for

that device mode and sample the functions to find the code that

operates the target device. The keys available to be sampled,

provided they are applicable to that mode, are PO_ER,1, [;{_,_),

and _. Invalid keys will be ignored while in program mode.

To cycle through each available device code and

sample its functions:

1

2

3

4

Press the appropriate mode select button on the remote

control.

While holding down _, press 8, 5, 0, 0. The remote

control will enter program mode.

Point the remote control at the target device and press P_ER

(or other function buttons that are available to be

sampled).

If the device responds to the remote control:

Press _ to store the device code. The mode select

button will blink two times and the remote control will

exit the program mode.

If the device does not respond to the remote control:

Press A, and then press _. Repeat this step until the

device responds to the remote control, and then press

Note: When a search cycle is completed, the mode select

button will blink three times. The remote control will begin

to cycle through the available codes again. If no key is

pressed within 10 seconds during programming, the

remote control will exit the program mode and return to the

previous code.

Usingthe volume lock feature (8000)

By default (factory setting), tile remote control's volume keys

(I;{__ and _) are locked to tile "TV" device mode.

The remote control will operate the TV's volume, even when

"TV" is not the current device mode.

If you unlock the remote control's volume keys, each device

mode will have its own volume (if the device ID has volume

data). The remote control will operate the volume of the device

associated with the current device mode.

If you lock the remote control's volume keys to a specific

device mode, the remote control will operate the volume of the

device associated with the locked mode, even when the locked

mode is not the current device mode.

See "Using the remote control to operate your other devices"

on page 24.

To lock the remote control's volume keys to a specific

mode (CABLE/SAT in this example):

1

2

3

Press CABLE/SAT.

While holding down the @ button, press 8, 0, 0, 0.

Press (_{_.The CABLE/SAT mode select button will blink

two times (locked).

The remote control's volume keys will now operate the

volume of the device associated with the CABLE/SAT

mode, even when CABLE/SAT is not the current device

mode.

To unlock the remote control's volume keys:

1While holding down _, press 8, 0, 0, 0.

2Press _-_.The CABLE/SAT mode select button will blink

four times.

The CABLE/SAT mode will be unlocked.

Operational feature reset (8900)

This feature clears all programmed remote control features not

related to "Device code setup" and resets the volume lock to

the "TV" device mode.

To reset the remote control:

While holding down @, press 8, 9, 0, 0. The mode select

button will respond with four blinks.

25

Multi-brand remote

control device codes

TVs

Brand Code

Toshiba 01524

Cable boxes

Brand Code

A-Mark 10008, 10144

ABC 10237, 10003,

10008, 10014,

10017

Accuphase 10003, 10014,

10017

Acorn 10237

Action 10237

Active 10237

Americast 10899

Amino 11822

Archer 10237

BCC 10276

Bell & Howell 10014

Bell South 10899

British Telecom 10003

Century 10008

Citation 10017

Clearmaster 10883

ClearMax 10883

Cool Box 10883

Coohnax 10883

Digeo 11187

Digi 10637

Director 10476

Dumont 10637

Emerson 10014

Fosgate 10276

GE 10144

General Instrument 10476, 10810,

10276, 10003,

10012, 10014

Gibralter 10003

GMI 10883

GoldStar 10144

Hamlin 10009, 10273

Hitachi 10003, 10008,

10009

Insight 10476, 10810

Jebsee 10014

Jerrold 10476, 10810,

10276, 10003,

10012, 10014

Memorex 10000

Mitsubishi 10003

Motorola 11376, 10476,

10810, 10276,

11187, 11254,

10014, 11106

Multitech 10883

Myrio 11822

Nova Vision 10008

Novaplex 10008, 10017

26

NSC

Oak

Pace

Panasonic

Panther

Paragon

Penney

Philips

Pioneer

tS"ism

Pulsar

Quasar

RadioShack

RCA

Regal

Runco

Samsung

Scientific Atlanta

Sony

Sprucer

Starcom

Stargate

Storm

Supercable

Supermax

Thomson

Tocom

Torx

Toshiba

Tristar

United Cable

US Electronics

V2

Videoway

Viewmaster

Vision

Vortex View

Zenith

Satellite receivers

Brand

AlphaStar

Bell ExpressVu

Chaparral

Coolsat

Crossdigital

10012,

10017

11877,

10237,

10000,

10144,

10637

10000,

10525

10000,

11305,

11877,

10144,

10012

10000

10000

10883

11256

10276,

10273

10000

10003,

11877,

10477,

10003,

10008,

10017

11006

10144

10003,

10014

10637

10276

10883

11256

10012

10003

10000

10883

10276,

10014

10276,

10008,

10883

10000

10883

10883

10883

10000,

10899,

Code

10772

10775

10216

11806

11109

10637

10877,

10008

10008,

10107

10008,

10637

10317

10877,

10533

10279,

10144

10877,

10237,

10000,

10012,

10014

10003,

10003,

10017

10525,

10017

DirecTV

Dish Network System

Dishpro

Echostar

Expressvu

Fortec Star

Funai

GE

General Instrument

GOI

Hitachi

Houston

HTS

Hughes Network

Systems

Hmnax

hmova

Jerrold

JVC

LG

Magnavox

McIntosh

Menlorex

Mitsubishi

Motorola

Netsat

Next Level

Optimus

Panasonic

Pansat

Paysat

Philips

Pioneer

tS"imestar

tS"oscan

RadioShack

RCA

Samsung

SKY

Sony

11377,10392.

10566,10639.

11639,11142.

10247,10749.

11749,10724.

10819,11856.

11076,11108,

10099,11109,

11414,11442,

11609,11392,

11640

11505,11005,

10775,11170,

11775

11505,11005,

10775,11775

11505,11005,

10775,11170,

11775

10775,11775

11821

11377

10392,10566

10869

10775,11775

10749,10819

10775

10775,11775

11142,10749,

11749,11442

11790

10099

10869

10775,11170,

11775

11226,11414

10724,10722

10869

10724

10749

10869

10099

10869

10724

10247,10701

11807

10724

11142,10749,

11749,10775,

10724,10819,

11076,10722,

10099,11442

11142,11442

10869

10392,10566

10566,10775,

10869

10392,10566,

11142,10775,

10855,10143,

11392,11442

11377,11142,

11276,11108,

11109,11442,

11609

10099

10639,11639,

11640

StarChoice

StarTrak

Thomson

Tivo

Toshiba

UltimateTV

Ultrasat

Uniden

Voom

Zenith

DVDs

Brand

3D LAB

Accurian

Advent

Afi'eey

Aiwa

Akai

Alba

Alco

Allegro

Apex Digital

Arrgo

Aspire Digital

Audiovox

Axion

Blaupunkt

Blue Parade

Blue Sky

Bose

Brandt

Broksonic

California Audio Labs

Celestial

Centrex

Cinea

CineVision

Citizen

Clairtone

Coby

Craig

Creative

Curtis Mathes

CyberHome

Cytron

10869

10772,10869

10392,10566

11142,11442

10749,11749,

10790,10819,

11285,11286,

11287,11289,

11857,11858

11392,11640

11806

10724,10722

10869

11856

Code

20503,20539

21072,21416

21016

20698

20641

20695,20705,

20770,20899,

21089

20672,20717

20790

20869

20533,20672.

20717,20755.

20794,20796.

20797,20830.

21004,21020.

21056,21061.

21100

21023

21168,21407

20717,20790,

21041,21071,

21072,21121,

21122

21071,21072

20717

20571

20695

21895

20651

20695,20868

20490

21020

20672,21004

20831

20876,20833,

20869

21003,21277

20571

20778,21086,

21107,21177

20831

20503,20539

21087

20816,20874,

21023,21024,

21117,21129,

21502

20705

Daewoo

Dansai

Decca

Denon

Denver

Desay

Digitrex

Disney

DiViDo

Dual

Durabrand

DVD2000

Electrohome

Emerson

Enterprise

Entivo

Enzer

ESA

Firstline

Fisher

Funai

Gateway

GE

Go Video

Go Vision

GoldStar

Goodmans

Gradiente

Greenhill

Grundig

Harman/Kardon

Hitachi

Hiteker

Humax

iLo

Initial

Insignia

Integra

IRT

JBL

Jensen

JMB

JVC

Kawasaki

Kenwood

KLH

Kloss

Koss

Lasonic

Lecson

20784,20705,

20770,20833,

20869,21169,

21172,21234,

21242

20770

20770

20490,20634

20778

21407

20672

20675,21270

20705

20675,21068

21127

20521

21003

20591,20675,

20821,21268

20591

20503,20539

20770

20821,21268

20651

20670

20675,21268,

21334

21073,21158

20522,20815,

20717

20573,20744,

20717,20715,

20741,20783,

20833,20869,

21044,21075,

21099,21158,

21304,21730

21071,21072

20741,20801,

20869

20790

20490,20651

20717

20539,20705

20582,20702

20573,20664,

21247

20672

21588

21348

20717

21268

20571,20627

20783

20702

21016

20695

20558,20623,

20867,21164

20790

20490,20534

20717,20790,

21020,21149

20533

20651,21061

20627,20798

21533

Lenoxx

LG

LiteOn

Loewe

Logix

Magnasonic

Magnavox

Marantz

McIntosh

Medion

Memorex

Microsoft

Minato

Mintek

Mitsubishi

NAD

Naiko

NEC

Nesa

NexxTech

Norcent

Onkyo

Optimus

Orion

Oritron

Palsonic

Panasonic

Philips

PianoDisc

Pioneer

Polaroid

PolkAudio

Portland

tS"esidian

tS"ima

tS"oceed

tS"oscan

tS"oVision

Qwestar

Radionette

RadioShack

RCA

Realistic

Reoc

Rio

Rotel

Rowa

Saba

21127

20591,2074l,

20801,20869

21058,21158,

21416,21440

20511,20741

20783

20651,20675

20503,20539,

20646,20675,

20821,21268

20503,20539,

20675

21533

20651

20695,20831,

21270

20522,21708

20752

20839,20717

21521,20521

20591,20741

20770

20785,20869

20717

21402

21003,21107,

21265

20503,20627,

20792,21769

20571

21854

20651

20672

20503,20490,

20571,20703,

21362,21462,

21490,21762

20503,20539,

20646,20675,

20854,21260,

21267,21354

21024

20525,2057l,

20631

21020,21061,

21086

20539

20770

20675,21072

21016

20672

20522

20778

20651

20741

20571

20522,2057l,

20717,20790,

20822,21022,

21132,21769

20571

20752

20869

20623

21004

20651

(continued)

27

Sampo

Samsung

Sansui

Sanyo

Schneider

Schwaiger

Sensory Science

Sharp

Sharper hnage

Sherwood

Shinsonic

Slim Art

Sonic Blue

Sony

Sova

Superscan

SVA

Sylvania

Symphonic

Tatung

Teac

Technics

Technika

Tevion

Theta Digital

Thomson

Tivo

Toshiba

Unimax

Universum

Urban Concepts

US Logic

V

Venturer

Visio

Vizio

Xbox

Yamaha

Zenith

Zeus

Zoece

HDDVDs

Brand

LG

Onkyo

20698,20752

20490,20573,

20744,20820,

20899,21044,

21075

20695

20670,20675,

20695,20873,

21334

20783

20752

21158

20630,20675,

20752,21256

21117

20770,21043

20533,20839

20784

20573,20715,

20783,20869,

21099

20533,21533,

20864,21033,

21070,21431

21122

20821

20717

20675,20821,

21268

20675,20821,

21268,21334

20770

20571,20717,

20790

20490,20703

20770

20651

20571

20522,20511

21503,21588

20503,20573,

20539,20695,

21045,21154,

21503,21515,

21588,21769,

21854

20770

20591

20503,20539

20839

21064,21226

20790

21064,21226

21064,21226

20522,21708

20490,20539,

20545

20503,20591,

20741,20869

20784

21265

Code

60741

61769

RCA

Toshiba

DVD-R

Brand

Accurian

Apex Digital

Aspire Digital

Coby

CyberHome

Funai

Gateway

Go Video

iLo

JVC

LG

LiteOn

Magnavox

Panasonic

Philips

Pioneer

Polaroid

RCA

Samsung

Sensory Science

Sharp

Sony

Sylvania

Toshiba

Zenith

DVD/VCRCombo

Brand

Allegro

Apex Digital

Broksonic

CineVision

Daewoo

Emerson

Funai

Go Video

GoldStar

Hitachi

JVC

LG

Magnavox

Memorex

Panasonic

Philips

Polaroid

tS"esidian

RCA

Samsung

Sansui

Sanyo

Sharp

61769

61510,61515,

61769

Code

21416

21056

21168

21086

21129,21502

20675,21334

21073,21158

20741,21158,

21304,21730

21348

21164

20741

21158,21416,

21440

20646,20675

20490

20646

20631

21086

20522

20490

21158

20675

21033,21070,

21431

20675

21510

20741

Code

20869

21061

20695

20833,20869

20833,20869

20675

20675

20744,20715,

20741,20833,

20869,21044,

21075

20741

20664

20867,21164

20741

20675

20695

21762

20675,21267

21061

20675

20522,20822

20820,21044,

21075

20695

20670,20873

20630

Sony

Sylvania

Symphonic

Toshiba

Zenith

Emerson

Funai

Hitachi

Magnavox

tS"esidian

RCA

Sanyo

Sharp

Sylvania

Symphonic

Toshiba

VCRs

Brand

A-Mark

ABS

Admiral

Adventura

Adyson

Aiko

Aiwa

Akai

Alba

Alienware

Allegro

America Action

American High

Amstrad

Asha

Astra

Audiovox

Avis

Beaumark

Bell & Howell

Broksonic

Calix

Candle

Canon

Capehart

Carrera

Carver

20864,21033,

21070,21431

20675

20675

20503,21854

20741,20869

31593

31593

30000

31593

31593

30060

30104

30848

30000,30593,

31593

30000,31593

41788

Code

30037,30240,

30000,30278,

30046

31972

30060,30048,

30039,30047,

30104,30209,

30020,30062,

30479

30037,30240,

30000

30072

30278

30037,30000,

30124,30307

30041,30061,

30106,30175

30209,30072,

30278

31972

30039

30278

30035,30081

30000

30240

30035,30240

30037,30278,

30038

30000,30072

30240

30035,30048,

30039,30000,

30104,30046,

30479

30184,30121,

30209,30002,

30208,30479,

31479

30037

30037,30038

30035

30002,30020,

30062

30240

30035,30081

28

CCE

Cineral

Citizen

Classic

Colortyrne

Colt

Craig

Criterion

Crosley

Crown

Curtis Mathes

Cybemex

CyberPower

Daewoo

Daytron

Dell

Denon

Derwent

DirecTV

Dual

Durahrand

Dynatech

Electrohome

Electrophonic

Emerald

Emerex

Emerson

Fisher

Fuji

Fujitsu

Funai

Garrard

Gateway

GE

30072,

30278

30035,

30240,

30209,

30479,

30037

30060,

30045,

30000,

30037,

30240,

30271

30000,

30035,

30000,

30072,

30060,

30162,

30000,

30278,

30760,

30240

31972

30037,

30278,

30046,

31278

30037,

30020

31972

30081,

30041

30739

30000

30039,

30240,

30060,

30240,

30043,

30061

30037

30184,

30032

30037,

30240,

30121,

30209,

30278,

30208,

30479,

30593,

31479,

30039,

30000,

30046

30035,

30000

30037,

30072,

30593,

30000

31972

30060,

30048,

30000,

30202,

30807,

31060

30278

30037,

30000,

30278,

31278

30035,

30278

30072

30047,

30072,

30072

30081,

30149

30278

30035,

30240,

30041,

30432,

31035

30045,

30020,

30561,

30278,

30042

30038

30000

30037,

30000,

30209,

30121

30184,

30000,

30043,

30002,

30202,

30061,

30561,

31278,

31593

30047,

30104,

30033

30000,

30278,

31593

30035,

30240,

30149,

30760,

31035,

Gemini

Genexxa

Go Video

GoldStar

Goodmans

Gradiente

Granada

Grundig

Harley Davidson

Harman/Kardon

Harvard

Harwood

Headquarter

Hewlett Packard

HI-Q

Hitachi

Howard Computers

HP

Hughes Network

Systems

Hmnax

Hush

Hytek

iBUYPOWER

ITT Nokia

Janeil

Jensen

JVC

KEC

Kenwood

KLH

Kodak

KTV

LG

Linksys

Lloyd' s

Loewe

Logik

Lumatron

Luxor

LXI

M Electronic

Magnasonic

30060

30037,

30278

30240,

30526,

30035,

30039,

30278,

31237

30037,

30000,

30278,

30062

30000,

30081,

30081

30000

30081,

30072

30072

30046

31972

30035,

30000

30035,

30045,

30042,

30089,

31972

31972

30042,

30739

31972

30047,

30072

31972

30240,

30240

30067,

30067,

30008,

31162

30037,

30067,

30038,

30072

30035,

30000

30037,

30038,

31972

30240,

30072,

30208

30081

30240,

30072

30278

30046,

30037,

30042,

30240

30037,

30000,

30278,

30593,

30000,

30432,

30614

30037,

30000,

30038,

30081,

30072,

30020,

30008

30042

30038

30047,

30037,

30000,

30041,

30105

30739

30000,

30041

30041

30041,

30061,

30278

30041,

30046

30037

30240,

31037

30000,

30038,

30000,

30106

30000,

30067

30240,

30072,

30020,

31278

Magnavox

Magnin

Marantz

Marta

Matsui

Matsushita

Media Center PC

MEI

Melnorex

Metz

MGA

MGN Technology

Microsoft

Midland

Mind

Minolta

Mitsubishi

Motorola

Movie Walker

MTC

MTX

Multitech

NAD

NEC

New Tech

Nikko

Nikkodo

Nishi

Niveus Media

Noblex

Northgate

Olympus

Onkyo

Optimus

Optonica

30035,30037,

30048,30039,

30081,30240,

30000,30149,

30563,30593,

30618,31593,

31781

30240

30035,30081,

30038,30062

30037

30037,30209

30035,30162,

30081,31162

31972

30035

30035,30162,

30037,30048,

30039,30047,

30240,30000,

30104,30209,

30072,30278,

30062,30046,

30307,30479,

31037,31162,

31237,31262

30037

30060,30240,

30043,30061

30240

31972

30240

31972

30042,30105

30060,30048,

30047,30000,

30042,30067,

30043,30041,

30061,30807

30035,30048

30072

30240,30000,

30072

30000

30039,30000,

30072

30240,30104

30104,30067,

30041,30038

30072

30037,30278

30037,30278

30240

31972

30240

31972

30035,30162,

30104

30222

31062,30035,

30162,30037,

30048,30047,

30240,30000,

30104,30062,

30432,30593,

31048,31162,

31262

30062

(continued)

29

Orion

Panama

Panasonic

Penney

Pentax

Philco

Philips

Pilot

Pioneer

Polk Audio

Portland

tS"esidian

tS"ofitronic

tS"oscan

tS"otec

tS"otech

Pulsar

Pulser

Quarter

Quartz

Quasar

RadioShack

Radix

Randex

RCA

3O

30184,

30000,

30121,

30002,

30208,

31479

30035

31062,

30162,

30020,

30614,

31035,

31262

30035,

30037,

30081,

30000,

30067,

31035,

30042,

30035,

30000,

30479

30035,

30048,

30045,

30209,

30616,

30739,

31181

30037

30162,

30042,

30081

30278,

31593

30240

30060,

30760,

30000,

30072

30039,

30278

30240

30046

30035,

30046

30035,

30002,

31162

30035,

30037,

30047,

30000,

30046,

31037,

30037

30037

30060,

30048,

30045,

30042,

30105,

30202,

30807,

31035,

30240,

30104,

30209,

30278,

30479,

30035,

30000,

30225,

30616,

31162,

30162,

30047,

30240,

30042,

30038,

31237

30105

30081,

30209,

30162,

30081,

30000,

30062,

30618,

31081,

30081,

30067

30020

30202,

31060

30072

30240,

30047,

30162,

31035,

30162,

30048,

30240,

30104,

30062,

31162

30035,

30240,

30000,

30149,

30106,

30760,

30880,

31060

Realistic

ReplayTV

Ricavision

Runco

Samsung

Samtron

Sanky

Sansui

Sanyo

Scientific Atlanta

Scott

Sears

Sharp

Shintom

Shogun

Siemens

Signature

Singer

Sonic Blue

Sonographe

Sony

Soundmaster

Stack 9

STS

SV2000

SVA

30035,

30037,

30047,

30000,

30121,

30046,

31162

30614,

31972

30039

30060,

30045,

30038,

30739,

30240

30048,

30240,

30067,

30041,

30002,

30479,

30047,

30000,

30046,

30479

30008

30184,

30121,

30208,

30060,

30162,

30048,

30047,

30045,

30042,

30067,

30209,

30072,

30105,

30048,

30032,

30062,

30848

30039,

30000,

30208

30240

30037,

30060,

30037,

30000,

30046,

30037,

30072

30614,

30046

30035,

30032,

30000,

30046,

31032,

31972

30000

31972

30042,

30000,

30000

30162,

30048,

30240,

30104,

30278,

30062,

30616

30240,

30000,

30432,

31014

30039

30000,

30209,

30072,

30271,

31479

30240,

30104,

30159,

30045,

30043,

30210

30035.

30037.

30039.

30033.

30000.

30104.

30043.

30041.

30046.

31237

30047,

30000,

30807,

30240,

30072,

30104

30035,

30048,

30149,

30479

30240,

30616

30047,

30033,

30067,

30636,

31232,

30105

30072

Sylvania

Symphonic

Systemax

Tagar Systems

Tandy

Tatung

Teac

Technics

Teknika

Telecorder

Telefunken

Tevion

Thomas

Thomson

Tisonic

Tivo

TMK

TNIX

Tocom

Toshiba

Tosonic

Totevision

Touch

Trix

Ultra

Unitech

Vector

Vector Research

Vextra

Victor

Video Concepts

Videomagic

Videosonic

Viewsonic

Villain

Voodoo

Wards

30035,30081,

30000,30043,

30593,31593,

31781

30240,30000,

30002,30593,

31593

31972

31972

30000,30104

30048,30081,

30000,30067,

30041,30008

30000,30067,

30041

30035,30162,

30037,30000

30035,30037,

30000

30240

30041,30208

30479

30000,30002

30060,30041,

30202

30278

30618,30636,

30739,31996

30240,30000,

30208

30037

30240

30240,30045,

30000,30043,

30209,30041,

30062,30210,

30845,31008,

31145,31972,

31996

30278

30037,30240

31972

30037

30045,30278,

30020

30240

30045

30184,30038

30072

30067,30041,

30008

30045,30061,

30210

30037

30240,30000,

30072

31972

30000

31972

30060,30035.

30037,30048.

30047,30081.

30033,30240.

30045,30000.

30042,30043.

30041,30072.

30038,30149.

30046,30062.

30479,30760

Wharfedale

WhiteWestinghouse

World

XR-1000

Yamaha

Zenith

ZTGroup

PVRs

Brand

ABS

Alienware

CyberPower

Dell

DirecTV

Gateway

Hewlett Packard

Howard Computers

HP

Hughes Network

Systems

Humax

Hush

iBUYPOWER

Linksys

Media Center PC

Microsoft

Mind

Niveus Media

Northgate

Panasonic

Philips

RCA

ReplayTV

Samsung

Sonic Blue

Sony

Stack 9

Systemax

Tagar Systems

Tivo

Toshiba

Touch

Viewsonic

Voodoo

ZT Group

Cable/PVRCombo

Brand

Americast

Amino

Digeo

General Instrument

Jerrold

30593

30000,

30072,

30479

30209,

30479

30035,

30000,

30208

30041,

30037,

30033,

30209,

30278,

31139,

31972

Code

31972

31972

31972

31972

30739

31972

31972

31972

31972

30739

30739

31972

31972

31972

31972

31972

31972

31972

31972

30616

30618,

30880

30614,

30739

30614,

30636,

31972

31972

31972

30618,

30739

31008,

31996

31972

31972

31972

31972

Code

10899

11822

11187

10810

10810

30209,

30278,

30002,

30240,

30072,

30038

30039,

30000,

30041,

30479,

31479

30739

30616

30616

31972

30636,

31972,

Motorola

Myrio

Pace

Pioneer

RCA

Scientific Atlanta

Sony

Supercable

Thomson

Zenith

DBS/PVRCombo

Brand

DirecTV

Dish Network System

Dishpro

Echostar

Expressvu

Hughes Network

Systems

JVC

Motorola

Philips

tS"oscan

RCA

Samsung

Sony

Star Choice

Hughes Network

Systems

Philips

Samsung

Audio Amp

Brand

Adcom

Bose

Carver

Curtis Mathes

GE

Harman/Kardon

JVC

Left Coast

Marantz

NEC

Optimus

Philips

Pioneer

Polk Audio

RCA

Realistic

Shure

Sony

Soundesign

Victor

11376,10810,

11187,11106

11822

11877,10237

11877,10877

11256

11877,10877

11006

10276

11256

10899

Code

11377,10392,

10639,11142,

11076,10099,

11392,11442,

11640

11505,10775

11505,10775

11505,10775,

11170

10775

11142,11442

lll70

10869

11142,11442

10392

11392

11442

10639,11640

10869

30739

30739

30739

Code

40577

40674

40892

40300

40078

40892

40331

40892

40892

40264

40013,40300,

40823

40892

40013,40300,

40823

40892

40013,40300,

40823

40013

40264

40689,40815

40078

40331

Wards

Yamaha

CDplayers

Brand

Acoustic Research

Aiwa

Arcam

Audio Research

Burmester

Cairn

California Audio Labs

Cambridge

Soundworks

Carver

Curtis Mathes

Denon

DKK

DMX Electronics

Fisher

Garrard

Genexxa

Grundig

Hafler

Harman/Kardon

Hitachi

Inkel

Integra

Jerrold

JVC

Kenwood

KLH

Krell

Linn

LXI

Magnavox

Marantz

Matsui

McIntosh

MCS

Memorex

Micromega

Miro

Mission

Modulaire

MTC

NSM

Onkyo

Optimus

Panasonic

Parasound

Penney

40078,40013

40354,40133

Code

50420

50157

50157

50157

50420

50157

50029,50303

50157

50157,50179

50032

50003,50034

50000

50157

50000,50179

50420

50032

50157

50173

50100,50157,

50173

50032

50157,50180

50101

50003

50032,50072

50626,50000,

50029,50028,

50037,50190

51711

50157

50157

50179

50157,50274

50626,50029,

50157,50180

50157

50256

50029

50000,50032,

50179,50420,

50468

50157

50000

50157

50000,50032,

50087,50179,

50180,50420,

50468

50420

50157

51327,50101

50000,50032,

50037,50087,

50179,50420,

50468

50029,50303,

50388,50752

50420

50029

(continued)

31

Philips

Pioneer

PolkAudio

tS"oceed

tS"oton

QED

Quad

Quasar

RadioShack

RCA

Realistic

Revox

Rotel

SAE

Sansui

Sanyo

Sears

Sharp

Sherwood

Sonic Frontiers

Sony

Sugden

Sylvania

Symphonic

TAG McLaren

Tan@

Tascam

Teac

Technics

Techwood

Thule Audio

Victor

Wards

Yarnaha

Yorx

AudioAmp/Tuners

Brand

ADC

Aiwa

Alco

AMC

Anam

Apex Digital

Arcam

Audiotronic

Audiovox

B&K

32

50626,50157,

50274

51062,50032,

51087,50468

50157

50420

50157

50157

50157

50029

50000,50032,

50179,50180,

50420,50468

51062,50032,

50053,50179,

50420,50468

50000,50032,

50087,50179,

50180,50420,

50468

50157

50157,50420

50157

50000,50157

50000,50087,

50179

50179

50037,50180

50180

50157

50490,50000,

50100,51364,

50185

50157

50157

50180

50157

50032

50420

50490,50180,

50420

50029,50303

50303

50157

50072

50032,50157,

50053,50087,

50179

50490,50036,

51292

50000

Code

40531

41405,40189,

40121,41388,

41641

41390

41077

41609,41074

41774

41189

41189

41390

40701,40820

Bose

Cairn

Capetronic

Carver

Curtis Mathes

Denon

glnerson

Fisher

Grundig

Harman/Kardon

Hitachi

Integra

JBL

JVC

Kawasaki

Kenwood

KLH

Koss

LG

Linn

Liquid Video

Magnavox

Marantz

Mclntosh

Micromega

Mitsubishi

Myryad

Nakamichi

Onkyo

Optimus

Oritron

Panasonic

Philips

Pioneer

Polaroid

Polk Audio

tS"oscan

RadioShack

41229,40639,

41253,41933

40189

40531

41189,40189,

40121,41289

40014

41360,40121,

40771,41142,

41306

40531

41801

40189

40110,40189,

40891,41289,

41304,41306

41273,41801

40135,40842,

41298,41320

40110,41306

41058,40074,

41374,41495,

41811

41390

41313,41570,

41569,40186

41390,41428

41366,41497

41293

40189

41497

41189,41269,

40189,40531,

41266,41514

41189,41269,

40189,40891,

41289

41289

41189,40189

41393

41189

41313

40135,40842,

41298,41320,

41531

41023,40074,

40014,40121,

40186,40531,

41074

41366,41497

41308,41518,

40309,41288,

41316,41548,

41633,41763,

41764

41189,41269,

40189,40891,

41266

41023,40014,

40150,40531,

40630,41384

41508

40189,41289

41254

41609

RCA

Realistic

Revox

Samsung

Sansui

Sanyo

Sharp

Sherwood

Sirius

Sony

Stereophonics

Sunfire

Teac

Technics

Thorens

Toshiba

Venturer

Victor

Wards

Yamaha

Zenith

41023,41609,

41254,40531,

41074,41390,

41511

41609,40121,

40186

40189

41295,41304,

41500

41189,40189

41251,41469,

41801

40186

41077

41811

41058,41441,

41258,41622,

41658,41758,

41858

41023

41313

41074,41390

41308,41518,

40309,41633

41189

40135,40842,

41788

41390

40074

40189,40014

41023,40176,

40186,41176,

41276,41331,

41375

41293

Main menulayout

To open tile main menus (illustrated below), press _ on tile

remote control or TV control panel.

Applications

Video

Audio

Preferences

Locks

Setup

Channel Browser '_' 42

Favorites Browser 42

REGZA-LINK Player Control 57

Start Demo 35

Mode 48

Picture Settings 48

Noise Reduction 62

ColorMaster 63

x.v.Color Selection 64

Game Mode 64

Theater Settings 45

TheaterLock 49

Digital Audio Selector 51

Audio Settings 51

Advanced Audio Settings 64

Audio Setup 51

CC Selector 50

Base CC Mode 49

Digital CC Settings 50

Auto Input 37

Input Labeling 41

Channel Labeling 38

Menu Language 35

Channel Browser Setup 43

Enable Rating Blocking 53

Edit Rating Limits 54

Channels Block 55

Input Lock 55

Control Panel Lock 56

GameTimer ® 55

New PIN Code 53

Installation 36

REGZA-LINK Setup 58

Sleep Timer 57

HDMI Settings 59

PC Settings 56

Power-On Mode 40

Demo Mode 40

Setup/Installation menulayout

To open the Installation menu (illustrated below), press

on the remote control or TV control panel, open the Setup

menu, select Installation, and press @.

Terrestrial Input Configuration 36

Channel Program 36

Channel Add/Delete 37

Channel Tuning Mode 44

Signal Meter 39

Time Zone

Time Zone Setup 39

System Status

System Information 40

THINCTM menu

The THINC* menu provides access to the Channel

Browser, Favorites Browser, and REGZA-LINK Player

Control features.

The THINC menu is not part of the main menu system. You

can only view the THINC menu by pressing [_ on the

remote control.

Channel Browser

Favorites Browser

REGZA-LINK Player Control

* Toshiba Home Interactive Network Connection.

33

Navigatingthe menusystem

You can use the buttons on the remote control or TV control

panel to access and navigate your TV's on-screen menu

system.

• Press _ to open the menu system.

• When a menu is open, use the upldownlleftlright arrow

buttons (AV<I I_) on the remote control or TV control panel

to move in the corresponding direction in the menu.

• Press @ to use on-screen buttons or select a highlighted

item. (A highlighted menu item appears in a different color

in the menu.)

• All menus close automatically if you do not make a selection

within 60 seconds, except the signal meter menu, which

closes automatically after about 5 minutes.

• To close a menu instantly, press [girfl.

Note:

•The menu background may sometimes appear black,

depending on the signal the TV is receiving. This is not a

sign of malfunction.

• The Video sub-menu appears with a black background,

which looks different from other menus.

34

Setting the DemoMode

When you first turn on the TV, menu language selection and

Demo Mode selection windows will appear by default.

To select settings:

1From the menu language selection window, select your

preferred language.

2Press @. Next the Demo Mode setting window will

appear.

For normal TV usage, select Normal (Off).

If you do not make a selection within 120 seconds, the

Demo Mode setting window will automatically disappear.

The TV will switch to Normal mode.

To enable the on-screen demonstration, select Store

(On). The ClearFrame'" demonstration window will

display for 60 seconds. To restart the on-screen

demonstration, press _ on the remote or on the TV for

2 seconds.

Note: The on-screen demonstration wi// automatica/ly

restart if you do not make a selection within 120 seconds.

To change the demo mode setting:

Press the MENU and VOLUME, buttons on the TV control

panel at the same time and hold for about 2 seconds, or use the

Demo Mode item in the Setup menu (_ page 40).

Selectingthe menulanguage

You can choose from three different languages (English,

French and Spanish) for the on-screen display of menus and

messages.

To select the menu language:

1Press _ and open the Preferences menu.

2Highlight Menu Language and press I_.

3Press •or • to select your preferred menu language and

press @.

4Press [g_flto close the Preferences menu.

35

Configuringthe input sourcefor the

ANT/CABLEterminal

To configure the ANT/CABLE input source:

1Press _ and open the Setup menu.

2Highlight Installation and press @. A new set of

Installation menu icons will appear, as shown below.

3

Power-Saving

Demo Mode Off

Open the Terrestrial menu, highlight Input

Configuration, and press @.

iiii_i_i_!_Niiiii!!i_iii!i_i!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!!!i!

Channel Tuning Mode Auto

4 Press • and <• to select the input source (Cable or

Antenna) for the ANT/CABLE input on the TV.

5To save your new settings, highlight Done and press @.

To revert to your original settings, highlight Cancel and

press @.

Programmingchannels into the

TV's channel memory

When you press (_ or _,_ on the remote control or TV control

panel, your TV will stop only on the channels you programmed

into the TV's channel memory.

Follow the steps below to program channels into the TV's

channel memory.

Programming channels automatically

Your TV can automatically detect all active channels in your

area and store them in its memory. After the channels are

programmed automatically, you can manually add or erase

individual channels in the channel memory.

Note:

•/f the ANT/CABLE input signal type is set to Cable, the

automatic channel programming process erases channels

that were previously programmed into the TV's memory.

• If the ANT/CABLE input signal type is set to Antenna, the

automatic channel programming process adds newly found

channels to the existing set of programmed channels (and

does NOT erase channels that were previously

programmed into the TV's memory.) To remove an Antenna

source channel from the memory, you must manually delete

it.

• To tune the TV to a channel not programmed in the channel

memory, you must use the Channel Number buttons on the

remote control.

• Programming channels when the ANT/CABLE input is

configured for Cable will take substantially longer than when

the ANT/CABLE input is configured for Antenna. This is

normal; however, once channel programming is finished,

you should not have to repeat the programming process

again unless your Cable TV service lineup changes

significantly.

To program channels automatically:

1You must configure the ANT/CABLE input source, if

you have not already done so (_' page 36).

2From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

36

3Open the Terrestrial menu, highlight Channel

Program to bring up tile Start, and press @ again to

begin channel programming.

4

The TV will automatically cycle through all the channels,

and store all active channels in the channel memory.

While the TV is cycling through the channels, the

message "Scanning channels, please wait ..." appears (as

shown above).

To cancel channel programming, press [g_ on the remote

control (or highlight Cancel in the on-screen display and

press @).

When channel programming is finished, press (_ or _,_ to

view the programmed channels.

Manually adding and deleting channels

in the channel memory

After automatically programming channels into tile channel

memory, you can manually add or delete individual channels.

To add or delete channels in the channel memory:

1

2

From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

Open the Terrestrial menu, highlight Channel Add/

Delete, and then press @.

To add a channel to the channel memory:

Highlight the unchecked box next to the channel number you

want to add, and then press @ to check the box.

To manually add digital subchannels on aphysical

channel:

Use tile Channel Numbers and tile Dash ((SN))on tile remote

control to enter the channel number (for example, 56-1).

If the channel is found, the number will be added to the list and

the box will be checked.

If the channel is not found, a message ("Not Found") will

appear.

To remove achannel from the channel memory:

Highlight tile checked box next to tile channel number you

want to remove, and then press @ to uncheck the box.

To save your new settings:

Highlight Done and press @.

Note: A video preview of the currently highlighted channel is

provided to assist you in adding/deleting channels.

To revert to your original settings:

Highlight Cancel and press @ before saving.

To remove all channels from the channel memory:

Highlight Reset and press @, and then highlight Done and

press @.

To remove encrypted channels from the channel

memory:

If an encrypted channel is accidentally added to tile channel list

by programming channels, you can remove the unwanted

encrypted (non-viewable) channel while you are channel

surfing. When you tune into an encrypted channel, the

following message will appear.

Press @ while the message is on the screen to remove the

unnecessary channel from the channel list.

Setting the Auto Inputfeature

This feature allows you to change TV inputs using the MODE

SELECT buttons--TV, CABLE/SAT, HD DVD, DVD,

VCR/PVR--on the remote control. Once an input has been set

for a specific MODE SELECT button, the TV will

automatically switch to the input when you press and hold the

MODE SELECT button for 2 seconds.

Auto Input settings options for each MODE SELECT button

are shown below.

• TV: ANT/CABLE

•CABLE/SAT: ANT/CABLE, Video 1, Video 2,

ColorStream HD 1,ColorStream HD2, HDMI 1, HDMI 2,

HDMI 3, HDMI 4, PC

•HD DVD: Video 1, Video 2, ColorStream HD1,

ColorStream HD2, HDMI 1,HDMI 2, HDMI 3, HDMI 4,

PC

• DVD: Video 1, Video 2, ColorStream HD1,

ColorStream HD2, HDMI 1,HDMI 2, HDMI 3, HDMI 4,

PC

•VCR/PVR: ANT/CABLE, Video 1,Video 2,

ColorStream HD 1,ColorStream HD2, HDMI 1, HDMI 2,

HDMI 3, HDMI 4, PC

Note: The TV mode se/ect button wil/ be restricted to the ANT/

CABLE input.

To set the Auto Input:

1From tile Preferences menu, highlight Auto Inputand

press @.

(continued)

87

2Press • or • to highlight Enable Auto Input and then

press • or • to select On.

Video 1

3

4

Press • or • to select the mode field you want to set.

Press •or • to select the desired input source for that

mode.

5Repeat steps 3 and 4 for other modes.

6To save your settings, highlight Done and press @.

To turn off the Auto Input:

Select Off in step 2.

Note: Setting the feature to Off will not cancel any settings;

however, all items will be grayed out.

To reset Auto Input:

Highlight Reset and press @.

Labelingchannels

A list of common channel labels (logos) for various channels

(ABC, CBS, etc.) will be programmed into the TV. You will

be able to view and assign these logos from the Channel

Labeling window. If the desired channel label is not provided

in the list, you will be able to manually enter/edit labels using

the software keyboard.

To assign channel labels:

1From the Preferences menu, highlight Channel

Labeling and press @.

The Channel Labeling window opens.

2Press (_ or _," to select the channel you want to label.

3Press • and •• to highlight the desired channel label and

press @.

4Repeat steps 2 and 3 for other channels.

5To save your settings, highlight Done and press @.

The maximum number of labels that can be stored is 128.

To remove channel labels:

1Open the Channel Labeling window.

2Press (_ or _," to select the channel for which you want to

remove the label.

3Press •and •• to highlight No Label and press @.

4Repeat steps 2 and 3 for other channels.

5To save your settings, highlight Done and press @.

If the desired channel label is not available from the list of

presets, you can create a custom label.

To create and assign a custom label:

1Open the Channel Labeling window.

2Press _ or _,_ to select a channel you want to label.

3Press • to highlight Custom and press @.

The software keyboard will appear.

4

5

6

7

8

Repeatedly press the corresponding key on the remote

control to highlight the desired character on the on-screen

software keyboard.

The highlighted character is entered after you either press

a different key, press • key, or after a two-second pause.

Repeat steps 4 and 5 until you have entered all desired

text.

When finished, press @.

New labels will be added to the list in alphabetical order

and marked with an icon ! to indicate that they are

custom. Highlight the new custom label and press @ to

assign.

Assigned channel labels will be displayed in the banner,

Channel Add/Delete, Channels Block, and

Channel Browser.

To delete the custom label:

1Open the Channel Labeling window.

2Highlight the label to be deleted and press (_).

3Highlight Yes from the deletion confirmation window

and press @.

4Highlight Done and press @ to save changes, and go

back to the Channel Labeling window.

38

tting t mode..........................................................................

To set the HDMI audio mode:

1

2

From the Audio menu, highlight Audio Setup and press

0.

Press • or • to select HDMI 1 Audio and then press

• or • to select the HDMI 1audio mode (Auto, Digital,

or Analog). (Auto is the recommended mode.) See

"Connecting an HDMI or DVI device to the HDMI input"

(_ page 16).

3To save your setting, highlight Done and press @.

When viewing the HDMI I input, if digital

audio from the HDMI input is available, it

Auto will be output. If not, the TV will

automatically detect and output analog audio

from the shared analog audio inputs.

Digital When viewing the HDMI I input, digital

audio from the HDMI input will be output.

When viewing the HDMI 1 input, analog

Analog audio from the shared analog audio inputs

will be output.

Note: Because the PC and HDMI 1 inputs share the same

analog audio input, the PC Audio menu setting influences the

HDMI 1 Audio menu setting. If PC Audio is set to "No," the

HDMI 1 Audio setting changes to "Auto." If PC Audio is set to

"Yes," the HDMI 1 Audio setting is set to "Digital" and is

grayed out in the menu. (Also see item 4 on page 11 and

"Setting the PC Audio" on page 57.)

Viewing the digital signal meter

You can view the digital signal meter in the ANT/CABLE

digital TV input source only.

To view the digital signal meter:

1

2

3

From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

Open the Terrestrial menu, highlight Signal Meter,

and press @.

Press ••• • to select the digital channel you want to

check. You can choose from Advanced or Basic signal

meter.

Note:

•The physical digital channel number listed in the Signal

Meter screen may not correspond to a virtual TV

channel number. Contact your local broadcasters to

obtain the RF channel numbers for your local digital

stations.

•The signal strength does not change between virtual

channels on the same physical channel.

To close the screen and return to the Terrestrial

menu:

Highlight Done and press @.

To return to normal viewing:

Press _iil.

Setting the time zone

The Time Zone setup will allow you to specify the correct time

zone for your region. This feature will allow the TV to show

the correct time zone information and you can see it displaying

the TV status information (_ page 60).

To set the time zone:

1

2

3

From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

Open the Time Zone menu, highlight Time Zone

Setup, and press @.

Press • and •• to select the region, highlight Done, and

then press @.

After the time zone has been set, you will be asked to set the

current Daylight Saving Time status.

To set the Daylight Saving Time status:

1Press • and • • to select Yes or No, highlight Done,

and then press @.

39

Viewing the systemstatus

To view the system status:

1

2

3

From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

Open the System Status menu, highlight System

Information, and press @.

Press • • to scroll through the menu bar to select the

Software Version and view the related information.

To close the screen and return to the Installation

menu:

Highlight Done and press @.

To return to normal viewing:

Press _i_.

Reset Factory Defaults

To reset all settings and channels to their factory

default values:

1From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

2Open the System Status menu, highlight System

Information, and press @.

3Press • • to scroll through the menu bar to select

Factory Defaults.

4Enter your PIN code (or 0000 if no PIN code has been set).

5Highlight Yes and press @. The TV will turn off

automatically after a few seconds. After the TV turns off,

unplug the TV power cord and then plug it in again to

complete the reset process.

To cancel the reset:

Highlight No and press @.

Selectingthe Power-OnMode

You can select either Power-Saving or Fast mode.

•Power-Saving mode keeps power consumption in standby

mode to below 3W. As a result, it takes a bit longer for the

TV to turn on.

•Fast mode increases power consumption in standby mode.

As a result, the TV will turn on more quickly. While in Fast

mode, the yellow LED on the front of the TV will be lit.

To set the Power-On Mode feature:

1From the Setup menu, highlight Power-On Mode and

press •.

2Press • or • to select either Power-Saving or Fast, and

press @.

To return to normal viewing:

Press _iil.

Selectingthe DemoMode

You can set the TV's demo mode to On or Off.

This feature is provided for demonstrational purposes only.

To select the Demo Mode:

1Press _, and open tile Setup menu.

2Highlight Demo Mode and press •.

3Press • or • to select either On or Off, and press @.

Note:/f #_e dome mode has been set to On, the Dome mode

will run automatically when you turn on the TV.

4O

Selecting the video inputsource

to view

To select the video input source to view:

1

2Press @ on the remote control or TV control panel.

And then either:

a) Press 0-9; or

b) Repeatedly press Al!' on the remote control and then

press @ to change the input; or

c) Repeatedly press @ on the remote control or TV

control panel to change the input.

The current signal source displays in the top right corner

of the Input Selection screen.

Note:

m(_ ANT/CABLE

O Video 1

Video 2

ColorStream HD1

Q ColorStream HD2

Q HDMI1

HDMI 2

@ HDMI 3

HDMI 4

Q PC

_° 1_ /_ fro SeUecf[ _ Navigate

You can label the video input sources according to the

specific devices you have connected to the TV

(_r_r""Labeling the video input sources" at right).

• Sources can also be "hidden" (_r_,""Labeling the video input

sources" at right).

•"No Video Signal" will appear randomly on the screen if no

signal is received in video input mode.

• Ifa CEC device is connected to an HDMI input, the REGZA-

LINK icon will appear.

• When the Auto Input feature is set, you can also select a

video input source by pressing and holding MODE SELECT

button for 2 seconds (_r_,"page 37).

If a REGZA-LINK device with HDMI switching

capability (e.g. Audio Receiver) is connected to the

HDMI input:

Press _) on the remote or TV control panel repeatedly to

highlight HDMI 1, HDMI 2, HDMI3, or HDMI 4

If the connected CEC device has any connected devices, a

separate device selection popup window will appear.

HDMI1 - 2 Player

Press @ repeatedly to highlight the desired input source, and

then press [g_.

Note:

• When selecting REGZA-L/NK input sources from the popup

window using _), some REGZA-LINK devices may

automatically turn on.

• When selecting input sources using • V, you wifl have to

press -@ to actually select a particular device from the

popup window.

Labelingthe videoinputsources

You can label each video input source according to the type of

device you connected to each source, from the following preset

list of labels:

•--(default label)

•Audio Receiver

•Cable

•Compact Disc

•DTV

•DVD

•Game Console

•HD DVD

•HDMI Switch (HDMI inputs only)

•Laser Disk

•Satellite/DSS

•VCR

•Video Recorder

•Hide (to hide an unused input in the Input Selection screen

and in the Channel Browser Inputs list)

Note: If you select PC in the Input Selection screen, you can

choose only "- -", "Game Console", or "Hide" as the label.

To label the video input sources:

1Press _ and open the Preferences menu.

2Highlight Input Labeling and press 9.

3

Digital CC Settings

Auto Input

Menu Language English

Press • or • to highlight the video source you want to

label.

(continued)

41

4Press • or • to select the desired label for that input

source. If a particular input is not used, you can select

Hide as the label, which will cause that input to be

"grayed out" in the Input Selection screen and skipped

over when you press _ on the remote control.

5To save the new input labels, highlight Done and

press 0.

To revert to the factory default labels, highlight Reset

and press 0.

Input labeling example:

The screen below left shows the default Input Selection

screen (with none of the inputs labeled as a specific device).

The screen below right is an example of how you could label

the inputs if you connected a VCR to VIDEO 1, Cable TV to

VIDEO 2, a video recorder to ColorStream HD1, a DTV set-

top box to HDMI 1, a satellite/DSS set-top box to HDMI 2, and

a DVD player to HDMI 3, and an HD DVD player to HDMI 4.

Also note that the ColorStream HD2 input is labeled "Hidden,"

which means that input will be skipped over when _) is

pressed.

|_ AN'_7CA£LE

Video 1

Video 2

ColorStream HD1

ColorSheam HD2

HDMI 1

_{_ HDMI 2

@ HDMI 3

HDMI 4

Q PC

-_ /_[_to Select _[_Navigate

In3utSelectionscreenwith

noinputslabeled.

_} AN'F/CAgLE

@ VCR

Cable

Video Recorder

Coio_Si_e_m ND_ i}iidd_i_}

DTV

SateIIde/DSS

@ DVD

HD DVD

Q PC

- _ /_ to Select _ Navigate

In3utSelectionscreenwith

allinputslabeledexceptinput4,

whichhasbeenhidden.

To clear the input labels:

1From the Preferences menu,highlight Input Labeling

and press _.

2Highlight Reset and press _.E_.

Tuningchannels

Tuning channels using the

Channel BrowserTM

The Channel Browser'" provides an easy navigation interface

for all your channels and inputs. This feature allows you to:

• Navigate the contents of all of your inputs.

• Keep a list of your favorite channels (see "Favorites

Browser," below).

• Keep a history of the last 32 channels or inputs viewed.

• Quickly surf and tune your recently viewed channels/inputs

from the Channel Browser'" History List (illustrated on the

next page).

• Surf via Browse mode (to immediately tune channels as you

highlight them in the Channel Browser'") or Select mode (to

surf over channels in the Channel Browser'" before you

select one to tune).

• Quickly change inputs from the Inputs List.

• Quickly select REGZA-LINK devices from the REGZA-

LINK List.

Favorites Browser

The Favorites Browser allows you to quickly set up a favorite

channels/inputs list that is integrated into the Channel Browser'".

To add a favorite channel/input:

1 Tune to the channel or input.

2Press and hold _ on the remote control for 3 seconds.

Note: Additions are added to #_e beginning of #_e Favorites list

on the left side of the Channel Browser TM.

To delete a favorite channel/input:

1Press _ to open the Favorites list.

2 Highlight the channel or input to delete by pressing

Bt_C;_ NEXt

c_•ore•.

3Press and hold _ for 3 seconds. The channel/input will

be removed from the Favorites list.

42

To set up the Channel BrowserTM:

1

2

From the Preferences menu, highlight Channel

Browser Setup and press @.

Press • to highlight Navigation, and then press • or •

to select either Browse Mode or Select Mode.

3

4

5

6

7

8

Press • to highlight History List, and then press •or •

to select the setting you prefer: either On or Off.

Note: History List will be cleared every time the TVis

powered off.

Press • to highlight ANT/CABLE List, and then press •

or • to select On or Off.

Press • to highlight Inputs List, and then press •or •

to select On or Off.

Press • to highlight Favorites List, then press •or• to

select On or Off.

Press • to highlight REGZA-LINK List, and then press

• or • to select On or Off.

Note: REGZA-L/NK List will be automatically grayed out

and set to Off when Enable REGZA-LINK is switched to

Off. (See "To set the REGZA-LINK Setup" on page 59 for

more information.)

To save your entries, highlight Done and press @.

To return to factory defaults, highlight Reset and

press @.

To open the Channel BrowserTM:

•Press 'c2•or _i • on the remote control.

• Press 12 • to surf backward through the previously tuned 32

channels in the History list, the channels in the ANT/

CABLE channel list, the inputs in the Inputs list, the

REGZA-LINK devices in the REGZA-LINK list, or the

favorite channels/inputs in the Favorites list.

• Press _i • to surf forward through the channel History, the

ANT/CABLE channel list, the Inputs list, the REGZA-

LINK list, or the favorite channels/inputs in the Favorites

list.

Elementsof the Channel Browser'"

1 2 3 4

2

3

4

5

6

, I

56

Current list (History, ANT/CABLE, Inputs,

Favorites, or REGZA-LINK)

Input type

Channel or input currently being viewed

Channel or input that is currently highlighted in the

browser

Channels stored in the History List

Channel labels

To toggle among the available lists:

After opening the Channel Browser'", press • or • to toggle

among History, ANT/CABLE, Inputs, Favorites, and

REGZA-LINK.

Note:

•The Channel Browser TMopens in History List by default.

Once another list has been selected, the Channel BrowseY _

will open in the last selected fist.

• /fall lists are turned off, pressing 12<, _i •, or_ will not

display the Channel BrowseY _. If Favorites List is turned

off, _will have no effect.

• Pressing_ will bring up the Channel Browse/_ Favorites

list regardless of the last selected list in the

Channel Browse/_.

To tune to a channel or input in Browse mode:

1While watching TV, press 12•or _i • to open the

Channel Browser '_'and surf back to a previous item or

surf forward to the next item in the list.

In Browse mode, when you stop on an item in the

Channel Browser'", it will be highlighted and the TV will

automatically tune to the channel or input.

2Press [g_ to close the Channel Browser'".

To tune to a channel or input in Select mode:

1While watching TV, press 12•or _i • to open the

Channel Browser '_'and surf back to a previous item or

forward to the next item in the list.

In Select mode, when you stop on an item in the Channel

Browser'", it will be highlighted but you must press @ to

tune the TV to the highlighted item.

2Press @ to tune the TV to the highlighted item.

3Press [g_ to close the Channel Browser'".

(continued)

43

Addingand clearing channels and inputs in the

HistoryList

Adding channels and inputs to the History List:

As a channel or input is tuned, the Channel Browser'" adds it

to the History List and displays it on the "right side" of the

Channel Browser '_'.Previously tuned channels/inputs are

"shifted" to the left, eventually moving off the left side. Press

i_ • to surf backward through the previously tuned channels/

inputs. Any channel or input that is tuned repeatedly will not

be repeated in tile History List, but instead is moved to the end

of the list on the right side of the Channel Browser '_'.

The Channel Browser '_'will store the following channels:

•All channels that are tuned using the numeric buttons on the

remote control.

• All channels that are tuned using (_ or _,_ on the remote

control.

Note: Whenever an item is selected that cannot be tuned (for

various reasons), the TV will automatically tune to the

previously viewed channel or input.

Clearing channels from the History List:

• Reconfiguring the ANT/CABLE input will clear the

History List.

Note: See page 36 for details on configuring the ANT/

CABLE input.

• Once 32 channels or inputs are stored in the History List, the

oldest item will be removed from the list when a new

channel or input is tuned.

• Turning off the TV will clear the History List.

Setting the Channel Tuning Mode

This feature allows you to choose how tuning will be handled

for analog and digital channels when the TV is in Antenna

mode.

Note: To use this feature, the InputConfigurationmust be set

to Antenna (_r._"page 36).

The channel tuning mode has three options.

Both analog and digital channels can be

Standard tuned normally

Auto

(default)

Digital channels will have priority when

manually entering a channel number using

the Channel Number (0-9) on the remote

control, analog channels can still be tuned by

/_._ if available

Digital Only digital channels can be tuned

Note: Digital mode will be most useful after analog channels

are shut down by the government in 2009.

To set the Channel Tuning Mode:

1

2

From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

Open the Terrestrial menu, highlight Channel Tuning

Node, and then press • and • • to select your desired

mode, and press @.

Note: The Channel Add/Delete & Channels Block windows as

well as the Channel Browser ANT/CABLE list will be updated

automatically when you change the mode. Also, the History

List will be cleared, but the Favorites List will be saved.

Tuning to the next programmedchannel

To tune to the next programmed channel:

Press (_ or _,_ on the remote control or TV control panel.

Note:This feature will not work unless you program channels

into the TV's channel memory (_r_"page 36).

Tuning to a specific channel (programmed

or unprogrammed)

Tuning analog channels:

Press the Channel Number (0-9) on the remote control. For

example, to select channel 125, press 1, 2, 5, then @.

Tuning digital channels:

Press the Channel Number (0-9) on the remote control,

followed by the dash ((_) button and then the sub-channel

number. For example, to select digital channel 125-1, press 1,

2, 5, -, 1, then @.

Note: If a @ita/ channel is not programmed--either through

the automatic channel scan (_r_r"page 36) or the channel add/

delete function (_r_r"page 37)--you will have to tune the RF

channel using the Channel Number and dash ((_) on the

remote control.

44

Switching between two channels using

Channel Return

The Channel Return feature allows you to switch between two

channels without entering an actual channel number each time.

1Select the first channel you want to view.

2Select a second channel using the Channel Number

buttons (and the dash ((_)) button if selecting a digital

channel).

3Press [_ on the remote control. The previous channel

will display. Each time you press [_, the TV will switch

back and forth between the last two channels that were

tuned.

Note:If you press [_} after changing the current input,

the TV will return to the last-viewed input.

Switching between two channels using

SurfLockTM

The SurfLock '_'feature temporarily "memorizes" one channel

to the [_ button, so you can return to that channel quickly

from any other channel by pressing [_. To memorize a

channel to the [_ button:

1

2

3

Tune the TV to the channel you want to program into the

[_ button.

Press and hold [_ for about 2 seconds until the message

"Memorized" appears on-screen. The channel has been

programmed to the [_ button.

You can then change channels repeatedly, and when you

press [_, the memorized channel will be tuned.

The TV will return to the memorized channel one time only.

Once you press [_ and then change channels again, the CH

RTN memory will be cleared and the button will function as

Channel Return, by switching back and forth between the last

two channels that are tuned.This feature also works for

external inputs.

Selecting the picture size

You can view many program formats in a variety of picture

sizes--Natural, TheaterWide 1, TheaterWide 2,

TheaterWide 3, Full, 4:3 HD, Native, and Dot by Dot.

Note: The "picture size" illustrations are examples only. The

format of the image (in any of the picture sizes) will vary

depending on the format of the signal you are currently

watching. Select the picture size that displays the current

program the way that looks best to you.

You can save separate picture size preferences for each input

on your TV.

To select the picture size using the remote control:

1

2

Press _ on the remote control.

While the Picture Size screen is open, you can do one of

the following to select the desired picture size:

• Repeatedly press _.

• Press the corresponding Number button (0-6) while the

Picture Size screen is open.

• Press • or • while the Picture Size screen is open.

To select the picture size using the menus:

1Select Picture Size in the Theater Settings menu.

2Press • or • to select the desired picture size setting.

3Highlight Done and press _._.

Note: Some of the picture sizes may not be available

depending on the receiving signal format (those will be

"grayed out" in the Picture Size screen).

Using these functions to change the picture size (i.e.,

changing the height/width ratio) for any purpose other than

your private viewing may be prohibited under the Copyright

Laws of the United States and other countries, and may

subject you to civil and criminal liability.

Note: If you select one of the TheaterWide ®picture sizes, the

top and bottom edges of the picture (including subtitles or

captions) may be hidden. To view the hidden edges, either

scroll the picture (TheaterWide 2 and 3 only) or try viewing the

program in Full or Natural picture size.

(continued)

45

Natural

000

000

Some program formats will display with sidebars and/or bars

at the top and bottom.

TheaterWide 1

(for 4:3 formatprograms)

I O 1 [oo 1ooo

The center of the picture remains close to its original

proportion, but the left and right edges are stretched wider to

fill the screen.

TheaterWide2

(for letter boxprograms)

ooo I

000

The top and bottom edges of the picture may be hidden*.

TheaterWide3

(for letter boxprograms with subtitles)

h J........

The top and bottom edges are hidden*.

Full

(for 16:9 [480i, 480p1 source programs only)

I°°°FI°°°

000 000

•If receiving a squeezed 4:3 format program, the picture is

stretched wider to fill the width of the screen, but not

stretched taller.

• None of the picture is hidden.

4:3 HD

(for720p, 1080i, and 1080p program sourcesonly)

000

000

Picture is not distorted from original size.

Native

(for480i (HDMI), 480p (HDIVlI),720p, 1080i, and1080p

signalprograms)

_o_=>000

o 000

• If receiving a480i (HDMI), 480p (HDMI), 72%, 1080i, or

1080p signal program, Native mode scales the video to

display the entire picture within the borders of the screen

(i.e. no overscanning).

• This is especially useful for external HD sources such as

HD-DVD, DVHS movies, or PC graphics.

Note:

•This mode is supported only for HDMI (1080p, 1080i,

720p, 480p, and 480i), ColorStream (1080i and 720p), and

ANT/CABLE (digital) inputs (1080p, 1080L and 720p).

• Depending on the input signals, the border of the picture

may be hidden, displayed in black, or noisy.

Dotby Dot

"Dot by Dot" is a non-scaling display.

Depending on the input signal format, the picture is displayed

with sidebars and/or bars at the top and bottom. (Example:

VGA input source)

* To view the hidden areas (such as subtitles or captions), see

"Scrolling the TheaterWide _ picture" (r_ page 47).

46

Scrollingthe TheaterWide®picture

(TheaterWide2 and3 only)

You can set separate scroll settings for the TheaterWide 2 and

TheaterWide 3 modes for each input.

To set the scroll settings:

1Press _ and open the Video menu.

2Highlight Theater Settings and press @.

Picture Settings

ColorMaster

....XlVldOiorseieoi ..................................

........TheaterLock ..........................................................................................................Of!

3In the Picture Size field, select either TheaterWide 2

or TheaterWide 3 (you cannot scroll in any other mode).

4Press • to highlight the Picture Scroll field.

5Press • or • to scroll the picture up and down as needed,

from -10 to +20.

6To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Usingthe auto aspect ratio feature

When the auto aspect ratio feature is set to On, the TV will

automatically select the picture size when one of the following

input sources is received:

• A 480i, 480p, 720p, 1080i digital signal from the ANT/

CABLE input

•A 480i signal from tile Video 1or Video 2input

• A 480i, 480p, 720p, 1080i signal from the ColorStream

HD1 or HD2 input

• A 480i, 480p, 720p, 1080i, 1080p, or VGA (60/72/75Hz)

signal from the HDMI 1121314 input

4:3 normal Natural (with sidebars)

4:3 letter box TheaterWide 2

16:9 full Full

Not defined

(no ID-1 data The current picture size you set under

or HDMI "Selecting the picture size" on page 45.

aspect data)

Note: The auto aspect ratio feature is not app/icab/e to the PC

input.

To turn on the auto aspect ratio feature:

1

2

3

From the Video menu, highlight Theater Settings and

press @.

In the Auto Aspect Ratio field, select On.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

To turn off the auto aspect ratio feature:

Select Off in step 2 above.

47

Usingthe FREEZEfeature

To use the FREEZE feature:

1When viewing the TV, press _ to make the picture a

still picture.

2To return to the moving picture, press _ again.

Note: If the TV is left in FREEZE mode for more than 15

minutes, the FREEZE mode will automatically be released

and the TV will return to moving picture.

Using the FREEZE function for any purpose other than your

private viewing may be prohibited under the Copyright Laws

of the United States and other countries, and may subject

you to civil and criminal liability.

Adjustingthe picture

Selecting the picture mode

You can select your desired picture settings from tile following

modes, as described below.

Sports Bright and dynamic picture

Standard Standard picture settings

Movie Lower contrast for darkened room

PC Designed for viewing of PC tables and

documents

Preference Your personal preferences

Note: PC mode is available for HDMI and PC inputs only

(grayed out for other inputs).

1

2

From the Video menu, highlight Mode and press @.

Press • or • to select the picture mode you prefer and

press @.

Note: Thepicture mode affects the current input only.

Adjustingthe picture quality

You can adjust tile picture quality (Contrast, Backlight,

DynaLight TM, Brightness, Color, Tint, and Sharpness) to your

personal preferences.

Contrast lower higher

Backlight* darker lighter

DynaLight** On/Off On/Off

Brightness darker lighter

Color paler deeper

Tint reddish greenish

Sharpness softer sharper

* Backlight

This feature adjusts the brightness of the entire screen. When in

video mode and no signal is input, this will automatically be set to O.

(Settings are stored in memory.)

** DynaLight

This function automatically strengthens the black coloring of dark

areas in the video according to the level of darkness.

To adjust the picture quality:

1

2

3

From the Video menu, highlight Picture Settings and

press @.

Press • or • to select the picture quality you want to

adjust (Contrast, Backlight, Dynakight,

Brightness, Color, Tint, or Sharpness), and then

press • or • to adjust the setting, as described in the table

above.

To save the new settings, highlight Done and press @.

You can use any of the picture modes (_g:""Selecting the

picture mode," above left) as a starting point for adjusting

the picture settings.

To revert back to the base mode that you began adjusting

the picture settings from, highlight Reset and press @.

The picture qualities you adjusted are automatically saved in

the Preference mode (_g:""Selecting the picture mode,"

above left) until Reset is selected.

48

Usingthe TheaterLockTM feature

The TheaterLock'" feature allows you to "lock" all items that

affect the picture mode setting. In other words, those settings

that when adjusted cause the Mode setting to automatically

change to "Preference" will be grayed out and unavailable

when the TheaterLock setting is set to "On". Items that do not

influence Mode status will not be affected e.g., Noise

Reduction, x.v.Color Selection, Game Mode, etc.

To turn on TheaterLockTM:

1From the Video menu, press • or • to highlight the

TheaterLock field. Press • and • • to select On and

press @.

To turn off TheaterLockTM:

Select Off in step 1 above.

Note: When TheaterLock is set to On, a lock icon (fi ) will also

be displayed in all Video menu windows where items are

disabled.

Usingthe closed caption mode

Base closed captions

Tile closed caption mode has two options:

•Captions--An on-screen display of the dialogue, narration,

and sound effects of TV programs and videos that are closed

captioned (usually marked "CC" in program guides).

• Text--An on-screen display of information not related to

the current program, such as weather or stock data (when

provided by individual stations).

To view captions or text:

1From the Preferences menu, highlight Base CC

Mode and press •.

2Press • or • to select the desired closed caption mode and

press @.

• To view captions:

Highlight CC1, CC2, CC3, or CC4. (CC1 displays

translation of the primary language in your area.)

Note: If the program or video you selected is not closed

captioned, no captions will display on-screen.

To view text:

Highlight T1, T2, T3, or T4.

Note: If text is not available in your area, a black rectangle

may appear on screen. If this happens, set the Base CC

Mode to Off

To turn off the closed caption mode:

Select Off in step 2 above.

Note: A closed caption signal may not display in the following

situations:

• When a videotape has been dubbed

• When the signal reception is weak

• When the signal reception is non-standard

(continued)

49

Digital CCSettings

You can customize the closed caption display characteristics

by changing the background color, opacity, text size, type,

edge, and color.

Note:

•This feature is available for digital channels only.

• You cannot set the Caption Text and Background as the

same color.

Caption Size Auto, Small, Standard, Large

Auto, Default, Mono w. Serif, Prop. w.

Caption Text Serif. Mono w/o Serif, Prop. w/o Serif,

Type Casual, Cursive, Small Capitals

Caption Text Auto. None, Raised, Depressed, Uniform,

Edge Left Drop Shadow, Right Drop shadow

Caption Text Auto. Black, White, Red, Green, Blue,

Color Yellow, Magenta, Cyan

Text Foreground Auto. Transparent, Translucent,

Opacity Flashing, Solid

Background Auto. Black, White, Red, Green, Blue,

Color Yellow, Magenta, Cyan

Text Background Auto. Transparent, Translucent,

Opacity Flashing, Solid

Caption Text Auto. Black, White, Red, Green, Blue,

Edge Color Yellow, Magenta, Cyan

To customize the

1

2

3

closed captions:

From the Preferences menu, highlight Digital CC

Settings and press_.

Press • or • to highlight the characteristic you want to

change, and then press • or • to select the format for that

characteristic (see table above).

To save the new settings, highlight Done and press _._.

To revert to the factory defaults, highlight Reset and

press _._.

CCSelector

You can use the CC Selector to temporarily override the

default analog caption mode (set in Base CC Mode) for a

particular channel. However, once you change to another

analog channel, the closed caption setting will automatically

change back to the current Base CC Mode setting.

You can also use the CC Selector to select digital closed

caption services (if available). When such services are not

available, the CC Selector presents a default list of services.

If the selected service is not available, the next best service will

be used instead.

To select closed captions:

1

2

From the Preferences menu, highlight CC Selector

and press _.

Press • or • to select Closed Caption, and then press

• or • to select the desired service.

3Press [g_.

Usingthe Closed Caption button on

the remote control

If you press Q when an analog channel is tuned:

•The CC selector will be active and will display CC1-4 and

T1-4 as the options.

• The audio selector will be disabled.

If you press Q when adigital channel is tuned:

• The CC selector will be active and will display the possible

caption options (available languages) for that channel or

service. For example, in addition to English, a channel

might offer closed captions in Spanish and/or French.

• The audio selector will be active and will offer different

audio choices for the digital channel (Dolby or AC3, for

example).

Adjustingthe audio

Muting the sound

Press (_ on the remote control to partially reduce (1/2

MUTE) or turn off (MUTE) the sound. Each time you press

(_, the mute mode will change in the following order:

[--_112 Mute -----+Mute-----+Volume

If the closed caption mode is set to Off when you select

"MUTE" mode, the closed caption feature is automatically

activated if the TV program is Closed Captioned. To mute the

audio without automatically activating the closed caption

feature, use _-_to set the volume to 0. See "Using the closed

caption mode" (_ page 49) for more information on closed

caption modes.

5O

Usingthe digital audio selector

You can use the Digital Audio Selector to conveniently

switch between audio tracks on a digital channel (for those

channels that have multiple audio tracks). This temporarily

overrides the audio track chosen by the language option under

Audio Setup (_g:" "Selecting stereo/SAP broadcasts" below).

To use the digital audio selector:

1Press _ and open the Audio menu.

2Highlight Digital Audio Selector and press 9.

_:Advanced Audio Settings

Audio Setup

3Press • or • to select Audio, and then press • or • to

select the desired service.

4Press [g_.

Selecting stereo/SAP broadcasts

The Multi-channel TV Sound (MTS) feature allows you to

output high-fidelity stereo sound. MTS also can transmit a

Second Audio Program (SAP) containing a second language,

music, or other audio information (when provided by

individual stations).

When the TV receives a stereo or SAP broadcast, the word

"STEREO" or "SAP" appears on-screen when _ is pressed.

The MTS feature is only available for analog signals on the

ANT/CABLE input (u_:" page 60).

To listen to stereo sound:

1From the Audio menu, highlight Audio Setup and press

@.

2In the MTS field, select Stereo.

3To save the new settings, highlight Done and press @.

To reset the settings to the factory defaults, highlight

Reset and press @.

Note:

•You can typically/eave the TVin Stereo mode because

it will automatically output the type of sound being

broadcast (stereo or monaural).

• If the stereo sound is noisy, select Mono to reduce the

noise.

To listen to an alternate language on an ATSC digital

station (if available):

Highlight the Language field in step 2 above, and then press

• or • to select the language you prefer.

To listen to a second audio program on an analog

station (if available):

Select SAP in step 2.

Note:

• A second audio program (SAP) can be heard only on those

TV stations that offer it. For example, a station might

broadcast another language as a second audio program. If

you have SAP on, you will see the current program on the

screen but hear the other language instead of the program's

normal audio.

• If you have SAP on and the station you are watching is not

broadcasting a second audio program, the station's normal

audio will be output. However, occasionally there is no

sound at all in SAP mode. If this happens, set the MTS

feature to Stereo mode.

Adjustingthe audio quality

You can adjust the audio quality by adjusting the bass, treble,

and balance.

To adjust the audio quality:

1From the Audio menu, highlight Audio Settings and

press @.

2Press • or • to highlight the item you want to adjust

(Bass, Treble, or Balance).

3Press •or • to adjust the level.

•<1makes the bass or treble weaker or increases the

balance in the left channel (depending on the item

selected).

••makes the bass or treble stronger or increases the

balance in the right channel (depending on the item

selected).

4To save the new settings, highlight Done and press @.

To reset the settings to the factory defaults, highlight

Reset and press @.

(continued)

51

Usingthe StableSound®feature

Tile StableSound ('_feature limits tile highest volume level to

prevent extreme changes in volume when the signal source

changes (for example, to prevent the sudden increase in

volume that often happens when a TV program switches to a

commercial).

To turn on the StableSound _ feature:

1

2

3

From the Audio menu, highlight Audio Settings and

press @.

In the StableSound field, select On.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Note: TheRESETfunction returnsyour audio adjustments

to the following factory settings:

Bass ........ center (50)

Treble ....... center (50)

Balance ...... center (0)

StableSound .. Off

Note: This feature wi// be gray out in digital channels, to turn it

On or Off, it's necessary to be tuned in an analog channel.

To turn off the StableSound feature:

Select Off in step 2 above.

Selecting the optical audio output format

You can use this feature to select the optical audio output

format when you connect a Dolby Digital decoder or other

digital audio system to the DIGITAL AUDIO OUT terminal

on the TV (_ "Connecting a digital audio system" on

page 18).

To select the optical audio output format:

1

2

3

From the Audio menu, highlight Audio Setup and press

0.

In the Optical Output Format field, select either

Dolby Digital or PCM, depending on your device.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Usingthe Dolby_Digital Dynamic Range

Control feature

This dynamic range control feature causes the ATSC dynamic

range to be further compressed, allowing you to switch from

digital to analog broadcasts at the same dynamic range.

To use the Dolby Digital Dynamic Range Control:

1

2

3

From the Audio menu, highlight Audio Setup and press

0.

In the Dolby Digital Dynamic Range Control field,

select Compressed. When Standard is selected, the

audio is output with minimal compression.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Note:

•This item wi//be grayed out for Analog signals, Video,

ColorStream, HDMI, and PC inputs.

• The Dolby Digital Dynamic Range Control will function in

relation to Optical Output Format (PCM mode).

Usingthe Locksmenu

The Locks menu includes the Enable Rating Blocking, Edit

Rating Limits, Channels Block, Input Lock, Control Panel

Lock, GameTimer, and New PIN Code features. You can use

these features after entering the correct PIN code.

Entering the PIN code

1on the remote control or TV control panel, press _ and

highlight the Locks menu icon.

Enable Rating Blocking Off

Edit Rating Limits

Channels Block

Input Lock Off

GameTimer Off

New PIN Code

52

2Press •, which displays the PIN code entry screen.

• The Lock System screen (below) appears if a PIN

code has not been stored. Press the Channel Number

buttons to enter a new four-digit code, enter the code a

second time to confirm, and press @.

• The Locks/Active screen appears if the PIN code is

already stored. Use the Number buttons to enter your

four-digit code and press 9.

If the wrong PIN code is entered, the message "Incorrect PIN

code, please try again !" appears. Highlight Retry and press

@. Enter the code again and press @.

When the correct PIN code is entered, the Locks menu opens.

If you cannot remember your PIN code

While tile PIN code entering screen is displayed, press @ four

times within five seconds. The PIN code will be cleared and

you can enter a new PIN code.

Changingyour PIN code

1From the Locks menu, press • to display the PIN code

entering screen.

2Enter your four-digit PIN code and press @.

3Press • to highlight New PIN Code and press @.

4Press the Number buttons to enter a new four-digit code.

Reenter the PIN code to confirm it.

5Press @. The new PIN code is now active.

Blocking TV programsand movies

by rating (V-Chip)

Some TV programs and movies include signals that classify

the content of the program (violence, sex, dialog, language).

The V-Chip feature in this TV detects the signals and blocks

the programs according to the ratings you select. (For rating

descriptions, see the tables on the next page.)

Note: Rating b/ocking is a function of the V-Chip feature in this

TV, which supports the U.S. V-Chip system only.

To block and unblock TV programs and movies:

1From the Locks menu, press • to display the PIN code

entering screen.

2Enter your four-digit PIN code and press @.

3Press • to highlight Enable Rating Blocking.

4Press • and • to select On, and then press @.

5Press • to highlight Edit Rating Limits and press @.

The Edit Rating Limits screen appears.

6Press A•_I • and then press @ to select the level of

blocking you prefer. A box with an "X" is a rating that will

be blocked. As you highlight a rating, a definition for the

rating appears at the bottom of the screen.

7When done selecting the ratings you want to block,

highlight Done and press @.

(continued)

53

Downloadingan additional rating system

for blocking TV programsand movies

In the future, an additional rating system may become

available for use in selectively blocking programs.

Note: The currently tuned station must be receiving a digital

signal before an additional rating system can be downloaded.

To download the additional rating system

(if available):

1From the Locks menu, press • to display the PIN code

entering screen.

2Enter your four-digit PIN code and press @.

3Press • to highlight Enable Rating Blocking.

4Press • and • to select On, and press @.

5Press • to highlight Edit Rating Limits and press @.

The Edit Rating Limits screen appears.

6Highlight AIt RS and press @. The Edit Alternate

Ratings screen will appear.

7

8

9

Note:

•The AIt RS button will only be available if an additional

rating system is currently available.

• It may take several minutes for the TV to download the

additional rating system.

• The information displayed in the Alternate Ratings

screen will depend on the configuration of the

additional rating system available at the time of

download.

Press • • • • and then press @ to select the level of

blocking you prefer. A box with an "X" is a rating that will

be blocked.

When you are finished selecting the ratings you want to

block, highlight Done and press _._.

In the Edit Rating Limits screen, highlight Done and

press @.

Note:

• The additional rating system can only be downloaded one

time. You will not be able to download any updates to the

rating system should such updates become available.

• The additional rating system is not designed, transmitted, or

controlled by the TV or Toshiba, nor is the availability of an

additional rating system determined or controlled by

Toshiba. Similarly, the rating of programs in an additional

rating system is not determined, transmitted, or controlled

by the TV or Toshiba.

• The additional rating system is an evolving technology;

therefore, availability, content, and format may vary.

Independentratingsystemfor broadcasters

TV-MA

TV-14

TV-PG

TV-G

TV-Y7,

TV-Y7FV

TV-Y

Mature Audience Only (This program is specifically

designed to be viewed by adults and therefore may

be unsuitable for children under 17.)

L) Crude or indecent language S) Explicit sexual

activity V) Graphic violence

Parents Strongly Cautioned (This program contains

some material that many parents would find

unsuitable for children under 14 years of age.)

D) Intensely suggestive dialog L) Strong, coarse

language S) Intense sexual situations V) Intense

violence

Parental Guidance Suggested (This program

contains material parents may find unsuitable for

younger children.)

D) Some suggestive dialog L) Infrequent coarse

language S) Some sexual situations V) Moderate

violence

General Audience (Most parents would find this

program suitable for all ages.)

Directed to Older Children (This program is designed

for children age 7 and above. Note: Programs in

which fantasy violence may be more intense or more

combative than other programs in this category are

designated TV-Y7FV.)

All Children (This program is designed to be

appropriate for all children.)

Independentratingsystemfor movies

Ratin_R Desc_tdRan_ _nti_es _

X X-rated (For adults only)

NC-17 Not intended for anyone 17and under

a Restricted (Under 17 requiresaccompanying parent

or adult)

Parents Strongly Cautioned (Some material may be

PG-13 inappropriate for children under 13)

Parental Guidance Suggested (Some material may

PG not be suitable for children)

G General Audience (Appropriate for all ages)

Note:

• /fyou place an '×" in the box next to "'None' Rated,"

programs rated "None" will be blocked, however, programs

that do not provide any rating information will not be

blocked.

• To display the rating of the program you are watching, press

on the remote control. If it is rated "None," the word

"NONE" appears in the RECALL screen (as shown below

right). If rating information is not provided, no rating will

appear in the RECALL screen.

5• •,*e, •

54

Blocking channels

With tile Channels Block feature, you can block specific

channels. You will not be able to tune blocked channels unless

you unlock them.

To block channels:

1From tile Locks menu, press • to display tile PIN code

entering screen.

2Enter your four-digit PIN code and press @

(_ page 52).

3Press • to highlight Channels Block and then press 9.

A list of the channels available for that input will be

displayed along with the call letters for each channel, if

available.

4Press •• to highlight the channel you want to block and

press _._, which puts an "X" in the box next to that

channel.

5Repeat step 4 for other channels you want to block.

6Highlight Done and press _._.

To unblock individual channels:

In step 4 above, press •• to highlight the channel you want to

unblock, press @ to remove the "X" from the box, highlight

Done and press 9.

To block all channels at once:

Highlight Block All in step 4 above and then highlight Done

and press @.

To unblock all locked channels at once:

Highlight Allow All in step 4 above and then highlight Done

and press @.

Unlocking programstemporarily

If you try to tune tile TV to a program that exceeds tile rating

limits you set, the TV will enter program lock mode and the

following message will appear on-screen:

You can either temporarily unlock the program or select an

unlocked program to watch.

To temporarily unlock the program:

1

2

Press _.

Enter your four-digit PIN code and press @. If tile correct

code is entered, the program lock mode is released and the

normal picture appears. All locking is disabled until the

TV is turned off. and will be enabled when the TV is

turned on again.

Usingthe input lock feature

You can use tile Input Lock feature to lock tile video inputs

(Video 1, Video 2, ColorStream HD1, ColorStream

HD2, HDMI 1, HDMI 2, HDMI 3, HDMI 4, and PC) and

channels 3 and 4. You will not be able to view tile input sources

or channels until you unlock the inputs.

To lock/unlock the video inputs:

1From the Locks menu, press • to display the PIN code

entering screen.

2 Enter your four-digit PIN code and press @.

3Press • to highlight Input Lock and press ,.

4 Press Ator • to select the level of video input locking you

prefer, as described below.

Locks Video 1, Video 2, ColorStream

Video HD 1/HD2, HDMI 1, HDMI 2, HDMI 3,

HDMI 4, and PC.

Video+

Off

Locks Video 1, Video 2, ColorStream

HD 1/HD2, HDMI 1,HDMI 2, HDMI 3,

HDMI 4, PC and channels 3 and 4.

• Select Video+ if you play video tapes

via an ANT/CABLE input.

Unlocks all video inputs and channels 3

and 4.

5Press @.

Usingthe GameTimer®

You can use tile GameTimer to set a time limit for playing a

video game (30-120 minutes). When the GameTimer expires,

the TV enters Input Lock mode and locks out the input source

for the video game device.

To set the GameTimer®:

1From the Locks menu, press • to display the PIN code

entering screen.

2 Enter your four-digit PIN code and press @.

3Press • to highlight GameTimer and press ,.

4 Press • or • to select the length of time until the Input

Lock is activated (30, 60, 90, or 120 minutes) and press

@.

To cancel the GameTimer®:

Select Off in step 4 above.

(continued)

55

To deactivate the Input Lock once the GameTimer

has activated it:

Set the Input Lock to Off (_ "Using the input lock feature"

as described above).

Note:

•A message will appear when 10 minutes, 3 minutes, and 1

minute remain or?the GameTimer.

• If the TVIoses power with time remaining or?the GameTimer,

when power is restored the TV will enter Input Lock mode

(as if the GameTimer had been activated) and you will have

to deactivate the Input Lock (as described above).

Usingthe control panel lock feature

You can lock the control panel to prevent your settings from

being changed accidentally (by children, for example). When

the control panel lock is On, none of the controls on the TV

control panel will operate except POWER.

To lock the control panel:

1From the Locks menu, press • to display the PIN code

entering screen.

2Enter your four-digit PIN code and press @.

3Press • to highlight Control Panel Lock.

4Press• and• • tohighlightOnandpress@.Whenthe

control panel is locked and any button on tile control panel

(except POWER) is pressed, tile message "Not

Available" appears.

To unlock the control panel:

Highlight Off in step 4 above, or press and hold the

VOLUME - button on the TV control panel for about 10

seconds until the volume icon appears.

Usingthe PCsettings feature

You can view an image from a PC on the TV screen.

When a PC is connected to the TV's PC IN terminal, you can

use the PC Settings feature to make adjustments to the image.

If the edges of the picture are cut off, readjust the Horizontal

Position and Vertical Position. If the picture is affected by

interference, readjust the Clock Phase and Sampling

Clock.

To adjust the PC settings:

1Select PC input mode (_ "Selecting the video input

source to view" page 41).

2From the Setup menu, highlight PC Settings and press

@.

Note: If a PC is not connected or there is no PC input

signal, this feature will be grayed out in the Setup menu.

3Press • or • to highlight the item you want to adjust.

4Press • or • to make the appropriate adjustments.

Note: The screen is disrupted momentarily when

adjusting the PC settings. This is not a sign of malfunction.

Moves the picture le_right.

Horizontal The adjustment range is within +10 from

Position center.*

Moves the picture up/down.

Vertical The adjustment range is within +10 from

Position center.*

Helps to reduce noise and sharpen the

Clock Phase picture.

The adjustment range is within +32 from

center.*

Helps to reduce noise and minimize periodic

Sampling vertical stripes on the screen.

Clock The adjustment range is within +5 from

center.*

* The default settings and/or adjustment range vary depending on

the input signal format.

56

Setting the PCAudio

This function allows you to output or mute the sound from

your PC when connecting using the PC IN terminal and an

analog RGB cable.

To set the PC Audio:

1

2

From the Audio menu, highlight Audio Setup and press

@.

Press • or • to select PC Audio and then press • or•

to select No or Yes.

Yes: When viewing the PC input, the audio from the PC

Audio input can be heard.

No: When viewing the PC input, there will be no audio.

Note: Because the PC and HDMI 1inputs share the same

analog audio input, the PC Audio menu setting influences

the HDMI 1 Audio menu setting. If PC Audio is set to

"No," the HDMI 1 Audio setting changes to "Auto." If PC

Audio is set to "Yes," the HDMI 1 Audio setting is set to

"Digital" and is grayed out in the menu. (Also see item 4

on page 11 and "Setting the HDMI TM audio mode" on

page 39.)

Setting the sleep timer

You can set the sleep timer to turn off the TV after a set length

of time (maximum of 180 minutes).

To set the sleep timer using the remote control:

Press s_Epon the remote control to set the length of time until

the TV turns off. Repeatedly press s_Epto increase the time in

10-minute increments, or press • or • to increase or decrease

the time in 10-minute increments, to a maximum of 180

minutes.

To set the sleep timer using the on-screen menus:

1From the Setup menu, highlight Sleep Timer and press

@.

2Press the Number buttons to enter the length of time in

10-minute increments.

3Highlight Done and press @.

Note: When a power failure occurs, the sleep timer setting

may be cleared.

To display the remaining sleep time:

Press S LQ_EP,

Note: A message will display on-screen when there is one

minute remaining on the sleep timer.

To cancel the sleep timer:

Repeatedly press s_Epuntil it is set to 0 minute.

UsingREGZA-LINK

This is a new feature that uses CEC technology and allows you

to control Toshiba REGZA-LINK compatible devices from the

TV remote via HDMI connection (_g:"page 17).

When the Enable REGZA-LINK in the REGZA-LINK

Setup menu (_g:"page 58) is set to On, the following

REGZA-LINK functions will be enabled.

REGZA-LINKplayback device (HD DVD

player, etc.) control

With your TV's remote control, or using tile REGZA-LINK

Player Control menu, you can control the connected

REGZA-LINK playback device you are watching.

Available remote control key functions:

Before using the following key functions, first set the MODE

SELECT switch on the remote control to TV.

PLAY

cE) Begins playback.

STOP

c_3 Stops playback.

PAUS_STEP Pauses the picture during play or record

mode.

SKIP Skips forward.

SKIP Skips backward.

FF Fast-forwards.

NEW Rewinds/reverses.

• • • • Navigate contents menu, etc.

@ Enters contents menu, etc.

[g_ Returns to the previous menu.

Note: These functions depend on the devices connected.

(continued)

57

REGZA-LINK Player Control menu functions:

1Press _ and open the THINC Applications menu.

2Highlight REGZA-LINK Player Control and press @.

3Press • or • to select the item you want to control and

press @.

Power Turns the select device on and off.

Top Menu Accesses the top menu of a DVD.

Menu Accesses the menu of a DVD.

Accesses the contents list when you press

Contents @. At this time, the REGZA-LINK Player

Menu Control menu will disappear.

Note:

•These functions depend on the devices that are connected.

• The REGZA-LINK Player Control item will be grayed out in

the following conditions:

-Anon-HDMI input is currently selected.

The Enable REGZA-LINK item is set to Off

The connected CEC device is not a playback or recording

device.

REGZA-LINKinput source selection

If a REGZA-LINK device with HDMI switching capability

(e.g. Audio Receiver) is connected to the HDMI input, you can

select another REGZA-LINK device that is connected to the

master HDMI device using the TV's INPUT button. See page

41 for details.

VOLUMEand MUTE controls of Audio

Receiver

With your TV's remote control, you can adjust or mute the

sound volume of the Audio Receiver. First, set the MODE

SELECT switch on the remote control to TV.

•[_o__ adjust tile volume level.

• (_ turns off the sound.

Note:

•To use this function:

Set Speaker Preference to Audio Receiver in the

REGZA-LINK Setup menu.

Confirm that a connected REGZA-LINK device (such as

HD DVD player, etc) is selected for the Audio Receiver

input source.

• You can also use this function when the audio receiver is

connected to the TV's DIGITAL AUDIO OUT terminal (not

HDMI connection). In this case, select a digital audio input

mode on the Audio Receiver.

• These functions depend on the device connected.

Other REGZA-LINKfunctions

When the Enable REGZA-LINK and each item in the

REGZA-LINK Setup menu are set to On, the following

functions will be enabled.

If a connected HDMI device starts playing

TV Auto video or audio, the TV will automatically

Input Switch switch to the appropriate HDMI input.

If a REGZA-LINK device is turned on the

TV Auto Power TV turns on automatically.

If the TV is turned off. the TV will send a

Device Auto message to turn off all of the REGZA-

Standby LINK devices connected to the TV.

Speaker

Preference

From this item, you can set your audio

output preference to the TV speakers or the

audio receiver speakers. When this item is

set to Audio Receiver, the TV remote can

be used to adjust or mute the volume of the

audio. This item will be grayed out unless a

REGZA-LINK compatible audio receiver

is connected.

Note: When you turn on the Audio Receiver, change its input

source, or adjust the sound volume, the sound will be output

from the audio receiver's speakers even if TV Speakers has

been selected. Turn the TV off and on again to output the

sound from the TV speakers.

58

To set the REGZA-LINK Setup:

1From the Setup menu, highlight REGZA-LINK Setup

and press @.

2Press •or •to highlight Enable REGZA-LINK.

3Press •or • to select On.

Note: if you set Enable REGZA-LINK to Off, the other

items wi// be grayed out.

4 Press• or • to highlight the REGZA-LINK setupitem

you want to use, and press •or • to select On or desired

mode

•TV Auto Input Switch: On/Off

• TV Auto Power: On/Off

• Device Auto Standby: On/Off

• Speaker Preference: TV Speakers/Audio Receiver

5To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Usingthe HDMI settings feature

This menu consists of the following 3 items (new HDMI

capabilities) and will be grayed out on non-HDMI inputs.

Some HDMI legacy sources may not work properly with your

HDMI TV, please try setting the following options (Lip-Sync

Latency, Deep Color, and x.v.Color) to Oil. Adjusting these

settings should allow your HDMI legacy source to operate

properly with your TV.

Note: Youmust disconnect your source device first before

settings car) be adjusted.

• Lip-Sync Latency: On

This option activates an auto audio/video display timing

adjustment function that allows HDMI source devices to

accurately perform synchronization automatically.

• Deep Color: On

This feature allows the HDMI source to increase available

colors bits within the boundaries defined by the RGB or

YCbCr color space.

• x.v.Color: On

This feature expands the acceptable color range (limits) in

the HDMI signals, then allows sending wider color signals

from HDMI source.

All of the above HDMI settings need proper HDMI source

devices. If an HDMI source device does not support these

features, the TV may not work properly when these features

are enabled.

Note:/fyour HDMI connection is capable of 1080[) and/or

your TV is capable of refresh rates greater than 60Hz or

supports Deep Color, you will need a High Speed HDMI cable.

Con ventional HDMI/D VI cables may not work properly with this

mode.

To set the HDMI Settings:

1Select the appropriate HDMI input mode (HDMI 1,

HDMI 2, HDMI 3 or HDMI 4).

2From the Setup menu, highlight HDMI Settings and

press @.

3 Press • or • to highlight the item you want to set.

4 Press • or • to select On or Off.

5To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

59

DisplayingTV status information

To display TV status information using RECALL:

Press @ on the remote control.

The following information will display (if applicable):

•Current input (ANT/CABLE, Video 1, etc.)

• If ANT/CABLE is the current input, either "CABLE" (for

cable TV) or "ANT" (for over-the-air broadcasts).

• Channel number (if in ANT/CABLE mode)

• Channel label (if set)

• Digital signal strength indicator (bar graph in lower right

corner of box; for ATSC signal only)

• Stereo, Mono or SAP audio status (when HDMI input mode,

Dolby Digital or PCM)

• Video resolution

• Aspect ratio of incoming video signal (4:3 or 16:9)

• V-Chip rating status

• GameTimer (if set)

• x.v.Color status of incoming signal

To close the RECALL screen:

Press _ again.

To display TV status information using INFO:

(only available for ANT/CABLE input)

Press _ on the remote control.

The following additional information will display for off air

digital channels (if applicable):

• Title

• Duration

• Detailed description

To display Next information, press _ on the remote control

again. Pressing _ a third time will remove the entire banner.

Note: The location of #)e banner can be moved to the top or

bottom of the screen by pressing •or •while the RECALL or

INFO display is on-screen. (The last position will be stored to

memory.)

Understandingthe auto power off

feature

The TV will automatically turn itself off after approximately

15 minutes if it is tuned to a vacant channel or a station that

completes its broadcast for the day. This feature functions in

ANT/CABLE mode only.

Understandingthe last mode

memoryfeature

If the power is cut off while you are viewing the TV, the

Last Mode Memory feature automatically turns on the TV

when the power is resupplied.

Note:/f it's possible, and you will be away from the TV for an

extended period of time you should unplug the power cord.

6O

Usingthe advancedpicture settings

features

Usingdynamic contrast

When dynamic contrast is set to Low, Middle, or High, the

TV will detect changes in the picture quality that affect the

appearance of your contrast settings and then automatically

adjust the video.

To select dynamic contrast preferences:

1Press _ and open the Video menu.

2Highlight Picture Settings and press @.

3

4

5

Highlight Advanced Picture Settings and press @.

In the Dynamic Contrast field, select either Off, Low,

Middle or High.

To save the new settings, highlight Done and press _._.

To revert to the factory defaults, highlight Reset and

press _._.

Note: If you select one of the factory-set picture modes

(Sports, Standard, Movie or PC) and then change the

dynamic contrast setting, the picture mode automatically

changes to Preference.

Usingthe static gamma feature

Tile static gamma feature allows you to adjust tile levels of

black in the picture.

To adjust the static gamma settings:

1

2

3

From the Video menu,highlight Picture Settings and

press @.

Highlight Advanced Picture Settings and press _.

In the Static Gamma field, press • or • to adjust the

static gamma.

The adjustment range is within +4 from center.

•If the setting is moved in the minus direction, the detail

of black colors will be decreased.

• If the setting is moved in the plus direction, the detail of

black colors will be increased.

4To save the new settings, highlight Done and press @.

To revert the factory defaults, highlight Reset and

press _._.

Note: If you select one of #_e factory-set picture modes

(Sports, Standard, Movie or PC) and then change the

static gamma setting, the picture mode automatically

changes to Preference.

Selecting the color temperature

You can change tile quality of tile picture by selecting from

three preset color temperatures (Cool, Medium, and Warm), as

described below.

Cool blueish

Medium neutral

Warm reddish

To select the color temperature:

1From the Video menu, highlight Picture Settings and

press @.

2Highlight Advanced Picture Settings and press _.

3Highlight Color Temperature and press _.

4In the Color Temperature field, select the mode you

prefer (Cool, Medium, or Warm).

5 Press • or • to select either B Drive or G Drive, and

then press • or • to adjust the settings.

• B Drive: • makes the picture blueish.

• G Drive: • makes the picture greenish.

6

Note: The B Drive and G Drive settings are connected to

the Color Temperature settings and wi// change based

on which setting is selected in step 4 above.

To save the new settings, highlight Done and press _.

To revert to the factory defaults, highlight Reset and

press _._.

Note: If you select one of #_e factory-set picture modes

(Sports, Standard, Movie or PC) and then change the

co/or temperature mode, the picture mode automatically

changes to Preference.

(continued)

61

Selecting the cinema mode

(480i and 1080i signals)

When you view a DVD (3:2 pulldown processed) from a DVD

player connected to the Video 1, Video 2, ColorStream

HD1, ColorStream HD2 (component video), or HDMI

inputs on the TV, smoother motion can be obtained by setting

the Cinema Mode to Film.

To set the Cinema Mode to Film:

1From the Video menu, highlight Picture Settings and

press @.

2Highlight Advanced Picture Settings and press @.

3In the Cinema Mode field, select Film.

4To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

To set the Cinema Mode to Video:

Select Video in step 3 above.

Usingthe ClearFrameTM feature

The new ClearFrame 120 Hz anti-blur technology doubles the

frame rate from 60 frames per second to 120 frames per

second, virtually eliminating motion blur without adding

flicker or reducing image brightness.

To turn on the ClearFrame:

1From the Video menu, highlight Picture Settings and

press @.

2Highlight Advanced Picture Settings and press @.

3In the ClearFrame field, select On.

4To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Note:

•if you select one of the factory-set picture modes (Sports,

Standard, Movie or PC) and then change the ClearFrame

setting, the picture mode automatically changes to

Preference.

• When ClearFrame is set to Off, the Film Stabilization feature

will not be available (grayed out and set to Off).

Usingthe Film Stabilization feature

This feature helps to eliminate video shaking that can occur

when Cinema Mode is set to Film (3:2 pull down process

enabled).

To turn on Film Stabilization:

1From the Video menu, highlight Picture Settings and

press @.

2Highlight Advanced Picture Settings and press @.

3In the Film Stabilization field, select Smooth.

4To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Note:

•if you select one of the factory-set picture modes (Sports,

Standard, Movie or PC) and then change the Film

Stabilization setting, the picture mode automatically

changes to Preference.

• When Cinema Mode is set to Video or ClearFrame is set to

Off, Film Stabilization will be grayed out and set to Off

automatically.

UsingCableClear®digital noise reduction

Tile CableClear _'_digital noise reduction feature allows you to

reduce visible interference in your TV picture. This may be

useful when receiving a broadcast with a weak signal

(especially a Cable channel) or playing a noisy video cassette

or disc.

To change the CableClear settings:

1

2

3

From the Video menu, highlight Noise Reduction and

press @.

In the CableClear field, select your desired setting.

Note:

•ifthe current input is ANT/CABLE, Video 1, or Video 2,

the menu will display the text "CableClear." The

available selections are Off, Auto, Low, Middle, and

High.

•If the current input is ColorStream HD1, ColorStream

HD2, HDMI 1, HDMI 2, HDMI 3 or HDMI 4, the menu will

display the text "DNR." The available selections are Off,

Auto, Low, Middle, and High. Auto will react

proportionally to the strength of the noise. Low, Middle,

and High will reduce the noise in varying degrees, from

lowest to highest, respectively.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

62

UsingMPEGnoise reduction

The MPEG noise reduction feature allows you to reduce

visible interference caused by MPEG compression. Choices

for MPEG noise reduction are Off, Low, Middle, and High.

Off is automatically selected when this feature is disabled

("grayed out").

To select the MPEG noise reduction level:

1

2

3

From the Video menu, highlight Noise Reduction and

press @.

Press • or • to highlight the MPEG Noise Reduction

field, and then press •or • to select either Off, Low,

Middle or High.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Usingthe ColorMasterTM feature

Tile ColorMaster feature allows you to adjust standard colors.

The menu will consist of 3 items:

ColorMaster, Color Palette Adjustment, and Reset.

To turn on ColorMaster:

1From the Video menu, highlight ColorMaster and press

0.

2In the ColorMaster field, select On.

Note: If you select one of the factory-set picture modes

(Sports, Standard, Movie or PC) and then change the

ColorMaster setting, the picture mode automatically changes

to Preference.

To turn off ColorMaster:

Select Off in Step 2 above.

UsingColor Palette Adjustment

When color palette adjustment is selected, tile list of base

colors will be displayed. You can select a base color to adjust.

Note: To use Color Palette Adjustment ColorMaster must

be set to On.

To adjust the Base Colors:

1From the ColorMaster menu, highlight Color Palette

Adjustment andpress@.

2The Select Standard Color window will be displayed.

Press • or • to highlight the color you want to adjust, and

then press @.

3The Color Adjustment window will be displayed.

Press _ to freeze the picture.

To return to moving picture, press _ again.

Reset

4Press • or • to select either Hue, Saturation, or

Brightness, and then press • and • to adjust the setting.

Note: Torevert to the factory settings of the Hue,

Saturation, and Brightness for the se/ected co/or,

High/ight Reset and press @.

5 Press [_ to return to the previous menu.

6Repeat steps 2 through 5 to adjust any other color.

To reset ColorMaster to its factory settings:

1

2

3

From the ColorMaster menu, highlight Reset, and then

press @.

A confirmation message will appear. Highlight OK, and

then press @.

Press [g_.

(continued)

63

Usingx.v.Color Selection feature

The color range "x.v.Color" is an international standard and

enables a wider color range than conventional video

applications.

When set to Auto, picture settings are automatically set when

an x.v.Color signal is detected.

When set to On, x.v.Color detection does not occur, so picture

settings are always adjusted for x.v.Color.

When set to Off, normal processing occurs.

Note: If a non-HDMI input is selected or the x.v.Color setting

in the HDMI Settings menu is set to Off, this feature will appear

grayed out in the Video menu.

To change the x.v.Color Selection:

1

2Press _ and open the Video menu.

Press • or • to highlight x.v.Color Selection and press

• . Press • or • to select the settings you prefer (Auto,

On or Off) and press _._.

"x.v.Color" and the "x.v.Color" logo are trademarks of Sony

Corporation.

Usingthe Game Mode feature

You can use the Game Mode feature for shorter frame delays

when playing a video game requiring split-second timing

between the on-screen display and input from the controller

(such as music creation and high-action games).

This feature is more effective for 480i and 1080i input signals.

Note: To use the Game Mode feature, the current video input

must be Video 1, Video 2, ColorStream HD1,

ColorStream HD2, HDMI 1, HDMI 2, HDMI 3, HDMI 4, or PC.

The Game Mode cannot be turned on when the ANT/CABLE

input is selected.

To turn on Game Mode:

1From the Video menu, press • or • to highlight the

Game Mode field and press •. Press • or • to select O n

and press _._.

To turn off Game Mode:

Select Off in step 1 above, change the video input, or turn the

TV off and then on again.

Note: You can change the video input by pressing @E)on the

remote control (_r_,page 41).

Usingthe advancedaudio settings

features

Usingthe surroundsound features

Stereo Extension, Voice Enhancement, and Dynamic Bass

Boost help to create a thrilling surround sound experience with

deep, rich bass from stereo sound sources. Your TV's audio

will sound fuller, richer, and wider.

To adjust the settings:

1

2

3

4

Put the TV in STEREO mode (_ "Selecting stereo/SAP

broadcasts" on page 51).

From the Audio menu, highlight Advanced Audio

Settings and press@.

Press • or • to highlight the feature you want to adjust,

and then press • or • to adjust the item.

To turn the surround sound effect On or

Stereo Off.

Extension Note:If the broadcast is monaural, the

Stereo Extension effect will not work.

Voice To turn the vocal emphasis effect On or

Enhancement Off.

Dynamic Bass To select the desired bass expansion

Boost level (Off, Low, or High).

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

64

Generaltroubleshooting

Before calling a service technician, please check this chapter

for a possible cause of the problem and some solutions you can

try.

Black box on-screen

• The closed caption feature is setto oneof the Text modes(T1,

T2, T3, or T4). Setthe closed caption featureto Off

(_ page49).

TV stops responding to controls

• If the TV stops responding to the controls on the remote

control or TV control paneland you cannot turn off the TV,

pressand holdthe POWERbutton onthe IV control panelfor

5 or more seconds to resetthe TV.

Other problems

• If your TV's problem is not addressedin this Troubleshooting

sectionor the recommendedsolution has not worked, usethe

RestoreFactory Defaults procedure (_ page 40).

TV will not turn on

Makesure the power cord is plugged in, and then press P%E,.

The remote control batteries may be dead.Replacethe

batteries or try the control panel buttons.

Picture problems

General picture problems

• Checkthe antenna/cable connections (_ Chapter 2)

• Press_) onthe remotecontrol or TVand selecta valid video

input source (_ page 41) If no device is connected to a

particular input on the TV, no picture will display when you

selectthat particular input source. For device connection

details, seeChapter 2.

• Antenna reception may be poor. Usea highly directional

outdoor antenna (if applicable).

• The station may have broadcast difficulties. Try another

channel.

• Adjust the picture qualities (_ page 48).

• If you are using a VCR, make sure '_° on the remote control

is set correctly (_ page 21).

• Do not connect both a standard video cable and an S-video

cableto the VIDEO1 input at the same time

(_ page13).

Noisy picture

• If you are watching an analog channel (off-air broadcastor

CableTV), you canset the CableClear®/DNRfeatureto AUTO

to reduce visible interference in the TV picture (_ page 62).

Video Input Selection problems

• If the Input Selectionwindow does not appearwhen you

press _) on the remote control or TV, press _) a second

time, which will changeto the next video inputsource and

displaythe Input Selectionwindow.

Cannot view external signals or channel 3 or 4

•Ifyou cannotview signals from external devicesconnected to

VIDEO1, VIDEO2, ColorStream¢, HDIVll1, HDIVll2, HDIVll3,

HDIVll4, PCorfrom channels3 or4, makesurethe Input Lock

is set to Off (_ page 55)

Poor

Poor

color or no color

The station may have broadcast difficulties. Try another

channel.

Adjust the Tint and/or Color(_ page 48).

composfe or S-video picture

If the TV is connectedto an externalA/V device (e.g., DVD

player,video game system, set-top box, etc.) try using a

ColorStreamor HDIVllvideo connection instead.

If you connect an S-video cable, be sure to disconnect the

standard (composite) video cable. Do not connect both types

of video cableat the same time.

Picture and sound are out of sync

• As with all products that contain a digital display, in rare

instances,when viewing certain content (e.g.. television

broadcasts, video games, DVDs), you may notice that the

sound and picture are slightly out of sync. This phenomenon

can becausedby various factors including, without limitation,

video processing within the TV,video processing in an

attached gaming system, and video processing or different

compression rates used by broadcasters in their

programming. You may want to try one or more of the

following suggestions, which may helpto reducethe effect of

this phenomenon:

- If the TV is connectedto an A/V receiver that has a

programmable audio delayfeature, usethis feature to help

synchronize the sound to the picture.

- Ifyou noticethis phenomenon only on certainTVchannels,

please contact your local broadcast, cable,or satellite

provider to inform them of this issue.

LEDindications while in reboot from standby

• When you plug the power cord in, the yellow LEDwill blink

until the TV enters standby mode, (plugged in but not

powered on). This is normal and is not a sign of malfunction.

Sound problems

• Check the antenna/cableconnections (_ Chapter 2).

• The station may have broadcast difficulties. Try another

channel.

• The sound may be muted. Press VOLUME.

• If you hear no sound, try setting the IVlTSfeatureto

Stereo mode (_ page 51).

• If youare not receiving asecond audio program from a known

SAP source, make sure the IVlTSfeature is set to SAP mode

(_ page51).

• If you hearaudio that seems "incorrect" for the program you

are watching (such as music or a foreign language),the SAP

mode may be on. Setthe IVlTSfeature to Stereo mode

(_ page51).

(continued)

65

Remote control problems

Make sure the remote control is set to the correct device

mode (_ page 21).

Removeall obstructions betweenthe remotecontrol and the

TV.

The remote control batteries may be dead.Replacethe

batteries (_ page 20).

Your TV remote control may not operate certainfeatures on

your external device. Refer to the owner's manualfor your

other deviceto determine itsavailable features. Ifyour TV

remote control does not operate a specific feature on another

device, usethe remote control that camewith the device

(_ pages26-32).

Ifthe TV still does not act as expected,use the ResetFactory

Defaults procedure (_ page 40).

Channel tuning problems

• Make sure the remote control is set to the correct device

mode (_ page 21).

• The channel may havebeenerasedfrom the channel memory

by the ChannelAdd/Deletefeature. Add the channelto the

channel memory (_ page 37).

• The channel may be blocked by the ChannelsBlockfeature.

Unblockthe channel (_4r page55).

•If you are unableto tune digital channels, check the antenna

configuration (_ page 36). If you are still unableto tune

digital channels, clear all channelsfrom the channel list

(_ page 37) and reprogram channels into the channel

memory (_ page 36). If you are still unableto tune digital

channels, use the Reset Factory Defaults procedure

(_ page 40). Also see "TV stops responding to controls"

and "Other problems" (_ page65).

Closed caption problems

•Ifthe program or video you selected is not closed-captioned,

no captions will display (_' page 49).

• If text is not available, a black rectangle mayappear. If this

happens,turn off the closed caption feature (_ page49).

• A closed-caption signal may not display correctly in the

following situations: a)when a videotape has beendubbed; b)

when the signal reception is weak; or c) when the signal

reception is nonstandard (_ page 49).

Rating blocking (V-Chip) problems

• If youforget your PiN code: While the PiN code entering

screenis displayed, press _ four times within 5 seconds.

The PIN code you previously stored will be cleared

(_ page52).

• TheV-Chip feature is availablefor the U.S.V-Chip system only

(_ page53).

No REGZA-LINKoperation

• The REGZA-LINKfeatureis availableforToshiba REGZA-LINK

compatible devices.

•Makesurethe HDMI cableswith the HDMI Logo (141Drrll)

are used.

• When the connected REGZA-LINKdevicedoes not work

correctly after you have changed settings of the device,turn

off your TVand unplug the power cord,then plug andturn on

again.

• If several devicesare connected, REGZA-LINKfeature may

not operate properly.

• Readthe instruction manual furnished with the connected

REGZA-LINKdevice.

HDMI problems

For HDMI cables

• Makesurethe HDMI cables with the HDMI Logo (HDml)

are used (_ pages 16, 17 and 19).

For Deep Color

• You should need to use High SpeedHDMI cableto work

properly. Normal HDMI cable or DVI cablemay not work with

this option (_ page59).

For Legacy HDMI source

• Some of legacyHDMI sources may not work properly with

latest HDMI TV products, due to new standard adoption.

Pleasetry to set Off the HDMI settings(Lip-Sync Latency,

DeepColor, x.v.Color). Your legacy HDMI source should

operate properly with this TV products (_ page 59).

66

LEDindications

The green and yellow LED lights on the TV front indicate the

TV's status, as described below.

Note: If the TV Ioses A/C power (e.g., a power outage occurs

or the power cord is unplugged), when power is restored, the

yellow LED will brink while the TV is booting until the remote

control is usable. This is normal and is not a sign of

malfunction.

TV front

Yellow LED

LED Indication

• Green is ON (solid)

The TV is operating properly.

• Yellow is ON (solid)

Standby with Power-On Mode set to Fast.

POWER

Green LED

See "Selecting the Power-On Mode" (_g:"page 40).

•Yellow blinks

Fan stopped (42XV540U and 46XV540U only).

Turn OFF the TV and unplug the power cord. Plug the

power cord in again and turn ON the TV.

•Yellow blinks three times

TV is powering up.

Wait several seconds until the yellow LED stops blinking.

•Green blinks slowly

Abnormal operation of BUS line.

Turn OFF the TV and unplug the power cord. Plug the

power cord in again and turn ON the TV.

•Green blinks quickly

Power protect detection.

Turn OFF the TV and unplug the power cord. Plug the

power cord in again and turn ON the TV.

•Green blinks slowly

Yellow blinks slowly

Charis calibration error.

Turn OFF the TV and unplug the power cord. Plug the

power cord in again and turn ON the TV.

IL after trying the solutions, the problem still exists:

• In the U.S., call TACP Consumer Solutions at 1-800-575-

5469.

• In Canada, locate the nearest Toshiba authorized service

depot by directing your web browser to www.toshiba.ca;

click "Home Entertainment," and then click "Support."

67

Specifications

Note:

*This model complies with the specifications listed

below.

*Designs and specifications are subject to change

without notice.

*This model may not be compatible with features and/or

specifications that may be added in the future.

Television System

NTSC standard

ATSC standard (8VSB)

Digital Cable (64 QAM, 256 QAM; in-the-clear,

unencrypted)

Channel Coverage

VHF: 2 through 13

UHF: 14 through 69

Cable TV: Mid band (A-8 through A-l, A through I)

Super band (J through W)

Hyper band (AA through ZZ, AAA, BBB)

Ultra band (65 through 94, 100 through 135)

Power Source: 120 V AC, 60 Hz

Power Consumption

42XV540U: 2.0 Arms (maximum current)

0.3 W in standby mode

46XV540U: 2.6 Arms (maximum current)

0.3 W in standby mode

52XV540U: 3.(1 Arms (maximum current)

0.3 W in standby mode

Audio Power: 10 W + 10 W

Speaker Type

Two 1-3/8 x 6-3/8 inches (35 x 160 ram)

Video/Audio Terminals

S-VIDEO INPUT:

Y: 1 V(p-p), 75 ohm, negative sync.

C: 0.286 V(p-p) (burst signal), 75 ohm

VIDEO/AUDIO INPUT:

VIDEO: 1 V(p-p), 75 ohm, negative sync.

AUDIO: 150 mV(rms) (30% modulation equivalent, 22 k

ohm or greater)

ColorStream ® (component video) HD INPUT:

VIDEO:Y: 1V(p-p), 75 ohm

PR: 0.7 V(p-p), 75 ohm

PB: 0.7 V(p-p), 75 ohm

Suggested formats: 1080i, 720p, 480p, 480i

AUDIO: 150 mV(rms), 22 k ohm or greater

HDMI TM INPUT:

HDMI compliant (type A connector)

HDCP compliant

Audio Lip Sync supported

Deep Color supported (10 bit 4:4:4, 12 bit 4:4:4)

x.v.Color supported

Suggested formats: See table on the next page.

HDMI Audio: 2-channel Linear-PCM; 32/44.1/48 kHz

sampling frequency; 16/20/24 bits per sample

FIXED AUDIO OUTPUT:

150 mv (rms) (30% modulation equivalent, 2.2 k ohm

or less)

DIGITAL AUDIO OUTPUT:

Optical type

IR OUT:

3 V(p-p), 3.5 mm mono socket

PC INPUT:

15-Pin D-sub Analog RGB

Dimensions

42XV540U:

46XV540U:

52XV540U:

Mass (weight)

42XV540U:

46XV540U:

52XV540U:

Width: 39-3/4 inches (1,009 mm)

Height: 27-3/8 inches (694 mm)

Depth: 12-1/4 inches (308 ram)

Width: 43-5/8 inches (1,108 ram)

Height: 29-3/8 inches (746 mm)

Depth: 12-1/4 inches (308 ram)

Width: 49-3/8 inches (1,252 ram)

Height: 33 inches (837 mm)

Depth: 14-1/2 inches (368 ram)

56.7 lbs (25.7 kg)

65.0 lbs (29.5 kg)

87.7 lbs (39.8 kg)

Operating conditions

Temperature: 32°F - 95°F (0°C - 35°C)

Humidity: 20 - 80% (no moisture condensation)

Supplied Accessories

° Remote control with two size "AA" alkaline batteries

° Owner's manual (this book)

° Securement Clip

Use this clip to attach the TV to a wall stud, pillar, or other

immovable structure. See item 20 on page 3 and

instructions on page 5.

° Cleaning cloth (to clean the cabinet and control panel)

68

Acceptable signal formats for PCIN and HDMIterminals

PC IN signal formats

Note: Depending on the connected PC, the following status may occur, incorrect display, false format detection, picture position

failure, blur, or judder. But this is not a malfunction of your TV.

VGA 640 x 480 59.940Hz 31.469kHz 25.175MHz

72.809Hz 37.861kHz 31.500MHz

75.000Hz 37.500kHz 31.500MHz

SVGA 800 x 600 60.317Hz 37.879kHz 40.000MHz

72.188Hz 48.077kHz 50.000MHz

75.000Hz 46.875kHz 49.500MHz

XGA 1024 x 768 60.004Hz 48.363kHz 65.000MHz

70.069Hz 56.476kHz 75.000MHz

75.029Hz 60.023kHz 78.750MHz

WXGA 1280 x 768 59.995Hz 47.396kHz 68.250MHz

59.870Hz 47.776kHz 79.500MHz

74.893Hz 60.289kHz 102.250MHz

1360 x 768 60.015Hz 47.712kHz 85.500MHz

SXGA 1280 x 1024 60.020Hz 63.981 kHz 108.000MHz

HDMI signal formats

VGA 640 x 480 59.940Hz 31.469kHz 25.175MHz

72.809Hz 37.861kHz 31.500MHz

75.000Hz 37.500kHz 31.500MHz

SVGA 800 x 600 60.317Hz 37.879kHz 40.000MHz

72.188Hz 48.077kHz 50.000MHz

75.000Hz 46.875kHz 49.500MHz

XGA 1024 x 768 60.004Hz 48.363kHz 65.000MHz

70.069Hz 56.476kHz 75.000MHz

75.029Hz 60.023kHz 78.750MHz

WXGA 1280 x 768 59.995Hz 47.396kHz 68.250MHz

59.870Hz 47.776kHz 79.500MHz

74.893Hz 60.289kHz 102.250MHz

1360 x 768 60.015Hz 47.712kHz 85.500MHz

SXGA 1280 x 1024 60.020Hz 63.981 kHz 108.000MHz

480i 720 x 480i 59.940/60Hz 15.734/15.750kHz 27.000/27.027MHz

480p 720 x 480p 59.940/60Hz 31.469/31.500kHz 27.000/27.027MHz

720p 1280 x 720p 59.940/60Hz 44.955/45.000kHz 74.176/74.250MHz

1080i 1920 x 1080i 59.940/60Hz 33.716/33.750kHz 74.176/74.250MHz

1080p 1920 x 1080p 23.976/24Hz 26.973/27.000kHz 74.176/74.250MHz

1080p 1920 x 1080p 59.940/60Hz 67.433/67.500kHz 148.352/148.500MHz

69

Limited United States Warranty

for LCDTelevisions 26" and Larger

Toshiba America Consumer Products, L.LC. CTACP") makes the

following limited warranties to original consumers in the United States.

THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL

CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS LCD

TELEVISION AS A GIFT FROM THE ORIGINAL CONSUMER

PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.

LCD TELEVISIONS PURCHASED IN THE U.S.A. AND USED

ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT

LIMITATION, CANADA AND MEXICO, ARE NOT COVERED BY THESE

WARRANTIES.

LCD TELEVISIONS PURCHASED ANYWHERE OUTSIDE OF THE

U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA AND MEXICO,

AND USED IN THE U.S.A., ARE NOT COVERED BY THESE

WARRANTIES.

Limited One (1) Year Warranty on Parts and Labor

TACP warrants this LCD Television and its parts against defects in

materials or workmanship for a period of one (1) year after the date of

original retail purchase. DURING THIS PERIOD, TACP WILL, AT TACP'S

OPTION, REPAIR OR REPLACE A DEFECTIVE PART WITH A NEW OR

REFURBISHED PART WITHOUT CHARGE TO YOU FOR PARTS OR

LABOR. During this period, TACP Authorized Service Station personnel

will come to your home when warranty service is required. Depending on

the type of repair required, the service will either be performed in your

home or the LCD Television will be taken to a TACP Authorized Service

Station for repair and returned to your home at no cost to you.

Rental Units

The warranty for LCD Television rental units begins on the date of the first

rental or thirty (30) days after the date of shipment to the rental firm,

whichever comes first.

Limited Warranty for Commercial Units

TACP warrants LCD Televisions that are sold and used for commercial

purposes as follows: all parts are warranted against defects in materials

or workmanship for a period of ninety (90) days after the date of original

retail purchase. DURING THIS PERIOD, TACP WILL AT TACP'S OPTION,

REPAIR OR REPLACE A DEFECTIVE PART WITH A NEW OR

REFURBISHED PART WITHOUT CHARGE TO YOU.

Owner's Manual and Product Registration Card

Read this owner's manual thoroughly before operating this LCD

Television.

Completeand mail theenclosedproduct registrationcard or registeryour

LCDTelevisiononlineat www.tacp.toshiba.com/service as soonas

possible, Byregisteringyour LCDTelevisionyouwillenableTACPto bring

younew products specifically designed to meetyour needs and help us

to contact you inthe unlikelyevent a safetynotificationis required under

the U,S.ConsumerProduct SafetyAct, Failure to complete and

return the product registration card does not diminish your

warranty rights.

YourResponsibility

THE ABOVE WARRANTIESARE SUBJECTTO THE FOLLOWING

CONDITIONS:

(1) Youmust retainyour originalbill of saleor provideother proof of

purchase.

(2) Allwarrantyservicingof this LCDTelevisionmustbe performedby an

AuthorizedTACP ServiceStation.

(3) The warrantiesfromTACPare effective only ifthis LCDTelevisionis

purchased and operated inthe ContinentalU.S.A.or PuertoRico,

(4) Labor service charges for set installation,setup, adjustmentof

customercontrols,and installationor repairof antennasystemsare

not covered by this warranty.Receptionproblems caused by

inadequate antennasystems, misalignedsatellitedishes, cable

7O

television distribution, VCRs, DVD players/recorders, personal

computer level IEEE-1394 devices, and any other connected signal

source device are your responsibility.

(5) Warranties extend only to defects in materials or workmanship as

limited above, and do not extend to any LCD Television or parts that

have been lost or discarded by you or to damage to the LCD

Television or parts caused by fires, misuse, accident, Acts of God

(such as lightning or fluctuations in electric power), improper

installation, improper maintenance, or use in violation of instructions

furnished by TACP; use or malfunction through simultaneous use of

this LCD Television and connected equipment; or to units that have

been modified or had the serial number removed, altered, defaced,

or rendered illegible.

How to Obtain Warranty Service

If, after following all of the operating instructions in this manual and

reviewing the section entitled "Troubleshooting," you find that service is

needed:

(1) To find the nearest TACP Authorized Service Station, visit TACP's

website at www.tacp.toshiba.com/service or contact TACP's

Consumer Solution Center toll free at 1-800-575-5469.

(2) You must present your original bill of sale or other proof of purchase

to the TACP Authorized Service Station.

For additional information, visit TACP's website:

www.tacp.toshiba.com

ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE

U.S.A., INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

ARE EXPRESSLY LIMITED TO THE DURATION OF THE LIMITED

WARRANTIES SET FORTH ABOVE. WITH THE EXCEPTION OF ANY

WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A.

AS HEREBY LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE

AND IN LIEU OF ALL OTHER WARRANTIES, GUARANTEES,

AGREEMENTS, AND SIMILAR OBLIGATIONS OF TACP WITH

RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PARTS. IN NO

EVENT SHALL TACP BE LIABLE FOR CONSEQUENTIAL OR

INCIDENTAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOST

PROFITS, BUSINESS INTERRUPTION, OR MODIFICATION OR

ERASURE OF RECORDED DATA CAUSED BY USE, MISUSE OR

INABILITY TO USE THIS LCD TELEVISION).

No person, agent, distributor, dealer, or company is authorized to change,

modify, or extend the terms of these warranties in any manner whatsoever.

The time within which an action must be commenced to enforce any

obligation of TACP arising under the warranty or under any statute or law

of the United States or any state thereof is hereby limited to ninety (90)

days from the date you discover, or should have discovered, the defect.

This limitation does not apply to implied warranties arising under the law

of any state of the U.S.A.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU

MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE

TO STATE IN THE U.S.A. SOME STATES OF THE U.S.A. DO NOT

ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED

WARRANTY, WHEN AN ACTION MAY BE BROUGHT, OR THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES. THEREFORE, THE ABOVE PROVISIONS MAY NOTAPPLY

TO YOU UNDER SUCH CIRCUMSTANCES.

[0305]

Limited CanadianWarranty

for Toshiba Brand Flat Panel Televisions

Toshiba of Canada Limited ("TCL") makes the following limited warranties

to original consumers in Canada. THESE LIMITED WARRANTIES

EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY

PERSON RECEIVING THIS TOSHIBA BRAND FLAT PANEL

TELEVISION (the "-i-ELEVlSlON(S)" or "Television(s)") AS A GIFT FROM

THE ORIGINAL CONSUMER PURCHASER AND TO NO OTHER

PURCHASER OR TRANSFEREE.

TELEVISIONS PURCHASED IN CANADA, AND USED ANYWHERE

OUTSIDE OF CANADA INCLUDING, WITHOUT LIMITATION, THE

UNITED STATES AND MEXICO, ARE NOT COVERED BY THESE

WARRANTIES.

TELEVISIONS PURCHASED ANYWHERE OUTSIDE OF CANADA,

INCLUDING, WITHOUT LIMITATION, THE UNITED STATES AND

MEXICO, AND USED IN CANADA, ARE NOT COVERED BY THESE

WARRANTIES.

Limited One (1) Year Warranty on Parts and Labour

Subject to the more limited warranty if the Television is used for any

commercial or business purposes as set out below, TCL warrants the

Television and its parts against material defects in materials or

workmanship that result inthe Television failing for a period of one (1) year

after the date of original retail purchase. DURING THIS PERIOD, TCL

WILL, AT TCL'S OPTION, REPAIR OR REPLACE A DEFECTIVE PART

WITH A NEW OR REFURBISHED PART WITHOUT CHARGE TO YOU

FOR PARTS OR LABOUR.

(a) FOR TELEVISIONS 32 INCHES OR LESS: YOU MUST DELIVER THE

ENTIRE TELEVISION TO A TCL TELEVISION AUTHORIZED

SERVICE PROVIDER ("ASP"). YOU MUST PAY FOR ALL

TRANSPORTATION AND INSURANCE CHARGES FOR THE

TELEVISION TO AND FROM THE ASP.

(b) FOR TELEVISIONS OVER 32 INCHES: During this period, ASP

personnel will come to your home when warranty service is required.

Depending on the type of repair required, the service will either be

performed in your home or the Television will be taken to an ASP for

repair and returned to your home at no cost to you. IN-HOME

SERVICE ONLY APPLIES WITHIN 100 KILOMETERS OF AN ASP.

IF YOU ARE NOT WITHIN 100 KILOMETERS OF AN ASP, YOU

MUST DELIVER THE ENTIRE TELEVISION TO AN ASP. YOU MUST

PAY FOR ALL TRANSPORTATION AND INSURANCE CHARGES

FOR THE TELEVISION TO AND FROM THE ASP.

Limited Warranty for Commercial Units

TCL warrants Televisions that are used for any commercial or business

purposes as follows: all parts are warranted against material defects in

materials or workmanship that result in the Television failing for a period of

ninety (90) days after the date of original retail purchase. DURING THIS

PERIOD, TCL WILL, AT TCL'S OPTION, REPAIR OR REPLACE THE

DEFECTIVE PART WITH A NEW OR REFURBISHED PART WITHOUT

CHARGE TO YOU.

(c) FOR TELEVISIONS 32 INCHES OR LESS: YOU MUST DELIVER THE

ENTIRE TELEVISION TO AN ASP. YOU MUST PAY FOR ALL

TRANSPORTATION AND INSURANCE CHARGES FOR THE

TELEVISION TO AND FROM THE ASP.

(d) FOR TELEVISIONS OVER 32 INCHES: During this period, ASP

personnel will come on-site when warranty service is required.

Depending on the type of repair required, the service will either be

performed on-site or the Television will be taken to an ASP for repair

and returned at no cost to you. ON-SITE SERVICE ONLY APPLIES

WITHIN 100 KILOMETERS OF AN ASP. IF YOU ARE NOT WITHIN

100 KILOMETERS OF AN ASP, YOU MUST DELIVER THE ENTIRE

TELEVISION TO AN ASP. YOU MUST PAY FOR ALL

TRANSPORTATION AND INSURANCE CHARGES FOR THE

TELEVISION TO AND FROM THE ASP.

Rental Units

The warranty for Television rental units begins with the date of first rental

or thirty (30) days from the date of shipment to the rental firm, whichever

comes first.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING

CONDITIONS:

(1) You must provide your bill of sale or other proof of purchase.

(2) All warranty servicing of this Television must be performed by an ASP,

(3) The warranties from TCL are effective only if the Television is (i)

purchased as new and unopened from TCL or from TCL's authorized

distributors, dealers or resellers CADR's") and (ii) located/operated in

Canada.

(4) Labour charges for set installation, setup, adjustment of customer

controls, and installation or repair of antenna systems are not covered

by these warranties. Reception problems caused by inadequate

antenna systems are your responsibility.

(5) Warranties extend only to material defects in materials or

workmanship as limited above, and do not extend to:

a, Service, repairs or replacement made necessary by accident,

misuse, abuse, moisture, liquids, dust, dirt, neglect, accident,

damage, 24/7 applications, improper installation, improper

operation, improper cleaning, improper maintenance, normal

wear and tear, screen burn or image retention caused by

prolonged display of static images and/or phosphor aging, or any

other external cause or event, act or omission outside the control

of TCL, including fire, theft, acts of God, alteration, power failures,

power surges or power shortages, lightning, other electrical

faults, or repairs, modifications or replacements by persons other

than those authorized by TCL to service the Television;

b. Replacement of missing, discarded or lost parts, the provision of

retrofits, or preventive maintenance;

c. Repair of damage that is cosmetic only or does not affect the

Television functionality, such as wear and tear, scratches and

dents;

d. Service on Toshiba-branded accessory items (such accessory

items may be covered by their own warranty);

e. Service on third party products or service made necessary by

use of incompatible third party products;

f. Service made necessary by the simultaneous use of this

Television and connected equipment;

g. Modifications to the Television not approved in writing by TCL,

and service made necessary by the use or installation of non-

Toshiba modifications to the Television;

h. Service of a Television on which the TOSHIBA label or logo, rating

label or serial number have been defaced or removed;

i. On-site service and repair of the Television; and

j. Damage to the Television caused by failure to follow the

specifications, User manuals or guides as to usage and/or

storage.

(continued)

71

Disclaimer and Limitation of Remedy

TO THE EXTENT NOT PRECLUDED BY LAW, ALL OTHER EXPRESS

AND IMPLIED WARRANTIES, CONDITIONS AND REPRESENTATIONS

FOR THIS TELEVISION, INCLUDING THE IMPLIED WARRANTIES,

CONDITIONS AND REPRESENTATIONS OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED

AND EXCLUDED. IF THE APPLICABLE LAW, STATUTORY OR

OTHERWISE, PRECLUDES THE EXCLUSION OF ANY IMPLIED

WARRANTIES, CONDITIONS AND REPRESENTATIONS THEN SUCH

IMPLIED WARRANTIES, CONDITIONS AND REPRESENTATIONS ARE

OTHERWISE LIMITED IN DURATION TO THE TERM OF THIS

EXPRESS WRI-FIEN LIMITED WARRANTY. TO THE EXTENT NOT

PRECLUDED BY LAW, STATUTORY OR OTHERWISE, THIS WRI-FIEN

WARRANTY SUPERCEDES AND SPECIFICALLY DISCLAIMS ANY

OTHER WARRANTY, CONDITION OR REPRESENTATION NOT

STATED IN THIS WARRANTY, WHETHER MADE BY TCL, TOSHIBA

CORPORATION, THEIR AFFILIATES, ADRs AND ASPs AND WHETHER

MADE ORALLY OR IN WRITING (INCLUDING ANY STATEMENT IN

ANY BROCHURE, PRESS RELEASE, ANNOUNCEMENT,

ADVERTISEMENT, POINT OF SALE DISPLAY, ETC.).

YOU MUST READ AND FOLLOW ALL SET-UP AND USAGE

iNSTRUCTiONS iN THE APPLICABLE USER GUIDES AND/OR

MANUALS. iF YOU FAiL TO DO SO, THiS TELEViSiON MAY NOT

FUNCTION PROPERLY AND YOU MAY SUFFER DAMAGE. THiS

WARRANTY WiLL NOT COVER ANY SERVICE THAT iS REQUIRED, iN

PART OR iN WHOLE, AS A RESULT OF ANY FAILURE TO FOLLOW THE

SET-UP AND USAGE iNSTRUCTiONS. THiS WARRANTY DOES NOT

APPLY AND SHALL BE VOiD AND UNENFORCEABLE iF THE

TELEViSiON iS OPENED, SERVICED, OR REPAIRED BY PERSONS

OTHER THAN THOSE AUTHORIZED BY TCL TO SERVICE OR REPAIR

THE TELEVISION,

IF THE TELEVISION FAILS TO WORK AS WARRANTED ABOVE, YOUR

SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT

OF THE DEFECTIVE PART. IN NO EVENT WILL TCL TOSHIBA

CORPORATION THEIR AFFILIATES ADRs OR ASPs (THE "RELATED

PARTIES") BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY

DAMAGES, MONEY REIMBURSEMENT, COSTS OR EXPENSES, THIS

LIMITATION APPLIES TO DAMAGES, MONEY, REIMBURSEMENT,

COSTS OR EXPENSES OF ANY KIND WHATSOEVER INCLUDING ANY

DIRECT OR INDIRECT DAMAGES, DAMAGE TO PROPERTY OR

PERSON, LOST PROFITS, LOST SAVINGS, INCONVENIENCE OR

OTHER SPECIAL, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL

DAMAGES, WHETHER FOR BREACH OF WARRANTY, BREACH OF

CONTRACT, TORT (INCLUDING NEGLIGENCE), UNDER A STATUTE OR

UNDER ANY OTHER LAW OR FORM OR ACTION, OR WHETHER

ARISING OUT OFTHE USE OF OR INABILITY TO USE THE TELEVISION,

EVEN IF ANY OF THE RELATED PARTIES HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY OTHER

PARTY,

No person, agent, distributor, dealer or company isauthorized to change,

modify or extend the terms of these warranties in any manner whatsoever,

Arbitration and Dispute Resolution

To the extent not precluded by law, any claim, dispute, controversy or

disagreement (whether for breach of warranty, breach of contract, tort

(including negligence), under a statute or under any other law or form of

action) against any of the Related Parties arising out of, or otherwise

relating to: (i) this warranty; (ii) the Television; (iii) any oral or written

representation& statements, brochures, press releases, advertising,

announcement, point of sale display, or promotional material relating to

the Television; (iv) the relationships that result from this warranty, (the

foregoing claims, disputes controversies and disagreements are

collectively referred to as the "Dispute"), shall be referred to and resolved

by final and binding arbitration (to the exclusion of the courts). To the

extent not precluded by law, you agree to waive any right that you may

have to commence or participate in any representative or class

proceeding against the Related Parties relating to any Dispute. If and

where applicable and to the extent not precluded by law, you further

agree to opt out of any such representative or class proceedings.

Arbitration of any Dispute will be conducted in the forum and in the

manner as agreed to between you and TCL Failing such agreement, the

arbitration will be conducted by one arbitrator pursuant to the laws and

rules relating to arbitration generally in force in the jurisdiction in which you

reside at the time that the Dispute arises. To the extent not precluded by

law, no claim, dispute, controversy or disagreement of any other person

may be joined or combined with any Dispute by you, without the prior

written consent of TCL

Critical Applications

The Television you have purchased is not designed for any "critical

applications." "Critical applications" means life support systems, medical

applications, connections to implanted medical devices, commercial

transportation, nuclear facilities or systems or any other applications

where Television failure could lead to injury to persons or loss of life or

catastrophic property damage,

IF THE CUSTOMER USES THE TELEVISION IN ANY CRITICAL

APPLICATION, THE CUSTOMER - AND NOT TCL, ITS AFFILIATES, ADRs

OR ASPs- ASSUME SOLE AND FULL RESPONSIBILITY FOR SUCH USE.

TCL RESERVESTHE RIGHT TO REFUSE TO SERVICE ANY TELEVISION

USED IN A CRITICAL APPLICATION. TCL, ITS AFFILIATES, ADRs AND

ASPs HEREBY DISCLAIM ANY AND ALL LIABILITY, DAMAGES AND

CONSEQUENCES ARISING OUT OF THE SERVICE OR REFUSAL TO

SERVICE SUCH TELEVISION AND FURTHER DISCLAIM ANY AND ALL

LIABILITY, CONSEQUENCES AND DAMAGES THAT MAY ARISE OR

RESULT FROM THE USE OF THE TELEVISION IN ANY CRITICAL

APPLICATIONS,

General Provisions

If and to the extent that any provision of this limited warranty should

generally be found to be unenforceable, the unenforceable provision shall

be severed from the warranty and deemed not to form part of the warranty.

The remaining provisions of this warranty shall be and remain valid and

enforceable. Ifand to the extent that any provision of this limited warranty

as it relates to any of the Related Parties is found to be invalid or

unenforceable in respect of that party (the "Excluded Party"), the

Excluded Party shall be deemed to be severed or excluded from the

provision, and the provision shall remain valid enforceable and

applicable in respect of the other or remaininq Related Parties,

To the extent permitted by law, this limited warranty shall be governed and

construed in accordance with the laws of Ontario,

If there is any inconsistency between this limited warranty, on the one

hand, and any statement in the packaging of the Television or in any other

document enclosed with, or used in the context of the promotion or sale

of, the Television, on the other hand, the provisions of this limited warranty

shall prevail.

How to Obtain Warranty Services

if, after following all of the operating instructions in this manual and

checking the "Troubleshooting" section, you find that service is needed:

(1) To find the nearest ASP, visit TCL's web site at www.toshiba.ca, or

call toll free 1-800-268-3404

(2) Present your bill of sale or other proof of purchase to the ASP,

For additional information, visit TCL's website at www.toshiba.ca

A copy of the GPL source code in this product may be obtained by

contacting Toshiba Consumer Solutions at (800)631-3811, There will

be a charge to cover the costs of providing the source code,

A copy of the LGPL source code in this product may be obtained by

contacting Toshiba Consumer Solutions at (800)631-3811, There will

be a charge to cover the costs of providing the source code,

Portions of this software are copyright © <2007> The FreeType Project

(www,freetype,org). All rights reserved,

This software is based in part on the work of the Independent JPEG

Group,

72

A

Antenna input configuration ............ 36

Audio quality adjustments ............... 51

Audio system connection ................ 18

Auto aspect .................................... 47

Auto Input ...................................... 37

Auto power off ................................ 60

B

Base closed captions ...................... 49

Blocking channels .......................... 55

C

C (CLOSED). CAPTION button ....... 50

CableClear _ ................................... 62

CH A,V buttons ........................ 21,44

CH RTN button ......................... 21,45

Channel Browser TM ......................... 42

Channel labeling ............................ 38

Channel Number buttons .......... 21,44

Channel programming

Automatic programming ........... 36

Manually adding and deleting... 37

Channel Tuning Mode .................... 44

Cinema mode ................................. 62

ClearFrame TM ................................. 62

Closed captions .............................. 49

Color temperature .......................... 61

ColorMaster TM ................................. 63

ColorStream ®................................. 14

Component video connection .......... 14

#

Deep Color ..................................... 59

Demo mode ............................. 35, 40

Device codes table ......................... 26

Digital Audio Out ............................ 18

Digital audio selector ...................... 51

Digital CC Settings ......................... 50

Digital signal meter ......................... 39

Dolby Digital ................................... 18

Dolby Digital Dynamic Range

Control ....................................... 52

DVD player connection ................... 14

DVI connection ............................... 16

DynaLight TM ................................... 48

Dynamic Bass Boost ...................... 64

Dynamic contrast ............................ 61

F

Film Stabilization ............................ 62

FREEZE ......................................... 48

6

Game Mode feature ........................ 64

GameTimer _ .................................. 55

H

HDMI audio mode ........................... 39

HDMI settings ................................. 59

Deep Color .............................. 59

Lip-Sync Latency ..................... 59

x.v.Color .................................. 59

HDMI _" connection .......................... 16

I

INFO button .................................... 60

INPUT button .................................. 41

Integrated digital tuning ..................... 9

IR blaster ........................................ 15

IR OUT connection ......................... 15

L

Labeling video input ........................ 41

Language selection ......................... 35

Last mode memory feature ............. 60

LED indications ......................... 10, 67

Lip-Sync Latency ............................ 59

LOCKS menu

Channels, blocking ................... 55

Control Panel lock .................... 56

Enable rating blocking .............. 53

New PIN code .......................... 53

Unlocking programs

temporarily ................. 55

Video inputs, locking ................ 55

M

MODE SELECT ........................ 21,24

MPEG noise reduction .................... 63

MTS feature ................................... 51

MUTE button .................................. 50

O

Optical audio output format ............. 52

P

PC Audio ........................................ 57

PC connection ................................ 19

PC settings ..................................... 56

Picture mode .................................. 48

Picture quality ................................. 48

Picture scroll ................................... 47

Picture size selection ...................... 45

POWER button ........................ 10, 21

Power-On Mode .............................. 40

R

RECALL button ............................... 60

REGZA-LINK connection ................. 17

REGZA-LINK feature ...................... 57

Remote control

Battery installation .................... 20

Learning about the buttons ....... 21

Operational feature ................... 25

Volume lock feature .................. 25

Reset Factory Defaults .................... 40

S

SAP sound ..................................... 51

Satellite receiver connection ............ 14

Scroll settings ................................. 47

Sleep timer ..................................... 57

StableSound ®................................. 52

Stereo Extension ............................. 64

Stereo sound .................................. 51

SurfLock TM. ...................................... 45

System status ................................. 40

T

TheaterLock TM featu re...................... 49

TheaterWide ® picture size ............... 46

THINC button .................................. 21

THINC TM menu ............................... 33

Time Zone ...................................... 39

TV status information ...................... 60

V

V-Chip ............................................ 53

VCR connection ....................... 13, 14

Video input label ............................. 41

Video input lock .............................. 55

Voice Enhancement ........................ 64

X

x.v.Color Selection .......................... 64

73

TOSHIBA AMERICA CONSUMER PRODUCTS, L.L.C.

CorporateHeadquarters:82TOTOWAROAD,WAYNE,NJ07470,U.S.A.

NATIONALSERVICEDIVISION:1420-BTOSHIBADRIVE,LEBANON,TN37087,U.S.A.

TOSHIBA OF CANADA LTD.

HEADOFFICE:191McNABBSTREET,MARKHAM,ONTARIO,L3R8H2,CANADA-TEL:(905)470-5400

SERVICECENTERS:

TORONTO:191McNABBSTREET,MARKHAM,ONTARIOL3R8H2,CANADA-TEL:(905)470-5400

MONTREAL:18050TRANSCANADA,KIRKLAND,QUEBEC,H9J4A1,CANADA-TEL:(514)390-7766

VANCOUVER:13551COMMERCEPARKWAY,SUITE110,RICHMOND,B.C.,V6V2L1,CANADA-TEL: (604)303-2500

MANUFACTUREDBY

TOSHIBA ELECTROMEX. S.A. DE C.V.

CableClear,ColorStream,GameTimer,StableSound,andTheaterWideare registeredtrademarksof ToshibaAmericaConsumerProducts,L.L.C.

ChannelBrowser,SurfLock,DynaLight,ClearFrame,ColorMaster,TheaterLockandTHINCaretrademarksof ToshibaAmericaConsumerProducts,L.L.C.

REGZAis atrademarkofToshibaCorporation.

PRINTED IN USA

(08-03) TOSHIBA
