tOSHIBA

Leading Innovation >>

IntegratedHighDefinition

LEDTelevisionUser'sGuide:

50L1450U

If you need assistance:

Toshiba's Support Web site support.toshiba.corn

For more information, see "Troubleshooting" on page 96 in this guide.

O_vller's Record

The model number and serial number are on the back and side of your

Record these numbers in the spaces below. Refer to these numbers

whenever you communicate with your Toshiba dealer about this TV

Model number:

Serial number:

Note: To display a High Definition

picture, the TV must be receiving a

High Definition signal (such as an

over-the-air High Definition TV

broadcast, a High Definition digital

cable program, or a High Definition

digital satellite program). For details,

contact your TV antenna installer,

cable provider, or satellite provider

GMA30028010

12/13

DearCustomer,

Thank you for purchasing this Toshiba LED TV. This

document will help you use the many exciting features

of your new LED TV. Before operating your LED TV,

carefully read this manual completely.

Safety Precautions

WARNING: TO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

WARNING

WARNING:TO REDUCETHERISK OF ELECTRIC

SHOCK,DO NOTREMOVECOVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Thelightningflashwitharrowheadsymbol,withinan

equilateraltriangle,is intendedto alertthe userto the

presenceof uninsulated"dangerousvoltage"withinthe

)roduct'senclosurethatmaybedsufficientmagnitudeto

constituteariskofelectricshocktopersons.

z_The exclamationpointwithinanequilateraltriangleis

intendedto alerttheuserto thepresenceof important

operatingandmaintenance(servicing)instructionsinthe

literatureaccompanyingtheappliance.

WARNING

Improper location and installation of a television can

lead to the death of your child. Never place the

television on furniture or in a location where children

can climb up on and tip over the television. Please refer

to the Child Safety information in item 26) on page 5 of

the Important Safety Instructions/Installation section.

WARNING: Ifyou decide to wall mount this

television, always use a mounting bracket that has

been Listed by an independent laboratory (such as

UL, CSA, ETL) and is appropriate for the size and

weight of this television. The use of inappropriate

or non-Listed mounting brackets could result in

serious bodily injury and/or property damage. See

"To Display your LED TV on the included Pedestal

Stand:" on page 6

NOTETOCATVINSTALLERS

This is a reminder to call the CATV system installer's

attention to Article 820-40 of the U.S. NEC, which

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical. For

additional antenna grounding information, see 33) on

page 5 and 34) on page 5.

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

TOSHIBA CARES

* Manufacturers, retailers and the rest of the consumer electronics industry are committed to

maki ng home entertai nment safe and et-ijoya ble

*Asyouer-ijoyyourtelevision, pleasenotethatalltelevisions newandold mustbesL:pportedon

proper stands or installed according to the manuf:/cturer's recommendations televisions that

are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc,

may f_ll over, resulting in mjury

TUNE IN TO SAFETY

• ALWAYS follow the manufactL_rer's recommendations for the safb installation of your television

• ALWAYS read and fbllow all instructions fbr proper L:se of your television

• NEVER allow children to climb on or play on the television or the furniture on which the television

is placed

• NEVER place the television on furniture that can easily be used as steps, such as a chest of

drawers

• ALWAYS install the television where it cannot be pushed, pulled over or knocked down

• ALWAYS route cords and cables connected to the television so that they cannot be tripped

over, pulled or grabbed

WALL OR CEILING MOUNT YOUR TELEVISION

• ALWAYS contact your retailer about professional installation if yoL_have any doL_bts aboL_t yoL_r

ability to safely mount your television

• ALWAYS use a mount that has been recommended by the television manufbcturer and has a

safety certif cation by an independent laboratory (such as UL, CSA, E [ L)

• ALWAYS follow all instructions supplied by the television and mount manufhcturers

• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropnate

Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder

block construction f you are unsure, contact a professional installer

• lelevisions can be heavy A minimum of two people is required for a wall or ceiling mount

installation

MOVING AN OLDER TELEVISION TO A NEW PLACE IN

YOUR HOME

* Marly new television bL:yers move their older CRY televisions into a secondary room after the

purchase of a fat panel television Special care should be made in the placement of older CRT

televisions

* ALWAYS place your older CR f television on fL,rniture that is sturdy and appropriate for its size

and weight

, NEVER place your older CR f television on a d resser where children may be tempted to use the

drawers to climb

* ALWAYS make sure your older CR r television does not hang over the edge of your fL_rniture

ImportantSafetyInstructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose ofthe polarized or

grounding type plug. A polarized plug

has two blades with one wider than the

other. A grounding type plug has two

blades and a third grounding prong.

The wide blade or the third prong are

provided for your safety. Ifthe provided

plug does not fit into your outlet, consult an electrician

for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or

pinched, particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11) Only use attachments/accessories specified by

the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or

sold with the apparatus. When a cart is

used, use caution when moving the cart/

apparatus combination to avoid injury

from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally,

or has been dropped.

AdditionalSafetyPrecautions

14a) CAUTION: If the TV is dropped and the cabinet or

enclosure surface has been damaged or the TV

does not operate normally, take the following

precautions:

• ALWAYS turn off the "iV and unplug the power cord

to avoid possible electric shock orfire.

• NEVER a!low your body to come in contact with any

broken glass or liquid from the damaged television.

The LCD panel inside the TV contains glass and a

toxic liquid. Ifthe liquid comes in contact with your

mouth or eyes, or your skin is cut by broken glass,

rinse the affected area thoroughly with water and

contact your doctor immediately.

15)

• ALWAYS contact a service technician to inspect the

TV any time it has been damaged or dropped.

CAUTION:

• To reduce the risk of electric shock, do not use the

polarized plug with an extension cord, receptacle, or

other outlet unless the blades can be inserted

completely to prevent blade exposure.

• To prevent electric shock, match wide blade of plug

to wide slot; fully insert.

16) CAUTION:

• Do not let children swallow any small parts included

on or with the product or play with the plastic bag.

Keep the small parts and the plastic bag out of the

reach of children.

17) CAUTION:

• Do not let water or other liquids ceme into contact

with the product, as it may result in damage.

18) WARNING:

• Topreventthespreadoffire, keepcandlesorother

open flames away from this product at all times.

• Keep the product away from direct sunlight, fire or a

heat source such as a heater. This may reduce the

product life time or result in fire.

Installation,Care,andService

Installation

Follow these recommendations and precautions and

heed all warnings when installing your TV:

19) • WARNING: Never expose the batteries

to excessive heat such as sunshine or

' fire.

20) ALWAYS plug the product into an outlet that is located

in such a manner that itcan be easily unplugged in

case the product requires service.

21 ) NEVER route the product's power cord inside a wall or

similar enclosed area.

22) Never modify this equipment. Changes or

modifications may void: a) the warranty, and b) the

user's authority to operate this equipment under the

rules of the Federal Communications Commission.

23) _ DANGER: RISK OF

SERIOUS PERSONAL

INJURY, DEATH, OR

EQUIPMENT DAMAGE!

Never place the'IV on an unstable

cart, stand, or table. The "R/may

fall, causing serious personal injury,

death, or serious damage to the "IV.

24) When selecting a location for the TV,

•NEVER allow any part of the TV to hang over the

edge of the supporting furniture,

•NEVER place the TV on tall furniture (for example,

entertainment centers or bookcases) without

anchoring both the furniture and the TV to a suitable

support,

• Never place cloth or other material between the TV

and the supporting furniture.

• NEVER allow children to climb on the TV

25) To avoid damage to this product, never place or store

the TV in direct sunlight; hot, humid areas; or areas

subject to excessive dust or vibration.

26) Always place the TV on a sturdy, level, stable surface

that can support the weight of the unit. Secure the TV

using one of the following methods:

(1) Secure the "iV with a mounting screw

(Recommended.)

• Place the TV on a sturdy surface that has a sufficient

thickness and screw the unit on the surface securely

by using the mounting screw and the fall-prevention

screw hole.

• If secured to furniture or other movable objects, the

furniture must be secured to an immovable structure

using the method shown in item 2 below.

i[..... "ci_t/'_------ _

j/ Screwhole

(2) Secure the "IV with a sturdy strap to awall stud,

pilar, or other immovable structure. When connecting

the strap:

-attach the strap to the _ using the hooks on the back

of the "TV,the dips on the pedestal, or the hole inthe

base of the pedestal as available.

- make sure the strap istight, secure, and parallel to the

floor.

TV side TV top

27) The product shall not be exposed to dripping or

splashing, and that no objects filled with liquids, such

as vases, shall be placed on the apparatus

28) Never block or cover the slots or openings in the TV

cabinet back, bottom, and sides. Never place the TV:

• on a bed, sofa, rug, or similar surface;

• too close to drapes, curtains, or wals; or

• in a confined space such as a bookcase, built-in

cabinet, or any other place with poor ventilation.

29) Always leave a space of at least 4 (four)inches around

the TV. The slots and openings are provided to protect

the TV from overheating and to help maintain reliable

operation of the TV.

30) Never allow anything to rest on or roll over the power

cord, and never place the TV where the power cord is

subject to wear or abuse.

31) Never overload wall outlets and extension cords.

32) Always operate this equipment from a 120V AC, 60 Hz

power source.

33) Always make sure the antenna system is properly

grounded to provide adequate protection against

voltage surges and built-up static charges (see Section

810 of the National Electric Code),

/1' Gree_idal_p.-.

Gflrl _I_111£Iettlllt !_tem (lEO _1 It Pat-H I

34)

DANGER: RISK OF SERIOUS

PERSONAL INJURY OR DEATH!

• When installing a rooftop antenna, use extreme care

to make sure you are never in a position where your

body (or any item you are in contact with, such as a

ladder or screwdriver) can accidentally touch

overhead power lines. Never locate the antenna

near overhead power lines or other electrical

circuits.

• Never attempt to install any of the following during

lightning activity: a) an antenna system; or b) cables,

wires, or any home theater component connected to

an antenna or phone system.

Care

For better performance and safer operation of your

TOSHIBA TV, follow these recommendations and

)recautions:

35) Ifyou use the TV in a room whose temperature is 32° F

(0° C) or below, the picture brightness may vary until

the LED warms up. This is not a sign of malfunction.

36) WARNING: RISK OF SERIOUS

PERSONAL INJURY OR EQUIPMENT

DAMAGE!

• Never use chemicals (such as air fresheners,

cleaning agents, etc.) on or near the TV pedestal.

Studies indicate that plastics may weaken and crack

over time from the combined effects of chemical

agents and mechanical stress (such as the weight of

the TV). Failure to follow these instructions could

result in serious injury and/or permanent damage to

TV and TV pedestal.

• Always unplug the TV before cleaning. Gently wipe

the display panel surface (the TV screen) using a

dry, soft cloth (cotton, flannel, etc.). A hard cloth may

damage the surface of the panel. Avoid contact with

alcohol, thinner, benzene, acidic or alkaline solvent

cleaners, abrasive cleaners, or chemical cloths,

which may damage the surface. Never spray volatile

compounds such as insecticide on the cabinet.

Such products may damage or discolor the cabinet.

37) Never hit, press, or place anything on the back cover.

These actions will damage internal parts.

38) ........_ .......... WARNING:

.... RISK OF ELECTRICSHOCK!

Never spill liquids or push objects of any kind into

the 'rv cabinet slots.

39) During a lightning storm, do not touch the connecting

cables or product.

40) For added protection of yourrv from lightning and

power surges, always unplug the power cord and

disconnect the antenna from the 'rv if you leave the -IV

unattended or unused for long periods of time.

41) Always unplug the "FVto completely disconnect from

mains power. When the "IV is turned off using the on/

off switch, it is not completely disconnected from power

and a minute amount of current is still consumed.

42) During normal use, the TV may make occasional

snapping or popping sounds. This is normal, especially

when the unit is being turned on or off. Ifthese sounds

become frequent or continuous, unplug the power cord

and contact aToshiba Authorized Service Provider.

43) PERSONAL INJURY OR EQUIPMENTWARNING: RISK OF SERIOUS

.... " DAMAGE!

Never strike the screen with a sharp or heavy

object.

44)

• The LCD screen of this product can be damaged by

ultraviolet radiation from the sun. When selecting a

location for the television, avoid locations where the

screen may be exposed to direct sunlight, such as in

front of a window.

• Nevertouch, press, orplaceanythingontheLCD

screen. These actions will damage the LCD screen.

Ifyou need to clean the LCD screen, follow the

instructions in item 36) on page 5.

Service

45)

............. WARNING: .......i ......

.... RISKOFELECTRICSHOCK!

Never attempt to service the "iV yourself. Opening

and removing the covers may expose you to

dangerous voltage or other hazards. Failure to

follow this WARNING may result in death or

serious injury. Refer al! servicing not specified in

this manual to a Toshiba Authorized Service

Provider.

46) If you have the "IV serviced:

• Ask the service technician to use only replacement

parts specified by the manufacturer.

• Upon completion of service, ask the service

technician to perform routine safety checks to

determine that the "FVis in safe operating condition.

Choosinga locationforyourLEDTV

ToDisplay your LEDTV onthe included Pedestal Stand:

Observe the following safety precautions:

1) Read and follow the pedestal assembly instructions

included with the pedestal.

CAUTION: Before beginning pedestal assembly,

carefully lay the front of the LCD Panel face down

on a flat, cushioned surface such as a quilt or

blanket. Leave the bottom of the unit protruding

over the edge of the surface and assemble the

pedestal as indicated below.

Note: Extreme care should always be used when

attaching the pedestal stand to avoid damage to

the LCD panel.

2) Place the TV on a sturdy, level surface that can

support the weight of the TV.

3) Be sure to secure the TV to a wall, pillar, surface, or

other immovable structure see item 26) on page 5 for

additional details.

To Display your LED TV using a Wall Bracket:

If you decide to wall mount your LED TV, always use a

wall bracket Listed by an independent laboratory (such

as UL, CSA, ETL) that is appropriate for the size

and weight of the TV:

1) CAUTION: Two people are required for installation.

2) Unplug and remove any cables and!or other

component connectors from the rear of the TV

3) Remove the screws of the VESA Mounting Pattern

show in the table below, if applicable.

CAUTION: Do not use the screws removed from

the back cover to attach the wall mount bracket to

the TV.

4) Always use the screws supplied or recommended by

the wall mount manufacturer.

5) Follow the instructions provided with your wall bracket.

Before proceeding, make sure the appropriate

bracket(s) are attached to the wall and the back of the

TV as described in the instructions provided with the

wall bracket.

6) After attaching the appropriate bracket(s) to the wall

and the back of the TV, remove the pedestal stand

from the TV, as described below.

7) VESAMounting Pattern

TVSize HolePattern(HxV) ScrewSize

50" 400mm x 200mm M8

Removing the Pedestal Stand

1) Carefully lay the front of the unit face down on a flat,

cushioned surface such as a quilt or blanket. Leave

the stand protruding over the edge of the surface.

Note: Extreme care should always be used when

removing the pedestal stand to avoid damage to

the LCD panel.

2) Remove the stand screws shown in the diagram

below.This will allow removal of the pedestal stand,

3) Once you have removed the screws holding the

pedestal stand in place, remove the pedestal stand

from the TV,

50" TV. VESA Mounting Pattern

Hook Sturdy strap

Four stand screws (as short as possible)

(Sample Illustration)

CAUTION: Always place the TV on a sturdy, level,

stable surface that can support the weight of the unit.

To secure the TV, use a sturdy strap from the hook(s)

on the rear of the TV to a wall stud, pillar, or other

immovable structure. Make sure the strap is tight,

secure, and parallel to the floor.

FCCDeclaration of Conformity

ComplianceStatement (Part 15):

Toshiba 50L1450U Television models comply with

Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device nmst accept any interference received,

including imerference that may canse tmdesired operation.

The part?,:responsible for compliance to these roles is:

Toshiba America Information Systems, Inc.

9740 Irvine Blvd., Irvine, CA 92618.

Ph: 800-631-3811

Note: This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. Howeve_ there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by removing and applying

power to the equipment, the user is encouraged to try

to correct the interference by one of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the eqnipment into an outlet on a circuit different

from that to which the receiver is connected.

Consuh the dealer or an experienced radioiTV technician

for help.

"Caution: Changes or modifications to this equipment

not expressly approved by Toshiba could void the

user's authority to operate this equipment.

ENERGYSTAReUserInformation

ENERGY STAR User Information Statement: the factory

default settings of this television meet ENERGY STAR _

requirements. Changing Picture Settings may increase

energy consumption, possibly beyond the limits required lbr

ENERGY STAR qualification.

To ensure your television is operating at optimal energy

efficiency, select [Home] mode during initial activation. To

return to [Home] mode settings, select [Standard] picture

mode. [Standard] mode is recommended lbr nomlal home

use.

ENERGY STAR * qnalified T\_ Products

that earn the ENERGY STAR prevent

green house gas emissions by meeting

strict guidelines set by the U.S.

Environmental Protection Agency.

ENERGY STAR and the ENERGY STAR

mark are registered U.S. marks.

Important notesaboutyour TV

The following symptoms are technical limitations of

LCD Display technology and are not an indication of

malfunction; therefore, Toshiba is not responsible for

perceived issues resulting from these symptoms.

1) An afterimage (ghost) may appear on the screen if a

fixed, non-moving image appears for a long period of

time. The afterimage is not permanent and will

disappear in a short period of time.

2) The LCD panel contained in this TV is manufactured

using an extremely high level of precision technology;

however, there may be an occasional pixel (dot of

light) that does not operate properly (does not light,

remains constantly lit, etc.). This is a structural

property of LCD technology, is not a sign of

malfunction, and is not covered under your warranty.

Such pixels are not visible when the picture is viewed

from a normal viewing distance.

Note: Interactive video games that involve shooting a

"gun" type of joystick at an on-screen target may not

work with this T_X

TrademarkInformation

ColorStream, ColorMaster, DynaLight, GameTimer,

Native Mode, Stable Sound, Surflock, and

TheaterWide are trademarks or registered trademarks

of Toshiba America Information Systems, Inc.

Blu-ray Disc TM , Blu-ray TM ,and the loges are

trademarks of the Blu-ray DiscAssociation.

•Audyssey EQ®provides clear, accurate,m°° and natural sound right out of the box. This

technology ensures you enjoy your audio

experience as much as your video.

m•AudysseyABX TM technology uses

A.x sophisticated driver analysis and low

frequency monitoring to extend the range

and bass of small speakers. This enables

the system to produce lower frequencies

than would be possible with a traditional

system of the same size.

• Manufactured under license from

Audyssey Laboratories. U.S. and foreign

patents pending.

Audyssey EQ<_is a registered trademark,

AudysseyABX TM is atrademark of

Audyssey Laboratories.

r,I,.] OOLB't • Manufactured under license from Dolby_)

DIGITAL Laboratories. Dolby®and the double-D

symbol are trademarks of Dolby_

Laboratories.

I-Ii_:!11"11 .The terms HDMI and HDMI High-Definition

.................................Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of

HDMI Licensing LLC in the United States

and other countries.

•MPEG Layer-3 audio coding technology

licensed from Fraunhofer IIS and Thomson.

•This production contains Bitstream Vera

Sans fonts under the following copyright:

Rights Reserved. Bitstream Vera is a

trademark of Bitstream, Inc.

•All other brand and product names are

trademarks or registered trademarks of

their respective companies.

rights reserved. Under the copyright laws, this gnide cannot

be reproduced in any/brm without the prior written

permission of Toshiba. No patent liability is assmned,

however, with respect to the use of the infomlation

contained herein.

Notice

The in_rmation contained in this manual, including but not

limited to any pro_ct specifications, is subject to change

without notice.

TOSHIBA CORPORATION AND TOSHIBA

AMERICA INFOB2_IATION SYSTEMS, INC.

(TOSHIBA) PROVIDES NO VI24.Rl_a_NTY'WITH

REGARD TO THIS MAN1 AL OR ANY OTHER

INFORMATION CONTAINED HEREIN AND

HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED

VI24.RRANTIES OF MERCHANTABILITY OR

FITNESS FOR ANY PARTICULAR P1 RPOSE WITH

REGARD TO ANY OF THE FOREGOING. TOSHIBA

ASSUMES NO LIABILITY FOR ANY DAMAGES

INCURRED DIRECTLY OR INDIRECTLY FROM

ANY TECHNICAL OR TYPOGRAPHICAL ERRORS

OR OMISSIONS CONTAINED HEREIN OR FOR

DISCREPANCIES BET_VEEN THE PROD[ CT AND

THE MANI AL. IN NO EVENT SHALL TOSHIBA BE

LIABLE FOR ANY INCIDENTAL,

CONSEQI ENTIAL, SPECIAL, OR EXEMPLARY

DAMAGES, WHETHER BASED ON TORT,

CONTRACT OR OTHER'WISE, ARISING O[T OF

OR IN CONNECTION WITH THIS MANI AL OR

ANY OTHER INFOILMATION CONTAINED HEREIN

OR THE USE THEREOE

Contents

Chapterl:lntroduction.............................................................16

Features .................................................................. 17

Overview of installation, setup, and use................... 18

TVfront and side panel controls and connections ....19

TV back panel connections ...................................... 20

Chapter2:ConnectingYourTV.................................................21

Overview of cable types ........................................... 21

Coaxial (F-type) cable ....................................... 21

Standard A/V cables (red/white/yellow) ............. 22

Component video cables (red/green/blue) ......... 22

HDMI®cable (with HDMI Logo) ......................... 22

About the connection illustrations ..................... 23

Connecting aVCR, antenna, cable TV,

or camcorder ..................................................... 23

Connecting a Blu-rayTM/DVD player, satellite

receiver with ColorStream TMor VCR ................. 24

Connecting an HDMI® or DVI device to the

HDMl®input ...................................................... 26

HDMI®CEC connection ............................................ 29

Connecting acomputer ........................................... 30

Connection to the TV's HDMI®terminal ............. 30

Chapter3:

Chapter4:

Chapter5:

Chapter6:

UsingtheRemoteControl.......................................32

Installing batteries ................................................... 32

Remote control effective range ................................ 33

Learning about the remote control ........................... 34

Menu LayoutandNavigation..................................37

Main menu layout .................................................... 37

Navigating the menu system ................................... 39

SettingupyourTV ...................................................40

Initial Setup ............................................................. 40

Installation setup selection ...................................... 41

Storing channels in memory (optional) ................... 42

Auto Tuning ............................................................. 42

Manual Tuning ......................................................... 44

Setting channel skip ................................................ 44

Setting the AV input mode ....................................... 45

Setting the time zone ............................................... 45

Viewing the system status ....................................... 46

Resetting Factory Defaults ................................. 46

SettingupyourTV ...................................................47

Selecting the video input source .............................. 47

Labeling the video input sources ............................. 49

Tuning channels using the Channel Browser ............ 50

Favorites browser .................................................... 51

Elements of the Channel Browser ...................... 52

Adding and clearing channels and inputs

in the History List ........................................ 54

Tuning to the next programmed channel ............ 54

2Contents

Tuning to a specific channel

(programmed or unprogrammed) ............... 54

Switching between two channels using

Channel Return ........................................... 55

Switching between two channels using

Surf LockTM .................................................. 55

Selecting the picture size......................................... 56

Full.................................................................... 57

TheaterWide 1................................................... 57

TheaterWide 2................................................... 57

TheaterWide 3................................................... 58

Native ................................................................ 58

4:3..................................................................... 59

Normal .............................................................. 59

Dot by Dot ......................................................... 59

Scrolling the TheaterWide TM picture

(TheaterWide 2 and 3 only) ......

Using the Auto Aspect feature ........

Using the 4:3 Stretch ......................

Using the FREEZEfeature ...............

Adjusting the picture .....................

Selecting the picture mode .......

Adjusting the picture quality .....

Using closed captions ....................

Base closed captions ................

Digital CCsettings ....................

Adjusting the audio ................................................. 66

Muting the sound .............................................. 66

Using the Digital Audio Selection ....................... 67

Selecting stereo/SAP broadcasts ....................... 67

Adjusting the audio quality ................................ 68

Audyssey ®technologies .................................... 69

Audyssey ABXTM ................................................ 69

Stable SoundTM .................................................. 69

..................... 60

..................... 61

..................... 62

..................... 63

..................... 64

..................... 65

Using the Dolby ® Digital Dynamic Range

Control feature ......................................... 69

Selecting the PIN code .......................................... 70

Enter a new PIN code ....................................... 70

Forgotten PIN code ......................................... 70

Changing or deleting your PIN code ................ 70

Using parental controls (for USA region) ............... 70

Blocking TV programs and movies by

rating (V-Chip) ............................................ 70

Downloading an additional rating system .......... 71

Rating system ................................................... 73

Displaying ratings ............................................. 74

Unlocking programs temporarily ....................... 74

Using the input lock feature ..................................... 75

Locking channels .................................................... 75

Using the GameTimerTM ................................... 76

Using the panel lock feature ............................. 77

Using the Media Player .......................................... 78

Using Media Player with a USB device ............. 78

Auto Start function .......................................... 79

To open the Media Player................................. 79

Viewing photo files .......................................... 80

Playing music files .......................................... 82

Viewing photo files and playing music files

at the same time ......................................... 83

Sorting photo or music files .............................. 83

Setting the sleep timer ............................................. 84

No Signal Power Down ............................................ 85

Using HDMI®CEC ................................................... 85

HDMI ® CECplayback device

(Blu-ray TM Player/DVD player, etc.)

control ........................................................ 85

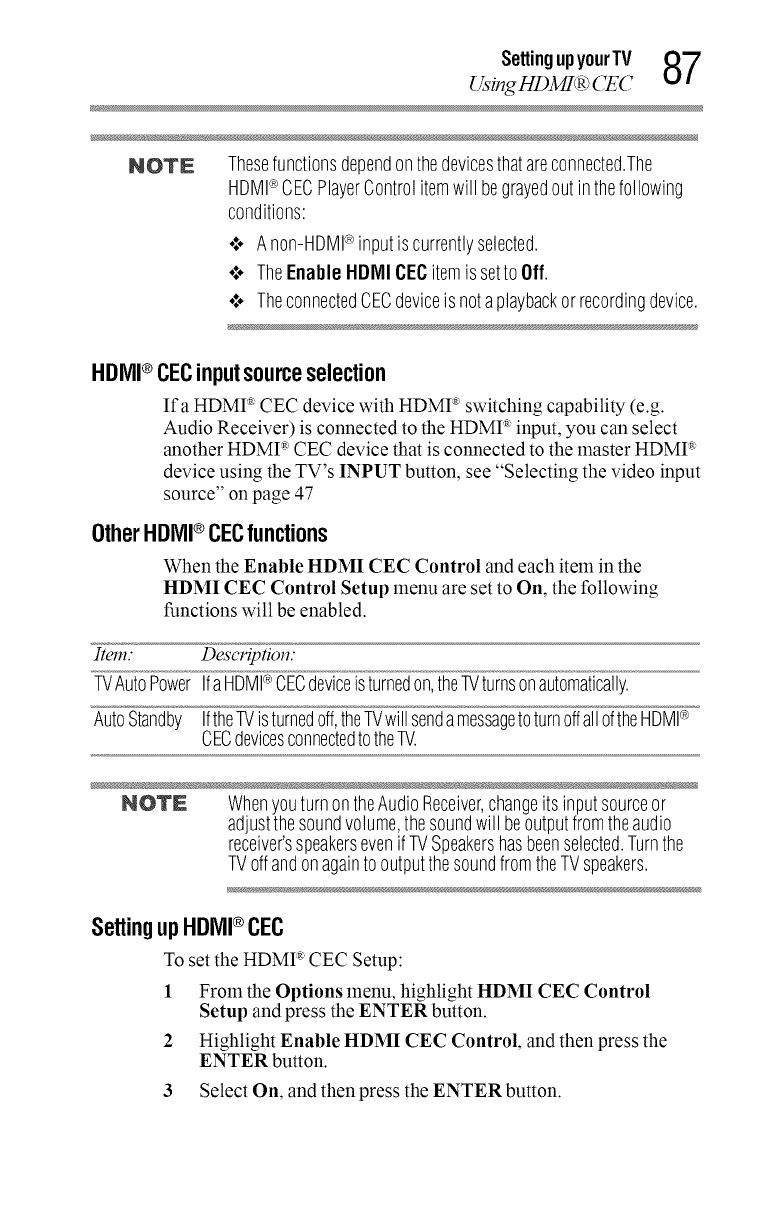

HDMI ® CECinput source selection .................... 87

Other HDMI® CECfunctions .............................. 87

Setting up HDMI® CEC....................................... 87

Using the HDMI ®settings feature ............................ 88

4Contents

HDMI® 1(or 2) RGB Range ................................ 88

HDMI® Information Display ............................... 88

Displaying TV status information ............................. 89

Understanding the last mode memory feature ......... 90

Chapter7: UsingtheTV'sAdvancedFeatures.........................91

Using the advanced picture settings ........................ 91

ColorMaster TM ................................................... 91

BaseColor Adjustment ....

Color Temperature ...........

Static Gamma ..................

Auto Brightness Sensor...

DynaLight TM.....................

Dynamic Contrast ............

Cinema Mode ..................

Noise Reduction ..............

................................ 91

................ 92

................ 93

................ 94

Chapter8:Troubleshooting.......................................................96

General troubleshooting ...................................... 96

Picture problems ................................................. 97

Sound problems .................................................. 98

Remote control problems .................................... 99

Channel tuning problems .................................... 99

Closed caption problems ................................... 100

Rating blocking (V-Chip) problems ..................... 100

No HDMI®CECoperation .................................... 100

HDMI® problems ................................................. 101

Media Player problems ........................................ 101

If the problem persists after trying the solutions ....101

AppendixA:Specifications.....................................................102

Television system .................................................. 102

Channel coverage .................................................. 102

Power source ........................................................ 103

Power maximum current ................................. 103

Power consumption ........................................ 103

Audio power .................................................... 103

Speaker type ......................................................... 103

Video/audio terminals ........................................... 103

Video/audio input ............................................ 103

ColorStream TM (component video) HD input ....103

HDMl®input .................................................... 103

Dimensions (with stand) ....................................

Weight (mass) ..............................................

Operating conditions ....................................

Supplied accessories ..........................................

Acceptable signal formats for HDMI® .................

HDMl®signal formats ...................................

.104

.105

AppendixB:LicenseAgreement.............................................106

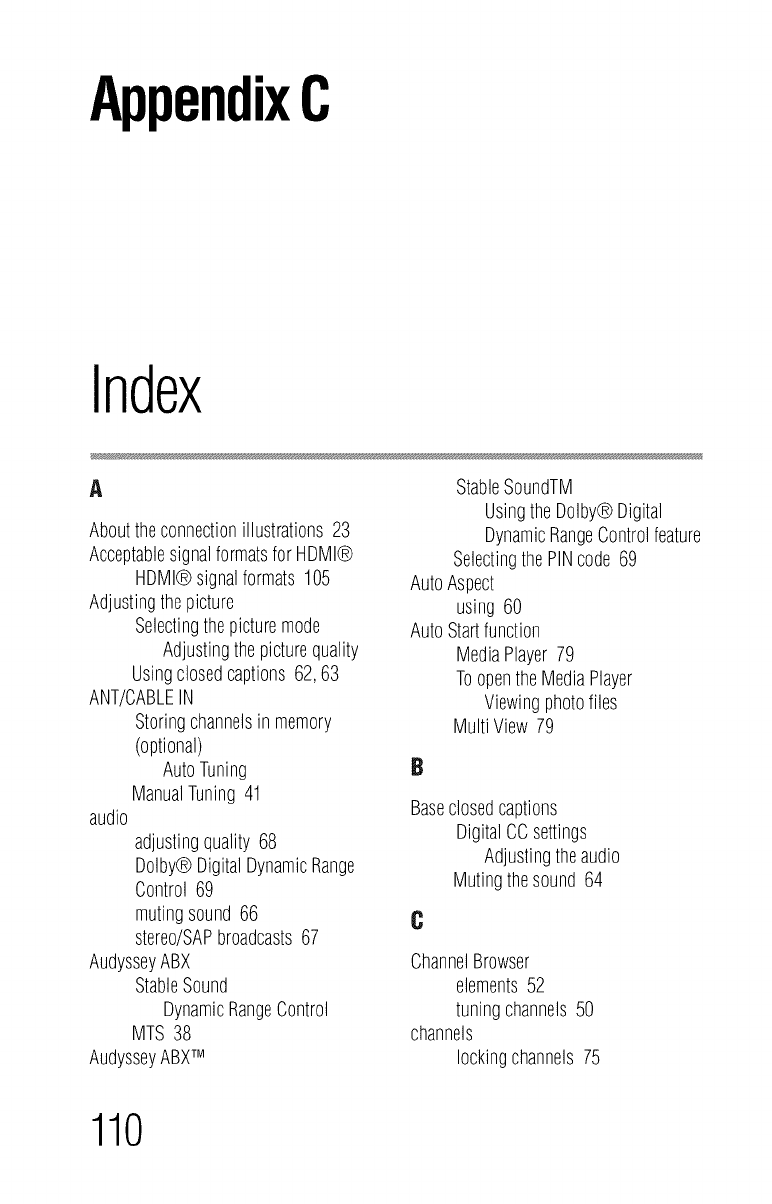

AppendixC:Index....................................................................110

Chapter1

Introduction

Safetyicons

This manual contains sat_ty instructions that must be observed to avoid potential

hazards that could result in personal injuries, damage to your equipment, or loss

of data. These satEtycautions have been classified according to the seriousness of

the risk, and icons highlight these instructions as tbllows:

Indicatesanimminentlyhazardoussituationwhich,ifnotavoided,will result

-- indeathorseriousinjury.

Indicatesa potentiallyhazardoussituationwhich,if notavoided,couldresult

indeathorseriousinjury.

Indicatesa potentiallyhazardoussituationwhich,if notavoided,mayresult

inminoror moderateinjury.

Indicatesa potentiallyhazardoussituationwhich,if notavoided,mayresult

inpropertydamage.

NOTE Providesimportantinformation.

Introduction17

Features

The following are just a few of the many exciting features of your

new Toshiba wide screen, integrated HD LED TV:

o:* Integrateddigit'_tuning(8VSB ATSCandQAM)--

Eliminates the need for a separate digital converter set-top box

(in most cases)

o:* 1920 x 1080 output resolution

o:* Two HDMI _'-Digital, High-Definition Multimedia Interfaces

with 1080p input support, see "Connecting an HDMI(R)or DVI

device to the HDMI(R)input" on page 26

o:* ColorStream TM HD--High-resolution component video input

and shared composite video input, see "Connecting a Btu-ray TM

/DVD player, satellite receiver with ColorStream TM or VCR"

on page 24

o,**Audyssey EQ ®and ABXTXI--Audio technologies for clear,

well-balanced sound, see "Audyssey(R) technologies" onpage 69

o,** ColorMasterTSr--Allows you to adjust the TV's standard

colors, see "ColorMaster TM''on page 91

o_* Cinema Mode--Shows fihn-like quality movies, see "Cinema

Mode" on page 93

o,**DynaLight TM Backlight control monitors the brightness of

each video frame and automatically adjusts backlight intensity

based on the content to create higher dynamic contrast, for

deeper blacks and increased depth, see "DynaLight TM''on

page 93

o,** ClearSean TM 120Hz--Technology utilizes advanced backlight

control with image synchronization to double the television

refresh rate for clearer fast motion video. This technology is

ideal for watching action movies, sports and video games.

o,**DNR--Digital picture Noise Reduction technology that filters

out video noise without decreasing the picture sharpness for

clean, crystal-clear images, see "DNR" on page 94

o,**HDMF' CEC--Allows control of external devices from the

TV remote via HDMI ®connection, see "Using HDMI(R)CEC"

on page 85

o,**Media Player--Allows you to view photo files and play music

files, see "Using the Media Player" on page 78

oI. ENERGY STAR _ qualified

8Introduction

Ovelwic_v of instcdlatl_m, setup, and use

Overviewofinstallation,setup,anduse

Follow these steps to set up your TV and begin using its many

exciting features.

1 Carefully read the important safety, installation, care, and

service information. Keep this document for future reference.

2 To choose a location for the TV:

o:* Read "hnportant notes about your TV" on page 8

.1. Place the TV on the floor or a sturdy, level, stable surface

that can support the weight of the unit. Secure the TV to a

wall, pillar, or other ilmnovable structure, see 26)

on page 5.

.1. Place the TV in a location where light does not reflect on

the screen.

o,** Always leave a space of at least 4 (four) inches around the

TV. The slots and openings are provided to protect the TV

from overheating and to help maintain reliable operation

of the TV.

3 Do not plug in any power cords until after you have connected

all cables and devices to your TV.

4 Before connecting cables or devices to the TV, learn the

functions of the TV's connections and controls, see "Overview

of cabte types" on page 21

5 Connect your other electronic device(s) to the TV, see

"Connecting an HDMI® or DVI device to the HDMI® input"

on page 26

6 Install the batteries in the remote control, see "Installing

batteries" on page 32

7 See "Learning about the remote control" on page 34 for an

overview of the buttons on the remote control.

8 After connecting all cables and devices, connect the power cord

to the TV and plug in the power cord into an outlet. Then press

the POWER button on the TV control panel or remote control

to turn on the TV. If the TV stops responding to the buttons on

the remote control or TV control panel and you cannot turn the

TV offor on, unplug the power cord for a few seconds and then

plug it in and try again.

9 See "Navigating the menu system" on page 39 for a quick

overview of navigating the TV's menu system.

10 Program channels into the TV's channel memory, see "Auto

Tuning" on page 42

11 For details on using the TV's features, see Chapter 6 and

Chapter 7

Introduction19

TVf_gnt and sidepanel eonnvls and connections

12 For help, refer to "Troubleshooting" on page 96

13 For technical specifications, see "Specifications" on page 102

For the End User License Agreement, see "License Agreement"

onpage 106

TVfrontandsidepanelcontrolsandconnections

Leftsidepanel TVfront

3 TVtop

(Sample Ilh4stmtion) 50L1450U- Front and side panel controls and

comTections

1 Brightness Sensor-- Detects the ambient light conditions to

optimize the backlighting levels.

2 Remote sensor (embedded)--Point the remote control toward

this remote sensor.

3 POWER--Turns the TV On/Off. If the TV stops responding to

the buttons on the remote control or TV control panel and you

cannot turn offthe TV, press and hold the POWER button on

the TV control panel for a few seconds to reset the TV.

4 A/T/+/-- -- Adjust the volume level, change the channel, or

change the input or source you are viewing, depending on the

mode, which is selected by the CH/INPUT button.

5 CH/INPUT--Switches the function of the A/T/+/-- buttons to

select the volume, channel, or input mode.

• In Volume mode, the buttons increase or decrease the

volume.

• In Channel mode, the buttons change the channel up or down.

• In Source mode, the buttons toggle the input from one source

to the next.

6 USB port--Accesses JPEG or MP3 files, or updates TV

firmware.

7 Power On/Standby LED--Power indicator light, (glows green

when the TV power is On).

0Introduction

TVbackpanelconnectio_s

4i PowerCord

(Sample Ilhlstration) 50L14 50U- Back pcmel connections

1 ANT/CABLEIAntenna input that supports analog (NTSC)

and digital (ATSC) off-air antenna signals and analog and

digital cable TV (QAM) signals.

2 ColorStream TM HDIHigh-resolution component video input

and shared composite video input, see "Connecting a Blu-ray TM

/DVD player, satellite receiver with ColorStream TM or VCR"

on page 24

3 HDMP INIHigh-Definition Multimedia Interface input

receives digital audio and uncolnpressed digital video from an

HDMI ®device or uncolnpressed digital video from a DVI

device. HDMt _ connection is necessary to receive 1080p

signals.

4 Power CordIplug one end of the power cord into the jack on

the back of the unit, and the other end into a live electrical

outlet.

Theincludedpowercordis forusewiththisunit only.Donotuseitwithother

equipment.

Ifyouarenotgoingto usetheunitforanextendedperiodoftime,disconnect

thepowercordfromthewalloutlet.

Wheneverthepowercordis pluggedintothewalloutlet,itwill drawsome

power,evenwhentheunitis off.

NOTE Component/Standard(composite)videocablescarryonlyvideo

information;separateaudiocablesarerequiredforacomplete

connection.

Chapter2

ConnectingYourTV

Overviewofcabletypes

Before purchasing cables, know the connector types your devices

require. You can purchase cables from most stores that sell audio/

video devices.

Coaxial(F-type)cable

(Sample Illustration) ('oaxial cable

Coaxial (F-type) cable connects your antenna, cable TV service,

and/or cable converter box to the ANT/CABLE input on your TV.

NOTN Pleasetightenthisconnectionbyhand.Usingtoolsmaydamagethe

connection.

2 ConnectingYourTV

Ovelwiew of cable _pes

StandardANcables(red/white/yellow)

(Sample Illustrcttion) Stcmdctrd A V cab les

Standard A/V cables (composite video) usually come in sets of

three, and connect to video devices with analog audio and

composite video output. These cables (and the related inputs on

your TV) are typically color-coded according to use: yellow for

video, red for stereo right audio, and white for stereo left (or mono)

audio.

Componentvideocables(red/green/blue)

Component video cables (red/green/blue)

Colnponent video cables come in sets of three and connect with

video devices with component video output. (ColorStream TM is

Toshiba's brand of colnponent video.) These cables are typically

color-coded red, green, and blue. Separate audio cables are required

for a complete connection.

NOTE Componentvideocablesprovidebetterpicturequalitythan

compositevideocables.

HDIVII®cable(withHDMI Logo)

(Sample Illustration) HDMI _cable

HDMI ®(High-Definition Multimedia Interface) cable connects to

devices that have an HDMI ®output. An HDMI ®cable delivers

digital audio and video in its native format. Separate audio cables

are not required, see "Connecting an HDMI(R)or DVI device to the

HDMI(R)input" on page 26

ConnectingYourTV 9_

(..__t,.,a

Connecting a V(_, antenna, cable _or cameolJer

NOTE HDMPcablesprovidethebestaudioandpicturequality.

Abouttheconnectionillustrations

You can connect different types and brands of devices to your TV in

several different configurations. The connection illustrations in this

manual are representative of typical device connections only. The

input/output terminals on your devices may differ from those

illustrated herein. For details on connecting and using your specific

devices, refer to each device's User's Guide.

ConnectingaVCR,antenna,cableTV,orcamcorder

From cable TV From cable TV

or antenna Cable box

Stereo VCR _

(Sample Illustration) 50L1450(_('onnecting to a V('R, cmtenmt,

cable TV, or camcorder

Items needed:

o,**Coaxial cables

o:* Standard AV cables

If you have a lnono VCR, connect L/MONO on the TV to your

VCR's audio out terminal using the white audio cable only.

o:* Standard audio cable

NOTE Themenusettingmayneedto bechangedinorderto watchthe

sharedinputbetweencompositeandcomponentvideo.Composite

andcomponentvideocannotbeusedsimultaneously.

4 ConnectingYourTV

Connecting a Bht-l"avTM/DVDplaver, satellite mc'eivel _with Colol_Stmamr_f ol_V(;R

NOTE Whenyouuseacablebox,youmaynotbeabletousetheremote

controlto programoraccesscertainfeaturesontheTV.Whenyou

useColorStreamTM HDorVideo,switchAVinputmodeappropriately.

To view the antenna or cable signal:

Select ANT/CABLE video input source on the TV.*

To view basic and premium cable channels:

Turn offthe VCR. Select the ANT/CABLE video input source on

the TV.* Tune the TV to channel 3 or 4 (whichever channel the

cable box output is set to). Use the cable box controls to change

channels.

To view the VCR or camcorder video:

Turn on the VCR or camcorder video. Select VIDEO input source

on the TV.*

*To select the video input source, press the INPUT button on the

remote control, see "Selecting the video input source" on page 47

NOTE Theunauthorizedrecording,use,distribution,orrevisionof

televisionprograms,videotapes,UVUs,andothermaterialsis

prohibitedundertheCopyrightLawsoftheUnitedStatesandother

countries,andmaysubjectyouto civilandcriminalliability.

Connectinga Blu-rayTM /DVDplayer,satellitereceiverwith

ColorStreamTMorVCR

_TV backpanel From antenna

Satellite receiver, Ble-ray TM or DID player

A_ampleIlh/stration) 50L14 50[_('otmectit_g a Bh/-r_{yTM /D VD

plc_,er or Scttellite receiver with Colorstrectm TM (or V('R).

ConnectingYourTV 9_

£.__J

Connecting a Blu-ravTM/DVDplm'er, satellite receiver with ColorStream rMor VCR

NOTE ColorStreamTM andcompositevideocablescannotbeconnected

simultaneously.

Items needed:

o,** Coaxial cables

o,** Standard AV cables

If you have a mono VCR, connect L/MONO on the TV to your

VCR's audio out terminal using the white audio cable only.

o,** Standard audio cables

o,** Component video cables

o,** You can connect the component video cables (plus audio

cables) from the DVD player or satellite receiver to the

COLOR STREAM HD terminal in the TV. The COLOR

STREAM HD terminal can be used to display Progressive

(480p, 720p) and Interlaced (480i, 1080i) scan systems.

Please note that 1080p is not supported. Check the User's

Guide of the DVD player in order to determine the best

output signal available.

o,** If your DVD player or satellite receiver does not have

component video, connect a standard A/V cable to the

AUDIO/VIDEO terminal. If your DVD player has HDMI _

video, see "Connecting an HDMI(R)or DVI device to the

HDMI(R)input" on page 26

NOTE WhenyouuseColorStreamTM HDorVideo,switchAVinputmode

appropriately.

To view antenna or Cable channels:

Select the ANT/CABLE video input source on the TV.*

To view the DVD player:

Turn on the DVD player. Select the COLORSTREAM HD video

input source on the TV.*

To view satellite programs using the component video

connections:

Turn on the satellite receiver. Select the COLORSTREAM HD

video input source on the TV.*

To view the VCR or view and record antenna channels:

Turn on the VCR. Tune the VCR to the channel you want to watch.

Select the VIDEO video input source on the TV.*

To record a TV program while watching a DVD:

Turn on the VCR. Tune the VCR to the channel to record. Select the

COLORSTREAM HD video input source on the TV* to view the

DVD.

6 ConnectingYourTV

Connecting an HD_(R.: 01"D lq dcn&'e to the IlDMI(R.: inlm tt

*To select the video input source, press the INPUT button on the

remote control, see "Selecting the video input source" on page 47

NOTE Theunauthorizedrecording,use,distribution,orrevisionof

televisionprograms,videotapes,DVDs,andothermaterialsis

prohibitedundertheCopyrightLawsoftheUnitedStatesandother

countries,andmaysubjectyouto civilandcriminalliability.

ConnectinganHDIVII®orDVIdevicetotheHDIVII®input

The HDMT _ input on your TV receives digital audio and

uncompressed digital video from an HDMT _source device, or

uncompressed digital video from a DVI (Digital Visual Interface)

source device.

This input is designed to accept HDCP (High- Bandwidth Digital-

Content Protection) program material in digital form from EIA/

CEA-861-D- compliant [11consumer electronic devices (such as a

set-top box or DVD player with HDMI ®or DVI output).

The HDMT _ input can accept and display various signal formats.

For detailed signal specifications, see "HDMI(R) signal formats" on

page 105.Supported Audio format: Linear PCM, sampling rate

32/44.1/48 kHz.

NOTE ToconnectacomputertotheHDMI®input,see"Connectionto the

TV'sHDMl®terminal"onpage30

To connect an HDMI ':_device, you will need one HDMI _ cable

(type A connector) per HDMP device.

o***For proper operation, it is recommended that you use an

HDMI '_*cable with the HDMI _ Logo(H_.m!).

o***HDMI _ cables transfer both video and audio. Separate analog

audio cables are not required (see illustration).

ConnectingYourTV 27

Connecting an HD_(RJ: 01"D VI device to the IJDMI(R; inlm tt

TVbackpanel

IHDMI IN roll

HDMI device

VIDEO Im_l_

(,S_tmpleIllustrcttion) 50L1450U HDMI _connections

To view the HDM[ "_'device video:

Select HDMI 1 or HDMI 2 video input source on the TV. (Press the

INPUT button on the remote control. For more information, see

"Selecting the video input source" on page 47)

To connect a DVI device, yon will need:

o:* HDMI _ to DVI adapter cable

For proper operation, the length of an HDMI :_to DVI adapter

cable should not exceed 9.8 ft (3in). The recommended length

is 6.6 ft (2in).

8 ConnectingYourTV

Connecting an HD3!!!:R: o1"DVI device to the/]DM!:R: in!_ tt

TVbackpanel

mCOLOR S_M HD/VIDEOIN _ IHDMI IN I

P, P_ Y/VIDEO

000

(ScmTple Illustrc_tion) 50L14 50U D VI connections

NOTE WhenusingaDVIconnection,anaudioconnectionis not

available.

NOTE ToensurethattheHDMPorDVldeviceis resetproperly:

¢ Whenturningonyourelectroniccomponents,turnontheTV

first,andthentheHUMPorDVldevice.

¢ Whenturningoffyourelectroniccomponents,turnoffthe

HDMI®orDVldevicefirst,andthentheTV.

ConnectingYourTV 29

//DM!_R_:(_C connection

NOTE EIA/CEA-861-Dcompliancecoversthetransmissionof

uncompresseddigitalvideowithhigh-bandwidthdigitalcontent

protection,whichis beingstandardizedforreceptionofhigh-

definitionvideosignals.Becausethisis anevolvingtechnology,it is

possiblethatsomedevicesmaynotoperateproperlywiththeTV.

HDIVII®CECconnection

You can control the basic functions of connected audio/video

devices using the TV's remote control if you connect a HDMV CEC

compatible audio receiver or playback device. The HDMI ®CEC

Control feature uses CEC technology as regulated by the HDMI ®

standard.

Backpanel

Audio Receiver

Playback device(HONI '_

CECOVO Player, etc,)

Playback device(HONI '_

CECOVOPlayer, etc,)

(Sample lllustration) 50L1450U HDMI_ ('E('compatible audio

receiver and pho,back device connections

To connect an HDMI _ device, you will need one HDMV cable

(type A connector) per HDMV' device (see "Overview of cable

types" on page 21)

NOTE o:o Ifseveraldevicesareconnected,HDMI®CECControlfeature

maynotoperateproperly.

¢ Forproperoperation,it is recommendedthatyouuseanHUMP

cablewiththeHUMPLogo(_._.!).

ConnectingYourTV

Connec'n_ a computer

Before controlling the device(s):

o.** After completing the above connections, configure the HDMI ®

CEC Setup menu with the desired settings, see "Setting up

HDMI(R)CEC" on page 87. The connected devices must also be

configured. For details, see the operation manual for each

device.

This feature uses the CEC technology as regulated by the

HDMI* standard.

This feature is limited to models incorporating Toshiba's

HDMI ®CEC. However, Toshiba is not liable for those

operations. Refer to the individual instruction manuals for

compatibility information.

NOTE Thisfeaturemaynotworkproperlydependingonthedevicesthatare

connected.

Connectingacomputer

With HDMI _ connection, you can view your computer's display on

the TV and hear the sound from the TV's speakers.

ConnectiontotheTV'sHDIVII®terminal

When connecting a computer with a DVI terminal, use an HDMI :_-

to-DVI adapter cable and analog audio cables.

When connecting a computer with an HDMI :_terminal, use an

HDMI ®cable (type A connector).

ConnectingYourTV _1

_,,.,//

(:onnec'li_ a comt_ tter

IV backpanel

Conversion adapter (if necessary)

(Sample Illustration) 50L1450(_E'otmectmg ct computer to the TV

through the HDMP termmcd.

For signal specification, see "Acceptable signal formats for

HDMI(R)"on page 105

NOTE o:÷Theedgesofthepicturemaybehidden.

o:÷If receivinga480i(HDMP),480p(HDMI®),720p,1080i,or

1080psignalprogram,Nativemodescalesthevideoto display

theentirepicturewithinthebordersofthescreen(i.e.no

overscan).

(Sctmple Illustrcttion) 50L1450(_Power cord connection

Chapter3

UsingtheRemoteControl

Installingbatteries

To install batteries •

1 Remove the battery cover from the back of the remote control.

Squeezetab

andlift cover

(Sctmple Illustrcttion) Removing the remote back cover

2 Insert two AAA batteries, corresponding to the (+) and (-)

markings on the battery compartment.

(Sample Illustration) Installing the batteries

3 Replace the battery cover.

Donotexposebatteriesto excessiveheatsuchassunshine,fire,etc.

UsingtheRemoteControl ,_,'_

Remote control cflbetive ra_e t..K9

NOTE o:÷Besureto useAAAsizebatteries.

o:÷Disposeof batteriesinadesignateddisposalarea.

o:- Alwaysconsidertheenvironmentwhendisposingofbatteries.

Alwaysfollowapplicablelawsandregulations.

o:- Iftheremotedoesnotoperatecorrectly,or iftheoperatingrange

is reduced,replacethebatteries.

o:- Alwaysreplacebothbatterieswithnewones.Nevermixbattery

typesorusenewandusedbatteriestogether.

o:- Alwaysremovebatteriesfromtheremoteif theyaredeadorif the

remotecontrolis nottobeusedforanextendedperiodoftime.

Thispreventsbatteryacidfromleakingintothebattery

compartment.

Remotecontroleffectiverange

For optimum performance, aim the remote control directly at the

TV and make sure there is no obstruction between the remote

control and the TV.

16.4 ft (5m)

(Sm_Tple Illustration) Remote control effective rcmge

4UsingtheRemoteControl

Learning about the remote control

Learningabouttheremotecontrol

The buttons used for operating the TV are described below. For the

HDMI ®CEC remote control functions, see "HDMI® CEC

playback device (Blu-ray TM PlayefDVD player, etc.) control" on

page 85

(Sample Illustration) Remote control overview

NOTE Theerrormessage"NOTAVAILABLE"mayappearifyou pressa

buttonforafunctionthatis notavailable.

UsingtheRemoteControl ,_

Learni_ about the remote control

1 The POWER button turns the TV On/Off. When the TV is on,

the power LED indicator on the TV front glows green.

2 The PIC SIZE button cycles through the picture sizes, see

"Selecting the picture size" on page 56

3 The PIC MODE button selects the picture mode, see

"Adjusting the picture" on page 62

4 The INPUT button selects the video input source, see

"Selecting the video input source" on page 47

5 The SLEEP button accesses the sleep timer, see "Setting the

sleep timer" on page 84

6 The FREEZE button freezes the picture. Press again to restore

the moving picture, see "Using the FREEZE feature" on page 61

7 The Channel Number buttons (0-9, and Dash 100) directly

tune channels. The (Dash 100) button allows you to enter two

part channel numbers, see "Storing channels in memory

(optional)" on page 42 or to edit the Favorites List, see "Favorites

browser" on page 51

8 The FAV button accesses the Favorites List in the Channel

Browser, see "Favorites browser" on page 51

9 The RECALL button displays TV status information.

10 The CH • /• (arrow) buttons cycle through programlned

channels (when no on-screen menu is present), see "Tuning

channels using the Channel Browser" on page 50

11 The C. CAPTION button accesses closed captions, see "Using

closed captions" on page 64

12 The MUTE button reduces or turns offthe sound, see "Muting

the sound" on page 66

13 The VOL (+ -) buttons adjust the volume level.

14 The INFO button displays TV status information as well as

program details, when available, see "Displaying TV stares

information" on page 89

The EXIT button closes on-screen menus.15

16 The ENTER button activates highlighted items in the main

menu system.

6UsingtheRemoteControl

Learni_q about the remote control

17 The CH RTN button returns to the last viewed channel or

source, see "Switching between taro channels using Channel

Return" on page 55

18 The Arrow buttons (A/T/41/_) select or adjust progrannning

menus when a menu is on-screen.

19 The Arrow buttons (-,4/_) open the Channel Browser and tune

to the previous/next channel in the channel history when TV

programlning is on-screen. See "Tuning channels using the

Channel Browser" on page 50

20 The MENU button accesses the main TV menu system. See

"Navigating the menu system" on page 39. The following key

functions allow you to control Toshiba

HDMI ®CEC compatible devices via HDMt _ connection. See

"Using HDMI(R)CEC" on page 85

21 The STOP button stops playback of the loaded playback

device.

22 The PLAY button begins playback of the loaded playback

device.

23 The SKIP forward button skips forward to locate later DVD

chapters.

24 The FF button fast-forwards the playback device. (Press during

play mode to view the picture moving rapidly forward.)

25 The EJECT button ejects the DVD or tape.

26 The PAUSE/STEP button suspends play or record temporarily.

Press during play or record mode to pause the picture; press

again to restart.

27 The SKIP reverse button skips to the beginning of the current

DVD chapter or locates the previous chapter.

28 The REW button rewinds/reverses the playback device. (Press

during play mode to view the picture moving rapidly

backward.).

Chapter4

MenuLayoutandNavigation

Main menulayout

The tables below and on the next pages provide a quick overview of

your TV's menu system. To open the menus (illustrated below),

press MENU on the remote control.

Icon Item

Picture PictureMode

Reset

Backlight

Contrast

Brightness

Color

Tint

Sharpness

AdvancedPictureSettings

DisplaySettings

@lion

Dynamic/Standard/Movie/Game/PC/

Store

NOTE StoreModeisonlyavailableiftheTV issetto

StoreModeat initialsetup.This optionis hiddeninthe

HomeMode.

NOTE WhentheTVis setto Stere inthe initial menuor

Stere inthe InstallationMenu,the setwill alwaysresetto

Stere PictureMode.

Revertsto thefactorydefaultsfortheselected

picturemode

AdjustsBacklight

AdjustsContrast

AdjustsBrightness

AdjustsColor

AdjustsTint

AdjustsSharpness

OpenstheAdvancedPictureSettingsmenu

OpenstheDisplaySettingsmenu

8MenuLayoutandNavigation

Main metal layout

Icon Item Option

Sound Balance AdjustsBalance

Bass AdjustsBass

Treble AdjustsTreble

AudysseyABX On/Off

StableSound On/Off

DynamicRangeControl On/Off

MTS Stereo/Mono/SAP

DigitalAudioSelection Offersdifferentaudiochoicesfordigitalchannels

PrimaryAudioLanguage Primaryaudiochoicefordigitalchannels

Options ChannelOptions OpensChannelOptionsmenu

ClosedCaptions OpensClosedCaptionsmenu

MediaShareSetup OpensMediaShareSetupmenu

HDMICECControl OpensHDMICECControlSetupmenu

Setup

HDMICECPlayer OpensHDMICECPlayerControlmenu

Control

InputOptions OpensInputOptionsmenu

ChannelBrowserSetup OpensChannelBrowserSetupmenu

PowerManagement OpensPowerManagementmenu

PanelLock On/Off

HDMIInformationDisplay On/Off

ParentalPINSetup OpensParentalPINSetupmenu

ParentalControlandLocks OpensParentalControlandLocksmenu

Installation MenuLanguage English/Fra%ais/Espa_o]

TimeZone Eastern/Newfoundland/Atlantic/Hawaii/

Alaska/Pacific/Mountain/Central

DaylightSavingTime On/Off

Store/HomeMode Home/Store

ChannelTuning OpensChannelTuningmenu

QuickSetup ExecutesQuickSetup

ResetTV ResetstoFactoryDefauIts

Timers SleepTimer 10-minuteincrements,from0 minto a

maximumof 12hours

GameTimer Off/30min/60min/90min/120min

MenuLayoutandNavigation 39

Navigati_ the menu system

Icon Item Option

GetHelp SystemInformation OpenstheSystemInformationscreen

AutoDemo OpensAutoDemomenu

NOTE Onlyavailableif theTVissettoStoremode.

Navigatingthemenusystem

You can use the buttons on the remote control to access and navigate

your TV's on-screen menu system.

1 Press the MENU button to open the menu system.

(Sample Image) ?¢)tvigating the menu system

2 When a menu is open, use the I,/!)'/41/I_ (arrow) buttons on

the remote control to move in the corresponding direction in

the menu.

3 Press the ENTER button to save your menu settings or select a

highlighted item.

Ahighlighted menu item appears in a different color in the

menu.

4 All menus close automatically if you do not make a selection

within approximately 60 seconds.

5 To close a menu instantly, press the EXIT button.

NOTE Themenubackgroundmaysometimesappearblack,dependingon

thesignaltheTVis receiving.Thisis notasignofmalfunction.

Chapter5

SettingupyourTV

InitialSetup

When you first turn on or reset the TV, the Initial Setup window will

appear.

1 In the Menu Language field, press the 41/_ (arrow) buttons to

select your preferred language.

2 Press the A/• (arrow) buttons to select Time Zone.Then set

your desired time zone, using the 41/_ (arrow) buttons and

press the ENTER button.

The Store /Home Mode settings window appears.

3 For normal home use, press the 41/_ (arrow) buttons to select

Home, and then press the ENTER button.

The ANT/CABLE In setup window appears.

4 Press the 41/_ (arrow) buttons to select the input source (Cable

or Antenna), and then press the ENTER button.

5 Press the ENTER button to select Start Scan and continue with

the Auto Tuning.

You must select a Language, either Home/Store mode before you

can exit out of the Setup Menu. The EXIT button will not function

until these selections have been made.

SettingupyourTV 41

Installation setup selection

Installationsetupselection

Menulanguage

You can choose from three different menu language settings

(English, Francais, and Espafiol) for the on-screen display oflnenus

and messages.

To select the menu language:

1Press the MENU button and open the Installation menu, then

highlight Menu Language.

2 Press the -41/_ / •/• (arrow) buttons to select your preferred

language.

(Sample Image) Selecting the metal language

3 Press the EXIT button to close the Installation menu.

ANT/CABLEIN

This setting configures the input source for the ANT/CABLE

terminal.

1 Press the MENU button and open the Installation menu.

2 Highlight Channel Tuning, and then press the ENTER button.

(Sample Image) Installation - Setup selection

2 SettingupyourTV

Auto Tuni_

3 Open the Channel Tuning menu, highlight ANT/CABLE In,

and then press the ENTER button.

(Sample hm_tge) Channel tuning menu -Input configuration

selection

4Press the A/T (arrow) buttons to select the input source (Cable

or Antenna), and then press the ENTER button to save your

new settings.

Storingchannelsinmemory(optional)

To make sure your TV stops only on the channels you want when

you press the A/T (arrow) buttons on the remote control or the

control panel, store those channels in the TV's memory.

AutoTuning

You can set up the TV to detect all active channels in your area and

store them in its memory. Then you can manually add or erase

individual channels from memory.

NOTE o:÷YoumustsetuptheANT/GABLEinputsourcebefore

programmingchannels.See"ANT/GABLEIN"onpage41.

•:- Theautomaticchannelprogrammingprocesswill erase

channelsthatwerepreviouslyprogrammedintotheTV's

memory.

o:- TotunetheTVtoachannelnotprogrammedinthechannel

memory,youmustusetheChannel Number buttonsonthe

remotecontrol.

•:- ProgrammingchannelswhentheANT/CABLEinputis

configuredfor Cablewill takesubstantiallylongerthanwhenthe

antennainputis configuredforAntenna.Thisisnormal;

however,oncechannelprogrammingis finished,youshouldnot

haveto repeattheprogrammingprocessagainunlessyourCable

TVservicelineupchangessignificantly.

SettingupyourTV 43

To program channels automatically:

1 Configure the antenna input source, if you have not already

done so, see "ANT/CABLE IN" on page 41.

2 Press the MENU button and open the Installation menu.

3 Highlight Channel Tuning, and then press the ENTER button.

(Sample Image) Setup metal - Instalh_ttion selection

4 Highlight Auto Tuning, and then press the ENTER button to

open the Channel Program menu to begin channel

progrannning.

(Sample Image) Installation metal - Channel selection

The TV will automatically cycle through all the antenna/cable

channels, and store all active channels in the channel memory.

While the TV is cycling through the channels, the message

"Scanning channels, please wait" appears.

To cancel channel progrannning, press the EXIT button on the

remote control or highlight Cancel in the on-screen display,

and then press the ENTER button.

When channel programlning is complete, press the CH A/Y

(arrow) buttons to view the programlned channels.

4 SettingupyourTV

Setti_q channel skip

ManualTuning

After storing channels in memory, you can manually enter channels

if the physical channel is known.

1 Press the MENU button and open the Installation menu.

2 Highlight Channel Tuning and then press the ENTER button.

3 Highlight Manual Tuning and then press the ENTER button,

the Manual Tuning form will appear.

4 Use buttons 0-9 on the remote control to enter the channel

number (for example, 56)

5 Press the ENTER button to start Manual Tuning.

ATV Analogchannel.

DTV Digitalchannel.

Settingchannelskip

To prevent a channel from being viewed, you can set it to be

skipped.

1 From the Options menu, highlight Channel Options, and then

press the ENTER button.

The list of channels appears.

(Sample Illustration) ('hcmnel Options

Press the A/T (arrow) buttons to select a channel position to be

skipped, and then press the ENTER button.

A check will appear in the box. To remove the check, press the

ENTER button again.

SettingupyourTV 45

Setting the time zone

To add a channel to the channel memory:

•:* Highlight the checked box next to the channel number you

wish to add, and then press the ENTER button to remove the

check.

NOTE Youcanalsoblockspecificchannelssothattheycannotbetuned

untilyouunlockthem.Forinformation,see"Lockingchannels"on

page75.

To manually add digital sub-channels on a physical channel:

Use the Channel Numbers and the (Dash 100) on the remote

control to enter the channel number (for example, 56-1).

If the channel is found, the number will be added to the list and

the box will be unchecked. If the channel is not found, a

message appears.

NOTE SkippedchannelscannotbeselectedwiththeCH A/V (arrow)

buttons;however,theycanbeaccessedusingthenumberkeysonthe

remotecontrol.

SettingtheP.Vinputmode

This setting determines the configuration of the shared AV input on

your TV. You can set this input for either ColorStream HD or Video.

Add the following descriptions:

To set the AV Input mode:

1 From Options menu, highlight Input Options, and then press

the ENTER button.

2 Press •/• (arrow) buttons to select AV Input, and then press

the ENTER button.

3 Press •/• (arrow) buttons to select Video or ColorStream

HD, and then press the ENTER button to save your new setting.

Settingthetimezone

The Time Zone setup allows you to specify the correct time zone for

your region. This feature allows the TV status information to

display the correct time zone information for your viewing area.

To set the time zone:

1 In the Installation menu, highlight Time Zone, and press the

ENTER button.

2 Press the •/• (arrow) buttons to select the region, and then

press the ENTER button.

6SettingupyourTV

Vic_vi_qthe system stares

To set the Daylight Saving Time stares:

1 In the Inst'_ation menu, highlight Dayfight Sa_4ngTime, and

press the ENTER button.

2 Press the A/T (arrow) buttons to select On or Off, and then

press the ENTER button.

Viewingthesystemstatus

1 In the Get Help menu, highlight System Information, and

then press the ENTER button. The related information

appears.

To close the screen and return to the Get Help menu:

oI. Highlight Done in the Support Information screen, and then

press the ENTER button.

To return to normal viewing, press the EXIT button.

ResettingFactoryDefaults

To reset all settings and channels to their factory default values:

1 Press the MENU button and open the Installation menu.

2 Highlight Reset TV, and then press the ENTER button.

3 Enter your PIN code (If a PIN code has been set).

4 Aconfirlnation screen appears. Select Yes, and press the ENTER

button. The TV will turn off autolnatically.

To cancel the reset process, select No, and press the ENTER button.

Chapter6

SettingupyourTV

Selectingthevideoinputsource

To select the video input source to view:

1 Press the INPUT button on the remote control or TV control

panel.

2 Do one of the following:

o:* Press 0-3.

Repeatedly press the • /• (arrow) buttons on the remote

control, and then press the ENTER button to change the

input setting.

Repeatedly press the INPUT button to cycle through all

the inputs. Stop pressing the INPUT button when the

desired input is selected.

8SettingupyourTV

Selecti_q the video input source

(3'ample Image) 50L1450U- I17put Selectiol_ screel_

NOTE o:. Youcanlabelthevideoinputsourcesaccordingtothespecific

devicesyouhaveconnectedtotheTV,see"Labelingthevideo

inputsources"onpage49

•:- Sourcescanbe"hidden,"see"Labelingthevideoinputsources"

onpage49

•.*- "NOVIDEO"will appearrandomlyonthescreenif no

signalis receivedinvideoinputmode

•.*- IfaCECdeviceisconnectedtoanHDMI®input,the

HDMI®CECiconappears

If a HDMI ®CEC device with HDMI ®switching capability

(e.g. Audio Receiver) is connected to the HDMt * input, press the

INPUT button on the remote control repeatedly to highlight HDMI

1 or HDMI 2.

If the connected CEC device has any connected devices, a separate

device selection pop-up window appears:

(SampleIllus'tratiol_)HDMI _settil_gpop-up wil_dow

Press the INPUT button repeatedly to highlight the desired input

source, and then press the EXIT button.

NOTE .,*- WhenyouselectHDMPOEOinputsourcesfromthepop-up

windowusingtheINPUTbutton,someHDMI®CECdevices

mayautomaticallyturnon

SettingupyourTV 49

Labeli_ the video input sources

NOTE o:÷WhenselectinginputsourcesusingtheCH A/v(arrow)

buttons,youwill needto presstheENTERbuttonto actually

selectaparticulardevicefromthepop-upwindoworwait5

secondsafterhighlightingdesiredinput.

Labelingthevideoinputsources

You can label each video input source according to the type of

device you have connected to each source. Choose from the

following preset list of labels:

o:. -- (default label)

•:* Receiver

•:. Cable

o.**DVD

•:. Game

o.**PC

o:. Recorder

o.** Satellite

•.*. VCR

•l° Blu-Ray

•:. Hide (to hide an unused input in the Input Selection screen and

in the Channel Browser Inputs list)

To label the video input sources:

1 In Options menu, highlight Input Options and then press the

ENTER button.

2 Highlight Input Labeling, and then press the ENTER button.

3 Press the •/• (arrow) buttons to highlight the video source

you wish to label.

4 Press the </I,- (arrow) buttons to select the desired label for

that input source. Ifa particular input is not used, Hide can be

selected as the label. This will cause that input to be grayed out

in the Input Selection screen and skipped over when you press

the INPUT button on the remote control.

Reset Done

(5'ampleImage) 50L1450{7- Input Labeling screen

0 SettingupyourTV

_mi¢_ channelsusi¢_ the ('hannelBrowser

To save the new input labels, highlight Done, and then press

the ENTER button.

To revert to the factory default labels, highlight Reset and press

the ENTER button.

Input labeling example:

The screen below left shows the default Input Selection screen

(with none of the inputs labeled as a specific device). The screen

below (right) is an example of how you can label the inputs if you

connected a VCR to ColorStream TM HD, a video recorder to

HDMI 1, and a DVD player to HDMI 2.

Tuning

Noinputslabeled All inputslabeled

(Sample Image) 50L1450U- Input selection screens

To clear the input labels:

1 In Options menu, highlight Input Options andthen press the

ENTER button.

2 Highlight Input Labeling, and then press the ENTER button.

3 Highlight Reset, and then press the ENTER button.

channelsusingtheChannelBrowser

The Channel Browser provides an easy navigation interface for all

your channels and inputs. This feature allows you to:

o***Navigate and select entries.

o***Keep a list of your favorite channels, see "Favorites browser"

on page 51

o***Quickly surf and tune your recently viewed channels/inputs

from the Channel Browser History List.

o***Surf via Browse mode (to innnediately tune channels as you

highlight them in the Channel Browser) or Select mode (to surf

over channels in the Channel Browser before you select one to

tune).

o***Quickly change inputs from the Inputs List.

o***Quickly select HDMI ®CEC devices from the

HDMI ®CEC List.

SettingupyourTV 51

Favorites browser

Favoritesbrowser

The Favorites Browser allows you to quickly set up a favorite

channels/inputs list that is integrated into the Channel Browser.

To add a favorite channel/input:

1 Tune to the channel or input.

2 Press and hold the FAV button for a few seconds.

NOTE Thechannelor inputisaddedto thebeginningoftheFavoriteslist

ontheleftsideoftheChannelBrowser.

To delete a favorite channel/input:

1 Press the FAV button to open the Favorites browser list.

2 Highlight the channel or input to delete by pressing BACK CB

or NEXT CB arrow buttons.

3 Press and hold the (Dash 100) button for a few seconds. The

channel/input will be removed from the Favorites list.

To set up the Channel Browser:

1 In the Options menu, highlight Channel Browser Setup, and

then press the ENTER button.

2 Press the • (arrow) button to highlight Navigation, and then

press the 4/_ (arrow) buttons to select either Browse Mode or

Select Mode.

(Sample h_mge) Channel browser setup screen

Press the • (arrow) button to highlight History List, ANT/

CABLE List, Input List, Favorites List or HDMI CEC

List, and then press the 4/_ (arrow) buttons to select On or

Off.

NOTE o:÷ TheHistoryListwillbeclearedeverytimetheTVispoweredoff.

¢ HDMI®CECListis automaticallygrayedoutandsetto Offwhen

EnableHDMI®CECisswitchedto Off.

See"UsingHDMI®CEC"onpage85

2SettingupyourTV

Favorites browser

To save the new entries, highlight Done, and then press the

ENTER button.

To return to factory defaults, highlight Reset, and then press

the ENTER button.

To open the Channel Browser:

o,** Press BACK CB or NEXT CB arrow buttons on the remote

control.

o,** Press the BACK CB arrow button to surf backward through the

previously tuned channels in the History list, the channels in

the ANT/CABLE channel list, the inputs in the Inputs list, the

favorite channels/inputs in the Favorites list, or the

HDMI ®CEC devices in the HDMt _ CEC List.

o,** Press the NEXT CB arrow button to surf forward through the

channel History, the ANT/CABLE channel list, the Inputs list,

the favorite channels/inputs in the Favorites list, or the

HDMI ®CEC List.

ElementsoftheChannelBrowser

123

(Sample Illustratiol_)Channel Browser elements

1 Current list (History, ANT/CABLE, Inputs, Favorites, or

I-IDMI"" CEC).

2 Channel or input type.

3 Channel or input currently being viewed.

4 Channel or input that is currently highlighted in the browser.

5 Channels stored in the Current List.

SettingupyourTV _

Favorites browser

To toggle among the available lists:

After opening the Channel Browser, press the • /• (arrow) buttons

to toggle through the History, ANT/CABLE, Inputs, Favorites, or

HDMV' CEC options.

NOTE o:- TheChannelBrowseropensinHistoryListbydefault.Once

anotherlisthasbeenselected,theChannelBrowserwill openin

thelastselectedlist.

o:o Ifall listsareturnedoff,pressingBACKCBorNEXTCBarrow

buttonsortheFAVbuttonwill notdisplaytheChannelBrowser.

If FavoritesLististurnedoff,theFAVbuttonwill havenoeffect.

•:,, PressingtheFAVbuttonwill displaytheChannelBrowser

FavoriteslistregardlessofthelastselectedlistintheChannel

Browser.

To rune to a channel or input in Browse mode:

1 While watching TV, press BACK CB or NEXT CB arrow

buttons to display the Channel Browser and surf back to a

previous item or surf forward to the next item in the list. In

Browse mode, when you stop on an item in the Channel

Browser, it is highlighted and the TV automatically tunes to the

channel or input.

2 Press the EXIT button to close the Channel Browser.

To rune to a channel or input in Select mode:

1 While watching TV, press BACK CB or NEXT CB arrow

buttons to display the Channel Browser and surf back to a

previous item or surf forward to the next item in the list.

In Select mode, when you stop on an item in the Channel

Browser, it is highlighted, but the TV is not turned to the

channel until you press the ENTER button.

2 Press the ENTER button to tune the TV to the highlighted

item.

3 Press the EXIT button to close the Channel Browser.

4SettingupyourTV

Favorites browser

AddingandclearingchannelsandinputsintheHistoryList

As a channel or input is tuned, the Channel Browser adds it to the

History List and displays it on the right side of the Channel

Browser. Previously tuned channels/inputs are shifted to the left,

eventually moving offthe left side. Press the BACK CB arrow

button to surf backward through the previously tuned

channels/inputs. Any channel or input that is tuned repeatedly will

not be repeated in the History List, but instead is moved to the end

of the list on the right side of the Channel Browser.

o:* All channels that are tuned using the numeric buttons on

the remote control.

o:* All channels that are tuned using the 4/_ (arrow) buttons

on the remote control.

NOTE Wheneveranitemis selectedthatcannotbetuned(forvarious

reasons),theTVwill automaticallytuneto thepreviouslyviewed

channelor input.

Clearing channels from the History List:

o:* Reconfiguring the ANT/CABLE input will clear the

History List. see "ANT/CABLE IN" on page 41

o:* Turning offthe TV will clear the History List.

Tuningtothenextprogrammedchannel

To tune to the next programmed channel, press the 4/_ (arrow)

buttons on the remote control or TV control panel.

NOTE Thisfeaturewill notfunctionuntilyouhaveprogrammedchannels

intotheTV'schannelmemory,see"Storingchannelsinmemory

(optional)"onpage42

Tuningtoaspecificchannel(programmedorunprogrammed)

To tune analog channels:

Press the Channel Number (0-9) on the remote control. For

example, to select channel 125, press 1,2, 5, and then press the

ENTER button.

Tuning digital channels:

Press the Channel Number (0-9) on the remote control, followed by

the (Dash 100) button, and then the sub-channel number. For

example, to select digital channel 125-1, press 1,2, 5, -, 1,and then

press the ENTER button.

SettingupyourTV 55

Favorites browser

NOTE Ifadigitalchannelis notprogrammed,eitherthroughtheautomatic

channelscanortheChanneladdfunction,see"AutoTuning"onpage

42,youwill havetotunetheRFchannelusingtheChannelNumbers

andthe(Bash 100) buttonontheremotecontrol.

SwitchingbetweentwochannelsusingChannelReturn

The Channel Return feature allows you to switch between two

channels without entering an actual channel number each time.

1 Select the first channel you want to view.

2 Select a second channel using the Channel Number buttons

(and the (Dash 100) button if selecting a digital channel).

3 Press the CH RTN button on the remote control.

The previous channel will display. Each time you press the CH

RTN button, the TV will switch back and forth between the last

two channels that were tuned.

NOTE IfyoupresstheCHRTNbuttonfromanon-antennainput,theTV

will returntothelast-viewedinput.

SwitchingbetweentwochannelsusingSurfLockTM

The SurfLock TM feature temporarily "memorizes" one channel to

the CH RTN button, so you can return to that channel quickly from

any other channel by pressing the CH RTN button.

To memorize a channel to the CH RTN button:

1 Tune the TV to the channel you wish to program into the CH

RTN button.

2 Press and hold the CH RTN button for a few seconds until the

message "Memorized" appears on the screen. The channel has

been prograimned to the CH RTN button.

3 You can then change channels repeatedly, and when you press

the CH RTN button, the memorized channel will be tuned.

The TV will return to the memorized channel one time only. Once

you press the CH RTN button and then change channels again, the

CH RTN memory will be cleared and the button will function as

Channel Return, by switching back and forth between the last two

channels that are tuned.This feature also works for external inputs.

6 SettingupyourTV

5_lec_ thepicture size

Selectingthepicturesize

You can view many program formats in several picture sizes--

Native, 4:3, Full, TheaterWide 1,TheaterWide 2, TheaterWide 3,

Normal, and Dot by Dot.

NOTE Thepicturesizeillustrationsareexamplesonly.Theformatofthe

image(inanyofthepicturesizes)dependsontheformatofthesignal

youarecurrentlywatching.Selectthepicturesizethatdisplaysthe

currentprograminthewaythatlooksbesttoyou.

You can save separate picture size preferences for each input on

your TV.

To select the picture size:

1 Press the PIC SIZE button on the remote.

2 With the Picture Size menu displayed, do one of the following:

o,** Repeatedly press the PIC SIZE button.

o:* Press the corresponding number button (0-5) while the

Picture Size menu is displayed.

o:* Press the A/T (arrow) buttons while the Picture Size

menu is displayed.

NOTE Someofthepicturesizesmaynotbeavailabledependingonthe

receivingsignalformat(thosewill begrayedoutinthePictureSize

screen).

NOTE Usingthesefunctionsto changethepicturesize(i.e.,changingthe

height/widthratio)foranypurposeotherthanyourprivateviewing

maybeprohibitedundertheCopyrightLawsoftheUnitedStatesand

othercountries,andmaysubjectyoutocivil andcriminalliability.

NOTE IfyouselectaTheaterWideTM picturesize,thetopandbottomedges

ofthepicture(includingsubtitlesorcaptions)maybehidden.To

viewtheseedges,adjustthePicturePositionortryviewingthe

programin4:3orFull,see"ScrollingtheTheaterWideTM picture

(TheaterWide2and3only)"onpage60

SettingupyourTV 57

Selectl_ tflepicmre size

Full

The Full setting is for viewing in the 16:9 (480i, 480p) source

programs. If receiving a squeezed 4:3 format program, the picture is

stretched horizontally to fill the width of the screen but not stretched

vertically.

The Full setting is for viewing in 1080i, 1080p, and 720p program

source.

(SampleIllustratiol_)Picture size -Full

The edges of the picture may be hidden.

TheaterWide1

This setting is for viewing 4:3 format programs.

(SampleIllustratiol_)Picture size - TheaterWide1

The center of the picture remains close to its original proportion,

but the left and right edges are stretched horizontally to fill the

screen.

TheaterWide2

This setting is for viewing letter box programs.

(SampleIllustratiol_)Pictm_esize -TheaterV/ide2, letter box

8SettingupyourTV

Sdeca_g thepicmre size

The picture's top and bottom edges may be hidden*.

TheaterWide3

This setting is for viewing letter box programs with subtitles.

Native

(Sample Illus'tration) Picture size -Theater Wide 3, letter box with subtitles

The picture's top and bottom edges are hidden*.

* To view the hidden areas (such as subtitles or captions), see

"Scrolling the TheaterWide TM picture (TheaterWide 2 and 3 only)"

on page 60

These settings are for viewing in 480i (HDMr">),480p (HDMr">),

720p, 1080i, and 1080p signal programs).

(Sample Illustration) Picture size -Native

o***If receiving a 1080i, 1080p, 720p, 480i (HDMI_>),or 480p

(HDMP) signal program, the video is scaled to display the

entire picture within the borders of the screen (i.e. no over-

scanning).

o***This is especially useful for external HD sources such as DVD

movies, Video Games, or computer graphics.

NOTE o,*,,TheNativemodeis supportedonlyfor HDMI®(1080i,1080p,

720p,480i,and480p), ColorStreamTM (1080iand720p),and

ANT/CABLE(digital)inputs(1080i,1080p,and720p).

o,*,,Dependingontheinputsignal,thepicture'sbordermaybe

hidden,displayedinblack,ornoisy.

SettingupyourTV 59

Selectl_ thepicmre size

4:3

(SampleIllustration) Picture size -4:3

Some program formats will display with sidebars and/or bars at the

top and bottom.

Normal

This setting is for viewing VGA, SVGA, XGA, WXGA, and

SXGA sources.

........... ili_'¸¸_¸_'0

(SampleIllus'tration)Picture size -Normal

This size is a non-stretched display. Some input signal formats will

display with sidebars and/or bars at the top and bottom.

DotbyDot

This setting is for viewing VGA, SVGA, XGA, WXGA, and

SXGA sources.

(SampleIllustration) Picture size -Dot byDot

Dot by Dot is a non-scaling display. Depending on the input signal

format (VGA, for example) the picture may appear with sidebars

and/or bars at the top and bottom.

0 SettingupyourTV

Usi_q the Auto A_pectJeamre

ScrollingtheTheaterWideTM picture(TheaterWide2and3

only)

You can set separate scroll settings for the TheaterWide 2 and

TheaterWide 3 modes for each input.

To set the scroll settings:

1 In the Picture Menu, highlight Display Settings, and then

press the ENTER button.

2 Highlight Picture Position, and then press the ENTER button.

(The Picture Position will be available when Picture Size is

TheaterWide 2 or TheaterWide 3.)

(Samp/e Image) Picture melTu- Theater Sett#Tgs se/ectio17

3 The Picture Position screen will appear, press 41/I_ (arrow)

button to scroll the picture up and down as needed.

4 To save the new settings, highlight Done, and then press the

ENTER button.

To revert to the factory defaults, highlight Reset and then press

the ENTER button.

The adjustment range is from -5 to +10.

NOTE Whenreceivingasignalat480iresolution,thepicturescrollfunction

mayhavelimitedadjustmentrange.

UsingtheAutoAspectfeature

When this feature is set to On, the TV will automatically select the

picture size when one of the following input sources is received:

o***A 480i, 480p, 720p, 1080i digital signal from the ANT/CABLE

input.

o***480i, 480p, 720p, 1080i, 1080p, orVGA(60Hz) signal from

the HDMT_ inputs.

SettingupyourTV 61

Usi_ the FREEZEJeature

A_pect Ratio ofSignal Automatic A_pect Size (automatically selected whenAuto

Soume A_pect is On)

4:3Normal 4:3

4:3LetterBox TheaterWide2

16:9Full Full

Notdefined(noID-I Thecurrentpicturesizeyouselected,see"Selectingthe

dataorHDMI®aspect

data) picturesize"onpage56

To turn on the auto aspect ratio feature:

1 Press the MENU button and open the Picture menu.

2 Highlight Display Settings, and then press the ENTER button.

3 In the Auto Aspect field, press the ENTER button, and then

select On.

To turn offtheAutoAspect ratio feature, Select Offin step 3 above.

Usingthe4:3Stretch

When 4:3 Stretch is activated, the TV displays 4:3 programs as a

full-screen picture.

1 From the Picture menu, highlight Display Settings, and then

press the ENTER button.

2 Press the (arrow) buttons to select 4:3 Stretch, and then press

the ENTER button.

3 Press the • /•(arrow) buttons to select On or Off, and then

press the ENTER button

NOTE ThisfeatureisavailablewhenAutoAspectis setto On.

UsingtheFREEZEfeature

To use the FREEZE feature:

1 When watching the TV, press the FREEZE button to freeze the

picture.

2 To unfreeze the picture, press the FREEZE button again

(or any other button).

2 SettingupyourTV

Adjusti_q thepicmre

NOTE UsingtheFREEZEfunctionforanypurposeotherthanyourprivate

viewingmaybeprohibitedundertheCopyrightLawsoftheUnited

Statesandothercountries,andmaysubjectyoutocivilandcriminal

liability.

NOTE IftheTVis leftinFREEZEmodefor morethan15minutes,the

FREEZEmodewill automaticallyreleaseandtheTVreturnsto normal

video.

Adjustingthepicture

Selectingthepicturemode

You can select your desired picture settings from the modes

described below.

Mode: Desex'priori:

Dynamic MaximizesContrast,ColorSaturation,Sharpness,GrayScale,and

Brightnesstocreatemorevividanddynamicimages.

Standard Standardpicturesettings.

Movie Lowercontrastfordarkenedroom.

Game Optimizedforplayingvideogamesbydisplayingtheimagesintheir

purestform(4:4:4)withoutthelossofcolorinformation.Theresult

issuperiorimagequalityandshortersignaltoscreentimeforafaster

gamingexperience.

PC Optimizedforviewingyourpersonalcomputer.

NOTE StoreModeis onlyavailableiftheTVis settoStoreModeatinitial

setup.ThisoptionishiddenintheHomeMode.

WhentheTVis setto Stere intheinitialmenuorStere inthe

InstallationMenu,thesetwill alwaysresetto StorePictureMode.

NOTE PCmodeis availablefor HDMI only(grayedoutfor otherinput

sources).

SettingupyourTV j_

Adjusfi_ thepicmre k,lIJ

To select the picture mode using the menu system:

1 Press the MENU button and open the Picture menu.

2 Highlight Picture Mode, and then press the ENTER button.

(Sample Image) Picture melTu -Mode se[ectio17

3 Press the • /•(arrow) buttons to select the picture mode you

prefer, and then press the ENTER button.

Adjustingthepicturequality

You can adjust the picture quality (Contrast, Backlight,

DynaLight TM, Brighmess, Color, Tint, and Sharpness.) to your

personal preferences.

Selection Press (4) Press (_ )

Backlight* darker lighter

Contrast lower higher

Brightness darker lighter

Color paler deeper

Tint reddish greenish

Sharpness softer sharper

* Backlight: adjusts the brightness of the entire screen. When in video mode

and no signal is input, this selection is automatically set to 0. (Settings are

stored in melnory.)

To adjust the picture quality:

1 Press the MENU button and open the Picture menu.

2 Press the • /• (arrow) buttons to select the picture quality you

wish to adjust ( Backlight, Contrast, Brightness, Color, Tint, or

Sharpness), press the ENTER button. Then press the

41/_ (arrow) buttons to adjust the setting.

4 SellingupyourTV

Usi_ clos_l captions'

To reset to the factory defaults:

1Press the Menu button.

2 Select Picture _ Reset.

3 Press the OK button.

4 A confirmation screen appears.

5 Press the •/• (arrow) buttons to select Yes, and then press

OK.

NOTE Anypicturesettinothatyouadjustafterthecurrentinputonly.You

canadjustthepicturequalityseparatelyforeachinput.

DependingonaSharpnessvalue,theEdgeEnhancereffectmaybe

reduced.

Usingclosedcaptions

Baseclosedcaptions

Closed caption mode has two options:

o***Captions--An onscreen display of the dialogue, narration and

sound effects of TV programs and videos that are closed

captioned (usually marked "CC" in program guides).

o***Text--An onscreen display of information not related to the

current program, such as weather or stock data (when provided

by individual stations).

To view captions or text:

1 In Options menu, highlight Closed Captions, and then press

the ENTER button.

2 In the Closed Caption Display field, select On.

3 In the Analog CC Mode field, select the desired closed caption

mode, and then press the ENTER button.

To view captions, highlight CC1, CC2, CC3, or CC4.

(CC 1 displays translation of the primary language in your area.)

(Sample Illustratiol_) Viewil_g caprioles

SettingupyourTV 65

Usi_ closed captions

NOTE Iftheprogramorvideoyouselectedis notclosedcaptioned,no

captionswill displayonscreen.

To view text, highlight T1, T2, T3, or T4.

d5'ampleIllustratiol_) Caprioles -text

NOTE Iftextis notavailableinyourarea,ablackrectanglemayappearon

screen.Ifthishappens,settheBaseCCModeto Off.

To turn off closed caption mode, select Offin step 2 above.

NOTE Aclosedcaptionsignalmaynotdisplayinthefollowingsituations:

¢ Whenarecordinghasbeendubbed

¢ Whenthesignalreceptionis weak

¢ Whenthesignalreceptionis non-standard

DigitalCCsettings

You can customize the closed caption display characteristics by

changing the background color, opacity, text size, type, edge, and

color.

NOTE o:÷Thesesettingsareavailablefordigitalchannelsonly.

¢ YoucannotsetCaptionTextandBackgroundasthesamecolor.

To customize closed captions:

1 In Options menu, highlight Closed Captions, and then press the

ENTER button.

6 SettingupyourTV

Adjusti_q the audio

Highlight Digital CC Settings, and then press the ENTER

button.

Press the A/V(arrow) buttons to highlight the characteristic

you wish to change, and then press the -_/_ (arrow) buttons to

select the format for that characteristic.

To save the new settings, highlight Done, and then press the

ENTER button.

To revert to the factory defaults, highlight Reset, and then press

the ENTER button.

Mode." Description

CaptionSize Auto,Small,Standard,Large

CaptionTextType Auto,Default,Mono(withSerif),Prop.(withSerif),Mono

(withoutSerif),Prop.(withoutSerif),Casual,Cursive,Small

Capitals

CaptionTextEdge Auto,None,Raised,Depressed,Uniform,LeftDropShadow,

RightDropshadow

CaptionTextColor Auto,Black,White,Red,Green,Blue,Yellow,Magenta,Cyan

TextForegroundOpacity Auto,Transparent,Translucent,Flashing,Solid

BackgroundColor Auto,Black,White,Red,Green,Blue,Yellow,Magenta,Cyan

Magenta,Cyan

TextBackgroundOpacity Auto,Transparent,Translucent,Flashing,Solid

CaptionTextEdgeColor Auto,Black,White,Red,Green,Blue,Yellow,Magenta,Cyan

Adjustingtheaudio

Mutingthesound

Press the MUTE button to partially reduce (1/2 Mute) or turn off

(Mute) the sound. Each time you press the MUTE button, the mute

mode changes in the following order: 1/2 Mute, Mute, Volume, 1/2

Mute, etc.

1/2 Mute _ Mute _ Volume 4

(Sample Imaged Levels of mute

SettingupyourTV 67

Adjus'ti_ the audio

NOTE IfyoumodifyitemsintheSoundmenuwhileMuteisactive,Muteis

cancelled.

UsingtheDigitalAudioSelection

You can use the Digital Audio Selection to conveniently switch

between audio tracks on a digital channel (for those channels that

have multiple audio tracks). This temporarily overrides the audio

track chosen by the Primary Audio Language option under the

Sound menu, see "Selecting stereo/SAP broadcasts" on page 67

1 Press the MENU button and open the Sound menu.

2 Highlight Digital Audio Selection, and then press the ENTER

button.

(Samp/e Image) SomTdmelTu -D_ita/ Audio Se/ector se/ectio17

3 Press the -_/_ (arrow) buttons to select the desired service.

4 Press the EXIT button.

Selectingstereo/SAPbroadcasts

The multi-channel TV sound (MTS) feature allows you to output

high-fidelity stereo sound. MTS also can transmit a second audio

program (SAP) containing a second language, music or other audio

information (when provided by individual stations).

When the TV receives a stereo or SAP broadcast, the icon Stereo or

SAP appears when the INFO button is pressed. The MTS feature is

only available for analog signals on the ANT/CABLE input.

To listen in stereo sound:

1 Press the MENU button and open the Sound menu.

2 Highlight MTS, and then press the ENTER button.

3 Select Stereo, and then press the ENTER button.

8 SettingupyourTV

Adjusti_q the audio

NOTE o:÷YoucantypicallyleavetheTVinStereomodebecauseit outputs

thetypeof soundbeingbroadcast(stereoormonaural).

¢ Ifthesoundisnoisy,selectMonoto reducethenoise.

To listen to an alternate language on an ATSC digital station (if

available), highlight the Primary Audio Language field in step 2

above, and then press the 41/_ (arrow) buttons to select the

language you prefer.

To listen to a second audio program on an analog station, if

available, select SAP in step 2 above.

NOTN o:÷Asecondaudioprogram(SAP)canbeheardonlyonthoseTV

stationsthatofferit.Forexample,astationmightbroadcast

anotherlanguageasasecondaudioprogram.Ifyou haveSAP

on,youwill seethecurrentprogramonthescreenbuthearthe

otherlanguageinsteadoftheprogram'snormalaudio.

¢ IfyouhaveSAPonandthestationyouarewatchingisnot

broadcastingasecondaudioprogram,thestation'snormalaudio

will beoutput.However,occasionallythereisnosoundatall in

SAPmode.Ifthishappens,settheMTSfeaturetoStereomode.

Adjusting the audio quality

You can adjust the audio quality by adjusting the bass, treble and

balance.

To adjust the audio quality:

1 Press the MENU button and open the Sound menu.

2 Press the • /• (arrow) buttons to highlight the item you wish to

adjust (Bass, Treble, or Balance), and then press the ENTER

button.

3 Press the 41/_ (arrow) buttons to adjust the level.

o:+ 41makes the bass or treble weaker or increases the balance

in the left channel (depending on the item selected).

o:+ _ makes the bass or treble stronger or increases the

balance in the right channel (depending on the item

selected).

SettingupyourTV j_Q

Adjus'ti_ the audio kl_,,I

Audyssey_technologies

These televisions use the following technologies for better sound

quality:

•:. Audyssey EQ_--Provides clear, accurate and natural

sound right out of the box. This technology ensures you

enjoy your audio experience as much as your video.

Audyssey ABX_M--Technology uses sophisticated driver

analysis and low frequency monitoring to extend the range

and bass of small speakers. This enables the system to

produce lower frequencies than would be possible with a

traditional system of the same size.

AudysseyABXTM

To turn on Audyssey ABX_M:

1 Press the MENU button and open the Sound menu.

2 Highlight Audyssey ABX field, and then press the ENTER

button.

3 Press the • /• (arrow) buttons to select On, and then press the

ENTER button.

StableSoundTM

The Stable Sound TM feature limits high volume levels and prevents

the extreme changes in volume that can occur when channels are

changed or a program switches to a commercial.

To turnon Stable SoundT_:

1Pressthe MENU button andopen the Sound menu.

2 Highlight Stable Sound, andthen press the ENTER button.

3 Press the • /• (arrow) buttons to select On.

Usingthe Dolby_DigitalDynamicRangeControlfeature

You can further compress Dolby _ Digital dynamic range, allowing

you to switch from digital to analog broadcasts at the same dynamic

range.

To use the Dolby _ Digital Dynamic Range Control:

1 Press the MENU button and open the Sound menu.

2 Highlight Dynamic Range Control, and then press the ENTER

button.

3Press the • /• (arrow) buttons to select On, and thenpress the

ENTER button.

0 SettingupyourTV

Usi_parental controls (for _S'Ar_ion)

NOTE o:÷ThisfeatureisavailablewhentheTVistunedtoadigitalRF

channeloranHDMPinputwiththeDolby®Digitalsignal.

SelectingthePINcode

APIN code is necessary for some menus.

NOTN .:. TheParentalControlandLocksmenuisgrayedoutif noPINhas

beenset.

Entera newPINcode

l Press the MENU button and open the Options menu.

2 Highlight Parental PIN Setup, and then press the ENTER button.

3 Use the number buttons to enter a4-digit number. Confirm the code.

ForgottenPINcode

While the PIN code entering screen is displayed, press the INFO

button four times within five seconds. The P1N code will be cleared

and you can enter a new PIN code.

ChangingordeletingyourPINcode

l Press the MENU button and open the Options menu.

2 Highlight Parental PIN Setup, and then press the ENTER button.

3 Use the number button to enter a 4-digit number.

4 Select Change PIN or Delete PIN. Press the ENTER button.

Usingparentalcontrols(forUSAregion)

BlockingTVprogramsandmoviesbyrating(V-Chip)

Some TV programs and movies include signals that classify the

content of the program (as unsuitable for younger viewers). The

V-Chip feature in this TV detects the signals and blocks the

programs according to the ratings you select.

1 Press the MENU button and open the Options menu.

2 Highlight Parental Control and Locks, and then press the ENTER

button.

3 Enter your four-digit P1Ncode.

SettingupyourTV 71

Usi_parental controls (_br{_S'Ar_on)

4 Press the • /•(arrow) buttons tohighlight Enable Rating

Blocking, andpress ENTER button.

5Press the • /• (arrow) buttons to select On, and then press the

ENTER button.

(Samp/e h_mge) Locks metal -E17ab/e Rat#Tg B/ock#Tg se/ectio17

6 Press the • (arrow) button to highlight Edit Rating Limits,

and then press the ENTER button. The Edit Rating Limits

screen appears.

7 For each desired selection, press the •/•/-_l/l_(arrow)

buttons to highlight the selection, and then press the ENTER

button to select it.

A box with an "X" is a rating that will be blocked. As you

highlight a rating, a definition for the rating appears at the

bottom of the screen.

8 To save the new settings, highlight Done, and then press the

ENTER button.

NOTE Thisfeaturewill benotavailableif noPINcodeis set.

Downloadinganadditionalratingsystem

In the future, an additional rating system may become available for

use in selectively blocking TV programs and movies.

NOTE Thecurrentlytunedstationmustbereceivingadigitalsignalbefore

anadditionalratingsystemcanbedownloaded.

To download the additional rating system, if available:

1 Press the MENU button and open the Options menu.

2Hihglight Parental Control and Locks, and then press the ENTER

button.

3 Enteryour four-digit PIN code.

2 SettingupyourTV

Usi_parental controls (ibr _ZS'Ar_ion)

4 Press the • /•(arrow) buttons to highlight Enable Rating

Blocking, and press the ENTER button.

5 Press the • /• (arrow) buttons to select On, and then press the

ENTER button.

6 Press the • (arrow) button tohighlight Edit Rating Limits, and

then press the ENTER button.

The Edit Rating Limits screen appears.

7 Highlight Air RS, and thenpress the ENTER button.

The EditAlternate Ratings screen appears.

NOTE .:÷ TheALTRSbuttonwill onlybeavailableif anadditionalrating

systemis currentlyavailable.

•:* ItmaytakeseveralminutesfortheTVto downloadtheadditional

ratingsystem.

•:* TheinformationdisplayedintheAlternateRatingsscreenwill

dependontheconfigurationoftheadditionalratingsystem

availableatthetimeofdownload.

8 For each desired selection, press the •/•/41/_(arrow)

buttons to highlight the selection, and then press the ENTER

button to select it.

A box with an "X" is a rating that will be blocked.

9 To save the new settings, highlight Done, and then press the

ENTER button.

10 In the Edit Rating Limits screen, highlight Done, and then

press the ENTER button.

NOTE .:÷ Theadditionalratingsystemcanonlybedownloadedonetime.

Youwill notbeableto downloadanyupdatestotherating

systemshouldsuchupdatesbecomeavailable.

¢ Theadditionalratingsystemisnotdesigned,transmittedor

controlledbytheTVorToshiba,noristheavailabilityofan

additionalratingsystemdeterminedorcontrolledbyToshiba.

Similarly,theratingof programsinanadditionalratingsystemis

notdetermined,transmittedorcontrolledbytheTVorToshiba.

¢ Theadditionalratingsystemisanevolvingtechnology;

therefore,availability,contentandformatmayvary.

SettingupyourTV 73

Usi_parental controls (fbr _S'A region)

Ratingsystem

Independent rating system for broadcasters:

Rat#Ns." Desc14ptionand Content themes."

TV-MA

TV-14

TV-PG

MatureAudienceOnly(Thisprogramisspecificallydesignedtobeviewed

byadultsandthereforemaybeunsuitableforchildrenunder17.

L)Crudeorindecentlanguage

S)Explicitsexualactivity

V)Graphicviolence

ParentsStronglyCautioned(Thisprogramcontainssomematerialthatmany

parentswouldfindunsuitableforchildrenunder14yearsofage.)

D)Intenselysuggestivedialogue

L)Strong,coarselanguage

S)Intensesexualsituations

V)Intenseviolence

ParentalGuidanceSuggested(Thisprogramcontainsmaterialparentsmay

findunsuitableforyoungerchildren.)

D)Somesuggestivedialogue

L)Infrequentcoarselanguage

S)Somesexualsituations

V)Moderateviolence

TV-G GeneralAudience(Mostparentswouldfindthisprogramsuitableforall

ages)

TV-Y7, DirectedtoOlderChildren(Thisprogramisdesignedforchildrenage7and

TV-Y7FV above.

NOTE:Programsinwhichfantasyviolencemaybemoreintenseormore

combativethanotherprogramsinthiscategoryaredesignatedTV-Y7FV.)

TV-Y AllChildren(Thisprogramis designedtobeappropriateforallchildren)

Independent rating system for movies:

Desclq_)tionand Content themes."

X X-rated(Foradultsonly)

NC-17 Notintendedforanyone17andunder

R Restricted(Under17requiresaccompanyingparentoradult)

PG-13 ParentsStronglyCautioned(Somematerialmaybeinappropriatefor

childrenunder13)

PG ParentsGuidanceSuggested(Somematerialmaybenotbesuitablefor

children)

G GeneralAudience(Appropriateforallages)

4 SettingupyourTV

Usi_parental controls (/br _ZS'Ar_ion)

Indication other than rating system:

TV-NONE TVNone

MPAAN/A MovieNotApplicable

NOTRATE MovieNotRated

(Noratingappears) Noratinginformationisprovided

NOTE Ifyouplacean"X" intheboxnextto "None"Rated,programsrated

"None"or"NotRated"will beblocked;Programsthatdonotprovide

anyratinginformationwill notbeblocked.

Displayingratings

To display the rating of the program you are watching, press the

INFO button on the remote control. If it is rated "None" the word

"NONE" appears in the INFO screen. If rating inforlnation is not

provided, no rating will appear in the INFO screen.

(Sample b_Tage) Rating I_fb screens

Unlockingprogramstemporarily

If you try to rune to a program that exceeds the rating limits you

have set, the TV will enter program lock mode and a warning

message appears on the screen.

(Sample IlhLs'tration) Warning -exceeded rating limit

You can either temporarily unlock the program or select an

unlocked program to watch.

To temporarily unlock the program:

1 Press the MUTE button.

SettingupyourTV 75

Locki_cflannels

Enter your four-digit P1N code, and then press the ENTER

button.

If the correct code is entered, the program lock mode is released

and the normal picture appears. All locking will be enabled

again when you change the channel.

Usingtheinputlockfeature

You can use the Input Lock feature to lock the video inputs (Video,

ColorStream HD, HDMI 1 and HDMI 2) and channels 3 and 4. You

will not be able to view the input sources or channels until you

unlock the inputs.

To lock/unlock the video inputs:

1 In the Options menu, highlight the Parental Control and

Locks, and then press the ENTER button.

2 Enter your four-digit P1N code.

3 Highlight Input Lock, and then press the ENTER button.

4 Press the • /• (arrow) buttons to select the level of video input

locking you prefer (see table below for descriptions), and then

press the ENTER button.

Mode."

Video LocksVideo,ColorStreamHD,HDMI1andHDMI2.

Video+ LocksVideo,ColorStreamHD,HDMI1, HDMI2 andchannels3 and4.

SelectVideo+ifyouplayvideotapesviaanANT/CABLEinput.

Off Unlocksallvideoinputs.

Lockingchannels

With the Lock feature, you can lock specific channels. Locked

channels can only be accessed by entering the PIN code, see "Enter

a near PIN code" on page 70

To lock channels:

1From the Options menu, highlight Channel Options, and then

press the ENTER button.

6SettingupyourTV

Locki_channels

(Sample IllustratiotT) ('hatmel options

2 Press the • /• (arrow) buttons to select a channel in the lock

column.

3 Press the ENTER button. The PIN code entry will be required

to set a locked channel.

NOTE IfthePINcodehasnotyetbeenset,awarningmessageappears.

4 A check appears in the box.

5 To remove the check, press the ENTER button.

6 Press the EXIT button.

UsingtheGameTimeFM

You can use the GameTilner TM to set a time limit for playing a video

game (30-120 minutes). When the GameTilner TM expires, the TV

enters Input Lock mode and locks out the input source for the video

game device.

To set the GameTimerT_*:

1 In the Timers menu, highlight GameTimer, and then press the

ENTER button.

2Enter your four-digit PIN code.

3 Press the • (arrow) button to select 30, 60, 90 or 120 minutes,

and then press the ENTER button.

To cancel the GameTilner TM, select Offin step 3 above.

To deactivate the Input Lock once the GameTimer TM has activated

it:

SettingupyourTV 77

Locki_channels I!

o***Set the Input Lock to Off, see "Using the input lock feature" on

page 75

NOTE o**÷Amessageappearswhenl0 minutes,3minutes,andl minute

areremaining.

o,*-IftheTVlosespowerwithtimeremaining,theTVwill enterInput

Lockmodewhenpoweris restored(asif theGameTimdrMhad

beenactivated).Toresumeuse,youmustdeactivatetheInput

Lock,see"Usingtheinputlockfeature"onpage75

UsingthepanelIockfeature

You can lock the control panel to prevent your settings from being

changed accidentally (by children, for example). When Panel Lock

is set to On, none of the controls on the control panel operate except

the POWER button.

To lock the control panel:

1 In the Options menu, highlight Panel Lock, and then press the

ENTER button.

2 Enter your four-digit PIN code.

3Press the • (arrow) button to select On.

When the control panel is locked and any button on the control

panel (except the POWER button) is pressed, the message "NOT

AVAILABLE" appears.

(Sample Illustration) Locks menu -Panel Lock selection

To unlock the control panel, select Off in Step 3 in this section or

press and hold the VOLUME (-) button on the TV control panel for

approximately 15 seconds until the volume icon appears.

8 SettingupyourTV

Usi_Whe Media Player

UsingtheMediaPlayer

UsingMediaPlayerwitha USBdevice

You can enjoy photo or music content stored on a USB storage

device.

Photo Viewer specifications:

o:* Data type: JPEG EXIF vet 2.1

•:. File format: JPEG

o:. Maximum photo size: 6 MB

o:. Maximum number of files: 500/folder

o:. Maximum photo resolution: 4096 x 4096 pixels

Music Player specifications:

•:. File format: MP3

o:* Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

o:* Bit rate: from 32 to 320 kbps

o:. Maximum number of files: 500/folder

Supported file system: FAT16 and FAT32

NOTE o:. GentlyinserttheUSBdeviceintotheportanddonotremove

whileviewingMediaPlayer.

o:- USBdevice:USBMassStorageClassdevice(MSC)

o:- Connectivityis notguaranteedfor alldevices.

o:- ConnecttheUSBdevicetotheTVdirectly.

o:- DonotuseaUSBHub.

o:- Youmustobtainanyrequiredpermissionfromcopyrightowners

tousecopyrightcontent.Toshibacannotanddoesnotgrant

suchpermission.

o:- DependingonthefilesizeandamountinyourUSBstorage

device,it maytakesometimeto loadbeforecontentisviewable.

Amessagewill displayon-screenwhenfilesareloadingfromthe

USBstoragedevice.

o:- Onlylimitedtypesof U3USBdevicearesupported.Therefore,it

issuggestedthatyounotuseU3USBwithMediaPlayer.

o:- Non-supportedcharacterswill bereplacedwithasquare.

SettingupyourTV 79

Usi_ the Media Player

AutoStartfunction

WhenAuto Start is enabled, you will be asked if you want to start

the Media Player when a USB device is inserted. If Auto Start is

disabled, you must manually start the Media Player from the menu.

To change the Auto Start setting:

1 In the Options menu, highlight MediaShare Setup, and then press

the ENTER button.

2 Press the • /•(arrow) buttons to highlight USB Auto Start.

3 Press the "41/_(arrow) buttons to select On or Off.

ToopentheMediaPlayer

There are two methods for starting the Media Player: auto start and

manual start.

Auto Start:

1 Gently insert a supported USB storage device to the USB port

on the back of the TV.A prompt will appear.

NOTE IfyourepeatedlyinsertandremovetheUSBconnector,theprompt

maynotappear.

2 Press the 41/_ (arrow) buttons to select Yes, and then press the

ENTER button.

The Media Player menu appears. (If you select No, nothing

happens.)

(Sample hmtge) Media Player -open screen

NOTE o**÷Thepromptwill disappearafterabout10sec.

¢ IfAutoStartis settooff,youcanstarttheMediaPlayer

manually.

Manual Start:

1 In the Options menu, highlight MediaShare Setup, and then press

the ENTER button.

2 Press the • /• (arrow) buttons to highlight Photo or Music, and

then press the ENTER button.

0 SettingupyourTV

Usi_ theM_ia Player

_S'ample hmtge) Media Play screen

NOTE o+*÷Theviewerwill openeveniftherearenophotoormusicfiles.

o:° WhiletheMediaPlayerisactive,themainmenuscannotbe

displayed.

Viewingphotofiles

There are three types of view modes: multi view, single view, and

slide show. Within Slide show, you can skip forward, repeat, and set

time interval.

MultiView

This view allows you to search for photos in a grid format. These

pictures are displayed using thumbnail data in each image file.

(Sample hmtge) Media Play - photos screet7

To use multi view:

Press the •/•/41/_ (arrow) buttons to move the highlight in

one window. If all of the photos will not fit in one screen, the

screen will move to the previous page when you press 41 from

the top left thumbnail. When you press _ from the bottom

right thumbnail, the screen will move to the next page. You can

also use the •/• (arrow) buttons to page up or down the in

photo list when there are snore photos than will fit on one

screen.

3 When you select a folder, press the ENTER button to move to

the next layer, or press the CH RTN button to return to the

previous layer.

SettingupyourTV 81

Usi_ the Media Player

4 Press the ENTER button to view the selected photo in Single

View mode.

Singleview

In this view mode, only files located in the selected directory will be

displayed. This view allows you to change the photo content

manually. When you move from Multi View to the Single View, the

currently selected photo is displayed.

To use single view:

o,**Press the _ (arrow) button to view the next photo. Press 41 to

view the previous photo.

o,**Press • to rotate the image 90° counterclockwise. Press • to

rotate the image 90° clockwise.

Slideshow

This view allows you to watch a slide show of the photos. In this

mode, only files located in the selected directory will be played.

To use slide show:

1 Press the ENTER button in the Single View mode.

2 Press the 41/_ (arrow) buttons to view the previous or next

photo.

To set Interval Time and Repeat settings:

1 Press the MENU button to open the Quick Menu.

2 Press the • /• (arrow) buttons to select either Interval Time

or Repeat.

3 Press the 41/_ (arrow) buttons to adjust the setting and press

the CH RTN button.

NOTE ZoomandPicturesizefunctionsaredisable.

To close the Photo Viewer, press the EXIT button. The television

will return to the last viewed channel or external input.

2SettingupyourTV

Usi_Whe Media Player

Playing music files

You can listen to music from a list of available files. When listening

to music files, you can select music lists, play, pause, stop, skip,

repeat play, and adjust sound settings.

(Sctmple Image) Media Play - mlISiO list

Afteropening Media PlayermadselectingMusic (see"To open the

MediaPlayer" onpage 79)press the • /•(arrow)buttonsto selecta file

or folder.Youcan use the • /• (arrow) buttons topage up or down

themusic listwhen there aremore files than willfitonto one screen.

4 Select the desired folder and press the ENTER button to move

to the next layer. Press the CH RTN button to move back to the

previous layer.

5 With the desired file selected, press the ENTER button or the

PLAY button to start playback.

6 Press the STOP button to stop playback

NOTE .:. IfplaybackfinishesbeforeSTOPispressed,thenextfilewill

automaticallystartto playfromthebeginning.

¢ Dependingonthefilesize,it maytakesometimefor playbackto

begin.

During playback you can do the following:

o.** Press PAUSE to pause.

o.** To resume nounal playback, press PLAY.

o.** To locate a specific file, press the SKIP Reverse or SKIP

Forward button repeatedly.

o.** To adjust volume, press the VOL (+ -) buttons.

NOTE Toplayinfastreverseorfastforward,pressREVorFFduring

playback.EachtimeyoupressREVorFF,theplaybackspeed

changes.

SettingupyourTV _Q

Usi_ the Media Player kJk*

NOTE Duringplayback,youcanadjusttheSoundmenufunctionsfromthe

QuickMenu.

To set the repeat mode:

1 Press the MENU button to open the Quick Menu.

2 Press the •/• (arrow) buttons to select Repeat.

3 Press the 41/_ (arrow) buttons to select Off, All or 1.

4 Press CH RTN.

To close the Music Player, press EXIT.

Viewingphotofilesandplayingmusicfilesatthesametime

While viewing photo files, you can listen to music from a list of

available files.

1 While viewing photos in the Single View or Slide Show mode,

press the MENU button to open the Quick Menu.

2 Highlight Background Music and press the ENTER

button.

The music list appears.

3 Select amusic file and press the ENTER button to start

playback.

4 Press CH RTN twice to move back to photo view mode.

The music is now playing in the background.

Sortingphotoormusic files

From the photos Multi View or from the music list, you can sort

your photo or music folders and files.

To sort photo or music folders and files:

1 From photo Multi View mode or from the music list, press the

MENU button to open the Quick Menu.

2 Press the •/• (arrow) buttons to select Sort.

3 Press the _/l* (arrow) buttons to select Title, New, or Old to

set the sorting rule.

Title-File sorting rules:

o:* Unicode priority

4SettingupyourTV

Settl_q tke sleep timer

•:. Numerical (0-9), Uppercase (A-Z), lowercase (a-z),

Chinese

•:* Increasing order

New-From new to old according to the date and time when the

picture was taken.

Old-From old to new according to the date and time when the

picture was taken.

NOTE Duringplayback,youcanadjusttheSoundmenufunctionsfromthe

QuickMenu.

NOTE TheSortingorTotalTimedisplaymaynotbeavailableinallcases.

Settingthesleeptimer

You can set the sleep timer to turn off the TV after a set length of

time 0naximum of 12 hours).

To set the sleep timer using the remote control:

1 Press the SLEEP button on the remote control to set the length

of tilne until the TV turns off.

2 Repeatedly press the SLEEP button to increase the time in

10-1ninute increments, or press the A/• (arrow) buttons to

increase or decrease the time in 10-1ninute increments, to a

maxilnuln of 12 hours.

To set the sleep timer using the on-screen menus:

1 In Timers menu, highlight Sleep Timer, and then press the

ENTER button.

Press the Number buttons to enter the length oftilne

(lnaxilnuln of 12 hours) and then press the ENTER button. Or

press the A/• (arrow) buttons to increase or decrease in

10-minute increments (lnaximuln of 12hours).

NOTE Ifapowerfailureoccurs,thesleeptimersettingmaybecleared.

To display the time remaining until the TV turns off, press the

SLEEP button.

To cancel the sleep timer, repeatedly press SLEEP until it is set to 0

minutes.

SettingupyourTV

•85

NoSignalPowerDown

The TV will automatically turn itself off after 15 minutes when no

signal is detected. You can change the setting to Offfor the

following purposes:

o,**Low signal strength of analog channel (no signal detection)

o,**Only Audio L/R is connected to external input to listen to music

through the TV speakers.

To change the no signal power down setting:

1 From the Options menu, highlight Power Management, and

then press the ENTER button.

2 Highlight No Signal Power Down, and then press the ENTER

button.

3 Press the •/• (arrow) buttons to highlight the item you want

to change, and press the 4/_ (arrow) buttons to select On or

Off.

NOTE o:. Defaultsettingforthisfeatureis On.

o:÷Awarningmessagewillappear1minutebeforetheTVturnsoff.

UsingHDMI®CEC

This is a new feature that uses CEC technology and allows you to

control Toshiba HDMI ®CEC compatible devices from the TV

remote via HDMI ®connection (see "HDMI(R)CEC connection" on

page 29)

When Enable HDMI CEC Control in the HDMI CEC Control

Setup menu is set to On (see "Setting up HDMI(R)CEC" on page 87),

the HDMI _ CEC functions described below will be enabled.

HDMI®

control

CECplaybackdevice(Blu-rayTM Player/DVDplayer,etc.)

With your TV's remote control, or using the HDMI _ CEC Player

Control menu, you can control the connected HDMV CEC

playback device you are watching.

Availableremotecontrolkeyfunctions

Button." Description."

PLAY Beginplayback

STOP Stopplayback

PAUSE Pausethepictureduringplayorrecordmode

SKIPForward SkipForward

6 SettingupyourTV

Button." Description."

SKIPReverse Skipbackward

FF Fastforward

REW Rewind/reverse

•/V/4/l_ Navigatesmenuoptions

ENTER Entersmenuoptions

EXIT Returntothepreviousmenu

NOTE Thesefunctionsdependonthedevicesconnected.

HDMI®CECPlayerControlmenufunctions

To control the HDMt _ CEC player from the menu:

1 From the Options menu, highlight HDMI CEC Player

Control, and then press the ENTER button.

1_171."

Power

RootMenu

ContentsMenu

SetupMenu

TopMenu

(Sample Image) Preferences menu -HDMI _CEC Plco,er Control

2 Press the • /•(arrow) buttons to select the item you wish to

control and press the ENTER button.

Descrip#on :

TurnstheselectdeviceOn/Off

Accessestherootmenuoftheselecteddevice

AccessesthecontentslistwhenyoupressENTER.Atthistime,the

HDMICECPlayerControlmenudisappears.

Accessesthesetupmenuofaselecteddevice

Accessesthetopmenuofaselecteddevice

Accessesthemenuofaselecteddevice

SettingupyourTV

Us_,q HDMIq _( 'E(

NOTE ThesefunctionsdependonthedevicesthatareconnectedThe

HDMI®CECPlayerControlitemwill begrayedoutinthefollowing

conditions:

•:÷ Anon-HDMPinputis currentlyselected

•:÷ TheEnableHDMICECitemis settoOff

•:. TheconnectedCECdeviceisnotaplaybackorrecordingdevice

HDMI®CECinputsource selection

If a HDMI _ CEC device with HDMI ®switching capability (e.g.

Audio Receiver) is connected to the HDMI :_input, you can select

another HDMI ®CEC device that is connected to the master HDMI :_

device using the TV's INPUT button, see "Selecting the video input

source" on page 47

OtherHDIVII®CECfunctions

When the Enable HDMI CEC Control and each item in the

HDMI CEC Control Setup menu are set to On, the following

functions will be enabled.

Item." Description."

TVAutoPowerIfaHDMI®CECdeviceisturnedon,theTVturnsonautomatically.

AutoStandby IftheTVisturnedoff,theTVwillsendamessagetoturnoffalloftheHDMP

CECdevicesconnectedtotheTV.

NOTE WhenyouturnontheAudioReceiver,changeitsinputsourceor

adjustthesoundvolume,thesoundwill beoutputfromtheaudio

receiver'sspeakersevenif TVSpeakershasbeenselected.Turnthe

TVoffandonagainto outputthesoundfromtheTVspeakers.

SettingupHDMI®CEC

To set the HDMI ®CEC Setup:

1 From the Options menu, highlight HDMI CEC Control

Setup and press the ENTER button.

2 Highlight Enable HDMI CEC Control, and then press the

ENTER button.

3 Select On, and then press the ENTER button.

8SettingupyourTV

Usi_q the HDM[(R) setti_qsJbamre

NOTE IfyouselectEnableHDMICECOff,theotheritemswill begrayed

out.

Press the •/• (arrow) buttons to highlight the HDMV CEC

Setup item you want to use, and press the ENTER button,

follow by at /• (arrow) buttons.

o:* TVAuto Power: On/Off

•:. Auto Standby: On/Off

UsingtheHDIVII®settingsfeature

HDMI®1(or2) RGBRange

You can select RGB range of HDMI inputs from the following

modes, as described below:

1 From the Options menu, highlight Input Options, and then

press the ENTER button.

2 Highlight HDMI l(or 2 ) RGB Range and then press the

ENTER button.

3 Press the •/• (arrow) buttons to select Auto, Full, or

Limited, and then press the ENTER button.

Mode Description

,Au!o dj,ust),RGBJy)_h[ao,,nges[gnalautomatically,=...........................................

Full RGBinputsignalis displayedintherangefrom0 to 255.

Limited RGBinputsignalis displayedintherangefrom16to 235.

The HDMI _ setting (RGB Range) needs proper HDMI _ source

devices. If your HDMV source device does not support these

features, the TV may not work properly when this feature is enabled.

HDMI®InformationDisplay

Viewing the HDMV signal information:

1 From the Options menu, highlight HDMI Information

Display, and then press the ENTER button.

2Press the •/• (arrow) buttons to select On or Off, and then

press the ENTER button.

3 When the HDMI Information is set to On, pressing the INFO

button displays the HDMI Information banner (Resolution,

Scan Type, Frame Rate, Aspect, Bit Depth, Color Space, RGB/

YUV, Chroina Format). When the HDMI Information is set to

Off, the normal banner is displayed.

SettingupyourTV 89

Displayi_ TVstams inJbrmation

NOTE °:,,Thesignalinformationbannerwill appearwhenthisfeatureisset

to OnandyouwatchanHDMI®inputandpresstheINFObutton.

Thesignalinformationwill disappearafterapproximately60

seconds.

¢ IfyoupresstheINFObuttonwhenthisfeatureis setto Off,only

thenormalbannerwill appear.

DisplayingTVstatusinformation

To display TV status information using the RECALL button:

o:* Press the RECALL button on the remote control.

The following information will be displayed (if applicable):

o!. Current input (ANT/CABLE, Video, etc.)

o!. If ANT/CABLE is the current input, either"CABLE" (for cable

TV) or "ANT" (for over-the-air broadcasts).

o!. Channel number (if in ANT/CABLE mode)

o!. Digital signal strength indicator (bar graph in lower right

corner of box; for digital signals only)

o:* Stereo, Mono, or SAP audio status (when in HDMP input

mode, Dolby _ Digital, or PCM)

o!. Video resolution

o!. Aspect ratio of incoming video signal (4:3 or 16:9)

o!. V-Chip rating status

•:* GameYimer (if set)

To close the Recall screen, press the RECALL button again.

To display TV status information using INFO, press the INFO

button.

The following additional information will display for digital

channels, if applicable:

•.** Title

o***Duration

0SettingupyourTV

Jnderstandi_ the last mode memoryJeamre

o***Detailed description

(Sample Illustration) Infb banner

To close the INFO screen, press the INFO button again.

Understandingthelastmodememoryfeature

If the power is cut off while you are viewing the TV, the Last Mode

Memory feature automatically turns on the TV when the power is

resupplied.

NOTE Ifyouknowyouwill beawayfromtheTVforanextendedperiodof

timeyoushouldunplugthepowercord.

Chapter7

UsingtheTV'sAdvanced

Features

Usingtheadvancedpicturesettings

ColoriVlasterTM

The ColorMasteW Mfeature allows you to adjust standard colors.

1 From the Picture menu, highlight Advanced Picture Settings,

and then press the ENTER button.

2 Highlight ColorMaster, and then press the ENTER button.

3 Press the • /• (arrow) buttons to select On, and then press the

ENTER button.

BaseColorAdjustment

When ColorMaster TMis set to On, the list of base colors appears.

You can select a base color to adjust.

1 From the Picture menu, highlight Advanced Picture Settings,

and then press the ENTER button.

2 Highlight Base Color Adjustment and then press the ENTER

button.

3 Press the • /• (arrow) buttons to select a color. Press the

ENTER button.

4 Press the 41/I_ (arrow) buttons to select Hue, Saturation, or

Brightness. 91

2UsingtheTV'sAdvancedFeatures

Usi_q the advanced picmre setti_qs

5 Press the •/• (arrow) buttons to adjust the setting.

6 Repeat Steps 3 through 5 to adjust other colors.

To reset the adjustments to the factory defaults, select Reset on

the screen. Press the ENTER button.

ColorTemperature

You can change the quality of the picture by selecting from three

preset Color Temperatures (Cool, Medium, and Warm), as

described below.

Mode." Picture _htalitv."

Cool blueish

Medium neutral

Warm reddish

1From the Picture menu, highlight Advanced Picture Settings,

and then press the ENTER button.

2 Highlight Color Temperature and then press the ENTER

button.

3 Press the ENTER button, follow by • /• (arrow) buttons to

select the desired color temperature, and then press the

ENTER button.

4 Press the •/• (arrow) buttons to highlight Red, Green, or

Blue level, and then press the 41/_ (arrow) buttons to adjust

the level. Press the EXIT button.

NOTE TheRed,Green,andBluelevelsettingsareconnectedtotheColor

Temperaturesettingsandwill changebasedonwhichpresetcolor

temperature(Cool,Medium,orWarm)isselected.

StaticGamma

The static gamlna feature lets you adjust the levels of black in the

picture.

1 From the Picture menu, highlight Advanced Picture Settings,

and then press the ENTER button.

2 Highlight Static Gamma and then press the ENTER button.

3 Press the 4/I_ (arrow) buttons to adjust the level of black

detail. Press the EXIT button.

o,** If the setting is decreased, the detail of black colors is

decreased.

UsingtheTV'sAdvancedFeatures (_Q

Usi_ the advanced picture settings

o.** If the setting is increased, the detail of black colors is

increased.

AutoBrightnessSensor

When the Auto Brightness function of Auto Brightness Sensor

settings is set to On, the TV optimizes the backlighting levels to suit

ambient light conditions.

1 From the Picture menu, highlight Advanced Picture Settings,

and then press the ENTER button.

2 Highlight Auto Brightness Sensor and then press the ENTER

button.

3 Press the •/• (arrow) buttons to select On or Off. Press the

ENTER button.

DynaLightTM

The DynaLight TM feature automatically strengthens the black

coloring of dark areas in the video according to the level of

darkness.

1From the Picture menu, highlight Advanced Picture Settings, and

then press the ENTER button.

2 Highlight DynaLight and then press the ENTER button.

3 Press the • /• (arrow) buttons to select High, Low, or Off. Press

the ENTER button.

DynamicContrast

Dynamic Contrast detects changes in picture quality that affect the

appearance of your contrast settings and then automatically adjusts

the video.

1 From the Picture menu, highlight Advanced Picture Settings, and

then press the ENTER button.

2 Highlight Dynamic Contrast and thenpress the ENTER button.

3 Press the • /• (arrow) buttons to select High, Middle, Low, or

Off: Press the ENTER button.

CinemaMode

When you view a DVD (3:2 pulldown processed) from a DVD

player connected to the VIDEO, ColorStream TM HD (component

video), or HDMI ®inputs on the TV, smoother motion can be

obtained by setting the Cinema Mode to On. (available for 480i and

1080i signals).

4UsingtheTV'sAdvancedFeatures

Usi_q the advanced picmre setti_qs

1 From the Picture menu, highlight Advanced Picture Settings, and

then press the ENTER button.

2HighlightCinema Mode and then press the ENTER button.

3 Press the •/• (arrow) buttons to select On or Off. Press the

ENTER button.

NoiseReduction

MPEGNR

The MPEG noise reduction feature allows you to reduce visible

interference caused by MPEG compression.

1 From the Picture menu, highlight Advanced Picture Settings, and

then press the ENTER button.

2 Highlight Noise Reduction and then press the ENTER button.

3 Press the • /• (arrow) buttons to select MPEG NR and then

press the ENTER button.

4 Press the •/• (arrow) buttons to select High, Middle, Low, or

Off, and then press the ENTER button.

DNR

DNR lets you soften the screen representation of a weak signal to

reduce the noise effect.

1 From the Picture menu, highlight Advanced Picture Settings, and

then press the ENTER button.

2 Highlight Noise Reduction and then press the ENTER button.

3 Press the • /• (arrow) buttons to select DNR and then press

the ENTER button.

4 Press the • /• (arrow) buttons to select High, Middle, Low, or

Off, and then press the ENTER button.

UsingtheTV'sAdvancedFeatures (_

Usi_ the advanced picture settings

EdgeEnhancer

The Edge Enhancer feature lets you adjust the levels for your

desired picture settings and achieve a sharper picture.

1 From the Picture menu, highlight Advanced Picture Settings, and

then press the ENTER button.

2 Highlight Edge Enhancer and then press the ENTER button.

3 Press the • /• (arrow) buttons to select On or Off. Press the

ENTER button.

NtOTN This feature may not work properly depending on the

content.

Chapter8

Troubleshooting

Generaltroubleshooting

Before calling a service technician, review this chapter or visit the

Toshiba technical support Web site at support.toshiba.coin for

possible causes/solutions for the problem you are experiencing.

Before you begin to troubleshoot any problem, first unplug the TV

from the AC wall outlet, wait approximately one minute, and then

plug the TV back into the AC wall outlet. If the problem still exists

attempt to troubleshoot the problem.

Black box on-screen.

The closed caption feature is set to one of the Text modes (T1, T2,

T3, or T4). Set the closed caption feature to Off, see "Using closed

captions" on page 64

TV stops responding to controls.

If the TV stops responding to the buttons on the remote control or

TV control panel and you cannot turn offthe TV, press and hold

POWER button on the TV control panel for several seconds to reset

the TV. If the TV does not power offusing this method, unplug the

TV from theAC wall outlet and plug it back in.

If you cause a static discharge when touching the TV and the TV

fails to function, simply unplug the TV from the AC outlet and plug

it back in. The TV should return to normal operation.
