TOSHIBA

R/RW V I D E 0 _ _ DIGITALAUDIO

R AM4.7

DVD VIDEO RECORDER

D-R4SU

D-R4SC

D-KR4SU

OWNER'S MANUAL

RECORDING DIGITAl. OUT

Read "INSTALLATION GUIDE" first.

TOSHIBA

P000416410

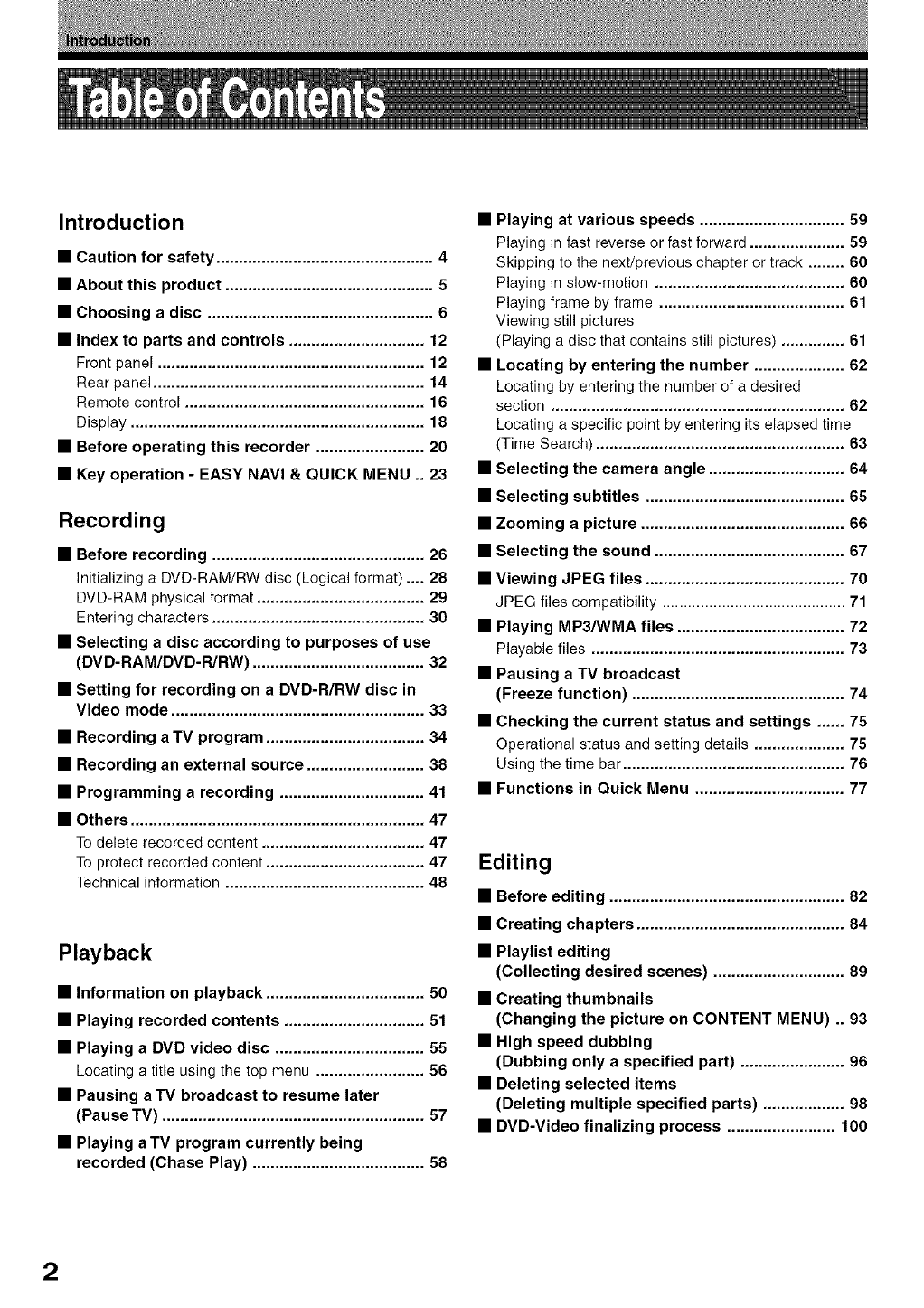

Introduction

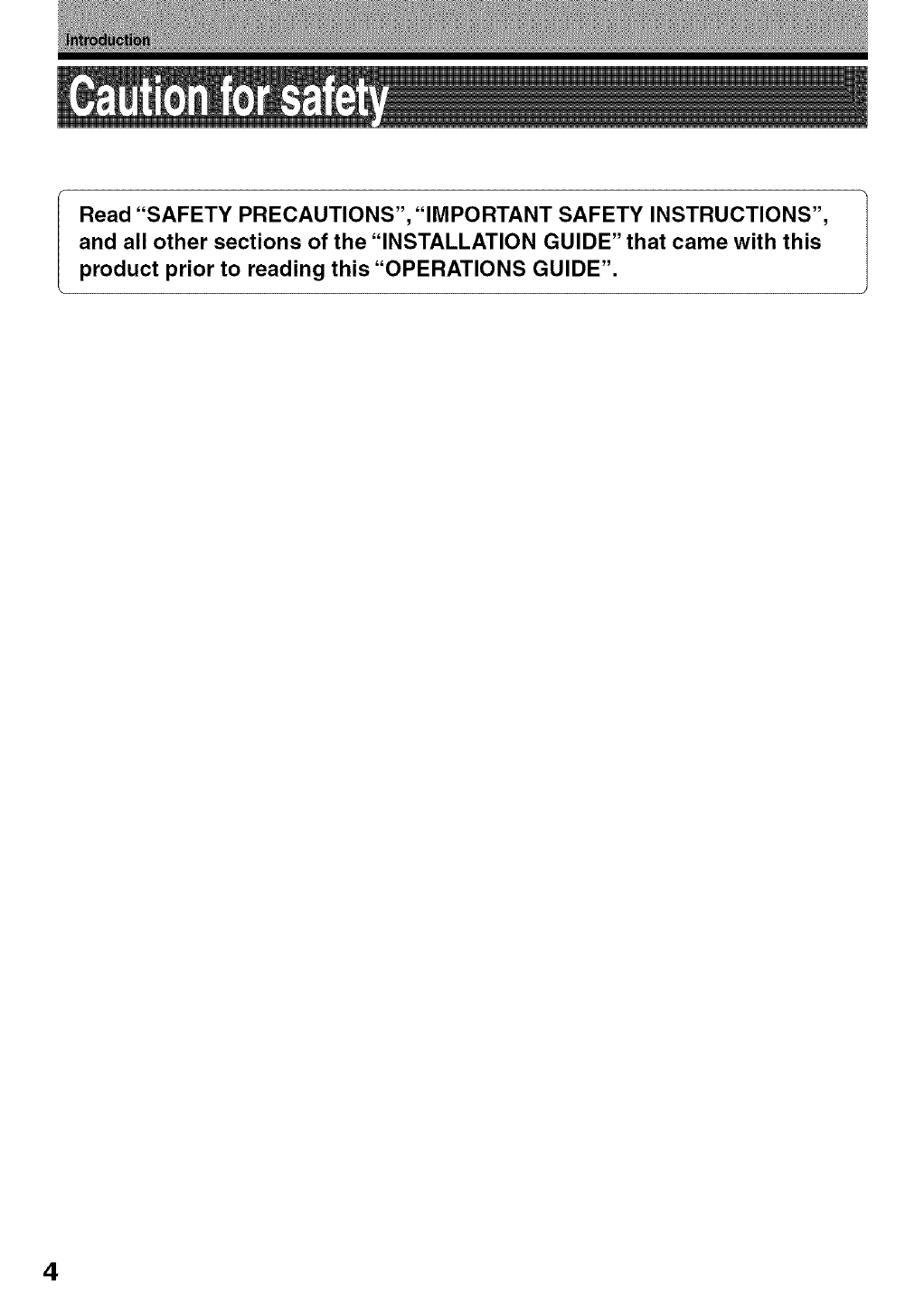

•Caution for safety ................................................ 4

•About this product .............................................. 5

•Choosing a disc .................................................. 6

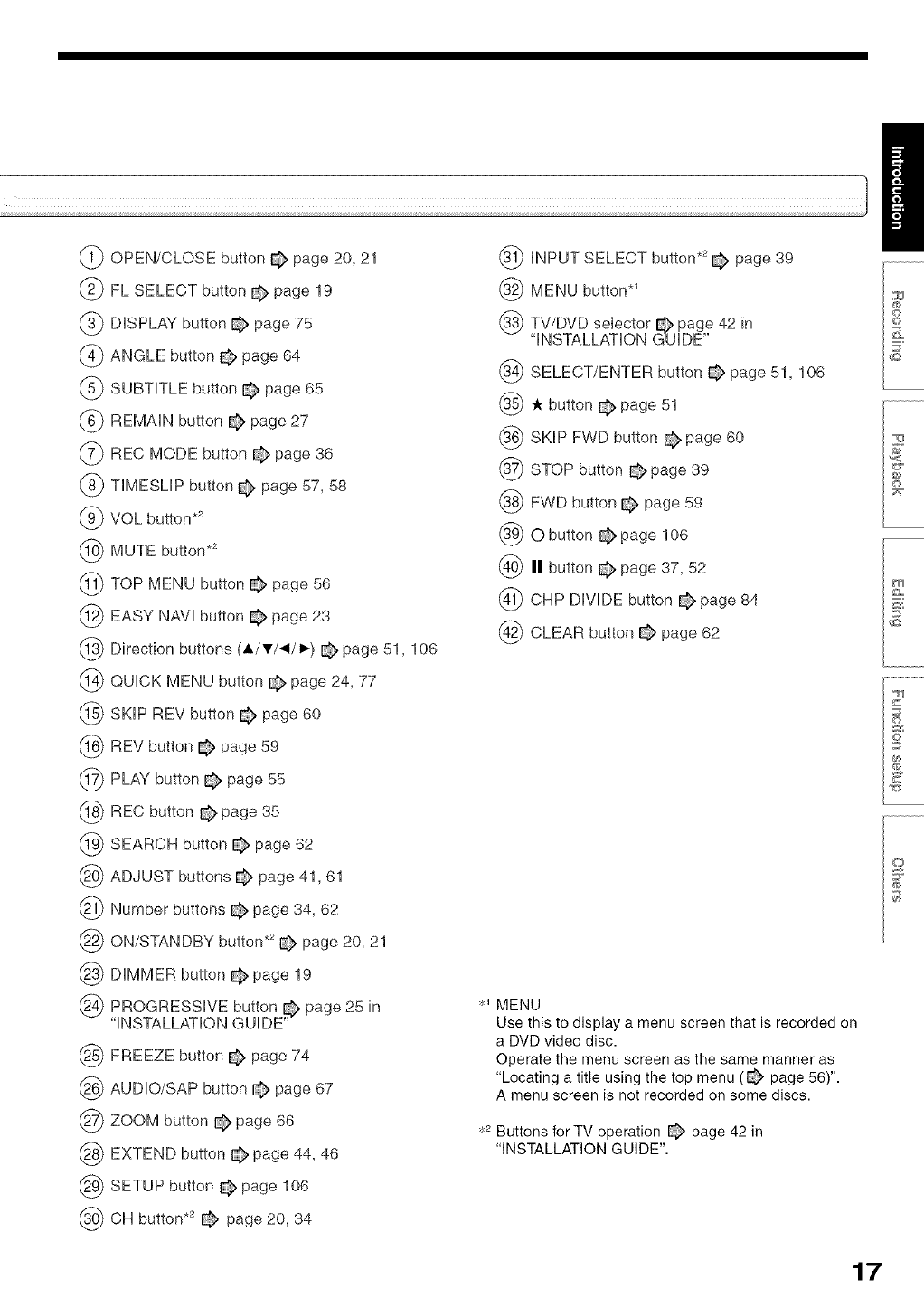

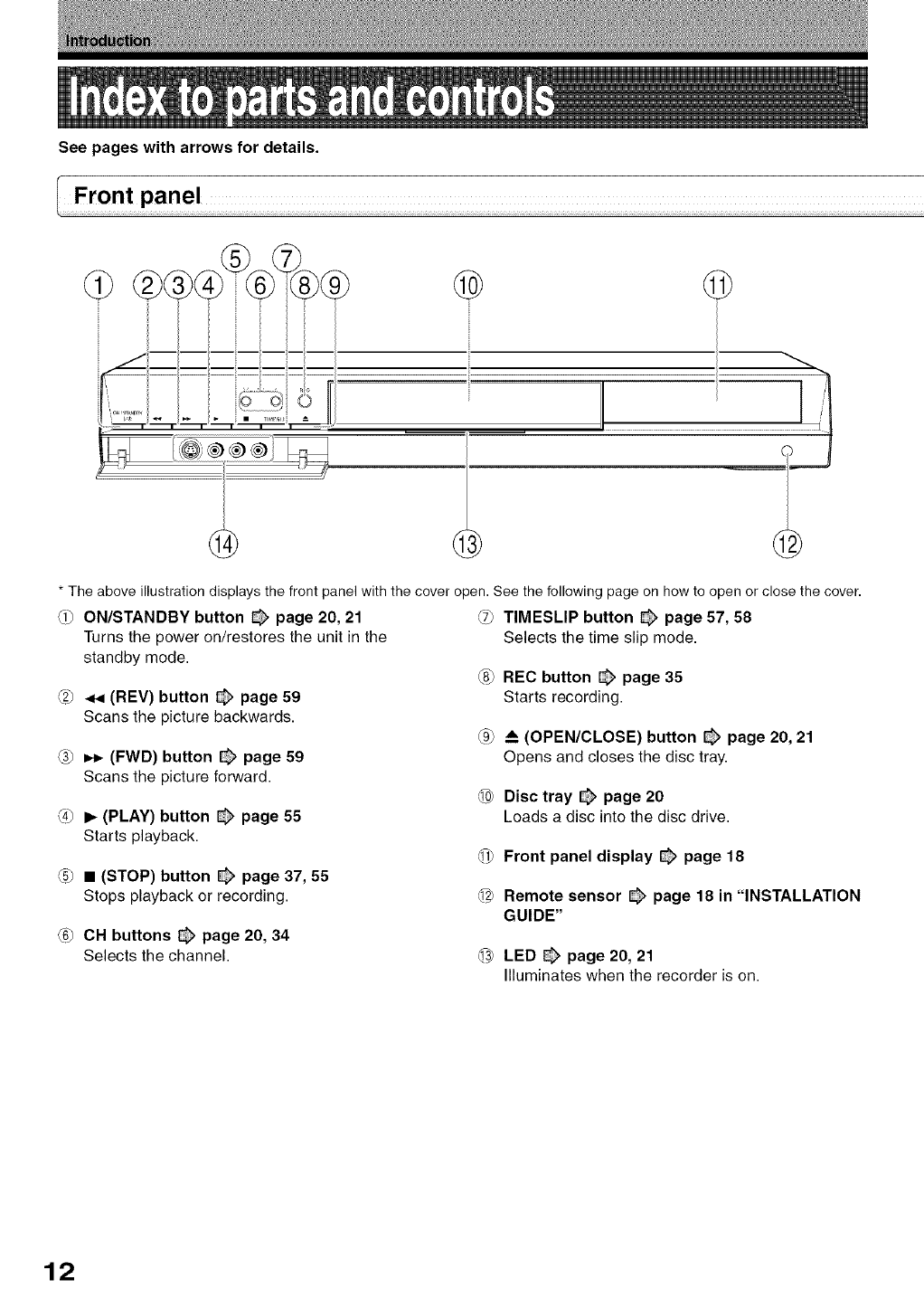

•Index to parts and controls .............................. 12

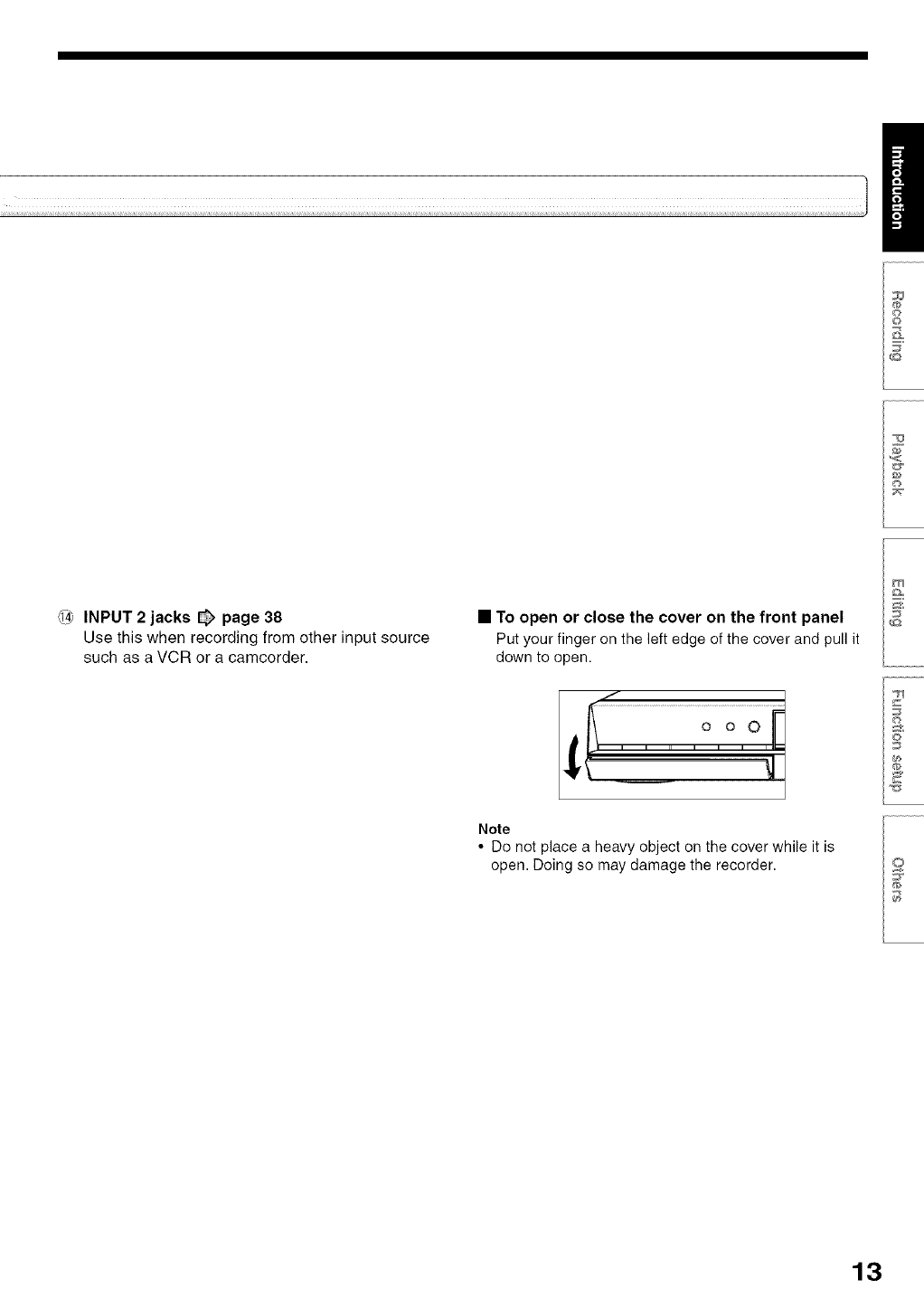

Front panel ........................................................... 12

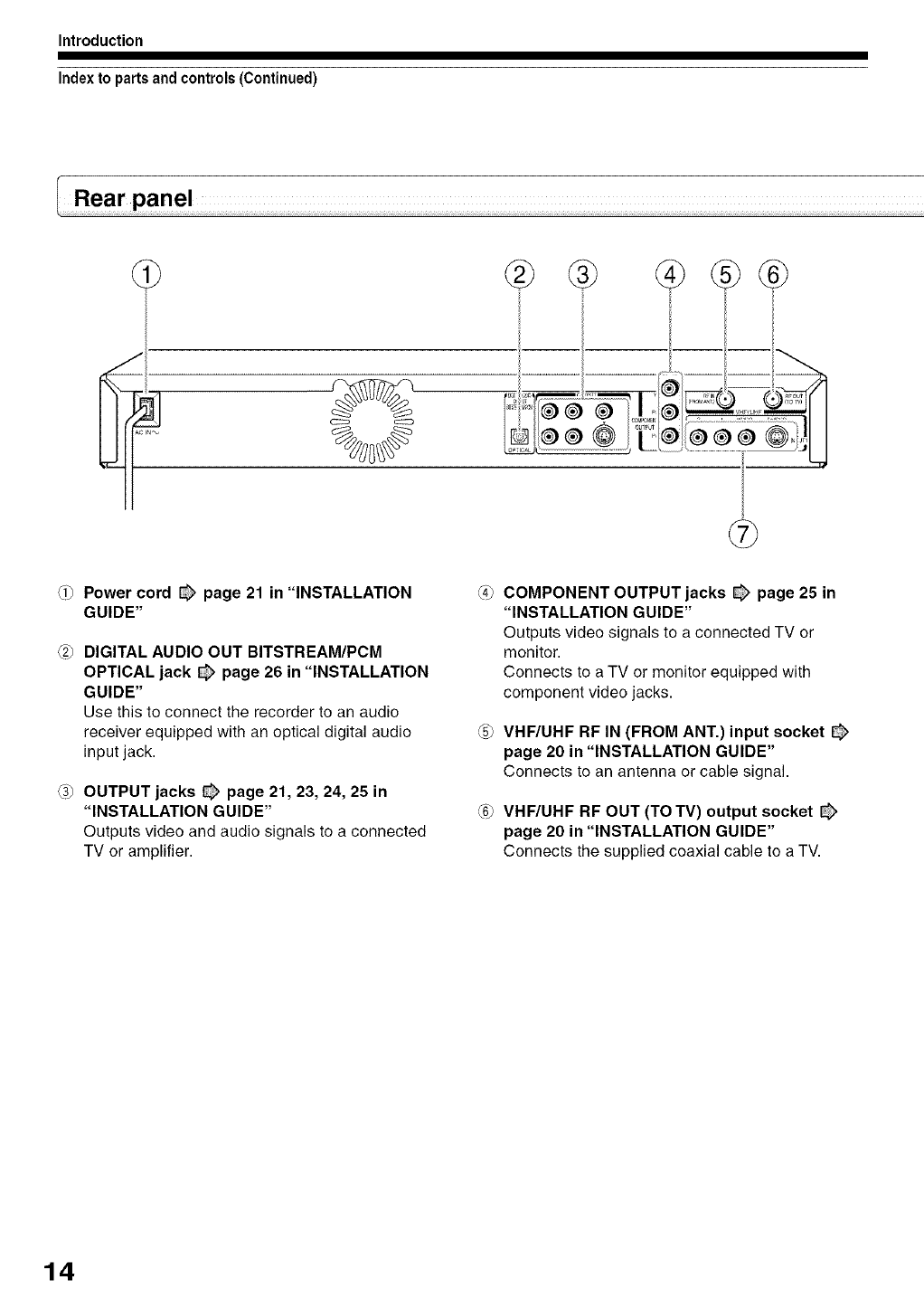

Rear panel ............................................................ 14

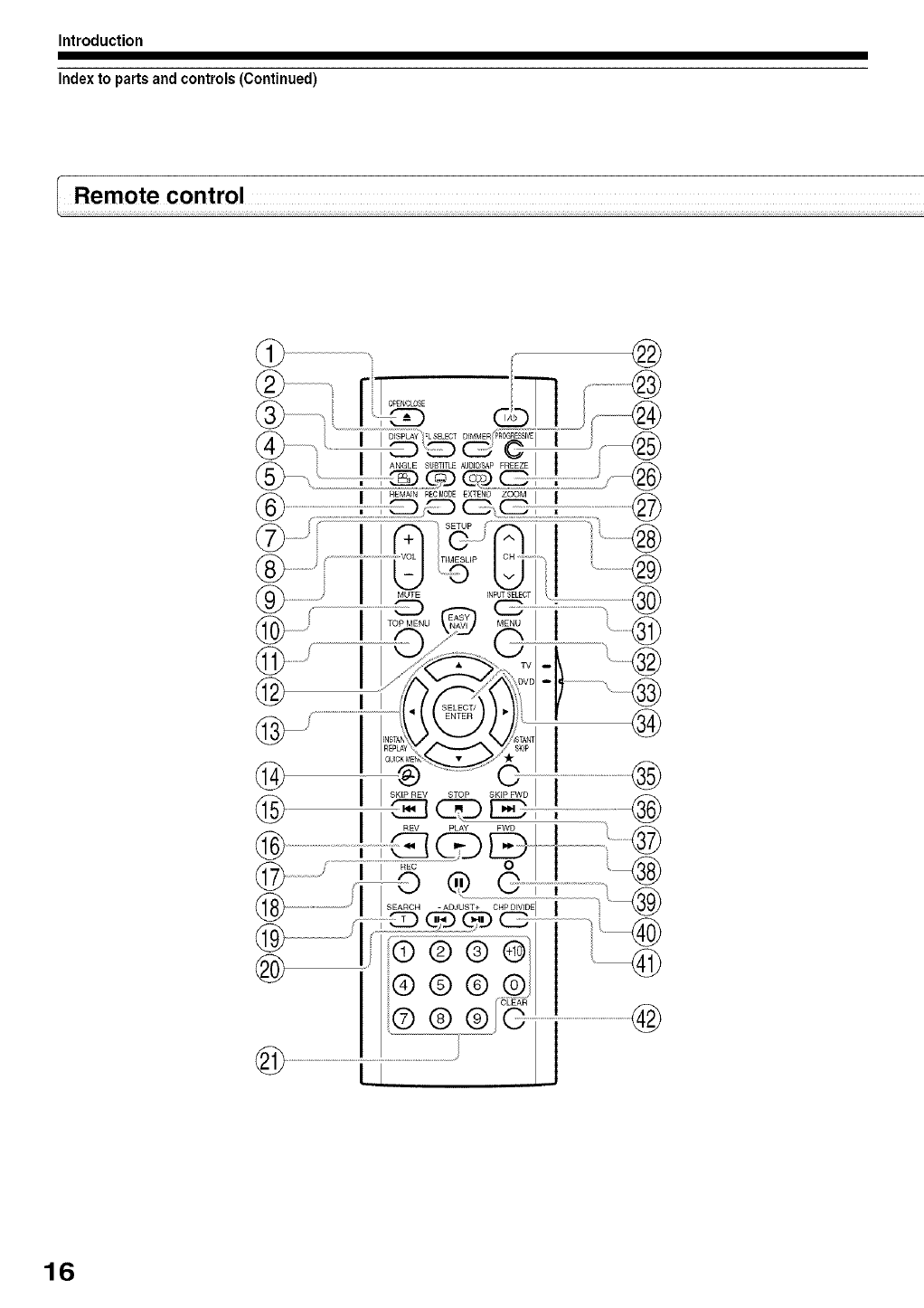

Remote control ..................................................... 16

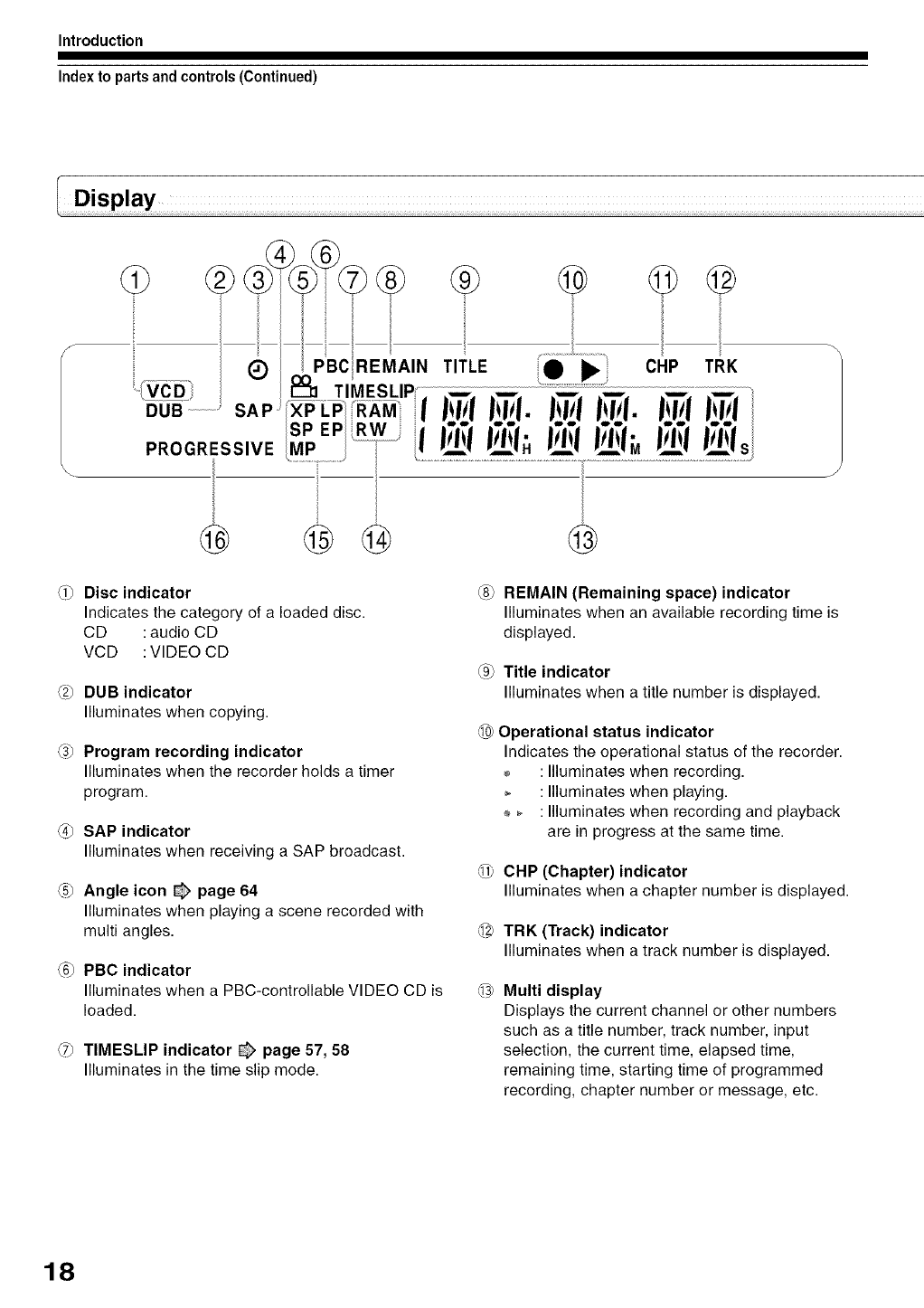

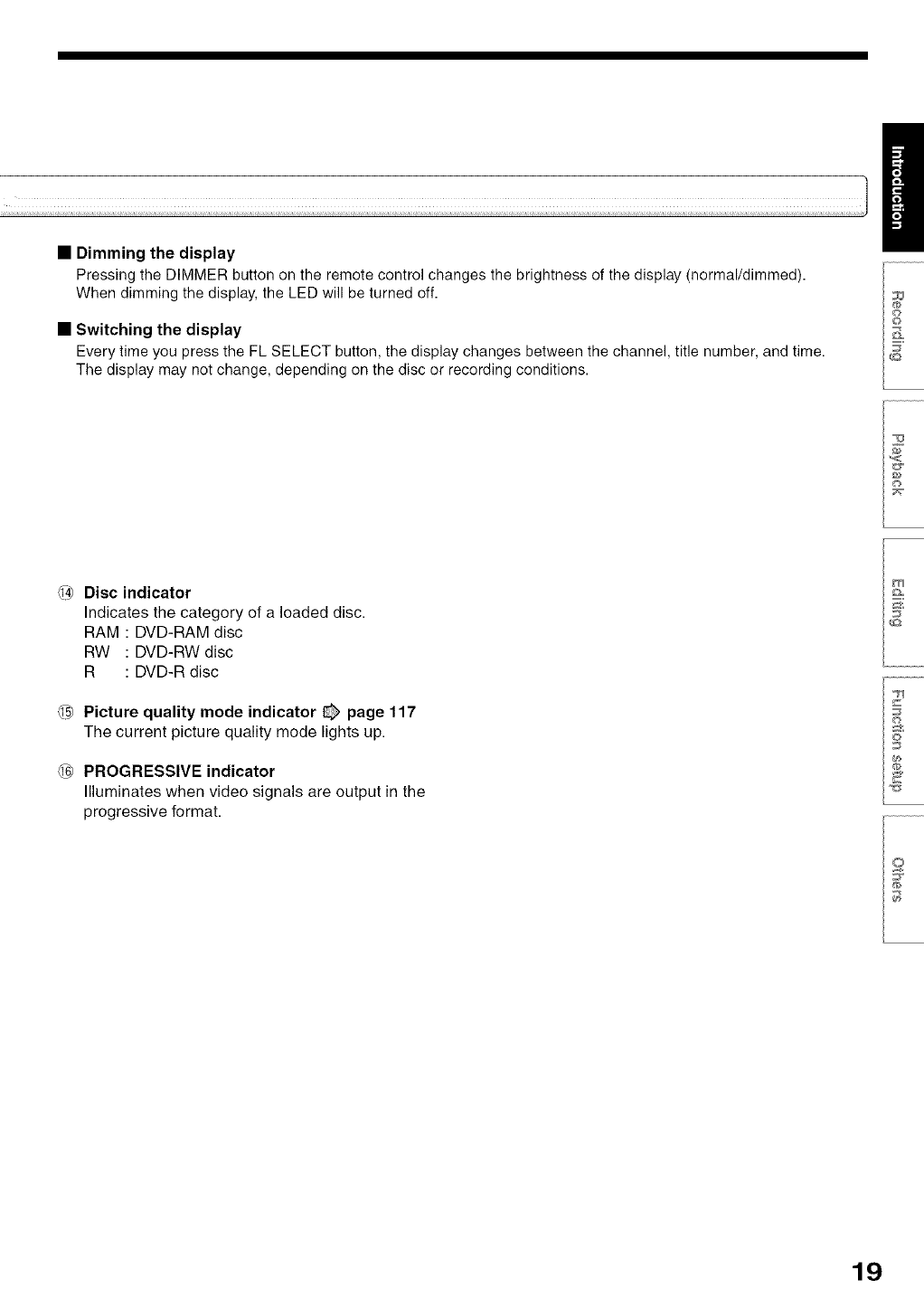

Display ................................................................. 18

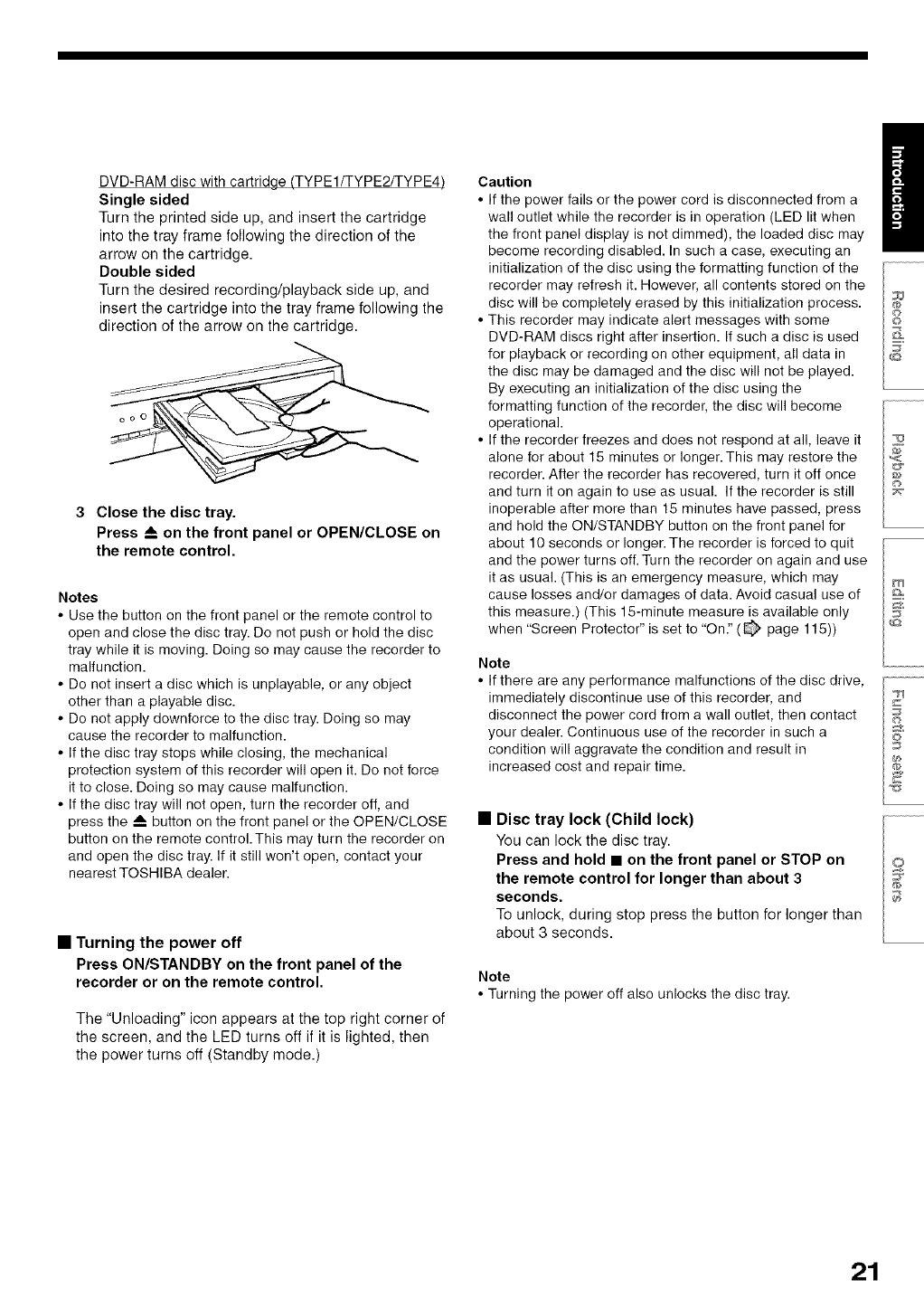

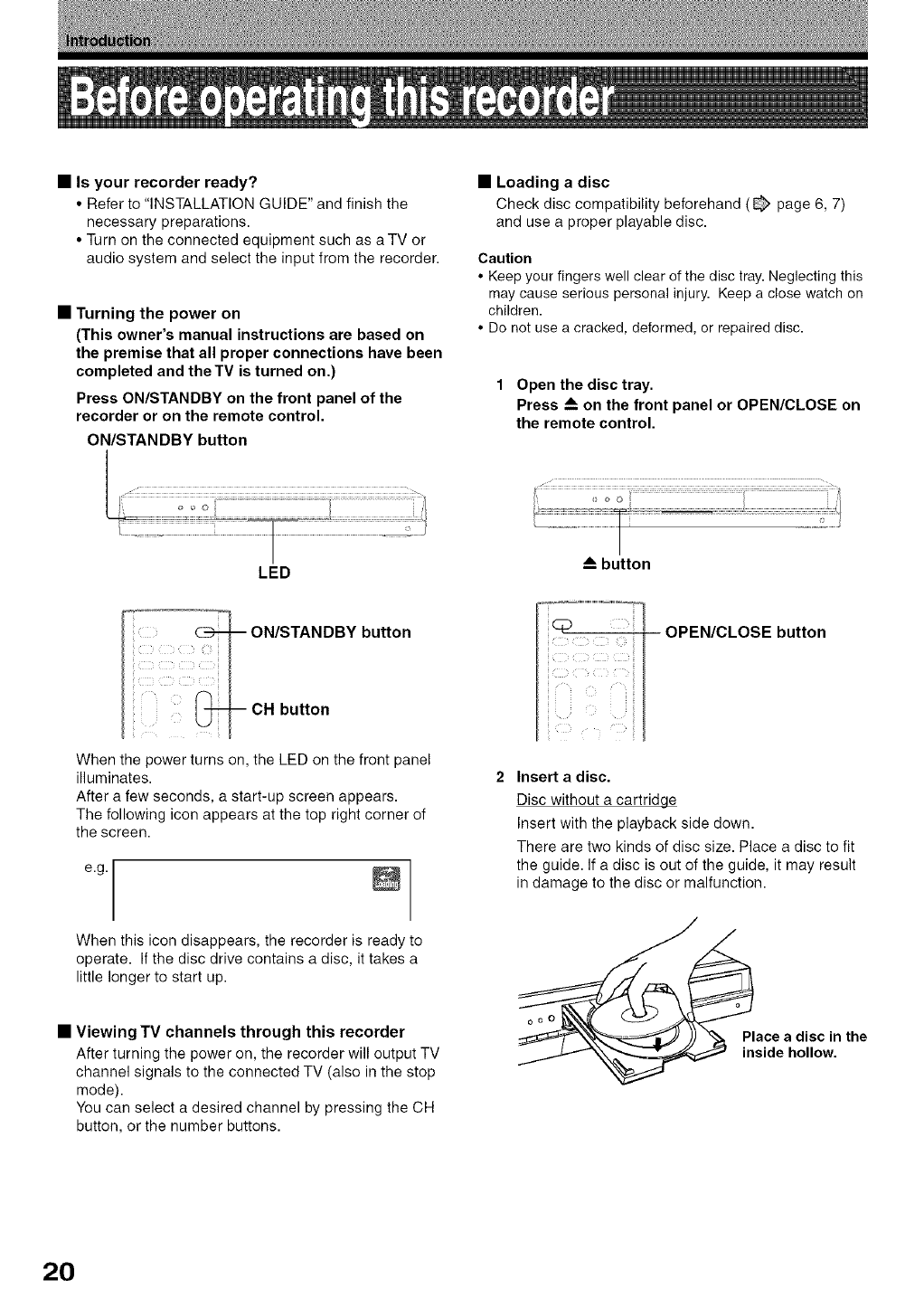

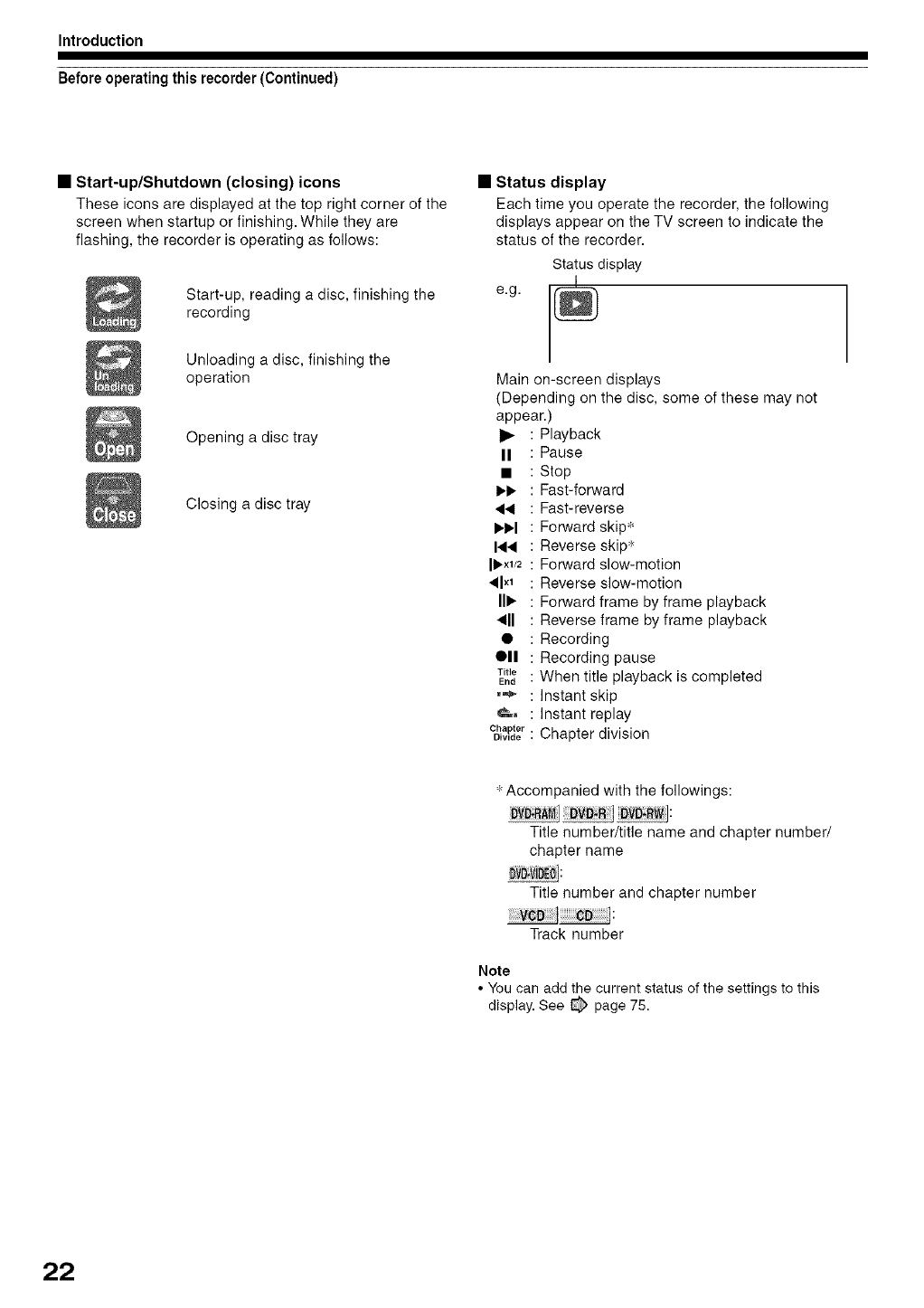

•Before operating this recorder ........................ 20

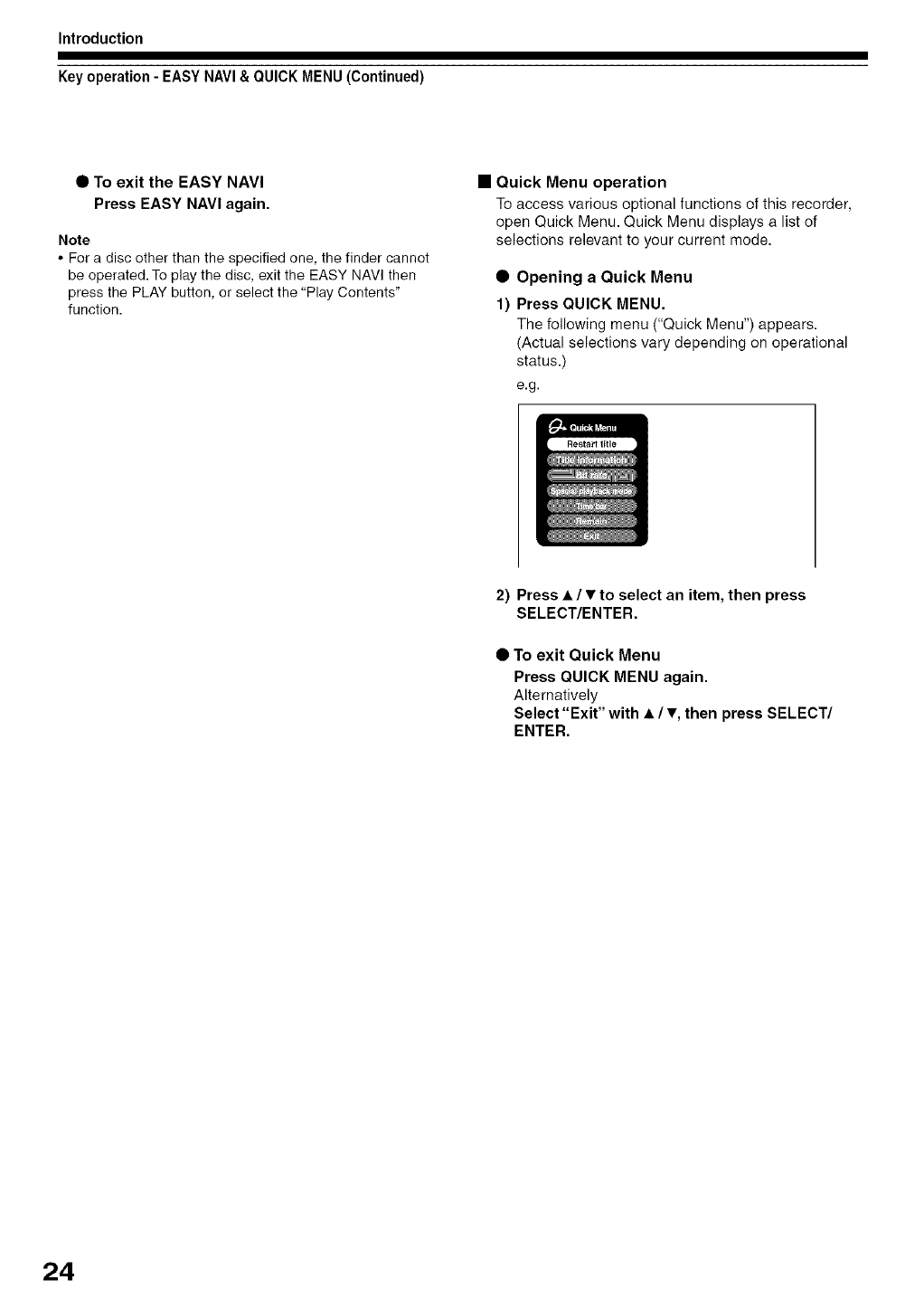

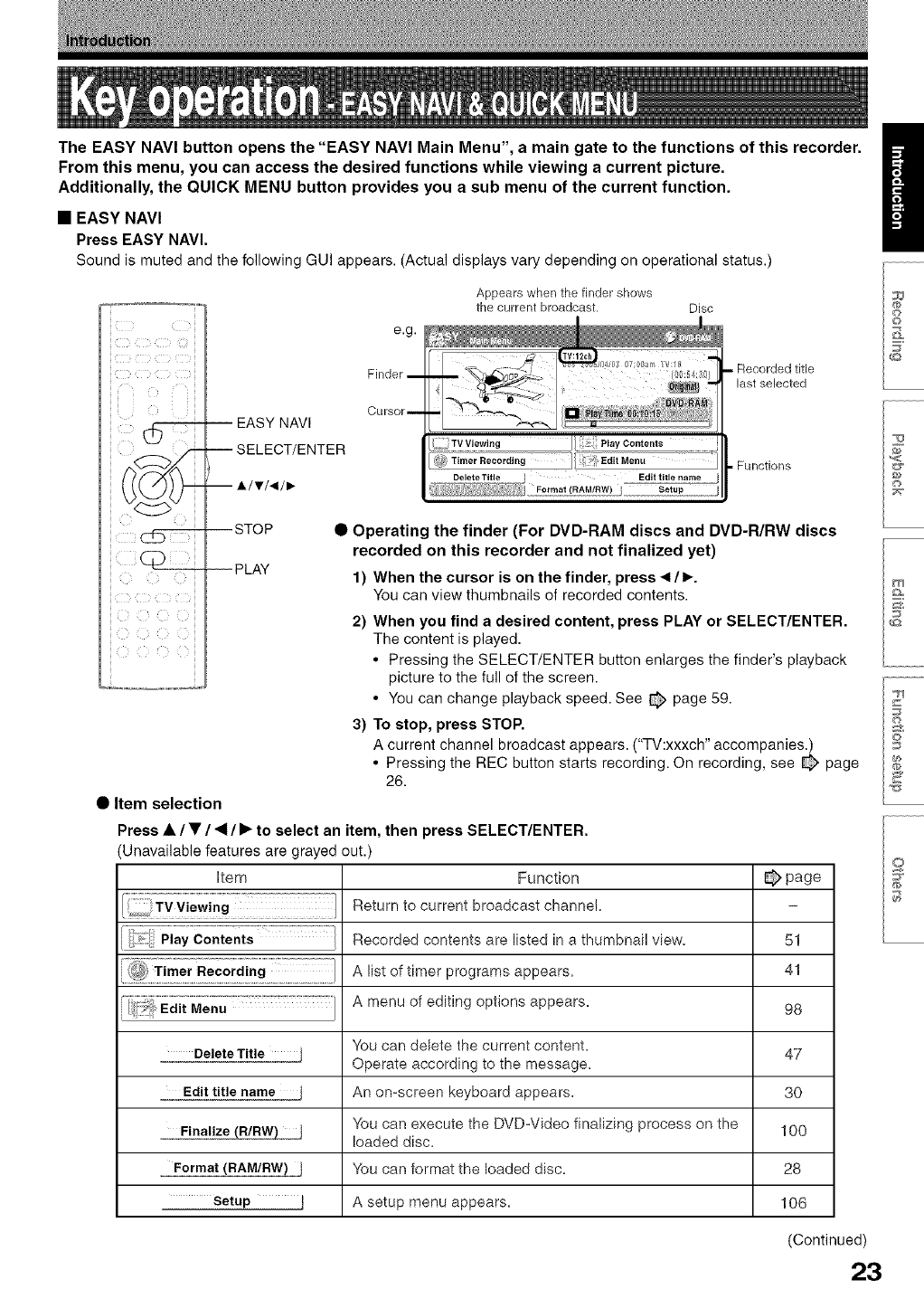

•Key operation - EASY NAVI & QUICK MENU .. 23

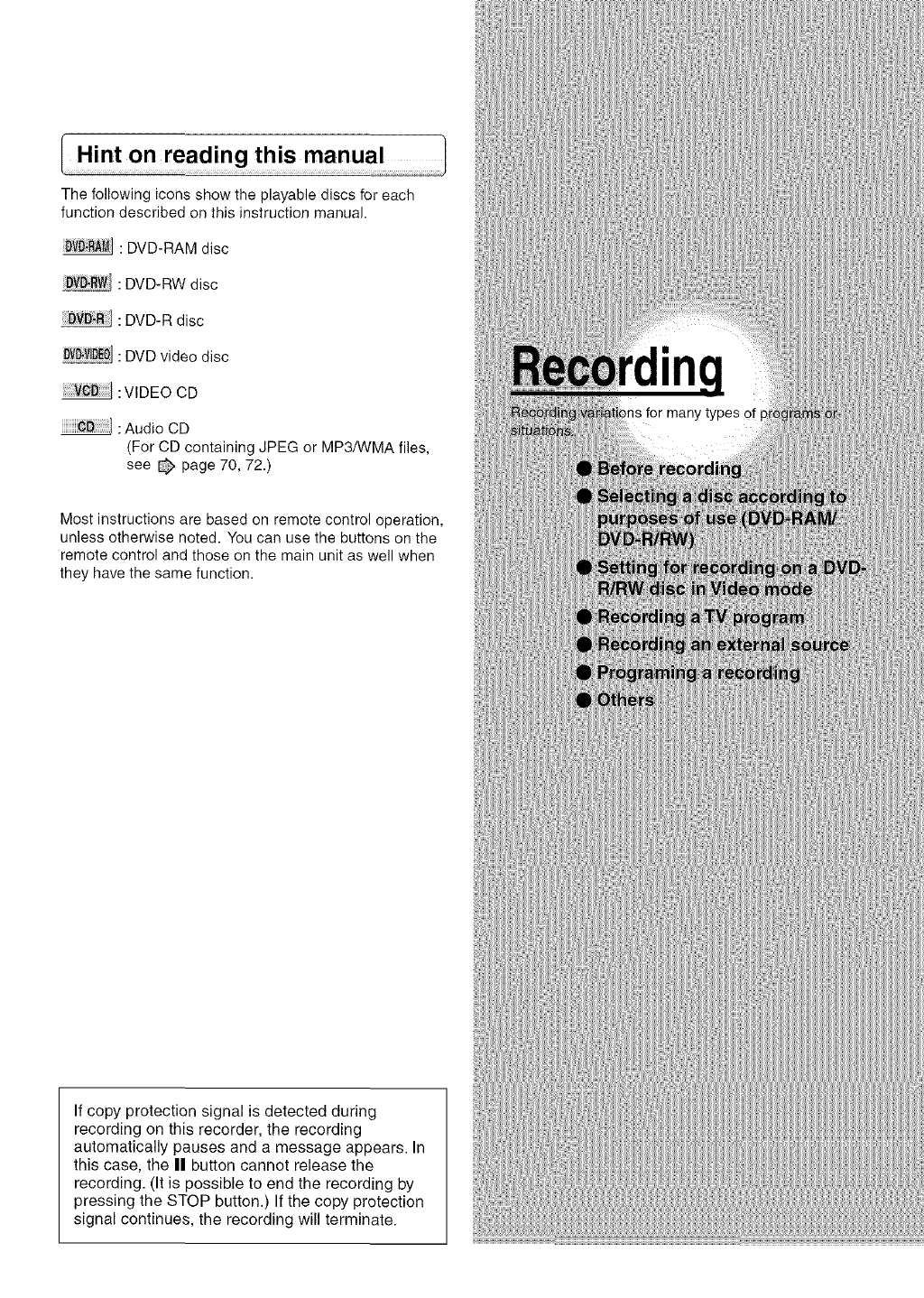

Recording

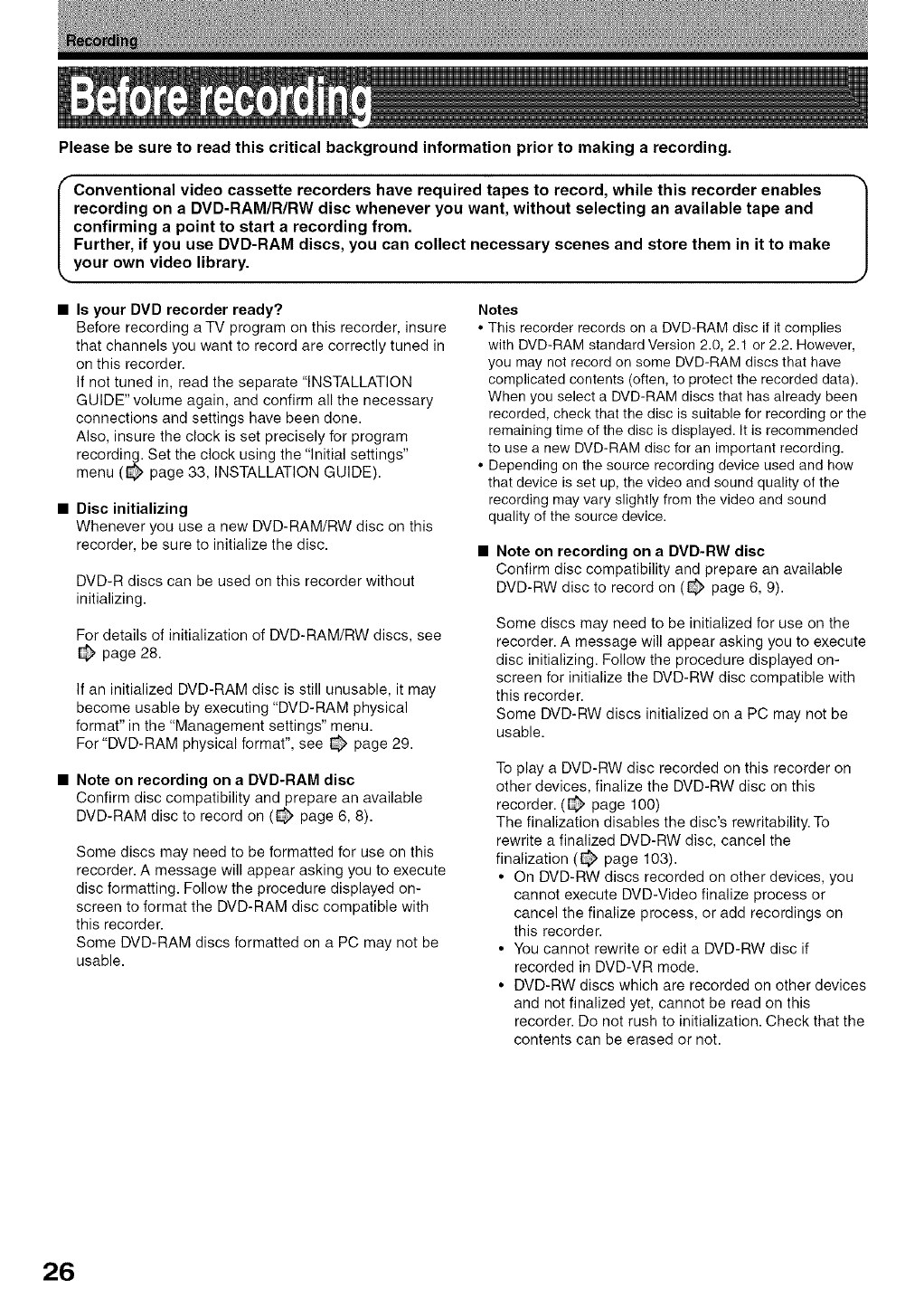

•Before recording ............................................... 26

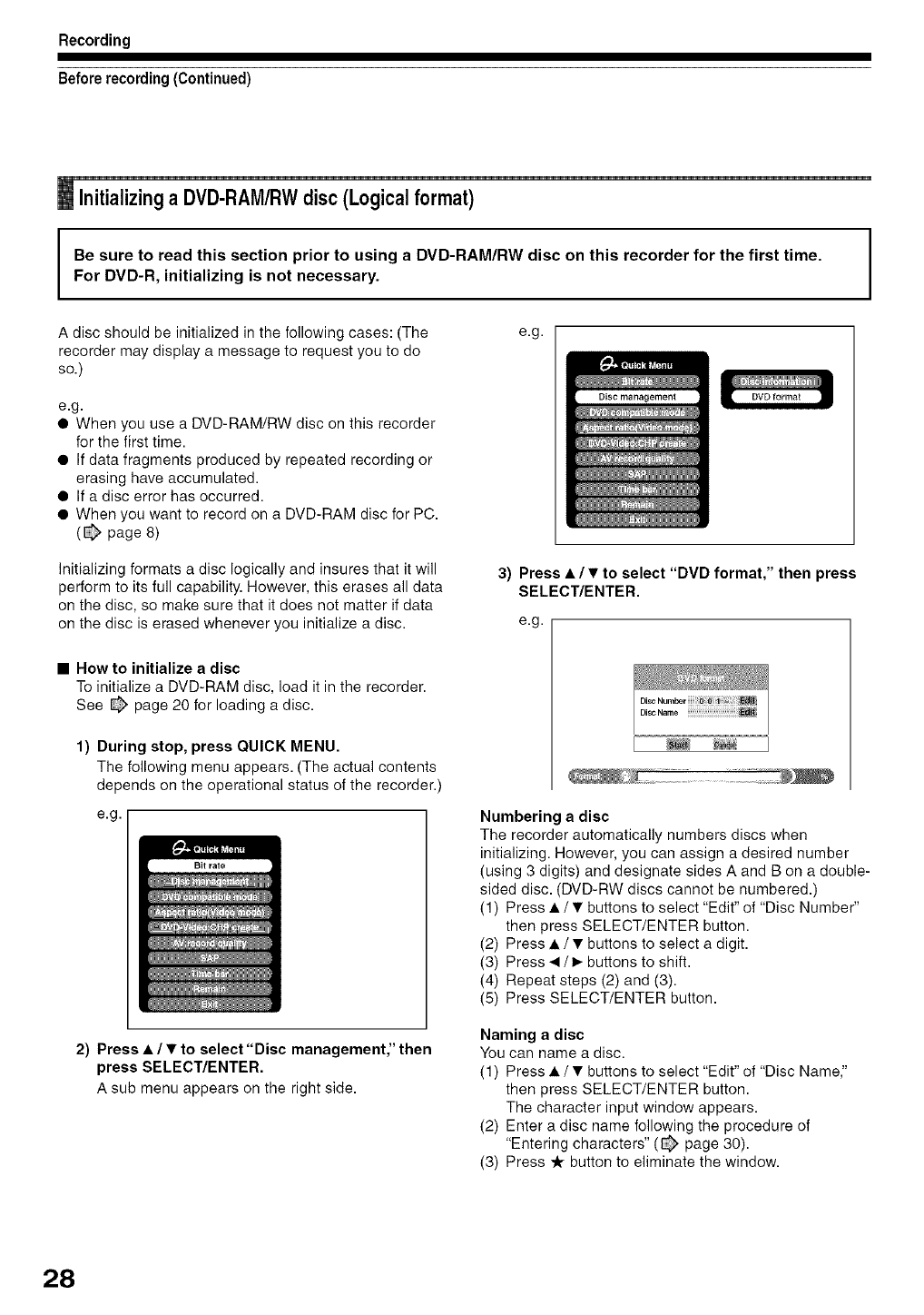

Initializing a DVD-RAM/RW disc (Logical format) .... 28

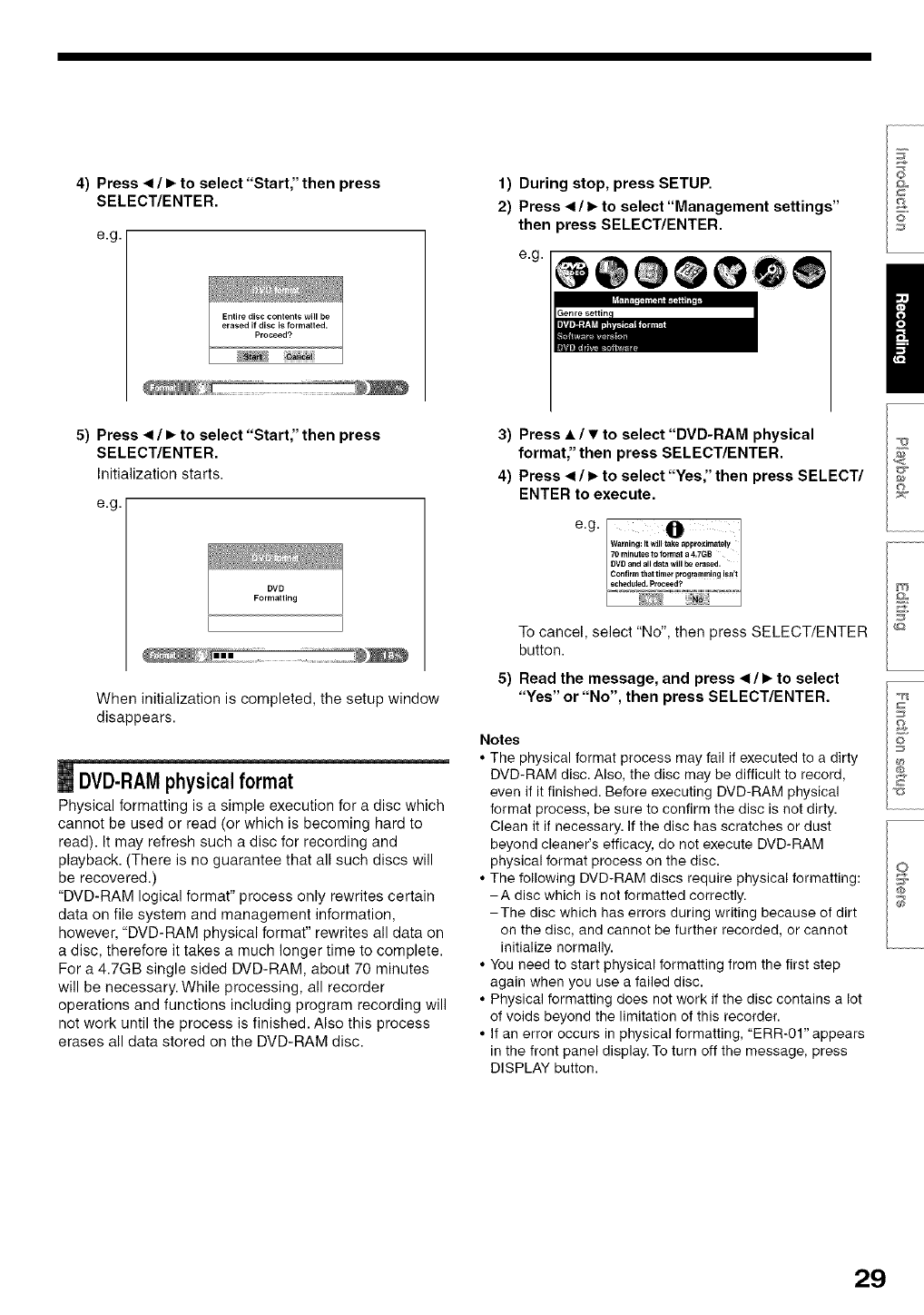

DVD-RAM physical format ..................................... 29

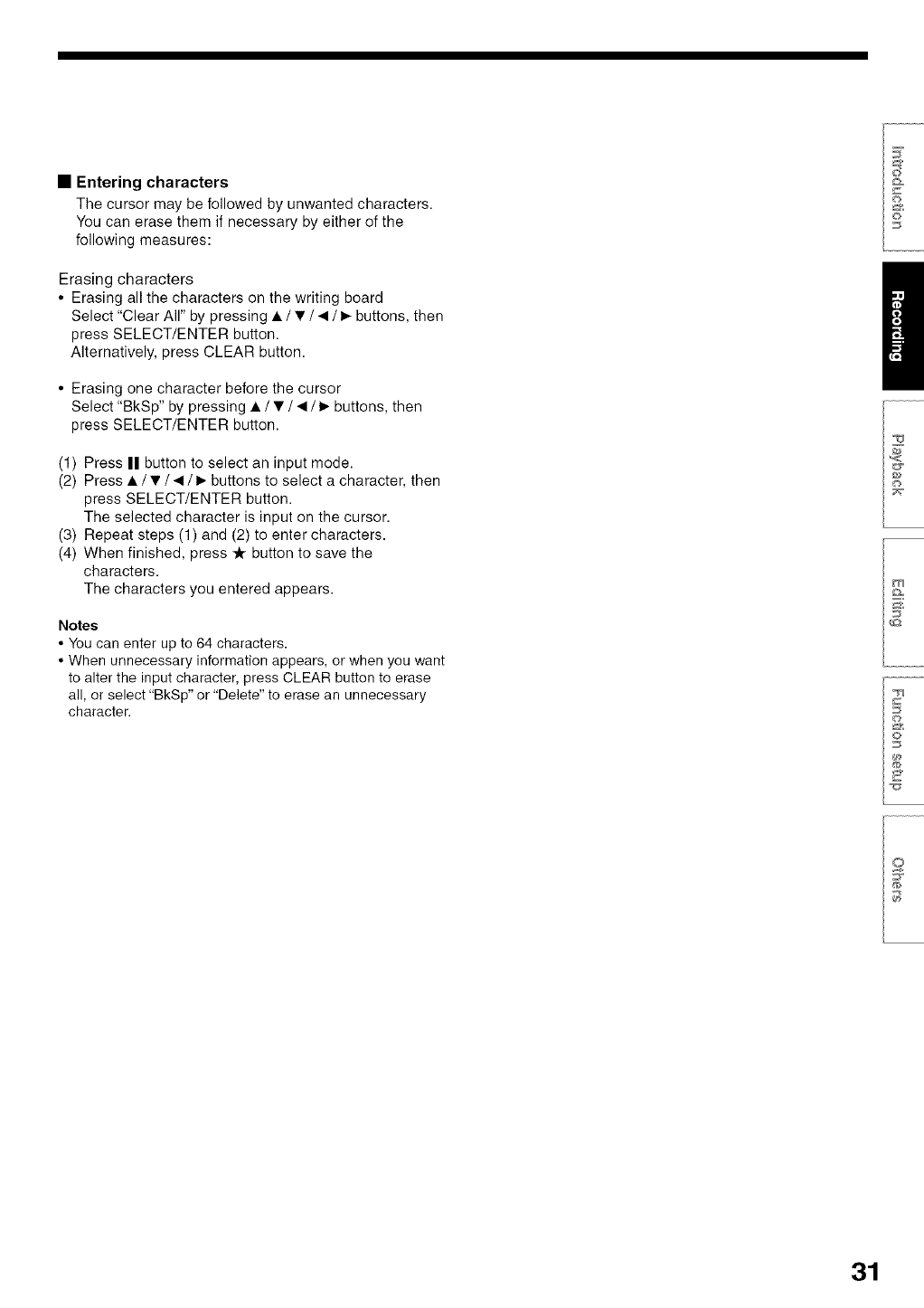

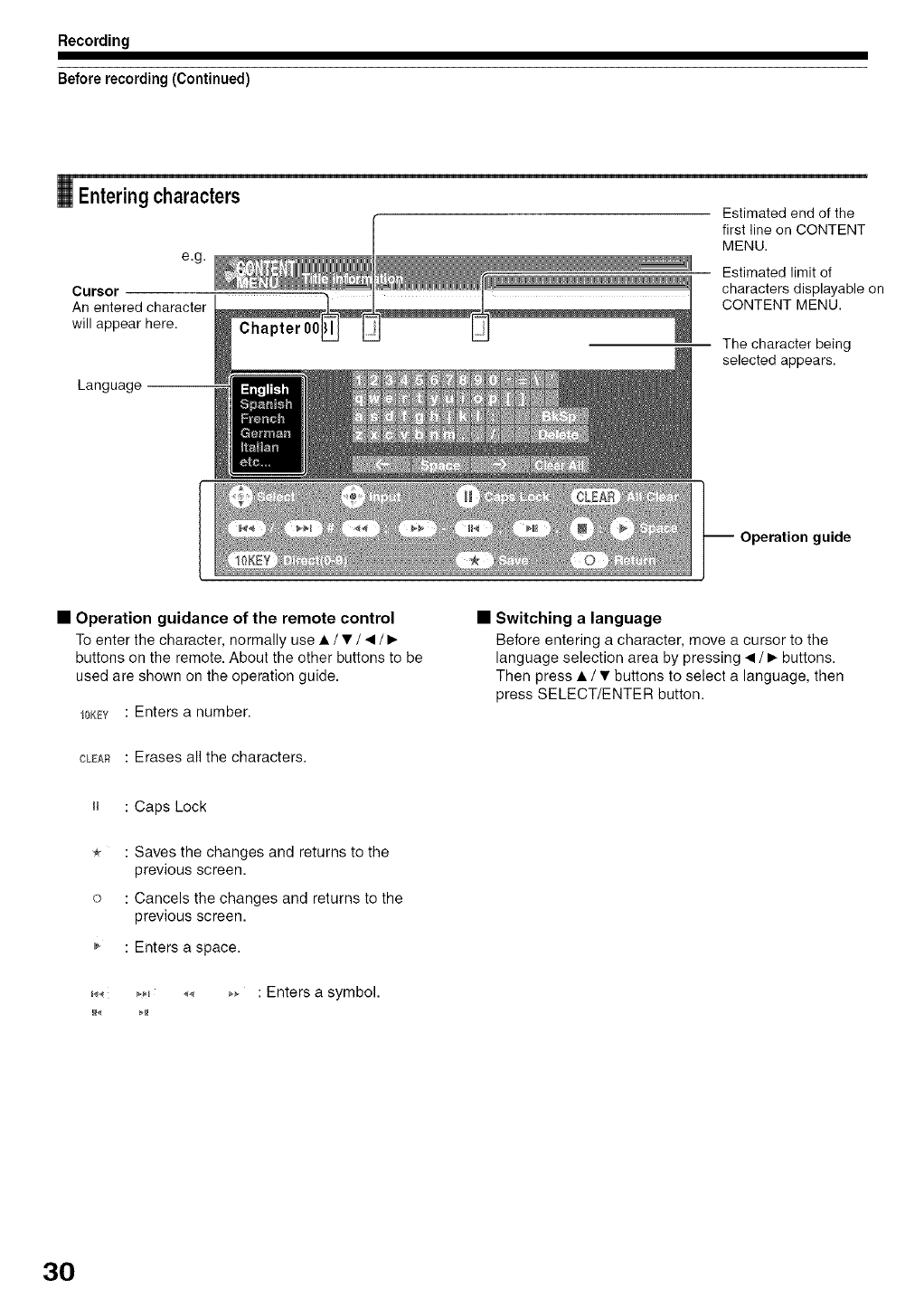

Entering characters ............................................... 30

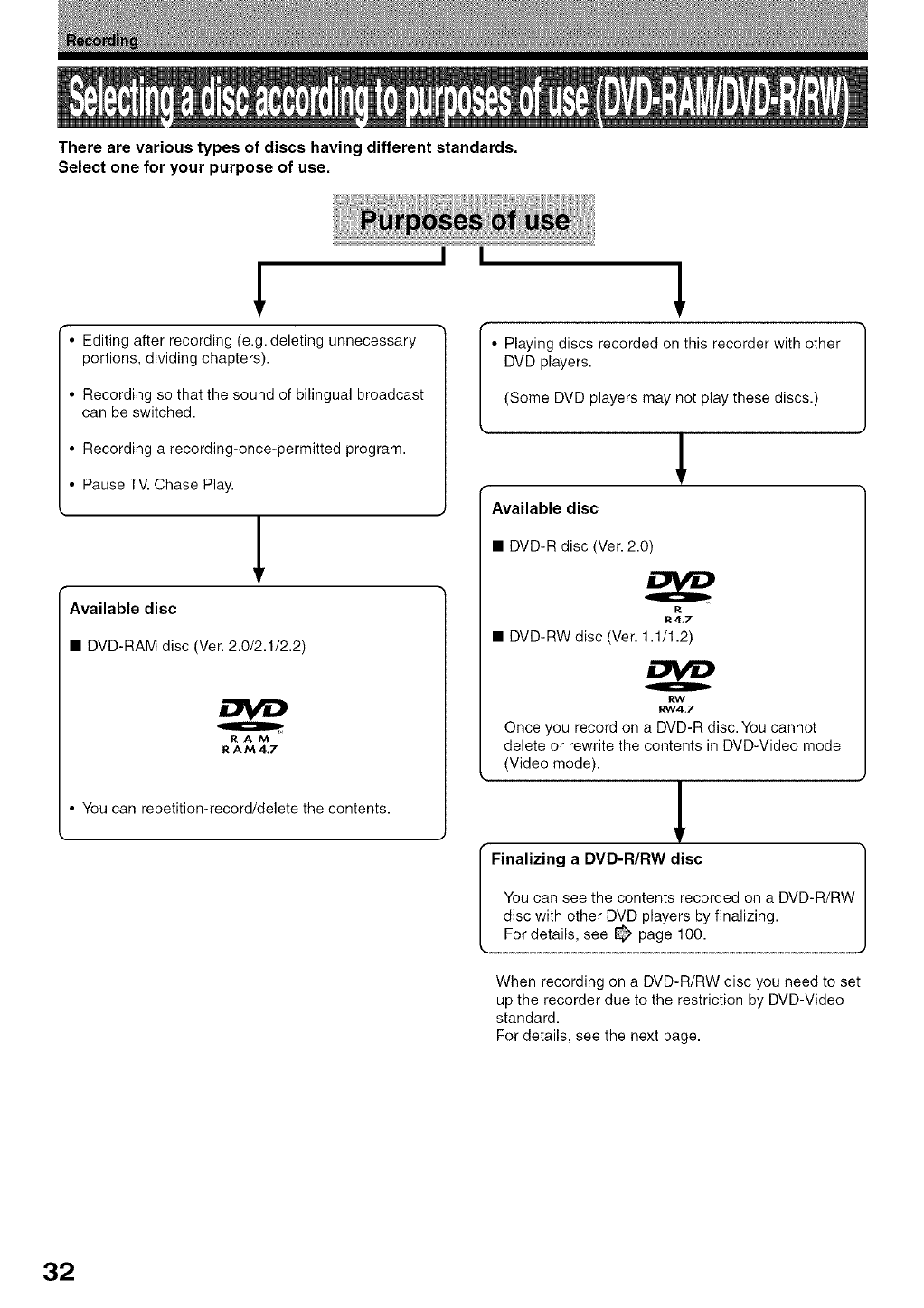

•Selecting a disc according to purposes of use

(DVD-RAM/DVD-R/RW) ...................................... 32

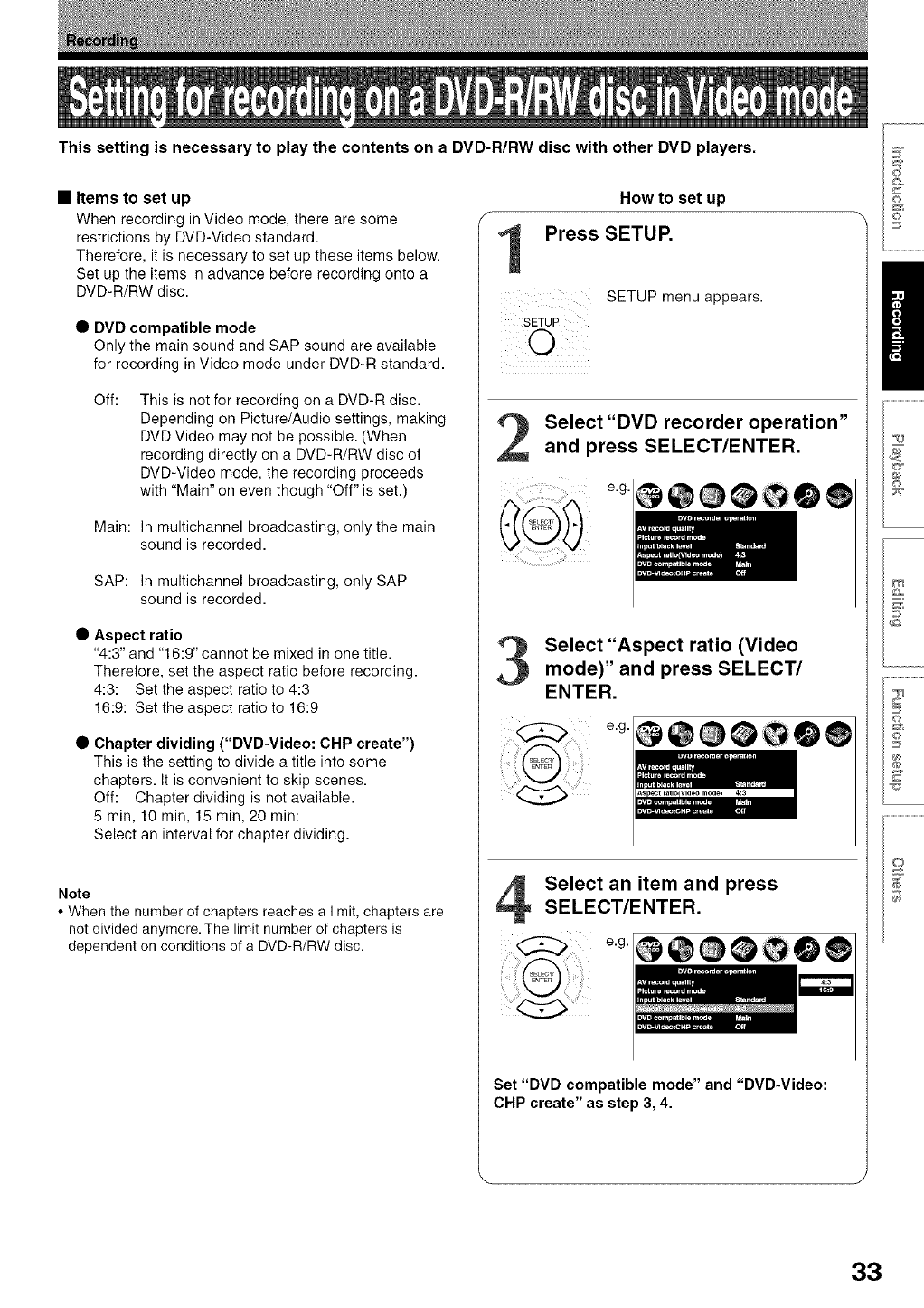

•Setting for recording on a DVD-R/RW disc in

Video mode ........................................................ 33

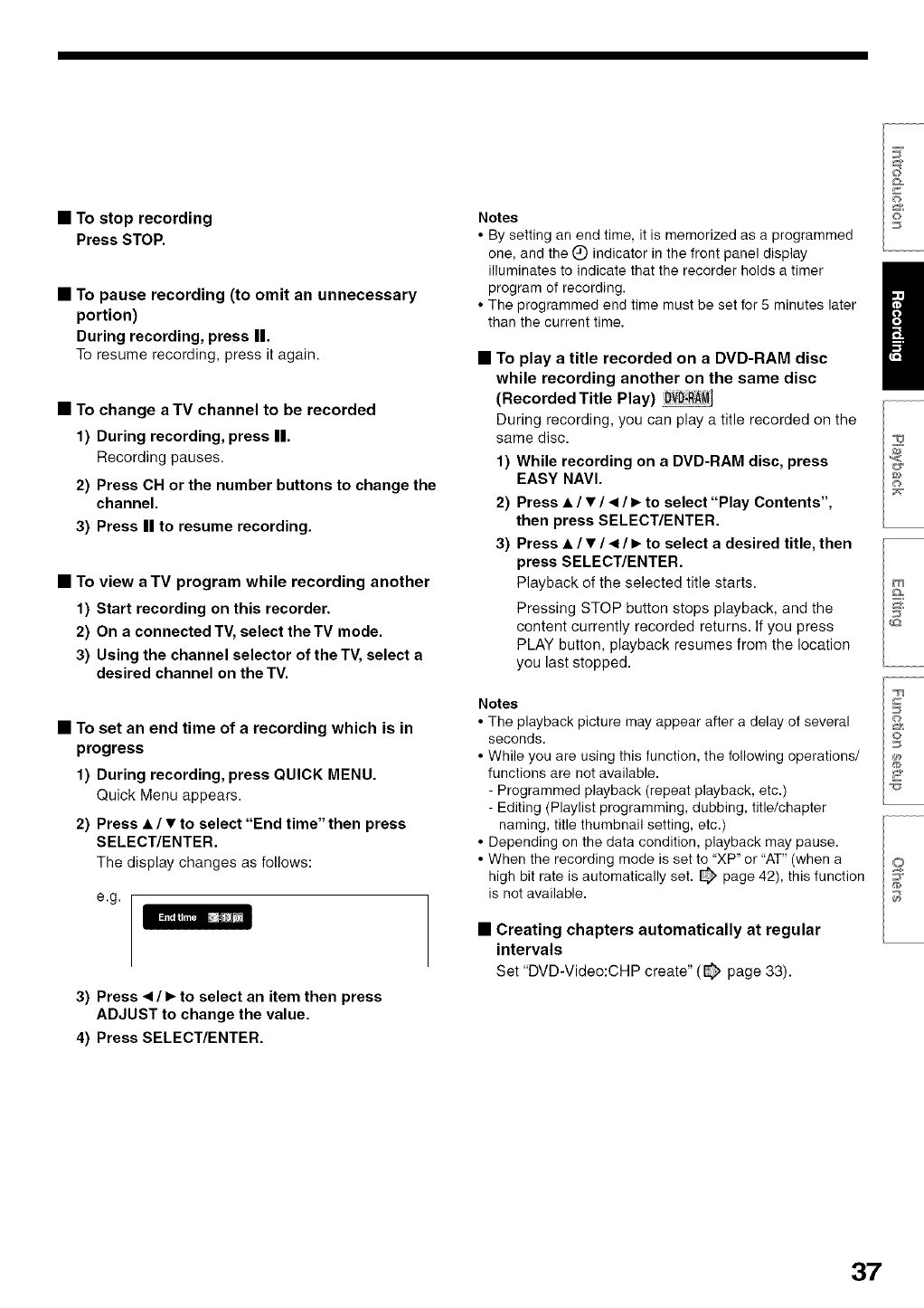

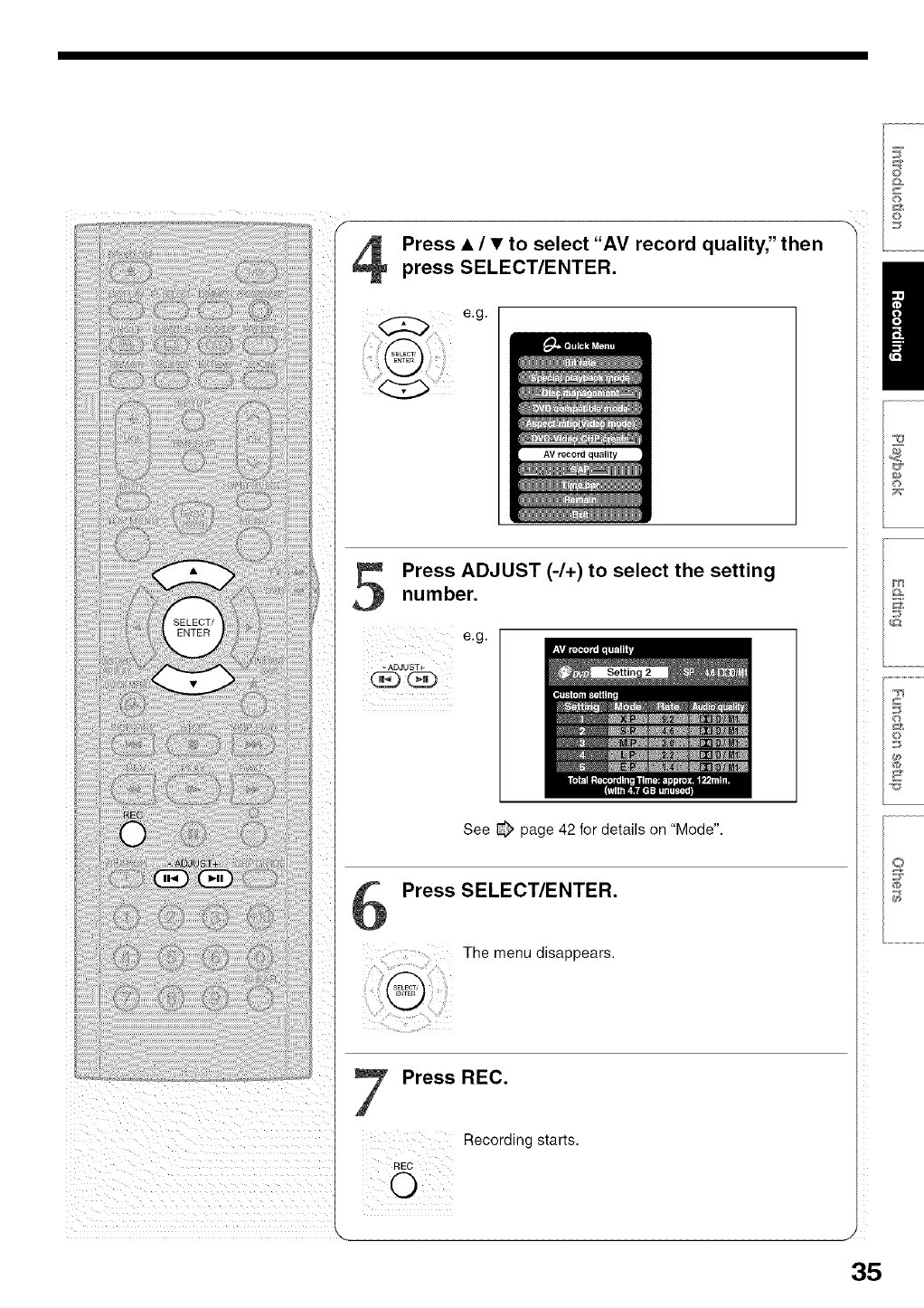

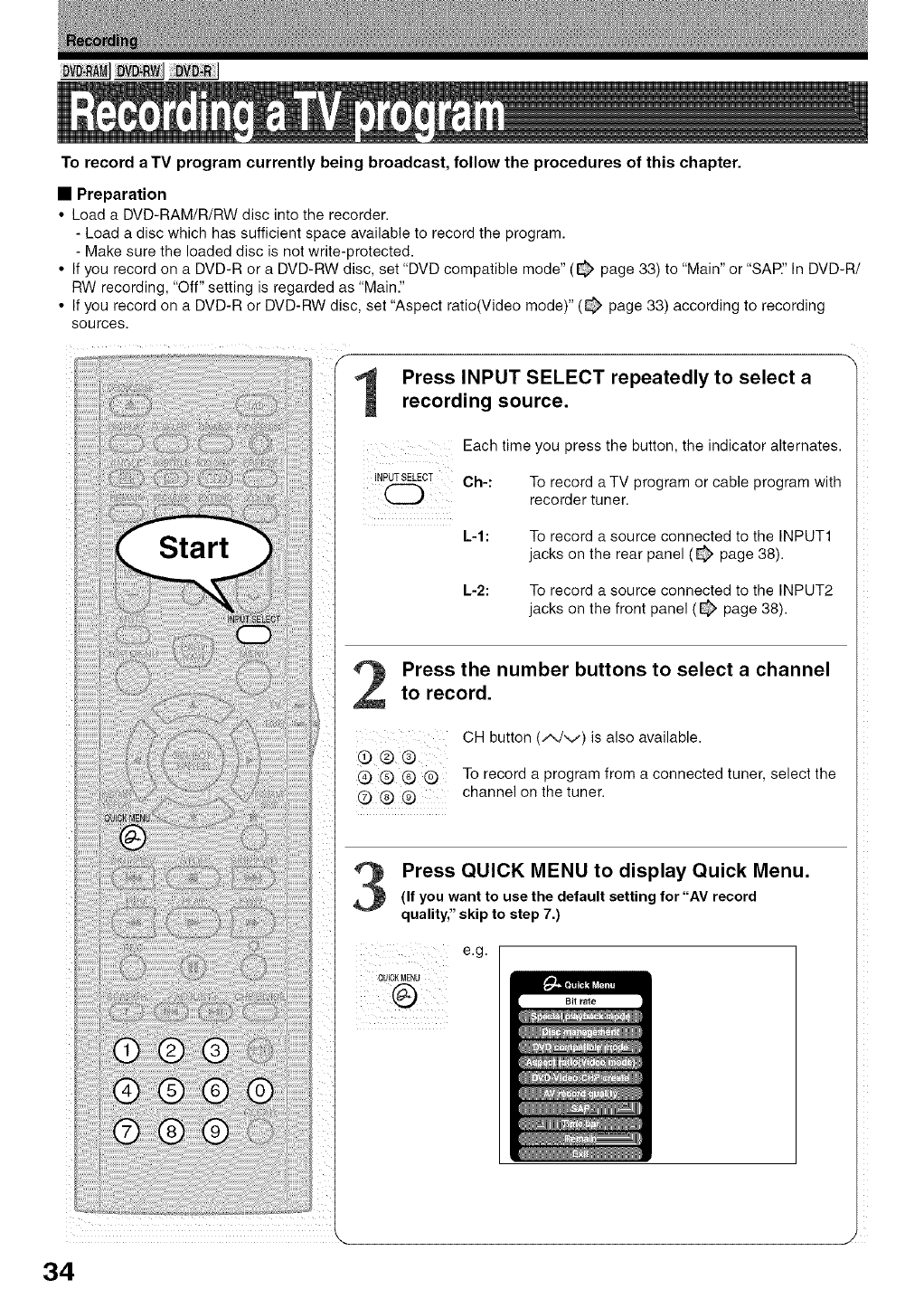

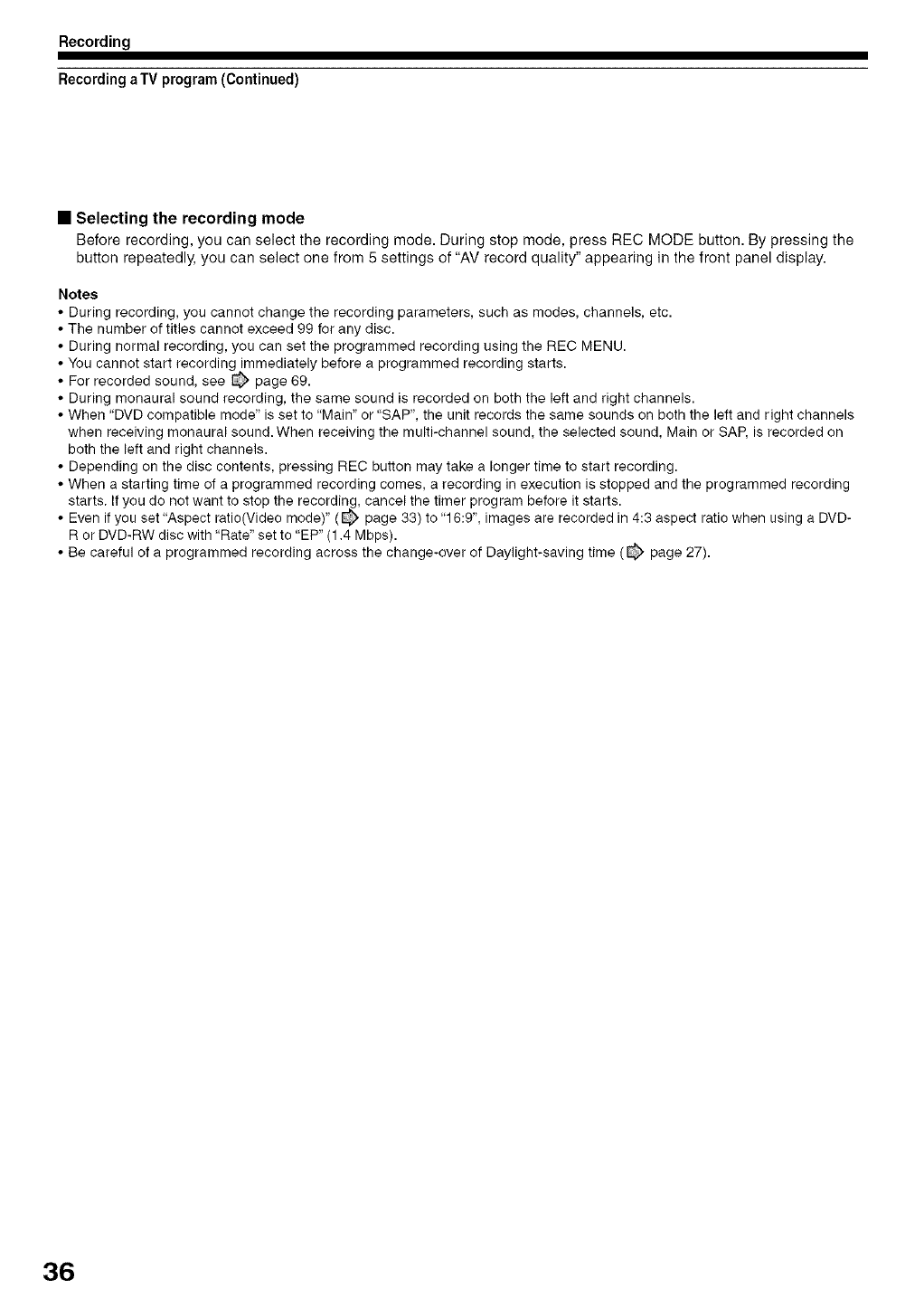

•Recording aTV program ................................... 34

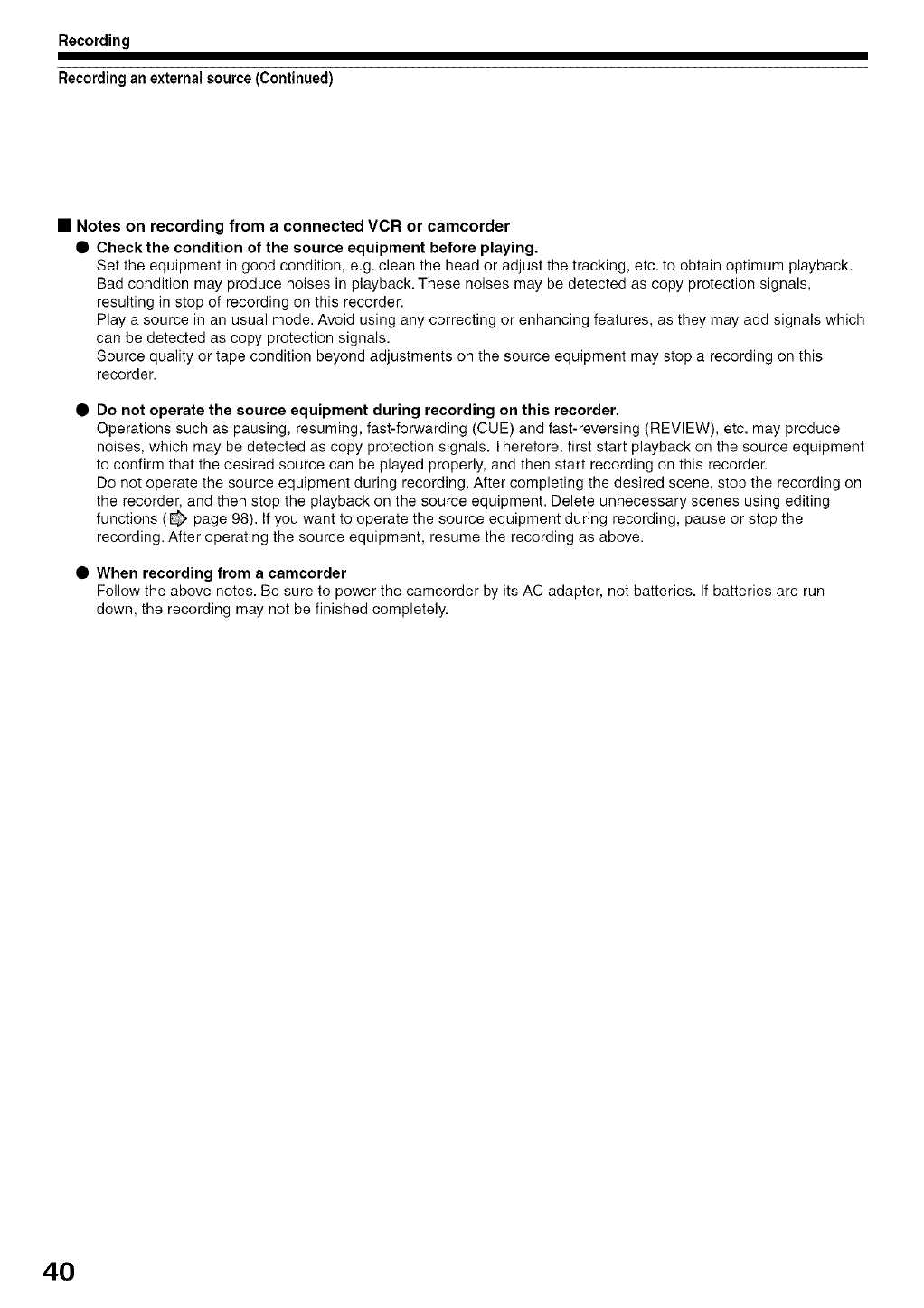

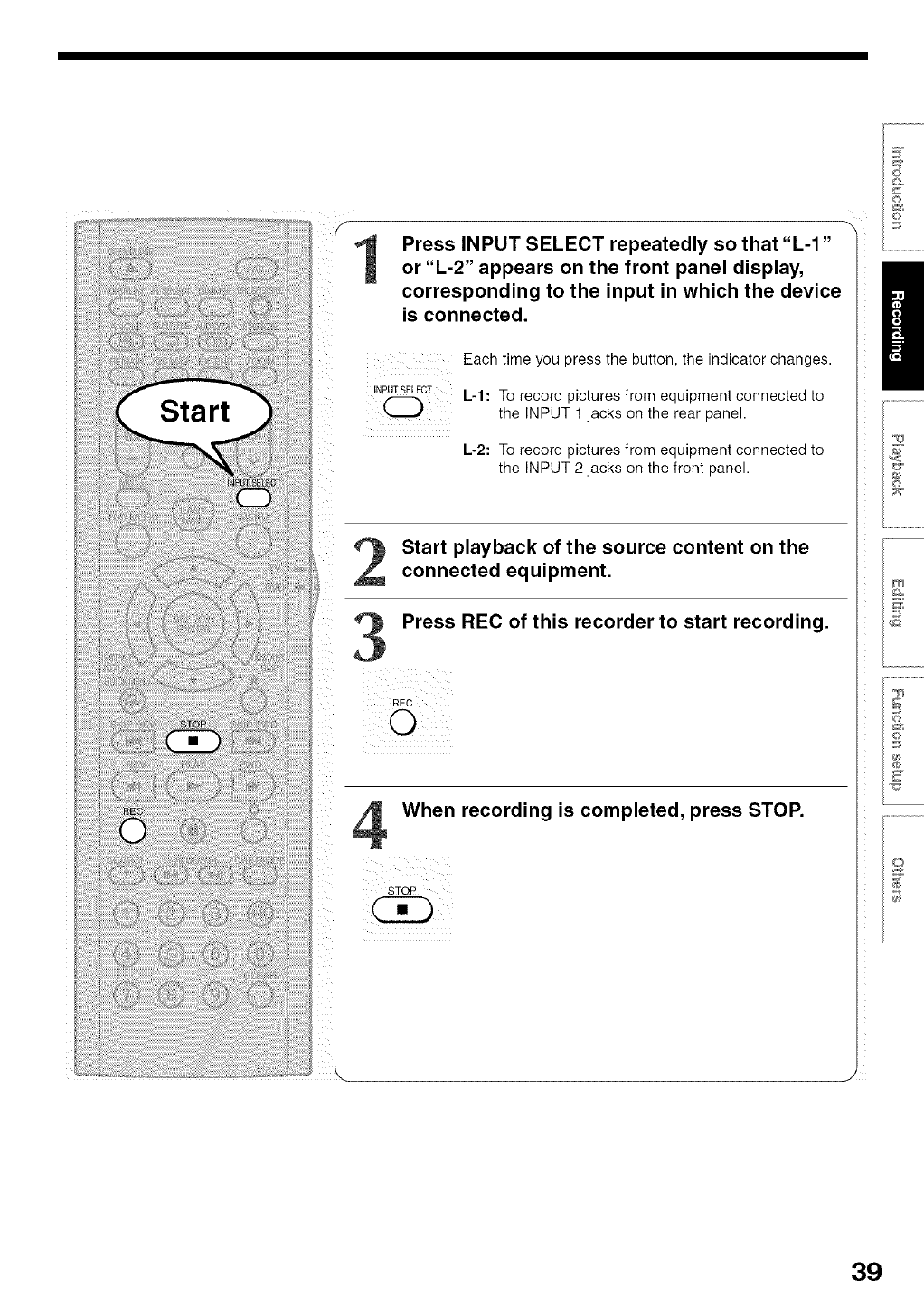

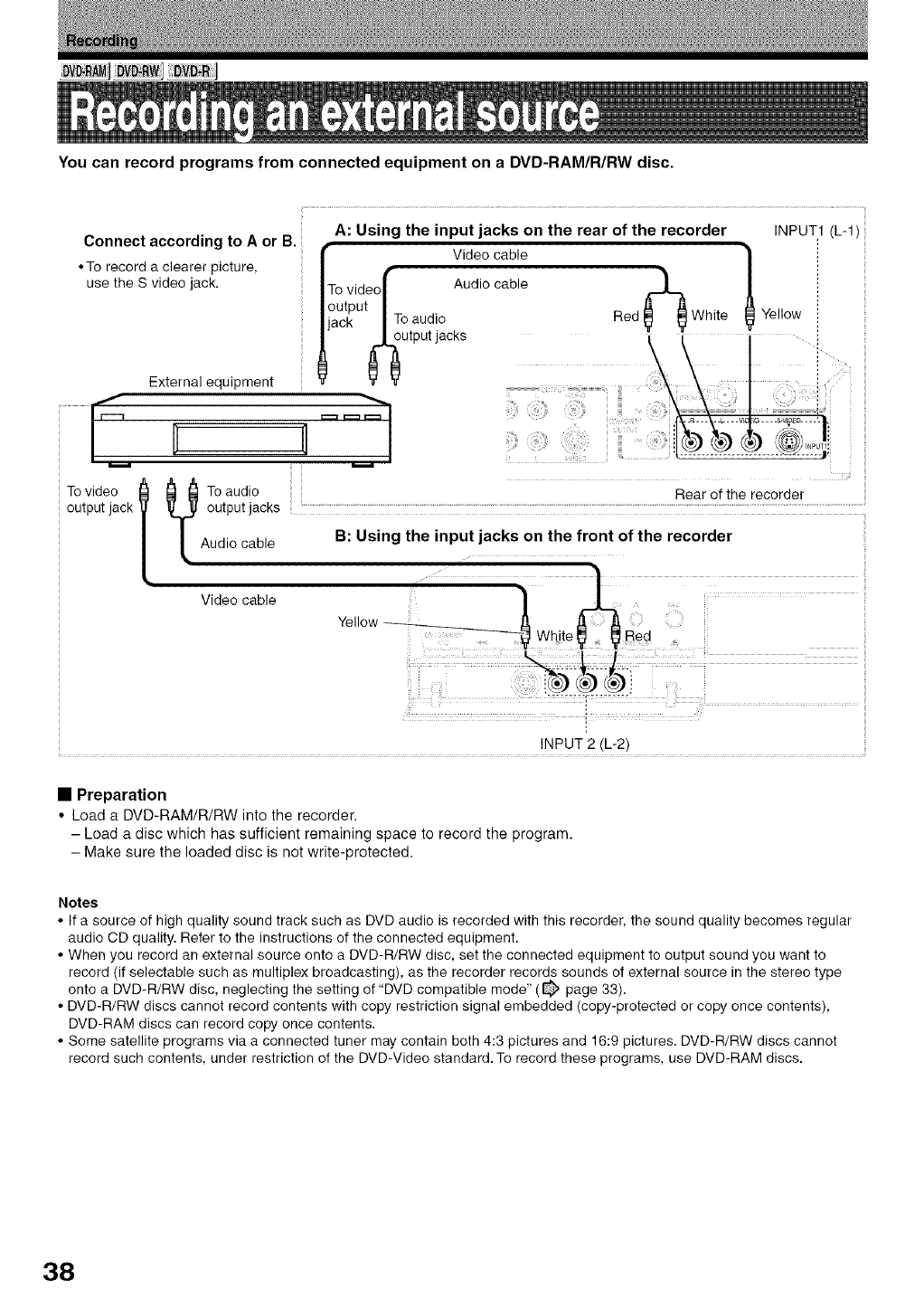

•Recording an external source .......................... 38

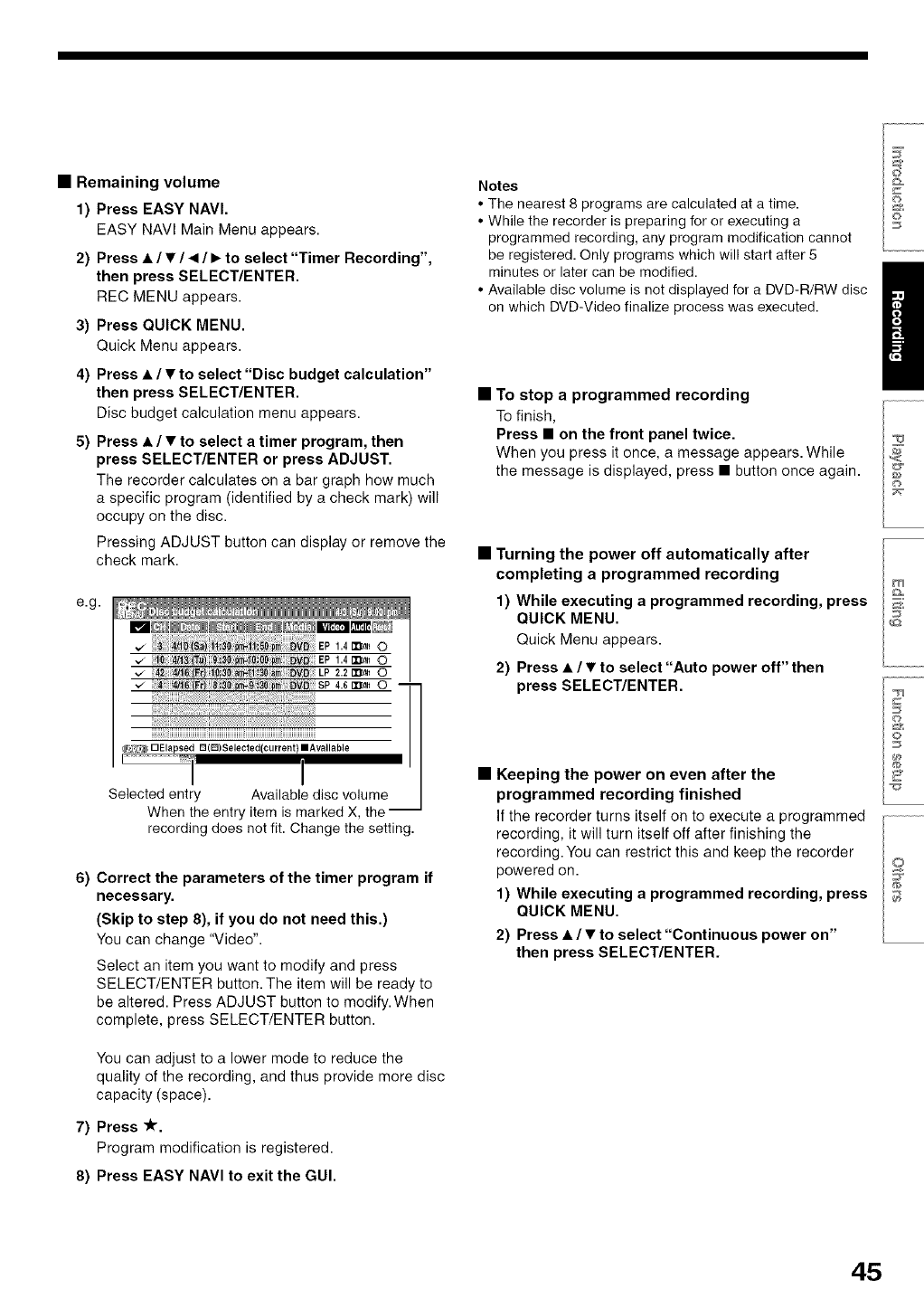

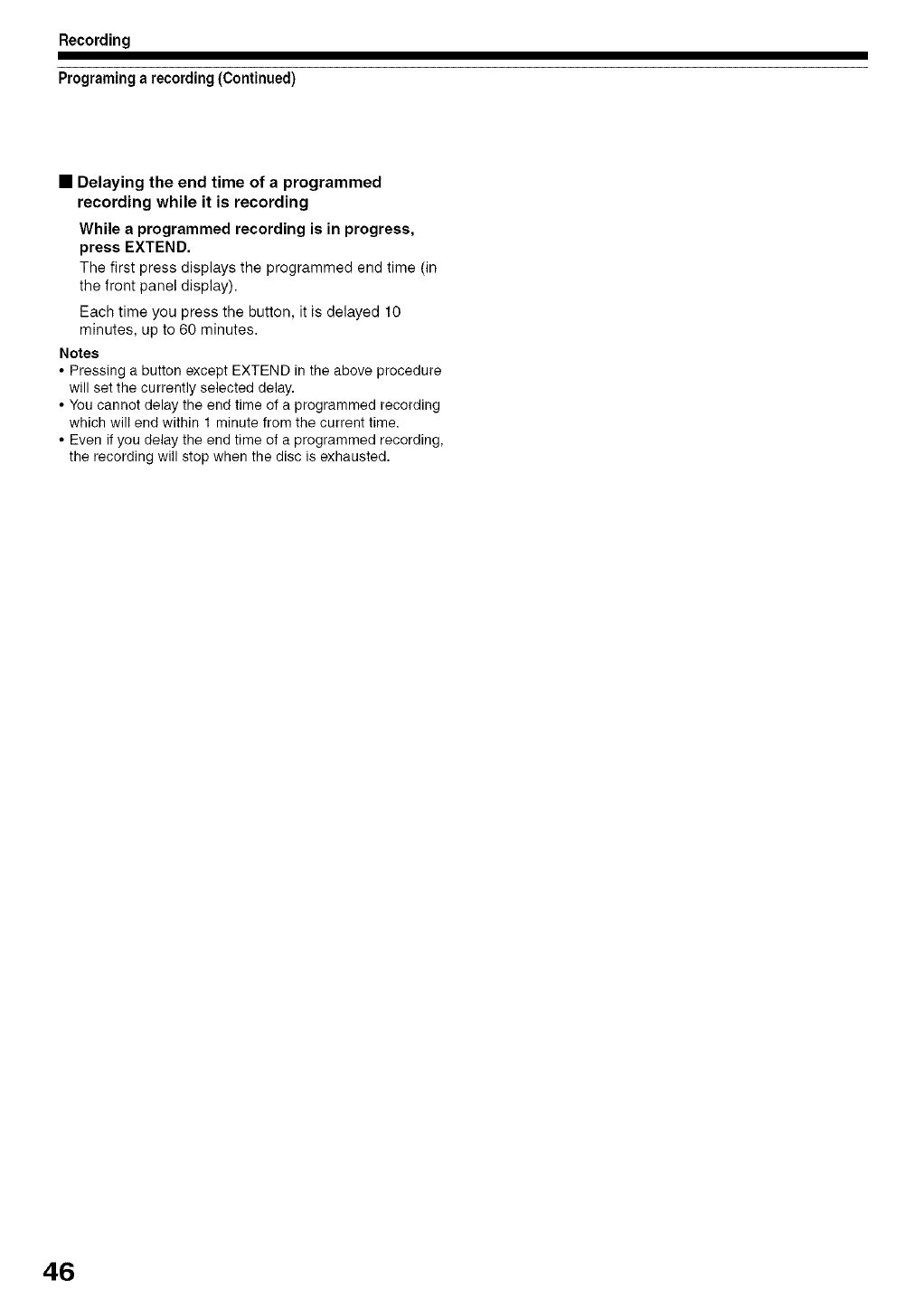

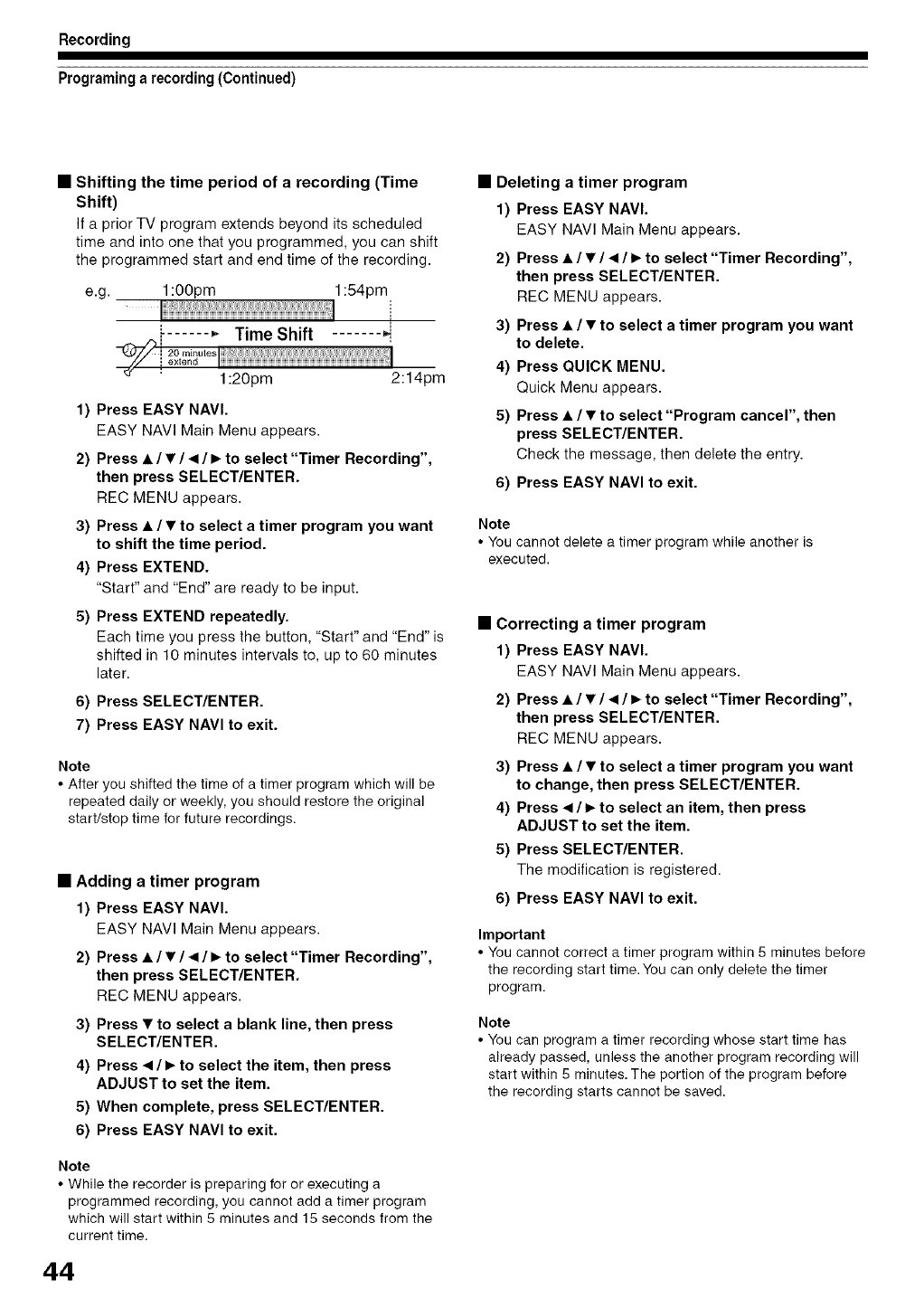

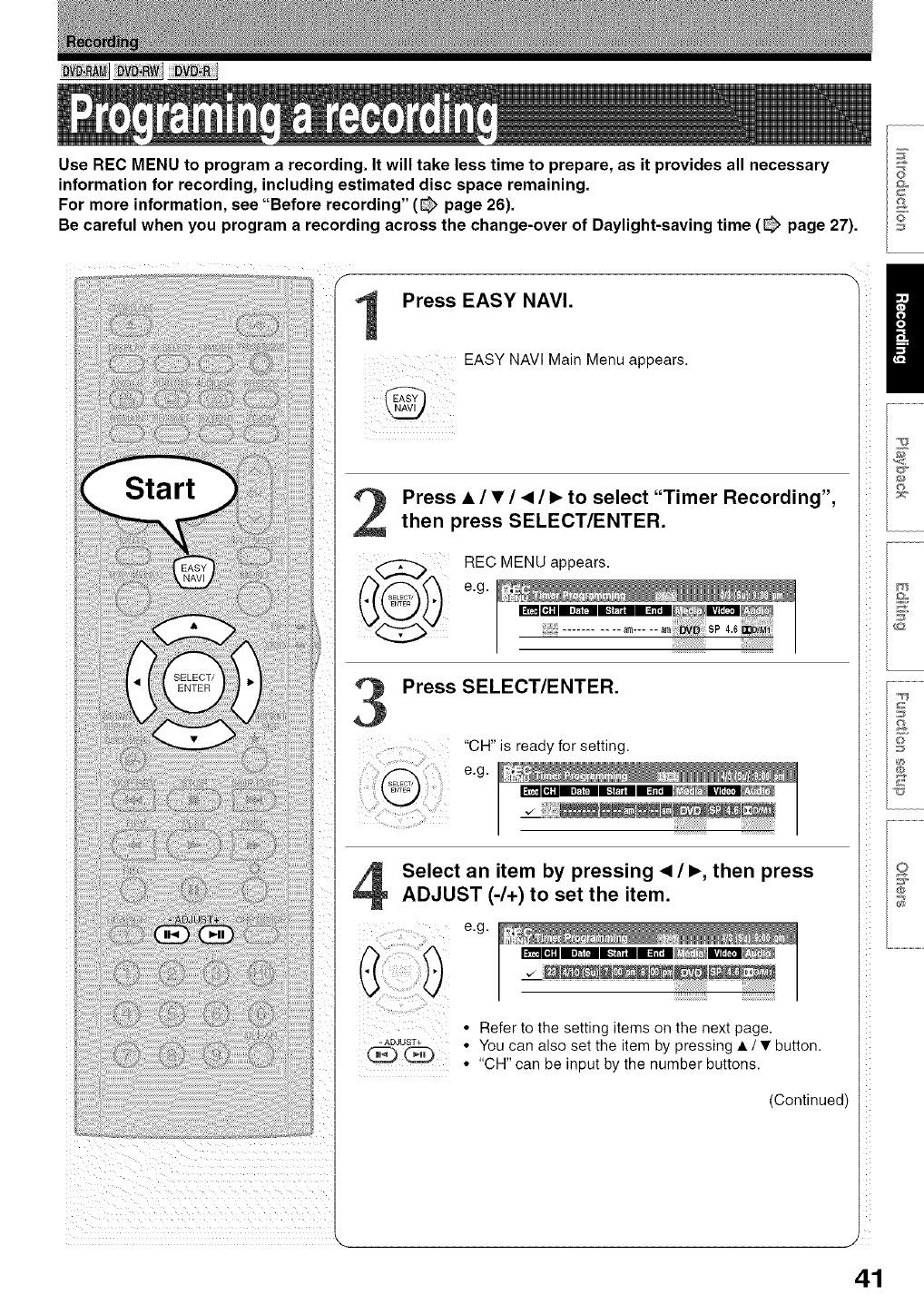

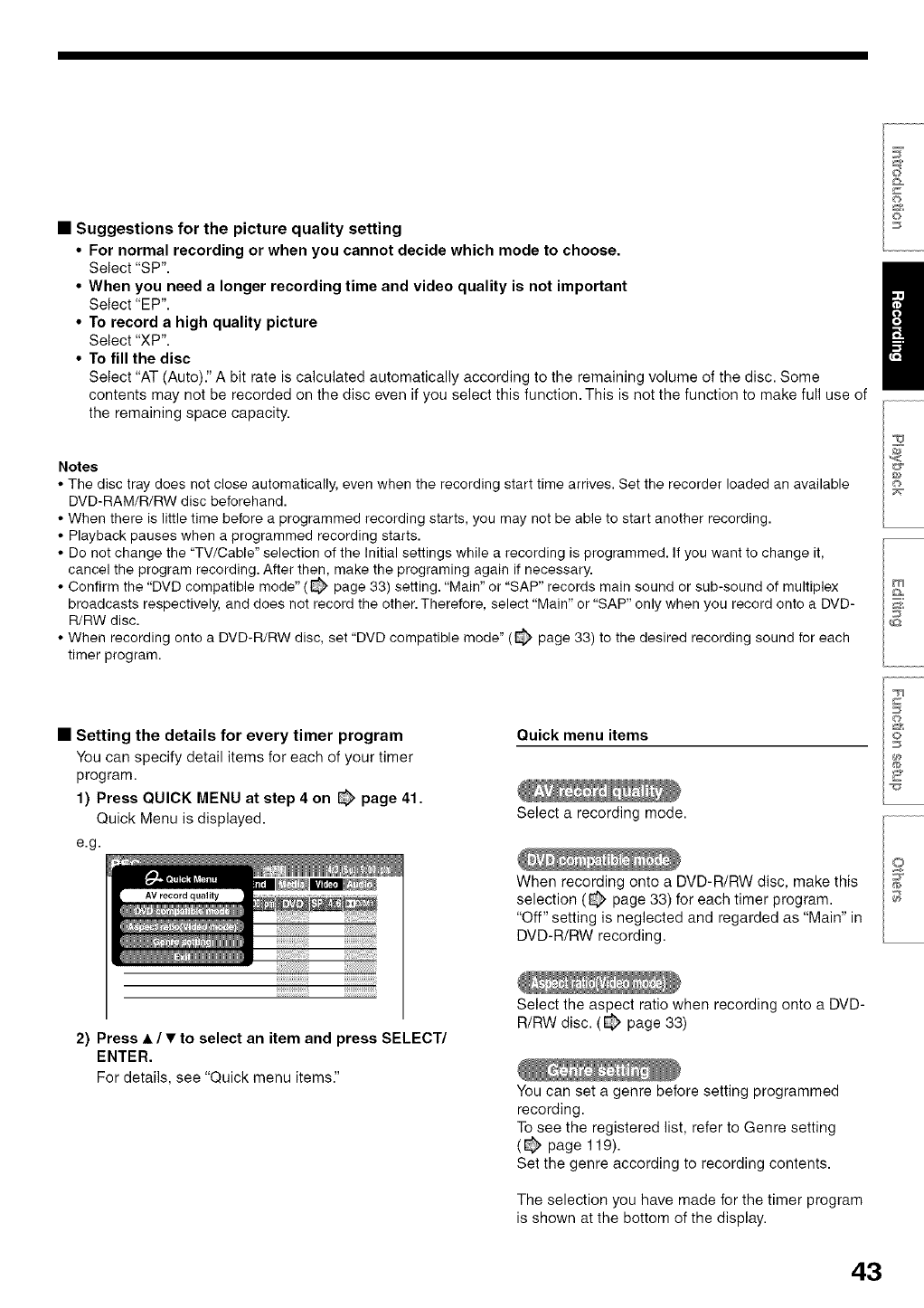

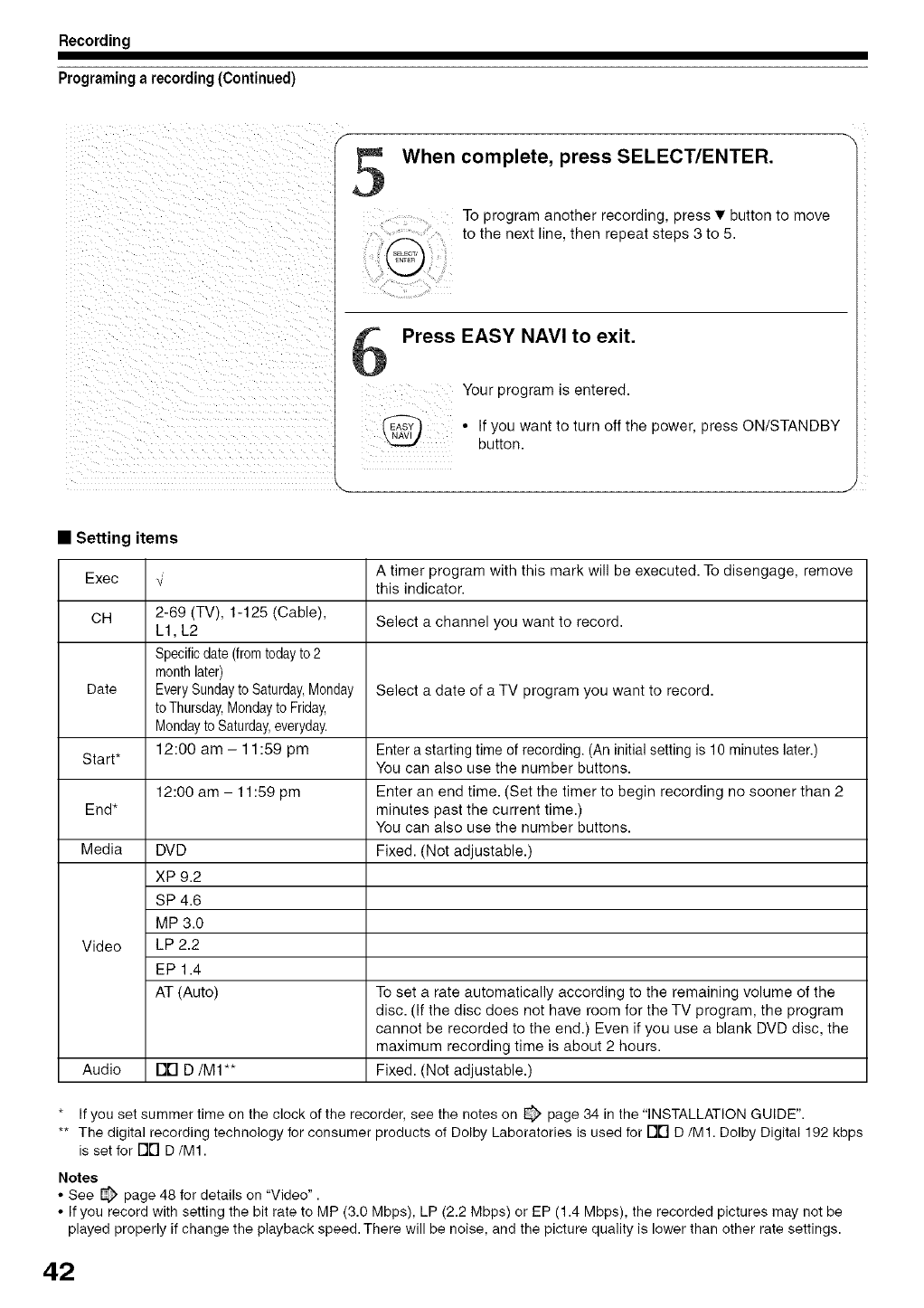

•Programming a recording ................................ 41

•Others ................................................................. 47

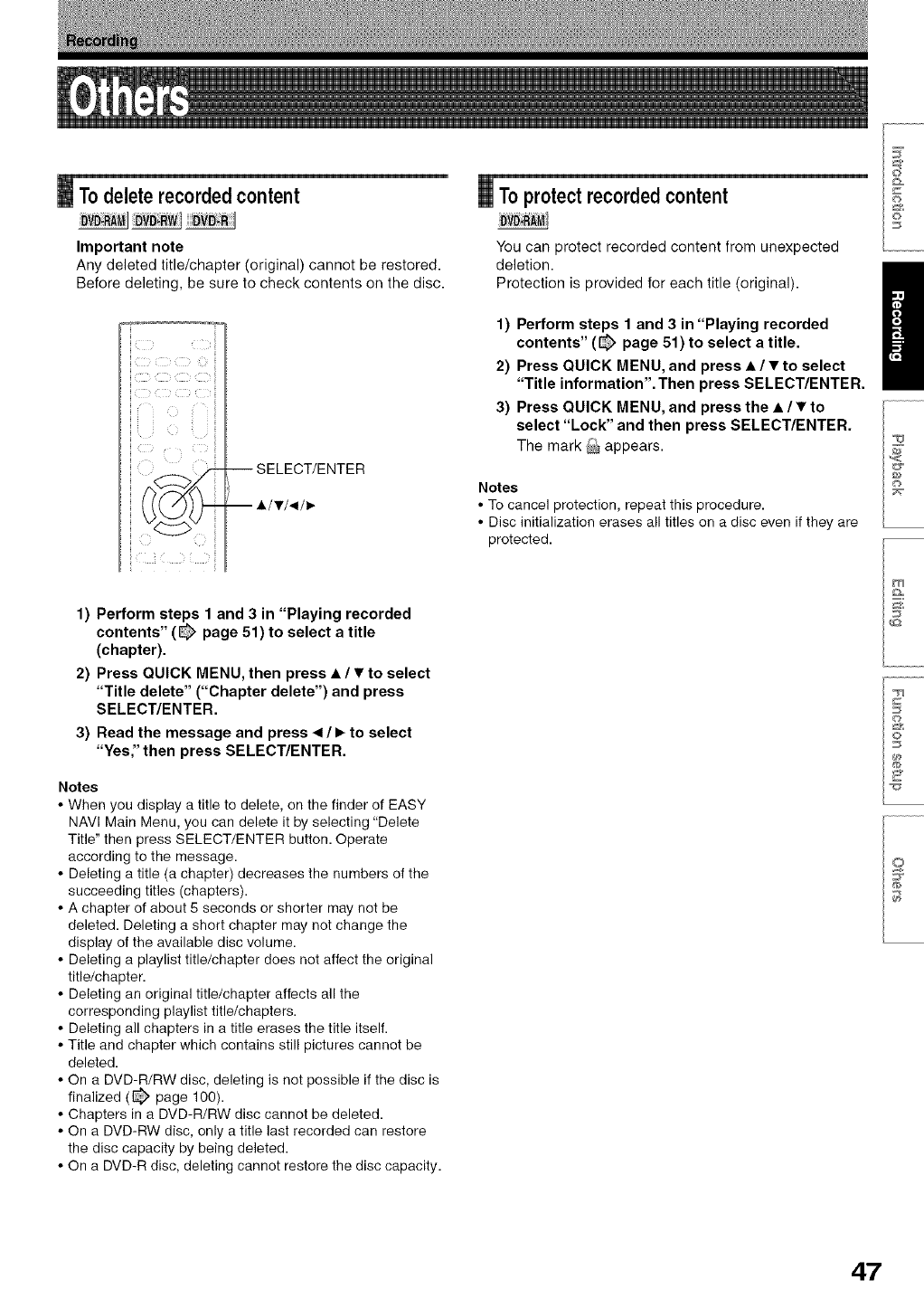

To delete recorded content .................................... 47

To protect recorded content ................................... 47

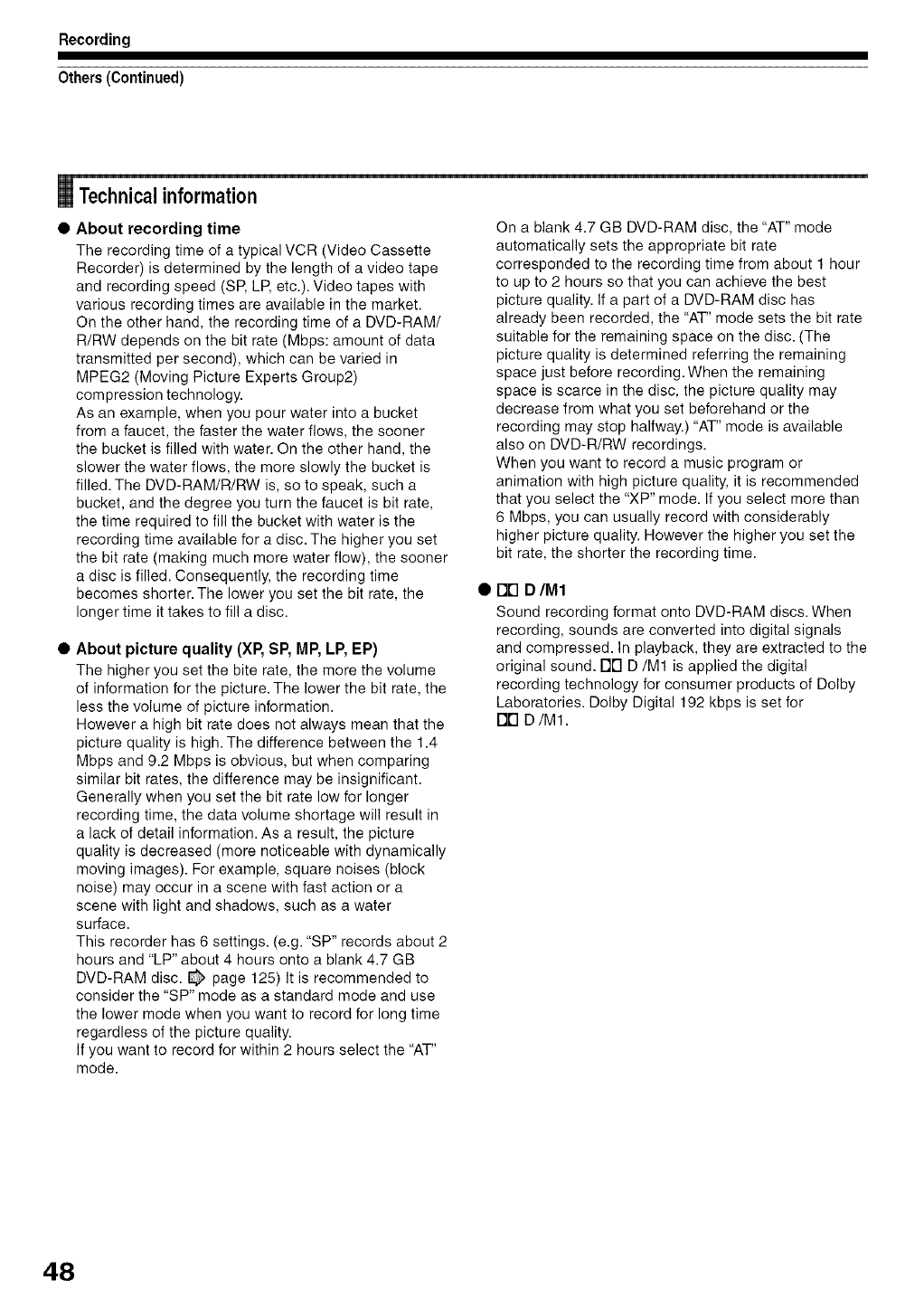

Technical information ............................................ 48

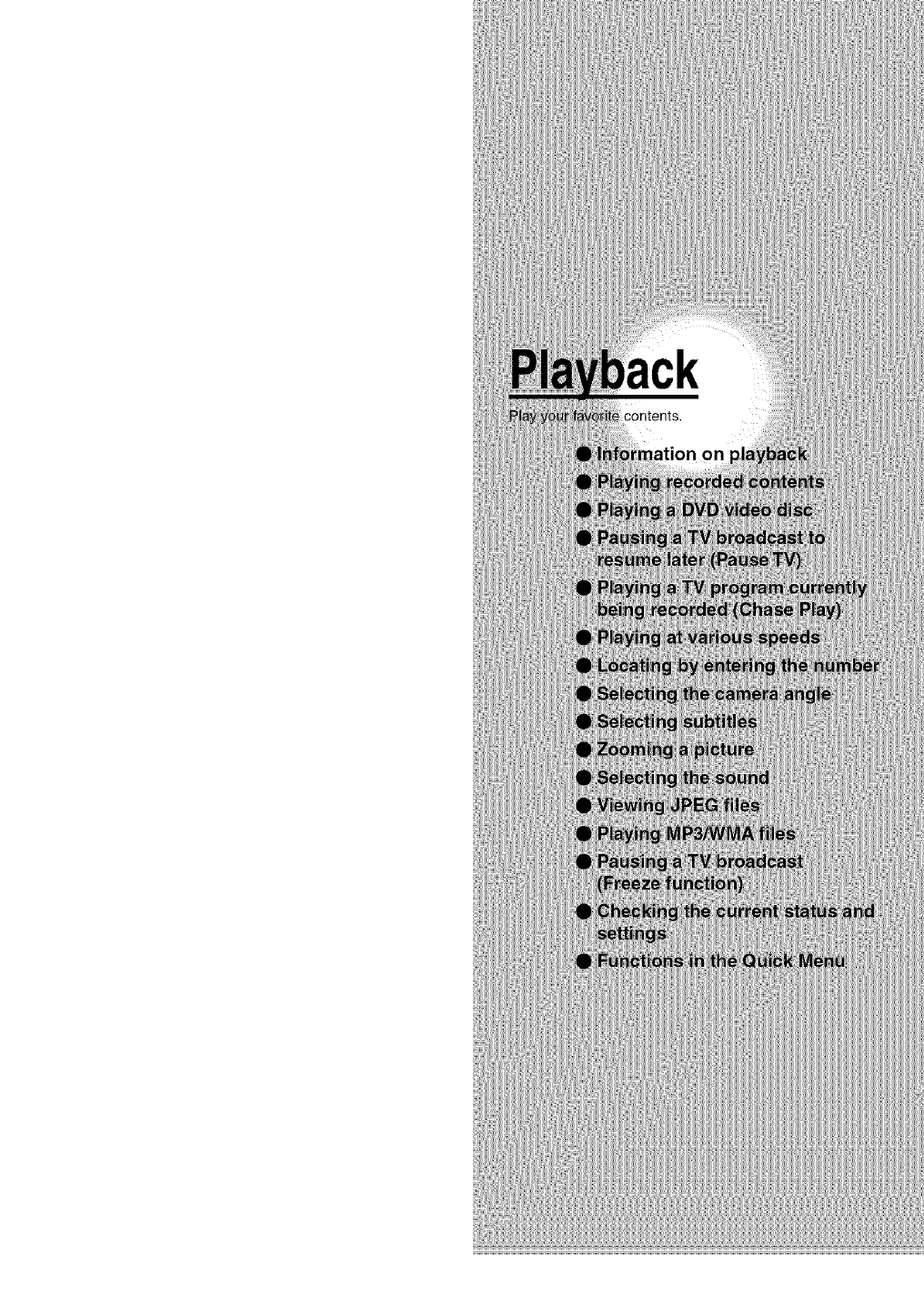

Playback

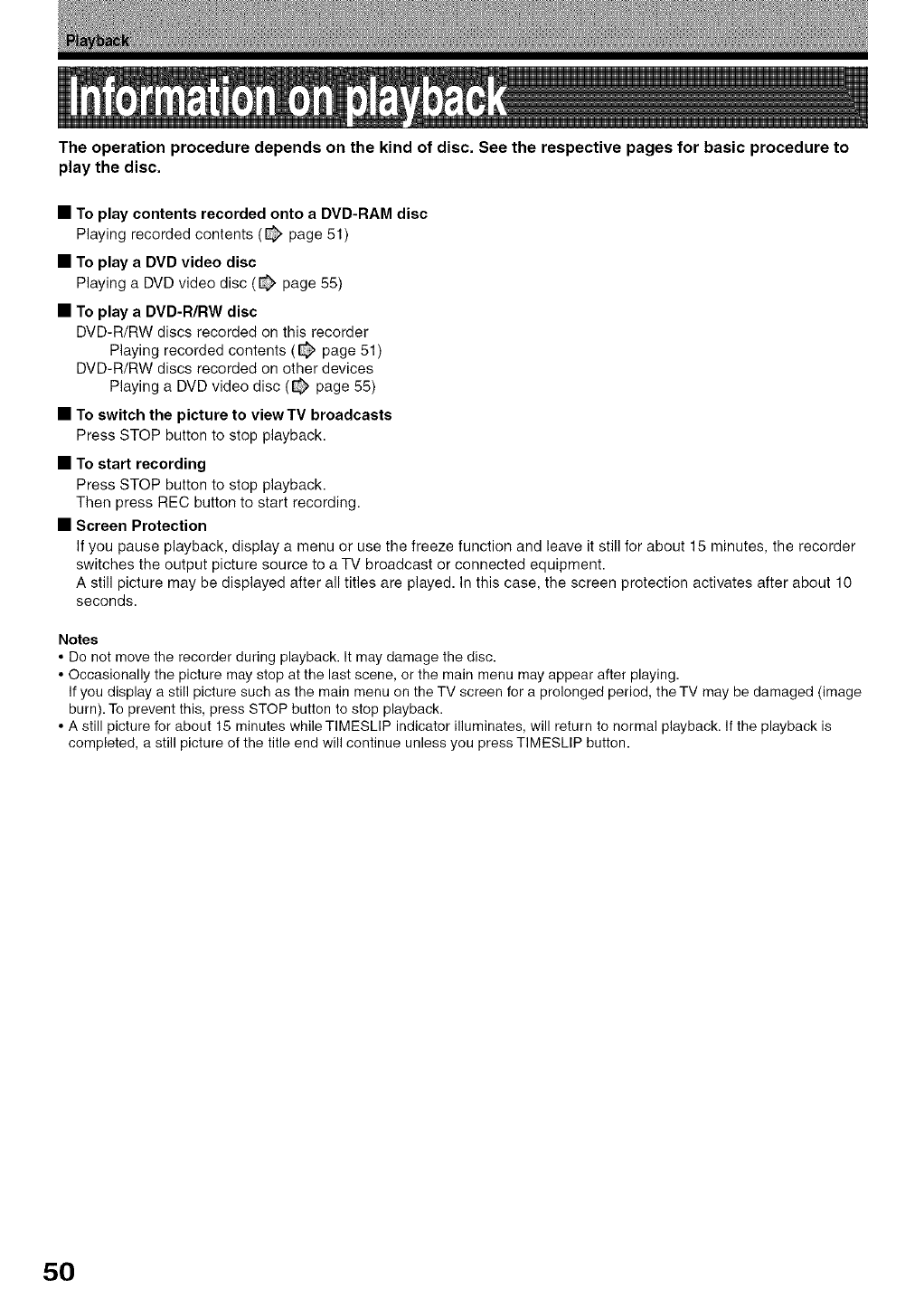

•Information on playback ................................... 50

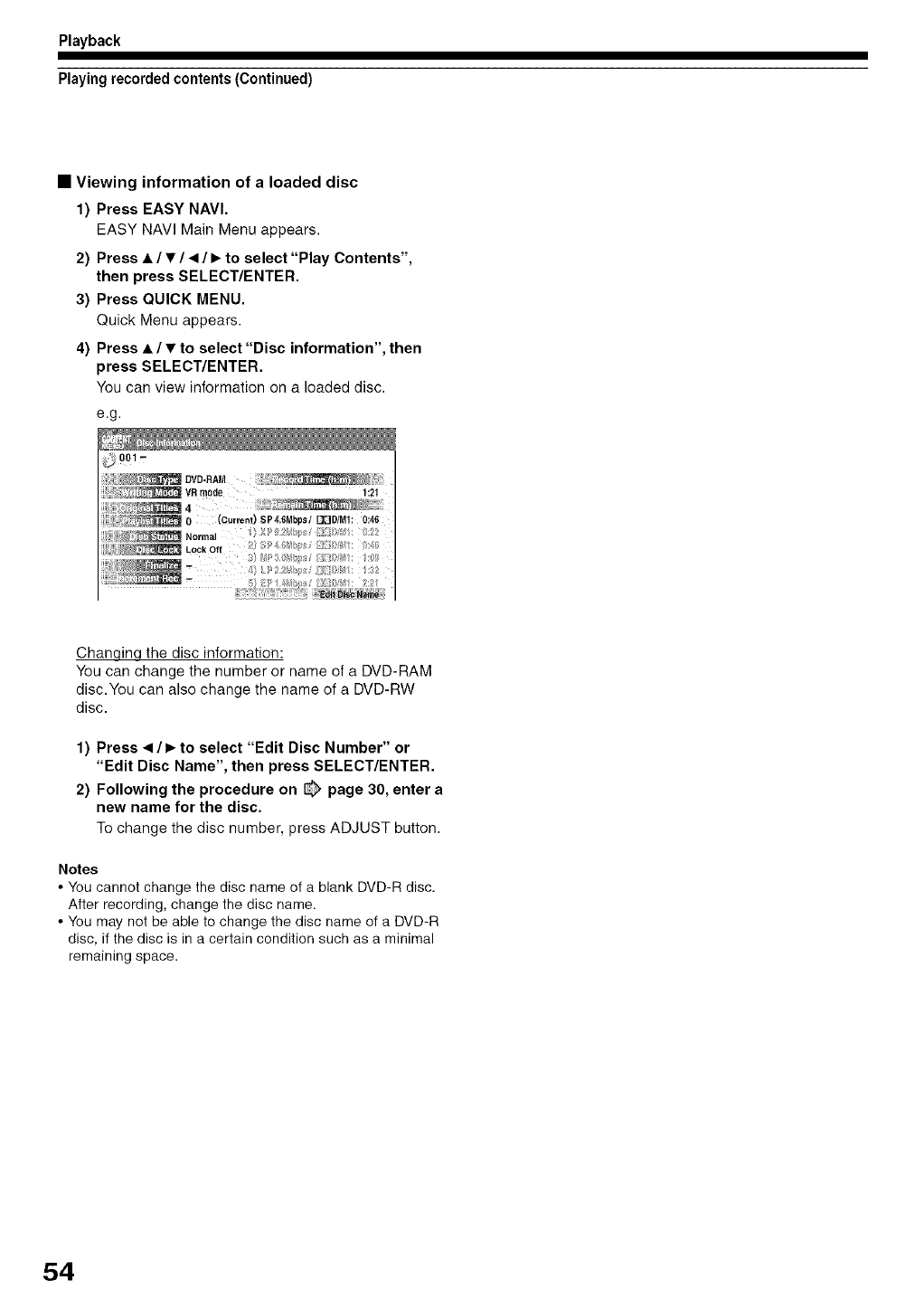

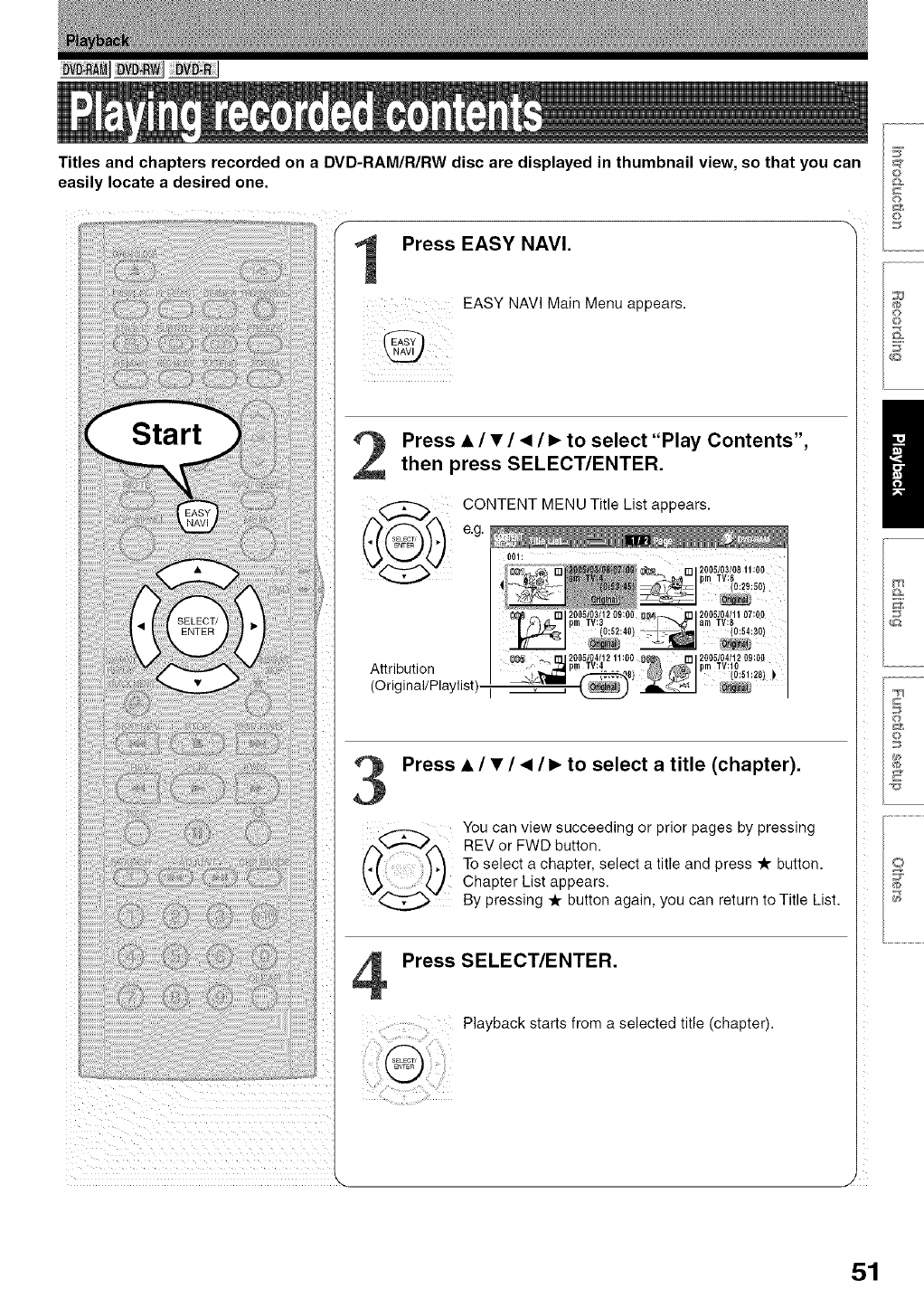

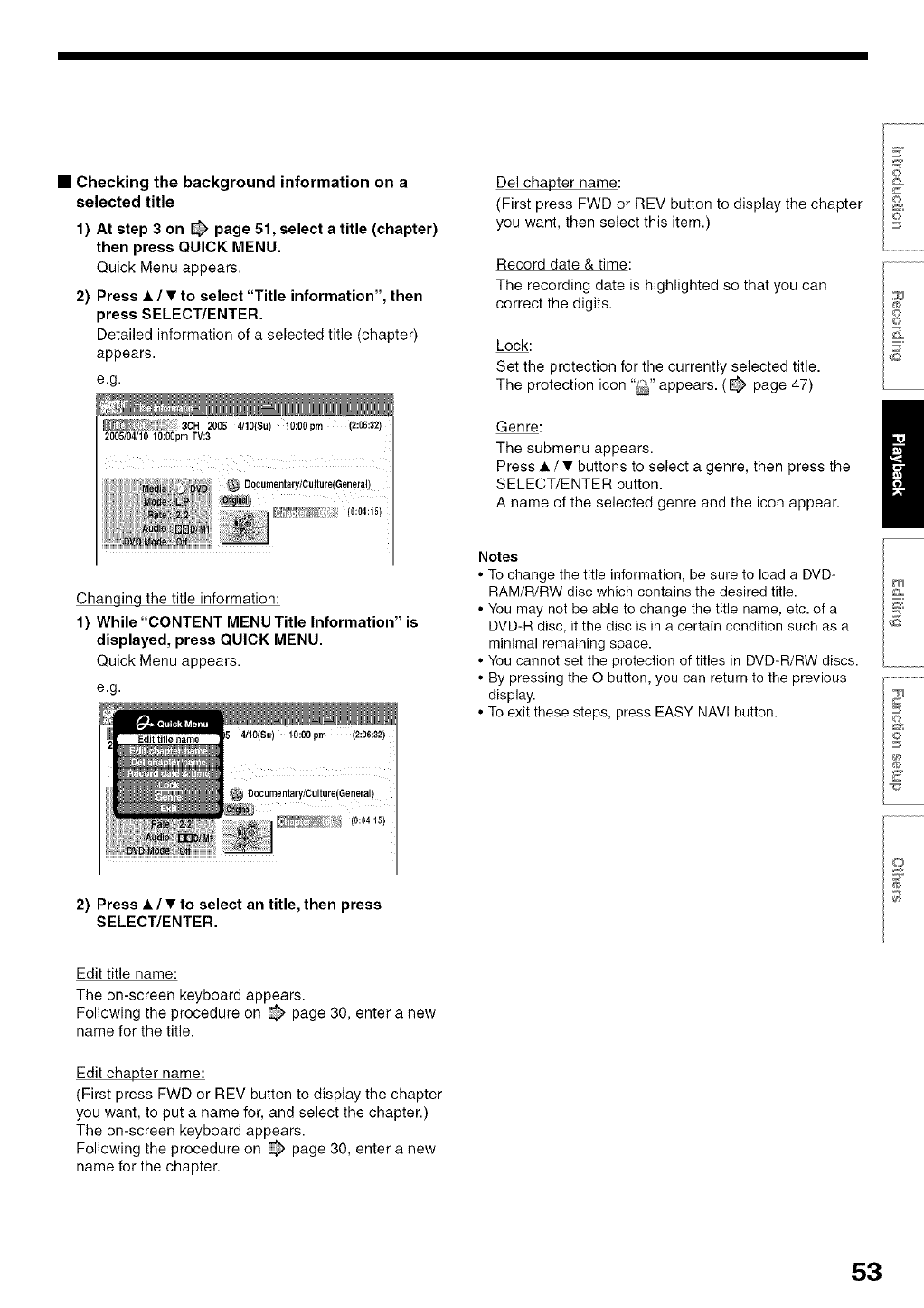

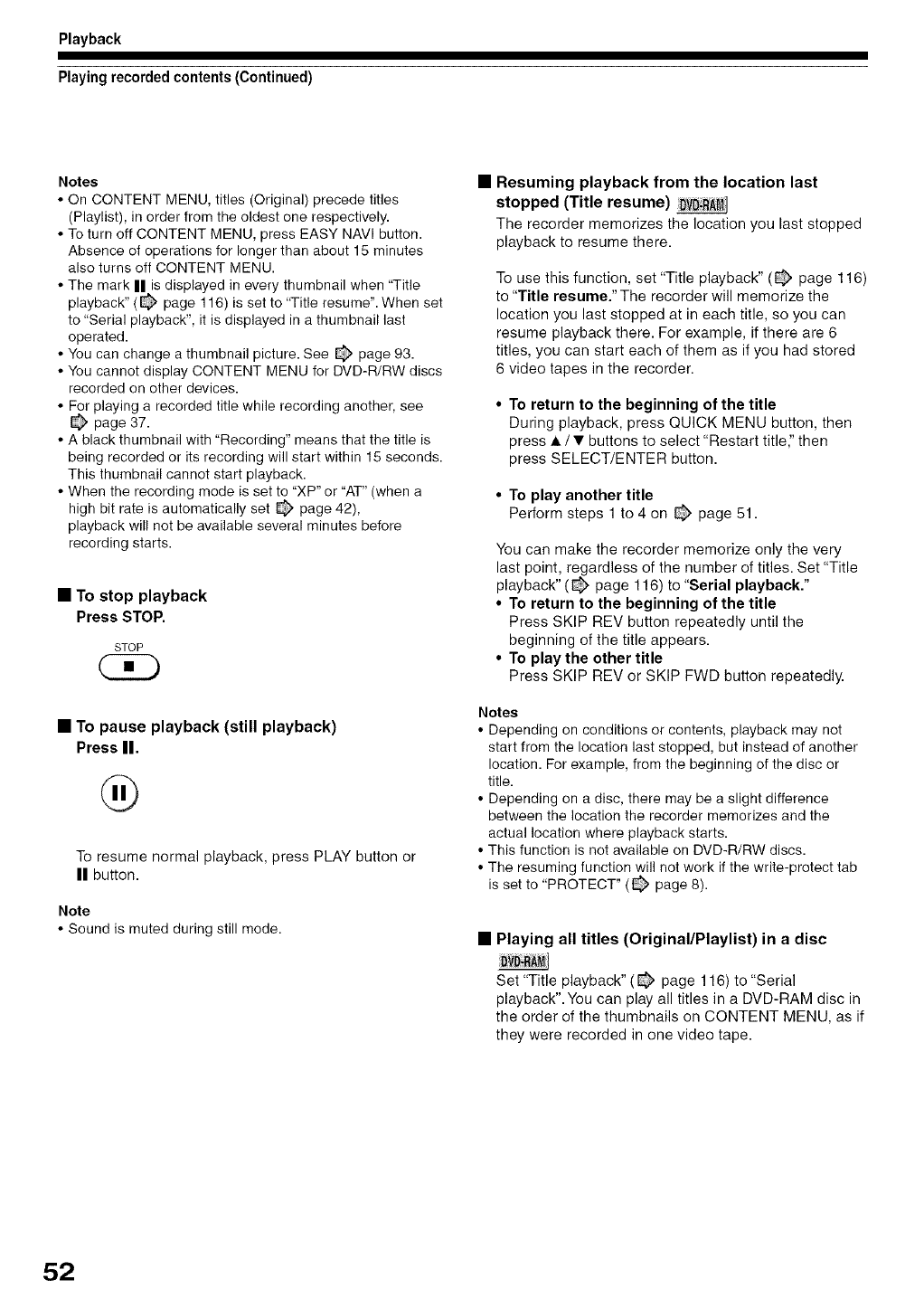

•Playing recorded contents ............................... 51

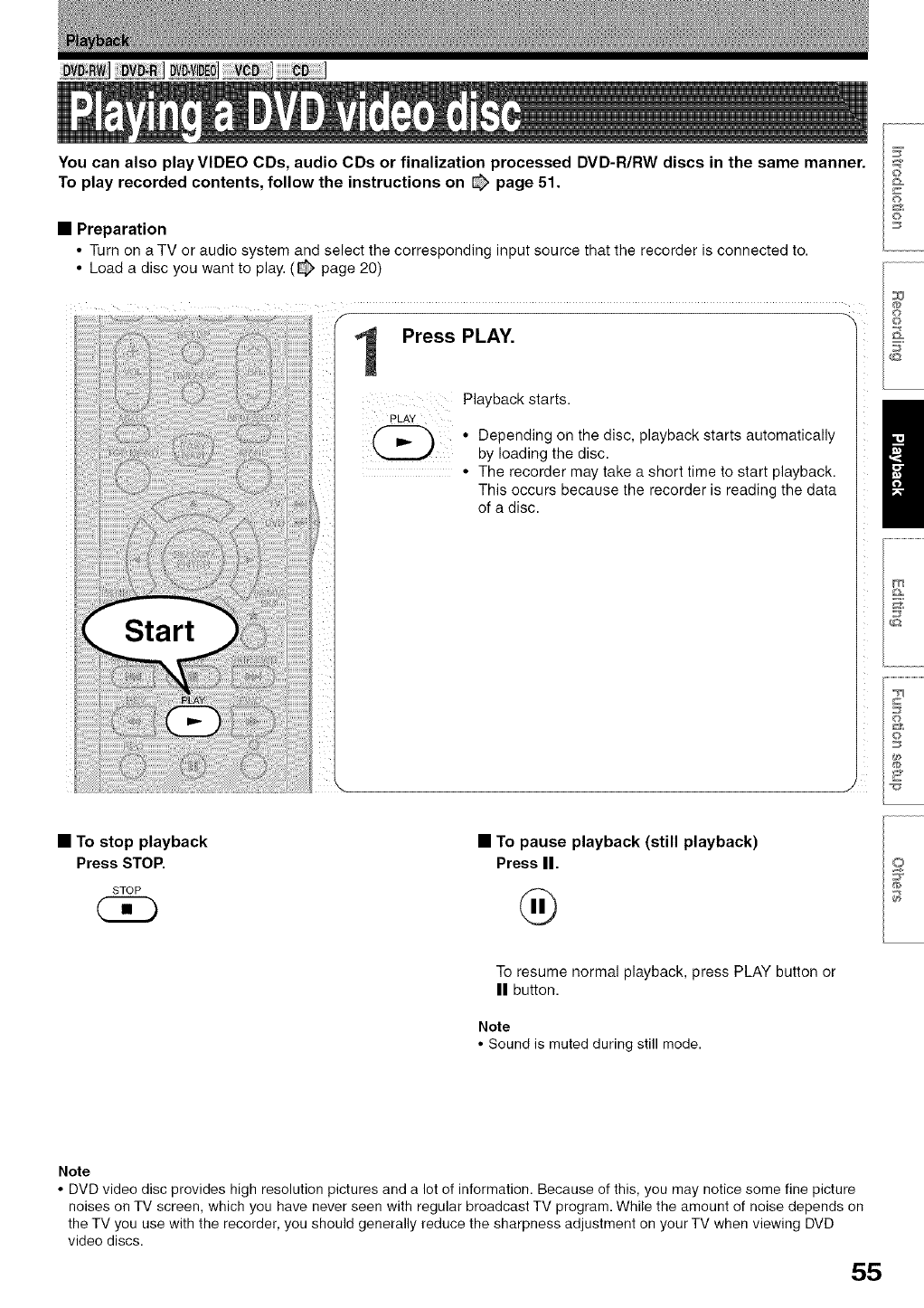

•Playing a DVD video disc ................................. 55

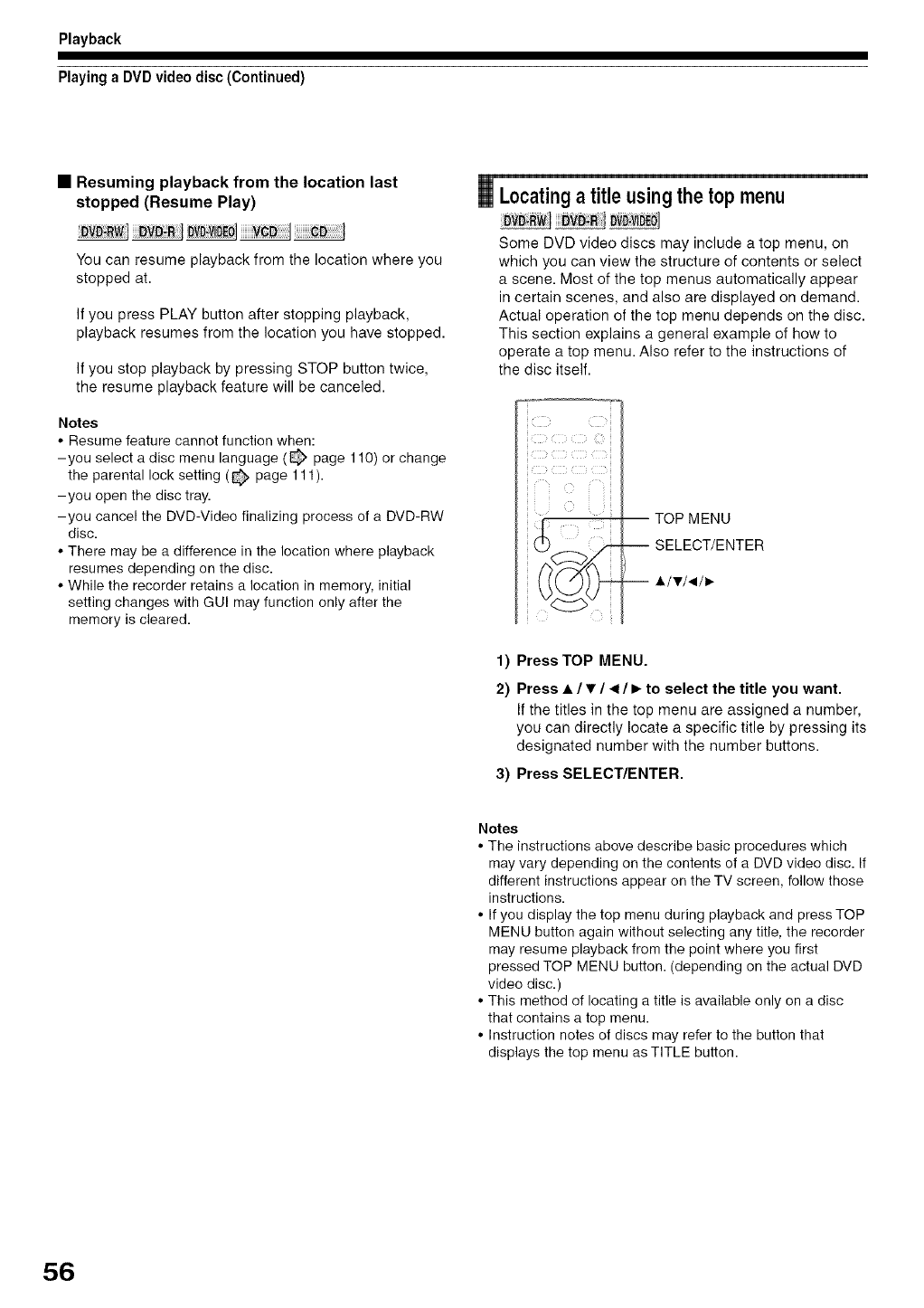

Locating a title using the top menu ........................ 56

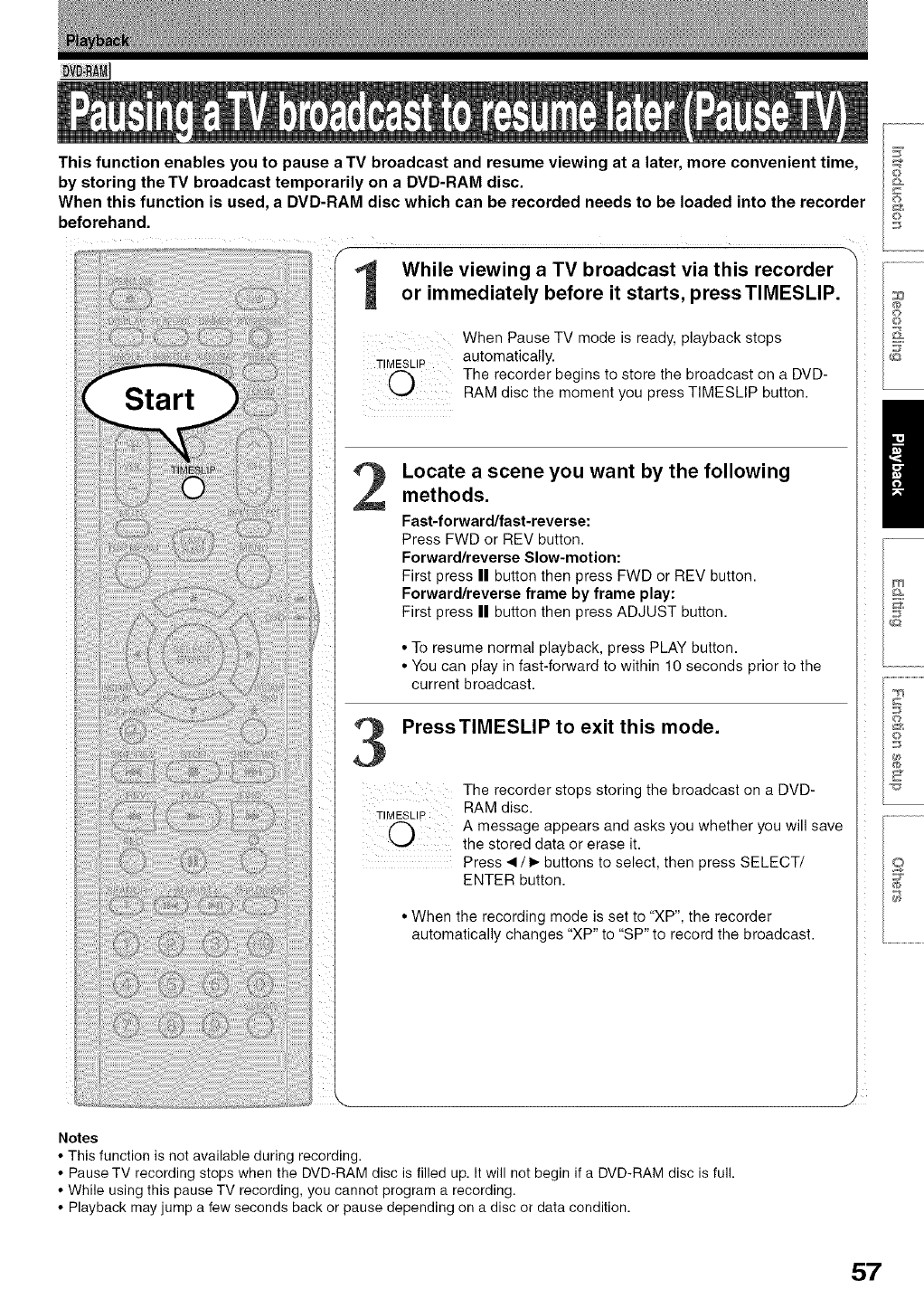

•Pausing aTV broadcast to resume later

(Pause TV) .......................................................... 57

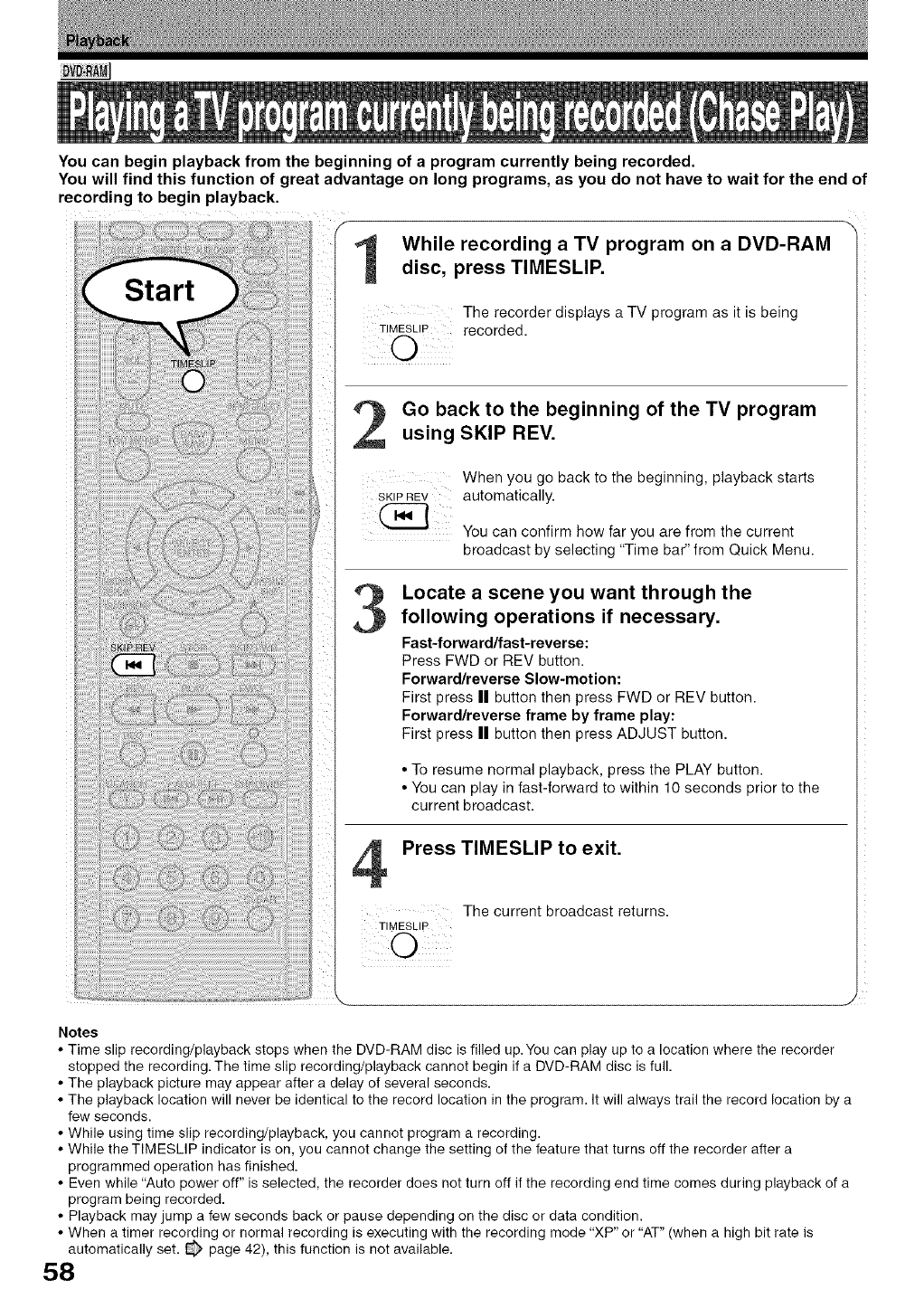

• Playing aTV program currently being

recorded (Chase Play) ...................................... 58

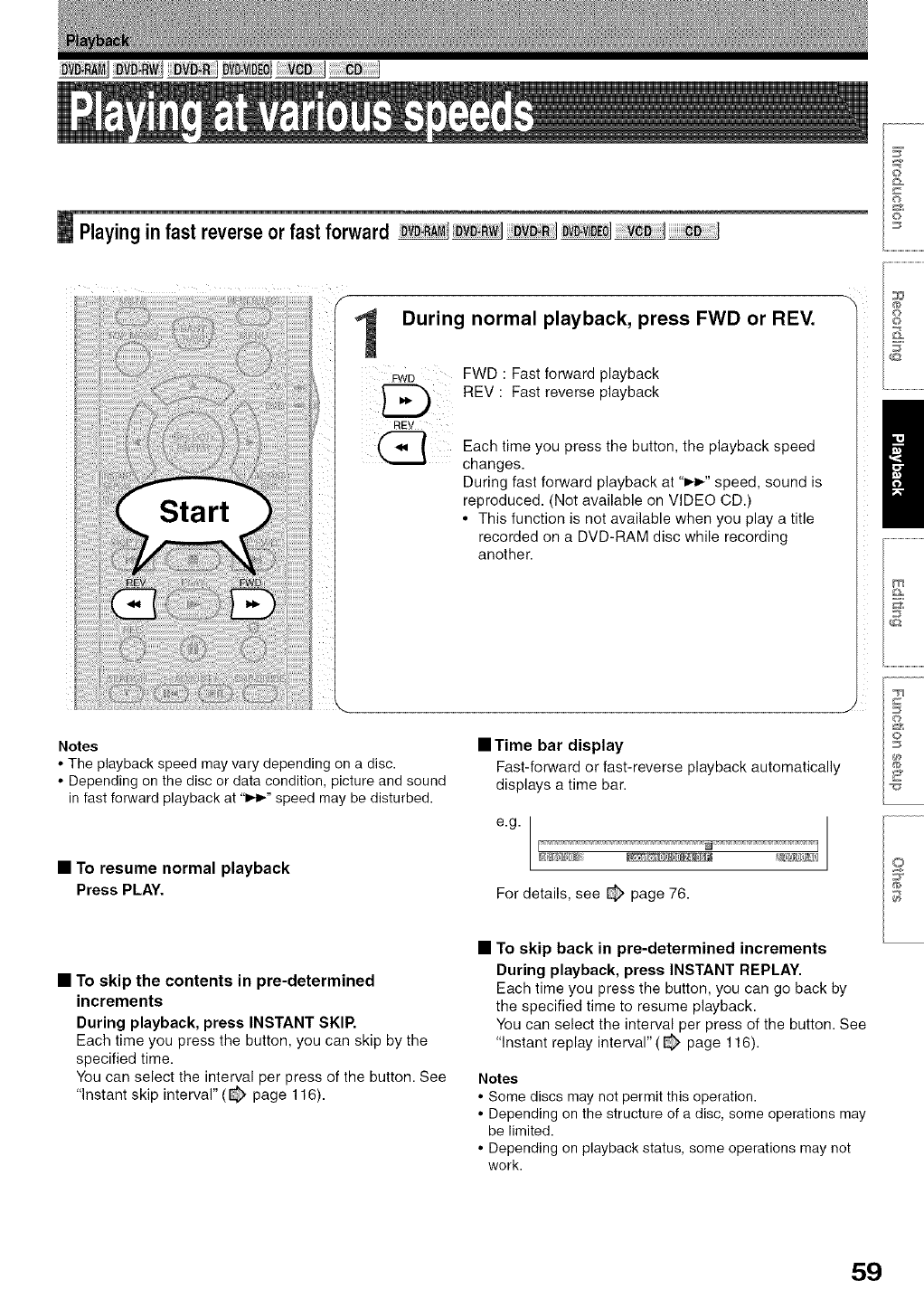

•Playing at various speeds ................................ 59

Playing in fast reverse or fast forward ..................... 59

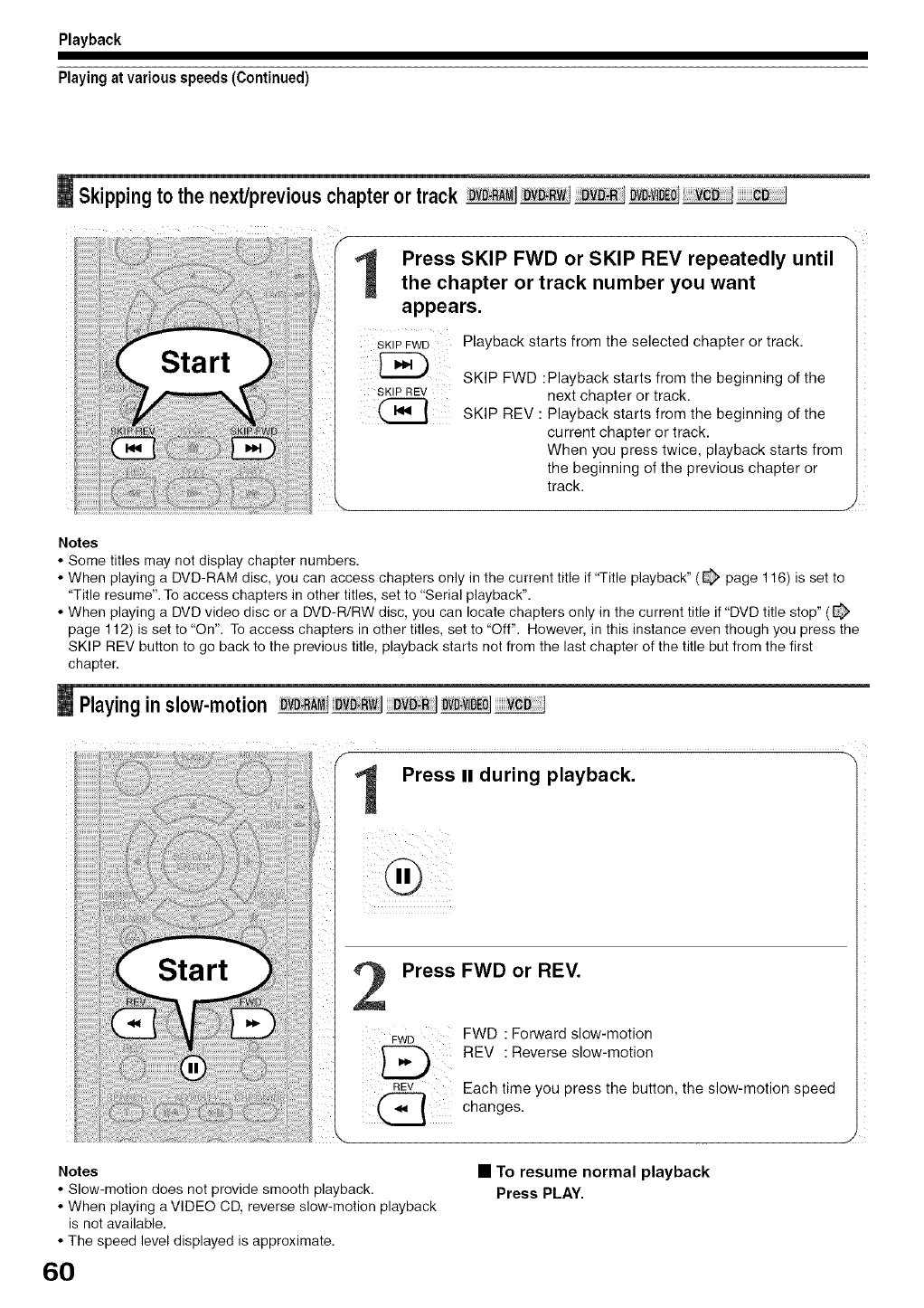

Skipping to the next/previous chapter or track ........ 60

Playing in slow-motion .......................................... 60

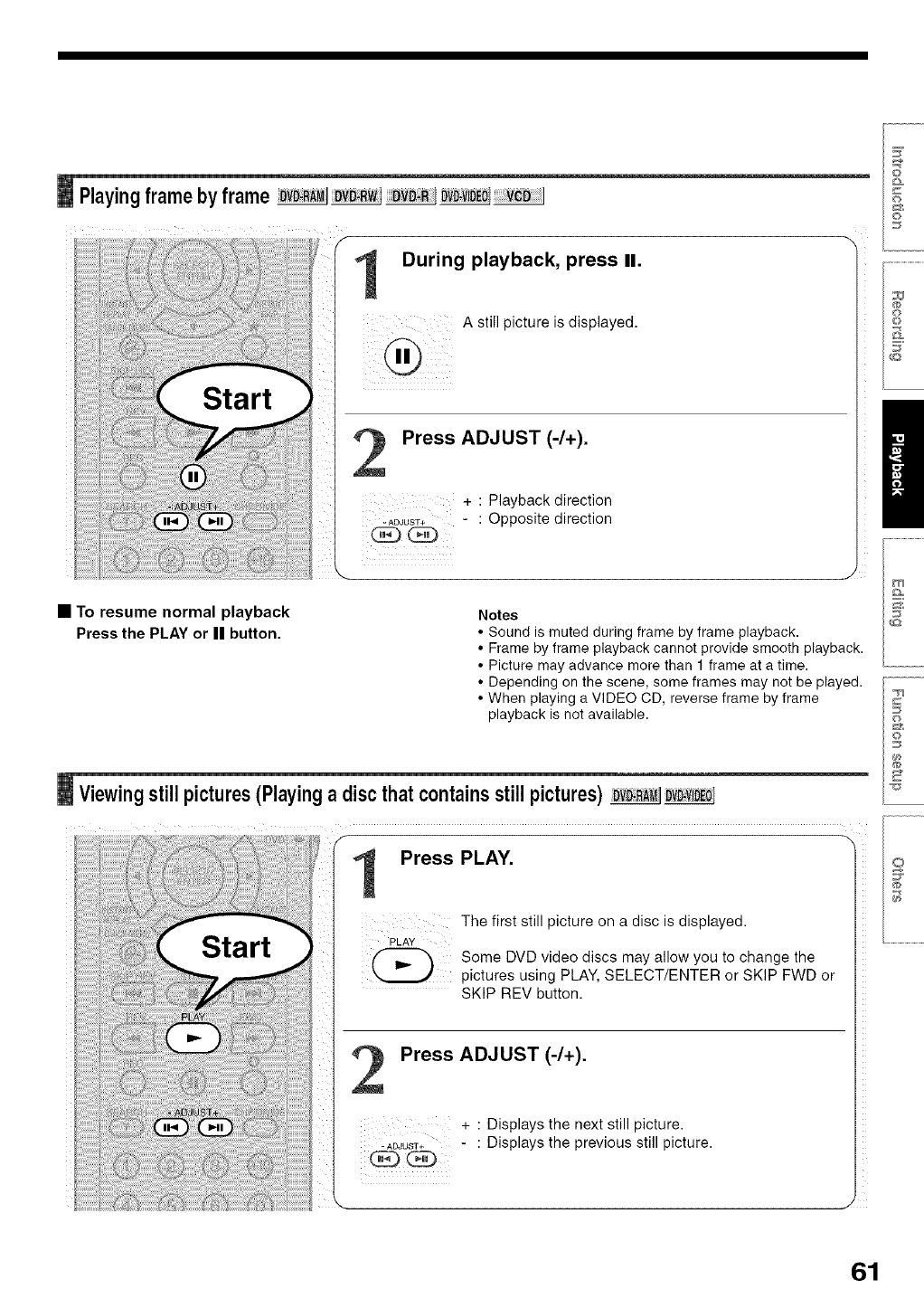

Playing frame by frame ......................................... 61

Viewing still pictures

(Playing a disc that contains still pictures) .............. 61

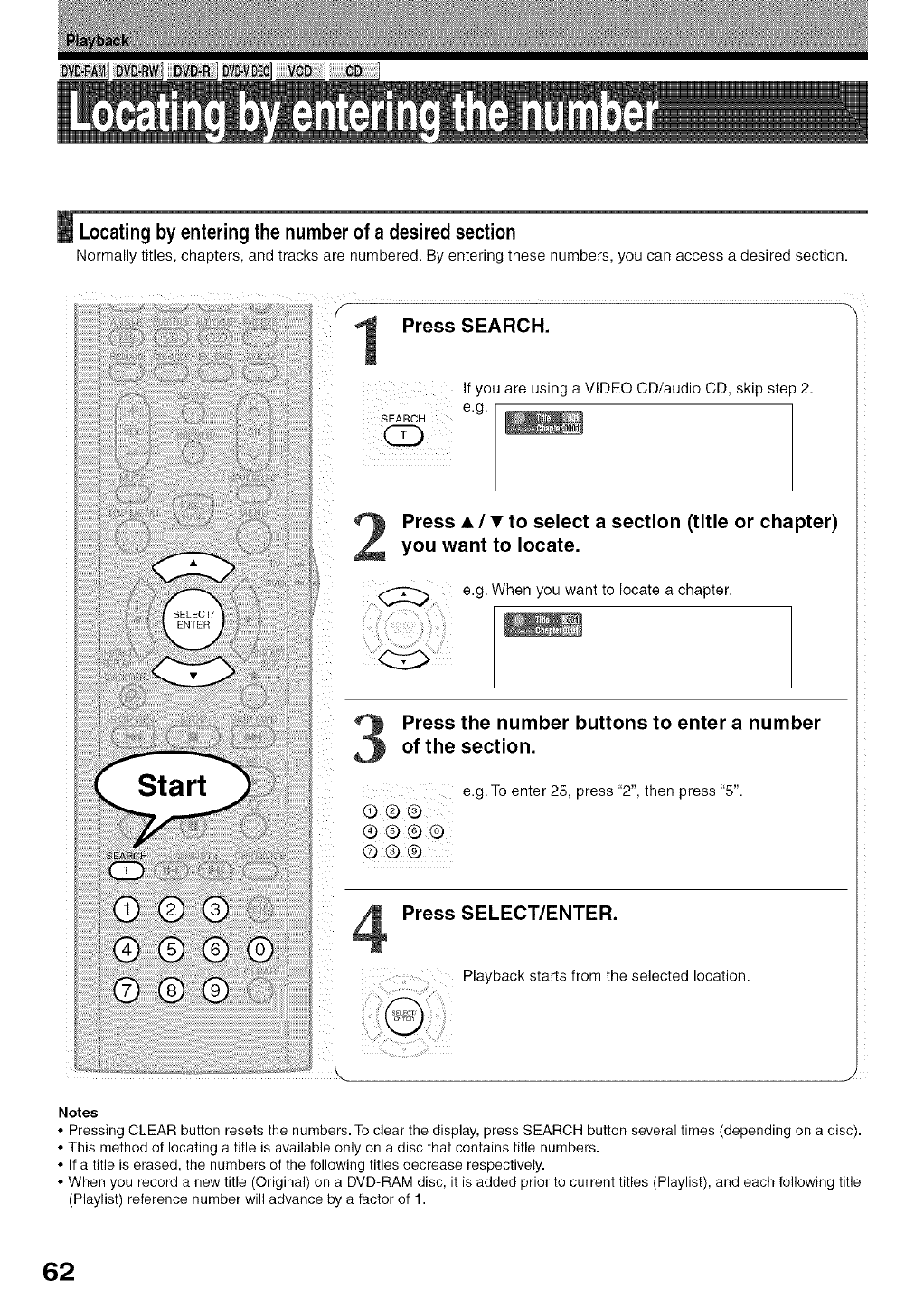

•Locating by entering the number .................... 62

Locating by entering the number of a desired

section ................................................................. 62

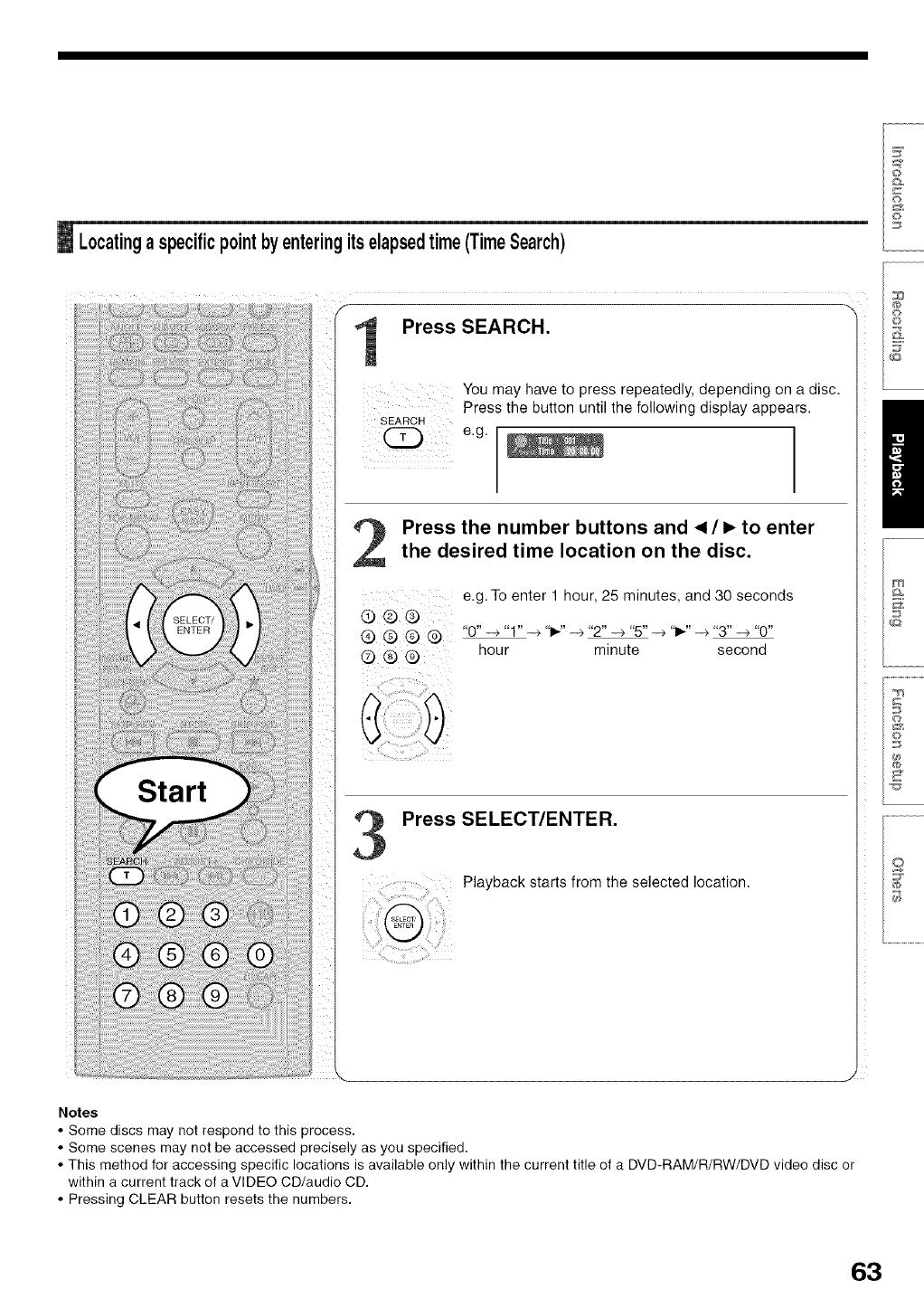

Locating a specific point by entering its elapsed time

(Time Search) ....................................................... 63

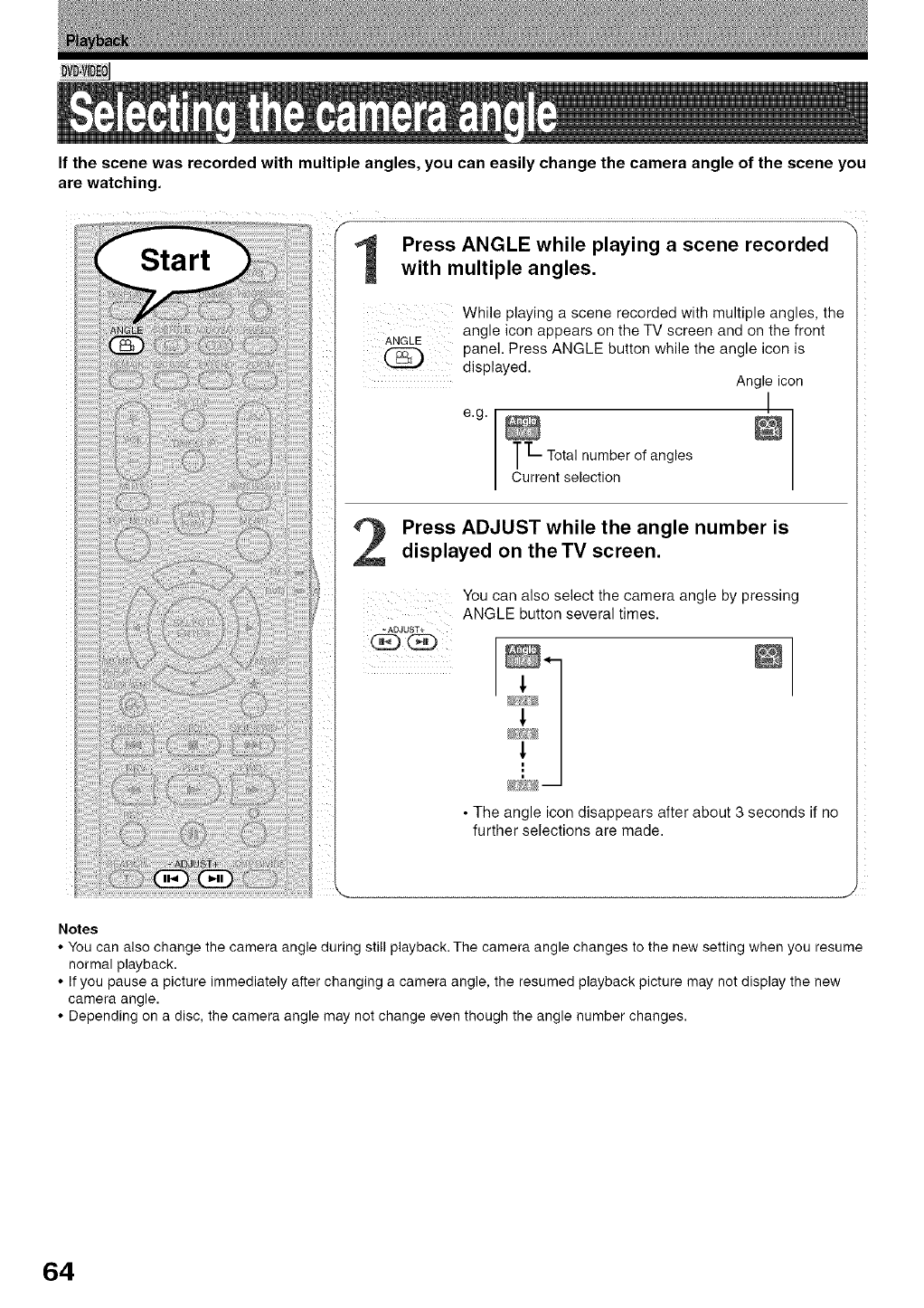

• Selecting the camera angle .............................. 64

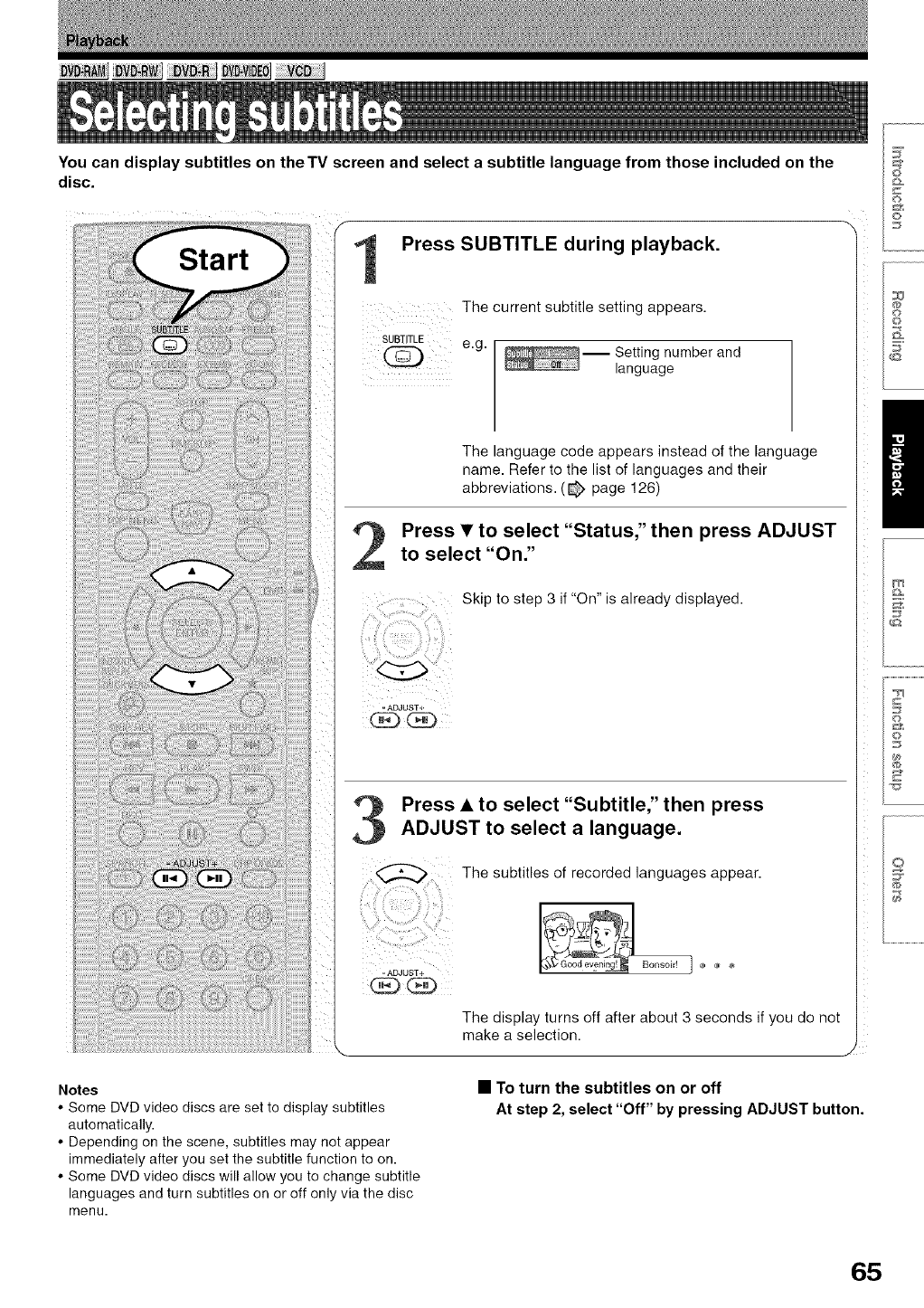

• Selecting subtitles ............................................ 65

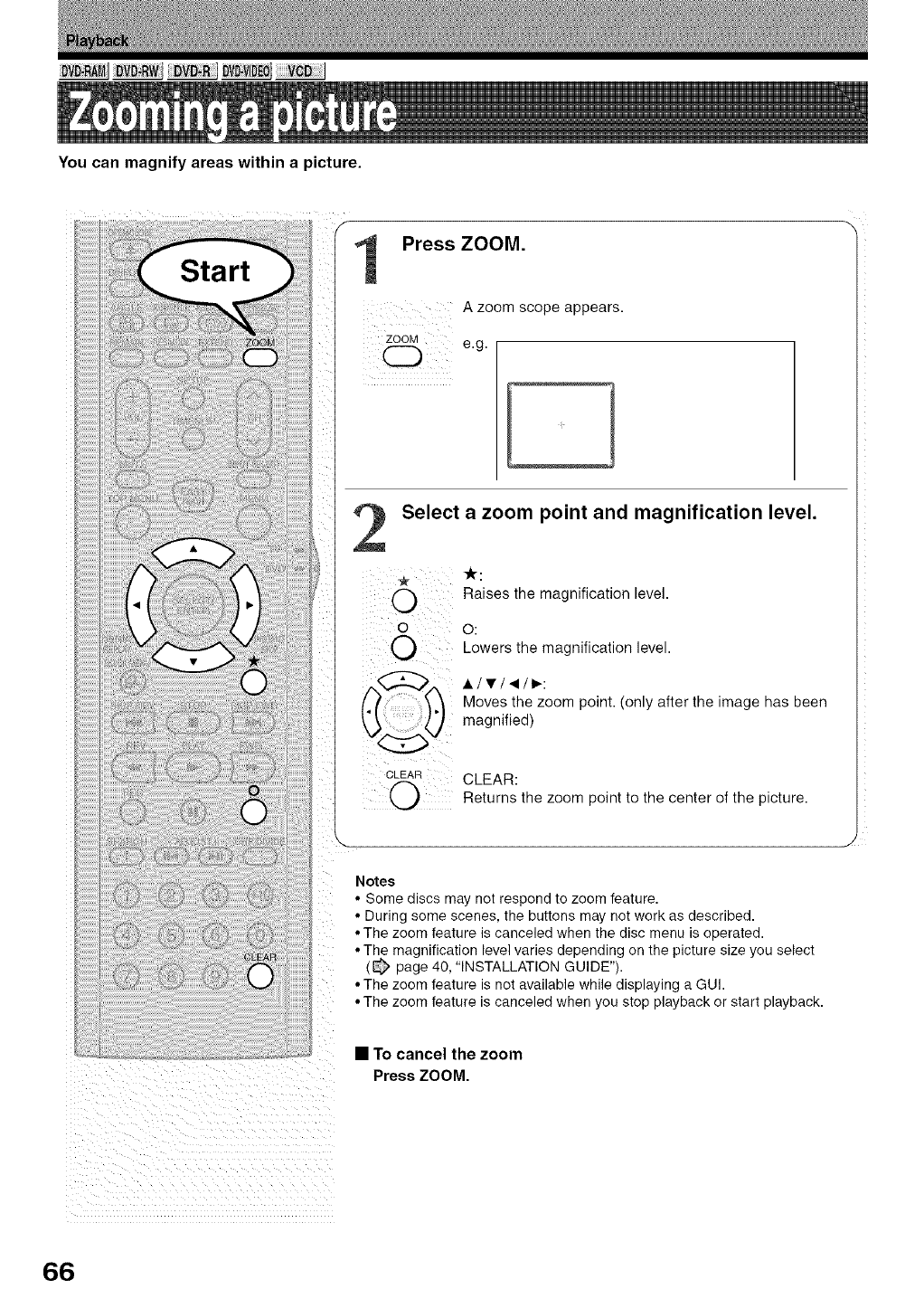

• Zooming apicture ............................................. 66

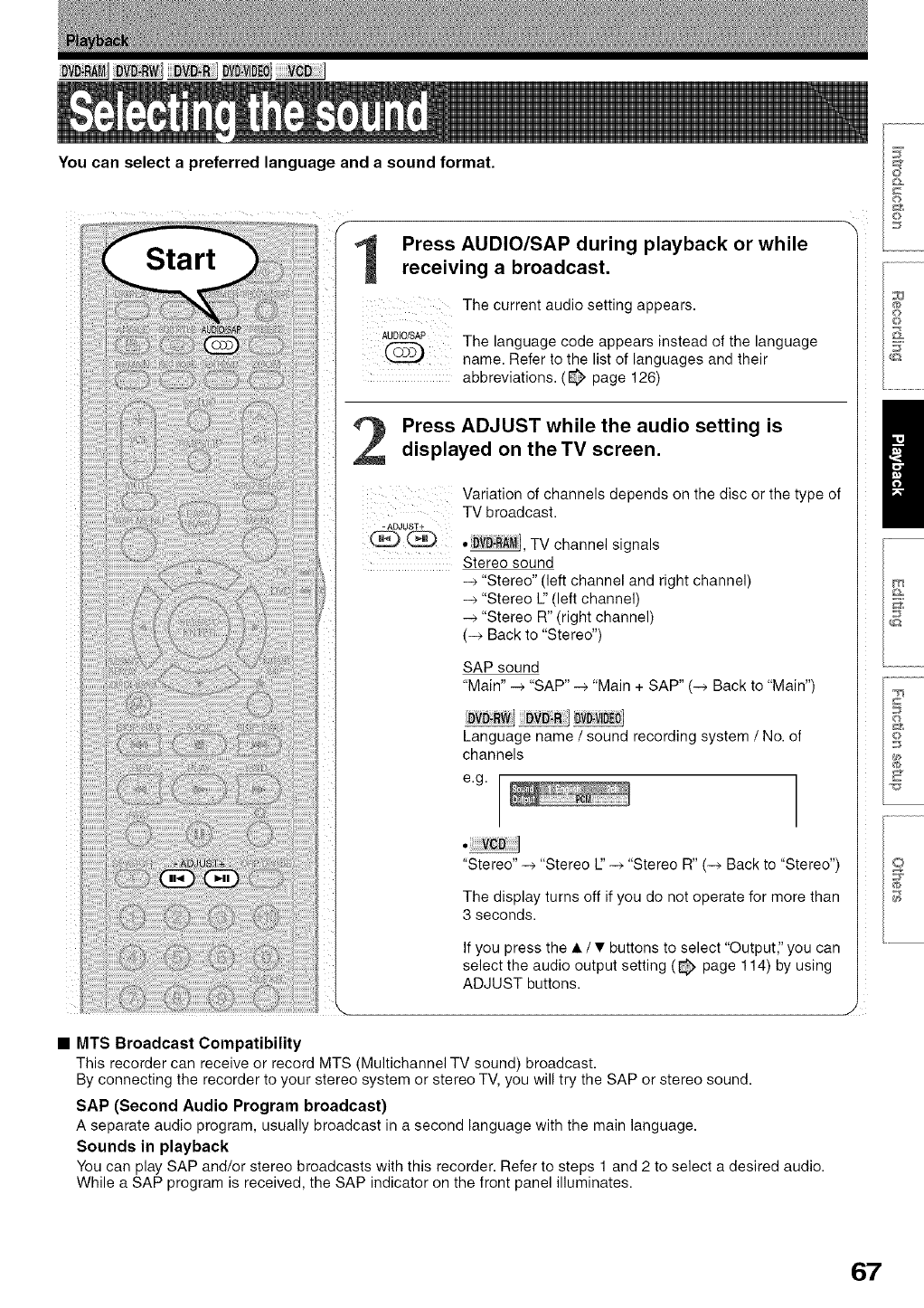

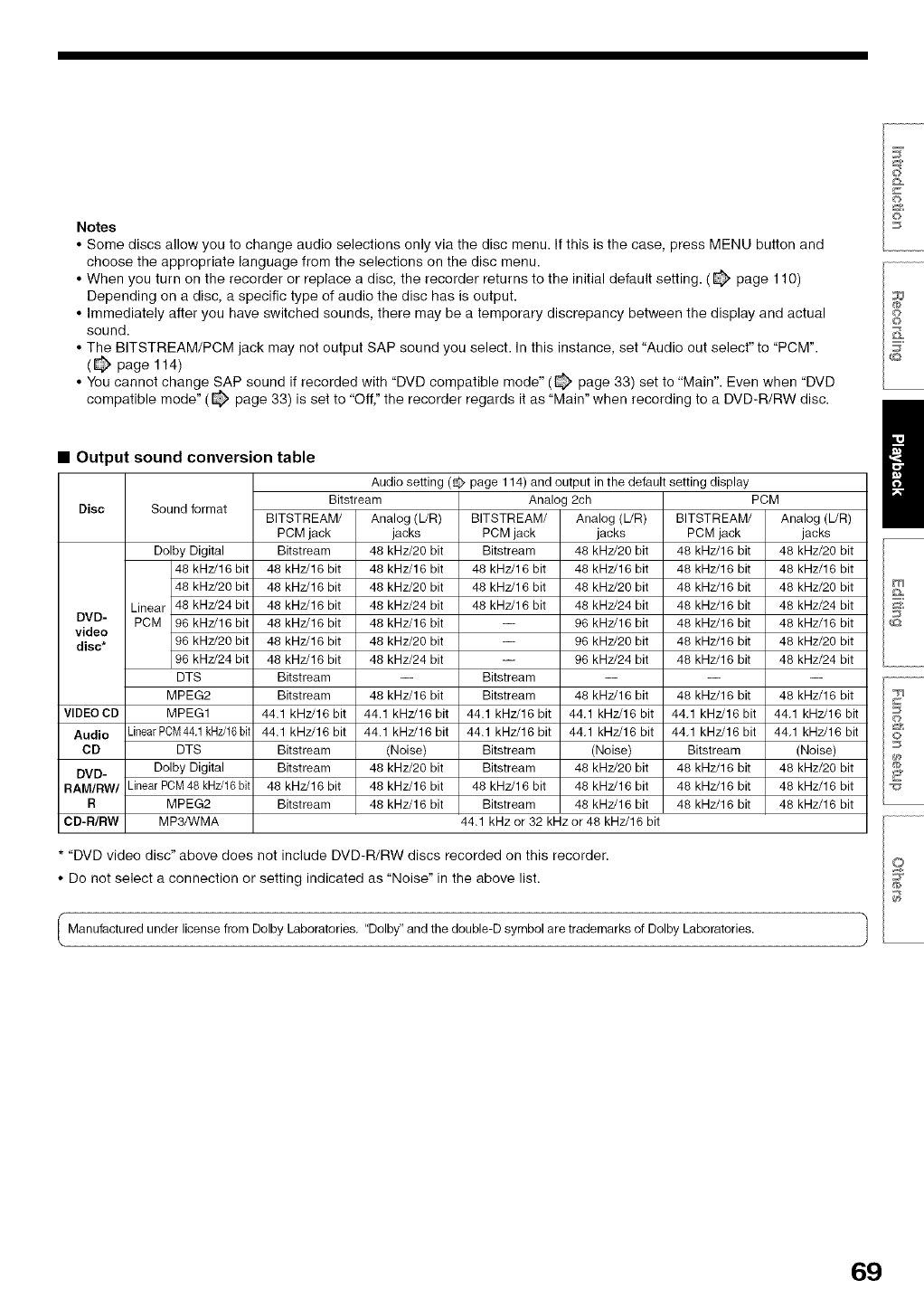

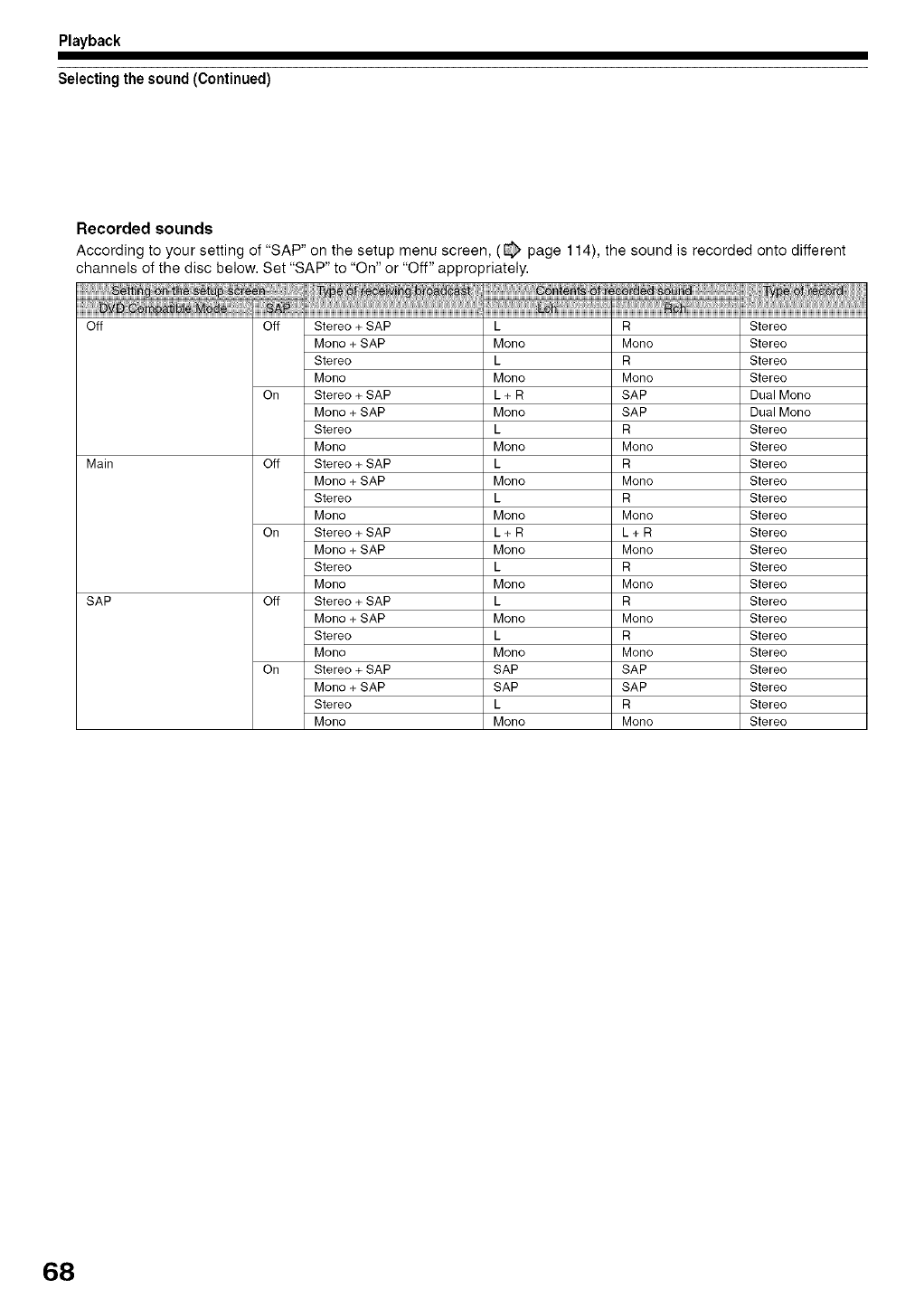

• Selecting the sound .......................................... 67

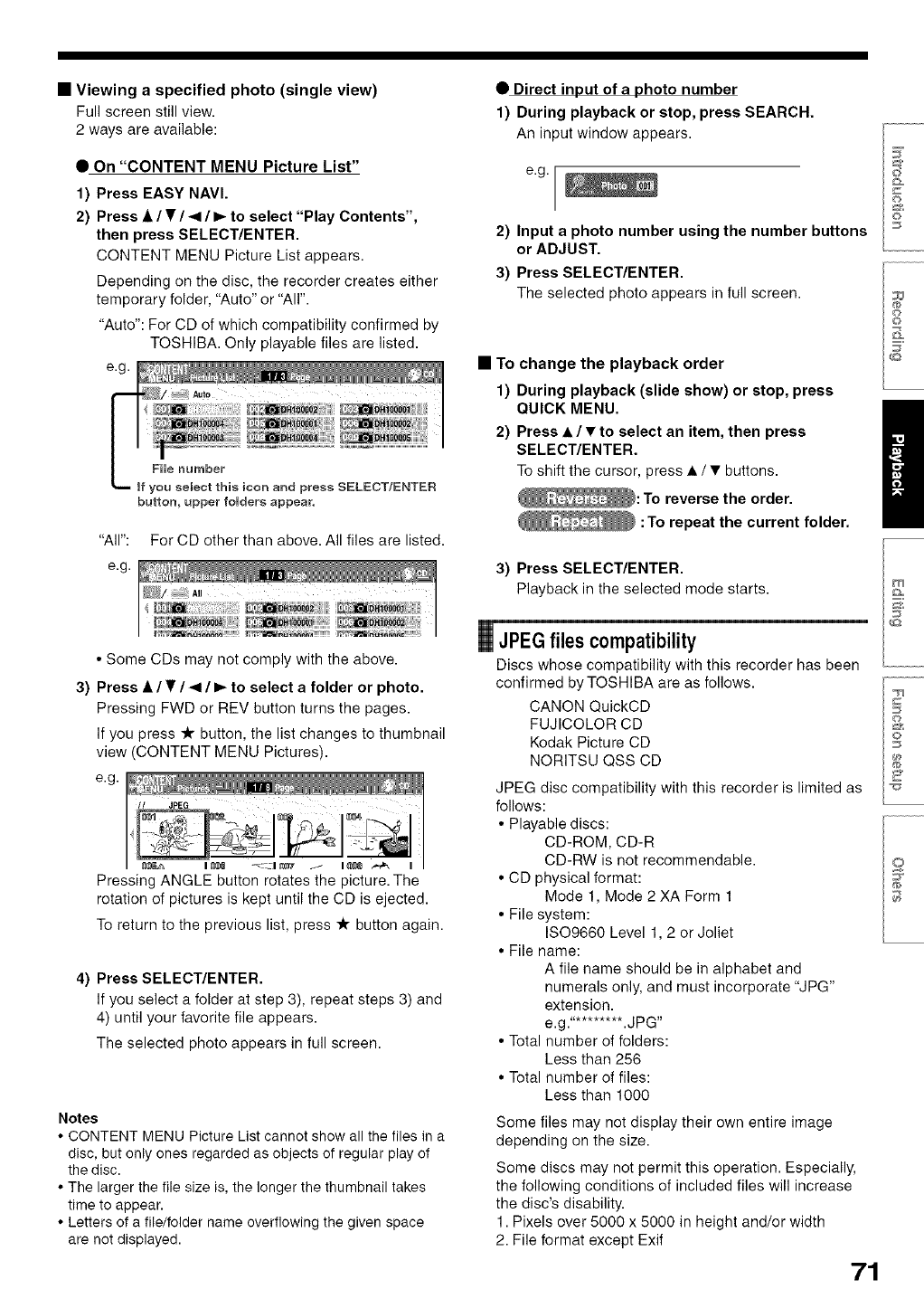

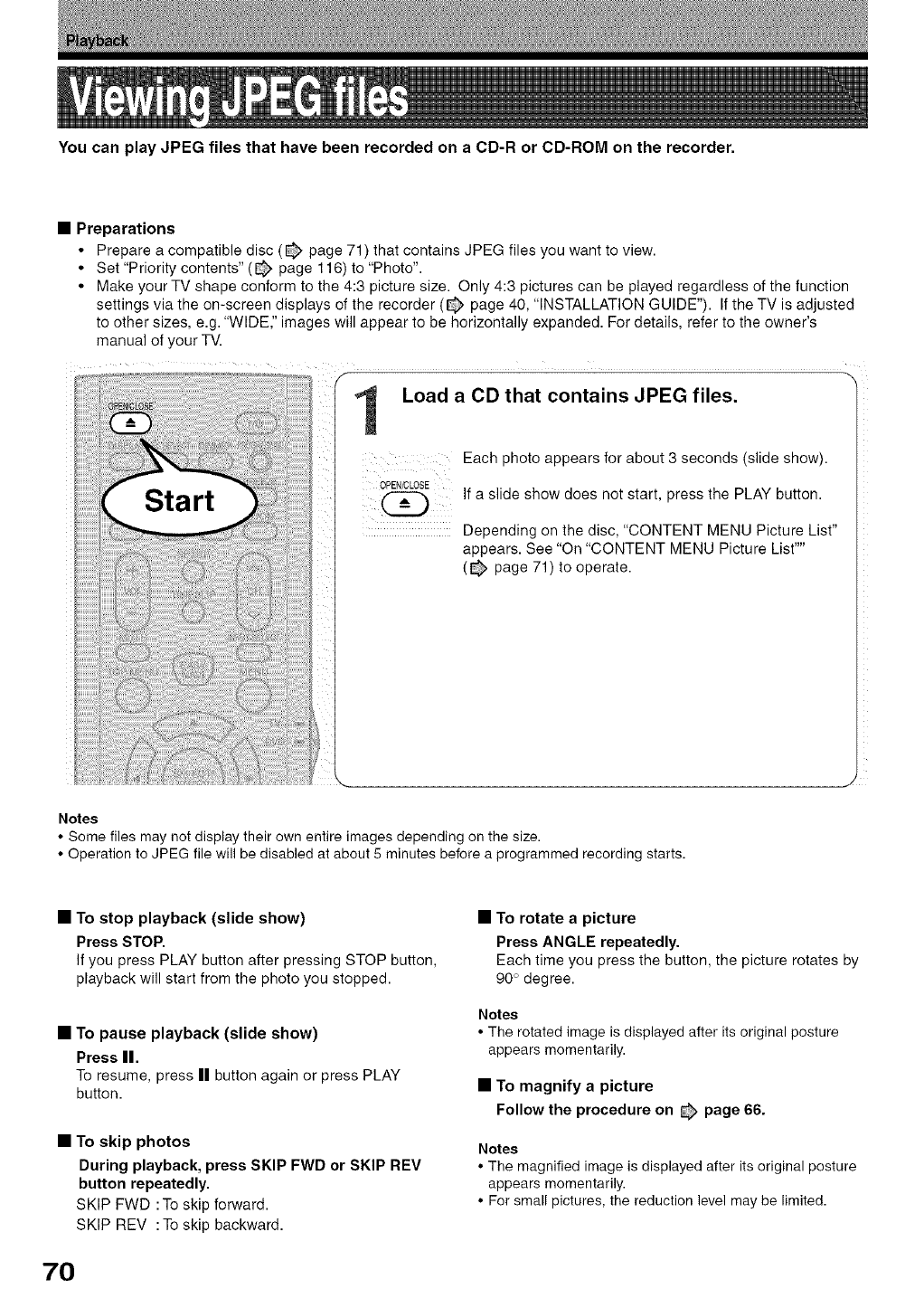

• Viewing JPEG files ............................................ 70

JPEG files compatibility ........................................... 71

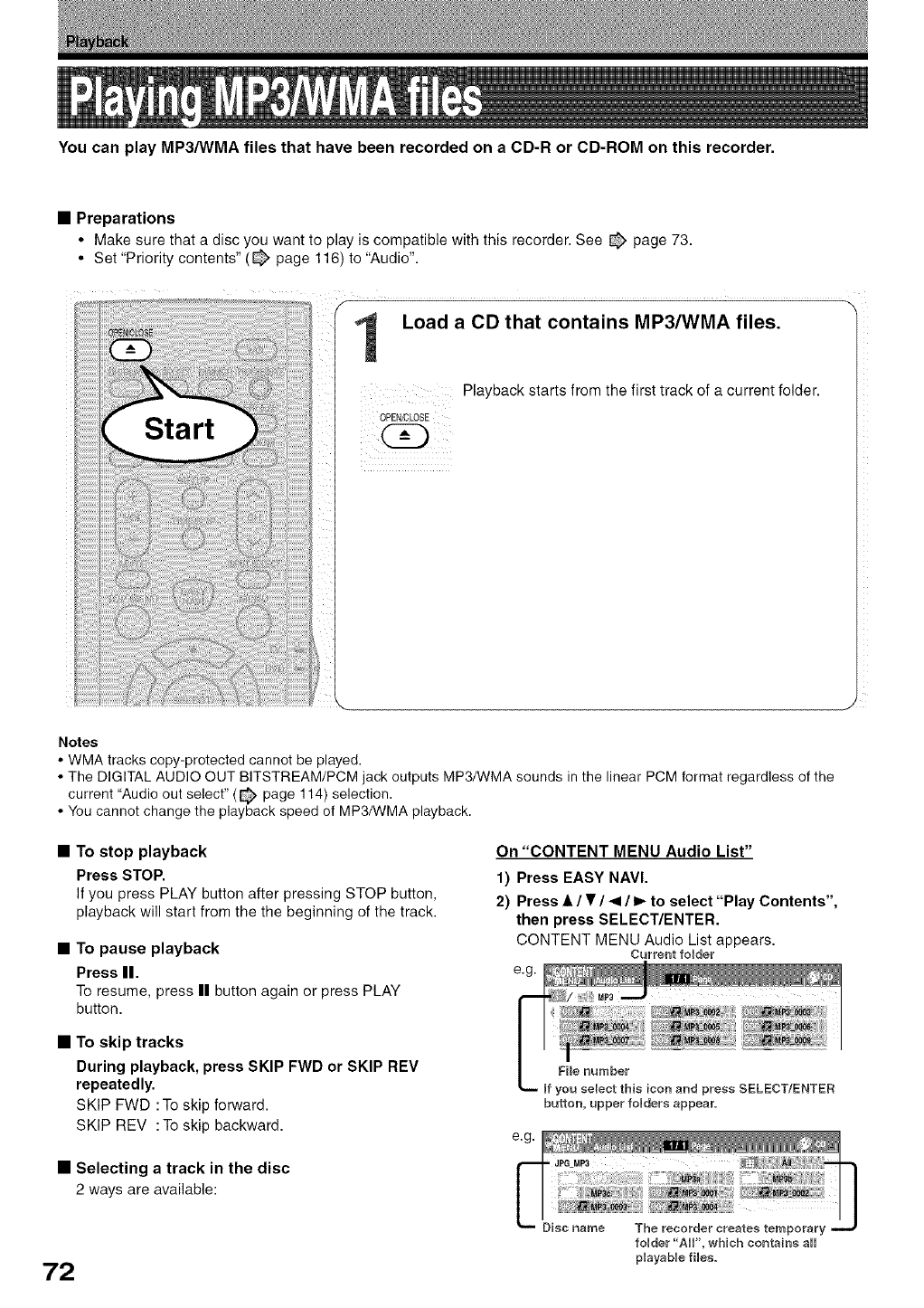

•Playing MP3/WMA files ..................................... 72

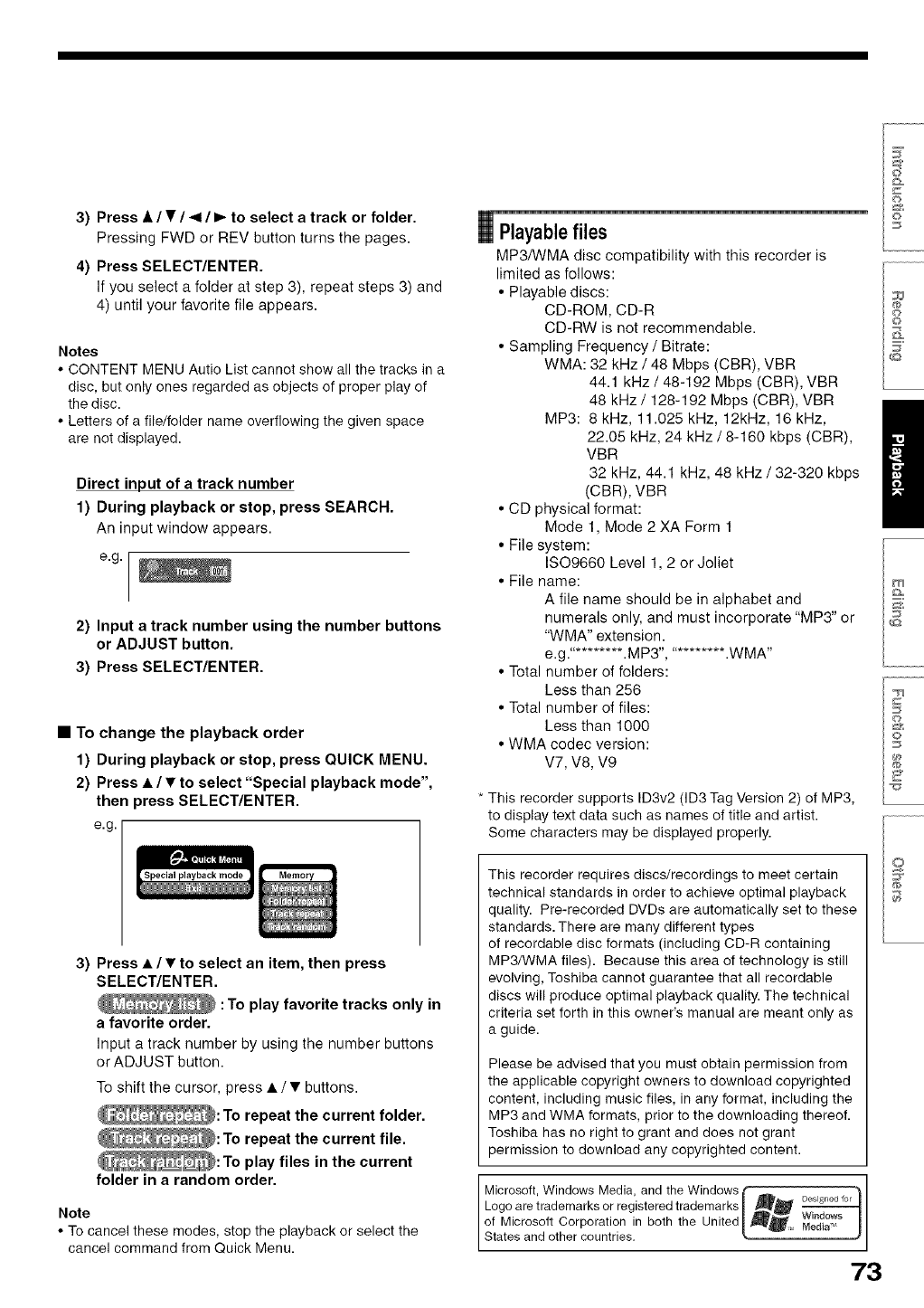

Playable files ........................................................ 73

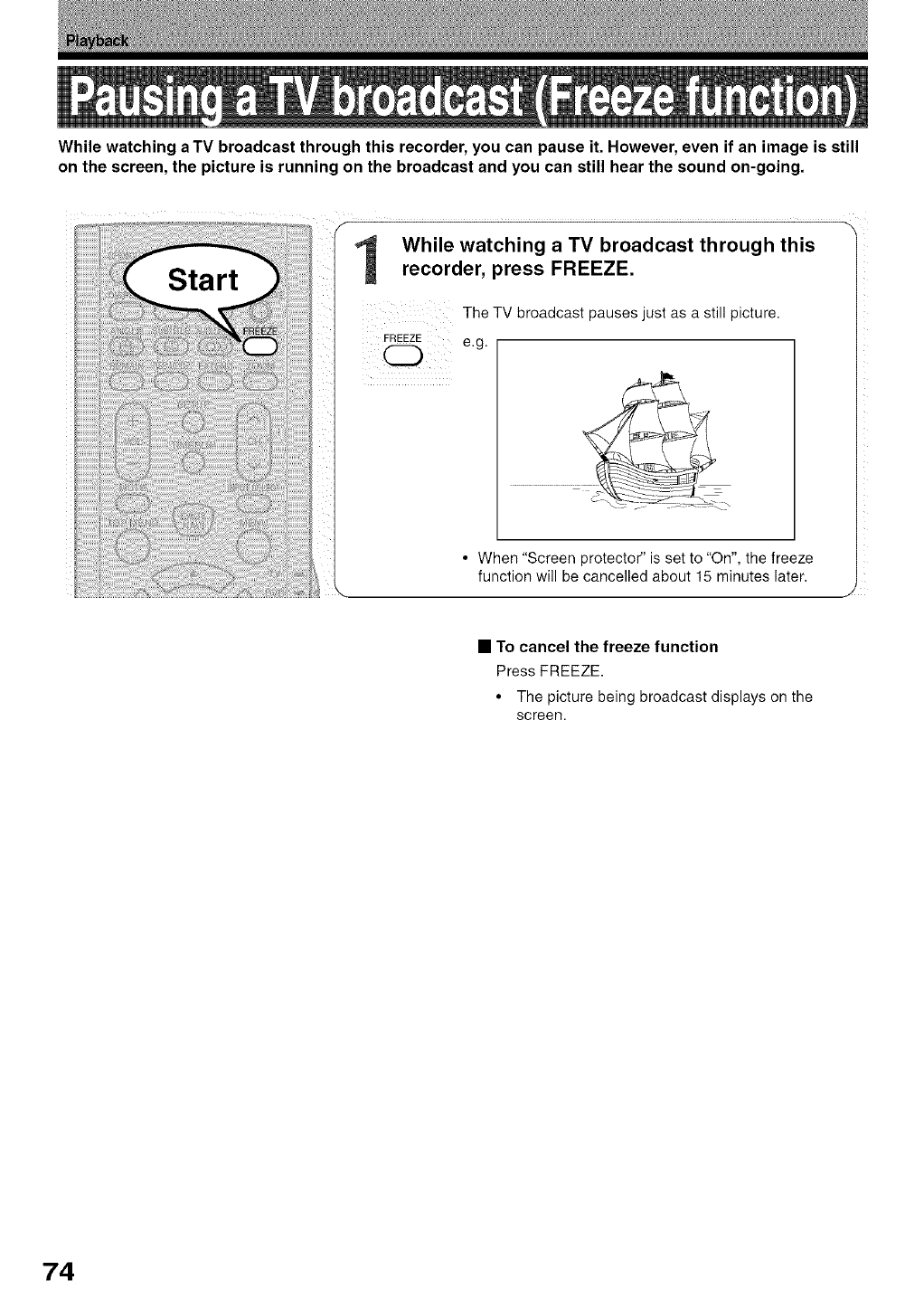

• Pausing a TV broadcast

(Freeze function) ............................................... 74

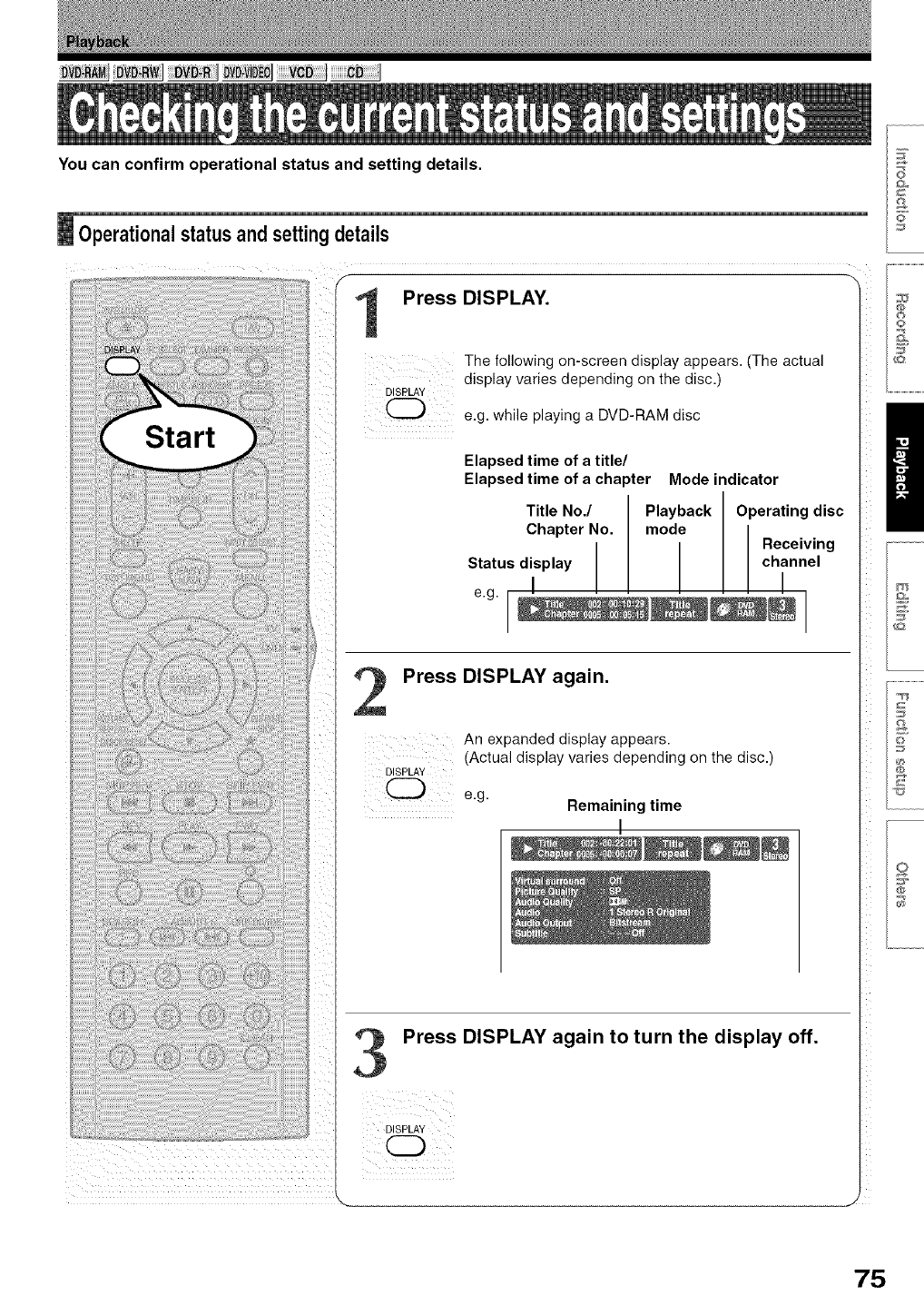

• Checking the current status and settings ...... 75

Operational status and setting details .................... 75

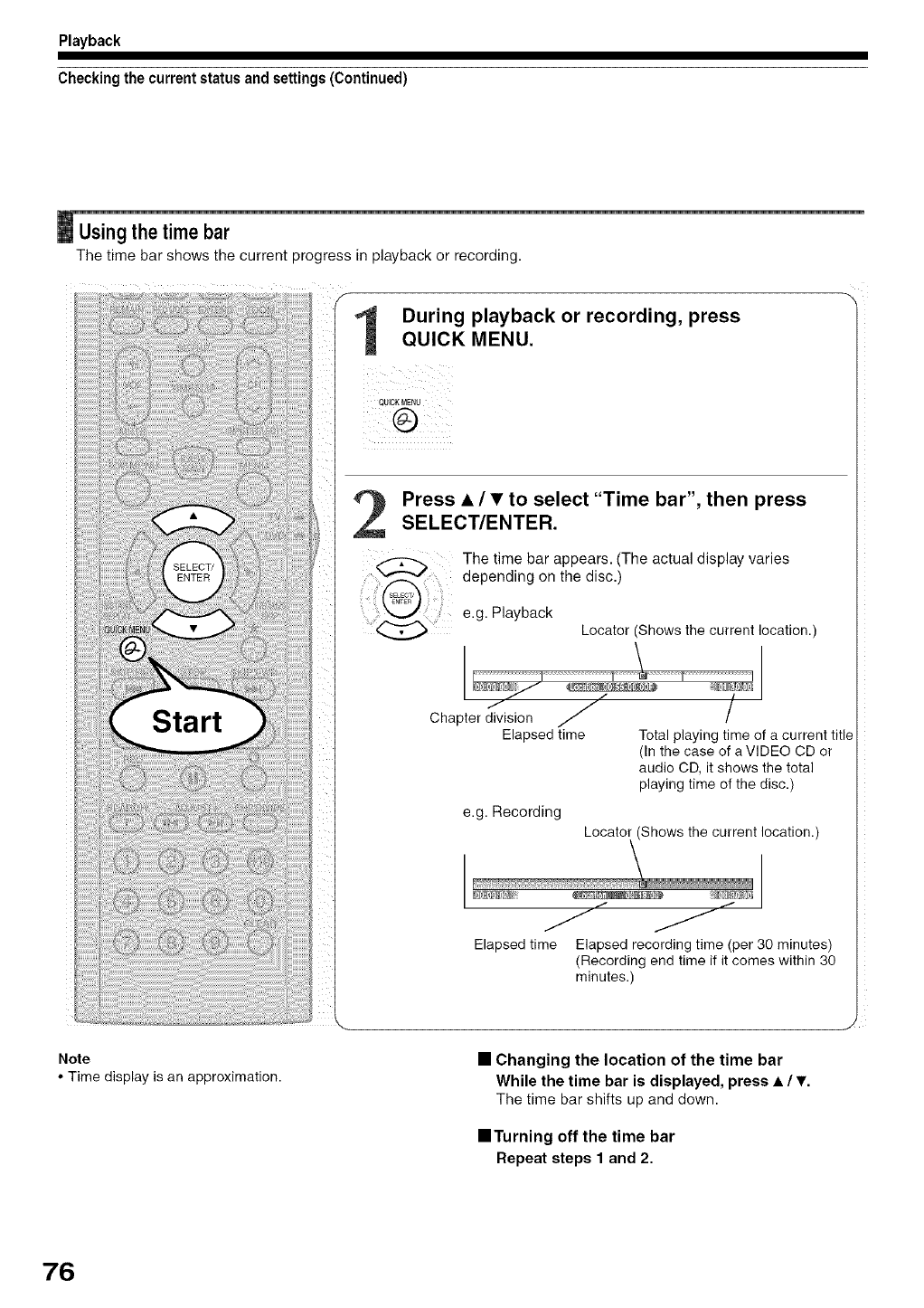

Using the time bar ................................................. 76

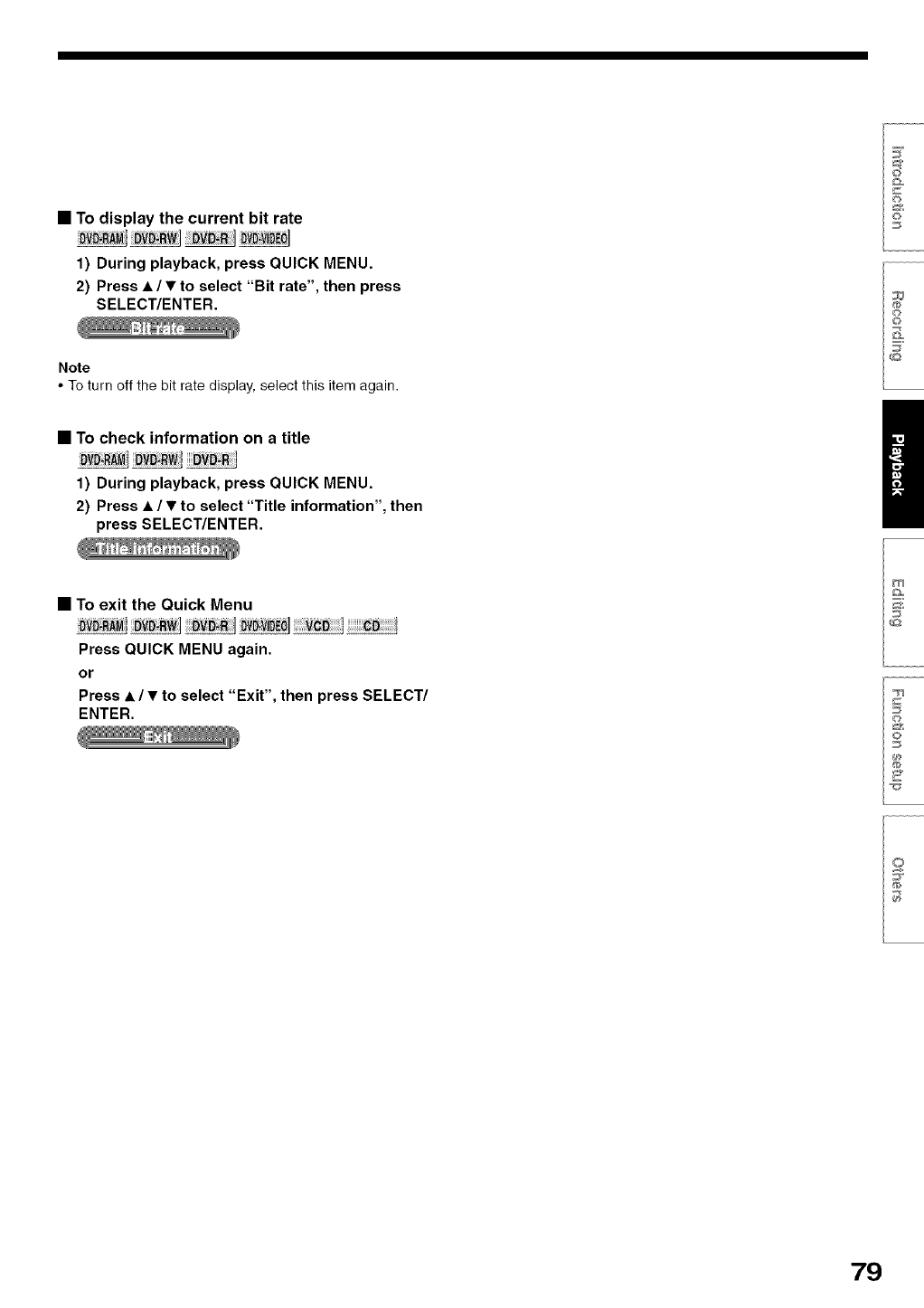

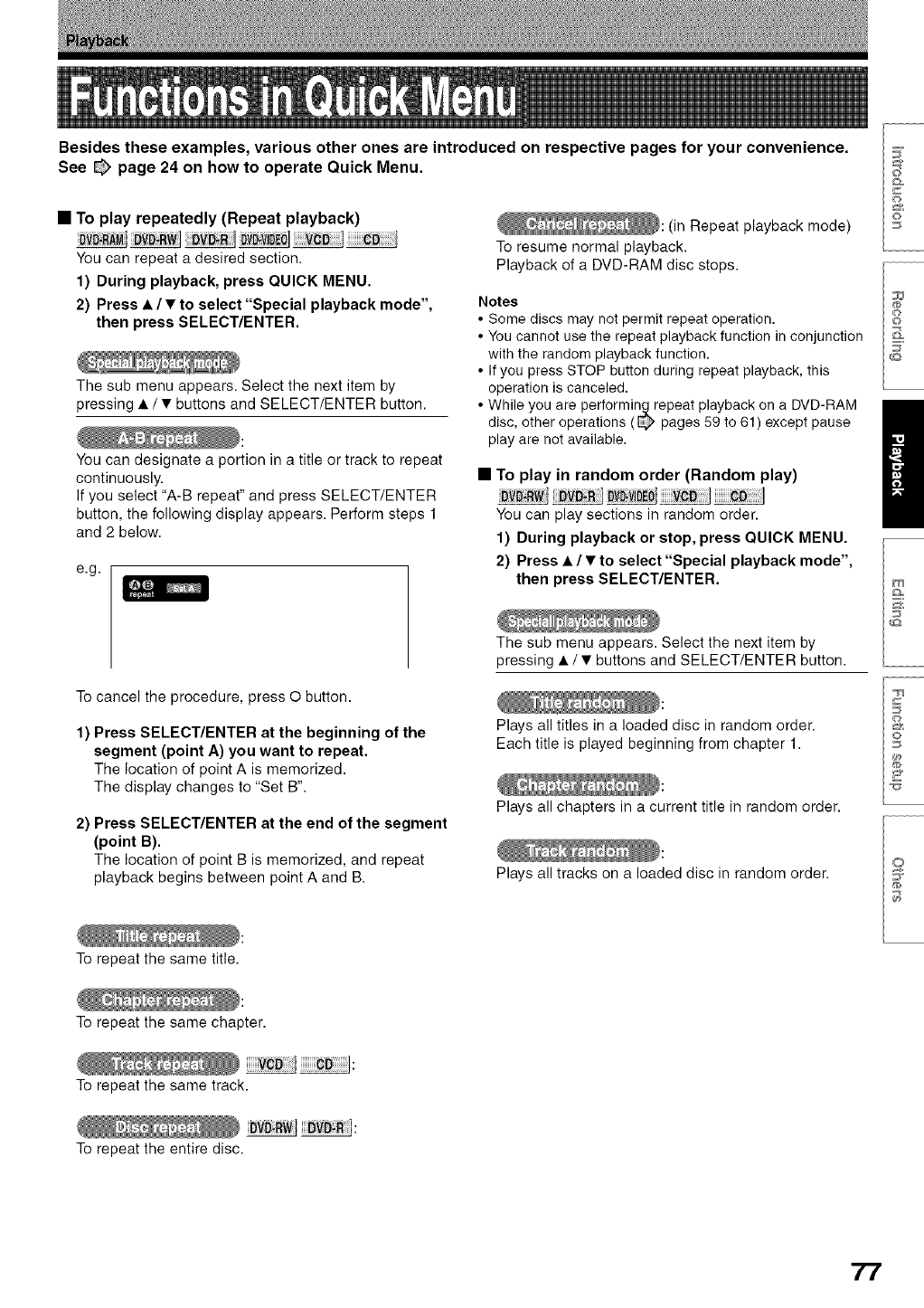

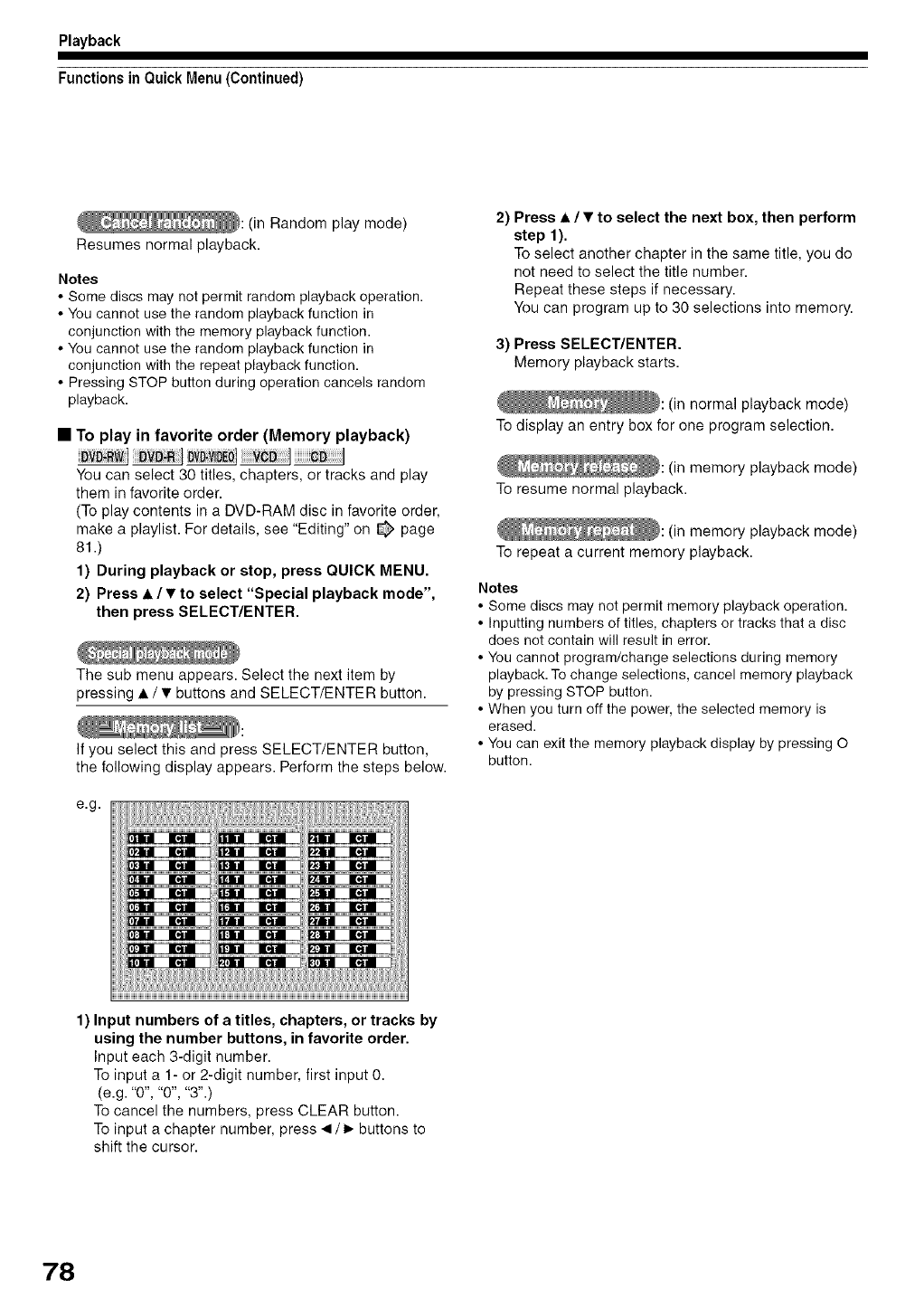

• Functions in Quick Menu ................................. 77

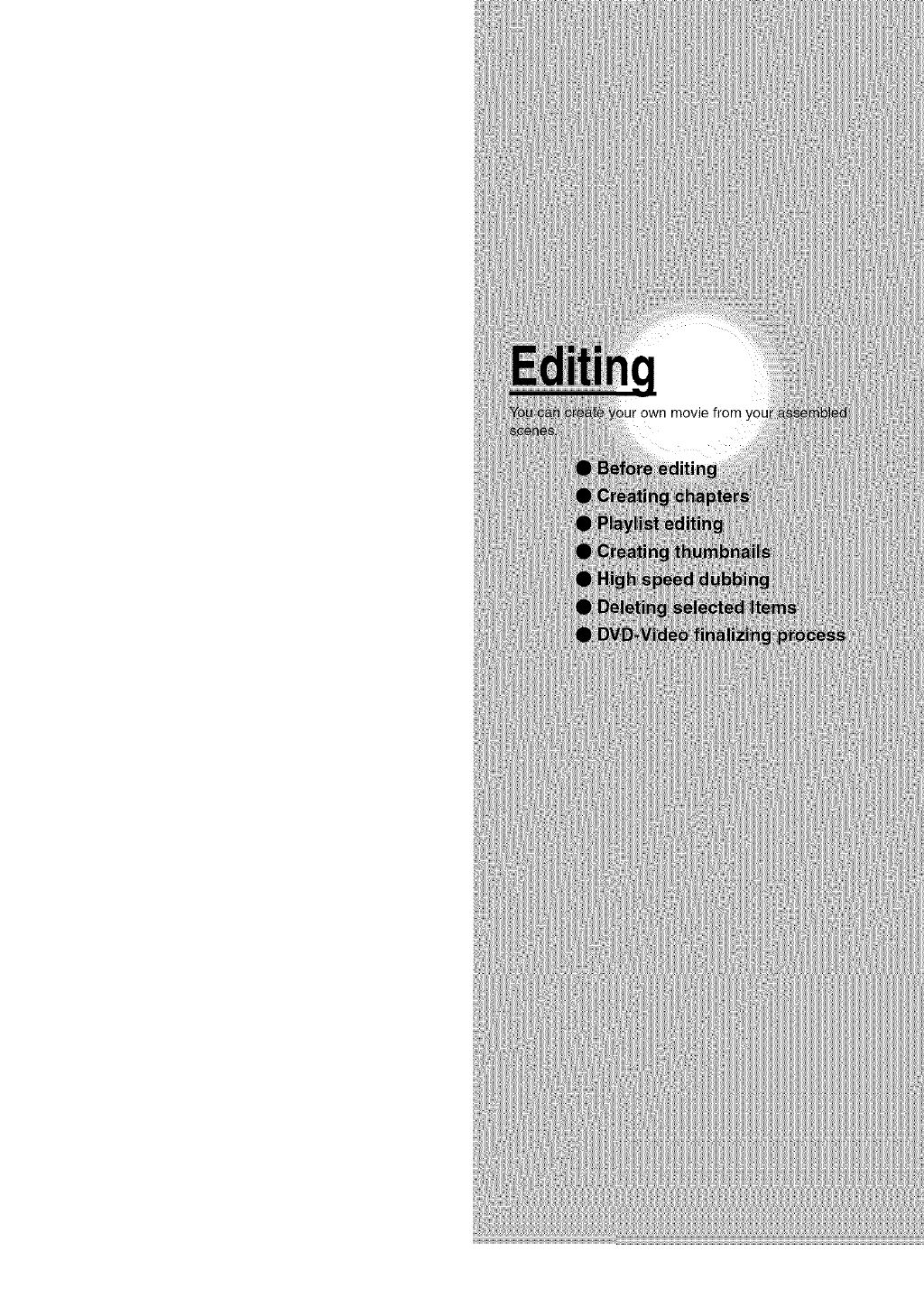

Editing

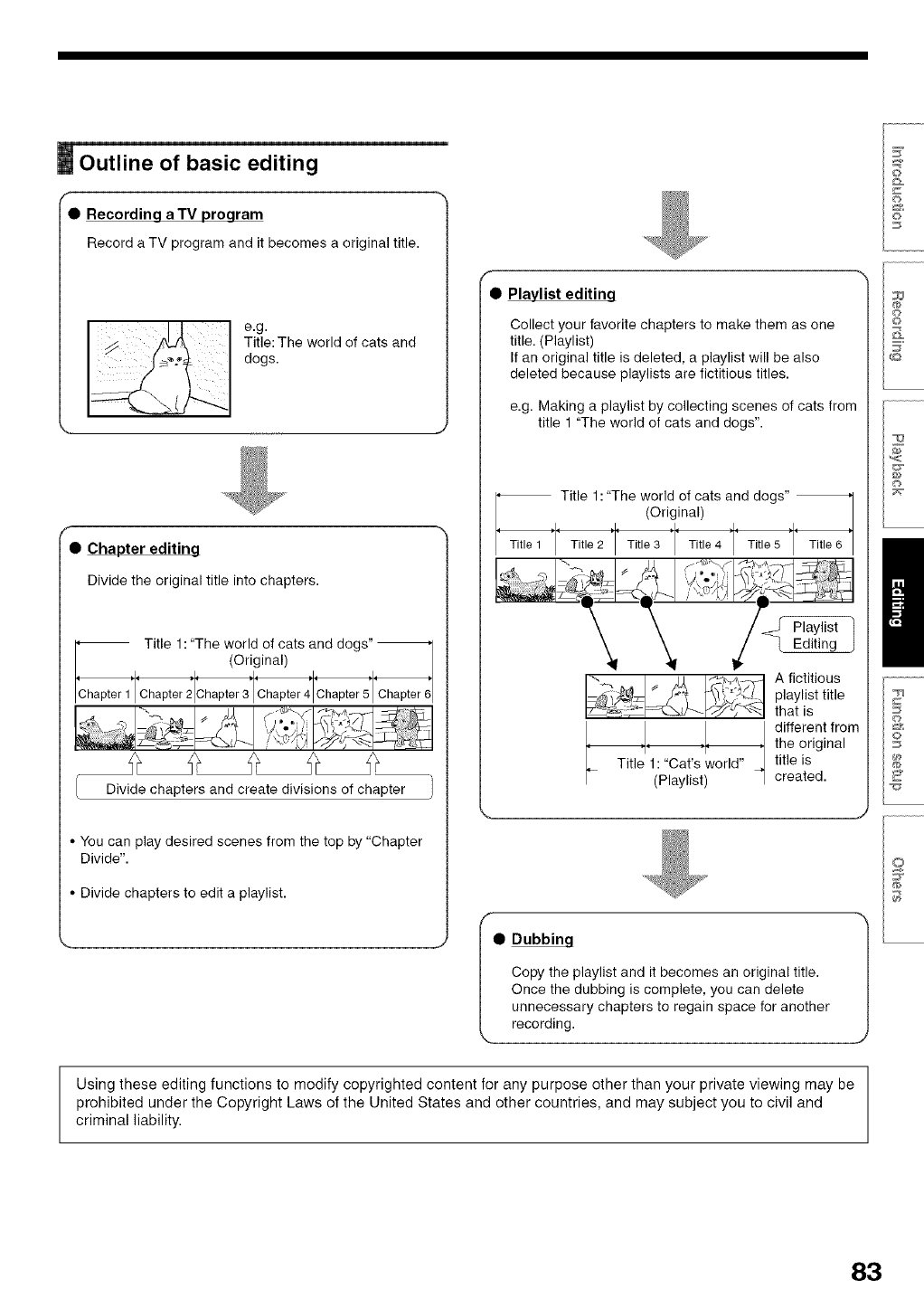

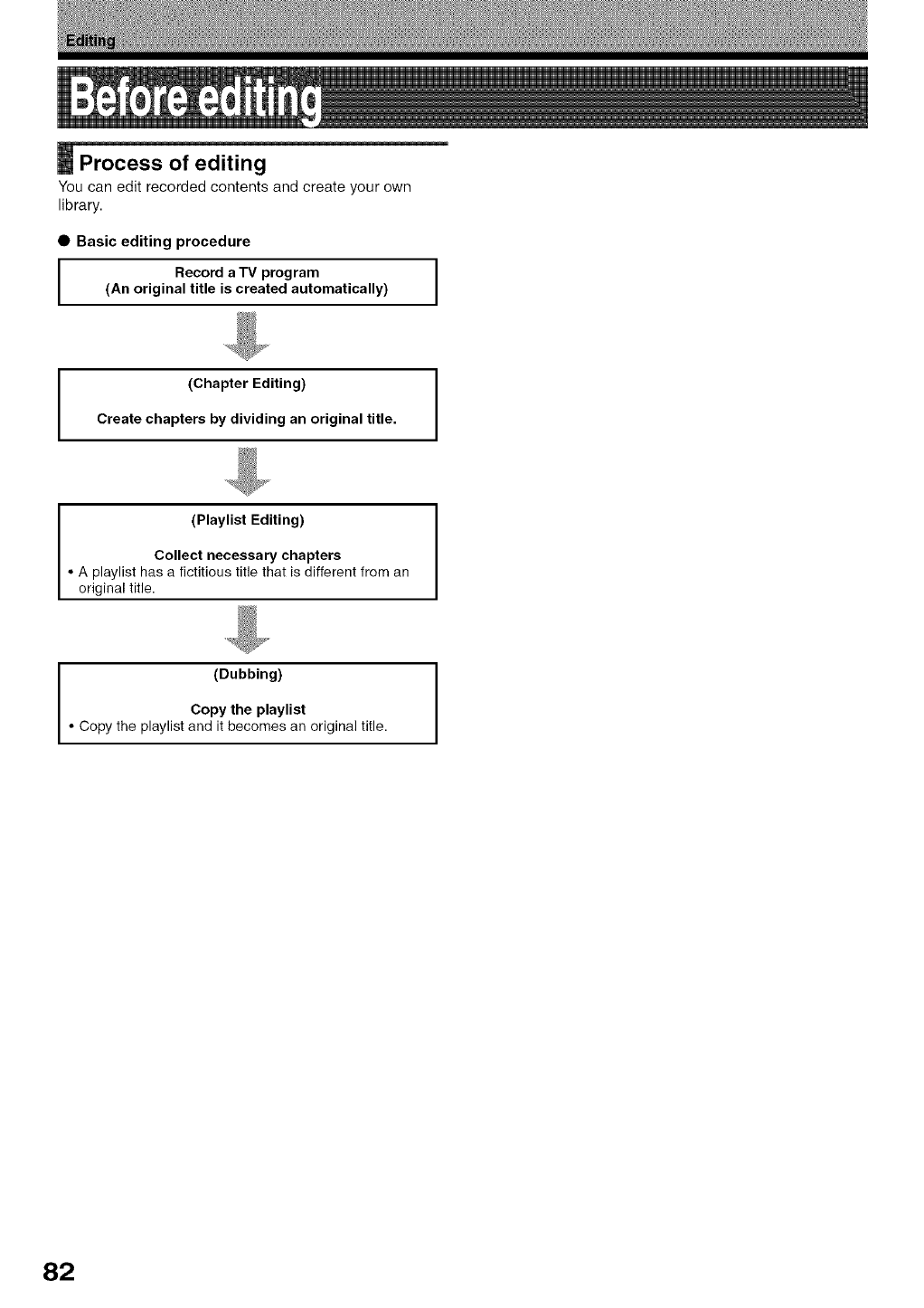

•Before editing .................................................... 82

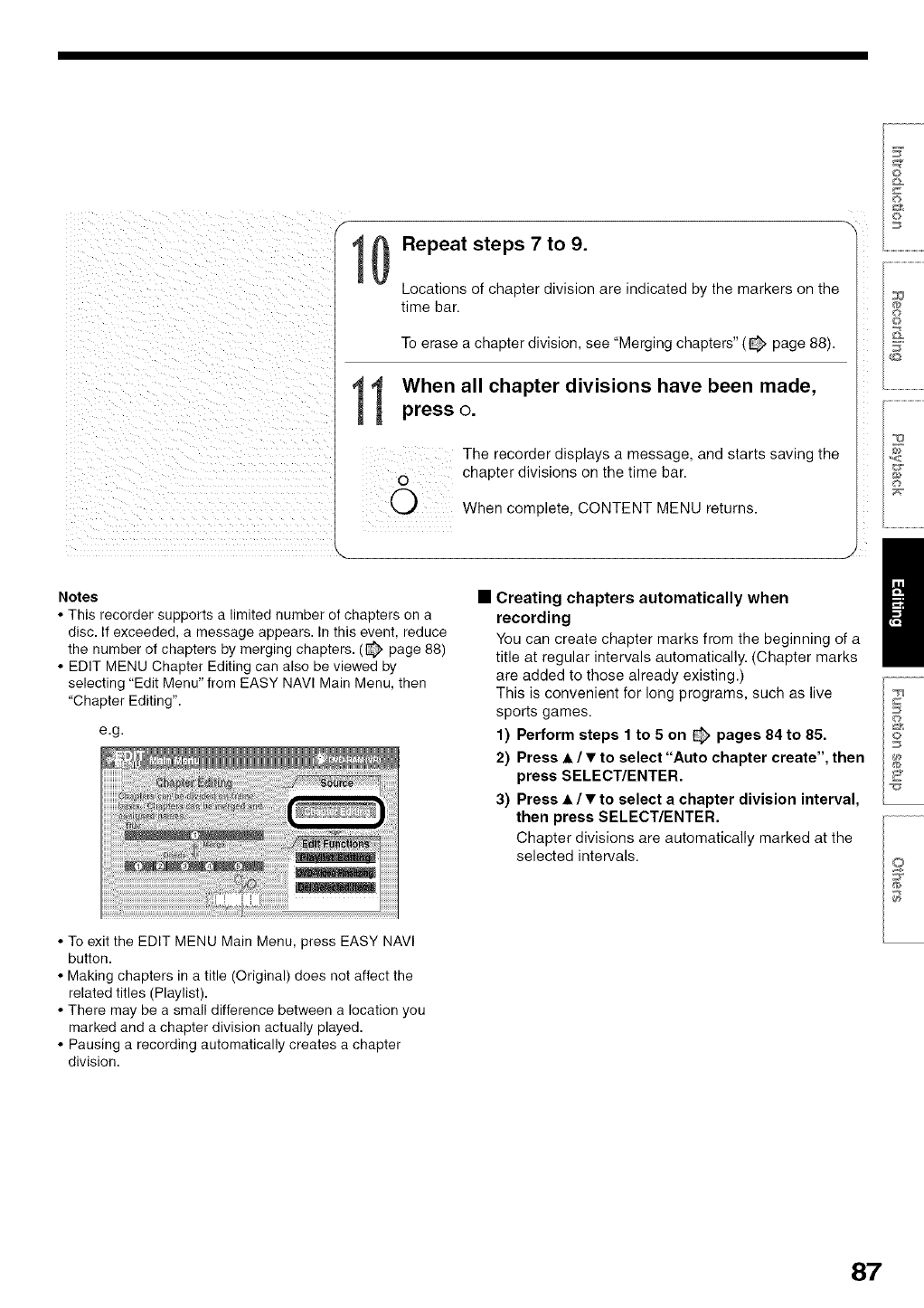

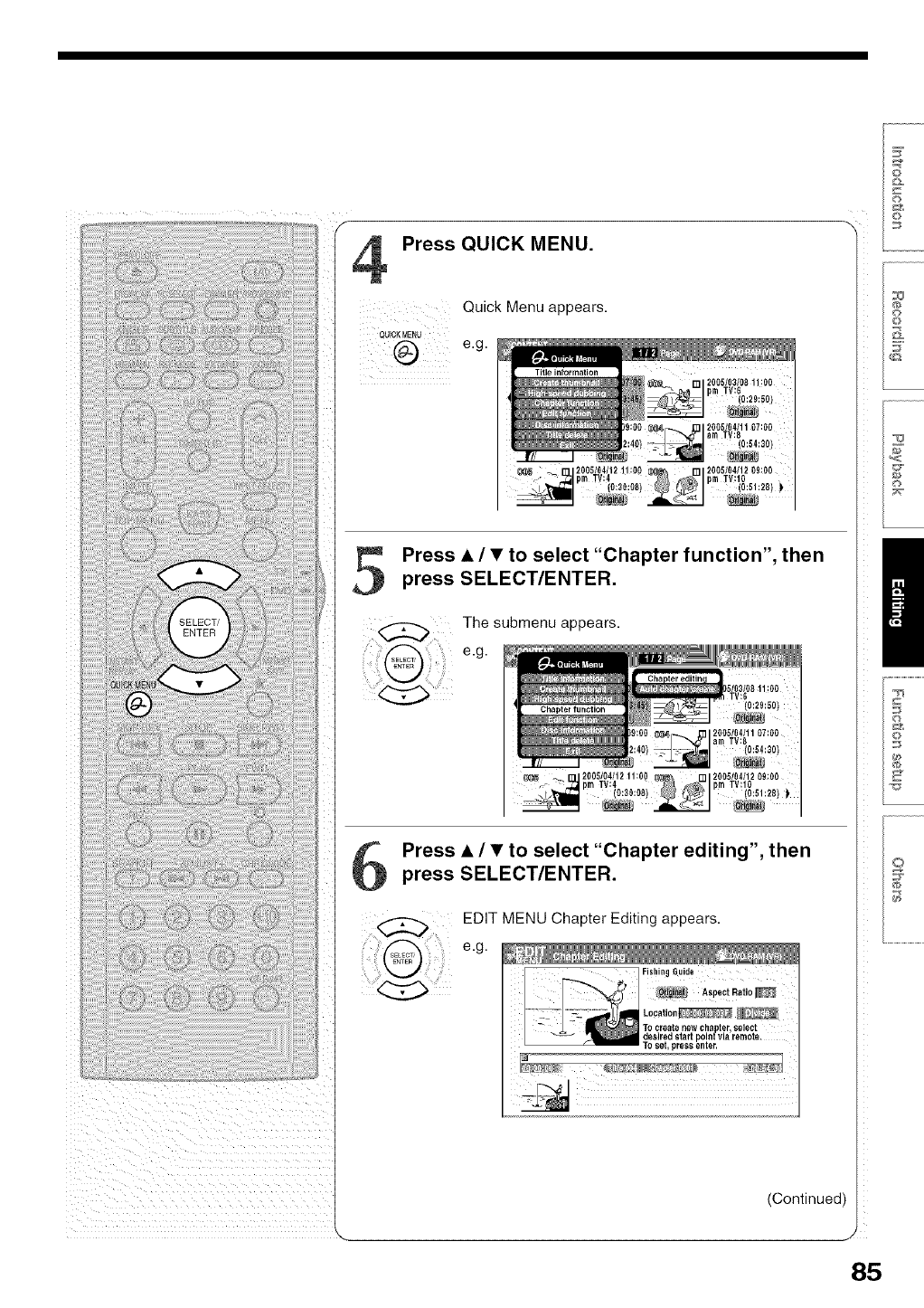

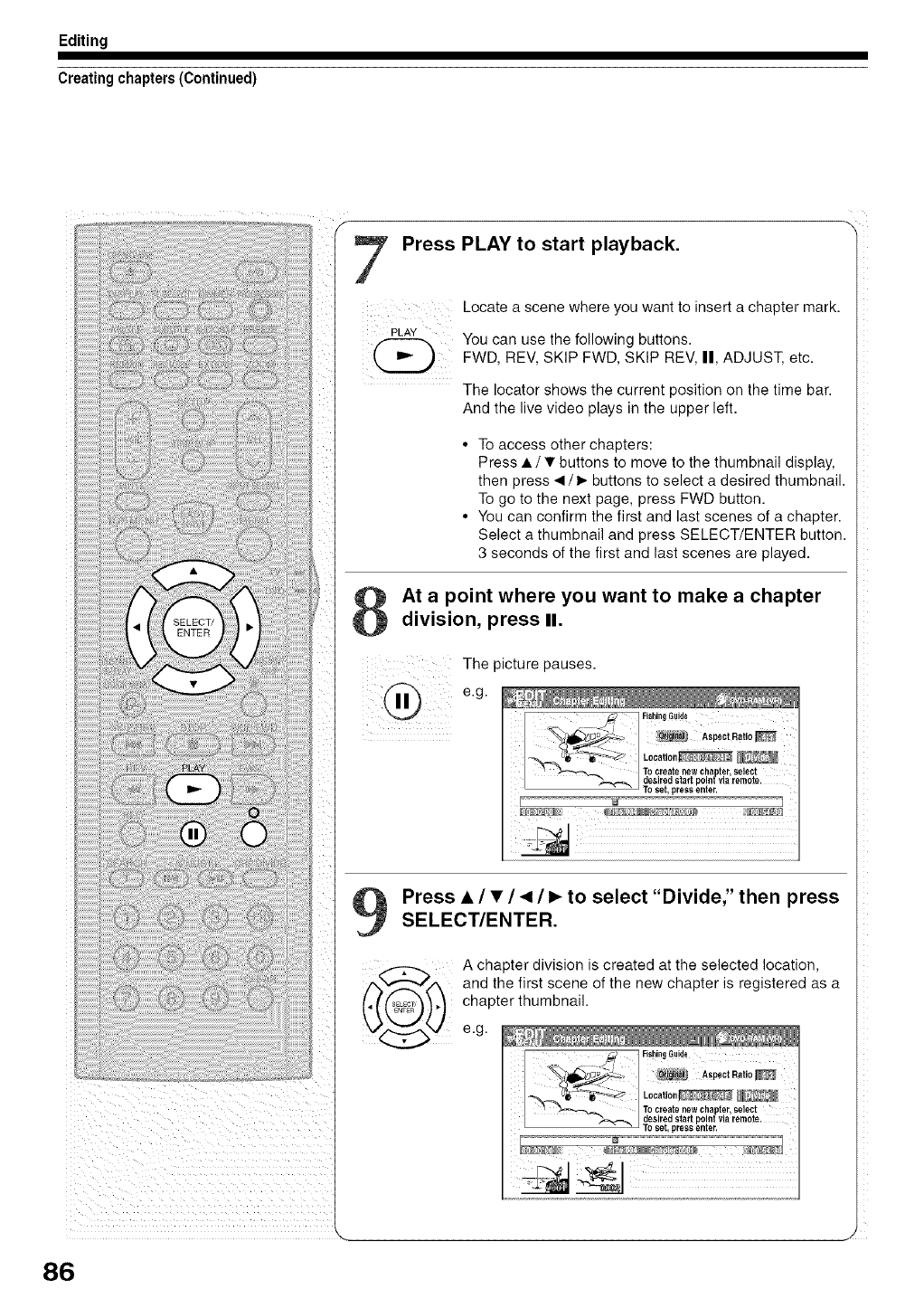

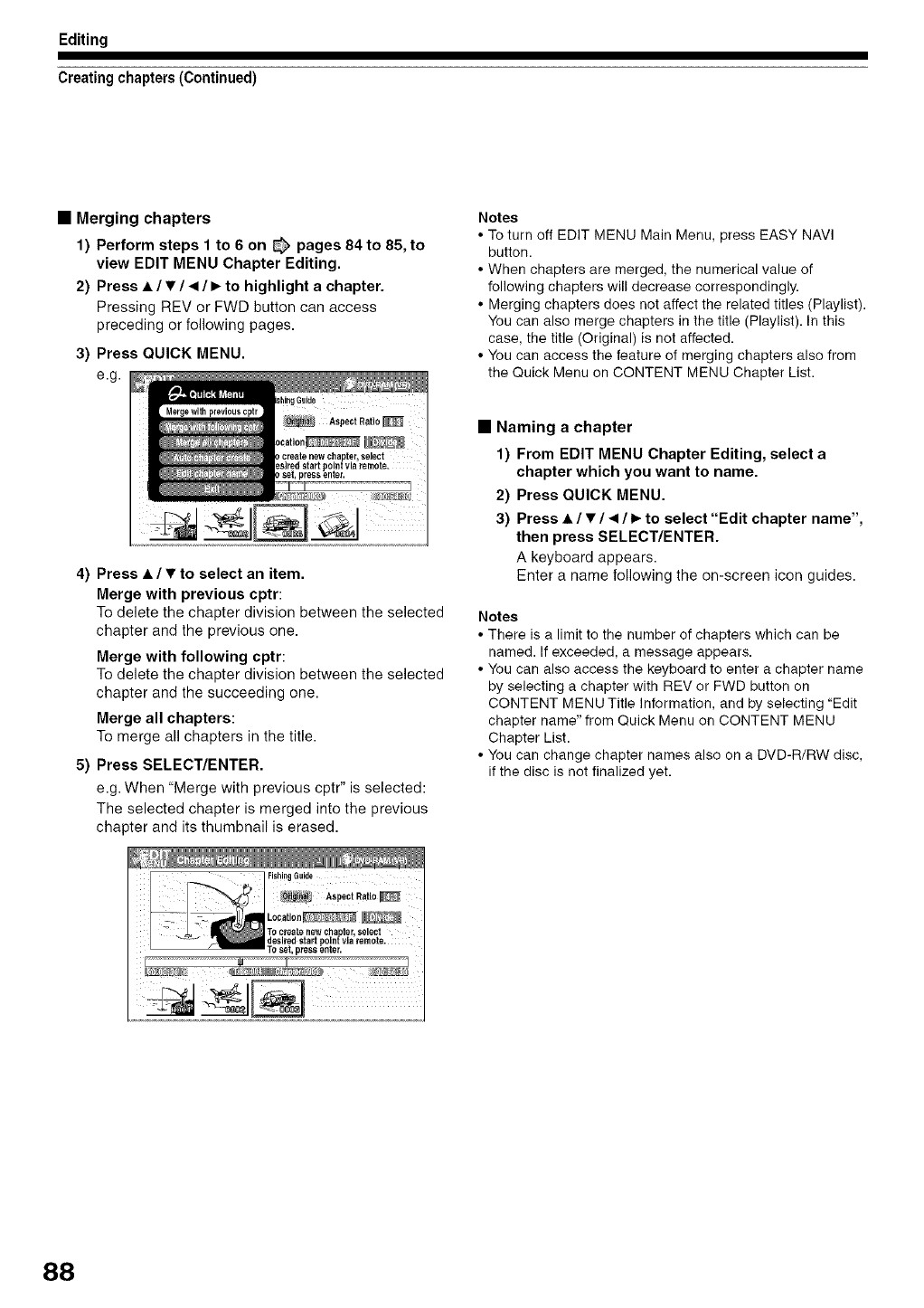

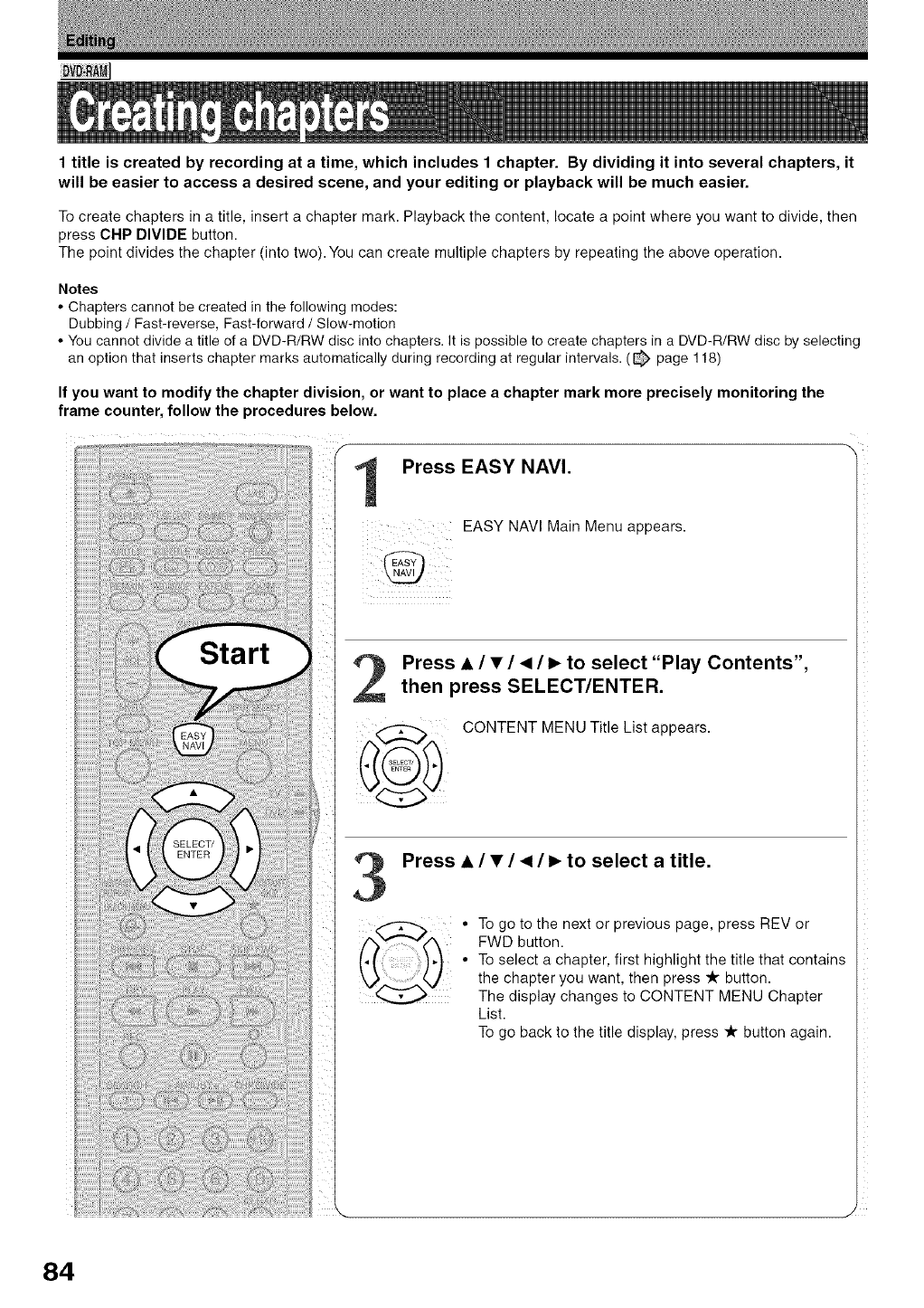

•Creating chapters .............................................. 84

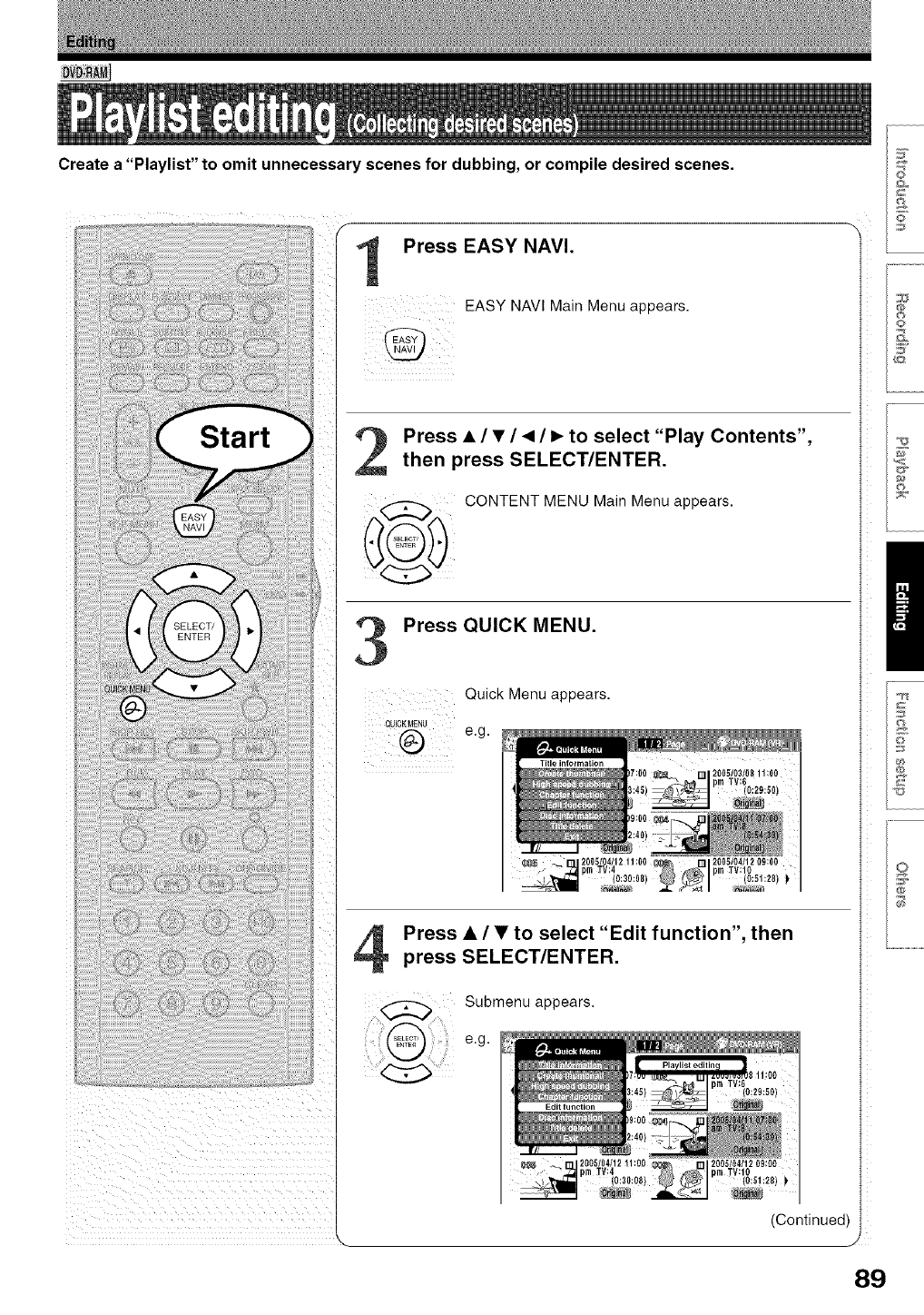

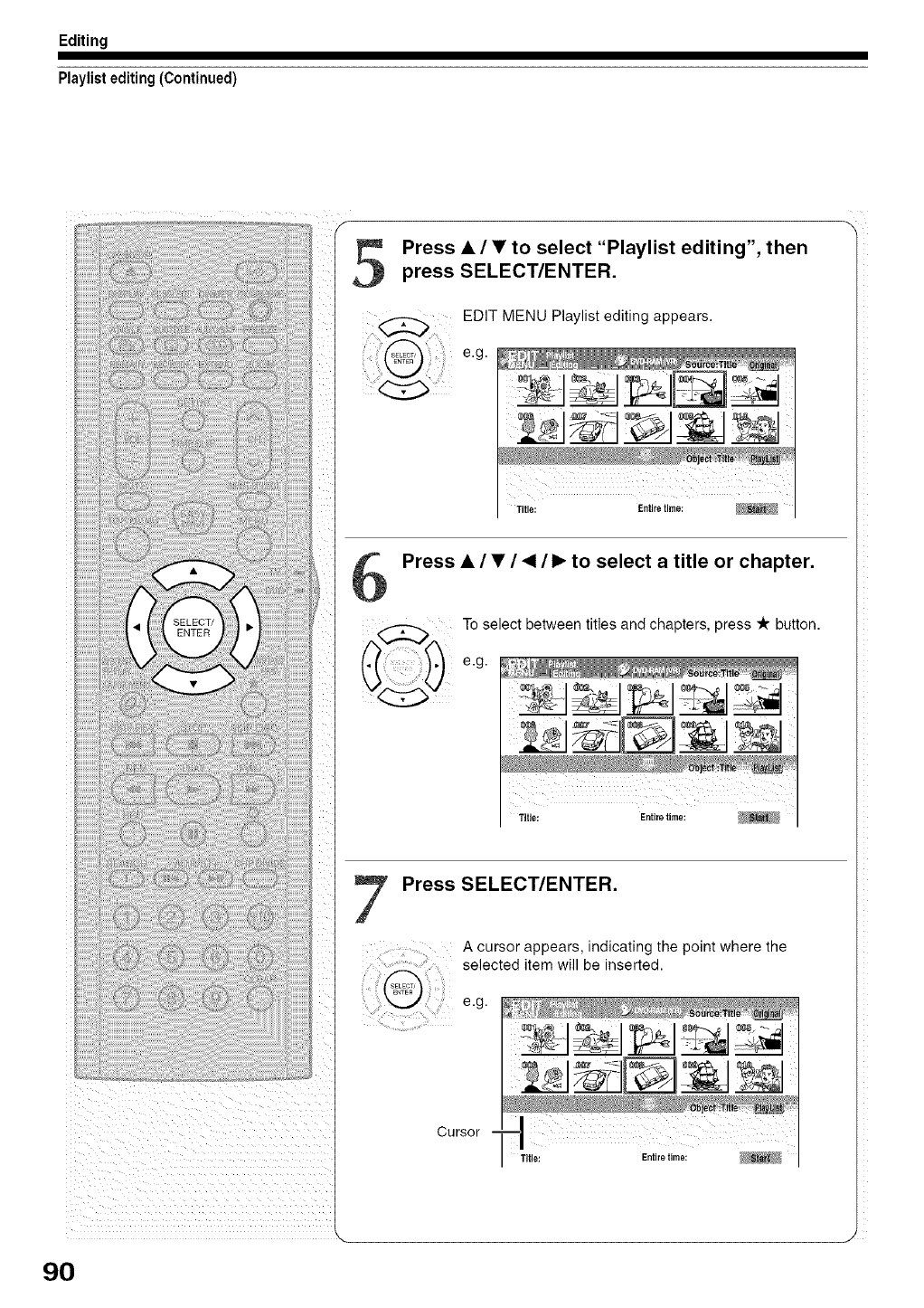

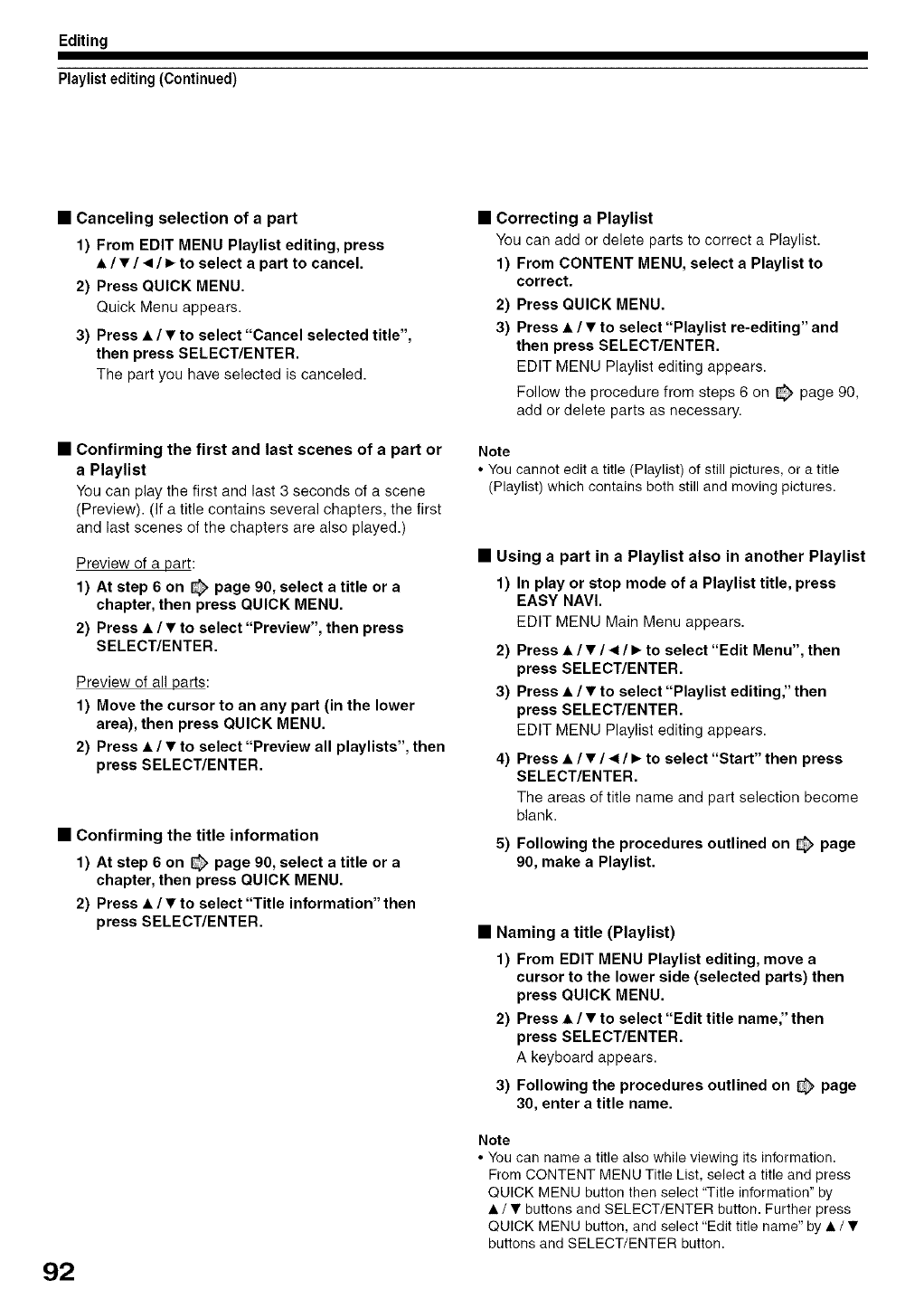

•Playlist editing

(Collecting desired scenes) ............................. 89

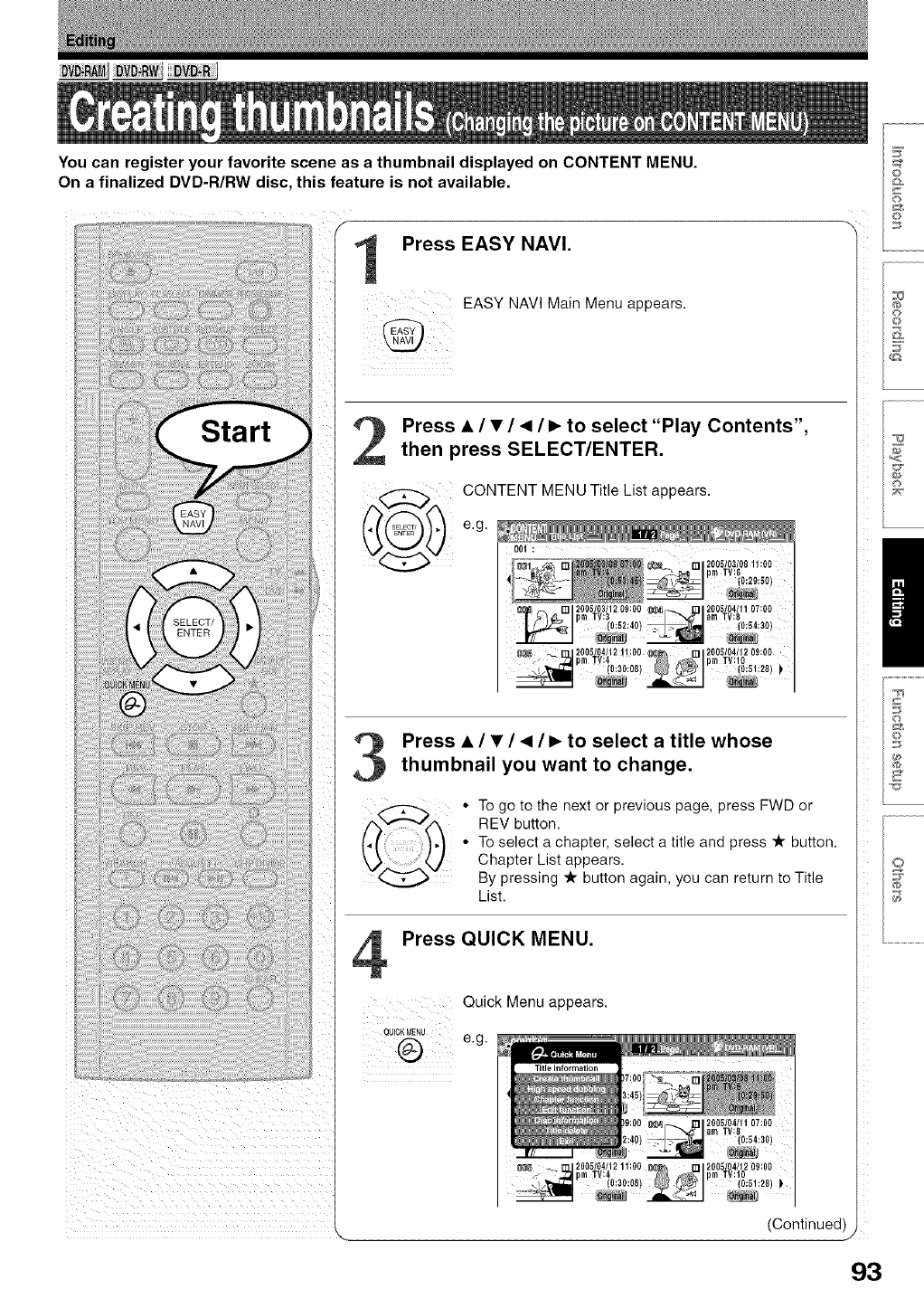

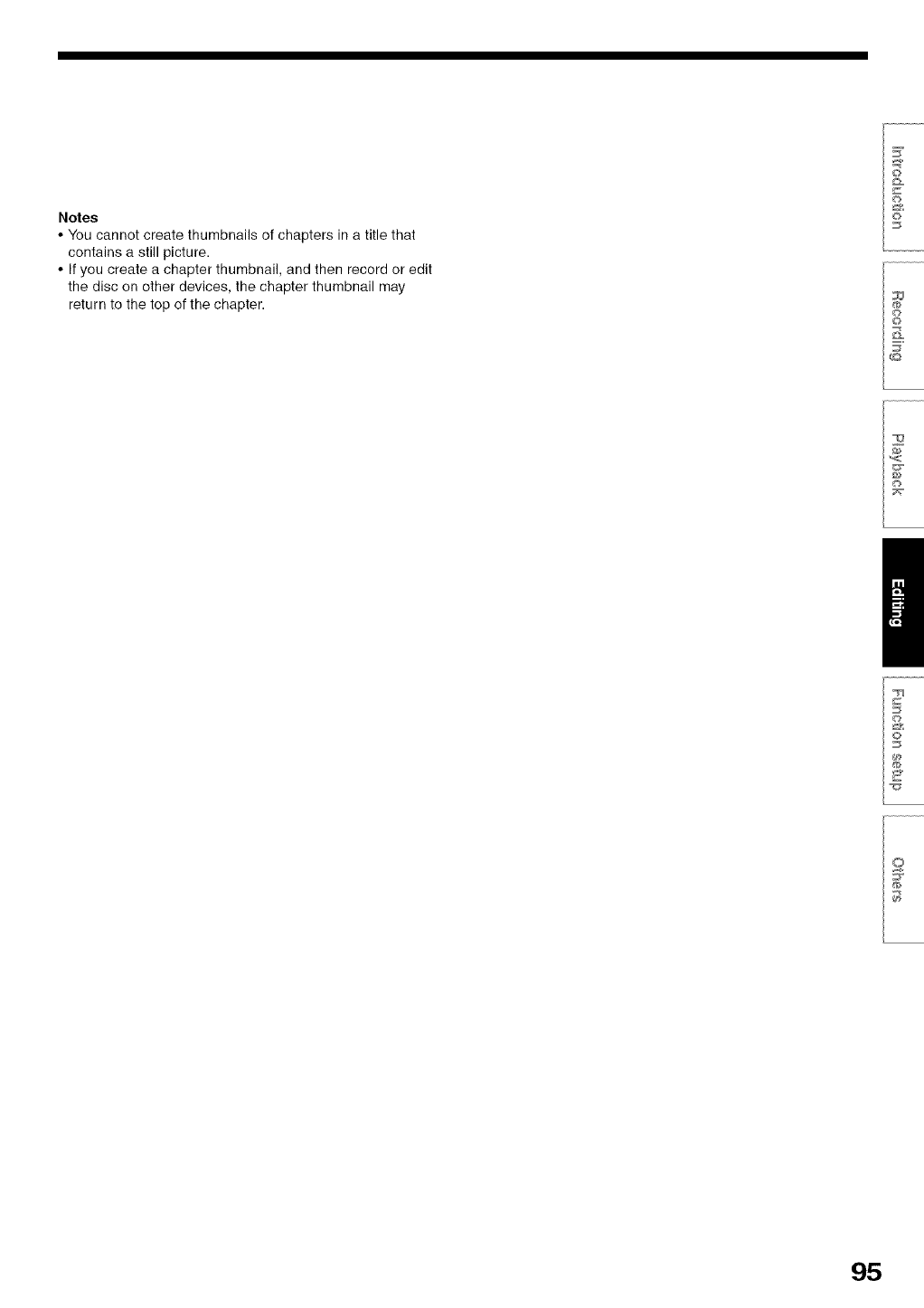

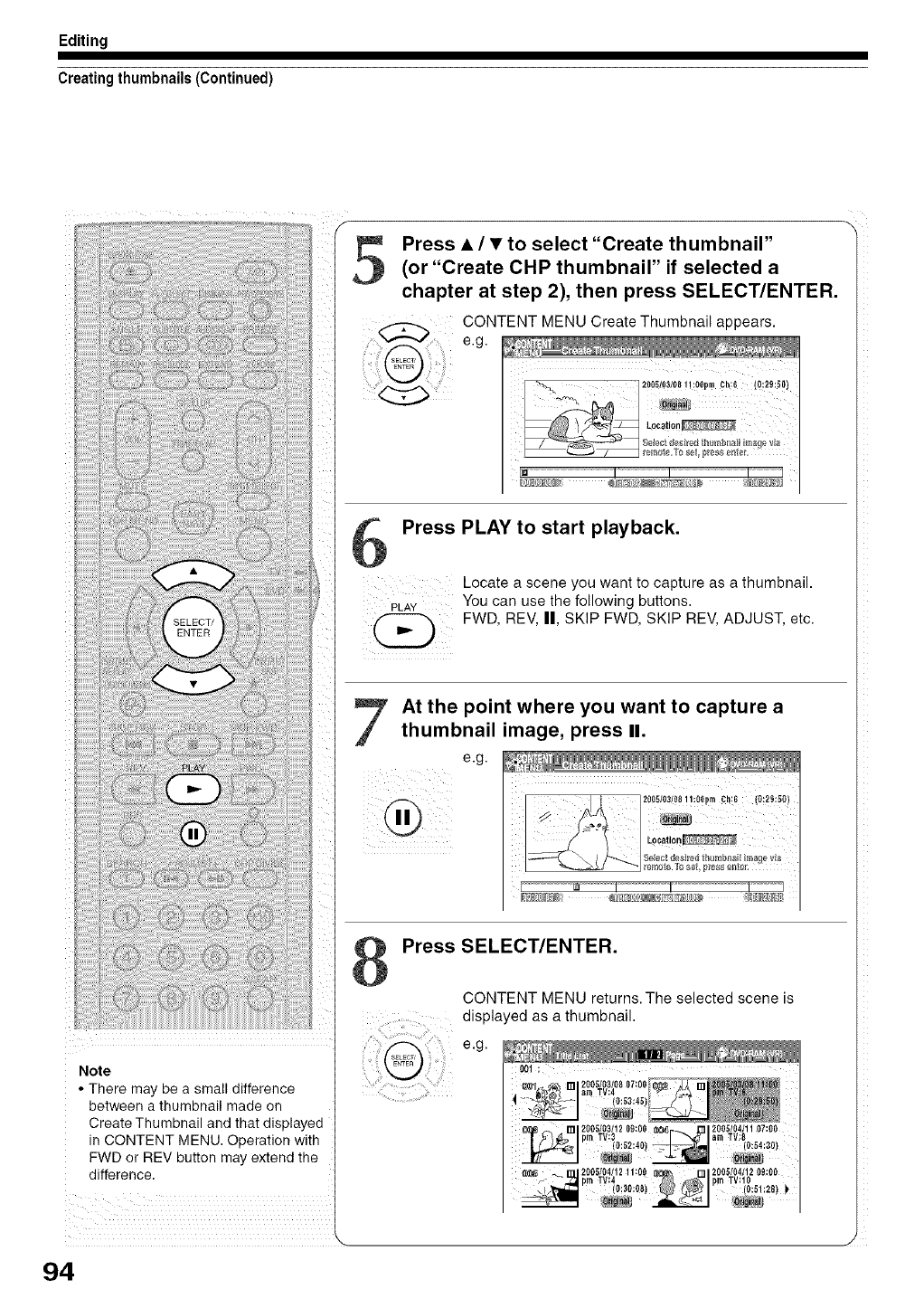

•Creating thumbnails

(Changing the picture on CONTENT MENU) .. 93

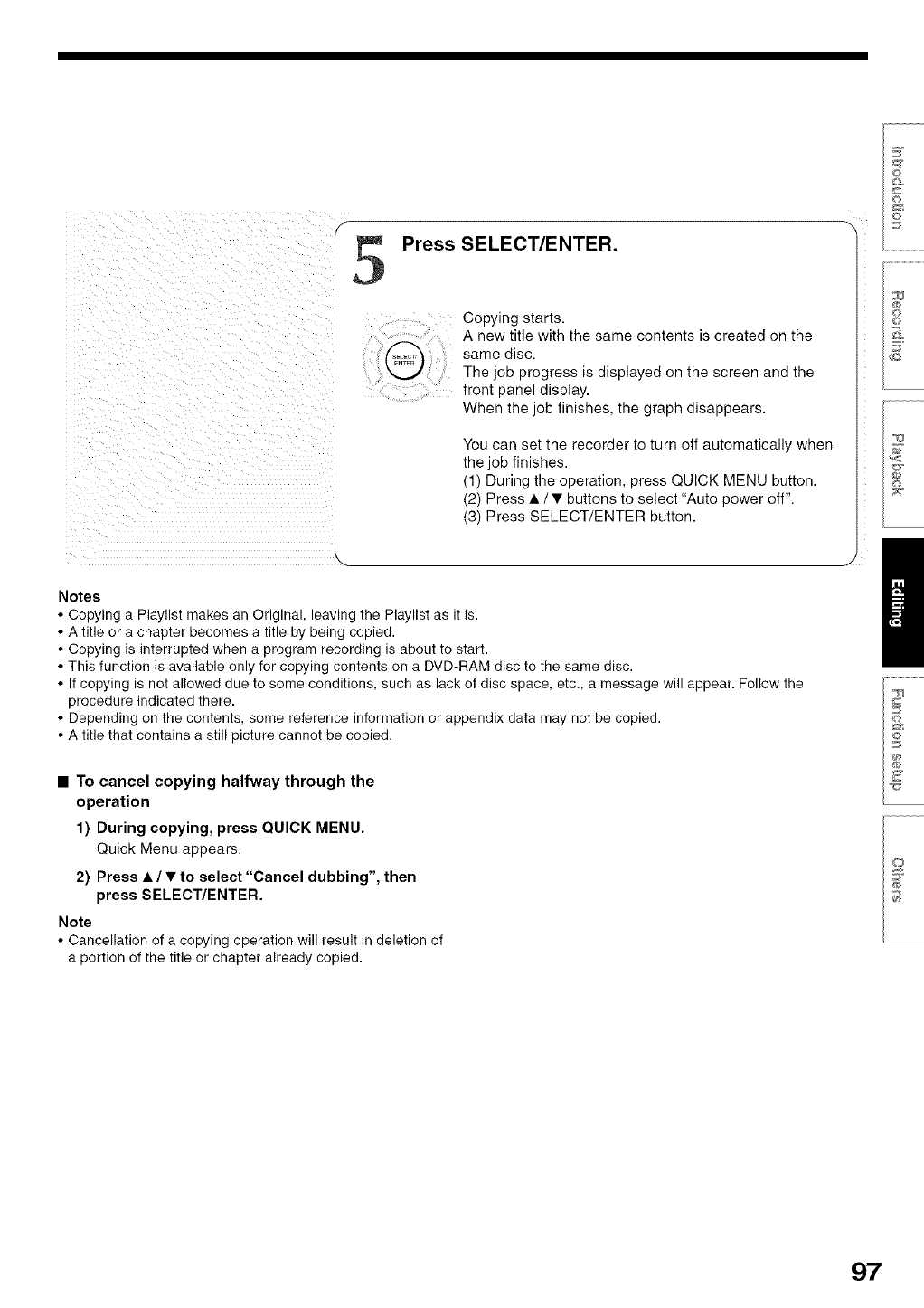

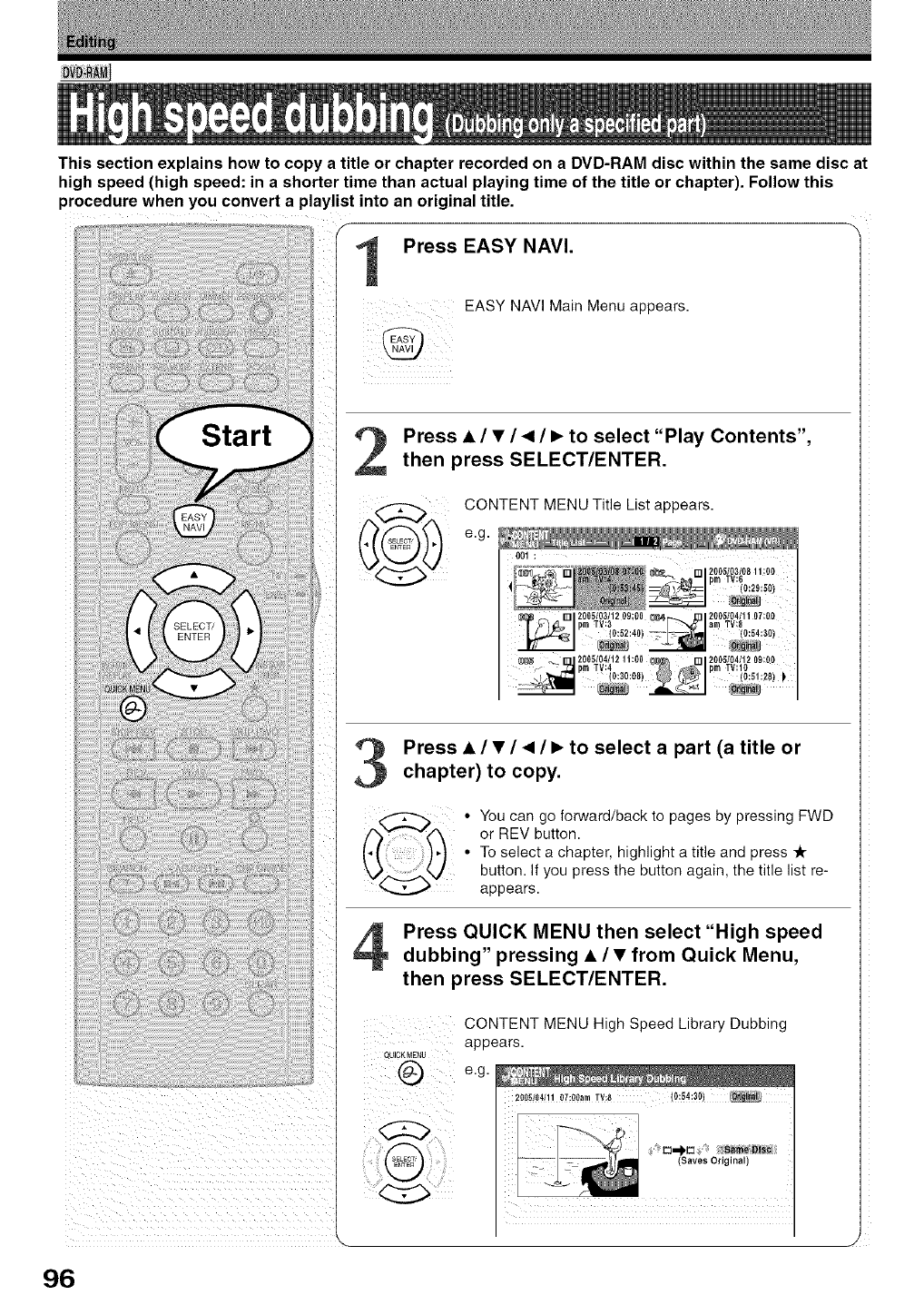

•High speed dubbing

(Dubbing only a specified part) ....................... 96

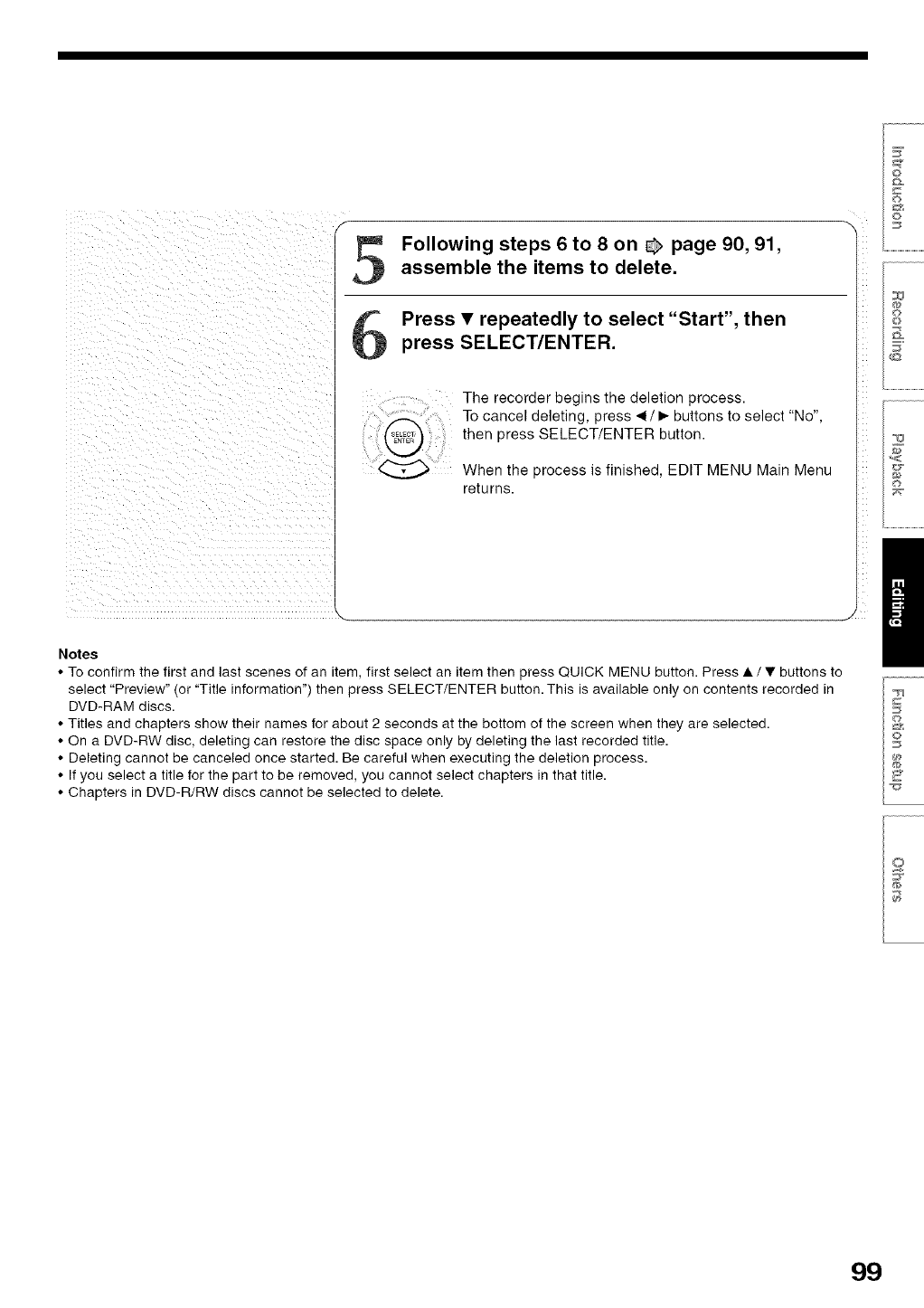

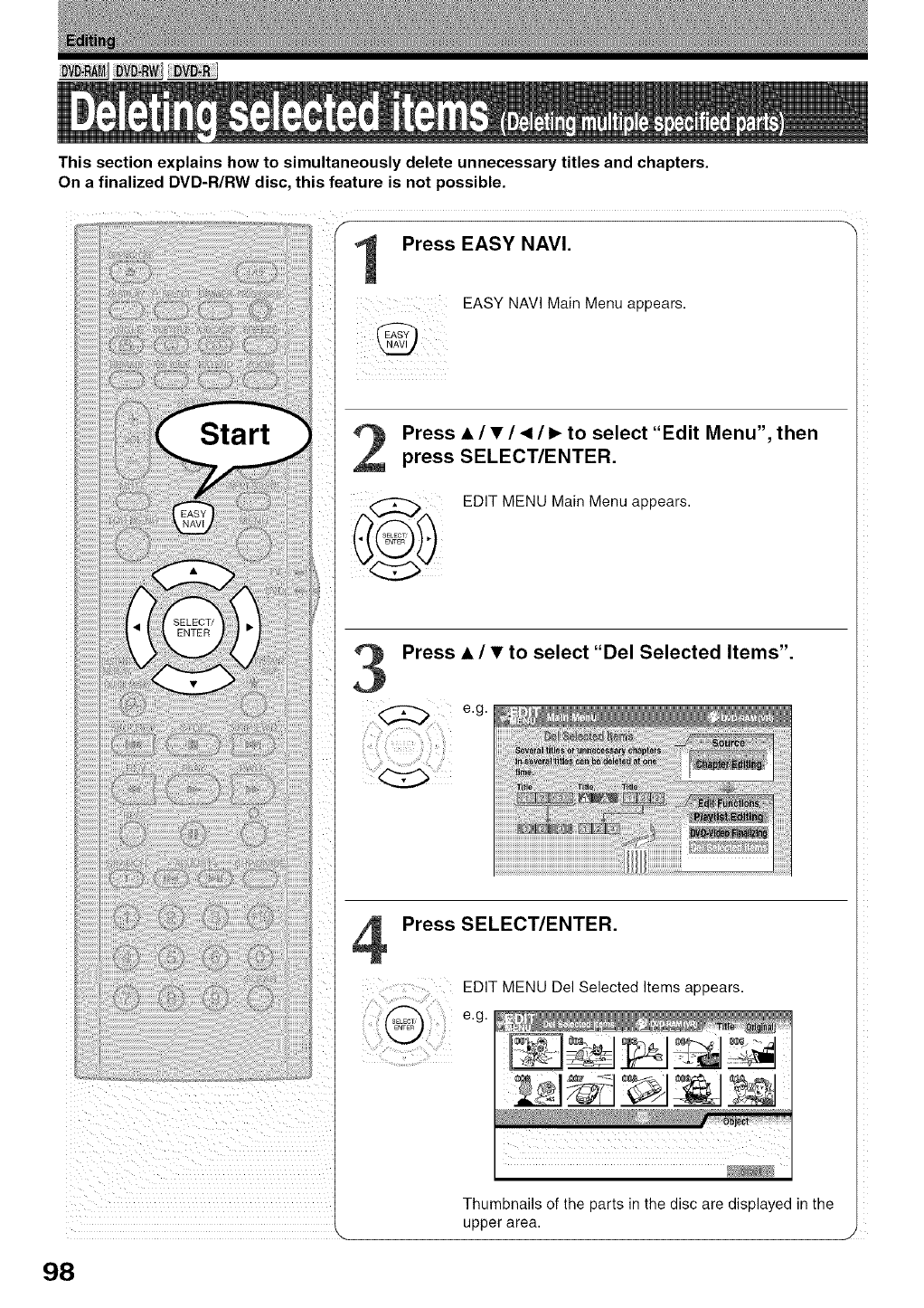

•Deleting selected items

(Deleting multiple specified parts) .................. 98

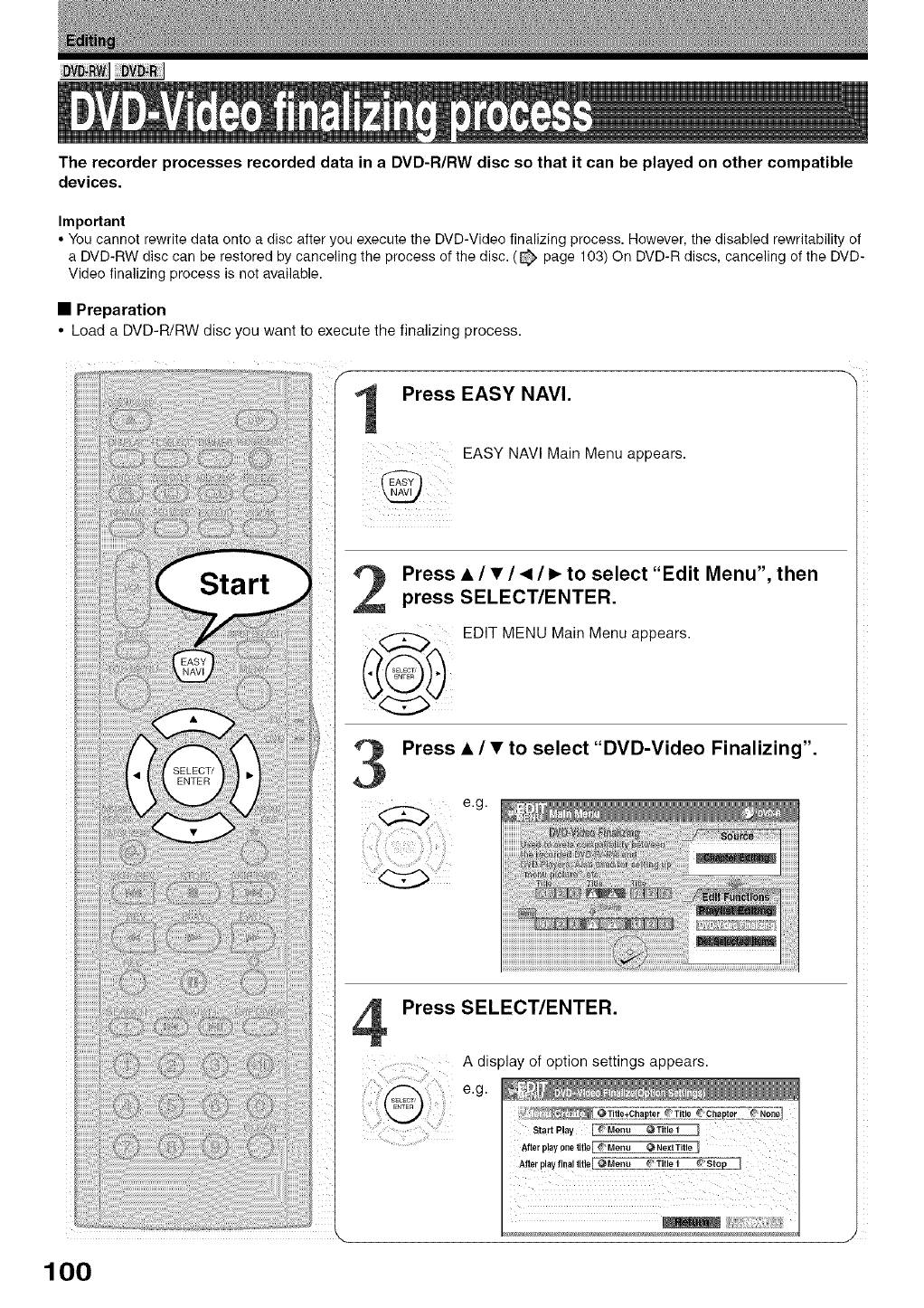

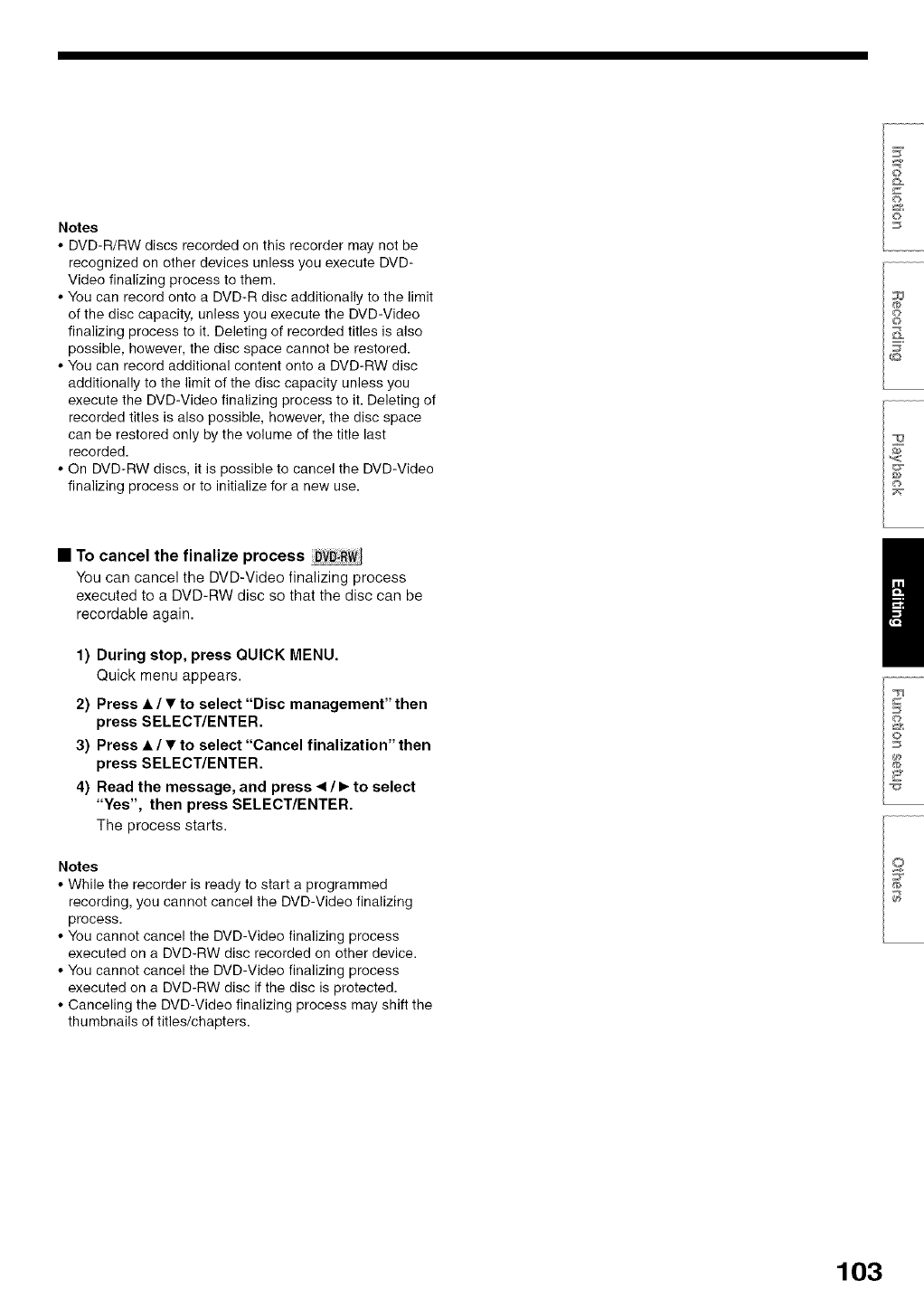

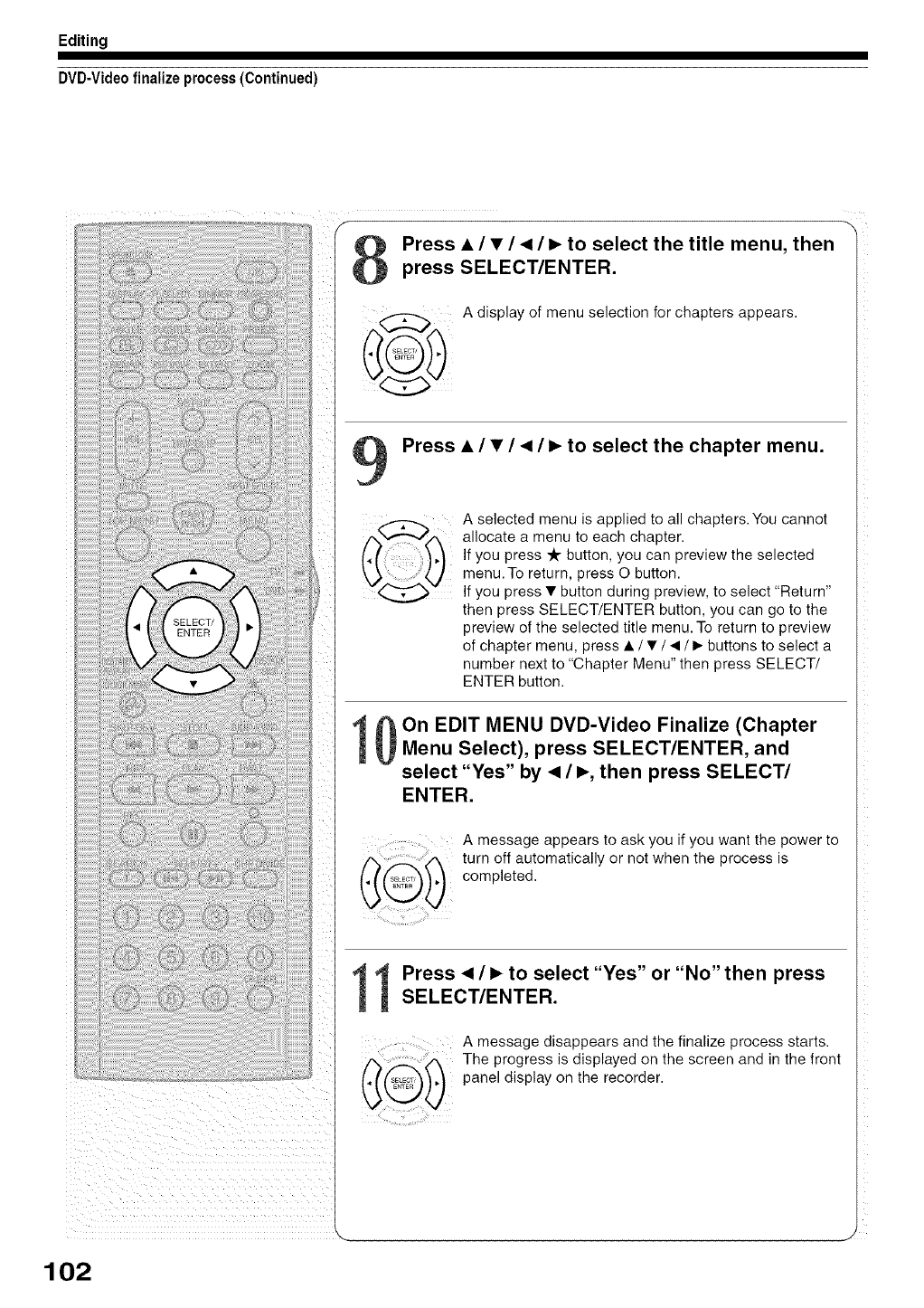

•DVD-Video finalizing process ........................ 100

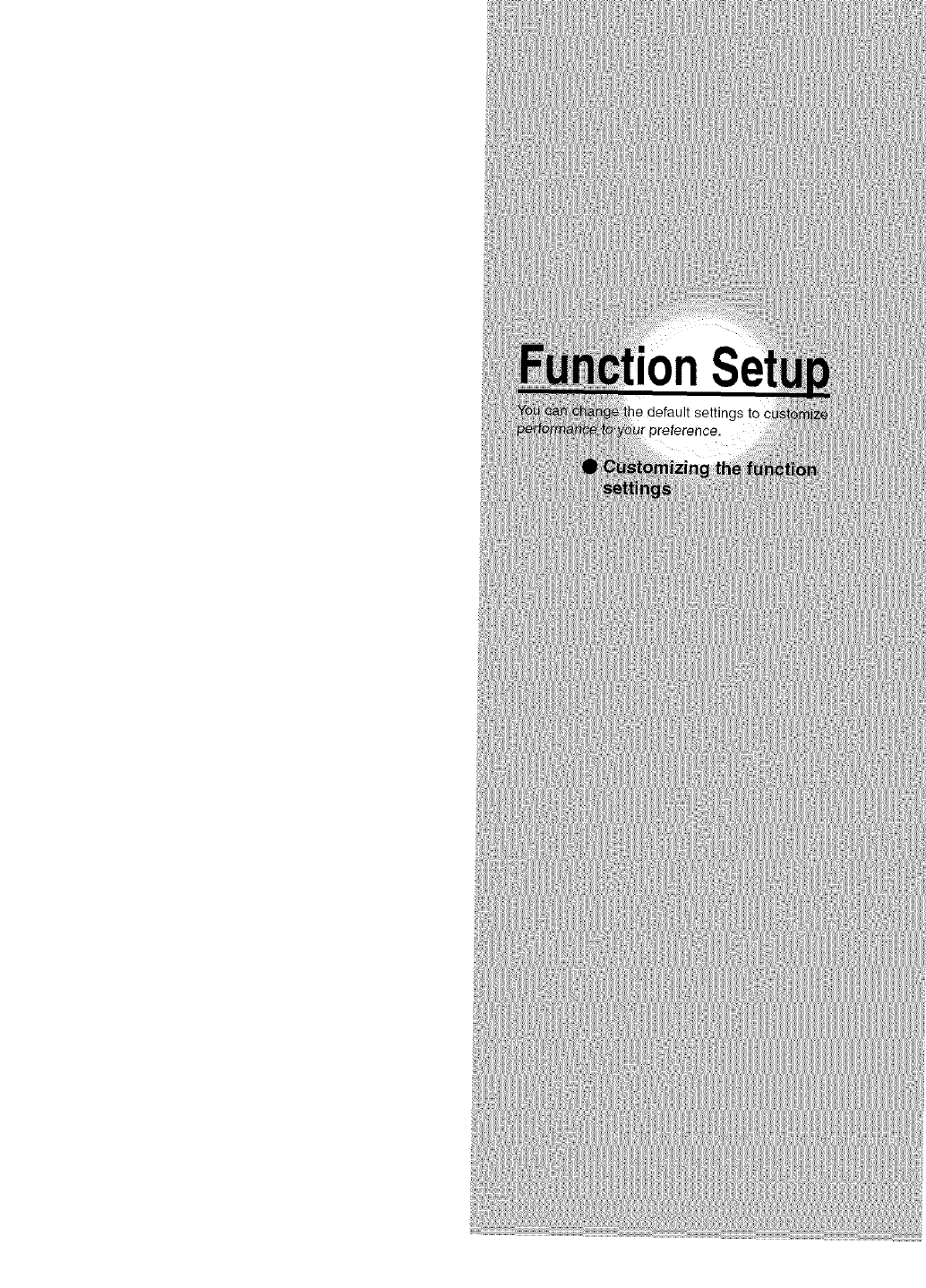

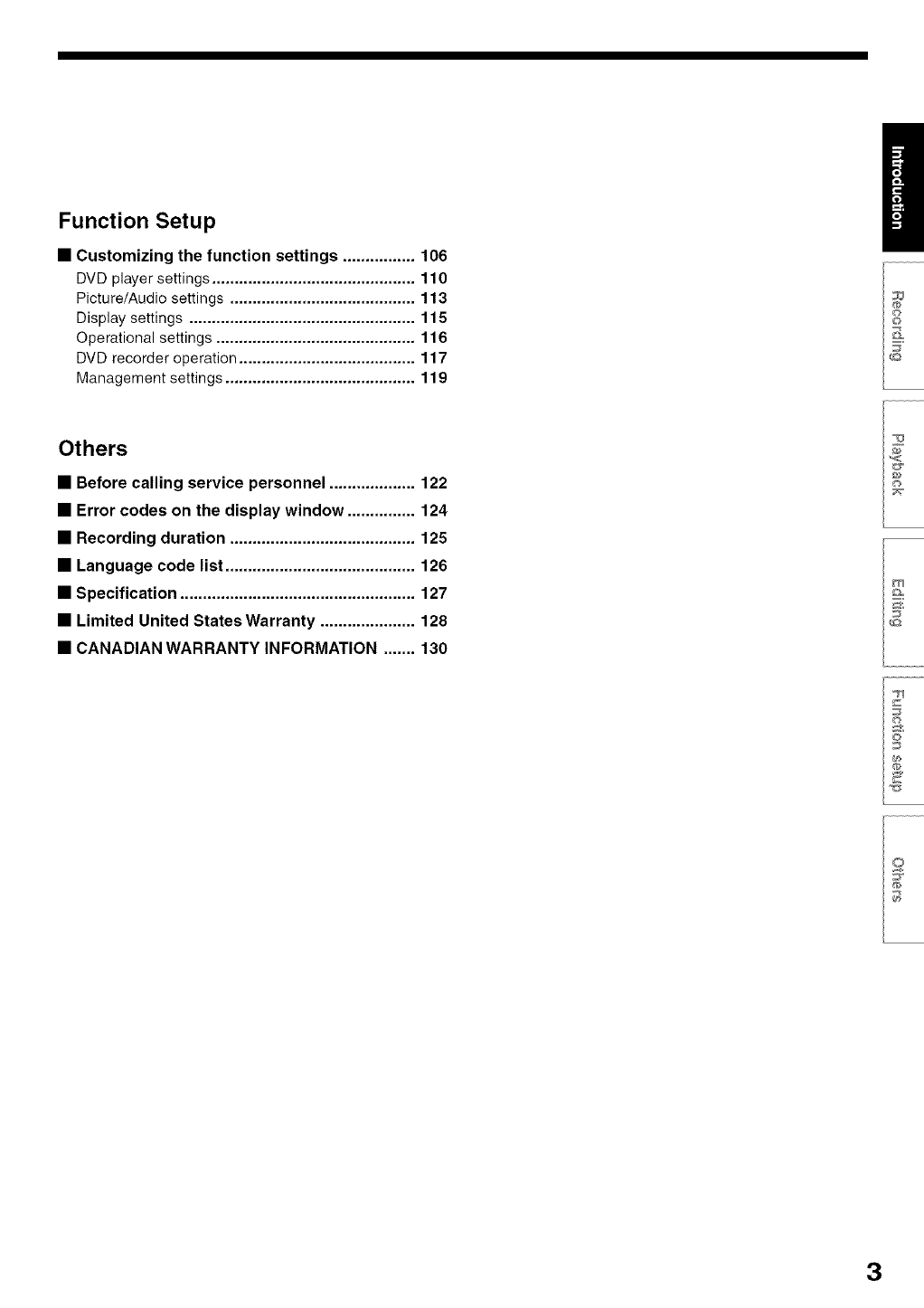

Function Setup

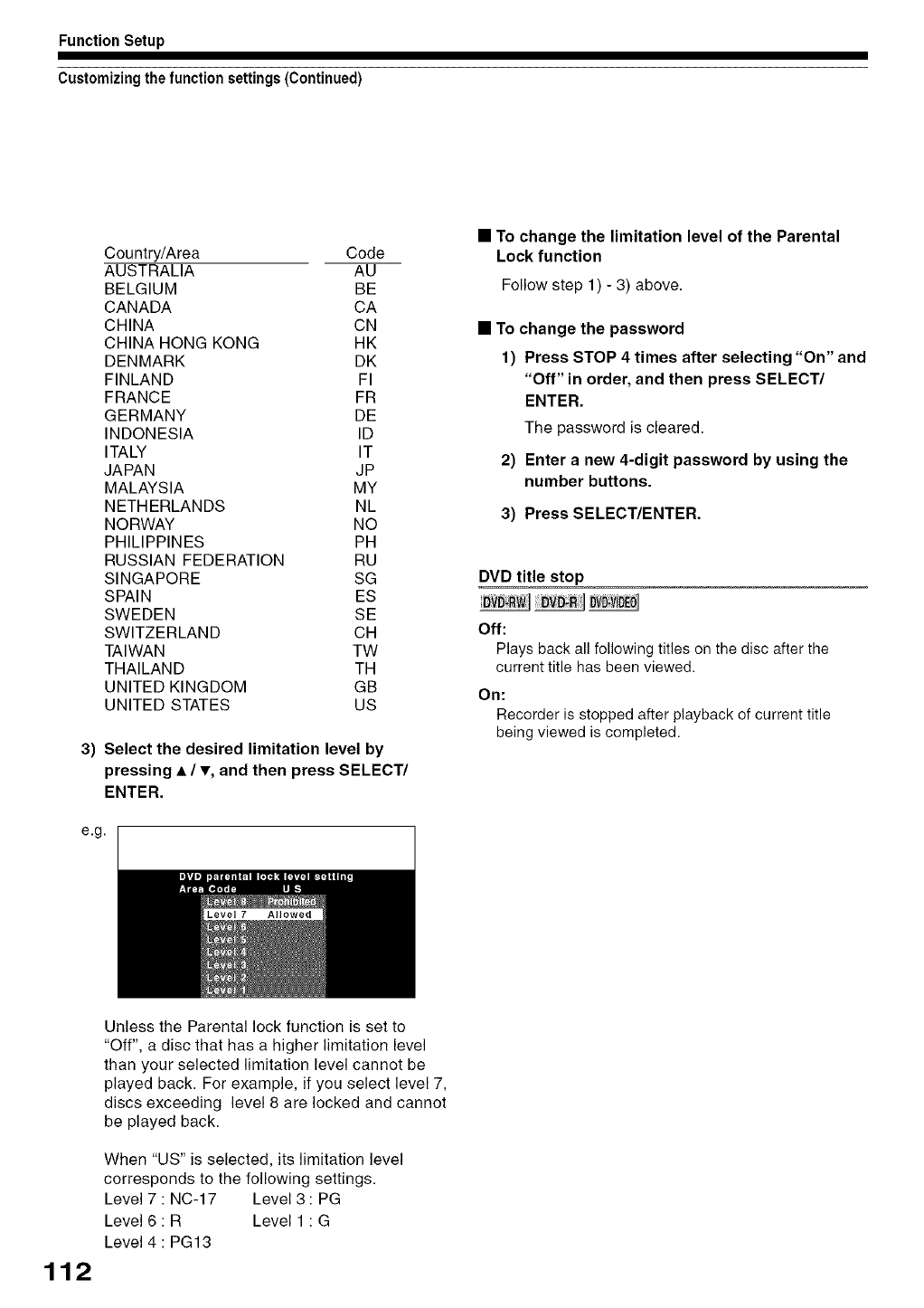

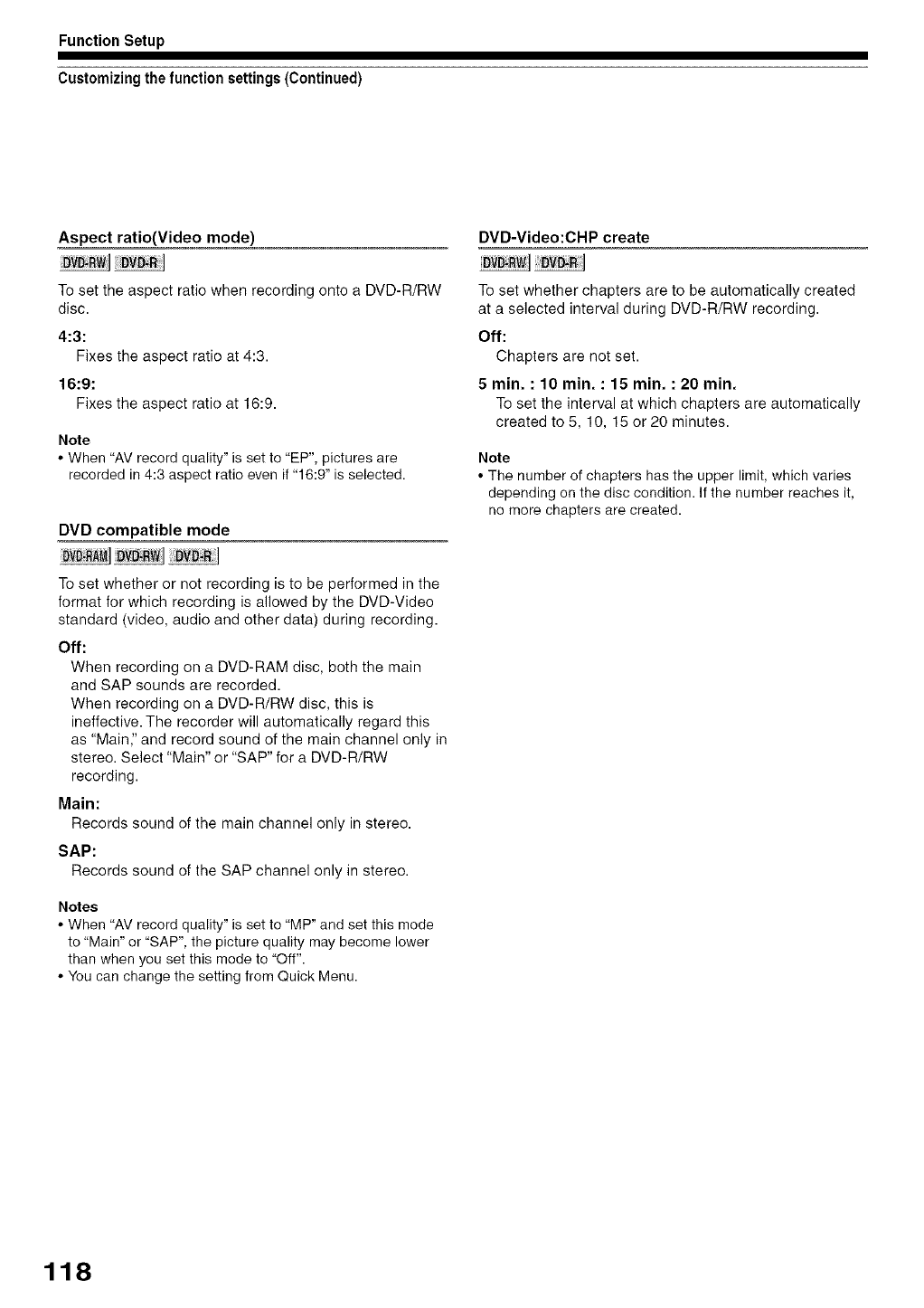

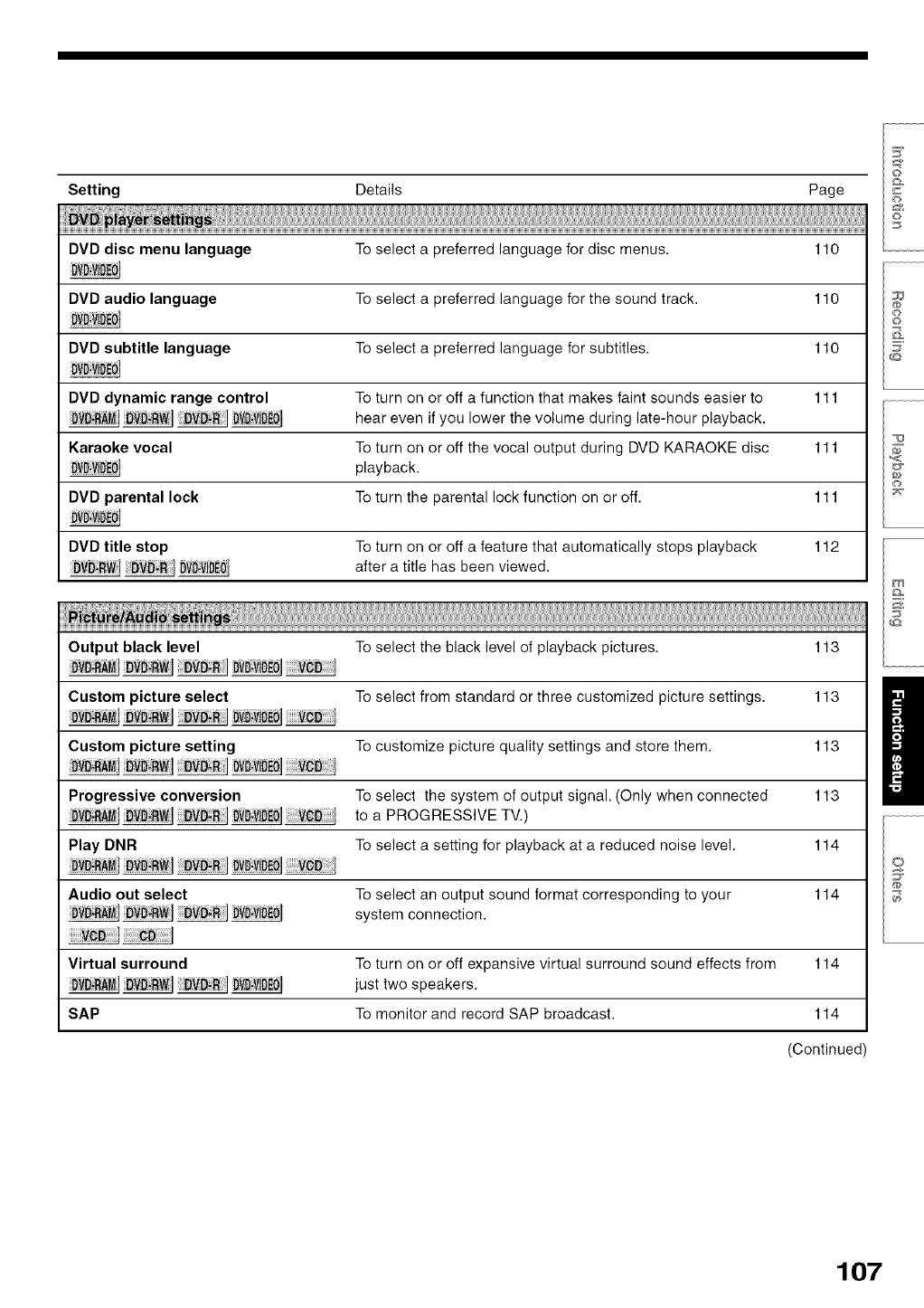

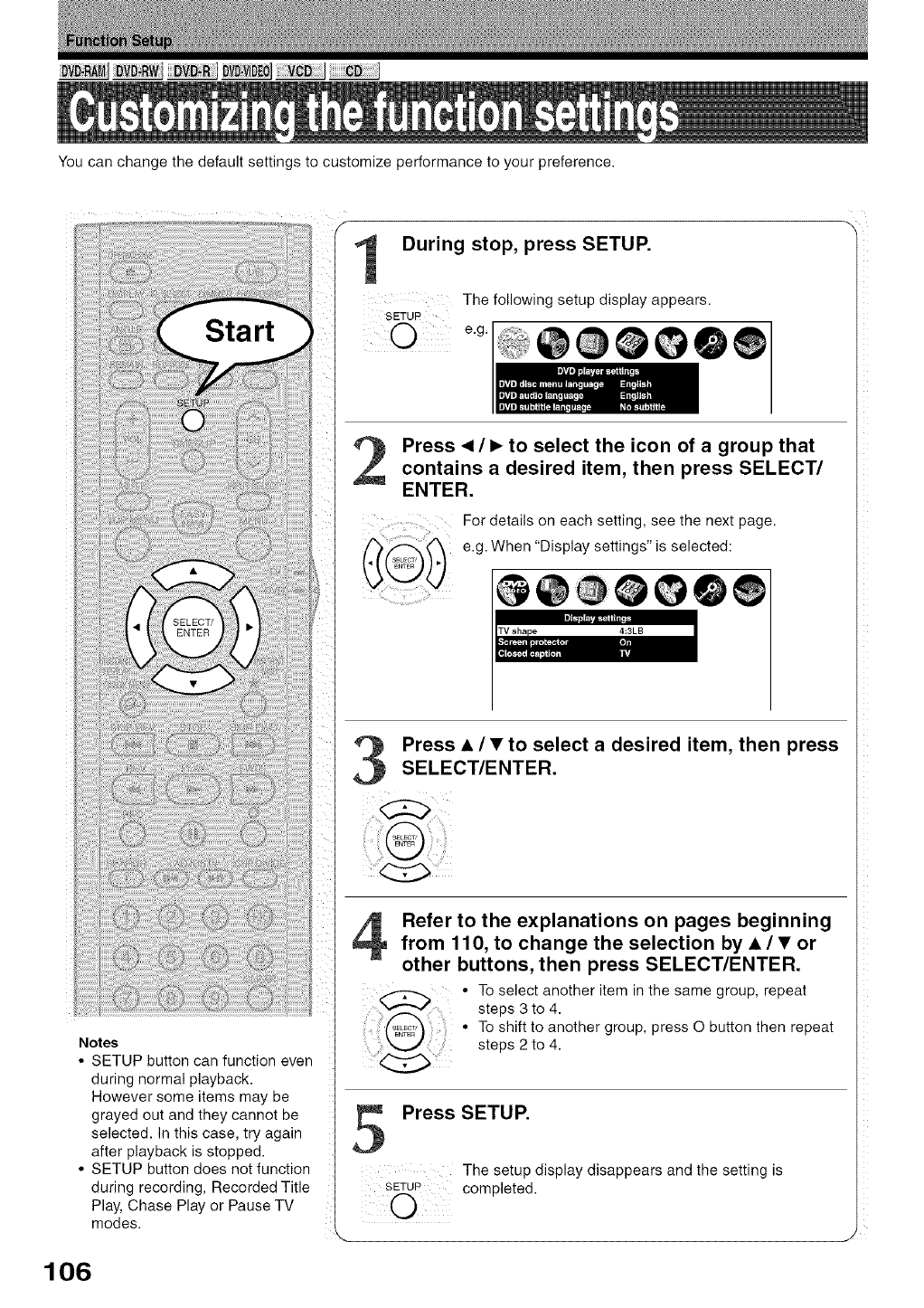

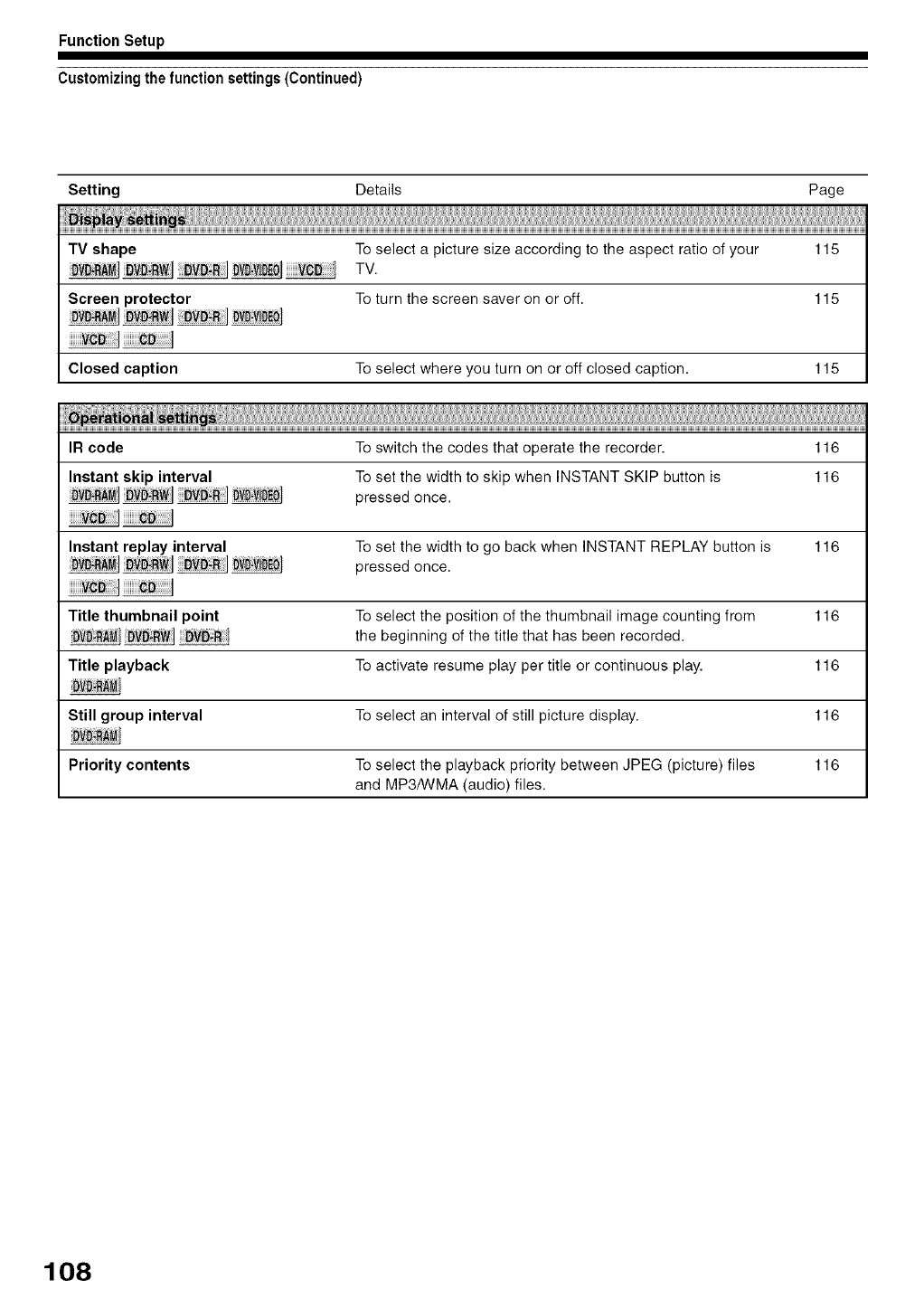

•Customizing the function settings ................ 106

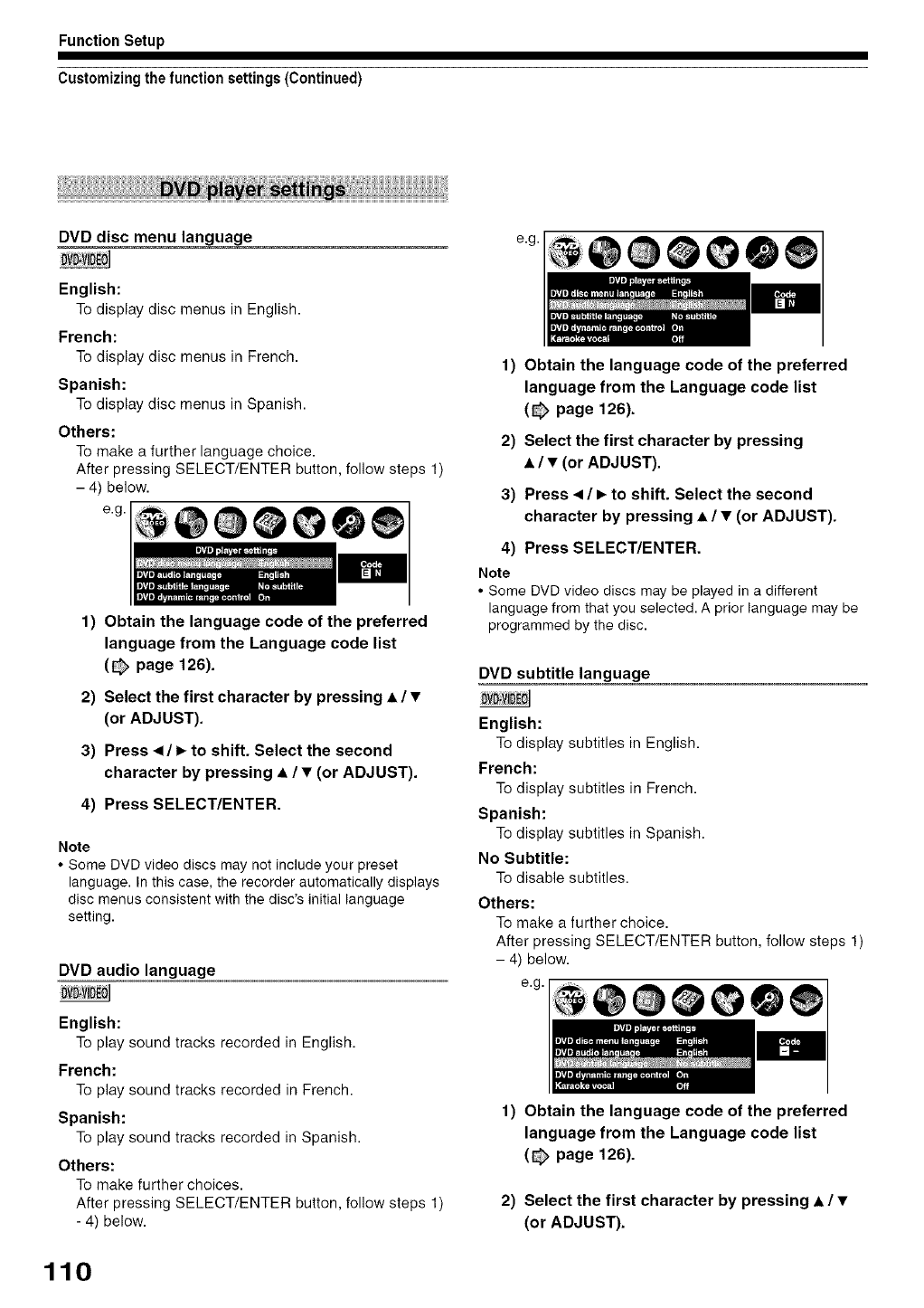

DVD player settings ............................................. 110

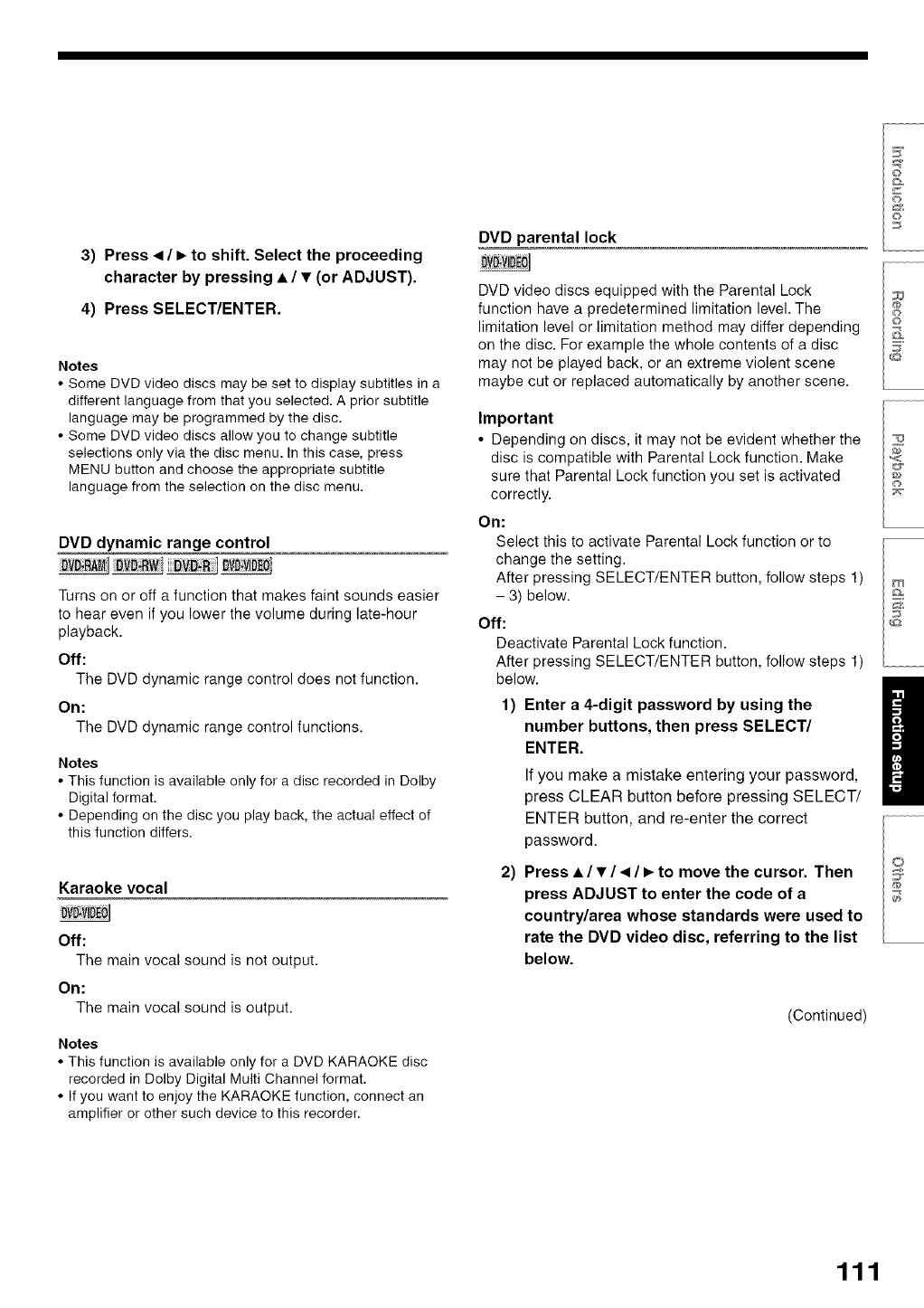

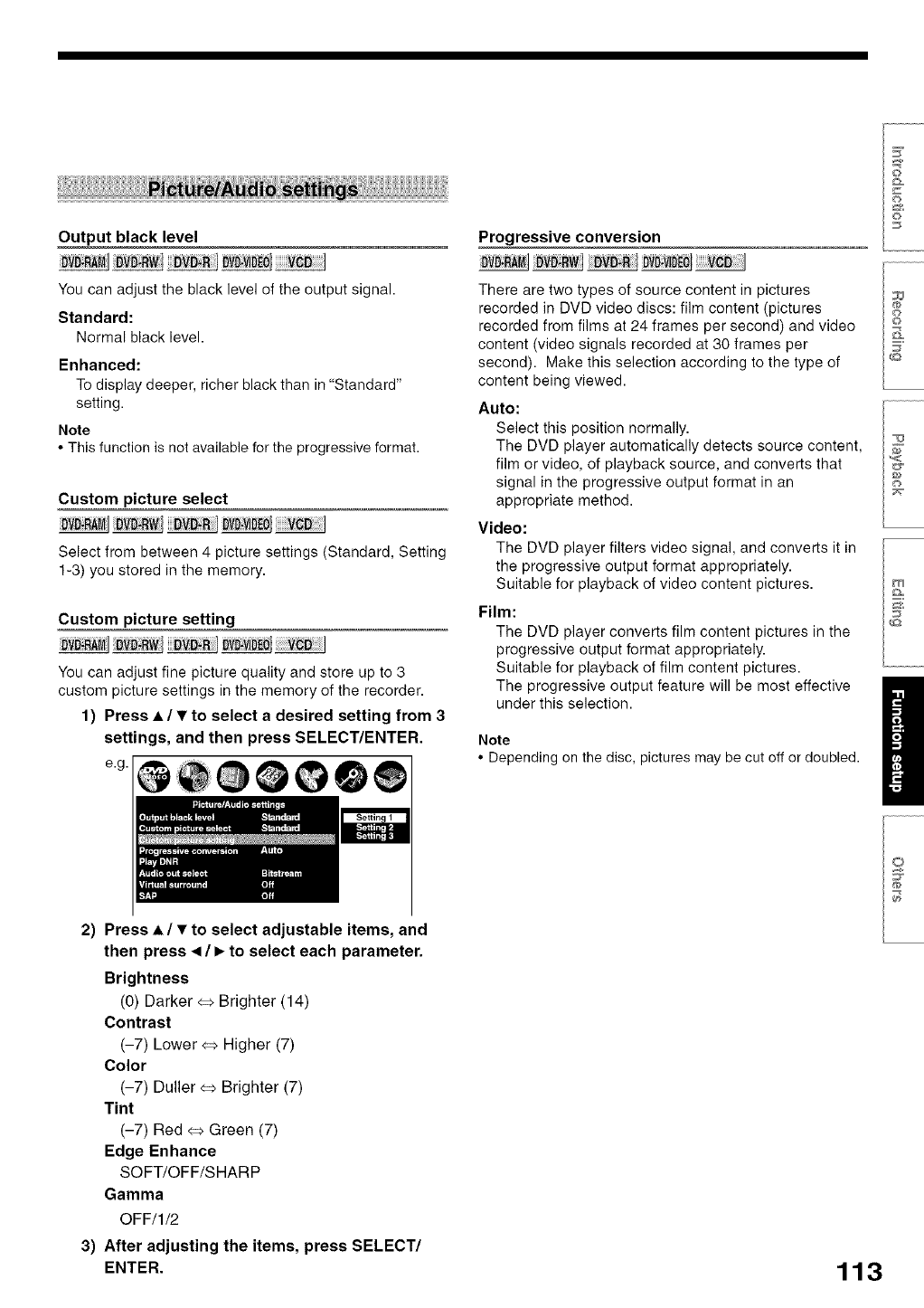

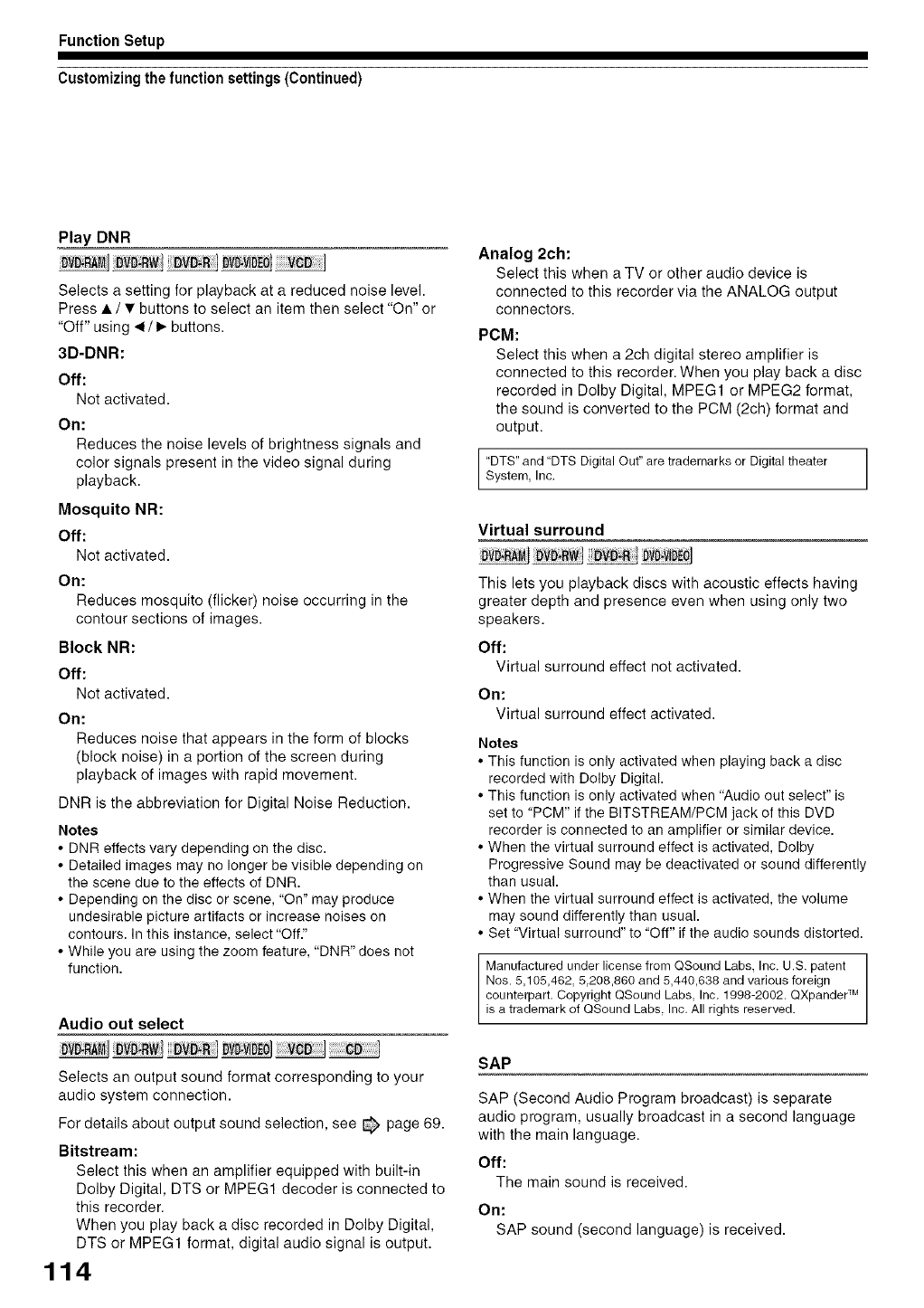

Picture/Audio settings ......................................... 113

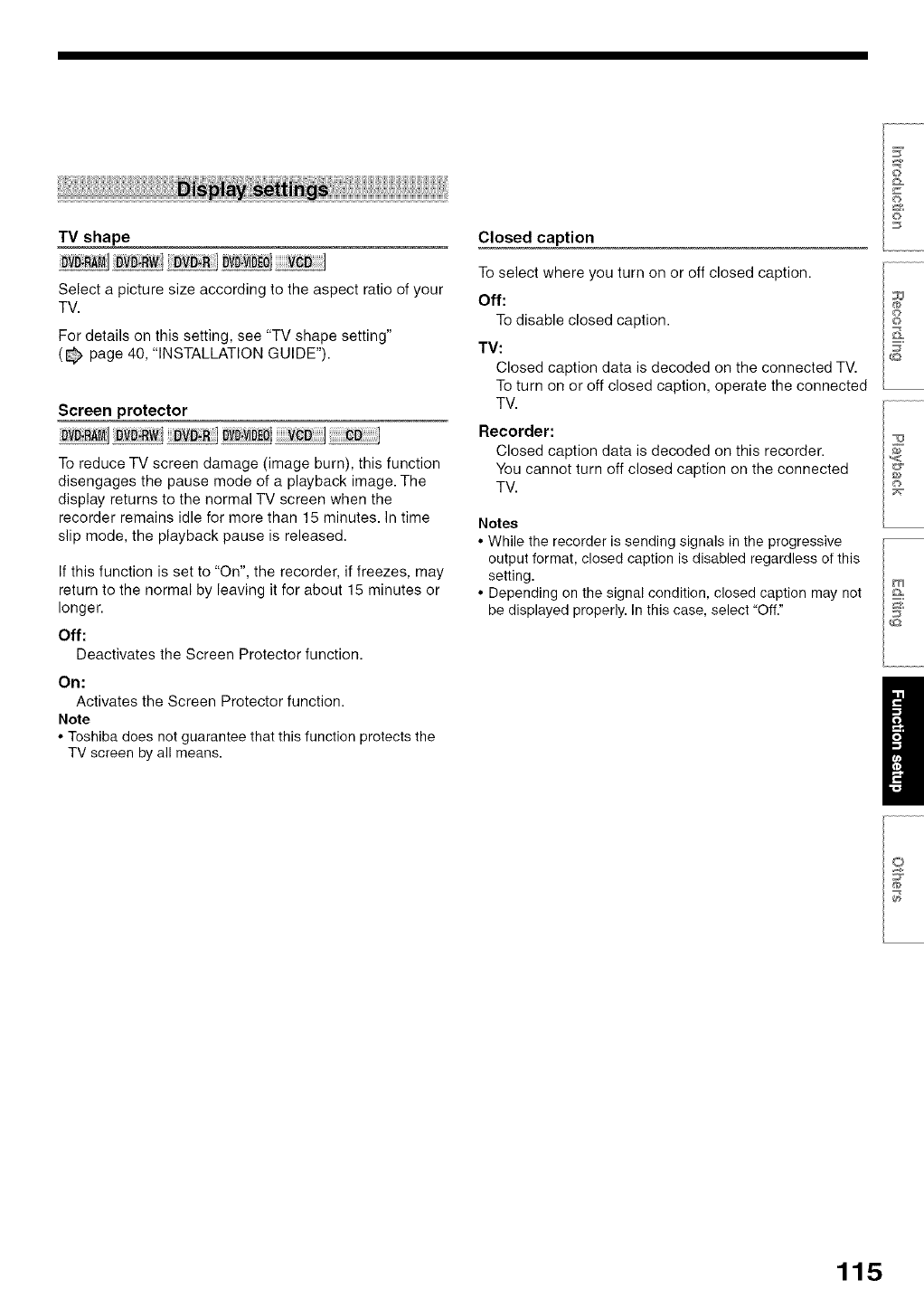

Display settings .................................................. 1 t 5

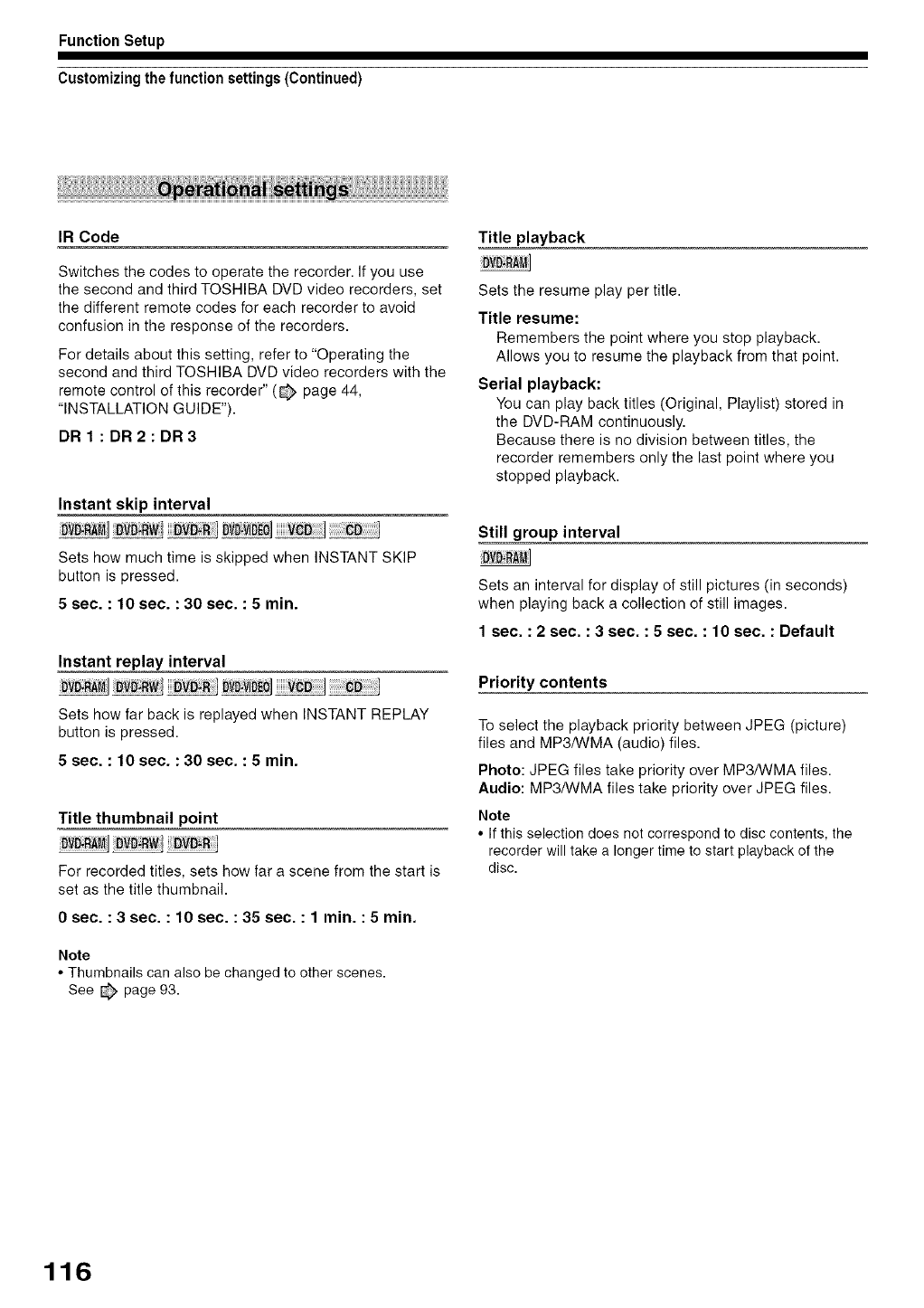

Operational settings ............................................ 1 t 6

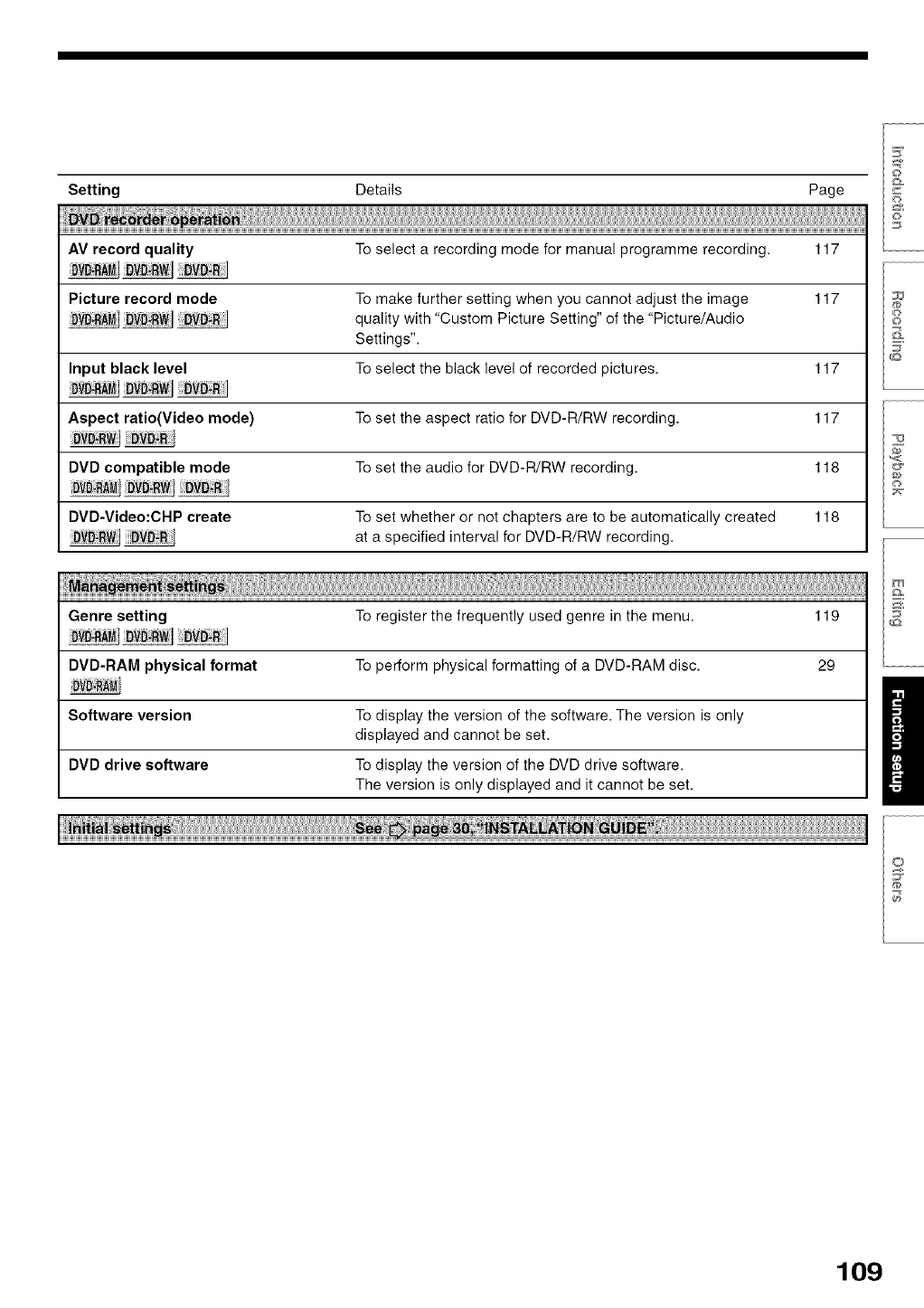

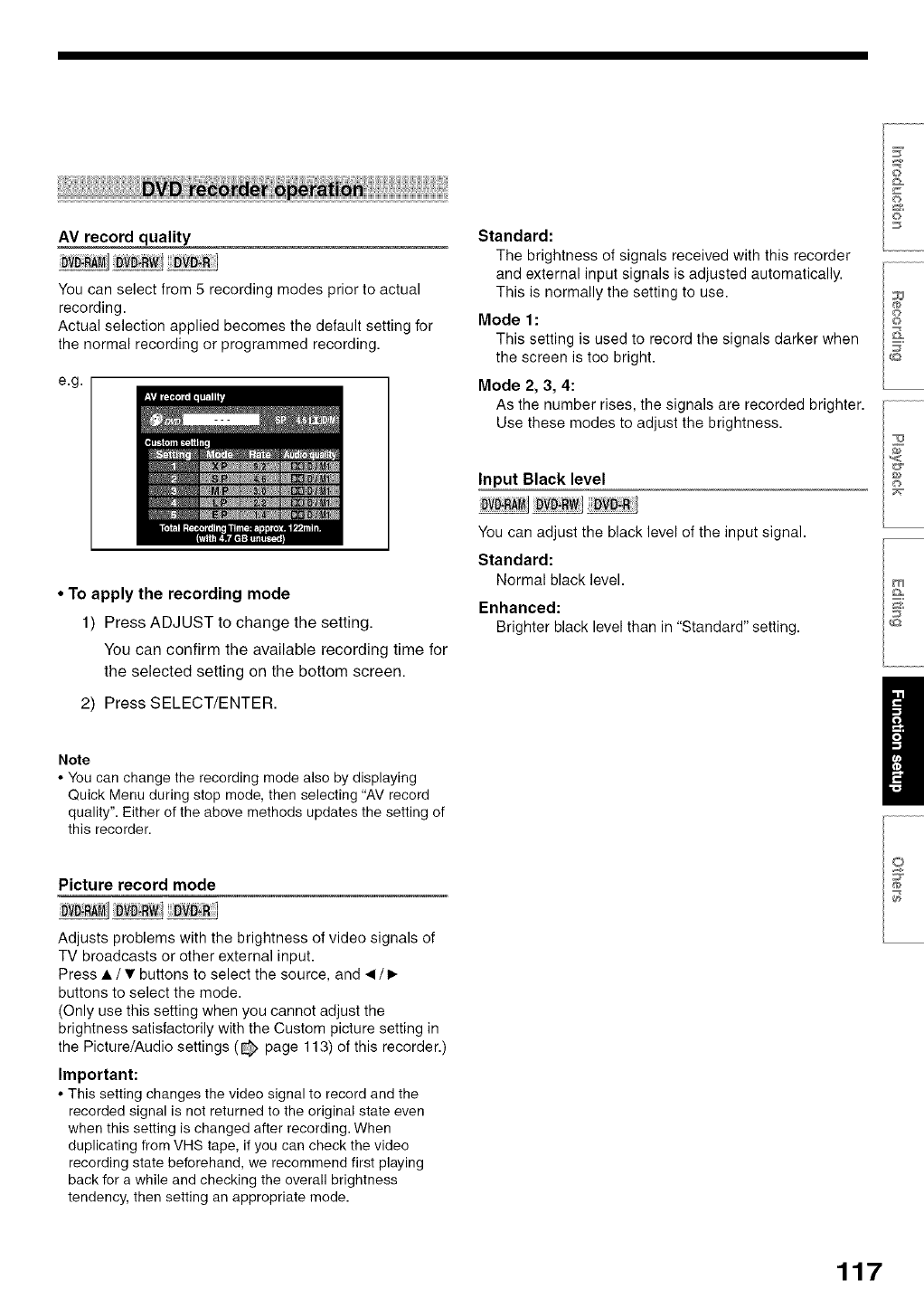

DVD recorder operation ....................................... 1 t 7

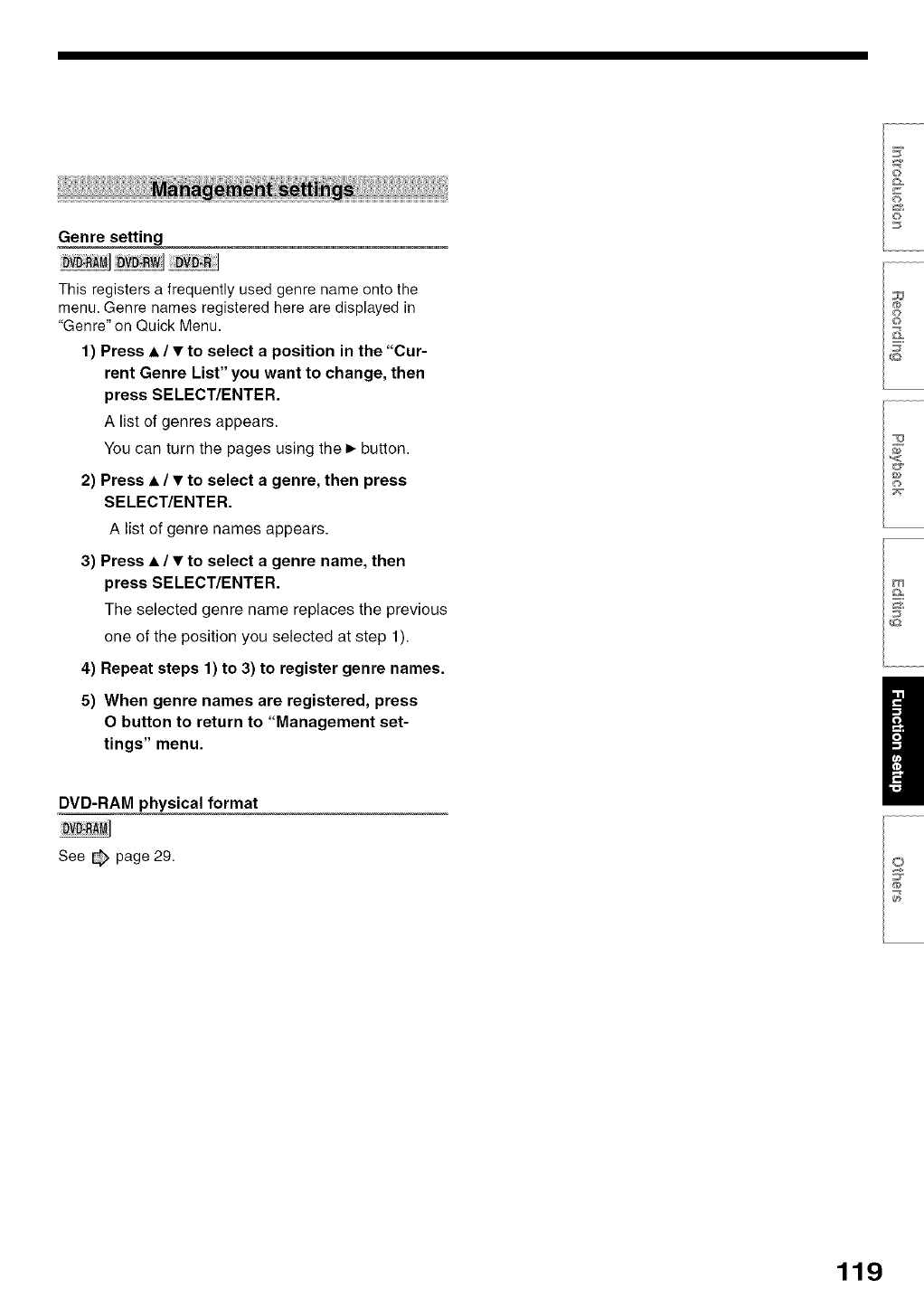

Management settings .......................................... 1 t 9

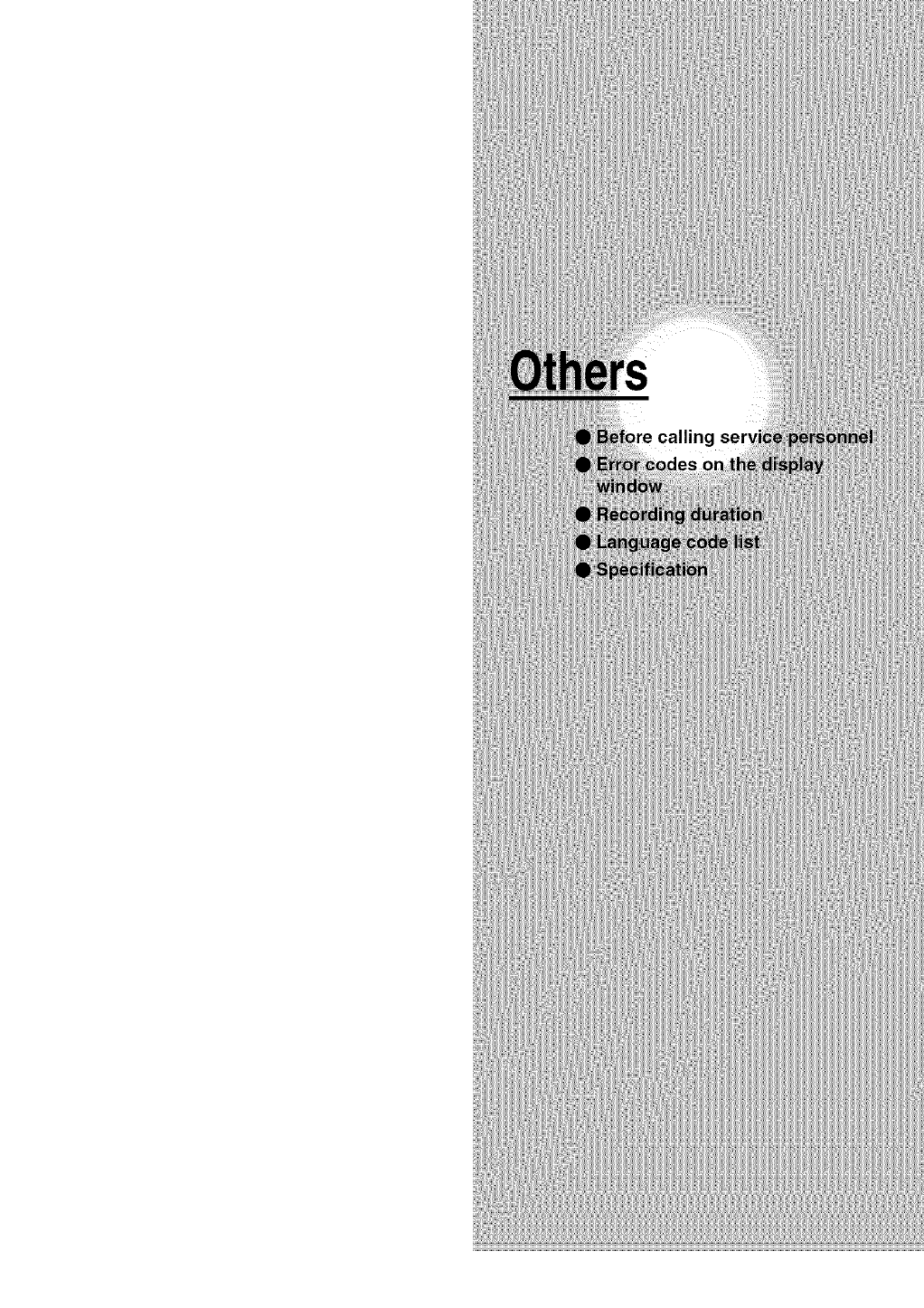

Others

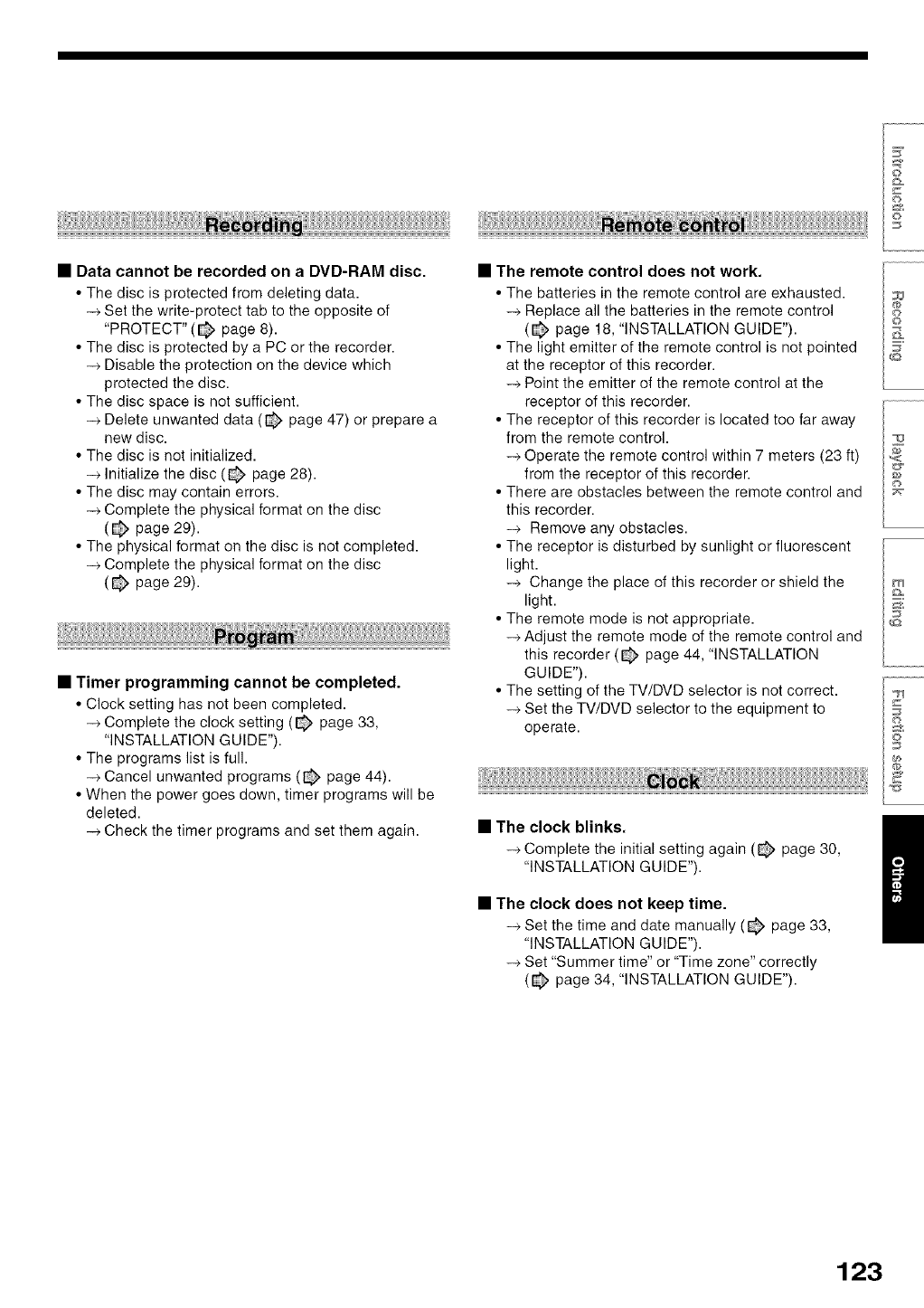

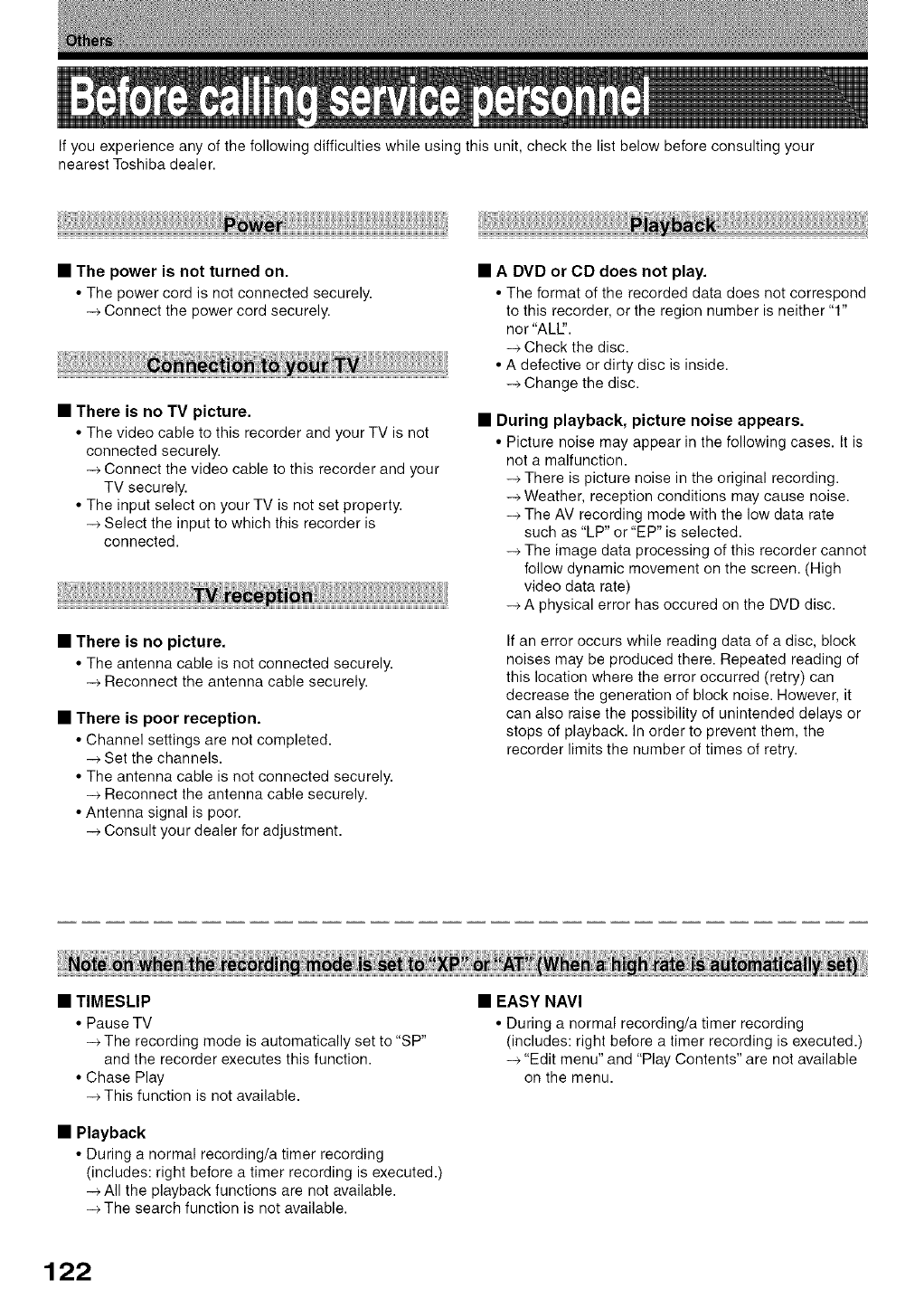

•Before calling service personnel ................... 122

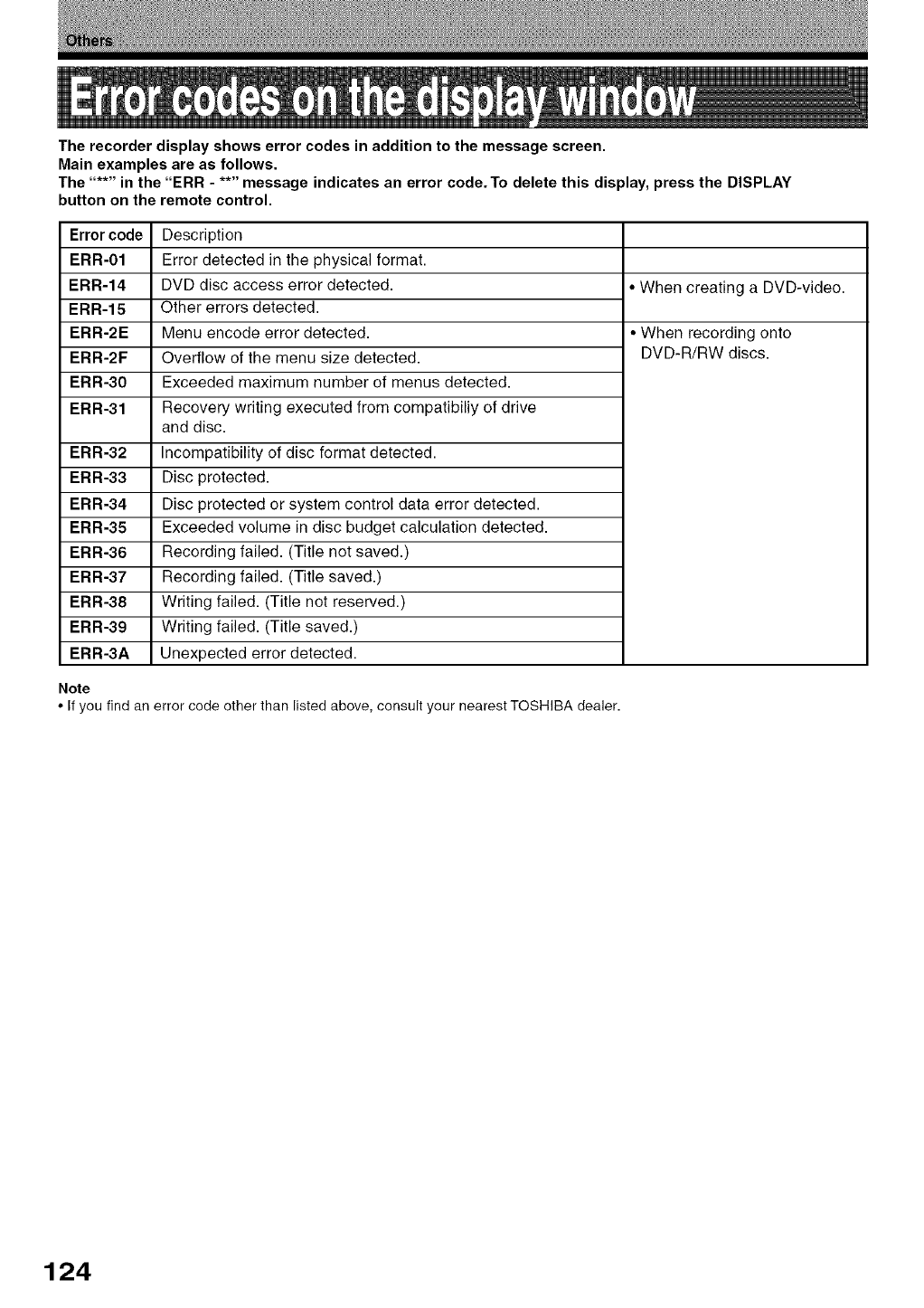

•Error codes on the display window ............... 124

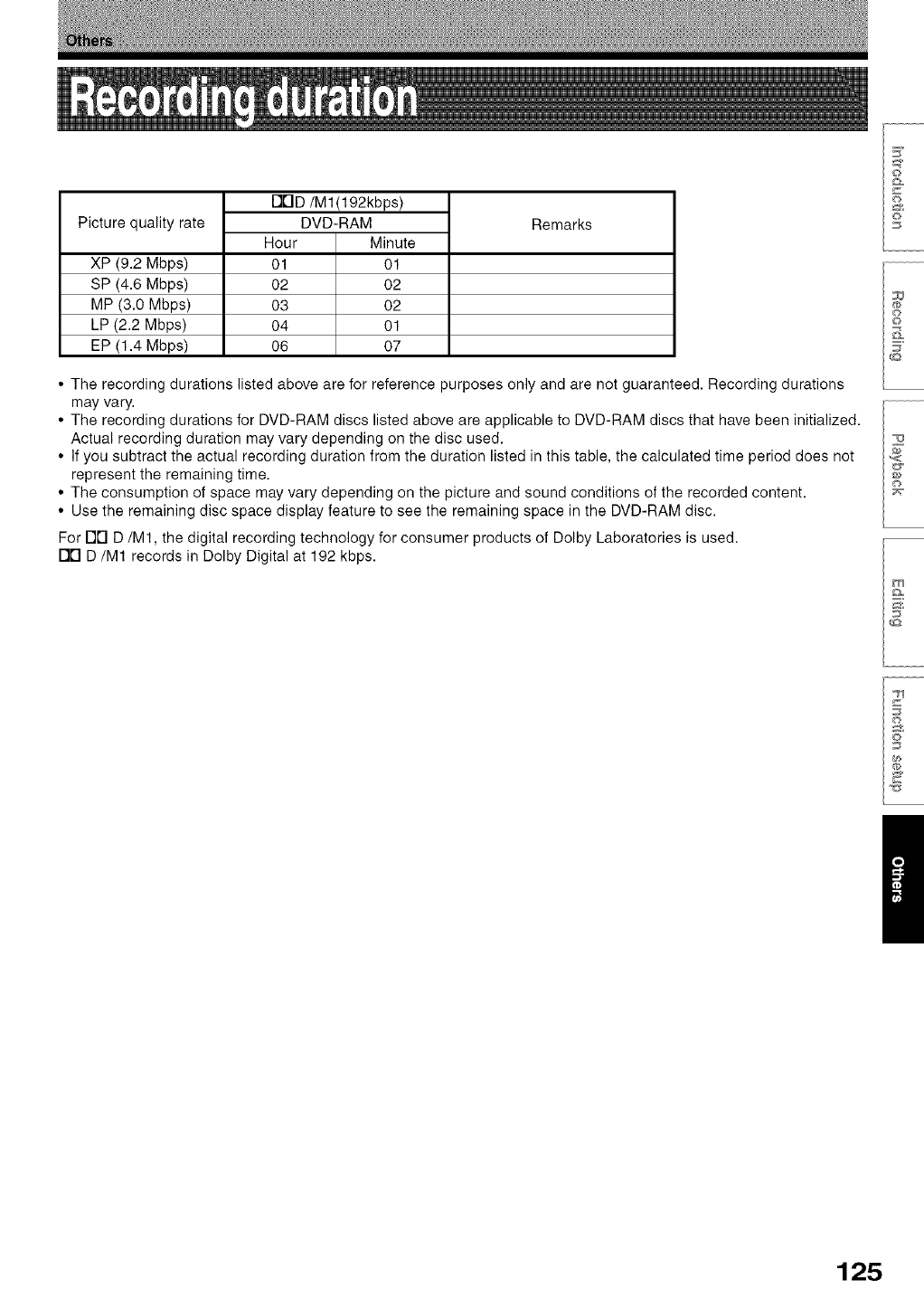

•Recording duration ......................................... 125

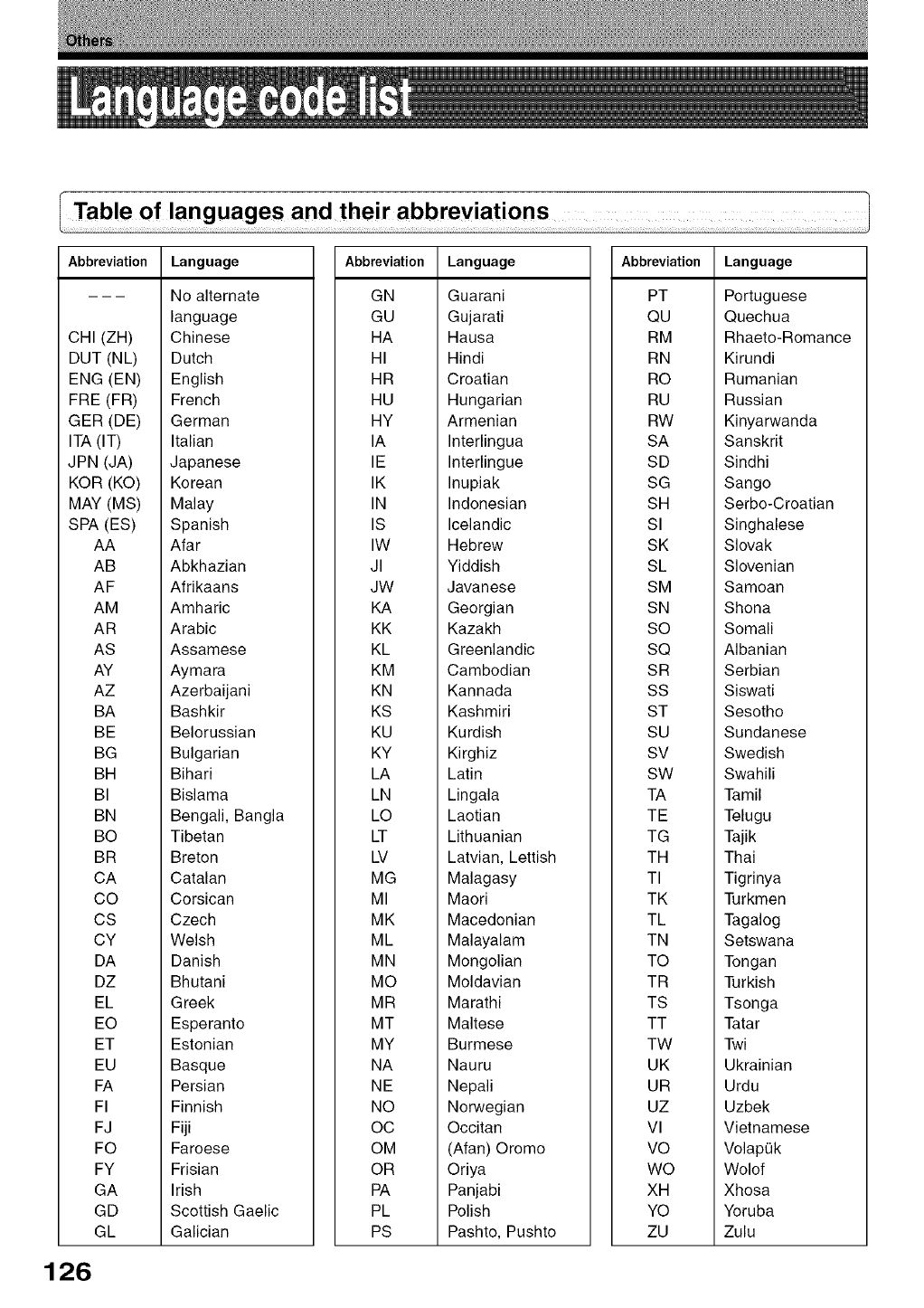

•Language code list .......................................... 126

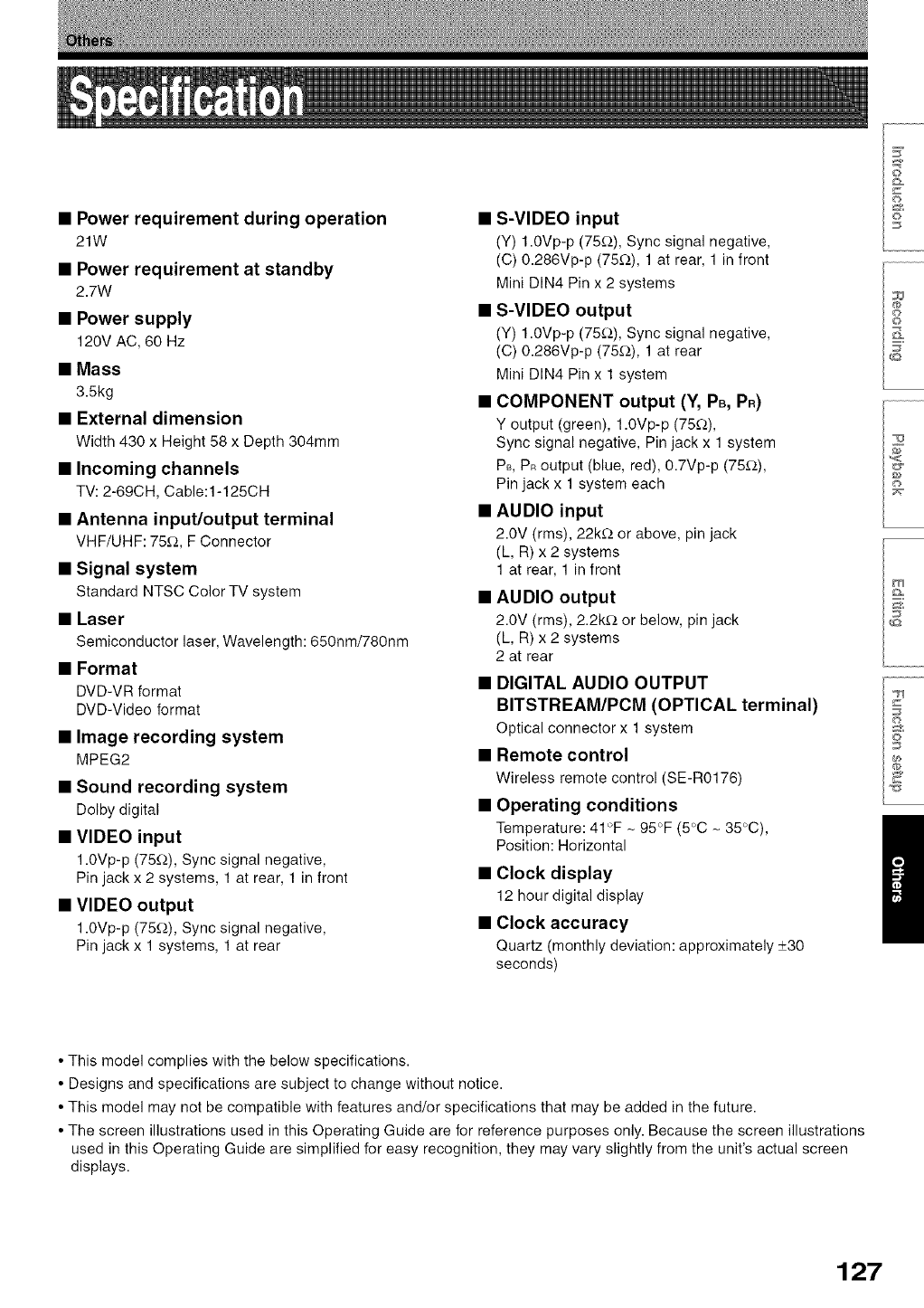

•Specification .................................................... 127

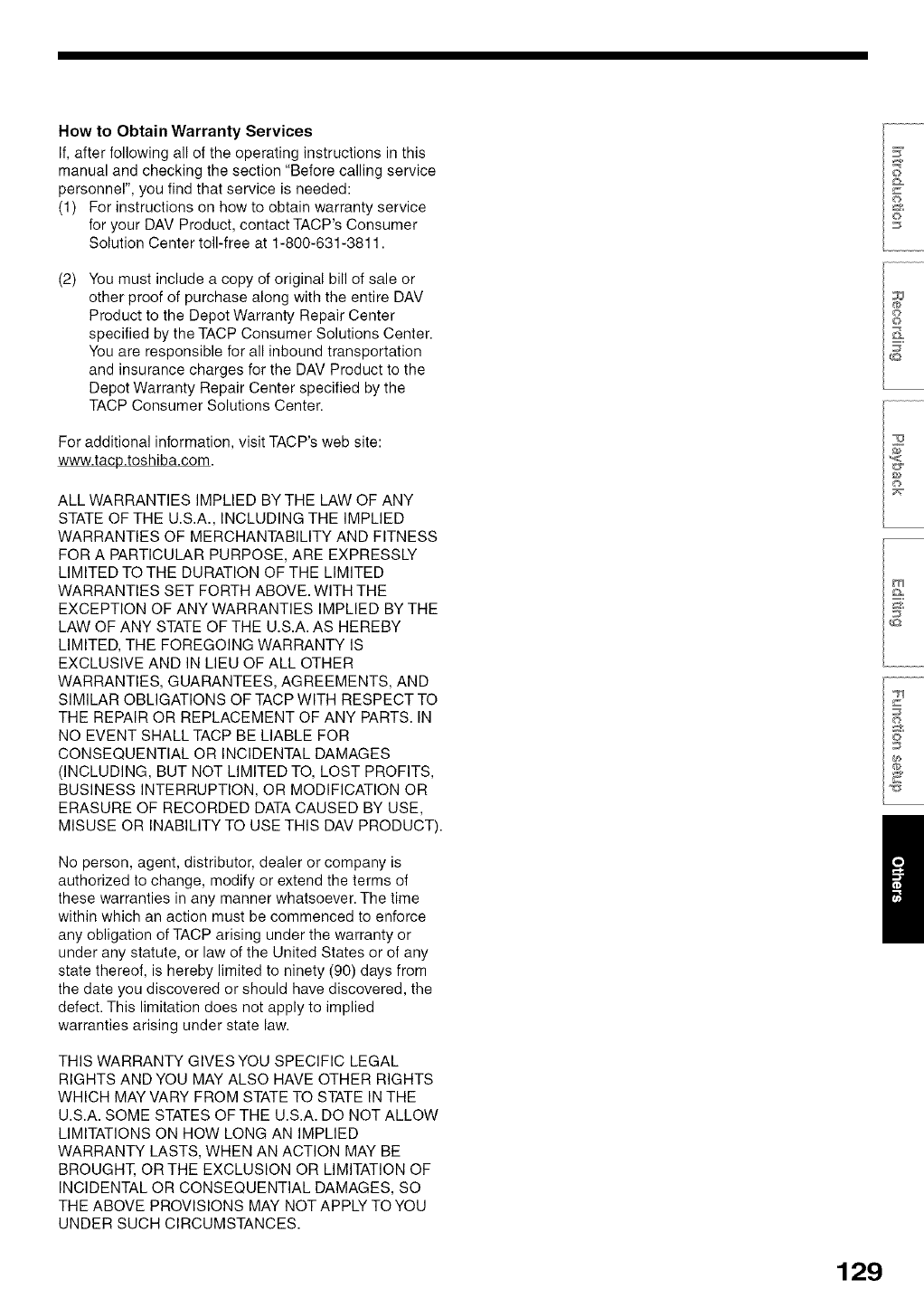

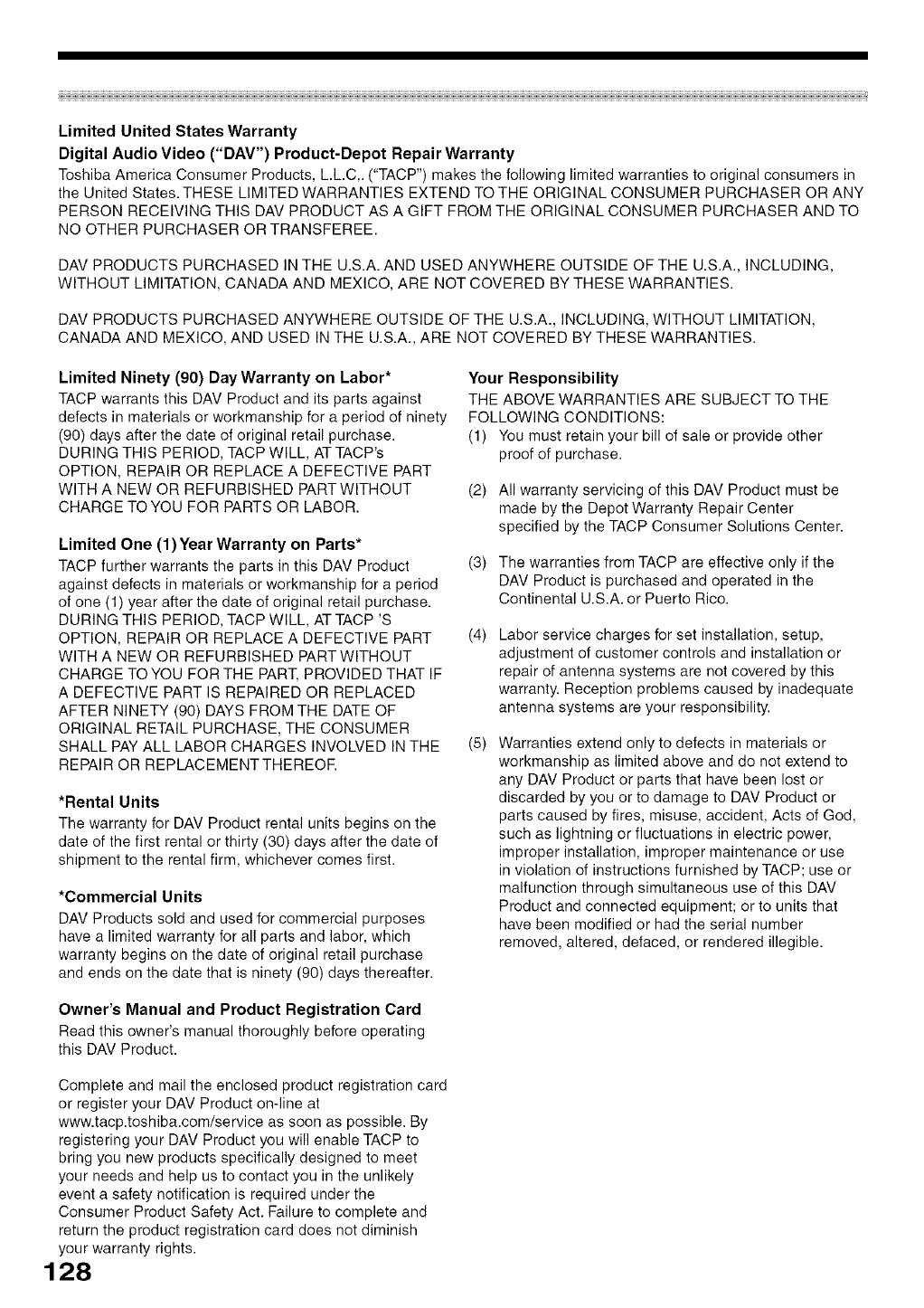

•Limited United States Warranty ..................... 128

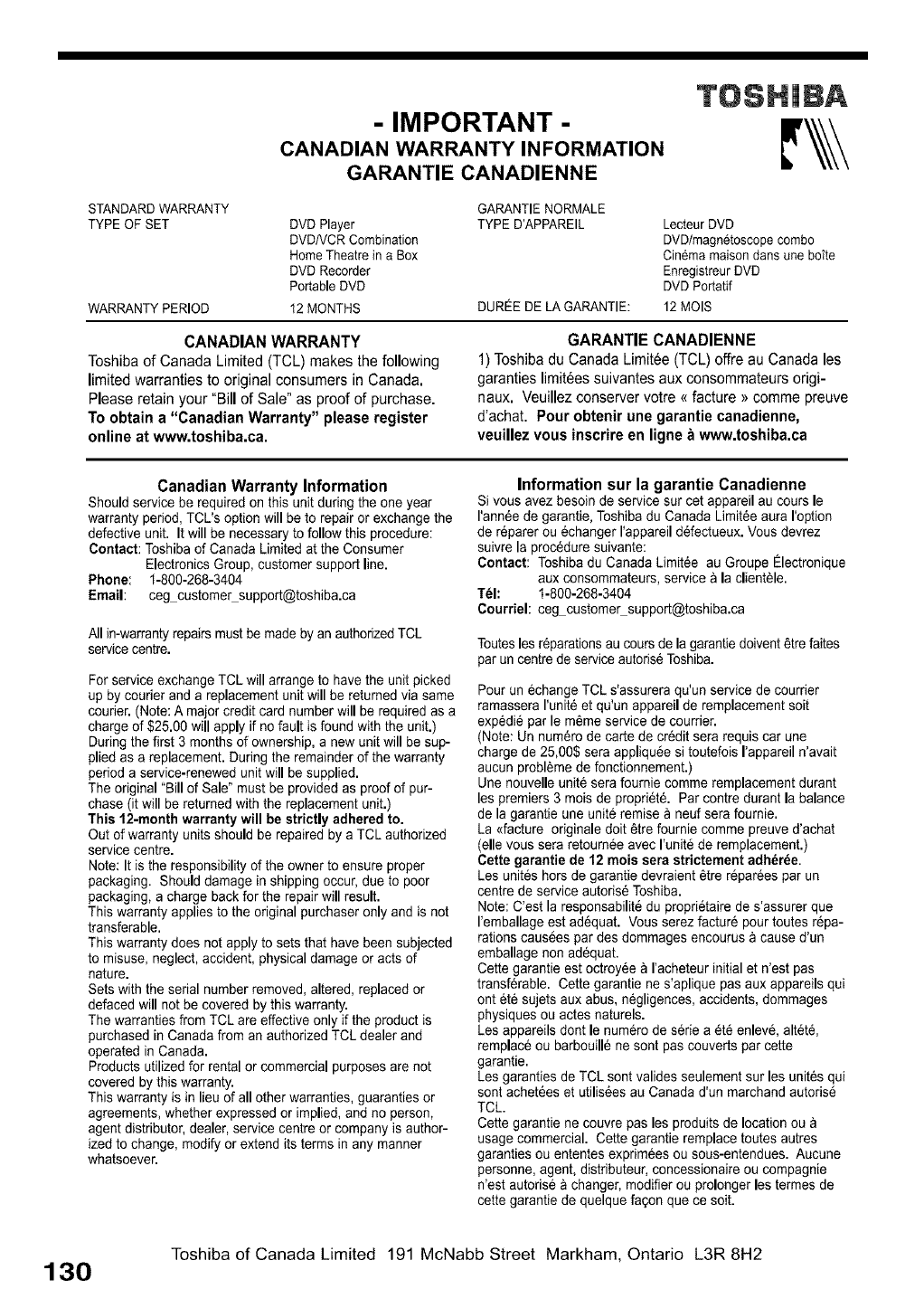

•CANADIAN WARRANTY INFORMATION ....... 130

Read "SAFETY PRECAUTIONS", "IMPORTANT SAFETY INSTRUCTIONS",

and all other sections of the "INSTALLATION GUIDE" that came with this

product prior to reading this "OPERATIONS GUIDE".

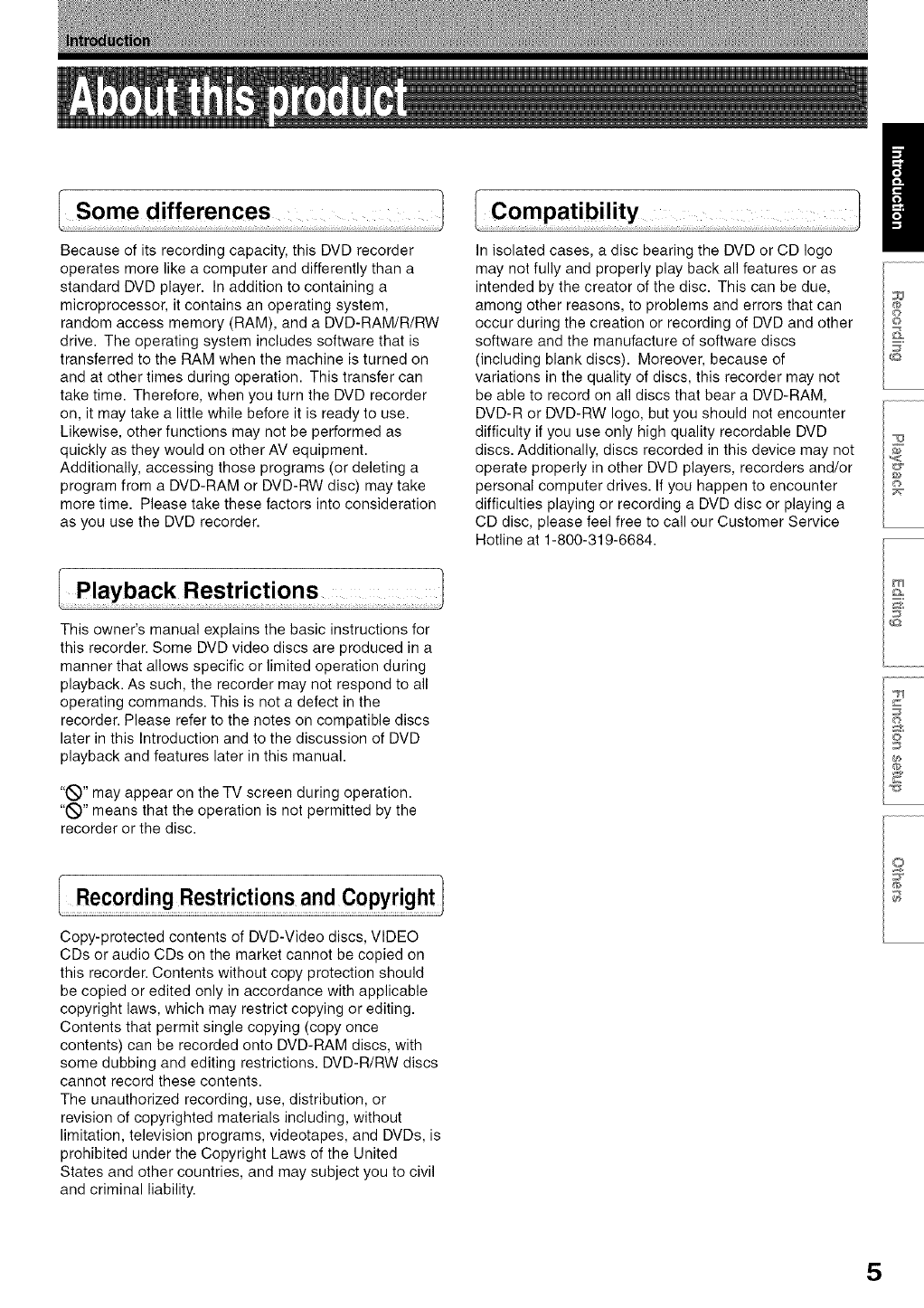

Because of its recording capacity, this DVD recorder

operates more like a computer and differently than a

standard DVD player. In addition to containing a

microprocessor, it contains an operating system,

random access memory (RAM), and a DVD-RAM/R/RW

drive. The operating system includes software that is

transferred to the RAM when the machine is turned on

and at other times during operation. This transfer can

take time. Therefore, when you turn the DVD recorder

on, it may take a little while before it is ready to use.

Likewise, other functions may not be performed as

quickly as they would on other AV equipment.

Additionally, accessing those programs (or deleting a

program from a DVD-RAM or DVD-RW disc) may take

more time. Please take these factors into consideration

as you use the DVD recorder.

In isolated cases, a disc bearing the DVD or CD logo

may not fully and properly play back all features or as

intended by the creator of the disc. This can be due,

among other reasons, to problems and errors that can

occur during the creation or recording of DVD and other

software and the manufacture of software discs

(including blank discs). Moreover, because of

variations in the quality of discs, this recorder may not

be able to record on all discs that bear a DVD-RAM,

DVD-R or DVD-RW logo, but you should not encounter

difficulty if you use only high quality recordable DVD

discs. Additionally, discs recorded in this device may not

operate properly in other DVD players, recorders and/or

personal computer drives. If you happen to encounter

difficulties playing or recording a DVD disc or playing a

CD disc, please feel free to call our Customer Service

Hotline at 1-800-319-6684.

This owner's manual explains the basic instructions for

this recorder. Some DVD video discs are produced in a

manner that allows specific or limited operation during

playback. As such, the recorder may not respond to all

operating commands. This is not a defect in the

recorder. Please refer to the notes on compatible discs

later in this Introduction and to the discussion of DVD

playback and features later in this manual.

"_" may appear on the TV screen during operation.

"_" means that the operation is not permitted by the

recorder or the disc.

Copy-protected contents of DVD-Video discs, VIDEO

CDs or audio CDs on the market cannot be copied on

this recorder. Contents without copy protection should

be copied or edited only in accordance with applicable

Contents that permit single copying (copy once

contents) can be recorded onto DVD-RAM discs, with

some dubbing and editing restrictions. DVD-R/RW discs

cannot record these contents.

The unauthorized recording, use, distribution, or

revision of copyrighted materials including, without

limitation, television programs, videotapes, and DVDs, is

prohibited under the Copyright Laws of the United

States and other countries, and may subject you to civil

and criminal liability.

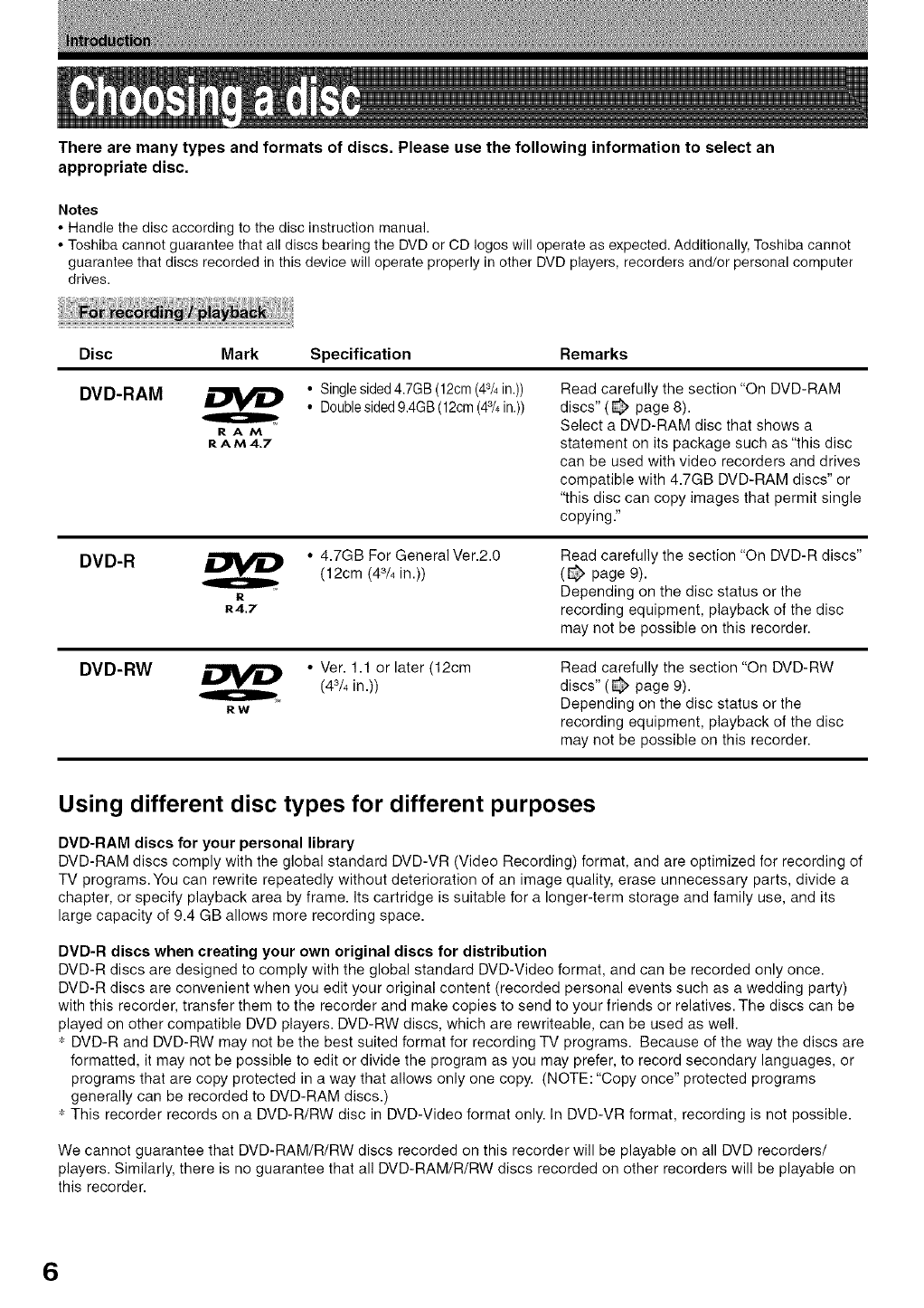

There are many types and formats of discs. Please use the following information to select an

appropriate disc.

Notes

• Handle the disc according to the disc instruction manual.

• Toshiba cannot guarantee that all discs bearing the DVD or CD Iogos will operate as expected. Additionally, Toshiba cannot

guarantee that discs recorded in this device will operate properly in other DVD players, recorders and/or personal computer

drives.

Disc

DVD-RAM

Mark Specification Remarks

RAM

RAM4.7

•Singlesided4.7GB(12cm(43/4in.))

• Doublesidedg.4GB(12cm(43/4in.))

DVD-R _ • 4.7GB For General Ver.2.0

(120m (43/4 in.))

R4.7

Read carefully the section "On DVD-RAM

discs" (_ page 8).

Select a DVD-RAM disc that shows a

statement on its package such as "this disc

can be used with video recorders and drives

compatible with 4.7GB DVD-RAM discs" or

"this disc can copy images that permit single

copying."

DVD-RW • Ver. 1.1 or later (12cm

(43/4in.))

Read carefully the section "On DVD-R discs"

(_ page 9).

Depending on the disc status or the

recording equipment, playback of the disc

may not be possible on this recorder.

Read carefully the section "On DVD-RW

discs" (@ page 9).

Depending on the disc status or the

recording equipment, playback of the disc

may not be possible on this recorder.

Using different disc types for different purposes

DVD-RAM discs for your personal library

DVD-RAM discs comply with the global standard DVD-VR (Video Recording) format, and are optimized for recording of

TV programs.You can rewrite repeatedly without deterioration of an image quality, erase unnecessary parts, divide a

chapter, or specify playback area by frame. Its cartridge is suitable for a longer-term storage and family use, and its

large capacity of 9.4 GB allows more recording space.

DVD-R discs when creating your own original discs for distribution

DVD-R discs are designed to comply with the global standard DVD-Video format, and can be recorded only once.

DVD-R discs are convenient when you edit your original content (recorded personal events such as a wedding party)

with this recorder, transfer them to the recorder and make copies to send to your friends or relatives. The discs can be

played on other compatible DVD players. DVD-RW discs, which are rewriteable, can be used as well.

'_ DVD-R and DVD-RW may not be the best suited format for recording TV programs. Because of the way the discs are

formatted, it may not be possible to edit or divide the program as you may prefer, to record secondary languages, or

programs that are copy protected in a way that allows only one copy. (NOTE: "Copy once" protected programs

generally can be recorded to DVD-RAM discs.)

'_ This recorder records on a DVD-R/RW disc in DVD-Video format only. In DVD-VR format, recording is not possible.

We cannot guarantee that DVD-RAM/R/RW discs recorded on this recorder will be playable on all DVD recorders/

players. Similarly, there is no guarantee that all DVD-RAM/R/RW discs recorded on other recorders will be playable on

this recorder.

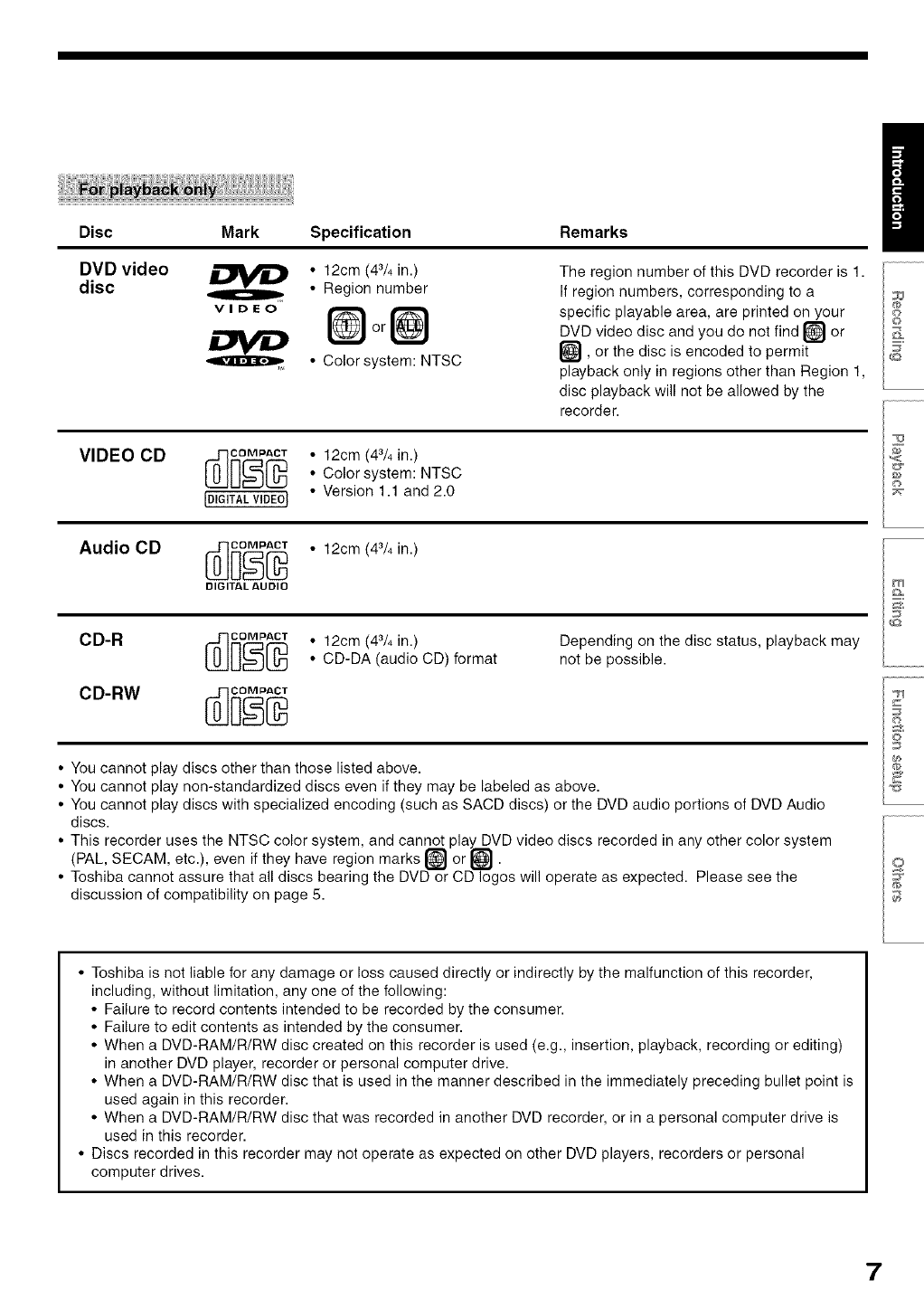

Disc

DVD video

disc

VIDEO CD

Mark Specification Remarks

VIDEO

•12cm (43/4 in.)

• Region number

or[

• Color system: NTSC

The region number of this DVD recorder is 1.

If region numbers, corresponding to a

specific playable area, are printed on your

DVD video disc and you do not find or

[], or the disc is encoded to permit

playback only in regions other than Region 1,

disc playback will not be allowed by the

recorder.

_]o_p@ .12cm (43/4 JR.)• Color system: NTSC

[DIGITALVIDEO] • Version 1.1 and 2.0

Audio CD

_]o_@ .12cm (43/4 in.)

DIGITAL AUDIO

CD-R _o_p_ •12cm (43/4 in.)• CD-DA (audio CD) format

co.w

Depending on the disc status, playback may

not be possible.

• You cannot play discs other than those listed above.

• You cannot play non-standardized discs even if they may be labeled as above.

• You cannot play discs with specialized encoding (such as SACD discs) or the DVD audio portions of DVD Audio

discs.

• This recorder uses the NTSC color system, and cannot play DVD video discs recorded in any other color system

(PAL, SECAM, etc.), even if they have region marks _ or _.

• Toshiba cannot assure that all discs bearing the DVD or CD Iogos will operate as expected. Please see the

discussion of compatibility on page 5.

• Toshiba is not liable for any damage or loss caused directly or indirectly by the malfunction of this recorder,

including, without limitation, any one of the following:

• Failure to record contents intended to be recorded by the consumer.

• Failure to edit contents as intended by the consumer.

• When a DVD-RAM/R/RW disc created on this recorder is used (e.g., insertion, playback, recording or editing)

in another DVD player, recorder or personal computer drive.

• When a DVD-RAM/R/RW disc that is used in the manner described in the immediately preceding bullet point is

used again in this recorder.

• When a DVD-RAM/R/RW disc that was recorded in another DVD recorder, or in a personal computer drive is

used in this recorder.

• Discs recorded in this recorder may not operate as expected on other DVD players, recorders or personal

computer drives.

Introduction

Choosinga disc(Continued)

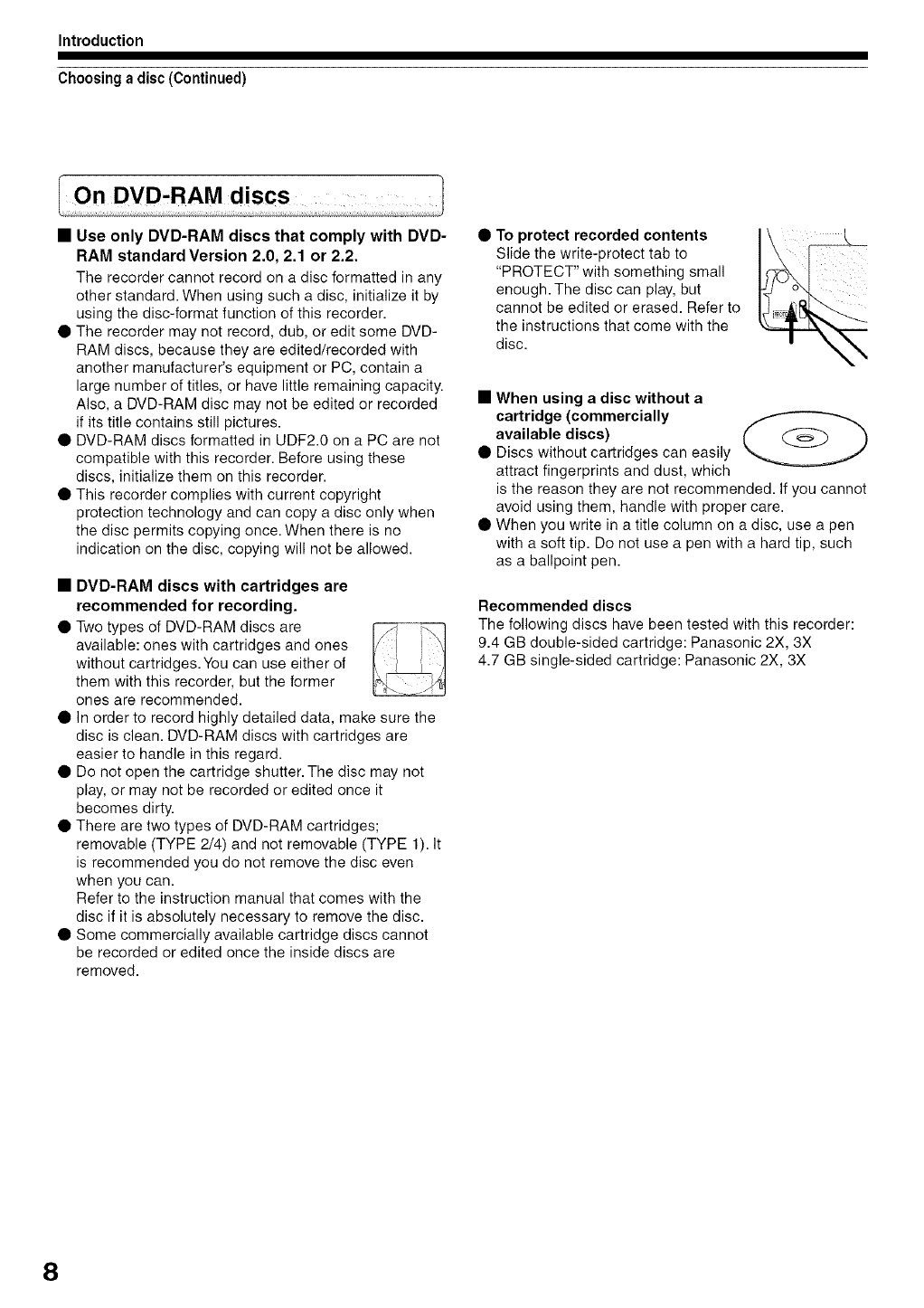

•Use only DVD-RAM discs that comply with DVD- •

RAM standard Version 2.0, 2.1 or 2.2.

The recorder cannot record on a disc formatted in any

other standard. When using such a disc, initialize it by

using the disc-format function of this recorder.

• The recorder may not record, dub, or edit some DVD-

RAM discs, because they are edited/recorded with

another manufacturer's equipment or PC, contain a

large number of titles, or have little remaining capacity.

Also, a DVD-RAM disc may not be edited or recorded •

if its title contains still pictures.

• DVD-RAM discs formatted in UDF2.0 on a PC are not

compatible with this recorder. Before using these •

discs, initialize them on this recorder.

• This recorder complies with current copyright

protection technology and can copy a disc only when

the disc permits copying once. When there is no •

indication on the disc, copying will not be allowed.

•DVD-RAM discs with cartridges are

recommended for recording.

• Two types of DVD-RAM discs are

available: ones with cartridges and ones

without cartridges.You can use either of

them with this recorder, but the former

ones are recommended.

• In order to record highly detailed data, make sure the

disc is clean. DVD-RAM discs with cartridges are

easier to handle in this regard.

• Do not open the cartridge shutter. The disc may not

play, or may not be recorded or edited once it

becomes dirty.

• There are two types of DVD-RAM cartridges;

removable (TYPE 2/4) and not removable (TYPE 1). It

is recommended you do not remove the disc even

when you can.

Refer to the instruction manual that comes with the

disc if it is absolutely necessary to remove the disc.

• Some commercially available cartridge discs cannot

be recorded or edited once the inside discs are

removed.

To protect recorded contents

Slide the write-protect tab to

"PROTECT" with something small

enough. The disc can play, but

cannot be edited or erased. Refer to

the instructions that come with the

disc.

When using a disc without a

cartridge (commercially

available discs)

Discs without cartridges can easily

attract fingerprints and dust, which

is the reason they are not recommended. If you cannot

avoid using them, handle with proper care.

When you write in a title column on a disc, use a pen

with a soft tip. Do not use a pen with a hard tip, such

as a ballpoint pen.

Recommended discs

The following discs have been tested with this recorder:

9.4 GB double-sided cartridge: Panasonic 2X, 3X

4.7 GB single-sided cartridge: Panasonic 2X, 3X

• Standards

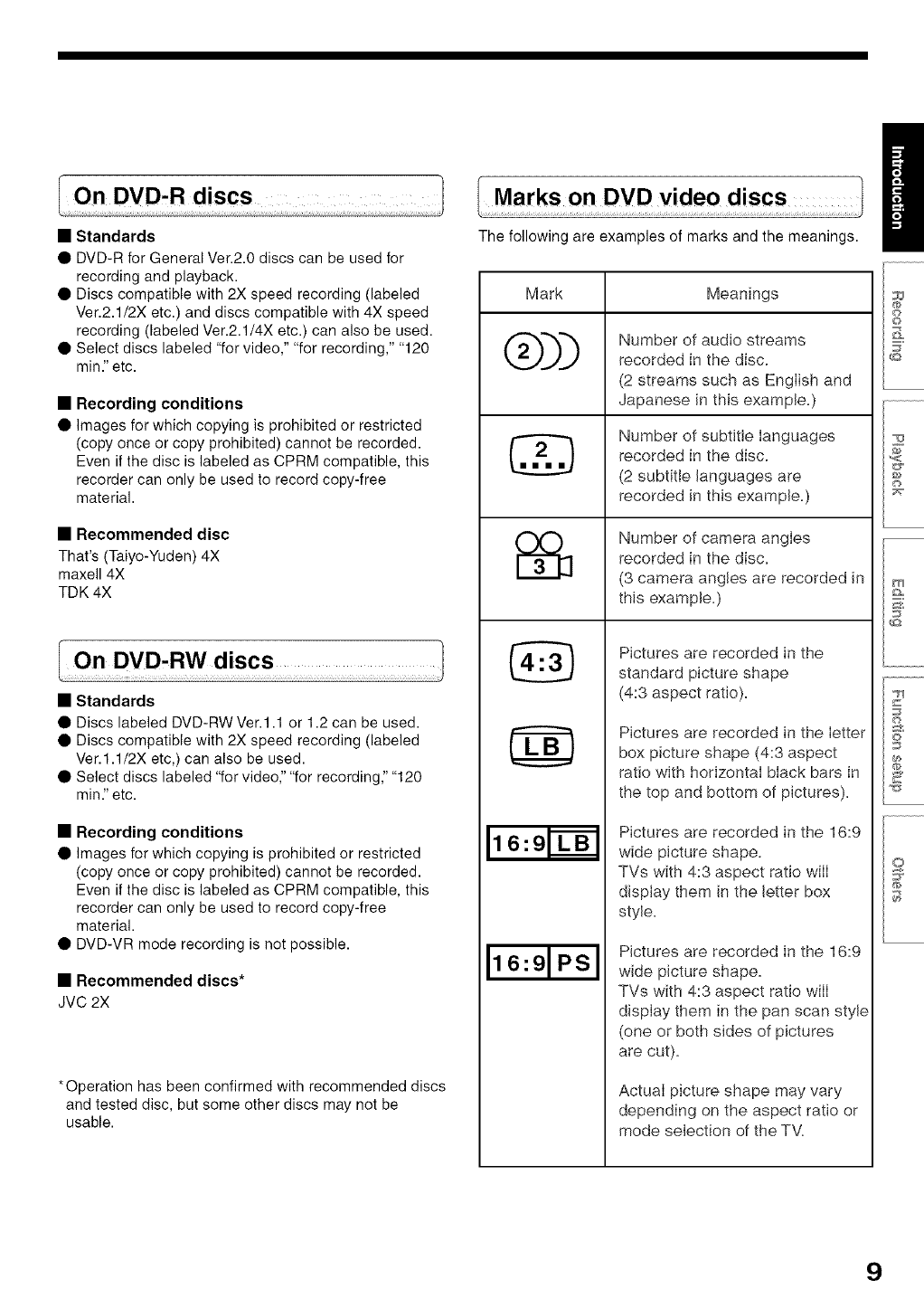

• DVD-R for General Ver.2.0 discs can be used for

recording and playback.

• Discs compatible with 2X speed recording (labeled

Ver.2.1/2X etc.) and discs compatible with 4X speed

recording (labeled Ver.2.1/4X etc.) can also be used.

• Select discs labeled "for video," "for recording," "120

min." etc.

•Recording conditions

• Images for which copying is prohibited or restricted

(copy once or copy prohibited) cannot be recorded.

Even if the disc is labeled as CPRM compatible, this

recorder can only be used to record copy-free

material.

•Recommended disc

That's (Taiyo-Yuden) 4X

maxell 4X

TDK 4X

•Standards

• Discs labeled DVD-RW Ver.1.1 or 1.2 can be used.

• Discs compatible with 2X speed recording (labeled

Ver.1.1/2X etc,) can also be used.

• Select discs labeled "for video," "for recording," "120

min." etc.

•Recording conditions

• Images for which copying is prohibited or restricted

(copy once or copy prohibited) cannot be recorded.

Even if the disc is labeled as CPRM compatible, this

recorder can only be used to record copy-free

material.

• DVD-VR mode recording is not possible.

•Recommended discs*

JVC 2X

*Operation has been confirmed with recommended discs

and tested disc, but some other discs may not be

usable.

The following are examples of marks and the meanings.

Mark Meanings

recorded in the disc.

(2 streams such as EngIish and

Japanese in this example=)

Number of subtitle languages

recorded in the disc.

(2 subtitle languages are

recorded in this example.)

_1 Number of camera angles

recorded in the disc.

(3 camera angles are recorded in

this example.)

Pictures are recorded in the

standard picture shape

(4:3 aspect ratio).

Pictures are recorded in the letter

box picture shape (4:3 aspect

ratio with horizontal black bars in

the top and bottom of pictures).

Pictures are recorded in the 16:9

wide picture shape.

TVs with 4:3 aspect ratio wiii

display them in the letter box

style.

Pictures are recorded in the 16:9

wide picture shape.

TVs with 4:3 aspect ratio wiii

display them in the pan scan style

(one or both sides of pictures

are cut).

Actual picture shape may vary

depending on the aspect ratio or

mode selection of the TM

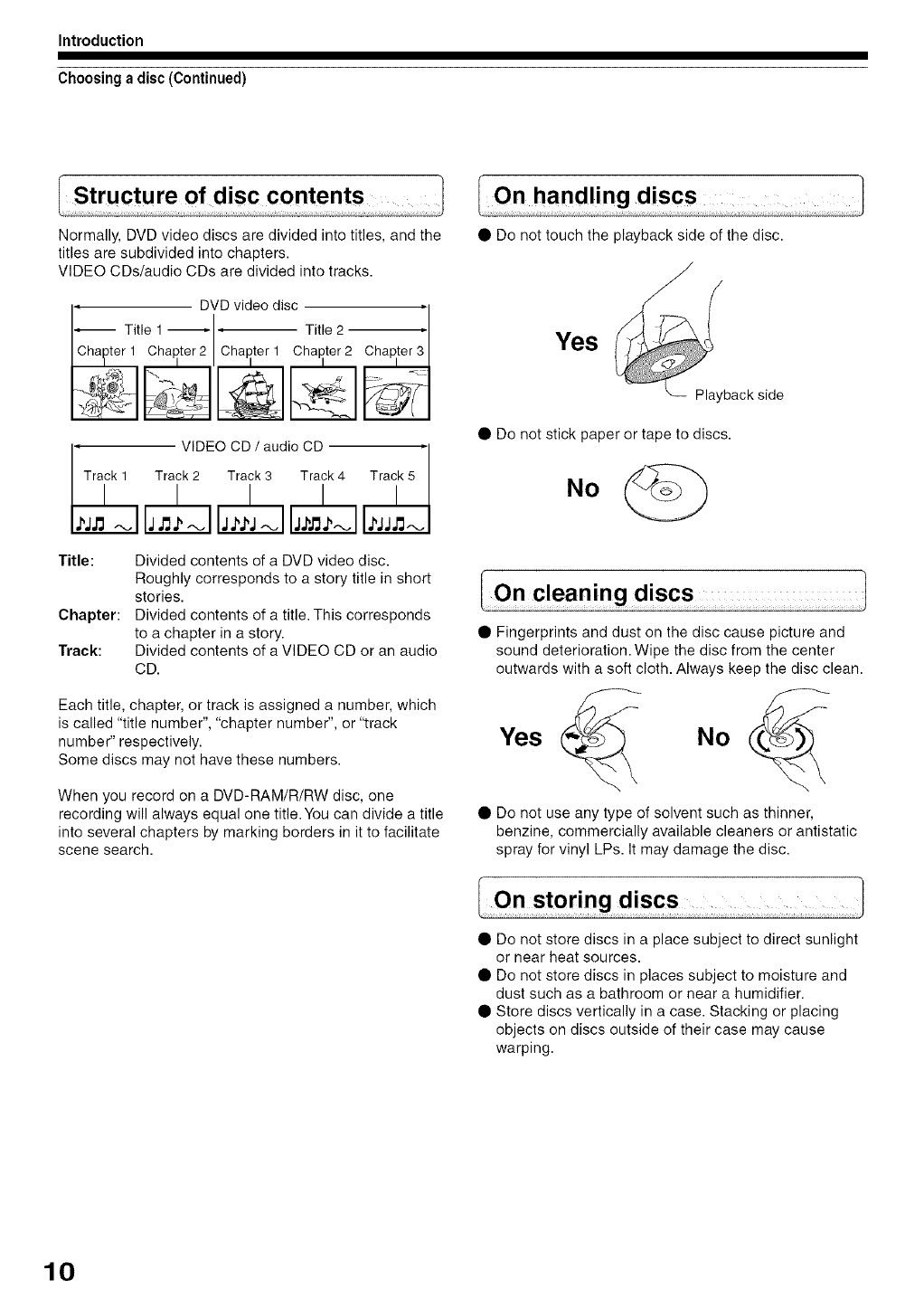

Introduction

Choosinga disc(Continued)

o!d!s l

Normally, DVD video discs are divided into titles, and the

titles are subdivided into chapters.

VIDEO CDs/audio CDs are divided into tracks.

DVD video disc

Title 1 , • Title 2 -

Cha_)ter 1 Chal_ter 21 Chal_ter 1 Chal_ter 2 ChaPlter_

, VIDEO CD /audio CD Traik 5 '

Traik 1 Traik 2 Trackl 3 Trackl4

Title:

Chapter:

Track:

Divided contents of a DVD video disc.

Roughly corresponds to a story title in short

stories.

Divided contents of a title. This corresponds

to a chapter in a story.

Divided contents of a VIDEO CD or an audio

CD.

Each title, chapter, or track is assigned a number, which

is called "title number", "chapter number", or "track

number" respectively.

Some discs may not have these numbers.

When you record on a DVD-RAM/R/RW disc, one

recording will always equal one title.You can divide a title

into several chapters by marking borders in it to facilitate

scene search.

[handling di scs ]

• Do not touch the playback side of the disc.

Yes

Playback side

• Do not stick paper or tape to discs.

• Fingerprints and dust on the disc cause picture and

sound deterioration. Wipe the disc from the center

outwards with a soft cloth. Always keep the disc clean.

Yes No

• Do not use any type of solvent such as thinner,

benzine, commercially available cleaners or antistatic

spray for vinyl LPs. It may damage the disc.

• Do not store discs in a place subject to direct sunlight

or near heat sources.

• Do not store discs in places subject to moisture and

dust such as a bathroom or near a humidifier.

• Store discs vertically in a case. Stacking or placing

objects on discs outside of their case may cause

warping.

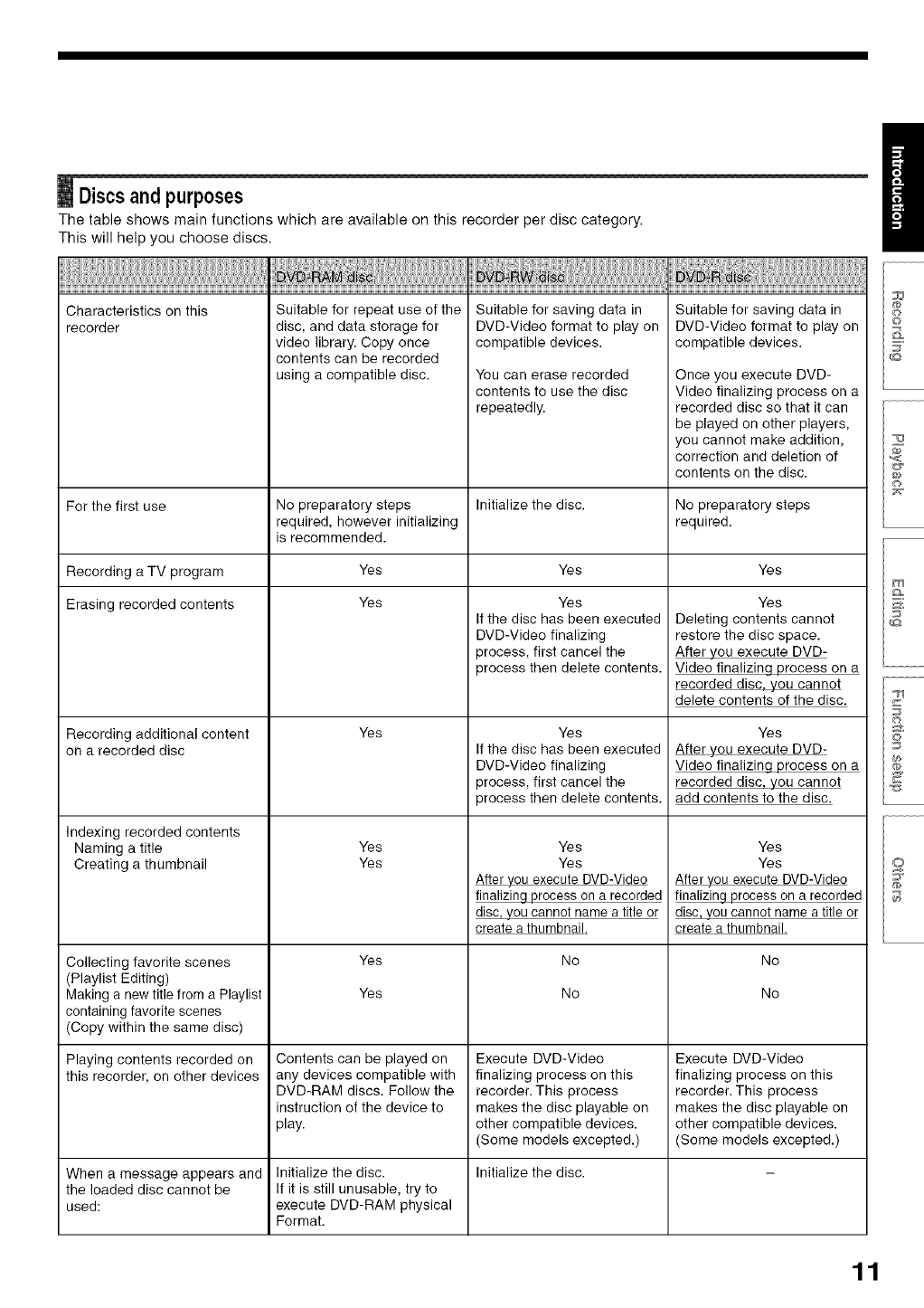

Discsandpurposes

The table shows main functions which are available on this recorder per disc category.

This will help you choose discs.

Characteristics on this

recorder

For the first use

Recording a TV program

Erasing recorded contents

Recording additional content

on a recorded disc

Indexing recorded contents

Naming a title

Creating a thumbnail

Collecting favorite scenes

(Playlist Editing)

Making a new title from a Playlist

containing favorite scenes

(Copy within the same disc)

Playing contents recorded on

this recorder, on other devices

Suitable for repeat use of the

disc, and data storage for

video library. Copy once

contents can be recorded

using a compatible disc.

Suitable for saving data in

DVD-Video format to play on

compatible devices.

You can erase recorded

contents to use the disc

repeatedly.

,,,,,,,_J,,,,,,,_,_,, ,,,,,,,,,,,,,,,,,,_,,,,__,,,,,,,,2_,,_,_,_,,,,,_i,_,_,_,__i_,_,,,_,__,,__,,__,,_ _,,_

Suitable for saving data in

DVD-Video format to play on

compatible devices.

Once you execute DVD-

Video finalizing process on a

recorded disc so that it can

be played on other players,

you cannot make addition,

correction and deletion of

contents on the disc.

No preparatory steps Initialize the disc. No preparatory steps

required, however initializing required.

is recommended.

Yes Yes Yes

Yes

If the disc has been executed

DVD-Video finalizing

process, first cancel the

process then delete contents.

Yes

If the disc has been executed

DVD-Video finalizing

process, first cancel the

process then delete contents.

Yes

After you execute DVD-Video

finalizinq process on a recorded

disc, you cannot name a title or

create a thumbnail.

Execute DVD-Video

finalizing process on this

recorder. This process

makes the disc playable on

other compatible devices.

(Some models excepted.)

Yes

Contents can be played on

any devices compatible with

DVD-RAM discs. Follow the

instruction of the device to

play.

When a message appears and Initialize the disc. Initialize the disc.

the loaded disc cannot be If it is still unusable, try to

used: execute DVD-RAM physical

Format.

Yes

Deleting contents cannot

restore the disc space.

After you execute DVD-

Video finalizing process on a

recorded disc, you cannot

delete contents of the disc.

Yes

After you execute DVD-

Video finalizinq process on a

recorded disc, you cannot

add contents to the disc.

Yes

After you execute DVD-Video

finalizinq process on a recorded

disc, you cannot name a title or

create a thumbnail.

Execute DVD-Video

finalizing process on this

recorder. This process

makes the disc playable on

other compatible devices.

(Some models excepted.)

{

See pages with arrows for details.

* The above illustration displays the front panel with the cover open. See the following pageon how to open or close the cover.

ON/STANDBY button _page 20, 21 _TIMESLIP button _page 57, 58

Turns the power on/restores the unit in the

standby mode.

_2_ -(4 (REV) button _ page 59

Scans the picture backwards.

),_ (FWD) button _page 59

Scans the picture forward.

_4_ I_ (PLAY) button _page 55

Starts playback.

_5_ • (STOP) button _page 37, 55

Stops playback or recording.

@_ CH buttons _page 20, 34

Selects the channel.

Selects the time slip mode.

_8_REC button _page 35

Starts recording.

_9_ _ (OPEN/CLOSE) button _page 20, 21

Opens and closes the disc tray.

Disc tray _ page 20

Loads a disc into the disc drive.

_Front panel display _page 18

_?_ Remote sensor _page 18 in "INSTALLATION

GUIDE"

@LED _page 20, 21

Illuminates when the recorder is on.

INPUT 2 jacks _ page 38

Use this when recording from other input source

such as a VCR or a camcorder.

• To open or close the cover on the front panel

Put your finger on the left edge of the cover and pull it

down to open.

Note

•Do not place a heavy object on the cover while it is

open. Doing so may damage the recorder.

Introduction

Indexto parts and controls(Continued)

_Power cord _page 21 in "INSTALLATION

GUIDE"

®DIGITAL AUDIO OUT BITSTREAM/PCM

OPTICAL jack _page 26 in "INSTALLATION

GUIDE"

Use this to connect the recorder to an audio

receiver equipped with an optical digital audio

input jack.

_3_ OUTPUT jacks _ page 21, 23, 24, 25 in

"INSTALLATION GUIDE"

Outputs video and audio signals to a connected

TV or amplifier.

®®@

COMPONENT OUTPUT jacks _page 25 in

"INSTALLATION GUIDE"

Outputs video signals to a connected TV or

monitor.

Connects to a TV or monitor equipped with

component video jacks.

VHF/UHF RF IN (FROM ANT.) input socket

page 20 in "INSTALLATION GUIDE"

Connects to an antenna or cable signal.

VHF/UHF RF OUT (TO TV) output socket

page 20 in "INSTALLATION GUIDE"

Connects the supplied coaxial cable to a TV.

_7_ INPUT1 jacks @ page 38

Use this to connect the recorder to output jacks of

external devices such as another player or

camcorder.

Introduction

Indexto parts and controls(Continued)

(_ OPEN/CLOSE button @ page 20, 21

(_) FL SELECT button @ page 19

DISPLAY button @ page 75

ANGLE button @ page 64

(_ SUBTITLE button @ page 65

(_ REMAIN button _ page 27

(_) REC MODE button @ page 36

(_ TIMESMP button _ page 57, 58

(_) VOL button .2

(_ MUTE button *a

(_ TOP MENU button @ page 56

(_ EASY NA'vqbutton _ page 23

Direction buttons (A/T/_I/I_) _ page 51, 106

(_) QUICK MENU button _ page 24, 77

(_) SKIP REV button _ page 60

(_ REV button @ page 59

(_ PLAY button _ page 55

REC button _ page 35

SEARCH button _ page 62

(_ ADJUST buttons @ page 41,61

(_ Number buttons _ page 34, 62

@ ON/STANDBY button .2 _ page 20, 21

(_) DIMMER button Opage 19

(_ PROGRESSIVE button _ page 25 in

"INSTALLATION GUIDE"

(_ FREEZE button _ page 74

(_ AUDIO/SAP button _ page 67

(_ ZOOM button _ page 66

EXTEND button _ page 44, 46

(_ SETUP button _ page 106

(_ OH button .2 _ page 20, 34

(_ INPUT SELECT button*2 _ page 39

MENU button .1

@ TV/DVD selector _page 42 in

"INSTALLATION GUIDE"

(_ SELECT/ENTER button @ page 51,106

* button _ page 51

(_ SKIP FWD button _ page 60

STOP button @ page 39

FWD button @ page 59

O button @ page 106

(_ II button @ page 37, 52

CHP DIVIDE button _ page 84

@ CLEAR button _ page 62

,_1 MENU

Use this to display a menu screen that is recorded on

a DVD video disc.

Operate the menu screen as the same manner as

'+Locating a title using the top menu (_ page 56)".

A menu screen is not recorded on some discs.

,++2Buttons for TV operation _ page 42 in

"INSTALLATION GUIDE".

Introduction

Indexto parts and controls(Continued)

DUB

PROGRESSIVE

® ® @

_Disc indicator

Indicates the category of a loaded disc.

CD : audio CD

VCD : VIDEO CD

DUB indicator

Illuminates when copying.

_3_ Program recording indicator

Illuminates when the recorder holds a timer

program.

_ SAP indicator

Illuminates when receiving a SAP broadcast.

_5_ Angle icon @ page 64

Illuminates when playing a scene recorded with

multi angles.

(6_ PBC indicator

Illuminates when a PBC-controllable VIDEO CD is

loaded.

(7_ TIMESLIP indicator _page 57, 58

Illuminates in the time slip mode.

_8_ REMAIN (Remaining space) indicator

Illuminates when an available recording time is

displayed.

_9_Title indicator

Illuminates when a title number is displayed.

Operational status indicator

Indicates the operational status of the recorder.

: Illuminates when recording.

:Illuminates when playing.

_ :Illuminates when recording and playback

are in progress at the same time.

@ CliP (Chapter) indicator

Illuminates when a chapter number is displayed.

_2_TRK (Track) indicator

Illuminates when a track number is displayed.

@Multi display

Displays the current channel or other numbers

such as a title number, track number, input

selection, the current time, elapsed time,

remaining time, starting time of programmed

recording, chapter number or message, etc.

• Dimming the display

Pressing the DIMMER button on the remote control changes the brightness of the display (normal/dimmed).

When dimming the display, the LED will be turned off.

• Switching the display

Every time you press the FL SELECT button, the display changes between the channel, title number, and time.

The display may not change, depending on the disc or recording conditions.

_4_ Disc indicator

Indicates the category of a loaded disc.

RAM : DVD-RAM disc

RW : DVD-RW disc

R : DVD-R disc

_Picture quality mode indicator _page 117

The current picture quality mode lights up.

PROGRESSIVE indicator

Illuminates when video signals are output in the

progressive format.

•Is your recorder ready?

• Refer to "INSTALLATION GUIDE" and finish the

necessary preparations.

• Turn on the connected equipment such as aTV or

audio system and select the input from the recorder.

•Turning the power on

(This owner's manual instructions are based on

the premise that all proper connections have been

completed and theTV is turned on.)

Press ON/STANDBY on the front panel of the

recorder or on the remote control.

ON/STANDBY button

•Loading a disc

Check disc compatibility beforehand (_ page 6, 7)

and use a proper playable disc.

Caution

• Keep your fingers well clear of the disc tray. Neglecting this

may cause serious personal injury. Keep a close watch on

children.

• Do not use a cracked, deformed, or repaired disc.

1 Open the disc tray.

Press ----.on the front panel or OPEN/CLOSE on

the remote control.

LED

When the power turns on, the LED on the front panel

illuminates.

After a few seconds, a start-up screen appears.

The following icon appears at the top right corner of

the screen.

e,g, @

When this icon disappears, the recorder is ready to

operate. If the disc drive contains a disc, it takes a

little longer to start up.

•Viewing TV channels through this recorder

After turning the power on, the recorder will output TV

channel signals to the connected TV (also in the stop

mode).

You can select a desired channel by pressing the CH

button, or the number buttons.

Abutton

OPEN/CLOSE button

Insert a disc.

Disc without a cartridge

Insert with the playback side down.

There are two kinds of disc size. Place a disc to fit

the guide. If a disc is out of the guide, it may result

in damage to the disc or malfunction.

ocO

_lace a disc in the

inside hollow.

DVD-RAM disc with cartridge (TYPE1/TYPE2/TYPE4)

Single sided

Turn the printed side up, and insert the cartridge

into the tray frame following the direction of the

arrow on the cartridge.

Double sided

Turn the desired recording/playback side up, and

insert the cartridge into the tray frame following the

direction of the arrow on the cartridge.

3 Close the disc tray.

Press __ on the front panel or OPEN/CLOSE on

the remote control.

Notes

• Use the button on the front panel or the remote control to

open and close the disc tray. Do not push or hold the disc

tray while it is moving. Doing so may cause the recorder to

malfunction.

• De not insert a disc which is unplayable, or any object

other than a playable disc.

• De not apply dewnforce to the disc tray. Doing so may

cause the recorder to malfunction.

• If the disc tray stops while closing, the mechanical

protection system of this recorder will open it. Do not force

it to close. Doing so may cause malfunction.

• If the disc tray will not open, turn the recorder off, and

press the _ button on the front panel or the OPEN/CLOSE

button on the remote control. This may turn the recorder on

and open the disc tray. If it still won't open, contact your

nearest TOSHIBA dealer.

•Turning the power off

Press ON/STANDBY on the front panel of the

recorder or on the remote control.

The "Unloading" icon appears at the top right corner of

the screen, and the LED turns off if it is lighted, then

the power turns off (Standby mode.)

Caution

• If the power fails or the power cord is disconnected from a

wall outlet while the recorder is in operation (LED lit when

the front panel display is not dimmed), the loaded disc may

become recording disabled. In such a case, executing an

initialization of the disc using the formatting function of the

recorder may refresh it. However, all contents stored on the

disc will be completely erased by this initialization process.

• This recorder may indicate alert messages with some

DVD-RAM discs right after insertion. If such a disc is used

for playback or recording on other equipment, all data in

the disc may be damaged and the disc will not be played.

By executing an initialization of the disc using the

formatting function of the recorder, the disc will become

operational.

• If the recorder freezes and does not respond at all, leave it

alone for about 15 minutes or longer.This may restore the

recorder. After the recorder has recovered, turn it off once

and turn it on again to use as usual. If the recorder is still

inoperable after more than 15 minutes have passed, press

and hold the ON/STANDBY button on the front panel for

about 10 seconds or longer.The recorder is forced to quit

and the power turns off.Turn the recorder on again and use

it as usual. (This is an emergency measure, which may

cause losses and/or damages of data. Avoid casual use of

this measure.) (This 15-minute measure is available only

when "Screen Protector" is set to "On." (_ page 115))

Note

• If there are any performance malfunctions of the disc drive,

immediately discontinue use of this recorder, and

disconnect the power cord from a wall outlet, then contact

your dealer. Continuous use of the recorder in such a

condition will aggravate the condition and result in

increased cost and repair time.

•Disc tray lock (Child lock)

You can lock the disc tray.

Press and hold • on the front panel or STOP on

the remote control for longer than about 3

seconds.

To unlock, during stop press the button for longer than

about 3 seconds.

Note

• Turning the power off also unlocks the disc tray.

Introduction

Beforeoperatingthis recorder(Continued)

•Start-up/Shutdown (closing) icons

These icons are displayed at the top right corner of the

screen when startup or finishing. While they are

flashing, the recorder is operating as follows:

Start-up, reading a disc, finishing the

recording

Unloading a disc, finishing the

operation

Opening a disc tray

Closing a disc tray

• Status display

Each time you operate the recorder, the following

displays appear on the TV screen to indicate the

status of the recorder.

Status display

e.g. [_

Main on-screen displays

(Depending on the disc, some of these may not

appear.)

D.,IH

I.q._

I1_xl/2

,I,1

I1_,

,11

111

Title

End

Cha ter

Divl_de

: Playback

: Pause

: Stop

: Fast-forward

: Fast-reverse

: Forward skip '_'

: Reverse skiF _

: Forward slow-motion

: Reverse slow-motion

: Forward frame by frame playback

: Reverse frame by frame playback

: Recording

: Recording pause

: When title playback is completed

: Instant skip

: Instant replay

: Chapter division

'_Accompanied with the followings:

Title number/title name and chapter number/

chapter name

_D.ViOEOj:

Title number and chapter number

Track number

Note

• You can add the current status of the settings to this

display. See _ page 75.

The EASY NAVI button opens the "EASY NAVI Main Menu", a main gate to the functions of this recorder.

From this menu, you can access the desired functions while viewing a current picture. /

Additionally, the QUICK MENU button provides you a sub menu of the current function.

•EASY NAVI

Press EASY NAVI.

Sound is muted and the following GUI appears. (Actual displays vary depending on operational status.)

--EASY NAVI

--SELECT/ENTER

--A/T/</,

STOP

PLAY

e,g,

Appears when the tinder shows

the current broadcast, Disc

TV:12¢h =

ov__A_

TV V ew ng _P ay Con en s

Recorded title

last selected

Functions

•Operating the finder (For DVD-RAM discs and DVD-R/RW discs

recorded on this recorder and not finalized yet)

1) When the cursor is on the finder, press </1_.

You can view thumbnails of recorded contents.

2) When you find a desired content, press PLAY or SELECT/ENTER.

The content is played.

• Pressing the SELECT/ENTER button enlarges the finder's playback

picture to the full of the screen.

• You can change playback speed. See @ page 59.

3) To stop, press STOP,

A current channel broadcast appears. ("TV:xxxch" accompanies.)

• Pressing the REC button starts recording. On recording, see _ page

26.

•Item selection

Press •/•/</•to select an item, then press SELECT/ENTER.

Unavailable features are grayed out.)

Htem Function

Return to current broadcast channel.

Recorded contents are listed in a thumbnail view.

A list of timer programs appears.

A menu of editing options appears.

You can delete the current content.

Delete Title j Operate according to the message.

Edit title name j An on=screen keyboard appears.

"Youcan execute the DVD=Video finalizing process on the

loaded disc.

Format (RAM/RW) j You can format the loaded disc,

Setup l A setup menu appears.

_page

100

106

(Continued)

Introduction

Key operation- EASY NAVI& QUICK MENU(Continued)

• To exit the EASY NAVI

Press EASY NAVI again.

Note

• For a disc other than the specified one, the finder cannot

be operated. To play the disc, exit the EASY NAVl then

press the PLAY button, or select the "Play Contents"

function.

•Quick Menu operation

To access various optional functions of this recorder,

open Quick Menu. Quick Menu displays a list of

selections relevant to your current mode.

•Opening a Quick Menu

1) Press QUICK MENU.

The following menu ("Quick Menu") appears.

(Actual selections vary depending on operational

status.)

e.g.

2) Press •/•to select an item, then press

SELECT/ENTER.

• To exit Quick Menu

Press QUICK MENU again.

Alternatively

Select "Exit" with • /•, then press SELECT/

ENTER.

[Hint on reading this manual ............................1

The following icons show the playable discs for each

function described on this instruction manual.

DV_R_MJ: DVD-RAM disc

_#_W_ : DVD- RW disc

: DVD-R disc

_VD,VI_0J: DVD video disc

:VIDEO CD

:Audio CD

(For CD containing JPEG or MP3/WMA files,

see @ page 70, 72.)

Most instructions are based on remote control operation,

unless otherwise noted. You can use the buttons on the

remote control and those on the main unit as well when

they have the same function.

If copy protection signal is detected during

recording on this recorder, the recording

automatically pauses and a message appears. In

this case, the || button cannot release the

recording. (It is possible to end the recording by

pressing the STOP button.) If the copy protection

signal continues, the recording will terminate.

Please be sure to read this critical background information prior to making a recording.

Ionventional video cassette recorders have required tapes to record, while this recorder enables }

recording on a DVD-RAM/R/RW disc whenever you want, without selecting an available tape and J

confirming a point to start a recording from.

Further, if you use DVD-RAM discs, you can collect necessary scenes and store them in it to make

your own video library.

•Is your DVD recorder ready?

Before recording a TV program on this recorder, insure

that channels you want to record are correctly tuned in

on this recorder.

If not tuned in, read the separate "INSTALLATION

GUIDE" volume again, and confirm all the necessary

connections and settings have been done.

Also, insure the clock is set precisely for program

recording. Set the clock using the "initial settings"

menu (_ page 33, INSTALLATION GUIDE).

•Disc initializing

Whenever you use a new DVD-RAM/RW disc on this

recorder, be sure to initialize the disc.

DVD-R discs can be used on this recorder without

initializing.

For details of initialization of DVD-RAM/RW discs, see

page 28.

If an initialized DVD-RAM disc is still unusable, it may

become usable by executing "DVD-RAM physical

format" in the "Management settings" menu.

For"DVD-RAM physical format", see _ page 29.

•Note on recording on a DVD-RAM disc

Confirm disc compatibility and prepare an available

DVD-RAM disc to record on (_ page 6, 8).

Some discs may need to be formatted for use on this

recorder. A message will appear asking you to execute

disc formatting. Follow the procedure displayed on-

screen to format the DVD-RAM disc compatible with

this recorder.

Some DVD-RAM discs formatted on a PC may not be

usable.

Notes

• This recorder records on a DVD-RAM disc if it complies

with DVD-RAM standard Version 2.0, 2.1 or 2.2. However,

you may not record on some DVD-RAM discs that have

complicated contents (often, to protect the recorded data).

When you select a DVD-RAM discs that has already been

recorded, check that the disc is suitable for recording or the

remaining time of the disc is displayed. It is recommended

to use a new DVD-RAM disc for an important recording.

• Depending on the source recording device used and how

that device is set up, the video and sound quality of the

recording may vary slightly from the video and sound

quality of the source device.

•Note on recording on a DVD-RW disc

Confirm disc compatibility and prepare an available

DVD-RW disc to record on (_ page 6, 9).

Some discs may need to be initialized for use on the

recorder. A message will appear asking you to execute

disc initializing. Follow the procedure displayed on-

screen for initialize the DVD-RW disc compatible with

this recorder.

Some DVD-RW discs initialized on a PC may not be

usable.

To play a DVD-RW disc recorded on this recorder on

other devices, finalize the DVD-RW disc on this

recorder. (_ page 100)

The finalization disables the disc's rewfitability. To

rewrite a finalized DVD-RW disc, cancel the

finalization (_ page 103).

• On DVD-RW discs recorded on other devices, you

cannot execute DVD-Video finalize process or

cancel the finalize process, or add recordings on

this recorder.

• You cannot rewrite or edit a DVD-RW disc if

recorded in DVD-VR mode.

• DVD-RW discs which are recorded on other devices

and not finalized yet, cannot be read on this

recorder. Do not rush to initialization. Check that the

contents can be erased or not.

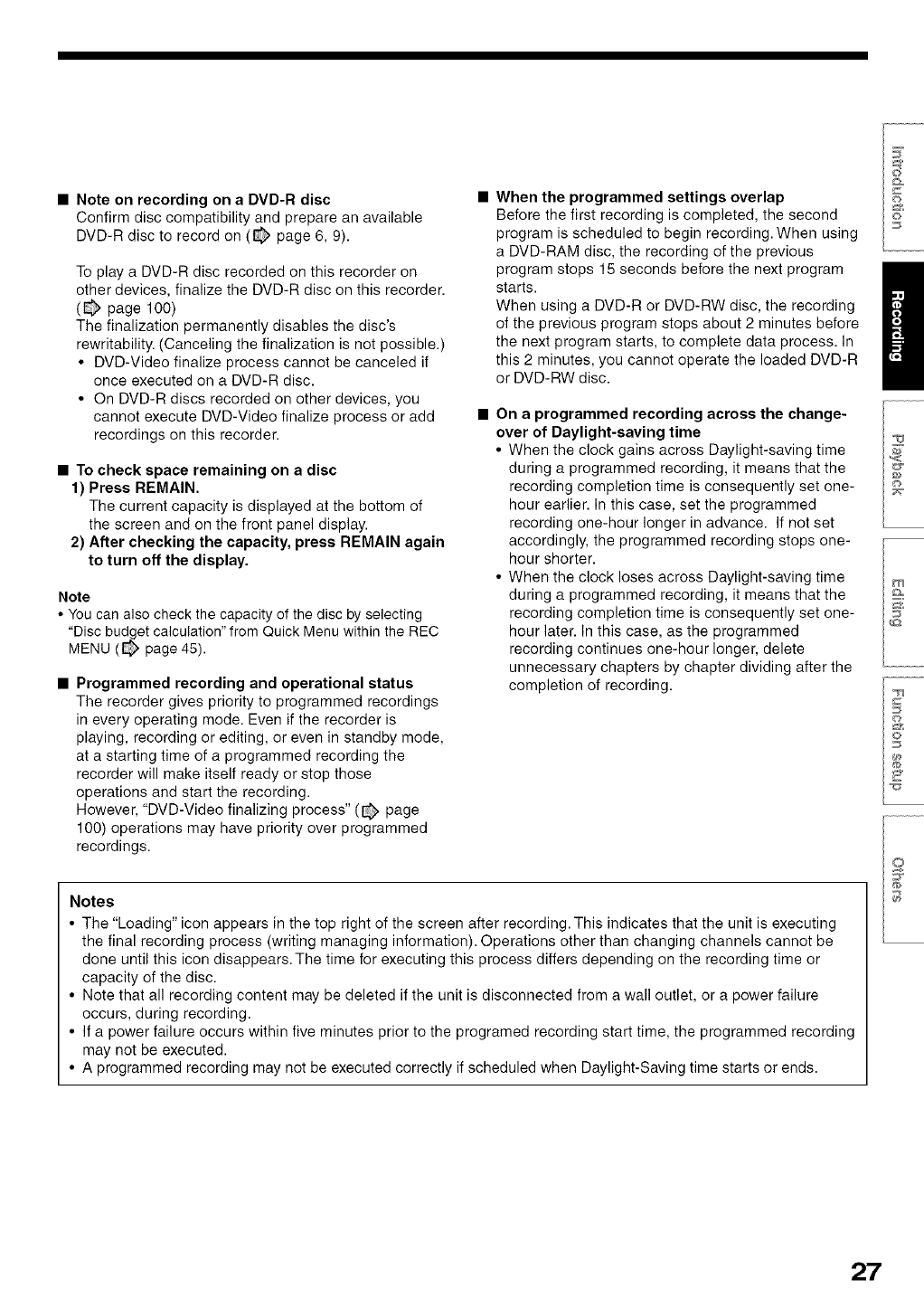

• Note on recording on a DVD-R disc

Confirm disc compatibility and prepare an available

DVD-R disc to record on (@ page 6, 9).

To play a DVD-R disc recorded on this recorder on

other devices, finalize the DVD-R disc on this recorder.

(_ page 100)

The finalization permanently disables the disc's

rewritability. (Canceling the finalization is not possible.)

• DVD-Video finalize process cannot be canceled if

once executed on a DVD-R disc.

• On DVD-R discs recorded on other devices, you

cannot execute DVD-Video finalize process or add

recordings on this recorder.

•To check space remaining on a disc

1) Press REMAIN.

The current capacity is displayed at the bottom of

the screen and on the front panel display.

2) After checking the capacity, press REMAIN again

to turn off the display.

Note

• You can also check the capacity of the disc by selecting

"Disc budget calculation" from Quick Menu within the REC

MENU (_ page 45).

•Programmed recording and operational status

The recorder gives priority to programmed recordings

in every operating mode. Even if the recorder is

playing, recording or editing, or even in standby mode,

at a starting time of a programmed recording the

recorder will make itself ready or stop those

operations and start the recording.

However, "DVD-Video finalizing process" (_ page

100) operations may have priority over programmed

recordings.

When the programmed settings overlap

Before the first recording is completed, the second

program is scheduled to begin recording. When using

a DVD-RAM disc, the recording of the previous

program stops 15 seconds before the next program m

starts. H

When using a DVD-R or DVD-RW disc, the recording

of the previous program stops about 2 minutes before

the next program starts, to complete data process. In

this 2 minutes, you cannot operate the loaded DVD-R

or DVD-RW disc.

On a programmed recording across the change-

over of Daylight-saving time

• When the clock gains across Daylight-saving time

during a programmed recording, it means that the

recording completion time is consequently set one-

hour earlier. In this case, set the programmed

recording one-hour longer in advance. If not set

accordingly, the programmed recording stops one-

hour shorter.

• When the clock loses across Daylight-saving time

during a programmed recording, it means that the

recording completion time is consequently set one-

hour later. In this case, as the programmed

recording continues one-hour longer, delete

unnecessary chapters by chapter dividing after the

completion of recording.

Notes

• The "Loading" icon appears in the top right of the screen after recording. This indicates that the unit is executing

the final recording process (writing managing information). Operations other than changing channels cannot be

done until this icon disappears.The time for executing this process differs depending on the recording time or

capacity of the disc.

• Note that all recording content may be deleted if the unit is disconnected from a wall outlet, or a power failure

occurs, during recording.

• If a power failure occurs within five minutes prior to the programed recording start time, the programmed recording

may not be executed.

• A programmed recording may not be executed correctly if scheduled when Daylight-Saving time starts or ends.

Recording

Beforerecording(Continued)

Initializinga DVD-RAM/RWdisc(Logicalformat)

J e sure to read this section prior to using a DVD-RAM/RW disc on this recorder for the first time. I

For DVD-R, initializing is not necessary. I

A disc should be initialized in the following cases: (The

recorder may display a message to request you to do

SO.)

e,g,

•When you use a DVD-RAM/RW disc on this recorder

for the first time.

• If data fragments produced by repeated recording or

erasing have accumulated.

• If a disc error has occurred.

• When you want to record on a DVD-RAM disc for PC.

(_ page 8)

Initializing formats a disc logically and insures that it will

perform to its full capability. However, this erases all data

on the disc, so make sure that it does not matter if data

on the disc is erased whenever you initialize a disc.

•How to initialize a disc

To initialize a DVD-RAM disc, load it in the recorder.

See _ page 20 for loading a disc.

1) During stop, press QUICK MENU.

The following menu appears. (The actual contents

depends on the operational status of the recorder.)

e,g,

2) Press • /•to select"Disc management;' then

press SELECT/ENTER.

A sub menu appears on the right side.

3) Press •/•to select "DVD format," then press

SELECT/ENTER.

e.g.

Disc Number

Di_ Name

Numbering a disc

The recorder automatically numbers discs when

initializing. However, you can assign a desired number

(using 3 digits) and designate sides A and B on a double-

sided disc. (DVD-RW discs cannot be numbered.)

(1) Press • /• buttons to select "Edit" of "Disc Number"

then press SELECT/ENTER button.

(2) Press • /• buttons to select a digit.

(3) Press •/1_ buttons to shift.

(4) Repeat steps (2) and (3).

(5) Press SELECT/ENTER button.

Naming a disc

You can name a disc.

(1) Press • /• buttons to select "Edit" of "Disc Name,"

then press SELECT/ENTER button.

The character input window appears.

(2) Enter a disc name following the procedure of

"Entering characters" (_ page 30).

(3) Press _ button to eliminate the window.

4) Press < /•to select "Start," then press

SELECT/ENTER.

e.g.

Entire disc contents will be

erasedifdiscisforrnatted.

Proceed?

1) During stop, press SETUP.

2) Press < /I_ to select "Management settings"

then press SELECT/ENTER.

e.g.

5) Press < /•to select "Start," then press

SELECT/ENTER.

Initialization starts.

e.g.

DVD

Formatting

When initialization is completed, the setup window

disappears.

DVD-RAMphysicalformat

Physical formatting is a simple execution for a disc which

cannot be used or read (or which is becoming hard to

read). It may refresh such a disc for recording and

playback. (There is no guarantee that all such discs will

be recovered.)

"DVD-RAM logical format" process only rewrites certain

data on file system and management information,

however, "DVD-RAM physical format" rewrites all data on

a disc, therefore it takes a much longer time to complete.

For a 4.7GB single sided DVD-RAM, about 70 minutes

will be necessary. While processing, all recorder

operations and functions including program recording will

not work until the process is finished. Also this process

erases all data stored on the DVD-RAM disc.

3) Press •/•to select "DVD-RAM physical

format," then press SELECT/ENTER.

4) Press < /I_ to select "Yes," then press SELECT/

ENTER to execute.

eg i¸ i

_ I

To cancel, select "No", then press SELECT/ENTER

button.

5) Read the message, and press </•to select

"Yes" or "No", then press SELECT/ENTER.

Notes

• The physical format process may fail if executed to a dirty

DVD-RAM disc. Also, the disc may be difficult to record,

even if it finished. Before executing DVD-RAM physical

format process, be sure to confirm the disc is not dirty.

Clean it if necessary. If the disc has scratches or dust

beyond cleaner's efficacy, do not execute DVD-RAM

physical format process on the disc.

• The following DVD-RAM discs require physical formatting:

-A disc which is not formatted correctly.

-The disc which has errors during writing because of dirt

on the disc, and cannot be further recorded, or cannot

initialize normally.

• You need to start physical formatting from the first step

again when you use a failed disc.

• Physical formatting does not work if the disc contains a lot

of voids beyond the limitation of this recorder.

• If an error occurs in physical formatting, "ERR-01" appears

in the front panel display.To turn off the message, press

DISPLAY button.

Recording

Beforerecording(Continued)

Enteringcharacters

e,g,

Cursor

An entered character

will appear here.

Language

Estimated end of the

first line on CONTENT

MENU.

Estimated limit of

characters displayable on

CONTENT MENU.

The character being

selected appears.

-- Operation guide

•Operation guidance of the remote control

To enter the character, normally use • /•/</•

buttons on the remote. About the other buttons to be

used are shown on the operation guide.

IOKE¥ : Enters a number.

CLEA_]: Erases all the characters.

•Switching a language

Before entering a character, move a cursor to the

language selection area by pressing •/• buttons.

Then press • /• buttons to select a language, then

press SELECT/ENTER button.

:Caps Lock

: Saves the changes and returns to the

previous screen.

: Cancels the changes and returns to the

previous screen.

: Enters a space.

_, _ : Enters a symbol.

•Entering characters

The cursor may be followed by unwanted characters.

You can erase them if necessary by either of the

following measures:

Erasing characters

• Erasing all the characters on the writing board

Select "Clear All" by pressing • /•/•/1_buttons, then

press SELECT/ENTER button.

Alternatively, press CLEAR button.

• Erasing one character before the cursor

Select "BkSp" by pressing • /•/•/I_ buttons, then

press SELECT/ENTER button.

(1) Press || button to select an input mode.

(2) Press • /•/•/1_buttons to select a character, then

press SELECT/ENTER button.

The selected character is input on the cursor.

(3) Repeat steps (1) and (2) to enter characters.

(4) When finished, press _ button to save the

characters.

The characters you entered appears.

Notes

• You can enter up to 64 characters.

• When unnecessary information appears, or when you want

to alter the input character, press CLEAR button to erase

all, or select "BkSp" or "Delete" to erase an unnecessary

character.

There are various types of discs having different standards.

Select one for your purpose of use.

• Editing after recording (e.g. deleting unnecessary

portions, dividing chapters).

• Recording so that the sound of bilingual broadcast

can be switched.

• Recording a recording-once-permitted program.

• Pause TV. Chase Play.

Available disc

• DVD-RAM disc (Ver. 2.0/2.1/2.2)

RAM

RAM4.7

• You can repetition-record/delete the contents.

I I

• Playing discs recorded on this recorder with other

DVD players.

(Some DVD players may not play these discs.)

Available disc

• DVD-R disc (Ver. 2.0)

R4.7

• DVD-RW disc (Ver. 1.1/1.2)

IA'V4.7

Once you record on a DVD-R disc. You cannot

delete or rewrite the contents in DVD-Video mode

(Video mode). !

Finalizing a DVD-R/RWdisc

You can see the contents recorded on a DVD-R/RW

disc with other DVD players by finalizing.

For details, see @ page 100.

When recording on a DVD-R/RW disc you need to set

up the recorder due to the restriction by DVD-Video

standard.

For details, see the next page.

This setting is necessary to play the contents on a DVD-R/RW disc with other DVD players.

• Items to set up

When recording in Video mode, there are some

restrictions by DVD-Video standard.

Therefore, it is necessary to set up these items below.

Set up the items in advance before recording onto a

DVD-R/RW disc.

•DVD compatible mode

Only the main sound and SAP sound are available

for recording in Video mode under DVD-R standard.

Off: This is not for recording on a DVD-R disc.

Depending on Picture/Audio settings, making

DVD Video may not be possible. (When

recording directly on a DVD-R/RW disc of

DVD-Video mode, the recording proceeds

with "Main" on even though "Off" is set.)

Main: In multichannel broadcasting, only the main

sound is recorded.

SAP: In multichannel broadcasting, only SAP

sound is recorded.

•Aspect ratio

"4:3" and "16:9" cannot be mixed in one title.

Therefore, set the aspect ratio before recording.

4:3: Set the aspect ratio to 4:3

16:9: Set the aspect ratio to 16:9

• Chapter dividing ("DVD-Video: CHP create")

This is the setting to divide a title into some

chapters. It is convenient to skip scenes.

Off: Chapter dividing is not available.

5 min, 10 min, 15 min, 20 min:

Select an interval for chapter dividing.

Note

•When the number of chapters reaches a limit, chapters are

not divided anymore. The limit number of chapters is

dependent on conditions of a DVD-R/RW disc.

How to set up

Press SETUP.

SETUP menu appears.

SETUP

Select"DVD recorder operation"

and press SELECT/ENTER.

Select"Aspect ratio (Video

mode)" and press SELECT/

ENTER.

Select an item and press

SELECT/ENTER.

e.o.@@O @

Set "DVD compatible mode" and "DVD-Video:

CHP create" as step 3, 4.

To record a"lV program currently being broadcast, follow the procedures of this chapter.

•Preparation

• Load a DVD-RAM/R/RW disc into the recorder.

- Load a disc which has sufficient space available to record the program.

- Make sure the loaded disc is not write-protected.

• If you record on a DVD-R or a DVD-RW disc, set "DVD compatible mode" (_ page 33) to "Main" or "SAP." In DVD-R/

RW recording, "Off" setting is regarded as "Main."

• If you record on a DVD-R or DVD-RW disc, set "Aspect ratio(Video mode)" (_ page 33) according to recording

sources.

Press INPUT SELECT repeatedly to select a

recording source.

Each time you press the button, the indicator alternates.

INPUTSELECTCh-: TO record a TV program or cable program with

(_ recorder tuner.

L-l: To record a source connected to the INPUT1

jacks on the rear panel (_ page 38).

L-2: To record a source connected to the INPUT2

jacks on the front panel (_ page 38).

Press the number buttons to select a channel

to record.

®©®

®®©®

®®®

CH button (-'_/v) is also available.

To record a program from a connected tuner, select the

channel on the tuner.

Press QUICK MENU to display Quick Menu.

(If you want to use the default setting for "AV record

quality," skip to step 7.)

e,g,

QU 3KMENU

_i!ii_'iii

iiliiiiiiiiiiiiiiiiiiiiiiiiiiii _i_i_i_i_i_i_i_

ii!iiiiiiiiiiiiii _!iiiii;;;ii¸ _iiiiiiiiii

_i/iji_!i!i!i!i!i!i!i

/ i!!iiiiiiii!i¸ii_ililiiii!l;;i;i_:i:i:i:i_i_i_i!i_!iili ii_i_!!

............._,,,i

!!_iiiii

Press •/• to select "AV record quality," then

press SELECT/ENTER.

e.g.

Press ADJUST (-/+) to select the setting

number.

e.g.

= ADJUST+

See _ page 42 for details on "Mode".

Press SELECT/ENTER.

The menu disappears.

Press REC.

Recording starts.

REC

Recording

RecordingaTV program(Continued)

•Selecting the recording mode

Before recording, you can select the recording mode. During stop mode, press REC MODE button. By pressing the

button repeatedly, you can select one from 5 settings of "AV record quality" appearing in the front panel display.

Notes

• During recording, you cannot change the recording parameters, such as modes, channels, etc.

• The number of titles cannot exceed 99 for any disc.

• During normal recording, you can set the programmed recording using the REC MENU.

• You cannot start recording immediately before a programmed recording starts.

• For recorded sound, see _ page 69.

• During monaural sound recording, the same sound is recorded on both the left and right channels.

• When "DVD compatible mode" is set to "Main" or "SAP", the unit records the same sounds on both the left and right channels

when receiving monaural sound. When receiving the multi-channel sound, the selected sound, Main or SAP, is recorded on

both the left and right channels.

• Depending on the disc contents, pressing REC button may take a longer time to start recording.

• When a starting time of a programmed recording comes, a recording in execution is stopped and the programmed recording

starts. If you do not want to stop the recording, cancel the timer program before it starts.

• Even if you set "Aspect ratio(Video mode)" (_ page 33) to "16:9", images are recorded in 4:3 aspect ratio when using a DVD-

R or DVD-RW disc with "Rate" set to "EP" (1.4 Mbps).

• Be careful of a programmed recording across the change-over of Daylight-saving time (_ page 27).

•To stop recording

Press STOP.

•To pause recording (to omit an unnecessary

portion)

During recording, press II.

To resume recording, press it again.

•To change aTV channel to be recorded

1) During recording, press I|.

Recording pauses.

2) Press CH or the number buttons to change the

channel.

3) Press II to resume recording.

•To view aTV program while recording another

1) Start recording on this recorder.

2) On a connected TV, select the TV mode.

3) Using the channel selector of the TV, select a

desired channel on the TV.

•To set an end time of a recording which is in

progress

1) During recording, press QUICK MENU.

Quick Menu appears.

2) Press •/•to select "End time" then press

SELECT/ENTER,

The display changes as follows:

e.g.

3) Press •/•to select an item then press

ADJUST to change the value.

4) Press SELECT/ENTER.

Notes

•By setting an end time, it is memorized as a programmed

one, and the C) indicator in the front panel display

illuminates to indicate that the recorder holds a timer

program of recording.

• The programmed end time must be set for 5 minutes later

than the current time.

To play a title recorded on a DVD-RAM disc

while recording another on the same disc

(Recorded Title Play)

During recording, you can play a title recorded on the

same disc.

1) While recording on a DVD-RAM disc, press

EASY NAVI.

2) Press •/•/•/•to select "Play Contents",

then press SELECT/ENTER.

3) Press •/•/•/•to select a desired title, then

press SELECT/ENTER.

Playback of the selected title starts.

Pressing STOP button stops playback, and the

content currently recorded returns. If you press

PLAY button, playback resumes from the location

you last stopped.

Notes

• The playback picture may appear after a delay of several

seconds.

• While you are using this function, the following operations/

functions are not available.

- Programmed playback (repeat playback, etc.)

- Editing (Playlist programming, dubbing, title/chapter

naming, title thumbnail setting, etc.)

• Depending on the data condition, playback may pause.

• When the recording mode is set to "XP" or "AT" (when a

high bit rate is automatically set. _ page 42), this function

is not available.

•Creating chapters automatically at regular

intervals

Set "DVD-Video:CHP create" (_ page 33).

You can record programs from connected equipment on a DVD-RAM/R/RW disc.

Connect according to A or B.

*To record a clearer picture,

use the S video jack.

Tovideo

output jack

External equipment

........................ )

A: Using the input jacks on the rear of the recorder INPUT1 (L-l)

Video cable t

lutput'°videof| Audio cable

ack |To audio Red White Yellow

L_utput jacks

) )

To audio Rear of the recorder

output jacks

Audio cable B: Using the input jacks on the front of the recorder

Ye,ow w ,te

INPUT 2 (L-2)

•Preparation

•Load a DVD-RAM/R/RW into the recorder.

- Load a disc which has sufficient remaining space to record the program.

- Make sure the loaded disc is not write-protected.

Notes

• If a source of high quality sound track such as DVD audio is recorded with this recorder, the sound quality becomes regular

audio CD quality. Refer to the instructions of the connected equipment.

• When you record an external source onto a DVD-R/RW disc, set the connected equipment to output sound you want to

record (if selectable such as multiplex broadcasting), as the recorder records sounds of external source in the stereo type

onto a DVD-R/RW disc, neglecting the setting of "DVD compatible mode" (_ page 33).

• DVD-R/RW discs cannot record contents with copy restriction signal embedded (copy-protected or copy once contents),

DVD-RAM discs can record copy once contents.

• Some satellite programs via a connected tuner may contain both 4:3 pictures and 16:9 pictures. DVD-R/RW discs cannot

record such contents, under restriction of the DVD-Video standard. To record these programs, use DVD-RAM discs.

Start

Press INPUT SELECT repeatedly so that "L-1"

or "L-2" appears on the front panel display,

corresponding to the input in which the device

is connected.

Each time you press the button, the indicator changes.

IN_CT L-l: To record pictures from equipment connected to

tJ the INPUT 1 jacks on the rear panel.

L-2: To record pictures from equipment connected to

the INPUT 2 jacks on the front panel.

Start playback of the source content on the

connected equipment.

Press REC of this recorder to start recording.

REC

When recording is completed, press STOP.

ii_ ii

STOP

Recording

Recordingan externalsource(Continued)

•Notes on recording from a connected VCR or camcorder

•Check the condition of the source equipment before playing.

Set the equipment in good condition, e.g. clean the head or adjust the tracking, etc. to obtain optimum playback.

Bad condition may produce noises in playback. These noises may be detected as copy protection signals,

resulting in stop of recording on this recorder.

Play a source in an usual mode. Avoid using any correcting or enhancing features, as they may add signals which

can be detected as copy protection signals.

Source quality or tape condition beyond adjustments on the source equipment may stop a recording on this

recorder.

Do not operate the source equipment during recording on this recorder.

Operations such as pausing, resuming, fast-forwarding (CUE) and fast-reversing (REVIEW), etc. may produce

noises, which may be detected as copy protection signals. Therefore, first start playback on the source equipment

to confirm that the desired source can be played properly, and then start recording on this recorder.

Do not operate the source equipment during recording. After completing the desired scene, stop the recording on

the recorder, and then stop the playback on the source equipment. Delete unnecessary scenes using editing

functions (@ page 98). If you want to operate the source equipment during recording, pause or stop the

recording. After operating the source equipment, resume the recording as above.

•When recording from a camcorder

Follow the above notes. Be sure to power the camcorder by its AC adapter, not batteries. If batteries are run

down, the recording may not be finished completely.

Use REC MENU to program a recording. It will take less time to prepare, as it provides all necessary

information for recording, including estimated disc space remaining.

For more information, see "Before recording" (_ page 26).

Be careful when you program a recording across the change-over of Daylight-saving time (_ page 27).

Press EASY NAVI.

EASY NAVI Main Menu appears.

Press A/,/</l_to select"Timer Recording",

then press SELECT/ENTER.

REC MENU appears.

e.g.

Press SELECT/ENTER.

"CH" is ready for setting.

e.g.

Select an item by pressing < /I_, then press

ADJUST (-/+) to set the item.

e.g.

•Refer to the setting items on the next page.

-,,DJusr._ • You can also set the item by pressing • /• button.

(_) (_ • "CH" can be input by the number buttons.

(Continued)

Recording

Programinga recording(Continued)

When complete, press SELECT/ENTER.

To program another recording, press • button to move

to the next line, then repeat steps 3 to 5.

Press EASY NAVI to exit.

Your program is entered.

• If you want to turn off the power, press ON/STANDBY

button.

•Setting items

A timer program with this mark will be executed. To disengage, remove

Exec _ this indicator.

CH 2-69 (TV), 1-125 (Cable),

L1, L2 Select a channel you want to record.

Specific date (from today to 2

month later)

Date Every Sundayto Saturday, Monday Select a date of a TV program you want to record.

to Thursday, Monday to Friday,

Monday to Saturday, everyday.

Start* 12:00 am - 11:59 pm Enter a starting time of recording. (An initial setting is 10 minutes later.)

You can also use the number buttons.

12:00 am - 11:59 pm Enter an end time. (Set the timer to begin recording no sooner than 2

End* minutes past the current time.)

You can also use the number buttons.

Media DVD Fixed. (Not adjustable.)

XP 9.2

SP 4.6

MP 3.0

Video LP 2.2

EP 1.4

AT (Auto) To set a rate automatically according to the remaining volume of the

disc. (If the disc does not have room for the TV program, the program

cannot be recorded to the end.) Even if you use a blank DVD disc, the

maximum recording time is about 2 hours.

Audio r]rl D/MI** Fixed. (Not adjustable.)

If you set summer time on the clock of the recorder, see the notes on _ page 34 in the "INSTALLATION GUIDE".

** The digital recording technology for consumer products of Dolby Laboratories is used for DE] D/M1. Dolby Digital 192 kbps

is set for I]rl D/M1.

Notes

• See _ page 48 for details on "Video".

• If you record with setting the bit rate to MP (3.0 Mbps), LP (2.2 Mbps) or EP (1.4 Mbps), the recorded pictures may not be

played properly if change the playback speed. There will be noise, and the picture quality is lower than other rate settings.

•Suggestions for the picture quality setting

•For normal recording or when you cannot decide which mode to choose.

Select "SP". N

• When you need a longer recording time and video quality is not important

Select "EP".

• To record a high quality picture

Select "XP".

• To fill the disc

Select "AT (Auto)." A bit rate is calculated automatically according to the remaining volume of the disc. Some

contents may not be recorded on the disc even if you select this function. This is not the function to make full use of

the remaining space capacity.

Notes

• The disc tray does not close automatically, even when the recording start time arrives. Set the recorder loaded an available

DVD-RAM/R/RW disc beforehand.

• When there is little time before a programmed recording starts, you may not be able to start another recording.

• Playback pauses when a programmed recording starts.

• Do not change the "TV/Cable" selection of the Initial settings while a recording is programmed. If you want to change it,

cancel the program recording. After then, make the programing again if necessary.

• Confirm the "DVD compatible mode" (_ page 33) setting. "Main" or "SAP" records main sound or sub-sound of multiplex

broadcasts respectively, and does not record the other. Therefore, select "Main" or "SAP" only when you record onto a DVD-

R/RW disc.

• When recording onto a DVD-R/RW disc, set "DVD compatible mode" (_ page 33) to the desired recording sound for each

timer program.

• Setting the details for every timer program

You can specify detail items for each of your timer

program.

1) Press QUICK MENU at step 4 on _ page 41.

Quick Menu is displayed.

e.g.

Quick menu items

Select a recording mode.

When recording onto a DVD-R/RW disc, make this

selection (_ page 33) for each timer program.

"Off" setting is neglected and regarded as "Main" in

DVD-R/RW recording.

2) Press •/•to select an item and press SELECT/

ENTER.

For details, see "Quick menu items."

Select the aspect ratio when recording onto a DVD-

R/RW disc. (@ page 33)

You can set a genre before setting programmed

recording.

To see the registered list, refer to Genre setting

(_ page 119).

Set the genre according to recording contents.

The selection you have made for the timer program

is shown at the bottom of the display.

Recording

Programinga recording(Continued)

•Shifting the time period of a recording (Time

Shift)

If a prior TV program extends beyond its scheduled

time and into one that you programmed, you can shift

the programmed start and end time of the recording.

e.g. 1:00pm 1:54pm

I I i

i _ Time Shift .......

_)_i 20 minutes:extend I

1:20pro 2:14pm

1) Press EASY NAVI.

EASY NAVI Main Menu appears.

2) Press •/•/•/• to select "Timer Recording",

then press SELECT/ENTER.

REC MENU appears.

3) Press •/• to select a timer program you want

to shift the time period.

4) Press EXTEND.

"Start" and "End" are ready to be input.

5) Press EXTEND repeatedly.

Each time you press the button, "Start" and "End" is

shifted in 10 minutes intervals to, up to 60 minutes

later.

6) Press SELECT/ENTER.

7) Press EASY NAVI to exit.

Note

• After you shifted the time of a timer program which will be

repeated daily or weekly, you should restore the original

start/stop time for future recordings.

•Adding a timer program

1) Press EASY NAVI.

EASY NAVI Main Menu appears.

2) Press • /•/•/• to select "Timer Recording",

then press SELECT/ENTER.

REC MENU appears.

3) Press • to select a blank line, then press

SELECT/ENTER.

4) Press • /• to select the item, then press

ADJUST to set the item.

5) When complete, press SELECT/ENTER.

6) Press EASY NAVI to exit.

Note

• While the recorder is preparing for or executing a

programmed recording, you cannot add a timer program

which will start within 5 minutes and 15 seconds from the

current time.

•Deleting a timer program

1) Press EASY NAVI.

EASY NAVI Main Menu appears.

2) Press •/•/•/• to select "Timer Recording",

then press SELECT/ENTER.

REC MENU appears.

3) Press •/• to select a timer program you want

to delete.

4) Press QUICK MENU.

Quick Menu appears.

5) Press •/• to select "Program cancel", then

press SELECT/ENTER.

Check the message, then delete the entry.

6) Press EASY NAVI to exit.

Note

• You cannot delete a timer program while another is

executed.

•Correcting a timer program

1) Press EASY NAVI.

EASY NAVI Main Menu appears.

2) Press •/•/•/I_ to select "Timer Recording",

then press SELECT/ENTER.

REC MENU appears.

3) Press •/•to select a timer program you want

to change, then press SELECT/ENTER.

4) Press •/• to select an item, then press

ADJUST to set the item.

5) Press SELECT/ENTER.

The modification is registered.

6) Press EASY NAVI to exit.

Important

• You cannot correct a timer program within 5 minutes before

the recording start time. You can only delete the timer

program.

Note

• You can program a timer recording whose start time has

already passed, unless the another program recording will

start within 5 minutes. The portion of the program before

the recording starts cannot be saved.

•Remaining volume

1) Press EASY NAVI.

EASY NAVI Main Menu appears.

2) Press • /•/•/• to select "Timer Recording",

then press SELECT/ENTER.

REC MENU appears.

3) Press QUICK MENU.

Quick Menu appears.

4) Press • /• to select "Disc budget calculation"

then press SELECT/ENTER.

Disc budget calculation menu appears.

5) Press • /• to select a timer program, then

press SELECT/ENTER or press ADJUST.

The recorder calculates on a bar graph how much

a specific program (identified by a check mark) will

occupy on the disc.

Pressing ADJUST button can display or remove the

check mark.

e,g,

4/1 i_ i _p_ _i_ _ _ EP 1.4 [_10

,/ 10 4113(Tu) 00 pm DVD EP 1.4 [_0_10

42 4/16(Fr) 30am DVD LP 2.2BDo#_lO

Notes

•The nearest 8 programs are calculated at a time.

• While the recorder is preparing for or executing a

programmed recording, any program modification cannot

be registered. Only programs which will start after 5

minutes or later can be modified.

• Available disc volume is not displayed for a DVD-R/RW disc

on which DVD-Video finalize process was executed.

• To stop a programmed recording

To finish,

Press • on the front panel twice.

When you press it once, a message appears. While

the message is displayed, press • button once again.

•Turning the power off automatically after

completing a programmed recording

1) While executing a programmed recording, press

QUICK MENU.

Quick Menu appears.

2) Press •/•to select "Auto power off" then

press SELECT/ENTER.

recording does not fit. Change the setting.

6) Correct the parameters of the timer program if

necessary.

(Skip to step 8), if you do not need this.)

You can change "Video".

Select an item you want to modify and press

SELECT/ENTER button. The item will be ready to

be altered. Press ADJUST button to modify.When

complete, press SELECT/ENTER button.

You can adjust to a lower mode to reduce the

quality of the recording, and thus provide more disc

capacity (space).

7) Press "ik'.

Program modification is registered.

8) Press EASY NAVI to exit the GUI.

Keeping the power on even after the

programmed recording finished

If the recorder turns itself on to execute a programmed

recording, it will turn itself off after finishing the

recording.You can restrict this and keep the recorder

powered on.

1) While executing a programmed recording, press

QUICK MENU.

2) Press •/• to select "Continuous power on"

then press SELECT/ENTER.

Recording

Programinga recording(Continued)

•Delaying the end time of a programmed

recording while it is recording

While a programmed recording is in progress,

press EXTEND.

The first press displays the programmed end time (in

the front panel display).

Each time you press the button, it is delayed 10

minutes, up to 60 minutes.

Notes

• Pressing a button except EXTEND in the above procedure

will set the currently selected delay.

• You cannot delay the end time of a programmed recording

which will end within 1 minute from the current time.

• Even if you delay the end time of a programmed recording,

the recording will stop when the disc is exhausted.

To deleterecordedcontent

Important note

Any deleted title/chapter (original) cannot be restored.

Before deleting, be sure to check contents on the disc.

--SELECT/ENTER

protectrecordedcontent

You can protect recorded content from unexpected

deletion.

Protection is provided for each title (original).

1) Perform steps 1and 3 in "Playing recorded

contents" (_ page 51) to select a title.

2) Press QUICK MENU, and press • /•to select

"Title information". Then press SELECT/ENTER.

3) Press QUICK MENU, and press the •/•to

select "Lock" and then press SELECT/ENTER.

The mark _ appears.

Notes

• To cancel protection, repeat this procedure.

• Disc initialization erases all titles on a disc even if they are

protected.

1) Perform steps 1and 3 in "Playing recorded

contents" (@ page 51) to select a title

(chapter).

2) Press QUICK MENU, then press •/•to select

"Title delete" ("Chapter delete") and press

SELECT/ENTER.

3) Read the message and press 4/I_ to select

"Yes," then press SELECT/ENTER.

Notes

• When you display a title to delete, on the finder of EASY

NAVI Main Menu, you can delete it by selecting "Delete

Title" then press SELECT/ENTER button. Operate

according to the message.

• Deleting a title (a chapter) decreases the numbers of the

succeeding titles (chapters).

• A chapter of about 5 seconds or shorter may not be

deleted. Deleting a short chapter may not change the

display of the available disc volume.

• Deleting a playlist title/chapter does not affect the original

title/chapter.

• Deleting an original title/chapter affects all the

corresponding playlist title/chapters.

• Deleting all chapters in a title erases the title itself.

• Title and chapter which contains still pictures cannot be

deleted.

• On a DVD-R/RW disc, deleting is not possible if the disc is

finalized (_ page 100).

• Chapters in a DVD-R/RW disc cannot be deleted.

• On a DVD-RW disc, only a title last recorded can restore

the disc capacity by being deleted.

• On a DVD-R disc, deleting cannot restore the disc capacity.

Recording

Others(Continued)

Technicalinformation

•About recording time

The recording time of a typical VCR (Video Cassette

Recorder) is determined by the length of a video tape

and recording speed (SP, LP, etc.). Video tapes with

various recording times are available in the market.

On the other hand, the recording time of a DVD-RAM/

R/RW depends on the bit rate (Mbps: amount of data

transmitted per second), which can be varied in

MPEG2 (Moving Picture Experts Group2)

compression technology.

As an example, when you pour water into a bucket

from a faucet, the faster the water flows, the sooner

the bucket is filled with water. On the other hand, the

slower the water flows, the more slowly the bucket is

filled. The DVD-RAM/R/RW is, so to speak, such a

bucket, and the degree you turn the faucet is bit rate,

the time required to fill the bucket with water is the

recording time available for a disc. The higher you set

the bit rate (making much more water flow), the sooner

a disc is filled. Consequently, the recording time

becomes shorter. The lower you set the bit rate, the

longer time it takes to fill a disc.

•About picture quality (XP, SP, MP, LP, EP)

The higher you set the bite rate, the more the volume

of information for the picture. The lower the bit rate, the

less the volume of picture information.

However a high bit rate does not always mean that the

picture quality is high. The difference between the 1.4

Mbps and 9.2 Mbps is obvious, but when comparing

similar bit rates, the difference may be insignificant.

Generally when you set the bit rate low for longer

recording time, the data volume shortage will result in

a lack of detail information. As a result, the picture

quality is decreased (more noticeable with dynamically

moving images). For example, square noises (block

noise) may occur in a scene with fast action or a

scene with light and shadows, such as a water

surface.

This recorder has 6 settings. (e.g. "SP" records about 2

hours and "LP" about 4 hours onto a blank 4.7 GB

DVD-RAM disc. _ page 125) It is recommended to

consider the "SP" mode as a standard mode and use

the lower mode when you want to record for long time

regardless of the picture quality.

If you want to record for within 2 hours select the "AT"

mode.

On a blank 4.7 GB DVD-RAM disc, the "AT" mode

automatically sets the appropriate bit rate

corresponded to the recording time from about 1 hour

to up to 2 hours so that you can achieve the best

picture quality. If a part of a DVD-RAM disc has

already been recorded, the "AT" mode sets the bit rate

suitable for the remaining space on the disc. (The

picture quality is determined referring the remaining

space just before recording. When the remaining

space is scarce in the disc, the picture quality may

decrease from what you set beforehand or the

recording may stop halfway.) "AT" mode is available

also on DVD-R/RW recordings.

When you want to record a music program or

animation with high picture quality, it is recommended

that you select the "XP" mode. If you select more than

6 Mbps, you can usually record with considerably

higher picture quality. However the higher you set the

bit rate, the shorter the recording time.

130 D/M1

Sound recording format onto DVD-RAM discs. When

recording, sounds are converted into digital signals

and compressed. In playback, they are extracted to the

original sound. 130 D/M1 is applied the digital

recording technology for consumer products of Dolby

Laboratories. Dolby Digital 192 kbps is set for

130 D/M1.

hation on

The operation procedure depends on the kind of disc. See the respective pages for basic procedure to

play the disc.

• To play contents recorded onto a DVD-RAM disc

Playing recorded contents (_ page 51)

•To play a DVD video disc

Playing a DVD video disc (_ page 55)

• To play aDVD-R/RW disc

DVD-R/RW discs recorded on this recorder

Playing recorded contents (_ page 51)

DVD-R/RW discs recorded on other devices

Playing a DVD video disc (_ page 55)

• To switch the picture to view TV broadcasts

Press STOP button to stop playback.

•To start recording

Press STOP button to stop playback.

Then press REC button to start recording.

•Screen Protection

If you pause playback, display a menu or use the freeze function and leave it still for about 15 minutes, the recorder

switches the output picture source to a TV broadcast or connected equipment.

A still picture may be displayed after all titles are played. In this case, the screen protection activates after about 10

seconds.

Notes

• Do not move the recorder during playback. It may damage the disc.

• Occasionally the picture may stop at the last scene, or the main menu may appear after playing.

If you display a still picture such as the main menu on the TV screen for a prolonged period, the TV may be damaged (image

burn). To prevent this, press STOP button to stop playback.

• A still picture for about 15 minutes while TIMESLIP indicator illuminates, will return to normal playback. If the playback is

completed, a still picture of the title end will continue unless you press TIMESLIP button.

Titles and chapters recorded on a DVD-RAM/R/RW disc are displayed in thumbnail view, so that you can

easily locate a desired one.

Start

Press EASY NAVI.

EASY NAVI Main Menu appears.

Press •/•/</1_ to select "Play Contents",

then press SELECT/ENTER.

Attribution

(Original/Playlist) I

CONTENT MENU Title List appears.

e.g.

001:

2005/0411211:00

200510411107:00

am TV:8

Press •/•/</I_ to select a title (chapter).

You can view succeeding or prior pages by pressing

REV or FWD button.

To select a chapter, select a title and press _ button.

Chapter List appears.

By pressing _r button again, you can return to Title List.

Press SELECT/ENTER.

Playback starts from a selected title (chapter).

Playback

Playingrecordedcontents(Continued)

Notes

• On CONTENT MENU, titles (Original) precede titles

(Playlist), in order from the oldest one respectively.

• To turn off CONTENT MENU, press EASY NAVl button.

Absence of operations for longer than about 15 minutes

also turns off CONTENT MENU.

• The mark II is displayed in every thumbnail when "Title

playback" (_ page 116) is set to "Title resume". When set

to "Serial playback", it is displayed in a thumbnail last

operated.

• You can change a thumbnail picture. See _ page 93.

• You cannot display CONTENT MENU for DVD-R/RW discs

recorded on other devices.

• For playing a recorded title while recording another, see

page 37.

• A black thumbnail with "Recording" means that the title is

being recorded or its recording will start within 15 seconds.

This thumbnail cannot start playback.

• When the recording mode is set to "XP" or "AT" (when a

high bit rate is automatically set _ page 42),

playback will net be available several minutes before

recording starts.

•To stop playback

Press STOP.

STOP

•To pause playback (still playback)

Press II.

To resume normal playback, press PLAY button or

II button.

Note

• Sound is muted during still mode.

Resuming playback from the location last

stopped (Title resume) _HAMI

The recorder memorizes the location you last stopped

playback to resume there.

To use this function, set "Title playback" (_ page 116)

to "Title resume." The recorder will memorize the

location you last stopped at in each title, so you can

resume playback there. For example, if there are 6

titles, you can start each of them as if you had stored

6 video tapes in the recorder.

•To return to the beginning of the title

During playback, press QUICK MENU button, then

press • /• buttons to select "Restart title," then

press SELECT/ENTER button.

• To play another title

Perform steps 1 to 4 on _ page 51.

You can make the recorder memorize only the very

last point, regardless of the number of titles. Set "Title

playback" (_ page 116) to "Serial playback."

• To return to the beginning of the title

Press SKIP REV button repeatedly until the

beginning of the title appears.

• To play the other title

Press SKIP REV or SKIP FWD button repeatedly.

Notes

• Depending on conditions or contents, playback may not

start from the location last stopped, but instead of another

location. For example, from the beginning of the disc or

title.

• Depending on a disc, there may be a slight difference

between the location the recorder memorizes and the

actual location where playback starts.

• This function is not available on DVD-R/RW discs.

• The resuming function will not work if the write-protect tab

is set to "PROTECT" (_ page 8).

•Playing all titles (Original/Playlist) in a disc

Set "Title playback" ( _ page 116) to "Serial

playback". You can play all titles in a DVD-RAM disc in

the order of the thumbnails on CONTENT MENU, as if

they were recorded in one video tape.

•Checking the background information on a

selected title

1) At step 3 on _page 51, select a title (chapter)

then press QUICK MENU.

Quick Menu appears.

2) Press •/•to select "Title information", then

press SELECT/ENTER.

Detailed information of a selected title (chapter)

appears.

e.g.

Chanqing the title information:

1) While "CONTENT MENU Title Information" is

displayed, press QUICK MENU.

Quick Menu appears.

e.g.

Del chapter name:

(First press FWD or REV button to display the chapter

you want, then select this item.)

Record date & time:

The recording date is highlighted so that you can

correct the digits.

Lock:

Set the protection for the currently selected title.

The protection icon "_" appears. (@ page 47)

Genre:

The submenu appears.

Press • /• buttons to select a genre, then press the

SELECT/ENTER button.

A name of the selected genre and the icon appear.

Notes

• To change the title information, be sure to load a DVD-

RAM/R/RW disc which contains the desired title.

• You may not be able to change the title name, etc. of a

DVD-R disc, if the disc is in a certain condition such as a

minimal remaining space.

• You cannot set the protection of titles in DVD-R/RW discs.

• By pressing the O button, you can return to the previous

display.

• To exit these steps, press EASY NAVl button.

2) Press •/•to select an title, then press

SELECT/ENTER.

Edit title name:

The on-screen keyboard appears.

Following the procedure on _ page 30, enter a new

name for the title.

Edit chapter name:

(First press FWD or REV button to display the chapter

you want, to put a name for, and select the chapter.)

The on-screen keyboard appears.

Following the procedure on _ page 30, enter a new

name for the chapter.

Playback

Playingrecordedcontents(Continued)

•Viewing information of a loaded disc

1) Press EASY NAVI.

EASY NAVI Main Menu appears.

2) Press •/•/•/•to select "Play Contents",

then press SELECT/ENTER.

3) Press QUICK MENU.

Quick Menu appears.

4) Press •/•to select "Disc information", then

press SELECT/ENTER.

You can view information on a loaded disc.

e,g,

DVD-RAM

VR mode t:21

0 (Current) SP4,6Mbps/ OOD/MI: 0:46

Chanqing the disc information:

You can change the number or name of a DVD-RAM

disc.You can also change the name of a DVD-RW

disc.

1) Press •/1_ to select "Edit Disc Number" or

"Edit Disc Name", then press SELECT/ENTER.

2) Following the procedure on _page 30, enter a

new name for the disc.

To change the disc number, press ADJUST button.

Notes

• You cannot change the disc name of a blank DVD-R disc.

After recording, change the disc name.

• You may not be able to change the disc name of a DVD-R

disc, if the disc is in a certain condition such as a minimal

remaining space.

You can also playVIDEO CDs, audio CDs or finalization processed DVD-R/RW discs in the same manner.

To play recorded contents, follow the instructions on _page 51.

•Preparation

• Turn on a TV or audio system and select the corresponding input source that the recorder is connected to.

• Load a disc you want to play. (_ page 20)

Press PLAY.

Playback starts.

This occurs because the recorder is reading the data

of a disc.

Start

•To stop playback

Press STOP. •To pause playback (still playback)

Press II.

To resume normal playback, press PLAY button or

II button.

Note

• Sound is muted during still mode.

Note

• DVD video disc provides high resolution pictures and a lot of information. Because of this, you may notice some fine picture

noises on TV screen, which you have never seen with regular broadcast TV program. While the amount of noise depends on

the TV you use with the recorder, you should generally reduce the sharpness adjustment on your TV when viewing DVD

video discs.

Playback

Playinga DVD video disc(Continued)

•Resuming playback from the location last

stopped (Resume Play)

You can resume playback from the location where you

stopped at.

If you press PLAY button after stopping playback,

playback resumes from the location you have stopped.

If you stop playback by pressing STOP button twice,

the resume playback feature will be canceled.

Notes

• Resume feature cannot function when:

-you select a disc menu language (_ page 110) or change

the parental lock setting (_ page 111).

-you open the disc tray.

-you cancel the DVD-Video finalizing process of a DVD-RW

disc.

• There may be a difference in the location where playback

resumes depending on the disc.

• While the recorder retains a location in memory, initial

setting changes with GUI may function only after the

memory is cleared.

Locatinga titleusingthetopmenu

Some DVD video discs may include a top menu, on

which you can view the structure of contents or select

a scene. Most of the top menus automatically appear

in certain scenes, and also are displayed on demand.

Actual operation of the top menu depends on the disc.

This section explains a general example of how to

operate a top menu. Also refer to the instructions of

the disc itself.

i ...... i ¸¸¸i

i _ i ii_:ii i__i iii___i iii_i

i _ii _:i ii_ _i __iiii_i

TOP MENU

SELECT/ENTER

A/T/,/_

1) Press TOP MENU.

2) Press •/•/4/• to select the title you want.

If the titles in the top menu are assigned a number,

you can directly locate a specific title by pressing its

designated number with the number buttons.

3) Press SELECT/ENTER.

Notes

• The instructions above describe basic procedures which

may vary depending on the contents of a DVD video disc. If

different instructions appear on the TV screen, follow those

instructions.

• If you display the top menu during playback and press TOP

MENU button again without selecting any title, the recorder

may resume playback from the point where you first

pressed TOP MENU button. (depending on the actual DVD

video disc.)

• This method of locating a title is available only on a disc

that contains a top menu.

• Instruction notes of discs may refer to the button that

displays the top menu as TITLE button.

This function enables you to pause a TV broadcast and resume viewing at a later, more convenient time,

by storing the TV broadcast temporarily on a DVD-RAM disc.

When this function is used, a DVD-RAM disc which can be recorded needs to be loaded into the recorder

beforehand.

While viewing a TV broadcast via this recorder

or immediately before it starts, press TIMESLIP.

Start

When Pause TV mode is ready, playback stops

i _ automatically.

! The recorder begins to store the broadcast on a DVD-

RAM disc the moment you press TIMESLIP button.

2Locate a scene you want by the following

methods.

Fast-forward/fast-reverse:

Press FWD or REV button.

Forward/reverse Slow-motion:

First press II button then press FWD or REV button.

Forward/reverse frame by frame play:

First press II button then press ADJUST button.

• To resume normal playback, press PLAY button.

• You can play in fast-forward to within 10 seconds prior to the

current broadcast.

PressTIMESLIP to exit this mode.

The recorder stops storing the broadcast on a DVD-

RAM disc.

TIMESLIP

O A message appears and asks you whether you will save

the stored data or erase it.

Press •/I_ buttons to select, then press SELECT/

ENTER button.

• When the recording mode is set to "XP", the recorder

automatically changes "XP" to "SP" to record the broadcast.

Notes

• This function is not available during recording.

• Pause TV recording stops when the DVD-RAM disc is filled up. It will not begin if a DVD-RAM disc is full.

• While using this pause TV recording, you cannot program a recording.

• Playback may jump a few seconds back or pause depending on a disc or data condition.

You can begin playback from the beginning of a program currently being recorded.

You will find this function of great advantage on long programs, as you do not have to wait for the end of

recording to begin playback.

Start

While recording a TV program on a DVD-RAM

disc, press TIMESLIP.

The recorder displays a TV program as it is being

TIMESLIP recorded.

Go back to the beginning of the TV program

using SKIP REV.

When you go back to the beginning, playback starts

SKIP REV automatically.

fTiCC'--I YOUcan confirm how far you are from the current

broadcast by selecting "Time bar" from Quick Menu.

Locate a scene you want through the

following operations if necessary.

Fast-forward/fast-reverse:

Press FWD or REV button.

Forward/reverse Slow-motion:

First press II button then press FWD or REV button.

Forward/reverse frame by frame play:

First press II button then press ADJUST button.

• To resume normal playback, press the PLAY button.

• You can play in fast-forward to within 10 seconds prior to the

current broadcast.

Press TIMESLIP to exit.

The current broadcast returns.

TIMESLIP

Notes

• Time slip recording/playback stops when the DVD-RAM disc is filled up.You can play up to a location where the recorder

stopped the recording. The time slip recording/playback cannot begin if a DVD-RAM disc is full.

• The playback picture may appear after a delay of several seconds.

• The playback location will never be identical to the record location in the program. It will always trail the record location by a

few seconds.

• While using time slip recording/playback, you cannot program a recording.

• While the TIMESLIP indicator is on, you cannot change the setting of the feature that turns off the recorder after a

programmed operation has finished.

• Even while "Auto power off" is selected, the recorder does not turn off if the recording end time comes during playback of a

program being recorded.

• Playback may jump a few seconds back or pause depending on the disc or data condition.

• When a timer recording or normal recording is executing with the recording mode "XP" or "AT" (when a high bit rate is

automatically set. _ page 42), this function is not available.

Playinginfastreverseorfast forward

Start

During normal playback, press FWD or REV.

FWD FWD : Fast forward playback

REV: Fast reverse playback

BEV

Each time you press the button, the playback speed

changes.

During fast forward playback at "_.,_" speed, sound is

reproduced. (Not available on VIDEO CD.)

• This function is not available when you play a title

recorded on a DVD-RAM disc while recording

another.

Notes

• The playback speed may vary depending on a disc.

• Depending on the disc or data condition, picture and sound

in fast forward playback at "1_-" speed may be disturbed.

•To resume normal playback

Press PLAY.

•Time bar display

Fast-forward or fast-reverse playback automatically

displays a time bar.

For details, see @ page 76.

•To skip the contents in pre-determined

increments

During playback, press INSTANT SKIP.

Each time you press the button, you can skip by the

specified time.

You can select the interval per press of the button. See

"Instant skip interval" (_ page 116).

•To skip back in pre-determined increments

During playback, press INSTANT REPLAY.

Each time you press the button, you can go back by

the specified time to resume playback.

You can select the interval per press of the button. See

"Instant replay interval" (_ page 116).

Notes

• Some discs may not permit this operation.

• Depending on the structure of a disc, some operations may

be limited.

• Depending on playback status, some operations may not

work.

Playback

Playingat variousspeeds (Continued)

Skipping to the next/previous chapter or track _w_E_l _1

Press SKIP FWD or SKIP REV repeatedly until

the chapter or track number you want

appears.

Start

next chapter or track.

current chapter or track.

the beginning of the previous chapter or

track.

Notes

• Some titles may not display chapter numbers.

• When playing a DVD-RAM disc, you can access chapters only in the current title if "Title playback" (_ page 116) is set to

"Title resume". To access chapters in other titles, set to "Serial playback".

• When playing a DVD video disc or a DVD-R/RW disc, you can locate chapters only in the current title if "DVD title stop" (_

page 112) is set to "On". To access chapters in other titles, set to "Off". However, in this instance even though you press the

SKIP REV button to go back to the previous title, playback starts not from the last chapter of the title but from the first

chapter.

Playinginslow-motion

Start 2

FWD

REV

(221

Notes

• Slow-motion does not provide smooth playback.

• When playing a VIDEO CD, reverse slow-motion playback

is not available.

• The speed level displayed is approximate.

Press II during playback.

Press FWD or REV.

FWD : Forward slow-motion

REV : Reverse slow-motion

Each time you press the button, the slow-motion speed

changes.

•To resume normal playback

Press PLAY.

Playingframebyframe

During playback, press II.

A still picture is displayed.

Start

Press ADJUST (-/+).

+:Playback direction

_u_- : Opposite direction

•To resume normal playback

Press the PLAY or II button.

Notes

• Sound is muted during frame by frame playback.

• Frame by frame playback cannot provide smooth playback.

• Picture may advance more than 1 frame at a time.

• Depending on the scene, some frames may not be played.

• When playing a VIDEO CD, reverse frame by frame

playback is not available.

Viewingstillpictures(Playingadisc thatcontainsstillpictures)

Start

Press PLAY.

The first still picture on a disc is displayed.

PLAY

Some DVD video discs may allow you to change the

pictures using PLAY, SELECT/ENTER or SKIP FWD or

SKIP REV button.

+ : Displays the next still picture.

-ADJUST+ -: Displays the previous still picture.

Locatingby enteringthe numberof a desired section

Normally titles, chapters, and tracks are numbered. By entering these numbers, you carl access a desired section.

Press SEARCH.

Start

If you are using a VIDEO CD/audio CD, skip step 2.

e.g.

Press •/•to select a section (title or chapter)

you want to locate.

i{{i_ii_i_'_i({iiii{:'i!_i:iiii__

When you want to locate a chapter.

Press the number buttons to enter a number

of the section.

e.g. To enter 25, press "2", then press "5".

O©®

®®®®

®®®

Press SELECT/ENTER.

Playback starts from the selected location.

Notes

• Pressing CLEAR button resets the numbers. To clear the display, press SEARCH button several times (depending on a disc).

• This method of locating a title is available only on a disc that contains title numbers.

• If a title is erased, the numbers of the following titles decrease respectively.

• When you record a new title (Original) on a DVD-RAM disc, it is added prior to current titles (Playlist), and each following title

(Playlist) reference number will advance by a factor of 1.

Locatingaspecificpointbyenteringitselapsedtime(TimeSearch)

Press SEARCH.

You may have to press repeatedly, depending on a disc.

Press the button until the following display appears.

e.g.

Start

Press the number buttons and < /_to enterthe desired time location on the disc.

e.g.To enter 1 hour, 25 minutes, and 30 seconds

O®®

O ® ® ® "0" -> "1" -> '_" -_ "2" -_ "5" -> "1_" -_ "3" -> "0"

® ® @ hour minute second

Press SELECT/ENTER.

Playback starts from the selected location.

Notes

•Some discs may Rot respond to this process.

• Some scenes may not be accessed precisely as you specified.

• This method for accessing specific locations is available only within the current title of a DVD-RAM/R/RW/DVD video disc or

within a current track of a VIDEO CD/audio CD.

• Pressing CLEAR button resets the numbers.

If the scene was recorded with multiple angles, you can easily change the camera angle of the scene you

are watching.

Press ANGLE while playing a scene recorded

Start with multiple angles.

While playing a scene recorded with multiple angles, the

ANGLE angle icon appears on the TV screen and on the front

panel. Press ANGLE button while the angle icon is

displayed. Angle icon

e.g. _

TL Total number of angles

Current selection

Press ADJUST while the angle number is

displayed on the TV screen.

You can also select the camera angle by pressing

ANGLE button several times.

= ADJUST+

• The angle icon disappears after about 3 seconds if no

further selections are made.

Notes

• You can also change the camera angle during still playback.The camera angle changes to the new setting when you resume

normal playback.

• If you pause a picture immediately after changing a camera angle, the resumed playback picture may not display the new

camera angle.

• Depending on a disc, the camera angle may not change even though the angle number changes.

You can display subtitles on theTV screen and select a subtitle language from those included on the

disc.

Start Press SUBTITLE during playback.

The current subtitle setting appears.

e.g. -- Setting number and

language

The language code appears instead of the language

name. Refer to the list of languages and their

abbreviations. (_ page 126)

Press •to select "Status," then press ADJUST

to select "On."

Skip to step 3 if "On" is already displayed.

=ADJUST_

3Press •to select "Subtitle," then press

ADJUST to select a language.

The subtitles of recorded languages appear.

= ADJUST+

The display turns off after about 3 seconds if you do not

make a selection.

Notes

•Some DVD video discs are set to display subtitles

automatically.

• Depending on the scene, subtitles may not appear

immediately after you set the subtitle function to on.

• Some DVD video discs will allow you to change subtitle

languages and turn subtitles on or off only via the disc

menu.

•To turn the subtitles on or off

At step 2, select "Off" by pressing ADJUST button.

You can magnify areas within a picture.

Start Press ZOOM.

A zoom scope appears.

e.g.

i I iiii

Select a zoom point and magnification level.

Raises the magnification level.

Lowers the magnification level.

A/T/</I_:

Moves the zoom point. (only after the image has been

magnified)

CLEAR:

Returns the zoom point to the center of the picture.

Notes

•Some discs may not respond to zoom feature.

•During some scenes, the buttons may not work as described.

• The zoom feature is canceled when the disc menu is operated.

• The magnification level varies depending on the picture size you select

(E_ page 40, "INSTALLATION GUIDE").

• The zoom feature is not available while displaying a GUI.

• The zoom feature is canceled when you stop playback or start playback.

•To cancel the zoom

Press ZOOM.

You can select a preferred language and a sound format.

Start Press AUDIO/SAP during playback or while

receiving a broadcast.

The current audio setting appears.

AUDIO/SAP The language code appears instead of the language

Q name. Refer to the list of languages and their

abbreviations. (_ page 126)

Press ADJUST while the audio setting is

displayed on the TV screen.

Variation of channels depends on the disc or the type of

TV broadcast.

= ADJUST+

(_) *_Mj, TV channel signals

Stereo sound

-_ "Stereo" (left channel and right channel)

-_ "Stereo I" (left channel)

-_ "Stereo R" (right channel)

(-_ Back to "Stereo")

Language name /sound recording system /No. of

channels

e.g.

The display turns off if you do not operate for more than

3 seconds.

If you press the • /• buttons to select "Output," you can

select the audio output setting (_ page 114) by using

ADJUST buttons.

•MTS Broadcast Compatibility

This recorder can receive or record MTS (Multichannel TV sound) broadcast.

By connecting the recorder to your stereo system or stereo TV, you will try the SAP or stereo sound.

SAP (Second Audio Program broadcast)

A separate audio program, usually broadcast in a second language with the main language.

Sounds in playback

You can play SAP and/or stereo broadcasts with this recorder. Refer to steps 1 and 2 to select a desired audio.

While a SAP program is received, the SAP indicator on the front panel illuminates.

Playback

Selectingthesound(Continued)

Recorded sounds

According to your setting of "SAP" on the setup menu screen, (_ page 114), the sound is recorded onto different

channels of the disc below. Set "SAP" to "On" or "Off" appropriately.

off Off Stereo + SAP

Mono + SAP

Stereo

Mono

On Stereo + SAP

Mono + SAP

Stereo

Mono

Off Stereo + SAP

Mono + SAP

Stereo

Mono

On Stereo + SAP

Mono + SAP

Stereo

Mono

Off Stereo + SAP

Mono + SAP

Stereo

Mono

On Stereo + SAP

Mono + SAP

Stereo

Mono

Main

SAP

Mono

L+R

Mono

L+R

Mono

SAP

Mono

SAP

Mono

L+R

Mono

SAP

Mono

Stereo

Dual Mono

Stereo

Notes

• Some discs allow you to change audio selections only via the disc menu. If this is the case, press MENU button and

choose the appropriate language from the selections on the disc menu.

• When you turn on the recorder or replace a disc, the recorder returns to the initial default setting. (_ page 110)

Depending on a disc, a specific type of audio the disc has is output.

• Immediately after you have switched sounds, there may be a temporary discrepancy between the display and actual

sound.

• The BITSTREAM/PCM jack may not output SAP sound you select. In this instance, set "Audio out select" to "PCM".

(_ page 114)

• You cannot change SAP sound if recorded with "DVD compatible mode" (_ page 33) set to "Main". Even when "DVD

compatible mode" ( _ page 33) is set to "Off," the recorder regards it as "Main" when recording to a DVD-R/RW disc.

•Output sound conversion table

Audio setting (@ page 114) and output in the default setting display

Bitstream Analog 2ch PCM

Disc Sound format BITSTREAM/ Analog (L/R) BITSTREAM/ Analog (L/R) BITSTREAM/ Analog (L/R)

PCM jack jacks PCM jack jacks PCM jack jacks

Dolby Digital Bitstream 48 kHz/20 bit Bitstream 48 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit

48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

48 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit

Linear 48 kHz/24 bit 48 kHz/16 bit 48 kHz/24 bit 48 kHz/16 bit 48 kHz/24 bit 48 kHz/16 bit 48 kHz/24 bit

DVD- PCM 96 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit -- 96 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

video

disc* 96 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit -- 96 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit

96 kHz/24 bit 48 kHz/16 bit 48 kHz/24 bit -- 96 kHz/24 bit 48 kHz/16 bit 48 kHz/24 bit

DTS Bitstream -- Bitstream -- -- --

MPEG2 Bitstream 48 kHz/16 bit Bitstream 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

VIDEO CD MPEG1 44.1 kHz/16 bit 44.1 kHz/16 bit 44.1 kHz/16 bit 44,1 kHz/16 bit 44,1 kHz/16 bit 44,1 kHz/16 bit

Audio _inearPCM44.1 kHz/16bit 44.1 kHz/16 bit 44.1 kHz/16 bit 44.1 kHz/16 bit 44,1 kHz/16 bit 44,1 kHz/16 bit 44,1 kHz/16 bit

CD DTS Bitstream (Noise) Bitstream (Noise) Bitstream (Noise)

DVD- Dolby Digital Bitstream 48 kHz/20 bit Bitstream 48 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit

RAM/RW/ _inear PCM48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

R MPEG2 Bitstream 48 kHz/16 bit Bitstream 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

CD-R/RW M P3/WMA 44.1 kHz or 32 kHz or 48 kHz/16 bit

* "DVD video disc" above does not include DVD-R/RW discs recorded on this recorder.

• Do not select a connection or setting indicated as "Noise" in the above list.

I Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. J

You can play JPEG files that have been recorded on a CD-R or CD-ROM on the recorder.

•Preparations

• Prepare a compatible disc (_ page 71) that contains JPEG files you want to view.

• Set "Priority contents" (_ page 116) to "Photo".

• Make your TV shape conform to the 4:3 picture size. Only 4:3 pictures can be played regardless of the function

settings via the on-screen displays of the recorder (_ page 40, "INSTALLATION GUIDE"). If the TV is adjusted

to other sizes, e.g. "WIDE," images will appear to be horizontally expanded. For details, refer to the owner's

manual of your TV.

Load a CD that contains JPEG files.

Each photo appears for about 3 seconds (slide show).

0PEN/CLOSE

Start If a slide show does not start, press the PLAY button.

Depending on the disc, "CONTENT MENU Picture List"

appears. See "On "CONTENT MENU Picture List ....

(_ page 71) to operate.

Notes

• Some files may not display their own entire images depending on the size.

• Operation to JPEG file will be disabled at about 5 minutes before a programmed recording starts.

• To stop playback (slide show)

Press STOP.

If you press PLAY button after pressing STOP button,

playback will start from the photo you stopped.

• To pause playback (slide show)

Press II.

To resume, press || button again or press PLAY

button.

•To skip photos

During playback, press SKIP FWD or SKIP REV

button repeatedly.

SKIP FWD :To skip forward.

SKIP REV : To skip backward.

• To rotate a picture

Press ANGLE repeatedly.

Each time you press the button, the picture rotates by

90 ° degree.

Notes

• The rotated image is displayed after its original posture

appears momentarily.

•To magnify a picture

Follow the procedure on _page 66.

Notes

• The magnified image is displayed after its original posture

appears momentarily.

• For small pictures, the reduction level may be limited.

• Viewing a specified photo (single view)

Full screen still view.

2 ways are available:

•On "CONTENT MENU Picture List"

1) Press EASY NAVI.

2) Press • /•/41 /I_ to select "Play Contents",

then press SELECT/ENTER.

CONTENT MENU Picture List appears.

Depending on the disc, the recorder creates either

temporary folder, "Auto" or "All".

"Auto": For CD of which compatibility confirmed by

TOSHIBA. Only playable files are listed.

button, upper foUders appear.

"All": For CD other than above. All files are listed.

e.g.

•Direct input of a photo number

1) During playback or stop, press SEARCH.

An input window appears.

e.g.[

2) Input a photo number using the number buttons

or ADJUST.

3) Press SELECT/ENTER.

The selected photo appears in full screen.

•To change the playback order

1) During playback (slide show) or stop, press

QUICK MENU. /

2) Press • /•to select an item, then press

SELECT/ENTER.

To shift the cursor, press • /• buttons.

_: To reverse the order.

: To repeat the current folder.

3) Press SELECT/ENTER.

Playback in the selected mode starts.

• Some CDs may not comply with the above.

3) Press •/•/_1 /I_ to select a folder or photo.

Pressing FWD or REV button turns the pages.

If you press Yr button, the list changes to thumbnail

view (CONTENT MENU Pictures).

e.g.

Pressing ANGLE button rotates the picture. The

rotation of pictures is kept until the CD is ejected.

To return to the previous list, press _ button again.

4) Press SELECT/ENTER.

If you select a folder at step 3), repeat steps 3) and

4) until your favorite file appears.

The selected photo appears in full screen.

Notes

• CONTENT MENU Picture List cannot show all the files in a

disc, but only ones regarded as objects of regular play of

the disc.

• The larger the file size is, the longer the thumbnail takes

time to appear.

• Letters of a file/folder name overflowing the given space

are not displayed.

JPEGfiles compatibility

Discs whose compatibility with this recorder has been

confirmed by TOSHIBA are as follows.

CANON QuickCD

FUJICOLOR CD

Kodak Picture CD

NORITSU QSS CD

JPEG disc compatibility with this recorder is limited as

follows:

• Playable discs:

CD-ROM, CD-R

CD-RW is not recommendable.

• CD physical format:

Mode 1, Mode 2 XA Form 1

• File system:

ISO9660 Level 1,2 or Joliet

• File name:

A file name should be in alphabet and

numerals only, and must incorporate "JPG"

extension.

e.g.' ......... .JPG"

• Total number of folders:

Less than 256

• Total number of files:

Less than 1000

Some files may not display their own entire image

depending on the size.

Some discs may not permit this operation. Especially,

the following conditions of included files will increase

the disc's disability.

1. Pixels over 5000 x 5000 in height and/or width

2. File format except Exif

You can play MP3/WMA files that have been recorded on a CD-R or CD-ROM on this recorder.

•Preparations

• Make sure that a disc you want to play is compatible with this recorder. See _ page 73.

• Set "Priority contents" (_ page 116) to "Audio".

Start

fLoad a CD that contains MP3/WMA files.

Playback starts from the first track of a current folder.

0PEN/CLOSE

Notes

• WMA tracks copy-protected cannot be played.

• The DIGITAL AUDIO OUT BITSTREAM/PCM jack outputs MP3/WMA sounds in the linear PCM format regardless of the

current "Audio out select" (_ page 114) selection.

• You cannot change the playback speed of MP3/WMA playback.

• To stop playback

Press STOP.

If you press PLAY button after pressing STOP button,

playback will start from the the beginning of the track.

•To pause playback

Press II.

To resume, press II button again or press PLAY

button.

On "CONTENT MENU Audio List"

1) Press EASY NAVI.

2) Press • /•/</I_ to select "Play Contents",

then press SELECT/ENTER.

CONTENT MENU Audio List appears.

Currentfolder

•To skip tracks

During playback, press SKIP FWD or SKIP REV

repeatedly.

SKIP FWD :To skip forward.

SKIP REV : To skip backward.

button, upper foUders appear.

•Selecting a track in the disc

2 ways are available:

foUder "AH", which contains aH

72 playabUe flues.

3) Press • /•/41 /I)- to select a track or folder.

Pressing FWD or REV button turns the pages.

4) Press SELECT/ENTER.

If you select a folder at step 3), repeat steps 3) and

4) until your favorite file appears.

Notes

• CONTENT MENU Autio List cannot show all the tracks in a

disc, but only ones regarded as objects of proper play of

the disc.

• Letters of a file/folder name overflowing the given space

are not displayed.

Direct input of a track number

1) During playback or stop, press SEARCH.

An input window appears.

e.g. _

2) Input a track number using the number buttons

or ADJUST button.

3) Press SELECT/ENTER.

•To change the playback order

1) During playback or stop, press QUICK MENU.

2) Press •/• to select "Special playback mode",

then press SELECT/ENTER.

e.g.

3) Press •/•to select an item, then press

SELECT/ENTER.

:To play favorite tracks only in

afavorite order.

Input a track number by using the number buttons

or ADJUST button.

To shift the cursor, press • /• buttons.

_: To repeat the current folder.

_: To repeat the current file.

_: To play files in the current

folder in a random order.

Note

• To cancel these modes, stop the playback or select the

cancel command from Quick Menu.

Playablefiles

MP3/WMA disc compatibility with this recorder is

limited as follows:

• Playable discs:

CD-ROM, CD-R

CD-RW is not recommendable.

• Sampling Frequency/Bitrate:

WMA: 32 kHz /48 Mbps (CBR), VBR

44.1 kHz /48-192 Mbps (CBR), VBR

48 kHz /128-192 Mbps (CBR), VBR

MP3:8 kHz, 11.025 kHz, 12kHz, 16 kHz,

22.05 kHz, 24 kHz/8-160 kbps (CBR),

VBR

32 kHz, 44.1 kHz, 48 kHz/32-320 kbps

(CBR), VBR

• CD physical format:

Mode 1, Mode 2 XA Form 1

• File system:

ISO9660 Level 1,2 or Joliet

• File name:

A file name should be in alphabet and

numerals only, and must incorporate "MP3" or

"WMA" extension.

e.g.' ......... .MP3", .......... .WMA"

• Total number of folders:

Less than 256

• Total number of files:

Less than 1000

• WMA codec version:

V7, V8, V9

This recorder supports ID3v2 (ID3 Tag Version 2) of MP3,

to display text data such as names of title and artist.

Some characters may be displayed properly.

This recorder requires discs/recordings to meet certain

technical standards in order to achieve optimal playback

quality. Pre-recorded DVDs are automatically set to these

standards. There are many different types

of recordable disc formats (including CD-R containing

MP3/WMA files). Because this area of technology is still

evolving, Toshiba cannot guarantee that all recordable

discs will produce optimal playback quality. The technical

criteria set forth in this owner's manual are meant only as

a guide.

Please be advised that you must obtain permission from

the applicable copyright owners to download copyrighted

content, including music files, in any format, including the

MP3 and WMA formats, prior to the downloading thereof.

Toshiba has no right to grant and does not grant

permission to download any copyrighted content.

Microsoft, Windows Media, and the Windows _ _}

Logo are trademarks or registered trademarks _ _ Designedfor

of Microsoft Corporation in both the United _ml, _ _windows

States and other countries,

While watching aTV broadcast through this recorder, you can pause it. However, even if an image is still

on the screen, the picture is running on the broadcast and you can still hear the sound on-going.

While watching a TV broadcast through this

Start recorder, press FREEZE.

The TV broadcast pauses just as a still picture.

i _! e.g.

i_ I _ii

• When "Screen protector" is set to "On", the freeze

function will be cancelled about 15 minutes later.

• To cancel the freeze function

Press FREEZE.

• The picture being broadcast displays on the

screen.

You can confirm operational status and setting details.

perationalstatusandsettingdetails

Press DISPLAY.

The following on-screen display appears. (The actual

display varies depending on the disc.)

e.g. while playing a DVD-RAM disc

Elapsed time of a title/

Elapsed time of a chapter Mode indicator

Title No./ Playback Operating disc

Chapter No. mode Receiving

Status display channel

e.g. I I

Press DISPLAY again.

An expanded display appears.

(Actual display varies depending on the disc.)

e.g. Remaining time

Press DISPLAY again to turn the display off.

DISPLAY

Playback

Checkingthe currentstatus and settings(Continued)

Usingthe time bar

The time bar shows the current progress in playback or recording.

Start

During playback or recording, press

QUICK MENU.

e.g. Recording

J J

Elapsed time Elapsed recording time (per 30 minutes)

(Recording end time if it comes within 30

minutes.)

Note

• Time display is an approximation.

•Changing the location of the time bar

While the time bar is displayed, press •/V.

The time bar shifts up and down.

mTurning off the time bar

Repeat steps 1 and 2.

Besides these examples, various other ones are introduced on respective pages for your convenience.

See _page 24 on how to operate Quick Menu.

•To play repeatedly (Repeat playback)

You can repeat a desired section.

1) During playback, press QUICK MENU.

2) Press • /•to select "Special playback mode",

then press SELECT/ENTER.

The sub menu appears. Select the next item by

pressing • /• buttons and SELECT/ENTER button.

You can designate a portion in a title or track to repeat

continuously.

If you select "A-B repeat" and press SELECT/ENTER

button, the following display appears. Perform steps 1

and 2 below.

e,g,

To cancel the procedure, press 0 button.

1) Press SELECT/ENTER at the beginning of the

segment (point A) you want to repeat.

The location of point A is memorized.

The display changes to "Set B".

2) Press SELECT/ENTER at the end of the segment

(point B).

The location of point B is memorized, and repeat

playback begins between point A and B.

: (in Repeat playback mode)

To resume normal playback.

Playback of a DVD-RAM disc stops.

Notes

• Some discs may not permit repeat operation.

• You cannot use the repeat playback function in conjunction

with the random playback function.

• If you press STOP button during repeat playback, this

operation is canceled.

• While you are performin_ repeat playback on a DVD-RAM

disc, other operations (@ pages 59 to 61) except pause

play are not available.

•To play in random order (Random play)

You can play sections in random order.

1) During playback or stop, press QUICK MENU.

2) Press •/•to select "Special playback mode",

then press SELECT/ENTER.

The sub menu appears. Select the next item by

pressing • /• buttons and SELECT/ENTER button.

Plays all titles in a loaded disc in random order.

Each title is played beginning from chapter 1.

Plays all chapters in a current title in random order.

Plays all tracks on a loaded disc in random order.

To repeat the same title.

To repeat the same chapter.

To repeat the same track.

To repeat the entire disc.

Playback

Functionsin QuickMenu(Continued)

: (in Random play mode)

Resumes normal playback.

Notes

•Some discs may not permit random playback operation.

• You cannot use the random playback function in

conjunction with the memory playback function.

• You cannot use the random playback function in

conjunction with the repeat playback function.

• Pressing STOP button during operation cancels random

playback.

•To play in favorite order (Memory playback)

You can select 30 titles, chapters, or tracks and play

them in favorite order.

(To play contents in a DVD-RAM disc in favorite order,

make a playlist. For details, see "Editing" on _ page

81 .)

1) During playback or stop, press QUICK MENU.

2) Press •/• to select "Special playback mode",

then press SELECT/ENTER.

The sub menu appears. Select the next item by

pressing • /• buttons and SELECT/ENTER button.

If you select this and press SELECT/ENTER button,

the following display appears. Perform the steps below.

e,g,

2) Press •/•to select the next box, then perform

step 1).

To select another chapter in the same title, you do

not need to select the title number.

Repeat these steps if necessary.

You can program up to 30 selections into memory.

3) Press SELECT/ENTER.

Memory playback starts.

: (in normal playback mode)

To display an entry box for one program selection.

: (in memory playback mode)

To resume normal playback.

: (in memory playback mode)

To repeat a current memory playback.

Notes

• Some discs may not permit memory playback operation.

• Inputting numbers of titles, chapters or tracks that a disc

does not contain will result in error.

• You cannot program/change selections during memory

playback. To change selections, cancel memory playback

by pressing STOP button.

• When you turn off the power, the selected memory is

erased.

• You can exit the memory playback display by pressing O

button.

1) Input numbers of a titles, chapters, or tracks by

using the number buttons, in favorite order.

Input each 3-digit number.

To input a 1- or 2-digit number, first input O.

(e.g. "0", "0", "3".)

To cancel the numbers, press CLEAR button.

To input a chapter number, press •/I_ buttons to

shift the cursor.

•To display the current bit rate

1) During playback, press QUICK MENU.

2) Press •/•to select "Bit rate", then press

SELECT/ENTER.

Note

• To turn off the bit rate display, select this item again.

•To check information on a title

1) During playback, press QUICK MENU.

2) Press •/•to select "Title information", then

press SELECT/ENTER. /

•To exit the Quick Menu

Press QUICK MENU again.

Press •/•to select "Exit", then press SELECT/

ENTER.

Process of editing

You can edit recorded contents and create your own

library.

•Basic editing procedure

IRecord a TV program

(An original title is created automatically)

I (Chapter Editing)Create chapters by dividing an original title,

(Playlist Editing)

Collect necessary chapters

•A playlist has a fictitious title that is different from an

original title.

I (Dubbing)

Copy the playlist

• Copy the playlist and it becomes an original title.

Outline of basic editing

•Recording aTV program

Record a TV program and it becomes a original title.

e,g,

Title: The world of cats and

dogs.

•Chapter editing

Divide the original title into chapters.

Title 1: "The world of cats and dogs"

(Original)

J. .I. J. .I.

IChapter 1Tchapter 21Chapter3]Chapter 41Chapter5Tchapter £

Divide chapters and create divisions of chapter

• You can play desired scenes from the top by "Chapter

Divide".

• Divide chapters to edit a playlist.

•Playlist editing

Collect your favorite chapters to make them as one

title. (Playlist)

If an original title is deleted, a playlist will be also

deleted because playlists are fictitious titles.

e.g. Making a playlist by collecting scenes of cats from

title 1 "The world of cats and dogs".

-- Title 1: "The world of cats and dogs"

(Original)

Title1 T Title2 1 Title3 T Title4 1 Title5 T Title 6

Playlist 1

I_'-..-, I _ _1 I_,_,4_1 A fictitious

'-_'_/ playlist title

i' _ _ _ -"/ /-_l that is

different from

, the original

Title 1: "Cat's world" title is

(Playlist) created.

,. J

r "1

_ Copy the playlist and it becomes an original title.

_ Once the dubbing is complete, you can delete

_ unnecessary chapters to regain space for another

L recording. J

Using these editing functions to modify copyrighted content for any purpose other than your private viewing may be

prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and

criminal liability.

1 title is created by recording at a time, which includes 1 chapter. By dividing it into several chapters, it

will be easier to access a desired scene, and your editing or playback will be much easier.

To create chapters in a title, insert a chapter mark. Playback the content, locate a point where you want to divide, then

press CNP DIVIDE button.

The point divides the chapter (into two).You can create multiple chapters by repeating the above operation.

Notes

• Chapters cannot be created in the following modes:

Dubbing /Fast-reverse, Fast-forward /Slow-motion

• You cannot divide a title of a DVD-R/RW disc into chapters. It is possible to create chapters in a DVD-R/RW disc by selecting

an option that inserts chapter marks automatically during recording at regular intervals. (_ page 118)

If you want to modify the chapter division, or want to place a chapter mark more precisely monitoring the

frame counter, follow the procedures below.

Start

Press EASY NAVI.

EASY NAVI Main Menu appears.

Press A/•/_I/I_ to select"Play Contents",

then press SELECT/ENTER.

CONTENT MENU Title List appears.

3Press •/•/,,I /P, to select a title.

• To go to the next or previous page, press REV or

FWD button.

• To select a chapter, first highlight the title that contains

the chapter you want, then press *button.

' The display changes to CONTENT MENU Chapter

List.

To go back to the title display, press *button again.

Press QUICK MENU.

Quick Menu appears.

e.g.

Press •/• to select "Chapter function", then

press SELECT/ENTER.

3005/04/1211:00 [] 2005/04/1203;00

pm TV:4 pm TV:10

(0:30:08) _1 (0:51:28) ,

Press • /• to select "Chapter editing", then

press SELECT/ENTER.

EDiT MENU Chapter Editing appears.

e.g.

(Continued)

Editing

Creatingchapters(Continued)

Press PLAY to start playback.

PLAY

Locate a scene where you want to insert a chapter mark.

You can use the following buttons.

FWD, REV, SKIP FWD, SKIP REV, ||, ADJUST, etc.

The Iocator shows the current position on the time bar.

And the live video plays in the upper left.

• To access other chapters:

Press •/• buttons to move to the thumbnail display,

then press • /I_. buttons to select a desired thumbnail.

To go to the next page, press FWD button.

• You can confirm the first and last scenes of a chapter.

Select a thumbnail and press SELECT/ENTER button.

3 seconds of the first and last scenes are played.

At a point where you want to make a chapter

division, press II.

The picture pauses.

e,g,

Press •/•/,11/_to select "Divide," then press

SELECT/ENTER.

A chapter division is created at the selected location,

and the first scene of the new chapter is registered as a

chapter thumbnail.

e,g,

I 0 Repeatsteps7t09o

Locations of chapter division are indicated by the markers on the

time bar.

To erase a chapter division, see "Merging chapters" (_ page 88).

1When all chapter divisions have been made,

press o.

The recorder displays a message, and starts saving the

chapter divisions on the time bar.

When complete, CONTENT MENU returns.

Notes

• This recorder supports a limited number of chapters on a

disc. If exceeded, a message appears. In this event, reduce

the number of chapters by merging chapters. (_ page 88)

• EDIT MENU Chapter Editing can also be viewed by

selecting "Edit Menu" from EASY NAVI Main Menu, then

•Creating chapters automatically when 1

recording il

You can create chapter marks from the beginning of a

title at regular intervals automatically. (Chapter marks

are added to those already existing.)

This is convenient for long programs, such as live

sports games.

1) Perform steps 1 to 5 on _pages 84 to 85.

2) Press •/•to select "Auto chapter create", then

press SELECT/ENTER.

3) Press •/• to select a chapter division interval,

then press SELECT/ENTER.

Chapter divisions are automatically marked at the

selected intervals.

• To exit the EDIT MENU Main Menu, press EASY NAVI

button.

• Making chapters in a title (Original) does not affect the

related titles (Playlist).

• There may be a small difference between a location you

marked and a chapter division actually played.

• Pausing a recording automatically creates a chapter

division.

Editing

Creatingchapters(Continued)

•Merging chapters

1) Perform steps I to 6 on _pages 84 to 85, to

view EDIT MENU Chapter Editing.

2) Press •/•/</•to highlight a chapter.

Pressing REV or FWD button can access

preceding or following pages.

3) Press QUICK MENU.

e.g.

Press •/•to select an item.

Merge with previous cptr:

To delete the chapter division between the selected

chapter and the previous one.

Merge with following cptr:

To delete the chapter division between the selected

chapter and the succeeding one.

Merge all chapters:

To merge all chapters in the title.

Press SELECT/ENTER.

e.g. When "Merge with previous cptr" is selected:

The selected chapter is merged into the previous

cha )ter and its thumbnail is erased.

FishingGuide

To createnewcha ter,select

desiredstartpolntPvtlaremote.

To set,pressenter.

Notes

• To turn off EDIT MENU Main Menu, press EASY NAVI

button.

• When chapters are merged, the numerical value of

following chapters will decrease correspondingly.

• Merging chapters does not affect the related titles (Playlist).

You can also merge chapters in the title (Playlist). In this

case, the title (Original) is not affected.

• You can access the feature of merging chapters also from

the Quick Menu on CONTENT MENU Chapter List.

•Naming a chapter

1) From EDIT MENU Chapter Editing, select a

chapter which you want to name.

2) Press QUICK MENU.

3) Press •/•/-,I/•to select "Edit chapter name",

then press SELECT/ENTER.

A keyboard appears.

Enter a name following the on-screen icon guides.

Notes

• There is a limit to the number of chapters which can be

named. If exceeded, a message appears.

• You can also access the keyboard to enter a chapter name

by selecting a chapter with REV or FWD button on

CONTENT MENU Title Information, and by selecting "Edit

chapter name" from Quick Menu on CONTENT MENU

Chapter List.

• You can change chapter names also on a DVD-R/RW disc,

if the disc is not finalized yet.

Create a "Playlist" to omit unnecessary scenes for dubbing, or compile desired scenes.

Start

Press EASY NAVI.

EASY NAVI Main Menu appears.

Press •/•/</1_to select "Play Contents",

then press SELECT/ENTER.

CONTENT MENU Main Menu appears.

Press QUICK MENU.

Quick Menu appears.

QUIQKMENU

_ilQ ¸ e.g.

Press • /•to select "Edit function", then

press SELECT/ENTER.

Submenu appears.

2005164/12 11:00 [] 2005164/12 09:00

_," _ pm TV:4 pm TV:10

(Continued)

Editing

Playlietediting(Continued)

Press • /•to select "Playlist editing", then

press SELECT/ENTER.

EDIT MENU Playlist editing appears.

e.g.

Title:

Press •/•/<1/I_ to select a title or chapter.

To select between titles and chapters, press _ button.

e.g.

Title: Entiretime:

Press SELECT/ENTER.

A cursor appears, indicating the point where the

selected item will be inserted.

e.g.

Cursor

Title: Entiretime:

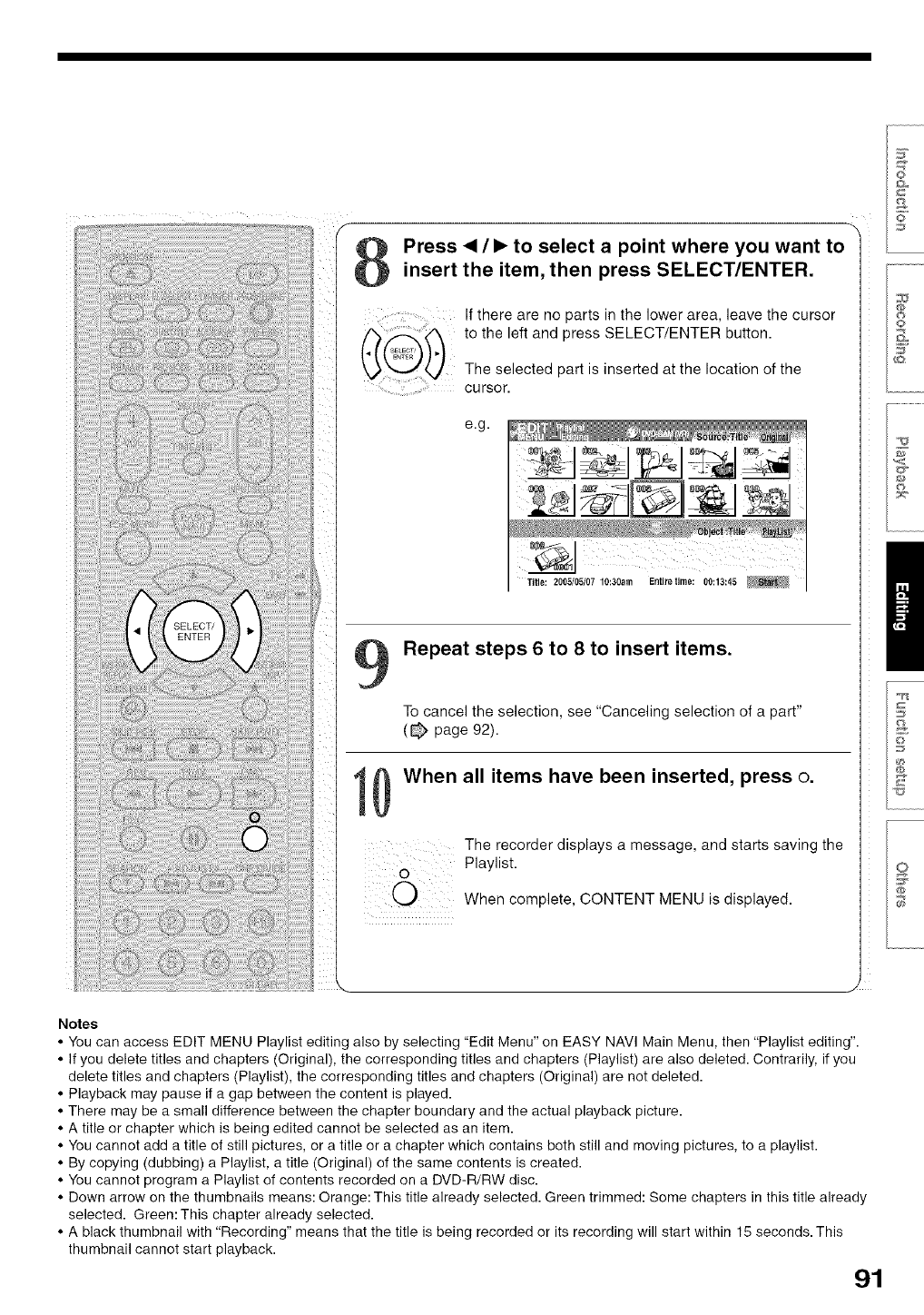

Press •/•to select a point where you want to

insert the item, then press SELECT/ENTER.

If there are no parts in the lower area, leave the cursor

to the left and press SELECT/ENTER button.

The selected part is inserted at the location of the

cursor.

e,g,

i ¸¸¸¸ ?

Title: 2005/05/07 10:30am Entlretlme: 00:13:45

9Repeat steps 6 to 8 to insert items.

To cancel the selection, see "Canceling selection of a part"

(_ page 92).

IWhen all items have been inserted, press o.

The recorder displays a message, and starts saving the

o Playlist.

O When complete, CONTENT MENU is displayed.

Notes

• You can access EDIT MENU Playlist editing also by selecting "Edit Menu" on EASY NAVl Main Menu, then "Playlist editing".

• If you delete titles and chapters (Original), the corresponding titles and chapters (Playlist) are also deleted. Contrarily, if you

delete titles and chapters (Playlist), the corresponding titles and chapters (Original) are not deleted.

• Playback may pause if a gap between the content is played.

• There may be a small difference between the chapter boundary and the actual playback picture.

• A title or chapter which is being edited cannot be selected as an item.

• You cannot add a title of still pictures, or a title or a chapter which contains both still and moving pictures, to a playlist.

• By copying (dubbing) a Playlist, a title (Original) of the same contents is created.

• You cannot program a Playlist of contents recorded on a DVD-R/RW disc.

• Down arrow on the thumbnails means: Orange: This title already selected. Green trimmed: Some chapters in this title already

selected. Green:This chapter already selected.

• A black thumbnail with "Recording" means that the title is being recorded or its recording will start within 15 seconds.This

thumbnail cannot start playback.

Editing

Playlietediting(Continued)

•Canceling selection of a part

1) From EDIT MENU Playlist editing, press

•/•/•/•to select a part to cancel.

2) Press QUICK MENU.

Quick Menu appears.

3) Press • /• to select "Cancel selected title",

then press SELECT/ENTER.

The part you have selected is canceled.

•Confirming the first and last scenes of a part or

a Playlist

You can play the first and last 3 seconds of a scene

(Preview). (If a title contains several chapters, the first

and last scenes of the chapters are also played.)

Preview of a part:

1) At step 6 on _page 90, select a title or a

chapter, then press QUICK MENU.

2) Press •/• to select "Preview", then press

SELECT/ENTER.

Preview of all parts:

1) Move the cursor to an any part (in the lower

area), then press QUICK MENU.

2) Press •/•to select "Preview all playlists", then

press SELECT/ENTER,

•Confirming the title information

1) At step 6 on _page 90, select a title or a

chapter, then press QUICK MENU.

2) Press •/•to select "Title information" then

press SELECT/ENTER.

•Correcting a Playlist

You can add or delete parts to correct a Playlist.

1) From CONTENT MENU, select a Playlist to

correct.

2) Press QUICK MENU.

3) Press •/• to select "Playlist re-editing" and

then press SELECT/ENTER.

EDIT MENU Playlist editing appears.

Follow the procedure from steps 6 on _ page 90,

add or delete parts as necessary.

Note

• You cannot edit a title (Playlist) of still pictures, or a title

(Playlist) which contains both still and moving pictures.

•Using a part in a Playlist also in another Playlist

1) In play or stop mode of a Playlist title, press

EASY NAVI.

EDIT MENU Main Menu appears.

2) Press •/•/</•to select "Edit Menu", then

press SELECT/ENTER,

3) Press •/•to select "Playlist editing:' then

press SELECT/ENTER,

EDIT MENU Playlist editing appears.

4) Press •/•/</• to select "Start" then press

SELECT/ENTER,

The areas of title name and part selection become

blank.

5) Following the procedures outlined on _page

90, make a Playlist.

•Naming a title (Playlist)

1) From EDIT MENU Playlist editing, move a

cursor to the lower side (selected parts) then

press QUICK MENU.

2) Press •/•to select "Edit title name," then

press SELECT/ENTER,

A keyboard appears.

3) Following the procedures outlined on _page

30, enter a title name.

Note

• You can name a title also while viewing its information.

From CONTENT MENU Title List, select a title and press

QUICK MENU button then select "Title information" by

•/• buttons and SELECT/ENTER button. Further press

QUICK MENU button, and select "Edit title name" by • /•

buttons and SELECT/ENTER button.

You can register your favorite scene as a thumbnail displayed on CONTENT MENU.

On a finalized DVD-R/RW disc, this feature is not available.

Start

Press EASY NAVI.

EASY NAVI Main Menu appears.

Press •/•/</I_ to select "Play Contents",

then press SELECT/ENTER.

CONTENT MENU Title List appears.

(_ eg 200510310811:00

pm TV:6

(0:29:50)

2005/04/1107:00

amTV:8

(0:54:30)

@_ 2005104/12J1:00 _ [] 200510411209:00

s _ pin TV:4 pin TV:10

2005/03/12 09:00

_m TV:3

Press •/•/</I_ to select a title whose

thumbnail you want to change.

•To go to the next or previous page, press FWD or

REV button.

To select a chapter, select a title and press _" button.

Chapter List appears.

By pressing -k button again, you can return to Title

List.

Press QUICK MENU.

O_ OKMENU

Quick Menu appears.

e.g.

Editing

Creatingthumbnails(Continued)

Press •/• to select "Create thumbnail"

(or "Create CHP thumbnail" if selected a

chapter at step 2), then press SELECT/ENTER.

CONTENT MENU Create Thumbnail appears.

e.g.

I_ I 1 I /

Press PLAY to start playback.

PLAY

Locate a scene you want to capture as a thumbnail.

You can use the following buttons.

FWD, REV, ||, SKIP FWD, SKIP REV, ADJUST, etc.

At the point where you want to capture a

thumbnail image, press II.

e.g.

Location_

I ........................_ .................I...........................I.....................

Press SELECT/ENTER.

Note

• There may be a small difference

between a thumbnail made on

Create Thumbnail and that displayed

in CONTENT MENU. Operation with

FWD or REV button may extend the

difference.

CONTENT MENU returns. The selected scene is

displayed as a thumbnail.eg

Notes

• You cannot create thumbnails of chapters in a title that

contains a still picture.

• If you create a chapter thumbnail, and then record or edit

the disc on other devices, the chapter thumbnail may

return to the top of the chapter.

This section explains how to copy a title or chapter recorded on a DVD-RAM disc within the same disc at

high speed (high speed: in a shorter time than actual playing time of the title or chapter). Follow this

procedure when you convert a playlist into an original title.

Press EASY NAVI.

EASY NAVI Main Menu appears.

Press •/•/</•to select "Play Contents",

then press SELECT/ENTER.

CONTENT MENU Title List appears.

e.g.

_2005103/1209;00 @_ 2005t04/1107:00(

pm TV:3 TV:80:54:30)

i _ _ 2205/04/12 11_00 @ [] 2000104/12 00_00

• _ pm TV_4 pm T_10

Press •/•/</•to select a part (a title or

chapter) to copy.

•You can go forward/back to pages by pressing FWD

or REV button.

• To select a chapter, highlight a title and press "k

button. If you press the button again, the title list re-

appears.

Press QUICK MENU then select "High speed

dubbing" pressing •/• from Quick Menu,

then press SELECT/ENTER.

CONTENT MENU High Speed Library Dubbing

appears.

Qu_ e.g.

2005/04/11 07:00am TV:8 (0:54:00) _

(Saves Original)

Press SELECT/ENTER.

Copying starts.

A new title with the same contents is created on the

same disc.

The job progress is displayed on the screen and the

front panel display.

When the job finishes, the graph disappears.

You can set the recorder to turn off automatically when

the job finishes.

(1) During the operation, press QUICK MENU button.

(2) Press • /• buttons to select "Auto power off".

(3) Press SELECT/ENTER button.

Notes

•Copying a Playlist makes an Original, leaving the Playlist as it is.

• A title or a chapter becomes a title by being copied.

• Copying is interrupted when a program recording is about to start.

• This function is available only for copying contents on a DVD-RAM disc to the same disc.

• If copying is not allowed due to some conditions, such as lack of disc space, etc., a message will appear. Follow the

procedure indicated there.

• Depending on the contents, some reference information or appendix data may not be copied.

• A title that contains a still picture cannot be copied.

• To cancel copying halfway through the

operation

1) During copying, press QUICK MENU.

Quick Menu appears.

2) Press •/•to select "Cancel dubbing", then

press SELECT/ENTER.

Note

• Cancellation of a copying operation will result in deletion of

a portion of the title or chapter already copied.

This section explains how to simultaneously delete unnecessary titles and chapters.

On a finalized DVD-R/RW disc, this feature is not possible.

Start

i i i i

i \

Press EASY NAVI.

EASY NAVI Main Menu appears.

Press •/•/_1/_to select "Edit Menu", then

press SELECT/ENTER.

EDIT MENU Main Menu appears.

Press •/•to select "Del Selected Items".

e.g.

Press SELECT/ENTER.

EDIT MENU Del Selected Items appears.

e.g.

Thumbnails of the parts in the disc are displayed in the

upper area.

Following steps 6 to 8 on 0page 90, 91,

assemble the items to delete.

Press •repeatedly to select "Start", then

press SELECT/ENTER.

The recorder begins the deletion process.

To cancel deleting, press _1/I_ buttons to select "No",

then press SELECT/ENTER button.

When the process is finished, EDIT MENU Main Menu

returns.

Notes

• To confirm the first and last scenes of an item, first select an item then press QUICK MENU button. Press • /• buttons to

select "Preview" (or "Title information") then press SELECT/ENTER button. This is available only on contents recorded in

DVD-RAM discs.

• Titles and chapters show their names for about 2 seconds at the bottom of the screen when they are selected.

• On a DVD-RW disc, deleting can restore the disc space only by deleting the last recorded title.

• Deleting cannot be canceled once started. Be careful when executing the deletion process.

• If you select a title for the part to be removed, you cannot select chapters in that title.

• Chapters in DVD-R/RW discs cannot be selected to delete.

The recorder processes recorded data in a DVD-R/RW disc so that it can be played on other compatible

devices.

Important

• You cannot rewrite data onto a disc after you execute the DVD-Video finalizing process. However, the disabled rewritability of

a DVD-RW disc can be restored by canceling the process of the disc. (_ page 103) On DVD-R discs, canceling of the DVD-

Video finalizing process is not available.

•Preparation

•Load a DVD-R/RW disc you want to execute the finalizing process.

Start

Press EASY NAVI.

EASY NAVl Main Menu appears.

Press •/•/_1/I_ to select "Edit Menu", then

press SELECT/ENTER.

EDiT MENU Main Menu appears.

Press •/•to select "DVD-Video Finalizing".

Press SELECT/ENTER.

A display of option settings appears.

e.g.

Start P!ay

After p!ay one title _#Menu @ Next Title ]

Afterplayfinal title; @Menu _Title1 #_i_

1OO

Press •/•/_1/I_ to select.

As you select each item, its function is explained.

When "Menu Create" is set to "None":

"Start Play" and "After play one title" are automatically

omitted.

Press •/•to select "Next", then press

SELECT/ENTER.

hqformation on data to be processed appears.

If you press • button to select "Edit Name" then press

SELECT/ENTER button, a keyboard appears so that

you can enter a title name.

When "Menu Create" is set to "None":

Select "Writing" at the right bottom by • /•/•/• buttons

and press SELECT/ENTER button. Skip to step 11.

Press •to select "Next", then press SELECT/

ENTER.

When "Menu Create" is set to "Title+Chapter" or "Title", a

display of title menu selection appears.

e.g.

Olive Sepia Light Blue

Orange CyberOree, Lavendet Oyber Red

If you press _ button, you can preview the selected

menu.To return, press O button.

(Continued)

101

Editing

DVD-Videofinalize process(Continued)

Press •/•/•/I_ to select the title menu, then

press SELECT/ENTER.

A display of menu selection for chapters appears.

Press •/•/•/_to select the chapter menu.

A selected menu is applied to all chapters.You cannot

allocate a menu to each chapter.

If you press _ button, you can preview the selected

menu.To return, press O button.

If you press • button during preview, to select "Return"

then press SELECT/ENTER button, you can go to the

preview of the selected title menu. To return to preview

of chapter menu, press • /•/•/_ buttons to select a

number next to "Chapter Menu" then press SELECT/

ENTER button.

1On EDIT MENU DVD-Video Finalize (Chapter

Menu Select), press SELECT/ENTER, and

select "Yes" by •/I_, then press SELECT/

ENTER.

A message appears to ask you if you want the power to

C_) urn off automatically or not when the process is

completed.

1Press •/I_ to select "Yes" or "No" then press

SELECT/ENTER.

A message disappears and the finalize process starts.

(_) he progress is displayed on the screen and in the front

panel display on the recorder.

102

Notes

• DVD-R/RW discs recorded on this recorder may not be

recognized on other devices unless you execute DVD-

Video finalizing process to them.

• You can record onto a DVD-R disc additionally to the limit

of the disc capacity, unless you execute the DVD-Video

finalizing process to it. Deleting of recorded titles is also

possible, however, the disc space cannot be restored.

• You can record additional content onto a DVD-RW disc

additionally to the limit of the disc capacity unless you

execute the DVD-Video finalizing process to it. Deleting of

recorded titles is also possible, however, the disc space

can be restored only by the volume of the title last

recorded.

• On DVD-RW discs, it is possible to cancel the DVD-Video

finalizing process or to initialize for a new use.

•To cancel the finalize process

You can cancel the DVD-Video finalizing process

executed to a DVD-RW disc so that the disc can be

recordable again.

1) During stop, press QUICK MENU.

Quick menu appears.

2) Press •/•to select "Disc management" then

press SELECT/ENTER.

3) Press •/•to select "Cancel finalization" then

press SELECT/ENTER.

4) Read the message, and press _1/1_to select

"Yes", then press SELECT/ENTER.

The process starts.

Notes

• While the recorder is ready to start a programmed

recording, you cannot cancel the DVD-Video finalizing

process.

• You cannot cancel the DVD-Video finalizing process

executed on a DVD-RW disc recorded on other device.

• You cannot cancel the DVD-Video finalizing process

executed on a DVD-RW disc if the disc is protected.

• Canceling the DVD-Video finalizing process may shift the

thumbnails of titles/chapters.

103

You can change the default settings to customize performance to your preference.

Start

Notes

•SETUP button can function even

during normal playback.

However some items may be

grayed out and they cannot be

selected. In this case, try again

after playback is stopped.

• SETUP button does not function

during recording, Recorded Title

Play, Chase Play or Pause TV

modes.

During stop, press SETUP.

The following setup display appears.

SETUP

0 eg

Press 4/1_ to select the icon of a group that

contains a desired item, then press SELECT/

ENTER.

For details on each setting, see the next page.

e.g. When "Display settings" is selected:

4:3LB

3Press •/•to select a desired item, then press

SELECT/ENTER.

Refer to the explanations on pages beginning

from 110, to change the selection by •/•or

other buttons, then press SELECT/ENTER.

• To select another item in the same group, repeat

•steps 3to 4.

('_,_#_,_ To shift to another group, press O button then repeat

steps 2 to 4.

Press SETUP.

The setup display disappears and the setting is

SETUP completed.

106

Setting Details Page

DVD disc menu language To select a preferred language for disc menus. 110

DVD audio language To select a preferred language for the sound track. 110

DVD subtitle language To select a preferred language for subtitles. 110

DVD dynamic range control To turn on or off a function that makes faint sounds easier to 111

hear even if you lower the volume during late-hour playback.

Karaoke vocal To turn on or off the vocal output during DVD KARAOKE disc 111

playback.

DVD parental lock To turn the parental lock function on or off. 111

DVD title stop To turn on or off a feature that automatically stops playback 112

after a title has been viewed.

Output black level To select the black level of playback pictures. 113

Custom picture select To select from standard or three customized picture settings. 113

Custom picture setting To customize picture quality settings and store them. 113

Progressive conversion To select the system of output signal. (Only when connected 113

to a PROGRESSIVE TV.)

Play DNR To select a setting for playback at a reduced noise level. 114

Audio out select To select an output sound format corresponding to your 114

system connection.

Virtual surround To turn on or off expansive virtual surround sound effects from 114

just two speakers.

SAP To monitor and record SAP broadcast. 114

(Continued

107

Function Setup

Customizing the function settings (Continued)

Setting Details Page

Ip, i

TV shape To select a picture size according to the aspect ratio of your 115

TV.

Screen protector To turn the screen saver on or off. 115

Closed caption To select where you turn on or off closed caption. 115

IR code To switch the codes that operate the recorder. 116

Instant skip interval To set the width to skip when INSTANT SKIP button is 116

pressed once.

Instant replay interval To set the width to go back when INSTANT REPLAY button is 116

pressed once.

Title thumbnail point To select the position of the thumbnail image counting from 116

the beginning of the title that has been recorded.

Title playback To activate resume play per title or continuous play. 116

Still group interval To select an interval of still picture display. 116

Priority contents To select the playback priority between JPEG (picture) files 116

and MP3/WMA (audio) files.

108

Setting Details Page

AV record quality To select a recording mode for manual programme recording. 117

Picture record mode To make further setting when you cannot adjust the image 117

quality with "Custom Picture Setting" of the "Picture/Audio

Settings".

Input black level To select the black level of recorded pictures. 117

Aspect ratio(Video mode) To set the aspect ratio for DVD-R/RW recording. 117

DVD compatible mode To set the audio for DVD-R/RW recording. 118

DVD-Video:CHP create To set whether or not chapters are to be automatically created 118

at a specified interval for DVD-R/RW recording.

Genre setting To register the frequently used genre in the menu. 119

DVD-RAM physical format To perform physical formatting of a DVD-RAM disc. 29

Software version To display the version of the software. The version is only

displayed and cannot be set.

DVD drive software To display the version of the DVD drive software.

The version is only displayed and it cannot be set.

109

Function Setup

Customizingthefunction settings(Continued)

DVD disc menu language

English:

To display disc menus in English.

French:

To display disc menus in French.

Spanish:

To display disc menus in Spanish.

Others:

To make a further language choice.

After pressing SELECT/ENTER button, follow steps 1)

- 4) below.

e.g.

IE I_1

1) Obtain the language code of the preferred

language from the Language code list

(_ page 126).

2) Select the first character by pressing • /•

(or ADJUST).

3) Press •/I_ to shift. Select the second

character by pressing • /•(or ADJUST).

4) Press SELECT/ENTER.

Note

• Some DVD video discs may not include your preset

language. In this case, the recorder automatically displays

disc menus consistent with the disc's initial language

setting.

DVD audio language

English:

To play sound tracks recorded in English.

French:

To play sound tracks recorded in French.

Spanish:

To play sound tracks recorded in Spanish.

Others:

To make further choices.

After pressing SELECT/ENTER button, follow steps 1)

-4) below.

e,g,

1) Obtain the language code of the preferred

language from the Language code list

(_ page 126).

2) Select the first character by pressing

•/•(or ADJUST).

3) Press •/•to shift. Select the second

character by pressing •/•(or ADJUST).

4) Press SELECT/ENTER.

Note

• Some DVD video discs may be played in a different

language from that you selected. A prior language may be

programmed by the disc.

DVD subtitle language

English:

To display subtitles in English.

French:

To display subtitles in French.

Spanish:

To display subtitles in Spanish.

No Subtitle:

To disable subtitles.

Others:

To make a further choice.

After pressing SELECT/ENTER button, follow steps 1)

- 4) below.

e.g.

1) Obtain the language code of the preferred

language from the Language code list

(_ page 126).

2) Select the first character by pressing •/•

(or ADJUST).

110

3) Press < /!_to shift. Select the proceeding

character by pressing •/•(or ADJUST).

4) Press SELECT/ENTER.

Notes

• Some DVD video discs may be set to display subtitles in a

different language from that you selected. A prior subtitle

language may be programmed by the disc.

• Some DVD video discs allow you to change subtitle

selections only via the disc menu. In this case, press

MENU button and choose the appropriate subtitle

language from the selection on the disc menu.

DVD dynamic range control

Turns on or off a function that makes faint sounds easier

to hear even if you lower the volume during late-hour

playback.

Off:

The DVD dynamic range control does not function.

On:

The DVD dynamic range control functions.

Notes

• This function is available only for a disc recorded in Dolby

Digital format.

• Depending on the disc you play back, the actual effect of

this function differs.

Karaoke vocal

Off:

The main vocal sound is not output.

On:

The main vocal sound is output.

Notes

• This function is available only for a DVD KARAOKE disc

recorded in Dolby Digital Multi Channel format.

• If you want to enjoy the KARAOKE function, connect an

amplifier or other such device to this recorder.

DVD parental lock

DVD video discs equipped with the Parental Lock

function have a predetermined limitation level. The

limitation level or limitation method may differ depending

on the disc. For example the whole contents of a disc

may not be played back, or an extreme violent scene

maybe cut or replaced automatically by another scene.

Important

• Depending on discs, it may not be evident whether the

disc is compatible with Parental Lock function. Make

sure that Parental Lock function you set is activated

correctly.

On:

Select this to activate Parental Lock function or to

change the setting.

After pressing SELECT/ENTER button, follow steps 1)

- 3) below.

Off:

Deactivate Parental Lock function.

After pressing SELECT/ENTER button, follow steps 1)

below.

1) Enter a 4-digit password by using the

number buttons, then press SELECT/

ENTER.

If you make a mistake entering your password,

press CLEAR button before pressing SELECT/

ENTER button, and re-enter the correct

password.

2) Press A/•/</l_ to move the cursor. Then

press ADJUST to enter the code of a

country/area whose standards were used to

rate the DVD video disc, referring to the list

below.

(Continued)

111

Function Setup

Customizingthefunction settings(Continued)

Country/Area Code

AUSTRALIA AU

BELGIUM BE

CANADA CA

CHINA CN

CHINA HONG KONG HK

DENMARK DK

FINLAND FI

FRANCE FR

GERMANY DE

INDONESIA ID

ITALY IT

JAPAN JP

MALAYSIA MY

NETHERLANDS NL

NORWAY NO

PHILIPPINES PH

RUSSIAN FEDERATION RU

SINGAPORE SG

SPAIN ES

SWEDEN SE

SWITZERLAND CH

TAIWAN TW

THAILAND TH

UNITED KINGDOM GB

UNITED STATES US

3) Select the desired limitation level by

pressing •/T, and then press SELECT/

ENTER.

e.g.

•To change the limitation level of the Parental

Lock function

Follow step 1) - 3) above.

•To change the password

1) Press STOP 4 times after selecting "On" and

"Off" in order, and then press SELECT/

ENTER.

The password is cleared.

2) Enter a new 4-digit password by using the

number buttons.

3) Press SELECT/ENTER.

DVD title stop

Off:

Plays back all following titles on the disc after the

current title has been viewed.

On:

Recorder is stopped after playback of current title

being viewed is completed.

112

Unless the Parental lock function is set to

"Off", a disc that has a higher limitation level

than your selected limitation level cannot be

played back. For example, if you select level 7,

discs exceeding level 8 are locked and cannot

be played back.

When "US" is selected, its limitation level

corresponds to the following settings.

Level 7 : NC-17 Level 3 : PG

Level 6 : R Level 1 : G

Level 4 : PG13

Output black level

_D _M;1 _v0.vi_01

You can adjust the black level of the output signal.

Standard:

Normal black level.

Enhanced:

To display deeper, richer black than in "Standard"

setting.

Note

• This function is not available for the progressive format.

Custom picture select

Select from between 4 picture settings (Standard, Setting

1-3) you stored in the memory.

Custom picture setting

You can adjust fine picture quality and store up to 3

custom picture settings in the memory of the recorder.

1) Press •/•to select a desired setting from 3

settings, and then press SELECT/ENTER.

e.g.

Progressive conversion

There are two types of source content in pictures

recorded in DVD video discs: film content (pictures

recorded from films at 24 frames per second) and video

content (video signals recorded at 30 frames per

second). Make this selection according to the type of

content being viewed.

Auto:

Select this position normally.

The DVD player automatically detects source content,

film or video, of playback source, and converts that

signal in the progressive output format in an

appropriate method.

Video:

The DVD player filters video signal, and converts it in

the progressive output format appropriately.

Suitable for playback of video content pictures.

Film:

The DVD player converts film content pictures in the

progressive output format appropriately.

Suitable for playback of film content pictures.

The progressive output feature will be most effective

under this selection.

Note

• Depending on the disc, pictures may be cut off or doubled.

2) Press •/•to select adjustable items, and

then press < /•to select each parameter.

Brightness

(0) Darker <:_Brighter (14)

Contrast

(-7) Lower <=>Higher (7)

Color

(-7) Duller <=>Brighter (7)

Tint

(-7) Red <=>Green (7)

Edge Enhance

SOFT/OFF/SHARP

Gamma

OFF/l/2

3) After adjusting the items, press SELECT/

ENTER. 113

Function Setup

Customizingthefunction settings(Continued)

Play DNR

Selects a setting for playback at a reduced noise level.

Press • /• buttons to select an item then select "On" or

"Off" using </1_ buttons.

3D-DNR:

Off:

Not activated.

On:

Reduces the noise levels of brightness signals and

color signals present in the video signal during

playback.

Mosquito NR:

Off:

Not activated.

On:

Reduces mosquito (flicker) noise occurring in the

contour sections of images.

Block NR:

Off:

Not activated.

On:

Reduces noise that appears in the form of blocks

(block noise) in a portion of the screen during

playback of images with rapid movement.

DNR is the abbreviation for Digital Noise Reduction.

Notes

• DNR effects vary depending on the disc.

• Detailed images may no longer be visible depending on

the scene due to the effects of DNR.

• Depending on the disc or scene, "On" may produce

undesirable picture artifacts or increase noises on

contours. In this instance, select "Off."

• While you are using the zoom feature, "DNR" does not

function.

Audio out select

Selects an output sound format corresponding to your

audio system connection.

For details about output sound selection, see _ page 69.

Bitstrearn:

Select this when an amplifier equipped with built-in

Dolby Digital, DTS or MPEG1 decoder is connected to

this recorder.

When you play back a disc recorded in Dolby Digital,

DTS or MPEG1 format, digital audio signal is output.

114

Analog 2ch:

Select this when a TV or other audio device is

connected to this recorder via the ANALOG output

connectors.

PCM:

Select this when a 2ch digital stereo amplifier is

connected to this recorder. When you play back a disc

recorded in Dolby Digital, MPEG1 or MPEG2 format,

the sound is converted to the PCM (2ch) format and

output.

"DTS" and "DTS Digital Out" are trademarks or Digital theater

System, Inc.

Virtual surround

This lets you playback discs with acoustic effects having

greater depth and presence even when using only two

speakers.

Off:

Virtual surround effect not activated.

On:

Virtual surround effect activated.

Notes

• This function is only activated when playing back a disc

recorded with Dolby Digital.

• This function is only activated when "Audio out select" is

set to "PCM" if the BITSTREAM/PCM jack of this DVD

recorder is connected to an amplifier or similar device.

• When the virtual surround effect is activated, Dolby

Progressive Sound may be deactivated or sound differently

than usual.

• When the virtual surround effect is activated, the volume

may sound differently than usual.

• Set "Virtual surround" to "Off" if the audio sounds distorted.

Manufactured under license from QSound Labs. Inc. U.S. patent

Nos. 5.105.462, 5,208.860 and 5,440.638 and various foreign

SAP

SAP (Second Audio Program broadcast) is separate

audio program, usually broadcast in a second language

with the main language.

Off:

The main sound is received.

On:

SAP sound (second language) is received.

TV shape

Select a picture size according to the aspect ratio of your

TV.

For details on this setting, see "TV shape setting"

(_ page 40, "INSTALLATION GUIDE").

Screen protector

To reduce TV screen damage (image burn), this function

disengages the pause mode of a playback image. The

display returns to the normal TV screen when the

recorder remains idle for more than 15 minutes. In time

slip mode, the playback pause is released.

If this function is set to "On", the recorder, if freezes, may

return to the normal by leaving it for about 15 minutes or

longer.

Off:

Deactivates the Screen Protector function.

On:

Activates the Screen Protector function.

Note

• Toshiba does not guarantee that this function protects the

TV screen by all means.

Closed caption

To select where you turn on or off closed caption.

Off:

To disable closed caption.

TV:

Closed caption data is decoded on the connected TV.

To turn on or off closed caption, operate the connected

TV.

Recorder:

Closed caption data is decoded on this recorder.

You cannot turn off closed caption on the connected

TV.

Notes

• While the recorder is sending signals in the progressive

output format, closed caption is disabled regardless of this

setting.

• Depending on the signal condition, closed caption may not

be displayed properly. In this case, select "Off."

115

Function Setup

Customizingthefunction settings(Continued)

IR Code

Switches the codes to operate the recorder. If you use

the second and third TOSHIBA DVD video recorders, set

the different remote codes for each recorder to avoid

confusion in the response of the recorders.

For details about this setting, refer to "Operating the

second and third TOSHIBA DVD video recorders with the

remote control of this recorder" (@ page 44,

"INSTALLATION GUIDE").

DRI:DR2:DR3

Instant skip interval

Sets how much time is skipped when INSTANT SKIP

button is pressed.

5 sec. : 10 sec. : 30 see. : 5 rain.

Instant replay interval

_MI DV_I _i_1 _D J

Sets how far back is replayed when INSTANT REPLAY

button is pressed.

5sec. : 10 sec. : 30 see. : 5 min.

Title thumbnail point

For recorded titles, sets how far a scene from the start is

set as the title thumbnail.

0sec. : 3 sec. : 10 sec. : 35 sec. : 1 min. : 5 min.

Note

• Thumbnails can also be changed to other scenes.

See _ page 93.

Title playback

]

Sets the resume play per title.

Title resume:

Remembers the point where you stop playback.

Allows you to resume the playback from that point.

Serial playback:

You can play back titles (Original, Playlist) stored in

the DVD-RAM continuously.

Because there is no division between titles, the

recorder remembers only the last point where you

stopped playback.

Still group interval

Sets an interval for display of still pictures (in seconds)

when playing back a collection of still images.

1sec. : 2 sec. : 3 see. : 5 see. : 10 sec. : Default

Priority contents

To select the playback priority between JPEG (picture)

files and MP3/WMA (audio) files.

Photo: JPEG files take priority over MP3/WMA files.

Audio: MP3/WMA files take priority over JPEG files.

Note

• If this selection does not correspond to disc contents, the

recorder will take a longer time to start playback of the

disc.

116

AV record quality

You can select from 5 recording modes prior to actual

recording.

Actual selection applied becomes the default setting for

the normal recording or programmed recording.

e,g,

• To apply the recording mode

1) Press ADJUST to change the setting.

You can confirm the available recording time for

the selected setting on the bottom screen.

2) Press SELECT/ENTER.

Note

• You can change the recording mode also by displaying

Quick Menu during stop mode, then selecting "AV record

quality". Either of the above methods updates the setting of

this recorder.

Standard:

The brightness of signals received with this recorder

and external input signals is adjusted automatically.

This is normally the setting to use.

Mode 1 :

This setting is used to record the signals darker when

the screen is too bright.

Mode 2, 3, 4:

As the number rises, the signals are recorded brighter.

Use these modes to adjust the brightness.

Input Black level

You can adjust the black level of the input signal.

Standard:

Normal black level.

Enhanced:

Brighter black level than in "Standard" setting.

Picture record mode

Adjusts problems with the brightness of video signals of

TV broadcasts or other external input.

Press •/T buttons to select the source, and </1_

buttons to select the mode.

(Only use this setting when you cannot adjust the

brightness satisfactorily with the Custom picture setting in

the Picture/Audio settings (_ page 113) of this recorder.)

Important:

• This setting changes the video signal to record and the

recorded signal is not returned to the original state even

when this setting is changed after recording. When

duplicating from VHS tape, if you can check the video

recording state beforehand, we recommend first playing

back for a while and checking the overall brightness

tendency, then setting an appropriate mode.

117

Function Setup

Customizingthefunction settings(Continued)

Aspect ratio(Video mode) DVD-Video:CHP create

To set the aspect ratio when recording onto a DVD-R/RW

disc.

4:3:

Fixes the aspect ratio at 4:3.

16:9:

Fixes the aspect ratio at 16:9.

Note

• When "AV record quality" is set to "EP', pictures are

recorded in 4:3 aspect ratio even if "16:9" is selected.

DVD compatible mode

To set whether chapters are to be automatically created

at a selected interval during DVD-R/RW recording.

Off:

Chapters are not set.

5 rain. : 10 min. : 15 min. : 20 min.

To set the interval at which chapters are automatically

created to 5, 10, 16 or 20 minutes.

Note

• The number of chapters has the upper limit, which varies

depending on the disc condition. If the number reaches it,

no more chapters are created.

To set whether or not recording is to be performed in the

format for which recording is allowed by the DVD-Video

standard (video, audio and other data) during recording.

Off:

When recording on a DVD-RAM disc, both the main

and SAP sounds are recorded.

When recording on a DVD-R/RW disc, this is

ineffective. The recorder will automatically regard this

as "Main," and record sound of the main channel only in

stereo. Select "Main" or "SAP" for a DVD-R/RW

recording.

Main:

Records sound of the main channel only in stereo.

SAP:

Records sound of the SAP channel only in stereo.

Notes

• When "AV record quality" is set to "MP" and set this mode

to "Main" or "SAP", the picture quality may become lower

than when you set this mode to "Off".

• You can change the setting from Quick Menu.

118

Genre setting

This registers a frequently used genre name onto the

menu. Genre names registered here are displayed in

"Genre" on Quick Menu.

1) Press •/•to select a position in the "Cur-

rent Genre List" you want to change, then

press SELECT/ENTER.

A list of genres appears.

You can turn the pages using the I_ button.

2) Press •/•to select a genre, then press

SELECT/ENTER.

A list of genre names appears.

3) Press •/•to select a genre name, then

press SELECT/ENTER.

The selected genre name replaces the previous

one of the position you selected at step 1).

4) Repeat steps 1) to 3) to register genre names.

5) When genre names are registered, press

O button to return to "Management set-

tings" menu.

DVD-RAM physical format

See _ page 29.

119

If you experience any of the following difficulties while using this unit, check the list below before consulting your

nearest Toshiba dealer.

!ii !!! !!!!I

• The power is not turned on.

•The power cord is not connected securely.

-_ Connect the power cord securely.

•There is no TV picture.

• The video cable to this recorder and your TV is not

connected securely.

-_ Connect the video cable to this recorder and your

TV securely.

• The input select on your TV is not set property.

-_ Select the input to which this recorder is

connected.

• A DVD or CD does not play.

• The format of the recorded data does not correspond

to this recorder, or the region number is neither "1"

nor "ALL:'.

-_ Check the disc.

• A defective or dirty disc is inside.

-_ Change the disc.

•During playback, picture noise appears.

• Picture noise may appear in the following cases. It is

not a malfunction.

-_ There is picture noise in the original recording.

-_ Weather, reception conditions may cause noise.

-_ The AV recording mode with the low data rate

such as "LP" or "EP" is selected.

-_ The image data processing of this recorder cannot

follow dynamic movement on the screen. (High

video data rate)

-_ A physical error has occured on the DVD disc.

• There is no picture.

• The antenna cable is not connected securely.

-_ Reconnect the antenna cable securely.

•There is poor reception.

• Channel settings are not completed.

-_ Set the channels.

• The antenna cable is not connected securely.

-_ Reconnect the antenna cable securely.

• Antenna signal is poor.

-_ Consult your dealer for adjustment.

If an error occurs while reading data of a disc, block

noises may be produced there. Repeated reading of

this location where the error occurred (retry) can

decrease the generation of block noise. However, it

can also raise the possibility of unintended delays or

stops of playback. In order to prevent them, the

recorder limits the number of times of retry.

• TIMESLIP

• Pause TV

-_ The recording mode is automatically set to "SP"

and the recorder executes this function.

• Chase Play

-_ This function is not available.

•Playback

• During a normal recording/a timer recording

(includes: right before a timer recording is executed.)

-_ All the playback functions are not available.

-_ The search function is not available.

•EASY NAVI

• During a normal recording/a timer recording

(includes: right before a timer recording is executed.)

-_ "Edit menu" and "Play Contents" are not available

on the menu.

122

•Data cannot be recorded on a DVD-RAM disc.

•The disc is protected from deleting data.

-_ Set the write-protect tab to the opposite of

"PROTECT" (_ page 8).

• The disc is protected by a PC or the recorder.

-_ Disable the protection on the device which

protected the disc.

• The disc space is not sufficient.

-_ Delete unwanted data (_ page 47) or prepare a

new disc.

• The disc is not initialized.

-_ Initialize the disc (_ page 28).

• The disc may contain errors.

-_ Complete the physical format on the disc

(_ page 29).

• The physical format on the disc is not completed.

-_ Complete the physical format on the disc

(_ page 29).

•Timer programming cannot be completed.

• Clock setting has not been completed.

-_ Complete the clock setting (_ page 33,

"INSTALLATION GUIDE").

• The programs list is full.

-_ Cancel unwanted programs (_ page 44).

• When the power goes down, timer programs will be

deleted.

-_ Check the timer programs and set them again.

• The remote control does not work.

• The batteries in the remote control are exhausted.

-_ Replace all the batteries in the remote control

(_ page 18, "INSTALLATION GUIDE").

• The light emitter of the remote control is not pointed

at the receptor of this recorder.

-_ Point the emitter of the remote control at the

receptor of this recorder.

• The receptor of this recorder is located too far away

from the remote control.

-_ Operate the remote control within 7 meters (23 ft)

from the receptor of this recorder.

• There are obstacles between the remote control and

this recorder.

-_ Remove any obstacles.

• The receptor is disturbed by sunlight or fluorescent

light.

-_ Change the place of this recorder or shield the

light.

• The remote mode is not appropriate.

-_ Adjust the remote mode of the remote control and

this recorder (_ page 44, "INSTALLATION

GUIDE").

• The setting of the TV/DVD selector is not correct.

-_ Set the TV/DVD selector to the equipment to

operate.

• The clock blinks.

-_ Complete the initial setting again (_ page 30,

"INSTALLATION GUIDE").

•The clock does not keep time.

-_ Set the time and date manually (_ page 33,

"INSTALLATION GUIDE").

-_ Set "Summer time" or "Time zone" correctly

(_ page 34, "INSTALLATION GUIDE").

123

The recorder display shows error codes in addition to the message screen.

Main examples are as follows.

The ...... in the "ERR - **" message indicates an error code.To delete this display, press the DISPLAY

button on the remote control.

Error code

ERR-g1

ERR-14

ERR-15

ERR-2E

ERR-2F

ERR-30

ERR-31

ERR-32

ERR-33

ERR-34

ERR-35

ERR-36

ERR-37

ERR-38

ERR-39

ERR-3A

Description

Error detected in the physical format.

DVD disc access error detected.

Other errors detected.

Menu encode error detected.

Overflow of the menu size detected.

Exceeded maximum number of menus detected.

Recovery writing executed from compatibiliy of drive

and disc.

Incompatibility of disc format detected.

Disc protected.

Disc protected or system control data error detected.

Exceeded volume in disc budget calculation detected.

Recording failed. (Title not saved.)

Recording failed. (Title saved.)

Writing failed. (Title not reserved.)

Writing failed. (Title saved.)

Unexpected error detected.

• When creating a DVD-video.

• When recording onto

DVD-R/RW discs.

Note

• If you find an error code other than listed above, consult your nearest TOSHIBA dealer.

124

Picture quality rate

XP (9.2 Mbps)

SP (4.6 Mbps)

MP (3.0 Mbps)

LP (2.2 Mbps)

EP (1.4 Mbps)

ODD/M1(192kbps)

DVD-RAM

Hour Minute

01 01

02 02

03 02

04 01

06 07

Remarks

• The recording durations listed above are for reference purposes only and are not guaranteed. Recording durations

may vary.

• The recording durations for DVD-RAM discs listed above are applicable to DVD-RAM discs that have been initialized.

Actual recording duration may vary depending on the disc used.

• If you subtract the actual recording duration from the duration listed in this table, the calculated time period does not

represent the remaining time.

• The consumption of space may vary depending on the picture and sound conditions of the recorded content.

• Use the remaining disc space display feature to see the remaining space in the DVD-RAM disc.

For Orl D/M1, the digital recording technology for consumer products of Dolby Laboratories is used.

0[3 D/M1 records in Dolby Digital at 192 kbps.

125

Abbreviation

CHI (ZH)

DUT (NL)

ENG (EN)

FRE (FR)

GER (DE)

ITA (IT)

JPN (JA)

KOR (KO)

MAY (MS)

SPA (ES)

Language

No alternate

language

Chinese

Dutch

English

French

German

Italian

Japanese

Korean

Malay

Spanish

Afar

Abkhazian

Afrikaans

Amharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Belorussian

Bulgarian

Bihari

Bislama

Bengali, Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

Bhutani

Greek

Esperanto

Estonian

Basque

Persian

Finnish

Fiji

Faroese

Frisian

Irish

Scottish Gaelic

Galician

126

Abbreviation

Language

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Interlingue

Inupiak

Indonesian

Icelandic

Hebrew

Yiddish

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laotian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Maltese

Burmese

Nauru

Nepali

Norwegian

Occitan

(Afan) Oromo

Oriya

Panjabi

Polish

Pashto, Pushto

Abbreviation

Language

Portuguese

Quechua

Rhaeto-Romance

Kirundi

Rumanian

Russian

Kinyarwanda

Sanskrit

Sindhi

Sango

Serbo-Croatian

Singhalese

Slovak

Slovenian

Samoan

Shona

Somali

Albanian

Serbian

Siswati

Sesotho

Sundanese

Swedish

Swahili

Tamil

Telugu

Tajik

Thai

Tigrinya

Turkmen

Tagalog

Setswana

Tongan

Turkish

Tsonga

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

VolapQk

Wolof

Xhosa

Yoruba

Zulu

•Power requirement during operation

21W

•Power requirement at standby

2.7W

•Power supply

120V AC, 60 Hz

•Mass

3.5kg

• External dimension

Width 430 x Height 58 x Depth 304mm

•Incoming channels

TV: 2-69CH, Cable:1-125CH

•Antenna input/output terminal

VHF/UHF: 75f_, F Connector

•Signal system

Standard NTSC Color TV system

•Laser

Semiconductor laser, Wavelength: 650nm/780nm

• Format

DVD-VR format

DVD-Video format

• Image recording system

MPEG2

• Sound recording system

Dolby digital

• VIDEO input

1.ovp-p (75_), Sync signal negative,

Pin jack x 2 systems, 1 at rear, 1 in front

• VIDEO output

1.oVp-p (75_), Sync signal negative,

Pin jack x 1 systems, 1 at rear

•S-VIDEO input

(Y) 1.0Vp-p (75_-_), Sync signal negative,

Mini DIN4 Pin x 2 systems

• S-VIDEO output

(Y) 1.0Vp-p (75_-2), Sync signal negative,

Mini DIN4 Pin x 1 system

•COMPONENT output (Y, PB,PR)

Y output (green), 1.0Vp-p (75_),

Sync signal negative, Pin jack x 1 system

PB, PR output (blue, red), 0.7Vp-p (75f_),

Pin jack x 1 system each

•AUDIO input

2.0V (rms), 22kf_ or above, pin jack

(L, R) x 2 systems

1 at rear, 1 in front

•AUDIO output

2.0V (rms), 2.2kf_ or below, pin jack

(L, R) x 2 systems

2 at rear

•DIGITAL AUDIO OUTPUT

BITSTREAM/PCM (OPTICAL terminal)

Optical connector x 1 system

•Remote control

Wireless remote control (SE-R0176)

•Operating conditions

Temperature: 41_'F - 95°F (5°C - 35°C),

Position: Horizontal

•Clock display

12 hour digital display

•Clock accuracy

Quartz (monthly deviation: approximately _+30

seconds) /

• This model complies with the below specifications.

• Designs and specifications are subject to change without notice.

• This model may not be compatible with features and/or specifications that may be added in the future.

• The screen illustrations used in this Operating Guide are for reference purposes only. Because the screen illustrations

used in this Operating Guide are simplified for easy recognition, they may vary slightly from the unit's actual screen

displays.

127

Limited United States Warranty

Digital Audio Video ("DAV') Product-Depot Repair Warranty

Toshiba America Consumer Products, L.L.C,. ("TACP") makes the following limited warranties to original consumers in

the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY

PERSON RECEIVING THIS DAV PRODUCT AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO

NO OTHER PURCHASER OR TRANSFEREE.

DAV PRODUCTS PURCHASED IN THE U.S.A. AND USED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING,

WITHOUT LIMITATION, CANADA AND MEXICO, ARE NOT COVERED BY THESE WARRANTIES.

DAV PRODUCTS PURCHASED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT LIMITATION,

CANADA AND MEXICO, AND USED IN THE U.S.A., ARE NOT COVERED BY THESE WARRANTIES.

Limited Ninety (90) Day Warranty on Labor*

TACP warrants this DAV Product and its parts against

defects in materials or workmanship for a period of ninety

(90) days after the date of original retail purchase.

DURING THIS PERIOD, TACP WILL, AT TACP's

OPTION, REPAIR OR REPLACE A DEFECTIVE PART

WITH A NEW OR REFURBISHED PART WITHOUT

CHARGE TO YOU FOR PARTS OR LABOR.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE

FOLLOWING CONDITIONS:

(1) You must retain your bill of sale or provide other

proof of purchase.

(2) All warranty servicing of this DAV Product must be

made by the Depot Warranty Repair Center

specified by the TACP Consumer Solutions Center.

Limited One (1) Year Warranty on Parts*

TACP further warrants the parts in this DAV Product

against defects in materials or workmanship for a period

of one (1) year after the date of original retail purchase.

DURING THIS PERIOD, TACP WILL, AT TACP 'S

OPTION, REPAIR OR REPLACE A DEFECTIVE PART (4)

WITH A NEW OR REFURBISHED PART WITHOUT

CHARGE TO YOU FOR THE PART, PROVIDED THAT IF

A DEFECTIVE PART IS REPAIRED OR REPLACED

AFTER NINETY (90) DAYS FROM THE DATE OF

ORIGINAL RETAIL PURCHASE, THE CONSUMER

SHALL PAY ALL LABOR CHARGES INVOLVED IN THE (5)

REPAIR OR REPLACEMENTTHEREOR

*Rental Units

The warranty for DAV Product rental units begins on the

date of the first rental or thirty (30) days after the date of

shipment to the rental firm, whichever comes first.

*Commercial Units

DAV Products sold and used for commercial purposes

have a limited warranty for all parts and labor, which

warranty begins on the date of original retail purchase

and ends on the date that is ninety (90) days thereafter.

(3) The warranties from TACP are effective only if the

DAV Product is purchased and operated in the

Continental U.S.A. or Puerto Rico.

Labor service charges for set installation, setup,

adjustment of customer controls and installation or

repair of antenna systems are not covered by this

warranty. Reception problems caused by inadequate

antenna systems are your responsibility.

Warranties extend only to defects in materials or

workmanship as limited above and do not extend to

any DAV Product or parts that have been lost or

discarded by you or to damage to DAV Product or

parts caused by fires, misuse, accident, Acts of God,

such as lightning or fluctuations in electric power,

improper installation, improper maintenance or use

in violation of instructions furnished by TACP; use or

malfunction through simultaneous use of this DAV

Product and connected equipment; or to units that

have been modified or had the serial number

removed, altered, defaced, or rendered illegible.

Owner's Manual and Product Registration Card

Read this owner's manual thoroughly before operating

this DAV Product.

Complete and mail the enclosed product registration card

or register your DAV Product on-line at

www.tacp.toshiba.com/service as soon as possible. By

registering your DAV Product you will enable TACP to

bring you new products specifically designed to meet

your needs and help us to contact you in the unlikely

event a safety notification is required under the

Consumer Product Safety Act. Failure to complete and

return the product registration card does not diminish

your warranty rights.

128

How to Obtain Warranty Services

If, after following all of the operating instructions in this

manual and checking the section "Before calling service

personnel", you find that service is needed:

(1) For instructions on how to obtain warranty service

for your DAV Product, contact TACP's Consumer

Solution Center toll-free at 1-800-631-3811.

(2) You must include a copy of original bill of sale or

other proof of purchase along with the entire DAV

Product to the Depot Warranty Repair Center

specified by the TACP Consumer Solutions Center.

You are responsible for all inbound transportation

and insurance charges for the DAV Product to the

Depot Warranty Repair Center specified by the

TACP Consumer Solutions Center.

For additional information, visit TACP's web site:

www.tacp.toshiba.com.

ALL WARRANTIES IMPLIED BYTHE LAW OF ANY

STATE OF THE U.S.A., INCLUDING THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE, ARE EXPRESSLY

LIMITED TO THE DURATION OF THE LIMITED

WARRANTIES SET FORTH ABOVE. WITH THE

EXCEPTION OF ANY WARRANTIES IMPLIED BY THE

LAW OF ANY STATE OF THE U.S.A. AS HEREBY

LIMITED, THE FOREGOING WARRANTY IS

EXCLUSIVE AND IN LIEU OF ALL OTHER

WARRANTIES, GUARANTEES, AGREEMENTS, AND

SIMILAR OBLIGATIONS OF TACP WITH RESPECT TO

THE REPAIR OR REPLACEMENT OF ANY PARTS. IN

NO EVENT SHALL TACP BE LIABLE FOR

CONSEQUENTIAL OR INCIDENTAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, LOST PROFITS,

BUSINESS INTERRUPTION, OR MODIFICATION OR

ERASURE OF RECORDED DATA CAUSED BY USE,

MISUSE OR INABILITY TO USE THIS DAV PRODUCT).

No person, agent, distributor, dealer or company is

authorized to change, modify or extend the terms of

these warranties in any manner whatsoever. The time

within which an action must be commenced to enforce

any obligation of TACP arising under the warranty or

under any statute, or law of the United States or of any

state thereof, is hereby limited to ninety (90) days from

the date you discovered or should have discovered, the

defect. This limitation does not apply to implied

warranties arising under state law.

THIS WARRANTY GIVESYOU SPECIFIC LEGAL

RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE IN THE

U.S.A. SOME STATES OF THE U.S.A. DO NOT ALLOW

LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS, WHEN AN ACTION MAY BE

BROUGHT, OR THE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO

THE ABOVE PROVISIONS MAY NOT APPLY TO YOU

UNDER SUCH CIRCUMSTANCES.

129

-IMPORTANT -

CANADIAN WARRANTY INFORMATION

GARANTIE CANADIENNE

STANDARD WARRANTY

TYPE OF SET

WARRANTY PERIOD

DVD Player

DVD/VCR Combination

Home Theatre in a Box

DVD Recorder

Portable DVD

12 MONTHS

GARANTIE NORMALE

TYPE D'APPAREIL

DUREE DE LA GARANTIE:

LecteurDVD

DVD/magn6toscopecombo

Cinema maison dans une boTte

EnregistreurDVD

DVD Portatif

12 MOIS

CANADIAN WARRANTY

Toshiba of Canada Limited (TCL) makes the following

limited warranties to original consumers in Canada.

Please retain your "Bill of Sale" as proof of purchase.

To obtain a"Canadian Warranty" please register

online at www.toshiba.ca.

GARANTIE CANADIENNE

1) Toshiba du Canada Limitee (TCL) offre au Canada les

garanties limitees suivantes aux consommateurs origi-

naux. Veuillezconserver votre {{ facture >>comme preuve

d'achat. Pour obtenir une garantie canadienne,

veuillez vous inscrire en ligne a www.toshiba.ca

Canadian Warranty Information

Should service be required on this unit during the one year

warranty period, TCL's option will be to repair or exchange the

defective unit. It will be necessary to follow this procedure:

Contact: Toshiba of Canada Limited at the Consumer

Electronics Group, customer support line.

Phone: 1-800-268-3404

Email: ceg customersupport@toshiba.ca

All in-warranty repairs must be made by an authorized TCL

service centre.

For service exchange TCL will arrange to have the unit picked

up by courier and a replacement unit will be returned via same

courier. (Note: A major credit card number will be required as a

charge of $25.00 will apply if no fault is found with the unit.)

During the first 3 months of ownership, a new unit will be sup-

plied as a replacement. During the remainder of the warranty

period a service-renewed unit will be supplied.

The original "Bill of Sale" must be provided as proof of pur-

chase (it will be returned with the replacement unit.)

This 12-month warranty will be strictly adhered to.

Out of warranty units should be repaired by a TCL authorized

service centre.

Note: It is the responsibility of the owner to ensure proper

packaging. Should damage in shipping occur, due to poor

packaging, a charge back for the repair will result.

This warranty applies to the original purchaser only and is not

transferable.

This warranty does not apply to sets that have been subjected

to misuse, neglect, accident, physical damage or acts of

nature.

Sets with the serial number removed, altered, replaced or

defaced will not be covered by this warranty.

The warranties from TCL are effective only if the product is

purchased in Canada from an authorized TCL dealer and

operated in Canada.

Products utilized for rental or commercial purposes are not

covered by this warranty.

This warranty is in lieu of all other warranties, guaranties or

agreements, whether expressed or implied, and no person,

agent distributor, dealer, service centre or company is author-

ized to change, modify or extend its terms in any manner

whatsoever.

Information sur la garantieCanadienne

Si vous avez besoin de service sur cet appareil au cours le

rann6e de garantie, Toshiba du Canada Limit6e aura [option

de r_parer ou _changer rappareil d6fectueux. Vous devrez

suivre la proc6dure suivante:

Contact: Toshiba du Canada Limitee au Groupe _lectronique

aux consommateurs, service a la clientele.

Tel: 1-800-268-3404

Courriel: ce_customersupport@toshiba.ca

Toutes les r6parations au cours de la garantie doivent _tre faites

par un centre de service autorise Toshiba.

Pour un echange TCL s'assurera qu'un service de courrier

ramassera I'unite et qu'un appareil de remplacement soit

exp6di6 par le m_me service de courrier.

(Note: Un num6ro de carte de cr6dit sera requis car une

charge de 25,005 sera appliqu6e si toutefois rappareil n'avait

aucun probleme de fonctionnement.)

Une nouvelle unit_ sera foumie comme remplacement durant

les premiers 3 mois de propriet& Par contre durant la balance

de la garantie une unite remise a neuf sera fournie.

La <dacture originale doit _tre fournie comme preuve d'achat

(elle vous sera retourn6e avec I'unite de remplacement.)

Cette garantie de 12 mois sera strictement adh6r_e.

Les unit6s hors de garantie devraient _tre r6par6es par un

centre de service autoris6 Toshiba.

Note: C'est la responsabilite du proprietaire de s'assurer que

I'emballage est ad6quat. Vous serez factur6 pour toutes r6pa-

rations caus6es par des dommages encourus a cause d'un

emballage non adequat.

Cette garantie est octroy6e _ I'acheteur initial et n'est pas

transf6rable. Cette garantie ne s'aplique pas aux appareils qui

ont 6t6 sujets aux abus, negligences, accidents, dommages

physiques ou actes naturels.

Les appareils dont le num6ro de s6rie a _t6 enlev6, alt6t6,

remplace ou barbouill6 ne sont pas couverts par cette

garantie.

Les garanties de TCL sent valides seulement sur les unites qui

sont achet6es et utilis6es au Canada d'un marchand autoris6

TCL.

Cette garantie ne couvre pas les produits de location ou

usage commercial. Cette garantie remplace toutes autres

garanties ou ententes exprim6es ou sous-entendues. Aucune

personne, agent, distributeur, concessionaire ou compagnie

n'est autorise a changer, modifier ou prolonger les termes de

cette garantie de quelque fa£on que ce soit.

Toshiba of Canada Limited 191 McNabb Street Markham, Ontario L3R 8H2

130

Memo

131

Toshiba D R4SU User Manual DVD RECORDER Manuals And Guides L0523091

TOSHIBA DVD Systems Manual L0523091 TOSHIBA DVD Systems Owner's Manual, TOSHIBA DVD Systems installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
