Dear Customer,

Thank you for purchasing this Toshiba LCD TV /

DVD combination. This manual will help you use the

many exciting features of your new LCD TV / DVD

combination. Before operating your LCD TV / DVD

combination, please read this manual completely,

and keep it nearby for future reference.

Safety Precautions

WARNING: TO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

WARNING

RISK OF ELECTRIC

SHOCK DO NOT OPEN.

WARNING: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in

the literature accompanying the appliance.

WARNING

To prevent injury, this apparatus must be securely

attached to the floor/wall in accordance with the

installation instructions. See item 25 on page 4.

WARNING:

If you decide to wall mount this

television, always use a UL Listed wall bracket

appropriate for the size and weight of this television.

The use of any wall bracket other than a UL Listed

wall bracket appropriate for the size and weight of this

television for wall mounting this television could result

in serious bodily injury and/or property damage. See

“Removing the Pedestal Stand” ( page 6).

NOTE TO CATV INSTALLERS

This is a reminder to call the CATV system installer’s

attention to Article 820-40 of the U.S. NEC, which

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building,

as close to the point of cable entry as practical. For

additional antenna grounding information, see items

32 and 33 on page 4.

Congratulations on your purchase! As you enjoy your

new product, please keep these safety tips in mind:

The Issue

• The home theater entertainment experience is a growing trend

and larger flat panel displays are popular purchases. However,

flat panel displays are not always supported on the proper stands

or installed according to the manufacturer’s recommendations.

• Flat panel displays that are

inappropriately situated on dressers,

bookcases, shelves, desks,

speakers, chests or carts may fall

over and cause injury.

TOSHIBA Cares!

• The consumer electronics industry

is committed to making home

entertainment enjoyable and safe.

Tune Into Safety

•

One size does NOT fit all. Follow the manufacturer’s recommendations

for the safe installation and use of your flat panel display.

• Carefully read and understand all enclosed instructions for

proper use of this product.

• Don’t allow children to climb on or play with furniture and

television sets.

• Don’t place flat panel displays on furniture

that can easily be used as steps, such

as a chest of drawers.

• Remember that children can

become excited while watching a

program, especially on a “larger

than life” flat panel display. Care

should be taken to place or install

the display where it cannot be

pushed, pulled over, or knocked down.

• Care should be taken to route all cords and

cables connected to the flat panel display so that they cannot be

pulled or grabbed by curious children.

Wall Mounting: If you decide to wall mount your

flat panel display, always:

• Use a mount that has been recommended by the display

manufacturer and/or listed by an independent laboratory (such

as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount

manufacturers.

• If you have any doubts about your ability to safely install your

flat panel display, contact your retailer about professional

installation.

• Make sure that the wall where you are mounting the display is

appropriate. Some wall mounts are not designed to be mounted

to walls with steel studs or old cinder block construction. If you

are unsure, contact a professional installer.

• A minimum of two people are

required for installation. Flat panel

displays can be heavy.

CHILD SAFETY:

It Makes A Difference How and Where You Use Your Flat

Panel Display

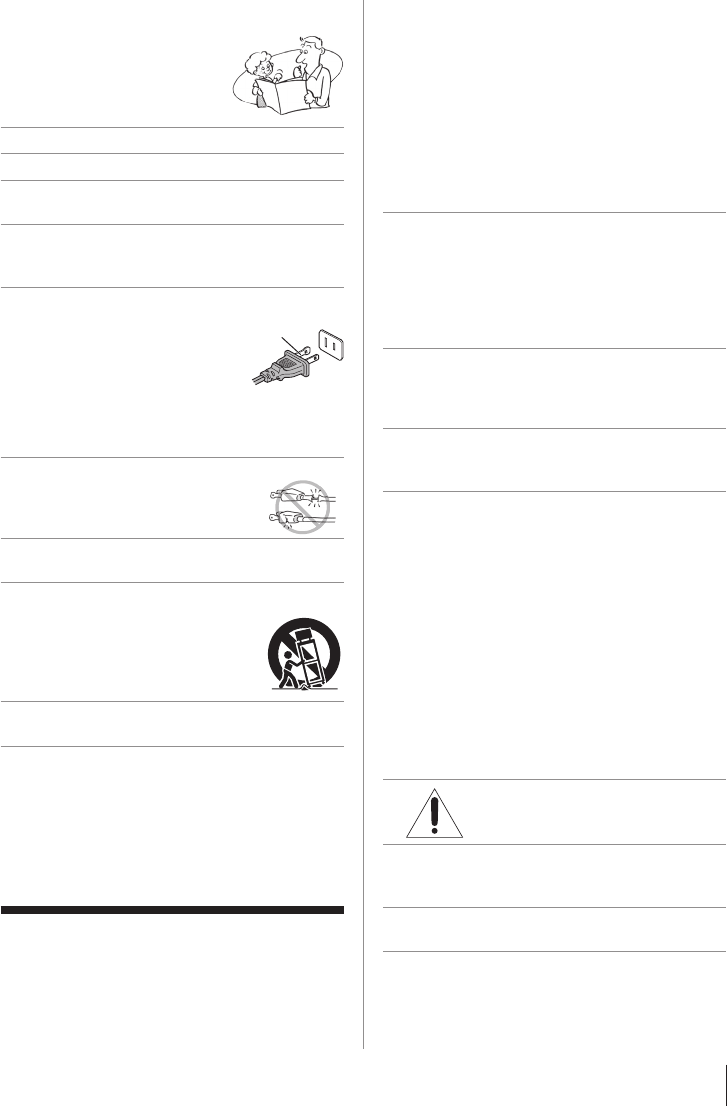

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized

or grounding type plug. A polarized

plug has two blades with one wider

than the other. A grounding type

plug has two blades and a third

grounding prong. The wide blade or

the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on

or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

11)

Only use attachments/accessories specified by

the manufacturer.

12)

Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer,

or sold with the apparatus. When a

cart is used, use caution when moving

the cart/apparatus combination to

avoid injury from tip-over.

13) Unplug this apparatus during lightning storms

or when unused for long periods of time.

14) Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or

has been dropped.

Additional Safety Precautions

14a) CAUTION:

If the TV is dropped and the cabinet

or enclosure surface has been damaged or the

TV does not operate normally, take the following

precautions:

Wide blade

• ALWAYS turn off the TV and unplug the power

cord to avoid possible electric shock or fire.

• NEVER allow your body to come in contact with

any broken glass or liquid from the damaged

television. The LCD panel inside the TV contains

glass and a toxic liquid. If the liquid comes in

contact with your mouth or eyes, or your skin

is cut by broken glass, rinse the affected area

thoroughly with water and consult your doctor.

• ALWAYS contact a service technician to inspect the

TV any time it has been damaged or dropped.

15) CAUTION:

• To reduce the risk of electric shock, do not

use the polarized plug with an extension cord,

receptacle, or other outlet unless the blades can

be inserted completely to prevent blade exposure.

• To prevent electric shock, match wide blade of plug

to wide slot; fully insert.

)

CAUTION:

Do not let children swallow the product or play with

the plastic bag. Keep the product and the plastic bag

out of the reach of children.

)

CAUTION

Do not let water or other liquids come into contact

with the product, as it may result in damage.

) WARNING

• To prevent the spread of fire, keep candles or other

open flames away from this product at all times.

• Keep the product away from direct sunlight, fire or

a heat source such as a heater. This may reduce

the product lifetime or result in fire.

• The mains plug is used as the disconnect

device, and therefore install the LCD TV / DVD

combination near the wall outlet so that the mains

plug can be accessed easily at all times.

Installation, Care, and Service

Installation

Follow these recommendations and precautions and

heed all warnings when installing your TV:

19)

WARNING: NEVER expose batteries to

excessive heat such as sunshine, fire

or the like.

20)

ALWAYS plug the product into an outlet that is

located in such a manner that it can be easily

unplugged in case the product requires service.

21) NEVER route the product’s power cord inside a wall

or similar enclosed area.

22)

Never modify this equipment. Changes or

modifications may void: a) the warranty, and b) the

user’s authority to operate this equipment under the

rules of the Federal Communications Commission.

(continued)

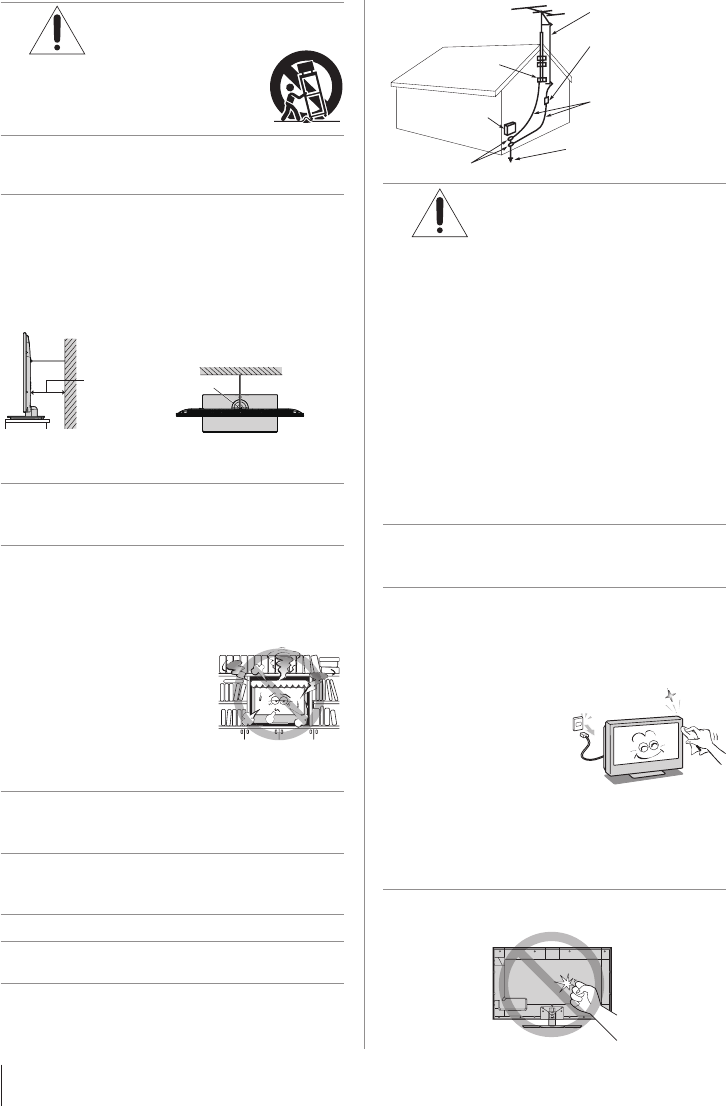

23) DANGER: RISK OF SERIOUS PERSONAL

INJURY, DEATH, OR EQUIPMENT

DAMAGE!

Never place the TV on an unstable

cart, stand, or table. The TV may

fall, causing serious personal injury,

death, or serious damage to the TV.

24)

To avoid damage to this product, never place or

store the TV in direct sunlight; hot, humid areas;

or areas subject to excessive dust or vibration.

25) Always place the TV on the floor or a sturdy, level,

stable surface that can support the weight of the

TV. In order to maintain stability and prevent the TV

falling over, secure the TV with a sturdy strap from

the hook on the rear of the TV pedestal to a wall stud,

pillar, or other immovable structure. Make sure the

strap is tight, secure, and parallel to the floor.

pot VTedis VT

min.

Hook

Sturdy strap (as short as possible)

(The sturdy tie and hook is applicable to 32SLV411U.)

26)

The apparatus shall not be exposed to dripping or

splashing, and no objects filled with liquids, such

as vases, shall be placed on the apparatus.

27) Never block or cover the slots or openings in the TV

cabinet back, bottom, and sides. Never place the TV:

• on a bed, sofa, rug, or similar surface;

• too close to drapes, curtains, or walls; or

• in a confined space such as a bookcase, built-in

cabinet, or any other place

with poor ventilation.

The slots and openings are

provided to protect the TV

from overheating and to help

maintain reliable operation

of the TV. Leave a space of at least 4 (four) inches

around the TV.

28)

Always place the back of the television at least 4

(four) inches away from any vertical surface (such

as a wall) to allow proper ventilation.

29)

Never allow anything to rest on or roll over the

power cord, and never place the TV where the

power cord is subject to wear or abuse.

30)

Never overload wall outlets and extension cords.

31)

Always operate this equipment from a 120 VAC,

60 Hz power source only.

32)

Always make sure the antenna system is properly

grounded to provide adequate protection against

voltage surges and built-up static charges (see

Section 810 of the National Electric Code).

Antenna lead-in wire

Antenna discharge unit

(NEC Section 810-20)

Grounding conductors

(NEC Section 810-21)

Power service grounding

electrode system

(NEC Article 250 Part-H)

Ground clamp

Electric service

equipment

Ground clamps

33) DANGER: RISK OF SERIOUS

PERSONAL INJURY OR DEATH!

• Use extreme care to make sure you are never in

a position where your body (or any item you are

in contact with, such as a ladder or screwdriver)

can accidentally touch overhead power lines.

Never locate the antenna near overhead power

lines or other electrical circuits.

• Never attempt to install any of the following

during lightning activity: a) an antenna system;

or b) cables, wires, or any home theater

component connected to an antenna or phone

system.

Care

For better performance and safer operation of your

TOSHIBA LCD TV / DVD combination, follow these

recommendations and precautions:

34)

If you use the TV in a room whose temperature is 32 °F

(0 °C) or below, the picture brightness may vary until

the LCD warms up. This is not a sign of malfunction.

35)

Always unplug the TV before cleaning. When

cleaning your TV, please first remove any dirt or

dust from the surface. Gently wipe the cabinet

and the display panel surface (the TV screen) with

a dry, soft cloth only (cotton, flannel, etc.). The

enclosed cleaning cloth

is for cabinet cleaning.

Harsh rubbing or use of

a dirty or stiff cloth will

scratch the TV surface.

Avoid contact with

alcohol, thinner, benzene,

acidic or alkaline solvent cleaners, abrasive

cleaners, or chemical cloths, which may damage

the TV surface. Never spray volatile compounds

such as insecticide on the TV surface. Such

products may damage or discolor the TV.

36)

Never hit, press, or place anything on the back cover.

These actions will damage internal parts.

(continued)

37) WARNING:

RISK OF ELECTRIC SHOCK!

Never spill liquids or push objects of any kind into

the TV cabinet slots.

38) While it is thundering, do not touch the

connecting cables or apparatus.

39) For added protection of your TV from lightning

and power surges, always unplug the power

cord and disconnect the antenna from the TV if

you leave the TV unattended or unused for long

periods of time.

40) ALWAYS unplug the TV to completely disconnect

from mains power. When the TV is turned off using

the on/off switch, it is not completely disconnected

from power and a minute amount of current is still

consumed.

41) During normal use, the TV may make occasional

snapping or popping sounds. This is normal,

especially when the unit is being turned on or off.

If these sounds become frequent or continuous,

unplug the power cord and contact a Toshiba

Authorized Service Provider.

42) WARNING: RISK OF SERIOUS PERSONAL

INJURY OR EQUIPMENT DAMAGE!

Never strike the

screen with a sharp or heavy

object.

43) • The LCD screen of this product can be damaged by

ultraviolet radiation from the sun. When selecting

a location for the television, avoid locations where

the screen may be exposed to direct sunlight, such

as in front of a window.

• Never touch, press, or place anything on the

LCD screen. These actions will damage the LCD

screen. If you need to clean the LCD screen,

follow the instructions in item 35 on page 4.

Service

44)

WARNING:

RISK OF ELECTRIC SHOCK!

Never attempt to service the TV yourself. Opening

and removing the covers may expose you to

dangerous voltage or other hazards. Failure to follow

this WARNING may result in death or serious injury.

Refer all servicing not specified in this manual to a

Toshiba Authorized Service Provider.

45) If you have the TV serviced:

• Ask the service technician to use only replacement

parts specified by the manufacturer.

• Upon completion of service, ask the service

technician to perform routine safety checks to

determine that the TV is in safe operating condition.

Choosing a location for your LCD

TV / DVD combination

To Display your LCD TV / DVD combination

on the included Pedestal Stand:

Observe the following safety precautions:

1) Read and Follow the pedestal assembly

instructions included with the pedestal.

CAUTION: Before beginning pedestal assembly,

carefully lay the front of the LCD Panel face down

on a flat, cushioned surface such as a quilt or

blanket. Leave the bottom of the unit protruding

over the edge of the surface and assemble the

pedestal as indicated below.

Note: Extreme care should always be used

when attaching the pedestal stand to avoid

damage to the LCD panel.

2) Place the TV on a sturdy, level surface that can

support the weight of the TV.

3) Be sure to secure the TV to a wall, pillar, surface, or

other immovable structure. ( item 25,

page 4).

To Display your LCD TV / DVD combination

using a Wall Bracket:

If you decide to wall mount your LCD TV / DVD

combination, always use a UL listed wall bracket

appropriate for the size and weight of the LCD TV /

DVD combination ( page 2):

1) CAUTION: Two people are required for installation.

2) Unplug and remove any cables and/or other

component connectors from the rear of the TV.

3) Follow the instructions provided with your wall

bracket. Before proceeding, make sure the

appropriate bracket(s) are attached to the wall and

the back of the TV as described in the instructions

provided with the wall bracket.

4) IMPORTANT: Always use the screws supplied or

recommended by the wall mount manufacturer.

5) After attaching the appropriate bracket(s) to the

wall and the back of the TV, remove the pedestal

stand from the TV as described below.

VESA Mounting Pattern

TV Size Hole Pattern(HxV) Screw Size

19” 100x100 mm M4

24’’ 100x100 mm M4

32’’ 200x200 mm M6

(unit in mm)

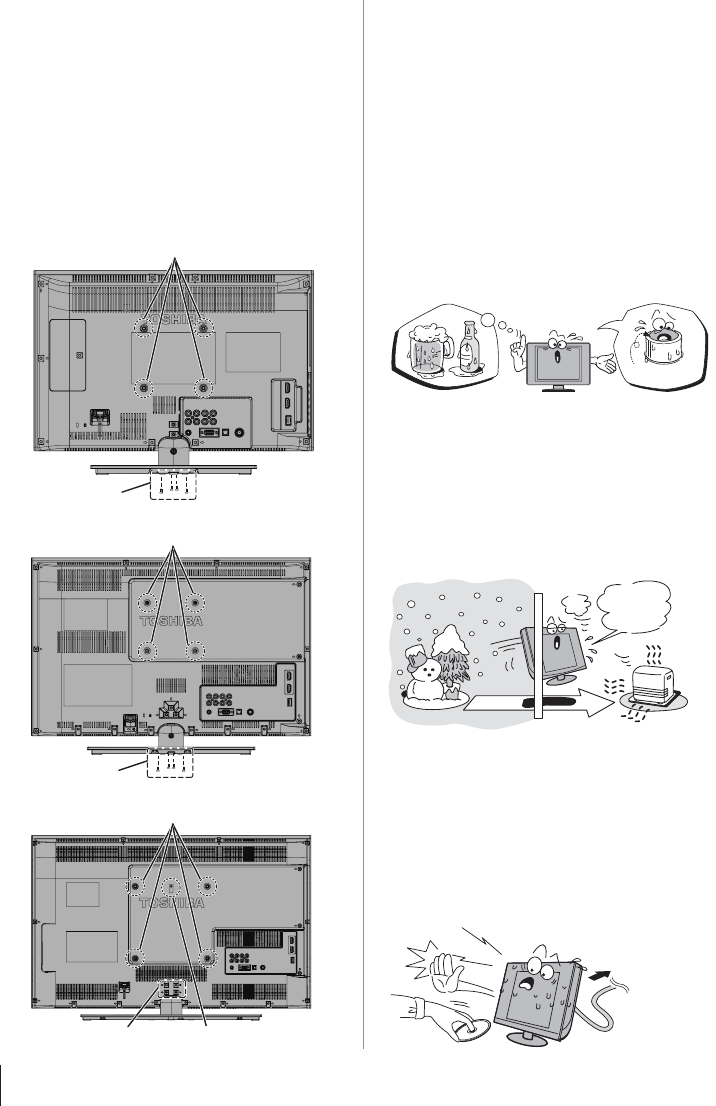

Removing the Pedestal Stand

Carefully lay the front of the TV face down on a flat,

cushioned surface such as a quilt or blanket. Leave

the stand protruding over the edge of the surface.

Note: Extreme care should always be used

when removing the pedestal stand to avoid

damage to the LCD panel.

Remove the four screws shown in the below diagram.

This will allow removal of the pedestal stand.

3) Once you have removed all four screws, holding

the pedestal stand in place, remove the pedestal

stand from the TV.

CAUTION: Always place the TV on the floor or a

sturdy, level, stable surface that can support the

weight of the unit. To secure the TV, use a sturdy strap

from the hook(s) on the rear of the TV to a wall stud,

pillar, or other immovable structure. Make sure the

strap is tight, secure, and parallel to the floor.

Notes on moisture condensation

Moisture condensation damages the unit. Please

read the following carefully.

Moisture condensation occurs, for example, when

you pour a cold drink into a glass on a warm day and

drops of water form on the outside of the glass. In

the same way, moisture may condense on this unit’s

internal optical pick-up lens, one of the most crucial

internal parts of the unit.

Example of moisture

condensation!

Optical pickup

lens

Moisture condensation may occur in the following

situations:

• When you move the unit from a cold area to a warm

area.

• When you use the unit in a room in which the heat

was just turned on.

• When you use the unit in an area where cold air

from an air conditioner directly hits the unit.

• When you use the unit in a humid area.

It’s too

warm!

Never use the unit when moisture condensation may

occur.

Using the unit when moisture condensation exists

may damage discs and internal parts. Connect the

power cord of the unit to the wall outlet, turn on the

unit, remove the disc, and leave it for two or three

hours. After two or three hours, the unit will have

warmed up and evaporated any moisture. Leaving

the TV connected to the wall outlet will help prevent

moisture condensation in the unit.

Wall outlet

Wait!

19SLV411U

Four screws

VESA Mounting Pattern

24SLV411U VESA Mounting Pattern

32SLV411U VESA Mounting Pattern

Four screws

Four screws Hook

Sturdy strap

(as short as possible)

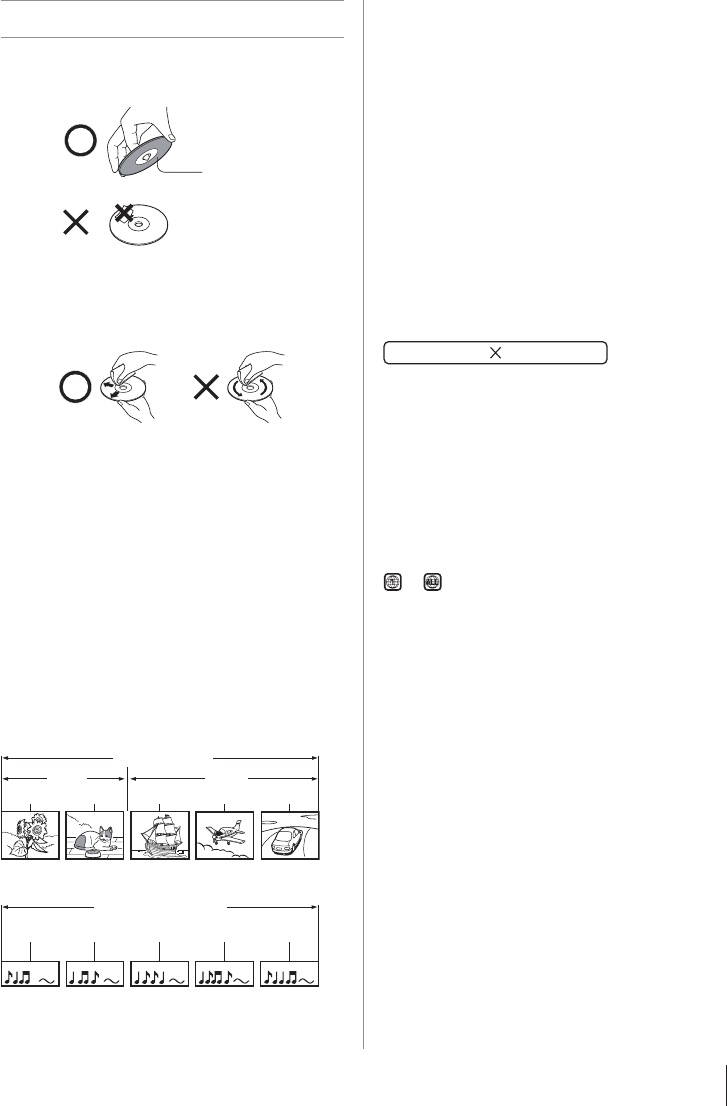

Notes on discs

On handling discs

• Do not touch the playback side of the disc. Handle

the disc as shown in the figure below.

Playback side

• Do not attach paper or tape to discs.

On cleaning discs

• Fingerprints and dust on the disc cause picture and

sound deterioration. Wipe the disc from the center

outwards with a soft cloth. Always keep the disc

clean.

• Do not use any type of solvent such as thinner,

benzine, commercially available cleaners or antistatic

spray for vinyl LPs. It may damage the disc.

On storing discs

• Do not store discs in a place subject to direct

sunlight or near heat sources.

• Do not store discs in places subject to moisture and

dust such as a bathroom or near a humidifier.

• Store discs vertically in a case. Stacking or placing

objects on discs outside of their case may cause

warping.

Structure of disc contents

Normally, DVD video discs are divided into titles, and

the titles are sub-divided into chapters. Video CDs and

Audio CDs are divided into tracks.

DVD

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2Chapter 3

Video CD/Audio CD

Track 1 Track 2 Track 3 Track 4 Track 5

Each title, chapter or track is assigned a number,

which is called “title number”, “chapter number” or

“track number” respectively. There may be discs that

do not have these numbers.

Notes on copyright

The unauthorized recording, use, distribution, or

revision of copyrighted materials including, without

limitation, television programs, videotapes, and DVDs,

is prohibited under the Copyright Laws of the United

States and other countries, and may subject you to

civil and criminal liability.

About this owner’s manual

This owner’s manual explains the basic instructions

of this LCD TV / DVD combination. Some DVD video

discs are produced in a manner that allows specific

or limited operation during playback. As such, the

LCD TV / DVD combination may not respond to all

operating command. This is not a defect of the LCD

TV / DVD combination. Refer to the instruction notes

of discs. The following symbol may appear on the TV

screen during operation.

It means that the operation is not permitted by the

LCD TV / DVD combination or the disc. For example,

sometimes it is unable to stop the playback of

is pressed. Alternatively, this symbol may also indicate

that the feature is not available for the disc.

Notes on region numbers

The region number of this LCD TV / DVD combination

is 1. If region numbers, which stand for their playable

area, are printed on your DVD and you do not find

or , disc playback will not be allowed by the

player. (In this case, the LCD TV / DVD combination

will display a message on-screen.). Some DVDs that

have no region code label may still be subject to area

restrictions and therefore not playable.

On Video CDs

This LCD TV / DVD combination supports Video CDs

equipped with the Playback Control (PBC) function,

version 2.0. You can enjoy two playback variations

depending on types of discs.

• Video CD not equipped with PBC function

(Version 1.1)

Sound and movie can be played on this LCD TV /

DVD combination in the same way as a DVD.

• Video CD equipped with PBC function (Version 2.0)

In addition to operation of a Video CD not equipped

with the PBC function, you can enjoy playback of

interactive software with search function by using

the on-screen playback menu. Some of the functions

described in this owner’s manual may not work with

some discs.

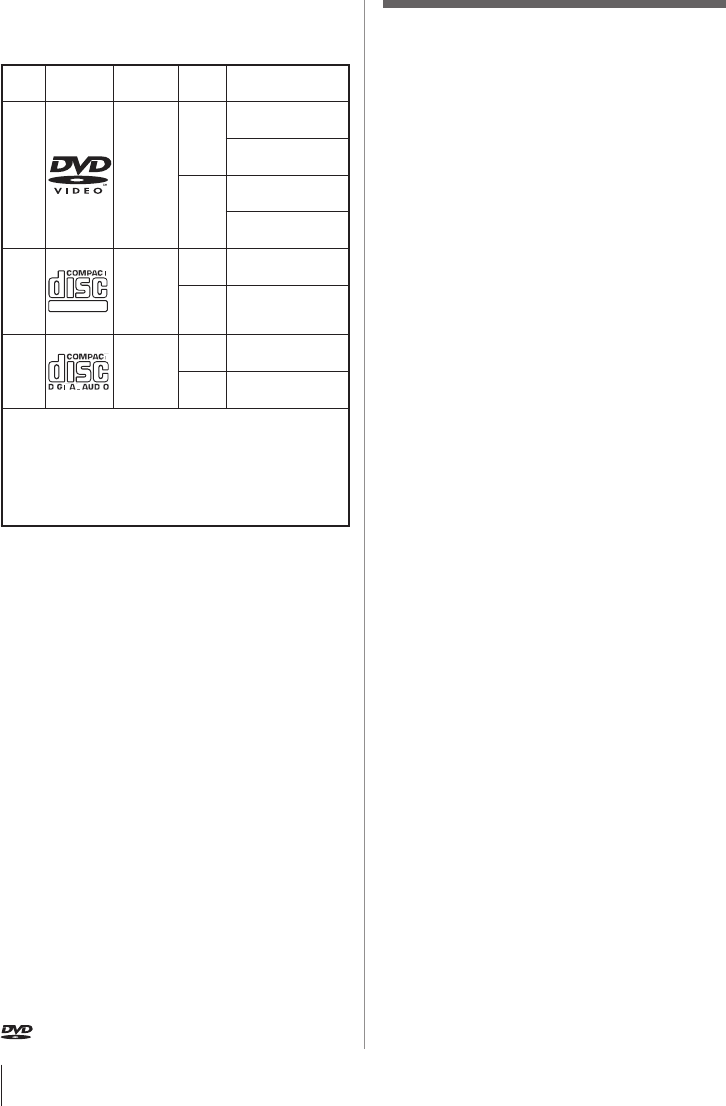

Playable discs

This LCD TV / DVD combination can play the following

discs.

Disc

mark Contents Disc

size Maximum

playback time

DVD

Video

disc

Audio

Video

(moving

pictures)

12 cm

Approx. 4 hours

(single sided disc)

Approx. 8 hours

(double sided disc)

8 cm

Approx. 80 minutes

(single sided disc)

Approx. 160 minutes

(double sided disc)

Video

DIGITAL VIDEO

Audio

Video

(moving

pictures)

12 cm Approx. 74 minutes

(single sided disc)

8 cm Approx. 20 minutes

(single sided disc)

Audio

CD Audio

12 cm Approx. 74 minutes

(single sided disc)

8 cm Approx. 20 minutes

(single sided disc)

The following discs are also supported.

• DVD-R/RW discs containing files of DVD video format.

• CD-R/CD-RW discs containing CD-DA, Video CD,

MP3, WMA, or JPEG files.

• Kodak Picture CD and FUJICOLOR CD.

Some of these discs may be incompatible.

• You cannot play discs other than those listed above.

• You cannot play discs of DVD-RAM, DVD-ROM,

CD-ROM, Photo CD, etc., or non-standardized discs

even if they may be labeled as above.

• Some CD-R/RWs cannot be played back depending

on the recording conditions.

• This LCD TV / DVD combination uses the NTSC color

system, and cannot play DVD video discs recorded in

any other color system (PAL, SECAM, etc.).

• This LCD TV / DVD combination can play an 8 cm disc.

Please do not use a disc adapter. It may cause trouble.

• Please do not insert any disc of an irregular shape

into the LCD TV / DVD combination, as it may

interfere with the function of the LCD TV / DVD

combination. You may not be able to remove it.

• Please do not use after market accessories, such as

a ring protector, as this may cause trouble with the

operation of the LCD TV / DVD combination.

Because of problems and errors that can occur

during the creation of DVD and CD software and/

or the manufacture of DVD and CD discs, Toshiba

cannot assure that this LCD TV / DVD combination will

successfully play every disc bearing the DVD and CD

logos. If you happen to experience any difficulty playing

a DVD or CD on this LCD TV / DVD combination, please

contact Toshiba Customer Service.

is a trademark of DVD Format / Logo Licensing

Corporation.

FCC Declaration of Conformity

Compliance Statement (Part 15):

The Toshiba 19SLV411U, 24SLV411U and

32SLV411U LCD TV / DVD combinations comply with

Part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) this device may not

cause harmful interference, and (2) this device must

accept any interference received, including interfer-

ence that may cause undesired operation.

The party responsible for compliance to these rules

is:

Toshiba America Information Systems, Inc.

9740 Irvine Blvd.; Irvine, CA 92618

Ph: 1-800-631-3811

Note: This equipment has been tested and

found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the

FCC rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference

to radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by

removing and applying power to the equipment,

the user is encouraged to try to correct the

interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and the receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV

technician for help.

Caution: Changes or modifications to this

equipment not expressly approved by Toshiba

could void the user’s authority to operate this

equipment.

ENERGY STAR® User Information

(only for 19/24’’)

ENERGY STAR User Information Statement: the fac-

tory default settings of this television meet ENERGY

STAR requirements. Changing Picture Settings may

increase energy consumption, possibly beyond the limits

required for ENERGY STAR qualiﬁcation.

To ensure your television is operating at optimal energy

efﬁciency, select [Home] mode during initial activation.

To return to [Home] mode settings, select [Standard]

picture mode. [Standard] mode is recommended for

normal home use.(



page 26)

ENERGY STAR

qualified TV.

Products that earn the ENERGY

STAR prevent green house gas

emissions by meeting strict guidelines

set by the U.S. Environmental

Protection Agency. ENERGY STAR

and the ENERGY STAR mark are

registered U.S. marks.

Note: Model 32SLV411U is not ENERGY STAR®

qualified.

Important notes about your

LCD TV / DVD combination

The following symptoms are technical

limitations of LCD Display technology

and are not an indication of malfunction;

therefore, Toshiba is not responsible for

perceived issues resulting from these

symptoms.

1) An afterimage (ghost) may appear on the screen if

a fixed, nonmoving image is displayed for a long

period of time. The afterimage is not permanent

and will disappear in a short period of time.

2) The LCD panel contained in this TV is

manufactured using an extremely high level

of precision technology; however, there may

be an occasional pixel (dot of light) that does

not operate properly (does not light, remains

constantly lit, etc.). This is a structural property of

LCD technology, is not a sign of malfunction, and

is not covered under your warranty. Such pixels

are not visible when the picture is viewed from a

normal viewing distance.

Note: Interactive video games that involve

shooting a “gun” type of joystick at an on-

screen target may not work with this TV.

CLASS 1

LASER PRODUCT

Location of the required Marking

The rating sheet and the safety caution are on the rear

of the unit.

CERTIFICATION: COMPLIES WITH FDA

PERFORMANCE STANDARDS FOR LASER

PRODUCTS EXCEPT FOR DEVIATIONS

PURSUANT TO LASER NOTICE NO.50,

DATED JUNE 24, 2007.

CAUTIONS:

- THIS LCD TV / DVD COMBINATION EMPLOYS

A LASER SYSTEM.

- TO ENSURE PROPER USE OF THIS

PRODUCT, PLEASE READ THIS OWNER’S

MANUAL CAREFULLY AND RETAIN IT FOR

FUTURE REFERENCE.

- SHOULD THE UNIT REQUIRE

MAINTENANCE, CONTACT AN

AUTHORIZED SERVICE LOCATION.

- USE OF CONTROLS, ADJUSTMENTS OR

THE PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION

EXPOSURE.

- TO PREVENT DIRECT EXPOSURE TO LASER

BEAM, NEVER OPEN THE ENCLOSURE.

VISIBLE LASER RADIATION MAY BE

PRESENT WHEN THE ENCLOSURE IS

OPENED. NEVER STARE INTO THE BEAM.

Trademark Information

• Manufactured under license from Dolby

Laboratories.

Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

• HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing

LLC in the United States and other countries.

• MPEG Layer-3 audio coding technology

licensed from Fraunhofer IIS and Thomson.

• This production contains Bitstream Vera Sans

fonts under the following copyright.

Rights Reserved.

Bitstream Vera is a trademark of Bitstream,

Inc

Contents

Important Safety Instructions ..........................................3

Installation, Care, and Service ........................................3

Choosing a location for your LCD TV / DVD combination ............5

Notes on discs ..................................................................................7

Chapter 1: Introduction ............................................... 11

Features of your new TV ................................................................11

Overview of steps for installing, setting up, and using your new TV ....11

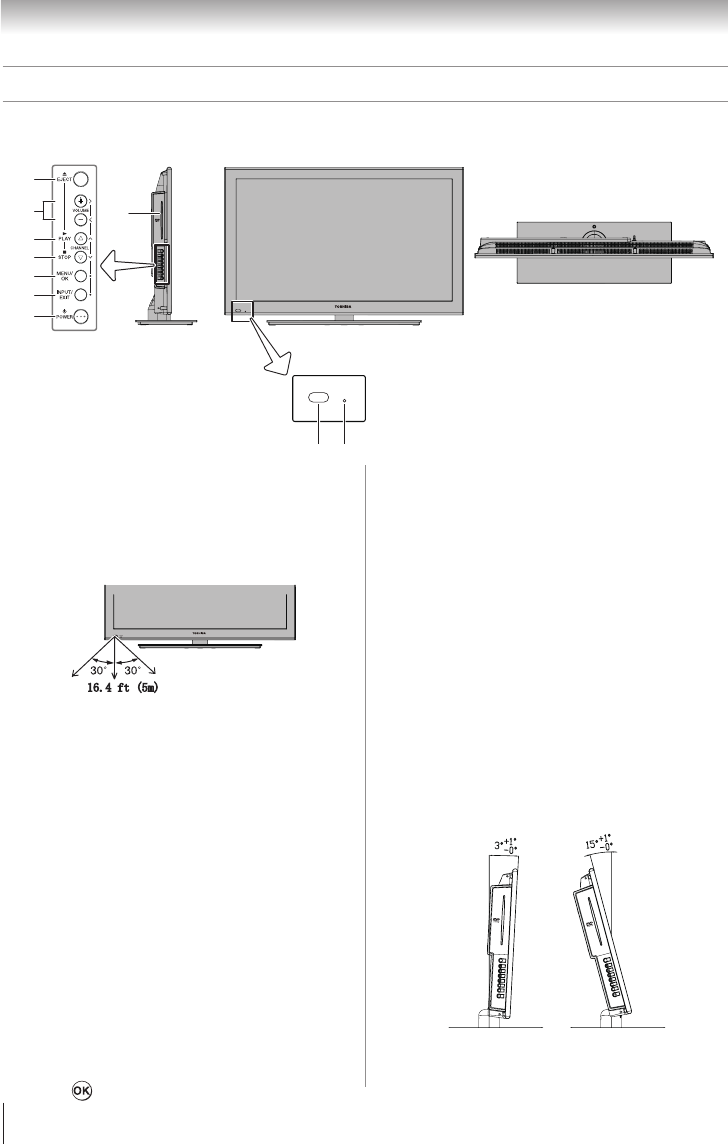

TV front, top and side panel controls and connections ..................12

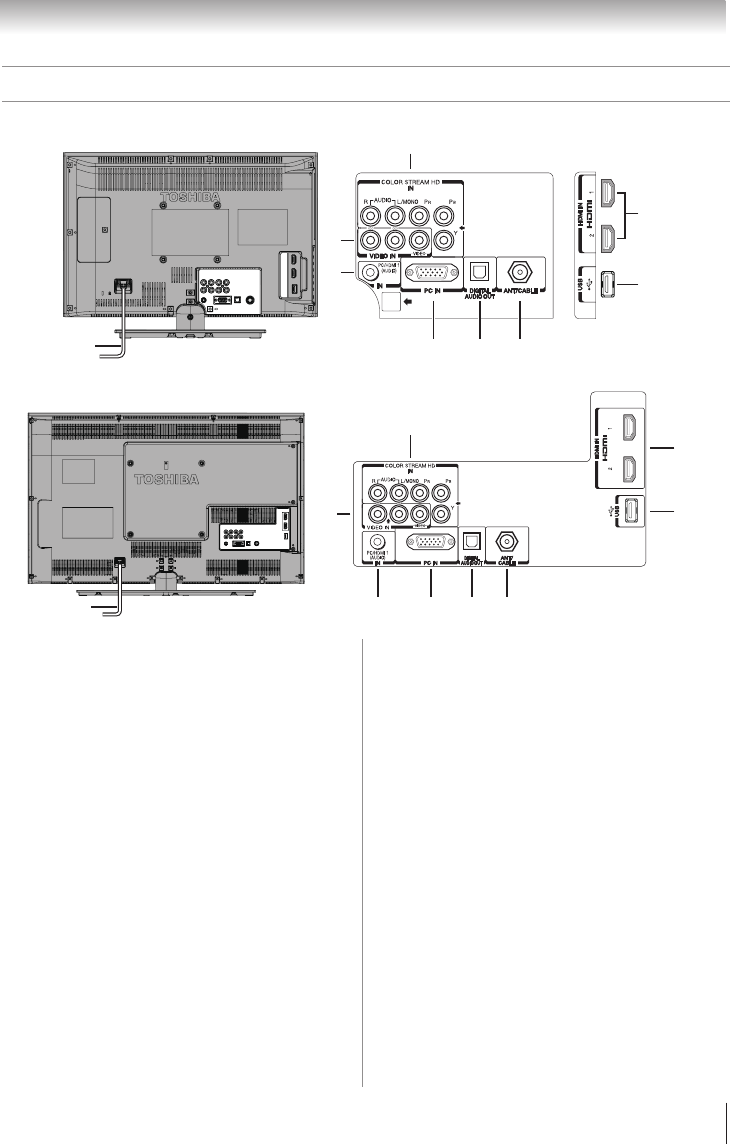

TV back panel connections ............................................................13

Chapter 2: Connecting your TV ...................................... 14

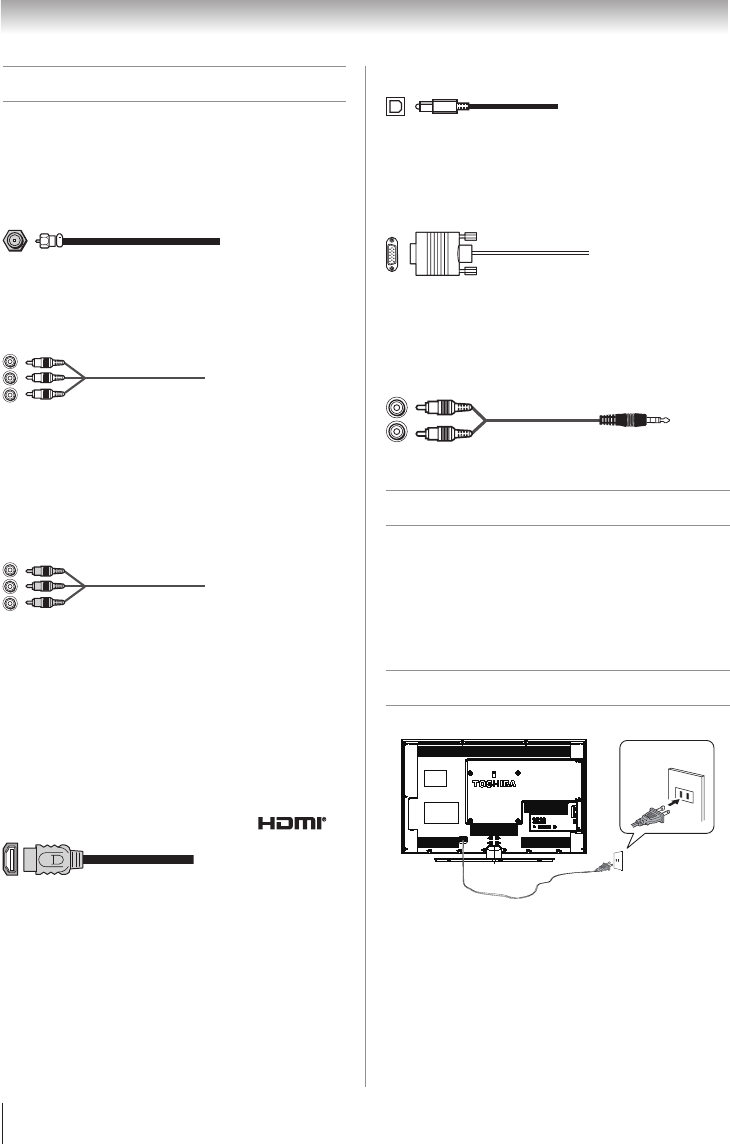

Overview of cable types .................................................................14

About the connection illustrations .................................................14

Connecting TV to a power source ..................................................14

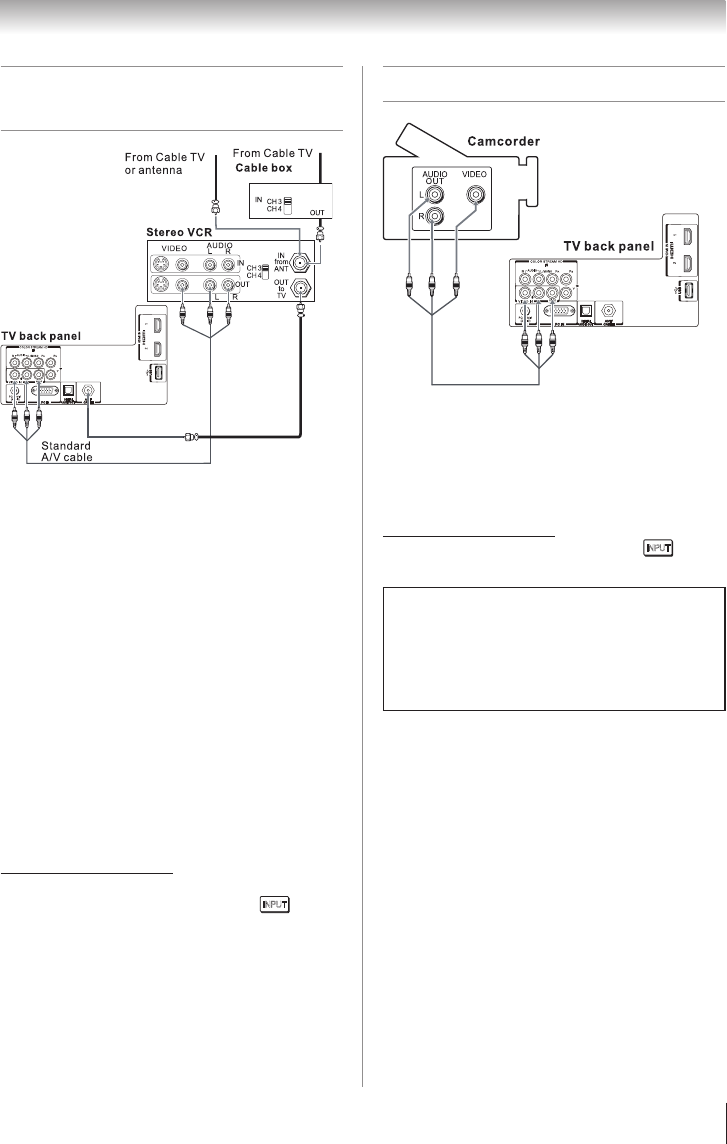

Connecting a VCR, and antenna, Cable TV ...................................15

Connecting a camcorder .................................................................15

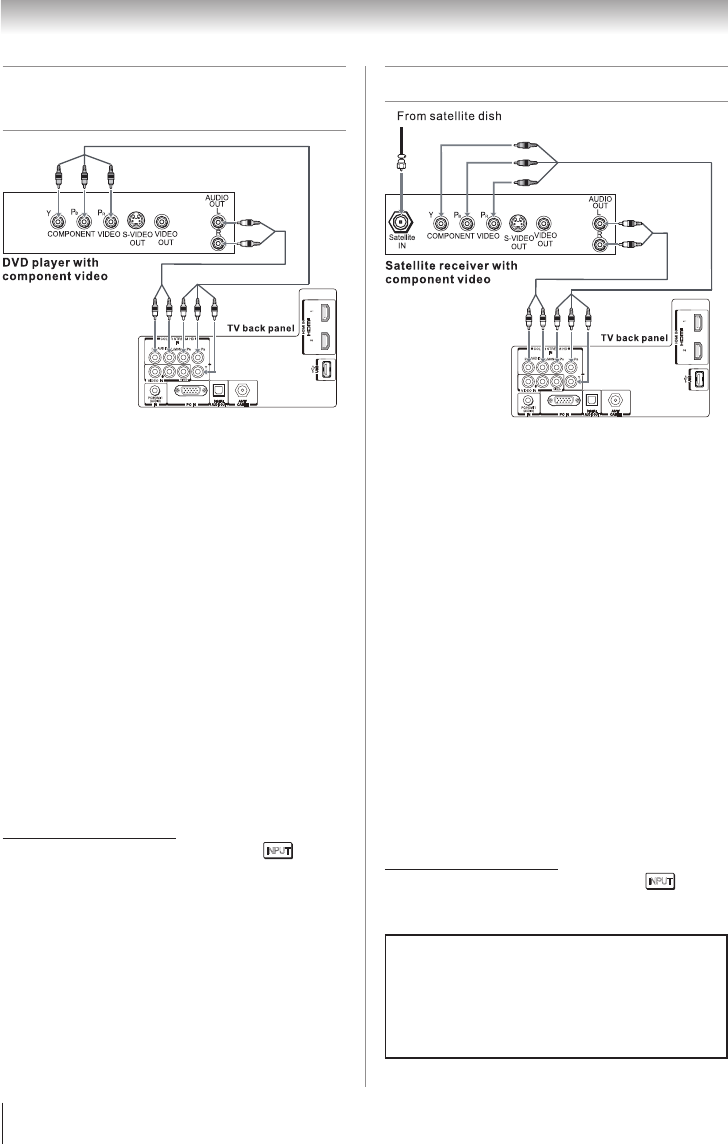

Connecting a DVD player with ColorStream

(component video) ..........16

Connecting a satellite receiver .......................................................16

Connecting an HDMI or DVI device to the HDMI

input .............17

REGZA-LINK

connection ...........................................................18

Connecting a digital audio system .................................................19

Connecting a personal computer (PC) ...........................................20

Chapter 3: Using the remote control ................................ 21

Preparing the remote control for use ..............................................21

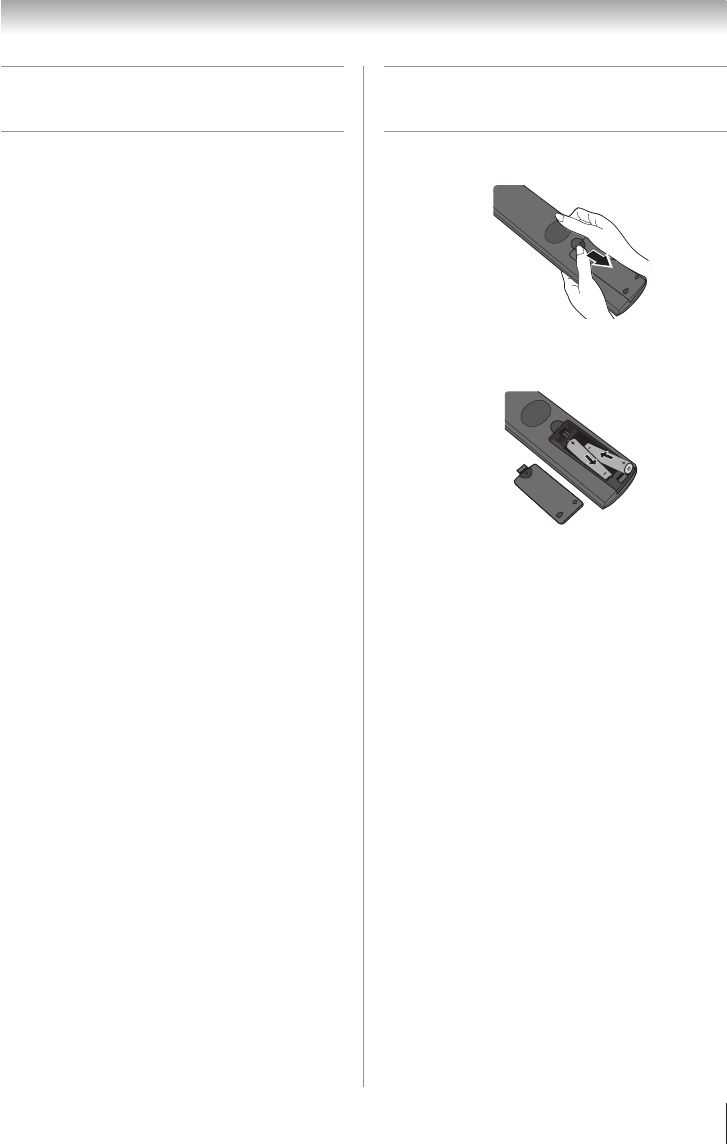

Installing the remote control batteries ............................................21

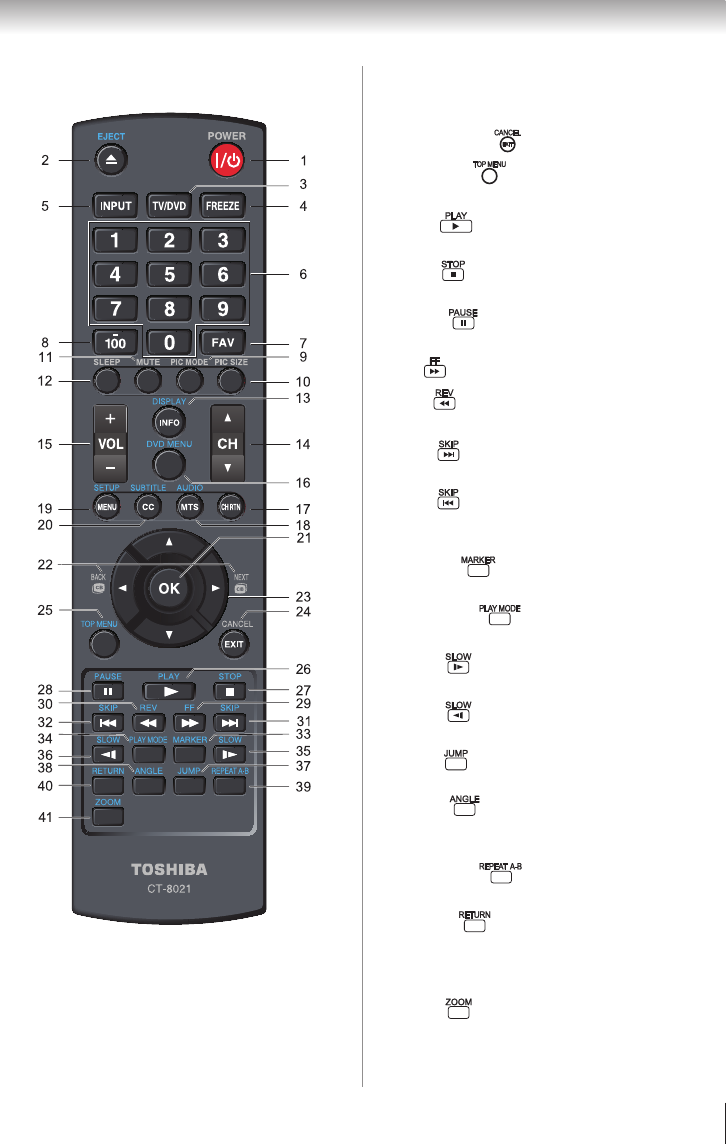

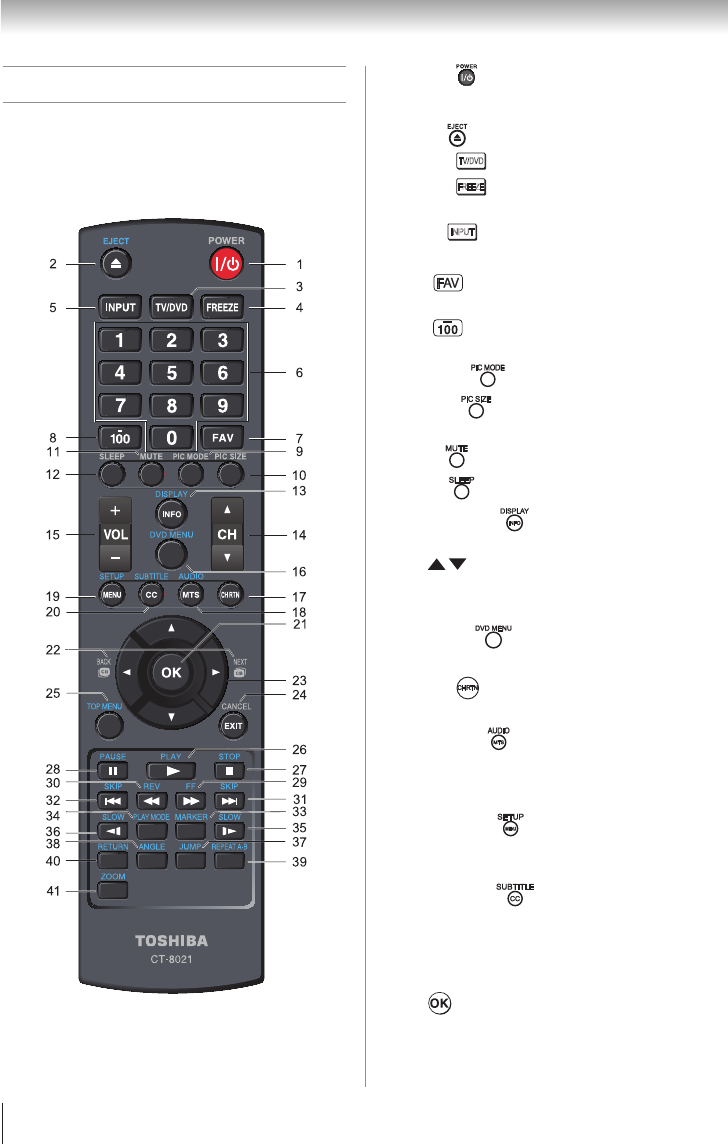

Learning about the remote control .................................................22

Chapter 4: Menu layout and navigation ............................ 24

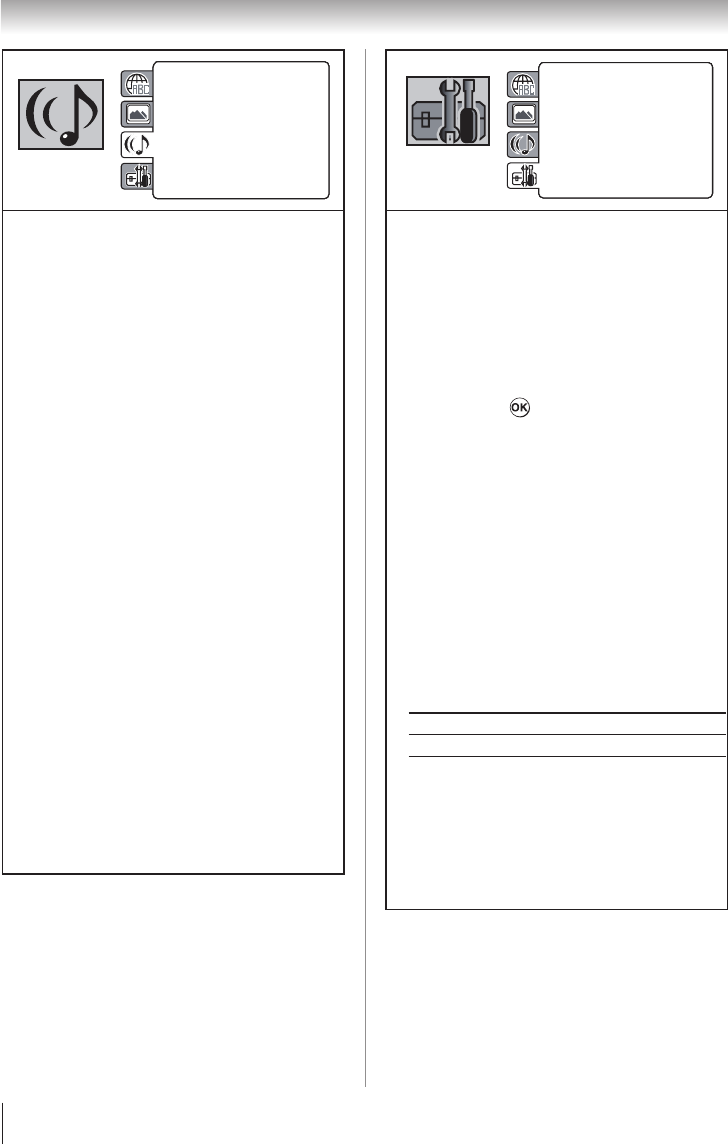

Main menu layout ..........................................................................24

Setup / Installation menu layout .....................................................25

Navigating the menu system ..........................................................25

Chapter 5: Setting up your TV ........................................ 26

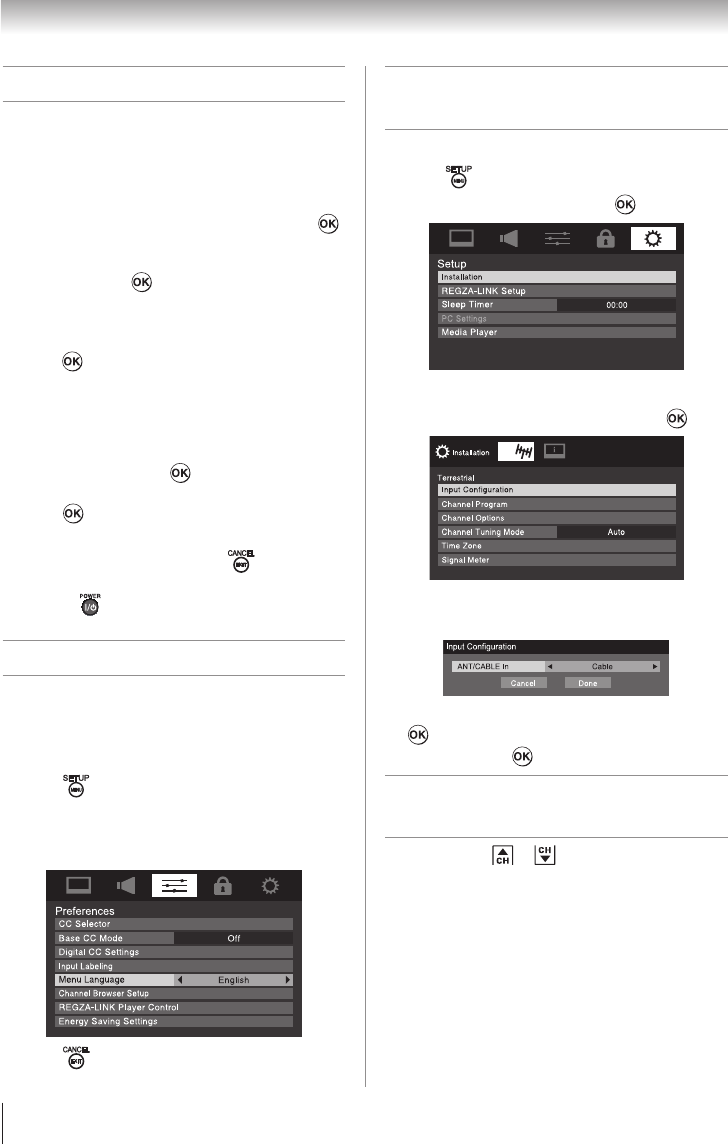

Initial Setup ....................................................................................26

Selecting the menu language ..........................................................26

Configuring the antenna input source for the ANT/CABLE terminal .........26

Programming channels into the TV’s channel memory .................26

Programming channels automatically ....................................26

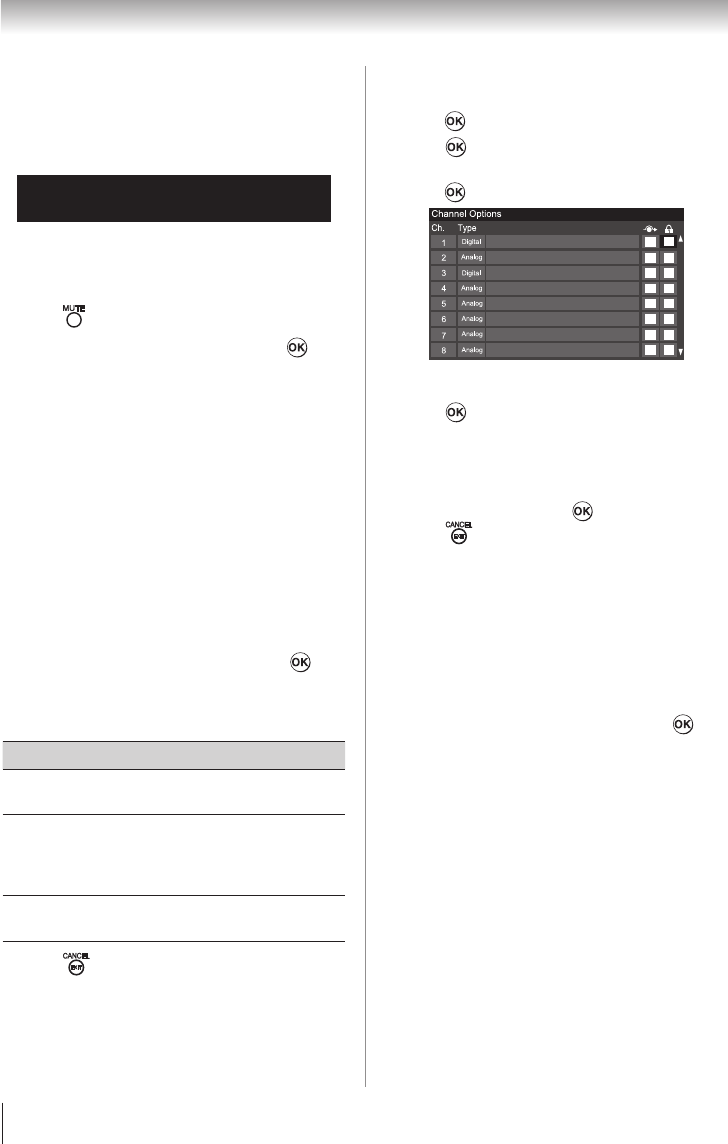

Setting channel skip .......................................................................27

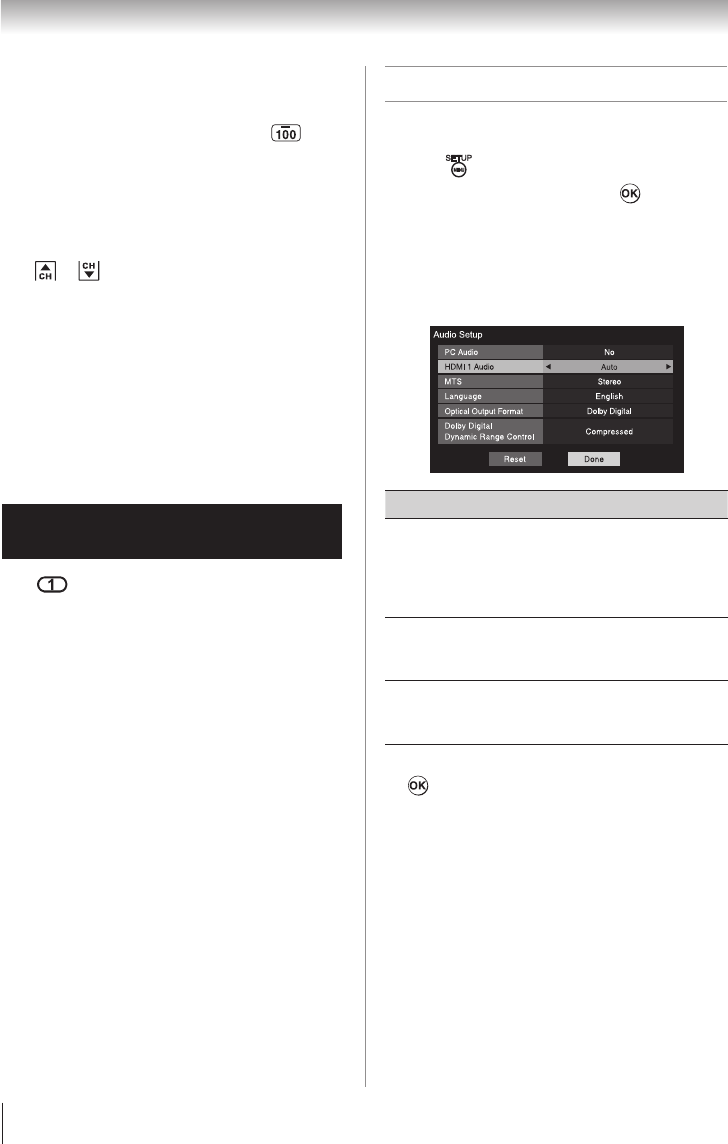

Setting the HDMI

audio mode .....................................................28

Viewing the digital signal meter .....................................................29

Setting the time zone ......................................................................29

Viewing the system status ..............................................................29

Reset Factory Defaults ........................................................29

Chapter 6: Using the TV’s features .................................. 30

Selecting the video input source to view ........................................30

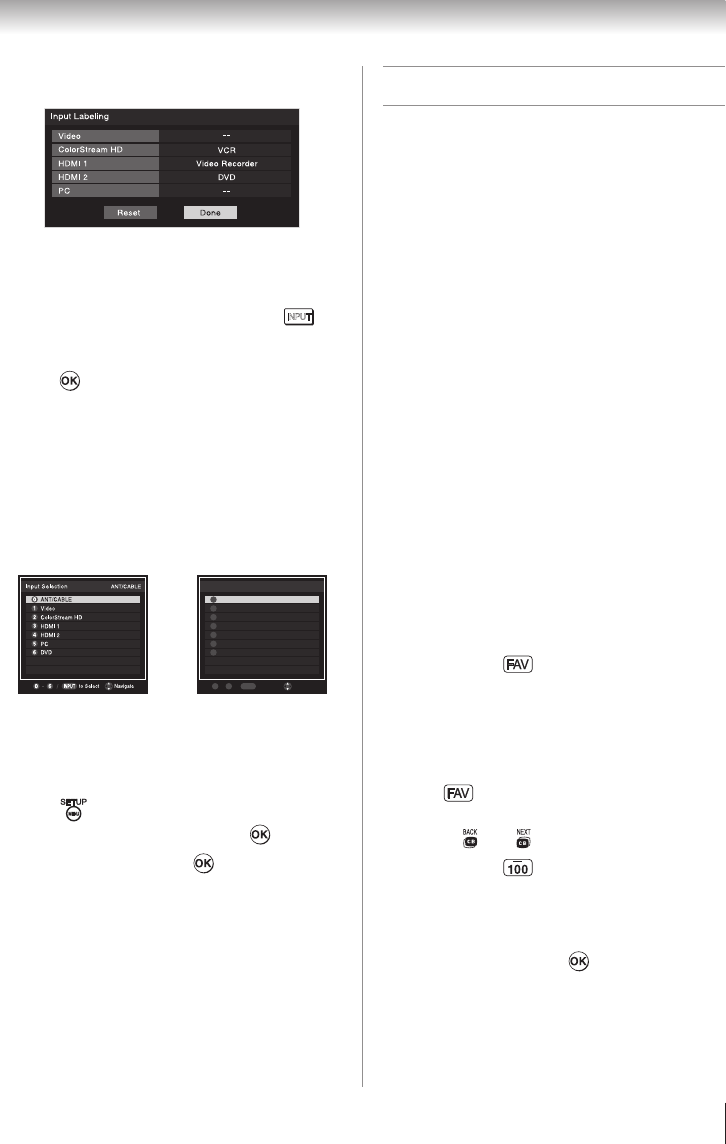

Labeling the video input sources ....................................................30

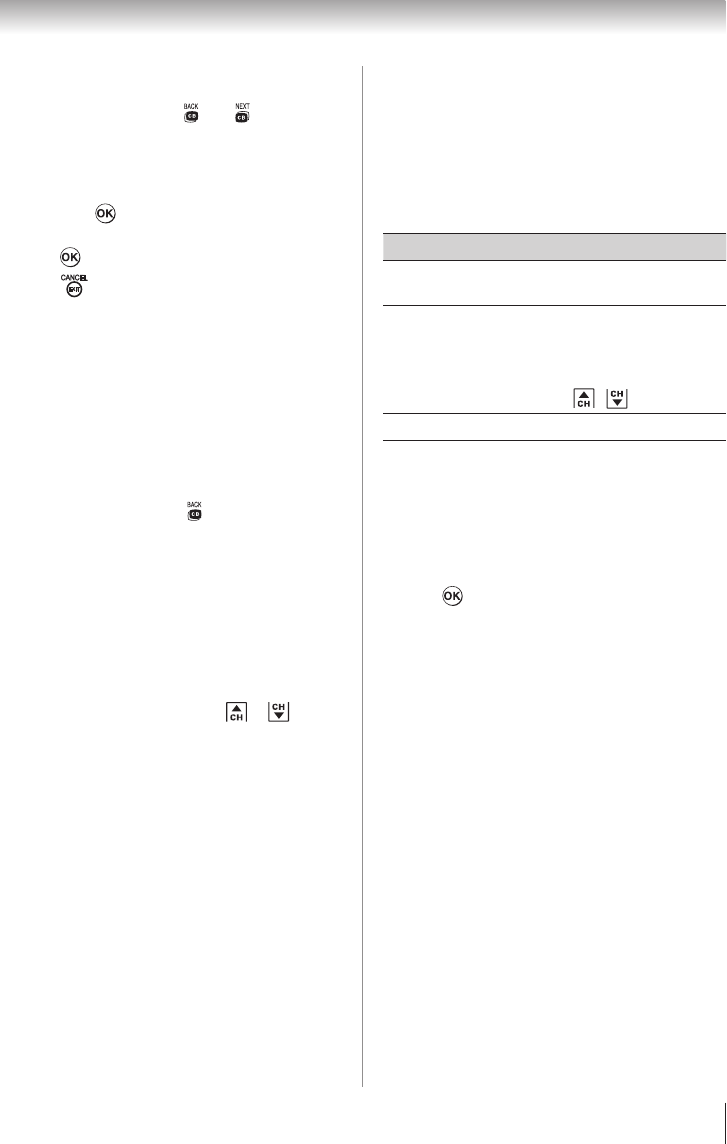

Tuning channels .............................................................................31

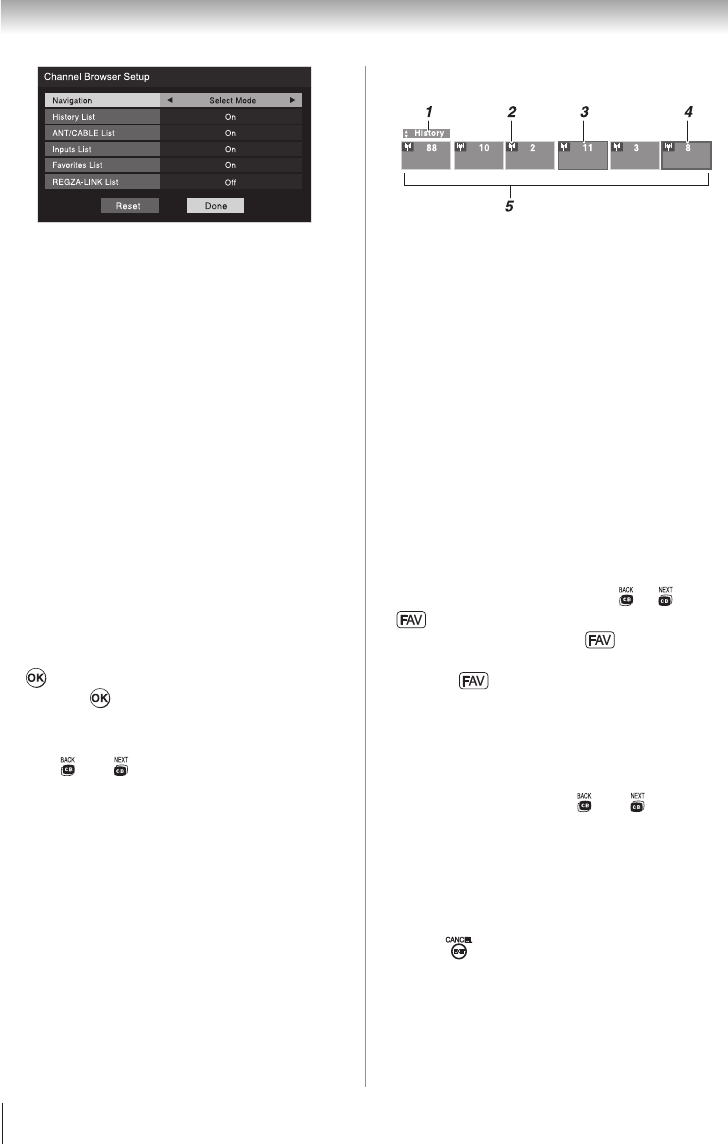

Tuning channels using the Channel Browser

™

...........................31

Setting the Channel Tuning Mode ..............................................33

Tuning to the next programmed channel ....................................34

Tuning to a specific channel (programmed or unprogrammed) .34

Switching between two channels using Channel Return............34

Switching between two channels using SurfLock

™

...................34

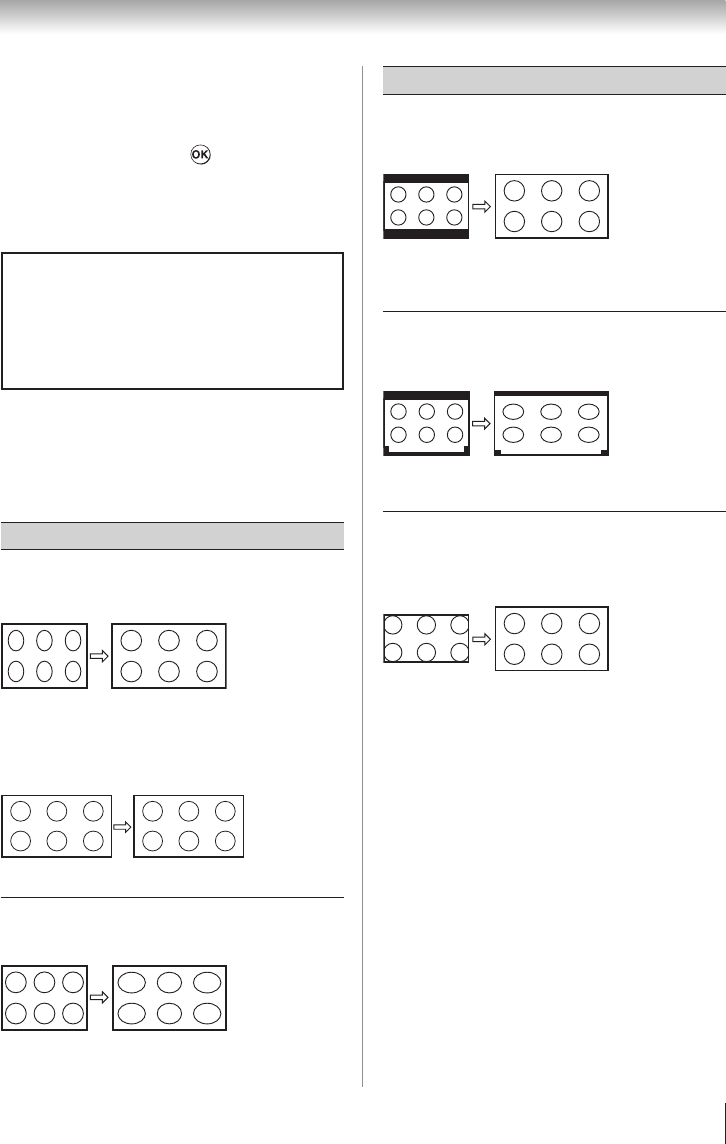

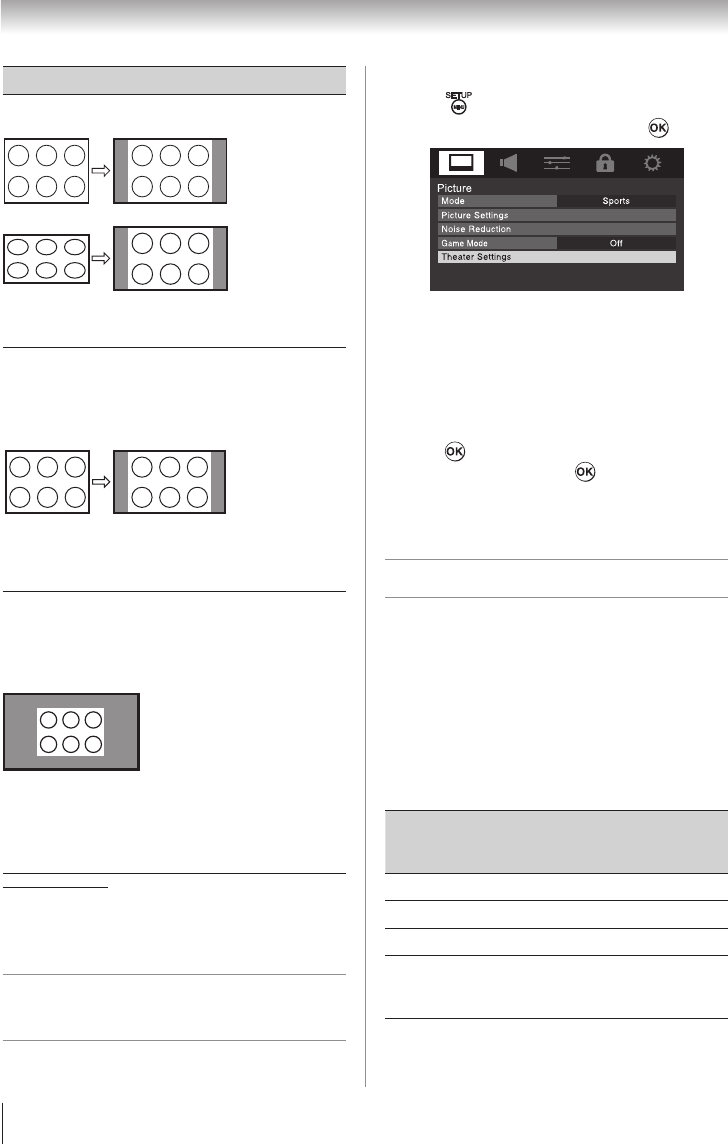

Selecting the picture size ................................................................34

Scrolling the TheaterWide

picture (TheaterWide 2 and 3 only) ..........36

Using the auto aspect ratio feature .................................................36

Selecting the cinema mode ............................................................37

Using the FREEZE feature .............................................................37

Adjusting the picture ......................................................................37

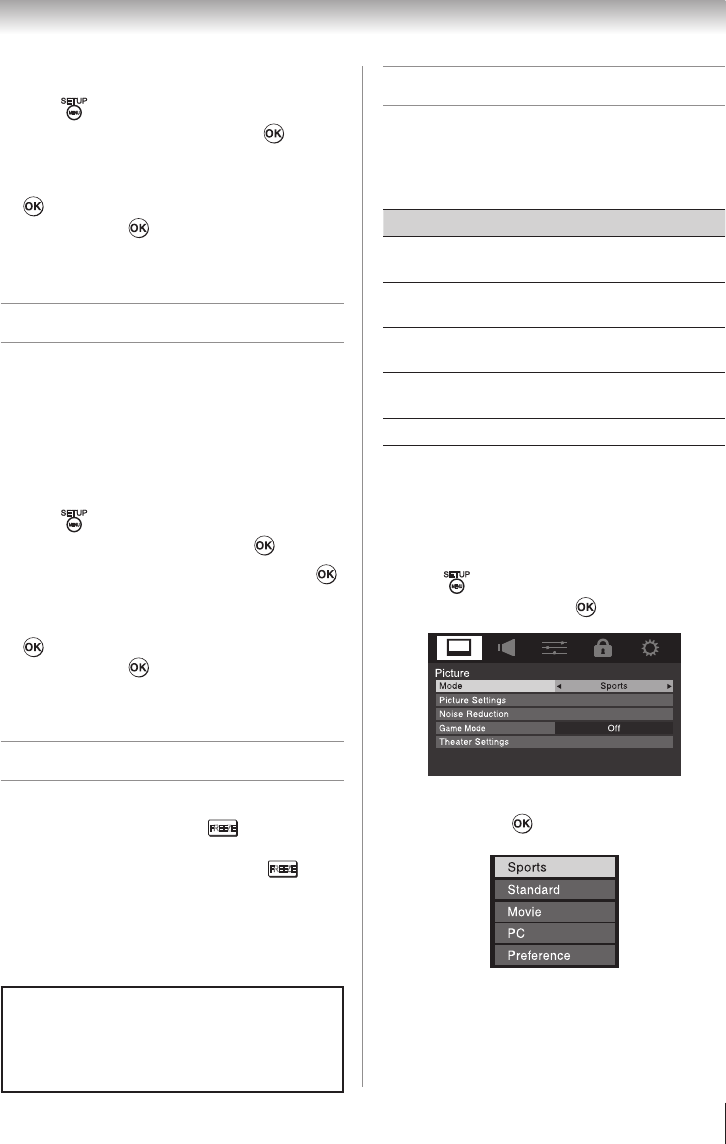

Selecting the picture mode .........................................................37

Adjusting the picture quality ......................................................38

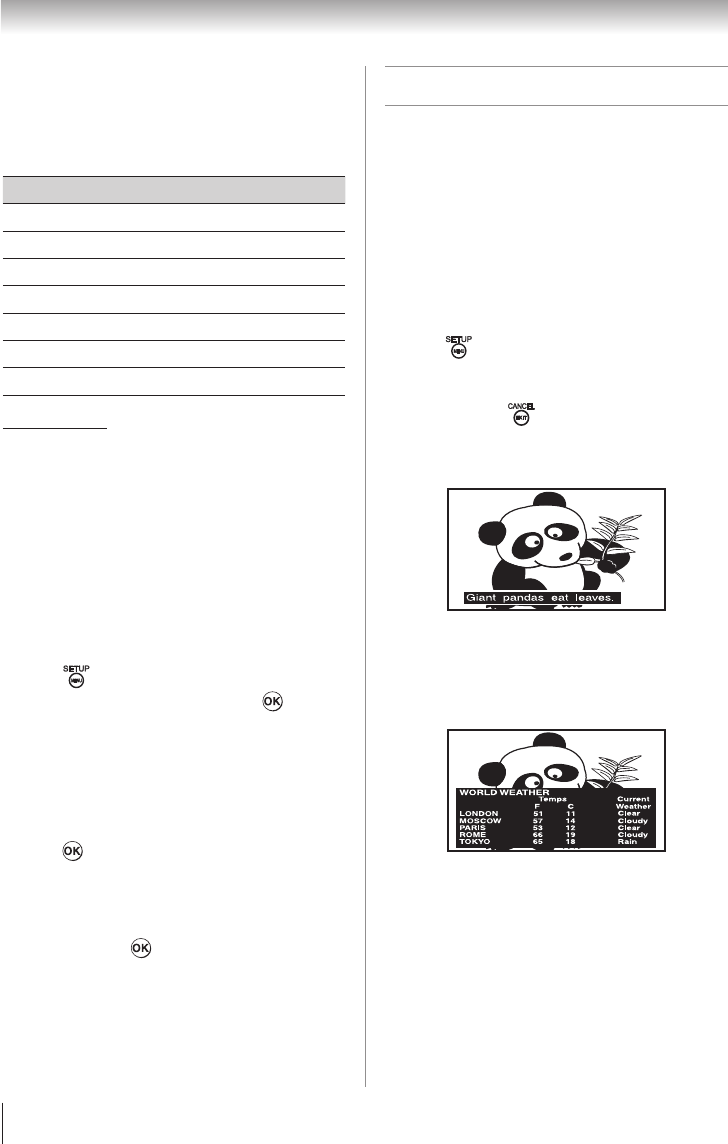

Using the closed caption mode ......................................................38

Base closed captions ...................................................................38

Digital CC Settings ....................................................................39

CC Selector ................................................................................39

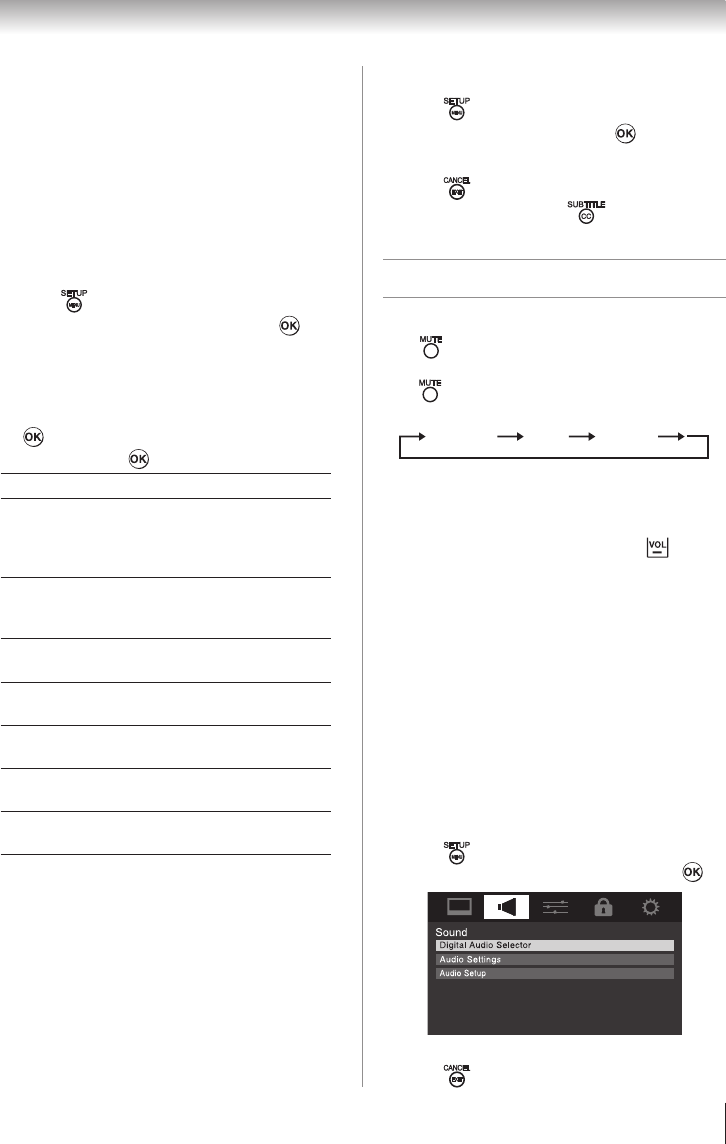

Adjusting the audio ........................................................................39

Muting the sound (For TV speakers)..........................................39

Using the digital audio selector ..................................................39

Selecting stereo / SAP broadcasts ..............................................40

Using the MTS button ................................................................40

Adjusting the audio quality ........................................................40

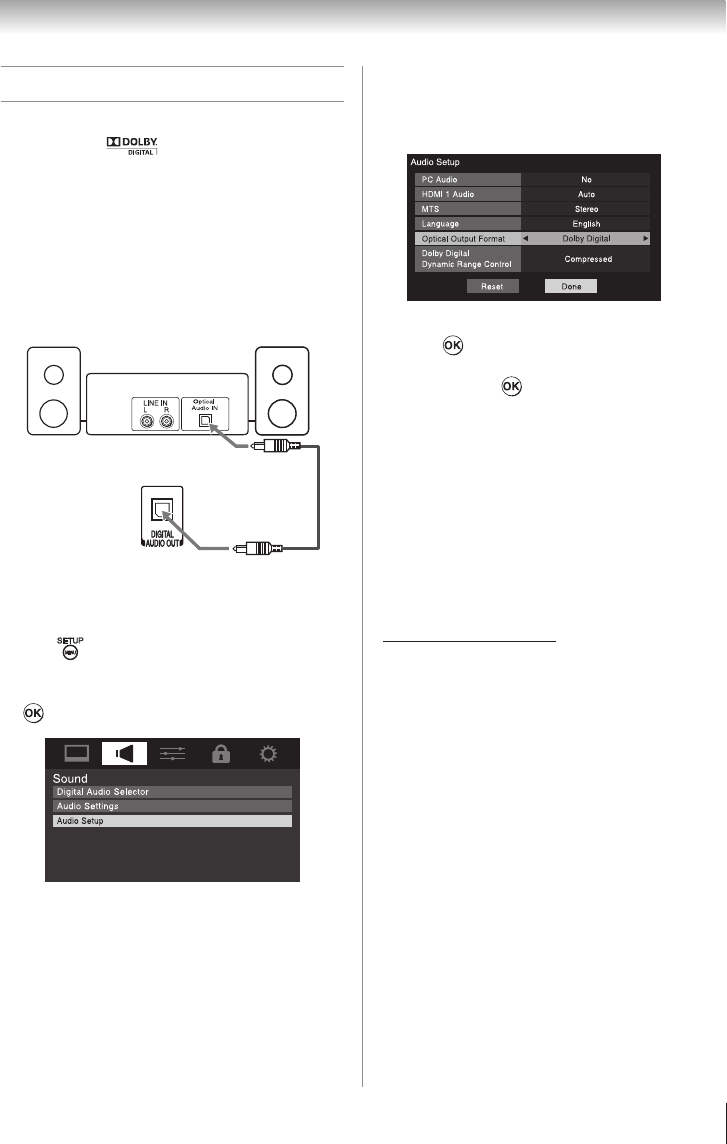

Selecting the optical audio output format ..................................40

Using the Dolby

Digital Dynamic Range Control feature .......41

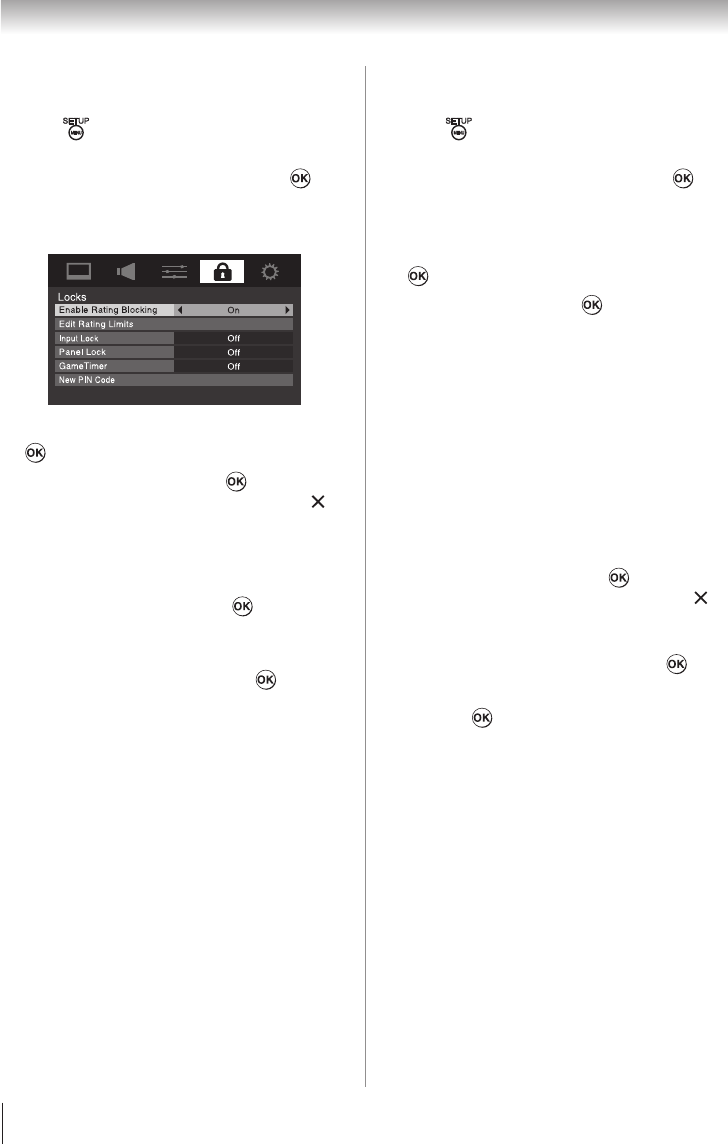

Using the Locks menu ....................................................................41

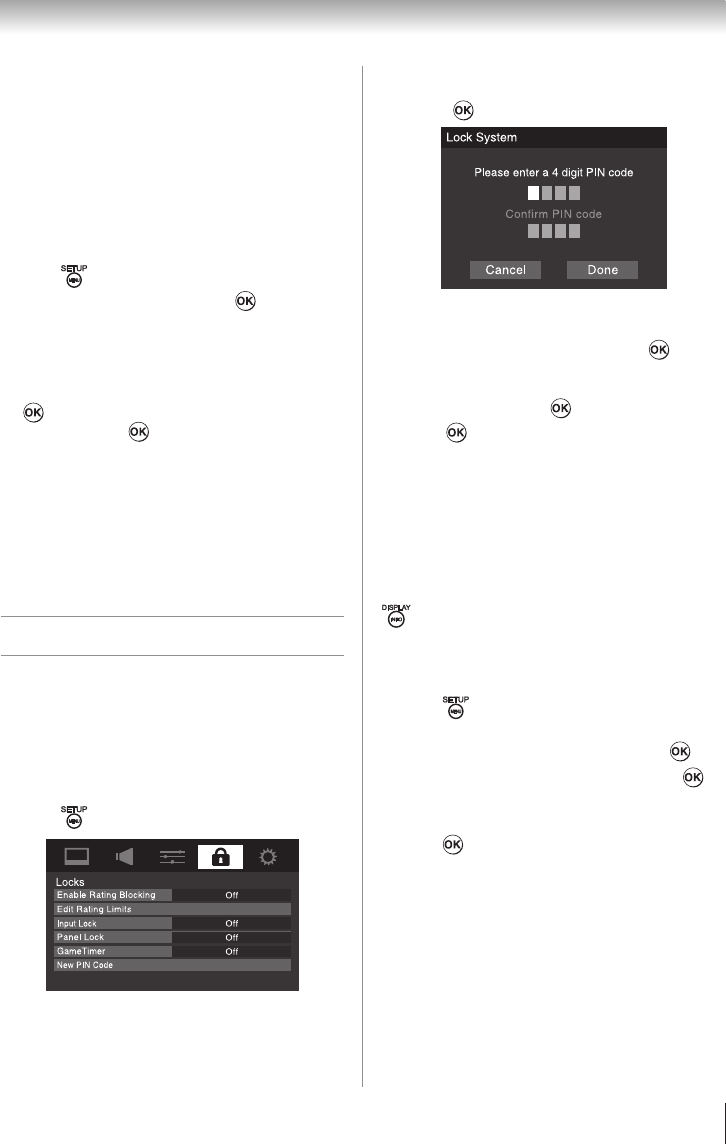

Entering the PIN code ................................................................41

If you cannot remember your PIN code .....................................41

Changing your PIN code ............................................................41

Blocking TV programs and movies by rating (V-Chip) .............41

Downloading an additional rating system for blocking TV

programs and movies ......................................................42

Blocking TV programs by Canada rating ...................................43

Unlocking programs temporarily ...............................................44

Using the input lock feature .......................................................44

Locking channels ........................................................................44

Using the GameTimer

...............................................................44

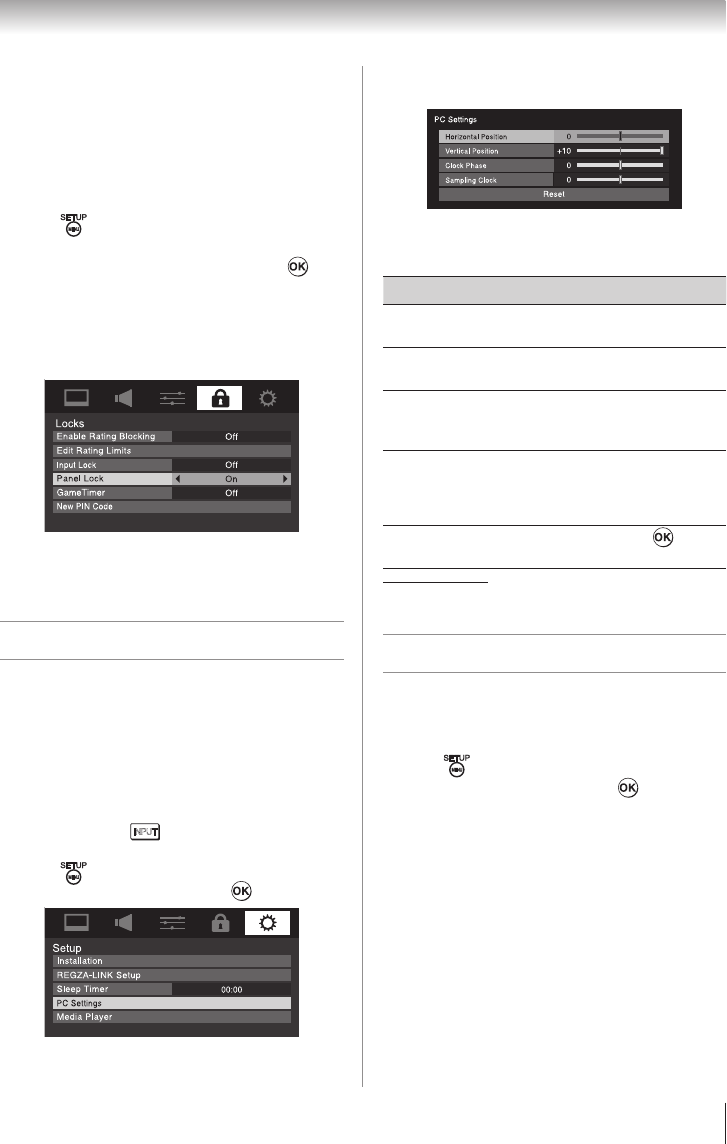

Using the panel lock feature .......................................................45

Using the PC settings feature .........................................................45

Setting the PC Audio ......................................................................45

Using the Media Player ..................................................................46

Using the Media Player with USB .............................................46

To select the Auto Start function ................................................46

To open the Media Player ..........................................................46

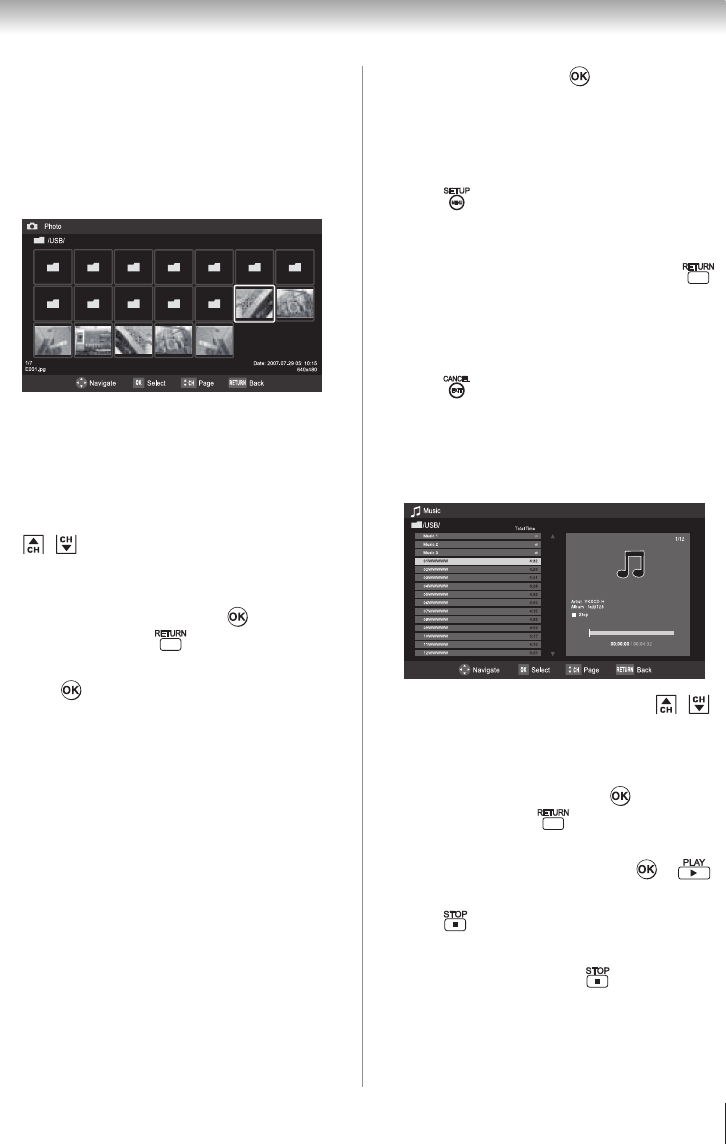

Viewing photo files ....................................................................47

Single View .................................................................................47

Slide Show ..................................................................................47

Playing music files .....................................................................47

During playback .........................................................................48

Viewing photo files with playing music files at the same time ..48

Setting the sleep timer ....................................................................49

Automatic Power Down .................................................................49

No Signal Power Down ..................................................................49

Using REGZA-LINK

...................................................................50

REGZA-LINK

playback device (DVD player, etc.) control ........50

REGZA-LINK

input source selection ......................................50

VOLUME and MUTE controls of Audio Receiver ....................51

Other REGZA-LINK

functions ................................................51

Displaying TV status information ..................................................52

Understanding the auto power off feature ......................................52

Understanding the last mode memory feature ...............................52

Chapter 7: Using the TV’s advanced features ..................... 53

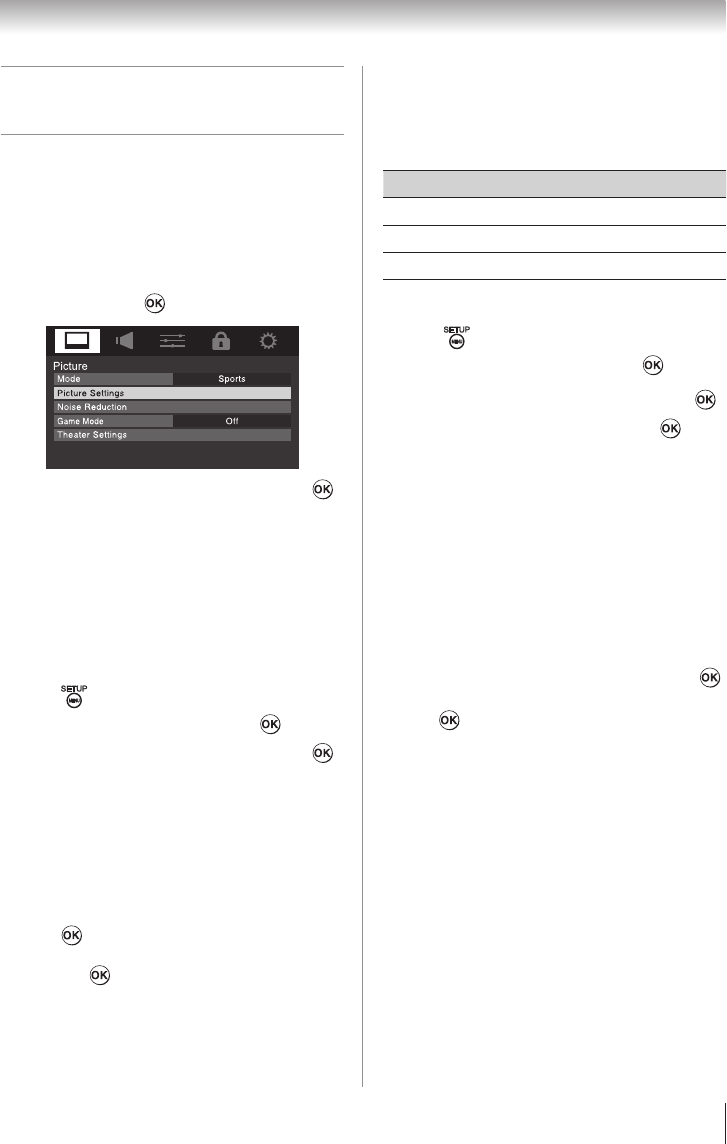

Using the advanced picture settings features .................................53

Using Dynamic Contrast ............................................................53

Using the Static Gamma feature .................................................53

Selecting the Color Temperature ................................................53

Using CableClear

digital Noise Reduction ...............................54

Using MPEG Noise Reduction ..................................................54

Using the Game Mode feature....................................................54

Chapter 8: Basic disc playback ...................................... 55

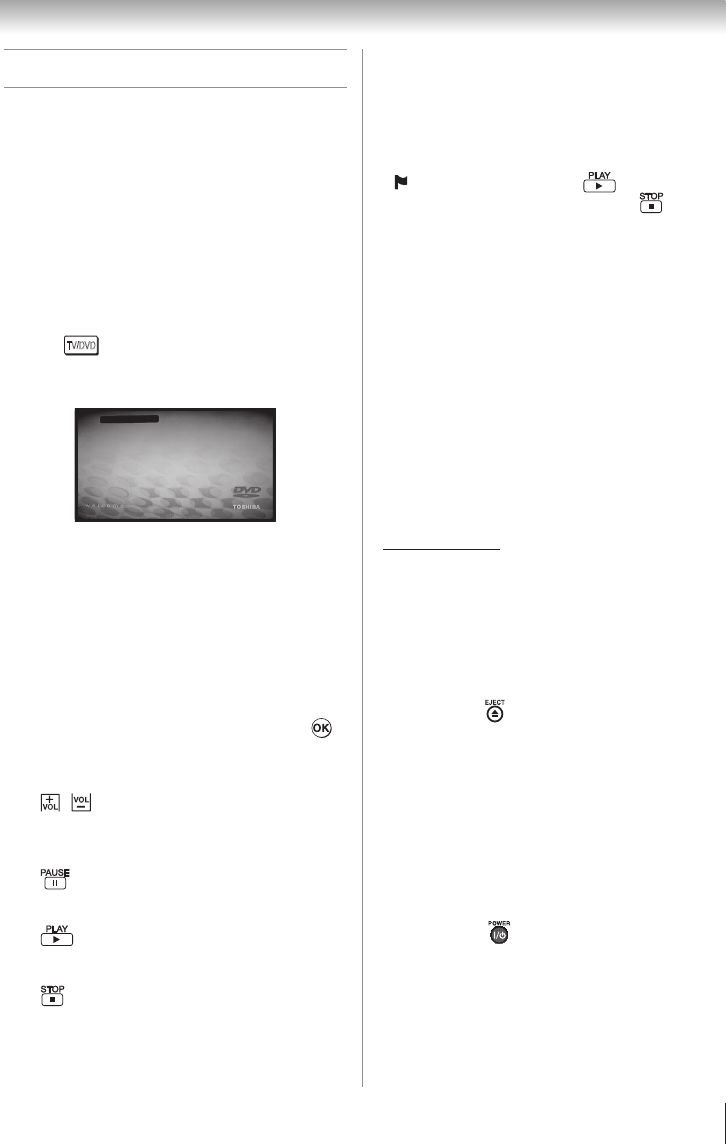

Disc playback .................................................................................55

Playback navigation .......................................................................56

Playing in fast reverse or fast forward direction (DVD/VCD/CD)..56

Playing frame by frame (DVD/VCD) ........................................56

Playing in slow motion (DVD/VCD) .........................................56

Locating a chapter or track (DVD/VCD/CD) ............................56

Chapter 9: Advanced disc playback ................................. 57

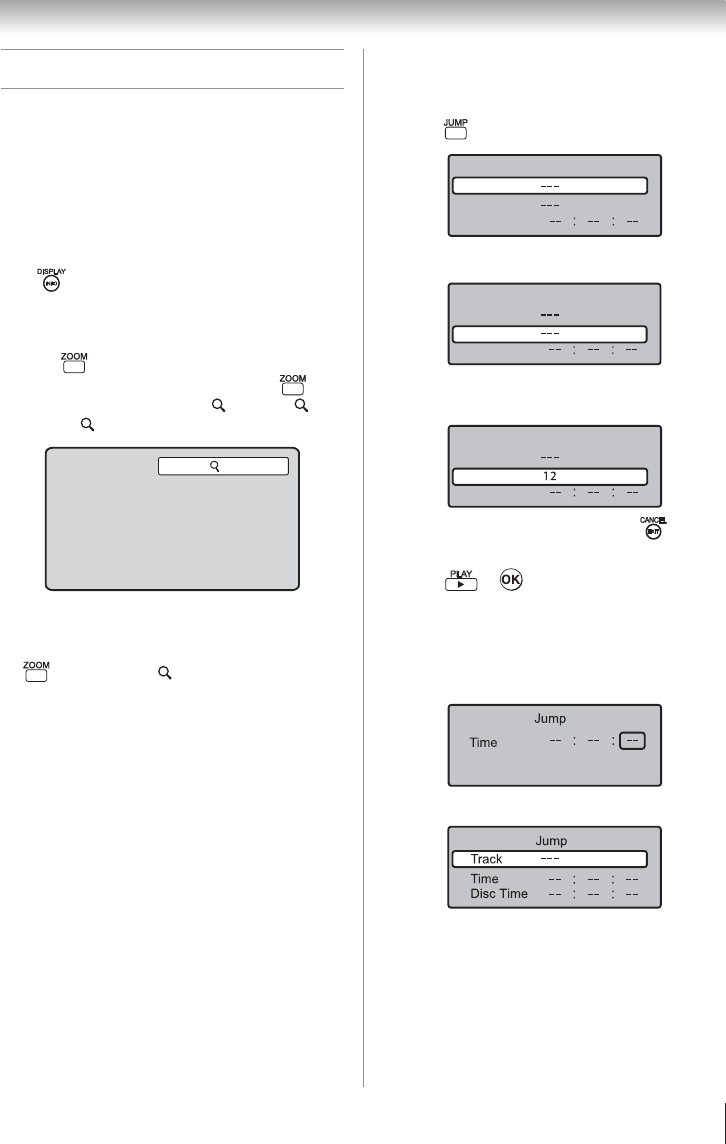

Zoom function/Scene navigation ...................................................57

Using Zoom (DVD/VCD) ..........................................................57

Locating a specific scene ...........................................................57

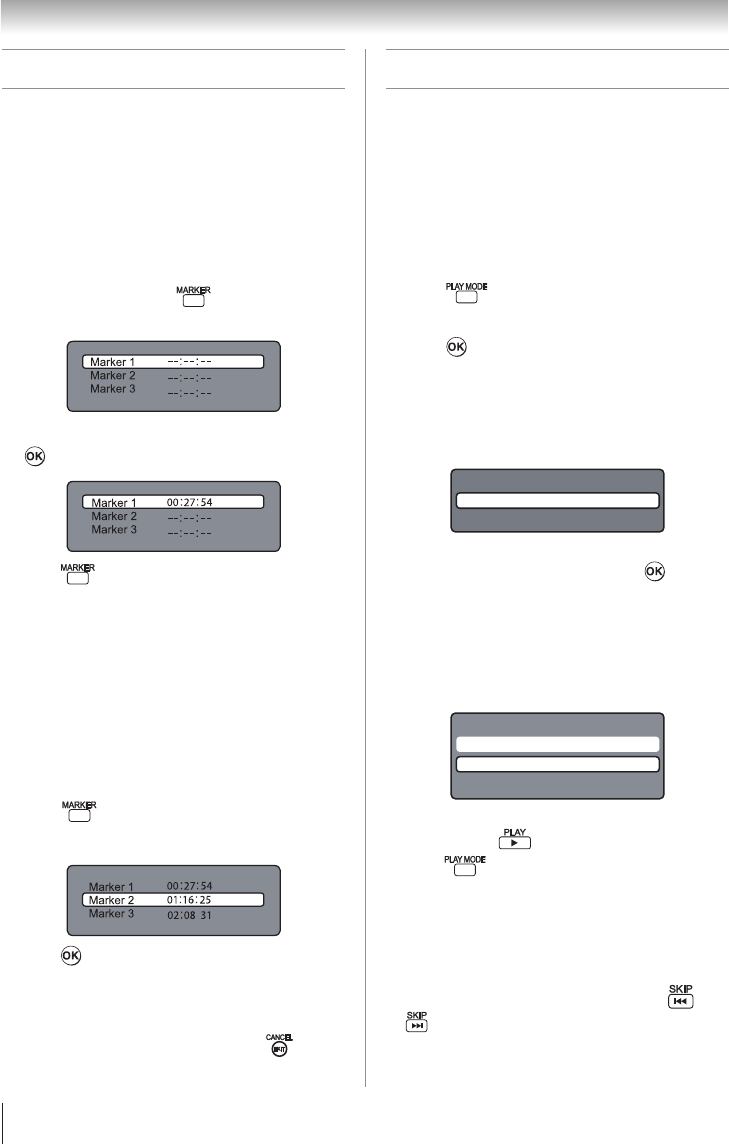

Scene bookmark .............................................................................58

Bookmarking a scene (DVD/VCD/CD) .....................................58

Viewing a scene bookmark (DVD/VCD/CD) ............................58

Repeat playback/A-B repeat ..........................................................58

Enabling repeat playback (DVD/VCD)......................................58

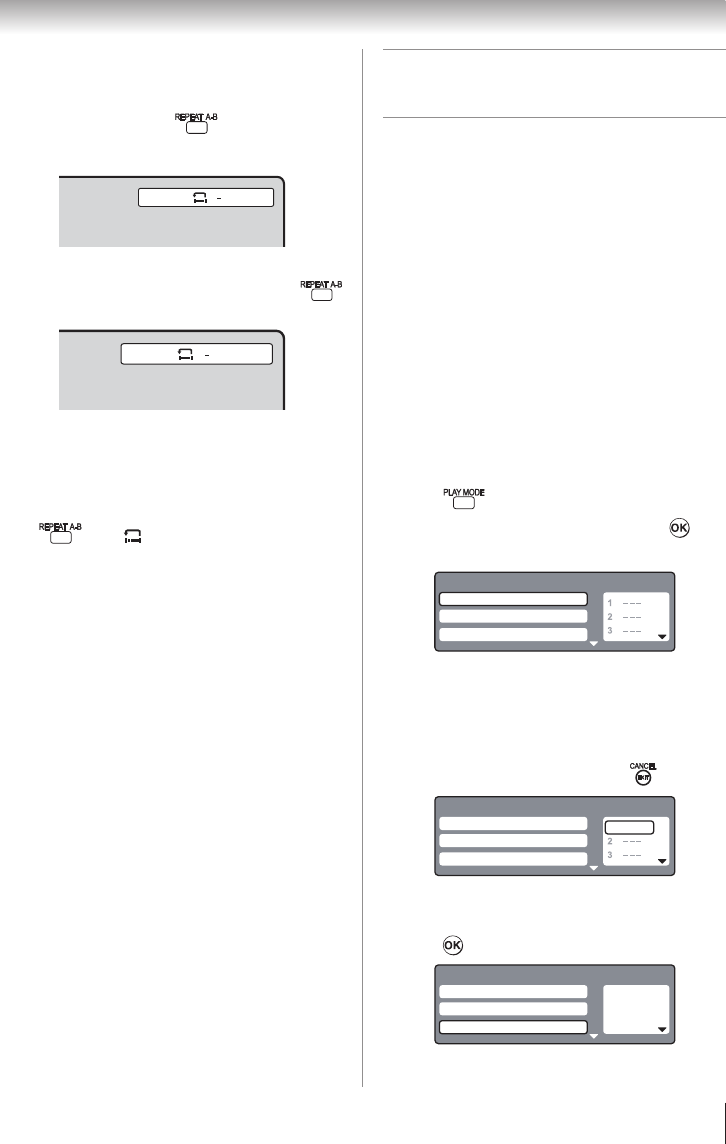

Enabling A-B repeat mode (DVD/VCD/CD) .............................59

Programmed playback/Random playback ......................................59

Programming the playback sequence (VCD) .............................59

Enabling random playback (VCD) .............................................60

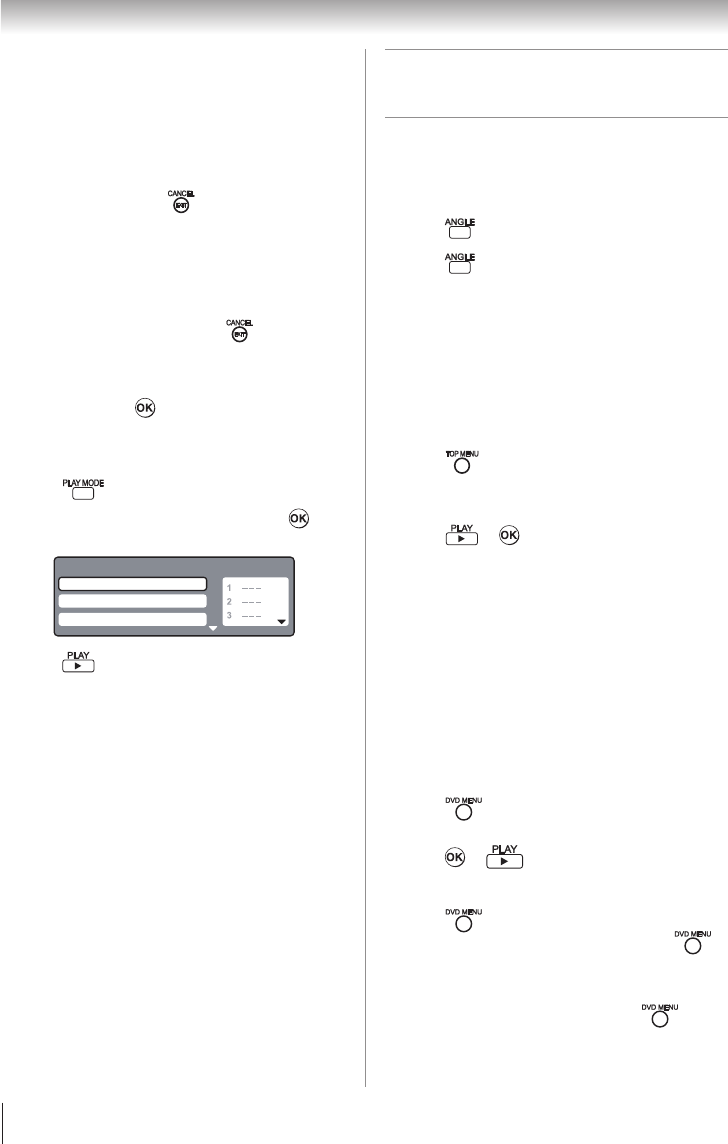

Scene angle/Title selection/DVD menu .........................................60

Changing the scene angle (DVD) ...............................................60

Selecting a DVD title (DVD) .....................................................60

DVD menu (DVD) .....................................................................60

Soundtrack language/Audio channel/Subtitle ................................61

Selecting a soundtrack language (DVD) ....................................61

Selecting the audio channel (VCD) ............................................61

Viewing subtitles (DVD) ............................................................61

Playback information/VCD playback control ................................61

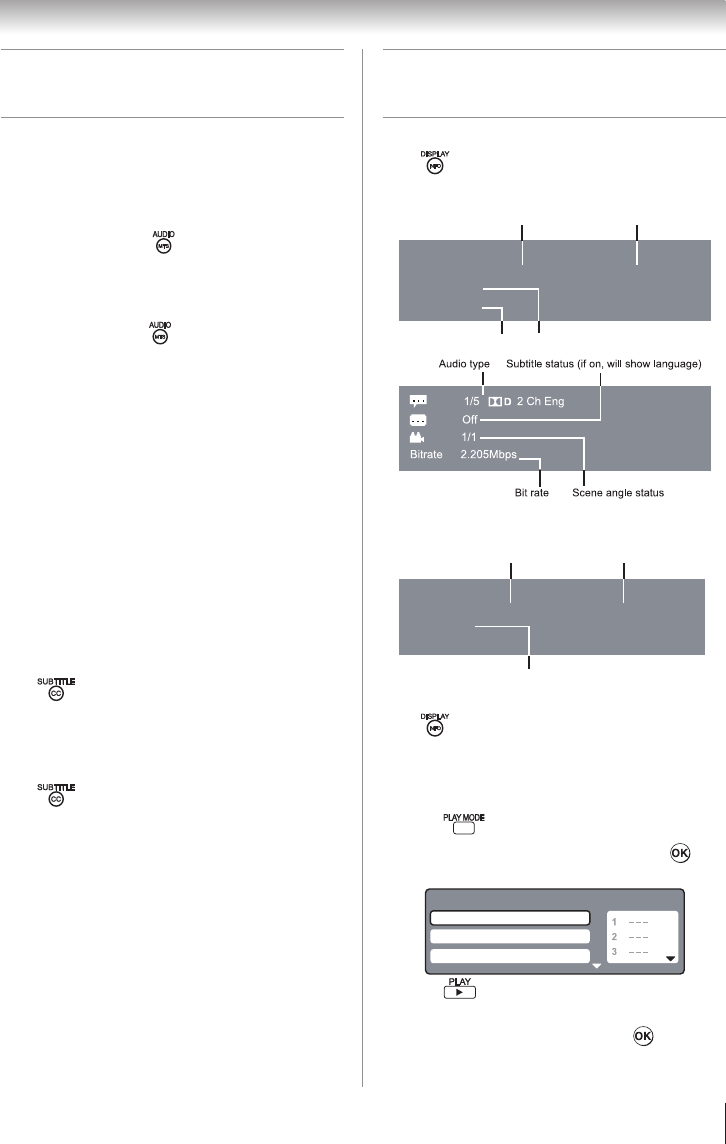

Viewing the playback info (DVD/VCD) ....................................61

Turning off the PBC function (VCD) .........................................61

MP3, WMA, JPEG, and Audio CD operation ................................62

MP3/WMA/JPEG/Audio CD information (CD) ........................62

About the file browser (CD) .......................................................63

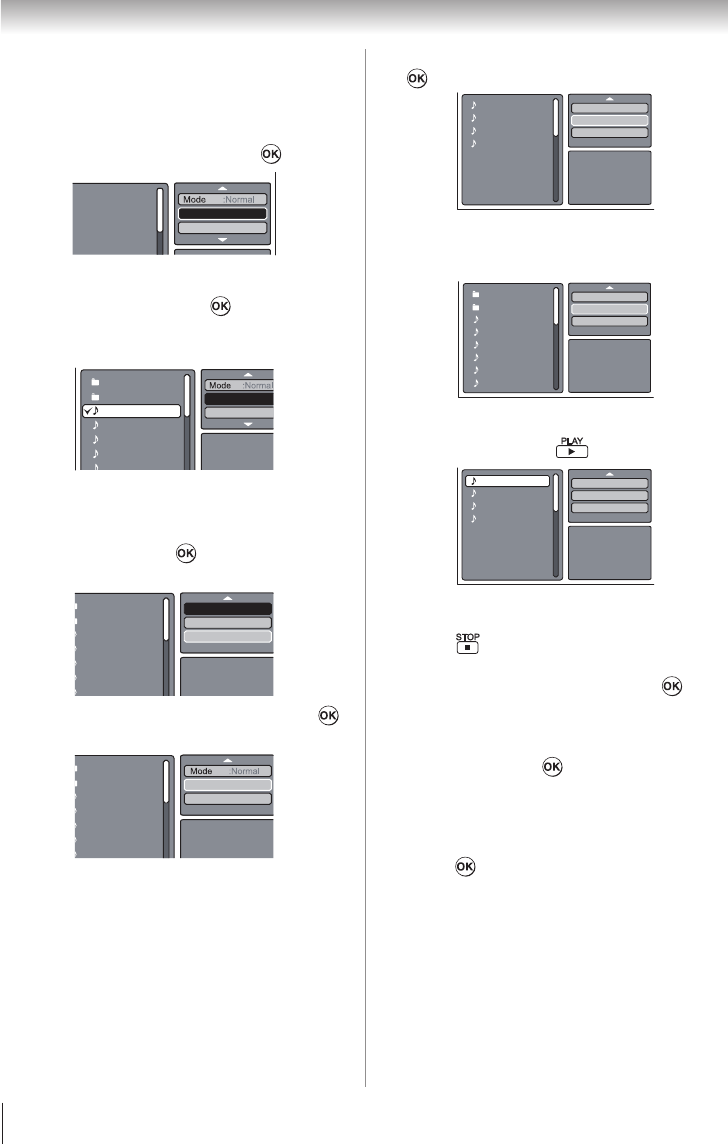

Playing an audio file (CD) ..........................................................63

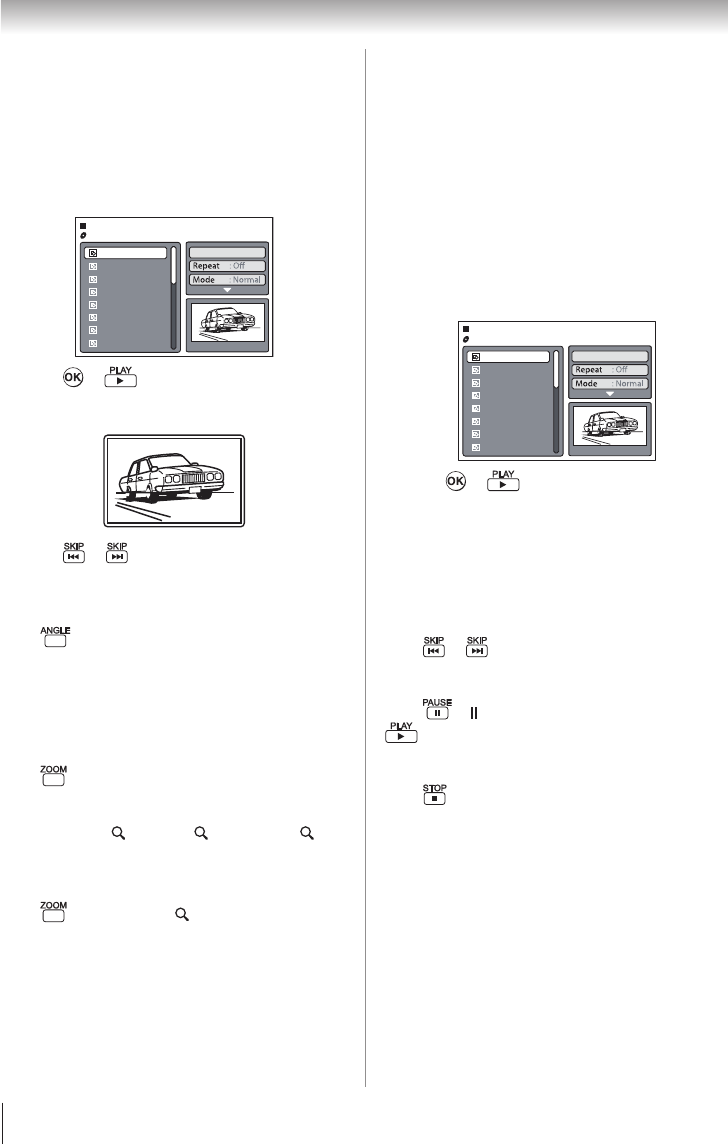

Viewing a JPEG file (CD) ..........................................................64

Viewing a slide show (CD) .........................................................64

MP3, WMA, JPEG and Audio CD playback modes ......................65

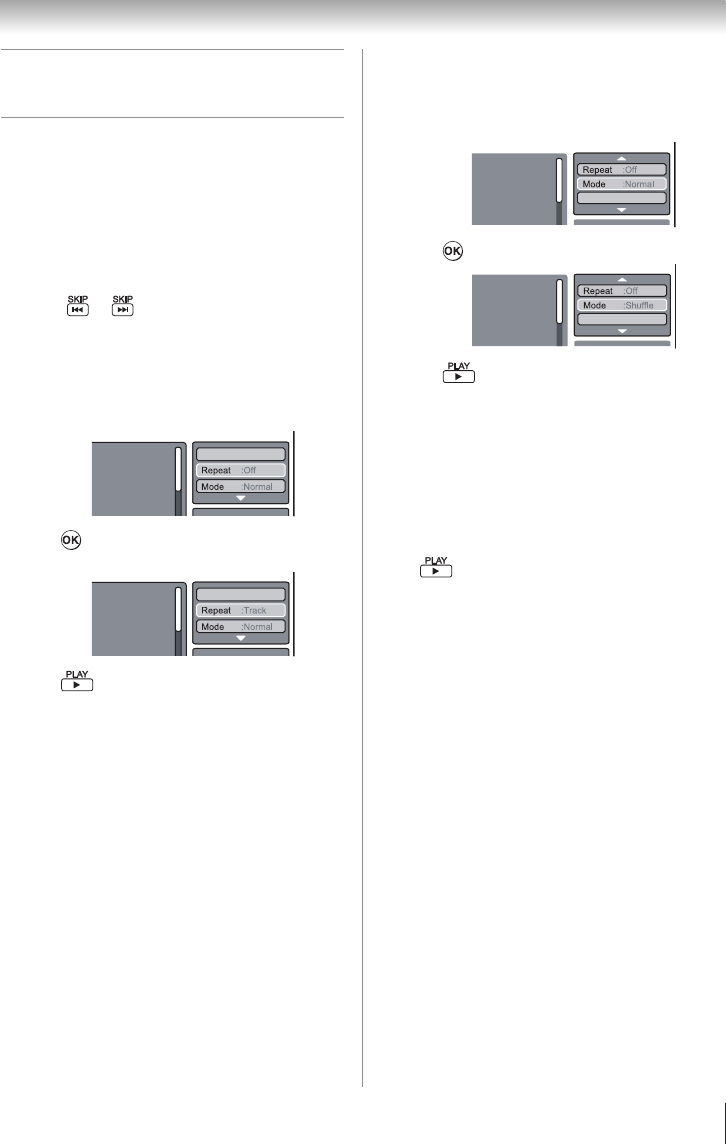

Enabling repeat playback (CD) ..................................................65

Enabling random playback (CD) ................................................65

Programming the playback sequence (CD) ................................66

Chapter 10: Customizing disc playback ............................ 67

Customizing disc playback ............................................................67

Chapter 11: Troubleshooting ......................................... 72

General troubleshooting .................................................................72

LED Indication ...............................................................................73

Chapter 12: Appendix ................................................. 74

Specifications .................................................................................74

Acceptable signal formats for PC IN and HDMI terminals ...........75

Limited United States Warranty LCD TV/DVD Combination .....76

Limited Canadian Warranty for Toshiba Brand Flat Panel

Televisions ..............................................................................77

Features of your new TV

The following are just a few of the many exciting

features of your new Toshiba widescreen, integrated

HD, LCD TV / DVD combination:

• Integrated digital tuning (8VSB ATSC and

QAM) eliminates the need for a separate digital

converter set-top box (in most cases).

• 1366 x 768 output resolution. (19SLV411U,

32SLV411U)

• 1920 x 1080 output resolution. (24SLV411U)

• Two HDMI® digital, high-definition multimedia

interfaces 1080p input support ( page 17).

• One set of ColorStream® HD high-resolution

component video inputs ( page 16).

• Digital Audio Out optical audio connection with

Dolby® Digital optical output format ( page 40).

• CableClear® digital picture Noise Reduction

( page 54).

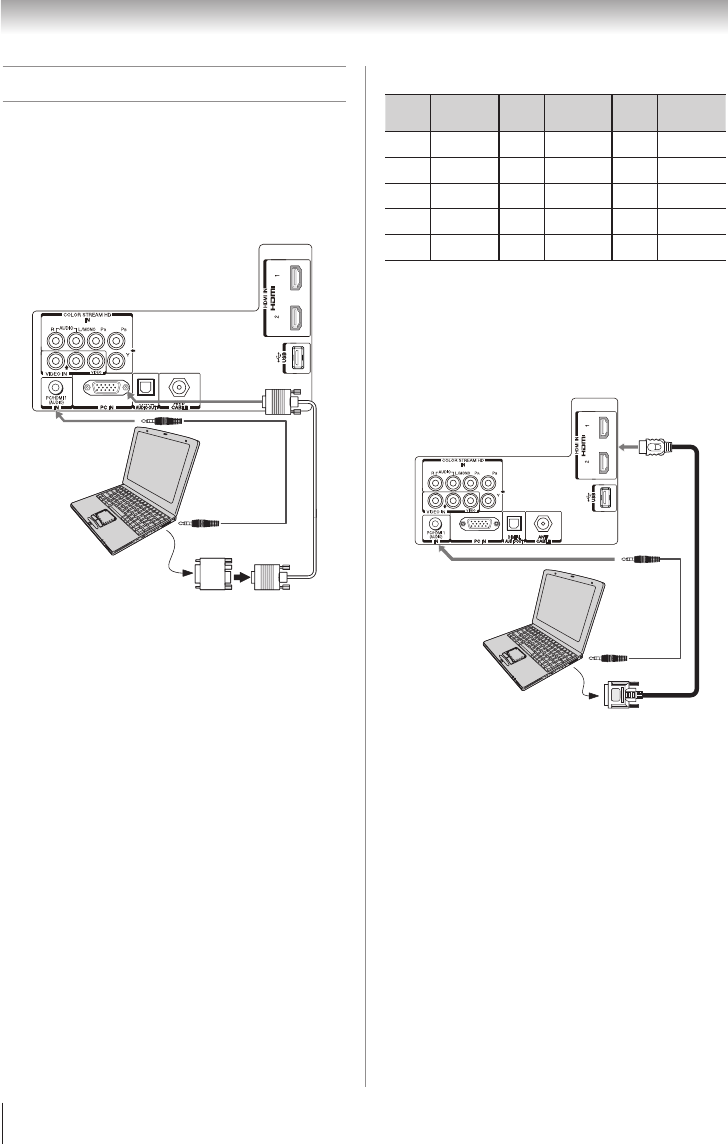

• PC IN (Analog RGB) computer terminal

( page 20).

• REGZA-LINK® allows control of external

devices from the TV remote via HDMI connection

( page 50).

• Media Player allows you to view your JPEG files

and listen to MP3 music. ( page 46).

• ENERGY STAR® qualified.

Overview of steps for installing,

setting up, and using your new TV

Follow these steps to set up your TV and begin using

its many exciting features.

1 Carefully read the important safety, installation,

care, and service information. Keep this manual

for future reference.

2 Observe the following when choosing a location

for the TV:

• Read “ Important notes about your LCD TV /

DVD combination ” ( page 9).

• Place the TV on the floor or a sturdy, level,

stable surface that can support the weight of the

unit. Secure the TV to a wall, pillar, or other

immovable structure ( page 4).

Chapter 1: Introduction

• Place the TV in a location where light does not

reflect on the screen.

• Place the TV far enough from walls and other

objects to allow proper ventilation. Inadequate

ventilation may cause overheating, which will

damage the TV. THIS TYPE OF DAMAGE

IS NOT COVERED UNDER THE TOSHIBA

WARRANTY.

3 Do not plug in any power cords until AFTER you

have connected all cables and devices to your TV.

4 BEFORE connecting cables or devices to the TV,

learn the functions of the TV’s connections and

controls ( pages 12–13).

5 Connect your other electronic device(s) to the TV

( pages 14–20).

6 Install the batteries in the remote control

( page 21).

7 See “Learning about the remote control”

( page 22) for an overview of the buttons on the

remote control.

8 AFTER connecting all cables and devices, plug

in the power cords for your TV and other devices.

Then press POWER on the TV control panel or

remote control to turn on the TV. If the TV stops

responding to the controls on the remote control

or TV control panel and you cannot turn the TV

off or on, please unplug the power cords for a few

seconds then re-plug to try again.

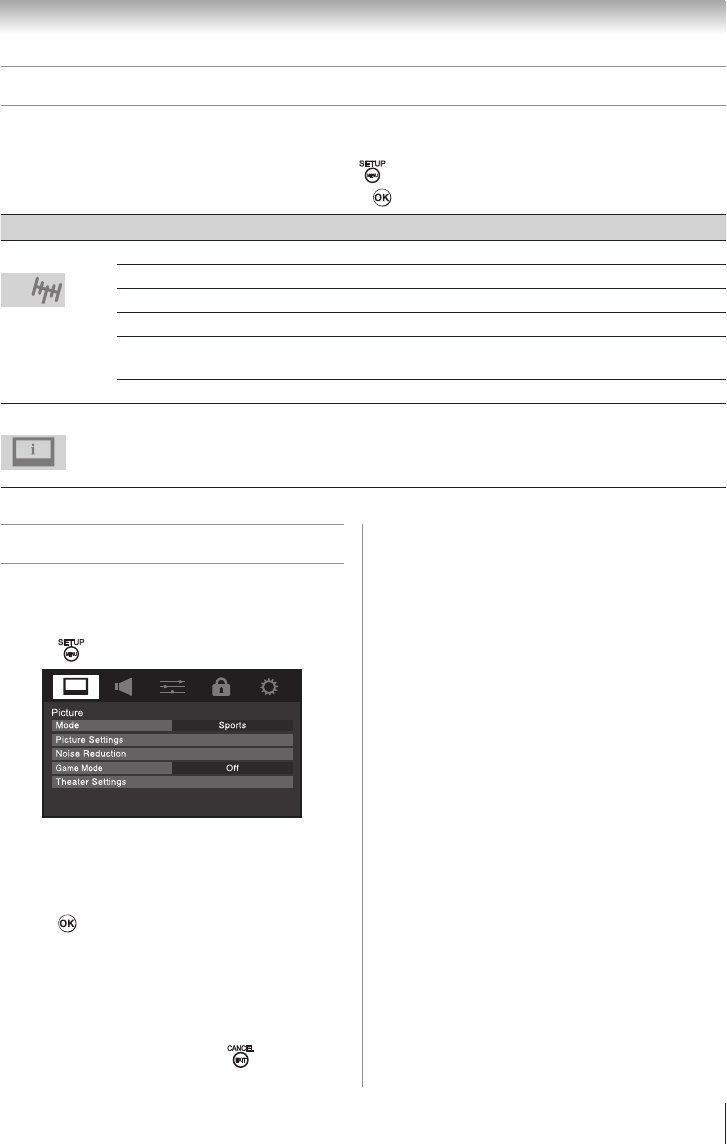

9 See “Menu layout and navigation” for a quick

overview of navigating the TV’s menu system

( page 24).

10 Program channels into the TV’s channel memory

( page 26).

11 For details on using the TV’s features, see

Chapters 6 and 7.

12 For details on disc playback, see Chapters 8 and 9.

13 For help, refer to the Troubleshooting Guide,

Chapter 11.

14 For technical specifications and warranty

information, see Chapter 12.

15 Enjoy your new TV!

Chapter 1: Introduction

TV front, top and side panel controls and connections

19SLV411U / 24SLV411U / 32SLV411U

9無 INPUT / EXIT — Repeatedly press to change the

source you are viewing. When a menu is on-

screen, the INPUT button on the TV’s control

panel functions as the EXIT button.

10無 POWER — Press to turn the TV on and off.

If the TV stops responding to the controls on

the remote control or TV control panel and

you cannot turn off the TV, press and hold the

POWER button on the TV control panel for 5 or

more seconds to reset the TV.

Note: 32SLV411U is used for illustration

purposes.

Adjusting the screen angle (Applicable to

19SLV411U/24SLV411U)

You can adjust the angle of the TV screen 3° forward

or 15° backward from a vertical angle. Hold the base

of the TV while adjusting the screen.

Some illustrations in this owner’s manual are

for explanation purposes and may differ from

the actual unit.

1無 Power On / Standby LED —

Power LED (Green) = Power indicator

Power LED (Red) = Power standby

2無 Remote sensor (embedded) — Point the remote

control toward this remote sensor.

Effective range:

3無 Disc slot — Load the disc, with label facing

forward, into the disc slot to view or listen.

4無 EJECT — Press to eject the disc.

5無 VOLUME +/- — These buttons adjust the volume

level. When a menu is on-screen, these buttons

function as left/right menu navigation buttons.

6無 PLAY u / CHANNEL p — Press to play the disc

in DVD mode; press to change the channel in

TV mode.

ARROW p — When a menu is on-screen, the

button functions as up menu navigation button.

7無 STOP  / CHANNEL q — Press to stop the disc

playback in DVD mode; press to change the

channel in TV mode.

ARROW q — When a menu is on-screen, the

button functions as down menu navigation

button.

8無 MENU (OK) — Press to access the menu system

( page 25). When a menu is on-screen, the

MENU button on the TV’s control panel functions

as the button.

TV frontLeft side panel

Chapter 1: Introduction

4無 PC IN — For use when connecting a personal

computer.

5無 DIGITAL AUDIO OUT — Optical audio output in

Dolby Digital or PCM (Pulse-Code Modulation)

format for connecting an external Dolby Digital

decoder, amplifier, or home theater system with

optical audio input.

6無 ANT/CABLE — Input that supports analog

(NTSC) / digital (ATSC) off-air antenna signals

and analog / digital Cable TV (QAM) signals.

7無 HDMI IN — High-Definition Multimedia

Interface input receives digital audio and

uncompressed digital video from an HDMI

device or uncompressed digital video from a DVI

device. HDMI connection is necessary to receive

1080p signals.

8無 USB port — To access JPEG or MP3 files.

Note: 19SLV411U and 32SLV411U are used for

illustration purposes.

TV back panel connections

For an explanation of cable types and connections see pages 14-20.

1無 AUDIO/COLOR STREAM HD — ColorStream®

high-definition component video inputs (with

standard stereo audio inputs) for connecting

devices with component video output, such as a

Toshiba DVD player with ColorStream®.

Note: Component video cables carry only

video information; separate audio cables

are required for a complete connection.

2無 AUDIO/VIDEO — Standard (composite) video and

standard audio inputs (with standard A/V cables)

for connecting devices with composite video.

Note: Standard (composite) video cables

carry only video information; separate

audio cables are required for a complete

connection.

3無 PC/HDMI1(Audio) IN — PC audio input terminal

is shared with HDMI 1 analog audio input

terminal, and its use can be configured in the

Audio Setup menu ( page 45).

5 6

3 5 6

19SLV411U

32SLV411U (Please use this illustration for 24SLV411U model.)

Power cord

Overview of cable types

Cables can be purchased from most stores that sell

audio/video devices. Before purchasing any

cables, be sure of connector types required by your

devices and the length of each cable.

Coaxial (F-type) cable

Coaxial (F-type) cable is used for connecting your

antenna, cable TV service, and/or cable converter

box to the

TUNER

input on your TV.

Standard A/V cables (red/white/yellow)

Standard A/V cables (composite video) usually come

in sets of three, and are for use with video devices with

analog audio and composite video output. These cables

(and the related inputs on your TV) are typically color-

coded according to use: yellow for video, red for stereo

right audio, and white for stereo left (or mono) audio.

Component video cables (red/green/blue)

Component video cables come in sets of three and are

for use with video devices with component video output.

(ColorStream® is Toshiba’s brand of component video.)

These cables are typically color-coded red, green, and

blue. Separate audio cables are required for a complete

connection.

Note: Component video cables provide better

picture performance than a standard (composite)

video.

HDMI® cable (with HDMI Logo “ ”)

HDMI (High-Definition Multimedia Interface) cable is

for use with devices with an HDMI output.

An HDMI cable delivers digital audio and video in its

native format. This cable carries both video and audio

information; therefore, separate audio cables are not

required for a complete HDMI device connection

( page 17, 18 and page 20).

Note: An HDMI cable provides the best audio

and picture performance.

Optical audio cable

Optical audio cable is for connecting receivers with

Dolby Digital or PCM (Pulse-Code Modulation) optical

audio input to the TV’s DIGITAL AUDIO OUT terminal

( page 19).

Analog RGB (15-pin) computer cable

Analog RGB (15-pin) computer cable is for connecting

a PC to the TV’s PC IN terminal ( page 20).

Note: Separate audio cables are required for

a complete connection.

3.5mm Stereo to RCA Y-cable

3.5mm Stereo to RCA Y-Cable is for connecting audio

signal from DVI device to TV.

About the connection illustrations

You can connect different types and brands of devices to

your TV in several different configurations. The connection

illustrations in this manual are representative of typical

device connections only. The input/output terminals on

your devices may differ from those illustrated herein. For

details on connecting and using your specific devices, refer

to each device’s owner’s manual.

Connecting TV to a power source

To connect AC power:

120 V, 60 Hz

outlet

AC cord

Note:

•Never connect the AC cord plug to other

than the specified voltage (120 V, 60 Hz).

•If you cause a static discharge when

touching the LCD TV / DVD combination and

it fails to function, simply unplug the LCD TV /

DVD combination from the AC outlet and plug

it back in. The LCD TV / DVD combination

should return to normal operation.

Chapter 2: Connecting your TV

Connecting a VCR, and antenna,

Cable TV

wolleY

etihW

deR

wolleY

etihW

deR

You will need:

• coaxial cables

• standard A/V cables

Note: When you use a Cable box, you may not

be able to use the remote control to program or

access certain features on the TV.

To view the antenna or Cable signal:

Select the ANT/CABLE video input source on the TV.*

To view basic and premium Cable channels:

Turn OFF the VCR. Select the ANT/CABLE video

input source on the TV.* Tune the TV to channel 3 or

4 (whichever channel the Cable box output is set to).

Use the Cable box controls to change channels.

To view the VCR:

Turn ON the VCR. Select the VIDEO video input

source on the TV.*

* To select the video input source, press

INPUT

on the

remote control ( page 30).

Connecting a camcorder

woll

etih

deR

wolleY

etihW

deR

You will need:

• standard A/V cables

To view the camcorder video:

Select the VIDEO video input source on the TV.*

* To select the video input source, press

INPUT

on the

remote control ( page 30).

The unauthorized recording, use, distribution,

or revision of television programs, videotapes,

DVDs, and other materials is prohibited under

the Copyright Laws of the United States and

other countries, and may subject you to civil and

criminal liability.

Chapter 2: Connecting your TV

Connecting a satellite receiver

Red

Green

Blue

Red

White

deR

lB eu

G eer n

deR

etihW

You will need:

• standard audio cables

• component video cables

− You can connect the component video

cables (plus audio cables) from the satellite

receiver to the COLOR STREAM HD

terminal on the TV. The COLOR STREAM

HD terminal can be used to display

Progressive (480p, 720p) and Interlaced

(480i, 1080i). Please check the Owner’s

Manual of the satellite receiver in order to

determine the best output signal available.

− If your satellite receiver does not have

component video, connect a standard A/V

cable to AUDIO/VIDEO terminal.

To view satellite programs using the

component video connections:

Turn on the satellite receiver. Select the ColorStream

HD video input source on the TV.*

* To select the video input source, press

INPUT

on the

remote control ( page 30).

The unauthorized recording, use, distribution,

or revision of television programs, videotapes,

DVDs, and other materials is prohibited under

the Copyright Laws of the United States and

other countries, and may subject you to civil and

criminal liability.

Connecting a DVD player with

ColorStream® (component video)

deR

G eer n

lB eu

Red

White

deR

lB eu

G eer n

deR

etihW

You will need:

• standard audio cables

• component video cables

− You can connect the component video

cables (plus audio cables) from the DVD

player to the COLOR STREAM HD terminal

on the TV. The COLOR STREAM HD

terminal can be used to display Progressive

(480p, 720p) and Interlaced (480i, 1080i).

Please check the Owner’s Manual of the

DVD player in order to determine the best

output signal available.

− If your DVD player does not have component

video, connect a standard A/V cable to

AUDIO/VIDEO terminal. If your DVD player

has HDMI video, see page 17.

To view the DVD player:

Turn ON the DVD player. Select the ColorStream

HD video input source on the TV.*

* To select the video input source, press

INPUT

on the

remote control ( page 30).

Chapter 2: Connecting your TV

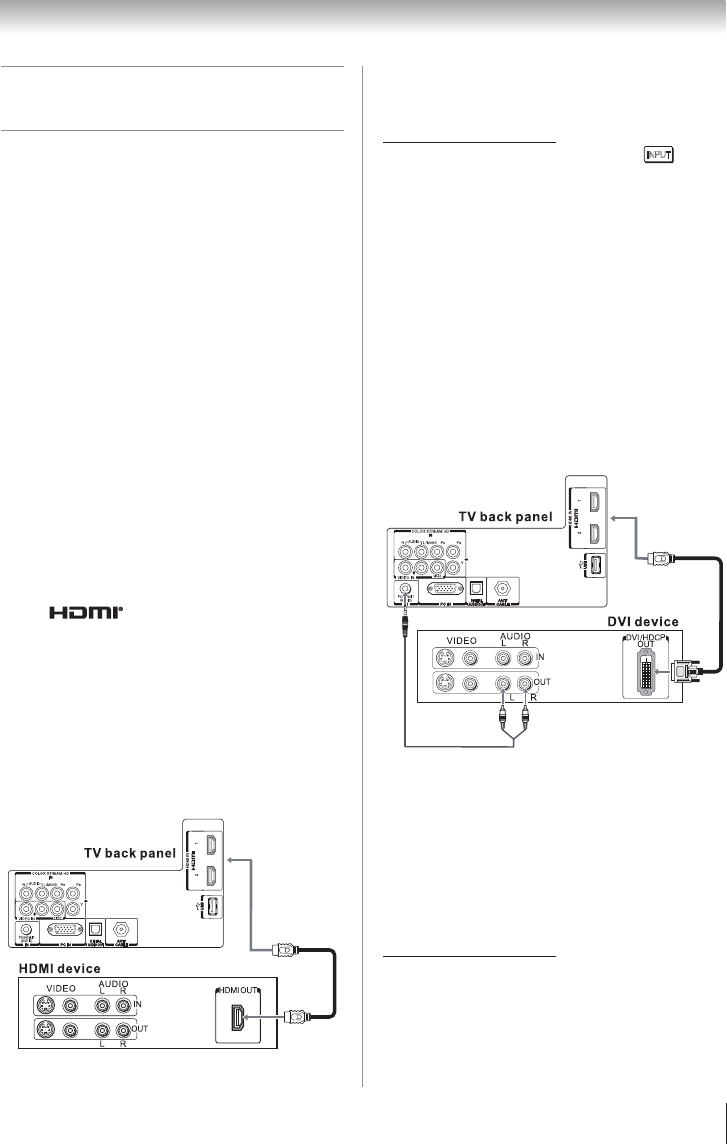

To view the HDMI device video:

Select the HDMI 1 or HDMI 2 video input source on the

TV.*

* To select the video input source, press

INPUT

on the

remote control ( page 30).

To connect a DVI device, you will need:

• One HDMI-to-DVI adapter cable

− For proper operation, the length of an HDMI-

to-DVI adapter cable should not exceed

9.8 ft (3m). The recommended length is

6.6 ft (2m).

• One 3.5mm Stereo to RCA Y-Cable

− An HDMI-to-DVI adapter cable transfers

video only. Separate analog audio cables

are required (see illustration).

− See “Setting the HDMI® audio mode”

( page 28).

deR

etihW

Note: To ensure that the HDMI or DVI device

is reset properly, it is recommended that you

follow these procedures:

•When turning on your electronic components,

turn on the TV first and then the HDMI or

DVI device.

•When turning off your electronic components,

turn off the HDMI or DVI device first and

then the TV.

[1] EIA/CEA-861-D compliance covers the transmission of

uncompressed digital video with high-bandwidth digital

content protection, which is being standardized for

reception of high definition video signals. Because this is

an evolving technology, it is possible that some devices

may not operate properly with the TV.

Connecting an HDMI or DVI

device to the HDMI® input

The HDMI input on your TV receives digital audio

and uncompressed digital video from an HDMI

source device, or uncompressed digital video from

a DVI (Digital Visual Interface) source device.

This input is designed to accept HDCP (High-

Bandwidth Digital-Content Protection) program

material in digital form from EIA/CEA-861-D

compliant[1] consumer electronic devices (such as

a set-top box or DVD player with HDMI or DVI

output). The HDMI input can accept and display

VGA, SVGA, XGA, WXGA, SXGA, 480i (60 Hz),

480p (60 Hz), 720p (60 Hz), 1080i (60 Hz), and

1080p (24 Hz / 30 Hz / 60 Hz) signal formats. For

detailed signal specifications, see page 75. Supported

Audio format: Linear PCM, sampling rate 32/44.1/48

kHz.

Note: To connect a PC to the HDMI input, see

page 20.

To connect an HDMI device, you will need:

• One HDMI cable per HDMI device

− For proper operation, it is recommended that

you use an HDMI cable with the HDMI Logo

( )

− To display a 1080p/60 Hz signal format,

you will need a High Speed HDMI cable.

Conventional HDMI/DVI cable may not work

properly.

− HDMI cable transfers both video and audio.

Separate analog audio cables are not

required (see illustration).

− See “Setting the HDMI® audio mode”

(



page 28).

Chapter 2: Connecting your TV

REGZA-LINK® connection

You can control the basic functions of connected audio/video devices using the TV’s remote control if you

connect a REGZA-LINK® compatible audio receiver or playback device. For an explanation of setup and

operations, see pages 50-51.

TV back panel

Audio receiver

Playback device

(REGZA-LINK® DVD player,etc.)

Playback device

(REGZA-LINK® DVD player,etc.)

To connect an Audio Receiver and Playback

Devices, you will need:

• HDMI cables ( page 14)

Note:

•If several devices are connected, REGZA-

LINK® feature may not operate properly.

•For proper operation, it is recommended that

you use HDMI cables with the HDMI Logo

( ).

Before controlling the device(s):

• After completing the above connections, set the

REGZA-LINK Setup menu as you desire ( page

51).

• The connected devices must also be set. For

details, see the operation manual for each device.

• The REGZA-LINK® feature uses the CEC

technology as regulated by the HDMI standard.

• This feature is limited to models incorporating

Toshiba’s REGZA-LINK®. However, Toshiba is not

liable for those operations. Refer to the individual

instruction manuals for compatibility information.

Note: This feature may not work properly

depending on the devices that are connected.

Chapter 2: Connecting your TV

Connecting a digital audio system

The TV’s DIGITAL AUDIO OUT terminal outputs a

Dolby® * Digital or 2-channel down-mixed

PCM (Pulse-Code Modulation) signal for use with

an external Dolby® Digital decoder or other external

audio system with optical audio input.

You will need:

• Optical audio cable (Use an optical audio cable

that has the larger “TosLink” connector and not

the smaller “mini-optical” connector.)

Dolby Digital decoder or

other digital audio system

TV back panel

To control the audio:

1無 Turn on the TV and the digital audio device.

2無 Press on the remote control and open the

Sound

3無 Press

to select

Audio Setup

and then press

4無 Press p or q to select Optical Output Format.

5無 Press

to select either

Dolby Digital

PCM,

depending on your device.

(



“Selecting the optical audio output format” on page

40).

6無 To save the new settings, highlight Done and then

press .

To revert to the factory defaults, highlight Reset

and then press .

Note:

•Some audio systems may not be compatible

with Dolby Digital bitstream signals. Older

audio systems that are not compatible with

standard optical out signals may not work

properly, creating a high noise level that

may damage speakers or headphones.

THIS DAMAGE IS NOT COVERED BY YOUR

WARRANTY.

•The DIGITAL AUDIO OUT terminal may not

output some digital audio sources because

of copy restrictions.

* Manufactured under license from Dolby

Laboratories. Dolby, and the double-D symbol are

trademarks of Dolby Laboratories.

Chapter 2: Connecting your TV

Connecting a personal computer (PC)

With either the PC IN or HDMI connection, you can watch

your computer’s display on the TV and hear the sound

from the TV’s speakers.

To connect a PC to the PC IN terminal on the TV:

When connecting a PC to the

PC IN

terminal on the TV, use

an analog RGB (15-pin) computer cable and a PC audio cable.

PC audio

cable

PC audio

output

Conversion adapter

(if necessary)

Computer

TV back panel

• To use a PC, set the monitor output resolution on the

PC before connecting it to the TV. The PC IN terminal

can accept and display VGA, SVGA, XGA, and WXGA

signal formats. For detailed signal specifications, see

page 75.

Other formats or non-standard signals will not be

displayed correctly.

• To display the optimum picture, use the PC setting

feature ( “Using the PC settings feature” on page 45).

Note:

•The PC audio input terminals on the TV are shared

with the HDMI-1 analog audio input terminals.

•Some PC models cannot be connected to this TV.

•An adapter is not needed for computers with a

compatible mini D-sub15-pin terminal.

•Depending on the DVD’s title and the

specifications of the PC on which you are playing

the DVD-Video, some scenes may be skipped or

you may not be able to pause during multi-angle

scenes.

• Signal names for mini D-sub 15-pin connector

No.

Signal

name

No.

Signal

name

No.

Signal

name

1 R 6 Ground 11 Reserved

2 G 7 Ground 12 SDA

3 B 8 Ground 13 H-sync

4 Reserved 9 5V 14 V-sync

5 Ground 10 Ground 15 SCL

To connect a PC to the HDMI terminal on the TV:

When connecting a PC to the HDMI terminal on the

TV, use an adapter cable and analog audio cables.

If connecting a PC with an HDMI terminal, use

an HDMI cable. Separate analog cables are not

necessary ( page 14).

PC audio

output

PC audio

cable

TV back panel

Computer

The HDMI input can accept and display VGA, SVGA,

XGA, WXGA, SXGA, 480i (60Hz), 480p (60Hz), 720p

(60Hz), 1080i (60Hz), and 1080p (24Hz / 60Hz) signal

formats. For detailed signal specifications, see page 75.

Note:

•The edges of the images may be hidden.

•If receiving a 480i (HDMI), 480p (HDMI), 720p,

1080i, or 1080p signal program, Native mode

scales the video to display the entire picture within

the borders of the screen (i.e. no overscanning).

Preparing the remote control for

use

The remote control can operate your LCD TV /

DVD combination and control the basic functions

of connected audio/video devices if you connect

a REGZA-LINK® compatible audio receiver or

playback device ( page 50).

Installing the remote control

batteries

1無 Open the battery lid at the bottom of

remote controller.

Push!

2無 Insert the batteries, corresponding to

the (+) and (-) markings on the battery

compartment.

3無 Reattach the battery cover.

Caution: Batteries must not be exposed

to excessive heat such as sunshine, fire or

the like.

Note:

•Be sure to use AAA size batteries.

•Dispose of batteries in a designated disposal

area.

•Batteries should always be disposed of with

the environment in mind. Always dispose of

batteries in accordance with applicable laws

and regulations.

•If the remote control does not operate

correctly, or if the operating range becomes

reduced, replace batteries with new ones.

•When necessary to replace batteries in the

remote control, always replace both batteries

with new ones. Never mix battery types or use

new and used batteries in combination.

•Always remove batteries from the remote

control if they are dead or if the remote

control is not to be used for an extended

period of time. This will prevent battery acid

from leaking into the battery compartment.

Chapter 3: Using the remote control

Learning about the remote control

The buttons used for operating the LCD TV / DVD

combination are described here. For the REGZA-

LINK® remote control functions, see the section

“ Using REGZA-LINK® ” ( page 50).

Note: The error message “NOT AVAILABLE”

may appear if you press a key for a function

that is not available.

1無 POWER turns the TV on and off. When the TV is

on, the power LED indicator on the TV front will be

illuminated in green.

2無 EJECT ejects the disc from the disc slot.

3無 TV/DVD

TV/DVD

switches to TV or DVD mode.

4無 FREEZE

FREEZE

freezes the picture. Press again to restore

the moving picture ( page 37).

5無 INPUT

INPUT

selects the video input source ( page 30).

6無 Channel Numbers directly tune channels.

7無 FAV accesses the Favorites List in the Channel

BrowserTM (  page 31).

8無 100 uses to enter two part channel numbers

( page 34) or to edit the Favorites List ( page 31).

9無 PIC MODE selects the picture mode ( page 37).

10無 PIC SIZE cycles through the picture sizes

( page 34).

11無 MUTE reduces or turns off the sound ( page 39).

12無 SLEEP accesses the sleep timer ( page 49).

13無 DISPLAY / INFO displays TV status information as

well as program details, when available ( page 52).

14無

CH cycles through programmed channels when

no menu is on-screen ( page 34).

15無 VOL + – adjusts the volume level.

16無 DVD MENU accesses the DVD menu

( page 60).

17無 CH RTN returns to the last viewed channel or

source ( page 34).

18無 AUDIO / MTS selects the audio mode in ANT/

CABLE source ( page 40); selects the DVD

soundtrack language or VCD audio channel in DVD

mode ( page 61).

19無 SETUP / MENU accesses the main TV menu system

( page 25); configures the disc playback settings

( page 67).

20無 SUBTITLE / CC

SUBTITLE : selects the subtitle language or switches

subtitle off in DVD mode ( page 61).

CC : opens the closed caption selector in ANT/CABLE

source ( page 39).

21無 OK activates highlighted items in the main menu

system.

22無 t / u While watching TV, these buttons open the

Channel BrowserTM and tune to the previous/next

channel in the channel history ( page 32). (Also see

“Arrow buttons.”)

Chapter 3: Using the remote control

23無 Arrow buttons (pqtu) When a menu is on-screen,

these buttons select or adjust programming menus.

(Also see t / u.)

24無 CANCEL / EXIT closes on-screen menus.

25無 TOP MENU accesses the top menu of DVDs that

contain two or more titles( page 60).

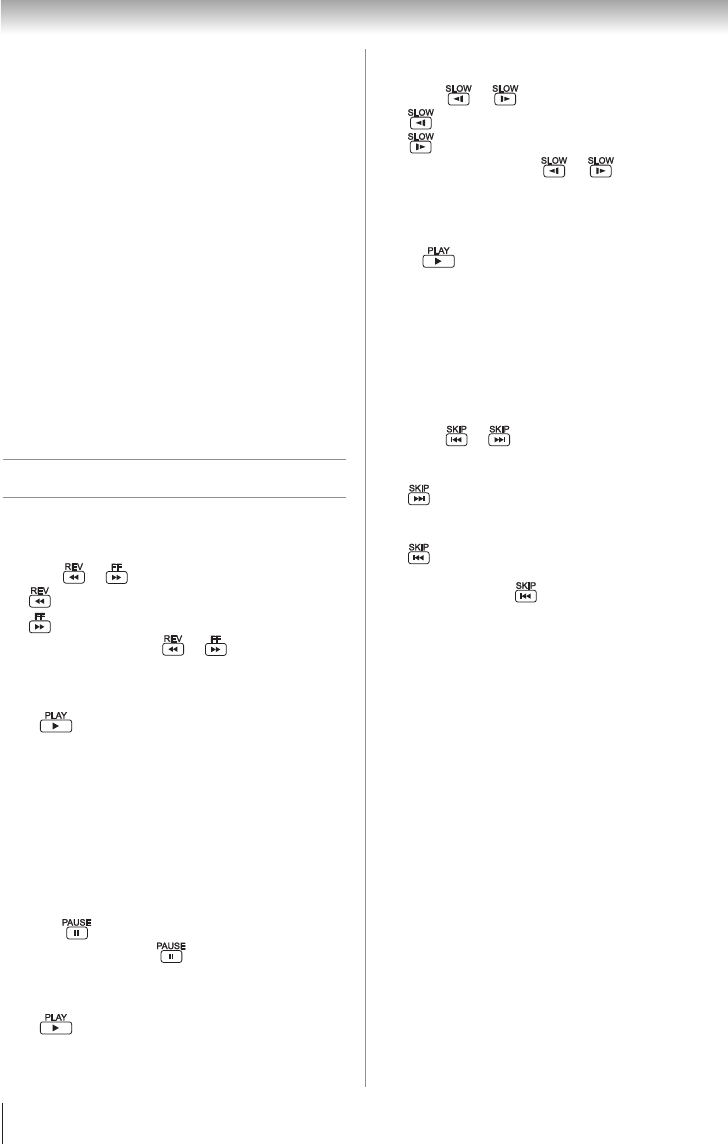

26無 PLAY begins playback of the loaded disc

( page 55).

27無 STOP stops playback of the loaded disc

( page 55).

28無 PAUSE suspends disc playback temporarily or

plays back disc frame by frame ( pages 55, 56).

29無 FF fast-forwards playback of the disc ( page 56).

30無 REV fast-reverses playback of the disc

( page 56).

31無 SKIP skips forward to locate later DVD chapters

( page 56).

32無 SKIP skips reverse to locate the beginning of

current DVD chapter or locate previous chapter

( page 56).

33無 MARKER bookmarks specific points in the

playback range for later access ( page 58).

34無 PLAY MODE sets the disc playback repeat mode

( page 59).

35無 SLOW slow-forwards playback of the disc

( page 56).

36無 SLOW slow-reverses playback of the disc

( page 56).

37無 JUMP selects or locates a specific point with the

disc playback ( page 57).

38無 ANGLE changes the scene angle when playing

back a DVD recorded with multiangle scenes

( page 60).

39無 REPEAT A-B repeats playback of a specific

section between two set points ( page 59).

40無 RETURN returns to the root directory in Audio

CD playback ( page 63); returns to previous directory

from Media Player subfolder or sub-menu

( page 47).

41無 ZOOM zooms into the center of the image during

disc playback ( page 57).

Main menu layout

The tables below and on the next page provide a quick overview of your TV’s menu system.

To open the main menus (illustrated below), press on the remote control or MENU on the TV control panel.

Icon Item Option

Picture Mode  Sports / Standard / Movie / PC / Preference

Picture Settings  [Opens the Picture Settings menu]

Noise Reduction  [Opens the Noise Reduction menu]

Game Mode  Off / On

Theater Settings  [Opens the Theater Settings menu]

Sound Digital Audio Selector  [Launches the temporary Audio Selector]

Audio Settings  [Opens the Audio Settings menu]

Audio Setup  [Opens the Audio Setup menu]

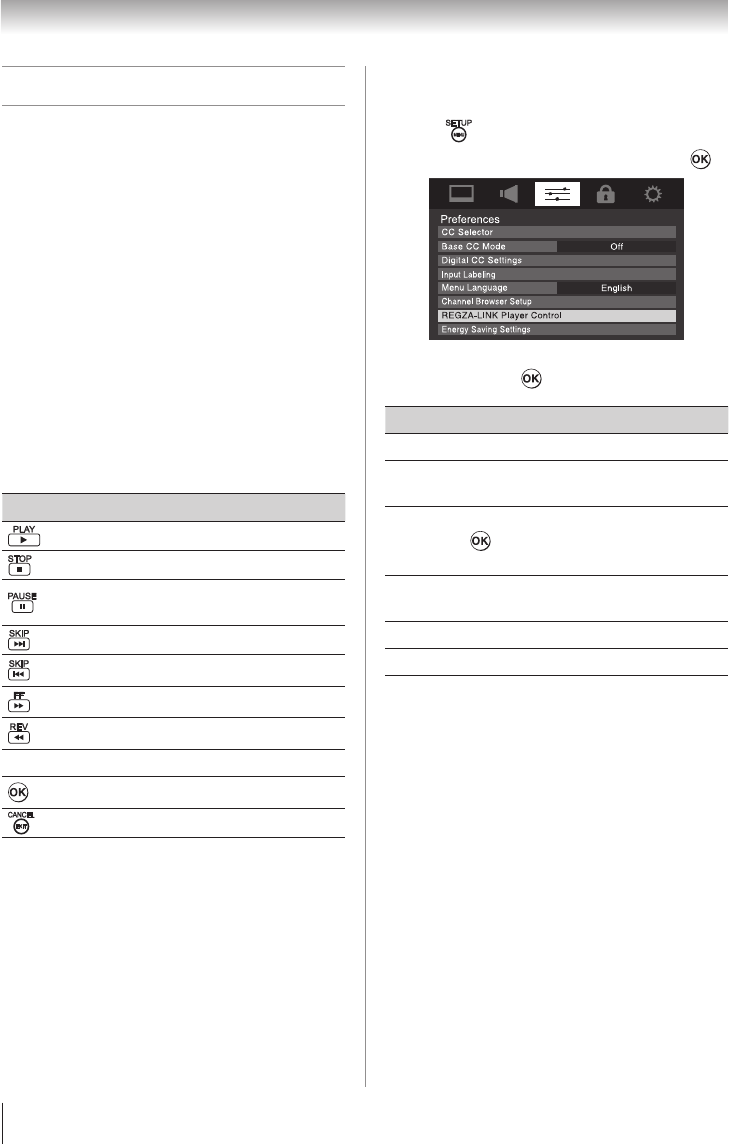

Preferences CC Selector  [Launches the temporary CC Selector]

Base CC Mode  Off / CC1 / CC2 / CC3 / CC4 / T1 / T2 / T3 / T4

Digital CC Settings  [Opens the Digital CC Settings menu]

Input Labeling  [Opens the Input Labeling menu]

Menu Language  English / Français / Español

Channel Browser Setup  [Opens the Channel Browser Setup menu]

REGZA-LINK Player Control  [Opens the REGZA-LINK Player Control menu]

Energy Saving Settings  [Opens the Energy Saving Settings menu]

Locks Enable Rating Blocking  Off / On

Edit Rating Limits  [Opens the Edit Rating Limits menu]

Input Lock  Off / Video / Video+

Panel Lock  Off / On

GameTimer  Off / 30 min / 60 min / 90 min / 120 min

New PIN Code  [Opens the New PIN Code entry screen]

Setup Installation  [Opens the Installation menu ( page 26)]

REGZA-LINK Setup  [Opens the REGZA-LINK Setup menu]

Sleep Timer  [10-minute increments, from 0 min to a maximum of

12 hours ]

PC Settings  [Opens the PC Settings menu]

Media Player  [Opens the Media Player menu]

Chapter 4: Menu layout and navigation

Setup / Installation menu layout

The Installation menu contains the Terrestrial and System Status menus.

To open the Installation menu (illustrated below), press on the remote control or MENU on the TV control

panel, open the Setup menu, select Installation, and press .

Icon Item Option

Terrestrial Input Configuration  [Opens the Input Configuration menu]

Channel Program  [Start Scan]  [Scans for new channels on ANT/CABLE]

Channel Options  [Opens the Skip / Lock Channel menu]

Channel Tuning Mode  Standard / Auto / Digital

Time Zone 

Eastern / Newfoundland / Atlantic / Hawaii / Alaska /

Pacific / Mountain / Central

Signal Meter  [Opens the Signal Meter menu]

System Status

System Information  [Opens the System Information screen]

Navigating the menu system

You can use the buttons on the remote control or TV

control panel to access and navigate your TV’s on-

screen menu system.

• Press to open the menu system.

• When a menu is opened, use the up/down/left/

right arrow buttons (pqtu) on the remote

control or pq + – on the TV control panel to

move in the corresponding direction in the menu.

• Press to save your menu settings or select

a highlighted item. (A highlighted menu item

appears in a different color in the menu.)

• All menus close automatically if you do not make

a selection within 60 seconds, except the signal

meter menu, which closes automatically after

about 5 minutes.

• To close a menu instantly, press .

Note:

The menu background may sometimes appear

black, depending on the signal the TV is

receiving. This is not a sign of malfunction.

Initial Setup

When you first turn on or reset the TV, the Initial

Setup window will appear.

1無 In the Menu Language field, press t or u to

select your preferred language.

2無 Press p or q to select Time Zone Setup and set

your desired time zone with t or u and press .

3無 Next, the Location setting window will appear.

For normal home use, press t or u to select

Home and press .

4無 Next, ANT/CABLE In setup window will appear.

Press t or u to select the input source (Cable or

Antenna) for the ANT/CABLE input on the TV and

press .

5無 If you select Antenna, the Channel Tuning Mode

setup window will appear. To tune only digital

channels, select Digital. To tune digital channels

preferentially over analog when entering channel

number directly, select Auto. For normal tuning,

select Standard. Press to continue to Auto

Tuning.

6無 Press to select Start Scan and continue with

the Auto Tuning.

You can stop the Initial Setup with . However

if you do not finish the entire Initial Setup process

by pressing until step 5 above, the Initial Setup

window will appear every time you turn on the TV.

Selecting the menu language

You can choose from three different languages

(English, French and Spanish) for the on-screen

display of menus and messages.

To select the menu language:

1無 Press and open the Preferences menu,

highlight Menu Language.

2無 Press t or u to select your preferred menu

language.

3無 Press to close the Preferences menu.

Chapter 5: Setting up your TV

Configuring the antenna input

source for the ANT/CABLE terminal

To configure the ANT/CABLE input source:

1無 Press and open the Setup menu.

2無 Highlight Installation and press .

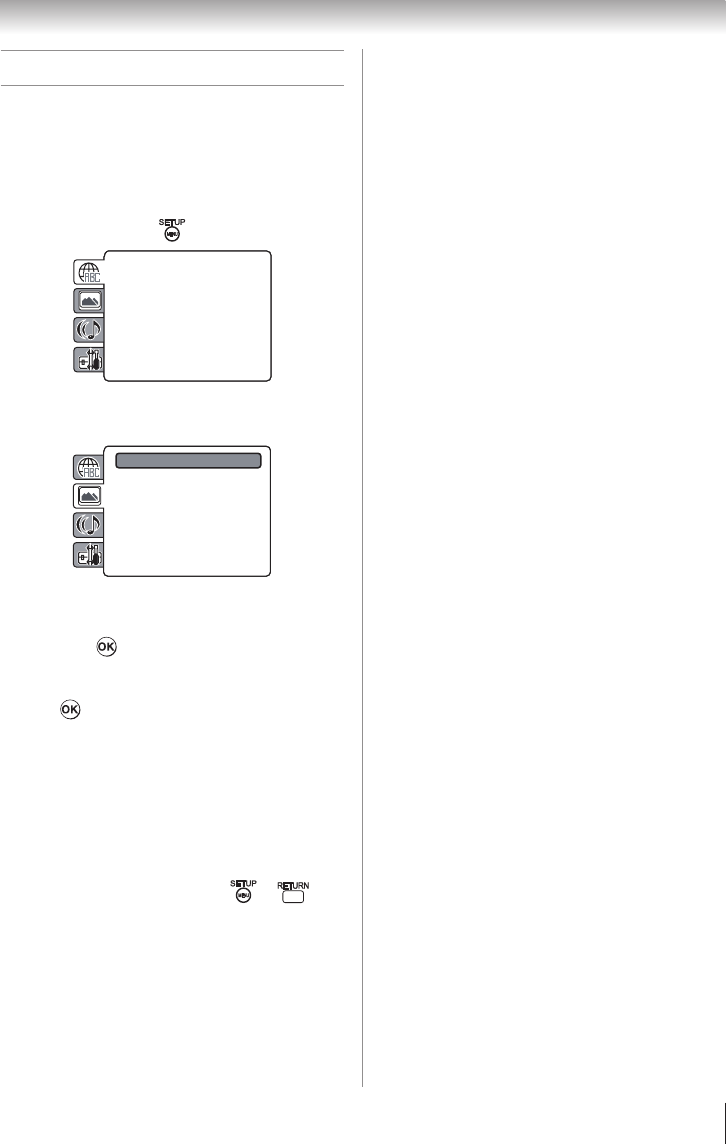

3無 A new set of Installation menu icons will appear,

as shown below. Open the Terrestrial menu,

highlight Input Configuration, and press .

4無 Highlight ANT/CABLE In and press t or u to

select the input source (Cable or Antenna) for the

ANT/CABLE input on the TV.

5無 To save your new settings, highlight Done and press

. To revert to your original settings, highlight

Cancel and press .

Programming channels into the

TV’s channel memory

When you press or on the remote control

or TV control panel, your TV will stop only on the

channels you programmed into the TV’s channel

memory.

Follow the steps below to program channels into the

TV’s channel memory.

Programming channels automatically

Your TV can automatically detect all active channels

in your area and store them in its memory. After the

channels are programmed automatically, you can

manually add or erase individual channels in the

channel memory. (continued)

Chapter 5: Setting up your TV

Note:

•You must configure the ANT/CABLE input source

before programming channels ( page 26).

•The automatic channel programming process

will erase channels that were previously

programmed into the TV’s memory.

•To tune the TV to a channel not programmed in

the channel memory, you must use the Channel

Number buttons on the remote control.

•Programming channels when the ANT/CABLE

input is configured for Cable will take

substantially longer than when the antenna

input is configured for Antenna. This is

normal; however, once channel programming

is finished, you should not have to repeat

the programming process again unless your

Cable TV service lineup changes significantly.

To program channels automatically:

1無 Configure the antenna input source, if you have

not already done so ( page 26).

2無 Press and open the Setup menu.

3無 Highlight Installation and press .

4無 A new set of Installation menu icons will appear,

as shown below. Open the Terrestrial menu,

highlight Channel Program to bring up the

Start Scan, and press again to begin channel

programming.

The TV will automatically cycle through all the

antenna channels, and store all active channels

in the channel memory. While the TV is cycling

through the channels, the message “Scanning

channels, please wait” will appear.

5無 To cancel channel programming, press on the remote

control (or highlight Cancel in the on-screen display and

press ).

When channel programming is finished, press or

to view the programme

d channels.

Setting channel skip

To prevent certain channels from being viewed,

channel positions can be skipped.

1無 From the Setup menu, highlight Installation and

press .

2無 Press p or q to select

Channel Options

and press

. The list of channels will appear.

3無 Press p or q to select a channel position to be

skipped and press . A tick will appear in the

box. To remove the tick, press again.

To add a channel to the channel memory:

Highlight the checked box next to the channel number

you want to add, and then press to remove the tick.

To block channels in the channel memory:

You can block specific channels. You will not be able to

tune blocked channels unless you unlock them.

1無 From the

Channel Options

menu, press

to move

to the channel lock list.

2無 Press p or q to select a channel position to

be locked and then press

. Enter your four-

digit PIN code. A tick will appear in the box. To

remove the tick, press

again

Note: If the PIN code has not been set yet, a

warning message will appear.

3無 To save the setting, press . (continued)

Chapter 5: Setting up your TV

Setting the HDMI® audio mode

To set the HDMI® audio mode:

1無 Press and open the Sound menu.

2無 Highlight Audio Setup and press .

3無 Press p or q to select HDMI 1 Audio and

then press t or u to select the HDMI 1 audio

mode (Auto, Digital, or Analog). (Auto is the

recommended mode.) See “Connecting an HDMI

or DVI device to the HDMI® input” ( page 17).

Mode Description

Auto

When viewing the HDMI 1 input, if

digital audio from the HDMI input is

available, it will be output. If not, the

TV will automatically detect and output

analog audio from the PC Audio input.

Digital

When viewing the HDMI 1 input,

digital audio from the HDMI input will

be output.

Analog

When viewing the HDMI 1 input,

analog audio from the PC Audio input

will be output.

4無 To save your settings, highlight Done and press

Note: Because the PC and HDMI1 inputs share

the same set of analog audio inputs, the PC

Audio menu setting influences the HDMI 1

Audio menu setting. If PC Audio is set to “No”

the HDMI 1 Audio setting changes to “Auto”.

If PC Audio is set to “Yes” the HDMI 1 Audio

setting is set to “Digital” and is grayed out in

the menu. (Also see item 3 on page 13 and

“Setting the PC Audio” on page 45.)

To manually add digital subchannels on a

physical channel:

Use the Channel Numbers and the Dash ( ) on

the remote control to enter the channel number (for

example, 56–1).

If the channel is found, the number will be added to

the list and the box will be unchecked.

If the channel is not found, a message will appear.

Note: Skipped channels cannot be selected

with or ; however, they can still be

accessed using the number keys on the remote

control.

To remove encrypted channels from the

channel memory:

If an encrypted channel is accidentally added to the

channel list by programming channels, you can remove

the unwanted encrypted (non-viewable) channel while

you are channel surfing. When you tunes to an encrypted

channel, the following message will appear.

Digital Channel Is Encrypted - Press 1 on remote to remove channel

Press while the message is on the screen to remove

the unnecessary channel from the channel list.

Chapter 5: Setting up your TV

Viewing the digital signal meter

You can view the digital signal meter in the ANT/

CABLE digital TV input source only.

To view the digital signal meter:

1無 Press and open the Setup menu.

2無 Highlight Installation and press .

3無 A new set of Installation menu icons will appear.

Open the Terrestrial menu, highlight Signal

Meter, and press .

4無 Press pqtu to select the antenna input and

digital channel whose signal you want to check.

5無 If you want to know the detail information of the

presentation channel, Highlight Advanced and

press .

Note:

• The physical digital channel number listed in

the Signal Meter screen may not correspond

to a virtual TV channel number. Contact your

local broadcasters to obtain the RF channel

numbers for your local digital stations.

• The signal strength does not change between

virtual channels on the same physical

channel.

To close the screen and return to the

Installation menu:

Highlight Done and press .

To return to normal viewing:

Press .

Setting the time zone

The Time Zone setup will allow you to specify the

correct time zone for your region. This feature will

allow the TV status information to show the correct

time zone information for your viewing area ( page

52).

To set the time zone:

1無 From the Setup menu, highlight Installation and

press . A new set of Installation menu icons will

appear.

2無 Highlight Time Zone, and press .

3無 Press t or u to select the region, highlight Done,

and then press .

After the time zone has been set, you will be asked to

set the current Daylight Saving Time status.

To set the Daylight Saving Time status:

1無 Press t or u to select Yes or No, highlight Done,

and then press .

Viewing the system status

To view the system status:

1無 Press and open the Setup menu.

2無 Highlight Installation and press .

3無 A new set of Installation menu icons will appear.

Open the System Status menu, highlight System

Information, and press .

4無 Press tu to scroll through the menu bar to select

the Factory Defaults or Support Information and

view the related information.

To close the screen and return to the

Installation menu:

Highlight Done of Support Information or highlight

No of Factory Defaults, and press .

To return to normal viewing:

Press .

Reset Factory Defaults

To reset all settings and channels to their

factory default values:

1無 Press and open the Setup menu.

2無 Highlight Installation and press . A new set of

Installation menu icons will appear.

3無 Open the System Status menu, highlight System

Information, and press .

4無 Press tu to scroll through the menu bar to select

Factory Defaults.

5無 Highlight Yes and press .

6無 (If PIN code has been set, enter your PIN code. Press

t or u to select Done and press .)

A warning message will appear, select Yes and press

, the TV will turn off automatically after a few

seconds. After the TV turns off, unplug the TV power

cord and then plug it in again to complete the reset

process.

To cancel the reset:

Select No and press in step 5 above.

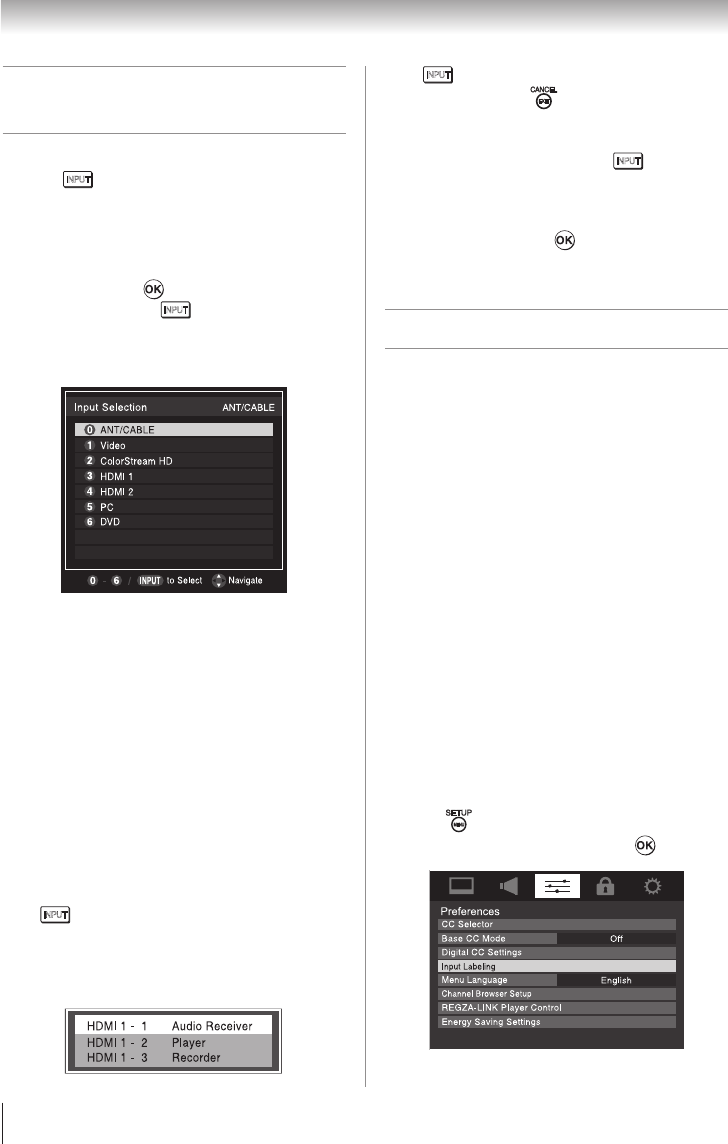

Selecting the video input source

to view

To select the video input source to view:

1無 Press

INPUT

on the remote control or TV control

panel.

2無 And then either:

a) Press 0–6 ; or

b) Repeatedly press pq on the remote control

and then press to change the input; or

c) Repeatedly press

INPUT

on the remote control

or TV control panel to change the input.

The current signal source displays in the top right

corner of the Input Selection screen.

Note:

•You can label the video input sources

according to the specific devices you have

connected to the TV ( “Labeling the video

input sources” at right).

•Sources can be “hidden” ( “Labeling the

video input sources” at right).

•“No video signal” will appear randomly on the

screen if no signal is received in video input

mode.

•If CEC device is connected to an HDMI input,

the REGZA-LINK® icon will appear.

If a REGZA-LINK® device with HDMI

switching capability (e.g. Audio Receiver) is

connected to the HDMI input:

Press

INPUT

on the remote or TV control panel

repeatedly to highlight HDMI 1 or HDMI 2.

If the connected CEC device has any connected

devices, a separate device selection popup window

will appear.

Chapter 6: Using the TV’s features

Press

INPUT

repeatedly to highlight the desired input

source, and then press .

Note:

•When selecting REGZA-LINK® input sources

from the popup window using

INPUT

, some

REGZA-LINK® devices may automatically turn

on.

•When selecting input sources using pq,

you will have to press to actually select a

particular device from the popup window.

Labeling the video input sources

You can label each video input source according to

the type of device you connected to each source,

from the following preset list of labels:

• – – (default label)

• Audio Receiver

• Cable

• Compact Disc

• DTV

• DVD

• Game Console

• HDMI Switch (HDMI inputs only)

• Laser Disc

• Satellite/DSS

• VCR

• Video Recorder

• Hide (to hide an unused input in the Input Selection

screen and in the Channel Browser™ Inputs list)

Note: If you select PC in the Input Selection

screen, you can choose only “– –”, “Game

Console”, or “Hide” as the label.

To label the video input sources:

1無 Press and open the Preferences menu.

2無 Highlight Input Labeling and press .

(continued)

Chapter 6: Using the TV’s features

3無 Press p or q to highlight the video source you

want to label.

4無 Press t or u to select the desired label for that

input source. If a particular input is not used, you

can select Hide as the label, which will cause that

input to be “grayed out” in the Input Selection

screen and skipped over when you press

INPUT

the remote control.

5無 To save the new input labels, highlight Done and

press .

Input labeling example:

The screen below left shows the default Input Selection

screen (with none of the inputs labeled as a specific

device). The screen below right is an example of how

you could label the inputs if you connected a VCR to

ColorStream HD, a video recorder to HDMI 1, and a

DVD player to HDMI 2.

ANT/CABLE

INPUT

- /

to Select

Navigate

Input Selection ANT/CABLE

Video Recorder

Video

DVD

VCR

Input Selection screen

with no inputs labeled.

Input Selection screen

with all inputs labeled.

To clear the input labels:

1無 Press and open the Preferences menu.

2無 Highlight Input Labeling and press .

3無 Highlight Reset and press .

Tuning channels

Tuning channels using the

Channel Browser™

The Channel Browser™ provides an easy navigation

interface for all your channels and inputs. This

feature allows you to:

• Navigate the contents of all of your inputs.

• Keep a list of your favorite channels (see

“Favorites Browser,” below).

• Quickly surf and tune your recently viewed

channels/inputs from the Channel Browser™

History List (illustrated on the next page).

• Surf via Browse mode (to immediately tune

channels as you highlight them in the Channel

Browser™) or Select mode (to surf over channels

in the Channel Browser™ before you select one to

tune).

• Quickly change inputs from the Inputs List.

• Quickly select REGZA-LINK® devices from the

REGZA-LINK® List.

Favorites Browser

The Favorites Browser allows you to quickly set up a

favorite channels/inputs list that is integrated into the

Channel Browser™.

To add a favorite channel/input:

1無 Tune to the channel or input.

2無 Press and hold for 3 seconds.

Note: The channel or input is added to the

beginning of the Favorites list on the left side of

the Channel Browser™.

To delete a favorite channel/input:

1無 Press to open the Favorites browser list.

2無 Highlight the channel or input to delete by

pressing t or u.

3無 Press and hold for 3 seconds. The channel/

input will be removed from the Favorites list.

To set up the Channel Browser™:

1無 From the Preferences menu, highlight Channel

Browser Setup and press .

2無 Press p to highlight Navigation, and then press

t or u to select either Browse Mode or Select

Mode.

(continued)

Chapter 6: Using the TV’s features

3無 Press q to highlight History List, and then press t

or u to select the setting you prefer: either On, or

Off.

Note: History List will be cleared every time

the TV is powered off.

4無 Press q to highlight ANT/CABLE List, and then

press t or u to select On or Off.

5無 Press q to highlight Inputs List, and then press

t or u to select On or Off.

6無 Press q to highlight Favorites List, then press t

or u to select On or Off.

7無 Press q to highlight REGZA-LINK List, and then

press t or u to select On or Off.

Note: REGZA-LINK List will be automatically

grayed out and set to Off when Enable

REGZA-LINK is switched to Off. (See “To

set the REGZA-LINK® Setup” on page 51 for

more information.)

8無 To save your entries, highlight Done and press

. To return to factory defaults, highlight Reset

and press .

To open the Channel Browser™:

• Press t or u on the remote control.

• Press t to surf backward through the previously

tuned channels in the History list, the channels

in the ANT/ CABLE channel list, the inputs in

the Inputs list, the favorite channels/inputs in the

Favorites list, or the REGZA-LINK® devices in the

REGZA-LINK® list.

• Press u to surf forward through the channel

History, the ANT/CABLE channel list, the Inputs

list, the favorite channels/inputs in the Favorites

list, or the REGZA-LINK® list.

Elements of the Channel Browser™

1無 Current list (History, ANT/CABLE, Inputs,

Favorites, or REGZA-LINK)

2無 Input type

3無 Channel or input currently being viewed

4無 Channel or input that is currently

highlighted in the browser

5無 Channels stored in the History List

To toggle among the available lists:

After opening the Channel Browser™, press p or

q to toggle among History, ANT/CABLE, Inputs,

Favorites, and REGZA-LINK.

Note:

•The Channel Browser™ opens in History

List by default. Once another list has been

selected, the Channel Browser™ will open in the

last selected list.

•If all lists are turned off, pressing t, u, or

will not display the Channel Browser

™

. If

Favorites List is turned off, will have no

effect.

•Pressing will bring up the Channel Browser

™

Favorites list regardless of the last selected list in

the Channel Browser

™

To tune to a channel or input in Browse

mode:

1無 While watching TV, press t or u to open

the Channel Browser™ and surf back to a previous

item or surf forward to the next item in the list.

In Browse mode, when you stop on an item in

the Channel Browser™, it will be highlighted and

the TV will automatically tune to the channel or

input.

2無 Press to close the Channel Browser™.

(continued)

Chapter 6: Using the TV’s features

To tune to a channel or input in Select mode:

1無 While watching TV, press t or u to open the

Channel Browser™ and surf back to a previous item

or forward to the next item in the list.

In Select mode, when you stop on an item in the

Channel Browser™, it will be highlighted but you

must press to tune the TV to the highlighted

item.

2無 Press to tune the TV to the highlighted item.

3無 Press to close the Channel Browser™.

Adding and clearing channels and inputs

in the History List

Adding channels and inputs to the History

List:

As a channel or input is tuned, the Channel Browser

™

adds it to the History List and displays it on the “right

side” of the Channel Browser

™

. Previously tuned

channels/inputs are “shifted” to the left, eventually

moving off the left side. Press t to surf backward

through the previously tuned channels/inputs. Any

channel or input that is tuned repeatedly will not be

repeated in the History List, but instead is moved to

the end of the list on the right side of the Channel

Browser

™

The Channel Browser™ will store the following

channels:

• All channels that are tuned using the numeric buttons

on the remote control.

• All channels that are tuned using

on the

remote control.

Note: Whenever an item is selected that cannot

be tuned (for various reasons), the TV will

automatically tune to the previously viewed

channel or input.

Clearing channels from the History List:

• Reconfiguring the ANT/CABLE input will clear the

History List.

Note: See page 26 for details on configuring

the antenna input.

• Turning off the TV will clear the History List.

Setting the Channel Tuning Mode

This feature allows you to choose how tuning will be

handled for analog and digital channels when the TV

is in Antenna mode.

Note: To use this feature, the Input Configuration

must be set to Antenna ( page 26).

The channel tuning mode has three options.

Mode Description

Standard Both analog and digital channels can

be tuned normally

Auto

(default)

Digital channels will have priority when

manually entering a channel number

using the Channel Number (0-9) on the

remote control, analog channels can

still be tuned by / , if available

Digital Only digital channels can be tuned

Note: Digital mode will be most useful after

analog channels were shut down by the

government in 2009.

To set the Channel Tuning Mode:

1無 From the Setup menu, highlight Installation and

press . A new set of Installation menu icons

will appear.

2無 Open the Terrestrial menu, highlight Channel

Tuning Mode, and then press

u to select

your desired mode.

Note:

•The Channel Options windows as well as

the Channel Browser ANT/CABLE list will be

updated automatically when you change the

mode. Also, the History List will be cleared, but

the Favorites List will be saved.

•Even if the Channel Tuning Mode is set to

Digital, analog channel 3 will still be the

default channel to prevent the initial case

where no digital channels have been found in

prior channel scans. (Channel Options will not

have anything listed until a scan is done.)

(continued)

Chapter 6: Using the TV’s features

Tuning to the next programmed

channel

To tune to the next programmed channel:

Press or on the remote control or TV control

panel.

Note: This feature will not work unless you

program channels into the TV’s channel memory

( page 26).

Tuning to a specific channel

(programmed or unprogrammed)

Tuning analog channels:

Press the Channel Number (0–9) on the remote control.

For example, to select channel 125, press 1, 2, 5, then .

Tuning digital channels:

Press the Channel Number (0–9) on the remote

control, followed by the dash ( ) button and then

the sub-channel number. For example, to select digital

channel 125-1, press 1, 2, 5, –, 1, then .

Note: If a digital channel is not programmed—

either through the automatic channel scan (

page 26) or the Channel add function ( page

27)—you will have to tune the RF channel using

the Channel Number and dash ( ) on the

remote control.

Switching between two channels

using Channel Return

The Channel Return feature allows you to switch

between two channels without entering an actual

channel number each time.

1無 Select the first channel you want to view.

2無 Select a second channel using the Channel

Number buttons (and the dash ( ) button if

selecting a digital channel).

3無 Press on the remote control. The previous

channel will display. Each time you press , the

TV will switch back and forth between the last two

channels that were tuned.

Note: If you press

from a non-antenna

input, the TV will return to the last-viewed

input.

Switching between two channels

using SurfLock™

The SurfLock™ feature temporarily “memorizes” one

channel to the

button, so you can return to that

channel quickly from any other channel by pressing

To memorize a channel to the

button:

1無 Tune the TV to the channel you want to program

into the

button.

2無 Press and hold

for about 2 seconds until the

message “Memorized” appears on-screen. The

channel has been programmed to the

button.

3無 You can then change channels repeatedly, and

when you press

, the memorized channel will

be tuned.

The TV will return to the memorized channel one

time only. Once you press

and then change

channels again, the CH RTN memory will be cleared

and the button will function as Channel Return,

by switching back and forth between the last two

channels that are tuned.This feature also works for

external inputs.

Selecting the picture size

You can view many program formats in a variety of

picture sizes — Full, TheaterWide 1, TheaterWide 2,

TheaterWide 3, Native, 4:3, Normal, and Dot by Dot.

Note: The “picture size” illustrations are

examples only. The format of the image (in any

of the picture sizes) will vary depending on the

format of the signal you are currently watching.

Select the picture size that displays the current

program the way that looks best to you.

You can save separate picture size preferences for

each input on your TV.

To select the picture size using the remote

control:

1無 Press on the remote control.

2無 While the Picture Size menu is opened, you can do

one of the following to select the desired picture size:

• Repeatedly press .

• Press the corresponding Number button (0–5)

while the Picture Size menu is opened.

• Press p or q while the Picture Size menu is

opened.

(continued)

Chapter 6: Using the TV’s features

To select the picture size using the menus:

1無 Select Picture Size in the Theater Settings menu.

2無 Press t or u to select the desired picture size setting.

3無 Highlight Done and press .

Note: Some of the picture sizes may not be

available depending on the receiving signal

format (those will be “grayed out” in the Picture

Size screen).

Using these functions to change the picture

size (i.e., changing the height/ width ratio) for

any purpose other than your private viewing

may be prohibited under the Copyright Laws

of the United States and other countries, and

may subject you to civil and criminal liability.

Note: If you select one of the TheaterWide®

picture sizes, the top and bottom edges of the

picture (including subtitles or captions) may be

hidden. To view the hidden edges, either scroll

the picture (TheaterWide 2 and 3 only) or try

viewing the program in Full or 4:3 picture size.

Picture Size

Full

(for 16:9 [480i, 480p] source programs only)

If receiving a squeezed 4:3 format program, the

picture is stretched wider to fill the width of the

screen but not stretched taller.

(for 1080i, 1080p, and 720p program sources)

The edges surrounding the picture may be hidden.

TheaterWide 1

(for 4:3 format programs)

The center of the picture remains close to its original

proportion, but the left and right edges are stretched

wider to fill the screen.

Picture Size

TheaterWide 2

(for letter box programs)

A B C D E F G - - - - - - - - - - - - - - - -

The top and bottom edges of the picture may be

hidden*.

TheaterWide 3

(for letter box programs with subtitles)

A B C D E F G - - - - - - - - - - - - - - - -

A B C D E F G - - - - - - - - - - - - - - - - - - - - - - - - - -

The top and bottom edges are hidden*.

Native

(for 480i (HDMI), 480p (HDMI), 720p, 1080i,

and 1080p signal programs)

• If receiving a 480i (HDMI), 480p (HDMI), 720p,

1080i, or 1080p signal program, Native mode

scales the video to display the entire picture within

the borders of the screen (i.e. no overscanning).

• This is especially useful for external HD sources

such as DVHS movies, or PC graphics.

Note:

•This mode is supported only for HDMI

(1080p,1080i, 720p, 480p, and 480i), ColorStream

(1080i and 720p), and ANT/ CABLE (digital)

inputs (1080p,1080i, and 720p).

•Depending on the input signals, the border of

the picture may be hidden, displayed in black,

or noisy.

(continued)

Chapter 6: Using the TV’s features

Picture Size

4:3

Some program formats will display with sidebars

and/or bars at the top and bottom.

Normal

(for VGA, SVGA, XGA, WXGA, and SXGA

sources and Photo files)

“Normal” is a non-stretched display. Some input

signal formats will display with sidebars and/or bars

at the top and bottom.

Dot by Dot

(for VGA, SVGA, XGA, WXGA, and SXGA

sources only)

The “Dot by Dot” picture is non-scaling display.

Depending on the input signal formats, picture is

displayed with sidebars and/or bars at the top and

bottom. (Example: VGA input source)

*To view the hidden areas (such as subtitles or

captions), see below “Scrolling the TheaterWide®

picture”.

Scrolling the TheaterWide® picture

(TheaterWide 2 and 3 only)

You can set separate scroll settings for the TheaterWide 2

and TheaterWide 3 modes for each input.

To set the scroll settings:

1無 Press and open the Picture menu.

2無 Highlight Theater Settings and press .

3無 In the Picture Size field, select either

TheaterWide 2 or TheaterWide 3 (you cannot

scroll in any other mode).

4無 Press q to highlight the Picture Scroll field.

5無 Press t or u to scroll the picture up and down as

needed.

6無 To save the new settings, highlight Done and

press . To revert to the factory defaults,

highlight Reset and press .

Note: When receiving a signal at 480i

resolution, the picture scroll function may have

limited adjustment range.

Using the auto aspect ratio feature

When the auto aspect ratio feature is set to On, the

TV will automatically select the picture size when

one of the following input sources is received:

• A 480i, 480p, 720p or 1080i digital signal from the

ANT/CABLE input

• A 480i signal from the VIDEO, ColorStream HD

DVD

input

• A 480i, 480p, 720p, 1080i, 1080p or VGA (60Hz)

signal from the HDMI 1/2 input

Aspect ratio of

signal source

Automatic aspect size

(automatically selected when

Auto Aspect is On)

4:3 normal 4:3

4:3 letter box TheaterWide 2

16:9 full Full

Not defined (no

ID-1 data or

HDMI aspect data)

The current picture size you

set under “Selecting the

picture size” on page 34.

Note:

The auto aspect ratio feature is not

applicable to PC input.

(continued)

Chapter 6: Using the TV’s features

To turn on the auto aspect ratio feature:

1無 Press and open the Picture menu.

2無 Highlight Theater Settings and press .

3無 In the Auto Aspect Ratio field, select On.

4無 To save the new settings, highlight Done and press

. To revert to the factory defaults, highlight

Reset and press .

To turn off the auto aspect ratio feature:

Select Off in step 3 above.

Selecting the cinema mode

When you view a DVD (3:2 pulldown processed) from

a DVD player connected to the VIDEO, ColorStream

HD (component video), or HDMI inputs on the TV,

smoother motion can be obtained by setting the

Cinema Mode to Film.

To set the Cinema Mode to Film:

(available for 480i and 1080i signals)

1無 Press and open the Picture menu.

2無 Highlight Picture Settings and press .

3無 Highlight Advanced Picture Settings and press .

4無 In the Cinema Mode field, select Film.

5無 To save the new settings, highlight Done and press

. To revert to the factory defaults, highlight

Reset and press .

To set the Cinema Mode to Video:

Select Video in step 4 above.

Using the FREEZE feature

To use the FREEZE feature:

1無 When viewing the TV, press

FREEZE

to make the

picture a still picture.

2無 To return to the moving picture, press

FREEZE

again

(or any other button).

Note: If the TV is left in FREEZE mode for

more than 15 minutes, the FREEZE mode

will automatically be released and the TV will

return to moving picture.

Using the FREEZE function for any purpose

other than your private viewing may be

prohibited under the Copyright Laws of the

United States and other countries, and may

subject you to civil and criminal liability.

Adjusting the picture

Selecting the picture mode

You can select your desired picture settings from four

different modes, as described below.

Mode Picture Quality

Sports Bright and dynamic picture (factory

setting)

Standard Standard picture settings (factory

setting)

Movie Lower contrast for darkened room

(factory setting)

PC Designed for viewing of PC tables

and documents

Preference Your personal preferences

Note: PC mode is available for HDMI and PC

inputs only (grayed out for other input sources).

To select the picture mode using the menu

system:

1無 Press and open the Picture menu.

2無 Highlight Mode and press .

3無 Press p or q to select the picture mode you

prefer and press .

(continued)

Chapter 6: Using the TV’s features

Adjusting the picture quality

You can adjust the picture quality (Contrast,

Backlight, DynaLight™, Brightness, Color, Tint, and

Sharpness.) to your personal preferences.

Selection Pressing tPressing u

Contrast lower higher

Backlight* darker lighter

DynaLight** On/Off On/Off

Brightness darker lighter

Color paler deeper

Tint reddish greenish

Sharpness softer sharper

*Backlight

This feature adjusts the brightness of the

entire screen. When in video mode and no

signal is input, this will automatically be set to

0. (Settings are stored in memory.)

** DynaLight

This function automatically strengthens the

black coloring of dark areas in the video

according to the level of darkness.

To adjust the picture quality:

1無 Press and open the Picture menu.

2無 Highlight Picture Settings and press .

3無 Press p or q to select the picture quality you

want to adjust (Contrast, Backlight, DynaLight,

Brightness, Color, Tint, or Sharpness), and then

press t or u to adjust the setting, as described in

the table above.

4無 To save the new settings, highlight Done and

press . You can use any of the picture modes

( “Selecting the picture mode” on page 37) as a

starting point for adjusting the picture settings.

To revert back to the base mode that you began

adjusting the picture settings from, highlight

Reset and press .

The picture qualities you adjusted are automatically

saved in the Preference mode ( “Selecting the

picture mode” on page 37) until Reset is selected.

Using the closed caption mode

Base closed captions

The closed caption mode has two options:

• Captions—An on-screen display of the dialogue,

narration and sound effects of TV programs and

videos that are closed captioned (usually marked

“CC” in program guides).

• Text—An on-screen display of information not

related to the current program, such as weather or

stock data (when provided by individual stations).

To view captions or text:

1無 Press and open the Preferences menu,

highlight Base CC Mode.

2無 Press t or u to select the desired closed caption

mode and press .

• To view captions:

Highlight CC1, CC2, CC3, or CC4. (CC1 displays

translation of the primary language in your area.)

Note: If the program or video you selected

is not closed captioned, no captions will

display on-screen.

• To view text:

Highlight T1, T2, T3, or T4.

Note: If text is not available in your area, a

black rectangle may appear on screen. If this

happens, set the Base CC Mode to Off.

• To turn off the closed caption mode:

Select Off in step 2 above.

Note: A closed caption signal may not display

in the following situations:

•When a videotape has been dubbed.

•When the signal reception is weak.

•When the signal reception is non-standard.

(continued)

Chapter 6: Using the TV’s features

Digital CC Settings

You can customize the closed caption display

characteristics by changing the background color,

opacity, text size, type, edge, and color.

Note:

•This feature is available for digital channels

only.

•You cannot set the Caption Text and

Background as the same color.

To customize the closed captions:

1無 Press and open the Preferences menu.

2無 Highlight Digital CC Settings and press .

3無 Press p or q to highlight the characteristic you

want to change, and then press t or u to select

the format for that characteristic (see table below).

4無 To save the new settings, highlight Done and press

. To revert to the factory defaults, highlight

Reset and press .

Caption Size Auto, Small, Standard, Large

Caption Text

Type

Auto, Default, Mono w. Serif,

Prop. w. Serif, Mono w/o

Serif, Prop. w/o Serif, Casual,

Cursive, Small Capitals

Caption Text

Edge

Auto, None, Raised, Depressed,

Uniform, Left Drop Shadow,

Right Drop Shadow

Caption Text

Color

Auto, Black, White, Red, Green,

Blue, Yellow, Magenta, Cyan

Text Foreground

Opacity

Auto, Transparent, Translucent,

Flashing, Solid

Background

Color

Auto, Black, White, Red, Green,

Blue, Yellow, Magenta, Cyan

Text Background

Opacity

Auto, Transparent, Translucent,

Flashing, Solid

Caption Text

Edge Color

Auto, Black, White, Red, Green,

Blue, Yellow, Magenta, Cyan

CC Selector

You can use the CC Selector to temporarily override

the default analog caption mode (set in Base CC

Mode) for a particular channel. However, once you

change to another analog channel, the closed caption

setting will automatically change back to the current

Base CC Mode setting.

You can also use the CC Selector to select digital

closed caption services (if available). When such

services are not available, the CC Selector presents a

default list of services. If the selected service is not

available, the next best service will be used instead.

To select closed captions:

1無 Press and open the Preferences menu.

2無 Highlight CC Selector and press .

3無 Press t or u to select the desired service.

4無 Press .

Note: You can also press to open CC

Selector and follow from step 3.

Adjusting the audio

Muting the sound (For TV speakers)

Press on the remote control to partially reduce (1/2

MUTE) or turn off (MUTE) the sound. Each time you

press , the mute mode will change in the following

order:

1/2 Mute Mute Volume

If the closed caption mode is set to Off when you

select “MUTE” mode, the closed caption feature is

automatically activated if the TV program is Closed

Captioned. To mute the audio without automatically

activating the closed caption feature, use to

set the volume to 0. See “Using the closed caption

mode” ( page 38) for more information on closed

caption modes.

Note: If you modify items in the SOUND menu

while Mute is active, the Mute will automatically

be canceled.

Using the digital audio selector

You can use the Digital Audio Selector to

conveniently switch between audio tracks on a digital

channel (for those channels that have multiple audio

tracks). This temporarily overrides the audio track

chosen by the language option under Audio Setup

( “Selecting stereo/SAP broadcasts” on page 40).

To use the digital audio selector:

1無 Press and open the Sound menu.

2無 Highlight Digital Audio Selector and press .

3無 Press t or u to select the desired service.

4無 Press . (continued)

Chapter 6: Using the TV’s features

Selecting stereo / SAP broadcasts

The multi-channel TV sound (MTS) feature allows

you to output high-fidelity stereo sound. MTS

also can transmit a second audio program (SAP)

containing a second language, music or other audio

information (when provided by individual stations).

When the TV receives a stereo or SAP broadcast,

the symbol “ ” or word “SAP” appears on-

screen when is pressed. The MTS feature is only

available for analog signals on the ANT/CABLE input.

To listen to stereo sound:

1無 Press and open the Sound menu.

2無 Highlight Audio Setup and press .

3無 In the MTS field, select Stereo.

4無 To save the new settings, highlight Done and press

. To reset the settings to the factory defaults,

highlight Reset and press .

Note:

•You can typically leave the TV in Stereo

mode because it will automatically output

the type of sound being broadcast (stereo

or monaural).

•If the stereo sound is noisy, select Mono to

reduce the noise.

To listen to an alternate language on an

ATSC digital station (if available):

Highlight the Language field in step 3 above, and

then press t or u to select the language you prefer.

To listen to a second audio program on an

analog station (if available):

Select SAP in step 3 above.

Note:

•A second audio program (SAP) can be heard

only on those TV stations that offer it. For

example, a station might broadcast another

language as a second audio program. If you

have SAP on, you will see the current program

on the screen but hear the other language

instead of the program’s normal audio.

•If you have SAP on and the station you are

watching is not broadcasting a second audio

program, the station’s normal audio will be

output. However, occasionally there is no

sound at all in SAP mode. If this happens, set

the MTS feature to Stereo mode.

Using the MTS button

If you press when an analog channel is

tuned:

• The Analog Audio bar will appear and will display

Stereo, SAP, Mono as the options.

If you press when a digital channel is

tuned:

• The Digital Audio bar will appear and will offer

different audio choices for the digital channel.

If you press when an external input is

selected:

• No Audio bar is displayed.

Adjusting the audio quality

You can adjust the audio quality by adjusting the

bass, treble and balance.

To adjust the audio quality:

1無 Press and open the Sound menu.

2無 Highlight Audio Settings and press .

3無 Press q or p to highlight the item you want to

adjust (Bass, Treble or Balance).

4無 Press t or u to adjust the level.

• t makes the bass or treble weaker or increases

the balance in the left channel (depending on the

item selected).

• u makes the bass or treble stronger or increases

the balance in the right channel (depending on

the item selected).

5無 To save the new settings, highlight Done and press

. To reset the settings to the factory defaults,

highlight Reset and press .

Selecting the optical audio output

format

You can use this feature to select the optical audio

output format when you connect a Dolby Digital

decoder or other digital audio system to the Optical

Audio Out terminal on the TV (see “Connecting a

digital audio system” on page 19).

To select the optical audio output format:

1無 Press and open the Sound menu.

2無 Highlight Audio Setup and press .

3無 In the Optical Output Format field, select either

Dolby Digital or PCM, depending on your device.

4無 To save the new settings, highlight Done and press

. To revert to the factory defaults, highlight

Reset and press .

(continued)

Chapter 6: Using the TV’s features

Using the Dolby® Digital Dynamic

Range Control feature

This dynamic range control feature causes Dolby

Digital dynamic range to be further compressed,

allowing you to switch from digital to analog

broadcasts at the same dynamic range.

To use the Dolby Digital Dynamic Range

Control:

1無 Press and open the Sound menu.

2無 Highlight Audio Setup and press .

3無 In the Dolby Digital Dynamic Range Control field,

select Compressed. When Standard is selected,

the audio is output with minimal compression.

4無 To save the new settings, highlight Done and press

. To revert to the factory defaults, highlight

Reset and press .

Note:

•This feature is available when tuned to a

digital RF channel with the Dolby Digital

signal.

•The Dolby Digital Dynamic Range Control will

function in relation to Optical Output Format

(PCM mode).

Using the Locks menu

The Locks menu includes the Enable Rating

Blocking, Edit Rating Limits, Input Lock, Panel

Lock, GameTimer and New PIN Code features. You

can use these features after entering the correct PIN

code.

Entering the PIN code

1無 Press and highlight the Locks menu icon.

2無 Press q, which displays the PIN code entry

screen.

• The Lock System screen (Top right) appears if a

PIN code has not been stored. Press the Channel

Number buttons to enter a new four-digit code,

enter the code a second time to confirm, and

press .

• The Locks/Active screen appears if the PIN code

is already stored. Use the Number buttons to

enter your four-digit code and press .

If the wrong PIN code is entered, the message

“Incorrect PIN code, please try again!” appears.

Highlight Retry and press . Enter the code again

and press .

When the correct PIN code is entered, the Locks menu

opens.

Note:

PIN code cannot be set to “0000”.

If you cannot remember your PIN code

While the PIN code entering screen is displayed, press

four times within five seconds. The PIN code will be

cleared and you can enter a new PIN code.

Changing your PIN code

1無 Press and highlight the Locks menu icon.

2無 Press q to display the PIN code entering screen.

3無 Enter your four-digit PIN code and press .

4無 Press q to highlight New PIN Code and press .

5無 Press the Number buttons to enter a new four-

digit code. Reenter the PIN code to confirm it.

6無 Press . The new PIN code is now active.

Note:

PIN code cannot be set to “0000”.

Blocking TV programs and movies

by rating (V-Chip)

Some TV programs and movies include signals that

classify the content of the program (violence, sex,

dialog, language). The V-Chip feature in this TV

detects the signals and blocks the programs according

to the ratings you select. (For rating descriptions, see

the tables on page 43.)

(continued)

Chapter 6: Using the TV’s features

To block and unblock TV programs and

movies:

1無 Press and highlight the Locks menu icon.

2無 Press q to display the PIN code entering screen.

3無 Enter your four-digit PIN code and press .

4無 Press q to highlight Enable Rating Blocking.

5無 Press u to select On.

6無 Press q to highlight Edit Rating Limits and press

. The Edit Rating Limits screen appears.

7無 Press pqt u and then press to select the

level of blocking you prefer. A box with an “ ”

is a rating that will be blocked. As you highlight

a rating, a definition for the rating appears at the

bottom of the screen.

8無 When done selecting the ratings you want to

block, highlight Done and press .

Note: Above selection of blocking level is for

U.S V-Chip system. For Canada rating, you can

highlight the “Canada RS” then press , another

“Canadian Rating Menu” screen will appear.

Downloading an additional rating

system for blocking TV programs and

movies

In the future, an additional rating system may become

available for use in selectively blocking programs.

Note: The currently tuned station must be

receiving a digital signal before an additional

rating system can be downloaded.

To download the additional rating system

(if available):

1無 Press and highlight the Locks menu icon.

2無 Press q to display the PIN code entering screen.

3無 Enter your four-digit PIN code and press .

4無 Press q to highlight Enable Rating Blocking.

5無 Press u to select On.

6無 Press q to highlight Edit Rating Limits and press

. The Edit Rating Limits screen appears.

7無 Highlight Alt RS and press . The Edit Alternate

Ratings screen will appear.

Note:

•The Alt RS button will only be available

if an additional rating system is currently

available.

•It may take several minutes for the TV to

download the additional rating system.

•The information displayed in the Alternate

Ratings screen will depend on the

configuration of the additional rating

system available at the time of download.

8無 Press pqt u and then press to select the

level of blocking you prefer. A box with an “ ”

is a rating that will be blocked.

9無 When you have finished selecting the ratings you

want to block, highlight Done and press .

10In the Edit Rating Limits screen, highlight Done

and press .

Note:

•The additional rating system can only be

downloaded one time. You will not be able to

download any updates to the rating system

should such updates become available.

•The additional rating system is not designed,

transmitted or controlled by the TV or Toshiba,

nor is the availability of an additional rating

system determined or controlled by Toshiba.

Similarly, the rating of programs in an

additional rating system is not determined,

transmitted or controlled by the TV or Toshiba.

•The additional rating system is an evolving

technology; therefore, availability, content and

format may vary.

(continued)

Chapter 6: Using the TV’s features

Independent rating system for broadcasters

Ratings Description and Content themes

TV-MA

Mature Audience Only (This program

is specifically designed to be viewed

by adults and may be unsuitable for

children under 17.)

L) Crude or indecent language

S) Explicit sexual activity

V) Graphic violence

TV-14

Parents Strongly Cautioned (This

program contains some material that

many parents would find unsuitable for

children under 14.)

D) Intensely suggestive dialog

L) Strong, coarse language

S) Intense sexual situations

V) Intense violence

TV-PG

Parental Guidance Suggested (This

program contains material that parents

may find unsuitable for younger children.)

D) Some suggestive dialog

L) Infrequent coarse language

S) Some sexual situations

V) Moderate violence

TV-G General Audience (Most parents would

find this program suitable for all ages.)

TV-Y7,

TV-Y7FV

Directed to Older Children (This

program is designed for children age

7 and above. Note: Programs in which

fantasy violence may be more intense or

more combative than other programs in

this category are designated TV-Y7FV.)

TV-Y All Children (This program is designed

to be appropriate for all children.)

Independent rating system for movies

Ratings Description and Content themes

XX-rated (For adults only)

NC-17 Not intended for anyone 17 and under

RRestricted (Under 17 requires

accompanying parent or adult)

PG-13

Parents Strongly Cautioned (Some material

may be inappropriate for children under 13)

PG Parental Guidance Suggested (Some

material may not be suitable for children)

General Audience (Appropriate for all ages)

Note:

•If you place an “ ” in the box next to

“ None” Rated programs rated “ None ”

will be blocked; however, programs that do

not provide any rating information will not be

blocked.

•To display the rating of the program you are

watching, press on the remote control. If

it is rated “ None ” the word “ NONE ” appears

in the INFO screen (as shown below right). If

rating information is not provided, no rating

will appear in the INFO screen.

Blocking TV programs by Canada rating :

1無 Press and highlight the Locks menu icon.

2無 Press q to display the PIN code entering screen.

3無 Enter your four-digit PIN code and press .

4無 Press q to highlight Enable Rating Blocking.

5無 Press u to select On.

6無 Press q to highlight Edit Rating Limits and press

. The Edit Rating Limits screen appears.

7無 Highlight Canada RS and press . The

Canadian Raging Menu will appear.

8無 Press pqt u and then press to select the

level of blocking you prefer. A box with an “ ”

is a rating that will be blocked.

9無 When you have finished selecting the ratings you

want to block, highlight Done and press .

10In the Edit Rating Limits screen, highlight Done

and press .

English

Ratings Description and Content themes

EExempt shows

CChildren ages of 2 to 7 years

C8+ Children 8 years and older

GGeneral programming

PG Parental Guidance

14+ Viewers 14 and older

18+ Adult programming

French

Ratings Description and Content themes

EExempt shows

GGeneral programming

8 ans+ Not recommended for ages under 8

13 ans+ Not recommended for ages under 13

16 ans+ Not recommended for ages under 16

18 ans+ Programming restricted to adults

(continued)

Chapter 6: Using the TV’s features

Unlocking programs temporarily

If you try to tune the TV to a program that exceeds

the rating limits you set, the TV will enter program

lock mode and the following message will appear on-

screen:

This program exceeds the rating limit you set.

Push 'MUTE' to enter PIN.

You can either temporarily unlock the program or

select an unlocked program to watch.

To temporarily unlock the program:

1無 Press .

2無 Enter your four-digit PIN code and press .

If the correct code is entered, the program lock

mode is released and the normal picture appears.

All locking will be enabled when the TV change

channel.

Using the input lock feature

You can use the Input Lock feature to lock the video

inputs (Video, ColorStream HD, HDMI 1, HDMI 2,

and PC) and channels 3 and 4. You will not be able to

view the input sources or channels until you unlock the

inputs.

To lock/unlock the video inputs:

1無 From the Locks menu, Press q to display the PIN

code entering screen.

2無 Enter your four-digit PIN code and press .

3無 Press q to highlight Input Lock and press u to

select the level of video input locking you prefer,

as described below.

Mode Description

Video Locks Video, ColorStream HD, HDMI 1,

HDMI 2 and PC.

Video+

Locks Video, ColorStream HD, HDMI 1,

HDMI 2, PC and channels 3 and 4.

• Select Video+ if you play video tapes

via an ANT/CABLE input.

Off Unlocks all video inputs and channels 3

and 4.

4無 Press .

Locking channels

With the Lock feature, you can lock specific

channels. The locked channels can only be accessed

by entering the PIN.

To lock channels:

1無 From the Setup menu, highlight Installation and

press .

2無 Press to select Terrestrial.

3無 Press p or q to select Channel Options and

press . The list of channels will appear.

4無 Press u and then p or q to select a channel in

the lock column.

5無 Press . PIN code entry will be required to set a

locked channel.

Note: If the PIN code has not been set yet, a

warning message will appear.

6無 A tick will appear in the box.

To remove the tick, press again.

7無 Press .

Using the GameTimer®

You can use the GameTimer to set a time limit for

playing a video game (30–120 minutes). When the

GameTimer expires, the TV enters Input Lock mode and

locks out the input source for the video game device.

To set the GameTimer®:

1無 From the Locks menu, press q to display the PIN

code entering screen.

2無 Enter your four-digit PIN code and press .

3無 Press q to highlight GameTimer and press u to

select the length of time until the Input Lock is

activated (30, 60, 90 or 120 minutes).

To cancel the GameTimer®:

Select Off in step 3 above.

To deactivate the Input Lock once the

GameTimer® has activated it:

Set the Input Lock to Off ( “Using the input lock

feature” as described).

Note:

•A message will appear when 10 minutes, 3

minutes, and 1 minute remain on the GameTimer.

•If the TV loses power with time remaining on the

GameTimer, when power is restored the TV will

enter Input Lock mode (as if the GameTimer had

been activated) and you will have to deactivate

the Input Lock (as described before).

(continued)

Chapter 6: Using the TV’s features

Using the panel lock feature

You can lock the control panel to prevent your

settings from being changed accidentally (by

children, for example). When the Panel Lock is On,

none of the controls on the TV control panel will

operate except POWER.

To lock the control panel:

1無 Press and highlight the Locks menu icon.

2無 Press q to display the PIN code entering screen.

3無 Enter your four-digit PIN code and press .

4無 Press q to highlight Panel Lock.

5無 Press u to select On. When the control panel

is locked and any button on the control panel

(except POWER) is pressed, the message “NOT

AVAILABLE” appears.

To unlock the control panel:

Select Off in step 5 above, or press and hold the

VOLUME – button on the TV control panel for about

10 seconds until the volume icon appears.

Using the PC settings feature

You can view an image from a PC on the TV screen.

When a PC is connected to the TV's PC IN terminal,

you can use the PC Settings feature to make

adjustments to the image. If the edges of the picture are

cut off, readjust the Horizontal Position and Vertical

Position. If the picture is affected by interference,

readjust the Clock Phase and Sampling Clock.

To adjust the PC settings:

1無 Repeatedly press

INPUT

to select PC input mode (

“Selecting the video input source to view” page 30).

2無 Press and open the Setup menu.

3無 Highlight PC Settings and press .

Note: If a PC is not connected or there is no

pc input signal, this feature will be grayed

out in the Setup menu.

4無 Press p or q to highlight the item you want to adjust.

5無 Press t or u to make the appropriate adjustments.

Note: The screen is disrupted momentarily

when adjusting the PC settings. This is not a

sign of malfunction.

Mode Description

Horizontal

Position

Moves the picture left/right. The adjustment

range is within ±10 from center.*

Vertical

Position

Moves the picture up/down. The adjustment

range is within ±10 from center.*

Clock

Phase

Helps to reduce noise and sharpen the

picture. The adjustment range is within

±16 from center.*

Sampling

Clock

Helps to reduce noise and minimize

periodic vertical stripes on the screen.

The adjustment range is within ±10

from center.*

Reset Highlight this item then press to get

an optimum adjustment automatically.

*The default settings may vary depending on

the input signal format.

Setting the PC Audio

This function allows you to output or mute the sound

from your PC when connecting using the PC IN

terminal and an analog RGB cable. ( page 20)

To set the PC Audio:

1無 Press and open the Sound menu.

2無 Highlight Audio Setup and press .

3無 Press p or q to select PC Audio and then press

t or u to select No or Yes.

Yes: When viewing the PC input, the audio from

the PC Audio input can be heard.

No: When viewing the PC input, there will be no audio.

Note: Because the PC and HDMI-1 inputs

share the same set of analog audio inputs,

the PC Audio menu setting influences the

HDMI 1 Audio menu setting. If PC Audio

is set to “No” the HDMI 1 Audio setting

changes to “Auto” If PC Audio is set to “Yes”

the HDMI 1 Audio setting is set to “Digital”

and is grayed out in the menu. (Also see

item 3 on page 13 and “Setting the HDMI®

audio mode” on page 28.)

Chapter 6: Using the TV’s features

Using the Media Player

Using the Media Player with USB

You can enjoy photos or music contents stored on a

USB storage device.

Photo Viewer specifications:

Data type: JPEG Exif ver2.1

File format: JPEG

Maximum photo size: 6 MB

Maximum number of files: 500 / folder

Maximum photo resolution: 4096 x 4096 pixels

Best photo resolution:

1366 x 768 pixels (19SLV411U, 32SLV411U)

1920 x 1080 pixels (24SLV411U)

Music Player specifications:

File format: MP3

Sampling frequency: 16 kHz, 22.05 kHz, 24 kHz,

32 kHz, 44.1 kHz, 48 kHz

Bit rate: from 8 to 320 kbps

Maximum number of files: 500 / folder

Supported file system:

FAT16 and FAT32

Note:

•Gently insert the USB device into the port and

do not remove while viewing Media Player.

•USB device: USB Mass Storage Class device

(MSC)

•Connectivity is not guaranteed for all devices.

•Connect the USB device to the TV directly.

•Do not use a USB Hub.

•You must obtain any required permission from

Toshiba cannot and does not grant such

permission.

•Depending on the file size and amount in your

USB storage device, it may take some time

for loading to view. A message will display

on-screen when loading files from the USB

storage device.

•Only limited types of U3 USB device are

supported. Therefore, it is suggested not to

use U3 USB for playing Media Player.

•Non-supported characters will be replaced

with a square ( ).

To select the Auto Start function

1無 Press and t or u to select the Setup menu.

2無 Press q to select Media Player, and then press .

3無 Press p or q to select Auto Start.

4無 Press t or u to select On or Off.

To open the Media Player

There are two kinds of methods to open the Media

Player.

Automatically open:

1無 Gently insert a supported USB storage device to

the USB port on the rear side of the TV. A prompt

will appear.

Note: If you repeatedly insert and remove

the USB connector, the prompt may not

appear.

2無 Press t or u to select Yes, and then press .

The Media Player menu will appear. When you

select No, nothing happens.

Note:

•The prompt will disappear after about 10 sec.

•If Auto Start is set to off, you can start the

Media Player manually.

Manually open:

1無 Press and t or u to select the Setup menu.

2無 Press q to select Media Player, and then press .

3無 Press p or q to select Photo or Music then press

Note:

•The viewer will also open even if there are no

photo or music files.

•While the Media Player is active, the main

menus cannot be displayed.

(continued)

Chapter 6: Using the TV’s features

Viewing photo files

There are three types of view modes.

Multi View:

This view allows you to search for photos in a grid

format. These pictures are displayed using thumbnail

data in each image file.

1無 Press pqtu to move the highlight in one

window. If all of the photos will not fit in one

screen, when pressing t at the top left thumbnail,

the screen will move to the previous page.

Conversely, when pressing u at the bottom right

thumbnail, the screen will move to the next page.

buttons can be used to page up/down the

photo list when there are more photos than will fit

onto one screen.

2無 When you select a folder, press to move to

the next layer. Press to move back to the

previous layer.

3無 Press to view the selected photo in Single

View mode.

Single View

In this view mode, only files located in the selected

directory shall be displayed. This view allows you to

change the photo content manually. When moving

from Multi View to the Single View, the currently

selected photo shall be displayed.

1無 Press u to view the next photo. Press t to view

the previous photo.

2無 Press p to rotate the image 90° counterclockwise.

Press q to rotate the image 90° clockwise.

Slide Show

This view allows you to watch a slide show of the

photos. In this mode, only files located in the selected

directory will be played.

1無 To start slide show, press in the Single View

mode.

2無 Press t or u to view the previous or next photo.

To set Interval Time and Repeat settings:

1無 Press to open the Quick Menu.

2無 Press p or q to select either Interval Time or

Repeat.

3無 Press t or u to adjust the setting and press .

Note: Zoom and Picture size functions are

disable.

To close the Photo Viewer

1無 Press . The television will return to the last

viewed channel or external input.

Playing music files

You can listen to music from a list of available files.

1無 Press p or q to select a file or folder.

buttons can be used to page up/down the music

list when there are more files than will fit onto

one screen.

2無 When you select a folder, press to move to

the next layer. Press to move back to the

previous layer.

3無 With the desired file selected, press or

to start playback.

4無 Press to stop playback.

Note:

•If playback finishes before is pressed, the

next file will automatically start to play from the

beginning.

•Depending on the file size, it may take some

time for playback to begin.

(continued)

Chapter 6: Using the TV’s features

During playback

• Press to pause.

• To normal playback, press or .

• To locate a specific file, press or repeatedly.

• To adjust volume , press

Note:

During playback, you can adjust the SOUND

menu functions from the Quick Menu.

To set the repeat mode:

1無 Press to open the Quick Menu.

2無 Highlight Repeat, and press t or u to select Off,

All or 1.

3無 Press .

To close the Music Player

1無 Press .

Viewing photo files with playing

music files at the same time

While viewing photo files, this allow you to listen to

music from a list of available files.

1無 While viewing photo in the Single View or Slide

Show mode, press to open the Quick Menu.

2無 Highlight Background Music and press , the

music list will appear.

3無 Select a music file and press to start playback.

4無 Press twice to move back the photo

view mode, now the music is playing in the

background.

Contents Description Description

Photo Photo list (Multi View) See page 47.

Sorting

To sort the folders and files

1無 Press to open the Quick Menu

from Multi View mode.

2無 Press p or q to select Sort.

3無 Press t or u to select Title, New

or Old to set the sorting rule.

Title--File sorting rules:

1 Unicode priority

2 (0, 1, ..., 9), capital alphabet

(A, B, ..., Z), small alphabet

(a, b, ..., z), Chinese

3 Increasing order

New--From new to old according to

the date and time when the

picture was taken.

Old--From old to new according to

the date and time when the

picture was taken.

Single View mode See page 47.

Slide Show mode See page 47.

Skip to previous/next photo See page 47.

Slide Show Repeat play See page 47.

Slide Show Interval Time

selection See page 47.

(continued)

Chapter 6: Using the TV’s features

Contents Description Description

Music Music list (Multi View) See page 47.

Sorting

To sort the folders and files

1無 Press to open the Quick Menu.

2無 Press p or q to select Sort.

3無 Press t or u to select Title, New

or Old to set the sorting rule.

Playback See page 47.

Pause See page 48.

Stop See page 47.

Skip See page 48.

Repeat play See page 48.

SOUND Settings

(“Adjusting the audio quality”)

See page 40.

Note: Sorting, Total Time display may not be

available in all cases.

Setting the sleep timer

You can set the sleep timer to turn off the TV after a

set length of time (maximum of 12 hours).

To set the sleep timer using the remote control:

Press on the remote control to set the length of

time until the TV turns off. Repeatedly press to

increase the time in 10-minute increments, or press

p or q to increase or decrease the time in 10-minute

increments, to a maximum of 12 hours.

To set the sleep timer using the on-screen

menus:

1無 Press and open the Setup menu.

2無 Highlight Sleep Timer.

3無 Press the Number buttons to enter the length of

time (maximum of 12 hours) and then press .

Or press t or u to increase or decrease in

10-minute increments (maximum of 12 hours).

Note: When a power failure occurs, the

sleep timer setting may be cleared.

To display the remaining sleep time:

Press .

Note: A message will display on-screen when

there is one minute remaining on the sleep timer.

To cancel the sleep timer:

Repeatedly press until it is set to 0 minute.

Automatic Power Down

The TV will automatically turn itself off (standby)

after 4 hours, if you do not operate the TV either

from the remote control or the TV control panel.

1無 From the Preferences menu, highlight Energy

Saving Settings and press .

2無 Press p or q to select Automatic Power Down.

3無 Press t or u to select On or Off, and press .

Note:

• The initial setting of this feature is Off.

• 1 minute before switching to standby, a

warning message will appear.

• When the following features are set, the

feature that is set for the nearest time will

function.

−Automatic Power Down

−Sleep Timer

−No signal auto power off (after 15 minute of

no signal).

No Signal Power Down

The TV will automatically turn itself off after 15

minutes when no signal is detected.

You can change the setting to Off for the following

purposes:

• Low signal strength of analog channel (no signal

detection)

• Only Audio L/R is connected to external input to

listen to music through the TV speakers.

1無 From the Preferences menu, highlight Energy

Saving Settings and press .

2無 Press p or q to select No Signal Power Down

and press .

3無 Press p or q to highlight the item you want to

change, and press t or u to select On or Off.

Note:

• Default setting is all On.

• A warning message will appear 1 minute

before turning off.

Chapter 6: Using the TV’s features

Using REGZA-LINK®

This is a new feature that uses CEC technology

and allows you to control Toshiba REGZA-LINK®

compatible devices from the TV remote via HDMI

connection ( page 18).

When the Enable REGZA-LINK in the REGZA-LINK

Setup menu is set to On, the following REGZA-

LINK® functions will be enabled.

REGZA-LINK® playback device (DVD

player, etc.) control

With your TV’s remote control, or using the

REGZA-

LINK Player Control

menu, you can control the

connected REGZA-LINK

playback device you are

watching.

Available remote control key functions:

Button Description

Begins playback.

Stops playback.

Pauses the picture during play or record

mode.

Skips forward.

Skips backward.

Fast-forwards.

Rewinds/reverses.

pqtu Navigate contents menu, etc.

Enters contents menu, etc.

Returns to the previous menu.

Note: These functions depend on the devices

connected.

REGZA-LINK Player Control menu

functions:

1無 Press and open the Preferences menu.

2無 Highlight REGZA-LINK Player Control and press .

3無 Press p or q to select the item you want to

control and press .

Item Description

Power Turns the select device on and off.

Root

Accesses the top menu of the selected

device.

Contents

Accesses the contents list when you press

. At this time, the REGZA-LINK Player

Control menu will disappear.

Setup

Accesses the setup menu of a DVD

player.

Top Menu Accesses the top menu of a DVD.

Menu Accesses the menu of a DVD.

Note:

• These functions depend on the devices that are

connected.

• The REGZA-LINK Player Control item will be

grayed out in the following conditions:

−A non-HDMI input is currently selected.

−The Enable REGZA-LINK item is set to Off.

−The connected CEC device is not a

playback or recording device.

REGZA-LINK® input source selection

If a REGZA-LINK® device with HDMI switching

capability (e.g. Audio Receiver) is connected to

the HDMI input, you can select another REGZA-

LINK® device that is connected to the master HDMI

device using the TV’s INPUT button. See page 30 for

details.

(continued)

Chapter 6: Using the TV’s features

VOLUME and MUTE controls of Audio

Receiver

With your TV’s remote control, you can adjust or

mute the sound volume of the Audio Receiver.

• / adjust the volume level.

• turns off the sound.

Note:

•To use this function:

− Set Speaker Preference to Audio Receiver in

the REGZA-LINK Setup menu.

− Confirm that a connected REGZA-LINK

device

(such as DVD player, etc) is selected for the

Audio Receiver input source.

•You can also use this function when the audio

receiver is connected to the TV’s DIGITAL

AUDIO OUT terminal (not HDMI connection).

In this case, select a digital audio input mode

on the Audio Receiver.

•These functions depend on the device

connected.

Other REGZA-LINK® functions

When the Enable REGZA-LINK and each item in the

REGZA-LINK Setup menu are set to On, the following

functions will be enabled.

Item Description

TV Auto

Input Switch

If a connected HDMI device starts

playing video or audio, the TV will

automatically switch to the appropriate

HDMI input.

TV Auto

Power

If a REGZA-LINK

device is turned

on, the TV turns on automatically.

Device Auto

Standby

If the TV is turned off the TV will send

a message to turn off all of the REGZA-

LINK

devices connected to the TV.

Speaker

Preference

From this item, you can set your audio

output preference to the TV speakers

or the audio receiver speakers. When

this item is set to Audio Receiver,

the TV remote can be used to adjust

or mute the volume of the audio.

This item will be grayed out unless

a REGZA-LINK

compatible audio

receiver is connected.

Note

When you turn on the Audio Receiver,

change its input source or adjust the sound

volume, the sound will be output from the audio

receiver’s speakers even if TV Speakers has

been selected. Turn the TV off and on again to

output the sound from the TV speakers.

To set the REGZA-LINK® Setup:

1無 From the Setup menu, highlight REGZA-LINK

Setup and press .

2無 Press p or q to highlight Enable REGZA-LINK.

3無 Press t or u to select On.

Note: If you select Enable REGZA-LINK Off, the

other items will be grayed out.

4無 Press p or q to highlight the REGZA-LINK Setup

item you want to use, and press t or u to select

On or desired mode.

• TV Auto Input Switch: On/Off

• TV Auto Power: On/Off

• Device Auto Standby: On/Off

• Speaker Preference: TV Speakers/Audio Receiver

5無 To save the new settings, highlight Done and press

. To revert to the factory defaults, highlight

Reset and press .

Chapter 6: Using the TV’s features

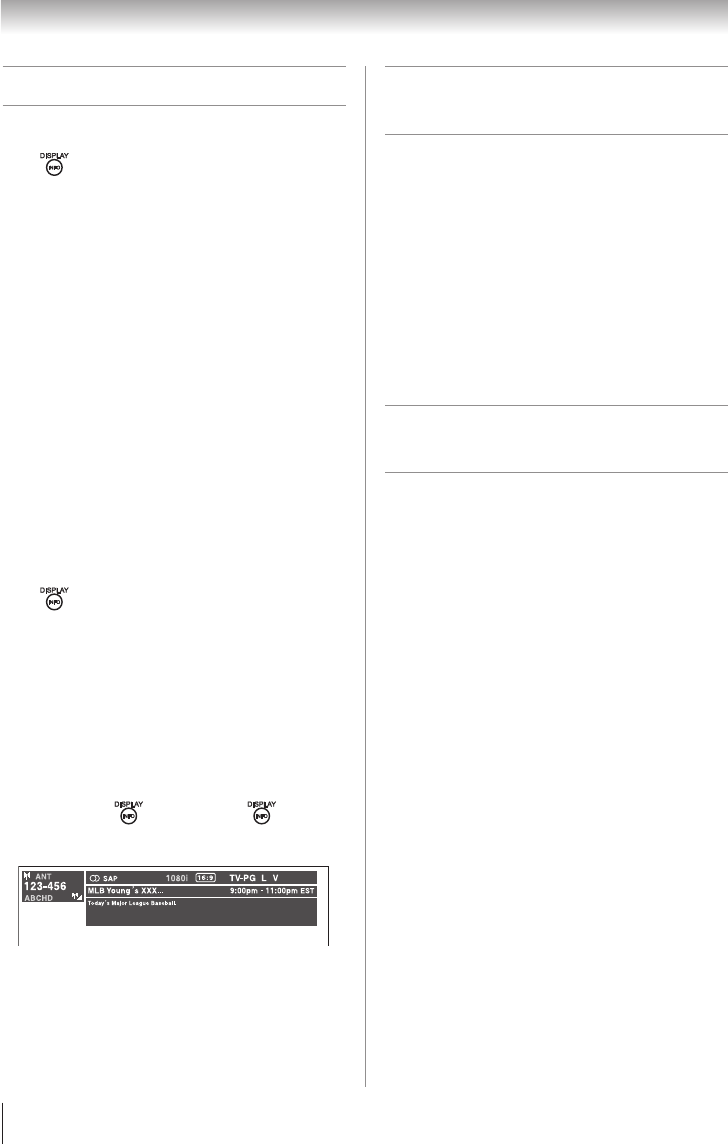

Displaying TV status information

To display TV status information :

Press on the remote control.

The following information will display (if applicable):

• Current input (ANT/CABLE, VIDEO, etc.)

• If ANT/CABLE is the current input, either “CABLE”

(for cable TV) or “ANT” (for over-the-air broadcasts).

• Channel number (if in ANT/CABLE mode)

• Channel label (if applicable)

• Digital signal strength indicator (bar graph in lower

right corner of box; for ATSC signal only)

• Stereo, Mono or SAP audio status (when HDMI input

mode, Dolby Digital or PCM)

• Video resolution

• Aspect ratio of incoming video signal (4:3 or 16:9)

• V-Chip rating status

• GameTimer (if set)

To close the screen (except ANT/CABLE

input):

Press again.

The following additional information will display for

ANT/CABLE input (if applicable):

• Title

• Duration

• Detailed description

• To display next program information for digital

channels, press again. Pressing a third

time will remove the entire banner.

Note:

The location of the banner can be moved

to the top or bottom of the screen by pressing p

or q while the INFO display is on-screen.

Understanding the auto power off

feature

The TV will automatically turn itself off after

approximately 15 minutes if it is tuned to a vacant

channel or a station that completes its broadcast for

the day.

Note:

•If you want to set this feature to off, see “No Signal

Power Down” on page 49.

•If it is possible that you will be away from the TV

for an extended period of time, you should unplug

the power cord.

Understanding the last mode

memory feature

If the power is cut off while you are viewing the

TV, the Last Mode Memory feature automatically

turns on the TV when the power is resupplied.

Note: If it’s possible, and you will be away

from the TV for an extended period of time you

should unplug the power cord.

Using the advanced picture

settings features

Using Dynamic Contrast

Dynamic Contrast detects changes in picture quality

that affect the appearance of your contrast settings

and then automatically adjusts the video.

To select Dynamic Contrast preference:

1無 From the the Picture menu, highlight Picture

Settings and press .

2無 Highlight Advanced Picture Settings and press .

3無 Press p or q to select

Dynamic Contrast

4無 Press t or u to select

High

, Middle

, Low and Off.

Using the Static Gamma feature

The Static Gamma feature allows you to adjust the

levels of black in the picture.

To adjust the Static Gamma settings:

1無 Press and open the Picture menu.

2無 Highlight Picture Settings and press .

3無 Highlight Advanced Picture Settings and press .

• In the Static Gamma field, press t or u to

adjust the Static Gamma.

The adjustment range is within ±5 from center.

• If the setting is moved in the minus direction,

the detail of black colors will be decreased.

• If the setting is moved in the plus direction, the

detail of black colors will be increased.

4無 To save the new settings, highlight Done and

press .

To revert the factory defaults, highlight Reset

and press .

Note: If you select one of the factory-set

picture modes (Sports, Standard, Movie

or PC) and then change the Static Gamma

setting, the picture mode automatically

changes to Preference.

Chapter 7: Using the TV’s advanced features

Selecting the Color Temperature

You can change the quality of the picture by selecting

from three preset Color Temperatures (Cool,

Medium, and Warm), as described below.

Mode Picture Quality

Cool blueish

Medium neutral

Warm reddish

To select the Color Temperature:

1無 Press and open the Picture menu.

2無 Highlight Picture Settings and press .

3無 Highlight Advanced Picture Settings and press .

4無 Highlight Color Temperature and press .

5無 In the Color Temperature field, press t or u to select

the mode you prefer (Cool, Medium, or Warm).

6無 Press p or q to select either B Drive or G Drive,

and then press t or u to adjust the settings.

• B Drive: u makes the picture blueish.

• G Drive: u makes the picture greenish.

Note: The B Drive and G Drive settings

are connected to the Color Temperature

settings and will change based on which

setting is selected in step 5 above.

7無 To save the new settings, highlight Done and press .

To revert to the factory defaults, highlight Reset and

press .

Note: If you select one of the factory-

set picture modes (Sports, Standard,

Movie, or PC) and then change the Color

Temperature mode, the picture mode

automatically changes to Preference.

(continued)

Chapter 7: Using the TV’s advanced features

Using CableClear® digital Noise

Reduction

The CableClear® digital Noise Reduction feature

allows you to reduce visible interference in your

TV picture. This may be useful when receiving a

broadcast with a weak signal (especially a Cable

channel) or playing a noisy video cassette or disc.

To change the CableClear settings:

1無 Press and open the Picture menu, highlight

Noise Reduction and press .

2無 In the CableClear field, select your desired setting.

Note:

•If the current input is ANT/CABLE or

VIDEO, the menu will display the text

“CableClear”. The available selections are

Off, Low, Middle, and High.

•If the current input is ColorStream HD,

HDMI 1 or HDMI 2, the menu will display

the text “DNR”. The available selections

are Off, Low, Middle, and High. Low,

Middle, and High will reduce the noise in

varying degrees, from lowest to highest,

respectively.

3無 To save the new settings, highlight Done and

press .

To revert to the factory defaults, highlight Reset

and press .

Using MPEG Noise Reduction

The MPEG Noise Reduction feature allows you

to reduce visible interference caused by MPEG

compression. Choices for MPEG Noise Reduction

are Off, Low, Middle, and High. Off is automatically

selected when this feature is disabled (“grayed out”).

To select the MPEG Noise Reduction level:

1無 Press and open the Picture menu.

2無 Highlight Noise Reduction and press .

3無 Press p or q to highlight the MPEG Noise

Reduction field and then press t or u to select

either Off, Low, Middle or High.

4無 To save the new settings, highlight Done and

press .

To revert to the factory defaults, highlight Reset

and press .

Using the Game Mode feature

You can use the Game Mode feature for shorter

frame delays when playing a video game requiring

split-second timing between the on-screen display

and input from the controller (such as music creation

and high-action games).

This feature is more effective for 480i and 1080i input

signals.

Note: To use the Game Mode feature,

the current video input must be Video,

ColorStream HD, HDMI 1 or HDMI 2. The

Game Mode cannot be turned on when

any other video input, other than the above

mentioned is selected.

To turn on Game Mode:

1無 Press and open the Picture menu, then

highlight the Game Mode.

2無 Press t or u to select On.

To turn off Game Mode:

Select Off in step 2 above, change the video input, or

turn the TV off and then on again.

Note: You can change the video input by

pressing

INPUT

on the remote control

( page 30).

Disc playback

This section shows you the basics on how to play a

disc.

Basic playback (DVD/VCD/CD)*

1無 Press

POWER

on the TV control panel or on the

remote control.

The Power LED on the front of the LCD TV /

DVD combination changes to green. It may take

approximately 10 seconds for a picture to appear

on-screen.

When using an amplifier, switch on the amplifier.

2無 Press

TV/DVD

on the remote control to switch to

DVD mode.

The DVD start-up screen will appear on-screen.

3無 Hold the disc by its edges and load it in the disc

slot with the label side facing forward.

The prompt “Insert Disc” changes to “Reading”

and then playback starts.

Note: DO NOT touch the surface of the disc.

This may leave a smudge that can cause

playback errors.

If the disc has its own menu, it will be displayed

on-screen. Press p q t or u on the remote

control to navigate the disc menu, then press

to implement the selected menu option.

To adjust playback volume:

Press / .

To temporarily suspend disc playback (still

mode):

Press .

To continue playback from still mode:

Press .

To stop playback:

Press .

Chapter 8: Basic disc playback

Playback resume function:

Your LCD TV / DVD combination supports playback

resume function.

If you stopped the disc playback before it is

completed, the LCD TV / DVD combination records

the stop point.

“ ” appears on-screen. Press to resume

playback on the stop point. If you press twice in

quick succession or unload the disc, the LCD TV /

DVD combination will clear the stop point.

Higher quality picture:

High resolution pictures on some discs may

occasionally cause noise on the picture display. If

this is the case, reduce the

Sharpness

setting under

the

Picture Settings

menu ( page 38).

Note:

•Keep your fingers well clear of the disc slot

when a disc is loading or unloading. Failure

to do so may cause serious personal injury.

•Do not move the TV during playback. Doing

so may damage the disc.

•When a disc is inserted when the TV is not in

DVD mode, the TV will automatically switch

to DVD mode.

*This indicates the kind of disc that can employ the

function described under that heading.

DVD : You can use this function with DVDs.

VCD : You can use this function with Video CDs.

CD : You can use this function with Audio CDs and

CD-R/RW discs.

Removing a disc

1無 Press

EJECT

on the TV control panel or on the

remote control.

2無 Wait for the disc to be ejected and then remove

the disc from the slot.

Disc playback reminders

•If the LCD TV / DVD combination does not

operate properly, static electricity build-up

may be the cause. Turn off the LCD TV / DVD

combination, then disconnect the power cord from

the AC outlet. Reconnect the power cord, then

press

POWER

to turn on the LCD TV / DVD

combination again.

•If an incompatible disc is loaded, one of the

following error messages appears on-screen:

“Incorrect Disc”, “Disc region incorrect” or

“Enter Password”. If this is the case, check your

disc again. Go to page 8 for a list of supported

disc formats and to page 73 for playback-related

troubleshooting instructions. (continued)

Chapter 8: Basic disc playback

•In some instances the LCD TV / DVD combination

may take a minute or so to start disc playback.

•When you load a disc with the playback side

facing backward, “Reading” appears on-screen but

it will be replaced by “Incorrect Disc”. Eject the

disc and load it again making sure the playback

side is now facing forward.

•The playback resume function may not work on

some discs.

•Some DVDs may have fixed playback operations

/ DVD combination follows this fixed playback

design. In such cases, some playback features may

not be available. You may refer to the instructions

accompanying the DVD.

•Do not put any objects other than compatible discs

on the disc slot. Doing so may cause damage to

the LCD TV / DVD combination.

•There may be a few seconds between the action of

pressing a button and the function it activates.

Playback navigation

Playing in fast reverse or fast forward

direction (DVD/VCD/CD)

1無 Press or during playback.

: Fast reverse playback

: Fast forward playback

Each time you press

or , the playback

speed changes.

To resume normal playback:

Press .

Note:

•The sound is muted during reverse and

forward scan.

•The playback speed may differ depending

on the disc.

•You can use fast reverse/fast forward

playback for MP3 and WMA CDs.

Playing frame by frame (DVD/VCD)

1無 Press during playback.

Each time you press , the picture advances

one frame.

To resume normal playback:

Press .

Note:

•The sound is muted during frame by frame

playback.

Playing in slow motion (DVD/VCD)

1無 Press or during playback.

: Slow reverse playback

: Slow forward playback

Each time you press or , the slow motion

speed changes.

To resume normal playback:

Press .

Note:

•The sound is muted during slow motion

playback.

Locating a chapter or track (DVD/

VCD/CD)

1無 Press or repeatedly to locate the previous

or next chapter or track you want to play.

: To locate succeeding chapters or tracks.

Playback starts from the beginning of the selected

chapter or track.

: Playback starts from the beginning of the

current chapter or track.

When you press twice in quick succession,

playback starts from the beginning of the

preceding chapter or track.

Zoom function/Scene navigation

You can change the viewing scale of a picture by

using the Zoom function. Once the image has been

rescaled, use the arrow buttons pqt u to pan the

image.

Scene navigation options differ depending on the

kind of disc. DVDs use the title, chapter or record

time to locate the start point for playback. Audio CDs

and Video CDs use the record time or track number.

To view the discs title/track or chapter/ track list,

press .

Using Zoom (DVD/VCD)

1無 Press during playback. The view will zoom

into the center of the image. Each press of

will increase the scale value: 1 (× 1.3), 2 (×

1.5) and 3 (× 2.0).

2無 Press pqt u to pan the scene and view different

sections of the picture.

3無 To return to normal view, in Zoom mode, press

repeatedly until Off appears.

Note:

•You can use the Pause, Slow and Search

playback functions in Zoom mode.

•Zoom function may not apply to some discs.

Chapter 9: Advanced disc playback

Locating a specific scene

[DVD]

1無 Press during playback, still or stop mode.

Jump

Title

Chapter

Time

2無 Press p or q to select a navigation option.

Jump

Title

Chapter

Time

3無 Use the Channel Number buttons (0-9) to key in a

value for the navigation option you selected.

Jump

Title

Chapter

Time

If you input a wrong number, press . Refer

to the disc package to check the correct number.

4無 Press or to start playback.

[VCD/CD]

For audio CDs and Video CDs, you can locate a

scene by track number or record time.

VCD mode

CD mode

Note:

•When you use title navigation, playback

starts from the first chapter of the selected

title.

•For PBC-enabled VCDs, turn off the PBC

function first before using the Jump function

( page 61).

•Scene navigation may not apply to some

discs.

Chapter 9: Advanced disc playback

Scene bookmark

Scene bookmarks refer to specific points in the

playback range that have been marked for later

access. You can create up to three markers per disc.

Note: The saved scene bookmarks are only

accessible during the current session. Once

you eject the disc or turn off the LCD TV / DVD

combination, all bookmarks will be cleared.

Bookmarking a scene (DVD/VCD/CD)

1無 During playback, press at the scene where

you would like to place the bookmark.

2無 Press p or q to select a blank marker, then press

to bookmark the selected scene.

3無 Press to close the bookmark window.

4無 To save two more bookmarks, repeat steps 1-3.

Note:

•In some cases, subtitles for the marked

scene may not display.

•Bookmarking a scene may not apply to some

discs.

Viewing a scene bookmark (DVD/VCD/

CD)

1無 Press during playback mode.

2無 Press p or q to select the saved marker.

3無 Press to start playback on the scene saved in the

selected bookmark.

To delete a scene bookmark:

Perform steps 1 and 2 above, then press .

Repeat playback/A-B repeat

You can choose to repeat DVD playback by title

or chapter. For audio CDs and Video CDs, you can

repeat a single track or the entire disc.

The A-B repeat function lets you repeat a specific

section between two set points. This section will be

played repeatedly until you turn off the A-B repeat

mode.

Enabling repeat playback (DVD/VCD)

1無 Press during playback or stop mode.

2無 [DVD]

Press repeatedly to select a repeat mode. It

can either be by Chapter or by Title.

The LCD TV / DVD combination

automatically starts

repeat playback after finishing

the current title or chapter.

Play Mode

Repeat : Off

[VCD]

Press q to select Repeat, then press

repeatedly to select a repeat mode. It can either be

Single or All.

The LCD TV / DVD combination

automatically starts

repeat playback after finishing

the current track.

Play Mode

Mode : Normal

Repeat : Off

Note: If you set the repeat mode during stop

mode, press to start Repeat playback.

3無 Press again to close the Play Mode window.

To resume normal playback:

Select Off in step 2 above.

Note:

•The Repeat mode is canceled when or

is pressed.

•The Repeat playback function may not apply

to some discs.

(continued)

Chapter 9: Advanced disc playback

Enabling A-B repeat mode (DVD/VCD/

CD)

1無 During playback, press at the point where

you would like the playback loop to begin. This

sets your “A” point.

2無 When the playback reaches the point where you

would like the playback loop to stop, press

again. This sets your “B” point.

A B

The section between points A and B will be

played repeatedly in a loop until you turn off the

Repeat A-B mode.

To resume normal playback:

Press until Off appears on-screen.

Note:

•In some cases, subtitles for the repeated

scene may not display.

•The A-B repeat mode may not apply to some

DVD scenes.

•The A-B repeat mode is not applicable to

interactive DVDs and JPEG CDs.

Programmed playback/Random

playback

You can program the playback sequence of tracks

on a Video CD. Or you can set the LCD TV / DVD

combination to play tracks at random.

For procedures applicable to audio CD / MP3 /

WMA / JPEG, go to page 62.

Note:

•The programmed and random playback

modes are not applicable to PBC-enabled

Video CDs.

•The programmed and random playback

modes are only applicable during the current

session. Once you eject the disc or turn off

the LCD TV / DVD combination, these modes

will be disabled.

Programming the playback sequence

(VCD)

1無 Press in stop mode.

2無 Press p or q to select

Mode

, then press

Repeatedly to select Program.

Play Mode

Mode : Program

Repeat : Off

Program Playback

3無 Press

t or u

to go to the right column. Press

or q

to select the playback position, then use the

Channel Number buttons (0-9) to input the track

for that position.

To program other tracks, repeat this step.

If you input a wrong number, press

1 9

Play Mode

Mode : Program

Repeat : Off

Program Playback

4無 Press t or u to return to the left column, then

press p or q to select Program Playback and

press .

1 9

2 3

3 11

Play Mode

Mode : Program

Repeat : Off

Program Playback

Track playback will follow the sequence you set

in step 3. (continued)

Chapter 9: Advanced disc playback

To resume normal playback:

In step 2, set Mode to Normal.

To change the program:

1. Set Mode to Program.

2. Press t or u, then p or q to select the

playback position you want to change the track

input for, then press .

3. Use the Channel Number buttons (0-9) to input

the new track for the selected position.

To remove a track from the programmed list:

1. Set Mode to Program.

2. Press t or u, then p or q to select the

playback position, then press .

To clear all the programs:

On the left column, press p or q to select Clear

Program, then press .

Enabling random playback (VCD)

1無 Press in stop mode.

2無 Press p or q to select

Mode

, then press

repeatedly to select Shuffle.

Play Mode

Mode : Shuffle

Repeat : Off

Program Playback

3無 Press to start random playback.

Note: If you set random playback during

playback mode, random playback will begin

after the current track finished playing.

To resume normal playback:

In step 2, set Mode to Normal.

Scene angle/Title selection/DVD

Changing the scene angle (DVD)

When playing back a DVD recorded with multiangle

scenes, you can select the scene angle that you prefer.

1無 Press during playback.

2無 Press repeatedly until the preferred scene

angle is displayed.

Note: Depending on the DVD, you may not be

able to change the scene angle even if multiangle

data are recorded on the disc.

Selecting a DVD title (DVD)

Some DVDs contain two or more titles. If this is the

case, you can select a particular title for playback.

1無 Press during playback to display the title

menu.

2無 Press pqt u to select the preferred title.

3無 Press or to start playback.

Note:

•Title selection may not apply to some DVDs.

•The title menu may simply be referred to a

“menu” or “title” in the instructions supplied

with the DVD.

DVD menu (DVD)

Some DVDs have an encoded menu that allows users

to select a specific disc content, enable a particular

DVD feature (e.g. subtitle or soundtrack language),

or choose a particular title (for multititle DVDs).

1無 Press during playback.

2無 Press pqt u to select a DVD menu item, then

press or to access it. Use the same keys

to enable an option for the selected item.

Repeat this step to configure other menu options.

3無 Press again to resume playback on the

scene that was playing when you pressed .

Note: Depending on the DVD, you may not be

able to resume playback from the same scene

that was playing when you pressed .

Chapter 9: Advanced disc playback

Soundtrack language/Audio

channel/Subtitle

Selecting a soundtrack language

(DVD)

You can select the soundtrack language when you

play a multilingual DVD.

During playback, press repeatedly until the

preferred language track is selected.

Selecting the audio channel (VCD)

During playback, press repeatedly until the

preferred audio channel is heard. Options include

Stereo, Left, Right, and Mix.

Note:

•If the preferred language option is not heard

after selecting it for several times, that

language is not recorded on the disc.

•The soundtrack language selected is only

applicable for the current session. When you

stop playback and try to play the disc again,

the default language track will be used.

Viewing subtitles (DVD)

When playing back a disc recorded with subtitles, you

can select the subtitle language or turn the subtitle off.

To view subtitles:

Press repeatedly during playback until the

preferred language is selected.

The Subtitle prompt will disappear after a few seconds.

To disable subtitles:

Press until Off appears.

Note:

•Not all DVDs have encoded subtitles.

•The subtitle selection may revert to the default

language when you stop playback and try to

play the DVD again.

•In some cases, the selected subtitle may not

display immediately.

Playback information/VCD

playback control

Viewing the playback info (DVD/VCD)

Press during playback.

DVD mode

DVD Video

Time TT 00:01:52/00:09:11 CH 00:01:41/00:00:01

Title 1/2

Chapter 2/5

Elapsed/remaining time

for current title

Title no.

Elapsed/remaining time for

current chapter

Chapter no.

VCD mode

VCD2.0

Time DISC 00:00:19/00:16:12 Track 00:00:19/00:02:28

Track 1/8

Elapsed/remaining time

for current disc

Track no. (if PBC is enabled, “PBC On” will be displayed.)

Elapsed/remaining time for

current track (If PBC is On,

current track time is not displayed)

To close the information display:

Press .

Note: Depending on the disc, this operation

may not be available.

Turning off the PBC function (VCD)

1無 Press in stop mode.

2無 Press p or q to select Mode, then press

repeatedly until

Normal

appears.

Play Mode

Mode : Normal

Repeat : Off

Program Playback

3無 Press to close the screen.

To turn on the PBC function:

Follow steps 1 and 2 above, then press repeatedly

until PBC appears.

When enabled, PBC allows interactive Video CD

playback using the remote control.

Chapter 9: Advanced disc playback

MP3, WMA, JPEG, and Audio CD operation

This LCD TV / DVD combination can play MP3, WMA, and JPEG files recorded on a CD-R or CD-RW disc. To

create the MP3/ WMA/ JPEG disc, you need a Windows PC with a CD-RW drive and file encoding software. You

must use a Windows PC to create the MP3/WMA/JPEG disc.

This LCD TV / DVD combination requires discs/recordings that meet certain technical standards in order to

achieve optimal playback quality. There are many different types of recordable disc formats (including CD-R

discs containing MP3 or WMA files). Not all recordable discs will produce optimal playback quality. The technical

criteria set forth in this owner’s manual are meant only as a guide. Use of CD-RW discs for recording MP3 files is

not recommended.

You must obtain any required permission from copyright owners to download or use copyrighted content.

Toshiba can not and does not grant such permission.

MP3/WMA/JPEG/Audio CD information (CD)

MP3/WMA/JPEG CD playback reminders

• Make sure the file name of the MP3, WMA, and JPEG files in the CD includes the 3-character file extension (“mp3”,

“wma”, “jpg”, “div”, and “avi”) to make it compliant with the ISO 9660 standard.

• This LCD TV / DVD combination can read 2000 files per disc. If a disc has more than 2000 files, it reads the first

2000 files, while the remaining files will be omitted.

• To play the files in sequence based on the recorded order:

−Use an encoding software that records data alphabetically or numerically.

−Include a two- or three-digit number prefix on the file name (ex. “01” “02” or “001” “002”).

−Refrain from making too many sub-folders.

• It may take more than one minute for this LCD TV / DVD combination to read MP3, WMA, and JPEG files

depending on the disc structure.

• Audio files recorded using the Joliet Recording Specification can be played back in this LCD TV / DVD

combination. The file name is displayed (up to 15 characters). Longer file names will be condensed.

• Music recorded based on the Joliet Recording Specification can be played back, the file name is displayed (within

15 letters) on the screen. Long file names will be condensed.

• This LCD TV / DVD combination does not support data disc burned using the Apple Mac OS (Hierarchical File

System, HFS format).

• MP3/WMA/JPEG CDs cannot be used for recording purpose.

File name display reminders

• The maximum number of characters for file name display is 15.

• Only the following characters will be displayed: A through Z (both upper and lower case), 0 through 9, and the

underscore symbol (_).

• Non-supported characters will be replaced with a hyphen (-).

MP3/WMA/JPEG CD limitations

• Depending on the recording conditions, some MP3/WMA/JPEG CDs cannot be played back in your LCD TV /

DVD combination.

• Only MP3, WMA, and JPEG files recorded in the CD-R/RW disc will be played. Other files will not be read nor

displayed.

MP3/WMA file encoding information

• MP3

−File format: MPEG-1 Audio

−Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

−Bit rate: 32 to 320 kbps (constant bit rate or variable bit rate)

The recommended recording setting for high-quality sound is 44.1 kHz sampling frequency and 128 kbps

constant bit rate.

• WMA

−File format: WMA version 7 or 8

−Sampling frequency: 32 kHz / 48 kbps, 44.1 kHz / 48 to 92 kbps, 48 kHz / 128 to 192 kbps

A file recorded in mono (48 kHz / 48 kbps) is not supported by this LCD TV / DVD combination.

Microsoft, Windows Media, and Windows Logo are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Chapter 9: Advanced disc playback

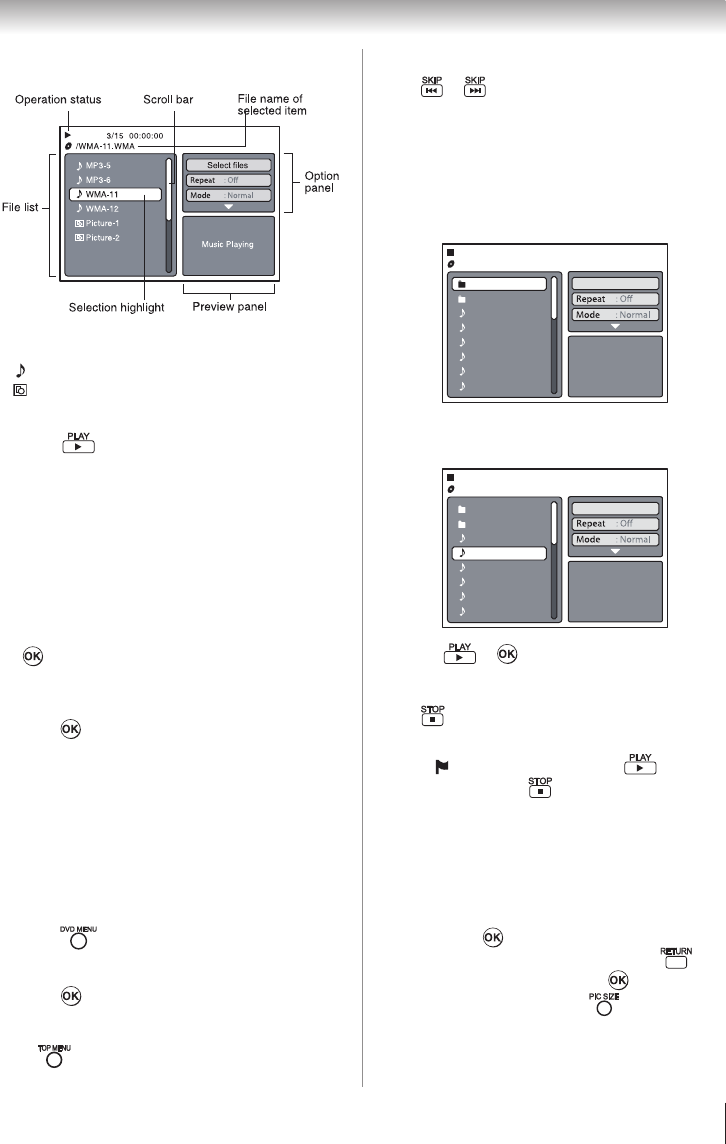

About the file browser (CD)

File icons

Music file (MP3/WMA/Audio CD track)

Picture file (JPEG)

If a CD contains a mixture of MP3, WMA and JPEG

files, and is pressed without selecting a file,

playback automatically begins starting from the first

file in the list.

Setting the file type listing

You can choose the type of files listed in the file

browser.

1無 Press u to move the selection highlight to the

Option panel.

2無 Press p or q to highlight Select files, then press

3無 Press p or q to select a file type from the list —

Audio or Photo.

4無 Press to add or remove the check mark next to

each file type. Checked file type will be displayed

in the file browser.

5無 Press t twice to move the selection highlight

back to the file list.

Viewing image files in thumbnail mode

You can change the browsers view mode from list

mode to thumbnail mode. This is convenient when

browsing for JPEG files.

1無 Press .

2無 Press pqt u to select an image file.

3無 Press to play an image file you want.

To return the browser to list mode:

Press .

To view the previous or next thumbnail page:

Press or .

Playing an audio file (CD)

1無 Load an MP3/WMA/Audio CD in the disc slot.

The file browser appears on-screen. It may

automatically play by composition of an audio

file.

Select files

Folder-2

MP3-1

MP3-2

MP3-3

WMA-1

WMA-2

WMA-3

Folder-1

JPEG Preview

/Folder-1

2無 Press p or q to select another audio file for

playback.

Select files

Folder-1

Folder-2

MP3-1

MP3-3

WMA-1

WMA-2

WMA-3

MP3-2

JPEG Preview

/MP3-2

3無 Press or to start playback.

To stop playback:

Press .

The LCD TV / DVD combination records the stop

point. “ ” appears on-screen. Press to resume

playback. If you press twice in quick succession

or unload the disc, the LCD TV / DVD combination

will clear the stop point.

Note:

•If the current directory has more than eight

files, press p or q to scroll the file list.

•To see folder contents, select a folder and

then press .

•To return to the root directory, press or

select “Go Up...” then press .

•In thumbnail mode, press repeatedly to

change the thumbnail size.

•The Repeat and Random/Programmed

playback modes can be enabled during MP3

or WMA playback. Refer to page 65.

(continued)

Chapter 9: Advanced disc playback

Viewing a JPEG file (CD)

1無 Load a disc containing JPEG files in the disc slot.

The file browser appears on-screen.

2無 Press p or q to select an image file for view.

A preview of the selected file is displayed in the

Preview panel.

JPEG Preview

W: 2048 H: 1536

/Picture-01.JPG

Select files

Picture-01

Picture-02

Picture-03

Picture-04

Picture-05

Picture-06

Picture-07

Picture-08

3無 Press or .

The selected image is displayed in full-screen

mode.

Press or to view the previous or next

image file in the current directory.

To rotate an image:

Press repeatedly until the preferred angle

is obtained. The image angle is adjusted in 90°

increments.

The current angle setting is shown on-screen: 90°,

180°, 270° or No rotation.

To magnify an image:

Press repeatedly until the image is displayed in

the preferred scale.

The current zoom setting is indicated by the

following icons: 1 (× 1.3), 2 (× 1.5) and 3 (×

2.0).

To return to normal view:

Press repeatedly until Off appears.

Viewing a slide show (CD)

If there are multiple JPEG files in the selected

directory, you can view them in a slide show. For

instructions on how to enable the slide show feature

and set the interval period between pictures, go to

page 69.

1無 Open the file folder containing the JPEG files you

want to include in the slide show.

2無 Press p or q to select the file you want to be the

starting image for the slide show.

A preview of the selected file is displayed in the

Preview panel.

JPEG Preview

W: 2048 H: 1536

/Picture-01.JPG

Select files

Picture-01

Picture-02

Picture-03

Picture-04

Picture-05

Picture-06

Picture-07

Picture-08

3無 Press or .

The selected image is displayed in full-screen

mode.

When the slide show is completed, the file

browser appears.

To view the previous or next image in the

slide show:

Press or .

To temporarily stop the slide show:

Press . “ ” appears briefly on-screen. Press

to resume the slide show.

To stop the slide show:

Press . The file browser appears.

Note:

•The Rotate and Zoom modes are available in

regular JPEG viewing and slide show modes.

•The Jump and A-B repeat modes are not

available when viewing JPEG images.

•During a slide show, the interval time

between images may increase if the file size

is too big.

•When an image exceeds 5760 x 3840 pixels,

the image display can appear cropped.

This applies when viewing the image in the

Preview panel of the file browser; or when

in the thumbnail, fullscreen or slide show

modes.

Chapter 9: Advanced disc playback

MP3, WMA, JPEG and Audio CD

playback modes

You can choose to repeat CD playback by track or the

entire disc. You can also program the file playback

sequence or set the LCD TV / DVD combination to

play files at random.

Note: These playback modes are only

applicable during the current session. Once

you eject the disc or turn off the LCD TV / DVD

combination, these modes will be disabled.

Pressing or during playback will also

cancel these modes.

Enabling repeat playback (CD)

1無 During stop mode, in the Option panel of the file

browser, press p or q to select Repeat.

Select files

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

2無 Press repeatedly to select a repeat mode, Track

or All.

Select files

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

3無 Press .

The LCD TV / DVD combination automatically

starts repeat playback after finishing the current

track.

To resume normal playback:

Select Off in step 2 above.

Enabling random playback (CD)

1無 During stop mode, in the Option panel of the file

browser, press p or q to select Mode.

Edit Mode

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

2無 Press repeatedly to set mode to Shuffle.

Edit Mode

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

3無 Press .

The LCD TV / DVD combination automatically

applies the shuffle mode.

To resume normal playback:

Select Normal in step 2 above.

To activate Music Intro mode:

Select Music Intro in step 2 above.

Press .

Note: When the Music Intro mode is enabled,

the first 10 seconds of an audio track is played.

This is useful if you are simply looking for a

particular track in a list.

(continued)

Chapter 9: Advanced disc playback

Programming the playback sequence

(CD)

1無 In the Option panel of the file browser, press p

or q to select Edit Mode, then press .

Edit Mode

Program View

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

2無 Press t to return to the file list and press p or

q to select a file, then press to mark it for

inclusion in the programmed playlist. A check

mark will appear next to the file.

Edit Mode

Program View

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

Repeat this step to mark any other files you want

to add in the programmed playlist.

3無 In the Option panel, press p or q to select Add

To Program, then press to add the marked files

in the programmed playlist.

Edit Mode

Program View

Add To Program

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

4無 Press p or q to select Edit Mode, then press

to disable it.

Edit Mode

Program View

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

5無 Press p or q to select Program View, then press

Program View

Edit Mode

Browser View

Clear Program

MP3-1

MP3-2

MP3-3

WMA-3

In Program view, only the files you added in step

3 are displayed.

Browser View

Edit Mode

Program View

Add To Program

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

WMA-1

WMA-2

WMA-3

6無 In the programmed file list, press p or q to

select a file, then press to start playback.

Edit Mode

Browser View

Clear Program

MP3-1

MP3-2

MP3-3

WMA-3

To remove a file from the programmed list:

1. Press twice to stop playback.

2. In Program view, press pqt u to select Edit

Mode on the Option panel, then press to

enable it.

3. Press t to go to the programmed list.

4. Press p or q to select the file you want to

remove, then press .

5. Repeat step 4 to mark any other files you want

to remove from the list.

6. Press u to go to the Option panel.

7. Press p or q to select Clear Program, then

press .

Customizing disc playback

You can customize the disc playback settings to suit

your preferences.

Configuring the disc playback

settings (DVD/VCD/CD)

1無 In DVD mode, press during stop mode.

Parental : Off

Set Password

Output : Interlace

DivX(R) VOD

DRC : Off

QSound : On

E.B.L. : Off

TV Screen : 4:3

Display : On

Picture Mode : Auto

JPEG Interval : 5 Seconds

Screen Saver : On

Menu :English

Subtitle :English

Audio :English

OSD :English

2無 Press p or q to select a setup tab, then press u.

The first setup option is highlighted.

Set Password

Output : Interlace

DivX(R) VOD

QSound : On

Menu : English

Subtitle : English

Audio : English

Display :Off

Picture Mode :Auto

JPEG Interval :Off

3無 Press p or q to select the setup option you want

to customize.

4無 Press u or to display a list of available option

settings.

5無 Press p or q to select an option setting, then

press to apply and save it.

Go to pages 68-71 for list of description for each

option setting.

6無 To configure another option on the same setup

tab, repeat steps 3–5.

To configure an option on another tab, press t,

then use p or q to select a setup tab.

Repeat steps 3–5 to configure the preferred

option.

7無 To close the Setup screen, press or .

Chapter 10: Customizing disc playback

(continued)

Chapter 10: Customizing disc playback

Disc playback setup

Tab Option Description Go to

page

Menu Select the language for the DVD menu display.

Subtitle Select the subtitle language for disc playback.

Audio Select the audio language for disc playback.

OSD Select the language for the Setup screen display.

Display Choose whether to show a status display whenever

a button is pressed.

69Picture Mode Select the DVD source content.

JPEG Interval Select the interval time between images in a slide

show.

Night Mode Toggle the night mode on or off.

Digital Out Select the format for the digital audio output

corresponding to your audio connection.

Parental Set the restriction level for allowable disc content. 70

Password Change the access password for the parental

control setting. 71

Note: These setup settings are retained in the LCD TV / DVD combination’s memory. It remains active

even if the power is turned off.

Chapter 10: Customizing disc playback

Set Password

Output : Interlace

DivX(R) VOD

QSound : On

Menu : English

Subtitle : English

Audio : English

Display :On

Picture Mode :Auto

JPEG Interval :Off

n Display

Choose whether to show a status display

whenever a button is pressed.

Off There will be no on-screen display.

On There will be on-screen display

when any button is pressed.

n Picture Mode

The source content of a DVD can either be

recorded in: film format (images are recorded at

24 frames per second) or video format (images

are recorded at 30 frames per second).

Auto The LCD TV / DVD combination

automatically detects the type of

source content and converts that

signal in an appropriate method

based on the current aspect ratio

of the LCD TV / DVD combination.

This option will normally suit most

DVDs.

Film Suitable for playback of DVDs

recorded in a film format.

Video Suitable for playback of DVDs

recorded in a video format.

Note: If picture appears cut off or doubled,

select the “Video” setting.

n JPEG Interval

Select the interval time between images during

a JPEG slide show.

Off Slide show option is disabled.

5, 10, or 15

seconds

Images will be displayed in a slide

show using the selected interval

time.

(continued)

Parental : Off

Set Password

Output : Interlace

DivX(R) VOD

DRC : Off

QSound : On

E.B.L. : Off

TV Screen : 4:3

Display : On

Picture Mode : Auto

JPEG Interval : 5 Seconds

Screen Saver : On

Menu :English

Subtitle :English

Audio :English

OSD :English

n Menu / n OSD

Select the language for the DVD and Setup

menu display. Options include: English, French,

and Spanish.

n Subtitle / n Audio

Select the language for the subtitle display and

audio track output during disc playback.

English

French

Spanish

The selected language will be

heard or seen.

Auto (Subtitle) The LCD TV / DVD

combination will display the

subtitle in the disc’s default

language.

Off (Subtitle) There will be no subtitle

display.

Note: If the selected language is not available,

the default disc language will be used.

Chapter 10: Customizing disc playback

!!!!!!!!!!!!!Tfu!Qbttxpse

Pvuqvu! ;!Joufsmbdf

!!!!!!!!!!!!!!EjwY)S*!WPE

Nfov! ;!Fohmjti

Tvcujumf! ;!Fohmjti

Bvejp! ;!Fohmjti

UW!Tdsffo! ;!5;4!

Ejtqmbz! ;!Po

Qjduvsf!Npef! ;!Bvup

KQFH!Joufswbm! ;!6!Tfdpoet

Tdsffo!Tbwfs! ;!Po

Night Mode :Off

Digital Out :Bitstream

n Night Mode

Select to toggle the Night Mode feature on

or off. When enabled, this function allows for

automatic volume level adjustment for audio

that may be too low (e.g. whispered dialogues)

or too high (e.g. a thunderstorm scene).

Off Audio retains its disc recording

volume level.

On Volume level is automatically

adjusted depending on the scene

content.

Note: The Night Mode feature is only applicable

to Dolby Digital-featured DVDs. The adjusted

sound level depends on the DVD encoding.

n Digital Out

Select the sound format of the digital output

depending on the enabled signal connection.

Off Disables digital sound output.

Select this option when there’s no

equipment connected to the optical

DIGITAL AUDIO OUT jack.

PCM Changes Dolby Digital output to

PCM. Select this option when

using a two-channel digital stereo

amplifier.

Bitstream Select this option to output the

signal in its native format.

Note: MPEG audio will always be in PCM

format regardless of the Digital Output setting.

DRC : Off

QSound : On

Menu : English

Subtitle : English

Audio : English

E.B.L. : Off

TV Screen : 4:3

Display : On

Picture Mode : Auto

JPEG Interval : 5 Seconds

Screen Saver : On

Parental :Off

Password :Change

n Parental

A DVD is usually encoded with a rating level

to indicate the recommended audience age.

You have the option to select the content rating

level allowed for playback in your LCD TV /

DVD combination.

You will be prompted to key in the system

password to access this settings option.

Press p or q to select the allowable rating

level, then press .

Off No playback restriction. All discs

can be played regardless of content

rating.

Level 1–5 Discs of varied non-adult ratings

will be played back. The higher

the number, the more severe the

content is.

Level 6–8 Discs of varied adult only ratings

will be played back.

Note:

• The Parental rating levels correspond to the

US movie ratings.

Level 1 – Kids Safe Level 5 – PG–R

Level 2 – G Level 6 – R

Level 3 – PG Level 7 – NC–17

Level 4 – PG–13 Level 8 – Adult

• Some discs may not have their rating level

encoded on the disc though it’s indicated on

the disc jacket. Playback restriction will not

apply to these discs so make sure to restrict

access to it manually.

(continued)

Chapter 10: Customizing disc playback

To temporarily cancel the parental

restriction:

1) Load the restricted content DVD that you

want to play.

2) Use the Channel Number buttons (0–9) to

input the system password after the “Enter

Password” message, then press .

This suspension of the parental restriction

setting applies until disc is ejected.

n Password

Select this option to change the access

password for the parental control setting.

1) Press p or q to select Password, then

press .

2) Use the Channel Number buttons (0–9) to

input the current password, then press .

If the password has not been set yet, key in

“0000”. This is the factory default password.

3) Use the Channel Number buttons (0–9) to

input the new password, then press .

You will be prompted to confirm the new

password.

4) Use the Channel Number buttons (0–9) to

input the new password again, then press

5) Press one last time to confirm the

changed password. Note this new password

for future reference.

If you forget the system password:

1) Make sure there is no disc in the disc slot.

2) Press and hold down “4” on the remote

control, then press VOLUME- on the TV

control panel.

The “Initializing” message appears on-

screen to indicate that the password has

been reset to its default factory setting

“0000”. All DVD Setup related settings will

also be reset to their default factory values.

General troubleshooting

Before calling a service technician, please check this

chapter for a possible cause of the problem and some

solutions you can try.

Black box on-screen

•The closed caption feature is set to one of the

Text modes (T1, T2, T3, or T4). Set the closed

caption feature to Off ( page 38).

TV stops responding to controls

•If the TV stops responding to the controls on

the remote control or TV control panel and you

cannot turn off the TV, press and hold POWER

on the TV control panel for 5 or more seconds to

reset the TV.

•If you cause a static discharge when touching

the TV and the TV fails to function, simply unplug

the TV from the AC outlet and plug it back in.

The TV should return to normal operation.

Other problems

•If your TV’s problem is not addressed in this

Troubleshooting section or the recommended

solution has not worked, use the Reset Factory

Defaults procedure ( page 29).

TV will not turn on

•Make sure the power cord is plugged in, and then

press .

•The remote control batteries may be dead. Replace

the batteries or try the control panel buttons.

Picture problems

General picture problems

•Check the antenna/cable connections

( Chapter 2).

•Press

INPUT

on the remote control or TV and

select a valid video input source ( page 30).

If no device is connected to a particular input

on the TV, no picture will display when you

select that particular input source. For device

connection details, see Chapter 2.

•Antenna reception may be poor. Use a highly

directional outdoor antenna (if applicable).

•The station may have broadcast difficulties. Try

another channel.

•Adjust the picture qualities ( page 38).

Video Input Selection problems

•If the Input Selection window does not appear

when you press

INPUT

on the remote control or

TV, press

INPUT

a second time, which will change

to the next video input source and display the

Input Selection window.

Cannot view external signals or channel 3 or 4

•If you cannot view signals from external devices

connected to VIDEO, ColorStream® HD, HDMI 1,

HDMI 2, PC or from channels 3 or 4, make sure

the Input Lock is set to Off ( page 44).

Noisy picture

•If you are watching an analog channel (off-

air broadcast or Cable TV), you can set

the CableClear® feature to reduce visible

interference in the TV picture ( page 54).

Chapter 11: Troubleshooting

Poor color or no color

•The station may have broadcast difficulties. Try

another channel.

•Adjust the Tint and/or Color ( page 38).

Poor composite picture

•If the TV is connected to an external A/V device

(e.g., DVD player, video game system, set-top

box, etc.) try using a ColorStream or HDMI

video connection instead.

Picture and sound are out of sync

•As with all products that contain a digital display,

in rare instances, when viewing certain content

(e.g. television broadcasts, video games, DVDs),

you may notice that the sound and picture are

slightly out of sync. This phenomenon can be

caused by various factors including, without

limitation, video processing within the TV, video

processing in an attached gaming system, and

video processing or different compression rates

used by broadcasters in their programming.

You may want to try one or more of the following

suggestions, which may help to reduce the

effect of this phenomenon:

–If the TV is connected to an A/V receiver that

has a programmable audio delay feature,

use this feature to help synchronize the

sound to the picture.

–If you notice this phenomenon only on

certain TV channels, please contact your

local broadcast, cable, or satellite provider to

inform them of this issue.

Sound problems

•Check the antenna/cable connections ( Chapter 2).

•The station may have broadcast difficulties. Try

another channel.

•The sound may be muted. Press VOLUME.

•If you hear no sound, try setting the MTS feature

to Stereo mode ( page 40).

•If you are not receiving a second audio program

from a known SAP source, make sure the MTS

feature is set to SAP mode ( page 40).

•If you hear audio that seems “incorrect” for the

program you are watching (such as music or a

foreign language), the SAP mode may be on. Set

the MTS feature to Stereo mode ( page 40).

Remote control problems

•Remove all obstructions between the remote

control and the TV.

•The remote control batteries may be dead.

Replace the batteries ( page 21).

•If the TV still does not act as expected, use the

Reset Factory Defaults procedure ( page 29).

Channel tuning problems

•The channel may be locked by the Channel

Options feature. Unlocked the channel ( page 44).

•If you are unable to tune digital channels, check

the antenna configuration ( page 26). If you

are still unable to tune digital channels, use the

Reset Factory Defaults procedure ( page 29).

Also see “TV stops responding to controls” and

“Other problems” ( page 72).

Chapter 11: Troubleshooting

Closed caption problems

•If the program or video you selected is not

closed captioned, no captions will display

( page 38).

•If text is not available, a black rectangle may

appear. If this happens, turn off the closed

caption feature ( page 38).

•A closed-caption signal may not display correctly

in the following situations: a) when a videotape

has been dubbed; b) when the signal reception

is weak; or c) when the signal reception is non-

standard ( page 38).

Rating blocking (V-Chip) problems

•If you forget your PIN code: While the PIN

code entering screen is displayed, press

four times within 5 seconds. The PIN code you

previously stored will be cleared ( page 41).

•The V-Chip feature is available for the U.S. and

Canada V-Chip systems ( page 41).

No REGZA-LINK® operation

•The REGZA-LINK® feature is available for

Toshiba REGZA-LINK® compatible devices.

•Make sure the HDMI cables with the HDMI Logo

( ) are used.

•When the connected REGZA-LINK® device

does not work correctly after you have changed

settings of the device, turn off your TV and unplug

the power cord, then plug and turn on again.

•If several devices are connected, REGZA-LINK®

feature may not operate properly.

•Read the instruction manual furnished with the

connected REGZA-LINK® device.

HDMI problems

For HDMI cables

•Make sure to use cables with the HDMI Logo

( ) ( page 14).

For Legacy HDMI source

•Some legacy HDMI sources may not work

properly with the latest HDMI TV products, due

to new standard adoption.

Media Player problems

•Make sure that devices are connected correctly.

•Incorrect behavior may occur with a USB HUB

connection.

•Photo files that was processed and edited by

using the PC’s application software may not be

able to be viewed.

•The TV may select one format automatically and

play it when contents that support two or more

formats are played.

•Confirm contents of the USB storage device are

formats that correspond with this TV ( page 46).

Disc playback problems

Playback does not start

•No disc is loaded.

•The disc may be dirty. Clean the disc.

•The disc format is not supported ( page 8).

No picture

•The TV is not in DVD mode.

No sound

•T

he TV is in the special playback mode ( page 56).

•If an external speaker is connected, check its

volume control.

Picture distortion during fast reverse/forward

playback

•The picture will be distorted occasionally. This

is normal.

Playback features failure

•The playback features such as stopping,

searching, slow motion play, repeat play or

programmed play, etc are not applicable to all

discs.

Playback does not start when the title is selected

•The disc may not be compliant with the “Parental”

setting ( page 70).

The audio soundtrack and/or subtitle

language cannot be changed

•The disc has no multilanguage option encoded

on it ( page 61).

No subtitle

•The disc has no subtitle encoded on it.

•Subtitles are disabled. Press ( page 61).

Scene angle cannot be changed

•The disc has no multiangle scenes ( page 60).

“X” appears on the screen

•The function is not applicable to the disc or to

the current mode ( page 7).

LED Indication

The Power LED light on the TV front indicates the

TV’s status, as described below.

LED Indication

Power LED

• Green is ON (solid)

The TV is operating properly.

• Red is ON (solid)

The TV is in Standby mode.

If, after trying the solutions, the problem still exists:

•In the U.S., visit TAIS’s Consumer Solution Center

on the web at http://support.toshiba.com or call

1-800-631-3811

•In Canada, locate the nearest Toshiba authorized

service depot by directing your web browser to

www.toshiba.ca/support

Specifications

Note:

•These models comply with the

specifications listed below.

•Designs and specifications are subject to

change without notice.

•These models may not be compatible with

features and/or specifications that may be

added in the future.

Television System

NTSC standard

ATSC standard (8VSB)

Digital Cable (64 QAM, 256 QAM; in-the-clear,

unencrypted)

Channel Coverage

VHF: 2 through 13

UHF: 14 through 69

Cable TV:

Mid band (A-8 through A-1, A through I)

Super band (J through W)

Hyper band (AA through ZZ, AAA, BBB)

Ultra band (65 through 94, 100 through 135)

Power Source: 120 V AC, 60 Hz

Power Maximum Current

19SLV411U: 0.55 A

24SLV411U: 0.75 A

32SLV411U: 1.35 A

Power Consumption

19SLV411U: 0.5 W in standby mode

24SLV411U: 0.5 W in standby mode

32SLV411U: 0.5 W in standby mode

Audio Power:

19SLV411U: 3 W + 3 W

24SLV411U: 5 W + 5 W

32SLV411U: 7 W + 7 W

Speaker Type:

19SLV411U: Two 3-5/8 x 1 x 5/8 inches

(91 x 25 x 15mm)

24SLV411U: Two 3-5/8 x 1 x 7/8 inches

(91 x 25 x 23mm)

32SLV411U: Two 5-5/8 x 1 x 5/8 inches

(142 x 25 x 16mm)

Video/Audio Terminals

VIDEO/AUDIO INPUT:

VIDEO: 1 V(p-p), 75 ohm, negative sync.

AUDIO: 200 mV(rms) (-20dBFS, 47K ohm or

greater)

Chapter 12: Appendix

ColorStream® (component video) HD INPUT:

VIDEO: Y: 1V(p-p), 75 ohm, negative sync.

PR: 0.7 V(p-p), 75 ohm

PB: 0.7 V(p-p), 75 ohm

Suggested formats: 1080i, 720p,

480p, 480i

AUDIO: 200 mV(rms) (-20dBFS, 47K ohm or

greater)

HDMI® INPUT:

HDMI compliant

HDCP compliant

HDMI Audio: 2-channel Linear-PCM; 32/44.1/

48 kHz sampling frequency; 16/

20/24 bits per sample

DIGITAL AUDIO OUTPUT: Optical type

PC INPUT: 15-Pin D-sub Analog RGB

DVD/CD player

Signal system: NTSC

Supported disc size: 12 cm, 8 cm

Pickup mechanism: 1-lens, 2-beams

Dimensions

19SLV411U:

Width: 1’6-1/2 inches (470.1 mm)

Height: 1’1-1/2 inches (343.3 mm)

Depth: 7-5/8 inches (194.0 mm)

24SLV411U:

Width: 1’11 inches (583.1 mm)

Height: 1’4-1/8 inches (410.9 mm)

Depth: 9-1/8 inches (233.2 mm)

32SLV411U:

Width: 2’6-1/2 inches (775.4 mm)

Height: 1’8-1/8 inches (512.5 mm)

Depth: 7-7/8 inches (200.0 mm)

Mass (Weight)

19SLV411U: 9.9 lbs (4.5 kg)

24SLV411U: 13.2 lbs (6.0 kg)

32SLV411U: 19.8 lbs (9.0 kg)

Operating conditions

Temperature: 32ºF - 95ºF (0ºC - 35ºC)

Humidity: 20 - 80% (no moisture condensation)

Supplied Accessories

• Remote control with two size “AAA” batteries

• Owner’s manual (this book)

• Four screws for holding the pedestal stand

• Instruction manual

Chapter 12: Appendix

Acceptable signal formats for PC IN and HDMI terminals

PC IN signal formats

Note: Depending on the connected PC, the following status may occur; incorrect display, false format

detection, picture position failure, blur, or judder. But this is not a malfunction of your TV.

Format Resolution V. Frequency H. Frequency Pixel Clock Frequency

VGA 640 × 480 59.940Hz 31.469kHz 25.175MHz

SVGA 800 × 600 60.317Hz 37.879kHz 40.000MHz

XGA 1024 × 768 60.004Hz 48.363kHz 65.000MHz

WXGA 1280 × 768 59.870Hz 47.776kHz 79.500MHz

1360 × 768 60.015Hz 47.712kHz 85.500MHz

SXGA 1280 × 1024 60.020Hz 63.981kHz 108.000MHz (24SLV411U)

HDMI signal formats

Format Resolution V. Frequency H. Frequency Pixel Clock Frequency

VGA 640 × 480 59.940Hz 31.469kHz 25.175MHz

SVGA 800 × 600 60.317Hz 37.879kHz 40.000MHz

XGA 1024 × 768 60.004Hz 48.363kHz 65.000MHz

WXGA 1280 × 768 59.870Hz 47.776kHz 79.500MHz

1360 × 768 60.015Hz 47.712kHz 85.500MHz

SXGA 1280 × 1024 60.020Hz 63.981kHz 108.000MHz

480i 720 × 480i 59.940Hz 15.734kHz 27.000MHz

480p 720 × 480p 59.940Hz 31.469kHz 27.000MHz

720p 1280 × 720p 60.000Hz 45.000kHz 74.250MHz

1080i 1920 × 1080i 60.000Hz 33.750kHz 74.250MHz

1080p 1920 × 1080p 24.000Hz 27.000kHz 74.250MHz

1080p 1920 × 1080p 60.000Hz 67.500kHz 148.500MHz

• Some illustrations in this owner’s manual are for explanation purposes and may differ from the actual unit.

• Designs and specifications are subject to change without notice.

• These models may not be compatible with features and/or specifications that may be added in the future.

Chapter 12: Appendix

Limited United States Warranty for

LCD TV/DVD Combination

Toshiba America Information Systems, Inc. (“TAIS”) makes

the following limited warranties to original consumers in the

United States.

THESE LIMITED WARRANTIES EXTEND TO THE

ORIGINAL CONSUMER PURCHASER OR ANY PERSON

RECEIVING THIS LCD TV/DVD COMBINATION AS A GIFT

FROM THE ORIGINAL CONSUMER PURCHASER AND

TO NO OTHER PURCHASER OR TRANSFEREE. LCD TV/

DVD COMBINATIONS PURCHASED IN THE U.S.A. OR

PUERTO RICO AND USED ANYWHERE OUTSIDE OF

THE U.S.A. OR PUERTO RICO, INCLUDING, WITHOUT

LIMITATION, CANADA AND MEXICO, ARE NOT COVERED

BY THESE WARRANTIES. LCD TV/DVD COMBINATIONS

PURCHASED ANYWHERE OUTSIDE OF THE U.S.A. OR

PUERTO RICO, INCLUDING, WITHOUT LIMITATION,

CANADA AND MEXICO, AND USED IN THE U.S.A., ARE

NOT COVERED BY THESE WARRANTIES.

Limited One (1) Year Warranty on Parts and Labor

TAIS WARRANTS THIS LCD TV/DVD COMBINATION

AND ITS PARTS AGAINST DEFECTS IN MATERIALS

OR WORKMANSHIP FOR A PERIOD OF ONE (1) YEAR

FROM THE DATE OF ORIGINAL RETAIL PURCHASE.

DURING THIS PERIOD, TAIS WILL, AT TAIS’ SOLE

DESCRETION, REPAIR OR REPLACE A DEFECTIVE

PART/PRODUCT WITH A NEW OR REFURBISHED PART/

PRODUCT WITHOUT CHARGE TO YOU FOR PARTS OR

LABOR. ANY PART OR PRODUCT REPLACED UNDER

THIS LIMITED WARRANTY BECOMES THE PROPERTY

OF TAIS. IN SOME CASES, YOU MAY BE RESPONSIBLE

FOR DELIVERING THE PRODUCT TO A SERVICE

CENTER.

Rental Units

The limited warranty period begins on the date of the rst rental

or thirty (30) days after the date of shipment to the rental rm,

whichever comes rst.

Your Responsibility

Read the owner’s manual thoroughly before installing or

operating this LCD TV/DVD Combination. Complete and mail

the enclosed product registration card (if provided) or register

your LCD TV/DVD Combination online at support.toshiba.com.

Registration of your LCD TV/DVD Combination will enable

TAIS to contact you in the unlikely event a safety notication is

required under the U.S. Consumer Product Safety Act. Failure

to complete and return the product registration card does not

diminish your warranty rights.

THE ABOVE WARRANTIES ARE SUBJECT TO THE

FOLLOWING CONDITIONS:

(1) This Limited Warranty is extended only to the original

purchaser and only covers product purchased as new.

(2) A purchase receipt or other proof of the original

purchase date is required for warranty service.

(3) All warranty servicing of this LCD TV/DVD Combination

must be performed by an Authorized TAIS Service

Provider.

(4) The warranties from TAIS are effective only if this LCD

TV/DVD Combination is purchased and operated in the

U.S.A. or Puerto Rico.

(5) Removal and reinstallation of product that is mounted

in such a manner as to impede normal service is

not covered under these warranties. This includes

wall mounts, custom cabinets and other installation

methods that do not provide for direct and immediate

access to the product for service purposes. Labor

service charges for set installation, setup, adjustment of

customer controls, and installation or repair of antenna,

satellite or cable systems are not covered by this limited

warranty.

(6) Reception or other problems caused by inadequate

antenna systems, misaligned satellite dishes, improperly

installed cable drops or use with non-standard signals

or sources are your responsibility and are not covered

by this limited warranty.

(7) This limited warranty is void if the product is used

outside the range of the temperature (heat/cold) and/

or moisture operating conditions as outlined in the

product’s specication listed in the Owner’s manual,

or if the product is exposed to excessive smoke, dust,

or other airborne contaminants or environmental

conditions.

(8) Warranties extend only to defects in materials or

workmanship as limited above, and do not extend to

any LCD TV/DVD Combination or parts that have been

lost or discarded by you or to damage to the LCD TV/

DVD Combination or parts caused by res, misuse,

abuse, accident, Acts of God (such as lightning or

uctuations in electric power), improper installation,

improper maintenance, or use in violation of instructions

furnished by TAIS; use or malfunction through

simultaneous use of this LCD TV/DVD Combination

and connected equipment; or to units that have been

modied or had the serial number removed, altered,

defaced, or rendered illegible.

(9) Product purchased “AS-IS” or “With known faults,

defects or problems” are not covered by this limited

warranty.

(10) Product previously owned or registered by a consumer

and resold is not covered by this limited warranty.

(11) Product that is refurbished and resold is not covered

under this limited warranty.

How to Obtain Warranty Service

After following all of the operating instructions in the Owner’s

manual, review the section entitled “Concierge” located on our

Customer Support Web site at support.toshiba.com. If you nd

that service is needed, follow the instructions provided on the

web site or please contact TAIS’ Consumer Solution Center toll

free at 1-800-631-3811. You must present upon request your

original bill of sale or other proof of purchase including the serial

number for in warranty service.

ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE

OF THE U.S.A., INCLUDING THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, ARE EXPRESSLY LIMITED

TO THE DURATION OF THE LIMITED WARRANTIES

SET FORTH ABOVE. WITH THE EXCEPTION OF

ANY WARRANTIES IMPLIED BY THE LAW OF ANY

STATE OF THE U.S.A. AS HEREBY LIMITED, THE

FOREGOING LIMITED WARRANTY IS EXCLUSIVE AND

IN LIEU OF ALL OTHER WARRANTIES, GUARANTEES,

AGREEMENTS, AND SIMILAR OBLIGATIONS OF TAIS

WITH RESPECT TO THE REPAIR OR REPLACEMENT

OF ANY PARTS. IN NO EVENT SHALL TAIS BE LIABLE

FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, LOST PROFITS,

BUSINESS INTERRUPTION, OR MODIFICATION OR

ERASURE OF RECORDED DATA CAUSED BY USE,

MISUSE OR INABILITY TO USE THIS LCD TV/DVD

COMBINATION).

No person, agent, distributor, dealer or company is

authorized to change, modify or extend the terms of these

warranties in any manner whatsoever. The time within

which an action must be commenced to enforce any

obligation of TAIS arising under this limited warranty or

under any statute, or law of the United States or any state

thereof, is hereby limited to ninety (90) days from the date

you discover or should have discovered, the defect. This

limitation does not apply to implied warranties arising under

the law of any state of the U.S.A.

(continued)

Chapter 12: Appendix

THIS LIMITED WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER

RIGHTS WHICH MAY VARY FROM STATE TO STATE

IN THE U.S.A. SOME STATES OF THE U.S.A. DO

NOT ALLOW LIMITATIONS ON THE DURATION OF

AN IMPLIED WARRANTY, WHEN AN ACTION MAY

BE BROUGHT, OR THE EXCLUSION OR LIMITATION

OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.

THEREFORE, THE ABOVE PROVISIONS MAY NOT

APPLY TO YOU UNDER SUCH CIRCUMSTANCES.

Limited Canadian Warranty for

Toshiba Brand Flat Panel Televisions

Toshiba of Canada Limited (“TCL”) makes the following

limited warranties to original consumers in Canada.

THESE LIMITED WARRANTIES EXTEND TO THE

ORIGINAL CONSUMER PURCHASER OR ANY PERSON

RECEIVING THIS TOSHIBA BRAND FLAT PANEL

TELEVISION (the “TELEVISION(S)” or “Television(s)”) AS A

GIFT FROM THE ORIGINAL CONSUMER PURCHASER

AND TO NO OTHER PURCHASER OR TRANSFEREE.

TELEVISIONS PURCHASED IN CANADA, AND USED

ANYWHERE OUTSIDE OF CANADA INCLUDING,

WITHOUT LIMITATION, THE UNITED STATES AND

MEXICO, ARE NOT COVERED BY THESE WARRANTIES.

TELEVISIONS PURCHASED ANYWHERE OUTSIDE

OF CANADA, INCLUDING, WITHOUT LIMITATION, THE

UNITED STATES AND MEXICO, AND USED IN CANADA,

ARE NOT COVERED BY THESE WARRANTIES.

Limited One (1) Year Warranty on Parts and Labour

TCL warrants the Television and its parts against

material defects in materials or workmanship that result

in the Television failing for a period of one (1) year after

the date of original retail purchase.

DURING THIS PERIOD, TCL WILL, AT TCL’S OPTION,

REPAIR OR REPLACE A DEFECTIVE PART WITH A

NEW OR RECERTIFIED PART WITHOUT CHARGE

TO YOU FOR PARTS OR LABOUR.

Rental Units

The warranty for Television rental units begins with the

date of ﬁrst rental or thirty (30) days from the date of

shipment to the rental ﬁrm, whichever comes ﬁrst.

Your Responsibility

Read the owner’s manual thoroughly before operating

this LCD TV/DVD Combination. Complete and mail

the enclosed product registration card or register

your LCD TV/DVD Combination online at support.

toshiba.ca/warranty/. Registration of your LCD TV/

DVD Combination will enable TCL to contact you in

the unlikely event of a product safety notice. Failure to

complete the product registration does not diminish

your warranty rights.

THE ABOVE WARRANTIES ARE SUBJECT TO THE

FOLLOWING CONDITIONS:

(1)

You must provide your bill of sale or other proof of

purchase.

(2) All warranty servicing of this Television must

be performed by a Toshiba Authorized Service

Provider (ASP).

(3) The warranties from TCL are effective only if the

Television is (i) purchased as new and unopened

from TCL or from TCL’s authorized distributors,

dealers or resellers (“ADR’s”) and (ii) located/

operated in Canada.

(4) Removal and reinstallation of product that is

mounted in such a manner as to impede normal

service is not covered under these warranties. This

includes wall mounts, custom cabinets and other

installation methods that do not provide for direct

and immediate access to the product for service

purposes. Labour charges for set installation, setup,

adjustment of customer controls, and installation

or repair of antenna systems are not covered by

these warranties. Reception problems caused by

inadequate antenna systems are your responsibility.

(5)

Warranties extend only to material defects in materials

or workmanship as limited above, and do not extend

to:

a. Service, repairs or replacement made necessary

by accident, misuse, abuse, moisture, liquids,

dust, dirt, neglect, accident, damage, 24/7

applications, improper installation, improper

operation, improper cleaning, improper

maintenance, normal wear and tear, screen

burn or image retention caused by prolonged

display of static images and/or phosphor aging,

or any other external cause or event, act or

omission outside the control of TCL, including

re, theft, acts of God, alteration, power failures,

power surges or power shortages, lightning,

other electrical faults, or repairs, modications

or replacements by persons other than those

authorized by TCL to service the Television;

b. Replacement of missing, discarded or lost

parts, the provision of retrots, or preventive

maintenance;

c. Repair of damage that is cosmetic only or does

not affect the Television functionality, such as

wear and tear, scratches and dents;

Service on Toshiba-branded accessory items (such

accessory items may be covered by their own

warranty);

Service on third party products or service made

necessary by use of incompatible third party

products;

f. Service made necessary by the simultaneous

use of this Television and connected equipment;

g. Modications to the Television not approved in

writing by TCL, and service made necessary

by the use or installation of non-Toshiba

modications to the Television;

h. Service of a Television on which the TOSHIBA

label or logo, rating label or serial number have

been defaced or removed;

i. Damage to the Television caused by failure

to follow the specications, User manuals or

guides as to usage and/or storage.

j. Firmware updates that are posted to the Toshiba

Support website and can be performed by the

end user via a USB stick or SD card type media.

Disclaimer and Limitation of Remedy

TO THE EXTENT NOT PRECLUDED BY LAW, ALL OTHER

EXPRESS AND IMPLIED WARRANTIES, CONDITIONS

AND REPRESENTATIONS FOR THIS TELEVISION,

INCLUDING THE IMPLIED WARRANTIES, CONDITIONS

AND REPRESENTATIONS OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY

DISCLAIMED AND EXCLUDED. IF THE APPLICABLE

LAW, STATUTORY OR OTHERWISE, PRECLUDES THE

EXCLUSION OF ANY IMPLIED WARRANTIES, CONDITIONS

AND REPRESENTATIONS THEN SUCH IMPLIED

WARRANTIES, CONDITIONS AND REPRESENTATIONS

ARE OTHERWISE LIMITED IN DURATION TO THE TERM

OF THIS EXPRESS WRITTEN LIMITED WARRANTY. TO

THE EXTENT NOT PRECLUDED BY LAW, STATUTORY OR

OTHERWISE, THIS WRITTEN WARRANTY SUPERCEDES

AND SPECIFICALLY DISCLAIMS ANY OTHER WARRANTY,

CONDITION OR REPRESENTATION NOT STATED IN

THIS WARRANTY, WHETHER MADE BY TCL, TOSHIBA

(continued)

Chapter 12: Appendix

CORPORATION, THEIR AFFILIATES, ADRs AND ASPs

AND WHETHER MADE ORALLY OR IN WRITING

(INCLUDING ANY STATEMENT IN ANY BROCHURE,

PRESS RELEASE, ANNOUNCEMENT, ADVERTISEMENT,

POINT OF SALE DISPLAY, ETC.).

YOU MUST READ AND FOLLOW ALL SET-UP AND

USAGE INSTRUCTIONS IN THE APPLICABLE

USER GUIDES AND/OR MANUALS. IF YOU FAIL TO

DO SO, THIS TELEVISION MAY NOT FUNCTION

PROPERLY AND YOU MAY SUFFER DAMAGE.

THIS WARRANTY WILL NOT COVER ANY SERVICE

THAT IS REQUIRED, IN PART OR IN WHOLE, AS A

RESULT OF ANY FAILURE TO FOLLOW THE SET-

UP AND USAGE INSTRUCTIONS. THIS WARRANTY

DOES NOT APPLY AND SHALL BE VOID AND

UNENFORCEABLE. IF THE TELEVISION IS OPENED,

SERVICED, OR REPAIRED BY PERSONS OTHER

THAN THOSE AUTHORIZED BY TCL TO SERVICE OR

REPAIR THE TELEVISION.

IF THE TELEVISION FAILS TO WORK AS

WARRANTED ABOVE, YOUR SOLE AND EXCLUSIVE

REMEDY SHALL BE REPAIR OR REPLACEMENT

OF THE DEFECTIVE PART. IN NO EVENT WILL TCL,

TOSHIBA CORPORATION, THEIR AFFILIATES, ADRs

OR ASPs (THE “RELATED PARTIES”) BE LIABLE TO

YOU OR ANY THIRD PARTY FOR ANY DAMAGES,

MONEY, REIMBURSEMENT, COSTS OR EXPENSES.

THIS LIMITATION APPLIES TO DAMAGES, MONEY,

REIMBURSEMENT, COSTS OR EXPENSES OF ANY

KIND WHATSOEVER INCLUDING ANY DIRECT OR

INDIRECT DAMAGES, DAMAGE TO PROPERTY

OR PERSON, LOST PROFITS, LOST SAVINGS,

INCONVENIENCE OR OTHER SPECIAL, INCIDENTAL,

EXEMPLARY OR CONSEQUENTIAL DAMAGES,

WHETHER FOR BREACH OF WARRANTY, BREACH

OF CONTRACT, TORT (INCLUDING NEGLIGENCE),

UNDER A STATUTE OR UNDER ANY OTHER LAW

OR FORM OR ACTION, OR WHETHER ARISING

OUT OF THE USE OF OR INABILITY TO USE THE

TELEVISION, EVEN IF ANY OF THE RELATED

PARTIES HAS BEEN ADVISED OF THE POSSIBILITY

OF SUCH DAMAGES OR OF ANY CLAIM BY ANY

OTHER PARTY.

No person, agent, distributor, dealer or company is

authorized to change, modify or extend the terms of

these warranties in any manner whatsoever.

Arbitration and Dispute Resolution

To the extent not precluded by law, any claim, dispute,

controversy or disagreement (whether for breach of

warranty, breach of contract, tort (including negligence),

under a statute or under any other law or form of action)

against any of the Related Parties arising out of, or

otherwise relating to: (i) this warranty; (ii) the Television;

(iii) any oral or written representations, statements,

brochures, press releases, advertising, announcement,

point of sale display, or promotional material relating to

the Television; (iv) the relationships that result from this

warranty, (the foregoing claims, disputes controversies

and disagreements are collectively referred to as the

“Dispute”), shall be referred to and resolved by nal

and binding arbitration (to the exclusion of the courts).

To the extent not precluded by law, you agree to waive

any right that you may have to commence or participate

in any representative or class proceeding against the

Related Parties relating to any Dispute. If and where

applicable and to the extent not precluded by law, you

further agree to opt out of any such representative or

class proceedings. Arbitration of any Dispute will be

conducted in the forum and in the manner as agreed

to between you and TCL. Failing such agreement, the

arbitration will be conducted by one arbitrator pursuant

to the laws and rules relating to arbitration generally in

force in the jurisdiction in which you reside at the time

that the Dispute arises. To the extent not precluded by

law, no claim, dispute, controversy or disagreement of

any other person may be joined or combined with any

Dispute by you, without the prior written consent of TCL.

Critical Applications

The Television you have purchased is not

designed for any “critical applications.” “Critical

applications” means life support systems, medical

applications, connections to implanted medical

devices, commercial transportation, nuclear

facilities or systems or any other applications

where Television failure could lead to injury to

persons or loss of life or catastrophic property

damage.

IF THE CUSTOMER USES THE TELEVISION IN ANY

CRITICAL APPLICATION, THE CUSTOMER – AND

NOT TCL, ITS AFFILIATES, ADRs OR ASPs – ASSUME

SOLE AND FULL RESPONSIBILITY FOR SUCH

USE. TCL RESERVES THE RIGHT TO REFUSE TO

SERVICE ANY TELEVISION USED IN A CRITICAL

APPLICATION. TCL, ITS AFFILIATES, ADRs AND

ASPs HEREBY DISCLAIM ANY AND ALL LIABILITY,

DAMAGES AND CONSEQUENCES ARISING OUT

OF THE SERVICE OR REFUSAL TO SERVICE SUCH

TELEVISION AND FURTHER DISCLAIM ANY AND ALL

LIABILITY, CONSEQUENCES AND DAMAGES THAT

MAY ARISE OR RESULT FROM THE USE OF THE

TELEVISION IN ANY CRITICAL APPLICATIONS.

General Provisions

If and to the extent that any provision of this limited

warranty should generally be found to be unenforceable,

the unenforceable provision shall be severed from

the warranty and deemed not to form part of the

warranty. The remaining provisions of this warranty

shall be and remain valid and enforceable. If and to

the extent that any provision of this limited warranty as

it relates to any of the Related Parties is found to be

invalid or unenforceable in respect of that party (the

“Excluded Party”), the Excluded Party shall be deemed

to be severed or excluded from the provision, and the

provision shall remain valid, enforceable and applicable

in respect of the other or remaining Related Parties.

To the extent permitted by law, this limited warranty shall

be governed and construed in accordance with the laws

of Ontario.

If there is any inconsistency between this limited

warranty, on the one hand, and any statement in the

packaging of the Television or in any other document

enclosed with, or used in the context of the promotion or

sale of, the Television, on the other hand, the provisions

of this limited warranty shall prevail.

How to Obtain Warranty Services

If, after following all of the operating instructions in

this manual, checked the “Troubleshooting” section,

and have visited support.toshiba.com. for additional

(continued)

Chapter 12: Appendix

information, you nd that service is needed, please

contact TCL Customer Support toll free at 1 800 268-

3404.

A copy of the GPL source code in this product may be

obtained by contacting Toshiba Consumer Solutions

at (800) 631-3811. There will be a charge to cover the

costs of providing the source code.

A copy of the LGPL source code in this product

may be obtained by contacting Toshiba Consumer

Solutions at (800) 631-3811. There will be a charge to

cover the costs of providing the source code.

The FreeType Project (w ww.freetype.org). All rights

reserved.

This software is based in part on the work of the

Independent JPEG Group.

MPEG Layer-3 audio compression technology

licensed by Fraunhofer IIS and THOMSON

multimedia.

The GNU General Public License (GPL)

Version 2, June 1991

Inc.

59 Temple Place, Suite 330, Boston, MA 02111-1307

USA

Everyone is permitted to copy and distribute verbatim

copies of this license document, but changing it is not

allowed.

Preamble

The licenses for most software are designed to

take away your freedom to share and change it. By

contrast, the GNU General Public License is intended

to guarantee your freedom to share and change free

software--to make sure the software is free for all its

users. This General Public License applies to most of

the Free Software Foundation’s software and to any

other program whose authors commit to using it. (Some

other Free Software Foundation software is covered by

the GNU Library General Public License instead.) You

can apply it to your programs, too.

When we speak of free software, we are referring to freedom,

not price. Our General Public Licenses are designed to make

sure that you have the freedom to distribute copies of free

software (and charge for this service if you wish), that you

receive source code or can get it if you want it, that you can

change the software or use pieces of it in new free programs;

and that you know you can do these things.

To protect your rights, we need to make restrictions that

forbid anyone to deny you these rights or to ask you to

surrender the rights. These restrictions translate to certain

resp onsibilities for you if you distribute copies of the

software, or if you modify it.

For example, if you distribute copies of such a program,

whether gratis or for a fee, you must give the recipients

all the rights that you have. You must make sure that

they, too, receive or can get the source code. And you

must show them these terms so they know their rights

We protect your rights with two steps: (1) copyright the

software, and (2) offer you this license which gives you

legal permission to copy, distribute and/or modify the

software.

Also, for each author’s protection and ours, we want

to make certain that everyone understands that there

is no warranty for this free software. If the software is

modied by someone else and passed on, we want

its recipients to know that what they have is not the

original, so that any problems introduced by others will

not reect on the original authors’ reputations.

Finally, any free program is threatened constantly

by software patents. We wish to avoid the danger

that redistributors of a free program will individually

obtain patent licenses, in effect making the program

proprietary. To prevent this, we have made it clear that

any patent must be licensed for everyone’s free use or

not licensed at all.

The precise terms and conditions for copying,

distribution and modication follow.

TERMS AND CONDITIONS FOR COPYING,

DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work

which contains a notice placed by the copyright holder

saying it may be distributed under the terms of this

General Public License. The “Program”, below, refers

to any such program or work, and a “work based

on the Program” means either the Program or any

derivative work under copyright law: that is to say, a

work containing the Program or a portion of it, either

verbatim or with modications and/or translated into

another language. (Hereinafter, translation is included

without limitation in the term “modication”.) Each

licensee is addressed as “you”.

Activities other than copying, distribution and

modication are not covered by this License; they are

outside its scope. The act of running the Program is not

restricted, and the output from the Program is covered

only if its contents constitute a work based on the

Program (independent of having been made by running

the Program). Whether that is true depends on what

the Program does.

1. You may copy and distribute verbatim copies

of the Program’s source code as you receive it, in

any medium, provided that you conspicuously and

appropriately publish on each copy an appropriate

all the notices that refer to this License and to the

absence of any warranty; and give any other recipients

of the Program a copy of this License along with the

Program.

You may charge a fee for the physical act of

transferring a copy, and you may at your option offer

warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program

or any portion of it, thus forming a work based on the

Program, and copy and distribute such modications or

work under the terms of Section 1 above, provided that

you also meet all of these conditions:

a) You must cause the modied les to carry prominent

notices stating that you changed the les and the date

of any change.

b) You must cause any work that you distribute or

publish, that in whole or in part contains or is derived

from the Program or any part thereof, to be licensed as

(continued)

Chapter 12: Appendix

a whole at no charge to all third parties under the terms

of this License.

c) If the modied program normally reads commands

interactively when run, you must cause it, when started

running for such interactive use in the most ordinary

way, to print or display an announcement including an

appropriate copyright notice and a notice that there

is no warranty (or else, saying that you provide a

warranty) and that users may redistribute the program

under these conditions, and telling the user how to

view a copy of this License. (Exception: if the Program

itself is interactive but does not normally print such an

announcement, your work based on the Program is not

required to print an announcement.)

These requirements apply to the modied work as

a whole. If identiable sections of that work are not

derived from the Program, and can be reasonably

considered independent and separate works in

themselves, then this License, and its terms, do not

apply to those sections when you distribute them as

separate works. But when you distribute the same

sections as part of a whole which is a work based on

the Program, the distribution of the whole must be on

the terms of this License, whose permissions for other

licensees extend to the entire whole, and thus to each

and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or

contest your rights to work written entirely by you; rather,

the intent is to exercise the right to control the distribution of

derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on

the Program with the Program (or with a work based on the

Program) on a volume of a storage or distribution medium

does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based

on it, under Section 2) in object code or executable form

under the terms of Sections 1 and 2 above provided that you

also do one of the following:

a) Accompany it with the complete corresponding machine-

readable source code, which must be distributed under the

terms of Sections 1 and 2 above on a medium customarily

used for software interchange; or,

b) Accompany it with a written offer, valid for at least three

years, to give any third party, for a charge no more than your

cost of physically performing source distribution, a complete

machine-readable copy of the corresponding source code, to

be distributed under the terms of Sections 1 and 2 above on

a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the

offer to distribute corresponding source code. (This alternative

is allowed only for noncommercial distribution and only if you

received the program in object code or executable form with

such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of

the work for making modications to it. For an executable

work, complete source code means all the source code

for all modules it contains, plus any associated interface

denition les, plus the scripts used to control compilation and

installation of the executable.

However, as a special exception, the source code distributed

need not include anything that is normally distributed (in either

source or binary form) with the major components (compiler,

kernel, and so on) of the operating system on which the

executable runs, unless that component itself accompanies

the executable.

If distribution of executable or object code is made by offering

access to copy from a designated place, then offering

equivalent access to copy the source code from the same

place counts as distribution of the source code, even though

third parties are not compelled to copy the source along with

the object code.

4. You may not copy, modify, sublicense, or distribute the

Program except as expressly provided under this License. Any

attempt otherwise to copy, modify, sublicense or distribute the

Program is void, and will automatically terminate your rights

under this License.

However, parties who have received copies, or rights, from

you under this License will not have their licenses terminated

so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have

not signed it. However, nothing else grants you permission to

modify or distribute the Program or its derivative works. These

actions are prohibited by law if you do not accept this License.

Therefore, by modifying or distributing the Program (or any

work based on the Program), you indicate your acceptance

of this License to do so, and all its terms and conditions for

copying, distributing or modifying the Program or works based

on it.

6. Each time you redistribute the Program (or any work based

on the Program), the recipient automatically receives a license

from the original licensor to copy, distribute or modify the

Program subject to these terms and conditions. You may not

impose any further restrictions on the recipients’ exercise of

the rights granted herein. You are not responsible for enforcing

compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation

of patent infringement or for any other reason (not limited

to patent issues), conditions are imposed on you (whether

by court order, agreement or otherwise) that contradict the

conditions of this License, they do not excuse you from the

conditions of this License. If you cannot distribute so as to

satisfy simultaneously your obligations under this License and

any other pertinent obligations, then as a consequence you

may not distribute the Program at all. For example, if a patent

license would not permit royalty-free redistribution of the

Program by all those who receive copies directly or indirectly

through you, then the only way you could satisfy both it and

this License would be to refrain entirely from distribution of

the Program.

If any portion of this section is held invalid or unenforceable

under any particular circumstance, the balance of the section

is intended to apply and the section as a whole is intended to

apply in other circumstances.

It is not the purpose of this section to induce you to infringe any

patents or other property right claims or to contest validity of

any such claims; this section has the sole purpose of protecting

the integrity of the free software distribution system, which is

implemented by public license practices. Many people have

made generous contributions to the wide range of software

distributed through that system in reliance on consistent

application of that system; it is up to the author/donor to decide

if he or she is willing to distribute software through any other

system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is

believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted

in certain countries either by patents or by copyrighted

interfaces, the original copyright holder who places the

Program under this License may add an explicit geographical

distribution limitation excluding those countries, so that

distribution is permitted only in or among countries not

thus excluded. In such case, this License incorporates the

limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/

or new versions of the General Public License from time to

(continued)

Chapter 12: Appendix

time. Such new versions will be similar in spirit to the present

version, but may differ in detail to address new problems or

concerns.

Each version is given a distinguishing version number. If the

Program species a version number of this License which

applies to it and “any later version”, you have the option of

following the terms and conditions either of that version or of

any later version published by the Free

Software Foundation.

If the Program does not specify a version number of this

License, you may choose any version ever published by

the Free Software Foundation.

10. If you wish to incorporate parts of the Program into

other free programs whose distribution conditions are

different, write to the author to ask for permission. For

software which is copyrighted by the Free Software

Foundation, write to the Free Software Foundation; we

sometimes make exceptions for this. Our decision will be

guided by the two goals of preserving the free status of

all derivatives of our free software and of promoting the

sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE

OF CHARGE, THERE IS NO WARRANTY FOR

THE PROGRAM, TO THE EXTENT PERMITTED BY

APPLICABLE LAW. EXCEPT WHEN OTHERWISE

STATED IN WRITING THE COPYRIGHT HOLDERS

AND/OR OTHER PARTIES PROVIDE THE PROGRAM

“AS IS” WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND

PERFORMANCE OF THE PROGRAM IS WITH YOU.

SHOULD THE PROGRAM PROVE DEFECTIVE, YOU

ASSUME THE COST OF ALL NECESSARY SERVICING,

REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE

LAW OR AGREED TO IN WRITING WILL ANY

MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM

AS PERMITTED ABOVE, BE LIABLE TO YOU FOR

DAMAGES, INCLUDING ANY GENERAL, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE THE

PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS

OF DATA OR DATA BEING RENDERED INACCURATE

OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES

OR A FAILURE OF THE PROGRAM TO OPERATE WITH

ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER

OR OTHER PARTY HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of

the greatest possible use to the public, the best way to

achieve this is to make it free software which everyone

can redistribute and change under these terms.

To do so, attach the following notices to the program. It

is safest to attach them to the start of each source le

to most effectively convey the exclusion of warranty;

and each le should have at least the “copyright” line

and a pointer to where the full notice is found.

One line to give the program’s name and a brief idea of

what it does.

This program is free software; you can redistribute it

and/or modify it under the terms of the GNU General

Public License as published by the Free Software

Foundation; either version 2 of the License, or (at your

option) any later version.

This program is distributed in the hope that it will be

useful, but WITHOUT ANY WARRANTY; without

even the implied warranty of MERCHANTABILITY or

FITNESS FOR A PARTICULAR PURPOSE. See the

GNU General Public License for more details.

You should have received a copy of the GNU General

Public License along with this program; if not, write to

the Free Software Foundation, Inc., 59 Temple Place,

Suite 330, Boston, MA 02111-1307 USA

Also add information on how to contact you by

electronic and paper mail.

If the program is interactive, make it output a short

notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of

author Gnomovision comes with ABSOLUTELY NO

WARRANTY; for details type ‘show w’. This is free

software, and you are welcome to redistribute it under

certain conditions; type ‘show c’ for details.

The hypothetical commands ‘show w’ and ‘show c’

should show the appropriate parts of the General

Public License. Of course, the commands you use may

be called something other than ‘show w’ and ‘show

c’; they could even be mouse-clicks or menu items--

whatever suits your program.

You should also get your employer (if you work as a

programmer) or your school, if any, to sign a “copyright

disclaimer” for the program, if necessary. Here is a

sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest

in the program ‘Gnomovision’ (which makes passes at

compilers) written by James Hacker.

signature of Ty Coon, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit

incorporating your program into proprietary programs. If

your program is a subroutine library, you may consider

it more useful to permit linking proprietary applications

with the library. If this is what you want to do, use the

GNU Library General Public License instead of this

License.

The Libpng License Notices

This copy of the libpng notices is provided for your

convenience. In case of any discrepancy between this

copy and the notices in the le png.h that is included in

the libpng distribution, the latter shall prevail.

If you modify libpng you may insert additional notices

immediately following this sentence.

This code is released under the libpng license.

libpng versions 1.2.6, August 15, 2004, through 1.2.41,

Glenn Randers-Pehrson, and are distributed according

to the same disclaimer and license as libpng-1.2.5 with

the following individual added to the list of Contributing

Authors:

Cosmin Truta

libpng versions 1.0.7, July 1, 2000, through 1.2.5 -

Randers-Pehrson, and are distributed according to the

same disclaimer and license as libpng-1.0.6 with the

following individuals added to the list of Contributing

(continued)

Chapter 12: Appendix

Authors:

Simon-Pierre Cadieux

Eric S. Raymond

Gilles Vollant

and with the following additions to the disclaimer:

There is no warranty against interference with your

enjoyment of the library or against infringement.

There is no warranty that our efforts or the library will

fulll any of your particular purposes or needs. This

library is provided with all faults, and the entire risk of

satisfactory quality, performance, accuracy, and effort

is with the user.

libpng versions 0.97, January 1998, through 1.0.6,

Randers-Pehrson, and are distributed according to the

same disclaimer and license as libpng-0.96, with the

following individuals added to the list of Contributing

Authors:

Tom Lane

Glenn Randers-Pehrson

Willem van Schaik

libpng versions 0.89, June 1996, through 0.96, May

and are distributed according to the same disclaimer

and license as libpng-0.88, with the following individuals

added to the list of Contributing Authors:

John Bowler

Kevin Bracey

Sam Bushell

Magnus Holmgren

Greg Roelofs

Tom Tanner

libpng versions 0.5, May 1995, through 0.88, January

Group 42, Inc.

For the purposes of this copyright and license,

“Contributing Authors” is dened as the following set of

individuals:

Andreas Dilger

Dave Martindale

Guy Eric Schalnat

Paul Schmidt

Tim Wegner

The PNG Reference Library is supplied “AS IS”. The

Contributing Authors and Group 42, Inc. disclaim all

warranties, expressed or implied, including, without

limitation, the warranties of merchantability and of tness

for any purpose. The Contributing Authors and Group

42, Inc. assume no liability for direct, indirect, incidental,

special, exemplary, or consequential damages, which

may result from the use of the PNG Reference Library,

even if advised of the possibility of such damage.

Permission is hereby granted to use, copy, modify, and

distribute this source code, or portions hereof, for any

purpose, without fee, subject to the following restrictions:

1. The origin of this source code must not be

misrepresented.

2. Altered versions must be plainly marked as such and

must not be misrepresented as being the original

source.

3. This Copyright notice may not be removed or altered

from any source or altered source distribution.

The Contributing Authors and Group 42, Inc. specically

permit, without fee, and encourage the use of this source

code as a component to supporting the PNG le format

in commercial products. If you use this source code in a

product, acknowledgment is not required but would be

appreciated.

A “png_get_copyright” function is available, for

convenient use in “about” boxes and the like:

printf(“%s”,png_get_copyright(NULL));

Also, the PNG logo (in PNG format, of course) is

supplied in the les “pngbar.png” and “pngbar.jpg”

(88x31) and “pngnow.png” (98x31).

Libpng is OSI Certied Open Source Software. OSI

Certied Open Source is a certication mark of the Open

Source Initiative.

Glenn Randers-Pehrson

glennrp at users.sourceforge.net

December 3, 2009

The zlib License

zlib.h -- interface of the “zlib” general purpose

compression library

Version 1.2.3, July 18th, 2005

Adler

This software is provided “as-is”, without any express

or implied warranty. In no event will the authors be

held liable for any damages arising from the use of this

software.

Permission is granted to anyone to use this software for

any purpose, including commercial applications, and to

alter it and redistribute it freely, subject to the following

restrictions:

1. The origin of this software must not be

misrepresented; you must not claim that you wrote

the original software. If you use this software in

a product, an acknowledgment in the product

documentation would be appreciated but is not

required.

2. Altered source versions must be plainly marked as

such, and must not be misrepresented as being the

original software.

3. This notice may not be removed or altered from any

source distribution.

Jean-loup Gailly jloup@gzip.org

Mark Adler madler@alumni.caltech.edu

Note

TOSHIBA AMERICA INFORMATION

SYSTEMS, INC.

Corporate Headquaters: 9740 IRVINE BLVD.; IRVINE, CA 92618 U.S.A.

Visual Products Service and Support Dept: 1420-B TOSHIBA DRIVE, LEBANON, TN

37087, U.S.A. .

TOSHIBA OF CANADA LTD.

HEAD OFFICE: 191 McNABB STREET, MARKHAM, ONTARIO, L3R 8H2, CANADA

CableClear, ColorStream, GameTimer, and TheaterWide are registered trademarks of Toshiba

America Information Systems, Inc.

Channel Browser, DynaLight, and SurfLock are trademarks of Toshiba America Information

Systems, Inc.

REGZA-LINK is a registered trademark of Toshiba Corporation.
