TOSHIBA

Satellite® A20Series

Feature Model(s): Part Numbers

Satellite A20-259

P4 2660/15.0”TFT/256MB/40GB/DVD-CDRW/Mdm/LAN/WiFi(802.11g)/WinXP Pro PSA20U-09Z437

Satellite A20-2591

P4 2660/15.0”TFT/256MB/40GB/DVD-CDRW/Mdm/LAN/WiFi(802.11g)/WinXP Home PSA20U-09Z433

Satellite A20 Small Business Series

P4 2660/15.0”TFT/256MB/40GB/DVD-CDRW/Mdm/LAN/WiFi(802.11g)/WinXP Pro/Office XP SB PSA20U-09Z437W

P4 2660/15.0”TFT/256MB/40GB/DVD-CDRW/Mdm/LAN/WiFi(802.11g)/WinXP Pro/Office XP Pro PSA20U-09Z437X

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without

notice. Copyright 2003 TAIS satellite_A20-S259.doc Created on 9/11/2003 5:34 PM Rev. 1.0 Page 1 of 3

Product Highlights

Performance

• Intel® Pentium® 4 processor 2.66GHz

• 256MB of Main Memory

• 40GB* hard disk drive

Great Features

• 15.0” XGA TFT screen

• DVD-ROM/CDRW multi-function drive

Get On-Line

• Integrated V.92/56K modem

• Integrated 10/100 Ethernet LAN

• Integrated Wireless (802.11g) LAN

System Characteristics

CPU (See CPU Performance Disclaimer)**

• Intel® Pentium® 4 processor 2.66GHz**

• Integrated co-processor

L2 Cache

• 512KB Level 2 Cache integrated on die

• 533MHz Processor System Bus Clock Speed

Memory

• 256MB (1 DIMM) DDR SDRAM (Expandable to 1024MB)

• Expansion memory: 128MB/256MB/512MB PC2100 DDR, SODIM

M

2.5V

• Data/Address Bus Width; 64-bit/32-bit

• Ali M1672 + M1535 Chipset

Mass Storage/Optical Drive

• Primary Hard Disk Drive: 40GB* hard disk drive, Enhanced IDE

(ATA-5), 4200rpm, 9.7mm height, 0.2lbs, Service Removable

• DVD-ROM/CDRW Multi-function drive: Max Speed: CD-R(24x),

CD-RW(10x), CD-ROM(24x), DVD-ROM(8x); Compatibility: CD-

ROM, CD-R(read/write), CD-RW(read/re-write), DVD-ROM, DVD-

R

(read), DVD-RW(read); Service removable

• Software Decoder: InterVideo® (WinDVD™)

Graphics/Video

• 15.0” XGA TFT**** active-matrix display; internal display supports u

p

to 16M colors at 1024 x 768

• Trident CyberBlade XP2 graphics processor; 32MB shared video

memory

• External Color Support/Refresh rate: Non-Interlaced@16M Colors

640 x 480 60/75/85/100Hz

800 x 600 60/75/85/100Hz

1024 x 768 60/75/85/100Hz

1280 x 1024 60/75/85/100Hz

1600x 1200 60/75/85/100Hz

1920 x 1440 60/75Hz

2048 x 1536 60Hz

Input Devices

• Keyboard: Full sized 85 keys with 12 function keys, 2.7mm key

stroke, 6mm height; Dedicated Windows® & Application keys

support; HotKey function; TouchPad pointing device

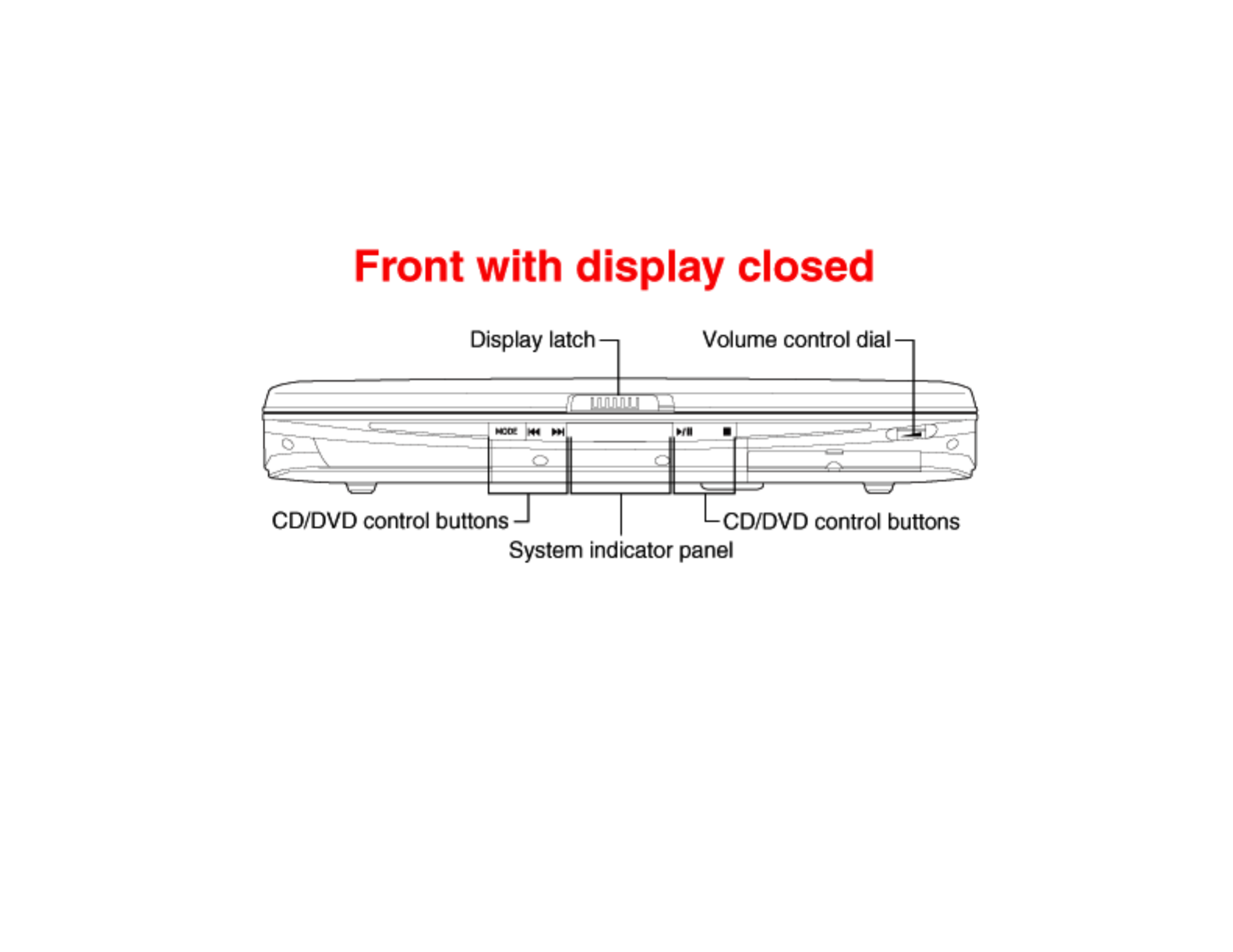

• CD Control Function: Play/Pause, Stop, Previous, Next, Mode

Control Switch (CD/DVD)

Expandability

• 2 Memory slots (Both slots may be occupied)

• PC Card slot supports 1 Type II (5mm)

Communications

• Integrated V.92/56K modem; Data and fax support

Due to FCC limitations, speeds of 53kbps are the maximum permissible

transmission rates during Download. Actual data transmission speeds will va

r

depending on line conditions.

• Integrated 10/100 Ethernet LAN

• Integrated Wireless (802.11g) LAN (Atheros)

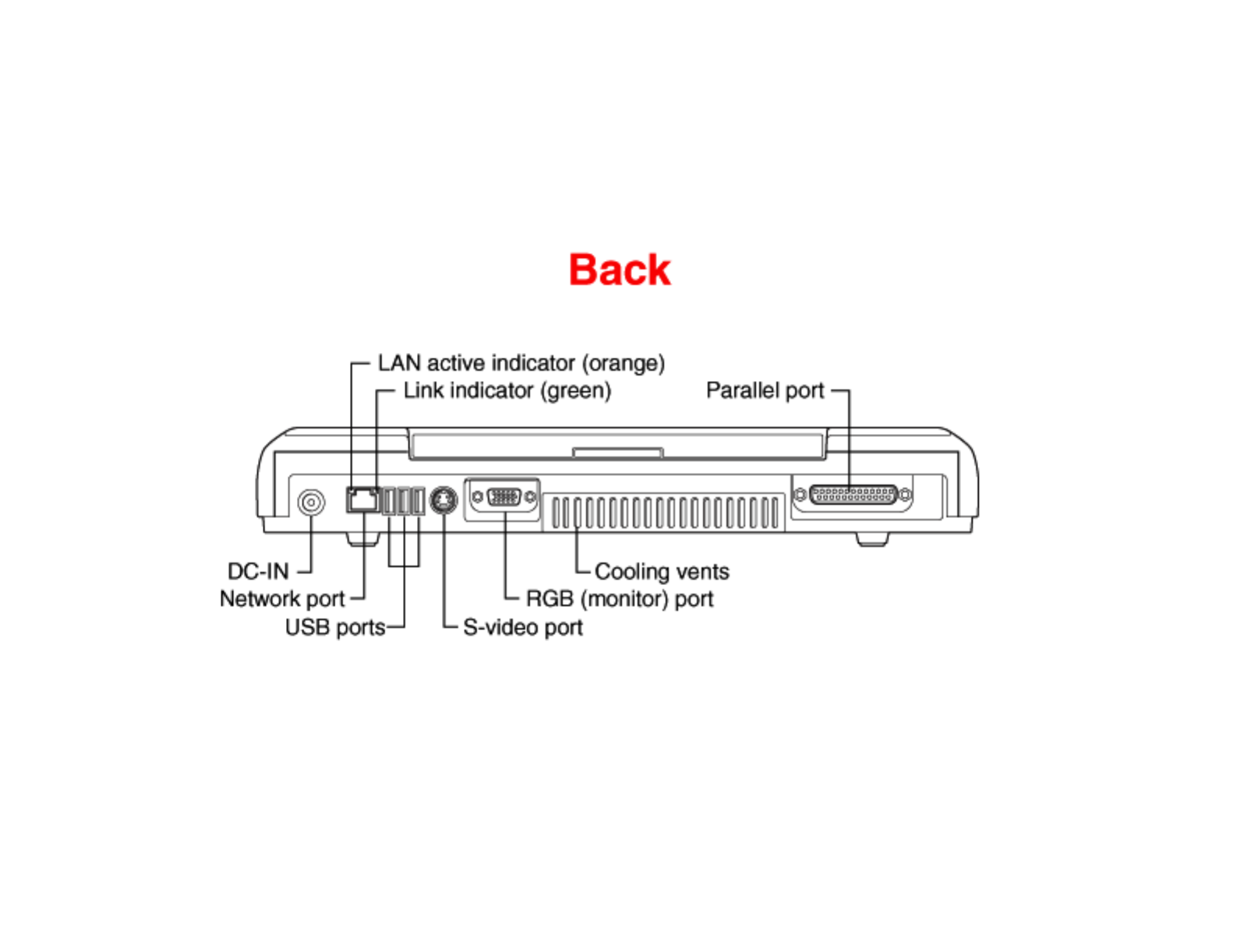

Ports

• RGB (monitor) port

• Parallel port

• 3 Universal Serial Bus ports (2.0)

• TV-Out (S-Video)

• RJ-45 LAN port

• RJ-11 modem port

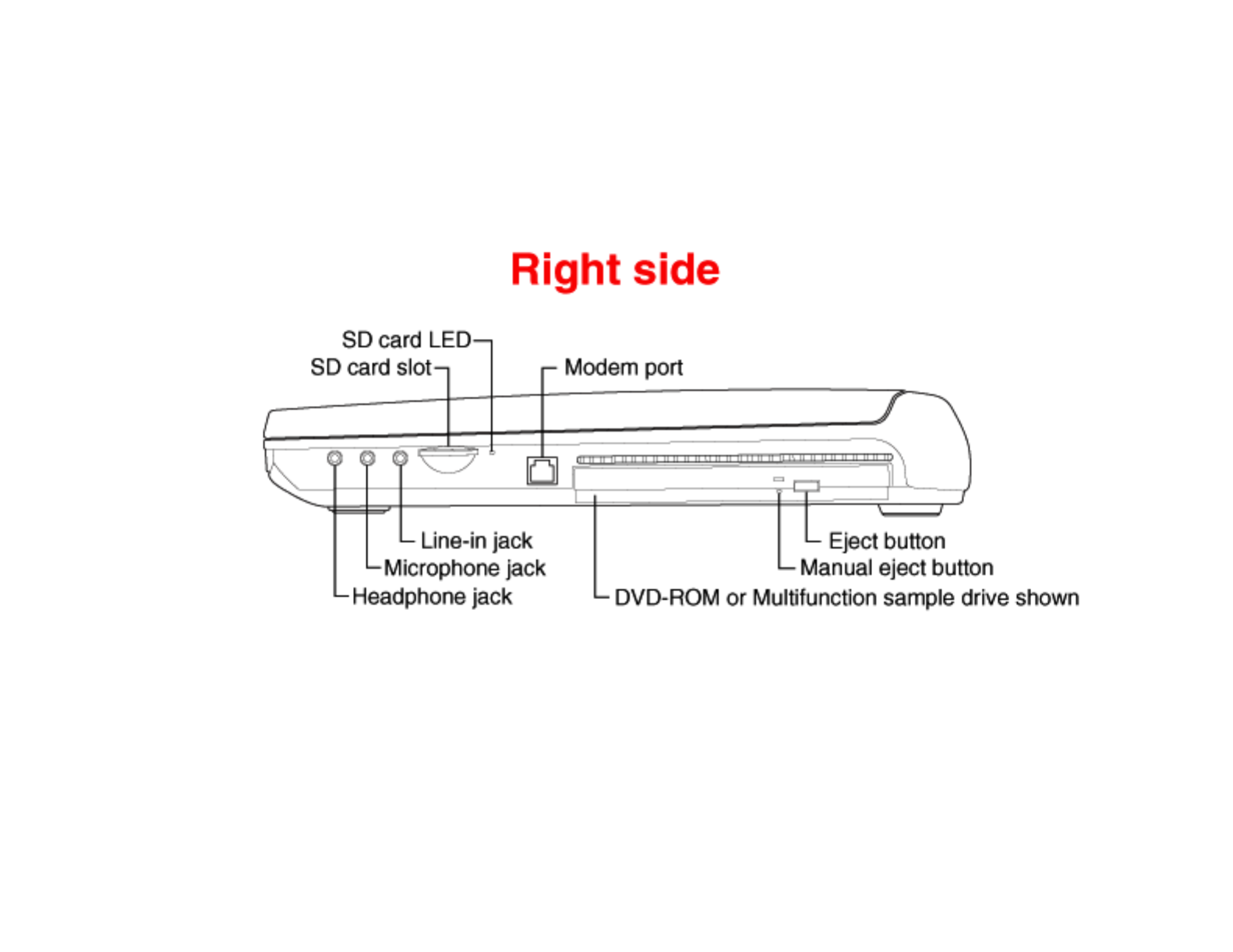

• Secure Digital® (SD) slot

Physical Description

• Dimensions (LxWxH): 13.4” x 11.6” x 1.9”

• Weight: 7.9lbs

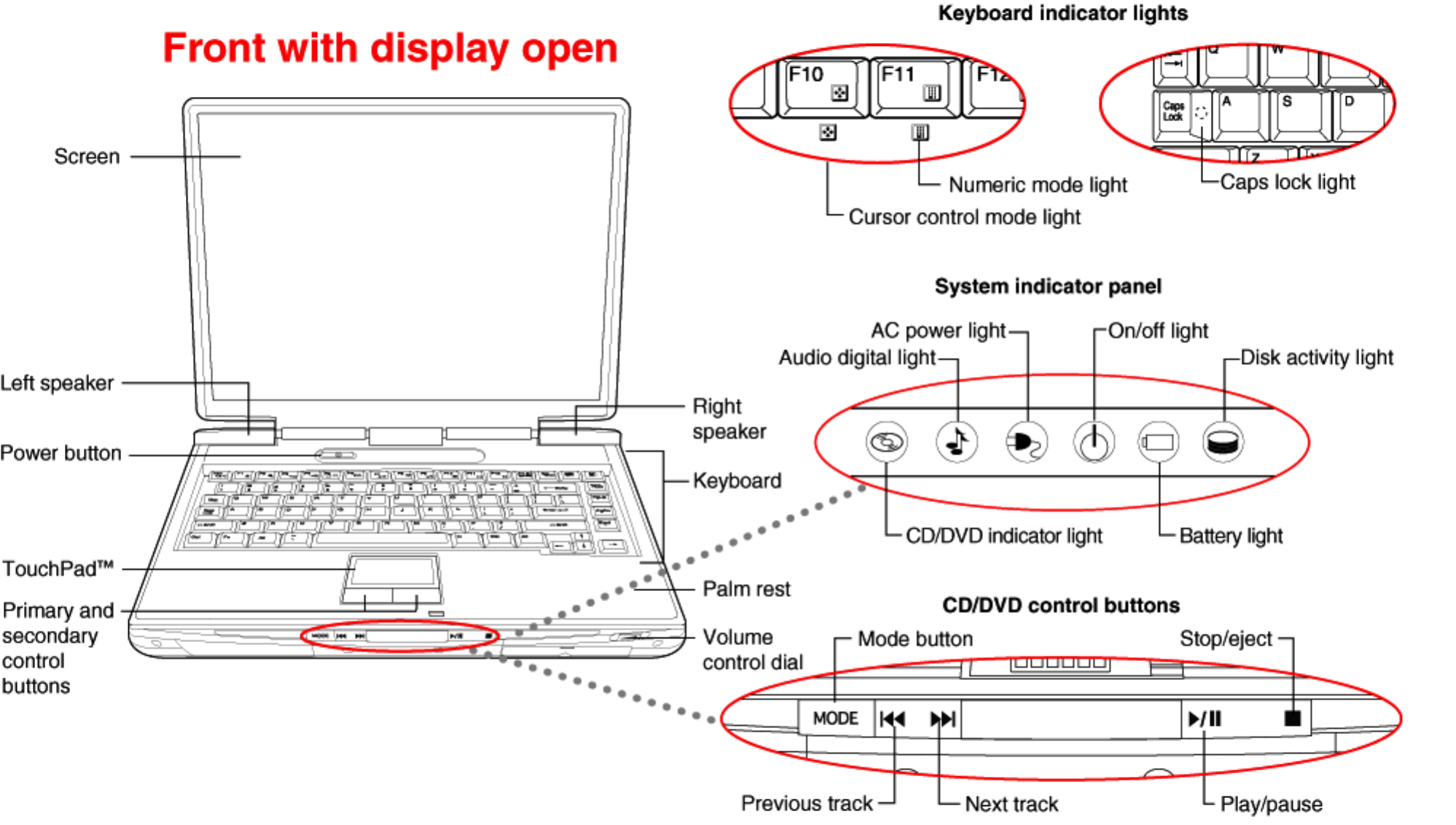

• LED Indicators: HDD, CD/DVD, DC-IN, Caps Lock, Arrow, Numeric

,

Main Battery Charging Status, System Sleep / Suspend status,

Wireless Communication switch (left side), SD Card (right side)

Sound

• Analog Devices AD1981B Codec Chip, Software sound; 16-bit stere

o

Stereo Speakers

• Direct 3D Sound (supported by sound driver); DirectSound and

DirectMusic (supported by sound driver); Full Duplex and MIDI (pla

y

back) support, 32 voices

• Sound Volume (by dial)

• Ports: External Microphone port, headphone port, Line-in port

Power Supply

• AC Adapter: 120W AC Adapter, 100-240V / 50-60Hz frequency

(Universal) input voltage, 15V x 8A Output.

Dimensions (LxWxH): 5.7” x 2.1” x 1.7”

Weight: 1.4lbs

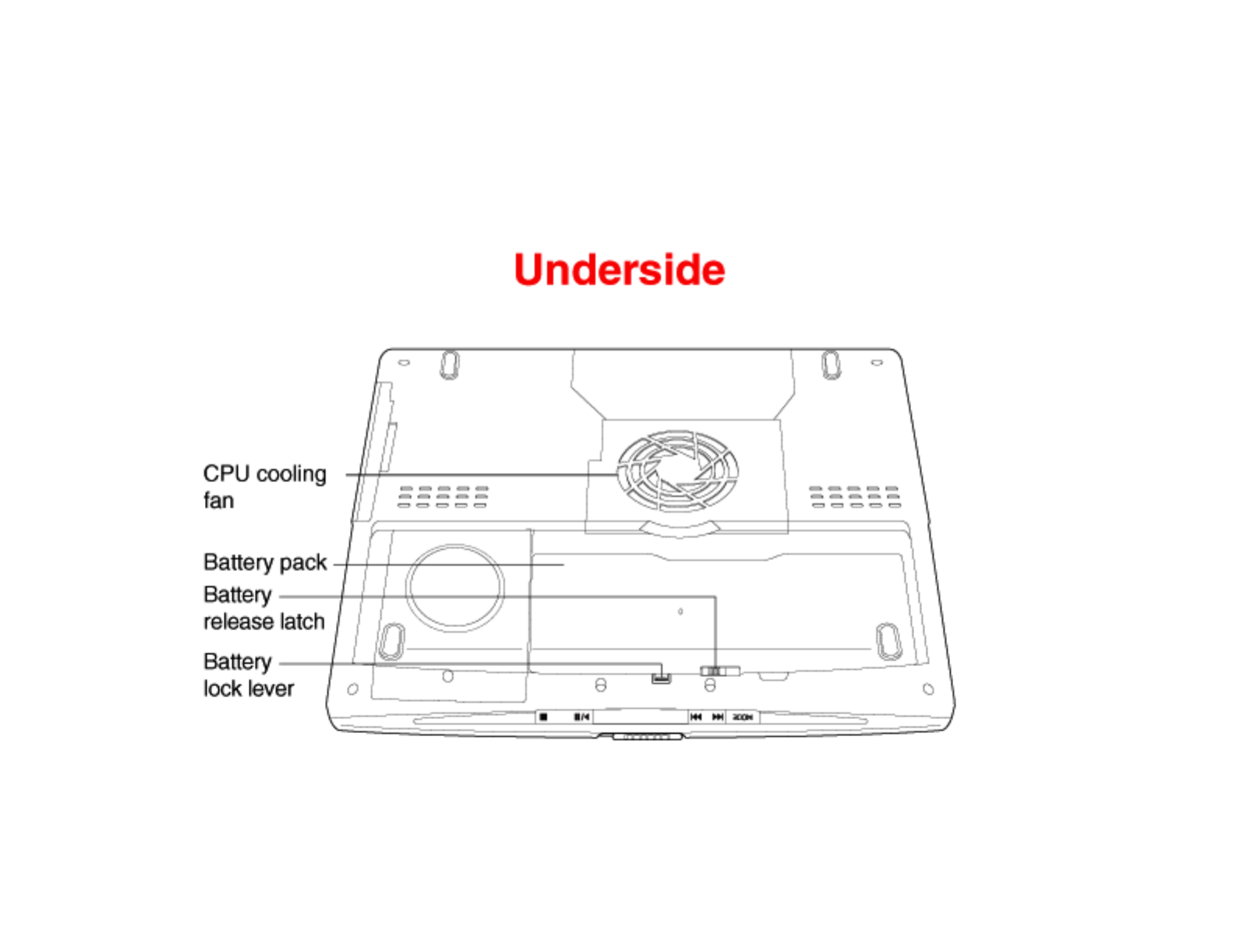

• Battery Pack: 12-cell, rechargeable, removable Lithium Ion

(Graphite) battery, 10.8V x 8400mAh

Dimension (LxWxH): 8.1” x 3.6” x 0.9”

Weight: 1.4lbs

• Battery Saver (in Windows): Stand by, HDD Auto Off, Display Auto

Off, Hibernation

• Battery life 3h18m***; Recharge time(Off/On): Approx

3.5H/3.5~12.5H+

Battery life may vary depending on applications, power management settings

and features utilized. Recharge time varies depending on usage. Battery ma

not charge while computer is consuming full power. After a period of time, th

e

battery will lose its ability to perform at maximum capacity and will need to be

replaced. This is normal for all batteries. To purchase a new battery pack or

see information on accessories shipping with your computer, visit the Toshib

a

website at www.accessories.toshiba.com

Security

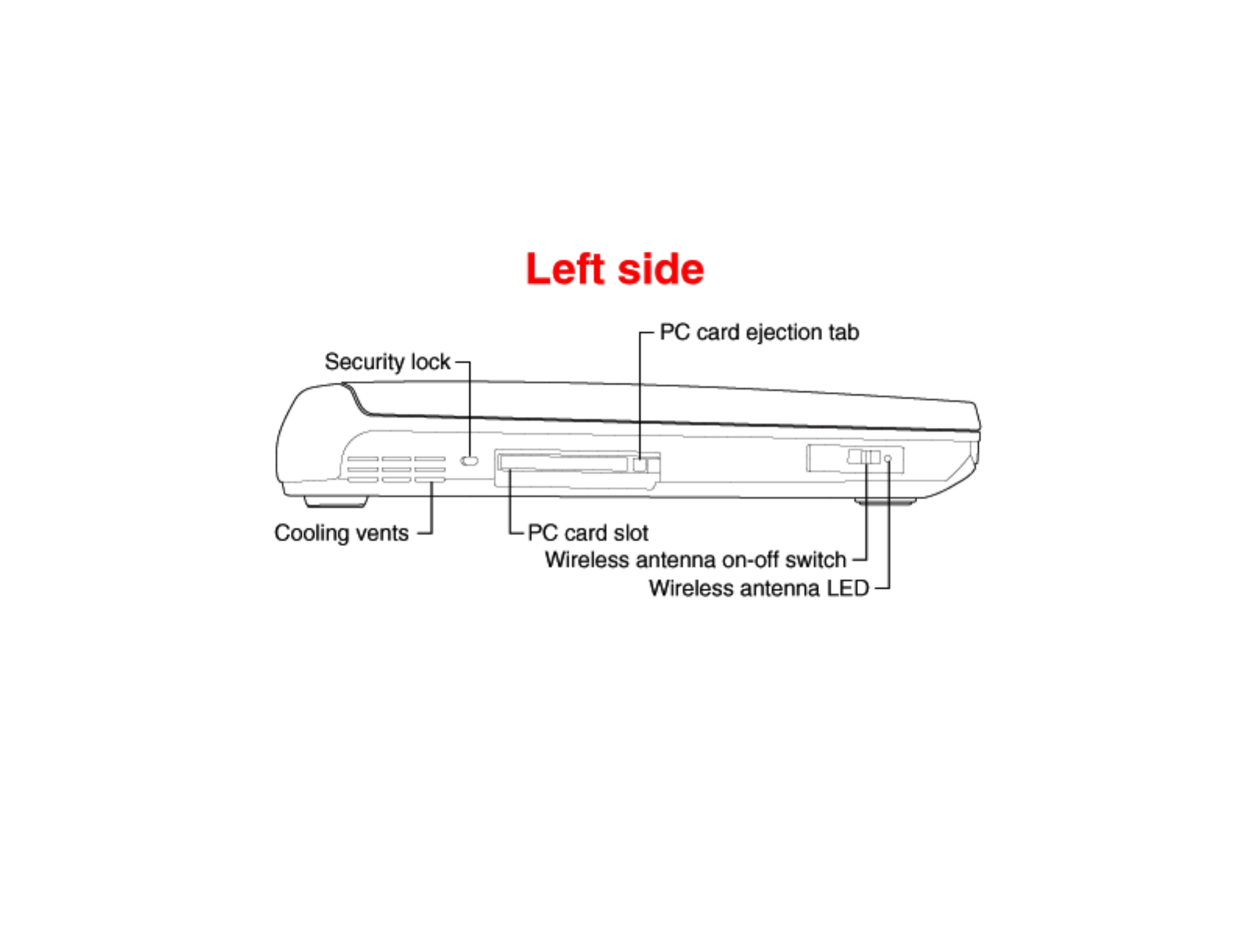

• Slot for Kensington Cable lock, HDD and memory (by screw only),

User Power-on password, Setup Security (by help of password

utility), HDD Password (by TSETUP), Screen Blank (by Hotkey),

Keyboard lock (by Hotkey), Screen Saver by software

Bios

• TSETUP, ACPI, PnP, VESA, DPMS, DDC, SM BIOS, PCI BIOS

support

Operating System

• Microsoft® Windows XP Pro pre-installed (A20-S259)

• Microsoft® Windows XP Home pre-installed (A20-S2591)

• Windows 2000 component drivers on the web

Additional Software

•

Microsoft® Office XP Professional (See Product/Part Number

s

TOSHIBA

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without

notice. Copyright 2003 TAIS satellite_A20-S259.doc Created on 9/11/2003 5:34 PM Rev. 1.0 Page 2 of 3

below)

• Microsoft® Office XP Small Business (See Product/Part Number

s

below)

• Toshiba Notebook Maximizer

• Intuit® Quicken® New User Edition 2003

• Norton® AntiVirus™ 2003- w/3 Month Subscription

• AOL® (3.-month offer)

AOL OFFER DETAILS: Availability may be limited, especially during peak

times. TO AVOID BEING CHARGED A MONTHLY MEMBERSHIP FEE,

SIMPLY CANCEL BEFORE THE THREE-MONTH PROMOTIONAL PERIOD

ENDS. Premium services carry surcharges and communication surcharges

may apply, including AK, even during promotional period. Members may inc

u

telephone charges on their phone bill, depending on their location and calling

plan, even during promotional period. Available to new AOL members in the

United States, age 18 or older; a major credit card or checking account is

required.

• Adobe® Acrobat™ Reader

• AT&T® Worldwide® Service – 1 Month Free

Telephone access and other charges and other terms and conditions may

apply. Offer available to new customers only. Offer expires 4/30/04.

• Microsoft Internet Explorer

• Toshiba ConfigFree™ Software

• Toshiba Custom Utilities

• Toshiba Great Software Offer: Receive your choice of two

software titles. The software selection includes titles from the follow

categories; productivity, education/reference, creativity and entertainment

Warranty

• 1 year parts, labor and battery

Environmental Specifications

• Temperature: Operating: 5° to 35°C (41° to 95°F); Non-operating:

-

20° to 65°C (-4° to 149°F)

• Thermal gradient: Operating: 15°C per hour maximum; Non-

operating: 20°C per hour maximum

• Relative Humidity: Operating: 20% to 80%; Non-operating: 10% t

o

95%

• Altitude (relative to sea level): Operating: -60 to 3000 meters; No

operating: -60 to 10,000 meters

• Shock: Operating: 10G; Non-operating: 60G

• Vibration: Operating: 0.5G; Non-operating: 1.0G

SelectServ® Warranty Programs

SWP-PEQQ3V Warranty Extension to 3 Years

SWP-PEGQ3V 3 Year SystemGuard

SWP-PEQX3V 3 Year Depot Express

SWP-PEGX3V 3 Year SystemGuard + Depot Express

SWP-PEQN3V 3 Year Business On-Site Repair;

Next Day Business Day Response

SWP-PEGN3V 3 Year SystemGuard + Business On Site Repair,

Next Business Day Response

Selected Accessories

Toshiba Accessories

PA3237U-1ACA Global AC Adapter (120W)

PA3287U-1BRS Primary Battery Pack (12 Cell)

PA1326U-1NCS Toshiba Blue Backpack

PA1328U-1NCS Toshiba Executive Leather

PA1333U-1NCS Toshiba Executive Nylon

PA3109U-1FDD USB Floppy Disk Drive

PA3171U-1BTM Toshiba Bluetooth SD Card II

PA3212U-3MPCR Wireless LAN Card Kit (Agere 802.11b)

- (Dealer Install)

PA3273U-2MPC Wireless LAN Card Kit (Atheros 802.11a/b)

- (Dealer Install)

Toshiba SD Memory

SD-M3203B3 32MB

SD-M6403B3 64MB

SD-M1283B3 128MB

SD-M2564B3 256MB

Kingston Memory

KTT3614/128 Kingston 128MB Memory

KTT3614/256 Kingston 256MB Memory

KTT3614/512 Kingston 512MB Memory

Targus Cases

NWCC52 Targus Global Traveler

Other Accessories

*Go to www.accessories.toshiba.com for additional, available accessories

Product/Part Numbers

Satellite A20-S259 (Win XP Pro pre-installed) PSA20U-09Z437

Satellite A20-S2591 (Win XP Home pre-installed) PSA20U-09Z433

Satellite A20 Small Business Series PSA20U-09Z437X

(Office XP Professional)

Satellite A20 Small Business Series PSA20U-09Z437W

(Office XP Small Business)

*GB = 1 Billion bytes

** Central Processing Unit (“CPU”) Performance Disclaimer:

CPU performance in your computer product may vary from specifications

under the following conditions:

• use of certain external peripheral products

• use of battery power instead of AC power

• use of certain multimedia games or videos with special effects

• use of standard telephone lines or low speed network connections

• use of complex modeling software, such as high end computer aided

design applications

• use of computer in areas with low air pressure (high altitude >1,000

meters or >3,280 feet above sea level)

• use of computer at temperatures outside the range of 5°C to 35°C

(41°F to 95° F) or >25°C (77°F) at high altitude (all temperature

references are approximate).

CPU performance may also vary from specifications due to design

configuration.

Under some conditions, your computer product may automatically shut-

down. This is a normal protective feature designed to reduce the risk of lost

data or damage to the product when used outside recommended

conditions. To avoid risk of lost data, always make back-up copies of data

by periodically storing it on an external storage medium. For optimum

performance, use your computer product only under recommended

conditions. Read additional restrictions under “Environmental Conditions” in

your product Resource Guide. Contact Toshiba Technical Service and

Support for more information.

**** TFT Display Disclaimer: Small bright dots may appear on your TFT

display when you turn on your PC. Your display contains an extremely

large number of thin-filmtransistors (TFT) and is manufactured using high-

precision technology. Any small bright dots that may appear on your

display are an intrinsic characteristic of the TFT manufacturing technology.

Return Policy

TAIS does not accept the return of component parts, or bundled software,

which have been removed from the PC system. Pro-rata refunds on

individual PC components or bundled software, including the operating

system, will not be granted. If you wish to return a complete PC system,

contact the TAIS dealer where you purchased the product, and comply with

the dealer’s standard return policies and procedures.

Subject to Change

While Toshiba has made very effort at the time of publication to ensure the

accuracy of the information provided herein, product specifications,

configurations, prices, system/component/options availability are all subject

to change without notice. For the most up-to-date product information about

your computer, or to stay current with the various computer software or

hardware options, visit Toshiba’s Web site at pcsupport.toshiba.com.

TOSHIBA

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without

notice. Copyright 2003 TAIS satellite_A20-S259.doc Created on 9/11/2003 5:34 PM Rev. 1.0 Page 3 of 3

*** Business Winstone® 2002 BatteryMark™ Version 1.0

These models achieved the battery life times shown using Ziff Davis Media Inc.’s Business Winstone® 2002 BatteryMark™ Version 1.0. These tests were

performed without independent verification by the VeriTest testing division of Lionbridge Technologies, Inc. (“VeriTest”). Neither Ziff Davis Media Inc. nor

VeriTest makes any representations or warranties as to the results of the tests. Winstone® is a registered trademark and BatteryMark™ is a trademark of Ziff

Davis Publishing Holdings Inc. in the U.S. and other countries. Copyright 2002 Ziff Davis Media Inc. All Rights Reserved. All products used in the tests were

shipping versions available to the general public. The battery life results were achieved running the Business Winstone® 2002 BatteryMark™ Version 1.0 on

the following system parameters. System parameters were set according to Ziff Davis Media Inc.’s recommendations.

Catalog Spec

(1st) 3h18m

(1st+2nd) N/A

Number of

Conditioning

Phase 0

Battery Life

Life Test Run 3

CPU Name Intel Pentium 4 Processor 2.66GHz

speed 2.66GHz

Processor info number of

processors 1

amount of RAM 256MBx2

A

Amount of secondary RAM cache 512KB (L2 RAM CACHE)

Li-Ion

type(1st) 10.8V X 8400mAh

model

number(1st) PA3287U-SBRS

N/A

type(2nd) N/A

model

number(2nd) N/A

B Battery

number of

batteries 1st=one,2nd=N/A

Graphics Trident CyberALADDiN-P4

Internal 32MB

amount and type of RAM

graphics driver name and version v.6.4612.22ICD_SE_NP

C

graphics resolution and color depth,

refresh rate 15.0" 1024x768

hard disk capacity 40GB

hard disk file system & transfer mode Enhanced IDE (ATA-5)

hard disk controller model ALi M1535+

D

size of hardware cache if any N/A

operating system version, service pack Windows XP Home Edition Version 2000 Service pack 1

E

other special conditions N/A

TOSHIBA

Satellite® A25 Series

Feature Model(s): Part Numbers

Satellite A25-S279

P4 2800/15.0”TFT/512MB/60GB/DVD-CDRW/Mdm/LAN/WiFi(802.11g)/WinXP Home PSA20U-0CH43V

Satellite A25-S2791

P4 2800/15.0”TFT/512MB/60GB/DVD-CDRW/Mdm/LAN/WiFi(802.11g)/WinXP Pro PSA20U-0CH436

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without

notice. Copyright 2003 TAIS satellite_A25-S279.doc Created on 9/11/2003 5:08 PM Rev. 1.0 Page 1 of 3

Product Highlights

Performance

• Intel® Pentium® 4 processor 2.80GHz

• 512MB of Main Memory

• 60GB* hard disk drive

Great Features

• 15.0” XGA TFT screen

• DVD-ROM/CDRW multi-function drive

Get On-Line

• Integrated V.92/56K modem

• Integrated 10/100 Ethernet LAN

• Integrated Wireless (802.11g) LAN

System Characteristics

CPU (See CPU Performance Disclaimer)**

• Intel® Pentium® 4 processor 2.80GHz**

• Integrated co-processor

L2 Cache

• 512KB Level 2 Cache integrated on die

• 533MHz Processor System Bus Clock Speed

Memory

• 512MB (2 DIMM) DDR SDRAM (Expandable to 1024MB) (Both

slots may be occupied)

• Expansion memory: 128MB/256MB/512MB PC2100 DDR,

SODIMM, 2.5V

• Data/Address Bus Width; 64-bit/32-bit

• Ali M1672 + M1535 Chipset

Mass Storage/Optical Drive

• Primary Hard Disk Drive: 60GB* hard disk drive, Enhanced IDE

(ATA-5), 4200rpm, 9.7mm height, 0.2lbs, Service Removable

• DVD-ROM/CDRW Multi-function drive: Max Speed: CD-R(24x),

CD-RW(10x), CD-ROM(24x), DVD-ROM(8x); Compatibility: CD-

ROM, CD-R(read/write), CD-RW(read/re-write), DVD-ROM, DVD-R

(read), DVD-RW(read); Service removable

• Software Decoder: InterVideo® (WinDVD™)

Graphics/Video

• 15.0” XGA TFT**** active-matrix display; internal display supports up

to 16M colors at 1024 x 768

• Trident CyberBlade XP2 graphics processor; 32MB shared video

memory

• External Color Support/Refresh rate: Non-Interlaced@16M Colors

640 x 480 60/75/85/100Hz

800 x 600 60/75/85/100Hz

1024 x 768 60/75/85/100Hz

1280 x 1024 60/75/85/100Hz

1600x 1200 60/75/85/100Hz

1920 x 1440 60/75Hz

2048 x 1536 60Hz

Input Devices

• Keyboard: Full sized 85 keys with 12 function keys, 2.7mm key

stroke, 6mm height; Dedicated Windows® & Application keys

support; HotKey function; TouchPad pointing device

• CD Control Function: Play/Pause, Stop, Previous, Next, Mode

Control Switch (CD/DVD)

Expandability

• 2 Memory slots (Both slots may be occupied)

• PC Card slot supports 1 Type II (5mm)

Communications

• Integrated V.92/56K modem; Data and fax support

Due to FCC limitations, speeds of 53kbps are the maximum permissible

transmission rates during Download. Actual data transmission speeds will

vary depending on line conditions.

• Integrated 10/100 Ethernet LAN

• Integrated Wireless (802.11g) LAN (Atheros)

Ports

• RGB (monitor) port

• Parallel port

• 3 Universal Serial Bus ports (2.0)

• TV-Out (S-Video)

• RJ-45 LAN port

• RJ-11 modem port

• Secure Digital® (SD) slot

Physical Description

• Dimensions (LxWxH): 13.4” x 11.6” x 1.9”

• Weight: 7.9lbs

• LED Indicators: HDD, CD/DVD, DC-IN, Caps Lock, Arrow, Numeric,

Main Battery Charging Status, System Sleep / Suspend status,

Wireless Communication switch (left side), SD Card (right side)

Sound

• Analog Devices AD1981B Codec Chip, Software sound; 16-bit

stereo; Stereo Speakers

• Direct 3D Sound (supported by sound driver); DirectSound and

DirectMusic (supported by sound driver); Full Duplex and MIDI (play

back) support, 32 voices

• Sound Volume (by dial)

• Ports: External Microphone port, headphone port, Line-in port

Power Supply

• AC Adapter: 120W AC Adapter, 100-240V / 50-60Hz frequency

(Universal) input voltage, 15V x 8A Output.

Dimensions (LxWxH): 5.7” x 2.1” x 1.7”

Weight: 1.4lbs

• Battery Pack: 12-cell, rechargeable, removable Lithium Ion

(Graphite) battery, 10.8V x 8400mAh

Dimension (LxWxH): 8.1” x 3.6” x 0.9”

Weight: 1.4lbs

• Battery Saver (in Windows): Stand by, HDD Auto Off, Display Auto

Off, Hibernation

• Battery life 2h41m***;

• Recharge time(Off/On): Approx 3.5H/3.5~12.5H+

Battery life may vary depending on applications, power management settings

and features utilized. Recharge time varies depending on usage. Battery

may not charge while computer is consuming full power. After a period of

time, the battery will lose its ability to perform at maximum capacity and will

need to be replaced. This is normal for all batteries. To purchase a new

battery pack or see information on accessories shipping with your computer,

visit the Toshiba website at www.accessories.toshiba.com

Security

• Slot for Kensington Cable lock, HDD and memory (by screw only),

User Power-on password, Setup Security (by help of password

utility), HDD Password (by TSETUP), Screen Blank (by Hotkey),

Keyboard lock (by Hotkey), Screen Saver by software

Bios

• TSETUP, ACPI, PnP, VESA, DPMS, DDC, SM BIOS, PCI BIOS

support

Operating System

• Microsoft® Windows XP Home pre-installed (A25-S279)

• Microsoft® Windows XP Pro pre-installed (A25-S2791)

• Windows 2000 component drivers on the web

Additional Software

• Microsoft® Works

• Toshiba Notebook Maximizer

• Intuit® Quicken® New User Edition 2003

• Norton® AntiVirus™ 2003- w/3 Month Subscription

•

AOL® (3.-month offer)

AOL OFFER DETAILS: Availability may be limited, especially during peak

TOSHIBA

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without

notice. Copyright 2003 TAIS satellite_A25-S279.doc Created on 9/11/2003 5:08 PM Rev. 1.0 Page 2 of 3

times. TO AVOID BEING CHARGED A MONTHLY MEMBERSHIP FEE,

SIMPLY CANCEL BEFORE THE THREE-MONTH PROMOTIONAL PERIOD

ENDS. Premium services carry surcharges and communication surcharges

may apply, including AK, even during promotional period. Members may incur

telephone charges on their phone bill, depending on their location and calling

plan, even during promotional period. Available to new AOL members in the

United States, age 18 or older; a major credit card or checking account is

required.

• Adobe® Acrobat™ Reader

• AT&T® Worldwide® Service – 1 Month Free

Telephone access and other charges and other terms and conditions may

apply. Offer available to new customers only. Offer expires 4/30/04.

• Microsoft Internet Explorer

• Toshiba ConfigFree™ Software

• Toshiba Custom Utilities

• Toshiba Great Software Offer: Receive your choice of two

software titles. The software selection includes titles from the follow

categories; productivity, education/reference, creativity and entertainment

Warranty

• 1 year parts, labor and battery

Environmental Specifications

• Temperature: Operating: 5° to 35°C (41° to 95°F); Non-operating: -

20° to 65°C (-4° to 149°F)

• Thermal gradient: Operating: 15°C per hour maximum; Non-

operating: 20°C per hour maximum

• Relative Humidity: Operating: 20% to 80%; Non-operating: 10% to

95%

• Altitude (relative to sea level): Operating: -60 to 3000 meters;

Non-operating: -60 to 10,000 meters

• Shock: Operating: 10G; Non-operating: 60G

• Vibration: Operating: 0.5G; Non-operating: 1.0G

SelectServ® Warranty Programs

SWP-PEQQ3V Warranty Extension to 3 Years

SWP-PEGQ3V 3 Year SystemGuard

SWP-PEQX3V 3 Year Depot Express

SWP-PEGX3V 3 Year SystemGuard + Depot Express

SWP-PEQN3V 3 Year Business On-Site Repair;

Next Day Business Day Response

SWP-PEGN3V 3 Year SystemGuard + Business On Site Repair,

Next Business Day Response

Selected Accessories

Toshiba Accessories

PA3237U-1ACA Global AC Adapter (120W)

PA3287U-1BRS Primary Battery Pack (12 Cell)

PA1326U-1NCS Toshiba Blue Backpack

PA1328U-1NCS Toshiba Executive Leather

PA1333U-1NCS Toshiba Executive Nylon

PA3109U-1FDD USB Floppy Disk Drive

PA3171U-1BTM Toshiba Bluetooth SD Card II

PA3212U-3MPCR Wireless LAN Card Kit (Agere 802.11b) - (Dealer Install)

PA3273U-2MPC Wireless LAN Card Kit (Atheros 802.11a/b)

- (Dealer Install)

Toshiba SD Memory

SD-M3203B3 32MB

SD-M6403B3 64MB

SD-M1283B3 128MB

SD-M2564B3 256MB

Kingston Memory

KTT3614/128 Kingston 128MB Memory

KTT3614/256 Kingston 256MB Memory

KTT3614/512 Kingston 512MB Memory

Targus Cases

NWCC52 Targus Global Traveler

Other Accessories

*Go to www.accessories.toshiba.com for additional, available accessories

Product/Part Numbers

Satellite A25-S279 (Win XP Home pre-installed) PSA20U-0CH43V

Satellite A25-S2791 (Win XP Pro pre-installed) PSA20U-0CH436

*GB = 1 Billion bytes

** Central Processing Unit (“CPU”) Performance Disclaimer:

CPU performance in your computer product may vary from specifications

under the following conditions:

• use of certain external peripheral products

• use of battery power instead of AC power

• use of certain multimedia games or videos with special effects

• use of standard telephone lines or low speed network connections

• use of complex modeling software, such as high end computer

aided design applications

• use of computer in areas with low air pressure (high altitude >1,000

meters or >3,280 feet above sea level)

• use of computer at temperatures outside the range of 5°C to 35°C

(41°F to 95° F) or >25°C (77°F) at high altitude (all temperature

references are approximate).

CPU performance may also vary from specifications due to design

configuration.

Under some conditions, your computer product may automatically shut-

down. This is a normal protective feature designed to reduce the risk of

lost data or damage to the product when used outside recommended

conditions. To avoid risk of lost data, always make back-up copies of

data by periodically storing it on an external storage medium. For

optimum performance, use your computer product only under

recommended conditions. Read additional restrictions under

“Environmental Conditions” in your product Resource Guide. Contact

Toshiba Technical Service and Support for more information.

**** TFT Display Disclaimer: Small bright dots may appear on your TFT

display when you turn on your PC. Your display contains an extremely

large number of thin-filmtransistors (TFT) and is manufactured using

high-precision technology. Any small bright dots that may appear on your

display are an intrinsic characteristic of the TFT manufacturing

technology.

Return Policy

TAIS does not accept the return of component parts, or bundled software,

which have been removed from the PC system. Pro-rata refunds on

individual PC components or bundled software, including the operating

system, will not be granted. If you wish to return a complete PC system,

contact the TAIS dealer where you purchased the product, and comply

with the dealer’s standard return policies and procedures.

Subject to Change

While Toshiba has made very effort at the time of publication to ensure

the accuracy of the information provided herein, product specifications,

configurations, prices, system/component/options availability are all

subject to change without notice. For the most up-to-date product

information about your computer, or to stay current with the various

computer software or hardware options, visit Toshiba’s Web site at

pcsupport.toshiba.com.

TOSHIBA

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without

notice. Copyright 2003 TAIS satellite_A25-S279.doc Created on 9/11/2003 5:08 PM Rev. 1.0 Page 3 of 3

*** Business Winstone® 2002 BatteryMark™ Version 1.0

These models achieved the battery life times shown using Ziff Davis Media Inc.’s Business Winstone® 2002 BatteryMark™ Version 1.0. These tests were

performed without independent verification by the VeriTest testing division of Lionbridge Technologies, Inc. (“VeriTest”). Neither Ziff Davis Media Inc. nor

VeriTest makes any representations or warranties as to the results of the tests. Winstone® is a registered trademark and BatteryMark™ is a trademark of Ziff

Davis Publishing Holdings Inc. in the U.S. and other countries. Copyright 2002 Ziff Davis Media Inc. All Rights Reserved. All products used in the tests were

shipping versions available to the general public. The battery life results were achieved running the Business Winstone® 2002 BatteryMark™ Version 1.0 on

the following system parameters. System parameters were set according to Ziff Davis Media Inc.’s recommendations.

CPU Name Intel Pentium 4 Processor

speed 2.80GHz

Processor info

number of processors 1

amount of RAM 256MB

Amount of secondary RAM cache 512KB (L2 RAM CACHE)

Li-Ion

type(1st)

10.8V X 8400mAh

model number(1st) PA3287U-SBRS

N/A

type(2nd)

N/A

model number(2nd) N/A

Battery

number of batteries 1st=one,2nd=N/A

Graphics Trident CyberALADDiN-P4

Internal 32MB

amount and type of RAM

graphics driver name and version v.6.4612.22ICD_SE_NP

graphics resolution and color depth, refresh rate 15.0" 1024x768

hard disk capacity 40GB

hard disk file system & transfer mode Enhanced IDE (ATA-5)

hard disk controller model ALi M1535+

size of hardware cache if any N/A

operating system version, service pack Windows XP Home Edition Version 2000 Service

pack 1

other special conditions N/A
