OWNER’S MANUAL
46BL702B
DIGITAL Series
"Register your TV online at:
www.toshiba.co.uk/registration”
- 1 -
English
Get started with Freeview
Freeview gives you over 50 TV channels to play with, not to mention 25 radio stations.
Start watching all your favourite TV content today, just connect your aerial and tune in.
Keep up-to-date
New channels are launched on Freeview from time to time along with other updates to the
service. So it pays to retune your digital TV periodically to make sure your Digital TV/Radio
channels are up to date. To retune your Toshiba Digital TV, please refer to the Re-tune
section for guidance.
Alternatively nd out more on the dedicated Freeview website:
www.freeview.co.uk/retune
Freeview service is subject to availability. Aerial upgrade may be required.
- 2 -
English
Contents
Safety Precautions ................................................. 4
Air Circulation ..................................................... 4
Heat Damage...................................................... 4
Mains Supply ...................................................... 4
Warning ............................................................. 4
Do ....................................................................... 4
Do not ................................................................. 4
Installation and Important Information .................... 5
EXCLUSION CLAUSE........................................ 5
Important safety information .................................. 6

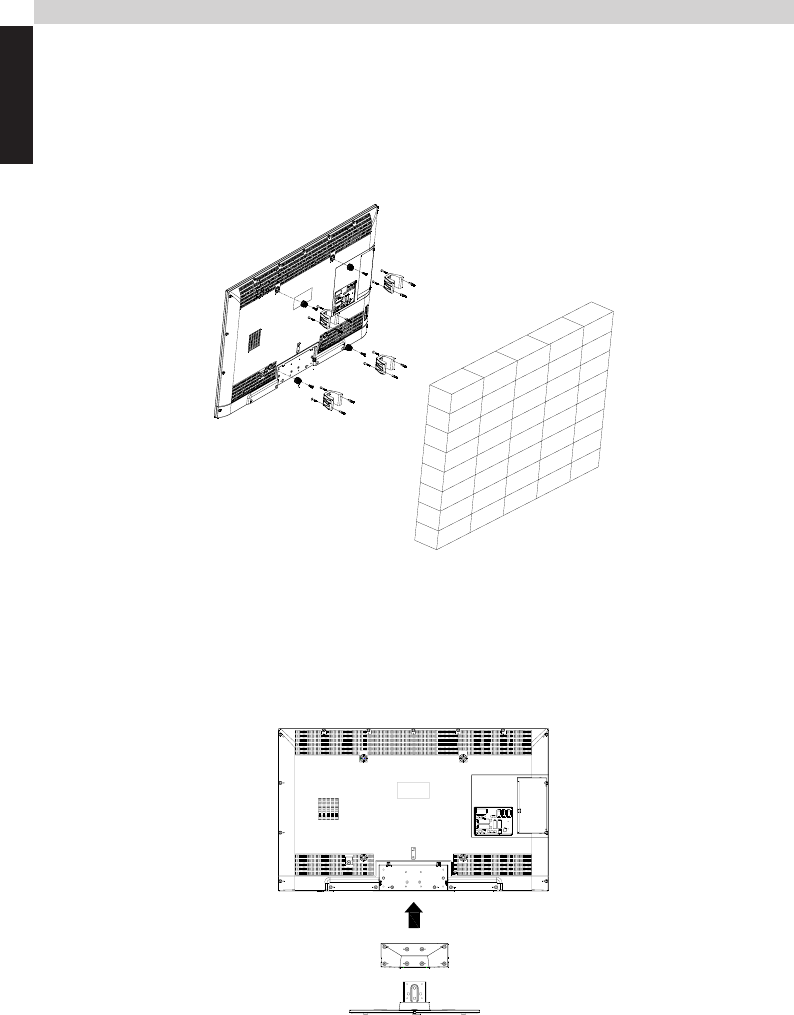

To display your LCD TV using a wall bracket ..... 8

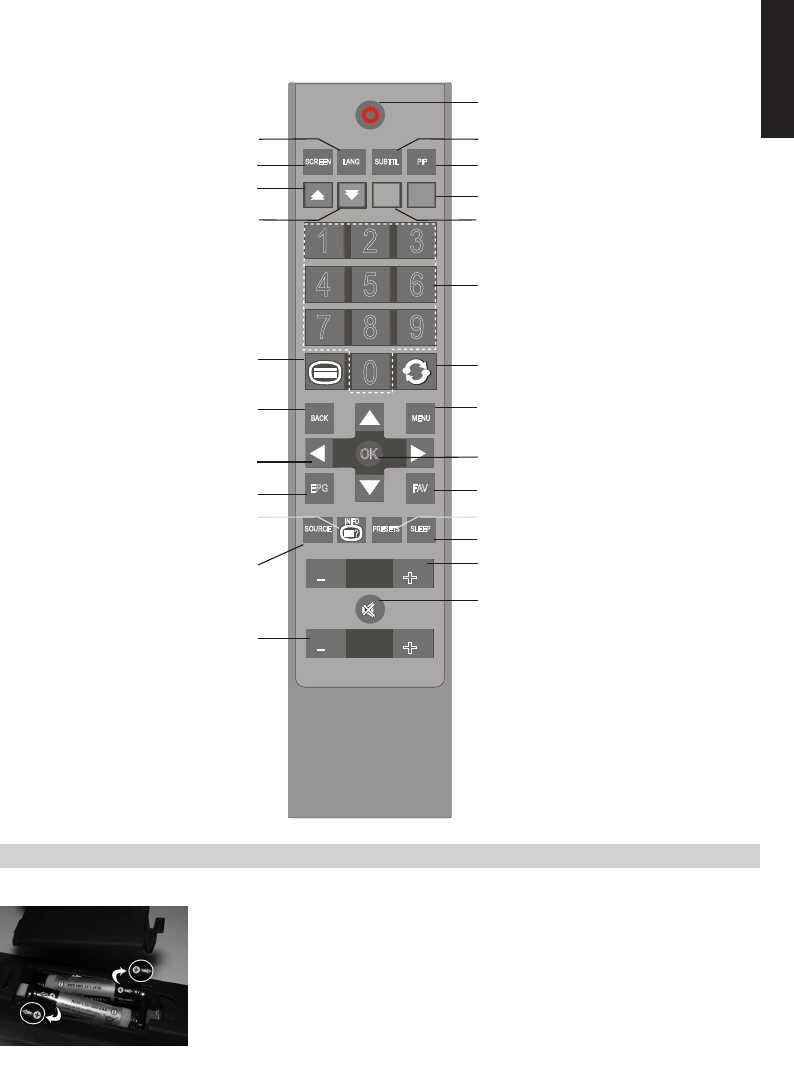

The Remote Control ............................................... 9
Inserting Batteries and Effective Range of the
Remote Control................................................... 9

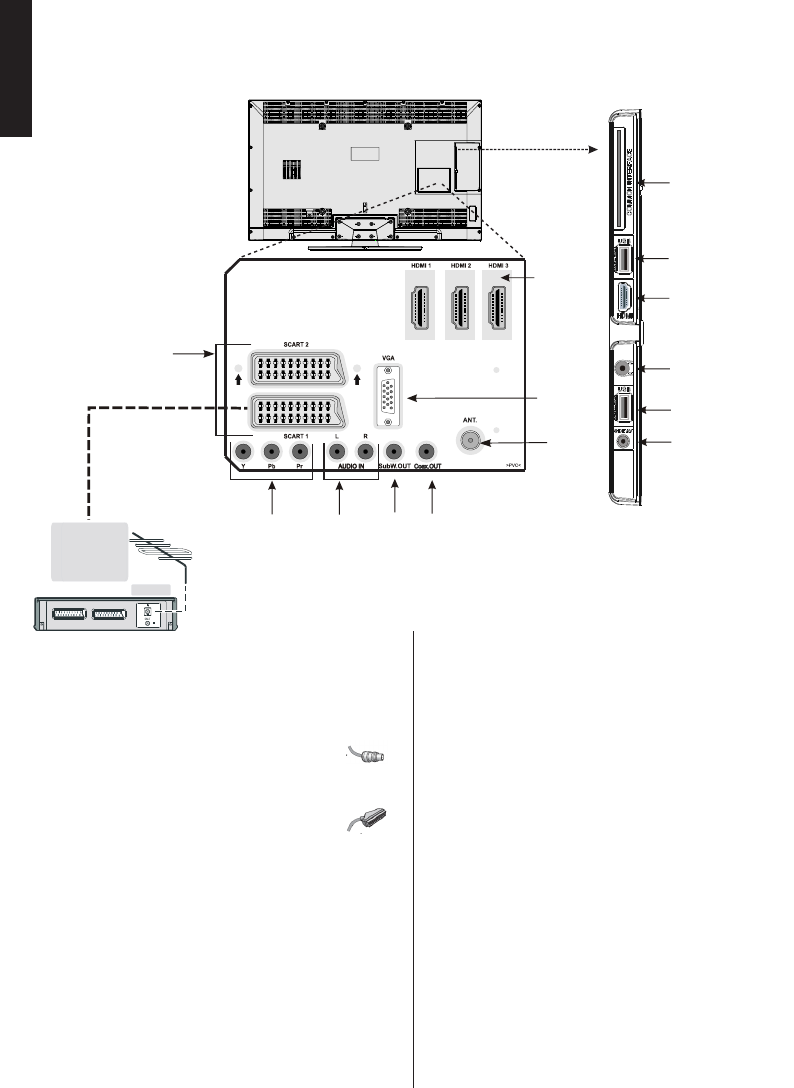

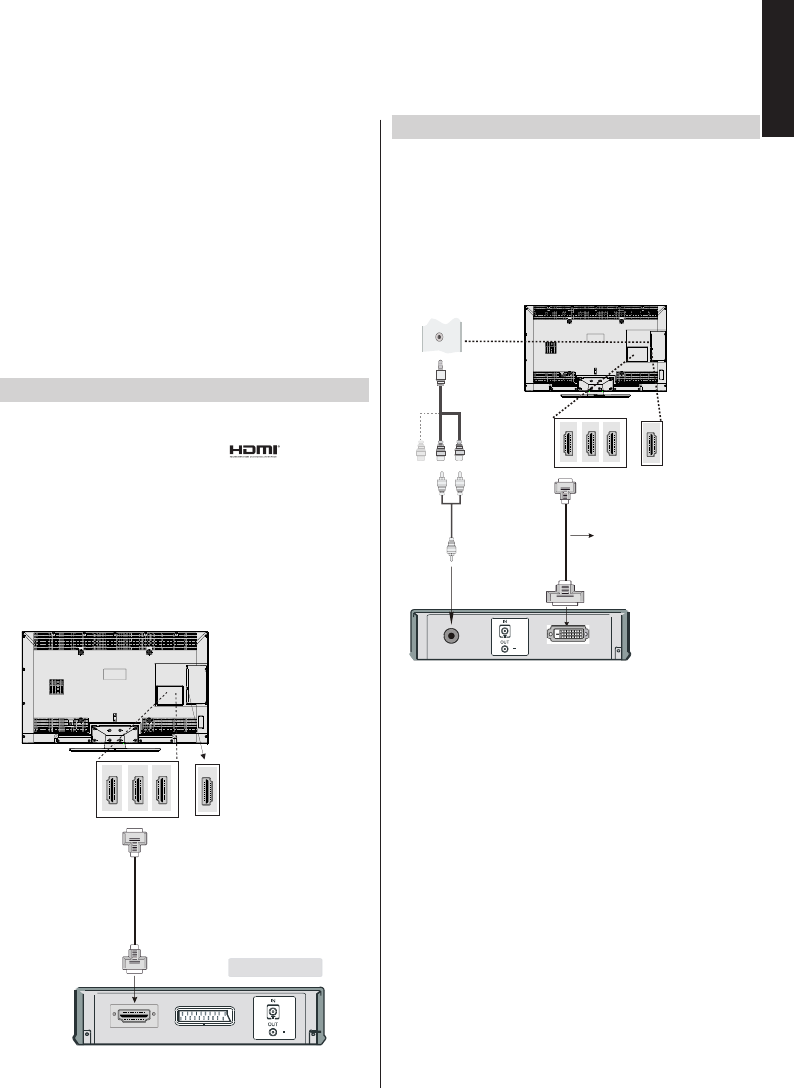

Connecting External Equipment ........................... 10
Connecting an HDMI® or DVI Device to the HDMI
Input.......................................................................11
To Connect an HDMI Device .............................11
To Connect a DVI Device (PC, DVD Player etc) ..11
Connecting a USB Memory .................................. 12

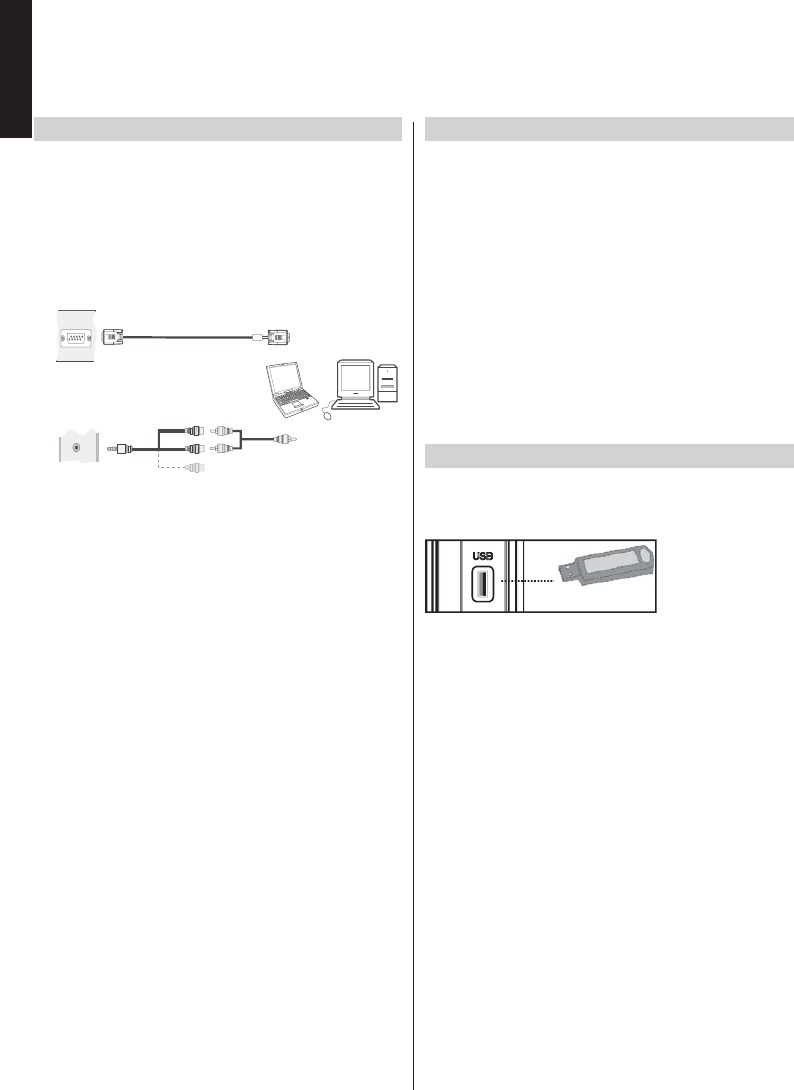

Connecting a Computer........................................ 12
To Connect a Computer .................................... 12
To Connect a USB Flash Drive ......................... 12
USB Memory Connection ................................. 12

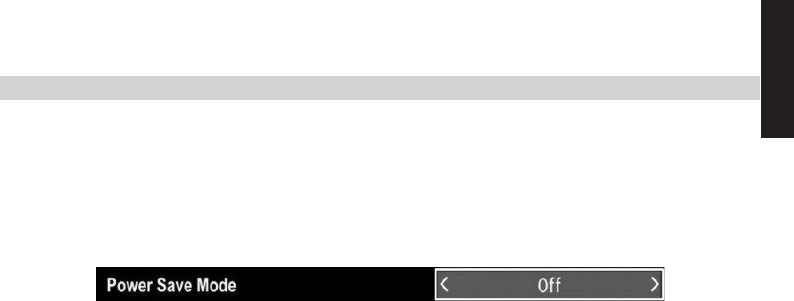

Power Save Mode ................................................ 13
Environmental Information ............................... 13
Controlling the TV ................................................. 14
Switching on ..................................................... 14
Using the Remote Control ................................ 14

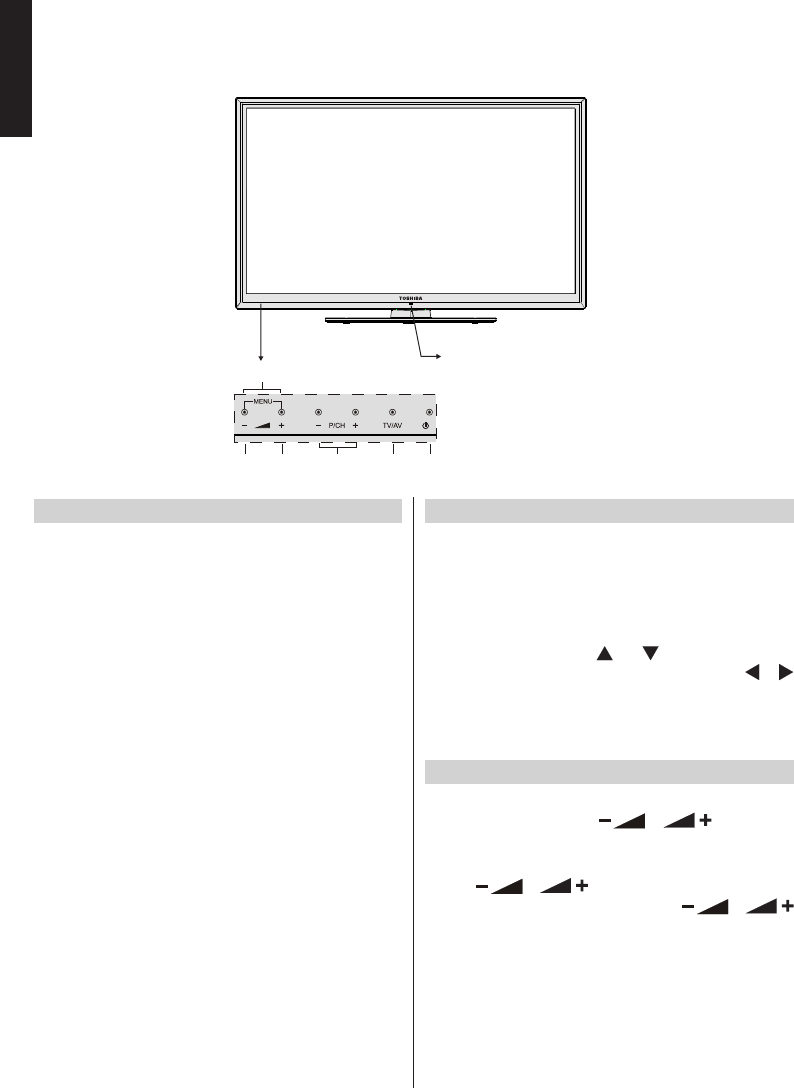

Using the Controls and Connections on the TV .. 14

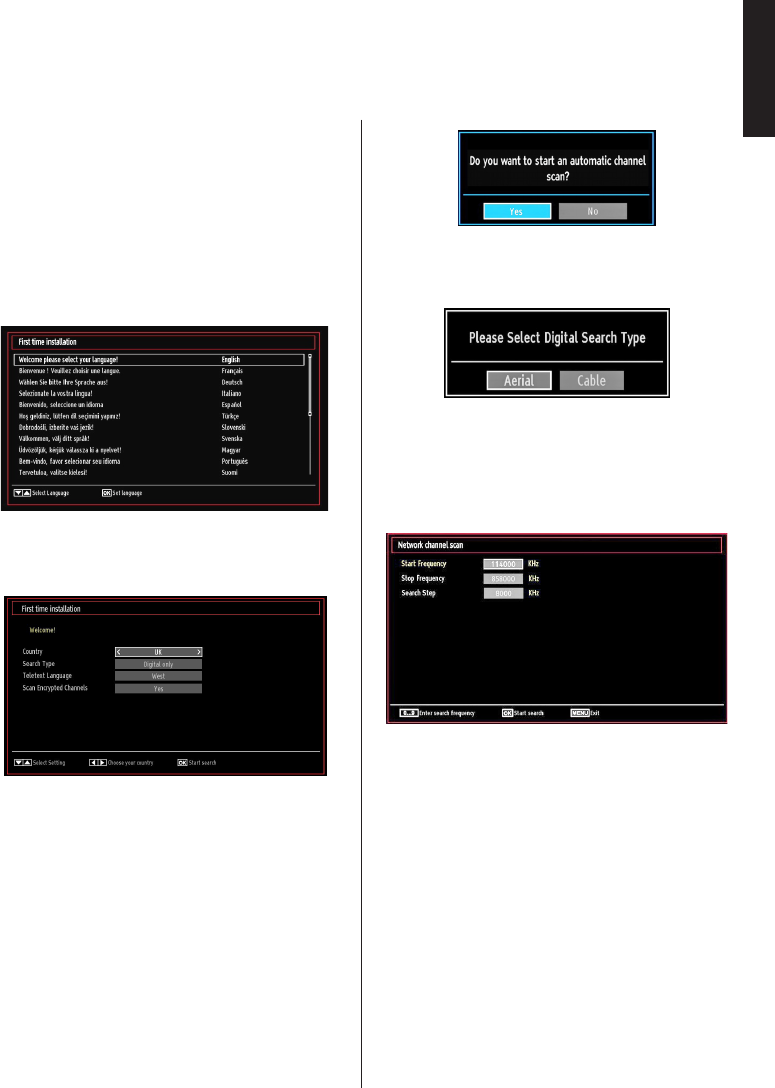

Initial Installation .................................................. 15

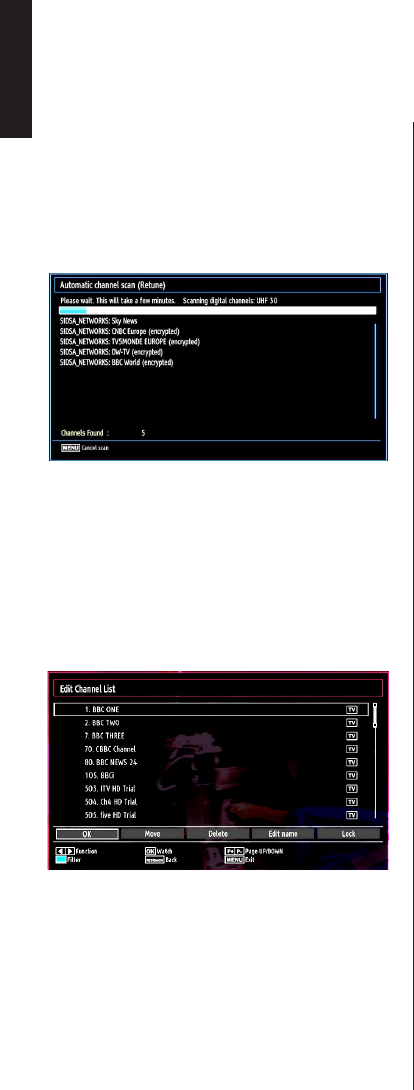

Auto Tuning....................................................... 17
Manual Tuning, Analogue Fine Tuning ................. 18

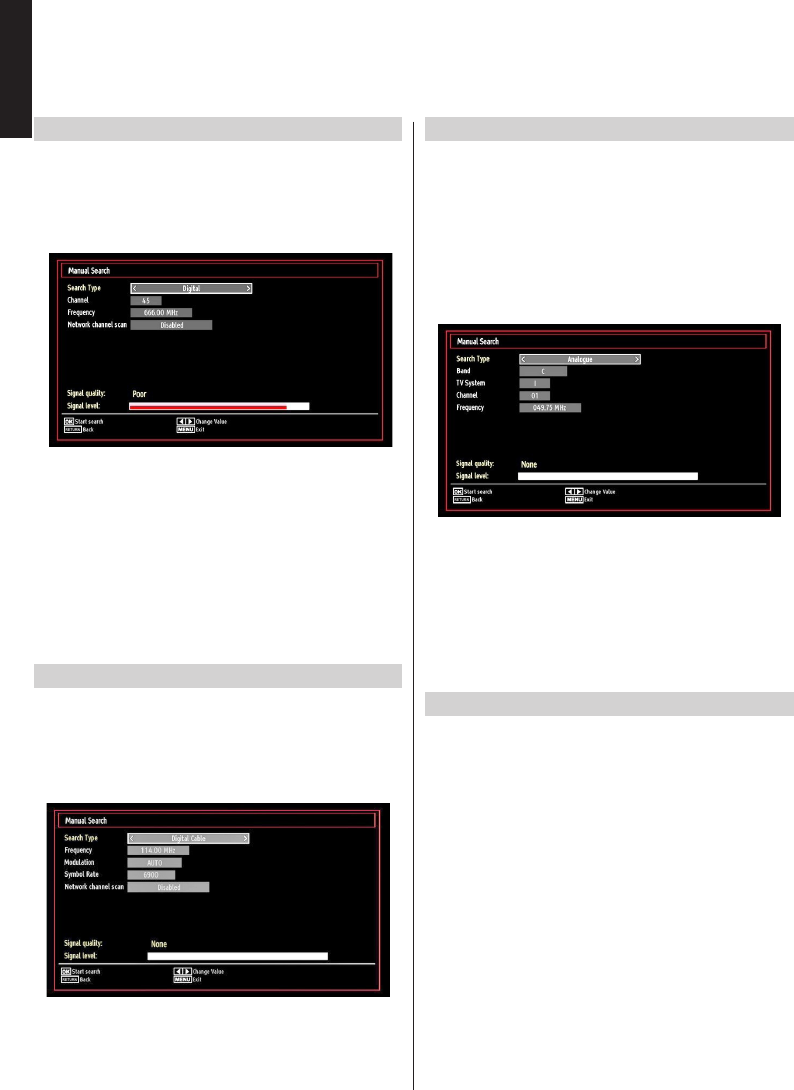

Digital Aerial Manual Search............................. 18
Digital Cable Manual Search (*) ....................... 18
Analogue Manual Search ................................. 18
Analogue Fine Tune.......................................... 18
General Operation ................................................ 19
Stereo and Bilingual Transmissions.................. 19
Displaying Subtitles .......................................... 19
Viewing Main Menu .......................................... 19
Controlling Volume and Muting Sound ............. 19
Selecting Programme Positions........................ 19

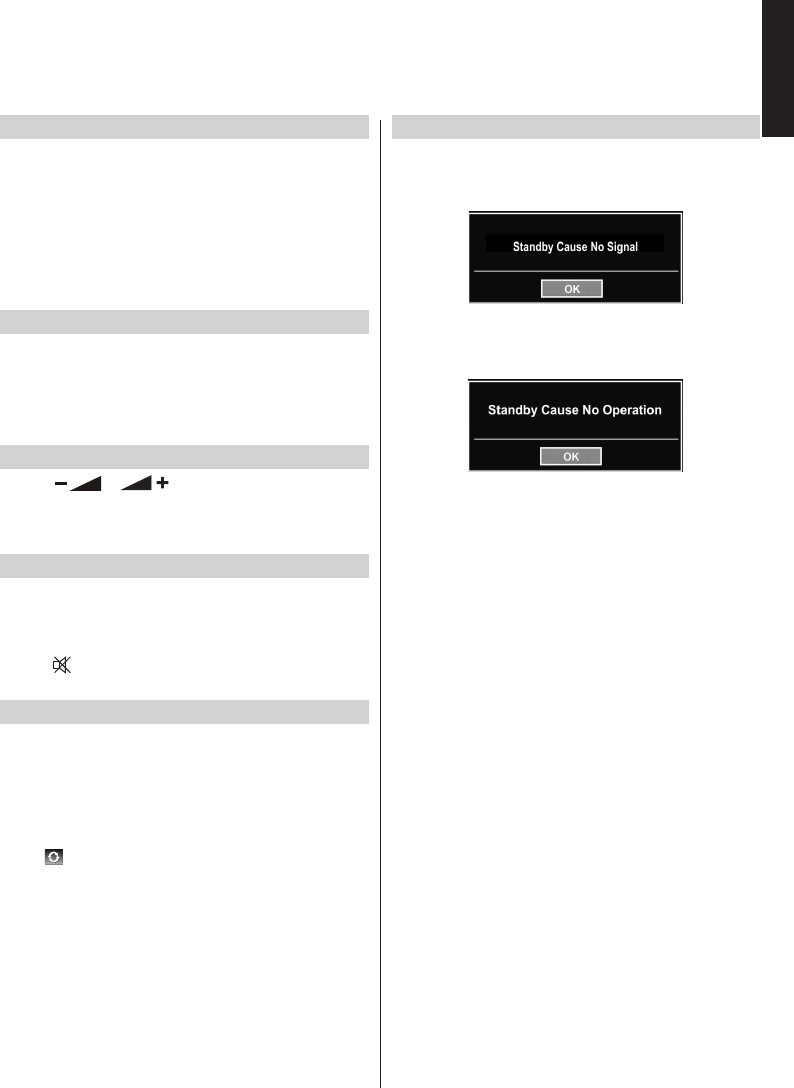

Standby Notications ........................................ 19
Channel List, Sorting Programmes, Programme
Locking ................................................................. 20

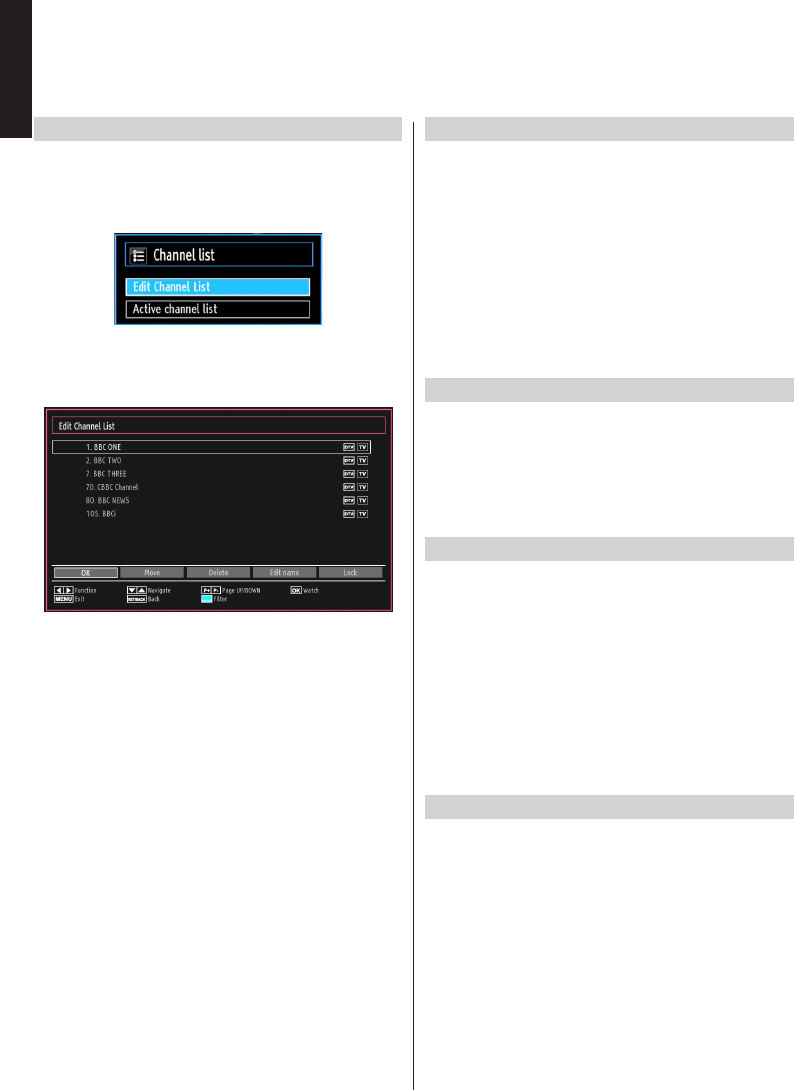

Viewing Channel List ........................................ 20
Moving a Channel ............................................. 20
Deleting a Channel ........................................... 20
Renaming a Channel ........................................ 20
Locking a Channel ............................................ 20

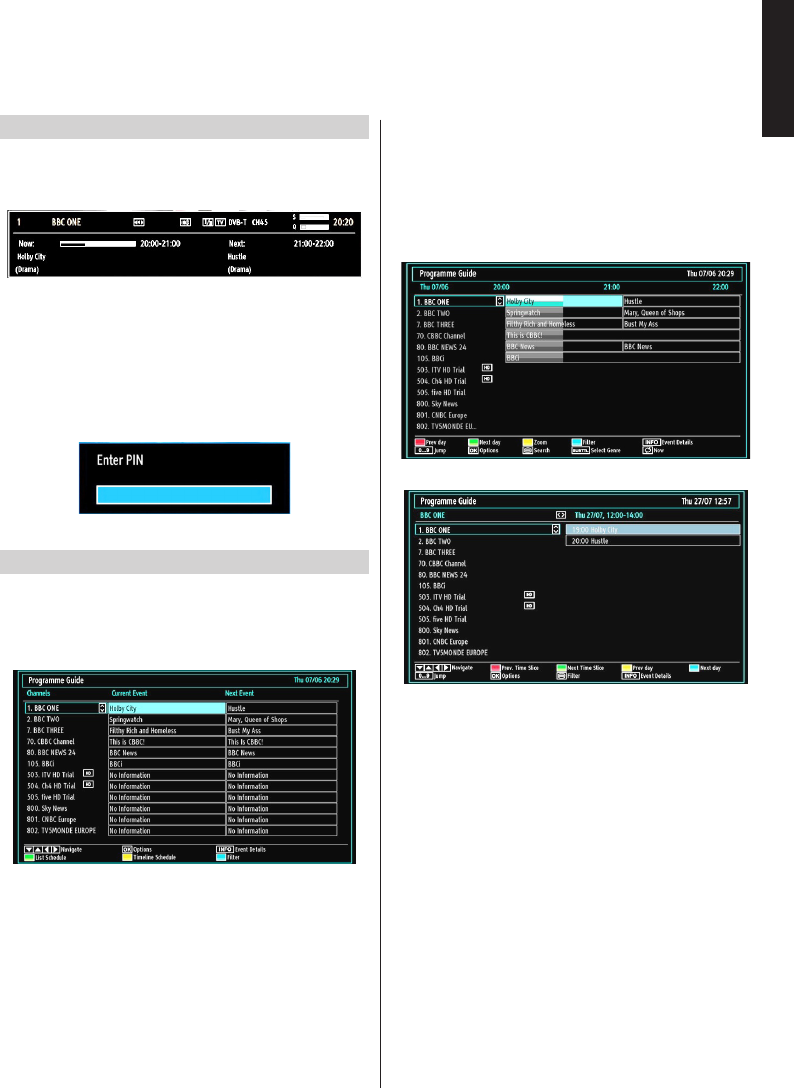

Viewing Info Banner, Electronic Programme
Guide .................................................................... 21
Viewing Info Banner .......................................... 21
Electronic Programme Guide............................ 21

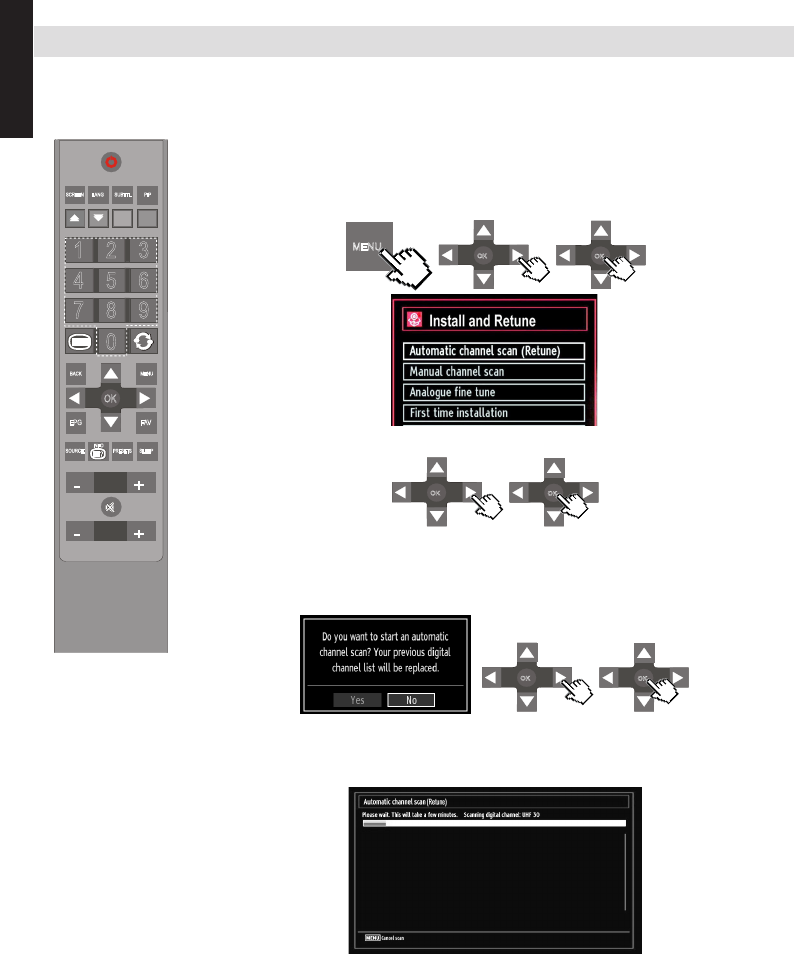

Re-tune Section .................................................... 22

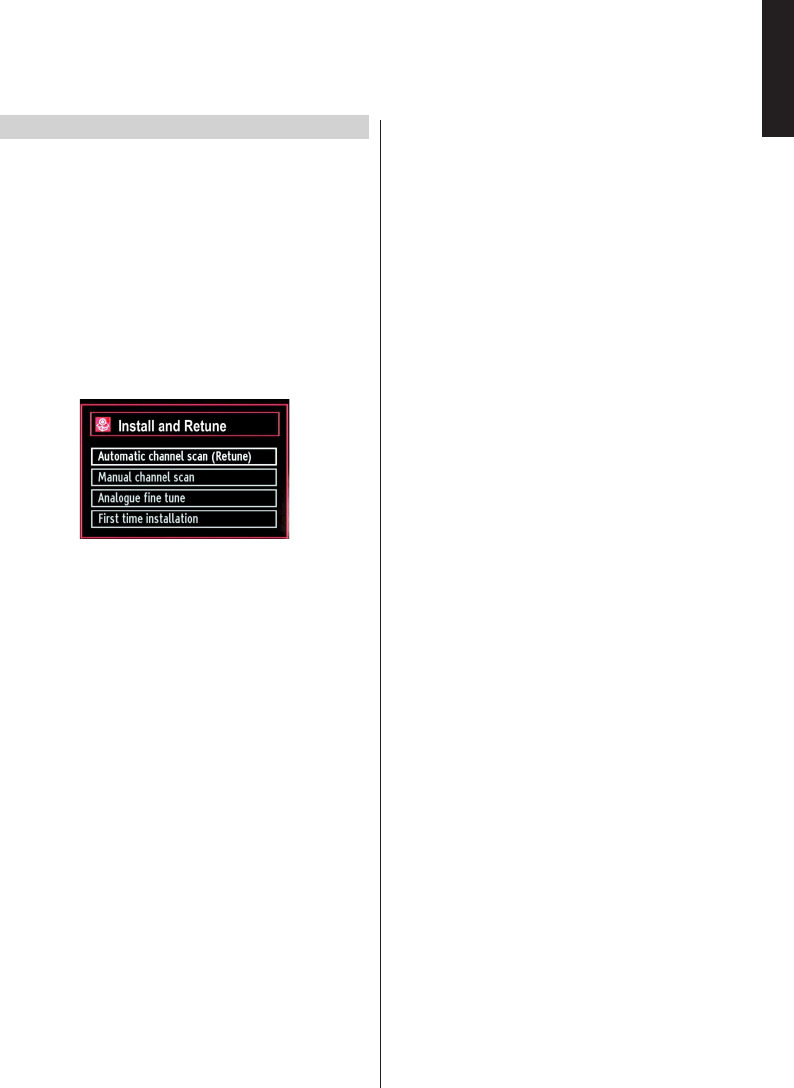

Re-tuning: TOSHIBA Freeview Products .............. 22
Language Selection .............................................. 23

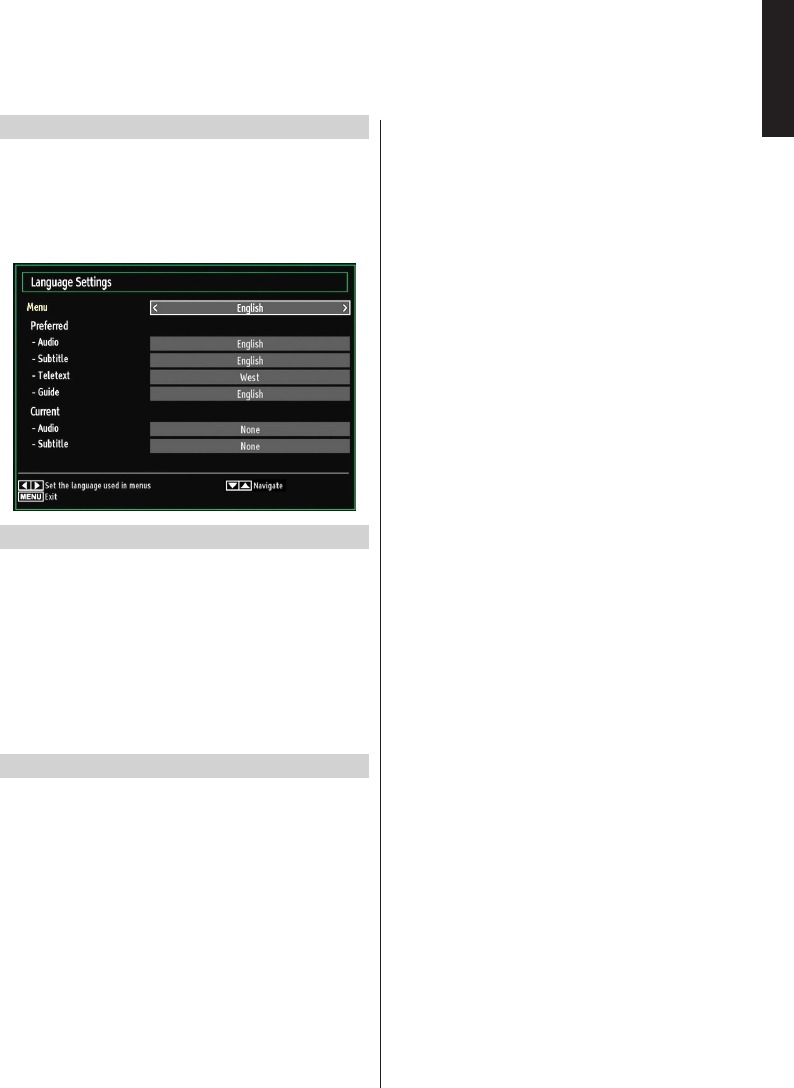

Language Settings ............................................ 23
Preferred ........................................................... 23
Current .............................................................. 23

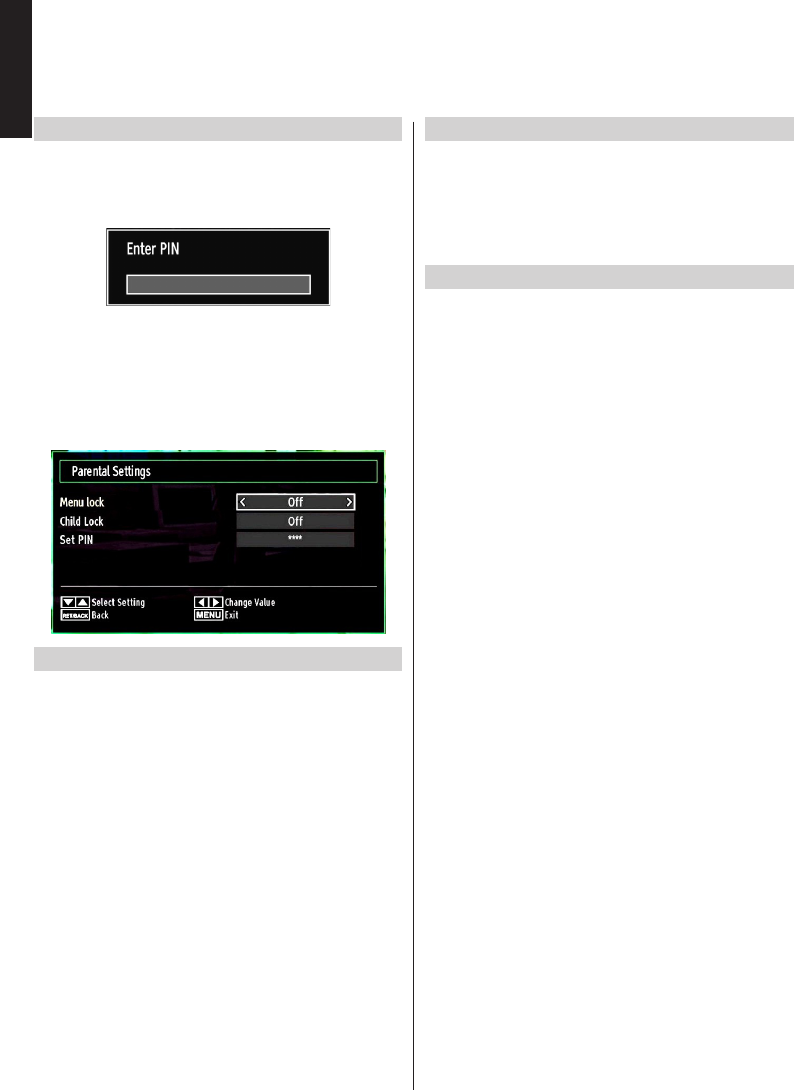

Digital Settings - Parental Control, Menu Lock, Set
PIN........................................................................ 24
Viewing Parental Control Menu ........................ 24
Menu Lock ........................................................ 24
Child Lock ......................................................... 24
Set PIN ............................................................. 24

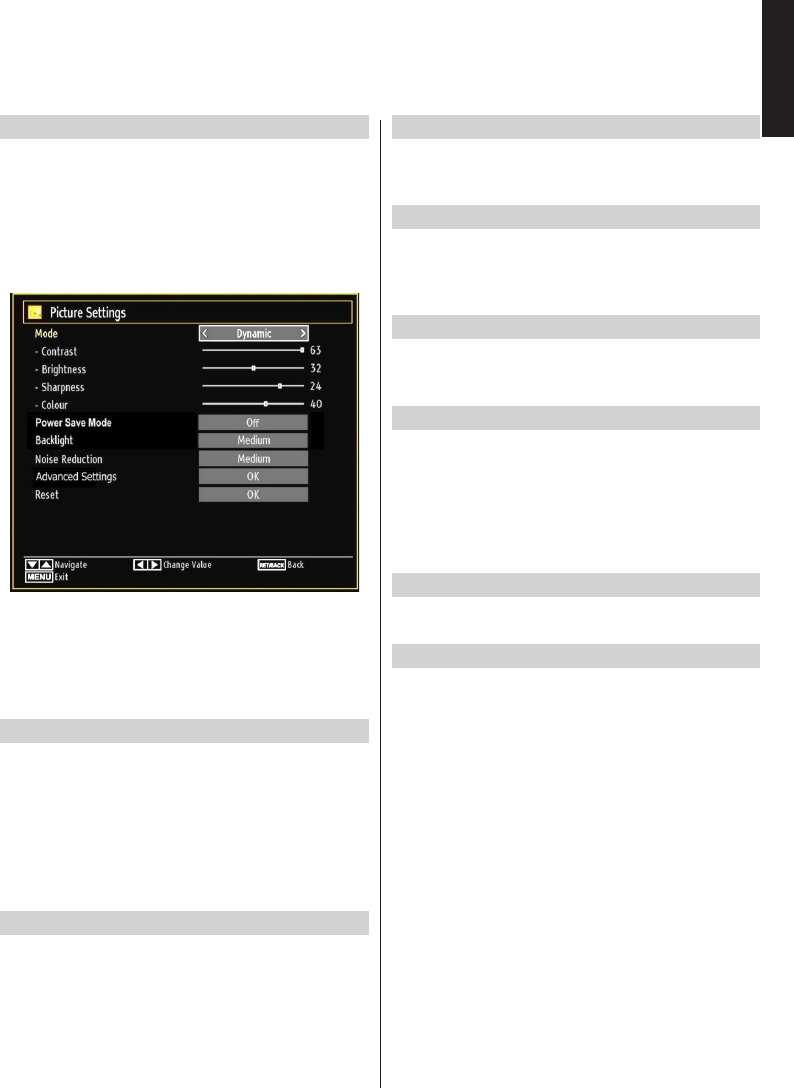

Conguring Picture Settings ................................. 25
Conguring Picture Settings ............................. 25
Picture Mode..................................................... 25
Contrast ............................................................ 25
Brightness ......................................................... 25
Sharpness......................................................... 25
Colour ............................................................... 25
Power Save Mode ........................................... 25
Backlight ........................................................... 25
Noise Reduction ............................................... 25
Advanced Settings ............................................ 26
Colour Temp ..................................................... 26
Picture Zoom .................................................... 26
Full Mode (optional) .......................................... 26
HDMI True Black (optional)............................... 26
Film Mode (optional) ......................................... 26
Colour Shift ....................................................... 26
Resetting........................................................... 26

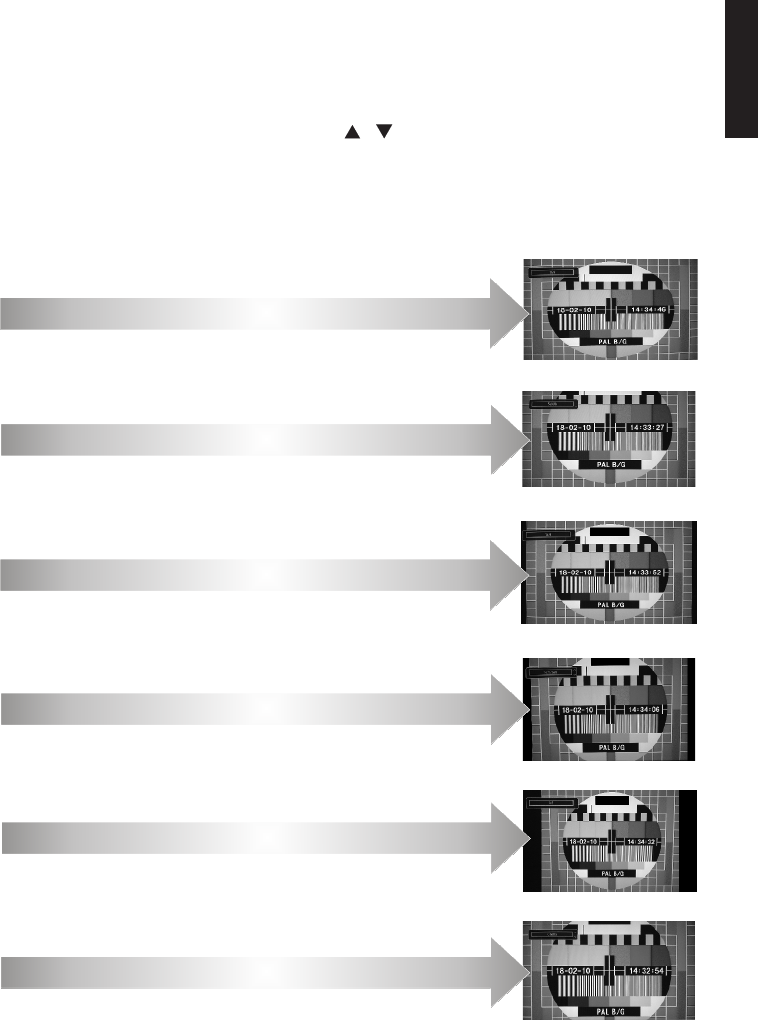

Changing Picture Format...................................... 27

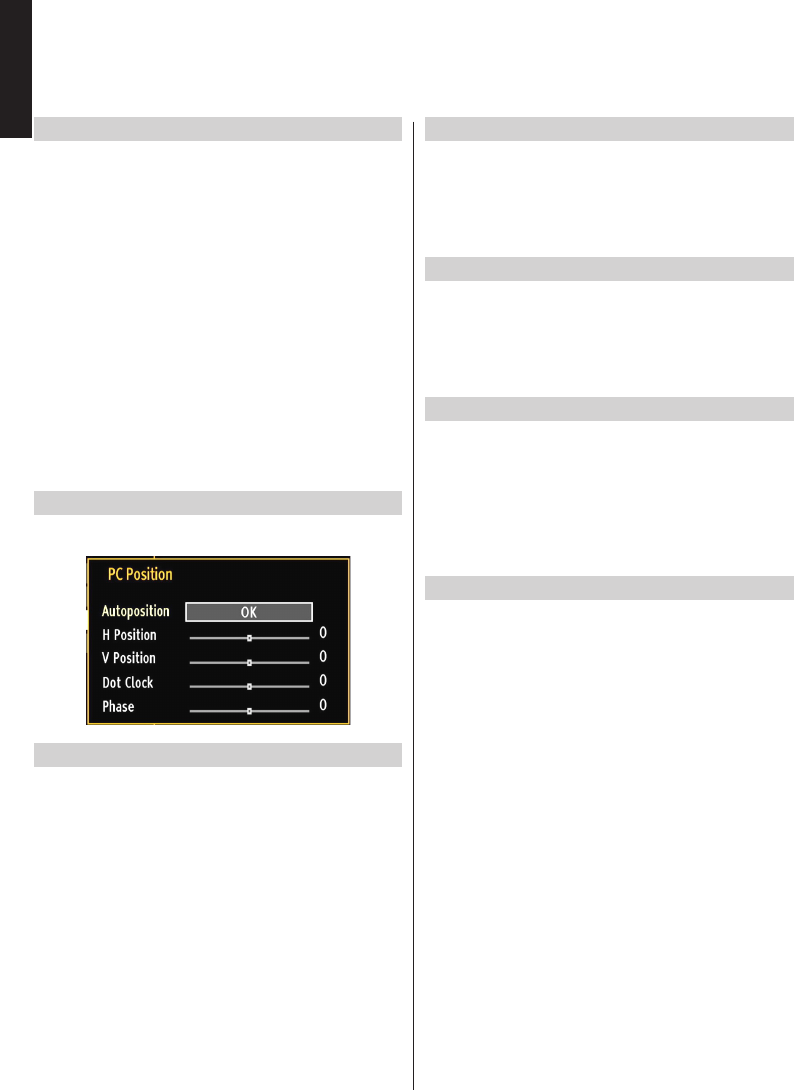

Conguring PC Picture Settings ........................... 28
PC Picture Settings (*) ...................................... 28
PC Position ....................................................... 28
Autoposition ...................................................... 28
H Position ......................................................... 28
V Position.......................................................... 28
Dot Clock .......................................................... 28
Phase................................................................ 28

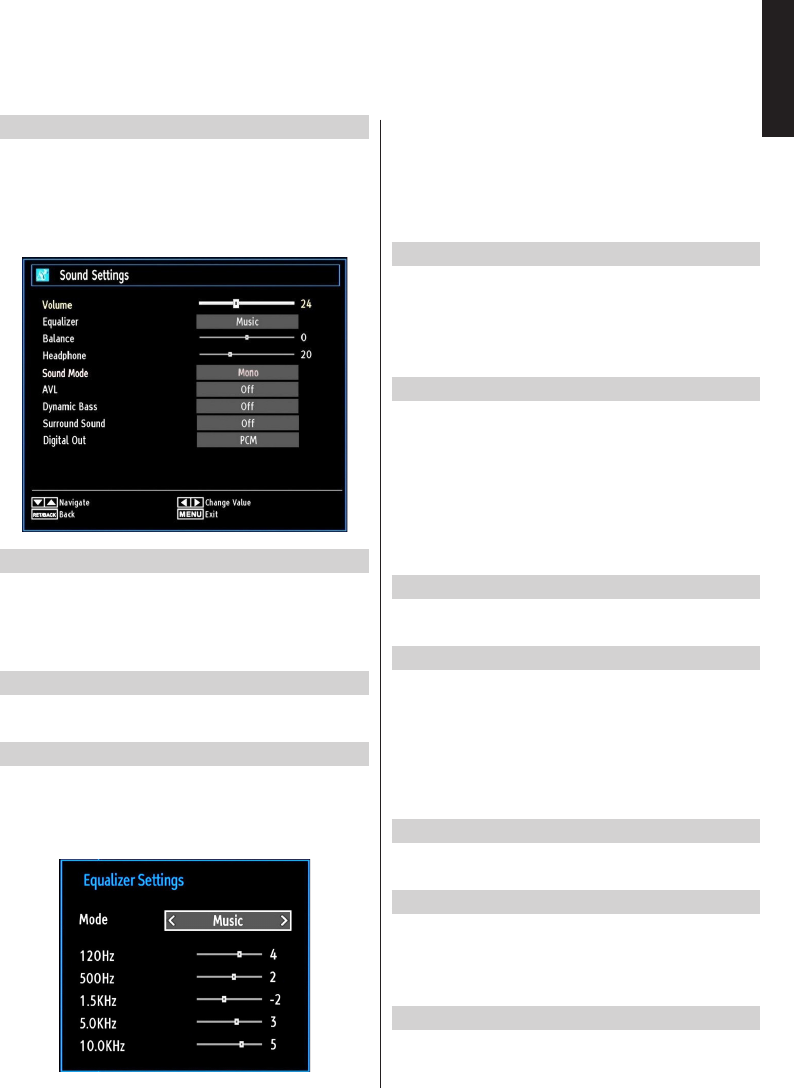

Conguring Sound Settings .................................. 28
Conguring Sound Settings .............................. 29
Operating Sound Settings Menu Items ............. 29
Volume .............................................................. 29
Equalizer (Only for speaker) ............................. 29
Balance (Only for speaker) ............................... 29
Headphone ....................................................... 29
Sound Mode ..................................................... 29
AVL ................................................................... 29
Dynamic Bass ................................................... 29
Surround Mode ................................................. 29
Digital Out ......................................................... 29
Settings Menu Operation, Conditional Access ..... 30
Conguring Your TV’s Settings ......................... 30
- 3 -
English

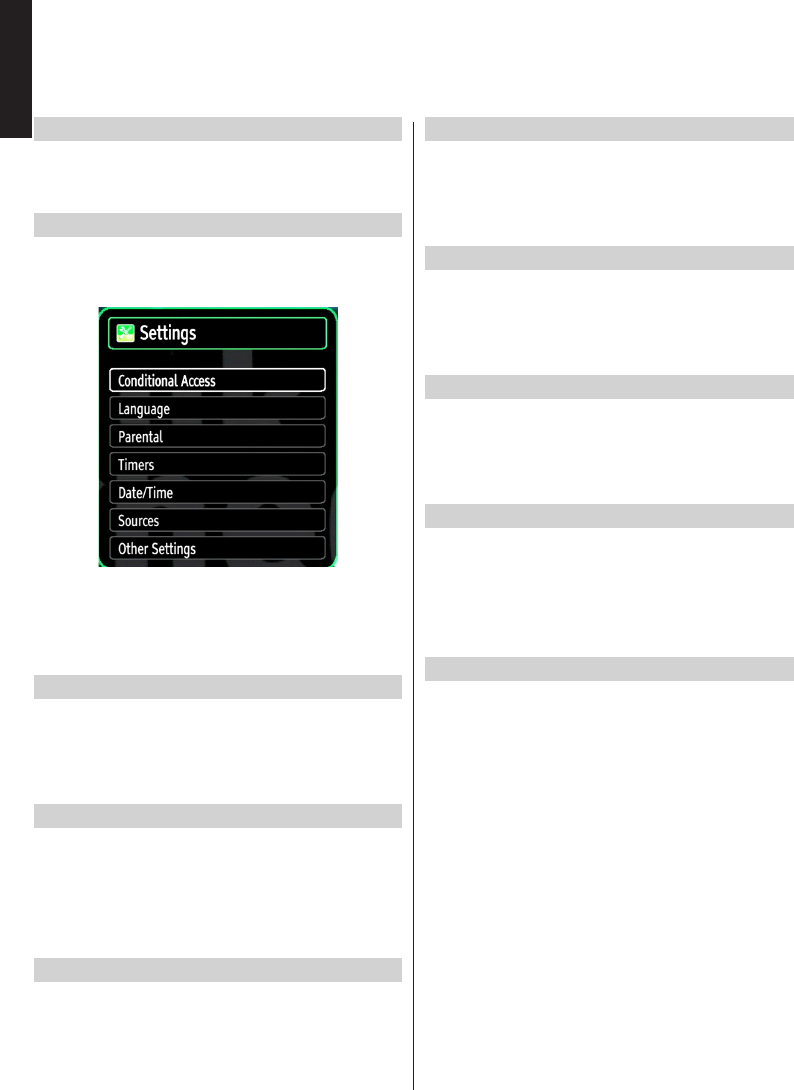

Viewing Settings Menu ..................................... 30
Conditional Access ........................................... 30
Language .......................................................... 30
Parental ............................................................ 30
Timers ............................................................... 30
Date/Time Settings ........................................... 30
Sources............................................................. 30
Other Settings ................................................... 30
Using a Conditional Access Module ................. 30
Setting Timers, Setting Date/Time ........................ 31
Timers ............................................................... 31
Setting Sleep Timer .......................................... 31
Setting Programme Timers ............................... 31

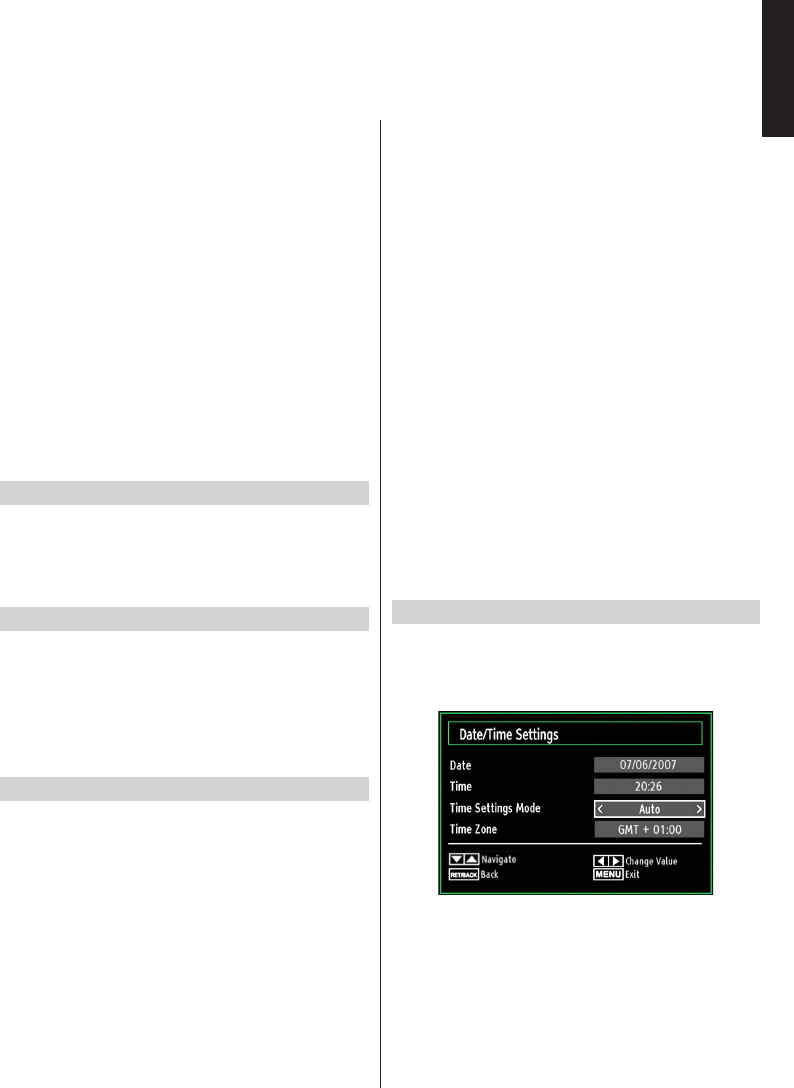

Conguring Date/Time Settings ........................ 31
Source Settings, Other Controls ........................... 32

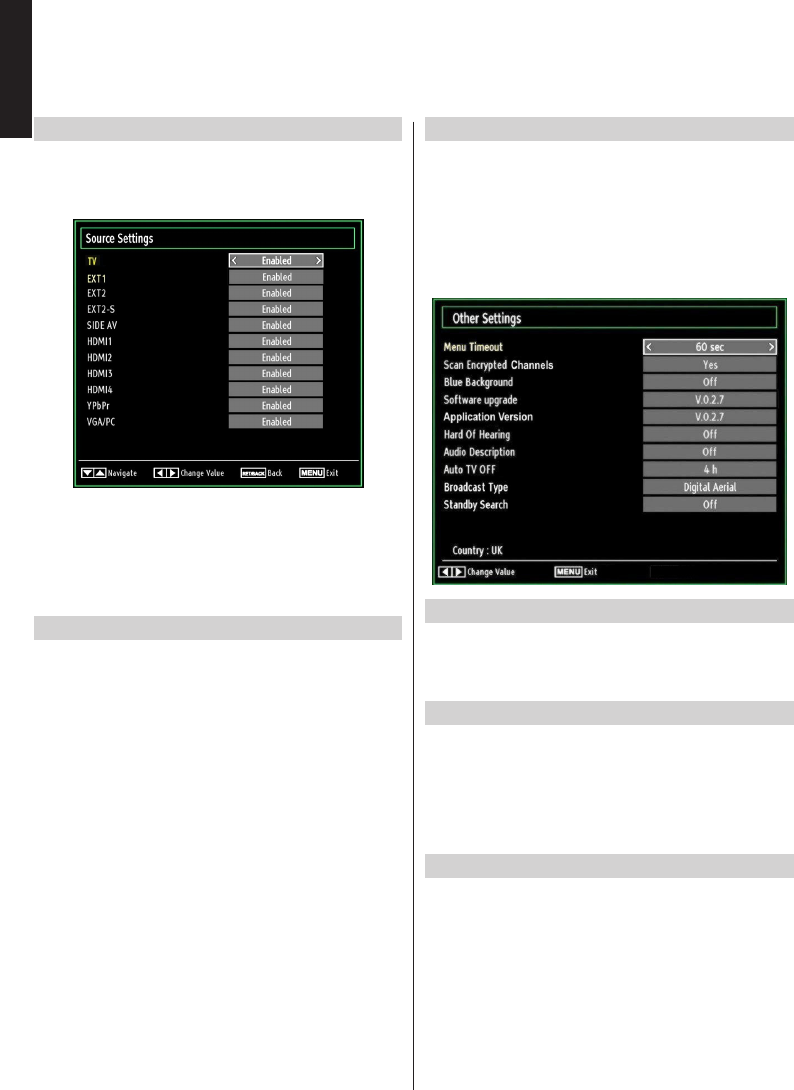

Conguring Source Settings ............................. 32
Input Selection .................................................. 32
Conguring Other Settings - General ............... 32
Operation .......................................................... 32
Menu Timeout ................................................... 32
Scan Encrypted ............................................... 32
Other Controls ...................................................... 33
Blue Background .............................................. 33

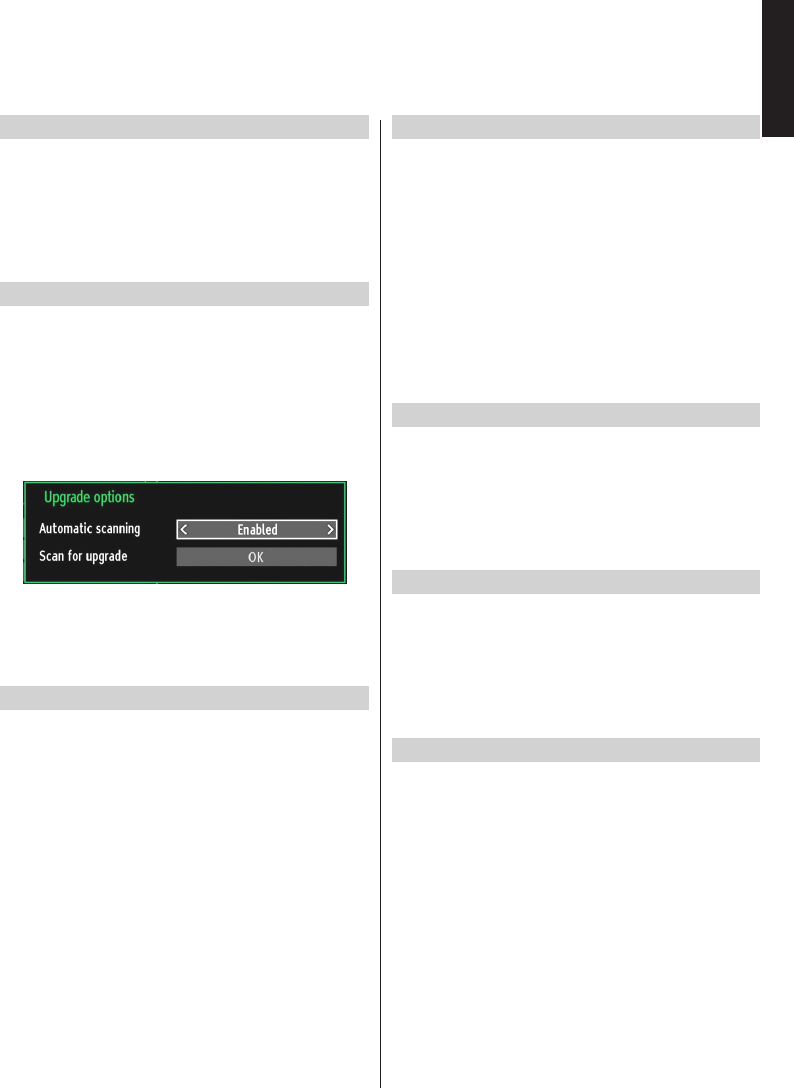

Software Upgrade ............................................. 33
Hard of Hearing ................................................ 33
Audio Description.............................................. 33
Auto TV Off ....................................................... 33
Broadcast Type ................................................. 33
Standby Search ............................................... 33
Full Mode (optional) .......................................... 34
TXT Language .................................................. 34

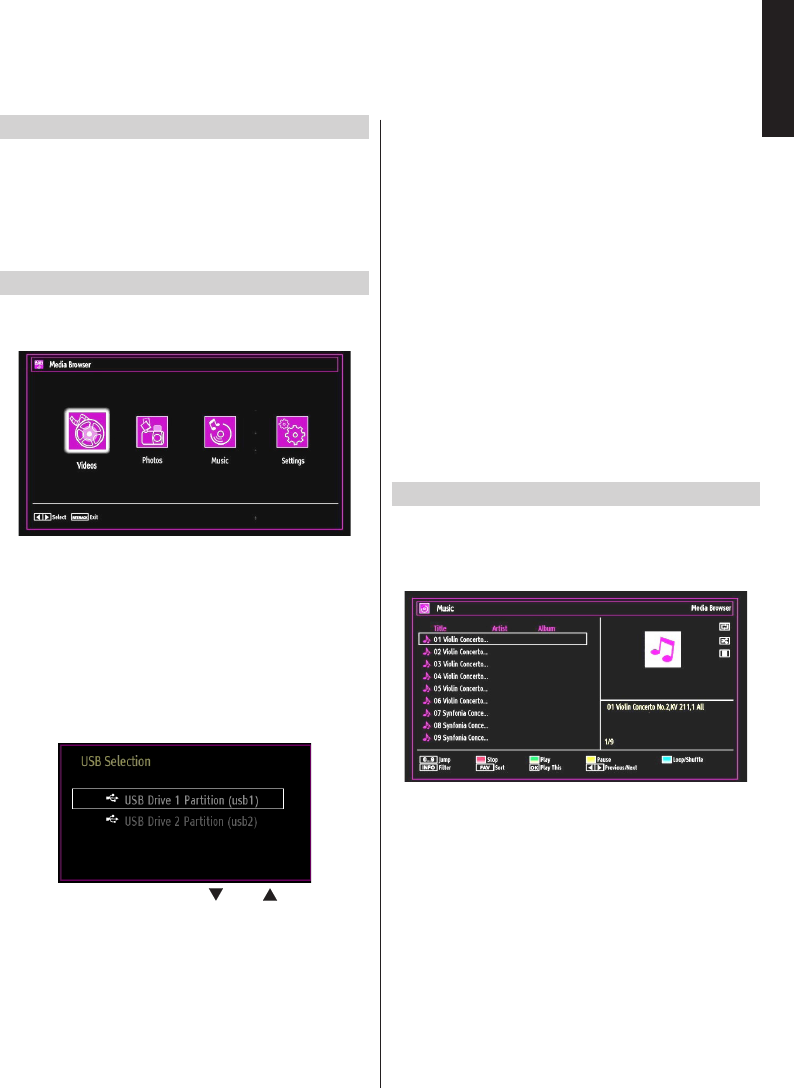

USB Media Browser ............................................. 35
Manual Start ..................................................... 35
Auto Start .......................................................... 35
Playing MP3 Files ............................................. 35

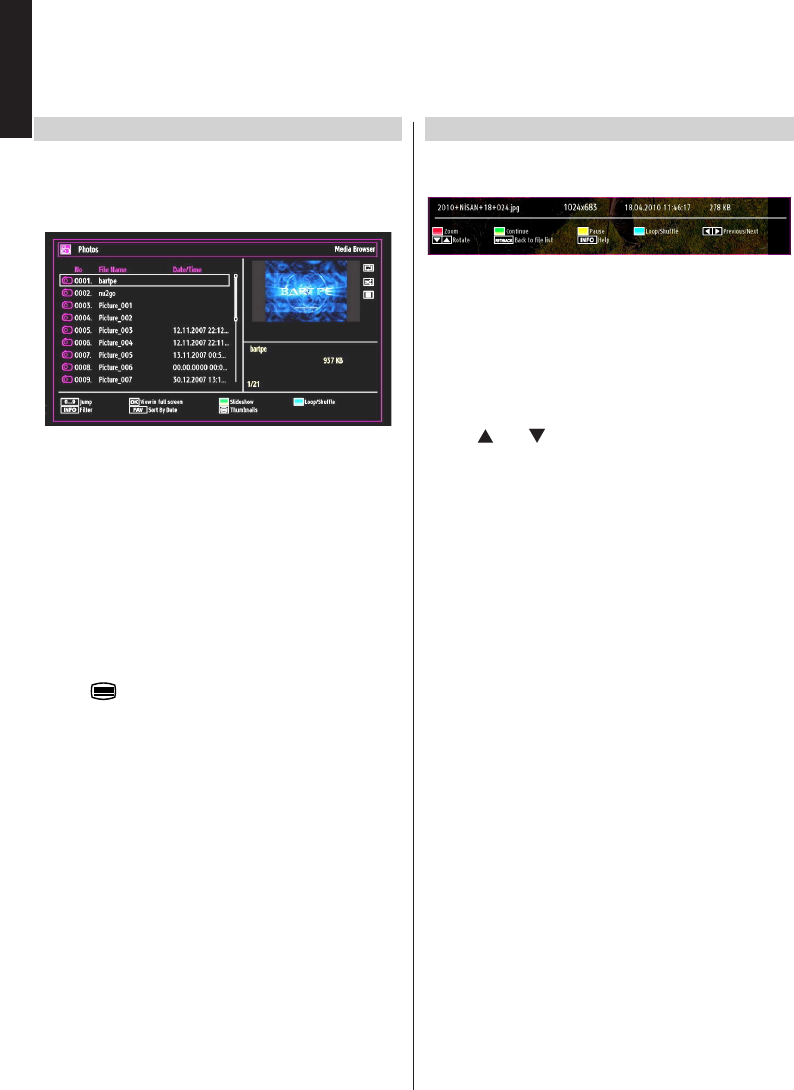

Viewing JPG Files ............................................. 36
Slideshow Feature ............................................ 36

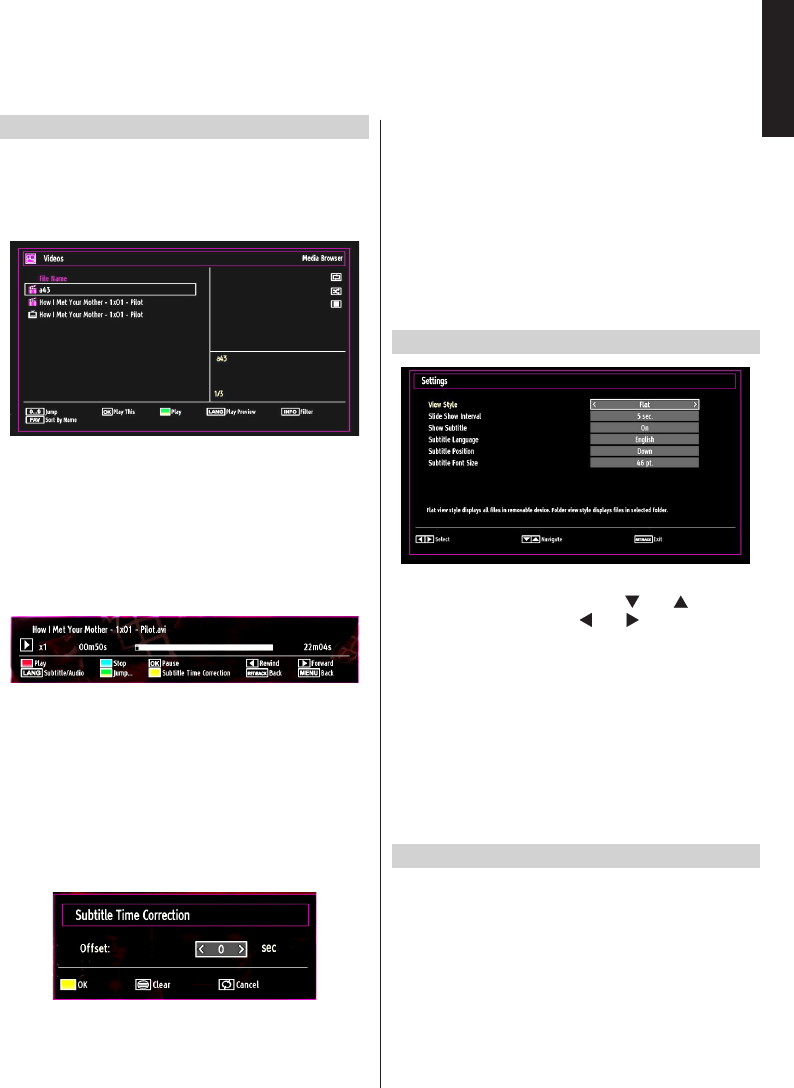

Video Playback ................................................. 37
Media Browser Settings .................................... 37
To Close the Media Player ................................ 37
Analogue Text Services ........................................ 38
Analogue Text Services .................................... 38
Using Text Button - ..................................... 38
Acessing Sub-Pages ........................................ 38
Revealing Concealed Text ................................ 38
Holding a Page ................................................ 38
To display an initial page................................... 38
Appendix A: PC Input Typical Display Modes ....... 39
Appendix B: AV and HDMI Signal Compatibility
(Input Signal Types) .............................................. 40
Appendix C: Supported File Formats for USB
Mode..................................................................... 41
Appendix D: PIN Information ............................... 41

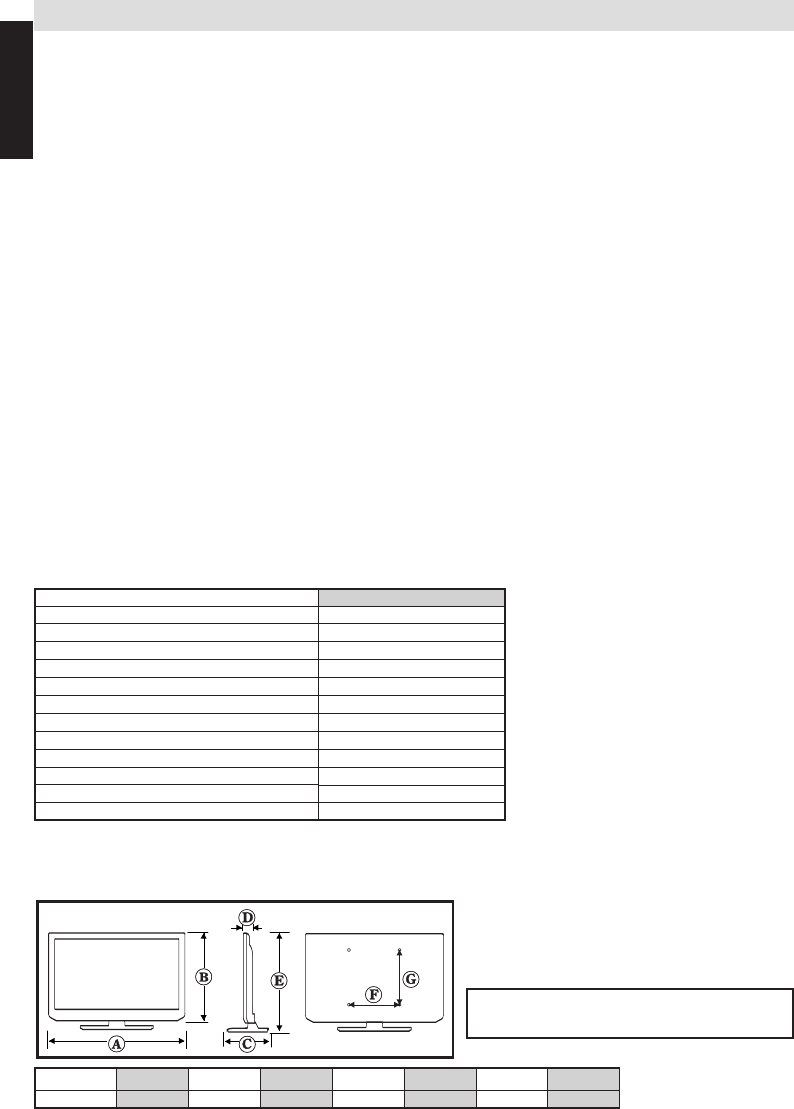

Specications and Accessories ............................ 42
License Information .............................................. 43
Questions and Answers ........................................ 44
- 4 -
Safety Precautions
This equipment has been designed and manufactured to meet international safety standards but, like any electrical equip-
ment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own
safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply
to the goods you have just purchased.
Air Circulation
Leave more than 10cm clearance around the television to
allow adequate ventilation. This will prevent overheating
and possible damage to the television. Dusty places should
also be avoided.
Heat Damage
Damage may occur if the television is left in direct sunlight
or near a heater. Avoid places subject to extremely high
temperatures or humidity, or locations where the temperature
is likely to fall below 5°C (41°F).
Mains Supply
The set should be operated only from a 220-240 V AC 50 Hz
outlet. DO ensure that the television is not standing on the
mains lead. DO NOT cut off the mains plug from this equip-
ment, this incorporates a special Radio Interference Filter,
the removal of which will impair its performance. In the UK,
the fuse tted in this plug is approved by ASTA or BSI
to BS1362. It should only be replaced by a correctly
rated and approved type and the fuse cover must be
retted. IF IN DOUBT PLEASE CONSULT A COM-
PETENT ELECTRICIAN.
Warning
To prevent the spread of re, keep candles or other open
ames away from this product at all times.
Do
DO read the operating instructions before you attempt to
use the equipment.
DO ensure that all electrical connections (including the mains
plug, extension leads and inter connections between pieces
of equipment) are properly made and in accordance with
the manufacturers’ instructions. Switch off and withdraw the
mains plug before making or changing connections.
DO consult your dealer if you are ever in doubt about the
installation, operation or safety of your equipment.
DO be careful with glass panels or doors on equipment and
stands.
Do not
DON’T remove any xed cover as this may expose danger-
ous voltages.
DON’T obstruct the ventilation openings of the equipment
with items such as newspapers, tablecloths, curtains, etc.
Overheating will cause damage and shorten the life of the
equipment.
DON’T allow electrical equipment to be exposed to dripping
or splashing or objects lled with liquids, such as vases, to
be placed on the equipment.
DON’T place hot objects or naked ame sources, such as
lighted candles or nightlights on, or close to equipment. High
temperatures can melt plastic and lead to res.
DON’T use makeshift stands and NEVER x legs with wood
screws.
DON’T leave equipment switched on when it is unattended,
unless it is specically stated that it is designed for unat-
tended operation or has a standby mode. Switch off by
withdrawing the plug, make sure your family know how to do
this. Special arrangements may need to be made for people
with disabilities.
DON’T continue to operate the equipment if you are in any
doubt about it working normally, or it is damaged in any way
- switch off, withdraw the mains plug and consult your dealer.
WARNING - excessive sound pressure from earphones or
headphones can cause hearing loss.
ABOVE ALL - NEVER let anyone, especially children,
push or hit the screen, push anything into holes, slots
or any other openings in the case.
NEVER guess or take chances with electrical equipment
of any kind - it is better to be safe than sorry.
THE MAINS PLUG IS USED AS A DISCONNECTING
DEVICE AND THEREFORE SHOULD BE READILY OP-
ERABLE.
Note : Interactive video games that involve shooting
a “gun” type of joystick at an on-screen target may
not work with this TV.
English
- 5 -
English
Please take note
The digital reception function of this television is only effective in the countries listed in the “Country” section
during the rst time installation menu. Depending on country/area, some of this television’s functions may not
be available. Reception of future additional or modied services cannot be guaranteed with this television.
If stationary images generated by 4:3 broadcasts, text services, channel identication logos, computer displays,
video games, on screen menus, etc. are left on the television screen for any length of time, they could become
conspicuous. It is always advisable to reduce both the brightness and contrast settings.
Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at
the 4:3 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer’s warranty.
Regular use of other size modes will prevent permanent retention.
EXCLUSION CLAUSE
Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:
i) re;
ii) earthquake;
iii) accidental damage;
iv) intentional misuse of the product;
v) use of the product in improper conditions;
vi) loss and/or damage caused to the product whilst in the possession of a third party;
vii) any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the
owner’s manual;
viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with
associated equipment;
Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not
limited to the following, loss of prot, interruption of business, the loss of recorded data whether caused during normal opera-
tion or misuse of the product.
Note: A suitable wall bracket for the size and weight must be used.
Installation and Important Information
Where to install
Locate the television away from direct sunlight and strong
lights. Soft, indirect lighting is recommended for comfortable
viewing. Use curtains or blinds to prevent direct sunlight
falling on the screen.
Place the TV on a stable, level surface that can support the
weight of the TV. In order to maintain stability and prevent
it falling over, secure the TV to a wall using a sturdy tie on
the back of the stand.
The LCD display panels are manufactured using an extreme-
ly high level of precision technology; however, sometimes
some parts of the screen may be missing picture elements
or have luminous spots. This is not a sign of a malfunction.
Make sure the television is located in a position where it
cannot be pushed or hit by objects, as pressure will break
or damage the screen. Also, please be certain that small items
cannot be inserted into slots or openings in the case.
Avoid using chemicals (such as air refreshers, cleaning agents,
etc.) on or near the TV pedestal. Studies indicate that
plastics may weaken and crack over time from the
combination effects of chemical agents and mechanical
stress (such as weight of TV). Failure to follow these instructions
could result in serious injury and/or permanent damage to TV
and TV pedestal.
Cleaning the screen and cabinet…
Turn off the power, and clean the screen and cabinet with a
soft, dry cloth. We recommend that you do not use any pro-
prietary polishes or solvents on the screen or cabinet as this
may cause damage.

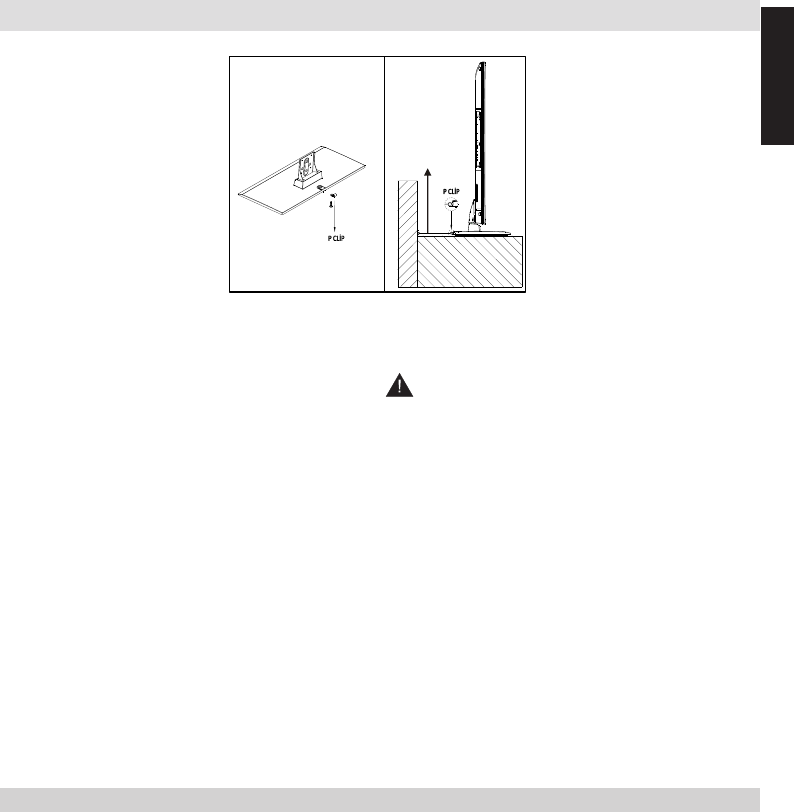

* Set controls and stand style
is dependant on model.
Sturdy tie
(as short
as possible)
- 6 -
English
Important safety information
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
Headphone Warning
Loud music can damage your hearing irreversibly. Do not set the volume to a high level when listening through
headphones, particularly for extended listening periods.
Information for the DVB-T function
• Any function relative to the digital television (with the DVB logo) is available only within the country or area
where such signals are transmitted. Verify with the salesperson if it is possible to receive a DVB-T signal in
the zone where you live.
• Even if the television conforms to the DVB-T specications, the compatibility to future digital DVB-T
transmissions is not guaranteed.
• Some digital television functions may not be available in some countries.
• The DVB-T system present in this device is FTA (Free to air).
• DVB is a registered trademark of the DVB Project. This logo indicates that the product is compliant with
European Digital Broadcasting.
Possible Adverse Effects on LCD Screen
If a xed (non-moving) pattern remains on the LCD screen for long periods of time, the image can become
permanently retained on the LCD TV panel and cause subtle but permanent ghost images. This type of
damage is NOT COVERED BY YOUR WARRANTY. Never leave your TV on for long periods of time while it
is displaying the following formats or images:
• Fixed Images, video game patterns, TV station logos, and websites.
IMPORTANT INFORMATION
TV Installation
If a television is not positioned in a sufciently stable location, it can be potentially hazardous due to falling.
Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• Using stands that are suitable for the size and weight for the TV.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the
furniture and the television to a suitable support.
• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its controls.
Place the TV on a stable, level surface that can support the weight of the TV. In order to maintain stability and
prevent it from falling over, secure the TV to a wall using a sturdy tie to the clip on the back of the table top stand.
This unit has been produced according to all current safety regulations. The following safety tips should safeguard users
against careless use and the dangers related to such use.
• Although this unit has been carefully manufactured and rigorously checked prior to leaving the factory as with all electrical
appliances, it is possible for problems to develop. If you notice smoke, an excessive build-up of heat or any other unexpected
phenomena, you should disconnect the plug from the mains power socket immediately.
- 7 -
English
• Ensure that the unit is sufciently ventilated! Never place it
next to or underneath curtains!
• This set should only be connected to an 220-240V AC 50Hz
mains power supply. Do not attempt to connect it to any other
type of supply.
• Do not open this unit. An attempt to repair the unit by a
non-expert could be dangerous and potentially cause a re
hazard. All repairs must be carried out by qualied service
personnel only.
• Keep away from rodents. Rodents (and also cockatiels)
enjoy biting electric exes. They can cause a short circuit
(re hazard!) and receive a fatal electric shock.
• Always hold the plug when disconnecting the unit from
the socket outlet. Do not pull on ex. The ex can become
damaged and cause a short circuit.
• Use a soft, dry cloth to clean the unit.
• Set up unit so that no one will trip over the ex.
• This unit is recommended to be installed on stable benches
in order to avoid any danger from falling.
• Take note that children can pull the unit down from a table or
cupboard by means of its ex. Children can hurt themselves
when doing this.
• Do not use the unit near heat sources. The TV enclosure and
ex could be damaged by the intensity of the heat.
• If you intend to wall mount the unit, contact the shop where
you purchased the unit for advice, and leave the installation
work to professionals. Improper installation can cause
damage and/or injuries.
• Take fall-prevention measures
- If these measures are not taken, the unit can fall and cause
damage and/or injuries.
• When a TV stand is used,
- Ensure the unit is fully on the stand and placed in the centre.
• Avoid placing the unit on any surfaces that may be subject
to vibrations or shocks.
• To protect the unit during a thunder storm, unplug the AC
power cord and disconnect the aerial, cable and satellite
decoder/systems etc.
Caution: Do not touch the aerial connector.
• When you leave your home for a long period of time, unplug
the AC power cord for safety.
• The unit becomes warm when in operation. Do not place any
covers or blankets on the unit in order to prevent overheating.
The ventilation holes should not be blocked. Do not set up
near radiators. Do not place in direct sunshine.
• When placing on a shelf, allow at least 10 cm clearance
space around the whole unit.
• The unit must not be exposed to dripping or splashing, and
no objects lled with liquids, such as vases, shall be placed
near the apparatus.
• Liquids spilled into the unit can cause serious damage.
Switch the set off and disconnect the mains power supply,
then consult a qualied service person before attempting to
use the unit again.
• Moisture condensation occurs in the following situations:
- When you move the unit from a cold place to a warm place.
- When you use the unit in a room where the heater was
just turned on.
- When you use the unit in an area where cold air from an air
conditioner directly hits the unit.
- When you use the unit in a humid place.
• Never use the unit when moisture condensation could occur.
• Using the unit when moisture condensation exists may
damage its own internal parts. After two or three hours, the
unit will warm up and moisture will be evaporated.
• Never place hot objects or open ame sources, such as
lighted candles or night lights, on or close to the TV. High
temperatures can melt plastic and lead to res.
Important safety information (continued)
- 8 -
English
To display your LCD TV using a wall bracket
When using a Wall Bracket
Please use a wall bracket appropriate for the size and weight of the LCD TV.
• Two people are required for installation.
• To install a wall-mount from another manufacturer.
(1) Unplug and remove any cables and/or other component connectors from the rear of the TV.
(2) Carefully lay the front of the unit face down on a at, cushioned surface such as a quilt or blanket.
(3) Follow the instructions provided with your wall bracket. Before proceeding, make sure the appropriate bracket(s) are
attached to the wall and the back of the TV as described in the instructions provided with the wall bracket.
(4) Always use the screws supplied or recommended by the wall mount manufacturer.
Note :
• The bracket shown above is a sample image. The bracket and xings are not supplied with the TV.
Removing the pedestal stand
(1) Carefully lay the front of the unit face down on a at, cushioned surface with the stand hanging over the edge.
(2) Remove the screws.
(3) After the screws are removed, hold the pedestal stand in place,then remove the pedestal stand and the plastic moulding
from the TV by removing away from the TV.
NOTE: Extreme care should always be used when removing the pedestal stand to avoid damage to the LCD panel.
For 46BL702B model
- 9 -
English
The Remote Control
Simple at-a-glance reference of your remote control.
Inserting Batteries and Effective Range of the Remote Control
SCREEN LANG SUBTTL PIP
1 2 3
4 65
97 8
0
BACK MENU
EPG FAV
SOURCE
PRESETS
SLEEP
?
INFO
+
+
-
-
VV
P
OK
Blue button
Yellow button
SWAP
Returns to the previous programme.
OK / Confirm
Hold (in TXT mode)
FILE SORT FUNCTION
Picture mode selection
Display sleep timer
Teletext / Mix
Green button
Image size
Expand (in TXT mode)
TOSHIBA
RC-3910
No function
Image size
Expand (in TXT mode)
Red button
To select TV
programme number
Direct number entry.
To alter the volume
For changing volume setting level.
AV / Source
To select input from external sources.
To call up text services in analogue
broadcasts and interactive services
in digital mode.
Programme guide
To display the programme guide.
MENU On/Off
To display the on screen menu.
Standby / On mode
To switch your TV to standby mode.
Subtitle On/Off
To enable the displaying of subtitles.
To mute the sound
Press once to mute sound. Press
again to disable mute mode.
To change channels
To move up/down between
the channels.
Info
Return
Mono-Stereo / Dual I-II
Stereo/Bilingual Transmissions
Navigation Buttons
To move up, down, left or right
in the on screen menu.
To return to the previous level
of the on-screen menu.
IN TV Mode: To display on-screen
information.
IN Text Mode: To access index page.
Remove the back cover to reveal the battery compartment and make sure the batteries are
inserted the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V.
Do not combine a used, old battery with a new one or mix battery types. Remove exhausted
batteries immediately to prevent acid from leaking into the battery compartment. Dispose of
them in a designated disposal area.
Warning: Batteries must not be exposed to excessive heat such as sunshine, re or the like.
The performance of the remote control will deteriorate beyond a distance of ve metres or
outside an angle of 30 degrees from the IR receiver. If the operating range becomes reduced
the batteries may need replacing.
- 10 -
English
Connecting External Equipment
Before connecting any external equipment, remove the mains plug from the wall socket.
Aerial cable:...........................................................
Connect the aerial to the ANT. socket on the rear of the
television.
SCART lead:..........................................................
If you use a decoder* or a media recorder, it is essential that
the scart cable is connected to the television.
Before running rst time installation, any connected devices
need to be set to standby mode.
The SPDIF Coax. OUT socket enables the connection of a
suitable surround sound system.
HDMI® (High-Denition Multimedia Interface) is for using
with a DVD decoder or other equipment with digital audio and
video output. It is designed for best performance with 1080i
and 1080p high-denition video signals but will also accept
and display VGA, 480i, 480p, 576i, 576p and 720p signals.
PC format signals will also be displayed.
NOTE: Although this television is able to connect to HDMI
equipment, it is possible that some equipment may not
operate correctly.
You can use Subwoofer Out for connecting an external, active
subwoofer to the set to give a much deeper bass effect.
A wide variety of external equipment can be connected to the
television; therefore, the relevant owner’s manuals for all addi-
tional equipment must be referred to for exact instructions.
If the television automatically switches over to monitor
external equipment, return to normal television by pressing
the desired programme position button. To recall external
equipment, press SOURCE button repeatedly to switch
between sources.
VGA
Input
SCART
Sockets
ANT. (Aerial)
Input
TV
* a decoder
could be Digital
Satellite, Free to
Air or any other
compatible
decoder.
decoder*
USB Input
USB Input
SIDE AV
YPbPr Video Inputs Audio Inputs
Headphone
COMMON INTERFACE
The Common Interface is
for a Conditional Access
Module (CAM).
HDMI Input
Sockets
Subwoofer
Out SPDIF Coaxial
Out
Side HDMI Input
Side View
- 11 -
English
Connecting an HDMI® or DVI Device to the HDMI Input
The HDMI input on your television receives digital audio and
uncompressed digital video from an HDMI source device
or uncompressed digital video from a DVI (Digital Visual
Interface) source device.
This input is designed to accept HDCP (High-Bandwidth
Digital-Content Protection) programme material in digital
form from EIA/CEA-861-D–compliant [1] consumer electronic
devices (such as a set-top box or DVD player with HDMI or
DVI output).
NOTE:
• Some early HDMI equipment may not work properly with
your latest HDMI TV.
• Supported Audio format: Linear PCM, sampling rate
32/44.1/48kHz.
To Connect an HDMI Device
Connect an HDMI cable (type A connector) to the HDMI ter-
minal. For proper operation, it is recommended that you use
an HDMI cable with the HDMI Logo ( ).
• If your HDMI connection is capable of 1080p and/or
your television is capable of refresh rates greater than 50Hz,
you will need a Category 2 cable. Conventional HDMI/DVI
cable may not work properly with this mode.
• HDMI cable transfers both video and audio. Separate
analogue audio cables are not required (see illustration).
• To view the HDMI device video, press the SOURCE button
to select HDMI1, HDMI2, HDMI3 or HDMI4.
HDMI Input
Sockets
(Back)
HDMI device
Side HDMI Input
or
To Connect a DVI Device (PC, DVD Player etc)
Connect an HDMI-to-DVI cable (HDMI type A connector) to the
HDMI input socket and audio cables to the RED and WHITE
SIDE AV AUDIO inputs on the Audio/Video connection cable
supplied (see illustration).
• The maximum HDMI-to-DVI cable length is 6.6 ft (2m).
• An HDMI-to-DVI cable transfers video only. Separate
analogue audio cables are required.
HDMI Input
Sockets
HDMI to DVI
Adapter Cable
(not supplied)
Audio Cable
(Not supplied)
Side HDMI Input
or
Side Audio/Video
Connection Cable
(Supplied)
SIDE AV
SIDE AV Input
NOTE:
To ensure that the HDMI or DVI device is reset properly, it is
recommended that you follow these procedures:
• When turning on your electronic components, turn on the
television rst, and then the HDMI or DVI device.
• When turning off your electronic components, turn off the
HDMI or DVI device rst, and then the television.
- 12 -
English
To Connect a Computer
With either an RGB/PC or an HDMI connection, you can watch
your computer’s display on the television and hear the sound
from the television’s speakers.
When connecting a PC to the RGB/PC input on TV, use an
analogue RGB (15-pin) computer cable and use the SIDE
AV socket with a PC audio cable (not supplied) for audio
connection, using the supplied Side AV connection cable’s
RED and WHITE inputs (see illustration).
RGB/PC Input
(back)
SIDE AV Input
PC VGA Cable
(not supplied)
PC Audio Cable
(not supplied)
Side Audio/Video
Connection Cable
(supplied)
or
SIDE AV
To use a PC, set the monitor output resolution on the PC
before connecting it to the television. To display the optimum
picture, use the PC setting feature.
NOTE:
• Some PC models cannot be connected to this
television. An adaptor is not needed for computers
with a compatible mini D-sub15-pin terminal.
• Depending on the DVD’s title and the specications
of the PC on which you are playing the DVD-Video,
some scenes may be skipped or you may not be
able to pause during multiangle scenes.
To Connect a USB Flash Drive
• You can connect a USB Flash Drive to your TV by
using the USB input of the TV. This feature allows
you to display/play music, photo or video les stored
in a USB stick.
• It is possible that certain types of USB devices (e.g.
MP3 Players) may not be compatible with this TV.
• You may back up your les before making any
connections to the TV set in order to avoid any
possible data loss. Note that manufacturer will not
be responsible for any le damage or data loss.
• Do not pull out USB module while playing a le.
CAUTION: Quickly plugging and unplugging USB
devices. This may cause damage to the USB device
itself.
USB Memory Connection
• Plug your USB device to one of the USB inputs of
the TV.
SIDE VIEW
USB MEMORY
NOTE: The USB socket has limited functionality, and Toshiba
can take no responsibility for damage to other connected
equipment.
Connecting a Computer Connecting a USB Memory
- 13 -
English
Environmental Information
• This television is designed to consume less energy.
• You not only help to the environment but also you can reduce electricity consumption electricity thanks to the
energy efciency feature of this TV. To reduce energy consumption, you should take the following steps:
• You can use Power Save Mode setting, located in the Settings menu. If you set Power Save Mode as On,
the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level.
Note that some picture settings will be unavailable(Greyed Out) to be changed when the TV is in Power
Save Mode.
• When the TV is not in use, please switch off or disconnect the TV from the mains socket. This can also
reduce energy consumption.
• Disconnect power when going away for longer time.
• Note that annually, using the TV set in Power Save Mode has more power efciency than disconnecting
the TV from the mains socket instead of keeping stand-by mode. Therefore it is highly recommended to
activate Power Save Mode setting to reduce your annual power consumption. And also it is recommended
to disconnect the TV from the mains socket to save energy more when you do not use.
• Please helps us to help the environment by following these above steps.
• This television is designed to consume less energy.
• Harmful substances and contents that are dangerous to health, have been eliminated in its design.
• This product is designed to be recycled at the end of its service life.
• When the TV reaches the end of its service life, dispose the product in accordance with the proper recycling
process as explained on page 43.
Repair Information
Please refer all servicing to qualied personnel. Only qualied personnel must repair the TV. Please contact
your local dealer, where you have purchased this TV for further information.
Power Save Mode
- 14 -
English
Controlling the TV
A wide variety of external equipment can be connected via the sockets located on the side and back of the
television. Whilst all the necessary adjustments and controls for the television are made using the remote
control, the touch controls on the left side of the television may be used for some functions.
Switching on
If the standby LED is unlit, check that the mains plug is con-
nected to the power and press the standby/on button on the
the television to switch the television on. Then the LED lights
up red. If the picture does not appear, press standby/on on
the remote control; it may take a few moments.
To put the television into Standby, press standby/on on the
remote control. To view the television, press standby/on again.
The picture may take a few seconds to appear. Note: The
active Standby LED may appear for a few moments when
the TV is switched off.
Note: A beeping sound will be heard when the touch
buttons are touched. This is normal operation, not
a fault and can also be heard when the set is in
standby.
For energy saving:
Turning the television off at its mains supply, or un-plugging
it, will cut energy use to nearly zero for all televisions. This
is recommended when the television is not being used for a
long time, e.g. when on holiday.
Reducing the brightness of the screen will reduce energy
use.
NOTE: Putting the television into standby mode, will reduce
energy consumption, but will still draw some power.
Using the Remote Control
Press the MENU button on the remote control to see the
menus.
The main menu appears as a group of icons each for a menu
option. Press the Left or Right button to select a topic.
In sub menu screen mode the menu appears as a list. Press
the Up or Down button to select a topic.
To use the options press the and buttons on the remote
control to move up and down through them and OK, or
buttons to select the required choice. Follow the on screen
instructions. The functions of each menu are described in
detail throughout the manual.
Using the Controls and Connections on the TV
Using the control buttons on the front of the TV:
• To alter the volume press “ ”/ “ ”.
• To alter the programme position press - P/CH + on the left
side of the TV.
• Press “”/ “ ” buttons at the same to view main
menu and use - P/CH + to navigate and “”/ “
” to change value.
To select an external input, press TV/AV until the appropriate
input source is selected.
Please always refer to the owner’s manual of the equipment
to be connected for full details.
IR receiver /Standby LED
Menu OSD
Volume
Down/Up
Programme
Down/Up
AV/
Source
Standby
/I
- 15 -
English
Initial Installation
Before switching on the television put your decoder and media recorder to Standby if they are connected
and ensure the aerial or cable is connected to your television. To set up the television use the buttons on
the remote control as detailed on page 9.
IMPORTANT: Ensure that the aerial is connected and
a Common Interface module is not inserted before
switching on the TV for the rst time installation.
1. Connect the mains plug and switch the TV on
using the standby switch. If the TV does not switch
on, press any numbered or standby button on the
remote control, then the language selection menu
will be displayed. This screen will appear the rst
time that the television is switched on and each
time the television is reset.
2. By pressing the Up or Down buttons highlight the
language you want to set and press OK button.
The following message will be displayed next:
3. By pressing Left or Right button, select the
country you want to set and press Down button
to highlight the Search Type option. Use Left or
Right to set the desired search type. Available
search types are digital only, analog TV only
and full.
4. When set, Down buton to select Teletext
Language. Use Left or Right button to select
desired Teletext Language.
5. Press OK button on the remote control to continue
and the following message will be displayed on
the screen:
6. Select Yes by using Left or Right buttons and
press OK to continue. Afterwards, the following
OSD will be displayed on the screen (*):
7. If you select Cable option, the following screen
will be displayed (*) :
Note: Although this cable feature can be selected,
it is not fully supported in the UK. If cable signals
are input to this TV from a Cable Network Provider
some may be displayed.
8. You can select frequency ranges from this
screen. For highlighting lines you see, use Up or
Down button. You can enter the frequency range
manually by using the numeric buttons on the
remote control. Set Start and Stop Frequency as
desired by using numeric buttons on the remote
control. After this operation, you can set Search
Step as 8000 kHz or 1000 kHz. If you select
1000 kHz, the TV will perform search process
in a detailed way. Searching duration will thus
increase accordingly.
9. If you select Aerial option from the Search Type
screen, the television will search for broadcasts.
(*) When finished, press OK button to start
automatic search.
- 16 -
English
10. The Auto tuning screen will appear and the
television will start to search for available stations.
The progress bar will move along the line. You
must allow the television to complete the search.
Tthe following OSD will be displayed on the
screen and the television will search for digital
TV broadcasts:
Note: You can press MENU button to cancel.
• After all the available stations are stored, Channel
List will be displayed on the screen. If you like the
sort channels, according to the LCN, please select
Yes and then press OK (if available).
Note:
• LCN = Local Channel Number used for channel
sorting”.
• Press OK button to quit channel list and watch TV.
Note:
• Do not turn off the TV while initializing rst time
installation.
Initial Installation - continued
- 17 -
English
Auto Tuning
As new services are broadcast, it will be necessary to
retune the television in order to view them.
• Auto Tuning will completely retune the television
and can be used to update the channel list. It is
recommended that Auto Tuning is run periodically
to ensure that all new services are added. All current
channels and settings, i.e. locked channels, will
be lost.
• Press MENU button on the remote control and select
Install and Retune by using Left or Right button.
Press OK button and the following menu screen
will be displayed.
• Select Automatic Channel Scan by using Up or
Down button and press OK button. Automatic Channel
Scan options will be displayed.You can select options
by using Up or Down and OK buttons.
Auto Channel Scan Menu Operation
Digital Aerial: Searches and stores aerial DVB stations.
Digital Cable: Searches and stores cable DVB stations.(*)
Analogue: Searches and stores analogue stations.
Digital Aerial & Analogue: Searches and stores both
analogue and aerial DVB stations.
Digital Cable & Analogue: Searches and stores both
analogue and cable DVB stations.
• Whenever you select an automatic search type and
press OK button, a conrmation screen will appear
on the screen. To start installation process, select
Yes, to cancel select No by using Left or Right
and OK button.
• After auto channel scan type is set and selected
and conrmed, installation process will start and
progress bar will move along. Press MENU button
to cancel process. In such a case, located channels
are not stored. The television will start to search for
all available stations. You must allow the television
to complete the search.
Auto Tuning
- 18 -
English
Digital Aerial Manual Search
The feature is available for service engineers or
can be used for direct channel entry if the multiplex
channel is known.
• Select Manual Search from the Installation menu
and press OK.
• After selecting search type as Digital Aerial, you can
enter the multiplex or frequency number using the
numeric buttons and press OK button to search.
• Enter the multiplex number using the numeric
buttons. The television will automatically search
for that multiplex. When the multiplex is found any
channels not currently on the programme list will be
added and the programme information at the top of
the screen will be updated.
• Repeat as necessary.
Digital Cable Manual Search (*)
• In cable manual scan, you can enter frequency,
modulation, symbol rate and network channel scan
options. After selecting search type as Digital Cable,
you can set the desired options and press OK button
to search.
Analogue Manual Search
The television can be tuned-in manually. For example:
if the television cannot be connected to a media
recorder/decoder with a SCART lead or to tune-in a
station on another System.
To allocate a programme position on the television
for a decoder and media recorder: turn the decoder
on, insert a pre-recorded lm into the media recorder
and press PLAY, then manually tune.
After selecting search type as Manual Channel
scan, you can use Up or Down button to highlight
an item and then press Left or Right button to set
an option.
Enter the channel number or frequency using the
numeric buttons. You can then press OK button
to search. When the channel is located, any new
channels that are not on the list will be stored.
Analogue Fine Tune
• Select Analogue Fine Tune from the Installation
menu by using Up or Down and OK buttons.
Analogue fine tune screen will be displayed.
Analogue Fine Tune feature will not be available if
there are no analogue channels, digital channels
and external sources stored.
• Press OK button to proceed. Use Left or Right
button to set Fine Tune. When nished, press OK
button again.
Manual Tuning, Analogue Fine Tuning
The television can be tuned-in manually using Manual Search feature.
- 19 -
English
Stereo and Bilingual Transmissions
If stereo or dual language broadcasts are transmitted, the
word Stereo or Dual will appear on the screen each time posi-
tions are changed, disappearing after a few seconds. If the
broadcast is not in stereo, the word Mono will appear.
Stereo… Press LANG to select Stereo or Mono.
Bilingual… Bilingual transmissions are rare. If they are
transmitted, the word Dual will be displayed. Choose the
required programme number, and if the word Dual appears,
press LANG to select Dual 1, Dual 2 or Mono.
Displaying Subtitles
In digital broadcasts, this feature will show subtitles
on the screen in the selected language provided they
are being broadcast.
• Press SUBTTL button to activate available subtitles.
Press SUBTTL button again to turn off subtitles.
Viewing Main Menu
• Press “ ”/ “ ” buttons on the TV at the same
time to view main menu.
• Press MENU button on the remote control to view main
menu.
Controlling Volume and Muting Sound
Volume
Press V+ or V- to adjust the volume.
Sound Mute
Press “ ” once to turn the sound off and again to
cancel.
Selecting Programme Positions
To select a programme position use the numbered
buttons on the remote control. Programme positions
can also be selected using P+ and P- .
Press INFO to display the on-screen information i.e.
programme position, stereo/mono signal and picture
format. To revert to the previous programme position
press (SWAP).
Standby Notications
If the TV switches off while in No Signal mode, the
following on-screen message will be displayed on the
next switch-on:
If the TV switches off owing to the auto power down
feature, the following on-screen message will be
displayed on the next switch-on:
General Operation
- 20 -
English
Viewing Channel List
The channel order may be changed to suit your personal
preference.
• Select Channel List from the main menu and press
OK. The following menu will be displayed:
• Select Edit Channel List to manage all stored
channels. Use Up or Down and OK buttons to select
Edit Channel List.
• Press Up or Down button for selecting a channel.
You can press P+ or P- button to move page up or
page down.
• To watch a specic channel, highlight it by using Up
or Down buttons. Afterwards press OK button.
• Press BLUE button to view ltering options.
• Press MENU button to exit.
Note: The channels listed are mixed at the channel
list. Channel types can be differentiated by the icons
next to them: DTV (digital tv), HD (HD TV) , ATV
(Analogue TV) ,TV (TV), RD (Radio), encrypted, lock,
and at the favourite list. Listed channels can also be
sorted by using the active channel list lter.
Moving a Channel
• Highlight the desired channel by using Up or Down
buttons.
• Select Move option in the channel list and press
OK button.
• Edit Number screen will be displayed. Enter the
desired channel number by using the numeric
buttons on the remote control. If there is a previously
stored channel on that number, a warning screen
will be displayed. Select Yes if you want to move the
channel and press OK.
• Selected channel is now moved.
Deleting a Channel
You can press GREEN button to tag/untag all
channels; YELLOW button to tag/untag channel.
• Select the channel that you want to delete and select
Delete option. Press OK button to continue.
• A warning screen will appear. Select Yes to delete,
select No to cancel. Press OK button to continue.
Renaming a Channel
• Select the channel that you want to rename and
select Edit Name option. Press OK button to
continue.
• Pressing Left or Right button moves to the previous/
next character. Pressing Up or Down button
changes the current character. Pressing the numeric
buttons ‘0...9’ replaces the highlighted character with
the characters printed above the button one by one
as the button is pressed.
• When nished, press OK button to save. Press
MENU to cancel.
Locking a Channel
You can press GREEN button to tag/untag all
channels; YELLOW button to tag/untag a single
channel.
• Select the channel that you want to lock by using
Up or Down buttons.
• Select Lock option by using Left or Right buttons.
Press OK button to continue.
• You will be asked to enter parental control PIN. Enter
the PIN number.
Note: Default PIN is set to 0000.
• Press OK button when the desired channel is
highlighted to lock/unlock the channel. Lock symbol
will be displayed next to the selected channel.
Channel List, Sorting Programmes, Programme Locking
You can view stored channels and sort them by using the Channel List feature.
- 21 -
English
Viewing Info Banner
• Press INFO button the information screen will
appear giving details of the channel and programme
currently being viewed.
• Whenever you change channel, the TV displays the
broadcast picture along with an information banner at
the bottom of the screen. This will remain on the screen
for a few seconds.
• If the selected channel is locked, you must enter the
correct four numeric code to view the channel. “Enter
PIN” will be displayed on the screen in such a case:
• Enter the 4-digit PIN number to continue.
Electronic Programme Guide
• Select the on-screen guide by pressing EPG, the
guide screen will appear highlighting details of the
channel and programme currently being viewed.
This may take a few moments to appear.
• For information on a highlighted programme, press
INFO button.
• For details of other programmes currently available,
press cursor buttons to scroll up and down or scroll
left/right through the list. As channels are selected,
details of the programme currently being broadcast
will appear.
• To set the timer for a selected programme, press
the OK button to select Timers menu.
• Press YELLOW button to switch to timeline view.
• Press GREEN button to list the schedule.
• Press BLUE button to display ltering options.
Note: There are alternative views of EPG screen.
Button functions will be displayed at the bottom of
the menu screen.
Viewing Info Banner, Electronic Programme Guide
- 22 -
English
Re-tuning: TOSHIBA Freeview Products
Toshiba Digital TV
This guide can be used to help you re-tune the following product with the remote control below.
Make sure your TV is on and press 80 for the BBC News channel
1 ) Press MENU and press ◄ or ► to select Install and Retune and press OK. Press
▲ or ▼ to select Automatic channel scan (Retune) to start the process.
MENU
OK
OK
2 ) Select the desired search mode using ► and press OK button.
OK
OK
3 ) Whenever you select an automatic search type and press OK button, a conrmation
screen will appear on the screen. To start installation process, select Yes by using ◄
or ► and OK button.
OK
OK
4 ) After auto channel scan type is set and selected and conrmed, installation process
will start and progress bar will move along. The television will start to search for all
available stations. You must allow the television to complete the search.
* This process may affect any saved information stored on your product. Please consult your
instruction manual or contact the manufacturer using the details above.
TOSHIBA Customer Helpline: 0844 856 0730 TOSHIBA Online Support: www.toshiba.co.uk/tv-dvd-support
SCREEN LANG SUBTTL PIP
1 2 3
4 65
97 8
0
BACK MENU
EPG FAV
SOURCE
PRESETS
SLEEP
?
INFO
+
+
-
-
V
P
OK
TOSHIBA
RC-3910
Re-tune Section
- 23 -
English
Language Settings
Using this menu you can adjust the preferred language
settings.
• Select Language from Setup menu and press OK
to view this menu. Press the BACK button on the
remote control to exit.
Preferred
These settings will be used if available. Otherwise the
current settings will be used.
Audio: by pressing Left or Right keys change the
audio language.
Subtitle: alter the subtitle language with Left or Right
keys. The chosen language will be seen in subtitles.
Teletext: changes the preferred teletext language.
Guide: By pressing Left or Right buttons change
the guide language.
Current
Audio: if audio language is supported change the
audio language by pressing Left or Right buttons.
Subtitle: if subtitle is backed up, alter the subtitle
language with Left or Right buttons. The chosen
language will be seen in subtitles.
Language Selection
- 24 -
English
Viewing Parental Control Menu
Press MENU button and select the Settings by using
Left or Right button. Press OK button to view Settings
menu. Use Up or Down button to highlight Parental
and press OK to continue:
• A dialogue box asking for the lock key will be
displayed. The default key is set to 0000. Enter
the PIN.
• If it is incorrect, “Wrong PIN” OSD will be displayed.
If it is correct, the Parental Control menu will be
displayed:
Menu Lock
In Menu lock you can set locking for All menus, or the
Installation Menu to restrict access to these menus.
If the menu lock is disabled, there will be free access
to the menu system.
• Use Up or Down buttons to go to Menu Lock
option. Use Left or Right buttons to choose Menu
Lock Mode.
DISABLED : All menus are unlocked.
ALL MENUS : All Menus are accessible only with
the correct lock key. So the user cannot add, delete,
rename, channels, cannot set timers.
INSTALLATION MENU: Installation menu is locked.
So the user can’t add channels. Changes will be
updated after exiting ‘Conguration Menu’.
Child Lock
Press MENU button and select settings by using
Left or Right button. Press OK to continue. Use Up
or Down to select parental and then press OK to
continue. Enter the pin number. Child Lock disables
the buttons on the television. All buttons on the remote
control can still be used.
Set PIN
• Use Up or Down buttons to select Set PIN option.
Press OK to display the Set PIN window.
• Use numeric buttons to enter new pin number. You
will need to input your new pin a second time for
verication purposes.
• After typing correct PIN numbers, PIN number will
be changed.
Note: The factory default pin number is 0000, if you
change the pin number make sure you write it down
and keep it safe.
Digital Settings - Parental Control, Menu Lock, Set PIN
You can view or set parental preferences of your TV.
- 25 -
English
Conguring Picture Settings
You can use different picture settings in detail. You can
customize current picture mode settings as desired.
For example you change items such as, Brightness,
Contrast, Colour, Sharpness and Hue.
Press MENU button and select the Picture icon by
using Left or Right button. Press OK button to view
Picture Settings menu.
Operating Picture Settings Menu Items
• Press Up or Down button to highlight a menu
item.
• Use Left or Right button to set an item.
• Press MENU button to exit.
Picture Mode
Press MENU button and select picture by using Left or
Right button. Press Up or Down to select mode. This
television offers the choice of personalising the picture
style. Cinema, Game, Dynamic and Natural are preset
options and affect settings within the television.
• In the Picture Settings menu, press Up or Down to
select Mode. Press Left or Right to select the picture
mode you prefer.
Contrast
Press MENU button and select picture by using
Left or Right button. Press Up or Down to select
contrast. Sets the lightness and darkness values of
the screen.
Brightness
Press MENU button and select picture by using Left or
Right button. Press Up or Down to select brightness.
Sets the brightness value for the screen.
Sharpness
Press MENU button and select picture by using Left or
Right button. Press Up or Down to select sharpness.
Sets the sharpness value for the objects displayed
on the screen.
Colour
Press MENU button and select picture by using Left
or Right button. Press Up or Down to select colour.
Sets the colour value, adjusting the colors.
Power Save Mode
Press MENU button and select settings by using
Left or Right button. Press OK to continue. Use Up
or Down to select others settings and then press
OK. Select Power Save Mode using Up or Down
buttons and use Left or Right to set. See the section,
“Environmental Information” in this manual for further
information on Power Save Mode.
Backlight
This setting controls the backlight level and it can be
set to Low, Medium, High and Auto.
Noise Reduction
Press MENU button and select picture by using Left
or Right button. Press Up or Down to select noise
reduction. Sometimes some words or picture elements
to become distorted or pixelated. Using the Noise
Reduction feature reduces this effect by smoothing
out the edges.
Conguring Picture Settings
You can congure picture settings of your TV by using Picture Settings menu.
- 26 -
English
Advanced Settings
Select Advanced Settings and press OK button to
view or edit advanced picture settings:
Colour Temp
Colour Temperature increases the ‘warmth’ or
‘coolness’ of the picture by increasing the red or
blue tint.
• In the PICTURE menu, press Up or Down to select
Advanced Settings. And then press Up or Down to
select Colour Temp.
• Press Left or Right to choose from one of these
options: Cool, Normal and Warm.
Note:
• Setting Cool option gives white colours a slight
blue stress.
• Setting Warm option gives white colours a slight
red stress.
• For normal colours, select Normal option.
Picture Zoom
Press MENU button and select picture by using Left
or Right button. Press Up or Down to select picture
zoom. Sets the picture size to auto,16:9, subtitle,14:9,
14:9 zoom, 4:3 or cinema.
Full Mode (optional)
If you connect a device via HDMI or YPbPr connectors
and set 1080i/1080p resolutions, Full picture mode
will be visible and the option “Full” will appear in the
Picture Format screen selection menu.
HDMI True Black (optional)
While watching from HDMI source, this feature will
be visible in the Picture Settings menu.
You can use this feature to enhance blackness in the
picture. You can set this feature as “On” for activating
HDMI True Black mode.
Note: HDMI True Black On/Off feature functions only
when the HDMI device output is set to RGB.
Film Mode (optional)
Films are recorded at a different number of frames
per second to normal television programmes.Press “
” or “ ” buttons to select Film mode. Press “ ” or
“” buttons to set this feature Auto or Off. Turn this
feature to Auto when you are watching lms to see
the fast motion scenes clearly.
Conguring Picture Settings - continued
Colour Shift
Press MENU button and select picture by using Left
or Right button. Press Up or Down to select colour
shift. Adjust the desired colour tone.
Resetting
Press MENU button and select picture by using Left
or Right button. Press Up or Down to select reset and
press OK. This feature allows you to reset the current
Picture Settings to the default values.
- 27 -
English
Changing Picture Format
Press SCREEN button and select Advanced Settings. Then press Up or Down to select Picture Zoom. Press
OK repeatedly to select between Auto(*), 16:9, Subtitle, 14:9, 14:9 Zoom, 4:3 or Cinema. When Auto is
selected the format being displayed is determined by the picture being broadcast.
“Note: Using the special functions to change the size of the displayed image (i.e. changing the height/width
ratio) for the purposes of public display or commercial gain may infringe on copyright laws.”
Note: You can shift to screen up or down by pressing “ ”/“ ” buttons while picture zoom is selected as 14:9
Zoom, Cinema or Subtitle.
(*) When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the
selected source (if available). The format being displayed in AUTO mode is completely independent of WSS
information which could be included in the broadcast signal or the signal from an external device.
Note: Auto mode will only be available in HDMI, YPbPr and DTV.
16:9
Use this setting when watching a
widescreen DVD, widescreen video
tape or a 16:9 broadcast (when
available). Due to the range of
widescreen formats (16:9, 14:9 etc.)
black bars may be visible on the top
and bottom of the screen.
4:3 Use this setting to view a true 4:3
broadcast.
14:9 Zoom This option zooms to the 14:9 picture.
Subtitle
When subtitles are included on a
letterbox format broadcast, this
setting will raise the picture to ensure
that all the text is displayed.
14:9
This zooms up the wide picture (14:9
aspect ratio) to the upper and lower
limits of the screen
Cinema
This zooms up the wide picture
(16:9 aspect ratio) to the full
screen.
- 28 -
English
PC Picture Settings (*)
(*) While in VGA/PC mode, some items in Picture
menu will be unavailable. Instead, VGA mode settings
will be added to the Picture Settings while in VGA/
PC mode.
PC Picture controls
Contrast, Brightness and Colour Temperature
adjustments in this menu are identical to adjustments
dened in TV picture menu.
Select Reset and press OK button to reset the
adjustments.
Note:
For switching to VGA/PC source, press SOURCE
button on your remote control and select VGA/PC
input.
Note that VGA/PC mode menu settings are available
only while the TV is in PC source.
PC Position
Select this to display PC position menu items.
Autoposition
If you shift the picture horizontally or vertically to an
unwanted position, use this item to put the picture into
correct place automatically.
• Select the PC POSITION option from the main
menu. PC Position menu appears on the screen.
• Press the Down button to highlight Autoposition
and then press the OK button.
H Position
H (Horizontal) Position shifts the image horizontally to
right hand side or left hand side of the screen.
• In the PC POSITION menu press the Down button
until H Position is highlighted.
• Press the Left or Right button to adjust the value.
V Position
V (Vertical) Position shifts the image vertically towards
the top or bottom of the screen.
In the PC POSITION menu press the Down button
until V Position is highlighted.
Press the Left or Right button to adjust the value.
Dot Clock
Dot Clock adjustment corrects the interference
that appear as vertical banding in dot intensive
presentations like spreadsheets or paragraphs or
text in smaller fonts.
• In the PC POSITION menu press the Down button
until Dot Clock is highlighted.
• Press the Left or Right button to adjust the value.
Phase
Depending on the resolution and scan frequency that
you input to the TV Set, you may see a hazy or noisy
picture on the screen. In such a case you can use this
item to get a clear picture by trial and error method.
• In the PC POSITION menu press the Down button
until Phase is highlighted.
• Press the Left or Right button to adjust the value.
Conguring PC Picture Settings
You can set PC Mode picture settings when using the TV as a PC monitor.
- 29 -
English
Conguring Sound Settings
Sound settings can be congured according to your
personal preferences.
Press MENU button and select the Sound icon by
using Left or Right button. Press OK button to view
Sound Settings menu.
Operating Sound Settings Menu Items
• Press Up or Down button to highlight a menu
item.
• Use Left or Right button to set an item.
• Press MENU button to exit.
Volume
Select Volume using Up or Down button and then use
Left or Right button to set volume level.
Equalizer (Only for speaker)
You can customize current sound mode settings. Select
the appropriate mode in accordance with the installation
location of the TV and adjust the equalizer on-screen as
desired. Press OK button to view equalizer sub-menu.
In equalizer menu, the preset can be changed to
Music, Movie, Speech, Flat, Classic and User.
Press the MENU button to return to the previous
menu.
Note: Equalizer menu settings can be changed
manually only when the Equalizer Mode is in User.
Balance (Only for speaker)
This setting is used for emphasizing left or right
speaker balance.
• Press Left or Right button to change the level of
the balance. Balance level can be adjusted between
-31 and +31.
Headphone
This setting is used to set the sound output when
headphones are connected.
• Press Up or Down button to select Headphone.
• Press Left or Right button to select Volume. Press
Right button to increase headphone volume level.
Press Left button to decrease headphone volume
level. Headphone volume level can be adjusted
between 0 and 63.
Sound Mode
You can select Mono, Stereo, Dual I or Dual II mode,
only if the selected channel supports that mode.
AVL
Sometimes there can be large changes in volume
when switching from a DTV 5.1ch to a DTV 2ch, an
ATV channel, or an external input. Using the AVL
feature reduces these volume differences.
• In the SOUND menu, press Up or Down to highlight
AVL. Press Left or Right button to set AVL as On
or Off.
Dynamic Bass
Dynamic Bass is used to increase bass effect of the
TV set.
Surround Mode
This feature is used for enriching the sound output.
• In the SOUND menu, press Up or Down to highlight
Surround Sound. Press Left or Right button to set
Surround Sound as On or Off.
Digital Out
Select Digital Out using Up or Down button and then
use Left or Right button.
Conguring Sound Settings
You can congure sound settings of your TV by using Sound Settings menu.
- 30 -
English
Conguring Your TV’s Settings
Detailed settings can be configured to suit your
personal preferences.
Viewing Settings Menu
Press MENU button and select Settings icon by
using Left or Right button. Press OK button to view
Settings menu.
Operating Settings Menu Items
• Press Up or Down button to highlight a menu item.
• Press OK button to select an item.
• Press MENU button to exit.
Conditional Access
Select Setting from the main menu by using Left or
Right button and press OK. Afterwards, use Up or
Down button to set Conditional Access. Press OK
to continue. This setting controls conditional access
modules when available.
Language
Press MENU button and select settings by using
Left or Right button. Press OK to continue. Use Up
or Down to select language and then press OK to
continue. Using this menu you can adjust the preferred
language settings.
Congures language settings.
Parental
Congures parental settings.
Timers
Sets timers for selected programmes. Press MENU
button and select Settings by using Left or Right
button. Press OK button to continue. Use Up or
Down button to select Timers and then press OK
button to continue.
Date/Time Settings
You can congure date/time preferences by using
this menu screen. Press MENU button and select
Settings by using Left or Right button. Press OK
button to continue. Use Up or Down button to select
Date/Time and then press OK button to continue.
Sources
Enables or disables selected source options. Press
MENU button and select Settings by using Left or
Right button. Press OK button to continue. Use Up
or Down button to select Sources and then press OK
button to continue.
Other Settings
Press MENU button and select settings by using Left
or Right button. Press OK to continue. Use Up or
Down to select other settings and then press OK to
continue. Using this menu you can adjust the preferred
language settings.
Displays other setting options of the TV set.
Using a Conditional Access Module
The Common Interface Slot, situated on the side of the
television, enables the insertion of a CAM (Conditional
Access Module) and card. These are purchased from
a service provider and allow additional subscription
broadcasts to be viewed. For more information, see
a service provider.
IMPORTANT: Insert or remove the CI module only
when the TV is SWITCHED OFF.
• In order to watch certain digital channels, a
conditional access module (CAM) is necessary. This
module must be inserted in the CI slot of your TV.
• Obtain the Conditional Access Module (CAM) and
the viewing card by subscribing to a pay channel
company, then insert those to the TV using the
following procedure.
• Insert the CAM and then the viewing card to the
slot that is located in the terminal cover at the rear
side of the TV.
Settings Menu Operation, Conditional Access
- 31 -
English
• The CAM should be correctly inserted, it is
impossible to insert fully if reversed. The CAM or
the TV terminal may be damaged if the CAM is
forcefully inserted.
Connect the TV to the mains supply, switch on and then
wait for few moments until the card is activated.
• When no module is inserted, “No Common Interface
module detected” message appears on the screen.
• Refer to the module instruction manual for details
of the settings.
Viewing Conditional Access Menu (*)
(*) These menu settings may change depending on
the service provider.
Press MENU button and select the Settings icon by
using Left or Right button. Press OK button to view
Settings menu. Use Up or Down button to highlight
Conditional Access and press OK to view menu
items.
Timers
Sets timers for selected programmes. Press MENU
button and select Settings by using Left or Right
button. Press OK button to continue. Use Up or
Down button to select Timers and then press OK
button to continue.
Setting Sleep Timer
The television can be set to turn itself Off after a
certain length of time.
• Highlight Sleep Timer by using Up or Down
button.
• Use Left or Right button to set. The timer can be
programmed between Off and 2.00 hours (120
minutes) in steps of 30 minutes.
Setting Programme Timers
This feature will set the television to go to a specic
channel at a certain time. It can be used to view
a particular programme, or by setting the mode
to daily or weekly, can be used to view a series of
programmes.
Press Down button to set timers on an event.
Programme timer function buttons will be displayed
on the screen.
Adding a Timer
• Press YELLOW button on the remote control to
add a timer. The following menu appears on the
screen:
Channel: Changes channel by using Left or Right.
Timer/Record Type: This feature is unavailable to
be set.
Date: Enter a date using the numeric buttons.
Start: Enter a starting time using the numeric buttons.
End: Enter an ending time using the numeric buttons.
Duration: Displays duration between the starting and
ending time.
Repeat: Sets a timer to be repeated as Once, Daily or
Weekly. Use Left or Right buttons to select an option.
Change/Delete: Controls parental settings on timers.
• Press GREEN button to save the timer. Press RED
button to cancel.
Editing a Timer
• Select the timer you want to edit by pressing Up or
Down button.
• When nished with editing, press GREEN button to
save. You can press MENU button to cancel.
Deleting a Timer
• Select the timer you want to delete by pressing Up
or Down button.
• Press RED button.
• Select YES by using Left or Right buttons to delete
the timer. Select NO to cancel.
Conguring Date/Time Settings
You can congure date/time preferences by using
this menu screen.
• Select Date/Time in the Settings menu to congure
Date/Time settings. Press OK button.
• Use Up or Down buttons to highlight an option.
• Use Left or Right buttons to change a setting and
press MENU to exit.
Setting Timers, Setting Date/Time
- 32 -
English
Conguring Source Settings
You can enables or disable selected source options.
The TV will not switch to the disabled source options
when SOURCE button is pressed.
• Select Sources in the Settings menu and press
OK button.
• Press Up or Down buttons to select a source.
• Use Left or Right button to enable or disable the
selected source. Changes are automatically stored.
Input Selection
Use the Input Selection window if the television
does not switch over to a connected source
automatically.
• Press SOURCE button on your remote control for
directly changing sources. Select settings tab and then
use Up or Down to select Source. Press OK button.
Use then Up or Down button to highlight an input and
press Right button to select.
Conguring Other Settings - General
You can congure the settings of your TV. Select
Conguration from Setup menu and press OK to view
this menu. Press the BACK button on the remote
control to exit.
To view general conguration preferences, select
Other Settings in the Settings menu and press OK
button.
Operation
• Press Up or Down buttons to select an item.
• Use Left or Right button to set an option.
• Press OK button to view a sub-menu.
Menu Timeout
Press MENU button and select Settings by using Left
or Right button. Press OK button to continue. Use Up
or Down button to select Other Settings and then
press OK button. Select Menu Timeout using Up or
Down button and use Left or Right button to set a
specic display timeout for menu screens.
Scan Encrypted
Press MENU button and select settings by using Left
or Right button. Press OK to continue. Use Up or
Down to select others settings and then press OK.
Select Scan Encrypted using Up or Down buttons
and use Left or Right to set. When this setting is on,
search process will locate the encrypted channels as
well. If it is set as OFF manually, encrypted channels
will not be located while in automatic search or manual
search. Scan Encrypted Channel feature will always
be ON after performing rst time installation.
Source Settings, Other Controls
- 33 -
English
Blue Background
Press MENU button and select settings by using Left
or Right button. Press OK to continue. Use Up or
Down to select others settings and then press OK.
Select Blue Background using Up or Down buttons
and use Left or Right to set. If the signal is weak or
absent, the TV will automatically change to a blue
screen. To enable this, set Blue Background to On.
Software Upgrade
This feature helps to keep your TV updated. It works
automatically and searches for new information
when available. Note that this setting is inactive to
be modied.
To ensure that your TV always has the most update
information, you can use this setting. In order for the
proper operation, please ensure that the TV is set to
standby mode.
You can enable or disable automatic upgrade by
setting Automatic Scanning option.
You can manually search for new software by
selecting Scan for upgrade.
Hard of Hearing
Press MENU button and select settings by using Left
or Right button. Press OK to continue. Use Up or
Down to select others settings and then press OK.
Select Hard of Hearing using Up or Down buttons and
use Left or Right to set. If the broadcaster enables any
special signal concerning the audio, you can set this
setting as On to receive such signals.
Audio Description
Press MENU button and select settings by using Left
or Right button. Press OK to continue. Use Up or
Down to select others settings and then press OK.
Select Audio Description using Up or Down buttons.
Audio description refers to an additional narration
track for blind and visually impaired viewers of
visual media, including television and movies. The
description narrator talks through the presentation,
describing what is happening on the screen during the
natural pauses in the audio (and sometimes during
dialogue, if deemed necessary). You can use this
feature, only if the broadcaster supports that additional
narration track.
Auto TV Off
Press MENU button and select settings by using Left
or Right button. Press OK to continue. Use Up or
Down to select others settings and then press OK.
Select Auto TV Off using Up or Down buttons. You
can set the timeout value of auto off feature. After the
timeout value is reached and the TV is not operated
for selected time , the TV will go off.
Broadcast Type
Press MENU button and select settings by using Left
or Right button. Press OK to continue. Use Up or
Down to select others settings and then press OK.
Select Broadcast Type using Up or Down buttons
and use Left or Right to set. When you set the desired
broadcast type by using Left or Right button, the TV
will display the related channel list.
Standby Search
This setting is visible only when the Country option is
set to Denmark, Sweden, Norway or Finland.
Press MENU button and select settings by using Left
or Right button. Press OK to continue. Use Up or
Down to select others settings and then press OK.
Select Standby Search using Up or Down buttons
and use Left or Right to set.
If the Standby Search is set to to on and the TV is
in standby mode, the TV will look for any changes in
the saved channels.
Other Controls
- 34 -
English
Full Mode (optional)
If you connect a device via HDMI or YPbPr connectors
and set 1080i/1080p resolutions, Full picture mode
will be visible and the option “Full” will appear in the
Picture Format screen selection menu.
TXT Language
Press MENU button and select settings by using Left
or Right button. Press OK to continue. Use Up or
Down to select others settings and then press OK.
Select TXT Language using Up or Down buttons
and use Left or Right to set. Use this setting to set a
preferred TXT Language.
Other Controls - continued
- 35 -
English
Manual Start
• To display Media Browser window, you can press
MENU button on the remote control and then select
Media Browser by pressing Left or Right button.
• Press OK button to continue. Media Browser menu
contents (depending on the contents of your USB
drive) will be displayed.
Auto Start
• When you plug a USB device, the following menu
will be displayed.
Note: The word under the graphic only appears when
the graphic is selected.
• You can play music, picture les from a USB memory
stick.
• You can connect two USB devices to your TV. If both
USB devices include music, picture or video les,
USB selection osd will be displayed on the screen.
The rst USB device connected to the TV will be
named as USB Drive1.
• Select a device by using “ ” or “ ” button and
press OK.
• To display All les in a list, select SETTINGS tab and
change View Style to Flat. Then go back to main
media browser screen and you will see that now All
tab will be available. Select All tab and press OK.
Note:
Some USB compliant devices may not be supported.
If the USB stick is not recognised after power off/on
or rst time installation,rst unplug the USB device
and power off/on the TV set, then plug the USB
device in again.
• Do not use a USB Hub.
• You must obtain any required permission from
copyright owners to use copyright content.
Toshiba cannot and does not grant such permission.
• Depending on the le size and amount in your USB
storage device, it may take some time for loading to
view. A message will display on-screen when loading
les from the USB storage device.
• Only limited types of USB devices are supported.
Therefore, it is suggested not to use USB for playing
Media Player.
• Non-supported characters will be replaced with a
square (□).
Playing MP3 Files
To play mp3 les from a USB disk, you can use this
menu screen. When you select Music from the main
options, available music les will be ltered and listed
on this screen.
• Use Up or Down button to highlight a le.
• Use Numeric Buttons to jump to the previous or
next le to play.
• Use RED button to stop playback.
• Press GREEN button to play all media les in the
folder starting with the selected one.
• Press YELLOW button to pause a playing le.
• Use BLUE button to play the selected le repeatedly or
in shufe mode.
• Press INFO button to display ltering options.
• Press FAV button to sort les by Title, Artist or Album.
• Press OK to play the selected le.
• Use Left or Right button to jump previous or next
le.
USB Media Browser
This TV allows you to enjoy photo, video or music les stored on a USB device.
- 36 -
English
Viewing JPG Files
To view photo les from a USB disk, you can use this
menu screen. When you select Photos from Media
Browser, available image les will be ltered and listed
on this screen.
If you select a subtitle le and press OK button, you
can select or deselect that subtitle le. The following
menu will be displayed while playing a video le:
• Use Numeric Buttons to jump to the previous or
next le. Press OK to play.
• Press OK button to view the selected picture in
full screen.
• Press GREEN button to start a slideshow.
• Press BLUE button to activate loop/shufe.
• Press INFO button to display ltering options.
• Press FAV button to sort les by date.
• Press button to view thumbnails.
Slideshow Feature
You can use this feature to display photos on your
TV.
• Press RED button to zoom picture.
• Press GREEN button to continue with the
slideshow.
• Press YELLOW button to pause a playing le.
• Press BLUE button to activate loop/shufe mode.
• Press Left or Right button to jump to previous or
next le of slideshow.
• Use or button to rotate the picture.
(Then, it becomes to be pause mode.)
• Press INFO button to activate the operations bar.
• Press BACK to go back.
USB Media Browser - continued
This TV allows you to enjoy photo, video or music les stored on a USB device.
- 37 -
English
Video Playback
When you select Videos from Media Browser,
available video les will be ltered and listed on this
screen. You can use Up or Down button to select a
video le and press OK button to play a video.
If you select a subtitle le and press OK button, you
can select or deselect that subtitle le.
• Use Up or Down button to highlight a le.
• Press OK button to start the video playback and play
the selected le. Press GREEN button to play all.
The following menu will be displayed while playing
a video le:
• Press BLUE button to stop the video playback.
• Press OK button to pause the video playback.
• Press LEFT button to go backward.
• Press RIGHT button to go forward.
• Use LANG button to set subtitle/Audio.
• Use GREEN button to jump to a time.
• Use YELLOW button to Open subtitle time
correction menu.
Note:
You can set subtitles by using OK button before
starting the playback or by using LANG button during
the playback. Selected subtitles may not be displayed
correctly in some cases.
In order to display movie subtitles correctly, you should
set a “Movie Subtitle” language. See the section,
“Movie Subtitle” in “Language Settings” for selecting
Movie Subtitle language.
• Press BACK button to switch back to previous menu.
Media Browser Settings
You can set your Media Browser preferences by
using the Settings dialog. Press “ ” or “ ” button to
highlight an item and use “ ” or “ ” button to set.
View Style: Sets default browsing mode.
Slide Show Interval: Sets slide show interval time.
Show Subtitle: Sets subtitle enabling preference.
Subtitle Language: Sets supported subtitle
language.
Subtitle Position: Sets subtitle position as up or
down.
Subtitle Font Size: Sets subtitle font size (max.
54pt).
To Close the Media Player
• Press MENU button on the remote control.
USB Media Browser - continued
This TV allows you to enjoy photo, video or music les stored on a USB device.
- 38 -
English
Analogue Text Services
Before using the text services, the required language
region must be chosen.
• Select Language from the SETTINGS menu.
• Press the Left or Right button to choose the required
language region.
• After the teletext language is selected, press MENU
button to exit.
Using Text Button -
• To view text services press . Press again to
superimpose text over a normal broadcast picture.
• Press again to return to normal viewing.
• Programmes cannot be changed until text is
cancelled.
• The rst text page shown will be the initial page.
• Any text page can be accessed by entering the 3
digit page number using the numbered buttons,
pressing the coloured buttons or pressing to
advance to the next page and to go back to the
previous page.
• Four coloured titles will appear at the base of the
screen. To access one of the four given subjects,
press the relevant coloured button on the remote
control.
• For further information on your particular text
system(s), see the broadcast text index page or,
consult your local Toshiba dealer.
Below is a guide to the functions of the remote control
text buttons.
Acessing Sub-Pages
If a text page has sub-pages, press and enter the sub-
page numbers 01,02,03 etc. which can be selected
using Left/ Right buttons at the bottom of the text page
under the coloured links.
Revealing Concealed Text
To discover the solutions on quiz and joke pages press
the INFO button.
Holding a Page
At times it is convenient to hold a page of text. Press
OK and HOLD will appear in the top left of the screen.
The page will be held on screen until the button is
pressed again.
To display an initial page
Press BACK to access an initial page. The one
displayed is dependant on the broadcaster.
Analogue Text Services
This television has a multi-page text memory, which takes a few moments to load.
- 39 -
English
Appendix A: PC Input Typical Display Modes
The following table is an illustration of some of the typical video display modes. Some, due to the display
native resolution, are scaled automatically to enable correct image to be displayed.
Your TV may not support different resolutions. Supported resolution modes are listed below.
If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.
Index
Resolution
Frequency
1640x400 70Hz
2
640x480 60Hz
3640x480 72Hz
4
640x480 75Hz
5800x600 56Hz
6
800x600 60Hz
7800x600 70Hz
8
800x600 72Hz
9800x600 75Hz
10 1024x768 60Hz
11 1024x768 70Hz
12
1024x768 72Hz
13 1024x768 75Hz
14
1152x864 75Hz
15 1280x768 60Hz
16
1360x768 60Hz
17 1280x768 75Hz
18
1280x960 60Hz
19 1280x960 75Hz
20 1280x1024 60Hz
21
1280x1024 75Hz
22 1400x1050 60Hz
23
1600x1200 60Hz
24 1920x1080 60Hz
25
1920x1200 60Hz
- 40 -
English
Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)
Source
Supported Signals
EXT
(SCART
SOCKETS)
PAL 50/60
NTSC 60
RGB 50
RGB 60
SIDE AV PAL 50/60
NTSC 60
YPbPr
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50Hz
720p 60Hz
1080i 50Hz
1080i 60Hz
1080p 50Hz
1080p 60Hz
HDMI1
HDMI2
HDMI3
HDMI4
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50Hz
720p 60Hz
1080i 50Hz
1080i 60Hz
1080p 50Hz
1080p 60Hz
1080p 24Hz
Note: In some cases a signal on the LCD TV may not be displayed properly. The problem may be an
inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such
a problem please contact your dealer and also the manufacturer of the source equipment.
- 41 -
English
Appendix C: Supported File Formats for USB Mode
Media
File
Extension
Format
Remarks
(Maximum resolution/Bit rate etc.)
Video
Audio
Movie
.mpg, .mpeg MPEG1, 2 MPEG Layer 1/2/3
max 1920x1080 @ 30p 20Mbit/sec
.dat MPEG1, 2 MPEG2
.vob MPEG2
.mkv H.264, MPEG1,2,4 EAC3 / AC3
.mp4 MPEG4, H.264 PCM/MP3
.avi
MPEG2, MPEG4 PCM/MP3
max 1920x1080 @ 30p 20Mbit/sec
H.264 PCM
Music .mp3 - MPEG 1 Layer 1 / 2
(MP3)
32kbps ~ 320kbps(Bit rate)
32kHz ~ 48kHz(Sampling rate)
Photo .jpg .jpeg Baseline JPEG max WxH = 15360x8640 4147200bytes
Progressive JPEG max WxH = 1024x768 6291456bytes
.bmp - max WxH = 9600x6400 3840000bytes
Subtitle .sub - -
.srt
Appendix D: PIN Information
Before connecting any external equipment, turn off all main power switches. If there is no equipment switch,
remove the mains plug from the wall socket. Signal information for Mini D-sub 15 pin connector
Pin No. Signal name Pin No. Signal name Pin No. Signal name
1R 6 Ground 11 NC
2G 7 Ground 12 NC
3
B 8 Ground 13 H-sync
4NC* 9 NC 14 V-sync
5NC* 10 Ground 15 NC
* NC = not connected
- 42 -
English
Specications and Accessories
Broadcast Systems/Channels
DVB-T: MPEG2, DVB-T: MPEG4 HD
DVB-C: MPEG2, DVB-C: MPEG4
RECEIVING CHANNELS
VHF (BAND I/III)
UHF (BAND U)
HYPERBAND
Video Input PAL, SECAM, NTSC 4.43
Stereo Nicam
External Connections
1-SCART 1 Input 21-pin SCART RGB, A/V
2-SCART 2 Input 21-pin SCART RGB, A/V, S-VHS
3-YPbPr Input Y+Pb+Pr Video RCA CVBS
4-Audio In Input RCA Audio L + R
5-Subwoofer Output RCA Audio
6-Digital Audio Output S/PDIF (Coaxial)
7-Side AV Input (Side) Side AV Cable input Video + Audio L + R
8-HDMI 1/2/3/4 Input HDMI® (RGB Range supported)
9-PC Input Mini D-Sub 15-Pin Analogue RGB Signal
USB Port Media Browser Interface Version: USB 2.0
USB Class: Mass Storage
File System: FAT32
Headphone Socket 3.5mm stereo
Operating Conditions Temperature 5°C - 35°C (41°F - 94°F)
Humidity 20 - 80% (non-condensing)
Supplied Accessories Remote Control
2 batteries (AAA,IEC R03 1.5V)
P Clip
Side AV Connection Cable
Stand Cover
8 screws
VESA mounting bolts
Stand Instructions
46BL702B
Energy Efciency Class A
Visible Screen Size (approx.) 117cm / 46”
On Mode Power Consumption (approx.)(*) 81 W
Annual Power Consumption (approx.)(**) 118 kWh
Standby Power Consumption (approx.) < 0.50 W
Screen Resolution (pixels) 1920 x 1080
Display 16:9
Sound Output (at 10% distortion) 2 x 8
Power Consumption Model (approx.) 135W
Weight TV with stand 18.5 kg
Gross weight 24 kg
TV without stand 15.5 kg
(*) Tested in accordance with IEC 62087-BD in default settings.
(**) Energy consumption 118 kWh per year, based on the power consumption of the television operating 4 hours per day for
365 days. The actual energy consumption will depend on how the television is used.
VESA Compliant for Simple Optional Wall Mounting
Unit Dimensions (Approximate)
Specication is subject to change without notice.
A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)
46BL702B 1088.9 657.4 232 39.9 703.3 400 400
- 43 -
English
License Information
• HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered trademarks
of HDMI Licensing, LLC.
• DVB is a registered trademark of the DVB Project.
• [1] EIA/CEA-861-D compliance covers the transmission of uncompressed digital video with high-bandwidth
digital content protection, which is being standardized for reception of high-denition video signals.
Because this is an evolving technology, it is possible that some devices may not operate properly with the
television.
Licence Notication
Manufactured under license from Dolby Laboratories.
TRADEMARK ACKNOWLEDGMENT
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Cleaning the screen and cabinet...
Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary
polishes or solvents on the screen or cabinet as this maycause damage.
Disposal...
The following information is only for EU-member states:
Disposal of products
The crossed out wheeIed dust bin symbol indicates that products must be collected and disposed of separately from
household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated
at the recycling centres.
The black bar indicates that the product was placed on the market after August 13, 2005.
By participating in separate collection of products and batteries, you will help to assure the proper disposal of
products and batteries and thus help to prevent potential negative consequences for the environment and human
health.
For more detailed information about the collection and recycling programmes available in your country, please
contact your local city office or the shop where you purchased the product.
Disposal of batteries and/or accumulators
The crossed out wheeled dust bin symboI indicates that batteries and/or accumulators must be collected and
disposed of separately from household waste.
If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or
cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg)
and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.
By participating in separate collection of batteries, you will help to assure the proper disposal of products and
batteries and thus help to prevent potential negative consequences for the environment and human health. For more
detailed information about the coIIection and recycling programmes available in your country, please contact your
local city office or the shop where you purchased the product.
EU
Hg Cd Pb
- 44 -
English
Questions and Answers
A
A
You can select via the Channel List
.
Questions and Answers
QWhy is there no sound or picture? QWhy don't the controls of the TV work?
ACheck the TV is not in standby mode.
Check the mains plug and all mains connections. ACheck that CHILD LOCK is not selected.
QWhy is there a picture but no sound? QWhy is the sound only coming from one speaker
when stereo sound is selected?
ACheck the volume has not been turned down or
that sound mute has not been selected. ACheck that the balance in the SOUND menu hasn't
been set to one side.
QWhat can cause a poor picture? QWhy are there problems with analogue text
service?
AInterference or a weak signal. Try a different TV
station. AGood performance of the analogue text depends
on a good strong broadcast signal. This normally
requires a roof or loft aerial. If the text is
unreadable or garbled, check the aerial. Go to the
main index page of the analogue text service and
look for the User Guide.
QWhy doesn't the video/DVD being played show
on screen? QWhat is DVB-T?
AMake sure the VCR or DVD player is connected to
the TV as illustrated in the beginning chapters, then
select the correct input by pressing SOURCE . ADigital Video Broadcast via an aerial/antenna.
QWhy is the VCR/DVD picture in black and white? QHow are radio channels selected?
A
C
h
ec
k
t
h
e co
rr
ect
in
put
h
as bee
n
c
h
ose
n.
Check the correct
input
has been chosen
.
A
You can select them via the Channel List.
them
QWhy is there a good video picture but no sound? QWhat can be done if the PIN number has been
f
or
g
otten?
ACheck the SCART lead connection. AYou can reset TV and perform first time
installation. Ensure that no-one else can
use this by removing the Owner’s Manual.
QWhy doesn't the remote control work? QWhy are there horizontal stripes and/or blurred
images on the screen when in PC mode?
ACheck the batteries aren't exhausted or inserted
incorrectly. AThe Phase may need adjustment. Select PC
Settings and highlight Phase and adjust until the
picture is clear.
- 45 -
English
Questions and Answers
QWhy doesn't the Media Browser feature operate? QWhy when digital subtitles have been selected
are they not showing on screen?
AMake sure that USB memory is connected correctly.
Incorrect behaviour may occur with a USB Hub
connection. ASubtitles are not currently being transmitted by the
broadcaster.
QWhy is the digital channel locked? QWhy is the soundtrack in English when a
different audio language has been selected?
AParental control is activated. Check parental settings. AThe programme is currently being broadcast with
an English soundtrack only.
QWhy are some encrypted digital channels
unavailable? QWhy does the active standby LED sometimes
take longer to go out?
AYour subscription needs upgrading. Contact your
service provider. AWhen put into standby, the TV's active
standby will automatically search all available
channels for downloads, provided Automatic
Download is enabled. The time taken to do this
may vary.
