SERVICE MANUAL

DVD VIDEO PLAYER

FILE NO. 810-200327

DOCUMENT CREATED IN JAPAN, Jul., 2003

SD-4900

1-11-1

SECTION 1

SUMMARY

CONTENTS

OWNER’S MANUAL(SD-4900)............................................................................................... 1-2

PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS ........... 1-36

SERVICING PRECAUTIONS ................................................................................................ 1-37

• General Servicing Precautions

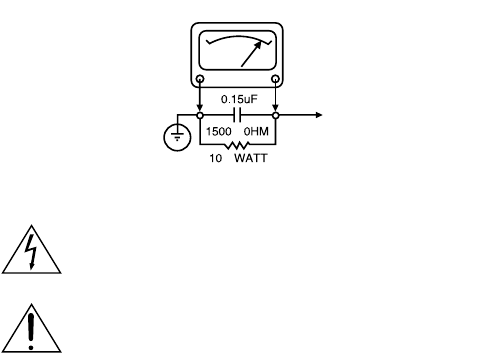

• Insulation Checking Prodedure

• Electrostatically Sensitive Devices

1-2

DVD PLAYER

OWNER’S MANUAL

MODEL : SD-4900

Before connecting, operating or adjusting this product,

please read this instruction booklet carefully and completely.

1-3

Safety Precautions

This lightning flash with arrowhead symbol within an

equilateral triangle is intended to alert the user to

the presence of uninsulated dangerous voltage

within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

appliance.

WARNING: Do not install this equipment in a confined space

such as a bookcase or similar unit.

CAUTION:

This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner’s

manual carefully and retain for future reference, should the unit

require maintenance, contact an authorized service location-

see service procedure.

Use of controls, adjustments or the performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

To prevent direct exposure to laser beam, do not try to open

the enclosure. Visible laser radiation when open. DO NOT

STARE INTO BEAM.

CAUTION: The apparatus shall not be exposed to water,

dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed on the apparatus.

FCC WARNING: This equipment may generate or use radio

frequency energy. Changes or modifications to this

equipment may cause harmful interference unless the modifi-

cations are expressly approved in the instruction manual. The

user could lose the authority to operate this equipment if an

unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This product has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the product is

operated in a residential installation. This product generates,

uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this product does cause harmful

interference to radio or television reception, which can be

determined by turning the product off and on, the user is

encouraged to try to correct the interference by one or more

of the following measures:

zReorient or relocate the receiving antenna.

zIncrease the separation between the product and

receiver.

zConnect the product into an outlet on a circuit different

from that to which the receiver is connected.

zConsult the dealer or an experienced radio/TV technician

for help.

Notes on copyrights:

It is forbidden by law to copy, broadcast, show, broadcast

via cable, play in public, or rent copyright material without

permission.

This product is equipped with copy protection measures

developed by Macrovision. Copy protection signals are record-

ed on some discs. When recording these discs on a VCR,

picture noise will appear during playback.

This product incorporates copyright protection technology that

is protected by certain U.S. patent claims and other intellectual

property rights owned by Macrovision Corporation and other

rights owners. Use of this copyright protection technology must

be authorized by Macrovision Corporation, and is intended for

home and other limited viewing uses only unless otherwise

authorized by Macrovision Corporation. Reverse engineering

or disassembly is prohibited.

SERIAL NUMBER: The serial number is found on the back of

this unit. This number is unique to this unit and not available to

others. You should record requested information here and

retain this guide as a permanent record of your purchase.

Model No. ___________________________________

Serial No. ___________________________________

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE

DANS LA BORNE CORRESPONDANTE DE LA PRISE ET

POUSSER JUSQU’AU FOND.

WARNING: TO REDUCE THE RISK OF FIRE OR ELEC-

TRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

1-4

INTRODUCTION

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND

INSTRUCTIONS IN THIS OWNER’S MANUAL AND THOSE

MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR

FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety.

Improper use can result in electric shock or fire hazard. The safeguards

incorporated in this unit will protect you if you observe the following proce-

dures for installation, use, and servicing.

This unit does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE

EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL ONLY.

1. Read These Instructions

All safety and operating instructions should be read before the

product is operated.

2. Follow All Instructions

All operating and use instructions should be followed.

3. Keep These Instructions

The safety and operating instructions should be retained for future

reference.

4. Heed All Warnings

All warnings on the product and in the operating instructions should

be adhered to.

5. Power Sources

This product should be operated only from the type of power

source indicated on the marking label. If you are not sure of the

type of power supply in your home, consult your product dealer or

local power company. For products intended to operate from bat-

tery power, or other sources, refer to the operating instructions.

6. Grounding or Polarization

Do not defeat the safety purpose of the polarized plug has two

blades with one wider than the other. A grounding-type plug has

two blades and a third grounding prong. The wide blade or the

prong are provided for your safety. If the provided plug does not fit

into your outlet, consult an electrician for replacement of the obso-

lete outlet.

7. Ventilation

Slots and openings in the cabinet are provided for ventilation and to

ensure reliable operation of the product and to protect it from over-

heating. These openings must not be blocked or covered. The open-

ings should never be blocked by placing the product on a bed, sofa,

rug or other similar surface. This product should not be placed in a

built-in installation such as a bookcase or rack unless proper ventila-

tion is provided or the manufacturer’s instructions have been adhered

to.

8. Heat

Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus (including amplifiers) that produce

heat.

9. Water and Moisture

Do not use this apparatus near water. For example: near a bath

tub, wash bowl, kitchen sink, Laundry tub, in a wet basement; or

near a swimming pool.

10. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use

liquid cleaners or aerosol cleaners. Clean only with dry cloth.

11. Power-Cord Protection

Protect the power cord from being walked on or pinched particularly

at plugs, convenience receptacles, and the point where they exit

from the apparatus.

12. Overloading

Do not overload wall outlets, extension cords, or integral conve-

nience receptacles, this can result in a risk of fire or electric shock.

13. Lightning

Unplug this apparatus during lightning storms or when unused for

long periods of time. This will prevent damage to the product due to

lightning and power-line surges.

14. Object and Liquid Entry

Never push objects of any kind into this product through openings

as they may touch dangerous voltage points or short-out parts that

could result in a fire or electric shock. Never spill liquid of any kind

on the product.

15. Attachments

Only use attachments/accessories specified by the manufacturer.

16. Accessories

Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

17. Disc Tray

Keep your fingers well clear of the disc tray as it is closing. It can

cause personal injury.

18. Burden

Do not place a heavy object on or step on the product. The object

may fall, causing serious personal injury and serious damage to the

product.

19. Connecting

When you connect the product to other equipment, turn off the

power and unplug all of the equipment from the wall outlet. Failure

to do so may cause an electric shock and serious personal injury.

Read the owner’s manual of the other equipment carefully and fol-

low the instructions when making any connections.

20. Sound Volume

Reduce the volume to the minimum level before you turn on the

product. Otherwise, sudden high volume sound may cause hearing

or speaker damage.

21. Sound Distortion

Do not allow the product to output distorted sound for a longtime. It

may cause speaker overheating and fire.

22. Earphone

When you use the earphone, keep the volume at a moderate level.

If you use the earphone continuously with high volume sound, it

may cause hearing damage.

23. Laser Beam

Do not look into the opening of the disc tray or ventilation opening

of the product to see the source of the laser beam. It may cause

sight damage.

24. Disc

Do not use a cracked, deformed, or repaired disc. These discs are

easily broken and may cause serious personal injury and product

malfunction.

25. Damage Requiring Service

Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normal, or has been

dropped.

26. Servicing

Do not attempt to service this product yourself as opening or

removing the cover may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service personnel.

27. Replacement parts

When replacement parts are required, be sure the service techni-

cian has used replacement parts specified by the manufacturer or

have the same characteristics as the original part. Unauthorized

substitutions may result in fire, electric shock, or other hazards.

28. Safety Check

Upon completion of any service or repairs to this product, ask the

service technician to perform safety checks to determine that the

product is in proper operating condition.

PORTABLE CART

WARNING

1-5

Table of Contents

Introduction

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . 3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 6

About Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 6

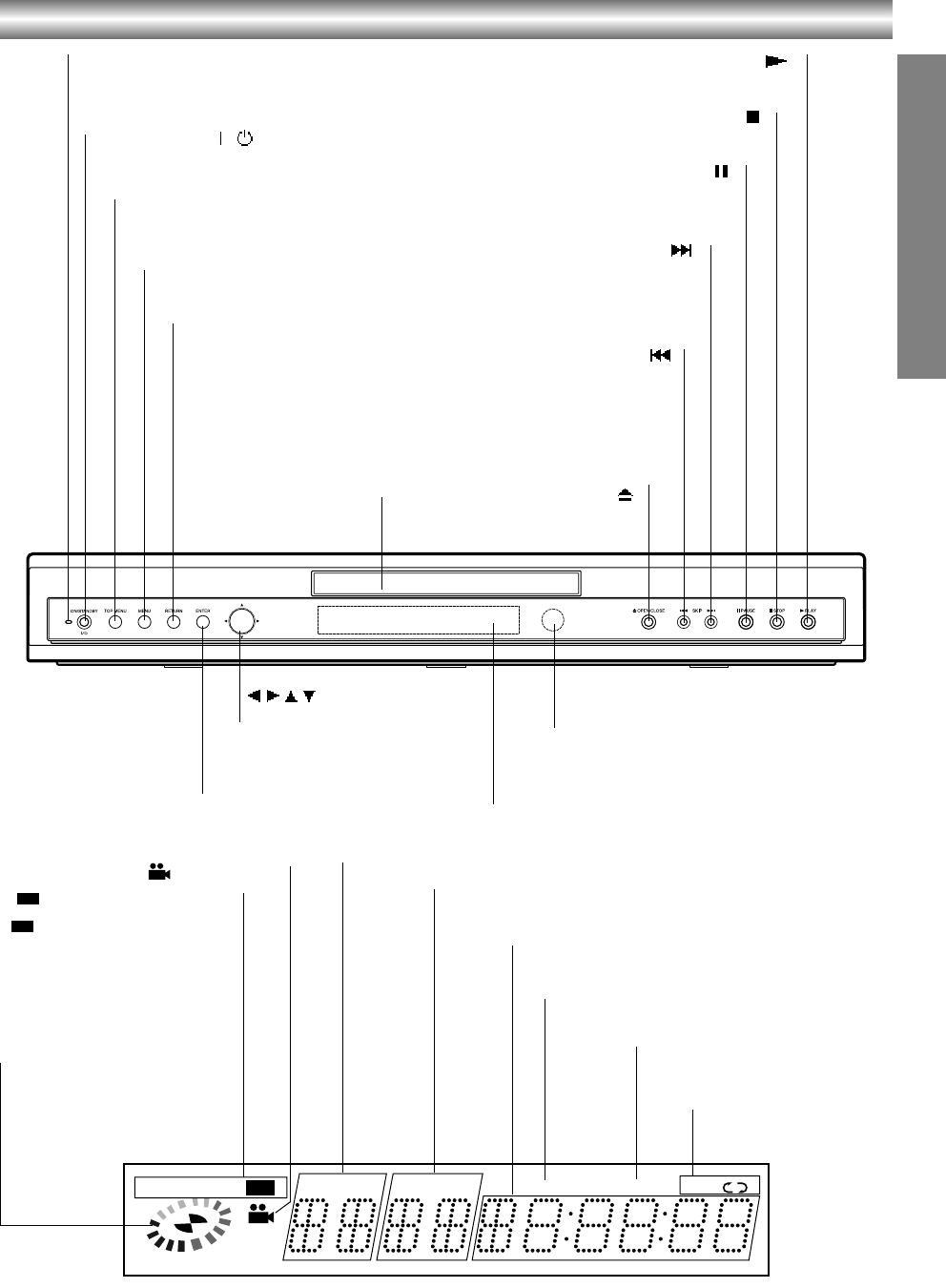

Front Panel and Display Window . . . . . . . . . . . . . . 7

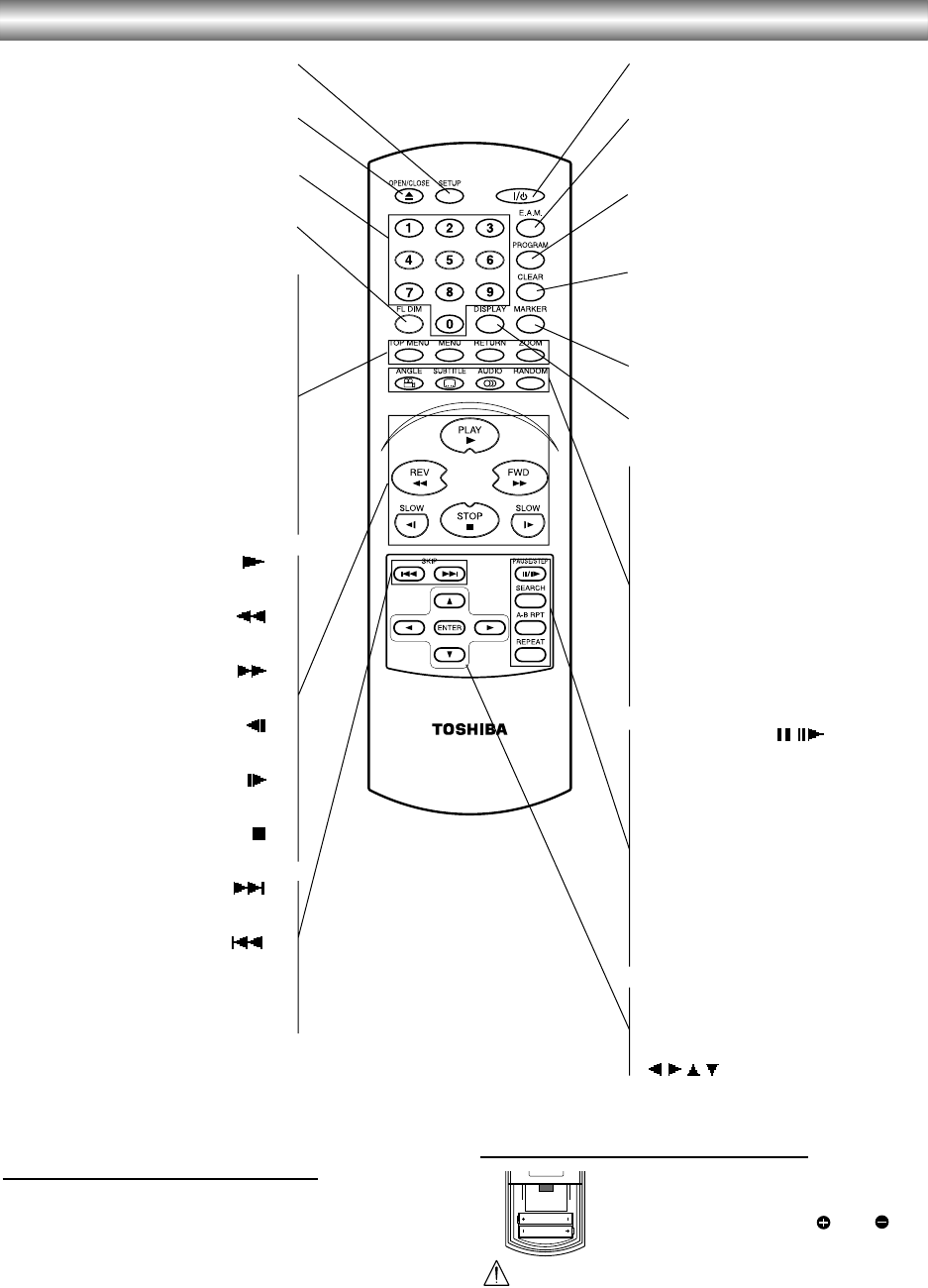

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

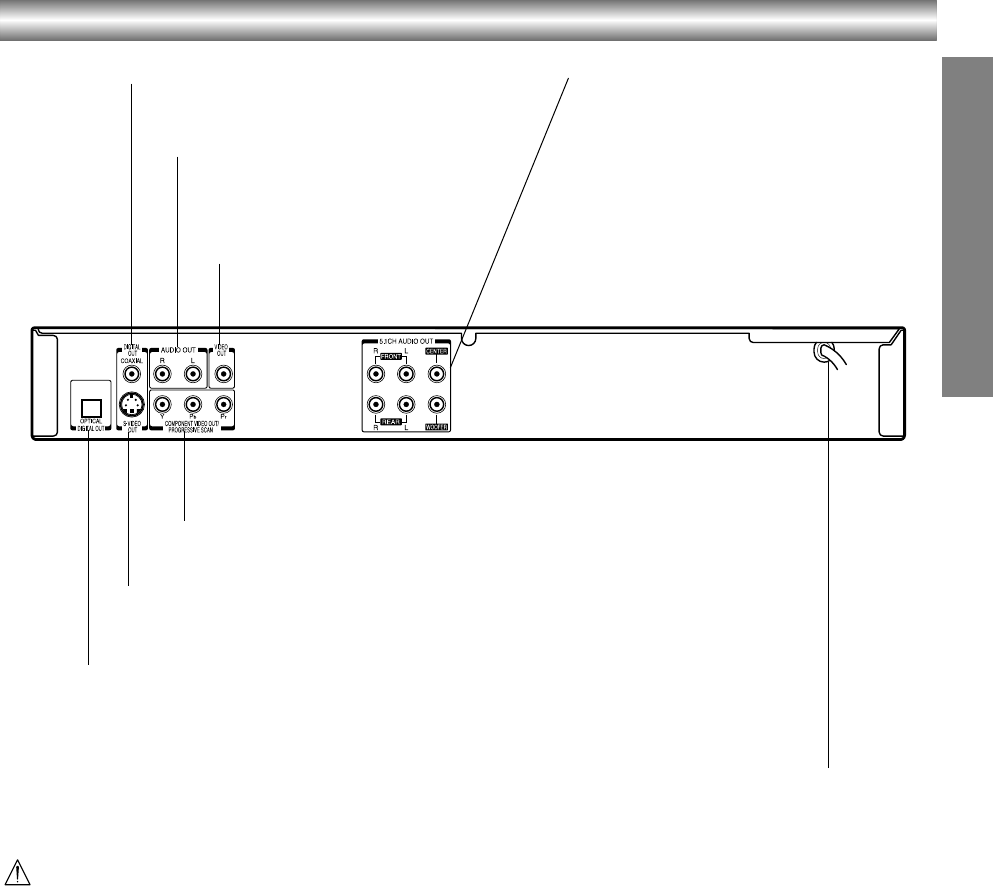

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Preparation

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11

Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . 10

Connecting to Optional Equipment . . . . . . . . . . . 11

Before Operation . . . . . . . . . . . . . . . . . . . . . . . 12-16

General Explanation. . . . . . . . . . . . . . . . . . . . . . 12

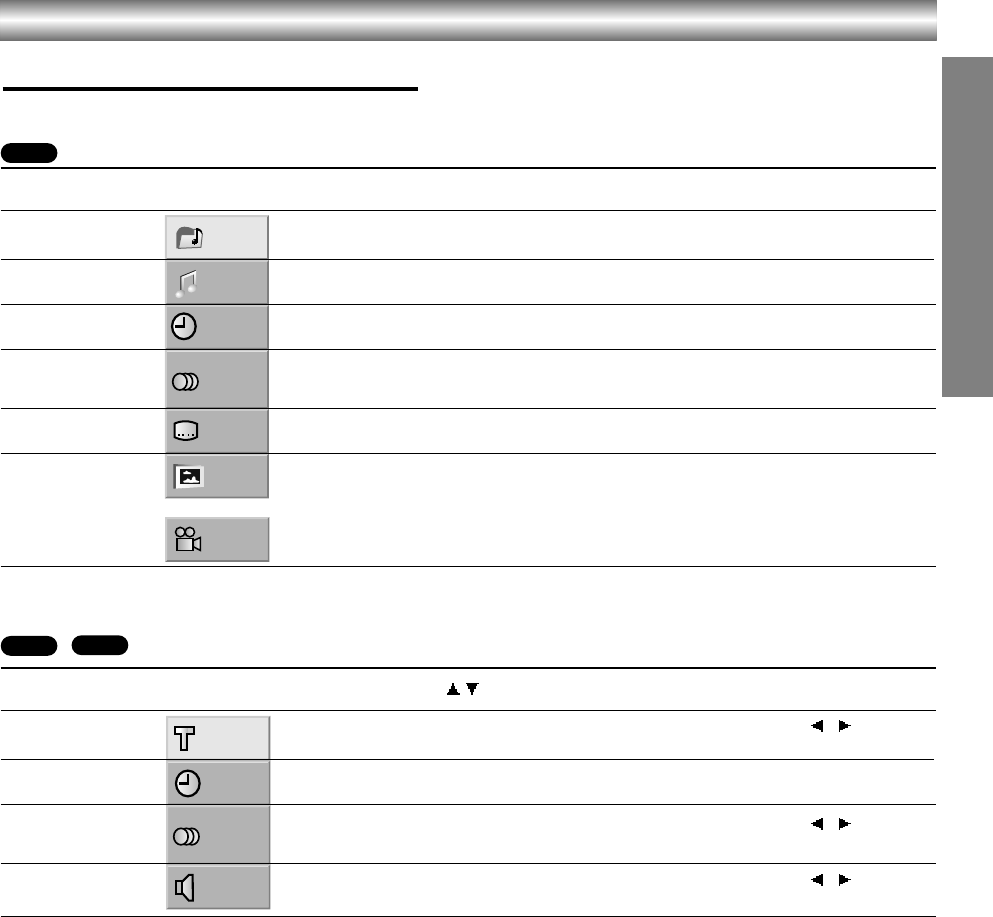

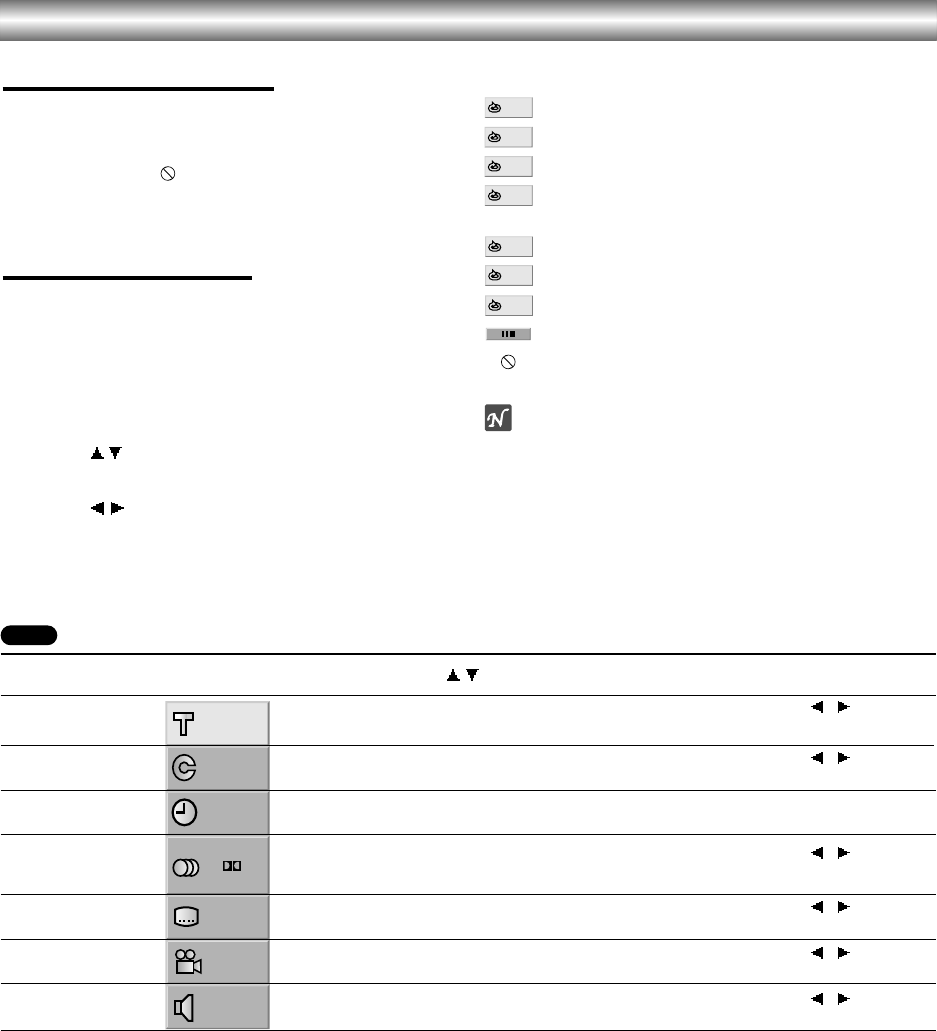

On-Screen Display . . . . . . . . . . . . . . . . . . . . 12-13

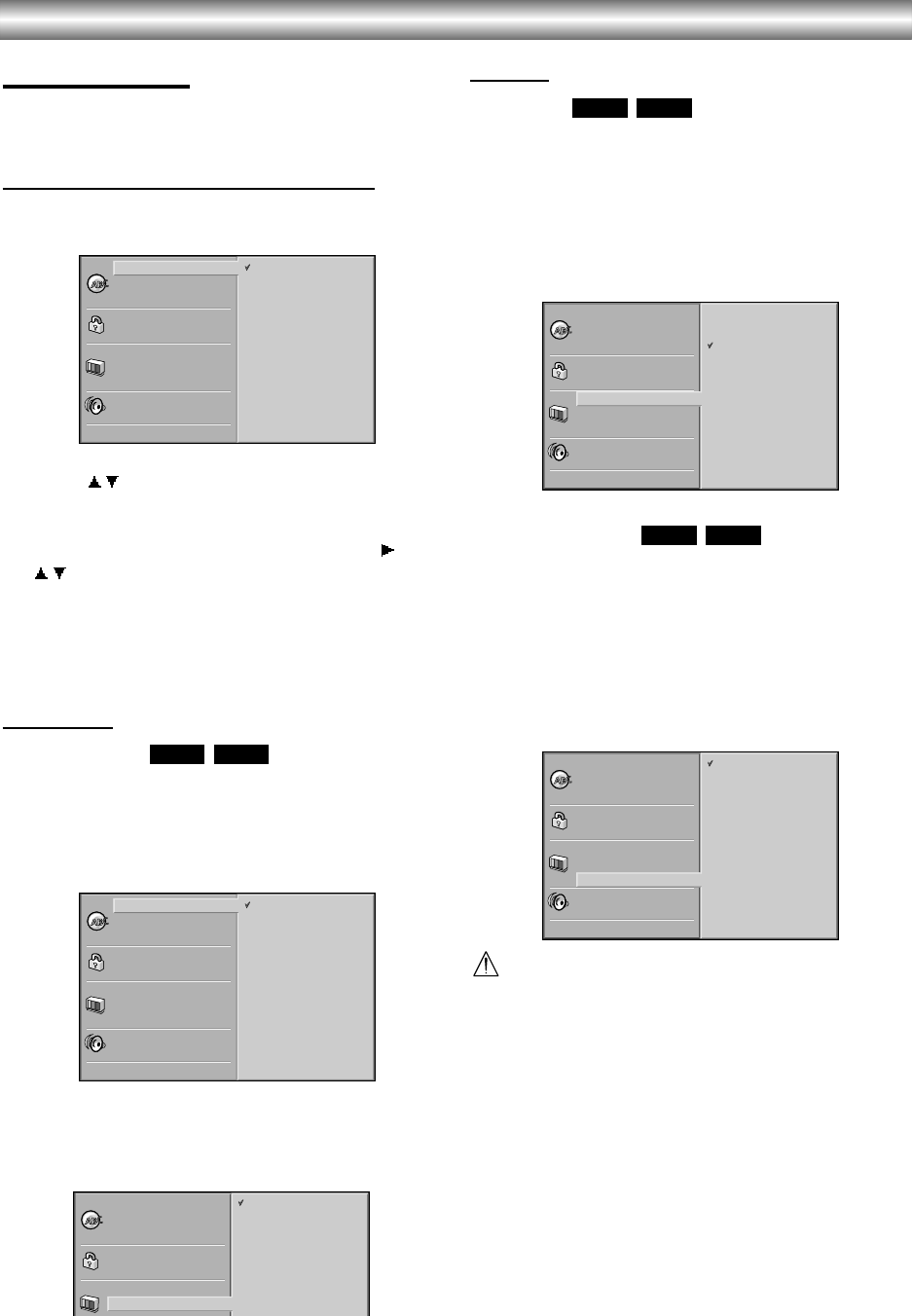

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . 14-16

z

Initial Settings General Operation. . . . . . . . . 14

z

Language . . . . . . . . . . . . . . . . . . . . . . . . . . 14

z

Picture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

z

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

z

Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

z

Parental Control. . . . . . . . . . . . . . . . . . . . . . 17

Operation

Operation with DVD and Video CD . . . . . . . . . 18-21

Playing a DVD and Video CD. . . . . . . . . . . . . . . 18

General Features. . . . . . . . . . . . . . . . . . . . . . . . 18

z

Moving to another TITLE/GROUP . . . . . . . . 18

z

Moving to another CHAPTER/TRACK . . . . . 18

z

Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

z

Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

z

Still Picture and Frame-by-Frame Playback . 19

z

Slow Motion. . . . . . . . . . . . . . . . . . . . . . . . . 19

z

Random . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

z

Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 19

z

Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

z

Time Search . . . . . . . . . . . . . . . . . . . . . . . . 19

z

Selecting the sound enhancement . . . . . . . . 20

z

Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

z

Marker Search. . . . . . . . . . . . . . . . . . . . . . . 20

Special DVD Features . . . . . . . . . . . . . . . . . . . . 20

z

Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 20

z

Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 20

z

Camera Angle . . . . . . . . . . . . . . . . . . . . . . . 20

z

Changing the Audio Language . . . . . . . . . . . 20

z

Changing the Audio Channel . . . . . . . . . . . . 20

z

Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

DVD Audio Discs . . . . . . . . . . . . . . . . . . . . . . . . 21

z

Moving to another GROUP

. . . . . . . . . . . . . . 21

z

Viewing another PAGE. . . . . . . . . . . . . . . . . 21

Operation with Audio CD and MP3/WMA Disc

. . 22-23

Playing an Audio CD and MP3/WMA Disc . . . . . 22

Notes on MP3/WMA Recordings . . . . . . . . . . . . 22

z

Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

z

Moving to another Track . . . . . . . . . . . . . . . 23

z

Repeat Track/ All/ Off. . . . . . . . . . . . . . . . . . 23

z

Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

z

Random . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

z

Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 23

z

Selecting the sound enhancement . . . . . . . 23

z

Changing the Audio Channel . . . . . . . . . . . . 23

Operation with JPEG Disc. . . . . . . . . . . . . . . . . . . 24

Viewing a JPEG disc . . . . . . . . . . . . . . . . . . . . . 24

z

Moving to another File . . . . . . . . . . . . . . . . . 24

z

Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . 24

z

To flip the picture . . . . . . . . . . . . . . . . . . . . . 24

z

To rotate picture. . . . . . . . . . . . . . . . . . . . . . 24

z

Notes on JPEG Recordings . . . . . . . . . . . . . 24

Programmed Playback . . . . . . . . . . . . . . . . . . . . . 25

Programmed Playback with Audio CD and

MP3/WMA Disc . . . . . . . . . . . . . . . . . . . . . . . . . 25

Programmed Playback with Video CD . . . . . . . . 25

z

Repeat Programmed Tracks . . . . . . . . . . . . 25

z

Erasing a Track from Program List . . . . . . . . 25

z

Erasing the Complete Program List . . . . . . . 25

Additional Information . . . . . . . . . . . . . . . . . . . 26-27

Screen Saver. . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Dimmer Function . . . . . . . . . . . . . . . . . . . . . . . . 26

Video Mode Setting . . . . . . . . . . . . . . . . . . . . . . 26

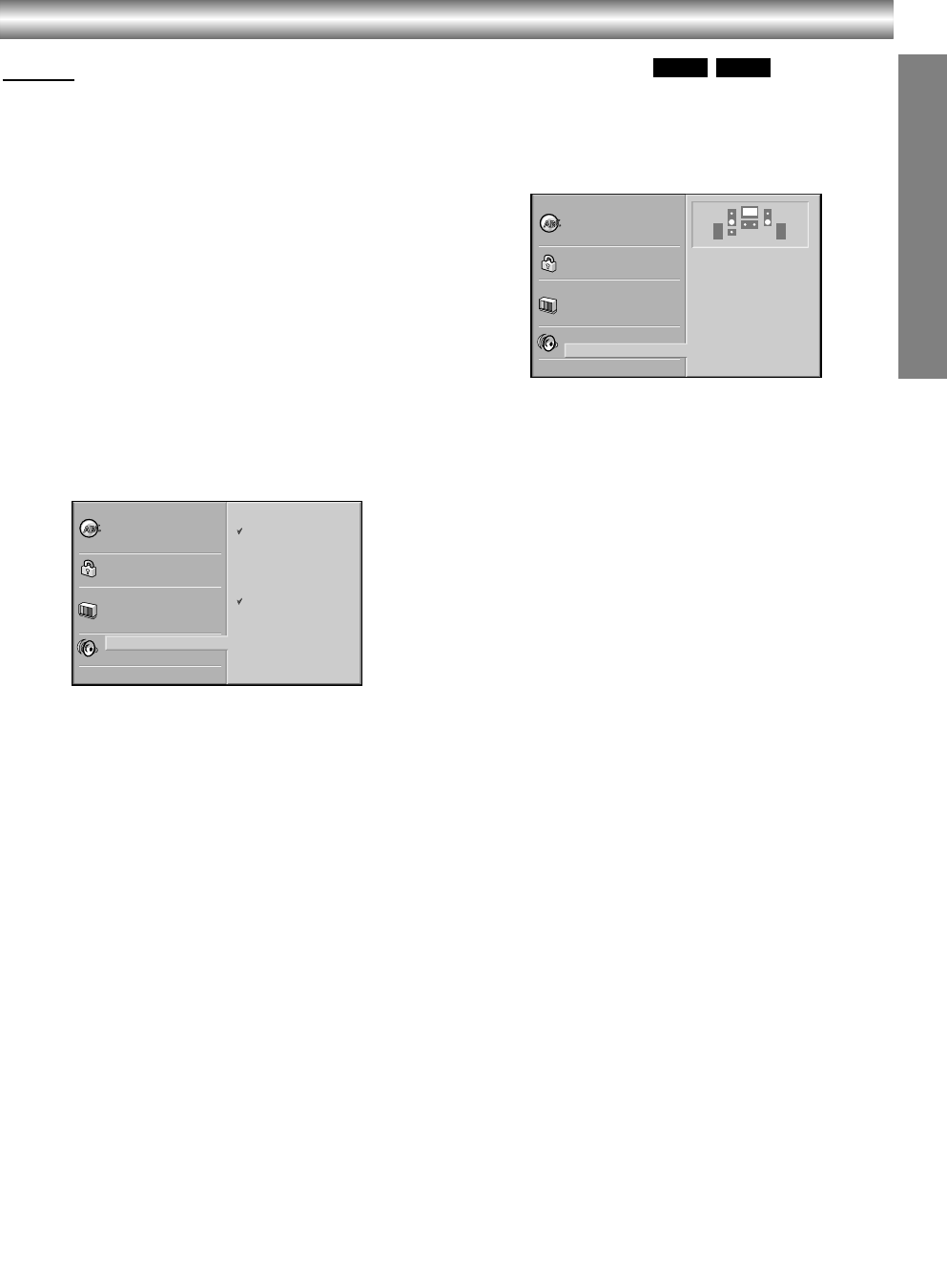

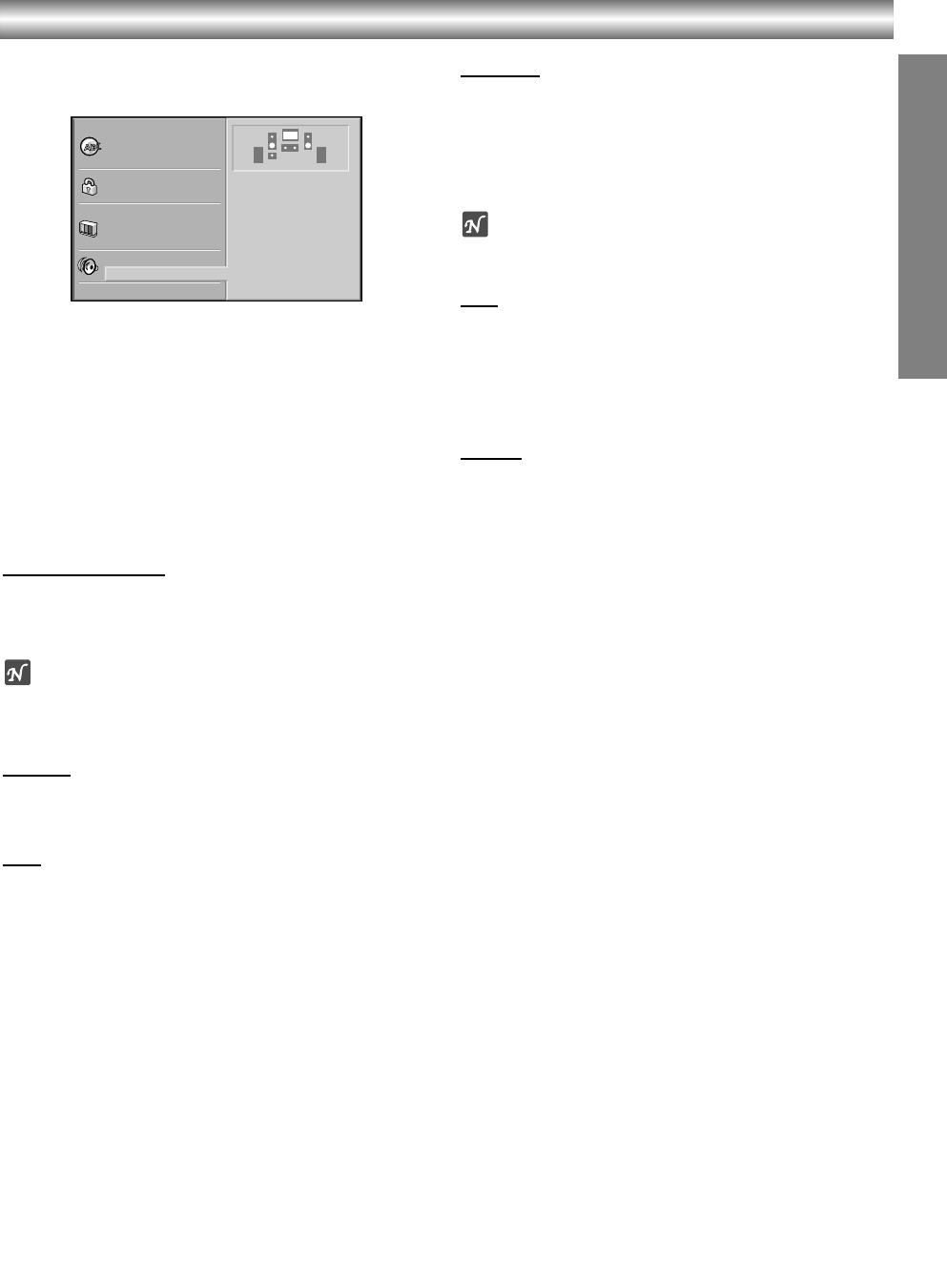

Speaker Settings . . . . . . . . . . . . . . . . . . . . . . . . 27

Reference

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Language Code List . . . . . . . . . . . . . . . . . . . . . . . 29

Area Code List. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Others

LIMITED WARRANTY DVD VIDEO PLAYER. . . 32-33

About the symbols for instructions

Indicates hazards likely to cause harm to the unit

itself or other material damage.

Indicates special operating features of this unit.

Indicates tips and hints for making the task easier.

1-6

INTRODUCTION

Before Use

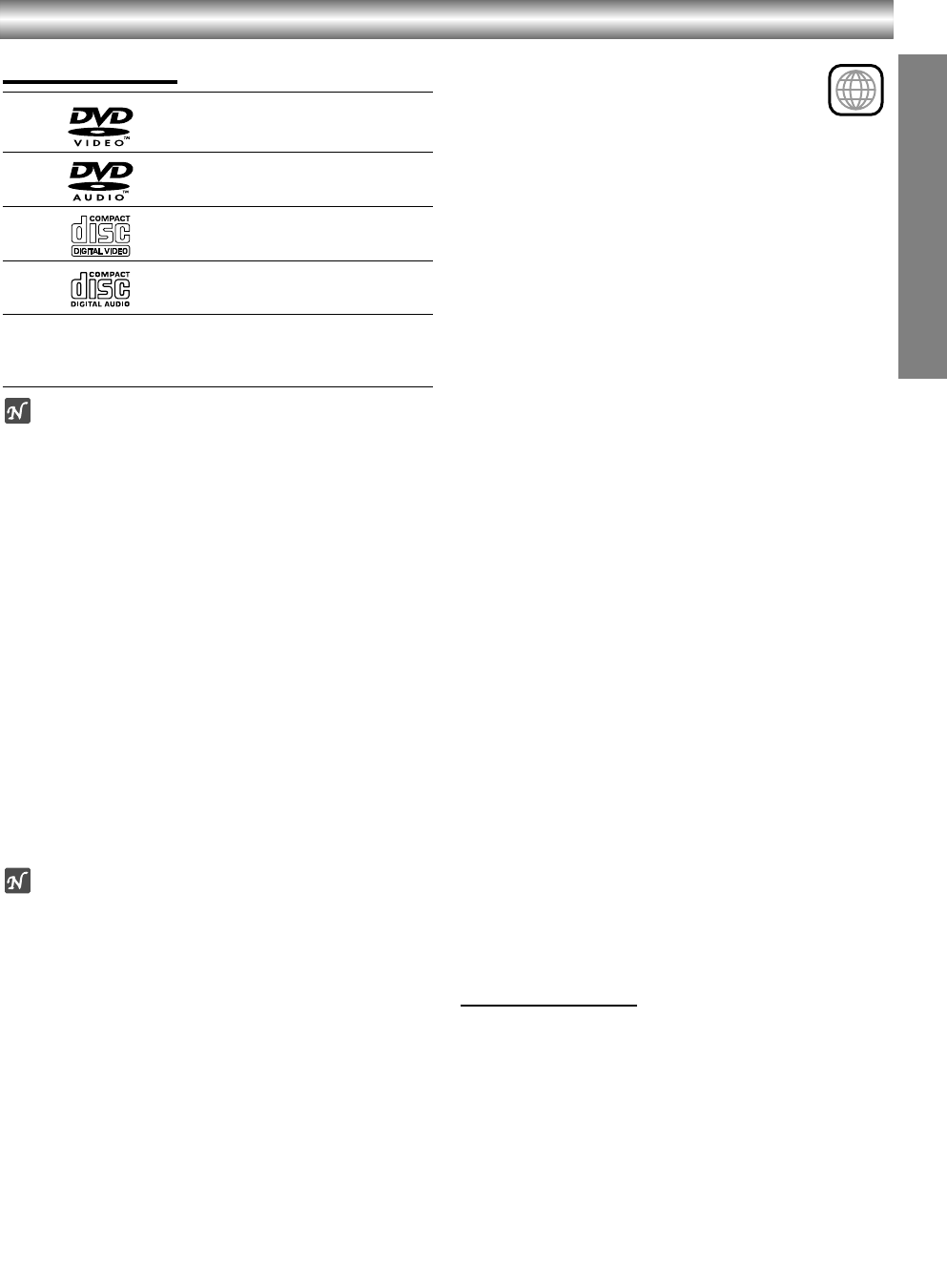

Playable Discs

DVD video discs

(8 cm / 12 cm disc)

DVD audio discs

(8 cm / 12 cm disc)

Video CD (VCD)

(8 cm / 12 cm disc)

Audio CD

(8 cm / 12 cm disc)

In addition, this unit can play a DVD-R, and CD-R or

CD-RW that contains audio titles, MP3, WMA or JPEG

files.

Notes

–Depending on the conditions of the recording equip-

ment or the CD-R/RW disc itself, some CD-R/RW

discs cannot be played on the unit.

–Do not attach any seal or label to either side (the

labeled side or the recorded side) of a disc.

–

Do not use irregularly shaped CDs (e.g., heart-shaped

or octagonal). It may result in malfunctions.

–

Because of problems and errors that can occur during

the creation of DVD software and/or the manufacture

of DVD discs, Toshiba America Consumer Products,

Inc., Toshiba Hawaii, Inc. and Toshiba of Canada, Ltd.

cannot guarantee that this player will play every fea-

ture of every DVD bearing the DVD logo. As one of the

creators of DVD technology, Toshiba DVD players are

manufactured to the highest standards of quality and,

as a result, such incompatibilities are very rare. If you

happen to experience and difficulty playing a DVD on a

Toshiba DVD player, please feel free to call our

Contact listed in “How to Obtain Warranty Services” on

page 32.

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs

may be intentionally fixed by software manufacturers.

As this unit plays DVDs and Video CDs according to

disc content designed by the software manufacturer,

some playback features of the unit may not be available

or other functions may be added.

Refer also to the instructions supplied with the DVDs

and Video CDs. Some DVDs made for business pur-

poses may not be played on the unit.

Regional code of the DVD player and DVDs

This DVD player is designed and manufactured

for playback of region “1” encoded DVD soft-

ware. The region code on the labels of some

DVD discs indicates which type of player can play those

discs. This unit can play only DVD discs labeled “1” or

“ALL”. If you try to play any other discs, the message

“Check Regional Code” will appear on the TV screen.

Some DVD discs may not have a region code label even

though their playback is prohibited by area limits.

Disc-related terms

Title (DVD video discs only)

The main film content or accompanying feature content

or additional feature content, or music album.

Each title is assigned a title reference number enabling

you to locate it easily.

Group (DVD audio discs only)

The main audio content or accompanying feature

content or additional feature content, or music album.

Each group is assigned a group reference number

enabling you to locate it easily.

Chapter (DVD video discs only)

Sections of a picture or a musical piece that are smaller

than titles. A title is composed of one or several chap-

ters. Each chapter is assigned a chapter number,

enabling you to locate the chapter you want. Depending

on the disc, chapters may not be recorded.

Track (DVD audio discs,Video CD

and audio CD only)

Sections of a picture or a musical piece on a video CD

or an audio CD. Each track is assigned a track number,

enabling you to locate the track you want.

Scene

On a video CD with PBC (Playback control) functions,

moving pictures and still pictures are divided into sec-

tions called “Scenes”. Each scene is displayed in the

menu screen and assigned a scene number, enabling

you to locate the scene you want.

A scene is composed of one or several tracks.

Types of video CDs

There are two types of video CDs:

Video CDs equipped with PBC (Version 2.0)

PBC (Playback control) functions allow you to interact

with the system via menus, search functions, or other

typical computer-like operations. Moreover, still pictures

of high resolution can be played if they are included in

the disc.

Video CDs not equipped with PBC (Version 1.1)

Operated in the same way as audio CDs, these discs

allow playback of video pictures as well as sound, but

they are not equipped with PBC.

1

1-7

Before Use (Continued)

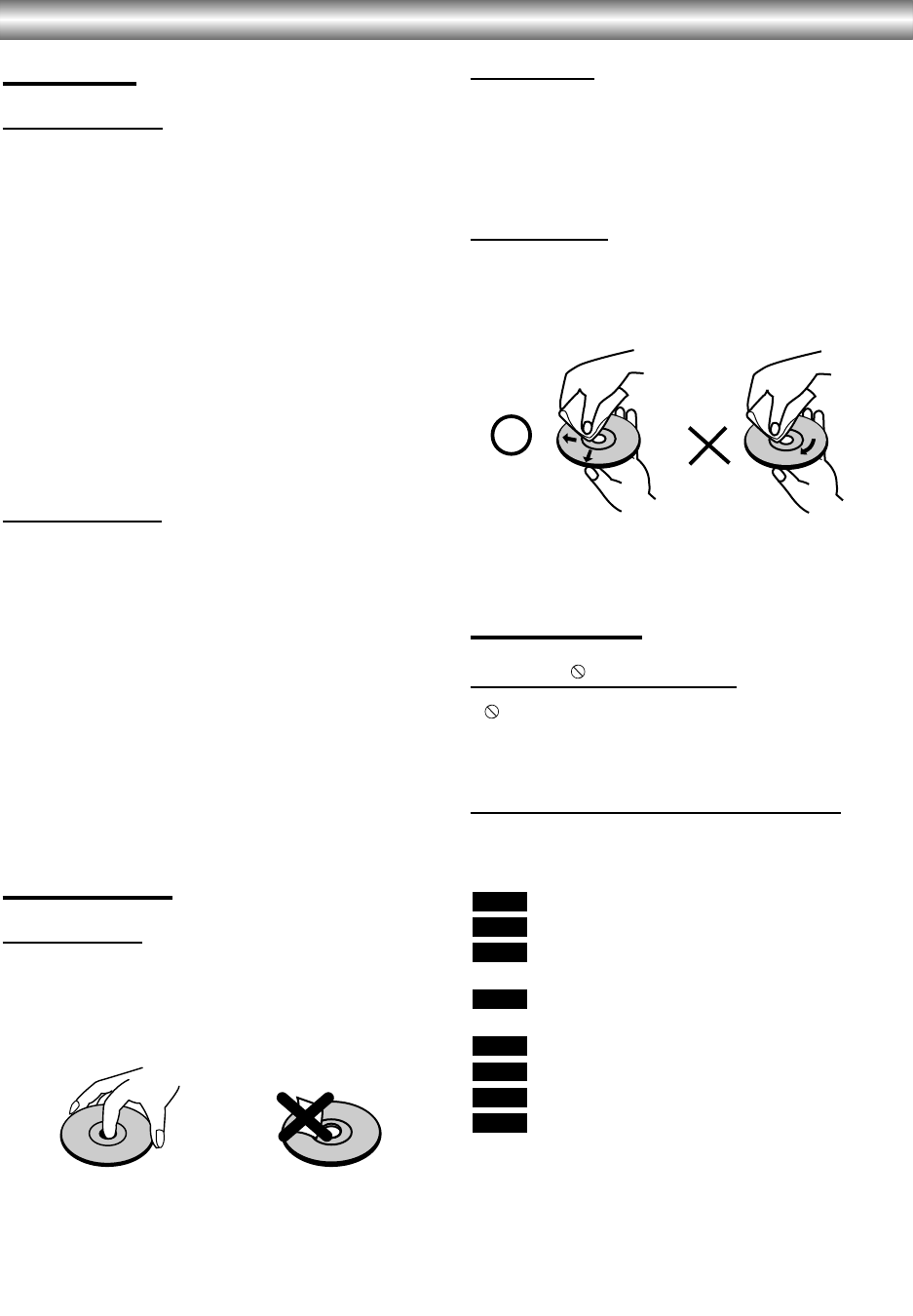

Precautions

Handling the unit

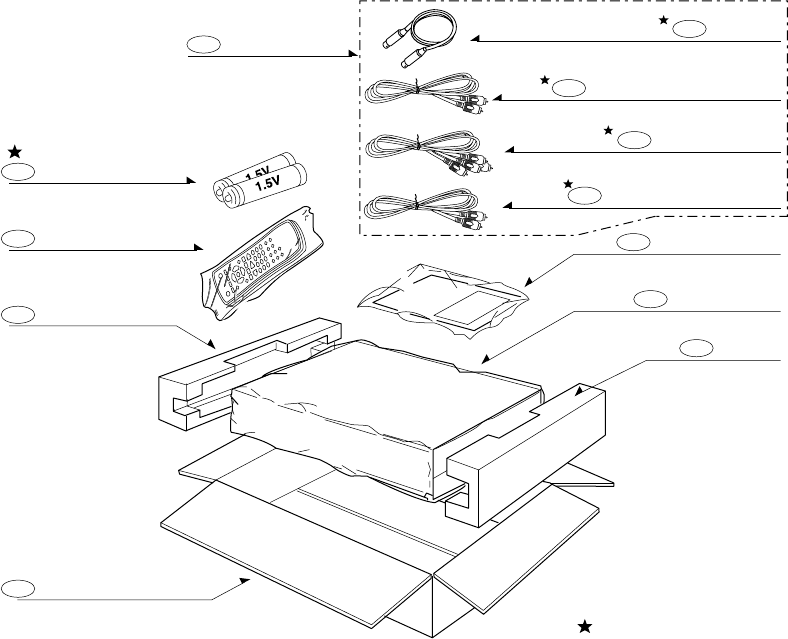

When shipping the unit

The original shipping carton and packing materials

come in handy. For maximum protection, re-pack the

unit as it was originally packed at the factory.

When setting up the unit

The picture and sound of a nearby TV, VCR, or radio

may be distorted during playback. In this case, position

the unit away from the TV, VCR, or radio, or turn off the

unit after removing the disc.

To keep the exterior surfaces clean

Do not use volatile liquids, such as insecticide spray,

near the unit. Do not leave rubber or plastic products in

contact with the unit for a long period of time. They will

leave marks on the surface.

Cleaning the unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty,

use a soft cloth lightly moistened with a mild detergent

solution. Do not use strong solvents such as alcohol,

benzine, or thinner, as these might damage the surface

of the unit.

To obtain a clear picture

The DVD player is a high-tech, precision device. If the

optical pick-up lens and disc drive parts are dirty or

worn, the picture quality will be poor.

Regular inspection and maintenance are recommended

after every 1,000 hours of use. (This depends on the

operating environment.)

For details, please contact your nearest dealer.

Notes on Discs

Handling discs

Do not touch the playback side of the disc.

Hold the disc by the edges so that fingerprints will not

get on the surface.

Do not stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case.

Do not expose the disc to direct sunlight or sources of

heat, or leave it in a parked car exposed to direct sun-

light, as there may be a considerable temperature

increase inside the car.

Cleaning discs

Fingerprints and dust on the disc can cause poor

picture quality and sound distortion. Before playing,

clean the disc with a clean cloth. Wipe the disc from the

center out.

Do not use strong solvents such as alcohol, benzine,

thinner, commercially available cleaners, or anti-static

spray intended for older vinyl records.

About Symbols

About the symbol display

“ ” may appear on the TV screen during operation.

This icon means the function explained in this owner’s

manual is not available on that specific DVD video disc.

About the disc symbols for instructions

A section whose title has one of the following symbol is

applicable only to the disc represented by the symbol.

DVD Video discs

DVD Audio discs

Video CDs with the PBC (playback control)

function.

Video CDs without the PBC (playback control)

function.

Audio CDs.

MP3 disc.

WMA disc.

JPEG disc.

JPEG

WMA

MP3

CD

VCD1.1

VCD2.0

DVD-A

DVD-V

1-8

INTRODUCTION

Front Panel and Display Window

Forward SKIP ( )

Go to NEXT chapter/track.

Press and hold for two seconds for

a fast forward search.

Reverse SKIP ( )

Go to the beginning of the current

chapter/track or press twice in quick

successions to go to PREVIOUS

chapter/track. Press and hold for two

seconds for a fast reverse search.

STOP ( )

Stops playback.

PAUSE ( )

Pause playback temporarily/ press repeatedly

for frame-by-frame playback.

PLAY ( )

Starts playback.

OPEN/CLOSE ( )

Opens or closes the disc tray.

Power indicator

Lights green when the

DVD player is turned on.

Remote Sensor

Point the DVD Player remote control here.

Disc Tray

Insert a disc here.

ON/STANDBY ( / )

Switches the player ON

and OFF.

TITLEMP3 VCD CD

PROG.

RANDOM ALL AB

CHP/TRK

ADVD

Indicates current player

function:

Playback, Pause, etc.

ANGLE active

DVD video disc inserted

DVD audio disc inserted

CD Audio CD inserted

VCD Video CD inserted

MP3 MP3 or WMA disc

inserted

ADVD

DVD

TITLE Indicates current title number

CHP/TRK Indicates current chapter or track number

Indicates total playing time/elapsed time

PROG. Programmed playback active

RANDOM RANDOM playback

active

Indicates repeat

mode

Display window

Shows the current status

of the player.

(left/right/up/down)

Selects an item in the menu.

TOP MENU

Displays the discs Title menu,

if available.

MENU

Accesses menu on a DVD disc.

RETURN

- Removes the setup menu.

- Displays the menu of a

video CD with PBC.

ENTER

Confirms menu selection.

1-9

Remote Control

Remote control battery installation

Detach the battery cover on the rear of

the remote control, and insert two R03

(size AAA) batteries with and

aligned correctly.

Caution

Do not mix old and new batteries. Never mix different

types of batteries (standard, alkaline, etc.).

Remote Control Operation Range

Point the remote control at the remote sensor and

press the buttons.

zzDistance: About 23 ft (7 m) from the front of the

remote sensor.

zzAngle: About 30°in each direction of the front of the

remote sensor.

AAA

AAA

SETUP

Accesses or removes setup menu.

OPEN/CLOSE

Opens and closes the disc tray.

0-9 number buttons

Selects numbered items in a menu.

FL DIM

Controls the Display Window’s light.

TOP MENU •

Displays the discs Title menu, if

available.

MENU •

Accesses menu on a DVD disc.

RETURN •

- Removes the setup menu.

- Displays the menu of a video CD

with PBC.

ZOOM •

Enlarges video image.

PLAY ( ) •

Starts playback.

REV (Reverse) ( ) •

Search backward.

FWD (Forward) ( ) •

Search forward.

Reverse SLOW ( ) •

Reverse slow playback.

Forward SLOW ( ) •

Forward slow playback.

STOP ( ) •

Stops playback.

Forward SKIP ( ) •

Advances to next chapter or track.

Reverse SKIP ( ) •

Returns to beginning of current

chapter or track or press twice in

quick successions to go to previous

chapter or track.

ON/STANDBY

Switches DVD Player ON and OFF.

E.A.M.

Selects sound mode during disc

playback.

PROGRAM

Enters to the program edit mode or

exits from that.

CLEAR

Removes a track number on the

program list or a mark on the

MARKER SEARCH menu.

MARKER

Marks any point during playback.

DISPLAY

Accesses On-Screen display.

• ANGLE

Selects a DVD camera angle if

available

• SUBTITLE

Selects a subtitle language.

• AUDIO

Selects an audio language (DVD) or

an audio channel (CD).

• RANDOM

Plays tracks in random order.

• PAUSE/STEP ( / )

Pauses playback temporarily/ press

repeatedly for frame-by-frame

playback.

• SEARCH

Displays MARKER SEARCH menu.

• A-B RPT

Repeat sequence.

• REPEAT

Repeat chapter, track, title, group,

all.

• ENTER

Confirms menu selection.

• (left/right/up/down)

Selects an item in the menu.

1-10

INTRODUCTION

Rear Panel

Do not touch the inner pins of the jacks on the rear

panel. Electrostatic discharge may cause permanent

damage to the unit.

COAXIAL (Digital audio out jack)

Connect to digital (coaxial) audio equipment.

OPTICAL (Digital audio out jack)

Connect to digital (optical) audio equipment.

AUDIO OUT (Left/Right)

Connect to an amplifier, receiver,

or stereo system.

VIDEO OUT

Connect to a TV with video inputs.

AC Power Cord

Plug into the power source.

S-VIDEO OUT

Connect to a TV with S-Video inputs.

COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr)

Connect to a TV with Y Pb Pr inputs.

5.1 CHANNEL AUDIO OUT

Connect to a 5.1 channel receiver

– center speaker connection

– subwoofer connection

– front speakers connections

– rear (surround) speakers connections

1-11

Connections

Tips

zzDepending on your TV and other equipment you wish

to connect, there are various ways you could connect

the player. Use only one of the connections

described below.

zzPlease refer to the manuals of your TV, VCR, Stereo

System or other devices as necessary to make the

best connections.

zzFor better sound reproduction, connect the player’s

AUDIO OUT jacks to the audio in jacks of your

amplifier, receiver, stereo or audio/video equipment.

See “Connecting to Optional Equipment”on page 11.

Caution

–

Make sure the DVD Player is connected directly to the

TV. Tune the TV to the correct video input channel.

–Do not connect the DVD Player’s AUDIO OUT jack to

the phono in jack (record deck) of your audio system.

–Do not connect your DVD Player via your VCR. The

DVD image could be distorted by the copy protection

system.

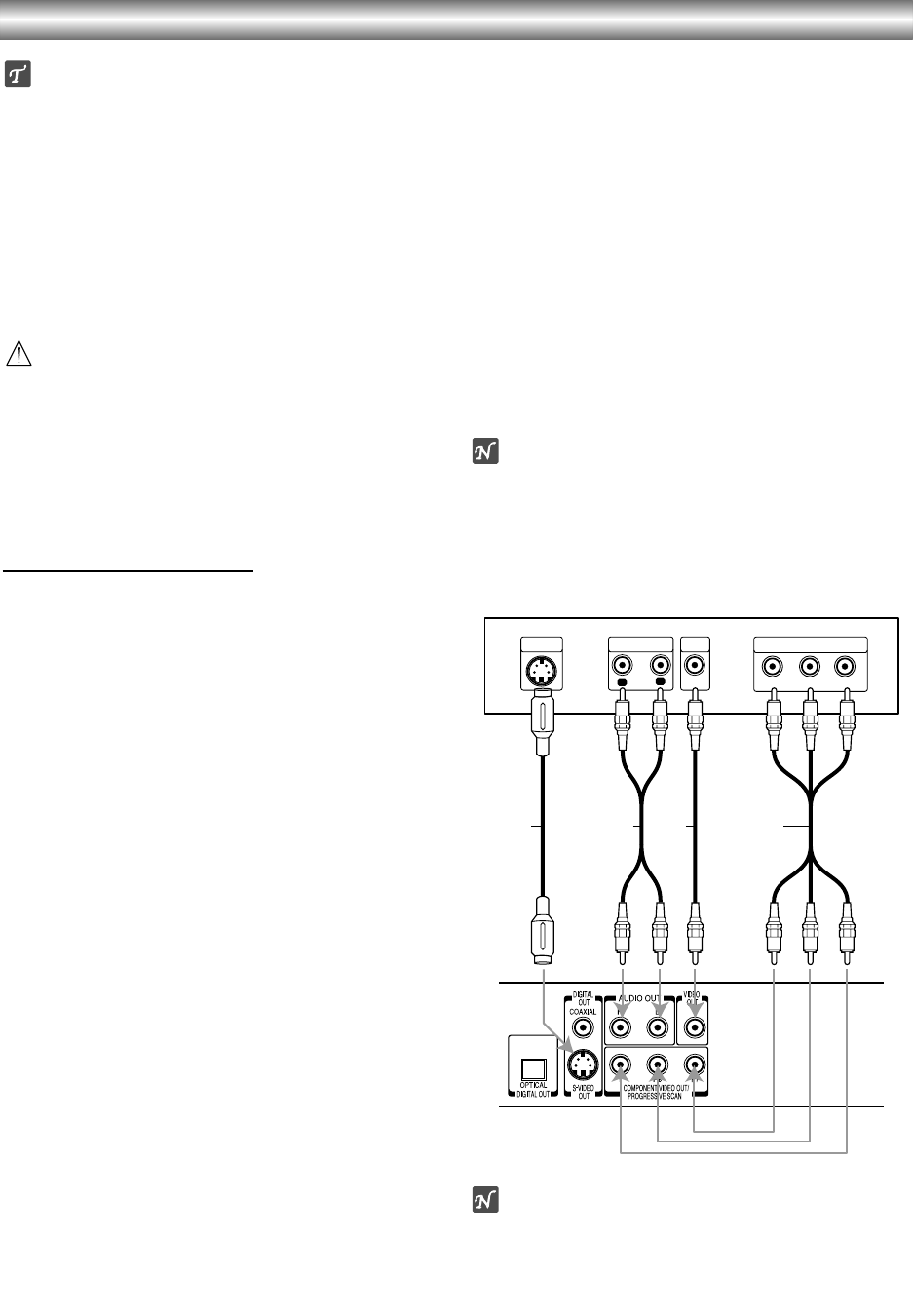

Connecting to a TV

zzMake one of the following connections, depending on

the capabilities of your existing equipment.

Video connection (Good)

11

Connect the VIDEO OUT jack on the DVD Player to

the video in jack on the TV using the video cable (V).

22

Connect the Left and Right AUDIO OUT jacks of

the DVD Player to the audio left/right in jacks on the

TV (A) using the audio cables.

S-Video connection (Better)

11

Connect the S-VIDEO OUT jack on the DVD Player

to the S-Video in jack on the TV using the S-Video

cable (S).

22

Connect the Left and Right AUDIO OUT jacks of

the DVD Player to the audio left/right in jacks on the

TV (A) using the audio cables.

Component Video (ColorStream®) connection (Best)

11

Connect the COMPONENT VIDEO OUT/

PROGRESSIVE SCAN jacks on the DVD Player to

the corresponding in jacks on the TV using the

Y Pb Pr cable (C).

22

Connect the Left and Right AUDIO OUT jacks of

the DVD Player to the audio left/right in jacks on the

TV (A) using the audio cables.

Progressive Scan (ColorStream®Pro) connection

zzIf your television is a high-definition or “digital ready”

television, you may take advantage of the DVD

Player’s progressive scan output for the highest

video resolution possible.

zzIf your TV does not accept the Progressive Scan for-

mat, the picture will appear scrambled if you try

Progressive Scan on the DVD Player.

11

Connect the COMPONENT VIDEO OUT/

PROGRESSIVE SCAN jacks on the DVD Player to

the corresponding in jacks on the TV using the

Y Pb Pr cable (C).

22

Connect the Left and Right AUDIO OUT jacks of

the DVD Player to the audio left/right in jacks on the

TV (A) using the audio cables.

Notes

–Set the Progressive to “On” on the setup menu for

progressive signal, see page 14.

–Progressive scan does not work with the analog video

connections (yellow VIDEO OUT jack) or S-VIDEO

connection.

Note

If the TV has an S-video input, connect the DVD player

with the S-video cable. When using an S-video cable,

do not connect the yellow video cable.

R

L

AUDIO INPUT VIDEO

INPUT

S-VIDEO

INPUT

Y

Pb

Pr

COMPONENT VIDEO /

PROGRESSIVE SCAN INPUT

Rear of

DVD player

Rear of TV

S A V C

1-12

PREPARATION

Connections (Continued)

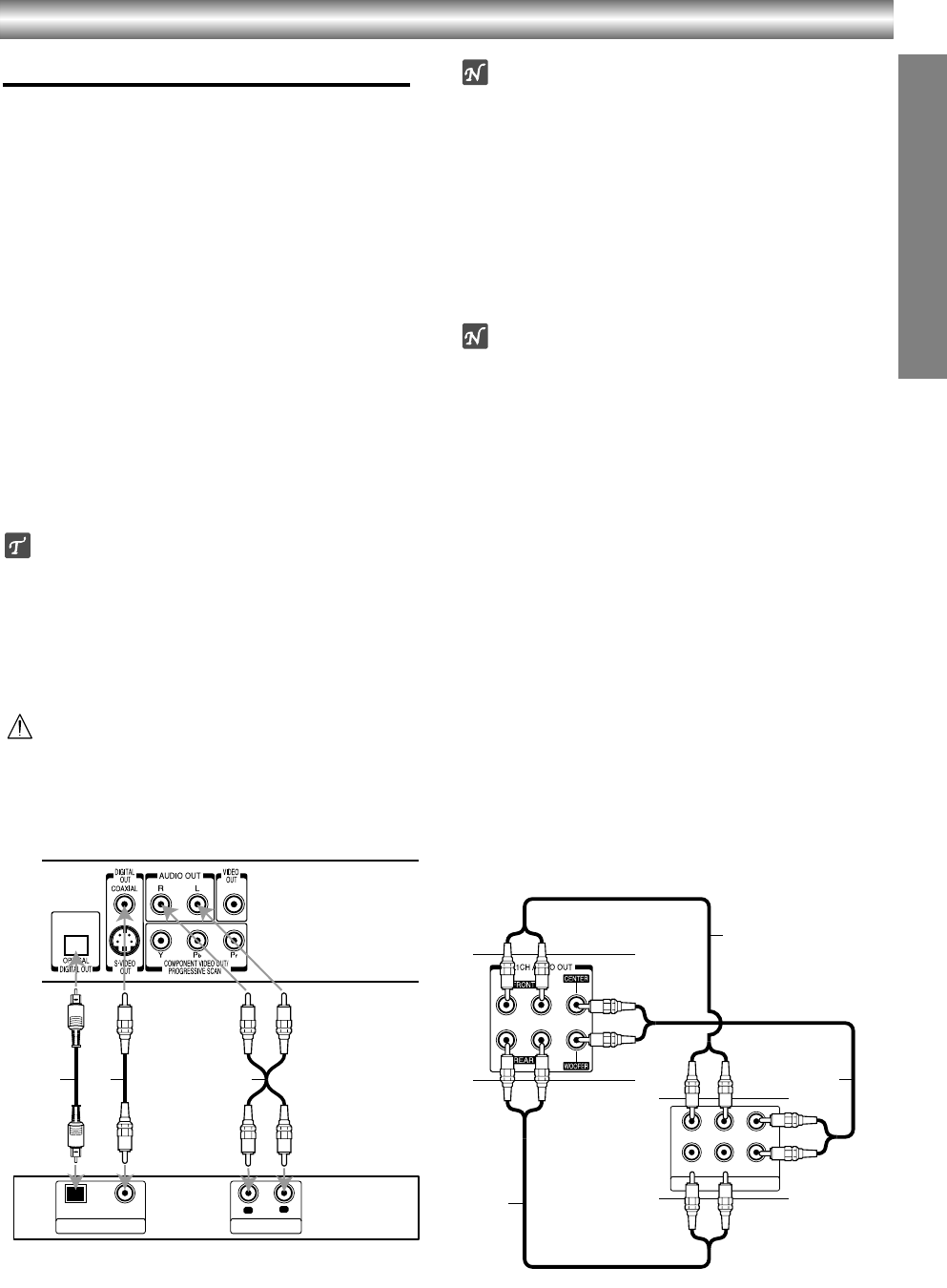

Connecting to Optional Equipment

Connecting to an amplifier equipped with two

channel analog stereo or Dolby Pro Logic ll/

Pro Logic

Connect the Left and Right AUDIO OUT jacks on the

DVD Player to the audio left and right in jacks on your

amplifier, receiver, or stereo system, using the audio

cables (A).

Connecting to an amplifier equipped with two

channel digital stereo (PCM) or to an Audio/

Video receiver equipped with a multi-channel

decoder (Dolby Digital™, MPEG 2, or DTS)

11

Connect one of the DVD Player’s DIGITAL AUDIO

OUT jacks (OPTICAL Oor COAXIAL X) to the cor-

responding in jack on your amplifier. Use an option-

al digital (optical Oor coaxial X) audio cable.

22

You will need to activate the player’s digital output.

(See “Digital Audio Output” on page 15).

Digital Multi-channel sound

A digital multi-channel connection provides the best

sound quality. For this you need a multi-channel

Audio/Video receiver that supports one or more of the

audio formats supported by your DVD Player (MPEG 2,

Dolby Digital™and DTS). Check the receiver manual

and the logos on the front of the receiver.

Caution:

Due to the DTS Licensing agreement, the digital output

will be in DTS digital out when DTS audio stream is

selected.

Notes

–

If the audio format of the digital output does not match

the capabilities of your receiver, the receiver will

produce a strong, distorted sound or no sound at all.

–Six Channel Digital Surround Sound via digital con-

nection can only be obtained if your receiver is

equipped with a Digital Multi-channel decoder.

–To see the audio format of the current DVD in the on-

screen display, press AUDIO.

–Repeated pressing of the AUDIO button may allow

you to select between various audio formats available

on the disc.

Note

This player does not perform internal (2 channel)

decoding of a DTS sound track. To enjoy DTS multi

channel surround, you must connect this player to a

DTS compatible receiver via one of this player’s digital

audio outputs. There will be no output at 6 channel

connectors of this player when DTS is selected.

Analog connection to a multi-channel A/V receiver

with 6 Channel connectors (Dolby Digital)

This DVD Player contains a multi-channel decoder. This

enables playback of DVDs recorded in Multi-channel

Surround without the need for an optional decoder.

11

Connect the CENTER and WOOFER jacks for the

Center speaker and the Subwoofer (C) to the corre-

sponding in jacks on your receiver.

22

Connect the Left and Right FRONT speaker jacks

(F) to the corresponding in jacks on your receiver.

33

Connect the Left and Right REAR speaker jacks

(R) to the corresponding in jacks on your receiver.

44

Make the appropriate Sound settings for Analog

Output and Speaker Settings in the setup menu.

See page 15.

Amplifier (Receiver)

Rear of DVD player

AXO

R

L

AUDIO INPUTDIGITAL INPUT

OPTICAL COAXIAL

ANALOG 5.1CH AUDIO INPUT

Rear R Rear L

Front R Front L

Subwoofer

Center

Amplifier

(Receiver)

Rear of

DVD player F

C

R

1-13

Before Operation

General Explanation

This manual gives basic instructions for operating the

DVD Player. Some DVDs require specific operation or

allow only limited operation during playback. When this

occurs, the symbol appears on the TV screen, indi-

cating that the operation is not permitted by the DVD

Player or is not available on the disc.

On-Screen Display

General playback status can be displayed on the TV

screen. Some items can be changed on the menu.

On-screen display operation

11

Press DISPLAY during playback.

22

Press /to select an item.

The selected item will be highlighted.

33

Press /to change the setting of an item.

The number buttons can also be used for setting

numbers (e.g., title number). For some functions,

press ENTER to execute the setting.

Temporary Feedback Field Icons

Repeat Title

Repeat Chapter

Repeat Group (DVD audio discs only)

Repeat Track (non-PBC Video CDs and DVD

audio discs only)

Repeat All Tracks (non-PBC Video CDs only)

Repeat A-B

Repeat Off

Resume play from this point

Action prohibited or not available

Notes

zSome discs may not provide all of the features on the

on-screen display example shown below.

zIf no button is pressed for 10 seconds, the on-screen

display disappears.

OFF

A B

ALL

TRACK

GROUP

CHAPT

TITLE

Items

Title Number

Chapter Number

Time search

Audio language

and Digital Audio

Output mode

Subtitle language

Angle

Sound

Function (Press /to select desired item)

Shows the current title number and total number of

titles, and skips to the desired title number.

Shows the current chapter number and total number of

chapters, and skips to the desired chapter number.

Shows the elapsed playing time, and

searches the point by the elapsed time directly.

Shows the current audio soundtrack language,

encoding method, and channel number, and

changes the setting.

Shows the current subtitles language, and

changes the setting.

Shows the current angle number and total number of

angles, and changes the angle number.

Shows the current sound mode, and

changes the setting.

Selection Method

/ ,or

Numbers, ENTER

/ ,or

Numbers, ENTER

Numbers, ENTER

/ ,or

AUDIO

/ ,or

SUBTITLE

/ ,or

ANGLE

/ ,or

E.A.M.

1 /3

1 /12

0:20:09

1 ENG

D

5.1 CH

OFF

1 /1

NORM.

DVD-V

1-14

Before Operation (Continued)

PREPARATION

Items

Track Number

Time

Audio Channel

Sound

Function (Press /to select desired item)

Shows the current track number, total number of tracks

and PBC On mode, and skip to the desired track number.

Shows the elapsed playing time (Display only)

Shows the audio channel, and

changes the audio channel.

Shows the current sound mode, and

changes the setting.

Selection Method

/ ,or

Numbers, ENTER

–

/ ,or

AUDIO

/ ,or

E.A.M.

1 /4

0:20:09

STER.

NORM.

VCD2.0 VCD1.1

DVD-A

Items

Group Number

Track Number

Time search

DVD Audio

Output mode

Subtitle language

Page (or Angle)

Function (Press 33/44to select desired item)

Shows the current group number and total number

of groups, and skips to the desired group number.

Shows the current track number and total number

of tracks, and skips to the desired track number.

Shows the elapsed playing time.(Display only)

Shows the current encoding method, and channel

number, and changes the setting.

Shows the current subtitles language, and

changes the setting.

Shows the current page (or angle) number and total number

of pages (or angle), and changes the page (or angle) number.

Selection Method

11

/

22

,or

Numbers, SELECT/ENTER

11

/

22

,or

Numbers, SELECT/ENTER

_

11

/

22

,or

AUDIO

11

/

22

,or

SUBTITLE

11

/

22

,or

ANGLE

2 /6

1 /12

0:10:15

1

PPCM

5 CH

OFF

1 /12

1 /1

or

On-Screen Display (Continued)

1-15

Before Operation (Continued)

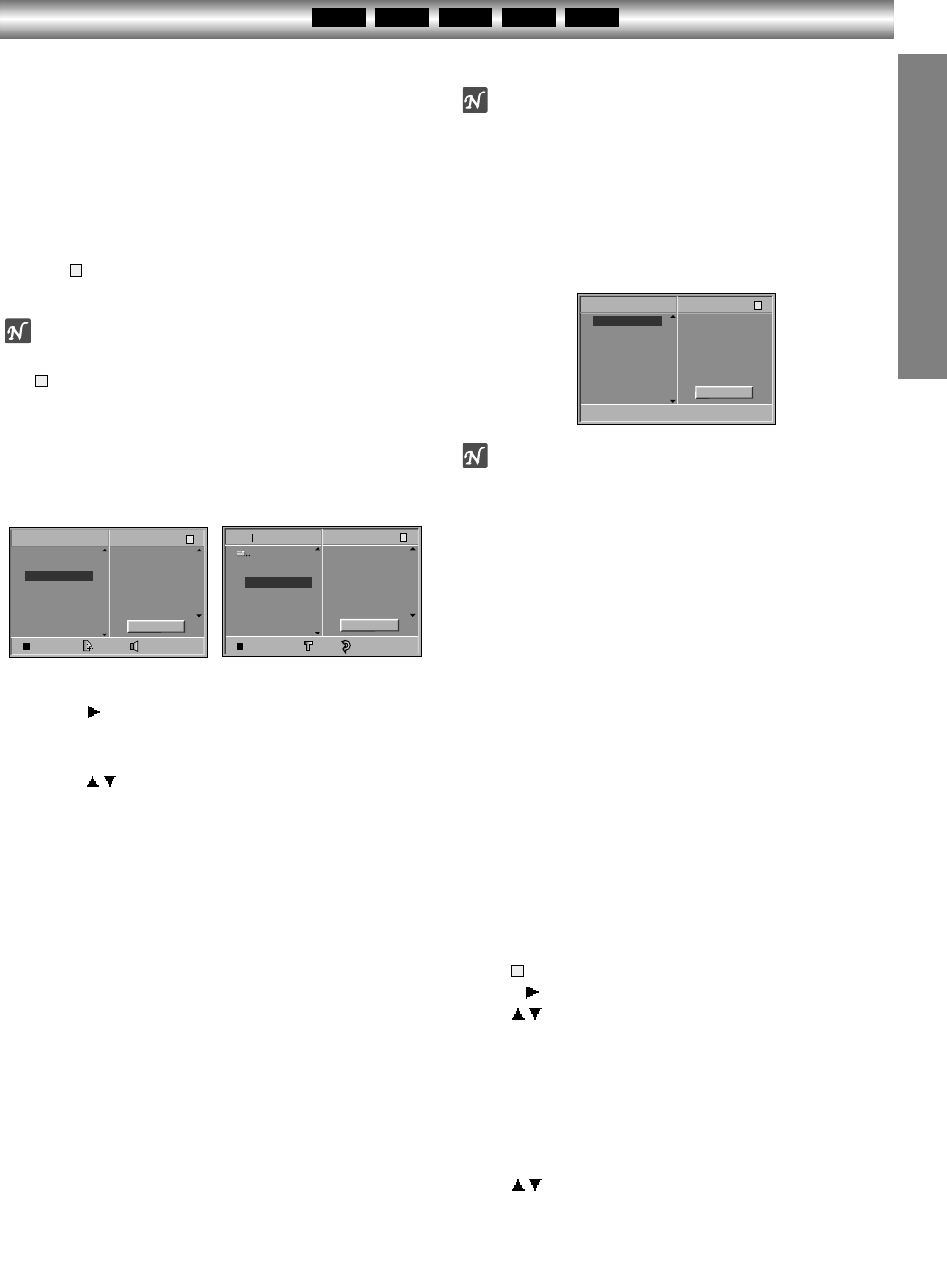

Initial Settings

You can set your own Personal Preferences on the

player.

Initial Settings General Operation

11

Press SETUP.

The setup menu appears.

22

Press /to select the desired item.

The screen will show the current setting for the

selected item, as well as alternate setting(s).

33

While the desired item is selected, press , then

/to select the desired setting.

44

Press ENTER to confirm your selection.

Some items require additional steps.

55

Press SETUP, RETURN, or PLAY to exit the

setup menu.

Language

Disc Language

Select a language for the disc’s Menu, Audio, and Subtitle.

Original : The original language set for the disc is selected.

Other : To select another language, press number buttons to

enter the corresponding 4-digit number according to the lan-

guage code list on page 29. If you enter the wrong language

code, press CLEAR.

Menu Language

Select a language for the setup menu. This is the menu

you see when you press SETUP.


TV Aspect

4:3 Letterbox: Select when a standard 4:3 TV is con-

nected. Displays theatrical images with masking bars

above and below the picture.

4:3 Panscan: Select when a conventional TV set is

connected. The video material formatted in the Pan &

Scan style is played back in that style (Both sides of the

picture are cut off).

16:9 Wide: Select when a 16:9 wide TV is connected.

Progressive Scan

Progressive Scan Video provides the highest quality

pictures with less flickering.

If you are using the COMPONENT VIDEO OUT/

PROGRESSIVE SCAN jacks, but are connecting the

DVD Player to a standard (analog) television, set

Progressive Scan to Off.

If you are using the Component Video jacks for

connection to a TV or monitor that is compatible with a

progressive scan signal, set Progressive Scan to On.

Caution

Once the setting for progressive scan output is entered,

an image will only be visible on a progressive scan

compatible TV or monitor. If you set Progressive Scan

to On in error, you must reset the unit. Press STOP to

stop any disc that is playing. Next, press STOP again

and hold it for five seconds before releasing it. The

video output will be restored to the standard setting,

and a picture will once again be visible on a convention-

al analog TV or monitor.

DVD-ADVD-V

DVD-ADVD-V

DVD-ADVD-V

Disc Subtitle

Disc Menu

Rating

Area Code

TV Aspect

Menu Language

Disc Audio English

Spanish

French

Disc Subtitle

Disc Menu

Rating

Area Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio 4:3

4:3

16:9

Letterbox

Panscan

Wide

Disc Subtitle

Disc Menu

Rating

Area Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio Original

Spanish

English

Chinese

Polish

Hungarian

French

German

Italian

Other — — — —

Disc Subtitle

Disc Menu

Rating

Area Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio Off

On

Disc Subtitle

Disc Menu

Rating

Area Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio Original

Spanish

English

Chinese

Polish

Hungarian

French

German

Italian

Other — — — —

1-16

Sound

Digital Audio Output

Each DVD disc has a variety of audio output options.

Set the player’s Digital Audio Output according to the

type of audio system you use.

DOLBY DIGITAL/PCM: Select “DOLBY DIGITAL/PCM”

if you connected the DVD Player’s DIGITAL OUT jack to

a Dolby Digital decoder (or an amplifier or other equip-

ment with a Dolby Digital decoder).

Stream/PCM: Select “Stream/PCM” if you connected

the DVD Player’s DIGITAL OUT jack to an amplifier or

other equipment with a DTS decoder, Dolby Digital

decoder or MPEG decoder.

If you like to have DTS sounds from the digital output

jack, you have to select “Stream/PCM”.

PCM: Select when connected to a 2-channel digital

stereo amplifier. The DVD player outputs sounds in the

PCM 2ch format when you play a DVD video disc

recorded on the Dolby Digital, MPEG1, or MPEG2

recording system.

Sample Frequency

To change the Sample Frequency setting, first select

the desired Digital Audio Output as indicated as above.

(1) If your receiver or amplifier is NOT capable of

handling 96KHz signals, loud buzzing sounds might

be heard. In this case, select 48 KHz.

When this choice is made, this unit will automatically

convert any 96KHz signals to 48KHz so your system

can decode them.

(2) If your receiver or amplifier is capable of handling

96KHz signals, select 96KHz. When this choice is

made, this unit will pass each type of signal through

without any further processing.

5.1 Speaker settings

Select speaker settings, including volume balance and

delay time, or test the speaker settings.

Speaker settings are only active on the Analog Multi-

Channel Output. (See “Speaker Settings”, page 27.)

DVD-ADVD-V

PREPARATION

Before Operation (Continued)

Disc Subtitle

Disc Menu

Rating

Area Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio DOLBY

DIGITAL /PCM

Stream/PCM

PCM

Sample Freq.

48 KHz

96KHz

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

R R

Front L

Volume 0 dB

Size Large

Distance 1 ft

Test

Return

1-17

Others

The DRC, Vocal, PBC, Auto Play, B.L.E., Pluge and

DNR settings can be changed.

zPress /to select the desired item and press

ENTER. The setting of the selected item is changed

between On and Off.

Dynamic Range Control (DRC)

With the DVD format, you can hear a program’s sound-

track in the most accurate and realistic presentation

possible, thanks to digital audio technology. However,

you may wish to compress the dynamic range of the

audio output (the difference between the loudest sounds

and the quietest ones). Then, you may listen to a movie

at a lower volume without losing clarity of sound. Set

DRC to On for this effect.

Vocal

Set Vocal to On only when a multi-channel karaoke

DVD is playing. The karaoke channels on the disc will

mix into normal stereo sound.

PBC

Set Playback Control (PBC) to On or Off.

On: Video CDs with PBC are played according to the PBC.

Off:

Video CDs with PBC are played the same way as Audio CDs.

Auto Play

You can set up the DVD Player so a DVD disc automat-

ically starts playing whenever the DVD is inserted.

If Auto Play mode is set to On, this DVD player will

search a title where playback time is longest and then

play back the title automatically.

On: Auto Play function is activated.

Off: Auto Play function is not activated.

Note

The Auto Play function may not work for some DVDs.

B.L.E. (Black Level Expansion)

To select the black level of playback pictures. Set your

preference and monitor’s ability.

On: Expanded grey scale. (0 IRE cut off)

Off: Standard grey scale. (7.5 IRE cut off)

Pluge (Blacker than Black)

For proper adjustment of your television brightness

settings utilizing a commercially available test disc.

On:

Select when you adjust the level of your TV using a

commercially available test disc that contains pluge signals.

Off: For normal use.

DNR (Digital Noise Reduction)

You can reduce ambient noise in the picture.

DNR1: Normal level

DNR2: Expanded level.

Off: Off.

Notes

–Actual picture enhancement may vary depending on the

quality of the disc.

–While the DNR2 (expanded level) can provide additional

improvement in the reduction of noise in the video signal, it

may produce undesirable picture artifacts on some discs.

Should this occur, select a more appropriate DNR level (nor-

mal or off).

–Depending on the disc, some picture detail may be lost by

the picture enhancement.

–A DVD audio disc with Dolby Digital or DTS soundtrack may

be played, some DVD audio discs include moving pictures

which may be modified by the above processes.

VCD1.1VCD2.0

DVD-V

DVD-V

VCD1.1VCD2.0

DVD-V

DVD-V

VCD1.1VCD2.0

DVD-V

DVD-V

Before Operation (Continued)

Disc Subtitle

Disc Menu

Rating

Area Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

Vocal

DRC

PBC

Auto Play

On

On

Off

B.L.E.

Pluge

DNR

On

On

Off

On

1-18

PREPARATION

Before Operation (Continued)

Parental Control

Rating

Movies on DVDs may contain scenes not suitable for

children. Therefore, discs may contain Parental Control

information that applies to the complete disc or to

certain scenes on the disc. These scenes are rated

from 1 to 8, and alternatively, more suitable scenes are

available for selection on some discs. Ratings are

country-dependent. The Parental Control feature allows

you to prevent discs from being played by your children

or to have certain discs played with alternative scenes.

11

Select “Rating” on the Setup menu using the

/buttons.

22

While “Rating” is selected, press .

33

When you have not entered a password yet.

Enter a 4-digit password using the numbered but-

tons to create a personal 4-digit security password.

then press ENTER. Enter the 4-digit password

again and press ENTER to verify.

When you have already entered a password;

Enter a 4-digit password using the numbered but-

tons to confirm the personal 4-digit security pass-

word, then press ENTER.

If you make a mistake before pressing ENTER, press

CLEAR and enter 4-digit security password again.

44

Select a rating from 1 to 8 using the /but-

tons.

Level 1: DVD software for adults cannot be

played back.

Level 8: All DVD software can be played back.

Unlock: If you select Unlock, Parental Control is

not active. The disc will play in full.

Ratings 1 to 8: Some discs contain scenes not

suitable for children. If you set a rating for the play-

er, all disc scenes with the same rating or lower will

be played. Higher rated scenes will not be played

unless an alternative scene is available on the disc.

The alternative must have the same rating or a

lower one. If no suitable alternative is found, play-

back will stop. You must enter the 4-digit password

or change the rating level in order to play the disc.

55

Press ENTER to confirm your rating selection,

then press SETUP to exit the menu.

Area Code

Enter the code of a country/area whose standards were

used to rate the DVD video disc, referring to the list

(See “Area Code List”, page 30.).

11

Select Area Code using the /buttons on the

setup menu.

22

While Area Code is selected, press .

33

Follow step 3 of “Rating” on left.

44

Select the first character using the /buttons.

55

Shift the cursor using button and select the

second character using /buttons.

66

Press ENTER to confirm your area code selec-

tion, then press SETUP to exit the menu.

Note

Confirmation of the 4-digit password is necessary when

the code is changed (see “Changing the 4-digit code”

below.).

Changing the 4-digit code

1Follow Steps 1-2 as shown above to the left (Rating).

2Enter the old code, then press ENTER.

3Select Change using /buttons then press

ENTER.

4Enter the new 4-digit code, then press ENTER.

5Enter exactly the same code a second time and veri-

fy by pressing ENTER.

6Press SETUP to exit the menu.

If you forget your 4-digit code

If you forget your password, to clear the current pass-

word, follow the procedure below.

1Press SETUP to display the setup menu.

2Use the Number buttons to enter the 6-digit number

“210499”.

The 4-digit password is cleared. “P CLr” appears on the

display for a moment.

3

Enter a new code as shown above to the left (Rating).

DVD-V

DVD-V

Disc Subtitle

Disc Menu

Rating

Area Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio Code Set

U S

Disc Subtitle

Disc Menu

Rating

Area Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio 8

7

6

5

4

3

2

1

Unlock

Change

1-19

Operation with DVD and Video CD

Playing a DVD and Video CD

Playback Setup

zTurn on the TV and select the video input source con-

nected to the DVD player.

zAudio system: Turn on the audio system and select

the input source connected to the DVD player.

11

Press OPEN/CLOSE to open the disc tray.

22

Load your chosen disc in the tray, with the

playback side down.

33

Press OPEN/CLOSE to close the tray.

READING appears on the TV screen, and playback

starts automatically. If playback does not start,

press PLAY.

In some cases, the disc menu might appear

instead.

If a menu screen is displayed

The menu screen may be displayed first after loading a

DVD or Video CD which offer a menu.

Use the buttons to select the title/chapter you

want to view, then press ENTER to start playback.

Press TOP MENU or MENU to return to the menu

screen.

Use the 11 22 33 44 buttons to select an option you

want, then press SELECT/ENTER to view the option.

zzUse the number buttons to select the track you want

to view.

Press RETURN to return to the menu screen.

zzMenu setting and the exact operating procedures for

using the menu may differ depending on the disc.

Follow the instructions on each menu screen.

You also may set PBC to Off under setup. See page

16.

Notes

–If Parental Control is set and the disc is not within the

Rating settings (not authorized), the 4-digit code must

be entered and/or the disc must be authorized (see

“Parental Control”, on page 17).

–DVDs may have a region code.

Your player will not play discs that have a region code

different from your player. The region code for this

player is 1 (one).

General Features

Note

Unless stated otherwise, all operations described use

the remote control. Some features may also be

available on the Setup menu.

Moving to another TITLE/GROUP

When a disc has more than one title/group, you can

move to another title/group as follows:

zzPress DISPLAY, then press the appropriate num-

bered button (0-9) to select a title/group number.

Moving to another CHAPTER/TRACK

When a title on a disc has more than one chapter or a

disc has more than one track, you can move to another

chapter/track as follows:

zPress SKIP or briefly during

playback to select the next chapter/track or to return

to the beginning of the current chapter/track.

zzPress SKIP twice in quick successions to step

back to the previous chapter/track.

zzTo go directly to any chapter/track during DVD play-

back, press DISPLAY. Then, press /to select the

chapter/track icon. Then, enter the chapter/track

number using the numbered buttons (0-9).

Note

For two-digit numbers, press the numbered buttons

(0-9) in rapid succession.

Search

1Press REV or FWD during playback.

The player will now go into SEARCH mode.

2Press REV or FWD repeatedly to select the

required speed: X2, X4, X16, X100

(backward) or X2, X4, X16, X100

(forward).

With a Video CD, the Search speed changes: X2,

X4, X8, (backward) or X2, X4, X8,

(forward).

3To exit SEARCH mode, press PLAY.

Note

When using a DVD audio disc that includes pictures,

this operation may be permitted in some picture

segments.

Pause

1Press PAUSE/STEP during playback.

2To return to playback, press PLAY.

VCD1.1VCD2.0

DVD-ADVD-V

VCD1.1VCD2.0

DVD-ADVD-V

1 /12

1 /12

1 /12

VCD2.0VCD1.1

DVD-ADVD-V

2 /6

1 /3

DVD-ADVD-V

VCD2.0

DVD-A

DVD-V

VCD1.1VCD2.0

DVD-ADVD-V

1-20

OPERATION

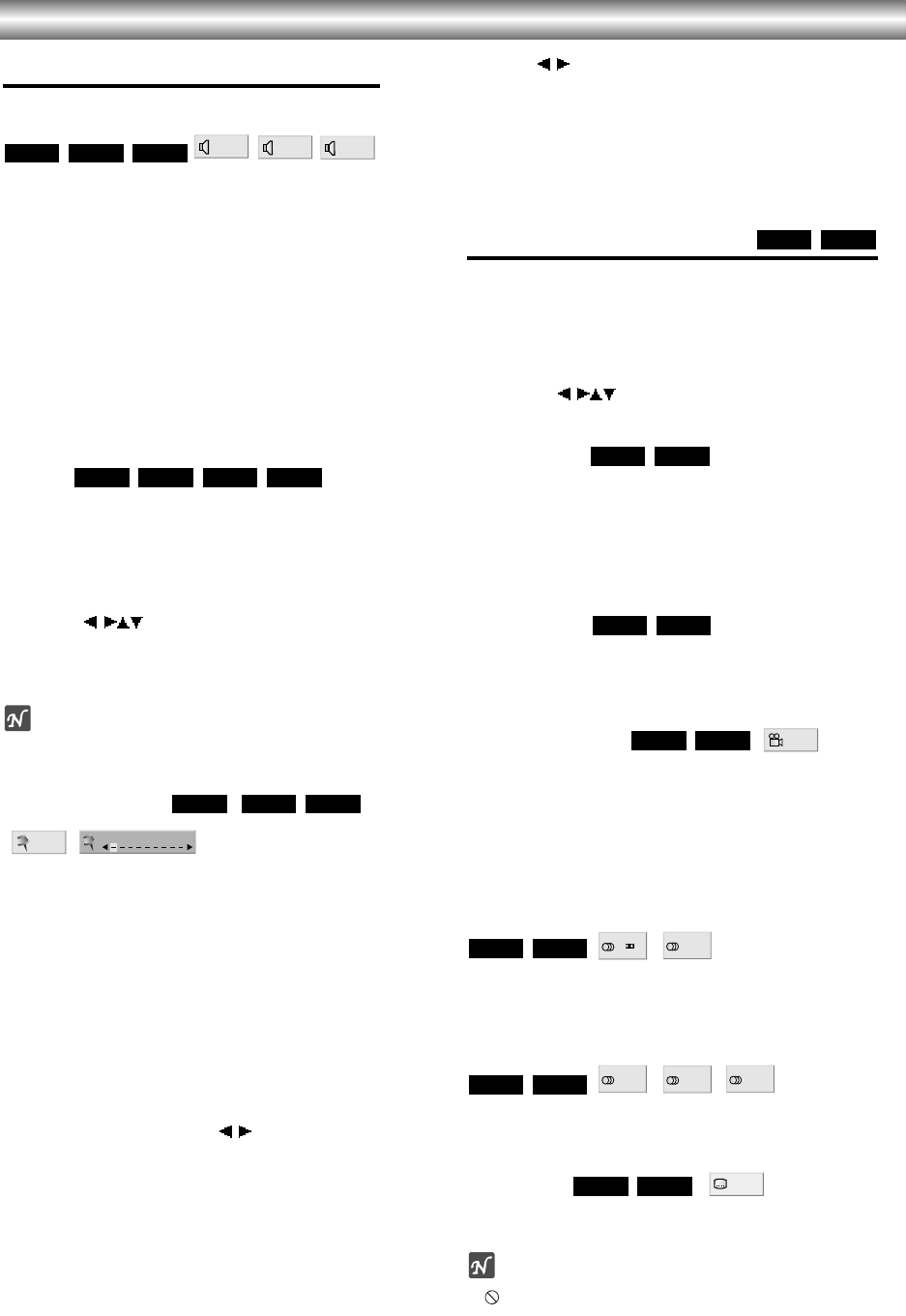

Operation with DVD and Video CD

General Features (continued)

Still Picture and Frame-by-frame playback

1Press PAUSE/STEP during playback.

The player will now go into PAUSE mode.

2You can advance the picture frame-by-frame by

pressing PAUSE/STEP repeatedly on the remote con-

trol.

Note

When using a DVD audio disc that includes pictures, this

operation may be permitted in some picture segments.

Slow Motion

1Press SLOW or during playback.

The player will enter SLOW mode.

2Use the SLOW or to select the required speed:

1/16, 1/8, 1/4 or 1/2 (backward), or

1/16, 1/8, 1/4 or 1/2 (forward).

3To exit slow motion mode, press PLAY.

Notes

zSlow motion playback in reverse is not applicable for

Video CD.

z

When using a DVD audio disc that includes pictures, this

operation may be permitted in some picture segments.

Random

1Press RANDOM during playback or in stop mode.

The unit automatically begins Random Playback and

“RANDOM” appears on the display window.

2To return to normal playback, press RANDOM until

“RANDOM” disappears on the display window.

Tip

By pressing SKIP during Random playback, the

unit selects another title (track) and resumes Random

playback.

Notes

zThis function only works with DVD Karaoke discs and

video CD without PBC.

zOn a Video CD with PBC, you must set PBC to Off on

the setup menu to use the Random function. See

page 16.

Repeat A-B

To repeat a sequence in a title or group:

1Press A-B RPT at your desired starting point.

“ A* ” appears briefly on the TV screen.

2Press A-B RPT again at your desired end point.

“AB” appears briefly on the TV screen, and the repeat

sequence begins (“A

s

B” appears on the display window).

3To cancel the sequence, press A-B RPT.

OFF

A B

A *

VCD1.1VCD2.0

DVD-ADVD-V

VCD1.1VCD2.0

Karaoke DVD

VCD1.1VCD2.0

DVD-ADVD-V

VCD1.1VCD2.0

DVD-ADVD-V

1-21

Operation with DVD and Video CD

General Features (continued)

Selecting the sound enhancement

Press E.A.M. to select the sound enhancement during

playback.

NORM. : Normal sound

3D SUR: This player can produce a 3D Surround effect, which

simulates multi-channel audio playback from two conventional

stereo speakers, instead of the five or more speakers normally

required to listen to multi-channel audio from a home theater

system.

DIALOGUE: Enhances critical center channel information to

make dialogue more intelligible (only when playing a DVD

video disc recorded on the Dolby Digital recording system).

•To use this enhancement on audio output from the

DIGITAL AUDIO OUT jack, be sure to set “Digital Audio

Output” to “PCM”. See page 15.

Zoom

The Zoom function allows you to enlarge the video

image and to move through the enlarged image.

1Press ZOOM during playback or still playback to acti-

vate the Zoom function.

If you press ZOOM repeatedly, the magnification level

increases up to six steps.

2Use the buttons to move through the zoomed

picture.

3Press CLEAR to resume normal playback or return to

the paused image.

Note

zThe zoom function may not work for some DVD-V

and DVD-A.

Marker Search

You can start playback from a memorized point. Up to

nine points can be memorized.

To enter a mark, follow these steps.

1During disc playback, press MARKER when

playback reaches the spot that you want to

memorize.

The Marker icon will appear on the TV screen briefly.

2Repeat step 1 to enter up to nine Marker points on a

disc.

To Recall a Marked Scene

1During disc playback, press SEARCH.

The MARKER SEARCH menu will appear on the screen.

2Within 10 seconds, press /to select a Marker

number that you want to recall.

3Press ENTER.

Playback will start from the Marked scene.

4To remove the MARKER SEARCH menu, press

SEARCH.

To clear a Marked Scene

1During disc playback, press SEARCH.

The MARKER SEARCH menu will appear on the screen.

2Press /to select the Marker number that you

want to erase.

3Press CLEAR.

The Marker number will be erased from the list.

4Repeat steps 2 and 3 to erase additional Marker

numbers.

5To remove the MARKER SEARCH menu, press

SEARCH.

Special DVD Features

Checking the contents of DVD Video

discs: Menus

DVDs may offer menus that allow you to access special

features. To use the disc menu, press MENU. Then,

press the appropriate number button to select an option.

Or, use the buttons to highlight your selection,

then press ENTER.

Title Menu

1Press TOP MENU.

If the current title has a menu, the menu will appear on the

screen. Otherwise, the disc menu may appear.

2The menu can list camera angles, spoken language

and subtitle options, and chapters for the title.

3To remove the title menu, press TOP MENU again.

Disc Menu

1Press MENU.

The disc menu is displayed.

2To remove the disc menu, press MENU again.

Camera Angle

If the disc contains scenes recorded at different camera

angles, you can change to a different camera angle

during playback.

zzPress ANGLE repeatedly during playback to select a

desired angle.

The number of the current angle appears on the display.

Changing the Audio Language

Press AUDIO repeatedly during playback to hear a dif-

ferent audio language or audio track.

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a dif-

ferent audio channel (STER., LEFT or RIGHT).

Subtitles

Press SUBTITLE repeatedly during playback to see the

different subtitle languages.

Note

If appears, the feature is not available on the disc.

1 ENG

DVD-ADVD-V

RIGHT

LEFT

STER.

VCD1.1VCD2.0

1

PPCM

5.1 CH

1 ENG

D

5.1 CH

DVD-ADVD-V

1 /1

DVD-ADVD-V

DVD-ADVD-V

DVD-ADVD-V

DVD-ADVD-V

MARKER SEARCH

1/9

VCD1.1VCD2.0

DVD-V

VCD1.1VCD2.0

DVD-ADVD-V

DIALOGUE

3D SUR

NORM.

VCD1.1VCD2.0

DVD-V

1-22

OPERATION

Operation with DVD and Video CD

DVD Audio Discs

DVD Audio is a new disc format building on the success

of DVD to provide high quality, uncompressed, multi-

channel audio for a new experience in audio quality. A

DVD Audio disc can be identified by the DVD audio logo

on the disc jacket or on the disc itself.

DVD Audio can provide higher quality stereo than Audio

CDs with a sampling rate of up to 192kHz (compared to

44.1kHz for CDs). DVD Audio digital sound can be

delivered with up to 24 bits of data (compared to 16 bits

for a standard CD).

A typical DVD Audio disc contains up to seven times the

data capacity of a CD. This additional space is used for

music, either Advanced Resolution multi-channel sound

quality that is closer to the artist’s master recording or

for longer recordings. Many DVD Audio discs contain

on-screen text, such as artist biographies, playlists, or

lyrics. Some DVD Audio discs contain photo galleries or

video clips.

Note

To enjoy maximum sound quality and surround effect of

DVD Audio, you must use 5.1 channel analog audio output

(5.1CH AUDIO OUT jacks on the DVD Player). If you use

the DIGITAL OUT (OPTICAL or COAXIAL) for your audio

connection, the sound will only be similar to CD-quality

sound even though you’re playing a DVD Audio disc and

might not have sorround effect.

Moving to another GROUP

Some DVD Audio discs divide content into different

groups. Your player enables you to quickly access

different groups during playback via the on-screen

display.

1Press DISPLAY during playback on in stop mode.

2Press 33/44to select Group icon.

3Press 1/2or the numbered buttons (0-9) to select a

group number.

Note

Sometimes the author of the disc creates hidden con-

tent that can only be accessed by entering a password.

If the lock icon appears on the TV screen, enter the

password (sometimes you’ll find it on the disc’s jacket

cover or on a web site). This password control isn’t dic-

tated by your DVD Player — it is a function of the disc.

Since the authoring of DVD Audio Discs varies, some of

the on-screen display choices might not be available for

the disc you’re playing.

Viewing another PAGE

Since DVD Audio discs can hold a lot of content, there

are various ways to see what’s available on the disc.

1Press DISPLAY during playback.

2Press 33/44to select Page icon.

3Press 1/2to select a page number.

What appears on the screen will vary from disc to disc

because the information available depends upon the way the

disc was created.

Note

Since the authoring of DVD Audio Discs varies, some of

the on-screen display choices might not be available for

the disc you’re playing.

1 /12

DVD-A

2 /6

DVD-A

DVD-A

1-23

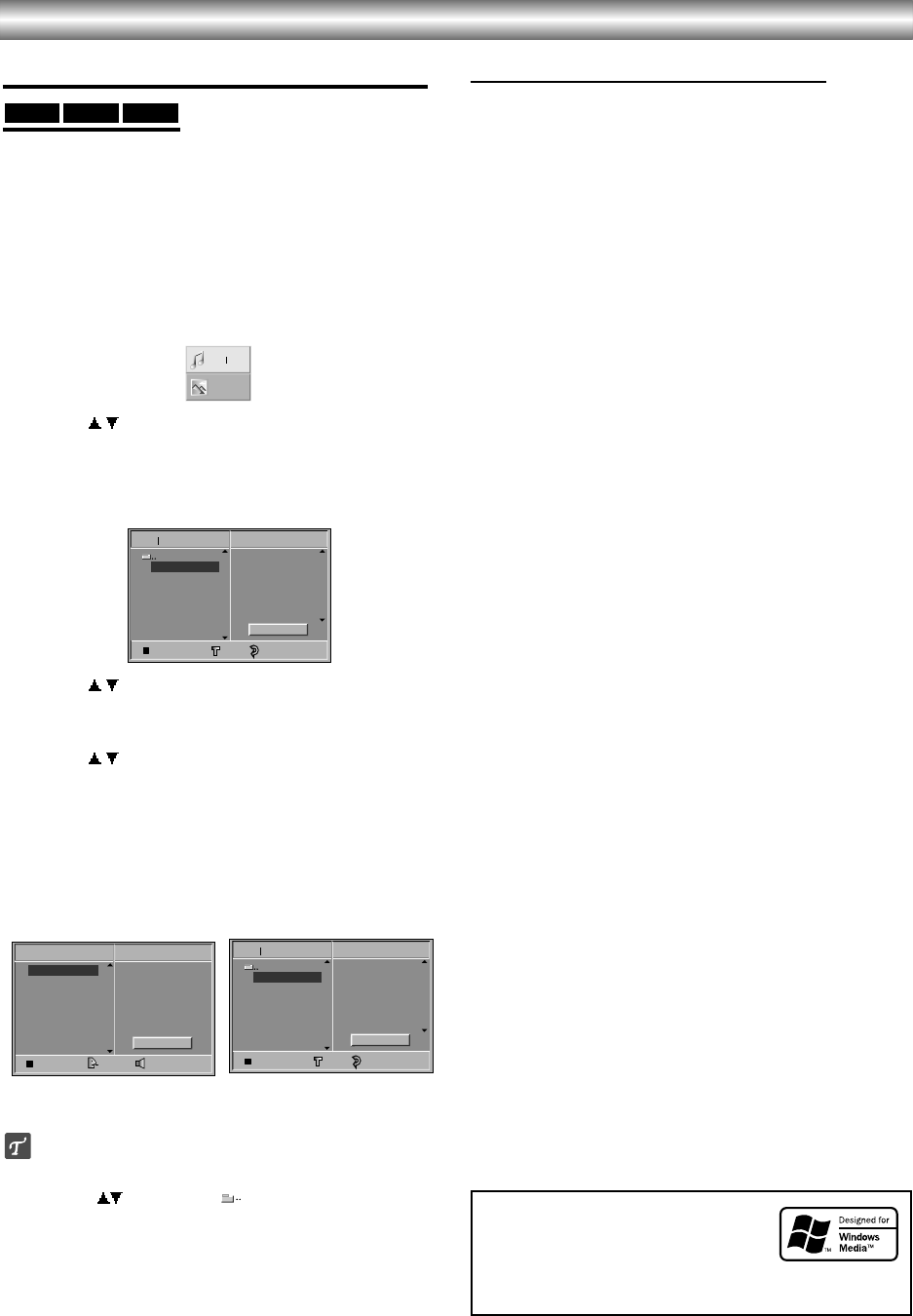

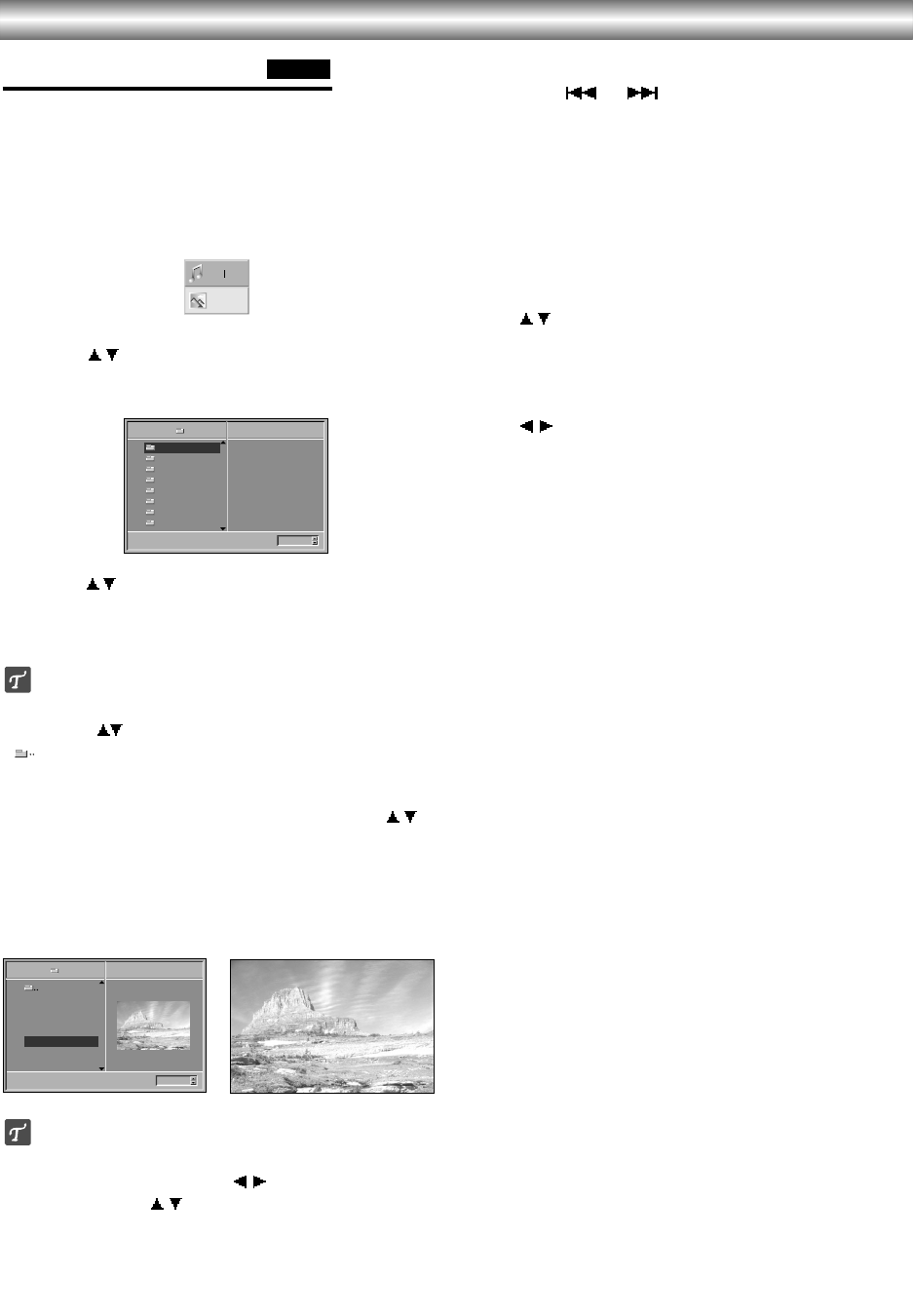

Operation with Audio CD and MP3/WMA Disc

Playing an Audio CD and MP3/WMA Disc

The DVD Player can play MP3/WMA formatted record-

ings on CD-ROM, CD-R or CD-RW discs.

Before playing MP3/WMA recordings, read the notes on

MP3/WMA Recordings on right.

11

Insert a disc and close the tray.

Audio CD; Audio CD menu appears on the TV

screen go to step 4.

MP3/WMA disc; The MP3/WMA-JPEG choice

menu appears on the TV screen. Go to step 2

22

Press /to select the MP3/WMA then press

ENTER.

The MP3/WMA menu appears on the TV screen.

Press RETURN to move to the MP3/WMA-JPEG

choice menu.

33

Press /to select a folder, and ENTER.

A list of files in the folder appears.

44

Press /to select a track then press PLAY or

ENTER.

Playback starts.

During playback, the current track’s elapsed playing

time will appear on the display window and menu.

Playback will stop at the end of the disc.

Press TOP MENU to move to the next page.

Press MENU to move to the previous page.

Audio CD menu MP3/WMA menu

Tips

If you are in a file list and want to return to the Folder

list, use the to highlight and press ENTER to

return to the previous menu screen.

55

To stop playback at any other time, press STOP.

Notes on MP3/WMA Recordings

About MP3

zzAn MP3 file is audio data compressed by using the

MPEG1 audio layer-3 file-coding scheme. We call

files that have the “.mp3” file extension “MP3 files”.

zzThe player can not read an MP3 file that has a file

extension other than “.mp3”.

About WMA(Window Media Audio)

zzAn WMA file is a Microsoft audio compression

technology.

zzWMA(Windows Media Audio) offers double the audio

compression of the MP3 format.

MP3/WMA Disc compatibility with this player is

limited as follows:

1. Sampling Frequency / only at 44.1kHz (MP3),

22.05 - 44.1kHz (WMA)

2. Bit rate / within 32 - 320kbps (MP3),

32 - 128kbps (WMA)

3. CD-R physical format should be “ISO 9660”

4. If you record MP3/WMA files using the software

which cannot create a FILE SYSTEM, for example

“Direct-CD” etc., it is impossible to playback

MP3/WMA files. We recommend that you use “Easy

CD Creator”, which creates an ISO9660 file system.

5. A single session disc requires MP3/WMA files in the

first track. If there is no MP3/WMA file in the 1st

track, it cannot playback MP3/WMA files. If you wish

to playback MP3/WMA files, format all the data in

the disc or use a new one.

6. File names should be named using 8 letters or less

and must incorporate “.mp3” or “.wma” extension

e.g. “********.MP3” or “********.WMA”.

7. Do not use special letters such as “/ : * ? “ < > ” etc.

8. Total number of files on the disc should be less than

650.

This DVD player requires discs/recordings to meet

certain technical standards in order to achieve optimal

playback quality. Pre-recorded DVDs are automatically

set to these standards. There are many different types

of recordable disc formats (including CD-R containing

MP3 or WMA files). That require certain pre-existing

conditions (see above) to insure compatible playback.

Customers should also note that permission is

required in order to download MP3/WMA files and

music from the Internet. Our company has no right

to grant such permission. Permission should

always be sought from the copyright owner.

WMAMP3CD

Program

CD

STER. NORM.

0: 56: 18

TRACK01

TRACK02

TRACK03

TRACK04

TRACK05

TRACK06

TRACK07

TRACK08 Clear All

TRACK 1.mp3

TRACK 2.mp3

TRACK 3.mp3

TRACK 4.mp3

TRACK 5.mp3

TRACK 6.mp3

TRACK 7.mp3

TRACK 8.mp3

Program

MP3 WMA

OFF00:00

1

Clear All

JPEG

MP3 WMA

TRACK 1.mp3

TRACK 2.mp3

TRACK 3.mp3

TRACK 4.mp3

TRACK 5.mp3

TRACK 6.mp3

TRACK 7.mp3

TRACK 8.mp3

Program

MP3 WMA

OFF00:00

1

Clear All

Microsoft, Windows Media, and the

Windows Logo are trademarks or

registered trademarks of Microsoft

Corporation in both the United States

and other countries

1-24

OPERATION

Operation with Audio CD and MP3/WMA Disc (Continued)

Pause

1Press PAUSE/STEP during playback.

2To return to playback, press PLAY or press

PAUSE/STEP again.

Moving to another Track

zzPress SKIP or briefly during

playback to go to the next track or to return to the

beginning of the current track.

zzPress SKIP twice in quick successions to step

back to the previous track.

zzIn case of audio CD, to go directly to any track, enter

the track number using the numbered buttons (0-9)

during playback.

Repeat Track/All/Off

1To repeat the track currently playing, press REPEAT.

The Repeat icon and “TRACK” appears on the menu

screen.

2To repeat all tracks on a disc, press REPEAT a sec-

ond time.

The Repeat icon and “ALL” appears on the menu screen.

3To cancel Repeat mode, press REPEAT a third time.

The Repeat icon and “OFF” appears on the menu screen.

Search

1Press REV or FWD during playback.

The player will now go into SEARCH mode.

2Press REV or FWD repeatedly to select the

required speed: X2, X4, X8 (backward) or

X2, X4, X8 (forward).

Search speed and direction are indicated on the menu

screen.

3To exit SEARCH mode, press PLAY.

Random

1Press RANDOM during playback or when playback is

stopped.

The unit automatically begins Random Playback and

RANDOM or “RAND.” appears on the display window

and menu screen.

2To return to normal playback, press RANDOM repeat-

edly until RANDOM or “RAND.” disappears on the

display window and menu screen.

Repeat A-B

To repeat a sequence.

1During disc playback, press A-B RPT at your desired

starting point.

The Repeat icon and “A* ” appears on the menu screen.

2Press A-B RPT again at your desired end point.

The Repeat icon and “AB” appears on the menu screen,

and the sequence begins to play repeatedly.

3To exit the sequence and return to normal play, press

A-B RPT again.

The Repeat icon and “OFF” appears on the menu screen.

Selecting the sound enhancement

This unit can produce a 3D Surround effect, which

simulates multi-channel audio playback from two

conventional stereo speakers, instead of the five or

more speakers normally required to listen to multi-

channel audio from a home theater system.

1Press E.A.M. to select “3D SUR” during playback.

2To turn off the 3D Surround effect, press E.A.M. again

to select “NORM.”.

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a

different audio channel (STER., LEFT, or RIGHT).

CD

CD

CD

WMAMP3CD

WMAMP3CD

WMAMP3CD

WMA

MP3CD

WMAMP3CD

1-25

Viewing a JPEG disc

This DVD Player can play discs with JPEG files. Before

playing JPEG recordings, read the notes on JPEG

Recordings on right.

1

Insert a disc and close the tray.

The MP3/WMA-JPEG choice menu appears on the

TV screen.

22

Press /to select the JPEG then press

ENTER.

The JPEG menu appears on the TV screen.

3

Press /to select a folder, and ENTER.

A list of files in the folder appears.

Press RETURN to move to the MP3/WMA-JPEG

choice menu.

Tip

If you are in a file list and want to return to the Folder

list, use the buttons on the remote to highlight

“” and press ENTER to return to the previous menu

screen.

44

If you want to view a particular file, press /to

highlight a file and press ENTER or PLAY.

Viewing the file proceeding starts.

During viewing a file, press RETURN to move to

the previous menu (JPEG menu).

Press TOP MENU to move to the next page.

Press MENU to move to the previous page.

Tip

There are three viewing Slide Speed options: Fast,

Normal, Slow, and Off. Press /to highlight the Slide

Speed then press /to select the option you want to

use, and press ENTER.

55

To stop viewing at any other time, press STOP.

The JPEG menu appears.

Moving to another File

Press SKIP or once during viewing a picture

to advance to the next file or to the previous file.

Still Picture

1Press PAUSE/STEP during slide show.

The player will now go into PAUSE mode.

2To return to the slide show, press PLAY or press

PAUSE/STEP again.

To flip the picture

Press /during showing a picture to flip the

picture horizontally or a vertically.

To rotate picture

Press /during showing a picture to rotate the

picture clockwise or counter clockwise.

Notes on JPEG Recordings

zzDepending upon the size and number of the JPEG

files, it could take a long time for the DVD player to

read the disc’s contents. If you don’t see an on-

screen display after several minutes, some of the files

are too big — reduce the resolution of the JPEG files

to less than 2 mega pixels and burn another disc.

zzTotal number of files and folders on the disc should

be less than 650.

zzSome disc may be incompatible due to different

recording format or condition of disc.

zWhen you are using software such as “Easy CD

Creator” to burn the jpeg files into the CD-R, ensure

that all the selected files have the “.jpg” extensions

when copying into the CD layout.

zIf the files have “.jpe” or “.jpeg” extensions, please

rename them as “.jpg” files.

zFile names without “.jpg” extension will not be able to

be read by this DVD player. Even though the files are

shown as JPEG image files in windows explorer.

JPEG

Operation with JPEG Disc

Slide Speed

5/32 1024X768








JPEG

Off

Folder1

MP3 WMA

JPEG

5/32 Picture5.jpg1024X768

Slide Speed Off

Folder1

Folder2

Folder3

Folder4

Folder5

Folder6

Folder7

Folder8

JPEG

1-26

OPERATION

Programmed Playback WMAMP3

VCD1.1VCD2.0

CD

Programmed Playback with Audio CD

and MP3/WMA Disc

The Program function enables you to store your favorite

tracks from any disc in the player memory.

Program can contain 30 tracks.

11

Press PROGRAM during playback or in the stop

mode to enter the Program Edit mode.

The mark will appear to the right of the word Program

on the right side of the menu screen.

Note

Press PROGRAM to exit the Program Edit mode;

the mark will disappear.

22

Select a track, then press ENTER to place the

selected track on the Program list.

33

Repeat step 2 to place additional tracks on the

Program list.

Audio CD menu MP3/WMA menu

44

Press .

The programmed track you selected last is highlighted on

the program list.

55

Press /to select the track you want to start

playing.

Press TOP MENU to move to the next page.

Press MENU to move to the previous page.

66

Press PLAY to start.

Playback begins in the order in which you programmed

the tracks and “PROG.” appears on both the menu screen

and display window.

Playback stops after all of the tracks on the Program list

have played once.

77

To resume normal playback from programmed

playback, press PROGRAM. Select a track of CD

(or MP3/WMA) list and then press ENTER.

“PROG.” indicator disappears from the menu screen and

display window.

Programmed Playback with Video CD

Note

On a Video CD with PBC, you must set PBC to Off on the

setup menu to use the Program function. See page 16.

11

Insert Video CD and close the tray.

22

Press PROGRAM while playback is stopped.

The VCD Program menu will appear.

Note

Press RETURN or PROGRAM to exit the Program menu.

33

Follow steps 2-6 of “Programmed Playback with

Audio CD and MP3/WMA disc” on left.

44

To resume normal playback from programmed

playback, press PROGRAM.

“PROG.” indicator disappears in the display window.

Repeat Programmed Tracks

zzTo repeat the track currently playing, press REPEAT.

The Repeat icon and “TRACK” appears on the menu

screen.

zzTo repeat all tracks on the program list, press

REPEAT a second time.

The Repeat icon and “ALL” appears on the menu screen.

zzTo cancel Repeat mode, press REPEAT a third time.

The Repeat icon and “OFF” appears on the menu screen.

Erasing a Track from Program List

1Press PROGRAM during playback (Audio CD and

MP3/WMA disc only) or in the stop mode to enter the

Program Edit mode.

The mark will appear.

2Press to move to the Program list.

3Use /to select the track that you wish to erase

from the Program list.

4Press CLEAR.

The track will be erased from the Program list.

Erasing the Complete Program List

1Follow steps 1-2 of “Erasing a Track from Program

List” as above.

2Use /to select “Clear All”, then press ENTER.

The complete Program for the disc will be erased.

The programs are also cleared when the disc is removed.

E

E

E

STER. NORM.

E

0: 56: 18

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 12

TRACK 8

TRACK 10

TRACK 3

TRACK 5

TRACK 6

TRACK 7

TRACK 8

Program

CD

Clear All

E

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

TRACK 8

Program

VCD

Clear All

E

TRACK 1.mp3

TRACK 2.mp3

TRACK 3.mp3

TRACK 4.mp3

TRACK 8.mp3

TRACK 2.mp3

TRACK 4.mp3

TRACK 3.mp3

TRACK 5.mp3

TRACK 6.mp3

TRACK 7.mp3

TRACK 8.mp3

Program

MP3 WMA

OFF00:00

3

Clear All

1-27

Additional Information

Screen Saver

The screen saver picture appears when you leave the

DVD Player in stop mode for about five minutes.

After the Screen Saver has been engaged for about five

minutes, the DVD Player will automatically turn itself off.

Dimmer Function

You can adjust the Display Window’s brightness in

3 steps. Each press of the FL DIM button modifies the

Display Window’s brightness in the following order:

Normal →Dim →Display Off →Normal

Video Mode Setting

zzWith certain discs, the playback picture may be flick-

ering or Dot Crawl is shown on straight lines. That

means Vertical interpolation or De-interlace is not

perfectly matched with the disc. In this case, the

picture quality may be improved by changing the

video mode.

zzTo change the video mode, press and hold

DISPLAY about 3 seconds during disc playback. The

new video mode number selected is displayed on the

TV screen. Check whether the video quality has

improved. If not, repeat the above procedure until pic-

ture quality is improved.

zzVideo mode sequence:

Auto →Film →Video →Auto

zzIf you turn off the power, the video mode will return to

initial default state (Auto).

Detailed Description of each Video Mode

Auto : The source material of the DVD video (film material or

video material) is determined from disc information.

Film : Suitable for playing film based content or video based

material recorded by the progressive scan method.

Video : Suitable for playing video based content with

comparatively little motion.

Note

The video mode setting only works when the

Progressive Scan mode is set to “On” on the setup

menu.

VCD1.1VCD2.0

DVD-ADVD-V

1-28

OPERATION

Speaker Settings

Make the following settings for the built-in 5.1 channel

surround decoder.

11

Select “5.1 Speaker Setup” using the 33/44but-

tons on the setup menu.

22

While “5.1 Speaker Setup” is selected, press 2

button.

33

Press 11/22buttons to select the desired speaker.

44

Adjust options by using 33441122buttons.

Speaker selection

Select a speaker that you want to adjust. (Front speak-

ers (Left), Front speakers (Right), Center Speaker, Rear

speakers (Left), Rear speakers (Right), or Subwoofer)

Note

Certain speaker settings are prohibited by the Dolby

Digital licensing agreement.

Volume

Press 11/ 22to adjust the output level of the selected

speaker. (-10dB - 0dB)

Size

zzPress 11/ 22to set a mode. (Large, Small or None)

zzIf you have connected the system to a speaker with

a low frequency of 100Hz or below, select “Large.”

zzIf you have connected the system to a speaker with-

out a low frequency of 100Hz or below, select

“Small.” If you have not connected a subwoofer,

always select “Large” for Front speaker (L/R).

zzWhen you do not have a certain speaker connected,

select “None.”

zzFront L/R speaker’s size can be set to “Large” or

“Small.”

zzIf Front L/R speaker’s size is set to “Small,” Rear and

Center speaker’s size can be set to “Small” or

“None.”

zzSubwoofer’s size can be set only to “Large” or

“None”.

Distance

If you connected speakers to your DVD Player, setting

the Distance lets the speakers know how far the sound

has to travel to reach your set listening point. This

allows the sound from each speaker to reach the listen-

er at the same time. (1 ft = 30.48 cm)

Note

You can not set the distance of subwoofer speaker.

Test

Press SELECT/ENTER to test the signals of each

speaker. Adjust the volume to match the volume of test

signals memorized in the system.

zzFront Left (L) →Center → Front Right (R)

→Rear Right (R) →Rear Left (L)

Return

Press SELECT/ENTER to return to the previous menu.

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

R R

Front L

Volume 0 dB

Size Large

Distance 1 ft

Test

Return

1-29

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom

No power.

The power is on, but

the DVD player does

not work.

No picture.

No sound./Buzzing

sounds.

The playback picture is

poor.

The DVD player does

not start playback.

The remote control

does not work properly.

Cause

zThe power cord is disconnected.

zNo disc is inserted.

zThe TV is not set to receive DVD signal

output.

zThe video cable is not connected

securely.

zThe connected TV power is turned off.

zThe equipment connected with the

audio cable is not set to receive DVD

signal output.

zThe audio cables are not connected

securely.

zThe power of the equipment connected

with the audio cable is turned off.

zThe Digital Audio Output is set to the

wrong selection.

zThe disc is dirty.

zNo disc is inserted.

zAn unplayable disc is inserted.

zThe disc is placed upside down.

zThe disc is not placed within the guide.

zThe disc is dirty.

zThe Rating level is set.

zThe remote control is not pointed at the

remote sensor of the DVD player.

zThe remote control is too far from the

DVD player.

zThere is an obstacle in the path of the

remote control and the DVD player.

zThe batteries in the remote control are

exhausted.

Correction

zPlug the power cord into the wall outlet

securely.

zInsert a disc. (Check that the DVD or,

audio CD indicator in the display

window is lit.)

zSelect the appropriate video input mode

on the TV so the picture from the DVD

player appears on the TV screen.

zConnect the video cable securely.

zTurn on the TV.

zSelect the correct input mode of the

audio receiver so you can listen to the

sound from the DVD player.

zConnect the audio cable securely.

zTurn on the equipment connected with

the audio cable.

zPress Setup on the remote control.

Move the cursor down to Digital Audio

Output. Press the right cursor. Select

the correct output desired. Press

ENTER. To get DTS sounds, “Bit

Stream/PCM” has to be selected. And

use the Digital Output or Optical Out

jack. Note that there will be no outputs

at 6 ch analog outputs of this set for

DTS selection. Next select the appropri-

ate sampling frequency.

If your equipment cannot receive 98

KHz, please select 48 KHz or else

buzzing sounds will be heard.

zClean the disc.

zInsert a disc. (Check that the DVD, or

audio CD indicator in the DVD display is lit.)

zInsert a playable disc. (Check the disc

type, color system, and Regional code.)

zPlace the disc with the playback side

down.

zPlace the disc on the disc tray correctly

inside the guide.

zClean the disc.

zCancel the Rating function or change

the rating level.

zPoint the remote control at the remote

sensor of the DVD player.

zOperate the remote control within 23 ft

(7 m).

zRemove the obstacle.

zReplace the batteries with new ones.

1-30

REFERENCE

Language Code List

Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu”

(See page 14).

Code Language

6566 Abkhazian

6565 Afar

6570 Afrikaans

8381 Albanian

6577 Ameharic

6582 Arabic

7289 Armenian

6583 Assamese

6588 Aymara

6590 Azerbaijani

6665 Bashkir

6985 Basque

6678 Bengali; Bangla

6890 Bhutani

6672 Bihari

6682 Breton

6671 Bulgarian

7789 Burmese

6669 Byelorussian

7577 Cambodian

6765 Catalan

9072 Chinese

6779 Corsican

7282 Croatian

6783 Czech

6865 Danish

7876 Dutch

6978 English

6979 Esperanto

6984 Estonian

7079 Faroese

Code Language

7074 Fiji

7073 Finnish

7082 French

7089 Frisian

7176 Galician

7565 Georgian

6869 German

6976 Greek

7576 Greenlandic

7178 Guarani

7185 Gujarati

7265 Hausa

7387 Hebrew

7273 Hindi

7285 Hungarian

7383 Icelandic

7378 Indonesian

7365 Interlingua

7165 Irish

7384 Italian

7465 Japanese

7487 Javanese

7578 Kannada

7583 Kashmiri

7575 Kazakh

7589 Kirghiz

7579 Korean

7585 Kurdish

7679 Laothian

7665 Latin

7686 Latvian, Lettish

Code Language

7678 Lingala

7684 Lithuanian

7775 Macedonian

7771 Malagasy

7783 Malay

7776 Malayalam

7784 Maltese

7773 Maori

7782 Marathi

7779 Moldavian

7778 Mongolian

7865 Nauru

7869 Nepali

7879 Norwegian

7982 Oriya

8065 Panjabi

8083 Pashto, Pushto

7065 Persian

8076 Polish

8084 Portuguese

8185 Quechua

8277 Rhaeto-Romance

8279 Rumanian

8285 Russian

8377 Samoan

8365 Sanskrit

7168 Scots Gaelic

8382 Serbian

8372 Serbo-Croatian

8378 Shona

8368 Sindhi

Code Language

8373 Singhalese

8375 Slovak

8376 Slovenian

8379 Somali

6983 Spanish

8385 Sudanese

8387 Swahili

8386 Swedish

8476 Tagalog

8471 Tajik

8465 Tamil

8484 Tatar

8469 Telugu

8472 Thai

6679 Tibetan

8473 Tigrinya

8479 Tonga

8482 Turkish

8475 Turkmen

8487 Twi

8575 Ukrainian

8582 Urdu

8590 Uzbek

8673 Vietnamese

8679 Volapük

6789 Welsh

8779 Wolof

8872 Xhosa

7473 Yiddish

8979 Yoruba

9085 Zulu

1-31

Code Area

AD Andorra

AE United Arab Emirates

AF Afghanistan

AG Antigua and Barbuda

AI Anguilla

AL Albania

AM Armenia

AN Netherlands Antilles

AO Angola

AQ Antarctica

AR Argentina

AS American Samoa

AT Austria

AU Australia

AW Aruba

AZ Azerbaidjan

BA Bosnia-Herzegovina

BB Barbados

BD Bangladesh

BE Belgium

BF Burkina Faso

BG Bulgaria

BH Bahrain

BI Burundi

BJ Benin

BM Bermuda

BN Brunei Darussalam

BO Bolivia

BR Brazil

BS Bahamas

BT Bhutan

BV Bouvet Island

BW Botswana

BY Belarus

BZ Belize

CA Canada

CC Cocos (Keeling) Islands

CF Central African Republic

CG Congo

CH Switzerland

CI Ivory Coast

CK Cook Islands

CL Chile

CM Cameroon

CN China

CO Colombia

CR Costa Rica

CS Former Czechoslovakia

CU Cuba

CV Cape Verde

CX Christmas Island

CY Cyprus

CZ Czech Republic

DE Germany

DJ Djibouti

DK Denmark

DM Dominica

DO Dominican Republic

DZ Algeria

EC Ecuador

EE Estonia

EG Egypt

EH Western Sahara

Code Area

ER Eritrea

ES Spain

ET Ethiopia

FI Finland

FJ Fiji

FK Falkland Islands

FM Micronesia

FO Faroe Islands

FR France

FX France (European

Territory)

GA Gabon

GB Great Britain

GD Grenada

GE Georgia

GF French Guyana

GH Ghana

GI Gibraltar

GL Greenland

GM Gambia

GN Guinea

GP Guadeloupe (French)

GQ Equatorial Guinea

GR Greece

GS S. Georgia & S. Sandwich

Isls.

GT Guatemala

GU Guam (USA)

GW Guinea Bissau

GY Guyana

HK Hong Kong

HM Heard and McDonald

Islands

HN Honduras

HR Croatia

HT Haiti

HU Hungary

ID Indonesia

IE Ireland

IL Israel

IN India

IO British Indian Ocean

Territory

IQ Iraq

IR Iran

IS Iceland

IT Italy

JM Jamaica

JO Jordan

JP Japan

KE Kenya

KG Kyrgyzstan

KH Cambodia6

KI Kiribati

KM Comoros

KN

Saint Kitts & Nevis Anguilla

KP North Korea

KR South Korea

KW Kuwait

KY Cayman Islands

KZ Kazakhstan

LA Laos

LB Lebanon

Code Area

LC Saint Lucia

LI Liechtenstein

LK Sri Lanka

LR Liberia

LS Lesotho

LT Lithuania

LU Luxembourg

LV Latvia

LY Libya

MA Morocco

MC Monaco

MD Moldavia

MG Madagascar

MH Marshall Islands

MK Macedonia

ML Mali

MM Myanmar

MN Mongolia

MO Macau

MP Northern Mariana Islands

MQ Martinique (French)

MR Mauritania

MS Montserrat

MT Malta

MU Mauritius

MV Maldives

MW Malawi

MX Mexico

MY Malaysia

MZ Mozambique

NA Namibia

NC New Caledonia (French)

NE Niger

NF Norfolk Island

NG Nigeria

NI Nicaragua

NL Netherlands

NO Norway

NP Nepal

NR Nauru

NU Niue

NZ New Zealand

OM Oman

PA Panama

PE Peru

PF Polynesia (French)

PG Papua New Guinea

PH Philippines

PK Pakistan

PL Poland

PM Saint Pierre and Miquelon

PN Pitcairn Island

PR Puerto Rico

PT Portugal

PW Palau

PY Paraguay

QA Qatar

RE Reunion (French)

RO Romania

RU Russian Federation

RW Rwanda

SA Saudi Arabia

SB Solomon Islands

Code Area

SC Seychelles

SD Sudan

SE Sweden

SG Singapore

SH Saint Helena

SI Slovenia

SJ Svalbard and Jan Mayen

Islands

SK Slovak Republic

SL Sierra Leone

SM San Marino

SN Senegal

SO Somalia

SR Suriname

ST Saint Tome and Principe

SU Former USSR

SV El Salvador

SY Syria

SZ Swaziland

TC Turks and Caicos Islands

TD Chad

TF French Southern

Territories

TG Togo

TH Thailand

TJ Tadjikistan

TK Tokelau

TM Turkmenistan

TN Tunisia

TO Tonga

TP East Timor

TR Turkey

TT Trinidad and Tobago

TV Tuvalu

TW Taiwan

TZ Tanzania

UA Ukraine

UG Uganda

UK United Kingdom

UM USA Minor Outlying

Islands

US United States

UY Uruguay

UZ Uzbekistan

VA Vatican City State

VC Saint Vincent &

Grenadines

VE Venezuela

VG Virgin Islands (British)

VI Virgin Islands (USA)

VN Vietnam

VU Vanuatu

WF Wallis and Futuna Islands

WS Samoa

YE Yemen

YT Mayotte

YU Yugoslavia

ZA South Africa

ZM Zambia

ZR Zaire

ZW Zimbabwe

Area Code List

Enter the appropriate code number for the initial setting “Area Code” (See page 17).

1-32

REFERENCE

Specifications

General

Power requirements AC 120V, 60 Hz

Power consumption 14W

Dimensions (approx.) 430 X 60 X 242 mm (16.9 x 2.4 x 9.5 inches) (w x h x d)

Mass (approx.) 2.4 kg (5.3 lbs)

Operating temperature 5˚C to 35˚C (41˚F to 95˚F)

Operating humidity 5 % to 90 %

System

Laser Semiconductor laser, wavelength 650 nm

Signal system NTSC

Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz

DVD (PCM 48 kHz): 8 Hz to 22 kHz

CD: 8 Hz to 20 kHz

Signal-to-noise ratio More than 100dB (ANALOG OUT connectors only)

Harmonic distortion Less than 0.008%

Dynamic range More than 100 dB (DVD)

More than 95 dB (CD)

Outputs

VIDEO OUT 1 Vp-p 75 Ω, sync negative, RCA jack x 1

S-VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1

(C) 0.3 V (p-p) 75 Ω

COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

Audio output (digital audio) 0.5 V (p-p), 75 Ω, RCA jack x 1

Audio output (optical audio) 5 V (p-p), 75 Ω, Optical connector x 1

Audio output (analog audio) 2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

Accessory

Video cable . . . . . . . . . . . . . . . . . . . . . . .1

Audio cable . . . . . . . . . . . . . . . . . . . . . . .1

Remote control . . . . . . . . . . . . . . . . . . . .1

Batteries . . . . . . . . . . . . . . . . . . . . . . . . .2

zzDesign and specifications are subject to change without notice.

Manufactured under license from Dolby Laboratories. Dolby, MLP Lossless and the double-D symbol are trademarks of Dolby

Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.

DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc.

1-33

Toshiba America Consumer Products, Inc. (“TACP”) and Toshiba Hawaii, Inc. (“THI”) make the following limited warranties to origi-

nal consumers for DVD Players purchased and used in the United States. THESE LIMITED WARRANTIES EXTEND TO THE

ORIGINAL CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS DVD PLAYER AS A GIFT FROM THE ORIGINAL

CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.

PRODUCTS PURCHASED IN THE U.S.A. AND USED IN CANADA ARE NOT COVERED BY THESE WARRANTIES.

PRODUCTS PURCHASED IN CANADA AND USED IN THE U.S.A. ARE NOT COVERED BY THESE WARRANTIES.

Limited One (1) Year Warranty*

TACP/THI warrants this DVD Player against defects in

materials or workmanship for a period of one (1) year after the

date of the original retail purchase. DURING THIS PERIOD

TACP/THI WILL, AT TACP/THI’S OPTION, REPAIR OR

EXCHANGE A DEFECTIVE DVD PLAYER WITH A NEW OR

REFURBISHED DVD PLAYER, AT TACP/THI’s OPTION.

DURING THE INITIAL NINETY (90) DAYS, THIS REPAIR OR

EXCHANGE WILL BE WITHOUT CHARGE TO YOU, EXCEPT

YOU MUST PAY FOR ALL TRANSPORTATION AND

INSURANCE CHARGES FOR THE DVD PLAYER TO BE

SHIPPED TO THE DESIGNATED TACP/THI FACILITY. AFTER

THE INITIAL NINETY (90) DAYS AND FOR THE REMAINDER

OF THE WARRANTY PERIOD, AN ADDITIONAL HANDLING

FEE WILL APPLY. YOU MUST DELIVER THE ENTIRE DVD

PLAYER AND ALL ACCESSORIES (SUCH AS POWER

CORDS, CABLES, AND THE UNIT’S REMOTE CONTROL

DEVICE) TO THE DESIGNATED TACP/THI FACILITY, AS

INSTRUCTED BY TACP/THI. TACP/THI IS NOT

RESPONSIBLE IF YOUR DVD PLAYER IS LOST OR

DAMAGED DURING SHIPMENT.

*Commercial Units

DVD Players sold and used for commercial purposes have a

limited ninety (90) day warranty.

Rental Units

The warranty period for rental units begins with the first rental

or thirty (30) days from the date of shipment to the rental firm,

whichever comes first.

Owner’s Manual and Demographic Card

You should read this owner’s manual thoroughly before

operating this DVD Player. You should complete and mail the

enclosed Demographic Card within ten days after you, or the

person who has given you this product as a gift, purchased this

DVD Player. This is one way to enable TACP/THI to provide

you with better customer service and improved products.

Failure to return the Demographic Card will not affect your

rights under this warranty.

Your Responsibility

THE ABOVE LIMITED WARRANTIES ARE SUBJECT TO THE

FOLLOWING CONDITIONS:

(1) You must provide your bill of sale or other proof of

purchase. For rental firms, proof of first rental is also

required.

(2) The limited warranties from TACP and THI are effective

only if the DVD Player is purchased and operated in the

U.S.A. or Puerto Rico.

(3) Labor service charges for installation, set up, and

adjustment of customer controls are not covered by these

limited warranties.

(4) These limited warranties extend only to defects in materials

or workmanship as limited above and do not extend to any

DVD Player or accessories which have been lost or

discarded by you, or to damage to any DVD Player or

accessories caused by misuse, accident, Acts of God

(such as lightning), or to fluctuations in electric power,

improper installation, improper maintenance or use in

violation of instructions furnished by TACP/THI; or to units

which have been modified or which have had the serial

number removed, altered, defaced or rendered illegible.

(5) Physically damaged DVD Players are not acceptable for

repair or exchange whether in or out of warranty and will

be returned as received.

How to Obtain Warranty Services

If, after following all of the operating instructions in this manual

and checking the “Troubleshooting” section, you find that

service is needed, call one of the following Customer Solutions

Centers to obtain further instructions. Have your proof of

purchase and your model and serial numbers available when

you call.

For DVD Players purchased in the United States,

except Hawaii, call TACP, toll free at 1-866-583-7353.

For DVD Players purchased in Hawaii, call THI. at

808-591-9281.

For additional updates, visit TACP’s web site:

www.toshiba.com/tacp.

LIMITED WARRANTY DVD VIDEO PLAYER

1-34

OTHERS

LIMITATION OF IMPLIED WARRANTIES

ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE

OF THE U.S.A., INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE EXPRESSLY LIMITED TO THE DURATION

OF THE LIMITED WARRANTIES SET FORTH ABOVE.

LIMITATION OF WARRANTY

WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY

THE LAW OF ANY STATE OF THE U.S.A. AS HEREBY

LIMITED, THE FOREGOING LIMITED WARRANTY IS

EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES,

GUARANTEES, AGREEMENTS AND SIMILAR OBLIGATIONS

OF TACP OR THI WITH RESPECT TO YOUR DVD PLAYER.

EXCLUSION OF DAMAGES

IN NO EVENT SHALL TACP OR THI BE LIABLE FOR

CONSEQUENTIAL OR INCIDENTAL DAMAGES.

No Change, Modification, or Extension

No person, agent, distributor, dealer or company is authorized

to change, modify or extend the terms of these limited war-

ranties in any manner whatsoever.

Time for Taking Action

The time within which action must be commenced to enforce

any obligation of TACP or THI arising under this limited

warranty or under any law of the United States or of any state

thereof is hereby limited to 90 days from the date you

discovered, or should have discovered, the defect. This

limitation does not apply to implied warranties arising under

the law of any state of the U.S.A.

HOW STATE LAW RELATES TO WARRANTY

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,

AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY

VARY FROM STATE TO STATE IN THE U.S.A.

SOME STATES OF THE U.S.A. DO NOT ALLOW LIMITA-

TIONS ON HOW LONG AN IMPLIED WARRANTY LASTS,

WHEN AN ACTION MAY BE BROUGHT, OR THE EXCLU-

SION OR LIMITATION OF INCIDENTAL OR CONSEQUEN-

TIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLU-

SIONS MAY NOT APPLY TO YOU UNDER SUCH CIRCUM-

STANCES.

ATTENTION CANADIAN CONSUMERS:

Canadian consumers are requested to complete the special Canadian “Warranty Registration Form” enclosed, and forward this

completed form with a copy of bill of sale to TOSHIBA OF CANADA to “Register and Validate” their warranty. Product must be

purchased from an Authorized Canadian Dealer. Products purchased in the U.S.A. and used in Canada are not covered by

these warranties.

IMPORTANT: PACKING AND SHIPPING INSTRUCTION

When you send the product to a Service Station, you must use the original carton box and packing material, then insert the origi-

nal carton box containing the unit into another carton using more packing material.

LIMITED WARRANTY DVD VIDEO PLAYER (Continued)

Contact: Toshiba of Canada Limited

Consumer Electronics Group

191 McNabb Street

Markham, Ontario L3R 8H2

(905)-470-5400

Consumer Electronics Group

22171 Fraserwood Way

Richmond, B.C. V6W 1J5

(604)-303-2500

Consumer Electronics Group

1643 North Service Road

Droval, QC H9P 1J1

(514)-856-4100

1-36

CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY,

NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFAC-

TURER’S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY

VOID THE WARRANTY, BUT MAY LEAD TO YOUR BEING LIABLE FOR ANY

RESULTING PROPERTY DAMAGE OR USER INJURY.

SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE

THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY

CHECKS AND SERVICING GUIDELINES. TO DO OTHERWISE,

INCREASES THE RISK OF POTENTIAL HAZARDS AND INJURY TO THE

USER.

WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTEC-

TION FROM A.C. LINE SHOCK.

SAFETY CHECKS

AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRCTED. A

CHECK SHOULD BE MADE OF THE FOLLOWING.

SUBJECT : FIRE & SHOCK HAZARD

1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY

AS TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS.

THIS IS ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE

TRANSPORTED TO AND FROM THE REPAIR SHOP.

2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES

SUCH AS INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN

RELIEFS, POWER SUPPLY CORDS, AND OTHER HARDWARE HAVE

BEEN REINSTALLED PER ORIGINAL DESIGN. BE SURE THAT THE

SAFETY PURPOSE OF THE POLARIZED LINE PLUG HAS NOT BEEN

DEFEATED.

3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD

SOLDER JOINTS, SOLDER SPLASHES OR SHARP SOLDER POINTS.

BE CERTAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.

4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR DETERIORATION

TO PARTS AND COMPONENTS. FOR FRAYED LEADS, DAMAGED

INSULATION (INCLUDING A.C. CORD). AND REPLACE IF NECESSARY

FOLLOW ORIGINAL LAYOUT, LEAD LENGTH AND DRESS.

5. NO LEAD OR COMPONENT SHOULD TOUCH A RECIVING TUBE OR

A RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND

PROTRUNING METAL SURFACES MUST BE AVOIDED.

6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPROOF

RESISTORS, CAPACITORS, ETC. MUST BE REPLACED WITH EXACT

FACTORY TYPES, DO NOT USE REPLACEMENT COMPONENTS

OTHER THAN THOSE SPECIFIED OR MAKE UNRECOMMENDED CIR-

CUIT MODIFICATIONS.

7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN A.C.

LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF THE CABI-

NET, (THE CHANNEL SELECTOR KNOB, ANTENNA TERMINALS. HAN-

DLE AND SCREWS) TO BE SURE THE SET IS SAFE TO OPERATE

WITHOUT DANGER OF ELECTRICAL SHOCK. DO NOT USE A LINE

ISOLATION TRANSFORMER DURING THIS TEST USE AN A.C. VOLT-

METER, HAVING 5000 OHMS PER VOLT OR MORE SENSITIVITY, IN

THE FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT RESIS-

TOR, PARALLELED BY A .15 MFD. 150.V A.C TYPE CAPACITOR

BETWEEN A KNOWN GOOD EARTH GROUND (WATER PIPE, CON-

DUIT, ETC.) AND THE EXPOSED METALLIC PARTS, ONE AT A TIME.

MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500

OHM RESISTOR AND .15 MFD CAPACITOR. REVERSE THE A.C. PLUG

AND REPEAT A.C. VOLTAGE MEASUREMENTS FOR EACH EXPOSED

METALLIC PART. VOLTAGE MEASURED MUST NOT EXCEED 75

VOLTS R.M.S. THIS CORRESPONDS TO 0.5 MILLIAMP A.C ANY

VALUE EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL SHOCK

HAZARD AND MUST BE CORRECTED IMMEDIATELY.

SUBJECT: GRAPHIC SYMBOLS

THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN

AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE

SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED

“DANGEROUS VOLTAGE” THAT MAY BE OF SUFFICIENT MAG-

NITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIAN-

GLE IS INTENDED TO ALERT THE SERVICE PERSONNEL TO

THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN

SERVICE LITERATURE.

SUBJECT : X-RADIATION

1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PER-

SONNEL COVER THE SUBJECT OF X-RADIATION. THE ONLY POTEN-

TIAL SOURCE OF X-RAYS IN CURRENT T.V. RECEIVERS IS THE PIC-

TURE TUBE. HOWEVER, THIS TUBE DOES NOT EMIT X-RAYS WHEN

THE HIGH VOLTAGE IS AT THE FACTORY SPECIFIED LEVEL. THE

PROPER VALUE IS GIVEN IN THE APPLICABLE SCHEMATIC. OPERA-

TION AT HIGHER VOLTAGES MAY CAUSE A FAILURE OF THE PIC-

TURE TUBE OR HIGH VOLTAGE SUPPLY AND, UNDER CERTAIN CIR-

CUMSTANCES, MAY PRODUCE RADIATION IN EXCESS OF DESIR-

ABLE LEVELS.

2. ONLY FACTORY SPECIFIED C.R.T. ANODE CONNECTORS MUST BE

USED. DEGAUSSING SHIELDS ALSO SERVE AS X-RAY SHIELD IN

COLOR SETS, ALWAYS RE-INSTALL THEM.

3. IT IS ESSNTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN

ACCURATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRA

TION OF THE METER SHOULD BE CHECKED PERIODICALLY

AGAINST A REFERENCE STANDARD, SUCH AS THE ONE AVAILABLE

AT YOUR DISTRIBUTOR.

4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY

THERE IS NO POSSIBILITY OF AN X-RADIATION PROBLEM. EVERY

TIME A COLOR CHASSIS IS SERVICED. THE BRIGHTNESS SHOULD

BE RUN UP AND DOWN WHILE MONITORING THE HIGH VOLTAGE

WITH A METER TO BE CERTAIN THAT THE HIGH VOLTAGE DOES

NOT EXCEED THE SPECIFIED VALUE AND THAT IT IS REGULATING

CORRECTLY, WE SUGGEST THAT YOU AND YOUR SERVICE ORGA-

NIZATION REVIEW TEST PROCEDURES SO THAT VOLTAGE REGU-

LATION IS ALWAYS CHECKED AS A STANDARD SERVICING PROCE-

DURE. AND THAT THE HIGH VOLTAGE READING BE RECORDER ON

EACH CUSTOMER’S INVOICE.

5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN

A PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE,

AVOID BEING UNNECESSARILY CLOSE TO THE PICTURE TUBE AND

THE HIGH VOLTAGE SUPPLY. DO NOT OPERATE THE PRODUCT

LONGER THAN IS NECESSARY TO LOCATE THE CAUSE OF EXCES

SIVE VOLTAGE.

6. REFER TO HV. B+ AND SHUTDOWN ADJUSTMENT PROCEDURES

DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS

(WHERE USED).

SUBJECT: IMPLOSION

1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTE

GRAL IMPLOSION PROTECTION SYSTEM, BUT CARE SHOULD BE

TAKEN TO AVOID DAMAGE DURING INSTALLATION, AVOID

SCRATCHING THE TUBE. IF SCRATCHED REPLACE IT.

2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.

SUBJECT : TIPS ON PROPER INSTALLATION

1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS, CUBBY-

HOLE OR CLOSELY FITTING SHELF SPACE. OVER OR CLOSE TO

HEAT DUCT, OR IN THE PATH OF HEATED AIR FLOW.

2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO

INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIA-

TORS WHERE STEAM LEAKAGE IS A FACTOR, ETC.

3. AVOID PALCEMENT WHERE DRAPERIES MAY OBSTRUCT REAR

VENTING. THE CUSTOMER SHOULD ALSO AVOID THE USE OF DEC-

ORATIVE SCARVES OR OTHER COVERINGS WHICH MIGHT

OBSTRUCT VENTILATION.

4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMER-

CIAL MOUNTING KIT. MUST FOLLOW THE FACTORY APPROVED

MOUNTING INSTRUCTIONS A PRODUCT MOUNTED TO A SHELF OR

PLATFORM MUST RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT

THICKNESS IN SPACERS) TO PROVIDE ADEQUATE AIR FLOW

ACROSS THE BOTTOM, BOLTS OR SCREWS USED FOR FASTENERS

MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM LEAKAGE

TEST ON CUSTOMIZED INSTALLATIONS.

5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A PRODUCT ON

SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS

PROPERLY SECURED.

6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS

MOUNTING TO THE CART. CAUTION THE CUSTOMER ON THE HAZ-

ARDS OF TRYING TO ROLL A CART WITH SMALL CASTERS ACROSS

THRESHOLDS OR DEEP PILE CARPETS.

7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND

WHICH HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES,

INC. FOR USE WITH THEIR SPECIFIC MODEL OF TELEVISION

RECEIVER OR GENERICALLY APPROVED FOR USE WITH T.V.’S OF

THE SAME OR LARGER SCREEN SIZE.

8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS,

EXPLAIN THAT A FOREST OF EXTENSIONS SPROUTING FROM A SIN-

GLE OUTLET CAN LEAD TO DISASTROUS CONSEQUENCES TO

HOME AND FAMILY.

PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS

A.C. VOLTMETER

GOOD EARTH GROUND

SUCH AS THE WATER

PIPE. CONDUIT. ETC

PLACE THIS PROBE

ON EACH EXPOSED

METAL PART

1-37

SERVICING PRECAUTIONS

CAUTION : Before servicing the DVD covered by this service

data and its supplements and addends, read and follow the

SAFETY PRECAUTIONS. NOTE : if unforeseen circum-

stances create conflict between the following servicing pre-

cautions and any of the safety precautions in this publica-

tions, always follow the safety precautions.

Remembers Safety First:

General Servicing Precautions

1. Always unplug the DVD AC power cord from the AC

power source before:

(1) Removing or reinstalling any component, circuit board,

module, or any other assembly.

(2) Disconnection or reconnecting any internal electrical

plug or other electrical connection.

(3) Connecting a test substitute in parallel with an elec-

trolytic capacitor.

Caution : A wrong part substitution or incorrect

polarity installation of electrolytic capacitors may result

in an explosion hazard.

2. Do not spray chemicals on or near this DVD or any of

its assemblies.

3. Unless specified otherwise in this service data, clean

electrical contacts by applying an appropriate contact

cleaning solution to the contacts with a pipe cleaner,

cotton-tipped swab, or comparable soft applicator.

Unless specified otherwise in this service data, lubrication

of contacts is not required.

4. Do not defeat any plug/socket B+ voltage interlocks with

whitch instruments covered by this service manual might

be equipped.

5. Do not apply AC power to this DVD and/or any of its

electrical assemblies unless all solid-state device heat

sinks are cerrectly installed.

6. Always connect test instrument ground lead to the

appropriate ground before connection the test instrument

positive lead. Always remove the test instrument ground

lead last.

Insulation Checking Procedure

Disconnect the attachment plug from the AC outlet and turn

the power on. Connect an insulation resistance meter(500V)

to the blades of the attachment plug. The insulation resis-

tance between each blade of the attachment plug and acces-

sible conductive parts (Note 1) should be more than 1M-

ohm.

Note 1 : Accessible Conductive Parts including Metal pan-

els, Input terminals, Earphone jacks, etc.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged

easily by static electricity. Such components commonly are

called Electrostatically Sensitive (ES) Devices. Examples of

typical ES devices are integrated circuits and some field

effect transistors and semiconductor chip components.

The following techniques should be used to help reduce the

incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor compo-

nent or semiconductor-equipped assembly, drain off any

electrostatic charge on your body by touching a known

earth ground. Alternatively, obtain and wear a commer-

cially available discharging wrist strap device, which

should be removed for potential shock reasons prior to

applying power to the unit under test.

2. After removing an electrical assembly equipped with ES

devices, place the assembly on a conductive surface such

as aluminum foil, to prevent electrostatic charge buildup or

exposure of the assembly.

3. Use only a grouned-tip soldering iron to solder or unsolder

ES devices.

4. Use only an anti-static solder removal device. Some

solder removal devices not classified a “anti-static” can

generate electrical charges sufficient to damage ES

devices.

5. Do not use freon-propelled chemicals. These can

generate electrical charge sufficient to damage ES

devices.

6. Do not remove a replacement ES device from its protec

tive package until immediately before you are ready to

install it. (Most replacement ES devices are packaged with

leads electrically shorted together by conductive foam,

aluminum foil, or comparable conductive material).

7. Immediately before removing the protective material from

the leads of a replacement ES device, touch the protective

material to the chassis or circuit assembly into which the

device will be installed.

Caution : Be sure no power is applied to the chassis or

circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged

replacement ES devices. (Normally harmless motion such

as the brushing together of your clothes fabric or the lifting

of your foot from a carpeted floor can generate static elec-

tricity sufficient to damage an ES device.)

2-1

SECTION 2

CABINET & MAIN CHASSIS

CONTENTS

1. EXPLODED VIEWS ................................................................................................................2-2

1. Cabinet and Main Frame Section...........................................................................................2-2

2. Packing Accessory Section....................................................................................................2-3

2-2

EXPLODED VIEWS

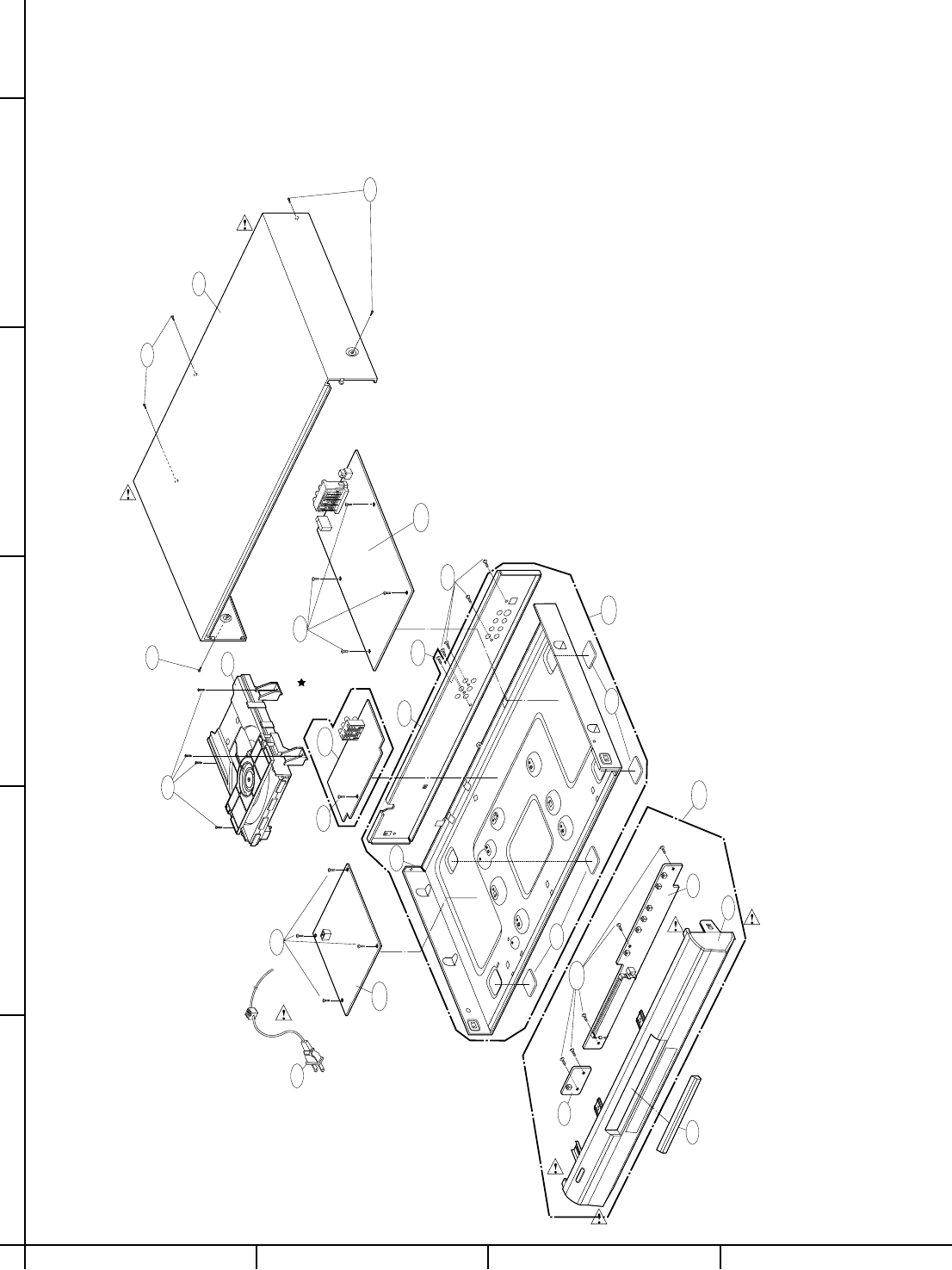

1. Cabinet and Main Frame Section

463 463

250

A00

463

463

300

283

280

A42

A49

A47

A48

A44

A43

A46

260

261

261

463

320

463

467

463

465

452

SCART&5.1CH

MODEL

ONLY

A

5

4

3

2

1

BCD

2. Packing Accessory Section

BATTERY

808

PACKING SHEET

804

PACKING

OPTIONAL PARTS

803

806

820

OWNER'S MANUAL

RF CABLE

810 CABLE SET ASS'Y

801

REMOCON

900

BOX CARTON

802

PACKING

803

811

812

PLUG ASS'Y 1WAY(YELLOW)

PLUG ASS'Y 1WAY(BLACK)

PLUG ASS'Y 2WAY

2-3

3-1

SECTION 3

ELECTRICAL

CONTENTS

ELECTRICAL TROUBLESHOOTING GUIDE......................................................................3-2

1. Power check flow.....................................................................................................................3-2

2. System operation flow ............................................................................................................3-3

3. Test & debug flow....................................................................................................................3-4

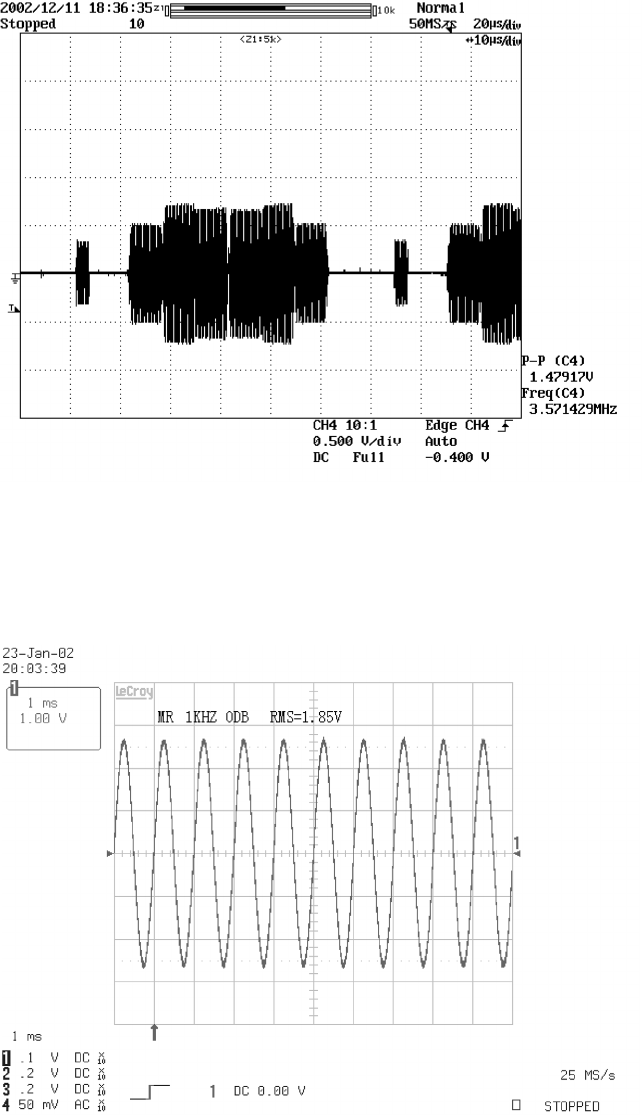

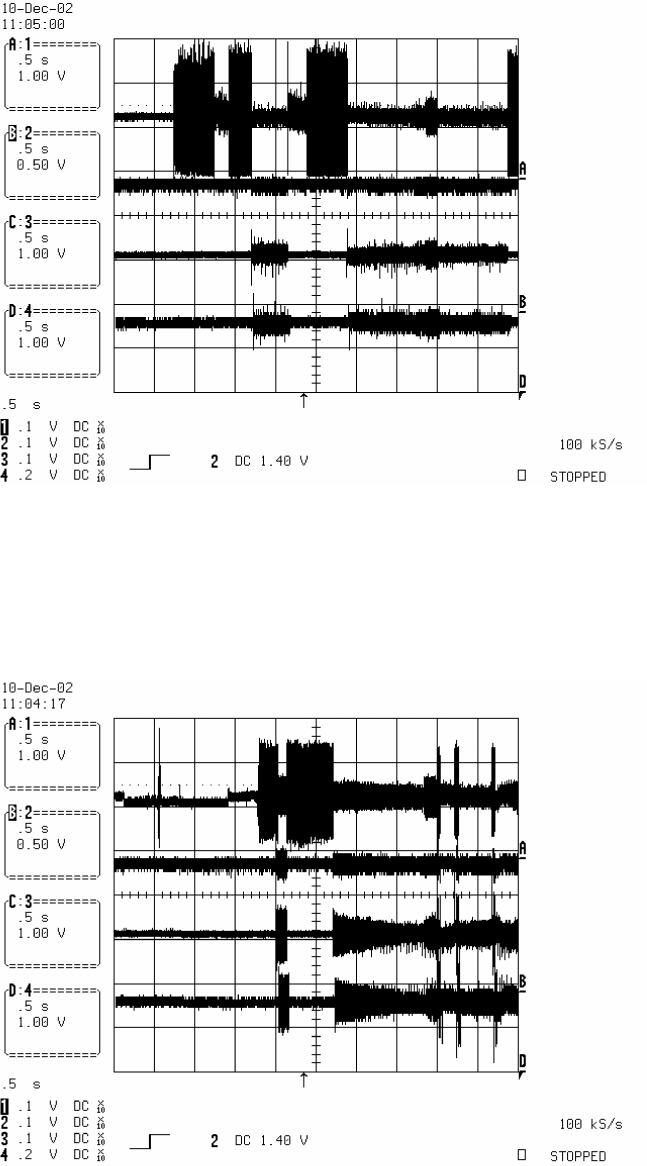

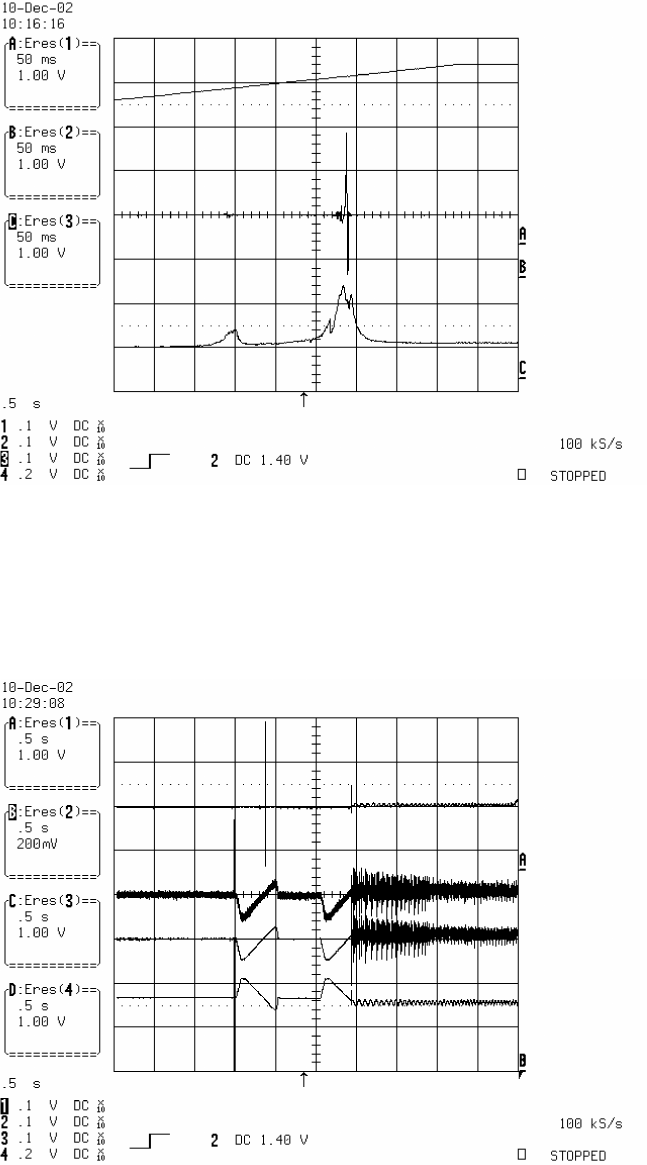

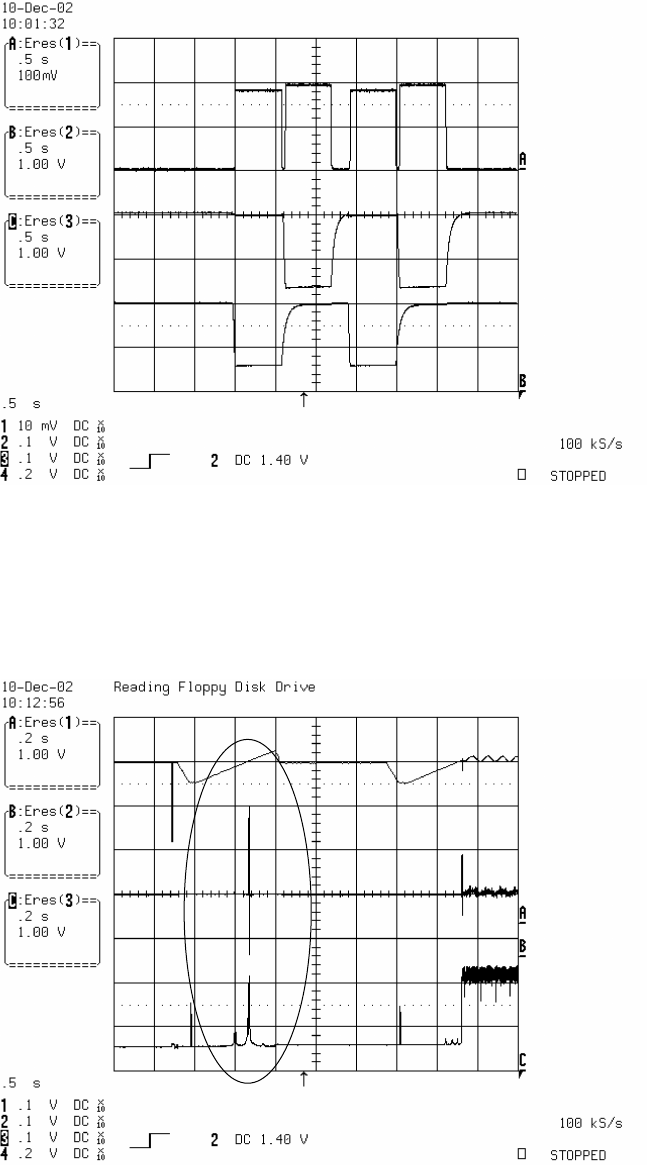

DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING....................3-10

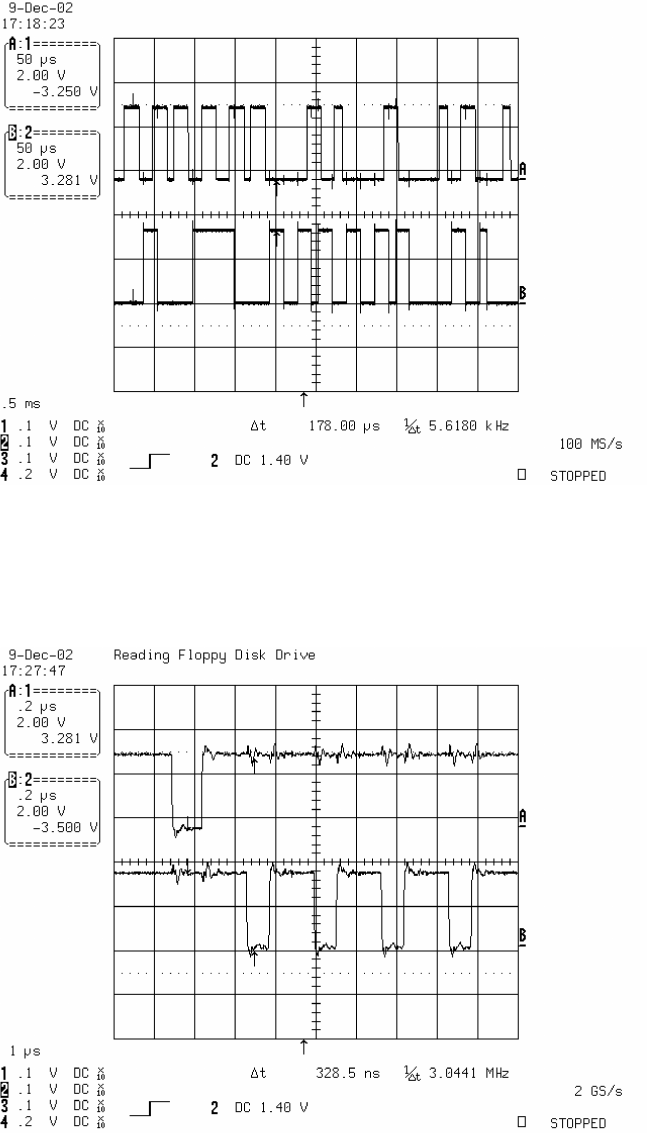

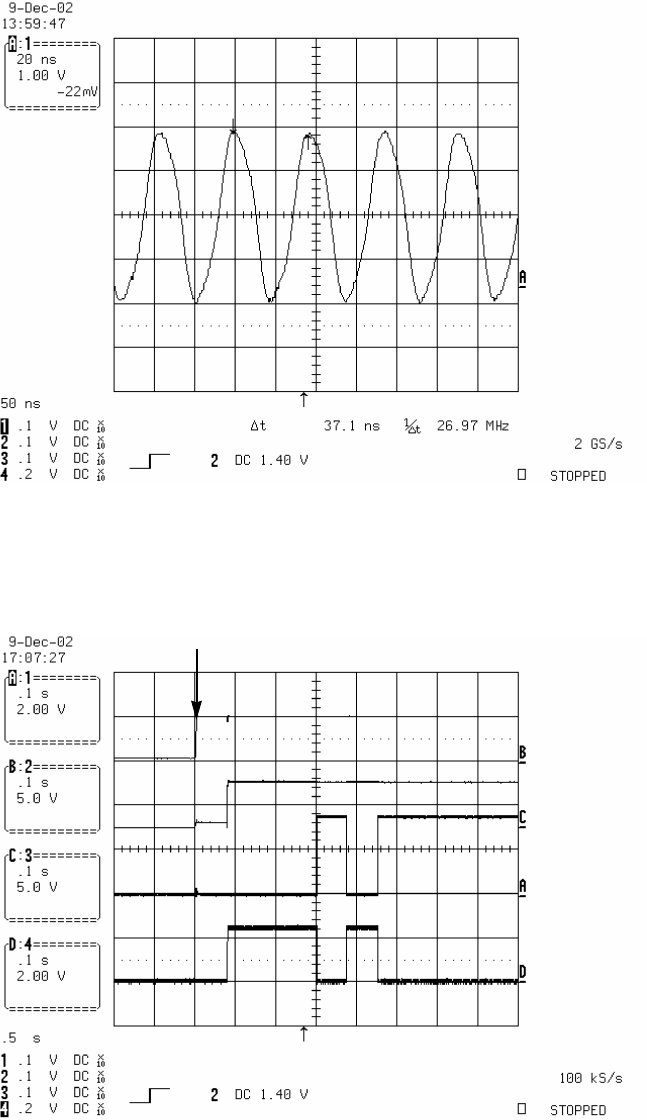

1. SYSTEM 27MHz CLOCK,RESET,FLASH R/W SIGNAL .......................................................3-10

2. SDRAM CLOCK......................................................................................................................3-12

3. TRAY OPEN/CLOSE SIGNAL ................................................................................................3-12

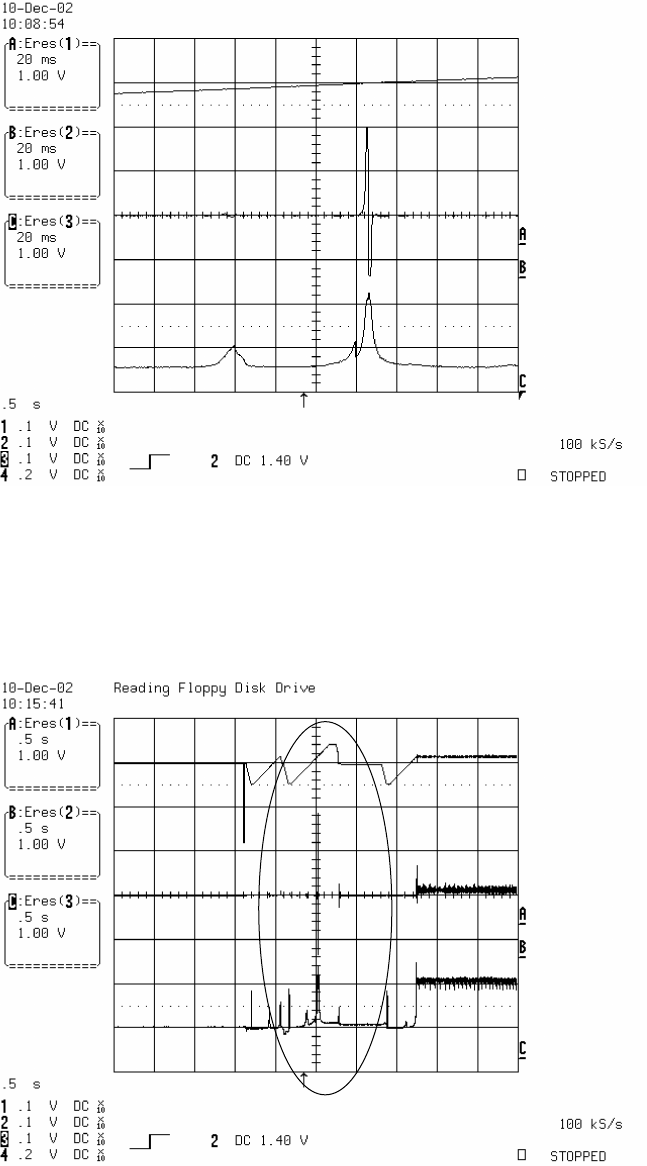

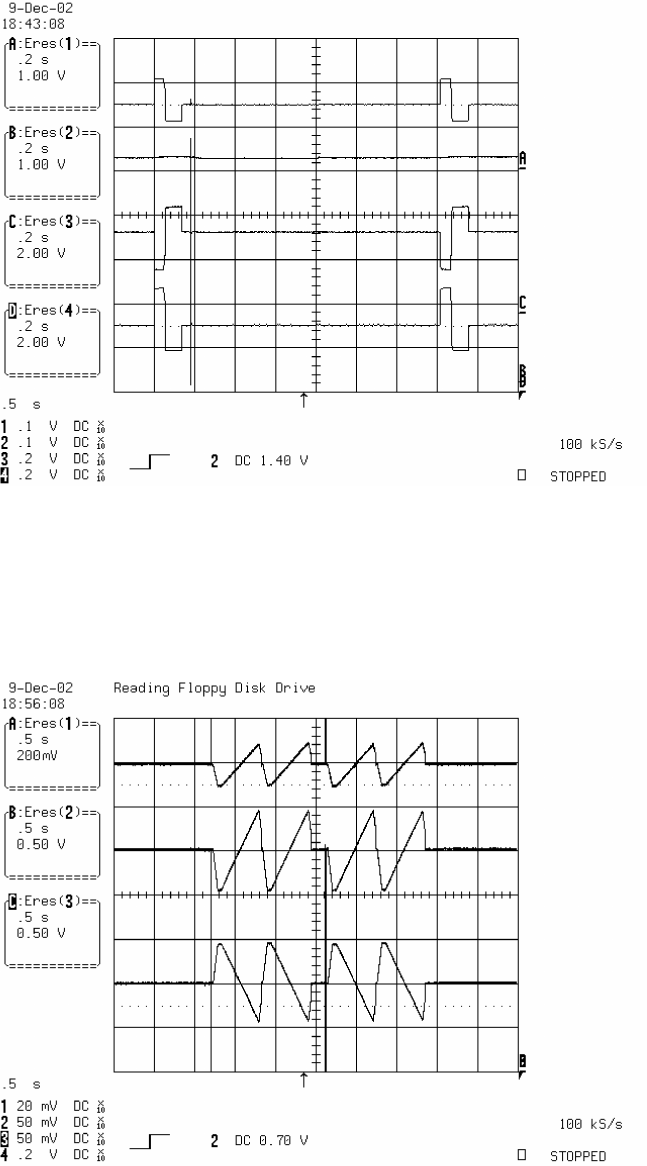

4. SLED CONTROL RELATED SIGNAL (NO DISC CONDITION) ............................................3-14

5. LENS CONTROL RELATED SIGNAL(NO DISC CONDITION) .............................................3-14

6. LASER POWER CONTROL RELATED SIGNAL(NO DISC CONDITION)............................3-15

7. DISC TYPE JUDGEMENT WAVEFORM ................................................................................3-15

8. FOCUS ON WAVEFORM........................................................................................................3-17

9. SPINDLE CONTROL WAVEFORM (NO DISC CONDITION).................................................3-18

10. TRACKING CONTROL RELATED SIGNAL(System checking).........................................3-19

11. RF WAVEFORM ....................................................................................................................3-20

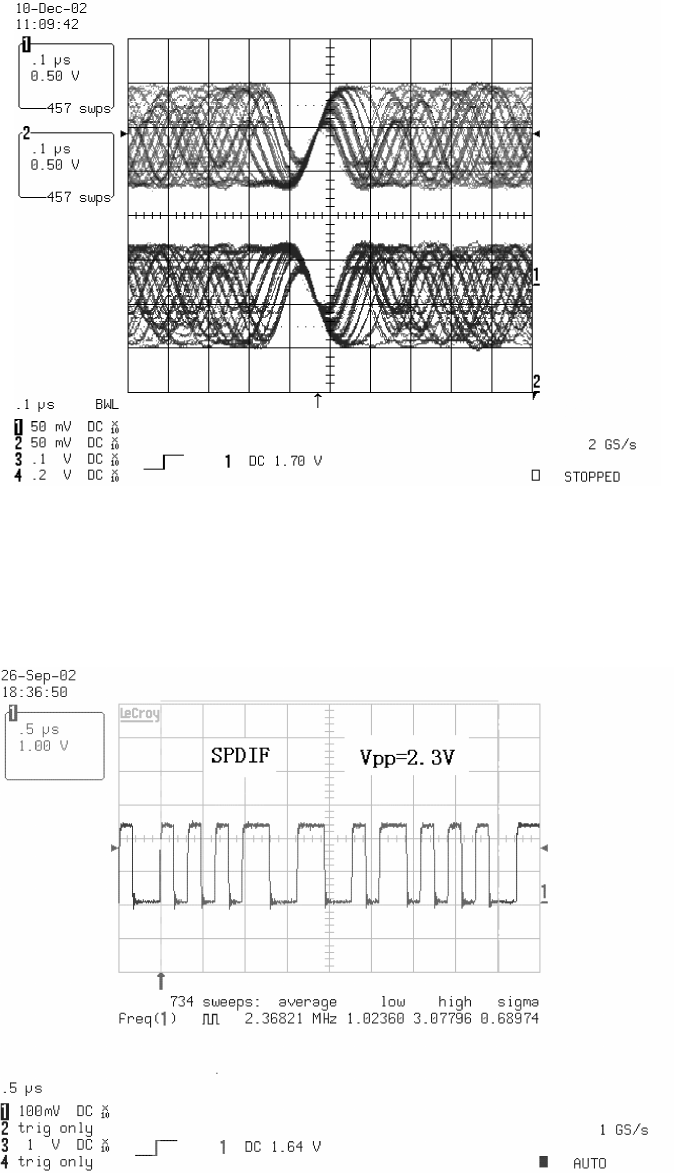

12. MT1379 AUDIO OPTICAL AND COAXIAL OUTPUT (ASPDIF)..........................................3-20

13. MT1379 VIDEO OUTPUT WAVEFORM................................................................................3-21

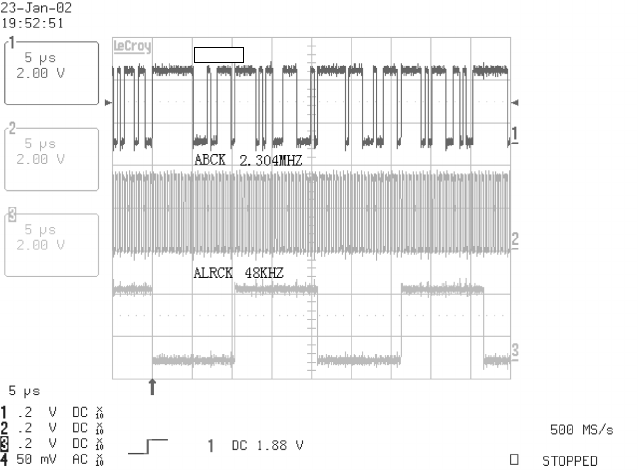

14. AUDIO OUTPUT FROM AUDIO DAC ..................................................................................3-22

BLOCK DIAGRAMS..................................................................................................................3-24

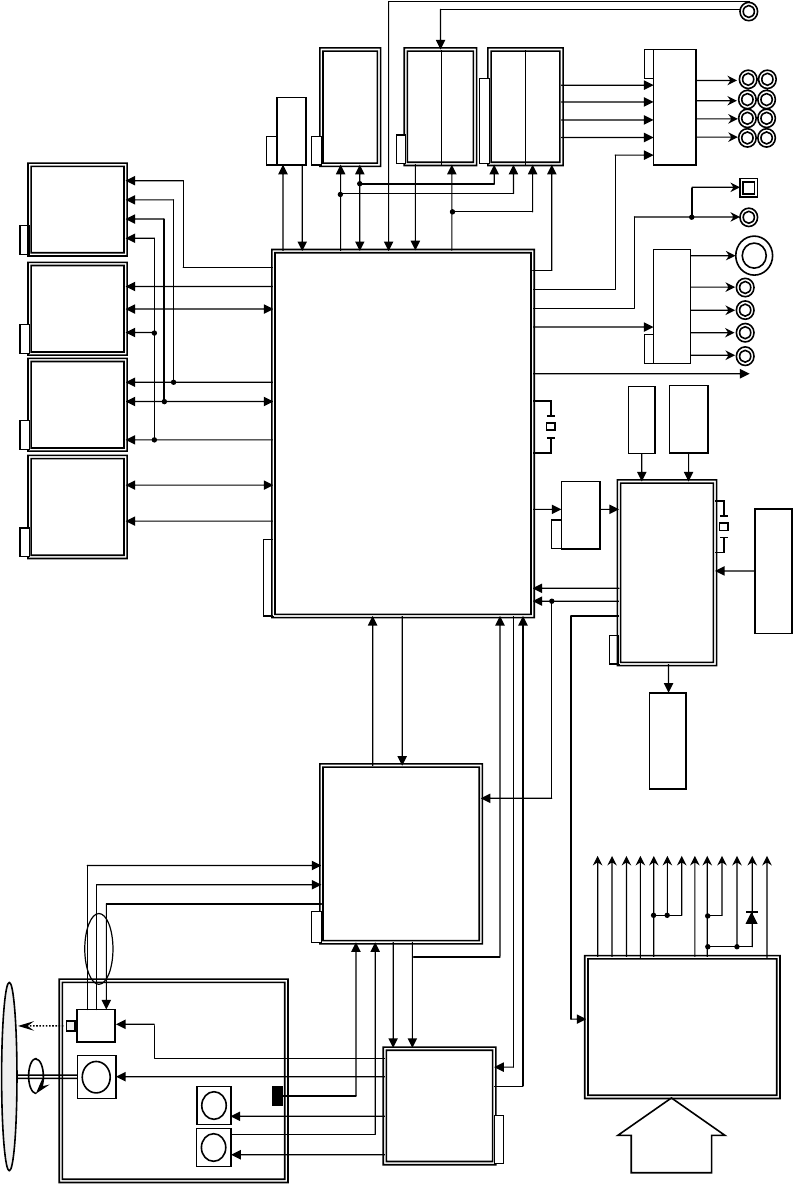

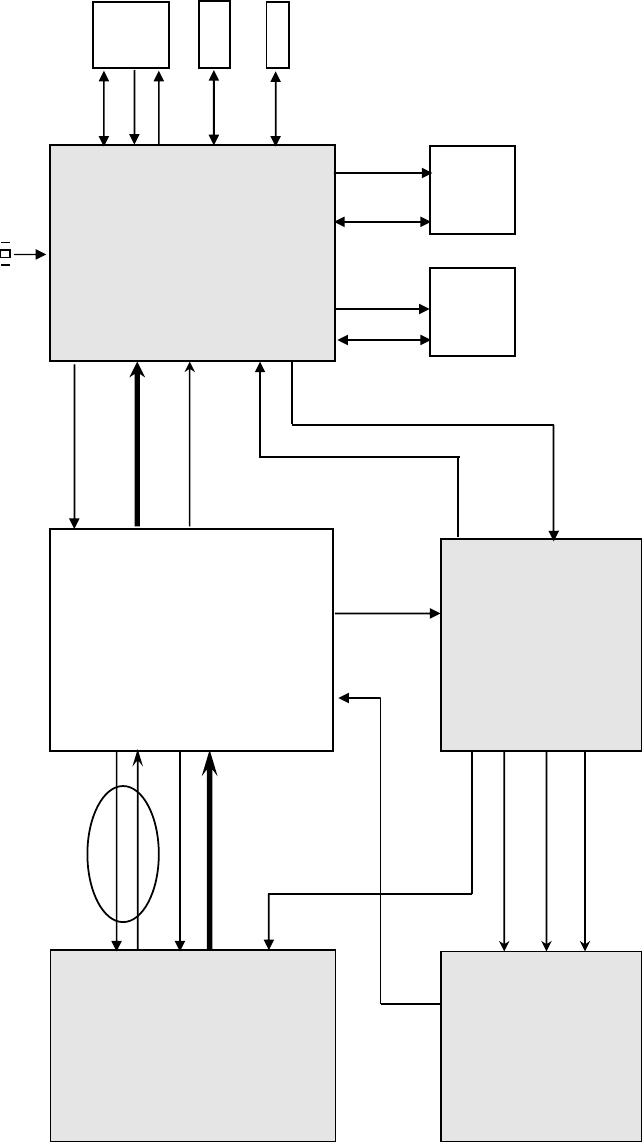

1. Overall Block Diagram ..........................................................................................................3-24

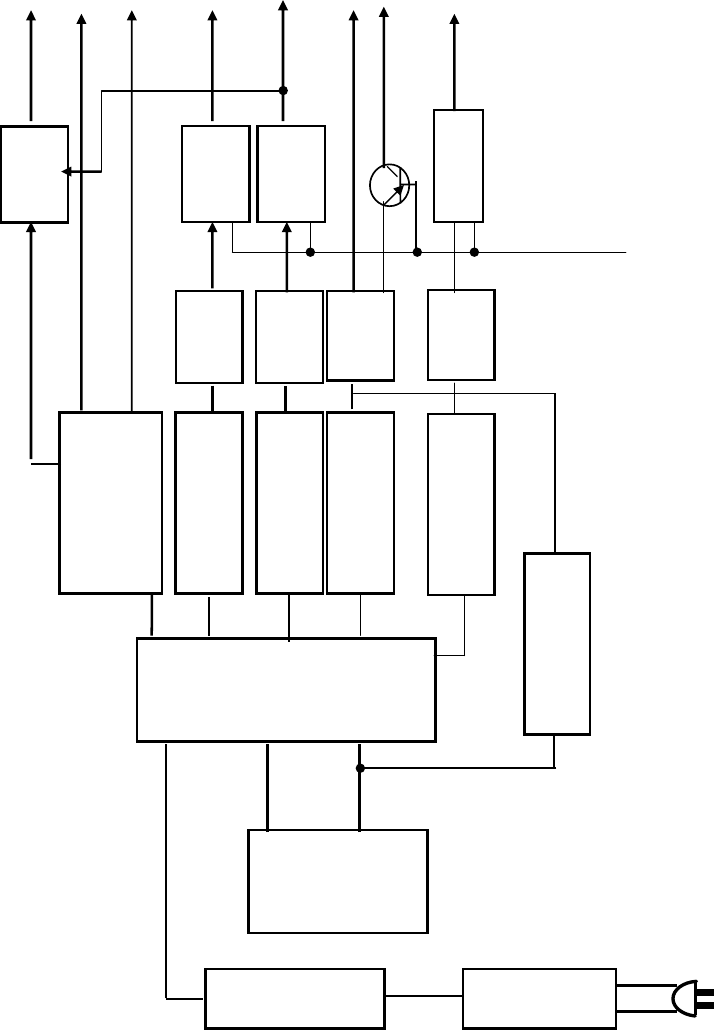

2. Power(SMPS) Block Diagram ...............................................................................................3-25

3. SERVO Block Diagram..........................................................................................................3-26

4. MPEG & MEMORY Block Diagram .......................................................................................3-27

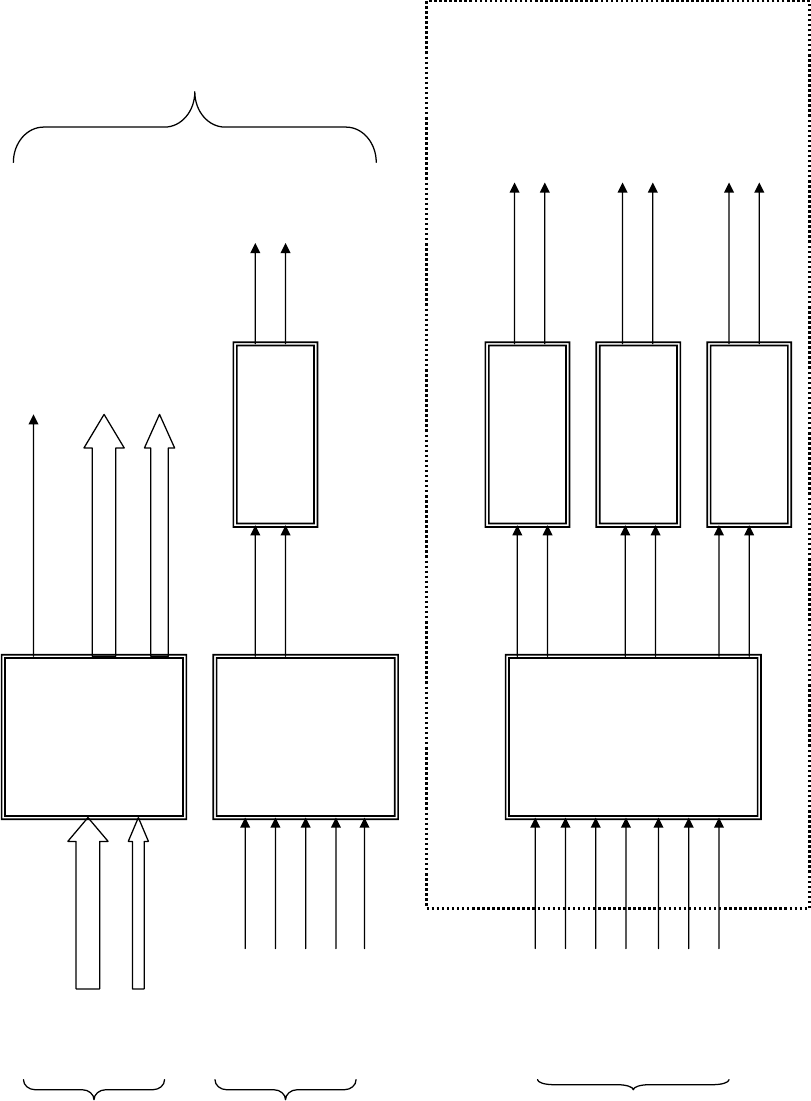

5. VIDEO & AUDIO Block Diagram ...........................................................................................3-28

CIRCUIT DIAGRAMS................................................................................................................3-29

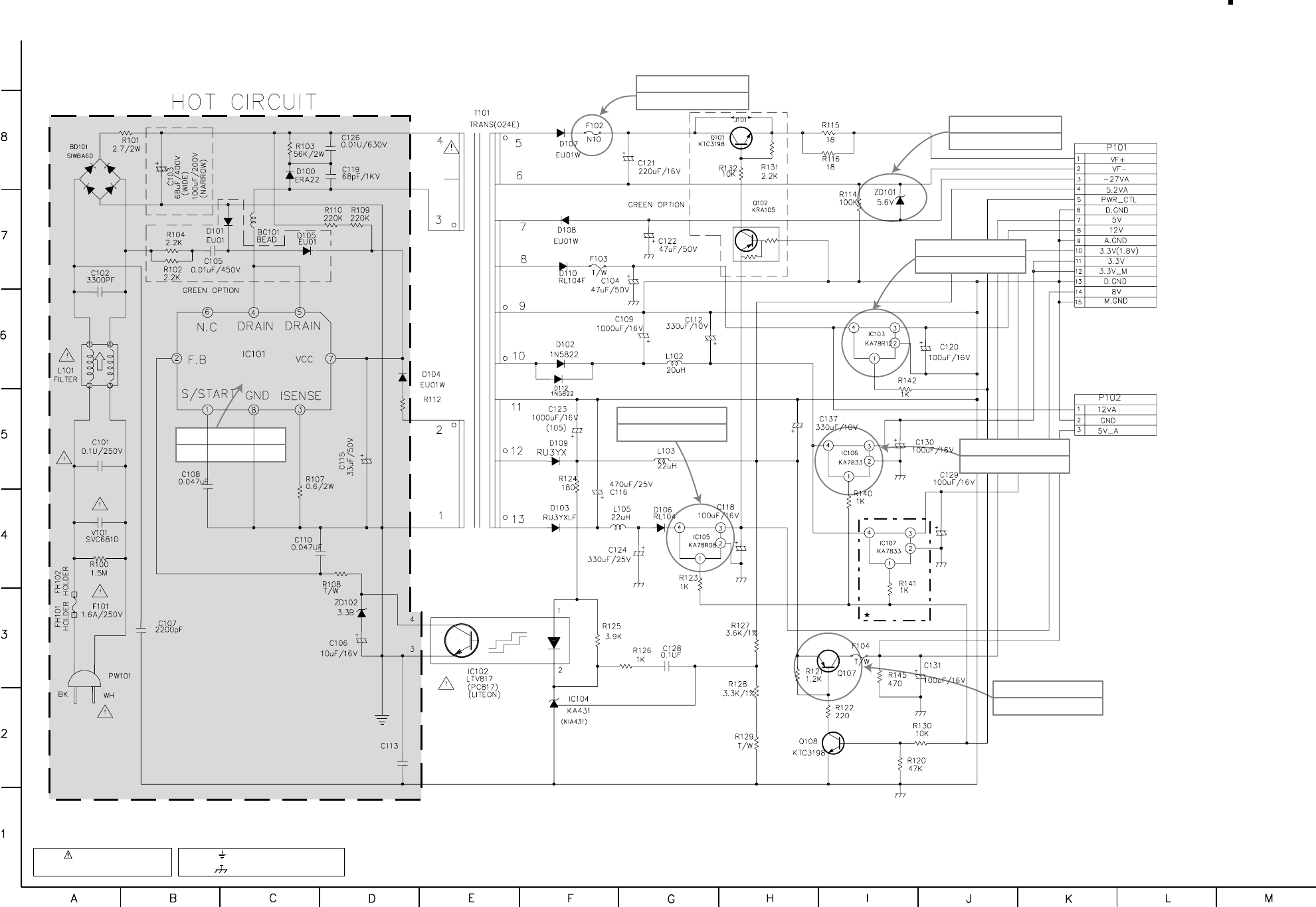

1. Power(SMPS) Circuit DIAGRAM...........................................................................................3-29

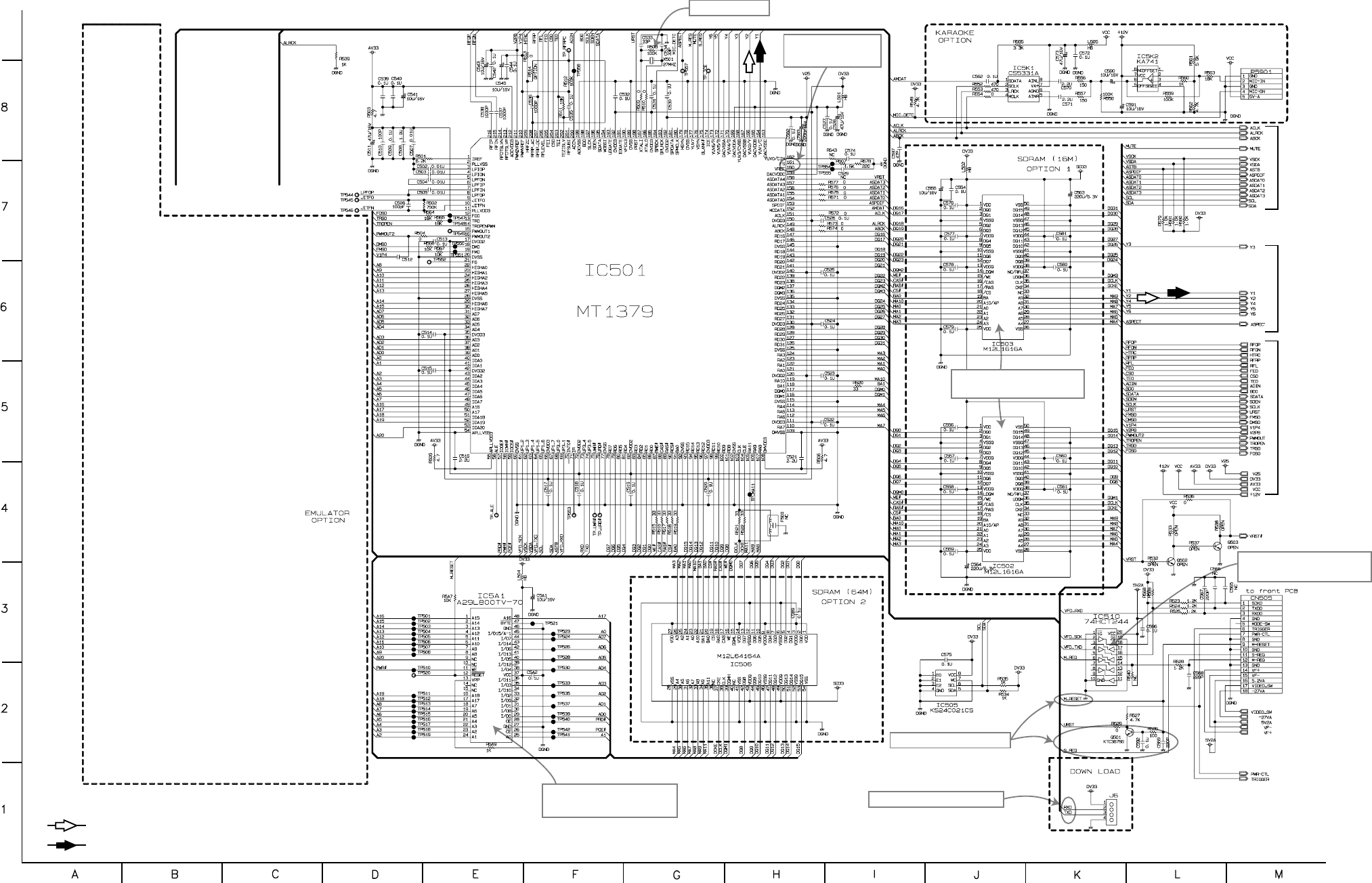

2. SYSTEM Circuit DIAGRAM ...................................................................................................3-31

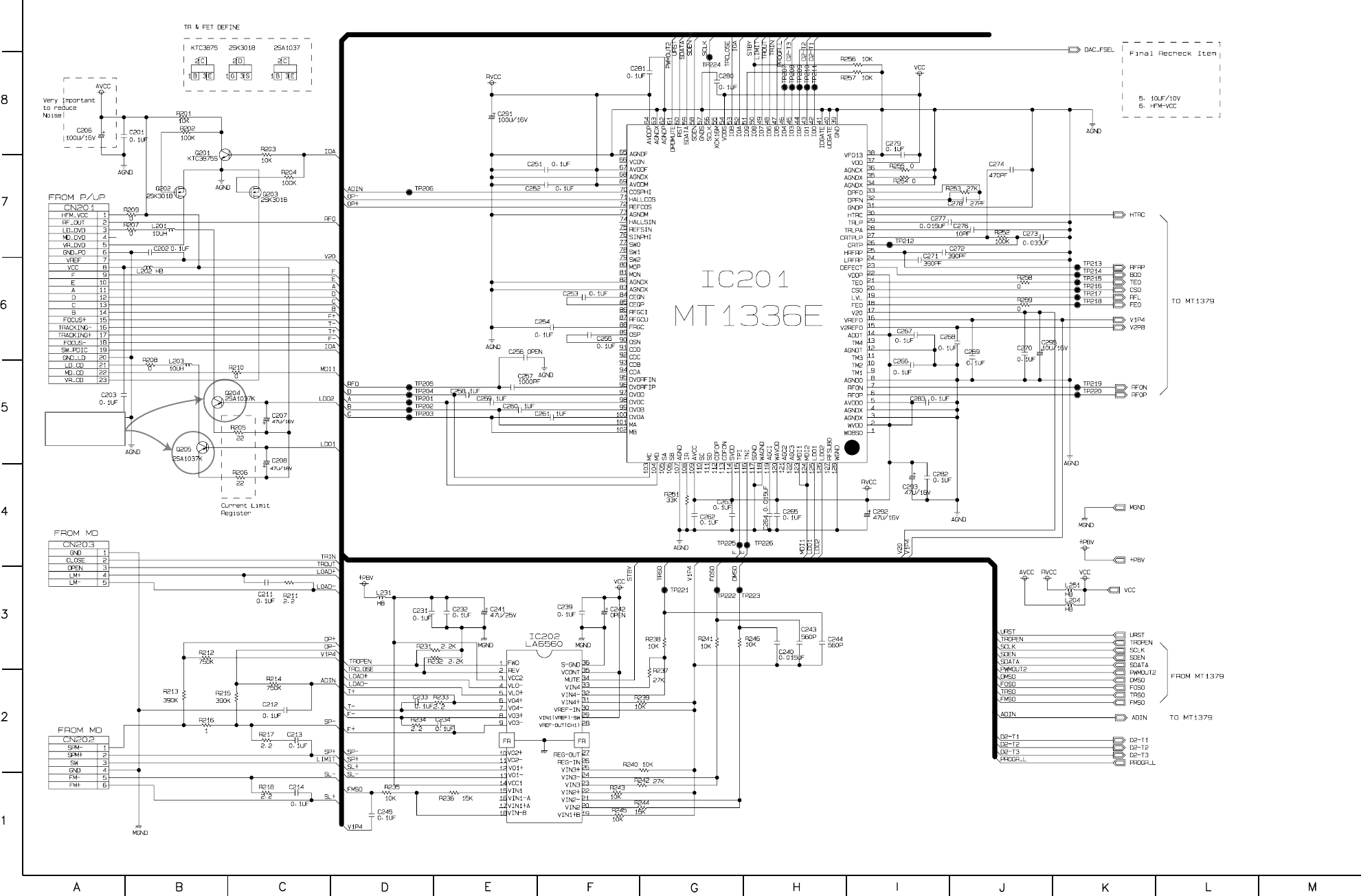

3. RF & SERVO Circuit DIAGRAM............................................................................................3-33

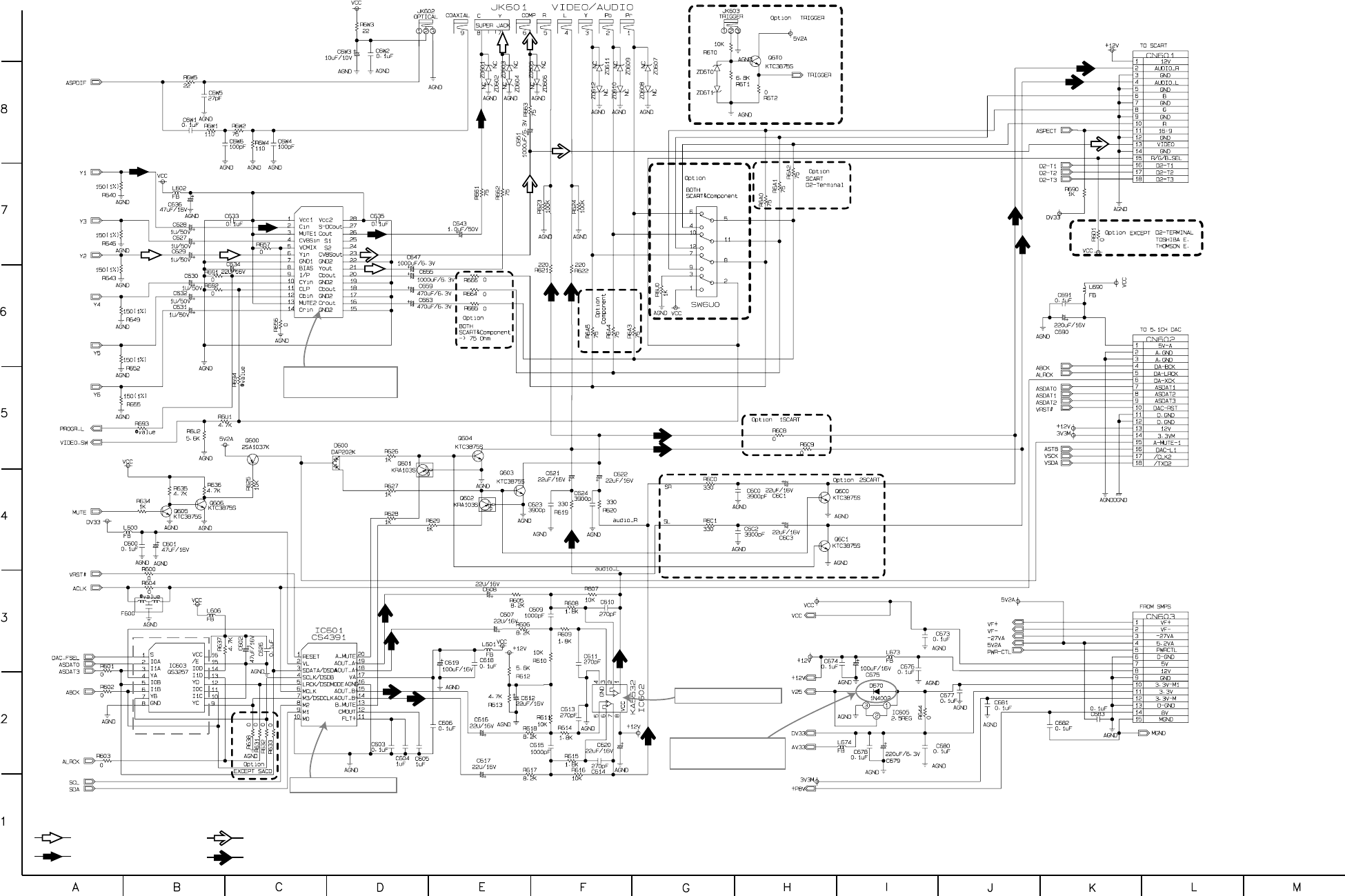

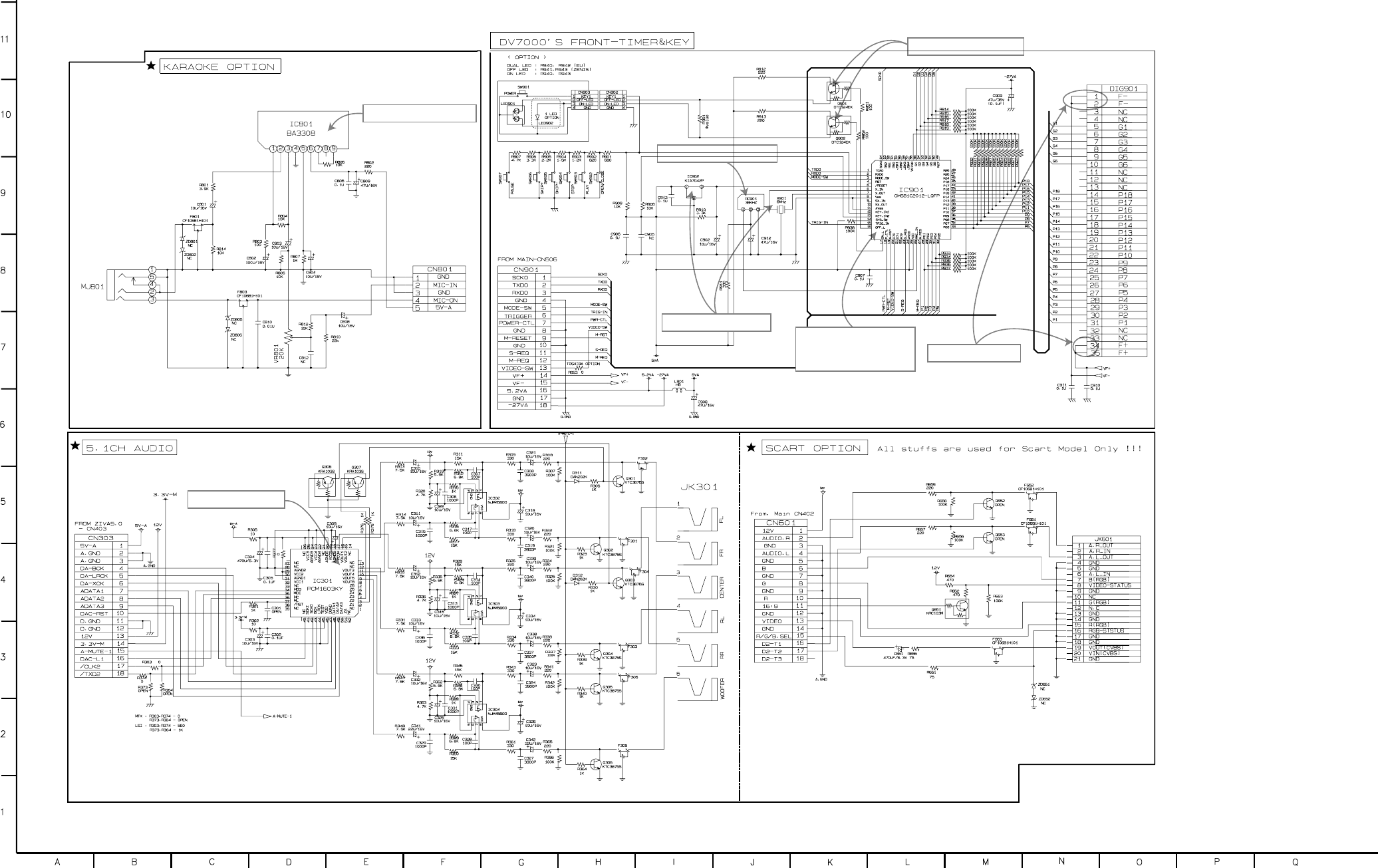

4. TIMER, 5.1CH, SCART, KARAOKE Circuit DIAGRAM ........................................................3-35

5. AV/JACK Circuit DIAGRAM...................................................................................................3-37

• CIRCUIT VOLTAGE CHART ....................................................................................................3-39

PRINTED CIRCUIT DIAGRAMS............................................................................................3-43

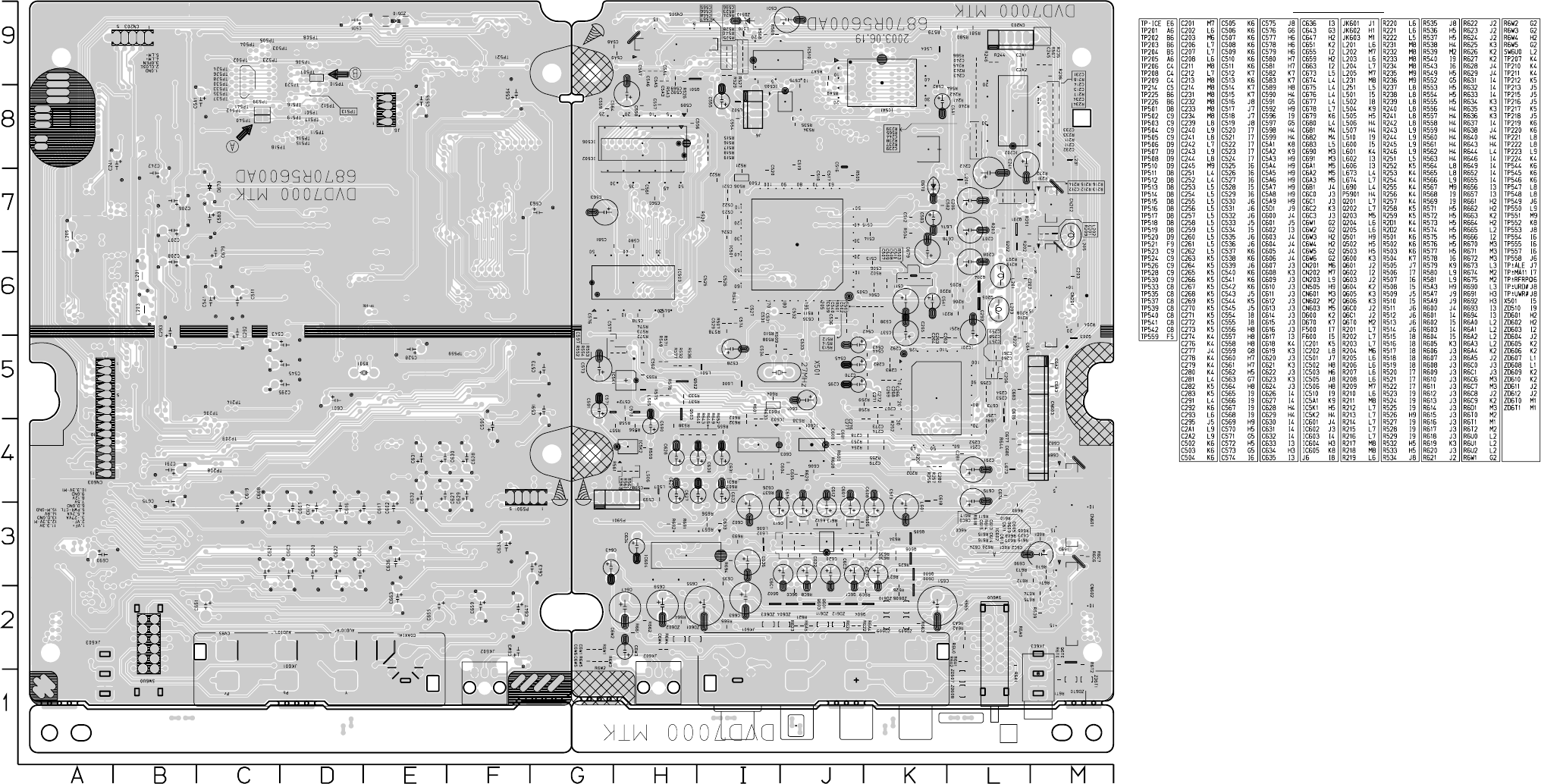

1. MAIN P.C.BOARD...................................................................................................................3-43

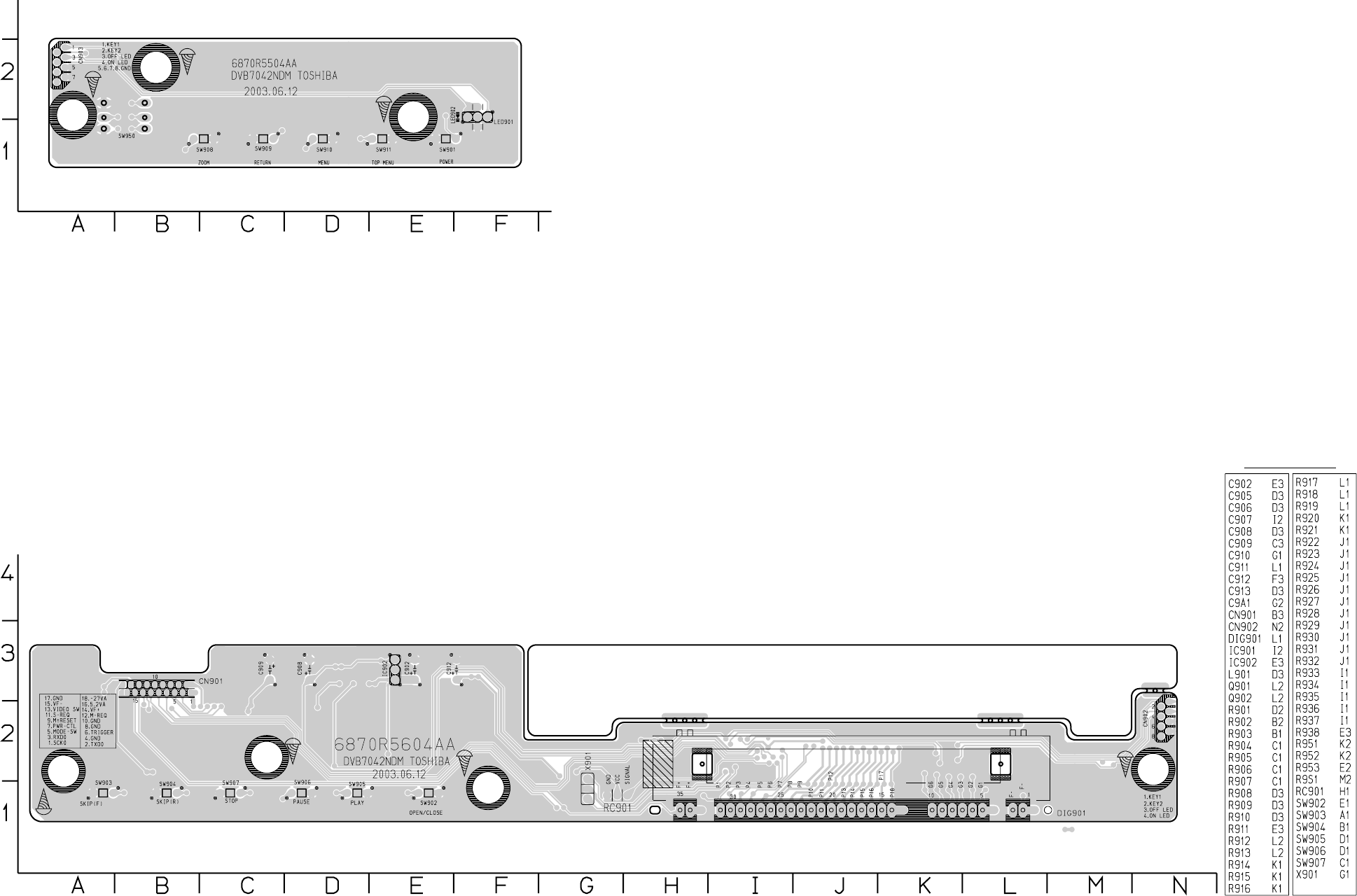

2. KEY P.C.BOARD.....................................................................................................................3-45

3. TIMER P.C.BOARD.................................................................................................................3-45

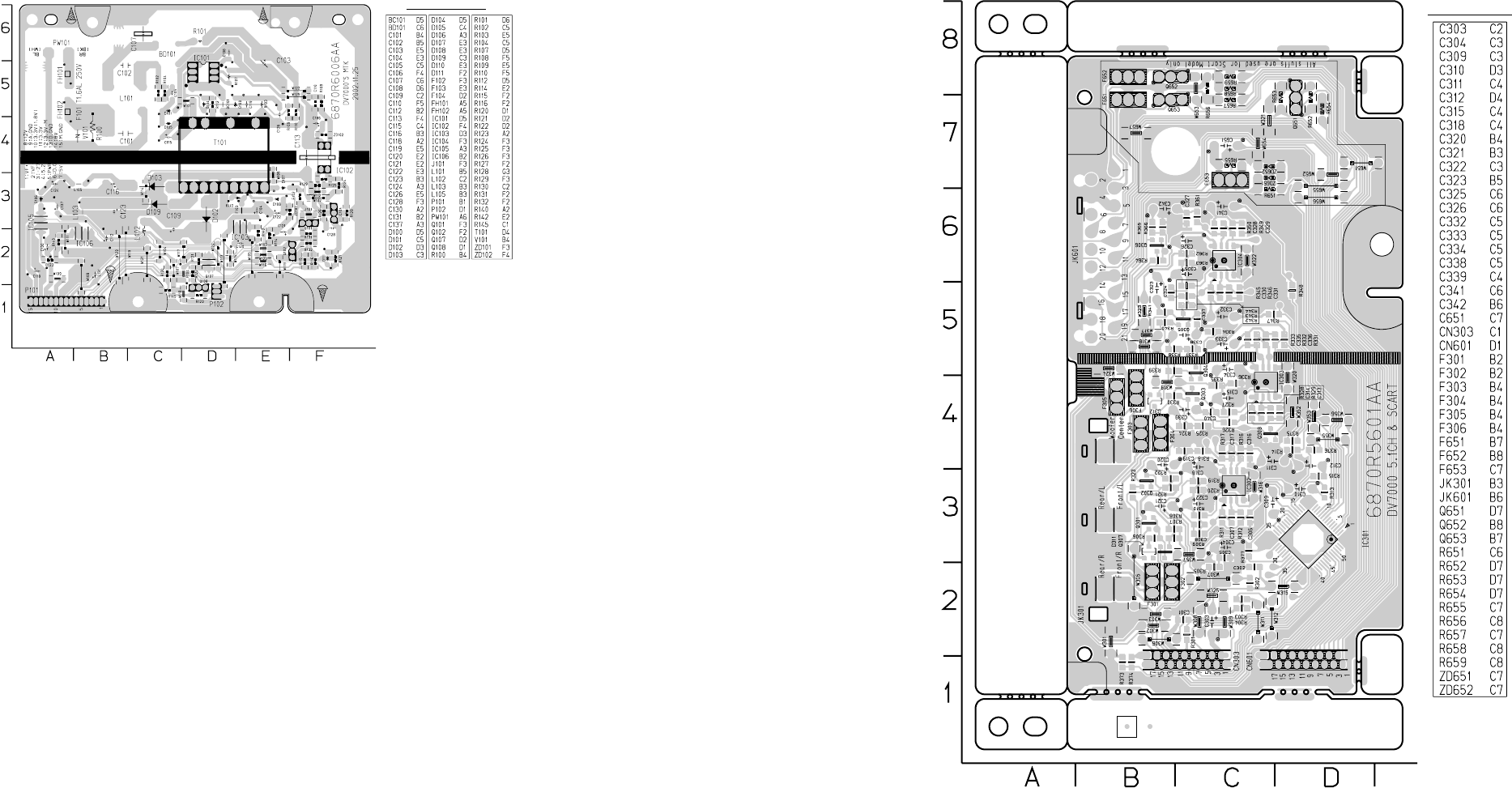

4. SMPS P.C.BOARD..................................................................................................................3-47

5. 5.1CH P.C.BOARD..................................................................................................................3-48

3-2

ELECTRICAL TROUBLESHOOTING GUIDE

No 5V_A .

No 5.2VA.

Is 5.2VA section working?

Is 5.2V present at emitter

of Q107?

Replace Q107.

Is there a DC voltage At

(+) terminal of BD101?

Is there a DC voltage at

R101?

Replace IC101.

Check F101

1. Power check flow

No VF+

Is 5.2VA section working?

Replace D109.

Check F102

NO

NO

YES

YES YES

YES

Replace R101.

YES

Replace BD101.

YES

YES

A. B.

NO

NO

NO

NO

3-3

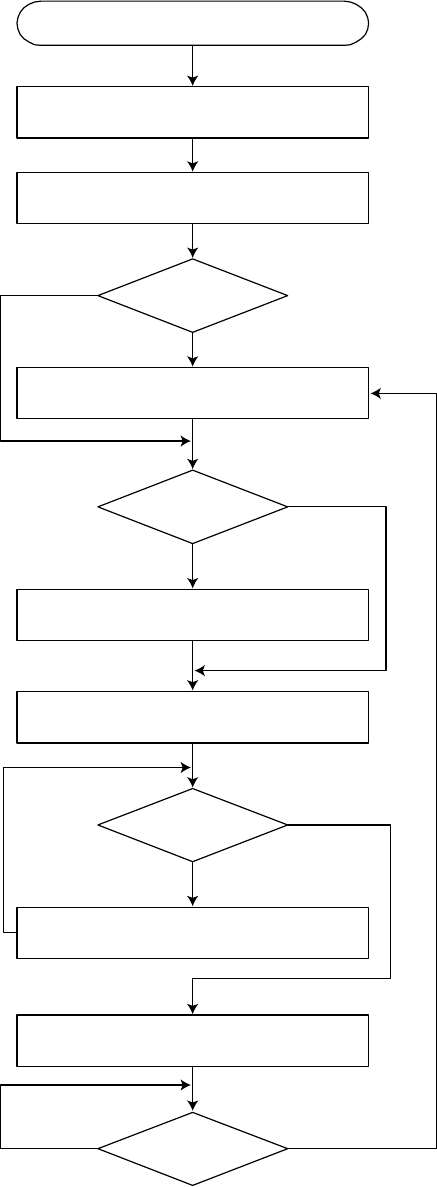

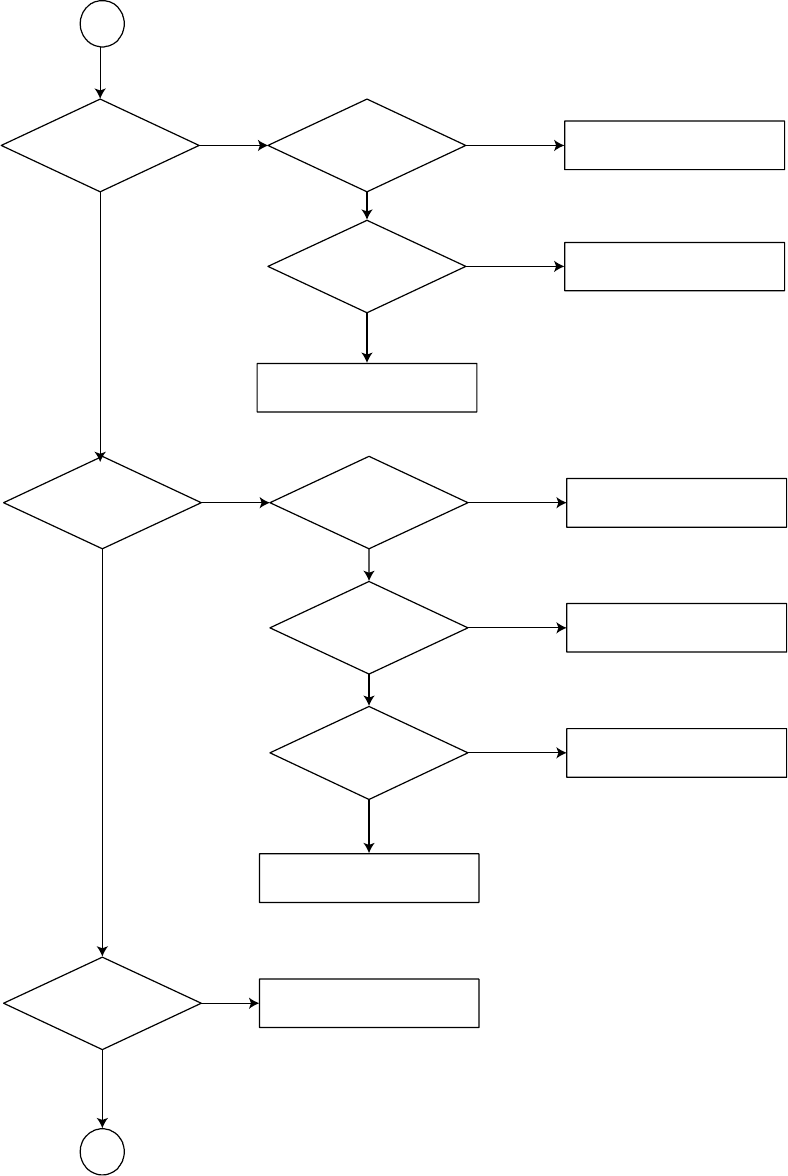

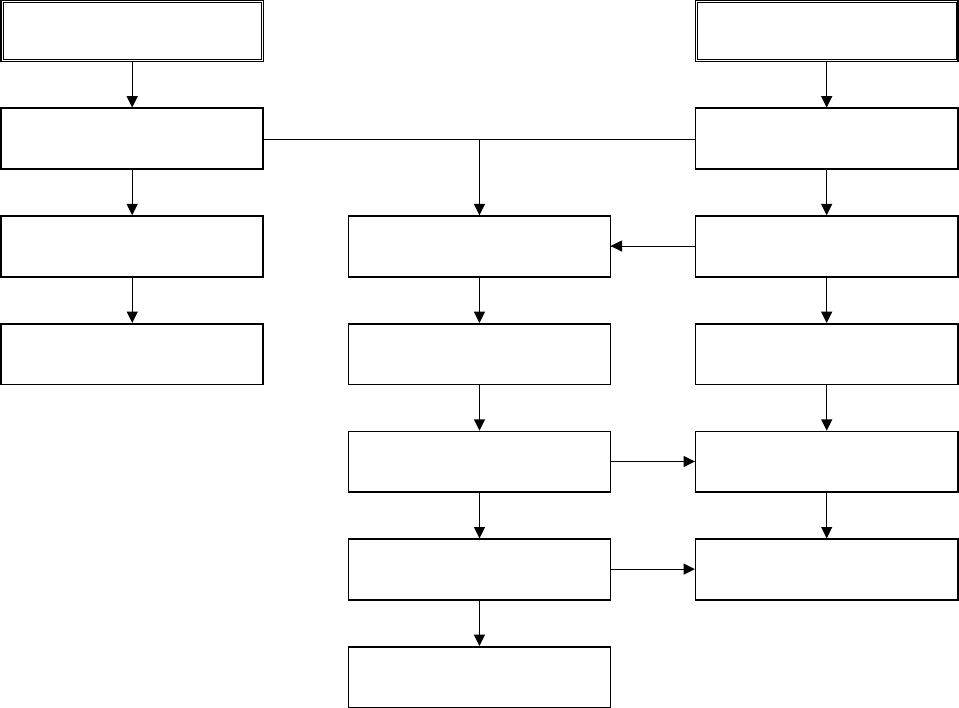

2. System operation flow

Power On

No

Yes

Yes

Yes

No

No

No

Show LOGO

Tray Closed?

Tray Close to Closed position

SLED Moves to Inner Position

Recieve

OPEN/ CLOSE

Key?

Receive

CLOSE Key?

1. Stop Playback & Open Tray

2. Display tray open message & LOGO

1. Execute Pressed Key & IR Key

2. Systemoperati on Routi ne Loop

1. Judge whether have disc and disc type

2. Jump to related disc reading procedure

SLED at Inner

Side?

1. 8032 initializes SERVO, DSP & RISC registers

2. Write RISC code to SDRAM

3. Reset RISC

3-4

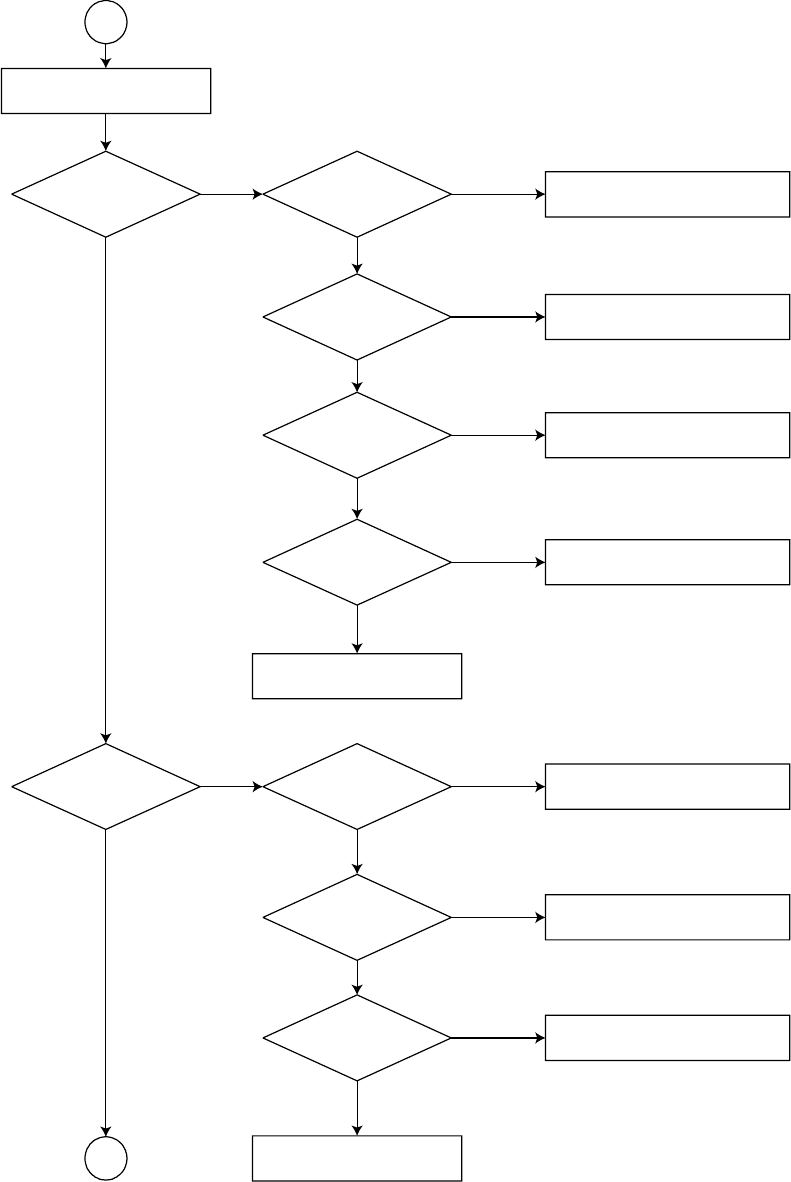

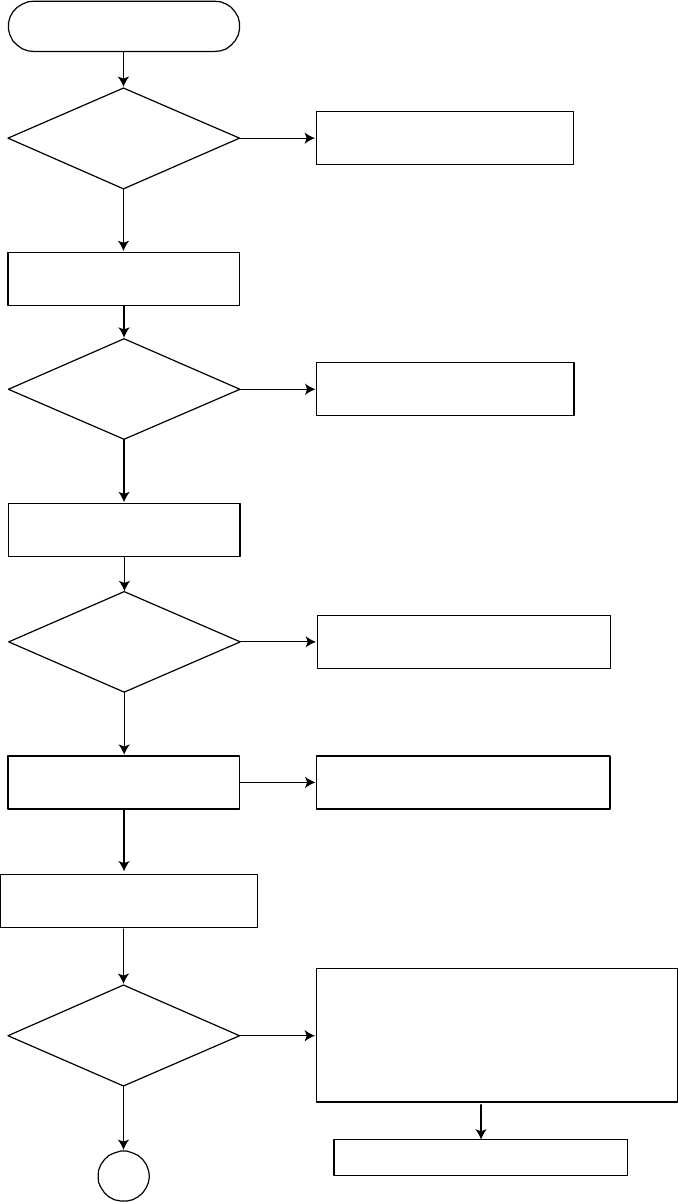

3. Test & debug flow

TEST

Check the POWER PART

No

Yes

No

Yes

No

No

No

Yes

Yes

Check the POWER PART

Check the regulators or diode( D670).

Check the cable connection Front

Panel & Communication Signal

1. Check 27MHz system clock.

2. Check systemreset circuit.

3. Check FLASH R/Wenable signal PRD,

RWR.

4. Check RS232 SIGNALS.

5. Check FLASH Memory related circui t.

Check the

AC Vol tage

Power PCBA (110V

or 220V)

Switch on the Power PCBA

Is

the DC Vol tage

outputs OK?

(5V, 3.3V, 8V, 12V)

Is 3.3V and 2.5V DC

outputs normal on main

PCBA?

Update

FLASH(IC5A1)

successfully?

Replace FLASH( IC5A1)

A

Communication between

IC901 & MT1379 is normally?

Connect to PC RS232 Cable and

update the FLASH memory code.

Make sure the main

PCBA don’t

3-5

A

B

RESET or Power On.

Show LOGO?

Flash

Memory operates

properly?

Check connecti on lines between FLASH

& MT1379 and the FLASH access time

whether is sui table or not.

SDRAM

works properl y?

MT1379

VIDEO outputs

properly?

Have

TV signal output?

Check AV cable

connection to TV set .

Check the load OPEN &

CLOSE switch

Check the Tray control IO pins

on MT1376 & MT1379.

Check the Tray control amplifying

circuit on Motor driver.(IC202)

Does

Tray move inside

when it is not at

closed position?

Normal

TROUT & TRIN

signals?

Normal

TRCLOSE &

TROPEN signal?

Normal

LOAD+ & LOAD-

signal ?

Check the cable connection between

main PCBA and loader. (MECHA)

Check connection lines between

SDRAM(IC502,IC503) & MT1379 and the

SDRAM is damaged.

Check the rel ated ci rcui t of MT1379.

(IC501 PIN 161,166, 168 check)

Check the fi l teri ng and amp ci rcui t of

TV si gnal .(IC604)

3-6

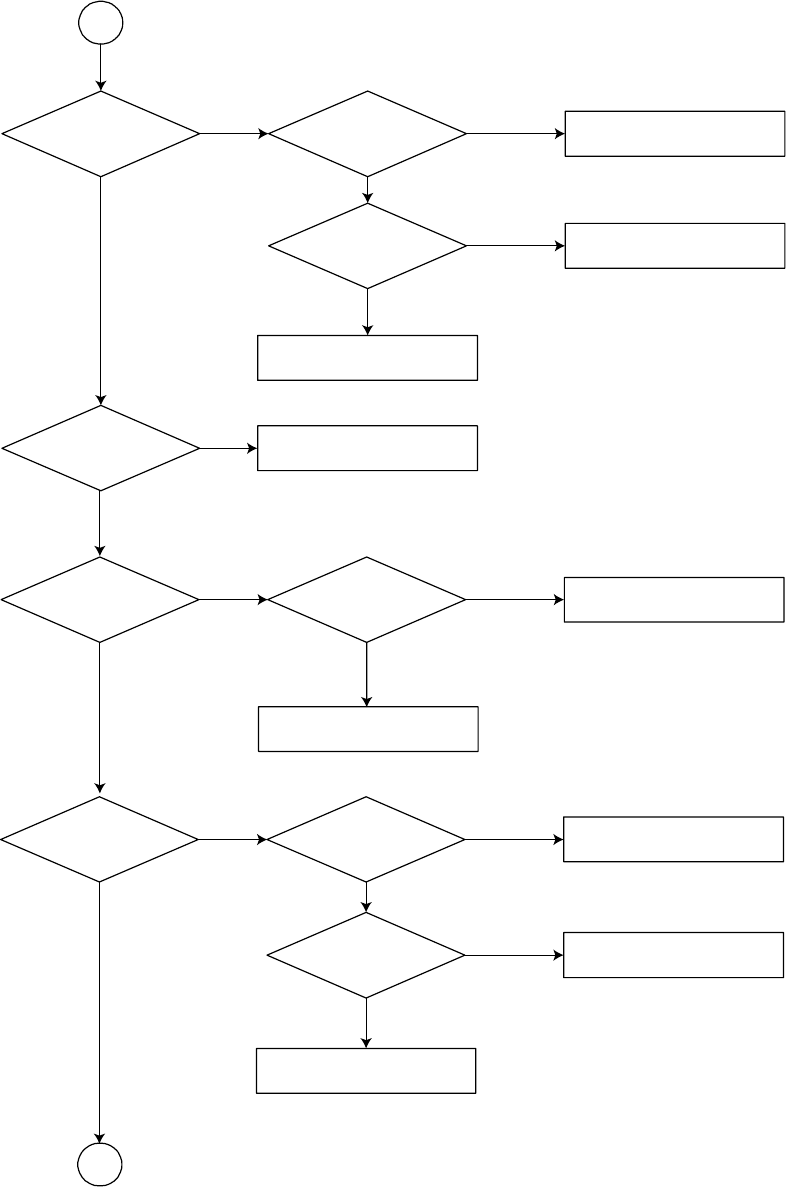

B

No

YesYes

Yes

No

Yes

Yes

Yes

No

Yes

No

No

No

Does

the SLED move

to inner side when it is at

outter positi on?

Motor Driver STBY

Pin is High?

Motor Driver STBY

Pin is High?

SL+ and SL- output

properl y?

Optical

Lens has movements

for searching

Focus?

Proper F+

& F- outputs?

Check cable connect on with

pick-up head.

Proper FOSO outputs

to motor driver?

Check FOSO connection on

MT1379 and motor dirver.

Check the amp circuit on

motor dirver.

C

Check the cable connection

with MECHA.

Do not put in disc and tray

close.

Check the connection line of

STBY signal .

Check the rel ated circuit of

FMSO.

Check the amp circuit on

motor driver.

3-7

C

No

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

No

Laser turns on when

reading disc? LD01 or LD02 output

properly?

Check the laser power circuit

on MT1336 and connecting to

power transistor. (Q204, Q205)

Check therel ated ci rcuit on

laser power transi stor

Check the related circuit

on MT1336 RFL signal .

Collector

voltage of power

transistor is OK?

( Q204, Q205)

Check cable connection between

transistor couput and pick-up head.

Laser off

Proper RFL signal

on MT1336?

Proper

DMSO signal on

MT1379

Check DMSO related

circuit on MT1379.

Check the spindle control

amp circuit of motor driver.

SP+ & SP- output

properly?

Check the cable connection

between spindle and main PCBA.

Check the RFL connection

between MT1336 and MT1379.

Put disc in?

Disc ID is correct?

Does spindle rotate?

D

3-8

D

Yes

Yes

No No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

Focus ON OK?

Track On OK?

Disc is play?

E

Proper

signals on A, B, C,

D of MT1336

Check connections between

MT1336 and pick-up head.

Proper FEO signal

on MT1336?

Proper FEO signal

on MT1336?

Check the related circuit

on MT1336 FEO sugnal .

Check the related

circuit on MT1336

Properly TRSO signal

on MT1379?

T+ & T- output

properly?

Check the TRSO connection

on MT1379 and motor dirver.

Check the tracking control

amp circuit on motor driver.

Check cable connection on

pick-up head.

Check RF signal waveform.

Check FEO connection

between MT1336 and MT1379

3-9

E

Normal

Audio output

when disc playback?

Normal

IR. VFD & Front

pannel key

functions?

TEST END

Audio

DAC received

correct data stream?

Normal

Audio DAC

out? (IC601)

Check Audio filter, amplify, mute

circuit. (IC602 Application circuit)?

Check the cable connection

on Front pannel.

Check connection between MT1379

& Audio DAC. (Check VRST#, ACLK,

ABCK, ASDAT3)

Check the related circuit of

Audio DAC. (Check Audio

out Pin 14, 15,18,19)

Check communi cation lines

on MT1379.

Communications

between IR.VFD Front pannel key

& MT1379 & Front u-com(IC901)

is normally?

3-10

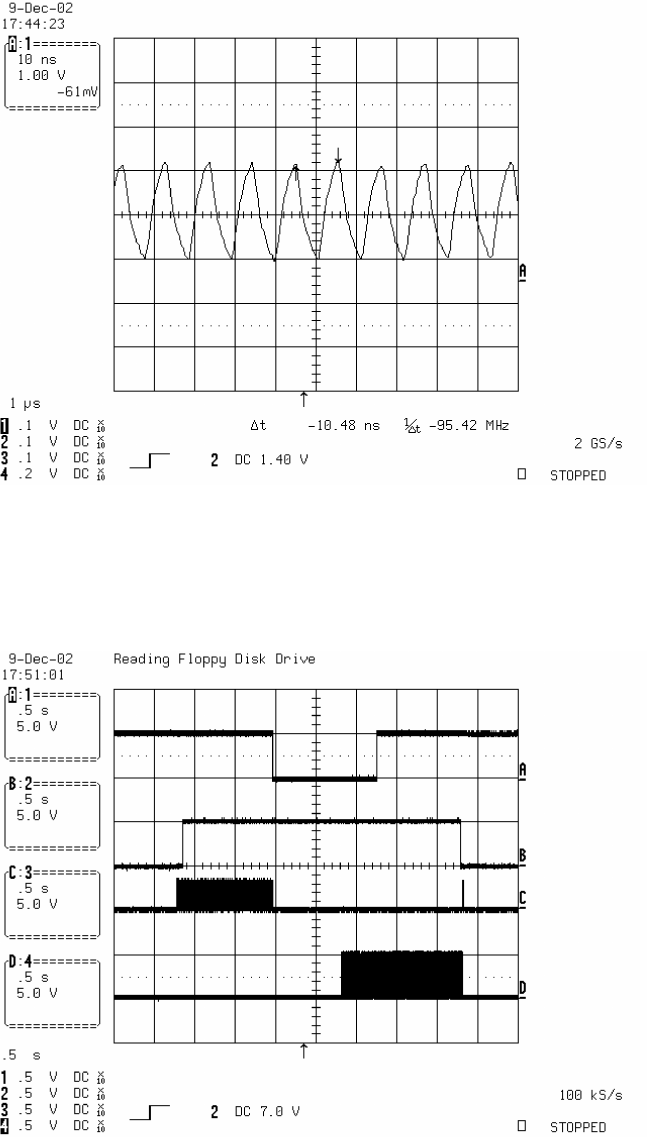

DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING

1. SYSTEM 27MHz CLOCK,RESET,FLASH R/W SIGNAL

1) MT1379 main clock is at 27MHz(X501)

3.8V, 27MHz

FIG 1-1

2) MT1379 & MT1336 reset is high active.

PWR_CTL(CN505 PIN 7)

5.2VA

Power Cord in

M_RESET(CN505 PIN 9)

URST(IC501 PIN 188)

FIG 1-2

3-11

3) RS232 waveform during procedure(Downloading)

TXD(J6 PIN3)

RXD(J6 PIN 2)

FIG 1-3

4) Flash R/W enable signal during download(Downloading)

FRD(IC5A1 PIN 28)

FWR(IC5A1 PIN 11)

FIG 1-4

3-12

2. SDRAM CLOCK

1) MT1379 main clock is at 27MHz(X501)

(IC502,IC503 PIN 35)

DCLK = 93MHz, Vp-p=2.2, Vmax=2.7V

FIG 2-1

3. TRAY OPEN/CLOSE SIGNAL

1) Tray open/close waveform

OPEN((CN203 PIN 3)

CLOSE(CN203 PIN 2)

TROPEN(IC202 PIN 1)

TRCLOSE(IC202 PIN 2)

FIG 3-1

3-13

2) Tray close waveform

OPEN((CN203 PIN 3)

CLOSE(CN203 PIN 2)

TROPEN(IC202 PIN 1)

TRCLOSE(IC202 PIN 2)

FIG 3-2

3) Tray open waveform

OPEN((CN203 PIN 3)

CLOSE(CN203 PIN 2)

TROPEN(IC202 PIN 1)

TRCLOSE(IC202 PIN 2)

FIG 3-3

3-14

4. SLED CONTROL RELATED SIGNAL (NO DISC CONDITION)

FMSO(2.0V/1.4V/1.0V)

(IC501 PIN 19)

STBY(5V) – (IC201 PIN 50)

SL+(4.7V/3.6V/1.9V)

(IC202 PIN 12)

SL-(5.3V/3.7V/2.5V)

(IC202 PIN 13)

FIG 4-1

5. LENS CONTROL RELATED SIGNAL(NO DISC CONDITION)

FOSO(1.5V/1.4V/1.3V)

(IC501 PIN 12)

F+(4.0V/3.6V/3.2V)

(IC202 PIN 9)

F-(4.0V/3.6V/3.2V)

(IC202 PIN 8)

FIG 5-1

3-15

6. LASER POWER CONTROL RELATED SIGNAL(NO DISC CONDITION)

MDI1(0V/180mV)

(IC201 PIN 124)

LD01(5.0V//3.5V)

IC201 PIN 125)

LD02(5.0V/3.6V)

(IC201 PIN 126)

FIG 6-1

7. DISC TYPE JUDGEMENT WAVEFORM

F+(IC202 PIN 9)

FE(IC201 PIN 18)

RFL(IC201 PIN 19)

FIG 7-1 (DVD)

3-16

F+(IC202 PIN 9)

FE(IC201 PIN 18)

RFL(IC201 PIN 19)

FIG 7-2 (DVD)

F+(IC202 PIN 9)

FE(IC201 PIN 18)

RFL(IC201 PIN 19)

FIG 7-3 (CD)

3-17

F+(IC202 PIN 9)

FE(IC201 PIN 18)

RFL(IC201 PIN 19)

FIG 7-4 (CD)

8. FOCUS ON WAVEFORM

FE(IC201 PIN 18)

FOSO(IC501 PIN12)

F+(IC202 PIN 9)

F-(IC202 PIN 8)

FIG 8-1 (DVD)

3-18

FE(IC201 PIN 18)

FOSO(IC501 PIN12)

F+(IC202 PIN 9)

F-(IC202 PIN 8)

FIG 8-2 (CD)

9. SPINDLE CONTROL WAVEFORM (NO DISC CONDITION)

DMSO(1.4V/1.8V)

(IC501 PIN 18)

SP-(3.6V/2.4V)

(IC202 PIN 10)

SP+(3.6V/4.8V)

(IC202 PIN 11)

FIG 9-1

3-19

10. TRACKING CONTROL RELATED SIGNAL(System checking)

TE(IC201 PIN 21)

TRSO(IC501 PIN 13)

T-(IC202 PIN 7)

T+(IC202 PIN 6)

FIG 10-1(DVD)

TE(IC201 PIN 21)

TRSO(IC501 PIN 13)

T-(IC202 PIN 7)

T+(IC202 PIN 6)

FIG 10-2(CD)

3-20

11. RF WAVEFORM

RFOP(2.3V/1.1V)

(IC201 PIN 6)

RFON(0.8V/2.0V)

(IC201 PIN 7)

FIG 11-1

12. MT1379 AUDIO OPTICAL AND COAXIAL OUTPUT (ASPDIF)

(IC501 PIN 153)

FIG 12-1

3-21

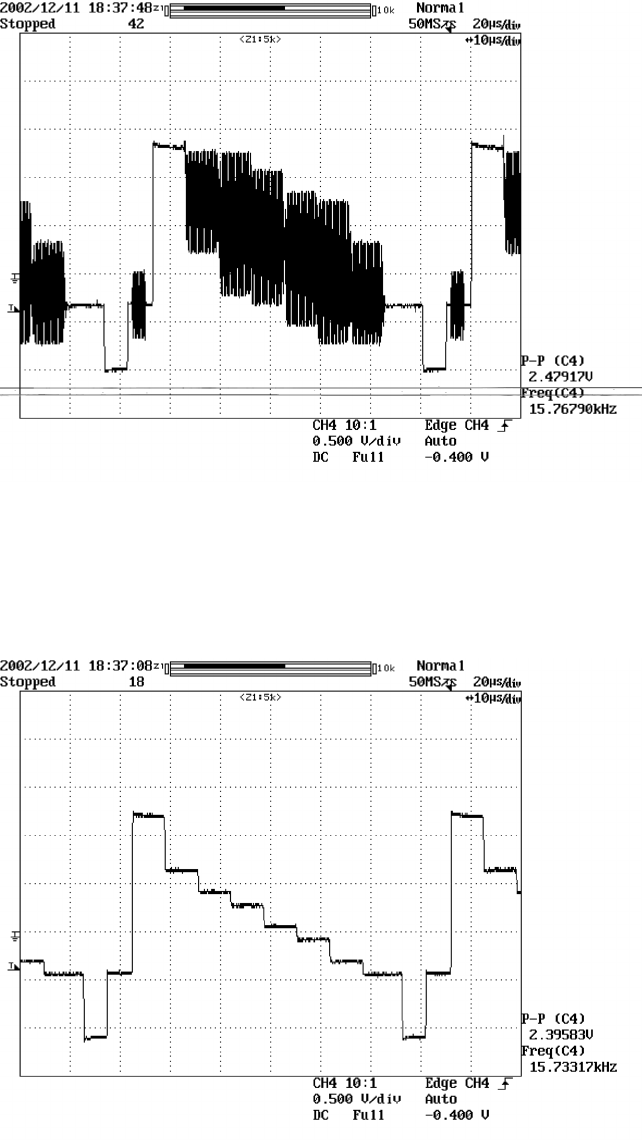

13. MT1379 VIDEO OUTPUT WAVEFORM

1) Full colorbar signal(CVBS)

(IC604 PIN 23)

DCLK = 93MHz, Vp-p=2.2, Vmax=2.7V

FIG 13-1

2) Y

(IC604 PIN 21)

FIG 13-2

3-22

3) C

(IC604 PIN 26)

DCLK = 93MHz, Vp-p=2.2, Vmax=2.7V

FIG 13-3

14. AUDIO OUTPUT FROM AUDIO DAC

1) Audio L/R

FIG 14-1

(JK601 PIN 4,5)

3-23

2) Audio related Signal

ASDAT3(IC501 PIN 157)

ABCK(IC501 PIN 148)

ALRCK(IC501 PIN 149)

ASDATA3

FIG 14-2

3-24

BLOCK DIAGRAMS

1. Overall Block Diagram

M

M

DISC

SPINDLE

MOTOR

LOADING

MOTOR

DECK MECHANISM

DVD:RF0,A,B,C,D

CD:RF0,A,B,C,D,E,F

PICK

UP

DIG901

FLD DISPLAY

KEY Input

6MHz

X-TAL

B/Pb

IC5A1

29LV800TA-70

1M

8BIT

FLASH ROM

URST

A[00:19]

PCE#

PRD#

PWR#

DQ[00:15]

RFON,RFOP,FEO,RFL,CSO

TEO,BDO,RFRP,HTRC,V2P8

L/R FL

FR

CVBS

R/Pr G/Y RL

RR

CENTER

WOOFER

Y[1:6]

Y

C

L/R FL

FR

RL

RR

CENTER

WOOFER

VF+

AC 90V~240V

50HZ/60Hz

VF-

-27VA

5V

3V3M

12V

STBY,TRCLOSE

27MHz

X-TAL

PWRCTL

DV33

IC505

KS24C021CS

EEPROM

IC601

CS4391(2DAC)

IC451

PCM1603(6DAC)

IC602/IC302/IC303/IC304

NJM4580

OP-AMP

RC901

REMOCON

RECEIVER

IC903

RESET IC

LOAD+,LOAD-

F+,F-,T+,T-

SP+,SP-

IC201

MT1336E

RF

SLED

(FEEDING)

MOTOR

SL+,SL-

IC202

LA6560

MOTOR

DRIVER

M

V33

DV33

AV33/DV33/V25

VCC/DV33/3V3M

IC5K1

CS5331A(ADC)

IC5K2

KA741(OP-AMP)

VCC

AMDAT

MIC_IN

ACLK

ABCLK

ALRCK

IC604

MM1623XFBE

VIDEO BUFFER

MIC_DETC

ASPDIF

COAX OPTICAL

ASPECT

VCC

RVCC

AVCC

AV33

V25

LD01,LD02, IOA, V2.0

VCC/+8V

RVCC

LIMIT

TROUT,TRIN

TROPEN,TRSO,FOSO,DMSO,FMSO

°‹

SCLK,SDEN,SDATA

PWMOUT2

AD[0:7]

VCC

IC901

GMS81C2012(Hynix)

Front Micom

VFD_SCK

VFD_TXD

M_REQ

POWER

BOARD

V1P4

MDI1

APC

VFD_RXD

S_REQ

5V2A

+P8V

MUTE

J6

RS232

TXD

RXD

SCL

IC502

M12L16161A

512K

2Banks

16BIT

SDRAM

DV33 IC503

M12L16161A

512K

2Banks

16BIT

SDRAM

DV33 DV33IC506

M12L64164A

1M

4Banks

16BIT

SDRAM

MA[00:10]

BA0

DCLK

DCKE

CS#

RAS#

CAS#

WE#

DQM[0:1]

DQ[16:31]

DQM[2:3]

MA11,BA1

SDA

VRST#

ASDAT[0:3]

VSCK

VSDA

ASTB

IC501

MT1379E

DSP/MPEG

+12V

+12VVCC

DV33

IC510

BUFFER IC

74HCT244

VCC

ADIN

DV7800M'S

TOSHIBA

3-25

2. Power(SMPS) Block Diagram

5V_A

-29VA

VF+

RECTIFIER LINE FILTER

SWITCHING IC

TRANS

FEED B.

REG(8V) 8V

5.2VA

VF-

RECTIFIER(FLD)

RECTIFIER(9V)

RECTIFIER(5.2V)

LPF

LPF

RECTIFIER(14V) LPF 12V

AC90~240V

PWR ON/OFF

REG(3.3V) 3.3V/3.3V_M

REG(12V)

ON/OFF

RECTIFIER(3.8V) LPF

DV7800M'S

TOSHIBA

3-26

IC202

LA6560

Motor Driver

DVD: A,B,C,D, RFO

CD: A,B,C,D, E, F,RFO

SP+, SP-

M/D

PICK

UP

X501

IC501

MT1379

DVDPLAYER

COMBO

CHIP

IC201

MT1336E

RF Signal

Processor

FOSO,TRSO,FMSO

DMSO,,TROPEN

FEO,TEO,RFL,RFRP

BDO,CSO,HTRC,V2P8

ADIN

F+, F-, T+, T-

SL+, SL-

LOAD+, LOAD-

27MHz

X-TAL

RFOP,RFON

LD0 1, LDO 2, IOA

MDI 1

ALPC

V20

SDEN, SDATA,

SCLK,PWMOUT2

LIMIT,TRIN,TROUT TRCLOSE

STBY,V1P4

IC302

GM72V161621

1M x 16bit

SDRAM

IC303

GM72V161621

1M x 16bit

SDRAM

MA[0:10]

DQM0 ,DQM1

WE#,CAS#,RAS#

CS#,BA0,

DCLK

DCKE

DQ[0:15]

DQ[16:31]

MA[0:10]

DQM0 ,DQM1

WE#,CAS#,RAS#

CS#,BA0,

DCLK

DCKE

FLASH

ROM

PRD#, PWR#

PCE#

AD[0:7]

A[0:19]

EEP

ROM

SCL, SDA

RS232C(MTK)

RXD, TXD

DV7800M'S

TOSHIBA

3. SERVO Block Diagram

3-27

4. MPEG & MEMORY Block Diagram

IC503

SDRAM

16M

IC505

EEPROM

IIC501 (MPEG + DSP )

MT1379

IC5A1

FLASH MEMORY

(8 M )

IC510 (74HCT244)

Voltage level shift

IC5K1

A/D Con.

(Karaoke)

IC5K2

OP Amp

VIDEO

Interface

AUDIO

Interface

RF IC

Interface

FRONT MICOM

Interface

(FRONT BOARD)

IC502

SDRAM

16M

RFOP,RFON,HTRC,RFRP,RFL

DCLK,WE,CAS,RAS

CS,DCKE,MA[0:10]

DQM0,DQM1

DQ[0:15]

DQM2,DQM3

DQ[16:31]

X501

27MHz

AMDAT

ACLK,ABCK

ALRCK

KARAOKE

BOARD

SCL,SDA

Y2(Y),Y3(Color)

Y4(Y),Y5(Cb),Y6(Cr)

ASPECT(16:9)

FEO,CSO,TEO,ADIN,BDO

SDATA,SDEN,SCLK,URST

FMSO,DMSO

V1P4,V2P8

TROPEN,TRSO,FOSO

ACLK,ALRCK,ABCK

MUTE,VSCK,VSDA

ASDTA[0:3]

ASTB,SCL,SDA

ASPDIF

PWR,PCE,PRD

A[0:19]

AD[0:7]

VFD_SCK

VFD_TXD

M_REQ

SCKO,TXDO,M-REQ

URST,S_REQ

VFD_RXD

DV7800M'S

TOSHIBA

3-28

5. VIDEO & AUDIO Block Diagram

IC604

VIDEO 6dB

Amp

IC601

AUDIO DAC

(2CH)

IC301

AUDIO DAC

(5.1CH)

IC602 (OP Amp)

LPF&Buffer

IC302 (OP Amp)

LPF&Buffer

IC303 (OP Amp)

LPF&Buffer

IC304 (OP Amp)

LPF&Buffer

CVBS

COMPONENT (R.G.B) / (Y.Pb.Pr )

SUPER VIDEO (Y/C)

(R.G.B) / (Y.Pb.Pr )

(Y/C)

DAC RESET

ACLK

SCL

SDA

DAC RESET

ACLK

SCL

SDA

ADATA1

ADATA2

ADATA3

A/V

JACK

MPEG

MPEG

MPMPEGEG

5.1CH BOARD

FRONT ‘R’

REAR ‘R’

FRONT ‘L’

REAR ‘L’

CENTER

WOOFER

AUDIO ‘R’

AUDIO ‘R’

ADATA3

DV7800M'S

TOSHIBA

3-29 3-30

CIRCUIT DIAGRAMS

1. POWER(SMPS) CIRCUIT DIAGRAM

IMPORTANT SAFETY NOTICE

WHEN SERVICING THIS CHASSIS, UNDER NO CIR-

CUMSTANCES SHOULD THE ORIGINAL DESIGN BE

MODIFIED OR ALTERED WITHOUT PERMISSION

FROM THE TOSHIBA ELECTRONICS CORPORATION.

ALL COMPONENTS SHOULD BE REPLACED ONLY

WITH TYPES IDENTICAL TO THOSE IN THE ORIGI-

NAL CIRCUIT. SPECIAL COMPONENTS ARE SHADED

ON THE SCHEMATIC FOR EASY IDENTIFICATION.

THIS CIRCUIT DIAGRAM MAY OCCASIONALLY DIF-

FER FROM THE ACTUAL CIRCUIT USED. THIS WAY,

IMPLEMENTATION OF THE LATEST SAFETY AND

PERFORMANCE IMPROVEMENT CHANGES INTO

THE SET IS NOT DELAYED UNTIL THE NEW SERVICE

LITERATURE IS PRINTED.

NOTE :

1. Shaded( ) parts are critical for safety. Replace only

with specified part number.

2. Voltages are DC-measured with a digital voltmeter

during Play mode.

Power Dead.

IC101 is defective.

NOTES) Warning

NOTES) Parts that are shaded are critical

NOTES) With respect to risk of fire or

NOTES) electricial shock.

8V Power Dead.

IC105 is defective.

5V Power Dead.

Q107 is defective.

3.3V Power Dead.

IC106 is defective.

12V Power Dead.

IC103 is defective.

VF(-) Power Dead.

ZD101 is defective.

VF(+) Power Dead.

F102 is defective.

'03. 02. 26 R16006A

TOSHIBA

39

1000PF

Without

KSB1151

NOTES : Symbol denotes AC ground.

Symbol denotes DC chassis ground.

3-31 3-32

No Power on

Video signal not

appeared

Video signal Y

Video signal Color

Digitron all not display

System not working

System not working or

screen is abnormal

System not working or

Digitron not display

Program download fail

System not operate

'02. 12. 26 R14600A

TOSHIBA

AUDIO DAC

interface

VIDEO

interface

RF & MOTOR DRIVE

interface

2. SYSTEM CIRCUIT DIAGRAM

3-33 3-34

3. RF & SERVO CIRCUIT DIAGRAM

CD/DVD LD

will not on

'02. 12. 26 R14601A

TOSHIBA

3-35 3-36

4. TIMER, 5.1CH, SCART, KARAOKE CIRCUIT DIAGRAM

Karaoke not operate.

Digital abnormal

5.1CH Audio Bad

Power LED abnormal

Remocon not operate

'03. 3. 10 R14603B

TOSHIBA

(OPTIONAL PART)

(OPTIONAL PART)

(OPTIONAL PART)

System not operate

System not operate or

Digitron abnormal or

Key not operate.

3-37 3-38

5. AV/JACK CIRCUIT DIAGRAM

Video Signal Y

Video Signal Color

Video Signal CVBS

2CH Audio

2CH Audio out bad.

All Video signal isn't

appear or bad

SACD OPTION

2CH Audio out bad.

2.5V doesn't appeat

System not working

'02. 12. 26 R14602A

TOSHIBA

3-39 3-40

PIN STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY

1 1.03 2.99 0 0 1.22 1.22 3.27 3.28 0000

2 5.11 5.08 0 0 0 0 1.18 1.26 0 0 2.59 2.55

3 0 0 8.04 8.01 0.96 0.9 1.1 1.52 0000

4 0 0 0.12 0.06 2 2.06 0 0 0 0 2.59 2.56

5 5.11 5.07 0 0.06 0 1.51 0.66 1.07 3.28 3.29 0 0

6 0 1.95 3.64 3.69 1.48 1.47 0.85 1.12 3.28 3.29 3.24 3.23

7 0 0 3.62 3.61 0 1.56 3.27 3.28 0000

8 0 0 3.64 3.53 3.2 1.52 0.51 0.97 3.28 3.29 0.14 0.08

9 5.11 0 3.6 3.76 0.12 0.06 3.06 0 0 0

10 5.11 5.08 3.62 2.43 0.12 0.06 0 0 0 0

11 5.11 5.08 3.63 4.85 3.25 3.25 0.06 0.98 0.15 0.09

12 0 0 3.62 3.72 1.41 1.49 3.18 0.87 0 0

13 5.11 0 3.64 3.57 1.41 1.41 3.27 3.28 0.15 0.08

14 5.11 5.08 8.04 8.01 0 0 2.94 2.56 5.19 5.19

15 2.84 2.81 1.45 1.48 1.42 1.42 0.47 0.42 0.14 0.09

16 1.45 1.43 0.27 1.39 3.3 0 2.93 3.01 5.25 5.24

17 2.08 2.07 0.29 1.32 2.53 2.53 3.21 3.22 0.15 0.08

18 1.37 1.42 1.45 1.43 1.42 2.27 2.87 2.95 5.23 5.23

19 0.69 2.3 1.45 1.43 1.42 1.39 0.15 1.32 0 0

20 2.4 0 1.45 0.82 0 0 0 0.05 5.25 5.25

21 2.35 0 1.45 1.43 2.61 2.58 3.09 1.32

22 5.11 5.08 1.45 1.43 0.75 1.46 3.09 1.32

23 0 0 1.47 1.37 2.83 1 3.09 1.32

24 2.59 3.2 1.45 1.43 1.9 0.89 3.09 1.33

25 0.19 1.88 1.45 1.43 1.72 0.39 3.27 3.29

26 1.58 0 0.95 0.91 0.68 0.31 0 0

27 2.56 3.13 0 0 2.84 3.16 0.15 1.36

28 2 2.01 1.45 1.43 0 0 1.84 2.36

29 2 2.06 5.15 5.11 2.85 0.66 1 2.32

30 2.96 1.52 1.45 1.43 1.83 0.49 0.54 1.75

31 0 0 1.45 1.43 0.91 1.39 0.06 0.06

32 0.06 2.07 1.45 1.43 1.43 1.2 0.05 0.06

33 0.07 2.07 1.46 1.45 1.51 1.57 0 0

34 0 0 5.08 5.06 1.51 1.43 0.73 1.26

35 0 0 5.15 5.11 3.3 3.29 1.48 1.55

36 0 0 0 0 0.81 1.26 2.91 2.53

37 5.13 0 1.45 1.02 0.07 0

38 0 0 1.82 1.6 3.27 3.28

39 0 0 1.2 1.5 1.06 1.05

40 0 0 2 2.06 0.47 0.98

41 0 0 2.17 1.95 0 0

42 5.12 5.09 2.53 2.52 0 0.6

43 5.12 5.09 1.96 1.9 1.12 1.24

44 5.12 5.09 1.79 1.9 3.27 3.28

45 5.12 5.09 0.8 1.72 1.21 0.99

46 5.12 5.09 0.8 1.96 1.31 1.34

47 0 0 0.8 1.84 0 0

48 5.12 5.09 3.3 2.63 1.43 1.44

49 5.12 0 0 0.13 0.88 1.01

50 5.08 5.06 0 0.07 0 0

51 5.09 5.07 0 0

52 5.1 0 0 0

5300 00

54 5.13 0 0 0

55 0.09 0.2 3.25 3.27

56 1.61 0 1.21 1.18

5700 00

58 0 0 3.29 3.29

5900 00

6000 00

61 3.28 0 2.59 2.57

62 0 0 2.58 2.58

6300 00

64 0 0 2.59 2.56

65 0 0 3.29 3.29

66 0.26 0 3.3 3.29

67 5.12 5.08 3.29 3.29

68 0 0 2.57 2.56

69 5.12 0 5.19 5.18

70 3.21 2.03 2.59 2.57

71 3.46 2.2 0.12 0.08

72 2.81 0 2.53 2.52

73 0 0 2.59 2.57

74 0.21 0.09 3.29 3.29

75 0.22 0 2.61 2.61

76 0 0.1 3.27 3.24

77 0.21 0.09 0 0

78 0.23 0.09 0.94 1.04

79 0.21 0.08 0.78 1.06

80 0.23 0.08 0.89 1.15

STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY

0.08 0.16 2 0 3.28 3.29 5.52 5.49 5.09 5.08

1.82 0.45 1.64 1.63 3.28 3.28 5.52 5.48 2.43 2.42

2.84 0 1.64 1.64 0 1.65 5.51 5.47 5.09 5.08

2.83 3.12 1.58 1.56 1.63 1.64 0 0 1.45 0

0.69 0.26 2.23 2.23 1.64 1.65 5.51 5.48 0 0

1.72 0.25 0 0 1.59 1.61 5.51 5.48 1.45 1.69

1.92 0.9 5.12 5.08 0 0 5.52 5.47 0 0

1.7 1.45 2.23 2.23 3.28 0 12.03 12.03 2.47 2.46

0 0 3.28 3.29 0 0

0 0 0 0 1.14 1.76

3.27 3.29 5.01 5.01 0 0

3.56 3.55 2.31 2.31 2.42 2.42

3.29 3.29 4.96 0 5.09 5.08

0 0 1.42 2.41 2.43 2.42

0.23 0.06 2.4 2.39 0 0

0 0 0 0 2.49 2.47

0 0 5.11 5.09 0 0

0 0.87 2.41 2.41 2.48 2.47

1.98 2.64 2.43 2.43 0 0

2.28 2.18 0 0 1.18 2.3

2.13 1.96 1.76 2.17

1.67 2.01 0 0

1.99 1.72 1.76 2.24

1.93 2.19 0 0

2.05 1.94 0 0

00 00

0 0 0.06 0.05

0 0 5.09 0

1.49 2.03

0.16 1.07

1.96 1.25

0.16 1.1

0.99 2.2

1.17 1.07

0.79 1.82

0.15 1.07

3.29 3.3

1.93 3.09

0.16 1.07

1.5 2.2

0.16 1.07

1.21 2.64

0.16 1.08

1.64 1.48

2.05 2.06

00

00

0.07 0.13

IC201(MT1336E) IC202(MOTOR) IC501(MT1379) IC502(SDRAM) IC505(EEPROM) IC510(BUFFER) IC5A1(FLASH) IC5K1(KARAOKE) IC601(CS4391) IC602(AMP)

IC604(MM1623XFBE)

PIN STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY

81 0.22 0 0.99 1.34

82 0 0 2.52 2.52

83 0 0 3.09 1.33

84 0.07 0 0.37 1.16

85 0.07 2.27 3.08 1.1

86 1.97 0 3.07 1.08

87 1.96 1.9 0.59 1.04

88 1.54 1.71 1.57 2.53

89 0.19 2.22 3.2 3.13

90 0.21 0 2.77 2.53

91 0.22 0.06 0.22 1.68

92 0.22 0 0 0

93 0.23 0.06 3.32 1

94 0.23 0.06 0.16 1.58

95 2.28 0 3.31 1.62

96 2.28 2.25 3.3 1.08

97 2.27 1.23 3.3 3.29

98 2.27 2.23 3.32 1.62

99 2.27 2.23 0.16 1.09

100 2.26 2.23 3.32 1.27

101 2.08 2.17 3.3 1.32

102 2.07 2.17 0 0

103 2.07 2.18 1.56 1.55

104 2.08 0 0.94 1.25

105 0.14 0.15 0.41 0

106 0.14 0.16 0.05 0.06

107 0 0 0 0.06

108 1.28 1.28 3.27 3.26

109 5.18 5.05 0 0

110 0.14 0.16 0.19 1.74

111 0.15 0.15 3.3 3.29

112 0.13 0.16 0.18 1.62

113 0.14 0.15 2.98 2.38

114 5.1 5.05 3.02 1.48

115 2.07 2.09 0 0

116 2.06 2.09 2.86 3.01

117 0 0 2.86 2.54

118 0 0 0 0

119 0 0 0 2.5

120 5.1 5.05 2.55 2.51

121 0.13 0.15 3.03 1.4

122 0.14 0.15 3.03 1.4

123 0 0.18 0.22 1.39

124 0 0.18 0.22 0.34

125 5.08 5.03 0 0

126 5.08 3.16 3.31 0.98

127 0.06 2.08 0.26 1.64

128 0 0 3.31 1.53

129 3.3 1.15

130 3.3 3.29

131 3.31 1.49

132 0.16 0.89

133 3.3 0

134 3.3 1.07

135 0 0

136 2.86 2.53

137 2.86 2.53

138 0.07 0.86

139 0.09 0.99

140 0.07 2.51

141 0.07 0.94

142 0.09 1.13

143 0.07 1.19

144 0.09 1.07

145 0.09 0

146 0 1.51

147 0.09 1.25

148 0.07 1.64

149 0.06 0

150 0 1.65

151 0.07 3.29

152 0 1.6

153 0 1.64

154 0 1.44

155 0 0

156 0 0

157 0 1.63

158 0 3.29

159 0 3.27

160 0 1.27

STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY

IC201(MT1336E) IC202(MOTOR) IC501(MT1379) IC502(SDRAM) IC505(EEPROM) IC510(BUFFER) IC5A1(FLASH) IC5K1(KARAOKE) IC601(CS4391) IC602(AMP)

IC604(MM1623XFBE)

• CIRCUIT VOLTAGE CHART

3-41 3-42

PIN STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY

161 0 1.27

162 0 2.35

163 0 0

164 0 0.73

165 0 3.27

166 0 0.5

167 0 0

168 0 0.53

169 0 3.27

170 0 0.59

171 0 0

172 3.01 0.72

173 0 0.72

174 0 0

175 0 2.73

176 0 3.13

177 0 3.13

178 0 3.25

179 0 0

180 0 0

181 2.04 2.64

182 0 2.52

183 0 0

184 0 0.09

185 0 3.26

186 - -

187 0 0.08

188 0 0

189 0 0

190 0 0

191 0.23 0

192 0 3.29

193 0 0

194 0 0

195 0 0

196 0 0

197 0 1.63

198 0 0

199 0 0

200 0 2.15

201 0 1.44

202 0 1.44

203 0 1.43

204 0 1.43

205 0 1.42

206 0 2.1

207 0 2.07

208 0 1.41

209 0 1.52

210 0 1.43

211 0 2.81

212 0 3.28

213 0 0.12

214 0 0.12

215 1.02 1.43

216 0 1.43

STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY

IC201(MT1336E) IC202(MOTOR) IC501(MT1379) IC502(SDRAM) IC505(EEPROM) IC510(BUFFER) IC5A1(FLASH) IC5K1(KARAOKE) IC601(CS4391) IC602(AMP)

IC604(MM1623XFBE) Q201 Q202 Q203 Q204 Q205

STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY

E 0 0 0 0 0 0 5.14 4.34 5.14 5.1

C 0 5.09 0 0 0 0.19 0 2.42 0.5 0

B 0.68 0 0 5.04 5.04 0 5.08 3.64 5.08 5.05

Q501 Q600 Q603 Q604 Q605

STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY

E 0 0 5.17 0 0 0 0 0 0 0

C 0 0 0 0.13 0 0 0 0 0 0

B 0.83 0.83 5.11 0 0.75 0 0.75 0.16 0.74 0.74

3-43 3-44

PRINTED CIRCUIT DIAGRAMS

1. MAIN P.C.BOARD

LOCATION GUIDE

5600AD

3-45 3-46

2. KEY P.C.BOARD

3. TIMER P.C.BOARD

LOCATION GUIDE

(Solder Side)

(Solder Side)

3-47 3-48

4. SMPS P.C.BOARD

LOACTION GUIDE

(Solder Side)

(Solder Side)

5. 5.1CH P.C.BOARD

LOCATION GUIDE

DECK MECHANISM PARTS

LOCATIONS

• Top View..................................................4-1

• Top View(without Tray Disc) .................4-1

• Bottom View ...........................................4-1

DECK MECHANISM

DISASSEMBLY

1. Holder Clamp....................................4-2

1-1. Clamp Assembly Disc.......................4-2

1-1-1. Plate Clamp ..................................4-2

1-1-2. Magnet Clamp ..............................4-2

1-1-3. Clamp Upper.................................4-2

2. Tray Disc ...........................................4-2

3. Base Assembly Sled........................4-3

3-1. Gear Assembly Feed ........................4-3

3-2. Gear Assembly Middle......................4-3

3-3. Gear Assembly Rack ........................4-3

4. Rubber Rear......................................4-3

5. Frame Assembly Up/Down..............4-4

6. Belt Loading......................................4-4

7. Gear Pulley .......................................4-4

8. Gear Loading ....................................4-4

9. Guide Up/Down.................................4-4

10. PWB Assembly Loading................4-4

11. Base Main........................................4-4

EXPLODED VIEW

1. Deck Mechanism Exploded View....4-5

CONTENTS

SECTION 4 MECHANISM OF DVD PART

4-1

DECK MECHANISM PARTS LOCATION

Starting No.

1

1, 2

1, 2, 3

1, 2, 3, 4

1

1, 6

1, 2, 6

1, 2, 6, 8

1, 2, 6, 8,

9

1, 2, 7

1, 2, 7

1, 2

1, 2 ,13

1, 2, 13, 14

1, 2, 7, 12, 13, 14

1, 2, 13

1, 2, 7, 12, 13,

14, 15, 16, 17

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

Holder

Clamp

Clamp Assembly

Disc

Plate Clamp

Magnet Clamp

Clamp Upper

Tray Disc

Base Assembly Sled

Gear Assembly

Feed

Gear

Middle

Gear Assembly

Rack

Rubber Rear

Frame Assembly

Up/Down

Belt Loading

Gear Pulley

Gear Loading

Guide Up/Down

PWB Assembly

Loading

Base Main

2 Screws,

2 Locking Tabs

4 Screws,

1 Screw

1 Screw

1 Locking Tab

1 Locking Tab

1 Locking Tab

1 Hook

2Screw

4-1

4-1

4-1

4-1

4-1

4-2

4-3

4-3

4-3

4-3

4-3

4-4

4-4

4-4

4-4

4-4

4-4

4-4

Bottom

Bottom

Procedure

Parts Fixing Type Fig-

ure

Disass

embly

Note

When reassembling, perform the procedure in

reverse order.

The “Bottom” on Disassembly column of above

Table indicates the part should be disassembled

at the Bottom side.

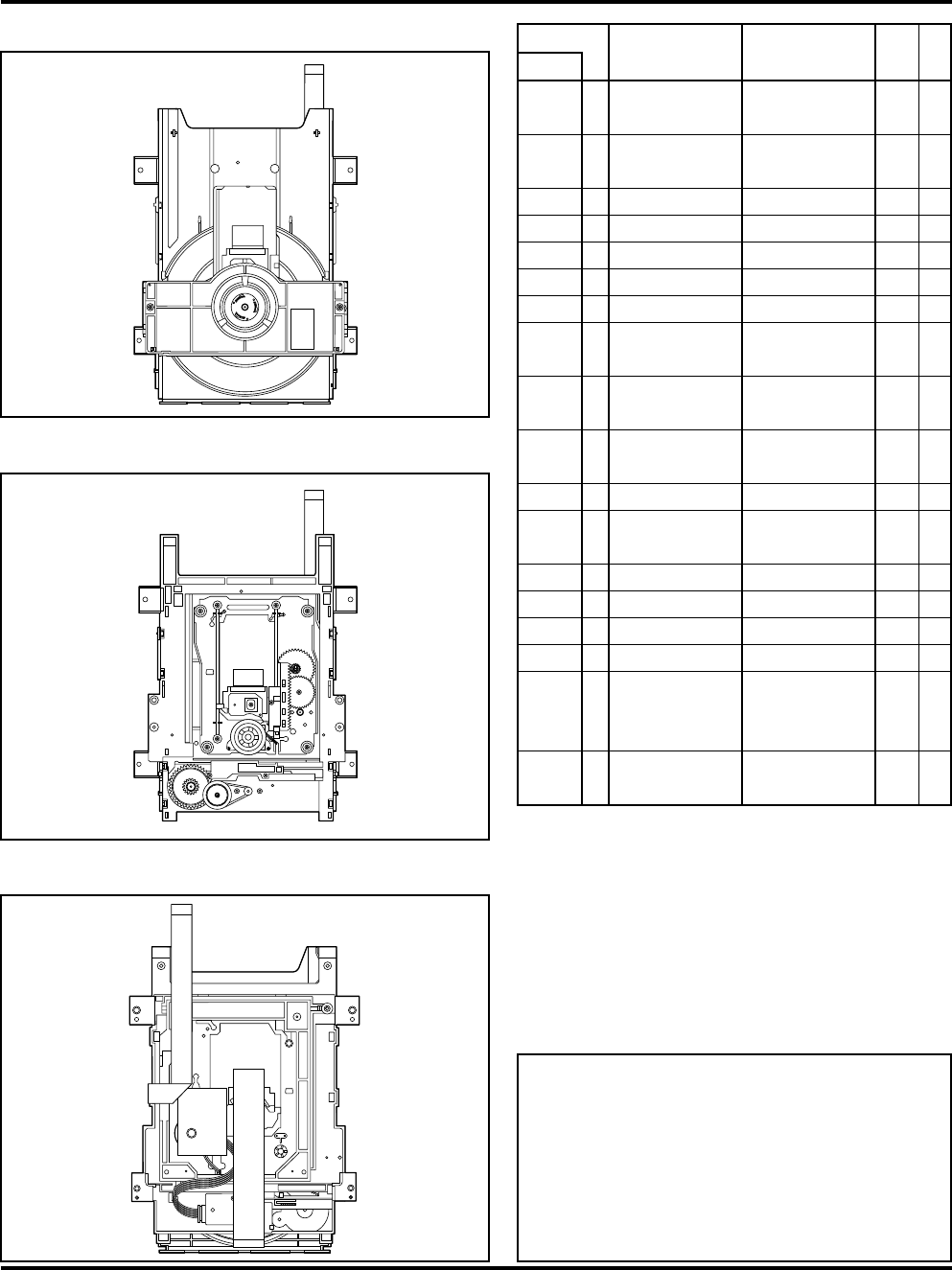

• Top View (Without Tray)

• Bottom View

• Top View (With Tray)

4-2

DECK MECHANISM DISASSEMBLY

1.Holder Clamp (Fig. 4-1)

1) Release 2 Screws(S1).

2) Unhook 2 Locking Tabs(L1).

3) Lift up the Holder Clamp and then separate it from the

Base Main.

1-1. Clamp Assembly Disc

1) Place the Clamp Assembly Disc as Fig. (A)

2) Lift up the Clamp Assembly Disc in direction of

arrow(A).

3) Separate the Clamp Assembly Disc from the Holder

Clamp.

1-1-1. Plate Clamp

1) Turn the Plate Clamp to counterclockwise direction and

then lift up the Plate Clamp.

1-1-2. Magnet Clamp

1-1-3.Clamp Upper

2. Tray Disc (Fig. 4-2)

1) Insert and push a Driver in the emergency eject

hole(A) at the right side, or put the Driver on the

Lever(B) of the Gear Emergency and pull the Lever(B)

in direction of arrow so that the Tray Disc is ejected

about 15~20mm.

2) Pull the Tray Disc until it is separated from the Base

Main completely.

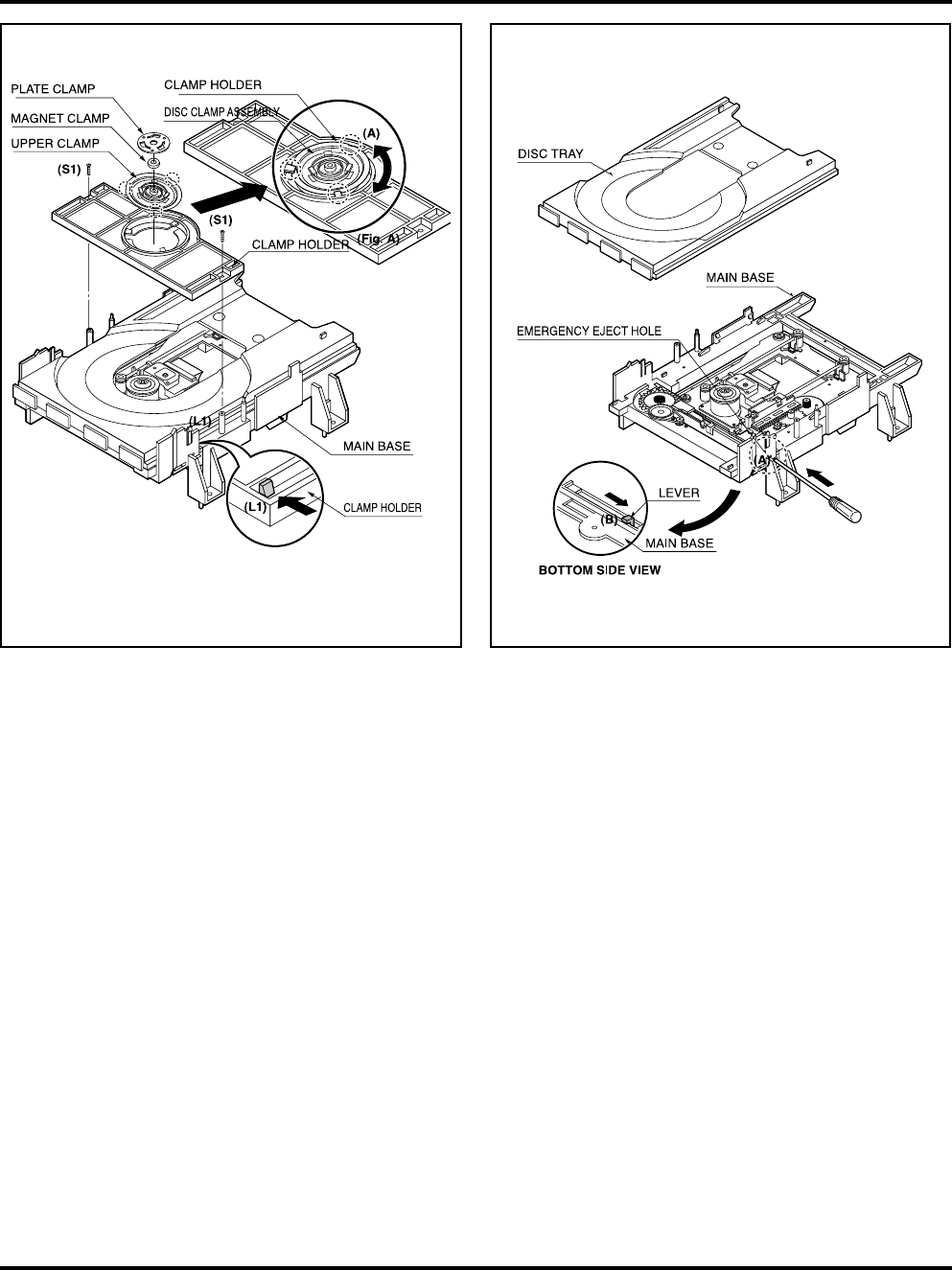

Fig. 4-1 Fig. 4-2

4-3

DECK MECHANISM DISASSEMBLY

3.Base Assembly Sled (Fig. 4-3)

1) Release 4 Screw(S2).

2) Disconnect the FFC Connector(C1)

3-1. Gear Assembly Feed

3-2. Gear Assembly Middle

3-3. Gear Assembly Rack

1) Release the Scerw(S3)

4. Rubber Rear (Fig. 4-3)

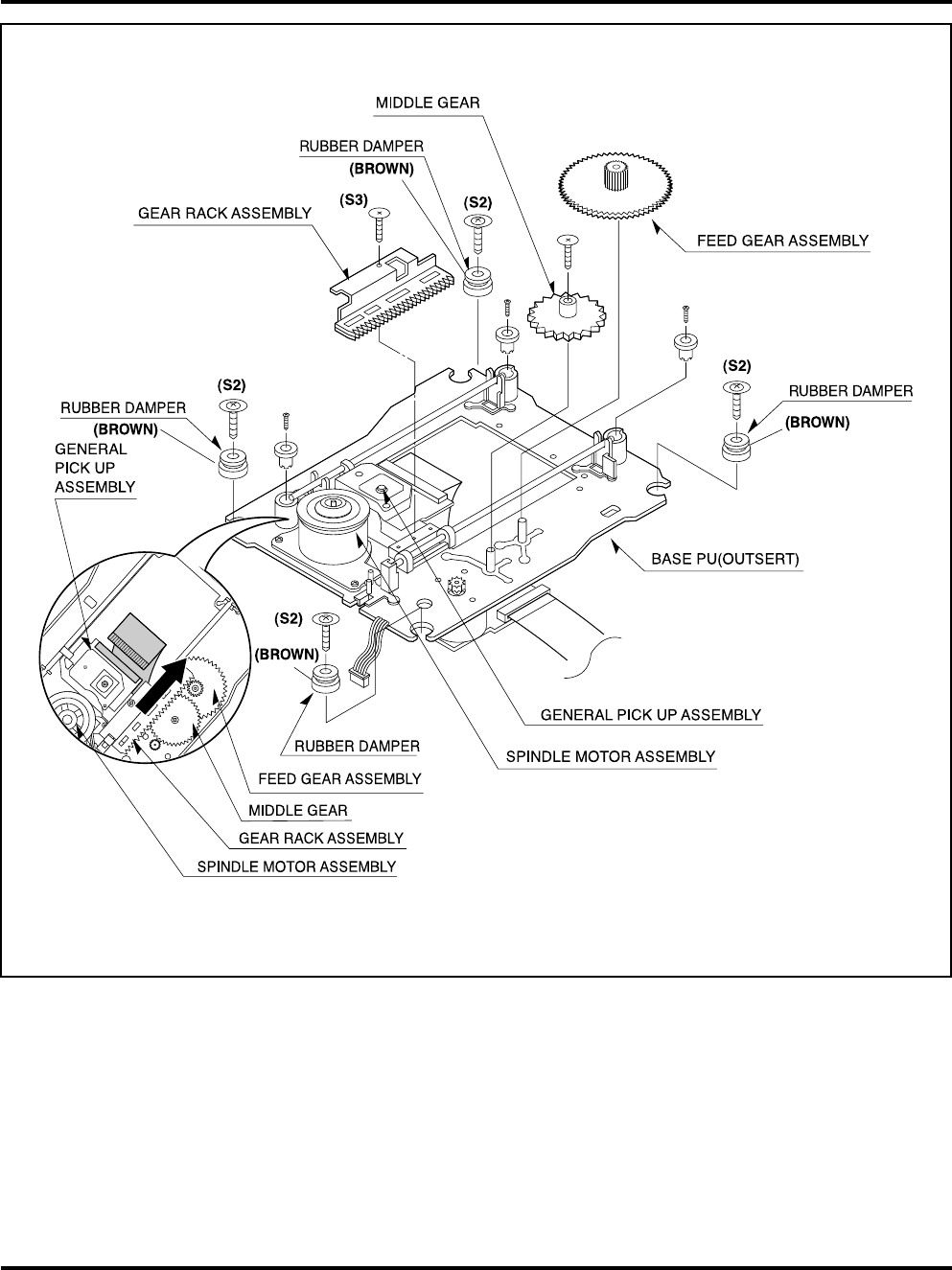

Fig. 4-3

4-4

DECK MECHANISM DISASSEMBLY

5. Frame Assembly Up/Down (Fig. 4-4)

Put the Base Main face down(Bottom Side)

1) Release the Screw(S4)

2) Unlock the Locking Tab(L3) in direction of arrow and

then lift up the Frame Assembly Up/Down to separate

it from the Base Main.

• When reassembling move the Guide Up/Down in direction

of arrow(C) until it is positioned as Fig.(C).

• When reassembling insert (A) portion of the Frame

Assembly Up/Down in the (B) portion of the Guide

Up/Down as Fig.(B)

6. Belt Loading(Fig. 4-4)

Put the Base Main on original position(Top Side)

7. Gear pulley (Fig. 4-4)

1) Unlock the Locking Tab(L4) in direction of arrow(B) and

then separate the Gear Pulley from the Base Main.

8. Gear Loading (Fig. 4-4)

9. Guide Up/Down (Fig. 4-4)

1) Move the Guide Up/Down in direction of arrow(A) as

Fig.(A)

2) Push the Locking Tab(L5) down and then lift up the

Guide Up/Down to separate it from the Base Main.

When reassembling place the Guide Up/Down as Fig.(C)

and move it in direction arrow(B) until it is locked by the

Locking Tab(L5). And confirm the Guide Up/Down as Fig.(A)

10. PWB Assembly Loading (Fig. 4-4)

Put the Base Main face down(Bottom Side)

1) Release 2 Screws(S5)

2) Unlock the Loading Motor (C2) from the Hook (H1) on

the Base Main.

3) Unlock 2 Locking Tabs(L6) and separate the PWB

Assembly Loading from the Base Main.

11. Base Main(Fig. 4-4)

Note

Note

Note

Note

Note

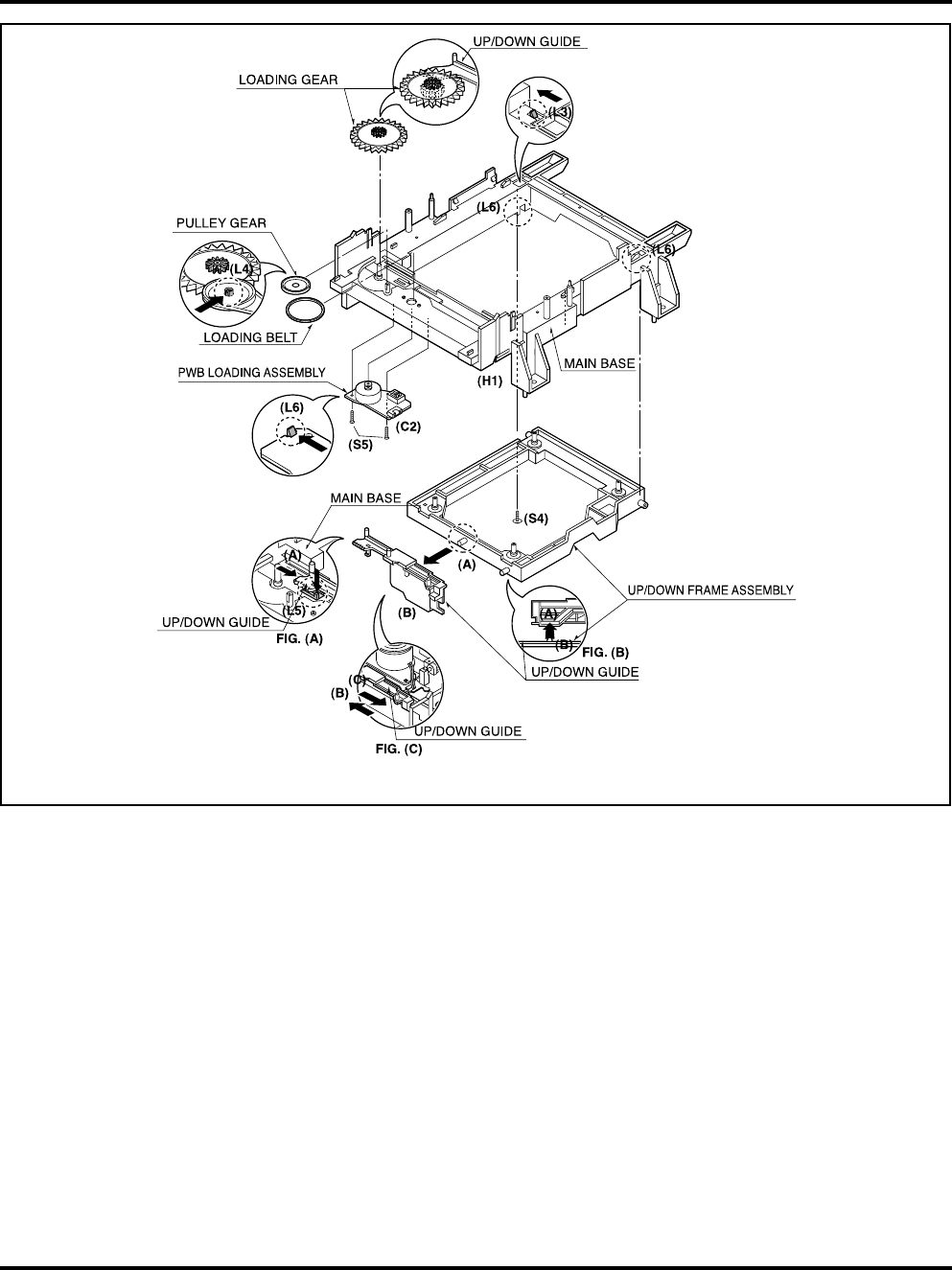

Fig. 4-4

EXPLODED VIEWS

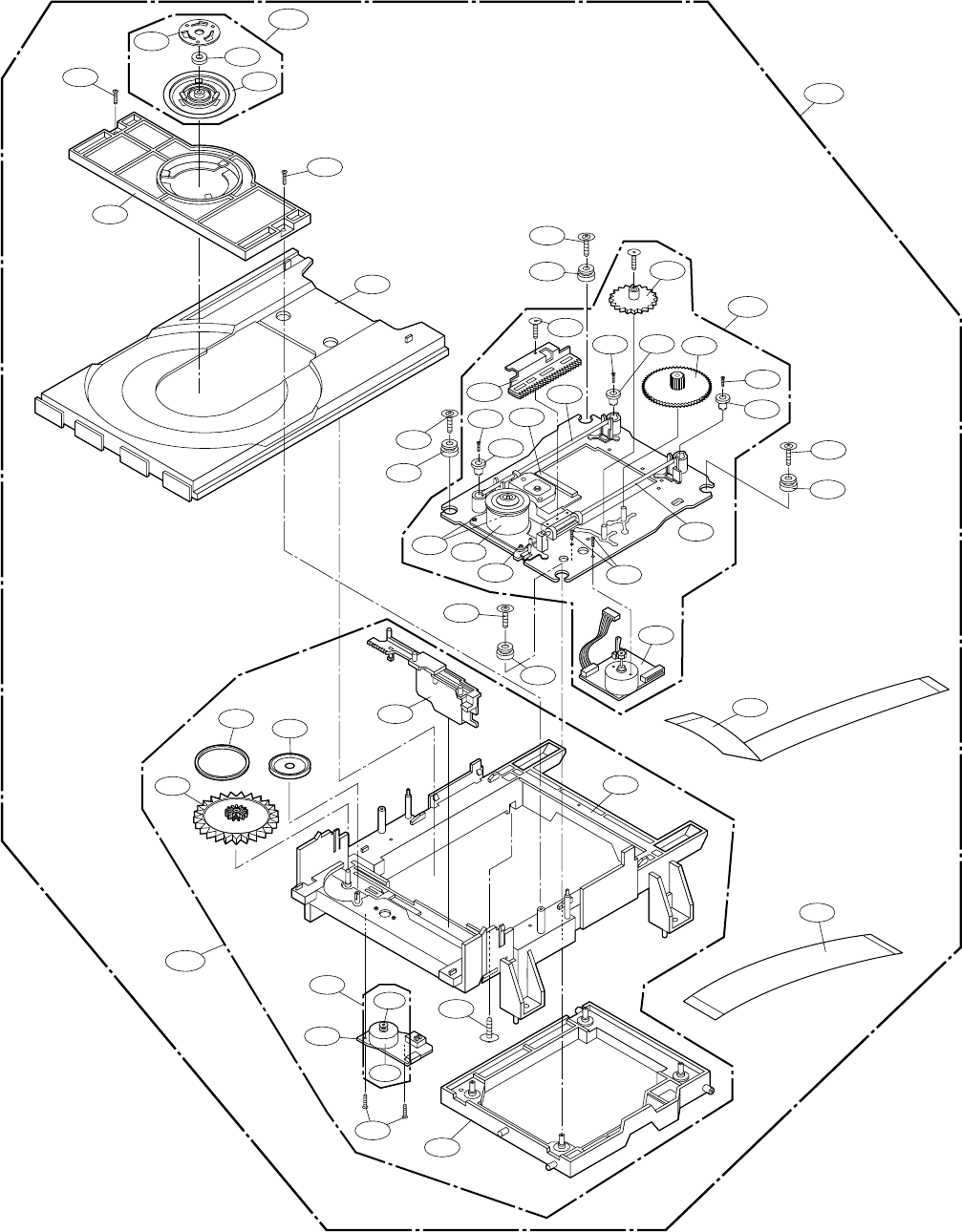

1. Deck Mechanism Exploded View

429

429

026

010

018

013 014

017

015

015A

011

430

431

011A

012

004

001

002

003

A01

A02

020

430

430

430

430

012

021

433

433

012

012

028

022

432

024

A03

A26

025

030

015B

015C

435

029

031

431

431

431

024A

024A

024B

4-5 4-6

5-1

SECTION 5 REPLACEMENT PARTS LIST

TOSHIBA MODEL : SD-4900-S-TU/SD-4900-S-TC NSP : Not avallable as service parts.

RUN DATE : 27-JULY-02

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

*** INDIVIDUAL PARTS ***

250 79096706 3110R-D001C CASE DVB7022NM PRESS 55-430-J597G W

283 AF000166 3580R-T091C DOOR,CASE DVD DVB7042NDM MOLD TRAY

300 79096072 6410RAHX02A POWER CORD SP-120P/JL001 CHAUS/JULIAN UL/

463 79096043 353-051G SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FN TB ROUN

465 79097903 353-046K SCREW SPECIAL (3X10 B.K)

*** PACKING ACCESSORY ***

801 AF000169 3835RS0060H INSTRUCTION ASSEMBLY DVD DVB7042NDM HA1UTT SD-4900-S-TU

801 AF000170 3835RS0060J INSTRUCTION ASSEMBLY DVD DVB7042NDM HA1CTT SD-4900-S-TC

802 AF000172 3890R-H820V BOX DVB7042NDM HA1UTT SWW3-A 0.870 SD-4900-S-TU

802 AF000171 3890R-H820U BOX DVB7042NDM HA1CTT SD-4900-S-TC

803 79096672 3920R-E066A PACKING,CASING DV7000 0.02 68 EPS 10 1165 238

804 AF000019 292-053B BAG SOFT(MIDI) NSP

808 79096103 841-0021 BATTERY,MN ER03X HI WATT 1.5V .MA/H AAA

*** CABLE ASSY ***

810 79096094 6851RP0003N CABLE ASSY,RF DVD CABLE ASSY,RCA USING AREA

811 79096073 6611R1G001A PLUG ASSY 1WAY YELLOW GLOBAL

812 AF000177 6611R2G001A PLUG ASSY 2WAY RED/WHITE GLOBAL

*** REMOTE CONTROLLER ***

900 79096699 6711R2N082A REMOTE CONTROLLER ASSEMBLY TOSHIBA DVB7021NM TOSHIBA SE-R

*** PANEL ASSEMBLY & TIMER ***

A43 AF000165 3501RF8217A BOARD ASSEMBLY DVD DVB7042NDM HA1UTT

280 AF000168 3721R-F810A PANEL ASSEMBLY,FRONT DVD DVB7042NDM HA1UTT

452 79097905 353-051A SCREW SPECIAL

A42 AF000180 6871R-5705A PWB(PCB) ASSEMBLY,TOTAL DVB7042NDM TOSHIBA STEP UP KEY

A49 AF000179 6871R-5704A PWB(PCB) ASSEMBLY,TOTAL DVB7042NDM TOSHIBA STEP UP TIM

C902 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C906 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C907 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C908 79098709 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C909 79097109 0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5

C910 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C911 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C912 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C913 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

DIG901 AF000176 6302R-V214A DIGITRON 6BT-335GNK FUTABA SEG VFD DVD7 ALTERNATE

DIG901 79096650 6302R-V205A DIGITRON HNV-06SC03T SS SDI SEG VFD DVD

DIG901 AF000176 6302RCV205A DIGITRON VFD16-0601FN ZEC SEG VFD TTL 1 ALTERNATE

IC901 AF000155 0IMCRHY070B IC,MICRO CONTROLLER HMS81C2012A-HK006 HYNIX 64PIN

IC902 79098739 0IKE704200B IC,KEC KIA7042P 3P 4.2V RESET(TAPING)

L901 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

LED901 79098732 0DL325319AA LED SPR325MVWT31 TP ROHM GREEN/RED

Q902 79095001 0TR103009AA TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC

R901 79093049 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

R902 79096690 0RH8200C622 RESISTOR,METAL GLAZED(CHIP) 820 OHM 1 / 16 W 1608 5.00% D

R903 79093031 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R904 79093034 0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D

R905 79093039 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D

R906 79093042 0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D

R907 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

NOTES) Warning

NOTES) Parts that are shaded are critical

NOTES) With respect to risk of fire or

NOTES) electricial shock.

5-2

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

R908 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R909 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R910 79093042 0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D

R911 79093041 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

R913 79098771 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D

R914 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R915 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R916 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R917 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R918 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R919 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R920 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R921 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R922 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R923 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R924 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R925 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R926 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R927 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R928 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R929 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R930 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R931 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R932 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R933 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R934 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R935 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R936 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R937 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R938 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R940 79093049 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

R941 79096690 0RH8200C622 RESISTOR,METAL GLAZED(CHIP) 820 OHM 1 / 16 W 1608 5.00% D

R942 79093031 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R943 79093034 0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D

R944 79093039 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D

R945 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R946 79093042 0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D

R947 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R948 79096480 0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D

R952 79093027 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

RC901 79096647 6712R1038GA REMOTE CONTROLLER RECEIVER TSOP2438SB1 VISHAY 38KHZ 10.2M

SW901 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW902 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW903 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW904 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW905 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW906 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW907 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW908 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW909 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW910 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW911 79097338 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW950 79098796 6600RRB003A SWITCH,TACT SKQUAA ALPS DC 12 V 50 MA VER

X901 79097349 6212BA3004A RESONATOR,CERAMIC CSTLS6M00G53-A0 MURATA 6MHZ +/

*** CHASSIS ASSEMBLY ***

A44 AF000164 3141R-D011U CHASSIS ASSEMBLY DVB7042NDM MTK 55MM NSP

260 79096705 3140R-D002A CHASSIS DV7000 PRESS MAIN

261 79096653 5040R-0069D RUBBER FOOT(SILICONE SPONGE DS-08 T=

320 AF000167 3720R-D085U PANEL,VIDEO DVD DVB7042NDM PRESS MTK 55MM

467 79097904 353-046N SCREW,DRAWING SPECIAL(3X8 BK.)

5-3

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

*** DECK ASSEMBLY ***

A00 79096645 6721RH0370A DECK ASSEMBLY,VIDEO DECK/MECHA DP-7(55) MITSUMI GO NSP

A01 AF000173 4861R-0016B CLAMP ASSEMBLY DISC DP7 - SH

A02 79096682 3041R-M003B BASE ASSEMBLY MAIN(DP-7R) - SH

A03 AF000163 3041R-M002B BASE ASSEMBLY SLED DP7(MIT 502W-GOLD) - SH

001 79097006 3300R-0547A PLATE CLAMP NSP

002 79097007 5016H-1016B MAGNET CLAMP(LDM-R608,10*5,1*1.5T) NSP

003 AF000069 4860R-0021A CLAMP UPPER DP7 NSP

004 79096657 4930R-0365A HOLDER CLAMP DP7

010 79096644 6850R-GF10B CABLE,FLAT P=1.0 FFC UL2896(0.05X0.65) 6

011 7909680 3210R-M001A FRAME UP/DOWN DP7 MOLD

011A 79096643 6850R-JW24Y CABLE,FLAT P=1.0 FFC UL2896(0.035X0.7) 23

012 79096652 5040R-0075B RUBBER DAMPER DP7 (CHUNG PUNG 30)

012 AF000076 5040R-0075D RUBBER DAMPER DP7 (YAMAUCHI 30) ALTERNATE

012 AF000174 5040R-0075F RUBBER DAMPER DP7 (JAE IL 30) ALTERNATE

013 79096669 4400H-1009A BELT GM-RT1332A

014 79096235 4470R-0055A GEAR PULLEY

015 79096638 6871R-9248B PWB(PCB) ASSEMBLY,TOTAL DP7 LOADING - SH

015A 79096660 4681R-A003B MOTOR ASSEMBLY LOADING DP7 - SH

015B 79096516 4560R-0008A PULLEY MOTOR

015C 79096662 4680R-E007A MOTOR(MECH) FEEDING BCZ3B01 SANKYO FOR DVD

015C 79096661 4680R-E008A MOTOR(MECH) FEEDING RF-300EA-1D390 MABUCHI ALTERNATE

017 79096236 4470R-0056A GEAR LOADING

018 79096656 4974R-0046A GUIDE UP/DOWN(DP-7)

020 AF000162 3040R-M004A BASE MAIN(DP7-55MM) MOLD NSP

021 79096663 4680R-C010A MOTOR(MECH) SPINDLE JCL9B78 SANKYO FOR DVD

022 79096659 4681R-B005B MOTOR ASSEMBLY FEEDING DP7 - SH

022A 79096662 4680R-E007A MOTOR(MECH) FEEDING BCZ3B01 SANKYO FOR DVD

022A 79096661 4680R-E008A MOTOR(MECH) FEEDING RF-300EA-1D390 MABUCHI

023 79096668 4470R-0119A GEAR FEED MOTOR

024 79096665 4470R-0124A GEAR PINION DP7

024A 79096654 5006R-0040A CAP SKEW (T) DP7

024B 79096655 5006R-0039A CAP SKEW (R) DP7

025 79096667 4470R-0122A GEAR MIDDLE A DP7

026 79096679 3390R-0015A TRAY DISC DP7

027 79096666 4470R-0123A GEAR MIDDLE B DP7

028 79096670 4370R-0083A SHAFT DECK/MECHA DP7 OTHER PU-T

029 79096671 4370R-0075A SHAFT PU

030 79096664 4471R-0010A GEAR ASSEMBLY RACK DP7

031 79096646 6716DPH005A PICK UP,DVD PVR-502W MITSUMI PLAYER H/HIGH

032 79096639 6871R-9243B PWB(PCB) ASSEMBLY,TOTAL DP7 FEEDING - SH

430 79096686 1SZZR-0046A SCREW,DRAWING + 1 D2.0 L6.0 SWRCH16A/FZY

431 79096220 1SZZH-1007B SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNBK 4MM 1

433 79096541 1SZZR-0050A SCREW,DRAWING + 1 D2.0 L4.5 SWRCH16A/ZNY S-T

434 79096687 1SZZR-0023B SCREW,DRAWING + 1 D1.7 L6.0 SWRCH16A/FZY RAC

435 79097902 1SZZR-0011A SCREW, MACHINE

436 79096685 1SZZR-0047A SCREW,DRAWING + 1 D1.4 L4.5 SWRCH16A/FZY TAP

*** SUB PWB(PCB) ASSEMBLY ***

A46 AF000183 6885R-1012U SUB PWB(PCB) ASSEMBLY DVB7042NDM HA1UTT 55(U),53(S), SD-4900-S-TU

A46 AF000182 6885R-1012T SUB PWB(PCB) ASSEMBLY DVB7042NDM HA1CTT SD-4900-S-TC

C201 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C202 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C203 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C206 79098705 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)

C207 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C208 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C211 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C212 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C213 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C214 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C231 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

5-4

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

C232 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C233 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C234 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C239 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C240 79096609 0CH1153K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.015UF 50V 10% X7R(X) 1608 R/

C241 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C243 79096595 0CH4561K412 CAPACITOR,FIXED CERAMIC(High d 560PF 50V 5% NP0 1608 R/TP

C244 79096595 0CH4561K412 CAPACITOR,FIXED CERAMIC(High d 560PF 50V 5% NP0 1608 R/TP

C245 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C251 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C252 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C253 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C254 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C255 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C257 79098715 0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP

C258 79098715 0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP

C259 79098715 0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP

C260 79098715 0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP

C261 79098715 0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP

C262 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C263 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C264 79096609 0CH1153K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.015UF 50V 10% X7R(X) 1608 R/

C265 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C266 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C267 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C268 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C269 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C270 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C271 79096598 0CH4391K412 CAPACITOR,CHIP[CERAMIC M/L TC 390PF 50V J NP0 1508 R/TP

C272 79096598 0CH4391K412 CAPACITOR,CHIP[CERAMIC M/L TC 390PF 50V J NP0 1508 R/TP

C273 79092019 0CH1333K562 CAPACITOR,CHIP[CERAMIC M/L HD 0.033UF 50V K X7R(X) 1508 R/TP

C274 79096596 0CH4471K412 CAPACITOR,CHIP[CERAMIC M/L TC 470PF 50V J NP0 1508 R/TP

C276 79092023 0CH4100K112 CHIP CAPA CERAMIC M/L T.C F/S 10P 50V D COG 1.6X0.8 R/TP

C277 79096609 0CH1153K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.015UF 50V 10% X7R(X) 1608 R/

C278 79098721 0CH4270K412 CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP

C279 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C280 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C281 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C282 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C283 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C291 79098705 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)

C292 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C293 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C295 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C2A1 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C2A2 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C502 79092013 0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T

C503 79092013 0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T

C504 79092013 0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T

C505 79092013 0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T

C506 79097121 0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP

C507 79092013 0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T

C508 79092018 0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216

C509 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C510 79097121 0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP

C511 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C513 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C514 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C515 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C516 79092018 0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216

C517 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

5-5

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

C518 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C519 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C520 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C521 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C522 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C523 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C524 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C525 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C526 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C527 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C528 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C530 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C531 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C532 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C533 79098720 0CH4180K412 CAPACITOR,CHIP[CERAMIC M/L TC 18P 50V J COG 1.6X0.8 R/TP

C534 79092026 0CH4330K412 CAPACITOR,CHIP[CERAMIC M/L TC 33P 50V J COG 1.6X0.8 R/TP

C535 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C536 79098714 0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T

C537 79098714 0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T

C538 79098714 0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T

C539 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C540 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C541 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C542 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C543 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C544 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C545 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C554 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C556 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C557 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C558 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C559 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C560 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C561 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C563 79098709 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C564 79098709 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C565 79092025 0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP

C566 79092025 0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP

C567 79092025 0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP

C568 79092025 0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP

C569 79092025 0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP

C575 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C576 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C577 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C578 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C579 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C580 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C581 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C582 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C583 79098709 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C589 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C592 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C596 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C597 79096155 0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP

C5A1 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C5A2 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C5A3 79092025 0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP

C5A4 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C5A5 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C5A6 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C5A7 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

5-6

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

C5A8 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C5A9 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C5D1 79098709 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C600 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C601 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C603 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C604 79098715 0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP

C605 79098715 0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP

C606 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C607 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

C608 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

C609 79098714 0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T

C610 79098722 0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP

C611 79098722 0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP

C612 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

C613 79098722 0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP

C614 79098722 0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP

C615 79098714 0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T

C616 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

C617 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

C618 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C619 79098705 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)

C620 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

C621 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

C622 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

C623 79098718 0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP

C624 79098718 0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP

C628 79098702 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C629 79098702 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C630 79098702 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C631 79098702 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C632 79098702 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C633 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C634 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

C635 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C636 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C643 79098702 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C647 79098706 0CE1086C638 CAPACITOR,FIXED ELECTROLYTIC 1000000000 PF SMS,SG 6.3V M FM

C651 79098706 0CE1086C638 CAPACITOR,FIXED ELECTROLYTIC 1000000000 PF SMS,SG 6.3V M FM

C655 79098706 0CE1086C638 CAPACITOR,FIXED ELECTROLYTIC 1000000000 PF SMS,SG 6.3V M FM

C659 79096020 0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5

C659 79098713 0CE477CC618 CAPACITOR,FIXED ELECTROLYTIC 470UF SHL,SD 6.3V 20% TP 5 FL

C663 79096020 0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5

C663 79098713 0CE477CC618 CAPACITOR,FIXED ELECTROLYTIC 470UF SHL,SD 6.3V 20% TP 5 FL

C673 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C674 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C675 79098705 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)

C676 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C677 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C678 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C679 79098709 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C680 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C681 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C682 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C683 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C690 79098709 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C691 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C6A1 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C6A2 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C6A3 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C6W1 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

5-7

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

C6W2 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP

C6W3 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C6W4 79097121 0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP

C6W5 79098721 0CH4270K412 CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP

C6W6 79097121 0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP

D600 79096310 0DSRM00118A DIODE,SWITCHING DAP202K T146 ROHM R/TP SMD 80V

D670 79096023 0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A

F600 79096503 6200JB8010V FILTER(CIRC),EMC LFA20-2A1E473MT MITSUBISHI MAT

IC201 79096585 0ILNRNF006A IC,LINEAR MT1336E MEDIATEK INCORPORATION

IC202 79096576 0IPRPSA010A IC,PERIPHERALS LA6560-A-TE-L SANYO HSOP-36R R

IC501 AF000154 0ILNRNF008B IC,LINEAR MT1379EEC MEDIATEK INCORPORATI

IC505 79096693 0ISS240210A IC,SAMSUNG ELECTRONICS S524A40X21-SCT0 SOP8 TP EEPROM

IC506 AF000156 0IMMRII006A IC,MEMORIES IS42S16400A-7T INTEGRATED SILI

IC510 79097140 0IFA742440F IC,FAIRCHILD MM74HCT244SJ 20P SOIC TP 3-STA

IC601 AF000159 0IPRPCI003C IC,PERIPHERALS CS4391A-KZR CIRRUS LOGIC 20PIN

IC601 79098755 0IPRPCI003B IC,PERIPHERALS CS4391-KZR CIRRUS LOGIC 20 TSS

IC602 79098737 0IJR458000B IC,JRC NJM4580M 8,DMP8 TP OP AMP 2K/R

IC604 79096577 0IPRPMT008A IC,PERIPHERALS MM1623XFBE MITSUMI 28PIN SOP R

JK601 79096649 6612JH003KC JACK,RCA RCA/DIN-150(SILVER) YUQIU

JK602 AF000087 6612K00003B JACK,FIBER OPTIC PLT131/T5/12(12MBPS) EVERLIGHT

JK602 79096076 6612K00003A JACK,FIBER OPTIC PLT131/T5/6 EVERLIGHT PUSH TYP

L201 79096571 0LR0102J025 INDUCTOR,RADIAL LEAD 10UH 5% 4X5 TR5

L202 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L203 79096571 0LR0102J025 INDUCTOR,RADIAL LEAD 10UH 5% 4X5 TR5

L204 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L231 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L251 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L501 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L502 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L504 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L510 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L600 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L601 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L602 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L673 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L674 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L690 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

Q201 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q202 79096542 0TRRH80042A TRANSISTOR,BIPOLARS 2SK3018 T106 ROHM KOREA R/TP U

Q203 79096542 0TRRH80042A TRANSISTOR,BIPOLARS 2SK3018 T106 ROHM KOREA R/TP U

Q204 79095002 0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -

Q205 79095002 0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -

Q501 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q600 79095002 0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -

Q601 79096031 0TR103009AC TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC

Q602 79096031 0TR103009AC TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC

Q603 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q604 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q605 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q606 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

R201 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R202 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R203 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R204 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R205 79096563 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R206 79096563 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R207 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R208 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R209 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R210 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R211 79096564 0RH0221C622 RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D

5-8

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

R212 79096547 0RJ7503C677 RESISTOR,METAL GLAZED(CHIP) 750K OHM 1/16 W 5% 1608 R/TP

R213 79096553 0RH3903C622 RESISTOR,METAL GLAZED(CHIP) 390K OHM 1 / 16 W 1608 5.00% D

R214 79096547 0RJ7503C677 RESISTOR,METAL GLAZED(CHIP) 750K OHM 1/16 W 5% 1608 R/TP

R215 79096553 0RH3903C622 RESISTOR,METAL GLAZED(CHIP) 390K OHM 1 / 16 W 1608 5.00% D

R216 79096565 0RH0101C622 RESISTOR,METAL GLAZED(CHIP) 1 OHM 1 / 16 W 1608 5.00% D

R217 79096564 0RH0221C622 RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D

R218 79096564 0RH0221C622 RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D

R220 79096563 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R221 79096563 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R231 79093039 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D

R232 79093039 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D

R233 79096564 0RH0221C622 RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D

R234 79096564 0RH0221C622 RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D

R235 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R236 79093035 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D

R237 79096557 0RH2702C622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 16 W 1608 5.00% D

R238 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R239 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R240 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R241 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R242 79096557 0RH2702C622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 16 W 1608 5.00% D

R243 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R244 79093035 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D

R245 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R246 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R251 79096215 0RH3302C622 RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 16 W 1608 5.00% D

R252 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R253 79096557 0RH2702C622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 16 W 1608 5.00% D

R254 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R255 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R256 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R257 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R258 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R259 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R501 79096480 0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D

R502 79096547 0RJ7503C677 RESISTOR,METAL GLAZED(CHIP) 750K OHM 1/16 W 5% 1608 R/TP

R503 79093024 0RH0471C622 RESISTOR,METAL GLAZED(CHIP) 4.7 OHM 1 / 16 W 1608 5.00% D

R504 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R505 79093024 0RH0471C622 RESISTOR,METAL GLAZED(CHIP) 4.7 OHM 1 / 16 W 1608 5.00% D

R506 79093024 0RH0471C622 RESISTOR,METAL GLAZED(CHIP) 4.7 OHM 1 / 16 W 1608 5.00% D

R507 79098770 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D

R508 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R509 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R510 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R511 79093037 0RH1802C622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 16 W 1608 5.00% D

R512 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R513 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R515 AF000119 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R516 AF000119 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R517 AF000119 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R518 AF000119 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R519 AF000119 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R520 AF000119 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R521 AF000119 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R522 AF000119 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R523 79093031 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R524 79093031 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R525 79093031 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R526 79093027 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R527 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R528 79093031 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

5-9

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

R529 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R534 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R535 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R536 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R549 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R564 79093037 0RH1802C622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 16 W 1608 5.00% D

R565 79093037 0RH1802C622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 16 W 1608 5.00% D

R566 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R567 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R571 79093044 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R572 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R573 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R574 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R575 79093044 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R576 79093044 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R577 79093044 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R578 79093041 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

R579 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R580 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R581 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R5A3 79093031 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R5A7 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R5A9 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R600 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R601 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R602 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R603 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R605 79093051 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R606 79093051 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R607 79096480 0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D

R608 79098770 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D

R609 79098770 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D

R610 79096480 0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D

R611 79096480 0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D

R612 79093047 0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D

R613 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R614 79098770 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D

R615 79098770 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D

R616 79096480 0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D

R617 79093051 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R618 79093051 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R619 79093041 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

R620 79093041 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

R621 79098771 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D

R622 79098771 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D

R623 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R624 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R625 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R626 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R627 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R628 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R629 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R631 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R632 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R633 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R634 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R635 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R636 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R638 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R640 79093033 0RH1500C422 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D

R643 79093033 0RH1500C422 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D

5-10

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

R644 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R649 79093033 0RH1500C422 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D

R652 79093033 0RH1500C422 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D

R655 79093033 0RH1500C422 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D

R656 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R661 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D

R662 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D

R663 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D

R664 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R665 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R666 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R670 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R671 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R672 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R673 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R674 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R675 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R690 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R691 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R694 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R6A0 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D

R6A1 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D

R6A2 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D

R6A3 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D

R6A4 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D

R6A5 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D

R6C8 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R6C9 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R6D1 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R6T2 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R6U1 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R6U2 79093047 0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D

R6W1 79098768 0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D

R6W2 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D

R6W3 79093023 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R6W4 79098768 0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D

R6W5 79093023 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

X501 79097346 6202R-BL06C RESONATOR,CRYSTAL HC-49/S BUBANG 27MHZ 20PPM 1

ZD510 79096015 0DZ562609AA DIODE,ZENER GDZJ5.6B 26MM TP GRANDE DO34

*** PWB(PCB) ASSEMBLY , TOTAL 5.1CH ***

A48 AF000181 6871R-7601B PWB(PCB) ASSEMBLY,TOTAL DV7000S MTK SH 5.1CH

C302 79096283 0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)

C303 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C304 79098709 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C305 79096283 0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)

C306 AF000152 0CH4102K406 CHIP CAPA CERAMIC M/L T.C F/S 1000P 50V J SL 2.0X1.2 R/TP

C307 79096292 0CH4101K416 CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP

C308 79096608 0CH1392K566 CAPACITOR,FIXED CERAMIC(Temp.c 3900P 50V K X7R 2.0X1.2 R/TP

C309 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C310 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C311 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C312 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C313 AF000152 0CH4102K406 CHIP CAPA CERAMIC M/L T.C F/S 1000P 50V J SL 2.0X1.2 R/TP

C314 79096292 0CH4101K416 CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP

C315 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C316 AF000152 0CH4102K406 CHIP CAPA CERAMIC M/L T.C F/S 1000P 50V J SL 2.0X1.2 R/TP

C317 79096292 0CH4101K416 CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP

C318 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C319 79096608 0CH1392K566 CAPACITOR,FIXED CERAMIC(Temp.c 3900P 50V K X7R 2.0X1.2 R/TP

C320 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C321 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

5-11

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

C322 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C323 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C324 79096608 0CH1392K566 CAPACITOR,FIXED CERAMIC(Temp.c 3900P 50V K X7R 2.0X1.2 R/TP

C325 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C326 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C327 79096608 0CH1392K566 CAPACITOR,FIXED CERAMIC(Temp.c 3900P 50V K X7R 2.0X1.2 R/TP

C328 79096292 0CH4101K416 CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP

C329 AF000152 0CH4102K406 CHIP CAPA CERAMIC M/L T.C F/S 1000P 50V J SL 2.0X1.2 R/TP

C330 79096292 0CH4101K416 CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP

C331 AF000152 0CH4102K406 CHIP CAPA CERAMIC M/L T.C F/S 1000P 50V J SL 2.0X1.2 R/TP

C332 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C333 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C334 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C335 79096292 0CH4101K416 CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP

C336 AF000152 0CH4102K406 CHIP CAPA CERAMIC M/L T.C F/S 1000P 50V J SL 2.0X1.2 R/TP

C337 79096608 0CH1392K566 CAPACITOR,FIXED CERAMIC(Temp.c 3900P 50V K X7R 2.0X1.2 R/TP

C338 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C339 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C340 79096608 0CH1392K566 CAPACITOR,FIXED CERAMIC(Temp.c 3900P 50V K X7R 2.0X1.2 R/TP

C341 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

C342 79097106 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)

D311 79096013 0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80

D312 79096013 0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80

F301 79091006 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

F302 79091006 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

F303 79091006 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

F304 79091006 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

F305 79091006 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

F306 79091006 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

IC301 AF000158 0IPRPBB002A IC,PERIPHERALS PCM1603KY BUR BROWN 52 TQFP TR

IC302 79098737 0IJR458000B IC,JRC NJM4580M 8,DMP8 TP OP AMP 2K/R

IC303 79098737 0IJR458000B IC,JRC NJM4580M 8,DMP8 TP OP AMP 2K/R

IC304 79098737 0IJR458000B IC,JRC NJM4580M 8,DMP8 TP OP AMP 2K/R

JK301 AF000178 6612JH002XA JACK,RCA RCA-617A-01 YUQIU

Q301 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q302 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q303 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q304 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q305 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q306 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC

Q307 79096031 0TR103009AC TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC

Q308 79096031 0TR103009AC TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC

R301 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R302 AF000161 0RH0102D622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 10 W 2012 5.00% D

R303 79096206 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

R305 AF000161 0RH0102D622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 10 W 2012 5.00% D

R306 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R307 79096346 0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D

R308 79096355 0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D

R309 79096556 0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D

R310 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R311 79096351 0RH1502D622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 10 W 2012 5.00% D

R312 79096370 0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D

R313 79096371 0RH7501D622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 10 W 2012 5.00% D

R314 79096371 0RH7501D622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 10 W 2012 5.00% D

R315 79096371 0RH7501D622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 10 W 2012 5.00% D

R316 79096370 0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D

R317 79096351 0RH1502D622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 10 W 2012 5.00% D

R318 79096556 0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D

R319 79096551 0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D

R320 79096365 0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D

5-12

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

R321 79096346 0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D

R322 79096355 0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D

R323 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R324 79096355 0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D

R325 79096346 0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D

R326 79096556 0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D

R327 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R328 79096351 0RH1502D622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 10 W 2012 5.00% D

R329 79096370 0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D

R330 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R331 79096371 0RH7501D622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 10 W 2012 5.00% D

R332 79096370 0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D

R333 79096351 0RH1502D622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 10 W 2012 5.00% D

R334 79096556 0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D

R335 79096551 0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D

R336 79096365 0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D

R337 79096346 0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D

R338 79096355 0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D

R339 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R340 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R341 79096355 0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D

R342 79096346 0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D

R343 79096556 0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D

R344 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R345 79096351 0RH1502D622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 10 W 2012 5.00% D

R346 79096370 0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D

R347 79096371 0RH7501D622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 10 W 2012 5.00% D

R348 79096371 0RH7501D622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 10 W 2012 5.00% D

R349 79096370 0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D

R350 79096351 0RH1502D622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 10 W 2012 5.00% D

R361 79096556 0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D

R362 79096551 0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D

R363 79096365 0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D

R364 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R365 79096355 0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D

R366 79096346 0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D

R374 79096206 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

R375 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R376 79096344 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D

R377 79096206 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

*** PWB(PCB) ASSEMBLY , TOTAL POWER ***

A47 79096640 6871R-7605F PWB(PCB) ASSEMBLY,TOTAL DV7000S MTK SMPS SH 110V(UL) L

BC101 79091008 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD101 79096005 0DD160000DA DIODE S1WBA60(1A 600V) SHIDENKEN

C101 79097353 624-088S CAPACITOR,DRAWING MPX104K ETR/EUROPTRONIC BULK

C102 79097353 624-088S CAPACITOR,DRAWING MPX104K ETR/EUROPTRONIC BULK

C103 79097105 0CE1076Q600 CAPACITOR,ELECTROLYTIC 100UF SMS 200V M W BULK

C104 79092035 624-085D CAPACITOR CE 47UF/50V KME (SMPS)

C106 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C107 79096148 0CG2220U630 CAPACITOR,SEMI CERAMIC 2200 PF 400V M E R (NK,AD,SD)

C108 79096616 0CE4744K638 CAPACITOR,ELECTROLYTIC 0.47M SRA 50V M FM5 TP(5)

C109 79092003 0CE108BF630 CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK

C110 79098729 0CN4730K948 CAPACITOR,FIXED TUBULAR(High d 0.047UF D 50V 80%,-20% F(Y5V)

C112 79092007 0CE3376D638 CAPACITOR,ELECTROLYTIC 330UF SMS 10V M FM5 TP5

C113 79096279 0CG1020U630 CAPACITOR,SEMI CERAMIC 1000PF 400V M E(Z5U) R

C115 79096697 0CE3366K638 CAPACITOR,FIXED ELECTROLYTIC 33UF SMS,SG 50V 20% FM5 TP 5

C116 79092010 0CE477BH630 CAPACITOR,AL.ELECTROLYTIC 470UF KME TYPE 25V M FM5 BULK

C118 79098705 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)

C119 79096651 624-087G CAPACITOR HIGH-VOL 68PF/1KV SMPS SAMHWA

C120 79098705 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)

C121 79009200 0CE2276F638 CAPACITOR,ELECTROLYTIC 220U SMS 16V M FM5 TP(5)

5-13

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

C121 79092005 0CE2276F638 CAPACITOR,ELECTROLYTIC 220U SMS 16V M FM5 TP(5)

C122 79092035 624-085D CAPACITOR CE 47UF/50V KME (SMPS)

C123 79092003 0CE108BF630 CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK

C124 79098711 0CE337CH618 CAPACITOR,FIXED ELECTROLYTIC 330UF SHL,SD 25V 20% FL TP 5

C126 79092033 0CQ1031Y519 CAPACITOR,POLYESTER 0.01UF D 630V K PE NI TP

C128 79098731 0CQ1042K409 CAPACITOR,FIXED FILM 0.1UF S 50V J PE TP

C130 79098705 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)

C131 79098705 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)

C137 79092007 0CE3376D638 CAPACITOR,ELECTROLYTIC 330UF SMS 10V M FM5 TP5

D100 79096002 0DD010009CA DIODE,RECTIFIER EG01CW(R-FORM 5MM) TP SANKEN

D100 79096006 0DD221009AA DIODE,RECTIFIERS ERA22-10 KFLB,TP ,R T/P,FUJI

D101 AF000153 0DZ240009AF DIODE,ZENERS GDZJ24B GRANDE TP26 DO34 0.5W

D102 79096011 0DR810040BA DIODE,RECTIFIER ERC81-004L22 BK FUJI DO201AD 4

D102 79096009 0DR158220AA DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V

D103 79096696 0DR202000AB DIODE,RECTIFIER HER202 BK RECTRON NON 100V 2A

D104 79096023 0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A

D106 79096008 0DR104009AB DIODE,RECTIFIER RL104 R. TP GULF SEMICONDUCTOR

D107 79096023 0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A

D108 79096023 0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A

D109 79096696 0DR202000AB DIODE,RECTIFIER HER202 BK RECTRON NON 100V 2A

D110 79096023 0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A

D111 79096012 0DRRE00029A DIODE,RECTIFIERS 1N17 RECTRON TP NON 20V 1A 20

F101 79096318 0FS1601B51B FUSE,SLOW BLOW 1600MA 250 V 5.2X20 CY/GL KS /

F101 79098701 585-027B FUSE,SLOW BLOW 1600MA 250 V 5.2X20 CY/GL KS /

F102 79096691 0RF0200F708 RESISTOR,VARIABLE[CARBON FILM] 0.2 OHM 1/6 W 10% TA26

FH101 79098790 586-008B HOLDER FUSE CLIP TP SINSUNG

FH102 79098790 586-008B HOLDER FUSE CLIP TP SINSUNG

IC101 79096694 0IPMGIH004A IC,POWER MANAGEMENT ICE2B0565 INFINEON 8PIN DIP ST

IC102 79094030 657-063A SENSOR LTV-817B,PHOTO COUPLER(LITEON)

IC103 AF000157 0IPMGSH010A IC,POWER MANAGEMENT PQ12RD1L SHARP 4PIN TO-220 ST ALTERNATE

IC103 79098750 0IPMGFA017A IC,POWER MANAGEMENT KA78R12TSTU FAIRCHILD 4P TO-22 ALTERNATE

IC103 79098740 0IKE781200S IC,KEC KIA78R12PI CU 4P TO-220IS ST 1

IC104 79097152 0IPMGUK001A IC,POWER MANAGEMENT SL431-AT AUK 3PIN TO-92 TP PRO ALTERNATE

IC104 79094010 0IKE431000A IC,KEC KIA431 3 PIN TP

IC104 79094020 0ISS431000A IC,SAMSUNG ELECTRONICS KA431AZ (LM431AZ) ALTERNATE

IC105 AF000115 0IPMGSH009A IC,POWER MANAGEMENT PQ08RD1L SHARP 4PIN TO-220 ST ALTERNATE

IC105 79098753 0IPMGKE008B IC,POWER MANAGEMENT KIA78R08PI CU KEC 4P TO-220IS

IC105 79098749 0IPMGFA016A IC,POWER MANAGEMENT KA78R08TSTU FAIRCHILD 4P TO-22 ALTERNATE

IC106 AF000160 0ISH313000C IC,SHARP PQ3RD13L 4PIN TO-220 ST 3.3V L ALTERNATE

IC106 79098752 0IPMGKE006B IC,POWER MANAGEMENT KIA78R33PI CU KEC 4P TO-220IS

IC106 79098748 0IPMGFA015A IC,POWER MANAGEMENT KA78R33TSTU FAIRCHILD 4P TO-22 ALTERNATE

L101 79091004 616-145J FILTER(CIRC),DRAWING BUJEON V-04350

L101 79098791 616-145M FILTER(CIRC),DRAWING V-04350 LS FUTAI BULK =616-145

L102 79098794 633-088D COIL,CHOKE CHOCK ,20UH KWANGSUNG LEAD CU

L103 79091007 633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP

L105 79091007 633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP

Q101 79095006 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC ALTERNATE

Q101 79095007 0TR319909AF TRANSISTOR,BIPOLARS KTC3199-BL MINI TP KEC ALTERNATE

Q101 79096377 0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92

Q102 79096688 0TR105009AD TRANSISTOR,BIPOLARS KRA105M KEC TP TO92 50V 100MA

Q107 AF000018 0TR115100AC TRANSISTOR,BIPOLARS KTB1151-Y BK KEC TO126 -

Q107 79096546 0TR115100AA TRANSISTOR KSB1151-Y BK SAMSUNG TO-126

Q108 79095006 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC ALTERNATE

Q108 79096377 0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92

Q108 79095007 0TR319909AF TRANSISTOR,BIPOLARS KTC3199-BL MINI TP KEC ALTERNATE

R100 79093009 0RD1504H632 RESISTOR,FIXED CARBON FILM 1.5M OHM 1/2 W 5.00% MF10

R101 79093056 614-007A RESISTOR 2.7/2W CEMENT SMPS V

R103 79093055 0RS5602K619 RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR

R107 79096689 0RS0600K619 RESISTOR,FIXED METAL OXIDE FIL 0.6 OHM 2 W 5% TR

R109 79093012 0RD2203F608 RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26

R110 79093012 0RD2203F608 RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26

5-14

S AL LOCA. NO. TOSHIBA PART LG PART NO. DESCRIPTION SPECIFICATION REMARKS

R112 79096692 0RD0392F608 RESISTOR,FIXED CARBON FILM 39 OHM 1/6 W 5% TA26

R114 79093006 0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26

R115 79097165 0RD0182F608 RESISTOR,FIXED CARBON FILM 18 OHM 1/6 W 5.00% TA26

R116 79097165 0RD0182F608 RESISTOR,FIXED CARBON FILM 18 OHM 1/6 W 5.00% TA26

R120 79093018 0RD4702F608 RESISTOR,FIXED CARBON FILM 47K OHM 1/6 W 5% TA26

R121 79093007 0RD1201F608 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26

R121 79096185 0RD1201F608 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26

R122 79093011 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R123 79093004 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R124 79093010 0RD1800F608 RESISTOR,FIXED CARBON FILM 180 OHM 1/6 W 5% TA26

R125 79093015 0RD3901F608 RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26

R126 79093004 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R127 79093054 0RN3601E408 RESISTOR,FIXED METAL FILM 3.6K OHM 1/8 W 1.00% TA26

R128 79093053 0RN3301E408 RESISTOR,FIXED METAL FILM 3.3K OHM 1/8 W 1.00% TA26

R130 79093005 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R131 79098761 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R132 79093005 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R140 79093004 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R142 79093004 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R145 79093016 0RD4700F608 RESISTOR,FIXED CARBON FILM 470 OHM 1/6 W 5% TA26

T101 79096069 6170RNGW05B TRANSFORMER,SMPS[COIL] EER2828 SOOJUNG DVD SLIM

V101 79098795 656-004C VARISTOR,DRAWING SVC681D-10A SAMHWA 4.O CUT

ZD101 79098735 0DZ560009CJ DIODE,ZENERS GDZJ5.6B 26MM GRANDE TP26 DO34

ZD102 79098734 0DZ332609FB DIODE,ZENERS GDZJ3.3B 26MM GRANDE TP26 DO34
