TOSHIBA AMERICA INFORMATION SYSTEMS
STORAGE DEVICE DIVISION
IRVINE, CALIFORNIA
SD-R5002
DVD REWRITEABLE DRIVE
USER MANUAL
CONTENTS
Introduction..............................................................................1
Setup ........................................................................................3
Using the DVD Rewriteable Drive...........................................7
Troubleshooting.....................................................................10
Specifications ........................................................................11
Drive Connectors...................................................................15
1
INTRODUCTION – SD-R5002
General Features
Reads and records digital data on DVD-R/-RW and CD-R/-RW discs
CD-R/-RW disc write/rewrite at 16X/10X
DVD-R/-RW disc write/rewrite at 2X/1X
3-way Disc Eject (eject button, software, emergency eject hole)
Average Random Access Time
CD 110ms
DVD-ROM 130ms
Horizontal or Vertical Mount
2MByte Buffer
Playback interchangeability for CD-ROM and DVD-ROM discs
Regionalization (RPC2 compliance) (DVD)
BUS Interface - ATAPI
Types of Disc Formats Supported - Write
• Applicable Write Format CD-R/-RW, DVD-R/-RW: Disc at once, Track at one, Session at
once, Packet write, incremental write, restricted overwrite
• Applicable Write disc CD-R/-RW, DVD-R/-RW: CD-DA, CD+(E)G, CD-MIDI, CD-ROM, CD-
ROM XA, MIXED MODE CD, CD-I, CD-I Bridge, (Photo-CD, Video-CD), Multi-session CD
(Photo-CD, CD EXTRA, Portfolio), DVD-R (Ver 2.01 for General), DVD-RW (Ver 1.1)
Types of Disc Formats Supported - Read
DVD:
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD0-R (Ver 1.0, Ver 2.0), DVD-RW (Read Ver 1.1)
CD:
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, CD-I, CD-I Bridge (Photo-CD,
Video-CD), Multi-session (Photo-CD, CD-EXTRA, CD-R, CD-RW, Portfolio), CD-R, CD-RW
Front Panel
Figure 1.SD-R5002 DVD Writeable Drive Front Panel
Loading
Tray
Load disc using tray.
Busy Light
LED
The LED lights green or amber when the drive is operating (LED is amber when drive is
writing.)
Eject
Button
The Eject button is used to open the disc tray so you can install or remove a disc.
Emergency
Eject Hole
The emergency eject hole is to be used only when the Loading Tray will not open when
Eject button is pressed.
System Requirements
The DVD Writeable kit requires the following (If kit uses Nero6 software):
• Microsoft Windows 98SE, XP, 2000 or ME
• CPU Requirements:
300MHz minimum
800MHz for capturing to hard disc
1.6GHz for capturing to DVD video
• 64MB RAM, 128MB RAM (for video editing)
• Hard Drive Space:
500MB minimum
4.8GB for DVD Images
• Screen solution 800 x 600 pixel minimum, 16 bit color depth or higher
• Windows Internet Explorer 4.0 or higher
• PCI sound card, USB audio box or motherboard built-in audio device
• TV tuner or video capture board for analog recording
3
SETUP – SD-R5002
The following steps must be performed to properly install your drive:
• Set Drive Jumper Settings
• Connect Audio Cable
• Attach IDE BUS Cable
• Attach Power Cable
• Mount Drive

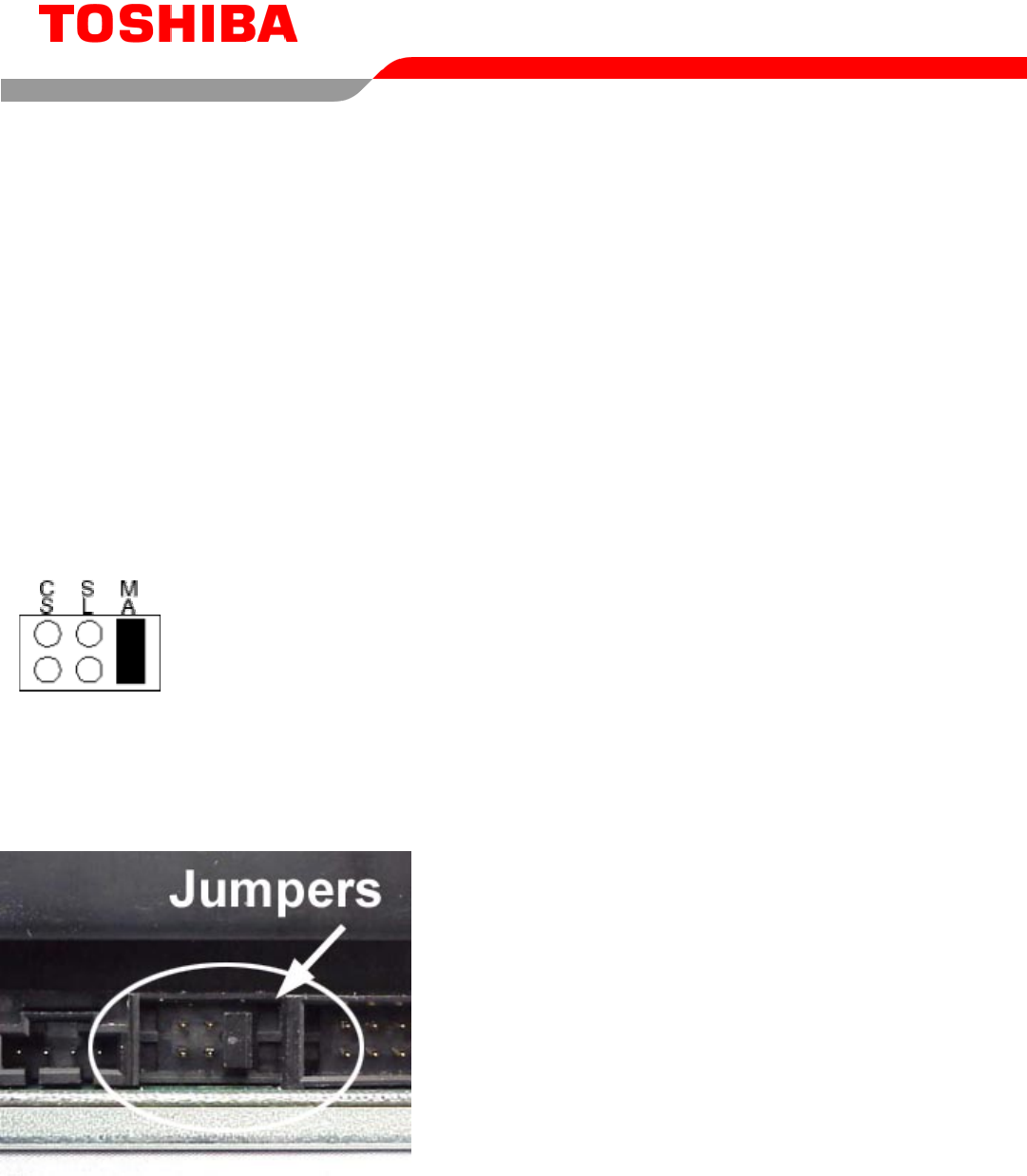

Jumper Settings
The mode select jumpers are 6 straight angle pins located on the rear of the DVD Rewriteable drive.
By placing a jumper on the pins, you can select the following functions:
CS
Drive is configured using host interface signal CSEL
SL Configures drive as Slave
MA Configures drive as Master (default mode)
Figure 1.Mode Select Jumper
In most installations, jumper should remain in the MA position (factory default). It is recommended that
you install your DVD Rewriteable drive only on the secondary IDE BUS. If you are installing on primary
IDE BUS, your hard drive would then be the Master, and you should set your DVD Rewriteable drive to
the Slave position (SL)
Figure 2.Jumper Locations
4
Placing DVD Rewriteable Drive inside your Computer
Now that you have set the jumpers, you are ready to install your DVD Rewriteable drive inside your
computer.
Important Note: Disconnect power from your computer system before beginning installation.
Remove computer cover and faceplate if required. Refer to your computer systems manual for removal
information. If the DVD Rewriteable drive is replacing a CD-ROM or DVD-ROM, remove drive presently
installed in your system.
Your Toshiba DVD Rewriteable drive can be placed in any free half-height drive slot at the front of your
computer. (It can be mounted horizontally or vertically.)
Carefully start sliding the DVD Rewriteable drive into the opening with the disc tray facing the front of the
computer. Before you push the drive all the way in you will need to connect the IDE BUS cable, Audio
cable and the Power cable on the back of the drive.
Connecting Cables
IDE BUS Cable (not supplied with drive) - Your computer system should have a primary and secondary
IDE BUS, cable with your Hard Drive most likely being the Master on the primary BUS. Connect BUS
cable as follows, assuring that pin 1 of cable (side with red stripe) is connected to pin 1 of the DVD
Rewriteable drive's interface connector:
If you are replacing your CD-ROM or DVD:
connect DVD Rewriteable drive to the BUS Cable
connector that the CD-ROM or DVD was connected to.
If DVD Rewriteable drive is not replacing a CD-
ROM/DVD or is an addition to a CD-ROM/DVD:
connect DVD Rewriteable drive to an open connector on
the secondary IDE BUS cable (not supplied with drive).
If DVD Rewriteable drive is to be slave on Primary BUS:
connect DVD Rewriteable drive to open connector on
the primary IDE BUS cable (not supplied with drive).
Figure 3.Installing BUS Cable
5

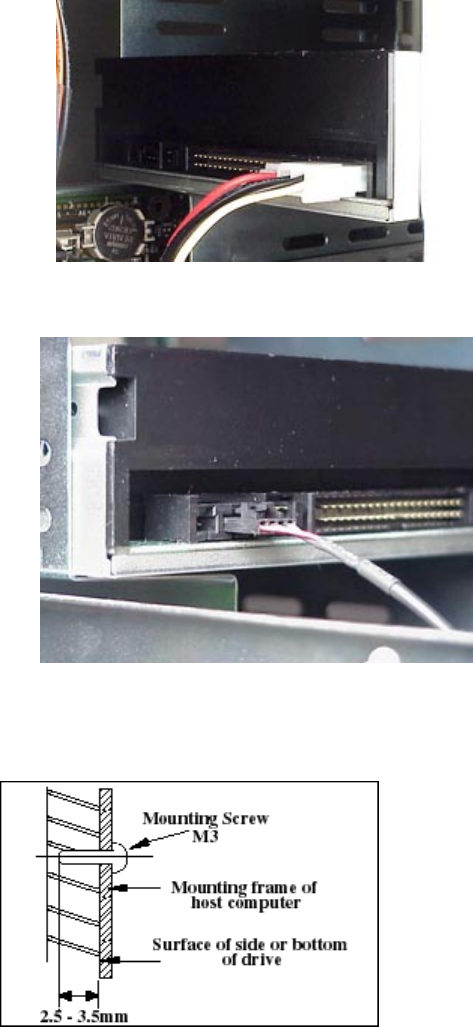

Power Cable - Connect an internal computer power
supply cable to the power socket at the back of the DVD
Rewriteable drive. One side of the plug has chamfered
edges, so the power connector fits only one way. Push
plug completely into the socket making sure the plug fits
correctly.
Figure 4.Installing Power Cable
Audio Cable (optional) - If you have a sound card and
speakers, and would like to play audio CDs on your
computer, you will need to install a CD/DVD audio cable.
Toshiba's DVD Rewriteable drives use a standard 4-pin
audio cable that can be purchased from most local
computer suppliers. The sound cable connects to your
sound card at one end and the other end connects to
the digital audio connector at the left rear of the DVD
Rewriteable drive (see DVD Rewriteable drive Back
Panel photo for location). Refer to the instructions that
came with your sound card for details on any sound-
driver software required.
Figure 5.Installing Audio Cable
Completing Installation
After you have connected all the necessary cables,
push the DVD Rewriteable drive completely into the
computers drive slot. Mount drive per your computers
instructions. The screw length should not exceed
30.5mm (measured from outside surface of side or
bottom of drive to tip of screw). Replace computer
cover and all outer screws.
Figure 6.Mounting Illustration
6
Software Driver - Toshiba's optical drives do not require any unique device drivers for Windows
'95/'98/2000/Me/XP/NT. After installing your drive and re-booting, your system should recognize your
drive. Windows '95/'98/2000/Me/XP/NT Operating Systems support all Toshiba optical drives natively If
you prefer using DOS, download the DOS ATAPI driver from our web site.
Other Software - Additional software is required to use the SD-R5002 CD-R/-RW, DVD-R/-RW and
DVD functions. When you purchase the SD-R5002 as a kit, it will include the following software (Nero6):
Nero6 OEM Suite 3 Software:
• Nero Burning Rom - This easy to use software enables you to create your own CDs and DVDs.
• Nero Backup - Easy to use data backup program.
• InCD 4 - Easy to use Packet writing tool.
• Nero Media Player - Easy to use software for CD Audio, Streaming Audio and Streaming Video.
• Nero ShowTime - a software DVD player for the most vibrant picture viewing of DVD movies and
your own projects, along with MPEG-4 (Nero Digital) compatibility
• NeroVision Express 2 - a software package that leads you comfortably through the whole
process of making Video CDs, Super VideoCDs or high-value DVDs
If you did not purchase the SD-R5002 as a kit, you will need to purchase third party software in order to
view DVDs and create CD-R/-RW and DVD-R/-RW discs.
7
USING THE DVD Rewriteable Drive – SD-R5002
Drive Operation
Inserting a Disc - Horizontally
To insert a disc into a drive that is mounted horizontally, perform the following steps:
Figure 1.Inserting Disc
1. Open the drive's Loading tray by pressing the Eject Button.
2. Place disc or into drive's Loading tray
3. Press Eject button again or gently push on the open disc tray. Tray will automatically close.
Inserting a Disc - Vertically
To insert a disc in a drive that is mounted vertically, perform the following steps:
1. Locate sliding disc holders (4 locations) on drive's Loading Tray.
2. The vertical position of the drive (eject button up or down) determines which of these four sliding
disc holders are used (see photo below). Position the disc behind 3 of the disc holders, two on
bottom, and one on upper rear, closest to drive). Using all four holders may cause the disc to not
set properly in tray.
3. Slide the disc holders towards the center of tray using your finger, opened paper clip or the end
of the emergency eject tool. The holder in the upper front side should be pulled away from the
center of tray.
4. Position the disc behind disc holders on upper and rear side of tray. Then put disc behind bottom front
holder
5. Check to see that all three disc holders are holding disc securely.
6. Close the drive by gently pushing in the tray or pressing the eject button.
8
Figure 2.Inserting Disc Vertically
Removing a Disc
To remove a disc from the DVD Rewriteable drive, perform the following steps:
1. Open the Loading Tray by pressing the Eject Button.
2. Slide disc holders away from disc.
3. Grasp disc by edges, and lift out of loading tray.
4. Press Eject Button again to close Loading Tray.
Software
When you purchase the SD-R5002 as a Kit, it will include Nero6 OEM Suite Software.
Nero6 OEM Suite 3 disc contains the following software:
Nero Burning Rom This easy to use software enables you to create your own CDs and
DVDs
Nero Backup Easy to use data backup program
InCD 4 Easy to use Packet writing tool
Nero Media Player Easy to use software for CD Audio, Streaming Audio and Streaming
Video
Nero ShowTime A software DVD player for the most vibrant picture viewing of DVD
movies and your own projects, along with MPEG-4 (Nero Digital)
compatibility
NeroVision Express 2 A software package that leads you comfortably through the whole
process of making Video CDs, Super VideoCDs or high-value DVDs
Media Recommendations
Toshiba recommends that major brand media be used for recording.
Below are recommended blank media speeds.
CD-R: all speeds DVD-R: 2X minimum
CD-RW: 1X - 4X DVD-RW: 1X minimum
High Speed CD-RW: 4X - 10X
9
Usage Guidelines
• Keep the disc tray closed when not using the DVD Rewriteable Drive.
• Do not press down on the disc tray when opening or closing it.
• Do not place objects on the disc tray.
• Never use a damaged, broken, or deformed disc.
• Do not press the Open/Close button while the drive is playing a DVD movie or accessing a disc.
To stop a DVD movie, click Stop button in the DVD player application program.
NOTE: High-speed drives spin the disc at a high rotational speed. If a disc has printing on only half of the
disc, or if there is a slight imbalance in the disc, the imbalance is greatly magnified by the high speed,
causing the drive to vibrate or produce a fan-like noise. These effects are inherent in the high-speed
technology and do not indicate a problem with the drive.

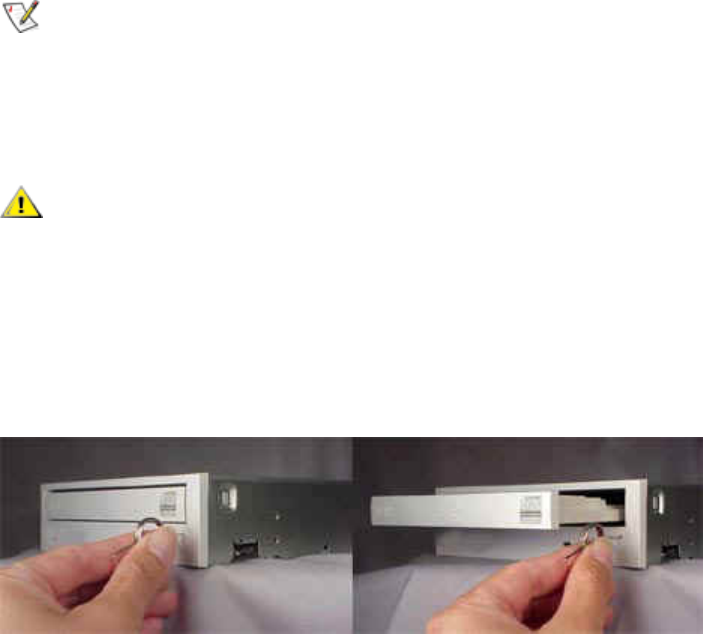

Emergency Ejection
CAUTION: The following procedure is intended only as a last resort when pressing the
eject button fails to open the Loading Tray
1. Turn computer power OFF by properly shutting down system.
2. Insert a solid bar (i.e. large paper clip) into Emergency Eject hole and push in until loading tray
opens. Pull tray out.
Figure 3.Using Emergency Eject
Handling Media
DVD media is sensitive to dust and fingerprints. Carefully handle media by its edges only. If a DVD
movie skips or hangs during playback, clean the media. Most DVD video playback issues are media-
related and can be remedied by proper handling and care of media.
Cleaning Media
Try to avoid touching the read area (underside) of the disc as dirt and smears will degrade the disc
accessing speed.
If the disc becomes dirty wipe it with a damp soft cloth. Avoid cleaning in a circular motion, but rather
from the inner side outward.
.
10
TROUBLESHOOTING – SD-R5002
Problem Solution
Disc tray cannot be opened • Check that there is power to drive.
• Use Emergency Eject instructions to open tray.
Drive is not recognized by system • Is the drive connected properly? Are all cables plugged in properly (e.g.
Power Cable, Interface Cable and Audio Cables).
• Are the drive configuration jumpers on the DVD Rewriteable drive set
properly?
• Is the software driver loaded? On a step-by-step (F8) Boot of the
system is the DVD Rewriteable drive recognized?
(BIOS / DOS reports "device driver not found" or "no valid drivers
selected."). If not, Contact Technical Support.
• Has the DVD Rewriteable drive software driver been corrupted by a
virus. Run a Virus Scan program and repair if possible. Contact
Technical Support if the Virus renders the DVD Rewriteable drive
software drivers not useable.
Drive is not recognized by system
during Boot process, but is
recognized by the Operating
System (i.e. XP, Win2000, Win98,
Win NT, etc.)
• Is the DVD Rewriteable drive software driver loaded? On a step-by-step
(F8) Boot of the system is the DVD Rewriteable drive recognized?
(BIOS / DOS reports "device driver not found" or "no valid DVD drivers
selected."). If not, Contact Technical Support.
• Has the Windows DVD Rewriteable drive software driver program been
corrupted by a virus. Run a Virus Scan program and repair if possible.
Contact Technical Support if the Virus renders the software drivers not
useable.
BUSY Indicator LED flashes
slowly
• The disc may be dirty Clean it with a soft damp cloth. Avoid cleaning the
disc using a circular motion. The disc should be wiped in a radial
direction. That is, from the inner side outward.
• The laser lens may have become cloudy or blocked by particulate
matter. Please contact Technical Support.
BUSY Indicator LED is constantly
ON
• Possible Hardware Problem. Please contact Technical Support.
DVD-ROM can not play a DVD in
the drive or certain types of CD
media (i.e. CD-plus, etc.)
• Is the DVD Rewriteable drive driver loaded
• Is the DVD disc the correct format for the type of system that you are
using? (i.e. on a PC an ISO9660 IBM compatible PC format as opposed
to Apple/Mac HFS disc or UNIX disc formats which will not function).
• Do you have the correct software applications program/drivers installed
to run a DVD disc?
• Has the Windows DVD Rewriteable drive software driver program been
corrupted by a virus. Run a Virus Scan program and repair if possible.
Contact Technical Support if the Virus renders the software drivers not
useable.
11
SPECIFICATIONS –SD-R5002
General
Interface: ATAPI
Applicable Formats - Write:
Write Formats
CD-R/RW
DVD-R/RW
Disc at once, Track at once, session at once, Packet Write, incremental write,
restricted overwrite
Write Disc -
CD-R/-RW
DVD-R/-RW
CD-DA, CD+(E)G, CD-MIDI, CD-ROM, CD-ROM XA, CD-I, MIXED MODE CD,
CD-I Bridge (Photo-CD, Video-CD), Multi-session CD (Photo-CD, CD-Extra,
Portfolio), DVD-R (Ver 2.0 for General), DVD-RW (Ver1.1)
Applicable Formats - Read:
DVD: DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18)
DVD-R (Ver. 2.0, Ver 2.0)
DVD-RW (Ver. 1.1)
CD: CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, CD-I, CD-I Bridge (Photo-CD,
Video-CD), Multi-session (Photo CD, CD-Extra, CD-R, CD-RW, Portfolio), CD-RW, CD-R
Note: All DVD/CD formats, except CD-Red Book (audio), require additional application specific software
and/or hardware. The drive is capable of reading these data formats. However, in order to run applications
that use these formats, you must first have the required software and/or hardware.
Data Disc Capacities
DVD-ROM
4.377GB (DVD-5)
7.959GB (DVD-9)
8.754GB (DVD-10)
15.917GB (DVD-18)
DVD-R (Ver 1)
DVD-R (Ver 2.0)
DVD-RW
CD
3.679GB
4.377GB
4.377GB
656.5MB (mode 1)
748.8MB (mode 2)
12
Performance
Rotational Speed
DVD-ROM (single layer)
DVD-ROM (dual layer)
DVD-R (Ver. 1.0)
DVD-R (Ver. 2.0)
DVD-RW (Ver 1.1)
DVD-video (CSS-Disc)
DVD-R (Ver 2.0) (Write)
DVD-RW (Ver 1.1) (Write)
CD-ROM, CD-R
CD-RW
CD-DA Transfer
CD-DA, Video-CD
CD-R (Write)
High Speed CD-RW
(Write)
CD-RW (Write)
7,580rpm (5.0 - 12X CAV)
5,053rpm (3.3 - 8X CAV)
3,200rpm (2 - 4.8X CAV)
2,780rpm (2 - 4.8X CAV)
2,780rpm (2 - 4.8X CAV)
2,780rpm (2 - 4.8X CAV)
550 - 1,390rpm (1X CLV)
1,100 - 2,780rpm (2X CLV)
550 - 1,390rpm (1X CLV)
8,561rpm (17.2 - 40X CAV)
4,281rpm (8.6 - 20X CAV)
3,200rpm (12.7 - 16X CAV)
1,200 - 2,000rpm (4 - 6X PCAV)
3,400 - 5,940rpm (12, 16X ZCLV)
2,550 - 5,940rpm (12X CLV)
1,700 - 3,960rpm (8XCLV)
850 - 1,980rpm (4X CLV)
2,125 - 4,950rpm (10X CLV)
850 - 1,980rpm (4X CLV)
850 - 1,980rpm (4X CLV)
Transfer Rate
DVD (Single)
DVD (Dual)
DVD-VIDEO (CSS Disc)
DVD-R, DVD-RW
CD
CD-RW
6,682 - 16,200KB/second
4,432 - 10,800KB/second
2,704 - 6,536KB/second
2,704 - 6,536KB/second
2,588 - 6,000KB/second (mode 1)
2,950 - 6,843KB/second (mode 2)
1,294 - 3,000KB/second (mode 1)
1,475 - 3,422KB/second (mode 2)
Random Access Time
DVD
CD
130ms
110ms
Data Error Rate
DVD-ROM
CD-ROM
10-15 Max
10-15 Max (Mode 1)
10-12 Max (Mode 2)
Data Buffer 2MB
13
Reliability
MTBF 100,000 hours
Power ON Hours 5,436 hours/year
ON/OFF Cycles 313 cycles/year
Number of Access 600,000 accesses/year
Operating Duty Cycle 20% of Power ON time (Reading/Seeking)
2% of Power ON time (Writing/Seeking)
MTTR 0.5 hours
Environmental
Ambient Temperature
Operating 5° to 50° C (41° to 122° F)
Storage -10° to 60° C (14° to 140° F)
Shipping -40° to 65° C (-40° to 149° F)
Temperature Gradient
Operating 11° C /hour (max)
Storage/Shipping 20° C /hour (max)
Relative Humidity
Operating 8% to 80%
Storage/Shipping 5% to 95% (wet bulb 40° C max)
Vibration
Operating (5 to 500 Hz) (read) 2.45 m/s2 (0.25G) (O-P)
Operating (5 to 500Hz) (write) 2.45 m/s2 (0.25G) (O-P)
Non-operating (10 to 500Hz) 9.8 m/s2 (1.0G) (O-P)
Transporting (with packing) (10 to 25 Hz) 9.8 m/s2 (1.0G) (O-P)
Shock (Non-operating) 490 m/s2 [50G]
Acoustical Noise 40dB
Power
DC Voltage and Current Requirements 5V, 12V 5%
Physical
Height 5.75" (146mm)
Width 1.63" (41.5mm)
Depth 7.46" (189.5mm)
Weight 2.20lbs (1.0kg)
Connectors
DC input 4-pin Power Supply Connector
ATAPI Interface Connector 40 Pin I/F ATAPI Standard
Audio Connectors 4-pin and 2-pin connector (use matching housing, Part No.
70066, made by Molex Corp, or equivalent)
14
Regulatory
The SD-R5002 DVD Writeable drive has been certified by the following
regulatory agencies:
• UL 1950
• CSA C22.2 No. 950
• TUV (EN60950I)
• CE standard
• DHHS 21 CFR Sub-Chapter J
• FDA CFR21, EN60825
15
DRIVE CONNECTORS –SD-R5002
Figure 1.SD-R5002 DVD Rewriteable Drive Rear Panel - Connectors
Power
Connector
Power is supplied to your DVD drive by the connection with your computer's +5V/+12V
power cable to the power socket at the back of drive. One side of the plug has
chamfered edges, so the power connector fits only one way.
CAUTION: Severe damage to the Drive circuits may occur if power cable is plugged in
upside-down with power ON.
Audio
Connectors
Supplies Analog and Digital sound to your system.
ATAPI
Connector
The SD-R5002 DVD drive is connected to your computer system through the ATAPI
connector.
Mode Select
Jumper
The mode select jumpers are 6 straight angle pins located on the rear of the DVD
drive. By placing a jumper on the pins, you can select the following functions: CL
(CSEL), SL (Slave) or MA (Master). (see Setup for additional information).
16
Table 1.Interface Pin Assignments
INTERFACE PIN ASSIGNMENT
PIN
NO.
I/O SIGNAL
NAME
HOST SIGNAL NAME PIN
NO.
I/O SIGNAL
NAME
HOST SIGNAL NAME
1 I Reset Host Reset 21 O HDRQ DMA Request
2 - GND 22 - GND
3 I/O HD7 Host Data Bus BIT 7 23 I HWR-,STOP Host I/O Write
4 I/O HD8 Host Data Bus BIT 8 24 - GND
5 I/O HD6 Host Data Bus BIT 6 25 I HRD-,
HDMARDY, -
HSTROBE
Host I/O Read
6 I/O HD9 Host Data Bus BIT 9 26 - GND
7 I/O HD5 Host Data Bus BIT 5 27 O IORDY,
DDMARDY,-
DSTROBE
I/O Channel Ready
8 I/O HD10 Host Data Bus Bit 10 28 - CSEL Cable Select
9 I/O HD4 Host Data Bus BIT 4 29 I HDAK- DMA Acknowledge
10 I/O HD11 Host Data Bus BIT 11 30 - GND
11 I/O HD3 Host Data Bus BIT 3 31 O INTRQ Host Interrupt Request
12 I/O HD12 Host Data Bus BIT 12 32 O IOCS16- Host 16 BIT I/O
13 I/O HD2 Host Data Bus BIT 2 33 I HA1 Host Address Bus BIT 1
14 I/O HD13 Host Data Bus BIT 13 34 I/O PDIAG- Passed Diagnostics
15 I/O HD1 Host Data Bus BIT 1 35 I HA0 Host Address Bus BIT 0
16 I/O HD14 Host Data Bus BIT 14 36 I HA2 Host Address Bus BIT 2
17 I/O HD0 Host Data Bus BIT 0 37 I HCS1 Host CHIP Select 0
18 I/O HD15 Host Data Bus BIT 15 38 I HCS3 Host CHIP Select 1
19 - GND 39 I/O DASP- Drive Active/Drive 1
Present
20 - (KEYPIN) 40 - GND
