OWNER’S MANUAL

DATA PROJECTOR

TDP-MT500

SAFETY PRECAUTIONS

The lightning flash with arrowhead symbol, within an equilateral triangle, is in-

tended to alert the user to the presence of uninsulated "dangerous voltage"

within the product's enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (servicing) instructions

in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX-

POSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH

VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN

THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

USA only

WARNING: Handling the cord on this product or cords associated with accessories sold

with this product, will expose you to lead, a chemical known to the State of

California to cause birth defects or other reproductive harm. Wash hands after

handling.

FCC NOTICE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the in-

structions, may cause harmful interference to radio communications. How-

ever, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications made to this equipment, not expressly approved by

Toshiba, or parties authorized by Toshiba, could void the userís authority to

operate the equipment.

CANADA only

Notice: This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du

Canada.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN

IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN

THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can

result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if

you observe the following procedures for installation, use and servicing. This unit is fully transis-

torized and does not contain any parts that can be repaired by the user.

1. Read Owner's Manual

After unpacking this product, read

the owner's manual carefully, and

follow all the operating and other

instructions.

2. Power Sources

This product should be operated only

from the type of power source indicated

on the marking label. If you are not sure

of the type of power supply to your home,

consult your product dealer or local

power company.

For products intended to operate from

battery power, or other sources, refer to

the operating instructions.

3. Source of Light

Do not look into the lens while the lamp

is on. The strong light from the lamp may

cause damage to your eyes or sight.

4. Ventilation

Openings in the cabinet are provided for

ventilation and to ensure reliable opera-

tion of the product and to protect it from

overheating, and these openings must

not be blocked or covered.

The openings should never be blocked

by placing the product on a bed, sofa,

rug or other similar surface. This prod-

uct should not be placed in a built-in in-

stallation such as a bookcase or rack

unless proper ventilation is provided or

the manufacturer's instructions have

been adhered to.

5. Heat

The product should be situated away

from heat sources such as radiators,

heat registers, stoves, or other products

(including amplifiers) that produce heat.

8. Power-Cord Protection

Power-supply cords should be routed so

that they are not likely to be walked on

or pinched by items placed upon or

against them, paying particular attention

to cords at plugs, convenience recep-

tacles, and the point where they exit from

the product.

6. Water and Moisture

Do not use this product near water.

- for example, near a bath tub, wash

bowl, kitchen sink, or laundry tub; in a

wet basement; or near a swimming pool

and the like. 9. Overloading

Do not overload wall outlets; extension

cords, or integral convenience recep-

tacles as this can result in a risk of fire

or electric shock.

7. Cleaning

Unplug this product from the wall outlet

before cleaning. Do not use liquid clean-

ers or aerosol cleaners.

Use a soft cloth for cleaning. 10. Lightning storms

For added protection for this product

during storm, or when it is left unat-

tended and unused for long periods of

time, unplug it from the wall outlet. This

will prevent damage to the product due

to lightning and power-line surges.

IMPORTANT SAFETY INSTRUCTIONS

11. Object and Liquid Entry

Never push objects of any kind into this

product through openings as they may

touch dangerous voltage points or short-

out parts that could result in a fire or elec-

tric shock. Never spill liquid of any kind

on the product.

12. Do not place the product verti-

cally

Do not use the product in the upright

position to project the pictures at the

ceiling, or any other vertical positions. It

may fall down and dangerous.

13. Stack Inhibited

Do not stack other equipment on this

product or do not place this product on

the other equipment.

Top and bottom plates of this product

develops heat and may give some un-

desirable damage to other unit.

14. Attachments

Do not use attachments not recom-

mended by the product manufacturer as

they may cause hazards.

15. Accessories

Do not place this product on an unstable

cart, stand, tripod, bracket, or table. The

product may fall, causing serious injury

to a child or adult, and serious damage

to the product. Use only with a cart,

stand, tripod, bracket, or table recom-

mended by the manufacturer, or sold

with the product. Any mounting of the

product should follow the manufacturer's

instructions, and should use a mount-

ing accessory recommended by the

manufacturer. A product and cart com-

bination should be moved with care.

Quick stops, excessive force, and un-

even surfaces may cause the product

and cart combination to overturn.

IMPORTANT SAFETY INSTRUCTIONS

18. Servicing

Do not attempt to service this product

yourself as opening or removing covers

may expose you to dangerous voltage

or other hazards. Refer all servicing to

qualified service personnel.

16. Damage Requiring Service

Unplug this product from the wall outlet

and refer servicing to qualified service

personnel under the following condi-

tions:

a) When the power-supply cord or plug is

damaged.

b) If liquid has been spilled, or objects have

fallen into the product.

c) If the product has been exposed to rain

or water.

d) If the product does not operate normally

by following the operating instructions.

Adjust only those controls that are cov-

ered by the operating instructions as an

improper adjustment of other controls

may result in damage and will often re-

quire extensive work by a qualified tech-

nician to restore the product to its nor-

mal operation.

e) If the product has been dropped or dam-

aged in any way.

f) When the product exhibits a distinct

change in performance - this indicates

a need for service.

19. Replacement Parts

When replacement parts are required,

be sure the service technician has used

replacement parts specified by the

manufacturer or have the same charac-

teristics as the original part. Unautho-

rized substitutions may result in fire,

electric shock, or other hazards.

(Replacement of the lamp only should

be made by users.)

20. Safety Check

Upon completion of any service or re-

pairs to this product, ask the service

technician to perform safety checks to

determine that the product is in proper

operating condition.

17. If glass components, including

lens and lamp, should break,

contact your dealer for repair

service.

This product incorporates glass compo-

nents, including a lens and a lamp. If

such parts should break, please handle

with care to avoid injury and contact your

dealer for repair service. The broken

pieces of glass may cause to injury. In

the unlikely event of the lamp rupturing,

thoroughly clean the area around the

projector and discard any edible items

placed in that area.

IMPORTANT SAFETY INSTRUCTIONS

21. Do not leave thermal-paper

documents or easily deformed

items on top of the unit or near

the air exhaust.

The heat from the unit could erase the

information on the thermal paper, or

cause deformation or warping.

Also, when you touch a metal object put

near the air exhaust, a burn may be

caused.

22. Unplug the power plug after

the projector is finished to

use.

Turn off POWER button to bring the pro-

jector into its standby state with the light-

source lamp off. Then, wait about 2 min-

utes and turn off the main power switch,

and be sure to unplug the power plug

for safety.Wait about 2 minutes in

standby state, because during this time

the intake/exhaust fan is operating to

cool down the light-source lamp. Turn-

ing off the main power switch or unplug-

ging the power plug immediately

after use may bring the projector into

failure.

IMPORTANT SAFETY INSTRUCTIONS

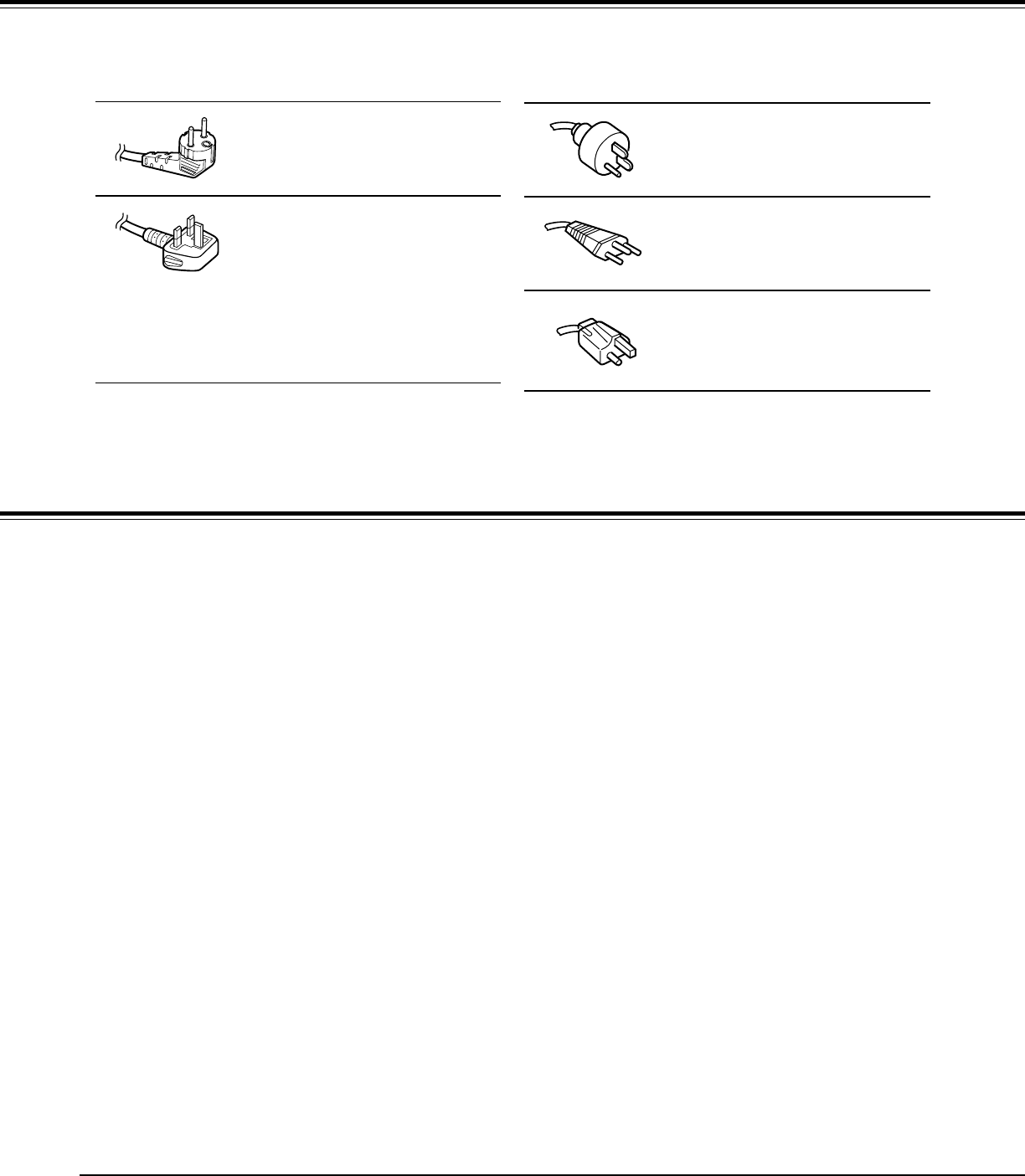

POWER SUPPLY CORD SELECTION

If your line voltage is 220 to 240V, use one of the following types of cable.

Plug

configuration Plug type Line voltage

EURO 220 – 240V

UK 220 – 240V

Use a 5A fuse which is approved by ASTA

or BSI to BSI362.

Always replace the fuse cover after changing

the fuse.

Plug

configuration Plug type Line voltage

Australian

240V

10A

Switzerland 200 – 240V

240V

North 200 – 240V

American

240V

15A

IMPORTANT PRECAUTIONS

Save Original Packing Materials

The original shipping carton and packing materials will come in handy if you ever have to

ship your projector. For maximum protection, repack the set as it was originally packed at

the factory.

Moisture Condensation

Never operate this unit immediately after moving it from a cold location to a warm location.

When the unit is exposed to such a change in temperature, moisture may condense on the

crucial internal parts. To prevent the unit from possible damage, do not use the unit for at

least 2 hours when there is an extreme or sudden change in temperature.

Place and Manner of Installation

• Do not place in hot locations, such as near heating equipment. Doing so could cause mal-

function, and shorten the life of the projector.

• Avoid locations with oil or cigarette smoke. Doing so will dirty the optical parts, shortening

their lives, and darkening the screen.

• Do not use in angle of 20∞ or more degrees. Doing so could shorten the life of the lamp.

• If used at high altitudes, the unit could cease operation even if used within the rated tempera-

ture range. This is because the thinner air at high altitudes decreases the internal cooling

efficiency. Therefore, please lower the ambient temperature if using at high altitudes.

IMPORTANT PRECAUTIONS

Avoid Volatile Liquid

Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or

plastic products touching the unit for a long time. They will leave marks on the finish.

If cleaning with a chemically saturated cloth, be sure to follow the product’s precautions.

In the spaces provided below, record the Model and Serial No. located at the bottom of your

projector.

Model No. Serial No.

Retain this information for future reference.

DECLARATION OF CONFORMITY

TRADE NAME: DLP DATA PROJECTOR

MODEL NAME: TDP-MT500

RESPONSIBLE PARTY: TOSHIBA AMERICA INFORMATION SYSTEMS, INC.

9740 Irvine Blvd., Irvine, CA 92618-1697 U.S.A

Phone: (949) 583-3000

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause

undesired operation.

TABLE OF CONTENTS

PREPARATION

Checking accessories ............................................................................................................................................................11

Inserting the dry batteries into the remote controller .........................................................................................................11

Name and function of operational parts of the projector ....................................................................................................12

How to use remote controller ................................................................................................................................................13

Operational range of remote controller ............................................................................................................................... 14

SETTING UP

Setting up screen ....................................................................................................................................................................15

Basic setup ..............................................................................................................................................................................15

Screen size and Projection distance .................................................................................................................................... 16

VIWING VIDEO IMAGES

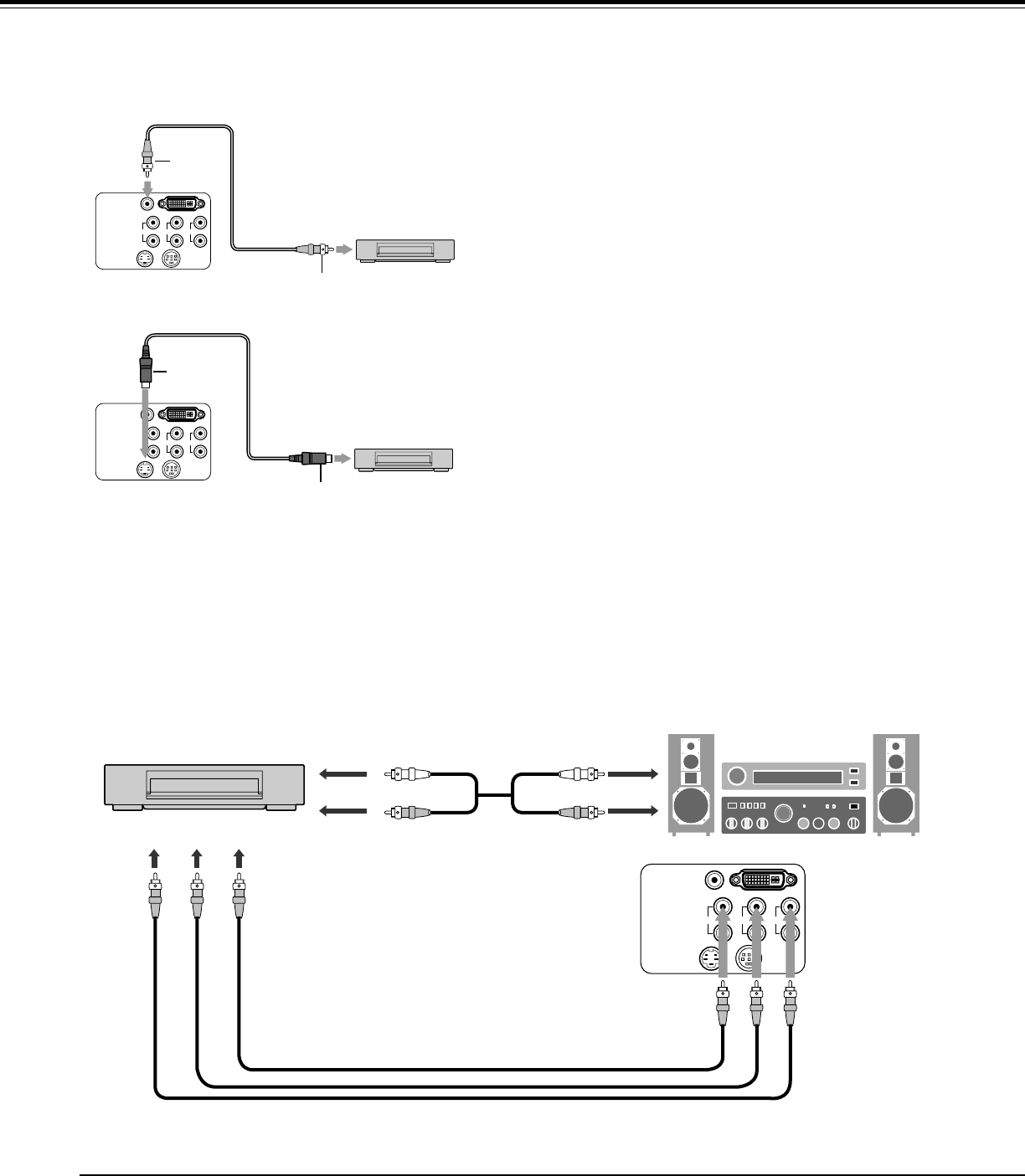

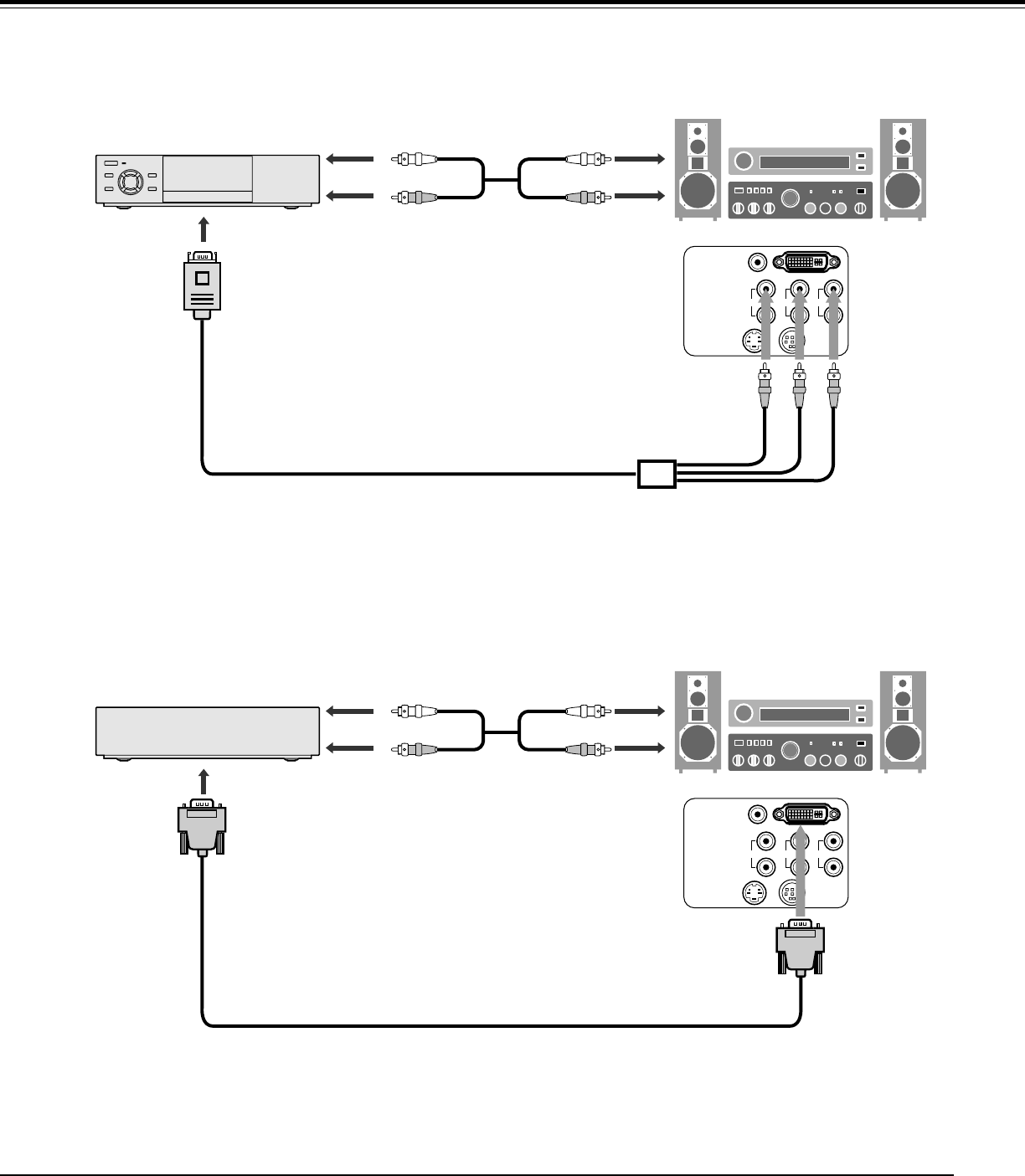

A. Connecting the projector to video equipment

B. Plugging power cord ..........................................................................................................................................................20

C. Making projection ...............................................................................................................................................................21

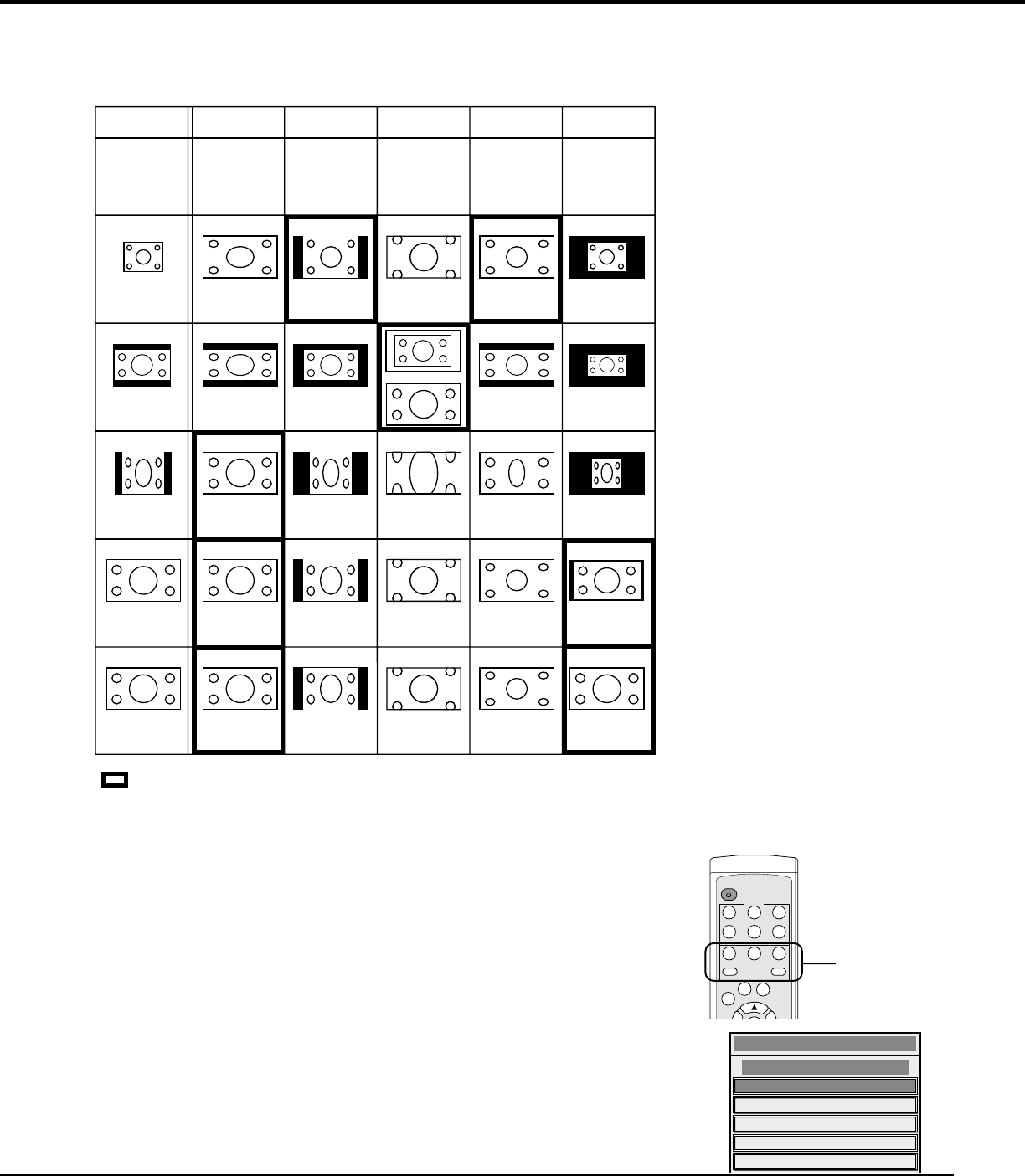

D. On setting ASPECT (Image angle) ................................................................................................................................... 23

E. Connecting this projector with a computer .................................................................................................................... 24

F. Plugging power cord..........................................................................................................................................................24

VIWING COMPUTER IMAGES ..............................................................................................24

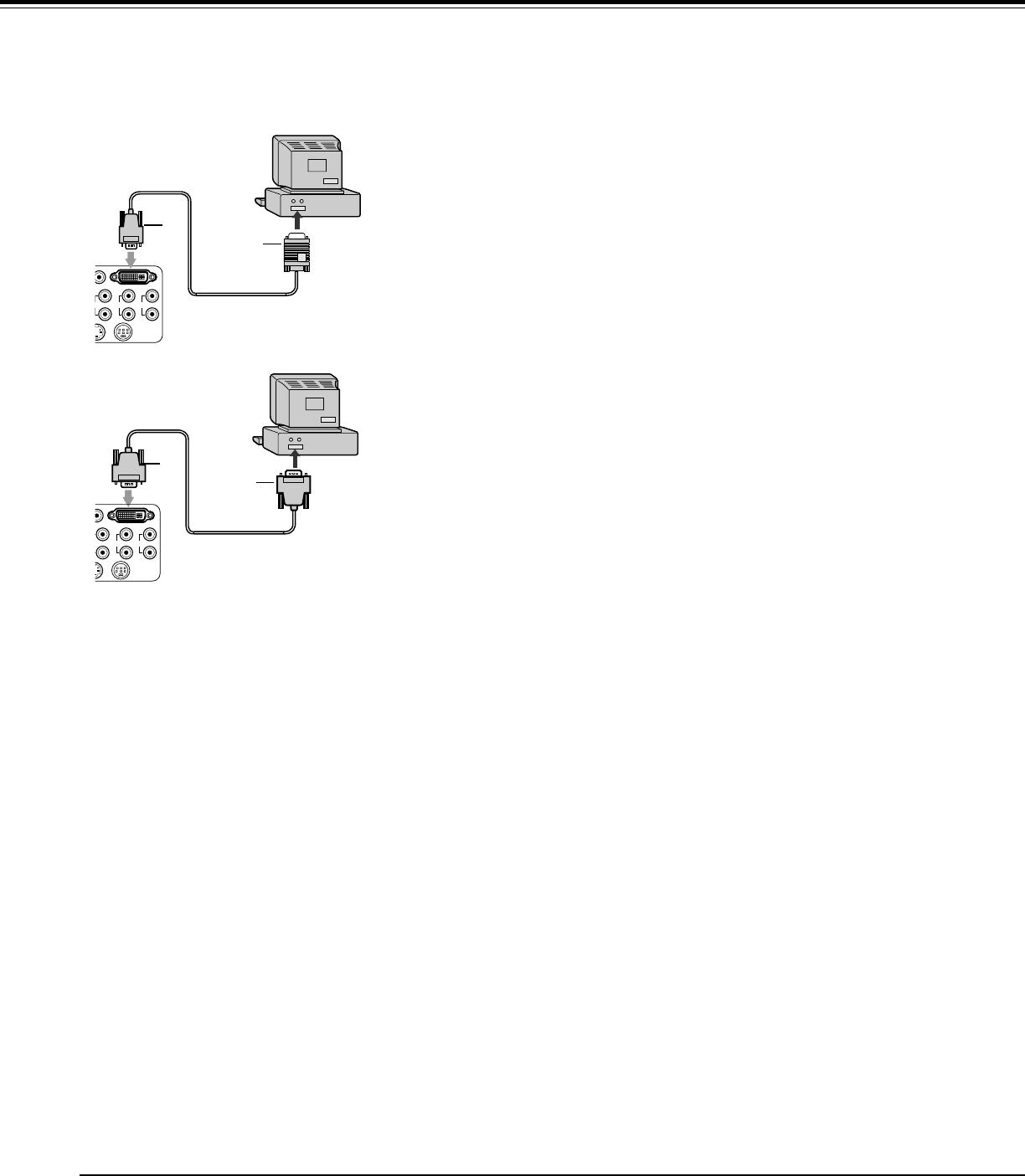

A. Connecting the projector with a computer ..................................................................................................................... 24

B. Plugging power cord ..........................................................................................................................................................24

C. Making projection ...............................................................................................................................................................25

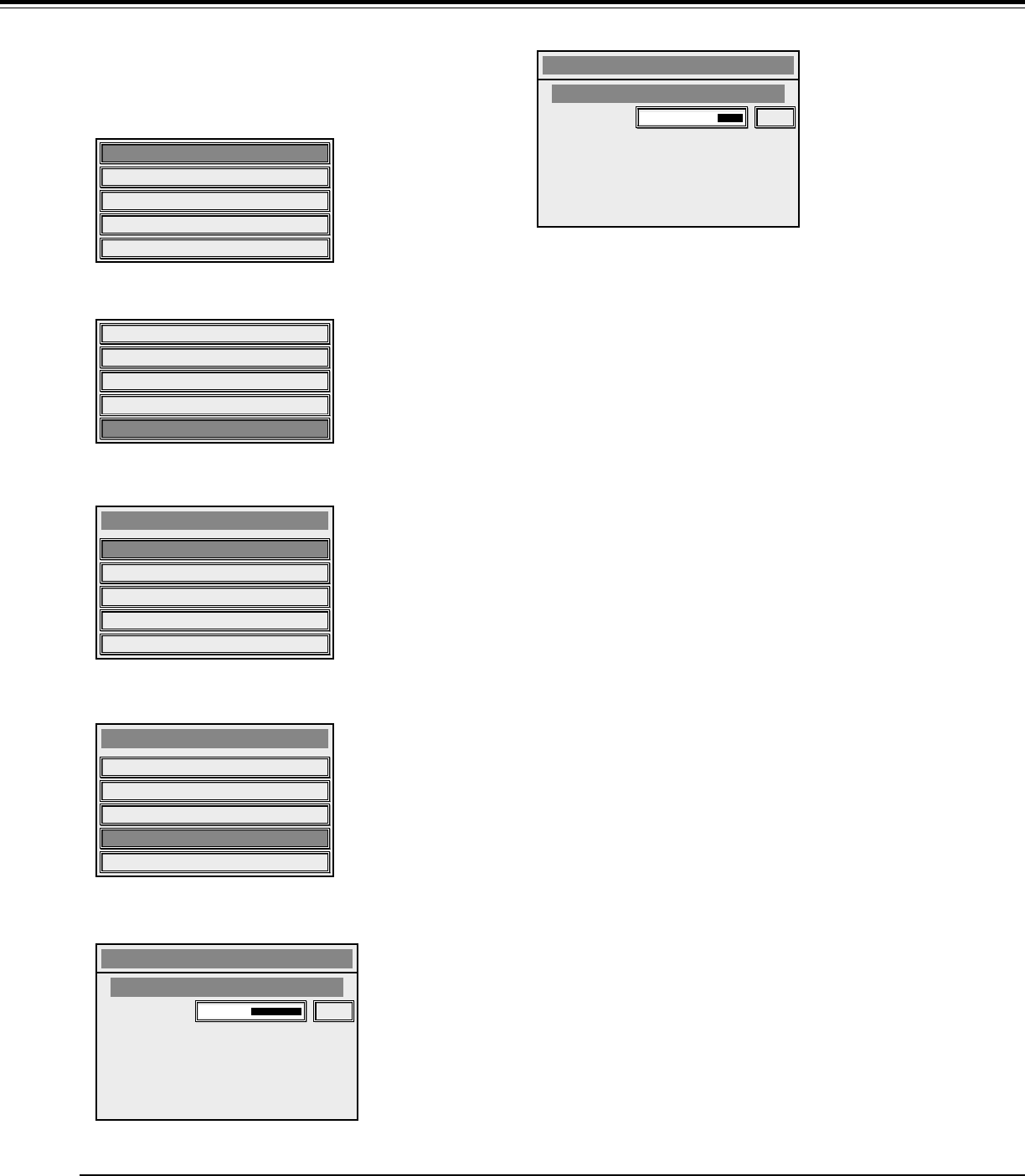

SETTING WITH MENUS

Menu construction ..................................................................................................................................................................27

How to make menu setting: ...................................................................................................................................................28

Items that can be set with menus ......................................................................................................................................... 29

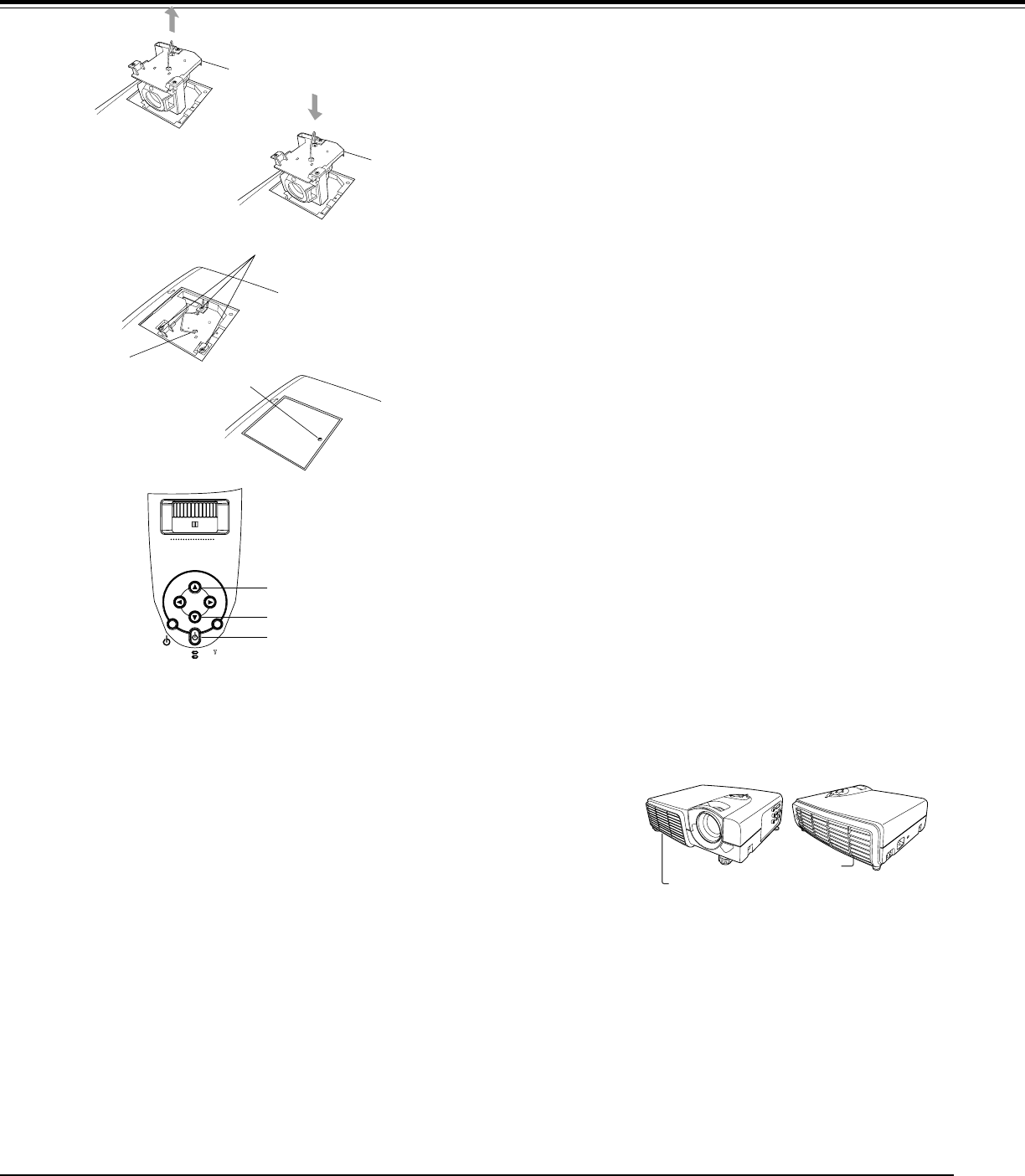

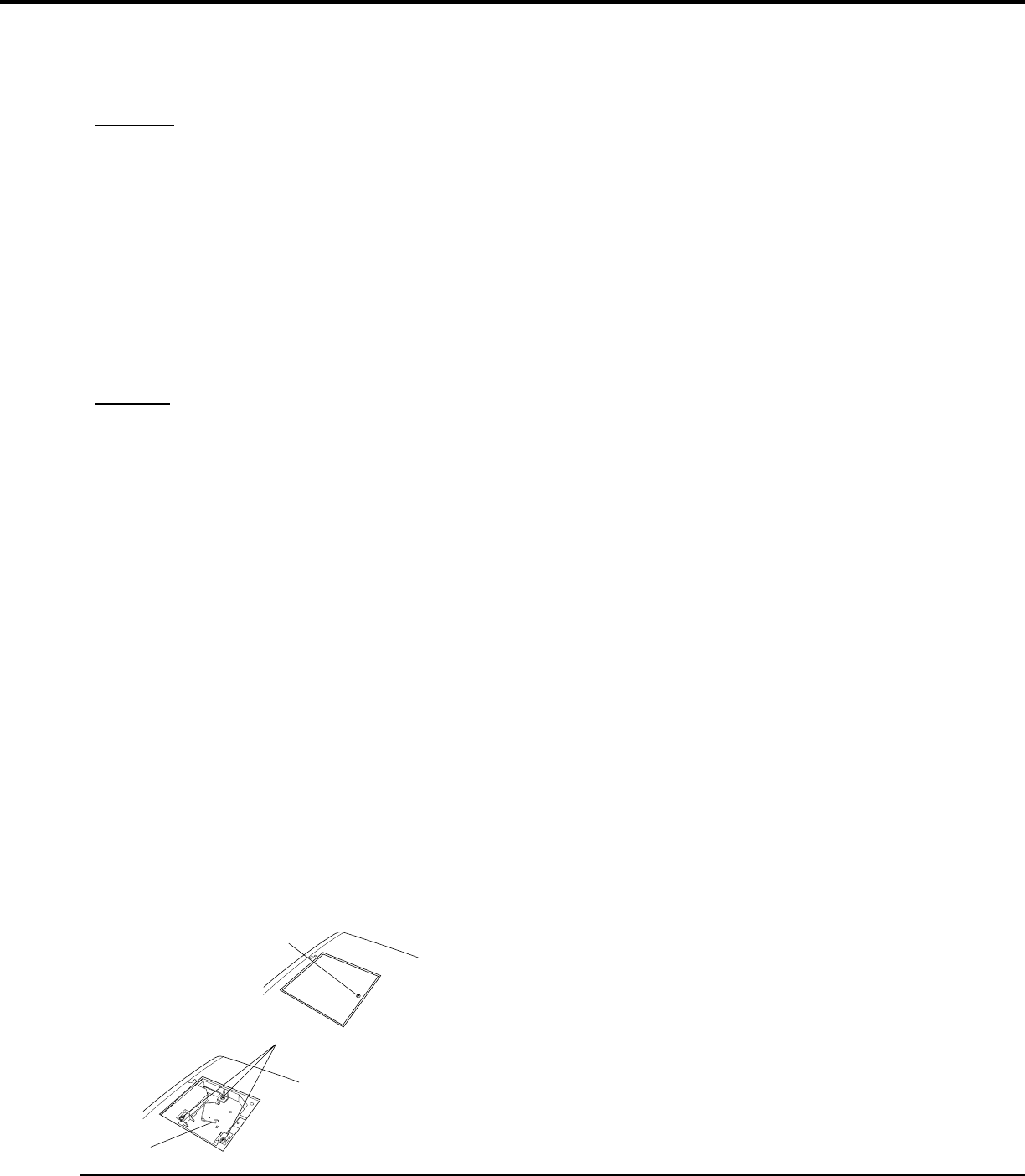

REPLACING THE LAMP / CLEANING THE PROJECTOR ..................................................34

TROUBLESHOOTING............................................................................................................36

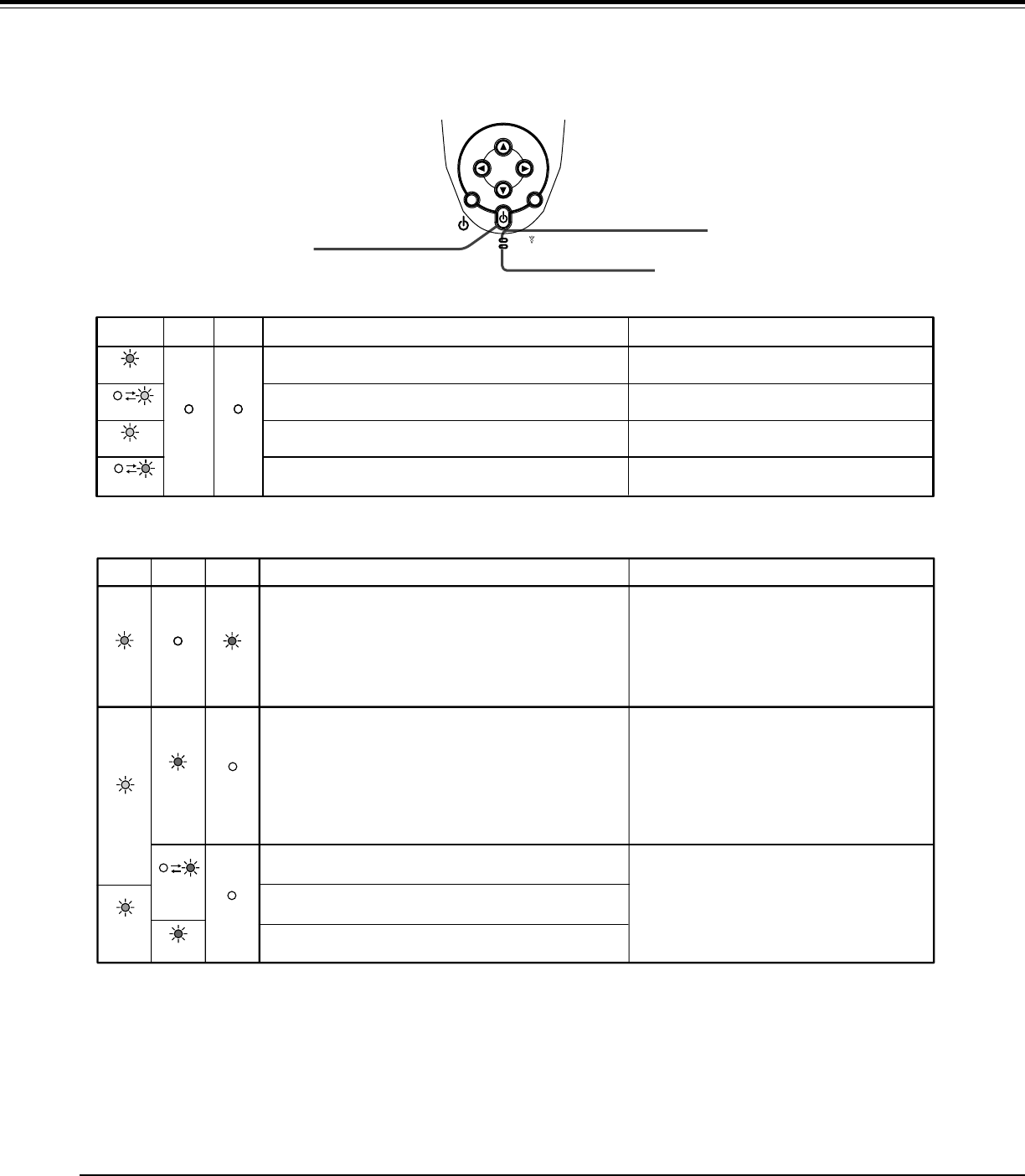

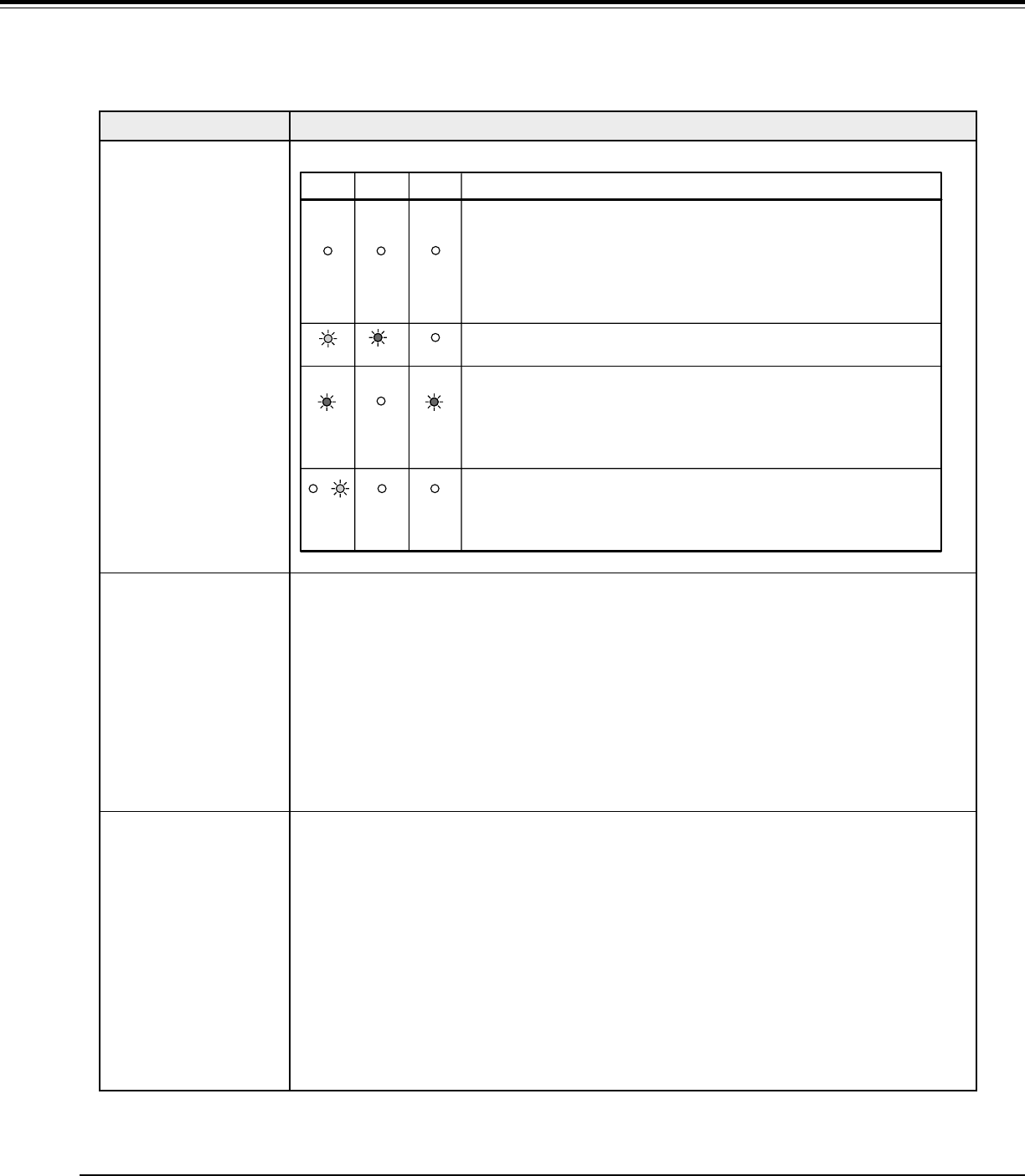

INDICATORS ..........................................................................................................................38

WHEN ASKING INSTALLATION WORK ...............................................................................39

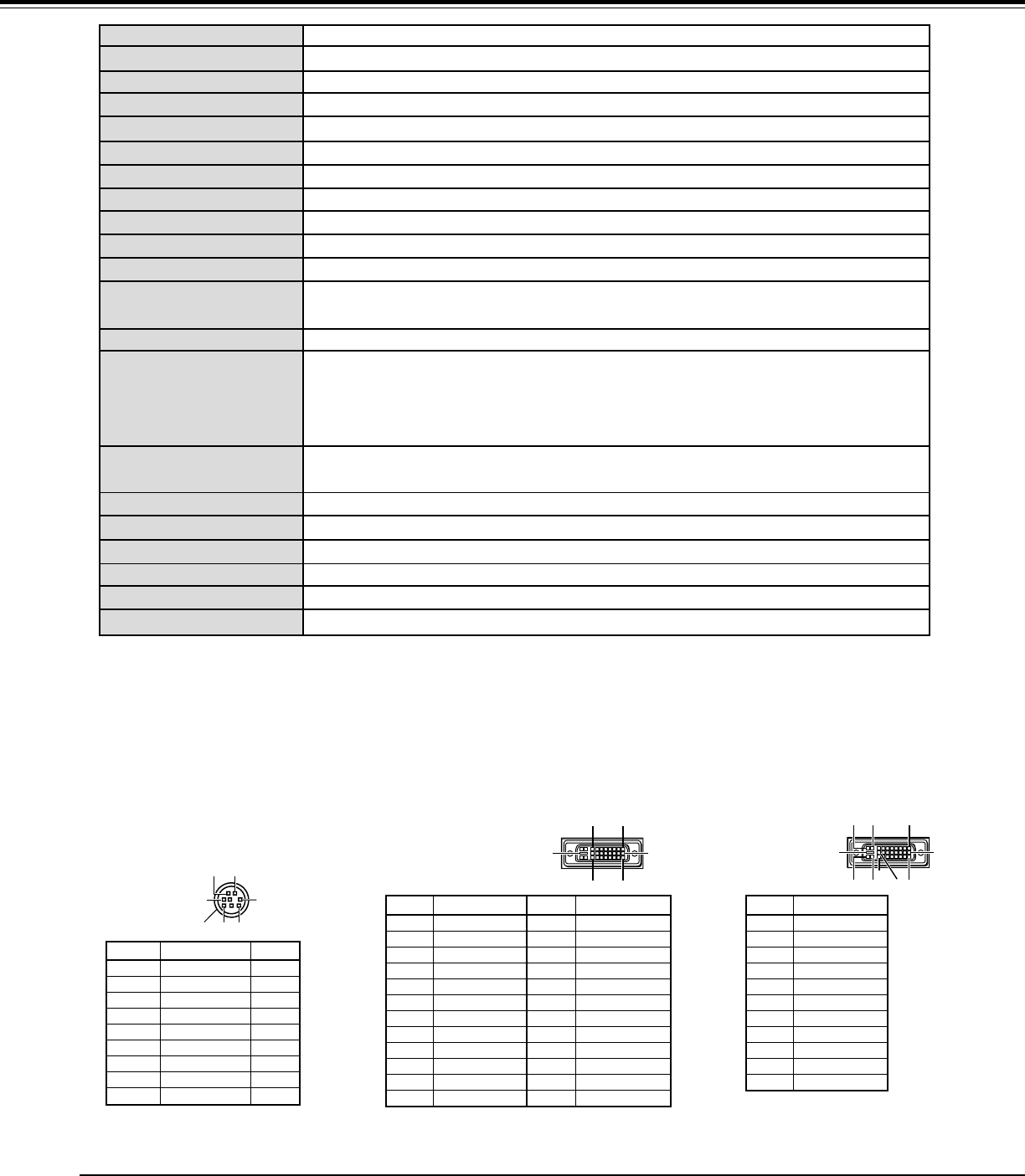

SPECIFICATIONS ..................................................................................................................40

PREPARATION

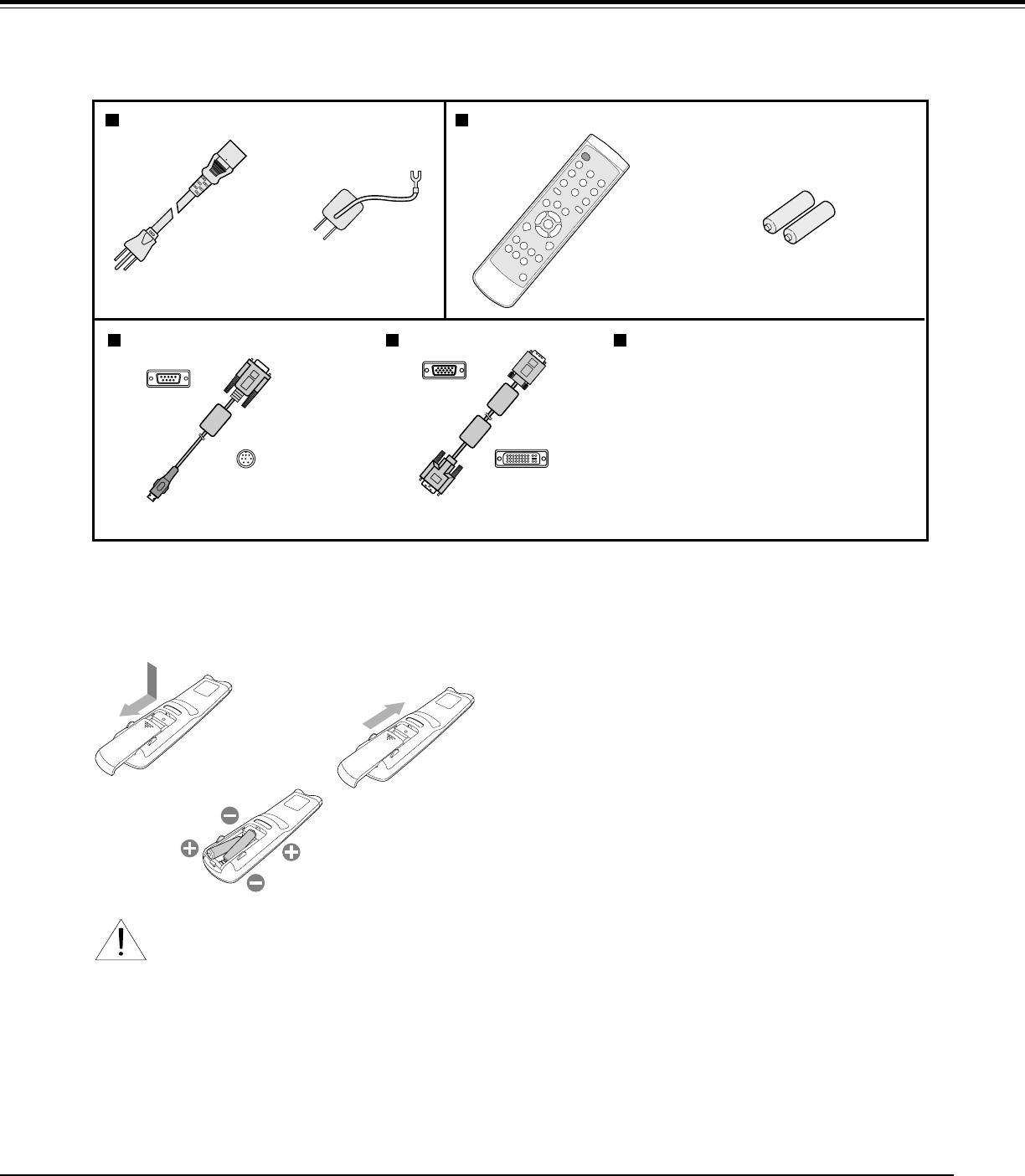

Checking accessories

The following accessories are provided with this projector. Check to be sure that all the accessories are packed in

the package.)

Personal computer parts

Power supply parts Remote controller parts

Power cable Conversion adaptor Remote controller

Video parts

Size-AAA

dry batteries (two)

RS-232C cable

D-SUB 9P

Mini DIN 8P DVI

Mini D-SUB 15P DVI-conversion cable

Mini D-SUB 15P

Others

• Lens cap (Attached to the main body)

• Soft carrying case

• Operation manual

• Regular user card

• Warranty card

• Remote controller photo-sensor

protection sticker

• The attached power cable and conversion adaptor are to be used exclusively for this product. Never use them

for other products.

Inserting the dry batteries into the remote controller

1. Remove the rear lid of the remote controller.

2. Check the polarity (+), (-) of the dry batteries, and set

them correctly inserting their (-) side first.

• If the battery is inserted from the (+) side first, inserting

the (-) side is difficult because the coil spring end hits on

the battery side. If the battery is forced to insert in this

way, the outer label of the battery may get ripped and it

may cause short-circuit and heating.

3. Attach the rear lid.

• Use two size-AAA dry batteries (RO3).

• Exchange the two batteries to new ones if the distance

that allows the remote controller to operate becomes

shorter than usual.

• Correctly treat the batteries after thoroughly reading "On treating the batteries" described on Page 7.

If the batteries are treated incorrectly, they may cause fire or peripheral contamination due to leakage

of the liquid, heating, or burst. (Read the cautions indicated on the battery, too.)

• This projector is designed as plug-in equipment. There must be an easily accessible power outlet near

the installed projector.

• Use the attached power cord with this projector. Using any other power cord than specified could

cause electromagnetic interference to radio or television broadcast.

• Use the attached mini D-SUB 15pin-DVI conversion cable and RS-232C cable to suppress the inter-

ference within the restriction for J55022 class-B apparatus.

• Use a DVI shielded cable to suppress the interference within the restriction for J55022 class-B appa-

ratus.

• Be sure to connect this projector to a ground.

PREPARATION

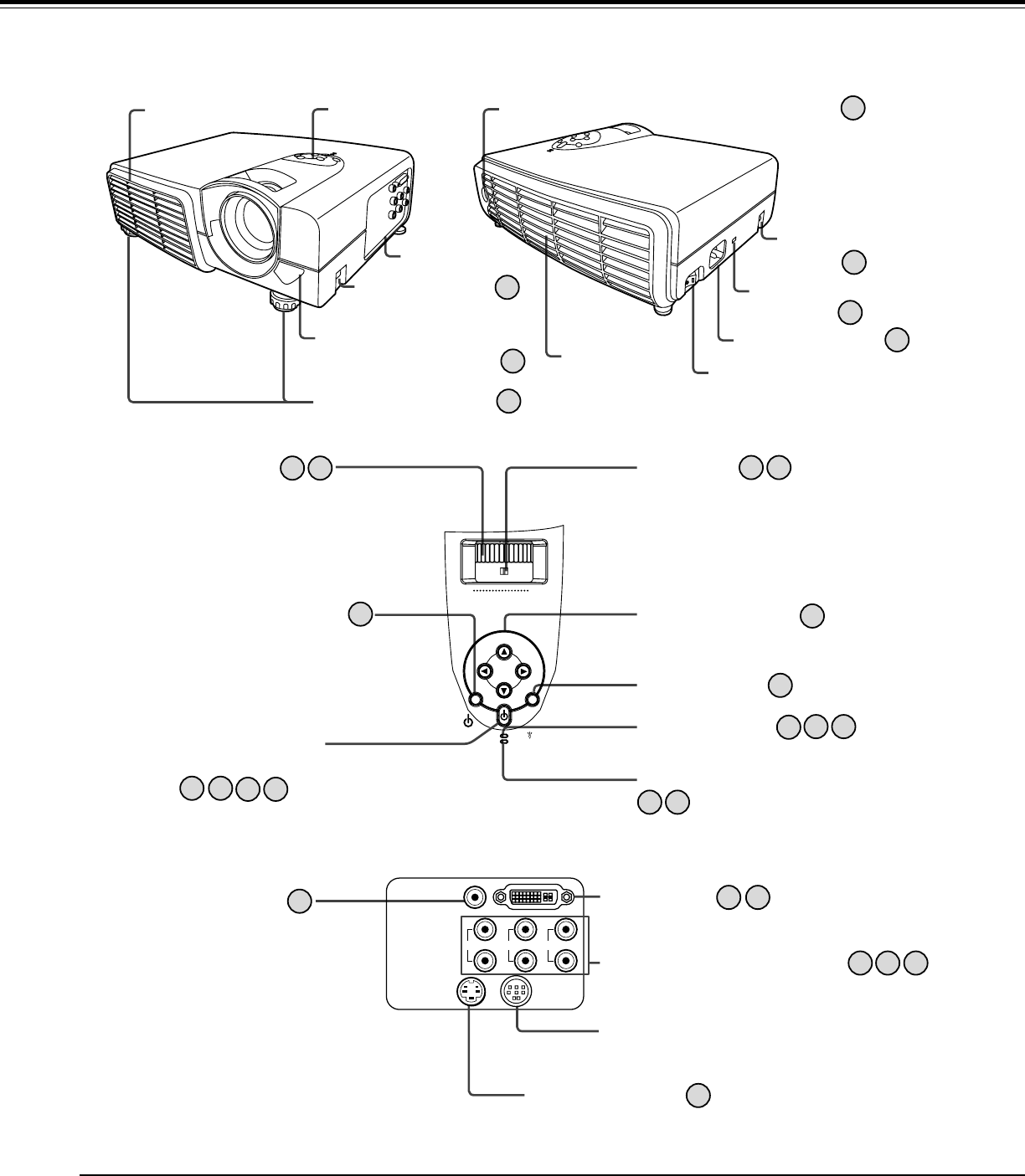

Name and function of operational parts of the projector

Focus ring:

Adjusts focus.

LAMP indicator

TEMP (temperature) indicator

Directional button:

Used to shift menu item and adjust values.

ENTER button:

Used to determine menu item.

MENU/EXIT button:

Displays menu when pressed.

Erases menu when pressed again.

POWER button /

POWER indicator

Operation panel

Remote controller

photo-sensor (Front)

Angle adjusting

button

Terminal panel

Intake vent

Angle adjusting foot

34 36

18 22 18 22

34 36

14 15 21

14 15 16

COMPONENT1

DVI

COMPONENT2

S-VIDEO

VIDEO

RS-232C

Y Cb/Pb Cr/Pr

ENTER

WIDETELE

LAMP

TEMP

MENU/EXIT

POWER

Main power switch

I: Turn-on

O: Turn-off

Remote controller photo-sensor (Rear)

Theft-prevention

lock hole

Power cable inlet

Exhaust vent

Angle adjusting

button

VEDEO terminal:

Connects to such equipment as

video players that output

composite video signals.

Zoom ring:

Expands projected picture images when

turned to the right (WIDE).

Contracts projected picture images

when turned to the left (TELE).

DVI terminal:

Connects to such equipment as video

equipment with DVI-D terminal and computers.

COMPONENT 1, 2 terminals:

Connects to such equipment as DVD players

that output chrominance signals.

RS-232C terminal (DIN 8P):

Used mainly for adjustments made by service

personnel.

S-VIDEO terminal:

Connects to such equipment as video players that

output S-video signals.

PREPARATION

POWER ON/OFF

SOURCE

C1 C2 DVI

DVI

COMP1 COMP2 DVI-D

DVI-AVIDEOS-VIDEO

ASPECT

16:9

16:9 4:3

4:3 ZOOM

REAL

DYN

DYNAMIC

ENTER

EXIT

CONTRAST

BRIGHT COLOR TINT

COLOR

TEMP

GAMMA

SHARPNESS

LIGHT

SHGAM

TEM

TIN

COL

BRICNT

Directional button:

Used to shift menu item and adjust values.

Picture quality adjusting button:

(See below)

POWER button:

MENU button:

Displays menu.

Erases the menu when pressed again.

ENTER button:

Used to determine menu item.

2218



LIGH button:

Switches between LIGHT modes of remote controller every time

it is pressed.

If the remote controller button lights up when the LIGHT button

is pressed, the dark-room mode is brought into ON. If it does not

light up, the normal mode is ON.

Dark room mode : All the buttons on the remote controller light

up if any of the buttons is pressed.

Normal mode : Any of the buttons on the remote controller

does not light up if any of the button is

pressed (Except for LIGHT button).

•The light automatically comes off a while after the remote

controller button is released.

MEMORY (1, 2, 3) buttons:

Set the pre-stored values in the

picture adjustment menu when

pressed.

SOURCE button:

Selects an input video signal to be

projected.

ASPECT button:

Selects size of the video image according to

the video signal to be projected.

EXIT button:

Displays the menu in one-level higher

hierarchy when pressed.

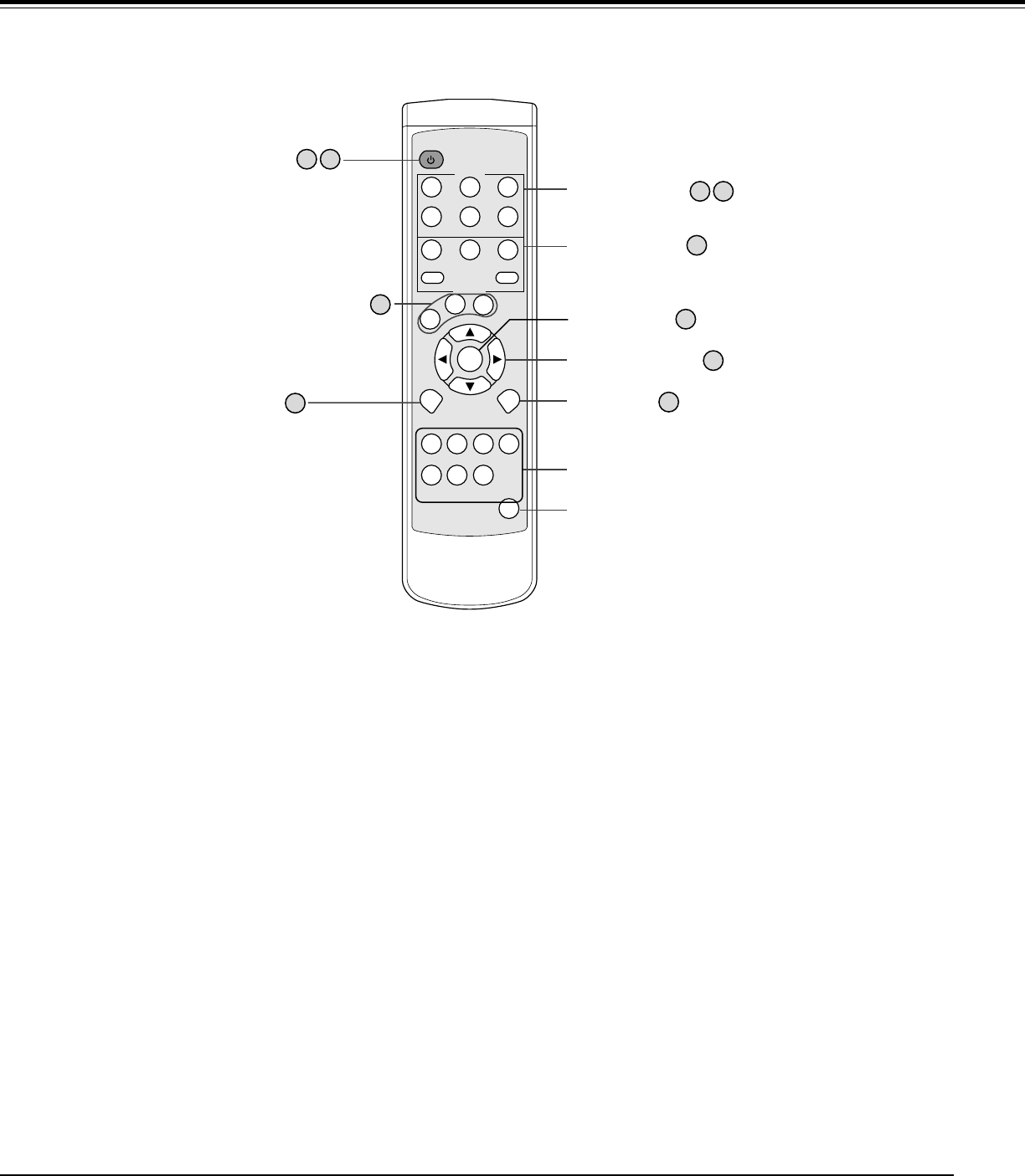

How to use remote controller

Name and function of operational parts of remote controller

On the picture quality adjusting buttons

When any of the picture quality adjusting button is pressed, its corresponding screen for adjusting the

picture quality appears. Then, adjust the picture quality by pressing % and $ button. The picture quality

adjustment can also be made in the picture quality menu. (See Page 26.)

The following picture quality adjusting buttons are displayed on the menu screen:

CONTRAST ......... Adjusts the contrast of projected picture images. Every time the % button is pressed, the pro-

jected image becomes brighter and more vivid. Every time the $ button is pressed, the pro-

jected image becomes darker and less vivid.

BRIGHT................Adjusts the brightness of projected picture images. Every time the % button is pressed, the

projected image becomes brighter. Every time the $ button is pressed, the projected image

becomes darker.

COLOR ................ Adjust the color thickness of projected picture image. Every time the % button is pressed, the

projected image color becomes thicker. Every time the $ button is pressed, the projected

image color becomes thinner.

TINT ..................... Adjusts the tint of projected picture images. Every time the % button is pressed, the skin color

of projected image becomes more reddish. Every time the $ button is pressed, the skin color

of projected image becomes greenish.

COLOR TEMP ..... Selects one of the preset color temperatures.

GAMMA ................ Selects one of the preset gamma corrections.

SHARPNESS ....... Adjusts the sharpness of projected picture images. Every time the % button is pressed, the

projected picture image becomes sharper. Every time the $ button is pressed, the projected

picture image becomes softer.

Front of projector Rear of projector

30˚30˚30˚30˚

Operate the

remote controller

within a distance

of 10 m from the

projector, pointing

the light beam at

the remote control

photo-sensor

(front or rear) of

the projector.

When operating the remote controller forwarding the

light beam to projector screen, keep the distance from

the remote controller to the projector via the screen

within about 6m. The operable range of the remote

controller, however, depends on the characteristics of

the screen.

15˚ 15˚

15˚15˚

Operational range of remote controller

•Keep the remote controller photo-sensor

away from the direct sun light or fluores-

cent lamp light.

•Keep the remote controller photo-sensor

at least 2 m apart from fluorescent lamps.

Otherwise, the remote controller may

malfunction.

•If there is an inverter-operated fluores-

cent lamp near the remote controller, the

remote controller operation may become

unstable. On this occasion, stick the at-

tached protection sticker on the photo-

sensor that is closer to the fluorescent

lamp.

Vertical directions

Vertical directions (When the projector is suspended from ceiling)

PREPARATION

SETTING UP

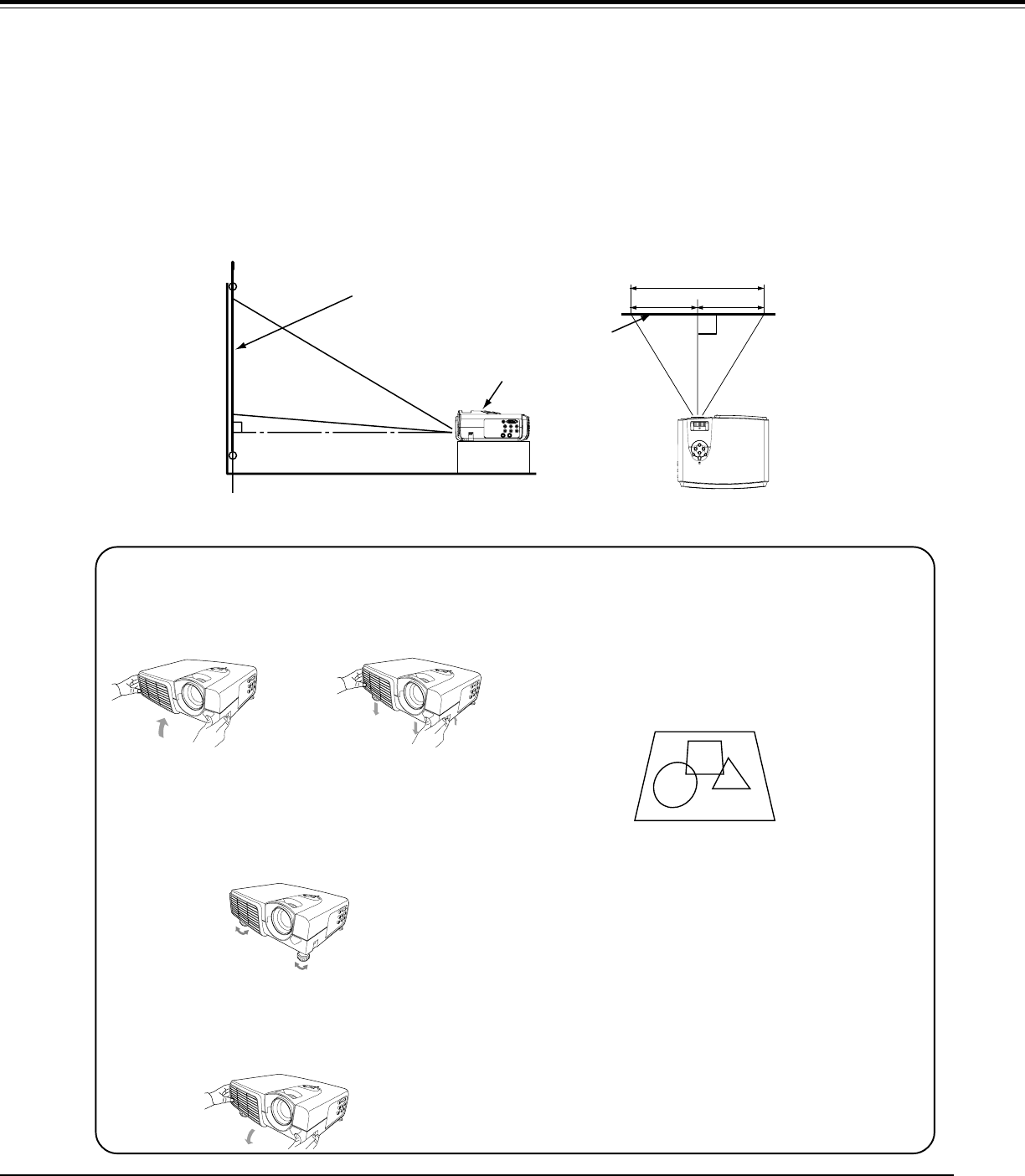

Setting up screen

Set the screen perpendicular to the projector. If the screen can not be set perpendicularly, adjust the

projection angle of the projector. (See below.)

•Adjust the screen or projector so that the shadow of the projector lens may be projected onto the center of the

screen.

•Do not place the screen where the direct sunlight and illuminating lights come onto the screen. Direct light

illumination onto the screen could whiten the screen surface making the projected picture images bad to see.

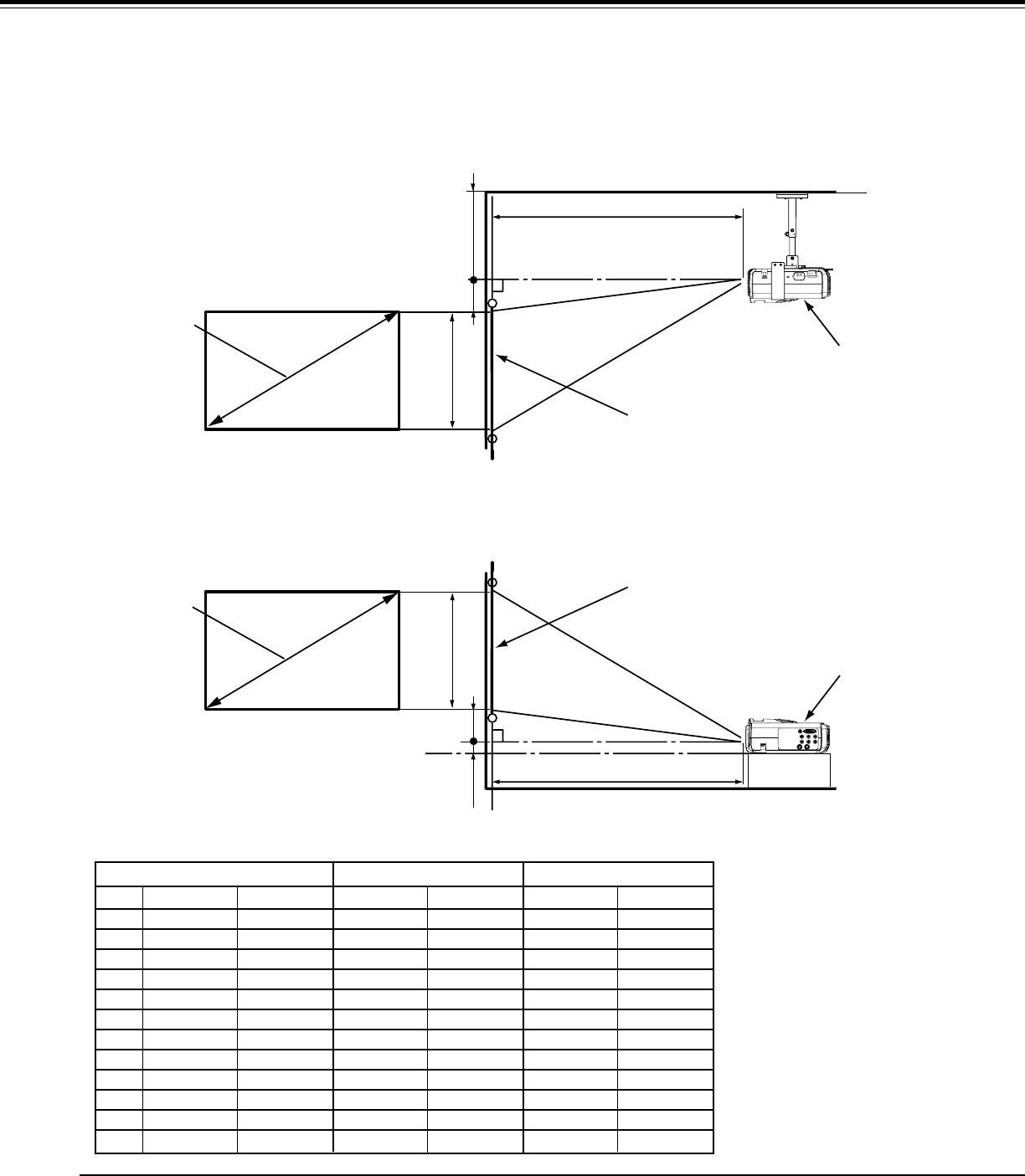

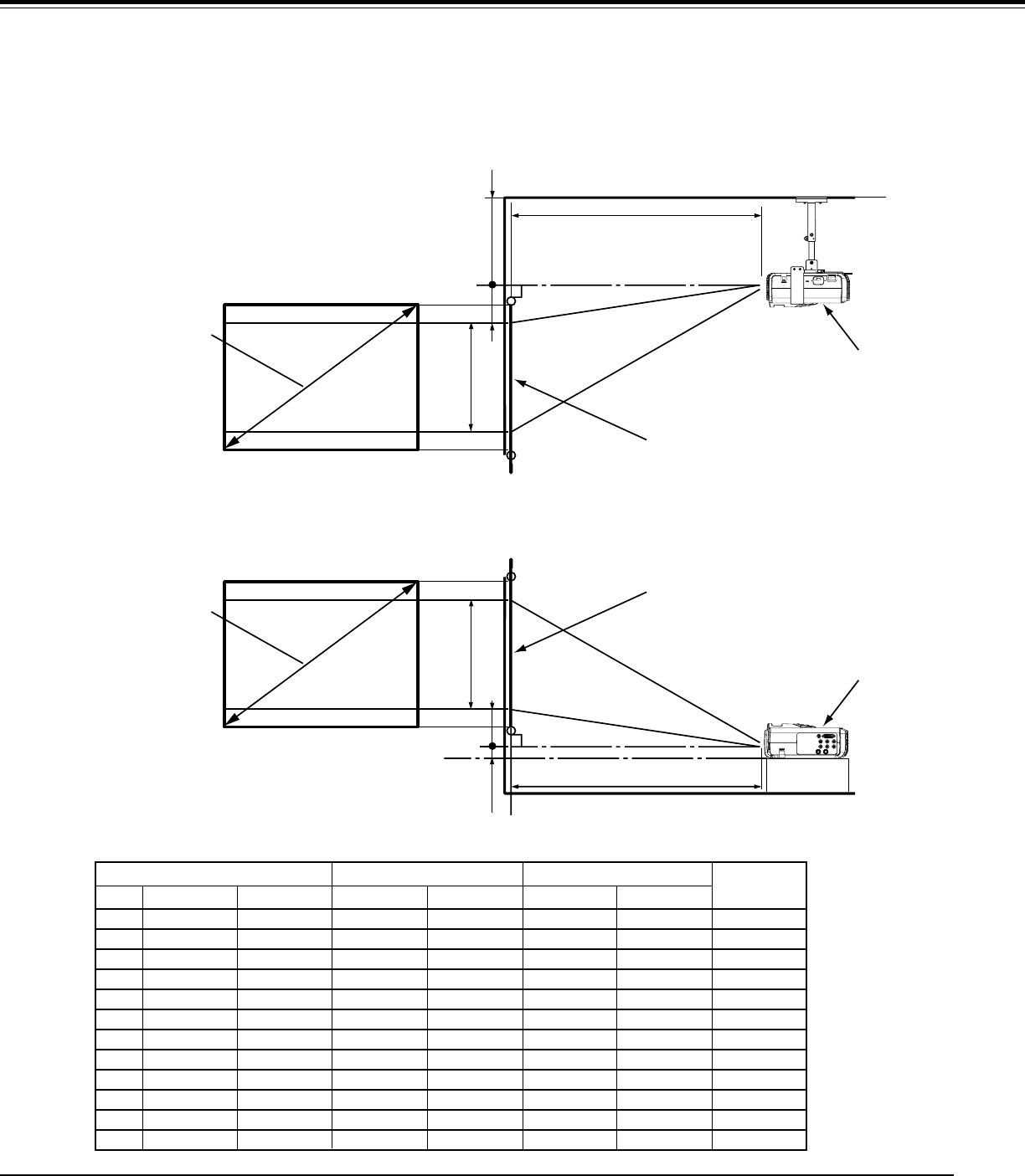

Basic setup

Determine the distance from the screen to the projector according to the size of the picture images to be

projected. (See Page 14 and 15.)

Screen

Size of projected picture

images (Width)

A=B

Screen

Projector

•As for the locations for the setup, read "Be sure to observe the followings for safety" described on Pages 4 to 7

in advance.

Adjusting projection angle

If a part of the projected picture image lies off the

edge of the screen, adjust the projection height or

the projection angle as follows:

1. Lift up the projector up to the desired projection

angle by hands.

•Set the projector within a tilt angle of 15 degrees.

2. Press up the left and right angle adjusting buttons.

3. Release the hands from the angle adjusting but-

tons and projector.

5. Slowly lift down the projector by pressing the left

and right angle-adjusting buttons while holding the

projector by hands.

•It is also possible to adjust the projection angle by turn-

ing the angle adjusting foot (rear) to the lift or right.

If the projected image frame is distorted

to a trapezoid:

If the screen and the projector are not set perpen-

dicular to each other, the projected image frame be-

comes trapezoidal.If it is not possible to bring them

into positions perpendicular to each other by any

mechanical adjustments, adjust the value for trapezoi-

dal correction in the setup menu. (See Page 19.)

•If the "trapezoidal correction" is applied, the as-

pect ratio may not be adjusted correctly in some

cases.

•If the "trapezoidal correction" is applied, the reso-

lution of the projected image will be reduced. Also,

moire fringes on fine-pattern images or drooping

of straight lines in the images will appear. There-

fore, try to set the screen and the projector per-

pendicular to each other as much as possible.

4. By turning the angle adjusting foot (front) to the

left or right, make fine adjustment so that the pro-

jected image frame may be in parallel with the

sides of the screen.

When storing the projector:

SETTING UP

Screen size

Plojection distance (L)

Height (A)

Type Height Width Min Max Tele Wide

50 62 111 181 217 23 21

60 75 133 218 260 27 26

70 87 155 254 303 32 30

80 100 177 290 347 36 34

90 112 199 326 390 41 39

100 125 221 363 433 45 43

110 137 244 399 477 50 47

120 149 266 435 520 54 52

130 162 288 471 563 59 56

140 174 310 508 607 64 60

150 187 332 544 650 68 64

180 224 399 653 780 82 77

(Unit : cm)

Screen size

(Height) Screen size

(Height)

Projection distance (L)

Screen

Projector

A66mm

Screen size

Screen size and Projection distance

Determine screen size by referring to the following table:

Where the screen size is 16: 9

Where the projector is suspended from the ceiling:

In the case of using suspension metal hook BR-D1208 only: B = 23 cm - 52cm

In the case of using suspension metal hook BR-D1208 and high-ceiling pole BR-XL30P: B = 77 cm - 129 cm

SETTING UP

Screen size

Projection distance (L)

Height (A)

Type Height Width Min Max Tele Wide

50 76 102 167 199 21 20 57

60 91 122 200 239 25 24 69

70 107 142 233 279 29 28 80

80 122 163 266 318 33 32 91

90 137 183 300 358 37 35 103

100 152 203 333 398 42 39 114

110 168 224 366 438 46 43 126

120 183 244 400 477 50 47 137

130 198 264 433 517 54 51 149

140 213 284 466 557 58 55 160

150 229 305 500 597 62 59 171

180 274 366 600 716 75 71 206

Projection

height (H)

(Unit : cm)

Projection

height (H) Projection

height (H)

Screen size

Projection distance (L)

Screen

Projector

AA66mm B

Screen size

Projection distance (L)

Where the screen size is 4: 3

Where the projector is suspended from the ceiling:

In the case of using suspension metal hook BR-D1208 only: B = 23 cm - 52cm

In the case of using suspension metal hook BR-D1208 and high-ceiling pole BR-XL30P: B = 77 cm - 129 cm

VIEWING VIDEO IMAGES

A. Connecting the projector to video equipment

Preparations:

• Check to be sure that the power for the projector and video equipment is turned off.

1 Connect an end of a commer-

cially available video cable to

VIDEO terminal of the projector.

2 Connect the other end of the

video cable to the video output

terminal of the video equipment.

If S-video output terminal is provided with the video

equipment, make the connection as follows:

3 Connect an end of a commer-

cially available S-video cable to

the S-VIDEO terminal of the pro-

jector.

4 Connect the other end of the S-

video cable to the S-video out-

put terminal of the video equip-

ment.

• Also, read the instruction manual of the video equipment to be connected.

• No speaker for audio output is stored in this projector. To reproduce audio signals, connect audio equipment.

• Consult the delivery agent of this projector on the detailed connections, as needed.

Connecting to DVD players

When connecting this projector to a video equipment that has component video output terminals, such as

DVD players, connect video cables to COMPONENT (1 or 2) terminals.

• Playback picture images of some of DVD players may not be able to be properly projected on screen.

S-video cable

3To S-VIDEO terminal

Video player, or the like.

To S-video output terminal

COMPONENT1

DVI

COMPONENT2

S-VIDEO

VIDEO

RS-232C

Y Cb/Pb Cr/Pr

Video cable

To VIDEO terminal

Video player, or the like.

To video output terminal

COMPONENT1

DVI

COMPONENT2

S-VIDEO

VIDEO

RS-232C

Y Cb/Pb Cr/Pr

COMPONENT1

DVI

COMPONENT2

S-VIDEO

VIDEO

RS-232C

Y Cb/Pb Cr/Pr

)

DVD player or

BS digital tuner

Video cables

(Commercially available)

To audio output

terminals

To audio input

terminals

To COMPONENT

(1 or 2) terminals

DVD player or BS digital

tuner that has D-terminal

D-RCA conversion cable

(Commercially available)

To audio output

terminal

To D-terminal

To audio input

terminal

COMPONENT1

DVI

COMPONENT2

S-VIDEO

VIDEO

RS-232C

Y Cb/Pb Cr/Pr

To COMPONENT

(1 or 2) terminals

Video equipment that

has DVI-D terminal

DVI cable (commercially available)

To DVI-D terminal

To DVI terminal

To DVI-D terminal

COMPONENT1

DVI

COMPONENT2

S-VIDEO

VIDEO

RS-232C

Y Cb/Pb Cr/Pr

Connecting DVD players or BS digital tuners that have D-terminal

When connecting this projector to a DVD player or BS digital tuner that has D-terminal, connect a

commercially available D-RCA conversion cable to COMPONENT (1 or 2) terminal.

•Playback picture images of some of DVD players may not be able to be properly projected on screen.

Connecting to video equipment that has DVI-D terminal

The DVI terminal of this projector makes it possible to project high-quality video images on screen by

connecting with a video equipment that has DVI-D terminal. Also, because this projector is in conformity

with HDCP, it is possible to receive digital image signals encrypted from BS tuner outputs or DVD player

outputs.

•Connect to DVI terminal with a commercially available DVI cable.

•Select DVI-DIGITAL for switching input signals.

•This projector is in compliance with only RGB signals, not with chrominance signals.

•HDCP (High-band with Digital Content Protection) is one of encryption formats of digital image signals,

which has been developed by Intel Corporation to protect digital contents.

VIEWING VIDEO IMAGES

Plug the attached

power cable as it is.

Power cable

Earthing terminal

Power cable

Power plug

Conversion adaptor

U-shaped metal

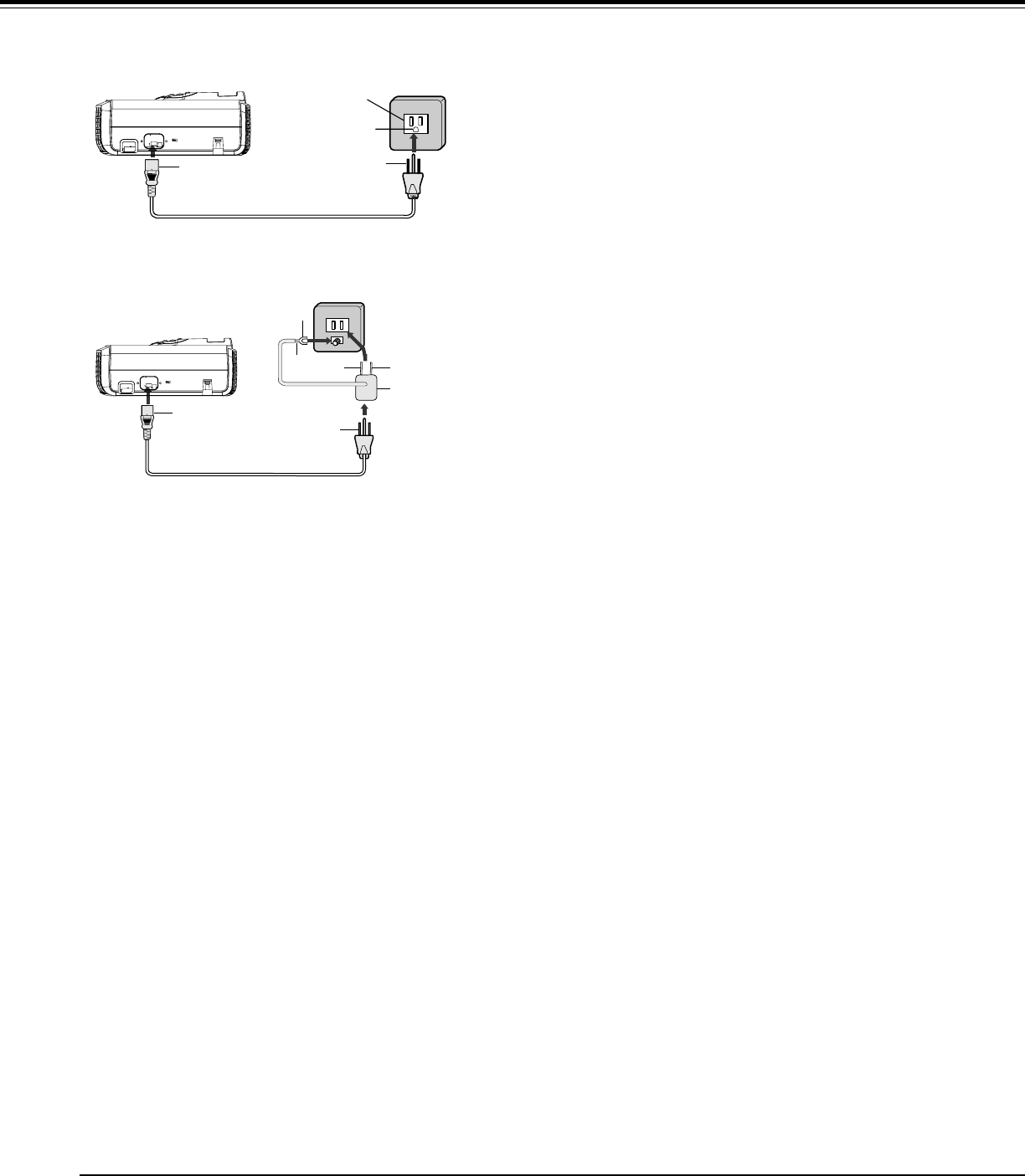

B. Plugging power cord

In the case of power outlets provided with an earthing terminal inlet:

1 Plug the attached power cable into

the power cable inlet of this projec-

tor.

2 Plug the other end of the power cable

into a power outlet.

In the case of power outlets provided with no earthing terminal inlet:

1 Plug the attached power cable into

the power cable inlet of this projec-

tor.

2 Fit the attached conversion adaptor

to the other end of the power cable.

3 Connect the U-shaped metal of the

conversion adaptor to the earthing

terminal of the power outlet (Earthing

connection).

•If there is no earthing terminal with the power outlet, ask

the delivery agent of this projector for the earthing work

(To be charged).

•Be sure to make earthing connection before connecting

the power plug to the power outlet. Further, when dis-

connecting the earthing connection, be sure to unplug

the power plug from the power outlet at

4 Plug the power plug of the conver-

sion adaptor into the power outlet.

•Be sure to use an AC-100V power outlet with earthing terminal for supply to this projector.

•Never connect the earthing metal of the power plug of the conversion adaptor to any of gas pipes, water pipes

and lightning conductors.

VIEWING VIDEO IMAGES

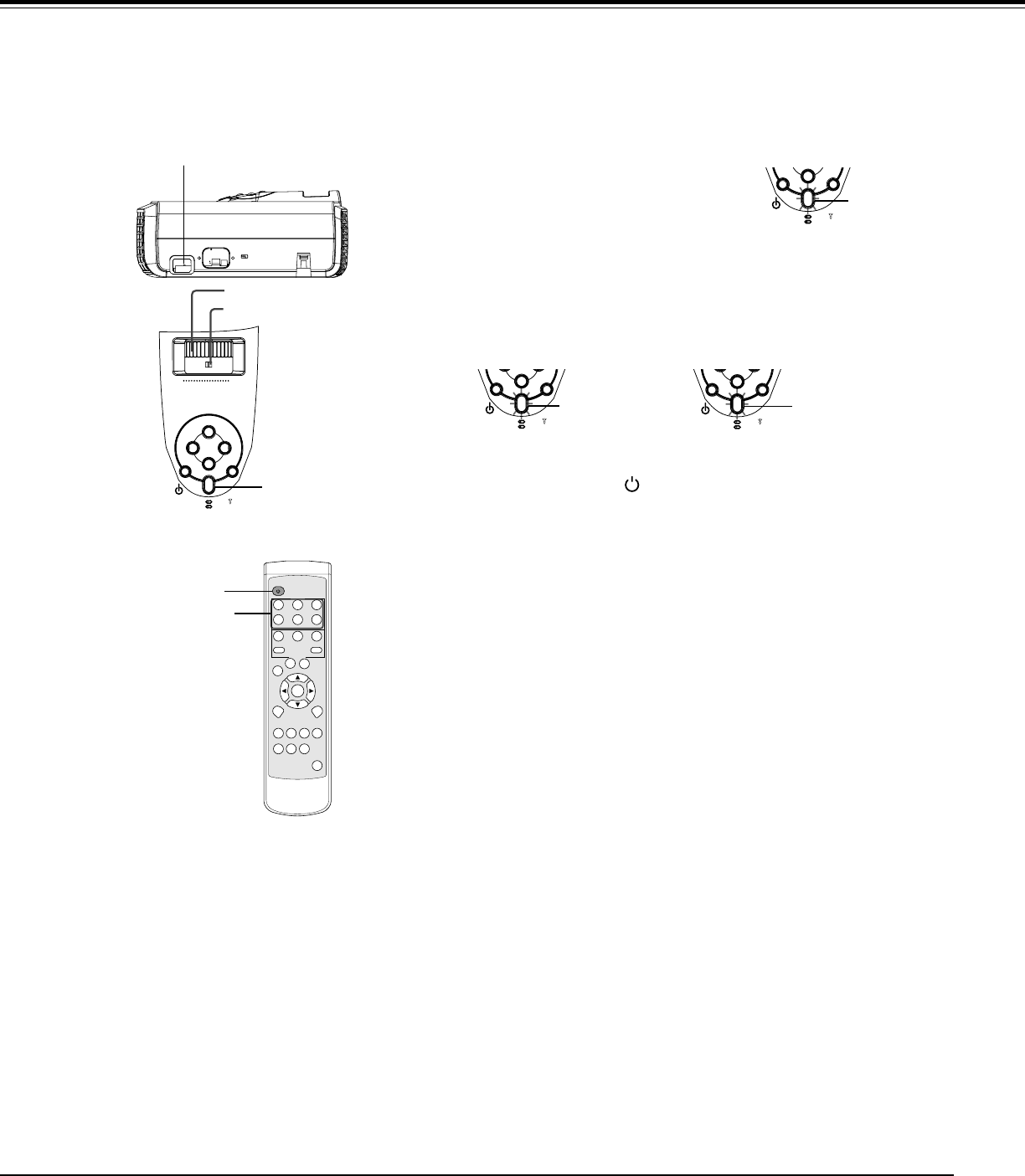

C. Making projection

Preparations:

•Remove the lens cap.

•Turn on power for the connected video equipment.

1 Turn “ON” the main power switch (Turn to

indication I).

• When the main power switch is

turned on, POWER indicator comes

on in orange.

•If the projector finished operation without sufficient cooling,

the following operation of the main power button may not work

during the time when the cooling fan is turning. (At this time

POWER indicator blinks in orange.) After the fan has stopped

turning, press the power button again to turn on the indicator

in orange.

2 Press POWER ( ) button.

•It may take about one minute for the lamp to come on.

•On rare occasions, the lamp may fail to come on. At this time, turn

on the lamp again after a few minutes.

3 Select an input signal.

•Press one of SOURCE buttons (VIDEO, S-VIDEO, COMPONENT

1, COMPONENT 2, DVI-DIGITAL, or DVI-ANALOG button) ac-

cording to the connected input terminal.

•Select the input signal after video image is projected on the screen.

•With this projector, the input signal is selected from the input sig-

nal sources contained in the signal setting menu. (See Page 26

for the details.)

•Some projected picture images may be made easy to see by chang-

ing ASPECT (image angle). (See Page 20 for the details.)

4 Set the projector after adjusting the projec-

tion distance to obtain specified image frame

size.

5 Set the projector and screen so that they

may face perpendicular to each other. (See

Page 11.)

•If the projector and the screen can not be made perpendicular to

each other, adjust the projection angle. (See Page 11.)

6. Adjust size of the projected image by turn-

ing the zoom ring.

•It is possible to change image size by varying the distance from

the projector to the screen.

7. Adjust focus by turning the focus ring.

ENTER

WIDETELE

LAMP

TEMP

MENU/EXIT

POWER

Main power switch

POWER button

SOURCE button

POWER button /

POWER indicator

Focus ring

Zoom ring

POWER ON/OFF

C1 C2 DVI

DVI

COMP1 COMP2 DVI-D

DVI-AVIDEOS-VIDEO

16:9

16:9 4:3

4:3 ZOOM

REAL

DYN

DYNAMIC

ENTER

EXIT

CONTRAST

BRIGHT COLOR TINT

COLOR

TEMP

GAMMA

SHARPNESS

LIGHT

SHGAM

TEM

TIN

COL

BRICNT

SOURCE

ASPECT

Lighting in orange

ENTER

LAMP

TEMP

MENU/EXIT

POWER

Blinking in green Lighting in green

Power can not be

turned “ON” or “OFF”.

ENTER

LAMP

TEMP

MENU/EXIT

POWER

ENTER

LAMP

TEMP

MENU/EXIT

POWER

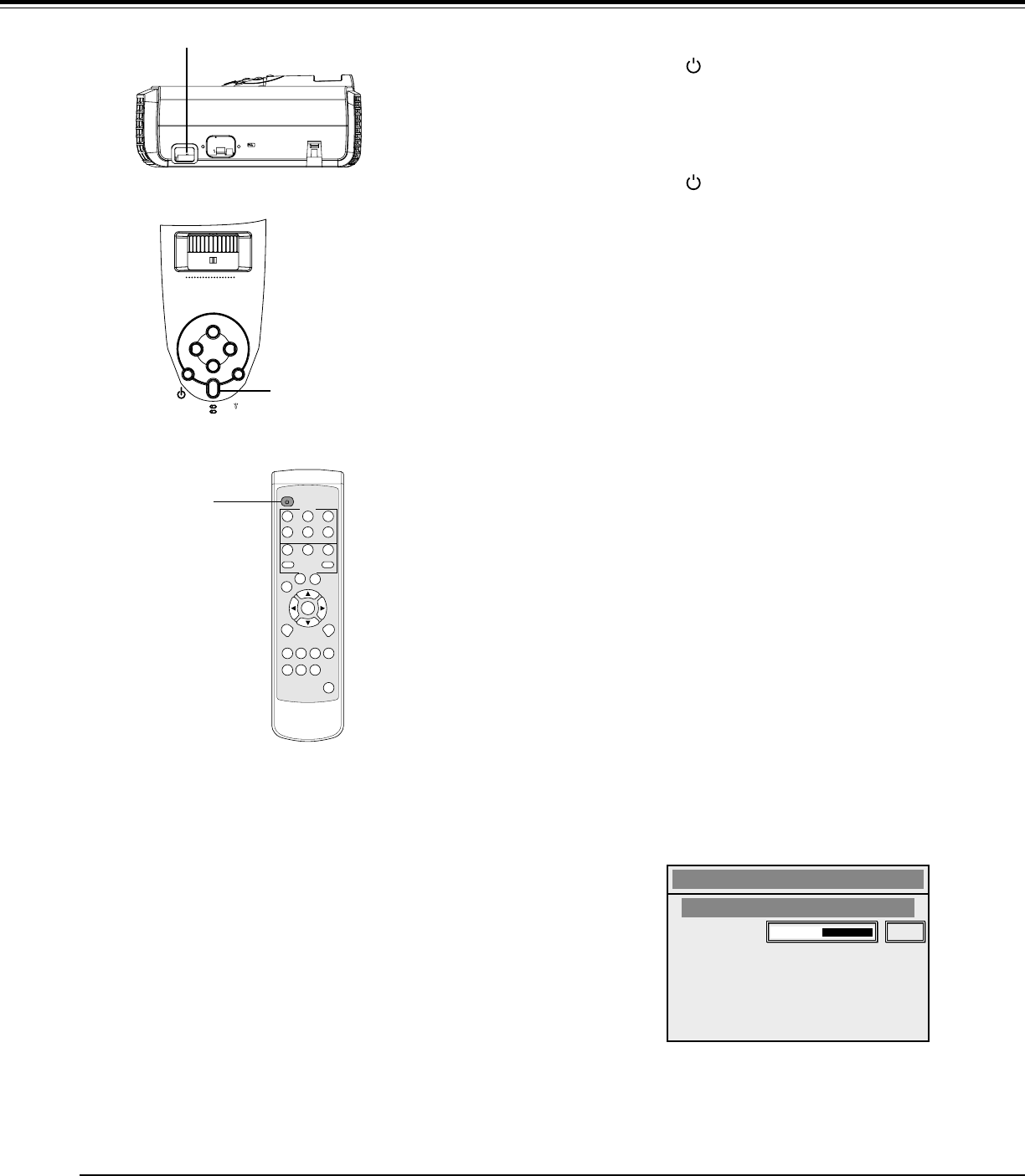

When stopping projection:

8 Press POWER ( ) button.

•A confirmation message appears on the screen.

•To cancel this state, wait for a while, or press EXIT but-

ton or MENU button of the remote controller, or press

MENU/EXIT button of the projector.

9 Press POWER ( ) button again.

•The light-source lamp comes off and the projector comes

to standby state. At this time POWER indicator blinks in

orange.

Wait about 2 minutes until POWER

indicator comes on in orange.

•Wait about 2 minutes in standby state, because during

this time the intake/exhaust fan is turning to cool down

the light-source lamp.

•The intake/exhaust fan continues to turn for about one

minute after POWER indicator has come on in orange.

•Do not turn off the main power switch while POWER in-

dicator is blinking. If the main power switch is turned off

immediately after use, the projector may fall in failure.

•The fan generates a loud sound while cooling down, but

it is not a failure.

Turn “OFF” the main power switch

(Turn to indication O).

•When the projector is not used for a long time, unplug

the power plug from the power outlet for safety.

•Set the lens cap to prevent dust from being gathered

from outside.

VIEWING VIDEO IMAGES

ENTER

WIDETELE

LAMP

TEMP

MENU/EXIT

POWER

Main power switch

POWER button

POWER button/

POWER indicator

POWER ON/OFF

C1 C2 DVI

DVI

COMP1 COMP2 DVI-D

DVI-AVIDEOS-VIDEO

16:9

16:9 4:3

4:3 ZOOM

REAL

DYN

DYNAMIC

ENTER

EXIT

CONTRAST

BRIGHT COLOR TINT

COLOR

TEMP

GAMMA

SHARPNESS

LIGHT

SHGAM

TEM

TIN

COL

BRICNT

SOURCE

ASPECT

If the projected image frame is deformed to a trapezoid:

Adjust the trapezoidal correction value contained in the setting menu.

(Refer to Page 25 for the method of setting the menu.)

1. Reveal the setting menu.

2. Select “Trapezoidal correction” by pressing {, } buttons.

3. Press ENTER button.

4. While viewing the image frame, align the upper and lower sides of the

image frame by pressing $, % buttons.

When canceling the menu:

5. Press MENU button.

KEYSTONE

INSTALLATION...

KEYSTONE

VIEWING VIDEO IMAGES

On setting ASPECT (Image angle)

This projector can change ASPECT ratio (The ratio between width and length of image frame) according

to input video signals.

POWER ON/OFF

C1 C2 DVI

DVI

COMP1 COMP2 DVI-D

DVI-AVIDEOS-VIDEO

16:9

16:9 4:3

4:3 ZOOM

REAL

DYN

DYNAMIC

ASPECT button

SOURCE

ASPECT

Original video


Projects video

images on full

screen (16: 9).

Projects video

images at a

ratio of 4: 3.

Projects video

images of

input signals

as they are.

Projects 4-to-3

signals by

expanding them

to 16-to-9 images

on full screen

(Nonlinear).

Projects video

images of

cinemascope

and vista size

together with the

caption.

*or

( ): name of remote controller button

Bold frames are recommended modes.

* In zoom mode, it is possible to switch between display sizes (cinemascope/vista) with ZOOM button.

In cinemascope mode, it is possible to shift the display position with {, } buttons.

16 : 9 4 : 3 ZOOM REAL

DYNAMIC

Picture images

with a ratio of 4: 3

(480i, 576i, 480p,

576p, and PC)

Cinemascope

and vista signals

with a ratio of 4: 3

Projected images

expand in

horizontal direction.

PC inputs not less

than SVGA are

projected on full

screen (16: 9).

Squeezed 4-to-

3 images

(480i, 576i,

480p, 576p)

16-to-9 images

(1080i)

16-to-9 images

(720p)

Projected images

are compressed to

the full screen size.

Horizontal and

vertical size of the

projected images are

reduced to a half.

DISPLAY...

4:3

ZOOM

DYNAMIC

REAL

16:9

ASPECT

How to change the settings:

With the remote controller:

1. Press an ASPECT button (16: 9, 4 : 3, ZOOM, or DYNAMIC).

With the operation panel of the projector.

(Refer to Page 25 for the method of setting the menu.)

1. Reveal the signal setting menu.

2. Select “Image angle” by pressing {, } buttons.

3. Press ENTER button.

4. Select a desired image angle by pressing {, } buttons.

5. Press ENTER button.

When canceling the menu:

6. Press MENU button.

VIWING COMPUTER IMAGES

DVI

RS-232C

Cb/Pb Cr/Pr

To monitor port

To DVI terminal

Mini D-SUB 15pin-DVI

conversion cable

To DVI terminal

DVI cable

To DVI terminal

DVI

RS-232C

Cb/Pb Cr/Pr

A. Connecting this projector with a computer

Preparations:

•Make sure that the power for the projector and computer are turned off.

•With a desk-top type computer, disconnect RGB cables connected to the monitor.

In the case of analog connections:

1 Connect the attached mini D-SUB 15pin-

DVI conversion cable to DVI terminal of

the projector.

2 Connect the other end of the mini D-SUB

15pin-DVI conversion cable to the moni-

tor port of the computer.

• A conversion connector, analog RGB output adaptor, and/or

the like may be needed depending on the type of computer to

be connected.

•If a long cable other than the attached cable is used, the qual-

ity of projected images may be degraded.

•When viewing picture images from a computer with analog

connection, press DVI-ANALOG button of the remote control-

ler.

•This projector does not comply with 3-line-signals (SYNC-ON-

GREEN).

•This projector does not comply with chrominance signals.

In the case of digital connections:

1. Connect a commercially available DVI

cable to DVI terminal of this projector.

2. Connect the other end of the DVI cable

to DVI terminal of the computer.

•A conversion connector, analog RGB output adaptor, and/or

the like may be needed depending on the type of computer to

be connected.

•If a long cable other than the attached cable is used, the qual-

ity of projected images may be degraded.

•When viewing picture images from a computer with digital con-

nection, press DVI-DIGITAL button of the remote controller.

•Also, read the instruction manual of the other equipment to be connected.

•If VGA60 signal outputs at the startup of the computer, the projected image may not be displayed properlyÑüfor

example, the position of the displayed image may be shifted. However, this is not a failure (Non-compliant

signal).

•No speaker for audio outputs is stored in this projector. To reproduce audio signals, use the speakers of the

personal computer, or connect necessary audio equipment.

•Consult the delivery agent of this projector on the detailed connections, as needed.

B. Plugging power cord

Plug the power cord in the same way as described in “Connecting to video equipment”. See Page 17.

C. Making projection

Preparations:

•Remove the lens cap.

•Turn on power for the connected video equipment.

1 Turn “ON” the main power switch (Turn to

indication I).

• When the main power switch is

turned on, POWER indicator comes

on in orange.

•If the projector finished operation without sufficient cooling,

the following operation of the main power button may not work

during the time when the cooling fan is turning. (At this time

POWER indicator blinks in orange.) After the fan has stopped

turning, press the power button again to turn on the indicator

in orange.

2 Press POWER ( ) button.

•It may take about one minute for the lamp to come on.

•On rare occasions, the lamp may fail to come on. At this time, turn

on the lamp again after a few minutes.

3 Select an input signal.

•Press one of SOURCE buttons (VIDEO, S-VIDEO, COMPONENT

1, COMPONENT 2, DVI-DIGITAL, or DVI-ANALOG button) ac-

cording to the connected input terminal.

•Select the input signal after video image is projected on the screen.

•With this projector, the input signal is selected from the input sig-

nal sources contained in the signal setting menu. (See Page 26

for the details.)

•Picture images of some input signals may not be projected on the

proper position of the screen. On this occasion, execute “AUTO”

in the signal setting menu of the setting menu. (See Page 30.)

4 Set the projector after adjusting the projec-

tion distance to obtain specified image frame

size.

5 Set the projector and screen so that they

may face perpendicular to each other. (See

Page 11.)

•If the projector and the screen can not be made perpendicular to

each other, adjust the projection angle. (See Page 11.)

6. Adjust size of the projected image by turn-

ing the zoom ring.

•It is possible to change image size by varying the distance from

the projector to the screen.

ENTER

WIDETELE

LAMP

TEMP

MENU/EXIT

POWER

Main power switch

POWER button

SOURCE button

POWER button /

POWER indicator

Focus ring

Zoom ring

POWER ON/OFF

C1 C2 DVI

DVI

COMP1 COMP2 DVI-D

DVI-AVIDEOS-VIDEO

16:9

16:9 4:3

4:3 ZOOM

REAL

DYN

DYNAMIC

ENTER

EXIT

CONTRAST

BRIGHT COLOR TINT

COLOR

TEMP

GAMMA

SHARPNESS

LIGHT

SHGAM

TEM

TIN

COL

BRICNT

SOURCE

ASPECT

Lighting in orange

ENTER

LAMP

TEMP

MENU/EXIT

POWER

Blinking in green Lighting in green

Power can not be

turned “ON” or “OFF”.

ENTER

LAMP

TEMP

MENU/EXIT

POWER

ENTER

LAMP

TEMP

MENU/EXIT

POWER

VIEWING COMPUTER IMAGES

When stopping projection:

8 Press POWER ( ) button.

•A confirmation message appears on the screen.

•To cancel this state, wait for a while, or press EXIT but-

ton or MENU button of the remote controller, or press

MENU/EXIT button of the projector.

9 Press POWER ( ) button again.

•The light-source lamp comes off and the projector comes

to standby state. At this time POWER indicator blinks in

orange.

Wait about 2 minutes until POWER

indicator comes on in orange.

•Wait about 2 minutes in standby state, because during

this time the intake/exhaust fan is turning to cool down

the light-source lamp.

•The intake/exhaust fan continues to turn for about one

minute after POWER indicator has come on in orange.

•Do not turn off the main power switch while POWER in-

dicator is blinking. If the main power switch is turned off

immediately after use, the projector may fall in failure.

•The fan generates a loud sound while cooling down, but

it is not a failure.

Turn “OFF” the main power switch

(Turn to indication O).

•When the projector is not used for a long time, unplug

the power plug from the power outlet for safety.

•Set the lens cap to prevent dust from being gathered

from outside.

VIEWING COMPUTER IMAGES

ENTER

WIDETELE

LAMP

TEMP

MENU/EXIT

POWER

Main power switch

POWER button

POWER button/

POWER indicator

POWER ON/OFF

C1 C2 DVI

DVI

COMP1 COMP2 DVI-D

DVI-AVIDEOS-VIDEO

16:9

16:9 4:3

4:3 ZOOM

REAL

DYN

DYNAMIC

ENTER

EXIT

CONTRAST

BRIGHT COLOR TINT

COLOR

TEMP

GAMMA

SHARPNESS

LIGHT

SHGAM

TEM

TIN

COL

BRICNT

SOURCE

ASPECT

Note-book type computer

When the projector is connected to a note-book type computer, the picture images from the computer may

not be projected on screen. On this occasion, setup the computer so that it may output picture signals. How

to setup the computer depends on the type of the computer. Refer to the instruction manual of the

computer.

Example of setup for the external output:

Press “Fn” key and any of “F1” to “F12” key (Depends on the type of the computer).

SETTING WITH MENUS

Menu construction

• The items with mark “ ” or “...“ requires to press ENTER button to confirm its entry after selecting the item.

PICTURE... CONTRAST – 32 ~ +31

BRIGHTNESS – 30 ~ +30

ICC YELLOW

ICC CONTROL

COLOR – 30 ~ +30

TINT – 15 ~ +15

COLOR TEMP

– 15 ~ +15

PRO-PICTURE...

DISPLAY... SOURCE...

ASPECT...

SAVE...

OPTION... RESET ALL

AUTO OFF

LAMP HOUR

LANGUAGE...

9300 / 6500 / 5700 / USER1 / USER2

CINEMA1/CINEMA2/VIDEO1/VIDEO2/STANDARD

VIDEO/S-VIDEO/COMPONENT1/COMPONENT2/

DVI-DIGITAL/DVI-ANALOG

16:9 / 4:3 / ZOOM / DYNAMIC / REAL

MEMORY1 / MEMORY2 / MEMORY3

YES / NO

0 / 10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 / 90 MINUTES

9300 / 6500 / 5700 / USER1 / USER2

LOAD FROM

– 10 ~ +10

ICC RED

ICC GREEN

SHARPNESS

ICC BLUE

R GAIN

G GAIN

B GAIN

R BIAS

G BIAS

B BIAS

SAVE TO

GAMMA

1 - 512

0 - 90

USER1 / USER2

SET USER COLOR TEMP

MIRROR..

/ ENGLISH / / /

INSTALLATION...

FLOOR FRONT / CEILING FRONT / FLOOR REAR / CEILING REAR

– 12 ~ +12

YES

AUTO

FREQUENCY

PHASE

H. POS

V. POS

KEYSTONE...

PATTERN

– 15 ~ +15

0 ~ 31

– 30 ~ +30

RGB & COMPONENT...

SETTING WITH MENUS

PRO-PICTURE...

DISPLAY...

OPTION...

INSTALLATION...

PICTURE...

PRO-PICTURE...

DISPLAY...

OPTION...

INSTALLATION...

PICTURE...

INSTALLATION...

RGB & COMPONENT

MIRROR

KEYSTONE

PATTERN

LANGUAGE

INTTALLATION...

RGB & COMPONENT

MIRROR

KEYSTONE

PATTERN

LANGUAGE

KEYSTONE

INSTALLATION...

KEYSTONE

INSTALLATION...

KEYSTONE

How to make menu setting:

The following figures describe how to set trapezoidal

correction as an example:

1 Press MENU button.

Main menu (the first level) appears.

2 Select the menu to be revealed by pressing { ,

} buttons.

3 Press ENTER button.

The desired menu (the second level) appears.

4 Select the menu to be revealed by pressing { ,

} buttons.

5 Press ENTER button.

The desired menu (the third level) appears.

6 Press $ , % buttons for the setting.

When canceling the menu

7 Press MENU button.

•When EXIT button of the remote controller is

pressed, the display returns to the menu of the pre-

vious level.

SETTING WITH MENUS

Items that can be set with menus

In this projector, the following items can be set by revealing setup menus.

PICTURE MENU ITEM SETTING FUNCTION

CONTRAST ------- -32 – +31 ---------- Adjusts contrast of projected images. (See Page 28.)

BRIGHTNESS ---- -30 – +30 ---------- Adjusts brightness of projected images. (See Page 28.)

COLOR ------------- -30 – +30 ---------- Adjusts color thickness of projected images. (See Page

28.)

TINT --------------- -15 – +15 ---------- Adjusts tint of projected images. (See Page 28.)

SHARPNESS ----- -10 – +10 ---------- Adjusts sharpness of projected images. (See Page 28.)

PROFESSIONAL PICTURE MENU

ITEM SETTING FUNCTION

ICC CONTROL ---------------------------- Emphasizes or de-emphasizes independently each of

four colors, RED, GREEN, BLUE and YELLOW.

COLOR TEMP ----------------------------- Selects one of preset color temperatures.

SET USER COLOR TEMP ------------- Selects one of color temperatures that are set in

“Color temperature user adjustment”. (See Page 29.)

GAMMA ------------------------------------- Adjusts favorable color temperatures and stores them.

(See Page 29.)

DISPLAY MENU

ITEM --------------- SETTING ---------- FUNCTION

SOURCE ------------ VIDEO ------------ Select when viewing picture images from a video

equipment connected to VIDEO terminal.

S-VIDEO ---------- Select when viewing picture images from a video

equipment connected to S-VIDEO terminal.

COMPONENT1----- Select when viewing picture images from a video

equipment connected to COMPONENT1 terminal.

COMPONENT2----- Select when viewing picture images from a video

equipment connected to COMPONENT2 terminal.

DVI-DIGITAL ------- Select when viewing picture images from a digital

equipment connected to DVI terminal.

DVI-ANALOG ------ Select when viewing picture images from an analog

equipment connected to DVI terminal.

ASPECT ------------------------------------- 16：9

Sets picture images to be projected to an aspect ratio

of 16: 9.

4：3 -------------- Sets picture images to be projected to an aspect ratio

of 4: 3.

ZOOM ------------ Projects expanded picture images.

DINAMIC ---------- Projects picture images expanded to full screen.

REAL ------------- Projects picture images keeping the input signals as

they are.

SAVE ---------- MEMORY1、2、3 ---- Stores the settings made in the PICTURER menu and

the PROFESSIONAL PICTURE menu into MEMORY.

(See Page 27.)

OPTION MENU

ITEM SETTING FUNCTION

RESET ALL --------------------------------- Pressing ENTER button reveals a confirmation box.

Select “Yes” and press ENTER button. Then, the

settings that were made in the picture quality setting

menu and the professional-use picture quality setting

menu are changed to the factory-default settings.

AUTO OFF --------------------------------

0 ---------------- Auto power off does not function.

10∼90MINUTES ----------

Without picture image signal input, power is

automatically turned off at the preset time.

LAMP HOUR-------------------------------- Indicates used-hours of the lamp. It is not possible to

change the indicated used-hours.

PICTURE...

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

ICC CONTROL

COLOR TEMP

SET USER COLOR TEMP

GAMMA

ENTER

PROFESSIONAL-PICTURE...

DISPLAY...

ASPECT...

SAVE...

SOURCE...

RESET ALL

AUTO OFF

LAMP HOUR

ENTER

+11

MINUTES

HOURS

OPTION...

INSTALLATION MENU

ITEM SETTING FUNCTION

LANGUAGE --------- -5言語 ------------ Selects a language used for displays on the screen, such as

menus. Adjusts computer video images.

RGB & COMPONENT ---------------- Adjusts computer video images.

AUTO * --------------------------------------- Selecting Auto and pressing ENTER button automatically

adjust position and size of the projected images in

accordance with the image signals from the computer.

FREQUENCY *−15∼＋15-------- If any wide streak pattern appears on the projected images, it

can be adjusted with this setting while viewing the images.

PHASE *------------ 0 ∼ 31 ----------- If any flicker or blur appears on the projected images, it can be

adjusted with this setting while viewing the images.

H.POS * --------- −30 ∼ +30 ------- Moves display position of projected images in horizontal

direction.

V. POS * --------- −30 ∼ +30-------- Moves display position of projected images in vertical direction.

MIRROR ------ FLOOR FRONT ----- Select this setting with the projector set on the floor when

viewing the projected images from the front side.Normally,

select this setting.

---------- CEILING FRONT ---- Select this setting with the projector suspended from the

ceiling when viewing the projected images from the front side.

------------ FLOOR REAR ------ Select this setting with the projector set on the floor when

viewing the projected images from the rear side of the screen.

----------- CEILING REAR ----- Select this setting with the projector suspended from the

ceiling when viewing the projected images from the rear side

of the screen.

KEYSTONE --- −12∼＋12-------- Select this setting when correcting trapezoidal distortion.

Normally, select “0”.

PATTERN ----------------------------------- Pressing ENTER button reveals the test pattern for focus

adjustment.

•The items with * mark function only for 1080i, 720p, 525p, and 625p input signals and input signals from DVI terminal.

•The varying range of the vertical position depends on the type of the input signal. With some values the vertical position may not

change, but this is not a failure.

•With the inputs from DVI-DIGITAL terminal, no change appear on the projected images with adjustment of the dividing ratio and

fine, but this is not a failure.

•Without input signals, only some of the above items can be changed.

INSTALLATION...

RGB & COMPONENT

MIRROR

KEYSTONE

PATTERN

LANGUAGE

RGB & COMPONENT

INSTALLATION...

FREQUENTCY

AUTO YES?

PHASE

H. POS

V. POS

DIASPLAY MENU

On the memory for projected image quality

This projector allows each item in the picture quality setting menu and the professional-use picture quality

setting menu (except for color temperature use-adjustment) to be adjusted to up to three kinds of favorable

picture quality for each input signal.

Input that allows the setting Number of settings

VIDEO 3

S-VIDEO 3

COMPONENT 1, 2 3

DVI-ANALOG/DIGITAL 3

To store the settings:

(Refer to Page 25 for how to set menus.)

1. Set an item in the picture quality setting menu and the professional-use picture quality setting menu.

2. Reveal the signal setting menu.

3. Select “Store the setting “ by pressing {, } buttons.

4. Press ENTER button.

The setting storage menu appears.

5. Select the memory where the setting is to be stored by pressing {, } buttons.

6. Press ENTER button.

The setting is stored in the memory.

To cancel the menus:

7. Press MENU button.

To apply the set picture quality:

1. Press MEMORY1, 2, or 3 button.

The picture quality of the projected image comes to the set quality.

INSTALLATION...

MEMORY 2

MEMORY 3

MEMORY 1

SAVE

SETTING WITH MENUS

PICTURE...

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

Adjusting projected images

Adjusting brightness of projected images (CONTRAST and BRIGHT)

Items related to brightness of projected images are adjusted with menus.

(Refer to Page 25 for setting menus.)

1 Reveal the picture quality setting menu.

2 Select “CONTRAST” or “BRIGHT” by pressing {, } buttons.

3 Adjust the selected item by pressing $, % buttons.

To cancel the menus:

4 Press MENU button.

CONTRAST ................... Adjusts vividness of projected picture images.Every time ? button is pressed, the images

are made brighter and more vivid. Every time ? button is pressed, the images are made

darker and less vivid.

BRIGHT.......................... Every time ? button is pressed, the images are made brighter. Every time ? button is

pressed, the images are made darker.

Adjusting color (COLOR THICKNESS and TINT)

Items related to color of projected images are adjusted with menus.

(Refer to Page 25 for setting menus.)

1 Reveal the picture quality setting menu.

2 Select “COLOR THICKNESS” or “TINT” by pressing {, } buttons.

3 Adjust the selected item by pressing $, % buttons.

To cancel the menus:

4 Press MENU button.

COLOR THICKNESS ..... Adjusts color thickness of projected picture images.Every time ? button is pressed, the

colors are made thicker. Every time ? button is pressed, the colors are made thinner.

TINT ............................... Adjusts tint of projected picture images.Every time ? button is pressed, the skin color of

the projected images is made more reddish. Every time ? button is pressed, the skin

color is made more greenish.

Setting projected images sharper or softer (SHARPNESS)

Sharpness of projected images are adjusted with menus.

(Refer to Page 25 for setting menus.)

1 Reveal the picture quality setting menu.

2 Select “SHARPNESS” by pressing {, } buttons.

3 Adjust sharpness by pressing $ buttons.

To cancel the menus:

4 Press MENU button.

Emphasizing or de-emphasizing a specified color of projected images (FOUR COLOR

INDEPENDENT CONTROL)

It is possible to emphasize or de-emphasize a specified color (RED, GREEN, BLUE, OR YELLOW) of

projected images with menus.

(Refer to Page 25 for setting menus.)

1. Reveal the professional-use picture quality setting menu.

2. Select “FOUR COLOR INDEPENDENT CONTROL” by pressing {,

} buttons.

3. Press ENTER button.

4. Select a color to be set by pressing {, }• buttons.

5. Set the color by pressing $, % buttons.

6. Set the other colors by repeating no. 4 and 5.

To cancel the menus:

7. Press MENU button.

ICC CONTROL

ENTER

PROFESSIONAL-PICTURE...

ICC CONTROL

ICC RED

ICC GREEN

ICC BLUE

ICC YELLOW

SETTING WITH MENUS

Adjusting whiteness degree of white color of projected images (Setting COLOR TEMPERATURE)

One of preset color temperatures (degree of white color) is selected with menus.

(Refer to Page 25 for setting menus.)

1. Reveal the professional-use picture quality setting menu.

2. Select “COLOR TEMPERATURES” by pressing {, } buttons.

3. Press ENTER button.

4. Select a desired color temperature by pressing {, } buttons..

Åú A favorable color temperature depends on each one’s preference. Generally, 9300 is preferably selected

for viewing TV, 6500 is for viewing HDTV, and 5700 is for viewing movies.

Åú When “USER1” or “USER2” is selected, each corresponding color temperature adjusted by user setting

is selected.

To cancel the menus:

5. Press MENU button.

Adjusting degree of white color of projected images (User-adjustment of COLOR TEMPERATURES)

When setting (storing) user’s preferable color temperatures, use “User-adjustment of color temperatures”

in the professional-use picture quality setting menu.

(Refer to Page 25 for setting menus.)

To store the settings:

1. Reveal the professional-use picture quality setting menu.

2. Select “User-adjustment of color temperatures” by pressing {, } buttons. buttons.

3. Press ENTER button.

Åú The menu for user-adjustment of color temperatures appears.

4. Select a basic color temperature by pressing {, } buttons.

Åú Generally, select the most preferable color temperature from preset color temperatures.

5. Press ENTER button.

Åú The selected color temperature is indicated, and the whiteness of projected images changes according to

the color temperature.

6. Select the item to be changed by pressing {, } buttons.

7. Set the item by pressing ?, ? buttons.

Åú The projected images also change accordingly.

8. Repeat the settings by repeating no. 6 and 7.

9. Select “User 1” or “User 2” by pressing {, } buttons buttons.

10. Press ENTER button.

Åú The set color temperatures are stored in the memory.

To cancel the menus:

11. Press MENU button.

To bring one of the set color temperatures:

Select “User 1” or “User 2” in “Setting color temperatures” of the professional-use picture quality setting

menu.

On color temperatures

There is various degree of white color. One of the methods of representing degree of white color is color

temperatures. White color of low color temperature is reddish white, and that of high color temperature is

bluish white. In this projector, the color temperatures are set by varying each gain and bias of R (red), G

(green), and B (blue) signal.

To make the color temperature higher:

Set the value of B-gain (or B-bias) larger, and the value of R-gain (or R-bias) smaller.

To make the color temperature lower:

Set the value of R-gain (or R-bias) larger, and the value of B-gain (or B-bias) smaller.

One method of adjusting color temperatures is to make use of person’s skin color. Project a large still

picture of human face on the screen, and adjust the color tone of the face so that it may look favorable

(generally, it may look healthy).

Åú Generally, the gains are used to adjust bright pictures, and the biases are used to adjust dark pictures.

Åú Using the biases is effective in adjusting color of monotone pictures. (It is especially effective for

adjusting dark to intermediate portions.) For example, when the green is relatively strong, decrease the

value of R-bias, or increase the values of both B-bias and R-bias evenly. Also, when the projected images

are bluish, decrease the value of B-bias, and when they are reddish, decrease the value of R-bias. In this

way, favorable picture quality can be obtained.

COLOR TEMPERATURE

6500

9300

5700

USER1

USER2

SET USER COLOR TEMP

R GAIN

LOAD FROM

SAVE TO

G GAIN

B GAIN

R BIAS

G BIAS

B BIAS

5700 6500 9300 USER2

+256

+45

USER1

USER2USER1

SETTING WITH MENUS

Adjusting picture images sent from computers

This projector automatically sets an appropriate signal processing format according to the image signal

sent from computers. However, depending on the type of the computer, the image signals may not be

projected properly. On this occasion, a countermeasure should be taken as follows:

1. Reveal the setting menu.

2. Select “Setting signals” by pressing Å£, Å• buttons.

3. Press ENTER button.

•The signal setting menu appears.

4. Select “Auto” by pressing Å£, Å• buttons.

5. Press ENTER button.

• Automatic setting is made so that an appropriate setting may be obtained for the input signal.

To cancel the menus:

6. Press MENU button.

If the computer images can not be projected properly with the above operation, adjust the images using

menus as follows:

These settings can be stored in memory of the projector.

How to adjust computer images using menus:

If the following phenomena are observed, adjust as follows:

Projected images are shifted to the left or right:Åc.

Adjust “Horizontal position” in the signal setting menu. Every time ? button is pressed, the projected

image is shifted to the left. Every time ? button is pressed, the projected image is shifted to the right.

Projected images are shifted up or down:Åc.

Adjust “Vertical position” in the signal setting menu. Every time ? button is pressed, the projected image

is shifted downward. Every time ? button is pressed, the projected image is shifted upward.

Projected images blink.

Projected images are blurred:Åc.

Adjust “Fine” in the signal setting menu.

A wide streak pattern appears on the projected images:Åc.

Adjust “Dividing ratio” in the signal setting menu.

Åú Usually, do not change the settings in the signal setting menu.

A simple method of adjusting the position of projected images

Adjusting horizontal position:

1. Align the left edge of the projected image with the left side of the screen by adjusting “Horizontal

position”. Then, align the right edge with the right side of the screen by adjusting “Dividing ratio”.

2. Repeat the above adjustments to align the horizontal position.

Adjusting vertical position:

3. Align the upper edge of the projected image with the upper side of the screen by adjusting “Vertical

position”.

SETTING WITH MENUS

REPLACING THE LAMP / CLEANING THE PROJECTOR



(a)

Holder

(b)

The light-source lamp is stored in the projector to project picture images on screen. The light-source lamp is a

consumable part. It may go off or its brightness may decrease during use. In these cases, replace the lamp to new

one in good time. For the replacement, be sure to use the light-source lamp that is sold exclusively for TDP-MT500.

Purchase the lamp from the delivery agent of the projector.

Warning

• Before replacing the light-source lamp, be sure to turn off the main power switch and unplug the power plug.

Replacing the lamp without turning off the main power switch can cause electric shock.

• When replacing the light-source lamp, be cautious not to drop the screws fixing the lamp into the inside of the

projector. Do not put any metal pieces or easily flammable things in the projector. If the projector is operated

containing foreign matters, electric shock or fire may be caused. If users can not take out the foreign matters

inside, ask a repair front of Mitsubishi Electric Corporation to take them out.

• Securely fix the light-source lamp. If it is not fixed properly, it will not come on and may cause fire.

• Never shake the replaced light-source lamp or bring it over face. The lamp may be broken and its broken glass

pieces may be scattered or enter human eyes causing injuries.

• Do not replace the light-source lamp immediately after its use, because it is very hot and may cause burn. Turn

off the power button to put off the lamp, and wait about 2 minutes until the cooling fan comes to a complete stop.

Then, turn off the main power switch and unplug the power plug. After more than one hour has passed and the

lamp has been thoroughly cooled down, replace the lamp.

Caution

In this projector, a LAMP indicator blinks after the light-source lamp has been used more than 1000 hours.

When the lamp has been used more than 1300 hours, a warning appears on the screen every time the power

is turned on. After more than 1500 hours of use, the power for the lamp is automatically turned off and the

lamp can not be used any more. Then, replace the lamp to new one as soon as possible.

• Do not remove the light-source lamp except when it is replaced. Otherwise, removing it may cause a failure.

• As the light-source lamp, the high-pressure mercury lamp is used. The high-pressure mercury lamp may burst

with a disruptive sound, if it is shocked or scratched, or if the lamp deteriorates while being used. Also, it may

stop lighting when it comes to its life end. The lapse of time until each lamp bursts or stops lighting, if it occurs,

depends on the characteristics or use condition of each lamp. Therefore, there is a possibility that it may burst

by chance even in a short time after its start of use.

• The possibility of burst of the high-pressure mercury lamp increases if it is used beyond its replacement period.

When the indication of lamp replacement appears, immediately replace the lamp to new one if the lamp is

lighting normally.

• If the high-pressure mercury lamp bursts, the fragments of the glass valve may scatter in and out of the lamp

box, or the gas filled in the valve may come out of the ventilation outlet. The gas filled in the high-pressure

mercury lamp contains mercury vapor. Be extremely cautious not to inhale the gas or bring the gas into eyes or

mouths. If the gas should be inhaled or brought into eyes or mouths, consult a doctor immediately.

• If the high-pressure mercury lamp bursts, fragments of the glass valve are scattered inside of the projector. It is

recommended to ask a service outlet of Mitsubishi Electric Corporation to replace the light-source lamp and

check the interior of the projector. When users make the cleaning and the replacement of the lamp for them-

selves, be sure to turn the main unit upside down and do it holding the lamp holder. Otherwise, the broken glass

pieces of the lamp may cause injuries.

How to replace the lamp:

1 Turn the unit upside down.

2 Undo the screw fixing the lamp cover (a)

with a Phillips screwdriver and remove the

lamp cover from the unit.

3 Undo the three screws fixing the lamp box

with the Phillips screwdriver.

4 Pull up the holder.

REPLACING THE LAMP / CLEANING THE PROJECTOR

Holder

(b)



(a)

Exhaust vent

Intake vent

ENTER

WIDETELE

LAMP

TEMP

MENU/EXIT

POWER

▲

button

▼

button

POWER button

5 Holding the holder, pull out the light-source

lamp from the unit.

•Pull out the light-source lamp slowly. If the lamp is burst, the glass

fragments may be scattered if the lamp is pulled out hurriedly.

•Do not spray water or the like over the light-source lamp pulled

out, or do not put it where children can access it or near anything

easily flammable. It may cause burn or injury.

6 Holding the holder of a new lamp, insert the

lamp to the bottom fitting the lamp to the

shape of the hole in the unit.

7 Press the holder into the storage.

•Make sure that the holder is securely locked.

8 Securely screw down the three fixing screws

(b) with the Phillips screwdriver.

9 Insert the lamp cover into the unit, and se-

curely screw down the screw (a) with the

Phillips screwdriver to fix the lamp cover.

•If the lamp cover is dislocated, the power can not be turned on.

Turn on the power.

Simultaneously press on {{

{{

{, }}

}}

} buttons and

POWER button ( ) on the operation panel of

the unit for more than 3 seconds.

•If the three buttons are not pressed simultaneously, the lamp-used-

hours may not be reset.

•If the lamp-used-hours have exceeded 1500 hours and the lamp has been replaced, it is not possible to turn on

the new light-source lamp until the lamp-used-hours are reset.

•Do not reset the lamp-used-hours if the lamp is not replaced.

Cleaning dust in the intake vent

If dust is accumulated in the intake vent, the temperature in the projec-

tor goes up abnormally, and may

damage the internal parts. Also, the light-source lamp may come off to

protect the internal parts. Clean up

the dust with a vacuum cleaner about once a year.

Cleaning the projector

Softly wipe off dirt on the projector with a soft cloth.

•If the dirt is thick, wipe it off with a cloth soaked in a neutral detergent diluted with water, and then finish with a dry

cloth.

•If any pesticide is sprayed over the projector, or if the projector is wiped with benzine or thinner, or if rubber or

vinyl products are brought into contact with the projector for a long period of time, the painting of the projector

may change in quality or removed.

Cleaning the lens

Remove dust or dirt on the lens with a commercially available lens cleaning kit (blower, brush, and the

like).

•Because the surface of the lens is easily scratched, do not rub or hit the surface with anything hard.

POWER

LAMP TEMP Countermeasure

On in orange

Off Off

Off

On in red

On in redOn in

green

•Connect the power cable to the projector.

•Plug the power plug into a power outlet.

•Turn “On” the main power switch.

•Fit the rear lamp cover.

•If the projector itself is very hot, turn off the power switch, and

after the temperature has come down, turn on the power switch again.

•Replace the light-source lamp. (The lamp is at the end of its life.)

•If the intake and/or exhaust vent is blocked with anything, remove it.

•Prevent the wind from a heater from blowing into the exhaust

vent of the projector, if it is happening.

•Check if the air filter is foul with dust or not.

→Clean the filter, if it is foul.

•Press POWER button after POWER indicator has stopped

blinking in orange.

•If the main power was turned “Off” while the fan was still turning, the lamp may not be able

to come on next time for about one minute after the main power switch is turned “On” .

•For about one minute after the light-source lamp has been put out, it is not possible to put the lamp on again.

→

←

Blinking in

orange

TROUBLESHOOTING

Before asking for repair of the projector, check the followings: If the problem still continues, stop using

it and be sure to unplug the power plug. Then, contact the delivery agent of the projector.

Picture images are not projected on screen.

Phenomenon

Power can not be turned

on.

Picture images are not

projected on screen.

Projected images sud-

denly disappear.

Check/Countermeasure

•Check whether the indicators are on or off and how they are lighting.

•In some cases it takes about one minute to put the lamp on.

•On rare occasions, the lamp fails to come on. Then, turn on the lamp again after a few minutes.

•If the projector finished operation without sufficient cooling, the cooling fan is turning and the follow-

ing operation of the main power button may not work after the main power was turned on. (At this

time POWER indicator blinks in orange.) After the fan has stopped turning, press the power button

again to turn on the indicator in orange.

•Check if the intake vent is not blocked with anything.

•Check to be sure that the lamp cover is closed. (See Page 32 and 33.)

•Check if the cable connecting the projector and external equipment is not broken.

•When an extension cable is used, replace it with the attached cable for checking. If picture images

are normally projected with the attached cable, employ an RGB signal amplifier together with the

extension cable.

•This phenomenon may occur if the intake vent and/or exhaust vent is blocked with any-

thing.

(At this time TEMP (temperature) indicator is lighting in red.)

–After removing those things blocking the intake vent and/or exhaust vent, execute the

followings:

1 Wait until the intake/exhaust fan stops turning. (Wait until TEMP (temperature) indica-

tor comes off.)

2 Turn off the main power switch.

3 Wait about 10 minutes.

4 Turn on the main power switch.

5 Press POWER button.

•LAMP indicator lighting in red indicates that the lamp must be replaced. Replace the

light-source lamp to a new one. (See Page 32 and 33.)

TROUBLESHOOTING

Projected images are irregular.

Others

Phenomenon

Power can not be

turned on.

If the following phenomenon occurs after the lamp has been replaced, check the following first:

Phenomenon

Projected images are distorted.

Projected images are

dark.

Projected images are

blurred.

White dots are seen in

projected images.

Black dots are seen in

the projected images.

A rainbow-color brume pattern

is seen on projected images.

Fine streak pattern is seen

on projected images.

Projected images are

disturbed.

Tint of projected images

is irregular.

Check/Countermeasure

•Adjust the projector and the screen so that they may become perpendicular to each other. (See Page 11.)

• Adjust BRIGHT and CONTRAST in the picture quality menu. (See Page 28.)

•Replace the lamp to a new one. (See Page 32 and 33.)

•Adjust the focus. (See Page 18 and 22.)

•Check if the lens cap is not put on.

•Clean the lens.

•Adjust “FINE” and “DIVIDING RATIO” in the signal setting menu. (See Page 30.)

•Adjust BRIGHT and CONTRAST in the picture quality menu. (See Page 28.)

•Adjust the projector and the screen so that they may become perpendicular to each other.

(See Page 11.)

•This phenomenon is proper to DLP projector and is not a failure. (A very small number of

pixels may be constantly lighting on or off, but this is not a failure. Pixels of more than

99.99% are effective ones.)

•This pattern is a color breaking noise that occurs in DLP system in principle. This is not a

failure.

•This phenomenon occurs due to the interference with the screen surface, and is not a

failure. Try to replace the screen or defocus the lens a little.

•Securely plug the cable connecting the external equipment to the bottom.

•Keep the projector away from equipment generating interfering radiowaves.

•Check if the cable connecting the external equipment is broken.

Phenomenon

A hot air comes out of

the exhaust vent.

Menu setting is dis-

abled.

Abnormal sounds oc-

cur.

Check/Countermeasure

•This air comes out after cooling the inside of the projector. It may feel hot, but is not a

failure.

•Affected by noises, the microcomputer in the projector may be malfunctioning.

–>Turn off POWER once, and after 2 minutes turn it on again.

•If POWER can not be turned off, turn off the main power switch and leave the projector as

it is for more than 10 minutes. Then, turn on POWER again.

•On rare occasions, a metallic clank occurs because the color wheel is rotating at a high

speed. But, this is not a failure.

Check/Countermeasure

•Securely fit the rear lamp cover. (See Page 32 and 33.)

•Reset the lamp-used-hours. (See Page 33.)

How to see the internal states from indicators

There are three indicators that inform of the internal states of the projector. The internal states can be

known by how the indicators are lighting. Check the followings, and if there is any problem, stop to use

the projector and be sure to unplug the power plug. Then, contact a repair/customer front of Mitsubishi

Electric Corporation.

On in red

On in

green

On in

orange

POWER

LAMP TEMP STATE REMARK

On in

orange

Blinking

in red

Off

On in red

Replace the light-source lamp to a new

one. Purchase a light-source lamp from

the delivery agent of the projector.

•Press POWER button after POWER

indicator has ceased blinking.

If this operation is repeated several times and the

light-source lamp still does not come on, replace

the lamp to a new one. Ask the delivery agent of the

projector or a repair/customer front of Mitsubishi

Electric Corporation about purchase of the lamp.

The interior of the projector is very hot.

•The intake vent and/or exhaust vent is blocked

with something.

•The projector is used at a very hot place such as

outlet of heating air.

•The air filter is foul.

The protection circuit is working, or

The lamp is not normal.

(When power is turned off normally, this indication appears,

and this is not a failure.)

Countermeasure

•Remove those things with which the

vent is blocked.

•Relocate the projector.

•Clean the filter.

Indicating replacement of the lamp (Used about 1000

hours* in total; Power is "ON".)

Indicating replacement of the lamp (Used about 1000

hours* in total; Power is "OFF".)

Indicating replacement of the lamp (Used about 1500

hours* in total)

On in orange

On in green

Blinking in green

Blinking in orange

POWER LAMP TEMP STATE REMARK

Power "ON" (usually).

Lamp standby state. Power can not be turned "OFF".

Lamp is being cleaned. Power can not be turned "ON".

Standby state.

OffOff

If the projector is not normal:

When the projector is normal:

LAMP indicator

TEMP(temperature) indicator

POWER indicator

ENTER

LAMP

TEMP

MENU/EXIT

POWER

INDICATORS

Kensington Lock

This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security

System. Refer to the information that came with the Kensington System for instructions on how to use it to

secure the projector. Please contact to Kensington Technology Group as shown below.

Kensington Technology Group

2855 Campus Drive

San Mateo, CA 94403, U.S.A.

Phone : (650)572-2700 Fax : (650)572-9675

44.5

199 53.5

33.5

181

168

254

166

167

1616

280

251

308

235

108

Screen

Projector

Screen

Projector

WHEN ASKING INSTALLATION WORK

In the case of suspending the projector from

ceiling and viewing the projected images from

the front side:

When suspending the projector from ceiling, use the

separately sold dedicated metal bracket (see Page 38).

Also, be sure to ask a special worker who received train-

ing of the installation work to do the work. Consult

the delivery agent of the projector about the details of

the installation work.

•If the projector is damaged by using any other suspension

bracket than the dedicated one or due to any problem of the

environment in which the suspension metal bracket is in-

stalled, Mitsubishi Electric Corporation will not compensate

the damage even if the product is still under warranty.

Dimensional drawings (for references)

•In the case of the suspension from ceiling, set the projection

method in the setting menu to “Ceiling suspension”. Refer

to Page 27 for the detail.

•Ask the installation worker to provide a power breaker for

the projector. When the projector is not used, be sure to turn

off the main power for the projector with the breaker.

•Where the projector is suspended from ceiling, the bright-

ness of the projected images may be less brighter than where

it is set on floor. However, this is not a failure.

•Do not install the projector where its exhaust vent is directly

exposed to the wind from an air conditioner or the like. Such

installation may cause failures of the projector.

•Do not install the projector near a fire alarm, because hot air

is exhausted form the vent of the projector.

In the case of installing the projector so that the

picture images are projected onto a semitranspar-

ent screen and viewed them from the rear side of

the screen:

When installing the projector, be sure to ask a special

worker who received training of the installation work.

Consult the delivery agent of the projector about the

details of the installation work.

•When viewing projected images from the rear side of

the screen, set the projection method in the setting

menu to “Rear”. Refer to Page 27 for the detail.

Item DLPTM projector

Model no. TDP-MT500

Projection system DLPTM (Single-Board DMDTM) system

Power AC 100 V, 50/60 Hz

Power dissipation 300 W

Resolution 1,024 x 576

Maximum number of display colors

16,770,000 colors (full-color display)

Light-source lamp 210-W lamp

Projection screen Resolution: 640 x 400 (expanded) ~ 1024 x 768 (compressed)

PC image input signal

Resolution: 640 x 400 (expanded) ~ 1024 x 768 (compressed)

Video input signal

NTSC /4.43 NTSC / PAL / PAL-N / PAL-M / PAL-60: automatically discriminated

S-video input Luminance signal: Vp-p = 1.0 V, 75Ω (negative sync)

Chrominance signals: Vp-p = 0.286 V, 75Ω (burst signal)

Video input Vp-p = 1.0 V, 75Ω (negative sync)

Analog RGB input RGB: Vp-p = 0.7 V, 75Ω (negative sync)

(Mini D-SUB 15P) YCBCR: Vp-p = 1.0 V (Y) (negative sync), Vp-p = 0.7 V (CB, CR)

HD/CS: TTL-level (negative or positive polarity)

VD: TTL-level (negative or positive polarity)

Computer digital DVI interface (TMDS single ring)

input (DVI-D24P)

Control terminal Serial (DIN 8-pin female terminal): RS-232C specification: one route

Maximum outside dimensions

30.8 cm (W) x 10.8 cm(H) x 25.1 cm(D): including lens projection and legs

Weight 3.4 kg

Power cable 2.9 m

Operating temperatures

+5˚C - +35˚C

Operating humidity 10% - 90% (except for dew condensation)

Terminals

PIN No. NAME I/O

1––

2––

3 RXD OUT

4––

5–IN/OUT

6–IN

7 TXD –

8––

SHELL GND –

RS-232C terminal

(DIN 8P)

8SHELL

DVI terminal

(DVI-D)

PIN NO. STATUS PIN NO. STATUS

1 DATA 2–13 –

2 DATA 2+ 14 +5V Power

DATA 2 Shield

15 GND

4–16 Hot Plug Detect

5–17 DATA 0–

6 DDC Clock 18 DATA 0+

7 DDC Data 19

DATA 0 Shield

8–

0–

9 DATA 1–21 –

10 DATA 1+ 22 Clock Shield

DATA 1 Shield

23 Clock+

12 –24 Clock–

1724

16 9

DVI terminal

(DVI-A)

C3C4

C2 C1

8116

PIN NO. STATUS

C1 ANALOG RED

C2 ANALOG GREEN

ANALOG BLUE

C4 H Sync

C5 GND

6 DDC Clock

7 DDC Data

8 Analog Sync

14 +5V Power

15 GND

16 Hot Plug Detect

SPECIFICATIONS (The specifications and outside appearance of the projector are sub-

ject to change without prior notice. Please be notified in advance.)

•The maximum resolution of this projector is 1024 x 576 dots. It is not possible to obtain more than the maxi-

mum resolution for projected images.

•If picture images of a connected computer have a resolution and sync frequency other than those

indicated in the above table, they may be projected by changing the resolution and frequency within

the computer.

•Because XGA60 signal and SVGA60 signal are in conformity with HTPC, they are projected with em-

phasis on picture quality, and the projected images become a little dark. The other PC input signals

are projected with emphasis on brightness.

•1080i represents Hi-Vision.

•COMPONENT 1,2 input does not deal with RGB signals.

•DVI-ANALOG input does not deal with chrominance signals.

•If signals out of specification input, they may not be projected properly.

•If VGA60 signal outputs at the startup of the computer, the projected image may not be displayed properly–for

example, the position of the displayed image may be shifted. However, this is not a failure (non-compliant

signal).

Type of connectable signals

Input signal Screen size

Signal Resolution Horizontal sync Vertical sync REAL display

representation (H x V) frequency (kHz) frequency (Hz) (H x V)

480i –15.73 59.94 720 x 480

576i –15.63 50.00 720 x 576

480p –31.47 59.94 720 x 480

576p –31.25 50.00 720 x 576

720p50 –37.50 50.00 1024 x 576

720p59 –44.96 59.94 1024 x 576

720p60 –45.00 50.00 1024 x 576

1080i25 –28.13 25.00 960 x 540

1080i29 –33.72 59.94 960 x 540

1080i30 –33.75 60.00 960 x 540

VGA 640 x 400 31.47 70.09 640 x 400

VGA 640 x 480 43.27 85.01 640 x 480

SVGA 800 x 600 37.88 60.32 800 x 600

SVGA 800 x 600 46.88 75.00 800 x 600

SVGA 800 x 600 53.67 85.06 800 x 600

XGA 1024 x 768 48.36 60.00 1024 x 768

XGA 1024 x 768 60.02 75.03 1024 x 768

XGA 1024 x 768 68.68 85.00 1024 x 768

SPECIFICATIONS

Printed in Japan

Toshiba Tdp Mt500 Owners Manual 01 09

TDP-MT500 projector_manual_2077
