42H81 - 50H81 - 57H81 - 65H81
LIMITED WARRANTY
Index
Back Cover

Projection Television

42H81

50H81

57H81

65H81

OWNER'S MANUAL

Owner's Record

The model number and serial number are on the back

of your TV. Record these numbers in the spaces below.

Refer to these numbers whenever you communicate

with your Toshiba dealer about this TV.

Model number:

Serial number:

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Important Information

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning symbol in the triangle tells you that the

voltage inside this product may be strong enough to

cause an electric shock. DO NOT TRY TO SERVICE

THIS PRODUCT YOURSELF.

The exclamation mark in the triangle tells you that

important operating and maintenance instructions

follow this symbol.

CAUTION

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS

POLARIZED PLUG WITH AN EXTENSION CORD

RECEPTACLE OR OTHER OUTLET UNLESS THE

PRONGS CAN BE FULLY INSERTED INTO THE

OUTLET TO PREVENT ANY EXPOSURE OF THE

PRONGS ON THE POLARIZED PLUG.

ATTENTION

POUR PRÉVENIR LES CHOCS ÉLECTRIQUES NE PAS

UTILISER CETTE FICHE POLARISÉE AVEC UN

PROLONGATEUR, UNE PRISE DE COURANT OU UNE

AUTRE SORTIE DE COURANT, SAUF SI LES LAMES

PEUVENT ÊTRE INSÉRÉS À FOND SANS EN LAISSER

AUCUNE PARTIE À DÉCOUVERT.

CAUTION

The plug has one prong wider than the other and will fit only

one way into a standard

electrical outlet (120 volt AC,

60 Hz). If the plug does not

fit into the outlet, try turning

it around. If the plug still does

not fit, the outlet is probably

non-standard and must be

replaced by a qualified electrician. Do not tamper with the plug

or try to force it into a non-standard outlet.

Note to CATV system installers in the USA

This reminder is provided to call the CATV system installer’s

attention to Article 820-40 of the NEC, which provides

guidelines for proper grounding, and, in particular, specifies that

the cable ground shall be connected to the grounding system of

the building, as close to the point of cable entry as practical.

Precautions

Installing your TV

• Place the TV on the floor or on a sturdy platform. The

mounting surface should be flat and steady. If you install the

TV on a soft floor, make sure that the floor is not damaged

by the weight of the TV.

• Place the TV far enough away from the walls to allow proper

ventilation. This will prevent the TV from overheating and

avoid possible damage to the TV. Avoid dusty areas too.

• Damage may occur if you leave the TV in direct sunlight or

near a heater. Avoid areas subject to extremely high

temperatures or humidity, and temperatures of 41˚F(5˚C) or

lower.

Using your TV

• Do not stand or climb on the TV.

• Do not put any heavy object on top of the TV.

• Do not place containers with liquids such as drinks or

cosmetics on the TV. If any foreign material or water leaks

into the TV, unplug the AC cord and contact your dealer.

• If the room temperature suddenly rises, condensation may

occur on the lenses resulting in picture distortion or color

fading. In such a case, simply wait a while (with the power

on) and the condensation will evaporate.

• Avoid displaying stationary images on your TV screen for

extended periods of time. Stationary patterns generated by a

picture-out-picture (POP) display, computer displays, video

games, stock market reports, etc., can become permanently

engrained on the picture tube. This damage is not protected

by your warranty because it is the result of misuse. If you wish

to use your TV to display still images, reduce brightness and

contrast settings. Never leave a POP, computer, or video game

display unattended.

• Sit approximately 10-25 feet away from the TV. Sitting too

far to the left or right of the screen will cause the picture to

appear dull as will direct sunlight and room lights. Turn the

TV off to check for reflections on the screen. Then remove

the source of any reflections while viewing.

Cleaning your TV

• Clean the TV with a soft, dry cloth. Never use strong solvents

such as thinner or benzine which might damage the finish of

the cabinet. If the cabinet is very dirty, use a damp cloth to

wipe the cabinet clean, then finish with a dry cloth.

wide prong

Introduction................................................................ 4

Welcome to Toshiba ......................................................... 4

Exploring your new TV ................................................... 4

Connecting your TV .................................................. 5

Connecting a VCR .......................................................... 5

Connecting a cable converter box .................................... 6

Connecting a cable converter box and VCR ..................... 6

Connecting a DVD player or satellite receiver and

a VCR.............................................................................. 7

Connecting a DVD player

(with or without ColorStream™) and a VCR .................. 8

Connecting a DTV receiver/set-top box

(with or without ColorStream™) and a VCR .................. 9

Connecting two VCRs ................................................... 10

Connecting a camcorder ................................................ 10

Connecting an audio system .......................................... 11

Connecting an A/V receiver ........................................... 11

Using the remote control ...................................... 12

Preparing the remote control for use .............................. 12

Installing the remote control batteries ............................ 12

Using the remote control with a Toshiba VCR or

cable TV converter ......................................................... 12

Programming the remote control for use with a

non-Toshiba VCR or cable TV converter ....................... 13

VCR code table ...................................................... 14

Cable TV converter code table ................................ 15

Learning about the remote control ................................. 16

Setting up your TV .................................................. 17

Learning about the menu system ................................... 17

Changing the on-screen display language ....................... 18

Selecting the antenna input............................................ 18

Using the TV/VIDEO button to select the

antenna input ......................................................... 18

Adding channels to the TV’s memory ............................ 19

Programming channels automatically ...................... 19

Adding and erasing channels manually.................... 20

Changing channels ........................................................ 20

Adjusting the color convergence..................................... 21

Using the TV’s features.......................................... 23

Adjusting the channel settings........................................ 23

Switching between two channels ............................. 23

Programming your favorite channels ....................... 23

Labeling channels ................................................... 24

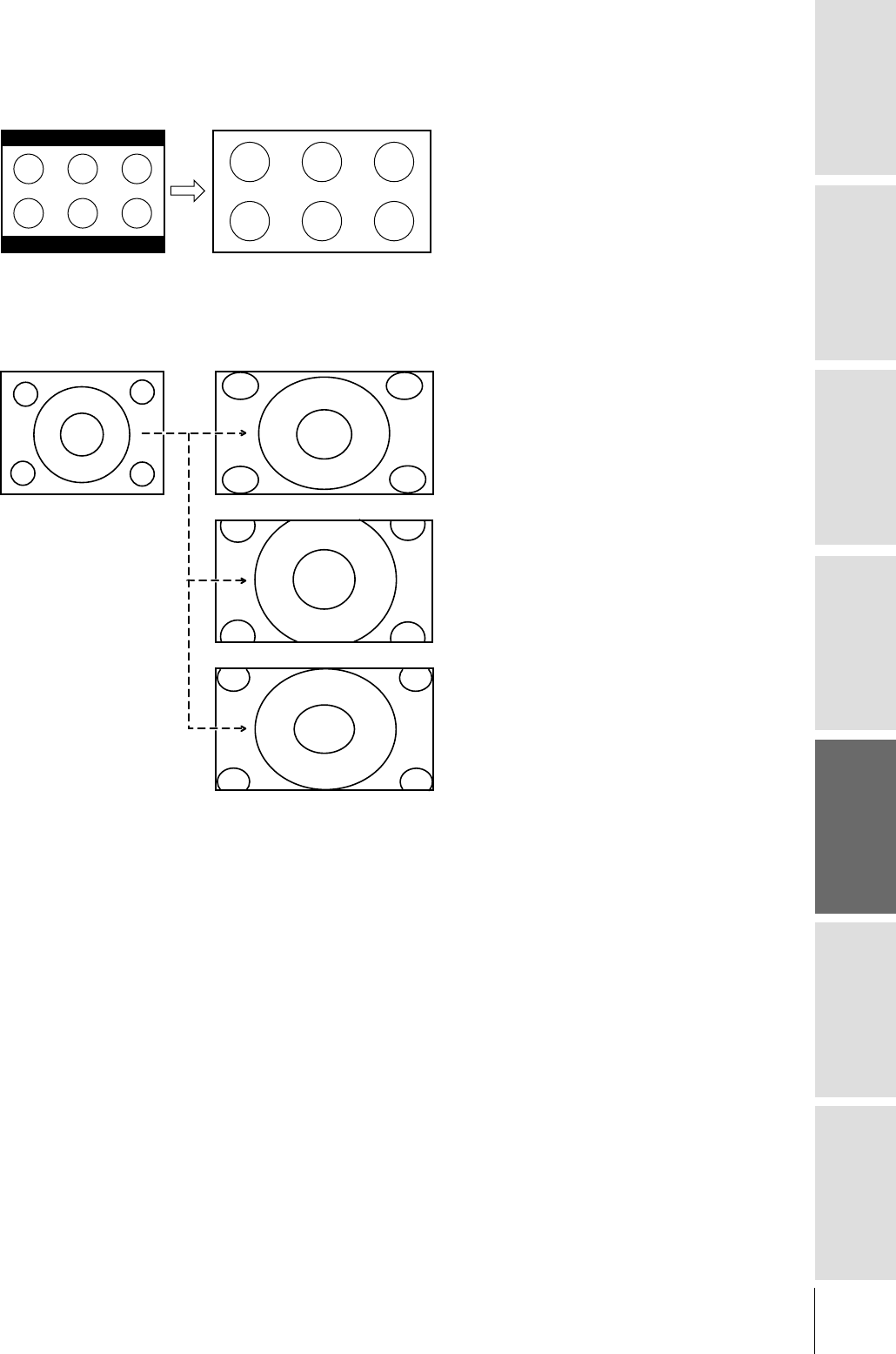

Viewing the wide-screen picture formats ........................ 26

Selecting the picture size ......................................... 26

Normal ............................................................... 26

Full ..................................................................... 26

Theater Wide 1, 2, 3........................................... 27

Scrolling the Theater Wide picture

(Theater Wide 2 and 3 only) .................................. 28

Using the POP double-window feature .......................... 29

Switching the main and POP pictures ..................... 30

Freezing the POP picture ........................................ 30

Using the favorite channel search function .............. 30

Using the LOCKS menu ............................................... 31

Entering the PIN code ............................................ 31

Using the V-CHIP menu ............................................... 32

ENABLE BLOCKING .......................................... 32

TV RATING (Independent rating system for

broadcasters) ........................................................... 32

MPAA RATING (Independent rating system for

movies) ................................................................... 33

BLOCKING OPTION .......................................... 33

Unlocking programs temporarily ............................ 34

Locking channels ........................................................... 34

Locking video inputs ..................................................... 35

Using the front panel lock feature .................................. 36

Changing the PIN code ................................................. 36

Adjusting the picture ..................................................... 37

Selecting the picture mode ...................................... 37

Adjusting the picture quality ................................... 37

Saving new preference............................................. 38

Using the ALS (Automatic Light Sensor) feature ..... 38

Using the flesh tone feature ..................................... 38

Selecting the cinema mode...................................... 39

Using the Digital Noise Reduction (DNR) feature .... 39

Selecting the color temperature ............................... 40

Resetting picture adjustments ................................. 40

Selecting the video input source ..................................... 41

Labeling the video input sources .................................... 41

Using the closed caption feature ..................................... 42

Setting the sleep timer.................................................... 43

Setting the clock ............................................................ 43

Adjusting the sound ....................................................... 44

Muting the sound ................................................... 44

Selecting stereo/SAP broadcasts .............................. 44

Using the SRS 3D surround sound feature ............. 45

Adjusting the sound quality .................................... 45

Resetting audio adjustments ................................... 46

Using the sub-bass system (SBS) ............................. 46

Turning off the built-in speakers ............................. 47

Selecting the Audio OUT sound ............................. 47

Using the StableSound™ feature .............................. 48

Selecting the background of the menu display ............... 48

Displaying on-screen information .................................. 48

Viewing the demonstration mode .................................. 49

Understanding the auto power off feature ...................... 49

Understanding the last mode memory feature ................ 49

Appendix ................................................................... 50

Specifications ................................................................. 50

Troubleshooting ............................................................. 51

Limited United States Warranty ..................................... 52

Index .......................................................................... 53

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

ANT( 75 )

ANT-1

CHANNEL IN

ON OFF

OUT

ANT-2

AUDIO CENTER

OUT

VAR

AUDIO

OUT

VIDEO

MONO

AUDIO

S-VIDEO

VIDEO

VIDEO-1 VIDEO-2

COLOR

STREAM AUDIO AUDIO

ININ

AUDIO

COLOR

STREAM

HD 2HD 1

{

Introduction

Welcome to Toshiba

Congratulations! You have purchased one of the finest projection TVs

on the market. The goal of this manual is to guide you through

setting up and operating your Toshiba TV as quickly as possible.

This manual applies to models 42H81, 50H81, 57H81, and 65H81.

Before you start reading, check the model number on the back of the

TV.

Instructions in this manual are based on using the remote control.

You can also use the controls on the TV if they have the same name as

those on the remote control.

Please read all the safety and operating instructions carefully, and keep

the manual for future reference.

Exploring your new TV

You can operate your TV using the buttons on the front panel or the

remote control. The back panel and front panel (behind the door)

provide all the terminal connections you will need to connect other

equipment to your TV. See “Connecting your TV” on page 5.

POWER

TOUCH FOCUSTV/VIDEOEXIT

VOLVOL

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY POP

REC TV/VCR REW FF

STILL SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Back

Front

Remote control sensor

(behind the screen)

VIDEO-3

Video/audio inputs

(behind the door)

TOUCH FOCUS

MENU TV/VIDEO POWER

Automatic Light Sensor

Power indicator (red)

EXIT

Volume

x •

Channel

yzx •

Please Note

On some models, the SET UP

menu automatically appears

on-screen the first time the TV is

turned on.

To change the menu settings, see

“Setting Up Your TV” on page 17.

To close the menu, either press

EXIT or turn off the TV.

CT-90086

Variable

Audio OUT

VIDEO-1

VIDEO-2

ColorStream

HD1

ColorStream

HD2

Audio

OUT

Audio Center

Channel

ANT-1 IN

ANT OUT

ANT-2 IN

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Connecting your TV

If you have not connected electronic equipment before, or you have

been frustrated in the past, you may wish to read this section. (Cables

are not supplied.)

•A coaxial cable is the standard cable that comes in from your

antenna or cable converter box. Coaxial cables use “F”

connectors.

•Audio and video cables are usually color-coded according to use:

yellow for video, and red and white for audio. The red audio

cable is for the stereo right channel, and the white audio cable is

for the stereo (or mono) left channel. On the rear panel of the

TV, the terminals are color-coded in the same manner as the

cables.

•S-video cables provide better picture performance. S-video cables

can only be used with S-video compatible components.

•ColorStream™ cables come in sets of three and provide the best

picture performance. ColorStream cables can only be used with

ColorStream compatible components.

Connecting a VCR

This connection allows you to watch local channels and video

programs, play or record on the VCR while watching TV, and record

from one channel while watching another channel.

You will need:

•one coaxial cable

•one pair of audio cables (one single audio cable for a mono VCR)

•one video cable (one S-video cable for an S-VHS VCR)

ANT( 75 )

ANT-1

CHANNEL IN

ON OFF

OUT

ANT-2

AUDIO CENTER

IN from ANT

VIDEO AUDIO

OUT to TV

CH 3

CH 4

OUT

VAR

AUDIO

OUT

VIDEO

MONO

AUDIO

S-VIDEO

VIDEO

VIDEO-1 VIDEO-2

COLOR

STREAM AUDIO AUDIO

ININ

AUDIO

COLOR

STREAM

HD 2HD 1

Caution:

Do not plug the TV in until you have finished

connecting all of your equipment.

Note:

If you have a mono VCR, connect L/Mono to

VCR Audio OUT using only one audio cable.

If you have an S-VHS VCR, use an S-video

cable (in the S-video jacks) instead of the

regular video cable.

Do not connect a regular video cable and an

S-video cable to Video-1 (or Video-2) at the

same time.

ANTENNA

Coaxial Cable

AUDIO

Cables

VIDEO

Cable

S-VIDEO

Cable

Color Stream

Cable

From Cable Box or Antenna

Stereo VCR

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Connecting a cable converter box

This connection allows you to watch basic and premium cable

channels.

To use the TV’s features, select ANT-1. To view premium channels,

select ANT-2, tune the TV to channel 3 or 4 (whichever channel is

vacant in your area), and use the converter box to change channels.

You will need:

•two coaxial cables

ANT( 75 )

ANT-1

CHANNEL IN

ON OFF

OUT

ANT-2

AUDIO CENTER

INOUT

Cable converter box

OUT

VAR

AUDIO

OUT

VIDEO

MONO

AUDIO

S-VIDEO

VIDEO

VIDEO-1 VIDEO-2

COLOR

STREAM AUDIO AUDIO

ININ

AUDIO

COLOR

STREAM

HD 2HD 1

Connecting a cable converter box and VCR

This connection allows you to watch and record basic and premium

cable channels, watch videotapes, and record one channel while

watching another channel. To use the TV’s features, select ANT-1.

To view premium channels or record with the VCR, select ANT-2,

tune the TV to channel 3 or 4 (whichever channel is vacant in your

area), and use the converter box to change channels.

You will need:

•three coaxial cables

•one pair of audio cables (one single audio cable for a mono VCR)

•one video cable (one S-video cable for an S-VHS VCR)

OUT

Cable converter box

IN from ANT

VIDEO AUDIO

OUT to TV

CH 3

LR CH 4

OUT

VAR

AUDIO

OUT

VIDEO

MONO

AUDIO

S-VIDEO

VIDEO

VIDEO-1 VIDEO-2

COLOR

STREAM AUDIO AUDIO

ININ

AUDIO

COLOR

STREAM

HD 2HD 1

ANT( 75 )

ANT-1

CHANNEL IN

ON OFF

OUT

ANT-2

AUDIO CENTER

Note:

When you use a converter box with your TV,

the remote control will not operate some

features, such as programming your favorite

channels, labeling channels, and locking

channels.

Note:

If you have a mono VCR, connect L/Mono to

VCR Audio OUT using only one audio cable.

If you have an S-VHS VCR, use an S-video

cable (in the S-video jacks) instead of a

regular video cable. Do not connect a regular

video cable and an S-video cable to Video-1

(or Video-2) at the same time.

When you use a converter box with your TV,

the remote control will not operate some

features, such as programming your favorite

channels, labeling channels, and locking

channels.

TV From Cable

Stereo VCR

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Connecting a DVD player or satellite receiver

and a VCR

This connection allows you to watch DVD/satellite, VCR, and TV

programs, and record one TV channel while watching another

channel.

You will need:

•one coaxial cable

•two pairs of audio cables (one single and one pair of audio cables

for a mono VCR)

•one video cable (between the TV and VCR)

•one S-video cable (between the TV and DVD player/satellite

receiver)

OUT

VAR

AUDIO

OUT

VIDEO

MONO

AUDIO

S-VIDEO

VIDEO

VIDEO-1 VIDEO-2

COLOR

STREAM AUDIO AUDIO

ININ

AUDIO

COLOR

STREAM

HD 2HD 1

IN from ANT

VIDEO AUDIO

OUT to TV

CH 3

CH 4

OUT

VIDEO

OUTOUT

S-VIDEO

AUDIO

OUT

IN from ANT

VIDEO

OUTOUT

S-VIDEO

AUDIO

OUT

ANT( 75 )

ANT-1

CHANNEL IN

ON OFF

OUT

ANT-2

AUDIO CENTER

Caution:

The unauthorized recording of television

programs, videotapes, and other materials

may infringe upon the provisions of copyright

laws.

Note:

For the highest possible picture quality from

a non-ColorStream DVD player/satellite

receiver, use an S-video cable between

the TV and DVD player/satellite receiver.

(If your DVD player or satellite receiver is

ColorStream-compatible, see page 8).

Do not connect both an S-video cable and

a regular video cable between the TV and

DVD player/satellite receiver at the same

time. Doing so will distort the picture.

Do not connect the DVD player/satellite

receiver and VCR to the same video channel

on the TV. (See the illustrations, which show

the DVD player/satellite receiver connected

to Video-1 on the TV, and the VCR connected

to Video-2 on the TV.)

From

Antenna

Stereo VCR

From

Satellite

Dish

DVD/Player

Satellite Receiver

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Connecting a DVD player (with or without

ColorStream™) and a VCR

This connection allows you to watch DVD, VCR, and TV programs,

and record DVD and TV programs. You can record from one source

while watching a program from another source.

Your TV has ColorStream (component video) inputs. Connecting

your TV to a ColorStream-compatible DVD player (such as a Toshiba

ColorStream-equipped DVD player) can greatly enhance picture

quality and realism.

You will need:

•one coaxial cable

•three pairs of audio cables (two single and one pair of audio cables

for a mono VCR)

•two video cables

•one set of ColorStream video cables (one S-video cable for a non-

ColorStream DVD player; see notes at right)

OUT

VAR

AUDIO

OUT

VIDEO

MONO

AUDIO

S-VIDEO

VIDEO

VIDEO-1 VIDEO-2

COLOR

STREAM AUDIO AUDIO

ININ

AUDIO

COLOR

STREAM

HD 2HD 1

IN from ANT VIDEO AUDIO

OUT to TV

CH 3

CH 4

OUT

VIDEO

OUT

S-VIDEO

AUDIO

COMPONENT VIDEO

OUT

PRPBY

ANT( 75 )

ANT-1

CHANNEL IN

ON OFF

OUT

ANT-2

AUDIO CENTER

Stereo VCR

From Antenna

DVD Player with ColorStream™

Caution:

The unauthorized recording of television

programs, videotapes, and other materials

may infringe upon the provisions of copyright

laws.

Note:

For the highest possible picture quality, use

ColorStream video cables between the TV

and DVD player. You can connect the

ColorStream cables from the DVD player to

either ColorStream jack on the TV (HD1 or

HD2).

The ColorStream HD1 and HD2 jacks can be

used with Progressive (480p) and Interlace

(480i,1080i) scan systems.

If your DVD player is not ColorStream-

compatible, use the S-video connections

(both audio and video) instead of the

ColorStream connections. Do not connect

both S-Video and ColorStream cables

between the TV and DVD player at the same

time.

To record from the DVD player, set the VCR

to Line IN. To monitor recording from the

DVD player, set the VCR to Line IN, and set

the TV to Video-1.

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Connecting a DTV receiver/set-top box (with

or without ColorStream™) and a VCR

This connection allows you to watch DTV (digital TV broadcast),

VCR, and TV programs, and record DTV and TV programs. You can

record from one source while watching a program from another

source.

Your TV has ColorStream (component video) inputs. Connecting

your TV to a ColorStream-compatible DTV receiver can greatly

enhance picture quality and realism.

You will need:

•one coaxial cable

•three pairs of audio cables (two single and one pair of audio

cables for a mono VCR)

•two video cables

•one set of ColorStream video cables (one S-video cable for a non-

ColorStream DTV receiver; see notes at right)

OUT

VAR

AUDIO

OUT

VIDEO

MONO

AUDIO

S-VIDEO

VIDEO

VIDEO-1 VIDEO-2

COLOR

STREAM AUDIO AUDIO

ININ

AUDIO

COLOR

STREAM

HD 2HD 1

IN from ANT OUT to TV

CH 3

CH 4

VIDEO AUDIO

OUT

Satelite IN

VIDEO

OUT

S-VIDEO

AUDIO

OUT

ANT( 75 )

ANT-1

CHANNEL IN

ON OFF

OUT

ANT-2

AUDIO CENTER

COMPONENT VIDEO

DTV Receiver with ColorStream™

Stereo VCR

From

Antenna

From

DTV Antenna

Note:

For the highest possible picture quality, use

ColorStream video cables between the TV

and DTV receiver. You can connect the

ColorStream cables from the DTV receiver to

either ColorStream jack on the TV (HD1 or

HD2).

The ColorStream HD1 and HD2 jacks can be

used with Progressive (480p) and Interlace

(480i,1080i) scan systems.

If your DTV receiver is not ColorStream-

compatible, use the S-video connections

(both audio and video) instead of the

ColorStream connections. Do not connect

both S-Video and ColorStream cables

between the TV and DTV receiver at the

same time.

To record from the DTV receiver, set the VCR

to Line IN. To monitor recording from the DTV

receiver, set the VCR to Line IN, and set the

TV to Video-1.

Caution:

The unauthorized recording of television

programs, videotapes, and other materials

may infringe upon the provisions of copyright

laws.

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Connecting two VCRs

This connection allows you to record (dub/edit) from one VCR to

another VCR while watching a videotape. You can also record from

one TV channel while watching another TV channel.

You will need:

•one coaxial cable

•two pairs of audio cables (two single audio cables for mono

VCRs)

•two video cables (two S-video cables for S-VHS VCRs)

OUT

VAR

AUDIO

OUT

VIDEO

MONO

AUDIO

S-VIDEO

VIDEO

VIDEO-1 VIDEO-2

COLOR

STREAM AUDIO AUDIO

ININ

AUDIO

COLOR

STREAM

HD 2HD 1

VIDEO AUDIO

CH 3

CH 4

OUT

VIDEO AUDIO

CH 3

CH 4

IN from ANT OUT to TV

OUT

ANT( 75 )

ANT-1

CHANNEL IN

ON OFF

OUT

ANT-2

AUDIO CENTER

Connecting a camcorder

This connection allows you to watch video materials recorded on a

camcorder.

You will need:

•one pair of audio cables

•one video cable (one S-video cable for an S-VHS camcorder)

VIDEO AUDIO

OUT

VCR1

From Antenna

Caution:

The unauthorized recording of television

programs, videotapes, and other materials

may infringe upon the provisions of copyright

laws.

Note:

If you have S-VHS VCRs, use S-video cables

instead of regular video cables. Do not

connect both a regular video cable and an

S-video cable to Video-1 or Video-2 at the

same time.

Do not connect the same VCR to the output

and input jacks on the TV at the same time.

To dub or edit, VCR 2 must select Line IN,

and the TV must select Video-1.

*The Video OUT jack does not output the

POP picture.

**The Audio OUT jacks can output the sound

of either the Main or POP picture (see

“Selecting the Audio OUT sound” on

page 47).

Camcorder

Video-3 (front panel)

VCR2

Caution:

If you have an S-VHS camcorder, use an

S-video cable between the S-video jacks on

the camcorder and TV. Do not connect both

a regular video cable and an S-video cable at

the same time.

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

OUT

VAR

AUDIO

OUT

VIDEO

MONO

AUDIO

S-VIDEO

VIDEO

VIDEO-1 VIDEO-2

COLOR

STREAM AUDIO AUDIO

ININ

AUDIO

COLOR

STREAM

HD 2HD 1

ANT( 75 )

ANT-1

CHANNEL IN

ON OFF

OUT

ANT-2

AUDIO CENTER

LINE IN

Connecting an audio system

This connection allows you to use an audio amplifier to adjust the

audio level. This also allows you to use external speakers.

To control the audio, turn on the TV and the stereo amplifier, and

turn off the built-in speakers (see “Turning off the built-in speakers”

on page 47).

You will need:

•one pair of audio cables

Note:

To hear sound when using an external audio amplifier, the

volume of both the TV and the amplifier must be set

above 0 (zero).

For example, if the volume of the TV is set to 0, you will

not be able to hear any sound, even the volume of the

amplifier is at its highest level.

Connecting an A/V receiver

This connection allows you to use an audio/video (A/V) receiver to

enhance your TV’s sound.

If you have a system with Dolby Pro Logic® surround sound, you can

add to the realism of the sound by using the TV’s internal speakers as

center channel speakers.

You will need:

•one pair of audio cables

•one single audio cable for the audio center channel

•one video cable

OUT

VAR

AUDIO

OUT

VIDEO

MONO

AUDIO

S-VIDEO

VIDEO

VIDEO-1 VIDEO-2

COLOR

STREAM AUDIO AUDIO

ININ

AUDIO

COLOR

STREAM

HD 2HD 1

ANT( 75 )

ANT-1

CHANNEL IN

ON OFF

OUT

ANT-2

AUDIO CENTER

ON OFF

Note:

Refer to the instructions provided with your A/V receiver

for details about your surround sound system.

When the Audio Center Channel ON/OFF switch is in

the ON position, the TV speakers will function only as

center channel speakers.

Adjust the volume for the center channel speakers

using the center level control on the A/V receiver.

To use the TV speakers as normal speakers, set the

Audio Center Channel ON/OFF switch to the OFF

position.

Caution:

To avoid damaging the speakers, turn the TV

off before connecting or disconnecting the

Audio Center Channel audio cable.

Amplifier

To A/V Receiver

Video

OUT

Center

OUT

From

Antenna

Dolby Pro Logic* surround sound

system connection example

T V

Right

speaker

Left

speaker

Surround

speaker L

Surround

speaker R

VCR

A/V receiver

Audio Video

Video

Audio

Video

Audio

center

channel

Audio

LDP/DVD

_________

* Dolby Pro Logic is a registered trademark

of Dolby Laboratories Licensing

Corporation.

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Using the remote control

Preparing the remote control for use

With the remote control, you can operate your TV, most VCR

models, and cable TV converters together, even if they are different

brands. If you will be using your TV with a Toshiba VCR or cable TV

converter, your remote control is already programmed and ready to

use. If you own different brands of VCRs and/or converters, you must

program the remote control. (See “Programming the remote control

for use with a non-Toshiba VCR or a cable TV converter” on page

13.)

Installing the remote control batteries

To install the batteries:

1. Slide the battery cover off the back of the remote control.

2. Install two “AA” size alkaline batteries. Match the + and - signs on

the batteries to the signs on the battery compartment.

3. Slide the battery cover back on to the remote control until the

lock snaps.

Using the remote control with a Toshiba VCR

or cable TV converter

To control a Toshiba VCR:

Set the TV/CABLE/VCR switch to the VCR position. The

shaded buttons shown at right will then control the VCR. The

unshaded buttons will operate the TV as usual.

If you own different brands of VCRs, program the remote control

to recognize the brand of your VCR. (See “Programming the

remote control for use with a non-Toshiba VCR or a cable TV

converter” on page 13.)

To control a Toshiba cable TV converter:

Set the TV/CABLE/VCR switch to the CABLE position. The

shaded buttons shown at right will control the cable TV

converter.

Note:

Your TV’s remote control may not operate

certain features on your VCR, cable TV

converter, or other electronic device.

Refer to the owner’s manuals for your other

devices to determine their available features.

If your TV’s remote control does not operate a

specific feature on a device, use the remote

control that came with the device.

Caution:

•Dispose of batteries in a designated

disposal area. Do not throw batteries into a

fire.

•Do not mix battery types or combine used

batteries with new ones.

•If the batteries are dead or if you will not

use the remote control for a long time,

remove the batteries to prevent battery acid

from leaking into the battery compartment.

Note:

•Battery life expectancy is about one year

with normal use.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY POP

REC TV/VCR REW FF

STILL SWAP

FAVORITE

MENU/

C.CAPT

ENTER

TV/CABLE/VCR

POWER

Channel yz

Chanel

Number

Enter

PLAY

STOP

Fast Forward

Rewind

TV/VCR

Record

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Programming the remote control for use with a

non-Toshiba VCR or cable TV converter

The TV remote control is pre-programmed to operate Toshiba VCRs

and cable TV converters. To use the remote control to operate a

non-Toshiba VCR or cable TV converter, follow the steps below to

program the remote control.

1. Refer to the “VCR code table” or “Cable TV converter code

table” on pages 14–15 to find the corresponding code for your

VCR or cable TV converter brand.

If more than one code is listed, try each one separately until you

find the one that works.

2. If you are reprogramming the remote control to operate your:

•VCR: Set the TV/CABLE/VCR switch on the remote

control to VCR.

•Cable TV converter: Set the TV/CABLE/VCR switch on the

remote control to CABLE.

3. White holding down the RECALL button, press the Number

buttons (0-9) to enter the three-digit code for your VCR or cable

TV converter.

4. Point the remote control at the VCR or converter and press

POWER to test the code.

If the VCR responds, you have entered the correct code.

If the VCR or converter does not respond, you may have entered

the wrong code. Repeat steps 1–4 using another code.

5. Reset the TV/CABLE/VCR switch to TV to control the TV.

For future reference, write down the code(s) you used:

VCR code _____________________

Cable TV converter code _____________________

Note:

•Each time you replace the batteries, you

must reprogram the remote control.

•Some newer VCRs are capable of working

on either of two remote codes. These VCRs

have a switch labeled “VCR1/VCR2.” If

your VCR has this kind of switch and does

not respond to any of the codes for your

VCR brand, set the switch to the other

position (VCR1 or VCR2) and reprogram

the remote control.

POWER

Channel yz

Channel

Number

Enter

RECALL

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

VCR code table

Brand name Code number

Adventura 019

Aiko 297

Aiwa 019

Akai 060,068,080,125,

261

American High 054

Asha 259

Audiovox 056

Beaumark 259

Bell & Howell 123

Brandt 206

Broksonic 140,203,230,314,

380

Calix 056

Canon 054

Capehart 039

Carver 100

CCE 091,297

Citizen 056,297

Colt 091

Craig 056,066,091,259

Curtis Mathes 054,060,079

Cybernex 259

Daewoo 039,064,297

Daytron 039

Dynatech 019

Electrohome 056

Electrophonic 056

Emerex 051

Emerson 019,021,056,062,

080,087,140,203,

227,228,230,231,

297,313,314,380,

498

Fisher 066,073,085,123

Fuji 052,054

Funai 019,344

Garrard 019,344

GE 054,079,084,221

Go Video 251,298

Goldstar 037,056,057

Gradiente 019

Harley Davidson 019

Harman/Kardon 057,094

Harwood 087,091

Headquarter 065

HI-Q 066

Hitachi 060,061,084,124,

254

Jensen 060

JVC 027,060,086

Kenwood 057,060,086

KLH 091

Kodak 054,056

Lloyd 019

Lloyd’s 227

Logik 091

LXI 056

Magnavox 054,058,100,129,

168

Magnin 259

Marantz 054,100

Marta 056

Masushita 054

MEI 054

Memorex 019,054,056,058,

065,066,067,123,

259

MGA 062,080

MGN Technology 259

Minolta 061,124

Mitsubishi 062,080,086,094,

192,233,261

Motorola 054,067

MTC 019,259

Multitech 019,091

Nad 077

NEC 057,059,060,069,

086

Nikko 056

Noblex 259

Olympus 054

Optimus 056,067,077,123

Optonica 081

Orion 498

Panasonic 054,096,181,244

Penney 054,056,057,059,

061,073,259

Pentax 061,084,124

Philco 054

Philips 054,081,100,129

Pilot 056

Pioneer 077,086

Portland 039

Protec 091

Pulsar 058

Quarter 065

Quartz 065

Quasar 054,096

Radio Shack 019,056,344

Radix 056

Randex 056

RCA 061,079,084,096,

124,125,168,221

Realistic 019,054,056,065,

066,067,081,085,

123,259

Ricoh 053

Runco 058

Samsung 064,259

Sanky 058,067

Sansui 060,086

Sanyo 065,066,123,259

Scott 062,064,140,203,

229,230,231

Sears 054,056,061,065,

066,073,085,123,

124

Sharp 067,081

Shintom 091

Shogun 259

Singer 091

Sony 051,052,053,054

STS 061

Sylvania 019,054,062,100,

129

Symphonic 019,344

Tatung 060

Teac 019,060

Technics 054,181

Teknika 019,054,056,071

Telefunken 060,206

TMK 227,259

Toshiba 062,064,085,229,

231,385

Totevision 056,259

Unitech 259

Vector 064

Vector Research 057,059

Video Concepts 059,064,080

Videosonic 259

Wards 019,054,061,066,

067,081,091,168,

231,259

XR-1000 019,054,091

Yamaha 057

Zenith 052,053,058

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Cable TV converter

code table

Brand name Code number

ABC 020,022,026,027,

030,032,033,036,

066

Antronix 041

Archer 041,058,172

Belcor 075

Cable Star 075

Cabletenna 041

Cableview 041

Century 172

Citizen 172

Colour Voice 044,050

Comtronics 059,079

Contec 038

Dae Ryung 027

Eastern 021

Focus 419

Garrard 172

GC Electronics 035,075

Gemini 034,089

General Instrument 030,295

GoldStar 059,163

Hamlin 028,039,053,278,

292

Hitachi 030

Hytex 026

Jasco 172

Jerrold 022,030,031,033,

034,043,066,295

Macom 052

Magnavox 046

Memorex 019

Movie Time 175

NSC 089,175

Oak 026,038,267

Panasonic 019,040,126

Paragon 019

Philips 044,046,047,048,

049,050,172

Pioneer 042,163,552

Popular Mechanics 419

Pulsar 019

RCA 040

Recoton 419

Regal 039,278,292

Regency 021

Rembrandt 030,089

Runco 019

Samsung 059,163

Scientific Atlanta 025,027,036,296

Signal 034,059

Signature 030

SL Marx 059

Sprucer 040

Standard

Components 174

Starcom 022,034,066

Stargate 034,059

Starquest 034

Sylvania 020

Teleview 059

Texscan 020

Tocom 031,032,078

Toshiba 019

Tusa 034

Unika 041,172

United Artists 026

United Cable 022

Universal 041,058,075,096,

172,210

Viewstar 046,079,230

Zenith 019

Zentek 419

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Learning about the remote control

POWER turns the TV on and off

RECALL displays information on-screen (page 48)

LIGHT illuminates the keypad for five seconds

TIMER sets the TV to turn off at a specific time (page 43)

TV/VIDEO selects the video input source (page 41)

MUTE mutes the sound (page 44)

TV/CABLE/VCR switches between TV, Cable and VCR (pages 12-13)

Channel y z cycles through programmed channels (page 20)

Channel Numbers allow direct access to channels (page 20)

VOL y z adjusts the volume level

CH RTN returns to the last viewed channel (page 23)

MENU accesses on-screen programming menus (page 17)

ENTER sets programmed menu information (page 17)

y z x • select or adjust programming menus (page 17)

POP CH y z

select the POP (picture-out-picture) channel (page 29)

FAV x • cycle through favorite channels (page 23)

FAVORITE accesses the favorite channel search function (page 30)

PIC SIZE cycles through the five picture sizes: Normal; Theater Wide

1, 2, 3; and Full (page 26)

C.CAPT cycles through closed caption settings (page 42)

EXIT closes programming menus (page 17)

POP turns the POP feature on and off (page 29)

SOURCE selects the POP picture source (page 29)

STILL freezes the POP picture (page 30)

SWAP switches the main and POP pictures (page 30)

VCR Functions allow access to VCR functions (page 12)

STOP stops a videotape

REC starts recording a videotape

PLAY plays a videotape

FF fast forwards a videotape

REW rewinds a videotape

TV/VCR toggles between TV and VCR when viewing while

recording

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY POP

REC TV/VCR REW FF

STILL SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Note:

The error message “Not Available” will appear

if you press a key for a function that is not

available.

CT-90086

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Setting up your TV

Learning about the menu system

After you have installed the batteries and programmed the remote

control, you will need to set some preferences on the TV using the

menu system. You can access the menus using the buttons on your TV

or remote control.

1. Press MENU to display the menu system.

2. Press x or • to select a menu.

3. Press y or z select an item.

4. Press x or • to select or adjust a setting.

SELECT:

P CTURE ANTENNAI

MODE SPORTS

ON / OFF

PREFERENCE

CONTRAST

BR GHTNESSI

COLOR

RESET

SAVE

ALS

NEW

TINT

SHARPNESS

100

END:EXIT

MOVE:SELECT:

P CTURE ANTENNAI

MODE SPORTS

PREFERENCE

FLESH TONE ON

OFF

F I LM

COOL

OFF/

DNR

C I NEMA MODE

CONVERGENCE

SAVE NEW

COLOR

TEMPERATURE

SELECT:

AUD OI

MTS

BASS STEREO

TREBLE

BALANCE

RESET

END:EXIT

MOVE: SELECT:

AUD OI

SBS

SBS LEVEL ON

MA NI

50 OFF/

SPEAKERS

AUD O OUTI

STABLE SOUND

SELECT:

THEATER

SRS 3D

P I CTURE SCROLL ON

SELECT:

UPSET

LANGUAGE

CLOCK

ANT

ADD ADDERASE/

CH PROGRAM CABLE/ CABLE

1 ANT1/2

SET 00:00

ENGL SHI

SELECT:

CUSTOM

TIMER

FAVOR I CH OFF

000

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING

END:EXIT

:SELECT END:

LOCKS

VCHIP–

FRONT PANEL LOCK

NEW P I N

I LOCK

LOCK

CODE

DEO

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK I NG

BLOCK I NG OPT I ON

OFF

EXIT

•Press ENTER to activate the function settings in the SET UP menu.

•If you do not make a selection within 15 seconds, the main

menus close automatically; the other menus close automatically

within 6 seconds (except the Convergence menu, which will

remain until a button is pressed).

•If you want to close an on-screen menu instantly, press EXIT.

POWER

TOUCH FOCUSTV/VIDEOEXIT

VOLVOL

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Note:

•The menu illustrations on the following

pages have been distorted for easy

reference.

•You can change the background of the

menu. See page 48 for details.

EXIT

yzx •

EXIT

MENU/ENTER

yzx •

TV Front Panel

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Changing the on-screen display language

Choose from three different languages (English, French and Spanish)

for the on-screen display of adjustment menus and messages.

To select a language:

1. Press MENU, and then press x or • until the SET UP menu

appears.

2. Press y or z to highlight LANGUAGE.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

SET UP

LANGUAGE

CLOCK

ANT

ADD ADDERASE/

CH PROGRAM CABLE/ CABLE

1 ANT1/2

SET 00:00

ENGL SH FRANCAII ESPANOLS

3. Press x or • to highlight the desired language.

Selecting the antenna input

You can connect to two different antenna input sources (ANT 1 or

ANT 2).

To select the antenna input using the menu system:

1. Press MENU, and then press x or • to highlight the SET UP

menu.

2. Press y or z to highlight ANT 1/2.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

SET UP

LANGUAGE

CLOCK

ANT

ADD ADDERASE/

CH PROGRAM CABLE/ CABLE

1ANT1 ANT2//2

SET ENGL SHI

00:00

3. Press x or • to highlight either ANT 1 or ANT 2, depending on

the antenna terminal you wish to use.

Using the TV/VIDEO button to select the antenna input

To select the antenna input using the TV/VIDEO button:

1. Press the TV/VIDEO button on the remote control or TV (see

illustrations below). The current signal source displays in purple.

2. Continue pressing the TV/VIDEO button to select ANT 1 or

ANT 2.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

TV/VIDEO

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

SOURCE

ANT 1

ANT 2

V I DEO 1

V I DEO 2

CSooltreamr

6: CSooltreamr

I DEO

HD1

HD2

SELECT ION

0–6 TO SELECT:

Pressing TV/VIDEO on the remote control

displays the current signal source

(press TV/VIDEO again or 0–6 to change)

Pressing TV/VIDEO on the TV

changes the current signal source

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

SOURCE

ANT 1

ANT 2

V I DEO 1

V I DEO 2

CSooltreamr

I DEO

HD1

HD2

SELECT ION

TV / V I DEO TO SELECT

TV Front Panel

EXIT

VOLVOL

POWER

TOUCH FOCUSTV/VIDEO

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Adding channels to the TV’s memory

When you press Channel y or z, your TV will select only the

channels stored in the TV’s channel memory.

Follow the steps below and on the next page to program all active

channels into the TV’s memory.

Programming channels automatically

Your TV can automatically detect all active channels in your area and

store them in its memory. After the channels are stored automatically,

you can manually add or erase individual channels (see page 20).

If you use both ANT-1 and ANT-2 terminals, you must program

channels for each input source.

To program channels automatically:

1. Press MENU, and then press x or • until the SET UP menu

appears.

2. Press y or z until TV/CABLE is highlighted.

3. Press x or • to highlight either TV or CABLE, depending on

which you use. If you use an antenna, highlight TV; if you use

cable, highlight CABLE.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

SET UP

LANGUAGE

CLOCK

ANT

ADD ADDERASE/

CH PROGRAM TV / CABLE/ CABLE

1 ANT1/2

SET ENGL SHI

00:00

4. Press z to select CH PROGRAM.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

SET UP

LANGUAGE

CLOCK

ANT

ADD ADDERASE/

CH PROGRAM CABLE/ CABLE

1 ANT1/2

SET ENGL SHI

00:00

5. Press x or • to start channel programming. The TV will

automatically cycle through all the TV or Cable channels

(depending on which you selected), and store all active channels

in the channel memory.

While the TV is cycling through the channels, the message

“Programming Now—Please Wait” appears.

6. When channel programming is complete, the message

“Completed” appears.

7. Press Channel y or z to view the programmed channels.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

Channel yz

Note:

To tune the TV to a channel not programmed

in the channel memory, use the Channel

Number buttons on the remote control.

Channel

Numbers

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Adding and erasing channels manually

After you have programmed the channels automatically, you can

manually add or erase specific channels.

To add or erase channels:

1. Select the channel you want to add or erase. If you are adding a

channel, you must select the channel using the Channel Number

buttons.

2. Press MENU, and then press x or • until the SET UP menu

appears.

3. Press y or z to highlight ADD/ERASE.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

SET UP

LANGUAGE

CLOCK

ANT

ADD ADD ERASE/ERASE/

CH PROGRAM CABLE/ CABLE

1 ANT1/2

SET ENGL SHI

00:00

4. Press x or • to select ADD or ERASE, depending on which

function you want to perform.

5. Press z to add (or erase) the channel.

6. Repeat steps 1–5 for other channels you want to add or erase.

Changing channels

To change to the next programmed channel:

Press Channel y or z on the TV or remote control.

To change to a specific programmed channel:

Press and hold Channel y or z for about one second. The TV

will enter the channel surf mode.

4 CNN

7 CBS

11 FOX

13 ESPN

16 TBS

Repeatedly press or hold Channel y or z while the channel surf

mode is on-screen to scroll the channel list. Release the button to

display the highlighted channel.

To change to a specific channel (programmed or unprogrammed):

Press the Channel Number buttons (0–9 and 100).

For channels 100 and higher, press the 100 button, and then the

next two numbers. For example, to select channel 125, press

100, 2, 5.

POWER

TOUCH FOCUSTV/VIDEOEXIT

VOLVOL

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

Channel yz

Channel

Numbers

Upper channels

↑

Current channel

↓

Lower channels

Channel label (if set)

Channel yzMENU

yzx •

TV Front Panel

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Adjusting the color convergence

This projection TV uses three separate TV tubes: red, green, and blue.

The red, green, and blue images are projected onto the screen where

they converge to form a full-color picture. You can see a clear picture

only when the three images converge correctly. Convergence may drift

over time or if you move the TV. If you can see clear images on your

TV screen, skip this procedure.

Make this adjustment after the TV has been on for at least 30

minutes.

To use the TOUCH FOCUS (auto convergence) button:

Press TOUCH FOCUS on the TV once. The TV will enter the

auto convergence mode and correctly adjust convergence

automatically.

TOUCH FOCUS

TOUCH FOCUS F I N I SHED

Horizontal

Vertical

When the adjustment is complete, the normal picture reappears.

If the error message “Touch Focus Error” appears, retry the

TOUCH FOCUS adjustment or adjust the convergence

manually, as described below.

To check and adjust the color convergence manually:

1. Press MENU, and then press x or • until the PICTURE menu

appears.

2. Press y or z to highlight CONVERGENCE.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

P CTURE ANTENNAI

MODE SPORTS

PREFERENCE

FLESH TONE ON

OFF

COOL

DNR

C I NEMA MODE F I LM / V I DEO

CONVERGENCE

SAVE NEW

COLOR

TEMPERATURE

(Continued on next page)

BGR

POWER

TOUCH FOCUSTV/VIDEOEXIT

VOLVOL

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CTV

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

TOUCH FOCUSMENU yzx •

TV Front Panel

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

EXIT

yzx •

Numbers

MENU/ENTER

3. Press x or • to display the Center Convergence menu.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

TO SELECT POS I I ONT:

ENTER

RED BLUE

TO SELECT COLOR:

TO ADJUST:

If you see separate red, blue, or green crossed lines (or red or blue

shadows next to white lines), you need to adjust the convergence.

4. Press ENTER to highlight RED or BLUE, depending on which

color needs adjusting. If both red and blue need adjusting, you

will need to perform steps 4 and 5 twice.

5. Press y (up), z (down), x (left), or • (right) on the remote

control to converge the red or blue line into the green line, which

will turn completely white when correctly adjusted. When color

convergence is correctly adjusted, you will see two single crossed

white lines.

6. Press EXIT to display the Circumference Convergence menu.

7. Press the corresponding Number button (1–4 and 6–9) to select

the area you want to adjust.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

PUSH 1

9–

8. Press ENTER to highlight RED or BLUE, depending on which

color needs adjusting. If both red and blue need adjusting, you

will need to perform steps 8 and 9 twice for the selected area.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

32 33 34 35

TO SELECT POS I I ONT:

ENTER

RED BLUE

TO SELECT COLOR:

TO ADJUST:

9. Press yzx • to converge the red or blue line into the green line,

which will turn completely white when correctly adjusted. Repeat

steps 8 and 9 until you see two single crossed white lines.

10. Press EXIT once to select another area to adjust, and then repeat

steps 7–9.

11. Press EXIT twice to close the Convergence menu.

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Using the TV’s features

Adjusting the channel settings

Switching between two channels

You can switch between two channels without entering an actual

channel number each time.

To switch between two channels:

1. Select the first channel you want to view.

2. Select a second channel with the Channel Number buttons (0-9,

100).

3. Press CH RTN. The previous channel will be displayed.

Each time you press CH RTN, the TV will switch back and forth

between the two channels.

Programming your favorite channels

You can preset up to 9 of your favorite channels each for the

FAVORITE CH1 and FAVORITE CH2 modes using the Favorite

Channel Programming feature. Because this feature scans through

only your favorite channels, it allows you to skip other channels you

do not normally watch.

To program your favorite channels:

1. Press MENU, and then press x or • until the CUSTOM menu

appears.

2. Press y or z to highlight FAVORITE CH1 or FAVORITE CH2.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER 0 0 0

FAVOR I CH OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER

FAVOR I CH OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING

000

3. Press x or • to display the FAVORITE CH1 menu, for

example.

CH INPUT will be highlighted.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER 0 0 0

FAVOR I CH CH I NPUT

TV CABLE

CLEAR ALL

OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING

4. Press the Channel Number buttons to enter one of your favorite

channels.

5. Press ENTER.

6. Repeat steps 4 and 5 for other channels.

To select your favorite channels:

Press FAV z or y.

To quickly scan through your favorite channels in a 9-picture

multi-window:

Press FAVORITE (see page 30).

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Channel

Number

CH RTN

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

FAV zy

MENU/ENTER

Note:

•The FAV zy buttons operate as

MENU x • buttons when a menu is

on-screen.

•The favorite channel feature is not available

in ANT2 mode.

TV/VIDEO

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

To clear a favorite channel:

1. Press MENU, and then press x or • until the CUSTOM menu

appears.

2. Press y or z to highlight FAVORITE CH2, for example.

3. Press x or • to display the FAVORITE CH2 menu.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER 0 0 0

FAVOR I CH

CH I NPUT

TV CABLE

CLEAR ALL

51 081 00

268

OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING

4. Press yzx • to highlight the channel you want to clear, then

press ENTER.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER

FAVOR I CH

CH I NPUT

TV CABLE

CLEAR ALL

51 081 00

268

OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING

000

5. Repeat step 4 for other channels.

To clear all favorite channels at once:

•Press y or z to highlight CLEAR ALL in step 4 above, and then

press • or x.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER 0 0 0

FAVOR I CH CH I NPUT

TV CABLE

CLEAR ALL

OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING

Labeling channels

Channel labels appear above the on-screen channel number each time

you turn on the TV, change the channel, or press RECALL. You can

choose any four characters to identify a channel.

To create channel labels:

1. Press MENU, and then press x or • until the CUSTOM menu

appears.

2. Press y or z to highlight CH LABELING.

3. Press x or • to display the CH LABELING menu.

CH INPUT will be highlighted.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER 0 0 0

FAVOR I CH OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING CH

LABEL

CLEAR ––––

I NPUT

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Channel

Number

yzx •

MENU/ENTER

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

4. Press the Channel Number buttons to select a channel you want

to label.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER 0 0 0

FAVOR I CH OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING CH

LABEL 6

CLEAR ––––

I NPUT

5. Press z to highlight LABEL.

6. Press x or • repeatedly to select a character for the first space,

and then press ENTER.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER 0 0 0

FAVOR I CH OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING CH

LABEL 06

CLEAR A–––

I NPUT

7. Repeat step 6 to enter the rest of the characters.

If you would like a blank space in the label name, you must

choose an empty space from the list of characters. Otherwise, a

dash “–” will appear in that space.

8. Repeat steps 4–6 for other channels. You can assign labels to a

maximum of 32 channels.

To erase channel labels:

1. Press MENU, and then press x or • until the CUSTOM menu

appears.

2. Press y or z to highlight CH LABELING.

3. Press x or • to display the CH LABELING menu.

4. Press z to highlight CH INPUT, then select the channel you

want to clear with the Channel Number buttons.

5. Press z to highlight CLEAR.

2345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER 0 0 0

FAVOR I CH OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING CH

LABEL 06

CLEAR ABCD

I NPUT

6. Press x or • to erase the channel label.

7. Repeat steps 4–6 to erase other channel labels.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Channel

Number

MENU/ENTER

yzx •

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Viewing the wide-screen picture formats

You can view programs that have the conventional TV picture format

(4:3 aspect ratio) and the wide-screen format (16:9 aspect ratio) in a

variety of picture sizes.

Selecting the picture size

Repeatedly press PIC SIZE to select either Nomal, Theater Wide 1,

Theater Wide 2, Theater Wide 3, or Full picture size, as described

below.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

P I CTURE S I ZE

NORMAL

THEATER W I DE 1

THEATER W I DE 2

THEATER

FULL

W I DE 3

0–4 TO SELECT:

While the above menu is on-screen, select the desired picture size by

pressing the corresponding number button (0–4).

Normal

The Normal picture size displays the picture in the conventional 4:3

aspect ratio, with bars at the left and right.

Full

Full picture size stretches the picture to fill the screen width (distorts

the picture).

Note:

If you select the Theater Wide picture size for

conventional size programs, parts of the

picture at the top and bottom of the screen

may be hidden. You can adjust the height of

the picture or scroll the picture (see “Theater

Wide 1, 2, 3” on page 27 and “Scrolling the

Theater Wide picture” on page 28.)

Conventional picture on a

conventional TV screen

Conventional picture in Normal size

on a wide-screen TV

PIC SIZE

yzx •

Conventional picture on a

conventional TV screen

Conventional picture in Full size on a

wide-screen TV

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Theater Wide 1, 2, 3

The Theater Wide picture size enlarges the picture to fill the screen

(see note at right).

Theater Wide 1 (recommended mode:

•The picture is non-uniformly enlarged—the center of the picture

remains close to its true proportion, but the left and right edges

are stretched wider to fill the screen.

•None of the picture is hidden.

Theater Wide 2:

•The entire picture is uniformly enlarged—it is stretched the same

amount both wider and taller (retains its true proportion).

•Part of the picture (top and bottom) is hidden. To view the

hidden areas, see “Scrolling the Theater Wide picture” on page

28.

Theater Wide 3:

•The picture is non-uniformly enlarged—it is stretched wider to

fill the width of the screen, but only slightly stretched taller.

•A small part of the picture (top and bottom) is hidden. To view

the hidden areas, see “Scrolling the Theater Wide picture” on

page 28.

Wide-screen picture on

conventional TV screen (also

known as “letter box” format,

with bars at top and bottom)

Wide-screen picture in Theater Wide

size on wide-screen TV

Conventional picture on

conventional TV screen

Theater Wide 1

Theater Wide 2

Theater Wide 3

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Scrolling the Theater Wide picture

(Theater Wide 2 and 3 only)

1. Press PIC SIZE to select the Theater Wide 2 or 3 mode.

2. Press MENU, and then press x or • until THEATER menu

appears.

3. Press y or z to highlight PICTURE SCROLL.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

THEATER

P I CTURE SCROLL

SRS 3D

4. Press x or • to display the Scroll Adjustment mode.

SCROLL ADJUSTMENT 0

TO ADJUST

5. Press y or z to adjust the vertical position of the picture.

•Normal (center) position

SCROLL ADJUSTMENT 0

TO ADJUST

•To raise the picture, press y .

SCROLL ADJUSTMENT +35

TO ADJUST

•To lower the picture, press z.

SCROLL ADJUSTMENT –20

TO ADJUST

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Note:

You can scroll the picture in Theater Wide 2

and Theater Wide 3 only. The scroll amounts

are as follows:

•480i signal source:

Wide 1: Not adjustable

Wide 2: +45 to –20

Wide 3: +45 to –20

•480p signal source:

Wide 1: Not adjustable

Wide 2: +30 to –20

Wide 3: +30 to –20

PIC SIZE

yzx •

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CTV

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY POP

REC TV/VCR REW FF

STILL SWAP

FAVORITE

MENU/

C.CAPT

ENTER

SOURCE

Using the POP double-window feature

The POP (picture-out-picture) feature splits the screen into a double

window that allows you to watch two programs at the same time. The

POP program can come from a TV broadcast or an external source,

such as a VCR.

To display a TV broadcast in the POP window:

1. Press POP to display the POP window.

POP

2. Press POP CH yz to change the channel of the POP window.

If the V-CHIP feature is active and you try to watch a TV

program that exceeds the set rating limits, the program will be

blocked (see “Using the V-CHIP menu” on page 32).

POP

BLOCKED

To display a picture from an external source in the POP window:

1. Connect the external source equipment (see “Connecting your

TV” on page 5).

2. Select the TV program you want to watch in the main window.

3. Press POP to display the POP window.

4. Repeatedly press SOURCE to select the input source for the POP

window (VIDEO 1, VIDEO 2, or VIDEO 3 only; you cannot

select ColorStream in POP mode). The current source will

display in purple.

5. You can play a tape as the POP picture, or select a channel for the

POP window using the VCR’s channel keys.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

POP SOURCE SELECT I ON

TV 1

V I DEO

V I DEO 2

V I DEO 3

SOURCE :TO SELECT

To close the POP window:

Press POP again.

POP windowMain window

Note:

•The POP buttons on the remote control

operate the TV’s POP features.

•You cannot access POP features when

viewing ColorStream HD1 or HD2 input.

•You cannot display the ANT-2 signal source

in the POP window.

•You can choose to hear the sound of either

the main or POP program (see “Selecting

the Audio OUT sound” on page 47).

POP

POP CH yz

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

CH RTN

PIC SIZE

EXIT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY POP

REC TV/VCR REW FF

STILL SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Switching the main and POP pictures

Press SWAP while you are using the POP feature to switch the main

and POP pictures.

Freezing the POP picture

Press STILL while you are using the POP feature. The POP picture

will become a still picture. To return to the moving picture, press

STILL again.

Using the favorite channel search function

You can use the favorite channel search function to quickly scan your

favorite channels (see “Programming your favorite channels” on page

23).

1. Press FAVORITE.

The TV automatically enters POP mode, and begins a nine-

picture scan of your favorite channels in the POP window. The

first window will display as a moving picture.

2. Press yzx • to select one of the nine pictures (becomes a moving

picture).

3. Press ENTER to display the channel you selected in step 2 as a

normal picture.

Still picture

Moving picture

SWAP

STILL

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

FAVORITE

Every time you press FAVORITE, the POP window scans your

favorite channels in the following order:

FAVORITE CH1 — FAVORITE CH2 — Off

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Using the LOCKS menu

The LOCKS menu includes the V-Chip, CH Lock, Video Lock, and

New PIN Code functions. You can use these functions after entering

the correct PIN code.

Entering the PIN code

1. Press MENU, and then press x or • until the LOCKS menu

appears.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

NEW

CH LOCK

FRONT PANEL LOCK

I LOCK

CODE

DEO

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK I NG

BLOCK I NG OPT I ON

OFF

2. Press y or z to display the PIN code entering mode.

RECALL

MENU/ENTER

yzx •

•Blocking Reset status:

Set your 4-digit code by pressing

the Number buttons (0-9), and

then press ENTER.

•When the PIN code is already stored:

Press the Number buttons (0-9) to enter

the 4-digit PIN code used for blocking

channels, and then press ENTER.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1234567 8910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

BLOCK NG RESETI

P I N CODE 1110

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1234567 8910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

BLOCK NG ACT I VEI

P I N CODE 1 2 3 4

If the wrong PIN code is entered, the message “Incorrect”

appears. Enter the code again, and the press

ENTER

If you cannot remember the PIN code, while in the PIN code

entering mode, press the RECALL button four times within five

seconds. The PIN code will be released (Blocking Reset status

restored).

2345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

V I LOCKDEO OFF

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK I NG

BLOCK I NG OPT I ON

ON / OFF

CH LOCK

NEW

FRONT PANEL LOCK

P I N CODE OFF

Continue to set each item following the steps on the next page.

Number

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Using the V-CHIP menu

Some TV programs and movies include signals that classify the

content of the program (violence, sex, dialog, language). The V-CHIP

conrol feature in this TV detects the signals and blocks the programs

according to your selections. To use this feature, perform the

following setup.

ENABLE BLOCKING

1. From the LOCKS menu, select ENABLE BLOCKING.

2. Press x or • to select ON or OFF.

ON : To enable your setting (Lock)

OFF: To release your setting (Unlock)

Note: The CH LOCK function is not affected with this selection.

TV RATING (Independent rating system for

broadcasters)

1. From the LOCKS menu, select TV RATING.

2. Press x or • to display

the TV RATING menu.

3. Press z or y to select item.

4. Press • to lock (display “X” )

Press x to unlock (display “✓ ”)

5. Repeat steps 3 and 4 to set

the next item.

The TV age-based ratings and content themes that can be blocked are

listed in the table below.

Ratings Description and Content themes

MA Mature Audience Only (This program is specifically

designed to be viewed by adults and therefore may be

unsuitable for children under 17.)

L) Crude or indecent language S) Explicit sexual activity

V) Graphic violence

14 Parents Strongly Cautioned (This program contains some

material that many parents would find unsuitable for

children under 14 years of age.)

D) Intensely suggestive dialog L) Strong, coarse language

S) Intense sexual situations V) Intense violence

PG Parental Guidances Suggested (This program contains

material that parents may find unsuitable for younger

children.)

D) Some suggestive dialog L) Infrequent coarse

language S) Some sexual situations V) Moderate

violence

G General Audience (Most parents would find this program

suitable for all ages.)

Y7, Directed to Older Children (This program is designed for

Y7FV children age 7 and above. Note: Programs in which fantasy

violence may be more intense or more combative than other

programs in this category are designated Y7FV.)

Y All Children (This program is designed to be appropriate for

all children)

LOCKS menu

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

V I LOCKDEO

LOCKCH

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK I NG

BLOCK I NG OPT I ON

ON /OFF

NEW

FRONT PANEL LOCK

P I N CODE OFF

OFF

To select each item:

Press z or y .

Press RECALL to display the rating of

the TV program you are currently

watching.

33 34 35

ANT

FULL

STEREO

SAP

TV L VPG–

CABLE9:25

yzx •

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

TV RAT I NG MA PG G14

YOUTH TV RAT NGI

Y7FV Y7 Y

DLSVNO

D I ALOG

LANGUAGE

SEX

V I OLENCE

V CH I P MENU–

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

MPAA RATING (Independent rating system for movies)

1. From the LOCKS menu, select MPAA RATING.

2. Press x or • to display the MPAA RATING menu, then press z

or y to highlight MPAA RATING.

3. Press x or • to display the MPAA RATING menu.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

MPAA RAT I NG

X R PG PG GNC17 13

V CH I P MENU–

4. Press • to lock (“X”) or press x to unlock (“✓”).

The movie ratings you can lock are described as follows:

X : X-rated (For adults only)

NC17: Not intended for anyone 17 and under

R : Restricted (Under 17 requires accompanying parent or adult

guardian.)

PG13 : Parents Strongly Cautioned (Some material may be

inappropriate for children under 13)

PG : Parental Guidance Suggested (Some material may not be

suitable for children)

G : General Audience (Appropriate for all ages)

BLOCKING OPTION

1. From the LOCKS menu, select BLOCKING OPTION.

2. Press x or • to display the BLOCKING OPTION menu,

then press y or z to select item.

MPAA UNRATED:

Press x or • to select ON (Lock) or OFF (Unlock) for unrated

programs in the MPAA rating system.

2345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32

LOCKS

VCHIP–

CH LOCK

I LOCKDEO

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK I NG

BLOCK I NG OPT I ON

OFF

NEW

FRONT PANEL LOCK

P I N CODE OFF

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31

LOCKS

MPAA

TV NONE RATING

UNRATED

BLOCK I NG OPT I ON

OFF

ON/ OFF

V CH I P MENU–

TV NONE RATING

Press x or • to select ON (Lock) or OFF (Unlock) for programs

rated NONE in the TV PARENTAL GUIDELINES.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

MPAA

TV NONE RATING

UNRATED

BLOCK I NG

OPT I ON

OPT

EMERGENCY MESSAGES

I ON MAY BLOCK

/OFF

NOTE : ENABL

CH I ISITH

P MENU–

V-CHIP MENU:

Press x or • to return to the LOCKS menu.

LOCKS menu

2345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32

LOCKS

VCHIP–

CH LOCK

I LOCKDEO

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK I NG

BLOCK I NG OPT I ON

OFF

NEW

FRONT PANEL LOCK

P I N CODE OFF

To select each item:

Press z or y .

yzx •

Caution

Be aware that setting the TV None Rating to

ON may block the broadcast of emergency

information.The menu will display the note,

“Enabling this option may block emergency

messages” to warn you of this possibility.

Note

The POP feature is not locked even if TV

None Rating is set to ON (locked).

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Unlocking programs temporarily

1. If you try to watch a TV program that exceeds the set rating

limits, the TV enters program lock mode. After 4 seconds, the

TV starts the favorite channel search function (see page 30). You

can either unlock the program temporarily (see steps 2-4) or

select a non-locked program to watch.

TH IS PROGRAM HAS BEEN BLOCKED!

EXCEEDS

PUSH MUTE TO ENTER

SET L I M I TS

INP

PG L V–

CABLE

TH I S PROGRAM HAS BEEN BLOCKED!

EXCEEDS

PUSH MUTE TO ENTER

SET L I M I TS

INP

PG L V–

CABLE

2. To temporarily unlock the program, press MUTE.

3. Press the Number buttons (0-9) to enter your 4-digit PIN code.

BLOCK ACT

ENTER

TO TEMPORAR

ING I VE

––––

UN–BLOCKLY

CODEP

0–9 TO SELECT ENTER: TO SET:

4. Press ENTER.

If the correct code is entered, the program lock mode is released

and the normal picture appears.

All locking is disabled until the TV is turned off, and will be

enabled when the TV is turned on again.

Locking channels

With the CH LOCK feature, you can lock specific channels. The TV

will not be able to tune locked channels with the Channel y z

buttons or Channel Number buttons unless you clear the setting.

You can lock a maximum of nine channels.

To lock channels:

1. From the LOCKS menu, select CH LOCK. CH INPUT will be

highlighted.

2. Press x or • to display the CH LOCK menu.

3. Press the Channel Number buttons to enter the channel you

want to lock. (The channel you are currently watching cannot be

locked.)

4. Press ENTER.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

NEW P I N

I LOCK

LOCK

CODE

DEO 0 0 0

000

TV CABLE

ENABLE

TV RAT

MPAA

ING

RATI NG

BLOCK ING

BLOCK I NG OPTI

OFF

FRONT PANEL LOCK

CH NPUT

CLEAR ALL

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

NEW P I N

I LOCK

LOCK

CODE

DEO 2100

TV CABLE

000

ENABLE

TV RAT

MPAA

ING

RATI NG

BLOCKI NG

BLOCK ING OPTI ON

OFF

FRONT PANEL LOCK

CH NPUT

CLEAR ALL

5. Repeat steps 3 and 4 for other channels.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

LOCKS menu

2345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31

LOCKS

VCHIP–

I LOCK

LOCK

DEO OFF

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK I NG

BLOCK I NG OPT I ON

NEW

FRONT PANEL LOCK

P I N CODE OFF

To select each item:

Press z or y .

ENTER

yzx •

MUTE

After 4 seconds

Channel

Number

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

To unlock channels:

1. From the LOCKS menu, select CH LOCK.

2. Press x or • to display the CH LOCK menu.

3. Press yzx • to highlight the channel you want to unlock, then

press ENTER.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

NEW P I N

I LOCK

LOCK

CODE

DEO 2133 8162

TV CABLE

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK ING

BLOCK I NG OPT I ON

FRONT PANEL LOCK

CH NPUT

CLEAR ALL

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

NEW P I N

I LOCK

LOCK

CODE

DEO

TV CABLE

000

12 18 33

ENABLE

TV RAT

MPAA

ING

RATI NG

BLOCK ING

BLOCK I NG OPT I ON

FRONT PANEL LOCK

CH NPUT

CLEAR ALL

4. Repeat step 3 for other channels.

To clear all locked channels at once:

1. Press y or z to highlight CLEAR ALL, and then press • or x.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

NEW P I N

I LOCK

LOCK

CODE

DEO

TV CABLE

000

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK ING

BLOCK I NG OPT I ON

FRONT PANEL LOCK

CH NPUT

CLEAR ALL

CH NPUT

CLEAR ALL

Locking video inputs

With the VIDEO LOCK feature, you can lock out the input sources

(Video 1, Video 2, Video 3, ColorStream HD1, ColorStream HD2)

and channels 3 and 4.

You will not be able to select the input sources with the TV/VIDEO

button or Channel buttons unless you clear the setting.

To set up the video lock:

1. From the LOCKS menu, select VIDEO LOCK.

2. Press x or • to highlight the level of video locking you want

(Video, Video+, or Off), as follows:

VIDEO : Locks Video 1, Video 2, Video 3, ColorStream HD1

and HD2.

VIDEO+ : Locks Video 1, Video 2, Video 3, ColorStream,

HD1/HD2, and channels 3 and 4. This option

should be used if you use the antenna terminal to play

a video tape.

Note: Make sure the POP is not on channel 3 or 4.

OFF : Unlocks all video input sources.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

I LOCK

LOCK

DEO VI /DEO VI +

DEO / OFF

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK I NG

BLOCK I NG OPT I ON

NEW

FRONT PANEL LOCK

P I N CODE OFF

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Using the front panel lock feature

Lock the front panel buttons to prevent the buttons from being

pressed accidentally (by children, for example). When the front panel

lock is in ON mode, all control buttons on the TV front panel

(except POWER) do not operate.

To lock the front panel:

1. From the LOCKS menu, select FRONT PANEL LOCK.

2. Press x or • to highlight ON.

2345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

V I LOCKDEO

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK I NG

BLOCK I NG OPT I ON

ON /OFF

CH LOCK

NEW

FRONT RANEL LOCK

P I N CODE

If a button on the front panel is pressed, the message “Not

Available” appears.

To unlock the front panel:

Highlight OFF in step 2 above.

Changing the PIN code

1. From the LOCKS menu, select NEW PIN CODE.

2. Press the Number buttons (0-9) to enter a 4-digit code.

The numbers you enter will replace the dashes in the display.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

LOCKS

VCHIP–

NEW P I N

I LOCK

LOCK

CODE

DEO V

2562

I DEO

ENABLE

TV RAT

MPAA

ING

RAT I NG

BLOCK I NG

BLOCK I NG OPT I ON

FRONT RANEL LOCK OFF

3. Press ENTER.

The new PIN code is now active.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

POWER

TOUCH FOCUSTV/VIDEOEXIT

VOLVOL

ENTER

Number

Buttons to be locked

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Adjusting the picture

Selecting the picture mode

Select the desired picture type from four picture modes: Sports,

Standard, Movie, and Preference.

*(see “Saving new preference” on page 38.)

To select the picture mode:

1. Press MENU, and then press x or • until the PICTURE menu

appears.

2. Press z or y to select MODE.

3. Press x or • to highlight the mode you prefer.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

P CTURE ANTENNAI

MODE PREFERENCE

PREFERENCE

CONTRAST

SPORTS STANDARD MOV I E///

BR GHTNESSI

COLOR

RESET

SAVE

ALS OFF

NEW

TINT

SHARPNESS

Adjusting the picture quality

You can adjust the picture quality to your personal preferences,

including the contrast, brightness, color, tint, sharpness, flesh tone,

noise reduction and color temperature.

To adjust the picture quality:

1. Press MENU, and then press x or • until the PICTURE menu

appears.

2. Press z or y until the item you want to adjust is highlighted.

3. Press x or • to adjust the level.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

P CTURE ANTENNAI

MODE STANDARD

PREFERENCE

CONTRAST

BR GHTNESSI

COLOR

RESET

ALS OFF

SAVE NEW

TINT

SHARPNESS

The PICTURE qualities you adjusted can be saved in the TV’s

memory with the SAVE NEW PREFERENCE feature (see page 38).

You can keep these settings or choose factory set options, as described

under “Selecting the picture mode” above.

Mode Picture Quality

Sports Bright and dynamic picture (factory setting)

Standard Standard picture setting (factory setting)

Movie Movie-like picture setting (factory setting)

Preference Your personal preference*

Selection x Pressing •

contrast lower higher

brightness darker lighter

color paler deeper

tint reddish greenish

sharpness softer sharper

Note:

If you select one of the factory-set picture

modes (SPORTS, STANDARDS, or MOVIE)

and then change a picture quality setting (for

example, increase the contrast), the picture

mode automatically changes to

PREFERENCE in the Picture menu.

To save your new picture quality settings, you

must select SAVE NEW PREFERENCE (see

page 38) before closing the Picture menu or

the TV will return to the previous picture

mode.

POWER

TOUCH FOCUSTV/VIDEOEXIT

VOLVOL

MENU yzx •

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Saving new preference

You can save the PICTURE qualities (contrast, brightness, color, tint,

and sharpness) you adjusted in the picture preference mode.

To save your new preferences:

1. Press MENU, and then press x or • until the PICTURE menu

appears.

2. Press y or z to highlight SAVE NEW PREFERENCE.

3. Press x or •. When complete, the menu displays “DONE.”

P CTURE ANTENNAI

MODE PREFERENCE

PREFERENCE DONE

FLESH

C I NEMA MODE V I DEO

TONE OFF

OFF

MEDI UM

DNR

CONVERGENCE

SAVE NEW

COLOR

TEMPERATURE

The mode automatically changes to PREFERENCE (see “Selecting the

picture mode” on page 37).

Using the ALS (Automatic Light Sensor) feature

ALS senses the room ambient light and automatically adjusts the

picture contrast for varying light conditions. For example, when the

room is dark, the ALS will automatically reduce the contrast (which

reduces eye strain). ALS is energized when the ALS menu is set to

ON.

To activate the ALS:

1. Press MENU, and then press x or • until the PICTURE menu

appears.

2. Press y or z to highlight ALS.

3. Press x or • to highlight ON. The CONTRAST setting changes

to AUTO, and is not adjustable while the ALS feature is on.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 25 26 27 28 29 30 31 32 33 34 35

P CTURE ANTENNAI

MODE SPORTS

AUTO

PREFERENCE DONE

CONTRAST

BR GHTNESSI

COLOR

RESET

SAVE

ALS NEW

TINT

SHARPNESS

ON OFF/

To deactivate the ALS:

Highlight OFF in step 3 above.

Using the flesh tone feature

This feature displays natural flesh tones by correcting the tint.

To turn on the flesh tone feature:

1. Press MENU, and then press x or • until the PICTURE menu

appears.

2. Press y or z to highlight FLESH TONE.

3. Press x or • to highlight ON.

P CTURE ANTENNAI

MODE PREFERENCE

PREFERENCE

FLESH TONE ON

OFF

V I DEO

MEDI UM

OFF/

DNR

C I NEMA MODE

CONVERGENCE

SAVE NEW

COLOR

TEMPERATURE

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

Note:

Do not cover the ALS sensor on the front

panel of the TV.

POWER

TOUCH FOCUSTV/VIDEOEXIT

VOLVOL

MENU yzx •ALS sensor

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Selecting the cinema mode

When you view a DVD movie (3-2 pulldown processed) from a DVD

player connected to the ColorStream (component video) inputs on

the TV, smoother and more natural motion can be obtained by setting

the CINEMA MODE to FILM (auto).

To set the CINEMA MODE to FILM (auto):

1. Press MENU, and then press x or • until the PICTURE menu

appears.

2. Press y or z to highlight CINEMA MODE.

3. Press x or • to select FILM.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

P CTURE ANTENNAI

MODE PREFERENCE

PREFERENCE

FLESH TONE ON

AUTO

F I LM V I DEO

MED UMI

DNR

C I NEMA MODE

CONVERGENCE

SAVE NEW

COLOR

TEMPERATURE

To set the CINEMA MODE to VIDEO (off):

Press x or • to select VIDEO in step 3 above.

Using the Digital Noise Reduction (DNR) feature

This feature allows you to reduce visible interference in your TV

picture. This is useful when receiving a broadcast with a weak signal

or playing back a video cassette or disc damaged by repeated use.

To turn on the DNR feature:

1. Press MENU, and then press x or • until the PICTURE menu

appears.

2. Press y or z to highlight DNR.

3. Press x or • to highlight AUTO.

P CTURE ANTENNAI

MODE

PREFERENCE

FLESH TONE ON OFFAUTO

MED

F I LM

IUM

DNR

C I NEMA MODE

CONVERGENCE

SAVE NEW

COLOR

TEMPERATURE

PREFERENCE

To turn off the DNR feature:

Highlight OFF in step 3 above.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Selecting the color temperature

You can change the quality of the picture by selecting from three

preset color temperatures: cool, medium, and warm.

To select the color temperature:

1. Press MENU, and then press x or • until the PICTURE menu

appears.

2. Press y or z to highlight COLOR TEMPERATURE.

3. Press x or • to highlight the mode you prefer.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

P CTURE ANTENNAI

MODE PREFERENCE

PREFERENCE

FLESH TONE ON

AUTO

F I LM

COOL MED UM WARMI//

DNR

C I NEMA MODE

CONVERGENCE

SAVE NEW

COLOR

TEMPERATURE

Resetting picture adjustments

The RESET function adjusts the picture qualities to the following

factory settings:

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

Contrast ................ max (100)

Brightness ............ center (50)

Color ................... center (50)

Tint ....................... center (0)

Sharpness ............. center (50)

Color temperature........... cool

DNR ............................. auto

Mode ........................... sports

To reset the picture adjustments:

1. Press MENU, and then press x or • until the PICTURE menu

appears.

2. Press y or z to highlight RESET.

3. Press x or •. The menu displays “DONE.”

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

P CTURE ANTENNAI

MODE SPORTS

PREFERENCE DONE

CONTRAST

BR GHTNESSI

COLOR

RESET

SAVE

ALS OFF

NEW

TINT

SHARPNESS

100

Mode Picture Quality

cool blueish

medium neutral

warm reddish

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Selecting the video input source

Press the TV/VIDEO button on the remote control or TV to view a

signal coming from another device connected to your TV, such as a VCR

or video disc player (see illustrations below). You can select ANT 1,

VIDEO 1, VIDEO 2, VIDEO 3, ColorStream HD1, ColorStream

HD2, or ANT 2, depending on which input jacks are used for

connecting the devices (see “Connecting your TV” on page 5).

Labeling the video input sources

The video label feature allows you to label each input source for your

TV from the following preset list of labels:

–: Uses the default label name

VCR : Video cassette recorder

DVD : DVD video

DTV : Digital TV set-top box

SAT : Satellite box

CBL : Cable box

To label the video input sources:

1. Press MENU, and then press x or • until the CUSTOM menu

appears.

2. Press y or z to highlight VIDEO LABEL.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER 0 0 0

CC C2

FAVOR I CH OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING

3. Press x or • to display the VIDEO LABEL menu.

4. Press y or z to highlight the video source you want to label.

5. Press x or • to select the desired label for that input source.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

IV DEO

I1V DEO

I2V DEO

I3V DEO HD1

LABEL

VCR/ DVD / DTV / SAT CBL/

–

CUSTOM MENU

Color Stream

HD2

Color Stream

6. Finish labeling the other video sources as desired. To return to the

previous menu, press y or z to highlight CUSTOM MENU,

and then press x or •.

7. To exit the menu, press EXIT.

Note:

•When ColorStream HD 1 or

HD 2 is selected, the video

OUT jack does not output a

signal. To receive a video

OUT signal, use a video or

S-video IN connection

instead of a ColorStream

connection.

•If you select ColorStream

HD1 or HD2 while the POP

picture is active, the POP

window will close.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

EXIT

TV/VIDEO

POWER

TOUCH FOCUSTV/VIDEOEXIT

VOLVOL

TV/VIDEO

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

SOURCE

ANT 1

ANT 2

V I DEO 1

V I DEO 2

CSooltreamr

6: CSooltreamr

I DEO

HD1

HD2

SELECT ION

0–6 TO SELECT:

Pressing TV/VIDEO on the remote control

displays the current signal source

(press TV/VIDEO again or 0–6 to change)

Pressing TV/VIDEO on the TV

changes the current signal source

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

SOURCE

ANT 1

ANT 2

V I DEO 1

V I DEO 2

CSooltreamr

I DEO

HD1

HD2

SELECT ION

TV / V I DEO TO SELECT

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Using the closed caption feature

The closed caption feature has two options:

•Captions—An on-screen display of the dialogue, narration, and

sound effects of TV programs and videos that are closed

captioned (usually marked as “CC” in TV listings).

•Text—An on-screen display of information not related to the

current program, such as weather or stock data (when provided

by individual stations).

To view captions or text:

1. Tune the TV to the desired program.

2. Press C.CAPT to select a closed caption mode (C1 through C4,

T1 through T4, or OFF).

Note: Every time C.CAPT is pressed, the closed caption mode will change.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER

CC C1 / C2 / C3 / C4 / T1 / T2 / T3 / T4 /

FAVOR I CH OFF

1TE

FAVOR I CH2TE

BACKGROUND

IDEO

CH LABEL

LABEL

ING

000

•To view captions, highlight C1, C2, C3, or C4 (C1 displays

translation of the primary language in your area).

Note: If the program or video you selected is not closed

captioned, no captions will display on the screen.

Giant pandas eat leaves.

•To view text, highlight T1, T2, T3, or T4.

Note: If text is not available in your area, a black rectangle may

appear on your screen. If this happens, turn the Closed Caption

feature OFF.

WORLD WEATHER

Temps Current

F C Weather

LONDON 51 11

MOSCOW

PARIS

ROME

TOKYO

57 14

53 12

66 19

65 18

Cloudy

Clear

Cloudy

Rain

Clear

•To turn off the Closed Caption feature:

Highlight OFF in step 3.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

C.CAPT

Note:

A closed caption signal may not display in the

following situations:

•when a videotape has been dubbed

•when the signal reception is weak

•when the signal reception is nonstandard

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Setting the sleep timer

To set the sleep timer to turn the TV off automatically:

1. Press TIMER to set the length of time until the TV turns off.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

T I MER

Every time you press the button, the time display will increase by

10 minutes, up to 180 minutes.

10 → 20 170 → 180 → 0 → 10 MIN.

To cancel the sleep timer:

Press TIMER until it is set to 0.

The timer can also be set using the on-screen menu:

1. Press MENU, and then press x or • until the SETUP menu

appears.

2. Press y or z to highlight TIMER.

3. After the number position starts to blink, press the Channel

Number buttons (0-9) to enter the length of time until the TV

turns off automatically.

4. Press ENTER to start the timer.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER

CC C1

120

FAVOR I CH1TE

FAVOR I CH2TE

BACKGROUND

I DEO

CH LABEL

LABEL

ING

Setting the clock

To set the clock:

1. Press MENU, and then press x or • until the SET UP menu

appears.

2. Press y or z to highlight CLOCK SET.

3. After the number position starts to blink, press the Channel

Number buttons (0-9) to enter the correct time. The clock

operates on a 12-hour cycle.

4. Press ENTER to start the clock.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

SET UP

LANGUAGE

CLOCK

ANT

ADD ADDERASE/

CH PROGRAM CABLE/ CABLE

1 ANT

09 25:1/2

SET ENGL SHI

To display the time on-screen:

Press RECALL.

Note :

To display the amount of time left until the TV

turns off automatically, press TIMER once.

TIMER

POWER

yzx •

RECALL

MENU/ENTER

Number

EXIT

Note :

If the TV’s power source is interrupted (the

power cord is unplugged or a power failure

occurs), the clock must be reset.

T I MER

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Adjusting the sound

Muting the sound

Press MUTE to temporarily turn off the sound. While the sound is

off, the screen will display the word “1/2 MUTE” or “MUTE” in the

lower right corner. Every time you press the button, the mute mode

will change in the following order.

→ Normal → 1/2 MUTE → MUTE

When you select “MUTE” mode, the closed caption feature is

automatically activated. To deactivate this feature, press MUTE again.

This feature works only when the closed caption mode is set to OFF.

See “Using the closed caption feature” on page 42 for more

information.

Selecting stereo/SAP broadcasts

The multi-channel TV sound (MTS) feature allows you to listen to

high-fidelity stereo sound while watching TV. MTS can also transmit

a second audio program (SAP) containing a second language, music,

or other audio information (when provided by individual stations).

When the TV receives a stereo or SAP broadcast, the word STEREO

or SAP appears on-screen every time the TV is turned on, the channel

is changed, or the RECALL button is pressed.

The MTS feature is not available when the TV is in VIDEO mode.

To listen to stereo sound:

1. Press MENU, and then press x or • until the AUDIO menu

appears.

2. Press y or z to highlight MTS.

3. Press x or • to highlight STEREO.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

AUD OI

MTS

BASS STEREO SAP MONO//

TREBLE

BALANCE

RESET

You can leave your TV in STEREO mode because it will

automatically output the type of sound being broadcast (stereo or

monaural). The word “STEREO” or “SAP” displays in yellow in

the menu when the TV receives the signal.

If the stereo sound is noisy, select MONO to reduce the noise.

To listen to SAP (if available):

1. Press MENU, and then press x or • until the AUDIO menu

appears.

2. Press y or z to highlight MTS.

3. Press x or • to highlight SAP. You will hear the station’s second

audio program (if available) from the speakers, while viewing the

original program’s picture (see note at right).

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

RECALL

MUTE

POWER

TOUCH FOCUSTV/VIDEOEXIT

VOLVOL

yzx •MENU

Note :

A second audio program (SAP) can be heard

only on those TV stations that offer it.

For example, a station might broadcast music

as a second audio program. If you have SAP

on, you will see the current program on the

screen but hear music instead of the

program’s normal audio.

However, if you have SAP on, and the station

you are watching is not currently

broadcasting a second audio program, you

will see the picture but not hear any sound. If

this happens, put the TV in STEREO mode so

you can hear the station’s normal audio.

yzx •

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Using the SRS 3D surround sound feature

The SRS 3D surround sound feature expands the audio listening field

wider and deeper to create exceptional sound quality from the TV’s

speakers. The feature uses stereo signals from a TV broadcast or video

input.

To turn on the SRS 3D surround:

1. Select STEREO mode (see “Selecting stereo/SAP broadcasts” on

page 44).

2. Press MENU, and then press x or • until the THEATER menu

appears.

3. Press y or z to highlight SRS 3D.

4. Press x or • to highlight ON.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

THEATER

SRS 3D

P I CTURE SCROLL

ON OFF/

To turn off the SRS 3D surround:

Highlight OFF in step 4 above.

In general, you can leave your TV in ON mode because it will

automatically produce the type of sound being broadcast

(surround stereo or monaural).

Adjusting the sound quality

You can change the quality of your TV’s sound by adjusting the bass,

treble, and balance.

To adjust the sound quality:

1. Press MENU, and then press x or • until the AUDIO menu

appears.

2. Press y or z to highlight the item to adjust.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

AUD OI

MTS

BASS STEREO

TREBLE

BALANCE

RESET

3. Press x or • to adjust the level.

•x makes the sound quality weaker or decreases the balance in the

right channel, depending on the item selected.

•• makes the sound quality stronger or decreases the balance in

the left channel, depending on the item selected.

Note:

When the SRS 3D surround sound feature is

selected, the StableSound™ feature is

automatically turned off (see page 48).

If the broadcast is monaural, the SRS 3D

effect does not work.

yzx •

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Resetting audio adjustments

The RESET function returns the audio adjustments to the following

factory settings:

Bass.................. center (50)

Treble ............... center (50)

Balance ............ center (0)

To reset the audio adjustments:

1. Press MENU, and then press x or • until the AUDIO menu

appears.

2. Press y or z to highlight RESET.

3. Press x or •. The menu displays “DONE.”

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

AUD OI

MTS

BASS STEREO

DONE

TREBLE

BALANCE

RESET

Using the sub-bass system (SBS)

The sub-bass system allows you to enhance bass performance, even

when the volume is low.

To turn on the SBS:

1. Press MENU, and then press x or • until the AUDIO menu

appears.

2. Press y or z to highlight SBS.

3. Press x or • to highlight ON.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

AUD OI

SBS

SBS LEVEL ON

OFF

MA I N

100 OFF/

SPEAKERS

AUD O OUTI

STABLE SOUND

To adjust the SBS level:

4. Press y or z to highlight SBS LEVEL.

5. Press x or • to adjust the SBS level.

2345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

AUD OI

SBS

SBS LEVEL ON

OFF

SPEAKERS

AUD O OUTI

STABLE SOUND MA I N

To turn off the SBS:

Highlight OFF in step 3 above.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

Note:

•The SBS signal does not pass through the

“Variable Audio OUT” jacks (see

“Connecting an audio system” on page

11); however, the AUDIO menu will

appear when the buttons are pressed.

yzx •

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Turning off the built-in speakers

Use this feature to turn the TV speakers off when you connect an

audio system (see “Connecting an audio system” on page 11).

To turn off the built-in speakers:

1. Press MENU, then press x or • until AUDIO menu appears.

2. Press y or z to highlight SPEAKERS.

3. Press x or • to highlight OFF.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

AUD OI

SBS

SBS LEVEL ON

ON/ OFF

OFF

SPEAKERS

AUD O OUTI

STABLE SOUND MA I N

To turn on the built-in speakers:

Highlight ON in step 3 above.

Selecting the Audio OUT sound

This feature allows you to select the sound source (MAIN or POP)

that is output from the Audio OUT jacks.

This is useful when amplifying or recording the POP sound with

external equipment while hearing the sound of the main picture

through the built-in speakers.

To select the Audio OUT sound:

1. Press MENU, and then press x or • until the AUDIO menu

appears.

2. Press y or z to highlight AUDIO OUT.

3. Press x or • to select MAIN or POP.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

AUD OI

SBS

SBS LEVEL ON

OFF

MAIN / PPO

100

SPEAKERS

AUD O OUTI

STABLE SOUND

•MAIN: Outputs the sound of the main program.

•POP : Outputs the sound of the POP program.

Note:

Make sure the volume control of your audio

amplifier is set to a moderate listening level.

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

123

456

789

ENT

100

VOL

POWER

TIMER

RECALL

TV/VIDEO

MUTE

CABLE

VCR

CH RTN

PIC SIZE

EXIT

LIGHT

STOP SOURCE

ADV/

POP CH

ADV/

POP CH

FAV FAV

PLAY PIP

REC TV/VCR REW FF

STILL LOCATE SWAP

FAVORITE

MENU/

C.CAPT

ENTER

yzx •

RECALL

Using the StableSound™ feature

When the signal source is changed, the StableSound feature limits the

high volume level to prevent extreme changes in volume (for example,

to prevent the sudden increase in volume that often happens when a

TV program switches to a commercial).

To turn on the StableSound feature:

1. Press MENU, and then press x or • until the AUDIO menu

appears.

2. Press y or z to highlight STABLE SOUND.

3. Press x or • to select ON.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

12345678910111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

AUD OI

SBS

SBS LEVEL ON

ON OFF/

PPO

SPEAKERS

AUD O OUTI

STABLE SOUND

Selecting the background of the menu display

You can change the background of the menu display by selecting from

two preset types: shaded and solid (gray).

To select the background:

1. Press MENU, and then press x or • until the CUSTOM menu

appears.

2. Press y or z to highlight BACKGROUND.

3. Press x or • to select either a SHADED or SOLID background.

2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

1 2 3 4 5 6 7 8 9 10111213141516171819

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

CUSTOM

T I MER 0 0 0

CC C 1

FAVOR I CH1TE

FAVOR I CH2TE

BACKGROUND SHADED SOL I D/

I DEO

CH LABEL

LABEL

ING

Displaying on-screen information

Press RECALL to display the following information on-screen:

•Antenna mode (when in TV mode)

•Channel number or VIDEO mode selected

•Time (if set)

•Channel label (if set)

•Stereo or SAP audio status

•V-CHIP rating status

•Picture size

33 34 35

ANT

ABCDFULL

STEREO

SAP

TV L VPG–

CABLE9:25

Note:

When the StableSound feature is turned on,

the SRS 3D surround sound feature is

automatically turned off (see page 45).

yzx •

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Viewing the demonstration mode

The demonstration mode is an option available in the MENU button

on the TV front panel that will demonstrate several of your TV’s

features.

To start the demo:

Press and hold the MENU button on the TV front panel for

4 seconds.

To stop the demo:

Press RECALL, EXIT, or POWER.

Understanding the auto power off feature

The TV will automatically turn itself off after approximately 15

minutes if it is tuned to a vacant channel or a station that completes

its broadcast for the day. This feature does not work in VIDEO mode.

Understanding the last mode memory feature

If the power is cut off while you are viewing the TV, the Last Mode

Memory feature turns the TV on automatically when the power is

resupplied.

If the power is going to be off for a long time and you are going to be

away from the TV, unplug the power cord to prevent the TV from

turning on in your absence.

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Television System

NTSC standard

Channel Coverage

VHF: 2 through 13

UHF: 14 through 69

Cable TV: Mid band (A-8 through A-1, A through I)

Super band (J through W)

Hyper band (AA through ZZ, AAA, BBB)

Ultra band (65 through 94, 100 through 125)

Power Source

120 V AC, 60 Hz

Power Consumption

42H81: 192 W (average)

50H81: 189 W (average)

57H81: 189 W (average)

65H81: 189 W (average)

Audio Power

15 W + 15 W

Speaker Type

42H81: Two 4-3/4 inches (12 cm) round

50H81: Two 6-5/16 inches (16 cm) round

57H81: Two 6-5/16 inches (16 cm) round

65H81: Two 6-5/16 inches (16 cm) round

Video/Audio Terminals

S-VIDEO INPUT

Y : 1 V(p-p), 75 ohm, negative sync.

C : 0.286 V(p-p) (burst signal), 75 ohm

VIDEO/AUDIO INPUT

VIDEO: 1 V(p-p), 75 ohm, negative sync.

AUDIO: 150 mV(rms) (30% modulation equivalent,

47 kohm)

ColorStream™ (component video) INPUT

Y : 1V(p-p), 75 ohm

PR: 0.7 V(p-p), 75 ohm

PB: 0.7 V(p-p), 75 ohm

AUDIO: 150 mV(rms), 47 kohm

VIDEO/AUDIO OUTPUT

VIDEO: 1 V(p-p), 75 ohm, negative sync.

AUDIO: 150 mV(rms) (30% modulation equivalent,

4.7 kohm)

VARIABLE AUDIO OUTPUT

0–300 mV(rms) (30% modulation equivalent, 4.7 kohm)

AUDIO CENTER CHANNEL INPUT

300 mV(rms) (30% modulation equivalent, 10 kohm)

Appendix

Specifications

Dimensions

42H81: Width 39-5/16 inches (998 mm)

Height 46-9/16 inches (1183 mm)

Depth 18-1/8 inches (460 mm)

50H81: Width 46-3/16 inches (1173 mm)

Height 50-3/8 inches (1280 mm)

Depth 21-7/8 inches (556 mm)

57H81: Width 52-3/16 inches (1325 mm)

Height 55-3/4 inches (1416 mm)

Depth 23-5/8 inches (600 mm)

65H81: Width 60-7/8 inches (1540 mm)

Height 59-5/16 inches (1510 mm)

Depth 26 inches (660 mm)

Mass

42H81: 130 lbs (60 kg)

50H81: 240 lbs (109 kg)

57H81: 254 lbs (115 kg)

65H81: 260 lbs (120 kg)

Supplied Accessories

Remote Control with 2 size “AA” alkaline batteries

Design and specifications are subject to change without notice.

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Troubleshooting

Before calling a service technician, please check the following table for a possible cause of the problem and

some solutions.

Problem Solution

TV will not turn on • Make sure the power cord is plugged in, and then press POWER.

• The remote control batteries may be dead. Replace the batteries.

No picture, no sound • Check the antenna/cable connections.

No sound, picture OK • The sound may be muted. Press VOLUME.

• The station may have broadcast difficulties. Try another channel.

• Check that the SPEAKERS function in AUDIO menu is set properly.

Poor picture, sound OK • Check the antenna connections.

• The station may have broadcast difficulties. Try another channel.

• Adjust the PICTURE menu.

Poor reception of broadcast channels • The station may have broadcast difficulties. Try another channel.

• Check the antenna connections.

• If you are using a VCR, make sure the TV/VCR button is set

correctly.

Cannot receive above channel 13 • Make sure the TV/CABLE switch is set to the mode that

corresponds with the signal source type (cable company or outside

antenna).

Black box appears on the screen • The closed caption feature may be set to one of the Text modes (T1,

T2, T3, or T4). Turn closed captioning OFF.

Unable to select a certain channel • The channel may be locked out with the CH LOCK feature, or

erased with the ADD/ERASE feature.

Multiple images • The station may have broadcast difficulties. Try another channel.

• Antenna reception may be poor. Use a highly directional outdoor

antenna.

Poor color or no color • The station may have broadcast difficulties. Try another channel.

• Adjust the TINT and/or COLOR in the PICTURE menu.

No stereo or SAP sound from a • Make sure the MTS feature is set properly.

known MTS broadcast

The front panel buttons do not operate • Check the FRONT PANEL LOCK feature.

The remote control does not operate • Make sure the TV/CABLE/VCR switch is set properly.

• Remove all obstructions between the remote control and the remote

control sensor in the TV.

• The remote control batteries may be dead. Replace the batteries.

Cannot access signal input sources •Check the VIDEO LOCK feature.

(Video1, Video2, Video3,

ColorStream HD1/HD2) and/or

Channels 3 and 4.

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

Limited United States Warranty

Toshiba America Consumer Products, Inc. (“TACP”) and Toshiba Hawaii Inc. (“THI”) make the following limited warranties. These limited

warranties extend to the original consumer purchaser or any person receiving this set as a gift from the original consumer purchaser and to no other

purchaser or transferee.

Limited One (1) Year Warranty

TACP and THI warrant this product and its parts against defects in

materials or workmanship for a period of one (1) year after the date of

original retail purchase. During this period, TACP and THI will repair

or replace a defective part, at their option, with a new or refurbished

part, without charge to you. TACP/THI Authorized Service Station

personnel will come to your home when warranty service is required.

Depending on the type of repair required, the service will either be

performed in your home or the set will be taken to the TACP/THI

authorized service station for repair and returned to your home at no

cost to you.

Limited Two (2) Year Warranty of Picture Tube

TACP and THI further warrant the picture tube in this product against

defects in materials or workmanship for a period of two (2) years after

the date of original retail purchase. During this period, TACP and THI

will repair or replace a defective picture tube at their option, with a new

or refurbished picture tube, without charge to you, except that if a

defective picture tube is replaced after one (1) year from the date of the

original retail purchase, you pay labor charges involved in the

replacement.

Rental Units

The warranty for rental units begins with the first rental or thirty (30)

days from the date of shipment to the rental firm, whichever comes

first.

Commercial Units

Products sold and used for commercial use have a limited ninety (90)

day warranty for all parts, labor and picture tube.

If after following all of the operating instructions in this manual and checking the “Troubleshooting” section, you find that service is needed:

(1) Call the TACP toll-free number 1-800-631-3811 to find the nearest

TOSHIBA Authorized Service Station. In Hawaii, contact Toshiba Hawaii,

Inc. 327 Kamakee Street, Honolulu, Hawaii 96814 (808) 591-9281

(2) Present your bill of sale or other proof to the Authorized Service Station.

“Authorized TACP/THI service station personnel will come to your home

when warranty service is required. Depending on the type of repair required,

the service will either be performed in your home or the set will be taken to the

TACP/THI Authorized service station for repair and returned to your home at

no cost to you.”

How to Obtain Warranty Service

Owner’s Manual and Demographic Card

You should read this owner’s manual thoroughly before operating this

product. You should complete and mail the enclosed Demographic card

within ten days after you., or the person who has given you this product

as a gift, purchased this product. This is one way to enable TACP/THI

to provide you with better customer service and improved products.

Failure to return the Demographic card will not affect your rights under

this warranty.

Your Responsibility

The above warranties are subject to the following conditions;

(1) You must retain your bill of sale or provide other proof of

purchase.

(2) All warranty servicing of this product must be made by an

Authorized TACP/THI Service Station.

(3) These warranties are effective only if the product is purchased and

operated in the U.S.A. or Puerto Rico.

(4) Labor service charges for set installation, set up, adjustment of

customer controls and installation or repair of antenna systems are

not covered by this warranty. Reception problems caused by

inadequate antenna systems are your responsibility.

(5) Warranties extend only to defects in materials or workmanship as

limited above and do not extend to any product or parts which

have been lost or discarded by you or to damage to products or

parts caused by misuse, accident, damage caused by Acts of God,

such as lightning or fluctuations in electric power, improper

installation, improper maintenance or use in violation of

instructions furnished by us; or to units which have been

modified or had the serial number removed, altered, defaced or

rendered illegible.

All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular purpose, are expressly limited to

the duration of the limited warranties set forth above. With the exception of any warranties implied by state law as hereby limited, the foregoing

warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar obligations of manufacturer or seller with respect to the

repair or replacement of any parts. In no event shall TACP or THI be liable for consequential or incidental damages.

No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner whatsoever.

The time within which action must be commenced to enforce any obligation of TACP or THI arising under this warranty or under any state, or

law of the United States or any state thereof, is hereby limited to 90 days from the date you discover or should have discovered, the defect. This

limitation does not apply to implied warranties arising under state law.

This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. Some states do not allow

limitation on how long an implied warranty lasts, when an action may be brought, or the exclusion or limitation of incidental or consequential

damages, so the above provisions may not apply to you.

Products purchased in the U.S.A. and used in Canada are not covered by these warranties.

Products Purchased in Canada and used in the U.S.A. are not covered by these warranties.

REV. 09-01

ATTENTION CANADIAN CONSUMERS:

Canadian consumers are requested to complete the special Canadian “Warranty Registration Form” enclosed, and

forward this completed form with a copy of bill of sale to TOSHIBA OF CANADA to “Register and Validate” their

warranty.

For additional information,

visit our web site:

www.toshiba.com

Introduction

Connecting

your TV

Using the

Remote Control

Setting up

your TV

Using the TV’s

Features

Appendix

Index

A/V receiver connection ...................................................11

ANT 1/2 ...................................................................................18

Antenna cables ...................................................................... 5

Audio cables ........................................................................... 5

AUDIO OUT sound, selecting ........................................ 47

Audio system connection ................................................. 11

Auto convergence ...............................................................21

Auto power off ......................................................................49

Automatic light sensor (ALS) .........................................38

BACKGROUND selection ................................................48

Back of the TV ........................................................................ 4

Cable converter box connection ..................................... 6

Camcorder connection ...................................................... 10

CH yz buttons ....................................................................20

Channel surf mode .............................................................20

CH LABEL .............................................................................. 24

CH LOCK .................................................................................34

CH RTN button .....................................................................23

Channel Number buttons ................................................ 20

Channel programming

ADD/ERASE .....................................................................20

Automatic programming ............................................. 19

TV/CABLE selection ......................................................19

Cinema mode ........................................................................39

Clock, setting ........................................................................ 43

Closed caption ......................................................................42

Color temperature ...............................................................40

ColorStream cables .............................................................. 5

Convergence adjustment ................................................. 21

Demonstration mode .........................................................49

Double-window (“POP”) feature ................................... 29

DNR (Digital Noise Reduction) .....................................39

DTV receiver connection .................................................... 9

DVD connection................................................................. 7, 8

FAV zy buttons .................................................................. 23

FAVORITE button .................................................................30

Favorite channels ................................................................23

Front of the TV ........................................................................ 4

Front panel lock .................................................................. 36

L M

Labeling channels ...............................................................24

Labeling video inputs ........................................................41

Language selection ............................................................ 18

Last mode memory .............................................................49

Locking channels ................................................................34

Locking video inputs ..........................................................35

Locks menu ...........................................................................31

Menu system ......................................................................... 17

MTS feature ...........................................................................44

MUTE button .........................................................................44

Picture adjustments

COLOR TEMPERATURE ..............................................40

FLESH TONE ....................................................................38

Picture mode ....................................................................37

Picture quality .................................................................. 37

Picture-out-picture (POP)

POP button ........................................................................29

POP CH yz buttons ..................................................... 29

SOURCE button ..............................................................29

STILL button .................................................................... 30

SWAP button ....................................................................30

Picture scroll ..........................................................................28

Picture size selection .........................................................26

POP (also see “Picture-out-picture”) .......................... 29

RECALL button ....................................................................48

Remote control

Battery installation ......................................................... 12

Learning about the buttons ........................................ 16

Programming ....................................................................13

RESET .............................................................................. 40, 46

SAP sound ............................................................................. 44

Satellite receiver connection............................................. 7

Scrolling the Theater Wide picture ...............................28

Set-top box connection ...................................................... 9

Sleep timer .............................................................................43

Sound quality adjustments ..............................................45

SPEAKERS on/off ............................................................... 47

Specifications ........................................................................50

SRS 3D surround ................................................................. 45

STABLE SOUND ..................................................................48

Stereo sound .........................................................................44

Sub-bass system (SBS) ....................................................46

S-video cables ........................................................................ 5

Theater wide picture .......................................................... 27

TIMER button .......................................................................43

TOUCH FOCUS ....................................................................21

Troubleshooting .................................................................. 51

TV/VIDEO button ......................................................... 18, 41

V-CHI P

BLOCKING OPTION ...................................................... 33

ENABLE BLOCKING ..................................................... 32

MPAA RATING ................................................................33

NEW PIN CODE ............................................................. 36

TV RATING ........................................................................32

Unlocking programs temporarily..............................34

VCR connection .............................................................. 5–10

Video cables ............................................................................ 5

VIDEO LABEL ...................................................................... 41

VIDEO LOCK .........................................................................35

Warranty ..................................................................................52

(01-06)R 23565268

HEAD OFFICE/191 McNABB STREET MARKHAM, ONTARIO L3R 8H2, CANADA TEL: (905) 470-5400

SERVICE CENTERS/TORONTO: 191 McNABB STREET MARKHAM, ONTARIO L3R 8H2, CANADA TEL: (905) 470- 5400

MONTREAL: 1643, NORTH SERVICE RD., TRANS-CANADA HIGHWAY, DORVAL QUEBEC, H9P 1J1, CANADA

TEL: (514) 856-4100

VANCOUVER: 22171 FRASERWOOD WAY, RICHMOND, B.C. V6W 1J5, CANADA TEL: (604) 303-2500

HEAD OFFICE/327 KAMAKEE STREET, HONOLULU, HAWAII 96814, U.S.A. TEL: (808) 591-9281

MANUFACTURED BY

PRINTED IN USA

HEAD OFFICE/82 TOTOWA ROAD, WAYNE, NEW JERSEY 07470

NATIONAL SERVICE DIVISION:1420B TOSHIBA DRIVE, LEBANON, TN. 37087

ColorStream is a registered trademark of Toshiba Corporation. StableSound is a trademark of Toshiba America Consumer Products, Inc.

SRS and the symbol are trademarks of SRS Labs, Inc. SRS technology is incorporated under license from SRS Labs, Inc.

42/50/57/65H81(E)

Toshiba Theaterwide 50H81 Owners Manual 42,50,57H81(E) 01

01150bdc-5fac-4d04-a000-3474e072595d Toshiba Projection Television 50H81 User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
