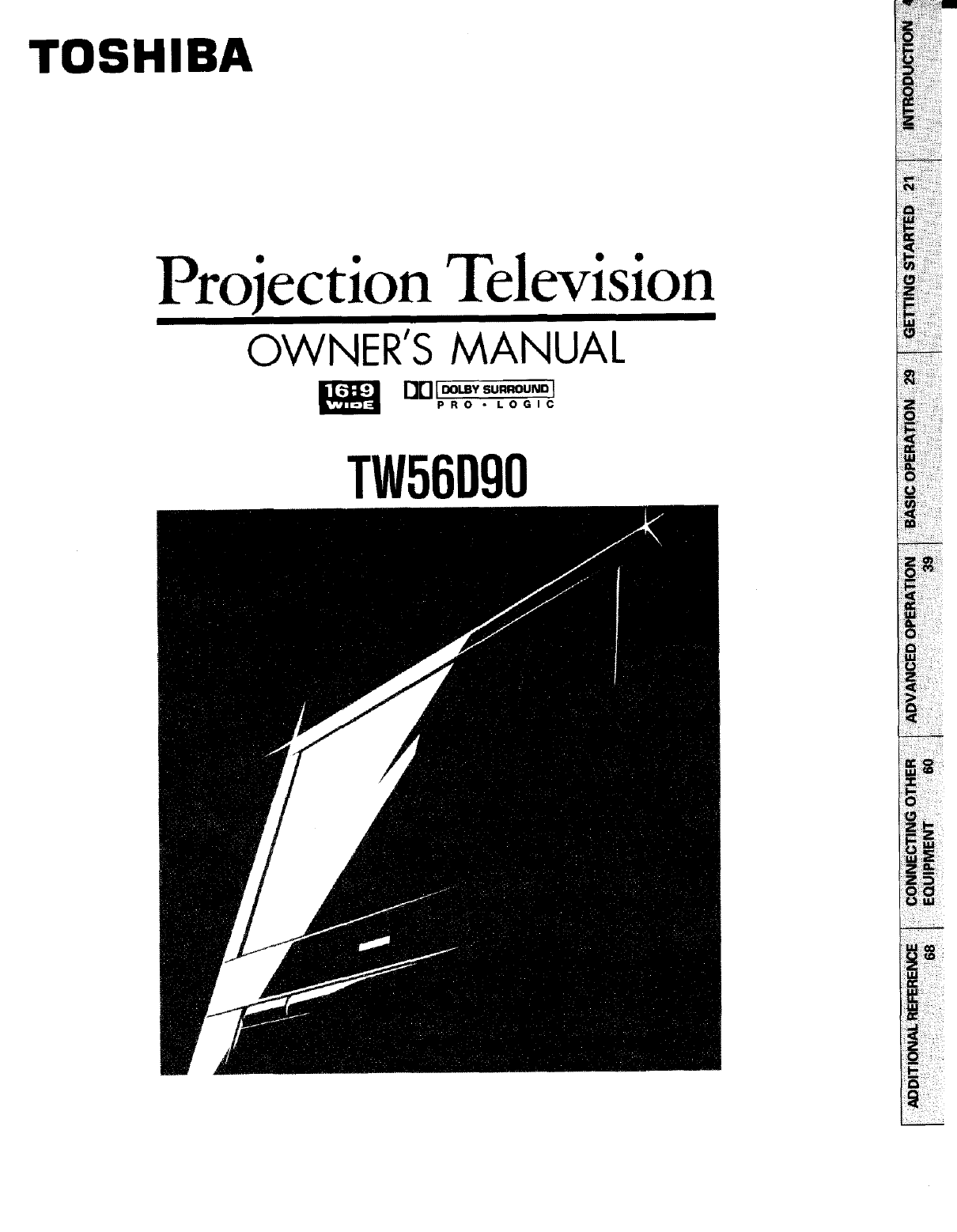

TOSHIBA

Projection Television

OWNER'S MANUAL

PRO • LOGIC

TW56D90

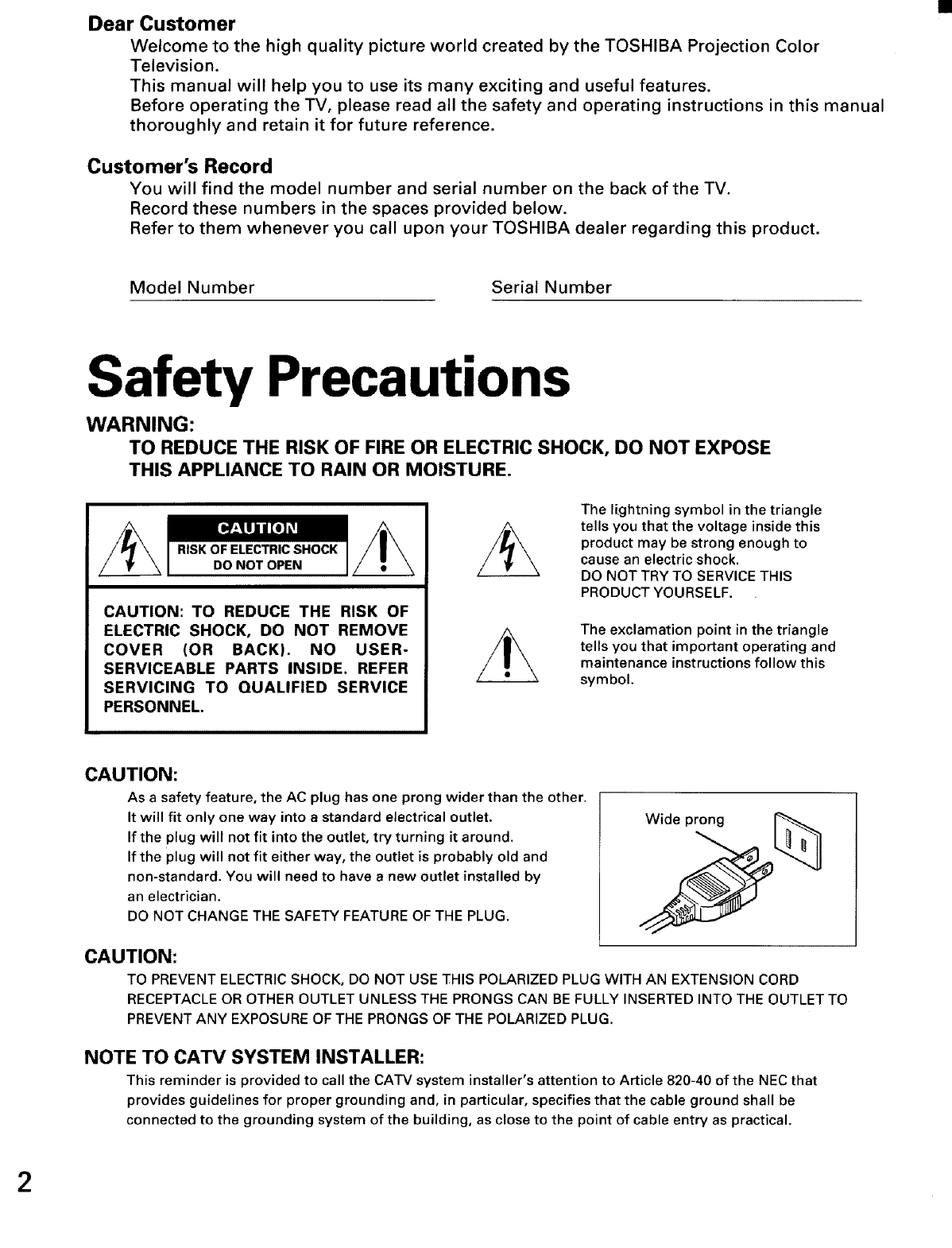

Dear Customer

Welcome to the high quality picture world created by the TOSHIBA Projection Color

Television.

This manual will help you to use its many exciting and useful features.

Before operating the TV, please read all the safety and operating instructions in this manual

thoroughly and retain it for future reference.

Customer's Record

You will find the model number and serial number on the back of the TV.

Record these numbers in the spaces provided below.

Refer to them whenever you call upon your TOSHIBA dealer regarding this product.

Model Number Serial Number

Safety Precautions

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning symbol in the triangle

tells you that the voltage inside this

product may be strong enough to

cause an electric shock.

DO NOT TRY TO SERVICE THIS

PRODUCT YOURSELF.

The exclamation point in the triangle

tells you that important operating and

maintenance instructions follow this

symbol.

CAUTION:

As a safety feature, the AC plug has one prong wider than the other.

It will fit only one way into a standard electrical outlet.

If the plug will not fit into the outlet, try turning it around.

If the plug will not fit either way, the outlet is probably old and

non-standard. You will need to have a new outlet installed by

an electrician.

DO NOT CHANGE THE SAFETY FEATURE OF THE PLUG.

Wide prong

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD

RECEPTACLE OR OTHER OUTLET UNLESS THE PRONGS CAN BE FULLY INSERTED INTO THE OUTLET TO

PREVENT ANY EXPOSURE OF THE PRONGS OF THE POLARIZED PLUG.

NOTE TO CATV SYSTEM INSTALLER:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of cable entry as practical.

2

Table of Contents

INTRODUCTION

Installation ....................................................... 4

To install the TV ....................................................... 4

Supplied accessories ............................................... 5

To set up the Surround Speakers ........................... 6

Care and Maintenance ...................................... 7

Antenna/Cable TV Connection ......................... 8

Home antenna connection ...................................... 9

Cable TV connection .............................................. 10

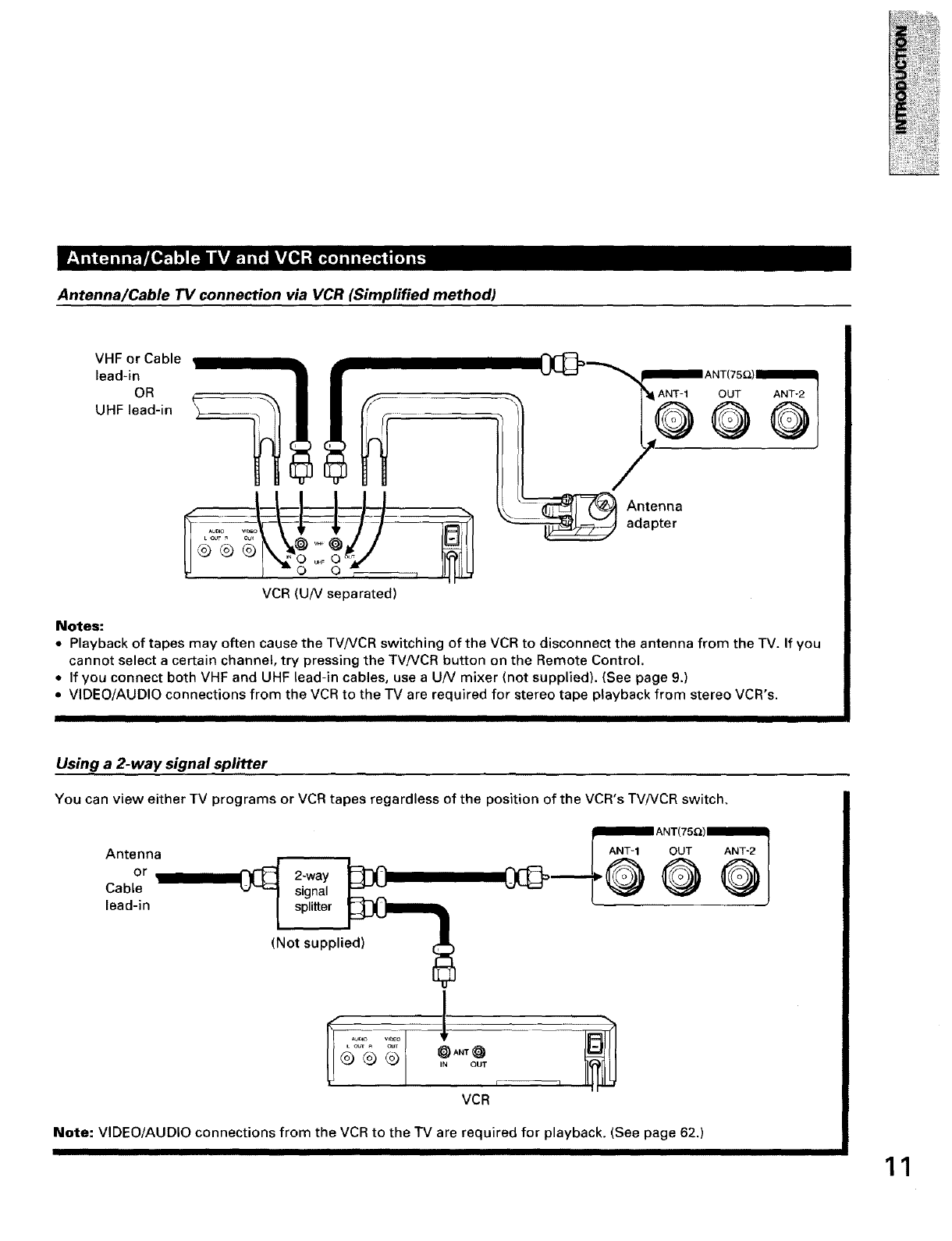

Antenna/Cable TV and VCR connections ............. 11

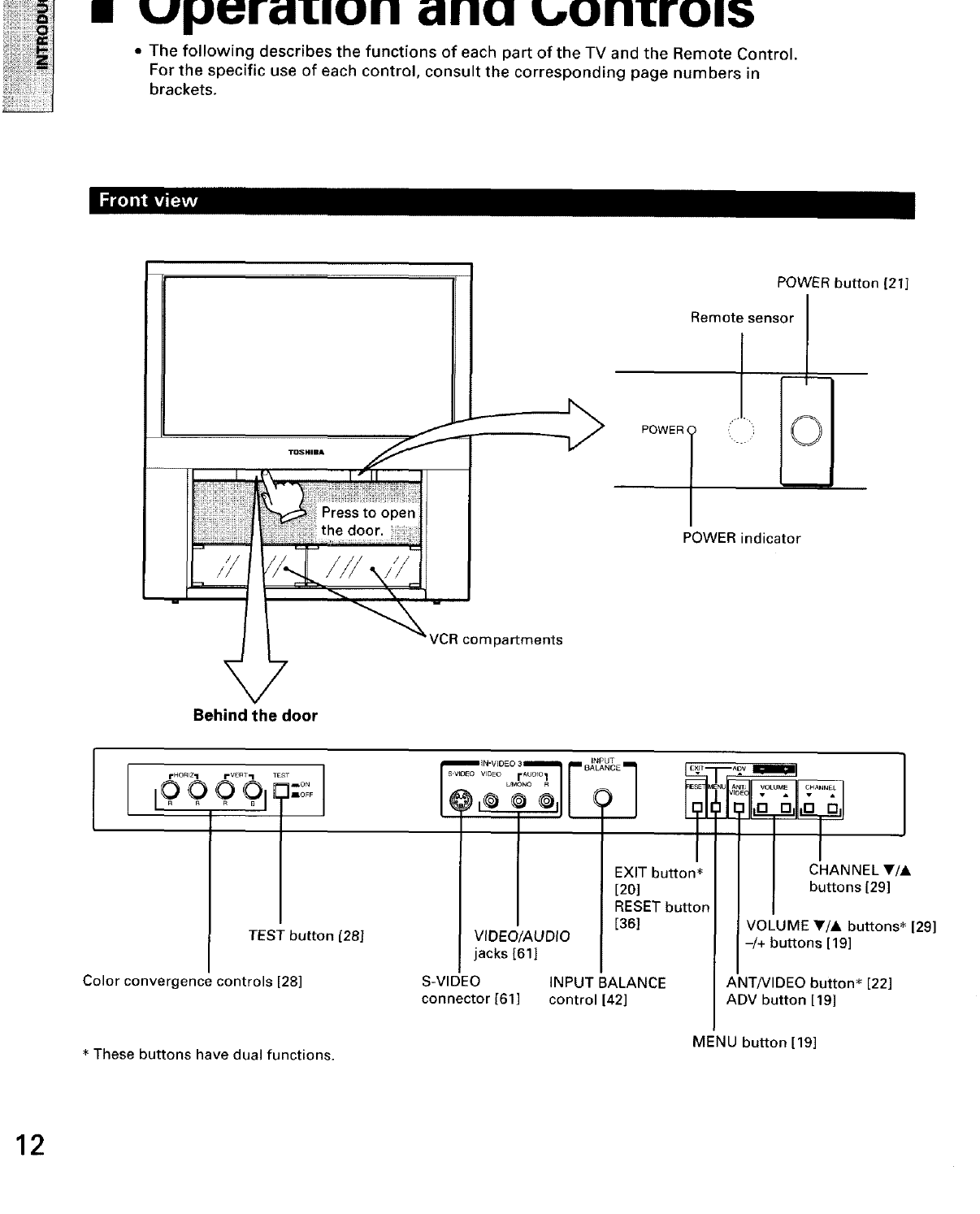

Operation and Controls .................................. 12

Front view ............................................................... 12

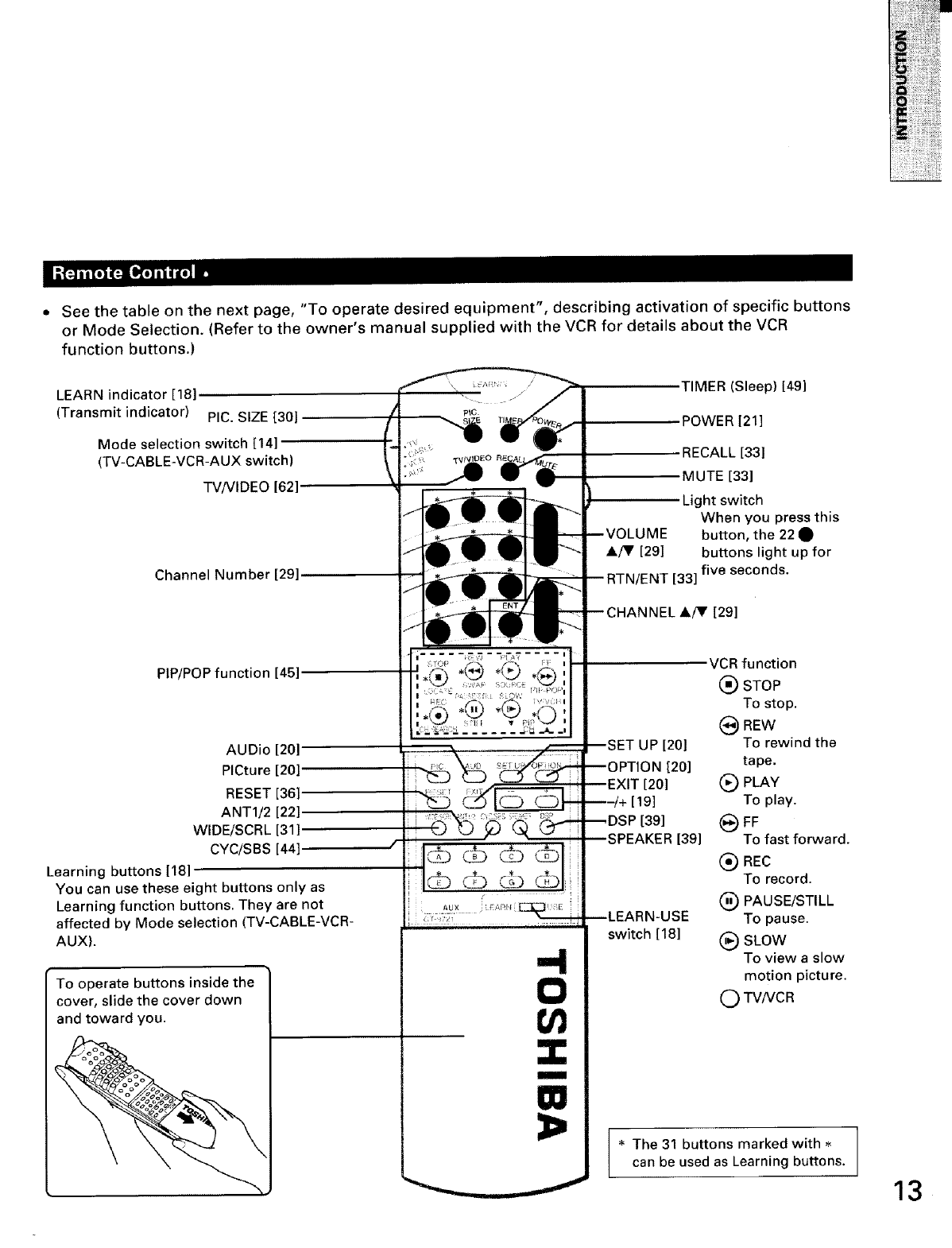

Remote Control ...................................................... 13

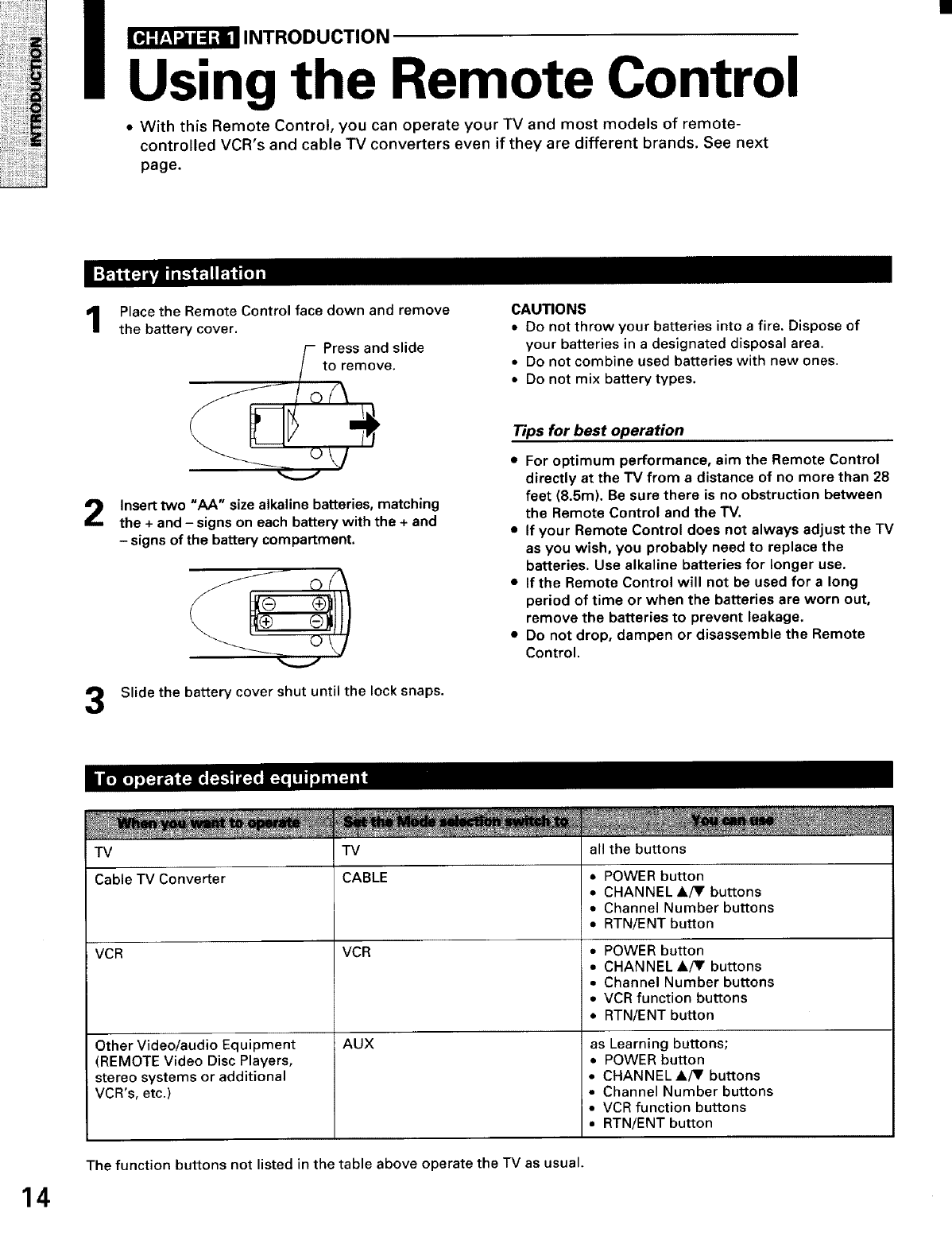

Using the Remote Control .............................. 14

Battery installation ................................................. 14

To operate desired equipment .............................. 14

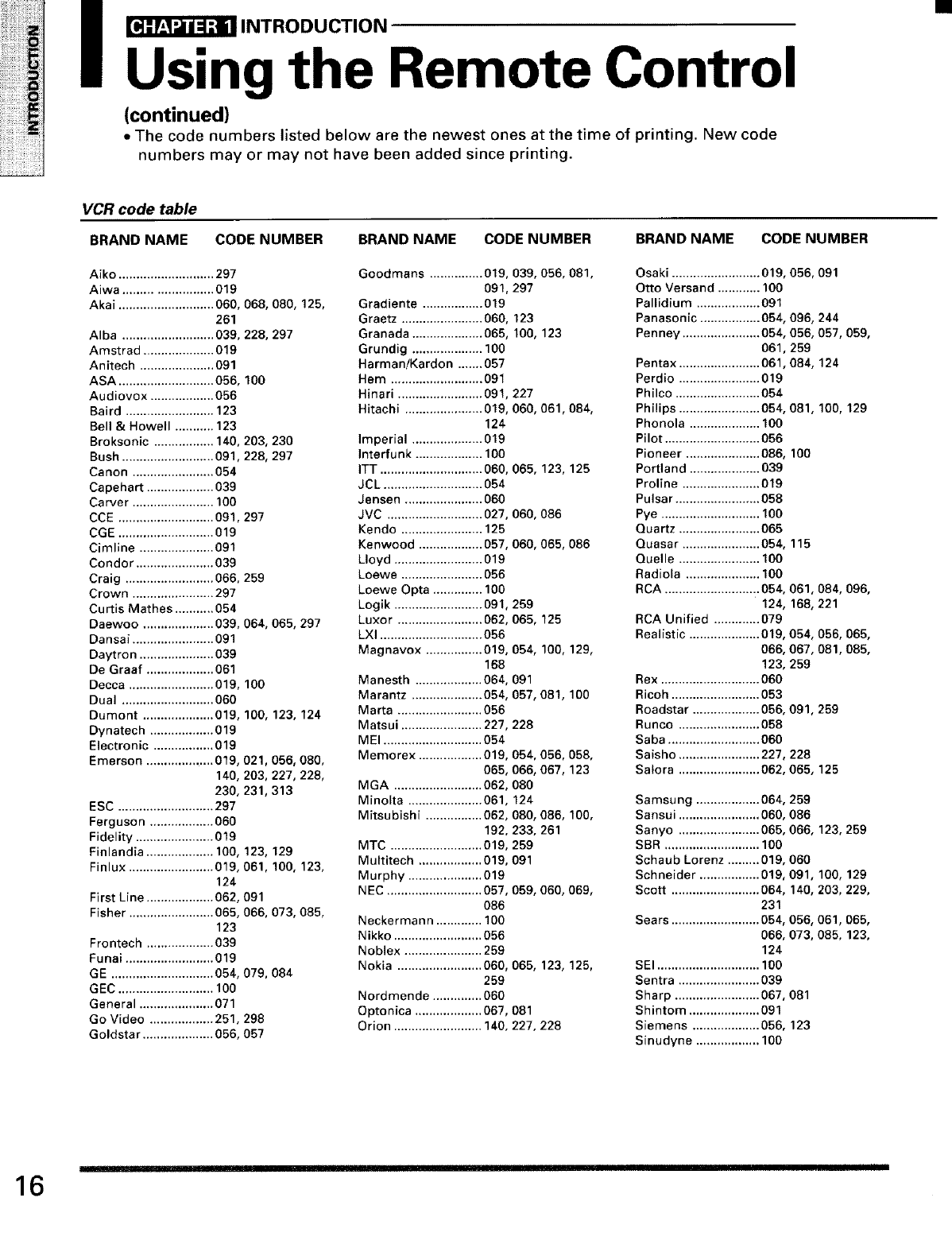

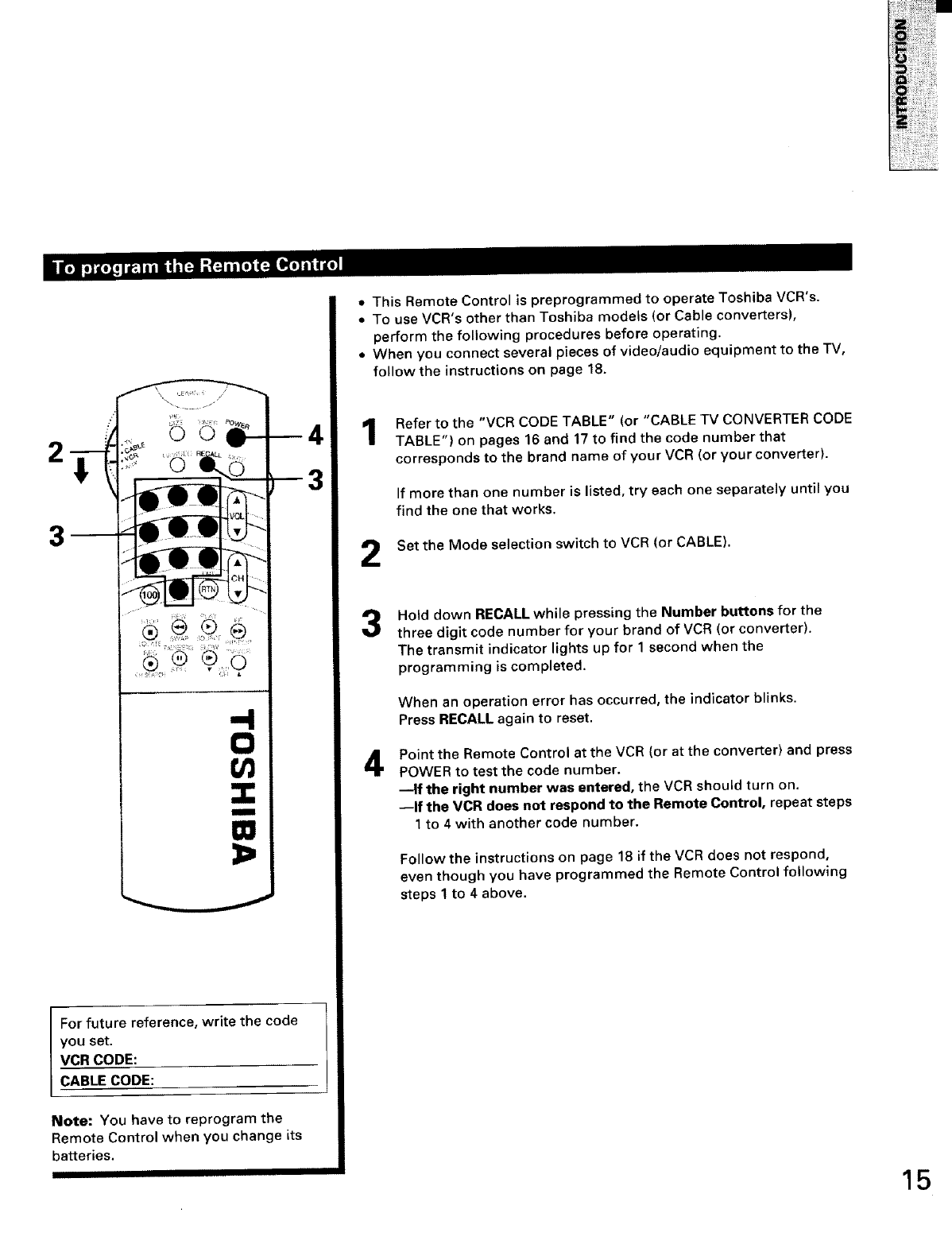

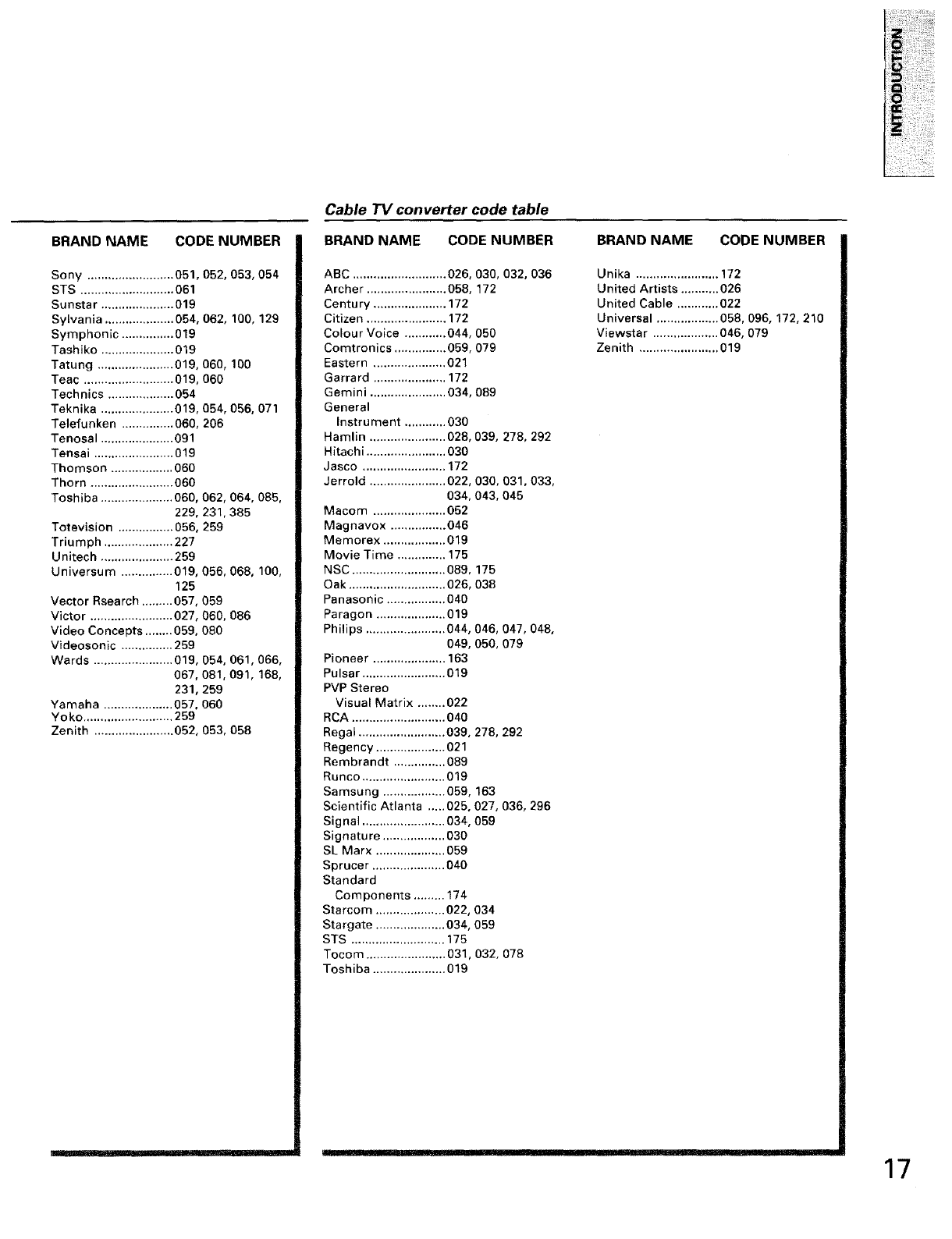

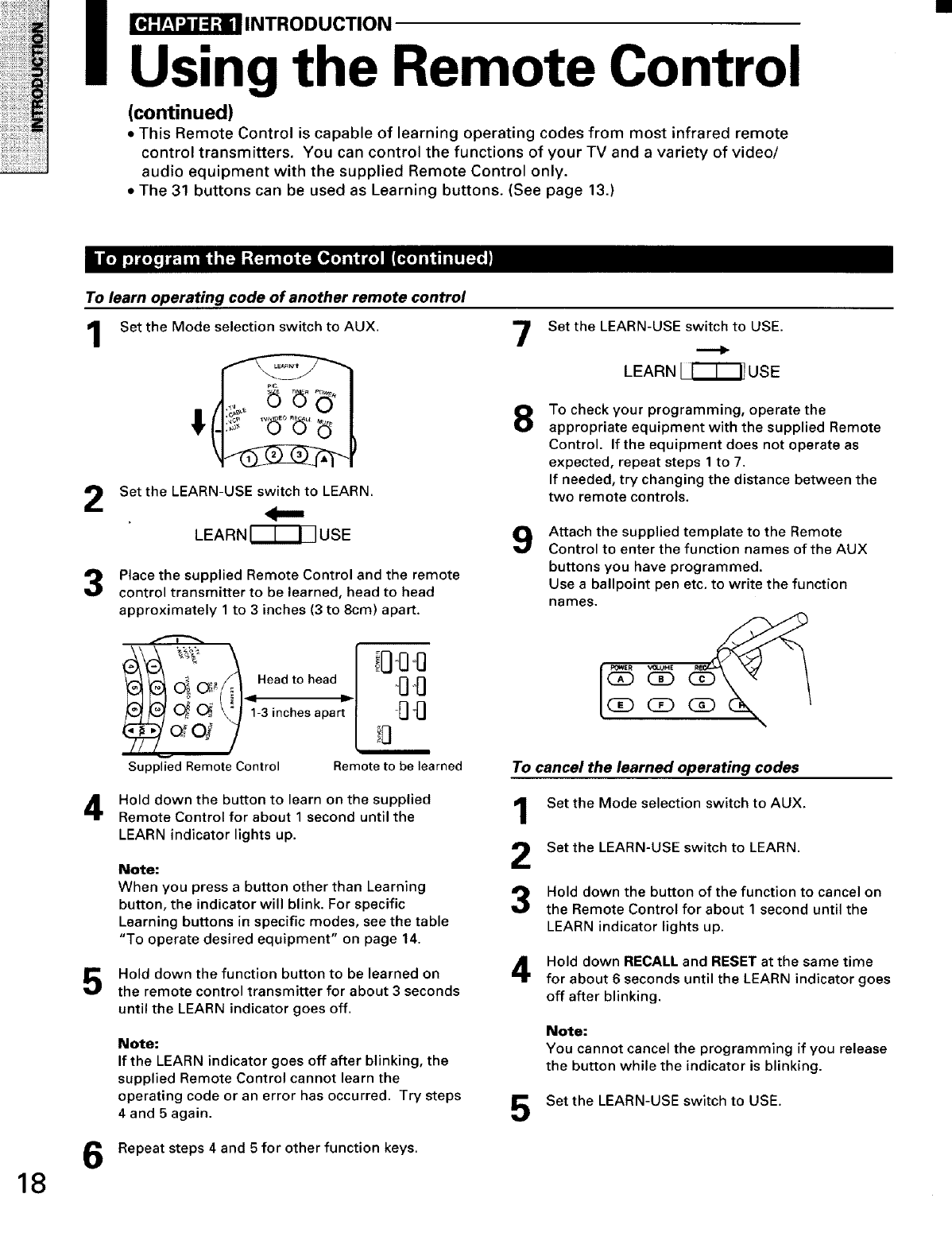

To program the Remote Control ........................... 15

Quick Reference Menu Guide ......................... 19

To use the menu function buttons on the TV ...... 19

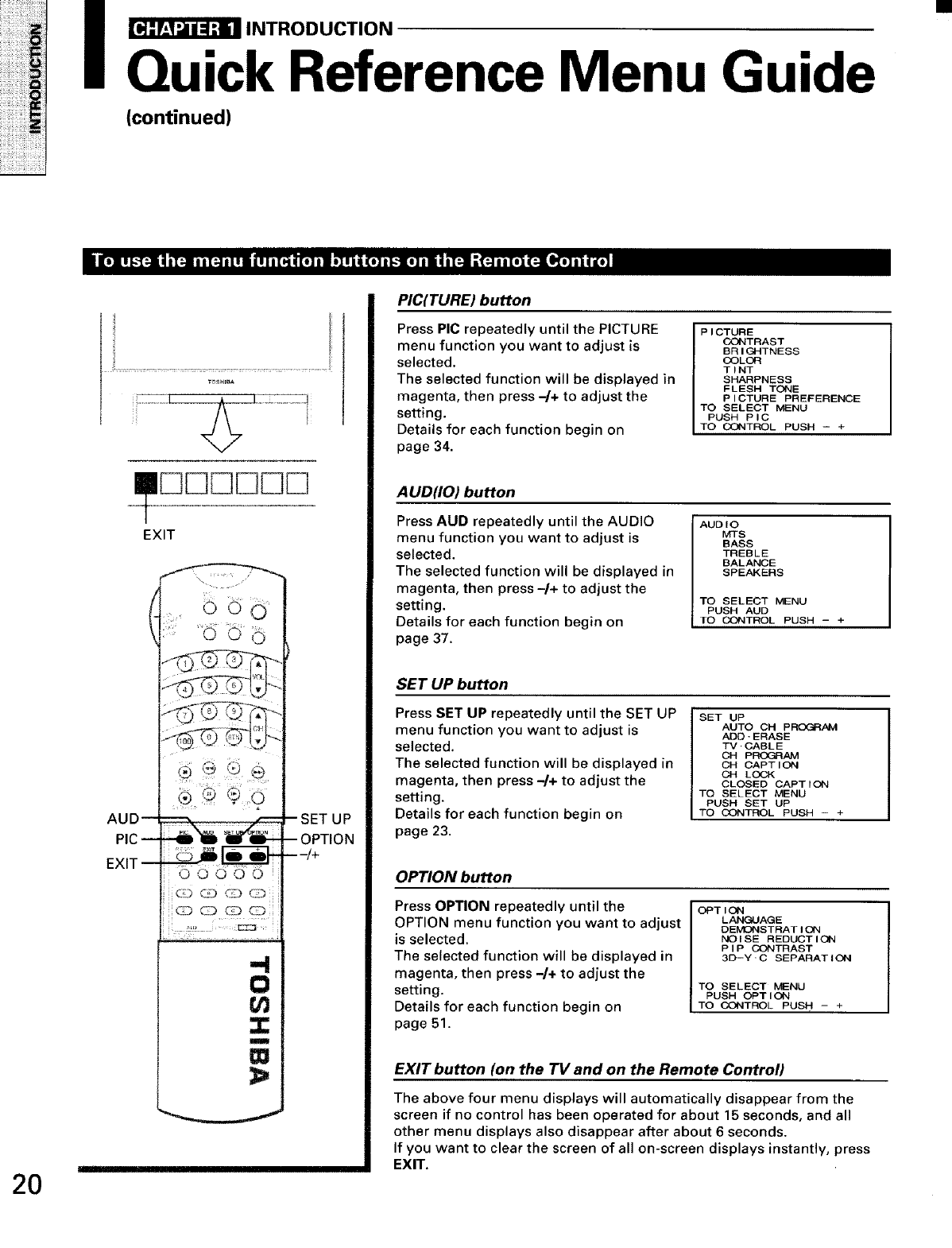

To use the menu function buttons on the Remote

Control ................................................................ 20

GETTING STARTED

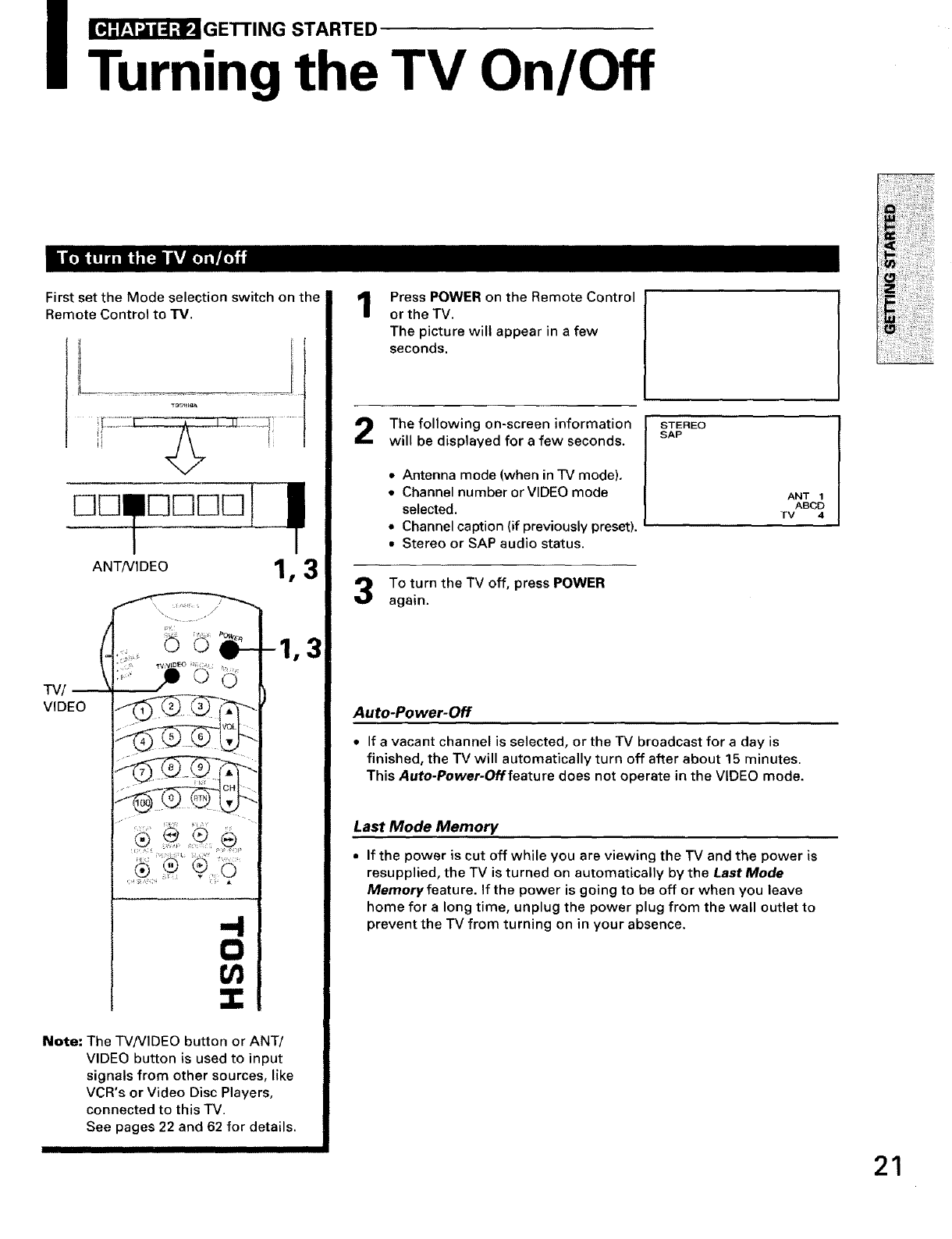

Turning the TV On/Off .................................... 21

To turn the TV on/off .............................................. 21

To select the antenna input ................................... 22

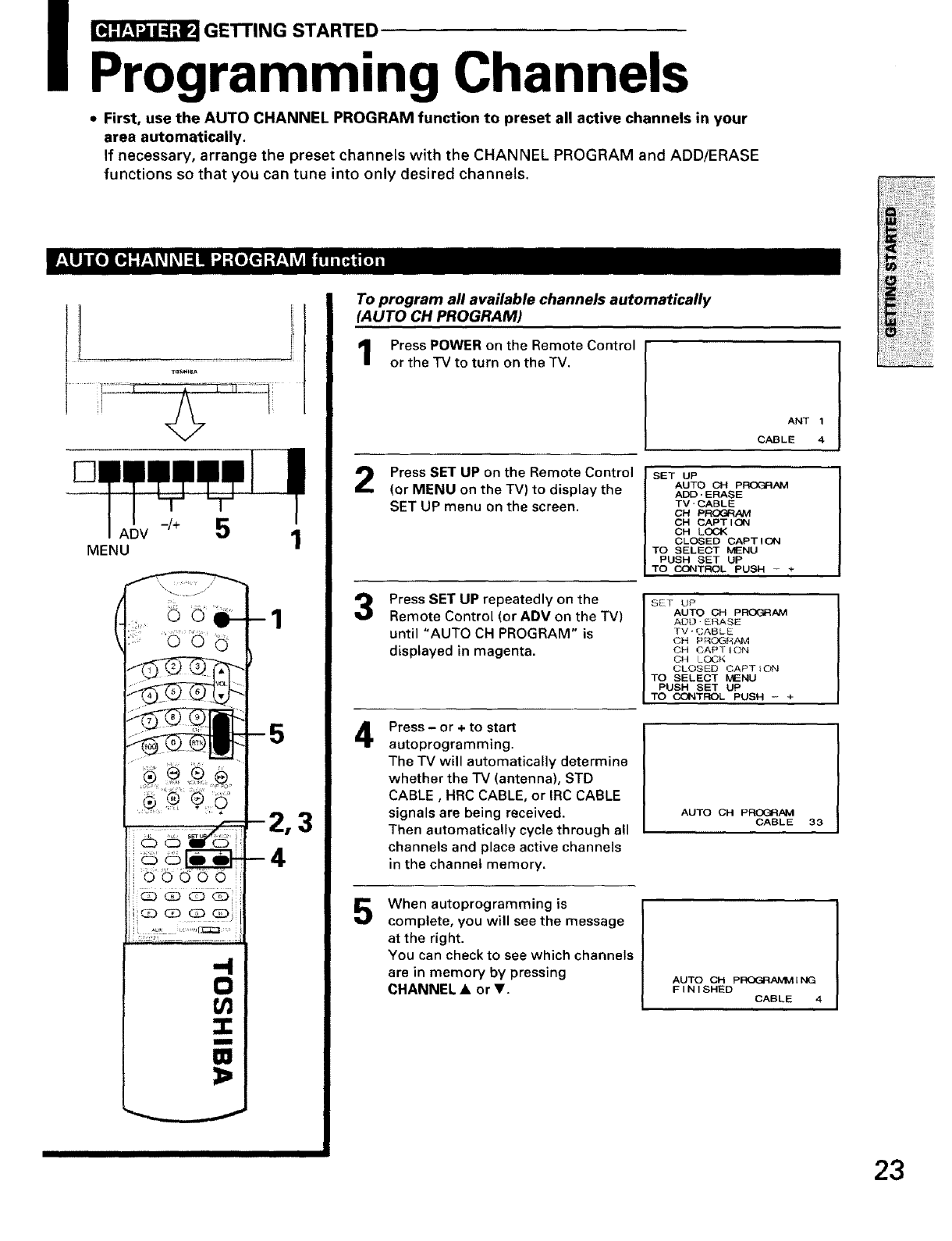

Programming Channels .................................. 23

AUTO CHANNEL PROGRAM function .................. 23

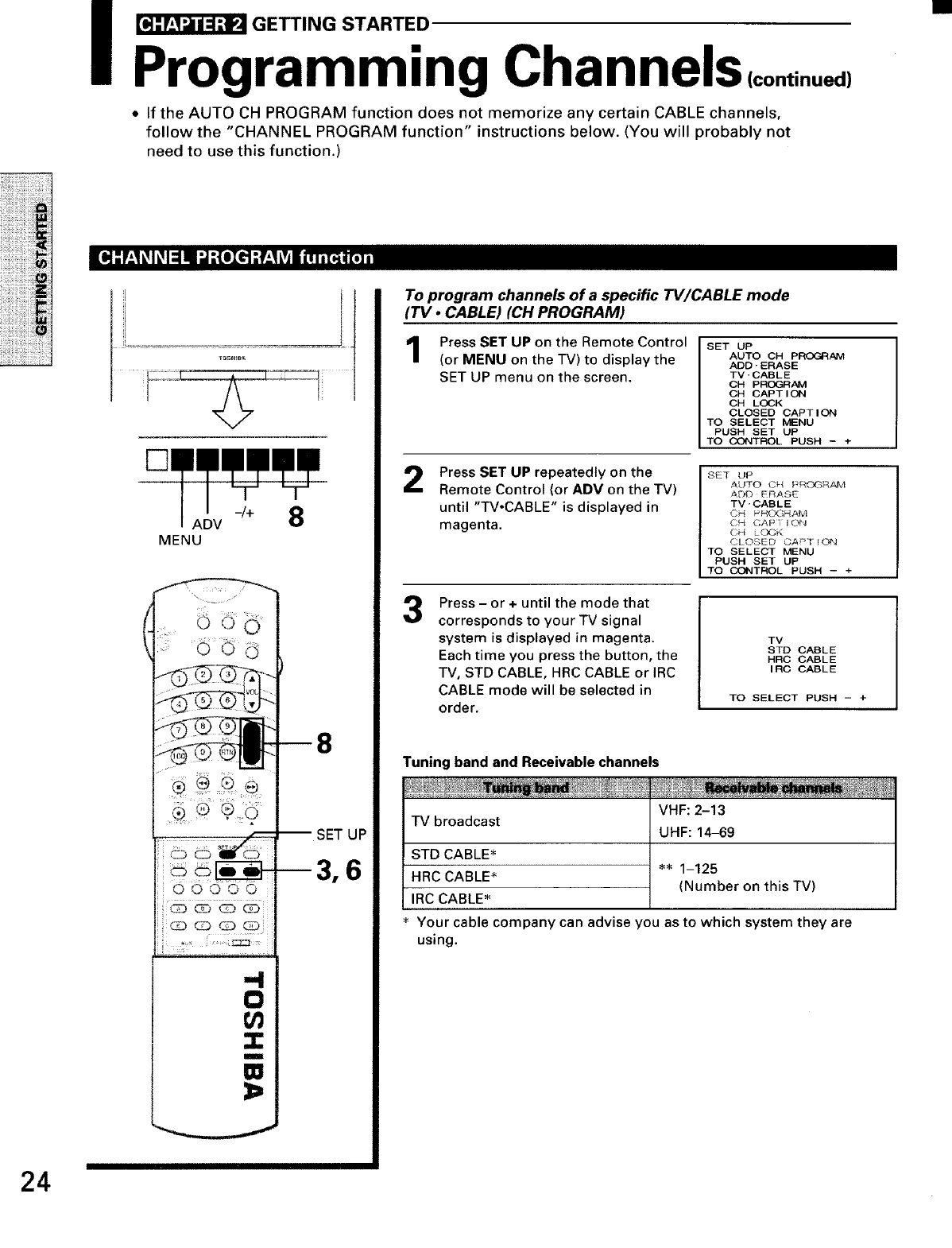

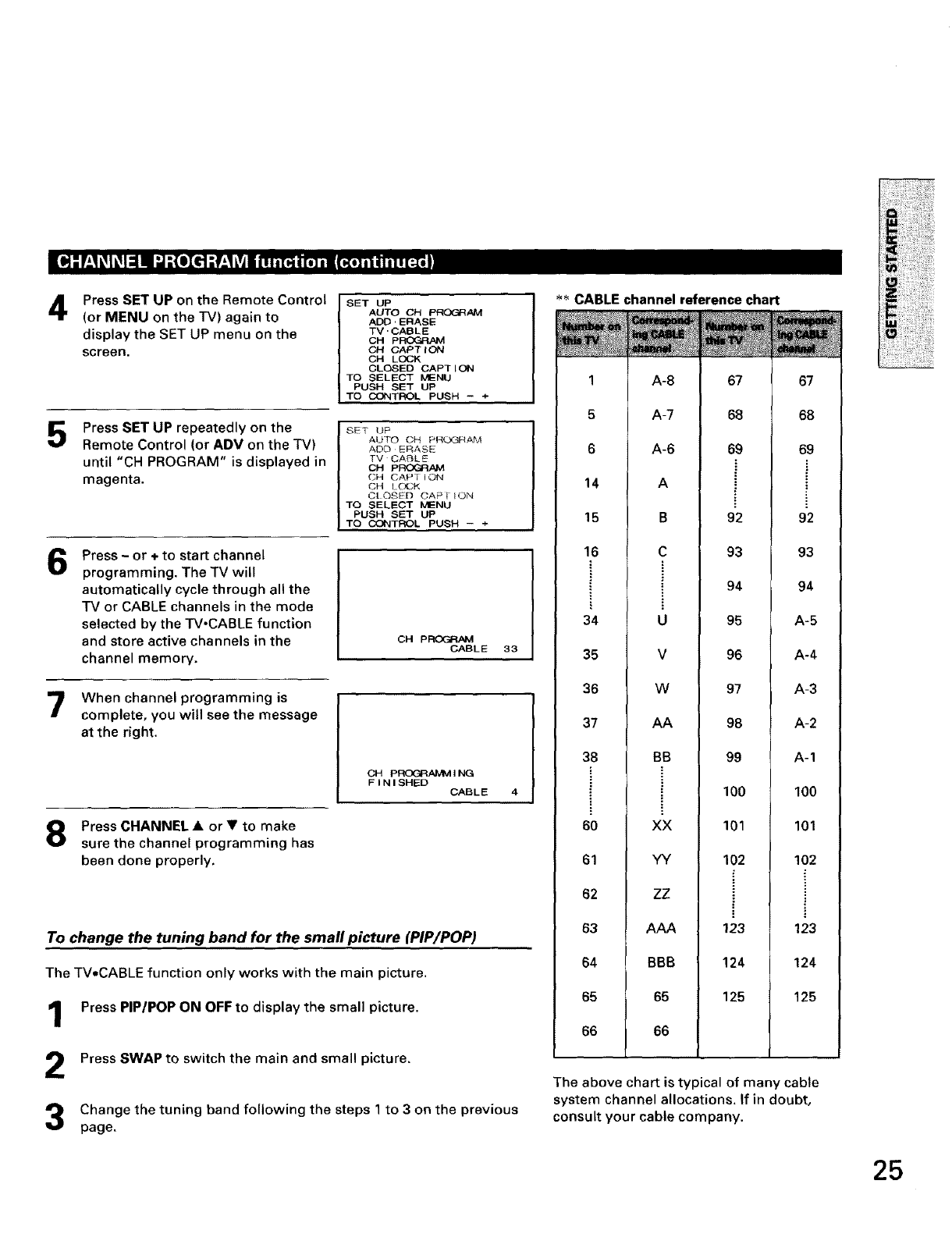

CHANNEL PROGRAM function ............................. 24

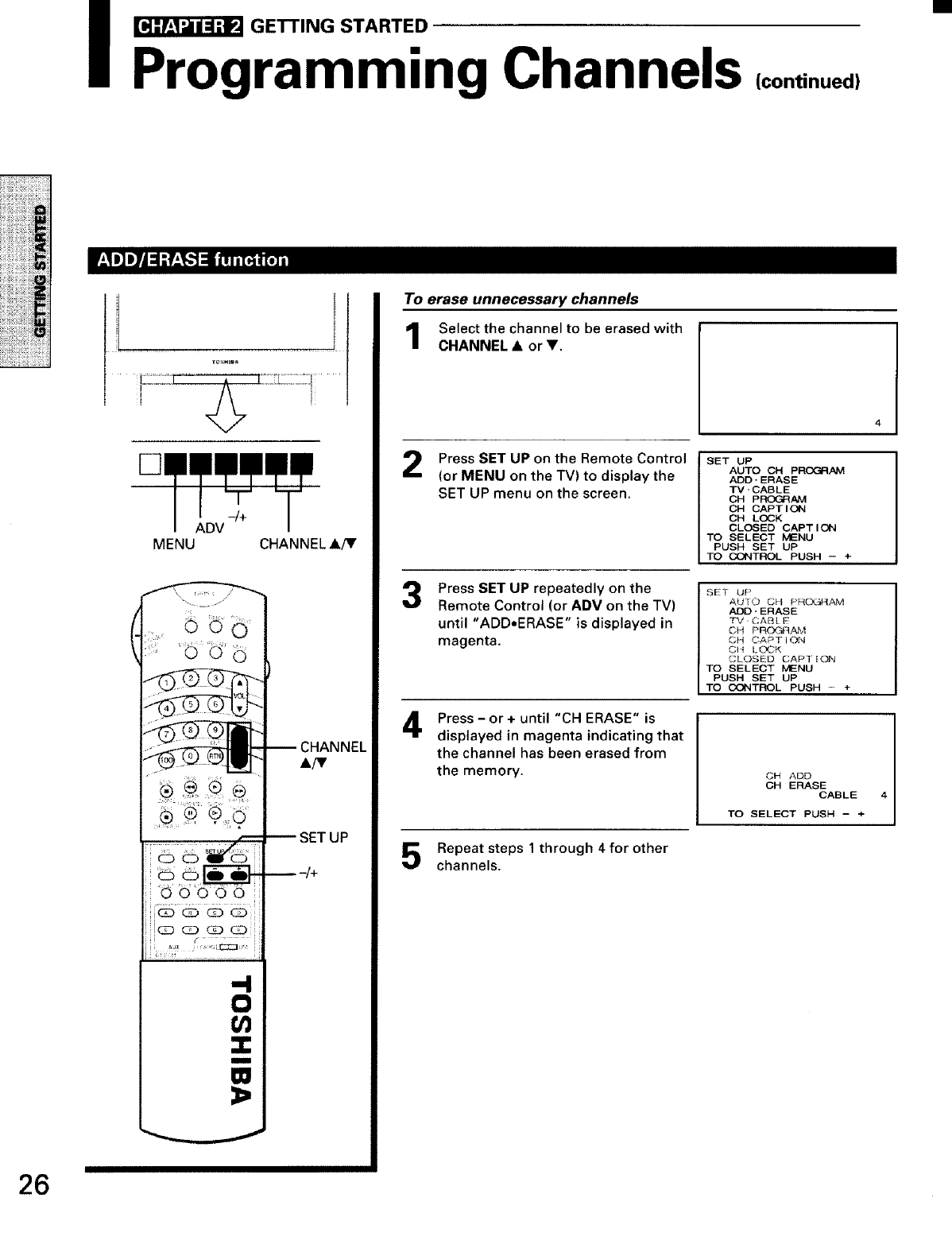

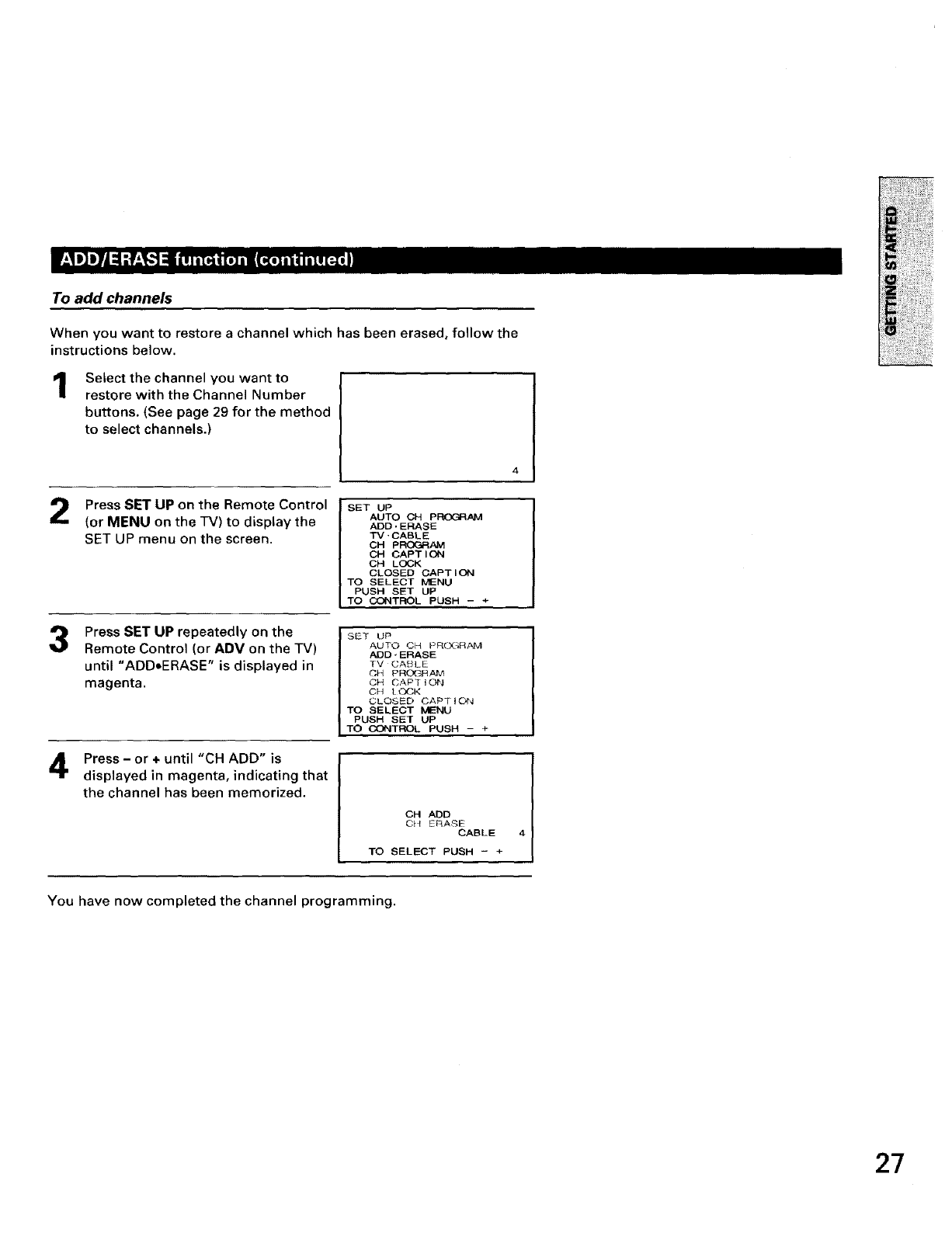

ADD/ERASE function ............................................. 26

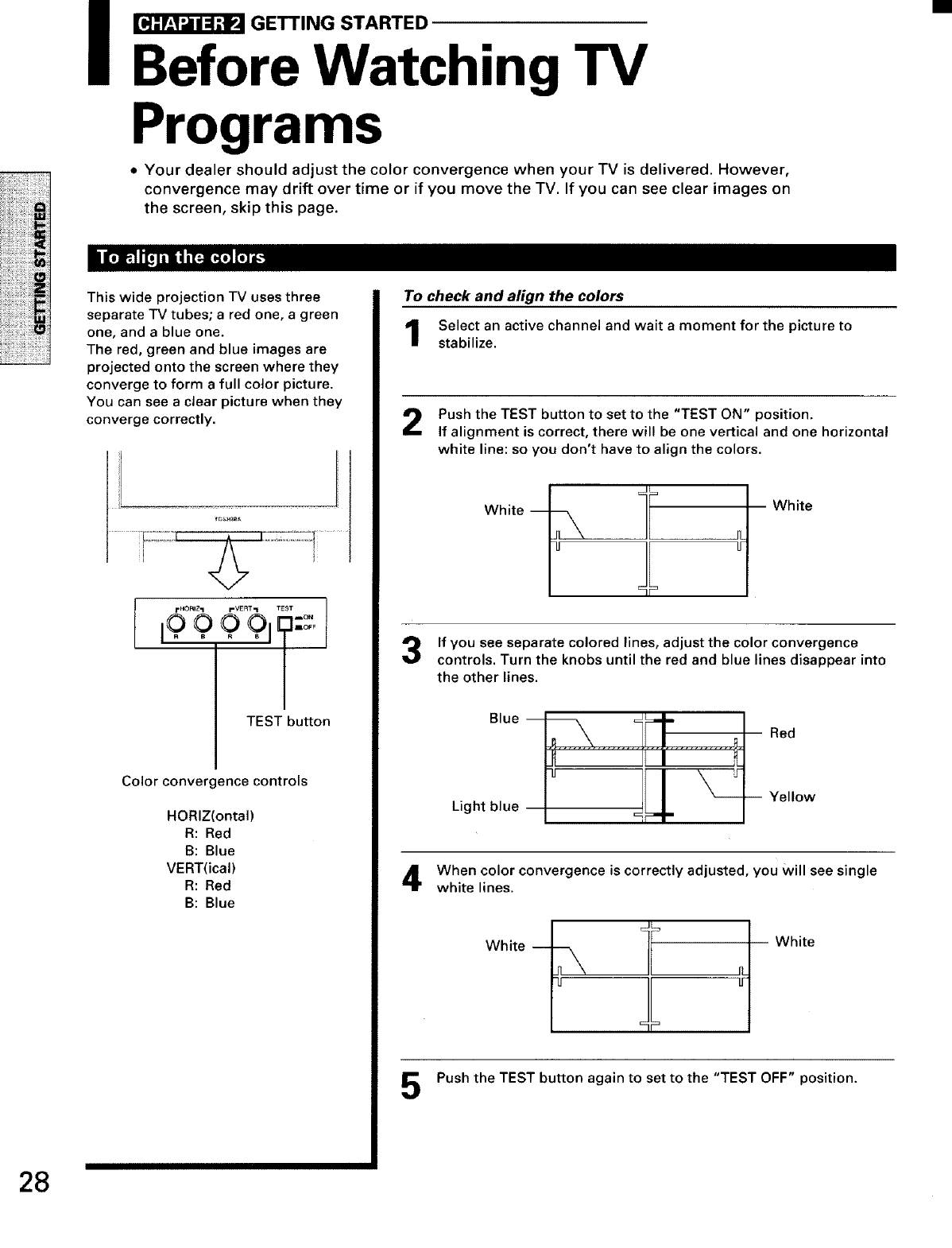

Before Watching TV Programs ....................... 28

To align the colors ................................................. 28

BASIC OPERATION

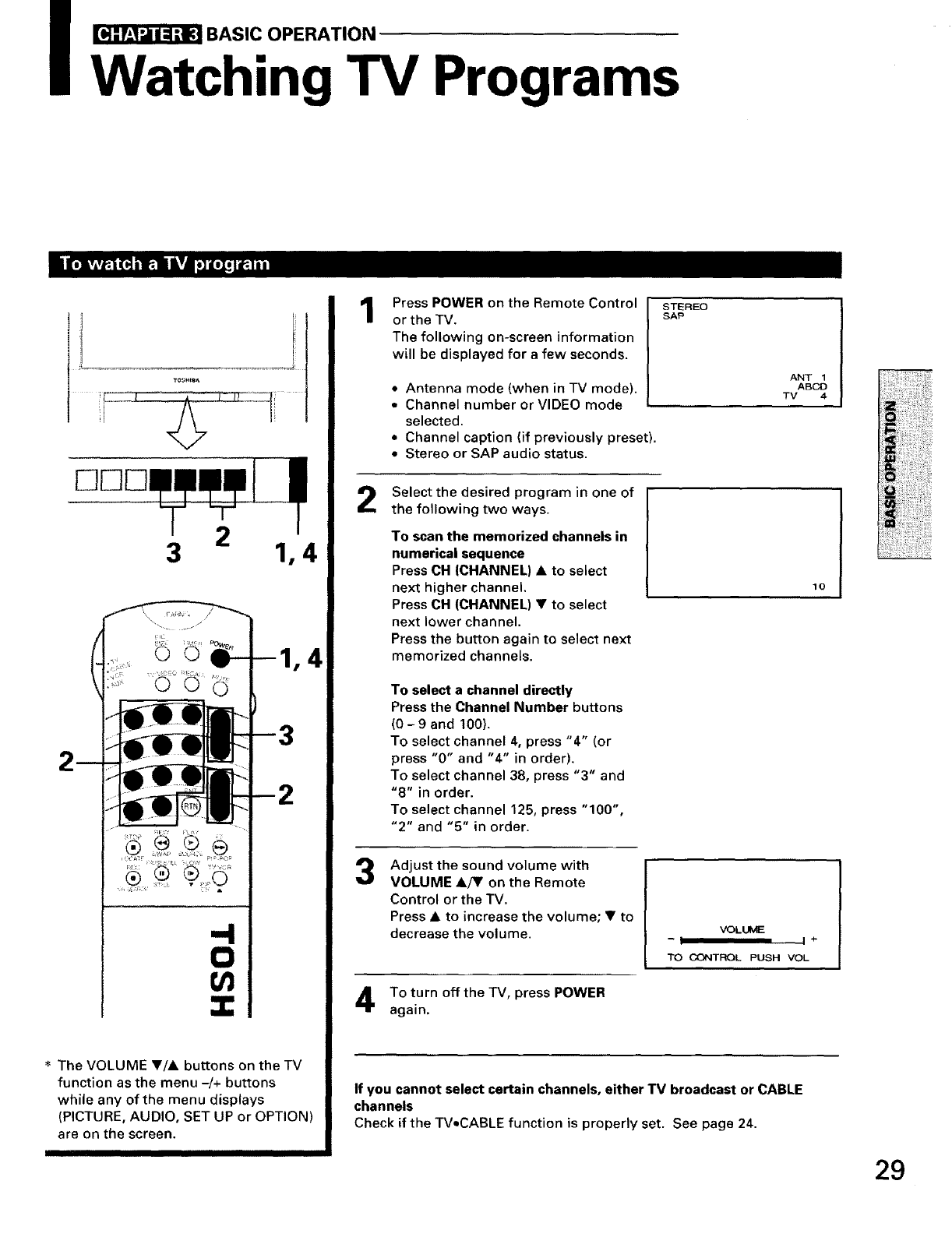

Watching 113/Programs ................................... 29

To watch aTV program ......................................... 29

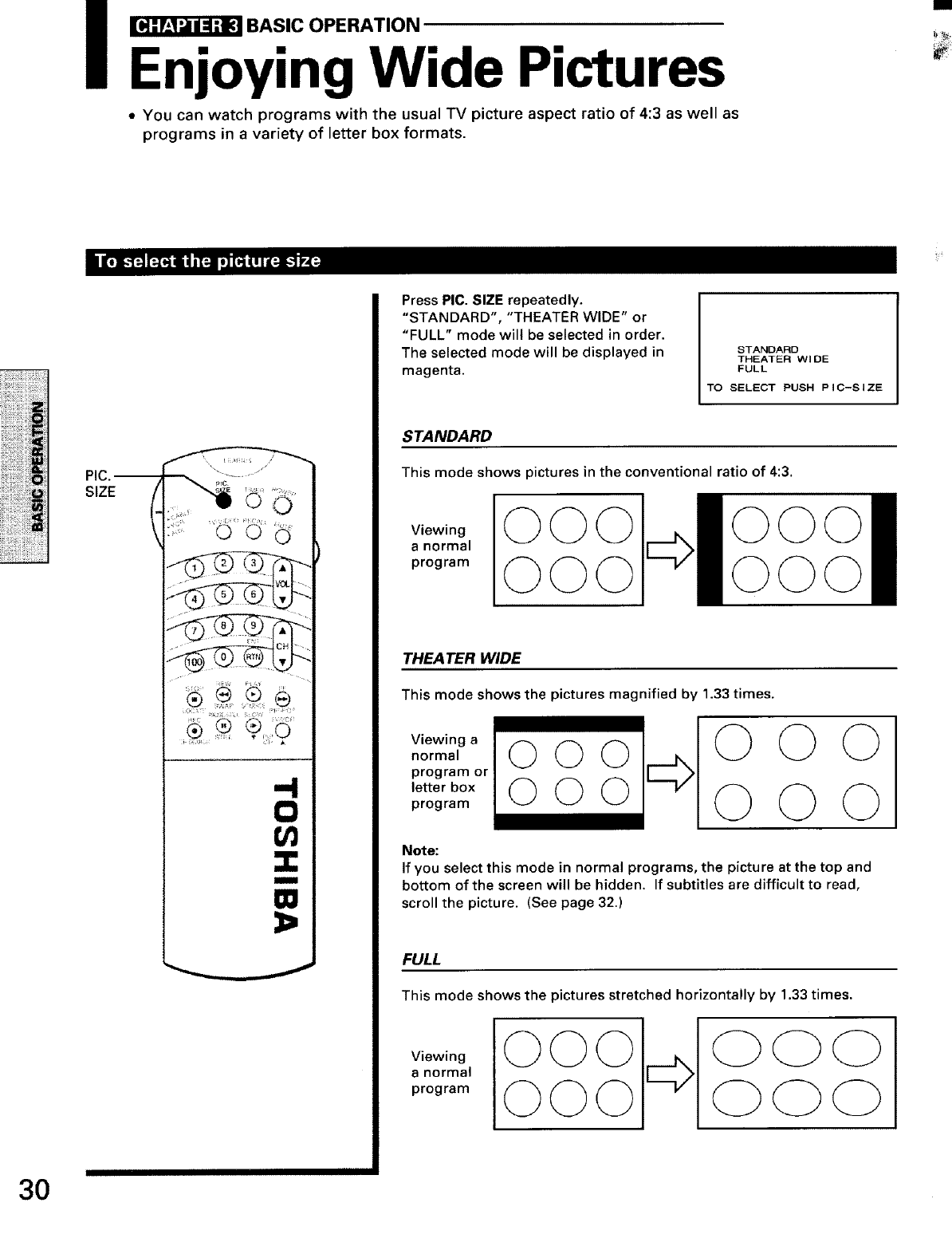

Enjoying Wide Pictures ................................... 30

To select the picture size ....................................... 30

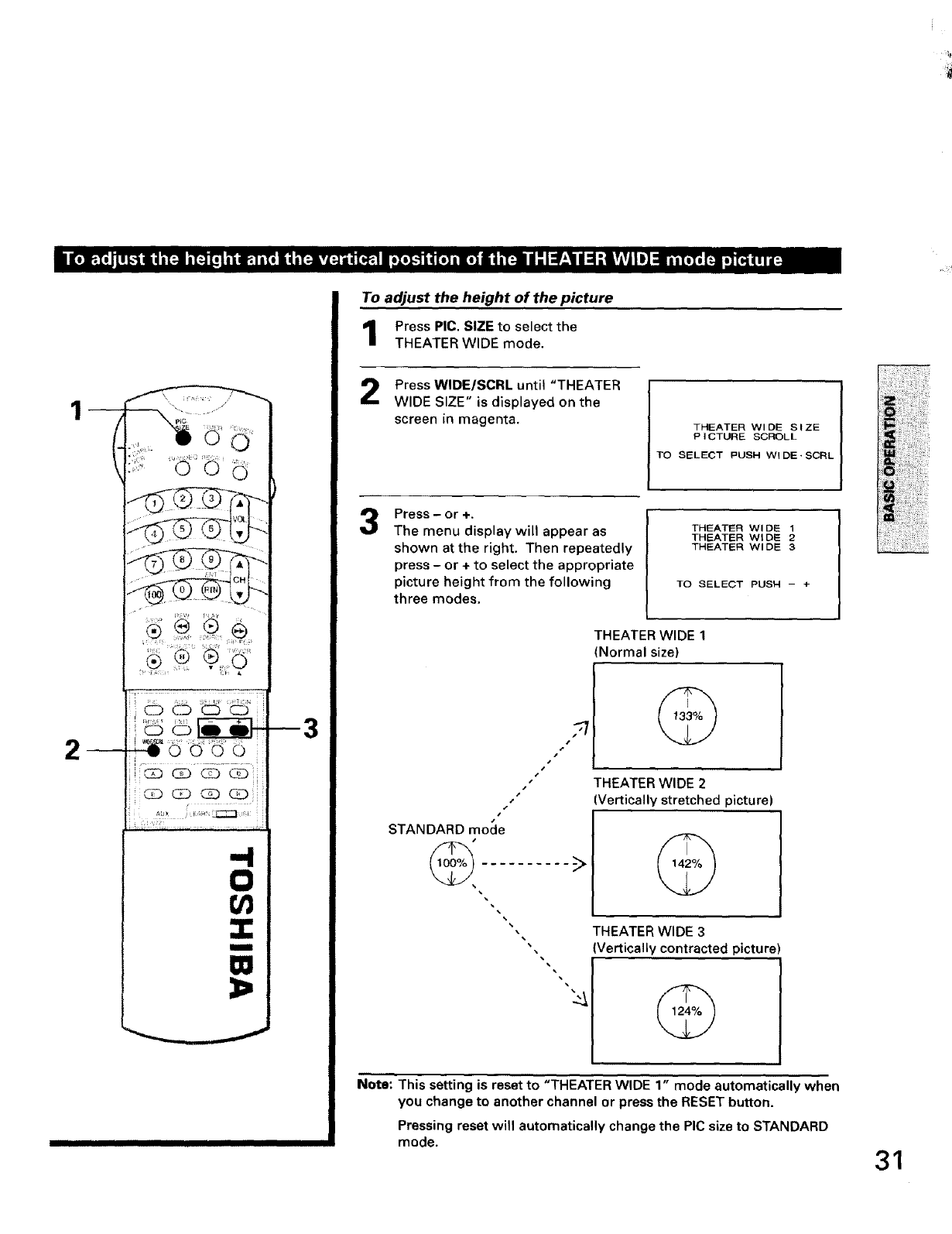

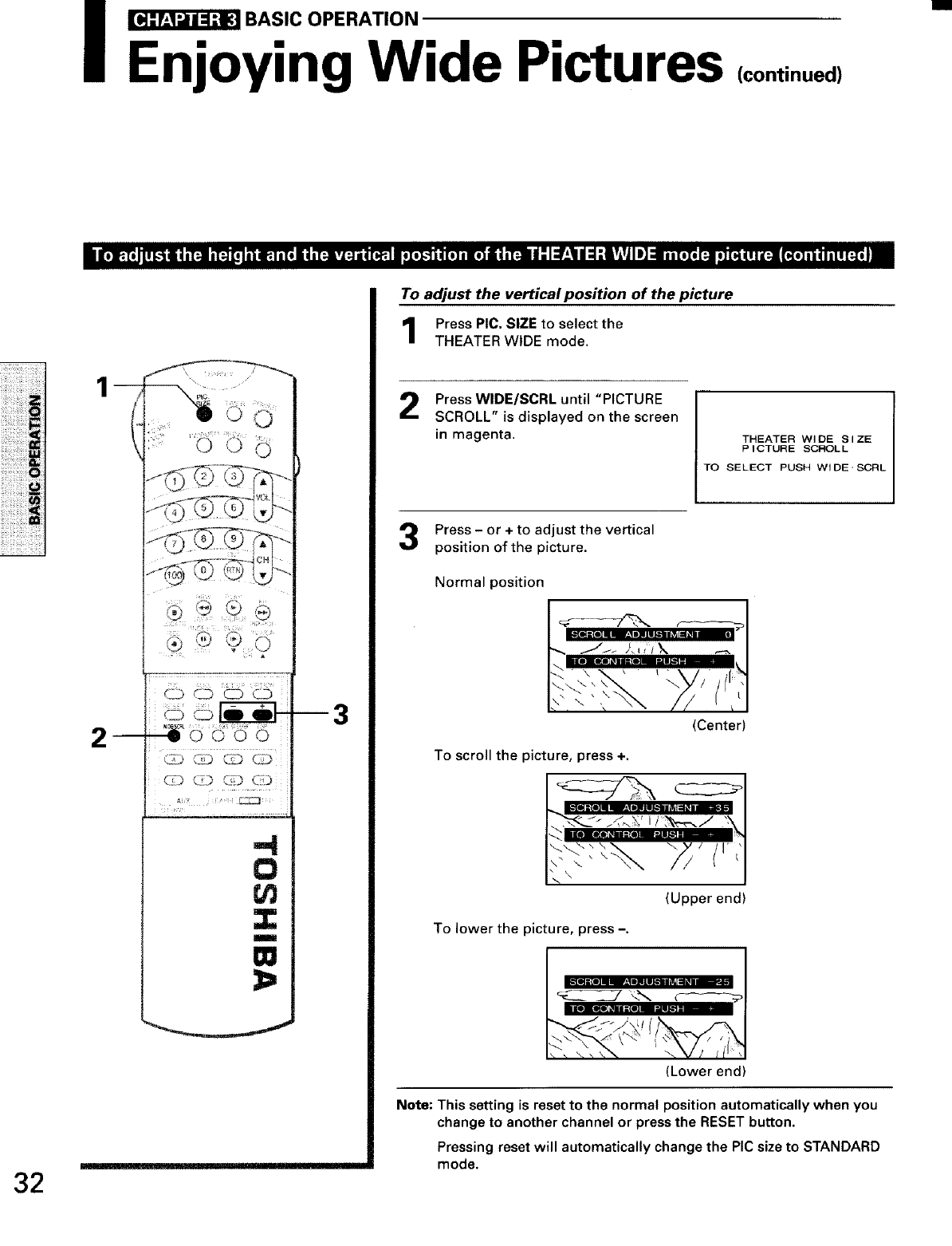

To adjust the height and the vertical position

of the THEATER WIDE mode picture ............... 31

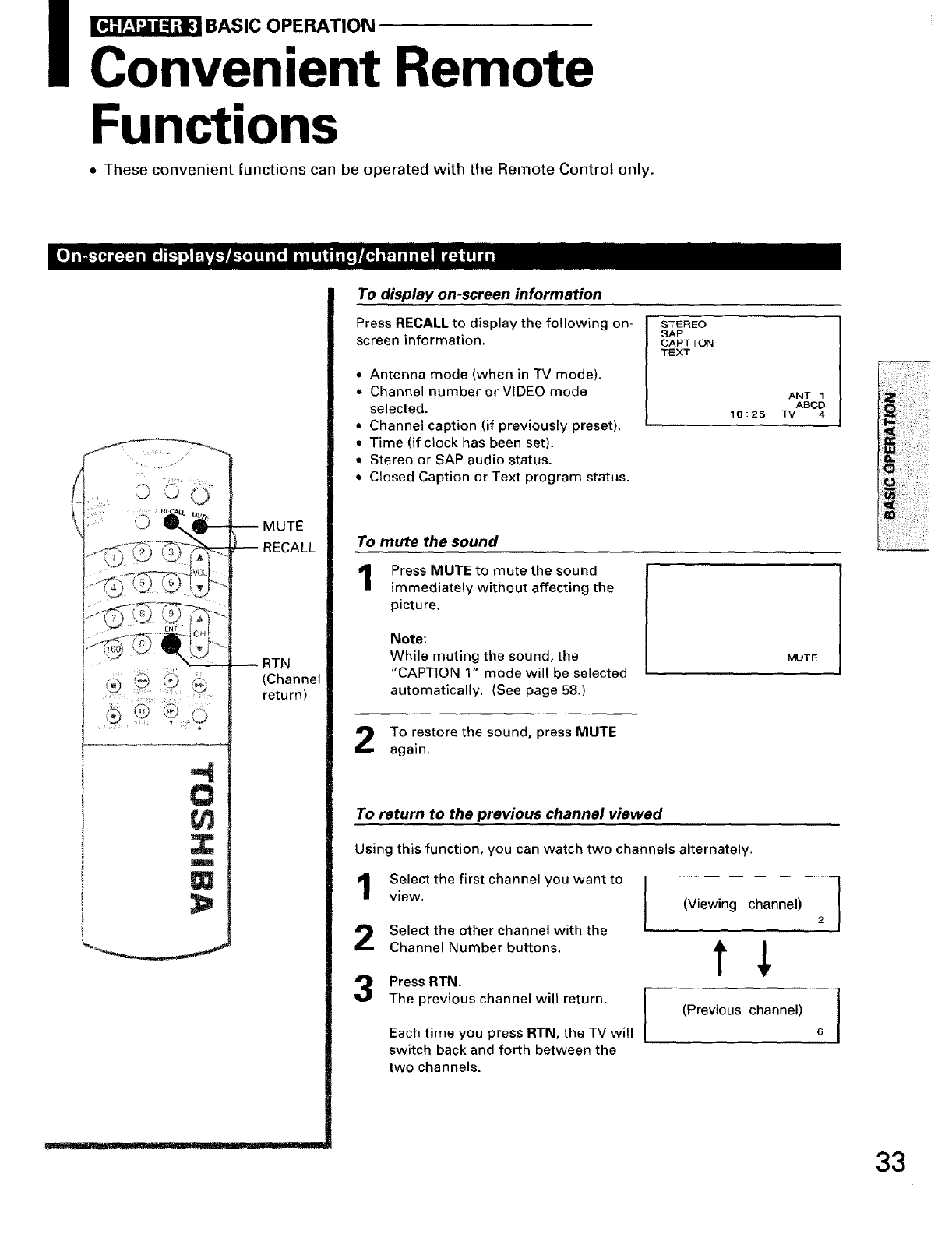

Convenient Remote Functions ........................ 33

On-screen calling/sound muting/channel

return .................................................................. 33

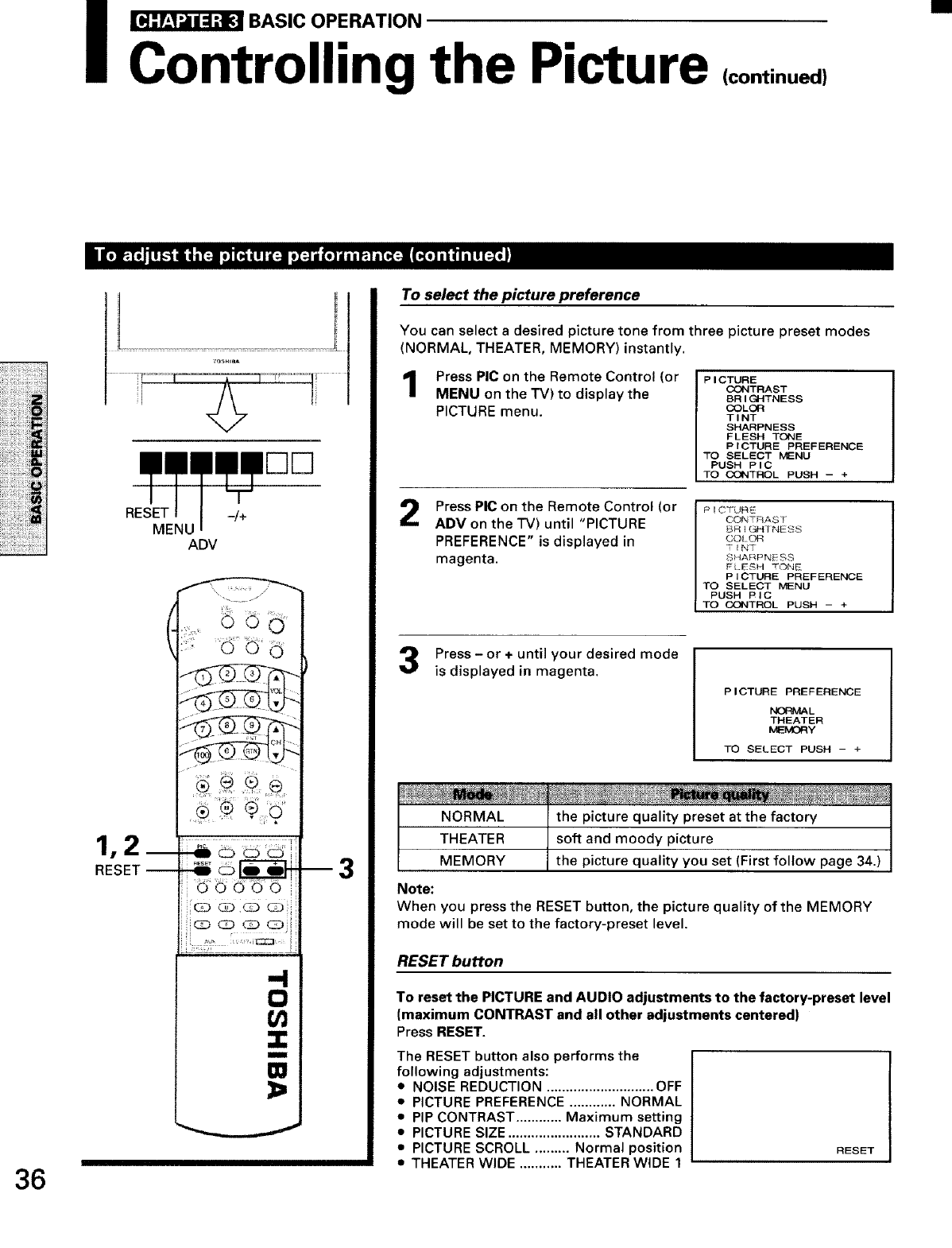

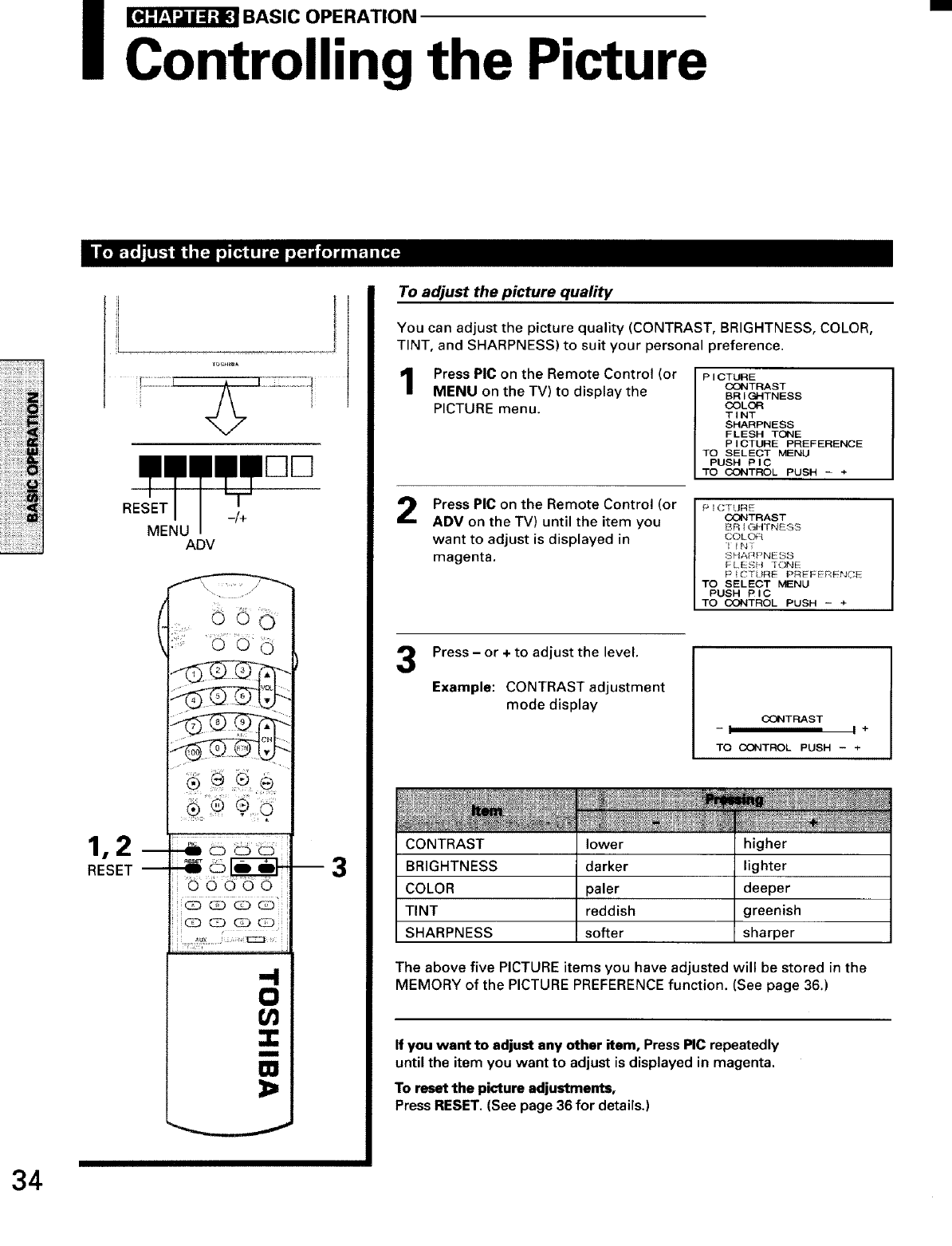

Controlling the Picture ................................... 34

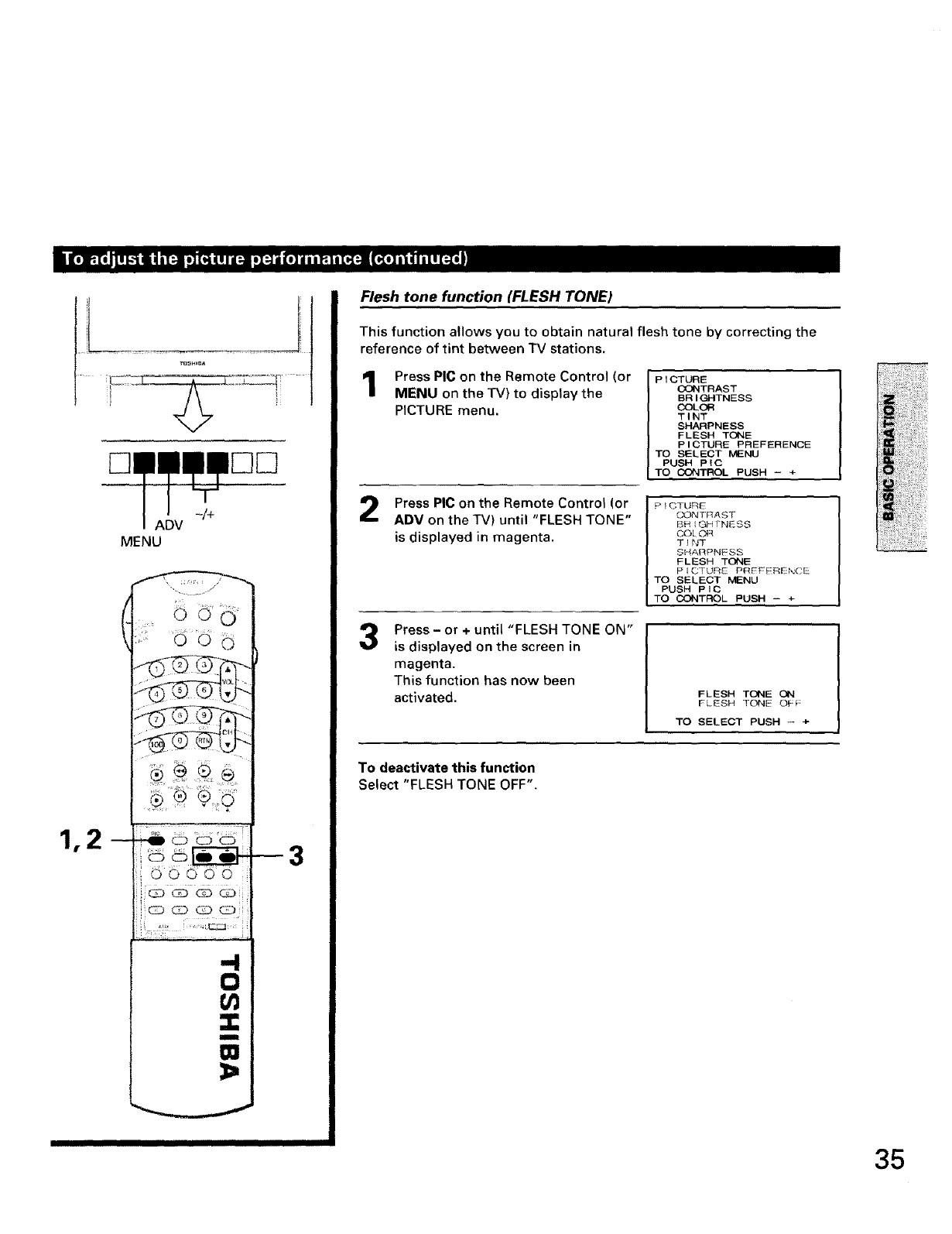

To adjust the picture performance ....................... 34

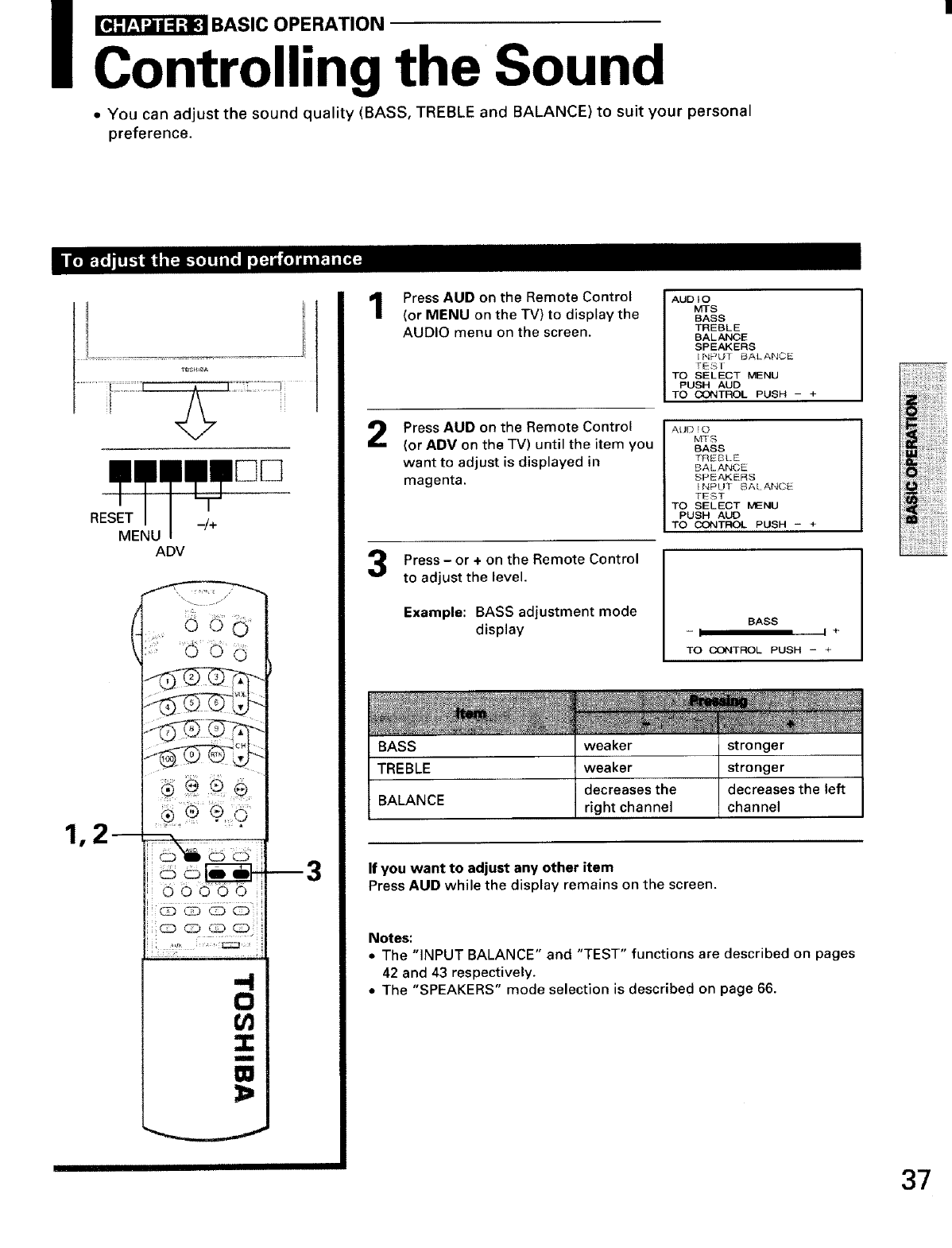

Controlling the Sound .................................... 37

To adjust the sound performance ........................ 37

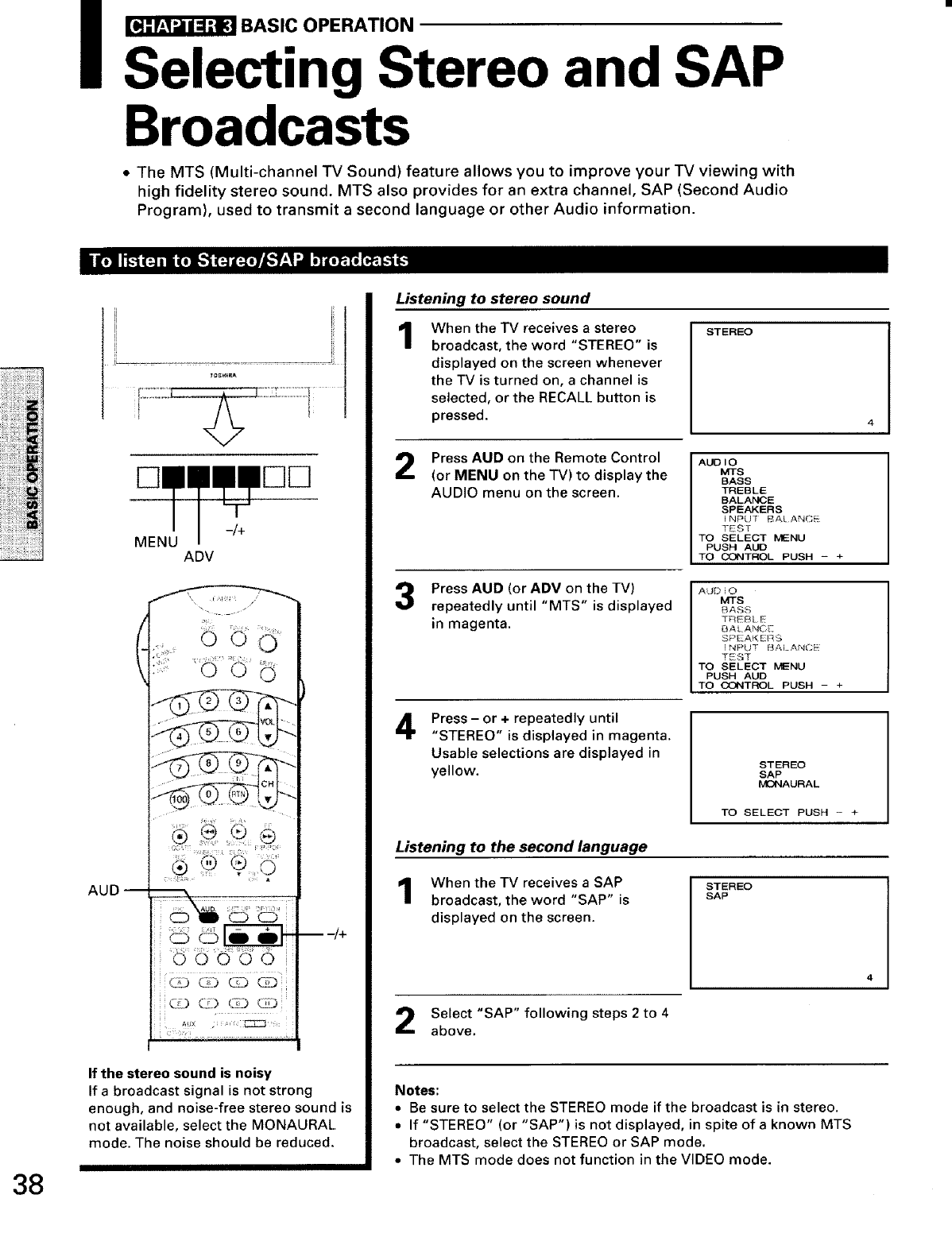

Selecting Stereo and SAP Broadcasts ............ 38

To listen to Stereo/SAP broadcasts ...................... 38

ADVANCED OPERATION

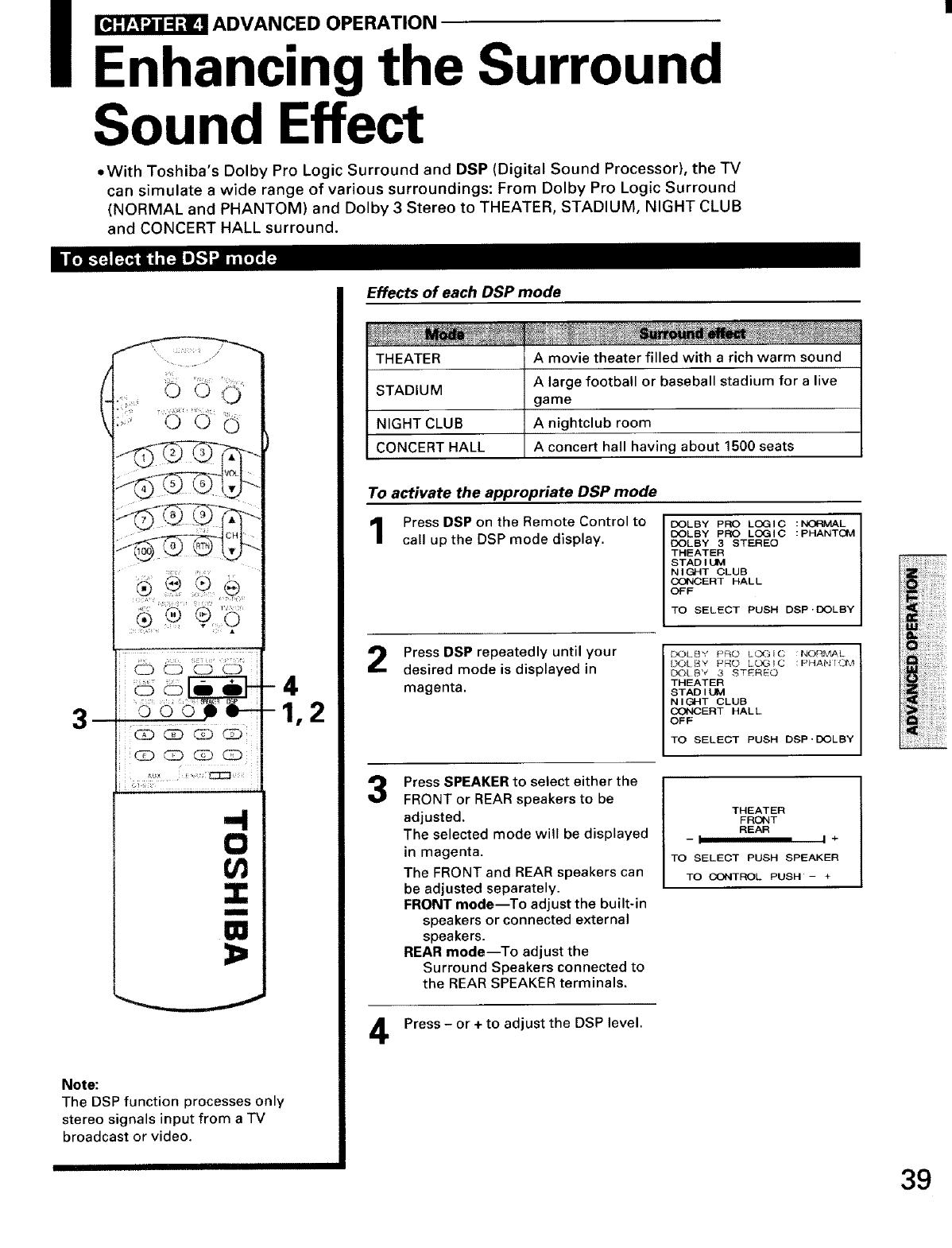

Enhancing the Surround Sound Effect ........... 39

To select DSP mode ............................................... 39

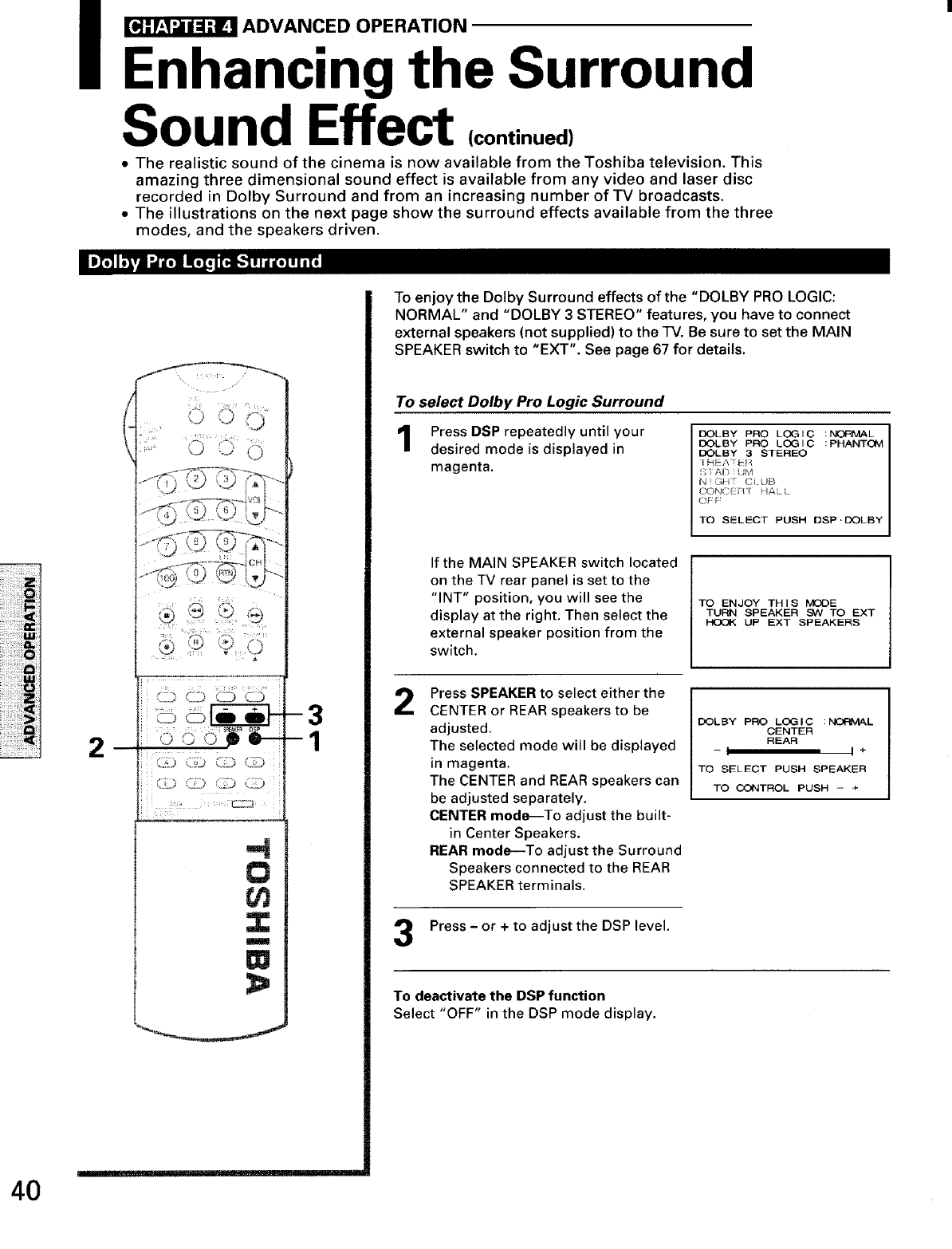

Dolby Pro Logic Surround ..................................... 40

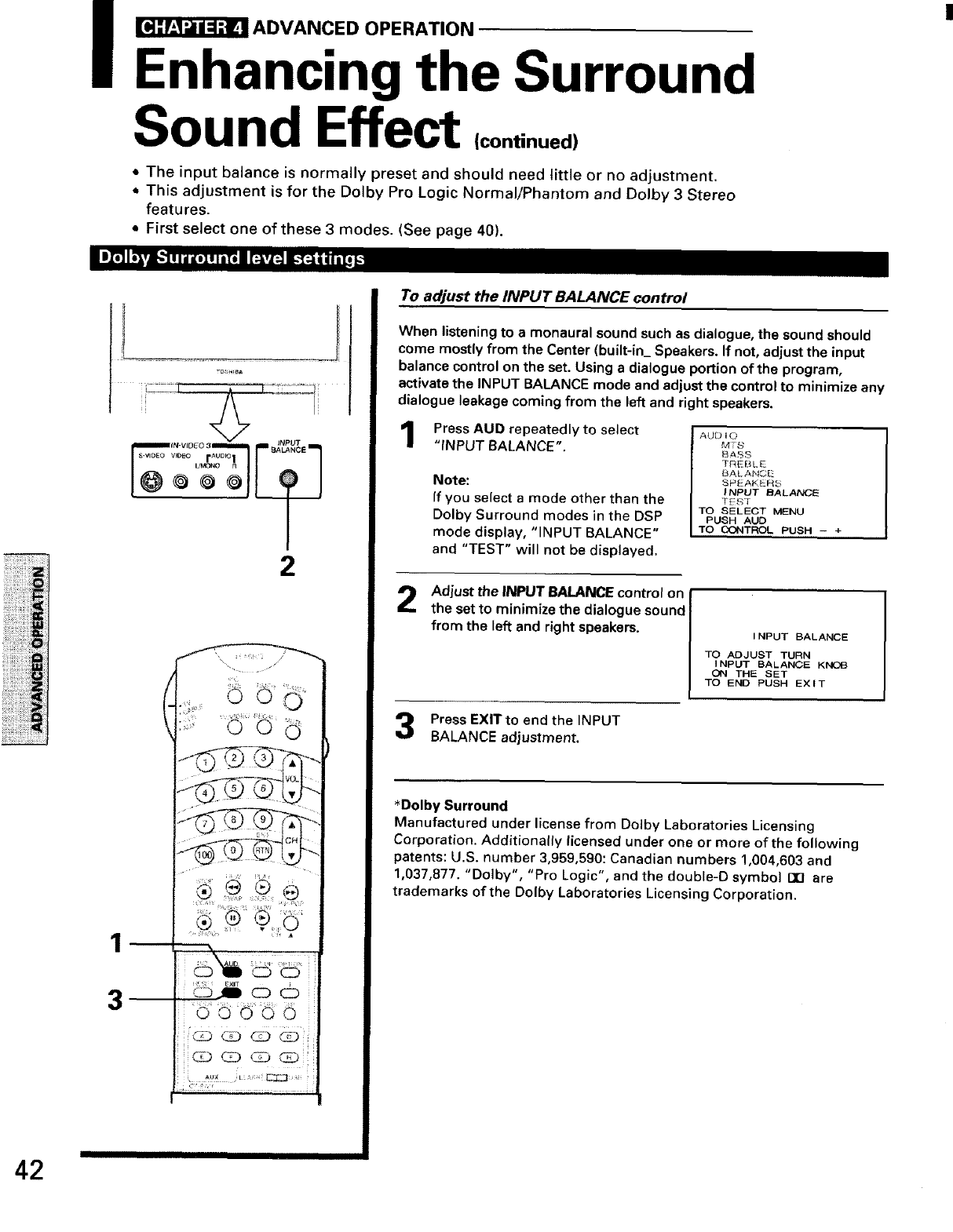

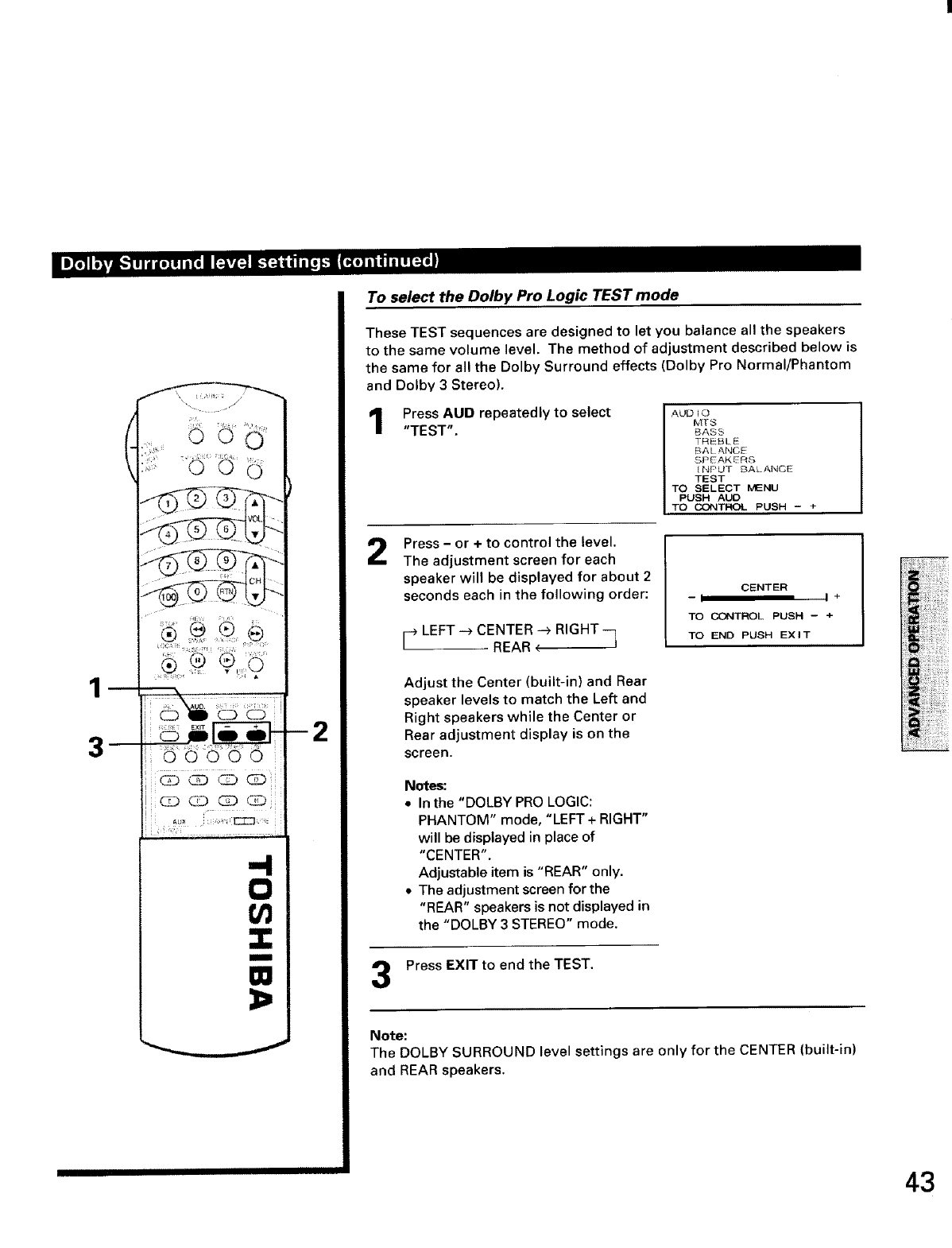

Dolby Surround level settings .............................. 42

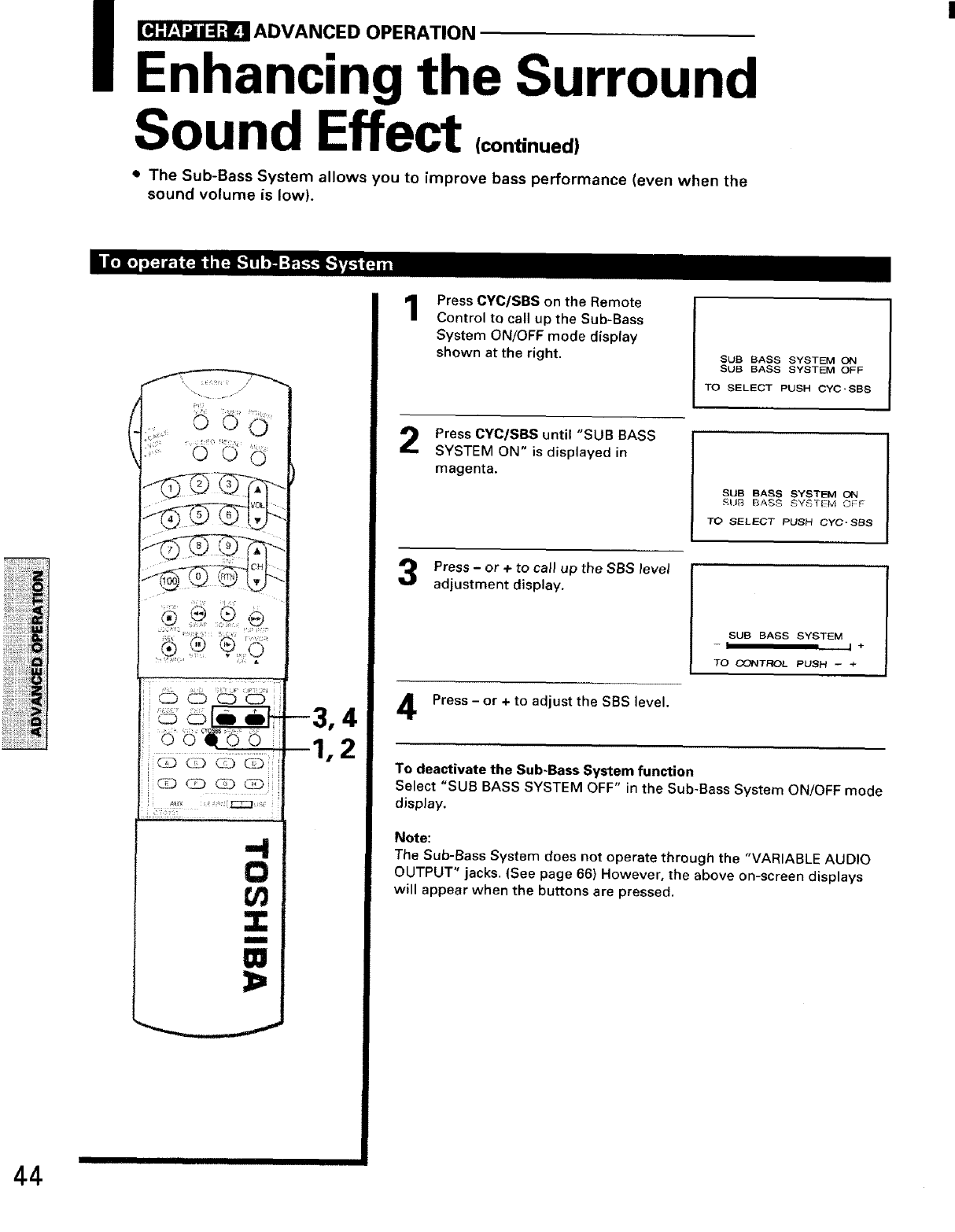

To operate the Sub-Bass System ......................... 44

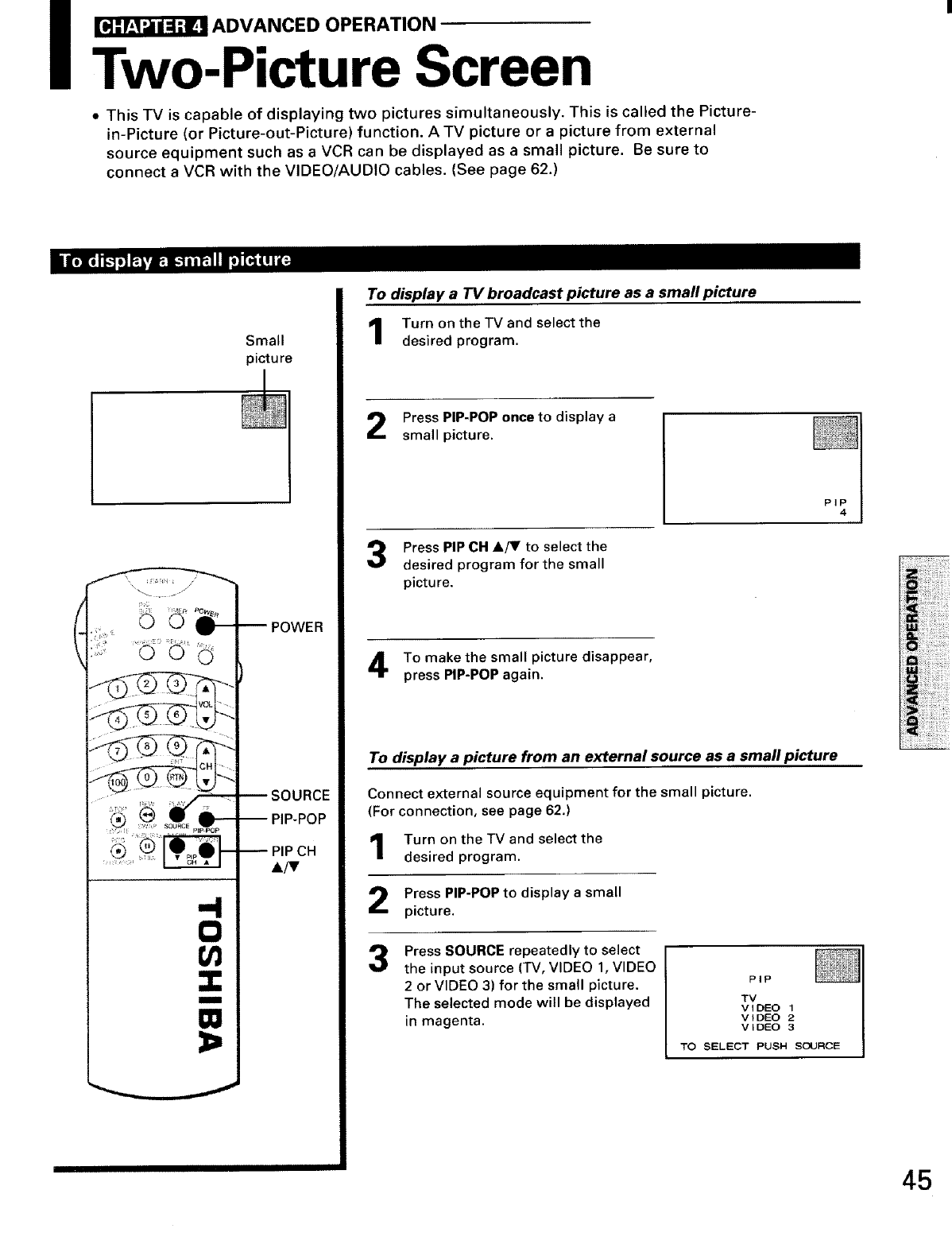

Two-Picture Screen ........................................ 45

To display a small picture ..................................... 45

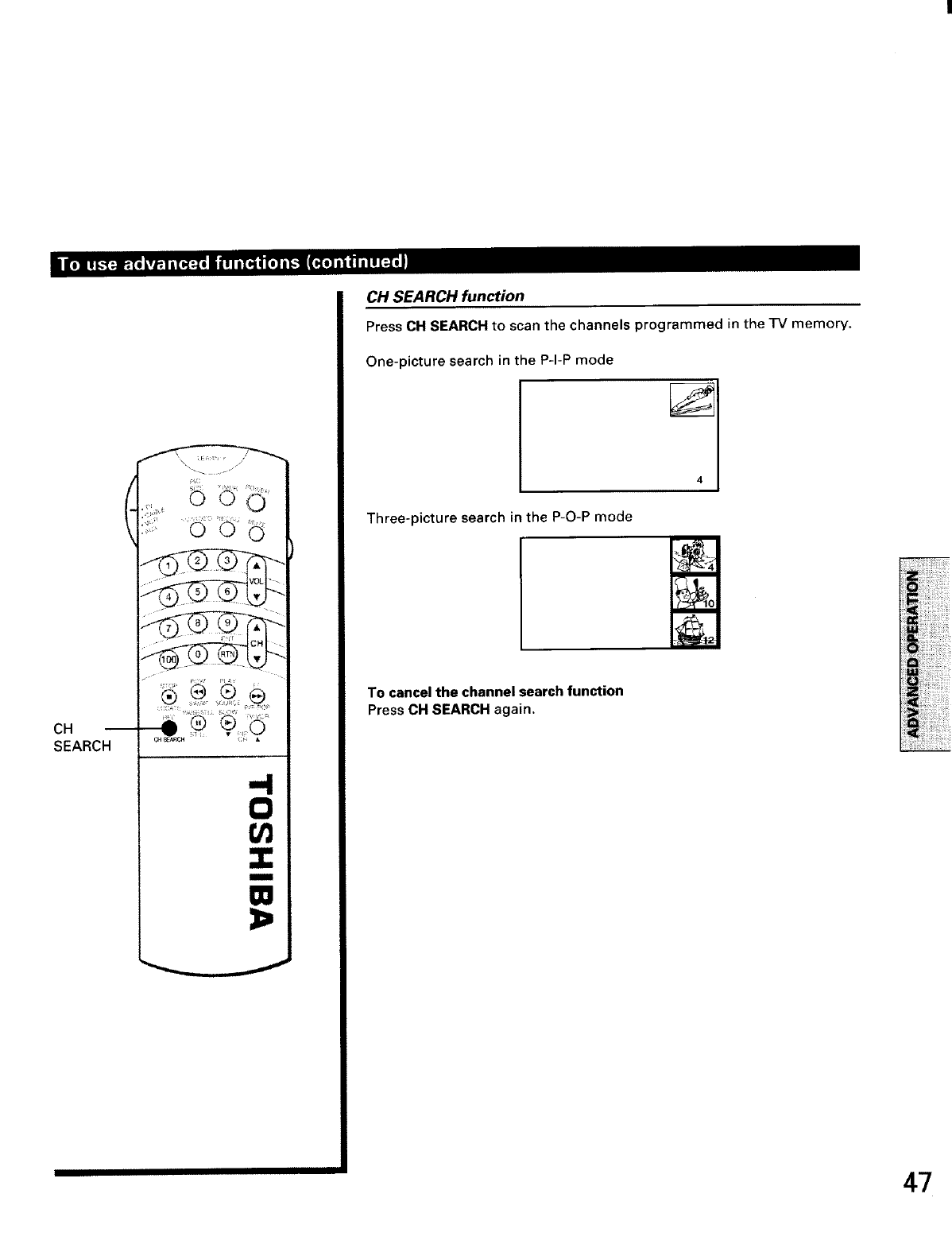

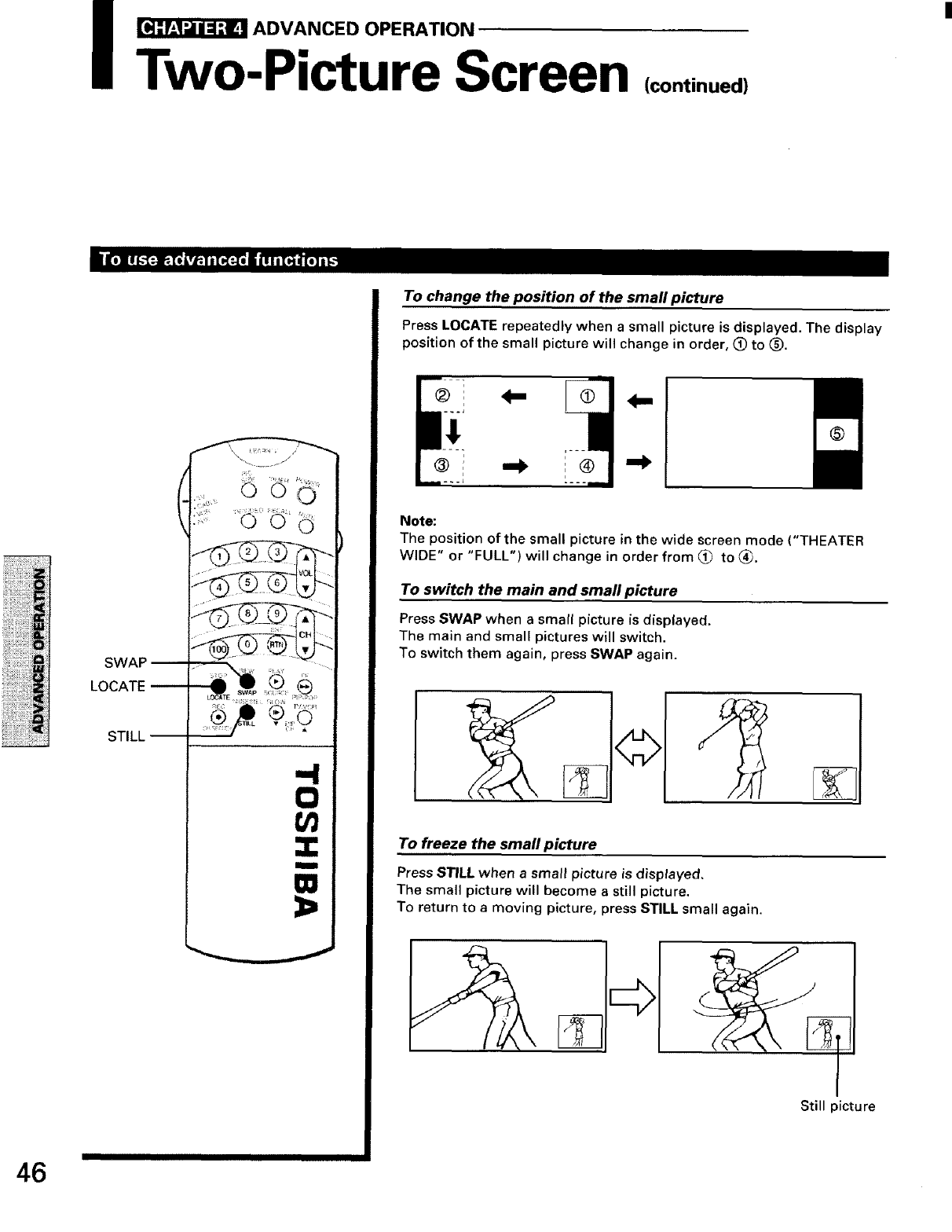

To use advanced functions ................................... 46

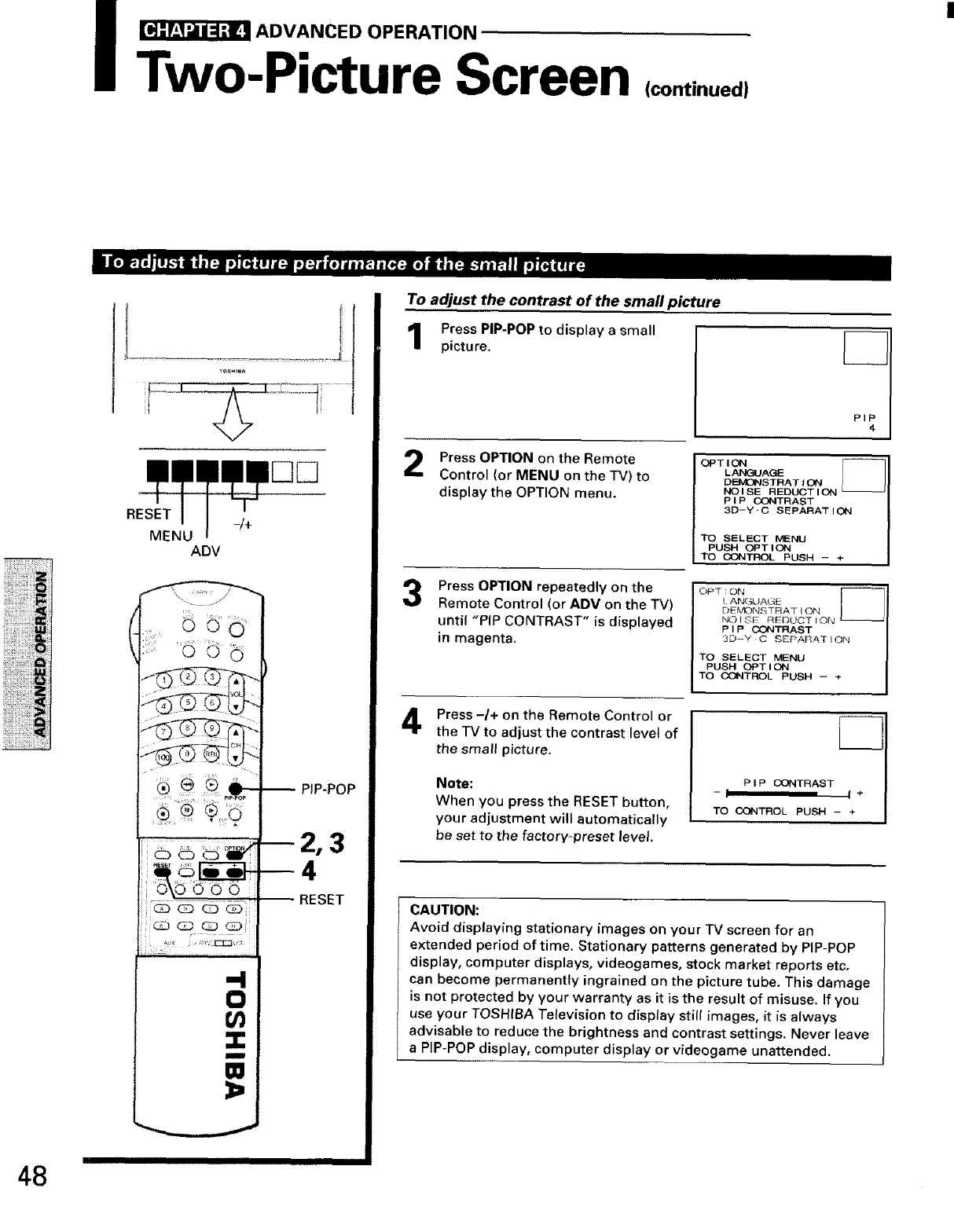

To adjust the picture performance of the

small picture ...................................................... 48

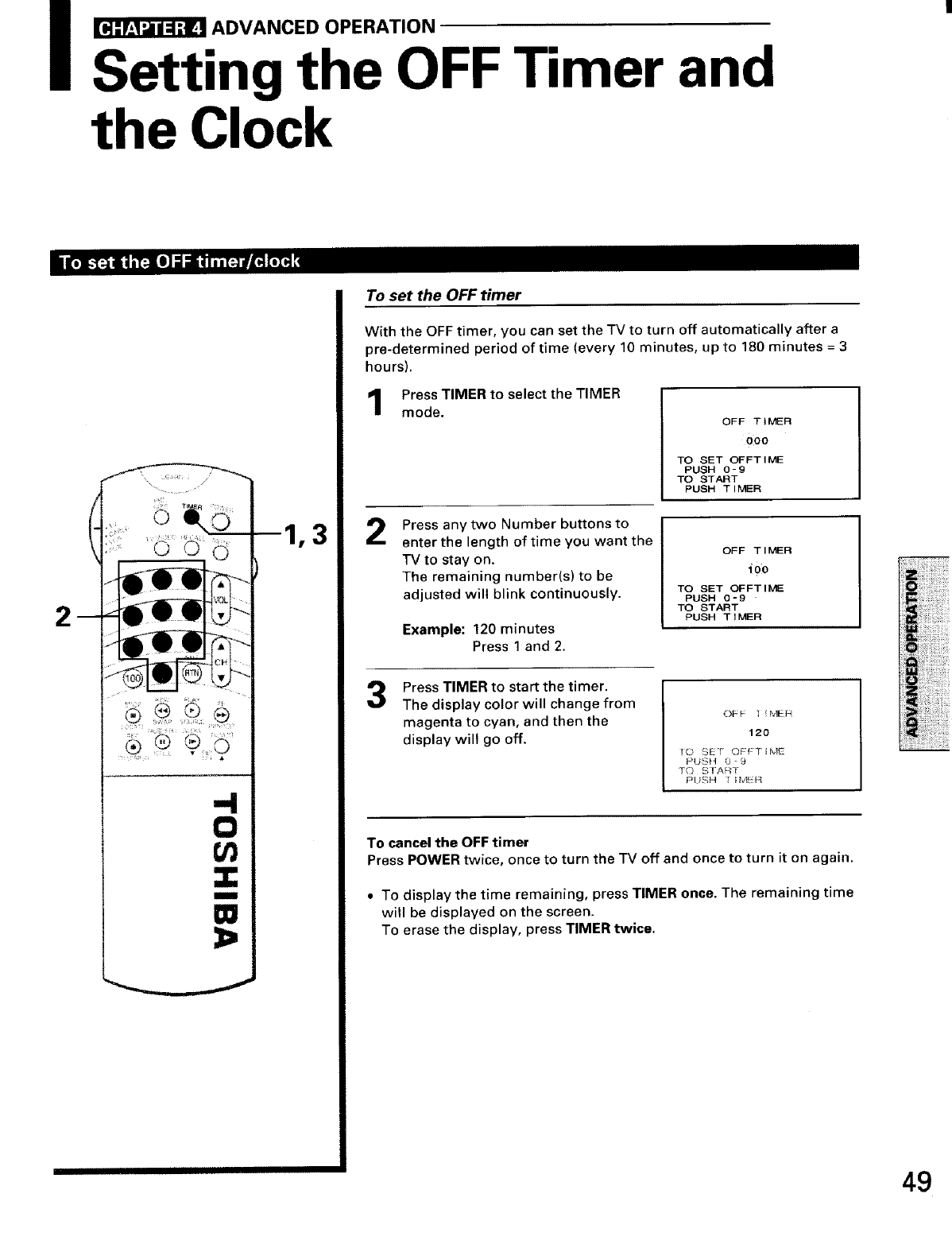

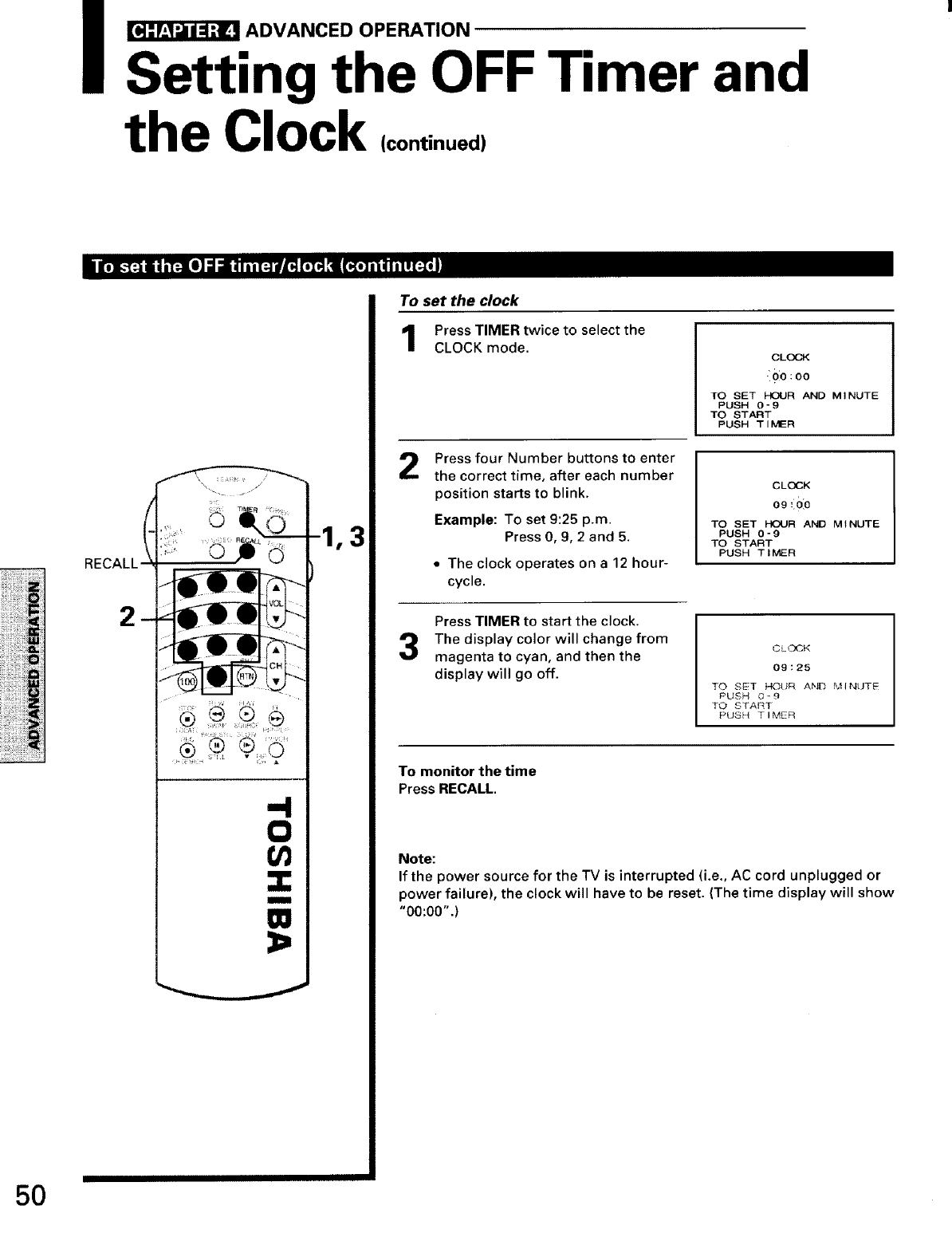

Setting the OFF Timer and the Clock ............. 49

To set the OFF timer/clock ..................................... 49

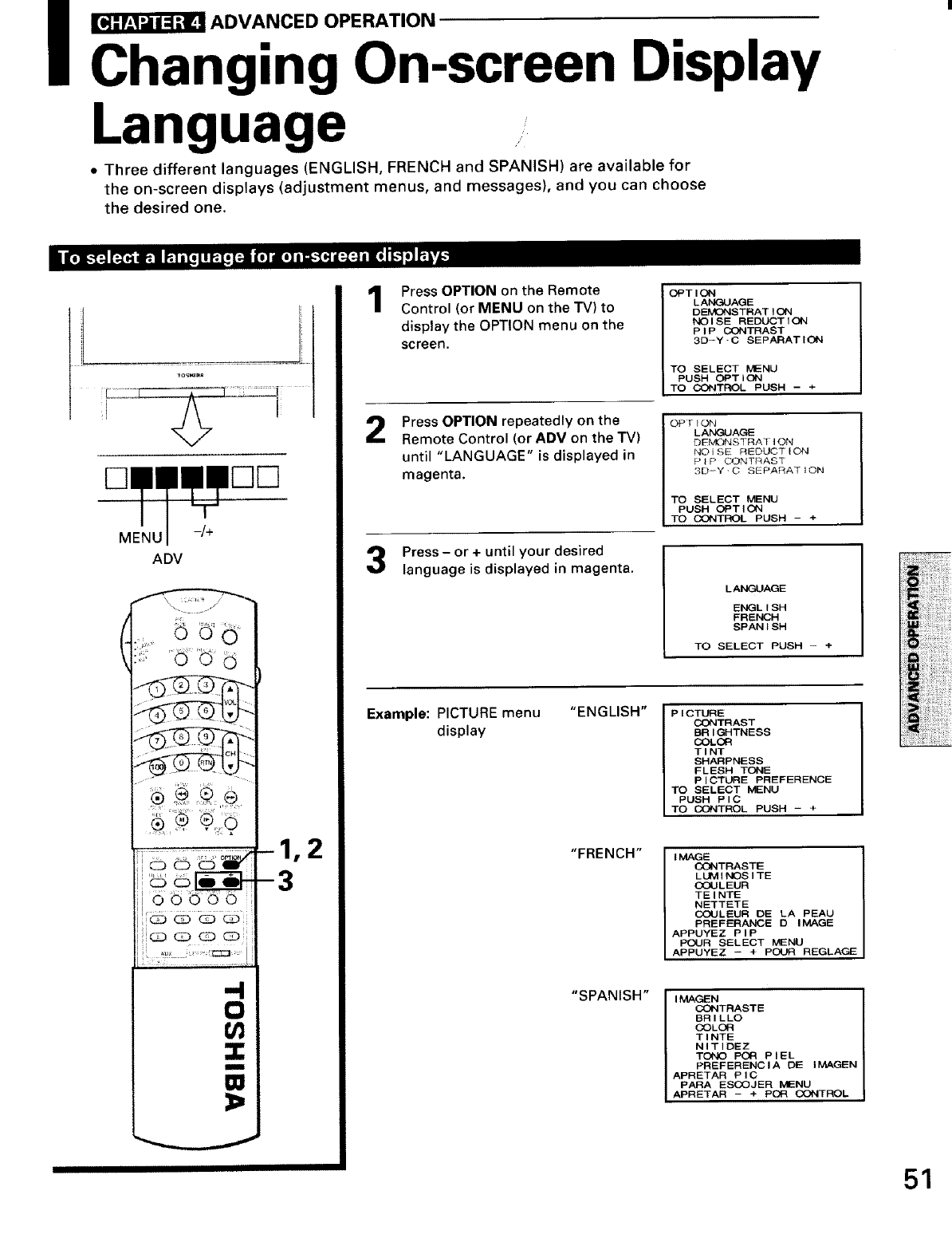

Changing the On-screen Display Language .... 51

To select alanguage for on-screen displays ....... 51

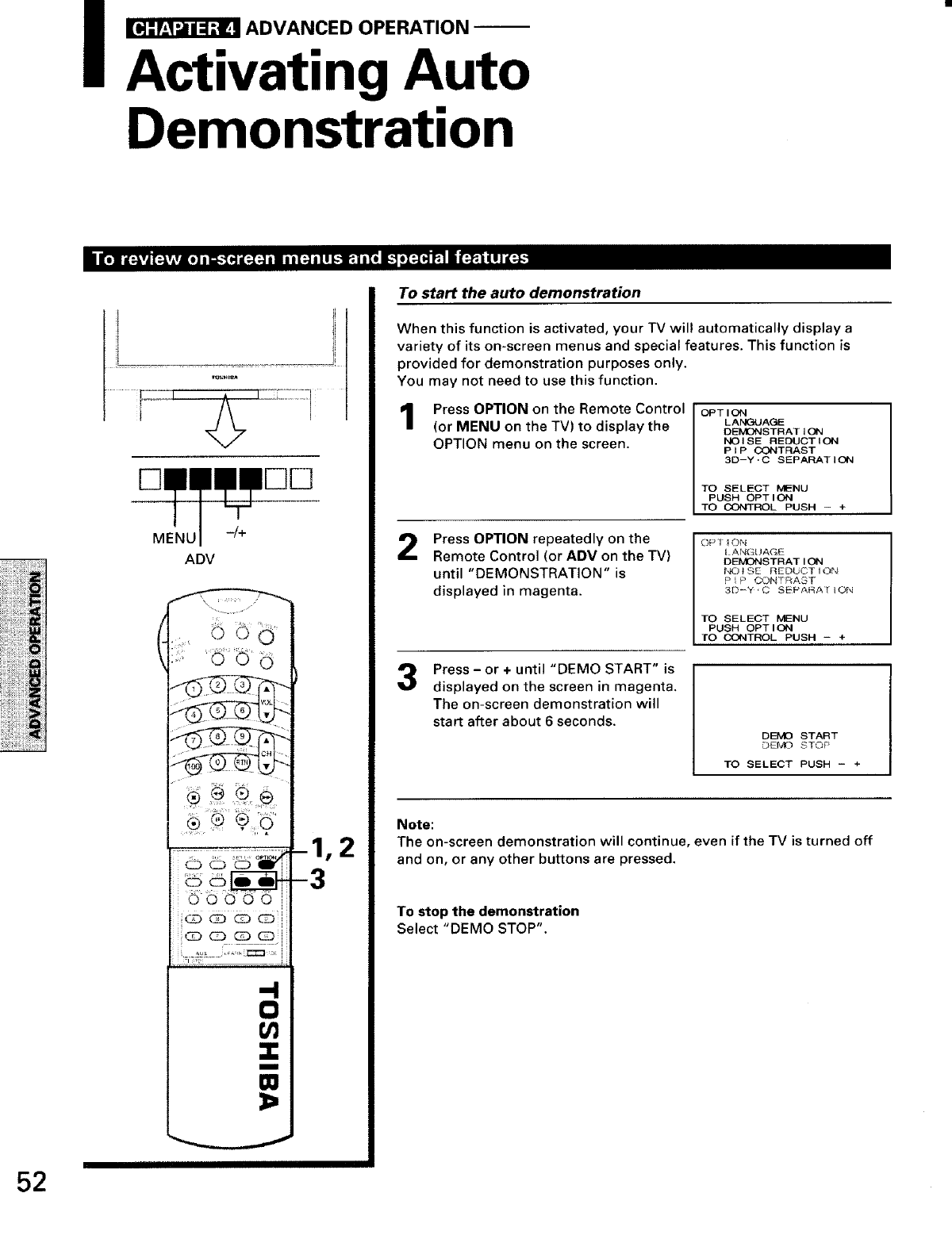

Activating Auto Demonstration ..................... 52

To review on-screen menus and special

features .............................................................. 52

Turning Noise Reduction On ........................... 53

To reduce picture noise ......................................... 53

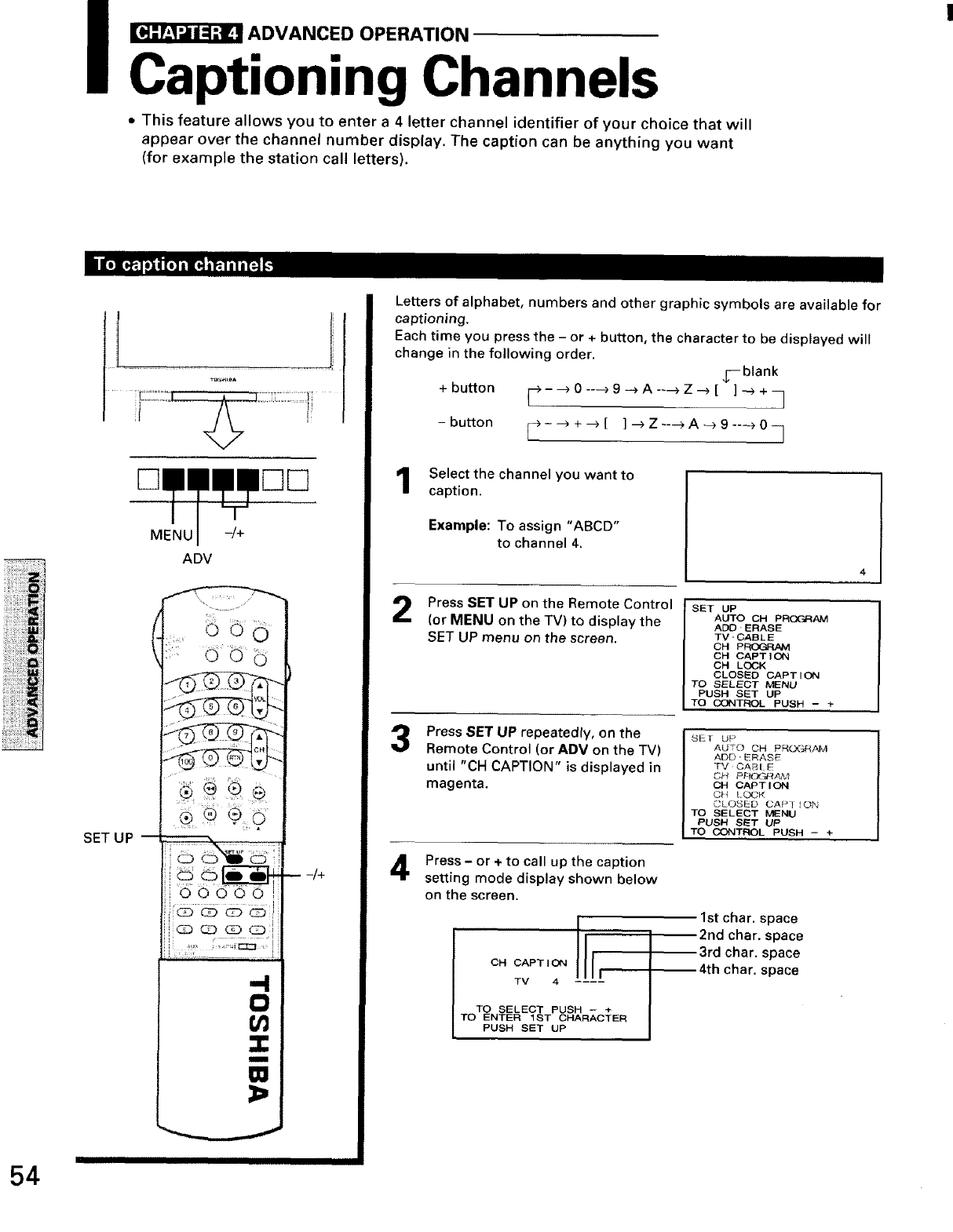

Captioning Channels ...................................... 54

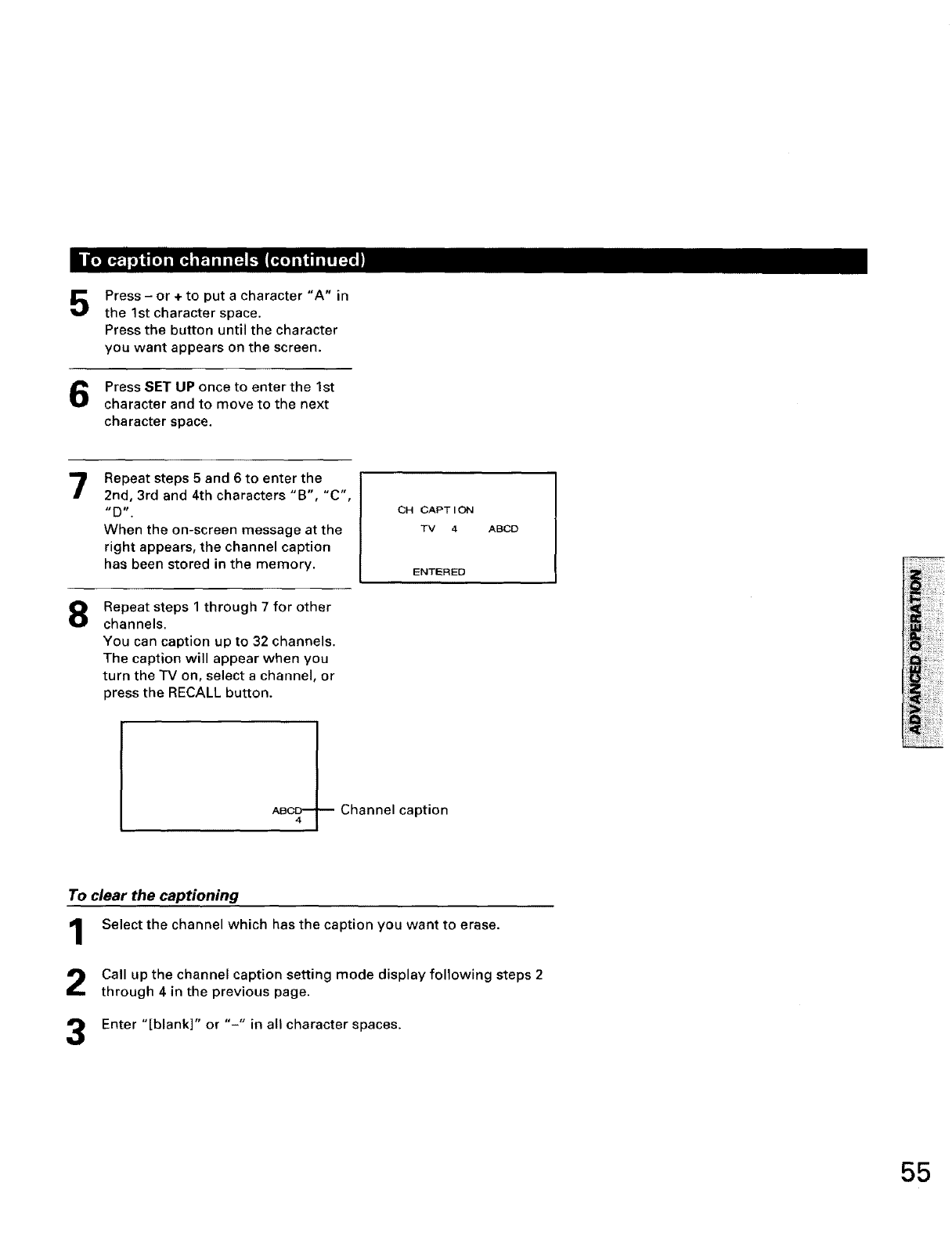

To caption channels ............................................... 54

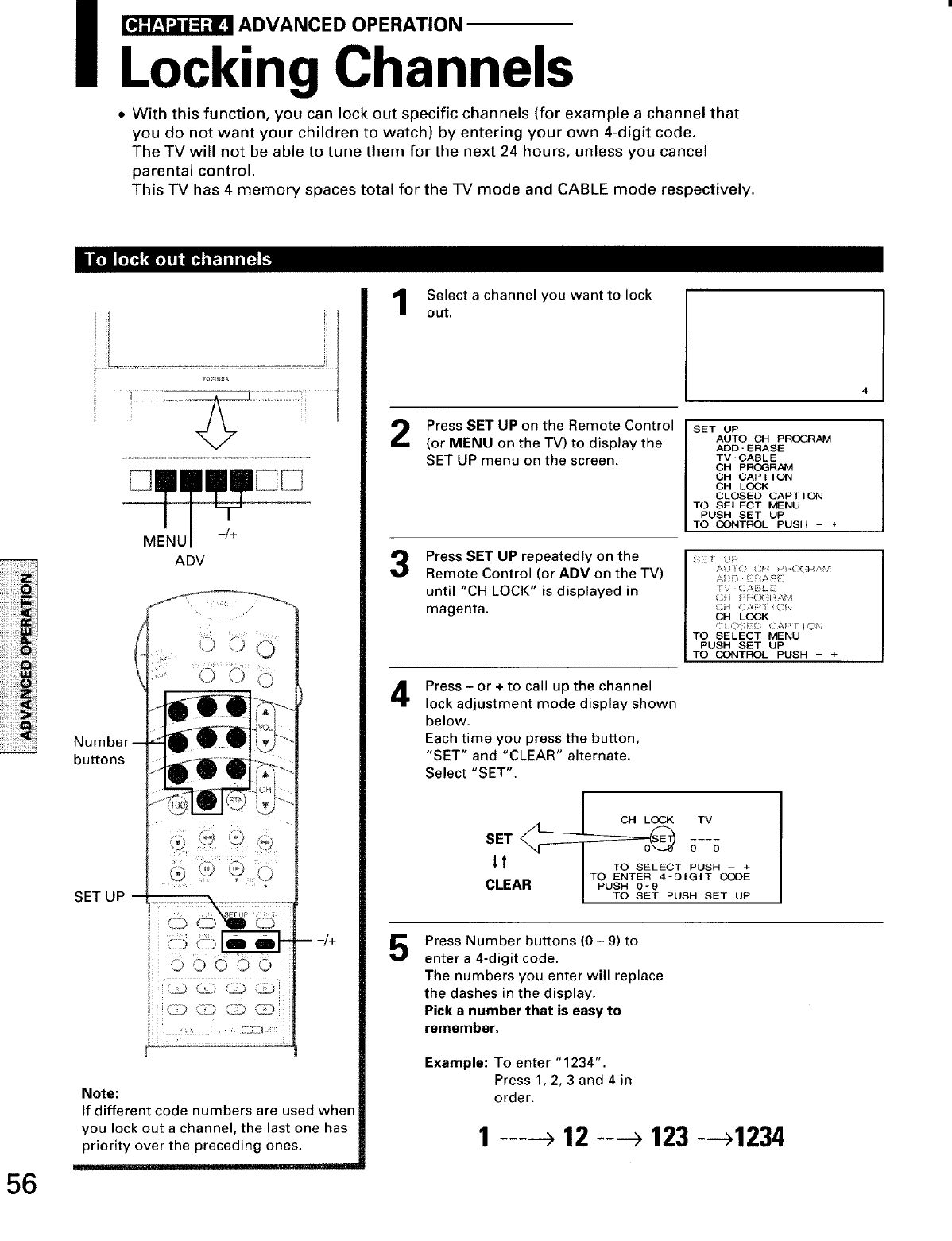

Locking Channels ........................................... 56

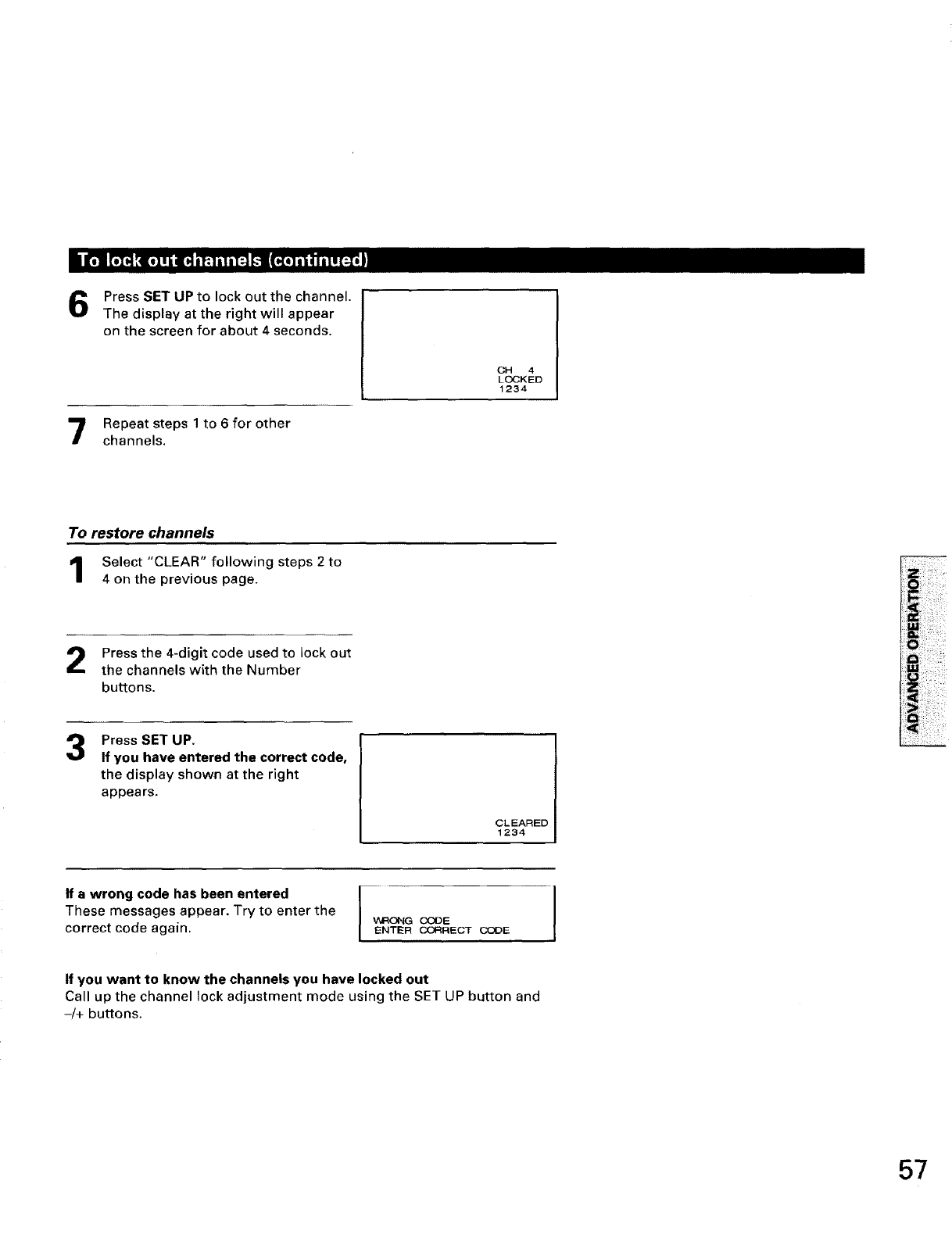

To lock out channels .............................................. 56

Operating the Closed Captioning Feature ...... 58

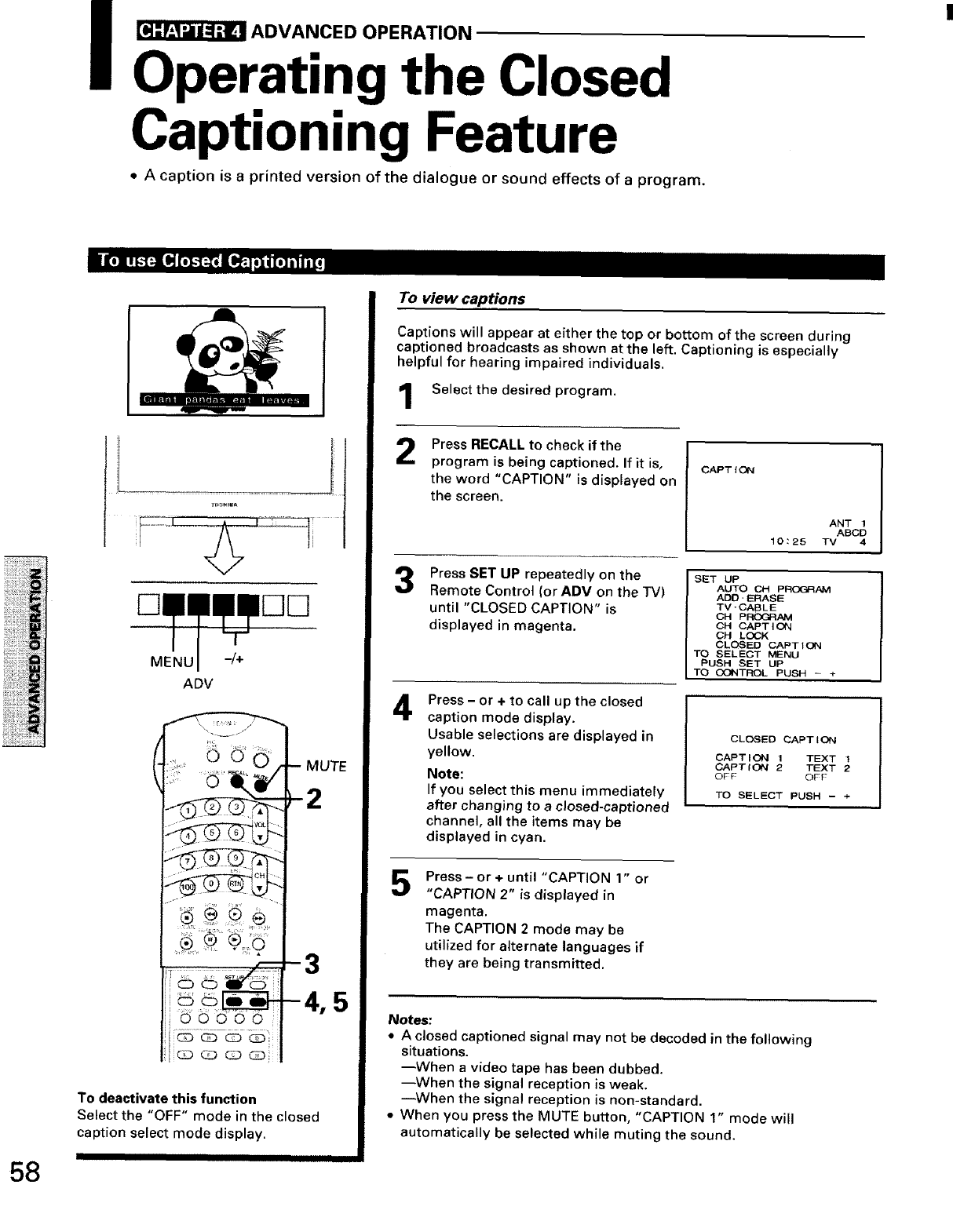

To use Closed Captioning ..................................... 58

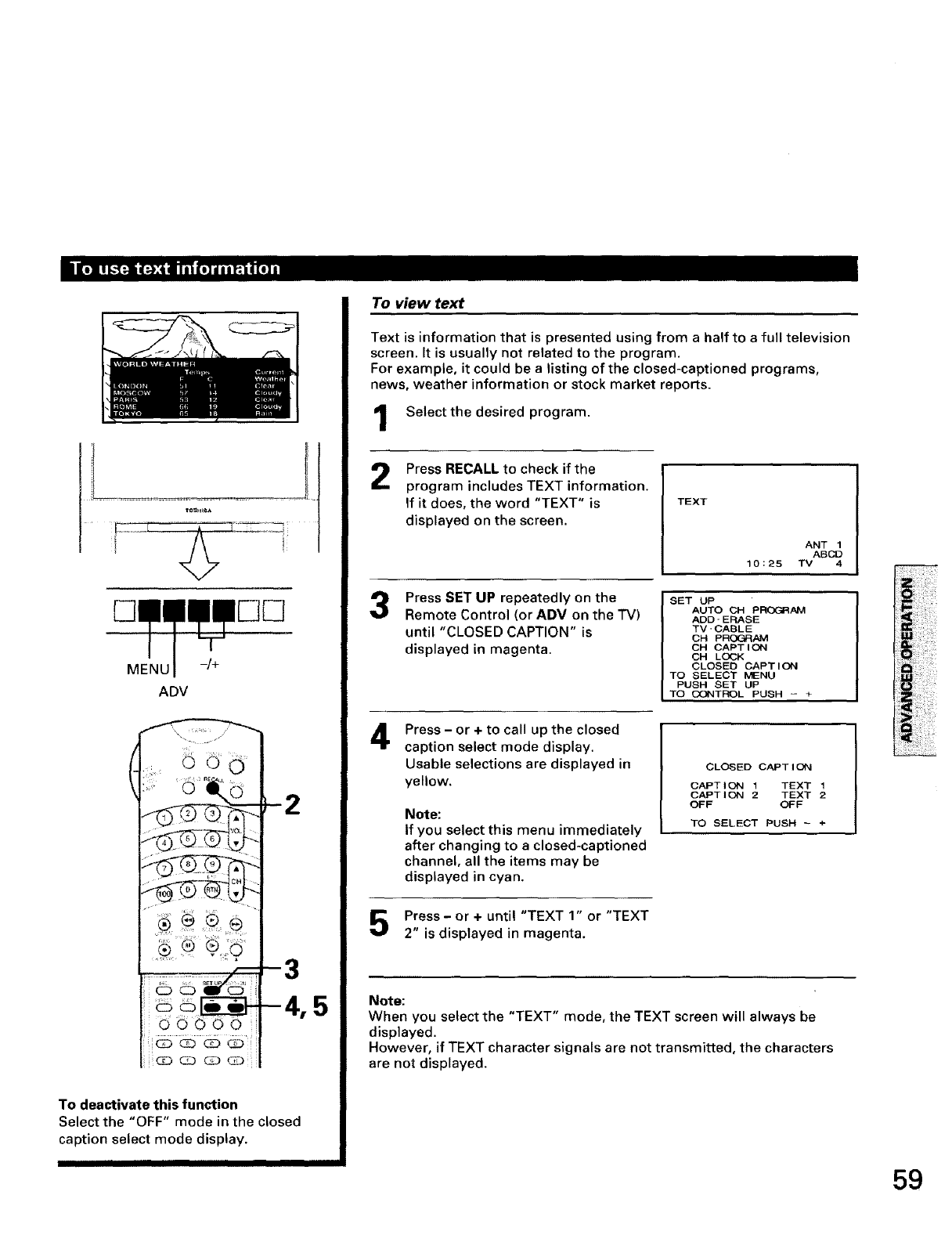

To use text information ......................................... 59

CONNECTING OTHER EQUIPMENT --

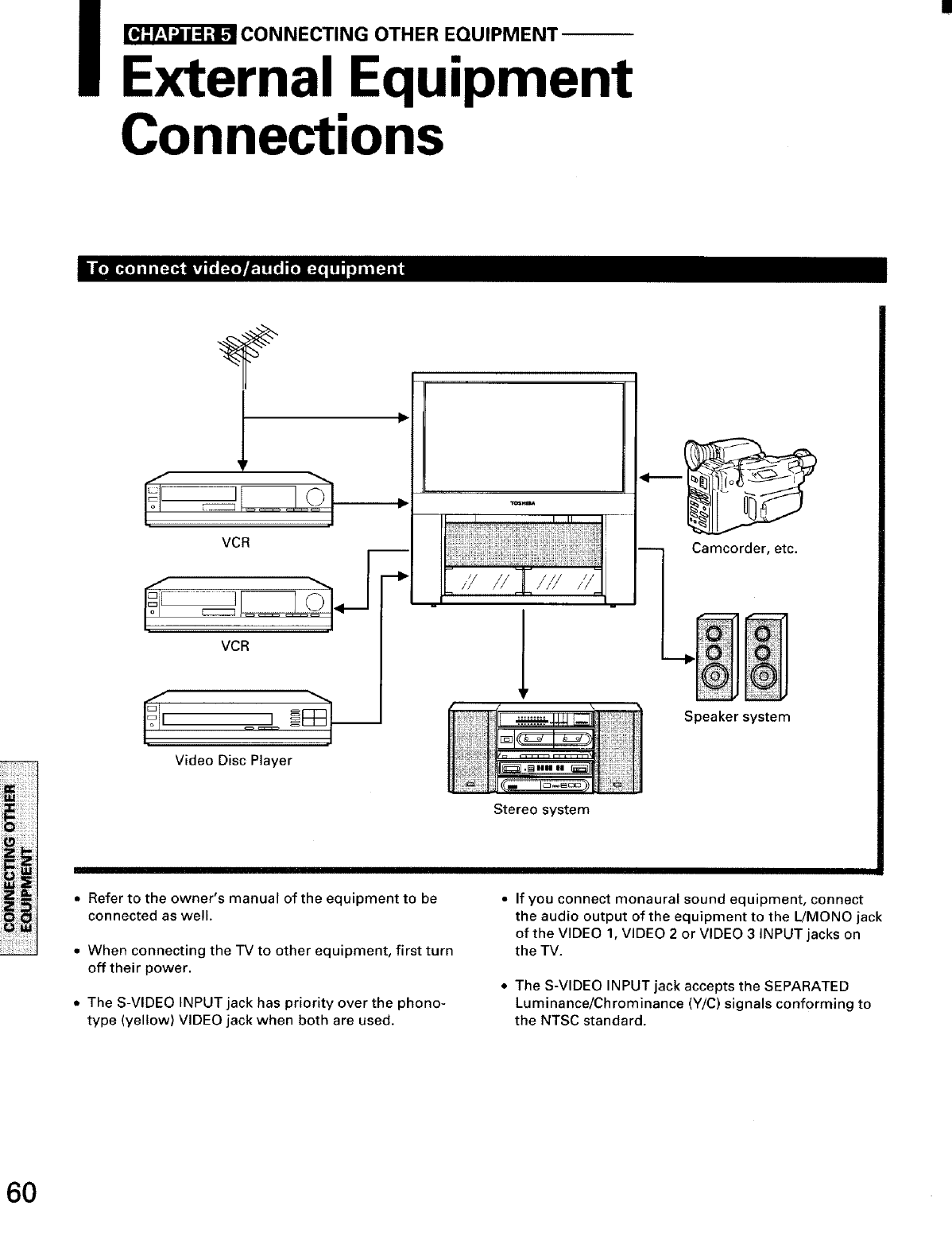

External Equipment Connections ................... 60

To connect video/audio equipment ...................... 60

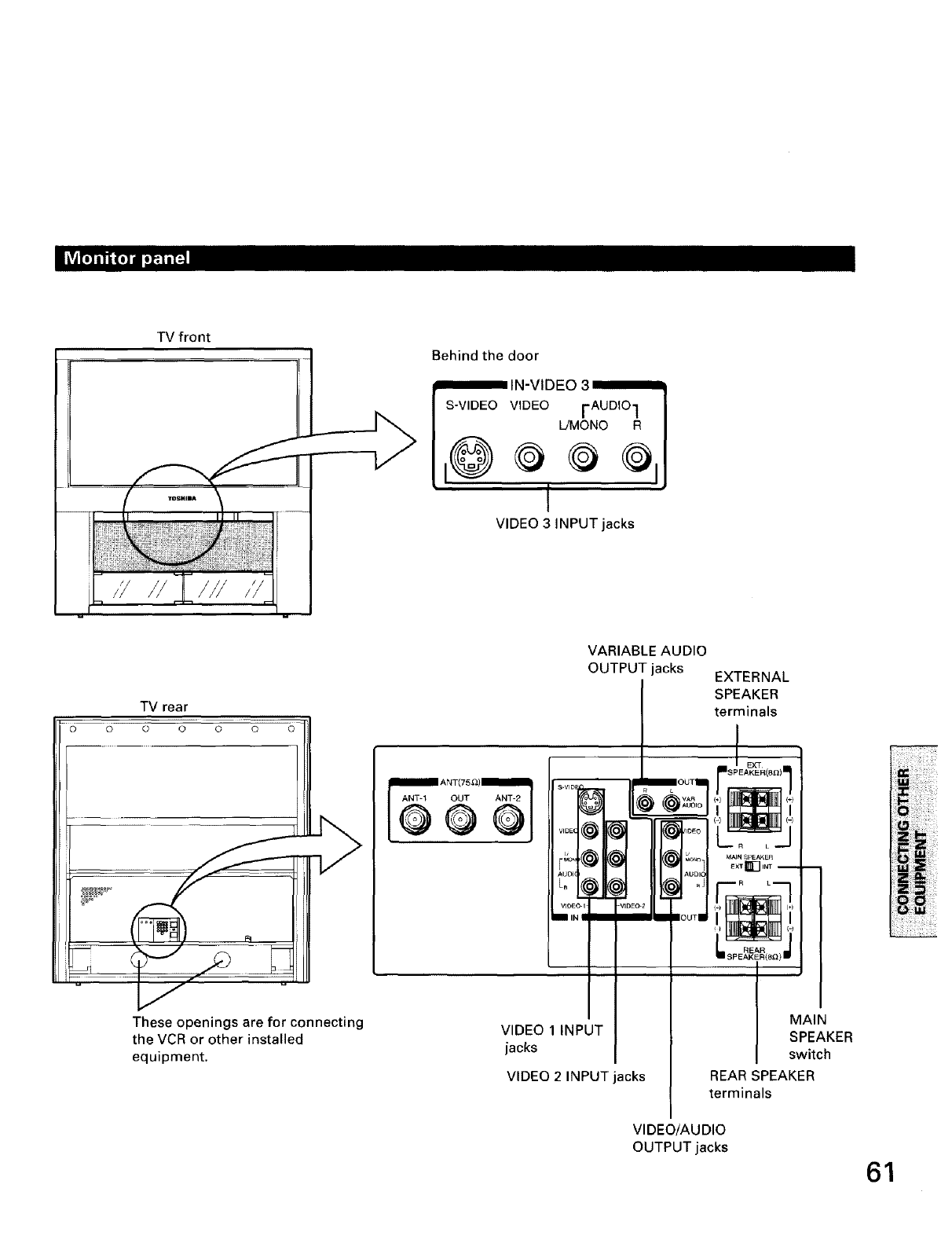

Monitor panel ......................................................... 61

To connect a standard VCR ................................... 62

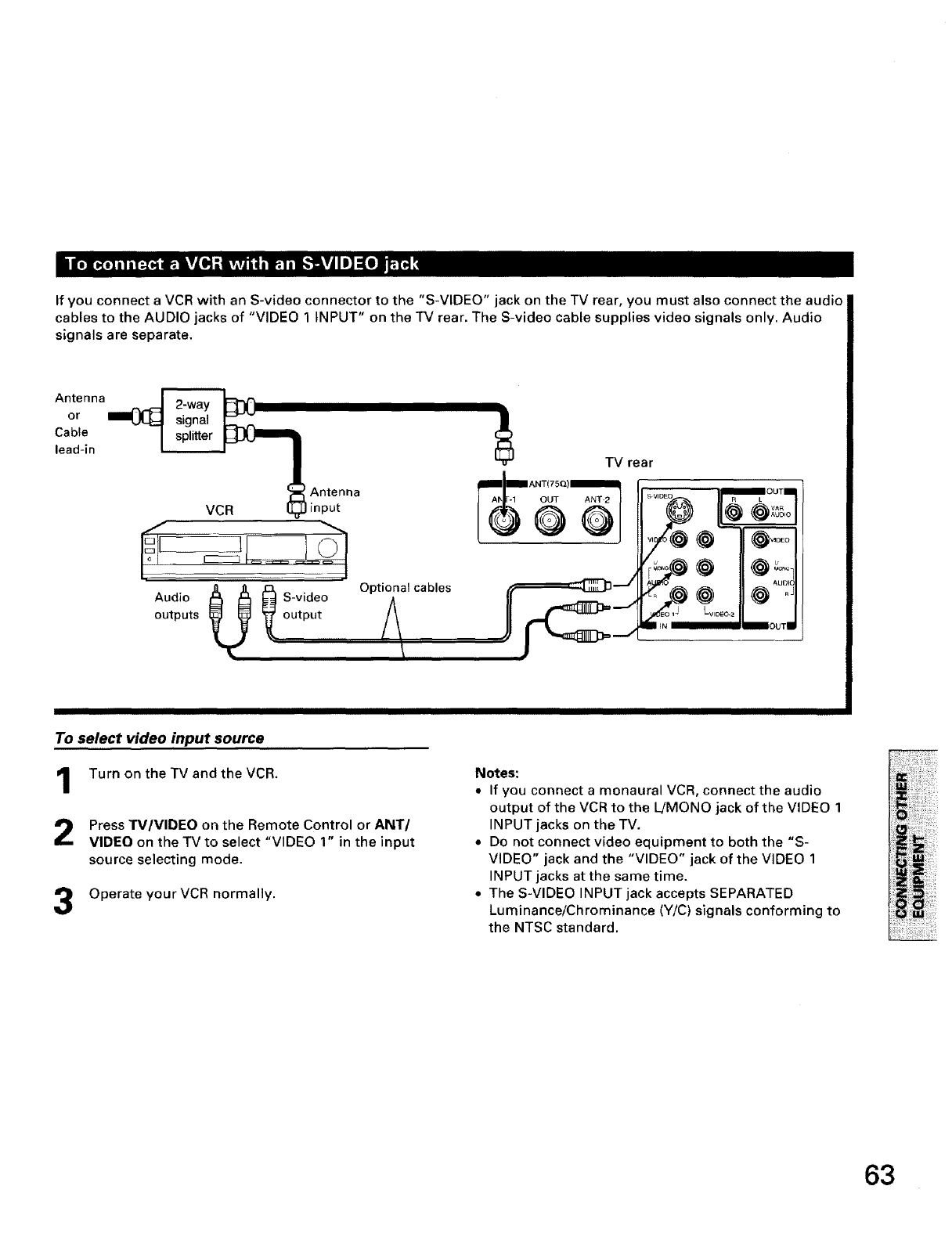

To connect a VCR with a S-VIDEO jack ................ 63

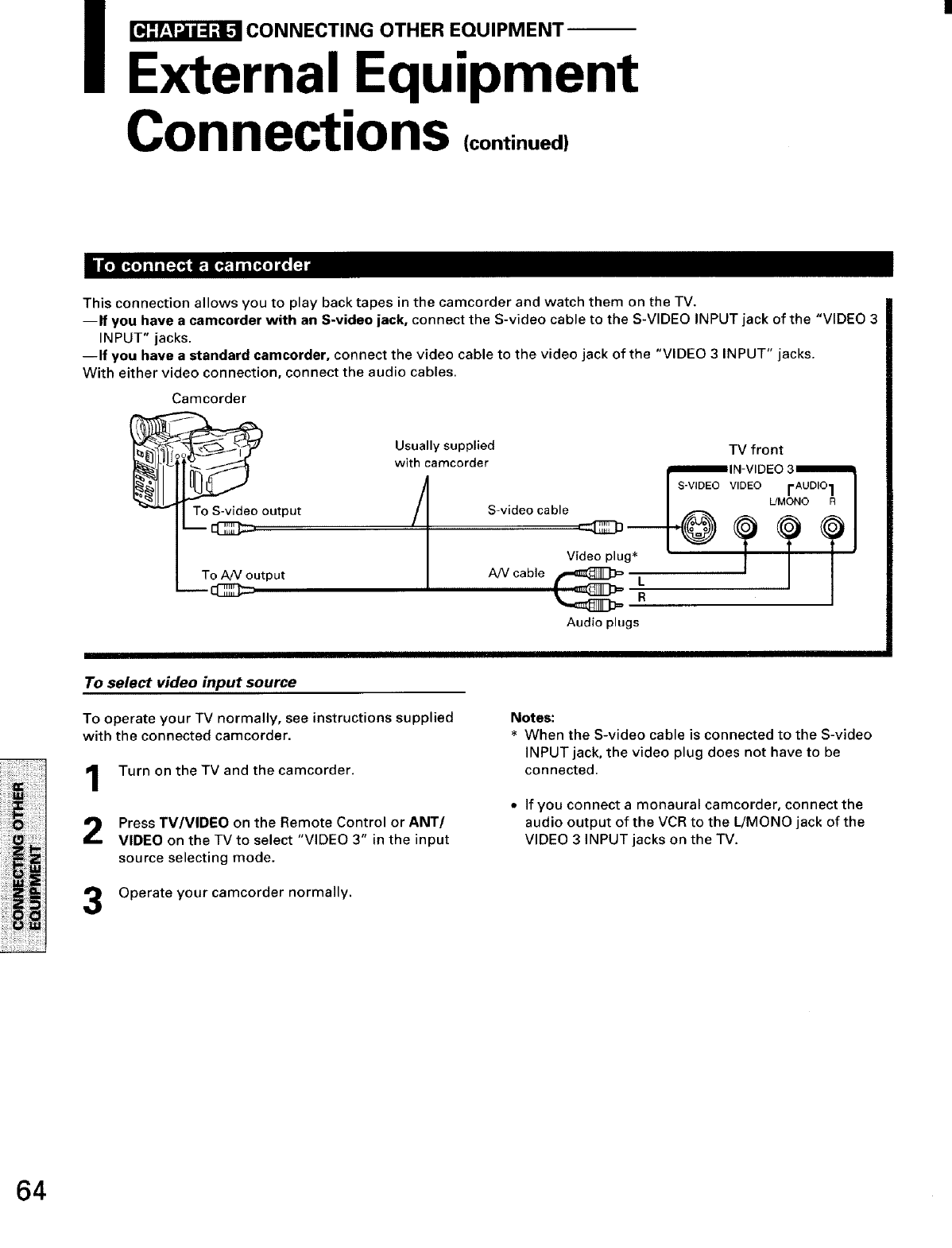

To connect a camcorder ........................................ 64

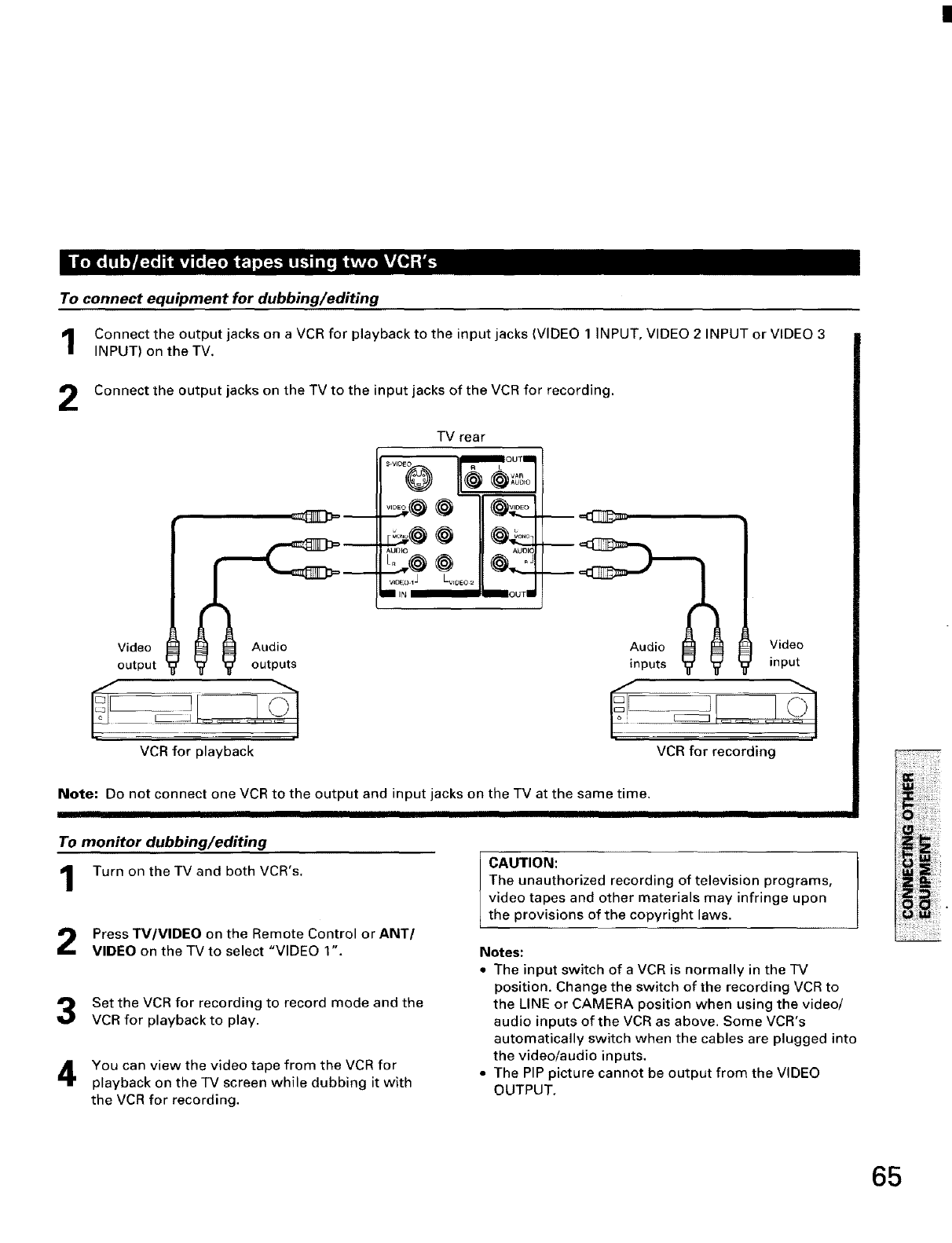

To dub/edit video tapes using two VCR's ............ 65

To connect an audio amplifier .............................. 66

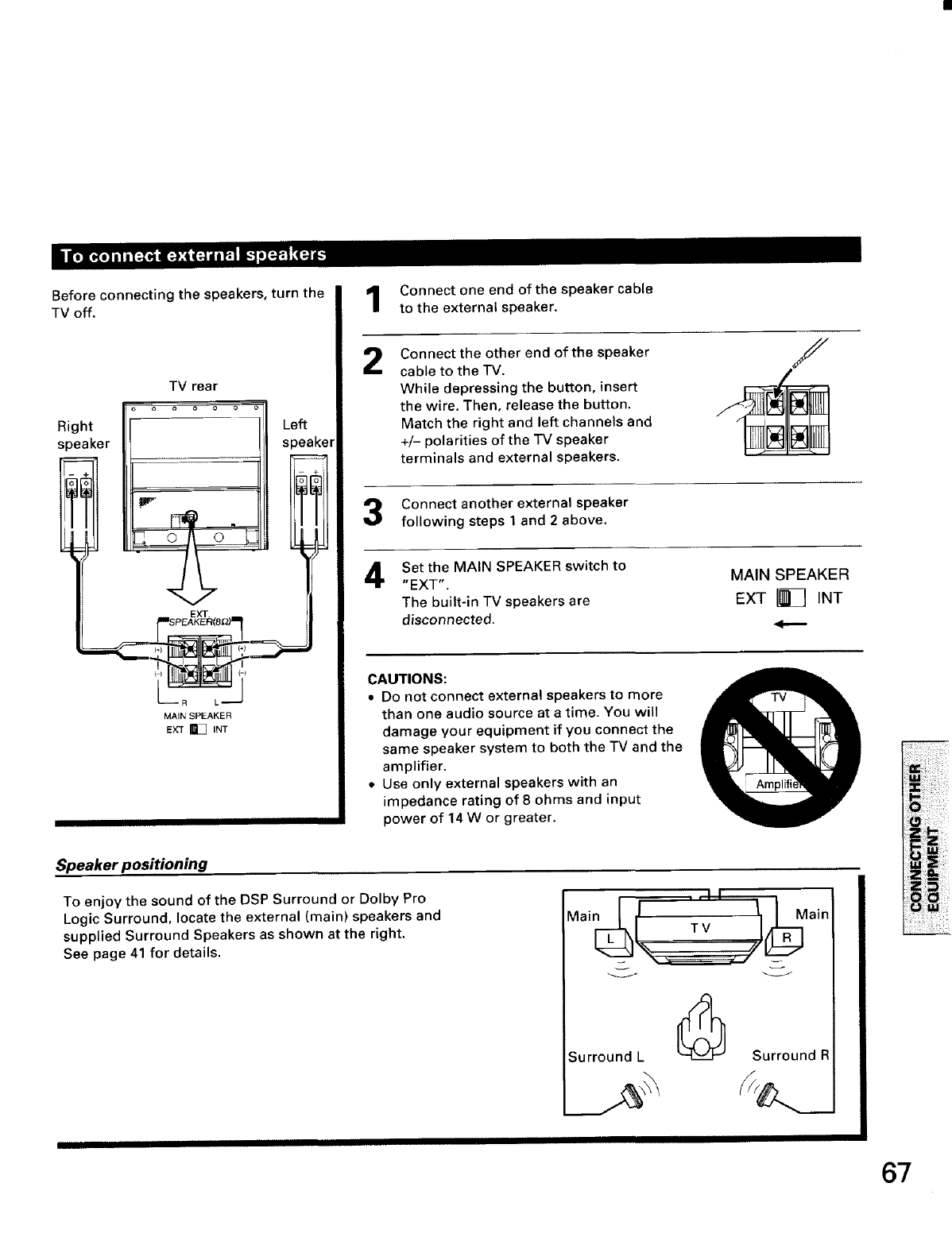

To connect external speakers ............................... 67

ADDITIONAL REFERENCE

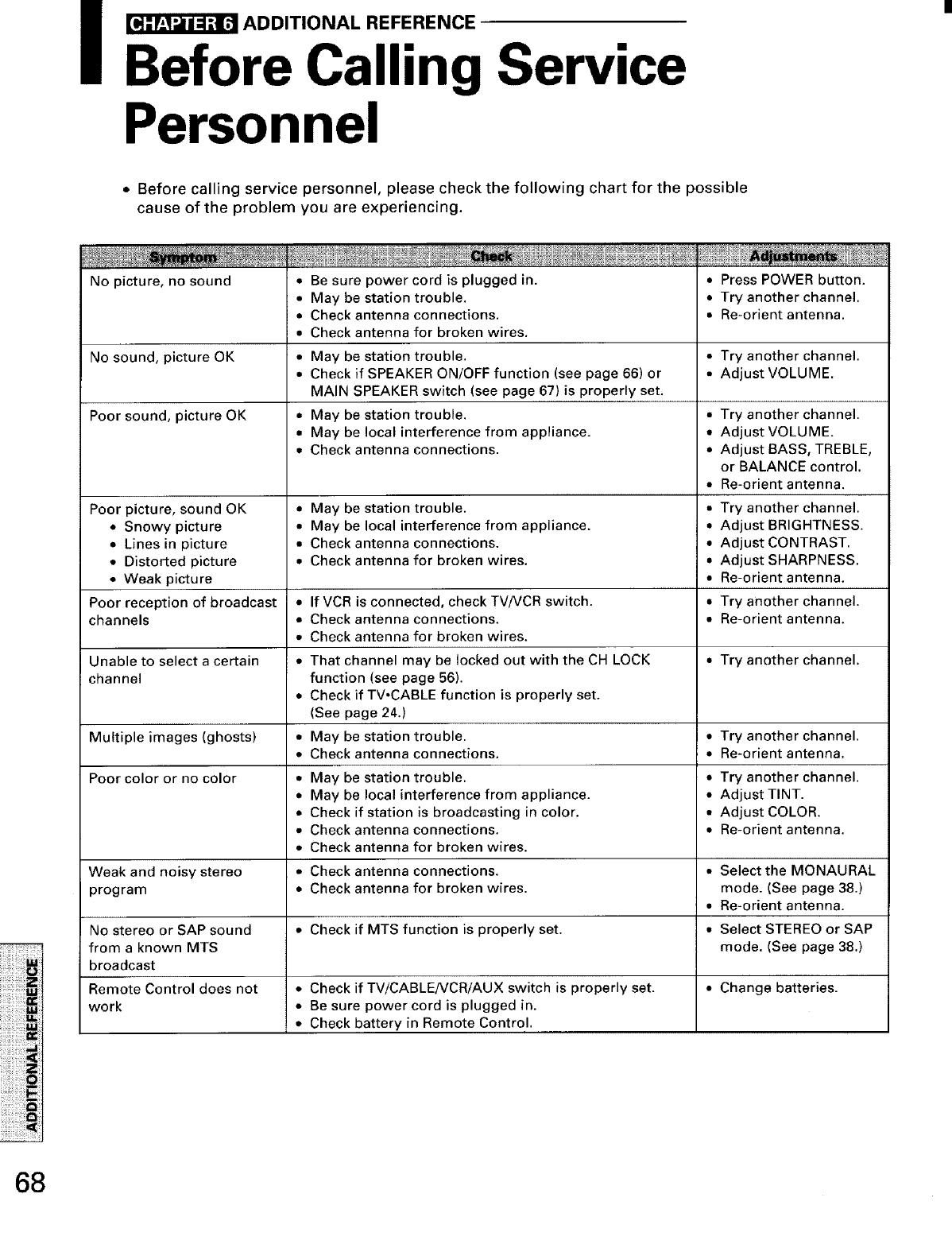

IBefore Calling Service Personnel ................... 68

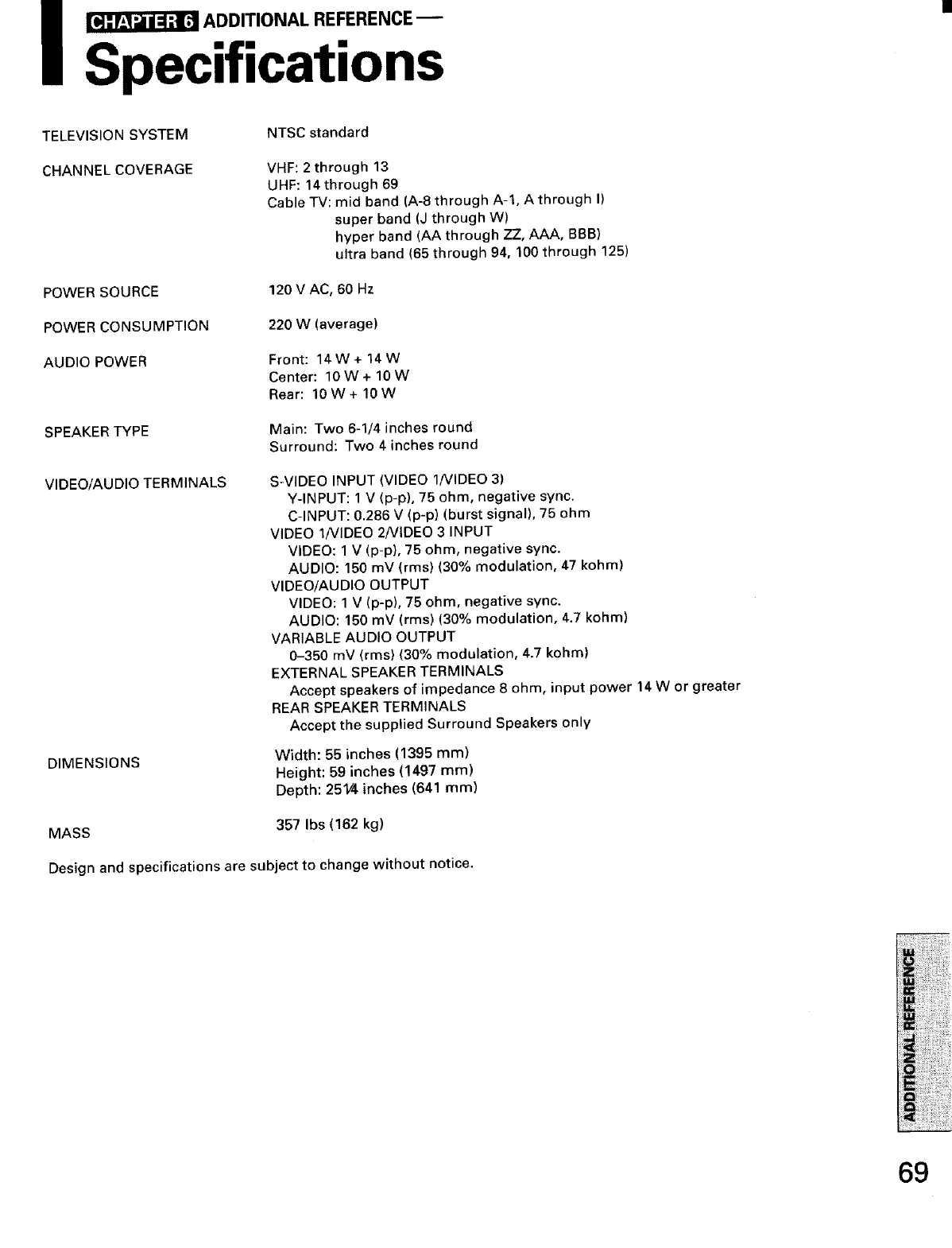

Specifications ................................................. 69

Limited Warranty ............................................ 70 3

i_INTRODUCTION

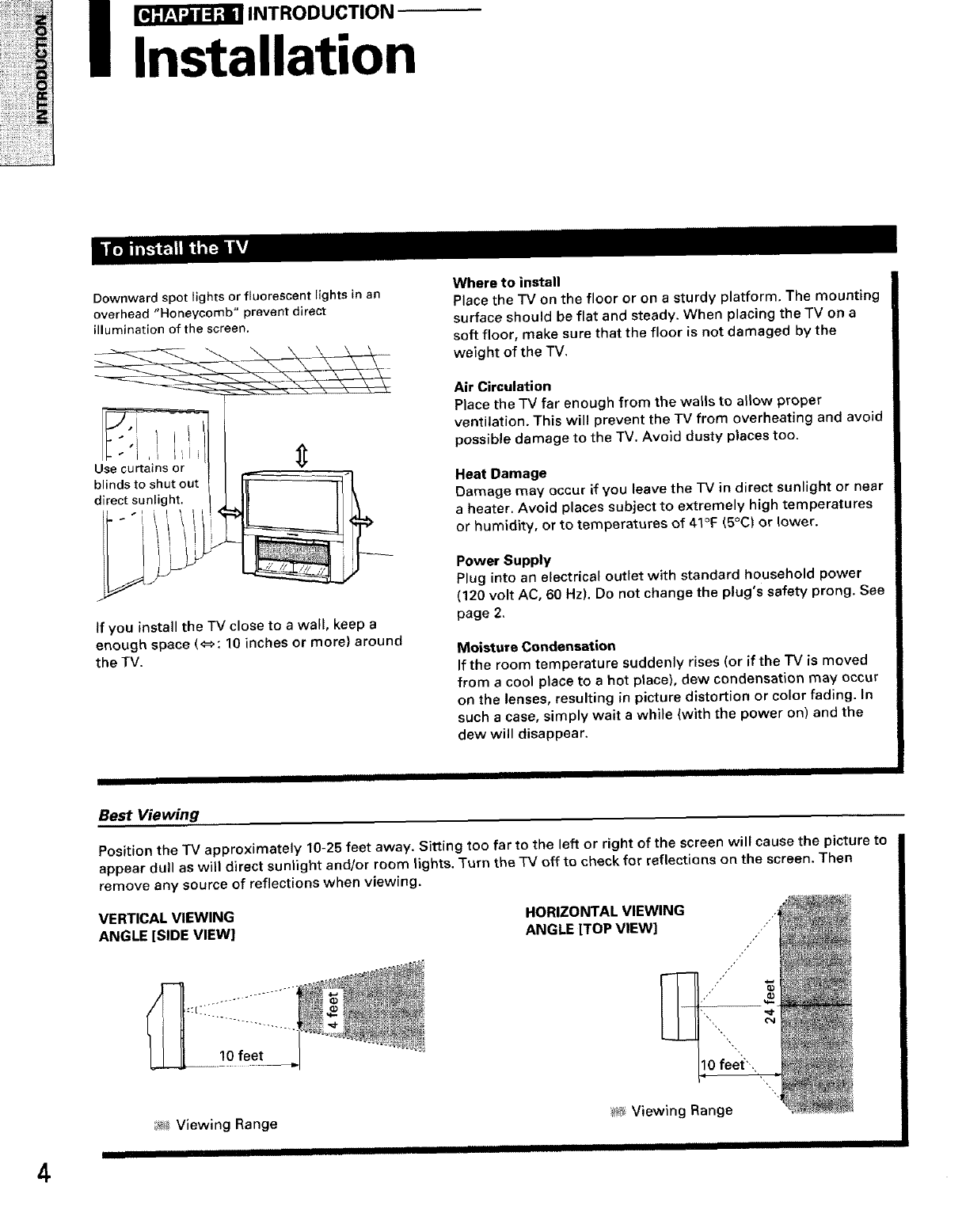

Installation

Downward spot lights or fluorescent lights in an

overhead "Honeycomb" prevent direct

illumination of the screen.

E.'I I:

Use curtains or

blinds to shut out

direct sunlight.

__i_t __ _i ' !

If you install the TV close to a wall, keep a

enough space (4=_: 10 inches or more) around

the TV.

Where to install

Place the "IV on the floor or on a sturdy platform. The mounting

surface should be flat and steady. When placing the TV on a

soft floor, make sure that the floor is not damaged by the

weight of the TV,

Air Circulation

Place the TV far enough from the walls to allow proper

ventilation. This will prevent the TV from overheating and avoid

possible damage to the TV. Avoid dusty places too.

Heat Damage

Damage may occur if you leave the TV in direct sunlight or near

a heater• Avoid places subject to extremely high temperatures

or humidity, or to temperatures of 41°F (5°C) or lower.

Power Supply

Plug into an electrical outlet with standard household power

(120 volt AC, 60 Hz). Do not change the plug's safety prong. See

page 2,

Moisture Condensation

If the room temperature suddenly rises (or if the rv is moved

from acool place to a hot place), dew condensation may occur

on the lenses, resulting in picture distortion or color fading. In

such a case, simply wait a while (with the power on) and the

dew will disappear.

4

IIIIIIIII

Best Viewing

Position the TV approximately 10-25 feet away. Sitting too far to the left or right of the screen will cause the picture to

appear dull as will direct sunlight and/or room lights. Turn the TV off to check for reflections on the screen. Then

remove any source of reflections when viewing.

VERTICAL VIEWING

ANGLE [SIDE VIEW]

_'_ Viewing Range

HORIZONTAL VIEWING

ANGLE [TOP VIEW]

• i;ei

?_ Viewing Range

I IIIII IIIIIII1[ IIIIIIIIIIII1[IIIIIIIIIIIIIIII

G:)¢_

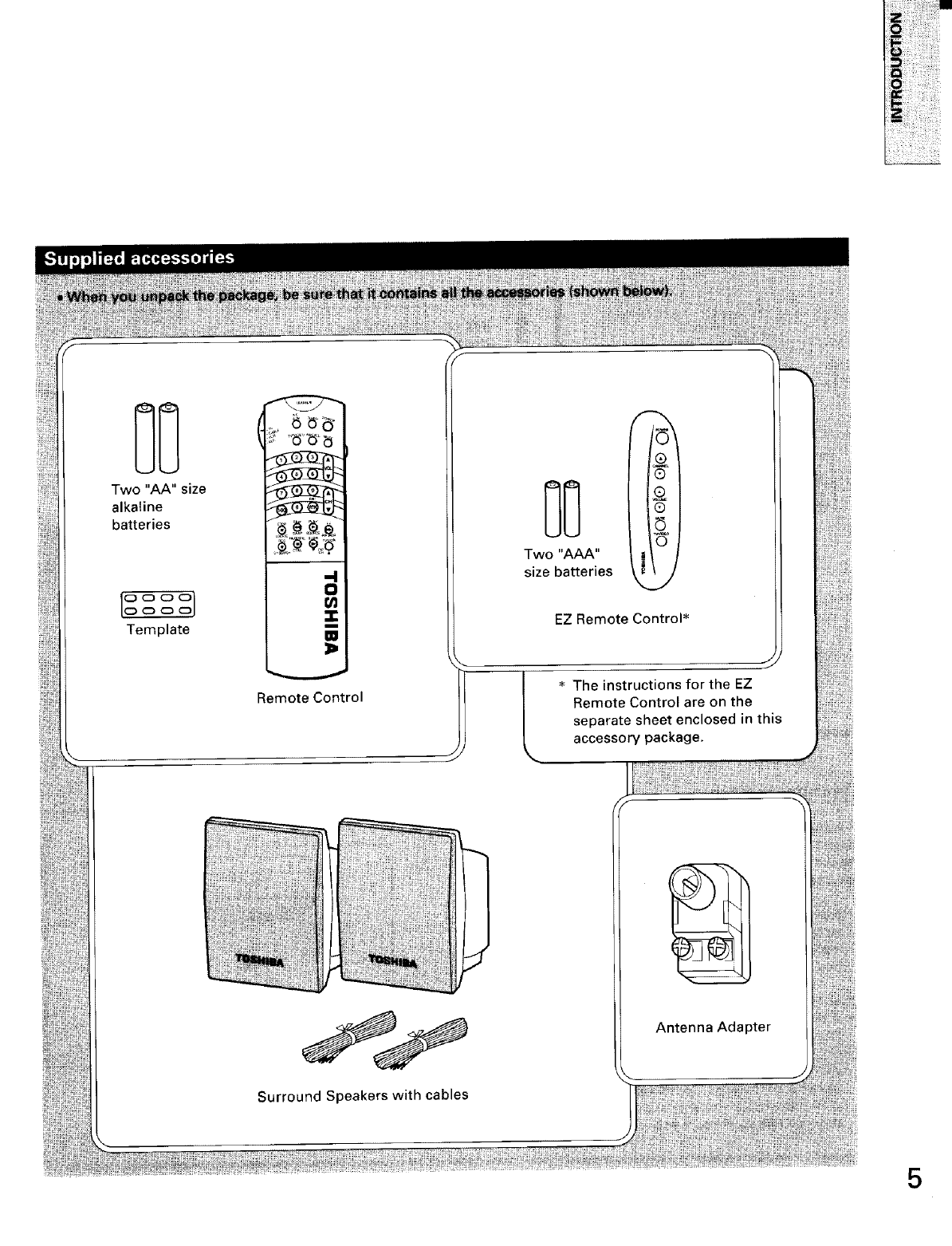

Template

Remote Control

Two "AAA"

size batteries

EZ Remote Control*

* The instructions for the EZ

Remote Control are on the

separate sheet enclosed in this

accessory package.

Surround Speakers with cables

Antenna Adapter

5

IINTRODUCTION

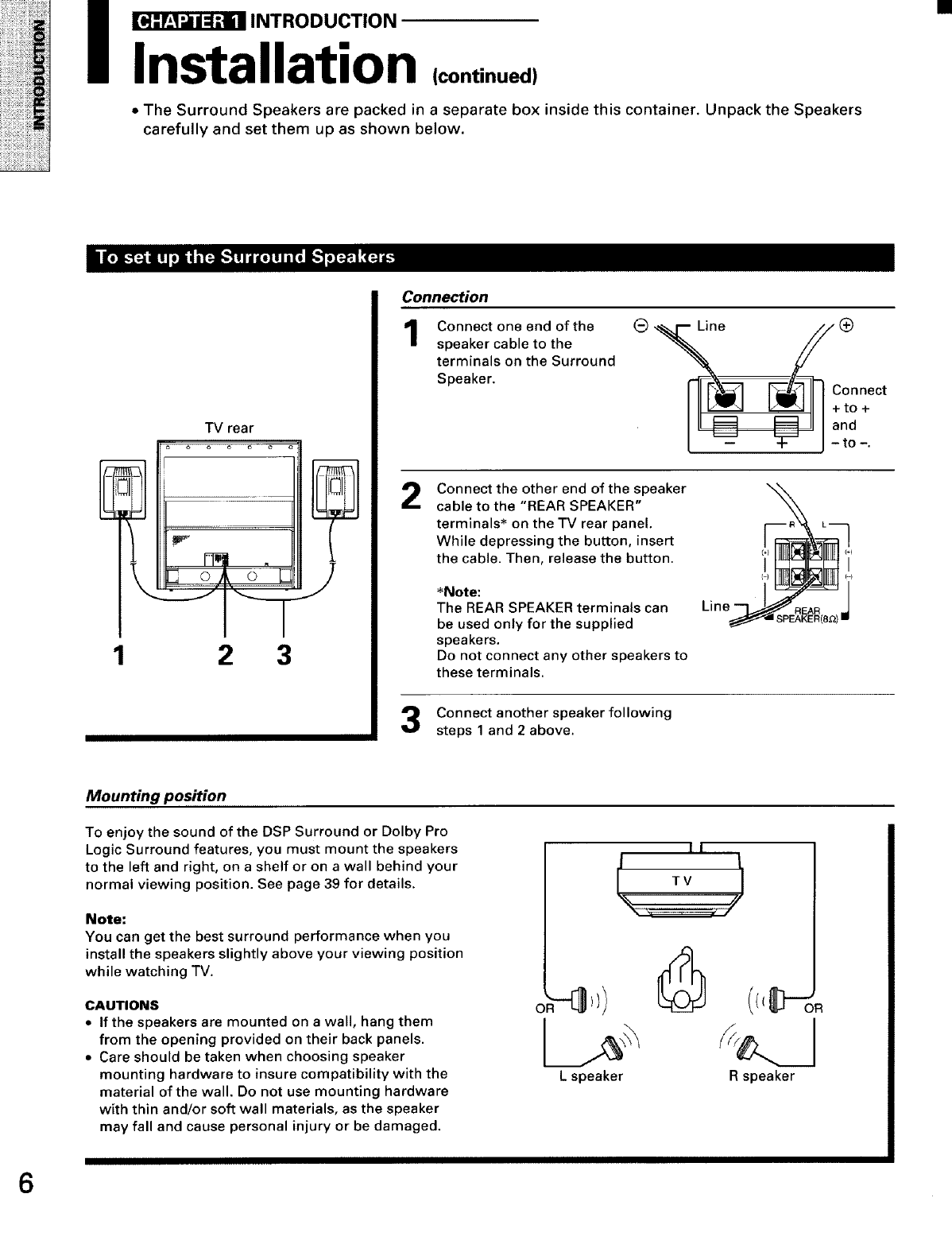

Installation (continued)

•The Surround Speakers are packed in a separate box inside this container. Unpack the Speakers

carefully and set them up as shown below.

TV rear

3 o) o E

23

Connec_on

Connect one end of the

speaker cable to the

terminals on the Surround

Speaker.

2Connect the other end of the speaker

cable to the "REAR SPEAKER"

terminals* on the TV rear panel.

While depressing the button, insert

the cable. Then, release the button.

*Note:

The REAR SPEAKER terminals can

be used only for the supplied

speakers.

Do not connect any other speakers to

these terminals.

Connect another speaker following

steps 1 and 2 above.

Mounting position

To enjoy the sound of the DSP Surround or Dolby Pro

Logic Surround features, you must mount the speakers

to the left and right, on a shelf or on a wall behind your

normal viewing position. See page 39 for details.

Note;

You can get the best surround performance when you

install the speakers slightly above your viewing position

while watching TV.

CAUTIONS

•If the speakers are mounted on a wall, hang them

from the opening provided on their back panels.

• Care should be taken when choosing speaker

mounting hardware to insure compatibility with the

material of the wall. Do not use mounting hardware

with thin and/or soft wall materials, as the speaker

may fall and cause personal injury or be damaged.

II

Lspeaker R speaker

6

_INTRODUCTION

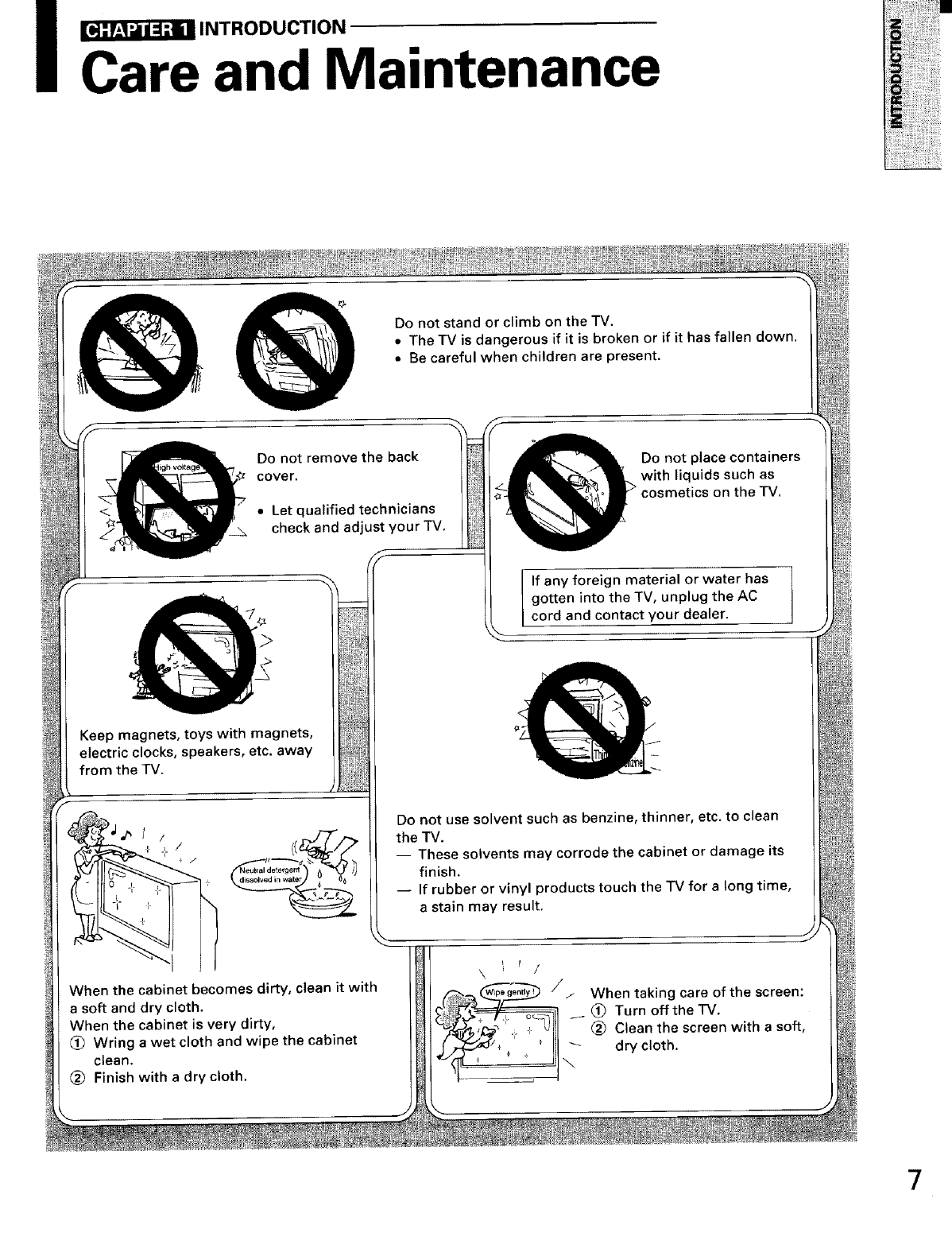

Care and Maintenance

Do not stand or climb on the TV.

•The TV is dangerous if it is broken or if it has fallen down.

•Be careful when children are present.

Do not remove the back

cover.

• Let qualified technicians

check and adjust your TV.

Keep magnets, toys with magnets,

electric clocks speakers, etc. away

from the TV.

When the cabinet becomes dirty, clean it with

a soft and dry cloth.

When the cabinet is very dirty,

(_ Wring a wet cloth and wipe the cabinet

clean.

(_ Finish with adry cloth.

Do not place containers

with liquids such as

cosmetics on the TV.

If any foreign material or water has

gotten into the TV, unplug the AC

cord and contact your dealer.

Do not use solvent such as benzine, thinner, etc. to clean

the TV.

-- These solvents may corrode the cabinet or damage its

finish.

-- If rubber or vinyl products touch the TV for along time,

a stain may result.

// When taking care of the screen:

(_) Turn off the TV.

-i- + _ Clean the screen with a soft,

"-_ dry cloth.

\

7

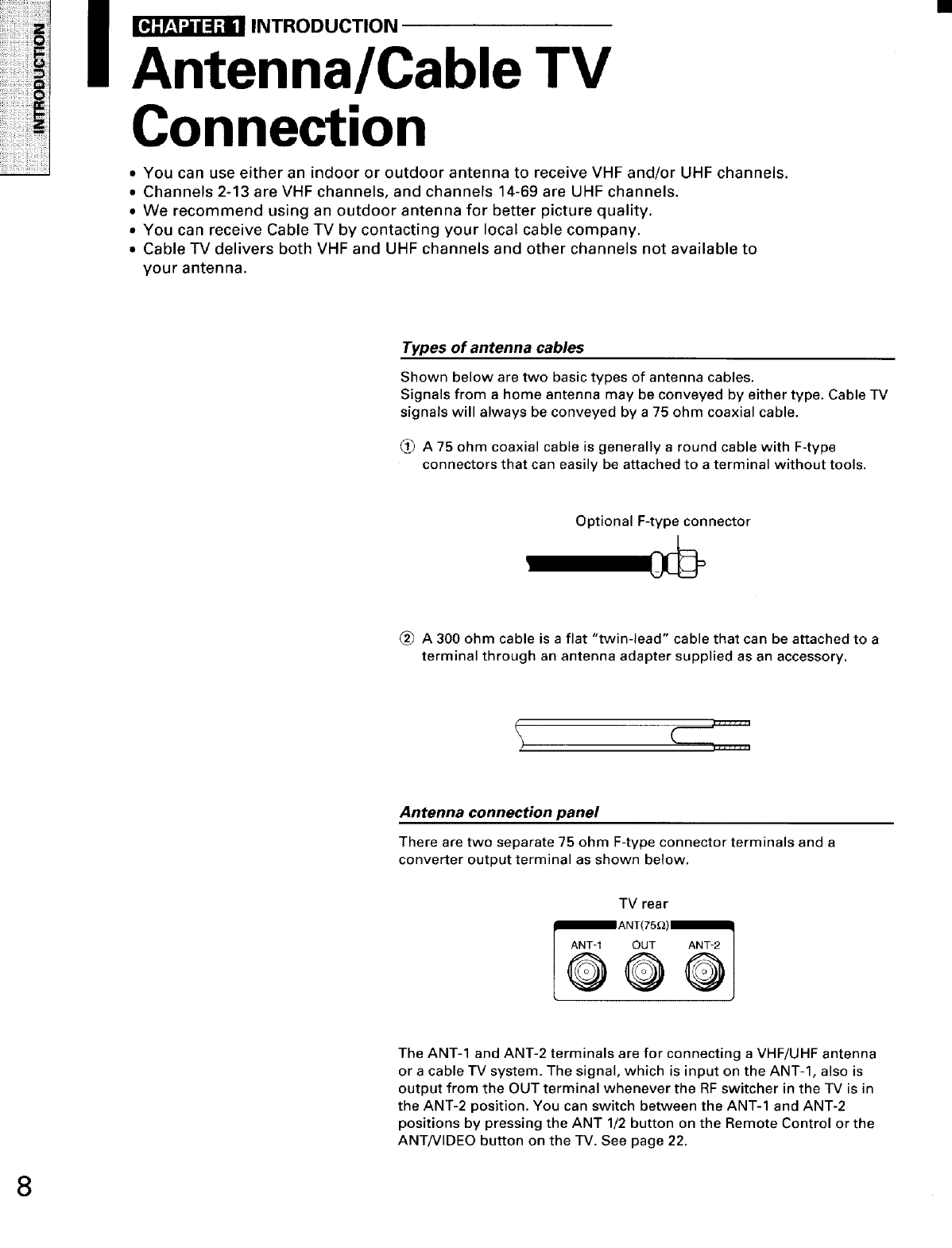

I _ INTRODUCTION

Antenna/Cable TV

Connection

• You can use either an indoor or outdoor antenna to receive VHF and/or UHF channels.

• Channels 2-13 are VHF channels, and channels 14-69 are UHF channels.

• We recommend using an outdoor antenna for better picture quality.

• You can receive Cable TV by contacting your local cable company.

• Cable TV delivers both VHF and UHF channels and other channels not available to

your antenna.

Types of antenna cables

Shown below are two basic types of antenna cables.

Signals from a home antenna may be conveyed by either type. Cable TV

signals will always be conveyed by a 75 ohm coaxial cable.

_) A 75 ohm coaxial cable is generally a round cable with F-type

connectors that can easily be attached to a terminal without tools.

Optional F-type connector

A300 ohm cable is a flat "twin-lead" cable that can be attached to a

terminal through an antenna adapter supplied as an accessory.

Antenna connection panel

There are two separate 75 ohm F-type connector terminals and a

converter output terminal as shown below.

TV rear

ANT'I OUT ANT-2

©QQ

The ANT-1 and ANT-2 terminals are for connecting a VHF/UHF antenna

or a cable TV system. The signal, which is input on the ANT-l, also is

output from the OUT terminal whenever the RF switcher in the TV is in

the ANT-2 position. You can switch between the ANT-1 and ANT-2

positions by pressing the ANT 1/2 button on the Remote Control or the

ANT/VIDEO button on the TV. See page 22.

8

Single lead-in cable

TV rear

VHF, UHF or

VHF/UHF COMBINATION

ANTENNA

75 ohm coaxial cable (round) _ _ -- =

OF{ "_"""_ Antenna _ "_ _

ll adapter _ANT(75.llN_h

300 ohm twin-lead cable (flat) (sup__IIANT-1 OUT ANT-2 l

Note: You can connect another signal source, like a cable TV system or video game, to the ANT-2 terminal.

Refer to CAUTION on page 48.

IIII

Both VHF and UHF lead-in cables

VHFANTENNA UHF ANTENNA

/_ U/V mixer

_._ (Not supplied)

,

Note: You can connect another signal source, like a cable TV system or video game, to the ANT-2 terminal.

Refer to CAUTION on page 48.

III IIIII IIIII 9

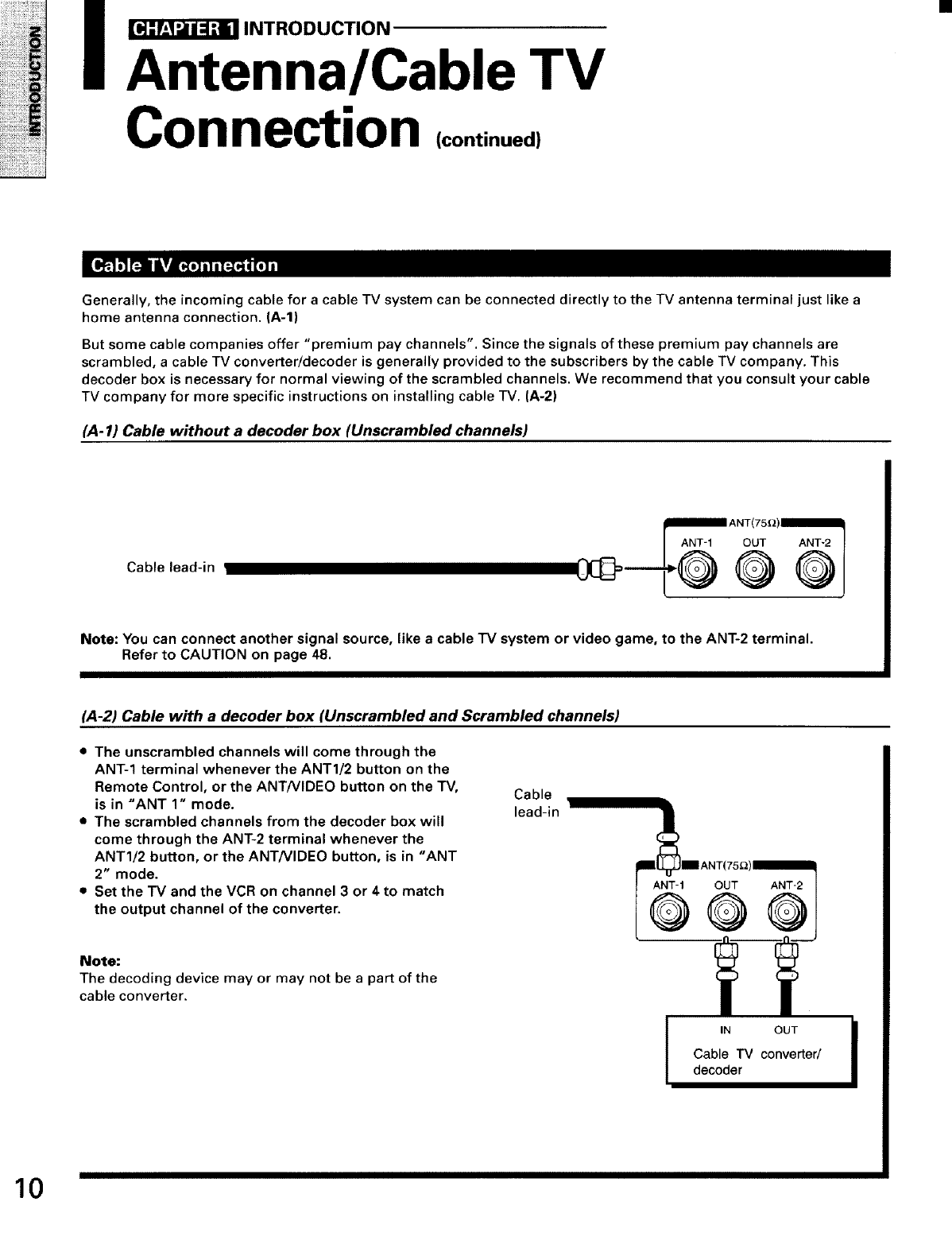

i_INTRODUCTION

Antenna/Cable TV

Connection (continued}

Generally, the incoming cable for a cable TV system can be connected directly to the TV antenna terminal just like a

home antenna connection. (A-l)

But some cable companies offer "premium pay channels". Since the signals of these premium pay channels are

scrambled, a cable TV converter/decoder is generally provided to the subscribers by the cable TV company. This

decoder box is necessary for normal viewing of the scrambled channels. We recommend that you consult your cable

TV company for more specific instructions on installing cable TV. (A-2)

(.4-I) Cable without a decoder box (Unscrambled channels)

Cable lead-in

ANT'I OUT ANT-2

@

Note: You can connect another signal source, like a cable TV system or video game, to the ANT-2 terminal.

Refer to CAUTION on page 48.

(A-2) Cable with a decoder box (Unscrambled and Scrambled channels)

• The unscrambled channels will come through the

ANT-1 terminal whenever the ANT1/2 button on the

Remote Control, or the ANT/VIDEO button on the TV,

is in "ANT 1" mode.

•The scrambled channels from the decoder box will

come through the ANT-2 terminal whenever the

ANT1/2 button, or the ANT/VIDEO button, is in "ANT

2" mode.

•Set the TV and the VCR on channel 3 or 4 to match

the output channel of the converter.

Cable

lead-in

lIANT(75_)Nlil

ANT-1 OUT ANT-2

@@@

Note:

The decoding device may or may not be a part of the

cable converter.

IIN OUT I

Cable TV conveRer/

decoder

10

Antenna/Cable 73/connection via VCR (Simplified method)

VHF or Cable

lead-in

OR

UHF lead-in

VCR (U/V separated)

Antenna

adapter

OUT ANT-2

O@

Notes:

•Playback of tapes may often cause the TV/VCR switching of the VCR to disconnect the antenna from the TV. If you

cannot select a certain channel, try pressing the TV!VCR button on the Remote Control.

• If you connect both VHF and UHF lead-in cables, use a U/V mixer (not supplied). {See page 9.)

• VIDEO/AUDIO connections from the VCR to the TV are required for stereo tape playback from stereo VCR's.

IIIIIIII II III

Using a 2-way signal splitter

You can view either TV programs or VCR tapes regardless of the position of the VCR's TV/VCR switch,

Antenna

or I__ 2-way _

Cable v-'- 1 signal ________,

lead-in _ splitter

(Not supplie6)_

v,_o l

IN OUT

VCR

Note: VIDEO/AUDIO connections from the VCR to the TV are required for playback. (See page 62.)

II III IIIIII 11

UIJUfi:ILIUII i:lllU L,oln:rol5

•The following describes the functions of each part of the TV and the Remote Control.

For the specific use of each control, consult the corresponding page numbers in

brackets.

POWER button [21]

Remote sensor

I

f

POWER O /

POWER indicator

VCR compartments

Behind the door

1

I"HORIZ'I I" VEnT "I TEST I

I0 Q 0 0 _]--o°:

I

TEST button [28J

Color convergence controls [28]

VIDEO/AUDiO

jacks [61]

I

EXIT button*

[20]

RESET button

[36]

S-VIDEO INPUT BALANCE

connector [61] control [42]

_U I T, VOL JME CHANNEL

v_-- v•v•

,o

I

CHANNEL V/A

buttons [29]

VOLUME T/A buttons* [29]

-/+ buttons [19]

ANT/VIDEO button* [22]

ADV button [19]

* These buttons have dual functions. MENU button [19]

12

• See the table on the next page, "To operate desired equipment", describing activation of specific buttons

or Mode Selection. (Refer to the owner's manual supplied with the VCR for details about the VCR

function buttons.)

LEARN indicator [18]

(Transmit indicator) PIC. SIZE [30]

Mode selection switch [14]

(TV-CABLE-VCR-AUX switch)

TV/VIDEO 162]

Channel Number [29]

PIP/POP function [45]

AUDio [20]

PICture [20]

RESET [36]

ANT1/2 [22]

WlDE/SCRL [31 ]

CYC/SBS [44]

Learning buttons [18]

You can use these eight buttons only as

Learning function buttons. They are not

affected by Mode selection (TV-CABLE-VCR-

AUX).

To operate buttons inside the

cover, slide the cover down

and toward you.

-4

0

m

m

TIMER (Sleep) [49]

POWER [21]

RECALL [33]

MUTE [33]

Light switch

When you press this

button, the 22 •

A_' [29] buttons light up for

rENT [33] five seconds.

HANNEL A/V [29]

UP [201

[20]

[19]

39]

[39]

JSE

switch [18]

VCR function

(_) STOP

To stop.

_ REW

To rewind the

tape.

(_) PINY

To play.

To fast forward.

(_ REC

To record.

(_) PAUSE/STILL

To pause.

(_ SLOW

To view a slow

motion picture.

C) TVNCR

* The 31 buttons marked with

can be used as Learning buttons.

13

_INTRODUCTION

Using the Remote Control

•With this Remote Control, you can operate your TV and most models of remote-

controlled VCR's and cable TV converters even if they are different brands. See next

page.

1Place the Remote Control face down and remove

the battery cover.

Press and slide

to remove.

CAUTIONS

• Do not throw your batteries into a fire. Dispose of

your batteries in a designated disposal area.

• Do not combine used batteries with new ones.

• Do not mix battery types.

Insert two "AA" size alkaline batteries, matching

the + and - signs on each battery with the + and

- signs of the battery compartment,

Slide the battery cover shut until the lock snaps.

Tips for best operation

•For optimum performance, aim the Remote Control

directly at the TV from a distance of no more than 28

feet (8.5m). Be sure there is no obstruction between

the Remote Control and the TV.

• If your Remote Control does not always adjust the TV

as you wish, you probably need to replace the

batteries. Use alkaline batteries for longer use.

• If the Remote Control will not be used for a long

period of time or when the batteries are worn out,

remove the batteries to prevent leakage.

•Do not drop, dampen or disassemble the Remote

Control.

14

TV

Cable TV Converter

VCR

Other Video/audio Equipment

(REMOTE Video Disc Players,

stereo systems or additional

VCR's, etc.)

TV

CABLE

VCR

AUX

all the buttons

• POWER button

• CHANNEL A!V buttons

• Channel Number buttons

•RTNiENT button

• POWER button

•CHANNEL A!V buttons

•Channel Number buttons

• VCR function buttons

• RTN/ENT button

as Learning buttons;

•POWER button

• CHANNEL A/V buttons

• Channel Number buttons

• VCR function buttons

• RTN/ENT button

The function buttons not listed in the table above operate the TV as usual.

2

i

no

For future reference, write the code

you set.

VCR CODE:

CABLE CODE:

Note: You have to reprogram the

Remote Control when you change its

batteries.

]

•This Remote Control is preprogrammed to operate Toshiba VCR's.

• To use VCR's other than Toshiba models (or Cable converters),

perform the following procedures before operating.

• When you connect several pieces of video/audio equipment to the TV,

follow the instructions on page 18,

Refer to the "VCR CODE TABLE" (or "CABLE TV CONVERTER CODE

TABLE") on pages 16 and 17 to find the code number that

corresponds to the brand name of your VCR (or your converter).

2

If more than one number is listed, try each one separately until you

find the one that works.

Set the Mode selection switch to VCR (or CABLE).

3

4

Hold down RECALL while pressing the Number buttons for the

three digit code number for your brand of VCR (or converter).

The transmit indicator lights up for 1 second when the

programming is completed.

When an operation error has occurred, the indicator blinks.

Press RECALL again to reset.

Point the Remote Control at the VCR (or at the converter) and press

POWER to test the code number.

--If the right number was entered, the VCR should turn on,

--If the VCR does not respond to the Remote Control, repeat steps

1 to 4 with another code number.

Follow the instructions on page 18 if the VCR does not respond,

even though you have programmed the Remote Control following

steps 1 to 4 above.

15

Irl_ INTRODUCTION

Using the Remote Control

(continued)

• The code numbers listed below are the newest ones at the time of printing. New code

numbers may or may not have been added since printing.

VCR code table

BRAND NAME CODE NUMBER

Aiko ........................... 297

Aiwa ......................... 019

Akai ........................... 060, 068, 080, 125,

261

Alba .......................... 039, 228, 297

Amstrad .................... 019

Anitech ..................... 091

ASA ........................... 056, 100

Audiovox .................. 056

Baird ......................... 123

Bell & Howell ........... 123

Broksonic ................. 140, 203, 230

Bush .......................... 091,228, 297

Canon ....................... 054

Capehart ................... 039

Carver ....................... 100

CCE ........................... 091,297

CGE ........................... 019

Cimline ..................... 091

Condor ...................... 039

Craig ......................... 066, 259

Crown ....................... 297

Curtis Mathes ........... 054

Daewoo .................... 039, 064, 065, 297

Dansai ....................... 091

Daytron ..................... 039

De Graaf ................... 061

Decca ........................ 019, 100

Dual .......................... 060

Dumont .................... 019, 100, 123, 124

Dynatech .................. 019

Electronic ................. 019

Emerson ................... 019, 021,056, 080,

140, 203, 227, 228,

230, 231,313

ESC ........................... 297

Ferg uson .................. 060

Fidelity ...................... 019

Finlandia ................... 100, 123, 129

Finlux ........................ 019, 061,100, 123,

124

First Line ................... 062, 091

Fisher ........................ 065, 066, 073, 085,

123

Frontech ................... 039

Funai ......................... 019

GE ............................. 054, 079, 084

GEC ........................... 100

General ..................... 071

Go Video .................. 251,298

Goldstar .................... 056, 057

BRAND NAME CODE NUMBER

Goodmans ............... 019, 039, 056, 081,

091,297

Gradiente ................. 019

G raetz ....................... 060, 123

Granada .................... 065, 100, 123

Grundig .................... 100

HarmaniKardon ....... 057

Hem .......................... 091

Hinari ........................ 091,227

Hitachi ...................... 019, 060, 061,084,

124

Imperial .................... 019

Interfunk ................... 100

ITT ............................. 060, 065, 123, 125

JCL ............................ 054

Jensen ...................... 060

JVC ........................... 027, 060, 086

Kendo ....................... 125

Kenwood .................. 057, 060, 065, 086

Lloyd ......................... 019

Loewe ....................... 056

Loewe Opta .............. 100

Logik ......................... 091,259

Luxor ........................ 062, 065, 125

LXI ............................. 056

Magnavox ................ 019, 054, 100, 129,

168

Manesth ................... 064, 091

Marantz .................... 054, 057, 081,100

Marta ........................ 056

Matsui ....................... 227,228

MEI ............................ 054

Memorex .................. 019, 054, 056, 058,

065, 066, 067, 123

MGA ......................... 062, 080

Minolta ..................... 061,124

Mitsubishi ................ 062, 080, 086, 100,

192, 233, 261

MTC .......................... 019, 259

Multitech .................. 019, 091

Murphy ..................... 019

NEC ........................... 057, 059, 060, 069,

086

Neckermann ............. 100

Nikko ......................... 056

Noblex ...................... 259

Nokia ........................ 060, 065, 123, 125,

259

Nordmende .............. 060

Optonica ................... 067, 081

Orion ......................... 140, 227, 228

BRAND NAME CODE NUMBER

Osaki ......................... 019, 056, 091

Otto Versand ............ 100

Pallidium .................. 091

Panasonic ................. 064, 096, 244

Penney ...................... 054, 056, 057, 059,

061,259

Pentax ....................... 061,084, 124

Perdio ....................... 019

Philco ........................ 054

Philips ....................... 054, 081,100, 129

Phonola .................... 100

Pilot ........................... 056

Pioneer ..................... 086, 100

Portland .................... 039

Proline ...................... 019

Pulsar ........................ 058

Pye ............................ 100

Quartz ....................... 065

Quasar ...................... 054, 115

Ouelle ....................... 100

Radiola ..................... 100

RCA ........................... 054, 061,084, 096,

124, 168, 221

RCA Unified ............. 079

Realistic .................... 019, 054, 056, 065,

066, 067,081,085,

123, 259

Rex ............................ 060

Ricoh ......................... 053

Roadstar ................... 056, 091,259

Runco ....................... 058

Saba .......................... 060

Saisho ....................... 227, 228

Satora ....................... 062, 065, 125

Samsu ng .................. 064, 259

Sansui ....................... 060, 086

Sanyo ....................... 065, 066,

SBR ........................... 100

Schaub Lorenz ......... 019, 060

Schneider ................. 019, 091,

Scott ......................... 064, 140,

231

Sears ......................... 054, 056,

066, 073,

124

SEI ............................. 100

Sentra ....................... 039

Sharp ........................ 067, 081

Shintom .................... 091

Siemens ................... 056, 123

Sinudyne .................. 100

123,259

100,129

203,229,

061,065,

085,123,

16

BRAND NAME CODE NUMBER

Sony ......................... 051,052, 053, 054

STS ........................... 061

Sunstar ..................... 019

Sylvania .................... 054, 062, 100, 129

Symphonic ............... 019

Tashiko ..................... 019

Tatung ...................... 019, 060, 100

Teac .......................... 019, 060

Technics ................... 054

Teknika ..................... 019, 054, 056, 071

Telefunken ............... 060, 206

Tenosal ..................... 091

Tensai ....................... 019

Thomson .................. 060

Thorn ........................ 060

Toshiba ..................... 060, 062, 064, 085,

229, 231,385

Totevision ................ 056, 259

Triumph .................... 227

Unitech ..................... 259

Universum ............... 019, 056, 068, 100,

125

Vector Rsearch ......... 057, 059

Victor ........................ 027, 060, 086

Video Concepts ........ 059, 080

Videosonic ............... 259

Wards ....................... 019,054, 061,066,

067,081,091,168,

231,259

Yamaha .................... 057.060

Yo ko .......................... 259

Zenith ....................... 052, 053, 058

Cable TV converter code table

BRAND NAME CODE NUMBER

ABC ........................... 026, 030, 032,036

Archer ....................... 058, 172

Century ..................... 172

Citizen ....................... 172

Colour Voice ............ 044, 050

Comtronics ............... 059, 079

Eastern ..................... 021

Garrard ..................... 172

Gemini ...................... 034, 089

General

Instrument ............ 030

Hamlin ...................... 028, 039, 278, 292

Hitachi ....................... 030

Jasco ........................ 172

Jerrold ...................... 022, 030, 031,033,

034, 043, 045

Macom ..................... 052

Magnavox ................ 046

Memorex .................. 019

Movie Time .............. 175

NSC ........................... 089, 175

Oak ............................ 026, 038

Panasonic ................. 040

Paragon .................... 019

Philips ....................... 044, 046, 047,048,

049, 050, 079

Pioneer ..................... 163

Pulsar ........................ 019

PVP Stereo

Visual Matrix ........ 022

RCA ........................... 040

Regal ......................... 039, 278, 292

Regency .................... 021

Rembrandt ............... 089

Runco ........................ 019

Samsung .................. 059, 163

Scientific Atlanta ..... 025, 027, 036, 296

Signal ........................ 034, 059

Signature .................. 030

SL Marx .................... 059

Sprucer ..................... 040

Standard

Components ......... 174

Starcom .................... 022, 034

Stargate .................... 034, 059

STS ........................... 175

Tocom ....................... 031,032, 078

Toshiba ..................... 019

U[JIL. H [l_lfm IIIIII1'1

BRAND NAME CODE NUMBER

Unika ........................ 172

United Artists ........... 026

United Cable ............ 022

Universal .................. 058, 096, 172, 210

Viewstar ................... 046, 079

Zenith ....................... 019

ir 'r'_ ..... ---_:-- -- 17

I _INTRODUCTION

Using the Remote Control

(continued)

• This Remote Control is capable of learning operating codes from most infrared remote

control transmitters. You can control the functions of your TV and a variety of video/

audio equipment with the supplied Remote Control only.

• The 31 buttons can be used as Learning buttons. (See page 13.)

18

To learn operating code of another remote control

Set the Mode selection switch to AUX. 7

if

Set the LEARN-USE switch to LEARN.

2

LEARN _ USE

Place the supplied Remote Control and the remote

control transmitter to be learned, head to head

approximately 1 to 3 inches (3 to 8cm) apart.

Head to head

_4.....O_ /_);-3 inches apar_ I -00"0'0

Supplied Remote Control Remote to be learned

Hold down the button to learn on the supplied

Remote Control for about 1second until the

LEARN indicator lights up.

Note:

When you press a button other than Learning

button, the indicator will blink. For specific

Learning buttons in specific modes, see the table

"To operate desired equipment" on page 14.

Hold down the function button to be learned on

the remote control transmitter for about 3 seconds

until the LEARN indicator goes off.

Note:

If the LEARN indicator goes off after blinking, the

supplied Remote Control cannot learn the

operating code or an error has occurred. Try steps

4 and 5 again.

Repeat steps 4 and 5 for other function keys.

9

1

2

3

Set the LEARN-USE switch to USE.

LEARN _ USE

To check your programming, operate the

appropriate equipment with the supplied Remote

Control. If the equipment does not operate as

expected, repeat steps 1 to 7.

If needed, try changing the distance between the

two remote controls.

Attach the supplied template to the Remote

Control to enter the function names of the AUX

buttons you have programmed.

Use a ballpoint pen etc. to write the function

names.

[(_ _0LUHE

(23 (_3

To cancel the learned operating codes

Set the Mode selection switchto AUX.

Set the LEARN-USE switch to LEARN.

Hold down the button of the function to cancel on

the Remote Control for about 1second until the

LEARN indicator lights up.

Hold down RECALL and RESET at the same time

for about 6 seconds until the LEARN indicator goes

off after blinking.

5

Note:

You cannot cancel the programming if you release

the button while the indicator is blinking.

Set the LEARN-USE switch to USE.

_INTRODUCTION

Quick Reference Menu Guide

• We recommend that you familiarize yourself with these procedures for using the Menu

function.

[][]

-/+

MENU ADV

Notes:

•The on-screen instructions will appear

under each menu display for easy step-

by-step operation•

•The ADV button on the rv functions as

the ANT/VIDEO button when no menu

display is on the screen.

•The -/+ buttons on the TV function as

the VOLUME &/V buttons when no

menu display is on the screen.

• The EXIT button on the TV functions as

the RESET button when there is no on-

screen display.

III IIII I

MENU button

Each time you press MENU, the PICTURE, AUDIO, SET UP or OPTION

menu on-screen display is selected in order.


CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

FLESH TONE

PICTUR PREFERENCE

TO SELECT AUDIO

TO CONTROl Mrs

BASS

TREBLE

BALANCE

SPEAKERS

TO TSET UP

BELEC

TO _TRNJ AUTO _ P_ I

----T._'_;.._ ADD.ERASE I

ITV,CABLE

/ CH PROGRAM I

/CH CAPTIOIN I

/OH LOCK I

/CLOSED CAPTION I

/TO SELECTIOPTION

LANGUAGE

|TO CONTROq DEMONSTRATION

/NOISE REDUCTION

1PIP _TRAST

3D-Y-C SEPARATION

On-screen ••_TO SELECT MENU PUSH ADV

|RstructlonS_To_T_ PUSH +

ADV button

Use the ADV button after you have pressed MENU to select the function

you want to adjust.

Each time you press ADV, the function to be adjusted will be selected in

numerical order.

The selected function will be displayed in magenta.

-/+ buttons

Use the -/+ buttons after you have pressed ADV or any of the four menu

buttons (PICTURE, AUDIO, SETUP or OPTION).

Example: CONTRAST adjustment mode display

CONTRAST

-I I +

TO CONTROL PUSH - ÷

Pressing +increases the picture contrast.

Pressing - decreases the picture contrast. 19

_INTRODUCTION

Quick Reference Menu Guide

(continued)

20

EXIT

AUD--

PIC --

EXIT --

b

00000

-I

0

Z

W

-SET UP

-- OPTION

---/+

I !1!

PIC(TURE) button

Press PIC repeatedly until the PICTURE

menu function you want to adjust is

selected.

The selected function will be displayed in

magenta, then press 4+ to adjust the

setting.

Details for each function begin on

page 34.


CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

FLESH TONE

PICTURE PREFERENCE

TO SELECT MENU

PUSH PIG

TO CONTROL PUSH -+

A UD(IO) button

Press AUD repeatedly until the AUDIO

menu function you want to adjust is

selected.

The selected function will be displayed in

magenta, then press -/+ to adjust the

setting.

Details for each function begin on

page 37.

AUDIO

MTS

BASS

TREBLE

BALANCE

SPEAKERS

TO SELECT MENU

PUSH AUD

TO CONTROL PUSH - +

SET UP button

Press SET UP repeatedly until the SET UP

menu function you want to adjust is

selected.

The selected function will be displayed in

magenta, then press -/+ to adjust the

setting.

Details for each function begin on

page 23.

SET UP

I AUTO CH PROGR_/vl

ADD'ERASE

TV'CABLE

CH PROGRAM

CH CAPTION

I OH LOCK

CLOSED CAPTION

TO SELECT MENU

PUSH SET UP

TO CONTROL PUSH - +

OPTION button

Press OPTION repeatedly until the

OPTION menu function you want to adjust

is selected.

The selected function will be displayed in

magenta, then press -/+ to adjust the

setting.

Details for each function begin on

page 51.

OPTION

LANGUAGE

DEMONSTRATION

NOISE REDUCTION

PIP CONTRAST

3D-Y-C SEPARATION

TO SELECT I_ENU

PUSH OPTION

TO CONTROL PUSH -+

EXIT button (on the TV and on the Remote Control)

The above four menu displays will automatically disappear from the

screen if no control has been operated for about 15 seconds, and all

other menu displays also disappear after about 6 seconds.

If you want to clear the screen of all on-screen displays instantly, press

EXIT.

_GETTING STARTED

Turning the TV On/Off

First set the Mode selection switch on the

Remote Control to rv.

I

ANT/VIDEO 1, 3

-IV/

VIDEO

-4

0

Ul

1,3

Note: The TV/VIDEO button or ANT/

VIDEO button is used to input

signals from other sources, like

VCR's or Video Disc Players,

connected to this TV.

See pages 22 and 62 for details.

IIII II III

1Press POWER on the Remote Control

or the TV.

The picture will appear in a few

seconds.

The following on-screen information

will be displayed for a few seconds.

•Antenna mode (when in TV mode).

• Channel number or VIDEO mode

selected.

•Channel caption (if previously preset).

• Stereo or SAP audio status.

To turn the TV off, press POWER

again.

STEREO

SAP

ANT 1

ABCD

TV 4

Auto-Power-Off

•If a vacant channel is selected, or the TV broadcast for a day is

finished, the TV will automatically turn off after about 15 minutes.

This Auto-Power-Offfeature does not operate in the VIDEO mode.

Last Mode Memory

•If the power is cut off while you are viewing the TV and the power is

resupplied, the TV is turned on automatically by the Last Mode

Memory feature. If the power is going to be off or when you leave

home for a long time, unplug the power plug from the wall outlet to

prevent the TV from turning on in your absence,

21

I _GETTING STARTED

Turning the TV On/Off

(continued)

•Your TV has two separate antenna inputs (ANT-1 and ANT-2) that allow you to connect

two different signal sources, if desired.

E3I-II IIZIIZ]IZIIZ]

ANTNIDEO

ANT1/2 --

You can switch back and forth between the two signal sources by

pressing the ANT1/2 button on the Remote Control or the ANTNIDEO

button on the TV.

Using the ANT1/2 button (on the Remote Control)

Each time you press the button, the ANT 1

mode and ANT 2 mode will alternate.

The selected mode will be displayed in

magenta to show which antenna source

you are watching.

Select the mode that matches the antenna

terminal you use.

ANT 1

ANT 2

TO SELECT PUSH ANT 1"2

Note:

This button does not function in the

VIDEO mode. See page 62 for details on

using the VIDEO modes.

Using the ANT/VIDEO button (on the TV)

Each time you press the button, the ANT

1, VIDEO 1, VIDEO 2, VIDEO 3 or ANT 2

mode will be selected in order.

The selected mode will be displayed in

magenta to show which signal source you

are watching.

Press the button until "ANT 1" or "ANT 2"

is displayed in magenta to match the

antenna terminal you use.

VIDEO 1ANT 1

VIDEO 2ANT 2

VIDEO 3

TO SELECT PUSH ANT.VIDEO

Note:

This button functions as the ADV button

while any of four menu displays

(PICTURE, AUDIO, SET UP or OPTION) are

on the screen.

22

_GETTING STARTED

Programming Channels

• First, use the AUTO CHANNEL PROGRAM function to preset all active channels in your

area automatically.

If necessary, arrange the preset channels with the CHANNEL PROGRAM and ADD/ERASE

functions so that you can tune into only desired channels.

MENU 1

¸,¸

i_(:Z:)(:D CD G:)ii_i

.< ................

-1

5

I

To program all available channels automatically

(AUTO CH PROGRAM)

Press POWER on the Remote Control

or the TV to turn on the TV.

Press SET UP on the Remote Control

(or MENU on the TV) to display the

SET UP menu on the screen.

ANT 1

CABLE 4

4

SET UP

AUTO OH pF_X_{AM

ADO- ERASE

TV •CABLE

CH PROGRAM

OH CAPT ION

CH LOCK

CLOSED CAPTION

TO SELECT MENU

PUSH SET UP

TO CONTROL PUSH -+

Press SET UP repeatedly on the

Remote Control (or ADV on the TV)

until "AUTO CH PROGRAM" is

displayed in magenta.

SET UP

AUTO CH P_AM

ADD E_ASE

rv "CABLE

OH PF_OGR.AM

CH CAPT t()N

CH LOCK

CLOSED CAPT _ON

TO SELECT MENU

PUSH BET UP

TO CONTROL PUSH - +

Press - or + to start

autoprogramming.

The TV will automatically determine

whether the TV (antenna), STD

CABLE, HRC CABLE, or IRC CABLE

signals are being received.

Then automatically cycle through all

channels and place active channels

in the channel memory.

AUTO CH PRCI:_IAM

CABLE 30

When autoprogramming is

complete, you will see the message

at the right.

You can check to see which channels

are in memory by pressing

CHANNEL • or V. AUTO CH pRCX3FIAMMIN(3

FINISHED CABLE 4

23

I _ GETTING STARTED

Programming ChannelS continued,

•If the AUTO CH PROGRAM function does not memorize any certain CABLE channels,

follow the "CHANNEL PROGRAM function" instructions below. (You will probably not

need to use this function.)

ADV -/+ 8

MENU

UP

To program channels of a specific TVICABLE mode

(TV •CABLE) (CH PROGRAM)

Press SET UP on the Remote Control

(or MENU on the TV) to display the

SET UP menu on the screen.

SET UP

AUTO CH P_AM

ADD-ERASE

TV'CABLE

OH PROGRAM

CH CAPTION

CH LOCK

CLOSED CAPTION

TO SELECT MENU

PUSH SET UP

TO CONTROL PUSH - +

2Press SET UP repeatedly on the

Remote Control (or ADV on the TV)

until "TV°CABLE" is displayed in

magenta.

SET UP

AUTO C,_ PRC_"]_TAI'vl

ADD ERASE

TV-CABLE

C_ PHr..XJ_AM

O_-_ CAP i ¸ _ON

CH L ¢_']K

CLOSED CA_T I O_J

TO SELECT MENU

PUSH SET UP

TO CONTROL PUSH - +

3Press - or +until the mode that

corresponds to your TV signal

system is displayed in magenta.

Each time you press the button, the

TV, STD CABLE, HRC CABLE or IRC

CABLE mode will be selected in

order,

TV

STD CABLE

HRC CABLE

IRC CABLE

TO SELECT PUSH -+

Tuning band and Receivable channels

TVbroadcast

STD CABLE _

HRC CABLE _

IRC CABLE*

VHF: 2-13

UHF: 14-69

** 1-125

(Number on this TV)

Your cable company can advise you as to which system they are

using.

24

I[ql,]:L_I_I k_1:1II "-'-]:{e[€.] :]L_ILrjliiwti[_ t [,] nm(_o]il it ti! [_, I

4

5

6

Press SET UP on the Remote Control

(or MENU on the TV) again to

display the SET UP menu on the

screen.

Press SET UP repeatedly on the

Remote Control (or ADV on the "IV)

until "CH PROGRAM" is displayed in

magenta.

Press -or + to start channel

programming. The TV will

automatically cycle through all the

"rv or CABLE channels in the mode

selected by the "IV.CABLE function

and store active channels in the

channel memory.

When channel programming is

complete, you will see the message

at the right.

Press CHANNEL •or • to make

sure the channel programming has

been done properly.

SET UP

AUTO CH P_OGRAM

ADD ' ERASE

TV" CAB L E

CH p FI(DG_,_VI

OH CAPT ION

CH LOCK

CLOSED CAPT ION

TO SELECT MENU

PUSH SET UP

TO CONTROL PUSH -+

SET UP

AUTO CH pHUGF,I,_#',.4

ADD ERASE

TV CABLE

OH pROP_..4_/_I

CH CAP I ION

CH lOCK

CtOSED CAP[ ION

TO SELECT MENU

PUSH SET UP

TO CONTROL PUSH -+

OH p ROGR,a_

CABLE 33

OH pROGRAMMING

FINISHED CABLE

To change the tuning band for the small picture (PIP/POP)

The TV,CABLE function only works with the main picture,

Press PIP/POP ON OFF to display the small picture,

Press SWAP to switch the main and small picture,

Change the tuning band following the steps 1to 3 on the previous

page.

I

_CABLE channel reference chart

1

5

6

14

15

16

34

35

36

37

38

60

61

62

63

64

65

66

A-8

A-7

A-6

A

B

C

U

V

W

AA

BB

XX

YY

ZZ

AAA

BBB

65

66

67

68

69

92

93

94

95

96

97

98

99

100

101

102

123

124

125

67

68

69

92

93

94

A-5

A-4

A-3

A-2

A-1

100

101

102

123

124

125

The above chart is typical of many cable

system channel allocations. If in doubt,

consult your cable company.

25

_GETTING STARTED

Programming Channels (continued)

[]

-/+

ADV

MENU CHANNEL A/Y

t--

CHANNEL

A/V

SET UP

-/+

To erase unnecessary channels

Select the channel to be erased with

CHANNEL •or V.

Press SET UP on the Remote Control

(or MENU on the TV) to display the

SET UP menu on the screen.

Press SET UP repeatedly on the

Remote Control (or ADV on the TV)

until "ADD.ERASE" is displayed in

magenta.

Press- or + until "CH ERASE" is

displayed in magenta indicating that

the channel has been erased from

the memory.

Repeat steps 1 through 4 for other

channels.

SET UP

AUTO OH PROGRAM

ADO - ERASE

TV -CAB L E

OH PROGRAM

OH CAPT ION

OH LOCK

CLOSED CAPT I ON

TO SELECT MENU

PUSH SET UP

ITO CONTROL PUSH - +

I SET UP

_,UTO CH PRIAM

ADD. ERASE

TV CABI E

OH PROGFL&M

CH ©APT ION

OH LOOK

CLOSEO CAP] ION

TO SELECT MENU

I PUSH SET UP

I TO CONTROL PUSH -+

OH ADD

OH ERASE CABLE

TO SELECT PUSH - +

26

To add channels

When you want to restore a channel which has been erased, follow the

instructions below.

1Select the channel you want to

restore with the Channel Number

buttons. (See page 29 for the method

to select channels.)

Press SET UP on the Remote Control

(or MENU on the rv) to display the

SET UP menu on the screen.

3Press SET UP repeatedly on the

Remote Control (or ADV on the TV)

until "ADDoERASE" is displayed in

magenta.

Press- or ÷ until "CH ADD" is

displayed in magenta, indicating that

the channel has been memorized.

I SET UP

AUTO OH pFEX3_AM

ADD. ERASE

TV- CABL E

CH PFEP---:_AM

CH CAPT I ON

CH LOCK

CLOSED CAPTION

TO SELECT MENU

PUSH SET UP

TO CONTROL PUSH - +

I SET UP

AUTO CH PR(_AM

ADD "ERASE

TV CABLE

CH PRO_R AIV_

CH CAP_ IOi",_

CH tOCK

CLOSED CAPT ION

TO SELECT MENU

PUSH BET UP

TO CONTROL PUSH - +

CH ADD

0}4 E_ASE CABLE

TO SELECT PUSH - +

You have now completed the channel programming.

27

I _ GETTING STARTED

Before Watching TV

Programs

•Your dealer should adjust the color convergence when your TV is delivered. However,

convergence may drift over time or if you move the TV. If you can see clear images on

the screen, skip this page.

This wide projection TV uses three

separate TV tubes; a red one, a green

one, and a blue one.

The red, green and blue images are

projected onto the screen where they

converge to form afull color picture.

You can see aclear picture when they

converge correctly.

I................' I....

FHORIZ-I I-VERT,,I TEST

199 9 911::_

TEST button

Color conver ence controls

HORIZ(ontal)

R: Red

B: Blue

VERT(ical)

R: Red

B: Blue

To check and align the colors

Select an active channel and wait a moment for the picture to

stabilize.

Push the TEST button to set to the "TEST ON" position.

If alignment is correct, there will be one vertical and one horizontal

white line: so you don't have to align the colors.

White

If you see separate colored lines, adjust the color convergence

controls. Turn the knobs until the red and blue lines disappear into

the other lines.

Light blue Yellow

When color convergence is correctly adjusted, you will see single

white lines.

White

Push the TEST button again to set to the "TEST OFF" position.

28

_BASIC OPERATION

Watching TV Programs

C][I][

2

3 1,4

13

The VOLUME •/• buttons on the TV

function as the menu -/+ buttons

while any of the menu displays

(PICTURE, AUDIO, SET UP or OPTION)

are on the screen.

III III IIIIII II

1

2

3

Press POWER on the Remote Control

or the TV.

The following on-screen information

will be displayed for a few seconds.

• Antenna mode (when in TV mode).

• Channel number or VIDEO mode

selected.

• Channel caption (if previously preset).

• Stereo or SAP audio status.

Select the desired program in one of

the following two ways.

To scan the memorized channels in

numerical sequence

Press CH (CHANNEL) • to select

next higher channel.

Press CH (CHANNEL) • to select

next lower channel.

Press the button again to select next

memorized channels.

To select a channel directly

Press the Channel Number buttons

(0 -9 and 100).

To select channel 4, press "4" (or

press "0" and "4" in order).

To select channel 38, press "3" and

"8" in order.

To select channel 125, press "100",

"2" and "5" in order.

Adjust the sound volume with

VOLUME &/Y on the Remote

Control or the TV.

Press • to increase the volume; • to

decrease the volume.

To turn off the TV, press POWER

again.

STEREO

SAP

ANT 1

ABCD

TV 4

10

VOLUME

-I I +

TO CONTROL PUSH VOL

If you cannot select certain channels, either TV broadcast or CABLE

channels

Check if the TV•CABLE function is properly set. See page 24.

29

_BASIC OPERATION

Enjoying Wide Pictures

•You can watch programs with the usual TV picture aspect ratio of 4:3 as well as

programs in a variety of letter box formats.

PIC. --

SIZE

Press PIC. SIZE repeatedly.

"STANDARD", "THEATER WIDE" or

"FULL" mode will be selected in order.

The selected mode will be displayed in

magenta.

STANDARD

THEATER WIDE

FULL

TO SELECT PUSH PIG-SIZE

STANDARD

This mode shows pictures in the conventional ratio of 4:3.

Viewing

a normal

program

THEA TEn WIDE

This mode shows the pictures magnified by 1.33 times.

Viewing a

normal

program or

letter box

program

©

©

©O

Note:

If you select this mode in normal programs, the picture at the top and

bottom of the screen will be hidden. If subtitles are difficult to read,

scroll the picture. (See page 32.)

FULL

This mode shows the pictures stretched horizontally by 1.33 times.

Viewing

a normal

program

O©

O©©

30

2--3

0

I

M

ID,

IIIIIIIII

To adjust the height of the picture

Press PIC, SIZE to select the

THEATER WIDE mode.

Press WIDE/SCRL until "THEATER

WIDE SIZE" is displayed on the

screen in magenta. THEATER WIDE SIZE

PICTURE SCROLL

TO SELECT PUSH WIDE,SCRL

Press - or +.

The menu display will appear as

shown at the right. Then repeatedly

press - or + to select the appropriate

picture height from the following

three modes.

THEATER WIDE 1

THEATER WIDE 2

THEATER WIDE 3

TO SELECT PUSH - +

THEATER WIDE1

Normalsize)

/

/

s

s

s

s

s

r

STANDARD mode

THEATER WIDE 2

(Vertically stretched picture)

THEATER WIDE 3

(Vertically contracted picture)

Note: This setting is reset to "THEATER WIDE 1" mode automatically when

you change to another channel or press the RESET button.

Pressing reset will automatically change the PIC size to STANDARD

mode. 31

I_BASIC OPERATION

Enjoying Wide Pictures (continued)

32

2

-4

0

_q

Z

OQ

I i

To adjust the vertical position of the picture

Press PIC. SIZE to select the

THEATER WIDE mode,

Press WIDE/SCRL until "PICTURE

SCROLL" is displayed on the screen

in magenta. THEATER WIDE SIZE

PICTURE SCFK)LL

TO SELECT PUSH WIDE-SCFIL

Press - or +to adjust the vertical

position of the picture.

Normal position

(Center)

To scroll the picture, press +.

To lower the picture, press-.

(Upper end)

(Lower end)

Note: This setting is reset to the normal position automatically when you

change to another channel or press the RESET button.

Pressing reset will automatically change the PIC size to STANDARD

mode.

_BASIC OPERATION

Convenient Remote

Functions

• These convenient functions can be operated with the Remote Control only.

-- MUTE

RECALL

RTN

(Channel

return)

Q

Z

W

€=

To display on-screen information

Press RECALL to display the following on-

screen information.

+ Antenna mode (when in TV mode).

•Channel number or VIDEO mode

selected.

• Channel caption (if previously preset).

•Time (if clock has been set).

• Stereo or SAP audio status.

• Closed Caption or Text program status.

STEREO

SAP

CAPTION

TEXT

ANT 1

ABCD

10:2S TV 4

To mute the sound

Press MUTE to mute the sound

immediately without affecting the

picture.

Note:

While muting the sound, the

"CAPTION 1" mode will be selected

automatically, (See page 58.)

MUTE

To restore the sound, press MUTE

again,

To return to the previous channel viewed

Using this function, you can watch two channels alternately.

Select the first channel you want to

view.

Select the other channel with the

Channel Number buttons.

PressRTN.

The previous channel will return.

Each time you press RTN, the TV will

switch back and forth between the

two channels.

(Viewing channel)

2

tl

(Previous channel)

6

1

33

I_BASIC OPERATION

Controlling the Picture

RESET -/+

MENUADV

1,2 m

RESET--

ii

I GD _ GD _il

8

:r.

--3

To adjust the picture quality

You can adjust the picture quality (CONTRAST, BRIGHTNESS, COLOR,

TINT, and SHARPNESS) to suit your personal preference.

Press PIC on the Remote Control (or

MENU on the TV) to display the

PICTURE menu.


COI%ITRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

FLESH TONE

PICTURE PREFERENCE

TO SELECT MENU

PUSH PIC

TO CONTROL PUSH -+

2Press PIC on the Remote Control (or

ADV on the TV) until the item you

want to adjust is displayed in

magenta.

P1CTHRE

CONTRAST

BRIGHTNESS

COL(_

1IN}

8HA_PNESS

FLESH YC_E

F!CTURE PREFERENCE

TO SELECT MENU

PUSH PIG

TO CONTROL PUSH - +

3Press -or + to adjust the level.

Example: CONTRAST adjustment

mode display

CONTRAST

-I I +

TO CONTROL PUSH - +

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

lower higher

darker lighter

paler deeper

reddish greenish

softer sharper

The above five PICTURE items you have adjusted will be stored in the

MEMORY of the PICTURE PREFERENCE function. (See page 36.)

If you want to adjust any other item, Press PIC repeatedly

until the item you want to adjust is displayed in magenta.

To reset the picture adjustments,

Press RESET. (See page 36 for details.)

34

-/+

MENU

O

--3

II I IIII III

Flesh tone function (FLESH TONE)

This function allows you to obtain natural flesh tone by correcting the

reference of tint between TV stations.

Press PIC on the Remote Control (or

MENU on the TV) to display the

PICTURE menu.


CO_ITRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

I FLESH TONE

J PICTURE PREFERENCE

|TO SELECT MENU

|PUSH PIC

I TO CONTROL PUSH - +

Press PIC on the Remote Control (or

ADV on the TV) until "FLESH TONE"

is displayed in magenta.


C_NTRAST

BRIGHTNESS

CO[(_:_

T}NT

SHARPNESS

FLESH TONE

PICTURE P_EEERENCE

TO SELECT MENU

PUSH PIC

TO CONTROL PUSH - +

3Press - or + until "FLESH TONE ON"

is displayed on the screen in

magenta.

This function has now been

activated. FLESH TONE ON

FLESH TONE OF_:

TO SELECT PUSH - +

To deactivate this function

Select "FLESH TONE OFF".

35

I _BASIC OPERATION

Controlling the Picture (continued)

36

RESET -/+

MENU

ADV

1,2m

RESET--

OOOOO

Q QQ C_

• ,/2 .......................

,I

--3

To select the picture preference

You can select a desired picture tone from three picture preset modes

(NORMAL, THEATER, MEMORY) instantly.

Press PIC on the Remote Control (or

MENU on the TV) to display the

PICTURE menu.


CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

FLESH TONE

PICTURE PREFERENCE

TO SELECT MENU

PUSH PIC

TO CONTROL PUSH -- +

2Press PIC on the Remote Control (or

ADV on the TV) until "PICTURE

PREFERENCE" is displayed in

magenta.


CONTRAST

BRIGHTNESS

COL_

TINTPICTURE PREFERENCE

SHARPNESS

FLESH T(]hE

ITO SELECT MENU

I PUSH PIC

TO CC_ITROL PUSH -+

Press- or + until your desired mode

is displayed in magenta.

PICTURE PREFERENCE

N(_O_IA L

THEATER

MEMORY

TO SELECT PUSH - +

NORMAL the picture quality preset at the factory

THEATER soft and moody picture

MEMORY the picture quality you set (First follow page 34.)

Note:

When you press the RESET button, the picture quality of the MEMORY

mode will be set to the factory-preset level.

RESET button

To reset the PICTURE and AUDIO adjustments to the factory-preset level

(maximum CONTRAST and all other adjustments centered)

Press RESET.

The RESET button also performs the

following adjustments:

• NOISE REDUCTION ............................ OFF

• PICTURE PREFERENCE ............ NORMAL

• PIP CONTRAST ............ Maximum setting

• PICTURE SIZE ........................ STANDARD

• PICTURE SCROLL ......... Normal position

• THEATER WIDE ........... THEATER WIDE 1

RESET I

_BASIC OPERATION

Controlling the Sound

•You can adjust the sound quality (BASS, TREBLE and BALANCE) to suit your personal

preference.

RESET _/+

MENUADV

(

1r2--

Press AUD on the Remote Control

(or MENU on the TV) to display the

AUDIO menu on the screen.

2Press AUD on the Remote Control

(or ADV on the TV) until the item you

want to adjust is displayed in

magenta.

Press- or + on the Remote Control

to adjust the level.

Example: BASS adjustment mode

display

AUDIO

Mrs

BASS

TREBLE

BALANCE

SPEAKERS

INPUT BALANCE

TESf

TO SELECT MENU

PUSH AUD

TO CONTROL PUSH - +

I AUD_O

MTS

BASS

TREBLE

BALANCE

SPEAKERS

INPUT BALANCE

TEST

TO SELECT MENU

PUSH AUD

TO CONTROL PUSH - +

BASS

-I I +

TO CONTROL PUSH -+

BASS weaker

TREBLE weaker

decreases the

BALANCE right channel channel

the left

If you want to adjust any other item

Press AUD while the display remains on the screen.

Notes:

• The "INPUT BALANCE" and "TEST" functions are described on pages

42 and 43 respectively.

•The "SPEAKERS" mode selection is described on page 66.

37

ISele = :'ing"Stereoand SAP

Broadcasts

• The MTS (Multi-channel TV Sound) feature allows you to improve your TV viewing with

high fidelity stereo sound. MTS also provides for an extra channel, SAP (Second Audio

Program), used to transmit a second language or other Audio information.

38

-/+

MENU ADV

(

AUD --

/

-- 4+

If the stereo sound is noisy

If a broadcast signal is not strong

enough, and noise-free stereo sound is

not available, select the MONAURAL

mode. The noise should be reduced.

Listening to stereo sound

1When the IV receives a stereo

broadcast, the word "STEREO" is

displayed on the screen whenever

the TV is turned on, a channel is

selected, or the RECALL button is

pressed.

STEREO

Press AUD on the Remote Control

(or MENU on the "IV) to display the

AUDIO menu on the screen.

AUDIO

MTS

BASS

TREBLE

BALANCE

SPEAKERS

I NP{JT BA[ ANCE

TEST

TO SELECT MENU

PUSH ALE)

TO CONTROL PUSH - +

Press AUD (or ADV on the TV)

repeatedly until "MTS" is displayed

in magenta.

ALJDIO

MTS

BASS

TREBLE

BALANCE

SPEAKERS

iNPU] BALANCE

TEST

TO SELECT MENU

PUSH AUD

TO CONTROL PUSH - +

4Press - or + repeatedly until

"STEREO" is displayed in magenta.

Usable selections are displayed in

yellow. STEREO

SAP

MONAURAL

TO SELECT PUSH - +

Listening to the second language

When the TV receives a SAP

broadcast, the word "SAP" is

displayed on the screen.

STEREO

SAP

Select"SAP"following steps2to 4

above.

Notes:

•Be sure to select the STEREO mode if the broadcast is in stereo.

•If "STEREO" (or "SAP") is not displayed, in spite of a known MTS

broadcast, select the STEREO or SAP mode.

•The MTS mode does not function in the VIDEO mode.

_ADVANCED OPERATION

Enhancing the Surround

Sound Effect

• With Toshiba's Dolby Pro Logic Surround and DSP (Digital Sound Processor), the TV

can simulate a wide range of various surroundings: From Dolby Pro Logic Surround

(NORMAL and PHANTOM) and Dolby 3 Stereo to THEATER, STADIUM, NIGHT CLUB

and CONCERT HALL surround.

3

I!Q Q Q Q!

-4

0

01

m

Note:

The DSP function processes only

stereo signals input from a TV

broadcast or video.

Effects of each DSP mode

THEATER A movie theater filled with a rich warm sound

STADIUM A large football or baseball stadium for a live

game

NIGHT CLUB A nightclub room

CONCERT HALL A concert hall having about 1500 seats

To activate the appropriate DSP mode

Press DSP on the Remote Control to

call up the DSP mode display.

DOLBY PRO LOGIC :_L

DOLBY PRO LOGIC :PHANTOM

DOLBY 3 STEREO

THEATER

STAD I UM

NIGHT CLUB

CONCERT HALL

OFF

TO SELECT PUSH DSP.DOLBY

Press DSP repeatedly until your

desired mode is displayed in

magenta.

3

4

Press SPEAKER to select either the

FRONT or REAR speakers to be

adjusted.

The selected mode will be displayed

in magenta.

The FRONT and REAR speakers can

be adjusted separately.

FRONT mode--To adjust the built-in

speakers or connected external

speakers.

REAR mode---To adjust the

Surround Speakers connected to

the REAR SPEAKER terminals.

Press - or + to adjust the DSP level.

L_)LBY PRO L_IC NORI_$,-_L

IX:)I{:_Y PRO LOGIC :PHANIO_, _

STAD I UM

I'_:_l B"/ 3 STEREO

THEATER

NIGHT CLUB

OF(_F ERT HALL

TO SELECT PUSH DSP.BOLBY

THEATER

FRONT

REAR

-I I +

TO SELECT PUSH SPEAKER

TO CONTROL PUSH- +

39

_ADVANCED OPERATION

Enhancing the Surround

Sound Effect (continued,

•The realistic sound of the cinema is now available from the Toshiba television. This

amazing three dimensional sound effect is available from any video and laser disc

recorded in Dolby Surround and from an increasing number of TV broadcasts.

• The illustrations on the next page show the surround effects available from the three

modes, and the speakers driven.

2C,_,) ib CiD C©

0

Z

W

m___

To enjoy the Dolby Surround effects of the "DOLBY PRO LOGIC:

NORMAL" and "DOLBY 3 STEREO" features, you have to connect

external speakers (not supplied) to the TV. Be sure to set the MAIN

SPEAKER switch to "EXT'. See page 67 for details.

To select Dolby Pro Logic Surround

Press DSP repeatedly until your

desired mode is displayed in

magenta.

DOLBY PRO LOG I C : NORMAL

DOLBY PRO LOGIC :PHANTOM

DOLBY 3 STEREO

I HEA _p1

f_ IAD _UM

NC_H _ (: UB

CON/::_ _'l _ALL

OF F

TO SELECT PUSH DSP.DOLBY

If the MAIN SPEAKER switch located

on the TV rear panel is set to the

"INT" position, you will see the

display at the right. Then select the

external speaker position from the

switch.

TO ENJOY THIS MODE

TURN SPEAKER SVVTO EXT

UP EXT SPEAKERS

2

3

Press SPEAKER to select either the

CENTER or REAR speakers to be

adjusted.

The selected mode will be displayed

in magenta.

The CENTER and REAR speakers can

be adjusted separately.

CENTER mode--To adjust the built-

in Center Speakers.

REAR mode--To adjust the Surround

Speakers connected to the REAR

SPEAKER terminals.

Press - or + to adjust the DSP level.

DOLBY PRO LI::X31C :_L

CENTER

REAR

-I I ÷

TO SELECT PUSH SPEAKER

TO CONTROL PUSH -- +

To deactivate the DSP function

Select "OFF" in the DSP mode display.

ImIo]lI:]h'4--j_e] _ _€.][o__eJ--tl,v_!l!

If you choose to use the external speakers.

Main Left (external) 1

Center (built-in) 2

Main Right (external) 1

Rear Left (Surround) 1

Rear Right (Surround) 1

Notes:

• The built-in speakers operate as the Center speakers (monaural).

• You can get the best surround performance when you install the

Surround Speakers slightly above your viewing position while

watching TV.

I_o]lll:_ -_[o] [l(oIe][o_ _.'P':1_l[O]_VAI

If you choose not to use the external speakers.

Main Left (built-in) 1

Main Right (built-in) 1

Rear Left (Surround) 1

Rear Right (Surround) 1

Notes:

• The built-in speakers operate as the Main speakers (stereo).

• You can get the best surround performance when you install the

Surround Speakers slightly above your viewing position while

watching TV.

m_J_o]II:]L'd_] [_d_P-[o]

If you choose not to use the Surround Speakers.

Main Left (external) 1fMAIN SPEAKER

Center(built-in) 2 _]EXT_ INT

Main Right (external) 1 \ z

Note: The built-in speakers operate as the Center speakers (monaural).

41

_ADVANCED OPERATION

Enhancing the Surround

Sound Effect (continued)

• The input balance is normally preset and should need little or no adjustment.

• This adjustment is for the Dolby Pro Logic Normal/Phantom and Dolby 3 Stereo

features.

•First select one of these 3 modes. (See page 40).

42

1

3

IIIIIII

2

I Ill

To adjust the INPUT BALANCE control

When listening to amonaural sound such as dialogue, the sound should

come mostly from the Center (built-in_ Speakers. If not, adjust the input

balance control on the set. Using a dialogue portion of the program,

activate the INPUT BALANCE mode and adjust the control to minimize any

dialogue leakage coming from the left and right speakers.

Press AUD repeatedly to select

"INPUT BALANCE".

Note:

If you select a mode other than the

Dolby Surround modes in the DSP

mode display, "INPUT BALANCE"

and "TEST" will not be displayed.

AUDIO

MTS

BASS

TREBLE

BALANCE

SPEAKERS

INPUT BALANCE

"TEST

TO SELECT MENU

PUSH AUD

TO CONTROL PUSH -+

Adjust the INPUT BALANCE control on

the set to minimize the dialogue sound

from the left and right speakers.

Press EXITto end the INPUT

BALANCE adjustment.

INPUT BALANCE

TO ADJUST TURN

INPUT BALANCE KNOB

ON THE SET

TO END PUSH EXIT

*Dolby Surround

Manufactured under license from Dolby Laboratories Licensing

Corporation. Additionally licensed under one or more of the following

patents: U.S. number 3,959,590: Canadian numbers 1,004,603 and

1,037,877. "Dolby", "Pro Logic", and the double-D symbol 130 are

trademarks of the Dolby Laboratories Licensing Corporation.

1

36oooo

!

i

7 7; ...............

-4

0

W

i2

To select the Dolby Pro Logic TEST mode

These TEST sequences are designed to let you balance all the speakers

to the same volume level. The method of adjustment described below is

the same for all the Dolby Surround effects (Dolby Pro Normal/Phantom

and Dolby 3 Stereo).

Press AUD repeatedly to select

"TEST".

AUDIO

MT8

BASS

TREBLE

BAtANCE

SPEAKERS

INPUT BALANCE

TEST

TO SELECT MENU

PUSH AUD

TO CONTROL PUSH -+

2Press -or +to control the level.

The adjustment screen for each

speaker will be displayed for about 2

seconds each in the following order:

r LEFT --) CENTER --) RIGHT --7

REAR <

CENTER

--I I ÷

TO CONTROL PUSH - +

TO END PUSH EXIT

Adjust the Center (built-in) and Rear

speaker levels to match the Left and

Right speakers while the Center or

Rear adjustment display is on the

screen.

Notes:

• In the "DOLBY PRO LOGIC:

PHANTOM" mode, "LEFT + RIGHT"

will be displayed in place of

"CENTER".

Adjustable item is "REAR" only.

• The adjustment screen for the

"REAR" speakers is not displayed in

the "DOLBY 3 STEREO" mode.

Press EXIT to end the TEST.

Note:

The DOLBY SURROUND level settings are only for the CENTER (built-in)

and REAR speakers.

43

_ADVANCED OPERATION

Enhancing the Surround

Sound Effect (continued)

•The Sub-Bass System allows you to improve bass performance (even when the

sound volume is low).

...................... ,i

[ C_D C_ c_D CD

G3 (_ G3

-I

0

Z

W

1Press CYC/SBS on the Remote

Control to call up the Sub-Bass

System ON/OFF mode display

shown at the right. SUB BASS SYSTEM ON

SUB BASS SYSTEM OFF

TO SELECT PUSH CYC-SBS

Press CYC/SBS until "SUB BASS

SYSTEM ON" is displayed in

magenta.

SUB BASS SYSTEM O_

SIJB BASS SYSTEM OFt

TO SELECT PUSH CYC'SBS

Press - or + to call up the SBS level

adjustment display.

SUB BASS SYSTEM

-I I +

TO CONTROL PUSH -- ÷

Press- or + to adjust the SBS level.

To deactivate the Sub*Bass System function

Select "SUB BASS SYSTEM OFF" in the Sub-Bass System ON/OFF mode

display,

Note:

The Sub-Bass System does not operate through the "VARIABLE AUDIO

OUTPUT" jacks. (See page 66) However, the above on-screen displays

will appear when the buttons are pressed.

44

IADVANCED OPERATION

Two-Picture Screen

• This TV is capable of displaying two pictures simultaneously. This is called the Picture-

in-Picture (or Picture-out-Picture) function. A TV picture or a picture from external

source equipment such as a VCR can be displayed as a small picture. Be sure to

connect a VCR with the VIDEO/AUDIO cables. (See page 62.)

Small


O

1/1

I

m

POWER

SOURCE

PIP-POP

PIP CH

To display a TV broadcast picture as a small picture

Turn on the TV and select the

desired program.

Press PIP-POP once to display a

small picture.

Press PIP CH &_' to select the

desired program for the small

picture.

PIP 4

To make the small picture disappear,

press PIP-POP again.

To display a picture from an external source as a small picture

Connect external source equipment for the small picture.

(For connection, see page 62.)

Turn on the TV and select the

desired program.

Press PIP-POP to display a small

picture.

Press SOURCE repeatedly to select

the input source (TV, VIDEO 1, VIDEO

2 or VIDEO 3) for the small picture.

The selected mode will be displayed

in magenta.

PIP

TV

VIDEO 1

VIDEO 2

VIDEO 3

TO SELECT PUSH SOURCE

45

IADVANCED OPERATION

Two-Picture Screen (continued)

46

LOCATE

STILL

lUlIMIII

-4

0

U)

m

W

To change the position of the small picture

Press LOCATE repeatedly when a small picture is displayed, The display

position of the small picture will change in order, (_) to (_),

®

®i®

Note:

The position of the small picture in the wide screen mode ("THEATER

WIDE" or "FULL")will change in order from (_ to _,

To switch the maM and small picture

Press SWAP when a small picture is displayed.

The main and small pictures will switch.

To switch them again, press SWAP again.

To freeze the small picture

Press STILL when asmall picture is displayed,

The small picture will become a still picture,

To return to a moving picture, press STILL small again.

©

Still picture

CH SEARCH function

Press CH SEARCH to scan the channels programmed in the "IV memory.

One-picture search in the P-I-P mode

CH

SEARCH

O

{/1

I

W

Three-picture search in the P-O-P mode

To cancel the channel search function

Press CH SEARCH again.

47

i_ADVANCED OPERATION

Two-Picture Screen (continued)

BIJ[._|_I. J.-,Ji.:a.] [,,. i,[:-aoz:_l'_.]a. _.[,.:_,] _ .:a.-l.min,j[,,_r.,r_

RESET -]+

MENU ADV

......6 0'

PIP-POP

RESET

To adjust the contrast of the small picture

Press PIP-POP to display a small

picture.

Press OPTION on the Remote

Control (or MENU on the TV) to

display the OPTION menu.

3

OPTION

LANGUAGE

DEIvIONSTBAT tON

NO I SE REDUCT I ON

PI P CONTRAST

3D-Y -CSEPARAT I ON

TO SELECT MENU

PUSH OPT { ON

TO CONTROL PUSH - +

Press OPTION repeatedly on the

Remote Control (or ADV on the TV)

until "PIP CONTRAST" is displayed

in magenta.

OPT I ON

L ANGUAG_ L_J

DEMONSTRAT _ON

NO{SE REDUCT ION

P I PCONTRAST

3D-'Y' C SEPARAT iON

TO SELECT MENU

PUSH OPT I ON

TO CONTROL PUSH - +

Press -/+ on the Remote Control or

the TV to adjust the contrast level of

the small picture.

Note:

When you press the RESET button,

your adjustment will automatically

be set to the factory-preset level.

CAUTION:

Avoid displaying stationary images on your TV screen for an

extended period of time. Stationary patterns generated by PIP-POP

display, computer displays, videogames, stock market reports etc,

can become permanently ingrained on the picture tube. This damage

is not protected by your warranty as it is the result of misuse. If you

use your TOSHIBA Television to display still images, it is always

advisable to reduce the brightness and contrast settings. Never leave

a PIP-POP display, computer display or videogame unattended.

48

_ADVANCED OPERATION

Setting the OFF Timer and

the Clock

2

0

U_

m

m

3=

3

To set the OFF timer

With the OFF timer, you can set the TV to turn off automatically after a

pre-determined period of time (every 10 minutes, up to 180 minutes = 3

hours).

Press TIMER to select the TIMER

mode. OFF TIMER

090

TO SET OFFTIME

PUSH O-9

TO START

PUSH TIMER

2Press any two Number buttons to

enter the length of time you want the

TV to stay on.

The remaining number(s) to be

adjusted wilt blink continuously.

Example: 120 minutes

Press 1 and 2.

OFF TIMER

i01o

TO SET OFFTIME

PUSH 0-9

TO START

PUSH TIMER

3Press TIMER to start the timer.

The display color will change from

magenta to cyan, and then the

display will go off.

OF_ I!ME_

120

10 SET OFF1iME

PtJSH 0-9

TO START

Pt;SH T_M_R

To cancel the OFF timer

Press POWER twice, once to turn the TV off and once to turn it on again.

•To display the time remaining, press TIMER once. The remaining time

will be displayed on the screen.

To erase the display, press TIMER twice.

49

_ADVANCED OPERATION

Setting the OFF Timer and

the Clock (continued,

RECALL-

IIImll

W

-1,3

To set the clock

Press TIMER twice to select the

CLOCK mode.

2

3

CLOCK

0o:oo

TO SET HOUR AND MINUTE

PUSH O" 9

TO START

PUSH TIMER

Press four Number buttons to enter

the correct time, after each number

position starts to blink.

Example: To set 9:25 p.m.

Press 0, 9, 2 and 5.

• The clock operates on a 12 hour-

cycle.

CLOCK

09 _00

TO SET HOUR AND MINUTE

PUSH 0"9

TO START

PUSH TIMER

Press TIMER to start the clock.

The display color will change from

magenta to cyan, and then the

display will go off.

CLOCK

09:25

TO SET N0[JR AND MINUTE

PUSH 09

TO START

PUSH TIMER

To monitor the time

Press RECALL.

Note:

If the power source for the TV is interrupted (i.e., AC cord unplugged or

power failure), the clock will have to be reset. (The time display will show

"00:00".)

50

_ADVANCED OPERATION

Changing On-screen Display

Language i

•Three different languages (ENGLISH, FRENCH and SPANISH) are available for

the on-screen displays (adjustment menus, and messages), and you can choose

the desired one.

MENU -/+

ADV

(

o 0 0 0 0

=

1

2

Press OPTION on the Remote

Control (or MENU on the TV) to

display the OPTION menu on the

screen.

Press OPTION repeatedly on the

Remote Control (or ADV on the TV)

until "LANGUAGE" is displayed in

magenta.

Press- or + until your desired

language is displayed in magenta.

OPTION

LANGUAGE

DEMONSTRATION

NOISE REDUCTION

PIP CONTRAST

3D--Y-C SEPARATION

TO SELECT MENU

PUSH OPTION

TO CONTROL PUSH -+

OPF_ON

LANGUAGE

DEMC_STRATION

NOISE REDUCTION

PIP CONTRAST

3D-Y-O SEPARATION

TO SELECT MENU

PUSH OPTION

TO CONTROL PUSH - +

LANGUAGE

EI"_GLISH

FRENCH

SPANISH

TO SELECT PUSH -+

Example: PICTURE menu

display

"ENGLISH" PICTURE

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

FLESH TONE

PICTURE PREFERENCE

TO SELECT MENU

PUSH PIC

TO CONTROL PUSH - +

"FRENCH" IMAGE

CONTRASTE

LUMINO$1TE

[COULEUR

TEINTE

NETTETE

COULEUR DE LA PEAO

PREFERANCE D IMAGE

APPUYEZ PIP

POUR SELECT MENU

APPUYEZ - + POUR REGLAGE

"SPANISH" IMAGEN

CONTRASTE

BR I L LO

COLOR

TINTE

NITIDEZ

TONO POP PIEL

PREFERENCIA DE IMAGEN

APRETAR PIC

PARA ESCOJER MENU

APRETAR - + PUn CONTROL

51

_ADVANCED OPERATION

Activating Auto

Demonstration

/1_ _,ft_v, vj[€__ [i_-_]_ F'Ji_J_ _-JCt_

v

DD

MENU -/+

ADV

© © '_ oil

G Q Q c__...,

-4

0

m

m

To start the auto demonstration

When this function is activated, your TV will automatically display a

variety of its on-screen menus and special features. This function is

provided for demonstration purposes only.

You may not need to use this function.

Press OPTION on the Remote Control

(or MENU on the TV) to display the

OPTION menu on the screen.

OPTION

LANGUAGE

DEMONSTRATiON

NOISE REDUCTION

PIP CONTRAST

3D-Y'C SEPARATION

TO SELECT MENU

PUSH OPTION

TO CONTROL PUSH -+

2Press OPTION repeatedly on the

Remote Control (or ADV on the TV)

until "DEMONSTRATION" is

displayed in magenta.

OP_©N

I ANGUA¢_E

DEMONSTRATION

_'3tSE REDUCTION

PiP C_3NTRAST

3D-Y'C SEPAt_AflON

TO SELECT MENU

PUSH OPTION

TO CONTROL PUSH - +

3Press -or +until "DEMO START" is

displayed on the screen in magenta.

The on-screen demonstration will

start after about 6 seconds.

DEMO START

DEMO STOP

TO SELECT PUSH - +

Note:

The on-screen demonstration will continue, even if the -FV is turned off

and on, or any other buttons are pressed.

To stop the demonstration

Select "DEMO STOP".

52

_ADVANCED OPERATION

Turning Noise Reduction On

RESET

MENU

ADV

;:iO _, _

-4

0

Ul

Z

I

This function allows you to reduce visible interference in your TV picture.

This is useful when receiving a broadcast with a weak signal or playing

back a video cassette or disc damaged by repeated use.

Press OPTION on the Remote Control

(or MENU on the TV) to display the

OPTION menu.

OPTION

LANGUAGE

DEMONSTRATION

NORSE REDUCTION

PIP CONTRAST

3D-Y'C SEPARATION

TO SELECT MENU

PUSH OPTION

TO CONTROL PUSH - +

2Press OPTION repeatedly on the

Remote Control (or ADV on the TV)

until "NOISE REDUCTION" is

displayed in magenta.

OPTION

LANGUAGE

@Eb_}NSIRA}-iON

NOISE REDUCTION

PIP (_XqT_AST

3D Y © SFPARATIO_

TO SELECT MENU

PUSH OPTION

TO CONTROL PUSH - +

Press- or + until "NOISE

REDUCTION ON" is displayed on the

screen in magenta.

NOISE REDUCTION ON

NOISE REDUCTION OFF

TO SELECT PUSH - +

To deactivate this function

Select "NOISE REDUCTION OFF".

3D-YoC SEPARATION

3D-Y-C means "3-Dimensional luminance

signal (Y)/chrominance signal (C)

Separation circuit". It separates Y and C

signals to prevent them from interfering

with one another, thereby improving

picture (especially color) quality.

Select "3D-Y-C SEPARATION ON" for

optimum picture quality.

3D-Y'C SEPARTION ON

3D Y'C S PARer iON Ol:_:

TO SELECT PUSH -+

Note:

This feature will automatically be set to "ON" when you turn the TV on.

53

_ADVANCED OPERATION

Captioning Channels

• This feature allows you to enter a 4 letter channel identifier of your choice that will

appear over the channel number display. The caption can be anything you want

(for example the station call letters).

i_[_.T._'_ _11_'J_]_

54

.... _i_ i

t

DI

MENU -/+

ADV

(

SET UP --

0 ¸¸b b

. L ......

a

I/1

Z

IIIIIIll

ID

-/+

Letters of alphabet, numbers and other graphic symbols are available for

captioning.

Each time you press the - or + button, the character to be displayed will

change in the following order.

j-blank

+button F_---_ 0----_ 9-, A-_-_ Z-_ [ ]-_+_

-button ¢---:, +--> [ ] -->Z ---_ A --_ 9 ----_ 0 --]

Select the channel you want to

caption.

Example: To assign "ABCD"

to channel 4.

Press SET UP on the Remote Control

(or MENU on the TV) to display the

SET UP menu on the screen.

3Press SET UP repeatedly, on the

Remote Control (or ADV on the TV)

until "CH CAPTION" is displayed in

magenta.

Press- or +to call up the caption

setting mode display shown below

on the screen.

OH CAPTION I1,

TV 4 ....

TO SELECT PUSH - +

TO ENTER 1ST CHARACTER

PUSH SET UP

SET UP

AUTO CH PROGRAM

ADD-ERASE

TV-CABLE

OH P_/CVI

CH CAPTION

CH LOCK

CLOSED CAPTION

TO SELEOT MENU

PUSH SET UP

TO CONTROL PUSH - +

I SEI UP

AUTO CH PRL,XJRAM

ADD'ERASE

ITVCABIE

OH CAPTION

ICH L_K

CLOSED CAPIfO#_

TO SELECT MENU

| PUSH SET UP

I TO CONTROL PUSH -- +

lstchar, space

2nd char. space

3rd char. space

4th char. space

5Press - or + to put a character "A" in

the 1st character space.

Press the button until the character

you want appears on the screen.

Press SET UP once to enter the 1st

character and to move to the next

character space.

7

8

Repeat steps 5 and 6 to enter the

2nd, 3rd and 4th characters "B', "C",

"D'.

When the on-screen message at the

right appears, the channel caption

has been stored in the memory.

CH CAPTION

TV 4

ENTERED

ABCD

Repeat steps 1 through 7 for other

channels.

You can caption up to 32 channels.

The caption will appear when you

turn the TV on, select a channel, or

press the RECALL button.

ABCD_-- Channel caption

1

2

3

To clear the captioning

Select the channel which has the caption you want to erase.

Call up the channel caption setting mode display following steps 2

through 4 in the previous page.

Enter "[blank]" or "-" in all character spaces.

55

_ADVANCED OPERATION

Locking Channels

• With this function, you can lock out specific channels (for example a channel that

you do not want your children to watch) by entering your own 4-digit code.

The TV will not be able to tune them for the next 24 hours, unless you cancel

parental control.

This TV has 4 memory spaces total for the TV mode and CABLE mode respectively.

ilL_ ["_"J_[;TI']I_

56

ADV

Number

buttons

SET UP

Note:

If different code numbers are used when

you lock out a channel, the last one has

priority over the preceding ones.

____ 101[Ill

Select a channel you want to lock

out.

Press SET UP on the Remote Control

(or MENU on the TV) to display the

SET UP menu on the screen.

3

4

5

SET UP

AUTO CH PROGRAM

ADD-ERASE

TV-CABLE

OH PIE}GRAM

CH CAPTION

CH LOCK

CLOSED CAPTION

TO SELECT MENU

PUSH SET UP

TO CONTROL PUSH - +

Press SET UP repeatedly on the

Remote Control (or ADV on the TV)

until "CH LOCK" is displayed in

magenta.

[! U _

ADD _ A_'E

V • CABLE

Ci4 GAP I¸ iON

OH LOOK

TO SELECT MENU

PUSH SET UP

TO CONTROL PUSH - +

Press- or + to call up the channel

lock adjustment mode display shown

below.

Each time you press the button,

"SET" and "CLEAR" alternate.

Select "SET".

CH LOCK TV

SET _;--_

-- ITO ENTER 4- _ w_aJ

CLEAR I _u_ 6-9

I TO SET PUSH SET UP

I

Press Number buttons (0 - 9) to

enter a 4-digit code.

The numbers you enter will replace

the dashes in the display.

Pick a number that is easy to

remember.

Example: To enter " 1234".

Press 1, 2, 3 and 4 in

order.

.... 12 ----+ 123--->1234

I

ii_ [Jill tl*l! iI'_ iP, l il i [=l I-.I111_I l i | i I I l I [_Ii I

Press SET UP to lock out the channel.

The display at the right will appear

on the screen for about 4 seconds.

Repeat steps 1 to 6 for other

channels.

CH 4

LOCKED

1234

To restore channels

Select "CLEAR" following steps 2 to

4 on the previous page.

Press the 4-digit code used to lock out

the channels with the Number

buttons.

3Press SET UP.

If you have entered the correct code,

the display shown at the right

appears.

CLEARED

1234

If awrong code has been entered

These messages appear. Try to enter the

correct code again. V_RONG CODE I

ENTER CORRECT CODE

If you want to know the channels you have locked out

Call up the channel lock adjustment mode using the SET UP button and

-/+ buttons.

57

_ADVANCED OPERATION

Operating the Closed

Captioning Feature

•A caption is aprinted version of the dialogue or sound effects of a program.

58

MENU -/+

ADV

To deactivate this function

Select the "OFF" mode in the closed

caption setect mode display.

I IIIII IIIIIIIII IIIIIIII Illlll

To view captions

Captions will appear at either the top or bottom of the screen during

captioned broadcasts as shown at the left. Captioning is especially

helpful for hearing impaired individuals.

Select the desired program,

2

4

Press RECALL to check if the

program is being captioned. If it is,

the word "CAPTION" is displayed on

the screen.

Press SET UP repeatedly on the

Remote Control (or ADV on the TV)

until "CLOSED CAPTION" is

displayed in magenta.

Press -or + to call up the closed

caption mode display.

Usable selections are displayed in

yellow.

Note:

If you select this menu immediately

after changing to aclosed-captioned

channel, all the items may be

displayed in cyan.

Press - or + until "CAPTION 1" or

"CAPTION 2" is displayed in

magenta.

The CAPTION 2 mode may be

utilized for alternate languages if

they are being transmitted.

CAPTtCN

ANT 1

ABCD

10:25 TV 4

SET UP

AUTO CH PROP--:_I/_JVI

ADD,ERASE

TV-CABLE

CH PROGR/_M

CH CAPTION

CH LOCK

CLOSED CAPTtON

TO SELECT MENU

PUSH SET UP

TO OONTROL PUSH - ÷

CLOSED CAPTION

CAPTION 1 TEXT 1

CAPTION 2 TEXT 2

OFF OFF

TO SELECT PUSH - +

Notes:

• A closed captioned signal may not be decoded in the following

situations.

--When a video tape has been dubbed.

--When the signal reception is weak.

--When the signal reception is non-standard.

•When you press the MUTE button, "CAPTION 1" mode will

automatically be selected while muting the sound.

]

MENU -/+

ADV

(2

4,5

To deactivate this function

Select the "OFF" mode in the closed

caption select mode display.

To view text

Text is information that is presented using from a half to a full television

screen. It is usually not related to the program.

For example, it could be a listing of the closed-captioned programs,

news, weather information or stock market reports.

Select the desired program.

2

3

4

Press RECALL to check if the

program includes TEXT information.

If it does, the word "TEXT" is

displayed on the screen.

Press SET UP repeatedly on the

Remote Control (or ADV on the TV)

until "CLOSED CAPTION" is

displayed in magenta.

Press - or + to call up the closed

caption select mode display.

Usable selections are displayed in

yellow.

Note:

If you select this menu immediately

after changing to a closed-captioned

channel, all the items may be

displayed in cyan.

Press- or ÷ until "TEXT 1" or "TEXT

2" is displayed in magenta.

TEXT

10:25

SET UP

AUTO CH P_AM

ADD'ERASE

TV'CABLE

OH pROC-_AM

CH CAPTION

CH LOCK

CLOSED CAPTION

TO SELECT MENU

PUSH SET UP

TO CONTROL PUSH = +

CLOSED CAPTION

CAPTION 1 TEXT 1

CAPTION 2TEXT 2

OFF OFF

TO SELECT PUSH - +

ANT 1

ABCD

TV 4

Note:

When you select the "TEXT" mode, the TEXT screen will always be

displayed.

However, if TEXT character signals are not transmitted, the characters

are not displayed.

59

_CONNECTING OTHER EQUIPMENT

External Equipment

Connections

•[o]lKe] il i[:-To'h IvJ I_ [:,,To]r/";| i [a I [oleo _e] liT:-] il

,!

VCR

VCR

m

Video Disc Player

f .... I

!!i!ii!iiiiiiii!i_ili

ii_i!i!i_!i_iiiii

Stereo system

Camcorder, etc.

Speaker system

• Refer to the owner's manual of the equipment to be

connected as well.

•When connecting the TV to other equipment, first turn

off their power.

The S-VIDEO INPUT jack has priority over the phono-

type (yellow) VIDEO jack when both are used.

•If you connect monaural sound equipment, connect

the audio output of the equipment to the L/MONO jack

of the VIDEO 1, VIDEO 2 or VIDEO 3 INPUT jacks on

the TV.

• The S-VIDEO INPUT jack accepts the SEPARATED

Luminance/Chrominance (Y/C) signals conforming to

the NTSC standard.

60

TV front

Behind the door

S-VIDEO VIDEO FAUDIOI

L/MONO R

i@ O ® ®l

I

VIDEO 3 INPUT jacks

TV rear

0O000 00

These openings are for connecting

the VCR or other installed

equipment.

1ANT(75£)I

ANT-1 OUT ANT-2

QQQ

VARIABLE AUDIO

OUTPUT jacks EXTERNAL

SPEAKER

terminals

s-rID

AUDI_ i

I EXT

EXTOl INT

AUDIO

,,,_,_T_:,o....T,o_,,',,_ ,i,

VIDEO 1INPUT

jacks

VIDEO 2 INPUT jacks

VIDEC/AUDIO

OUTPUT jacks

I MAINSPEAKER

switch

REAR SPEAKER

terminals

61

i_CONNECTING OTHER EQUIPMENT

External Equipment

Connections (continued)

IL_ _ ea_l_I_J I_P]_t

Connect VIDEO 1 or VIDEO 2 INPUT jacks on the TV rear panel to the video/audio output jacks of VCR, Video Disc

Player, etc. for playback of video material.

Antenna

or

Cable

lead-in

II__M Ann;etna

Audio Video

outputs output ,.,_,L,=,_*;on_ cables

TV rear

To select video input source

Press TV/VIDEO on the Remote Control (or ANT/VIDEO

on the TV) repeatedly to select the appropriate source.

Each time you press the button, the TV, VIDEO 1, VIDEO

2 or VIDEO 3 source will be selected in order.

The selected source will be displayed in magenta.

Note on the VIDEO 2 INPUT jacks

The VIDEO 2 INPUT jacks can also be used for

connecting a second piece of video equipment with

video/audio outputs.

To view video from equipment connected to the VIDEO

2 INPUT jacks, select "VIDEO 2".

TV

VIDEO 1

VIDEO 2

VIDEO 3

TO SELECT PUSH TV'VIDEO

Note on the VIDEO 3 INPUT jacks

The VIDEO 3 INPUT jacks on the TV front panel are

convenient for connecting portable video/audio

equipment.

To view video from equipment connected to the VIDEO

3 INPUT jacks, select "VIDEO 3".

62

I t.i_.] ,I ir_,_ lhllVLll :i,,u 11,i_.l, lhllVl I e]:[ei _ i

If you connect a VCR with an S-video connector to the "S-VIDEO" jack on the TV rear, you must also connect the audio

cables to the AUDIO jacks of "VIDEO 1 INPUT" on the TV rear. The S-video cable supplies video signals only. Audio

signals are separate.

Audio S-video

outputs output

Optional cables

To select video input source

Turn on the TV and the VCR.

Press W/VIDEO on the Remote Control or ANT/

VIDEO on the IV to select "VIDEO 3' in the input

source selecting mode.

Operate your VCR normally.

I

Notes:

• If you connect a monaural VCR, connect the audio

output of the VCR to the L!MONO jack of the VIDEO 1

INPUT jacks on the TV,

• Do not connect video equipment to both the "S-

VIDEO" jack and the "VIDEO" jack of the VIDEO 1

INPUT jacks at the same time.

• The S-VIDEO INPUT jack accepts SEPARATED

Luminance/Chrominance (Y/C) signals conforming to

the NTSC standard.

63

_CONNECTING OTHER EQUIPMENT

External Equipment

Connections (continued)

This connection allows you to play back tapes in the camcorder and watch them on the TV.

--If you have a camcorder with an S-video jack, connect the S-video cable to the S-VIDEO INPUT jack of the "VIDEO 3

INPUT" jacks.

--If you have astandard camcorder, connect the video cable to the video jack of the "VIDEO 3 INPUT" jacks.

With either video connection, connect the audio cables.

Camcorder

To S-video output

To AN output

--cl3_=

Usually supplied

with camcorder

/S-video cable

d:]]_ --

Video plug*

AiVcable _ L

R

Audio plugs

TV front

_IN-VIDEO 3_

sv,oEov,oEo rAue'°l I

L/MONO RI

To select video input source

To operate your TV normally, see instructions supplied

with the connected camcorder.

Turn on the TV and the camcorder.

Press TV/VIDEO on the Remote Control or ANT/

VIDEO on the TV to select "VIDEO 3" in the input

source selecting mode,

3Operate your camcorder normally.

Notes:

When the S-video cable is connected to the S-video

INPUT jack, the video plug does not have to be

connected.

,, If you connect a monaural camcorder, connect the

audio output of the VCR to the L/MONO jack of the

VIDEO 3 INPUT jacks on the TV.

64

•ioxom."YJ'_r,l,J _.n_JoI_l, mnn, nL,,,t.svzeli_

To connect equipment for dubbing/editing

Connect the output jacks on a VCR for playback to the input jacks (VIDEO 1 INPUT, VIDEO 2 INPUT or VIDEO 3

INPUT) on the TV,

2Connect the output jacks on the TV to the input jacks of the VCR for recording.

Video _ --

output "_" "_" outputs

VCR for playback

TV rear

,......

-- _ Video

inputs "_" _ input

VCR for recording

Note: Do not connect one VCR to the output and input jacks on the TV at the same time.

To monitor dubbing/editing

Turn on the TV and both VCR's,

Press TV/VIDEO on the Remote Control or ANT/

VIDEO on the TV to select "VIDEO 1".

Set the VCR for recording to record mode and the

VCR for playback to play.

You can view the video tape from the VCR for

playback on the TV screen while dubbing it with

the VCR for recording.

CAUTION:

The unauthorized recording of television programs,

video tapes and other materials may infringe upon

the provisions of the copyright laws.

Notes:

•The input switch of a VCR is normally in the TV

position. Change the switch of the recording VCR to

the LINE or CAMERA position when using the video/

audio inputs of the VCR as above. Some VCR's

automatically switch when the cables are plugged into

the video/audio inputs.

•The PIP picture cannot be output from the VIDEO

OUTPUT.

65

_CONNECTING OTHER EQUIPMENT-

External Equipment

Connections (continued)

Connect the VARIABLE AUDIO OUTPUT jacks to the external input jacks on the stereo amplifier. You can control the

audio equipment using the Remote Control for this TV.

TV rear

Fixed level AUDIO OUTPUT •

External

input

Stereo amplifier

Speaker (L) Speaker (R)

The "Fixed level" audio output from the VIDEO/AUDIO OUTPUT jacks is also available for connecting an audio

cassette recorder (or amplifier) to record audio from the TV. This constant audio signal is not affected by pressing

the VOLUME controls on the TV or the Remote Control.

To disconnect the built-in speakers

Press AUD on the I AUDIO

1

Mrs

Remote Control to BASS

display the AUDIO TREBLE

BALANCE

menu on the screen. SPEAKERS

TO SELECT MENU

PUSH AUD

TO CONTROL PUSH - +

PressAUD until

"SPEAKERS" is

displayed in

magenta.

Press -/+ to select

the SPEAKERS ON/

OFF mode on-

screen display at the

right.

4Press-/÷ until

"SPEAKERS OFF" is

displayed in

magenta. The built-

in speakers will be

disconnected.

SPEAKERS ON

SPEAKERS OFF

TO SELECT PUSH -+

AIJDIO

NTS

BASS

FREBLE

BALANCE

SPEAKERS

TO SELECT MENU

PUSH AUD

TO CONTROL PUSH +

To use the built-in speakers again

Select "SPEAKERS ON" in step 4 above.

Note:

Make sure the volume control of your stereo amplifier is

set to a moderate listening level.

SPEAKERS ON

SPEAKERS OFF

TO SELECT PUSH - +

66

il_ [_,_ [-._?11_J_ll_I_I _'1'ZJ_

Before connecting the speakers, turn the

TV off.

Right

speaker

TV rear

ooooo

Left

speaker

(-_

L_R<_J

MAIN SPEAKER

EXT _[_ INT

1

2

3

4

Connect one end of the speaker cable

to the external speaker.

Connect the other end of the speaker

cable to the TV.

While depressing the button, insert

the wire. Then, release the button.

Match the right and left channels and

+/- polarities of the TV speaker

terminals and external speakers.

Connect another external speaker

following steps 1 and 2 above.

Set the MAIN SPEAKER switch to

"E XT".

The built-in TV speakers are

disconnected.

MAIN SPEAKER

EXT _ INT

CAUTIONS:

,, Do not connect external speakers to more

than one audio source at a time. You will

damage your equipment if you connect the

same speaker system to both the TV and the

amplifier.

• Use only external speakers with an

impedance rating of 8 ohms and input

power of 14 W or greater.

'I.,11

MainF_ [ TV tt_ Main

Speaker positioning

To enjoy the sound of the DSP Surround or Dolby Pro

Logic Surround, locate the external (main) speakers and

supplied Surround Speakers as shown at the right.

See page 41 for details.

Surround L [_ Surround R

67

i_ADDITIONAL REFERENCE

Before Calling Service

Personnel

•Before calling service personnel, please check the following chart for the possible

cause of the problem you are experiencing.

No picture, no sound

No sound, picture OK

Poor sound, picture OK

Poor picture, sound OK

•Snowy picture

• Lines in picture

• Distorted picture

• Be sure power cord is plugged in.

• May be station trouble.

•Check antenna connections.

• Check antenna for broken wires.

• May be station trouble. •

• Check if SPEAKER ON/OFF function (see page 66) or •

MAIN SPEAKER switch (see page 67) is properly set.

• May be station trouble. •

• May be local interference from appliance. •

• Check antenna connections. •

• May be station trouble. •

• May be local interference from appliance. •

• Check antenna connections. •

• Check antenna for broken wires. •

• Press POWER button.

•Try another channel.

• Re-orient antenna.

Try another channel.

Adjust VOLUME.

Try another channel.

Adjust VOLUME.

Adjust BASS, TREBLE,

or BALANCE control.

Re-orient antenna.

Try another channel.

Adjust BRIGHTNESS.

Adjust CONTRAST.

Adjust SHARPNESS.

Re-orient antenna.

Try another channel.

Re-orient antenna.

• Weak picture •

Poor reception of broadcast • If VCR is connected, check TV/VCR switch. •

channels •Check antenna connections. •

• Check antenna for broken wires.

Unable to select a certain • That channel may be locked out with the CH LOCK • Try another channel.

channel function (see page 56).

• Check if TV,CABLE function is properly set.

(See page 24.)

Multiple images (ghosts) • May be station trouble. • Try another channel.

• Check antenna connections. • Re-orient antenna.

Poor color or no color • May be station trouble. • Try another channel.

• May be local interference from appliance. • Adjust TINT.

• Check if station is broadcasting in color. •Adjust COLOR.

• Check antenna connections. • Re-orient antenna.

• Check antenna for broken wires.

Weak and noisy stereo •Check antenna connections. • Select the MONAURAL

program • Check antenna for broken wires, mode. (See page 38.)

• Re-orient antenna.

No stereo or SAP sound • Check if MTS function is properly set. •Select STEREO or SAP

from a known MTS mode. (See page 38.)

broadcast

Remote Control does not • Check if TViCABLENCR!AUX switch is properly set. •Change batteries.

work •Be sure power cord is plugged in.

•Check battery in Remote Control.

68

I _ ADDITIONAL REFERENCE

Specifications

TELEVISION SYSTEM NTSC standard

CHANNELCOVERAGE VHF: 2 through 13

UHF: 14 through 69

Cable TV: mid band (A-8 through A-l, A through I)

super band (J through W)

hyper band (AA through ZZ, AAA, BBB)

ultra band (65 through 94, 100 through 125)

POWER SOURCE 120 V AC, 60 Hz

POWER CONSUMPTION 220 W (average)

AUDIO POWER Front: 14W+ 14W

Center: 10W+10W

Rear: 10 W+ 10 W

SPEAKER TYPE Main: Two 6-1/4 inches round

Surround: Two 4 inches round

VIDEO/AUDIO TERMINALS

DIMENSIONS

S-VIDEO INPUT (VIDEO 1NIDEO 3)

Y-INPUT: 1 V (p-p), 75 ohm, negative sync.

C-INPUT: 0.286 V (p-p) (burst signal), 75 ohm

VIDEO 1NIDEO 2NIDEO 3 INPUT

VIDEO: 1 V (p-p), 75 ohm, negative sync.

AUDIO: 150 mV (rms) (30% modulation, 47 kohm)

VIDEO/AUDIO OUTPUT

VIDEO: 1 V (p-p), 75 ohm, negative sync.

AUDIO: 150 mV (rms) (30% modulation, 4.7 kohm)

VARIABLE AUDIO OUTPUT

0-350 mV (rms) (30% modulation, 4.7 kohm)

EXTERNAL SPEAKER TERMINALS

Accept speakers of impedance 8 ohm, input power 14 W or greater

REAR SPEAKER TERMINALS

Accept the supplied Surround Speakers only

Width: 55 inches (1395 rnrn)

Height: 59 inches (1497 mm)

Depth: 251/4 inches (641 ram)

MASS 357 Ibs (162 kg)

Design and specifications are subject to change without notice.

69

I_ADDITIONAL REFERENCE

LIMITED UNITED STATES WARRANTY

70

Toshiba America Consumer Products, Inc. ("TACP") and Toshiba Hawaii Inc. ("THI") make the following limited warranties. These

limited warranties extend to the original consumer purchaser or any person receiving this set as agift from the original consumer

purchaser and to no other purchaser or transferee.

Limited One (1) Year Warranty

TACP and THI warrant this product and its parts against defects

in materials or workmanship for a period of one (1) year after

the date of original retail purchase. During this period, TACP

and THI will repair a defective product or part, without charge

to you. Authorized TACP/THI Service Station Personnel will

come to your home when warranty service is required.

Depending on the type of repair required, the service will either

be performed in your home or the set will be taken to the

authorized TACP/THI service station for repair and returned to

your home at no cost to you.

Umited Two i2i Year Warranty of Picture Tube

TACP and THI further warrant the picture tube in this product

against defects in materials or workmanship for a period of two

(2) years after the date of original retail purchase. During this

period, TACP and THI will replace a defective picture tube

without charge to you, except that if a defective picture tube is

replaced after one (1) year from the date of the original retail

purchase, you pay labor charges involved in the replacement.

Owner's Manual and Registration Card

You should read this owner's manual thoroughly before

operating this product. You should also insure that your name

and address are on file as owner of a TACPiTHI product by

completing and mailing the enclosed registration card within

ten days after you, or the person who has given you this

product as a gift, purchased this product. This is one way to

Step By-Step Procedures - How to Obtain Warranty Service

enable TACP/THI to provide you with better customer service

and improved products. Failure to return the card will not affect

your rights under this warranty so long as you retain other

proof of purchase such as a bill of sale.

Your Responsibility

The above warranties are subject to the following conditions:

(1) You must retain your bill of sale or provide other proof of

purchase.

(2) All warranty servicing of this product must be made by an

Authorized TACP/THI Service Station.

(3) These warranties are effective only if the product is

purchased and operated in the U.S.A.

(4) Labor service charges for set installation, set up, adjustment

of customer controls and installation or repair of antenna

systems are not covered by this warranty. Reception

problems caused by inadequate antenna systems are your

responsibility.

(5) Warranties extend only to defects in materials or

workmanship as limited above and do not extend to any

product or parts which have been lost or discarded by you

or to damage to products or parts caused by misuse,

accident, improper installation, improper maintenance or

use in violation of instructions furnished by us; or to units

which have been altered or modified without authorization

of TACP!THI or to damage to products or parts thereof

which have had the serial number removed, altered,

defaced or rendered illegible.

If,

you find that service is needed:

(1) Contact one of the TACP!THI Service Centers listed below for warranty service or

call the TACP toll free nunber 800-631-3811 within thirty (30) days after you find a

defective product or part to find the nearest TOSHIBA Authorized Service Station

or authorized TOSHIBA Dealer.

(2) Please present your bill of sale or other proof to the Authorized Service Station.

Authorized TACP/THI Service Station Personnel will come to your home when

warranty service is required. Depending on the type of repair required, the

service will either be performed in your home or the set will be taken to the

authorized TACP/THI service station for repair and returned to your home at no

cost to you.

(3) If you have any question about service, pleace contact one of the following

TACP/THI service Centers:

after following all of the operating instructions in this manual and checking the section "BEFORE CALLING SERVICE PERSONNEL",

IN THE CONTINENTAL UNITED STATES

Should your unit require service, Call

NORTHEAST MIDWEST WEST SOUTHEAST SOUTHWEST HAWAII

82 Totowa Road, 1010 Johnson Drive, 5490 E. Francis St., 6115 Jimmy Carter Blvd., 1421 Champion Drive 327 Kamakee Street,

Wayne, Buffalo Grove, Ontario, Suite C2, Norcross, Suite 304, Carrollton, Honolulu,

New Jersey 07470 illinois 60089-6900 California 91761 Georgia 30071-4607 Texas 75006 Hawaii, HI 96814

ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, ARE EXPRESSLY LIMITED TO THE DURATION OF THE LIMITED WARRANTIES SET FORTH ABOVE. Some

states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. WITH THE

EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS HEREBY LIMITED, THE FOREGOING EXPRESS WARRANTY IS

EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, GUARANTEES, AGREEMENTS AND SIMILAR OBLIGATIONS OF

MANUFACTURER OR SELLER WITH RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PRODUCT OR PARTS.

IN NO EVENT SHALL TACP OR THI BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES. Some states do not allow the

exclusion or limitation of incidental or consequential damages so the above limitation may not apply to you.

No person, agent, distributor, dealer, service station or company is authorized to change, modify or extend the terms of these

warranties in any manner whatsoever. The time within which an action must be commenced to enforce any obligation of TACP and

THI arising under this warranty or under any statute, or law of the United States or any state thereof, is hereby limited to one year from

the date you discover or should have discovered, the defect. This limitation does not apply to implied warranties arising under state

law. Some states do not permit limitation of the time within which you may bring an action beyond the limits provided by state law so

the above provision may not apply to you, This warranty gives you specific legal rights and you may also have other rights which vary (_

from state to state.

1_\ I-rENTION CANADIAN CONSUMERS:

Canadian consumers are requested 10 complete the special Canadian "Warranty Registration Form" enclosed, and forward this completed form with

a copy of bill of sale to TOSHIBA OF CANADA to "Register and Validate" their warranty

TOSHIBA AMERICA CONSUMER PRODUCTS, INC.

HEAD OFFICE/82 TOTOWA ROAD, WAYNE, NEW JERSEY 07470 TEL: (201) 628-8000

FACTORY SERVICE CENTERS/NORTHEAST: 82 TOTOWA ROAD, WAYNE, NEW JERSEY 07470 TEL: (201) 628-8000

MIDWEST: 1010 JOHNSON DRIVE, BUFFALO GROVE, ILLINOIS 60089-6900 TEL: (708) 541-9400

WEST: 5490E. FRANCIS ST., ONTARIO, CA 91761 TEL: (909) 988-5303

SOUTHWEST: 1421 CHAMPION DRIVE, SUITE 304 CARROLLTON, TEXAS 75006 TEL: (214) 243-1367

SOUTHEAST: 6115 JIMMY CARTER BLVD., SUITE C2, NORCROSS, GA 30071-4607 TEL: (404)242-7500

TOSHIBA OF CANADA LTD.

CONSUMER ELECTRONICS SECTOR

HEAD OFFICE /191 MCNABB STREET, MARKHAM, ONTARIO L3R 8H2, CANADA TEL: (905) 470-5400

SERVICE CENTRES/TORONTO: 191 MCNABB STREET, MARKHAM, ONTARIO L3R 8H2, PHONE: (905) 470-5400

MONTREAL: 1643,NORTH SERVICE RD., TRANS-CANADA HIGHWAY, DORVAL QUEBEC, H9P 1J1, CANADA

TEL: (514) 332-6860

VANCOUVER: 3870JACOMBS ROAD, RICHMOND, B.C.,V6V1Y6, CANADATEL: (604) 270-8481

TOSHIBA HAWAII, INC.

HEAD OFFICE/327 KAMAKEE STREET, HONOLULU, HAWAII 96814, U.S.A. TEL: (808)521-5377

MANUFACTURED BY

TOSHIBA AMERICA CONSUMER PRODUCTS, INC.

TOSHIBA

PRINTED IN USA

(94-04) 23562026
