WLT66

Series

Owner's manual

TOSHIBA

For television

operation queries,

please ring the

helpline…

Remember…

Contents

SETTING UP

Safety precautions –Some do’s and don’ts for you to be aware of 3

Installation and important information 4

The remote control – an at-a-glance guide 5

Connecting external equipment – a guide to connecting external equipment to the back of the television 6

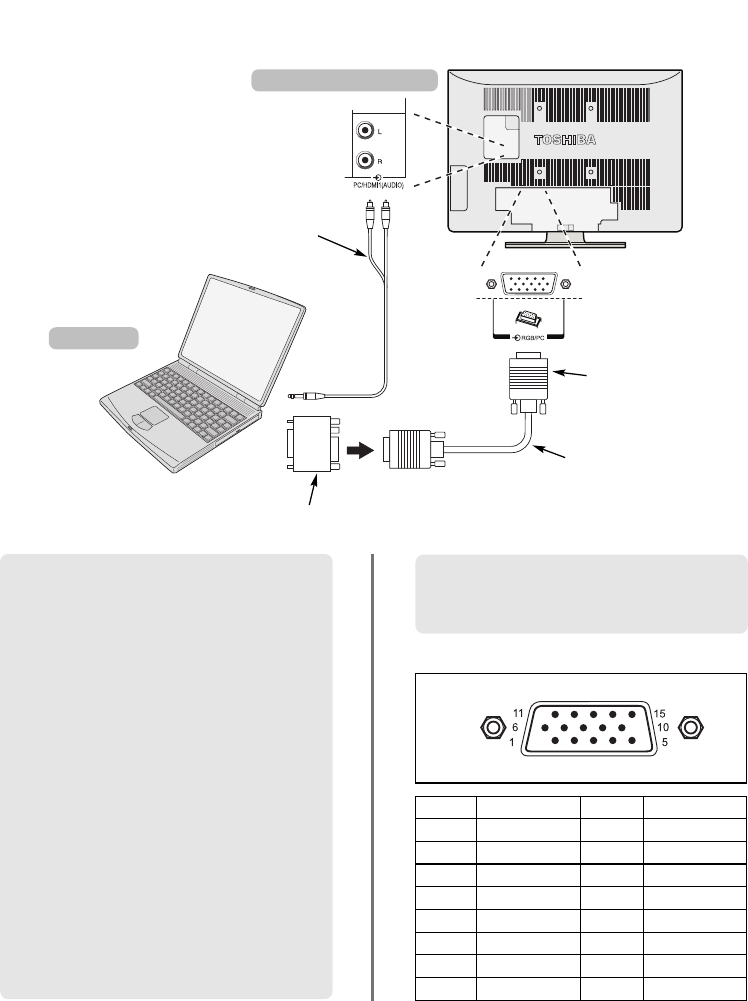

Connecting a computer – connecting a computer to the back of the television 7

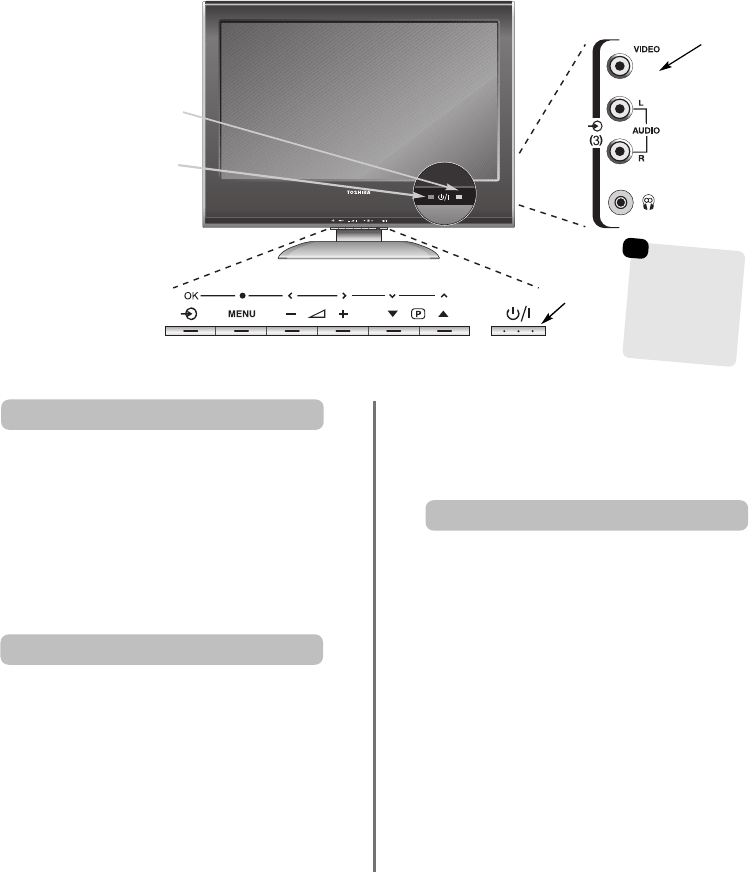

Controls and input connections – switching on the television, standby, using the controls on the television,

headphone socket, connecting equipment to the side input sockets 8

TUNING THE TELEVISION

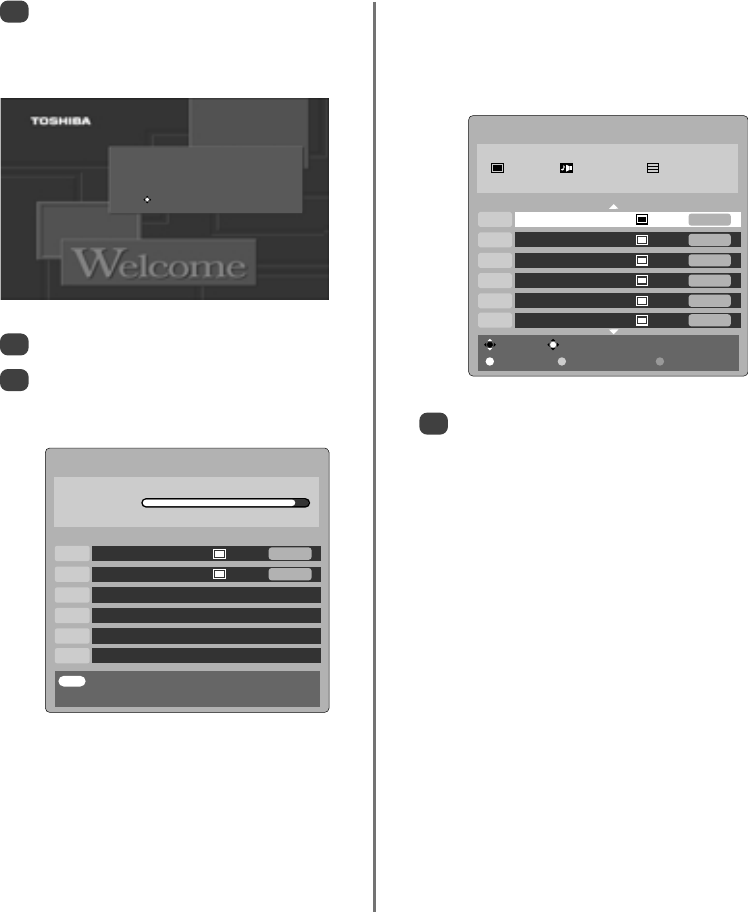

DIGITAL – tuning the television for the first time 9

DIGITAL – auto tuning 10

DIGITAL – programme sorting, manual tuning 11

ANALOGUE – tuning analogue mode for the first time, language, country 12

ANALOGUE – manual tune, broadcast system 13

ANALOGUE – auto tune 14

ANALOGUE – programme skip, sorting programme positions 15

CONTROLS AND FEATURES

General controls – changing programme position 16

Stereo and bilingual transmissions – stereo/mono or dual language broadcasts (analogue only) 16

Time display (analogue only) 16

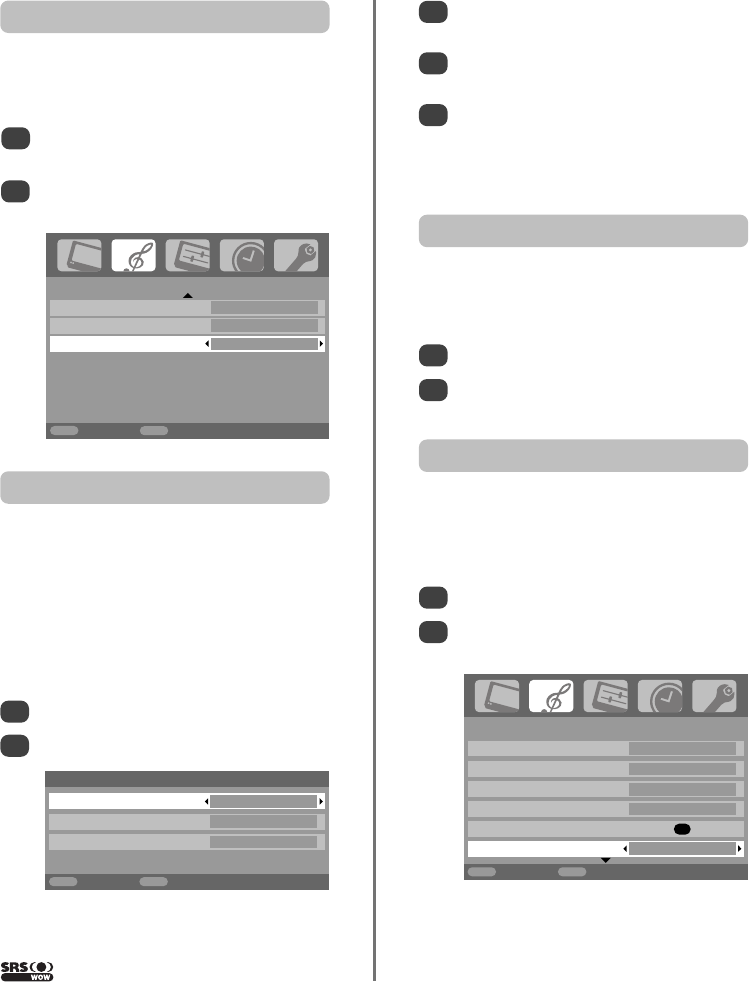

Sound controls – volume, sound mute, bass/treble/balance 16

Sound controls – bass boost, dual (analogue only), stable sound

SRS WOW™ sound effects – SRS 3D, FOCUS and TruBass 17

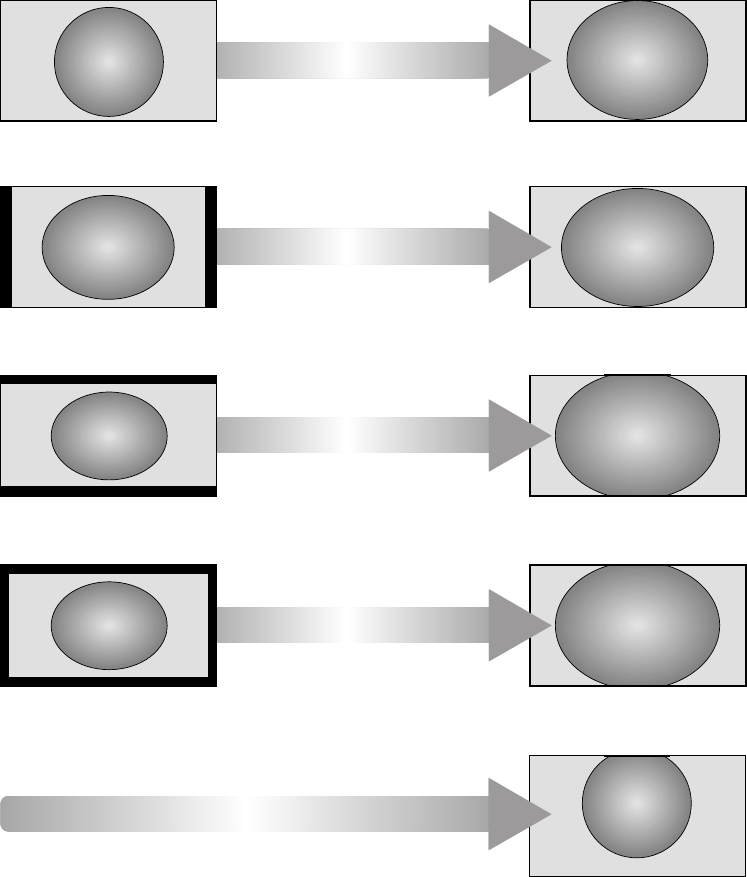

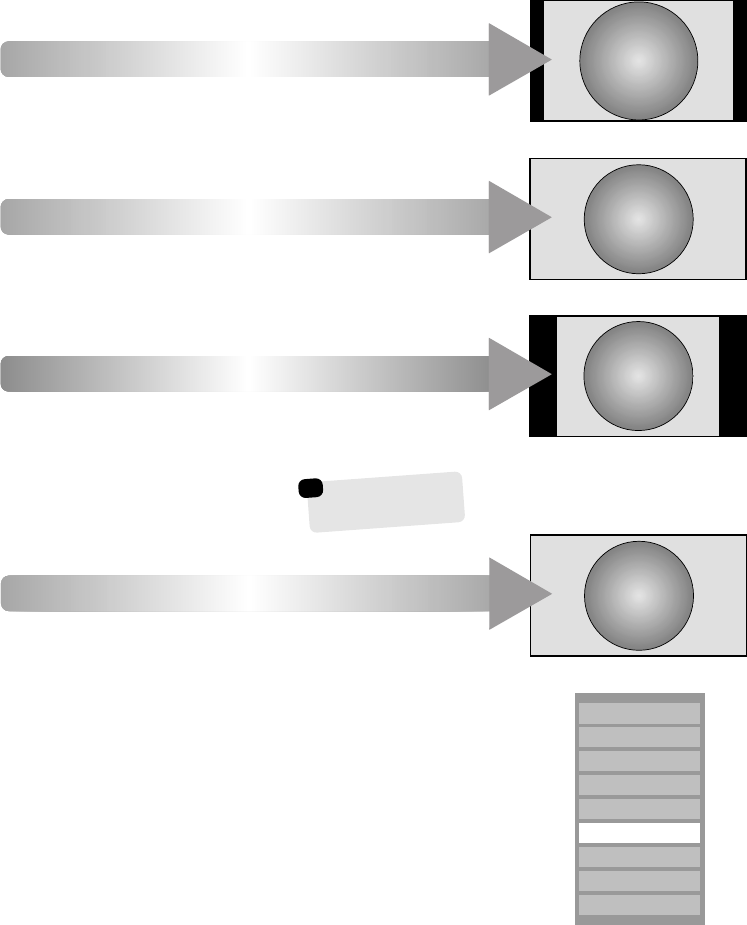

Widescreen viewing 18

Picture controls – picture position (analogue only), back light 20

Picture controls – picture preferences (contrast, brightness, colour, tint, sharpness), black stretch,

MPEG noise reduction (MPEG NR), digital noise reduction (DNR), colour temperature 21

Picture controls – 3D colour management, base colour adjustment, cinema mode, antenna amplifier 22

Picture controls – automatic format (widescreen), blue screen, side panel adjustment,

picture still 23

Panel lock – disabling the buttons on the television 23

DIGITAL – programme timer 24

Sleep timer 24

DIGITAL – on-screen information and programme guide 25

DIGITAL settings – parental controls (setting the PIN, mode) 26

DIGITAL settings – favourite programmes, locked programmes, encrypted programmes 27

DIGITAL settings – audio languages, subtitles, reset TV, common interface 28

DIGITAL settings – software upgrade (version, automatic download, searching for new software) 29

PC settings – picture position, clock phase, sampling clock, reset 30

Input selection and AV connections – input and output sockets for connected equipment,

analogue switch off 31

TEXT SERVICES

ANALOGUE text – setting up, general information, Auto. and LIST modes 33

ANALOGUE text – control buttons 34

DIGITAL interactive services – general information 34

PROBLEM SOLVING

Questions and Answers – answers to some of the more common queries including

manual fine tuning and colour system 35

INFORMATION

Notes – for your own records 38

Specifications and Accessories – technical information about the television, supplied accessories 40

Safety Precautions

This equipment has been designed and manufactured to meet international safety standards but, like any

electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read

the points below for your own safety. They are of a general nature, intended to help with all electronic

consumer products and some points may not apply to the goods you have just purchased.

DO NOT obstruct the ventilation openings of the

equipment with items such as newspapers,

tablecloths, curtains, etc. Overheating will cause

damage and shorten the life of the equipment.

DO NOT allow electrical equipment to be exposed

to dripping or splashing or objects filled with liquids,

such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources,

such as lighted candles or nightlights on, or close to

equipment. High temperatures can melt plastic and

lead to fires.

DO NOT use makeshift stands and NEVER fix legs

with wood screws. To ensure complete safety,

always fit the manufacturers’ approved stand,

bracket or legs with the fixings provided according

to the instructions.

DO NOT listen to headphones at high volume, as

such use can permanently damage your hearing.

DO NOT leave equipment switched on when it is

unattended, unless it is specifically stated that it is

designed for unattended operation or has a

standby mode. Switch off by withdrawing the plug,

make sure your family know how to do this. Special

arrangements may need to be made for people

with disabilities.

DO NOT continue to operate the equipment if you

are in any doubt about it working normally, or it is

damaged in any way – switch off, withdraw the

mains plug and consult your dealer.

ABOVE ALL – NEVER let anyone, especially

children, push or hit the screen, push

anything into holes, slots or any other

openings in the case.

NEVER guess or take chances with electrical

equipment of any kind – it is better to be safe

than sorry.

Leave at least 10cm clearance around the television

to allow adequate ventilation. This will prevent

overheating and possible damage to the television.

Dusty places should also be avoided.

Damage may occur if the television is left in direct

sunlight or near a heater. Avoid places subject to

extremely high temperatures or humidity. Place in a

location where the temperature remains between

5°C (41°F) min. and 35°C (94°F) max.

The mains supply required for this equipment is

220-240v AC 50/60Hz. Never connect to a DC

supply or any other power source. DO ensure that

the television is not standing on the mains lead.

DO NOT cut off the mains plug from this

equipment, this incorporates a special Radio

Interference Filter, the removal of which will impair

its performance. In the UK, the fuse fitted in this

plug is approved by ASTA or BSI to BS1362. It

should only be replaced by a correctly rated and

approved type and the fuse cover must be refitted.

IF IN DOUBT PLEASE CONSULT A COMPETENT

ELECTRICIAN.

DO read the operating instructions before you

attempt to use the equipment.

DO ensure that all electrical connections

(including the mains plug, extension leads and

inter-connections between pieces of equipment)

are properly made and in accordance with the

manufacturers’ instructions. Switch off and

withdraw the mains plug before making or

changing connections.

DO consult your dealer if you are ever in doubt

about the installation, operation or safety of your

equipment.

DO be careful with glass panels or doors on

equipment.

Air Circulation

Do not

Heat Damage

Mains Supply

DO NOT REMOVE ANY FIXED COVERS AS THIS

WILL EXPOSE DANGEROUS AND 'LIVE' PARTS.

THE MAINS PLUG IS USED AS A

DISCONNECTING DEVICE AND THEREFORE

SHOULD BE READILY OPERABLE.

Installation and important information

Where to install

Locate the television away from direct sunlight and strong

lights, soft, indirect lighting is recommended for comfortable

viewing. Use curtains or blinds to prevent direct sunlight

falling on the screen.

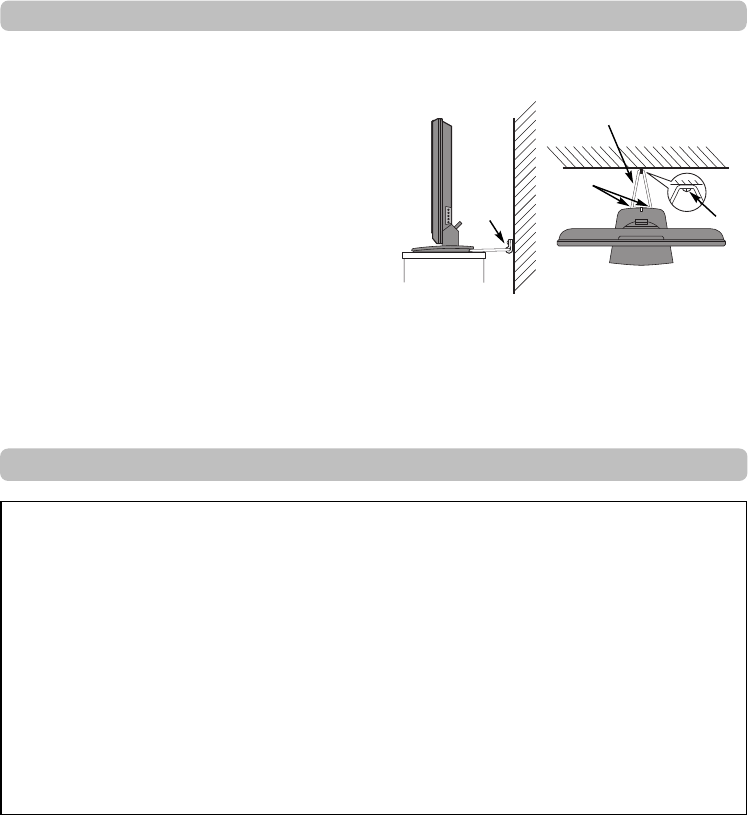

Place on a sturdy platform, the mounting surface should be

flat and steady. It should then be secured to the wall with a

sturdy tie using the clip on the back of the stand, or secured

to the platform using the fixing strap located underneath the

table top stand, this will prevent it from falling over.

The LCD display panels are manufactured using an

extremely high level of precision technology, however

sometimes some parts of the screen may be missing picture

elements or have luminous spots. This is not a sign of a

malfunction.

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or

damage the screen, and that small items cannot be inserted into slots or openings in the case.

Please take note

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

i) fire;

ii) earthquake;

iii) accidental damage;

iv) intentional misuse of the product;

v) use of the product in improper conditions;

vi) loss and/or damage caused to the product whilst in the possession of a third party;

vii) any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the owner’s

manual;

viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with

associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited

to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or

misuse of the product.

If stationary images generated by text services, channel identification logos, computer displays, video games, on screen menus, etc.

are left on the television screen for any length of time they could become conspicuous, it is always advisable to reduce both the

brightness and contrast settings.

Side View Top View

Sturdy tie

(as short as possible)

Clip

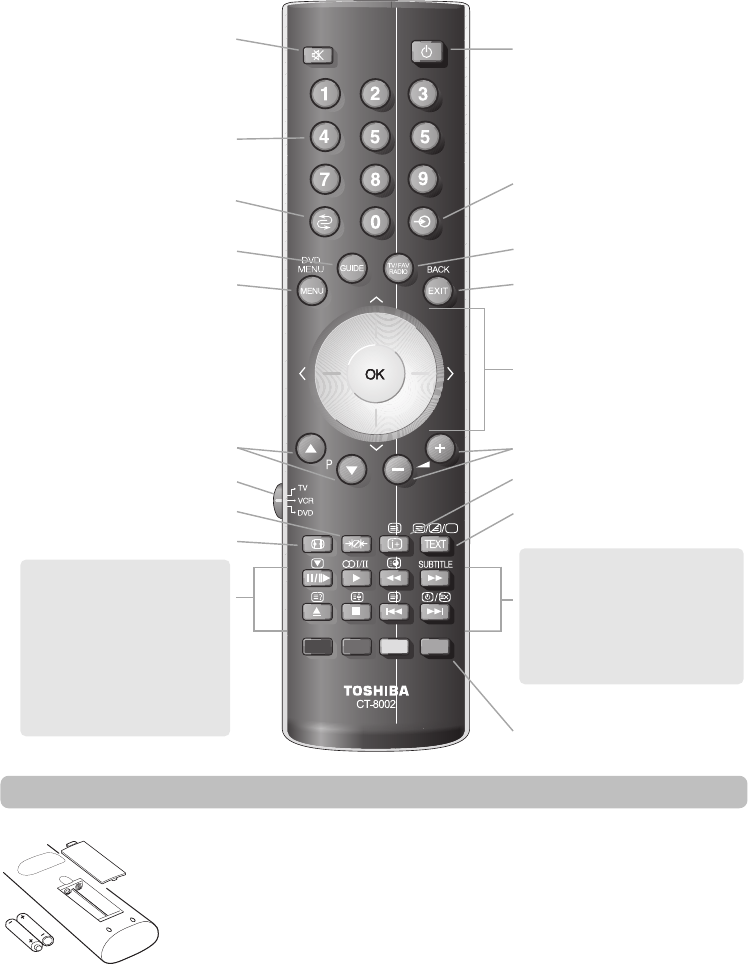

The remote control

Simple at-a-glance reference of your remote control.

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted

the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries

immediately to prevent acid from leaking into the battery compartment. Dispose of them in a

designated disposal area.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an

angle of 30 degrees from the centre of the television. If the operating range becomes reduced the

batteries may need replacing.

Inserting batteries and effective range of the remote

To alter the volume

To display digital on-screen information

To call up text services in analogue mode

and interactive services in digital mode

Text and interactive service control

buttons

To exit Menus

Selectable picture preferences

To mute the sound

To select input from external sources

To select mode

Widescreen viewing

On-screen Menus

To change programme positions and

text pages

To display the digital on-screen

Programme Guide

To switch between TV, Radio and Favourite

programmes when in digital mode

Number buttons

To return to the previous programme

For On/Standby mode

When using a TOSHIBA VCR or DVD:

press

rto PAUSE/STEP

press rto PLAY

press qto REWIND

presssto FAST FORWARD

presswto EJECT

presspto STOP

press

qto SKIP-REWIND

presss

to SKIP-FORWARD

When using menus the arrows move the

cursor on the screen up, down, left or

right. OK to confirm your selection

When in TV mode:

uStill picture

OI/II

Stereo/bilingual transmissions

SUBTITLE Digital Subtitles

9Time display

When using the Programme Guide:

q– 24 hours

+ 24 hours

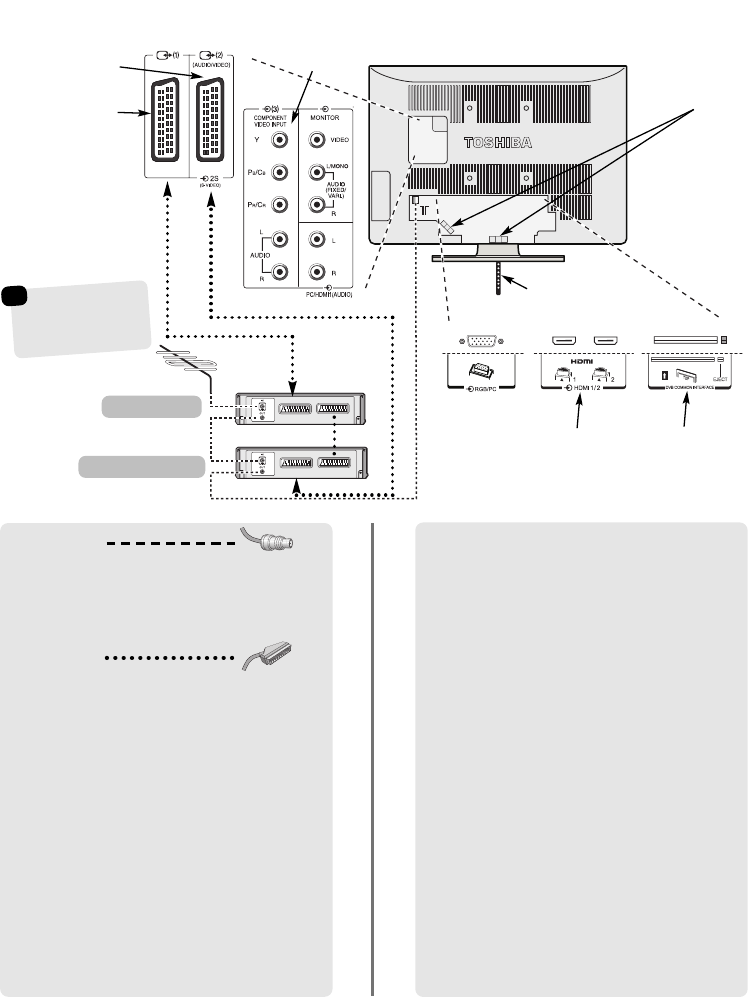

Connecting external equipment

Before connecting any external equipment, turn off all main power switches. If there is no switch

remove the mains plug from the wall socket.

HDMI™ (High-Definition Multimedia Interface) is for use

with a DVD, decoder or electrical equipment with digital

audio and video output. It is designed for best

performance with 1080i high-definition video signals but

will also accept and display 480i, 480p, 576i, 576p and

720p signals.

A wide variety of external equipment can be

connected to the back of the television, therefore

the relevant owners manuals for all additional

equipment must be referred to.

We recommend SCART 1 for a decoder and SCART 2 for

a media recorder.

If connecting S-VIDEO equipment, set the INPUT for

EXT2. See page 31.

If the television automatically switches over to monitor

external equipment, return to normal television by

pressing the desired programme position button. To

recall external equipment, press

to select between

DTV, EXT1, EXT2, EXT3(C), HDMI1, HDMI2, PC,

or ATV.

The cable holder can be used for aerial, media recorder

and audio cables. Do not use the cable holder as a

handle and make sure all cables are removed before

moving the television.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing, LLC.

Aerial cables:

Connect the aerial to the socket on the rear of the

television. If you use a decoder* and/or a media recorder

it is essential that the aerial cable is connected through

the decoder and/or through the media recorder to the

television.

SCART leads:

Connect the video recorder IN/OUT socket to the

television. Connect the decoder TV socket to the

television. Connect the media recorder SAT socket to the

decoder MEDIA REC. socket.

Before running Auto tuning put your decoder and media

recorder to Standby.

The phono sockets alongside the COMPONENT VIDEO

INPUT sockets will accept L and R audio signals.

In addition there is a fixed/variable external audio ouput

which enables the connection of a suitable Hi-Fi unit.

Make sure the Speaker option in the Sound menu is set

to Off. The variable option is altered by using the sound

controls.

media recorder

decoder*

CABLE HOLDER

FIXING STRAP

HDMI™ INPUT SOCKETS COMMON INTERFACE

The Common Interface is

for a Conditional Access

Module (CAM). There is

access for two CAMs.

Contact a service provider.

SCART 2 (EXT2)

COMPONENT

VIDEO (EXT3)

SCART 1 (EXT1)

a decoder could

be Digital Satellite

or any other

compatible decoder.

☛

IN/OUT

MEDIA REC.

SAT

Connecting a computer

the back of your television

Computer

Audio cable for PC to

television connection

(not supplied)

Conversion adaptor if required (not supplied)

RGB PC cable

(not supplied)

Mini D-sub

15 pin connector

Before connecting any external equipment, turn off all main power switches. If there is no switch

remove the mains plug from the wall socket.

Connect the PC cable from the computer to the PC

terminal on the back of the television.

Connect the audio cable to the PC/HDMI1 Audio

socket on the back of the television. Select PC from the

PC/HDMI1 audio options in the AV connection

menu located in the SET UP menu.

Press the Bto select PC mode.

The following signals can be displayed:

VGA: 640 x 480/60 Hz (VESA)

SVGA: 800 x 600/60 Hz (VESA)

XGA: 1024 x 768/60 Hz (VESA)

SXGA: 1280 x 1024/60 Hz (VESA)

IMPORTANT NOTE: SXGA will display but it will

not be to VESA standard.

PLEASE NOTE:

Some PC models cannot be connected to this

television.

An adaptor is not needed for computers with a DOS/V

compatible mini D-sub 15 pin terminal.

A band may appear at the edges of the screen or parts

of the picture may be obscured. This is due to scaling

of the picture by the set, it is not a malfunction.

When PC input mode is selected some of the

television’s features will be unavailable e.g. Manual

setting in the SET UP menu, Colour, Tint, DNR and

Black Stretch in the Picture settings menu.

Signal information for Mini D-sub 15 pin connector

Pin assignment

for RGB/PC

terminal

Pin. No. Signal name Pin No. Signal name

1R9NC

2 G 10 Ground

3B11NC

4 NC (not connected) 12 NC

5 NC 13 H-sync

6 Ground 14 V-sync

7 Ground 15 NC

8 Ground

Controls and input connections

If the RED LED is unlit check that the mains plug is

connected to the power supply. If the picture does not

appear press ion the remote control, it may take a few

moments.

To put the television into Standby press ion the remote

control, the GREEN active standby LED will appear

(see ‘Software Upgrade’ section) next to the RED for a few

moments then disappear. To view the television press i

again. The picture may take a few seconds to appear.

A wide variety of external equipment can be connected to the input sockets on the side of the television.

Whilst all the necessary adjustments and controls for the television are made using the remote control, the

buttons on the television may be used for some functions.

To alter the volume press —j+.

To alter the programme position press eeFff.

Press MENU and S,R,Qor Pto control the sound

and picture options.

Press MENU twice to finish.

When connecting sound equipment to EXT3, connect

the audio output of the equipment to the phono sockets

on the television.

To select the Input, press Buntil the display shows

EXT3 as described on page 31. The television will

automatically sense the type of signal.

Please always refer to the owner’s manual of the

equipment to be connected for full details.

Please note: Inserting the headphone plug will mute the

sound from all speakers.

Switching on

Using the controls and connections

Standby

GREEN LED – Active standby

RED LED – Power on

INPUT 3

(EXT3)

Press the MENU button on the remote control to see

the menus.

In digital mode the menu bar at the top of the screens

will show three different topics shown in symbols. As each

symbol is selected by pressing the Sor Rbutton on the

remote control, its respective options will appear below.

In analogue mode the menu appears as a list of five

topics. As each symbol is selected by pressing the Sor

Rbutton on the remote control, its respective options will

appear below.

To use the options press the Pand Qbutton on the

remote control to move up and down through them and

OK, Sor Rto select the required choice. Follow the on

screen instructions. The functions of each menu are

described in detail throughout the manual.

Using the remote control

Input 3

(side) will take

priority over

EXT3 (back) if

both connections

are used at the

same time.

☛

Tuning the television for the first time

Before switching on the television put your decoder and media recorder to Standby if they are connected

and ensure the aerial is connected. To set up the television use the buttons on the remote control as detailed

on page 5.

EXIT

Cancel

AUTO TUNING

Progress

Prog. Name Type UHF Quality

70 CBBC Channel 34 GOOD

87 Community 21 POOR

Thank you for choosing this Toshiba television.

First you need to tune your television.

Please ensure the aerial is connected

before proceeding.

Press to continue

Press the power-on button, the Welcome screen

will appear. This screen will appear the first time

that the television is switched on and each time

the television is reset.

Use Qor Pto move through the list to select a

programme then press OK to view.

Press OK to start tuning.

The AUTO TUNING screen will appear and the

television will start to search for available stations.

The progress bar will move along the line.

You must allow the television to complete

the search.

When the search is complete the television will

automatically select programme one.

The AUTO TUNING screen will display the total

number of services found.

Change Watch

Page Up Page Down Sort

AUTO TUNING

86 programmes found

55 TV 24 Radio 7 Text

Press OK to watch programme

Prog. Name Type UHF Quality

1 BBC ONE 34 GOOD

2BBC TWO 34 GOOD

3ITV1 31 GOOD

4Channel 4 31 POOR

5five 48 GOOD

6ITV2 31 POOR

Use Qor Pto move through the list to select a

programme then press OK to view.

At any time by pressing and holding Ba list

will appear on screen showing modes and all

stored external equipment. Use Pand Qto

highlight and OK to select.

NOTE: As new services are broadcast it will be necessary to re-tune the television in order to view them.

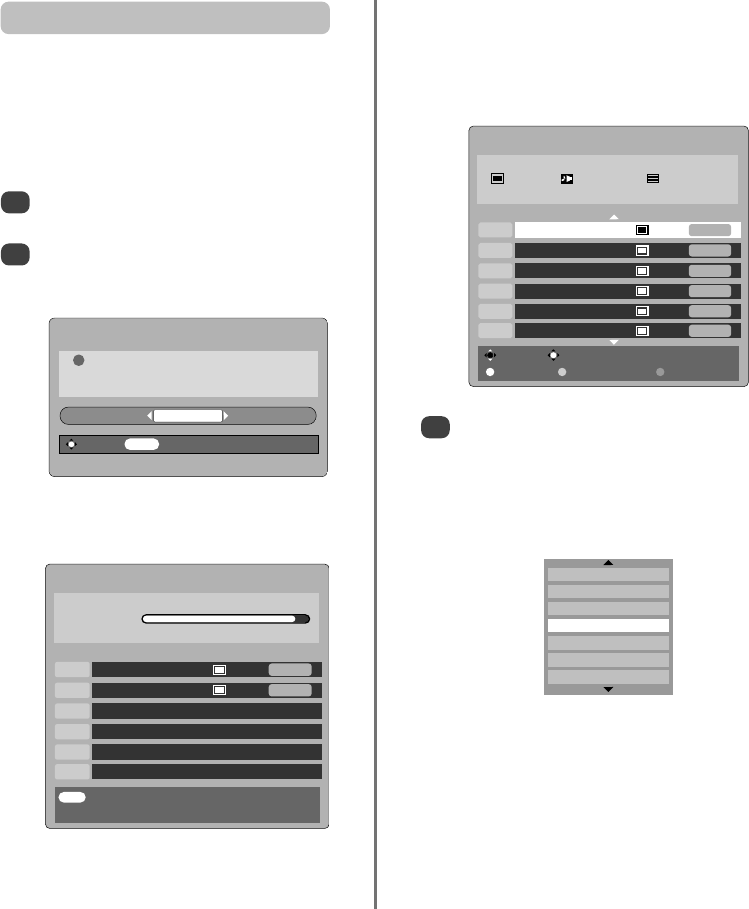

Digital auto tuning

The television will start to search for all available

stations.

You must allow the television to complete

the search.

When the search is complete the Auto tuning

screen will display the total number of services

found.

Auto tuning

Press MENU, the SETUP MENU will appear.

Use Qto highlight Auto tuning. Press OK.

A screen will appear warning that previous

digital programmes and settings will be deleted.

Press OK to continue with the Auto tuning.

Auto tuning will completely re-tune

the television and can be used to up date the channel list.

It is recommended that Auto tuning is run

periodically to ensure that all new services are

added. All current programmes and settings, i.e.

favourites and locked programmes, will be lost.

WARNING

!All previous digital programmes and

settings will be deleted.

Continue?

YES

Select

Cancel

Change Watch

Page Up Page Down Sort

AUTO TUNING

86 programmes found

55 TV 24 Radio 7 Text

Press OK to watch programme

Prog. Name Type UHF Quality

1 BBC ONE 34 GOOD

2BBC TWO 34 GOOD

3ITV1 31 GOOD

4Channel 4 31 POOR

5five 48 GOOD

6ITV2 31 POOR

When DTV mode is selected pressing B

repeatedly will scroll through all connected

equipment and the last channel being viewed in

DTV mode.

DTV

ATV

HDMI2

EXIT

Cancel

AUTO TUNING

Progress

Prog. Name Type UHF Quality

70 CBBC Channel 34 GOOD

87 Community 21 POOR

NOTE: When the television is switched off the mode being viewed at the time will automatically be selected

when the television is switched back on.

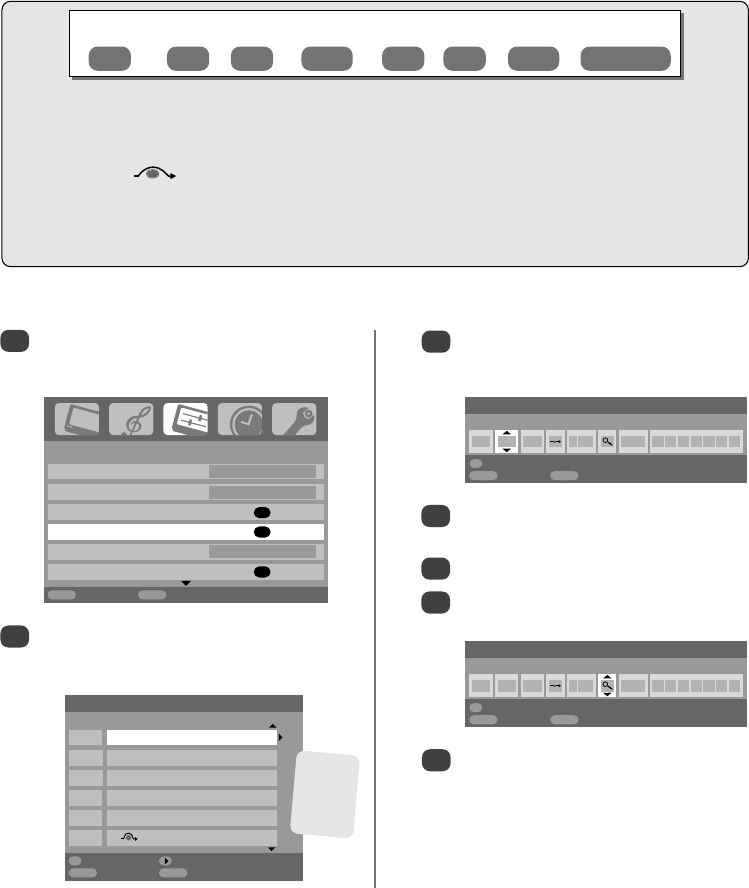

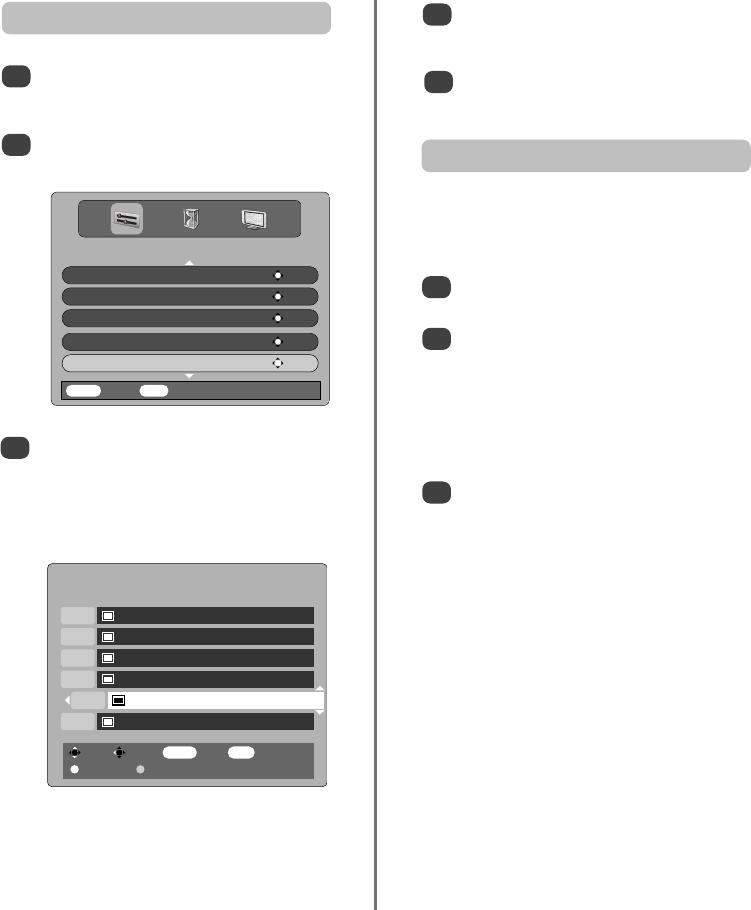

Digital programme sorting,

manual tuning

With the list of stations now showing use

Qor Pto highlight the station you want to

move and press R.

The selected station will be moved to the right of

the screen.

Sort Store

Back

EXIT

Watch TV

Page Up Page Down

PROGRAMMES

Prog. Name

1BBC ONE

2BBC TWO

3ITV1

4Channel 4

5 five

6ITV2

Use Qor Pto move through the list to your

preferred position. As you do so the other

stations will move to make room.

Press Sto store your move. Repeat as necessary,

then press EXIT.

Select Manual tuning from the SETUP MENU

and press OK.

Enter the multiplex number using the number

buttons and then press OK. The television will

automatically search for that multiplex.

When the multiplex is found any channels not

currently on the programme list will be added

and the programme information at the top of

the screen will be updated.

Repeat as necessary. Press EXIT to finish.

This feature is available for service engineers or can be

used for direct channel entry if the multiplex channel

is known.

Manual tuning

The station order may be changed to suit

personal preference. Press MENU, the SETUP

MENU will appear on screen.

Use Qto move down through the list and

highlight Programmes. Press OK.

Programme sorting

SETUP MENU

TV Setup OK

Languages OK

Auto tuning OK

Manual tuning OK

Programmes OK

Back

EXIT

Watch TV

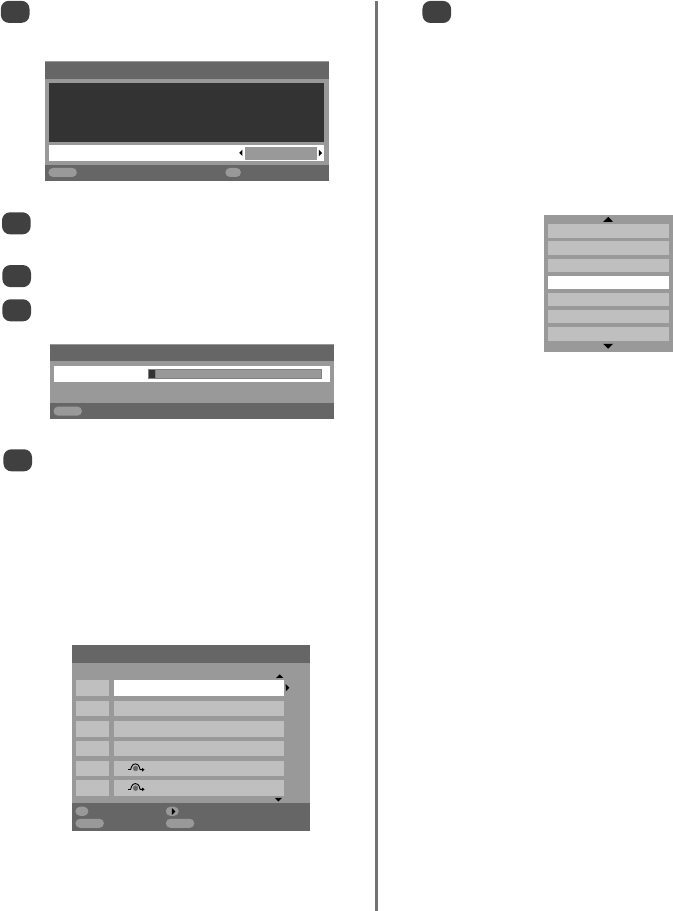

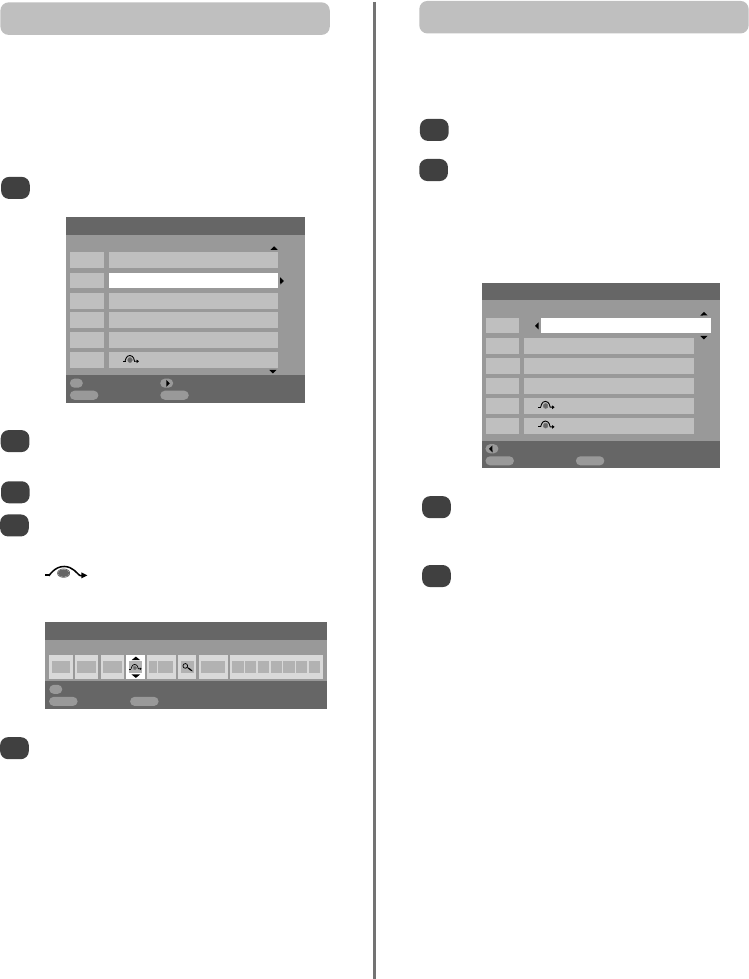

Tuning Analogue mode for the first time

The Quick Setup feature will tune all analogue channels currently available in the area. To put the

television into ATV mode press and hold Bthen use Por Qto highlight ATV. Press OK to select.

Manual tuning

Prog. Channel Station

1 C22 BBC1

2 C28 BBC2

3 C25 ITV

4 C32 CH4

5 C69

6 C69

Select Sort

Back

EXIT

Watch TV

Using Sor Rselect your language, then press

OK.

Then press Sor Rto select your country.

To start Auto tuning press OK.

Auto tuning

Searching

Channel : C22 Station : BBC1

EXIT

Stop

The search will begin for all available stations.

The slide bar will move along the line as the

search progresses.

You must allow the television to complete

the search.

When the search is complete the television will

automatically select programme position 1 and

the Manual tuning screen will appear.

Use Qor Pto move through the list to select a

programme then press OK to view.

The station order may be changed using the

Manual tuning screen (see the analogue

‘Sorting programme positions’ section).

At any time by pressing and holding Ba list

will appear on screen showing modes and all

stored external equipment. Use Pand Qto

highlight and OK to select.

When ATV mode is selected pressing B

repeatedly will scroll through all connected

equipment and the last channel being viewed in

ATV mode.

DTV

ATV

HDMI2

HDMI1

Select ATV mode. The Quick Setup screen will

appear.

Quick Setup

Select your language.

Language English

EXIT

Watch TV

Manual tuning

Prog. Channel Station

0 C60

1 C22 BBC1

2 C28 BBC2

3 C25 ITV

4 C32 CH4

5 C69

Select Sort

Back

EXIT

Watch TV

Press Rto select System and use Por Qto

change if required.

Then press Rto select Search.

Press Por Qto begin the search. The search

symbol will flash.

Analogue manual tune

Press OK to select. If the programme is skipped,

Programme skip must be removed before

storing.

The television can be tuned-in manually using Manual tuning. For example: if the television cannot be

connected to a media recorder/decoder with a SCART lead or to tune-in a station on another System.

Programme: The number to be pressed on the remote control.

System: Specific to certain areas.

Colour system: Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from

external source.

Programme skip: means nothing has been stored or the facility to skip the channel is ON. See page 15.

Channel: The channel number on which a station is being broadcast.

Search: Search up and down for a signal.

Manual fine tuning: Only used if interference/weak signal is experienced. See page 35.

Station: Station identification. Use the Por Qand Sor Rbuttons to enter up to seven characters.

Station

Programme System Colour

system Channel Search

Programme

skip Manual fine

tuning

Use Por Qto highlight the programme

position required e.g. we suggest Prog. 0 for

a media recorder.

Press MENU and using Sor Rselect the SET UP

menu, with Qhighlight Manual tuning, press

OK to select.

To allocate a programme position on the television for a decoder and media recorder: turn the decoder on,

insert a pre-recorded film in the media recorder and press PLAY, then manually tune.

Use

and

to move across the screen and select any of these Manual Tune options.

Each signal will show on the television, if it is not

your media recorder, press Por Qagain to

restart the search.

1/2

Manual tuning

System

0 I A C 60 0

Store

Back

EXIT

Watch TV

Manual tuning

Search: Up

0 I A C 60 0

Store

Back

EXIT

Watch TV

Different

Channel

numbers

may be

displayed

SET UP

Language English

Country UK

Auto tuning OK

Manual tuning OK

Antenna Amplifier On

AV connection OK

Back

EXIT

Watch TV

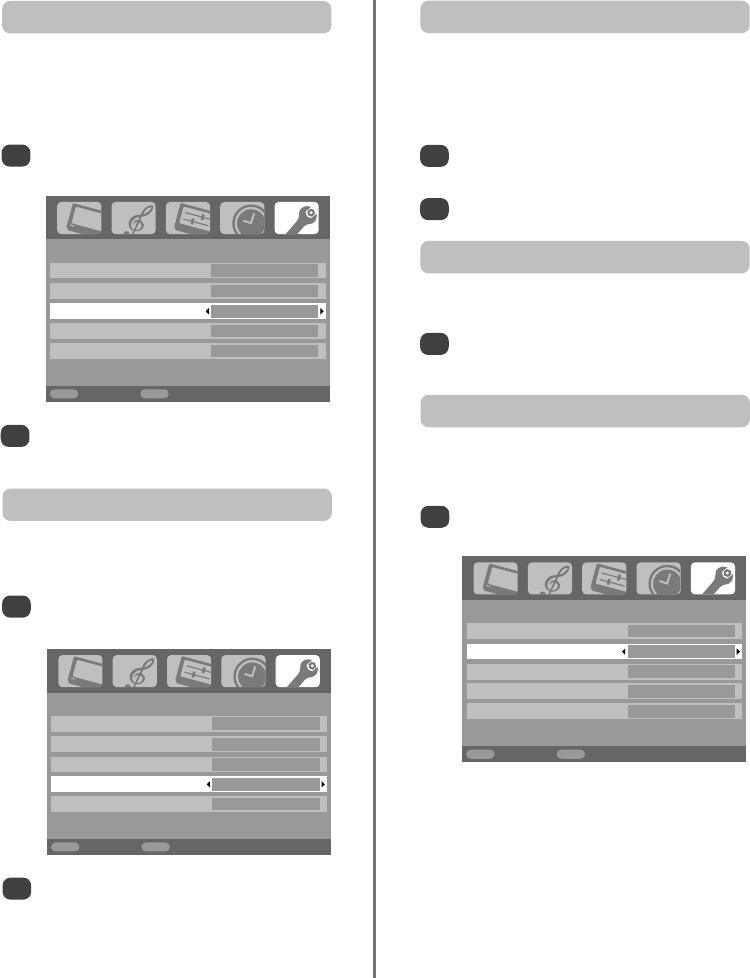

Using Auto tuning

To set up the television using Auto tuning, press

MENU and use Sor Rto select the SET UP menu.

You must allow the television to complete the search.

When the search is complete the television will

automatically select programme position 1. This may not

be a clear picture, so the station order can be changed

(see 'Sorting programme positions' section).

Press Qto highlight Language and Sor Rto

select.

Using Qhighlight Country, then Sor Rto select.

The television will now tune the stations for your

country.

Press Qto highlight Auto tuning, then press OK.

1/2

Auto tuning

Previous settings will be lost !

Press EXIT for no change.

Press OK to start Auto tune.

Back

EXIT

Watch TV

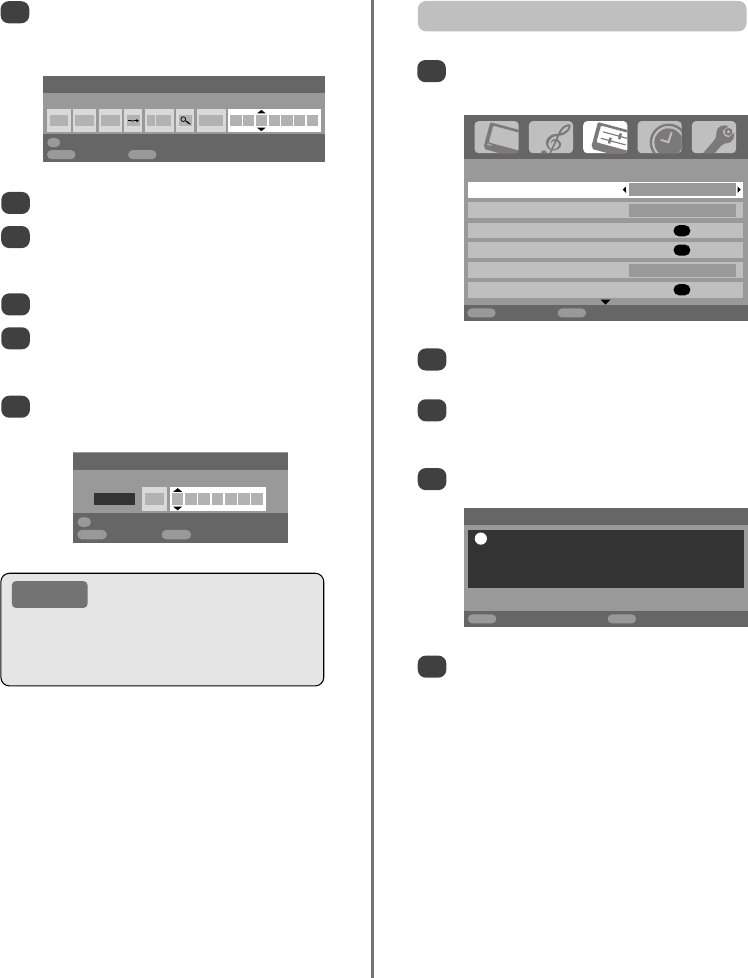

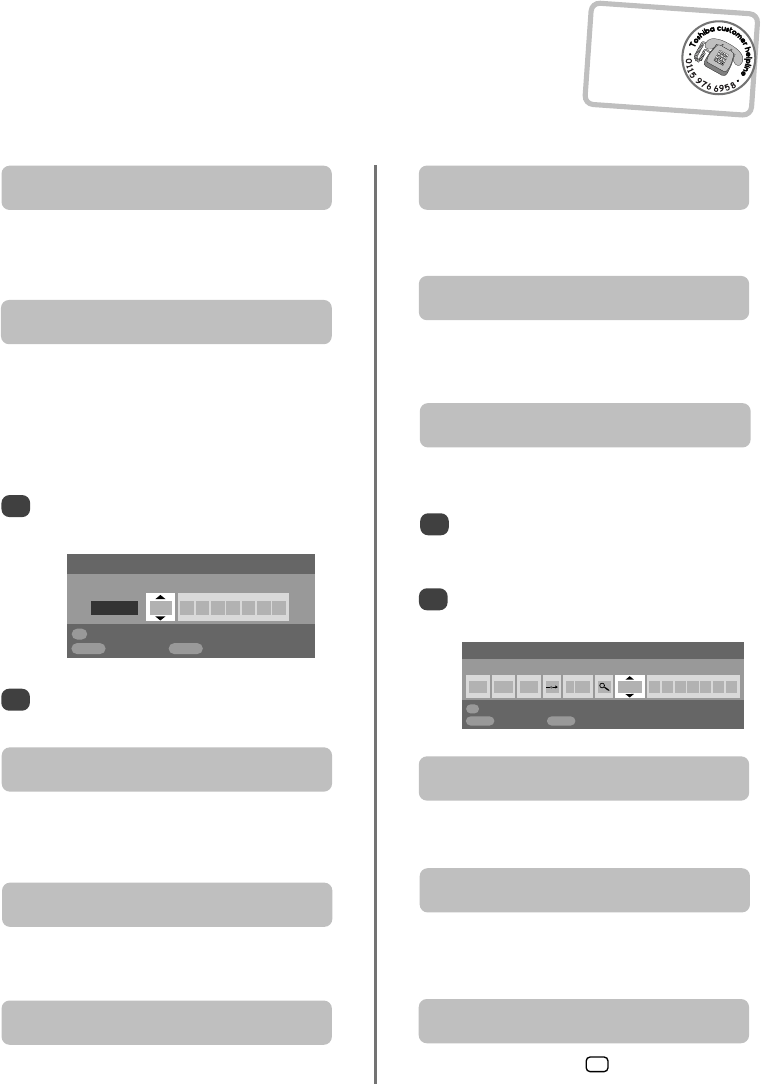

Analogue manual tune continued,

Auto tune

When your media recorder signal is found, press

Rto move along to Station. With P, Q, Sand

Rput in the required characters, e.g. VCR.

This television has direct channel entry

if the channel numbers are known.

Select the Manual tuning screen in Step 3. Enter the

Programme number, the System, then Cfor

standard (terrestrial) channels or Sfor cable channels

and the Channel number. Press OK to store.

Press OK to store.

Repeat for each programme position you want

to tune or, press MENU to return to the list of

channels and select the next number to tune.

Press EXIT when you have finished.

To name external equipment, e.g. DVD on EXT2,

press Bto select EXT2, then select Manual

setting from the SET UP menu.

Press Rto select Label then using P, Q, Sand

Rput in the required characters. Press OK.

PLEASE NOTE

Manual tuning

Station

0 I A C 60 0 V C R

Store

Back

EXIT

Watch TV

Manual setting

Label

EXT2 A D V D

Store

Back

EXIT

Watch TV

SET UP

Language English

Country UK

Auto tuning OK

Manual tuning OK

Antenna Amplifier On

AV connection OK

Back

EXIT

Watch TV

To start Auto tuning press OK.

Manual tuning

Prog. Channel Station

0 C60 VCR

1 C22 BBC1

2 C28 BBC2

3 C25 ITV

4 C32 CH4

5 C69

Select Sort

Back

EXIT

Watch TV

Analogue programme skip,

sorting programme positions

Press MENU and repeat from Step 2 or press

EXIT.

Each programme position has to be individually

selected. To turn Programme skip off, repeat the

procedure for each position.

Skipped programme positions cannot be selected

by Pfand Peor by the controls on the

television, but can still be accessed by the number

buttons on the remote control.

Use Por Qto highlight the programme position

to be skipped and press OK to select.

Press Rto select Programme skip.

Use Por Qto turn Programme skip on.

Press OK.

on the screen indicates a skipped

programme position.

To prevent certain programmes from being viewed, the

programme position can be skipped. The remote control

must be removed as the channels will still be available using

the number buttons

. Programmes can then be watched as

normal using the controls on the television, but the television

will not show the skipped programme position.

Programme skip

Select Manual tuning from the SET UP menu.

Channels may be moved and stored on the programme

position of your choice.

Sorting programme positions

Select Manual tuning from the SET UP menu.

With the list of stations now showing use Qor P

to highlight the station you want to move and

press R.

The selected station will be moved to the right of

the screen.

Manual tuning

Programme skip : On

1 I A C 22 0 B B C 1

Store

Back

EXIT

Watch TV

Use Qor Pto move through the list to your

preferred position. As you do so the other stations

will move to make room.

Press Sto store your move.

Repeat as necessary, then press EXIT.

Manual tuning

Prog. Channel Station

1 C22 BBC1

2 C28 BBC2

3 C25 ITV

4 C32 CH4

5 C69

6 C69

Store

Back

EXIT

Watch TV

Press Qto highlight Bass,Treble or Balance

and Sor Rto change the setting.

When connecting to a Hi-fi unit, set the Speaker

option to Off. Then select Fixed or Variable for

the Monitor (Audio) in the AV connection

menu. (See 'Input selection and AV connections'

section).

Bass, Treble and Balance

In digital mode, press MENU and using Q

highlight TV setup then press OK.

Use Sor Rto select SOUND.

In analogue mode, press MENU and Sor Rto

select SOUND.

The sound controls are accessible in digital and

analogue modes, as are most of the televisions features.

SOUND

Dual Dual 1

Bass 0

Treble 0

Balance 0

WOW OK

Stable sound On

Back

EXIT

Watch TV

1/2

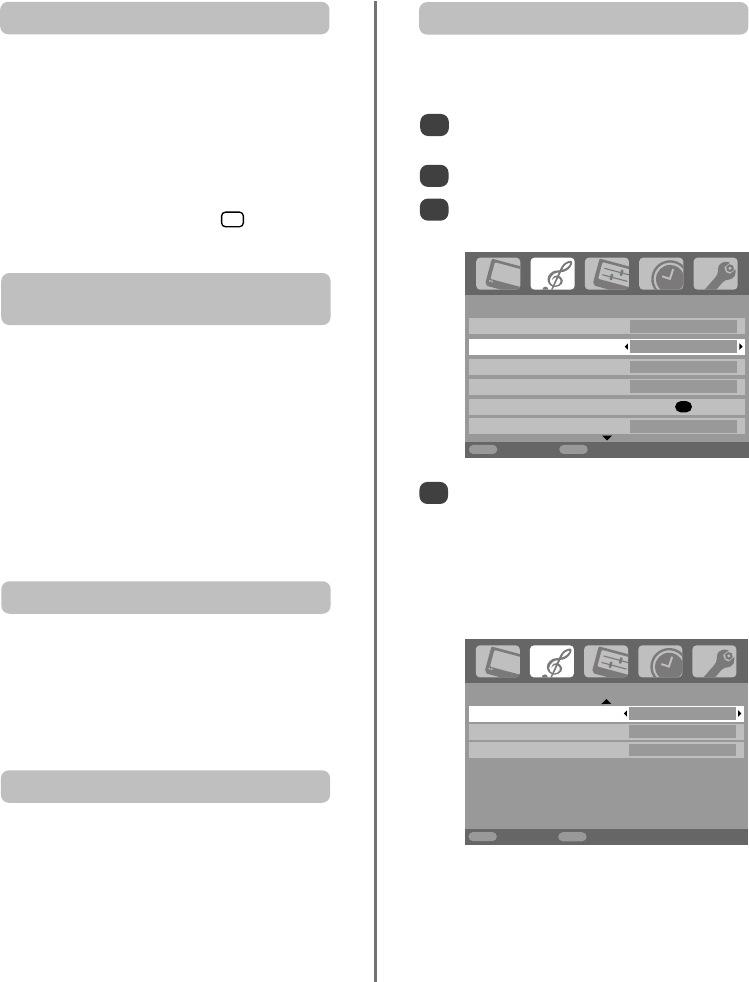

General controls, stereo/bilingual

transmissions, time display, sound controls

Volume

Press

— or

+ to adjust the volume.

Sound Mute

Press konce to turn the sound off and again to cancel.

To select a programme position use the numbered

buttons on the remote control.

Programme positions can also be selected using Pfand

Pe.

To revert to the previous programme position press ^^.

To display on-screen information i.e. programme position,

channels or stereo/mono signal, press . Press again

to cancel.

Selecting programme positions

Sound controls

The time display facility allows the current (text service)

time to be seen on the television screen.

Press 8/9whilst watching a normal television

broadcast to see a time display from the broadcaster. It

will remain on screen for about 5 seconds.

The Time Display – analogue only

If stereo or dual language broadcasts are transmitted the

word Stereo or Dual will appear on the screen each time

programme positions are changed, disappearing after a

few seconds. If the broadcast is not in stereo the word

Mono will appear.

Stereo… Press OI/II to select Stereo or Mono.

Bilingual… Bilingual transmissions are rare. If they are

transmitted the word Dual will display. Choose the

required programme number and if the word Dual

appears press OI/II to select Dual 1, Dual 2 or Mono.

Stereo and Bilingual transmissions

– analogue only

2/2

SOUND

Speaker Off

Bass boost On

Bass boost level 70

Back

EXIT

Watch TV

SOUND

Dual Dual 1

Bass 0

Treble 0

Balance 0

WOW OK

Stable sound On

Back

EXIT

Watch TV

1/2

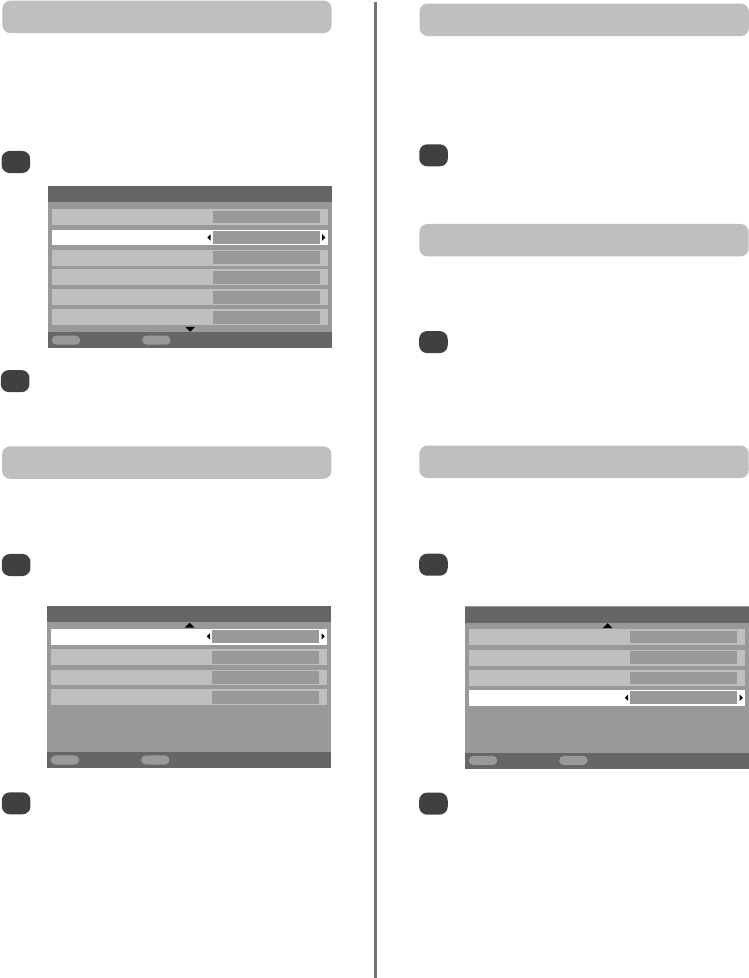

Sound controls continued, SRS WOW™ sound

effects, dual, stable sound

SRS WOW™sound effects

SRS WOW™ is a suite of audio effects which use the

stereo signals being broadcast to produce enhanced sound

from the television’s speakers. If mono sound is broadcast

only TruBass will be available.

SRS 3D gives a rich sound experience, FOCUS

concentrates the sound and gives the effect of it coming

from the centre of the television, TruBass enhances the

lower bass frequencies.

Stable sound®

The Stable Sound feature limits high volume levels and

prevents the extreme changes in volume that can occur

when channels are changed or a programme switches to

a commercial.

Bass boost

In the SOUND menu press Qto highlight Bass

boost. Use Sor Rto select On.

Then press Qto highlight Bass boost level and

using Sor Radjust to suit your preference.

Bass boost enhances the depth of the sound. The

difference will only be noticeable on sound with a

strong bass.

Press MENU and select the SOUND menu.

Use Por Qto highlight WOW then press OK.

Press Qto highlight SRS 3D and using

Sor Rselect between On or Off.

Then press Qto highlight FOCUS and press

Sor Rto select between On or Off.

Highlight TruBass and use Sor Rto select Off,

Low or High to suit your preference.

NOTE: This feature is not available through

headphones.

Select the SOUND menu.

Use Qto highlight Stable Sound then press

Sor Rto select On or Off.

Dual – analogue only

If a programme or film is being broadcast with a

soundtrack in more than one language, the DUAL feature

allows selection between them.

Select the SOUND menu.

Use Qto highlight Dual then press Sor Rto

choose between Dual 1 or Dual 2.

WOW, SRS and 

•symbol are trademarks of SRS Labs, Inc.

WOW technology is incorporated under license from SRS Labs, Inc.



WOW

SRS 3D On

FOCUS Off

TruBass Off

Back

EXIT

Watch TV

2/2

SOUND

Speaker On

Bass boost On

Bass boost level 70

Back

EXIT

Watch TV

SUBTITLE

When subtitles are included on a

letterbox format broadcast, this setting

will raise the picture to ensure that all

the text is displayed.

SUBTITLE

Widescreen viewing

SUPER LIVE 1

This setting will enlarge a 4:3 image to

fit the screen by stretching the image

horizontally and vertically, holding the

correct proportions at the centre of the

image. Some distortion may occur.

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats.

Press the {button repeatedly to select between Exact Scan,Wide,Super Live 2,Cinema 2, 4:3,

Super Live 1,Cinema 1,Subtitle and 14:9.

SUPER LIVE 2

If a ‘side panel format’ signal is being

received this setting will enlarge the

image to fit the screen by stretching

the image horizontally and vertically,

holding the correct proportions at the

centre of the image. Some distortion

may occur.

CINEMA 1

When watching ‘letterbox format’

films/video tapes, this setting will

eliminate or reduce the black bars at

the top and bottom of the screen by

zooming in and selecting the image

without distortion.

CINEMA 2

When watching ‘all sides panel format’

films/video tapes, this setting will

eliminate or reduce the black bars at all

sides of the screen by zooming in and

selecting the image without distortion.

Widescreen viewing continued

14:9 Use this setting when watching a 14:9

broadcast.

Use this setting when watching a

widescreen DVD, widescreen video

tape or a 16:9 broadcast

(when available). Due to the range of

widescreen formats (16:9, 14:9,

20:9 etc.) black bars may be visible

on the top and bottom of the screen.

WIDE

Use this setting to view a true 4:3

broadcast.

4:3

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or

commercial gain may infringe on copyright laws.

Press and hold the {button and a list of all the widescreen formats will appear on

screen. Use Pand Qto highlight the required format and OK to select.

Exact Scan

Wide

Super Live 2

Cinema 2

4:3

Super Live 1

Cinema 1

Subtitle

14:9

Use this setting when watching a

1080i source, it will display the image

as transmitted without scaling or

cropping the picture.

EXACT SCAN

This option is only

available when watching

a 1080i source.

☛

42 MODEL ONLY


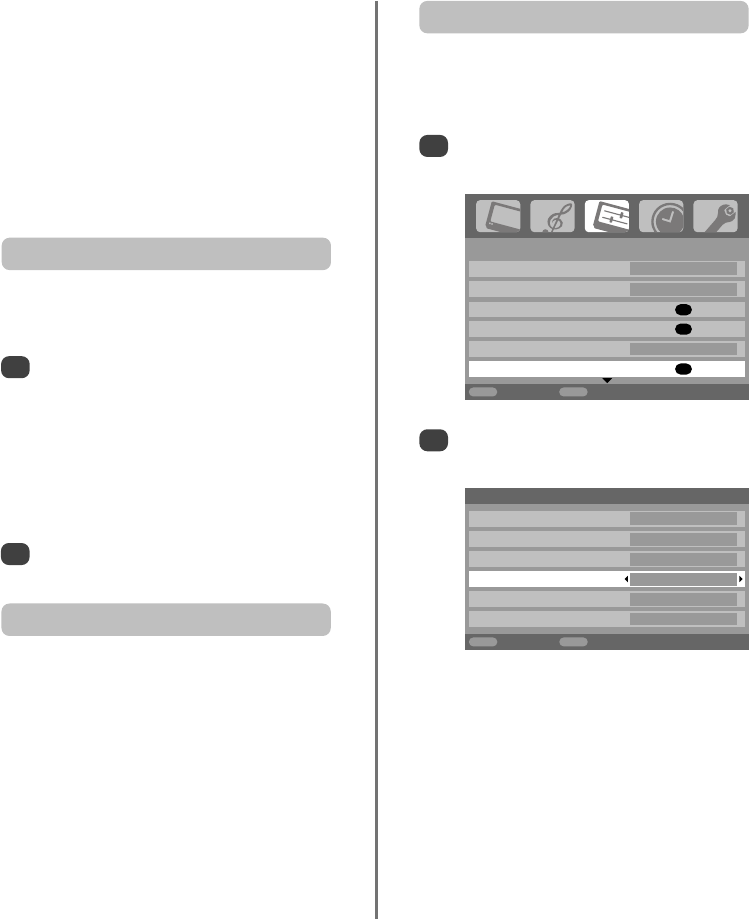

Picture settings OK

3D Colour management Off

Base colour adjustment

Cinema mode Off

Back

EXIT

Watch TV

2/2

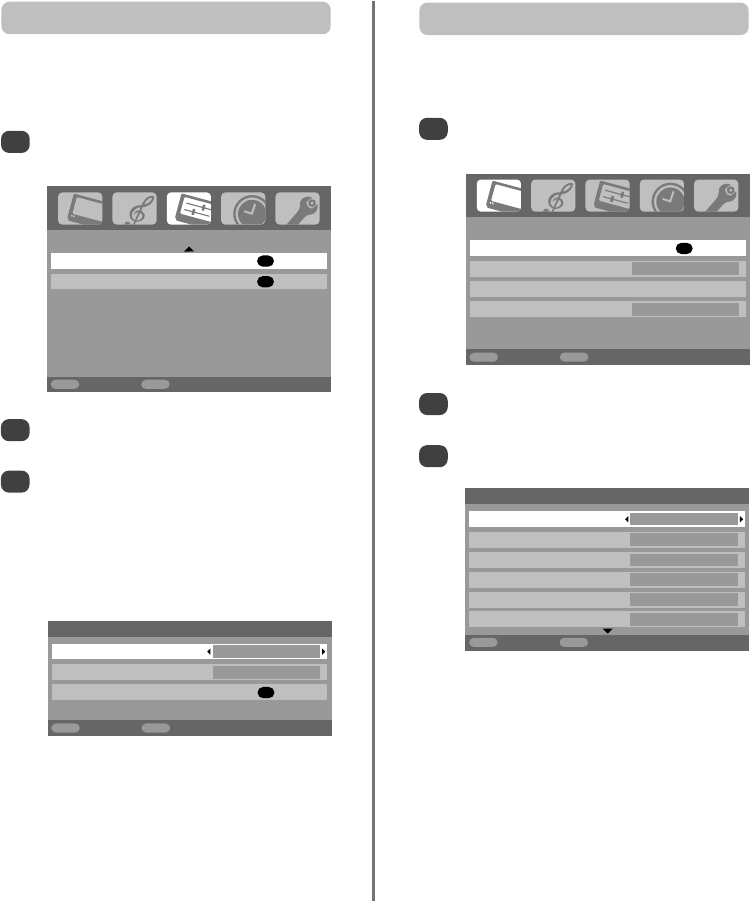

Picture controls

To return to the original factory settings select Reset

in the Picture position menu and press OK.

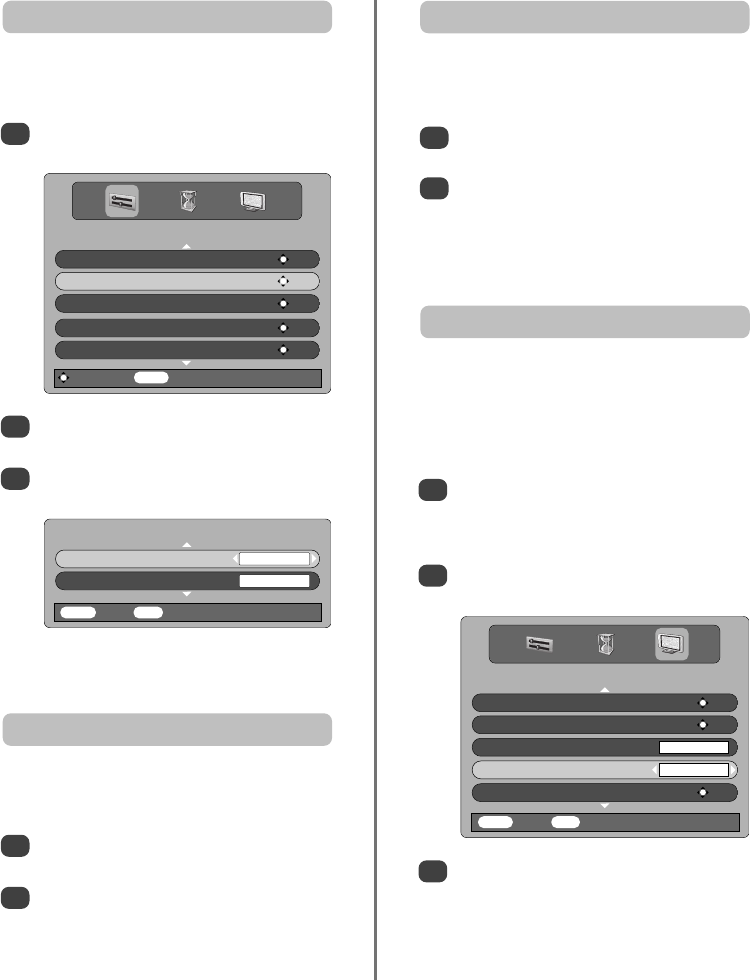

Picture position – analogue only

The picture position may be adjusted to suit personal

preference and can be particularly useful for

external inputs.

In the SET UP menu press Quntil

Picture position is highlighted.

Press OK to view the options available for the

picture format that has been selected.

Press Pand Qto select an option, then Sor R

to adjust the settings.

The options alter depending on the widescreen

format chosen and when viewing connected

equipment.

In Cinema 2:

In the Picture settings menu press Qto select

Back light.

Press Sor Rto adjust.

In the PICTURE menu press Qto select

Picture settings, then press OK.

Adjusting the Back light can improve the clarity of the

screen when viewing.

Back light

Picture position

Horizontal position 0

Vertical position 0

Reset OK

Back

EXIT

Watch TV

Picture settings

Back light 100

Contrast 100

Brightness 50

Colour 50

Tint 0

Sharpness 0

Back

EXIT

Watch TV

1/2

SET UP

Picture position OK

Quick Setup OK

Back

EXIT

Watch TV

Most of the picture controls and functions are available in both digital and analogue modes. To access the

the required menus when in digital mode: press MENU and using Qselect TV setup, press OK then Sor R

to select the desired menu. PLEASE NOTE: features not available in digital mode will be greyed out. To access

the required menus when in analogue mode: press MENU and use Sor Rto select the desired menu.

In the Picture settings menu press Quntil

Colour Temperature is highlighted.

Press Sor Rto select between Normal,Warm

and Cool to suit your preference.

Colour Temperature increases the ‘warmth’ or ‘coolness’

of a picture by increasing the red or blue tint.

Colour temperature

Picture settings

Black stretch On

MPEG NR Off

DNR Auto.

Colour Temperature Normal

Back

EXIT

Watch TV

2/2

Picture controls continued

DNR enables you to ‘soften’ the screen representation of a

weak signal to reduce the noise effect.

DNR – Digital Noise Reduction

Select DNR from the Picture settings menu. Use

Sor Rto adjust. The differences may not always

be noticeable (for the best result use lower

settings as picture quality can be lost if the setting

is too high).

When watching a DVD the compression may cause some

words or picture elements to become distorted or pixelated.

Using the MPEG NR feature reduces this effect by

smoothing out the edges.

MPEG NR – Noise Reduction

Select MPEG NR from the Picture settings

menu. Use Sor Rto select a setting to suit your

preference.

Black Stretch increases the strength of dark areas of the

picture which improves the definition.

Black stretch

Press Sor Rto select between On and Off. The

effect depends on the broadcast and is most

noticeable on dark colours.

Picture settings

Black stretch On

MPEG NR Off

DNR Auto.

Colour Temperature Normal

Back

EXIT

Watch TV

2/2

In the Picture settings menu press Quntil Black

Stretch is highlighted.

This television offers the choice of personalising the picture

style. Press mto view the different styles available:

Picture mode-1 to 3are preset options and

Picture mode-M stores your own settings:

Use Sor Rto adjust the Contrast,Brightness,

Colour,Tint and Sharpness.

Picture preferences

Select Picture settings from the PICTURE menu.

Picture settings

Back light 100

Contrast 100

Brightness 50

Colour 50

Tint 0

Sharpness 0

Back

EXIT

Watch TV

1/2

SET UP

Language English

Country UK

Auto tuning OK

Manual tuning OK

Antenna Amplifier On

AV connection OK

Back

EXIT

Watch TV

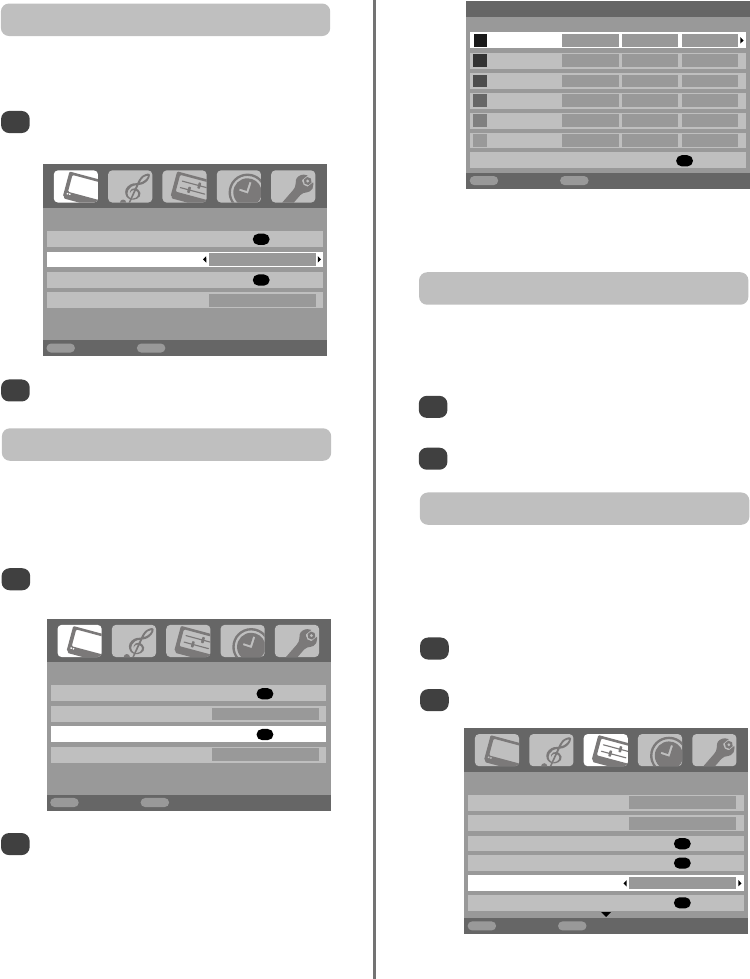

Picture controls continued

Press Pand Qto select an option, then Rto

adjust the settings.

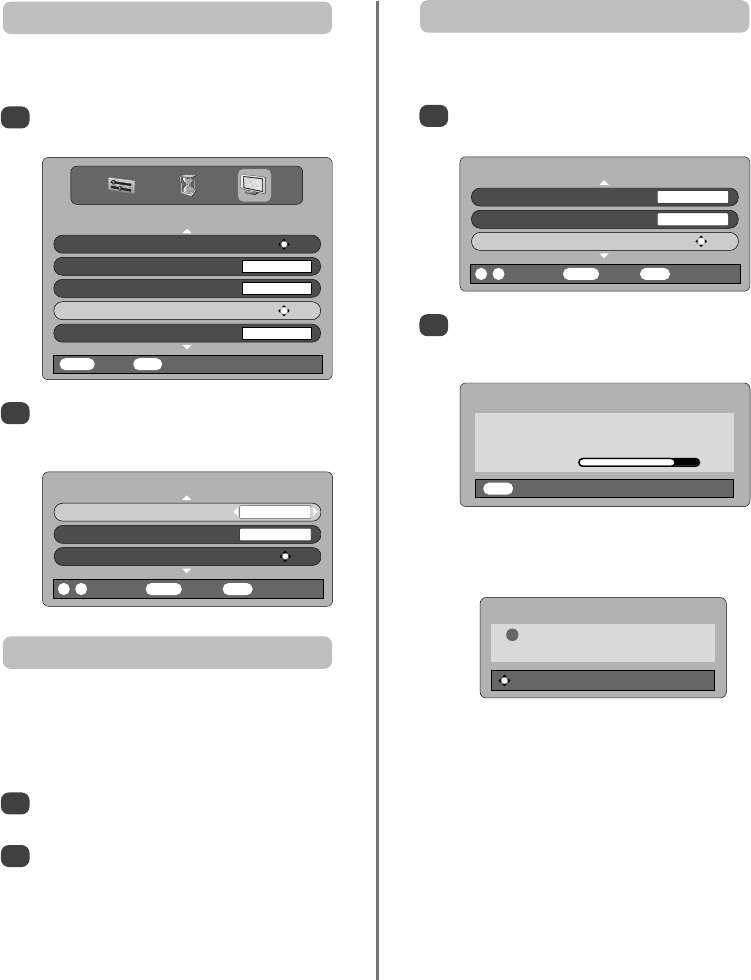

In the PICTURE menu press Qto select

Base colour adjustment, then press OK.

The Base colour adjustment feature allows the

adjustment of individual colours to suit personal

preference. This can be useful when using an

external source.

Base colour adjustment


Picture settings OK

3D Colour management On

Base colour adjustment OK

Cinema mode Off

Back

EXIT

Watch TV


Picture settings OK

3D Colour management On

Base colour adjustment OK

Cinema mode Off

Back

EXIT

Watch TV

When 3D Colour management is selected it allows the

‘Base colour adjustment’ feature to become available.

3D Colour management

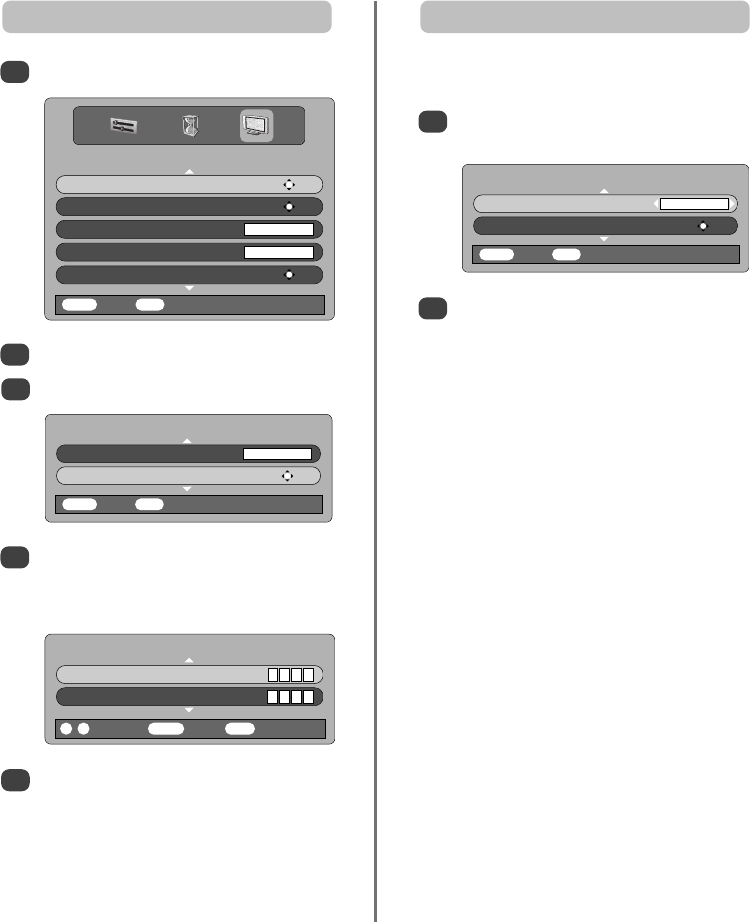

In the PICTURE menu press Qto select 3D Colour

management.

Press Sor Rto select On or Off.

To return to the original factory settings select

Reset and press OK.

Base colour adjustment

Hue Saturation Brightness

Red +2 +6 +4

Green 0 0 0

Blue 0 0 0

Yellow 0 0 0

Magenta 0 0 0

Cyan 0 0 0

Reset OK

Back

EXIT

Watch TV

In the PICTURE menu press Qto select Cinema

mode.

Press Sor Rto select On or Off.

If there are lines or jagged edges in the film or programme

being viewed, selecting Cinema mode can help correct

this by smoothing out the picture.

Cinema mode

If the signal being received by the television is too strong,

this may result in picture interference and/or a buzzing

sound. Setting Antenna Amplifier to Off reduces the

signal strength, and can help to remove the interference.

In the SET UP menu press Quntil Antenna

Amplifier is highlighted.

With Sor Rselect either On or Off.

Antenna amplifier

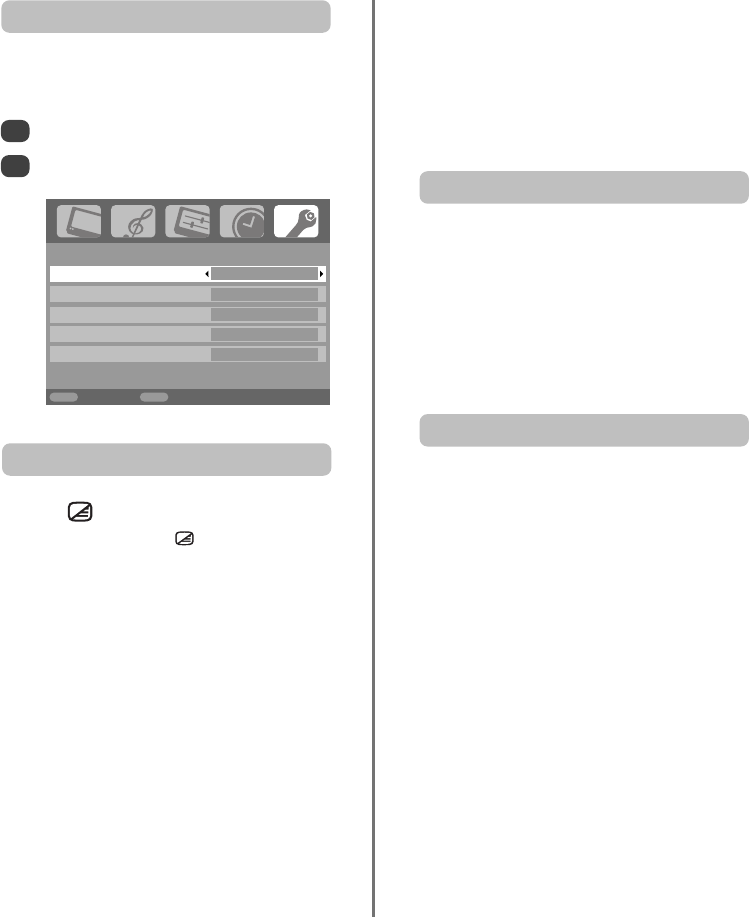

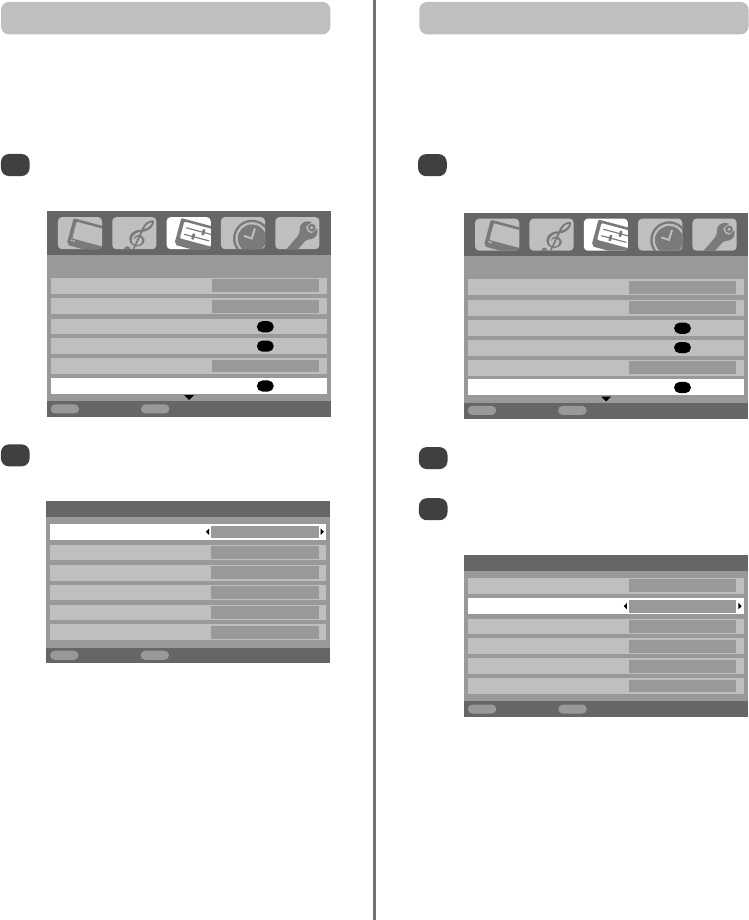

From the FUNCTION menu select Panel lock

and choose On or Off using Sor R.

Panel lock disables the buttons on the television. All

buttons on the remote control can still be used.

Panel lock

When Panel lock is On, a reminder will appear when

the buttons on the television are pressed. If the standby

button is pressed the television will switch off and

can only be brought out of standby by using the

remote control.

FUNCTION

Teletext Auto.

Panel lock On

Auto format On

Blue screen On

Side Panel 1

Back

EXIT

Watch TV

FUNCTION

Teletext Auto.

Panel lock Off

Auto format On

Blue screen On

Side Panel 1

Back

EXIT

Watch TV

The Side Panel feature lightens or darkens the band each

side of the screen when in 4:3 or 14:9 format. This helps

prevent image retention of the band and can also make

viewing in bright or dark conditions more comfortable.

Picture controls continued,

panel lock

Automatic format (Widescreen)

When this television receives a true Widescreen picture and

Auto format is On, it will automatically be displayed in

Widescreen format, irrespective of the

television’s previous setting.

Blue screen

When Blue screen is selected the screen will turn blue and

the sound will be muted when no signal is received.

Press MENU and Sor Rto select the

FUNCTION menu.

Press Qto highlight Auto format, then Sor R

to select On or Off.

In the FUNCTION menu press Quntil Side

Panel is highlighted.

Press Sor Rto adjust.

Side panel adjustment

In the FUNCTION menu press Qto highlight

Blue screen.

Press Sor Rto select On or Off.

This feature is used to hold a still image on the screen.

Press uto hold an image on the screen, press u

again to cancel.

Picture still

FUNCTION

Teletext Auto.

Panel lock Off

Auto format On

Blue screen On

Side Panel 1

Back

EXIT

Watch TV

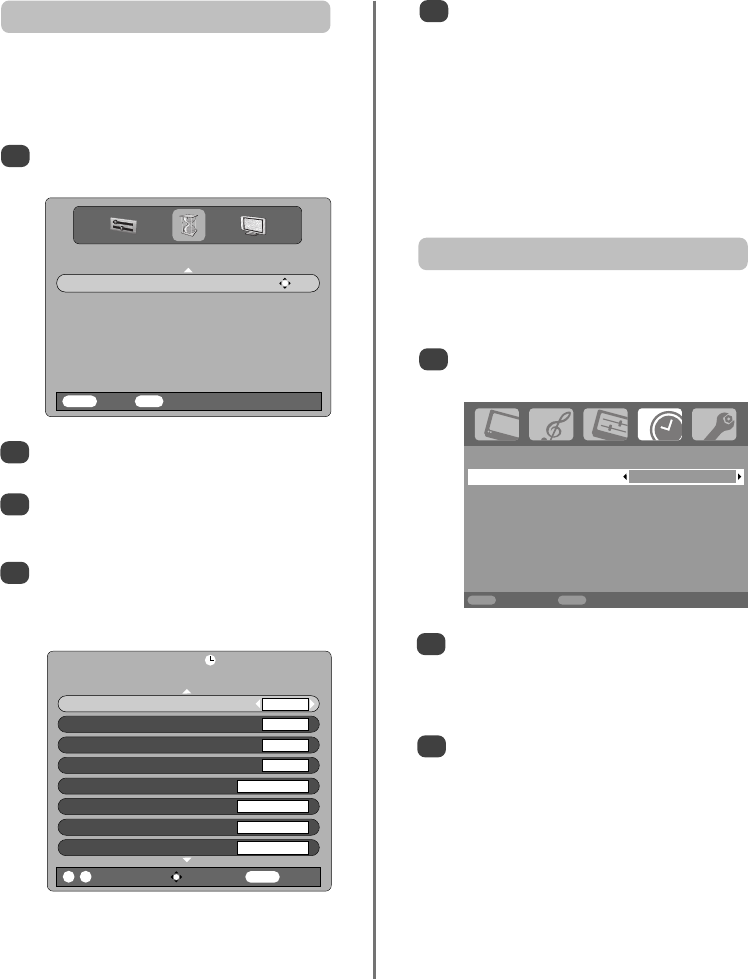

The timers

Press Qto select the Sleep timer. Use the

number buttons to set the required time. For

example, to switch the television off in one and a

half hours enter 01:30, or press Sor Rto

increase/decrease in steps of 10 minutes.

Press EXIT to finish.

This feature will set the television to go to a specific

channel at a certain time. It can be used to view a

particular programme, or by setting the mode to daily or

weekly, can be used to view a series of programmes.

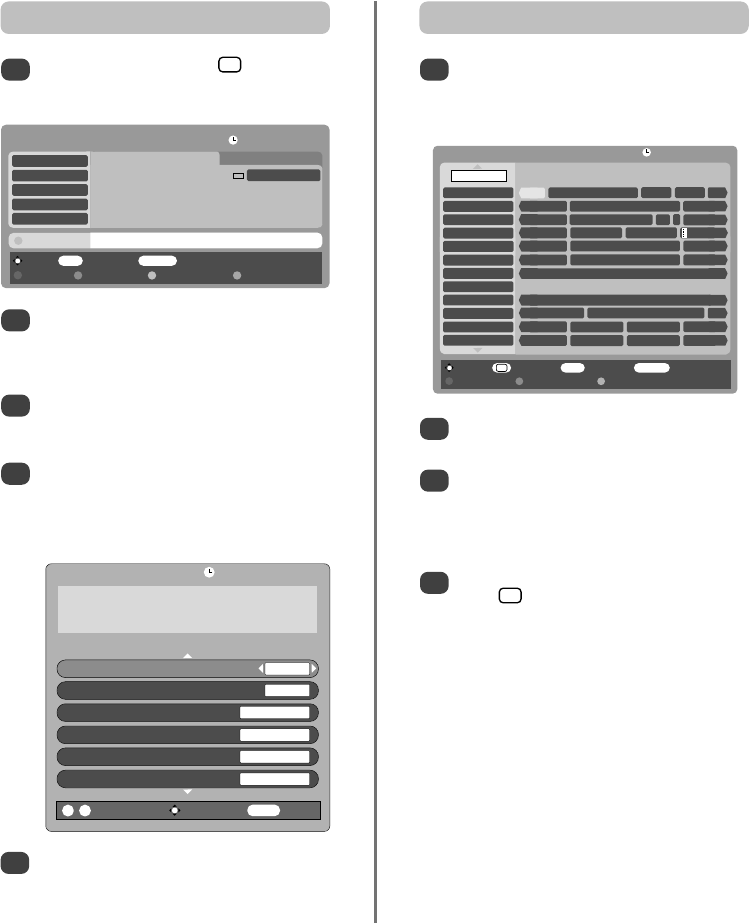

Programme timer – digital only

The television can be set to turn itself off after a

certain time.

Sleep timer

Press MENU and Sor Rto select the TIMER

menu.

TIMER

Sleep timer 01:30

Back

EXIT

Watch TV

Press Qto select Programme timers, then press

OK to select.

Press Qto select the first programme to be

timed, then press OK. The SET TIMER menu will

now appear on screen.

Press Pand Qto go through the list adding the

details of the programme to be timed by using

the number buttons and Sand Rto make

selections.

When all the details have been entered press OK

to save the timer.

Auto-start VCR: If your Toshiba media recorder is AV link

compatible setting this feature to YES will auto start/stop

a recording.

PLEASE NOTE: When a timed programme is about to

start, an information screen will appear offering the option

of watching or cancelling the programme. The menus and

other channels will not be available during the timed

programme unless the programme timer is cancelled.

Press MENU and Sor Rto select the TIMER

MENU.

TIMER MENU

Programme timers OK

Back

EXIT

Watch TV

SET TIMER

Programme BBC ONE 1

Date Fri, 13 Jan. 2006 13/01

Start Time 13.00

End Time 13.15

Repeat ONCE

Auto-start VCR NO

Subtitles NONE

Audio Language ENGLISH

0-9Enter Number Save Timer BACK Cancel

12:18 Fri, 13 Jan.

Digital on-screen information and

Programme Guide

When viewing in digital mode, the on-screen information and programme guide give access to programme

details for all available channels.

The details of the programme will have been

added to the screen. Press OK to save.

Information

Select information by pressing , the

information screen will appear giving details of the

channel and programme currently being viewed.

12:14 Fri, 13 Jan.

BBC ONE

BBC TWO

ITV1

Channel 4

five

11:30 Bargain Hunt

12:15 Cash in the Attic

1 minute left I/II ENTERTAINMENT

A bargain bought at Peterborough Fair makes double

its money at auction. [S] Then BBC News and Weather.

Showing also Bobinogs starting in 5 minutes on CBeebies…

…

Guide

Select the on-screen guide by pressing GUIDE, the

guide screen will appear highlighting details of the

channel and programme currently being viewed.

This may take a few moments to appear.

Press Sor Rfor information of other programmes

scheduled for the channel selected.

For details of other channels currently available,

press Pand Qto scroll up and down the

channel list. As the channel is selected details of

the programme currently being broadcast will

appear, then press Sor R.

For information on a highlighted programme

press . To set the timer for that programme

press the BLUE button to bring up the

Programme timers menu.

NOTE: Recording can be set from both the

information screen and guide. In order for the

recording operation to work the media recorder

must be AV link compatible.

To see details of any of the other channels currently

available, press Pand Qto scroll up and down the

channel list. As the channel is selected details of the

programme currently being broadcast will appear.

Pressing the YELLOW button will activate Showing

also, giving details of programmes which have

started on other channels.

To record the following programme, with the

information guide showing, press R. The Tune

option in the bottom section of the screen will

change to Record, press OK. The SET TIMER

screen will appear.

SET TIMER

Start Time 01:25

End Time 02:55

Repeat ONCE

Auto-start VCR NO

Subtitles NONE

Audio Language ENGLISH

0-9Enter Number Save Timer BACK Cancel

12:18 Fri, 13 Jan.

BBC News

001 BBC ONE 13:00-13:28 Fri, 13 Jan.

12.18 Fri, 13 Jan.

Page Up Page Down Timers

Bargain Hunt

ALL PROGS

BBC ONE

BBC TWO

ITV1

Channel 4

five

ITV2

BBC THREE

BBC FOUR

ITV3

Sky Travel

UKTV History

Friday

12:00 12:30 13:00 13:30

Barga Cash in the Attic BBC Ne Spotli Neig

The Daily Po Working Lunch World Prof

This Mornin ITV News We It Today Wit

News at No Whats in Cheers The Way

Home and A Brainteaser Born to S

Judge Judy The Jeremy Kyle Show Airline

This is BBC THREE

This is BBC FOUR

Kojak Quincy Quin

Canaries on Douglas Che Floyd Around Beauty Sch

What the St What the Vi Fred Dibnah' Fred Dibna

Tune EXIT Watch TV TV/FAV Change progs

Page Up Page Down Showing also Languages

Record More info EXIT Watch TV TV/FAV Change progs

Digital settings – parental control

In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked. These

can then only be accessed with a security code PIN when in digital mode.

PARENTAL CONTROL

Mode OFF

Change Pin OK

Back

EXIT

Watch TV

PARENTAL CONTROL

Mode OFF

Change Pin OK

Back

EXIT

Watch TV

This feature locks various menus to prevent the television

being retuned or the settings being overridden.

Setting the PIN

Press MENU and Rto select the FEATURE MENU.

Mode

In the PARENTAL CONTROL menu press Qto

select Mode.

Use Sor Rto choose between ON, OFF, LOCK

MENU and LOCK INSTALL.

When menus that have been locked are now

selected they will only become available when the

PIN is entered.

Use Qto select Parental Control then press OK.

Press Qto highlight Change Pin then press OK.

Using the number buttons enter a four digit

number, when these have been entered the screen

will ask you to confirm them by entering them

again.

Press MENU to go back to the Parental Control

screen. The PIN number is now set.

CHANGE PIN

New PIN * * * *

Confirm PIN – – – –

0-9Enter PIN MENU

Back

EXIT

Watch TV

FEATURE MENU

Parental Control OK

Favourite and Locked Programmes OK

Favourites ALL PROGS

Common Interface Slots

NO MODULE

Software Upgrade OK

Back

EXIT

Watch TV

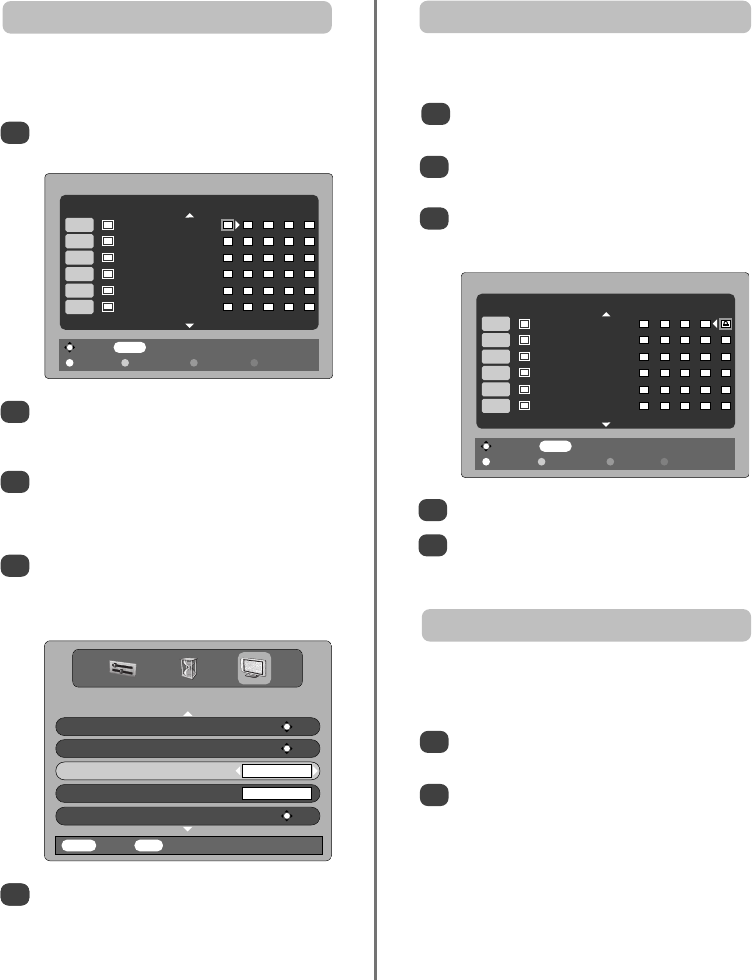

Digital settings – favourite programmes,

locked programmes, encrypted programmes

Locked Programmes stops the viewing of digital

channels, they can only be accessed by entering the PIN.

Locking programmes

From the FEATURE MENU press Qto select

Favourite and Locked Programmes.

Press Rrepeatedly to select the Locked

Programme list.

Use Pand Qto go through the list of channels

pressing OK to select the ones required, a

padlock will appear in the box.

Press EXIT to finish

When any of the channels in the Locked

Programme list are now selected the PIN must

be entered before they can be accessed.

Selecting Encrypted Programmes allows all encrypted

programmes to be shown in the programme list even if

they are not available to select.

Encrypted programmes

In the FEATURE MENU press Por Qto select

Encrypted Programmes.

Use Sor Rto select ON or OFF.

NOTE: CAMs (Conditional Access Modules) are

available from service providers (see 'Common

Interface' section)

Deselect MENU Back

Page Up Page Down Lock all Unlock all

FAVOURITE AND LOCKED PROGRAMMES

Locked Programme: Yes

1BBC ONE

2BBC TWO

7BBC THREE

10 BBC FOUR

30 CBBC Channel

31 CBeebies

Favourite Programmes creates a list of the digital

channels that are watched most. Four lists can be created,

these can be a mixture of television, text and radio channels.

Selecting favourite programmes

From the FEATURE MENU press Qto select

Favourite and Locked Programmes .

Use Pand Qto go through the list of channels

pressing OK to select the ones required, a tick will

appear in the box.

Press Rto select List 2. Follow the same

procedure to make the selection. When all

favourites have been selected press MENU to

return to the FEATURE menu.

Use Qto highlight Favourites and Sor Rto

select between ALL, TV, RADIO, FAV-1 and

FAV-2. The number of favourites available

depends on how many lists have been created.

Press EXIT.

Using the fPebuttons will now only access

those channels in Favourite List 1 when FAV-1 is

selected.

Select MENU Back

Page Up Page Down Select all Deselect all

FAVOURITE AND LOCKED PROGRAMMES

Favourite List 1: No

1BBC ONE

2BBC TWO

7BBC THREE

10 BBC FOUR

30 CBBC Channel

31 CBeebies

FEATURE MENU

Parental Control OK

Favourite and Locked Programmes OK

Favourites FAV-1

Common Interface Slots

NO MODULE

Software Upgrade OK

Back

EXIT

Watch TV

Digital settings continued – audio languages,

subtitles, reset tv, common interface

This feature allows a programme or film to be viewed with

a choice of soundtrack language, provided they are

currently being broadcast.

Audio languages

From the SETUP MENU press Qto select

Languages.

This feature will show subtitles on the bottom of the

screen in the selected language provided they are being

broadcast.

Subtitles

From the LANGUAGES menu press Qto select

Subtitles.

Use Sor Rto select OFF, ENGLISH, WELSH or

GAELIC.

Press OK, then press Por Qto highlight Audio

Language.

Use Sor Rto select ENGLISH, WELSH or

GAELIC.

NOTE: If more than one soundtrack is available,

use OI/II to select between them.

The Common Interface Slot, situated on the back of the

television, enables the insertion of a CAM (Conditional

Access Module) and card. These are purchased from a

service provider and allow additional subscription

broadcasts to be viewed. For information see a

service provider.

Common interface

Insert the CAM and card into the Common

Interface Slot, following the instructions provided

with the CAM. A box will appear on screen to

confirm that the CAM is loaded.

From the FEATURE MENU press Por Qto

select Common Interface Slots.

Details of the CAM should now be available. Use

OK to select it. If two CAMs are inserted use

Sor Rto select between the two.

Press MENU and then press Quntil Reset TV is

highlighted.

Press OK to select. A screen will appear warning

that all digital settings will be lost, press OK to

continue.

The Welcome screen will appear, press OK to

continue, the television will then auto tune.

Selecting Reset TV will delete all stored digital channels

and settings. The television will return to factory settings

and then auto tune.

Reset TV

SETUP MENU

TV Setup OK

Languages OK

Auto tuning OK

Manual tuning OK

Programmes OK

Watch TV

LANGUAGES

Audio Language ENGLISH

Subtitles OFF

Back

EXIT

Watch TV

FEATURE MENU

Parental Control OK

Favourite and Locked Programmes OK

Favourites ALL PROGS

Common Interface Slots

NO MODULE

Software Upgrade OK

Back

EXIT

Watch TV

Digital settings continued – software upgrade

SOFTWARE UPGRADE

Version 1.0

Auto upgrade ON

Search for New Software OK

0-9Enter PIN MENU

Back

EXIT

Watch TV

This feature can be used to check the version of software

currently installed.

Version

If Auto upgrade is selected the software will

automatically update as each version becomes available,

provided the television is on or in standby. If the television

is on, a screen prompt will appear showing the software

download taking place.

Auto Upgrade

From the FEATURE MENU press Por Qto

select Software upgrade. Press OK.

Press Por Qto select Version. Use Sor Rto

select. When the software has been updated there

will be a choice of two versions available.

SEARCHING FOR NEW SOFTWARE

Searching for a new software upgrade for

this TV.

Searching

EXIT

Stop

NO UPGRADE AVAILABLE

! There is no upgrade available

at this time.

Continue

In the SOFTWARE UPGRADE menu press Por

Qto select Auto upgrade.

Use Sor Rto select ON or OFF.

If preferred, software upgrades can be searched for

manually using Search for New Software.

Searching for new software

In the SOFTWARE UPGRADE menu press Por

Qto select Search for New Software.

Press OK. The television will automatically start

searching for a software upgrade, the progress bar

will move along the line.

If an upgrade is found the television will

automatically start downloading, if not a screen

will appear stating that an upgrade is unavailable.

SOFTWARE UPGRADE

Version 1.0

Auto upgrade OFF

Search for New Software OK

0-9Enter PIN MENU

Back

EXIT

Watch TV

FEATURE MENU

Favourite and Locked Programmes OK

Favourites ALL PROGS

Common Interface Slots

NO MODULE

Software Upgrade OK

Encrypted Programmes OFF

Back

EXIT

Watch TV

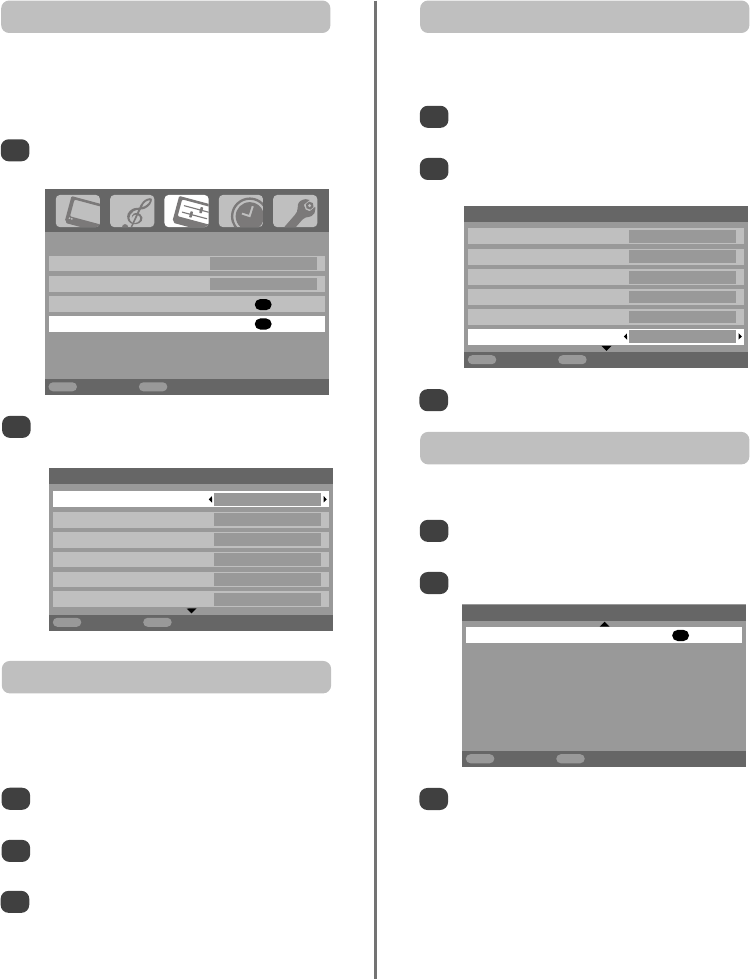

PC settings – picture position, clock phase,

sampling clock, reset

Use Sor Rto adjust until the picture clears.

In the SET UP menu press Quntil PC Setting is

highlighted.

Press OK to select, then Qto highlight Clock

phase.

Use Sor Rto adjust until the picture clears.

The Clock phase matches the PC signal with the LCD

display. Adjusting this can clear horizontal stripes and

picture blur.

Clock phase

In the SET UP menu press Quntil PC Setting is

highlighted.

Press OK to select, then Qto highlight Sampling

clock.

Adjusting the Sampling clock alters the number of pulses

per scan, this will clear vertical lines on the screen.

Sampling clockPicture position

Connect the PC (as shown in the ‘Connecting a PC’

section) and ensure that a picture is showing on the

television screen. The picture position may now be

adjusted to suit personal preference.

Press Bto select PC, then select PC Setting

from the SET UP menu.

Press OK. Press Pand Qto select an option,

then Sor Rto adjust the settings.

Press OK.

In the SET UP menu press Quntil PC Setting is

highlighted.

Press OK to select, then Qto highlight Reset.

To return to the original factory settings.

Reset

SET UP

Language English

Country UK

AV connection OK

PC Setting OK

Back

EXIT

Watch TV

1/2PC Settings

Horizontal position 0

Horizontal width – 5

Vertical position 0

Vertical height – 5

Clock phase 0

Sampling clock 0

Back

EXIT

Watch TV

1/2PC Settings

Horizontal position 0

Horizontal width – 5

Vertical position 0

Vertical height – 5

Clock phase 0

Sampling clock 0

Back

EXIT

Watch TV

2/2

PC Settings

Reset OK

Back

EXIT

Watch TV

1/2

SET UP

Language English

Country UK

Auto tuning OK

Manual tuning OK

Antenna Amplifier On

AV connection OK

Back

EXIT

Watch TV

Input selection and

AV connections

Defining the INPUT and OUTPUT sockets so that the television recognises connected equipment. See page 6

for a clear view of the back connection recommendations.

Most media recorders and decoders send a signal

through the SCART lead to switch the television to the

correct Input socket.

Alternatively press the external source selection button

Buntil the picture from connected equipment is shown.

This button must be used to view equipment connected

using the COMPONENT VIDEO INPUT (EXT3C).

An Sin the display e.g. B2S (EXT 2S), indicates the

input is set for an S-Video signal.

Use the Input Selection if the television does not switch

over automatically.

Input selection

This specifies the type of signal going into SCART 2 (EXT2)

on the back of the television. Please refer to the

manufacturers instructions for the connected equipment.

In the SET UP menu press Quntil

AV connection is highlighted, then press OK.

With Sor Rselect either AV or S-VIDEO as the

required input for EXT2.

If the colour is missing try the alternative setting.

INPUT signal selection

Press Bto select B1, B2, B3(C) (EXT1-3),

HDMI1,HDMI2 or PC.

HDMI™ displays equipment connected to Input

HDMI on the back of the television. It is designed

for best performance with 1080i high definition

signals.

PC displays a computer connected to Input

RGB/PC on the back of the television.

To return to television mode press and hold B

and then select DTV or ATV.

AV connection

PC/HDMI1 audio PC

HDMI1 audio Digital

EXT1 output DTV

EXT2 input S-VIDEO

EXT2 output DTV

Monitor (Audio) Fixed

Back

EXIT

Watch TV

This is a digital television which is integrated to allow the

use of both digital and analogue services. However,

during the lifetime of this set it is very likely that

analogue services will be switched off to allow for more

new digital services.

This ‘switch-off’ will happen in a number of phases,

which will be advertised in your area well in advance.

It is recommended that at each phase the television is

re-tuned to ensure that existing and new digital

services can be viewed without disruption

(see the 'Auto tuning' section).

Analogue switch-off

AV connection

PC/HDMI1 audio PC

HDMI1 audio Digital

EXT1 output DTV

EXT2 input S-VIDEO

EXT2 output DTV

Monitor (Audio) Fixed

Back

EXIT

Watch TV

AV connection

PC/HDMI1 audio HDMI1

HDMI1 audio Digital

EXT1 output DTV

EXT2 input S-VIDEO

EXT2 output DTV

Monitor (Audio) Fixed

Back

EXIT

Watch TV

1/2

SET UP

Language English

Country UK

Auto tuning OK

Manual tuning OK

Antenna Amplifier On

AV connection OK

Back

EXIT

Watch TV

1/2

SET UP

Language English

Country UK

Auto tuning OK

Manual tuning OK

Antenna Amplifier On

AV connection OK

Back

EXIT

Watch TV

Input selection and

AV connections continued

In the SET UP menu press Quntil

AV connection is highlighted, then press OK.

HDMI, the HDMI logo, and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI

Licensing, LLC.

HDMI1 audio

If the connected HDMI source does not support digital

audio, plug the audio cable into PC/HDMI1 audio on the

back of the television (as shown in the ‘Connecting a

computer’ section), then use the HDMI1 audio settings.

In the AV connection menu press Qto highlight

PC/HDMI1 audio and using Rselect HDMI1.

Then highlight HDMI1 audio and using Sor R

select Auto., Digital or Analogue.

If the sound is missing select an alternative

setting.

NOTE: HDMI1 supports digital and analogue

sound, HDMI2 is digital sound only.

Highlight PC/HDMI1 audio then use to Rselect

the PC option.

NOTE: Selecting the PC option will force HDMI

into digital audio.

In order to receive sound from a connected PC, plug the

audio cable into the back of the television (as shown in

‘Connecting a computer’ section), then use the

PC/HDMI1 audio settings.

PC audio

In the SET UP menu press Quntil

AV connection is highlighted, then press OK.

Analogue text services – setting up,

general information, Auto and LIST modes

This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of

viewing text – Auto will display Fastext, if available. LIST will store your four favourite pages.

If Fastext is available four coloured titles will appear at

the base of the screen.

To access one of the four given subjects, press the

relevant coloured button on the remote control.

For further information on your particular text system(s),

see the broadcast text index page or, consult your local

Toshiba dealer.

The sub-page you are viewing will be highlighted and, as

the television loads any additional sub-pages the colour

of the numbers will change, indicating that these pages

have been loaded.

These sub-pages will remain available to view until

another page is chosen or, in normal TV mode, the

channel is changed.

The 6/ /7button:

To view text services press 6/ /7. Press again to

superimpose the text over a normal broadcast picture and

again to return to normal viewing. Programmes cannot

be changed until text is cancelled.

The first text page shown will be the initial page.

Any text page can be accessed by entering the 3 digit

page number using the numbered buttons, pressing the

coloured buttons or pressing Pfto advance to the next

page and P eto go back to the previous page.

Sub-pages

If there are sub-pages they will automatically load into

memory without changing the page on screen.

To access the sub-pages press Xthen use Pfand P e

to view them. A bar with numbers will appear on the side

of the screen.

Navigating pages using Auto.

Text information

The four coloured choices at the bottom of the screen are

numbers – 100, 200, 300 and 400, which have been

programmed into the television’s memory. To view these

pages press the relevant coloured buttons.

To change these stored pages press the relevant coloured

button and enter the 3 digit number. This number will

change in the top left of the screen and in the coloured

highlight.

Press OK to store. The bars at the bottom of the screen

will flash white. Whenever OK is pressed all four

page numbers showing at the bottom will be stored

and the previous ones will be lost.

If OK is not pressed the selection will be forgotten when

text is cancelled.

Other pages may be viewed by entering the 3 digit page

number – but DO NOT press OK or these pages will be

stored.

Navigating pages using LIST

Select Teletext from the FUNCTION menu.

With Sor Rchoose Auto. or LIST then press EXIT.

The text character set will be automatically chosen by the

language setting in the SET UP menu.

Selecting modes

FUNCTION

Teletext Auto.

Panel lock Off

Auto format On

Blue screen On

Side Panel 1

Back

EXIT

Watch TV

Press Tto access the index/initial page. The one

displayed is dependant on the broadcaster.

Remember to cancel text before

changing channels – press the

/ /

button twice.

☛

Analogue text services – control buttons,

Digital interactive services

Below is a guide to the functions of the remote control text buttons.

Enter the page number then press 8/9, a normal

picture will be displayed. The television will indicate when

the page is present by displaying the page number at the

top of the screen. Press 6

/ /

7to view the page.

To display news flashes:

Select the news flash page for the chosen text service

(see the index page of text service). Press 8/9. The

news flashes will be displayed as and when they are

broadcast. Press 8/9again to cancel the display.

The news flash page must be cancelled before

changing programmes.

To display the index/initial page:

At times it is convenient to hold a page of text. Press

and

will appear in the top left of the screen. The

page will be held on screen until the button is pressed

again.

To hold a wanted page:

To discover the solutions on quiz and joke pages press the

rbutton.

To reveal concealed text:

Press 6

/ /

7to display text. Press again to

superimpose text over a normal broadcast picture. Press

again to return to normal television viewing. Programmes

cannot be changed until this has been done.

To display a page of text:

To select a page whilst viewing a

normal page:

/ /

Press

once to enlarge the top half of the page, press

again to enlarge the bottom half of the page. Press again

to revert to normal size.

To enlarge the text display size:

For use with Pfand P eto view sub-pages when

available.

To access sub-pages:

The digital interactive services are the up-to-

date way of viewing service information, using

computer-style formats, incorporating pictures

and interactive views.

They offer high quality on-screen images with multi-

colour photographic still images, advanced text and

graphics and are user-friendly. These services are free to

anyone with a digital television, however, they are not

available for all digital stations and are dependant on the

broadcaster.

Digital interactive services

Ensure that digital mode has been selected.

Press TEXT, it may take a few moments to load.

To navigate the pages and use the pull-down

menus, use the coloured buttons and P, Q,

Sand Ras directed.

Press TEXT again at any time to cancel.

Below are the answers to some of the most common queries.

For more information go to www.toshiba.co.uk

Check the mains switch is on and check all mains

connections.

Check the television is not in standby mode.

Why is there no sound or picture?

Check the volume has not been turned down or

that sound mute has not been selected.

Why is there a picture but no sound?

Check that Panel lock is not ON.

Why don’t the controls on the front of the

television work?

Check all lead connections.

Why is there a good video picture but no sound?

Make sure the VCR or DVD player is connected to

the television as shown on page 6, then select the

correct input by pressing

Why doesn’t the video/DVD being played show

on screen?

Check the correct input has been chosen,

S-VIDEO or AV. See AV connections page.

Why is the VCR/DVD picture in black and

white?

When using an external source, for instance, a

poor quality video tape, if there is little or no

colour, improvements may sometimes be achieved. The

colour is factory set to Auto. to automatically display the

best colour system.

To check that you have the best colour:

There is a picture, but why is there little or no

colour?

With the external source playing, select Manual

setting from the SET UP menu.

With Por Qchoose between Auto., PAL,

SECAM, NTSC 4. 43 or 3. 58.

For television

operation queries,

please ring the

helpline…

Remember…

Questions and Answers

Select the Manual tuning menu. Highlight the

station and press OK, then press R

to select

Manual fine tuning

Using Por Qadjust to get the best picture and

sound. Press OK and then EXIT.

Interference or a weak signal. Try a different

television station. Manual fine tuning may help.

What else can cause a poor analogue picture?

Check the side switch on the remote control is in

TV mode.

Check the batteries aren’t dead or inserted incorrectly.

Why doesn’t the remote control work?

Remove it by pressing .

Why is there a message permanently on the

screen?

Manual setting

Colour system: Auto.

EXT2 A V C R

OK Store

MENU Back EXIT Watch TV Manual tuning

Manual fine tuning

1 I A C 22 +2 B B C 1

Store

Back

EXIT

Watch TV

The signal strength may be too strong. Set the

Antenna Amplifier option in the SET UP menu

to On.

Why is there picture and sound interference on

all digital and analogue channels?

The programme is currently being broadcast with

an English soundtrack only.

Why is the soundtrack in English when a

different audio language has been selected?

Questions and Answers continued

Good performance of text depends on a good

strong broadcast signal. This normally requires a

roof or loft aerial. If the text is unreadable or garbled,

check the aerial. Go to the main index page of the text

service and look for the User Guide. This will explain the

basic operation of text in some detail. If further

information is needed on how to use text see the

text section.

Why are there problems with analogue text?

The Clock phase may need adjustment. Select

PC Setting from the SET UP menu, highlight

Clock phase and adjust until the picture clears.

Why are there horizontal stripes and/or blurred

images on the screen when in PC mode?

Check the Speaker option in the Sound menu is

set to Off.

Why is there no sound from my connected

sound equipment?

The Sampling clock may need adjustment. Select

PC Setting from the SET UP menu, highlight

Sampling clock and adjust until the lines clear.

Why are there vertical stripes on the screen

when in PC mode?

The digital programme being viewed is not

broadcasting digital text. Try another digital

programme.

Why is there no digital text service?

The channel has been selected in Locked

Programmes. See Digital Settings pages.

Why is the digital channel locked?

A Favourite list has been selected (see 'Favourite

Programmes' section), set the feature to ALL

PROGS or change channels by using the number buttons.

Why can only certain digital channels be

viewed?

Lock Menu has been enabled. See Parental

Controls page.

Why are some of the menus locked?

Use the Master PIN code of 1276, then change to

a number of your choice. Ensure that no-one else

can use the Master PIN by removing the Owner’s Manual.

What can be done if the PIN number has been

forgotten?

Analogue mode is selected. Press and hold

select DTV.

Why is the DTV main menu unavailable?

Subtitles are not currently being transmitted by the

broadcaster.

Why when digital subtitles have been selected

are they not showing on screen?

Your subscription needs upgrading. Contact your

service provider.

Why are some of the digital subscription

channels unavailable?

Questions and Answers continued

Cleaning the screen and cabinet…

Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or

solvents on the screen or cabinet as this may cause damage.

Disposal…

The following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about

recycling of this product, please contact your local city office, your household waste disposal service or the shop where

you purchased the product.

Text has been selected whilst viewing an external

source i.e. DVD or VCR. No text will appear on

screen or a box may appear stating no information is

available. Select a broadcasting channel and press

6/ /7to access.

Why are the four coloured text numbers visible

but no text?

Connect the source via a SCART lead and play.

Select Manual setting from the SET UP menu.

Why are the colours wrong when an NTSC

source is played?

Set the Colour to Auto. and exit.

Go to the Picture settings menu and adjust

the tint.

Manual setting

Colour system: Auto.

EXT2 A V C R

OK Store

MENU Back EXIT Watch TV

When put into standby the television’s active

standby will automatically search all available

channels for downloads, provided Automatic Download

is Enabled. The time it takes to do this may vary.

Why does the GREEN Active Standby LED

sometimes take longer to go out?

There are none broadcast or they have not yet

loaded. Press the

button to access.

(See text section).

Why are there no analogue text sub-pages?

Notes

For your own records

Notes

For your own records

Specifications and accessories

Broadcast systems/channels

PAL-I UHF UK21-UK69

PAL-B/G UHF E21-E69

VHF E2-E12, S1-S41

SECAM-L UHF F21-F69

VHF F1-F10, B-Q

SECAM-D/K UHF R21-R69

VHF R1-R12

Video Input PAL, SECAM, NTSC 3.58/4.43

External connections

EXT1 Input/Output 21-pin SCART RGB, A/V

Selectable output

EXT2 Input/Output 21-pin SCART A/V, S-video

Selectable output

EXT3 Input Phono jacks Y, PB/CB, PR/CR

Phono jacks A/V

EXT3 Input (Side) Phono jack Video

Phono jacks Audio L + R

HDMI 1/2 Input HDMI connector

PC Input Mini D-sub 15-pin Analog RGB signal

PC/HDMI1 Audio Phono jacks Audio L + R

Audio Ouput Fixed/Variable Phono jacks Audio L + R

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Surrey, GU15 3DT, UK

Specification is subject to change without notice.

Originated by Kensa Creative Solutions, Saltash, Cornwall.

Reproduction in whole or part without written permission is strictly prohibited.

Printed on recycled paper. 100% Chlorine free.

Stereo Nicam

2 carrier system

Visible Screen Size 32WLT 80cm

(approx.) 37WLT 94cm

42WLT 107cm

Display 16:9

Sound output (at 10% distortion) Main 10W + 10W

Power consumption 32WLT 159W

as specified in EN60107-1 : 1997 37WLT 174W

42WLT 255W

Standby (approx.) 32WLT <1W

37WLT <1W

42WLT <1W

Dimensions 32WLT 61cm (H) 80cm (W) 30cm (D)

(approx.) 37WLT 69cm (H) 92cm (W) 30cm (D)

42WLT 78cm (H) 105cm (W) 36cm (D)

(Height dimension includes foot stand)

Weight (approx.) 32WLT 20kg

37WLT 25kg

42WLT 34kg

Headphone socket 3.5mm stereo

Accessories Remote control

2 batteries

(AAA, IEC R03 1.5V)

32/37/42WLT66

VX1A00000200

Toshiba Wlt66 Users Manual

WLT66 to the manual 56e43883-b387-4963-b715-7cacff7d012d

Navigation menu

Versions of this User Manual:

Views

Navigation
