RF Remote Control System
Owner’s Manual
POWERTouch 1000POWERTouch 1000
By TouchTronics, Inc.
Easy
Installation...
Reduces Costs
1010-R
1011-R
1012-R
1013-R
1020-R
1021-R
1022-R
1023-R
1030-R
1031-R
1032-R
1033-R
1040-R
1041-R
1042-R
1043-R
Receiver
Model
x
x
x
x
x
x
x
x
4 - Relays
x
x
x
x
x
x
x
x
7 - Relays
x
x
x
x
x
x
x
x
12VDC
x
x
x
x
x
x
x
x
24VDC
x
x
x
x
x
x
x
x
30A
Connector
x
x
x
x
x
x
x
x
Fixed
Antenna
x
x
x
x
x
x
x
x
TNC
Connector
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
2 Switch
Inputs
x
x
x
x
x
x
x
x
6 Add’l
Switch Inputs
x
x
x
x
x
x
x
x
Input
Status
LEDs
1000-TF2
1000-TF4
1000-TF6
1000-TX2(S)
1000-TX4(S)
1000-TX6(S)
1000-TK1
1000-TK2
1000-TK4
1000-TM1
1000-TM2
1000-TM4

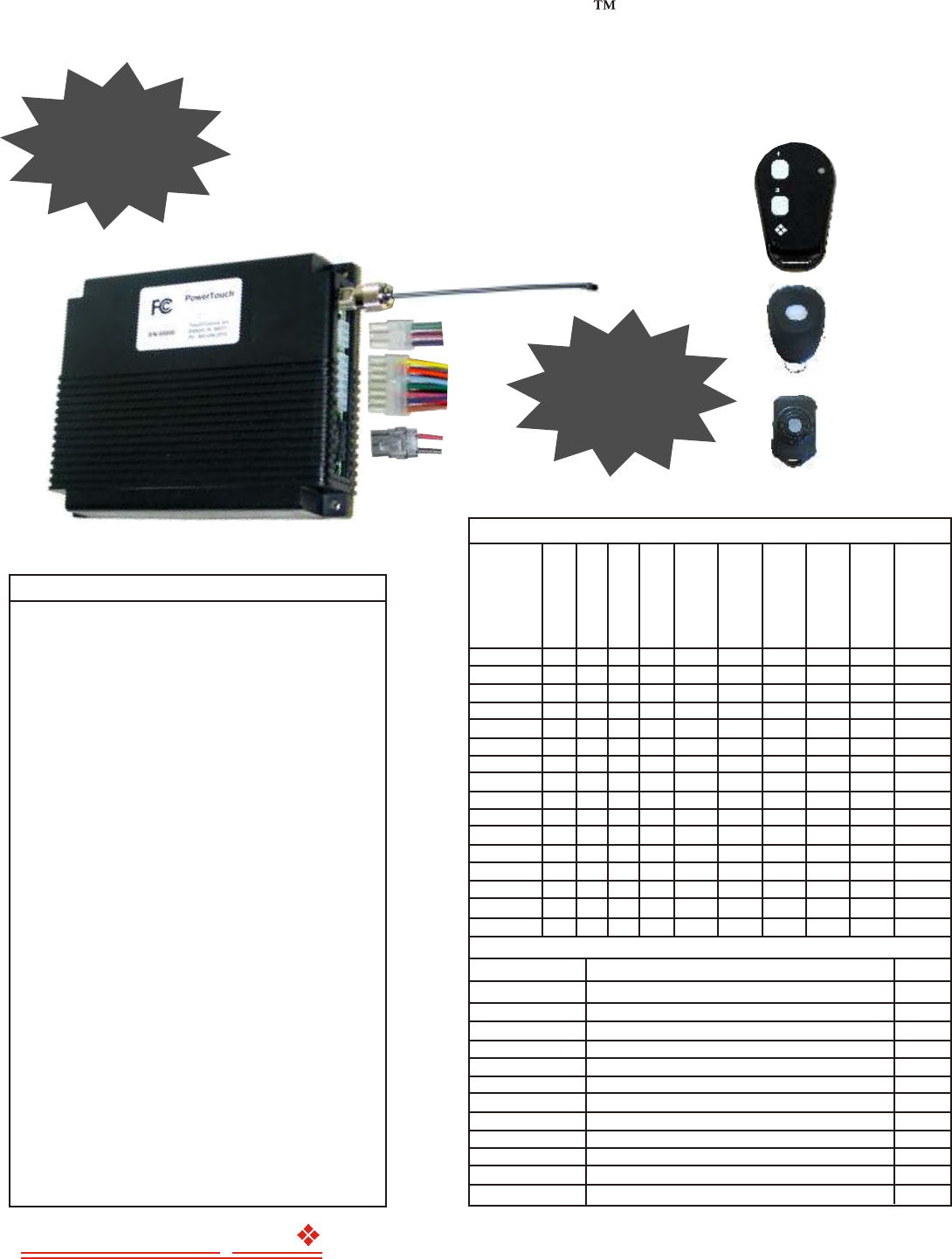

Receiver Selection Chart
Transmitter Selection Chart
Model
Large key fob, 2 button
Large key fob, 4 button
Large key fob, 6 button
Oval hand-held, 2 button, (S) = power switch
Oval hand-held, 4 button, (S) = power switch
Oval hand-held, 6 button, (S) = power switch
Small key fob, 1 button
Small key fob, 2 button
Small key fob, 4 button
Mini key fob, 1 button
Mini key fob, 2 button
Mini key fob, 4 button
1000 Series Receiver Specifications
Voltage 9 - 16 Volt DC (12 Volt DC Nominal)
24 Volt DC Optional
Current 5A / Output - 10A System Max
Switch Inputs 2 (6 Additional Optional)
Outputs 4 or 7
Frequency 433 MHz
Antenna
Standard Fixed
Optional Removable 6” Whip / TNC
Exterior / 14’ Cable
1000 Series System Specifications
Range-Pulsed 100 Feet Typical
300 Feet Clear Field
Range-Continuous 50 Feet Typical
Codes
Number Over 16,000,000
Type Digital Rolling Codes
Enrolling Self-Learning
1000 Series Transmitter Specifications
Frequency 433 MHz
Battery Lithium, Coin style (*CR2032)
Voltage 3 Volt DC
Battery Life 50,000 2-Second Presses
*All transmitter styles
1000 Series Physical Dimensions
Receiver Enclosures
Standard (unsealed) 6.50” x 5.50” x 1.00” (LxWxH)
Optional (sealed) 9.25” x 5.25” x 1.25” (LxWxH)
Transmitter Enclosures
Large Key Fob (sealed) 3.25” x 2.00” (LxW)
Oval (water resistant) 4.50” x 2.00” (LxW)
Small Key Fob (sealed) 2.60” x 2.00” (LxW)
Mini Key Fob 2.10” x 1.40” (LxW)
(water resistant)
System Specifications
Manual NST11424-1
Rev 2008-02-18
TouchTronics, Inc. 57315 Nagy Drive, Elkhart, IN 46517, 1-800-294-2570
Description
5A-1 R
IC: 626 000
133-R
0
Sealed
x
x
x
x
x
x
All Channels
are User
Programmable
Oval Hand-Held Transmitter Not Shown
Option 4 - Courtesy Light
Output #7 turns ON for 20-seconds whenever output #1 is activated.
Switch Input A1 controls output #1
Switch Input A2 turns OFF all outputs as long as it is active.

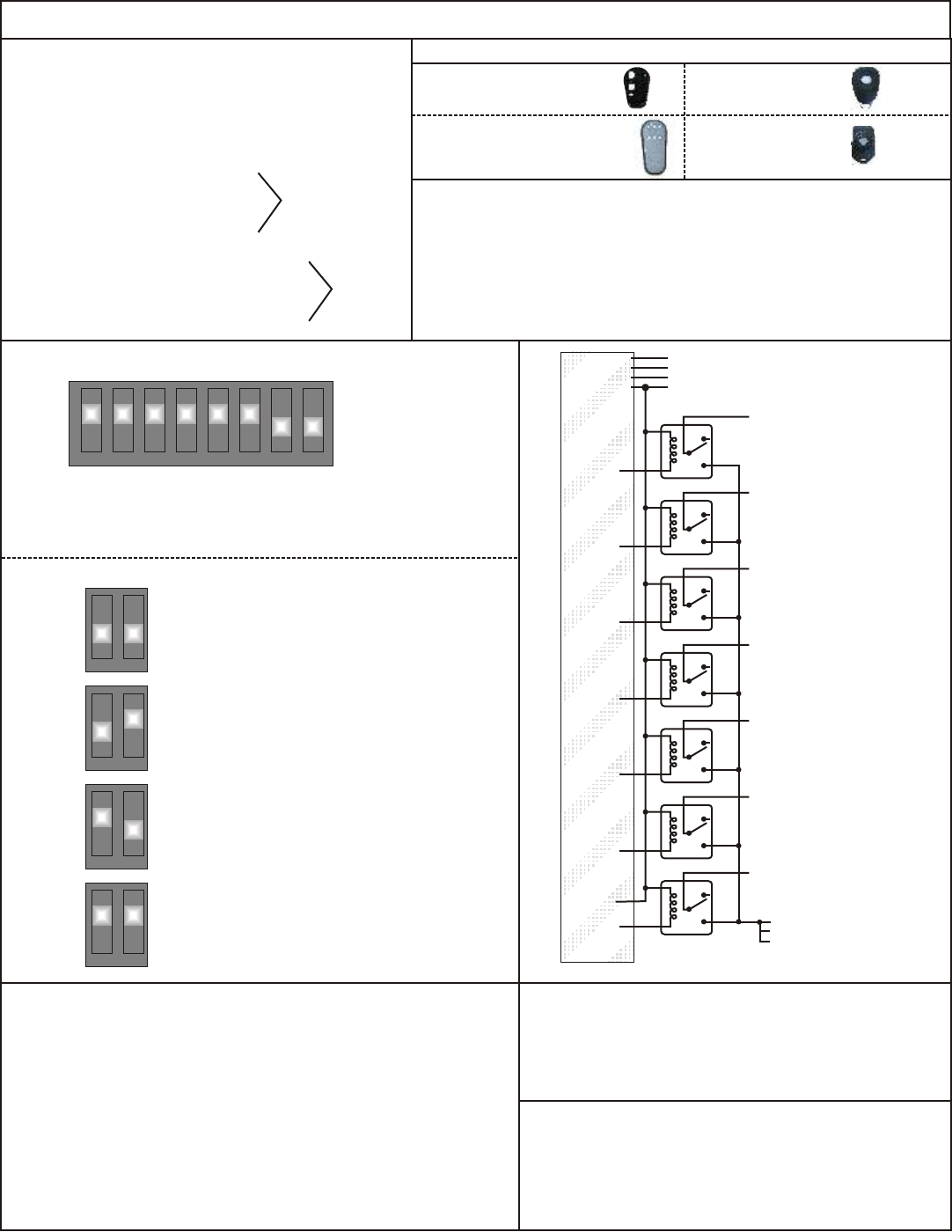

PowerTouch Remote Control Systems - 1000 Series (2 - 6) Functions Page -2-
ON
OFF
Receiver
1
Operation
Out
# 1
ON
OFF DIP Switch 7 - OFF
DIP Switch 8 - OFF
DIP Switch 7 - OFF
DIP Switch 8 - ON
Option 2 - Hydraulic Pump
Output #7 is ON anytime outputs 1 - 6 are active.
Switch Input A1 controls output #1
Switch Input A2 controls output #2
DIP Switch 7 - ON
DIP Switch 8 - OFF
Option 3 - Cascade
Output #7 turns ON for 2-seconds whenever output #1 is activated.
Switch Input A1 controls output #1
Switch Input A2 controls output #2
DIP Switch 7 - ON
DIP Switch 8 - ON
DIP Switches 7 & 8
Transmitter Styles
Receiver
Connection
Schematic
DIP switch
located inside
receiver enclosure
Signal Transmissions
Standard - Press & Release Button
No maximum signal duration
Option - Multi-channel signal
Status LED
Standard - One flash per second transmitting
- No flash if low battery
Inputs (DIP switch programmable)
Switch Input A1
Switch Input A2
Outputs (DIP switch programmable)
1 Momentary or Latching
2 Momentary or Latching
3 Momentary or Latching
4 Momentary or Latching
------------------------------------------------------
5 Momentary or Latching
6 Momentary or Latching
7 See DIP Switch Options Below
ENROLLING NEW TRANSMITTERS - Self-Learning Receiver
1. Remove cover from receiver enclosure.
2. Locate LEARN switch (small, square push-button style switch located in the
corner of the printed circuit board).
3. Press and release the LEARN switch and observe LEARN LED (next to
LEARN switch).
4. LED is flashing when unit is in LEARN Mode and new codes can be
enrolled.
5. When LEARN LED is flashing, press any button on transmitter.
6. LEARN LED blinks to confirm enrollment. Release transmitter button.
7. Press any button on the new transmitter to confirm that the new code has
been enrolled.
8. Replace receiver enclosure cover.
Output 7
J2-14
Output 6
J2-13
Output 5
J2-12
Output 4
J2-11
Output 2
J2-9
Output 3
J2-10
Output 1
J2-8
Switch Input A2, J2-2
NO INP BUS, J1-1 (Optional: Typ PWR)
NO INP BUS, J2-6
NO INP BUS, J2-7
Switch Input A1, J2-1
Logic Power, J2-4
Logic Ground, J2-3
DIP Switch Options
ON
OFF
Out
# 3
Out
# 2 Out
# 4 Out
# 5 Out
# 6
2345678
7 8
ON
OFF
7 8
ON
OFF
7 8
ON
OFF
7 8
ERASING ALL ENROLLED TRANSMITTERS
1. Press and hold the LEARN switch.
2. LEARN LED will flash rapidly for about 10 seconds,
followed by two long flashes.
3. Release LEARN switch.
4. All transmitter codes are now erased.
Optional Enrolling Method
1. Remove and reconnect power to unit. This will place unit
into LEARN mode for 5-seconds.
2. Press any button on transmitter. Wait 5-seconds and confirm
the transmitter has been enrolled by pressing any button and
verifying the correct output turned ON.
4-Relay
Models
7-Relay
Models
DIP Switches 1 - 6 control outputs 1 - 6 respectively:
OFF = Momentary
ON = Latching
LOGIC
Option 1 - Direct Switch Inputs
Switch Input A1 controls output #1
Switch Input A2 controls output #2
Standard - Large Key Fob
2, 4 & 6 Button
Option - Large Oval Hand-Held
2, 4 & 6 Button
(Power Switch Optional)
Option- Small Key Fob
1, 2 & 4 Button
Option - Mini Key Fob
1, 2 & 4 Button
Photos Not To Scale
SWITCH INPUT A1
SWITCH INPUT A2
CHASSIS GROUND
LOGIC POWER
REVERSAL REST @ GROUND - OPTION
RELAY POWER
OPTIONAL RELAY POWER
CHANNEL 1 - RELAY OUTPUT 1 (RR@G*)
CHANNEL 2 - RELAY OUTPUT 2 (RR@G*)
CHANNEL 3 - RELAY OUTPUT 3 (RR@G*)
CHANNEL 4 - RELAY OUTPUT 4 (RR@G*)
CHANNEL 5 - RELAY OUTPUT 5
CHANNEL 6 - RELAY OUTPUT 6
PROGRAMMABLE OPTION-RELAY OUTPUT 7
POWER - OUTPUTS 1 - 6
GROUND - OUTPUTS 1 - 4 (RR@G*)
SWITCH INPUT B1
SWITCH INPUT B2
SWITCH INPUT B3
SWITCH INPUT B4
SWITCH INPUT B5
SWITCH INPUT B6

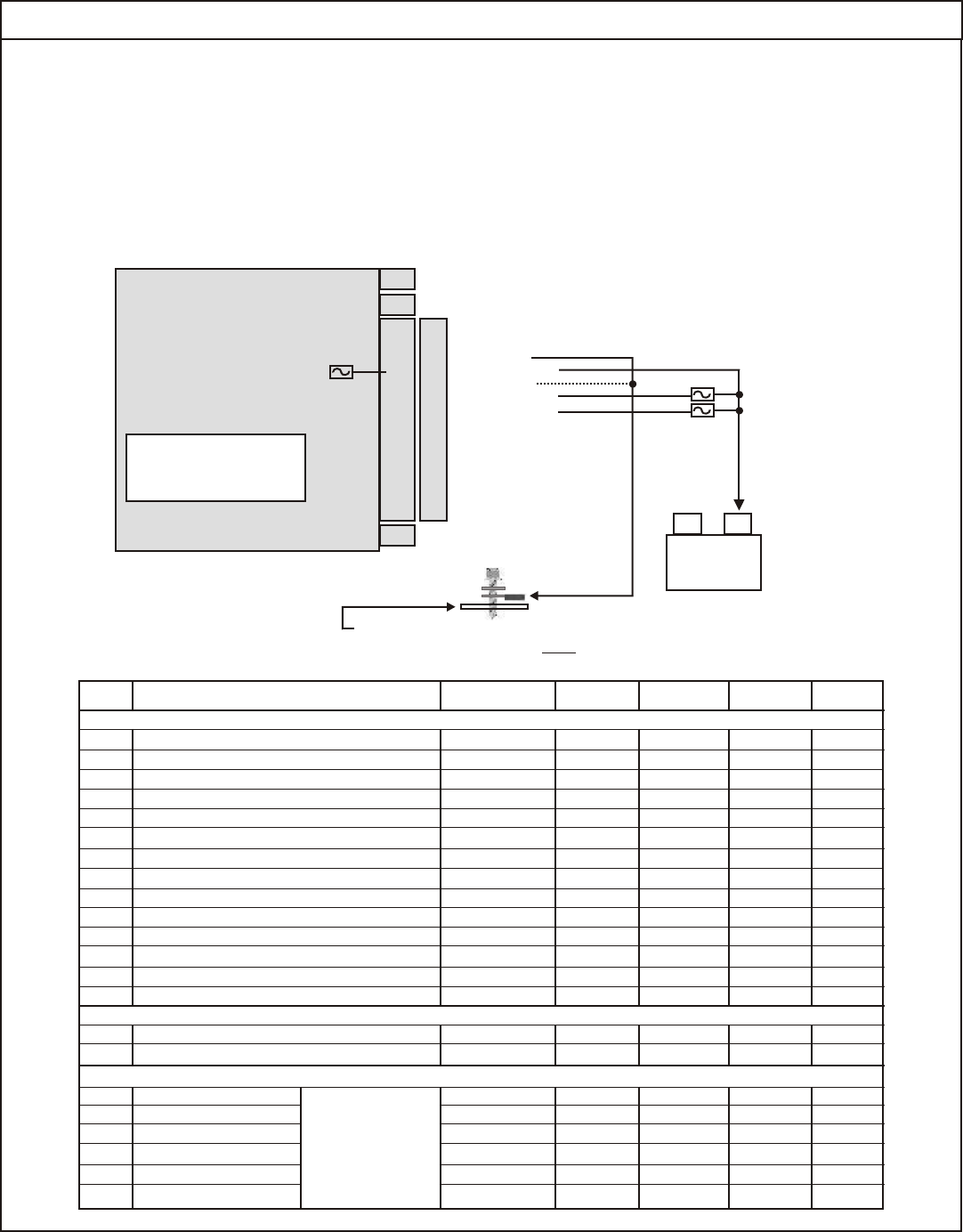

Receiver Installation
Determine installation location of receiver and antenna
- typically under the dash or behind a wall. There are
two types of receivers:
1) Standard Receiver - as pictured below
2) Optional Sealed Receiver
Antennas
A) Fixed Antenna (Installed inside enclosure)
B) Removable 6” Antenna / TNC Connector
C) Exterior Antenna / 14’ Cable
(-)
Vehicle
Battery
(+)
PowerTouch
Remote Control System
1000 Series RF Receiver
#10 Screw #10 Star Washer
#10 Ring Terminal Vehicle Frame
Scrape paint and clean area before installing ground screw.
A loose chassis ground connection WILL cause
intermittent operation!
Chassis Ground
2 Amp
Logic Fuse
J2-1
J2-2
J2-3
J2-4
J2-5
J2-6
J2-7
J2-8
J2-9
J2-10
J2-11
J2-12
J2-13
J2-14
J1-1
J1-2
J3-1
J3-2
J3-3
J3-4
J3-5
J3-6
+12V
+12V
GROUND
+12V BATTERY
GROUND
+12V BATTERY
+12V BATTERY
+12V
+12V
+12V
+12V
+12V
+12V
+12V
+12V
GROUND
+12V
+12V
+12V
+12V
+12V
+12V
INPUT
INPUT
INPUT
INPUT
INPUT
INPUT
INPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
INPUT
INPUT
INPUT
INPUT
INPUT
INPUT
INPUT
INPUT
N/A
N/A
500mA
500mA
5 A
5 A
5 A
5 A
5 A
5 A
5 A
5 A
5 A
5 A
30 A
30 A
Installation
OPTIONAL J1 POWER CONNECTOR
Antenna Installation
1. The antenna must be installed in an open, non-metal
area in order to receive RF (radio frequency)
transmissions.
2. RF transmissions are reduced if antenna is:
A) within 6 feet of a large motor
B) near large bundles of wires
C) near other RF devices
D) touching any metal
OPTIONAL J3 SWITCH INPUT CONNECTOR
NOTE
Standard:
Switch control 1 - 6.
Fail Safe Option:
Direct relay coil
control 1 - 6.
STANDARD J2 CONNECTOR
FUNCTION DESCRIPTIONPIN # VOLTAGE I / OCURRENT
J1
J3
High Current - 30 Amp
(not used in standard installation)
Fixed (standard) or Removable Antenna (optional)
J2 J2-1
J2-2
J2-3
J2-4
J2-5
J2-6
J2-7
J2-8
J2-9
J2-10
J2-11
J2-12
J2-13
J2-14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
SWITCH INPUT A1
SWITCH INPUT A2
GROUND
+12V BATTERY
GROUND*
+12V BATTERY
+12V BATTERY
+12V - OUTPUT # 1
+12V - OUTPUT # 2
+12V - OUTPUT # 3
+12V - OUTPUT # 4
+12V - OUTPUT # 5
+12V - OUTPUT # 6
+12V - OUTPUT # 7
Switch Inputs B1 - B6 (not used in standard installation)
5 Amp
5 Amp
Note: All output circuits
to be appropriately fused
by the installer with 5 Amp
being the maximum fuse size.
Standard Receiver
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
12 AWG
12 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
WHT/RED
GRY/RED
BLK/WHT
RED/WHT
BLK
RED
RED
YEL
ORG
BLU
GRN
PNK
VIO
TAN
RED
BLK
YEL/BLK
ORG/BLK
BLU/BLK
GRN/BLK
PNK/BLK
VIO/BLK
GAUGECOLOR
*Reversal Rest @ Ground
Typical Application
PowerTouch Remote Control Systems - 1000 Series (2 - 6) Functions Page -3-
Limited One (1) Year Warranty
1) Each individual product is warranted under the TouchTronics Limited Warranty program for 1 full year from date of purchase or a
maximum of 2 years from the date of manufacture.
2) No product will be covered under the TouchTronics Limited Warranty program that has a manufacture date older than 2 years.
3) To receive technical support or warranty service, call our technical support center during regular business hours. 1-800-294-2570
4) To enable our technical support staff to better serve you, please have the following information available when you call.
Purchase
Installation
Date Of:
Dealer Name
Dealer Phone
Make / Model
Vehicle Information:
Model Number
Serial Number
Product Information:
Please fill in all pertinent information at
the time of purchase or installation
TouchTronics, Inc. Warranty Policies and Procedures
Section One
Seller will warrant any product originally manufactured or assembled and sold by seller for a period of up to TWO YEARS (24 months) from the original date of manufacture or ONE YEAR (12 months) from the original retail
sale or O.E.M. in-service date.
Section Two
The following are in lieu of all warranties; expressed; implied; or statutory, including but not limited to, any implied warranty of merchantability of fitness for a particular purpose and of any other warranty obligation on the part of
seller. Seller, except as otherwise hereinafter provided, warrants the goods against faulty workmanship or defective materials for a period of up to TWO YEARS (24 months) from the original date of manufacture or ONE YEAR (12
months) from the original retail or O.E.M. in-service date.
Seller’s sole and exclusive liability shall be (at seller’s option) to repair; replace; or credit buyer for such goods which are returned by buyer during the applicable warranty period set forth above, provided that (I) seller is promptly
notified in writing or by phone upon discovery by buyer that such goods failed to conform and an explanation of any alleged deficiencies, (II) such goods are returned to seller, (III) sellers examination of such goods shall disclose that
such alleged deficiencies actually exist and were not caused by accident, misuse, neglect, alteration, improper installation, unauthorized repair or improper testing. If seller elects to repair or replace such goods, seller shall have a
reasonable time to make such repairs or replace such goods.
Seller’s warranties as herein above set forth shall not be enlarged, diminished, or affected by, and no obligation or liability shall arise or grow out of, sellers rendering of technical advice or service.
Damage to products caused by the customer or during installation cannot be claimed under this warranty. All devices returned that are not covered under the seller’s warranty policy, will be charged a minimum of $25.00 for evaluation
plus additional charges for components and labor to repair the device not to exceed the original selling price. Seller considers the following to be typical examples of customer or installation damage: burned or broken traces on the
printed circuit board, burned or damaged components, dirt or water residue on the printed circuit board or inside the case, modifications by the customer, broken cases or housings and dead batteries
Section Three
A return material authorization number (RMA) must be issued by seller before any product is returned for evaluation or repair. Warranty repairs must be completed at authorized repair facilities.
Warrantypolicy1 rev a.doc
01.01.03 rev a
09.30.98 rev int
Effective January 1, 2003
© 2005 TouchTronics, Inc. All Rights Reserved. TouchTronics, the TouchTronics logo, and other TouchTronics marks are owned by TouchTronics and may be registered. TouchTronics assumes no responsibility for any
errors that may appear in this manual. Information contained herein is subject to change without notice.
FCC Compliance and Advisory Statement. This hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this
device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1)
reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult
the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where
shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure
compliance with FCC regulations.
Canadian DOC Statement. This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus specified in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-
003 of the Department of Communications.
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference
that may cause undesired operation of the device.
© 2005 TouchTronics, Inc. Tous droits réservés. TouchTronics, le logo TouchTronics et les autres marques TouchTronics sont la propriété exclusive de TouchTronics et sont susceptibles d'être des marques déposées. Toutes
les autres marques sont la propriété exclusive de leurs détenteurs respectifs. TouchTronics décline toute responsabilité en cas d'erreurs dans ce manuel. Les informations énoncées dans le présent document peuvent faire
l'objet de modifications sans avis préalable.
Déclaration FCC. Cet équipement a été testé et déclaré conforme à la section 15 du règlement de la FCC. Son fonctionnement est soumis aux conditions suivantes: 1) l'équipement concerné ne doit pas causer d'interférences
dangereuses, et 2) il doit accepter toute interférence reçue, y compris les interférences risquant d'engendrer un fonctionnement indésirable. Cet équipement a été testé et déclaré conforme aux limitations prévues dans le cadre
de la catégorie B des appareils numériques défini par la section 15 du règlement de la FCC. Ces limitations sont stipulées aux fins de garantir une protection raisonnable contre les interférences gênantes en installation
résidentielle. Cet équipement génère, utilise et diffuse des ondes radio, et s'il n'est pas installé ni utilisé en conformité avec les instructions dont il fait l'objet, peut causer des interférences gênantes avec les communications
radio. Cependant, nous ne pouvons vous garantir qu'une interférence ne se produira pas dans une installation particulière. Si cet équipement produit des interférences graves lors de réceptions radio ou télévisées qui peuvent
être détectées en allumant et en éteignant l'équipement, vous êtes invités à les supprimer de plusieurs manières: 1) Réorienter ou déplacer l'antenne de réception; 2) Augmenter la distance séparant l'équipement et le récepteur
3) Connecter l'équipement à un circuit différent de celui auquel le récepteur est connecté; 4) Contacter votre revendeur ou un technicien radio/TV qualifié. Toutes modifications ou tous changements effectués sans l'accord
exprès de la partie responsable de la conformité aux normes pourraient contraindre l'utilisateur à ne plus utiliser son équipement. Afin d'assurer la conformité avec les règlements FCC, les câbles d'interface blindés fournis
avec le produit doivent être utilisés, ainsi que tout autres composants ou accessoires également spécifiés, lors de l'installation du produit.
Déclaration du Ministère des Communications Canadien. Cet appareil numérique est conforme aux limitations concernant l'émission d'interférences radio par des appareils numériques de catégorie B, telles que stipulées dans
le cadre de la norme Appareils numériques ICES-003 édictée par le Ministère canadien de l'industrie.
Cet équipement a été déclaré conforme à la norme RSS-210 édictée par le Ministère canadien de l'industrie. Son fonctionnement est soumis aux conditions suivantes: 1) l'équipement concerné ne doit pas causer
d'interférences, et 2) il doit accepter toute interférence reçue, y compris les interférences risquant d'engendrer un fonctionnement indésirable.
Technical Support Via Web Site / Email
www.touchtronics.com
Techsupport@touchtronics.com or
‘Contact Request’ link on the web page
Technical Support Numbers
Indiana Local 1-574-294-2570
Toll Free 1-800-294-2570
Fax 1-574-293-1611
Sales Support
Phone 1-800-294-2570
Fax 1-574-293-1611
Email sales@touchtronics.com
PowerTouch Remote Control Systems - 1000 Series (2 - 6) Functions Page -4-
