Touchtronics 1500B Base Station for Passive Authorization User Manual Exhibit D Users Manual per 2 1033 b3
Touchtronics Inc Base Station for Passive Authorization Exhibit D Users Manual per 2 1033 b3
Exhibit D Users Manual per 2 1033 b3

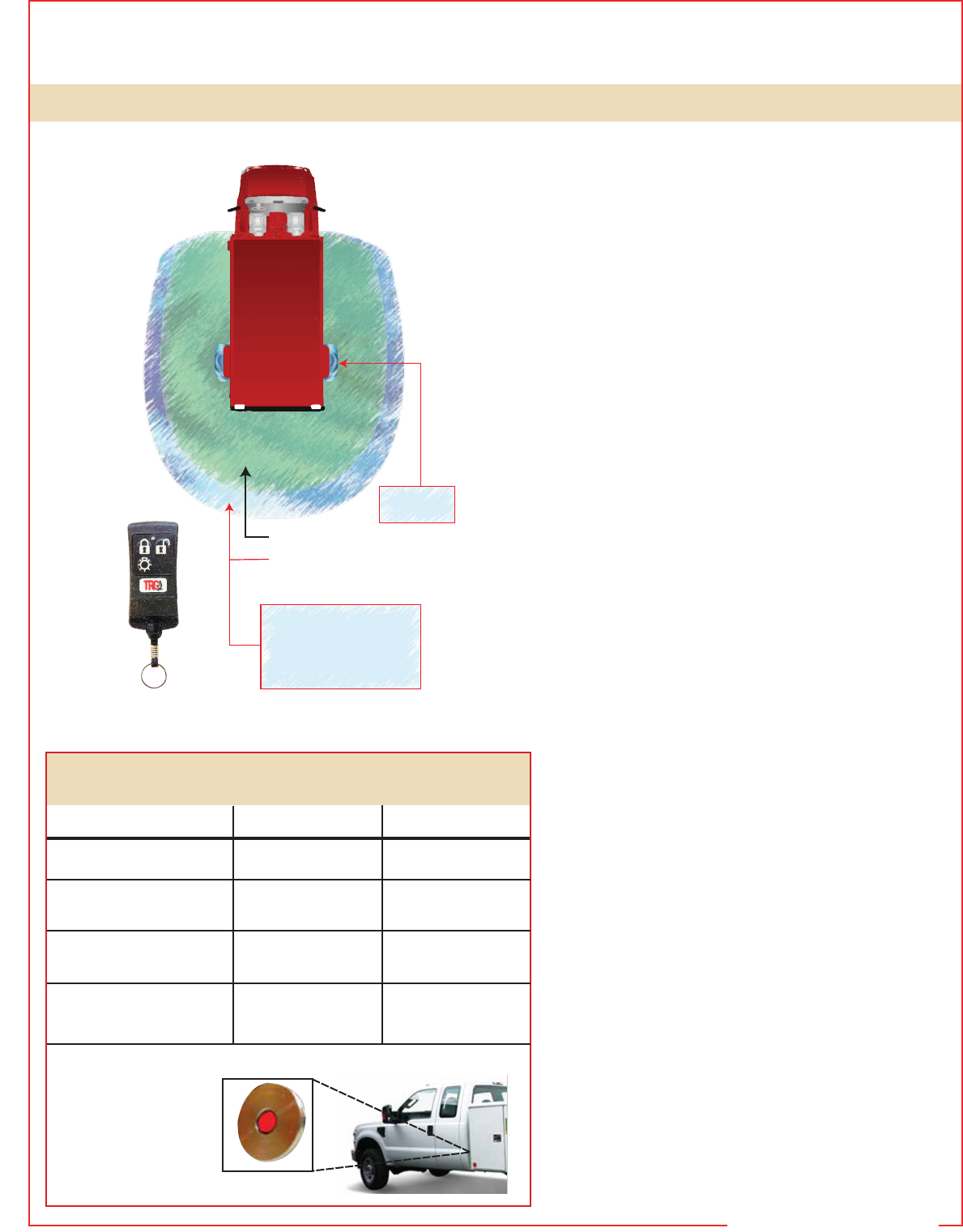

HotFob
8 FT
8 FT
5 FT
8 FT
Eddy Field - Range
(Typical 12-18 inches)
SmartShield Zone
3 FT
5 FT
3 FT
Unlock
• Anyme HotFob enters SmartShield Zone
• Press HotFob Unlock buon
• Audible Confirmation: Double Chirp
Lock ONLY - Any Door Open
• Press HotFob Lock buon - Doors Lock
• NO Audible Confirmation
Lock and Arm
• Anyme HotFob exits SmartShield Zone
AND all doors are closed (5-seconds)
• Press HotFob Lock buon (All doors closed)
• Audible Confirmation: Single Chirp
No Lock
• Anyme HotFob exits SmartShield Zone
AND door open
• HotFob exits SmartShield Zone and extra
Fob detected in zone
• Audible Confirmation: None
SmartShield OFF (Manual)
• Press AND Hold Lock & Unlock buttons
on FOB for 3-seconds
• Audible Confirmation: 10 Chirps
SmartShield ON (Automatic)
• Press AND Hold Lock & Unlock buttons
on FOB for 3-seconds
• Audible Confirmation: 10 Chirps
Eddy Field
• HotFob detected in Eddy Field can cause
intermittent Lock / Unlock events
Cargo Light - ON
• Any time doors Unlock and door is open
• Press HotFob Cargo Light button
Cargo Light - OFF
• Timer - 10-minutes
• Any time doors Lock
• Press HotFob Cargo Light button
**Eddy Field range may
vary +/- 10% based
on truck body install
Wheel-well
Eddy Field
Truck Cab
Truck Body
HANDS FREE Operating Instructions
LATCHMATIC
©
-SMARTSHIELD
Status LED / Alarm -- Audible & Visual Indiactors
LATCHMATIC
©
LATCHMATIC
©-
S
MART
S
HIELD
&
Event
Compartment Doors
Locked / Armed
Compartment Doors
Unlocked / Unarmed
Alarm Triggered
Compartment doors
lock, one door open
NOT armed
Visual Indicator
Single Flash
Every 5-seconds
Double Flash
One (1) time
Rapid Flashing
Until disarmed
No Flash
Audible Indicator
Single Chirp
Double Chirp
Siren Sounds
3-minutes
No Chirp
Status LED
Option on some
truck body models
NST11872-1.ai Rev K 2013-12-02 pg -2-
LATCHMATIC
©
Fob
Truck Cab
Truck Body
Unlock
• Press Unlock button
• Audible Confirmation: Double Chirp
Lock & Arm
• Press Lock button (All doors closed)
• Audible Confirmation: Single Chirp
Lock
• Press Lock button (All doors closed)
• Audible Confirmation: Single Chirp
*Any door open - No Audible Confirmation
Cargo Light - ON
• Press Unlock button
• Press Cargo Light button
Cargo Light - OFF
• Timer - 10-minutes
• Press Door Lock button
• Press Cargo Light button
Operating Instructions
Enrolling New Transponder / Transmitter FOB for both
LatchMatic SmartShield Base Station and LatchMatic Receiver
To place Base Station or Receiver into LEARN mode (*Recommended*)
a. Remove fuse at truck battery and replace
b. Within 5-seconds, press any button on transponder or transmitter
c. Wait 5-seconds, press any button on transponder or transmitter
The corresponding fuction should operate if FOB was enrolled successfully
OR
To place Base Station or Receiver into LEARN mode
a. Open brain box cover
b. Remove and replace 7.5 amp logic fuse
c. Within 5-seconds, press any button on transponder or transmitter
d. Wait 5-seconds, press any button on transponder or transmitter
The corresponding fuction should operate if FOB was enrolled successfully
Transmitter
Fob
Code Enrollment
LATCHMATIC
©
LATCHMATIC
©-
S
MART
S
HIELD
&
Transponder
HotFob
NST11872-1.ai Rev K 2013-12-02 pg -3-
