User’s Manual
for the
2015XLS
Virtual Window™
Virtual Window™ is a trademark of Dimension Technologies Inc. Rochester, N.Y. The contents
of this manual are for informational purposes only and are subject to change without notice.
Table of Contents
1. INTRODUCTION....................................................................................................................................... 1
2. INSTALLATION........................................................................................................................................ 2
2.1. ITEMS INCLUDED WITH YOUR DTI VIRTUAL WINDOW™............................................................................ 2
2.2. CONNECTION OVERVIEW ........................................................................................................................... 2
2.3. COMPUTER CONNECTIONS ......................................................................................................................... 3
2.4. VIDEO CONNECTIONS ................................................................................................................................ 3
3. GENERAL OPERATION .......................................................................................................................... 5
3.1. INTRODUCTION ......................................................................................................................................... 5
3.2. 3D CONTROLS .......................................................................................................................................... 6
3.3. IMAGE ADJUSTMENT CONTROLS ................................................................................................................ 6
3.3.1. Button Reference............................................................................................................................. 7
3.3.2. Main Menu...................................................................................................................................... 7
3.4. FUNCTION................................................................................................................................................. 8
3.5.OPERATING PROCEDURE ............................................................................................................................ 9
3.6.SCREEN IMAGE ADJUSTMENT................................................................................................................... 10
4. CARE AND HANDLING ......................................................................................................................... 11
4.1. HANDLING .............................................................................................................................................. 11
4.2. ENVIRONMENT........................................................................................................................................ 11
5. MAINTENANCE...................................................................................................................................... 12
6. SPECIFICATIONS................................................................................................................................... 13
6.1. ENVIRONMENTAL .................................................................................................................................... 13
6.2. INTERFACES ............................................................................................................................................ 13
6.2.1. VGA.............................................................................................................................................. 13
6.2.2. Video ............................................................................................................................................ 13
6.2.3. Serial ............................................................................................................................................ 13
6.2.4. Stereo Sync. .................................................................................................................................. 13
6.3. ELECTRICAL............................................................................................................................................ 13
6.4. SCREEN................................................................................................................................................... 13
FCC RF
INTERFERENCE STATEMENT
NOTE :
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio, TV technical for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved
by the grantee or manufacturer could void the users authority to operate such equipment.
Virtual Window User’s Guide 1
1. Introduction
The 2015XLS Virtual Window™ sets a new benchmark in autostereoscopic viewing. The Virtual
Window™ produces clear, bright, full-color stereoscopic images that can be seen without the aid
of restrictive viewing devices. With its wide-view autostereoscopic imagery, the Virtual
Window™ will allow for many hours of convenient and comfortable 3D viewing. Stereoscopic
3D imagery, as well as viewing software, is provided with the display.
The Virtual Window™ contains precisely aligned optical components. It is important to exercise
care when handling or moving the display. Be sure to read the Care and Handling section of this
manual, and follow the recommendations provided.
Note that two features described in this manual are optional. Side-by-side stereo support, when
using a computer signal, is one such feature. The other is support for one-channel and two-
channel video.
The remainder of this manual describes the installation, operation, and maintenance of the Virtual
Window™ display. Please read the pertinent sections of this manual before installing and
operating the unit. If you encounter any problems with your Virtual Window™, or have any
questions about operating the unit to deliver the best possible performance, please feel free to
contact DTI Technical Support. Contact information should be provided with your purchase
agreement.
In the event that this unit is defective or damaged, purchaser agrees not to open the unit; rather, it
agrees to return the unit to DTI for repair or replacement at purchaser’s expense. If purchaser
does not agree to these terms of sale, it will return the unit to DTI prior to its use of the unit.
Virtual Window User’s Guide 2
2. Installation
NOTE: Please see the “2015XLS Quick-Start Guide” for an illustrated one-page computer
installation guide.
2.1. Items Included With Your DTI Virtual Window™
Your Virtual Window™ is shipped with the following:
• One “DTI Virtual Window™ Quick Start Guide”
• One User Manual (which you are now reading)
• One standard power brick and power cord
• One display interface cable (VGA male to VGA male)
• One serial (RS-232) cable
• A CD-ROM containing PC software for your Virtual Window™
If any of these items appear to be missing, please contact DTI. Contact information can be found
in the “2015XLS Quick-Start Guide.”
2.2. Connection Overview
NOTE: When attaching cables to your Virtual Window, or detaching existing cables, the display
should always be turned off first.
* Video signal inputs are optional. Some models are not applicable for this feature.
The following picture shows the connections on your 2015XLS’s rear panel, along with labels for
each:
The following provides a overview of each connection:
• The ‘VESA Stereo Sync.’ connector is used for Frame Sequential stereo. The stereo sy77nc.
signal, utilized by workstations and high-end PC graphics accelerators, allows your Virtual
Window to recognize which incoming frames are left-eye frames, and which are right-eye
frames.
• The ‘S-Video’ connectors are used for video input. For single-channel video (for example,
from a VCR), the left-hand connector is used for video input.
For dual-channel video, the left-hand connector is used to connect the left-eye camera, while
the right-hand connector is used to connect the right-eye camera.
• The ‘BNC’ connectors are also used for video input; you can use these as an alternative to the
S-Video connectors, if you have a composite video source.
Virtual Window User’s Guide 3
NOTE: You cannot use the S-Video and BNC video inputs simultaneously.
• The ‘Power’ connector is used to connect the power supply to your Virtual Window.
• The ‘VGA’ connector is used to connect your computer system to your Virtual Window.
Your display requires a VESA-compliant, 60 Hz, 1024x768 signal to operate properly.
• The ‘Serial RS-232’ connector is used with the included PC software. The connection allows
the software to automatically switch your display between 2D and 3D modes. It is not needed
for 3rd party software, or other types of computer systems.
2.3. Computer Connections
Before connecting your 2015XLS to your computer system, please configure your system to
display a resolution of 1024x768, using a 60 Hz refresh rate. If you are not sure how to
accomplish this task, please ask your System Administrator for assistance.
To interface your computer system to your 2015XLS, please follow these steps:
• Make sure your 2015XLS is powered off.
• Connect the display cable to your 2015XLS’s VGA connector, as well as your computer
system.
• If you will be using Frame Sequential stereo, connect the stereo sync. cable to your 2015XLS,
along with your computer system.
• Turn the display on.
Note that the 2015XLS defaults to 2D computer input mode. To switch to 3D viewing, press the
‘Select 3D’ button on the front panel to enable the desired stereo mode.
When using Frame Sequential stereo, your computer system must be configured for 60 Hz
display. Other frame rates will not work correctly.
2.4. Video Connections ( This feature depends on the model.)
Note: Video inputs are optional. Some models might not have this feature.
If you purchased the video option with your 2015XLS, you can display one-channel and two-
channel stereo video. This section describes how the video support operates.
To use one-channel video:
• Make sure your 2015XLS is powered off.
• For S-Video: Connect the S-Video cable between your video source (a VCR for example),
and the left-hand S-Video connector.
Virtual Window User’s Guide 4
• For BNC: Connect the BNC cable between your video source and the left-hand BNC
connector.
• Power the display on.
• Press the ‘Select 3D’ button until you have switched the display to the proper stereo mode.
Note that the ‘video’ light should be on, in addition to one of the stereo mode lights. If the
‘video’ light is on only, you are in two-channel video mode; continue pressing the ‘Select 3D’
button until you have selected the desired mode.
• To view the video source in 2D, press the ‘2D’ button.
• To switch back to computer input mode, press the ‘Select 3D’ button until one of the
computer stereo modes are active.
• Finally, press the ‘2D’ button to switch back to 2D mode.
Two-channel video works in a similar manner to one-channel video. However, please note that
the two video sources should be synchronized (gen-locked). If they are not, one video source
may “roll” horizontally and/or vertically, while the other remains stable.
To use two-channel video, please follow these steps:
• Make sure your 2015XLS is powered off.
• For S-Video: Connect the left-eye video source’s S-Video cable to the left-hand S-Video
connector; connect the right-eye video source’s S-Video cable to the right-hand S-Video
connector.
• For BNC: Connect the left-eye video source’s BNC cable to the left-hand BNC connector;
connect the right-eye video source’s BNC cable to the right-hand BNC connector.
• Power the display on.
• Press the ‘Select 3D’ button until you have switched the display to two-channel video mode.
Note that the ‘video’ light should be on, with all stereo mode lights off. If a stereo mode light
is on in addition to the ‘video’ light, you are in one-channel video mode; continue pressing the
‘Select 3D’ button until you have enabled two-channel video mode.
• To switch back to computer input mode, press the ‘Select 3D’ button until one of the
computer stereo modes are active.
• Finally, press the ‘2D’ button to switch back to 2D mode.
Virtual Window User’s Guide 5
3. General Operation
3.1. Introduction
One of the main advantages of the Virtual Window™ is the ability to comfortably view
autostereoscopic 3D images for extended periods.
Here are some guidelines to facilitate comfortable and efficient viewing:
• The optimal viewing position is centered with respect to the screen, approximately 31" away
from the eye.
• Tilt the display back approximately six degrees.
• When possible, avoid placing the Virtual Window™ where there will be a bright light source
behind the viewer. This could result in glare and unwanted reflections.

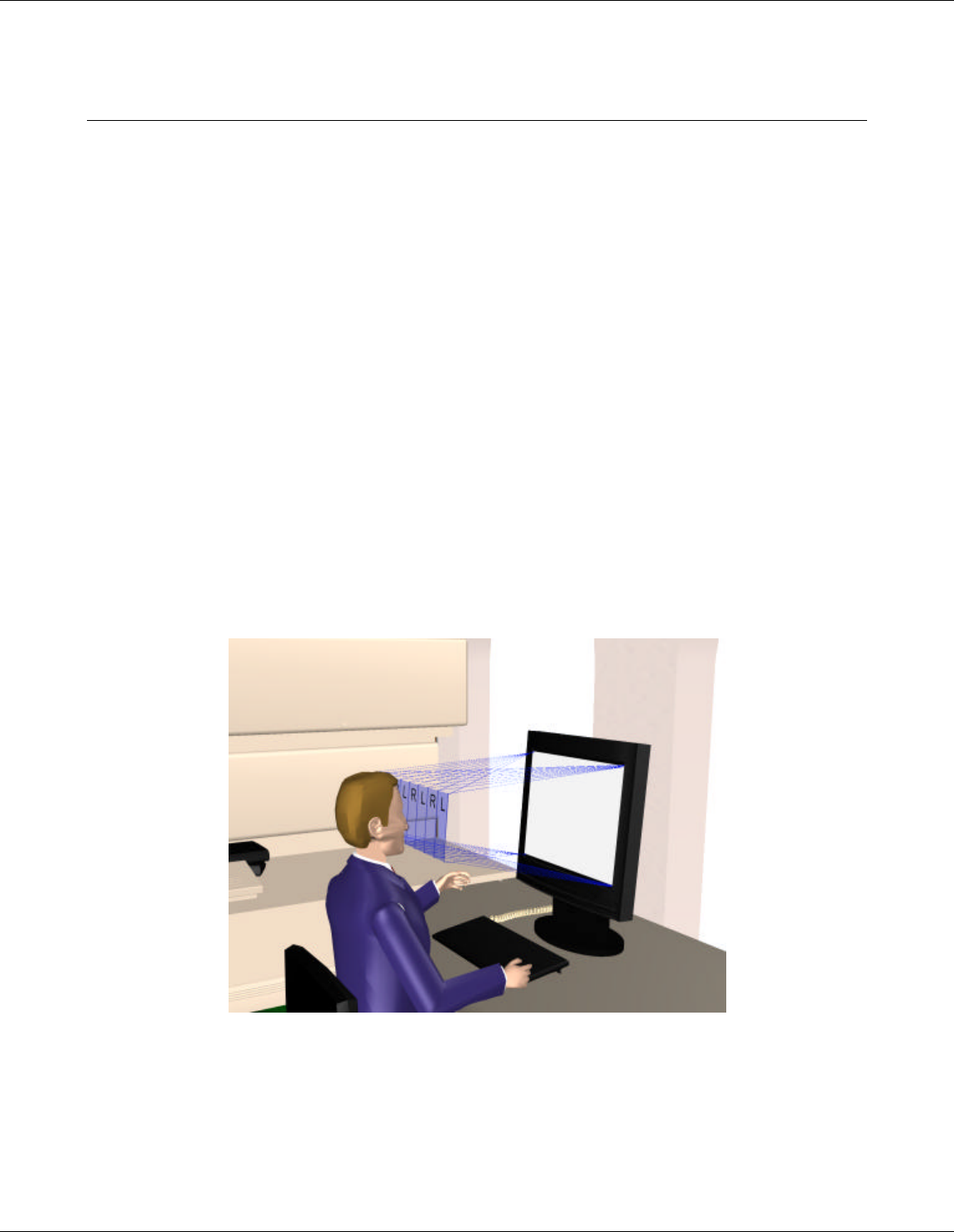

The Virtual Window™ creates a series of autostereo zones in front of the screen. There are three
to four autostereo zones to either side of the T-on position, at about 31” from the display. The
good viewing zones are interleaved with pseudo stereo zones where the image is reversed. When
your eyes are correctly positioned in an autostereo zone, the Virtual Window™ casts a left image
into the left eye and a right image into the right eye. This results in the perception of a
stereoscopic image.
The zones are illustrated in the following diagram:
Virtual Window User’s Guide 6
3.2. 3D Controls
The Virtual Window 3D controls are located on the bottom-right of the display fascia. There are
three buttons, along with a number of indicator lights.
• “Select 3D” toggles between the available stereo modes. The lights to the right of this button
depict which stereo mode is currently active.
• “Reverse 3D” will provide stereo reversal of the image, when operating in 3D mode. When
this function is active, the indicator light above this button will be lit.
• Finally, the “2D” button will toggle between 2D and 3D mode. 2D mode, when enabled, is
denoted by the light above the button.
The available stereo modes include:
For video input:
• Dual-channel video (‘Video’ light on, with no stereo mode lights on)
• Single-channel video:
• Field Sequential (‘Video’ light on, along with ‘F/S’ light)
• Side-by-Side (‘Video’ light on, along with ‘S/S’ light)
• Top-and-Bottom (‘Video’ light on, along with ‘T/B’ light)
For computer input:
• Frame Sequential (‘Fr/S’ light on)
• Field Sequential (‘F/S’ light on)
• Side-by-Side (‘S/S’ light on)
• Top-and-Bottom (‘T/B’ light on)
Note that there are two sets of single-channel video modes: full-screen (scaled), and windowed
(unscaled). The full-screen mode provides a larger image, while the windowed mode provides a
sharper image, with no scaling.
3.3. Image Adjustment Controls
Your Virtual Window provides a full set of image adjustment controls, accessed via the button
grouping on the bottom-left area of the display fascia. The controls are augmented by a full on-
screen display, to aid you in changing the different settings. Note that the display must be
powered-on and operational in order to use these controls.
If you make changes to any of the following settings, they are saved in non-volatile memory in
your Virtual Window. As such, the display “remembers” your settings when powered off and
back on again.
Virtual Window User’s Guide 7
3.3.1 Button Reference
‘Menu’ Button
- With pressing the button once, the OSD Screen comes on Menu Button is used when
exits
upper Menu after adjusting each Menu. The parameter value adjusted is automatically
saved.
‘UP/DOWN’ Button
- UP/DOWN : Used for adjusting Menu position
‘PLUS(+)/MINUS(-)’ Button
- Used for increasing or decreasing parameter value.
- Used for selecting Menu being adjusted.
‘Power’ ON/OFF Button
- ON/OFF : LCD SCREEN
3.3.2 Main Menu
The following screen is shown with pressing Menu Button.
1024 X 768 60HZ
BRIGHTNESS
CONTRAST
MANUAL TRACKING
MISC FUNC
INFORMATION
INPUT SELECT
RECALL
CLEAR EEPROM
AUTO CONFIG
FBL AUTO TUNNING
Virtual Window User’s Guide 8
3.4 Function
• BRIGHTNESS : Adjusts the black level of the backlight.
• CONTRAST : Adjusts the contrastratio of the image.
• MANUAL TRACKING :
MANUAL TRACKING
H SIZE POSITION
H POSITION ADJUST
V POSITION ADJUST
PHASE ADJUST
- H SIZE ADJUST : Adjusts the value of clock per Line.
- H POSITION ADJUST : Adjust Horizontal position.
- V POSITION ADJUST : Adjusts Vertical position.
- PHASE ADJUST : Adjsuts RGB GAIN.
• MISC FUNC : Adjusts RGB GAIN
MISC FUNC
EDGE FILTER
ADC R GAIN
ADC G GAIN
ADC B GAIN
ADC R OFFSET
ADC G OFFSET
ADC B OFFSET
- EDGE FILTER : Reserved
- ADC R GAIN : Reserved
- ADC G GAIN : Reserved
- ADC B OFFSET : Reserved
- ADC R OFFSET : Reserved
- ADC G OFFSET : Reserved
- ADC B OFFSET : Reserved
• INFORMATION : Indicates the information of the present Mode.
Virtual Window User’s Guide 9
• INPUT SELECT : Selects input source
INPUT SELECT
VGA
VIDEO IN
RETURN
- VGA : Uses for displaying VGA signal.
- VIDEO IN : Reserved
- RETURN : Returns to upper Menu.
- CLEAR EEPROM : Clears EEPROM datum.
- RETURN : Returns to upper Menu.
- RECALL : Sets all the values to be DEFAULT Value.
• AUTO CONFIG :
AUTO CONFIG
AUTO ADJUST
AUTO TRACKING
AUTO POSITION
AUTO GAIN
RETURN
- AUTO ADJUST : Automatically adjusts the screen position, the screen focus and
RGB GAIN for sharpening the image.
- AUTO TRACKING : Automatically sharpens the screen focus.
- AUTO POSITION : Automatically sets the screen position to be the best.
- AUTO GAIN : Automatically sets RGB gain to be the best.
• FBL AUTO TUNNING : Adjusts the screen image from FRAME BUFFER LESS.
FBL AUTO TUNNING
FBL AUTO ADJUST
FBL FINE
- FBL AUTO ADJUST : Automatically sets the screen image to be the best
from FRAME BUFFER LESS.
- FBL LINE : Adjusts the screen image in specific manually.
3.4 Operating procedure (6-Button)
- With pressing Menu Button, Main Menu displayed.
- Select Menu by pressing UP/DOWN Button, then press PLUS or MINUS Botton.
Virtual Window User’s Guide 10
- With pressing PLUS or MINUS Button, adjust the value as you want.
- With pressing Menu Button, it returns to the upper Menu.
- With pressing Menu Button from Main Menu, the screen exits after saving the
adjusted values.
3.5 Screen Image Adjustment
- With pressing Menu Button, Main Menu displayed.
- Select FBL AUTO TUNNING by pressing UP/DOWN Button, then press PLUS
or
MINUS Button.
- Select FBL AUTO ADJUST
1. The screen is OFF, then it appears within few seconds.
2. In case the screen gets pressed out of shape, try again.
3. If not satisfied with automatic adjustment, adjust the image manually by
pressing FBL LINE.
- Select AUTO CONFIG from Main Menu by pressing Menu Button for a moment.
- Select AUTO ADJUST, then press PLUS/MINUS Button.
1. Automatically adjusts the screen position, the screen focus and RGB gain.
2. In case that the lines appear horizontally, select MANUAL TRACKING first
from Main Menu and select PHASE ADJUST next, and then adjust Parameter
values by using PLUS or MINUS Button.
3. In case that the screen overlaid horizontally, select MANUAL TRACKING
first from Main Menu and select H SIZE ADJUST next, and then adjust
parameter values by using PLUS OR MINUS BUTTON
4. With pressing MENU Button for a moment, Main Menu displayed.
5. With pressing MENU Button from Main Menu, the screen exits after saving
the adjusted values.
Virtual Window User’s Guide 11
4. Care and Handling
4.1. Handling
The DTI Virtual Window™ contains carefully aligned optical components. A severe shock can
damage or misalign the unit, resulting in degraded performance or unit failure. If you exercise
care when handling the unit, your Virtual Window™ should remain trouble-free.
4.2. Environment
The Virtual Window™ works best at room temperature. Temperatures other than room
temperature may affect system performance. Do not operate the unit at ambient temperatures
lower than 10º C (50º F) or higher than 30º C (86º F).
Some other general guidelines:
• Avoid humid environments.
• As with all electronics, exercise caution with liquids. The display is not waterproof.
• Never bypass the grounding prong on the power cable.
Virtual Window User’s Guide 12
5. Maintenance
The DTI Virtual Window™ does not require regularly scheduled maintenance. Instead,
maintenance should be performed on an as-needed basis.
For cleaning the Virtual Window™ screen, best results can be achieved with a soft tissue and
distilled water. Dampen the tissue and gently wipe the screen in straight, even strokes. Be careful
not to leak water into the Virtual Window™. Clean the sides and back of the Virtual Window™
with a damp cloth and mild soap.
Virtual Window User’s Guide 13
6. Specifications
6.1. Environmental
Ambient Temperature:
Storage/Shipping +4º to +50º C (+39º to +122º F)
Operating +10º to +30º C (+50º to +86º F)
Ambient Relative Humidity:
Storage/Shipping 5% to 95% RH
Operating 8% to 80% RH
6.2. Interfaces
6.2.1. VGA
Analog RGB, 15-pin, accepting VESA-compliant signals.
6.2.2. Video
S-Video and BNC connectors, accepting NTSC or PAL signals.
6.2.3. Serial
Standard RS-232, 9-pin connector.
6.2.4. Stereo Sync.
VESA Stereo Sync. connector, accepting a VESA-compliant stereo sync. signal.
6.3. Electrical
Voltage: 95 to 240V 50/60Hz
Average Power Consumption: 35W
6.4. Screen
LCD Type: Active Matrix/TFT
Contrast Ratio: 230:1
Brightness: 180 cd/m2 in 3D, 58 cd/m2 in 2D
Screen Size: 15.1" Diagonal
Resolution, 2D Mode: 1024 x 768
Resolution, 3D Mode: 512 x 768
Viewing Distance: 31” ± 5”
