QUICK REFERENCE GUIDE
00505QRG164RUN
Printed in U.S.A. 8/15
15-TCS- 08592
2016
CUSTOMER EXPERIENCE CENTER
1-800 -331- 4331
4RUNNER
41
NOTES
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new 4Runner.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of 4Runner
operations. Every 4Runner owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2016
4Runner
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
1
INDEX
1 Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Gentex Corporation.
Engine maintenance
8
Fuel tank door and cap 6
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1
6
Smart Key system1 7
Air Conditioning/Heating 18
Audio 20
Auto lock/unlock1,2
9
Automatic running boards 19
Automatic Transmission 9
Bluetooth® Device Pairing Section 28-37
Clock 14
Cruise control 17
Four-wheel drive 10
Garage door opener (HomeLink®)3 19
Light control-Instrument panel
15
Lights1 & turn signals 16
Moon roof1 14
Parking brake 9
Power outlets-12V DC 22
Power outlets-120V AC 21
Seat adjustments-Front 11
Seat adjustments-Second row seats 11
Seat ventilators/heaters
19
Seats-Folding down second row seats 12
Seats-Head restraints 13
Seats-Returning third row seats 13
Seats-Stowing third row seats 13
Tilt and telescopic steering wheel 10
USB/AUX port 21
VSC OFF button 15
Windows1 14
Window-Back window1 15
Windshield wipers & washers
17
Door locks
23

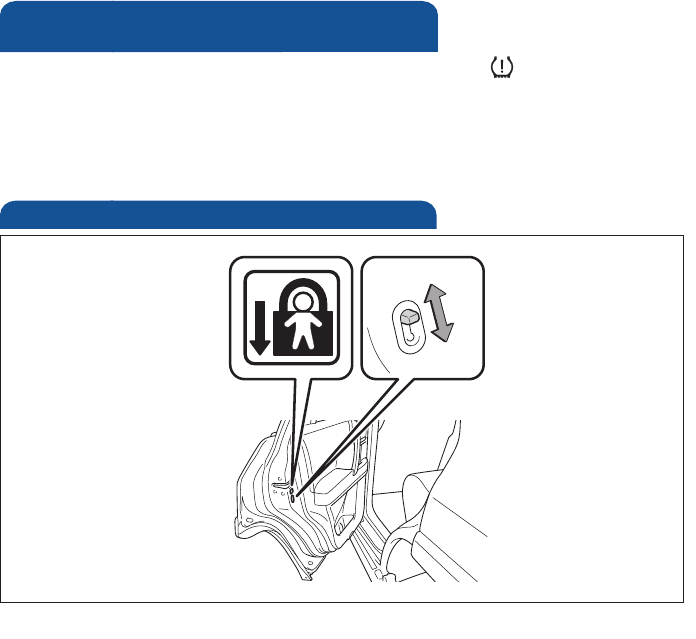

Doors-Child safety locks 24
Floor mat installation 27
Seat belts 23
Seat belts-Shoulder belt anchor 23
Spare tire & tools 25
Star Safety System
TM
26-27
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
2
Steering wheel audio controls2
Voice command button2
Telephone switches2
Cruise control
“DISP” switch
Back window and outside rearview mirror defogger switch
VSC off switch
Active traction control switch1
Downhill Assist Control system (DAC) switch1
Rear differential lock switch1
Multi-terrain Select switch1
Crawl Control switch1
Headlight, turn signal and front fog light controls
Wiper and washer controls
Emergency flasher switch
Accessory meter1/Outside temperature display
Audio system2/navigation system2
AUX/USB port2
Seat heater1/ventilator switches1
OVERVIEW
Instrument panel
Steering wheel controls
Center console box
Manual Air Conditioning Automatic Air
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
3
Overhead console instrument panel
Power outlet
Front-wheel drive control lever1
Front-wheel drive control switch1/Four-wheel drive control switch1
“ENGINE START STOP” button (Smart Key)1
Ignition switch (standard key)1
Tilt and telescopic steering lock release
Hood release
Power outside rearview mirror controls
Instrument panel light control
Intuitive parking assist switch and indicator1
Power outlet main switch1
Automatic running boards switch1
Windshield wiper de-icer switch1
Seat heater switch1
Power back window switch
1 If equipped
2 For details, refer to the “Navigation System Owner’s Manual.”
Conditioning
Type A Type B
Part-time 4WD
Part-time 4WD/full-time 4WD
4
OVERVIEW
Open door warning
Airbag SRS warning1,2
Tachometer
Engine coolant temperature gauge
Shift position and shift range
Fuel gauge
Speedometer
Odometer/trip meter display change button
Multi-information display
Service indicator and reminder
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Master warning1
Indicator symbols
Seat belt reminder
(alarm will sound if speed is over 12 mph)
AIR BAG ON/OFF indicator
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 For details, see “SRS airbags” Section 1-1, 2016 Owner’s Manual.
Low fuel level warning
Brake system warning1
Arrow direction indicates fuel tank door position
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
5
Low Tire Pressure Warning1
Crawl Control indicator1,5
Turn signal indicator
Front fog light indicator
Four-wheel drive indicator3,5
Low speed four-wheel drive indicator3,5
Center differential lock indicator3,5
Slip indicator1
Vehicle Stability Control OFF indicator1
Downhill Assist Control indicator1,5
AUTO Limited Slip Differential indicator1,5
Cruise control/Cruise control SET indicator4
Headlight low/high beam indicator
Anti-lock Brake System warning1
3 If this light flashes, refer to “Four-wheel drive system,” Section 4-5, 2016 Owner’s Manual.
4 If this light flashes, refer to “Cruise control,” Section 4-5, 2016 Owner’s Manual.
5 If equipped.
Multi-terrain select indicator
5
Rear differential lock indicator5
Active traction control indicator5
Power steering system warning
1
Kinetic Dynamic Suspension System indicator1,5
Engine immobilizer/Theft deterrent system indicator
Unengaged Park warning light
5
Smart Key system warning5
Eco Driving Indicator Light1
Traction Control OFF indicator1
Automatic running boards indicator1,5
6
OVERVIEW

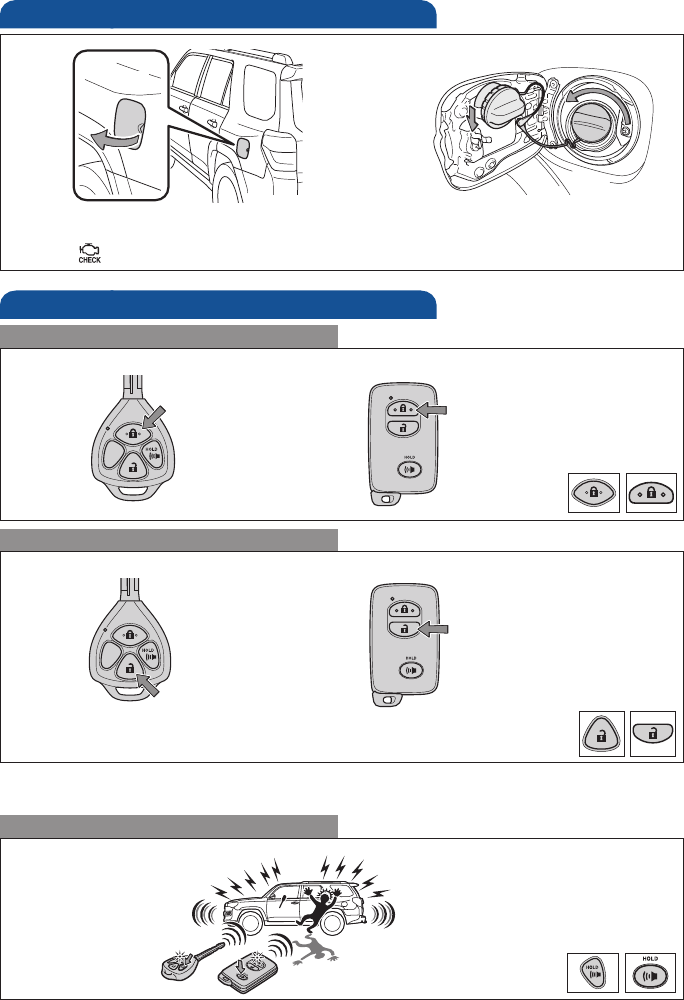

Fuel tank door and cap
Pull
Store
NOTE: Tighten until one click is heard. If the cap is not properly sealed, Check
Engine “ ” indicator may illuminate.
Keyless entry
Locking
Unlocking
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Push ONCE: Driver door
TWICE: All doors
Push
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
7
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine is not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Carry the electronic key to enable start function. Gear shift lever must be
in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Unlock
Push
Lock
Carry remote to lock/unlock/open
Back door lock/unlock/open
Open
Push
Push
Green indicator ON
Locking operation Unlocking operation
Carry remote to lock Carry remote to unlock
Front door lock Front door unlock*
Touch Grasp
8
Windshield and back window washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
Hood release
Pull
Push lever to the
left and raise hood
OVERVIEW
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
9
FEATURES/OPERATIONS
Automatic Transmission
* The ignition/“ENGINE START STOP” switch must be “ON” and the brake pedal
depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
P
R
N
D
“S” mode
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“ENGINE START STOP” switch or ignition switch OFF.
Refer to the Owner’s Manual for more details.
Parking brake
Set: Depress
Release: Depress again
10
Four-wheel drive (if equipped)
H2
Full-time four-wheel drive models
High speed (2WD)
High speed (4WD)
Shift to “H4” with speed
below 50 mph.
Low speed (4WD)
Stop vehicle, shift to “N”
position, then move the
lever to “L4.”
High speed
(center differential locked)
Low speed
(center differential locked)
Stop vehicle, shift to “N” position,
then push and turn to “L4L.”
Push “UNLOCK” button and then
push and turn the selector.
Push “UNLOCK” button and then
push and turn the selector.
H4L
L4L
Part-time four-wheel drive models
Neutral
High speed
H4F
FEATURES/OPERATIONS
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Angle
Lock release lever
Type A
Type B
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
11
Seatback angle
Seat position (forward/backward)
Driver seat: seat position, cushion angle and height
Passenger seat: seat position (forward/backward)
Seatback angle
Lumbar support (driver side only)
Seat adjustments-Front
Manual seat Power seat
Seat adjustments-Second row seats
Seat position (forward/backward)
Seatback angle
Vehicles with third row seats Vehicles without third row seats
12
FEATURES/OPERATIONS
Seats-Folding down second row seats
(1) Push
(2) Lower
(3) Stow
(5) Fold down
(4) Pull up
Without third row seats
With third row seats
(1) Push
(2) Lower
(5) Pull up
(3) Fold down
(7) Fold down
(6) Push down
(4) Stow
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
13
Seats-Stowing third row seats
(if equipped)
(1) Stow (2) Pull up
(3) Pull up
(4) Pull up
(5) Fold down
(1) Stow (2) Pull up (3) Pull up (4) Fold down
From inside
From outside
Seats-Returning third row seats
(if equipped)
(1) Raise
(2) Pull
(3) Raise
Seats-Head restraints
Front and second row
Lock release button
Second row (vehicles
without third row seats) Third row (if equipped)
14
FEATURES/OPERATIONS
Clock
H- Hour set
M- Minute set
Windows
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop the window partway, operate the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Up
Down
Window lock
switch
Moon roof (if equipped)
Sliding operation Tilting operation
Open
Close
Close
Tilt
Push once to open partway; again to
open completely.
Push once to close completely. To
stop partway, press switch lightly.
Recommended open
position to minimize
wind noise.
Driver side
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
15
Light control-Instrument panel
Operating from inside
Window-Back window
Operating from outside
Window lock switch
Open
Close
Turn and hold
Close
Open
With Smart Key system
Without Smart Key system
Close
Open
The VSC OFF button is used to switch between modes related to the TRAC, VSC
and Auto LSD (2WD) functions.
Refer to Section 4-5 of the Owner’s Manual for more information.
VSC OFF
VSC OFF button
Brightness control
+
-
Push and hold
16
FEATURES/OPERATIONS
Turn signals
Front fog lights
Front fog lights come on only when the headlights are on low beam.
Right turn
Turn
Lane change
Lane change
Left turn
Lights & turn signals
Headlights
High beam flasher
Low beam
High beam
Type B
Type A
Type C Type D
Headlights
Parking lights
Auto
OFF
Automatic light cut off system Will automatically turn lights off after a delay of
30 seconds, or the lock switch on remote may be pushed after locking.
Headlights
Parking lights
DRL ON
OFF
Headlights
Parking lights
DRL ON
Headlights
Parking lights
DRL ON
OFF
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
17
Windshield wipers & washers
Rear
Front
Interval wipe
Slow
Fast
Pull to wash and wipe
Adjust frequency*
Wash and wipe
Wipe
Interval wipe
Wash and wipe
NOTE: Rear wiper and washer operate only when back window is fully closed.
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Single wipe
Cruise control
Refer to the Owner’s Manual for more details.
Turning system ON/OFF Functions
System ON/OFF
Resume
/Increase speed
Set/Decrease speed
Cancel
Type A Type B
Interval wipe
Slow
Fast
Pull to wash and wipe
Adjust frequency* Single wipe
Wash and wipe
Wipe
Interval wipe
Wash and wipe
Type A Type B
18
FEATURES/OPERATIONS
Air Conditioning/Heating
Temperature selector (driver side)
Fan speed
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Temperature selector (front passenger side)
“DUAL” button
Indicator ON: Separate temperature settings for driver and passenger.
Indicator OFF: Synchronize temperature settings for driver and passenger.
Rear window and outside rearview mirror defoggers
Airflow vent
In “ ” mode, use outside air (“ ” indicator OFF) to reduce window
fogging. “ ” mode uses outside air only.
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Automatic Air Conditioning
Manual Air Conditioning
Fan speed
Recirculate cabin air (outside air when OFF)
Airflow vent
In “ ” mode, use outside air (“ ” indicator OFF) to reduce window
fogging. “ ” mode uses outside air only.
Rear window and outside rearview mirror defoggers
For maximum cooling. Air intake will automatically be set to recirculate.
Temperature selector
Air Conditioning ON/OFF
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
19
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Automatic running boards
(if equipped)
Garage door opener (HomeLink®)*
(if equipped)
The automatic running boards are linked to side door operation. When a side door
is opened or closed, the board on the same side extends or retracts.
ON/OFF switch
ON
OFF
Seat ventilators/heaters (if equipped)
Front
seats
Front passenger’s seat
Heater only
With ventilators
Driver’s seat
Ventilation Heat
On
20
“ ”
Use to search within the selected audio medium (radio, CD, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn audio
system OFF.
>
>
Steering wheel controls (if equipped)
FEATURES/OPERATIONS
Volume control
MAP card slot
Entune™ Audio Plus with Connected Navigation App
Entune™ Premium Audio with Integrated Navigation and App Suite
Audio (if equipped)
Refer to the “Navigation System Owner’s Manual” and “2016 Entune™ Audio Quick
Reference Guide” for instructions and more information.
Eject CD
Push to turn
ON/OFF
Seek station/
CD track
select
Push to
display
audio
screen
Turn to tune
radio stations
manually or
select tracks
or files
Push to
access
Bluetooth
hands-free
system
Touch screen display
Access to
navigation system
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
21
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
By inserting a mini plug into the USB/AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in USB/AUX
mode.
Refer to the “Navigation System Owner’s Manual” for instructions and more
information.
Type A Type B
USB/AUX port
NOTE: The 120V AC power outlet can only be used when engine is running.
Power outlets-120V AC (if equipped)
ON/OFF
Main switch
Push
Luggage compartment
22
FEATURES/OPERATIONS
NOTE: Designed for car accessories. Ignition switch/“ENGINE START STOP” switch
must be in the “ACC” or “ON” position to be used.
Power outlets-12V DC
Center panel
Luggage compartment
(with the 120V AC outlet)
Console box
Luggage compartment
(without the 120V AC outlet)
Outside
Inside
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
23
SAFETY AND EMERGENCY FEATURES
Seat belts-Shoulder belt anchor
Push up or squeeze lock
release to lower
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Door locks
Unlock
Lock
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
24
If tire pressure becomes critically low on any of the tires, “ ” indicator light
will come on. Correctly adjusting tire inflation will turn off the light after a
few minutes. If the light does not turn off, have the system checked by your
Toyota dealer.
Refer to the Owner’s Manual for more details.
Moving the lever downward will allow the door to be opened only from the outside.
Doors-Child safety locks
Rear door
Tire Pressure Monitoring (warning)
System
Unlock
Lock
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
25
Spare tire & tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end through the opening in the bumper, and into the
lowering screw.
(3) Turn the jack handle counterclockwise.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
(1)
(2) (3)
Tool bag
Jack
Spare tire
26
SAFETY AND EMERGENCY FEATURES
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can.
VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
27
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Floor mat installation
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Smart Stop Technology (SST)
Always align the ¨ marks
2828
BLUETOOTH® DEVICE PAIRING
SECTION
2929
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all Android mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.2
Initiate Bluetooth® on your Android®
STEP 1 STEP 2 STEP 3 STEP 4
From your APPS
SCREEN, select
SETTINGS
Select
CONNECTIONS and
select BLUETOOTH
Ensure
BLUETOOTH
is ON
Select YOUR PHONE
DEVICE to make it
discoverable.
Phone will seek out
Bluetooth devices while
remaining discoverable.
STEP 5
While your Android device is seeking
out Bluetooth devices, proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
Bluetooth® Pairing for Android® phone
and Entune™ touch screen system
1 To determine which head unit is installed in your vehicle, refer to Audio section in this guide.
2 Some Android devices may have slightly different SETTINGS screen layout depending on manufacturer of
device and Android OS version.
To begin the Bluetooth® Pairing process, press the HOME button on the
faceplate of your Toyota Vehicle Entune™ Multimedia Head Unit.1
3030
BLUETOOTH® DEVICE PAIRING
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth enabled on your phone and ready to pair, you will need
to initiate Bluetooth on your Entune head unit. Please follow the instructions
below to pair your Bluetooth enabled phone to your Entune system.
STEP 6
On your Toyota Vehicle
Entune Multimedia Head Unit,
Select SETUP BUTTON on the
Home Screen.
STEP 7
Select BLUETOOTH
STEP 8
Select ADD, to add your
phone device
STEP 9
Back on your smartphone,
you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the provided
Bluetooth PIN on your phone.
STEP 10
Your smartphone is now
paired with Entune.
STEP 11
Once paired, Entune will
attempt to connect audio and
contacts on your phone.
3131
STEP 12
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
A confirmation will
appear once your phone
has been paired and
connected.
STEP 13
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. You can
get more information from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
Disclosures
This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it
will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on
software, coverage & carrier.
3. Android is a trademark of Google Inc.
4. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data; you
are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.
Using your smartphone, you
will need to allow Entune
access to your messaging
and contacts
It is recommended to check the
“Don’t ask again” box, so as not
to have to press OK every time the
phone makes a Bluetooth connection
with your Toyota
3232
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all iPhone mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.
Initiate Bluetooth® on your iPhone®
STEP 1 STEP 2 STEP 3 STEP 4
From the HOME
SCREEN, select
SETTINGS
Select BLUETOOTH Ensure
BLUETOOTH
is ON
Your iPhone will seek
out Bluetooth devices
while remaining
discoverable
STEP 5
While your iPhone device is seeking
out Bluetooth devices, proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
Bluetooth® Pairing for iPhone® and
Entune™ touch screen system
BLUETOOTH® DEVICE PAIRING
3333
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth enabled on your phone and ready to pair, you will need
to initiate Bluetooth on your Entune head unit. Please follow the instructions
below to pair your Bluetooth enabled phone to your Entune system.
STEP 6
Select SETUP BUTTON on the
Home Screen.
STEP 7
Select BLUETOOTH
STEP 8
Select ADD, to add your
phone device
STEP 9
Back on your smartphone,
you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the provided
Bluetooth PIN on your phone.
STEP 10
Your smartphone is now
paired with Entune.
STEP 11
Once paired, Entune will
attempt to connect audio and
contacts on your phone.
3434
BLUETOOTH® DEVICE PAIRING
Using your smartphone, you may need to
allow Entune access to your messaging
and contacts
Only current iPhone text messages can be viewed on
the head unit. iPhone does not allow text message
reply.
STEP 12
A confirmation will
appear once your phone
has been paired and
connected.
STEP 13
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. You can
get more information from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
Disclosures
This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it
will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on
software, coverage & carrier.
3. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data; you
are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.
3535
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all Windows Phone mobile digital devices have Bluetooth integrated; all you
have to do is setup the phone and multimedia system to “talk” to each other and
form a connection.
Initiate Bluetooth® on your Windows Phone®
STEP 1 STEP 2 STEP 3 STEP 4
From your APP LIST,
select SETTINGS
Select BLUETOOTH Ensure
BLUETOOTH
is ON
Phone will seek out
Bluetooth devices
while remaining
discoverable
STEP 5
While your iPhone device is seeking
out Bluetooth devices, proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
Bluetooth® Pairing for Windows Phone®
and Entune™ touch screen system
3636
BLUETOOTH® DEVICE PAIRING
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth® enabled on your phone and ready to pair, you will need
to initiate Bluetooth® on your Entune head unit. Please follow the instructions
below to pair your Bluetooth enabled phone to your Entune system.
STEP 6
On your Toyota Vehicle
Entune Multimedia Head Unit,
Select SETUP BUTTON on the
Home Screen.
STEP 7
Select BLUETOOTH
STEP 8
Select ADD, to add your
phone device
STEP 9
Back on your smartphone,
you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the provided
Bluetooth PIN on your phone.
STEP 10
Your smartphone is now
paired with Entune.
STEP 11
Once paired, Entune will
attempt to connect audio and
contacts on your phone.
3737
Using your smartphone,
you may need to allow
Entune access to your
contacts
STEP 12
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
A confirmation will
appear that your phone
has been paired and
connected.
STEP 13
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. You can
get more information from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota va
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
Disclosures
This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it
will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on
software, coverage & carrier.
3. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data; you
are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.
3838
NOTES
3939
NOTES
4040
NOTES
41
NOTES
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new 4Runner.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of 4Runner
operations. Every 4Runner owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2016
4Runner
QUICK REFERENCE GUIDE
00505QRG164RUN
Printed in U.S.A. 8/15
15-TCS- 08592
2016
CUSTOMER EXPERIENCE CENTER
1-800 -331- 4331
4RUNNER

Navigation menu
