Rav4(U)
1
2000 RAV4 (OM42479U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 1
Rav4(U)
22000 RAV4 (OM42479U)

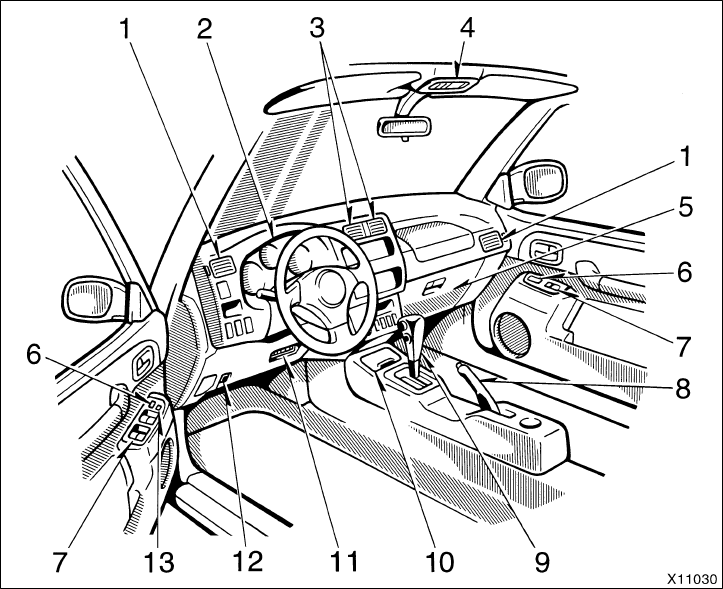

Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and personal
lights
5. Glove box
6. Power door lock switches
(with power windows)
7. Power window switches
8. Parking brake lever
9. Automatic transmission selector lever
or manual transmission gear shift lever
10. Ashtray
11. Lower vent
12. Hood lock release lever
13. Window lock switch
Rav4(U)
3
2000 RAV4 (OM42479U)

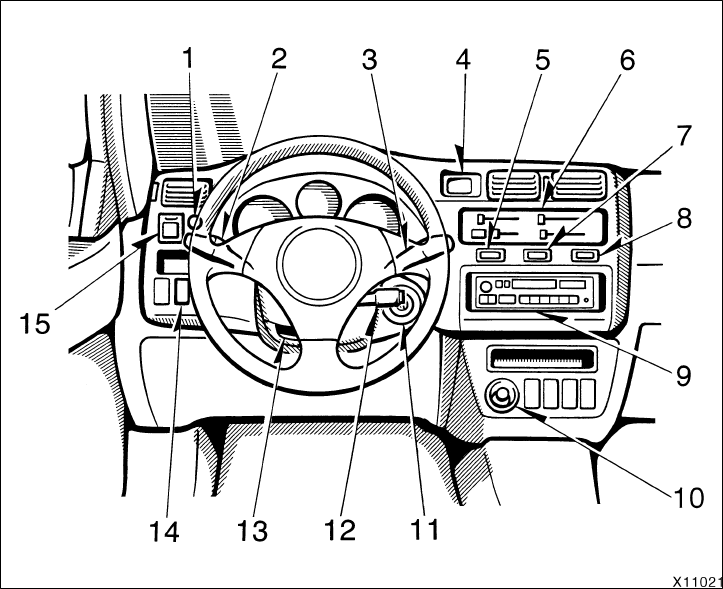

1. Instrument panel light control knob
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Clock
5. Center differential lock button or driving
pattern selector button
6. Air conditioning controls
7. Emergency flasher switch
8. Rear window defogger switch
9. Car audio
10. Cigarette lighter
11. Ignition switch
12. Cruise control switch
13. Tilt steering lock release lever
14. Power door lock switch
(without power windows)
15. Power rear view mirror control switch
Rav4(U)
42000 RAV4 (OM42479U)

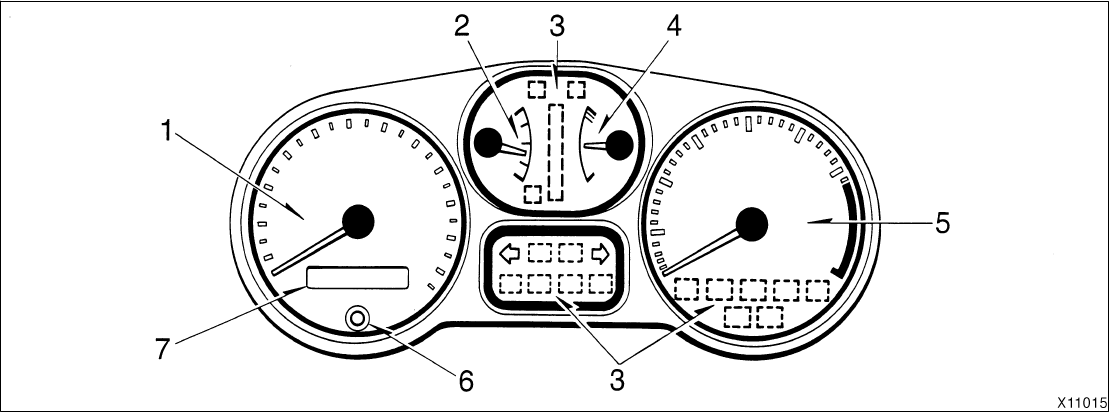

Instrument cluster overview
1. Speedometer
2. Fuel gauge
3. Service reminder indicators and
indicator lights
4. Engine coolant temperature gauge
5. Tachometer
6. Trip meter reset knob
7. Odometer and two trip meters
Rav4(U)
5
2000 RAV4 (OM42479U)
Indicator symbols on the instrument panel
Brake system warning light∗1
Discharge warning light∗1
Low oil pressure warning light∗1
Malfunction indicator lamp∗1
Headlight high beam indicator light
SRS warning light∗1
Turn signal indicator lights
Seat belt reminder light∗1Open door warning light∗1
Low fuel level warning light∗1
Automatic transmission fluid temperature warning
light∗1
Anti-lock brake system warning light∗1
(type A)
(type B)
(type A)
(type B)
(type A)
(type B)
Low windshield washer fluid level warning light∗1
Rav4(U)
62000 RAV4 (OM42479U)
∗1: For details, see ”Service reminder indicators and warning
buzzers” in Section 1−5.
∗2: If this light flashes, see ”Cruise control” in Section 1−6.
Cruise control indicator light∗2
Center differential lock indicator light
Driving pattern indicator light
Overdrive−off indicator light
Automatic transmission indicator light
