2004 COROLLA from Oct. ’03 Prod. (OM12859U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 6. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 1
’04 Corolla_U (L/O 0306)
2
2004 COROLLA from Oct. ’03 Prod. (OM12859U)

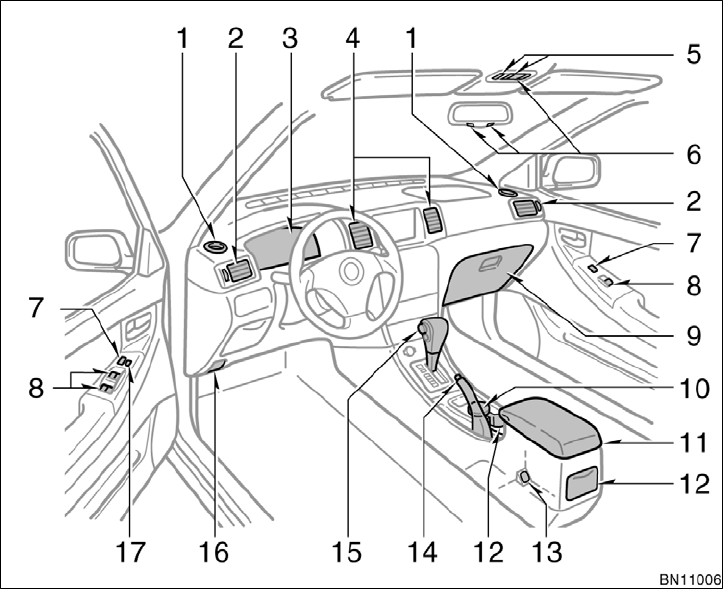

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Electric moon roof switches
6. Personal lights
7. Power door lock switches
8. Power window switches
9. Glove box
10. Portable ashtray
11. Rear console box
12. Cup holders
13. Power outlet
14. Parking brake lever
15. Automatic transmission selector lever
or manual transmission gear shift lever
16. Hood lock release lever
17. Window lock switch
Instrument panel overview
’04 Corolla_U (L/O 0306)
3
2004 COROLLA from Oct. ’03 Prod. (OM12859U)

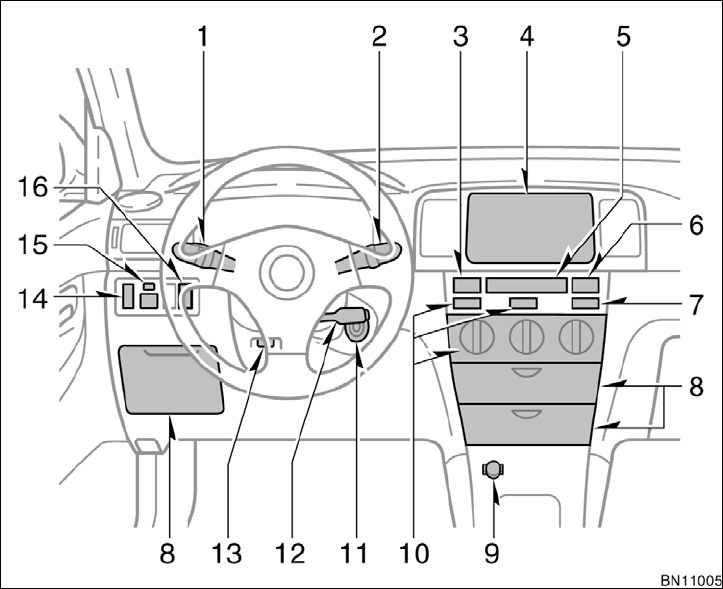

1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Car audio
5. Clock
6. Front passenger’s seat belt reminder
light
7. Rear window defogger switch
8. Auxiliary boxes
9. Power outlet or cigarette lighter
10. Air conditioning controls
11. Ignition switch
12. Cruise control switch
13. Tilt steering lock release lever
14. Interior/instrument panel light control
dial
15. Power rear view mirror control switches
16. Toyota vehicle intrusion protection
system indicator light
’04 Corolla_U (L/O 0306)
4
2004 COROLLA from Oct. ’03 Prod. (OM12859U)

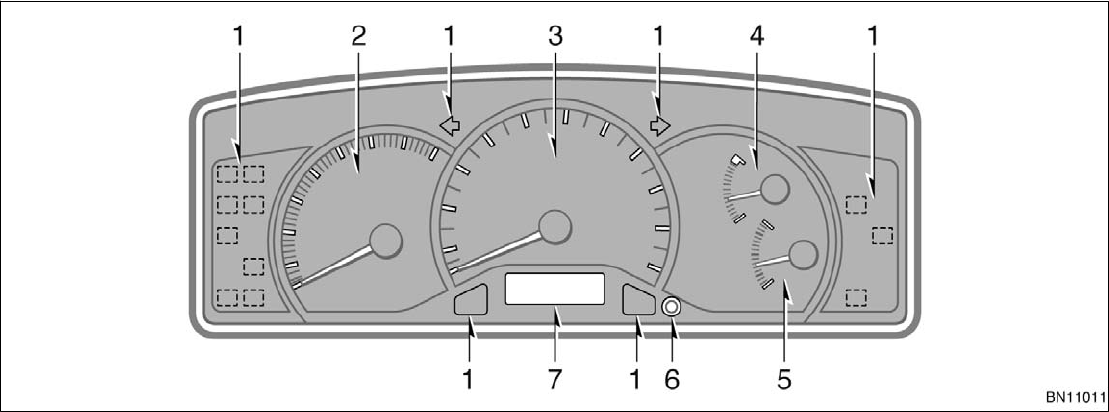

1. Service reminder indicators and
indicator lights
2. Tachometer
3. Speedometer
4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display
Instrument cluster overview
"Type A
’04 Corolla_U (L/O 0306)
5
2004 COROLLA from Oct. ’03 Prod. (OM12859U)

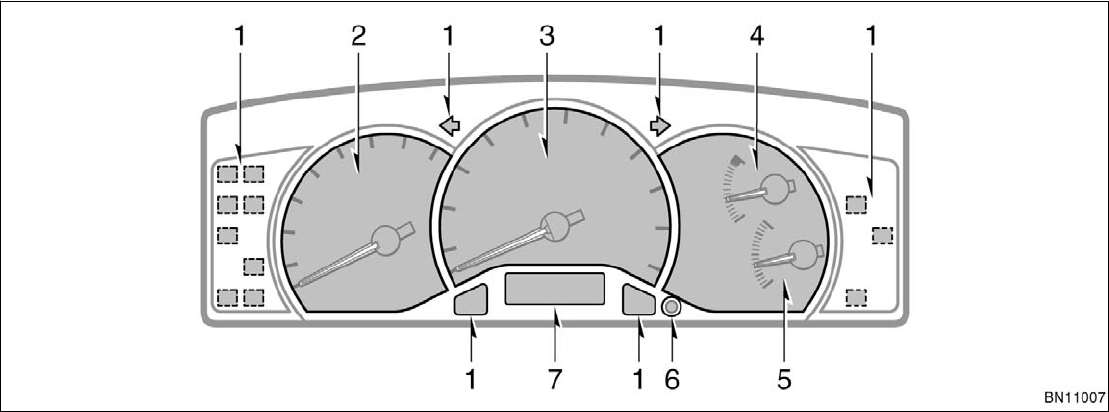

1. Service reminder indicators and
indicator lights
2. Tachometer
3. Speedometer
4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display
"Type B
’04 Corolla_U (L/O 0306)
6
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
or Brake system warning light∗1
Driver’s seat belt reminder light∗1
Discharge warning light∗1
Low fuel level warning light∗1
or
Low engine oil pressure warning light∗1
Anti−lock brake system warning light∗1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning light
∗1, ∗3
Turn signal indicator lights
Headlight high beam indicator light
Front passenger’s seat belt reminder light∗1
Malfunction indicator lamp∗1
or
Indicator symbols on the instrument panel
’04 Corolla_U (L/O 0306)
7
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
Overdrive−off indicator light
Cruise control indicator light∗2
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 88 in Section 1−6.
∗2: If this light flashes, see “Cruise control” on page 102 in
Section 1−7.
∗3: This symbol equipped only on vehicles sold in Canada.
