1
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:38
1QUICK GUIDE 11
2BASIC FUNCTION 31
3AUDIO SYSTEM 64
4
VOICE COMMAND SYSTEM
123
5INFORMATION 133
6PERIPHERAL MONITORING SYSTEM 139
7PHONE 151
8NAVIGATION SYSTEM 190
9
Entune App Suite
259
INDEX 275
TABLE OF CONTENTS
2
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
Introduction
This manual explains the operation of this system. Please read this manual
carefully to ensure proper use. Keep this manual in your vehicle at all times.
The screen shots in this document and the actual screens of this system differ
depending on whether the functions and/or a contract existed and the map data
available at the time of producing this document.
Please be aware that the content of this manual may be different from this sys-
tem in some cases, such as when the system’s software is updated.
The Navigation System is one of the most technologically advanced vehicle ac-
cessories ever developed. The system receives satellite signals from the Global
Positioning System (GPS) operated by the U.S. Department of Defense. Using
these signals and other vehicle sensors, the system indicates your present po-
sition and assists in locating a desired destination.
The navigation system is designed to select efficient routes from your present
starting location to your destination. The system is also designed to direct you
to a destination that is unfamiliar to you in an efficient manner. The system uses
AISIN AW maps. The calculated routes may not be the shortest nor the least
traffic congested. Your own personal local knowledge or “short cut” may at
times be faster than the calculated routes.
The navigation system’s database includes Point of Interest categories to allow
you to easily select destinations such as restaurants and hotels. If a destination
is not in the database, you can enter the street address or a major intersection
close to it and the system will guide you there.
The system will provide both a visual map and audio instructions. The audio in-
structions will announce the distance remaining and the direction to turn in when
approaching an intersection. These voice instructions will help you keep your
eyes on the road and are timed to provide enough time to allow you to maneu-
ver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limita-
tions that may affect their ability to perform properly. The accuracy of the vehi-
cle’s position depends on satellite conditions, road configuration, vehicle
condition or other circumstances. For more information on the limitations of the
system, refer to page 254.
NAVIGATION SYSTEM OWNER’S MANUAL
NAVIGATION SYSTEM (WITH NAVIGATION FUNCTION)
3
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
For safety reasons, this manual indicates items requiring particular attention
with the following marks.
IMPORTANT INFORMATION ABOUT THIS MANUAL
CAUTION
This is a warning against anything which may cause injury to people if the warning is
ignored. You are informed about what you must or must not do in order to reduce the risk
of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or its equip-
ment if the warning is ignored. You are informed about what you must or must not do in
order to avoid or reduce the risk of damage to your vehicle and its equipment.
SYMBOLS USED IN ILLUSTRATIONS
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do not do
this” or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
4
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
HOW TO READ THIS MANUAL
No. Name Description
Operational
Outlines An outline of the operation is explained.
Main Operations The steps of an operation are explained.
Related Operations A main operation’s supplementary operations are described.
Information Useful information for the user is described.
5
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
To use this system in the safest possible
manner, follow all the safety tips shown
below.
Do not use any feature of this system to
the extent it becomes a distraction and
prevents safe driving. The first priority
while driving should always be the safe op-
eration of the vehicle. While driving, be
sure to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire manual to make
sure you understand the system. Do not
allow other people to use this system until
they have read and understood the in-
structions in this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able screen buttons are dimmed.
To use this system in the safest possible
manner, follow all the safety tips shown
below.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to
the extent it becomes a distraction and
prevents safe driving. The first priority
while driving should always be the safe op-
eration of the vehicle. While driving, be
sure to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire manual to make
sure you understand the system. Do not
allow other people to use this system until
they have read and understood the in-
structions in this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able screen buttons are dimmed. Only
when the vehicle is not moving, can the
destination and route selection be done.
SAFETY INSTRUCTION
(WITHOUT NAVIGATION
FUNCTION)
CAUTION
For safety, the driver should not operate
the system while he/she is driving. Insuf-
ficient attention to the road and traffic
may cause an accident.
SAFETY INSTRUCTION (WITH
NAVIGATION FUNCTION)
6
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for reference. If the sys-
tem cannot determine the current position
correctly, there is a possibility of incorrect,
late, or non-voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street clo-
sures, etc.) frequently change. Therefore,
before following any instructions from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency ser-
vices. If unsure about the safety of an ar-
ea, do not drive into it. Under no
circumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.
CAUTION
For safety, the driver should not operate
the system while he/she is driving. Insuf-
ficient attention to the road and traffic
may cause an accident.
While driving, be sure to obey the traffic
regulations and maintain awareness of
the road conditions. If a traffic sign on
the road has been changed, route guid-
ance may not have the updated informa-
tion such as the direction of a one way
street.
7
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
TABLE OF CONTENTS
8
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
1. BASIC FUNCTION........................... 12
OVERVIEW BUTTONS ......................... 12
“Apps” SCREEN .................................... 14

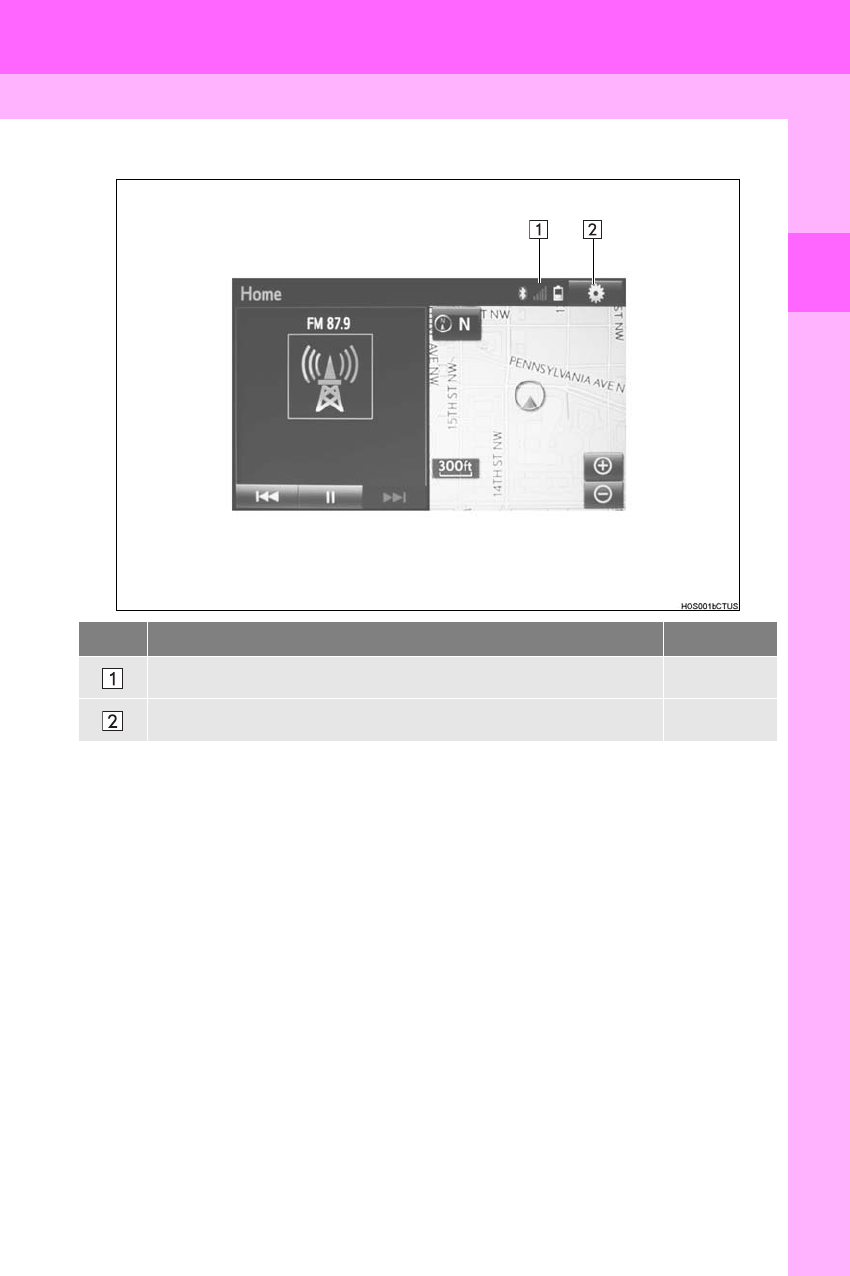

HOME SCREEN .................................... 16
2. QUICK REFERENCE....................... 20
“Setup” SCREEN ................................... 20
3. NAVIGATION OPERATION ............ 22

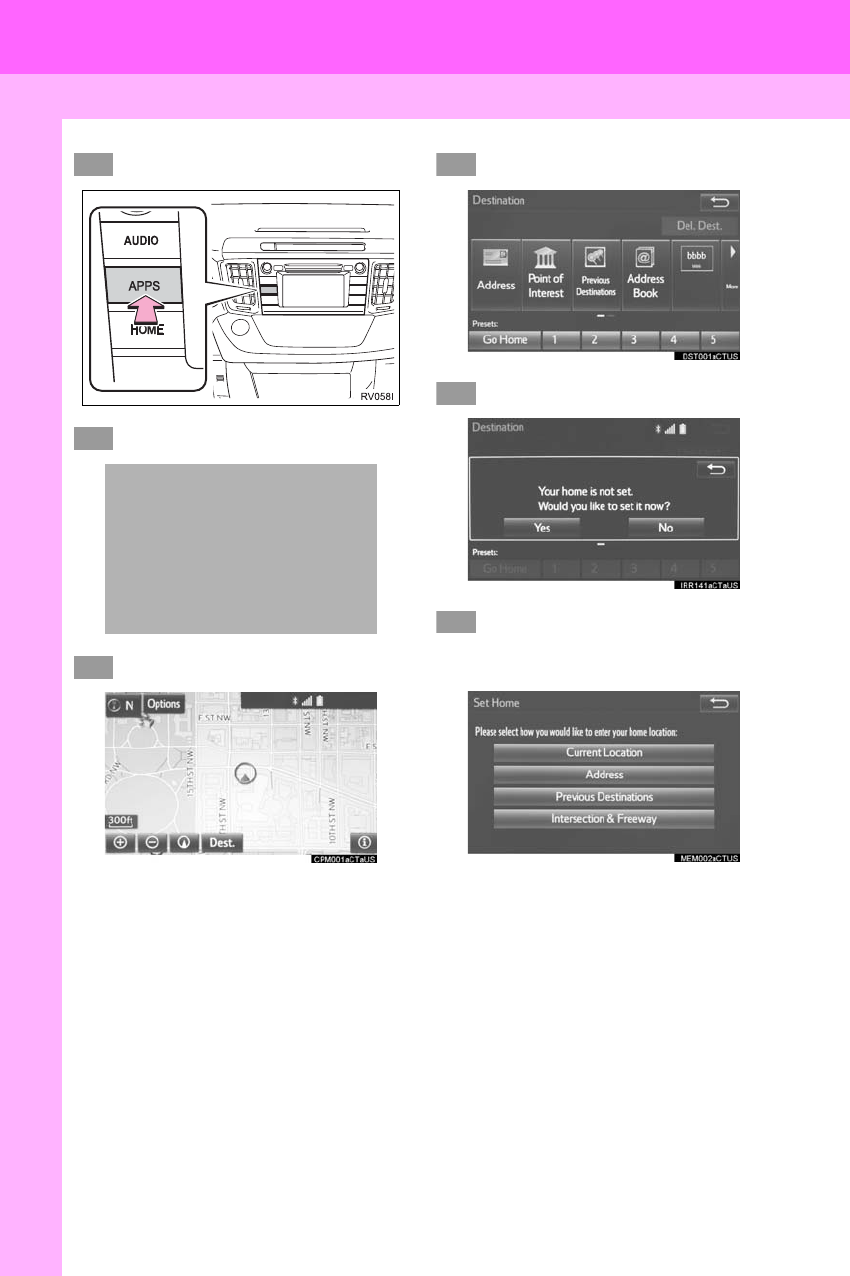

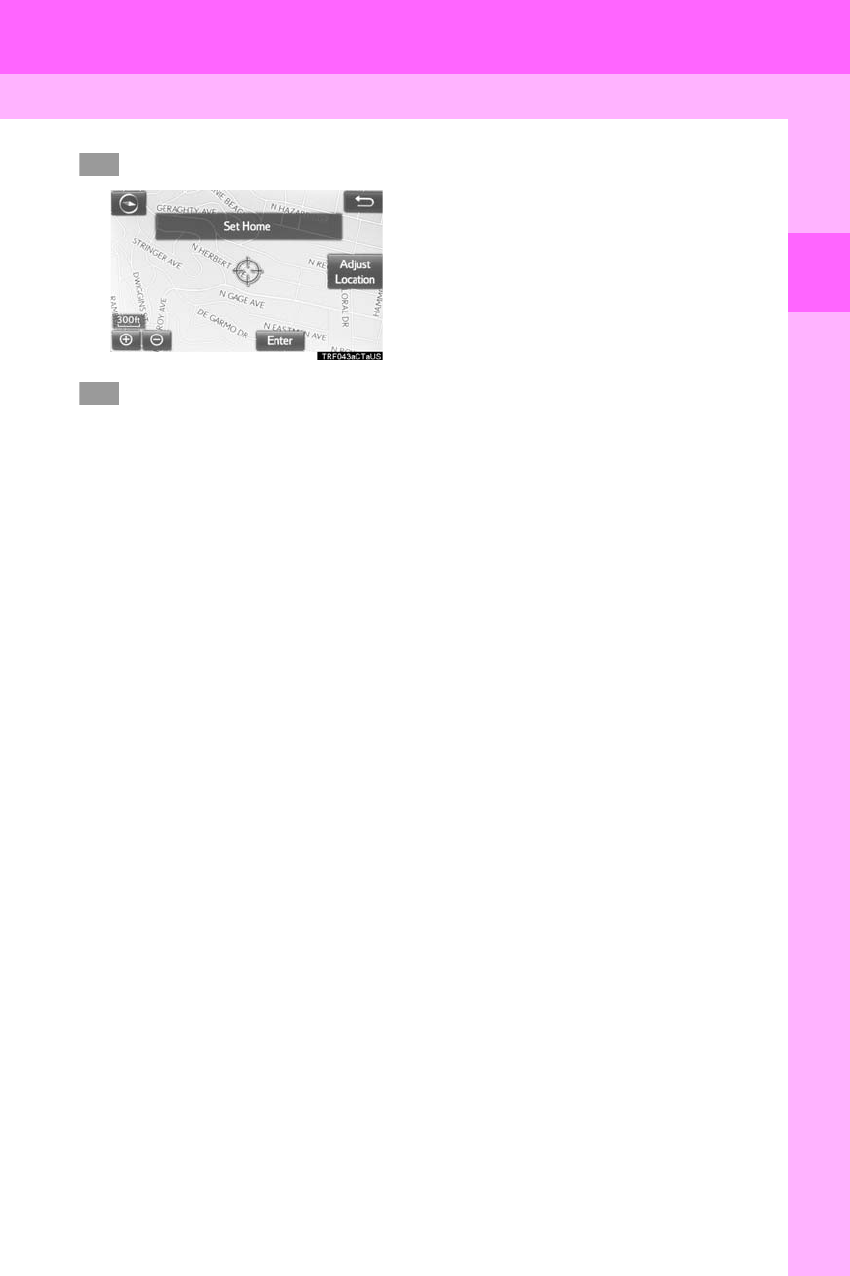

REGISTERING HOME .......................... 22
REGISTERING PRESET
DESTINATIONS.................................. 24
OPERATION FLOW:
GUIDING THE ROUTE ....................... 26
SETTING HOME AS THE
DESTINATION .................................... 27
4. FUNCTION INDEX........................... 28
FUNCTION INDEX ................................ 28
1. BASIC INFORMATION BEFORE
OPERATION.................................. 32
INITIAL SCREEN ................................... 32
TOUCH SCREEN GESTURES.............. 34
TOUCH SCREEN OPERATION ............ 35
HOME SCREEN OPERATION .............. 36
ENTERING LETTERS AND
NUMBERS/LIST SCREEN
OPERATION........................................ 37
SCREEN ADJUSTMENT ....................... 40
2. Bluetooth® SETTINGS................... 42
REGISTERING/CONNECTING
Bluetooth® DEVICE ............................. 42

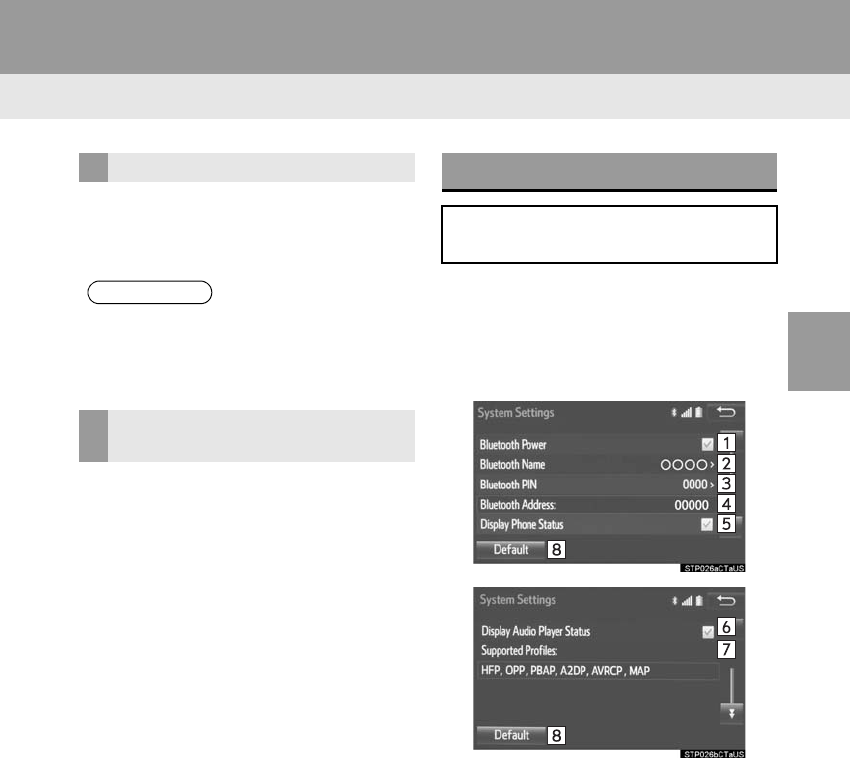

SETTING Bluetooth® DETAILS ............. 45
3. OTHER SETTINGS ......................... 53

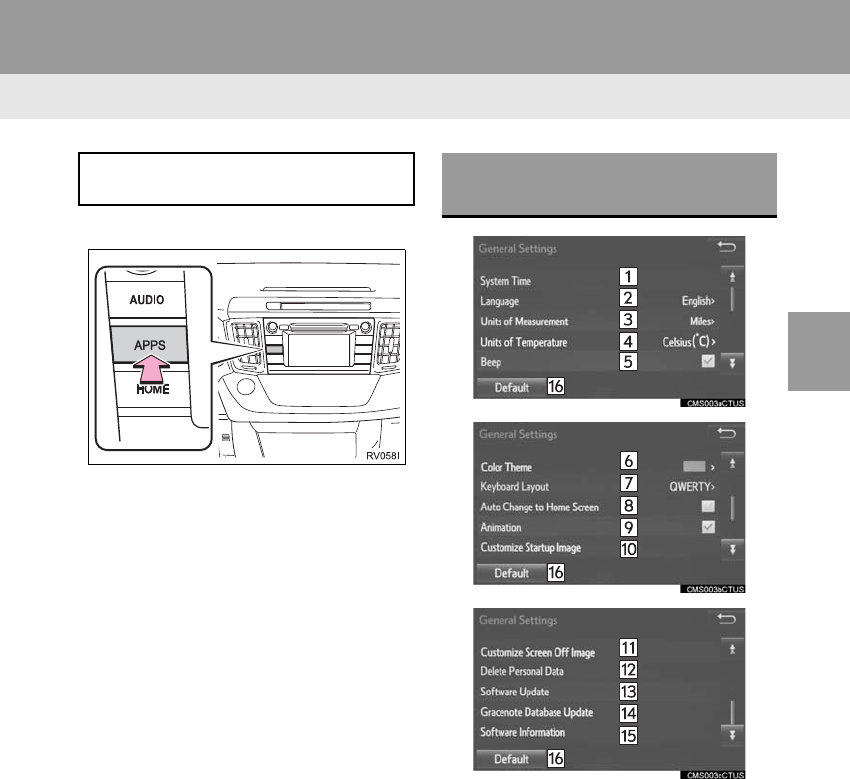

GENERAL SETTINGS ........................... 53
VOICE SETTINGS ................................. 59
DRIVER SETTINGS............................... 60
MAINTENANCE ..................................... 61
1QUICK GUIDE 2BASIC FUNCTION
9
1
2
3
4
5
6
7
8
9
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
1. BASIC OPERATION........................ 66
QUICK REFERENCE ............................ 66
SOME BASICS...................................... 68
2. RADIO OPERATION ....................... 73

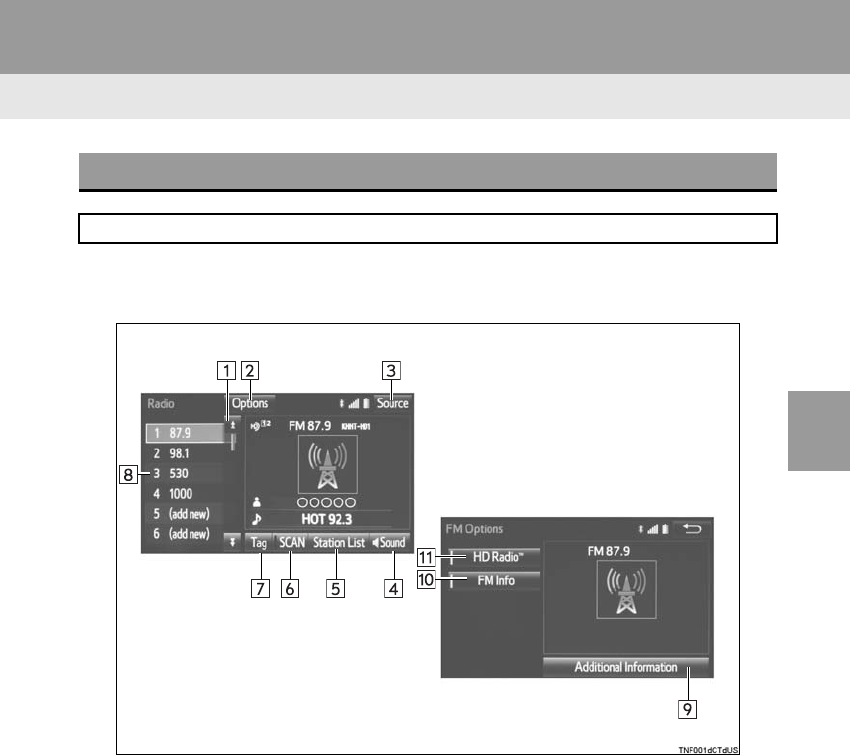

AM/FM RADIO....................................... 73
XM Satellite Radio ................................. 83
INTERNET RADIO ................................ 89
3. MEDIA OPERATION ....................... 90

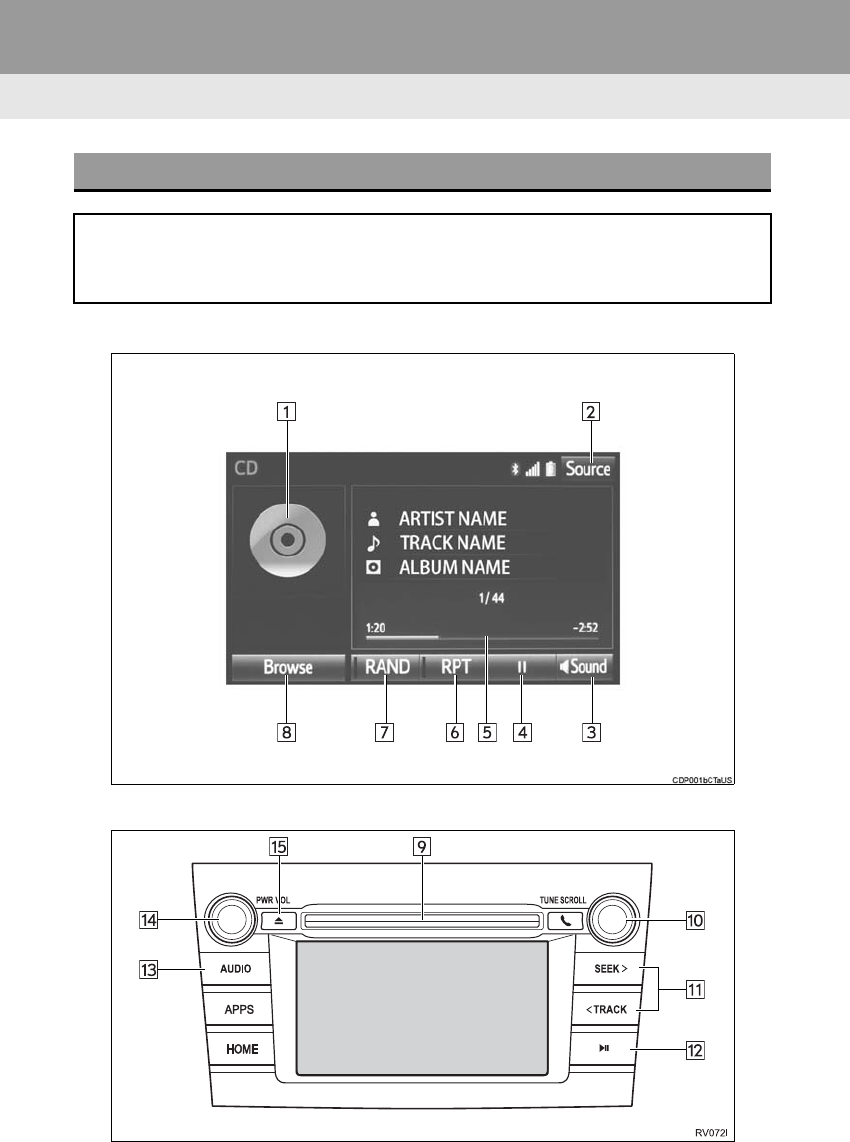

CD ......................................................... 90
USB MEMORY ...................................... 93
iPod ....................................................... 97
Bluetooth® AUDIO............................... 101

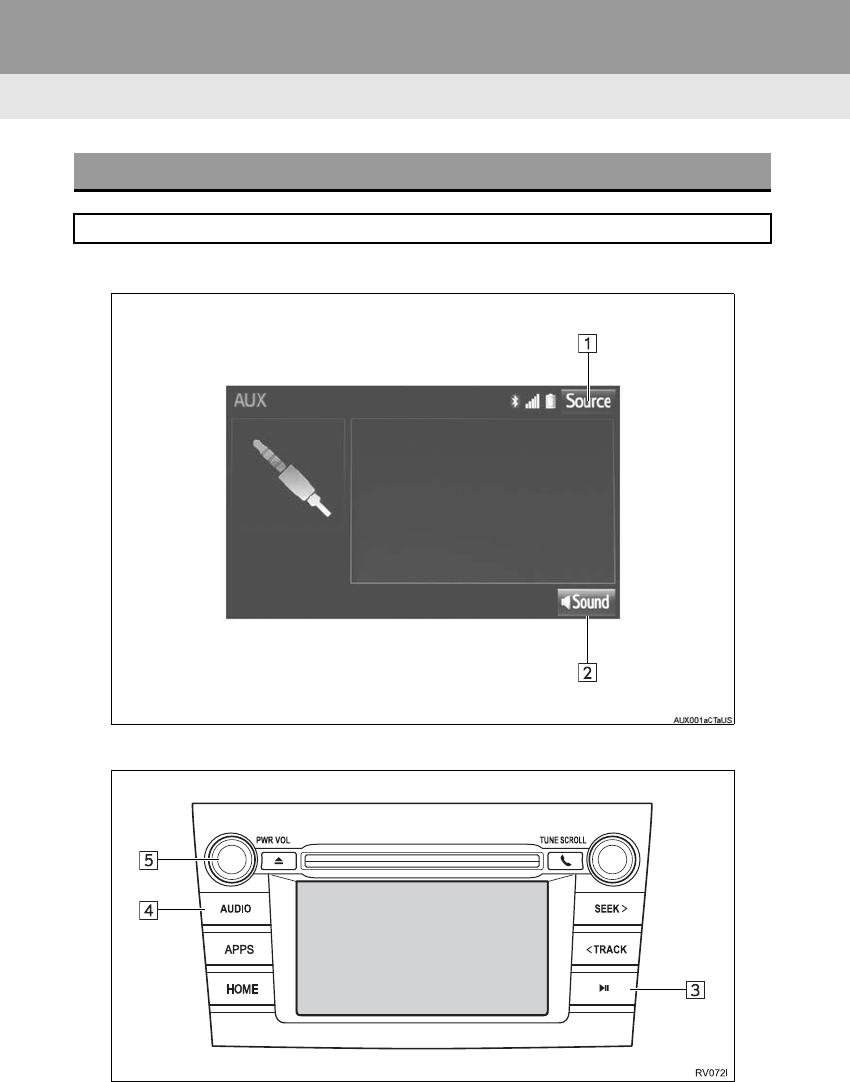

AUX ..................................................... 106
4. AUDIO REMOTE CONTROLS ...... 108
STEERING SWITCHES ...................... 108
5. SETUP ........................................... 111
AUDIO SETTINGS .............................. 111
6. TIPS FOR OPERATING THE
AUDIO SYSTEM .......................... 113
OPERATING INFORMATION ............. 113
1. VOICE COMMAND SYSTEM
OPERATION ................................ 124
VOICE COMMAND SYSTEM.............. 124
CASUAL SPEECH
RECOGNIZATION ............................ 130
COMMAND LIST ................................. 131
1. USEFUL INFORMATION.............. 134
RECEIVING WEATHER
INFORMATION ................................. 134
RECEIVING TRAFFIC MAP
INFORMATION ................................. 136

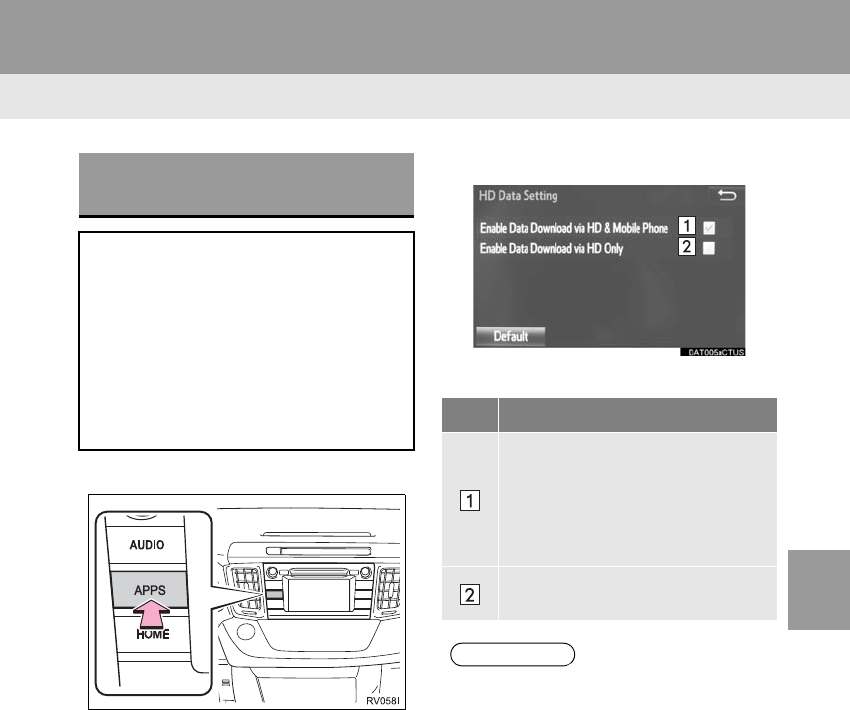

DATA SERVICES SETTINGS ............. 137

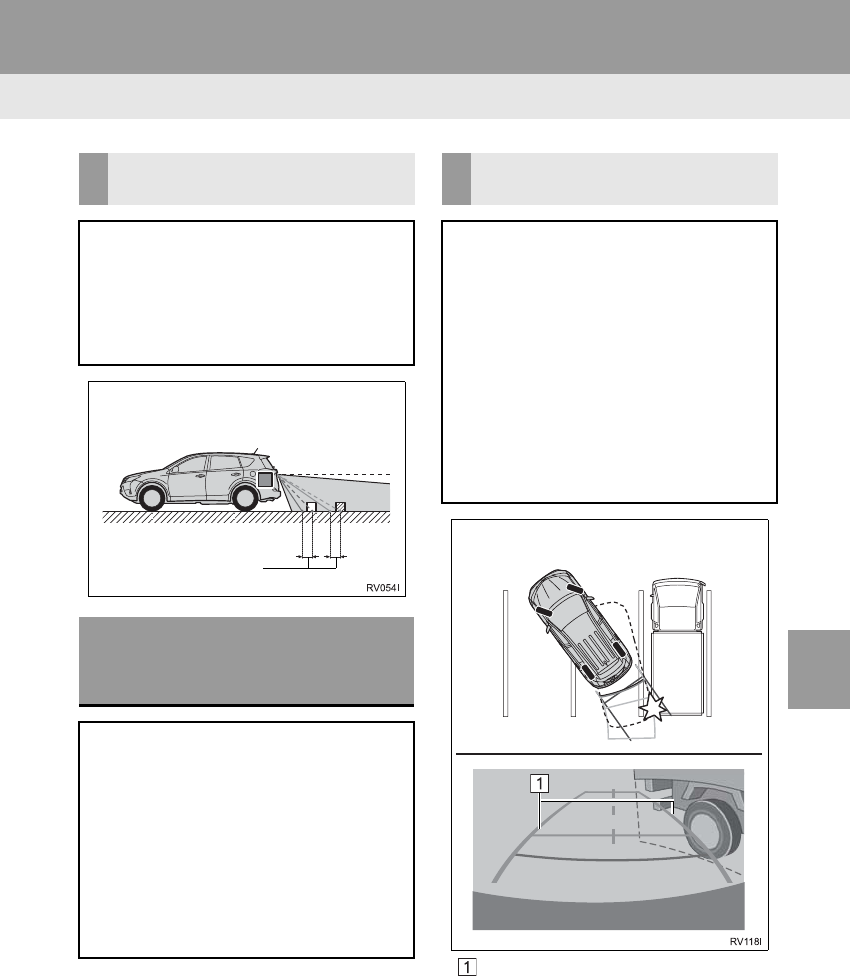

1. REAR VIEW MONITOR
SYSTEM ...................................... 140
REAR VIEW MONITOR
SYSTEM............................................ 140
REAR VIEW MONITOR
SYSTEM PRECAUTIONS................. 144
THINGS YOU SHOULD KNOW .......... 149
1. PHONE OPERATION
(HANDS-FREE SYSTEM
FOR CELLULAR PHONES)........ 152
QUICK REFERENCE .......................... 152
SOME BASICS .................................... 153
CALLING ON THE Bluetooth®
PHONE.............................................. 156
RECEIVING ON THE Bluetooth®
PHONE.............................................. 162
TALKING ON THE Bluetooth®
PHONE.............................................. 163
Bluetooth® PHONE MESSAGE
FUNCTION........................................ 166
2. SETUP........................................... 171
PHONE/MESSAGE SETTINGS .......... 171
3. WHAT TO DO IF... ........................ 183
TROUBLESHOOTING......................... 183
3AUDIO SYSTEM
4VOICE COMMAND SYSTEM
5INFORMATION
6PERIPHERAL MONITORING
SYSTEM
7PHONE
TABLE OF CONTENTS
10
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
1. BASIC OPERATION...................... 192
QUICK REFERENCE .......................... 192
MAP SCREEN OPERATION............... 195
MAP SCREEN INFORMATION........... 201
TRAFFIC INFORMATION.................... 205
2. DESTINATION SEARCH............... 208
DESTINATION SEARCH
SCREEN ........................................... 208
SEARCH OPERATION........................ 210
STARTING ROUTE GUIDANCE ......... 220
3. ROUTE GUIDANCE....................... 224
ROUTE GUIDANCE SCREEN ............ 224
TYPICAL VOICE GUIDANCE
PROMPTS......................................... 229
EDITING ROUTE................................. 230
4. MEMORY POINTS......................... 235
MEMORY POINTS SETTINGS ........... 235
5. SETUP ........................................... 244
DETAILED NAVIGATION
SETTINGS ........................................ 244
TRAFFIC SETTINGS........................... 248
6. TIPS FOR THE NAVIGATION
SYSTEM....................................... 254
GPS (GLOBAL POSITIONING
SYSTEM) .......................................... 254
MAP DATABASE VERSION AND
COVERED AREA.............................. 256
1. Entune App Suite
OVERVIEW.................................. 260
Entune App Suite SERVICE................. 260
2. Entune App Suite
OPERATION................................ 265
Entune App Suite ................................. 265
3. SETUP........................................... 272
Entune App Suite SETTINGS .............. 272
ALPHABETICAL INDEX................... 276
8NAVIGATION SYSTEM 9Entune App Suite
INDEX
1
11
1
2
3
4
5
6
7
8
9
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
1. OVERVIEW BUTTONS .................. 12
2. “Apps” SCREEN ........................... 14
3. HOME SCREEN ............................. 16
STATUS DISPLAY................................. 18
1. “Setup” SCREEN .......................... 20
1. REGISTERING HOME ................... 22
2. REGISTERING PRESET
DESTINATIONS........................... 24
3. OPERATION FLOW:
GUIDING THE ROUTE................. 26
4. SETTING HOME AS THE
DESTINATION ............................. 27
1. FUNCTION INDEX ......................... 28
1BASIC FUNCTION
2QUICK REFERENCE
3NAVIGATION OPERATION
4FUNCTION INDEX
QUICK GUIDE
12
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56

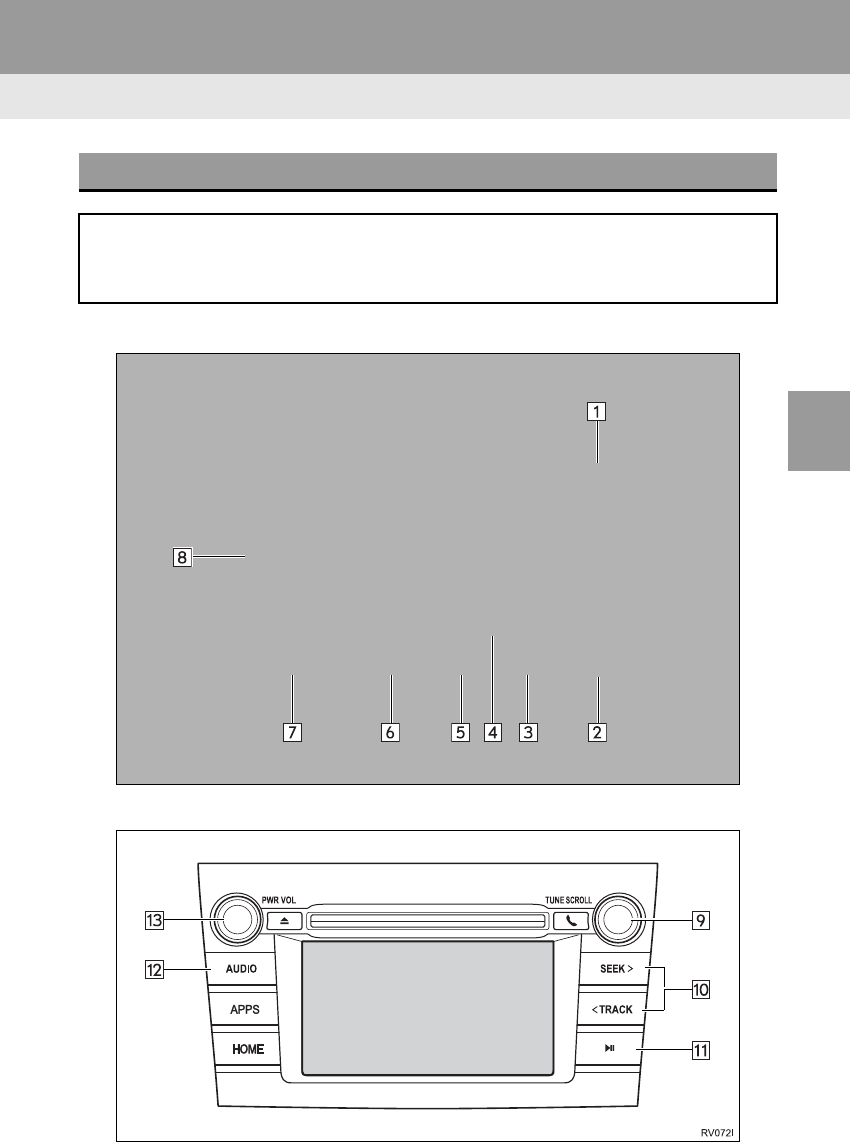

1. BASIC FUNCTION
1. OVERVIEW BUTTONS
Without navigation function
With navigation function
13
1. BASIC FUNCTION
1
QUICK GUIDE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Function Page
Press to eject a disc. 70
By touching the screen with your finger, you can control the selected
functions. 34, 35
Insert a disc into this slot. The CD player turns on immediately. 70
Press to access the Bluetooth® hands-free system. 152
Turn the “TUNE SCROLL” knob to select a radio station or skip to the
next or previous track/file.
73, 83, 90,
93, 97, 101
Press the “ ” or “ ” button to seek up or down for a radio station or to
access a desired track/file.
73, 83, 90,
93, 97, 101
Press to play/pause. 73, 90, 93,
97, 101, 106
Press to display the home screen. 16, 36
Press to display the “Apps” screen. 14
Press to access the audio system. The audio system turns on in the
last mode used. 66, 68, 69
Press the “PWR VOL” knob to turn the system on and off, and turn it
to adjust the volume. 68
MAP card slot
Do not eject the SD card, as doing so may deactivate the navigation
system.
257
14
1. BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. “Apps” SCREEN
Press the “APPS” button to display the “Apps” screen.
15
1. BASIC FUNCTION
1
QUICK GUIDE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Function Page
*Select to display the map screen. 192
Select to display the audio control screen. 66
Select to display the hands-free operation screen. 152
Select to display the “Message Inbox” screen. 166
Select to display weather information. 134
Select to reorder the applications.
Select the desired application then or to reorder. 267
Select to display traffic information. 136, 205
Select to display the “Setup” screen. 20
*Select to update the applications. 266
Select to display the fuel consumption screen. “Owner’s
Manual”
*Select to display the “Maintenance” screen. 61
*Select to display the application screen. 260
*: With navigation function
INFORMATION
When there are two pages, select or to change the page.
16
1. BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. HOME SCREEN
Three-way split screen
Press the “HOME” button to display the home screen.
The home screen can display multiple information screens, such as the audio sys-
tem screen, hands-free screen and navigation screen, simultaneously. When
hands-free mode is selected, it is possible to make a call on the home screen if the
desired telephone number is registered to one of the 4 displayed buttons. In order
to register the contact, select and hold the desired button and register the desired
contact by obey displayed messages on the screen. (P.161)
When a screen is selected, the selected screen is switched to a full-screen display.
The home screen can be set to either a three-way split screen or a two-way split
screen.
For details about setting the home screen: P.36
17
1. BASIC FUNCTION
1
QUICK GUIDE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Two-way split screen
No. Function Page
Displays the condition of the Bluetooth® connection 18
Select to display the “Setup” screen. 20
18
1. BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
STATUS DISPLAY
The condition of the Bluetooth® connection, as well as the level of reception and
the amount of cellular phone battery charge left, are displayed on the status dis-
play.
No. Indicators Conditions
The condition of
the Bluetooth®
connection
(Gray) (Blue)
No connection Poor Good
An antenna for the Bluetooth® connection is built into the instru-
ment panel. The condition of the Bluetooth® connection may dete-
riorate and the system may not function when a Bluetooth® phone
is used in the following conditions and/or places:
The cellular phone is obstructed by certain objects (such as when
it is behind the seat or in the glove box or console box).
The cellular phone is touching or is covered with metal materials.
Leave the Bluetooth® phone in a place where the condition of the
Bluetooth® connection is good.
The level of re-
ception
Poor Excellent
The level of reception does not always correspond with the level
displayed on the cellular phone. The level of reception may not be
displayed depending on the phone you have.
When the cellular phone is out of the service area or in a place
inaccessible by radio waves, “No Service” is displayed.
“Rm” is displayed when receiving in a roaming area. While roam-
ing, display “Rm” top-left on the icon.
The receiving area may not be displayed depending on the type of
phone you have.
19
1. BASIC FUNCTION
1
QUICK GUIDE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
The amount of
battery charge
left
Empty Full
The amount displayed does not always correspond with the
amount displayed on the Bluetooth® device.
The amount of battery charge left may not be displayed depend-
ing on the type of the Bluetooth® device connected.
This system does not have a charging function.
No. Indicators Conditions
20
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. QUICK REFERENCE
1. “Setup” SCREEN
The items shown on the “Setup” screen can be set. Press the “APPS” button, then
select “Setup” to display the “Setup” screen.
21
2. QUICK REFERENCE
1
QUICK GUIDE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Function Page
Select to change the selected language, operation sound, automatic
screen change settings, etc. 53
Select to customize the home screen. 36
Select to set the voice settings. 59
Select to adjust the contrast and brightness of the screens. 40
*1Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.
235, 244
Select to set audio settings. 111
Select to set the phone sound, contacts, message settings, etc. 171
Select to set Bluetooth® phones and Bluetooth® audio devices. 45
Select to turn the screen off.
*2Select to set Entune App Suite settings. 272
*2Select to set data services settings. 137
Select to link the driver’s cellular phone settings. (audio presets, lan-
guage, etc.) 60
Select to set vehicle information. “Owner’s
Manual”
*2Select to set traffic information. 248
*1: With navigation function
*2: With navigation function (only for U.S.A.)
22
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. NAVIGATION OPERATION
1. REGISTERING HOME*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Select “Go Home”.
Select “Yes”.
There are different kinds of meth-
ods to search for your home.
(P.208)
1
2
3
*: With navigation function
23
3. NAVIGATION OPERATION
1
QUICK GUIDE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Select “Enter”.
Select “OK”.
Registration of home is complete.
Registering home in a different way
P.236
Editing the name, location, phone num-
ber and icon
P.236
Setting home as the destination
P.211
24
3. NAVIGATION OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. REGISTERING PRESET DESTINATIONS*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Select one of the preset destina-
tion buttons.
Select “Yes”.
There are different kinds of meth-
ods to search for a destination.
(P.208)
1
2
3
*: With navigation function
25
3. NAVIGATION OPERATION
1
QUICK GUIDE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Select “Enter”.
Select a position for this preset
destination.
Select “OK”.
Registration of preset destinations is
complete.
Registering preset destinations in a dif-
ferent way
P.237
Editing the name, location, phone num-
ber and icon
P.238
Setting preset destinations as the desti-
nation
P.211
26
3. NAVIGATION OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. OPERATION FLOW: GUIDING THE ROUTE*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
There are different kinds of meth-
ods to search for a destination.
(P.208)
Select “Go”.
Select “OK”.
Selecting routes other than the one recom-
mended. (P.220)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
2
3
4
*: With navigation function
27
3. NAVIGATION OPERATION
1
QUICK GUIDE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
4. SETTING HOME AS THE DESTINATION*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Select “Go Home”.
Select “OK”.
Selecting routes other than the one recom-
mended. (P.220)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
5
*: With navigation function
28
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
4. FUNCTION INDEX
1. FUNCTION INDEX
Map*
Route guidance*
Displaying maps Page
Viewing the map screen 192
Displaying the current position 195
Viewing the current position vicinity map 199
Changing the scale 195
Changing the map orientation 196
Displaying map information 201
Displaying the estimated travel/arrival time to the destination 224
Selecting the map mode 197
Displaying traffic information 205
Searching for destinations Page
Searching for the destination 210
Changing the search area 211
Before starting or during route guidance Page
Starting route guide 220
Editing the route 230
Viewing the entire route map 225
Pausing guidance 223
Adjusting route guidance volume 59
Deleting the destination 231
Address book Page
Registering address book entries 239
Marking icons on the map 240
*: With navigation function
29
4. FUNCTION INDEX
1
QUICK GUIDE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Useful functions
Information Page
Displaying vehicle maintenance* 61
Hands-free system (for cellular phone) Page
Registering/connecting Bluetooth® phone 42
Making a call on a Bluetooth® phone 156
Receiving a call on the Bluetooth® phone 162
Voice command system Page
Operating the system with your voice 124
Peripheral monitoring system Page
Viewing behind the rear of the vehicle 139
*: With navigation function
30
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1
2
3
4
5
6
7
8
2
31
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
9
1. INITIAL SCREEN........................... 32
2. TOUCH SCREEN GESTURES...... 34
3. TOUCH SCREEN
OPERATION................................ 35
4. HOME SCREEN OPERATION ...... 36
5. ENTERING LETTERS AND
NUMBERS/LIST SCREEN
OPERATION................................ 37
ENTERING LETTERS AND
NUMBERS .......................................... 37
LIST SCREEN ....................................... 37
6. SCREEN ADJUSTMENT............... 40
1. REGISTERING/CONNECTING
Bluetooth® DEVICE ................... 42
REGISTERING A Bluetooth® PHONE
FOR THE FIRST TIME........................ 42
REGISTERING A Bluetooth® AUDIO
PLAYER FOR THE FIRST TIME......... 43
PROFILES ............................................. 44
2. SETTING Bluetooth®
DETAILS ..................................... 45
“Bluetooth* Setup” SCREEN.................. 45
REGISTERING A Bluetooth®
DEVICE ............................................... 46
DELETING A Bluetooth® DEVICE......... 47
CONNECTING A Bluetooth®
DEVICE ............................................... 48
EDITING THE Bluetooth® DEVICE
INFORMATION ................................... 50
“System Settings” SCREEN................... 51
1. GENERAL SETTINGS .................. 53
GENERAL SETTINGS SCREEN........... 53
2. VOICE SETTINGS......................... 59
VOICE SETTINGS SCREEN................. 59
3. DRIVER SETTINGS ...................... 60
MANUALLY SELECT LINKED
SETTINGS .......................................... 60
4. MAINTENANCE ............................ 61
1BASIC INFORMATION BEFORE
OPERATION 2Bluetooth® SETTINGS
3OTHER SETTINGS
BASIC FUNCTION
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
32
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:40
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the engine switch is in the “ACC”
or “ON” position, the initial screen will
be displayed and the system will begin
operating. (Vehicles without a smart
key system)
When the engine switch is in ACCES-
SORY or IGNITION ON mode, the ini-
tial screen will be displayed and the
system will begin operating. (Vehicles
with a smart key system)
-After a few seconds, the “Caution” screen
will be displayed.
-After about 5 seconds, the “Caution”
screen automatically switches to the next
screen.
-Images shown on the initial screen can
be changed to suit individual prefer-
ences. (P.56)
CAUTION
When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
MAINTENANCE
INFORMATION*
This system reminds users when to re-
place certain parts or components and
shows dealer information (if regis-
tered) on the screen.
When the vehicle reaches a previously
set driving distance or date specified
for a scheduled maintenance check,
the “Maintenance Reminder” screen
will be displayed when the system is
turned on.
-The screen goes off if the screen is not
operated for several seconds.
-To prevent the screen from being dis-
played again, select “Do Not Tell Me
Again”.
-To register maintenance information:
P.61
-If is selected, the registered
phone number can be called.
*: With navigation function
33
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:40
1Press and hold the “PWR VOL” knob
for 3 seconds or more.
RESTARTING THE SYSTEM
When system response is extremely
slow, the system can be restarted.
34
1. BASIC INFORMATION BEFORE OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:40
2. TOUCH SCREEN GESTURES
Operations are performed by touching the touch screen directly with your finger.
Operation method Outline Main use
Touch
Quickly touch and release
once.
Changing and selecting various set-
tings
Drag*1
Touch the screen with
your finger, and move the
screen to the desired posi-
tion.
Scrolling the lists
Scrolling the map screen*2
Flick*1
Quickly move the screen
by flicking with your finger.
Scrolling the main screen page
Scrolling the map screen*2
*1: The above operations may not be performed on all screens.
*2: With navigation function
INFORMATION
Flick operations may not be performed smoothly in high altitudes.
35
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:40
3. TOUCH SCREEN OPERATION
This system is operated mainly by the
buttons on the screen. (Referred to as
screen buttons in this manual.)
-When a screen button is touched, a
beep sounds. (To set the beep sound,
see page 53.)
NOTICE
To prevent damaging the screen, lightly
touch the screen buttons with your fin-
ger.
Do not use objects other than your finger
to touch the screen.
Wipe off fingerprints using a glass clean-
ing cloth. Do not use chemical cleaners
to clean the screen, as they may dam-
age the touch screen.
INFORMATION
If the system does not respond to touch-
ing a screen button, move your finger
away from the screen and then touch it
again.
Dimmed screen buttons cannot be oper-
ated.
The displayed image may become
darker and moving images may be
slightly distorted when the screen is
cold.
In extremely cold conditions, the map
may not be displayed and the data input
by a user may be deleted. Also, the
screen buttons may be harder than
usual to depress.
When you look at the screen through
polarized material such as polarized
sunglasses, the screen may be dark and
hard to see. If so, look at the screen
from different angles, adjust the screen
settings on the “Display Settings” screen
or take off your sunglasses.
36
1. BASIC INFORMATION BEFORE OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:40
4. HOME SCREEN OPERATION
1Press the “HOME” button.
2“Home” screen is displayed.
-When a screen is selected, the selected
screen will change to a full-screen display.
1Select .
2Select “Home Screen”.
-Select “Two Panel” or “Three Panel”.
3Select the desired area.
4Select the desired item.
5Select “OK”.
The home screen can display multiple
information screens, such as the audio
system screen and hands-free screen,
simultaneously.
CUSTOMIZING THE HOME
SCREEN
The display items/area on the home
screen can be changed.
INFORMATION
When the selected item is already being
displayed and another area is selected
for that item, the item that it is replacing
will be displayed in the original item’s
location.
37
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:40
5. ENTERING LETTERS AND NUMBERS/LIST SCREEN OPERATION
-On certain letter entry screens, letters can
be entered in upper or lower case.
: Select to enter in lower case.
: Select to enter in upper case.
1Enter characters and select “OK”.
-Matching items from the database are
listed even if the entered address or name
is incomplete.
-The list will be displayed automatically if
the maximum number of characters is
entered or matching items can be dis-
played on a single list screen.
When searching by an address, name,
etc., or entering data, letters and num-
bers can be entered via the screen.
ENTERING LETTERS AND
NUMBERS
No. Function
Select to enter desired characters.
Text field. Entered character(s) will
be displayed.
During entering character(s), when
there is only one available option for
the next character(s), the next char-
acter(s) will be displayed in gray text
in the text field automatically. Gray
text is entered by selecting this but-
ton.
Select to erase one character. Select
and hold to continue erasing charac-
ters.
Select to display the alphabet keys.
Select to display other symbols.
-Keyboard layout can be changed.
(P.53)
LIST SCREEN
The list screen may be displayed after
entering characters.
DISPLAYING THE LIST
INFORMATION
The number of matching items is shown
on the right side of the screen. If the
number of matching items is more than
999, the system displays” on the
screen.
38
1. BASIC INFORMATION BEFORE OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:40
SELECTING ALL ITEMS
1Select “Select All”.
“Unselect All”: Unselect all items in the
list.
Some lists contain “Select All”. If “Se-
lect All” is selected, it is possible to
select all items.
LIST SCREEN OPERATION
When a list is displayed, use the appro-
priate screen button to scroll through
the list.
Icon Function
Select to skip to the next or previ-
ous page.
Select and hold or to
scroll through the displayed list.
This indicates the displayed
screen’s position.
If appears to the right of an
item name, the complete name is
too long to display.
Select to scroll to the end of
the name.
Select to move to the begin-
ning of the name.
39
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:40
1Select “Sort”.
2Select the desired sorting criteria.
1Select the desired character jump but-
tons.
SORTING
The order of a list displayed on the
screen can be sorted in the order of
distance from the current location,
date, category, etc.
CHARACTER JUMP BUTTONS
IN LISTS
Some lists contain character screen
buttons, “ABC”, “DEF” etc., which al-
low a direct jump to list entries that be-
gin with the same letter as the
character screen button.
INFORMATION
Every time the same character screen
button is selected, the list starting with
the subsequent character is displayed.
40
1. BASIC INFORMATION BEFORE OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:40
6. SCREEN ADJUSTMENT
1Press the “APPS” button.
2Select “Setup”.
3Select “Display”.
4Select the items to be set.
1Select “Day Mode”.
The contrast and brightness of the
screen display and the image of the
camera display can be adjusted. The
screen can also be changed to either
day or night mode.
No. Function Page
Select to adjust the screen
display. 41
Select to adjust the camera
display.
Select to turn day mode on/
off. 40
INFORMATION
When the screen is viewed through
polarized sunglasses, a rainbow pattern
may appear on the screen due to optical
characteristics of the screen. If this is
disturbing, please operate the screen
without polarized sunglasses.
CHANGING BETWEEN DAY
AND NIGHT MODE
Depending on the position of the head-
light switch, the screen changes to day
or night mode. This feature is available
when the headlight is switched on.
INFORMATION
If the screen is set to day mode with the
headlight switch turned on, this condition
is memorized even with the engine
turned off.
41
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:40
1Select “General” or “Camera”.
2Select the desired item.
General
Camera
3Select “OK”.
ADJUSTING THE CONTRAST/
BRIGHTNESS
The contrast and brightness of the
screen can be adjusted according to
the brightness of your surroundings.
Screen button Function
“Brightness” “+” Select to brighten the
screen.
“Brightness” “-” Select to darken the
screen.
“Contrast” “+” Select to strengthen the
contrast of the screen.
“Contrast” “-” Select to weaken the
contrast of the screen.
42
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
2. Bluetooth® SETTINGS
1. REGISTERING/CONNECTING Bluetooth
®
DEVICE
1Turn the Bluetooth® connection setting
of your cellular phone on.
-This function is not available when
Bluetooth® connection setting of your cel-
lular phone is set to off.
2Press the “APPS” button.
3Select “Phone”.
-Operations up to this point can also be
performed by pressing the switch on
the steering wheel or switch on the
instrument panel.
4Select “Yes” to register a phone.
5When this screen is displayed, search
for the device name displayed on this
screen on the screen of your
Bluetooth® device.
-For details about operating the Bluetooth®
device, see the manual that comes with it.
-To cancel the registration, select “Can-
cel”.
6Register the Bluetooth® device using
your Bluetooth® device.
-A PIN-code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth® devices. Depending on the
type of Bluetooth® device being con-
nected, a message confirming registra-
tion may be displayed on the Bluetooth®
device’s screen. Respond and operate the
Bluetooth® device according to the confir-
mation message.
REGISTERING A Bluetooth®
PHONE FOR THE FIRST TIME
To use the hands-free system, it is
necessary to register a Bluetooth®
phone with the system.
Once the phone has been registered, it
is possible to use the hands-free sys-
tem.
This operation cannot be performed
while driving.
For details about registering a
Bluetooth® device: P.46
43
2. Bluetooth® SETTINGS
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
7Check that the screen is displayed
when registration is complete.
-The system waits for connection requests
coming from the registered device.
-At this stage, the Bluetooth® functions are
not yet available.
8Select “OK” when the connection sta-
tus changes from “Connecting...” to
“Connected”.
-If an error message is displayed, follow
the guidance on the screen to try again.
1Turn the Bluetooth® connection setting
of your audio player on.
-This function is not available when the
Bluetooth® connection setting of your
audio player is set to off.

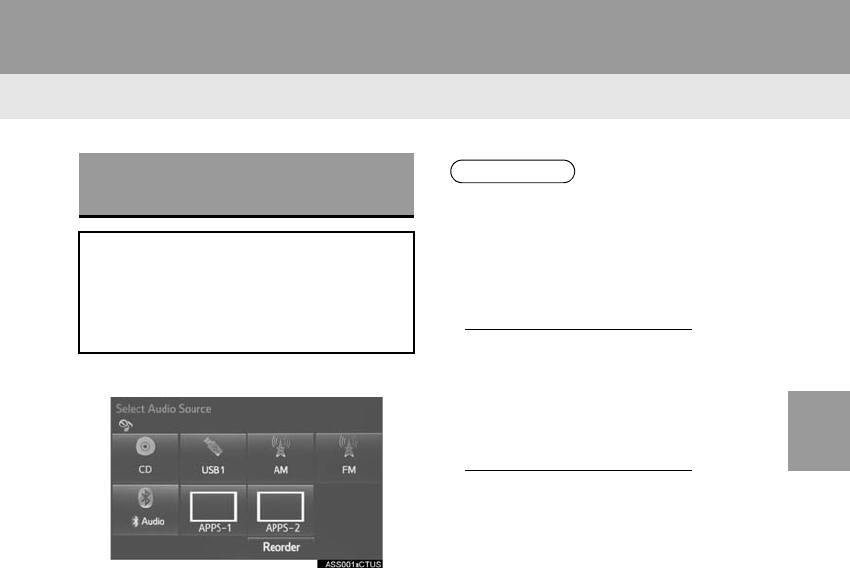

2Press the “AUDIO” button.
3Select “Source” on the audio screen
or press “AUDIO” button again.
4Select “ Audio.
5Select “Yes” to register an audio play-
er.
6Follow the steps in “REGISTERING A
Bluetooth® DEVICE” from “STEP 2”.
(P.46)
REGISTERING A Bluetooth®
AUDIO PLAYER FOR THE
FIRST TIME
To use the Bluetooth® Audio, it is nec-
essary to register an audio player with
the system.
Once the player has been registered, it
is possible to use the Bluetooth® Au-
dio.
This operation cannot be performed
while driving.
For details about registering a
Bluetooth® device: P.46
44
2. Bluetooth® SETTINGS
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
PROFILES
This system supports the following services.
Bluetooth®
Device Spec. Function Require-
ments
Recommen-
dations
Bluetooth®
Phone/
Bluetooth®
Audio
Player
Bluetooth® Specification
Registering
a Bluetooth®
device
Ver. 2.0 Ver. 3.0
+EDR
Bluetooth®
Device Profile Function Require-
ments
Recommen-
dations
Bluetooth®
Phone
HFP (Hands-Free Profile) Hands-free
system Ver. 1.0 Ver. 1.6
OPP (Object Push Profile) Transferring the
contacts
Ver. 1.1 Ver. 1.2
PBAP (Phone Book
Access profile) Ver. 1.0 Ver. 1.1
MAP (Message Access
Profile)
Bluetooth®
phone message Ver. 1.0
SPP (Serial Port Profile) Entune App
Suite* Ver. 1.1
Bluetooth®
Audio
Player
A2DP (Advanced Audio
Distribution Profile) Bluetooth® audio
system
Ver. 1.0 Ver. 1.2
AVRCP (Audio/Video
Remote Control Profile) Ver. 1.0 Ver. 1.4
*: With navigation function
INFORMATION
If your cellular phone does not support HFP, registering the Bluetooth® phone or using
OPP, PBAP, MAP or SPP profiles individually will not be possible.
If the connected Bluetooth® device version is older than recommended or incompatible,
the Bluetooth® device function may not work properly.
Refer to http://www.toyota.com/entune/ to find approved Bluetooth® phones for this sys-
tem.
45
2. Bluetooth® SETTINGS
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
2. SETTING Bluetooth® DETAILS
1Press the “APPS” button.
2Select “Setup”.
3Select “Bluetooth*”.
4Select the desired item to be set.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
“Bluetooth* Setup” SCREEN
Function Page
Registering a Bluetooth® device 46
Deleting a Bluetooth® device 47
Connecting a Bluetooth® device 48
Editing the Bluetooth® device infor-
mation 50
Bluetooth® system settings 51
46
2. Bluetooth® SETTINGS
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
From the phone/message settings
screen
1Press the “APPS” button.
2Select “Setup”.
3Select “Phone”.
4Select “Connect Phone”.
From the status display
1Select status display area on the
screen.
1Display the “Bluetooth* Setup” screen.
(P.45)
2Select “Add”.
When another Bluetooth® device is con-
nected
-To disconnect the Bluetooth® device,
select “Yes”.
When 5 Bluetooth® devices have al-
ready been registered
-A registered device needs to be replaced.
Select “Yes”, and select the device to be
replaced.
3When this screen is displayed, search
for the device name displayed on this
screen on the screen of your
Bluetooth® device.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
DISPLAYING THE “Bluetooth*
Setup” SCREEN IN A
DIFFERENT WAY
REGISTERING A Bluetooth®
DEVICE
Up to 5 Bluetooth® devices can be reg-
istered.
Bluetooth® compatible phones (HFP)
and audio players (AVP) can be regis-
tered simultaneously.
This operation cannot be performed
while driving.
47
2. Bluetooth® SETTINGS
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
-For details about operating the Bluetooth®
device, see the manual that comes with it.
-To cancel the registration, select “Can-
cel”.
4Register the Bluetooth® device using
your Bluetooth® device.
-A PIN-code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth® devices. Depending on the
type of Bluetooth® device being con-
nected, a message confirming registra-
tion may be displayed on the Bluetooth®
device’s screen. Respond and operate the
Bluetooth® device according to the confir-
mation message.
5Check that the screen is displayed
when registration is complete.
-The system waits for connection requests
coming from the registered device.
-At this stage, the Bluetooth® functions are
not yet available.
6Select “OK” when the connection sta-
tus changes from “Connection wait-
ing...” to “Connected”.
-If an error message is displayed, follow
the guidance on the screen to try again.
1Display the “Bluetooth* Setup” screen.
(P.45)
2Select “Remove”.
3Select the desired device.
4Select “Yes” when the confirmation
screen appears.
5Check that a confirmation screen is
displayed when the operation is com-
plete.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
DELETING A Bluetooth®
DEVICE
INFORMATION
When deleting a Bluetooth® phone, the
contact data will be deleted at the same
time.
48
2. Bluetooth® SETTINGS
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
1Display the “Bluetooth* Setup” screen.
(P.45)
2Select the device to be connected.
-Supported profile icons will be displayed.
: Phone
: Audio player
: Phone/Entune App Suite service
(With navigation function)
-Supported profile icons for currently con-
nected devices will illuminate.
-Dimmed icons can be selected to connect
to the phone/audio function directly.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
3Select the desired connection.
When another Bluetooth® device is con-
nected
-To disconnect the Bluetooth® device,
select “Yes”.
4Check that a confirmation screen is
displayed when the connection is com-
plete.
-If an error message is displayed, follow
the guidance on the screen to try again.
CONNECTING A Bluetooth®
DEVICE
Up to 5 Bluetooth® devices (Phones
(HFP) and audio players (AVP)) can be
registered.
If more than 1 Bluetooth® device has
been registered, select which device to
connect to.
-If the desired Bluetooth® device is not
on the list, select “Add” to register the
device. (P.46)
INFORMATION
It may take time if the device connection
is carried out during Bluetooth® audio
playback.
Depending on the type of Bluetooth®
device being connected, it may be nec-
essary to perform additional steps on
the device.
49
2. Bluetooth® SETTINGS
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
AUTO CONNECTION MODE
Vehicles without a smart key system
-When the engine switch is in the “ACC” or
“ON” position, the system searches for a
nearby registered device.
-The system will connect with the regis-
tered device that was last connected, if it
is nearby.
Vehicles with a smart key system
-When the engine switch is in ACCES-
SORY or IGNITION ON mode, the system
searches for a nearby registered device.
-The system will connect with the regis-
tered device that was last connected, if it
is nearby.
CONNECTING MANUALLY
1Press the “APPS” button and select
“Setup”.
2Select “Bluetooth*”.
3Follow the steps in “CONNECTING A
Bluetooth® DEVICE” from “STEP 2”.
(P.48)
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
RECONNECTING THE Bluetooth®
PHONE
-If a Bluetooth® phone is disconnected on
purpose, such as turning it off, this does
not happen. Reconnect the Bluetooth®
phone manually.
To turn auto connection mode on, set
“Bluetooth* Power” to on. (P.51)
Leave the Bluetooth® device in a loca-
tion where the connection can be es-
tablished.
When the auto connection has failed or
“Bluetooth* Power” is turned off, it is
necessary to connect Bluetooth® man-
ually.
If a Bluetooth® phone is disconnected
due to poor reception from the
Bluetooth® network when the engine
switch is in the following, the system
automatically reconnect the
Bluetooth® phone.
Vehicles without a smart key system
The engine switch is turned to the
“ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is turned to ACCES-
SORY or IGNITION ON mode.
50
2. Bluetooth® SETTINGS
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
1Display the “Bluetooth* Setup” screen.
(P.45)
2Select the desired device to be edited.
3Select “Device Info”.
4Confirm and change the Bluetooth®
device information.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
EDITING THE Bluetooth®
DEVICE INFORMATION
The Bluetooth® device’s information
can be displayed on the screen. The
displayed information can be edited.
No. Information
The name of the Bluetooth® device.
Can be changed to a desired name.
(P.51)
Select to set the Bluetooth® audio
player connection method. (P.51)
Device address is unique to the de-
vice and cannot be changed.
Phone number of the Bluetooth®
phone.
Compatibility profile of the
Bluetooth® device.
Select to reset all setup items.
INFORMATION
If 2 Bluetooth® devices have been regis-
tered with the same device name, the
devices can be distinguished referring to
the device’s address.
Depending on the type of phone, some
information may not be displayed.
51
2. Bluetooth® SETTINGS
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
1Select “Device Name”.
2Enter the name and select “OK”.
1Select “Connect Audio Player
From”.
2Select the desired connection method.
“Vehicle”: Select to connect the audio
system to the audio player.
“Device”: Select to connect the audio
player to the audio system.
-Depending on the audio player, the “Vehi-
cle” or “Device” connection method may
be best. As such, refer to the manual that
comes with the audio player.
-To reset the connection method, select
“Default”.
1Display the “Bluetooth* Setup” screen.
(P.45)
2Select “System Settings”.
3Select the desired item to be set.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
CHANGING A DEVICE NAME
INFORMATION
Even if the device name is changed, the
name registered in your Bluetooth®
device does not change.
SETTING AUDIO PLAYER
CONNECTION METHOD
“System Settings” SCREEN
The Bluetooth® settings can be con-
firmed and changed.
52
2. Bluetooth® SETTINGS
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:41
1Select “Bluetooth* Power”.
When “Bluetooth* Power” is on:
Vehicles without a smart key system
The Bluetooth® device is automatically
connected when the engine switch is
turned to the “ACC” or “ON” position.
Vehicles with a smart key system
The Bluetooth® device is automatically
connected when the engine switch is
turned to ACCESSORY or IGNITION
ON mode.
When “Bluetooth* Power” is off:
The Bluetooth® device is disconnected,
and the system will not connect to it next
time.
1Select “Bluetooth* Name”.
2Enter a name and select “OK”.
1Select “Bluetooth* PIN”.
2Enter a PIN-code and select “OK”.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
No. Information Page
Select to set Bluetooth®
connection on/off. 52
Displays system name.
Can be changed to a de-
sired name.
52
PIN-code used when the
Bluetooth® device was reg-
istered. Can be changed to
a desired code.
52
Device address is unique
to the device and cannot be
changed.
Select to set the phone
connection status display
on/off.
Select to set the connec-
tion status display of the
audio player on/off.
Compatibility profile of the
system device.
Select to reset all setup
items.
CHANGING “Bluetooth*
Power”
INFORMATION
While driving, the auto connection state
can be changed from off to on, but can-
not be changed from on to off.
EDITING THE Bluetooth* NAME
EDITING THE PIN-CODE
53
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. OTHER SETTINGS
1. GENERAL SETTINGS
1Press the “APPS” button.
2Select “Setup”.
3Select “General”.
4Select the items to be set.
Settings are available for system time,
operation sounds, etc. GENERAL SETTINGS
SCREEN
54
3. OTHER SETTINGS
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Function
Select to change the time zone and
set the daylight saving time on/off.
(P.55)
Select to change the language.
*Select to change the unit of measure
for distance.
Select to change the unit of temper-
ature.
Select to set the sound beeps on/off.
Select to change the screen button
color.
Select to change the keyboard lay-
out.
Select to set automatic screen
changes from the audio control
screen to the home screen to on/off.
When set to on, the screen will auto-
matically return to the home screen
from the audio control screen after
20 seconds.
Select to set the animations on/off.
Select to customize the startup im-
age. (P.56)
Select to customize the screen off
image. (P.57)
Select to delete personal data.
(P.58)
Select to update software versions.
For details, contact your Toyota
dealer.
Select to update “Gracenote” data-
base versions. For details, contact
your Toyota dealer.
Select to display the software infor-
mation. Notices related to third party
software used in this product are en-
listed. (This includes instructions for
obtaining such software, where ap-
plicable.)
Select to reset all setup items.
*: With navigation function
No. Function
55
3. OTHER SETTINGS
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “General Settings” screen.
(P.53)
2Select “System Time”.
3Select the items to be set.
4Select “OK”.
SETTING THE TIME ZONE
1Select “Time Zone”.
2Select the desired time zone.
SYSTEM TIME SETTINGS
Used for changing time zones and the
on/off settings of daylight saving time.
No. Function
Select to change the time zone.
(P.55)
Select to set daylight saving time on/
off.
56
3. OTHER SETTINGS
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
TRANSFERRING IMAGES
1Open the cover and connect a USB
memory.
-Turn on the power of the USB memory if it
is not turned on.
2Press the “APPS” button.
3Select “Setup”.
4Select “General”.
5Select “Customize Startup Image” or
“Customize Screen Off Image”.
6Select “Transfer”.
7Select “Yes”.
CUSTOMIZING THE STARTUP
AND SCREEN OFF IMAGES
An image can be copied from a USB
memory and used as the startup and
screen off images.
Vehicles without a smart key system
When the engine switch is in the “ACC”
or “ON” position, the initial screen will
be displayed. (P.32)
Vehicles with a smart key system
When the engine switch is in ACCES-
SORY or IGNITION ON mode, the ini-
tial screen will be displayed. (P.32)
57
3. OTHER SETTINGS
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
SETTING THE STARTUP IMAGES
1Display the “General Settings” screen.
(P.53)
2Select “Customize Startup Image”.
3Select the desired image.
4Select “OK”.
SETTINGS THE SCREEN OFF IM-
AGES
1Display the “General Settings” screen.
(P.53)
2Select “Customize Screen Off Im-
age”.
3Select the desired image.
4Select “OK”.
INFORMATION
When saving the images to a USB,
name the folder that the startup image is
saved to “StartupImage” and name the
folder that the screen off image is saved
to “DisplayOffImage”. If these folder
names are not used, the system cannot
download the images. (The folder
names are case sensitive.)
The compatible file extensions are JPG
and JPEG.
Image files of 5 MB or less can be trans-
ferred.
Up to 3 images can be downloaded.
Files with non-ASCII filenames can not
be downloaded.
58
3. OTHER SETTINGS
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
DELETING TRANSFERRED IMAG-
ES
1Display the “General Settings” screen.
(P.53)
2Select “Customize Startup Image” or
“Customize Screen Off Image”.
3Select “Delete All”.
4Select “Yes”.
1Display the “General Settings” screen.
(P.53)
2Select “Delete Personal Data”.
3Select “Delete”.
4Select “Yes” when the confirmation
screen appears.
-Registered or changed personal settings
will be deleted or returned to their default
conditions.
For example:
General settings
Navigation settings*
Audio settings
Phone settings
*: With navigation function
DELETING PERSONAL DATA
NOTICE
With navigation function: Make sure the
map SD card is inserted when deleting
personal data. The personal data cannot
be deleted when the map SD card is
removed.
Vehicles with a smart key system
To delete the data, after inserting the
map SD card, turn the engine switch
OFF and then turn the engine switch to
ACCESSORY or IGNITION ON mode.
Vehicles without a smart key system
To delete the data, after inserting the
map SD card, turn the engine switch to
“LOCK” position and then turn the engine
switch to “ACC” or “ON” position.
59
3. OTHER SETTINGS
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. VOICE SETTINGS
1Press the “APPS” button.
2Select “Setup”.
3Select “Voice”.
4Select the items to be set.
Voice volume, etc. can be set.
INFORMATION
“Voice Settings” screen can also be dis-
played from the voice recognition top
screen. (P.126)
VOICE SETTINGS SCREEN
No. Function
Select to adjust the volume of voice
guidance.
*Select to set the voice guidance dur-
ing route guidance on/off.
Select to set the voice recognition
prompts.
Select to train voice recognition.
The voice command system adapt
the user accent.
Select to set the voice prompt inter-
rupt on/off.
*
Select to set the web search engine.
The search engines are Entune App
Suite applications. (P.265)
Select to set the voice recognition
tutorial.
Select to reset all setup items.
*: With navigation function
60
3. OTHER SETTINGS
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. DRIVER SETTINGS
1Press the “APPS” button.
2Select “Setup”.
3Select “Driver”.
4Select “Enable this Feature”.
1Display the driver settings screen.
(P.60)
2Select “Manually Select Linked Set-
tings”.
3Select the desired phone.
-After a few seconds, loaded screen auto-
matically switches to the home screen.
The driver settings feature will allow
the system to link some preferences
(such as audio presets, button colors,
language, etc.) to a paired Bluetooth®
phone.
MANUALLY SELECT LINKED
SETTINGS
61
3. OTHER SETTINGS
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
4. MAINTENANCE
*
1Press the “APPS” button.
2Select “Maintenance”.
3Select the desired item.
When this system is turned on, the
“Maintenance Reminder” screen dis-
plays when it is time to replace a part
or certain components. (P.32)
No. Function
Select to set the condition of parts or
components.
Select to add new information items
separately from provided ones.
Select to cancel all conditions which
have been entered.
Select to reset the item which have
expired conditions.
Select to call the registered dealer.
Select to register/edit dealer infor-
mation. (P.62)
When set to on, the indicator will illu-
minate. The system is set to give
maintenance information with the
“Maintenance Reminder” screen.
(P.32)
INFORMATION
When the vehicle needs to be serviced,
the screen button color will change to
orange.
*: With navigation function
62
3. OTHER SETTINGS
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select the desired part or component
screen button.
-When the vehicle needs to be serviced,
the screen button color will change to
orange.
2Set the conditions.
3Select “OK” after entering the condi-
tions.
1Select “Set Dealer”.
2Select the desired item to search for
the location. (P.208)
-The editing dealer screen appears after
setting the location.
MAINTENANCE INFORMATION
SETTING
No. Function
Select to enter the next maintenance
date.
Select to enter the driving distance
until the next maintenance check.
Select to cancel the conditions which
have been entered.
Select to reset the conditions which
have expired.
INFORMATION
For scheduled maintenance information,
refer to “Scheduled Maintenance Guide”
or “Owner’s Manual Supplement”.
Depending on driving or road conditions,
the actual date and distance that main-
tenance should be performed may differ
from the stored date and distance in the
system.
DEALER SETTING
Dealer information can be registered in
the system. With dealer information
registered, route guidance to the deal-
er is available.
63
3. OTHER SETTINGS
2
BASIC FUNCTION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3Select the items to be edited. EDITING DEALER OR CONTACT
NAME
1Select “Edit” next to “Dealer” or “Con-
tact”.
2Enter the name and select “OK”.
EDITING THE LOCATION
1Select “Edit” next to “Location”.
2Scroll the map to the desired point
(P.200) and select “OK”.
EDITING PHONE NUMBER
1Select “Edit” next to “Phone #”.
2Enter the phone number and select
“OK”.
No. Function Page
Select to enter the name of
a dealer. 63
Select to enter the name of
a dealer member. 63
Select to set the location. 63
Select to enter the phone
number. 63
Select to delete the dealer
information displayed on
the screen.
Select to set the displayed
dealer as a destination. 220
64
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
1. QUICK REFERENCE..................... 66
2. SOME BASICS............................... 68
TURNING THE SYSTEM
ON AND OFF ...................................... 68
SELECTING AN AUDIO SOURCE........ 69
DISC SLOT............................................ 70
USB/AUX PORT .................................... 70
SOUND SETTINGS............................... 71
VOICE COMMAND SYSTEM................ 72
1. AM/FM RADIO............................... 73
OVERVIEW............................................ 73
PRESETTING A STATION .................... 76
SELECTING A STATION
FROM THE LIST ................................. 76
CACHING A RADIO PROGRAM ........... 77
RADIO BROADCAST DATA
SYSTEM.............................................. 78
TRAFFIC ANNOUNCEMENT
(FM RADIO)......................................... 79
USING HD Radio™
TECHNOLOGY.................................... 79
AVAILABLE HD Radio™
TECHNOLOGY.................................... 80
TROUBLESHOOTING GUIDE............... 82
2. XM Satellite Radio........................ 83
OVERVIEW............................................ 83
HOW TO SUBSCRIBE TO AN
XM Satellite Radio ............................... 85
DISPLAYING THE RADIO ID................. 87
PRESETTING A CHANNEL................... 87
SELECTING A CHANNEL
FROM THE LIST ................................. 87
IF THE SATELLITE RADIO TUNER
MALFUNCTIONS ................................ 88
3. INTERNET RADIO......................... 89
LISTENING TO INTERNET
RADIO ................................................. 89
1BASIC OPERATION 2RADIO OPERATION
3
AUDIO SYSTEM
3
65
1
2
3
4
5
6
7
8
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
9
1. CD .................................................. 90
OVERVIEW ........................................... 90
PLAYING AN AUDIO CD ...................... 92
PLAYING AN MP3/WMA/AAC
DISC.................................................... 92
2. USB MEMORY............................... 93
OVERVIEW ........................................... 93
PLAYING A USB AUDIO....................... 96
3. iPod................................................ 97
OVERVIEW ........................................... 97
iPod AUDIO ......................................... 100
iPod VIDEO ......................................... 100
4. Bluetooth® AUDIO ...................... 101
OVERVIEW ......................................... 101
CONNECTING A Bluetooth®
DEVICE............................................. 105
LISTENING TO Bluetooth®
AUDIO............................................... 105
5. AUX.............................................. 106
OVERVIEW ......................................... 106
1. STEERING SWITCHES............... 108
1. AUDIO SETTINGS ...................... 111
AUDIO SETTINGS SCREEN............... 111
1. OPERATING
INFORMATION ......................... 113
RADIO.................................................. 113
CD PLAYER AND DISC ...................... 114
iPod...................................................... 116
FILE INFORMATION ........................... 117
TERMS ................................................ 120
ERROR MESSAGES........................... 121
3MEDIA OPERATION 4AUDIO REMOTE CONTROLS
5SETUP
6TIPS FOR OPERATING THE
AUDIO SYSTEM
AUDIO SYSTEM
66
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1. BASIC OPERATION
1. QUICK REFERENCE
Without navigation function
With navigation function
Press the “AUDIO” button to display the audio screen.
67
1. BASIC OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Function Page
Using the radio 73, 83, 89
Playing an audio CD or MP3/WMA/AAC disc 90
Playing a USB memory 93
Playing an iPod®97
Playing a Bluetooth® device 101
Using the AUX port 106
Using the steering wheel audio switches 108
Audio system settings 111
INFORMATION
The display and button positions will differ depending on the type of the system.
68
1. BASIC OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. SOME BASICS
“PWR VOL” knob: Press to turn the audio
system on and off. The system turns on in
the last mode used. Turn this knob to ad-
just the volume.
“AUDIO” button: Press to display screen
buttons for the audio system.
This section describes some of the ba-
sic features of the audio system. Some
information may not pertain to your
system.
Vehicles without a smart key system
Your audio system works when the en-
gine switch is turned to the “ACC” or
“ON” position.
Vehicles with a smart key system
Your audio system works when the en-
gine switch is turned to ACCESSORY
or IGNITION ON mode.
CAUTION
For vehicles sold in U.S.A.:
Part 15 of the FCC Rules
FCC WARNING: Changes or
modifications not expressly approved by
the party responsible for compliance
could void the user’s authority to operate
the equipment.
Laser products
Without navigation function
USE OF CONTROL OR
ADJUSTMENT OR PERFORMANCE
OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS
RADIATION EXPOSURE.
THE USE OF OPTICAL
INSTRUMENTS WITH THIS
PRODUCT WILL INCREASE EYE
HAZARD.
With navigation function
THIS PRODUCT IS A CLASS 1 LASER
PRODUCT. USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN COVERS
AND DO NOT REPAIR BY YOURSELF.
REFER SERVING TO QUALIFIED
PERSONNEL.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio system
on longer than necessary when the
engine is not running.
TURNING THE SYSTEM ON
AND OFF
-A function that enables automatic return
to the home screen from the audio
screen can be selected. (P.5 3)
69
1. BASIC OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Press the “AUDIO” button.
2Select “Source” on the audio screen
or press “AUDIO” button again.
3Select the desired source.
1Display the “Select Audio Source”
screen. (P.69)
2Select “Reorder”.
3Select the desired audio source then
or to reorder.
4Select “OK”.
SELECTING AN AUDIO
SOURCE
INFORMATION
Dimmed screen buttons cannot be oper-
ated.
When there are two pages, select
or to change the page.
REORDERING THE AUDIO
SOURCE
70
1. BASIC OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Insert a disc into the disc slot.
-After insertion, the disc is automatically
loaded.
1Press the button and remove the
disc.
1Open the cover and connect a device.
-Turn on the power of the device if it is not
turned on.
DISC SLOT
INSERTING A DISC
EJECTING A DISC
NOTICE
Never try to disassemble or oil any part
of the CD player. Do not insert anything
other than a disc into the slot.
INFORMATION
The player is intended for use with 4.7
in. (12 cm) discs only.
When inserting a disc, gently insert the
disc with the label facing up.
USB/AUX PORT
INFORMATION
If a USB hub is plugged-in, two devices
can be connected at a time.
Even if a USB hub is used to connect
more than two USB devices, only the
first two connected devices will be rec-
ognized.
71
1. BASIC OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Audio Settings” screen.
(P.111)
Type A
2Select “Automatic Sound Levelizer”.
3Select “High”, “Mid”, “Low”, or
“Off”.
Type B
2Select “Auto Sound Levelizer”.
SOUND SETTINGS
AUTOMATIC SOUND
LEVELIZER (ASL)
The system adjusts to the optimum vol-
ume and tone quality according to ve-
hicle speed to compensate for
increased vehicle noise.
TONE AND BALANCE
TONE:
How good an audio program sounds is
largely determined by the mix of the
treble, mid and bass levels. In fact, dif-
ferent kinds of music and vocal pro-
grams usually sound better with
different mixes of treble, mid and bass.
BALANCE:
A good balance of the left and right ste-
reo channels and of the front and rear
sound levels is also important.
Keep in mind that when listening to a
stereo recording or broadcast, chang-
ing the right/left balance will increase
the volume of 1 group of sounds while
decreasing the volume of another.
72
1. BASIC OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “Sound” on the audio control
screen.
2Select the desired screen button. 1Press this switch to operate the voice
command system.
No. Function
Select “+” or “-” to adjust high-
pitched tones.
Select “+” or “-” to adjust mid-
pitched tones.
Select “+” or “-” to adjust low-
pitched tones.
Select to adjust the sound balance
between the front and rear speakers.
Select to adjust the sound balance
between the left and right speakers.
VOICE COMMAND SYSTEM
-The voice command system and its list
of commands can be operated.
(P.124)
73
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. RADIO OPERATION
1. AM/FM RADIO
CONTROL SCREEN
Without navigation function
OVERVIEW
Select “AM” or “FM” on the “Select Audio Source” screen. (P.69)
Top screen
Option screen
74
2. RADIO OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
With navigation function
CONTROL PANEL
Top screen
Option screen
75
2. RADIO OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Function
Select to scroll the page of preset buttons.
Select to display the option screen.
Select to display the audio source selection screen.
Select to display the sound setting screen.
Select to display a list of receivable stations/channels.
Select to scan for receivable stations/channels.
Select to store information of the audio currently being broadcast on the radio.
Select to tune to preset stations/channels.
Select to display the additional text information.
Analog FM only: Select to display RBDS text messages.
Select to turn HD Radio mode on/off.
When the “HD Radio™” indicator is off, the station list shows only analog broadcasts.
Cache radio only: Select to turn mute on/off.
Select to display the cache radio operation buttons. (P.77)
Turn to step up/down frequencies.
Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
Press to seek for a station/channel.
Press and hold for continuous seek.
*Press to turn mute on/off.
Press to select an audio mode.
Turn to adjust volume.
Press to turn the audio system on/off.
Press and hold to restart the audio system.
*: Without navigation function
INFORMATION
The radio automatically changes to stereo reception when a stereo broadcast is received.
The radio automatically blends to an HD Radio signal in AM or FM where available.
76
2. RADIO OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Tune in the desired station.
2Select “(add new)”.
-To change the preset station to a different
one, select and hold the preset station.
3Select “Yes” on the confirmation
screen.
4Select “OK” after setting the new pre-
set station.
1Select “Station List”.
2FM radio only: Select the desired pro-
gram genre.
3Select the desired station and select
“OK”.
PRESETTING A STATION
Radio mode has a mix preset function,
which can store up to 36 stations (6
stations per page x 6 pages) from any
of the AM, FM or SAT bands.

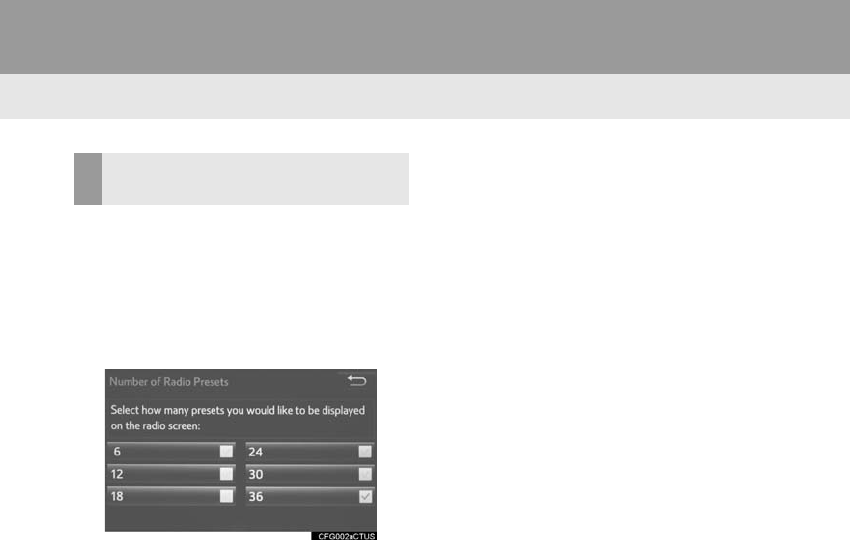

INFORMATION
The number of preset radio stations dis-
played on the screen can be changed.
(P.112)
SELECTING A STATION
FROM THE LIST
A station list can be displayed.
77
2. RADIO OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
REFRESHING THE STATION LIST
1Select “Refresh on the station list
screen and the following screen will be
displayed.
“Cancel Refresh”: Select to cancel the
refresh.
“Source”: Select to change to another au-
dio source while refreshing.
1Display the cache radio operation but-
tons. (P.73)
2Select the desired cache radio opera-
tion button.
INFORMATION
The audio system sound is muted during
refresh operation.
In some situations, it may take some
time to update the station list.
*: With navigation function
CACHING A RADIO
PROGRAM*
A radio program can be cached and
played back in a time-shifted manner.
PLAYING BACK THE CACHE
MANUALLY
The broadcast cached in the program
cache can be played back manually.
No. Function
Hides the cache operation buttons
Skips backward 2 minutes
Fast rewinds continuously
Returns to the live radio broadcast
Fast forwards continuously
Skips forward 2 minutes
Red vertical bar: Shows what por-
tion of the cached broadcast is cur-
rently playing
Light blue bar: Shows time in which
cache writing is in progress
78
2. RADIO OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “Station List”.
2FM radio only: Select a desired genre
of station and select a desired station.
-The genre list is in the following order:
• Classical
• Country
EasyLis (Easy Listening)
Inform (Information)
•Jazz
•News
•Oldies
• Other
Pop Music
• Religion
•Rock
R&B (Rhythm and Blues)
• Sports
•Talk
Traffic (Not available when “HD Radio™”
indicator is off.)
Alert (Emergency Alert)
AUTOMATIC PLAYBACK OF
THE CACHE
If the radio broadcast is interrupted by
another audio output, such as an
incoming phone call, the system will
automatically cache the interrupted
portion and perform time-shift
playback when the interruption ends.
To manually operate the cache
operation: (P.77)
INFORMATION
The system can store up to 20 minutes.
Cached data will be erased when the
radio mode or station is changed or
when the audio system is turned off.
If noise or silence occurs during the
caching process, cache writing will con-
tinue, with the noise or silence recorded
as is. In this case, the cached broadcast
will contain the noise or silence when
played back.
RADIO BROADCAST DATA
SYSTEM
This audio system is equipped with Ra-
dio Broadcast Data Systems (RBDS).
RBDS mode allows text messages to
be received from radio stations that uti-
lize RBDS transmitters.
When RBDS is on, the radio can
only select stations of a particular
program type,
display messages from radio sta-
tions,
— search for a stronger signal station.
RBDS features are available only
when listening to an FM station that
broadcasts RBDS information and the
“FM Info” indicator is on.
SELECTING A DESIRED
GENRE
79
2. RADIO OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “Station List”.
2Select the desired traffic program sta-
tion.
TRAFFIC ANNOUNCEMENT
(FM RADIO)
A station that regularly broadcasts traf-
fic information is automatically located.
INFORMATION
If a traffic program station is found, the
name of the traffic program station will
be displayed for a while.
USING HD Radio
TECHNOLOGY
HD Radio Technology is the digital
evolution of analog AM/FM radio. Your
radio product has a special receiver
which allows it to receive digital
broadcasts (where available) in
addition to the analog broadcasts it
already receives. Digital broadcasts
have better sound quality than analog
broadcasts as digital broadcasts
provide free, crystal clear audio with no
static or distortion. For more
information, and a guide to available
radio stations and programming, refer
to www.hdradio.com.
HD Radio Technology manufactured
under license from iBiquity Digital
Corporation. U.S. and Foreign
Patents. HD Radio and the HD, HD
Radio, and “Arc” logos are proprietary
trademarks of iBiquity Digital Corp.
80
2. RADIO OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select the “HD)” logo.
2Select the desired channel.
-Turning the “TUNE/SCROLL” knob can
also select the desired multicast channel.
1Select “Tag to bookmark the music
information.
2Connect an iPod. (P.70)
-Turn on the power of the iPod if it is not
turned on.
-Once an iPod is connected, the music tag
moves from the radio into the iPod.
-When the iPod is connected to iTunes, the
“tagged” information of the songs which
were tagged while listening to the radio
can be viewed. Then a user may decide to
purchase the song or CD/Album which
had been listened to on their radio.
AVAILABLE HD Radio
TECHNOLOGY
MULTICAST
On the FM radio frequency most digital
stations have “multiple” or supplemen-
tal programs on one FM station.
PRESERVING A MUSIC
INFORMATION
Tag information in the music broad-
casting is preserved in the system and
transmits to an iPod.
81
2. RADIO OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
INFORMATION
The tag information can not be pre-
served while scanning or caching the
radio station.
If tagging the music information fails,
“Saving the HD Radio tag was unsuc-
cessful.” will be displayed on the screen.
If this occurs, tag the information again.
HD Radio™ stations can be preset.
An orange “HD)” logo indicator will be
displayed on the screen when in digital.
The “HD)” logo will first appear in a gray
color indicating the station is indeed (an
analog and) a digital station. Once the
digital signal is acquired, the logo will
change to a bright orange color.
The song title and artist name will
appear on the screen when available by
the radio station. The radio station can
send album pictures when available.
As a user works through the analog
radio stations, (where applicable) the
radio receiver will automatically tune
from an analog signal to a digital signal
within 5 seconds.
82
2. RADIO OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
TROUBLESHOOTING GUIDE
Experience Cause Action
Mismatch of time align-
ment- a user may hear a
short period of program-
ming replayed or an echo,
stutter or skip.
The radio stations analog
and digital volume is not
properly aligned or the sta-
tion is in ballgame mode.
None, radio broadcast issue. A
user can contact the radio station.
Sound fades, blending in
and out.
Radio is shifting between
analog and digital audio.
Reception issue, may clear-up as
the vehicle continues to be driven.
Turning the indicator of the “HD
Radio™” button off can force radio
in an analog audio.
Audio mute condition when
an HD2/HD3 multicast
channel had been playing.
The radio does not have
access to digital signals at
the moment.
This is normal behavior, wait until
the digital signal returns. If out of
the coverage area, seek a new
station.
Audio mute delay when se-
lecting an HD2/HD3 multi-
cast channel preset.
The digital multicast con-
tent is not available until
HD Radio™ broadcast can
be decoded and make the
audio available. This takes
up to 7 seconds.
This is normal behavior, wait for
the audio to become available.
Text information does not
match the present song au-
dio.
Data service issue by the
radio broadcaster.
Broadcaster should be notified.
Complete the form;
www.ibiquity.com/automotive/
report_radio_station_experiences.
No text information shown
for the present selected fre-
quency.
Data service issue by the
radio broadcaster.
Broadcaster should be notified.
Complete the form;
www.ibiquity.com/automotive/
report_radio_station_experiences.
83
2. RADIO OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. XM Satellite Radio*
CONTROL SCREEN
CONTROL PANEL
OVERVIEW
Select “XM” on the “Select Audio Source” screen. (P.69)
*: With navigation function
84
2. RADIO OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Function
Select to scroll the page of preset buttons.
Select to display the option screen.
Select to scan for receivable channels.
Select “Additional Information” to display the information.
Select to display the audio source selection screen.
Select to display the sound setting screen.
Select to display a list of receivable channels.
Select to tune to preset channels.
Turn to step up/down channels.
Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
Press to seek for a channel.
Press and hold for continuous seek.
Press to select an audio mode.
Turn to adjust volume.
Press to turn the audio system on/off.
Press and hold to restart the audio system.
85
2. RADIO OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
HOW TO SUBSCRIBE TO AN
XM Satellite Radio
To listen to a satellite radio broadcast
in the vehicle, a subscription to the XM
Satellite Radio service is necessary.
An XM Satellite Radio is a tuner de-
signed exclusively to receive broad-
casts provided under a separate
subscription. Availability is limited to
the 48 contiguous U.S. states and
some Canadian provinces.
HOW TO SUBSCRIBE
It is necessary to enter into a separate
service agreement with XM Satellite
Radio in order to receive satellite
broadcast programming in the vehicle.
Additional activation and service sub-
scription fees apply that are not includ-
ed in the purchase price of the vehicle
and digital satellite tuner.
-For complete information on subscrip-
tion rates and terms, or to subscribe to
XM Satellite Radio:
U.S.A.
Refer to www.siriusxm.com or call
1-800-967-2346.
Canada
Refer to www.xmradio.ca or call
1-877-209-0079.
NOTICE
XM Radio Services Legal Disclaimers
and Warnings
Fees and Taxes Subscription fee,
taxes, one time activation fee, and
other fees may apply. Subscription fee
is consumer only. All fees and pro-
gramming subject to change.
Subscriptions subject to Customer
Agreement available at
www.siriusxm.com. (U.S.A.) or
www.xmradio.ca (Canada) XM service
only available in the 48 contiguous
United States and Canada.
Explicit Language Notice Channels
with frequent explicit language are indi-
cated with an “XL” preceding the chan-
nel name. Channel blocking is
available for XM Satellite Radio receiv-
ers by notifying XM at;
U.S.A. Customers:
Visit www.siriusxm.com or calling
1-800-967-2346
Canadian Customers:
Visit www.xmradio.ca or calling
1-877-209-0079
It is prohibited to copy, decompile, disas-
semble, reverse engineer, hack, manip-
ulate, or otherwise make available any
technology or software incorporated in
receivers compatible with the XM
Satellite Radio System or that support
the XM website, the Online Service or
any of its content. Furthermore, the
AMBE® voice compression software
included in this product is protected by
intellectual property rights including
patent rights, copyrights, and trade
secrets of Digital Voice Systems, Inc.
Note: this applies to XM receivers only
and not XM Ready devices.
86
2. RADIO OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
INFORMATION
XM Radio ServicesDescriptions
• Radio and Entertainment
XM offers more than 170 satellite radio
channels of commercial-free music
and premier sports, news, talk, and
entertainment. XM is broadcast via sat-
ellites to millions of listeners across the
continental United States. XM sub-
scribers listen to XM on satellite radio
receivers for the car, home, and porta-
ble use. More information about XM is
available online at www.siriusxm.com
(U.S.A.) or www.xmradio.ca (Canada).
XM Radio ServicesSubscription
Instructions
For XM Services requiring a subscrip-
tion (such as XM Radio, and some
Infotainment & data services), the fol-
lowing paragraph shall be included.
Required XM Radio and some Infotain-
ment & data services monthly sub-
scriptions sold separately after trial
period. Subscription fee is consumer
only. All fees and programming subject
to change. Subscriptions are subject to
the Customer Agreement available at
www.siriusxm.com. XM service only
available in the 48 contiguous United
States. 2011 Sirius XM Radio Inc.
Sirius, XM and all related marks and
logos are trademarks of Sirius XM
Radio Inc. All other marks, channel
names and logos are the property of
their respective owners.
For more information, program sched-
ules, and to subscribe or extend sub-
scription after complimentary trial
period; more information is available
at:
USA Customers:
Visit www.siriusxm.com or call
1-800-967-2346
INFORMATION
XM Satellite Radio is solely responsible
for the quality, availability and content of
the satellite radio services provided,
which are subject to the terms and con-
ditions of the XM Satellite Radio cus-
tomer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “Ch 000” on the radio. For details,
see “DISPLAYING THE RADIO ID”
below.
All fees and programming are the
responsibility of XM Satellite Radio and
are subject to change.
SATELLITE TUNER
TECHNOLOGY NOTICE
Toyota’s satellite radio tuners are
awarded Type Approval Certificates
from XM Satellite Radio Inc. as proof of
compatibility with the services offered
by XM Satellite Radio.
INFORMATION
Satellite tuner
The tuner supports only Audio Services
(Music and Talk) and the accompanying
Text Information of XM® Satellite Radio.
87
2. RADIO OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
-If “Ch 000” is selected using the “TUNE/
SCROLL” knob, the ID code, which is 8
alphanumeric characters, will be dis-
played. If another channel is selected, the
ID code will no longer be displayed. The
channel (000) alternates between display-
ing the radio ID and the specific radio
code.
1Tune in the desired channel.
2Select “(add new)”.
-To change the preset channel to a differ-
ent one, select and hold the preset station/
channel.
3Select “Yes on the confirmation
screen.
4Select “OK” after setting the new pre-
set channel.
1Select “Channel List”.
2Select the desired program genre.
3Select the desired channel and select
“OK”.
DISPLAYING THE RADIO ID
Each XM tuner is identified with a
unique radio ID. The radio ID is re-
quired when activating an XM service
or when reporting a problem.
PRESETTING A CHANNEL
SELECTING A CHANNEL
FROM THE LIST
88
2. RADIO OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
IF THE SATELLITE RADIO TUNER MALFUNCTIONS
When problems occur with the XM tuner, a message will appear on the screen. Re-
ferring to the table below to identify the problem, take the suggested corrective ac-
tion.
Message Explanation
“Check Antenna”
The XM antenna is not connected. Check whether the XM antenna
cable is attached securely.
A short circuit occurs in the antenna or the surrounding antenna ca-
ble. See a Toyota certified dealer for assistance.
“Ch Unauthorized”
You have not subscribed to XM Satellite Radio. The radio is being
updated with the latest encryption code. Contact XM Satellite Radio
for subscription information. When a contract is canceled, you can
choose “Ch 000” and all free-to-air channels.
The premium channel you selected is not authorized. Wait for about
2 seconds until the radio returns to the previous channel or “Ch 001”.
If it does not change automatically, select another channel. To listen
to the premium channel, contact XM Satellite Radio.
“No Signal” The XM signal is too weak at the current location. Wait until your ve-
hicle reaches a location with a stronger signal.
“Loading” The unit is acquiring audio or program information. Wait until the unit
has received the information.
“Channel Off Air” The channel you selected is not broadcasting any programming. Se-
lect another channel.
----- There is no song/program title or artist name/feature associated with
the channel at that time. No action is required.
“Chan Unavailable”
The channel you selected is no longer available. Wait for about 2
seconds until the radio returns to the previous channel or “Ch 001”.
If it does not change automatically, select another channel.
INFORMATION
Contact the XM Listener Care Center at 1-800-967-2346 (U.S.A.) or 1-877-209-0079
(Canada).
89
2. RADIO OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. INTERNET RADIO
*
1Select the internet radio application.
-The internet radio application screen is
displayed.
-Perform operations according to the dis-
played application screen.
-For the instrument panel operation
method: P.69
-If a compatible phone is already regis-
tered, it will be connected automatically.
LISTENING TO INTERNET
RADIO
One of Entune App Suite features is
the ability to listen to internet radio. In
order to use this service, a compatible
phone and the system needs to be set
up. For details: P.265
INFORMATION
Other applications can be activated
while listening to internet radio.
If an iPhone is connected via Bluetooth®
and USB at the same time, system oper-
ation may become unstable. For known
phone compatibility information, refer to
http://www.toyota.com/entune/.
Some parts of applications can be
adjusted using the switches on the
steering wheel.
Services requiring a separate contract
can also be used.
For details, refer to
http://www.toyota.com/entune/ or call
1-800-331-4331.
*: With navigation function
90
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. MEDIA OPERATION
1. CD
CONTROL SCREEN
CONTROL PANEL
OVERVIEW
The CD operation screen can be reached by the following methods:
Insert a disc. (P.70)
Select “CD” on the “Select Audio Source” screen. (P.69)
91
3. MEDIA OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Function
Displays cover art
Select to display a track/file list.
Select to display the audio source selection screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Audio CD: Select to display a track list.
MP3/WMA/AAC disc: Select to display a folder list.
To return to the top screen, select “Now Playing” on the list screen.
Disc slot
Turn to select a track/file.
Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
Press to select a track/file.
Press and hold to fast forward/rewind.
*Press to play/pause.
Press to select an audio mode.
Turn to adjust volume.
Press to turn the audio system on/off.
Press and hold to restart the audio system.
Press to eject a disc.
*: Without navigation function
INFORMATION
If a disc contains CD-DA files and MP3/WMA/AAC files, only the CD-DA files can be
played back.
If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to 32
characters can be displayed.
If the disc contains no CD-TEXT, only the track number would be displayed on the
screen.
92
3. MEDIA OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
PLAYING AN AUDIO CD
REPEATING
The track currently being listened to
can be repeated.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.
PLAYING AN MP3/WMA/AAC
DISC
REPEATING
The file currently being listened to can
be repeated.
RANDOM ORDER
Files can be automatically and ran-
domly selected.
93
3. MEDIA OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. USB MEMORY
CONTROL SCREEN
CONTROL PANEL
OVERVIEW
The USB memory operation screen can be reached by the following methods:
Connect a USB memory. (P.70)
Select “USB (DEVICE NAME)” on the “Select Audio Source” screen. (P.69)
94
3. MEDIA OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Function
Select to display the audio source selection screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
Displays cover art
Select to display file/track list.
Turn to select a file/track.
Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
Press to select a file/track.
Press and hold to fast forward/rewind.
*Press to play/pause.
Press to select an audio mode.
Turn to adjust volume.
Press to turn the audio system on/off.
Press and hold to restart the audio system.
*: Without navigation function
95
3. MEDIA OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
CAUTION
Do not operate the player’s controls or connect the USB memory while driving.
NOTICE
Do not leave your portable player in the car. In particular, high temperatures inside the
vehicle may damage the portable player.
Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
Do not insert foreign objects into the port as this may damage the portable player or its
terminal.
INFORMATION
If tag information exists, the file names will be changed to track names.
96
3. MEDIA OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
PLAYING A USB AUDIO
REPEATING
The file/track currently being listened
to can be repeated.
RANDOM ORDER
Files/tracks can be automatically and
randomly selected.
97
3. MEDIA OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. iPod
CONTROL SCREEN
OVERVIEW
The iPod operation screen can be reached by the following methods:
Connect an iPod. (P.70)
Select “iPod (DEVICE NAME)” on the “Select Audio Source” screen. (P.69)
When the iPod connected to the system includes iPod video, the system can only
output the sound by selecting the browse screen. (P.100)
98
3. MEDIA OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
CONTROL PANEL
No. Function
Displays cover art
Select to display a track list.
Select to display the audio source selection screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
Turn to select a track.
Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
Press to select a track.
Press and hold to fast forward/rewind.
*Press to play/pause.
Press to select an audio mode.
99
3. MEDIA OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Turn to adjust volume.
Press to turn the audio system on/off.
Press and hold to restart the audio system.
*: Without navigation function
CAUTION
Do not operate the player’s controls or connect the iPod while driving.
NOTICE
Do not leave your portable player in the car. In particular, high temperatures inside the
vehicle may damage the portable player.
Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
Do not insert foreign objects into the port as this may damage the portable player or its
terminal.
INFORMATION
When an iPod is connected using a genuine iPod cable, the iPod starts charging its bat-
tery.
Depending on the iPod, the video sound may not be able to be heard.
Depending on the iPod and the songs in the iPod, iPod cover art may be displayed. This
function can be changed to on/off. (P.111) It may take time to display iPod cover art,
and the iPod may not be operated while the cover art display is in process.
When an iPod is connected and the audio source is changed to iPod mode, the iPod will
resume playing from the same point it was last used.
Depending on the iPod that is connected to the system, certain functions may not be
available.
Files/tracks selected by operating a connected iPod may not be recognized or displayed
properly.
If an Entune App Suite application (P.265) is used while iPod audio is being played
back, operation may become unstable. In this case, restart the cellular phone. (Refer to
the manual that came with the cellular phone for turning it on/off.)
No. Function
100
3. MEDIA OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select the repeat button to change on/
off.
1Select the shuffle button to change on/
off.
iPod AUDIO
REPEATING
The track currently being listened to
can be repeated.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.
iPod VIDEO
To change to iPod video mode, select
“Browse” on the iPod audio screen,
then select the “Videos” tab and se-
lect the desired video file.
The system can only output the iPod
video sound.
101
3. MEDIA OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
4. Bluetooth® AUDIO
CONTROL SCREEN
The Bluetooth® audio system enables users to enjoy listening to music that is
played on a portable player on the vehicle speakers via wireless communication.
This audio system supports Bluetooth®, a wireless data system capable of playing
portable audio music without cables. If your device does not support Bluetooth®,
the Bluetooth® audio system will not function.
OVERVIEW
Select “ Audio on the “Select Audio Source” screen. (P.69)
Depending on the type of portable player connected, some functions may not be
available and/or the screen may look differently than shown in this manual.
102
3. MEDIA OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
CONTROL PANEL
103
3. MEDIA OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Function
Select to display the audio source selection screen.
Displays Bluetooth® device condition.
Select to display the sound settings screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Select to display the playlist screen.
To return to the top screen, select “Now Playing” on the list screen.
Select to display the portable device connection screen.
Displays cover art
Select to display a track list.
Turn to select a track.
Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
Press to select a track.
Press and hold to fast forward/rewind.
*Press to play/pause.
Press to select an audio mode.
Turn to adjust volume.
Press to turn the audio system on/off.
Press and hold to restart the audio system.
*: Without navigation function
104
3. MEDIA OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
CAUTION
Do not operate the player’s controls or connect to the Bluetooth® audio system while driv-
ing.
Your audio unit is fitted with Bluetooth® antennas. People with implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
defibrillators should maintain a reasonable distance between themselves and the
Bluetooth® antennas. The radio waves may affect the operation of such devices.
Before using Bluetooth® devices, users of any electrical medical device other than
implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves. Radio waves could
have unexpected effects on the operation of such medical devices.
NOTICE
Do not leave your portable player in the vehicle. In particular, high temperatures inside
the vehicle may damage the portable player.
INFORMATION
Depending on the Bluetooth® device that is connected to the system, the music may start
playing when selecting while it is paused. Conversely, the music may pause when
selecting while it is playing.
In the following conditions, the system may not function:
• The Bluetooth® device is turned off.
• The Bluetooth® device is not connected.
• The Bluetooth® device has a low battery.
It may take time to connect the phone when Bluetooth® audio is being played.
For operating the portable player, see the instruction manual that comes with it.
If the Bluetooth® device is disconnected due to poor reception from the Bluetooth® net-
work when the engine switch is in the following, the system will automatically reconnect
to the portable player.
Vehicles without a smart key system
The engine switch is turned to the “ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is turned to ACCESSORY or IGNITION ON mode.
If the Bluetooth® device is disconnected on purpose, such as it was turned off, this does
not happen. Reconnect the portable player manually.
Bluetooth® device information is registered when the Bluetooth® device is connected to
the Bluetooth® audio system. When selling or disposing of the vehicle, remove the
Bluetooth® audio information from the system. (P.58)
105
3. MEDIA OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Registering an additional device
1Select “Select Device” on the
Bluetooth® audio control screen.
2For more information: P.46
Selecting a registered device
1Select “Select Device” on the
Bluetooth® audio control screen.
2For more information: P.48
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
CONNECTING A Bluetooth®
DEVICE
To use the Bluetooth® audio system, it
is necessary to register a Bluetooth®
device with the system.
LISTENING TO Bluetooth®
AUDIO
REPEATING
The track currently being listened to
can be repeated.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.
106
3. MEDIA OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
5. AUX
CONTROL SCREEN
CONTROL PANEL
OVERVIEW
Select “AUX” on the “Select Audio Source” screen. (P.69)
107
3. MEDIA OPERATION
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Function
Select to display the audio source selection screen.
Select to display the sound setting screen.
*Press to turn mute on/off.
Press to select an audio mode.
Turn to adjust volume.
Press to turn the audio system on/off.
Press and hold to restart the audio system.
*: Without navigation function
CAUTION
Do not connect portable audio device or operate the controls while driving.
NOTICE
Do not leave portable audio device in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the player.
Do not push down on or apply unnecessary pressure to the portable audio device while it
is connected as this may damage the portable audio device or its terminal.
Do not insert foreign objects into the port as this may damage the portable audio device
or its terminal.
108
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
4. AUDIO REMOTE CONTROLS
1. STEERING SWITCHES
Volume control switch
Enter switch
Some parts of the audio system can be adjusted using the switches on the steering
wheel.
No. Switch
Volume control switch
Enter switch
“” switch
Back switch
“MODE/HOLD” switch
Mode Operation Function
All Press Volume up/down
Press and hold Volume up/down continuously
Mode Operation Function
Control
screen Press Show list screen
List screen Press Select cursor entry
Navigation
screen/
home
screen
Press Return to the top screen of current mode.
109
4. AUDIO REMOTE CONTROLS
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
” switch
” switch
Back switch
Mode Operation Function
AM/FM Radio
Press Preset station/channel up/down
Station/channel list up/down
Press and hold Fast preset station/channel up/down
Fast station/channel list up/down
XM
Press Preset channel up/down
Channel list up/down
Press and hold Fast preset channel up/down
Fast channel list up/down
Audio CD, MP3/
WMA/AAC disc,
USB, iPod, BT
audio
Press Track/file up/down
Track/file list up/down
Press and hold Fast track/file up/down
Fast track/file list up/down
Mode Operation Function
AM/FM Radio
Press Seek up/down
Press and hold Seek up/down continuously while the switch is being
pressed
XM Press Type seek up/down
Press and hold Fast channel up/down
Audio CD, MP3/
WMA/AAC disc,
USB, iPod, BT
audio
Press Tab selection*
Press and hold Fast forward/rewind
*: USB, iPod only
Mode Operation Function
All Press Return to the previous screen
110
4. AUDIO REMOTE CONTROLS
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
“MODE/HOLD” switch
Mode Operation Function
AM, FM,
XM, AUX
Press Change audio modes
Press and hold Mute (Press and hold again to resume the sound.)
Audio CD/
MP3/WMA/
AAC disc,
USB, iPod,
BT audio,
APPS
Press Change audio modes
Press and hold Pause (Press and hold again to resume the playmode.)
INFORMATION
In the APPS mode, some operation may be done on the screen depend on the selected
APPS.
111
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
5. SETUP
1. AUDIO SETTINGS
1Press the “APPS” button.
2Select “Setup”.
3Select “Audio”.
4Select the items to be set.
Detailed audio settings can be pro-
grammed. AUDIO SETTINGS SCREEN
No. Function Page
Select to change the num-
ber of preset radio sta-
tions/channels displayed
on the screen.
112
Select to set cover art set-
tings on/off.
Select to set automatic
sound levelizer. 71
*Select to enable cache ra-
dio.
Select to reset all setup
items.
*: With navigation function
112
5. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Audio Settings” screen.
(P.111)
2Select “Number of Radio Presets”.
3Select the button with the desired num-
ber to be displayed.
SETTING THE NUMBER OF
RADIO PRESETS
113
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
6. TIPS FOR OPERATING THE AUDIO SYSTEM
1. OPERATING INFORMATION
Fading and drifting stations: Generally, the
effective range of FM is about 25 miles (40
km). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter.
They are often accompanied by distortion.
Multi-path: FM signals are reflective, mak-
ing it possible for 2 signals to reach the ve-
hicle’s antenna at the same time. If this
happens, the signals will cancel each other
out, causing a momentary flutter or loss of
reception.
Static and fluttering: These occur when
signals are blocked by buildings, trees or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping: If the FM signal being
listened to is interrupted or weakened, and
there is another strong station nearby on
the FM band, the radio may tune in the
second station until the original signal can
be picked up again.
Fading: AM broadcasts are reflected by
the upper atmosphere — especially at
night. These reflected signals can interfere
with those received directly from the radio
station, causing the radio station to sound
alternately strong and weak.
Station interference: When a reflected sig-
nal and a signal received directly from a ra-
dio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static: AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening or electrical
motors. This results in static.
NOTICE
To avoid damage to the audio system:
Be careful not to spill beverages over
the audio system.
Do not put anything other than an
appropriate disc into the disc slot.
INFORMATION
The use of a cellular phone inside or
near the vehicle may cause a noise from
the speakers of the audio system which
you are listening to. However, this does
not indicate a malfunction.
RADIO
Usually, a problem with radio reception
does not mean there is a problem with
the radio — it is just the normal result
of conditions outside the vehicle.
For example, nearby buildings and ter-
rain can interfere with FM reception.
Power lines or phone wires can inter-
fere with AM signals. And of course, ra-
dio signals have a limited range. The
farther the vehicle is from a station, the
weaker its signal will be. In addition, re-
ception conditions change constantly
as the vehicle moves.
Here, some common reception prob-
lems that probably do not indicate a
problem with the radio are described.
FM
AM
114
6. TIPS FOR OPERATING THE AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
-Cargo loaded on the roof luggage carrier,
especially metal objects, may adversely
affect the reception of XM Satellite Radio.
-Alternation or modifications carried out
without appropriate authorization may
invalidate the user’s right to operate the
equipment.
-This CD player is intended for use with 4.7
in. (12 cm). discs only.
-Extremely high temperatures can keep the
CD player from working. On hot days, use
the air conditioning system to cool the
inside of the vehicle before using the
player.
-Bumpy roads or other vibrations may
make the CD player skip.
-If moisture gets into the CD player, the
discs may not be able to be played.
Remove the discs from the player and
wait until it dries.
-Use only discs marked as shown above.
The following products may not be play-
able on your player:
•SACD
•dts CD
Copy-protected CD
Video CD
XM
CD PLAYER AND DISC
CAUTION
CD players use an invisible laser beam
which could cause hazardous radiation
exposure if directed outside the unit. Be
sure to operate the player correctly.
Audio CDs
115
6. TIPS FOR OPERATING THE AUDIO SYSTEM
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
Special shaped discs
Transparent/translucent discs
Low quality discs
Labeled discs
-Handle discs carefully, especially when
inserting them. Hold them on the edge
and do not bend them. Avoid getting fin-
gerprints on them, particularly on the shiny
side.
-Dirt, scratches, warping, pin holes or other
disc damage could cause the player to
skip or to repeat a section of a track. (To
see a pin hole, hold the disc up to the
light.)
-Remove discs from the players when not
in use. Store them in their plastic cases
away from moisture, heat and direct sun-
light.
NOTICE
Do not use special shaped, transparent/
translucent, low quality or labeled discs
such as those shown in the illustrations.
The use of such discs may damage the
player, or it may be impossible to eject
the disc.
This system is not designed for use of
Dual Discs. Do not use Dual Discs
because they may cause damage to the
player.
Do not use discs with a protection ring.
The use of such discs may damage the
player, or it may be impossible to eject
the disc.
Do not use printable discs. The use of
such discs may damage the player, or it
may be impossible to eject the disc.
Correct Wrong
116
6. TIPS FOR OPERATING THE AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
To clean a disc: Wipe it with a soft, lint-
free cloth that has been dampened with
water. Wipe in a straight line from the cen-
ter to the edge of the disc (not in circles).
Dry it with another soft, lint-free cloth. Do
not use a conventional record cleaner or
anti-static device.
-CD-R/CD-RW discs that have not been
subject to the “finalizing process” (a pro-
cess that allows discs to be played on a
conventional CD player) cannot be
played.
-It may not be possible to play CD-R/CD-
RW discs recorded on a music CD
recorder or a personal computer because
of disc characteristics, scratches or dirt on
the disc, or dirt, condensation, etc. on the
lens of the unit.
-It may not be possible to play discs
recorded on a personal computer depend-
ing on the application settings and the
environment. Record with the correct for-
mat. (For details, contact the appropriate
application manufacturers of the applica-
tions.)
-CD-R/CD-RW discs may be damaged by
direct exposure to sunlight, high tempera-
tures or other storage conditions. The unit
may be unable to play some damaged
discs.
-If you insert a CD-RW disc into the player,
playback will begin more slowly than with
a conventional CD or CD-R disc.
-Recordings on CD-R/CD-RW cannot be
played using the DDCD (Double Density
CD) system.
-“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has
been designed to connect specifically to
iPod or iPhone respectively, and has been
certified by the developer to meet Apple
performance standards.
-Apple is not responsible for the operation
of this device or its compliance with safety
and regulatory standards. Please note
that the use of this accessory with iPod or
iPhone may affect wireless performance.
-iPhone, iPod, iPod classic, iPod nano, and
iPod touch are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Lightning is a trademark of Apple Inc.
CD-R/RW DISCS
iPod
117
6. TIPS FOR OPERATING THE AUDIO SYSTEM
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
The following iPod®, iPod nano®, iPod
classic®, iPod touch® and iPhone® devic-
es can be used with this system.
Made for
iPod touch (5th generation)*
iPod touch (4th generation)
iPod touch (3rd generation)
iPod touch (2nd generation)
iPod touch (1st generation)
iPod classic
iPod with video
iPod nano (7th generation)*
iPod nano (6th generation)*
iPod nano (5th generation)
iPod nano (4th generation)
iPod nano (3rd generation)
iPod nano (2nd generation)*
iPod nano (1st generation)*
• iPhone 5*
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
*: iPod video not supported
Depending on differences between mod-
els or software versions etc., some models
might be incompatible with this system.
COMPATIBLE USB DEVICES
COMPATIBLE COMPRESSED
FILES
COMPATIBLE MODELS FILE INFORMATION
USB communication
formats
USB 2.0 HS (480
Mbps) and FS
(12 Mbps)
File formats FAT 16/32
Correspondence class Mass storage
class
Item USB DISC
Compatible
file format MP3/WMA/AAC
Folders in the
device
Maximum
3000
Maximum
192
Files in the
device
Maximum
9999
Maximum
255
Files per
folder
Maximum
255
118
6. TIPS FOR OPERATING THE AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
CORRESPONDING SAMPLING
FREQUENCY
CORRESPONDING BIT RATES
(Variable Bit Rate (VBR) compatible)
-MP3 (MPEG Audio Layer 3), WMA
(Windows Media Audio) and AAC
(Advanced Audio Coding) are audio com-
pression standards.
-This system can play MP3/WMA/AAC files
on CD-R, CD-RW discs and USB memory.
-This system can play disc recordings com-
patible with ISO 9660 level 1 and level 2
and with the Romeo and Joliet file system.
-When naming an MP3/WMA/AAC file, add
an appropriate file extension (.mp3/.wma/
.m4a).
-This system plays back files with .mp3/
.wma/.m4a file extensions as MP3/WMA/
AAC files respectively. To prevent noise
and playback errors, use the appropriate
file extension.
-This system can play only the first session
when using multi-session compatible CDs.
-MP3 files are compatible with the ID3 Tag
Ver. 1.0, Ver. 1.1, Ver. 2.2 and Ver. 2.3 for-
mats. This system cannot display disc
title, track title and artist name in other for-
mats.
-WMA/AAC files can contain a WMA/AAC
tag that is used in the same way as an ID3
tag. WMA/AAC tags carry information
such as track title and artist name.
-The emphasis function is available only
when playing MP3/WMA files recorded at
32, 44.1 and 48 kHz.
-This system can play back AAC files
encoded by iTunes.
-The sound quality of MP3/WMA files gen-
erally improves with higher bit rates. In
order to achieve a reasonable level of
sound quality, discs recorded with a bit
rate of at least 128 kbps are recom-
mended.
-The MP3/WMA player does not play back
MP3/WMA files from discs recorded using
packet write data transfer (UDF format).
Discs should be recorded using “pre-mas-
tering” software rather than packet-write
software.
-M3u playlists are not compatible with the
audio player.
-MP3i (MP3 interactive) and MP3PRO for-
mats are not compatible with the audio
player.
File type Frequency (kHz)
MP3 files:
MPEG 1 LAYER 3 32/44.1/48
MP3 files:
MPEG 2 LSF LAYER 3 16/22.05/24
WMA files:
Ver. 7, 8, 9 (9.1/9.2) 32/44.1/48
AAC files:
MPEG4/AAC-LC
11.025/12/16/
22.05/24/32/
44.1/48
File type Bit rate (kbps)
MP3 files:
MPEG 1 LAYER 3 32 - 320
MP3 files:
MPEG 2 LSF LAYER 3 8 - 160
WMA files: Ver. 7, 8 CBR 48 - 192
WMA files:
Ver. 9 (9.1/9.2) CBR 48 - 320
AAC files:
MPEG4/AAC-LC 16 - 320
119
6. TIPS FOR OPERATING THE AUDIO SYSTEM
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
-The player is compatible with VBR (Vari-
able Bit Rate).
-When playing back files recorded as VBR
(Variable Bit Rate) files, the play time will
not be correctly displayed if the fast for-
ward or reverse operations are used.
-It is not possible to check folders that do
not include MP3/WMA/AAC files.
-MP3/WMA/AAC files in folders up to 8 lev-
els deep can be played. However, the
start of playback may be delayed when
using discs containing numerous levels of
folders. For this reason, we recommend
creating discs with no more than 2 levels
of folders.
-The play order of the compact disc with
the structure shown above is as follows:
-The order changes depending on the per-
sonal computer and MP3/WMA/AAC
encoding software you use.
001.mp3
002.wma
Folder 1
003.mp3
Folder 2
004.mp3
005.wma
Folder 3
006.m4a
001.mp3 002.wma . . . 006.m4a
120
6. TIPS FOR OPERATING THE AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
-This is a general term that describes the
process of writing data on-demand to CD-
R, etc., in the same way that data is writ-
ten to floppy or hard discs.
-This is a method of embedding track-
related information in an MP3 file. This
embedded information can include the
track number, track title, the artist’s name,
the album title, the music genre, the year
of production, comments, cover art and
other data. The contents can be freely
edited using software with ID3 tag editing
functions. Although the tags are restricted
to a number of characters, the information
can be viewed when the track is played
back.
-WMA files can contain a WMA tag that is
used in the same way as an ID3 tag. WMA
tags carry information such as track title
and artist name.
-This is the international standard for the
formatting of CD-ROM folders and files.
For the ISO 9660 format, there are 2 lev-
els of regulations.
-Level 1: The file name is in 8.3 format (8
character file names, with a 3 character
file extension. File names must be com-
posed of one-byte capital letters and num-
bers. The “_” symbol may also be
included.)
-Level 2: The file name can have up to 31
characters (including the separation mark
“.” and file extension). Each folder must
contain fewer than 8 hierarchies.
-Playlists created using “WINAMP” soft-
ware have a playlist file extension (.m3u).
-MP3 is an audio compression standard
determined by a working group (MPEG) of
the ISO (International Standard Organiza-
tion). MP3 compresses audio data to
about 1/10 the size of that on conventional
discs.
-WMA (Windows Media Audio) is an audio
compression format developed by
Microsoft®. It compresses files into a size
smaller than that of MP3 files. The decod-
ing formats for WMA files are Ver. 7, 8 and
9.
-This product is protected by certain intel-
lectual property rights of Microsoft Corpo-
ration and third parties. Use or distribution
of such technology outside of this product
is prohibited without a license from
Microsoft or an authorized Microsoft sub-
sidiary and third parties.
-AAC is short for Advanced Audio Coding
and refers to an audio compression tech-
nology standard used with MPEG2 and
MPEG4.
TERMS
PACKET WRITE
ID3 TAG
WMA TAG
ISO 9660 FORMAT
m3u
MP3
WMA
AAC
121
6. TIPS FOR OPERATING THE AUDIO SYSTEM
3
AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
ERROR MESSAGES
Mode Message Explanation
CD
“No music files found.” This indicates that no MP3/WMA/AAC files are
included in the disc.
“Check disc”
It indicates that the disc is dirty, damaged, or it
was inserted upside down. Clean the disc or in-
sert it correctly.
It indicates a disc which is not playable is insert-
ed.
“DISC Error” There is a trouble inside the system.
Eject the disc.
USB
“Connection error. Please
consult your Owner’s
Manual for instructions on
how to connect the USB
device.”
This indicates a problem in the USB memory or
its connection.
“There are no files avail-
able for playback. Please
add compatible files to
your USB device.”
This indicates that no MP3/WMA/AAC files are
included in the USB memory.
iPod
“Connection error. Please
consult your Owner’s
Manual for instructions on
how to connect the iPod.”
This indicates a problem in the iPod or its con-
nection.
“There are no songs avail-
able for playback. Please
add compatible files to
your iPod.”
This indicates that there is no music data in the
iPod.
“Please check the iPod
firmware version.”
This indicates that the software version is not
compatible. Perform the iPod firmware updates
and try again.
“iPod authorization unsuc-
cessful.”
This indicates that it failed to authorize the iPod.
Please check your iPod.
INFORMATION
If the malfunction is not rectified: Take your vehicle to your Toyota dealer.
122
6. TIPS FOR OPERATING THE AUDIO SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
4
123
1
2
3
4
5
6
7
8
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
9
1. VOICE COMMAND SYSTEM...... 124
USING THE VOICE COMMAND
SYSTEM............................................ 124
VOICE COMMAND SYSTEM
OPERATION ..................................... 125
2. CASUAL SPEECH
RECOGNIZATION..................... 130
3. COMMAND LIST......................... 131
1VOICE COMMAND SYSTEM
OPERATION
VOICE COMMAND SYSTEM
124
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1. VOICE COMMAND SYSTEM OPERATION
1. VOICE COMMAND SYSTEM
Talk switch
-Press the talk switch to start the voice
command system.
-To cancel voice recognition, press and
hold the talk switch.
-It is unnecessary to speak directly into the
microphone when giving a command.
The voice command system enables
the audio, hands-free systems, etc. to
be operated using voice commands.
Refer to the command list for samples
of voice commands. (P.131)
USING THE VOICE
COMMAND SYSTEM
STEERING SWITCH
MICROPHONE
125
1. VOICE COMMAND SYSTEM OPERATION
4
VOICE COMMAND SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Press the talk switch.
2Say the tab selection command or se-
lect the desired tab.
-Commands related with each function are
displayed on the screen of the each func-
tion tab. Some commonly used com-
mands are displayed on the screen of the
function tab.
INFORMATION
The voice command system can be
operated while guidance is being spo-
ken, when “Voice Prompt Interrupt”
(P.59) is set to on. (It is not necessary
to wait for the confirmation beep before
speaking a command.)
Voice commands may not be recognized
if:
Spoken too quickly.
Spoken at a low or high volume.
The roof or windows are open.
Passengers are talking while voice
commands are spoken.
The air conditioning speed is set high.
The air conditioning vents are turned
towards the microphone.
In the following conditions, the system
may not recognize the command prop-
erly and using voice commands may not
be possible:
The command is incorrect or unclear.
Note that certain words, accents or
speech patterns may be difficult for the
system to recognize.
There is excessive background noise,
such as wind noise.
VOICE COMMAND SYSTEM
OPERATION
The voice command system is operat-
ed by selecting a tab corresponding to
each function. The tabs are found on
the upper part of the screen.
-Voice guidance for the voice command
system can be skipped by pressing the
talk switch.
-Selecting “Help” or saying “Help”
prompts voice guidance to offer exam-
ples of commands and operation meth-
ods.
126
1. VOICE COMMAND SYSTEM OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3Say the command displayed on the
screen.
-Registered POIs, registered names in the
contacts list etc., can be said in the place
of the “<>” next to the commands.
(P.131)
For example: Say “Find nearby dining”,
“Call John smith” etc.
-If a desired outcome is not shown, or if no
selections are available, perform one of
the following to return to the previous
screen:
•Say “Go back”.
•Select “Go Back”.
-To cancel voice recognition, select “Can-
cel”, or press and hold the talk switch.
DISPLAYING THE “Voice Settings”
SCREENS
-Selecting “Voice Settings” can be dis-
played the “Voice Settings” screen.
(P.59)
1Press the talk switch.
2Say “Launch <application name>”.
-Entune App Suite application screen is
displayed.
INFORMATION
If the system does not respond or the
confirmation screen does not disappear,
press the talk switch and try again.
“Voice Recognition Prompts” can be set
on the “Voice Settings” screen. (P.59)
Some voice guidance can be canceled
by setting voice prompts to off. Use this
setting when it is desirable to say a com-
mand immediately after pressing the talk
switch and hearing a beep.
VOICE COMMAND EXAMPLE:
LAUNCH Entune App Suite
APPLICATION*
*: With navigation function
127
1. VOICE COMMAND SYSTEM OPERATION
4
VOICE COMMAND SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Press the talk switch.
2Say “Enter an address”.
3Say “<house number, street name,
city name, State>” continuously.
-A confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed. Say “<num-
ber>” or select the number.
-Some areas cannot be recognized by the
voice recognition system.
4Say “Go directly”.
-After this, follow the voice guidance and
search for a destination route by voice
command operation.
VOICE COMMAND EXAMPLE:
PERFORMING A DESTINATION
SEARCH BY ADDRESS
(ENGLISH ONLY)*
-For information regarding the state/
province setting to perform a destination
search by address: P.211
INFORMATION
The voice command recognition is
designed to recognize the main body of
the official street name.
For example: if the official street name is
“East Main Street”, the voice command
recognition will recognize “Main”.
Say the desired number, cardinal direc-
tion etc. in the place of the “<>”.
For example: Say “West 555”.
Inputting the house number can be
skipped.
Even if the state set using voice recogni-
tion is different from the set state in the
“Address” screen (which was set when a
destination was set manually), the set
state in the “Address” screen will not
change. (P.212)
The house number voice recognition
conditions are outlined below:
Numerals: 10 digits or less
Numerals and cardinal direction or a
hyphen and numerals: A total of 9
digits or less (Do not say “and”.)
Cardinal direction or a hyphen and
numerals: A total of 9 digits or less
(Do not say “and”.)
Numerals are recognized as single
digits only.
The cardinal direction and hyphens
are only recognized once.
The following cardinal directions can
be recognized: North, East, West and
South.
*: With navigation function
128
1. VOICE COMMAND SYSTEM OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Press the talk switch.
2Say “Play song <name>”.
-A confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed. Say “<num-
ber>” or select the number.
-The system starts playing music and the
song lists are displayed.
1Press the talk switch.
2Say “Call <contacts> <phone
types>”.
-A confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed. Say “<num-
ber>” or select the number.
VOICE COMMAND EXAMPLE:
SEARCH FOR A SONG
INFORMATION
The Gracenote database is only com-
patible with the USB or iPod mode.
A USB memory or iPod must be con-
nected to enable track searching and
playback. (P.93, 97)
When a USB memory or iPod is con-
nected, recognition data is created so
tracks can be searched using voice
commands.
Recognition data is updated under the
following conditions:
When the USB memory or iPod data
has changed.
When the voice recognition language
is changed. (P.53)
While the recognition data is being cre-
ated or being updated, a track search
cannot be performed using a voice com-
mand.
VOICE COMMAND EXAMPLE:
CALL NAME
INFORMATION
In the same manner as it is displayed on
the screen, “Call <contacts> <phone
types>”, after saying “Call a contact”
say the name, or the name and type of
phone, of a contact.
For example: “Call a contact”, “John
Smith” or “Call a contact”, “Mary
Davis”, “Mobile”
There are 4 types of phones: Home,
Mobile, Work and Other.
Short or abbreviated names in the con-
tacts list may not be recognized. Change
names in the contacts list to full names.
Sometimes a voice recognition result
confirmation screen will be displayed.
After confirming the result, say “Yes” or
“No”.
When the system recognizes multiple
names from the contacts list, a name
candidate list will be displayed on the
screen. If the desired name is not dis-
played on the top of the screen, say or
select the number of the name from the
candidate list (number 1, number 2, etc.)
to select a name from the candidate list.
When a contact has multiple phone
numbers registered in the contacts list, a
candidate list will be displayed. If the
desired phone number is not displayed
on the top of the screen, say or select
the number of the desired phone num-
ber from the candidate list (number 1,
number 2, etc.) to select a phone num-
ber from the candidate list.
129
1. VOICE COMMAND SYSTEM OPERATION
4
VOICE COMMAND SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Press the talk switch.
2Say the phone number.
-In the same manner as it is displayed on
the screen, “Dial <number>”, after saying
“Dial a number” say the phone number.
-Say the phone number one digit at a time.
For example, if the phone number is
2345678:
Say “two three four five six seven
eight”
Do not say “twenty three forty five sixty
seven eight”
Calling to the following phone numbers
3 digit numbers (911, 411, 611)
7 digit numbers (Local phone numbers)
10 digit numbers (Area code + Local
phone number)
11 digit phone numbers (1 + Area code +
Local phone number)
-As the system cannot recognize additional
numbers, say the complete number with-
out stopping.
Calling to other phone numbers
3Say “Call” or press the switch on
the steering wheel.
VOICE COMMAND EXAMPLE:
DIAL NUMBER
-When the system recognizes multiple
phone numbers, a phone number candi-
date list will be displayed on the screen.
Pressing the switch on the steering
wheel makes a call to the top entry on
the list. If the desired phone number is
not displayed on the top of the screen,
say the number of the desired phone
number from the candidate list to select
a phone number from the candidate list.
130
1. VOICE COMMAND SYSTEM OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. CASUAL SPEECH RECOGNIZATION
Due to natural language speech recog-
nition technology, this system enables
recognition of a command when spo-
ken naturally. However, the system
cannot recognize every variation of
each command. In some situations, it
is possible to omit the command for the
procedure and directly state the de-
sired operation. Not all voice com-
mands are displayed in the function
menu.
INFORMATION
If the command cannot be recognized
completely, the command input screen
will be displayed. (Search results will be
shown based on the part of the com-
mand that was recognized.)
EXPRESSION EXAMPLES FOR
EACH FUNCTION
Command Expression examples
“Go Home”* Navigate to my house.
Take me home.
“Enter an
Address”*
I need directions to an
address.
Give me a street.
“Find Nearby
<POI category>”*
Search for a <Restau-
rants> around here.
Find a <Restaurants>
nearby.
“Call <name>
<type>”
Get me <Robert
Brown>.
Call <contacts> <pho-
netypes>.
“Dial <number>” Call <911>.
“Play Artist
<name>”
Play the artist <name>.
I want to hear the band
<name>.
“Play Album
<name>”
Play album <name>.
Play album <albums>.
*: With navigation function
131
1. VOICE COMMAND SYSTEM OPERATION
4
VOICE COMMAND SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. COMMAND LIST
-Frequently used commands are listed in the following tables.
-For devices that are not installed in the vehicle, the related commands will not be dis-
played in the screen. Also, according to conditions, other commands may not be dis-
played in the screen.
-The functions available may vary according to the system installed.
Basic
Apps*1
When the voice recognition language is set to English.
Navigation*1
Recognizable voice commands and their actions are shown below.
-Voice recognition language can be changed. (P.53)
Command Action
“Help with <function name*>” Prompts voice guidance to offer examples of commands
or operation methods
“Go Back” Returns to the previous screen
“Number one/two/three/four/five” Selects the number on the list screen
“Next Page” Displays the next page
“Previous Page” Displays the previous page
“Go to <tab>” Displays the command list of the selected tab
*: For example; “Music”, “Phone”, etc.
Command Action
“Launch <apps>” Activates the Entune App Suite application
Command Action
“Find Nearby <POI category>” Displays a list of <POI category*2> near the current posi-
tion
“Enter an Address” Enables setting a destination by saying the address
“Go Home” Displays the route to home
“Cancel Route” Stops the route guidance
*1: With navigation function
*2: For example; “Gas stations”, “Restaurants”, etc.
132
1. VOICE COMMAND SYSTEM OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Phone
Audio
Information*
Command Action
“Redial” Places a call to the phone number of the latest outgoing
call
“Call Back” Places a call to the phone number of latest incoming call
“Show Recent Calls” Displays the call history screen
“Dial <phone number>” Places a call to the said phone number
“Call <contacts> <phonetypes>” Place a call to the said phone type of the contact from the
phone book
Command Action
“Play Playlist <name>” Plays tracks from the selected playlist
“Play Artist <name>” Plays tracks from the selected artist
“Play Song <name>” Plays the selected track
“Play Album <name>” Plays tracks from the selected album
Command Action
“Show Forecast” Displays weather information
“Show Traffic” Displays traffic information
*: Except for Mexico
INFORMATION
Commands relating to operation of the audio can only be performed when the audio is
turned on.
5
133
1
2
3
4
5
6
7
8
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
9
1. RECEIVING WEATHER
INFORMATION ......................... 134
DISPLAYING WEATHER
INFORMATION ................................. 134
2. RECEIVING TRAFFIC MAP
INFORMATION ......................... 136
DISPLAYING TRAFFIC MAP
INFORMATION ................................. 136
3. DATA SERVICES
SETTINGS................................. 137
SETTING DOWNLOAD
METHODS ........................................ 137
1USEFUL INFORMATION
INFORMATION
134
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1. USEFUL INFORMATION
1. RECEIVING WEATHER INFORMATION
1Press the “APPS” button.
2Select “Weather”.
3Check that the “Weather” screen is dis-
played.
Without navigation function
Weather information can be received
via the HD Radio.
With navigation function
Weather information can be received
via the HD Radio or by the Entune App
Suite application on a Bluetooth®
phone. For details about the Entune
App Suite application: P.263
DISPLAYING WEATHER
INFORMATION
No. Function
Select to display the weather of the
current location. (P.135)
Select to display the weather of a
desired location in the recently
checked locations list.
Select to display the weather of a
desired location in the national cities
list.
Select to display the weather of a
desired location in the other local cit-
ies list.
*Select to display weather informa-
tion over the map.
*: With navigation function
INFORMATION
Weather information is available in the
48 states, D.C. and Alaska of the United
States.
135
1. USEFUL INFORMATION
5
INFORMATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Weather” screen.
(P.134)
2Select “Current Weather”.
3Select the desired tab to be displayed.
DISPLAYING THE WEATHER
OF THE CURRENT LOCATION
INFORMATION
If weather is set to the home screen, the
weather screen of the current location
will be displayed.
136
1. USEFUL INFORMATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. RECEIVING TRAFFIC MAP INFORMATION*
1Press the “APPS” button.
2Select “Traffic”.
3Check that the “Traffic Map” screen is
displayed.
Traffic map information can be re-
ceived via the HD Radio.
DISPLAYING TRAFFIC MAP
INFORMATION
No. Function
Current position of your car
Traffic information line
The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Freely flowing traffic
INFORMATION
Traffic map information is available in
the 48 states, D.C. and Alaska of the
United States.
*: Without navigation function
137
1. USEFUL INFORMATION
5
INFORMATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. DATA SERVICES SETTINGS*
1Press the “APPS” button.
2Select “Setup”.
3Select “HD Data”.
4Select the desired item to be set.
-Select a checkbox on the right to set.
SETTING DOWNLOAD
METHODS
Data service information, which is
comprised of traffic information and
weather information, can be received
via the HD Radio and by the Entune
App Suite application on a Bluetooth®
phone. The receiving method can be
set to both or only via the HD Radio.
For details about the Entune App Suite
application: P.263 No. Function
Select to receive data service infor-
mation via both the HD Radio and
the Entune App Suite application on
a Bluetooth® phone. When both
methods are available, the HD Ra-
dio will be selected.
Select to receive data only via the
HD Radio.
INFORMATION
These settings are available in the 48
states, D.C. and Alaska of the United
States.
*: With navigation function
138
1. USEFUL INFORMATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
6
139
1
2
3
4
5
6
7
8
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:55
9
1. REAR VIEW MONITOR
SYSTEM.................................... 140
REAR VIEW MONITOR
SYSTEM............................................ 140
DRIVING PRECAUTIONS ................... 140
SCREEN DESCRIPTION .................... 142
2. REAR VIEW MONITOR
SYSTEM PRECAUTIONS......... 144
AREA DISPLAYED ON SCREEN........ 144
THE CAMERA ..................................... 144
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 145
WHEN APPROACHING
THREE-DIMENSIONAL
OBJECTS.......................................... 147
3. THINGS YOU SHOULD
KNOW ....................................... 149
IF YOU NOTICE ANY
SYMPTOMS...................................... 149
1REAR VIEW MONITOR
SYSTEM
PERIPHERAL MONITORING SYSTEM
140
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM
REAR VIEW MONITOR
SYSTEM
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle with fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
141
1. REAR VIEW MONITOR SYSTEM
6
PERIPHERAL MONITORING SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
CAUTION
Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
The instructions given are only guide-
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
CAUTION
Do not use the rear view monitor system
in the following cases:
On icy or slick road surfaces, or in
snow
When using tire chains or emergency
tires
When the back door is not closed com-
pletely
On roads that are not flat or straight,
such as curves or slopes.
In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
If the tire sizes are changed, the position
of the fixed guide lines displayed on the
screen may change.
The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances. (P.145)
142
1. REAR VIEW MONITOR SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
SCREEN DESCRIPTION
Vehicles with a smart entry & start system
The rear view monitor system screen will be displayed if the shift lever is shifted to the
“R” position while the engine switch is in IGNITION ON mode.
Vehicles without a smart entry & start system
The rear view monitor system screen will be displayed if the shift lever is shifted to the
“R” position while the engine switch is in “ON” position.
Guide lines are displayed on the screen.
Guide lines shown differ from those shown on the actual screen.
No. Display Function
Vehicle width extension
guide lines
Displays a guide path when the vehicle is being backed
straight up.
The displayed width is wider than the actual vehicle
width.
Vehicle center guide lines These lines indicate the estimated vehicle center on the
ground.
Distance guide lines Shows distance behind the vehicle.
Displays a point approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Distance guide line Shows distance behind the vehicle.
Displays a point approximately 3 ft. (1 m) (blue) from
the edge of the bumper.
143
1. REAR VIEW MONITOR SYSTEM
6
PERIPHERAL MONITORING SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
CANCELING REAR VIEW MONITOR SYSTEM
The rear view monitor system is canceled when the shift lever is shifted into any
position other than the “R” position.
144
1. REAR VIEW MONITOR SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
2. REAR VIEW MONITOR SYSTEM PRECAUTIONS
-The image adjustment procedure for the
rear view monitor system screen is the
same as the procedure for adjusting the
navigation screen. (P.40)
AREA DISPLAYED ON
SCREEN
The rear view monitor system displays
an image of the view from the bumper
of the rear area of the vehicle.
INFORMATION
The area displayed on the screen may
vary according to vehicle orientation
conditions.
Objects which are close to either corner
of the bumper or under the bumper can-
not be displayed.
The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
Items which are located higher than the
camera may not be displayed on the
monitor.
Screen
Displayed area
Corners of bumper
THE CAMERA
The camera for the rear view monitor
system is located as shown in the illus-
tration.
USING THE CAMERA
If the camera lens becomes dirty, it
cannot transmit a clear image. If water
droplets, snow or mud adhere to the
lens, rinse with water and wipe with a
soft cloth. If the lens is extremely dirty,
wash it with a mild cleanser and rinse.
145
1. REAR VIEW MONITOR SYSTEM
6
PERIPHERAL MONITORING SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
-The distance guide lines and the vehicle
width extension guide lines may not actu-
ally be parallel with the dividing lines of the
parking space, even when they appear to
be so. Be sure to check visually.
-The distances between the vehicle width
extension guide lines and the left and right
dividing lines of the parking space may not
be equal, even when they appear to be
so. Be sure to check visually.
-The distance guide lines give a distance
guide for flat road surfaces. In any of the
following situations, there is a margin of
error between the fixed guide lines on the
screen and the actual distance/course on
the road.
NOTICE
The rear view monitor system may not
operate properly in the following cases.
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change.
As the camera has a water proof con-
struction, do not detach, disassemble
or modify it. This may cause incorrect
operation.
• Do not strongly rub the camera lens. If
the camera lens is scratched, it cannot
transmit a clear image.
Do not allow organic solvent, car wax,
window cleaner or glass coat to adhere
to the camera. If this happens, wipe it
off as soon as possible.
If the temperature changes rapidly,
such as when hot water is poured on
the vehicle in cold weather, the system
may not operate normally.
When washing the vehicle, do not
apply intensive bursts of water to the
camera or camera area. Doing so may
result in the camera malfunctioning.
Do not expose the camera to strong
impact as this could cause a malfunc-
tion. If this happens, have the vehicle
inspected by your Toyota dealer as soon
as possible.
DIFFERENCES BETWEEN
THE SCREEN AND THE
ACTUAL ROAD
146
1. REAR VIEW MONITOR SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
WHEN THE GROUND BEHIND
THE VEHICLE SLOPES UP
SHARPLY
The distance guide lines will appear to
be closer to the vehicle than the actual
distance. Because of this, objects will
appear to be farther away than they ac-
tually are. In the same way, there will
be a margin of error between the
guidelines and the actual distance/
course on the road.
WHEN THE GROUND BEHIND
THE VEHICLE SLOPES DOWN
SHARPLY
The distance guide lines will appear to
be further from the vehicle than the ac-
tual distance. Because of this, objects
will appear to be closer than they actu-
ally are. In the same way, there will be
a margin of error between the guide-
lines and the actual distance/course on
the road.
147
1. REAR VIEW MONITOR SYSTEM
6
PERIPHERAL MONITORING SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
Vehicle width extension guide lines
WHEN ANY PART OF THE
VEHICLE SAGS
When any part of the vehicle sags due
to the number of passengers or the dis-
tribution of the load, there is a margin
of error between the fixed guide lines
on the screen and the actual distance/
course on the road.
WHEN APPROACHING
THREE-DIMENSIONAL
OBJECTS
The distance guide lines are displayed
according to flat surfaced objects
(such as the road). It is not possible to
determine the position of three-dimen-
sional objects (such as vehicles) using
the distance guide lines. When ap-
proaching a three-dimensional object
that extends outward (such as the flat-
bed of a truck), be careful of the follow-
ing.
A margin of error
VEHICLE WIDTH EXTENSION
GUIDE LINES
Visually check the surroundings and
the area behind the vehicle. In the case
shown below, the truck appears to be
outside of the vehicle width extension
guide lines and the vehicle does not
look as if it hits the truck. However, the
rear body of the truck may actually
cross over the vehicle width extension
guide lines. In reality if you back up as
guided by the vehicle width extension
guide lines, the vehicle may hit the
truck.
148
1. REAR VIEW MONITOR SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
DISTANCE GUIDE LINES
Visually check the surroundings and
the area behind the vehicle. On the
screen, it appears that a truck is park-
ing at point B. However, in reality if you
back up to point A, you will hit the truck.
On the screen, it appears that A is clos-
est and C is furthest away. However, in
reality, the distance to A and C is the
same, and B is farther than A and C.
Positions of A, B and C
C
A
B
C
AB
149
1. REAR VIEW MONITOR SYSTEM
6
PERIPHERAL MONITORING SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
3. THINGS YOU SHOULD KNOW
If you notice any of the following symptoms, refer to the likely cause and the so-
lution, and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by
your Toyota dealer.
IF YOU NOTICE ANY SYMPTOMS
Symptom Likely cause Solution
The image is difficult to see
The vehicle is in a dark
area
The temperature around
the lens is either high or low
The outside temperature is
low
There are water droplets on
the camera
It is raining or humid
Foreign matter (mud etc.) is
adhering to the camera
Sunlight or headlights are
shining directly into the
camera
The vehicle is under fluo-
rescent lights, sodium
lights, mercury lights etc.
Back up while visually check-
ing the vehicle’s surround-
ings. (Use the monitor again
once conditions have been
improved.)
The procedure for adjusting
the picture quality of the rear
view monitor system is the
same as the procedure for
adjusting the navigation
screen. (P.40)
The image is blurry
Dirt or foreign matter (such as
water droplets, snow, mud
etc.) is adhering to the cam-
era.
Rinse the camera lens with
water and wipe it clean with a
soft cloth.
Wash with a mild soap if the
dirt is stubborn.
The image is out of alignment
The camera or surrounding
area has received a strong
impact.
Have the vehicle inspected by
your Toyota dealer.
The fixed guide lines are very
far out of alignment
The camera position is out of
alignment.
Have the vehicle inspected by
your Toyota dealer.
The vehicle is tilted (there is
a heavy load on the vehicle,
tire pressure is low due to a
tire puncture, etc.)
The vehicle is used on an
incline.
If this happens due to these
causes, it does not indicate a
malfunction.
Back up while visually check-
ing the vehicle’s surround-
ings.
150
1. REAR VIEW MONITOR SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:42
7
151
1
2
3
4
5
6
7
8
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
9
1. QUICK REFERENCE................... 152
2. SOME BASICS ............................ 153
REGISTERING/CONNECTING A
Bluetooth® PHONE........................... 153
USING THE PHONE
SWITCH/MICROPHONE .................. 154
VOICE COMMAND SYSTEM.............. 154
ABOUT THE CONTACTS IN THE
CONTACT LIST ................................ 155
WHEN SELLING OR DISPOSING
OF THE VEHICLE............................. 155
3. CALLING ON THE Bluetooth®
PHONE....................................... 156
BY FAVORITES LIST.......................... 157
BY CALL HISTORY............................. 157
BY CONTACTS LIST .......................... 158
BY DIAL PAD ...................................... 160
BY OFF HOOK SWITCH..................... 160
BY “Home” SCREEN........................... 161
4. RECEIVING ON THE
Bluetooth® PHONE................... 162
INCOMING CALLS.............................. 162
5. TALKING ON THE
Bluetooth® PHONE................... 163
INCOMING CALL WAITING................ 165
6. Bluetooth® PHONE MESSAGE
FUNCTION ................................ 166
RECEIVING A MESSAGE ................... 167
CHECKING MESSAGES..................... 167
REPLYING TO A MESSAGE
(QUICK REPLY)................................ 168
CALLING THE MESSAGE
SENDER ........................................... 169
1. PHONE/MESSAGE
SETTINGS................................. 171
PHONE/MESSAGE SETTINGS
SCREEN ........................................... 171
“Sound Settings” SCREEN .................. 172
“Contact/Call History Settings”
SCREEN ........................................... 173
“Messaging Settings” SCREEN ........... 181
“Phone Display Settings”
SCREEN ........................................... 182
1. TROUBLESHOOTING ................ 183
1PHONE OPERATION
(HANDS-FREE SYSTEM
FOR CELLULAR PHONES)
2SETUP
3WHAT TO DO IF...
PHONE
152
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
1. QUICK REFERENCE
The phone top screen can be used to make a phone call. To display the hands-free
operation screen, press the “APPS” button and select “Phone”, the switch on
the steering wheel or switch on the instrument panel.
Several functions are available to operate on each screen that is displayed by se-
lecting the 4 tabs.
Function Page
Phone operation
Registering/connecting Bluetooth® phone 42
Calling on the Bluetooth® phone 156
Receiving on the Bluetooth® phone 162
Talking on the Bluetooth® phone 163
Message function Using the Bluetooth® phone message function 166
Setting up a phone Phone settings 171
Bluetooth® settings 45
153
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
2. SOME BASICS
The hands-free system enables calls
to be made and received without hav-
ing to take your hands off the steering
wheel.
This system supports Bluetooth®.
Bluetooth® is a wireless data system
that enables cellular phones to be used
without being connected by a cable or
placed in a cradle.
The operating procedure of the phone
is explained here.
CAUTION
While driving, do not use a cellular
phone or connect the Bluetooth® phone.
Your audio unit is fitted with Bluetooth®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroni-
zation therapy-pacemakers or
implantable cardioverter defibrillators
should maintain a reasonable distance
between themselves and the Bluetooth®
antennas. The radio waves may affect
the operation of such devices.
Before using Bluetooth® devices, users
of any electrical medical device other
than implantable cardiac pacemakers,
cardiac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manu-
facturer of the device for information
about its operation under the influence
of radio waves. Radio waves could have
unexpected effects on the operation of
such medical devices.
NOTICE
Do not leave your cellular phone in the
vehicle. The temperature inside may rise
to a level that could damage the phone.
INFORMATION
If your cellular phone does not support
Bluetooth®, this system cannot function.
In the following conditions, the system
may not function:
• The cellular phone is turned off.
The current position is outside the
communication area.
• The cellular phone is not connected.
• The cellular phone has a low battery.
When using Bluetooth® audio and
hands-free at the same time, the follow-
ing problems may occur:
The Bluetooth® connection may be
cut.
• Noise may be heard on the Bluetooth®
audio playback.
REGISTERING/CONNECTING
A Bluetooth® PHONE
To use the hands-free system for cellu-
lar phones, it is necessary to register a
cellular phone with the system.
(P.42)
Bluetooth® PHONE CONDITION
DISPLAY
The condition of the Bluetooth® phone
appears on the upper right side of the
screen. (P.18)
154
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
Steering switch
Volume control switches
-Press the “+” side to increase the volume.
-Press the “-” side to decrease the vol-
ume.
“” switch
-Press the “” or “” switch to change
item.
-Press the “” or “” switch to change
selected tabs.
Enter switch
-Press the enter switch to execute.
Off hook switch
On hook switch
Back switch
-Press the back switch to return to the pre-
vious screen.
Microphone
USING THE PHONE SWITCH/
MICROPHONE
By pressing the phone switch, a call
can be received or ended without tak-
ing your hands off the steering wheel.
The microphone is used when talking
on the phone.
VOICE COMMAND SYSTEM
Press this switch to operate the voice
command system.
-The voice command system and its list
of commands can be operated.
(P.124)
155
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
-The following data is stored for every reg-
istered phone. When another phone is
connected, the following registered data
cannot be read:
Contact data
Call history data
Favorites data
Image data
All phone settings
Message settings
-The following data in the system can be
initialized:
Contact data
Call history data
Favorites data
Image data
All phone settings
Message settings
INFORMATION
The other party’s voice will be heard
from the front speakers. The audio sys-
tem will be muted during phone calls or
when hands-free voice commands are
used.
Talk alternately with the other party on
the phone. If both parties speak at the
same time, the other party may not hear
what has been said. (This is not a mal-
function.)
Keep call volume down. Otherwise, the
other party’s voice may be audible out-
side the vehicle and voice echo may
increase. When talking on the phone,
speak clearly towards the microphone.
The other party may not hear you clearly
when:
Driving on an unpaved road. (Making
excessive traffic noise.)
Driving at high speeds.
The roof or windows are open.
The air conditioning vents are pointed
towards the microphone.
• The sound of the air conditioning fan is
loud.
There is a negative effect on sound
quality due to the phone and/or net-
work being used.
ABOUT THE CONTACTS IN
THE CONTACT LIST
INFORMATION
When a phone’s registration is deleted,
the above-mentioned data is also
deleted.
WHEN SELLING OR
DISPOSING OF THE VEHICLE
A lot of personal data is registered
when the hands-free system is used.
When selling or disposing of the vehi-
cle, initialize the data. (P.58)
INFORMATION
Once initialized, the data and settings
will be erased. Pay much attention when
initializing the data.
156
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
3. CALLING ON THE Bluetooth® PHONE
1Press the “APPS” button.
2Select “Phone”.
3Select the desired tab to call from.
-The phone top screen can be displayed by
pressing the switch on the steering
wheel or switch on the instrument
panel.
After a Bluetooth® phone has been
registered, a call can be made using
the hands-free system. There are sev-
eral methods by which a call can be
made, as described below.
How to make a call list Page
By favorites list 157
By call history 157
By contacts list*1158
By dial pad*1160
By e-mail/SMS/MMS 169
By POI call*2203
By off hook switch 160
By Entune App Suite*1, 2 270
By voice command system 128
By “Home” screen 161
*1: The operation cannot be performed while
driving.
*2: With navigation function
157
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
1Display the phone top screen.
(P.156)
2Select the “Favorites” tab and select
the desired contact.
3Select the desired number.
4Check that the “Call” screen is dis-
played.
1Display the phone top screen.
(P.156)
2Select the “Call History” tab and se-
lect or the desired contact.
-The icons of call type are displayed.
: Missed call
: Incoming call
: Outgoing call
When is selected
3Check that the “Call” screen is dis-
played.
When the desired contact is selected
3Select the desired number.
4Check that the “Call” screen is dis-
played.
BY FAVORITES LIST
Calls can be made using registered
contacts which can be selected from a
contact list. (P.178)
BY CALL HISTORY
Up to 30 of the latest call history items
(missed, incoming and outgoing) can
be selected from the “Call History” tab.
158
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
1Display the phone top screen.
(P.156)
2Select the “Contacts” tab and select
the desired contact.
3Select the desired number.
4Check that the “Call” screen is dis-
played.
INFORMATION
When making a call to the same number
continuously, only the most recent call is
listed in call history.
When a phone number registered in the
contact list is received, the name is dis-
played.
Number-withheld calls are also memo-
rized in the system.
International phone calls may not be
made depending on the type of cellular
phone you have.
The list should group together consecu-
tive entries with the same phone number
and same call type. For example, two
calls from Kay Rowles’s mobile would
be displayed as follows: Kay Rowles (2)
BY CONTACTS LIST
Calls can be made by using contact
data which is transferred from a regis-
tered cellular phone. (P.159)
Up to 2500 contacts (maximum of 4
phone numbers and e-mail addresses
per contact) can be registered in the
contact list.
159
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
FOR PBAP COMPATIBLE
Bluetooth® PHONES
When “Automatic Transfer” is set to on
(P.173)
-Contacts are transferred automatically.
When “Automatic Transfer” is set to off
(P.173)
1Select the desired item.
FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth®
PHONES
1Select the desired item.
When “Transfer” is selected
2Follow the steps in “FOR PBAP IN-
COMPATIBLE BUT OPP COMPATI-
BLE Bluetooth® PHONES” from
“STEP 2”. (P.174)
When “Add” is selected
2Follow the steps in “REGISTERING A
NEW CONTACT TO THE CONTACT
LIST” from “STEP 2”. (P.175)
WHEN THE CONTACT IS
EMPTY
No. Function
Select to transfer new contacts from
a cellular phone, select “Always”
and then enable “Automatic Trans-
fer”.
Select to transfer all the contacts
from a connected cellular phone
only once.
Select to cancel transferring.
No. Function
Select to transfer the contacts from
the connected cellular phone.
Select to add a new contact manual-
ly.
Select to cancel transferring.
160
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
1Display the phone top screen.
(P.156)
2Select the “Dial Pad” tab and enter the
phone number.
3Select or press the switch on
the steering wheel.
4Check that the “Call” screen is dis-
played.
1Press the switch on the steering
wheel to display the phone top screen.
2Press the switch on the steering
wheel to display the “Call History”
screen.
3Press the switch on the steering
wheel to call the latest history item.
4Check that the “Call” screen is dis-
played.
INFORMATION
Manual transfer operation cannot be
performed while driving.
If your cellular phone is neither PBAP
nor OPP compatible, the contacts can-
not be transferred.
Depending on the type of Bluetooth®
phone:
It may be necessary to perform addi-
tional steps on the phone when trans-
ferring contact data.
• The registered image in the contact list
may not transfer depending on the
type of Bluetooth® phone connected.
BY DIAL PAD
INFORMATION
Depending on the type of Bluetooth®
phone being connected, it may be nec-
essary to perform additional steps on
the phone.
BY OFF HOOK SWITCH
Calls can be made using the latest call
history item.
161
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
1Display the home screen. (P.36)
2Select the desired contact.
3Check that the “Call” screen is dis-
played.
1Select and hold the screen button to
add a contact.
2Select the desired contact.
3Select the desired number.
BY “Home” SCREEN
REGISTERING A NEW
CONTACT
INFORMATION
If there is no contact in the contacts list,
the contacts cannot be registered at the
home screen.
The contact cannot be registered at the
home screen while driving.
162
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
4. RECEIVING ON THE Bluetooth® PHONE
1Select or press the switch on
the steering wheel to talk on the phone.
To refuse to receive the call: Select
or press the switch on the steer-
ing wheel.
To adjust the volume of a received call:
Turn the “PWR VOL” knob, or use the vol-
ume control switch on the steering wheel.
INCOMING CALLS
When a call is received, this screen is
displayed with a sound.
INFORMATION
During international phone calls, the
other party’s name or number may not
be displayed correctly depending on the
type of cellular phone you have.
The incoming call display mode can be
set. (P.182)
The ringtone that has been set in the
“Sound Settings” screen sounds when
there is an incoming call. Depending on
the type of Bluetooth® phone, both the
system and Bluetooth® phone may
sound simultaneously when there is an
incoming call. (P.172)
163
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
5. TALKING ON THE Bluetooth® PHONE
BY DIAL PAD
1Select “0-9”.
2Enter the desired number.
While talking on the phone, this screen
is displayed. The operations outlined
below can be performed on this
screen.
No. Function Page
Select to display the dial
pad to send tones. 163
Select to mute your voice
to the other party.
Select to change handset
modes between hands-
free and cellular phone.
Select to adjust your voice
volume that the other party
hears from their speaker.
164
Select to send tones. This
button only appears when
a number that contains a
(w) is dialed in hands-free
mode.
164
Select to hang up the
phone.
Select “+” or “-” to adjust
the volume of the other par-
ty’s voice.
Select to start talking with
the other party. 165
INFORMATION
Changing from hands-free call to cellular
phone call is not possible while driving.
When cellular phone call is changed to
hands-free call, the hands-free screen
will be displayed and its functions can be
operated on the screen.
Changing between cellular phone call
and hands-free call can be performed by
operating the cellular phone directly.
Transferring methods and operations
will be different depending on the type of
cellular phone you have.
For the operation of the cellular phone,
see the manual that comes with it.
SENDING TONES
This operation cannot be performed
while driving.
164
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
BY SELECTING “Release Tones”
1Select “Release Tones”.
1Select “Transmit Volume”.
2Select the desired level for the transmit
volume.
3Select “OK”.
“Release Tones” appear when a con-
tinuous tone signal(s) containing a (w)
is registered in the contact list.
This operation can be performed while
driving.
INFORMATION
A continuous tone signal is a character
string that consists of numbers and the
characters p or w. (e.g.
056133w0123p#1)
When the “p” pause tone is used, the
tone data up until the next pause tone
will be automatically sent after 2 sec-
onds have elapsed. When the “w” pause
tone is used, the tone data up until the
next pause tone will be automatically
sent after a user operation is performed.
Release tones can be used when auto-
mated operation of a phone based ser-
vice such as an answering machine or
bank phone service is desired. A phone
number with continuous tone signals
can be registered in the contact list.
Tone data after a “w” pause tone can be
operated on voice command during a
call.
TRANSMIT VOLUME SETTING
INFORMATION
The sound quality of the voice heard
from the other party’s speaker may be
negatively impacted.
To reset the transmit volume, select
“Default”.
“Transmit Volume” is dimmed when
mute is on.
165
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
1Select or press the switch on
the steering wheel to start talking with
the other party.
To refuse to receive the call: Select
or press the switch on the steer-
ing wheel.
-Each time is selected or the
switch on the steering wheel is pressed
during an interrupted call, the party who is
on hold will be switched.
INCOMING CALL WAITING
When a call is interrupted by a third
party while talking, this screen is dis-
played.
INFORMATION
This function may not be available
depending on the type of cellular phone.
166
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
6. Bluetooth® PHONE MESSAGE FUNCTION
1Press the “APPS” button.
2Select “Phone”.
-You can also display the message inbox
screen to select “Messages”. (STEP4)
3Select .
-The phone top screen can be displayed by
pressing the switch on the steering
wheel or switch on the instrument
panel.
4Check that the message inbox screen
is displayed.
: Select to change to phone mode.
Received messages can be forwarded
from the connected Bluetooth® phone,
enabling checking and replying using
the system.
Depending on the type of Bluetooth®
phone connected, received messages
may not be transferred to the message
inbox.
If the phone does not support the mes-
sage function, this function cannot be
used.
Function Page
Receiving a message 167
Checking messages 167
Replying to a message (quick re-
ply) 168
Calling the message sender 169
Message settings 181
167
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
1Display the message inbox screen.
(P.166)
2Select the desired message from the
list.
3Check that the message is displayed.
RECEIVING A MESSAGE
When an e-mail/SMS/MMS is re-
ceived, the incoming message screen
pops up with sound and is ready to be
operated on the screen.
No. Function
Select to check the message.
Select to not open the message.
Select to call the message sender.
INFORMATION
Depending on the cellular phone used
for receiving messages, or its registra-
tion status with the system, some infor-
mation may not be displayed.
The pop up screen is separately avail-
able for incoming e-mail and SMS/MMS
messages under the following condi-
tions:
E-mail:
“Incoming E-mail Display” is set to “Full
Screen”. (P.181)
“E-mail Notification Popup” is set to on.
(P.181)
SMS/MMS:
• “Incoming SMS/MMS Display” is set to
“Full Screen”. (P.181)
“SMS/MMS Notification Popup” is set
to on. (P.181)
CHECKING MESSAGES
No. Function
*
Select “Mark Unread” or “Mark
Read” to mark mail unread or read
on the message inbox screen.
This function is available when “Up-
date Read Status on Phone” is set to
on. (P.181)
Select to reply the message.
(P.168)
Select to display the previous or
next message.
Select to have messages read out.
To cancel this function, select
“Stop”.
When “Automatic Message Read-
out” is set to on, messages will be
automatically read out. (P.181)
Select to make a call to the sender.
*: E-mail only
168
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
1Display the message inbox screen.
(P.166)
2Select the desired message from the
list.
3Select “Quick Message”.
4Select the desired message.
5Select “Send”.
-While the message is being sent, a send-
ing message screen is displayed.
-To cancel sending the message, select
“Cancel”.
INFORMATION
Reading a text message is not available
while driving.
Depending on the type of Bluetooth®
phone being connected, it may be
necessary to perform additional steps on
the phone.
Messages are displayed in the
appropriate connected Bluetooth®
phone’s registered mail address folder.
Select the tab of the desired folder to be
displayed.
Only received messages on the
connected Bluetooth® phone can be
displayed.
The text of the message is not displayed
while driving.
Turn the “PWR VOL” knob, or use the
volume control switch on the steering
wheel to adjust the message read out
volume.
REPLYING TO A MESSAGE
(QUICK REPLY)
15 messages have already been
stored.
169
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
EDITING QUICK REPLY MESSAG-
ES
1Select “Quick Message”.
2Select corresponding to the de-
sired message to edit.
3Select “OK” when editing is complet-
ed.
*: With navigation function
CALLING FROM E-MAIL/SMS/MMS
MESSAGE DISPLAY
1Display the message inbox screen.
(P.166)
2Select the desired message.
3Select .
-If there are 2 or more phone numbers,
select the desired number.
4Check that the “Call” screen is dis-
played.
This operation cannot be performed
while driving.
INFORMATION
To reset the editquick reply messages,
select “Default”.
“Quick Message 1” (“I am driving and
will arrive in approximately [ETA]
minutes.”)*:
This message cannot be edited and will
automatically fill in [ETA] with the
navigation calculated estimated time of
arrival on the confirm message screen.
If there are waypoints set, [ETA] to the
next waypoint will be shown.
If there is no route currently set in the
navigation system, “Quick Message 1”
cannot be selected.
CALLING THE MESSAGE
SENDER
Calls can be made to an e-mail/SMS/
MMS message sender’s phone num-
ber.
This operation can be performed while
driving.
170
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:43
CALLING FROM A NUMBER WITH-
IN A MESSAGE
1Display the message inbox screen.
(P.166)
2Select the desired message.
3Select the text area.
4Select the desired number.
-Identified phone numbers contained in the
message are displayed.
5Check that the “Call” screen is dis-
played.
Calls can be made to a number identi-
fied in a message’s text area.
This operation cannot be performed
while driving.
INFORMATION
A series of numbers may be recognized
as a phone number. Additionally, some
phone numbers may not be recognized,
such as those for other countries.
171
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. SETUP
1. PHONE/MESSAGE SETTINGS
1Press the “APPS” button.
2Select “Setup”.
3Select “Phone”.
4Select the item to be set.
1Display the phone top screen.
(P.156)
2Select “Settings”.
PHONE/MESSAGE SETTINGS
SCREEN
No. Information Page
Registering/connecting a
phone 45
Sound settings 172
Contact/call history set-
tings 173
Messaging settings 181
Phone display settings 182
DISPLAYING THE PHONE/
MESSAGE SETTINGS SCREEN
IN A DIFFERENT WAY
172
2. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Phone/Message Settings”
screen. (P.171)
2Select “Sound Settings”.
3Select the desired item to be set.
“Sound Settings” SCREEN
The call and ringtone volume can be
adjusted. A ringtone can be selected.
No. Function
Select to set the desired ringtone.
Select “- or “+” to adjust the ring-
tone volume.
Select “-” or “+” to adjust the mes-
sage readout volume.
Select to set the desired incoming
SMS/MMS tone.
Select “-” or “+” to adjust the in-
coming SMS/MMS tone volume.
Select to set the desired incoming e-
mail tone.
Select “-” or “+” to adjust the in-
coming e-mail tone volume.
Select “-” or “+” to adjust the de-
fault volume of the other party’s
voice.
Select to reset all setup items.
INFORMATION
Depending on the type of phone, certain
functions may not be available.
173
2. SETUP
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Phone/Message Settings
screen. (P.171)
2Select “Contact/Call History Set-
tings”.
3Select the desired item to be set.
*: For PBAP compatible Bluetooth®
phones, this function is available when
“Automatic Transfer” is set to off.
(P.173)
“Contact/Call History
Settings” SCREEN
The contact can be transferred from a
Bluetooth® phone to the system. The
contact also can be added, edited and
deleted.
The call history can be deleted and
contact and favorites can be changed.
No. Function Page
For PBAP compatible
Bluetooth® phones, select
to set automatic contact/
history transfer on/off.
When set to on, the
phone’s contact data and
history are automatically
transferred.
Select to update contacts
from the connected phone. 174
Select to sort contacts by
the first name or last name
field.
Select to add contacts to
the favorites list. 178
Select to delete contacts
from the favorites list. 180
Select to set the trans-
ferred contact image dis-
play on/off.
*Select to clear contacts
from the call history.
*Select to add new contacts
to the contact list. 175
*Select to edit contacts in
the contact list. 176
*Select to delete contacts
from the contact list. 177
Select to reset all setup
items.
174
2. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
FOR PBAP COMPATIBLE
Bluetooth® PHONES
1Select “Update Contacts from
Phone”.
-Contacts are transferred automatically.
2Check that a confirmation screen is
displayed when the operation is com-
plete.
-This operation may be unnecessary
depending on the type of cellular phone.
-Depending on the type of cellular phone,
OBEX authentication may be required
when transferring contact data. Enter
“1234” into the Bluetooth® phone.
-If another Bluetooth® device is connected
when transferring contact data, depending
on the phone, the connected Bluetooth®
device may need to be disconnected.
-Depending on the type of Bluetooth®
phone being connected, it may be neces-
sary to perform additional steps on the
phone.
FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth®
PHONES
1Select “Update Contacts from
Phone”.
2Transfer the contact data to the system
using a Bluetooth® phone.
-This operation may be unnecessary
depending on the type of cellular phone.
-Depending on the type of cellular phone,
OBEX authentication may be required
when transferring contact data. Enter
“1234” into the Bluetooth® phone.
-To cancel this function, select “Cancel”.
3Check that a confirmation screen is
displayed when the operation is com-
plete.
INFORMATION
Depending on the type of phone, certain
functions may not be available.
Contact data is managed independently
for every registered phone. When one
phone is connected, another phone’s
registered data cannot be read.
UPDATE CONTACTS FROM
PHONE
Operation methods differ between
PBAP compatible and PBAP incom-
patible but OPP compatible Bluetooth®
phones.
If your cellular phone is neither PBAP
nor OPP compatible, the contacts can-
not be transferred.
This operation cannot be performed
while driving.
175
2. SETUP
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
UPDATING THE CONTACTS IN A
DIFFERENT WAY (FROM THE “Call
History” SCREEN)
1Display the phone top screen.
(P.156)
2Select the “Call History” tab and se-
lect a contact not yet registered in the
contact list.
3Select “Update Contact”.
4Select the desired contact.
5Select a phone type for the phone
number.
1Select “New Contact”.
2Enter the name and select “OK”.
3Enter the phone number and select
“OK”.
4Select the phone type for the phone
number.
5To add another number to this contact,
select “Yes”.
For only OPP compatible Bluetooth®
phones, this function is available when
“Automatic Transfer” is set to off.
(P.173)
REGISTERING A NEW
CONTACT TO THE CONTACT
LIST
New contact data can be registered.
Up to 4 numbers per person can be
registered. For PBAP compatible
Bluetooth® phones, this function is
available when “Automatic Transfer” is
set to off. (P.173)
176
2. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
REGISTERING A NEW CONTACT IN
A DIFFERENT WAY (FROM THE
“Call History” SCREEN)
1Display the phone top screen.
(P.156)
2Select the “Call History” tab and se-
lect a contact not yet registered in the
contact list.
3Select “Add to Contacts”.
4Follow the steps in “REGISTERING A
NEW CONTACT TO THE CONTACT
LIST” from “STEP 2”. (P.175)
1Select “Edit Contacts”.
2Select the desired contact.
3Select corresponding to the de-
sired name or number.
For editing the name
4Follow the steps in “REGISTERING A
NEW CONTACT TO THE CONTACT
LIST” from “STEP 2”. (P.175)
For editing the number
4Follow the steps in “REGISTERING A
NEW CONTACT TO THE CONTACT
LIST” from “STEP 3”. (P.175)
For only OPP compatible Bluetooth®
phones, this function is available when
“Automatic Transfer” is set to off.
(P.173)
EDITING THE CONTACT DATA
For PBAP compatible Bluetooth®
phones, this function is available when
“Automatic Transfer” is set to off.
(P.173)
177
2. SETUP
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
EDITING THE CONTACT IN A DIF-
FERENT WAY (FROM THE “Contact
Details” SCREEN)
1Display the phone top screen.
(P.156)
2Select the “Contacts”, “Call History”
tab or the “Favorites” tab and select
the desired contact.
3Select “Edit Contact”.
“E-mail Addresses”: Select to display all
registered e-mail addresses for the con-
tact.
4Follow the steps in “EDITING THE
CONTACT DATA” from “STEP 4”.
(P.176)
1Select “Delete Contacts”.
2Select the desired contact and select
“Delete”.
3Select “Yes” when the confirmation
screen appears.
DELETING THE CONTACT
DATA
For PBAP compatible Bluetooth®
phones, this function is available when
“Automatic Transfer” is set to off.
(P.173)
INFORMATION
Multiple data can be selected and
deleted at the same time.
178
2. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
DELETING THE CONTACT IN A DIF-
FERENT WAY (FROM THE “Contact
Details” SCREEN)
1Display the phone top screen.
(P.156)
2Select the “Contacts”, “Call History”
tab or the “Favorites” tab and select
the desired contact.
3Select “Delete Contact”.
4Select “Yes” when the confirmation
screen appears.
REGISTERING THE CONTACTS IN
THE FAVORITES LIST
1Select “Add Favorite”.
2Select the desired contact to add to the
favorites list.
-Dimmed contacts are already stored as a
favorite.
3Check that a confirmation screen is
displayed when the operation is com-
plete.
INFORMATION
When a Bluetooth® phone is deleted,
the contact data will be deleted at the
same time.
FAVORITES LIST SETTING
Up to 15 contacts (maximum of 4 num-
bers per contact) can be registered in
the favorites list.
179
2. SETUP
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
When 15 contacts have already been
registered to the favorites list
1When 15 contacts have already been
registered to the favorites list, a regis-
tered contact needs to be replaced.
Select “Yes” when the confirmation
screen appears to replace a contact.
2Select the contact to be replaced.
3Check that a confirmation screen is
displayed when the operation is com-
plete.
Registering contacts in the favorites list
in a different way (from the “Contacts”
screen)
1Display the phone top screen.
(P.156)
2Select the “Contacts” tab.
3Select at the beginning of the de-
sired contact list name to be registered
in the favorites list.
-When selected, is changed to , and
the contact is registered in the favorites
list.
Registering contacts in the favorites list
in a different way (from the “Contact De-
tails” screen)
1Display the phone top screen.
(P.156)
2Select the “Contacts” tab or the “Call
History” tab and select the desired
contact.
3Select “Add Favorite”.
4Check that a confirmation screen is
displayed when the operation is com-
plete.
180
2. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
DELETING THE CONTACTS IN THE
FAVORITES LIST
1Select “Remove Favorite”.
2Select the desired contacts and select
“Remove”.
3Select “Yes” when the confirmation
screen appears.
4Check that a confirmation screen is
displayed when the operation is com-
plete.
Deleting contacts in the favorites list in a
different way (from the “Contacts”
screen)
1Display the phone top screen.
(P.156)
2Select the “Contacts” tab.
3Select at the beginning of the con-
tact list name to be deleted from the fa-
vorites list.
-When selected, is changed to , and
the data is deleted from the list.
Deleting contacts in the favorites list in a
different way (from the “Contact Details”
screen)
1Display the phone top screen.
(P.156)
2Select the “Contacts”, “Call History”
tab or the “Favorites” tab and select
the desired contact to delete.
3Select “Remove Favorite”.
4Select “Yes” when the confirmation
screen appears.
5Check that a confirmation screen is
displayed when the operation is com-
plete.
181
2. SETUP
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Phone/Message Settings
screen. (P.171)
2Select “Messaging Settings”.
3Select the desired item to be set.
“Messaging Settings”
SCREEN
No.
Function
Select to set automatic message
transfer on/off.
Select to set automatic message
readout on/off.
Select to set the SMS/MMS notifica-
tion popup on/off.
Select to set the e-mail notification
popup on/off.
Select to set adding the vehicle signa-
ture to outgoing messages on/off.
Select to set updating message read
status on phone on/off.
Select to change the incoming SMS/
MMS display.
“Full Screen”: When an SMS/MMS
message is received, the incoming
SMS/MMS display screen is dis-
played and can be operated on the
screen.
“Drop-down”: When an SMS/MMS
message is received, a message is
displayed on the upper side of the
screen.
Select to change the incoming e-mail
display.
“Full Screen”: When an e-mail is re-
ceived, the incoming e-mail display
screen is the displayed and can be
operated on the screen.
“Drop-down”: When an e-mail is re-
ceived, a message is displayed on the
upper side of the screen.
Select to set display of messaging ac-
count names on the inbox tab on/off.
When set to on, messaging account
names used on the cellular phone will
be displayed.
Select to reset all setup items.
182
2. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the phone top screen.
(P.156)
2Select .
3Select “Settings”.
1Display the “Phone/Message Settings”
screen. (P.171)
2Select “Phone Display Settings”.
3Select the desired item to be set.
INFORMATION
Depending on the phone, these func-
tions may not be available.
DISPLAYING THE “Messaging
Settings” SCREEN IN A
DIFFERENT WAY
“Phone Display Settings”
SCREEN
No. Function
Select to change the incoming call
display.
“Full Screen”: When a call is re-
ceived, the hands-free screen is dis-
played and can be operated on the
screen.
“Drop-down”: A message is dis-
played on the upper side of the
screen.
Select to set display of the contact/
history transfer completion message
on/off.
Select to reset all setup items.
INFORMATION
Depending on the phone, these func-
tions may not be available.
183
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. WHAT TO DO IF...
1. TROUBLESHOOTING
When using the hands-free system with a Bluetooth® device
If there is a problem with the hands-free system or a Bluetooth® device, first check
the table below.
Symptom Likely cause Solution
Page
Cellular
phone
This
system
The hands-free sys-
tem or Bluetooth® de-
vice does not work.
The connected de-
vice may not be a
compatible
Bluetooth® cellular
phone.
For a list of specific
devices which
operation has been
confirmed on this
system, check with
your Toyota dealer or
the following website:
http://www.toyota.com/
entune/
 
The Bluetooth® ver-
sion of the connect-
ed cellular phone
may be older than
the specified ver-
sion.
Use a cellular phone
with Bluetooth® ver-
sion 2.0 or higher (rec-
ommended: Ver. 3.0
+EDR or higher).
44
184
3. WHAT TO DO IF...
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
When registering/connecting a cellular phone
Symptom Likely cause Solution
Page
Cellular
phone
This
system
A cellular phone can-
not be registered.
An incorrect pass-
code was entered
on the cellular
phone.
Enter the correct pass-
code on the cellular
phone.
 
The registration op-
eration has not been
completed on the
cellular phone side.
Complete the registra-
tion operation on the
cellular phone (ap-
prove registration on
the phone).
 
Old registration in-
formation remains
on either this sys-
tem or the cellular
phone.
Delete the existing reg-
istration information
from both this system
and the cellular phone,
then register the cellu-
lar phone you wish to
connect to this system.
47
A Bluetooth® connec-
tion cannot be made.
Another Bluetooth®
device is already
connected.
Manually connect the
cellular phone you wish
to use to this system.
48
Bluetooth® function
is not enabled on
the cellular phone.
Enable the Bluetooth®
function on the cellular
phone.
 
Automatic
Bluetooth® connec-
tion on this system
is set to off.
Set automatic
Bluetooth® connection
on this system to on
when the engine switch
is in following.
Vehicles without a
smart key system
The engine switch is
turned to the “ACC” or
“ON” position.
Vehicles with a
smart key system
The engine switch is
turned to ACCESSO-
RY or IGNITION ON
mode.
52
185
3. WHAT TO DO IF...
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
When making/receiving a call
“Unable to dial.
Please check your
phone.”
Bluetooth® function
is not enabled on
the cellular phone.
Enable the Bluetooth®
function on the cellular
phone.
 
Old registration in-
formation remains
on either this sys-
tem or the cellular
phone.
Delete the existing reg-
istration information
from both this system
and the cellular phone,
then register the cellu-
lar phone you wish to
connect to this system.
47
Symptom Likely cause Solution
Page
Cellular
phone
This
system
A call cannot be
made/received.
Your vehicle is in a
“No Service” area.
Move to where “No
Service” no longer ap-
pears on the display.
 
Symptom Likely cause Solution
Page
Cellular
phone
This
system
186
3. WHAT TO DO IF...
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
When using the phonebook
Symptom Likely cause Solution
Page
Cellular
phone
This
system
Phonebook data can-
not be transferred
manually/automati-
cally.
The profile version
of the connected
cellular phone may
not be compatible
with transferring
phonebook data.
For a list of specific
devices which
operation has been
confirmed on this
system, check with
your Toyota dealer or
the following website:
http://www.toyota.com/
entune/
 
Automatic contact
transfer function on
this system is set to
off.
Set automatic contact
transfer function on this
system to on.
173
Passcode has not
been entered on the
cellular phone.
Enter the passcode on
the cellular phone if re-
quested (default pass-
code: 1234).
 
Transfer operation
on the cellular
phone has not com-
pleted.
Complete transfer op-
eration on the cellular
phone (approve trans-
fer operation on the
phone).
 
Phonebook data can-
not be edited.
Automatic contact
transfer function on
this system is set to
on.
Set automatic contact
transfer function on this
system to off.
173
187
3. WHAT TO DO IF...
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
When using the Bluetooth® message function
Symptom Likely cause Solution
Page
Cellular
phone
This
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.
Enable message trans-
fer on the cellular
phone (approve mes-
sage transfer on the
phone).
 
Automatic transfer
function on this sys-
tem is set to off.
Set automatic transfer
function on this system
to on.
181
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system
is set to off.
Set notification of SMS/
MMS/E-mail reception
on this system to on.
181
Automatic message
transfer function is
not enabled on the
cellular phone.
Enable automatic
transfer function on the
cellular phone.
 
188
3. WHAT TO DO IF...
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
In other situations
Symptom Likely cause Solution
Page
Cellular
phone
This
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine switch is in
following.
Vehicles without
a smart key sys-
tem
The engine switch is
turned to the “ACC” or
“ON” position.
Vehicles with a
smart key system
The engine switch is
turned to ACCESSO-
RY or IGNITION ON
mode.
Connection confir-
mation display on
this system is set to
on.
To turn off the display,
set connection confir-
mation display on this
system to off.
51
189
3. WHAT TO DO IF...
7
PHONE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
: For details, refer to the owner’s manual that came with the cellular phone.
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone
is not close enough
to this system.
Bring the cellular
phone closer to this
system.
 
The cellular phone
is the most likely
cause of the symp-
tom.
Turn the cellular phone
off, remove and rein-
stall the battery pack,
and then restart the
cellular phone.
 
Enable the cellular
phone’s Bluetooth®
connection.
 
Stop the cellular
phone’s security soft-
ware and close all ap-
plications.
 
Before using an appli-
cation installed on the
cellular phone, careful-
ly check its source and
how its operation might
affect this system.
 
Symptom Likely cause Solution
Page
Cellular
phone
This
system
190
RAV4_AVN+DA_OM42871U_(U)
13.09.03 14:56
1. QUICK REFERENCE................... 192
MAP SCREEN ..................................... 192
NAVIGATION OPTIONS
SCREEN ........................................... 194
2. MAP SCREEN OPERATION ....... 195
CURRENT POSITION DISPLAY......... 195
MAP SCALE ........................................ 195
ORIENTATION OF THE MAP ............. 196
SWITCHING THE MAP MODE............ 197
SCREEN SCROLL OPERATION ........ 199
ADJUSTING LOCATION IN
SMALL INCREMENTS...................... 200
3. MAP SCREEN
INFORMATION.......................... 201
DISPLAYING MAP
INFORMATION ................................. 201
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET ...................... 203
STANDARD MAP ICONS.................... 204
4. TRAFFIC INFORMATION............ 205
DISPLAYING TRAFFIC
INFORMATION ON THE MAP.......... 207
1. DESTINATION SEARCH
SCREEN.................................... 208
2. SEARCH OPERATION................ 210
SELECTING SEARCH AREA .............. 211
SETTING HOME AS
DESTINATION................................... 211
SETTING PRESET DESTINATIONS
AS DESTINATION............................. 211
SEARCHING BY ADDRESS................ 212
SEARCHING BY POINT OF
INTEREST......................................... 213
SEARCHING FROM PREVIOUS
DESTINATIONS ................................ 216
SEARCHING
BY ADDRESS BOOK ........................ 216
SEARCHING BY EMERGENCY.......... 217
SEARCHING BY INTERSECTION
AND FREEWAY ................................ 217
SEARCHING BY MAP ......................... 219
SEARCHING BY COORDINATES....... 219
3. STARTING ROUTE
GUIDANCE................................ 220
STARTING ROUTE GUIDANCE.......... 220
PAUSING GUIDANCE ......................... 223
1BASIC OPERATION 2DESTINATION SEARCH
8
NAVIGATION SYSTEM*
8
191
1
2
3
4
5
6
7
8
RAV4_AVN+DA_OM42871U_(U)
13.09.03 14:56
9
1. ROUTE GUIDANCE
SCREEN .................................... 224
SCREEN FOR ROUTE
GUIDANCE ....................................... 224
ROUTE OVERVIEW............................ 225
DURING FREEWAY DRIVING............ 226
WHEN APPROACHING
INTERSECTION ............................... 227
TURN LIST SCREEN .......................... 228
TURN-BY-TURN ARROW
SCREEN ........................................... 228
2. TYPICAL VOICE GUIDANCE
PROMPTS.................................. 229
3. EDITING ROUTE ......................... 230
ADDING DESTINATIONS ................... 231
REORDERING DESTINATIONS......... 231
DELETING DESTINATIONS ............... 231
SETTING ROUTE
PREFERENCES ............................... 232
SELECTING ROUTE TYPE ................ 232
DETOUR SETTING............................. 233
STARTING FROM ADJACENT
ROAD................................................ 234
1. MEMORY POINTS SETTINGS.... 235
SETTING UP HOME ........................... 236
SETTING UP PRESET
DESTINATIONS................................ 237
SETTING UP ADDRESS BOOK.......... 239
SETTING UP AREAS TO AVOID ........ 241
DELETING PREVIOUS
DESTINATIONS................................ 243
1. DETAILED NAVIGATION
SETTINGS................................. 244
SCREENS FOR NAVIGATION
SETTINGS ........................................ 244
2. TRAFFIC SETTINGS................... 248
SCREEN FOR TRAFFIC
SETTINGS ........................................ 248
AUTO AVOID TRAFFIC....................... 249
MY TRAFFIC ROUTES ....................... 250
1. GPS (GLOBAL POSITIONING
SYSTEM)................................... 254
LIMITATIONS OF THE
NAVIGATION SYSTEM..................... 254
2. MAP DATABASE VERSION
AND COVERED AREA............. 256
MAP INFORMATION ........................... 256
ABOUT THE MAP DATA ..................... 257
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM
*
*: With navigation function
192
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No. Name Function Page
2D North-up, 2D
heading-up or 3D
heading-up sym-
bol
Indicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
196
Options button Select to display the “Navigation Options” screen. 194
“GPS” mark
(Global Position-
ing System)
Shows that the vehicle is receiving signals from
the GPS. 254
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD, HD
mark is displayed on the right.
205
Scale indicator This figure indicates the map scale. 195
193
1. BASIC OPERATION
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Zoom in/out but-
ton
Select to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
195
Footprint map
button Select to display the footprint map screen. 196
Current position
button/voice
guidance button
Select to display the current position address.
Select to repeat voice guidance. 229
Destination but-
ton Select to display the “Destination” screen. 208
Speed limit icon Indicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off. 201
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
224
Route informa-
tion button
Select to change the display between the current
street name and the distance with the estimated
travel/arrival time.
224
No. Name Function Page
194
1. BASIC OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No. Function Page
Select to display the desired map configuration. 197
Select to set display of the map information such as POI icons, route
trace, speed limit, etc. 201
Select to display the map version and coverage area. 256
Select to edit the set route. 230
Select to pause or resume route guidance. 223
Select to display the overview of the entire route. 225
195
1. BASIC OPERATION
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation”.
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
-The scale indicator bar appears at the bot-
tom of the screen.
-Select and hold or to con-
tinue changing the scale of the map
screen.
-The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
-To correct the current position manu-
ally:P.246
INFORMATION
While driving, the current position mark
is fixed on the screen and the map
moves.
The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
INFORMATION
The map scale is displayed above the
zoom in button at the bottom left of the
screen.
In areas where the footprint map is avail-
able the map scale changes from
to when at the minimum range.
196
1. BASIC OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select on the map screen.
2Check that the footprint map is dis-
played.
-To return to the normal map display, select
.
1Select , or .
North-up screen
Heading-up screen
FOOTPRINT MAP
For areas covered by the footprint map
(some major cities), a footprint map on
a scale of 75 ft. (25 m) can be selected.
When the map is scaled down to 150 ft.
(50 m), changes to and
can be selected to display the footprint
map.
INFORMATION
If the map or the current position is
moved to the area which is not covered
by the footprint map, the screen scale
automatically changes to 150 ft. (50 m).
On the footprint map, a one way street is
displayed by .
Scrolling on the footprint map is not
available while driving.
Building footprints in the database
were created and provided by
NAVTEQ.
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.
197
1. BASIC OPERATION
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3D screen
: North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up.
-The letter(s) beside this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
1Select “Options” on the map screen.
2Select “Map Mode”.
3Select the desired configuration but-
ton.
-Depending on the conditions, certain
screen configuration buttons cannot be
selected.
SWITCHING THE MAP MODE
No. Function Page
Select to display the single
map screen. 198
Select to display the dual
map screen. 198
Select to display the com-
pass mode screen. 199
Select to display the turn list
screen. 228
Select to display the free-
way exit list screen. 226
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
227
Select to display the turn-
by-turn arrow screen. 228
198
1. BASIC OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
MAP ONLY
DUAL MAP
-The map on the left is the main map.
Editing right map
1Select any point on the right side map.
2Select the desired item.
-When set to on, the indicator will illumi-
nate.
The right side map can be edited.
No. Function Page
Select to change the orien-
tation of the map. 196
Select to display POI icons. 201
Select to show traffic infor-
mation. 205
Select to change the map
scale. 195
199
1. BASIC OPERATION
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
COMPASS
-To scroll over the map screen, place the
cursor mark in the desired position and
then touch and hold the map screen. The
map will continue scrolling in that direction
until the finger is released.
Information about the destination, cur-
rent position and a compass is dis-
played on the screen.
INFORMATION
The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the whole compass mode
screen.
SCREEN SCROLL
OPERATION
Use the scroll feature to move the de-
sired point to the center of the screen
for looking at a point on the map that is
different from the current position.
No. Information/Function
Cursor mark
Distance from the current position to
the cursor mark.
Select to set as a destination.
When selecting “Go to on the
following map screen, the navigation
system performs a search for the
route. (P.220)
If a destination has already been set,
“Go to and “Add to Route” will
be displayed.
“Go to : Select to delete the ex-
isting destination(s) and set a new
one.
“Add to Route: Select to add a
destination.
Select to register as a memory point.
To change the icon, name, etc.:
P.239
Select to return to the current posi-
tion.
200
1. BASIC OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select one of the 8 directional arrows
to move the cursor to the desired point
and then select “OK”.
ADJUSTING LOCATION IN
SMALL INCREMENTS
The cursor location can be adjusted in
small increments when “Adjust Loca-
tion” is selected on the setting map
screen.
Also, when changing the location of
memory points on the editing screen
(P.241) and adjusting the current posi-
tion mark manually on the “Calibration”
screen (P.246), 8 directional arrows
may appear for this purpose.
201
1. BASIC OPERATION
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. MAP SCREEN INFORMATION
1Select “Options” on the map screen.
2Select “Map Information”.
3Select the desired items to be dis-
played.
-When set to on, the indicator will illumi-
nate.
1Display the “Map Information” screen.
(P.201)
2Select “Select POI”.
-When the POI icons to be displayed on
the map screen have already been set,
“Change POI” is displayed.
3Select the desired POI category and
select “OK”.
DISPLAYING MAP
INFORMATION
Information such as POI icons, route
trace, speed limit, etc. can be dis-
played on the map screen.
No. Function Page
Select to display the select-
ed POI icons.
Select to select or change
POI icons. 201
Select to display route
trace. 203
Select to display speed limit
icon.
Select to display traffic infor-
mation. 205
SELECTING THE POI ICONS
No. Information/Function Page
Displays up to 5 selected
POI icons on the map
screen
Select to cancel the select-
ed POI icons.
Displays up to 6 POI icons
as favorite POI categories 245
Select to display other POI
categories if the desired
POIs cannot be found on
the screen.
202
Select to search for the
nearest POIs. 202
202
1. BASIC OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
SELECTING OTHER POI ICONS TO
BE DISPLAYED
1Select “Other POIs”.
2Select the desired POI categories and
select “OK”.
“List All Categories”: Select to display all
POI categories. To add more POI catego-
ries, select “More”.
DISPLAYING THE LOCAL POI LIST
1Select “Find Local POI”.
2Select the desired POI.
“Near...”: Select to search for POIs near
the current position or along the route.
3Check that the selected POI is dis-
played on the map screen. (P.199)
When “Near...” is selected
1Select the desired item.
“Near Here”: Select to search for POIs
near the current position.
“Along My Route”: Select to search for
POIs along the route.
POIs that are within 20 miles (32 km) of
the current position will be listed from
among the selected categories.
203
1. BASIC OPERATION
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Map Information” screen.
(P.201)
2Select “Route Trace”.
-The “Route Trace” indicator illuminates
and the route trace starts.
3Check that the traveled line is dis-
played.
STOP RECORDING THE ROUTE
TRACE
1Select “Route Trace” again.
2A confirmation screen will be dis-
played.
“Yes”: Select to keep the recorded
route trace.
“No”: Select to erase the recorded
route trace.
1Place the cursor over an icon.
2Select “Info”.
POI information
Memory point information
ROUTE TRACE
The traveled route can be stored and
retraced on the map screen. This fea-
ture is available when the map scale is
30 miles (50 km) or less.
INFORMATION
The traveled route can be stored up to
124 miles (200 km).
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET
When the cursor is placed over an icon
on the map screen, the name bar is
displayed on the upper part of the
screen. If “Info” appears on the right
side of the name bar, detailed informa-
tion can be displayed.
204
1. BASIC OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Destination information
No. Function
Select to register as a memory point.
To change the icon, name, etc.:
P.239
Select to set as a destination.
Select to call the registered number.
Select to delete destination or mem-
ory point.
Select to display the edit memory
point screen.
INFORMATION
Even when traffic information is not cur-
rently being received, traffic information
and “Info” will be displayed for a while
after traffic information has been
received.
STANDARD MAP ICONS
Icon Name
Island
Park
Industry
Business facility
Airport
Military
University
Hospital
Stadium
Shopping mall
Golf
205
1. BASIC OPERATION
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
4. TRAFFIC INFORMATION
1Press the “APPS” button.
2Select “Traffic”.
3Select the desired item.
1Display the “Traffic Information”
screen. (P.205)
2Select “Traffic Event List”.
3Select the desired traffic information.
“On Current Road”: Select to display traf-
fic information for the current road.
“On Current Route”: Select to display
traffic information for the set route.
-When set to on, the indicator will illumi-
nate.
4Check that the traffic information is dis-
played.
“Detail”: Select to display detailed traffic
information.
Traffic data can be received via HD or
Entune App Suite to display traffic in-
formation on the map screen.
No. Function Page
Select to display a list of
current traffic information. 205
Select to display a map
with predictive traffic data. 206
Select to display traffic
along the saved routes. 206
DISPLAYING TRAFFIC
INFORMATION
A list of current traffic information can
be displayed along with information on
the incident’s distance and position rel-
ative to the vehicle.
206
1. BASIC OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Traffic Information”
screen. (P.205)
2Select “Predictive Traffic Map”.
3Scroll the map to the desired point and
set the time of predictive traffic infor-
mation.
-The time of the predictive traffic informa-
tion can be displayed in 15-minute steps
up to +45 minutes.
“+”: Moves the time forward 15 minutes.
“-”: Moves the time back 15 minutes.
1Display the “Traffic Information”
screen. (P.205)
2Select “My Traffic Routes”.
-If map data has been updated, a confirma-
tion screen will be displayed. Select “OK”
or “Do Not Tell Me Again.
3Select the desired route.
“Options”: Select to add, edit or delete
personal routes. (P.250)
-If routes have not been registered yet, a
confirmation screen will be displayed.
Select “Yes” to register the route.
4Select the desired traffic information.
5Check that the traffic information is dis-
played.
“Detail”: Select to display detailed traffic
information.
DISPLAYING PREDICTIVE
TRAFFIC INFORMATION
A map with predictive traffic data can
be displayed.
MY TRAFFIC ROUTES
Traffic information along the saved
routes can be displayed. To use this
function, it is necessary to register a
route. (P.250)
207
1. BASIC OPERATION
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “Options” on the map screen.
2Select “Map Information”.
3Select “Traffic Information”.
-When set to on, the indicator will illumi-
nate.
4Check that the traffic information is dis-
played.
DISPLAYING TRAFFIC
INFORMATION ON THE MAP
No. Information/Function
The icons show traffic incident, road
repair, traffic obstacles, etc. Select to
display traffic information and start
voice guidance for the traffic informa-
tion.
The color of the arrow changes de-
pending on the traffic information re-
ceived.
The indicator is displayed as follows.
: Traffic information has
been received.
: Traffic information has
been received via HD.
No icon: Any traffic information has
not been received.
208
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. DESTINATION SEARCH
1. DESTINATION SEARCH SCREEN
The “Destination” screen enables to search for a destination. To display the “Des-
tination” screen, press the “APPS” button, and select “Navigation” on the “Apps”
screen. Then select “Dest.” on the map screen.
No. Function Page
Select to search for a destination by address. 212
Select to search for a destination by point of interest. 213
Select to search for a destination from previously set destinations. 216
Select to search for a destination from a registered entry in “Address
book”. 216
Select to search for a destination by online database. 269
Select to search for a destination from emergency service points. 217
Select to search for a destination by intersection or freeway entrance/
exit. 217
Select to search for a destination by the last displayed map. 219
Select to search for a destination by coordinates. 219
Select to set a destination by home. 211
209
2. DESTINATION SEARCH
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Select to set a destination from preset destinations. 211
Select to delete set destinations. 231
No. Function Page
210
2. DESTINATION SEARCH
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. SEARCH OPERATION
1Press the “APPS” button.
2Select “Navigation”.
3Select “Dest.”.
4Search for a destination.
-There are different kinds of methods to
search for a destination. (P.208)
5Select “Go” when the confirm destina-
tion screen is displayed.
No. Function
Select to adjust the position in small-
er increments. (P.200)
Select to register as a memory point.
Select to call the registered number.
Select to search for the route.
(P.220)
If a destination has already been
set, “Go Directly” and “Add to
Route” will be displayed.
“Go Directly”: Select to delete the
existing destination(s) and set a new
one.
“Add to Route”: Select to add a
destination.
211
2. DESTINATION SEARCH
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Destination” screen.
(P.210)
2Select “Address”, “Point of Interest”
or “Intersection & Freeway”.
3Select “Select State/Province” or
“Change State/Province”.
-If a state (province) has not been selected
yet, “Select State/Province” is dis-
played.
4Select the desired state (province).
-To change countries, select the “United
States”, “Canada” or “Mexico” tab.
-For map database information and
updates: P.256
1Display the “Destination” screen.
(P.210)
2Select “Go Home”.
-The navigation system performs a search
for the route and the entire route map is
displayed. (P.220)
1Display the “Destination” screen.
(P.210)
2Select any of the preset destination
buttons (1-5).
-The navigation system performs a search
for the route and the entire route map is
displayed. (P.220)
SELECTING SEARCH AREA
The selected state (province) can be
changed to set a destination from a
different state (province) by using
“Address”, “Point of Interest” or
“Intersection & Freeway”.
SETTING HOME AS
DESTINATION
To use this function, it is necessary to
register a home address. (P.236)
SETTING PRESET
DESTINATIONS AS
DESTINATION
To use this function, it is necessary to
register preset destinations to the
preset screen buttons (1-5). (P.237)
212
2. DESTINATION SEARCH
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Destination” screen.
(P.210)
2Select “Address”.
3Select the desired search method.
1Select “City”.
2Enter a city name and select “OK”.
“Last 5 Cities”: Select the city name from
the list of the last 5 cities.
3Select the desired city name.
4Enter a street name and select “OK”.
5Select the desired street name.
6Enter a house number and select
“OK”.
-If the same address exists, the address
list screen will be displayed. Select the
desired address.
1Select “Street Address”.
2Enter a house number and select
“OK”.
3Enter a street name and select “OK”.
4Select the desired street name.
5Enter a city name and select “OK”.
6Select the desired city name.
-If the same address exists, the address
list screen will be displayed. Select the
desired address.
SEARCHING BY ADDRESS
There are 2 methods to search for a
destination by address.
No. Function Page
Select to search by city. 212
Select to search by street
address. 212
SEARCHING BY CITY
SEARCHING BY STREET
ADDRESS
INFORMATION
A street name can be searched using
only the body part of its name.
For example: S WESTERN AVE
A search can be performed by entering
“S WESTERN AVE”, “WESTERN AVE”
or “WESTERN”.
213
2. DESTINATION SEARCH
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Destination” screen.
(P.210)
2Select “Point of Interest”.
3Select the desired search method.
1Select “Name”.
2Enter a POI name and select “OK”.
3Select the desired POI.
-When entering the name of a specific POI,
and there are 2 or more sites with the
same name, the list screen will be dis-
played. Select the desired POI.
SEARCHING BY POINT OF
INTEREST
There are 3 methods to search for a
destination by Points of Interest.
No. Function Page
Select to search by name. 213
Select to search by catego-
ry. 214
Select to search by phone
number. 215
SEARCHING BY NAME
No. Function Page
Select to search for POI in
the desired city. 214
Select to search for POI
from the category list. 214
INFORMATION
To search for a facility name using multi-
ple search words, put a space between
each word.
214
2. DESTINATION SEARCH
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
SELECTING A CITY TO SEARCH
1Select “City”.
2Enter a city name and select “OK”.
“Any City”: Select to cancel the city set-
ting.
3Select the desired city name.
4Select the desired POI.
SELECTING FROM THE CATEGO-
RIES
1Select “Category”.
2Select the desired category.
-If there is more than 1 detailed item of the
selected category, the detailed list will be
displayed.
“List All Categories”: Select to display all
POI categories.
3Select the desired POI.
1Select “Category”.
2Select the desired search point.
3Select the desired POI category.
-If there is more than 1 detailed item of the
selected category, the detailed list will be
displayed.
“List All Categories”: Select to display all
POI categories.
“Favorite POI Categories”: Select to use
the 6 POIs that have been previously set.
(P.245)
4Select the desired POI.
SEARCHING BY CATEGORY
No. Function
Select to set the search point from
near the current position.
Select to search for POIs along the
set route.
Select to set the search point from
near a city center. (P.215)
Select to set the search point from
near a destination.
215
2. DESTINATION SEARCH
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
When “Near a City Center in XX*” is se-
lected
1Select “Near a City Center in XX”.
2Enter a city name and select “OK”.
“Last 5 Cities”: Select the city name from
the list of the last 5 cities.
3Select the desired city name.
4Select “OK” when the city center map
screen is displayed.
5Follow the steps from 3 onward in
“SEARCHING BY CATEGORY”.
(P.214)
*:XX represents the selected search area
name.
1Select “Phone #”.
2Enter a phone number and select
“OK”.
-If there is more than 1 site with the same
number, the list screen will be displayed.
INFORMATION
The names of POIs located within
approximately 200 miles (320 km) from
the selected search point can be dis-
played.
INFORMATION
If the navigation system has never been
used, selecting the city name from “Last
5 Cities” will not be available.
SEARCHING BY PHONE
NUMBER
INFORMATION
If there is no match for the entered
phone number, a list of identical num-
bers with different area codes will be dis-
played.
216
2. DESTINATION SEARCH
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Destination” screen.
(P.210)
2Select “Previous Destinations”.
3Select the desired destination.
“Previous Start Point”: Select to display
the start point map of the previous guided
route.
“Delete”: Select to delete the previous
destination. (P.243)
1Display the “Destination” screen.
(P.210)
2Select “Address Book”.
3Select the desired address book entry.
SEARCHING FROM
PREVIOUS DESTINATIONS
INFORMATION
The previous start point and up to 100
previously set destinations are displayed
on the screen.
SEARCHING BY ADDRESS
BOOK
To use this function, it is necessary to
register an address book entry.
(P.239)
-“Options”: Select to register or edit
address book entries. (P.239)
217
2. DESTINATION SEARCH
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Destination” screen.
(P.210)
2Select “Emergency”.
3Select the desired emergency catego-
ry.
4Select the desired destination.
1Display the “Destination” screen.
(P.210)
2Select “Intersection & Freeway”.
3Select the desired method.
SEARCHING BY
EMERGENCY
INFORMATION
The navigation system does not guide in
areas where route guidance is unavail-
able. (P.255)
SEARCHING BY
INTERSECTION AND
FREEWAY
There are 2 methods to search for a
destination by Intersection & Freeway.
No. Function Page
Select to search by inter-
section. 218
Select to search by free-
way entrance/exit. 218
218
2. DESTINATION SEARCH
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “Intersection”.
2Enter the name of the first intersecting
street which is located near the desti-
nation and select “OK”.
3Select the desired street name.
4Enter the name of the second inter-
secting street and select “OK”.
5Select the desired street name.
-If the 2 streets cross at more than 1 inter-
section in a city, the list of intersections will
be displayed.
1Select “Freeway Entrance / Exit”.
2Enter a freeway name and select
“OK”.
3Select the desired freeway.
4Select “Entrance” or “Exit”.
5Enter a freeway entrance or exit name
and select “OK”.
6Select the desired entrance or exit
name.
SEARCHING BY
INTERSECTION SEARCHING BY FREEWAY
ENTRANCE/EXIT
INFORMATION
Be sure to use the complete name of the
freeway or highway, including the
hyphen, when entering the destination.
Freeways and interstates use an “I” (I-
405). US highways use the state desig-
nation before the number (CA-118).
219
2. DESTINATION SEARCH
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Destination” screen.
(P.210)
2Select “Map”.
3Scroll the map to the desired point and
select “Go to .
“Adjust Location: Select to adjust the
position in smaller increments. (P.200)
-If a destination has already been set, “Go
to ” and “Add to Route” will be dis-
played.
“Go to : Select to delete the existing
destination(s) and set a new one.
“Add to Route”: Select to add a destina-
tion.
-The navigation system performs a search
for the route and the entire route map is
displayed. (P.220)
1Display the “Destination” screen.
(P.210)
2Select “Coordinates”.
3Enter the latitude and longitude and
select “OK”.
SEARCHING BY MAP
By selecting “Map” the last displayed
location is displayed again on the map
screen. You can search for a destina-
tion from this map.
SEARCHING BY
COORDINATES
220
2. DESTINATION SEARCH
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. STARTING ROUTE GUIDANCE
1Select “OK” to start guidance.
When the destination is set, the entire
route map from the current position to
the destination is displayed.
STARTING ROUTE
GUIDANCE
No. Information/Function
Select the desired route from 3 pos-
sible routes. (P.221)
Select to change the route.
(P.222)
Select to display a list of the turns re-
quired to reach the destination.
(P.222)
Current position
Destination point
Type of route and its distance
Distance of the entire route
Select to start guidance.
If “OK” is selected and held until a
beep sounds, demo mode will start.
Press the “HOME” or “APPS” but-
ton to end demo mode.
CAUTION
Be sure to obey traffic regulations and
keep road conditions in mind while driv-
ing. If a traffic sign on the road has been
changed, the route guidance may not
indicate such changed information.
INFORMATION
The route for returning may not be the
same as that for going.
The route guidance to the destination
may not be the shortest route or a route
without traffic congestion.
Route guidance may not be available if
there is no road data for the specified
location.
When setting the destination on a map
with a scale more than 0.5 mile (800 m),
the map scale changes to 0.5 miles (800
m) automatically. If this occurs, set the
destination again.
If a destination that is not located on a
road is set, the vehicle will be guided to
the point on a road nearest to the desti-
nation. The road nearest to the selected
point is set as the destination.
221
2. DESTINATION SEARCH
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “3 Routes”.
2Select the desired route.
DISPLAYING 3 ROUTES INFORMA-
TION
1Select “Info”.
2Check that the “3 Route Information”
screen is displayed.
3 ROUTES SELECTION
No. Function
Select to display the quickest route.
Select to display the route that is the
shortest distance to the set destina-
tion.
Select to display the alternative
route.
Select to display the information
about the 3 routes. (P.221)
No. Information
Time necessary for the entire trip
Distance of the entire trip
Distance of the toll road
Distance of the freeway
Distance of the ferry trip
222
2. DESTINATION SEARCH
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “Turn List”.
2Check that the turn list is displayed.
1Select “Edit Route”.
2Select the desired item.
DISPLAYING TURN LIST
A list of turn information from the cur-
rent position to the destination can be
displayed.
No. Information
Current position
Distance to the next turn
Turn direction at the intersection
Select to display the map of the se-
lected point.
INFORMATION
However, not all road names on the
route may appear on the list. If a road
changes its name without requiring a
turn (such as on a street that runs
through 2 or more cities), the name
change will not appear on the list. The
street names will be displayed in order
from the starting point, along with the
distance to the next turn.
EDITING ROUTE
Destinations can be added, reordered
or deleted, and conditions for the route
to the destination can be changed.
No. Function Page
Select to add destinations. 231
Select to delete destina-
tions. 231
Select to reorder destina-
tions. 231
Select to set route prefer-
ences. 232
Select to change route
type. 232
INFORMATION
Even if the “Freeways” indicator is
dimmed, the route cannot avoid includ-
ing a freeway in some cases. (P.232)
If the calculated route includes a trip by
ferry, the route guidance shows a sea
route. After traveling by ferry, the current
position may be incorrect. Upon recep-
tion of GPS signals, it is automatically
corrected.
223
2. DESTINATION SEARCH
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “Options” on the map screen.
2Select “Pause Guidance”.
1Select “Resume Guidance”.
PAUSING GUIDANCE
RESUMING GUIDANCE
224
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. ROUTE GUIDANCE
1. ROUTE GUIDANCE SCREEN
1Select the route information bar ( ) or
the route information button ( ) to
change the display of the route infor-
mation bar.
During the route guidance, various
types of guidance screens can be dis-
played depending on conditions.
SCREEN FOR ROUTE
GUIDANCE
No. Information/Function
Distance to the next turn and an ar-
row indicating the turning direction
Guidance route
Current position
Current street name or route infor-
mation
INFORMATION
If the vehicle goes off the guidance
route, the route is searched again.
For some areas, the roads have not
been completely digitized in our data-
base. For this reason, the route guid-
ance may select a road that should not
be traveled on.
When arriving at the set destination the
destination name will be displayed on
the upper part of the screen.
CHANGING ROUTE
INFORMATION BAR
When the vehicle is on the guidance
route, the route information bar dis-
plays the current street name or the
distance with the estimated travel/ar-
rival time to the destination.
No. Information/Function
Select to change the display be-
tween the estimated travel time and
the estimated arrival time.
Select to change the display be-
tween the current street name and
the distance with the estimated trav-
el/arrival time.
INFORMATION
When the vehicle is on the guidance
route, the distance measured along the
route is displayed. Travel time and
arrival time are calculated based on the
average speed for the specified speed
limit.
When the vehicle gets off the guidance
route, the arrow facing the destination is
displayed instead of the estimated
travel/arrival time.
The route information bar fills from left to
right as the vehicle progresses on the
route.
225
3. ROUTE GUIDANCE
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select the route information bar.
2Check that the list of the distance and
time is displayed.
-By selecting one of the number buttons,
the desired route information is displayed.
1Select “Options” on the map screen.
2Select “Route Overview”.
3Check that the entire route map is dis-
played.
-For details about this screen: P.220
DISTANCE AND TIME TO
DESTINATION
When driving on the guidance route
with more than 1 destination set, a list
of the distance with estimated travel/
arrival time from the current position to
each destination is displayed.
ROUTE OVERVIEW
The entire route from the current posi-
tion to the destination can be displayed
during the route guidance.
226
3. ROUTE GUIDANCE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
DURING FREEWAY DRIVING
During freeway driving, the freeway
exit information screen will be dis-
played.
No./
Icon
Information/Function
Distance and time from the current
position to the road traffic facilities.
Name of the road traffic facilities.
POIs that are close to a freeway exit.
Select to display the selected map of
the exit vicinity.
Select to display the nearest road
traffic facilities from the current posi-
tion.
Select to scroll to farther road traffic
facilities.
Select to scroll to closer road traffic
facilities.
WHEN APPROACHING
FREEWAY EXIT OR JUNCTION
When the vehicle approaches an exit
or junction, the freeway guidance
screen will be displayed.
No. Information/Function
Next exit or junction name
Distance from the current position to
the exit or junction
Select to hide the freeway guidance
screen. To return to the freeway
guidance screen, select .
Remaining distance bar to the guid-
ance point
227
3. ROUTE GUIDANCE
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
TOLLGATE GUIDANCE
When the vehicle approaches a toll-
gate, the tollgate view will be dis-
played.
No. Information/Function
Distance from the current position to
the tollgate
Select to hide the tollgate guidance
screen. To return to the tollgate
guidance screen, select .
Remaining distance bar to the guid-
ance point
WHEN APPROACHING
INTERSECTION
When the vehicle approaches an inter-
section, the intersection guidance
screen will be displayed.
No. Information/Function
Next street name
Distance to the intersection
Select to hide the intersection guid-
ance screen. To return to the inter-
section guidance screen, select
.
Remaining distance bar to the guid-
ance point
228
3. ROUTE GUIDANCE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “Turn List” on the “Map Mode”
screen. (P.197)
2Check that the turn list screen is dis-
played.
1Select “Turn-by-Turn Arrow” on the
“Map Mode” screen. (P.197)
2Check that the turn-by-turn arrow
screen is displayed.
TURN LIST SCREEN
No. Information/Function
Turn direction
Distance between turns
Next street or destination name
TURN-BY-TURN ARROW
SCREEN
On this screen, information about the
next turn on the guidance route can be
displayed.
No. Information/Function
Exit number or street name
Turn direction
Distance to the next turn
229
3. ROUTE GUIDANCE
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. TYPICAL VOICE GUIDANCE PROMPTS
As the vehicle approaches an intersec-
tion, or point, where maneuvering the
vehicle is necessary, the system’s
voice guidance will provide various
messages.
CAUTION
Be sure to obey the traffic regulations
and keep the road condition in mind
especially when you are driving on IPD
roads (roads that are not completely dig-
itized in our database). The route guid-
ance may not have the updated
information such as the direction of a
one way street.
INFORMATION
If a voice guidance command cannot be
heard, select on the map screen
to hear it again.
To adjust the voice guidance volume:
P.59
Voice guidance may be made early or
late.
If the system cannot determine the cur-
rent position correctly, you may not hear
voice guidance or may not see the mag-
nified intersection on the screen.
230
3. ROUTE GUIDANCE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. EDITING ROUTE
1Press the “APPS” button.
2Select “Navigation”.
3Select “Options”.
4Select “Edit Route”.
5Select the item to be set.
6Check that the entire route map is dis-
played. (P.220)
No. Function Page
Select to add destinations. 231
Select to delete destina-
tions. 231
Select to reorder destina-
tions. 231
Select to set route prefer-
ences. 232
Select to change route
type. 232
Select to set detours. 233
Select to start from adja-
cent road. 234
231
3. ROUTE GUIDANCE
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Edit Route” screen.
(P.230)
2Select “Add”.
3Search for an additional destination in
the same way as a destination search.
(P.208)
4Select “Add Destination Here” to in-
sert the new destination into the route.
1Display the “Edit Route” screen.
(P.230)
2Select “Reorder”.
3Select the desired destination and se-
lect “Move Up” or “Move Down” to
change the arrival order. Then select
“OK”.
1Display the “Edit Route” screen.
(P.230)
2Select “Delete”.
3Select “Yes” when the confirmation
screen appears.
-When more than 1 destination has been
set, a list will be displayed on the screen.
Select the item(s) to be deleted.
“Delete All”: Select to delete all destina-
tions on the list.
-If more than 1 destination has been set,
the system will recalculate the route(s) to
the set destination(s) as necessary.
ADDING DESTINATIONS
REORDERING
DESTINATIONS
When more than 1 destination has
been set, the arrival order of the desti-
nations can be changed.
DELETING DESTINATIONS
232
3. ROUTE GUIDANCE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Edit Route” screen.
(P.230)
2Select “Preferences”.
3Select the desired route preferences
and select “OK”.
-When set to on, the indicator will illumi-
nate.
1Display the “Edit Route” screen.
(P.230)
2Select “Route Type”.
3Select the desired route type.
-During driving, the route guidance starts
after selecting the desired route type.
4The entire route from the starting point
to the destination is displayed.
-For details about this screen: P.220
SETTING ROUTE
PREFERENCES
The conditions to determine the route
can be selected from various choices
such as freeways, toll roads, ferries,
etc.
SELECTING ROUTE TYPE
233
3. ROUTE GUIDANCE
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Edit Route” screen.
(P.230)
2Select “Detour”.
3Select the desired detour distance.
DETOUR SETTING
During the route guidance, the route
can be changed to detour around a
section of the route where a delay is
caused by road repairs, an accident,
etc.
No.
Function
Select to detour within 1 mile of the
current position.
Select to detour within 3 miles of the
current position.
Select to detour within 5 miles of the
current position.
Select to detour on the entire route.
Select to make the system search
for the route based on traffic con-
gestion information received from
traffic information. (P.205)
234
3. ROUTE GUIDANCE
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Edit Route” screen.
(P.230)
2Select “Start from Adjacent Road”.
INFORMATION
This picture shows an example of how
the system would guide around a delay
caused by a traffic jam.
This position indicates the location of a
traffic jam caused by road repairs, an
accident, etc.
This route indicates the detour sug-
gested by the system.
When the vehicle is on a freeway, the
detour distance selections are 5, 15 and
25 miles (or 5, 15 and 25 km if units are
in km).
The system may not be able to calculate
a detour route depending on the
selected distance and surrounding road
conditions.
STARTING FROM ADJACENT
ROAD
When a freeway and a surface road
run in parallel, the system may show
the guidance route going on the free-
way while driving on the surface road,
or vice versa.
If this happens, you can instantly
choose the adjacent road for the route
guidance.
INFORMATION
When there is no adjacent road, this
screen button will not be displayed.
235
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
4. MEMORY POINTS
1. MEMORY POINTS SETTINGS
1Press the “APPS” button.
2Select “Setup”.
3Select “Navigation”.
4Select the desired item to be set.
Home, preset destinations, address
book entries, areas to avoid can be set
as memory points. The registered
points can be used as the destinations.
(P.208)
Registered areas to avoid, will be
avoided when the system searches for
a route.
No. Function Page
Select to set home. 236
Select to set preset desti-
nations. 237
Select to set the address
book. 239
Select to set areas to
avoid. 241
Select to delete previous
destinations. 243
Select to set detailed navi-
gation settings. 244
236
4. MEMORY POINTS
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
1Display the “Navigation Settings”
screen. (P.235)
2Select “Home”.
3Select the desired item to be set.
1Select “Set Home”.
2Select the desired item to search for
the location. (P.208)
3Select “OK” when the editing home
screen appears.
1Select “Edit”.
2Select the desired item to be edited.
3Select “OK”.
1Select “Delete”.
2Select “Yes” when the confirmation
screen appears.
SETTING UP HOME
If home has been registered, that infor-
mation can be recalled by selecting
“Go Home” on the “Destination”
screen. (P.211)
No. Function Page
Select to register home. 236
Select to edit home. 236
Select to delete home. 236
REGISTERING HOME
EDITING HOME
No. Function Page
Select to edit the home
name. 241
Select to set display of the
home name on/off.
Select to edit location infor-
mation. 241
Select to edit the phone
number. 241
Select to change the icon
to be displayed on the map
screen.
240
DELETING HOME
237
4. MEMORY POINTS
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
1Display the “Navigation Settings”
screen. (P.235)
2Select “Preset Destinations”.
3Select the desired item.
1Select “Set”.
2Select the desired item to search for
the location. (P.208)
3Select a position for this preset desti-
nation.
4Select “OK” when the editing preset
destination screen appears. (P.238)
SETTING UP PRESET
DESTINATIONS
If a preset destination has been regis-
tered, that information can be recalled
by using preset destinations on the
“Destination” screen. (P.211)
No. Function Page
Select to register a preset
destination. 237
Select to edit a preset des-
tination. 238
Select to delete a preset
destination. 238
REGISTERING PRESET
DESTINATIONS
INFORMATION
Up to 5 preset destinations can be regis-
tered.
238
4. MEMORY POINTS
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
1Select “Edit”.
2Select the desired preset destination.
3Select the item to be edited.
4Select “OK”.
1Select “Delete”.
2Select the preset destination to be de-
leted and select “Delete”.
3Select “Yes” when the confirmation
screen appears.
EDITING PRESET
DESTINATIONS
No. Function Page
Select to edit the preset
destination name. 241
Select to set display of the
preset destination name
on/off.
Select to edit location infor-
mation. 241
Select to edit the phone
number. 241
Select to change the icon
to be displayed on the map
screen.
240
DELETING PRESET
DESTINATIONS
239
4. MEMORY POINTS
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
1Display the “Navigation Settings”
screen. (P.235)
2Select “Address Book”.
3Select the desired item.
1Select “New”.
2Select the desired item to search for
the location. (P.208)
3Select “OK” when the editing address
book entry screen appears. (P.239)
1Select “Edit”.
2Select the desired address book entry.
3Select the item to be edited.
4Select “OK”.
SETTING UP ADDRESS
BOOK
Points on the map can be registered.
No. Function Page
Select to register address
book entries. 239
Select to edit address book
entries. 239
Select to delete address
book entries. 241
REGISTERING ADDRESS
BOOK ENTRIES
INFORMATION
Up to 100 address book entries can be
registered.
EDITING ADDRESS BOOK
ENTRIES
The icon, name, location and/or phone
number of a registered address book
entry can be edited.
No. Function Page
Select to edit the address
book entry name. 241
Select to set display of the
address book entry name
on/off.
Select to edit location infor-
mation. 241
Select to edit the phone
number. 241
Select to change the icon
to be displayed on the map
screen.
240
240
4. MEMORY POINTS
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
CHANGING THE ICON
1Select “Edit” next to the “Icon”.
2Select the desired icon.
-Change pages by selecting the “Page 1”,
“Page 2” or “With Sound” tab.
“With Sound”: Select the memory points
with a sound
When the “With Sound” tab is selected
1Select the “With Sound” tab.
2Select the desired sound icon.
: Select to play the sound.
-When “Bell (with Direction)” is selected,
select an arrow to adjust the direction and
select “OK”.
A sound for some address book entries
can be set. When the vehicle ap-
proaches the location of the address
book entry, the selected sound will be
heard.
INFORMATION
The bell sounds only when the vehicle
approaches this point in the direction
that has been set.
241
4. MEMORY POINTS
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
CHANGING THE NAME
1Select “Edit” next to “Name”.
2Enter a name and select “OK”.
CHANGING THE LOCATION
1Select “Edit” next to “Location”.
2Scroll the map to the desired point
(P.200) and select “OK”.
CHANGING PHONE NUMBER
1Select “Edit” next to “Phone #”.
2Enter the phone number and select
“OK”.
1Select “Delete”.
2Select the item to be deleted and select
“Delete”.
3Select “Yes” when the confirmation
screen appears.
1Display the “Navigation Settings”
screen. (P.235)
2Select “Areas to Avoid”.
3Select the desired item.
DELETING ADDRESS BOOK
ENTRIES
SETTING UP AREAS TO
AVOID
Areas to be avoided because of traffic
jams, construction work or other rea-
sons can be registered as “Areas to
Avoid”.
No. Function Page
Select to register areas to
avoid. 242
Select to edit areas to
avoid. 242
Select to delete areas to
avoid. 243
242
4. MEMORY POINTS
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
1Select “New”.
2Select the desired item to search for
the location. (P.208)
3Select either or to
change the size of the area to be avoid-
ed and select “OK”.
4Select “OK” when the editing area to
avoid screen appears.
1Select “Edit”.
2Select the area and select “OK”.
3Select the item to be edited.
4Select “OK”.
REGISTERING AREAS TO
AVOID
INFORMATION
If a destination is entered in the area to
avoid or the route calculation cannot be
made without running through the area
to avoid, a route passing through the
area to be avoided may be shown.
Up to 10 locations can be registered as
points/areas to avoid.
EDITING AREAS TO AVOID
The name, location and/or area size of
a registered area can be edited.
No. Function Page
Select to edit the name of
the area to avoid. 243
Select to set display of the
area to avoid name on/off.
Select to edit area location. 243
Select to edit area size. 243
Select to set the area to
avoid function on/off.
243
4. MEMORY POINTS
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
CHANGING THE NAME
1Select “Edit” next to “Name”.
2Enter a name and select “OK”.
CHANGING THE LOCATION
1Select “Edit” next to “Location”.
2Scroll the map to the desired point
(P.200) and select “OK”.
CHANGING THE AREA SIZE
1Select “Edit” next to “Size”.
2Select either or to
change the size of the area to be avoid-
ed and select “OK”.
1Select “Delete”.
2Select the area to be deleted and se-
lect “Delete”.
3Select “Yes” when the confirmation
screen appears.
1Display the “Navigation Settings”
screen. (P.235)
2Select “Delete Previous Dest.”.
3Select the previous destination to be
deleted and select “Delete”.
4Select “Yes” when the confirmation
screen appears.
DELETING AREAS TO AVOID
DELETING PREVIOUS
DESTINATIONS
Previous destinations can be deleted.
244
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
5. SETUP
1. DETAILED NAVIGATION SETTINGS
1Press the “APPS” button.
2Select “Setup”.
3Select “Navigation”.
4Select “Detailed Navi. Settings”.
5Select the items to be set.
6Select “OK”.
Settings are available for pop-up infor-
mation, favorite POI categories, low
fuel warning, etc.
SCREENS FOR NAVIGATION
SETTINGS
245
5. SETUP
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Detailed Navi. Settings”
screen. (P.244)
2Select “Favorite POI Categories”.
3Select the category to be changed.
“Default”: Select to set the default catego-
ries.
4Select the desired POI category.
“List All Categories”: Select to display all
POI categories.
5Select the desired POI icon.
No. Function Page
Select to set the voice guid-
ance for the next street
name on/off.
Select to set IPD road guid-
ance on/off.
Select to set favorite POI
categories that are used for
POI selection to display on
the map screen.
245
Select to adjust the current
position mark manually or
to adjust miscalculation of
the distance caused by tire
replacement.
246
Select to set display of pop-
up information on/off.
Select to set display of low
fuel warning on/off. 247
Select to reset all setup
items.
FAVORITE POI CATEGORIES
(SELECT POI ICONS)
Up to 6 POI icons, which are used for
selecting POIs on the map screen, can
be selected as favorites.
246
5. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Detailed Navi. Settings”
screen. (P.244)
2Select “Calibration”.
3Select the desired item.
POSITION/DIRECTION CALIBRA-
TION
1Select “Position / Direction”.
2Scroll the map to the desired point
(P.200) and select “OK”.
3Select an arrow to adjust the direction
of the current position mark and select
“OK”.
TIRE CHANGE CALIBRATION
1Select “Tire Change”.
-The message appears and the quick dis-
tance calibration starts automatically.
CURRENT POSITION/TIRE
CHANGE CALIBRATION
The current position mark can be ad-
justed manually. Miscalculation of the
distance caused by tire replacement
can also be adjusted.
-For additional information on the accu-
racy of a current position: P.254
When driving, the current position
mark will be automatically corrected by
GPS signals. If GPS reception is poor
due to location, the current position
mark can be adjusted manually.
The tire change calibration function will
be used when replacing the tires. This
function will adjust miscalculation
caused by the circumference differ-
ence between the old and new tires.
INFORMATION
If this procedure is not performed when
the tires are replaced, the current posi-
tion mark may be incorrectly displayed.
247
5. SETUP
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Detailed Navi. Settings”
screen. (P.244)
2Select “Low Fuel Warning Pop-up”.
SEARCHING GAS STATION IN LOW
FUEL WARNING
1Select “Yes” when the low fuel warn-
ing appears.
2Select the desired nearby gas station.
3Select “Enter ” to set as a destina-
tion.
“Info”: Select to display gas station infor-
mation. (P.203)
LOW FUEL WARNING POP-UP
When the fuel level is low, a warning
message will pop up on the screen.
A nearby gas station can be selected
as a destination.
248
5. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. TRAFFIC SETTINGS
1Press the “APPS” button.
2Select “Setup”.
3Select “Traffic”.
4Select the items to be set.
5Select “OK”.
Traffic information such as traffic con-
gestion or traffic incident warnings can
be made available.
SCREEN FOR TRAFFIC
SETTINGS
No. Function
Select to set specific routes (such as
frequently used routes) on which
you wish to receive traffic informa-
tion. (P.250)
Select to set the avoid traffic func-
tion auto/manual. (P.249)
Select to set the usage of traffic in-
formation for the estimated arrival
time on/off.
Select to set the display of an arrow
of free flowing traffic on/off.
Select to set to on/off whether to
consider the predictive traffic infor-
mation (P.206) with estimated ar-
rival time and detoured route
search.
Select to set of traffic incident voice
warning on/off.
Select to reset all setup items.
249
5. SETUP
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Traffic Settings” screen.
(P.248)
2Select “Avoid Traffic”.
3Select the desired item.
4Select “OK”.
CHANGING THE ROUTE MANUAL-
LY
1Select the desired item.
AUTO AVOID TRAFFIC
No. Function
Select to automatically change
routes when congestion information
of the guidance route has been re-
ceived.
Select to select manually whether or
not to change routes when conges-
tion information of the guidance
route has been received. In this
mode, a screen will appear to ask if
you wish to reroute.
Select to not reroute when conges-
tion information for the guidance
route has been received.
When the navigation system calcu-
lates a new route, the following screen
will be displayed.
No. Function
Select to start route guidance using
the new route.
Select to confirm the new route and
current route on the map.
Select to continue the current route
guidance.
250
5. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Traffic Settings” screen.
(P.248)
2Select “My Traffic Routes”.
3Select the desired item.
1Select “New”.
2Select “Edit” next to “Name”.
3Enter the name and select “OK”.
4Select “Edit” next to “Start”.
5Select the desired item to search for
the location. (P.208)
6Select “Edit” next to “End”.
7Select the desired item to search for
the location. (P.208)
8Select “OK” when the editing traffic
route screen appears.
-The routes can be adjusted by setting pre-
ferred roads. (P.252)
MY TRAFFIC ROUTES
Specific routes (such as frequently
used routes) on which you wish to re-
ceive traffic information can be regis-
tered as “My Traffic Routes”. A route is
set by defining a start point and end
point, and can be adjusted by setting
up to 2 preferred roads.
No. Function Page
Select to register personal
routes. 250
Select to edit personal
routes. 251
Select to delete personal
routes. 251
REGISTERING PERSONAL
ROUTES
INFORMATION
Up to 5 routes can be registered.
251
5. SETUP
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “Edit”.
2Select the desired traffic route.
3Select “Edit” next to the item to be ed-
ited.
4Select “OK”.
-The entire route map will be displayed.
1Select “Delete”.
2Select the traffic route to be deleted
and select “Delete”.
3Select “Yes” when the confirmation
screen appears.
EDITING PERSONAL ROUTES
No. Function Page
Select to edit the name of
the personal route.
250
Select to edit start location.
Select to edit end location.
Select to see and modify
the entire route. 252
DELETING PERSONAL
ROUTES
252
5. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Select “Set Preferred Roads”.
2Select the desired item.
ADDING PREFERRED ROADS
1Select “Add”.
-If two preferred roads are already set,
select “Yes” and delete a preferred road
before add a new one.
2Scroll the map to the desired point and
select “OK”.
3Select “OK” to use this road.
“Next”: Select to change road.
4Select “Add Here” for the desired lo-
cation.
-If a preferred road is already set, a second
preferred road can be added anywhere
between the start point, the end point and
the existing preferred road.
SETTING PREFERRED ROADS
“My Traffic Routes” can be adjusted by
setting up to 2 preferred roads.
No. Function Page
Select to add preferred
roads. 252
Select to modify preferred
roads. 253
Select to delete preferred
roads. 253
253
5. SETUP
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
MODIFYING PREFERRED ROADS
1Select “Modify”.
2Select the preferred road to be modi-
fied if 2 preferred roads have been set.
3Scroll the map to the desired point and
select “OK”.
4Select “OK” to use this road.
“Next”: Select to change road.
DELETING PREFERRED ROADS
1Select “Delete”.
2Select the preferred road to be deleted
if 2 preferred roads have been set.
“Delete All”: Select to delete all preferred
roads on the list.
3Select “Yes” when the confirmation
screen appears.
254
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
6. TIPS FOR THE NAVIGATION SYSTEM
1. GPS (GLOBAL POSITIONING SYSTEM)
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate
current position, normally using 4 or more
satellites, and in some case 3 satellites.
The GPS system has a certain level of in-
accuracy. While the navigation system
compensates for this most of the time, oc-
casional positioning errors of up to 300 ft.
(100 m) can and should be expected. Gen-
erally, position errors will be corrected
within a few seconds.
When the vehicle is receiving signals from
satellites, the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle po-
sition on the map screen. Tunnels, tall
buildings, trucks, or even the placement of
objects on the instrument panel may ob-
struct the GPS signals.
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving clear GPS signals, the vehicle po-
sition may not be shown accurately or
inappropriate route guidance may occur in
some cases.
LIMITATIONS OF THE
NAVIGATION SYSTEM
This navigation system calculates the
current position using satellite signals,
various vehicle signals, map data, etc.
However, an accurate position may not
be shown depending on satellite condi-
tions, road configuration, vehicle con-
dition or other circumstances.
NOTICE
The installation of window tinting may
obstruct the GPS signals. Most window
tinting contains some metallic content
that will interfere with GPS signal recep-
tion of the antenna in the instrument
panel. We advise against the use of win-
dow tinting on vehicles equipped with
navigation systems.
255
6. TIPS FOR THE NAVIGATION SYSTEM
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
-Accurate current position may not be
shown in the following cases:
When driving on a small angled Y-
shaped road.
When driving on a winding road.
• When driving on a slippery road such as
in sand, gravel, snow, etc.
When driving on a long straight road.
• When freeway and surface streets run in
parallel.
• After moving by ferry or vehicle carrier.
When a long route is searched during
high speed driving.
When driving without setting the current
position calibration correctly.
After repeating a change of direction by
going forward and backward, or turning
on a turntable in a parking lot.
When leaving a covered parking lot or
parking garage.
• When a roof carrier is installed.
When driving with tire chains installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or
larger than the factory specifications.
When the tire pressure in any of the 4
tires is not correct.
-Inappropriate route guidance may occur in
the following cases:
When turning at an intersection off the
designated route guidance.
If you set more than 1 destination but
skip any of them, auto reroute will dis-
play a route returning to the destination
on the previous route.
When turning at an intersection for which
there is no route guidance.
When passing through an intersection
for which there is no route guidance.
During auto reroute, the route guidance
may not be available for the next turn to
the right or left.
• During high speed driving, it may take a
long time for auto reroute to operate. In
auto reroute, a detour route may be
shown.
After auto reroute, the route may not be
changed.
If an unnecessary U-turn is shown or
announced.
• If a location has multiple names and the
system announces 1 or more of them.
When a route cannot be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the
route guidance may not be shown.
Your destination point might be shown
on the opposite side of the street.
When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other rea-
sons.
The road and map data stored in the
navigation system may not be complete
or may not be the latest version.
-If the vehicle cannot receive GPS sig-
nals, the current position can be
adjusted manually. For information on
setting the current position calibration:
P.246
-After replacing a tire: P.2 46
INFORMATION
This navigation system uses tire turning
data and is designed to work with fac-
tory-specified tires for the vehicle.
Installing tires that are larger or smaller
than the originally equipped diameter
may cause inaccurate display of the cur-
rent position. The tire pressure also
affects the diameter of the tires, so make
sure that the tire pressure of all 4 tires is
correct.
256
6. TIPS FOR THE NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. MAP DATABASE VERSION AND COVERED AREA
1Press the “APPS” button.
2Select “Navigation”.
3Select “Options”.
4Select “Map Data”.
5Check that the map data screen is dis-
played.
MAP INFORMATION
Coverage areas and legal information
can be displayed and map data can be
updated.
No. Function
Map version
Select to display map coverage ar-
eas.
Select to display legal information.
INFORMATION
Map data updates are available for a
fee. Contact your Toyota dealer for fur-
ther information.
257
6. TIPS FOR THE NAVIGATION SYSTEM
8
NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
ABOUT THE MAP DATA
Map data for the navigation system is
contained in a SD card that is inserted
in the SD card slot.
Do not eject the SD card, as doing so
may deactivate the navigation system.
NOTICE
Do not edit or delete the map data on
the SD card, as doing so may deactivate
the navigation system.
INFORMATION
microSDHC Logo is a trademark of SD-
3C,LLC.
258
6. TIPS FOR THE NAVIGATION SYSTEM
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
9
259
1
2
3
4
5
6
7
8
9
RAV4_AVN+DA_OM42871U_(U)
13.09.03 14:56
1. Entune App Suite
SERVICE................................... 260
BEFORE USING THE
FUNCTION........................................ 262
PREPARATION BEFORE USING
Entune App Suite .............................. 263
1. Entune App Suite....................... 265
USING Entune App Suite..................... 265
LINKING Entune App Suite AND
NAVIGATION FUNCTION................. 269
Entune App Suite KEYWORD
OPERATION ..................................... 270
1. Entune App Suite
SETTINGS................................. 272
SCREEN FOR Entune App Suite
SETTINGS ........................................ 272
1Entune App Suite OVERVIEW
2Entune App Suite OPERATION
3SETUP
Entune App Suite
*
*: With navigation function
260
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1. Entune App Suite OVERVIEW
1. Entune App Suite SERVICE*
Entune App Suite is a service that enables downloadable applications to be dis-
played on and operated from the screen. Before Entune App Suite can be used, a
few actions need to be performed first. (P.263)
*: Entune App Suite is available in the 48 states, D.C. and Alaska of the United States.
9
Entune App Suite
261
1. Entune App Suite OVERVIEW
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
No. Name Function
Content provider Provides content to the system via a cellular phone.
Application server Provides downloadable application to the system via a cellular
phone.
Cellular phone*
Using the Entune App Suite application, communication is re-
layed between the system, the application server and the con-
tents provider.
Applications
Downloaded Entune App Suite applications provide access to
audio/visual content from a content provider when connected
via a compatible phone with a data connection.
Entune App Suite
Contents received, via a cellular phone, from the contents pro-
vider servers are displayed on the screen. The system is
equipped with an application player to run applications.
*: For known compatible phones, refer to http://www.toyota.com/entune/.
INFORMATION
The actual service availability is dependent on the network condition.
262
1. Entune App Suite OVERVIEW
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
-Entune App Suite will be available on a 3
year trial period included upon purchase
of a new vehicle. User registration is
required to start using the service.
(P.264)
-When 3 years has elapsed after purchas-
ing a new vehicle, a fee will be charged to
renew the contract.*
-Services requiring a separate contract can
also be used.*
*: For details, refer to
http://www.toyota.com/entune/ or call
1-800-331-4331.
-Entune App Suite is available in the 48
states, D.C. and Alaska of the United
States.
-The following personal data can be
deleted from the system and returned to
their default settings:
Downloaded applications
Downloaded application content
BEFORE USING THE
FUNCTION
SUBSCRIPTION
AVAILABILITY OF SERVICE
INFORMATION
When using Entune App Suite, depend-
ing on the details of your cellular phone
contract, data usage fees may apply.
Confirm data usage fees before using
this service.
In this section, the required actions to
activate applications, connect a cellular
phone to the system and registration
steps for Entune App Suite are
explained. For details regarding Entune
App Suite operations and each of the
applications, refer to
http://www.toyota.com/entune/.
The actual service availability is depen-
dent on the network condition.
INITIALIZING PERSONAL
DATA
The personal data used in applications
can be removed from the system.
(P.58)
INFORMATION
Once initialized, data will be erased from
the system. Pay close attention when
initializing the data.
9
Entune App Suite
263
1. Entune App Suite OVERVIEW
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
Perform the following actions.
In order to use Entune App Suite, the fol-
lowing actions must first be performed:
-User registration with a service contract
(P.263)
-Download the Entune App Suite applica-
tion onto your cellular phone, and login to
the application. (P.264)
-Register the cellular phone that the
Entune App Suite application was down-
loaded to with the system. (P.264)
-Register a Bluetooth® phone with the
hands-free system. (P.42)
-Download Entune App Suite applications
to the system. (P.266)
1Perform Entune App Suite user regis-
tration from the designated web ad-
dress or from the downloaded Entune
App Suite application on your cellular
phone.
PREPARATION BEFORE
USING Entune App Suite
SETUP REQUIRED TO USE
Entune App Suite
1User registration
2Download the Entune App Suite ap-
plication to your cellular phone.
3Register the cellular phone to the sys-
tem.
4Download Entune App Suite applica-
tions to the system.
USER REGISTRATION
When purchasing the vehicle, an email
address is registered at your Toyota
dealer. If your email address was not
registered at your Toyota dealer, your
email address can be registered at the
Toyota drivers website. A user regis-
tration guidance email containing a
web address will be sent.
INFORMATION
If your email address was not registered
at your Toyota dealer when the vehicle
was purchased, an email address can
be registered at
http://www.toyota.com/entune/.
264
1. Entune App Suite OVERVIEW
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Download the Entune App Suite appli-
cation using to cellular phone.
2Run the Entune App Suite application
on your cellular phone.
3Enter the information required into the
Entune App Suite application. Login to
the application.
1The actions on P.263 need to be per-
formed before Entune App Suite appli-
cations can be downloaded.
2Once your phone is running the Entune
App Suite application with a valid ac-
count logged in and is connected to the
system, an on-screen pop-up will be
displayed offering to begin download-
ing Entune App Suite applications to
the system. After download has start-
ed, see P.267 for more information.
REGISTERING THE Entune App
Suite APPLICATION
INFORMATION
Applications can only be used when the
Entune App Suite application has been
downloaded to your cellular phone and
the application is running.
Entune App Suite operational proce-
dures can also be confirmed by visiting
http://www.toyota.com/entune/.
In order to use applications, it is neces-
sary to run the Entune App Suite appli-
cation on your cellular phone.
If an iPhone is connected via Bluetooth®
and USB at the same time, system oper-
ation may become unstable. For known
phone compatibility information, refer to
http://www.toyota.com/entune/.
If an Entune App Suite application is
used while iPod audio is being played
back, system operation may become
unstable.
DOWNLOADING Entune App
Suite APPLICATIONS
265
9
Entune App Suite
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
2. Entune App Suite OPERATION
1. Entune App Suite
1Press the “APPS” button.
2Select the desired application button.
USING Entune App Suite
Entune App Suite is a service that en-
ables the usable contents of a cellular
phone to be displayed on and operated
from the screen. Before Entune App
Suite can be used, a few actions need
to be performed first. (P.263)
For details about the function and ser-
vice of each application, refer to
http://www.toyota.com/entune/.
No. Function Page
Select to activate an appli-
cation.
Select to update the appli-
cation. 266
Select to reorder the appli-
cations. 267
266
2. Entune App Suite OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
DOWNLOADING THE UPDATED
DATA
1Select “Update”.
2Check that downloading is started.
“Download in Background”: Select to
operate other function while downloading.
“Cancel”: Select to cancel updating.
3Check that downloading is completed.
UPDATING an application
When Entune App Suite is activated,
an application may need to be updat-
ed. By updating, an application can be
kept to the latest version. When updat-
ing the application, it is necessary to
download the updated data and install
it.
If an update is available, “Update” can
be selected.
No. Function
Select to install the update later. The
screen will return to the last dis-
played screen. Installing the updat-
ed data later: P.267
Select to display detailed informa-
tion about the updated data.
Select to install the updated data.
Follow the steps “INSTALLING THE
UPDATED DATA” from “STEP 2”.
(P.267)
INFORMATION
Application download time may vary
based on the speed of the cellular net-
work.
Application download can be resumed
after turning off and back on.
Future mandatory updates will display
an on-screen pop-up when available.
9
Entune App Suite
267
2. Entune App Suite OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
INSTALLING THE UPDATED DATA
1Select “Install”.
2Select “Continue”.
“Later”: Select to postpone the installation
of the updated data and go back to the pre-
vious screen.
3Check that installing is started.
“Install in Background”: Select to oper-
ate other function while installing.
4Select “OK” after the installing is com-
plete.
1Display the “Apps” screen. (P.265)
2Select “Reorder”.
3Select the desired application to be
moved.
4Select or to move the ap-
plication, and select “OK”.
After the downloading is complete,
“Update” will be changed to “Install”.
INFORMATION
Entune App Suite function cannot be
operated while installing.
REORDERING THE
APPLICATIONS
Order of the applications can be
changed.
268
2. Entune App Suite OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
IF A MESSAGE APPEARS ON THE SCREEN
When problems occur starting up the application player, a message will appear on
the screen. Referring to the table below to identify the problem, take the suggested
corrective action.
Message Display conditions Corrective action
“This feature is unavailable
during an emergency call.”
Safety Connect is being im-
plemented.
After Safety Connect is fin-
ished, perform the operation
again.
“This feature is unavailable
while transferring contacts.”
Contacts are being trans-
ferred manually from the
phonebook.
When the transfer of contacts
is complete, perform the op-
eration.
“Unable to connect to a
Bluetooth* phone. For trou-
bleshooting assistance,
please visit toyota.com.”
The cellular phone cannot be
connected.
Refer to http://
www.toyota.com/entune/ to
confirm if the phone is com-
patible or not.
“This feature is unavailable
during a handsfree call.”
A hands-free call is in
progress.
After the hands-free call is fin-
ished, perform the operation.
“To use these services, an
active application needs to be
running on your phone. For
more information, please visit
toyota.com.”
The Entune App Suite appli-
cation cannot be connected
to Bluetooth* SPP.
Refer to http://
www.toyota.com/entune/ to
confirm if the phone is
Bluetooth* SPP compatible or
not, and then activate the
Entune App Suite application.
“Entune App Suite connection
has been lost. Please confirm
your connection.”
Communication was discon-
nected.
After a few moments, retry
the operation.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
9
Entune App Suite
269
2. Entune App Suite OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Press the “APPS” button.
2Select “Navigation”.
3Select “Dest.”.
4Select “Web Search”.
5Check that the “Web Search” screen is
displayed.
1Display the “Web Search” screen.
(P.269)
2Select the desired application button to
search.
3Enter a search term, and select “GO”.
4Select “Map”.
5Select “Go to .
6Select “OK” to start guidance.
LINKING Entune App Suite
AND NAVIGATION FUNCTION
The system can set a destination and
make a hands-free call via Entune App
Suite. For details about the function
and service of each application, refer
to http://www.toyota.com/entune/.
SETTING A DESTINATION
USING Entune App Suite
Locations that were searched using
Entune App Suite can be set as a des-
tination.
-For the operation of the route guidance
screen and the function of each screen
button: P.220
270
2. Entune App Suite OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Web Search” screen.
(P.269)
2Select the desired application button to
search.
3Enter a search term, and select “GO”.
4Select “Call”.
5Select “Yes”.
“Cancel”: Select to cancel making a
phone call.
6Check that the “Call” screen is dis-
played.
1Display the “Apps” screen. (P.265)
2Select the desired application button.
3Select the character input space.
4Enter a search term, and then select
“OK”.
5Entering characters will be reflected on
the character input space.
MAKING A PHONE CALL
USING Entune App Suite
Phone calls can be made to locations
which were searched using Entune
App Suite.
-For phone operation and the function of
each screen button: P.163
Entune App Suite KEYWORD
OPERATION
Information can be entered to an appli-
cation by the software keyboard or
voice recognition. For details about the
function and service of each applica-
tion, refer to
http://www.toyota.com/entune/.
-The keyboard layout can be changed.
(P.53)
USING THE SOFTWARE
KEYBOARD
-For details on operating the keyboard:
P.37
9
Entune App Suite
271
2. Entune App Suite OPERATION
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Apps” screen. (P.265)
2Select the desired application button.
3Press the talk switch. (P.124)
4When this screen is displayed, say the
desired keyword.
-Completion of saying the keyword will be
detected automatically.
5Search results will be displayed on the
screen.
ENTERING A KEYWORD USING
THE VOICE RECOGNITION
FUNCTION
272
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
3. SETUP
1. Entune App Suite SETTINGS
1Press the “APPS” button.
2Select “Setup”.
3Select “Entune”.
4Select the items to be set.
5Select “OK”.
Settings are available for Entune App
Suite. SCREEN FOR Entune App
Suite SETTINGS
No. Function
Select to set the voice guidance vol-
ume.
Select to set the pop up reminder for
cellular phone data usage. (P.273)
Select to reset all setup items.
9
Entune App Suite
273
3. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
1Display the “Entune Settings” screen.
(P.272)
2Select “Phone Data Plan Pop-Up”.
3Check the desired function to be oper-
ated.
4Select “OK”.
PHONE DATA PLAN POP-UP
SETTINGS
The phone data plan pop-up can be set
when a paid application is download-
ed.
274
3. SETUP
RAV4_AVN+DA_OM42871U_(U)
13.09.05 12:56
275
1
2
3
4
5
6
7
8
9
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
INDEX
276
ALPHABETICAL INDEX
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
A
AM/FM radio .............................................73
Available HD radio™ technology...........80
Caching a radio program.......................77
Overview ...............................................73
Presetting a station................................76
Radio broadcast data system................78
Selecting a station from the list .............76
Traffic announcement (FM radio)..........79
Troubleshooting guide...........................82
Using HD radio™ technology................79
“Apps” screen............................................14
Audio remote controls.............................108
Audio settings .........................................111
Audio settings screen..........................111
Audio system ............................................65
AUX.........................................................106
Overview .............................................106
B
Basic function......................................12, 31
Basic information before operation ...........32
Basic operation.................................66, 192
Bluetooth® audio.....................................101
Connecting a Bluetooth® device .........105
Listening to Bluetooth® audio..............105
Overview .............................................101
Bluetooth® phone message function ......166
Calling the message sender................169
Checking messages............................167
Receiving a message..........................167
Replying to a message
(Quick reply) ....................................168
Bluetooth® settings ...................................42
C
Calling on the Bluetooth® phone.............156
By call history ......................................157
By contacts list.....................................158
By dial pad...........................................160
By favorites list ....................................157
By “Home” screen................................161
By off hook switch................................160
Casual speech recognization..................130
CD.............................................................90
Overview................................................90
Playing an audio CD..............................92
Playing an MP3/WMA/AAC disc............92
Command list ..........................................131
D
Data services settings.............................137
Setting download methods ..................137
Destination search ..................................208
Destination search screen.......................208
Detailed navigation settings ....................244
Screens for navigation settings ...........244
Driver settings ...........................................60
Manually select linked settings..............60
ALPHABETICAL INDEX
277
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
E
Editing route............................................ 230
Adding destinations............................. 231
Deleting destinations........................... 231
Detour setting...................................... 233
Reordering destinations ...................... 231
Selecting route type ............................ 232
Setting route preferences.................... 232
Starting from adjacent road................. 234
Entering letters and numbers/list
screen operation ................................... 37
Entering letters and numbers................ 37
List screen............................................. 37
Entune App Suite............................ 259, 265
Entune App Suite keyword
operation.......................................... 270
Linking Entune App Suite and
navigation function........................... 269
Using Entune App Suite...................... 265
Entune App Suite operation.................... 265
Entune App Suite overview..................... 260
Entune App Suite service ....................... 260
Before using the function .................... 262
Preparation before using
Entune App Suite............................. 263
Entune App Suite settings ...................... 272
Screen for Entune App Suite
settings ............................................ 272
F
Function index...........................................28
G
General settings........................................53
General settings screen ........................53
GPS (Global positioning system)............254
Limitations of the navigation
system .............................................254
H
Home screen.............................................16
Status display........................................18
Home screen operation.............................36
I
Information..............................................133
Initial screen..............................................32
Internet radio.............................................89
Listening to internet radio ......................89
iPod...........................................................97
iPod audio ...........................................100
iPod video............................................100
Overview ...............................................97
278
ALPHABETICAL INDEX
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
M
Maintenance .............................................61
Map database version and
covered area .......................................256
About the map data.............................257
Map information...................................256
Map screen information ..........................201
Displaying information about the
icon where the cursor is set.............203
Displaying map information.................201
Standard map icons ............................204
Map screen operation .............................195
Adjusting location in small
increments .......................................200
Current position display.......................195
Map scale............................................195
Orientation of the map.........................196
Screen scroll operation........................199
Switching the map mode.....................197
Media operation ........................................90
Memory points ........................................235
Memory points settings...........................235
Deleting previous destinations ............243
Setting up address book......................239
Setting up areas to avoid.....................241
Setting up home ..................................236
Setting up preset destinations.............237
N
Navigation operation .................................22
Navigation system...................................191
O
Operating information..............................113
CD player and disc ..............................114
Error messages ...................................121
File information....................................117
iPod .....................................................116
Radio ...................................................113
Terms ..................................................120
Operation flow: Guiding the route .............26
Other settings............................................53
Overview buttons ......................................12
279
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
P
Peripheral monitoring system ................. 139
Phone ..................................................... 151
Phone operation (Hands-free system
for cellular phones)..............................152
Phone/message settings ........................ 171
“Contact/Call History Settings”
screen.............................................. 173
“Messaging Settings” screen...............181
“Phone Display Settings” screen......... 182
Phone/message settings screen......... 171
“Sound Settings” screen......................172
Q
Quick guide............................................... 11
Quick reference .................. 20, 66, 152, 192
Map screen ......................................... 192
Navigation options screen................... 194
R
Radio operation.........................................73
Rear view monitor system.......................140
Driving precautions..............................140
Screen description...............................142
Rear view monitor system
precautions..........................................144
Area displayed on screen....................144
Differences between the screen
and the actual road ..........................145
The camera .........................................144
When approaching
three-dimensional objects................147
Receiving on the Bluetooth® phone........162
Incoming calls......................................162
Receiving traffic map information............136
Displaying traffic map information .......136
Receiving weather information................134
Displaying weather information ...........134
Registering home......................................22
Registering preset destinations.................24
Registering/connecting Bluetooth®
device....................................................42
Profiles ..................................................44
Registering a Bluetooth® audio player
for the first time..................................43
Registering a Bluetooth® phone
for the first time..................................42
Route guidance.......................................224
Route guidance screen...........................224
During freeway driving.........................226
Route overview....................................225
Screen for route guidance...................224
Turn list screen....................................228
Turn-by-turn arrow screen...................228
When approaching intersection...........227
280
ALPHABETICAL INDEX
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
S
Screen adjustment....................................40
Search operation.....................................210
Searching by address..........................212
Searching by address book.................216
Searching by coordinates....................219
Searching by emergency.....................217
Searching by intersection and
freeway ............................................217
Searching by map ...............................219
Searching by point of interest..............213
Searching from previous
destinations......................................216
Selecting search area..........................211
Setting home as destination................211
Setting preset destinations as
destination .......................................211
Setting Bluetooth® details .........................45
“Bluetooth Setup” screen.......................45
Connecting a Bluetooth® device ...........48
Deleting a Bluetooth® device ................47
Editing the Bluetooth® device
information.........................................50
Registering a Bluetooth® device ...........46
“System Settings” screen ......................51
Setting home as the destination................27
Setup...............................111, 171, 244, 272
“Setup” screen ..........................................20
Some basics......................................68, 153
About the contacts in the
contact list........................................155
Disc slot.................................................70
Registering/connecting a
Bluetooth® phone.............................153
Selecting an audio source .....................69
Sound settings.......................................71
Turning the system on and off...............68
USB/AUX port........................................70
Using the phone
switch/microphone ...........................154
Voice command system ................72, 154
When selling or disposing
of the vehicle....................................155
Starting route guidance...........................220
Pausing guidance................................223
Starting route guidance .......................220
Steering switches....................................108
T
Talking on the Bluetooth® phone ............163
Incoming call waiting ...........................165
Things you should know..........................149
If you notice any symptoms.................149
Tips for operating the audio system........113
Tips for the navigation system ................254
Touch screen gestures..............................34
Touch screen operation ............................35
Traffic information ...................................205
Displaying traffic information
on the map.......................................207
Traffic settings.........................................248
Auto avoid traffic..................................249
My traffic routes...................................250
Screen for traffic settings.....................248
Troubleshooting ......................................183
Typical voice guidance prompts..............229
281
RAV4_AVN+DA_OM42871U_(U)
13.09.09 16:44
U
USB memory ............................................ 93
Overview ............................................... 93
Playing a USB audio ............................. 96
Useful information................................... 134
V
Voice command system..................123, 124
Using the voice command system ...... 124
Voice command system operation...... 125
Voice command system operation..........124
Voice settings ........................................... 59
Voice settings screen............................ 59
W
What to do if............................................ 183
X
XM Satellite Radio .................................... 83
Displaying the radio ID.......................... 87
How to subscribe to an
XM Satellite Radio............................. 85
If the satellite radio tuner
malfunctions ...................................... 88
Overview ............................................... 83
Presetting a channel ............................. 87
Selecting a channel from the list ...........87
282
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
Map database information and updates
283
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
284
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
285
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
286
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
287
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
288
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
289
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
290
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
291
RAV4_AVN+DA_OM42871U_(U)
13.08.30 21:03
Certain business data provided by Infogroup © 2012, All Rights Reserved.
292
RAV4_AVN+DA_OM42871U_(U)
13.09.03 19:04
w
-Gracenote, the Gracenote logo and logotype, “Powered by Gracenote”, MusicID, Playlist
Plus and MediaVOCS are either registered trademarks or trademarks of Gracenote, Inc.
in the United States and/or other countries
Certification
293
RAV4_AVN+DA_OM42871U_(U)
13.09.03 19:04
294
RAV4_AVN+DA_OM42871U_(U)
13.09.03 19:04
U.S.A. (Without navigation function)
Canada (Without navigation function)
-FCC ID: BABFT0045A
-This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
-FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
-CAUTION: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65. This equipment should be installed and operated keeping the
radiator at least 20 cm or more away from person’s body (excluding extremities: hands,
wrists, feet and ankles).
-Co-location: This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
-IC: 2024B-FT0045A
-This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
-CAUTION: Radio Frequency Radiation Exposure
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment should be installed and operated keeping the radiator at least 20 cm or more
away from person’s body (excluding extremities: hands, wrists, feet and ankles).
ATTENTION: l’exposition aux rayonnements radiofréquence
- Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées
pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences
radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en
gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à
l’exception des extrémités : mains, poignets, pieds et chevilles).
295
RAV4_AVN+DA_OM42871U_(U)
13.09.03 19:04
Mexico (Without navigation function)
-COFETEL: RCPFUFT13-1083
-La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible
que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o
dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su
operación no deseada.
296
RAV4_AVN+DA_OM42871U_(U)
13.09.03 19:04
U.S.A. (With navigation function)
Canada (With navigation function)
-FCC ID: BABFT0044C
-This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
-FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
-CAUTION: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65. This equipment should be installed and operated keeping the
radiator at least 20 cm or more away from person’s body (excluding extremities: hands,
wrists, feet and ankles).
-Co-location: This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
-IC: 2024B-FT0044C
-This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
-CAUTION: Radio Frequency Radiation Exposure
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment should be installed and operated keeping the radiator at least 20 cm or more
away from person’s body (excluding extremities: hands, wrists, feet and ankles).
ATTENTION: l’exposition aux rayonnements radiofréquence
- Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées
pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences
radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en
gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à
l’exception des extrémités : mains, poignets, pieds et chevilles).
297
RAV4_AVN+DA_OM42871U_(U)
13.09.03 19:04
Mexico (With navigation function)
-COFETEL: RCPFUFT12-1493
-La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible
que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o
dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su
operación no deseada.

Navigation menu
