Toys World Electronic TW2208-49-1300 RC Car User Manual

Toys World Electronic Limited RC Car

User Manual

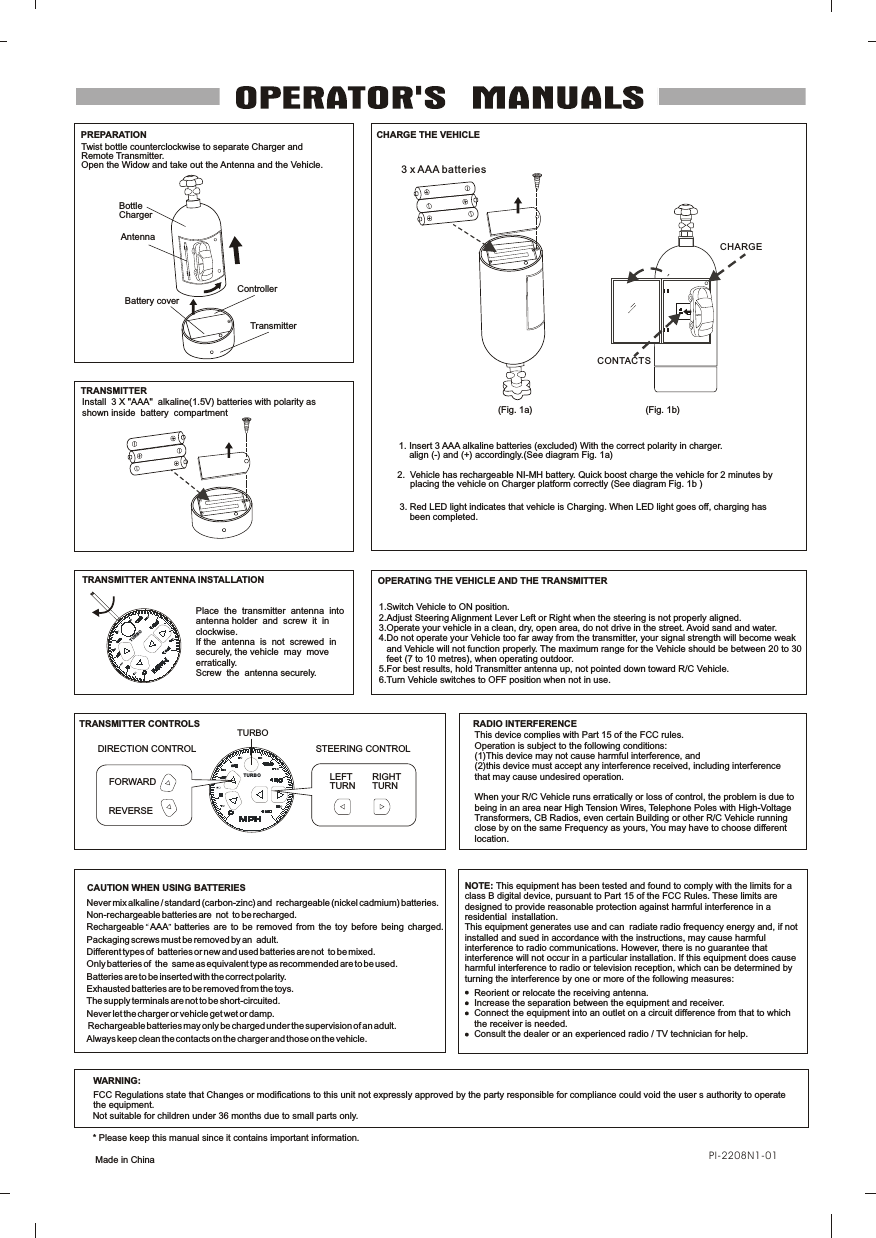

OPERATING THE VEHICLE AND THE TRANSMITTERRADIO INTERFERENCEThis device complies with Part 15 of the FCC rules.Operation is subject to the following conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interferencethat may cause undesired operation.When your R/C Vehicle runs erratically or loss of control, the problem is due to being in an area near High Tension Wires, Telephone Poles with High-Voltage Transformers, CB Radios, even certain Building or other R/C Vehicle running close by on the same Frequency as yours, You may have to choose different location.1.Switch Vehicle to ON position.2.Adjust Steering Alignment Lever Left or Right when the steering is not properly aligned.3.Operate your vehicle in a clean, dry, open area, do not drive in the street. Avoid sand and water.4.Do not operate your Vehicle too far away from the transmitter, your signal strength will become weak and Vehicle will not function properly. The maximum range for the Vehicle should be between 20 to 30 feet (7 to 10 metres), when operating outdoor. 5.For best results, hold Transmitter antenna up, not pointed down toward R/C Vehicle.6.Turn Vehicle switches to OFF position when not in use.CAUTION WHEN USING BATTERIESWARNING:FCC Regulations state that Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates use and can radiate radio frequency energy and, if not installed and sued in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the interference by one or more of the following measures:NOTE: Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit difference from that to which the receiver is needed.Consult the dealer or an experienced radio / TV technician for help.Install 3 X "AAA" alkaline(1.5V) batteries with polarity as shown inside battery compartmentTRANSMITTER ANTENNA INSTALLATIONPlace the transmitter antenna into antenna holder and screw it in clockwise.If the antenna is not screwed in securely, the vehicle may move erratically.Screw the antenna securely. 3. Red LED light indicates that vehicle is Charging. When LED light goes off, charging has been completed.2. Vehicle has rechargeable NI-MH battery. Quick boost charge the vehicle for 2 minutes by placing the vehicle on Charger platform correctly (See diagram Fig. 1b )1. Insert 3 AAA alkaline batteries (excluded) With the correct polarity in charger. align (-) and (+) accordingly.(See diagram Fig. 1a)3 x AAA batteriesCHARGETwist bottle counterclockwise to separate Charger and Remote Transmitter. Open the Widow and take out the Antenna and the Vehicle.AntennaBattery coverControllerCHARGE THE VEHICLETRANSMITTERTRANSMITTER CONTROLSSTEERING CONTROLPREPARATIONCONTACTS(Fig. 1a) (Fig. 1b)TURBOBottleChargerTransmitterNot suitable for children under 36 months due to small parts only.* Please keep this manual since it contains important information. Made in ChinaNever mix alkaline / standard (carbon-zinc) and rechargeable (nickel cadmium) batteries.Non-rechargeable batteries are not to be recharged.Rechargeable AAA batteries are to be removed from the toy before being charged.Packaging screws must be removed by an adult.Different types of batteries or new and used batteries are not to be mixed.Only batteries of the same as equivalent type as recommended are to be used.Batteries are to be inserted with the correct polarity.Exhausted batteries are to be removed from the toys.The supply terminals are not to be short-circuited.Never let the charger or vehicle get wet or damp. Rechargeable batteries may only be charged under the supervision of an adult.Always keep clean the contacts on the charger and those on the vehicle.TURBOTUR BO LEFT TURNRIGHT TURNDIRECTION CONTROLFORWARDREVERSEPI-2208N1-01
