Business Class Wi-Fi Solution
MODELS: EAP330/EAP320/EAP225/EAP220/EAP120/EAP115/EAP110
EAP110
EAP120EAP225 EAP220
EAP115
EAP320
EAP330
EAP Controller Software
Business-Class Indoor Wi-Fi Solution
Auranet access points provide a business-class wireless network solution that is exible, manageable,
secure, and easy-to-deploy. The free EAP Controller software allows users to manage hundreds of EAPs
at multiple sites from a single location. The ability to control, adjust, and visualize the entire network from
any connected PC makes centralized business Wi-Fi management more ecient than ever before.
Auranet EAPs also feature captive portal and advanced RF management functions, which make them
ideal for demanding, high-trac environments, such as campuses, hotels, malls, and oces.
EAP Controller Software
Auranet Solution
OFFICE
MALL HOTELS CAMPUSE ………
Impressive Performance:
Enterprise-class chipsets, 802.11ac standard,
MIMO Technology, and TurboQAM combine to ensure
excellent performance and reliability.
Manage Multiple Sites from a Single Location
The EAP Controller software allows network administrators to monitor and manage hundreds of Auranet
EAPs, at multiple sites, from any connected PC within the network. This dramatically enhances scalability
and makes remote network management more convenient.
Convenient, Eective Management
1. Advanced EAP Controller Software
Simple centralized management
Extensive Scalability:
With the capability to manage hundreds of
Auranet EAPs, you can easily extend the network
as simple as adding more EAPs at any time.
Centralized Management:
The Auranet solution exibly supports two low-cost
centralized management methods - multi-function
Auranet Controller and easy-to-use Cluster mode.
For simple and low-cost centralized management, there are two exible management methods for
Auranet solution – multi-function Auranet Controller software and easy-to-use Cluster mode, which
supports you to switch between two modes.
Cost Eciency:
The EAP Controller software is completely
free and eliminates the need for expensive
hardware controllers.
Free: No Additional Expense
Easy: No Special Training Required
Highlights
Captive Portal - Customizable Guest Authentication
Administrators can control guest access by designing a unique authentication page and establishing a
voucher system to limit the duration of use for each client.
Scheduled Reboot
With the scheduled reboot function, Auranet EAPs can reboot themselves automatically at
specied time to ensure network stability.

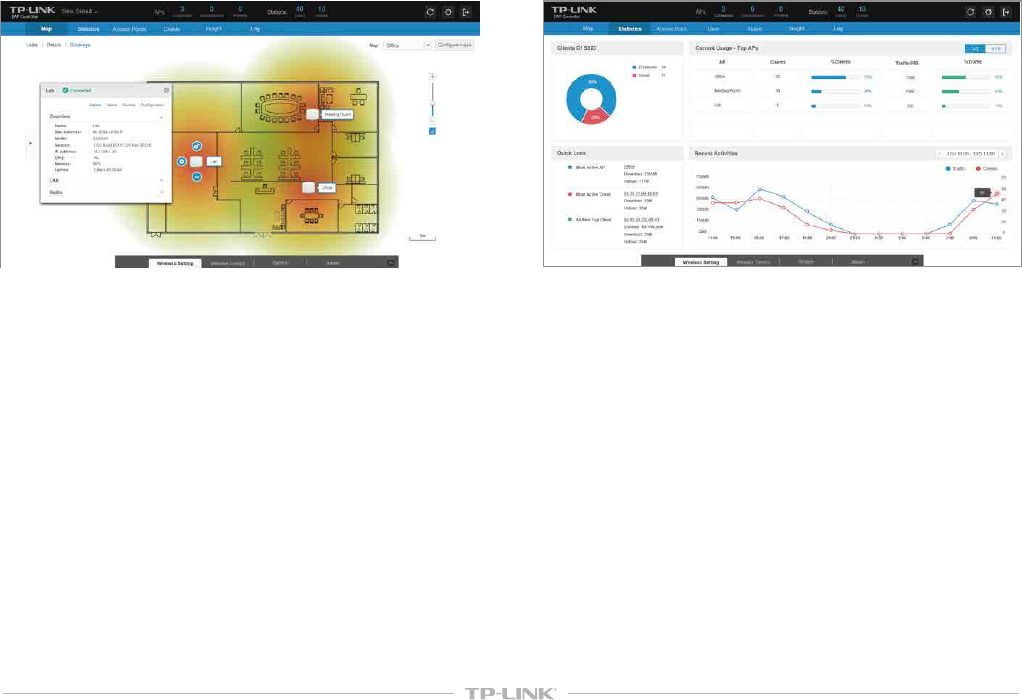

Statistics
The built-in data visualization tools allow you
to quickly analyze network trac statistics for
all connected APs. You can also view graphic
representations of recent client and network
trac statistics.
Access Point
Provides a list of all EAPs, arranged by status,
and oers real-time trac data for each EAP,
including the number of connected clients
and the amount of data that each client
consumes.
Real-Time Status Monitoring
Access Control
Access control allows you to maintain a list of blocked IPs, which helps to protect internal
communications and private data on the network.
Client
Lists all clients, including users and guests,
allowing you to view each client’s basic
information and statistics in real time. This
includes data rate, active time, and
download/upload trac.
Customized Map
The customized map feature makes managing
your EAP network more convenient. You can
upload the oor plan and create a clear visual
model that reects your network and its
coverage areas.
Which is the best management method for you?
2. Easy-to-use Cluster Mode*
Simple Cluster Mode allows you to manage up to 24 Auranet EAPs as a single cluster. A master
Auranet EAP is selected automatically and network administrators can easy manage the entire
cluster like managing a general Wi-Fi router via just the intuitive web user interface, without
installing any software on PC or expensive hardware controller, but the dierence is you don’t need
manage all AP one by one, a unied Wi-Fi just need once conguration, that’s so easy.
*Only be supported by EAP115
Auranet
Controller No Advanced
Basic Basic
Advanced
No No
Ye s √
√ √
√ √
- - - -
√ √ √
Need to install
Hardware?
Need to install
software?
Multi
SSID
Batch
Upgrade
Load
Balance
Captive
Portal
L3
Management
Reboot
Schedule
Band
Steer
Rate
Limit
Cluster
Easy-Mount Design
The Auranet EAP’s ceiling lamp appearance and easy-mount design promote quick installation on
any wall or ceiling surface and allow it to blend seamlessly with most interior decorating styles.
Easy Centralized Management
The EAP Controller software can congure and monitor a wide range of Auranet EAPs with ease.
And the cluster mode provides a easy-to-use management way like the general home router.
Product Features
Advanced RF Management
Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance
for business-level applications.
Business-Class Hardware Design
Enterprise-class chipsets oer outstanding performance and support longer running time, higher
client capacity, and wider range. Dedicated high-power ampliers, professional antennas, and
professionally designed RF shields ensure excellent wireless performance.
PoE Power Supply
With IEEE 802.3af/at PoE or Passive PoE, you can use Ethernet cable to transfer both electrical
power and network data, making deployment more exible.
Auranet Business Class Wi-Fi Solution
Operating Temperature: 0°C~60°C (32℉~144℉);
Storage Temperature: -40°C~70°C (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing;
802.11ac Indoor Access Points
Specications
model EAP220 EAP120
Name N600 Wireless Dual Band Gigabit
Access Point
300Mbps Wireless N
Gigabit Access Point
Main Design
LAN Interfaces Gigabit Ethernet (RJ-45) Port *1
Wireless Frequency 2.4GHz and 5GHz 2.4GHz
Wi-Fi Standards IEEE 802.11a/b/g/n IEEE 802.11b/g/n
Maximum Data Rate Up to 300 + 300 Mbps Up to 300 Mbps
Internal Antennas 4 * 4dBi 2 * 4dBi
Transmit Power CE: <20dBm
FCC: <26dBm (2.4GHz), <20dBm (5GHz)
Power over Ethernet (PoE) IEEE 802.3af
Centralized
Management EAP Controller Softaware •
Security
Captive Portal
Authentication •
Access Control •
Rogue AP Detection •
Wireless Encryption WEP, WPA/WPA2-Personal/Enterprise Encryption
802.1X Support •
Wireless
Function
Multiple SSIDs 16 (8 on each radio) 8
Automatic Channel
Assignment •
QoS(WMM) •
Airtime Fairness -
Beamforming -
Band Steering • -
Rate Limit •
Load Balance •
Reboot Schedule •
Wireless Schedule •
Support Data
Rates
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, VHT 20/40)
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps -
Physical &
Environment
Power Supply PoE or external 12V/1.5A power supply PoE or external 12V/1A power supply
Maximum Power
Consumption 7.95W 4.34W
Mounting Ceiling/Wall mounting (Kits included)
&HUWLƮFDWLRQV CE, FCC, RoHS
Dimensions (W x D x H) 7.1 x 7.1 x 1.9in. (180 x180 x 47.5 mm)
Environment
Operating Temperature: 0°C~60°C (32℉~144℉);
Storage Temperature: -40°C~70°C (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing;
802.11n Indoor Access Points
model EAP115 EAP110
Name 300Mbps Wireless N
Access Point
300Mbps Wireless N
Access Point
Main Design
LAN Interfaces 10/100Mbps Ethernet Port*1
Wireless Frequency 2.4GHz
Wi-Fi Standards IEEE802.11b/g/n
Maximum Data Rate 300 Mbps
Internal Antennas 2 * 3dBi
Transmit Power CE: <20dBm, FCC: <26dBm CE: <20dBm, FCC: <26dBm
Power over Ethernet (PoE) IEEE 802.3af 24V Passive PoE
Centralized
Management
EAP Controller Softaware •
Cluster • -
Security
Captive Portal
Authentication •
Access Control •
Rogue AP Detection •
Wireless Encryption WEP, WPA/WPA2-Personal/Enterprise Encryption
802.1X Support •
Wireless
Function
Multiple SSIDs 8
Automatic Channel
Assignment •
QoS(WMM) •
Airtime Fairness -
Beamforming -
Band Steering -
Rate Limit •
Load Balance •
Reboot Schedule •
Wireless Schedule •
Support Data
Rates
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, VHT 20/40)
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a -
Physical &
Environment
Power Supply PoE (802.3af-compliant, 36-57V 0.15A)
or external 12VDC/1.0A power supply 24VDC/1A Passive PoE Supply
Maximum Power
Consumption 5W 6.55W
Mounting Ceiling/Wall mounting (Kits included)
&HUWLƮFDWLRQV CE, FCC, RoHS
Dimensions (W x D x H) 7.1 x 7.1 x 1.9in. (180 x180 x 47.5 mm)
Environment
Operating Temperature: 0°C~60°C (32℉~144℉);
Storage Temperature: -40°C~70°C (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing;
802.11n Indoor Access Points
www.tp-link.com
Specications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or
registered trademarks of their respective holders. Copyright @ 2015 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
