1 Overview
2 Configuration
- 2.1 Managing EAPs in the Same Subnet
- 2.2 Managing EAPs in Different Subnets
  - 2.2.1 Managing EAPs at the Same Site
    - Using Discovery Utility to Discover EAPs
    - Using DHCP Option 138 to Discover EAPs
  - 2.2.2 Managing EAPs at Different Sites

Configuration Guide

For Managing EAPs via EAP Controller

1910012313 REV1.0.0

December 2017

CONTENTS

1 Overview �� 1

2 Configuration �� 2

2.1 Managing EAPs in the Same Subnet .......................................................................................................................... 2

2.2 Managing EAPs in Different Subnets .......................................................................................................................... 4

2.2.1 Managing EAPs at the Same Site ................................................................................................................. 4

Using Discovery Utility to Discover EAPs ................................................................................................ 4

Using DHCP Option 138 to Discover EAPs ......................................................................................... 10

2.2.2 Managing EAPs at Different Sites ............................................................................................................. 15

Using Discovery Utility to Discover EAPs via VPN Tunnel ........................................................... 15

Using DHCP Option 138 to Discover EAPs via VPN Tunnel ....................................................... 21

Using Discovery Utility to Discover EAPs via NAT Port Forwarding ...................................... 27

Using DHCP Option 138 to Discover EAPs via NAT Port Forwarding ................................. 30

Configuration Guide 1

Overview

1 Overview

The EAP provides specialized functions for maintenance and management� Users can

centrally monitor and manage the EAPs via EAP Controller’s management interface�

The EAP Controller is a management software for TP-Link EAP devices� The free EAP

Controller software allows users to manage hundreds of EAPs not only when they are in

the same network segment but also in different network segments�

Configuration procedures differ depending on the network topology� This guide

introduces how to manage EAPs via EAP Controller in various scenarios�

Configuration Guide 2

Configuration

2 Configuration

The application overview is as follows:

Managing EAPs in the Same Subnet

Managing EAPs in Different Subnets



●Managing EAPs at the Same Site

a� Using Discovery Utility to Discover EAPs

b� Using DHCP Option 138 to Discover EAPs



●Managing EAPs at Different Sites

a� Using Discovery Utility to Discover EAPs via VPN Tunnel

b� Using DHCP Option 138 to Discover EAPs via VPN Tunnel

c� Using Discovery Utility to Discover EAPs via NAT Port Forwarding

d� Using DHCP Option 138 to Discover EAPs via NAT Port Forwarding

Configuration Guideline:

Please ensure that EAP Controller is in the white list of Windows built-in firewall or a

third-party antivirus/firewall� Generally, the EAP Controller will be automatically added

into the white list of Windows built-in firewall, while for other operating systems or

third-party antivirus/firewall, it may need a manual step�

Please ensure that ports 8043, 8088, 29810, 29811, 29812 and 29813 are accessible

on the host where EAP Controller is installed� That is, these ports should not be

occupied by other applications�

2.1 Managing EAPs in the Same Subnet

Before configuring EAP Controller to centrally manage the EAPs, confirm whether EAPs

and EAP Controller are in same network segment or not�

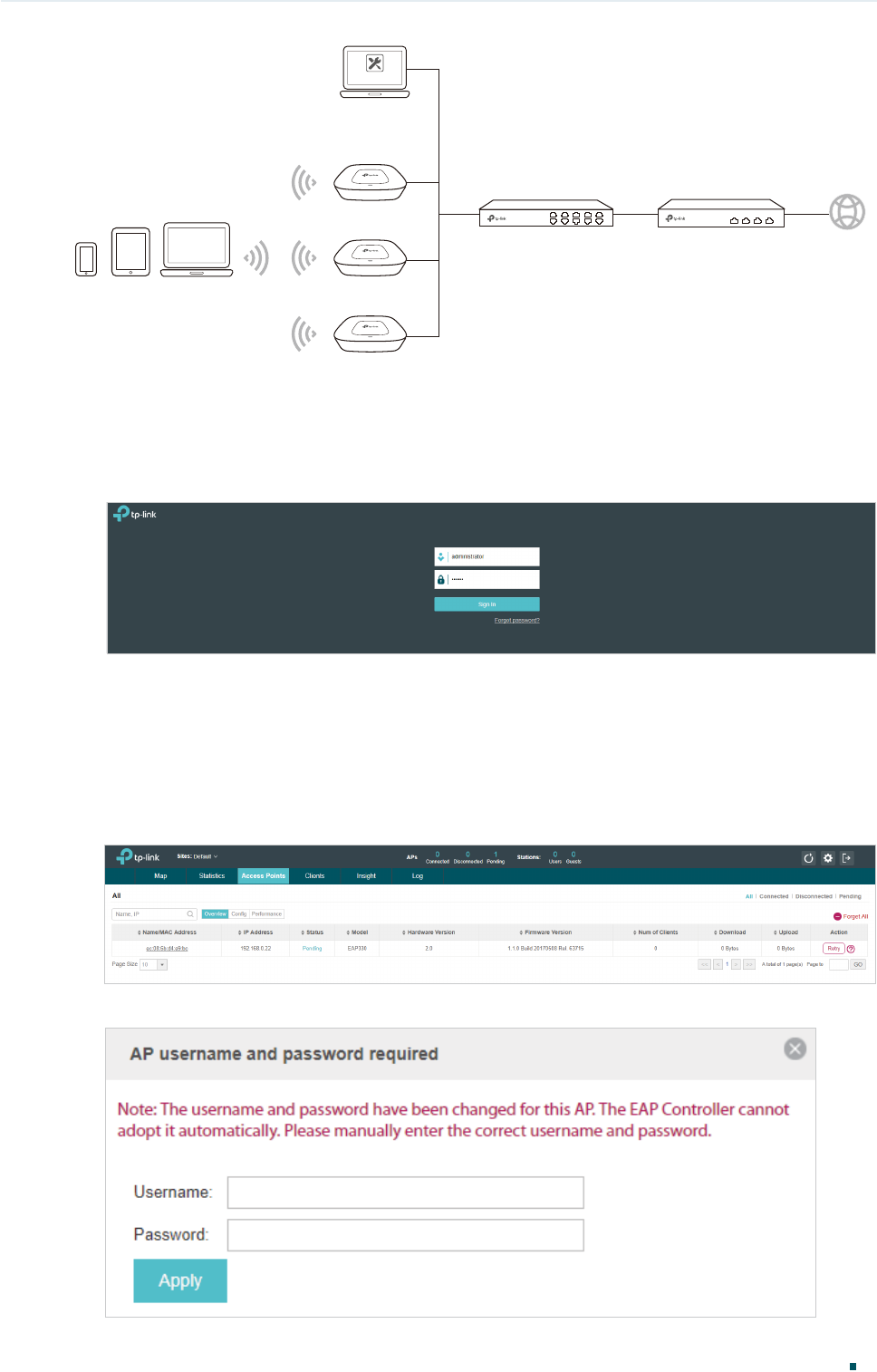

In the following network topology, the EAP Controller and EAPs are in the same subnet�

A router functions as a DHCP server to assign IP addresses to EAPs and clients� The EAP

Controller should be installed on one host, known as Controller Host�

Configuration Guide 3

Configuration

Host A (Controller Host)

IP:192.168.0.253/24

Layer 2 Switch

Router (DHCP Sever)

LAN IP:192.168.0.1/24 Internet

Clients

EAP Controller

EAP

To ensure that all EAPs are adopted, follow the steps below:

1) Launch EAP Controller to load the login page, enter the username and password

which are set in the installation of EAP Controller and click Sign In�

2) The EAP Controller and EAPs are in the same subnet, thus once the EAP is powered

on, it can be discovered by EAP Controller automatically� The EAP Controller will

automatically adopt the EAP using the default username and password (both are

admin)�

3) If the Retry button shows in the Action column, it means that the username and

password of the EAP have been changed�

You should enter the current username and password of the EAP�

Configuration Guide 4

Configuration

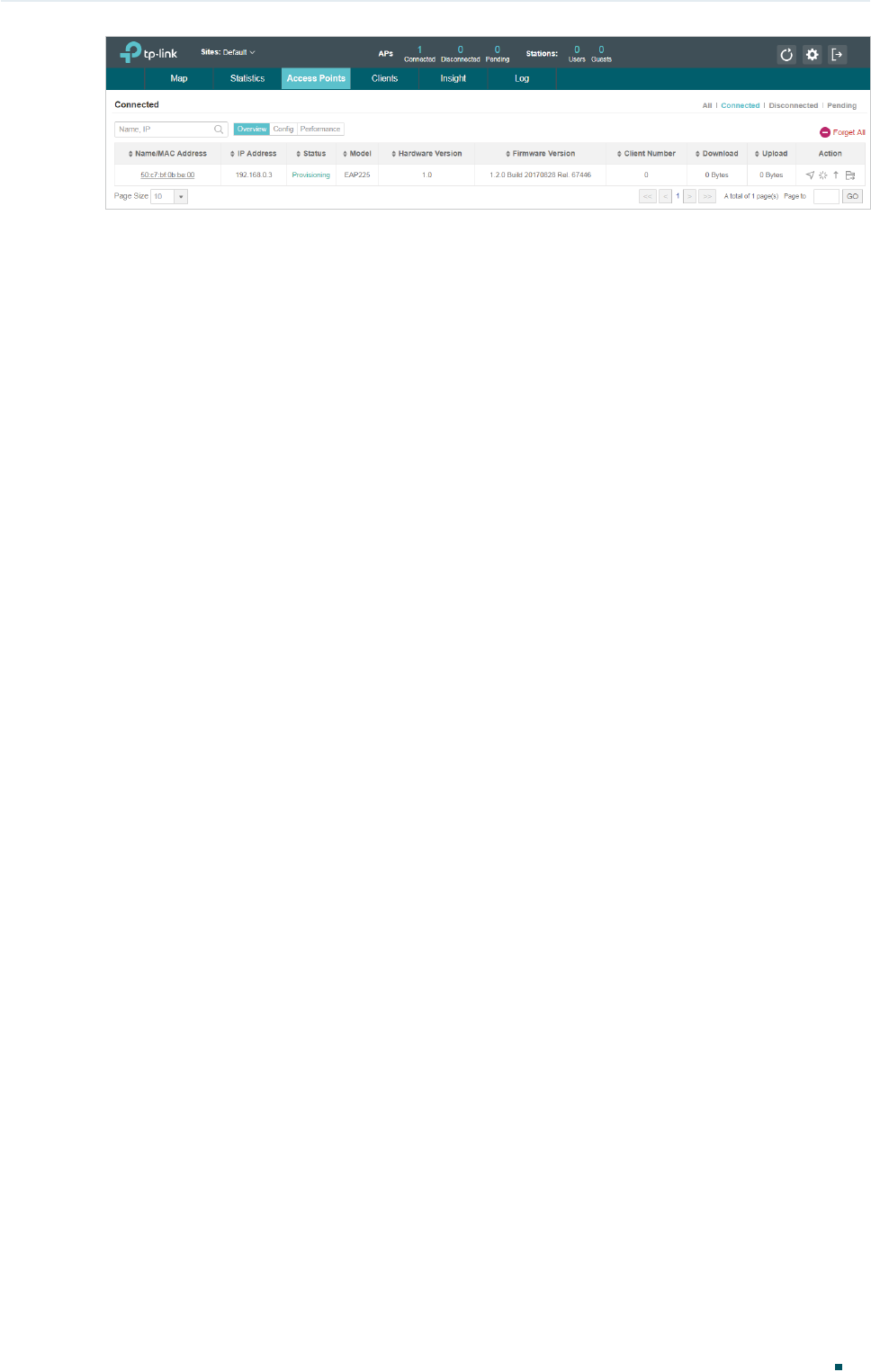

After successful adoption, the EAP will be displayed in the Connected list�

2.2 Managing EAPs in Different Subnets

When EAP Controller and EAPs are in different subnets, the problem is how the EAPs find

EAP Controller� There are two solutions:

Running EAP Discovery Utility on a host which is in the same network segment with

the EAPs to help the EAPs find the Controller Host�

Configure DHCP option 138 on a DHCP server which supports DHCP option 138

feature, thus the DHCP server will tell the EAPs where EAP Controller is�

The EAP Controller can manage multiple EAP networks, which are called sites� Generally

multiple sites are logically separated and located in different physical places� The

following section will introduce how to manage EAPs when they are at the same site and

different subnets�

2.2.1 Managing EAPs at the Same Site

Using Discovery Utility to Discover EAPs

Demonstrated with the network topology below, this section provides configuration

procedures for managing EAPs in different subnets at the same site with EAP Discovery

Utility�

There are three VLANs (three subnets), which are VLAN1 (192�168�0�0/24), VLAN2

(192�168�1�0/24) and VLAN3 (172�30�30�0/24)� The three VLANs are divided by switch

T2600G-28TS� Now we want the EAP Controller in VLAN1 to manage the EAP in VLAN2�

The computer that is running EAP Discovery Utility and the EAP to be managed should

be in the same VLAN� The gateway router is TP-Link router TL-ER6120�

Configuration Guide 5

Configuration

Router Internet

Clients

EAP Controller

EAP

EAP Discovery

Utility

VLAN 1

192.168.0.0/24

VLAN 2

192.168.1.0/24

VLAN 3

172.30.30.0/24

Discovery Host

Gi1/0/4

Gi1/0/15

Gi1/0/7

Gi1/0/16

Controller Host

192.168.0.253/24

Switch

(DHCP Server)

LAN

172.30.30.1/24 WAN

Step 1: Configurations on Switch

1) Go to VLAN > 802.1Q VLAN > VLAN Config to create VLAN2 and VLAN3� VLAN2

includes port4 and port5� VLAN3 includes port7� The detailed VLAN settings are

shown as below�

2) Go to VLAN > 802.1Q VLAN > Port Config to make sure that port 4, 5, 7 and 16 have

been configured as “Access“ type ports� Make sure that the PVID of port4 and 5 have

been configured as 2, and the PVID of port7 has been configured as 3�

Configuration Guide 6

Configuration

3) Go to Routing > Interface to enter the IP interface for VLAN1,VLAN2 and VLAN3, and

configure relevant IP addresses for these three interfaces as shown below�

4) Go to Routing > Static Routing > IPv4 Static Routing Config to configure the static

default routing entry which leads to the gateway router�

Configuration Guide 7

Configuration

5) Go to Routing > DHCP Server > Global Config to enable DHCP Server function�

6) Go to Routing > DHCP Server > Pool Setting to configure 192�168�1�0/24 IP address

pool for EAPs�

Configuration Guide 8

Configuration

Note:

Do not forget to fill in the default gateway address and DNS server address.

Step 2: Configurations on the Router

1) Go to Transmission > Static Route to add Static Routing for VLAN1 and VLAN 2

subnets�

2) Go to Transmission >NAT > Multi-NAT to configure multi-nets NAT for subnets

192�168�0�0/24 and 192�168�1�0/24�

Configuration Guide 9

Configuration

Step 3: Configurations on EAP Discovery Host

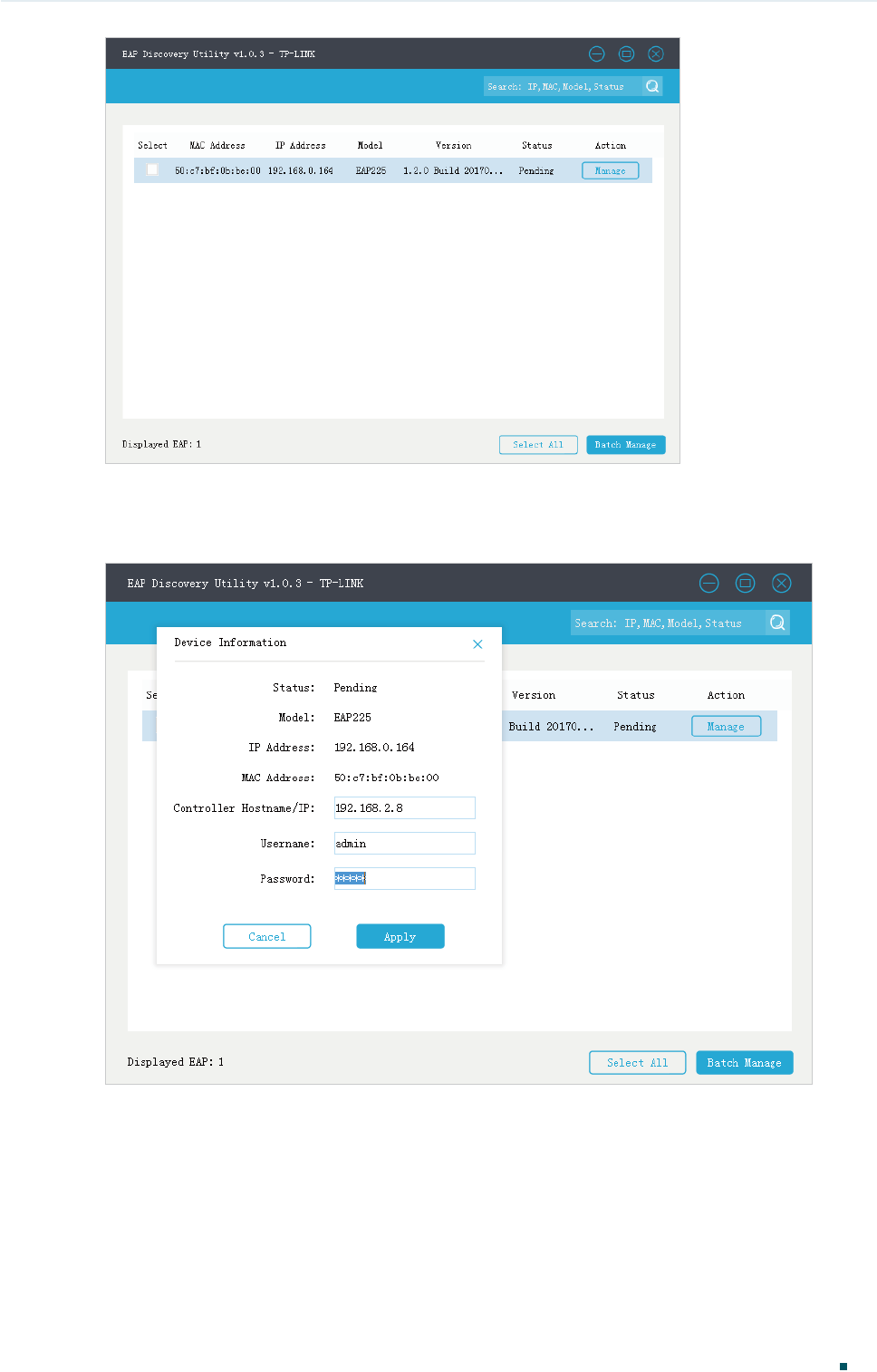

1) Connect the computer that is running EAP Discovery Utility to port5 of the switch,

and connect the EAP to port4� In this way, both EAP Discovery Utility and EAP are in

the same subnet (192�168�1�0/24)� Then open EAP Discovery Utility to let it discover

the EAP as shown below�

2) After EAP Discovery Utility has found the EAP, click Manage, then fill in the IP address

of Controller host and the Username/Password of the EAP (admin/admin by default)

so EAP Controller can manage this EAP�

Configuration Guide 10

Configuration

Note:

After the EAP has been successfully adopted by EAP Controller, you no longer need EAP

Discovery Utility. Thus, you can remove the computer that’s running EAP Discovery Utility from

the network.

Step 4: Adopt and Manage EAP

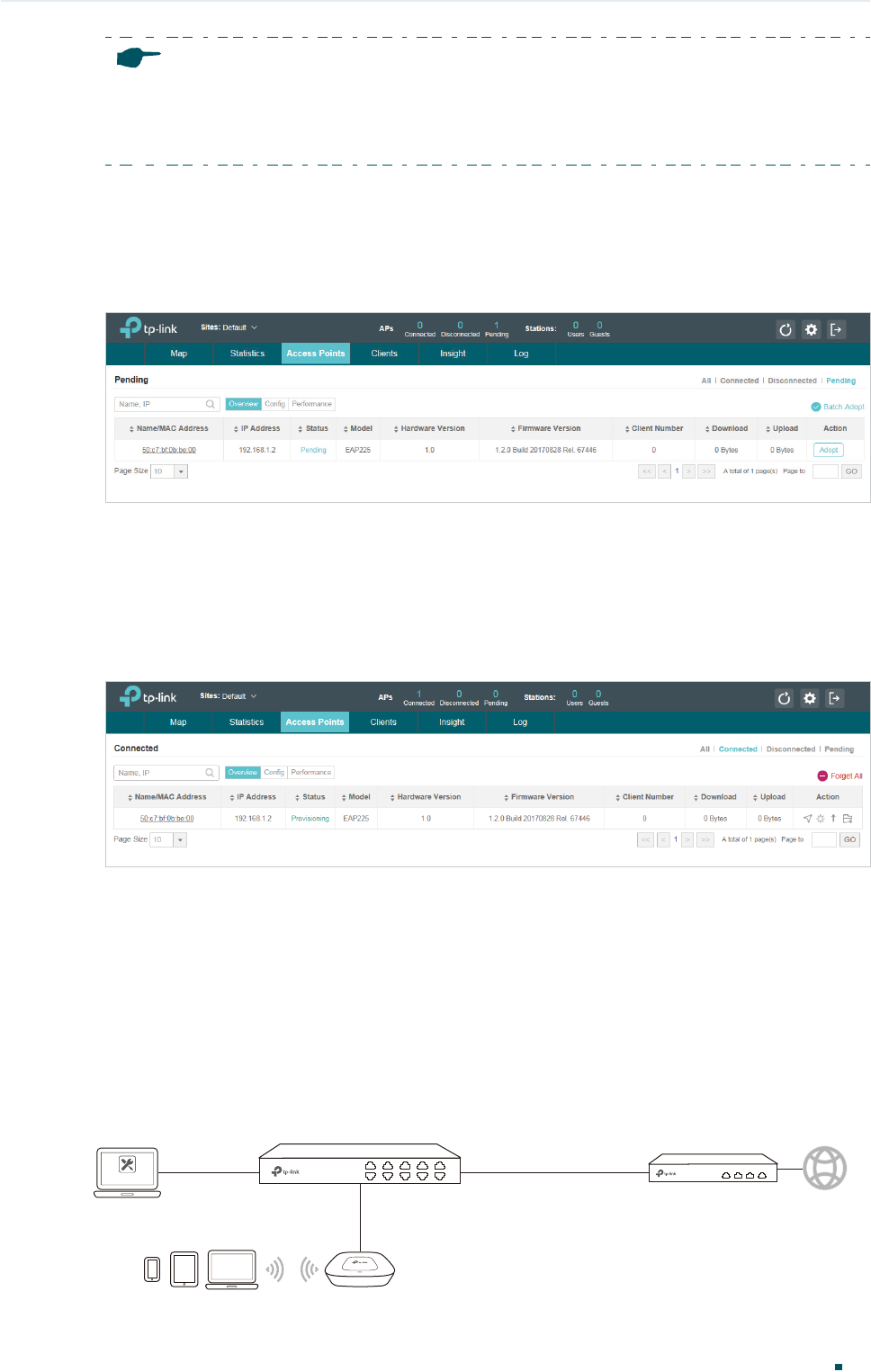

1) Run EAP Controller� The EAP which has been configured by EAP Discovery Utility in

the last step will appear in the Pending list as shown below, which means the EAP can

be adopted and managed by EAP Controller�

2) The EAP Controller will automatically adopt the EAP using the default username and

password (both are admin)� If the Retry button appears in the Action column, it means

that the username and password of the EAP have been changed� You should enter

the current username and password of the EAP� If the EAP appears in the Connected

list as shown below, it means the EAP has been adopted and can be managed by EAP

Controller�

Using DHCP Option 138 to Discover EAPs

Demonstrated with the network topology below, this section provides configuration

procedures for managing EAPs in different subnets at the same site with DHCP option

138� There are three VLANs (three subnets), which are VLAN1 (192�168�0�0/24), VLAN2

(192�168�1�0/24) and VLAN3 (172�30�30�0/24)� The three VLANs (three subnets) are

divided by switch T2600G-28TS� Now we want the EAP Controller in VLAN1 to manage

the EAP in VLAN2� The gateway router is TP-Link SMB router TL-ER6120�

Clients

EAP Controller

EAP

VLAN 1

192.168.0.0/24

VLAN 2

192.168.1.0/24

VLAN 3

172.30.30.0/24

Gi1/0/4

Gi1/0/7

Gi1/0/16

192.168.0.253/24

Controller Host

Switch

(DHCP Server) Internet

LAN

172.30.30.1/24

Router

Configuration Guide 11

Configuration

Step 1: Configurations on Switch

1) Go to VLAN > 802.1Q VLAN > VLAN Config to create VLAN2 and VLAN3�

VLAN2 includes port4� VLAN3 includes port7� The detailed VLAN settings are shown

as below�

2) Go to VLAN > 802.1Q VLAN > Port Config to make sure that port 4, 7 and 16 have

been configured as “Access“ type ports� Make sure that the PVID of port4 and 5 has

been configured as 2, the PVID of port7 has been configured as 3�

3) Go to Routing > Interface to enter the IP interface for VLAN1,VLAN2 and VLAN3, and

configure relevant IP addresses for these three interfaces as shown below�

Configuration Guide 12

Configuration

4) Go to Routing > Static Routing > IPv4 Static Routing Config to configure the static

default routing entry which leads to the gateway router�

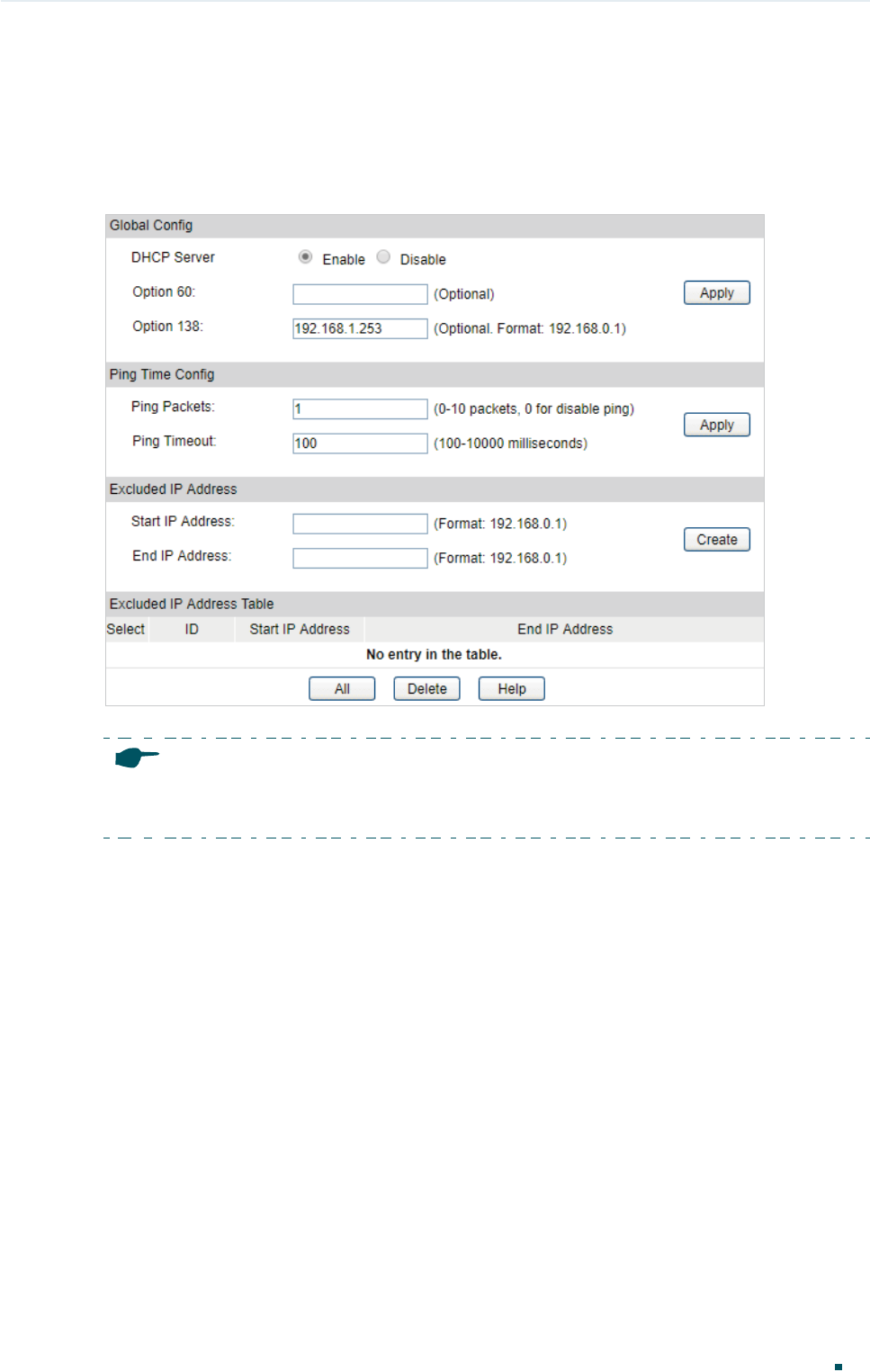

5) Go to Routing > DHCP Server to enable DHCP Server function� For Option138, you

should fill in the IP address of the Controller Host which is “192�168�0�253”� The DHCP

Server will then tell the EAPs where EAP Controller is, so that EAP Controller and

EAPs can communicate with each other among different subnets�

Configuration Guide 13

Configuration

6) Go to Routing > DHCP Server > Pool Setting to configure 192�168�1�0/24 IP address

pool for EAPs�

Configuration Guide 14

Configuration

Note:

Do not forget to fill in the default gateway address and DNS server address.

Step 2: Configurations on the Router

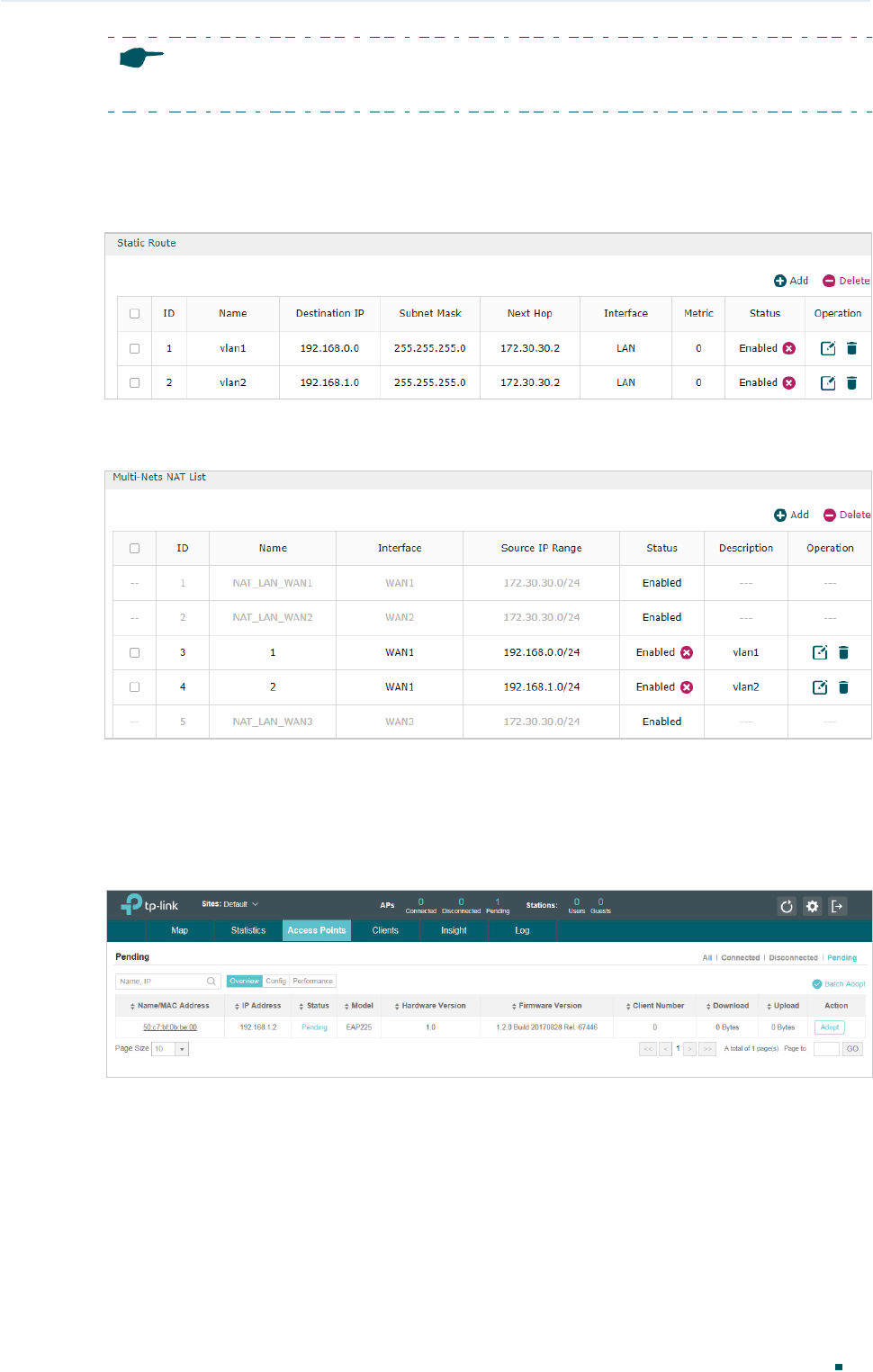

1) Go to Transmission > Static Route to add Static Routing for VLAN1 and VLAN2

subnets�

2) Go to Transmission >NAT > Multi-NAT to configure multi-nets NAT for

192�168�0�0/24 and 192�168�1�0/24 subnets�

Step 3: Adopt and Manage EAP

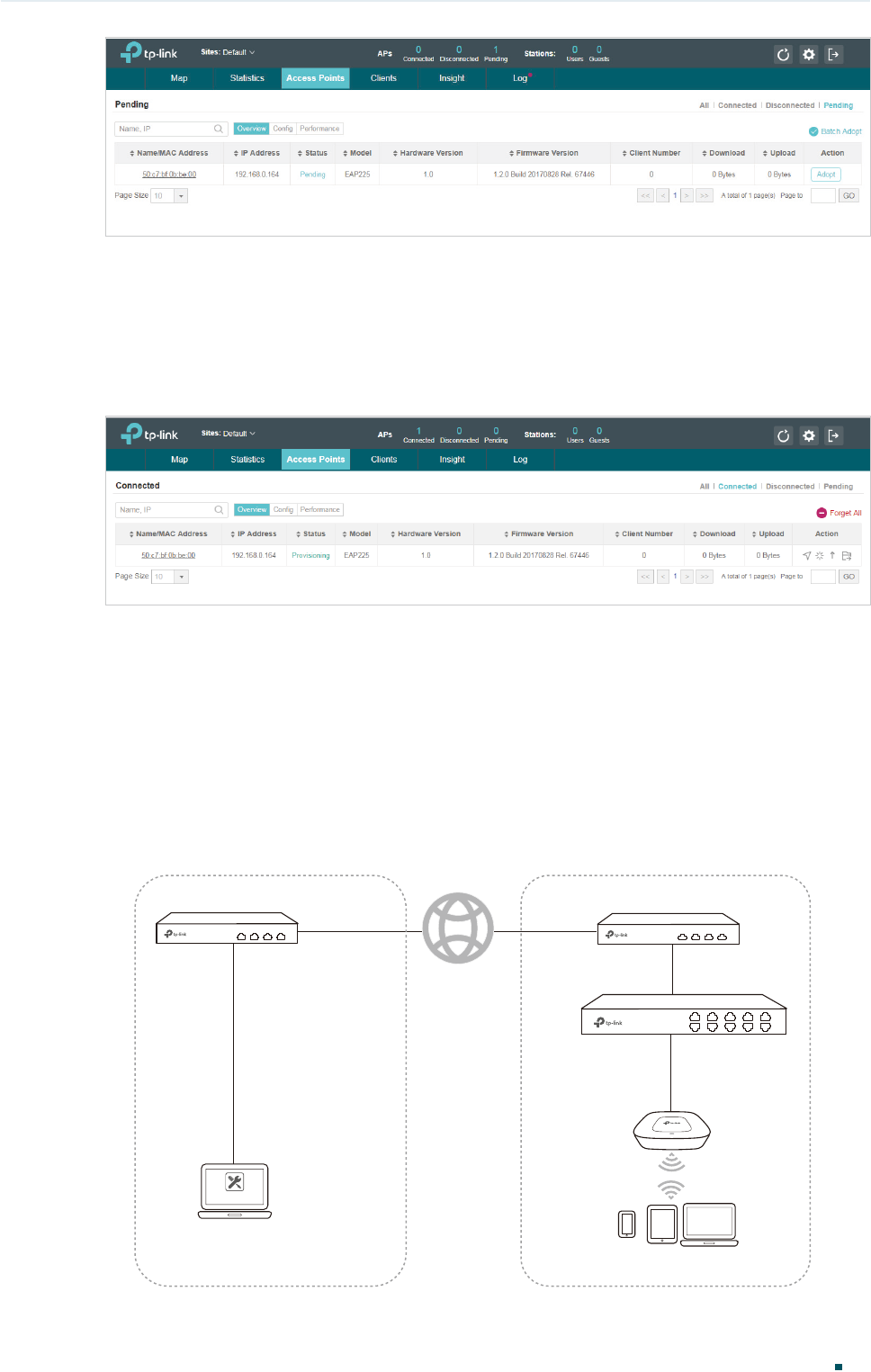

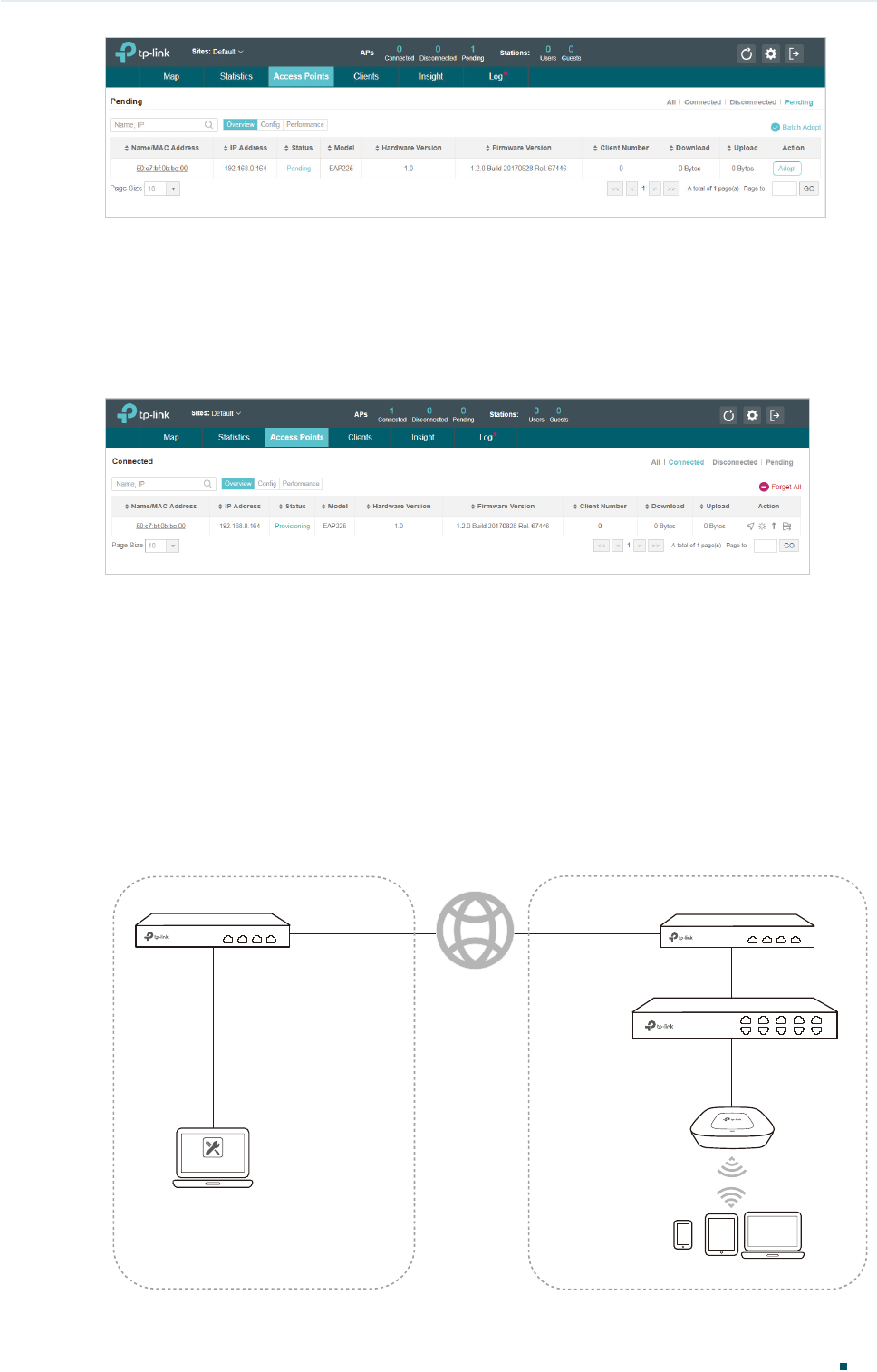

1) Run EAP Controller� The EAP which has DHCP option 138 configured from the last

step will appear in the Pending list as shown below, which means the EAP can be

adopted and managed by EAP Controller�

2) The EAP Controller will automatically adopt the EAP using the default username and

password (both are admin)� If the Retry button appears in the Action column, it means

that the username and password of the EAP have been changed� You should enter

the current username and password of the EAP� If the EAP appears in the Connected

list as shown below, it means the EAP has been adopted and can be managed by EAP

Controller�

Configuration Guide 15

Configuration

2.2.2 Managing EAPs at Different Sites

When the devices are at different sites, we will manage EAPs using EAP Controller across

the internet� In this case, there are two ways to achieve remote management:

Create a VPN connection between the local and remote networks by site to site IPsec

VPN�

Transmit traffic between the inside and outside networks by NAT Port Forwarding�

The two remote communication methods can achieve the purpose of managing EAP via

EAP Discovery Utility or DHCP option138 respectively with EAP Controller� The section

will give the detailed configuration steps in different cases�

Using Discovery Utility to Discover EAPs via VPN Tunnel

Demonstrated with the network topology below, this section provides configuration

procedures for managing EAPs at different sites via VPN Tunnel with EAP Discovery

Utility� As shown below, the HQ and branch office are located in different places which

is connected with each other through IPsec VPN tunnel� The EAP Controller and a VPN

router (TL-ER6120) are in the subnet 192�168�1�0/24 of HQ� TP-Link EAP Discovery

Utility, EAP and a VPN router (TL-ER6120 ) are in the subnet 192�168�0�0/24 of branch

office�

Internet

EAP Controller

EAP

EAP Discovery

Utility

HQ Branch Oce

192.168.0.253/24

LAN To LAN IPsec VPN Tunnel

Router Router

Controller Host

192.168.0.253/24

Switch

Clients

Discovery Host

WAN 192.168.2.13 WAN 192.168.2.10

LAN 192.168.1.0/24 LAN 192.168.0.0/24

Configuration Guide 16

Configuration

Step 1: VPN Settings for the Router in Branch Office

1) Go to VPN > IPsec > IPsec Policy to add an IPsec VPN Policy as the following picture

shows�

Note:

• Remote Gateway should be configured with the WAN IP address of the VPN router in

HQ�

• Local Subnet should be configured with the IP subnet of the branch office�

• Remote Subnet should be configured with the IP subnet of HQ�

Configuration Guide 17

Configuration

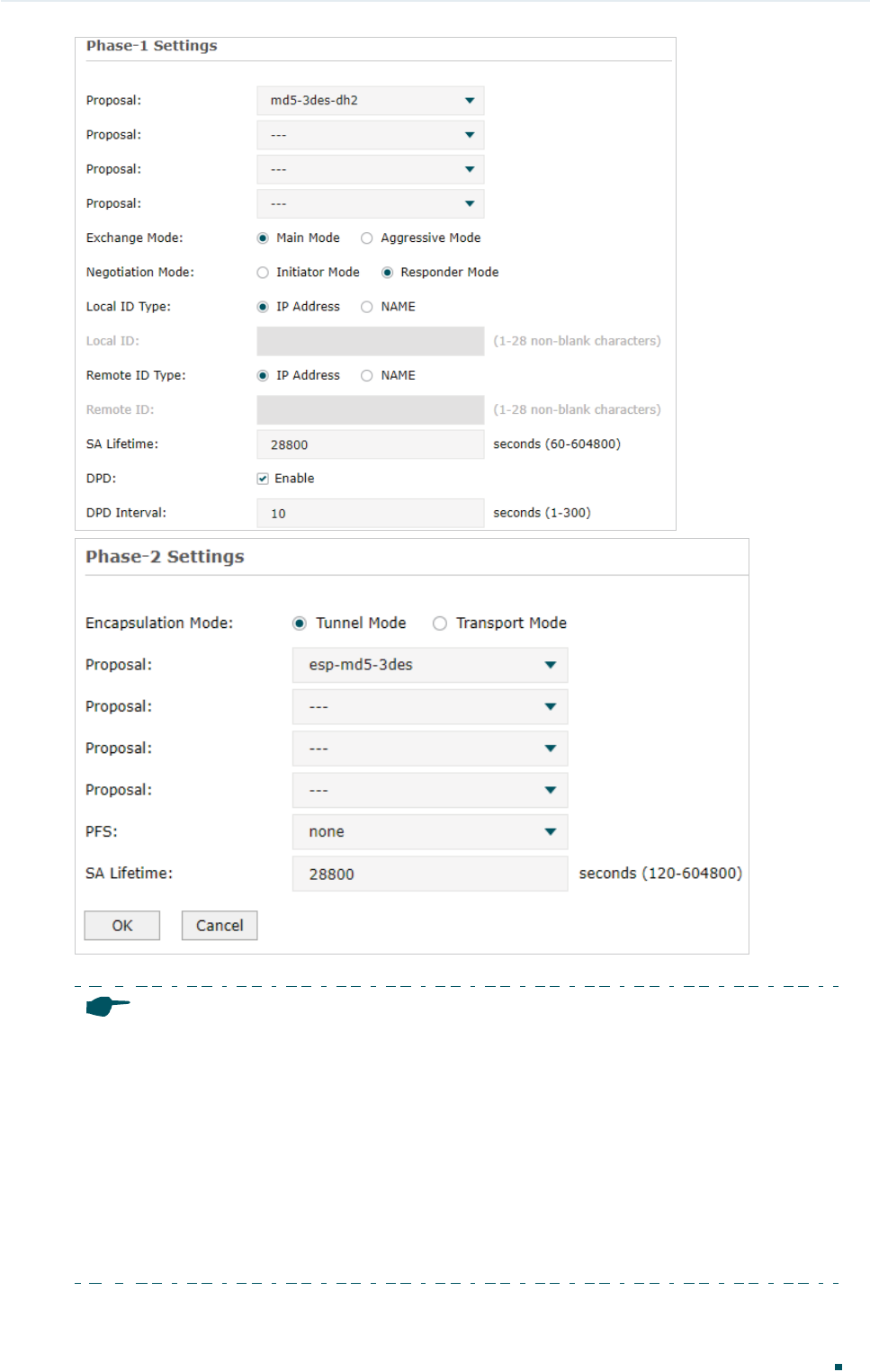

Step 2: VPN Settings for the Router in HQ

Configuring VPN settings on TL-ER6120 in HQ is similar to “Step 1”� We won’t describe

this in detail here�

Configuration Guide 18

Configuration

Configuration Guide 19

Configuration

Note:

• Remote Gateway should be configured with the WAN IP address of the VPN router in branch

office�

• Local Subnet should be configured with the IP subnet of HQ�

• Remote Subnet should be configured with the IP subnet of the branch office�

• Negotiation Mode should be chosen the Responder Mode in HQ (Negotiation Mode has

been chosen as Initiator Mode in the branch office�

• Pre-shared key should be filled with the same number string�

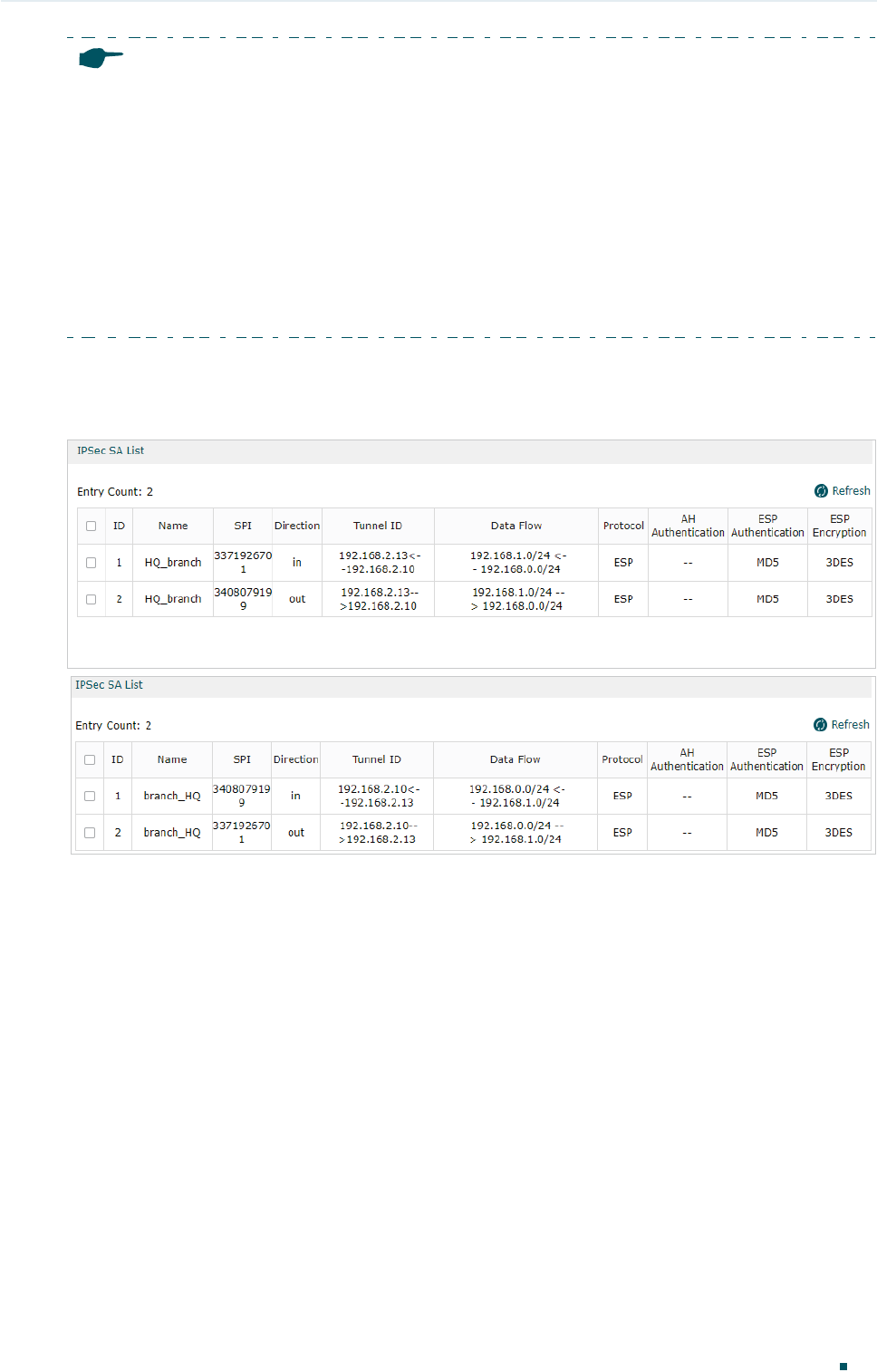

After all settings are done, the VPN tunnel will be established between HQ and the branch

office as shown below�

Step 3: Configurations on EAP Discovery Host

1) Connect the computer that is running EAP Discovery Utility and the EAP to the switch

in the branch office� Then open EAP Discovery Utility to let it discover the EAP as

shown below�

Configuration Guide 20

Configuration

2) After EAP Discovery Utility finds the EAP, click Manage, and then fill in the IP address

of the Controller Host and the Username/Password of the EAP (admin/admin by

default) to let EAP Controller find and manage this EAP�

Note:

After the EAP is successfully adopted by EAP Controller, you don’t need EAP Discovery Utility

any more, thus you can remove the computer that is running EAP Discovery Utility from the

network.

Step 4: Adopt and Manage EAP

1) Run EAP Controller� The EAP which has been configured by EAP Discovery Utility in

the last step will appear in the Pending list as shown below, which means the EAP can

be adopted and managed by EAP Controller�

Configuration Guide 21

Configuration

2) The EAP Controller will automatically adopt the EAP using the default username and

password (both are admin)� If the Retry button appears in the Action column, it means

that the username and password of the EAP have been changed� You should enter

the current username and password of the EAP� If the EAP appears in the Connected

list as shown below, it means the EAP has been adopted and can be managed by EAP

Controller�

Using DHCP Option 138 to Discover EAPs via VPN Tunnel

Demonstrated with the network topology below, this section provides configuration

procedures for managing EAPs at different sites via VPN Tunnel with DHCP Option

138� As shown below, the HQ and branch office are connected with each other through

IPsec VPN tunnel� The EAP Controller and VPN router TL-ER6120 are in the subnet

192�168�1�0/24 of HQ� EAP, switch T2600G-28TS as DHCP Server (supporting DHCP

option 138) and another VPN router TL-ER6120 are in the subnet 192�168�0�0/24 of

branch office�

Internet

EAP Controller

EAP

HQ Branch Oce

LAN To LAN IPsec VPN Tunnel

Router Router

Controller Host

192.168.0.253/24

Clients

WAN 192.168.2.13 WAN 192.168.2.10

LAN 192.168.1.0/24 LAN 192.168.0.0/24 Switch

(DHCP Server)

Configuration Guide 22

Configuration

Step 1: Configurations on the Switch in Branch Office

1) Go to Routing > DHCP Server > DHCP Server to enable DHCP Server function�

For Option138, you should fill in the IP address of Controller Host which is

“192�168�1�253”� The DHCP Server will then tell the EAPs where EAP Controller is,

so that EAP Controller and EAPs can communicate with each other among different

subnets�

Note:

Change switch’s default IP address from 192.168.0.1 to 192.168.0.2 to avoid IP conflict with

gateway router.

2) Go to Routing > DHCP Server > Pool Setting to configure 192�168�0�0/24 IP address

pool for EAPs�

Configuration Guide 23

Configuration

Note:

Change switch’s default IP address from 192.168.0.1 to 192.168.0.2 to avoid IP conflict with

gateway router.

Step 2: VPN Settings for the Router in Branch Office

Before you configure VPN, you should disable the DHCP server on the router in branch

office�

1) Go to VPN > IPSec > IPSec Policy to add a IPSec VPN Policy as the following page�

Configuration Guide 24

Configuration

Configuration Guide 25

Configuration

Note:

• Remote Gateway should be configured with the WAN IP address of the VPN router in

HQ�

• Local Subnet should be configured with the IP subnet of the Branch Office�

• Remote Subnet should be configured with the IP subnet of HQ�

Step 3: VPN Settings for the Router in HQ

Configuring VPN settings on TL-ER6120 in HQ is similar to “Step 1”� We won’t describe

this in detail here�

Configuration Guide 26

Configuration

Note:

• Remote Gateway should be filled in with the WAN IP address of the VPN router in the

branch office�

• Local Subnet should be filled in the IP subnet of HQ�

• Remote Subnet should be filled in the IP subnet of the Branch Office�

• Negotiation Mode should be chosen the Responder Mode in HQ (Negotiation Mode

has been chosen as the Initiator Mode in Branch Office�

• Pre-shared key should be filled with the same number string�

Configuration Guide 27

Configuration

After all settings are done, the VPN tunnel will be established between the HQ and branch

office as shown below�

Step 4: Adopt and Manage EAP

1) Run EAP Controller� The EAP which has DHCP option 138 configured from the last

step will appear in the Pending list as shown below, which means the EAP can be

adopted and managed by EAP Controller�

2) The EAP Controller will automatically adopt the EAP using the default username and

password (both are admin)� If the Retry button appears in the Action column, it means

that the username and password of the EAP have been changed� You should enter

the current username and password of the EAP� If the EAP appears in the Connected

list as shown below, it means the EAP has been adopted and can be managed by EAP

Controller�

Using Discovery Utility to Discover EAPs via NAT Port Forwarding

Demonstrated with the network topology below, this section provides configuration

procedures for managing EAPs at different sites via NAT Port Forwarding with EAP

Discovery Utility� the HQ and branch office are connected with each other� The EAP

Controller and TL-ER6120 (VPN router) are in subnet 192�168�1�0/24 of HQ� The EAP

Configuration Guide 28

Configuration

Discovery Utility, EAP and TL-ER6120 (VPN router) are in subnet 192�168�0�0/24 of the

branch office�

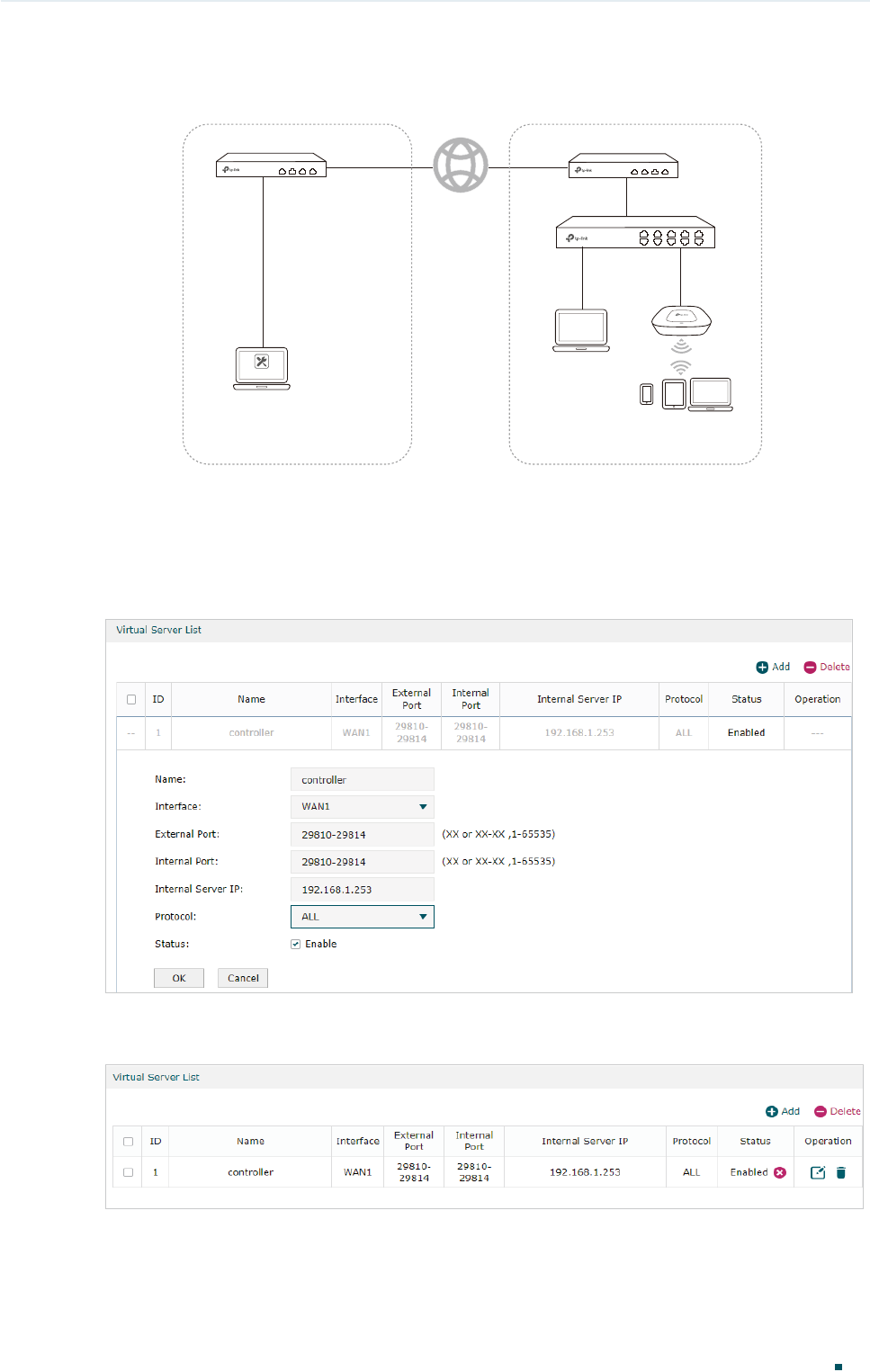

Internet

EAP Controller

EAP

HQ Branch Oce

192.168.1.253/24

EAP Discovery

Utility

Discovery Host

Router Router

Switch

Clients

Controller Host

WAN 192.168.2.8

Step 1: Configure Port Forwarding Rules on the Router in HQ

1) Go to Advanced > NAT > Virtual Server and configure virtual server for All ports,

ranging from 29810 to 29814� Configure Internal Server IP with 192�168�01�253,

which is the IP of the Controller Host�

Click OK and the configured NAT Port Forwarding rules will be displayed on the

following page�

Step 2：Configurations on the Discovery Host

1) Connect the computer that is running EAP Discovery Utility and EAP to the switch in

branch office� Then open EAP Discovery Utility to let it discover the EAP as shown

below�

Configuration Guide 29

Configuration

2) After EAP Discovery Utility finds the EAP, click Manage, and then fill in the WAN IP

address of the router in HQ and the Username/Password of the EAP (admin/admin by

default) to let EAP Controller find and manage this EAP�

Step 3: Adopt and Manage EAP

1) Run EAP Controller� The EAP which has been configured by EAP Discovery Utility in

the last step will appear in the Pending list as shown below, which means the EAP can

be adopted and managed by EAP Controller�

Configuration Guide 30

Configuration

2) The EAP Controller will automatically adopt the EAP using the default username and

password (both are admin)� If the Retry button appears in the Action column, it means

that the username and password of the EAP have been changed� You should enter

the current username and password of the EAP� If the EAP appears in the Connected

list as shown below, it means the EAP has been adopted and can be managed by EAP

Controller�

Using DHCP Option 138 to Discover EAPs via NAT Port Forwarding

Demonstrated with the network topology below, this section provides configuration

procedures for managing EAPs at different sites via NAT Port Forwarding with DHCP

option 138� As shown below, the EAP Controller and a VPN router (TL-ER6120) are in the

subnet 192�168�1�0/24 of HQ� EAP, switch T2600G-28TS as DHCP Server (supporting

DHCP option138) and another VPN router (TL-ER6120) are in the subnet 192�168�0�0/24

of Branch Office�

Internet

EAP Controller

HQ Branch Oce

192.168.1.253/24

Router Router

Switch

Controller Host

Clients

WAN 192.168.2.8

EAP

Configuration Guide 31

Configuration

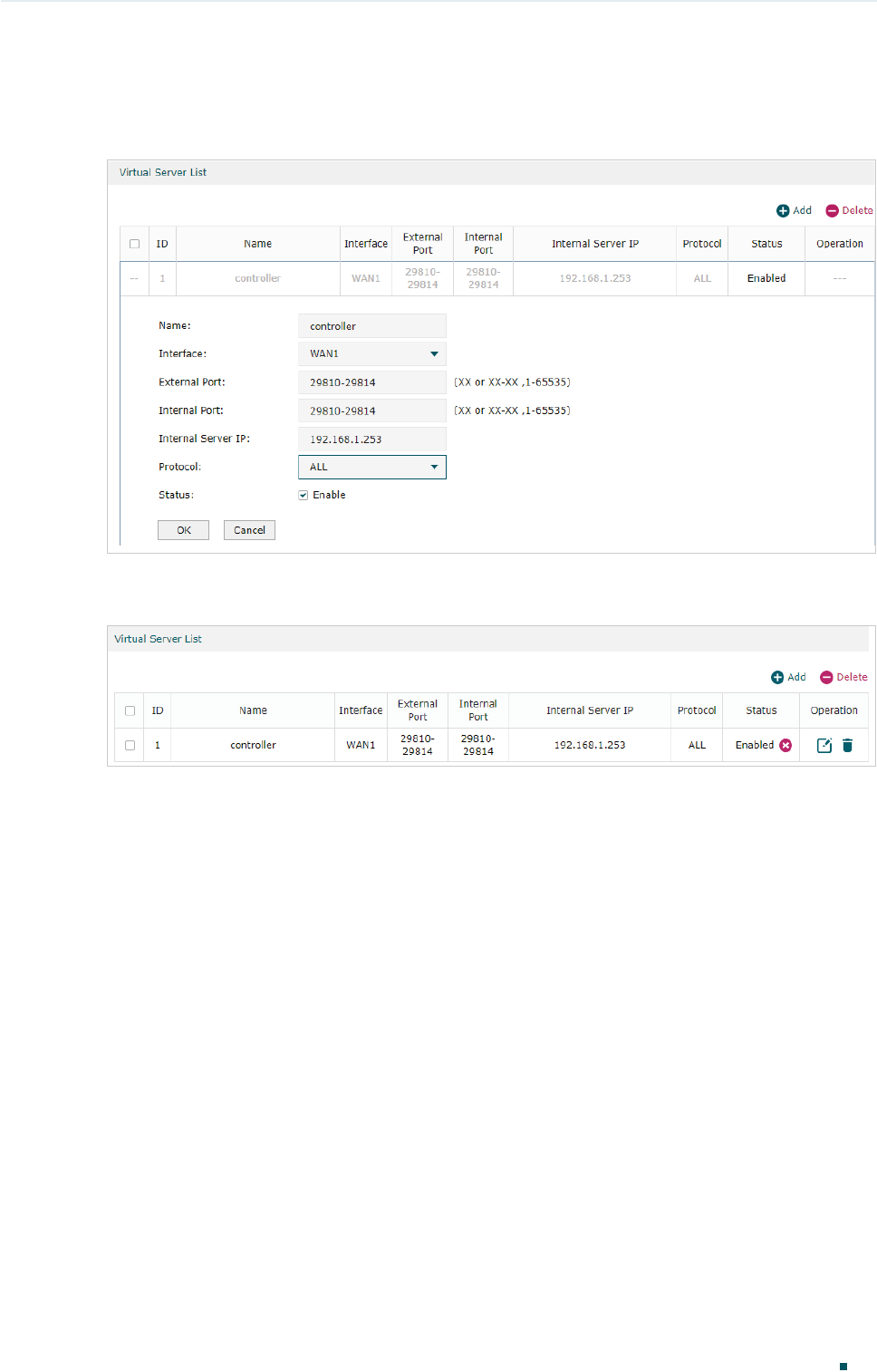

Step 1：Configure Port Forwarding Rules on the Router in HQ

1) Go to Advanced > NAT > Virtual Server and configure virtual server for All, ranging

from 29810 to 29814� Configure Internal Server IP with 192�168�01�253, which is the

IP of the Controller Host�

Click OK, the configured NAT Port Forwarding rules will be displayed on the following

page�

Step 2: Configurations on Switch in Branch Office

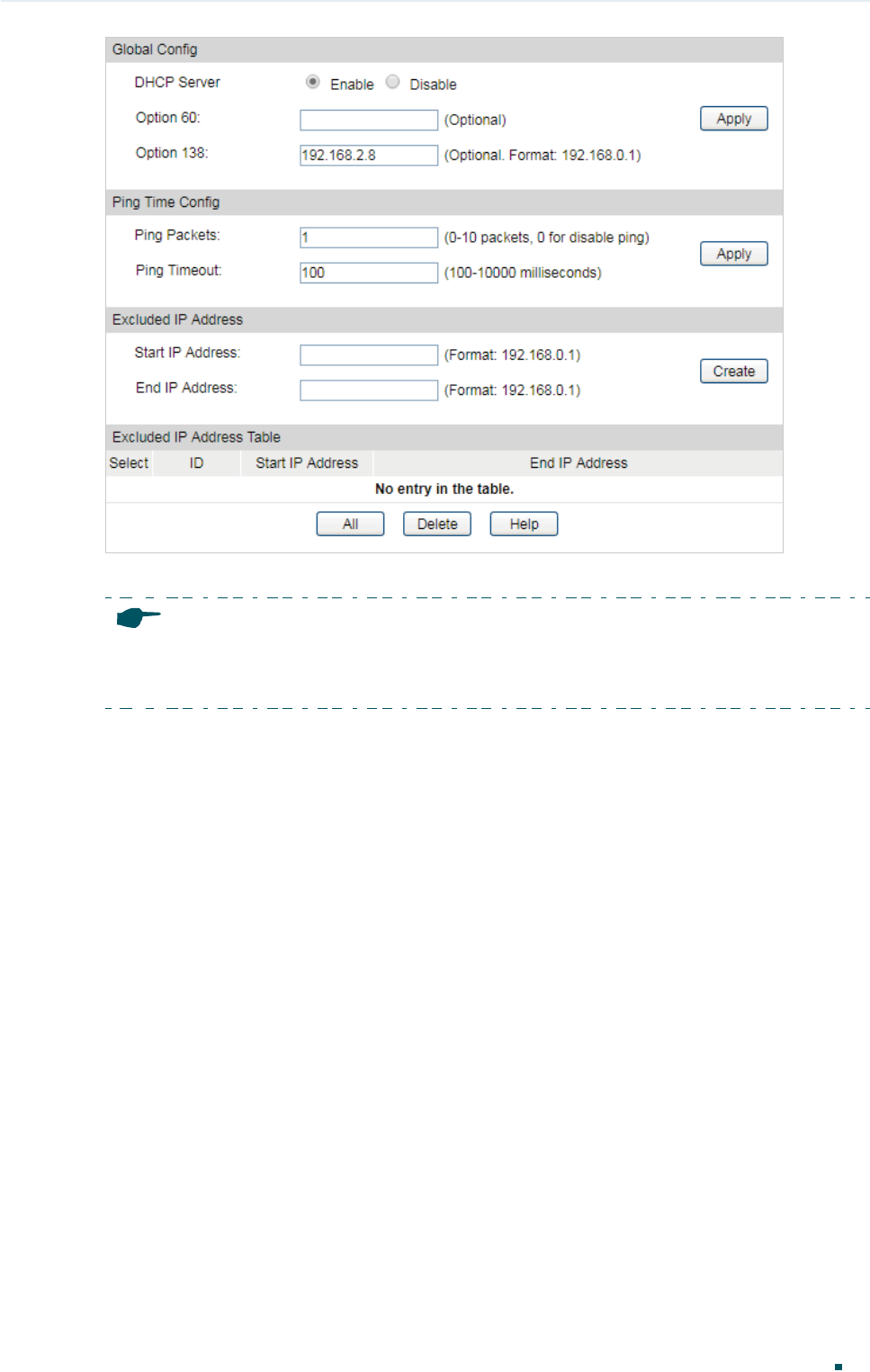

1) Go to Routing > DHCP Server > DHCP Server to enable DHCP Server function� Set

DHCP option 138 as the WAN IP (192�168�2�8) address of the router which is behind

the EAP Controller in HQ�

Configuration Guide 32

Configuration

Note:

Change switch’s default IP address from 192.168.0.1 to 192.168.0.2 to avoid IP conflict with

gateway router.

2) Go to Routing > DHCP Server > Pool Setting to configure 192�168�0�0/24 IP address

pool for EAPs, and Click Apply�

Configuration Guide 33

Configuration

Step 3: Adopt and Manage EAP

1) Run EAP Controller� The EAP which has been configured by DHCP option 138 in the

last step will appear in the Pending list as shown below, which means the EAP can be

adopted and managed by the EAP Controller�

2) The EAP Controller will automatically adopt the EAP using the default username and

password (both are admin)� If the Retry button appears in the Action column, it means

that the username and password of the EAP have been changed� You should enter

the current username and password of the EAP� If the EAP appears in the Connected

list as shown below, it means the EAP has been adopted and can be managed by the

EAP Controller�

Configuration Guide 34

Configuration

Specifications are subject to change without notice� is a registered

trademark of TP-Link Technologies Co�, Ltd� Other brands and product names are

trademarks or registered trademarks of their respective holders�

No part of the specifications may be reproduced in any form or by any means or used

to make any derivative such as translation, transformation, or adaptation without

Configuration Guide For Managing EAPs Via EAP Controller

Configuration Guide For Managing Eaps Via Eap Controller configuration_guide_for_managing_eaps_via_eap_controller configuration_guide_for_managing_eaps_via_eap_controller configurationguide static.tp-link.com 3:

Navigation menu

Versions of this User Manual:

Views

Navigation
