TL ANT2424MD & ANT5830MD Datasheet

2017-08-23

: Tp-Link Tl-Ant2424Md & Tl-Ant5830Md Datasheet TL-ANT2424MD & TL-ANT5830MD Datasheet

Open the PDF directly: View PDF PDF.
Page Count: 5

The Pharos Dish Antenna is a 2x2 MIMO Dish Antenna that is ideal for outdoor use when attached to a
Pharos Base Station. These antennas, which feature high-gain directional transmission patterns, are
excellent for building long distance Point-to-Point link.
Description
-High gain directional operation, long distance transimission, ideal for Point to Point backhaul
connection
-Easy Installation, seamlessly integrated with the Pharos Base Station
-MIMO technology for higher throughput
-Weatherproof design provides protection in harsh environments
Highlights
2x2 MIMO Sector Antenna
MODELS: TL-ANT2424MD/TL-ANT5830MD Datasheet
Designed with a built-in mount, TP-LINK dish antenna (TL-ANT5830MD/TL-ANT2424MD) work
seamlessly with Pharos Base Stations and no tools are required for installation.
WBS210
WBS210

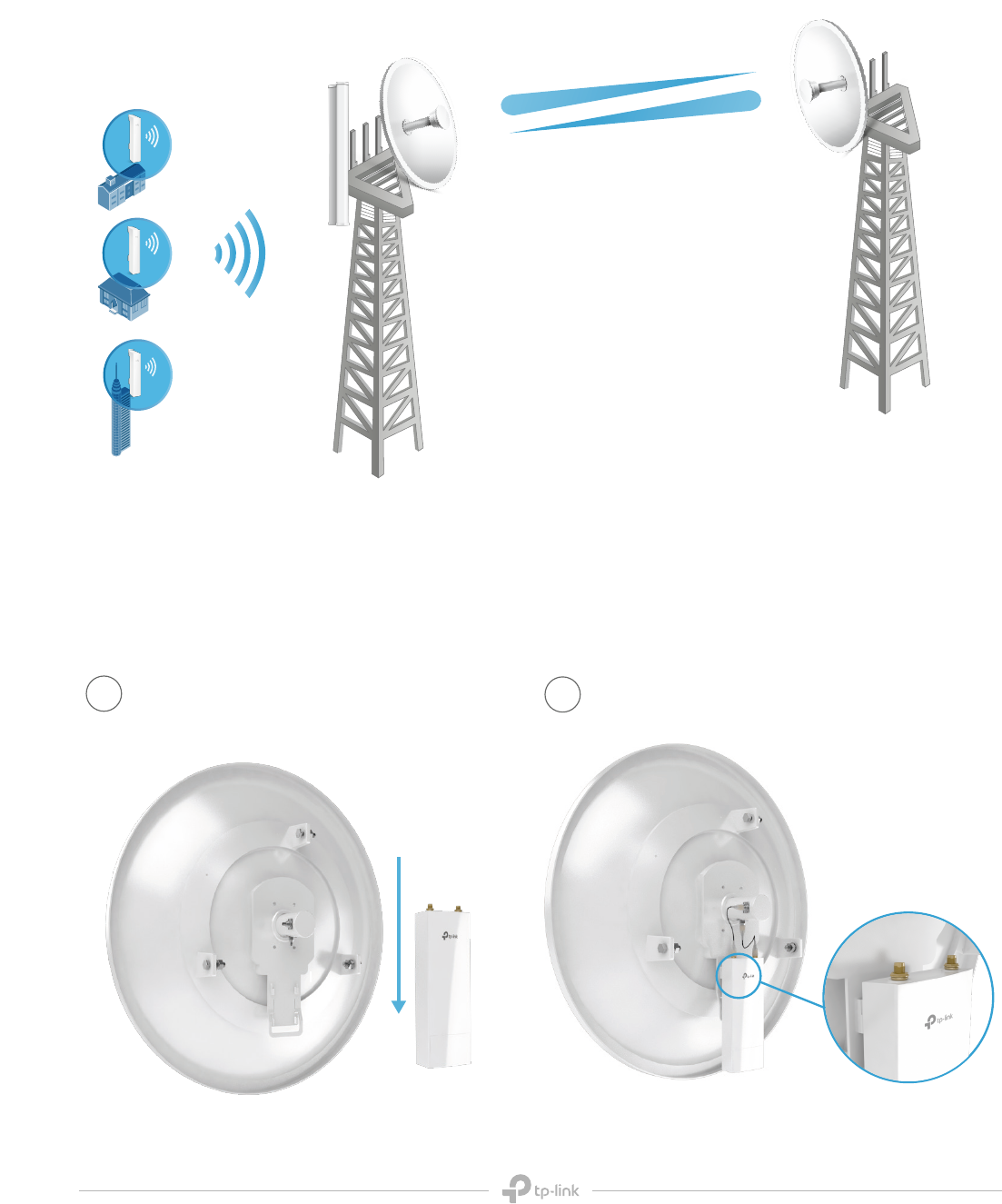

Scenarios/Topology
Easy Installation
CPE
CPE
CPE
12
Sector Antenna with
Pharos Base Station
Dish Antenna with Pharos
Base Station
A TL-ANT5830MD or TL-ANT2424MD, installed with a Pharos Base Station, is ideal for supporting long
distance Point-to-Point data transmission.
Point to
Multi-Point
Coverage
Point to Point Link
Specications
Radiation patterns
30
-30
0
60-60
-90
-120
-150 150
±180
120
90
0
-5
-10
-15
-20
-25
-30
Horizontal Azimuth
0
-5
-10
-15
-20
-25
-30
Horizontal Elevation
0
-5
-10
-15
-20
-25
-30
Vertical Azimuth
0
-5
-10
-15
-20
-25
-30
Vertical Elevation
-60
-120
-90
-30-150
±180
150
120 60
90
30
0
30
-30
0
60-60
-90
-120
-150 150
±180
130
90
*Exclude Cable Loss
-60
-120
-90
-30-150
±180
150
120 60
90
30
0

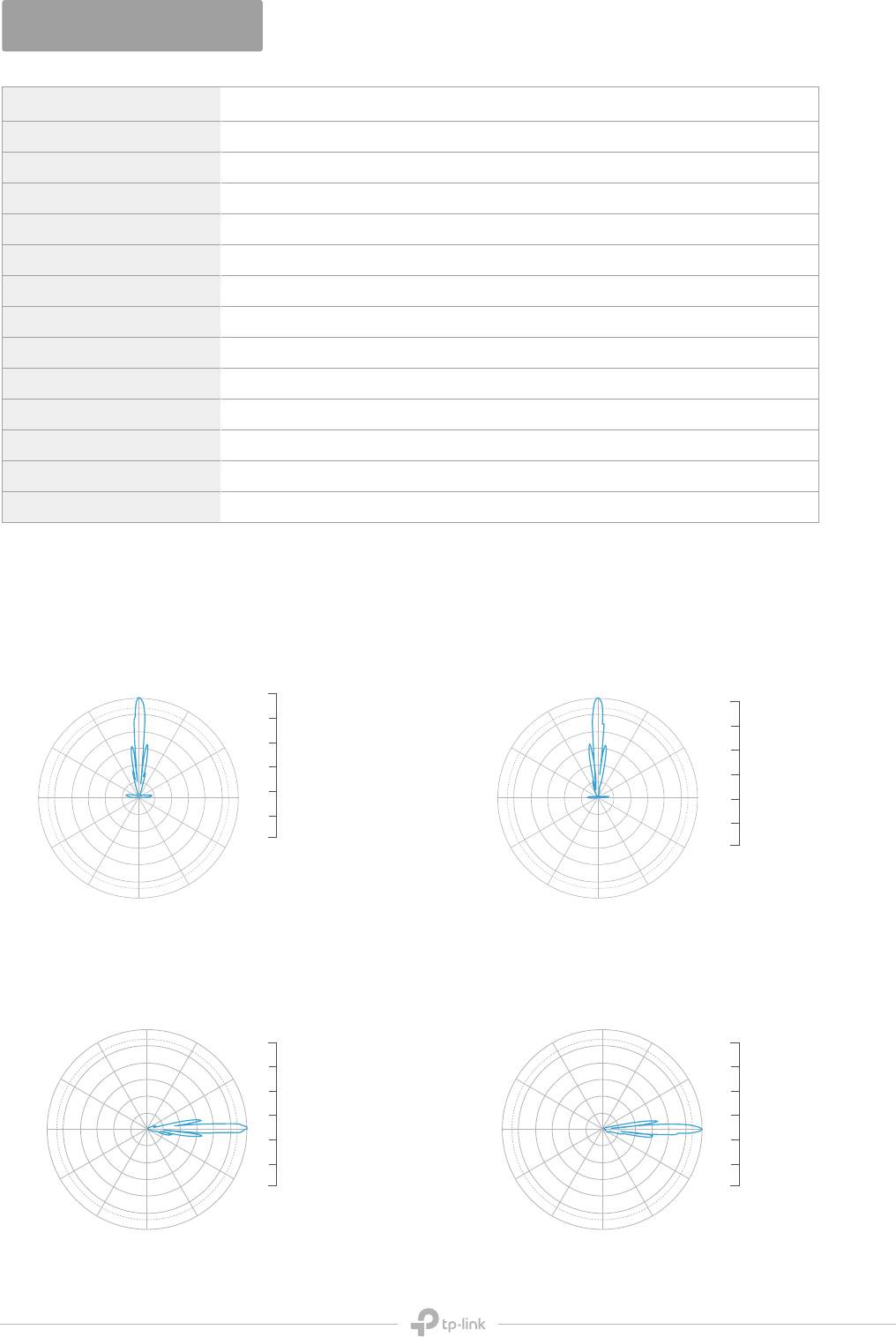

TL-ANT2424MD
Frequency Range 2.3 ~ 2.7 GHz
Gain* 24dBi
VSMR 1.8 Max
HPOL Beamwidth (3dB) 6°
VPOL Beamwidth(3dB) 6°
Elevation Beamwidth (3dB) 6°
F/B Ratio 32dB Min
Impedance 50Ω
Interfaces RP-SMA Female
Polarization Horizontal & Vertical
Mounting Pole Mount
Survival Wind Speed 241 Km/h
Standards RoHS, WEEE
Specications
Radiation patterns
0
-5
-10
-15
-20
-25
-30
Horizontal Azimuth
0
-5
-10
-15
-20
-25
-30
Vertical Azimuth
0
-5
-10
-15
-20
-25
-30
Vertical Elevation
-60
-120
-90
-30-150
±180
150
120 60
90
30
0
30
-30
0
60-60
-90
-120
-150 150
±180
120
90
0
-5
-10
-15
-20
-25
-30
Horizontal Elevation
30
-30
0
60-60
-90
-120
-150 150
±180
120
90
-60
-120
-90
-30-150
±180
150
120 60
90
30
0
*Exclude Cable Loss

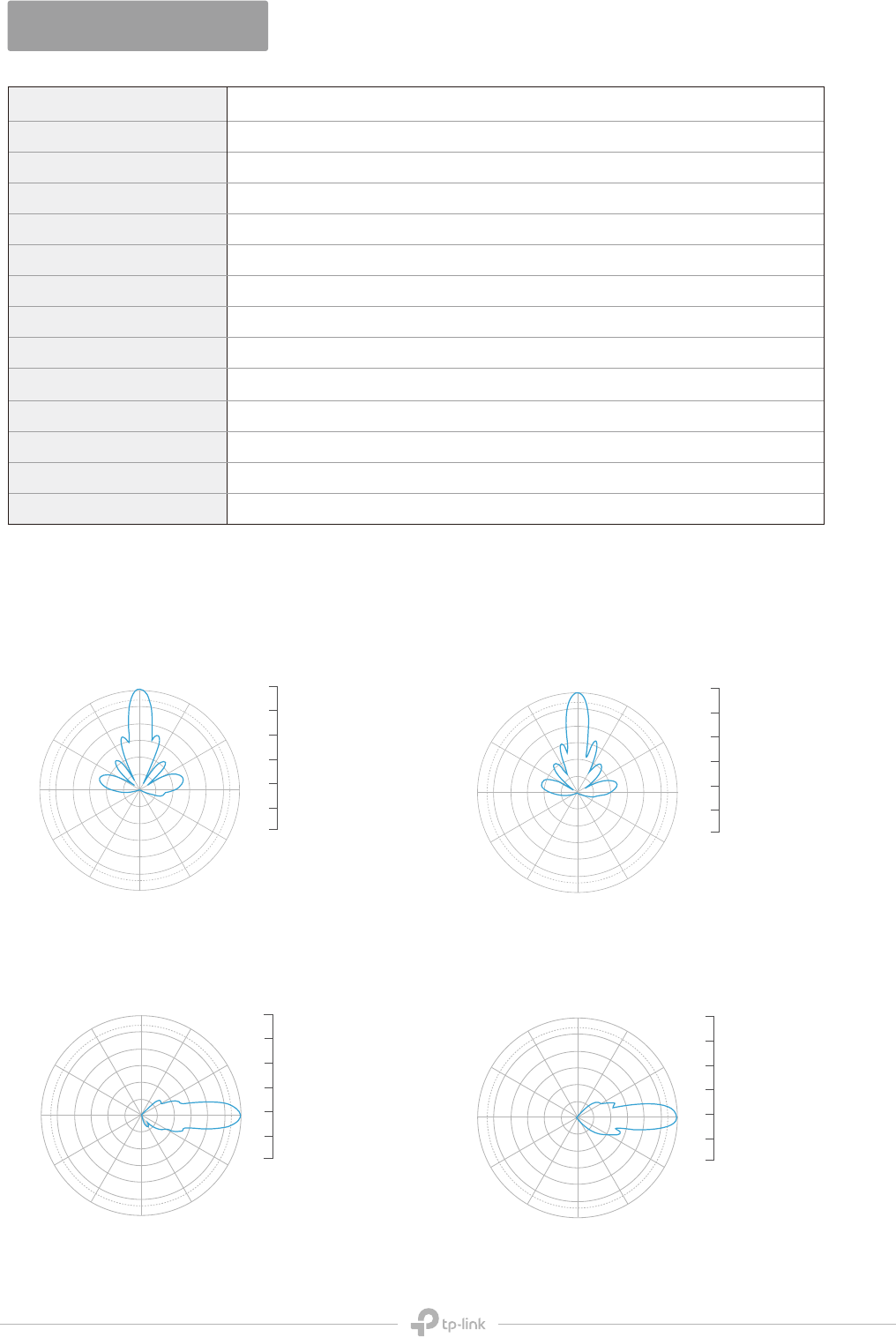

TL-ANT5830MD
Frequency Range 5.0 ~ 6.0 GHz
Gain* 30dBi
VSMR 1.8 Max
HPOL Beamwidth (3dB) 6°
VPOL Beamwidth(3dB) 6°
Elevation Beamwidth (3dB) 6°
F/B Ratio 34dB Min
Impedance 50Ω
Interfaces RP-SMA Female
Polarization Horizontal & Vertical
Mounting Pole Mount
Survival Wind Speed 241 Km/h
Standards RoHS, WEEE
www.tp-link.com

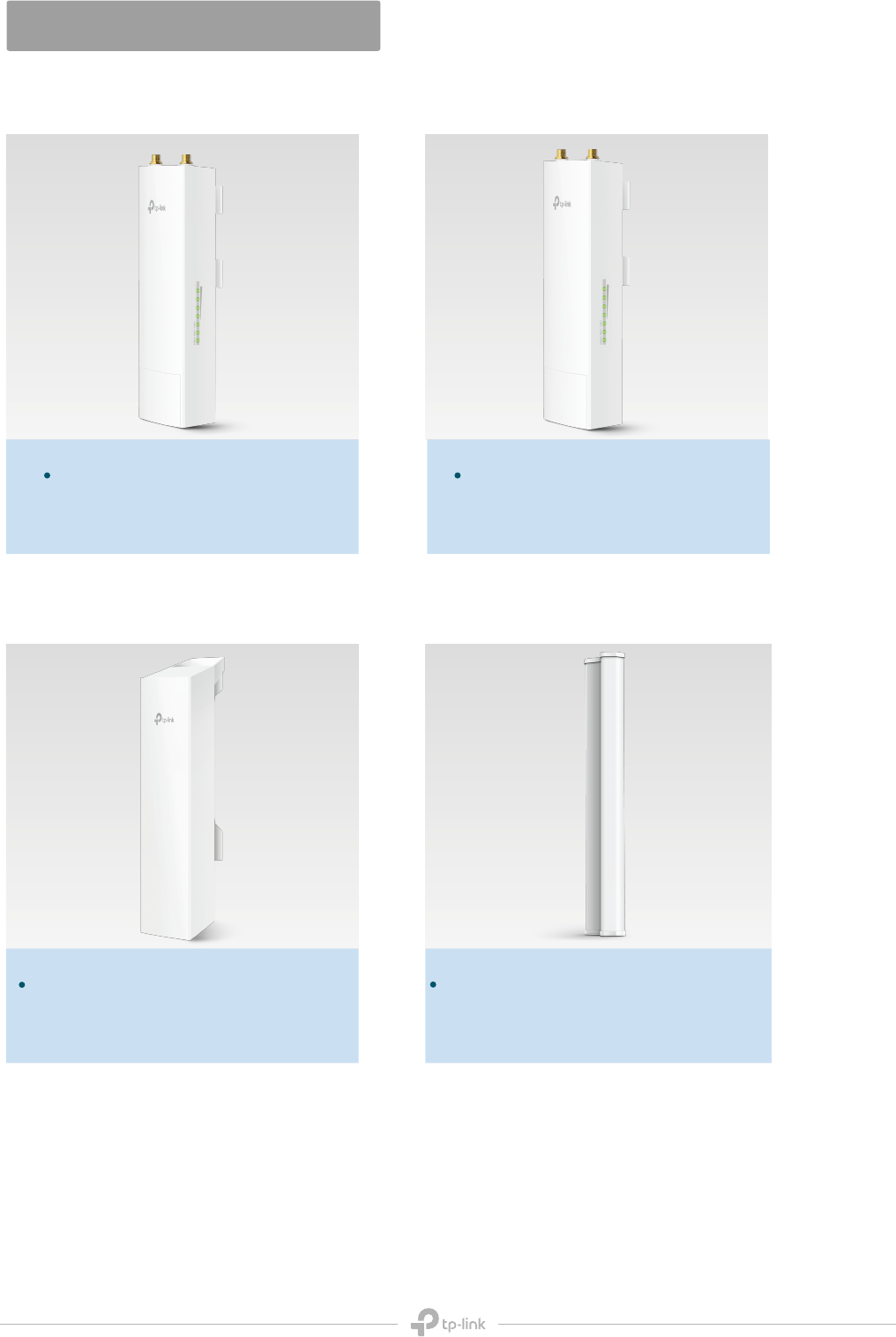

Ordering Information
Ideal to use with
Related Products
2.4GHz 300Mbps Outdoor
Wireless Base Station
WBS210
5GHz 300Mbps Outdoor
Wireless Base Station
WBS510
2.4GHz 15dBi/ 5GHz 19dBi
2x2 MIMO Sector Antenna
TL-ANT2415MS/TL-ANT5819MS
2.4GHz/5GHz 300Mbps 9/13dBi
Outdoor CPE
CPE210 /CPE510
Specications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or
registered trademarks of their respective holders. Copyright @ 2017 TP-Link Technologies Co., Ltd. All rights reserved.
