AV1300 Gigabit
Passthrough Powerline
Starter Kit
TL-PA8033P KIT
Smooth Ultra HD Streaming
in Every Room
2x2 MIMO
Technology
HomePlug AV2
1300Mbps Plug, Pair and Play
TP-Link AV1300 Gigabit Passthrough Powerline Starter Kit TL-PA8033P KIT
The HomePlug AV2 standard creates high-speed data transfer rates of up to
1300Mbps to support all your online activities.
Gigabit Ethernet port provides reliable high-speed wired connections for game
consoles, smart TVs, STB and more.
HomePlug AV2 Standard Compliant Gigabit Ethernet for Fast Connections
Highlights
High-Speed
Wired Connection
HomePlug AV
HomePlug AV2 1300Mbps
600Mbps

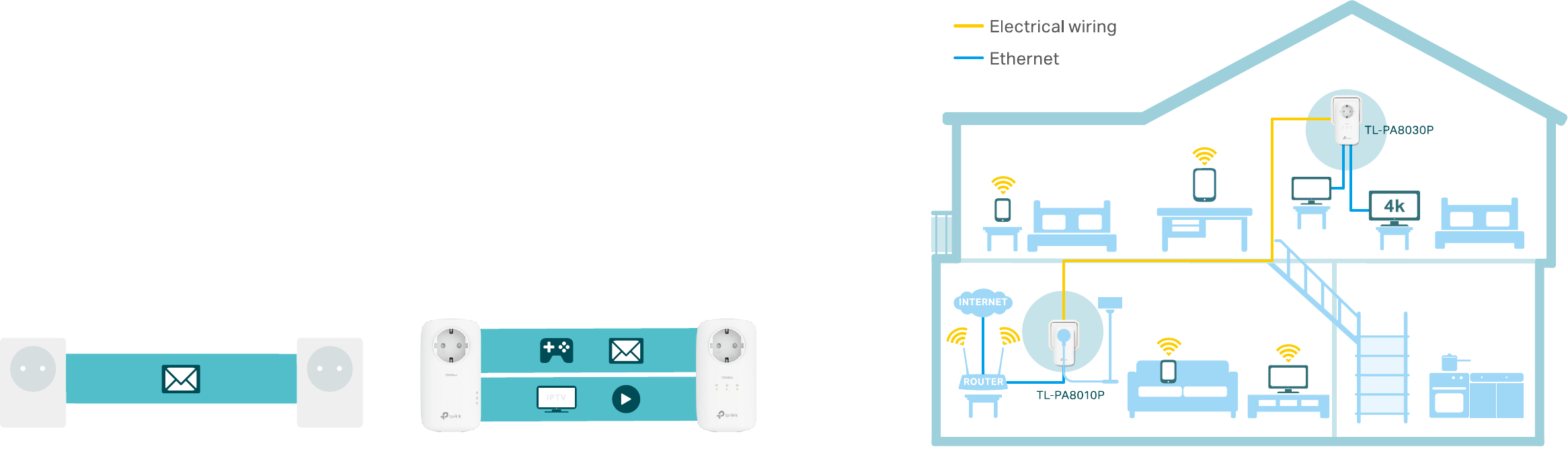

Internet from Any Outlet
Highlights
AV1300 3-port Gigabit Passthrough Powerline Starter Kit brings internet to
any area with a power outlet using your home's electrical wiring.
2 x 2 MIMO for More Throughput over Powerline
2 x 2 MIMO technology is like adding an extra lane on a highway. It establishes
multiple simultaneous connections so you can enjoy 2x speeds and greater
stability.
MIMO
Multi-In-Multi-Out
SISO
Single-In-Single-Out
TP-Link AV1300 Gigabit Passthrough Powerline Starter Kit TL-PA8033P KIT
· Plug, pair and play – Plug, pair and play, no conguration
required
· No new wires – No new wires, use existing electrical wiring
to expand your home network
· Keep your outlet – An integrated socket lets you power
regular devices as normal, and a built-in noise lter
prevents them from interrupting the powerline signal
· TP-Link tpPLC – Allows you to easily manage your
network using the tpPLC Utility
· Pair Button – 128-bit AES encryption easily at a
push of the "Pair" button
Ease of Use Security Energy Saving
· Power Saving – Power Saving Mode helps reducing
power consumption by up to 85%
· Ultra-fast Powerline Speed – HomePlug AV2 standard
compliant, high-speed data transfer rate of up to
1300Mbps, ideal for Ultra HD streaming and online
gaming
· Gigabit Ports – Gigabit Ethernet ports allow your TVs,
game consoles or PCs to connect to the internet at high
speeds
· 300-meter Range – Up to 300-meter range over
the household power circuit
Speed Range Reliability
· Mains Filter – Mains Filter inside the outlet reduces
electrical noise interference and improves powerline
communication performance
Features
TP-Link AV1300 Gigabit Passthrough Powerline Starter Kit TL-PA8033P KIT
* Compatible with all HomePlug AV & AV2 Standard Powerline adapters.
* Listed HomePlug AV2 speeds refer to the theoretical maximum physical-layer data transfer rate. Actual data speeds vary and are inuenced by the home’s electrical/physical environment, and if adapters are placed on the same home circuit.
Specications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright ©2018 TP-Link Technologies Co., Ltd. All rights reserved.
For more information, please visit
http://www.tp-link.com/en/products/details/TL-PA8033P-KIT.html
or scan the QR code left
www.tp-link.com
Hardware
· Plug Type: EU
· Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901,
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
· Power Consumption: Maximum: 5.53W
Typical: 5.32W
Standby: 1.36W
· Range: 300 meters over electrical circuit
· Interface: Gigabit Ethernet Ports, Power Socket
· Button: Pair Button
· LED Indicator: Power, Powerline, Ethernet
· Dimensions (W x D x H): 5.2 x 2.8 x 1.7 in. (131 x 71x 42 mm)
Others
· Certication: CE, RoHS
· Package Contents:
Powerline Adapter TL-PA8010P, TL-PA8030P
2 × Ethernet Cable
Quick Installation Guide
· System Requirements:
Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
· System Requirements for tpPLC Utility:
Windows XP/Vista/7/8/8.1/10 and Mac OS X (10.7 or later)
· Environment:
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Software
· Modulation Technology: OFDM (PLC)
· Encryption: Powerline Security: 128-bit AES
Specications
TP-Link AV1300 Gigabit Passthrough Powerline Starter Kit TL-PA8033P KIT
Power Socket
Plug
Pair Button
LEDs
Ethernet Ports
