TL-WDN3800
N600 Wireless Dual Band PCI Express Adapter
Rev: 2.0.0
1910011333
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from
TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2015 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1） This device may not cause harmful interference.
2） This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries
following the EU directive 1999/5/EC) without any limitation except for the countries mentioned
below:
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and
public service
France
Outdoor use limited to
10 mW e.i.r.p. within
the band 2454-2483.5
MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
Italy None If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation None Only for indoor applications
Note: Please don’t use the product outdoors in France.
5150-5250 MHz
Country Restriction Reason/remark
Bulgaria Not implemented Planned
Croatia License required
Italy General authorization required if used outside own
premises
Luxembourg None General authorization required for network and service
supply (not for spectrum)
Russian Federation No info
5250-5350 MHz
Country Restriction Reason/remark
Bulgaria Not
implemented
Planned
Croatia License required
Italy General authorization required if used outside own
premises
Luxembourg None General authorization required for network and service
supply (not for spectrum)
Russian Federation No info
Note: Please don’t use the product outdoors in France.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne doit pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité de l’appareil.
This device has been designed to operate with the antennas listed below, and having a
maximum gain of 2 dBi. Antennas not included in this list or having a gain greater than 2 dBi are
strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted
for successful communication.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with RSS 210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意！
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性或功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立
即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功
率射頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
減少電磁波影響，請妥適使用。
於5.25GHz 至5.35GHz 區域內操作之無線設備的警告聲明
工作頻率 5.250~5.350GHz 該頻段限於室內使用。
安全諮詢及注意事項
●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
●注意防潮，請勿將水或其他液體潑灑到本產品上。
●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
Safety Information
- When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
- Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock
and voiding the limited warranty. If you need service, please contact us.
- Avoid water and wet locations.
This product can be used in the following countries:
AT BG BY CA CZ DE DK EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU SE SK TR UA US
TP-LINK TECHNOLOGIES CO., LTD
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park,
Shennan Rd, Nanshan, Shenzhen, China
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: N600 Wireless Dual Band PCI Express Adapter
Model No.: TL-WDN3800
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2006/95/EC, Directives 1999/519/EC, Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents:
EN 300 328 V1.8.1
EN 301 489-1 V1.9.2 & EN 301 489-17 V2.2.1
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013
EN 50566: 2013
EN 301 893 V1.7.1
The product carries the CE Mark:
Person responsible for making this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2015-07-10
CONTENTS
Chapter 1Product Overview ................................................................................. 1
1.1Introduction ............................................................................................................. 1
1.2Features.................................................................................................................. 1
1.3LED Status.............................................................................................................. 1
Chapter 2Connect to a Computer ........................................................................ 2
Chapter 3Install Driver and Utility........................................................................ 3
Chapter 4Join a Wireless Network....................................................................... 6
4.1TP-LINK Utility......................................................................................................... 6
4.2WPS (Wi-Fi Protected Setup).................................................................................. 7
4.3Windows Wireless Utility ....................................................................................... 10
Chapter 5Management........................................................................................ 12
5.1Status.................................................................................................................... 12
5.2Profile.................................................................................................................... 12
5.3Advanced .............................................................................................................. 15
5.4SoftAP (For Windows 7 and above) ...................................................................... 15
5.5About..................................................................................................................... 16
Chapter 6Uninstall Driver and Utility ................................................................. 17
Appendix A: Specifications................................................................................... 18
Appendix B: Glossary............................................................................................ 19
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
1
Chapter 1 Product Overview
1.1 Introduction
The TP-LINK TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter connects your
desktop computer over Wi-Fi to an 11n or other network for applications such as lag-free video
streaming, online gaming, and secure Internet surfing.
1.2 Features
Dual band support - 2.4GHz or 5GHz channels bring an optimized HD video streaming, file
sharing and online experience
Compatible with 802.11a/b/g/n products
Wireless speed of up to 300Mbps for 2.4GHz or 5GHz network
Two antennas increase wireless performance and stability
Supports ad-hoc and infrastructure mode
Supports 64/128/152 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE
802.1x
Easy Wireless Configuration Utility
Supports Windows 8.1/8/7/Vista/XP 32/64bit
1.3 LED Status
Status Working Status
Off
The driver has not been installed.
The adapter's radio has been disabled.
Flashing Slowly The driver has been installed but no data is being transmitted or received.
Flashing Quickly Data is being transmitted or received.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
2
Chapter 2 Connect to a Computer
Before you begin using your adapter, connect the adapter to your computer.
PCI-E Slot
TL-WDN3800

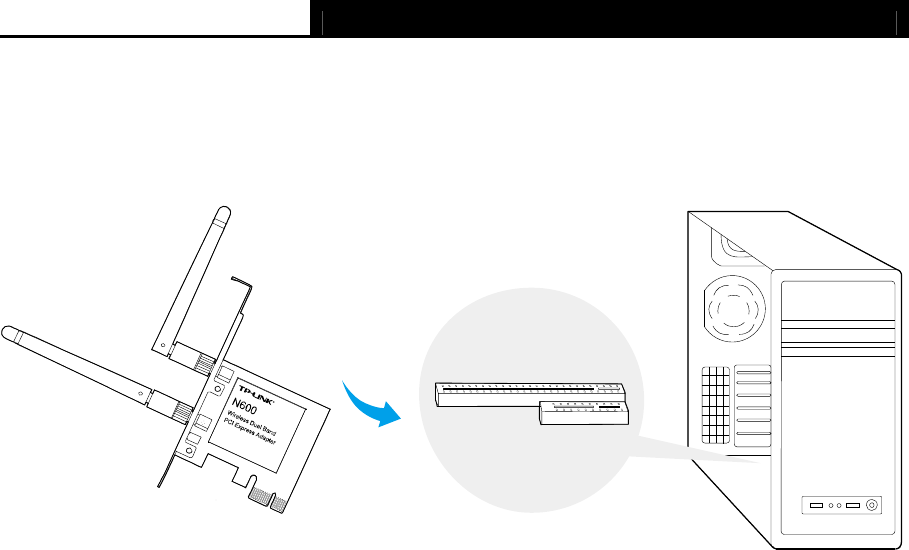

Insert the adapter into your computer by following these steps:
1. Install the antennas.
2. Turn off your computer, unplug the power cord and other connected peripheral devices to
your computer.
3. Remove the case panel. Locate an available PCI-E slot and remove its slot cover.
4. Carefully insert the adapter into the PCI-E slot and secure it with the retaining screw.
5. Replace the case panel.
6. Reconnect the power cord and turn on your computer.
Note:
In Windows XP/Vista, a Found New Hardware Wizard window will appear when the adapter is
detected. Please click Cancel.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
3
Chapter 3 Install Driver and Utility
The Setup Wizard will guide you through the installation procedures. We use the procedures in
Windows 7 as an example - the procedures may vary slightly for other versions of Windows.
1. Insert the resource CD into your CD drive and click the Run Autorun.exe from the pop-up
AutoPlay window. Select TL-WDN3800 and click Install Driver and Utility to begin.
Note:
- The CD is included in the package. If your CD does not work or your computer doesn't
support the CD, you can also download the driver and utility from the TP-LINK website
(www.tp-link.com).
- In some operating systems, the CD screen will pop up automatically. Otherwise, run the CD
manually.
2. The InstallShield Wizard window displays. Click Next to continue.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
4
3. Choose a setup type. It is recommended to select Install TP-LINK Wireless
Configuration Utility and Driver. Click Next.
4. If you want to change install location, click Change to specify the location for the software
installation. Or you can leave it default. Click Next.
5. Click Install. After a few minutes, the installation completes. Click Finish.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
5
6. TP-LINK utility pops up after installation. Its icon appears on the desktop as and in
the Windows system tray as . You can use the TP-LINK utility to join a Wi-Fi network
with your adapter. For more guidance, please refer to Join a Wireless Network.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
6
Chapter 4 Join a Wireless Network
There are three options of using the adapter to join a Wi-Fi network.
Option 1: TP-LINK Utility
TP-LINK Utility lets you easily connect the adapter to a Wi-Fi network and manage the adapter.
Option 2: WPS (Wi-Fi Protected Setup)
WPS (Wi-Fi Protected Setup) is a network security standard for easily adding computers and
other devices to a home network. Use this method if your wireless router or access point
supports WPS.
Option 3: Windows Wireless Utility
You can use the Windows WLAN Autoconfig service (for Windows 8.1/8/7/Vista) and the
Wireless Zero Configuration service (for Windows XP) to join a Wi-Fi network.
4.1 TP-LINK Utility

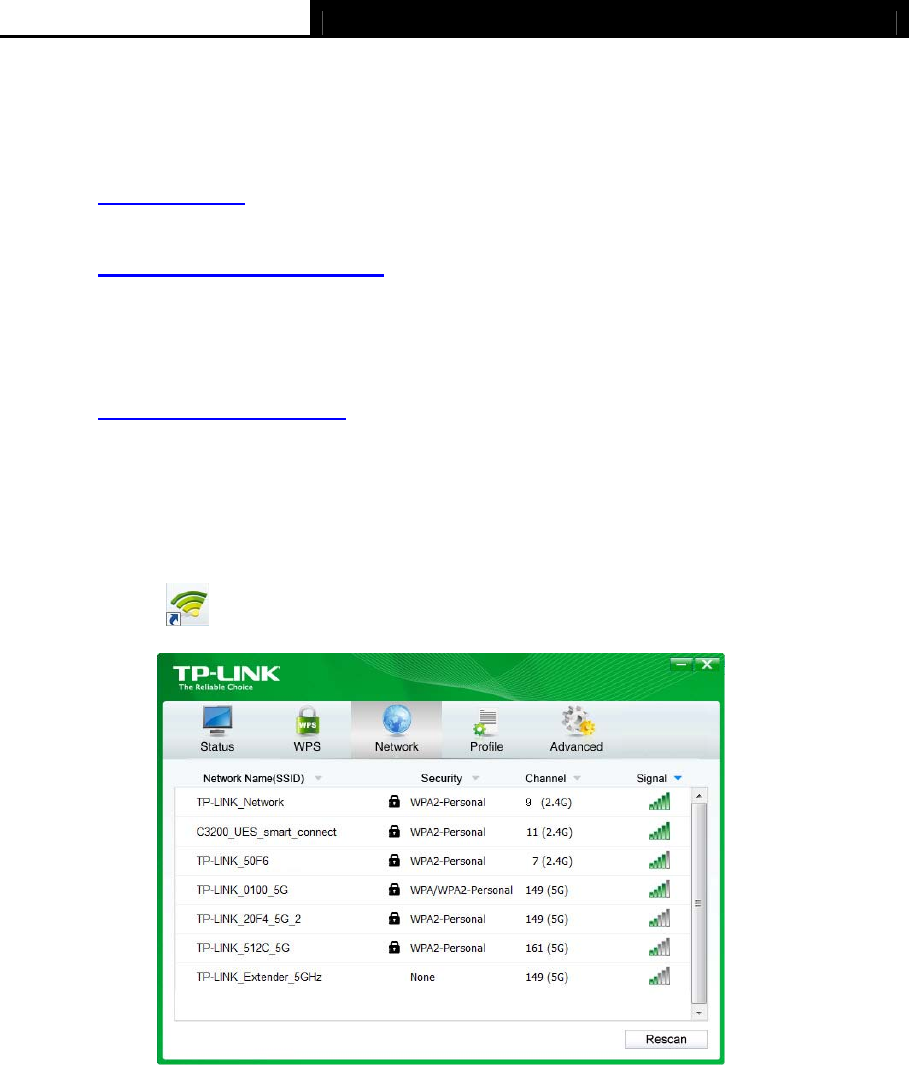

1. Double-click (TP-LINK Utility icon). The Network screen displays.

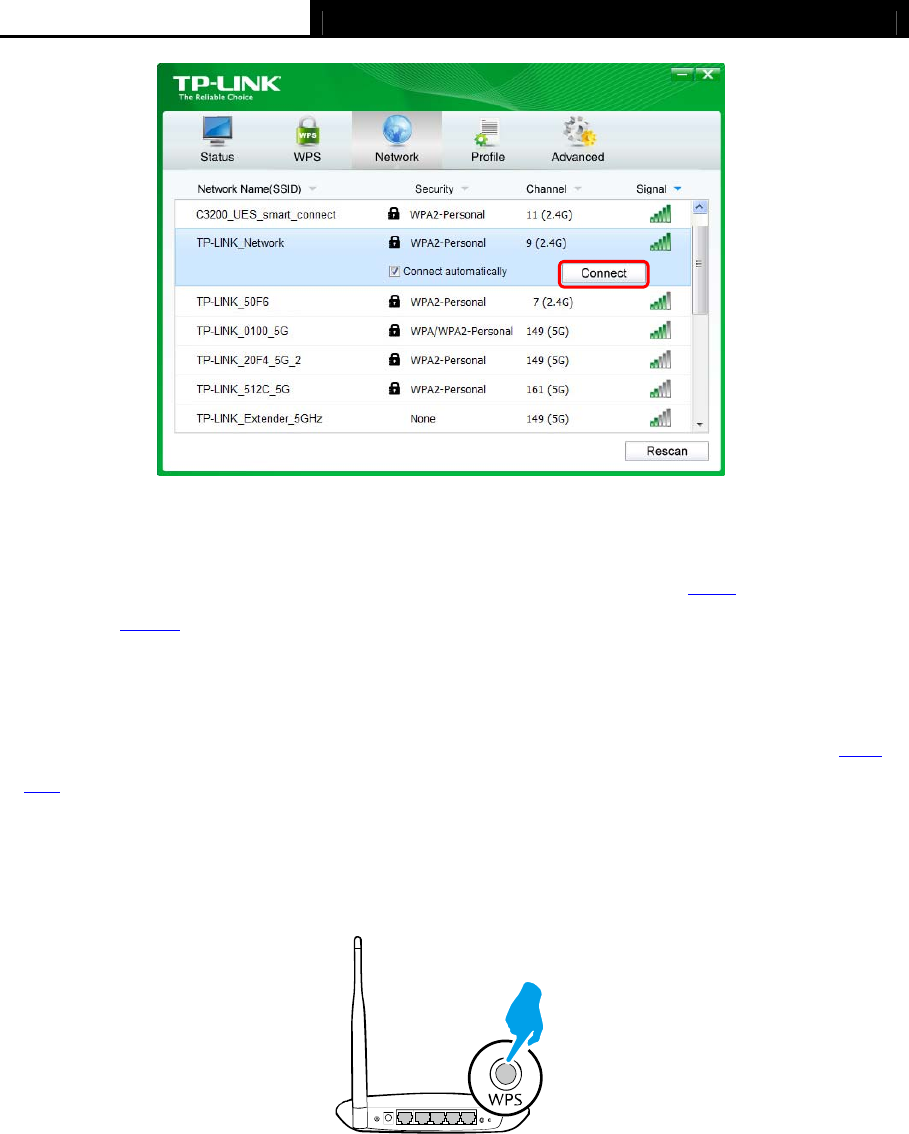

2. Select the network you want to join from the list on this screen and click Connect. If you
want the adapter to automatically connect to the network next time, select the Connect
automatically checkbox. Enter your Wi-Fi password when prompted.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
7
Note:
If your Wi-Fi network is not displayed in the list, you can try to join it by WPS or by adding a
profile in the Profile screen.
4.2 WPS (Wi-Fi Protected Setup)
WPS can be activated via PBC (Push Button Configuration) and PIN code. Please refer to PBC
or PIN below.
PBC
1. Press the WPS/QSS button on your router or AP.

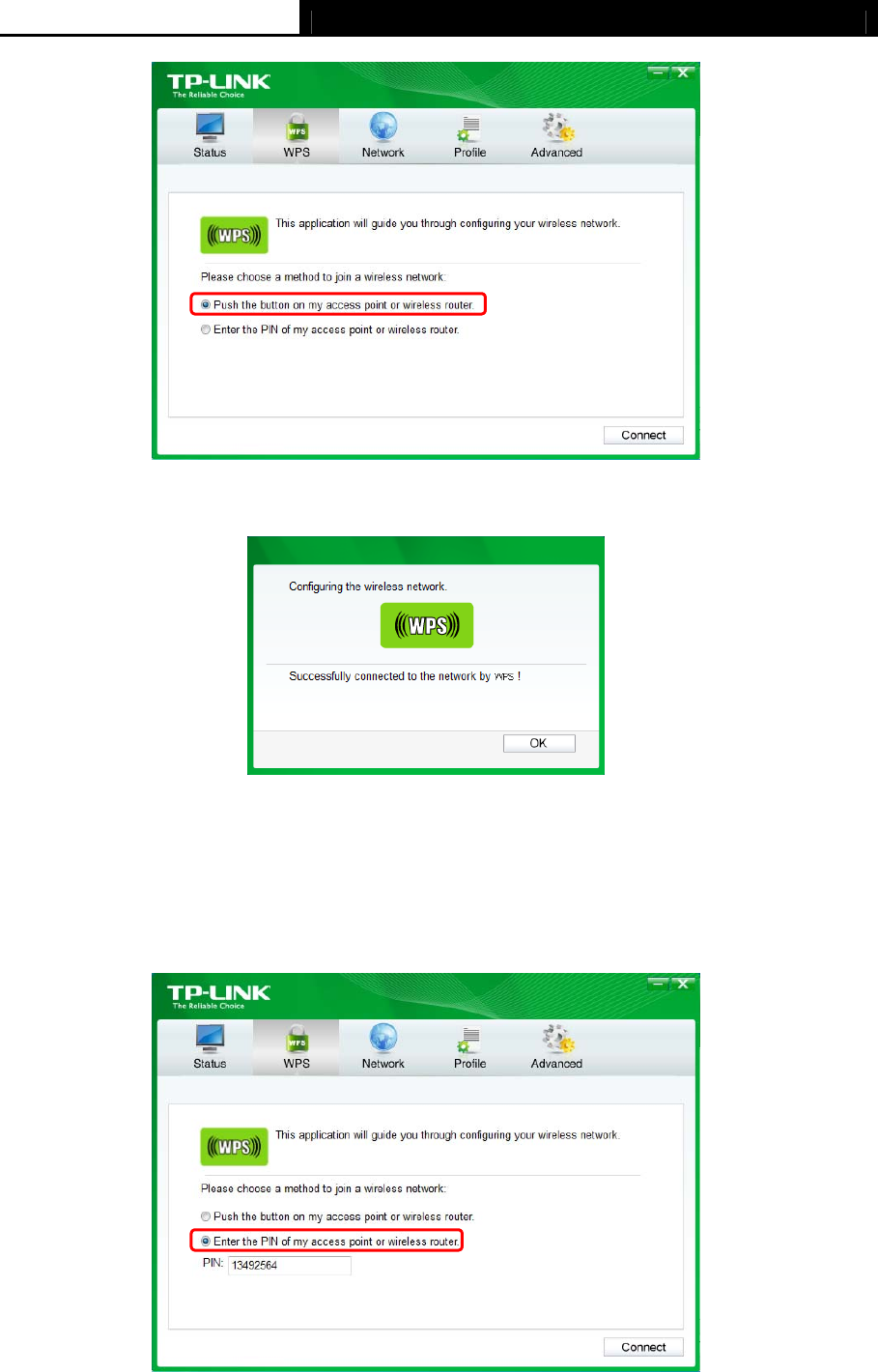

2. Open TP-LINK Utility and click WPS tab. Select Push the button on my access point or
wireless router and click Connect.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
8
3. The following screen indicates a successful connection by WPS. Click OK.
PIN
Option 1
1. Open TP-LINK Utility and click WPS tab. Select Enter the PIN of my access point or
wireless router. Enter the PIN of your router or AP. Click Connect.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
9
Note:
The default PIN of your router or AP is printed on the product label of your router or AP. If you
generated a new PIN for your router, please enter the new one.
2. The following screen indicates a successful connection by WPS. Click OK.
Option 2 (For Windows XP and Windows Vista only)

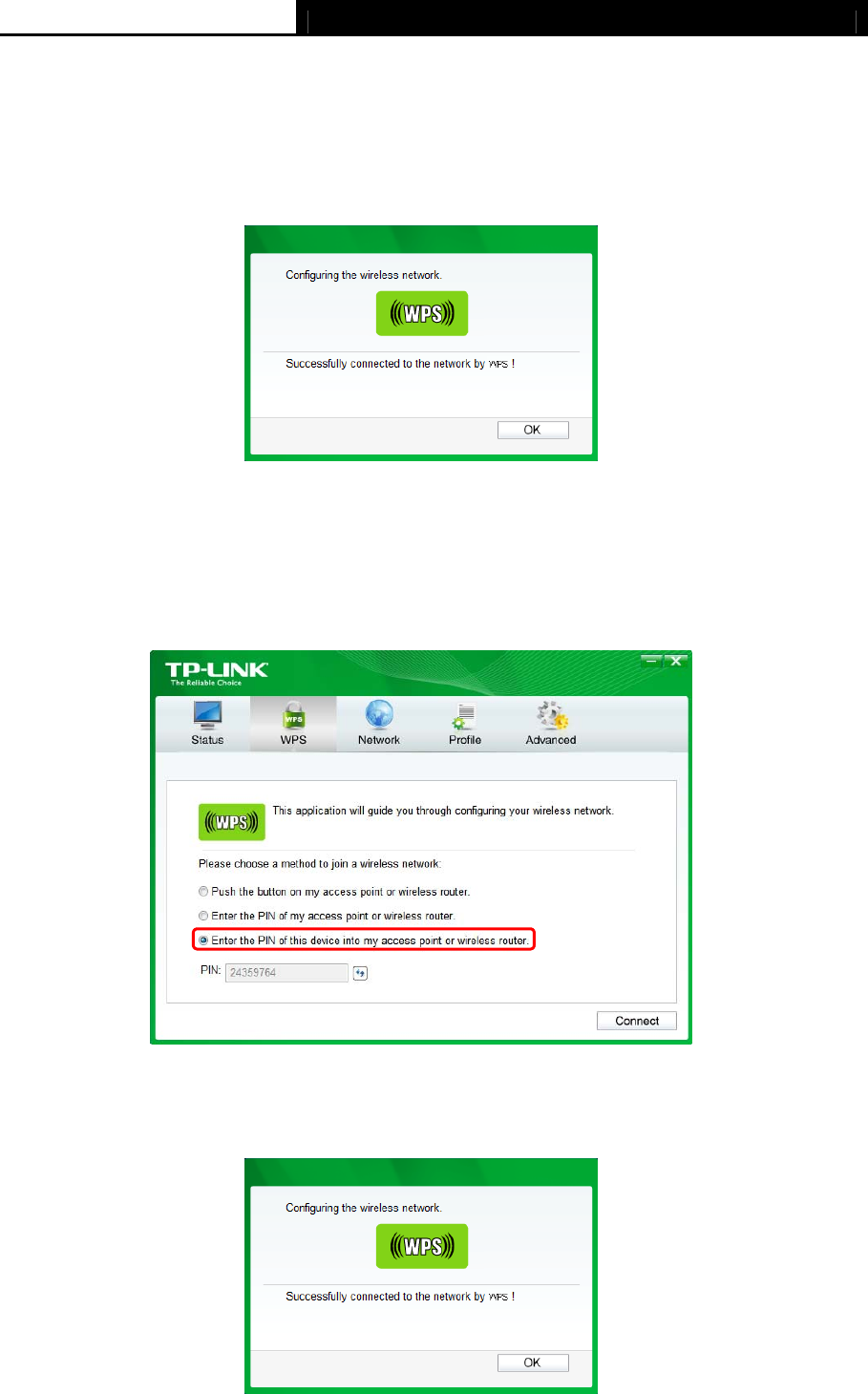

1. Open TP-LINK Utility and click WPS tab. Select Enter the PIN of this device into my
access point or wireless router. The screen displays a PIN of the adapter, which is
generated randomly. Click Connect.
2. Log in to the Web Management page of your router or AP. Go to the WPS page, enter the
PIN of the adapter in the corresponding field and click Connect.
3. The following screen indicates a successful connection by WPS. Click OK.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
10
4.3 Windows Wireless Utility
Follow the instructions in the appropriate section below to use your computer system’s built-in
wireless utility: Windows 8.1/8/7, Windows XP, Windows Vista.
Windows 8.1/8/7
1. Click or (Network icon) on the system tray. Select the network you want to join,
and click Connect. Enter your Wi-Fi password when prompted.
Note:
If you do not want to enter the Wi-Fi password, you can also join a wireless network either by
pushing the WPS or QSS button on your router or AP, or entering the PIN of your router when
the screen prompts you to do so, and click Next.
2. When Connected displays next to the network name (SSID) on the screen, it indicates a
successful network connection.
Windows XP
1. Right-click (TP-LINK Utility icon) on the system tray. (If you do not see the icon, click
the hidden icons arrow on the system tray.) Select Switch to Windows wireless
configuration tool.
Or you can open the TP-LINK Utility, select Advanced tab, then select Use Windows
wireless configuration tool.
2. Right-click (Windows XP Wireless Zero Configuration Utility icon) on the system tray,
and select View Available Wireless Networks.
3. Select the network you want to join, and click Connect. Enter your Wi-Fi password when
prompted.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
11
Windows Vista

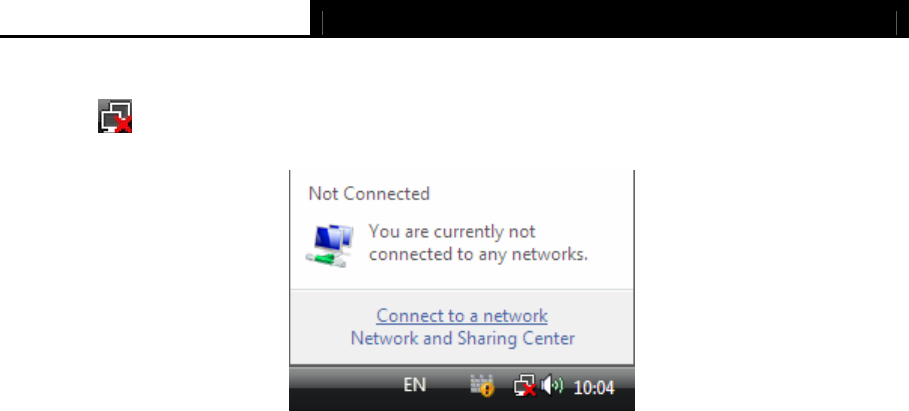

1. Click (Network icon) on the system tray and select Connect to a network.
2. Select the network you want to join, and click Connect. Enter your Wi-Fi password when
prompted.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
12
Chapter 5 Management
TP-LINK Utility provides you with an easy way to manage your adapter. It includes the following
sections:
Status - View the information of the current Wi-Fi network connection and of the adapter.
Profile - Save or manage various Wi-Fi network connection settings.
Advanced - Turn on or off the SoftAP mode (for Windows 7 and above) and power saving
mode, switch between TP-LINK Utility and Windows Wireless Utility (for Windows XP only).
SoftAP - Configure the settings of the network shared by your adapter, and view the IP address
of your adapter when it works on SoftAP mode.
About – View your adapter’s Utility version and its Driver version.
Double-click (TP-LINK Utility icon) and click the Status, Profile or Advanced tab to
manage the corresponding section of your adapter.
5.1 Status
You can view the IP address and MAC address of the adapter, the signal strength of the Wi-Fi
network, and other information of the network status as shown in the following figure.
5.2 Profile
The Profile screen lets you save and manage different Wi-Fi network connection settings as
profiles so that you can quickly and simply connect to your network. Moreover, you can join a
hidden Wi-Fi network that does not broadcast its SSID by adding a profile, provided that you
know its wireless settings, such as SSID, security type, and encryption type. For more details,
please refer to the instructions below: To add a new profile, To join a Wi-Fi network, To manage
an existing profile.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
13
To add a new profile

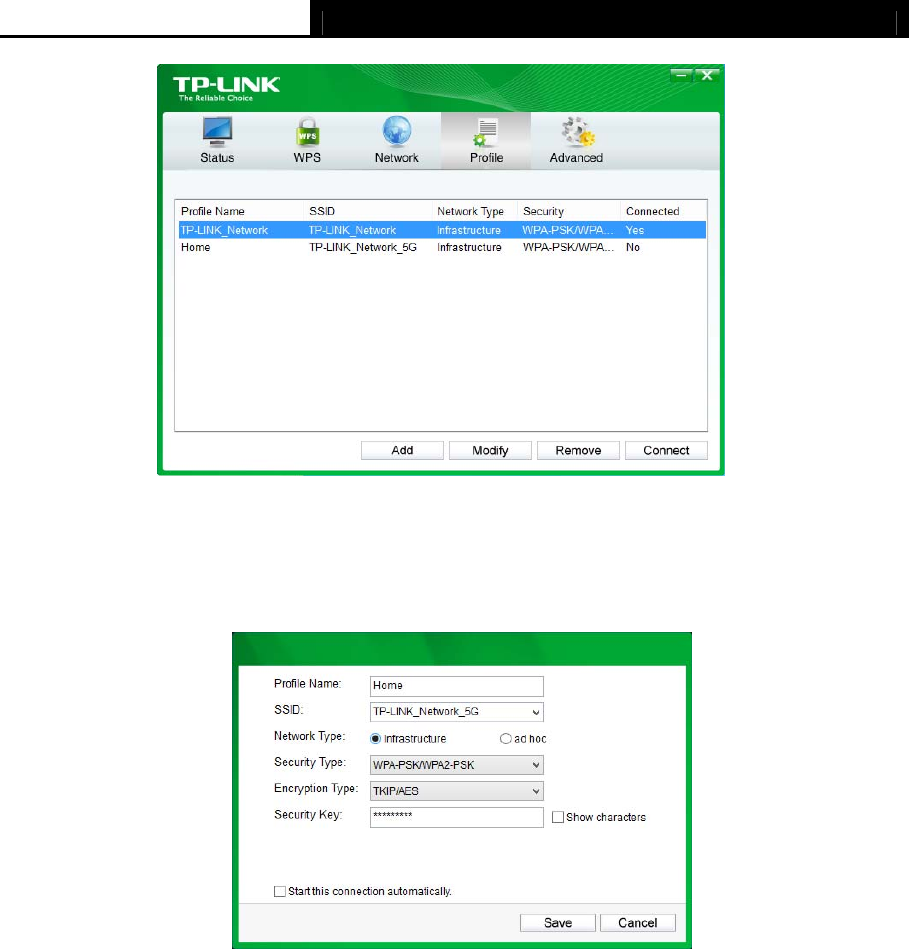

1. Click the Add button, and then a new window will open.
2. Complete the settings as shown in the following figure, and click Save.
Profile Name - Enter a name for your profile, such as Home, Office, Coffeehouse. Do not enter
the profile name that already exists.
SSID - Select your Wi-Fi network from the drop-down list or enter your Wi-Fi network name
manually.
Network Type - Select Infrastructure if you want to connect to a wireless router or an access
point. Select ad hoc if you want to connect to another wireless client, such as an adapter.
Infrastructure
If you select Infrastructure, you are asked to select or enter the corresponding wireless
settings, which should be the same as those of your Wi-Fi network.
ad hoc

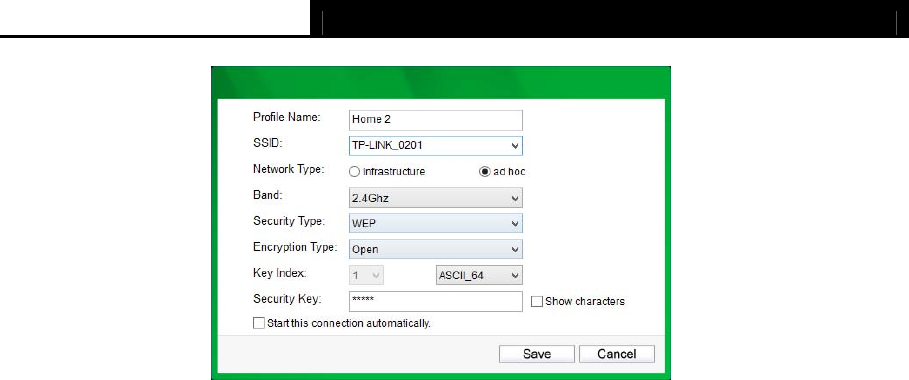

If you select ad hoc, you are asked to configure the wireless settings for your network, including
choosing the operating frequency band, the security type, the encryption type and setting a
security key.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
14
Note:
As for Key Index, you can select ASCII or Hexadecimal format from the drop-down list.
ASCII_64 - Please enter 5 ASCII characters.
ASCII_128 - Please enter 13 ASCII characters.
Hexadecimal_64 - Please enter 10 Hexadecimal digits (any combination of 0-9, a-f, A-F,
excluded space).
Hexadecimal_128 - Please enter 26 Hexadecimal digits (any combination of 0-9, a-f, A-F,
excluded space).
To join a Wi-Fi network
If you want to join a Wi-Fi network that listed in the profile screen, select the profile and click
Connect button in the bottom right corner.
To manage an existing profile
If you want to change the name or the wireless settings of an existing profile, select it and click
the Modify button in the bottom right corner of the Profile screen, then you can edit the settings
of this profile. If you want to delete a profile that you no longer use, select it and click the
Remove button.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
15
5.3 Advanced
Select wireless configuration tool - In Windows XP. You can either use TP-LINK Utility or
Windows wireless configuration tool. While in other operating systems, since you can use both
TP-LINK Utility and Windows wireless configuration tool at the same time, this function is
disabled.
Wireless network adapter switch - If you’ve installed several adapters in your computer, you
can switch to another adapter among the drop-down list.
SoftAP mode - Once ON is selected, the adapter will work as an AP. (For Windows 7 and
above)
Power Save mode - Once ON is selected, the adapter will automatically reduce its power
consumption when not being used.
5.4 SoftAP (For Windows 7 and above)
SoftAP is short for Software enabled Access Point. When the adapter works in SoftAP mode, it
allows the computer to create a wireless hotspot that other wireless devices nearby can use.
To switch to SoftAP mode, right-click the utility icon in the system tray and select Switch
to SoftAP mode.
After switching to SoftAP mode, the SoftAP icon appears in the utility. Click the SoftAP tab, and
complete the settings, then click Apply for the settings to take effect.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
16
Soft AP mode: Select ON or OFF to enable or disable this function.
Internet Connecting Share(ICS): Select a network connection that can access to the
Internet from the drop-down list. For example, if your computer is connecting to the Internet
via an Ethernet cable, you should select the corresponding Local Area Connection so as
to share the network with other wireless devices.
SSID: Set a name for the wireless network shared by your adapter. The default is SoftAP.
Security Type: The security type here is set to be WPA2-PSK which is based on 802.11i
and uses AES (Advanced Encryption Standard).
Encryption Type: The encryption type here is set to be AES.
Security Key: Set a security key for the wireless network that shared by your adapter. It is
recommended that you specify another key instead of the default key 12345678. When
another wireless device connects to the network shared by your adapter, it will be asked to
enter the corresponding security key.
IP Address: Displays the IP address of the adapter when it works in SoftAP mode. You
can also check if the network shared by your adapter is working properly by checking this
IP Address. For example, if the IP Address is 0.0.0.0, it means that the Internet connection
is failed.
5.5 About
You can view the adapter’s information in the About screen, such as the UI version (Utility
version) and the Driver version. Right-click (TP-LINK Utility icon) in the system tray and
select About, then the About screen displays.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
17
Chapter 6 Uninstall Driver and Utility
The software uninstallation steps vary a bit in different systems, please follow the appropriate
instructions for your Windows operating system: Windows 8/8.1, Windows XP/Vista/7.
Windows 8/8.1
Uninstall driver:
Go to Start > Apps, and find the TP-LINK application. Click Uninstall - TP-LINK TL-WDN3800
Driver, then follow the on-screen instructions to complete the uninstallation.
Uninstall utility:
Go to Start > Apps, and find the TP-LINK application. Click Uninstall - TP-LINK Wireless
Configuration Utility, then follow the on-screen instructions to complete the uninstallation.
Windows XP/Vista/7
Uninstall driver:
Go to Start > All Programs > TP-LINK > Uninstall - TP-LINK TL-WDN3800 Driver. Follow the
on-screen instructions to complete the uninstallation.
Uninstall utility:
Go to Start > All Programs > TP-LINK > Uninstall - TP-LINK Wireless Configuration Utility.
Follow the on-screen instructions to complete the uninstallation.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
18
Appendix A: Specifications
Normal
Interface PCI Express x1
Standards IEEE802.11a; IEEE802.11b; IEEE802.11g; IEEE802.11n;
IEEE802.1x; IEEE802.11e; IEEE802.11i
Operating System Windows XP, Windows Vista, Windows 7, Windows 8,
Windows 8.1
Throughput 2.4GHz: 300Mbps (Maximal)
5GHz: 300Mbps (Maximal)
Data Security WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Frequency* 2.4 ~ 2.4835 GHz, 5.180 ~ 5.240GHz,
5.260~ 5.320GHz, 5.745 ~ 5.825GHz
Environmental and Physical
Working Temperature 0℃~ 40℃ (32℉~104℉)
Storage Temperature -40℃~70℃(-40℉~158℉)
Working Humidity 10% ~ 90% RH, Non-condensing
Storage Humidity 5% ~ 90% RH, Non-condensing
* 1. Only 2.412GHz~2.462GHz is allowed to be used in USA, which means only channel 1~11 is
available for American users to choose.
* 2. Rules on the use of 5GHz band channels may vary according to different national laws.
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
19
Appendix B: Glossary
802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) was formed to help accelerate the IEEE 802.11n development process and promote a
technology specification for interoperability of next-generation wireless local area networking
(WLAN) products.
802.11g - Specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
802.11a - Specification for wireless networking at 54 Mbps using OFDM modulation and
operating in radio band at 5GHz.
Ad hoc Network - An ad hoc network is a group of computers, each with a Wireless Adapter,
connected as an independent 802.11 wireless LAN. Ad hoc wireless computers operate on a
peer-to-peer basis, communicating directly with each other without the use of an access point.
Ad hoc mode is also referred to as an Independent Basic Service Set (IBSS) or as
peer-to-peer mode, and is useful at a departmental scale or SOHO operation.
Infrastructure Network - An infrastructure network is a group of computers or other devices,
each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode,
the wireless devices communicate with each other and to a wired network by first going
through an access point. An infrastructure wireless network connected to a wired network is
referred to as a Basic Service Set (BSS). A set of two or more BSS in a single network is
referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a corporation
scale, or when it is necessary to connect the wired and wireless networks.
SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name. See also Wireless Network
Name and ESSID.
WEP - (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard. To gain access to a
TL-WDN3800 N600 Wireless Dual Band PCI Express Adapter User Guid
20
WEP network, you must know the key. The key is a string of characters that you create.
When using WEP, you must determine the level of encryption. The type of encryption
determines the key length. 128-bit encryption requires a longer key than 64-bit encryption.
Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or
ASCII (American Standard Code for Information Interchange – alphanumeric characters)
format. ASCII format is provided so you can enter a string that is easier to remember. The
ASCII string is converted to HEX for use over the network. Four keys can be defined so that
you can change keys easily.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards
group promoting interoperability among 802.11b devices.
WPA - (Wi-Fi Protected Access) - A wireless security protocol uses TKIP (Temporal Key
Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

Navigation menu
