User Guide

TL-ANT2414B

2.4GHz 14dBi Outdoor Directional Antenna

71065500

REV:1.0.0

1

COPYRIGHT & TRADEMARKS

Specifications are subject to change without notice.

is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD.

Other brands and product names are trademarks or registered

trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by

any means or used to make any derivative such as translation,

transformation, or adaptation without permission from TP-LINK

TECHNOLOGIES CO., LTD. Copyright © 2008 TP-LINK

TECHNOLOGIES CO., LTD. All rights reserved.

2

Specification

Electrical Properties:

¾ Frequency Range: 2.4GHz ~ 2.5GHz

¾ Impedance: 50Ω Nominal

¾ VSWR: 1.92 Max.

¾ Return Loss: -10dB Maximum

¾ Radiation: Directional

¾ Gain: 14dBi

¾ Admitted Power: 1W

Physical Properties:

¾ Cable: CFD-200 Coaxial Cable

¾ Antenna Cover: ABS

¾ Operating Te m p : -20℃ ~ +65℃

¾ Storage Temp: -30℃ ~ +75℃

¾ Color: Gray

¾ Connector: N-Type Jack (Female)

Website: http://www.tp-link.com

3

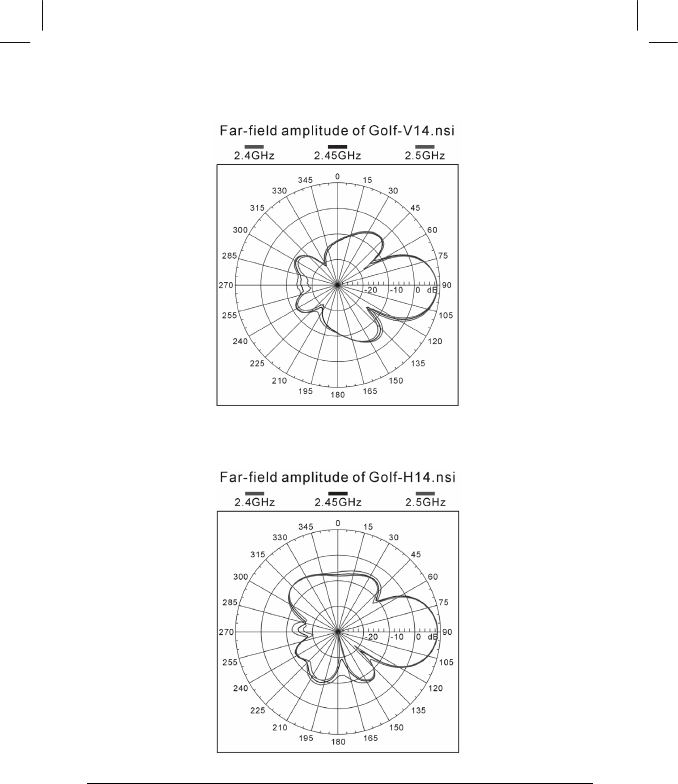

Field Pattern

4

Installation

There are two methods to install the antenna:

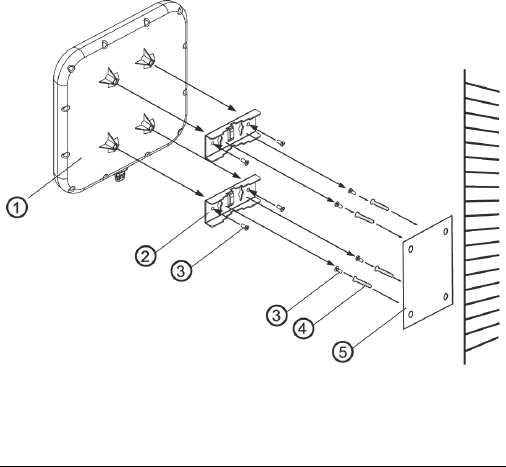

1. Wall Mounting

① Antenna 1 pc

② Holder 2 pc

③ Screws 8 pcs

④ Plastic Fixings 4 pcs

⑤ Sticker 1 pc

5

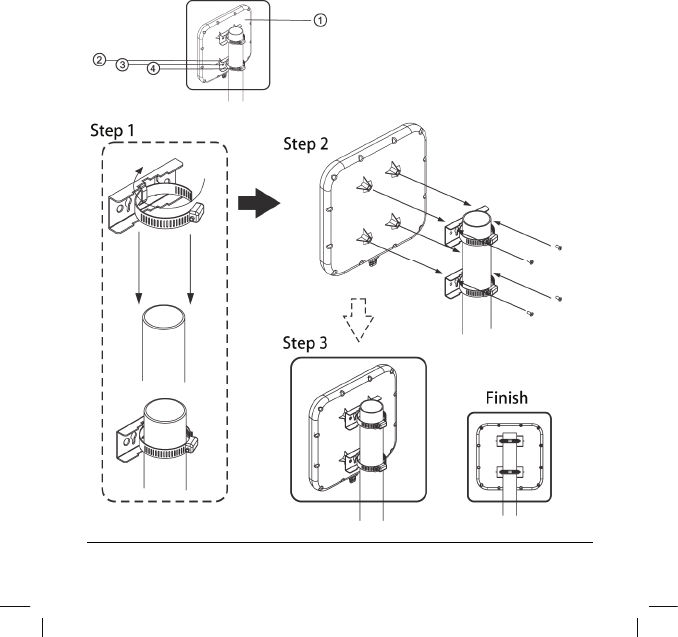

2. Pole Mounting

① Antenna 1 pc

② Holder 2 pc

③ Screws 4 pcs

④ Hose Clamp 2 pc
