TrackMan A S TMAN4 Field Disturbance Sensor User Manual TMA4A Installation and safety instructions
TrackMan A/S Field Disturbance Sensor TMA4A Installation and safety instructions
Installation and safety instructions
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 1 of 13
TrackMan™ Radar Unit
Installation and Safety Instruction
Model: TrackMan4 (TMA4A)
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 2 of 13
Contents
1
I
NTRODUCTION
...................................................................................................................... 3
2
S
AFETY
I
NSTRUCTIONS
.......................................................................................................... 4
2.1
Regulatory Notice ......................................................................................................... 4
2.2
Warning: Radiation Hazard .......................................................................................... 6
2.3
Caution: Safety precautions .......................................................................................... 7
3
I
NSTALLATION INSTRUCTIONS
............................................................................................... 8
3.1
System description ........................................................................................................ 8
3.2
System specifikations ................................................................................................... 9
3.3
Setting up the system .................................................................................................. 12
4
W
ARRANTY
C
OMMENTS
...................................................................................................... 13
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 3 of 13
1 Introduction
This document provides instructions and warning in order to safely install and operate the
TrackMan 4 Radar Unit
This document provides also instructions on how to make basic setup of the TrackMan™
system.
This document does not describe the TrackMan™ application software and how to operate it.
This is provided in separate document.
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 4 of 13
2 Safety Instructions
2.1 Regulatory Notice
FCC compliance
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies also with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes :
1) l'appareil ne doit pas produire de brouillage, et
2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 5 of 13
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TC technician for help.
Caution
Never try to open or repair the device yourself. Any changes or modifications not expressly
approved by TrackMan A/S could void the user’s authority to operate the device.
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 6 of 13
2.2 Warning: Radiation Hazard
Radiation Safety Warning.
This device radiates a low level of microwave electromagnetic radiation from the front
window and top when in use. The radiated power is significantly lower the international
safety standards for microwave frequencies. However, the user should maintain a minimum
distance of 20 cm from this device during operation.
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 7 of 13
2.3 Caution: Safety precautions
Use the following safety instructions to ensure your own personal safety and to help protect
the TrackMan™ radar unit.
General
• Do not attempt to service the device yourself. Always follow installation instructions
closely.
• Only use cables and accessories approved by TrackMan A/S together with your
TrackMan™ Radar Unit.
• The AC adaptor may become hot during normal operation of the TrackMan™ system.
Use care when handling the adaptor during or immediately after operation.
• If the TrackMan™ system has been used in wet weather, clean all items with a dry
cloth after use.
Power
• The TrackMan™ Radar Unit has a build in battery for stand-alone operations
• Do NOT cover the TrackMan™ Radar Unit while in use
• Only use the AC adaptor supplied with the TrackMan™ Radar Unit for battery
charging. Use of another adaptor may cause fire or explosion.
• Before you connect the TrackMan™ Radar Unit to an electrical outlet, check the AC
adaptor voltage rating to ensure that the required voltage and frequency match the
available power source.
• To help prevent electric shock, plug the AC adaptor and device power cables into
properly grounded power sources. These power cables may be equipped with 3-prong
plugs to provide an earth grounding connection. Do not use adaptor plugs or remove
the grounding prong from the power cable plug. If you use a power extension cable,
use the appropriate type, 2-prong or 3-prong, to mate the AC adaptor power cable.
• Make sure that the computer and AC adaptor connected to the TrackMan™ Radar
Unit are connected to the same power outlet. Failure to comply with this requirement
could cause electrical shock and create permanent damage on both the TrackMan™
Radar Unit and the computer.
• Place the AC adaptor in a ventilated and dry area. Do not cover the AC adaptor that
will reduce cooling.
• Be sure that nothing rests on your AC adaptors power cable and that the cable is not
located where it can be tripped over or stepped on.
TrackMan A/S accepts no liability for failure to comply with these requirements.
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 8 of 13
3 Installation instructions
3.1 System description
The TrackMan™ radar system is a standalone measurement system for the detection and
measurement of golf club and golf ball movements.
The system consists of:
• TrackMan™ Radar Unit model TMAN4
• Lap Top computer or PDA (not part of TMAN4 package)
• Interface USB cables (For service only)
• AC adaptor for battery charging
• TrackMan™ TPS software

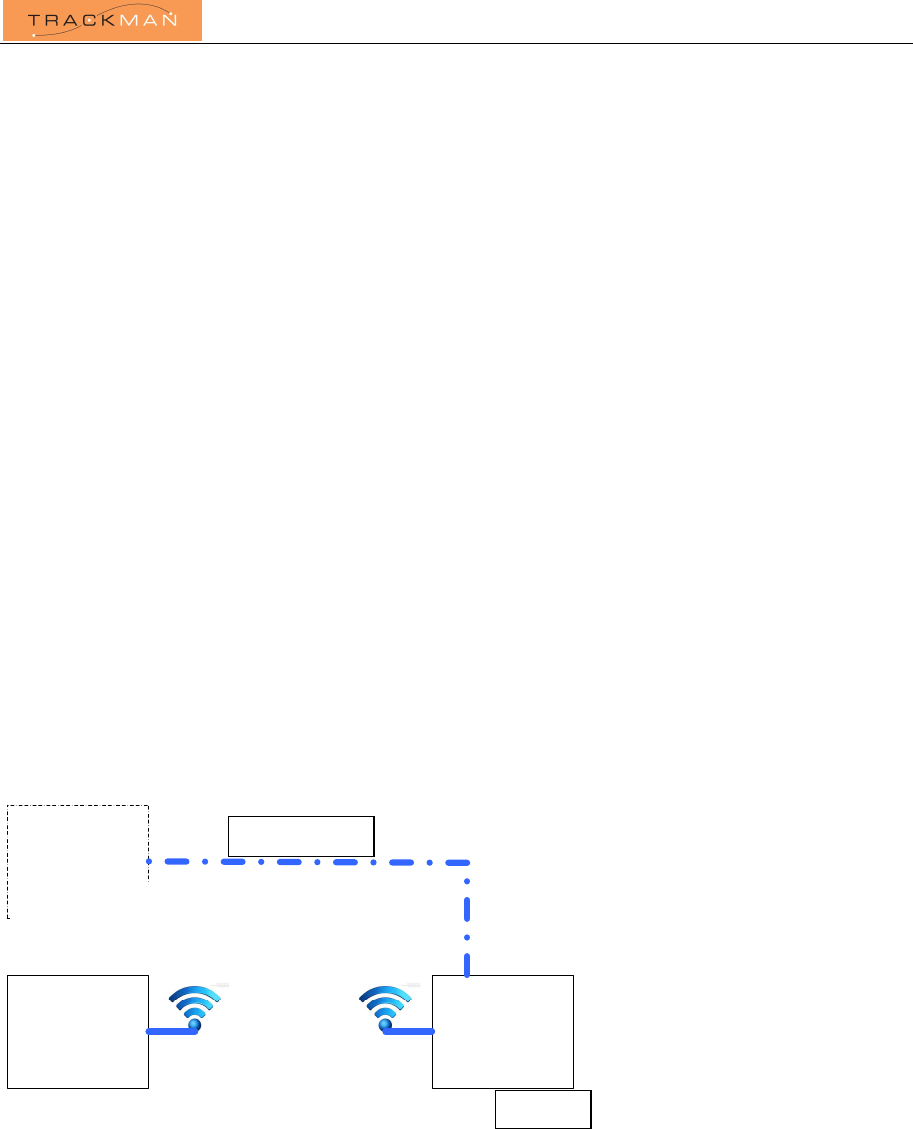

The following diagram depicts the TrackMan™ system:
AC adaptor
RADAR UNIT
TMANIIIe
PDA / Lap Top
CRAFTEC
LTEG5E-S4-P05-180
24 V DC
Figure 1: TrackMan™ system block diagram
For normal operation, the Radar is connected to a PDA / Laptop through a wireless WiFi
connection. The AC adaptor is only required for battery charging. Optionally a Gigabit
Ethernet connection are provided for fixed installation.
19
VDC
TMA4A
FSP Group Inc.
FSP065
-
RECN2
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 9 of 13
3.2 System specifikations
The TrackMan™ radar unit is a robust construction, with chassis made of polycarbonate. The
front of the TrackMan™ has an orange logo from where behind the microwave radiation is
transmitted and received. The WiFi antennas are integrated in the unit and place on top of the
Radar.

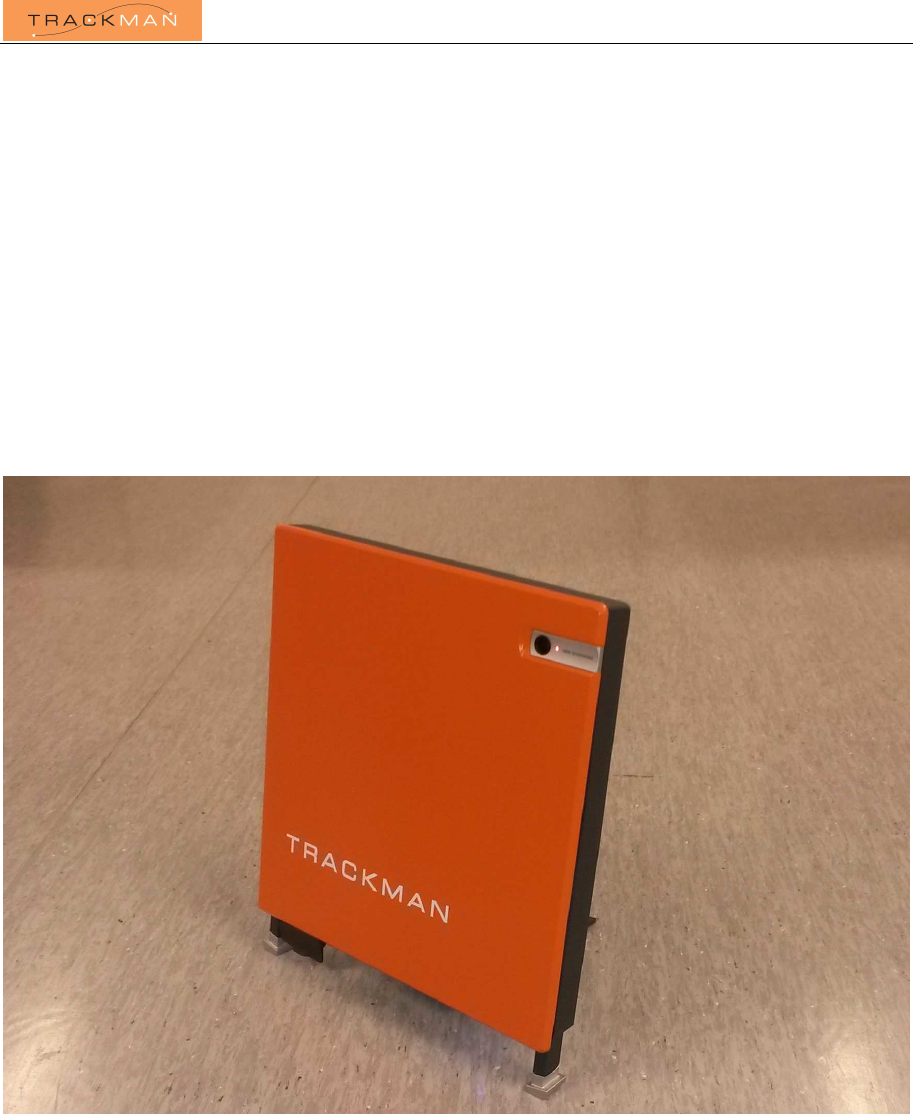

Figure 2: TrackMan™ radar unit, model TMAN4 front view
The TrackMan™ Radar Unit also has a built-in digital camera, which looks out through a
window in the front.
WARNING !
Make sure that the orange front and the camera window of the TrackMan™ Radar Unit
is handled with care. Avoid any load or bumping into with the front of the TrackMan™
Radar Unit.
Microwave radiation window
Wi-Fi Antenna
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 10 of 13
TrackMan™ Radar Unit , model TMAN 4
Operating Frequency CE Market:
10.500 - 10.600GHz
24.000 - 24.250GHz
US + CDN Market:
10.500 - 10.550GHz
24.075 - 24.175GHz
Operating frequency is fixed during manufacture
Transmitter power +17dBm (10GHz, US market)
+12dBm (10GHz, CE Market)
+8 dBm (24GHz)
Antenna gain 15 dB (10GHz)
12 dB (24GHz)
Horizontal beam 65° (± 14°)
Vertical beam 19° shaped (-5° to +60°)
Dimensions Width: 310 mm
Depth: 60 mm
Height: 310 mm
Mass ~3 kg
Main power supply 19VDC,
65W maximum during charging
Data interface Primary
Secondary WiFi, 5GHz 802.11n
WiFi, 2.4GHz 802.11 b/g/n
USB2.0 high speed (Service Only)
Gigabit Ethernet
Environmental, operating +5°C to + 40°C (+41°F to +104°F) ambient
100% humidity
Environmental, storage -20°C to + 55°C (-4°F to +131°F) ambient
100% humidity
WiFi 2.4GHz 802.11 b/g/n
5GHz 802.11n
The TrackMan™ Radar Unit consists of the following sub-assemblies and/or printed circuit
board assemblies:
• Radar analog signal processing
• Antennas for transmitting and receiving
• Embedded Computer Module for Radar Data Processing
• Adjustable legs with motors
• Digital camera
• Battery charger
• WiFi modules
• GPS receiver
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 11 of 13
The TrackMan™ Radar Unit is splash proof and designed to withstand rain showers. When
using the TrackMan™ system in very wet weather it might be necessary to dry off water
drops at the camera window, in order to get proper pictures of the landing field.
The TrackMan™ Radar Unit has two motorized legs for leveling the radar unit.

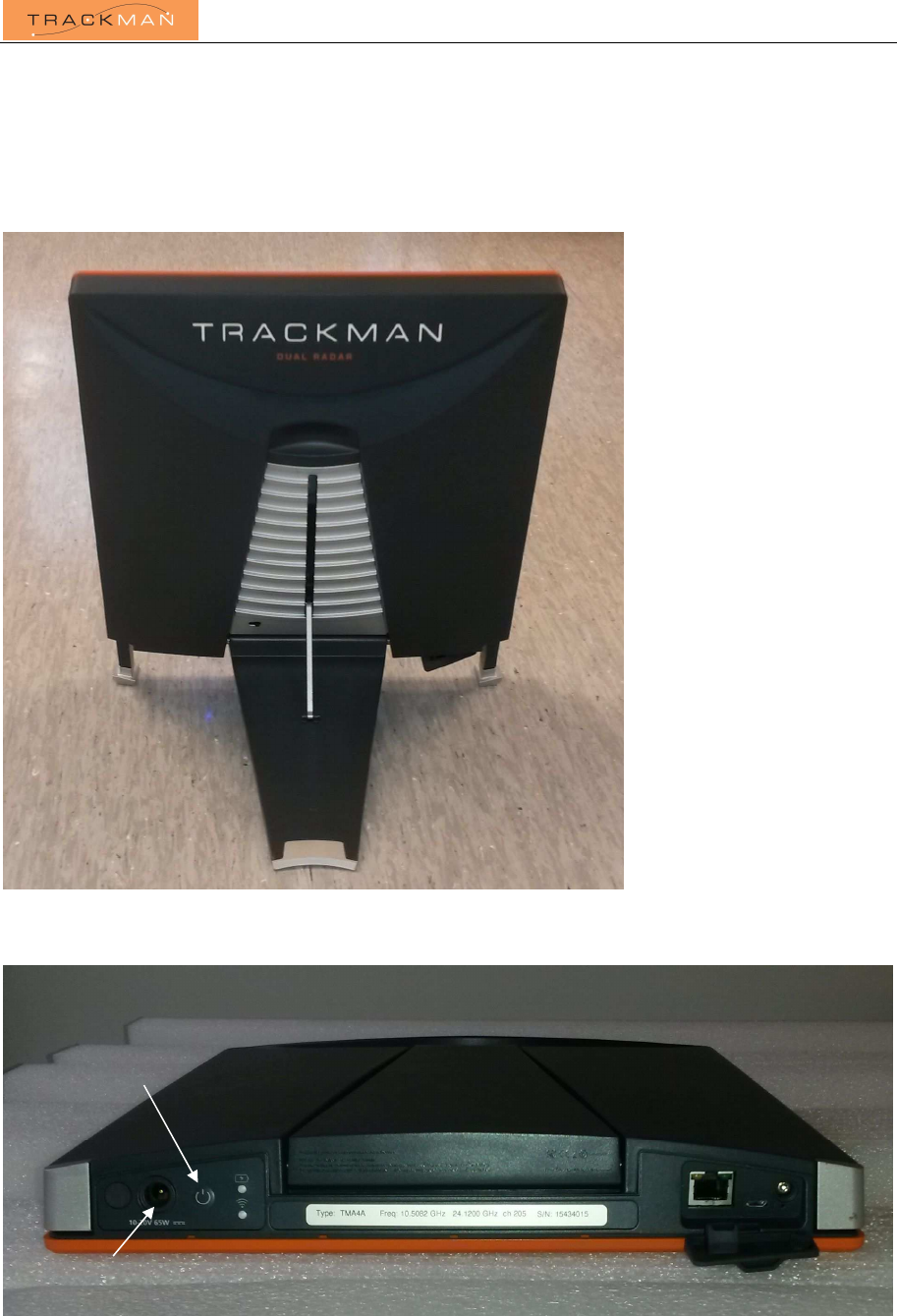

Figure 4: TrackMan™ radar unit, model TMAN4 back side view
Figure 4: TrackMan™ radar unit, model TMAN4 bottom view
Power ON
DC power input
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 12 of 13
3.3 Setting up the system
This section explains how to connect and set up the system in a typical Golf Application.
The system requires a free line-of-sight to the ball throughout the complete flight of the ball in
order to be able to deliver measurement data.

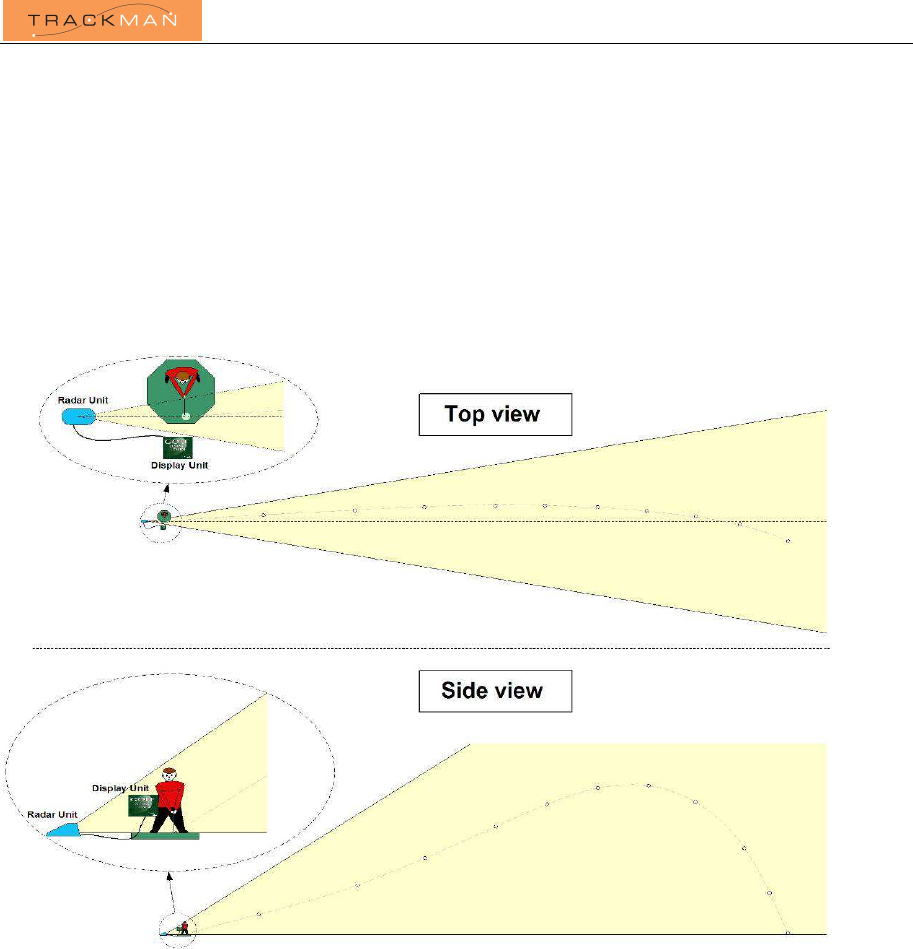

Figure 3: Recommended placement of the TrackMan™ Radar Unit.
The TrackMan™ Radar Unit should be placed roughly 2½-3m directly behind the desired tee-
off position. The camera window should be in a straight line to the ball – if anything better a
little to the right (for right-hand players) than to the left of the ball!
The system requires a free line-of-sight to the ball throughout the complete flight. Avoid
standing in front of the radar in such a way, that if you hook the ball, you will be blocking the
radar beam.
Avoid as much as possible large obstacles, especially metallic obstacles, close to the radar and
within the beam of the radar. Metallic objects in the beam of the radar will have a negative
effect on the measurement accuracy.
TMAN4/Iss_1
TrackMan™ “TMAN 4” Installation and Safety Instructions
Issue 2, March 2016
Page 13 of 13
If it is impossible to avoid metallic obstacles in the beam, the accuracy can be increased by
adding intentionally reflectors or by using microwave absorbing materials to avoid the main
reflectors to enter the radar. Please consult TrackMan A/S support team for guidelines on how
to do this.
NOTE! Some types of fluorescent light tubes emit significant electromagnetic noise.
Placement of the TrackMan™ Radar Unit nearby such types of light tubes will have a
negative influence on the tracking capability of the TrackMan™ system.
4 Warranty Comments
The TrackMan™ Radar Unit contains NO user serviceable parts inside. In case of defect or
malfunctioning TrackMan™ Radar Unit, TrackMan A/S authorized personal ONLY must
repair the unit.
IMPORTANT The box is sealed to prevent unauthorized access to the inside of the
TrackMan™ Radar Unit. If the sealed is broken any warranty agreement will terminate
immediately. Warranty will also terminate immediately if:
• Use of non-approved AC adaptor or incorrect direct applied DC voltage
• Use of non-approved cables between the TrackMan™ Radar Unit and the computer in
fixed installation.
• If the TrackMan™ Radar Unit is not installed or operated in compliance with this
manual.
For full description of the warranty and the scope hereof, reference is made to the warranty
agreement between the user and TrackMan A/S.
