User’s Manual
For
RM01
Jun 2013
522 Gillingham
Sugar Land, Texas 77478
Phone: (281) 240-7233
Fax: (281) 240-7238
Copyright 2013 Naztec, Inc
All rights reserved.
![](/img.php?id=2103357&img=bg2.png)
Confidential
Theory of Operation for Radio Module (10971) Jan 2013 Page 1-2
Terms of Use Agreement
USE OF THIS SOFTWARE MANUAL IS SUBJECT TO THESE TERMS OF USE.
Agreement
Please read this User Agreement carefully before using the information provided in this Manual. This Agreement explains the terms and
conditions governing the use of this Manual ("Terms of Use"), and it is your responsibility to read and understand them. By using the
Manual you expressly agree to be bound by these Terms of Use and to follow them as well as all applicable laws and regulations
governing the Manual. If you do not agree to be bound by these Terms of Use, you may not access or use this Manual. Trafficware
reserves the right to change these Terms of Use at any time, effective immediately upon posting the Manual from our company website.
By continuing to use the Manual after we post any such change, you accept the revised Terms of Use. If you violate these Terms of Use,
Trafficware may terminate your use of the Manual, bar you from future use of the Manual, and take appropriate legal action against you.
Permitted Use
You agree that you are only authorized to read, view and retain a copy of pages of this Manual for your own personal use, and that you
will not duplicate, download, publish, modify or otherwise distribute the material on this Manual for any purpose other than to review
product information for personal use or the use of a government or non-profit organization.
No Commercial Use
Users may not use this Manual for any commercial purposes such as to sell merchandise or services of any kind. You must obtain our
prior written consent to make commercial offers of any kind, whether by advertisements, solicitations, links, or by any other form of
communication. Trafficware will investigate and take appropriate legal action against anyone who violates this provision.
Copyright
All content included on this Manual, including text, graphics, logos, icons, images, and software is the property of Trafficware. or its
content suppliers and is protected by United States and international copyright laws. This compilation (that is, the collection, arrangement
and assembly) of all content on this Manual is the exclusive property of Trafficware and is protected by U.S. and international copyright
laws. Trafficware reserves the right to revise the pages of the Manual or withdraw access to them at any time.
Trademarks
The logo and trademarks that appear throughout the Manual belong to Trafficware, its affiliates or third party trademark owners, and are
protected by U.S. and international trademark laws. Without express prior written permission, you may not display or use in any manner,
the logos or trademarks. Nothing in this Manual shall be construed as granting any license or other right to the intellectual property or
other proprietary rights of Trafficware, its affiliates or any third party, whether by estoppels, implication or otherwise. All contents of the
Manual are: © Copyright 2012 Trafficware or its licensors. All Rights Reserved.
Disclaimer of Warranty
YOU UNDERSTAND AND EXPRESSLY AGREE THAT YOUR USE OF THE MANUAL AND THE INFORMATION FOUND
THERE IS ENTIRELY AT YOUR RISK. TRAFFICWARE AND ITS AFFILIATES AND LICENSORS MAKE NO WARRANTIES
OR ANY REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF TITLE OR NON-INFRINGEMENT OR IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, NON-INFRINGEMENT OR OTHER VIOLATION OF RIGHTS IN RELATION TO THE
AVAILABILITY, ACCURACY, VALIDITY, COMPLETENESS, RELIABILITY OR CONTENT OF THESE PAGES AND/OR THE
MANUAL. TRAFFICWARE SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES, LOST PROFITS OR FOR BUSINESS INTERRUPTION ARISING OUT OF THE USE OF OR
INABILITY TO USE THIS MANUAL, EVEN IF TRAFFICWARE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY LAW, YOU HEREBY RELEASE AND FOREVER WAIVE ANY
AND ALL CLAIMS YOU MAY HAVE AGAINST TRAFFICWARE, ITS AFFILIATES AND LICENSORS FROM LOSSES OR
DAMAGES YOU SUSTAIN IN CONNECTION WITH YOUR USE OF THE MANUAL.
SOME JURISDICTIONS DO NOT ALLOW EXCLUSION OF CERTAIN WARRANTIES OR LIMITATIONS OF LIABILITY, SO
THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THE LIABILITY OF TRAFFICWARE WOULD IN
SUCH CASE BE LIMITED TO THE GREATEST EXTENT PERMITTED BY LAW.
Applicable Law
These Terms of Use and all legal issues related to the Manual shall be governed by the laws of the State of Texas, without regard to
conflict of laws principles. You agree that any dispute involving these terms of use or this Manual will be heard in a court with
jurisdiction in Fort Bend County, Texas. You further agree that the prevailing party in any legal action will be entitled to recover its
reasonable attorneys fees incurred in connection with that action. If for any reason a court of competent jurisdiction finds any provision
of these Terms of Use to be unenforceable, the remaining terms will continue in full force and effect.
Entire Agreement
These Terms of Use are the final and entire agreement between you and Trafficware with respect to this subject and replace
any and prior or contemporaneous understandings or agreements, written or oral, regarding the subject matter. Any waiver
of any provision of these Terms of Use shall be effective only if in writing and signed by an authorized representative of
![](/img.php?id=2103357&img=bg3.png)
Trafficware.
Document Confidentiality Statement
The information in this document is confidential to the person to whom it is addressed and should not be disclosed to any other person. It
may not be reproduced in whole, or in part, nor may any of the information contained therein be disclosed without the prior consent of
Naztec, Inc. dba Trafficware.
Any form of reproduction, dissemination, copying, disclosure, modification, distribution, and or publication of this document is strictly
prohibited.
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC ID: MD5-RM01
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna
—Increase the separation between the equipment and receiver
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
—Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications to this device not expressly approved by Naztec, Inc. dba Trafficware could void
the user’s authority to operate the equipment.
RF Exposure WARNING: This equipment complies with FCC radio frequency energy exposure limits set forth for an
uncontrolled public environment. This equipment should be installed and operated with minimum distance 20 cm between
the radiator and your body.
The OEM must include the above warnings in the final configuration user manual plus comply with the marking and
warning requirements shown in section 2.1.
![](/img.php?id=2103357&img=bg4.png)
Confidential
Theory of Operation for Radio Module (10971) Jan 2013 Page 1-4
Table of Contents
1INTRODUCTION ....................................................................................................................................................... 1-5
1.1SPECIFICATIONS ..................................................................................................................................................... 1-5
1.2MODULE PIN DEFINITIONS ..................................................................................................................................... 1-5
1.3MECHANICAL DRAWINGS ...................................................................................................................................... 1-6
1.4RM01 CO-LOCATION ............................................................................................................................................. 1-6
2FCC CERTIFICATION REQUIREMENTS ............................................................................................................ 2-7
2.1OEM LABELING REQUIREMENTS ........................................................................................................................... 2-7
2.2FCC NOTICES......................................................................................................................................................... 2-7
2.3FCC APPROVED ANTENNAS ................................................................................................................................... 2-7
![](/img.php?id=2103357&img=bg5.png)

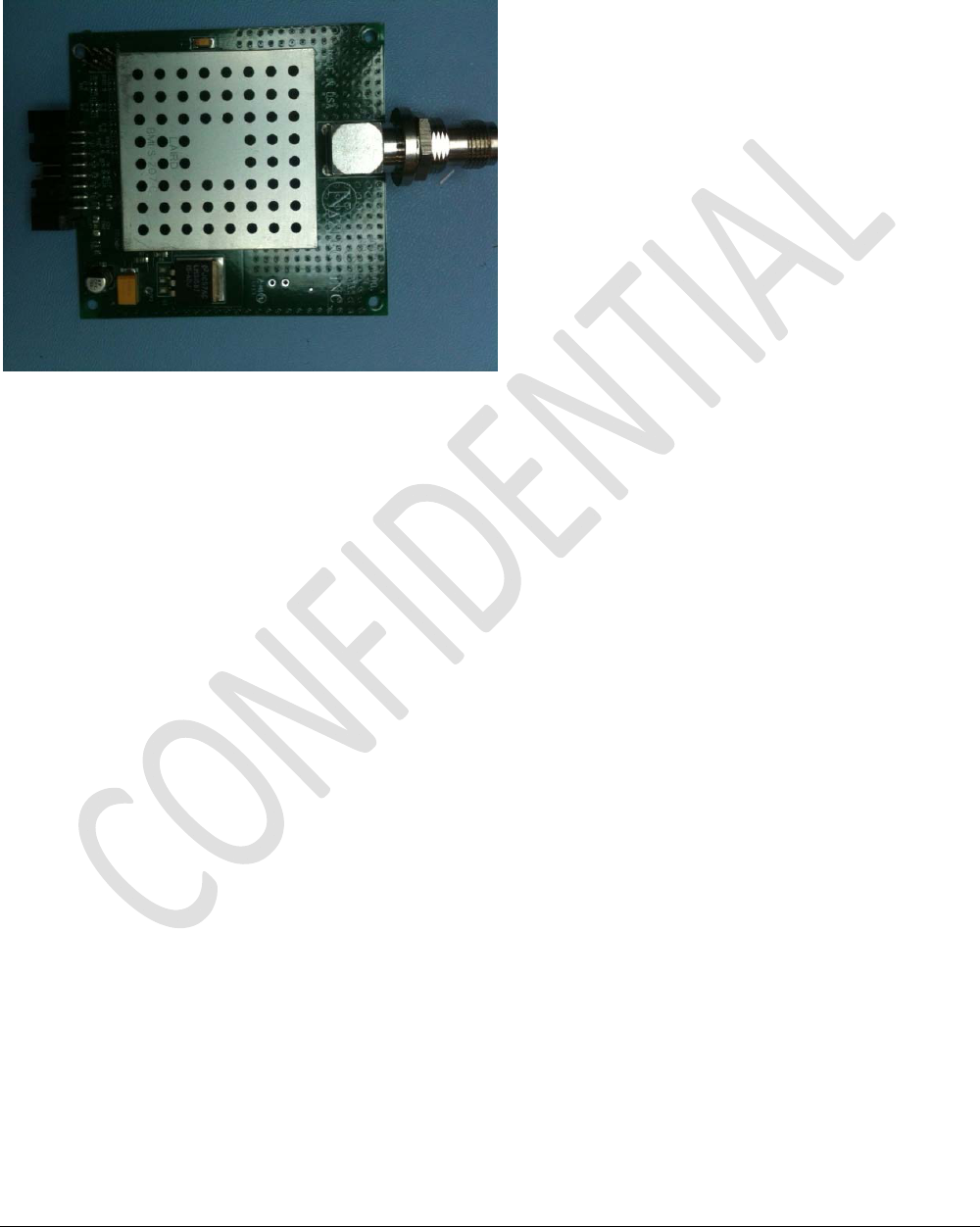

1 Introduction
This document will provide a brief description on how to use the RM01 within FCC limitations. Just applying power, we
have a configurable, high performance, simple to use 902-928 MHz radio at our disposal to be used in variety of
applications. Radio Module has the capability to transmit at 20 dbm, and an in-built low noise amplifier in the receive path
for extended range.
1.1 Specifications
RM01 Specifications
Performance Transmit Power Output 20 dbm
RF Data Rate 100 Kbps
Receiver Sensitivity -104 dbm (Typical)
Power Requirements Supply Voltage 5.0 – 5.5 V
Transmit Current 90mA
Idle/Receive Current 23mA
Sleep Mode 2uA
General Frequency ISM 902-928MHz
Spreading Method Frequency Hopping (FHSS)
Modulation GFSK
Number of Channels 60
Dimensions -
Operating Temperature -40 to 85 deg C.
Antenna Options External Reverse TNC
- 12dbi Panel Antenna
- 3dbi Phantom Antenna
- 3dbi Fiberglass Omni Antenna
- 12dbi Yagi Antenna
- 0 dBi Quarter wave whip Antenna
- 0 dBi Quarter wave Helical Antenna
Interface Serial 4-wire SPI
Agency Approvals FCC FCC Part 15.247
1.2 Module Pin Definitions
RM01 Pin Assignments
Pin Name Description
1 +5VDC Input, DC Power, Positive
2 +5VDC Input, DC Power, Positive
3 32.768 Khz Input, Real Time Clock
4 +5VDC Input, DC Power, Positive
5 DCGND Input, DC Power, Negative
6 SPICLK Input/Output, SPI Bus Clock
7 DCGND Input, DC Power, Negative
8 SPIMISO Output, SPI Bus
9 DCGND Input, DC Power, Negative
10 SPIMOSI Input, SPI Bus
11 1 Hz Input, PRM Sync Signal
12 CS Input, Chip Select from PXM
13 ACK Output, Acknowledge to PXM
14 C2D Input/Output, Data signal for C2 debug interface
15 C2CLK Input/Output, Clock signal for C2 debug interface
16 DCGND Input, DC Power, Negative
![](/img.php?id=2103357&img=bg6.png)
Confidential
Theory of Operation for Radio Module (10971) Jan 2013 Page 1-6
1.3 Mechanical Drawings
(Drawings pending.)
1.4 RM01 Co-location
Three RM01 co-located with each other. But the entire OEM should be installed and operated with minimum distance
20cm between the radiator and your body.
![](/img.php?id=2103357&img=bg7.png)
2 FCC Certification Requirements
RM01 complies with Part 15.247 of FCC rules and regulations. When the RM01 is used compliance with the labeling
requirements, FCC notices and antenna usage guidelines is required. In order to comply with FCC Certification
requirements, the Original Equipment Manufacturer (OEM) must fulfill the following requirements.
1. The system integrator must place an exterior label on the outside of the final product housing the RM01. Figure
below shows the contents that must be included in this label.
2. RM01 may only be used with the antenna that has been tested and approved for use with the module. Please refer
to the antenna table provided in this section.
2.1 OEM Labeling Requirements
NOTICE: The OEM must make sure that FCC labeling requirements are met. This includes a clearly visible exterior label
on the outside of the final product housing that includes the contents shown below.
CONTAINS FCC ID MD5-RM01
Additionally, the following text is required to appear on the product label:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
2.2 FCC Notices
NOTICE: OEM’s must certify final end product to comply with unintentional radiators (FCC Section 15.107 and 15.109)
before declaring compliance of their final product to Part 15 of the FCC Rules.
WARNING: The RM01 have been tested by the FCC for use with other products without further certification (as per FCC
Section 2.1091). Changes or modifications to this device not expressly approved by Naztec, Inc. dba Trafficware could void
the user’s authority to operate the equipment.
2.3 FCC Approved Antennas
The RM01 are FCC-approved for fixed base station and mobile applications in the ISM 902 to 928MHz frequency band.
Notice: To reduce potential radio interference to other users, the antenna type and its gain should be chosen so that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This module
has been designed to operate with the antennas listed in the table below, and having a maximum gain greater than the gain
mentioned for a particular type of antenna is strictly prohibited for use with this device. The required antenna impedance is
50 ohms.
Approved FCC Antennas
Type Maximum Gain Minimum Separation
Panel Antenna 12 dbi 20 cm
Yagi Antenna 12 dbi 20 cm
Phantom Mobile Antenna 3 dbi 20 cm
Fiber glass Omni Antenna 3 dbi 20 cm
Dipole (quarter wave whip) 0 dbi 20 cm
Helical antenna 0 dbi 20 cm
RF Exposure WARNING: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your
body.
![](/img.php?id=2103357&img=bg8.png)
Confidential
Theory of Operation for Radio Module (10971) Jan 2013 Page 2-8
NOTICE: The preceding statement must be included as a CAUTION statement in OEM product manuals in order to alert
users of FCC RF Exposure compliance.
