Trafficware Group SM02 Wireless Magnetic Multi-Axis Traffic Sensor Pod User Manual 15311 xx SM02 User s Manual
Naztec Inc Wireless Magnetic Multi-Axis Traffic Sensor Pod 15311 xx SM02 User s Manual
User Manual
![](/img.php?id=2249491&img=bg1.png)
User’s Manual
For
VDS-POD-S
Jan 2013
522 Gillingham
Sugar Land, Texas 77478
Phone: (281) 240-7233
Fax: (281) 240-7238
Copyright 2013 Naztec, Inc
All rights reserved.
![](/img.php?id=2249491&img=bg2.png)
Confidential
Theory of Operation for Radio Module (10971) Jan 2013 Page 1-2
Terms of Use Agreement
USE OF THIS SOFTWARE MANUAL IS SUBJECT TO THESE TERMS OF USE.
Agreement
Please read this User Agreement carefully before using the information provided in this Manual. This Agreement explains the terms and
conditions governing the use of this Manual ("Terms of Use"), and it is your responsibility to read and understand them. By using the
Manual you expressly agree to be bound by these Terms of Use and to follow them as well as all applicable laws and regulations
governing the Manual. If you do not agree to be bound by these Terms of Use, you may not access or use this Manual. Trafficware
reserves the right to change these Terms of Use at any time, effective immediately upon posting the Manual from our company website.
By continuing to use the Manual after we post any such change, you accept the revised Terms of Use. If you violate these Terms of Use,
Trafficware may terminate your use of the Manual, bar you from future use of the Manual, and take appropriate legal action against you.
Permitted Use
You agree that you are only authorized to read, view and retain a copy of pages of this Manual for your own personal use, and that you
will not duplicate, download, publish, modify or otherwise distribute the material on this Manual for any purpose other than to review
product information for personal use or the use of a government or non-profit organization.
No Commercial Use
Users may not use this Manual for any commercial purposes such as to sell merchandise or services of any kind. You must obtain our
prior written consent to make commercial offers of any kind, whether by advertisements, solicitations, links, or by any other form of
communication. Trafficware will investigate and take appropriate legal action against anyone who violates this provision.
Copyright
All content included on this Manual, including text, graphics, logos, icons, images, and software is the property of Trafficware. or its
content suppliers and is protected by United States and international copyright laws. This compilation (that is, the collection, arrangement
and assembly) of all content on this Manual is the exclusive property of Trafficware and is protected by U.S. and international copyright
laws. Trafficware reserves the right to revise the pages of the Manual or withdraw access to them at any time.
Trademarks
The logo and trademarks that appear throughout the Manual belong to Trafficware, its affiliates or third party trademark owners, and are
protected by U.S. and international trademark laws. Without express prior written permission, you may not display or use in any manner,
the logos or trademarks. Nothing in this Manual shall be construed as granting any license or other right to the intellectual property or
other proprietary rights of Trafficware, its affiliates or any third party, whether by estoppels, implication or otherwise. All contents of the
Manual are: © Copyright 2012 Trafficware or its licensors. All Rights Reserved.
Disclaimer of Warranty
YOU UNDERSTAND AND EXPRESSLY AGREE THAT YOUR USE OF THE MANUAL AND THE INFORMATION FOUND
THERE IS ENTIRELY AT YOUR RISK. TRAFFICWARE AND ITS AFFILIATES AND LICENSORS MAKE NO WARRANTIES
OR ANY REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF TITLE OR NON-INFRINGEMENT OR IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, NON-INFRINGEMENT OR OTHER VIOLATION OF RIGHTS IN RELATION TO THE
AVAILABILITY, ACCURACY, VALIDITY, COMPLETENESS, RELIABILITY OR CONTENT OF THESE PAGES AND/OR THE
MANUAL. TRAFFICWARE SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES, LOST PROFITS OR FOR BUSINESS INTERRUPTION ARISING OUT OF THE USE OF OR
INABILITY TO USE THIS MANUAL, EVEN IF TRAFFICWARE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY LAW, YOU HEREBY RELEASE AND FOREVER WAIVE ANY
AND ALL CLAIMS YOU MAY HAVE AGAINST TRAFFICWARE, ITS AFFILIATES AND LICENSORS FROM LOSSES OR
DAMAGES YOU SUSTAIN IN CONNECTION WITH YOUR USE OF THE MANUAL.
SOME JURISDICTIONS DO NOT ALLOW EXCLUSION OF CERTAIN WARRANTIES OR LIMITATIONS OF LIABILITY, SO
THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THE LIABILITY OF TRAFFICWARE WOULD IN
SUCH CASE BE LIMITED TO THE GREATEST EXTENT PERMITTED BY LAW.
Applicable Law
These Terms of Use and all legal issues related to the Manual shall be governed by the laws of the State of Texas, without regard to
conflict of laws principles. You agree that any dispute involving these terms of use or this Manual will be heard in a court with
jurisdiction in Fort Bend County, Texas. You further agree that the prevailing party in any legal action will be entitled to recover its
reasonable attorneys fees incurred in connection with that action. If for any reason a court of competent jurisdiction finds any provision
of these Terms of Use to be unenforceable, the remaining terms will continue in full force and effect.
Entire Agreement
These Terms of Use are the final and entire agreement between you and Trafficware with respect to this subject and replace
any and prior or contemporaneous understandings or agreements, written or oral, regarding the subject matter. Any waiver
of any provision of these Terms of Use shall be effective only if in writing and signed by an authorized representative of
![](/img.php?id=2249491&img=bg3.png)
Trafficware.
Document Confidentiality Statement
The information in this document is confidential to the person to whom it is addressed and should not be disclosed to any other person. It
may not be reproduced in whole, or in part, nor may any of the information contained therein be disclosed without the prior consent of
Naztec, Inc. dba Trafficware.
Any form of reproduction, dissemination, copying, disclosure, modification, distribution, and or publication of this document is strictly
prohibited.
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC ID: MD5-SM02
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna
—Increase the separation between the equipment and receiver
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
—Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications to this device not expressly approved by Naztec, Inc. dba Trafficware could void
the user’s authority to operate the equipment.
RF Exposure WARNING: This equipment complies with FCC radio frequency energy exposure limits set forth for an
uncontrolled public environment. This equipment should be installed and operated with minimum distance 20 cm between
the radiator and your body.
![](/img.php?id=2249491&img=bg4.png)
Confidential
Theory of Operation for Radio Module (10971) Jan 2013 Page 1-4
Table of Contents
1INTRODUCTION ....................................................................................................................................................... 1-5
1.1BLOCK DIAGRAM ................................................................................................................................................... 1-5
1.2SPECIFICATIONS ..................................................................................................................................................... 1-5
1.3MECHANICAL DRAWINGS ...................................................................................................................................... 1-6
1.4VDS-POD-S INSTALLATION CONSIDERATIONS ..................................................................................................... 1-7
1.4.1Equipment needed: ........................................................................................................................................ 1-7
1.4.2Installing the VDS-POD-S in the road .......................................................................................................... 1-7
![](/img.php?id=2249491&img=bg5.png)
1 Introduction
This document will provide a brief description on how the VDS-POD-S is being used within FCC limitations. VDS-POD-S
contains a configurable, high performance, simple to use 902-928 MHz radio. VDS-POD-S has the capability to transmit at
20 dbm, and an in-built low noise amplifier in the receive path for extended range. The VDS-POD-S is being used as a
configurable magnetic sensor.

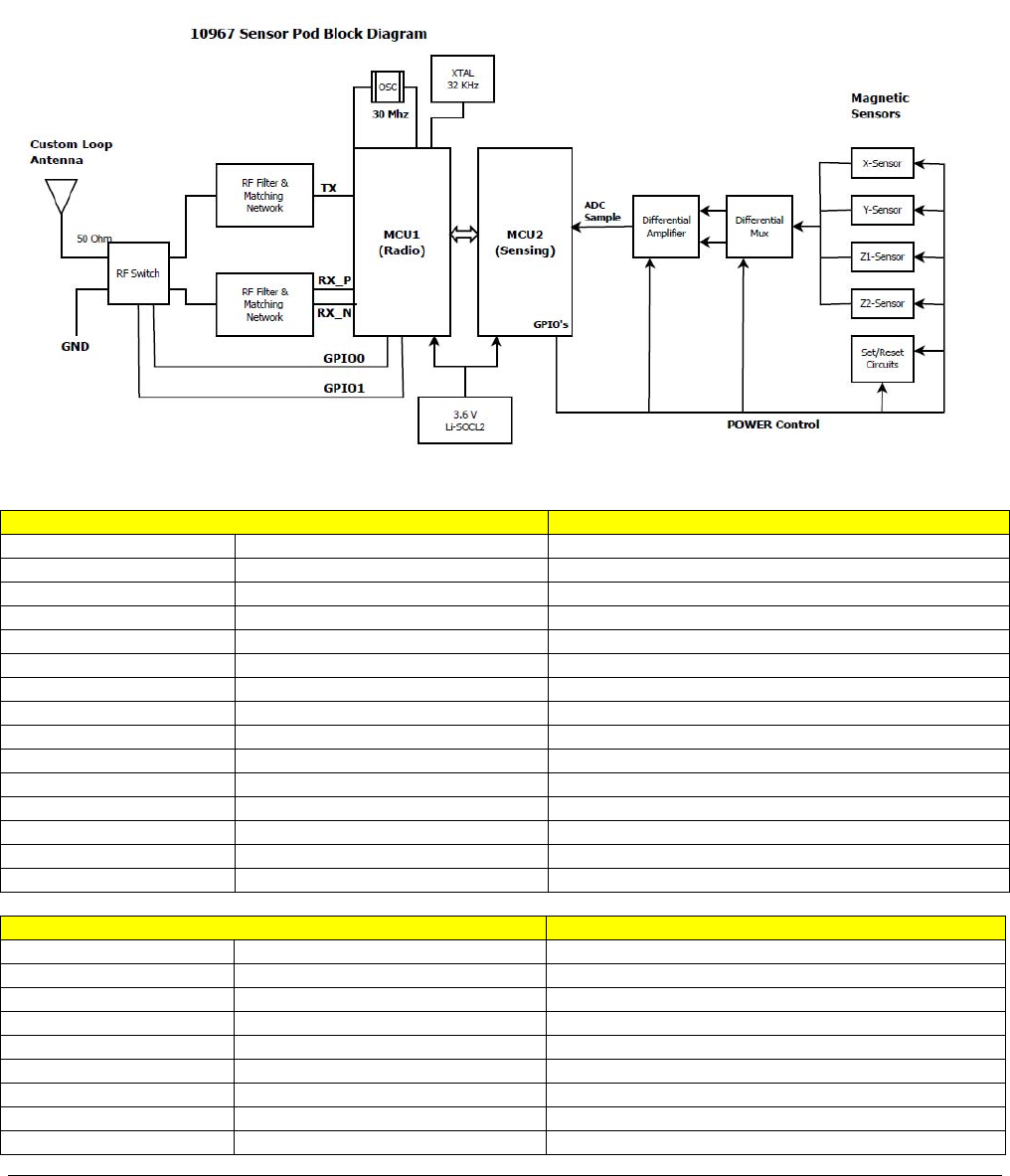

1.1 Block Diagram
1.2 Specifications
VDS-POD-S Radio Specifications
Performance Transmit Power Output 20 dbm
RF Data Rate 100 Kbps
Receiver Sensitivity -104 dbm (Typical)
Power Requirements Supply Voltage 3.6V Li-SOCL2 Battery
Transmit Current 90mA
Idle/Receive Current 23mA
Sleep Mode 1.4uA
General Frequency ISM 902-928MHz
Spreading Method Frequency Hopping (FHSS)
Modulation GFSK
Number of Channels 60
Dimensions -
Operating Temperature -40 to 85 deg C.
Antenna Options Custom loop Antenna
Agency Approvals FCC FCC Part 15.247
VDS-POD-S Magnetic Sensor Specifications
Performance Sensitivity 1 mV/V/gauss
Field Range +/- 6 gauss
Resolution 85 ugauss
Bridge resistance 1100 ohms
Bridge offset +/-2.5 mV
Power Requirements Supply Voltage 3.6 VDC
Bridge Current 3.2 mA
General Axis X,Y, Z1 and Z2 axis
Sample rate Z axis every 8 ms, X,Y axis every 1 second
![](/img.php?id=2249491&img=bg6.png)
Confidential
Theory of Operation for Radio Module (10971) Jan 2013 Page 1-6

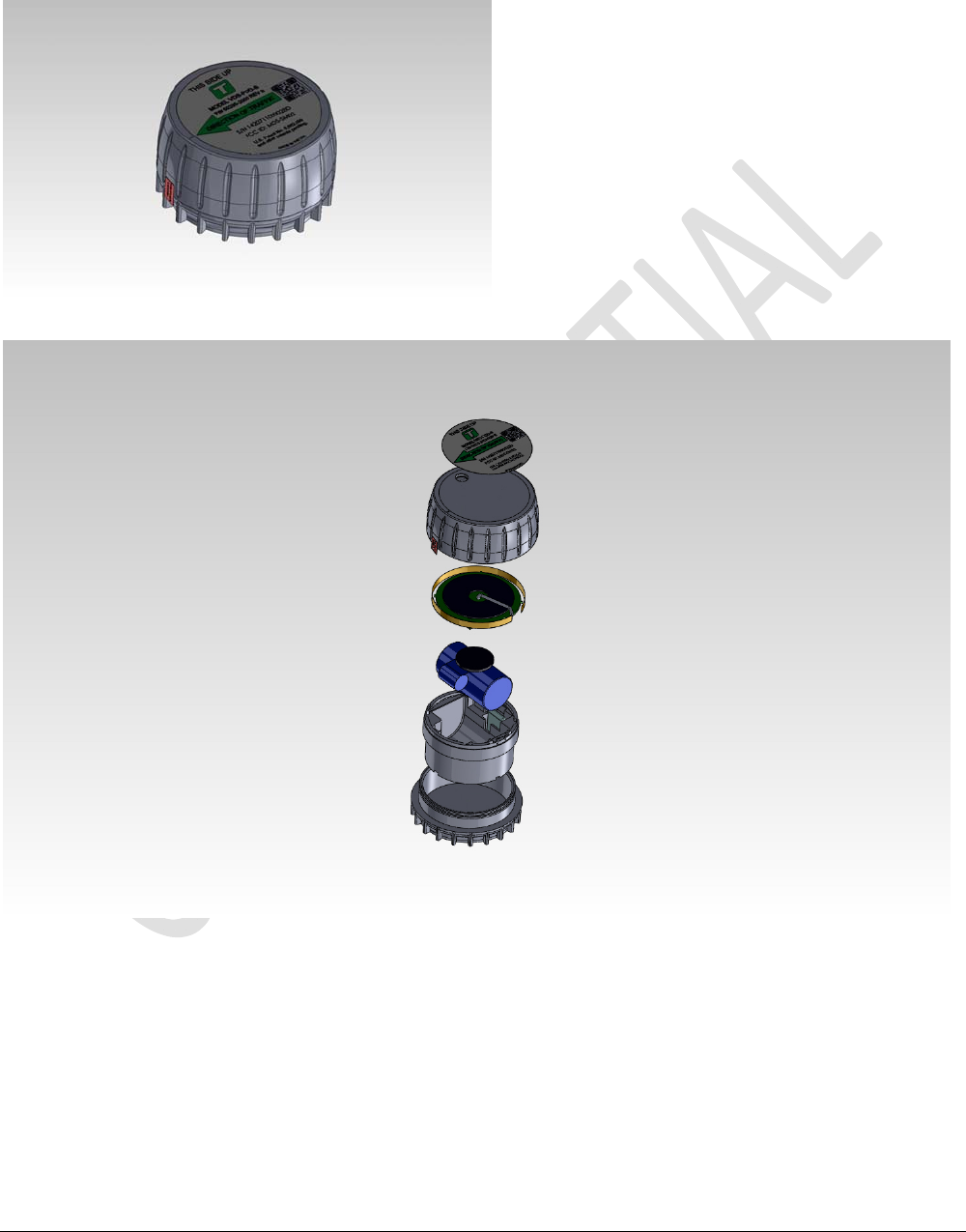

1.3 Mechanical Drawings
![](/img.php?id=2249491&img=bg7.png)
1.4 VDS-POD-S Installation Considerations
Care shall be taken to insure that the Sensor housing is not punctured or crushed. The sensor contains a Lithium Thionyl
Chloride battery and certain precautions shall be taken. Dispose the sensor housings with batteries in accordance with local
regulations.
A label is affixed on the top of the sensor which contains a unique ID and an arrow for the direction of traffic flow. The
unique ID is used for configuring the system so the Access Point only talks to the sensors at this specific location and not
Access Points nearby at other intersections. Record the ID of each sensor and their location for use when configuring the
User Interface.
1.4.1 Equipment needed:
Coring Drill with 4” diamond bit. Water is needed for the core drill to cool the bit during drilling.
Chisel for cleaning the hole out.
Shop Vacuum for removing the debris out of the hole after core is removed.
Propane torch to dry out the hole before sealant is applied.
Epoxy, a two part Joint sealant. Fabick Joint sealant is recommended.
1.4.2 Installing the VDS-POD-S in the road
IMPORTANT: Safety glasses are required at all times.
A manufacturers label is affixed on the top of the VDS-POD-S which contains an arrow for the direction of traffic flow.
1. Mark the area of the desired VDS-POD-S location.
2. Core a hole approximately 4.0” diameter and 2.75” deep into the pavement.
3. Remove any debris with chisel to clean out the hole.
4. Dry hole with propane torch to remove any moisture.
5. Fill hole with approximately 1” of sealant and place VDS-POD-S in hole with arrow pointing with the flow of
traffic.
6. Add sealant to completely cover the VDS-POD-S.
7. Maintain VDS-POD-S level about 0.25” from the road surface until sealant dries in approximately 3 minutes.
![](/img.php?id=2249491&img=bg8.png)
Confidential
Theory of Operation for Radio Module (10971) Jan 2013 Page 1-8
Index
User Agreement, 1-2
