Trail Ridge Technologies TRORQV1100CAM Wireless Backup Camera User Manual

Trail Ridge Technologies, LLC Wireless Backup Camera

User Manual

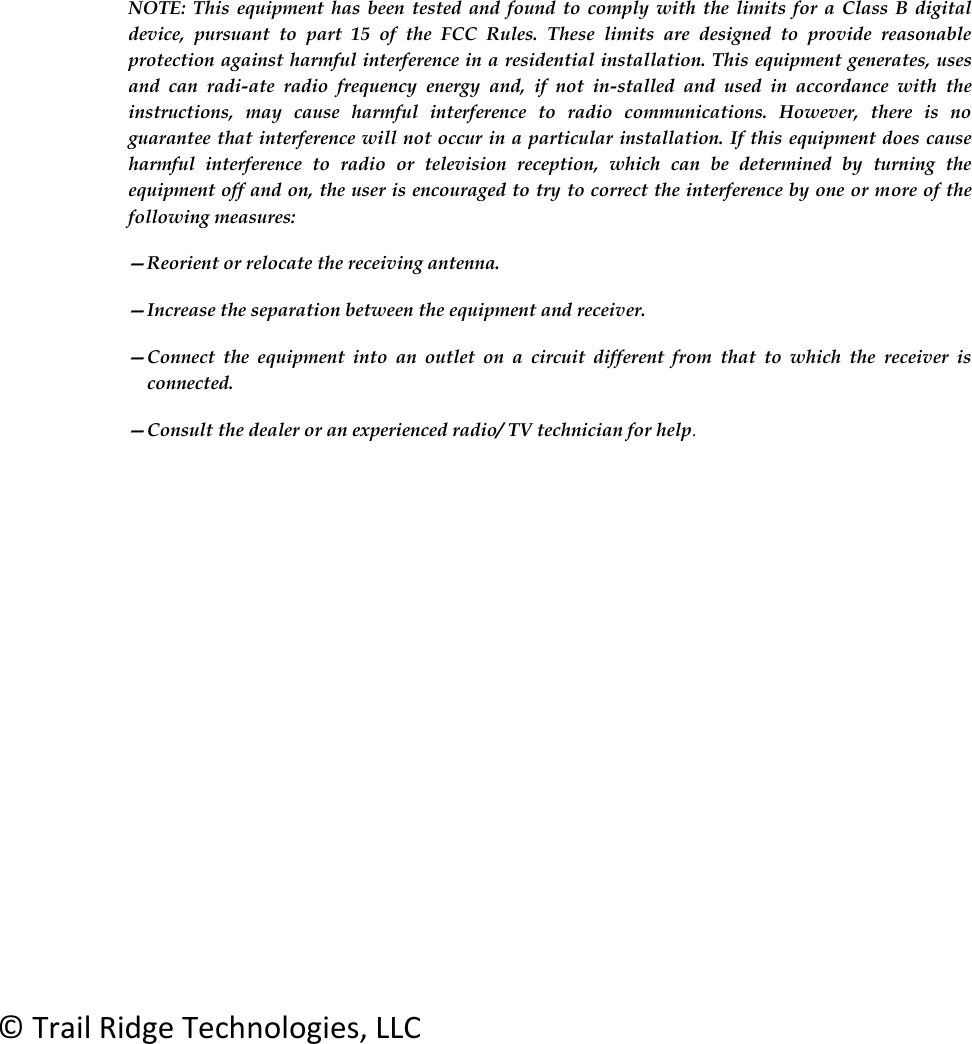

    NOTE:  This  equipment  has  been  tested and  found  to  comply  with  the  limits  for  a  Class B  digital device,  pursuant  to  part  15  of  the  FCC  Rules.  These  limits  are  designed  to  provide  reasonable protection against harmful interference in a residential installation. This equipment generates, uses and  can  radi-ate  radio  frequency  energy  and,  if  not  in-stalled  and  used  in  accordance  with  the instructions,  may  cause  harmful  interference  to  radio  communications.  However,  there  is  no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful  interference  to  radio  or  television  reception,  which  can  be  determined  by  turning  the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  —Reorient or relocate the receiving antenna.  —Increase the separation between the equipment and receiver.  —Connect  the  equipment  into  an  outlet  on  a  circuit  different  from  that  to  which  the  receiver  is connected.  —Consult the dealer or an experienced radio/ TV technician for help.         © Trail Ridge Technologies, LLC

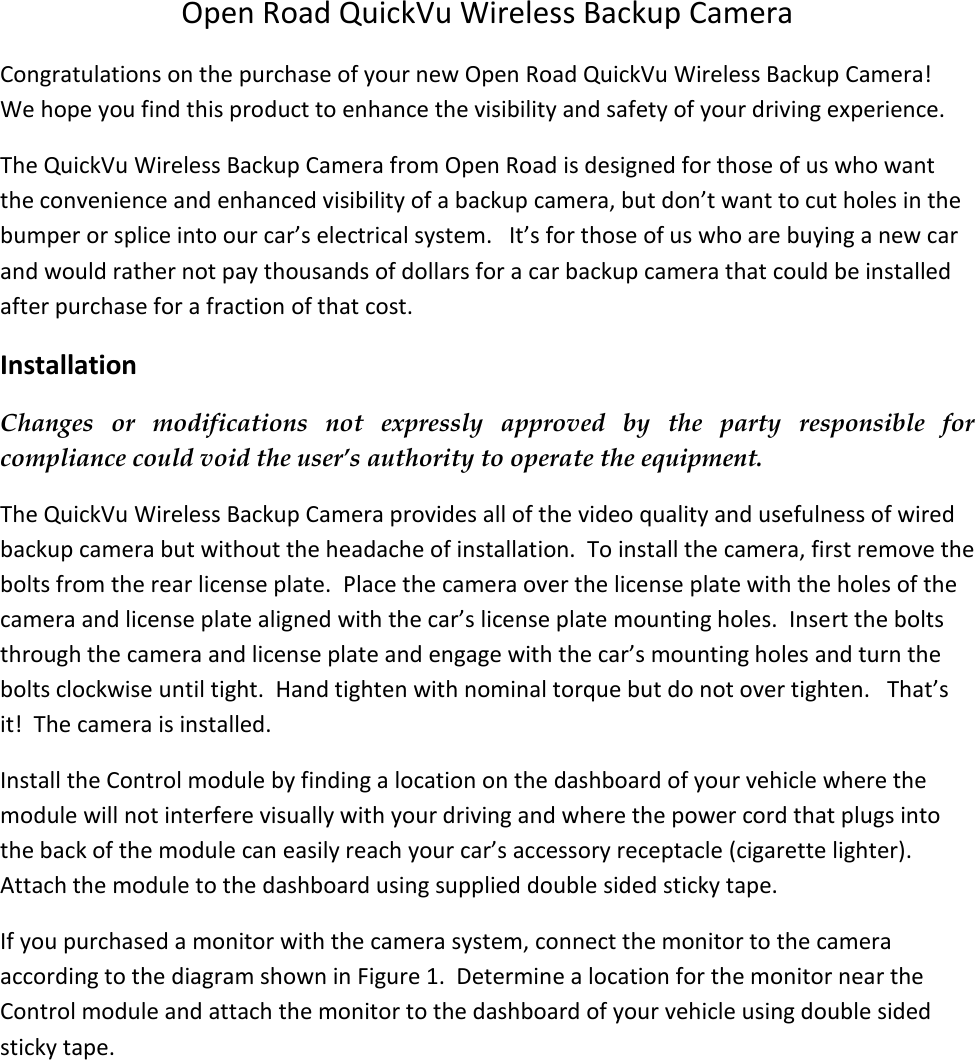

  Open Road QuickVu Wireless Backup Camera Congratulations on the purchase of your new Open Road QuickVu Wireless Backup Camera!  We hope you find this product to enhance the visibility and safety of your driving experience.    The QuickVu Wireless Backup Camera from Open Road is designed for those of us who want the convenience and enhanced visibility of a backup camera, but don’t want to cut holes in the bumper or splice into our car’s electrical system.   It’s for those of us who are buying a new car and would rather not pay thousands of dollars for a car backup camera that could be installed after purchase for a fraction of that cost.   Installation Changes  or  modifications  not  expressly  approved  by  the  party  responsible  for compliance could void the user’s authority to operate the equipment. The QuickVu Wireless Backup Camera provides all of the video quality and usefulness of wired backup camera but without the headache of installation.  To install the camera, first remove the bolts from the rear license plate.  Place the camera over the license plate with the holes of the camera and license plate aligned with the car’s license plate mounting holes.  Insert the bolts through the camera and license plate and engage with the car’s mounting holes and turn the bolts clockwise until tight.  Hand tighten with nominal torque but do not over tighten.   That’s it!  The camera is installed. Install the Control module by finding a location on the dashboard of your vehicle where the module will not interfere visually with your driving and where the power cord that plugs into the back of the module can easily reach your car’s accessory receptacle (cigarette lighter).  Attach the module to the dashboard using supplied double sided sticky tape.  If you purchased a monitor with the camera system, connect the monitor to the camera according to the diagram shown in Figure 1.  Determine a location for the monitor near the Control module and attach the monitor to the dashboard of your vehicle using double sided sticky tape.
