TranSystem 961900101 TripMate User Manual 852

TranSystem TripMate 852

Contents

UserMan

852
User’s Manual
Published on 12-Dec-2008
1
Note and Warning
- 852 uses AAA battery*2. If 852 used in temperature lower than -10°C or
higher than 60°C, its battery capability will decrease. Please leave the 852 far
from heat or high temperature environment. In addition, do not expose your
852 in temperature higher than 140°C/60°C. If you do not follow these rules,
the battery may become heat, explode or burn itself, and this will lead to very
serious damage.
- While in the hospital, turning off the 852 is recommended. Like other
common equipments do, wireless GPS receiver may also affect these medical
equipments which use radio frequency and make these equipments
malfunction.
- For a long period not using 852, take out the battery and store it in dry/cool
places.
- For safety, keep the 852 and all accessories out of small children’s reach.
- We assume no responsibility for any damages and loss resulting from the use
of this manual and also by deletion of data as a result of malfunction, dead
battery, or misuse of the product in any way.
- Use only the supplied and approved accessories. Unauthorized accessories,
antenna, modifications or attachments could damage the 852, and may
violate regulations governing radio devices.
- Use a dry, clean soft cloth to clean the unit. Do not use harsh cleaning
solvents, chemicals, or strong detergents.
- Do not attempt to open the 852 yourself. Unauthorized hacking may damage
the unit, and void your warranty.
2
Table of Contents
Chapter1. Before you begin.........................................................................................4
1.1 Introduction..............................................................................................4
1.2 Feature overview......................................................................................4
1.3 Specification..............................................................................................5
1.4 Buttons and Description..........................................................................7
1.5 ICON LED Functional Description........................................................8
1.6 Accessories................................................................................................9
Chapter2. Getting started .........................................................................................10
2.1 Turn on/off 852.......................................................................................10
2.2 Button description..................................................................................10
2.3 Sleep mode..............................................................................................11
2.4 Connecting your handheld device with 852.........................................11
2.5 Helpful Tips ............................................................................................15
Chapter3. How to configure your GPS Record?.....................................................16
3.1 Driver Installation..................................................................................16
3.2 GpsView software...................................................................................16
3.2.1 Connect USB cable between GPS and laptop..........................16
3.2.2 Executing GpsView Program....................................................17
Chapter 4 Using Photo Tagger software ..................................................................21
4.1. Execute and install software utility Photo Tagger ..............................21
4.2. Google Earth...........................................................................................21
4.3. Software Utility --- 852 ..........................................................................21
Appendix.....................................................................................................................22
3
Appendix A. locr GPS Photo.............................................................................22
Appendix B. Certification .................................................................................24
Appendix C. Warranty Information ................................................................26
4
Chapter1. Before you begin
1.1 Introduction

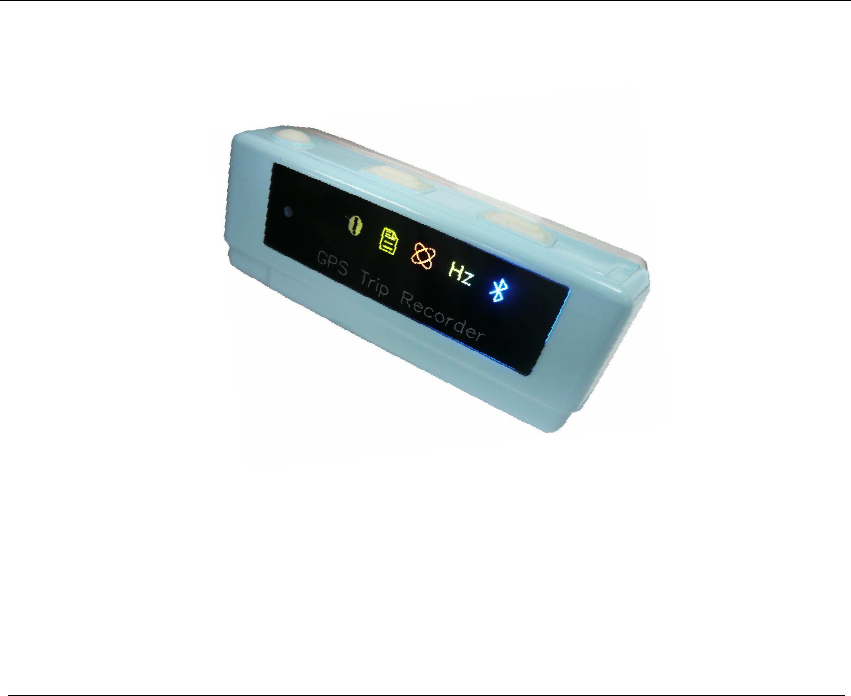

The TripMate852 features an all-in–one, cost-effective portable GPS
logger solution. When you travel in different country, it allows you to
record your routes by ways of time/ distance/ speed. The 852 include
a one inch LCD, as the real time, moving speed, distance
measurement and position information, all of the message always can
shown on the LCD. Through user friendly software utility, it can
combine the beautiful pictures and record routes show on the map.
This recorder is small and robust, ideal to carry everywhere for
applications such as route tracking, mountain climbing or fleet
management.
1.2 Feature overview
◎ MTK 3329 chip
◎ Smart log function
◎ Receiver & data logger dual function design
◎ Vibration sensor for power saving
◎ Micro SD card for POI storage
◎ Powered by AAA battery*2
5
1.3 Specification
General
Frequency L1,1575.42MHz C/A Code 1.023Mhz
Datum WGS84
Performance Characteristics
Without aid: 3.0m 2D-RMS Without aid: 0.1m/s
<3m CEP(50%) without
SA(horizontal
Velocity
Accuracy DGPS(WAAS,EGNOS,MSAS):
0.05m/s
Position
Accuracy DGPS(WAAS,EGNOS,MSAS)
: 2.5m Without aid: <4g
Timing
Accuracy 50ns RMS
Acceleration
DGPS(WAAS,EGNOS,MSAS): <4g
Reacquisition
Time <1s Hot start 1.5s
Warm start 34s Cold start 35s
AGPS <15s Acquisition: -148dBm Max.
Update 1Hz Sensitivity Tracking: -165dBm Max.
Dynamic
Altitude Maximum 18,000m Acceleration
Maximum 4g
Velocity Maximum 515m/s
Power
Operation Time
16hours Battery AAA battery*2
I/O
6
Baudrate 115200 bps Protocol NMEA 0183 v3.01
Environment
Operation
Temperature -10° to 50°
Interface
Fully compliant with USB2.0 Fully compliant with Bluetooth V1.2
USB Bridge 12Mbps 0dBm(Typical), Class II
SD Micro SD card Up to 10 meters
Serial Port Profile(SPP)
Bluetooth
2.4GHz~2.4835GHz ISM Band
Others
57.5g(with battery) Dimension 72*27x25mm
Weight (g) 36.5g(without battery) NMEA GGA,GSA,GSV,RMC
*Citation MTK original chipset spec.
7

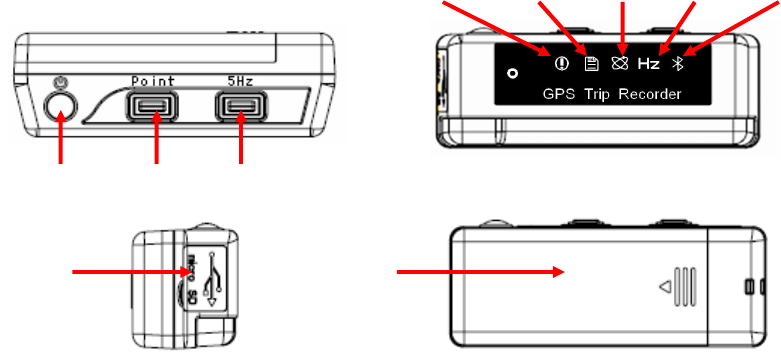

1.4 Buttons and Description
1. Power on/off button
2. Point button
3. 5Hz button
4. Memory warning light
5. Log light
6. Satellite light
7. 1sec or 5sec log switch button
8. Bluetooth light
9. USB & Micro SD slot
10. Battery Cover
1 2 3
4 5 6 7 8
9 10
8

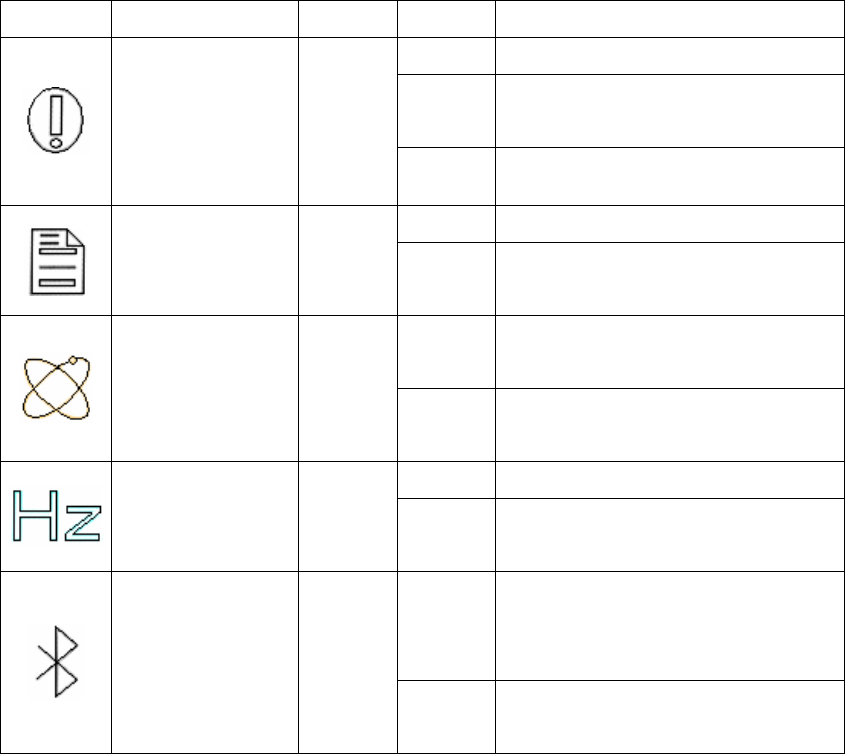

1.5 ICON LED Functional Description
Symbol Category Color Status Function
Off Memory capacity is big than 20%.
Blinking
for 2 sec
Memory is too low and less than
20%.
MEMORY
WARNING ICON
Red
On Memory is full.
Off No log
LOG ICON Green Blinking
for 2 sec
In log mode
On Acquiring satellites, GPS position
not fixed.
SATELLITE
ICON Orange Blinking
for 2 sec
GPS position is fixed, Navigation.
Off Every 1 second log one time
5Hz ICON Green Blinking
for 2 sec
Every 0.2 second log one time
On
Bluetooth light on but not
connected to any Bluetooth devices
yet.
BLUETOOTH
ICON Blue
Blinking
for 5 sec
Bluetooth is connected and ready
for data transmission.
9
1.6 Accessories
Congratulations on your purchase of the 852. Before you start using 852,
please make sure if your package includes the following items. If any
item is damaged or missing, please contact your dealer at once.
◎ Driver CD x1
◎ USB cable x1
◎ AAA battery x2
◎ Quick start guide x1
◎ Micro SD 256M x1
*Unit package contents may vary depending on countries without prior
notice.
10
Chapter2. Getting started
2.1 Turn on/off 852
Step 1.Take out the 852 battery cover and push the two AAA batteries
into TripMate852.
Step 2.Start TripMate852, push “POWER” button for 3 seconds.

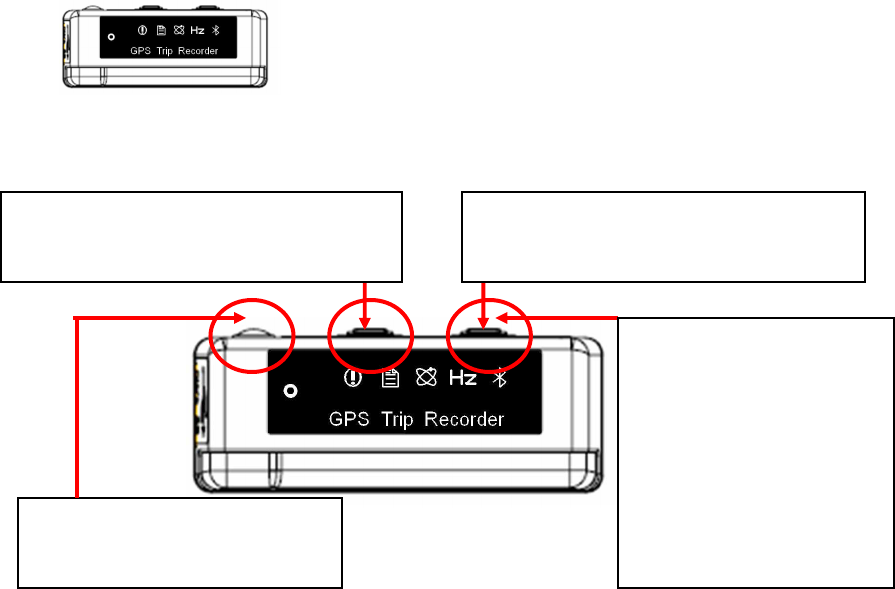

2.2 Button description
POWER
Push button for 1 second will
start POI function.
Push button for 3
seconds will change
log mode. Default: 1
second log one time.
Push button for 3
second: 0.2 second
log one time.(5Hz)
Push button for 3 seconds will
start log function.
Push button for 3 seconds
could switch Power
11
2.3 Sleep mode
After TripMate852 over than 10 minutes have not connection, it will into
sleep mode. Under the sleep mode, the TripMate852 is like power off.
The TripMate852 include vibration sensor. Therefore, when you just
touch or move the TripMate852, the 852 will automatically wake up.
2.4 Connecting your handheld device with 852
Please refer to the user manual of PDA to enable the Bluetooth
connectivity.
Below, we provide a common procedure of software installation to set up
your PDA. (For other PDA, the steps may be different. Bluetooth
Manager is a popular program used on Bluetooth device.)
-->
Start -> Bluetooth Manager New
12

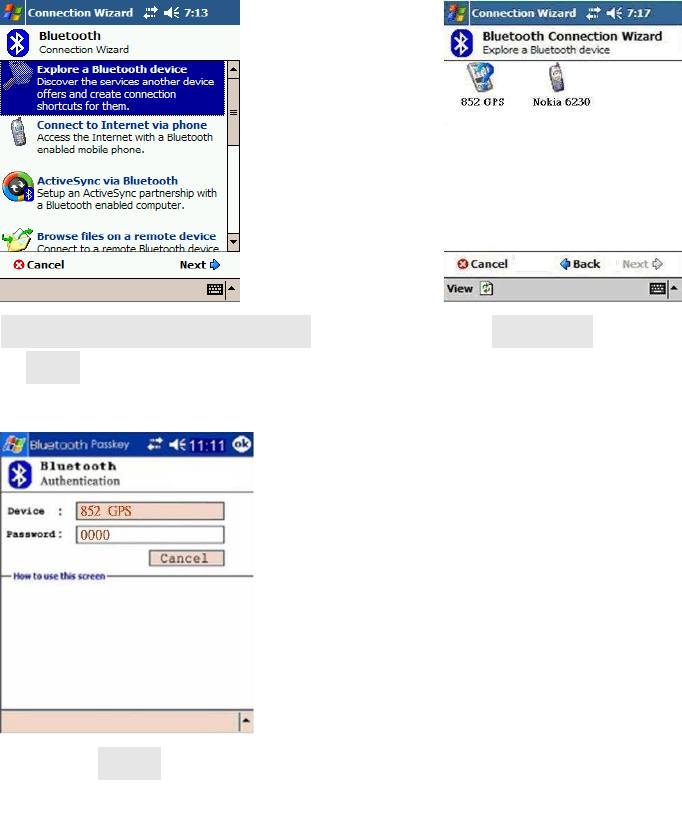

A. Open “Bluetooth Manager” on your pocket pc, and establish a
new connection.
-->
Explore A Bluetooth device
->Next
Tap 852 GPS
B. Explore a Bluetooth device, and find the “852”
Passkey 0000 (if your PDA
asks for the passkey)
13

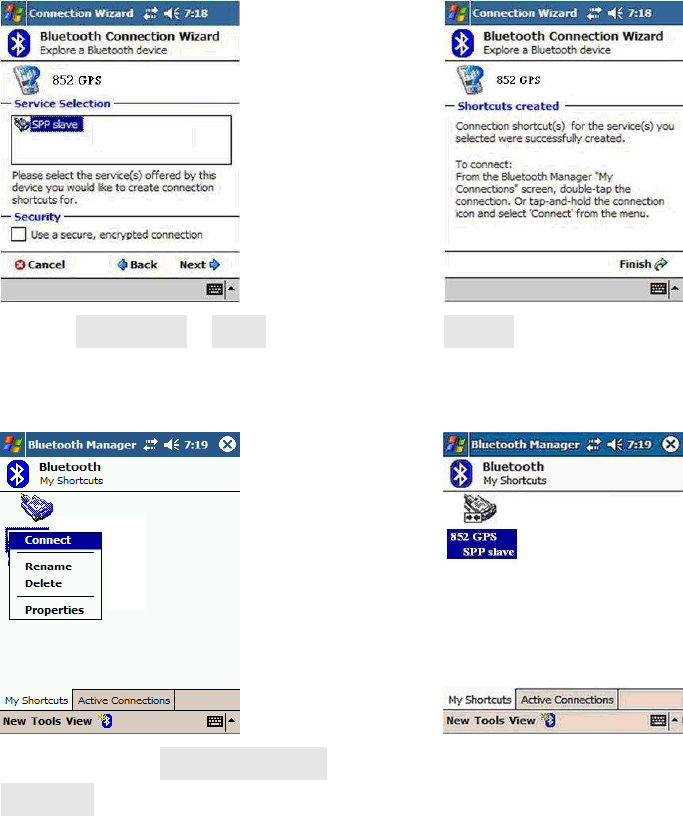

C. (Optional)
-->
Select SPP slave->Next Finish
D. Connect to Serial Port Profile (SPP) Slave
-->
Tap and Hold 852: SPP slave,
Connect
Done
E. Finish Bluetooth Manager Setup
14
2.3.1. Loading your GPS mapping or routing software
You should have mapping software on your PDA/ Smart phone/ laptop or
you need to install it before using the 852 for navigation.
2.3.2. Starting the application
Select the correct COM port & baud rate within the application.
Note: The Bluetooth device in most of the applications has an
“auto-detect” feature so that you do not need to select the Baud Rate.
15
2.5 Helpful Tips
-
It’s better to turn off the 852 when you don’t use it, or the serial Flash's life
can’t last long.
-
Some vehicles having heavy metallic sun protecting coating on windshields
may affect GPS signal receptions
-
Driving in and around high buildings may affect GPS signal receptions.
-
Driving in tunnels or indoor park may affect signal receptions.
-
In general, any GPS receiver performs best in open space where it can see
clean sky. Also weather will affect GPS reception – rain & snow contribute
to worse sensitivity.
-
Low battery of a PDA or of an 852 may affect signal receptions.
-
Please check the correct “COM” and “Baudrate” of your PDA.
-
852 output data updates every second, therefore the actual position and the
position shown in your map may have slight time delay. This may happen
when you drive at higher speed or make a turn around a corner.
-
Note that 852 may not work indoors where it can not see the sky.
-
For the 1
st
time you use the 852, it will take 1 to 3 minutes to obtain the
satellite constellation information and fix your position, this is called “Cold
Start”. If you replace the battery, 852 will do Cold Start again.
-
If your 852 can’t fix your position for more than 20 minutes, we suggest you
change to another spot with open space and then try again.
16
Chapter3. How to configure your GPS Record?
The GpsView program only supports the Microsoft Windows based
platform.
3.1 Driver Installation
Before the USB connector plugs in your PC/ Laptop, please have your
USB Driver Installation ready. (Install InstallDriver.exe driver for USB
port from CD-ROM.)
3.2 GpsView software
Open the GpsView software, please select correct COM port and Baud
Rate (USB / Bluetooth: 115,200bps) to configure GPS.

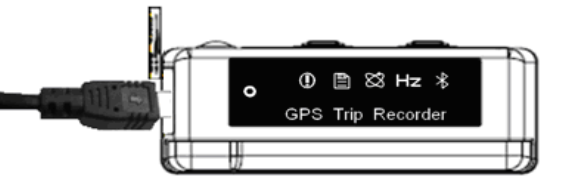

3.2.1 Connect USB cable between GPS and laptop
To USB port on PC/Laptop
17

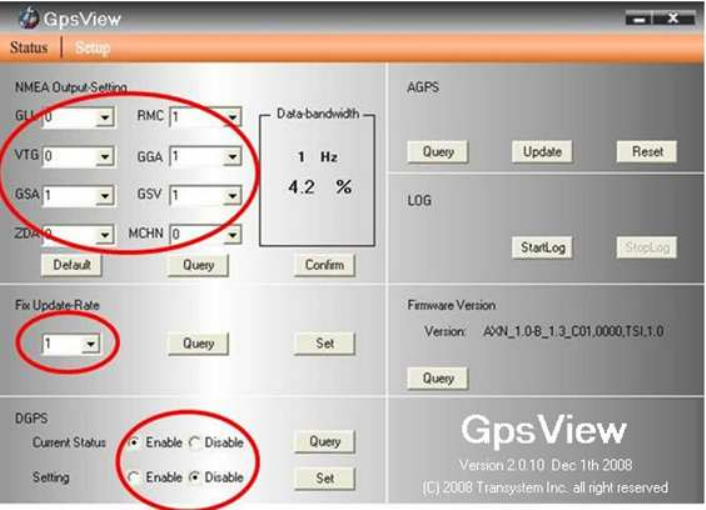

3.2.2 Executing GpsView Program
Click “Command” tap. Update Rate 1 ~ 5Hz is user configurable. And
still more options for choice of NMEA output, DGPS…etc. all available
through pull-down menus.
18
3.2.2 Download AGPS

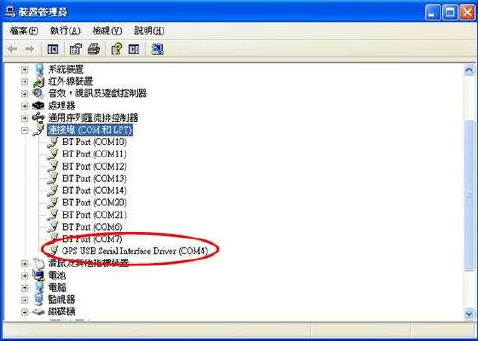

1. Start→Control Panel→System→Hardware→Device
Management→Connector（COM and LPT）Check Com
port position。
19

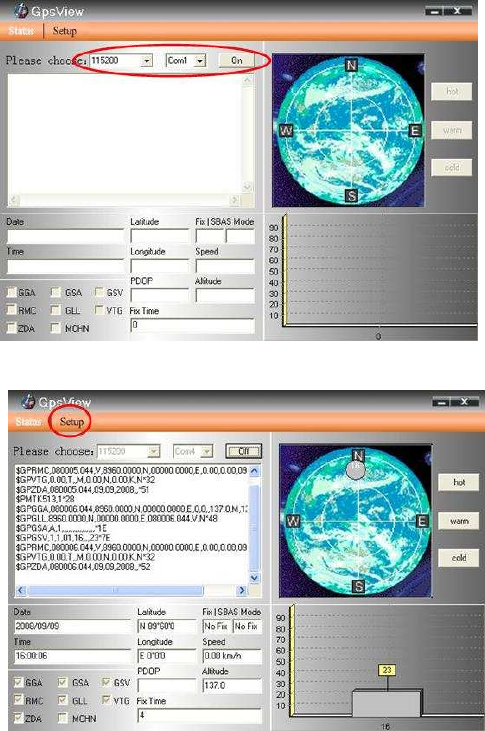

2. Open GpsView.exe→Check Baud Rate and Com
port→click On
3. Choice Setup
20
4. Choice Update。
5. When Updating now…100%, click Enter complete。
[Note] When you use GpsView software download AGPS
data, it only supports use Bluetooth connect to PC and 850.
21
Chapter 4 Using Photo Tagger software
4.1. Execute and install software utility Photo Tagger
Complete GPS Photo Tagger and USB drivers installation (Refer to CD)
4.2. Google Earth
If you computer is not yet installed with Google Earth. Google Earth has
free download version, go download it in the internet first. For more
information, please visit http://earth.google.com/.
4.3. Software Utility --- 852
For further function to use the Photo Tagger software in detail, please
refer to Photo Tagger user manual:
Photo Tagger software > Help > User Manual
To use a mini-USB cable to connect the 852 to your PC, you have to
power on the 852 unit. Please keep in mind to switch to LOG mode while
using Photo Tagger software.
22
Appendix
Appendix A. locr GPS Photo
With 852 and locr GPS Photo software, users are allowed to import
geotagging adds information to photos. The position (latitude/ longitude)
then be written into the EXIF header for the further application. Also, locr
GPS Photo can integrated travel log and digital photos by date/ time to
show photos on the map directly.
Please find the installation file for Windows XP/ Vista in CD tool, or go
to http://www.locr.com for further information.
23
Appendix B. Certification
FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
CAUTION: Change or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance."
24
25
CE Notices
Is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member
States relating to Electromagnetic Compatibility (89/336/EEC),
Low-voltage Directive (73/23/EEC) and the Amendment Directive
(93/68/EEC), the procedures given in European Council Directive
99/5/EC and 89/3360EEC.
The equipment was passed. The test was performed according to the
following European standards:
-
EN 300 328-2 V.1.2.1 (2001-08)
-
EN 301 489-1 V.1.4.1 (2002-04) / EN 301 489-17 V.1.2.1 (2002-04)
-
EN 50371: 2002
-
EN 60950: 2000
26
Appendix C. Warranty Information
Thank you for your purchase of GPS product from the company.
The company warrants this product to be free from defects in materials
and workmanship for one year from the date of purchase. The warranty
for accessories is six months. The stamp of distributor or a copy of the
original sales receipt is required as the proof of purchase for warranty
repairs. The company will, as its sole option, repair or replace any
components, which fail in normal use. Such repair or replacement will be
made at no charge to the customer for parts or labor. The customer is,
however, responsible for any transportation costs.
This warranty does not cover failures due to abuse, misuse, accident or
unauthorized alteration of repairs. The company assumes no
responsibility for special, incidental punitive or consequential damages,
or loss of use.

Navigation menu
