TranSystem Mini GPS iBT GPS Bluetooth GPS Data Logger
UserMan
887 photoMate
User’s Manual
Published on 3-Oct-2008
Table of Contents
Chapter 1 Before you begin.........................................................................................4
1.1 Note and Warning..........................................................................................4
1.2 Introduction....................................................................................................5
1.3 Features...........................................................................................................5
1.4 Applications ....................................................................................................6
1.5 Appearance.....................................................................................................6
1.6 Power On/Off and Push Button....................................................................7
1.7 LED Display ...................................................................................................8
Chapter 2 Getting Started...........................................................................................9
2.1 Checking the package content ......................................................................9
2.2 Getting Started .............................................................................................10
Step 1 Charging Your Battery...................................................................10
Step 2 Turning on the power switch (NAV/ LOG)...................................11
Step 3 Connecting your handheld device with 887 .................................11
Step 4 Loading your GPS mapping or routing software ........................14
Step 5 Starting the application..................................................................14
2.3 Helpful Tips ..................................................................................................15
Chapter 3 How to configure your GPS Record ?....................................................16
3.1 Driver Installation........................................................................................16
3.2 GpsView software ........................................................................................16
3.2.1 Connect USB cable between GPS and laptop.................................16
3.2.2 Executing GpsView Program....................................................17
3.2.3 Download AGPS.........................................................................18
Chapter 4 Using Photo Tagger software ..................................................................21
2
4.1 Execute and install software utility Photo Tagger ....................................21
4.2 Google Earth.................................................................................................21
4.3 Software Utility --- 887 Photo Tagger.........................................................21
Appendix.....................................................................................................................22
Appendix A. Specifications................................................................................22

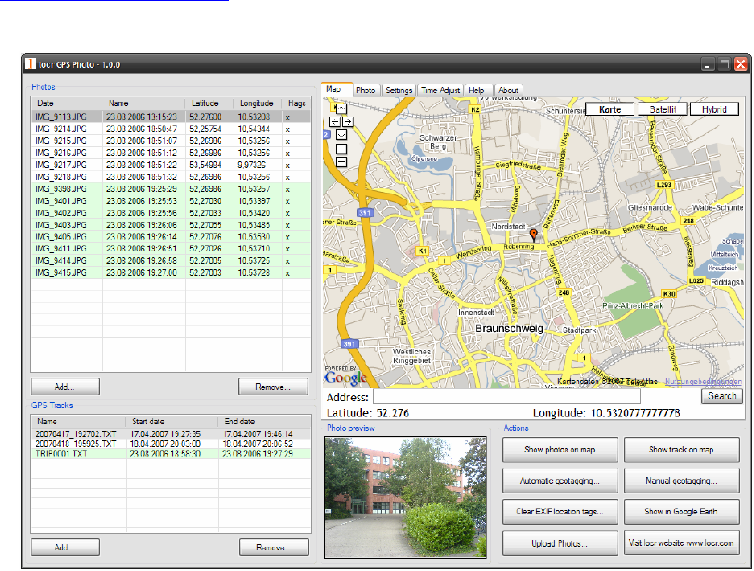

Appendix B. locr GPS Photo.............................................................................25
Appendix C. Certification .................................................................................26
Appendix D. Warranty Information ................................................................28
3
Chapter 1 Before you begin
1.1 Note and Warning
- 887 uses + Lithium-Ion battery. If 887 is used in temperature lower
than -10℃ or higher than 60℃, its battery charging capability will
decrease. Please leave the 887 far from heat or high temperature
environment. In addition, do not expose your 887 in temperature
higher than 140 /60 . If you℉℃ do not follow these rules, the battery
inside 887 may overheat, explode or burn itself, and this will lead to
very serious damage. The + Lithium-Ion battery inside the 887 should
be recycled.
- While in the hospital, turning off the 887 is recommended. Wireless
GPS receiver may interfere with medical equipments which use radio
frequency.
- For a long period not using 887, take out the battery and store it in
dry/cool places.
- For safety, keep the 887 and all accessories out of children’s reach.
- The manufacturer assumes no responsibility for any damages and loss
resulting from the use of this manual, or from deletion of data as a
result of malfunction, dead battery, or from misuse of the product in
any way.
- Use only the supplied and approved accessories. Unauthorized
accessories, modifications or attachments could damage the 887, and
may violate regulations governing radio devices.
- Use a dry, clean soft cloth to clean the unit. Do not use harsh cleaning
4
solvents, chemicals, or strong detergents.
- Do not attempt to open the 887 yourself. Unauthorized hacking may
damage the unit, and void your warranty.
1.2 Introduction
This 887 logger features an all-in-one, cost-effective portable GPS
logging solution. With its on-board memory, it allows you to log your
routes by ways of time/ distance/ speed. Through user friendly software
utility, it shows your track on Google Earth. This data logger is small
and robust, ideal to carry everywhere for applications such as route
tracking, mountain climbing or fleet management.
1.3 Features
1. Dual mode for both Data record and Navigation.
2. Smart LOG function (User can record the date by setting the interval
of time, distance and speed.)
3. 125,000 waypoints.
4. AGPS available.
5. Fuzzy Auto on/off.
6. Phototagger software.
7. G-Mouse function
5
1.4 Applications
- Record your travels
- Manage business trip expense
- Concerned about one’s driving behavior
- Geo-photo

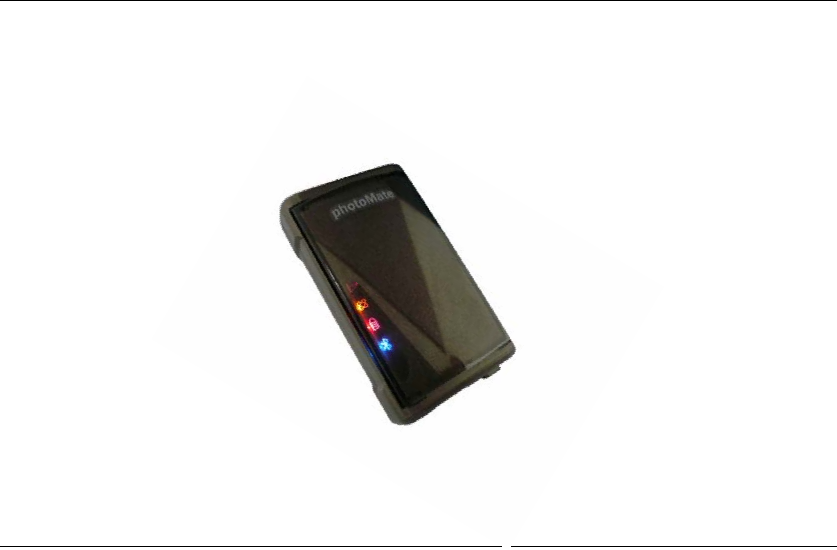

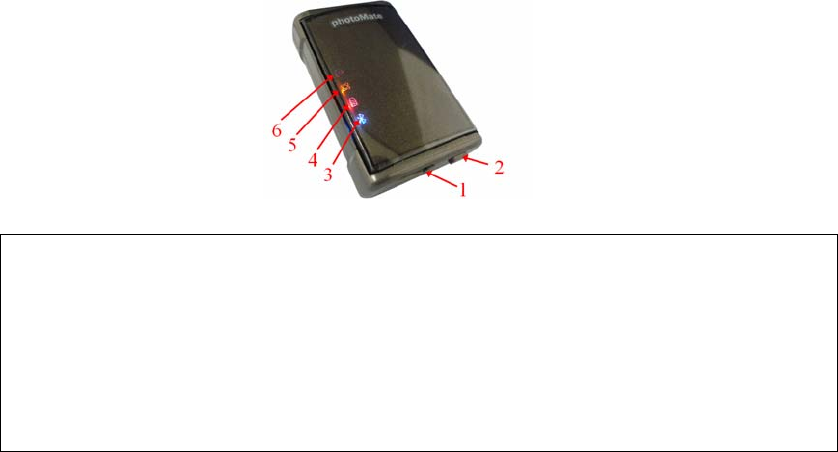

1.5 Appearance
1. DC jack (mini USB type)
2. Button (Power off/ Navigation/ Navigation&log)
3. Bluetooth status LED (blue)
4. Battery status LED (red/green)
5. GPS status LED (orange)
6. Recorder LED (green)
6

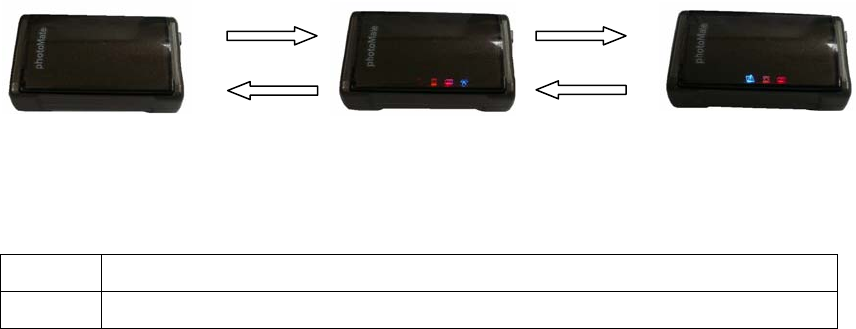

1.6 Power On/Off and Push Button
Power off NAV LOG
Push button 1sec Push button 3sec
Push button 3sec Push button 1sec
Difference between NAV and LOG:
NAV Working as a Bluetooth GPS receiver.
LOG Both of navigation and logging functions are enabled.
After you into the log mode, the 887 will automatic start smart log
function.
What is the Smart log function?
The 887 will auto adjust log frequency depend on speed.
7

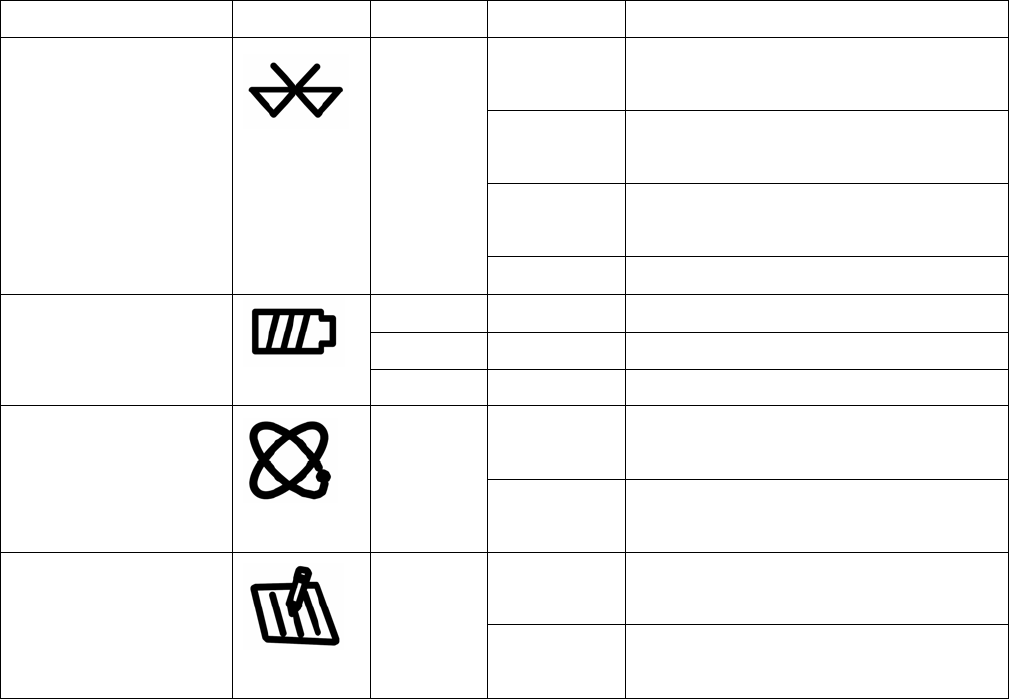

1.7 LED Display
887 photoMate has four LED lights, one is Bluetooth Status LED, the 2nd
one is Battery Status LED, the 3rd one is GPS Status LED, the 4nd one is
Log LED. The status table of LED shows as follows:
Category SYMBOL COLOR STATUS Function
Always
on:
Bluetooth on, but not connected
to any Bluetooth devices yet
1/5Hz
blinking:
Sleeping mode
1/2Hz
blinking:
Bluetooth is connected and
ready for data transmission
Bluetooth Status
LED
Blue
Off In LOG mode
Red Blinking: The battery is too low
Green On: The battery is charging
Battery Status
LED Green Off The battery is fully charged
Always
on:
Acquiring satellites, GPS
position not fixed
GPS Status LED
Orange
1Hz
Blinking:
GPS position is fixed,
Navigation
1/3Hz
Blinking
In LOG mode. LOG Status LED
Green
Always
on:
The memory has been full.
8
Chapter 2 Getting Started
2.1 Checking the package content
Congratulations on your purchase of the 887 with built-in + Lithium-Ion
chargeable battery. Before you start using 887, please make sure if your
package includes the following items. If any item is damaged or missing,
please contact your dealer at once.
- photoMate - 887 x 1
- USB to mini-USB cable x 1
- Car charger x 1
- Strap
- CD Tool x 1 (user manual, software utility, driver)
- Quick start guide x 1
*Unit package contents may vary depending on countries without prior
notice.
*NOTE: The Cigarette Adapter can only be used to charge 887. Please
don’t make use of it with devices other than 887.
9
2.2 Getting Started
Please follow the procedure step by step.

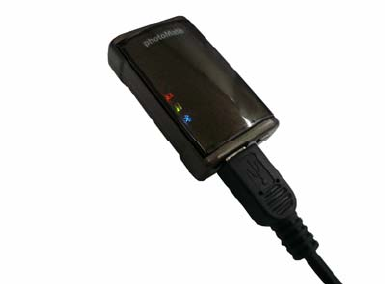

Step 1 Charging Your Battery
To charge your 887 data logger, you have to plug your USB cable into the
power source. Charging time is about 90 minutes and you can charge
from PC/ Notebook’s USB HOST or from cigarette-lighter in car.
For the 1st time you use the 887, please charge battery until it is full (the
green LED is off). Shown in below
- If the LED is red, that means battery power is critically low. Charge immediately.
- If the LED is green, that means battery is charging now.
- If the no LED light display, that means battery is fully charged.
10

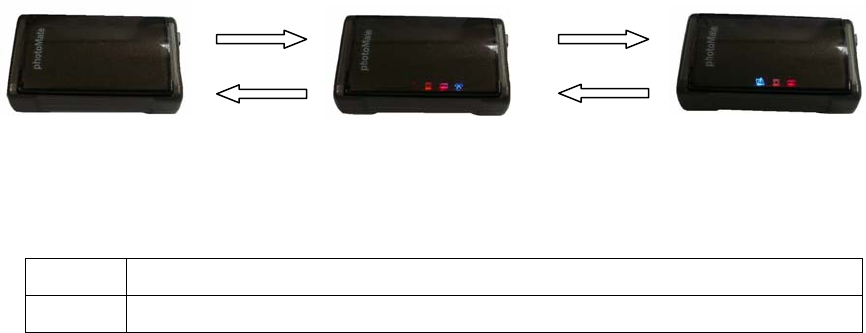

Step 2 Turning on the power (NAV/ LOG)
Power off NAV LOG
Push button 3sec
Push button 3sec Push button 1sec
Push button 1sec
Difference between NAV and LOG:
NAV Working as a Bluetooth GPS receiver.
LOG Both of navigation and logging functions are enabled.
Step 3 Connecting your handheld device with 887
Please refer to the user manual of PDA to enable the Bluetooth
connectivity. If the connection between your device and 887 is successful,
the blue LED of 887 will be blinking.
Below, we provide a common procedure of software installation to set up
your PDA. (For other PDA, the steps may be different. Bluetooth
Manager is a popular program used on Bluetooth device.)
11
-->

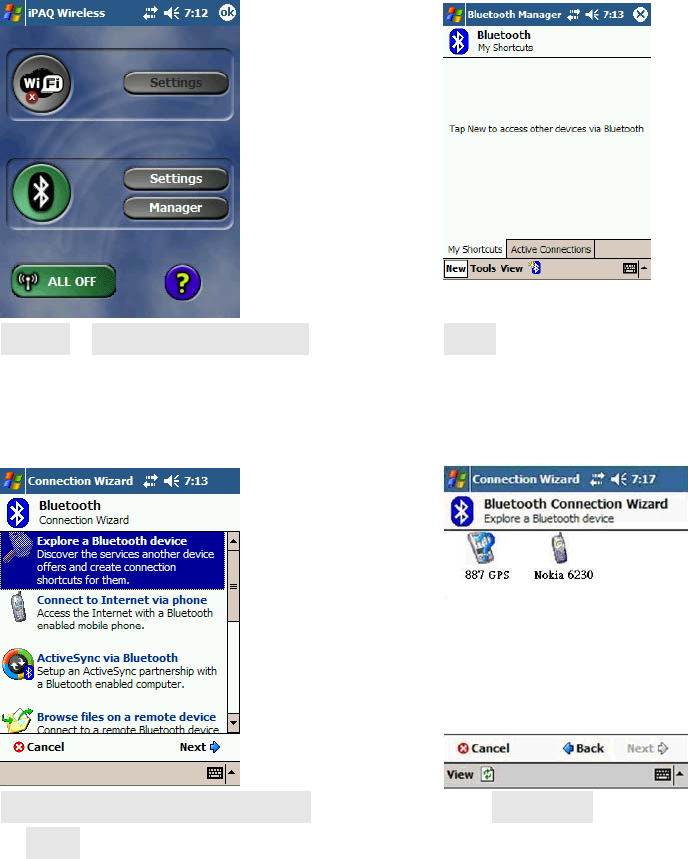

Start -> Bluetooth Manager New
1. Open “Bluetooth Manager” on your pocket pc, and establish a new
connection.
-->
Explore A Bluetooth device
->Next
Tap 887 GPS
12

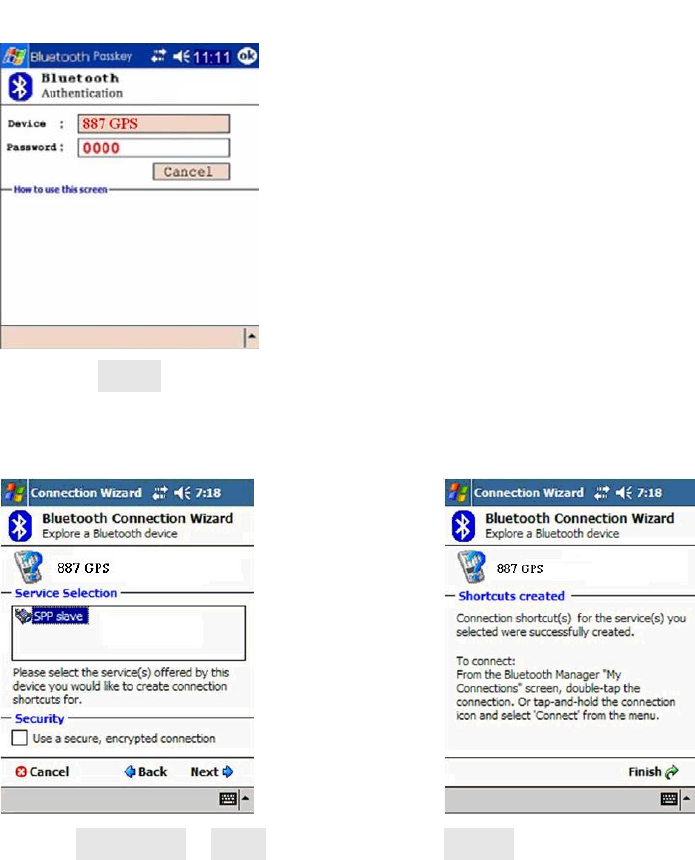

2. Explore a Bluetooth device, and find the “887”
Passkey 0000 (if your PDA
asks for the passkey)
3. (Optional)
-->
Select SPP slave->Next Finish
13

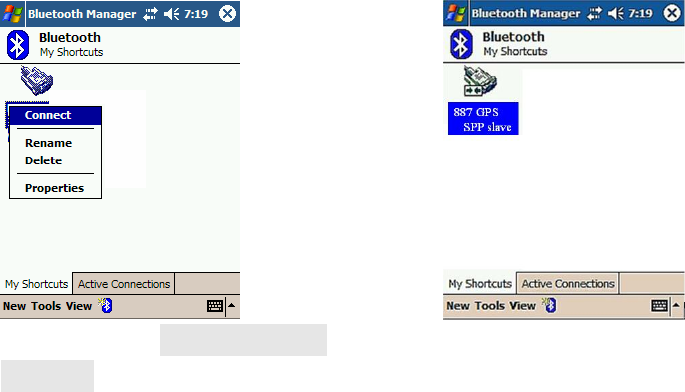

4. Connect to Serial Port Profile (SPP) Slave
-->
Tap and Hold 887: SPP slave,
Connect
Done
5. Finish Bluetooth Manager Setup
Step 4 Loading your GPS mapping or routing software
You should have mapping software on your PDA/ Smartphone/ laptop or
you need to install it before using the 887 for navigation.
Step 5 Starting the application
Select the correct COM port & baud rate within the application.
Note: The Bluetooth device in most of the applications has an
“auto-detect” feature so that you do not need to select the Baud Rate.
14
2.3 Helpful Tips
- It’s better to turn off the 887 when you don’t use it, or the serial Flash's life
can’t last long.
- Some vehicles having heavy metallic sun protecting coating on windshields
may affect GPS signal receptions
- Driving in and around high buildings may affect GPS signal receptions.
- Driving in tunnels or indoor park may affect signal receptions.
- In general, any GPS receiver performs best in open space where it can see
clean sky. Also weather will affect GPS reception – rain & snow contribute
to worse sensitivity.
- Low battery of a PDA or of an 887 may affect signal receptions.
- Please check the correct “COM” and “Baudrate” of your PDA.
- 887 output data updates every second, therefore the actual position and the
position shown in your map may have slight time delay. This may happen
when you drive at higher speed or make a turn around a corner.
- Note that 887 may not work indoors where it can not see the sky.
- For the 1st time you use the 887, it will take 1 to 3 minutes to obtain the
satellite constellation information and fix your position, this is called “Cold
Start”. If you replace the battery, 887 will do Cold Start again.
- If your 887 can’t fix your position for more than 20 minutes, we suggest you
change to another spot with open space and then try again.
15
Chapter 3 How to configure your GPS Record ?
The GpsView program only supports the Microsoft Windows based
platform.
3.1 Driver Installation
Before the USB connector plugs in your PC/ Laptop, please have your
USB Driver Installation ready. (Install InstallDriver.exe driver for USB
port from CD-ROM.)

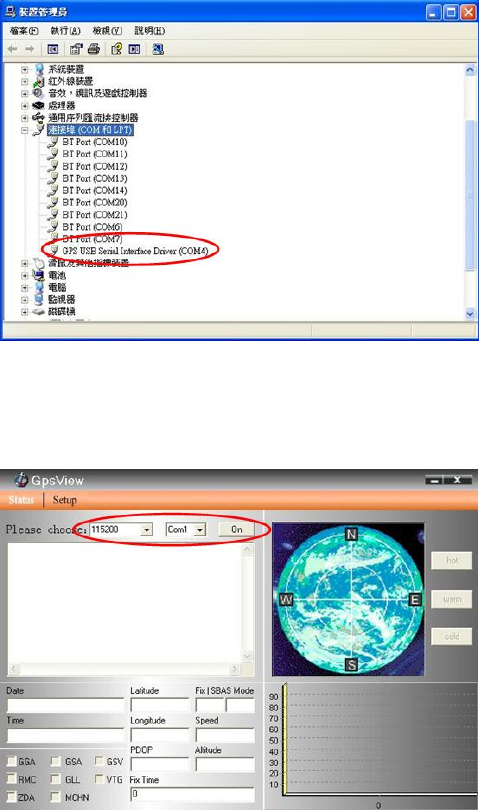

3.2 GpsView software
Open the GpsView software, please select correct COM port and Baud
Rate (USB / Bluetooth :115,200bps) to configure GPS.

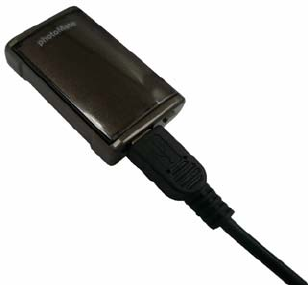

3.2.1 Connect USB cable between GPS and laptop
To USB port on PC/Laptop
16

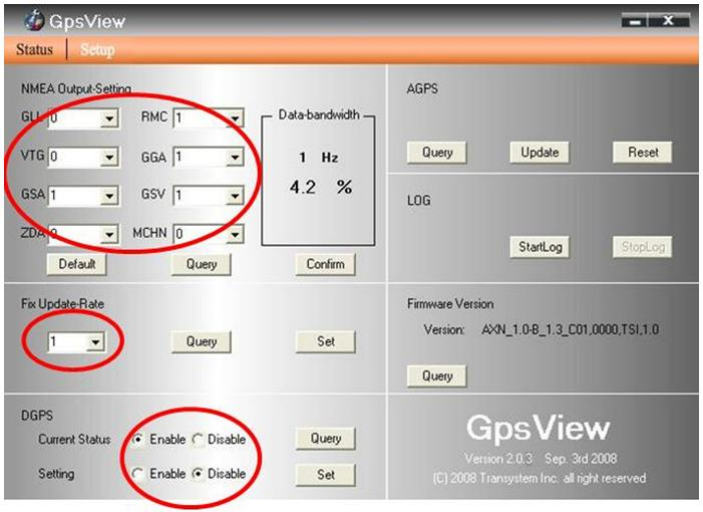

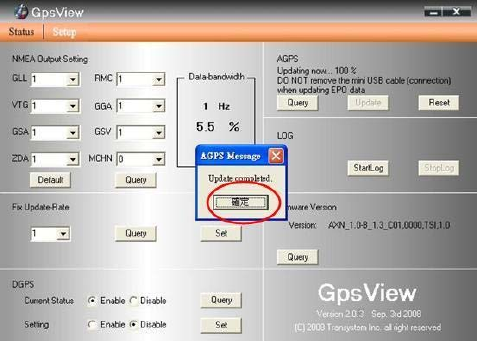

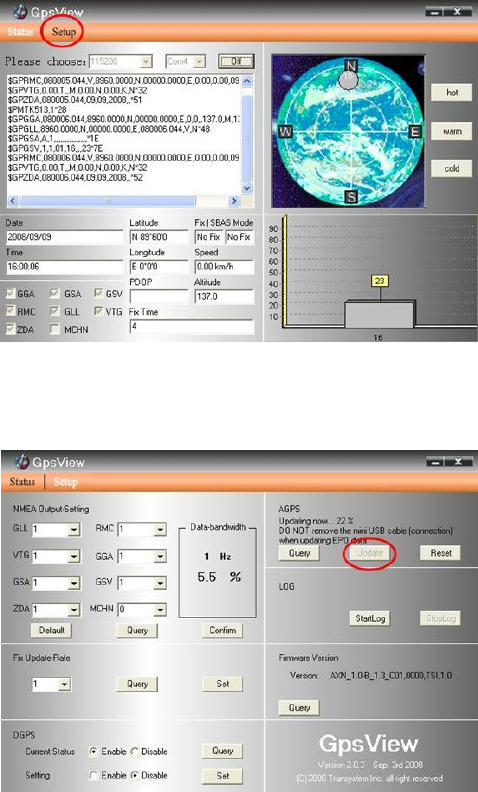

3.2.2 Executing GpsView Program
Click “Command” tap. Update Rate 1 ~ 5Hz is user configurable. And
still more options for choice of NMEA output, DGPS…etc. all available
through pull-down menus.
17
3.2.3 Download AGPS
1. Start→Control Panel→System→Hardware→Device
Management→Connector（COM and LPT）Check Com
port position。
2. Open GpsView.exe→Check Baud Rate and Com port→
click On
18
3. Choice Setup
4. Choice Update。
19
5. When Updating now…100%, click Enter complete。
NOTE: When you use AGPS function, we suggest use
GpsView to download the AGPS data via USB cable.
20
Chapter 4 Using Photo Tagger software
4.1 Execute and install software utility Photo Tagger
Complete GPS Photo Tagger and USB drivers installation (Refer to CD)
4.2 Google Earth
If you computer is not yet installed with Google Earth. Google Earth has
free download version, go download it in the internet first. For more
information, please visit http://earth.google.com/.
4.3 Software Utility --- 887 Photo Tagger
For further function to use the Photo Tagger software in detail, please
refer to Photo Tagger user manual:
Photo Tagger software > Help > User Manual
To use a mini-USB cable to connect the 887 to your PC, you have to
power on the 887 unit. Please keep in mind to switch to LOG mode while
using Photo Tagger software.
21
Appendix
Appendix A. Specifications
General
Frequency L1,1575.42MHZ
C/A Code 1.023MHZ
Datum WGS84
Performance Characteristics
Position Accuracy Without aid: 3.0m 2D-RMS
<3m CEP(50%) without SA(horizontal)
DGPS (WAAS,EGNOS,MSAS):2.5m
Velocity Accuracy Without aid: 0.1m/s
DGPS (WAAS,EGNOS,MSAS):0.05m/s
Acceleration Without aid:<4g
DGPS (WAAS,EGNOS,MSAS):<4g
Timing Accuracy 50 ns RMS
Reacquisition Time <1s
Hot start 1.5s
Warm start 34s
Cold start 35s
AGPS <15s
Sensitivity Acquisition:-148dBm Max.
Tracking:-165dBm Max.
22
Update 1Hz
Dynamic
Altitude Maximum 18,000m
Velocity Maximum 515m/s
Acceleration Maximum 4g
Power
Input Voltage Vin : 5.0V±10%
Battery Built-in chargeable + Lithium-Ion battery
I/O
Available Baud Rates 115200 bps
Protocols NMEA 0183 v3.01
Environment
Operating
Temperature -10 ~ 60C
Storage Temperature -20 ~ 60C
Charging 0 ~ 45C
Bluetooth
Standard Fully compliant with Bluetooth V1.2
Output Power 0dBm (Typical),ClassII
Range Over 10 meters
Bluetooth Profile Serial Port Profile(SPP)
Frequency 2.4G ~ 2.4835GHz ISM Band
Security Yes
23
USB Bridge
Standard Fully compliant with USB2.0
Full speed 12Mbps
Dimension 44 x 26 x 15 mm
Data Log
32Mb serial Flash ROM
125,000 way points.
Log GPS data by time interval/ distance/ speed limit.
User can configure settings by using utility.
＊.Citation MTK original chipset spec.
24
Appendix B. locr GPS Photo
With 887 data logger and locr GPS Photo software, users are allowed to
import geotagging adds information to photos. The position (latitude/
longitude) then be written into the EXIF header for the further application.
Also, locr GPS Photo can integrated travel log and digital photos by date/
time to show photos on the map directly.
Please find the installation file for Windows XP/ Vista in CD tool, or go
to http://www.locr.com for further information.
25
Appendix C. Certification
FCC Notices
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interface, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHOURIZED MODIFICATION TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
FCC RF Exposure requirements:
This equipment must be installed and operated in accordance with provided instructions and the antenna(s)
used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and
installers must be provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
26
CE Notices
Is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member
States relating to Electromagnetic Compatibility (89/336/EEC),
Low-voltage Directive (73/23/EEC) and the Amendment Directive
(93/68/EEC), the procedures given in European Council Directive
99/5/EC and 89/3360EEC.
The equipment was passed. The test was performed according to the
following European standards:
- EN 300 328-2 V.1.2.1 (2001-08)
- EN 301 489-1 V.1.4.1 (2002-04) / EN 301 489-17 V.1.2.1 (2002-04)
- EN 50371: 2002
- EN 60950: 2000
27
28
Appendix D. Warranty Information
Thank you for your purchase of GPS product from the company.
The company warrants this product to be free from defects in materials
and workmanship for one year from the date of purchase. The warranty
for accessories is six months. The stamp of distributor or a copy of the
original sales receipt is required as the proof of purchase for warranty
repairs. The company will, as its sole option, repair or replace any
components, which fail in normal use. Such repair or replacement will be
made at no charge to the customer for parts or labor. The customer is,
however, responsible for any transportation costs.
This warranty does not cover failures due to abuse, misuse, accident or
unauthorized alteration of repairs. The company assumes no
responsibility for special, incidental punitive or consequential damages,
or loss of use.
