User Manual IV

The signal strength is indicated in bars. The more bars, the better the signal strength.

A minimum of three bars is required for stable network operation. The network will op-

erate with one or two bars, but may result in intermittent or lost connections.

NOTE: Signal strength may be affected by router model, interference, obstructions and

distance from the router. Consult router documentation for additional information.

Available broadcasting networks with an adequate signal strength will

display their SSIDs (Service Set IDentiﬁers) in this screen.

A closed lock icon next to the SSID indicates a secure network. An

open lock indicates a non-secure, “open” network.

Select your network and press “Connect”.

If a “Network Not Found” message is displayed, verify the wireless network is function-

ing and within range. Consult router documentation for additional information.

Signal Strength Indicators

Indicator Bars (Color) Description

One (Red) Very Weak

Two (Yellow) Weak

Three (Green) Strong

Four (Green) Very Strong

Selecting a Network7.2

1A) If the network is

unsecured (with an

“open” padlock),

the following mes-

sage will be dis-

played.

2) Enter the network

key (case-sensitive

password). You

or your network

administrator will

need to provide the

required informa-

tion.

1B) If the network is

secured (with a

“closed” padlock),

the following mes-

sage will be dis-

played.

3) The control will

connect to the

wireless network.

4) When the control

has successfully

joined the wire-

less network,

the name of the

network will be

displayed with a

green dot to the

left and a signal

strength indicator

to the right.

Enter Network Key/Password7.3

Advanced networking will be required in the following two instances:

1. When connecting to a non-broadcast network

2. When conﬁguring a static IP address

Advanced Networking Information7.4

Enter the Advanced Network Setup Menu.

IMPORTANT:

The Advanced Network screens are intended for individuals with networking familiarity.

You or your network administrator will need to provide the required information.

If any of this information is unknown or for questions speciﬁc to the wireless router, please

consult the router documentation or your network administrator.

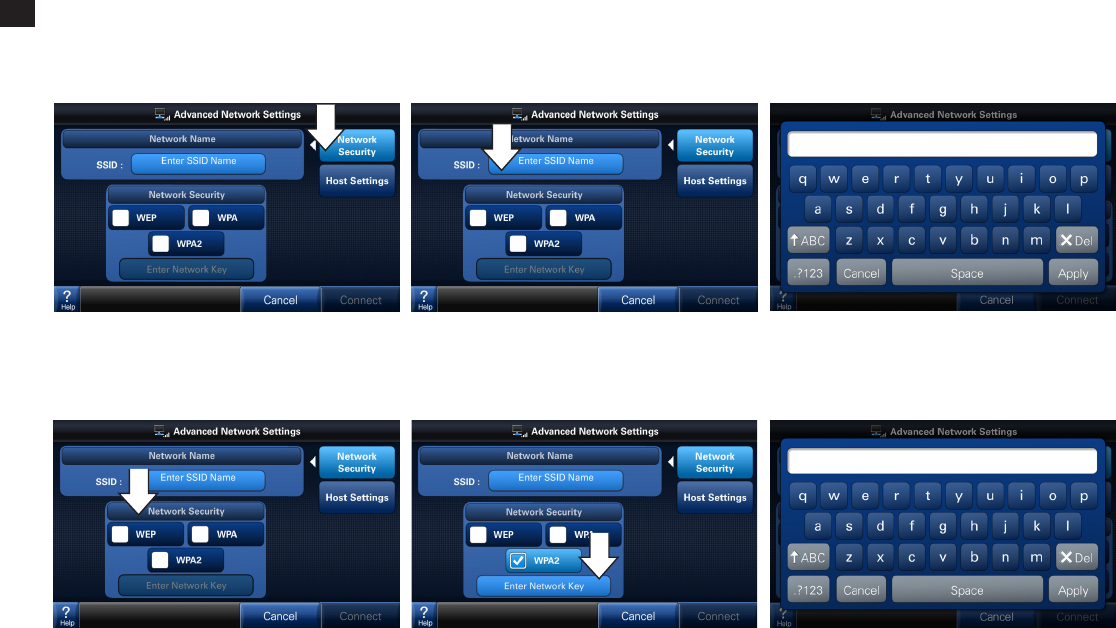

6) Enter the Network Key using the on-screen

keypad.

5) Press “Enter Network Key” button.

2) Press the “Enter SSID Name” button.1) The “Network Security” button in this Ad-

vanced Network Settings menu will be

highlighted by default.

4) Select a network security type.*

*NOTE: WEP-Shared is not supported.

3) Enter the SSID Name using the on-screen

keypad.

When the network’s SSID is not broadcast (hidden), manual conﬁguration in this screen is required.

Network Security7.5

Host Settings7.6

This screen is used to manage how the control obtains network addresses and is needed when DHCP (Dynamic Host Conﬁguration Protocol) has

been turned off or is not available on the router. Otherwise, you may use DHCP to automatically obtain this information. This manual conﬁguration is

required if a static IP address is desired.

NOTE: No additional conﬁguration may be required in a non-broadcast network where IP addresses are assigned by DHCP. You may connect to the

network without modifying the Host Settings.

3) Enter the IP address as required for each.

4) To manually select a DNS server, enter IP

address(es).

1) Select the “Host Settings” button to access

the second screen of settings in this Ad-

vanced Network Settings menu.

2) Select IP Address, Gateway and Subnet

Mask buttons as required.

5) After all the addresses are assigned, Con-

nect to the network.

To change a Static IP Address to a DHCP Ad-

dress, press “Release and Renew IP Address”.

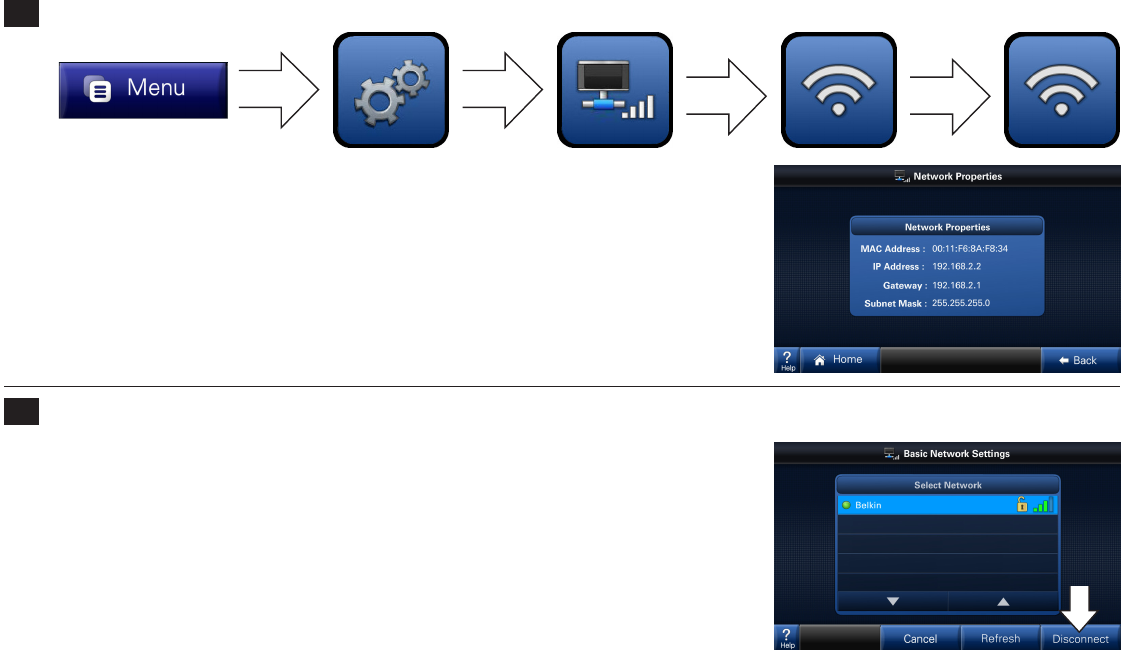

Once a network has been joined, the control will reconnect to it after signal or

power interruptions. When connected, a green dot will be shown.

To disconnect from this network, enter the “Connect to a Network” menu and

select “Disconnect”.

NOTE: When joining a different network, the current router must be discon-

nected in this menu before a new one may be selected. In addition if settings

are changed on the owner’s router, the network may need to be disconnected

and reconnected in this menu.

Repeat previous steps to connect to a different network.

The Network Properties screen displays the control’s current network informa-

tion.

Network Properties

Disconnecting from a Network

7.7

7.8

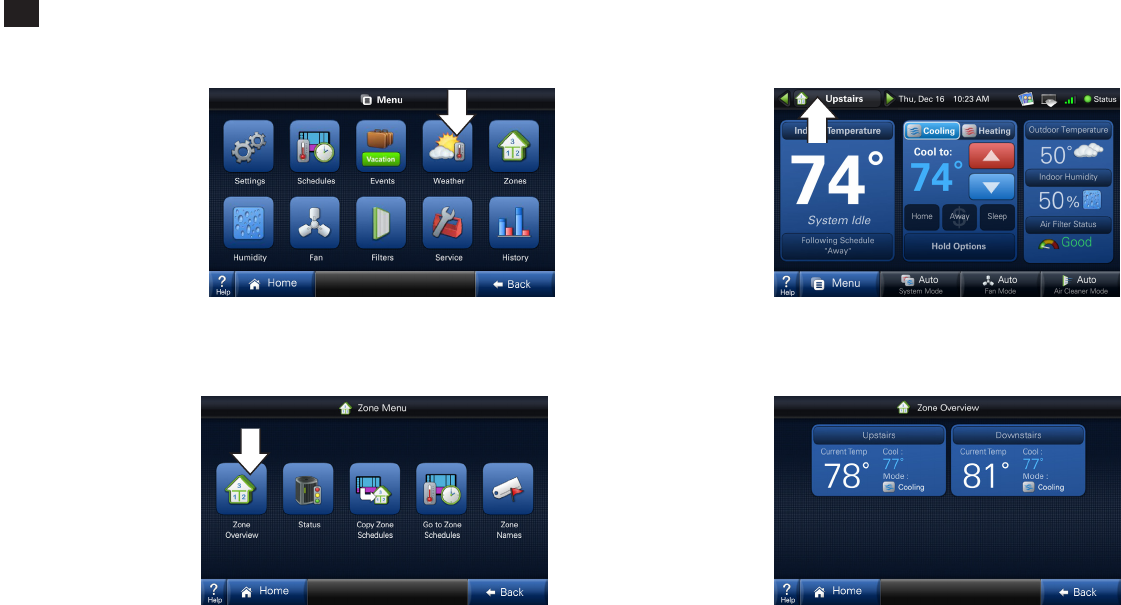

Zoned Environments7.9

2) The Zone Menu is

shown at right.

4) The Zone Overview

menu shows a quick

view of each zone’s

current condition.

3) In zoned environments,

the main screen display

will change to indicate

the presence of mul-

tiple zones. (Notice the

new zone button—la-

beled “Upstairs”—at

right.)

Arrow buttons navigate

between zone views.

1) In a zoned environ-

ment, the “Zones” but-

ton will appear in place

of the “System” button

(see picture at right).

5) System wide settings

for all zones can be

seen at a glance in the

System Status screen.

8) System and Zone

Names may be set

in the Zone Names

screen. The “Rename

System” and “Rename

Zone” buttons al-

low entering custom

names from a keypad.

Pre-conﬁgured names

are also available.

6) A schedule for one

zone can be copied to

another.

7) Each zone’s schedule

can be viewed by cy-

cling through the zones

using the arrows in the

top left corner.

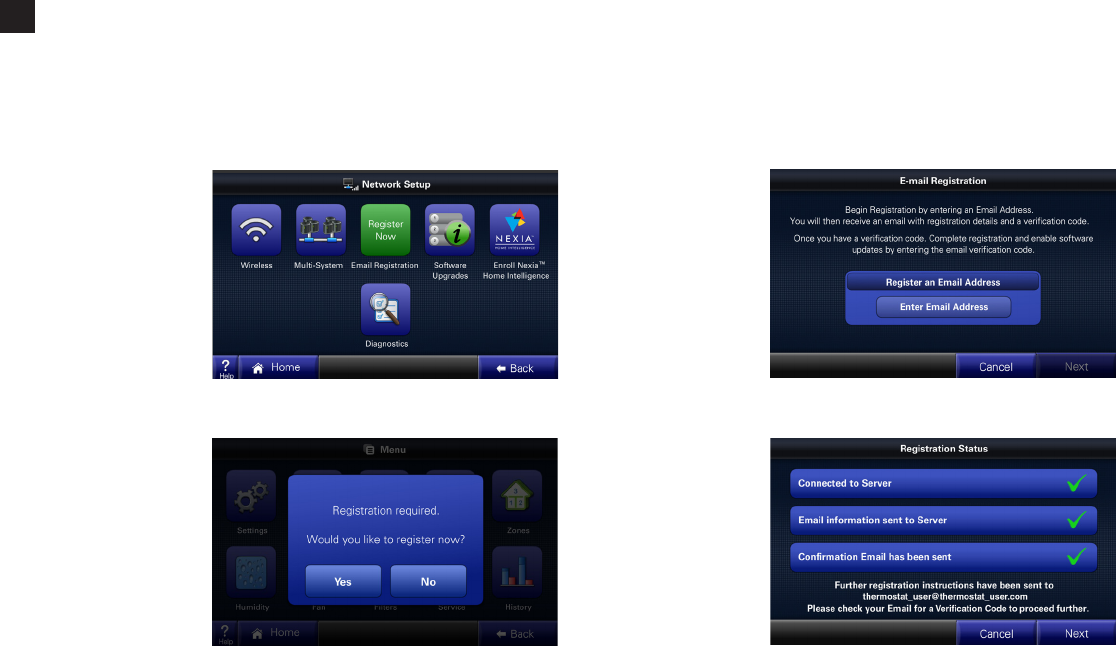

Wireless Registration

1A) In the Network Setup

Screen, select the

“Register Now” button

to begin registration.

Proceed to Step 2.

1B) If instead you try to

connect to Weather

before you have reg-

istered, you will be

prompted to register.

2) After reading and ac-

cepting the License

Agreement, enter

your email address.

3) An email containing

a veriﬁcation code

will automatically

be sent to the email

address you entered.

Registration is required for Weather, Software Updates and Nexia™ Home Ingelligence integration. Registration ensures that your control is using the

most up-to-date software and will also let you take advantage of exciting new features in the future. You will be notifed via email when there is a soft-

ware upgrade available. For complete privacy information see our Privacy Policy at trane.com.

Nexia™ Home Intelligence Enrollment

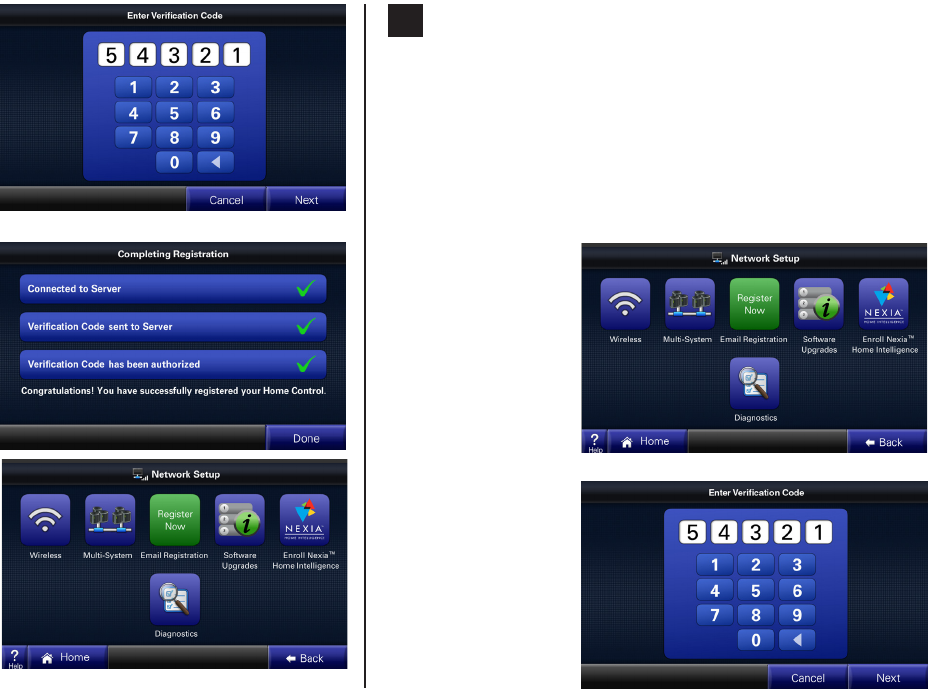

10) After entering your

veriﬁcation code,

your additional fea-

tures will now be

enabled.

11) In the event your

email address

changes, you can

update the email ad-

dress with your new

one. The process is

similar to ﬁrst-time

registration.

9) Enter the 5-digit veri-

ﬁcation code.

NOTE: This will only

need to be done one

time.

The control can be managed remotely via an internet connected

computer and most smart cell phones via Nexia™ Home Intelligence. Visit

www.nexiahome.com to learn more.

1) Visit www.nexiahome.com to sign on and add your new control to your

account or click on “Ready to setup a Nexia™ Home Intelligence system?

Get started here!” to set up a new Nexia™ account.

2) Follow the online

instructions to add

your control to your

account.

3) When you add your

control to your online

account, a veriﬁcation

PIN code is generated.

Enter that PIN

code to enroll your

control and enjoy the

comfort, savings and

convenience of Nexia™

Home Intelligence.

Software Upgrades

Your control is built with the future in mind and has the ability to upgrade its operating system.

Software upgrades ensure your control has the most up-to-date software optimizing its opera-

tion and providing exciting new features as they become available.

The Software Upgrades menu is accessed by navigating to Menu --> Settings --> Network. After

pressing the “Software Upgrades” button, follow the guided instructions on the series of screens.

Upgrade the software by one of the following methods:

1) Select the “Check for updates on the internet” box as shown in the screen at right. This is the

default setting and the easiest way to upgrade your control’s software.

2) Alternatively, using a web browser and your computer, download the latest sofware upgrade

image from the trane.com website and place this computer ﬁle on an SD card. After transfer-

ring the SD card from your computer to the control, select “Check for upgrades on SD Card”

as shown in the screen at right.

Follow the instructions to upgrade your control. Additional instructions are found on the

trane.com website.

Requirements

• Youmusthaveacurrentlyactiveinternetconnection.

• Youmustalreadyhaveregisteredyourcontrol(seeprevioussection).

• YoumusthaveanSDcardwithadequatememoryavailable.Datafortheupgradewillbe

stored on this card.

Note: Following the installation of software version 2.2 or later, an SD card is no longer

required for future Internet software upgrades. Also, all upgrades post 2.2 will be

automatically downloaded and a pop-up message will appear with the option to Install

Now or Remind Me Later.

Troubleshooting

Slow response or

unexpected operation:

Reboot your control at the

following location.

“No System Found” displays on the screen:

If this message stays on your screen, press the

“Reboot” button shown at right.

No response to any button presses:

Remove and re-install the control as shown below. The boot up process may take several minutes.

Re-Install Control

Re-install control ﬂat onto sub-base

being careful to align unit correctly with

the sub-base before applying force.

Control should ﬁt snug and not “rock”

when properly installed.

Remove Control

Remove control from its sub-base by

grasping at edges and gently pulling

the control straight towards you. It

should release without much effort.

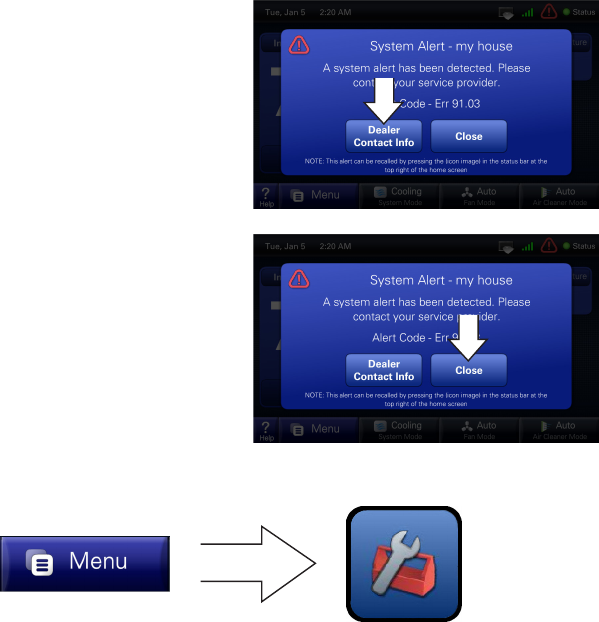

2) Press “Close” to dismiss the

alert. The error message can be

recalled by pressing the Alert

icon which will remain in the

menu bar.

Dealer Information can also be accessed by this path:

System Alerts

1) When your system indicates an

issue with communication or

operation, an alert will display on

the screen.

Click the “Dealer Contact Info”

to retrieve your dealer’s phone

numbers and website informa-

tion.

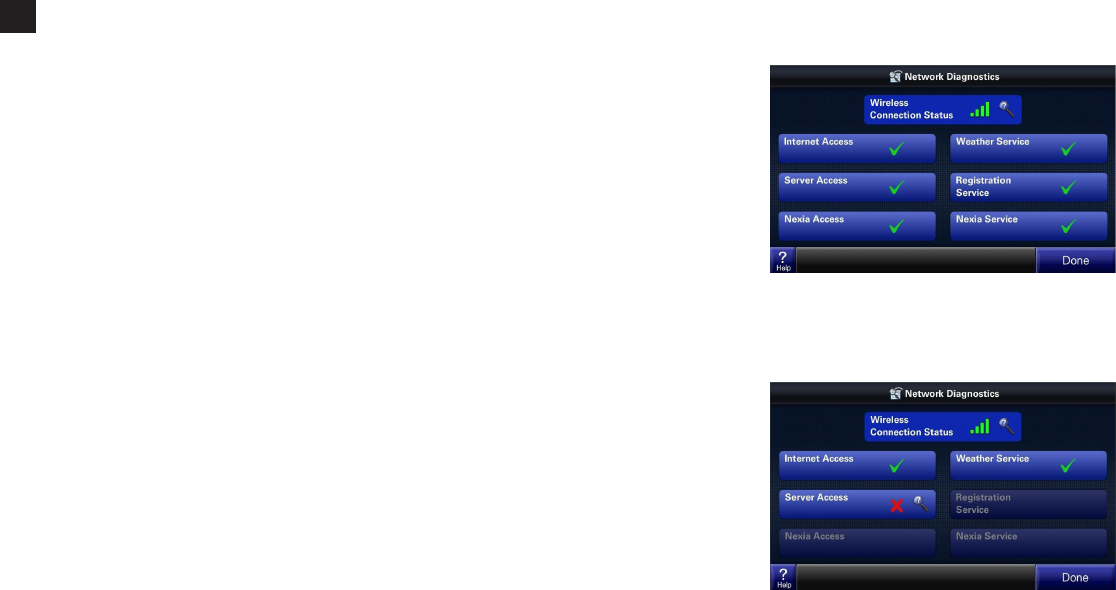

Networking Diagnostics

Networking Diagnostics allows the user to view information about the:

1) Wireless Connection (connection to the local router),

2) Internet Connection (connection to the Internet),

3) Server Access (the 950’s ability to call out and connect to the

Registration and Data Logging Server) and

4) Nexia Access (the 950’s ability to call out and connect to the Nexia

server).

The 950 automatically performs these four test each time the Network

Diagnostics screen is entered.

Optionally, the user can manually perform these tests:

1) Weather Service (receive current weather conditions),

2) Registration Service (send Registration Information and Data Logs to

the 950 server), and

3) Nexia Service (send and receive information from the Nexia server).

If a Service is unavailable or if a server is unaccessable, a red “X” and an

icon of a magnifying glass will appear on the display screen. Press the

magnifying glass for detailed information and troubleshooting procedures.

Base Limited Warranty

Subject to the terms and conditions of this limited warranty, Trane U.S., Inc. (“Com-

pany’) extends a limited warranty against manufacturing defects for the product(s) iden-

tiﬁed in Tables 1, 1A, 1B attached hereto (“Products’) that are installed in a residential/

multi-family application (personal, family or household purposes) under normal use and

maintenance in the United States and Canada.

This limited warranty applies to Products manufactured on or after August 1,

2011.

In order to maximize the available beneﬁts under this limited warranty, the

Purchaser (as deﬁned below) should read it in its entirety. All repairs of Product parts

covered under this limited warranty must be made with authorized service parts and by

a licensed HVAC service provider. Additionally, commercial applications are treated dif-

ferently under this limited warranty as stated in Tables 1, 1A, 1B attached hereto. For

purposes of this limited warranty, “commercial applications” shall mean any application

other than for personal, family, or household use.

TERM: The limited warranty period for Products is as stated in Tables 1, 1A, 1B

attached hereto. If the Purchaser properly registers the Products, the limited warranty

period shall be extended as stated in Tables 1, 1A, 1B attached hereto. Regardless of

registration, the Commencement Date for a limited warranty period shall be the date

that the original installation is complete and all Product start-up procedures have been

properly completed and veriﬁed by an installer’s invoice. If the installation and start-up

date cannot be veriﬁed by the installer’s invoice, the Commencement Date shall be

sixty (60) days after the factory manufacture date which is veriﬁed by the Product serial

number. Where a Product is installed in a newly constructed home, the Commence-

ment Date is the date the Purchaser purchased the residence from the builder. Proof of

Product purchase, installation, and/or closing date of the residence may be required to

conﬁrm the Commencement Date.

The installation of Product replacement parts under this limited warranty shall not

extend the original warranty period. The warranty period for any Product part replaced

under this limited warranty is the applicable warranty period remaining under the origi-

nal Product warranty.

WHO IS COVERED: This limited warranty is provided only to the original owner

and his or her spouse (“Purchaser’) of the residence where the Products are originally

installed. This warranty is not transferable except according to terms stated on the

applicable website identiﬁed below under Registration Requirements. Company has

the right to request any and all proof of Product purchase or installation and/or closing

date of the residence.

WHAT COMPANY WILL DO: Company may request proof of Product purchase

and/or installation in order to provide Product parts under this limited warranty. As

Company’s only responsibility and Purchaser’s only remedy under this limited warranty,

Company will furnish a replacement part to the licensed HVAC service provider, without

charge for the part only, to replace any Product part that fails due to a manufacturing

defect under normal use and maintenance. The Purchaser must pay for any and all

shipping and handling charges and other costs of warranty service for the replacement

part. If a Product part is not available, Company will, at its option, provide a free suit-

able substitute part or provide a credit in the amount of the then factory selling price for

a new suitable substitute part to be used by the Purchaser towards the retail purchase

price of a new Company product. Any new Product purchase shall be at Purchaser’s

sole cost and expense including, but not limited to, all shipping, removal, and installa-

tion costs and expenses.

REGISTRATION REQUIREMENTS: All Products must be properly registered

online by the Purchaser within sixty (60) days after the Commencement Date to receive

the registered limited warranty terms. To register online, go to:

http://www.trane.com/Residential/For-Owners/Warranties or

http://www.americanstandardair.com/servicesupport/pages/warranty.aspx

and click “Begin Online Registration.” If a Purchaser does not register within this stated

time period, the base limited warranty terms shall apply.

ELIGIBILITY REQUIREMENTS: The following items are required in order for the

Products to be covered under this limited warranty:

•The Products must be in the same location where they were originally installed.

•The Products must be properly installed, operated, and maintained by a licensed

HVAC service provider in accordance with the Product speciﬁcations or instal-

lation, operation, and maintenance instructions provided by Company with each

Product. Failure to conform to such speciﬁcations and/or instructions shall void

this limited warranty. Company may request written documentation showing the

proper preventative maintenance.

•All Product parts replaced by Company under this limited warranty must be given

to the servicing provider for return to Company.

•Air handlers, air conditioners, heat pumps, cased or uncased coils and stand-

alone furnaces must be part of an Air Conditioning, Heating, and Refrigeration

Institute rated and matched system or a speciﬁcation in a Company provided

bulletin or otherwise approved in writing by a Company authorized representative.

EXCLUSIONS: The following are not covered by this limited warranty:

•Labor costs including, but not limited to, costs for diagnostic calls or the removal

and reinstallation of Products and/or Product parts.

•Shipping and freight expenses required to ship Product replacement parts.

•Failures, defects, or damage (including, but not limited to, any loss of data or

property) caused by (1) any third party product, service, or system connected

or used in conjunction with the Products; (2) any use that is not designed or

intended for the Products; (3) modiﬁcation, alteration, abuse, misuse, negligence,

or accident; (4) improper storage, installation, maintenance, or operation includ-

ing, but not limited to, operation of electrical equipment at voltages other than

the range speciﬁed on the Product nameplate; (5) any use in violation of written

instructions or speciﬁcations provided by Company; (6) any acts of God includ-

ing, but not limited to, ﬁre, water, storms, lightning, or earthquakes; or any theft or

riots; or (7) a corrosive atmosphere or contact with corrosive materials such as,

but not limited to, chlorine, ﬂuorine, salt (provided that indoor and outdoor coils

will only be covered if a Sea Coast Kit is installed), sulfur, recycled waste water,

urine, fertilizers, rust, or other damaging substances or chemicals.

•Products purchased direct including, but not limited to, Internet or auction pur-

chases and purchases made on an uninstalled basis.

•Cabinets or cabinet pieces that do not affect product performance, air ﬁlters, re-

frigerant, refrigerant line sets, belts, wiring, fuses, surge protection devices, non-

factory installed driers, and Product accessories (unless otherwise speciﬁed).

•Increased utility usage costs.

REFRIGERANT POLICY: (1) Manufacturer-Installed Refrigerant: Beginning

on January 1, 2010, R-22 refrigerant will no longer be used as a manufacturer-in-

stalled refrigerant as required by federal regulation. All Products with manufac-

turer-installed refrigerant will include R410-A refrigerant. Any and all expenses

or costs associated with replacing Product parts that are not R-410A compatible

will not be covered by the terms and conditions of this limited warranty. (2) Non-

Manufacturer installed Refrigerant: For Products manufactured and sold by the

Company without refrigerant, only manufacturer approved and genuine alternate

refrigerants shall be used. The use of contaminated, counterfeit, non-genuine, or

non-manufacturer approved alternate refrigerant will void this limited warranty.

(3) All Products: Products include a liquid line ﬁlter drier which must be replaced

when a compressor replacement is necessary. A suction line ﬁlter drier must be

added for compressors deﬁned as burnouts and failure to do so will void this

warranty. Non-approved refrigerant and/or non-approved refrigerant system ad-

ditives including, but not limited to dyes will void this limited warranty.

ADDITIONAL TERMS:

THIS LIMITED WARRANTY AND LIABILITY SET FORTH HEREIN ARE IN LIEU

OF ALL OTHER WARRANTIES AND LIABILITIES, WHETHER IN CONTRACT OR IN

NEGLIGENCE, EXPRESS OR IMPLIED, IN LAW OR IN FACT. THE IMPLIED WAR-

RANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

ARE LIMITED TO THE DURATION OF THE APPLICABLE PRODUCT WARRANTY.

COMPANY DOES NOT AUTHORIZE ANY PERSON TO CREATE FOR IT ANY OBLI-

GATION OR LIABILITY IN CONNECTION WITH THE PRODUCTS.

NOTWITHSTANDING ANYTHING IN THIS LIMITED WARRANTY TO THE CON-

TRARY, COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUEN-

TIAL, INDIRECT, SPECIAL AND/OR PUNITIVE DAMAGES, WHETHER BASED

ON CONTRACT, WARRANTY, TORT (INCLUDING, BUT NOT LIMITED TO, STRICT

LIABILITY OR NEGLIGENCE), PATENT INFRINGEMENT, OR OTHERWISE, EVEN

IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. COMPANY’S MAXIMUM

LIABILITY HEREUNDER IS LIMITED TO THE ORIGINAL PURCHASE PRICE OF

THE PRODUCTS.

No action arising out of any claimed breach of this limited warranty may be brought

by a Purchaser more than one (1) year after the cause of action has arisen.

This limited warranty gives you speciﬁc legal rights, and you may also have other

rights as otherwise permitted by law. If this Product is considered a consumer product,

please be advised that some local laws do not allow limitations on incidental or con-

sequential damages, how long a warranty lasts based on registration, or how long an

implied warranty lasts, so that the above limitations may not fully apply. Refer to your

local laws for your speciﬁc rights under this limited warranty.

Consumer Relations

20 Corporate Woods Dr.

Bridgeton, MO 63044

Or visit our website at www.trane.com or www.americanstandardair.com

GW-658-5114

Table 1A: Warranty Time Periods for Controls, Zoning Products, Humidiﬁers, Energy Recovery Ventilators, and Air Cleaners

COVERAGE TERMS FOR RESIDENTIAL APPLICATIONS: Pursuant to the Trane U.S., Inc. (“Company”) limited warranty terms and conditions, the following

Products are covered for the base time periods as stated below (“Base Limited Warranty period”). If registered, the Base Limited Warranty Periods for certain

products will be extended as stated below (“Registered Limited Warranty Period”).

CONTROLS: *CONT200,*CONT401,*CONT402, *CONT600, *CONT602, *CONT624

Base Limited Warranty Period: one (1) year

Registered Limited Warranty Period: ﬁve (5) years

CONTROLS: *ZEMT500, *CONT800,*CONT802,*CONT803, *CONT824, *CONT850, *CONT900, *ZONE940, *ZONE950
