Performance Climate Changer™ Air Handlers

Sizes 3-120 for Indoor and Outdoor Units

October 2012 CLCH-PRC016-EN

Quick Select

2 CLCH-PRC016-EN

Selection Procedure

Note: For specific dimensional and weight information, refer to the unit submittals. The

dimensions and weights in this manual are approximate. Trane has a policy of continuous

product and product data improvement and reserves the right to change design and

specifications without notice.

1. Size the air-handling unit based on airflow through the cooling coil (see Table 1). The unique

fin design of Trane coils enables cooling coil selections at velocities in excess of 625 fpm with

no moisture carryover. The coil moisture carryover curves from tested data are built into the

Trane Official Product Selection System (the TOPSS™ program). Use this system to select coils.

2. Choose the coil section (see Table 2). Unit size, coil type, and coil rows determine the minimum

coil section size required.

3. Select a filter type and check face velocities (see Table 3). The maximum recommended face

velocity for pleated media, permanent, bag, and 12-inch cartridge filters is 625 fpm; for

throwaway and HEPA filters, it is 500 fpm.

Note: If selecting an outdoor unit with an inlet hood, verify airflow limitations using Table 4.

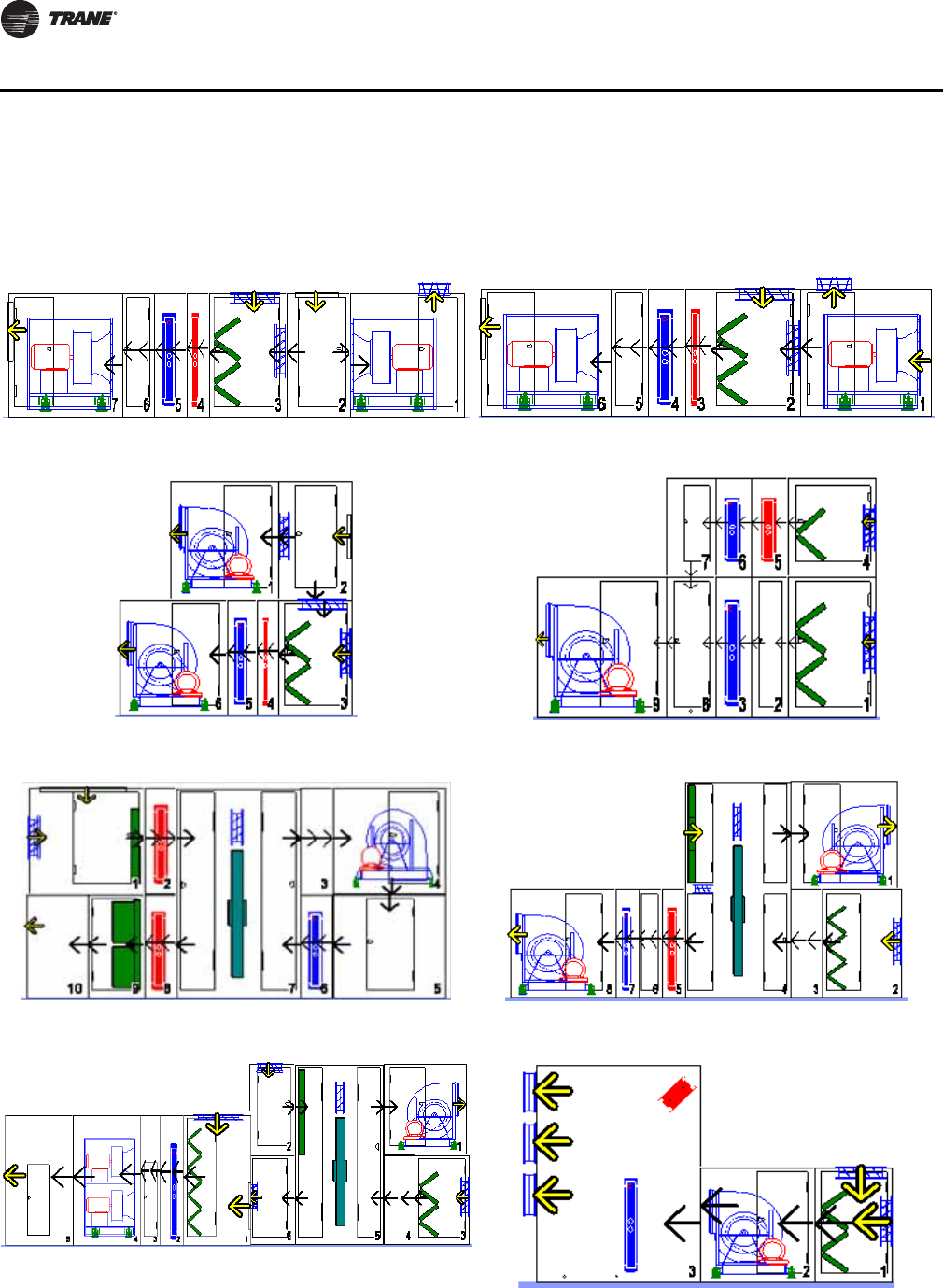

4. Design the basic air-handling system.

5. Estimate system static pressure requirements and select a fan (see Table 5 and Table 6).

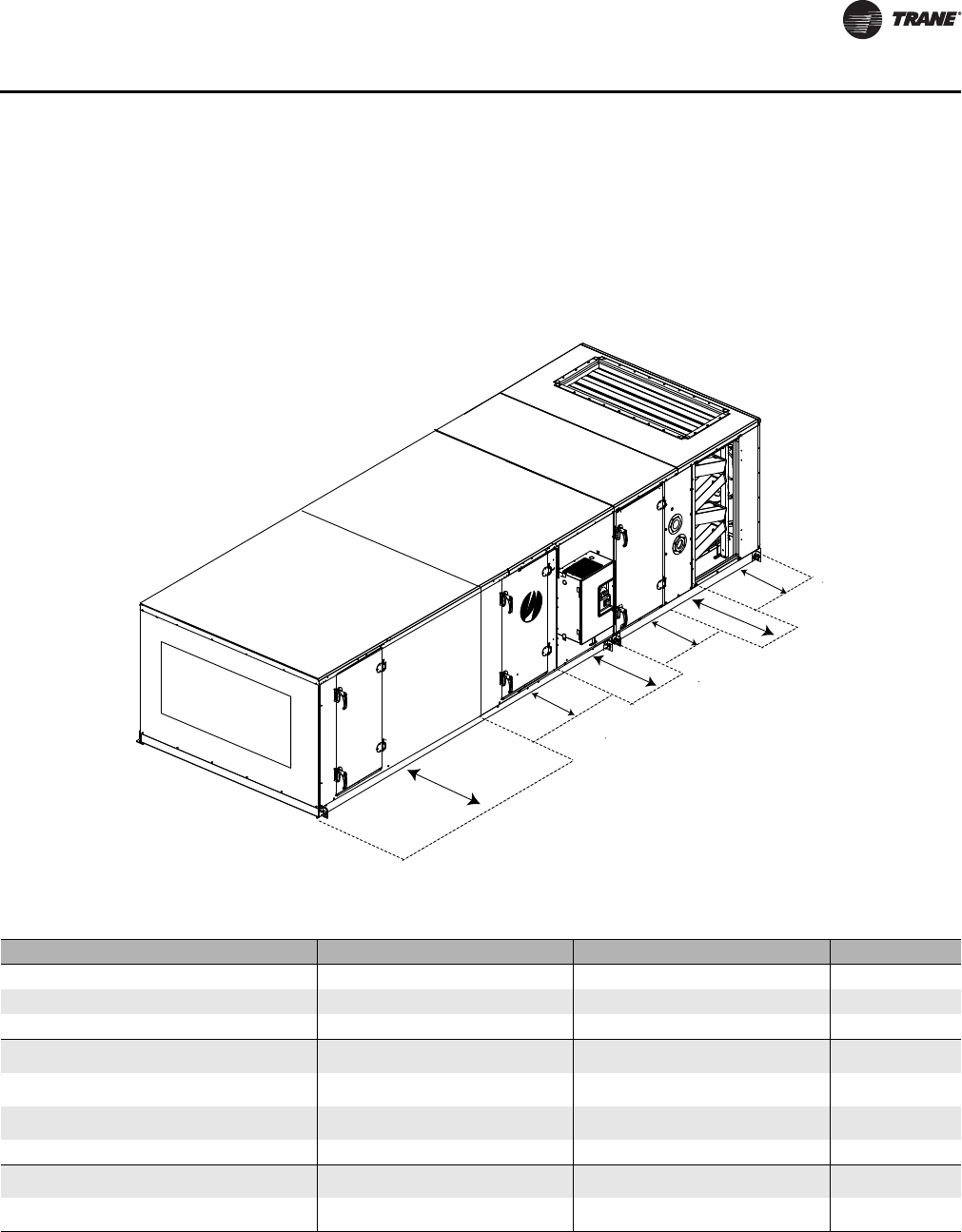

6. Total the overall air-handling unit dimensions and weights using Table 7 and Table 8.

Note: If selecting an outdoor unit, include external piping cabinet weight and dimensions. See

Table 7 and Table 8.

7. Select a control system. Factory-mounted, -wired, and -tested end devices, starters, VFDs, and

direct-digital, interoperable controllers are available to minimize construction cycles and job-

site coordination.

8. Contact your local Trane sales office to order an air-handling system or to ask questions.

Table 1. Size the air handler based on airflow through the cooling coil

Coil Type Unit Size 3 4 6 8 10 12 14

1/2-inch

unit Area (ft

2

) 2.92 4.51 6.11 7.99 9.98 12.30 13.65

Qty-Size 1-20 x 21 1-20 x 32.50 1-26.25 x 33.50 1-28.75 x 40 1-28.75 x 50 1-32.50 x 54.50 1-32.5 x 60.50

5/8-inch

unit Area (ft

2

)2.50 4.00 5.33 7.31 9.19 11.81 13.13

Qty-Size 1-18 x 20 1-18 x 32 1-24 x 32 1-27 x 39 1-27 x 49 1-31.50 x 54 1-31.50 x 60

1-inch unit Area (ft

2

) 2.50 4.00 5.33 6.50 8.17 11.25 12.50

Qty-Size 1–18 × 20 1–18 × 32 1–24 × 32 1–24 × 39 1–24 × 49 1–30 × 54 1–30 × 60

1/2-inch

modified Area (ft

2

)1.74 2.78 2.78 4.95 6.38 9.38 10.42

Qty-Size 1-12.50 x 20 1-12.50 x 32 1-12.50 x 32 1-18.75 x 38 1-18.75 x 49 1-25 x 54 1-25 x 60

5/8-inch

modified Area (ft

2

) 1.67 2.67 2.67 4.88 6.13 9.00 10.00

Qty-Size 1-12 x 20 1-12 x 32 1-12 x 32 1-18 x 39 1-18 x 49 1-24 x 54 1-24 x 60

1-inch

modified Area (ft

2

)1.67 2.67 2.67 4.88 6.13 9.00 10.00

Qty-Size 1-12 x 20 1-12 x 32 1-12 x 32 1-18 x 39 1-18 x 49 1-24 x 54 1-24 x 60

CLCH-PRC016-EN 3

Coil Type Unit Size 17 21 22 25 26 30 31

1/2-inch

unit Area (ft

2

) 16.81 20.81 19.97 24.97 24.67 29.90 29.96

Qty-Size 1-40 x 60.50 1-43.75 x 68.50 1-57.50 x 50 1-52.50 x 68.50 2-36.25 x 49 1-52.50 x 82 1-36.25 x 59.50

5/8-inch

unit Area (ft

2

)15.63 19.83 18.89 24.08 24.50 28.69 29.50

Qty-Size 1-37.50 x 60 1-42 x 68 1-55.50 x 49 1-51 x 68 2-36 x 49 1-51 x 81 1-36 x 59

1-inch unit Area (ft

2

) 13.75 17.00 17.35 22.67 22.46 27.00 27.04

Qty-Size 1–33 × 60 2–18 × 68 1-33 x 49

1-18 x 49 2–24 × 68 1-30 x 49

2-18 x 49 2–24 x 81 1-30 x 59

2-18 x 59

1/2-inch

modified

Area (ft

2

)13.02 15.94 12.34 17.12 19.14 20.39 23.05

Qty-Size 1-31.25 x 60 1-33.75 x 68 1-36.25 x 49 1-36.25 x 68 1-31.25 x 49

1-25 x 49 1-36.25 x 81 1-31.25 x 59

1-25 x 59

5/8-inch

modified Area (ft

2

) 12.50 15.58 12.25 17.00 18.38 20.25 22.13

Qty-Size 1-30 x 60 1-33 x 68 1-36 x 49 1-36 x 68 1-54 x 49 1-36 x 81 1-54 x 59

1-inch

modified

Area (ft

2

)12.50 15.58 12.25 17.00 18.38 20.25 22.13

Qty-Size 1-30 x 60 1-33 x 68 2-18 x 49 2-18 x 68 1-30 x 49

1-24 x 49 2-18 x 81 1-30 x 59

1-24 x 59

Coil Type Unit Size 35 36 40 41 50 51

1/2-inch

unit Area (ft

2

) 34.94 34.11 39.93 40.94 49.05 50.00

Qty-Size 1-57.50 x 87.50 1-37.50 x 65.50 1-57.50 x 100 2-45 x 65.50 2-31.25 x 113 2-45 x 80

5/8-inch

unit

Area (ft

2

)33.53 34.38 38.54 41.25 48.26 50.00

Qty-Size 1-55.50 x 87 2-37.50 x 66 1-55.50 x 100 2-45 x 66 1-27 x 113

1-34.50 x 113 2-45 x 80

1-inch unit Area (ft

2

) 30.81 31.63 35.42 38.50 47.08 46.67

Qty-Size 1-33 x 87

1-18 x 87 1-33 x 66

2-18 x 66 1-33 x 100

1-18 x 100 2-30 x 66

1-24 x 66 2-30 x 113 2-30 x 80

1-24 x 80

1/2-inch

modified

Area (ft

2

)21.90 26.93 25.17 33.23 33.35 40.28

Qty-Size 1-36.25 x 87 1-33.75 x 66

1- 25 x 66 1-36.25 x 100 2-36.25 x 66 1-42.50 x 113 2-36.25 x 80

5/8-inch

modified

Area (ft

2

) 21.75 26.13 25.00 33.00 35.31 40.00

Qty-Size 1-36 x 87 1-33 x 66

1-24 x 66 1-36 x 100 2-36 x 66 1-45 x 113 2-36 x 80

1-inch

modified

Area (ft

2

)21.75 26.13 25.00 23.38 32.96 38.33

Qty-Size 2-18 x 87 1-33 x 66

1-24 x 66 2-18 x 100 2-18 x 66

1-33 x 66 1-24 x 113

1-18 x 113 2-18 x 80

1-33 x 80

Coil Type Unit Size 57 58 66 80 100 120

1/2-inch

unit

Area (ft

2

) 56.89 56.89 65.63 78.75 99.14 118.10

Qty-Size 2-36.25 x 113 1-57.50 x 80

1-43.75 x 80 2-37.50 x 126 2-45 x 126 1-57.50 x 141

1-43.75 x 141 1-57.50 x 168

1-43.75 x 168

5/8-inch

unit Area (ft

2

)56.50 56.67 65.63 78.75 99.88 119.00

Qty-Size 2-36 x 113 2-51 x 80 2-37.50 x 126 2-45 x 126 2-51 x 141 2-51 x 168

1-inch unit Area (ft

2

) 51.79 53.33 60.38 73.50 94.00 96.00

Qty-Size 1-30 x 113

2-18 x 113 2-33 x 80

1-30 x 80 1-33 x 126

2-18 x 126 2-30 x 126

1-24 x 126 2-33 x 141

1-30 x 141 2-33 x 144

1-30 x 144

1/2-inch

modified

Area (ft

2

)44.14 43.75 51.41 63.44 77.11 91.88

Qty-Size 1-31.25 x 113

1-25 x 113 1-42.50 x 80

1-36.25 x 80 1-33.75 x 126

1-25 x 126 2-36.25 x 126 1-42.50 x 141

1-36.25 x 141 1-42.50 x 168

1-36.25 x 168

5/8-inch

modified

Area (ft

2

) 42.38 42.33 49.88 63.00 76.38 91.00

Qty-Size 1-54 x 113 1-42 x 80

1-36 x 80 1-33 x 126

1-24 x 126 2-36 x 126 1-42 x 141

1-36 x 141 1-42 x 168

1-36 x 168

1-inch

modified

Area (ft

2

)42.38 43.33 49.88 60.38 76.38 78.00

Qty-Size 1-30 x 113

1-24 x 113 1-30 x 80

2-24 x 80 1-33 x 126

1-24 x 126 2-18 x 126

1-33 x 126 1-30 x 141

2-24 x 141 1-30 x 144

2-24 x 144

Note: The area given is for the largest 5/8-inch coil per unit size. Other 5/8-inch unit coil areas are available; refer to product catalog CLCH-

PRC015-EN or the TOPSS program.

Table 1. Size the air handler based on airflow through the cooling coil

4 CLCH-PRC016-EN

Table 2. Size the coil section

Coil Type Unit Size

Rows available

3-6 8-14 17-22 25,30 26, 31 35,40 36, 41,

51, 58 50-57 66-

120

1/2-inch unit

Small 2 - 4 2 - 4 2 - 4 2 - 4 2-4

2 stacked 2-4 2 2 n/a

Medium 2 - 8 2 - 8 2 - 8 2 - 8 2-8

2-6 stk w/out IDP

2-4 stk with IDP 2 - 8 2-6

4-row cooling 2 - 4 2 - 4

Extended-medium 2 - 8 2 - 8 2 - 8 2 - 8 2-8 2 - 8 2-8 2 - 8 2 - 8

Medium large 2 - 8 2 - 8 2 - 8 2 - 8 2-8 2 - 8 2-8 2 - 8 2 - 8

Medium large with access 2 - 6 2 - 6 2 - 6 2 - 6 2-6

2-4 stk w/out IDP

2-2 stk w/IDP 2 - 4 2-8 2 - 4 n/a

Large 2 - 8 2 - 8 2 - 8 2 - 8 2-8 2 - 8 2-8 2 - 8 n/a

Large with access 2 - 8 2 - 8 2 - 8 2 - 8 2-8 2 - 8 2-8 2 - 8 n/a

Large vertical 2 - 8 2 - 8 2 - 8

4

2 - 8

4

n/a 2 - 8

4

n/a 2 - 8

4

n/a

Large vertical with access 2 - 8 2 - 8 2 - 8

4

2 - 8

4

n/a 2 - 8

4

n/a 2 - 8

4

n/a

5/8-inch unit

and 1/2-inch

modified

Small 1 - 2 1 - 2 1 - 2 1 - 2 1-2 1 - 2 1-2 1 - 2 n/a

Medium 1 - 4 1 - 4 1 - 4 1 - 4 1-4 1 - 4 1-4 w/out IDP

1-3 w/IDP 1 - 3 1 - 3

Extended-medium 1 - 8 1 - 8 1 - 8

1

1 - 8

1

1-8

1-6 with IDP 1 - 8

1

1-8 w/out IDP

1-6 w/IDP 1 - 6 1 - 6

Medium large 1 - 10 1 - 10 1 - 10 1 - 10 1-10 1 - 10 1-10 1 - 8 1 - 10

Medium large with access 1 - 3 1 - 3 1 - 3

2

1 - 3

2

1-4

1-3 stk w/out IDP

1-2 stk with IDP 1 - 3 1-6 n/a n/a

Large 1 - 10 1 - 10 1 - 10 1 - 10 1-10 1 - 10 1-10 1 - 8 n/a

Large with access 1 - 6 1 - 6 1 - 6 1 - 10

3

1-10 1 - 10 1-10 1 - 10 n/a

Large vertical 1 - 6 1 - 6 1 - 6

4

1 - 10

4

n/a 1 - 6

4

n/a 1 - 6

4

n/a

Large vertical with access 1 - 4 1 - 6 1 - 6

2,4

1 - 10

4

n/a 1 - 6

4

n/a 1 - 6

4

n/a

Note: Stk - stacked. IDP = intermediate drain pan.

Note:

1

Unit sizes 21-40 have a 6-row maximum for stacked coils.

2

4-row maximum for unit size 21, 22.

3

6-row maximum for coils. All CU fins are limited

to 1-8 rows.

4

Large vertical not available for size 22, 26, 31, 36, 41, 57 and 58.

CLCH-PRC016-EN 5

Table 3. Select filter type

Filter Type Unit Size 346810 12

Side-load 2-in. and 4-in. flat

filter and 2-in./4-in. high

efficiency combination filter

Area (ft

2

) 3.47 5.56 6.94 7.33 9.72 13.33

Qty–Size 1 - 20x25 2 - 20x20 2 - 20x25 1 - 24x20

1 - 24x24 2 - 20x25

1 - 16x25 3 - 16x20

3 - 16x20

Side-load 2-in. and 4-in.

angled filter Area (ft

2

)5.56 8.89 8.89 11.11 13.89 16.67

Qty–Size 2 - 16x25 4 - 16x20 4 - 16x20 4 - 20x20 4 - 25x20 6 - 20x20

Side-load bag/cartridge

filter and pre-filter

Area (ft

2

) 3.33 5.56 6.67 8.00 8.67 12.33

Qty–Size 1 - 20x24 2 - 20x20 2 - 24x20 4 - 24x12 2 - 24x20

1 - 24x12 3 - 20x20

2 - 12x24

Front-load bag/cartridge

filter and pre-filter

Area 2.00 2.00 6.00 6.00 8.00 10.00

Qty-Size 1 - 12x24 1 - 12x24 1 - 24x24

1 - 24x12 1 - 24x24

1 - 24x12 2 - 24x24 1 - 24x12

2 - 24x24

Front-load HEPA filters Area 2.00 2.00 6.00 7.00 9.00 10.00

Qty-Size 1 - 12x24 1 - 12x24 1 - 24x24

1 - 24x12 1 - 24x30

1 - 24x12 1 - 24x30

1 - 24x24 2 - 30x24

Filter Type Unit Size 14 17 21 22 25 26

Side-load 2-in. and 4-in. flat

filter and 2-in./4-in. high

efficiency combination filter

Area (ft

2

) 14.44 18.89 21.53 21.11 27.11 29.17

Qty–Size 4 - 16x20

2 - 16x25 4 - 20x24

2 - 20x20

3 - 25x20

1 - 25x16

3 - 16x25

4 - 20x20

2 - 20x16

2 - 16x25

6 - 20x20

2 - 20x16

3 - 12x24

6 - 25x20

3 - 25x16

Side-load 2-in. and 4-in.

angled filter

Area (ft

2

)18.06 28.89 33.33 33.33 50.00 44.44

Qty–Size 2 - 20x25

4 - 20x20 4 - 16x25

8 - 16x20 12 - 25x16 12 - 25x16 18 - 25x16 16 - 25x16

Side-load bag/cartridge

filter and pre-filter

Area (ft

2

) 13.44 18.89 22.00 17.33 26.00 26.00

Qty–Size 2 - 20x24

1 - 20x20

2 - 12x24

4 - 20x24

2 - 20x20 3 - 24x24

3 - 20x24 4 - 24x20

2 - 24x12 6 - 20x24

3 - 12x24 6 - 24x20

3 - 24x12

Front-load bag/cartridge

filter and pre-filter

Area 10.00 14.00 18.00 18.00 24.00 24.00

Qty-Size 1 - 24x12

2 - 24x24

2 - 12x24

1 - 24x12

2 - 24x24

3 - 12x24

3 - 24x24 1 - 12x24

4 - 24x24 6 - 24x24 6 - 24x24

Front-load HEPA filters

Area 10.00 14.00 21.00 19.00 24.00 27.00

Qty-Size 2 - 30x24 2 - 24x30

2 - 12x24 3 - 30x24

3 - 12x24

1 - 24x30

1 - 24x24

2 - 30x24

4 - 24x30

2 - 24x12 3 - 24x30

3 - 24x24

Filter Type Unit Size 30 31 35 36 40 41 50

Side-load 2-in. and 4-in. flat

filter and 2-in./4-in. high

efficiency combination filter

Area (ft

2

) 30.44 35.42 37.22 40.00 40.83 48.22 55.00

Qty–Size 6 - 20x24

2 - 20x16

3 - 12x24

9 - 25x16

3 - 25x20 8 - 20x24

3 - 16x25

1 - 16x20

9 - 20x20

3 - 20x16

3 - 16x25

8 - 20x20

2 - 20x25

4 - 16x20

1 - 16x25

12 - 20x20

4 - 20x16

3 - 12x24

12 - 25x20

4 - 16x25

1 - 16x20

Side-load 2-in. and 4-in.

angled filter

Area (ft

2

)56.67 57.78 63.33 62.50 70.00 66.67 100.00

Qty–Size 6 - 16x25

18 - 16x20 8 - 16x25

16 - 16x20 18 - 16x25

6 - 16x20 18 - 25x20 6 - 16x25

24 - 16x20 24 - 16x25 36 - 20x20

Side-load bag/cartridge

filter and pre-filter

Area (ft

2

) 28.22 34.00 34.67 36.00 36.00 48.00 50.00

Qty–Size 8 - 20x20

3 - 12x24 6 - 24x24

3 - 24x20 8 - 20x24

4 - 12x24 9 - 24x24 8 - 24x24

2 - 24x12 12 - 24x24 10 - 24x24

5 - 12x24

Front-load bag/cartridge

filter and pre-filter

Area 28.00 30.00 34.00 36.00 38.00 46.00 50.00

Qty-Size 2 - 12x24

6 - 24x24 3 - 24x12

6 - 24x24

3 - 12x24

2 - 24x12

6 - 24x24 9 - 24x24 3 - 12x24

8 - 24x24 1 - 12x24

11 - 24x24 5 - 12x24

10 - 24x24

Front-load HEPA filters

Area 28.00 30.00 30.00 36.00 37.00 45.00 46.00

Qty-Size 4 - 24x30

2 - 24x24 6 - 24x30 3 - 24x30

3 - 30x24 9 - 24x24 3 - 24x30

1 - 24x12

4 - 30x24 9 - 30x24 6 - 24x30

2 - 24x24

4 - 12x24

6 CLCH-PRC016-EN

Filter Type Unit Size 51 57 58 66 80 100 120

Side-load 2-in. and 4-in. flat

filter and 2-in./4-in. high

efficiency combination filter

Area (ft

2

) 54.89 63.33 61.11 75.56 85.56 104.17 122.22

Qty–Size 12 - 20X24

4 - 20X16

3 - 12X24

12 - 20x25

3 - 20x20

4 - 16x25

1 - 16x20

15 - 20x24

5 - 20x16 20 - 20x24

4 - 20x16

20 - 20x24

4 - 20x16

5 - 12x24 30 - 20x25 32 - 25x20

4 - 25x16

Side-load 2-in. and 4-in.

angled filter

Area (ft

2

)94.44 100.00 98.89 113.33 151.11 166.67 194.44

Qty–Size 24 - 20x20

8 - 20x25 36 - 20x20 32 - 16x20

8 - 20x25 36 - 20x20

6 - 16x20 48 - 20x20

8 - 16x20 48 - 20x25 56 - 25x20

Side-load bag/cartridge

filter and pre-filter

Area (ft

2

) 56.00 60.00 62.00 66.67 88.00 113.33 134.00

Qty–Size 12 - 24x24

4 - 24x12 15 - 24x24 12 - 24x24

4 - 24x12

3 - 12x24 20 - 20x24 20 - 24x24

4 - 24x12

28 - 24x20

4 - 24x12

6 - 12x24

28 - 24x24

4 - 24x12

7 - 12x24

Front-load bag/cartridge

filter and pre-filter

Area 54.00 60.00 62.00 66.00 86.00 106.00 124.00

Qty-Size 1 - 12x24

4 - 24x12

11 - 24x24 15 - 24x24 3 - 12x24

4 - 24x12

12 - 24x24

3 - 24x12

15 - 24x24

1 - 12x24

4 - 24x12

19 - 24x24

5 - 12x24

24 - 24x24 6 - 12x24

28 - 24x24

Front-load HEPA filters

Area 48.00 57.00 56.00 66.00 76.00 102.00 119.00

Qty-Size 6 - 24x30

3 - 24x24

3 - 12x24

9 - 24x30

3 - 24x24 8 - 24x30

4 - 24x24 12 - 24x30

3 - 24x12

12 - 24x30

3 - 24x12

5 - 12x24

18 - 30x24

6 - 12x24 21 - 30x24

7 - 12x24

Table 3. Select filter type

Table 4. Inlet hood (outdoor units only) airflow limitations (cfm)

Unit size

Mixing Section Economizer Section

Back inlet hood 1 side inlet hood 2 side inlet hoods Single inlet hood

3 2257 1781 3563 1412

45567 1781 3563 2917

6 6016 2179 4358 3625

88847 2634 5268 4628

10 7050 3050 6100 5257

12 9393 3841 7681 12381

14 10,185 5582 11,163 6245

17 11,789 4870 9741 7124

21 14,716 6524 13,047 10,767

25 17,054 6917 13,834 11,457

30 22,694 7742 15,483 13,030

35 24,316 12,199 24,397 18,222

40 27,434 12,640 25,280 18,716

50 32,700 15,808 31,617 20,827

57 37,677 14,933 29,865 24,427

66 51,988 15,039 30,077 29,252

80 55,539 17,943 35,887 35,080

80 Traq 55,539 19,633 39,265 35,080

100 65,029 23,239 46,477 44,031

100 Traq 65,029 41,463 82,926 44,031

120 77,916 26,797 53,595 45,046

120 Traq 77,916 40,231 80,462 45,046

CLCH-PRC016-EN 7

Table 5. Select a fan for unit sizes 3-30

Nominal Airflow

1

1500 2000 3000 4000 5000 6000 7000 8500 10,500 11,000 12,500 13,000 15,000

Airflow @ 625 fpm

2

2169 3475 4338 4581 6075 8331 9025 11,806 13,456 13,193 16,944 18,231 19,025

Unit Size 3 4 6 8 10 12 14 17 21 22 25 26 30

FC Housed Fan Low Pressure

Fan size/type 9-in FC 10-in FC 12-in FC 12-in FC 15-in FC 18-in FC 18-in FC 20-in FC 22-in FC 22-in FC 22-in FC 22-in FC 25-in FC

Fan name 9FA 10FA 12FA 12FA 15FA 18FA 18FA 20FA 22FA 22FA 22FA 22FA 25FA

Max TSP/rpm 4/2250 4.5/2100 5/1900 5/1900 5/1600 4/1215 4/1215 4/1050 3.5/950 3.5/950 3.5/950 3.5/950 4/850

Motor hp (ODP) 0.75-3 0.75-5 0.75-5 1-5 1-7.5 1-7.5 1-7.5 1.5-20 2-20 2-20 3-20 3-20 3-20

Outlet area (ft

2

) 0.85 1.04 1.46 1.46 2.05 2.88 2.88 4.38 5.54 5.54 5.54 5.54 6.94

Fan size/type 9-6-in FC 9-in FC 10-in FC 10-in FC 12-in FC 15-in FC 15-in FC 18-in FC 20-in FC 20-in FC 20-in FC 20-in FC 22-in FC

Fan name 5FA 9FA 10FA 10FA 12FA 15FA 15FA 18FA 20FA 20FA 20FA 20FA 22FA

Max TSP/rpm 4.5/2250 4/2250 4.5/2100 4.5/2100 5/1900 5/1600 5/1600 4/1215 4/1050 4/1050 4/1050 4/1050 3.5/950

Motor hp (ODP) 0.75-3 0.75-3 0.75-5 1-5 1-5 1-7.5 1-7.5 1.5-7.5 2-20 2-20 3-20 3-20 3-20

Outlet area (ft

2

)0.60 0.84 1.03 1.03 1.46 2.05 2.05 2.88 4.38 4.38 4.38 4.38 5.54

Fan size/type 9-4-in FC 9-6-in FC 9-in FC 9-in FC 10-in FC 12-in FC 12-in FC 15-in FC 18-in FC 18-in FC 18-in FC 18-in FC 20-in FC

Fan name 4FA 5FA 9FA 9FA 10FA 12FA 12FA 15FA 18FA 18FA 18FA 18FA 20FA

Max TSP/rpm 4.5/2250 4.5/2250 4/2250 4/2250 4.5/2100 5/1900 5/1900 5/1600 4/1215 4/1215 4/1215 4/1215 4/1050

Motor hp (ODP) 0.75-3 0.75-3 0.75-3 1-3 1-5 1-5 1-5 1.5-7.5 2-7.5 2-7.5 3-7.5 3-7.5 3-20

Outlet area (ft

2

) 0.50 0.60 0.84 0.84 1.03 1.46 1.46 2.05 2.88 2.88 2.88 2.88 4.38

High Pressure

Fan size/type 9-in FC 10-in FC 12-in FC 12-in FC 15-in FC 18-in FC 18-in FC 20-in FC 22-in FC 22-in FC 22-in FC 22-in FC 25-in FC

Fan name 9FB 10FB 12FB 12FB 15FB 18FB 18FB 20FB 22FB 22FB 22FB 22FB 25FB

Max TSP/rpm 5/2900 6/2525 6/2115 6/2115 6/1720 6/1500 6/1500 6/1330 5.5/1200 6/1200 6/1200 6/1200 6/1025

Motor hp (ODP) 0.75-3 0.75-5 0.75-7.5 1-7.5 1-10 1-15 1-15 1.5-20 2-20 2-20 3-25 3-25 3-30

Outlet area (ft

2

)0.85 1.04 1.46 1.46 2.05 2.88 2.88 4.38 5.54 5.54 5.54 5.54 6.94

Fan size/type 9-6-in FC 9-in FC 10-in FC 10-in FC 12-in FC 15-in FC 15-in FC 18-in FC 20-in FC 20-in FC 20-in FC 20-in FC 22-in FC

Fan name 5FB 9FB 10FB 10FB 12FB 15FB 15FB 18FB 20FB 20FB 20FB 20FB 22FB

Max TSP/rpm 6.5/2900 6/2900 6.5/2525 6.5/2525 6/2115 6/1720 6/1720 6/1500 6/1330 6/1330 6/1330 6/1330 6/1200

Motor hp (ODP) 0.75-3 0.75-5 0.75-7.5 1-7.5 1-10 1-10 1-10 1.5-15 2-20 2-20 3-25 3-25 3-30

Outlet area (ft

2

) 0.60 0.84 1.04 1.04 1.46 2.05 2.05 2.88 4.38 4.38 4.38 4.38 5.54

Fan size/type 9-4-in FC 9-6-in FC 9-in FC 9-in FC 10-in FC 12-in FC 12-in FC 15-in FC 18-in FC 18-in FC 18-in FC 18-in FC 20-in FC

Fan name 4FB 5FB 9FB 9FB 10FB 12FB 12FB 15FB 18FB 18FB 18FB 18FB 20FB

Max TSP/rpm 7/2900 6.5/2900 6/2900 6/2900 6.5/2525 6/2115 6/2115 6/1720 6/1500 6/1500 6/1500 6/1500 6/1330

Motor hp (ODP) 0.75-3 0.75-5 0.75-5 1-5 1-7.5 1-10 1-10 1.5-10 2-15 2-15 3-15 3-15 3-25

Outlet area (ft

2

)0.50 0.60 0.84 0.84 1.03 1.46 1.46 2.05 2.88 2.88 2.88 2.88 4.38

Note:

1

Nominal airflow is based on 500 fpm through a nominal coil (i.e. 500xunit size 8=4000 cfm).

2

Airflow@625 fpm through the flat filter (maximum

filter velocity).

8 CLCH-PRC016-EN

Nominal Airflow

1

1500 2000 3000 4000 5000 6000 7000 8500 10,500 11,000 12,500 13,000 15,000

Airflow @ 625 fpm

2

2169 3475 4338 4581 6075 8331 9025 11,806 13,456 13,193 16,944 18,231 19,025

Unit Size 3 4 6 8 10 12 14 17 21 22 25 26 30

AF Housed Fan Low Pressure

Fan size/type 9-in BC 10-in BC 12-in AF 12-in AF 15-in AF 18-in AF 18-in AF 20-in AF 22-in AF 22-in AF 22-in AF 22-in AF 25-in AF

Fan name 9BA 10BA 12AA 12AA 15AA 18AA 18AA 20AA 22AA 22AA 22AA 22AA 25AA

Max TSP/rpm 6.5/4375 5/4070 8/3700 8/3700 7/2900 6.5/2450 6.5/2450 7/2300 6/1900 6/1900 6/1900 6/1900 6/1650

Motor hp (ODP) 0.75-3 0.75-3 0.75-7.5 1-7.5 1-10 1-10 1-10 1.5-15 2-15 2-15 3-15 3-15 3-20

Outlet area (ft

2

) 0.85 1.04 1.46 1.46 2.05 2.88 2.88 4.38 5.54 5.54 5.54 5.54 6.94

Fan size/type 9-in BC 10-in BC 10-in BC 12-in AF 15-in AF 15-in AF 18-in AF 20-in AF 20-in AF 20-in AF 20-in AF 22-in AF

Fan name 9BA 10BA 10BA 12AA 15AA 15AA 18AA 20AA 20AA 20AA 20AA 22AA

Max TSP/rpm 6/4375 5.5/4070 5.5/4070 8/3700 7/2900 7/2900 6.5/2450 6.5/2300 6.5/2300 6.5/2300 6.5/2300 6/1900

Motor hp (ODP) 0.75-3 0.75-3 1-3 1-7.5 1-10 1-10 1.5-10 2-15 2-15 3-15 3-15 3-15

Outlet area (ft

2

)0.85 1.03 1.03 1.46 2.05 2.05 2.88 4.38 4.38 4.38 4.38 5.54

Fan size/type 9-in BC 9-in BC 10-in BC 12-in AF 12-in AF 15-in AF 18-in AF 18-in AF 18-in AF 18-in AF 20-in AF

Fan name 9BA 9BA 10BA 12AA 12AA 15AA 18AA 18AA 18AA 18AA 20AA

Max TSP/rpm 6.5/4375 6.5/4375 5.5/4070 8/3700 8/3700 7/2900 6.5/2450 6.5/2450 6.5/2450 6.5/2450 6.5/2300

Motor hp (ODP) 0.75-3 1-3 1-3 1-7.5 1-7.5 1.5-10 2-10 2-10 3-10 3-10 3-15

Outlet area (ft

2

) 0.84 0.84 1.03 1.46 1.46 2.05 2.88 2.88 2.88 2.88 4.38

High Pressure

Fan size/type 9-in BC 10-in BC 12-in AF 12-in AF 15-in AF 18-in AF 18-in AF 20-in AF 22-in AF 22-in AF 22-in AF 22-in AF 25-in AF

Fan name 9BB 10BB 12AB 12AB 15AB 18AB 18AB 20AB 22AB 22AB 22AB 22AB 25AB

Max TSP/rpm 8/5000 8/4650 8/4350 8/4350 9/3500 7.5/3100 7.5/3100 7.5/2750 8/2500 8/2500 9/2500 9/2500 9/2200

Motor hp (ODP) 0.75-5 0.75-5 0.75-7.5 1-10 1-15 1-15 1-15 1.5-20 2-25 2-25 3-30 3-30 3-40

Outlet area (ft

2

)0.85 1.03 1.46 1.46 2.05 2.88 2.88 4.38 5.54 5.54 5.54 5.54 6.94

Fan size/type 9-in BC 10-in BC 10-in BC 12-in AF 15-in AF 15-in AF 18-in AF 20-in AF 20-in AF 20-in AF 20-in AF 22-in AF

Fan name 9BB 10BB 10BB 12AB 15AB 15AB 18AB 20AB 20AB 20AB 20AB 22AB

Max TSP/rpm 8/5000 7.5/4650 7.5/4650 9/4350 9/3500 9/3500 9/3100 9.5/2750 9.5/2750 10/2750 10/2750 9/2500

Motor hp (ODP) 0.75-5 0.75-5 1-5 1-10 1-15 1-15 1.5-20 2-25 2-25 3-30 3-30 3-30

Outlet area (ft

2

) 0.85 1.03 1.03 1.46 2.05 2.05 2.88 4.38 4.38 4.38 4.38 5.54

Fan size/type 9-in BC 9-in BC 10-in BC 12-in AF 12-in AF 15-in AF 18-in AF 18-in AF 18-in AF 18-in AF 20-in AF

Fan name 9BB 9BB 10BB 12AB 12AB 15AB 18AB 18AB 18AB 18AB 20AB

Max TSP/rpm 8/5000 8/5000 7.5/4650 9/4350 9/4350 9/3500 9.5/3100 9.5/3100 9.5/3100 9.5/3100 10/2750

Motor hp (ODP) 0.75-5 1-5 1-5 1-10 1-10 1.5-15 2-20 2-20 3-20 3-20 3-30

Outlet area (ft

2

)0.84 0.84 1.03 1.46 1.46 2.05 2.88 2.88 2.88 2.88 4.38

Table 5. Select a fan for unit sizes 3-30

CLCH-PRC016-EN 9

Nominal Airflow

11500 2000 3000 4000 5000 6000 7000 8500 10,500 11,000 12,500 13,000 15,000

Airflow @ 625 fpm

22169 3475 4338 4581 6075 8331 9025 11,806 13,456 13,193 16,944 18,231 19,025

Unit Size 3 4 6 8 10 12 14 17 21 22 25 26 30

Belt-Drive Plenum Fan

Low Pressure

Fan size/type 12-in AF 16-in AF 16-in AF 18-in AF 20-in AF 22-in AF 25-in AF 28-in AF 28-in AF 28-in AF 28-in AF 32-in AF

Fan name 12PA 16PA 16PA 18PA 20PA 22PA 25PA 28PA 28PA 28PA 28PA 32PA

Max TSP/rpm 7/4130 8/3300 8/3300 7/3000 8/2650 8/2320 7/2070 7.5/1850 7.5/1850 7.5/1850 7.5/1850 6.5/1600

Motor hp (ODP) 0.75-5 0.75-10 1-10 1-10 1-15 1-15 1.5-20 2-25 2-25 3-25 3-25 3-25

Fan size/type 14-in AF 14-in AF 16-in AF 18-in AF 20-in AF 22-in AF 25-in AF 25-in AF 25-in AF 25-in AF 28-in AF

Fan name 14PA 14PA 16PA 18PA 20PA 22PA 25PA 25PA 25PA 25PA 28PA

Max TSP/rpm 7.5/3670 7.5/3670 8 / 3300 7/3000 8/2650 6.5/2320 6.5/2070 6.5/2070 6.5/2070 6.5/2070 7.5/1850

Motor hp (ODP) 0.75-7.5 1-7.5 1-10 1-10 1-15 1.5-15 2-20 2-20 3-20 3-20 3-25

High Pressure

Fan size/type 11-in BC 12-in AF 16-in AF 16-in AF 18-in AF 20-in AF 22-in AF 25-in AF 28-in AF 28-in AF 28-in AF 28-in AF 32-in AF

Fan name 11PB 12PB 16PB 16PB 18PB 20PB 22PB 25PB 28PB 28PB 28PB 28PB 32PB

Max TSP/rpm 9/4375 7.5/4500 8/3700 8/3700 9/3300 8/2850 9.5/2650 8/2350 8.5/2100 8.5/2100 8.5/2100 8.5/2100 9/1800

Motor hp (ODP) 0.75-5 0.75-7.5 0.75-10 1-10 1-15 1-15 1-20 1.5-25 2-30 2-30 3-30 3-30 3-40

Fan size/type 10-in BC 11-in BC 14-in AF 14-in AF 16-in AF 18-in AF 20-in AF 22-in AF 25-in AF 25-in AF 25-in AF 25-in AF 28-in AF

Fan name 10PB 11PB 14PB 14PB 16PB 18PB 20PB 22PB 25PB 25PB 25PB 25PB 28PB

Max TSP/rpm 8/5200 9/4375 9/4000 9/4000 8/3700 9/3300 9.5/2850 8/2650 9/2350 9/2350 9/2350 9/2350 10/2100

Motor hp (ODP) 0.75-3 0.75-5 0.75-10 1-10 1-10 1-15 1-20 1.5-20 2-30 2-30 3-30 3-30 3-40

Direct-Drive Plenum Fan

High Pressure

Fan size/type 10.5-in

AF Nom

Width

13.5-in

AF Red

Width

15-in

AF Red

Width

18-in

AF Red

Width

20-in

AF Red

Width

22-in

AF Red

Width

22-in

AF Nom

Width

24.5-in

AF Red

Width

2)20-in

AF Red

Width

27-in

AF Red

Width

2)22-in

AF Red

Width

30-in

AF Red

Width

2)24.5-in

AF Red

Width

Fan name 10NF 13NR 15NR 18NR 20NR 22NR 22NF 24NR 20NR 27NR 22NR 30NR 24NR

Max rpm 5195 4038 3650 2979 2771 2454 2454 2269 2771 2035 2454 1851 2269

Motor hp (ODP) 1-5 1.5-7.5 1.5-10 2-15 3-15 3-15 5-20 5-20 3-15 5-25 3-15 7.5-25 5-20

Fan size/type 10.5 in

AF Ext

Width

13.5 in

AF Nom

Width

15 in

AF Nom

Width

18 in

AF Nom

Width

20 in

AF Nom

Width

22 in

AF Nom

Width

22 in

AF Ext

Width

24.5 in

AF Nom

Width

2)20 in

AF Nom

Width

27 in

AF Nom

Width

2)22 in

AF Nom

Width

30 in

AF Nom

Width

2)24.5 in

AF Nom

Width

Fan name 10NW 13NF 15NF 18NF 20NF 22NF 22NW 24NF 20NF 27NF 22NF 30NF 24NF

Max rpm 5195 4038 3650 2979 2771 2454 2454 2269 2771 2035 2454 1851 2269

Motor hp (ODP) 1.5-5 1.5-7.5 1.5-10 3-15 3-15 5-20 5-20 5-20 3-15 7.5-25 5-20 10-40 5-20

Note:

1

Nominal airflow is based on 500 fpm through a nominal coil (i.e. 500xunit size 8=4000 cfm).

2

Airflow@625 fpm through the flat filter (maximum

filter velocity).

Table 5. Select a fan for unit sizes 3-30

10 CLCH-PRC016-EN

Table 6. Select a fan for unit sizes 35-120

Nominal Airflow

1

17,500 18,000 20,000 20,500 25,000 25,500 28,500 29,000 33,000 40,000 50,000 60,000

Airflow @ 625 fpm

2

23,263 25,000 25,519 30,138 34,375 34,306 39,581 39,722 47,225 53,475 65,106 76,388

Unit Size 35 36 40 41 50 51 57 58 66 80 100 120

FC Housed Fan Low Pressure

Fan size/type 25-in FC 25-in FC 28-in FC 28-in FC 32-in FC 32-in FC 32-in FC 32-in FC 36-in FC 40-in FC 40-in FC 40-in FC

Fan name 25FA 25FA 28FA 28FA 32FA 32FA 32FA 32FA 36FA 40FA 40FA 40FA

Max TSP/rpm 4/850 4/850 3.5/750 3.5/750 4.5/675 4.5/675 4.5/675 4.5/675 4/600 3.5/550 3.5/550 3.5/550

Motor hp range

(ODP) 7.5-20 7.5-20 7.5-25 7.5-25 7.5-30 7.5-30 7.5-30 7.5-30 10-40 15-40 15-40 30-40

Outlet area (ft

2

) 6.95 6.95 8.81 8.81 11.11 11.11 11.11 11.11 13.91 17.45 17.45 17.45

Fan size/type 22-in FC 22-in FC 25-in FC 25-in FC 28-in FC 28-in FC 28-in FC 28-in FC 32-in FC 36-in FC 36-in FC 36-in FC

Fan name 22FA 22FA 25FA 25FA 28FA 28FA 28FA 28FA 32FA 36FA 36FA 36FA

Max TSP/rpm 3.5/950 3.5/950 4/850 4/850 3.5/750 3.5/750 3.5/750 3.5/750 4.5/675 4/600 4/600 4/600

Motor hp range

(ODP) 7.5-20 7.5-20 7.5-20 7.5-20 7.5-25 7.5-25 7.5-25 7.5-25 10-30 15-40 15-40 30-40

Outlet area (ft

2

)5.54 5.54 6.95 6.95 8.81 8.81 8.81 8.81 11.11 13.91 13.91 13.91

Fan size/type 20-in FC 20-in FC 22-in FC 22-in FC 25-in FC 25-in FC 25-in FC 25-in FC 28-in FC 32-in FC 32-in FC 32-in FC

Fan name 20FA 20FA 22FA 22FA 25FA 25FA 25FA 25FA 28FA 32FA 32FA 32FA

Max TSP/rpm 4/1050 4/1050 3.5/950 3.5/950 4/850 4/850 4/850 4/850 3.5/750 4.5/675 4.5/675 4.5/675

Motor hp range

(ODP) 7.5-20 7.5-20 7.5-20 7.5-20 7.5-20 7.5-20 7.5-20 7.5-20 10-25 15-30 15-30 30

Outlet area (ft

2

)4.384.385.545.546.956.956.9456.9458.8111.1111.1111.11

High Pressure

Fan size/type 25-in FC 25-in FC 28-in FC 28-in FC 32-in FC 32-in FC 32-in FC 32-in FC 36-in FC 40-in FC 40-in FC 40-in FC

Fan name 25FB 25FB 28FB 28FB 32FB 32FB 32FB 32FB 36FB 40FB 40FB 40FB

Max TSP/rpm 6/1025 6/1025 5/860 5/860 5.5/760 5.5/760 5.5/760 5.5/760 5/665 5/600 5/600 5/600

Motor hp range

(ODP) 7.5-40 7.5-40 7.5-40 7.5-40 7.5-50 7.5-50 7.5-50 7.5-50 10-60 15-75 15-75 30-75

Outlet area (ft

2

) 6.95 6.95 8.81 8.81 11.11 11.11 11.11 11.11 13.91 17.45 17.45 17.45

Fan size/type 22-in FC 22-in FC 25-in FC 25-in FC 28-in FC 28-in FC 28-in FC 28-in FC 32-in FC 36-in FC 36-in FC 36-in FC

Fan name 22FB 22FB 25FB 25FB 28FB 28FB 28FB 28FB 32FB 36FB 36FB 36FB

Max TSP/rpm 6/1200 6/1200 6/1025 6/1025 5/860 5/860 5/860 5/860 5.5/760 5/665 5/665 5/665

Motor hp range

(ODP) 7.5-30 7.5-30 7.5-40 7.5-40 7.5-40 7.5-40 7.5-40 7.5-40 10-60 15-75 15-75 30-75

Outlet area (ft

2

)5.54 5.54 6.95 6.95 8.81 8.81 8.81 8.81 11.11 13.91 13.91 13.91

Fan size/type 20-in FC 20-in FC 22-in FC 22-in FC 25-in FC 25-in FC 25-in FC 25-in FC 28-in FC 32-in FC 32-in FC 32-in FC

Fan name 20FB 20FB 22FB 22FB 25FB 25FB 25FB 25FB 28FB 32FB 32FB 32FB

Max TSP/rpm 6/1330 6/1330 6/1200 6/1200 6/1025 6/1025 6/1025 6/1025 5/860 5.5/760 5.5/760 5.5/760

Motor hp range

(ODP) 3-25 3-25 7.5-30 7.5-30 7.5-40 7.5-40 7.5-40 7.5-40 10-40 15-60 15-60 30-60

Outlet area (ft

2

)4.384.385.545.546.956.956.956.958.8111.1111.1111.11

CLCH-PRC016-EN 11

Unit Size 35 36 40 41 50 51 57 58 66 80 100 120

AF Housed Fans

Low Pressure

Fan size/type 25-in AF 25-in AF 28-in AF 28-in AF 32-in AF 32-in AF 32-in AF 32-in AF 36-in AF 40-in AF 44-in AF 49-in AF

Fan name 25AA 25AA 28AA 28AA 32AA 32AA 32AA 32AA 36AA 40AA 44AA 49AA

Max TSP/rpm 1650 1650 1500 1500 1300 1300 1300 1300 1250 1200 850 800

Motor hp range

(ODP) 7.5-20 7.5-20 7.5-20 7.5-20 7.5-30 7.5-30 7.5-30 7.5-30 10-30 15-60 15-40 30-100

Outlet area (ft

2

)6.95 6.95 8.81 8.81 11.11 11.11 11.11 11.11 13.91 17.45 21.88 27.45

Fan size/type 22-in AF 22-in AF 25-in AF 25-in AF 28-in AF 28-in AF 28-in AF 28-in AF 32-in AF 36-in AF 40-in AF 44-in AF

Fan name 22AA 22AA 25AA 25AA 28AA 28AA 28AA 28AA 32AA 36AA 40AA 44AA

Max TSP/rpm 1900 1900 1650 1650 1500 1500 1500 1500 1300 1250 1200 850

Motor hp range

(ODP) 7.5-15 7.5-15 7.5-20 7.5-20 7.5-20 7.5-20 7.5-20 7.5-20 10-30 15-30 15-60 30-40

Outlet area (ft

2

)5.545.546.956.958.818.818.818.8111.1113.9117.4521.88

Fan size/type 20-in AF 20-in AF 22-in AF 22-in AF 25-in AF 25-in AF 25-in AF 25-in AF 28-in AF 32-in AF 36-in AF 40-in AF

Fan name 20AA 20AA 22AA 22AA 25AA 25AA 25AA 25AA 28AA 32AA 36AA 40AA

Max TSP/rpm 2300 2300 1900 1900 1650 1650 1650 1650 1500 1300 1250 1200

Motor hp range

(ODP) 7.5-15 7.5-15 7.5-15 7.5-15 7.5-20 7.5-20 7.5-20 7.5-20 10-20 15-30 15-30 30-60

Outlet area (ft

2

)4.38 4.38 5.54 5.54 6.95 6.95 6.95 6.95 8.81 11.11 13.91 17.45

Fan size/type 32-in AF 36-in AF

Fan name 32AA 36AA

Max TSP/rpm 1300 1250

Motor hp range

(ODP) 15-30 30

Outlet area (ft

2

)11.11 13.91

High Pressure

Fan size/type 25-in AF 25-in AF 28-in AF 28-in AF 32-in AF 32-in AF 32-in AF 32-in AF 36-in AF 40-in AF 44-in AF 49-in AF

Fan name 25AB 25AB 28AB 28AB 32AB 32AB 32AB 32AB 36AB 40AB 44AB 49AB

Max TSP/rpm 2200 2200 2050 2050 1700 1700 1700 1700 1550 1350 1150 1100

Motor hp range

(ODP) 7.5-40 7.5-40 7.5-50 7.5-50 7.5-60 7.5-60 7.5-60 7.5-60 10-75 15-100 15-100 30-125

Outlet area (ft

2

)6.95 6.95 8.81 8.81 11.11 11.11 11.11 11.11 13.91 17.45 21.88 27.45

Fan size/type 22 in AF 22 in AF 25-in AF 25-in AF 28-in AF 28-in AF 28-in AF 28-in AF 32-in AF 36-in AF 40-in AF 44-in AF

Fan name 22AB 22AB 25AB 25AB 28AB 28AB 28AB 28AB 32AB 36AB 40AB 44AB

Max TSP/rpm 2500 2500 2200 2200 2050 2050 2050 2050 1700 1550 1350 1150

Motor hp range

(ODP) 7.5-40 7.5-40 7.5-50 7.5-50 7.5-60 7.5-60 7.5-60 7.5-60 10-60 15-75 15-100 30-125

Outlet area (ft

2

)5.545.546.956.958.818.818.818.8111.1113.9117.4521.88

Fan size/type 20-in AF 20-in AF 22-in AF 22-in AF 25-in AF 25-in AF 25-in AF 25-in AF 28-in AF 32-in AF 36-in AF 40-in AF

Fan name 20AB 20AB 22AB 22AB 25AB 25AB 25AB 25AB 28AB 32AB 36AB 40AB

Max TSP/rpm 2750 2750 2500 2500 2200 2200 2200 2200 2050 1700 1550 1350

Motor hp range

(ODP) 7.5-30 7.5-30 7.5-50 7.5-50 7.5-50 7.5-50 7.5-50 7.5-50 10-60 15-60 15-75 30-100

Outlet area (ft

2

)4.38 4.38 5.54 5.54 6.95 6.95 6.95 6.95 8.81 11.11 13.91 17.45

Fan size/type 32-in AF 36-in AF

Fan name 32AB 36AB

Max TSP/rpm 1700 1550

Motor hp range

(ODP) 15-60 30-75

Outlet area (ft

2

)11.11 13.91

Table 6. Select a fan for unit sizes 35-120

12 CLCH-PRC016-EN

Nominal Airflow

1

17,500 18000 20,000 20500 25,000 25,500 28,500 29,000 33,000 40,000 50,000 60,000

Airflow @ 625 fpm

2

23,263 25,000 25,519 30,138 34,375 34,306 39,581 39,722 47,225 53,475 65,106 76,388

Unit Size 35 36 40 41 50 51 57 58 66 80 100 120

Belt-Drive Plenum Fan

Low Pressure

Fan size/type 36-in AF n/a 40-in AF n/a 40-in AF n/a 44-in AF n/a 44-in AF 49-in AF 55-in AF 63-in AF

Fan name 36PA n/a 40PA n/a 40PA n/a 44PA n/a 44PA 49PA 55PA 63PA

Max TSP/rpm 6.5/1350 n/a 5.5/1150 n/a 5.5/1150 n/a 6.5/1100 n/a 6.5/1100 5.5/950 6/850 6/750

Motor hp range

(ODP) 7.5-30 n/a 7.5-30 n/a 7.5-30 n/a 7.5-60 n/a 10-60 15-60 15-75 30-100

Fan size/type 32-in AF n/a 36-in AF n/a 36-in AF n/a 40-in AF n/a 40-in AF 44-in AF 49-in AF 55-in AF

Fan name 32PA n/a 36PA n/a 36PA n/a 40PA n/a 40PA 44PA 49PA 55PA

Max TSP/rpm 6.5/1600 n/a 6.5/1350 n/a 6.5/1350 n/a 5.5/1150 n/a 5.5/1150 6.5/1100 5.5/950 6/850

Motor hp range

(ODP) 7.5-25 n/a 7.5-30 n/a 7.5-30 n/a 7.5-30 n/a 10-30 15-60 15-60 30-75

High Pressure

Fan size/type 36-in AF n/a 40-in AF n/a 40-in AF n/a 44-in AF n/a 44-in AF 49-in AF 55-in AF 63-in AF

Fan name 36PB n/a 40PB n/a 40PB n/a 44PB n/a 44PB 49PB 55PB 63PB

Max TSP/rpm 9/1600 n/a 9/1400 n/a 9/1400 n/a 8.5/1200 n/a 8.5/1200 8/1100 9/975 8.5/850

Motor hp range

(ODP) 7.5-50 n/a 7.5-50 n/a 7.5-75 n/a 7.5-75 n/a 10-75 15-100 15-125 30-125

Fan size/type 32-in AF n/a 36-in AF n/a 36-in AF n/a 40-in AF n/a 40-in AF 44-in AF 49-in AF 55-in AF

Fan name 32PB n/a 36PB n/a 36PB n/a 40PB n/a 40PB 44PB 49PB 55PB

Max TSP/rpm 9/1800 n/a 9/1600 n/a 9/1600 n/a 9/1400 n/a 9/1400 8.5/1200 8/1100 9/975

Motor hp range

(ODP) 7.5-50 n/a 7.5-50 n/a 7.5-60 n/a 7.5-50 n/a 10-75 15-75 15-100 30-125

Direct-Drive Plenum Fan

High Pressure

Fan size/type 2)24.5 in

AF Nom

Width

2)22 in AF

Nom

Width

2) 27-in

AF Red

Width

2) 24.5-in

AF Nom

Width

2) 30-in

AF Red

Width

4) 22-in

AF Red

Width

2) 30-in

AF Red

Width

4) 22-in

AF Red

Width

4) 22-in

AF Nom

Width

4) 24.5-in

AF Nom

Width

6) 24.5-in

AF Nom

Width

6) 24.5-in

AF Nom

Width

Fan name 24NF 22SF 27NR 24SF 30NR 22SR 30NR 22SR 22SF 24SF 24SF 24SF

Max rpm 2269 2675 2035 2365 1851 2675 1851 2675 2613 2344 2344 2344

Motor hp range

(ODP) 5-20 5-25 5-20 5-25 10-30 3-20 10-30 3-20 5-25 7.5-25 5-20 5-20

Fan size/type 2)24.5 in

AF Ext

Width

2)22 in AF

Ext

Width

2) 27-in

AF Nom

Width

2) 24.5-in

AF Ext

Width

2) 30-in

AF Nom

Width

4) 22-in

AF Nom

Width

2) 30-in

AF Nom

Width

4) 22-in

AF Nom

Width

4) 22-in

AF Ext

Width

4) 24.5-in

AF Ext

Width

6) 24.5-in

AF Ext

Width

6) 24.5-in

AF Ext

Width

Fan name 24NW 22SW 27NF 24SW 30NF 22SF 30NF 22SF 22SW 24SW 24SW 24SW

Max rpm 2269 2675 2035 2365 1851 2675 1851 2675 2613 2344 2344 2344

Motor hp range

(ODP) 5-20 5-25 7.5-25 5-25 10-30 3-20 10-30 3-20 7.5-25 10-25 5-20 5-20

Note:

1

Nominal airflow is based on 500 fpm through a nominal coil (i.e. 500xunit size 8=4000 cfm).

2

Airflow@625 fpm through the flat filter (maximum

filter velocity).

Table 6. Select a fan for unit sizes 35-120

CLCH-PRC016-EN 13

Table 7. Section dimensions (inches) and weights (pounds) - unit sizes 3-30

Nominal airflow 1500 2000 3000 4000 5000 6000 7000 8500 10,500 11,000 12,500 13,000 15,000

Airflow at 625 fpm 2169 3475 4338 4581 6075 8331 9025 11,806 13,456 13,194 16,944 18,231 19,025

Unit size 3 4 6 8 10 12 14 17 21 22 25 26 30

Height - indoor unit 29.00 29.00 35.25 37.75 37.75 41.50 41.50 49.00 52.75 67.25 61.50 85.50 61.50

Width 31.50 44.00 44.00 50.50 61.50 66.50 72.00 72.00 80.00 61.50 80.00 61.50 93.50

Height for outdoor unit

includes base drip lip 36.25 36.38 42.63 45.13 45.13 49.25 49.25 56.75 60.50 n/a 69.25 n/a 69.25

Weight add for outdoor unit

(lbs/in. of unit length) 1.66 1.91 1.91 2.04 2.27 2.40 2.51 2.51 2.68 n/a 2.68 n/a 2.94

Access or blank

-Small horizontal 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00

48.05 57.43 60.55 66.67 74.92 80.55 84.67 88.41 96.28 89.63 100.65 98.73 110.78

-Medium horizontal 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00

59.91 71.18 75.25 82.74 92.66 99.61 104.57 109.45 119.10 111.84 124.79 123.71 136.97

-Extended-medium horizontal 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

74.73 88.37 93.62 102.82 114.83 123.43 129.44 135.74 147.62 139.60 154.97 154.93 169.71

-Medium-large horizontal 24.50 24.50 24.50 26.50 26.50 26.50 26.50 24.50 24.50 26.50 24.50 26.50 24.50

121.60 107.28 113.84 132.94 148.08 159.18 166.74 164.66 178.99 170.14 188.17 189.27 205.72

-Large horizontal or turning 34.00 34.00 34.00 36.00 36.00 36.00 36.00 36.00 34.00 36.00 46.00 46.00 46.00

137.75 164.85 179.46 208.50 235.01 257.70 271.35 293.42 314.60 315.97 413.45 428.50 457.18

-Extra-large horizontal or

turning

36.00 41.00 41.00 44.00 42.50 42.50 42.50 44.00 50.25 50.25 56.50 56.50 56.50

143.68 188.92 205.18 240.63 263.83 288.68 303.68 335.49 407.29 395.09 476.83 494.06 525.93

-Ducted inlet or ducted

outlet section 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00

48.10 57.40 60.50 66.70 74.90 80.50 84.70 88.40 96.30 89.60 100.60 98.70 110.80

Blender 19.00 24.50 24.50 26.50 36.00 36.00 36.00 36.00 34.00 30.500 46.00 36.00 46.00

94.86 132.71 146.30 173.34 238.64 264.12 276.73 303.71 323.59 300.15 427.13 385.06 470.25

Cool Dry Quiet (CDQ)

Desiccant Dehumidification 52.00 52.00 52.00 52.00 55.00 58.00 58.00 58.00 56.00 n/a 56.00 n/a 58.00

495.00 651.00 694.00 792.00 1011.00 1165.00 1326.00 1390.00 1793.00 1876.00 2029.00

Coils

-Small horizontal (with 4-row

UW) 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00

116.10 148.55 174.35 205.79 244.49 285.13 307.44 352.47 433.37 433.22 502.46 523.01 572.50

-Medium horizontal (with 8-

row UW) 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00

168.65 220.23 265.58 318.97 382.53 450.07 488.32 569.79 700.27 690.67 817.63 840.58 941.48

-Extended-medium horizontal

(with 8-row UW) 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

185.58 239.53 286.06 341.16 406.80 476.00 516.35 599.24 737.96 721.58 858.03 878.74 985.30

-Medium-large horizontal

(with 10-row W) 24.50 24.50 24.50 26.50 26.50 26.50 26.50 24.50 24.50 26.50 24.50 26.50 24.50

270.61 359.79 433.08 554.88 656.63 777.26 884.93 1013.57 1262.10 1175.58 1478.66 1503.93 1503.93

-Large horizontal or vertical

(with 10-row W) 34.00 34.00 34.00 36.00 36.00 36.00 36.00 36.00 34.00 36.00 46.00 46.00 46.00

302.77 396.45 471.99 597.03 702.74 826.53 938.18 1081.30 1333.70 1234.32 1652.36 1652.73 1652.73

-Electric Heat Coil 36.00 41.00 41.00 44.00 42.50 42.50 42.50 44.00 50.25 n/a 46.00 n/a 56.50

295.00 364.00 413.00 480.00 563.00 622.00 666.00 731.00 876.00 1012.00 1244.00

Integral-face-and-bypass coil

-Less than 4 rows n/a 26.50 26.50 26.50 26.50 26.50 26.50 26.50 26.50 26.50 26.50 26.50 26.50

n/a 355.20 367.21 470.21 541.93 585.86 619.66 733.14 792.88 858.31 805.52 1047.84 940.46

-4 rows n/a 43.00 43.00 43.00 43.00 43.00 43.00 43.00 43.00 43.00 43.00 43.00 43.00

n/a 543.54 560.74 725.48 835.34 901.70 950.23 1131.90 1216.48 1313.83 1399.66 1613.03 1439.40

14 CLCH-PRC016-EN

Unit size 3 4 6 8 10 12 14 17 21 22 25 26 30

Controls section (includes

largest available VFD) 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50

184.00 208.00 253.00 272.00 295.00 315.00 327.00 350.00 428.00 419.00 453.00 464.00 487.00

Diffuser 10.00 10.00 10.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 19.00 19.00 19.00

45.70 55.08 58.20 80.39 90.31 97.26 102.22 107.10 116.75 109.49 152.62 152.58 167.36

Discharge plenum

-Horizontal 34.00 34.00 34.00 36.00 36.00 36.00 36.00 36.00 34.00 36.00 46.00 46.00 46.00

135.40 162.50 177.11 206.15 232.66 255.35 269.00 291.07 312.25 313.62 411.10 426.15 454.83

-Vertical 36.00 41.00 41.00 44.00 42.50 42.50 42.50 44.00 50.25 n/a 56.50 n/a 56.50

159.90 211.48 233.54 275.69 306.29 339.58 358.68 401.43 486.37 570.00 634.27

Energy Wheel n/a 52.00 52.00 52.00 55.00 58.00 58.00 58.00 56.00 n/a 56.00 n/a 58.00

609.00 663.00 765.00 911.00 1085.00 1208.00 1269.00 1484.00 1595.00 1868.00

Face-and-Bypass Dampers

-Face-and-bypass 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

105.60 129.06 141.70 157.63 178.68 199.15 209.53 224.50 248.05 137.25 265.62 152.58 291.36

-External face-and-bypass 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 22.00 19.00 27.75 19.00

122.68 155.15 167.79 190.70 219.68 241.45 255.80 270.77 300.08 153.91 317.53 207.22 353.22

-Internal face-and-bypass or

face damper only 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

107.95 140.46 149.91 174.82 203.43 227.60 241.91 255.18 291.55 137.25 306.62 152.58 341.36

Fan

-Belt-drive plenum fan with

motor 36.00 41.00 41.00 44.00 42.50 42.50 42.50 44.00 50.25 n/a 56.50 n/a 56.50

397.87 538.34 631.36 682.55 875.00 951.91 1069.39 1239.89 1443.56 1494.52 1751.34

-Housed FC fan with motor 36.00 41.00 41.00 44.00 42.50 42.50 42.50 44.00 50.25 50.25 56.50 56.50 56.50

368.77 449.75 544.28 589.00 721.69 882.15 904.21 1054.64 1329.38 1295.80 1487.55 1511.37 1710.85

-Housed AF/BC fan with motor 36.00 41.00 41.00 44.00 42.50 42.50 42.50 44.00 50.25 50.25 56.50 56.50 56.50

378.87 467.35 574.68 649.40 849.71 920.08 942.14 1098.21 1432.10 1444.53 1572.28 1609.10 1797.21

-Direct-drive plenum fan with

motor 36.00 41.00 41.00 44.00 42.50 42.50 42.50 44.00 50.25 50.25 56.50 56.50 56.50

373.16 516.35 535.05 692.86 795.54 912.52 936.26 991.99 1380.92 1237.09 1541.05 1600.04 1652.91

Filters

-Side load 2-in. angled 24.50 24.50 24.50 26.50 26.50 26.50 26.50 24.50 24.50 24.50 24.50 24.50 24.50

134.55 163.83 175.66 202.44 225.96 251.82 265.94 314.12 347.50 348.70 403.70 418.53 454.19

-Side load 4-in. angled 24.50 24.50 24.50 26.50 26.50 26.50 26.50 24.50 24.50 24.50 24.50 24.50 24.50

141.89 176.87 192.86 209.64 247.16 254.22 273.54 352.07 379.13 361.27 409.37 470.37 465.65

-Side load cartridge 12-in. or

short bag 18-in. 24.50 24.50 24.50 26.50 26.50 26.50 26.50 24.50 24.50 24.50 24.50 24.50 24.50

125.03 159.79 176.46 220.46 234.88 284.12 303.60 335.02 365.40 342.50 439.69 440.65 479.36

-Side load 2-in. flat 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00

70.27 86.53 91.98 103.59 117.74 133.81 141.07 148.02 165.52 160.19 182.07 177.12 198.93

-Side load 4-in. flat 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00

81.56 104.62 114.08 117.09 143.40 142.66 154.67 202.82 213.64 189.17 217.75 254.10 249.73

-Side load 2-in. and 4-in.

combination flat 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

100.62 128.19 139.09 144.56 174.73 185.69 201.37 252.57 268.17 252.01 288.98 326.16 326.58

-Long bag 30-in. 36.00 41.00 41.00 44.00 42.50 42.50 42.50 44.00 50.25 50.25 46.00 40.00 46.00

159.54 203.31 223.70 269.26 289.43 330.97 349.19 382.94 461.96 395.90 488.89 462.06 523.37

-Front-load HEPA 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00

240.36 262.50 346.16 368.01 407.75 439.62 452.92 569.28 692.30 595.47 750.47 837.36 822.10

-Front-load cartridge 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00

215.15 237.79 285.59 310.12 341.11 386.04 399.01 470.25 525.86 468.47 580.13 552.53 651.47

Table 7. Section dimensions (inches) and weights (pounds) - unit sizes 3-30

CLCH-PRC016-EN 15

Unit size 3 4 6 8 10 12 14 17 21 22 25 26 30

-Front-load short bag 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00

222.35 246.75 279.75 306.39 335.16 369.65 383.67 432.15 473.60 487.79 518.05 573.98 566.55

Gas heat

- 200 MBH n/a n/a 57.00 57.00 59.00 57.00 57.00 60.00 60.00 n/a n/a n/a n/a

752.92 797.85 852.48 912.57 937.05 1011.83 1074.91

- 300 MBH n/a n/a 73.00 73.00 n/a n/a n/a n/a n/a n/a n/a n/a n/a

901.27 953.49

- 360 MBH n/a n/a n/a n/a 77.00 73.00 68.00 71.00 69.00 n/a 69.00 n/a 66.00

1093.23 1131.38 1127.89 1211.08 1264.50 1348.04 1298.88

- 560 MBH n/a n/a n/a n/a n/a n/a n/a 71.00 69.00 n/a 65.00 n/a 66.00

1191.99 1246.59 1307.47 1441.79

- 700 MBH n/a n/a n/a n/a n/a n/a n/a 83.00 75.00 n/a 75.00 n/a 76.00

1479.92 1503.43 1599.35 1745.65

- 860 MBH n/a n/a n/a n/a n/a n/a n/a n/a 81.00 n/a 81.00 n/a 76.00

1606.36 1711.24 1804.77

- 1000 MBH n/a n/a n/a n/a n/a n/a n/a n/a 87.00 n/a 90.00 n/a 85.00

1364.25 1497.35 1560.01

Humidifier

-Building Steam 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00

125.00 146.00 165.00 184.00 226.00 269.00 286.00 324.00 354.00 368.00 398.00 500.00 452.00

-Atmospheric Steam 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 19.00

127.00 168.00 178.00 203.00 252.00 276.00 312.00 339.00 396.00 344.00 432.00 396.00 528.00

Mixing box

-with angled filters 34.00 34.00 34.00 36.00 36.00 36.00 36.00 36.00 34.00 36.00 46.00 46.00 46.00

137.75 164.85 179.46 208.50 235.01 257070 271.35 293.42 314.60 315.97 413.45 428.50 457.18

-with front/back Traq and top

Traq dampers 36.00 41.00 41.00 44.00 42.50 42.50 42.50 44.00 50.25 51.00 56.50 n/a 56.50

191.06 247.07 272.06 321.58 356.08 396.49 418.78 463.57 555.65 549.18 646.61 715.15

-reduced length with side/top/

back/bottom airfoil damper 23.40 23.40 23.40 23.40 23.40 23.40 28.40 28.40 28.40 n/a 28.40 n/a 32.50

131.80 158.30 177.90 202.80 231.60 257.60 298.40 328.40 370.10 408.10 485.80

Multizone

- 3-deck vertical discharge n/a n/a 61.00 61.00 66.00 71.00 71.00 71.00 82.00 n/a 82.00 n/a 82.00

1125.00 1313.00 1671.00 1899.00 2063.00 2211.00 2757.00 2991.00 3425.00

- 2-deck vertical discharge n/a n/a 61.00 61.00 66.00 71.00 71.00 71.00 82.00 n/a 82.00 n/a 82.00

763.00 899.00 1099.00 1266.00 1380.00 1526.00 1882.00 2108.00 2413.00

-3-deck horizontal discharge n/a n/a 52.00 52.00 52.00 57.00 57.00 57.00 72.00 n/a 72.00 n/a 72.00

1031.00 1219.00 1511.00 1729.00 1892.00 2034.00 2603.00 2829.00 3267.00

-2-deck horizontal discharge n/a n/a 52.00 52.00 52.00 57.00 57.00 57.00 72.00 n/a 72.00 n/a 72.00

701.00 832.00 982.00 1145.00 1253.00 1396.00 1755.00 1975.00 2264.00

Silencer

-3 ft 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00

198.00 256.00 286.00 319.00 359.00 442.00 461.00 512.00 573.00 562.00 699.00 659.00 800.00

-5 ft 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00

308.00 391.00 436.00 483.00 541.00 678.00 704.00 780.00 873.00 858.00 1073.00 1005.00 1215.00

Trane Catalytic Air Cleaning

System (TCACS) 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00

334.73 367.14 389.21 434.66 470.05 497.59 514.12 544.30 599.38 690.80 665.11 777.83 711.12

Table 7. Section dimensions (inches) and weights (pounds) - unit sizes 3-30

16 CLCH-PRC016-EN

Unit size 3 4 6 8 10 12 14 17 21 22 25 26 30

UV light 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 n/a 14.00 n/a 14.00

76.02 93.64 98.69 120.26 135.22 146.68 155.07 162.95 179.84 188.71 218.33

Sections below are for outdoor units only

Unit size 3 4 6 8 10 12 14 17 21 22 25 26 30

Diagonal economizer

-with airfoil dampers 46.00 49.00 50.00 48.00 53.00 53.00 57.00 52.00 63.00 n/a 57.00 n/a 63.00

187.00 231.00 256.00 276.00 334.00 365.00 407.00 414.00 534.00 548.00 649.00

-with airfoil damper and one

side Traq damper 46.00 49.00 50.00 48.00 53.00 53.00 57.00 52.00 63.00 n/a 57.00 n/a 63.00

204.00 247.00 271.00 290.00 349.00 378.00 426.00 431.00 555.00 565.00 689.00

Exhaust damper section for

outdoor unit 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 n/a 19.00 n/a 19.00

93.30 113.30 124.30 140.20 159.60 176.70 186.80 204.00 229.10 250.50 280.40

Hoods

-Back inlet hood with airfoil and

Traq dampers 22.25 44.00 44.00 50.38 61.50 66.38 71.88 72.00 79.88 n/a 79.88 n/a 93.38

22.00 45.00 47.00 47.00 52.00 69.00 74.00 74.00 74.00 128.00 166.00

-Side inlet hood with airfoil and

Traq dampers 20.00 20.00 20.00 20.00 22.88 22.88 31.38 25.75 29.13 n/a 25.75 n/a 27.88

17.00 17.00 22.00 22.00 31.00 42.00 50.00 50.00 50.00 84.00 96.00

-Exhaust hood with airfoil

damper 20.00 20.00 20.00 20.00 22.88 22.88 31.38 25.75 29.13 n/a 25.75 n/a 27.88

12.00 12.00 16.00 16.00 21.00 29.00 30.00 30.00 30.00 59.00 67.00

-Economizer inlet hood 45.50 49.00 49.50 48.00 53.00 53.00 56.50 52.00 62.50 n/a 57.00 n/a 62.50

41.00 37.00 45.00 61.00 68.00 76.00 137.00 174.00 179.00 214.00 224.00

Pipe cabinet weight

15 inches long, 36 inches deep 104.00 104.00 116.00 120.00 120.00 127.00 127.00 141.00 148.00 n/a 164.00 n/a 164.00

24 inches long, 36 inches deep 122.00 122.00 135.00 140.00 140.00 147.00 147.00 162.00 170.00 n/a 187.00 n/a 187.00

48 inches long, 36 inches deep 169.00 169.00 184.00 191.00 191.00 200.00 200.00 218.00 228.00 n/a 249.00 n/a 249.00

96 inches long, 36 inches deep 263.00 263.00 284.00 293.00 293.00 305.00 305.00 331.00 343.00 n/a 373.00 n/a 373.00

Note:

1

Nominal airflow is based on 500 fpm through a nominal coil (i.e. 500xunit size 8=4000 cfm).

2

Airflow@625 fpm through the flat filter (maximum filter velocity).

3

Height includes standard 2.5-inch base frame for sizes 3-57 and 6-inch base frame for sizes 66-120.

4

Height includes 6-inch base frame for sizes 3-120.

5

Variable

lengths available from 14-96 inches.

6

Fan section weights include the heaviest fan with the largest ODP motor available.

7

Nominal length and height shown for

discharge plenums. Variable plenum height and length is available from 0.5 to 1.5 of nominal.

8

Access section required with humidifiers for dispersion distance.

Table 7. Section dimensions (inches) and weights (pounds) - unit sizes 3-30

CLCH-PRC016-EN 17

Table 8. Section dimensions (inches) and weights (pounds) - unit sizes 31-120

Nominal airflow 15,500 17,500 18,000 20,000 20,500 25,000 25,500 28,500 29,000 33,000 40,000 50,000 60,000

Airflow at 625 fpm 22,138 23,263 25,000 25,519 30,138 34,375 34,306 39,581 39,722 47,225 53,475 65,106 76,388

Unit size 31 35 36 40 41 50 51 57 58 66 80 100 120

Height - indoor unit 85.50 67.25 89.00 67.25 104.00 75.75 104.00 85.50 116.25 92.50 107.50 119.75 119.75

Width 72.00 100.00 80.00 112.50 80.00 125.50 93.50 125.50 93.50 140.50 140.50 154.50 182.00

Height for outdoor unit

includes base drip lip n/a 75.00 n/a 75.00 n/a 84.38 n/a 94.13 n/a 97.63 112.63 124.88 124.88

Weight add for outdoor unit

(lbs/in. of unit length) n/a 3.02 n/a 3.28 n/a 3.73 n/a 6.12 n/a 2.57 2.57 2.80 3.25

Access or blank

-Small horizontal 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 n/a n/a n/a n/a

106.61 211.11 207.98 227.92 224.38 254.69 242.54 265.35 255.92

-Medium horizontal 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 15.00 15.00 15.00 15.00

133.18241.53238.68260.24257.35290.28277.55302.41292.80430.36449.60493.59549.13

-Extended-medium horizontal 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

166.39 279.57 277.04 300.64 298.56 334.76 321.32 348.74 338.89 476.36 497.88 545.85 605.56

-Medium-large horizontal 26.50 24.50 29.50 24.50 29.50 24.50 29.50 24.50 29.50 24.50 24.50 24.50 24.50

202.93321.40319.24345.09343.89410.37369.46427.50389.59574.11600.46656.89725.47

-Large horizontal or turning 46.00 48.00 46.00 48.00 46.00 48.00 46.00 48.00 46.00 49.00 54.00 60.00 60.00

467.28 514.42 509.00 557.22 561.11 639.24 615.72 682.26 661.42 907.93 1036.33 1242.40 1387.96

-Extra-large horizontal or

turning n/a 63.75 n/a 63.75 n/a 68.50 n/a n/a n/a n/a n/a n/a n/a

624.86 675.12 809.42

-Ducted inlet or ducted

outlet section 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00

106.60 211.10 208.00 227.90 224.40 254.70 242.50 265.30 255.90 372.90 389.30 428.30 478.60

Blender 40.00 48.00 48.00 48.00 48.00 48.00 54.00 48.00 48.00 49.00 54.00 60.00 60.00

449.80 540.76 495.07 593.46 616.31 675.51 656.33 731.75 718.81 970.30 1112.23 1345.03 1567.62

Cool Dry Quiet (CDQ)

Desiccant Dehumidification n/a 56.00 n/a 56.00 n/a 59.00 n/a n/a n/a n/a n/a n/a n/a

2914.00 3122.00 4224.00

Coils

-Small horizontal (with 4-row

UW) 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 10.00 n/a n/a n/a n/a

594.43 690.59 675.23 754.61 792.51 934.27 922.65 1044.33 1014.74

-Medium horizontal (with 8-

row UW) 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 15.00 15.00 15.00 15.00

968.56 1094.27 1095.29 1219.78 1290.73 1561.92 1523.08 1759.58 1686.19 2220.94 2558.94 3094.04 3638.44

-Extended-medium horizontal

(with 8-row UW) 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

1009.31 1148.70 1138.74 1279.06 1337.01 1613.56 1572.75 1813.06 1738.19 2275.46 2615.73 3163.21 3712.02

-Medium-large horizontal

(with 10-row W) 26.50 24.50 29.50 24.50 29.50 24.50 29.50 24.50 29.50 24.50 24.50 24.50 24.50

1737.73 1955.08 2017.86 2216.68 2355.51 2754.49 2791.28 3215.01 3116.00 3876.05 4488.82 5499.42 6713.50

-Large horizontal or vertical

(with 10-row W) 46.00 48.00 46.00 48.00 46.00 48.00 46.00 48.00 46.00 n/a n/a n/a n/a

1896.66 2131.70 2161.23 2401.84 2508.26 2985.19 2955.21 3454.40 3287.59

-Electric Heat Coil n/a 63.75 n/a 63.75 n/a 68.50 n/a 48.00 n/a 49.00 n/a n/a n/a

1666.00 1825.00 2267.00 2297.00 2857.00

Integral-face-and-bypass coil

-Less than 4 rows 26.50 29.50 29.50 29.50 29.50 29.50 29.50 29.50 29.50 29.50 29.50 29.50 29.50

1190.19 1129.66 1407.86 1168.40 1449.00 1793.80 1640.15 1956.80 1817.25 2322.61 2378.60 2865.77 2936.42

-4 rows 43.00 43.00 43.00 43.00 43.00 n/a n/a n/a n/a n/a n/a n/a n/a

1836.97 1677.52 2148.28 1720.20 2196.84

18 CLCH-PRC016-EN

Unit size 31 35 36 40 41 50 51 57 58 66 80 100 120

Controls section (includes

largest available VFD) 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50 28.50

496.00 637.00 649.00 674.00 698.00 745.00 747.00 787.00 790.00 964.00 1031.00 1146.00 1266.00

Diffuser 19.00 24.50 24.50 24.50 24.50 24.50 24.50 24.50 24.50 27.50 37.25 37.25 37.25

164.04319.05316.89342.74341.54381.33367.11397.35387.24571.76715.78781.92860.66

Discharge plenum

-Horizontal 46.00 48.00 46.00 48.00 46.00 48.00 46.00 48.00 46.00 49.00 54.00 60.00 60.00

464.93 627.24 621.68 677.47 682.71 772.27 745.34 821.10 798.32 1058.35 1198.64 1423.88 1585.80

-Vertical n/a 63.75 n/a 63.75 n/a 68.50 n/a n/a n/a n/a n/a n/a n/a

876.48 949.58 1136.53

Energy Wheel n/a 61.00 n/a 65.00 n/a 65.00 n/a n/a n/a n/a n/a n/a n/a

2403.00 2742.00 3111.00

Face-and-Bypass Dampers

-Face-and-bypass 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

164.04 473.39 274.69 556.23 296.21 630.10 318.97 714.61 336.54 888.33 973.60 1093.88 1205.53

-External face-and-bypass 27.75 22.00 27.75 22.00 27.75 22.00 27.75 22.00 27.75 39.00 39.00 39.00 39.00

222.16 566.46 341.83 660.36 368.32 740.29 395.56 831.66 417.20 1256.07 1348.84 1498.11 1643.69

-Internal face-and-bypass or

face damper only 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

164.04 502.53 274.69 575.62 296.21 678.20 318.97 714.61 336.54 888.33 954.26 1082.84 1194.50

Fan

-Belt-drive plenum fan with

motor n/a 53.50 n/a 53.50 n/a 57.50 n/a 59.50 n/a 61.00 63.00 73.75 82.25

2368.54 2740.37 3263.68 3599.82 4062.62 4745.62 6223.51 7341.11

-Housed FC fan with motor 73.25 63.75 80.50 63.75 80.50 68.50 88.00 68.50 88.00 84.00 92.00 96.00 96.00

1832.18 2400.18 2423.46 2603.08 2771.01 3151.89 3312.75 3235.63 3414.05 4201.67 4922.58 5297.62 5600.08

-Housed AF/BC fan with motor 73.25 63.75 80.50 63.75 80.50 68.50 88.00 68.50 88.00 84.00 92.00 96.00 96.00

1979.55 2429.71 2568.99 2695.61 2863.54 3221.42 3382.28 3305.16 3483.58 4311.38 5101.29 6025.44 6891.90

-Direct-drive plenum fan with

motor 73.25 63.75 80.50 63.75 80.50 68.50 88.00 68.50 88.00 84.00 92.00 96.00 96.00

1673.71 2057.87 2804.47 2406.73 3039.54 3469.95 4268.88 3545.86 4349.06 4903.24 5456.86 7176.65 7382.51

Filters

-Side load 2-in. angled 24.50 24.50 24.50 24.50 24.50 27.50 24.50 27.50 24.50 27.50 27.50 27.50 27.50

469.97 593.86 562.37 649.06 652.32 770.02 688.86 797.89 777.14 989.00 1088.02 1157.16 1282.20

-Side load 4-in. angled 24.50 24.50 24.50 24.50 24.50 27.50 24.50 27.50 24.50 27.50 27.50 27.50 27.50

477.66 594.02 567.56 631.64 663.25 768.20 747.25 805.97 778.73 999.89 1105.14 1201.91 1338.65

-Side load cartridge 12-in. or

short bag 18-in. 24.50 24.50 24.50 24.50 24.50 27.50 24.50 27.50 24.50 27.50 27.50 27.50 27.50

487.55 681.24 637.25 668.25 762.69 878.57 874.81 934.14 980.36 1239.99 1364.91 1746.31 1903.54

-Side load 2-in. flat 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 15.00 15.00 15.00 15.00

198.17319.66322.85358.18358.29408.69392.33438.52426.12598.12637.02716.56817.63

-Side load 4-in. flat 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 15.00 15.00 15.00 15.00

241.97 359.20 350.39 375.13 404.69 451.33 461.82 498.71 476.21 657.87 729.15 803.46 913.90

-Side load 2-in. and 4-in.

combination flat 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

322.00 476.00 484.13 504.37 570.61 600.40 646.20 671.64 667.97 853.08 981.02 1078.09 1165.92

-Long bag 30-in. 37.25 37.25 37.25 37.25 37.25 37.25 37.25 37.25 37.25 37.25 37.25 37.25 37.25

505.93 657.41 700.77 716.04 802.78 826.72 883.10 906.56 944.63 1094.61 1270.51 1393.17 1549.80

-Front-load HEPA 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00

874.09 985.62 1176.01 1128.46 1267.90 1397.21 1449.89 1520.35 1561.45 1845.81 2141.38 2553.97 2924.72

-Front-load cartridge 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00 40.00

637.18 867.68 796.62 922.78 931.37 1093.06 1061.94 1173.89 1168.54 1449.48 1671.46 1923.09 2155.95

Table 8. Section dimensions (inches) and weights (pounds) - unit sizes 31-120

CLCH-PRC016-EN 19

Unit size 31 35 36 40 41 50 51 57 58 66 80 100 120

-Front-load short bag 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00 45.00

622.53 750.89 778.04 799.75 885.35 917.08 968.65 979.84 1048.59 1231.49 1365.35 1538.95 1696.33

Gas heat

- 200 MBH n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a

- 300 MBH n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a

- 360 MBH n/a 66.00 n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a

1402.11

- 560 MBH n/a 66.00 n/a 64.00 n/a 64.00 n/a 64.00 n/a n/a n/a n/a n/a

1594.61 1468.07 1853.53 1900.53 n/a n/a n/a n/a

- 700 MBH n/a 73.00 n/a 75.00 n/a 74.00 n/a 74.00 n/a 74.00 n/a n/a n/a

1895.19 1804.11 2190.52 2241.91 2490.63

- 860 MBH n/a 80.00 n/a 75.00 n/a 74.00 n/a 74.00 n/a 74.00 74.00 n/a n/a

2046.29 2098.72 2280.52 2331.91 2580.63 2198.81 n/a n/a

- 1000 MBH n/a 80.00 n/a 81.00 n/a 77.00 n/a 77.00 n/a 74.00 74.00 84.00 92.00

1723.73 1844.68 2325.57 2082.86 2300.63 1918.81 3156.04 3125.34

- 1250-1750 MBH n/a 101.00 n/a 105.00 n/a 106.00 n/a 106.00 n/a 109.00 109.00 92.00 102.00

2540.84 2717.94 3264.84 2942.76 3309.39 2949.68 3878.54 3886.60

- 2000 MBH n/a n/a n/a n/a 114.00 n/a 114.00 n/a 112.00 112.00 109.00 109.00

3758.71 3430.29 3688.33 3320.33 4503.52 4391.21

-2400 MBH n/a n/a n/a n/a n/a n/a n/a 118.00 112.00 121.00 119.00

3890.31 3455.33 4715.85 4668.51

Humidifier

-Building Steam 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 15.00 15.00 15.00 15.00

561.00 544.00 622.00 599.00 684.00 782.00 773.00 897.00 807.00 1123.00 1215.00 1363.00 1551.00

-Atmospheric Steam 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00 19.00

471.00 581.00 508.00 665.00 570.00 724.00 683.00 803.00 742.00 977.00 1078.00 1265.00 1492.00

Mixing box

-with angled filters 46.00 48.00 46.00 48.00 46.00 48.00 46.00 48.00 46.00 49.00 54.00 60.00 60.00

467.28 519.12 513.70 561.92 565.81 653.36 629.45 653.36 675.14 946.02 1077.83 1287.99 1433.55

-with front/back Traq and top

Traq dampers n/a 63.75 n/a 63.75 n/a 68.50 n/a 68.50 n/a 84.00 92.00 96.00 96.00

966.49 1073.80 1261.78 1365.59 1907.28 2151.42 2473.12 2790.48

-reduced length with side/top/

back/bottom airfoil damper n/a 35.50 n/a 38.50 n/a 41.50 n/a 41.50 n/a 41.50 41.50 47.00 53.00

708.50 795.10 947.60 1022.70 1328.50 1453.60 1731.30 2025.40

Multizone

- 3-deck vertical discharge n/a 92.00 n/a 92.00 n/a 96.00 n/a n/a n/a n/a n/a n/a n/a

4263.00 4732.00 5739.00

- 2-deck vertical discharge n/a 92.00 n/a 92.00 n/a 96.00 n/a n/a n/a n/a n/a n/a n/a

2965.00 3267.00 3986.00

-3-deck horizontal discharge n/a 78.00 n/a 78.00 n/a 78.00 n/a n/a n/a n/a n/a n/a n/a

4020.00 4471.00 5276.00

-2-deck horizontal discharge n/a 78.00 n/a 78.00 n/a 78.00 n/a n/a n/a n/a n/a n/a n/a

2725.00 3006.00 3633.00

Table 8. Section dimensions (inches) and weights (pounds) - unit sizes 31-120

20 CLCH-PRC016-EN

Unit size 31 35 36 40 41 50 51 57 58 66 80 100 120

Silencer

-3 ft 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00 38.00

826.00 918.00 951.00 974.00 1013.00 1226.00 1142.00 1332.00 1312.00 1573.00 1741.00 2196.00 2555.00

-5 ft 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00 62.00

1272.00 1335.00 1478.00 1439.00 1558.00 1795.00 1759.00 1945.00 2030.00 2313.00 2555.00 3230.00 3786.00

Trane Catalytic Air Cleaning

System (TCACS) 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00 36.00

825.55 881.59 916.32 935.35 945.79 1044.28 1043.64 1148.17 1132.38 1362.38 1451.30 1707.27 1881.13

UV light 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 14.00 15.00 15.00 15.00 15.00

n/a 325.48 n/a 352.71 n/a 394.34 n/a 419.43 n/a 574.52 604.11 667.60 758.72

Sections below are for outdoor units only

Diagonal economizer

-with airfoil dampers n/a 75.00 n/a 83.00 n/a 72.00 n/a 76.00 n/a 83.00 86.00 93.00 93.00

931.00 1062.00 1120.00 1223.00 1680.00 1851.00 2173.00 2396.00

-with airfoil damper and one

side Traq damper n/a 75.00 n/a 83.00 n/a 72.00 n/a 76.00 n/a 83.00 86.00 93.00 93.00

973.00 1101.00 1169.00 1266.00 1722.00 1920.00 2290.00 2494.00

Unit size 31 35 36 40 41 50 51 57 58 66 80 100 120

Exhaust damper section for

outdoor unit n/a 24.50 n/a 24.50 n/a 24.50 n/a 22.40 n/a 22.40 22.40 22.40 22.40

450.80 489.90 565.60 586.60 755.30 820.10 935.50 1058.30

Hoods

-Back inlet hood with airfoil

and Traq dampers n/a 99.88 112.38 n/a 125.38 n/a 125.38 n/a 126.00 140.00 140.00 167.25

176.00 n/a 195.00 230.00 270.00 317.00 344.00 491.00 566.00

-Side inlet hood with airfoil and

Traq dampers n/a 40.88 40.88 n/a 44.75 n/a 37.25 n/a 37.25 37.25 43.00 48.75

122.00 n/a 128.00 161.00 174.00 189.00 258.00 412.00 415.00

-Exhaust hood with airfoil

damper n/a 40.88 40.88 n/a 39.63 n/a 37.25 n/a 37.25 37.25 43.00 48.75

73.00 n/a 77.00 93.00 114.00 129.00 174.00 206.00 221.00

-Economizer inlet hood n/a 75.00 83.00 n/a 72.00 n/a 75.50 n/a 83.00 86.00 93.00 93.00

195.00 n/a 275.00 358.00 345.00 418.00 522.00 629.00 778.00

Pipe cabinet weight

15 inches long, 36 inches deep n/a 175.00 n/a 175.00 n/a 191.00 n/a 209.00 n/a 215.00 243.00 265.00 265.00

24 inches long, 36 inches deep n/a 199.00 n/a 199.00 n/a 216.00 n/a 236.00 n/a 243.00 273.00 298.00 298.00

48 inches long, 36 inches deep n/a 263.00 n/a 263.00 n/a 284.00 n/a 309.00 n/a 317.00 354.00 385.00 385.00

96 inches long, 36 inches deep n/a 392.00 n/a 392.00 n/a 421.00 n/a 454.00 n/a 466.00 517.00 558.00 558.00

Table 8. Section dimensions (inches) and weights (pounds) - unit sizes 31-120

CLCH-PRC016-EN 21

Service Clearance Recommendations

A minimum clearance of the section width plus 12 inches on the access door side of the gas heat

section is recommended for routine maintenance. This clearance provides enough room to replace

the heat exchanger in the event of failure. The section side panels must be removed to access the

heat exchanger. Refer to Figure 1 for service clearance recommendations for the air handler.

Figure 1. Service Clearance

Filter mixing box

Coil

Fan

Gas heat

Access

door

UV

lights

VFD

F

E

D

C

B

A

Table 9. Service clearance dimensions (inches)

Component 3 4 6 8 10 12 14 17 21 22 25 26 30 31 35 36 40 41 50 51 57 58 66 80 100 120

A (filter) 4848484848484848484848484848484848484848484852565858

B (coil) 48 59 59 66 77 82 87 87 95 77 95 77 109 87 115 96 128 96 141 110 141 110 156 156 170 197

C (UV Lights) 4848484848484848484848484848484848484848484852565858

C (Catalytic Air

Cleaner) 43 59 59 63 75 81 83 83 58 75 58 75 83 83 75 59 83 83 83 83 83 83 83 83 75 83

D (external starter

or VFD) 61 61 61 61 61 61 61 61 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64

D (internal starter

or VFD) 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48

E (fan) 484848485154586160516651665866607060776677669393101101

F (gas heat - Ext

Vestibule) n/a n/a 89 90 108 100 100 105 115 n/a 115 n/a 118 n/a 136 n/a 140 n/a 156 n/a 156 n/a 170 179 180 n/a

F (gas heat - Int

Vestibule) n/a n/a 56 63 74 79 84 84 92 n/a 92 n/a 106 n/a 112 n/a 125 n/a 138 n/a 138 n/a 153 153 167 194

Note: At a minimum, the above clearance dimensions are recommended on one side of the unit for regular service and maintenance. Refer to as-built

submittal for locations of items such as filter access doors, coil, piping connections, motor locations, hoods, pipe cabinets, etc. Sufficient clearance

must be provided on all sides of unit for removal of access panels, plug panels, or section-to-section attachment brackets. Clearance for starters, VFDs,

or other high-voltage devices must be provided per NEC requirements.

Note: For specific dimensional and weight information, refer to the unit submittals. The dimensions and weights in this manual are approximate. Trane has

a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.

22 CLCH-PRC016-EN

Common Indoor Configurations

Figure 2. Plenum Exhaust Fan Economizer with Exhaust

Damper on Fan Section Figure 3. Plenum Return Fan Economizer with Exhaust

Damper on Fan Section

Figure 4. Stacked Exhaust Fan Economizer Figure 5. Horizontal Split Dehumidification Unit (SDU)/

Winterizer

Figure 6. Cool Dry Quiet (CDQ™) - Outside Air 0-100% Figure 7. Energy Recover Wheel - Draw-thru Exhaust/

Draw-thru Supply

Figure 8. Dedicated Outside Air Split-Level

Preconditioning Energy Recovery Wheel Figure 9. Three-Deck Multizone/Triple-Duct - Housed Fan

CLCH-PRC016-EN 23

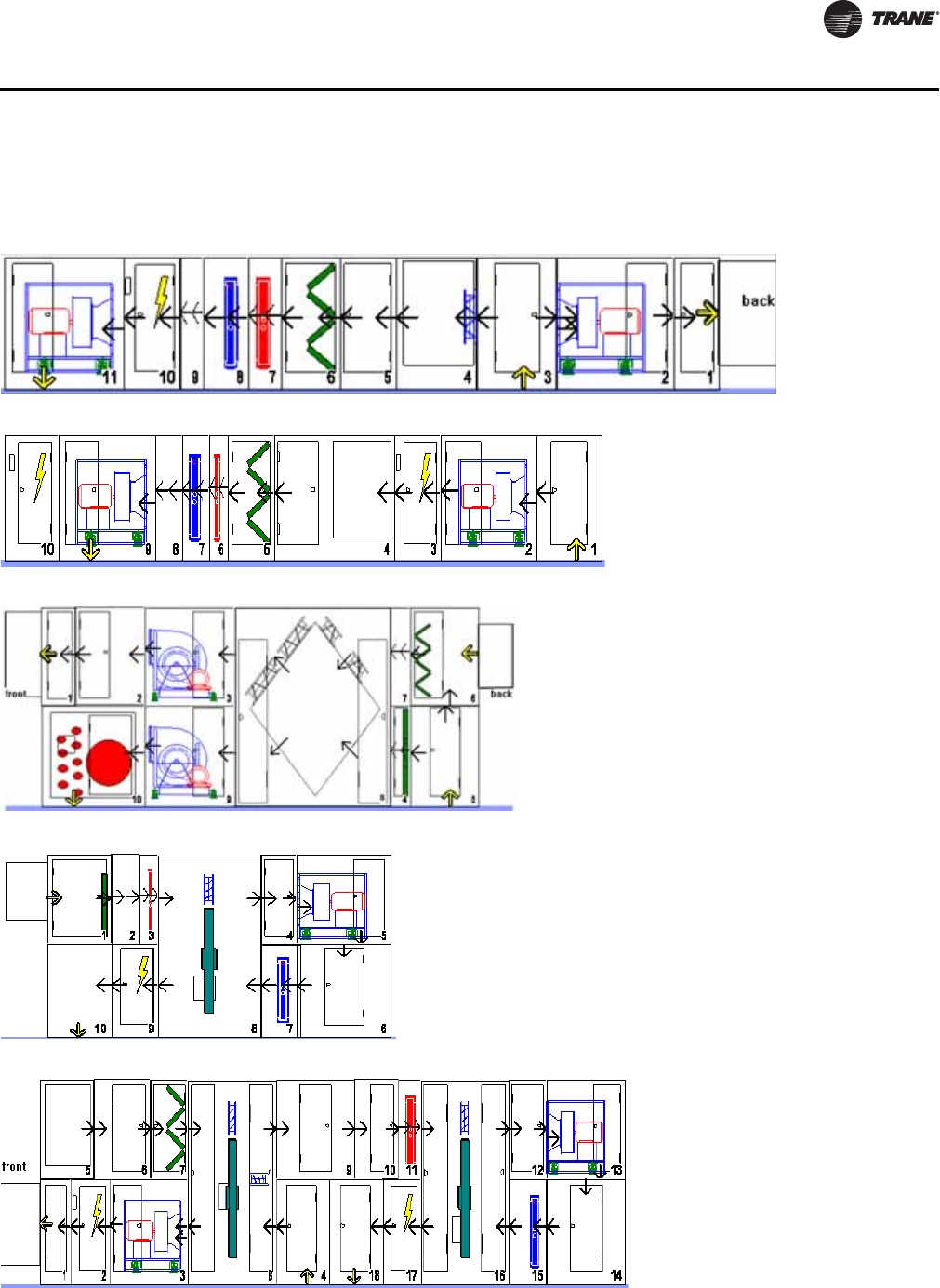

Common Outdoor Configurations

Figure 10. Plenum Fan Exhaust Economizer with VFD/Starter and Controls

Figure 11. Plenum Return Fan Economizer with VFD/Starter and Controls

Figure 12. Air-to-Air Plate Frame Make-Up Air Unit with Gas Heat

Figure 13. Cool Dry Quiet (CDQ™) - Dedicated Outside Air

Figure 14. Dual Wheel Unit - Energy Wheel, Cool Dry Quite (CDQ™) Desiccant Dehumidification System and Controls

Trane optimizes the performance of homes and buildings around the world. A business of Ingersoll Rand, the

leader in creating and sustaining safe, comfortable and energy efficient environments, Trane offers a broad

portfolio of advanced controls and HVAC systems, comprehensive building services, and parts.

For more information, visit www.Trane.com.

Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.

We are committed to using environmentally

conscious print practices that reduce waste.

© 2012 Trane All rights reserved

CLCH-PRC016-EN October 25, 2012

Supersedes CLCH-PRC016-EN (11 Nov 2011)
