Water Source Heat Pump

Axiom™ High Efficiency Rooftop — GER

3-25Tons — 60 Hz

August 2013 WSHP-PRC021-EN

Product Catalog

© 2013Trane All rights reserved WSHP-PRC021-EN

Introduction

If a rooftop water-source heat pump is in your building’s future, Trane has the right product and

flexible design to fit your needs.We’ve taken the quality of theTrane’s Precedent™andVoyager II™

rooftop units, and added water-cooled capabilities into the product configuration, to deliver the

Axiom water-source comfort system. Product features for the 3 through 10 ton equipment includes:

1. Reliatel™ standalone controls andTracer™ or LonTalk™communication interface

2. Trane built compressor

3. Removable, dual sloped, non-corrosive drain pan

4. Two-inch filter arrangement

5. Standard static, high static, and belt-driven motor configurations

6. Foil-faced insulation installed throughout air-side of unit

7. Motor speed-tap changeability (3-5T, single phase only)

8. Single point power connection

9. Field convertible units for sizes 3-10T (horizontal/down flow configuration)

10. Single platform design

11. Single-size roof curb

Revision Summary

WSHP-PRC021-EN (01 Aug 2013)

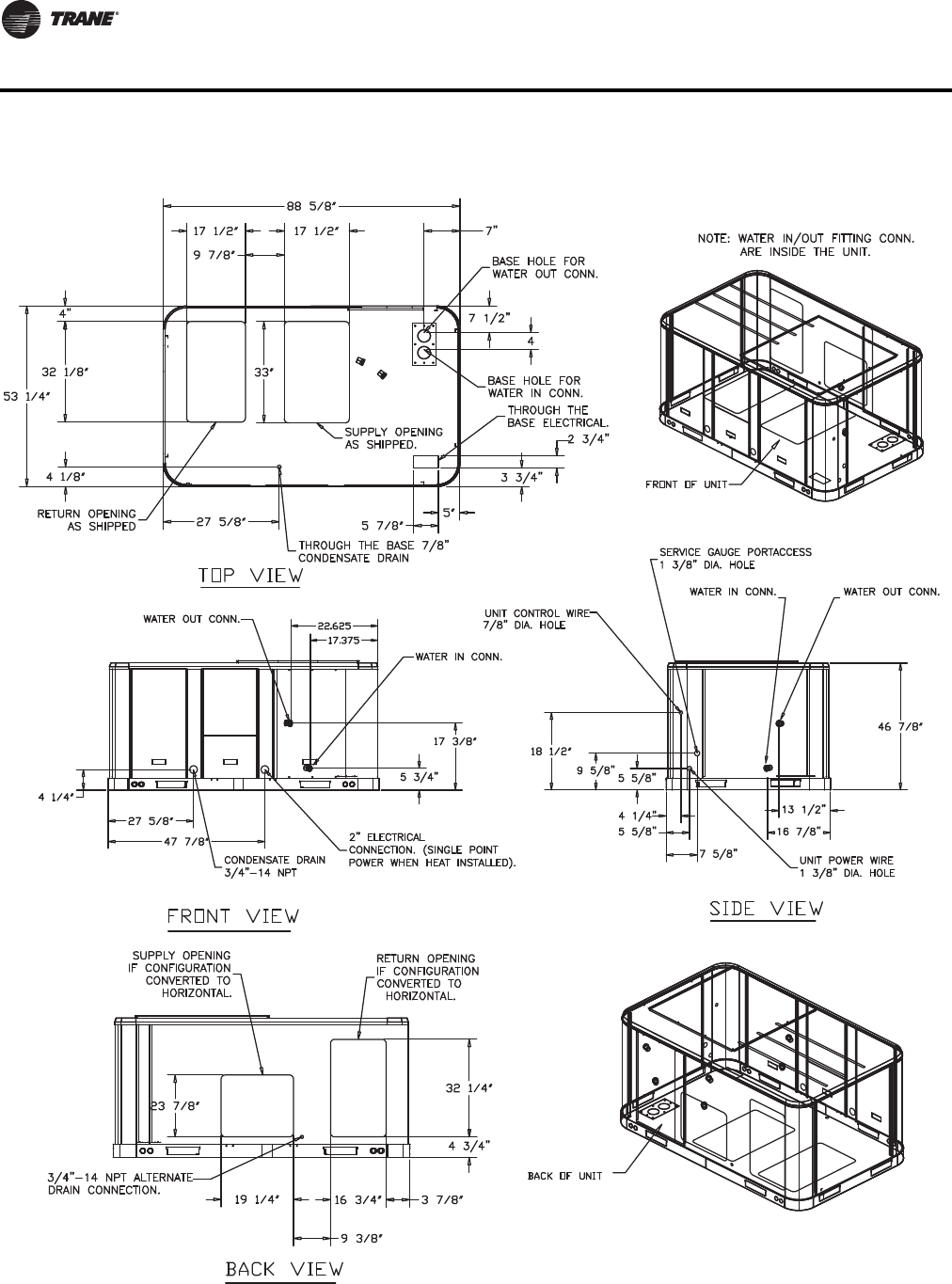

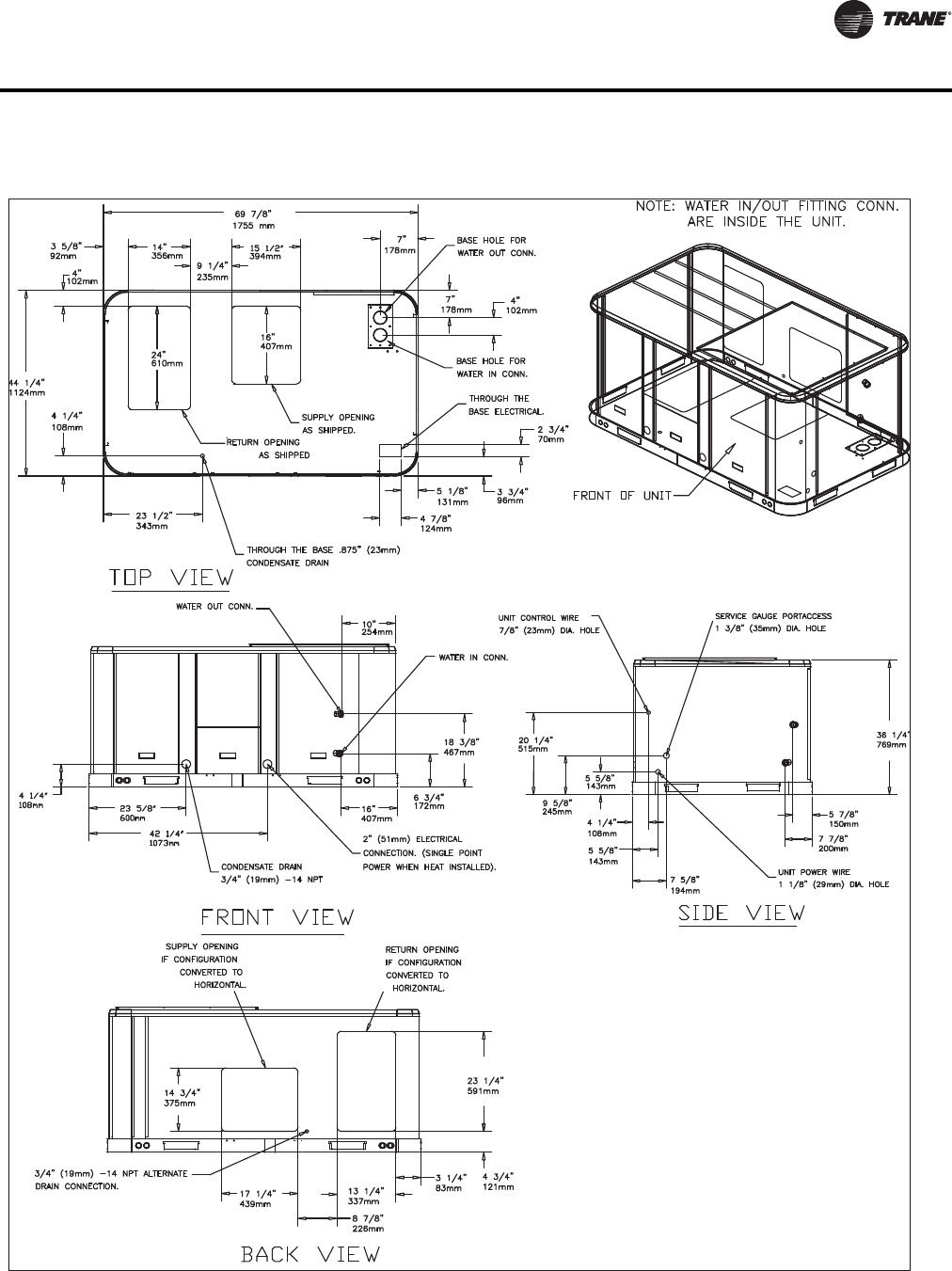

Corrected dimension drawings. Added corner weight and center of gravity information.

WSHP-PRC021-EN (09 May 2013)

Updated performance data. Corrections to dimension drawings.

Trademarks

Axiom, Precedent, ReliaTel,TOPSS,Tracer, Voyager II, Trane, and theTrane logo are trademarks

or registered trademarks ofTrane in the United States and other countries.Trane is a business of

Ingersoll Rand. All trademarks referenced in this document are the trademarks of their respective

owners.

LonTalk is a registered trademark of Echelon Corporation.

1

65

32

4

8

10

11

9

7

Table of Contents

WSHP-PRC021-EN 3

Introduction ......................................................2

Features and Benefits ..............................................4

Application Considerations ..........................................9

Selection Procedure ...............................................10

Model Number Descriptions ........................................12

General Data .....................................................13

Performance Data ................................................16

Operating Pressures in Cooling/Heating .......................... 16

Electrical Data ....................................................79

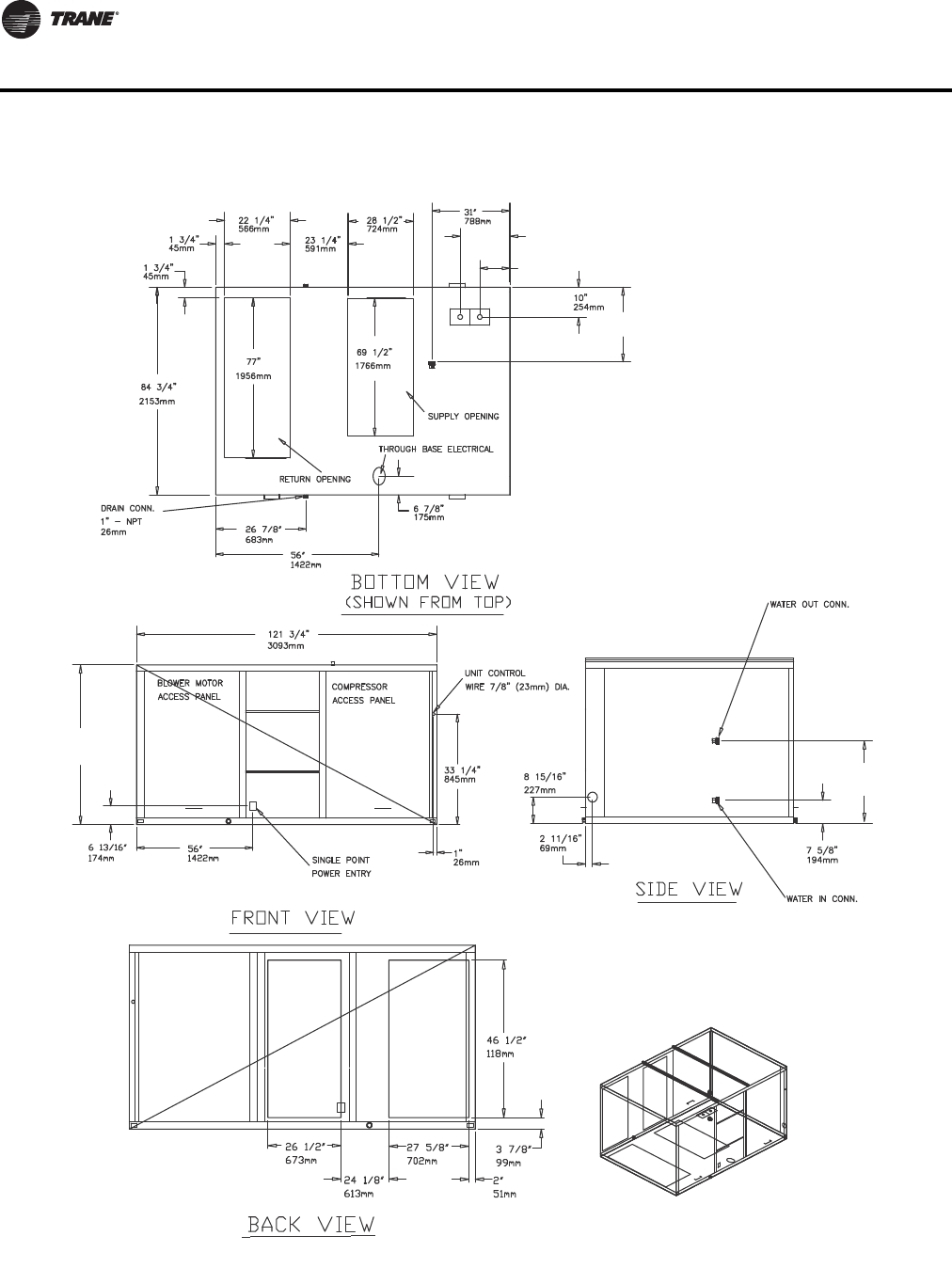

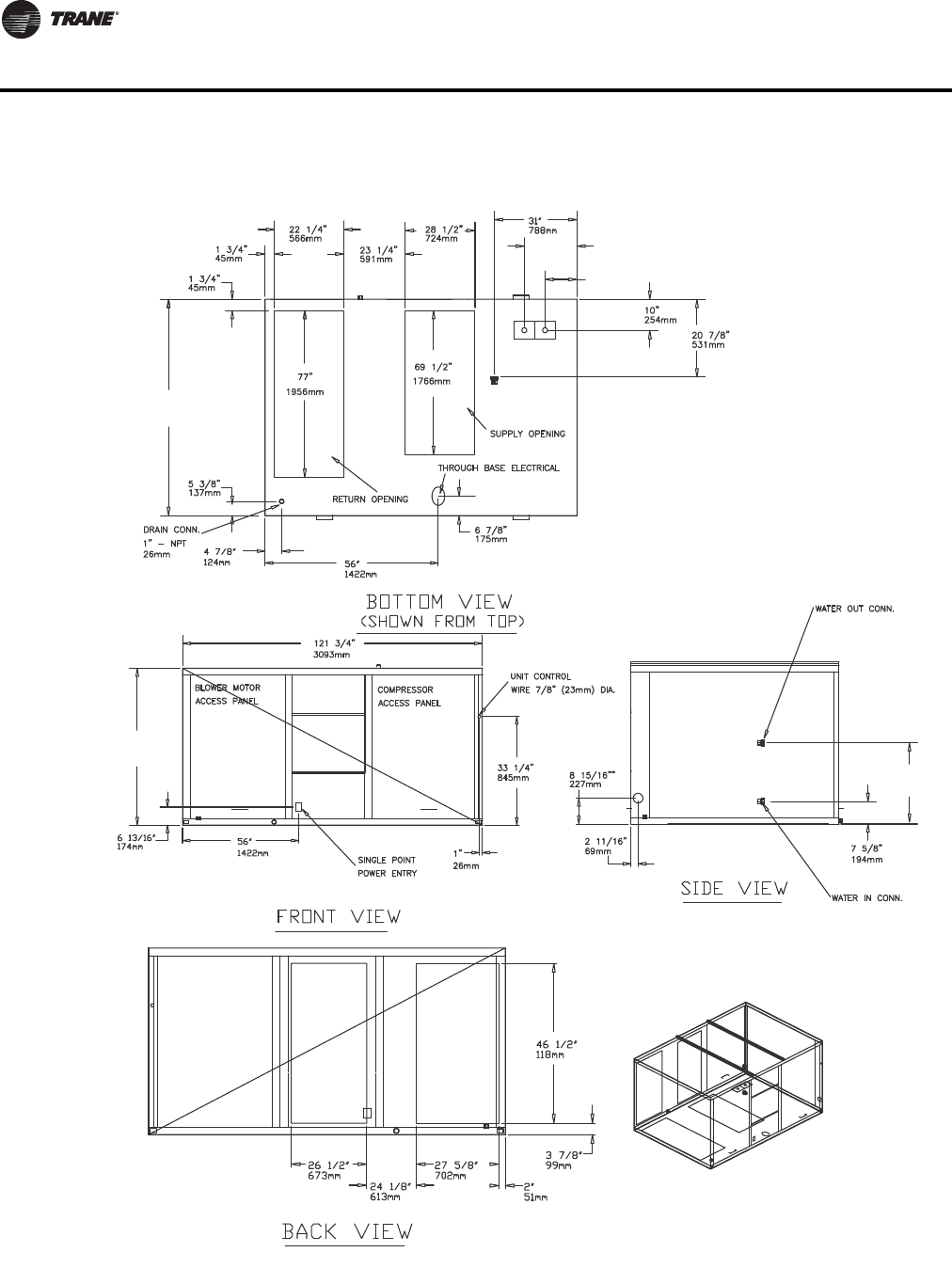

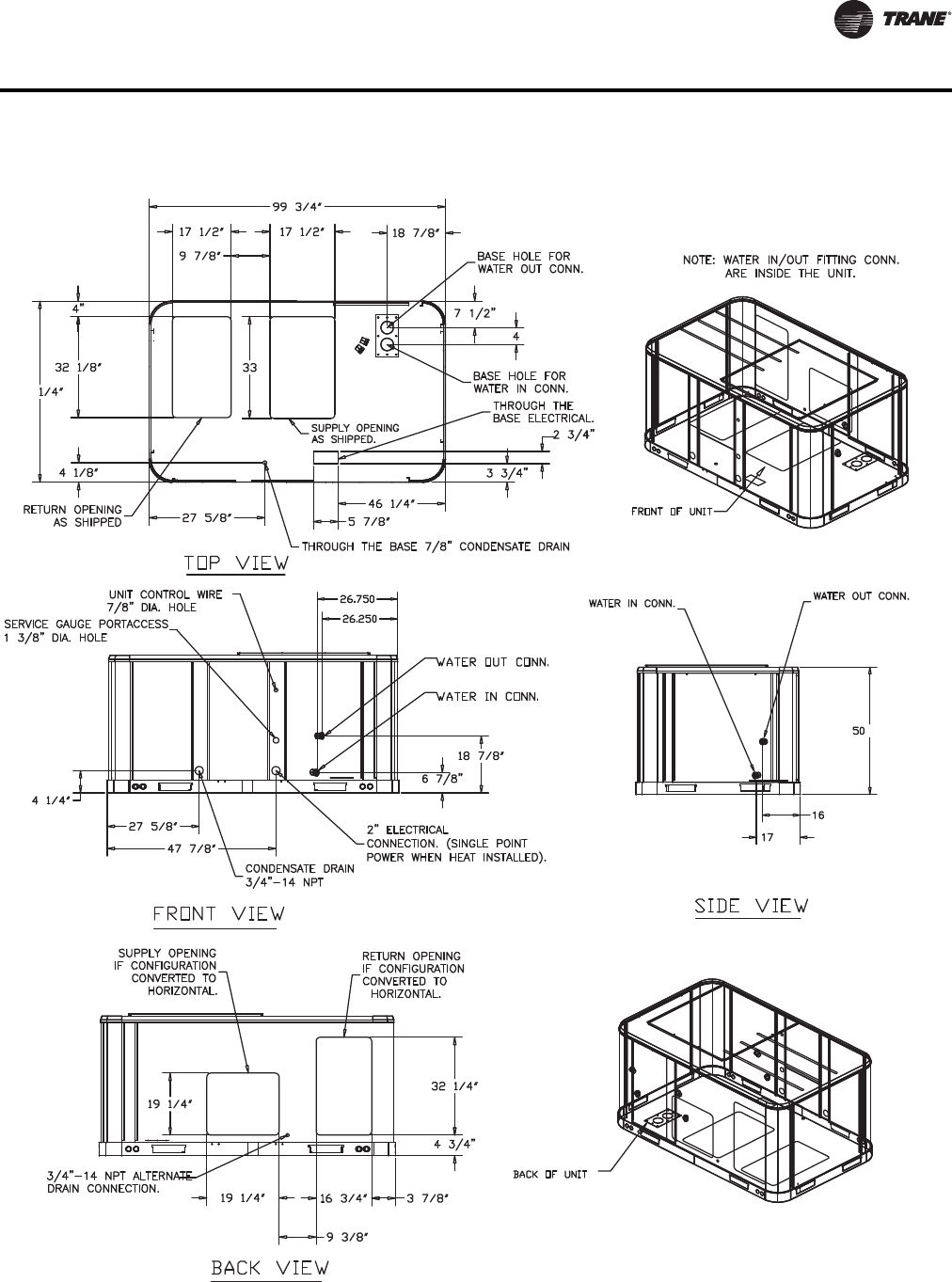

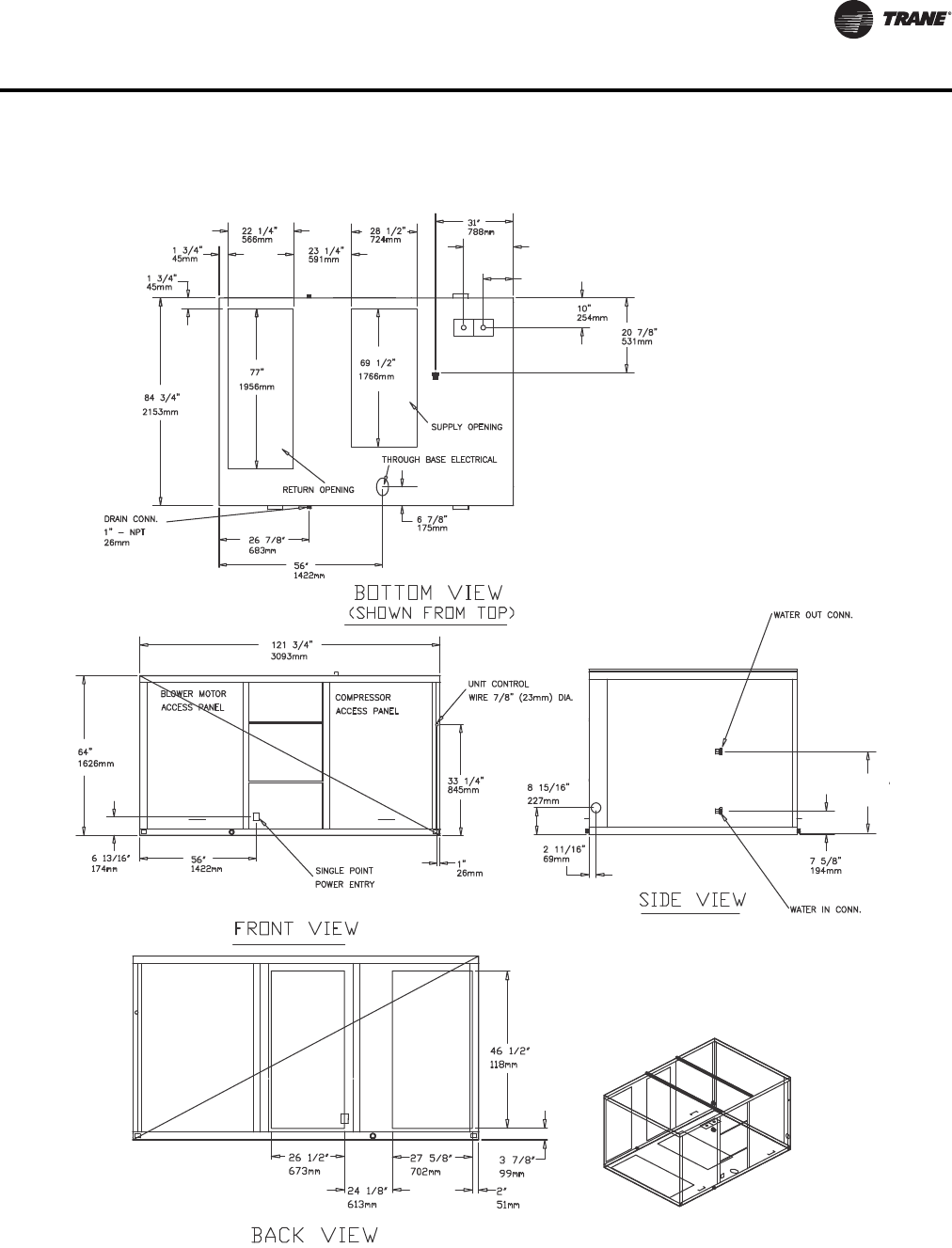

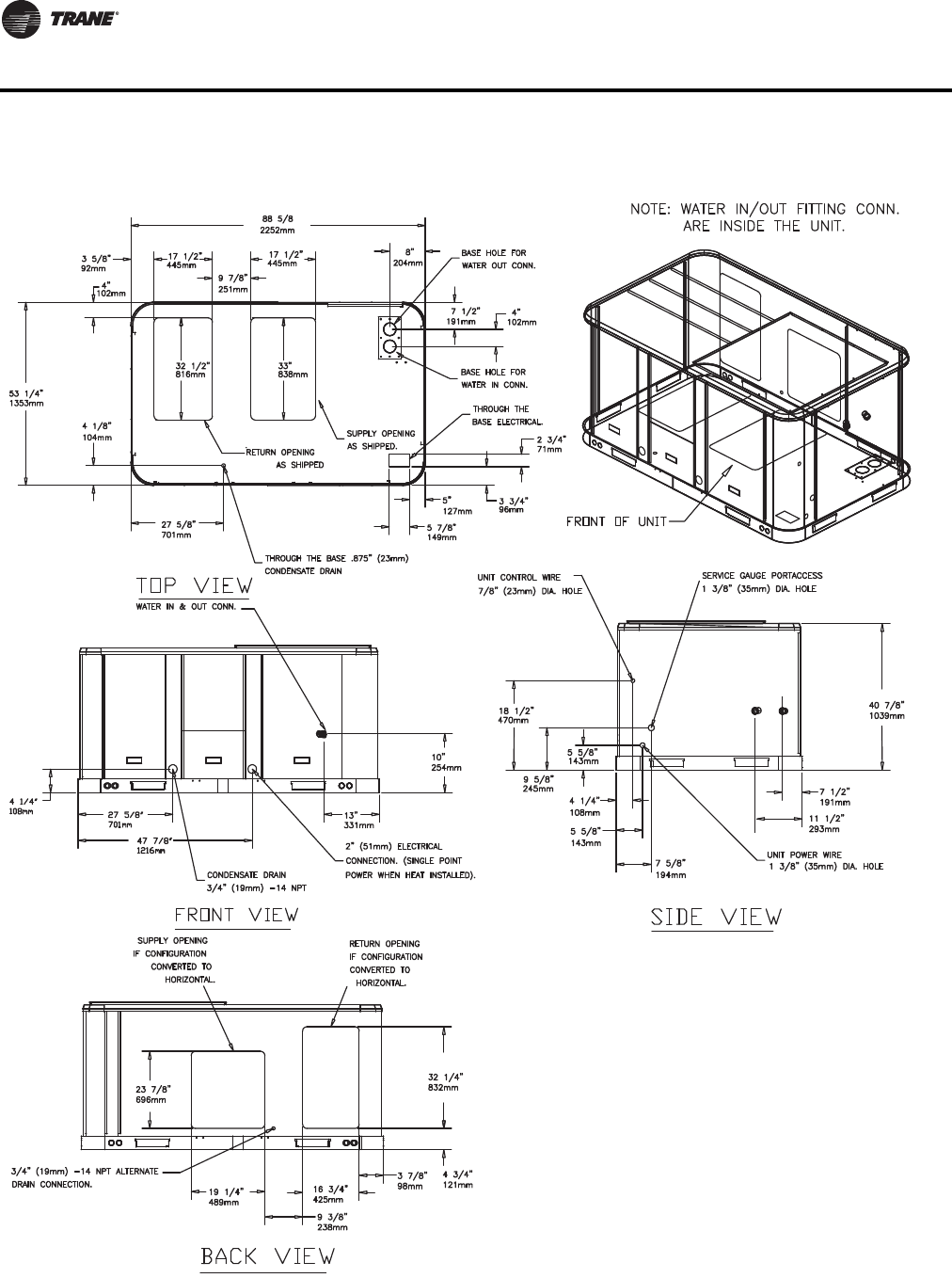

Dimensional Data .................................................86

Weights and Center of Gravity .....................................104

Accessories .....................................................105

System balancing hose kit .................................... 105

Thermostat/Sensor Location .................................. 105

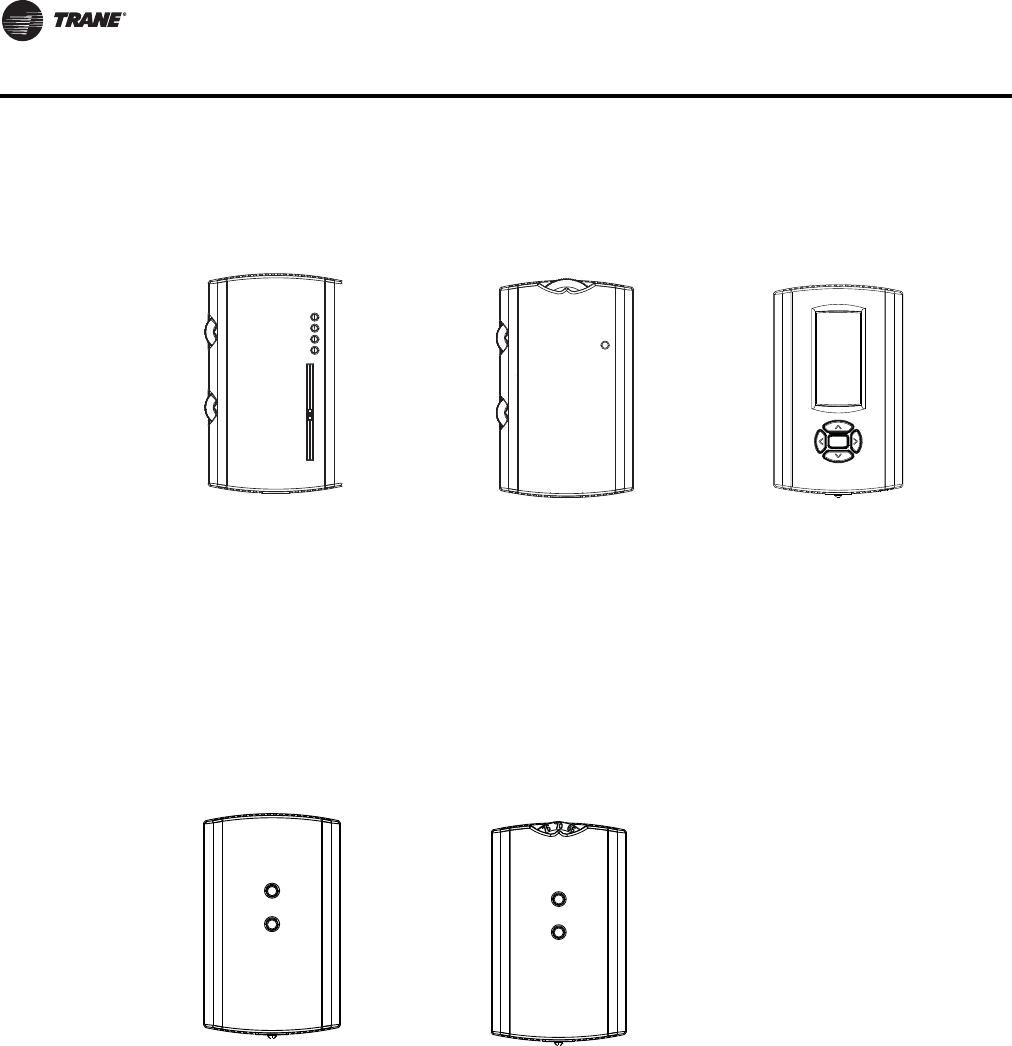

Zone Sensors ............................................... 106

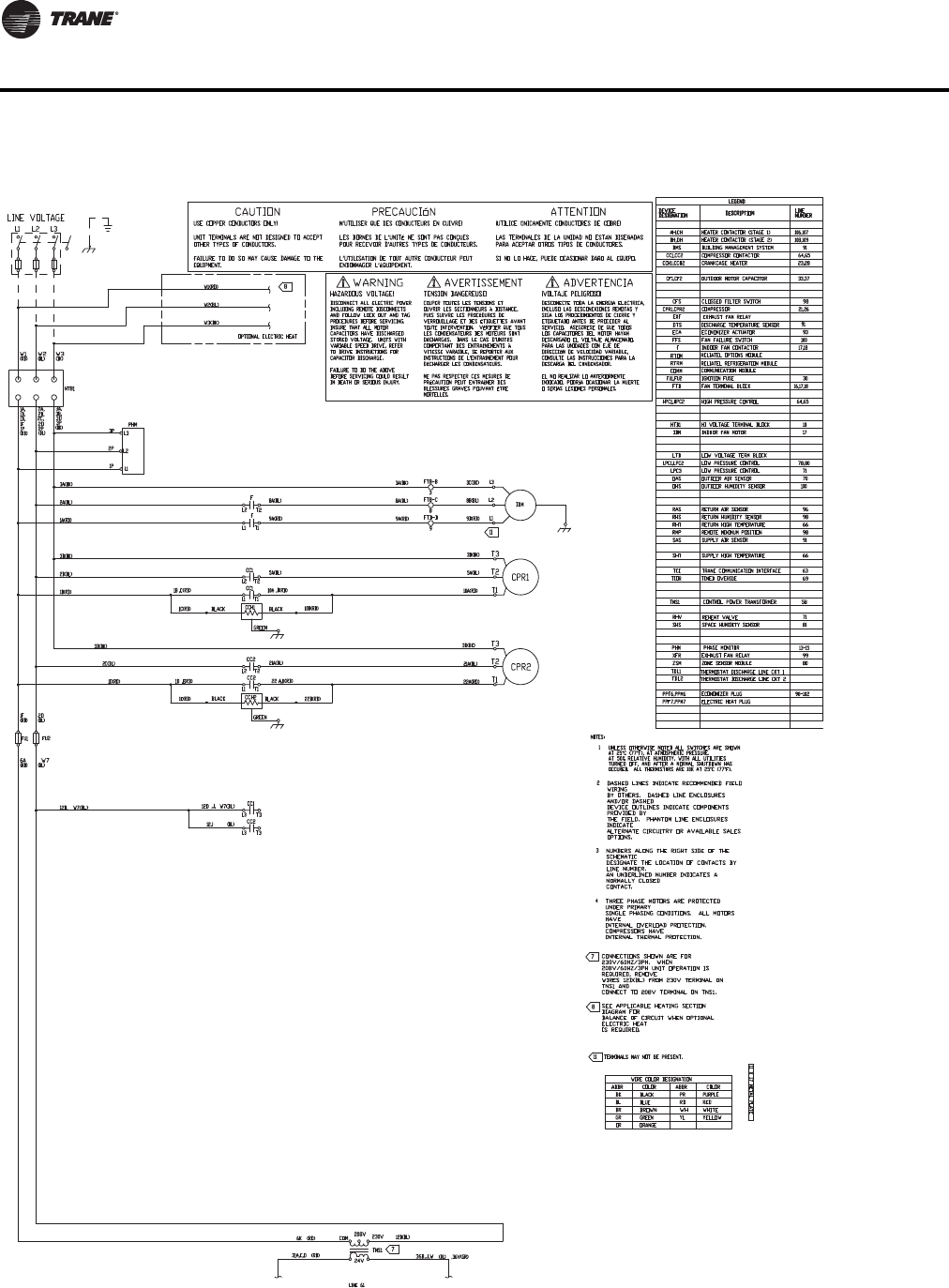

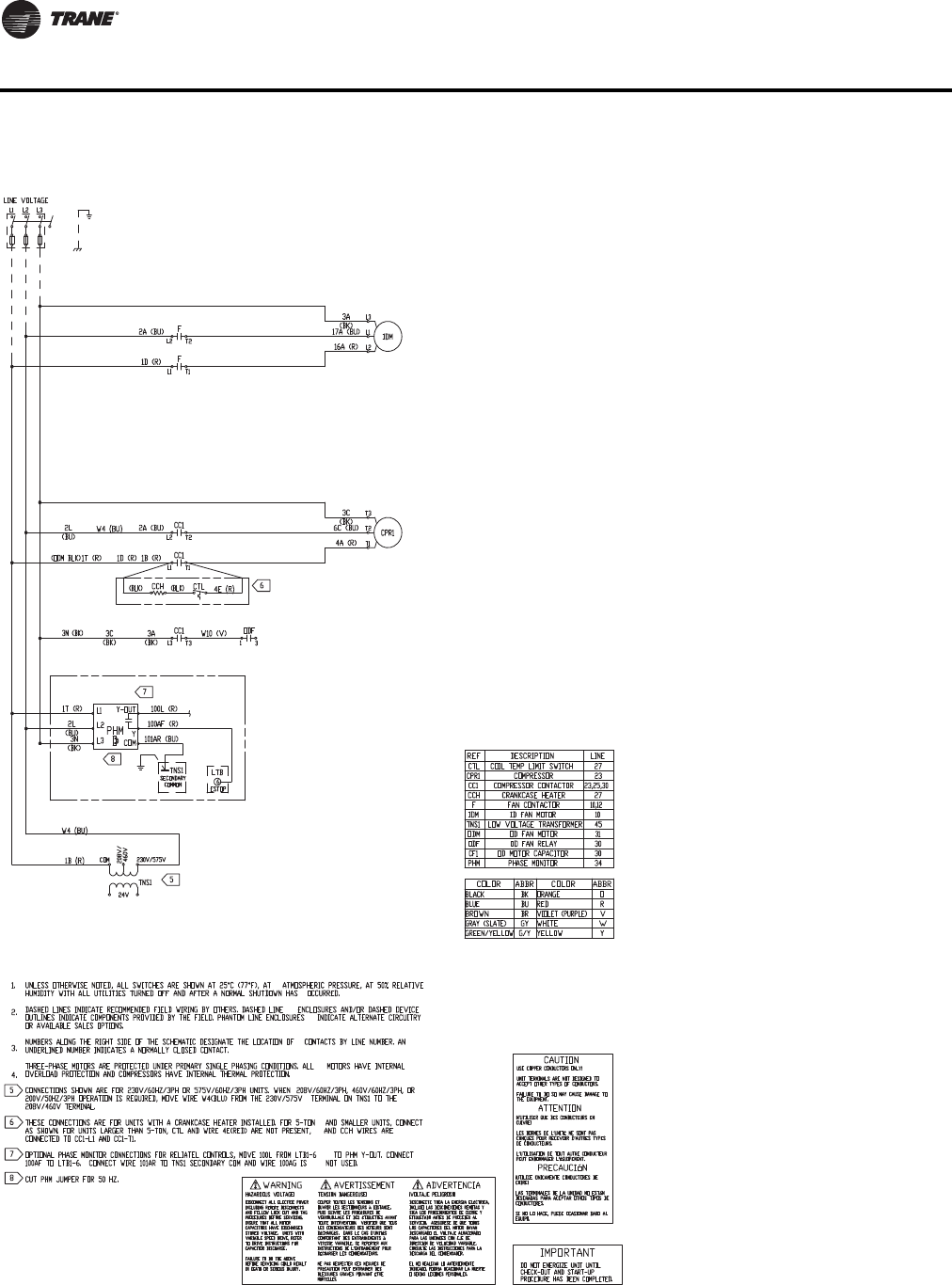

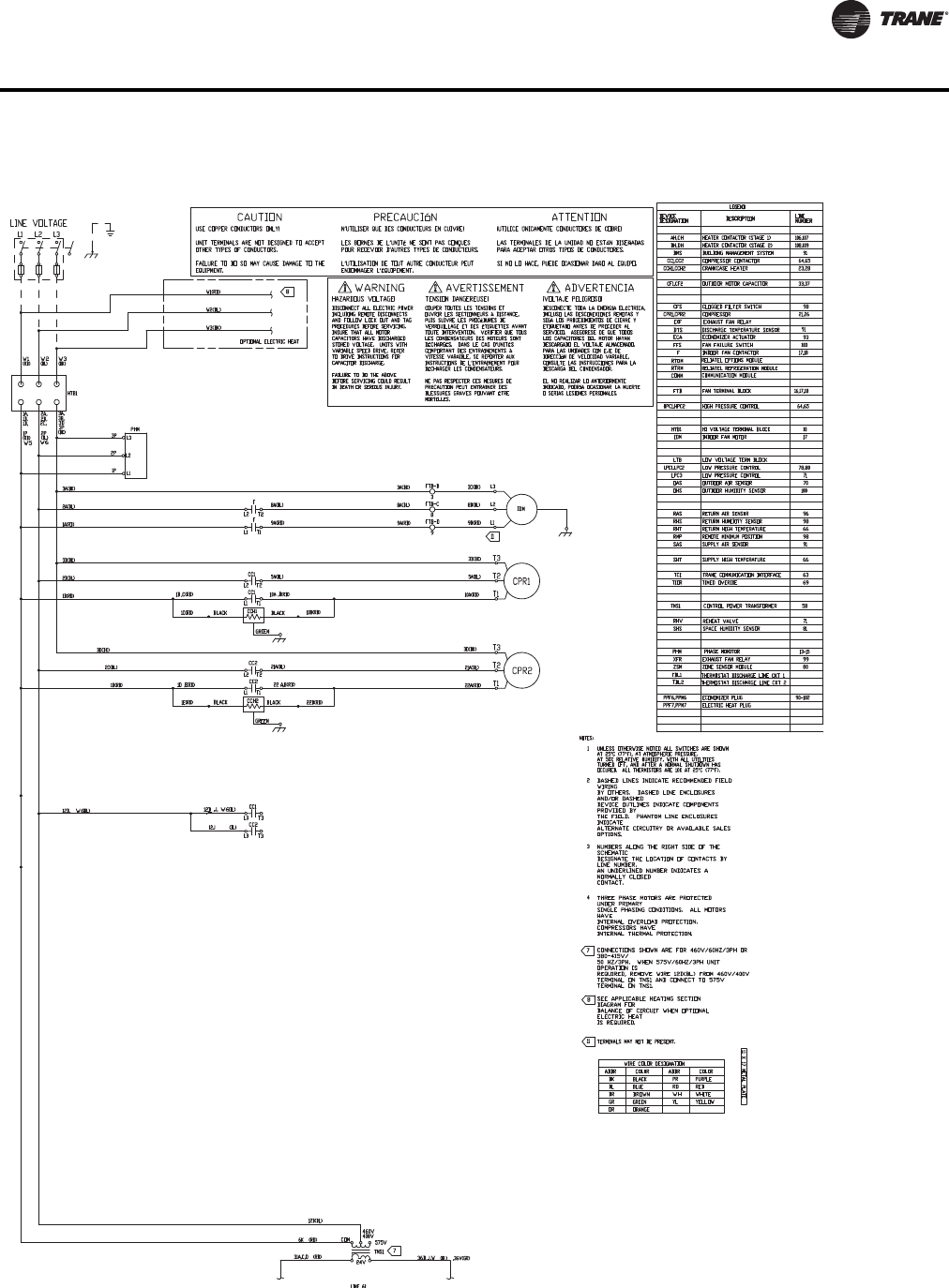

Wiring .........................................................107

Mechanical Specifications .........................................119

4 WSHP-PRC021-EN

Features and Benefits

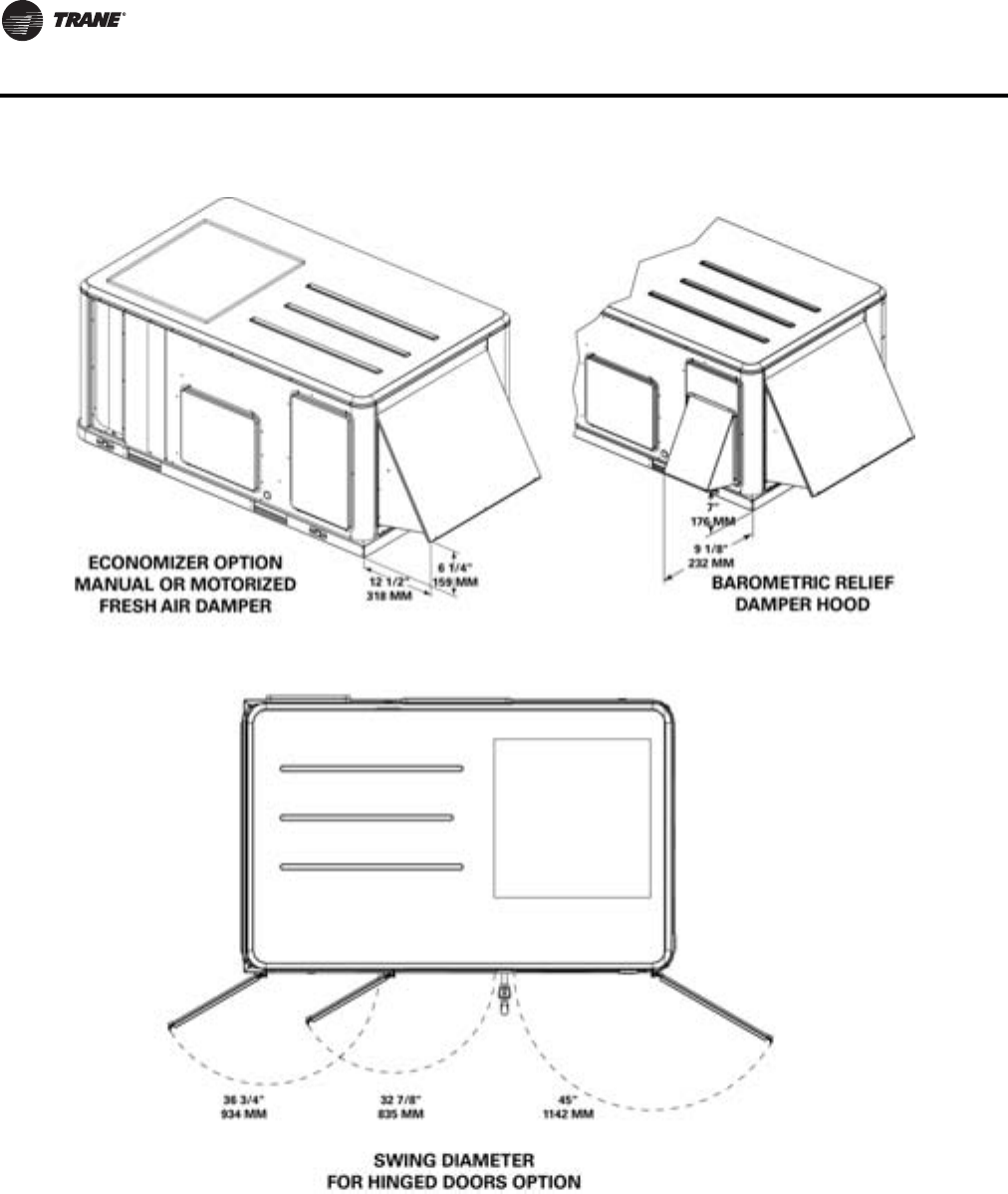

Barometric Relief (Option)

The Axiom rooftop line offers an optional barometric relief damper for use in conjunction with the

economizer option.This accessory consists of gravity dampers which open because of increased

pressure. As the building air pressure increases, the pressure in the unit’s return air section also

increases, forcing the dampers open and relieving the conditioned space.

Note: The effectiveness of the barometric relief damper during economizing operation is system

related. Pressure drop of the return-air system should be considered to control building

pressurization.

Clogged Filter/Fan Fail Switches

These sensors allow an Integrated Comfort™ System (ICS) or a zone sensor’s service light to

indicate a dirty filter or a fan that is not working.The high field installation costs of these devices

often eliminate them from consideration. By factory installing these features to the rooftop unit,

these sensors are cost effective and a good investment.

Communication Interface

The direct digital control module may be factory or field installed.This module, when applied with

ReliaTel, easily interfaces withTrane’s Integrated Comfort System

Trane’s micro processing controller provides unit control for heating, cooling and ventilation

utilizing input from sensors that measure outdoor and indoor temperature.

Belt-Drive Motor (Option)

With the easy-adjust idler arm, an option available on 12.5- 25 ton units, the belt and sheaves on

the belt driven units can be quickly adjusted without moving the mounted fan motor.The result is

a major savings in time and money.

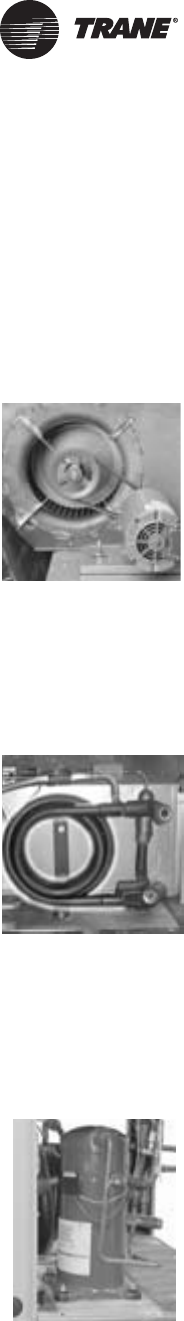

Blower Motors

Belt and direct drive motor selections are available in both standard and oversized configurations

to meet a wide airflow range.

Co-axial Water-to-Refrigerant Coil

The internal heat exchanging water coil is a copper or cupro-nickel tube-within-a-tube design.The

inner tube of the coil is deeply fluted to enhance heat transfer, and to minimize fouling and scaling.

Colored and Numbered Wiring

The unit wiring is both numbered and color-coded to save time and money when tracing wires or

diagnosing the unit.

Compressors

The Axiom rooftop contains the best compressor technology available to achieve the highest

possible performance. Our compressor line includes reciprocating and scrolls.

Controls by Trane

Several years ago,Trane was the first to introduce microprocessor controls into the light

commercial market. With this control board, a broad range of applications may be explored.This

range includes setups such as a standalone unit to sensor design, to a complete building control

system provided through an ICS design.

WSHP-PRC021-EN 5

Features and Benefits

Why Trane Controls?

Trane ICS controls are factory tested and commissioned to provide comfort, efficiency, and

reliability, as well as, single-source warranty and service. WithTrane’s integrated controls, the

installed costs are lower because the equipment has turn-key factory controls and every

component has been specifically designed to optimize the units performance. When the Axiom

rooftop withTrane controls arrives to the jobsite, it is completely ready for quick installation and

operation.

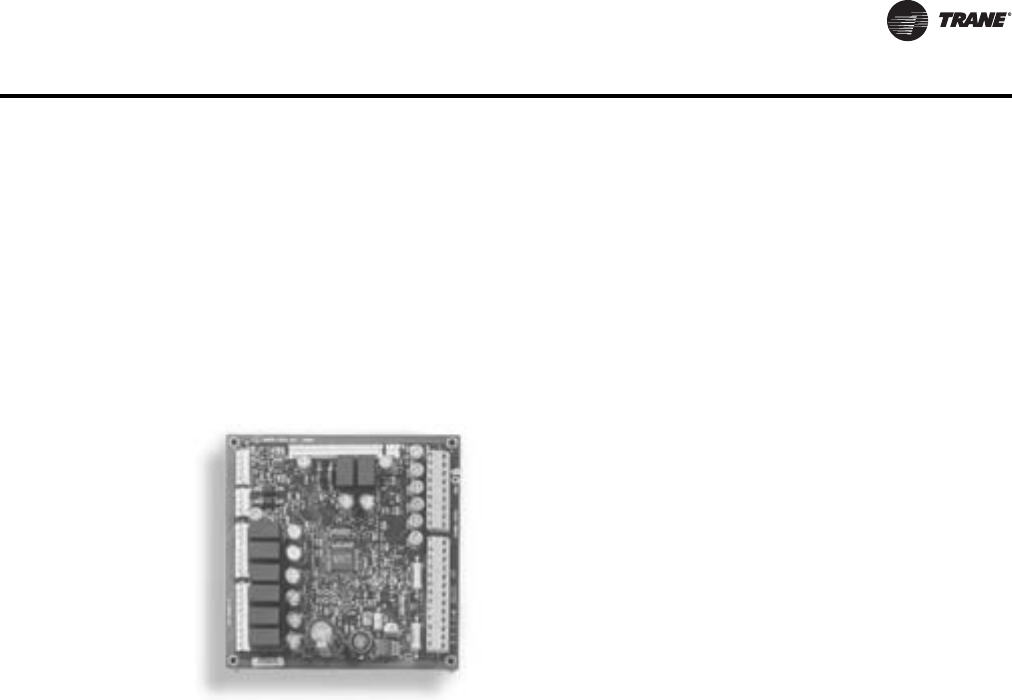

MicroControls

The unit microprocessor improves quality and reliability through the use of time-tested

microprocessor controls and logic.

Features for the micro processing controls include:

• Provides heating, cooling, and ventilating by utilizing input from sensors that measure outdoor

and indoor temperature.

• Prevents the unit from short cycling, considerably improving compressor life.

• Ensures that the compressor will run for a specific amount of time, which allows oil to return

for better lubrication, enhancing the reliability of the compressor.

• Reduces the number of components required to operate the unit, thereby reducing possibilities

for component failure.

• Eliminates the need for field-installed components with its built-in anti-short-cycle timer, time

delay relay and minimum "on time" controls.These controls are factory tested to assure proper

operation.

• Requires no special tools to run the rooftop unit through its paces during testing. Simply place

a jumper betweenTest 1 andTest 2 terminals on the low voltage terminal board and the unit

will walk through its operational steps.The unit automatically returns control to the zone sensor

after stepping through the test mode a single time, even if the jumper is left on the unit

• As long as the unit has power and the LED is lit, the microprocessor is operational.The light

indicates that the processor is functioning properly.

• Expanded diagnostic capabilities when teamed withTrane’s Integrated Comfort Systems to

become part of a full building management system throughTracer Summit.

• As an energy benefit, the microprocessor based controls soften electrical spikes by staging on

blower fans, compressors and heaters.

• The intelligent fallback or adaptive control is a benefit to the building occupant. If a component

goes astray, the unit will continue to operate at predetermined temperature set points.

• Functioning constantly, the microprocessor and zone sensors work together in harmony to

provide tight comfort control.

6 WSHP-PRC021-EN

Features and Benefits

Convertible Units (3 - 10 Ton)

The units ship in a downflow configuration, but may be easily converted to a horizontal supply by

simply moving two panels.

Condenser Thermostat

A bi-metal element thermostat is installed standard on the water out as a standard option of each

system. This standard option gives extra protection against water freeze due to extreme outside

low temperatures.

Discharge Line Thermostat

A bi-metal element discharge line thermostats installed as a standard option on the discharge line

of each system. This standard option provides extra protection to the compressors against high

discharge temperatures in case of loss of charge, extremely high ambient and other conditions

which could drive the discharge temperature higher.

Easy Access Panels

Easy access panels reduce the number of possible water entry points. By removing only two

screws, entry to the standardized internal components and wiring is possible.All panels are sealed

to prevent water from entering the duct work.

Foil-Faced Insulation

All panels in the air-side section of the unit contain cleanable, foil-faced insulation. All edges are

either captured or sealed to ensure fibers do not get into the airstream.

Quality and Reliability

All Axiom rooftop designs were rigorously rain tested at the factory to help ensure water integrity

Actual shipping tests were performed to determine packaging requirements. Units were test

shipped around the country to determine the best packaging.

Drain Pans

The unit drain pans are of non-corrosive material.They are dual-sloped, and removable for ease

of cleaning.The drain pans are reversible to allow a drain trap installation on either side of the unit.

Duct Flanges

The units come complete with horizontal duct flanges to save additional time and money to the field

contractor during installation.

Easy Access Low Voltage Terminal Strip

The low voltage terminal strip is external to the electrical control cabinet. It is extremely easy

to locate and attach the thermostat wire.

The wiring of the low voltage connections to the unit and the zone sensors is as simple as

matching 1-1, 2-2, and 3-3, which ultimately makes it easier for the installer to wire.

Hinged Access Doors

The hinged access option permits easy access to the filter, fan/air-to-refrigerant coil, and

compressor/control section.This option reduces the potential roof damage that may occur

from fallen screws or access panels. It also provides additional security to the panel during a

high wind situation.

WSHP-PRC021-EN 7

Features and Benefits

Factory shake and drop tests were used as part of the package design process to help assure that

the unit arrives at the job site in top condition.

Rigging tests include lifting a unit into the air and letting it drop one foot, assuring that the lifting

lugs and rails hold up under stress.

We perform a 100% coil leak test at the factory.The air-to-refrigerant coil is leak tested at 470 psig

and pressure tested to 470 psig.

All parts are inspected at the point of final assembly. Sub-standard parts are identified and rejected

immediately.

With verification of total unit performance, our customers can be assured that each unit shipped

will run properly. All equipment is run tested to meet the industry standards developed by AHRI

to insure that global quality standards are met.

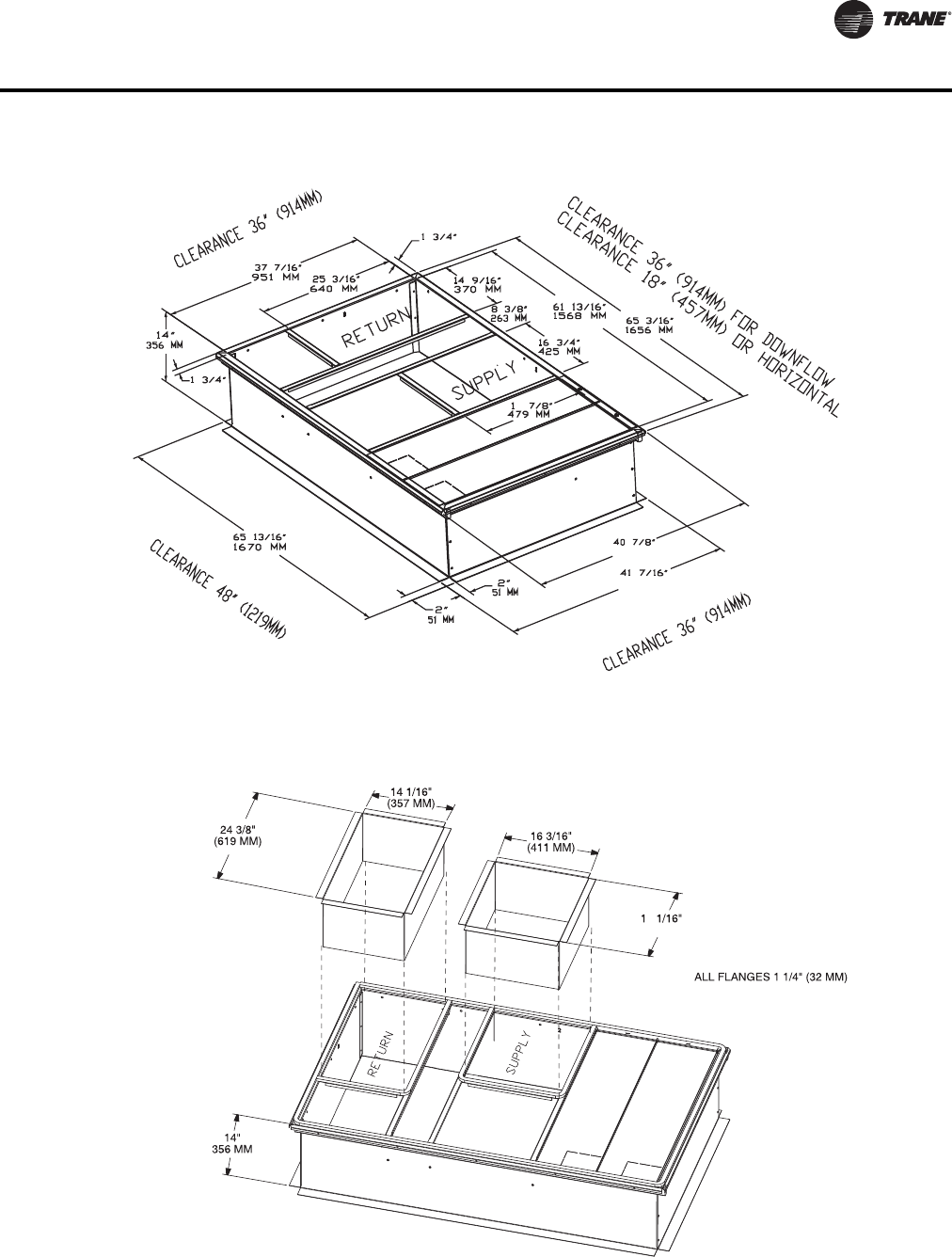

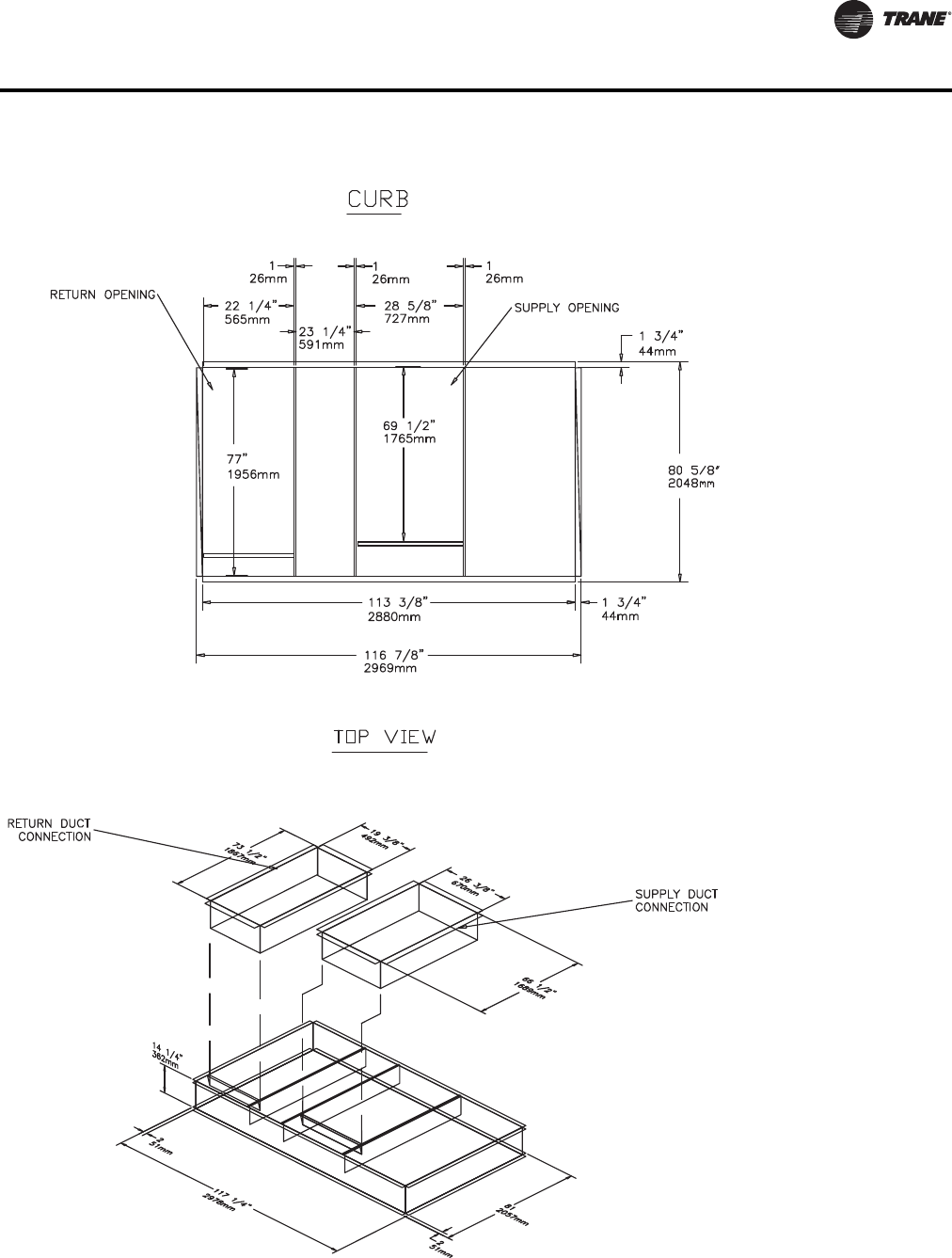

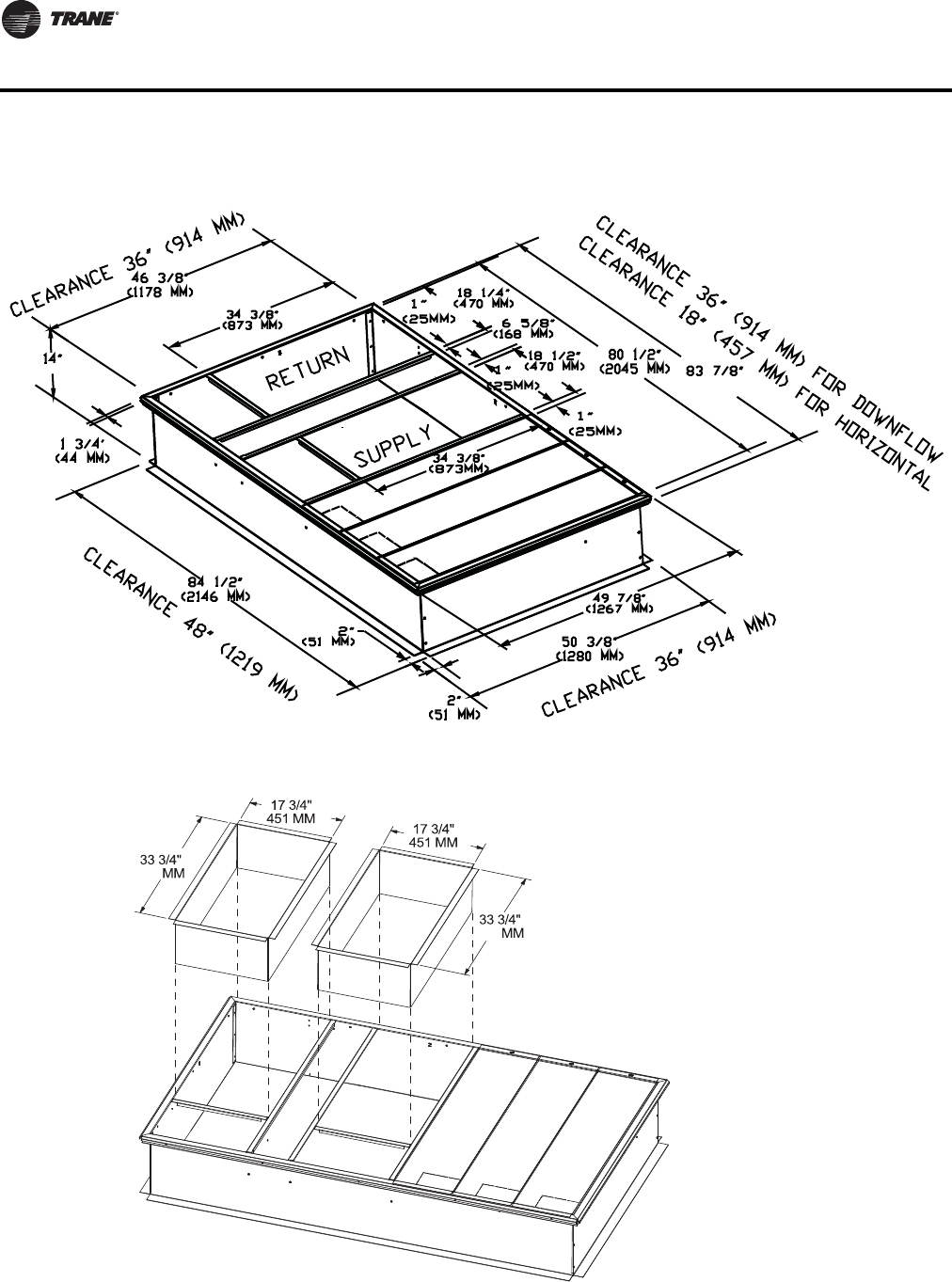

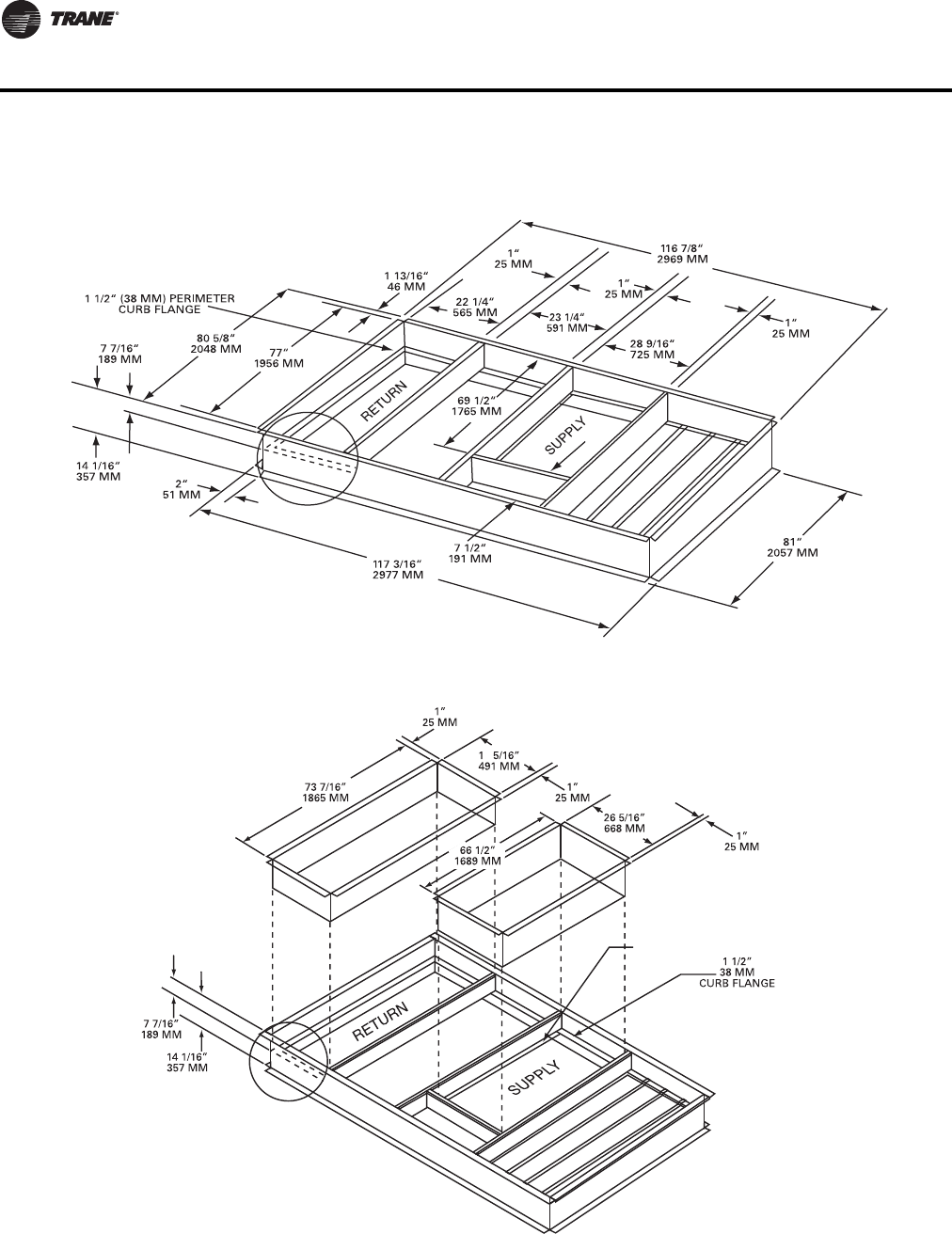

Roof Curb

Only one roof curb (both horizontal and down flow discharge) for the 3 through 5-ton or 6 through

10-ton rooftop line simplifies the roof curb selection. Curb selection for the 12 1/2 through 25-ton

equipment is made through only three roof curb combinations.

Safety Devices

All units are equipped with high and low pressure cutout to prevent compressor damage, and

water coil freezing.

The low pressure switch prevents compressor operation under low charge, excessive loss of

charge situations, and under low temperature operation. The high pressure switch prevents

compressor operation during high or excessive discharge pressures.

The following options round-out the complete line of options.

• 0 to 50% manual or motorized outside air

• Electric Heaters

• Supply and/or return smoke detectors

• Discharge air sensor

• Factory built roof curb

• Wide array of zone sensors and thermostats

Single Point Power

A single electrical connection to the contactor powers the unit when unit contains the electric heat

option.

Standardized Components

Components are placed in the same location on all rooftop units to provide a repetitious look and

feel to installation and maintenance personnel.

Through the Base Condensate

Every unit includes provisions for through-the-base condensate drain connections.This allows the

drain to be connected through the roof curb instead of requiring a separate roof penetration.

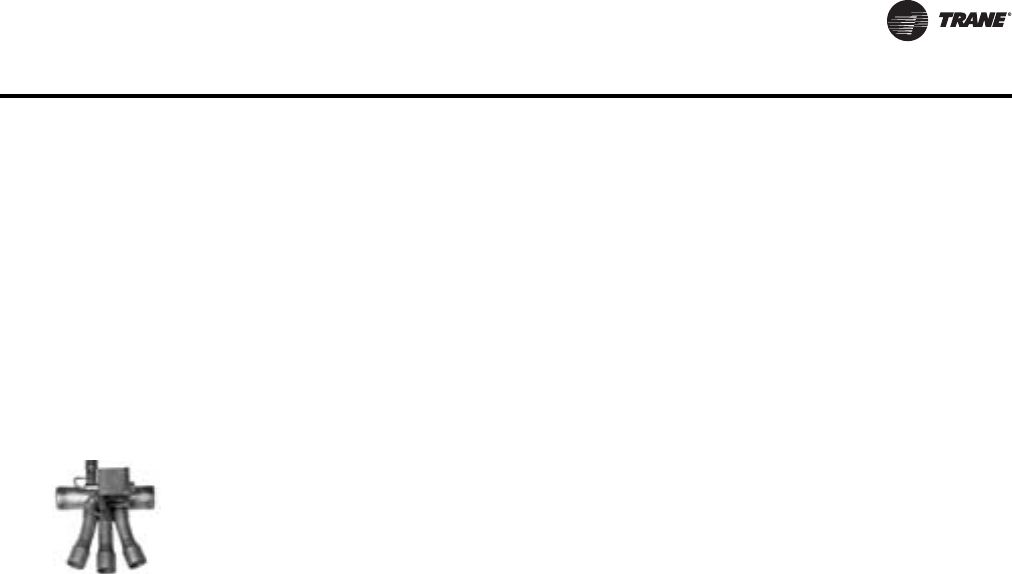

Reversing Valve

A system reversing valve (4-way valve) is included with all heat pump units.The valve is piped to

be energized in the cooling mode to allow space heating if valve failure were to occur.

Units with the cooling only option will not receive a reversing valve.

8 WSHP-PRC021-EN

Features and Benefits

Unit Base

For additional water integrity, the unit contains a raised 1 1/8-inch lip around the unit’s down flow

supply and return to prevent water from blowing into the ductwork.

Water Connection

The water-in/water-out connections to the co-axial coil are located in the refrigerant section of the

rooftop.These threaded and accessible connections provide a quick installation to a hose

Thermal Expansion Valve (TXV)

AllTrane water-source rooftops systems include a thermal expansion valve.This valve allows the

unit to operate under a large range of entering fluid temperature from 25° F to 110° F, and entering

air temperatures from 40° F to 90° F.This wide temperature range allows the unit to run without

a water regulating device through precise metering of refrigeration flow to achieve desired heating

or cooling.This precise metering by theTXV increases the efficiency of the unit.

Through the Base Electrical Utility Access

Factory provided through-the-base-openings simplifies wiring and piping. Because these

utility openings frequently minimize the number of roof penetrations, the integrity of roofing

materials is enhanced.

Unit Cabinet

The compact cabinet of the 3 through 10-ton equipment contains rounded corners to take up

less room. All units incorporate a one-piece top design to ensure superior water integrity. All

access panels are tightly sealed to prevent water from entering the duct work.

Unit Mounted Disconnect or Circuit Breaker

Codes require a method of assured unit shutdown for servicing. Field installed disconnects

sometimes interfere with service access. Factory installation of unit disconnects reduce costs,

assure proper mounting, and provide the opportunity to upgrade to unit circuit breaker

protection.

WSHP-PRC021-EN 9

Application Considerations

Flexibility

The rooftop water-source heat pump system is versatile for installation in boiler/cooling tower

applications, as well as ground-source (geothermal) applications.The system design may employ

either a central pumping design, or a distributed pumping design.

A central pumping design involves a single pump design, usually located within a basement or

mechanical room to fulfill pumping requirements for the entire building system. An auxiliary pump

is typically applied to lessen the likelihood of system downtime if the main pump malfunctions.

A distributed pumping system contains a single pump module connected directly to the unit supply

and return.This module is field installed and piped to the unit.This design requires individual

pump modules specifically sized for each water-source heat pump.

Building Automation

As part of a building automation system, the mechanical HVAC system may be optimized to lower

energy consumption. By running only the mechanical devices that are required to support the

building load at a given time of day or night means true savings for the building owner.

Maintenance and serviceability faults through the unit sensing devices are easily defined and cured

with an automated system.

The factory shipped DDC controls means turn-key installation and start-up.

Performance

Application of this product should be within the cataloged airflow and unit performance.TheTrane

Official Product Selection System (TOPSS™) will aid in the selection process for a set of given

conditions. If this program has not been made available, ask a localTrane sales engineer to supply

the desired selections or provide a copy of the program.

Condensate

The rooftop unit contains a draw-thru configuration. A negative pressure condensate trap must be

field provided prior to start-up for the unit to drain properly. See the installation manual for negative

pressure trapping.

Because the units have a reversible sloped condensate drain pan, the unit must be installed level.

Any unit slope must be toward the side of the unit where the condensate drain is located.

Hose Kits

A flexible stainless steel hose kit is used to connect the supply and return lines to the water-inlet/

outlet.

10 WSHP-PRC021-EN

Selection Procedure

Selection Program

All WSHP products should be selected through the Trane Official Product Selection System,

TOPSS™.

If this program has not been made available, ask a localTrane sales engineer to supply the desired

selection or a copy of the program.

Required Fields

The first step in the selection is to determine either:

• Total cooling capacity

• Sensible capacity

• Heating capacity

Note: The maximum allowable water pressure drop and selection ranges can also be identified.

TheTOPSS screen for the product is color coded to help identify field requirements.Fields

shadowed in red identify what is required to run aTOPSS calculation.The selection folder is

divided into five fields to allow ease of input for the selection process.These fields include:

• Fan information

• Cooling input information

• Heating input information

• Hose kit information

• All fields information

New Rating

The performance standard AHRI/ASHRAE/ISO 13256-1 became effective Jan. 1, 2000. It replaces

AHRI standards 320, 325 and 330.This new standard has three major categories which include:

Water Loop (AHRI 320), Ground Water (AHRI 325), and Ground Loop (AHRI 330).

The differences in ISO 13256-1 and the old AHRI ratings include:

• Cooling efficiency measurement is a watt per watt measurement similar to the widely used COP

measurement

• Entering water reflects the centigrade temperature scale at 68º F (20º C)

• Entering air reflects the centigrade temperature scale at 80.6º F (27º C) dry bulb and 66.2º F (19º

C) wet bulb.

• Pump power correction factors are added onto the existing power consumption

• Fan power is corrected to zero external static pressure

The rooftop water-source heat pump performance is rated in accordance to the AHRI/ISO 13256-

1 standard.This new standard has three major categories: Water Loop (AHRI 320), Ground Water

(AHRI 325), Ground Loop (AHRI 330). Although these standards are similar there are some

differences.

The cooling efficiency is measured in EER but includes a Watt-per-Watt unit of measure similar to

the traditional COP measurement.

The entering water temperature has changed to reflect the centigrade temperature scale. For

instance the water loop heating test is performed with 68ºF (20ºC) water instead of 70ºF.The cooling

tests are performed with 80.6ºF (27ºC) dry bulb and 66.2ºF (19ºC) wet bulb entering air instead of

the traditional 80ºF dry bulb, and 67ºF wet bulb entering air temperatures.This data (80.6/66.2) may

be converted to 80/67 by using the entering air correction table.

WSHP-PRC021-EN 11

Selection Procedure

A pump power correction has been added onto the existing power consumption. Within each

model, only one water flow rate is specified for each performance category, and pumping watts are

calculated utilizing the pump power correction formula: (gpm x 0.0631) x press drop x 2990) / 300.

Note: GPM relates to water flow, and press drop relates to the drop through the unit heat

exchanger at rated water flow in feet of head.The fan power is corrected to zero external

static pressure.The nominal airflow is rated at a specific external static pressure.This

effectively reduces the power consumption of the unit, and increases cooling capacity but

decreases heating capacity.These watts are significant enough in most cases to increase

EER and COP over AHRI 320, 325, and 330 ratings.

Cooling Dominated Applications

If humidity levels are moderate to high in a cooling dominated application, the heat pump should

be selected to meet or exceed the calculated sensible load. Also, the unit’s sensible capacity should

be no more than 115% of the total cooling load (sensible + latent), unless the calculated latent load

is less than the latent capacity of the unit.

The sensible-to-total cooling ratio can be adjusted with airflow. If the airflow is lowered, the unit

latent capacity will increase. When less air is pulled across the DX coil, more moisture will

condense from the air.

Heating Dominated Applications

Unit sizing in heating dominated applications is based upon humidity levels for the climate, and

goals for operating cost and installation costs.

If humidity levels are moderate, the heat pump should be selected with the heating capacity equal

to 125% of the cooling load.

If humidity levels are low in the application and low operating cost is important, the heat pump and

ground loop should be sized for 90% to 100% of the heating load.

If humidity levels are low and lower initial cost is important, then the heat pump and ground loop

should be sized for 70% to 85% of the heating load, with the remaining load to be treated with

electric resistance heat.

Installation cost will be reduced in this approach because of the smaller heat pump selection and

less loop materials.

In general, the system will not use enough electric heat to offset the higher installation costs

associated with a fully sized or oversized system.

Finally, a unit sized for the entire heating load in a heating dominated application will be oversized

in cooling. Comfort is reduced from increased room humidity caused by short-run times. Short

cycling will also shorten the life expectancy of the equipment and increase power consumption and

operating cost.

Many rebate incentives require the heat pump and ground loop to be sized for the entire heating

load. Check with you local utility for their requirements.

12 WSHP-PRC021-EN

Digits 1-3 — Unit Configuration

GER= High Efficiency Rooftop

Digit 4 — Development

Sequence

E

Digits 5-7 — Nominal Size (MBH)

036 = 3Ton

048 = 4Ton

060 = 5Ton

072 = 6Ton

090 = 7 1/2Ton

120 = 10Ton

150 = 12 1/2Ton

180 = 15Ton

240 = 20Ton

300 = 25Ton

Digit 8 — Voltage (Volts/Hz/

Phase)

1 = 208/60/1

2 = 230/60/1

3 = 208/60/3

4 = 460/60/3

5 = 575/60/3

8 = 230/60/3

Digit 9 — Heat Exchanger

1 = Copper Water Coil

2 = Cupro-nickel Water Coil

Digit 10 — Design Sequence

Most Up-to-Date Design

Digit 11 — Refrigeration Circuit

0 = Heating and Cooling Circuit

A = Cooling ONLY Circuit

Digit 12 — Blower Configuration

1 = Standard Blower

2 = Oversized Blower Motor

Digit 13 — Freeze Protection

A = 20 Degree Freezestat B/T

B = 30 Degree Freezestat B/T

Digit 14 — Open Digit

0 = Standard Design

S = Design Special

Digit 15 — Supply-Air

Arrangement

D = Down-Flow Supply-Air

Arrangement

(convertible for3-10Ton)

H = Horizontal Supply-Air

Arrangement

(12 1/2 - 25Ton option)

DIGIT 16 — Return-Air

Arrangement

0 = Standard Return-Air Arrangement

G E R E 060 1 1 A 0 1 1 0 D 0 T 0 A 6 0 0 1 1 0 A 0 B 0 0 0 0 0 000

1 2 3 4 5,6,7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30-36

Digit 17 — Control Types

R = ReliaTel™ Standalone Controls

T = Tracer™ Communication

Interface

L = LonTalk™ Communication

Interface

Digit 18 — T’stat/Sensor

Location

0 = Wall Mounted Location

A = Wall Mounted Sensor with Unit

Mounted Return-Air Smoke

Detector

B = Wall Mounted Sensor with Unit

Mounted Supply-Air Smoke

Detector

C = Wall Mounted Sensor with Unit

Mounted Return-Air/Supply-Air

Smoke Detectors

Digit 19 — Fault Sensors

0 = No Fault Sensor

A = Clogged Filter Switch

B = Fan Failure Switch

C = Discharge Air SensingTube

D = Clogged Filter Switch and Fan Fail

Switch

E = Clogged Filter Switch and

Discharge Air SensingTube

F = Fan Fail Switch and Discharge Air

SensingTube

G = Clogged Filter Switch, Fan Fail

Switch and DA SensingTube

Digit 20 — Temperature Sensor

7 = High Pressure Control/Frostat/

Crankcase Heater

Digit 21 — Night Setback

0 = No Night Setback Relay

N = Night Setback Relay

Note: Option N is used for the Micro

Standalone Controller ONLY.

Digit 22 — Electric Heat Option

0 = No Electric Heat

A = 5 kW (1-Phase)

B = 6 kW (3-Phase)

C = 9 kW (3-Phase)

D = 10 kW (1-Phase)

E = 12 kW (3-Phase)

F = 14 kW (1-Phase)

G = 18 kW (1 and 3-Phase)

J = 23 kW (3-Phase)

K = 27 kW (3-Phase)

N = 36 kW (3-Phase)

P = 54 kW (3-Phase)

Digit 23 — Unit Mounted

Disconnect

0 = No Unit Mounted Disconnect

1 = Non-Fused Disconnect

2 = Circuit Breaker

Digit 24 — Filter Type

2 = 2"Throwaway Filter

4 = 2" MERV 8 Filter

5 = 2" MERV 13 Filter

Digit 25 — Acoustic

Arrangement

0 = Sound Attenuation Package

Digit 26 — Factory Configuration

0 = Standard Factory Configuration

A = Hinged Access Panels

Digit 27 — Paint Color

0 = No Paint Selection Available

Digit 28 — Outside Air Option

0 = No Outside Air

A = Manual Outside Air Damper

0-25%

B = Motorized Outside Air Damper

0-50%

C = Economizer, Dry Bulb 0-100%

without Barometric Relief

D = Economizer, Dry Bulb 0-100%

with Barometric Relief

E = Economizer, Reference Enthalpy

0-100% without Barometric Relief

F = Economizer, Reference Enthalpy

0-100% with Barometric Relief

G = Economizer, Comparative

Enthalpy 0-100%

without Barometric Relief

H = Economizer, Comparative

Enthalpy 0-100%

with Barometric Relief

Digit 29 — Piping Arrangement

0 = Standard Piping Configuration

Digits 30-36 — Does Not Apply

To The Rooftop Product

0000000= Digit 30-36 Does NOT Apply to

the Rooftop Products

Note: Through-the-base electric is a

standard feature on the water-

source rooftop unit.

Model Number Descriptions

WSHP-PRC021-EN 13

General Data

Table 1. General data - 3-4 tons

3 Tons 4 Tons

GER036E1 GER036E3,4,W GER048E1 GER048E3,4,W

Unit Size

Length of Cabinet

Width of Cabinet

Height

Net Weight (lb)

69 7/8”

44 1/4”

36 1/4”

487

69 7/8”

44 1/4”

36 1/4”

487

69 7/8”

44 1/4”

36 1/4”

538

69 7/8”

44 1/4”

36 1/4”

538

Compressor

Number/Type 1/Scroll 1/Scroll 1/Scroll 1/Scroll

Sound

Outdoor Sound Rating (dB) 81 80 82 82

Air to Refrigerant Coil - Type Lanced Lanced Lanced Lanced

Tube Size (in.)

Face Area (sq. ft.)

Rows/FPI

Refrigerant Control

Drain Connection Number/Size (in.)

0.3125

6.68

3/16

Thermal Expansion Valve

¾ NPT

0.3125

6.68

3/16

Thermal Expansion Valve

¾ NPT

0.3125

7.71

4/16

Thermal Expansion Valve

¾ NPT

0.3125

7.71

4/16

Thermal Expansion Valve

¾ NPT

Water Connection (size inches) 1” 1” 1” 1”

Direct Drive Fan - Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal

Number Used/Diameter (in.)/Width (in.)

Drive Type/Number Speeds

Motor hp

Motor Frame Size

1/11x11

Direct/5

0.75

48

1/11x11

Belt/Variable

1.0

56

1/11x11

Direct/5

1.0

48

1/11x11

Belt/Variable

1.0

56

Filters - Type Furnished Throwaway Throwaway Throwaway Throwaway

Number Size Recommended (2) 20x30x1 (2) 20x30x1 (2) 20x30x1 (2) 20x30x1

Table 2. General data-5tons

5 Tons

GER060E1 GER060E3,4,W

Unit Size

Length of Cabinet

Width of Cabinet

Height

Net Weight (lb)

88 5/8”

53 1/4”

40 7/8”

678

88 5/8”

53 1/4”

40 7/8”

678

Compressor

Number/Type 1/Scroll 1/Scroll

Sound

Outdoor Sound Rating (dB) 87 87

Indoor Coil - Type Lanced Lanced

Tube Size (in.)

Face Area (sq. ft.)

Rows/FPI

Refrigerant Control

Drain Connection Number/Size (in.)

0.3125

9.27

3/16

Thermal Expansion Valve

1¾ NPT

0.3125

9.27

3/16

Thermal Expansion Valve

1¾ NPT

Water Connection (size inches) 1” 1”

Indoor Fan - Type (Standard)

Number Used/Diameter (in.)/Width (in.)

Drive Type/Number Speeds

Motor hp

Motor Frame Size

FC Centrifugal FC Centrifugal

1/11x11

Direct/5

1.00

48

1/11x11

Belt/Variable

1.00

56

Filters - Type Furnished Throwaway Throwaway

Number Size Recommended (4) 16x25x2 (4) 16x25x2

14 WSHP-PRC021-EN

General Data

Table 3. General data - 6-10 tons

6 Tons 7½ Tons 10 Tons

GER072E3,4,W GER090E3,4,W GER120E3,4,W

Unit Size

Length of Cabinet

Width of Cabinet

Height

Net Weight (lb)

88 5/8”

53 1/4”

40 7/8”

700

88 5/8”

53 1/4”

46 7/8"

794

99 3/4”

63 1/4”

50 7/8”

941

Compressor

Number/Type 1/Scroll 1/Scroll 2/Scroll

Sound

Outdoor Sound Rating (dB) 89 89 87

Indoor Coil - Type Lanced Lanced Lanced

Configuration

Tube Size (in.)

Face Area (sq. ft.)

Rows/FPI

Refrigerant Control

Drain Connection Number/Size (in.)

Full Face

0.3125

9.89

4/16

Orifice

1 3/4 NPT

Full Face

0.3125

12.36

3/16

Orifice

1 3/4 NPT

Intertwined

0.3125

16.65

4/16

Orifice

1 3/4 NPT

Water Connection (size inches) 1” 1 1/4” 1 1/2”

Indoor Fan - Type

Number Used/Diameter (in.)/Width (in.)

Drive Type/Number Speeds

Motor hp (Standard/Oversized)

Motor Frame Size (Standard/Oversized)

FC Centrifugal FC Centrifugal BC Plenum

1/12x12

Belt/Variable

1.0/2.0

56/56

1/15 x 15

Belt/Variable

1.0/2.0

56/56

1/19.7 x 15

Direct/Variable

3.75/—

—/—

Filters - Type Furnished Throwaway Throwaway Throwaway

Number Size Recommended (4) 16x25x2 (4) 20x25x2 (3) 20x25x2

(2) 20x30x2

Table 4. General data — 12½ - 20 tons

12½ Tons

Downflow & Horizontal

Units

15 Tons

Downflow & Horizontal

Units

20 Tons

Downflow & Horizontal

Units

GER150E3,E4,EW GER180E3,E4,EW GER240E3,E4,EW

Unit Size

Length of Cabinet

Width of Cabinet

Height

Net Weight (lb)

122 5/16”

84 3/4”

54”

1800

122 5/16”

84 3/4”

54”

1848

122 5/16”

84 3/4”

64”

2008

Compressor

Number/Type 2 / Scrolls 2 / Scrolls 2 / Scrolls

AHRI Sound Rating (BELS) 9.2 9.2 9.4

Indoor Coil — Type Hi-Performance Hi-Performance Hi-Performance

Tube Size (in.) ID

Face Area (sq. ft.)

Rows/FPI

Refrigerant Control

Drain Connection Number/Size (in.)

0.3125

26.00

3 / 15

Expansion Valve

1/1.00 NPT

0.3125

26.00

4 / 15

Expansion Valve

1/1.00 NPT

0.3125

31.42

4 / 15

Expansion Valve

1/1.00 NPT

Water Connection (size inches) 1 1/2” 1 1/2” 2”

Indoor Fan - Type FC Centrifugal FC Centrifugal FC Centrifugal

WSHP-PRC021-EN 15

General Data

Number Used/Diameter (in.)

Drive Type/No. Speeds

Number Motors

Motor HP (Standard/Oversized)

Motor RPM (Standard/Oversized)

Motor Frame Size (Standard/Oversized)

1 / 18x18

Belt / 1

1

3.0 / 5.0

1740 / 3,450

145T / 145T

1 / 18x18

Belt / 1

1

3.0 / 5.0

1740 / 3,450

145T / 145T

1 / 18x18

Belt / 1

1

5.0 / 7.5

3450 / 3,470

145T / 184T

Filters - Type Furnished Throwaway Throwaway Throwaway

Number Size Recommended

Downflow

Horizontal

(4)20x20x2 (4)20x25x2

(8)20x25x2

(4)20x20x2 (4)20x25x2

(8)20x25x2

(8)20x20x2 (4)20x16x2

(12)20x20x2

Table 4. General data — 12½ - 20 tons (continued)

12½ Tons

Downflow & Horizontal

Units

15 Tons

Downflow & Horizontal

Units

20 Tons

Downflow & Horizontal

Units

GER150E3,E4,EW GER180E3,E4,EW GER240E3,E4,EW

Table 5. General data — 25 ton standard efficiency

25 Tons Downflow & Horizontal Units

GER300E3,4,W,K

Unit Size

Length of Cabinet

Width of Cabinet

Height

Net Weight (lb)

121 3/4”

84 3/4”

54”

1906

Compressor

Number/Type 2 / Scrolls

Sound

Outdoor Sound Rating (BELS) 9.4

Indoor Coil

Type

Tube Size (in.) ID

Face Area (sq. ft.)

Rows/FPI

Refrigerant Control

Drain Connection Number/Size (in.)

Hi-Performance

0.3125

26.00

4 / 15

Short Orifice

1/1.00 NPT

Water Connection (size inches) 2”

Indoor Fan

Type

Number Used/Diameter (in.)

Drive Type/No. Speeds

Number Motors

Motor HP (Standard/Oversized)

Motor RPM (Standard/Oversized)

Motor Frame Size (Standard/Oversized)

FC Centrifugal

1 / 18x18

Belt / 1

1

7.5 / N/A

3,470/N/A

184T/N/A

Filters

Type Furnished

Number Size Recommended

Downflow

Horizontal

Throwaway

(4)20x20x2 (4)20x25x2

(8)20x25x2

16 WSHP-PRC021-EN

Performance Data

Operating Pressures in Cooling/Heating

There are many variables (airflow, air temperatures) in an air conditioning system that will affect

operating refrigerant pressures and temperatures.The charts below shows approximate

conditions and is based on air flow at the rated SCFM, entering air at 80.6°F(DB), 66.2°F(WB) in

cooling, 68°F(DB) in heating. (+)Heating data with 35°F EWT is based on the use of an anti-freeze

solution having a freezing point 20°F lower than the minimum expected entering temperature.

Table 6. AHRI rating

Unit

Size

tons

Rated

Water

Flow

(GPM)

Rated

Airflow

(SCFM)

Cooling

Capacity

WLHP

(BTUH)

EER

WLH

P

Heating

Capacity

WLHP

(BTUH)

COP

WLHP

Cooling

Capacity

GWHP

(BTUH)

EER

GWH

P

Heating

Capacity

GWHP

(BTUH)

COP

GWH

P

Cooling

Capacity

GLHP

(BTUH)

EER

GLHP

Heating

Capacity

GLHP

(BTUH)

COP

GLHP

GER036 3 8.4 1140 38200 14.6 41400 4.5 43800 23.9 36100 4.2 40000 17.6 29800 3.6

GER048 4 11.2 1520 51500 15.8 52700 4.7 58000 24.3 45500 4.3 53500 18.4 37900 3.6

GER060 5 14.0 1900 60900 14.6 69500 4.7 69200 22.4 59200 4.2 63500 16.9 47900 3.6

GER072 6 18.6 2280 75500 13.7 85200 4.3 83800 19.6 71100 4.0 78500 15.6 57700 3.4

GER090 7.5 23.3 2850 86600 13.0 105400 4.4 95500 18.0 86500 4.0 90600 14.6 70200 3.5

GER120 10 31.0 3800 133100 15.9 143200 4.9 153700 24.9 116900 4.2 140200 18.5 85800 3.3

GER150 12.5 38.8 4750 160300 15.9 181500 5.1 178700 22.7 150800 4.5 166800 18.0 118800 3.7

GER180 15 46.5 5700 184400 14.2 201000 4.6 204200 19.7 162900 4.0 192500 15.9 123200 3.2

GER240 20 62.0 7600 261600 13.2 313100 4.4 290500 17.7 265900 4.0 273500 14.8 210000 3.5

GER300 25 77.5 9500 290100 13.1 313100 16.6 299500 14.3

Table 7. GER036 operating pressures in cooling/heating

Operating Data

Model

Entering

Water Temp

°F

Water

Flow GPM

Cooling Heating

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp

Rise °F

Air Temp

Drop DB

°F

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp

Drop °F

Air Temp

Rise DB

°F

GER036

35 6.7 — — — — 82-94 278-353 6-8 20-29

35 8.4 — — — — 84-97 279-356 5-6 20-30

45 6.7 132-152 184-234 14-18 24-30 96-111 292-372 7-9 23-33

45 8.4 132-152 177-225 11-14 25-30 99-114 295-375 6-7 24-33

55 6.7 134-154 212-270 14-17 24-29 112-129 307-391 8-11 26-36

55 8.4 134-154 205-260 11-14 24-29 115-133 311-396 7-9 27-37

68 6.7 136-156 253-322 13-17 23-29 135-155 329-419 10-12 30-41

68 8.4 136-156 245-312 11-14 23-29 140-161 334-424 8-10 31-41

75 6.7 137-158 277-353 13-17 23-28 149-171 342-435 11-14 32-43

75 8.4 137-157 269-342 11-13 23-28 154-177 346-441 9-11 33-44

86 6.7 139-160 319-405 13-17 22-28 173-199 362-461 12-15 36-47

86 8.4 139-160 310-394 10-13 22-28 179-206 367-468 10-12 37-48

95 6.7 141-162 356-452 13-16 22-27 — — — —

95 8.4 141-162 346-441 10-13 22-27 — — — —

WSHP-PRC021-EN 17

Performance Data

Table 8. GER048 operating pressures in cooling/heating

Operating Data

Model

Entering

Water

Temp °F

Water

Flow GPM

Cooling Heating

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Rise

°F

Air Temp

Drop DB

°F

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp

Drop °F

Air Temp

Rise DB °F

GER048

359.0————82-94 267-339 6-7 18-27

35 11.2 ————83-96 268-341 5-6 19-28

45 9.0 135-155 183-233 13-17 23-29 96-111 278-354 6-8 21-30

45 11.2 135-155 177-225 10-13 23-29 98-113 280-356 5-7 21-31

55 9.0 136-157 212-270 13-16 23-29 112-129 291-370 7-9 23-33

55 11.2 136-157 205-260 10-13 23-29 115-133 293-373 6-8 24-34

68 9.0 138-159 253-323 13-16 22-28 136-157 309-393 9-11 27-37

68 11.2 138-159 246-313 10-13 23-28 140-161 312-398 7-9 28-38

75 9.0 140-161 278-354 13-16 22-28 150-173 320-407 10-12 29-39

75 11.2 139-160 270-344 10-13 22-28 155-179 324-412 8-10 30-40

86 9.0 142-163 321-408 12-16 21-27 175-202 338-430 11-14 32-43

86 11.2 142-163 312-397 10-13 22-27 181-208 342-435 9-11 33-44

95 9.0 144-165 359-456 12-16 21-27 ————

95 11.2 143-165 350-445 10-12 21-27 ————

Table 9. GER060 operating pressures in cooling/heating

Operating Data

Model

Entering

Water

Temp °F

Water

Flow GPM

Cooling Heating

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp

Rise °F

Air Temp

Drop DB

°F

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Drop

°F

Air Temp

Rise DB

°F

GER060

35 11.2 — — — — 86-99 277-352 6-7 18-27

35 14.0 — — — — 88-101 279-355 5-6 18-27

45 11.2 132-152 189-241 13-16 23-28 101-116 292-372 7-8 21-30

45 14.0 132-151 182-232 10-13 23-28 103-119 294-374 5-7 21-31

55 11.2 134-154 217-277 13-16 22-28 117-135 308-392 8-10 24-34

55 14.0 134-154 210-267 10-13 22-28 120-138 311-396 6-8 24-34

68 11.2 137-157 259-330 12-16 22-27 141-162 332-423 9-12 28-38

68 14.0 136-157 251-320 10-12 22-27 145-167 335-427 8-10 29-39

75 11.2 138-159 284-361 12-15 21-27 155-179 347-441 10-13 30-41

75 14.0 138-159 276-351 10-12 21-27 160-184 349-445 8-11 31-41

86 11.2 141-162 326-415 12-15 21-26 180-207 371-472 12-15 34-45

86 14.0 140-161 318-405 9-12 21-26 186-214 376-479 9-12 35-46

95 11.2 143-164 364-463 12-15 20-26 — — — —

95 14.0 142-164 355-452 9-12 20-26 — — — —

18 WSHP-PRC021-EN

Performance Data

Table 10. GER072 operating pressures in cooling/heating

Operating Data

Model

Entering

Water

Temp °F

Water

Flow

GPM

Cooling Heating

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Rise

°F

Air Temp

Drop DB

°F

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Drop

°F

Air Temp

Rise DB

°F

GER072

35 — — — — — 75-87 265-337 5-7 20-29

35 — — — — — 77-89 266-339 4-5 20-29

45 14.9 118-136 180-229 12-16 23-29 87-100 275-349 6-8 23-32

45 18.6 118-136 174-221 10-13 23-29 89-103 276-352 5-6 23-33

55 14.9 120-138 209-266 12-15 23-28 104-119 289-368 7-9 26-36

55 18.6 120-138 202-257 10-12 23-28 107-123 291-370 6-7 27-37

68 14.9 124-142 247-314 12-15 22-28 119-137 310-394 8-10 30-40

68 18.6 123-142 239-304 10-12 23-28 123-142 312-397 7-8 30-41

75 14.9 125-144 271-345 12-15 22-28 133-153 320-408 9-11 32-43

75 18.6 125-143 264-336 9-12 22-28 138-159 324-412 7-9 33-43

86 14.9 128-147 312-398 12-15 22-27 158-182 339-431 10-12 36-47

86 18.6 128-147 304-387 9-12 22-27 163-188 342-435 8-10 37-48

95 14.9 130-149 350-445 11-14 21-27 — — — —

95 18.6 130-149 342-435 9-12 21-27 — — — —

Table 11. GER090 operating pressures in cooling/heating

Operating Data

Cooling Heating

Model

Entering

Water

Temp °F

Water

Flow

GPM

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Rise

°F

Air Temp

Drop

DB °F

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Drop

F

Air Temp

Rise

DB °F

GER090

35 — — — — — 71-81 263-335 5-6 19-28

35 — — — — — 72-83 264-336 4-5 19-28

45 18.6 109-126 178-226 11-14 20-25 81-93 276-352 6-7 21-31

45 23.3 109-126 172-219 9-11 20-25 83-95 278-353 5-6 22-31

55 18.6 110-127 207-264 11-14 19-25 97-112 290-369 7-8 24-34

55 23.3 110-127 201-255 9-11 19-25 100-114 291-371 5-7 25-35

68 18.6 114-132 246-313 11-14 19-25 116-133 312-398 8-10 29-39

68 23.3 113-130 239-305 9-11 19-25 119-137 315-400 6-8 29-39

75 18.6 114-132 271-345 11-14 19-25 130-149 324-412 8-11 31-42

75 23.3 114-131 264-337 9-11 19-25 134-154 326-415 7-9 32-42

86 18.6 116-133 315-401 10-13 18-24 154-177 343-437 9-12 35-46

86 23.3 115-133 308-391 8-11 18-24 158-182 347-441 8-10 36-46

95 18.6 118-136 355-451 10-13 18-24 — — — —

95 23.3 118-135 347-441 8-10 18-24 — — — —

WSHP-PRC021-EN 19

Performance Data

Table 12. GER120 operating pressures in cooling/heating

Operating Data

Model

Entering

Water

Temp °F

Water

Flow

GPM

Cooling Heating

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Rise

°F

Air Temp

Drop DB

°F

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp

Drop °F

Air Temp

Rise DB

°F

GER120

35 — — — — — 74-85 256-326 5-6 17-26

35 — — — — — 76-87 257-327 4-5 17-26

45 24.8 124-143 175-223 12-16 25-30 83-95 267-340 6-7 21-31

45 31.0 124-143 168-214 10-13 25-30 85-97 269-343 5-6 22-31

55 24.8 126-145 204-259 12-16 24-30 99-113 281-358 7-9 25-34

55 31.0 126-144 196-250 10-12 25-30 101-117 284-361 6-7 25-35

68 24.8 128-147 245-312 12-15 24-29 122-141 302-384 8-10 29-39

68 31.0 128-147 238-303 10-12 24-29 126-145 304-387 7-8 30-40

75 24.8 129-149 270-344 12-15 23-29 137-157 312-398 9-11 31-42

75 31.0 129-148 262-334 9-12 23-29 141-162 316-402 7-9 32-43

86 24.8 131-151 313-398 12-15 23-28 162-186 330-421 10-13 35-46

86 31.0 131-151 305-388 9-12 23-28 167-193 333-424 8-10 36-47

95 24.8 133-153 351-447 11-15 22-28 — — — —

95 31.0 133-153 343-436 9-12 22-28 — — — —

Table 13. GER150 operating pressures in cooling/heating

Operating Data

Model

Entering

Water

Temp °F

Water

Flow GPM

Cooling Heating

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Rise

°F

Air Temp

Drop DB

°F

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp

Drop °F

Air Temp

Rise DB °F

GER150

35 31.0 — — — — 85-98 271-344 11-13 18-27

35 38.8 — — — — 86-100 272-346 9-11 19-28

45 31.0 134-154 192-244 24-31 23-29 100-115 284-362 12-16 21-30

45 38.8 134-154 185-236 19-24 23-29 102-117 285-363 10-13 21-31

55 31.0 135-156 220-280 24-30 23-28 116-134 299-381 14-18 24-34

55 38.8 135-156 213-271 19-24 23-28 119-137 301-383 12-15 24-34

68 31.0 138-158 261-333 23-29 22-28 140-161 321-408 17-22 28-38

68 38.8 137-158 254-323 18-24 22-28 144-166 323-411 14-18 28-39

75 31.0 139-160 286-364 23-29 22-27 155-178 334-425 19-24 30-41

75 38.8 139-160 278-354 18-23 22-27 159-183 336-428 15-19 31-41

86 31.0 141-162 329-419 22-29 21-27 180-207 355-452 21-27 34-45

86 38.8 141-162 321-408 18-23 21-27 185-213 359-457 17-22 34-45

95 31.0 143-164 367-467 22-28 21-26 — — — —

95 38.8 143-164 359-456 18-22 21-26 — — — —

20 WSHP-PRC021-EN

Performance Data

Table 14. GER180 operating pressures in cooling/heating

Operating Data

Model

GEH/GEV

Entering

Water

Temp °F

Water

Flow

GPM

Cooling Heating

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Rise

°F

Air Temp

Drop DB

°F

Suction

Pressure

PSIG

DischargeP

ressure

PSIG

Water

Temp

Drop °F

Air Temp

Rise DB

°F

GER180

35 37.2 — — — — 80-92 251-319 5-6 17-26

35 46.5 — — — — 82-94 251-320 4-5 17-26

45 37.2 134-155 187-238 11-14 22-27 95-109 259-329 5-7 18-28

45 46.5 134-154 181-231 9-11 22-27 97-111 260-331 4-6 19-28

55 37.2 135-156 217-276 11-14 22-27 111-128 268-341 6-8 21-30

55 46.5 135-156 210-267 9-11 22-27 113-130 270-343 5-6 21-30

68 37.2 137-158 260-330 11-14 21-27 135-155 282-359 7-9 23-33

68 46.5 137-157 252-321 9-11 21-27 138-159 282-359 5-7 23-33

75 37.2 138-159 285-363 11-14 21-26 149-172 288-367 7-9 25-34

75 46.5 138-159 278-354 9-11 21-27 153-177 289-368 6-7 25-34

86 37.2 140-161 329-419 11-14 20-26 175-201 299-381 8-10 27-37

86 46.5 140-161 321-409 9-11 20-26 180-207 300-381 6-8 26-36

95 37.2 141-163 368-469 11-13 20-26 — — — —

95 46.5 141-163 360-459 8-11 20-26 — — — —

Table 15. GER240 operating pressures in cooling/heating

Operating Data

Cooling Heating

Model

Entering

Water

Temp F

Water

Flow

GPM

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Rise

F

Air Temp

Drop DB F

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp

Drop F

Air Temp

Rise DB F

GER240

35 — — — — — 67-77 268-341 6-7 21-31

35 — — — — — 68-79 269-343 5-6 22-31

45 49.6 112-129 178-227 12-16 23-28 81-93 283-361 7-9 25-35

45 62.0 112-129 172-218 10-12 23-28 83-95 285-362 6-7 26-35

55 49.6 112-129 207-264 12-16 22-28 96-110 299-380 8-10 29-39

55 62.0 112-129 200-255 10-12 22-28 99-114 301-384 6-8 29-40

68 49.6 114-131 250-318 12-15 22-28 119-137 321-409 9-12 34-44

68 62.0 114-131 242-308 10-12 22-28 123-142 324-412 7-9 34-45

75 49.6 115-132 275-350 12-15 22-27 133-153 334-425 10-12 36-47

75 62.0 115-132 267-340 10-12 22-27 138-158 337-429 8-10 37-48

86 49.6 117-134 318-405 12-15 21-27 158-181 354-451 11-14 40-52

86 62.0 117-134 310-395 9-12 21-27 164-188 356-454 9-11 41-52

95 49.6 119-136 357-454 12-15 21-26 — — — —

95 62.0 118-136 348-443 9-12 21-26 — — — —

WSHP-PRC021-EN 21

Performance Data

GER036 Cooling Performance

Table 16. GER300 operating pressures in cooling/heating

Operating Data

Model

Entering

Water

Temp °F

Water

Flow

GPM

Cooling Heating

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp Rise

°F

Air Temp

Drop DB

°F

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Water

Temp

Drop °F

Air Temp

Rise DB °F

GER300

35—————— ———

35—————— ———

46 62.0 115-132 182-231 11-13 19-25 — — — —

46 77.5 113-130 177-225 8-11 19-24 — — — —

55 62.0 118-136 208-265 11-14 20-26 — — — —

55 77.5 117-134 203-258 8-11 20-25 — — — —

68 62.0 123-142 248-316 11-13 20-26 — — — —

68 77.5 122-140 243-309 8-11 20-26 — — — —

75 62.0 126-145 272-346 11-13 20-26 — — — —

75 77.5 125-144 266-339 8-11 20-26 — — — —

86 62.0 131-150 312-397 10-13 20-26 — — — —

86 77.5 129-148 306-389 8-11 20-26 — — — —

95 62.0 133-154 348-442 10-13 20-26 — — — —

95 77.5 133-153 341-435 8-10 20-26 — — — —

Table 17. GER036 cooling performance

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

45

5.5 46.9 32.8 0.70 1.58 52.3 64.0 2.7

6.7 47.3 33.1 0.70 1.51 52.5 60.7 3.8

7.6 47.6 33.3 0.70 1.48 52.7 58.9 4.8

8.4 47.8 33.4 0.70 1.45 52.7 57.6 5.7

8.8 47.8 33.4 0.70 1.44 52.7 57.0 6.2

9.2 47.9 33.5 0.70 1.43 52.8 56.5 6.7

10.1 48.0 33.5 0.70 1.41 52.8 55.5 7.9

55

5.5 45.5 32.3 0.71 1.81 51.7 73.8 2.6

6.7 45.9 32.5 0.71 1.74 51.8 70.5 3.7

7.6 46.3 32.8 0.71 1.71 52.1 68.7 4.6

8.4 46.4 32.8 0.71 1.68 52.1 67.4 5.5

8.8 46.3 32.8 0.71 1.67 52.0 66.8 6.0

9.2 46.4 32.9 0.71 1.66 52.1 66.3 6.5

10.1 46.6 33.0 0.71 1.64 52.2 65.3 7.6

68

5.5 43.5 31.5 0.72 2.13 50.7 86.5 2.5

6.7 43.9 31.8 0.72 2.06 50.9 83.2 3.5

7.6 44.1 32.0 0.72 2.02 51.0 81.4 4.4

8.4 44.3 32.1 0.72 2.00 51.1 80.2 5.2

8.8 44.4 32.1 0.72 1.99 51.1 79.6 5.7

9.2 44.4 32.2 0.72 1.98 51.2 79.1 6.2

10.1 44.6 32.2 0.72 1.96 51.2 78.1 7.3

22 WSHP-PRC021-EN

Performance Data

75

5.5 42.3 31.0 0.73 2.32 50.2 93.3 2.4

6.7 42.7 31.3 0.73 2.24 50.4 90.0 3.4

7.6 42.9 31.5 0.73 2.21 50.5 88.3 4.3

8.4 43.1 31.6 0.73 2.18 50.5 87.0 5.1

8.8 43.2 31.7 0.73 2.17 50.6 86.5 5.6

9.2 43.2 31.7 0.73 2.16 50.6 86.0 6.0

10.1 43.4 31.8 0.73 2.14 50.6 85.0 7.1

86

5.5 40.3 30.2 0.75 2.64 49.3 103.9 2.3

6.7 40.7 30.6 0.75 2.56 49.4 100.8 3.3

7.6 40.9 30.7 0.75 2.52 49.5 99.0 4.1

8.4 41.1 30.9 0.75 2.50 49.6 97.8 4.9

8.8 41.1 30.9 0.75 2.48 49.6 97.3 5.4

9.2 41.2 30.9 0.75 2.47 49.6 96.8 5.8

10.1 41.3 31.0 0.75 2.45 49.7 95.8 6.9

95

5.5 38.5 29.6 0.77 2.94 48.5 112.6 2.3

6.7 38.9 29.9 0.77 2.86 48.6 109.5 3.2

7.6 39.1 30.1 0.77 2.82 48.7 107.8 4.0

8.4 39.3 30.2 0.77 2.79 48.8 106.6 4.8

8.8 39.3 30.2 0.77 2.78 48.8 106.1 5.2

9.2 39.4 30.3 0.77 2.76 48.8 105.6 5.7

10.1 39.5 30.4 0.77 2.74 48.9 104.7 6.7

105

5.5 36.3 28.8 0.79 3.30 47.6 122.3 2.2

6.7 36.7 29.1 0.79 3.22 47.7 119.2 3.1

7.6 37.0 29.3 0.79 3.18 47.9 117.6 3.9

8.4 37.1 29.4 0.79 3.14 47.8 116.4 4.7

8.8 37.2 29.5 0.79 3.13 47.8 115.9 5.1

9.2 37.2 29.5 0.79 3.12 47.8 115.4 5.5

10.1 37.4 29.6 0.79 3.09 47.9 114.5 6.5

115

5.5 34.0 27.9 0.82 3.71 46.6 131.9 2.2

6.7 34.4 28.2 0.82 3.62 46.7 128.9 3.1

7.6 34.6 28.4 0.82 3.57 46.8 127.3 3.8

8.4 34.7 28.5 0.82 3.54 46.8 126.1 4.6

8.8 34.8 28.6 0.82 3.52 46.8 125.6 5.0

9.2 34.9 28.6 0.82 3.51 46.8 125.2 5.4

10.1 35.0 28.7 0.82 3.49 46.9 124.3 6.3

120

5.5 32.7 27.5 0.84 3.93 46.1 136.8 2.1

6.7 33.1 27.8 0.84 3.84 46.2 133.8 3.0

7.6 33.3 28.0 0.84 3.79 46.3 132.2 3.8

8.4 33.5 28.1 0.84 3.76 46.3 131.0 4.5

8.8 33.6 28.2 0.84 3.75 46.3 130.5 4.9

9.2 33.6 28.2 0.84 3.73 46.4 130.1 5.3

10.1 33.7 28.3 0.84 3.70 46.3 129.2 6.2

Note: Cooling performance data is tabulated at 80.6°F DB / 66.2°F WB at the rated CFM. For conditions other than what is

tabulated, multipliers must be used to correct performance. See Table 19, p. 24 for Fan Correction Factors for CFM other

than rated and the Cooling Correction Factors for variations in entering air temperatures. Rated GPM 8.4; Minimum CFM

960; Rated CFM 1140; Maximum CFM 1440.

Table 17. GER036 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

WSHP-PRC021-EN 23

Performance Data

GER036 Heating Performance

Table 18. GER036 heating performance

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

25

5.5 26.1 18.0 2.36 18.4 4.2

6.7 26.7 18.6 2.37 19.5 5.9

7.6 27.0 18.9 2.38 20.0 7.3

8.4 27.2 19.1 2.38 20.5 8.7

8.8 27.4 19.2 2.38 20.6 9.4

9.2 27.4 19.2 2.39 20.8 10.2

10.1 27.6 19.4 2.39 21.2 12.0

32

5.5 28.9 20.7 2.40 24.5 4.0

6.7 29.6 21.4 2.41 25.6 5.7

7.6 30.0 21.7 2.42 26.3 7.1

8.4 30.2 21.9 2.42 26.8 8.4

8.8 30.4 22.1 2.42 27.0 9.1

9.2 30.4 22.1 2.42 27.2 9.9

10.1 30.7 22.4 2.43 27.6 11.6

45

5.5 34.9 26.5 2.48 35.4 3.3

6.7 35.8 27.3 2.50 36.9 4.6

7.6 36.2 27.6 2.50 37.7 5.7

8.4 36.5 28.0 2.51 38.3 6.8

8.8 36.6 28.0 2.51 38.6 7.3

9.2 36.8 28.2 2.51 38.9 7.9

10.1 37.0 28.5 2.51 39.4 9.3

55

5.5 39.3 30.7 2.54 43.8 3.1

6.7 40.2 31.5 2.55 45.6 4.4

7.6 40.8 32.1 2.56 46.6 5.5

8.4 41.2 32.5 2.57 47.3 6.5

8.8 41.4 32.6 2.57 47.6 7.1

9.2 41.5 32.7 2.58 47.9 7.6

10.1 41.9 33.1 2.58 48.5 9.0

68

5.5 45.5 36.5 2.64 54.7 3.0

6.7 46.4 37.3 2.65 56.9 4.2

7.6 47.0 37.9 2.66 58.0 5.2

8.4 47.5 38.4 2.67 58.9 6.2

8.8 47.7 38.6 2.67 59.2 6.7

9.2 47.8 38.7 2.67 59.6 7.3

10.1 48.2 39.1 2.68 60.3 8.6

75

5.5 48.5 39.3 2.68 60.7 2.9

6.7 49.7 40.5 2.70 62.9 4.1

7.6 50.4 41.2 2.71 64.2 5.1

8.4 50.9 41.6 2.72 65.1 6.1

8.8 51.1 41.8 2.73 65.5 6.6

9.2 51.3 42.0 2.73 65.9 7.1

10.1 51.7 42.4 2.74 66.6 8.4

24 WSHP-PRC021-EN

Performance Data

GER048 Cooling Performance

86

5.5 53.6 44.2 2.77 69.9 2.8

6.7 55.0 45.5 2.79 72.4 4.0

7.6 55.7 46.2 2.80 73.8 4.9

8.4 56.3 46.7 2.81 74.9 5.9

8.8 56.7 47.0 2.82 75.3 6.4

9.2 57.0 47.3 2.82 75.7 6.9

10.1 57.2 47.6 2.82 76.6 8.1

Note: Heating performance data is tabulated at 68.0°F DB at the rated CFM. For conditions other than what is tabulated,

multipliers must be used to correct performance. See Table 19, p. 24 for Fan Correction Factors for CFM other than rated

and the Heating Correction Factors for variations in entering air temperatures. Rated GPM 8.4; Minimum CFM 960; Rated

CFM 1140; Maximum CFM 1440.

Table 19. GER036 fan correction factors

Entering

CFM

Cooling

Capacity

Sensible

Capacity

Cooling

Input

Watts

Heating

Capacity

Heating

Input

Watts

960 0.966 0.910 1.002 0.980 1.072

993 0.973 0.924 1.002 0.985 1.057

1026 0.979 0.941 1.001 0.989 1.044

1080 0.990 0.969 1.001 0.998 1.025

1140 1.000 1.000 1.000 1.000 1.000

1200 1.009 1.031 0.999 1.005 0.982

1320 1.024 1.091 0.997 1.014 0.951

1440 1.038 1.153 0.996 1.023 0.926

Table 20. GER048 cooling performance

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

45

7.3 60.4 43.0 0.71 1.86 66.7 63.3 1.5

9.0 60.7 43.2 0.71 1.77 66.7 59.8 2.1

10.1 60.8 43.3 0.71 1.73 66.7 58.2 2.6

11.2 60.9 43.4 0.71 1.69 66.7 56.9 3.1

11.8 61.0 43.4 0.71 1.68 66.7 56.3 3.4

12.3 61.0 43.4 0.71 1.67 66.7 55.9 3.7

13.4 61.1 43.5 0.71 1.64 66.8 55.0 4.3

55

7.3 58.7 42.3 0.72 2.16 66.1 73.1 1.4

9.0 59.1 42.5 0.72 2.07 66.1 69.7 2.0

10.1 59.2 42.7 0.72 2.03 66.1 68.1 2.5

11.2 59.4 42.8 0.72 1.99 66.2 66.8 3.0

11.8 59.4 42.8 0.72 1.98 66.2 66.2 3.3

12.3 59.5 42.8 0.72 1.97 66.2 65.8 3.6

13.4 59.6 42.9 0.72 1.95 66.2 64.9 4.1

Table 18. GER036 heating performance (continued)

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

WSHP-PRC021-EN 25

Performance Data

68

7.3 56.3 41.4 0.74 2.56 65.0 85.8 1.3

9.0 56.6 41.7 0.74 2.47 65.1 82.5 2.0

10.1 56.8 41.8 0.74 2.43 65.1 80.9 2.4

11.2 57.0 41.9 0.74 2.40 65.1 79.6 2.9

11.8 57.0 41.9 0.74 2.38 65.2 79.0 3.2

12.3 57.1 42.0 0.74 2.37 65.2 78.6 3.4

13.4 57.1 42.0 0.74 2.35 65.1 77.7 4.0

75

7.3 54.9 40.9 0.75 2.79 64.4 92.6 1.3

9.0 55.2 41.1 0.75 2.70 64.4 89.3 1.9

10.1 55.4 41.3 0.75 2.66 64.4 87.8 2.3

11.2 55.5 41.4 0.75 2.62 64.5 86.5 2.8

11.8 55.6 41.4 0.75 2.61 64.5 85.9 3.1

12.3 55.6 41.4 0.75 2.60 64.5 85.5 3.3

13.4 55.7 41.5 0.75 2.57 64.5 84.6 3.9

86

7.3 52.4 40.0 0.76 3.19 63.3 103.3 1.3

9.0 52.7 40.2 0.76 3.09 63.3 100.1 1.8

10.1 52.9 40.4 0.76 3.04 63.3 98.5 2.3

11.2 53.0 40.5 0.76 3.01 63.3 97.3 2.7

11.8 53.1 40.5 0.76 2.99 63.3 96.7 3.0

12.3 53.1 40.5 0.76 2.98 63.3 96.3 3.2

13.4 53.2 40.6 0.76 2.96 63.3 95.4 3.7

95

7.3 50.2 39.2 0.78 3.56 62.4 112.1 1.2

9.0 50.6 39.5 0.78 3.46 62.4 108.9 1.8

10.1 50.6 39.5 0.78 3.40 62.3 107.3 2.2

11.2 50.8 39.7 0.78 3.37 62.3 106.1 2.6

11.8 50.9 39.7 0.78 3.36 62.3 105.6 2.9

12.3 50.9 39.8 0.78 3.34 62.3 105.1 3.1

13.4 51.0 39.8 0.78 3.32 62.4 104.3 3.6

105

7.3 47.6 38.3 0.80 4.02 61.3 121.8 1.2

9.0 47.9 38.5 0.80 3.90 61.2 118.6 1.7

10.1 48.1 38.7 0.80 3.85 61.2 117.1 2.1

11.2 48.2 38.8 0.80 3.81 61.2 115.9 2.6

11.8 48.3 38.8 0.80 3.80 61.2 115.4 2.8

12.3 48.3 38.9 0.80 3.78 61.2 115.0 3.0

13.4 48.4 38.9 0.80 3.75 61.2 114.1 3.5

115

7.3 44.8 37.3 0.83 4.54 60.2 131.5 1.2

9.0 45.1 37.6 0.83 4.42 60.1 128.4 1.7

10.1 45.2 37.7 0.83 4.36 60.1 126.9 2.1

11.2 45.3 37.8 0.83 4.32 60.1 125.7 2.5

11.8 45.4 37.9 0.83 4.31 60.1 125.2 2.7

12.3 45.4 37.9 0.83 4.29 60.1 124.8 3.0

13.4 45.5 38.0 0.83 4.25 60.0 124.0 3.4

Table 20. GER048 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

26 WSHP-PRC021-EN

Performance Data

GER048 Heating Performance

120

7.3 43.2 36.8 0.85 4.82 59.6 136.3 1.2

9.0 43.5 37.1 0.85 4.70 59.6 133.2 1.7

10.1 43.7 37.3 0.85 4.64 59.5 131.8 2.1

11.2 43.8 37.3 0.85 4.60 59.5 130.6 2.5

11.8 43.9 37.4 0.85 4.58 59.5 130.1 2.7

12.3 43.9 37.4 0.85 4.56 59.5 129.7 2.9

13.4 44.0 37.5 0.85 4.53 59.4 128.9 3.4

Note: Cooling performance data is tabulated at 80.6°F DB / 66.2°F WB at the rated CFM. For conditions other than what

is tabulated, multipliers must be used to correct performance. See Table 22, p. 27 for Fan Correction Factors for CFM

other than rated and the Cooling Correction Factors for variations in entering air temperatures. Rated GPM 11.2;

Minimum CFM 1280; Rated CFM 1520; Maximum CFM 1920.

Table 21. GER048 heating performance

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

25

7.3 32.1 22.8 2.72 18.8 4.7

9.0 32.8 23.4 2.73 19.8 6.8

10.1 33.1 23.8 2.74 20.3 8.3

11.2 33.4 24.0 2.74 20.7 10.0

11.8 33.5 24.1 2.74 20.9 10.9

12.3 33.6 24.2 2.74 21.1 11.7

13.4 33.8 24.4 2.75 21.4 13.6

32

7.3 35.1 25.7 2.75 25.0 4.6

9.0 35.9 26.5 2.76 26.1 6.6

10.1 36.3 26.9 2.76 26.7 8.1

11.2 36.6 27.2 2.77 27.1 9.7

11.8 36.7 27.3 2.77 27.4 10.6

12.3 36.9 27.4 2.77 27.5 11.4

13.4 37.1 27.6 2.77 27.9 13.2

45

7.3 41.9 32.2 2.83 36.2 3.7

9.0 42.8 33.1 2.84 37.6 5.3

10.1 43.2 33.5 2.84 38.4 6.5

11.2 43.5 33.8 2.84 39.0 7.8

11.8 43.7 34.0 2.85 39.2 8.5

12.3 43.8 34.1 2.85 39.5 9.2

13.4 44.3 34.5 2.86 39.8 10.6

55

7.3 47.0 37.1 2.88 44.8 3.6

9.0 47.8 38.0 2.90 46.6 5.1

10.1 48.4 38.4 2.91 47.4 6.3

11.2 48.8 38.9 2.91 48.1 7.5

11.8 49.2 39.2 2.92 48.3 8.2

12.3 49.4 39.4 2.92 48.6 8.8

13.4 49.7 39.7 2.93 49.1 10.2

Table 20. GER048 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

WSHP-PRC021-EN 27

Performance Data

68

7.3 53.6 43.4 2.98 56.1 3.4

9.0 54.8 44.6 3.00 58.1 4.9

10.1 55.6 45.3 3.01 59.0 6.0

11.2 56.2 45.9 3.02 59.8 7.1

11.8 56.5 46.1 3.03 60.2 7.8

12.3 56.7 46.3 3.03 60.5 8.4

13.4 57.0 46.6 3.04 61.0 9.7

75

7.3 57.4 47.0 3.04 62.1 3.3

9.0 59.1 48.6 3.07 64.2 4.8

10.1 59.8 49.2 3.08 65.2 5.8

11.2 60.4 49.8 3.09 66.1 7.0

11.8 60.6 50.0 3.10 66.5 7.6

12.3 60.8 50.3 3.10 66.8 8.2

13.4 61.3 50.6 3.11 67.4 9.5

86

7.3 63.8 53.0 3.16 71.5 3.2

9.0 65.3 54.5 3.18 73.9 4.6

10.1 66.2 55.3 3.19 75.1 5.6

11.2 66.8 55.9 3.21 76.0 6.7

11.8 67.1 56.2 3.21 76.5 7.4

12.3 67.4 56.4 3.22 76.8 7.9

13.4 67.8 56.8 3.22 77.5 9.2

Note: Heating performance data is tabulated at 68.0°F DB at the rated CFM. For conditions other than what is tabulated,

multipliers must be used to correct performance. See Table 22, p. 27 fpr Fan Correction Factors for CFM other than rated

and the Heating Correction Factors for variations in entering air temperatures. Rated GPM 11.2; Minimum CFM 1280;

Rated CFM 1520; Maximum CFM 1920.

Table 22. GER048 fan correction factors

Entering

CFM

Cooling

Capacity

Sensible

Capacity

Cooling

Input

Watts

Heating

Capacity

Heating

Input

Watts

1280 0.966 0.902 1.002 0.977 1.058

1324 0.973 0.922 1.002 0.982 1.046

1368 0.980 0.941 1.001 0.986 1.034

1440 0.990 0.968 1.001 0.992 1.017

1520 1.000 1.000 1.000 1.000 1.000

1600 1.009 1.030 0.999 1.005 0.984

1760 1.027 1.095 0.999 1.022 0.960

1920 1.041 1.160 0.998 1.026 0.937

Table 21. GER048 heating performance (continued)

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

28 WSHP-PRC021-EN

Performance Data

GER060 Cooling Performance

Table 23. GER060 cooling performance

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

45

9.1 72.6 51.6 0.71 2.29 80.4 62.7 6.0

11.2 73.1 52.0 0.71 2.18 80.5 59.4 8.7

12.6 73.3 52.1 0.71 2.12 80.5 57.8 10.8

14.0 73.5 52.3 0.71 2.08 80.6 56.5 13.0

14.7 73.5 52.3 0.71 2.06 80.6 56.0 14.2

15.4 73.6 52.4 0.71 2.04 80.6 55.5 15.4

16.8 73.7 52.4 0.71 2.01 80.6 54.6 17.9

55

9.1 70.3 51.0 0.73 2.70 79.5 72.5 5.8

11.2 70.8 51.3 0.73 2.59 79.6 69.2 8.4

12.6 71.0 51.5 0.73 2.53 79.6 67.6 10.4

14.0 71.2 51.6 0.73 2.49 79.7 66.4 12.5

14.7 71.3 51.7 0.73 2.47 79.7 65.8 13.6

15.4 71.3 51.7 0.73 2.46 79.7 65.4 14.8

16.8 71.5 51.8 0.73 2.43 79.8 64.5 17.3

68

9.1 66.8 49.8 0.75 3.23 77.8 85.1 5.6

11.2 67.3 50.2 0.75 3.12 77.9 81.9 8.0

12.6 67.5 50.4 0.75 3.07 78.0 80.4 9.9

14.0 67.7 50.5 0.75 3.02 78.0 79.1 11.9

14.7 67.8 50.6 0.75 3.01 78.1 78.6 13.0

15.4 67.9 50.6 0.75 2.99 78.1 78.1 14.1

16.8 68.0 50.7 0.75 2.96 78.1 77.3 16.5

75

9.1 64.7 49.1 0.76 3.53 76.8 91.9 5.4

11.2 65.3 49.5 0.76 3.42 76.9 88.7 7.9

12.6 65.5 49.7 0.76 3.37 77.0 87.2 9.7

14.0 65.7 49.8 0.76 3.32 77.0 86.0 11.7

14.7 65.8 49.9 0.76 3.31 77.0 85.5 12.7

15.4 65.8 50.0 0.76 3.29 77.1 85.0 13.8

16.8 66.0 50.0 0.76 3.26 77.1 84.2 16.1

86

9.1 61.3 47.9 0.78 4.04 75.1 102.5 5.3

11.2 61.8 48.3 0.78 3.93 75.2 99.4 7.6

12.6 62.0 48.5 0.78 3.87 75.2 97.9 9.4

14.0 62.2 48.7 0.78 3.83 75.3 96.8 11.3

14.7 62.3 48.7 0.78 3.81 75.3 96.2 12.3

15.4 62.4 48.8 0.78 3.79 75.3 95.8 13.3

16.8 62.5 48.9 0.78 3.76 75.3 95.0 15.5

95

9.1 58.2 46.9 0.81 4.51 73.6 111.2 5.1

11.2 58.7 47.3 0.81 4.39 73.7 108.2 7.4

12.6 58.9 47.4 0.81 4.33 73.7 106.7 9.1

14.0 59.1 47.6 0.81 4.29 73.8 105.5 11.0

14.7 59.2 47.7 0.81 4.27 73.8 105.0 12.0

15.4 59.3 47.7 0.81 4.25 73.8 104.6 13.0

16.8 59.4 47.8 0.81 4.22 73.8 103.8 15.1

WSHP-PRC021-EN 29

Performance Data

GER060 Heating Performance

105

9.1 54.6 45.7 0.84 5.06 71.9 120.8 5.0

11.2 55.1 46.1 0.84 4.94 71.9 117.8 7.2

12.6 55.3 46.3 0.84 4.88 71.9 116.4 8.9

14.0 55.5 46.5 0.84 4.83 72.0 115.3 10.7

14.7 55.6 46.5 0.84 4.81 72.0 114.8 11.6

15.4 55.6 46.6 0.84 4.79 72.0 114.3 12.6

16.8 55.7 46.7 0.84 4.76 72.0 113.6 14.7

115

9.1 50.8 44.6 0.88 5.68 70.1 130.4 4.9

11.2 51.2 45.0 0.88 5.55 70.2 127.5 7.0

12.6 51.5 45.3 0.88 5.49 70.2 126.1 8.6

14.0 51.6 45.4 0.88 5.44 70.2 125.0 10.4

14.7 51.7 45.5 0.88 5.42 70.2 124.6 11.3

15.4 51.8 45.5 0.88 5.40 70.2 124.1 12.3

16.8 51.9 45.6 0.88 5.37 70.2 123.4 14.3

120

9.1 48.7 44.1 0.91 6.01 69.2 135.2 4.8

11.2 49.2 44.5 0.91 5.88 69.2 132.4 6.9

12.6 49.4 44.7 0.91 5.82 69.3 131.0 8.5

14.0 49.6 44.9 0.91 5.77 69.3 129.9 10.3

14.7 49.6 44.9 0.91 5.75 69.2 129.4 11.2

15.4 49.7 45.0 0.91 5.73 69.3 129.0 12.1

16.8 49.8 45.1 0.91 5.70 69.3 128.2 14.2

Note: Cooling performance data is tabulated at 80.6°F DB / 66.2°F WB at the rated CFM. For conditions other than what is

tabulated, multipliers must be used to correct performance. See Table 25, p. 31 for Fan Correction Factors for CFM other

than rated and the Cooling Correction Factors for variations in entering air temperatures. Rated GPM 14.0; Minimum CFM

1600; Rated CFM 1900; Maximum CFM 2400.

Table 24. GER060 heating performance

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

25

9.1 39.8 28.2 3.39 18.8 8.7

11.2 40.3 28.7 3.39 19.9 12.5

12.6 40.8 29.2 3.40 20.4 15.3

14.0 41.3 29.6 3.41 20.8 18.4

14.7 41.3 29.7 3.41 21.0 20.1

15.4 41.5 29.9 3.41 21.1 21.8

16.8 41.5 29.9 3.41 21.4 25.3

32

9.1 44.1 32.3 3.45 24.9 8.5

11.2 45.1 33.3 3.46 26.1 12.1

12.6 45.4 33.6 3.46 26.7 14.9

14.0 45.7 33.9 3.47 27.2 17.9

14.7 46.0 34.1 3.47 27.4 19.5

15.4 46.0 34.2 3.48 27.6 21.1

16.8 46.3 34.4 3.47 27.9 24.6

Table 23. GER060 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

30 WSHP-PRC021-EN

Performance Data

45

9.1 53.6 41.3 3.61 35.9 6.8

11.2 54.6 42.3 3.62 37.5 9.8

12.6 55.1 42.7 3.63 38.2 12.0

14.0 55.6 43.2 3.63 38.8 14.4

14.7 55.8 43.3 3.64 39.1 15.7

15.4 55.9 43.5 3.64 39.3 17.0

16.8 56.2 43.8 3.64 39.8 19.8

55

9.1 61.0 48.2 3.75 44.4 6.6

11.2 62.1 49.3 3.76 46.2 9.4

12.6 62.9 50.0 3.78 47.1 11.5

14.0 63.5 50.5 3.79 47.8 13.8

14.7 63.7 50.7 3.79 48.1 15.1

15.4 63.8 50.9 3.80 48.4 16.3

16.8 63.9 50.9 3.79 48.9 19.0

68

9.1 70.9 57.4 3.96 55.4 6.3

11.2 72.4 58.8 3.99 57.5 9.0

12.6 73.2 59.6 4.00 58.5 11.0

14.0 73.9 60.2 4.02 59.4 13.2

14.7 74.1 60.4 4.02 59.8 14.4

15.4 74.4 60.6 4.03 60.1 15.6

16.8 74.7 61.0 4.03 60.7 18.1

75

9.1 76.5 62.5 4.09 61.3 6.1

11.2 78.4 64.3 4.14 63.5 8.8

12.6 79.3 65.1 4.15 64.7 10.7

14.0 79.9 65.7 4.17 65.6 12.9

14.7 80.2 66.0 4.16 66.0 14.0

15.4 80.5 66.3 4.17 66.4 15.2

16.8 80.9 66.7 4.18 67.1 17.7

86

9.1 86.2 71.4 4.33 70.3 5.9

11.2 88.4 73.4 4.39 72.9 8.5

12.6 89.5 74.4 4.42 74.2 10.4

14.0 90.4 75.2 4.44 75.3 12.5

14.7 90.7 75.5 4.45 75.7 13.5

15.4 91.0 75.8 4.46 76.2 14.7

16.8 91.6 76.3 4.47 76.9 17.1

Note: Heating performance data is tabulated at 68.0°F DB at the rated CFM. For conditions other than what is tabulated,

multipliers must be used to correct performance. See Table 25, p. 31 for Fan Correction Factors for CFM other than rated

and the Heating Correction Factors for variations in entering air temperatures. Rated GPM 14.0; Minimum CFM 1600;

Rated CFM 1900; Maximum CFM 2400.

Table 24. GER060 heating performance (continued)

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

WSHP-PRC021-EN 31

Performance Data

GER072 Cooling Performance

Table 25. GER060 fan correction factors

Entering

CFM

Cooling

Capacity

Sensible

Capacity

Cooling

Input

Watts

Heating

Capacity

Heating

Input

Watts

1600 0.966 0.901 1.000 0.981 1.064

1655 0.973 0.919 1.000 0.986 1.052

1710 0.979 0.937 1.000 0.989 1.040

1800 0.989 0.966 1.000 0.994 1.018

1900 1.000 1.000 1.000 1.000 1.000

2000 1.009 1.032 1.000 1.004 0.982

2200 1.026 1.099 0.999 1.014 0.956

2400 1.043 1.169 1.000 1.022 0.933

Table 26. GER072 cooling performance

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

45

12.1 91.9 63.5 0.69 3.49 103.9 62.2 6.9

14.9 92.4 63.8 0.69 3.38 103.9 59.0 9.9

16.7 92.5 63.9 0.69 3.33 103.9 57.4 12.2

18.6 92.7 64.0 0.69 3.29 103.9 56.2 14.6

19.5 92.8 64.1 0.69 3.27 103.9 55.6 15.9

20.5 92.8 64.1 0.69 3.26 103.9 55.2 17.3

22.3 92.9 64.2 0.69 3.23 103.9 54.3 20.1

55

12.1 88.9 62.2 0.70 3.90 102.2 71.9 6.6

14.9 89.2 62.5 0.70 3.79 102.1 68.7 9.5

16.7 89.4 62.6 0.70 3.73 102.1 67.2 11.7

18.6 89.5 62.7 0.70 3.69 102.1 66.0 14.1

19.5 89.5 62.7 0.70 3.67 102.1 65.5 15.3

20.5 89.6 62.7 0.70 3.65 102.0 65.0 16.6

22.3 89.7 62.8 0.70 3.63 102.0 64.1 19.4

68

12.1 85.3 61.9 0.73 4.44 100.5 84.6 6.2

14.9 85.7 62.2 0.73 4.31 100.4 81.5 9.0

16.7 85.9 62.3 0.73 4.26 100.4 80.0 11.0

18.6 86.0 62.4 0.73 4.21 100.4 78.8 13.3

19.5 86.1 62.5 0.73 4.19 100.4 78.3 14.5

20.5 86.1 62.5 0.73 4.17 100.4 77.8 15.7

22.3 86.3 62.6 0.73 4.14 100.4 77.0 18.3

75

12.1 83.0 61.0 0.74 4.79 99.4 91.4 6.1

14.9 83.4 61.3 0.74 4.66 99.3 88.4 8.8

16.7 83.6 61.5 0.74 4.60 99.3 86.9 10.8

18.6 83.7 61.6 0.74 4.55 99.3 85.7 13.0

19.5 83.8 61.6 0.74 4.53 99.2 85.2 14.1

20.5 83.8 61.6 0.74 4.51 99.2 84.7 15.3

22.3 83.9 61.7 0.74 4.48 99.2 83.9 17.9

32 WSHP-PRC021-EN

Performance Data

86

12.1 78.9 60.1 0.76 5.41 97.4 102.1 5.9

14.9 79.3 60.4 0.76 5.27 97.3 99.1 8.5

16.7 79.5 60.6 0.76 5.21 97.3 97.6 10.4

18.6 79.7 60.7 0.76 5.15 97.3 96.5 12.5

19.5 79.8 60.7 0.76 5.13 97.3 96.0 13.6

20.5 79.8 60.8 0.76 5.11 97.2 95.5 14.8

22.3 79.9 60.8 0.76 5.08 97.2 94.7 17.2

95

12.1 75.4 58.9 0.78 5.96 95.8 110.8 5.4

14.9 75.8 59.2 0.78 5.82 95.7 107.9 7.8

16.7 76.0 59.3 0.78 5.75 95.7 106.4 9.6

18.6 76.1 59.3 0.78 5.70 95.5 105.3 11.6

19.5 76.1 59.4 0.78 5.68 95.5 104.8 12.6

20.5 76.2 59.5 0.78 5.66 95.5 104.3 13.7

22.3 76.3 59.5 0.78 5.62 95.5 103.6 16.0

105

12.1 71.5 57.5 0.80 6.62 94.1 120.6 5.3

14.9 71.9 57.8 0.80 6.47 94.0 117.6 7.6

16.7 72.1 58.0 0.80 6.40 94.0 116.2 9.3

18.6 72.3 58.1 0.80 6.35 93.9 115.1 11.2

19.5 72.3 58.1 0.80 6.32 93.9 114.6 12.3

20.5 72.4 58.2 0.80 6.30 93.9 114.2 13.3

22.3 72.5 58.3 0.80 6.26 93.9 113.4 15.5

115

12.1 67.1 56.0 0.83 7.34 92.2 130.2 5.1

14.9 67.6 56.4 0.83 7.19 92.1 127.4 7.4

16.7 67.8 56.6 0.83 7.12 92.1 126.0 9.1

18.6 67.9 56.7 0.83 7.06 92.0 124.9 11.0

19.5 68.0 56.7 0.83 7.03 91.9 124.4 11.9

20.5 68.1 56.8 0.83 7.01 92.0 124.0 13.0

22.3 68.2 56.9 0.83 6.98 92.0 123.2 15.1

120

12.1 64.8 55.3 0.85 7.72 91.1 135.1 5.1

14.9 65.3 55.7 0.85 7.57 91.1 132.2 7.3

16.7 65.5 55.9 0.85 7.50 91.1 130.9 9.0

18.6 65.6 56.0 0.85 7.44 91.0 129.8 10.8

19.5 65.7 56.1 0.85 7.42 91.0 129.3 11.8

20.5 65.7 56.1 0.85 7.40 91.0 128.9 12.8

22.3 65.8 56.2 0.85 7.36 91.0 128.1 14.9

Note: Cooling performance data is tabulated at 80.6°F DB / 66.2°F WB at the rated CFM. For conditions other than what is

tabulated, multipliers must be used to correct performance. See Table 28, p. 34 for Fan Correction Factors for CFM other

than rated and the Cooling Correction Factors for variations in entering air temperatures. Rated GPM 18.6; Minimum

CFM 1920; Rated CFM 2280; Maximum CFM 2880.

Table 26. GER072 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

WSHP-PRC021-EN 33

Performance Data

GER072 Heating Performance

Table 27. GER072 heating performance

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

25

12.1 51.0 36.5 4.25 19.0 10.6

14.9 51.9 37.3 4.27 20.0 14.4

16.7 52.3 37.7 4.28 20.5 17.3

18.6 52.5 37.9 4.29 20.9 20.2

19.5 52.6 38.0 4.29 21.1 21.8

20.5 52.7 38.0 4.30 21.3 23.4

22.3 52.7 38.1 4.30 21.6 26.9

32

12.1 56.0 41.3 4.32 25.2 9.3

14.9 57.0 42.2 4.33 26.3 13.3

16.7 57.4 42.6 4.33 26.9 16.3

18.6 57.7 42.8 4.34 27.4 19.6

19.5 57.8 43.0 4.34 27.6 21.4

20.5 57.9 43.1 4.34 27.8 23.2

22.3 58.2 43.4 4.35 28.1 27.0

45

12.1 66.9 51.2 4.61 36.5 6.9

14.9 68.0 52.2 4.62 38.0 9.9

16.7 68.7 52.9 4.63 38.7 12.2

18.6 69.1 53.3 4.64 39.3 14.6

19.5 69.3 53.4 4.64 39.5 15.9

20.5 69.4 53.6 4.64 39.8 17.3

22.3 69.7 53.9 4.64 40.2 20.1

55

12.1 75.7 59.5 4.75 45.2 6.6

14.9 76.7 60.5 4.76 46.9 9.5

16.7 77.4 61.1 4.77 47.7 11.7

18.6 77.8 61.5 4.77 48.4 14.1

19.5 78.0 61.7 4.77 48.7 15.3

20.5 78.3 62.0 4.78 48.9 16.6

22.3 78.6 62.3 4.78 49.4 19.4

68

12.1 84.0 66.4 5.18 57.0 6.2

14.9 86.2 68.3 5.22 58.8 9.0

16.7 86.9 69.1 5.23 59.7 11.0

18.6 87.6 69.8 5.23 60.5 13.3

19.5 88.1 70.3 5.24 60.8 14.5

20.5 88.5 70.6 5.25 61.1 15.7

22.3 88.9 70.9 5.25 61.6 18.3

75

12.1 90.4 72.4 5.28 63.0 6.1

14.9 92.1 74.0 5.31 65.1 8.8

16.7 93.2 75.0 5.32 66.0 10.8

18.6 94.0 75.8 5.34 66.9 13.0

19.5 94.3 76.1 5.34 67.2 14.1

20.5 94.7 76.4 5.35 67.5 15.3

22.3 95.2 76.9 5.36 68.1 17.9

34 WSHP-PRC021-EN

Performance Data

GER090 Cooling Performance

86

12.1 99.7 81.1 5.45 72.6 5.9

14.9 101.7 83.0 5.48 74.8 8.5

16.7 102.7 84.0 5.50 76.0 10.4

18.6 103.5 84.7 5.51 76.9 12.5

19.5 103.8 85.0 5.52 77.3 13.6

20.5 104.1 85.3 5.53 77.7 14.8

22.3 104.7 85.8 5.54 78.3 17.2

Note: Heating performance data is tabulated at 68.0°F DB at the rated CFM. For conditions other than what is tabulated,

multipliers must be used to correct performance. See Table 28, p. 34 for Fan Correction Factors for CFM other than rated

and the Heating Correction Factors for variations in entering air temperatures. Rated GPM 18.6; Minimum CFM 1920;

Rated CFM 2280; Maximum CFM 2880.

Table 28. GER072 fan correction factors

Entering

CFM

Cooling

Capacity

Sensible

Capacity

Cooling

Input

Watts

Heating

Capacity

Heating

Input

Watts

1920 0.968 0.910 1.002 0.985 1.067

1986 0.975 0.926 1.001 0.988 1.053

2052 0.981 0.942 1.001 0.989 1.040

2160 0.990 0.969 1.000 0.998 1.023

2280 1.000 1.000 1.000 1.000 1.000

2400 1.010 1.031 0.999 1.004 0.983

2622 1.023 1.086 0.998 1.011 0.956

2880 1.040 1.156 0.997 1.019 0.932

Table 29. GER090 cooling performance

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

45

15.1 101.5 68.9 0.68 4.37 116.5 60.4 5.6

18.6 101.7 69.0 0.68 4.26 116.2 57.5 8.1

21.0 101.8 69.0 0.68 4.20 116.1 56.1 9.9

23.3 101.9 69.1 0.68 4.16 116.1 55.0 11.9

24.5 101.9 69.1 0.68 4.14 116.0 54.5 13.0

25.6 101.9 69.1 0.68 4.12 116.0 54.0 14.1

28.0 101.9 69.1 0.68 4.09 115.9 53.3 16.5

55

15.1 99.1 67.9 0.68 4.87 115.7 70.3 5.4

18.6 99.3 68.0 0.68 4.75 115.5 67.4 7.8

21.0 99.4 68.0 0.68 4.69 115.4 66.0 9.6

23.3 99.5 68.1 0.68 4.64 115.3 64.9 11.5

24.5 99.5 68.1 0.68 4.63 115.3 64.4 12.5

25.6 99.5 68.1 0.68 4.61 115.2 64.0 13.6

28.0 99.6 68.2 0.68 4.58 115.2 63.2 15.8

Table 27. GER072 heating performance (continued)

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

WSHP-PRC021-EN 35

Performance Data

68

15.1 95.8 67.6 0.71 5.44 114.4 83.1 5.2

18.6 97.1 68.5 0.71 5.31 115.2 80.4 7.4

21.0 96.2 67.9 0.71 5.25 114.2 78.9 9.1

23.3 96.3 68.0 0.71 5.20 114.1 77.8 11.0

24.5 96.4 68.0 0.71 5.18 114.1 77.3 12.0

25.6 96.4 68.1 0.71 5.16 114.0 76.9 13.0

28.0 96.5 68.1 0.71 5.13 114.0 76.2 15.1

75

15.1 93.6 66.8 0.71 5.85 113.5 90.0 5.0

18.6 93.9 67.0 0.71 5.71 113.4 87.2 7.2

21.0 94.1 67.2 0.71 5.65 113.3 85.8 8.9

23.3 94.2 67.2 0.71 5.60 113.3 84.7 10.7

24.5 94.2 67.2 0.71 5.58 113.2 84.3 11.7

25.6 94.2 67.3 0.71 5.56 113.2 83.8 12.7

28.0 94.3 67.3 0.71 5.52 113.1 83.1 14.7

86

15.1 88.7 64.6 0.73 6.44 110.7 100.6 4.9

18.6 89.0 64.8 0.73 6.30 110.5 97.9 7.1

21.0 89.1 64.9 0.73 6.23 110.3 96.5 8.7

23.3 89.2 65.0 0.73 6.18 110.3 95.5 10.5

24.5 89.2 65.0 0.73 6.15 110.2 95.0 11.4

25.6 89.3 65.0 0.73 6.13 110.2 94.6 12.3

28.0 89.3 65.1 0.73 6.10 110.1 93.9 14.4

95

15.1 85.4 63.5 0.74 7.10 109.6 109.5 4.6

18.6 85.6 63.7 0.74 6.94 109.3 106.7 6.7

21.0 85.8 63.8 0.74 6.87 109.2 105.4 8.3

23.3 85.9 63.9 0.74 6.81 109.1 104.4 9.9

24.5 85.9 63.9 0.74 6.78 109.1 103.9 10.8

25.6 86.0 63.9 0.74 6.76 109.0 103.5 11.8

28.0 86.0 64.0 0.74 6.72 109.0 102.8 13.7

105

15.1 81.4 62.2 0.76 7.93 108.4 119.3 4.5

18.6 81.6 62.4 0.76 7.76 108.1 116.6 6.5

21.0 81.8 62.5 0.76 7.67 108.0 115.3 8.0

23.3 81.9 62.6 0.76 7.61 107.8 114.3 9.7

24.5 82.0 62.7 0.76 7.58 107.9 113.8 10.5

25.6 82.0 62.7 0.76 7.55 107.8 113.4 11.4

28.0 82.1 62.7 0.76 7.52 107.8 112.7 13.3

115

15.1 77.0 60.7 0.79 8.84 107.2 129.2 4.4

18.6 77.3 61.0 0.79 8.68 107.0 126.5 6.4

21.0 77.5 61.1 0.79 8.60 106.8 125.2 7.8

23.3 77.5 61.2 0.79 8.53 106.7 124.2 9.4

24.5 77.6 61.2 0.79 8.50 106.6 123.7 10.3

25.6 77.6 61.2 0.79 8.47 106.6 123.3 11.1

28.0 77.7 61.3 0.79 8.43 106.5 122.6 13.0

Table 29. GER090 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

36 WSHP-PRC021-EN

Performance Data

GER090 Heating Performance

120

15.1 74.7 60.0 0.80 9.36 106.6 134.1 4.4

18.6 75.0 60.2 0.80 9.19 106.3 131.4 6.3

21.0 75.1 60.4 0.80 9.10 106.2 130.1 7.7

23.3 75.2 60.5 0.80 9.03 106.1 129.1 9.3

24.5 75.3 60.5 0.80 9.00 106.0 128.7 10.1

25.6 75.3 60.5 0.80 8.98 105.9 128.3 11.0

28.0 75.4 60.6 0.80 8.93 105.8 127.6 12.8

Note: Cooling performance data is tabulated at 80.6°F DB / 66.2°F WB at the rated CFM. For conditions other than what is

tabulated, multipliers must be used to correct performance. See Table 31, p. 37 for Fan Correction Factors for CFM other

than rated and the Cooling Correction Factors for variations in entering air temperatures. Rated GPM 23.3; Minimum CFM

2400; Rated CFM 2850; Maximum CFM 3600.

Table 30. GER090 heating performance

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

25

15.1 60.7 43.3 5.10 19.3 7.1

18.6 61.8 44.3 5.12 20.2 10.2

21.0 62.2 44.7 5.14 20.7 12.5

23.3 62.6 45.0 5.15 21.1 15.1

24.5 62.8 45.2 5.15 21.3 16.4

25.6 62.9 45.3 5.15 21.5 17.8

28.0 63.2 45.6 5.16 21.7 20.7

32

15.1 66.4 48.6 5.24 25.6 6.9

18.6 67.9 49.9 5.28 26.6 9.9

21.0 68.2 50.2 5.29 27.2 12.2

23.3 68.5 50.5 5.29 27.7 14.6

24.5 68.8 50.7 5.30 27.9 15.9

25.6 68.9 50.9 5.30 28.0 17.2

28.0 69.3 51.2 5.31 28.3 20.1

45

15.1 79.0 60.1 5.54 37.1 5.6

18.6 80.3 61.3 5.57 38.4 8.1

21.0 80.8 61.8 5.58 39.1 9.9

23.3 81.3 62.2 5.59 39.7 11.9

24.5 81.5 62.4 5.59 39.9 13.0

25.6 81.7 62.6 5.60 40.1 14.1

28.0 82.0 62.9 5.61 40.5 16.5

55

15.1 88.6 68.9 5.78 45.9 5.4

18.6 90.1 70.2 5.81 47.5 7.8

21.0 90.7 70.9 5.83 48.2 9.6

23.3 91.3 71.4 5.84 48.9 11.5

24.5 91.5 71.6 5.85 49.1 12.5

25.6 91.7 71.7 5.85 49.4 13.6

28.0 92.4 72.3 5.87 49.8 15.8

Table 29. GER090 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

WSHP-PRC021-EN 37

Performance Data

68

15.1 101.9 80.2 6.38 57.4 5.2

18.6 104.1 82.1 6.44 59.2 7.4

21.0 105.0 82.9 6.47 60.1 9.1

23.3 105.7 83.5 6.49 60.8 11.0

24.5 106.0 83.9 6.50 61.1 12.0

25.6 106.2 84.0 6.50 61.4 13.0

28.0 106.7 84.5 6.52 62.0 15.1

75

15.1 109.7 87.2 6.61 63.5 5.0

18.6 111.7 89.0 6.65 65.4 7.2

21.0 112.6 89.8 6.68 66.4 8.9

23.3 113.4 90.5 6.70 67.2 10.7

24.5 113.8 90.9 6.71 67.6 11.7

25.6 114.1 91.1 6.72 67.9 12.7

28.0 114.6 91.6 6.74 68.4 14.7

86

15.1 121.6 97.8 6.96 73.1 4.9

18.6 124.1 100.1 7.04 75.3 7.1

21.0 125.2 101.0 7.08 76.4 8.7

23.3 126.3 102.1 7.10 77.2 10.5

24.5 126.7 102.4 7.11 77.6 11.4

25.6 127.1 102.8 7.12 78.0 12.3

28.0 127.8 103.4 7.14 78.6 14.4

Note: Heating performance data is tabulated at 68.0°F DB at the rated CFM. For conditions other than what is tabulated,

multipliers must be used to correct performance. See Table 31, p. 37 for Fan Correction Factors for CFM other than rated

and the Heating Correction Factors for variations in entering air temperatures. Rated GPM 23.3; Minimum CFM 2400;

Rated CFM 2850; Maximum CFM 3600.

Table 31. GER090 fan correction factors

Entering

CFM

Cooling

Capacity

Sensible

Capacity

Cooling

Input

Watts

Heating

Capacity

Heating

Input

Watts

2400 0.970 0.921 0.999 0.986 1.059

2482.5 0.976 0.936 0.999 0.988 1.046

2565 0.982 0.949 0.999 0.991 1.034

2700 0.991 0.973 1.000 0.994 1.016

2850 1.000 1.000 1.000 1.000 1.000

3000 1.009 1.027 1.001 1.005 0.986

3300 1.025 1.081 1.002 1.006 0.955

3600 1.038 1.129 1.003 1.012 0.935

Table 30. GER090 heating performance (continued)

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

38 WSHP-PRC021-EN

Performance Data

GER120 Cooling Performance

Table 32. GER120 cooling performance

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

45

20.2 158.9 112.6 0.71 4.54 174.4 62.3 7.4

24.8 160.2 113.4 0.71 4.31 174.9 59.1 10.7

27.9 160.7 113.8 0.71 4.19 175.0 57.5 13.1

31.0 161.0 114.0 0.71 4.10 175.0 56.3 15.8

32.6 161.1 114.1 0.71 4.06 174.9 55.7 17.2

34.1 161.4 114.3 0.71 4.03 175.1 55.3 18.6

37.2 161.7 114.5 0.71 3.97 175.2 54.4 21.7

55

20.2 153.8 110.4 0.72 5.38 172.2 72.1 7.1

24.8 154.9 111.2 0.72 5.16 172.5 68.9 10.3

27.9 155.5 111.6 0.72 5.02 172.6 67.4 12.6

31.0 155.8 111.9 0.72 4.94 172.7 66.1 15.2

32.6 156.0 112.0 0.72 4.90 172.8 65.6 16.5

34.1 156.2 112.1 0.72 4.87 172.8 65.1 17.9

37.2 156.5 112.3 0.72 4.81 172.9 64.3 20.9

68

20.2 146.7 107.6 0.73 6.46 168.7 84.7 6.8

24.8 147.7 108.4 0.73 6.24 169.0 81.6 9.8

27.9 148.2 108.7 0.73 6.13 169.1 80.1 12.0

31.0 148.6 109.0 0.73 6.05 169.2 78.9 14.5

32.6 148.7 109.1 0.73 6.01 169.2 78.4 15.8

34.1 148.9 109.2 0.73 5.98 169.3 77.9 17.1

37.2 149.1 109.4 0.73 5.92 169.3 77.1 19.9

75

20.2 142.6 106.0 0.74 7.08 166.7 91.5 6.6

24.8 143.6 106.8 0.74 6.85 167.0 88.5 9.6

27.9 144.0 107.1 0.74 6.74 167.1 87.0 11.8

31.0 144.4 107.4 0.74 6.66 167.1 85.8 14.1

32.6 144.6 107.5 0.74 6.62 167.2 85.3 15.4

34.1 144.7 107.6 0.74 6.59 167.2 84.8 16.7

37.2 145.0 107.8 0.74 6.53 167.2 84.0 19.5

86

20.2 135.7 103.5 0.76 8.12 163.4 102.2 6.4

24.8 136.7 104.2 0.76 7.88 163.6 99.2 9.2

27.9 137.2 104.6 0.76 7.77 163.7 97.7 11.3

31.0 137.5 104.8 0.76 7.68 163.7 96.6 13.6

32.6 137.7 105.0 0.76 7.64 163.8 96.1 14.9

34.1 137.7 105.0 0.76 7.61 163.7 95.6 16.1

37.2 138.2 105.4 0.76 7.55 164.0 94.8 18.8

95

20.2 129.7 101.1 0.78 9.06 160.7 110.9 6.0

24.8 130.7 101.8 0.78 8.82 160.8 108.0 8.7

27.9 131.1 102.2 0.78 8.71 160.8 106.5 10.7

31.0 131.5 102.5 0.78 8.62 160.9 105.4 12.8

32.6 131.6 102.6 0.78 8.58 160.9 104.9 14.0

34.1 131.8 102.7 0.78 8.55 160.9 104.4 15.2

37.2 132.0 102.9 0.78 8.49 161.0 103.7 17.7

WSHP-PRC021-EN 39

Performance Data

GER120 Heating Performance

105

20.2 122.5 98.5 0.80 10.16 157.2 120.6 5.8

24.8 123.5 99.3 0.80 9.91 157.3 117.7 8.4

27.9 123.8 99.6 0.80 9.80 157.3 116.3 10.4

31.0 124.4 100.0 0.80 9.71 157.5 115.2 12.5

32.6 124.5 100.1 0.80 9.68 157.5 114.7 13.6

34.1 124.6 100.2 0.80 9.64 157.5 114.2 14.8

37.2 124.9 100.4 0.80 9.57 157.5 113.5 17.2

115

20.2 114.7 95.7 0.83 11.39 153.6 130.2 5.7

24.8 115.7 96.5 0.83 11.13 153.7 127.4 8.2

27.9 116.1 96.9 0.83 11.01 153.7 126.0 10.1

31.0 116.5 97.2 0.83 10.92 153.8 124.9 12.2

32.6 116.6 97.3 0.83 10.88 153.7 124.4 13.3

34.1 116.8 97.4 0.83 10.82 153.7 124.0 14.4

37.2 117.0 97.6 0.83 10.77 153.8 123.3 16.8

120

20.2 110.6 94.3 0.85 12.04 151.7 135.1 5.6

24.8 111.6 95.2 0.85 11.79 151.8 132.2 8.1

27.9 112.0 95.5 0.85 11.67 151.8 130.9 10.0

31.0 112.3 95.8 0.85 11.57 151.8 129.8 12.0

32.6 112.5 96.0 0.85 11.53 151.9 129.3 13.1

34.1 112.7 96.1 0.85 11.49 151.9 128.9 14.2

37.2 112.9 96.3 0.85 11.43 151.9 128.2 16.6

Note: Cooling performance data is tabulated at 80.6°F DB / 66.2°F WB at the rated CFM. For conditions other than what is

tabulated, multipliers must be used to correct performance. See Table 34, p. 41 for Fan Correction Factors for CFM other

than rated and the Cooling Correction Factors for variations in entering air temperatures. Rated GPM 31.0; Minimum

CFM 3200; Rated CFM 3800; Maximum CFM 4800.

Table 33. GER120 heating performance

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

25

20.2 69.0 47.6 6.28 20.3 13.9

24.8 69.2 47.6 6.32 21.2 19.0

27.9 69.5 47.8 6.34 21.6 23.0

31.0 69.8 48.1 6.36 21.9 26.6

32.6 70.0 48.2 6.36 22.0 28.4

34.1 70.1 48.4 6.37 22.2 30.1

37.2 70.4 48.6 6.39 22.4 33.3

32

20.1 81.8 59.5 6.56 26.1 10.3

24.8 82.9 60.5 6.57 27.1 14.8

27.9 83.6 61.2 6.58 27.6 18.2

31.0 84.1 61.6 6.59 28.0 21.9

32.5 84.5 61.9 6.60 28.2 23.8

34.1 84.5 62.0 6.59 28.4 25.8

37.2 85.1 62.6 6.61 28.6 28.4

Table 32. GER120 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

40 WSHP-PRC021-EN

Performance Data

45

20.1 104.3 80.6 6.95 37.0 7.4

24.8 106.3 82.5 6.98 38.3 10.7

27.9 107.5 83.6 7.00 39.0 13.1

31.0 108.4 84.5 7.01 39.6 15.8

32.5 108.8 84.8 7.02 39.8 17.2

34.1 109.1 85.1 7.02 40.0 18.6

37.2 109.7 85.7 7.03 40.4 21.7

55

20.1 118.4 93.8 7.18 45.7 7.1

24.8 120.6 96.0 7.22 47.3 10.3

27.9 121.9 97.2 7.25 48.0 12.6

31.0 123.4 98.5 7.28 48.6 15.2

32.5 123.5 98.6 7.28 48.9 16.5

34.1 124.1 99.2 7.29 49.2 17.9

37.2 124.6 99.7 7.30 49.6 20.9

68

20.1 136.7 111.0 7.53 57.0 6.8

24.8 140.4 114.4 7.60 58.8 9.8

27.9 141.6 115.6 7.62 59.7 12.0

31.0 142.9 116.7 7.65 60.5 14.5

32.5 143.3 117.2 7.66 60.8 15.8

34.1 143.8 117.7 7.67 61.1 17.1

37.2 144.7 118.4 7.69 61.6 19.9

75

20.1 147.4 121.0 7.75 63.0 6.6

24.8 150.7 124.0 7.82 65.0 9.6

27.9 152.9 126.0 7.88 66.0 11.8

31.0 153.5 126.5 7.89 66.8 14.1

32.5 153.9 126.9 7.91 67.2 15.4

34.1 154.4 127.4 7.92 67.5 16.7

37.2 155.3 128.2 7.94 68.1 19.5

86

20.1 163.4 135.6 8.14 72.5 6.4

24.8 166.8 138.8 8.20 74.8 9.2

27.9 168.0 139.9 8.23 76.0 11.3

31.0 169.1 140.9 8.25 76.9 13.6

32.5 169.6 141.3 8.27 77.3 14.9

34.1 170.0 141.7 8.28 77.7 16.1

37.2 170.8 142.5 8.30 78.3 18.8

Note: Heating performance data is tabulated at 68.0°F DB at the rated CFM. For conditions other than what is tabulated,

multipliers must be used to correct performance. See Table 34, p. 41 for Fan Correction Factors for CFM other than rated

and the Heating Correction Factors for variations in entering air temperatures. Rated GPM 31.0; Minimum CFM 3200;

Rated CFM 3800; Maximum CFM 4800.

Table 33. GER120 heating performance (continued)

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

WSHP-PRC021-EN 41

Performance Data

GER150 Cooling Performance

Table 34. GER120 fan correction factors

Entering

CFM

Cooling

Capacity

Sensible

Capacity

Cooling

Input

Watts

Heating

Capacity

Heating

Input

Watts

3200 0.967 0.906 1.000 0.983 1.076

3310 0.973 0.924 1.000 0.986 1.060

3420 0.980 0.940 1.000 0.989 1.043

3600 0.990 0.968 1.000 0.992 1.020

3800 1.000 1.000 1.000 1.000 1.000

4000 1.009 1.029 1.001 1.002 0.980

4400 1.024 1.088 0.999 1.015 0.950

4800 1.039 1.152 0.999 1.019 0.922

Table 35. GER150 cooling performance

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

45 25.2 189.0 132.9 0.70 6.46 211.1 61.8 7.1

45 31.0 190.1 133.7 0.70 6.26 211.5 58.6 10.2

45 35.0 190.7 134.1 0.70 6.17 211.7 57.1 12.7

45 38.8 191.1 134.4 0.70 6.09 211.9 55.9 15.2

45 40.8 191.3 134.6 0.70 6.06 212.0 55.4 16.7

45 42.6 191.5 134.7 0.70 6.04 212.1 55.0 18.0

45 46.6 191.8 134.9 0.70 5.98 212.2 54.1 21.1

55 25.2 183.2 130.8 0.71 7.23 207.9 71.5 6.8

55 31.0 184.2 131.4 0.71 7.02 208.2 68.4 9.9

55 35.0 184.6 131.8 0.71 6.92 208.3 66.9 12.2

55 38.8 185.0 132.0 0.71 6.85 208.4 65.7 14.7

55 40.8 185.2 132.2 0.71 6.81 208.5 65.2 16.0

55 42.6 185.3 132.3 0.71 6.78 208.5 64.8 17.3

55 46.6 185.6 132.5 0.71 6.73 208.6 64.0 20.3

68 25.2 175.1 127.9 0.73 8.35 203.6 84.2 6.5

68 31.0 176.0 128.5 0.73 8.12 203.7 81.1 9.4

68 35.0 176.5 128.8 0.73 8.01 203.8 79.6 11.7

68 38.8 176.8 129.1 0.73 7.93 203.8 78.5 14.0

68 40.8 176.9 129.2 0.73 7.89 203.8 78.0 15.3

68 42.6 177.0 129.2 0.73 7.86 203.8 77.6 16.5

68 46.6 177.3 129.4 0.73 7.80 203.9 76.8 19.4

75 25.2 170.5 126.2 0.74 9.01 201.2 91.0 6.4

75 31.0 171.4 126.9 0.74 8.77 201.3 88.0 9.2

75 35.0 171.8 127.2 0.74 8.65 201.3 86.5 11.4

75 38.8 172.1 127.4 0.74 8.56 201.4 85.4 13.7

75 40.8 172.2 127.5 0.74 8.52 201.3 84.9 15.0

75 42.6 172.4 127.6 0.74 8.49 201.4 84.5 16.1

75 46.6 172.6 127.8 0.74 8.43 201.4 83.6 18.9

86 25.2 162.8 123.5 0.76 10.16 197.5 101.7 6.2

42 WSHP-PRC021-EN

Performance Data

86 31.0 163.6 124.2 0.76 9.89 197.4 98.7 8.9

86 35.0 164.1 124.5 0.76 9.77 197.4 97.3 11.0

86 38.8 164.4 124.7 0.76 9.67 197.4 96.2 13.2

86 40.8 164.5 124.8 0.76 9.63 197.3 95.7 14.4

86 42.6 164.6 124.9 0.76 9.60 197.3 95.3 15.6

86 46.6 164.8 125.0 0.76 9.53 197.3 94.5 18.3

95 25.2 156.1 121.3 0.78 11.20 194.3 110.4 6.0

95 31.0 156.9 121.9 0.78 10.93 194.2 107.5 8.7

95 35.0 157.3 122.2 0.78 10.80 194.1 106.1 10.7

95 38.8 157.5 122.4 0.78 10.70 194.1 105.0 12.9

95 40.8 157.7 122.5 0.78 10.66 194.1 104.5 14.1

95 42.6 157.8 122.6 0.78 10.63 194.0 104.1 15.2

95 46.6 158.0 122.8 0.78 10.56 194.0 103.3 17.8

105 25.2 147.9 118.6 0.80 12.44 190.4 120.1 5.8

105 31.0 148.7 119.2 0.80 12.16 190.2 117.3 8.4

105 35.0 149.1 119.5 0.80 12.03 190.2 115.9 10.4

105 38.8 149.4 119.8 0.80 11.93 190.1 114.8 12.5

105 40.8 149.5 119.8 0.80 11.88 190.0 114.3 13.7

105 42.6 149.6 120.0 0.80 11.84 190.1 113.9 14.8

105 46.6 149.8 120.1 0.80 11.77 190.0 113.2 17.3

115 25.2 138.9 115.6 0.83 13.80 186.0 129.8 5.7

115 31.0 139.7 116.3 0.83 13.52 185.9 127.0 8.2

115 35.0 140.1 116.7 0.83 13.39 185.8 125.6 10.2

115 38.8 140.4 116.9 0.83 13.28 185.8 124.6 12.2

115 40.8 140.6 117.0 0.83 13.23 185.7 124.1 13.3

115 42.6 140.7 117.1 0.83 13.20 185.7 123.7 14.4

115 46.6 140.9 117.3 0.83 13.12 185.7 123.0 16.8

120 25.2 133.6 113.7 0.85 14.52 183.2 134.5 5.6

120 31.0 134.5 114.4 0.85 14.24 183.1 131.8 8.1

120 35.0 135.0 114.9 0.85 14.10 183.1 130.5 10.0

120 38.8 135.2 115.1 0.85 14.00 183.0 129.4 12.0

120 40.8 135.5 115.3 0.85 13.95 183.2 129.0 13.2

120 42.6 135.4 115.2 0.85 13.91 182.9 128.6 14.2

120 46.6 135.8 115.5 0.85 13.83 183.0 127.9 16.6

Note: Cooling performance data is tabulated at 80.6°F DB / 66.2°F WB at the rated CFM. For conditions other than what is

tabulated, multipliers must be used to correct performance. See Table 37, p. 44 for Fan Correction Factors for CFM other

than rated and the Cooling Correction Factors for variations in entering air temperatures. Rated GPM 38.8; Minimum CFM

4000; Rated CFM 4750; Maximum CFM 6000.

Table 35. GER150 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

WSHP-PRC021-EN 43

Performance Data

GER150 Heating Performance

Table 36. GER150 heating performance

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

25

25.2 99.2 70.2 8.51 19.4 12.8

31.0 101.2 72.2 8.52 20.3 17.2

35.0 102.3 73.2 8.53 20.8 20.8

38.8 103.0 73.9 8.53 21.2 24.4

40.8 103.4 74.3 8.53 21.4 26.4

42.6 103.7 74.6 8.54 21.5 28.2

46.6 104.2 75.1 8.54 21.8 32.3

32

25.2 114.9 85.2 8.68 25.2 9.5

31.0 116.8 87.1 8.69 26.4 13.6

35.0 117.8 88.1 8.70 27.0 16.8

38.8 118.6 88.9 8.71 27.4 20.1

40.8 118.9 89.2 8.71 27.6 22.0

42.6 119.3 89.5 8.72 27.8 23.7

46.6 119.5 89.8 8.70 28.1 27.7

45

25.2 137.6 107.1 8.92 36.5 7.7

31.0 139.8 109.3 8.93 37.9 11.0

35.0 141.2 110.6 8.96 38.7 13.5

38.8 141.8 111.2 8.96 39.3 16.2

40.8 142.4 111.8 8.97 39.5 17.7

42.6 142.8 112.1 8.97 39.7 19.1

46.6 143.4 112.7 8.98 40.2 22.3

55

25.2 155.2 124.0 9.14 45.2 7.4

31.0 158.1 126.7 9.18 46.8 10.5

35.0 159.4 128.0 9.20 47.7 13.0

38.8 160.5 129.0 9.21 48.3 15.6

40.8 160.7 129.3 9.21 48.7 17.0

42.6 161.3 129.9 9.22 48.9 18.3

46.6 162.0 130.5 9.23 49.4 21.4

68

25.2 179.1 146.7 9.50 56.4 7.0

31.0 183.1 150.5 9.55 58.3 10.1

35.0 184.0 151.4 9.55 59.3 12.4

38.8 185.8 153.1 9.58 60.1 14.9

40.8 186.6 153.8 9.59 60.5 16.2

42.6 186.5 153.8 9.58 60.8 17.5

46.6 187.8 155.0 9.61 61.3 20.4

75

25.2 193.3 160.1 9.72 62.3 6.9

31.0 197.6 164.1 9.79 64.4 9.8

35.0 200.2 166.6 9.84 65.5 12.1

38.8 200.8 167.3 9.82 66.4 14.5

40.8 201.9 168.3 9.84 66.8 15.8

42.6 202.3 168.7 9.85 67.1 17.1

46.6 203.4 169.7 9.86 67.7 19.9

44 WSHP-PRC021-EN

Performance Data

GER180 Cooling Performance

86

25.2 216.4 181.9 10.11 71.6 6.6

31.0 220.5 185.8 10.16 74.0 9.5

35.0 223.3 188.4 10.21 75.2 11.7

38.8 224.7 189.7 10.23 76.2 14.0

40.8 225.7 190.7 10.24 76.7 15.3

42.6 226.3 191.3 10.26 77.0 16.5

46.6 227.3 192.2 10.27 77.7 19.2

Note: Heating performance data is tabulated at 68.0°F DB at the rated CFM. For conditions other than what is tabulated,

multipliers must be used to correct performance. See Table 37, p. 44 for Fan Correction Factors for CFM other than rated

and the Heating Correction Factors for variations in entering air temperatures. Rated GPM 38.8; Minimum CFM 4000;

Rated CFM 4750; Maximum CFM 6000.

Table 37. GER150 fan correction factors

Entering

CFM

Cooling

Capacity

Sensible

Capacity

Cooling

Input

Watts

Heating

Capacity

Heating

Input

Watts

4000 0.971 0.914 0.980 0.983 1.043

4138 0.977 0.929 0.983 0.984 1.031

4275 0.983 0.945 0.987 0.987 1.022

4500 0.991 0.971 0.993 0.995 1.010

4750 1.000 1.000 1.000 1.000 1.000

5000 1.008 1.029 1.008 1.007 0.993

5500 1.021 1.087 1.026 1.022 0.986

6000 1.029 1.145 1.045 1.028 0.984

Table 38. GER180 cooling performance

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

45

30.2 210.0 150.6 0.72 8.03 237.4 60.7 9.4

37.2 210.9 151.2 0.72 7.81 237.5 57.8 13.6

41.8 211.3 151.5 0.72 7.70 237.6 56.4 16.7

46.5 211.7 151.8 0.72 7.62 237.7 55.2 20.2

48.8 211.8 151.9 0.72 7.58 237.7 54.7 22.0

51.2 211.9 152.0 0.72 7.55 237.6 54.3 23.9

55.8 212.2 152.2 0.72 7.49 237.7 53.5 27.9

55

30.2 205.3 148.9 0.73 8.97 235.9 70.6 9.0

37.2 206.3 149.6 0.73 8.74 236.2 67.7 13.1

41.8 206.8 149.9 0.73 8.64 236.2 66.3 16.1

46.5 207.2 150.2 0.73 8.53 236.3 65.2 19.4

48.8 207.3 150.3 0.73 8.50 236.3 64.7 21.1

51.2 207.5 150.4 0.73 8.46 236.3 64.2 23.0

55.8 207.7 150.6 0.73 8.41 236.4 63.5 26.8

Table 36. GER150 heating performance (continued)

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

WSHP-PRC021-EN 45

Performance Data

68

30.2 197.8 146.0 0.74 10.24 232.7 83.4 8.6

37.2 198.8 146.8 0.74 10.00 232.9 80.5 12.5

41.8 199.3 147.1 0.74 9.89 233.0 79.1 15.3

46.5 199.7 147.4 0.74 9.80 233.1 78.0 18.5

48.8 199.9 147.5 0.74 9.76 233.2 77.6 20.2

51.2 200.0 147.7 0.74 9.72 233.2 77.1 22.0

55.8 200.3 147.8 0.74 9.66 233.2 76.4 25.6

75

30.2 191.7 143.8 0.75 11.24 230.1 90.2 8.4

37.2 192.7 144.6 0.75 10.98 230.2 87.4 12.1

41.8 193.2 145.0 0.75 10.86 230.3 86.0 14.9

46.5 193.7 145.3 0.75 10.76 230.4 84.9 18.0

48.8 193.8 145.4 0.75 10.72 230.4 84.4 19.6

51.2 194.0 145.6 0.75 10.68 230.4 84.0 21.3

55.8 194.2 145.8 0.75 10.62 230.5 83.3 24.8

86

30.2 185.0 141.5 0.76 12.37 227.2 101.0 8.1

37.2 186.1 142.3 0.76 12.08 227.3 98.2 11.8

41.8 186.6 142.7 0.76 11.95 227.4 96.9 14.5

46.5 187.0 143.0 0.76 11.85 227.4 95.8 17.5

48.8 187.2 143.2 0.76 11.81 227.5 95.3 19.0

51.2 187.3 143.3 0.76 11.75 227.4 94.9 20.7

55.8 187.6 143.5 0.76 11.68 227.4 94.2 24.1

95

30.2 177.6 138.6 0.78 13.60 224.0 109.8 7.9

37.2 178.7 139.4 0.78 13.30 224.1 107.0 11.5

41.8 179.3 139.9 0.78 13.17 224.3 105.7 14.1

46.5 179.7 140.2 0.78 13.05 224.2 104.6 17.0

48.8 179.9 140.3 0.78 13.01 224.3 104.2 18.5

51.2 180.0 140.4 0.78 12.96 224.2 103.8 20.2

55.8 180.3 140.6 0.78 12.89 224.3 103.0 23.5

105

30.2 168.5 135.2 0.80 15.14 220.2 119.6 7.7

37.2 169.6 136.1 0.80 14.83 220.2 116.8 11.2

41.8 170.1 136.5 0.80 14.67 220.2 115.5 13.7

46.5 170.5 136.8 0.80 14.55 220.2 114.5 16.5

48.8 170.7 137.0 0.80 14.50 220.2 114.0 18.0

51.2 170.8 137.1 0.80 14.45 220.2 113.6 19.6

55.8 171.1 137.3 0.80 14.37 220.2 112.9 22.8

115

30.2 158.5 131.3 0.83 16.86 216.0 129.3 7.5

37.2 159.6 132.2 0.83 16.53 216.0 126.6 10.9

41.8 160.1 132.6 0.83 16.37 216.0 125.3 13.4

46.5 160.6 133.1 0.83 16.26 216.1 124.3 16.1

48.8 160.7 133.1 0.83 16.19 215.9 123.8 17.5

51.2 160.8 133.2 0.83 16.14 215.9 123.4 19.1

55.8 161.1 133.5 0.83 16.06 215.9 122.7 22.2

Table 38. GER180 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

46 WSHP-PRC021-EN

Performance Data

GER180 Heating Performance

120

30.2 153.0 129.3 0.85 17.76 213.6 134.1 7.4

37.2 154.1 130.3 0.85 17.44 213.7 131.5 10.7

41.8 154.7 130.8 0.85 17.28 213.6 130.2 13.2

46.5 155.1 131.1 0.85 17.15 213.6 129.2 15.9

48.8 155.3 131.3 0.85 17.10 213.6 128.8 17.3

51.2 155.4 131.4 0.85 17.05 213.6 128.3 18.9

55.8 155.7 131.6 0.85 16.98 213.6 127.7 21.9

Note: Cooling performance data is tabulated at 80.6°F DB / 66.2°F WB at the rated CFM. For conditions other than what is

tabulated, multipliers must be used to correct performance. See Table 40, p. 47 for Fan Correction Factors for CFM other

than rated and the Cooling Correction Factors for variations in entering air temperatures. Rated GPM 46.5; Minimum CFM

4800; Rated CFM 5700; Maximum CFM 7200.

Table 39. GER180 heating performance

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

25

30.2 114.9 82.9 9.38 19.5 15.8

37.2 115.5 83.5 9.38 20.5 21.7

41.8 116.1 84.0 9.40 21.0 25.9

46.5 116.7 84.6 9.41 21.4 30.6

48.8 117.0 84.8 9.42 21.5 32.9

51.2 117.3 85.1 9.42 21.7 35.5

55.8 117.7 85.5 9.43 21.9 40.8

32

30.2 125.6 92.9 9.57 25.8 12.6

37.2 126.7 93.9 9.59 27.0 18.1

41.8 127.3 94.5 9.60 27.5 22.2

46.5 128.0 95.2 9.62 27.9 26.7

48.8 128.1 95.3 9.62 28.1 29.1

51.2 128.1 95.3 9.62 28.3 31.6

55.8 129.0 96.2 9.64 28.6 36.7

45

30.2 146.9 112.8 9.99 37.5 10.1

37.2 147.4 113.3 10.00 38.9 14.6

41.8 147.9 113.7 10.01 39.6 17.8

46.5 148.5 114.3 10.03 40.1 21.5

48.8 148.7 114.4 10.04 40.3 23.4

51.2 148.2 114.0 10.03 40.5 25.4

55.8 148.4 114.1 10.03 40.9 29.5

55

30.2 162.2 126.9 10.34 46.6 9.8

37.2 162.3 127.0 10.35 48.2 14.0

41.8 163.6 128.2 10.38 48.9 17.1

46.5 164.0 128.5 10.41 49.5 20.6

48.8 164.5 128.9 10.42 49.7 22.4

51.2 163.0 127.6 10.38 50.0 24.4

55.8 163.0 127.6 10.38 50.4 28.3

Table 38. GER180 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

WSHP-PRC021-EN 47

Performance Data

68

30.2 181.7 144.7 10.83 58.4 9.3

37.2 183.7 146.5 10.89 60.1 13.4

41.8 182.3 145.2 10.88 61.1 16.3

46.5 182.3 145.1 10.89 61.8 19.7

48.8 182.2 145.1 10.89 62.1 21.4

51.2 182.1 144.9 10.89 62.3 23.3

55.8 182.0 144.8 10.89 62.8 27.0

75

30.2 192.5 154.5 11.13 64.8 9.1

37.2 192.8 154.7 11.17 66.7 13.0

41.8 192.7 154.5 11.18 67.6 16.0

46.5 192.2 154.0 11.18 68.4 19.2

48.8 192.1 153.9 11.18 68.7 20.9

51.2 192.2 154.0 11.19 69.0 22.7

55.8 191.5 153.3 11.19 69.5 26.4

86

30.2 208.5 168.8 11.63 74.8 8.8

37.2 208.3 168.4 11.67 76.9 12.6

41.8 208.6 168.6 11.70 77.9 15.4

46.5 206.2 166.4 11.67 78.8 18.5

48.8 205.5 165.6 11.67 79.2 20.1

51.2 205.6 165.8 11.67 79.5 22.0

55.8 204.6 164.8 11.66 80.1 25.6

Note: Heating performance data is tabulated at 68.0°F DB at the rated CFM. For conditions other than what is tabulated,

multipliers must be used to correct performance. See Table 40, p. 47 for Fan Correction Factors for CFM other than rated

and the Heating Correction Factors for variations in entering air temperatures. Rated GPM 46.5; Minimum CFM 4800;

Rated CFM 5700; Maximum CFM 7200.

Table 40. GER180 fan correction factors

Entering

CFM

Cooling

Capacity

Sensible

Capacity

Cooling

Input

Watts

Heating

Capacity

Heating

Input

Watts

4800 0.979 0.922 0.970 0.974 1.001

4965 0.984 0.937 0.974 0.979 1.000

5130 0.988 0.952 0.979 0.984 0.999

5400 0.994 0.976 0.989 0.994 0.999

5700 1.000 1.000 1.000 1.000 1.000

6000 1.005 1.025 1.011 1.008 1.004

6600 1.013 1.073 1.038 1.022 1.017

7200 1.018 1.118 1.070 1.035 1.037

Table 39. GER180 heating performance (continued)

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

48 WSHP-PRC021-EN

Performance Data

GER240 Cooling Performance

Table 41. GER240 cooling performance

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

45

40.3 300.4 208.3 0.69 13.32 345.8 62.2 7.3

49.6 300.7 208.6 0.69 13.11 345.5 58.9 10.5

55.8 300.8 208.6 0.69 13.02 345.3 57.4 12.9

62.0 300.9 208.7 0.69 12.95 345.0 56.1 15.5

65.1 300.9 208.7 0.69 12.85 344.8 55.6 16.9

68.2 300.9 208.7 0.69 12.82 344.6 55.1 18.3

74.4 301.0 208.7 0.69 12.78 344.6 54.3 21.3

55

40.3 295.1 206.0 0.70 14.26 343.8 72.1 7.0

49.6 295.9 206.6 0.70 13.98 343.6 68.9 10.1

55.8 296.2 206.8 0.70 13.86 343.5 67.3 12.4

62.0 296.5 207.0 0.70 13.76 343.5 66.1 14.9

65.1 296.6 207.1 0.70 13.72 343.5 65.6 16.2

68.2 296.7 207.1 0.70 13.68 343.4 65.1 17.6

74.4 296.8 207.2 0.70 13.62 343.3 64.2 20.5

68

40.3 284.7 202.0 0.71 15.89 338.9 84.8 6.7

49.6 285.9 202.8 0.71 15.53 338.9 81.7 9.6

55.8 286.5 203.2 0.71 15.37 338.9 80.1 11.8

62.0 286.9 203.5 0.71 15.24 338.9 78.9 14.2

65.1 287.1 203.7 0.71 15.19 338.9 78.4 15.5

68.2 287.3 203.8 0.71 15.14 338.9 77.9 16.8

74.4 287.5 204.0 0.71 15.05 338.9 77.1 19.6

75

40.3 277.8 199.5 0.72 16.94 335.6 91.7 6.5

49.6 279.1 200.4 0.72 16.55 335.6 88.5 9.4

55.8 279.7 200.9 0.72 16.37 335.6 87.0 11.6

62.0 280.2 201.2 0.72 16.23 335.6 85.8 13.9

65.1 280.4 201.4 0.72 16.17 335.6 85.3 15.1

68.2 280.6 201.5 0.72 16.12 335.6 84.8 16.4

74.4 281.0 201.8 0.72 16.02 335.7 84.0 19.1

86

40.3 265.3 194.9 0.73 18.85 329.6 102.4 6.3

49.6 266.7 196.0 0.73 18.43 329.6 99.3 9.1

55.8 267.5 196.6 0.73 18.23 329.7 97.8 11.2

62.0 268.0 196.9 0.73 18.07 329.7 96.6 13.4

65.1 268.3 197.2 0.73 18.01 329.8 96.1 14.6

68.2 268.4 197.3 0.73 17.95 329.7 95.7 15.8

74.4 268.8 197.6 0.73 17.85 329.7 94.9 18.5

95

40.3 254.0 191.1 0.75 20.58 324.2 111.1 5.8

49.6 255.5 192.2 0.75 20.13 324.2 108.1 8.4

55.8 256.2 192.7 0.75 19.92 324.2 106.6 10.3

62.0 256.7 193.1 0.75 19.75 324.1 105.5 12.4

65.1 257.0 193.3 0.75 19.68 324.2 105.0 13.6

68.2 257.2 193.5 0.75 19.61 324.2 104.5 14.7

74.4 257.6 193.8 0.75 19.50 324.2 103.7 17.2

WSHP-PRC021-EN 49

Performance Data

GER240 Heating Performance

105

40.3 240.5 186.5 0.78 22.71 318.0 120.8 5.6

49.6 242.0 187.7 0.78 22.25 317.9 117.8 8.2

55.8 242.7 188.2 0.78 22.03 317.9 116.4 10.0

62.0 243.3 188.7 0.78 21.85 317.8 115.3 12.1

65.1 243.5 188.9 0.78 21.77 317.8 114.8 13.2

68.2 243.7 189.0 0.78 21.71 317.8 114.3 14.3

74.4 244.1 189.3 0.78 21.59 317.8 113.5 16.7

115

40.3 226.0 181.9 0.80 25.01 311.4 130.5 5.5

49.6 227.5 183.1 0.80 24.53 311.2 127.5 7.9

55.8 228.2 183.7 0.80 24.30 311.1 126.2 9.8

62.0 228.7 184.1 0.80 24.11 311.0 125.0 11.8

65.1 228.9 184.3 0.80 24.04 311.0 124.6 12.8

68.2 229.1 184.4 0.80 23.97 310.9 124.1 13.9

74.4 229.5 184.7 0.80 23.85 310.9 123.4 16.2

120

40.3 218.2 179.4 0.82 26.19 307.6 135.3 5.4

49.6 219.7 180.7 0.82 25.77 307.6 132.4 7.9

55.8 220.4 181.3 0.82 25.54 307.6 131.0 9.7

62.0 220.9 181.7 0.82 25.36 307.5 129.9 11.6

65.1 221.2 181.9 0.82 25.28 307.5 129.4 12.7

68.2 221.4 182.1 0.82 25.21 307.4 129.0 13.8

74.4 221.7 182.4 0.82 25.09 307.4 128.3 16.0

Note: Cooling performance data is tabulated at 80.6°F DB / 66.2°F WB at the rated CFM. For conditions other than what is

tabulated, multipliers must be used to correct performance. See Table 43, p. 51 for Fan Correction Factors for CFM other

than rated and the Cooling Correction Factors for variations in entering air temperatures. Rated GPM 62.0; Minimum

CFM 6400; Rated CFM 7600; Maximum CFM 9600.

Table 42. GER240 heating performance

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

25

40.3 179.2 129.4 14.57 18.6 9.8

49.6 182.3 132.3 14.64 19.7 14.1

55.8 184.6 134.4 14.69 20.2 17.3

62.0 186.0 135.7 14.73 20.6 20.8

65.1 186.7 136.4 14.75 20.8 22.7

68.2 187.2 136.8 14.75 21.0 24.6

74.4 188.3 137.9 14.78 21.3 28.6

32

40.3 198.8 147.4 15.06 24.7 9.6

49.6 202.7 151.0 15.14 25.9 13.7

55.8 204.8 153.0 15.18 26.5 16.8

62.0 206.3 154.3 15.22 27.0 20.2

65.1 207.4 155.3 15.25 27.2 22.0

68.2 207.8 155.7 15.26 27.4 23.9

74.4 209.4 157.1 15.32 27.8 27.8

Table 41. GER240 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

50 WSHP-PRC021-EN

Performance Data

45

40.3 241.0 185.8 16.15 35.8 7.3

49.6 246.1 190.5 16.30 37.3 10.5

55.8 247.9 192.1 16.33 38.1 12.9

62.0 249.9 194.0 16.39 38.7 15.5

65.1 250.6 194.6 16.41 39.0 16.9

68.2 251.3 195.3 16.42 39.3 18.3

74.4 252.4 196.3 16.45 39.7 21.3

55

40.3 272.4 214.2 17.05 44.4 7.0

49.6 277.5 218.7 17.20 46.2 10.1

55.8 280.1 221.1 17.28 47.1 12.4

62.0 282.5 223.3 17.36 47.8 14.9

65.1 283.1 223.8 17.38 48.1 16.2

68.2 283.9 224.5 17.40 48.4 17.6

74.4 285.8 226.2 17.46 48.9 20.5

68

40.3 314.7 251.9 18.39 55.5 6.7

49.6 319.6 256.3 18.55 57.7 9.6

55.8 323.2 259.5 18.67 58.7 11.8

62.0 324.9 261.0 18.75 59.6 14.2

65.1 325.9 261.8 18.78 60.0 15.5

68.2 326.6 262.4 18.81 60.3 16.8

74.4 327.3 262.9 18.85 60.9 19.6

75

40.3 336.4 271.1 19.12 61.5 6.5

49.6 342.2 276.3 19.29 63.9 9.4

55.8 344.9 278.7 19.40 65.0 11.6

62.0 347.2 280.7 19.49 65.9 13.9

65.1 347.7 281.1 19.52 66.4 15.1

68.2 349.5 282.7 19.57 66.7 16.4

74.4 350.7 283.7 19.63 67.4 19.1

86

40.3 369.8 300.6 20.27 71.1 6.3

49.6 376.8 306.7 20.54 73.6 9.1

55.8 379.5 309.0 20.66 74.9 11.2

62.0 380.9 310.4 20.66 76.0 13.4

65.1 382.4 311.7 20.72 76.4 14.6

68.2 383.3 312.4 20.76 76.8 15.8

74.4 383.7 312.7 20.80 77.6 18.5

Note: Heating performance data is tabulated at 68.0°F DB at the rated CFM. For conditions other than what is tabulated,

multipliers must be used to correct performance. See Table 43, p. 51 for Fan Correction Factors for CFM other than rated

and the Heating Correction Factors for variations in entering air temperatures. Rated GPM 62.0; Minimum CFM 6400;

Rated CFM 7600; Maximum CFM 9600.

Table 42. GER240 heating performance (continued)

EWT GPM

Gross

Mbtuh

Absorb

Mbtuh

Comp Pwr

kW LWT

Feet

Head

WSHP-PRC021-EN 51

Performance Data

GER300 Cooling Performance

Table 43. GER240 fan correction factors

Entering

CFM

Cooling

Capacity

Sensible

Capacity

Cooling

Input

Watts

Heating

Capacity

Heating

Input

Watts

6400 0.969 0.915 0.996 0.978 1.061

6620 0.976 0.932 0.997 0.983 1.048

6840 0.982 0.947 0.998 0.991 1.038

7200 0.991 0.973 0.999 0.993 1.017

7600 1.000 1.000 1.000 1.000 1.000

8000 1.008 1.028 1.001 1.005 0.984

8800 1.024 1.085 1.004 1.016 0.956

9600 1.039 1.142 1.006 1.023 0.933

Table 44. GER300 cooling performance

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

46

50.4 329.7 235.1 0.71 13.55 375.9 60.9 7.2

62.0 324.9 227.4 0.70 13.34 370.5 58.0 10.5

69.8 322.6 225.8 0.70 13.27 367.8 56.5 12.9

77.5 319.5 220.5 0.69 13.19 364.5 55.4 15.6

81.4 319.9 223.9 0.70 13.16 364.8 55.0 17.0

85.3 320.1 223.7 0.70 13.20 365.1 54.6 18.4

93.0 318.1 221.4 0.70 13.16 363.0 53.8 21.5

55

50.4 329.2 238.3 0.72 14.38 378.3 70.0 7.0

62.0 326.5 235.1 0.72 14.16 374.8 67.1 10.1

69.8 323.0 232.2 0.72 14.13 371.2 65.6 12.5

77.5 322.2 231.4 0.72 14.08 370.3 64.6 15.0

81.4 321.3 228.4 0.71 14.00 369.1 64.1 16.4

85.3 320.3 226.8 0.71 13.96 367.9 63.6 17.8

93.0 318.2 222.7 0.70 13.88 365.5 62.9 20.7

68

50.4 320.5 239.1 0.75 15.81 374.5 82.9 6.7

62.0 319.9 237.1 0.74 15.60 373.2 80.0 9.6

69.8 319.7 235.9 0.74 15.55 372.7 78.7 11.9

77.5 318.9 234.7 0.74 15.51 371.9 77.6 14.3

81.4 318.3 233.6 0.73 15.48 371.1 77.1 15.6

85.3 318.2 233.6 0.73 15.45 370.9 76.7 16.9

93.0 317.2 232.5 0.73 15.39 369.7 76.0 19.8

75

50.4 314.5 238.1 0.76 16.63 371.2 89.7 6.5

62.0 313.9 237.0 0.75 16.49 370.2 86.9 9.4

69.8 313.6 235.2 0.75 16.39 369.6 85.6 11.6

77.5 313.6 235.8 0.75 16.31 369.3 84.5 14.0

81.4 313.6 233.7 0.75 16.25 369.1 84.1 15.2

85.3 313.4 234.1 0.75 16.28 368.9 83.7 16.5

93.0 313.7 233.4 0.74 16.23 369.1 82.9 19.3

52 WSHP-PRC021-EN

Performance Data

Note: GER300 is cooling only.

86

50.4 299.5 236.0 0.79 18.14 361.4 100.3 6.3

62.0 300.5 235.6 0.78 17.98 361.8 97.7 9.1

69.8 301.9 234.6 0.78 17.87 362.9 96.4 11.2

77.5 302.9 234.2 0.77 17.77 363.6 95.4 13.5

81.4 302.3 234.3 0.77 17.79 363.0 94.9 14.7

85.3 302.6 232.7 0.77 17.72 363.1 94.5 16.0

93.0 302.5 232.3 0.77 17.68 362.8 93.8 18.6

95

50.4 282.5 231.9 0.82 19.45 348.8 108.8 6.1

62.0 287.9 232.6 0.81 19.32 353.8 106.4 8.9

69.8 288.9 232.5 0.81 19.25 354.6 105.2 10.9

77.5 289.6 232.2 0.80 19.15 354.9 104.2 13.1

81.4 289.6 232.3 0.80 19.15 355.0 103.7 14.3

85.3 289.0 232.3 0.80 19.15 354.3 103.3 15.6

93.0 290.0 231.7 0.80 19.13 355.3 102.6 18.1

105

50.4 249.9 222.7 0.89 21.39 322.9 117.8 6.0

62.0 259.8 225.5 0.87 21.07 331.7 115.7 8.6

69.8 269.2 228.1 0.85 20.86 340.5 114.8 10.6

77.5 270.9 228.4 0.84 20.77 341.8 113.8 12.8

81.4 271.5 228.3 0.84 20.73 342.2 113.4 13.9

85.3 272.9 228.5 0.84 20.67 343.5 113.1 15.1

93.0 274.0 228.8 0.83 20.61 344.4 112.4 17.6

115

50.4 215.5 212.5 0.99 23.48 295.6 126.7 5.8

62.0 237.2 219.1 0.92 22.97 315.6 125.2 8.4

69.8 240.4 220.0 0.92 22.86 318.4 124.1 10.3

77.5 242.7 220.6 0.91 22.75 320.3 123.3 12.5

81.4 243.9 221.0 0.91 22.70 321.4 122.9 13.6

85.3 244.9 221.2 0.90 22.68 322.3 122.6 14.7

93.0 245.3 221.3 0.90 22.62 322.5 121.9 17.2

120

50.4 206.1 206.1 1.00 24.51 289.8 131.5 5.8

62.0 214.2 211.8 0.99 24.18 296.7 129.6 8.3

69.8 224.1 215.4 0.96 23.95 305.8 128.8 10.2

77.5 228.0 216.4 0.95 23.81 309.2 128.0 12.3

81.4 229.0 216.7 0.95 23.79 310.2 127.6 13.4

85.3 230.7 217.3 0.94 23.79 311.9 127.3 14.5

93.0 234.4 218.5 0.93 23.68 315.2 126.8 17.0

Note: Cooling performance data is tabulated at 80.6°F DB / 66.2°F WB at the rated CFM. For conditions other than what is

tabulated, multipliers must be used to correct performance. See Table 45, p. 53 for Fan Correction Factors for CFM other

than rated and the Cooling Correction Factors for variations in entering air temperatures. Rated GPM 77.5; Minimum

CFM 7000; Rated CFM 9500; Maximum CFM 11000.

Table 44. GER300 cooling performance (continued)

EWT GPM

Gross

Mbtuh

Sen

Mbtuh SHR

Comp Pwr

kW

Reject

Mbtuh LWT

Feet

Head

WSHP-PRC021-EN 53

Performance Data

Table 45. GER300 fan correction factors

Entering

CFM

Cooling

Capacity

Sensible

Capacity

Cooling

Input

Watts

Heating

Capacity

Heating

Input

Watts

7000 0.939 0.853 0.971 — —

7750 0.961 0.897 0.983 — —

8500 0.976 0.941 0.994 — —

9000 0.991 0.973 0.997 — —

9500 1.000 1.000 1.000 — —

10000 1.007 1.034 1.008 — —

10500 1.013 1.061 1.011 — —

11000 1.020 1.094 1.017 — —

Table 46. GER036 correction factors for variation in entering air temperature

Cooling

Entering

Air WB °F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers Heating

Entering

Air DB °F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

49.4 0.935 1.009 1.039 1.107 1.176 * * 53.0 1.048 0.868

56.3 0.936 1.009 0.815 1.036 1.177 * * 58.0 1.034 0.911

60.3 0.936 1.009 0.633 0.846 1.064 * * 63.0 1.016 0.954

63.2 0.958 1.003 0.490 0.714 0.927 1.148 * 68.0 1.000 1.000

66.2 1.000 1.000 0.565 0.788 1.000 1.225 73.0 0.987 1.052

72.1 1.088 0.991 0.481 0.724 0.931 78.0 0.966 1.101

77.1 1.161 0.986 0.440 0.686 83.0 0.950 1.155

Table 47. GER048 correction factors for variation in entering air temperature

Cooling

Entering

Air WB F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers Heating

Entering

Air DB F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

49.4 0.920 1.010 1.001 1.068 1.139 * * 53.0 1.051 0.870

56.3 0.922 1.010 0.804 1.021 1.140 * * 58.0 1.033 0.911

60.3 0.924 1.009 0.614 0.838 1.059 1.211 * 63.0 1.015 0.953

63.2 0.956 1.001 0.459 0.699 0.922 1.142 * 68.0 1.000 1.000

66.2 1.000 1.000 0.549 0.778 1.000 1.219 73.0 0.983 1.048

72.1 1.096 1.000 0.472 0.699 0.925 78.0 0.966 1.101

77.1 1.181 0.997 0.439 0.662 83.0 0.949 1.155

Table 48. GER060 correction factors for variation in entering air temperature

Cooling

Entering

Air WB F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers Heating

Entering

Air DB F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

49.4 0.940 1.002 0.987 1.058 1.130 * * 53.0 1.051 0.871

56.3 0.941 1.002 0.796 1.036 1.131 * * 58.0 1.036 0.912

60.3 0.942 1.002 0.603 0.831 1.070 * * 63.0 1.016 0.953

63.2 0.959 0.999 0.460 0.689 0.919 1.162 * 68.0 1.000 1.000

66.2 1.000 1.000 0.543 0.767 1.000 1.247 73.0 0.984 1.049

54 WSHP-PRC021-EN

Performance Data

72.1 1.103 1.002 0.466 0.705 0.926 78.0 0.967 1.097

77.1 1.190 1.003 0.423 0.680 83.0 0.950 1.147

Table 49. GER072 correction factors for variation in entering air temperature

Cooling

Entering

Air WB F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers Heating

Entering

Air DB F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

49.4 0.940 1.007 1.032 1.098 1.165 * * 53.0 1.050 0.863

56.3 0.941 1.004 0.815 1.042 1.167 * * 58.0 1.036 0.908

60.3 0.941 1.007 0.621 0.844 1.071 * * 63.0 1.016 0.952

63.2 0.959 1.003 0.477 0.700 0.925 1.154 * 68.0 1.000 1.000

66.2 1.000 1.000 0.552 0.774 1.000 1.232 73.0 0.987 1.054

72.1 1.091 0.992 0.474 0.699 0.920 78.0 0.968 1.104

77.1 1.173 0.987 0.429 0.662 83.0 0.948 1.157

Table 48. GER060 correction factors for variation in entering air temperature

Cooling

Entering

Air WB F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers Heating

Entering

Air DB F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

Table 50. GER090 correction factors for variation in entering air temperature

Cooling

Entering

Air WB F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers Heating

Entering

Air DB F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

49.4 0.932 0.998 1.077 1.143 1.211 * * 53.0 1.038 0.868

56.3 0.933 0.998 0.824 1.056 1.212 * * 58.0 1.028 0.910

60.3 0.938 0.998 0.605 0.846 1.085 1.285 * 63.0 1.012 0.952

63.2 0.962 0.998 0.436 0.681 0.926 1.164 * 68.0 1.000 1.000

66.2 1.000 1.000 0.508 0.757 1.000 1.238 73.0 0.984 1.047

72.1 1.089 1.004 0.397 0.648 0.898 78.0 0.971 1.098

77.1 1.169 1.007 0.328 0.587 83.0 0.958 1.153

Table 51. GER120 correction factors for variation in entering air temperature

Cooling

Entering

Air WB F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers Heating

Entering

Air DB F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

49.4 0.934 1.002 1.023 1.090 1.157 * * 53.0 1.054 0.843

56.3 0.935 1.002 0.815 1.030 1.158 * * 58.0 1.037 0.894

60.3 0.936 1.002 0.635 0.847 1.061 * * 63.0 1.018 0.946

63.2 0.957 1.001 0.499 0.713 0.926 1.142 * 68.0 1.000 1.000

66.2 1.000 1.000 0.573 0.784 1.000 1.218 73.0 0.984 1.061

72.1 1.089 0.999 0.497 0.713 0.926 78.0 0.966 1.119

77.1 1.169 0.999 0.466 0.675 83.0 0.944 1.179

WSHP-PRC021-EN 55

Performance Data

Table 52. GER150 correction factors for variation in entering air temperature

Cooling

Entering

Air WB F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers

Heating

Entering

Air DB F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

49.4 0.936 1.001 1.026 1.094 1.163 * * 53.0 1.048 0.872

56.3 0.937 1.000 0.812 1.042 1.164 * * 58.0 1.033 0.913

60.3 0.937 1.002 0.620 0.844 1.072 * * 63.0 1.017 0.956

63.2 0.958 1.000 0.475 0.701 0.925 1.157 * 68.0 1.000 1.000

66.2 1.000 1.000 0.549 0.772 1.000 1.235 73.0 0.986 1.049

72.1 1.096 0.997 0.468 0.704 0.923 78.0 0.968 1.097

77.1 1.178 0.994 0.425 0.654 83.0 0.952 1.149

Table 53. GER180 correction factors for variation in entering air temperature

Cooling

Entering

Air WB F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers Heating

Entering

Air DB F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

49.4 0.939 0.992 1.031 1.096 1.161 * * 53.0 1.083 0.893

56.3 0.940 0.993 0.816 1.026 1.163 * * 58.0 1.058 0.928

60.3 0.942 0.994 0.618 0.844 1.062 1.223 * 63.0 1.030 0.965

63.2 0.962 0.997 0.470 0.699 0.926 1.138 * 68.0 1.000 1.000

66.2 1.000 1.000 0.544 0.772 1.000 1.209 73.0 0.972 1.038

72.1 1.086 1.008 0.461 0.689 0.919 78.0 0.942 1.077

77.1 1.159 1.017 0.419 0.647 83.0 0.911 1.117

Table 54. GER240 correction factors for variation in entering air temperature

Cooling

Entering

Air WB F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers Heating

Entering

Air DB F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

49.4 0.931 0.993 1.061 1.129 1.198 * * 53.0 1.053 0.884

56.3 0.932 0.993 0.822 1.049 1.199 * * 58.0 1.036 0.920

60.3 0.935 0.993 0.619 0.847 1.078 1.269 * 63.0 1.016 0.958

63.2 0.961 0.995 0.471 0.701 0.929 1.158 * 68.0 1.000 1.000

66.2 1.000 1.000 0.542 0.769 1.000 1.232 73.0 0.981 1.042

72.1 1.088 1.010 0.453 0.683 0.912 78.0 0.963 1.087

77.1 1.166 1.023 0.405 0.635 83.0 0.945 1.134

Table 55. GER300 correction factors for variation in entering air temperature

Cooling

Entering

Air WB °F

Cooling

Capacity

Cooling

Input

Watts

Sensible vs Entering Dry Bulb Multipliers Heating

Entering

Air DB °F

Heating

Capacity

Heating

Input

Watts65.6 70.6 75.6 80.6 85.6

49.4 0.942 0.971 0.778 0.933 1.098 * * — — —

56.3 0.943 0.971 0.720 0.936 1.100 * * — — —

60.3 0.943 0.972 0.561 0.822 1.085 * * — — —

63.2 0.959 0.979 0.447 0.691 0.930 1.176 * — — —

66.2 1.000 1.000 0.523 0.751 1.000 1.246 — — —

72.1 1.066 1.041 0.389 0.600 0.864 — — —

77.1 1.101 1.059 0.254 0.487 — — —

56 WSHP-PRC021-EN

Performance Data

Table 56. Multispeed direct drive evaporator fan performance - only available on single phase 3-5 ton units

Unit

Model

External Static Pressure (Inches of Water) & Motor Power (Bhp)(a)

Rated

Speed Set 1

Standard Low Speed

Speed Set 2

Mid Speed

Speed Set 3

Standard High Speed

Speed Set 4

High Speed

Speed Set 5

CFM ESP RPM BHP ESP RPM BHP ESP RPM BHP ESP RPM BHP ESP RPM BHP

GER036

Downflow

Airflow

960 0.43 707 0.21 0.70 843 0.38 0.88 919 0.38 1.02 979 0.36 1.15 1027 0.50

1020 0.37 687 0.20 0.62 818 0.37 0.80 896 0.37 0.94 956 0.35 1.07 1006 0.49

1080 0.31 668 0.19 0.55 792 0.36 0.73 872 0.36 0.87 933 0.34 0.99 985 0.48

1140 0.25 648 0.19 0.47 766 0.35 0.65 849 0.35 0.79 911 0.33 0.91 964 0.47

1200 0.19 628 0.18 0.39 740 0.34 0.57 826 0.34 0.71 888 0.32 0.83 943 0.46

1260 0.13 609 0.18 0.31 715 0.32 0.50 803 0.33 0.63 866 0.32 0.75 922 0.45

1320 0.07 589 0.17 0.24 689 0.31 0.42 780 0.32 0.56 843 0.31 0.68 901 0.44

1380 0.01 569 0.17 0.16 663 0.30 0.34 757 0.31 0.48 820 0.30 0.60 880 0.43

1440 — — — 0.08 637 0.29 0.26 734 0.30 0.40 798 0.29 0.52 859 0.42

GER036

Horizontal

Airflow

960 0.40 707 0.21 0.69 856 0.31 0.88 941 0.39 1.03 987 0.45 1.16 1034 0.50

1020 0.35 688 0.20 0.62 831 0.30 0.80 916 0.38 0.95 967 0.44 1.08 1011 0.49

1080 0.30 669 0.19 0.55 806 0.29 0.73 891 0.37 0.87 947 0.43 1.00 989 0.48

1140 0.24 650 0.19 0.48 781 0.28 0.65 866 0.36 0.79 927 0.42 0.92 966 0.47

1200 0.19 631 0.18 0.41 756 0.28 0.58 841 0.35 0.71 906 0.41 0.84 943 0.46

1260 0.14 612 0.18 0.34 731 0.27 0.50 816 0.34 0.63 886 0.40 0.76 920 0.45

1320 0.09 593 0.17 0.26 706 0.26 0.43 791 0.33 0.55 866 0.39 0.68 898 0.44

1380 0.04 574 0.17 0.19 681 0.25 0.35 766 0.32 0.47 846 0.38 0.60 875 0.43

1440 — — — 0.12 655 0.24 0.28 741 0.30 0.40 826 0.37 0.52 852 0.42

GER048

Downflow

Airflow

1280 0.60 865 0.36 0.84 977 0.47 1.02 1044 0.55 1.17 1090 0.63 — — —

1360 0.48 833 0.35 0.72 944 0.45 0.90 1012 0.54 1.04 1062 0.61 — — —

1440 0.37 802 0.34 0.60 912 0.44 0.77 980 0.52 0.92 1033 0.60 — — —

1520 0.25 770 0.32 0.48 879 0.42 0.65 948 0.50 0.80 1005 0.58 1.06 1100 0.69

1600 0.14 739 0.31 0.36 846 0.41 0.52 915 0.49 0.68 976 0.56 0.92 1069 0.67

1680 0.02 707 0.30 0.24 814 0.39 0.39 883 0.47 0.56 948 0.55 0.78 1038 0.65

1760 — — — 0.13 781 0.38 0.27 851 0.45 0.43 920 0.53 0.64 1006 0.63

1840 — — — 0.01 748 0.36 0.14 819 0.43 0.31 891 0.52 0.50 975 0.62

1920 — — ————0.02 787 0.42 0.19 863 0.50 0.37 944 0.60

GER048

Horizontal

Airflow

1280 0.61 864 0.36 0.84 967 0.47 1.00 1038 0.55 1.16 1115 0.65 — — —

1360 0.51 831 0.35 0.73 935 0.45 0.88 1006 0.53 1.05 1084 0.63 — — —

1440 0.40 798 0.33 0.62 904 0.44 0.77 974 0.52 0.94 1052 0.61 1.10 1114 0.70

1520 0.30 766 0.32 0.51 873 0.42 0.66 943 0.50 0.82 1020 0.59 0.99 1084 0.68

1600 0.19 733 0.31 0.40 842 0.41 0.55 911 0.48 0.71 989 0.57 0.87 1054 0.66

1680 0.09 701 0.29 0.29 810 0.39 0.44 879 0.47 0.60 957 0.55 0.75 1023 0.65

1760 — — — 0.18 779 0.38 0.32 848 0.45 0.48 925 0.54 0.64 993 0.63

1840 — — — 0.08 748 0.36 0.21 816 0.43 0.37 893 0.52 0.52 963 0.61

1920 — — ————0.10 784 0.42 0.26 861 0.50 0.40 932 0.59

GER060

Downflow

Airflow

1600 0.83 888 0.49 0.95 948 0.56 1.19 1048 0.67 — — — — — —

1700 0.69 847 0.46 0.82 908 0.53 1.04 1004 0.64 1.33 1110 0.78 — — —

1800 0.56 806 0.44 0.69 867 0.51 0.90 959 0.62 1.18 1063 0.75 — — —

1900 0.43 764 0.42 0.56 826 0.48 0.76 915 0.59 1.02 1016 0.71 — — —

2000 0.30 723 0.40 0.43 785 0.46 0.62 870 0.56 0.87 969 0.68 1.18 1089 0.88

2100 0.16 681 0.37 0.30 744 0.44 0.47 826 0.53 0.71 922 0.65 1.03 1044 0.84

2200 0.03 640 0.35 0.17 703 0.41 0.33 781 0.50 0.56 876 0.61 0.87 999 0.81

2300 — — — 0.04 663 0.39 0.19 737 0.47 0.41 829 0.58 0.72 954 0.77

2400 — — ————0.05 693 0.44 0.25 782 0.55 0.56 909 0.73

WSHP-PRC021-EN 57

Performance Data

GER060

Horizontal

Airflow

1600 0.76 884 0.48 0.82 932 0.55 0.98 1022 0.66 1.13 1104 0.77 — — —

1700 0.63 842 0.46 0.69 893 0.52 0.85 981 0.63 1.00 1061 0.74 — — —

1800 0.50 801 0.44 0.57 854 0.50 0.72 941 0.60 0.87 1018 0.71 — — —

1900 0.36 759 0.42 0.45 815 0.48 0.60 900 0.58 0.74 975 0.68 — — —

2000 0.23 718 0.39 0.32 776 0.46 0.47 859 0.55 0.61 932 0.65 0.87 1069 0.86

2100 0.10 676 0.37 0.20 737 0.43 0.34 818 0.53 0.49 890 0.62 0.74 1025 0.83

2200 — — — 0.07 699 0.41 0.22 778 0.50 0.36 847 0.59 0.61 980 0.79

2300 — — ————0.09 737 0.47 0.23 804 0.56 0.48 936 0.75

2400 — — ———————0.10 761 0.53 0.35 892 0.72

For 036 Models, fan motor heat (MBh) = 2.72 x Fan Bhp + 0.16. For 048 & 060 Models, fan motor heat (MBh) = 2.87 x Fan Bhp + 0.15.

Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at

all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature

motor failure. Our product’s warranty will not be affected.

(a) Data includes pressure drop due to wet coil and filters.

Table 56. Multispeed direct drive evaporator fan performance - only available on single phase 3-5 ton units (continued)

Unit

Model

External Static Pressure (Inches of Water) & Motor Power (Bhp)(a)

Rated

Speed Set 1

Standard Low Speed

Speed Set 2

Mid Speed

Speed Set 3

Standard High Speed

Speed Set 4

High Speed

Speed Set 5

CFM ESP RPM BHP ESP RPM BHP ESP RPM BHP ESP RPM BHP ESP RPM BHP

Table 57. Belt drive evaporator fan performance - GER036 downflow airflow (3 phase units only)

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Field Supplied Low Static Drive(a) 1-hp Standard Motor & Drive(b)

960 — — 572 0.14 639 0.19 702 0.23 762 0.28 816 0.34 865 0.39 907 0.44 948 0.49 986 0.54

1080 — — 608 0.18 672 0.23 731 0.27 785 0.33 840 0.38 890 0.44 937 0.50 979 0.56 1017 0.62

1200 572 0.18 645 0.23 707 0.28 762 0.33 814 0.38 864 0.44 913 0.50 961 0.57 1005 0.63 1046 0.70

1320 614 0.22 684 0.28 744 0.33 797 0.39 846 0.44 894 0.50 939 0.56 984 0.63 1028 0.70 1070 0.78

1440 656 0.27 723 0.34 781 0.40 833 0.46 881 0.52 925 0.58 969 0.64 1011 0.71 1053 0.78 1094 0.86

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Drive(b)

960 1022 0.59 1057 0.64 1092 0.69 1125 0.74 1157 0.79

1080 1053 0.67 1088 0.73 1121 0.79 1152 0.84 1184 0.9

1200 1084 0.77 1118 0.83 1152 0.89 1182 0.95 1213 1.01

1320 1110 0.85 1147 0.92 1182 1 1214 1.07 — —

1440 1133 0.94 1170 1.01 1207 1.1 — — — —

1-hp Standard Motor & Field Supplied High Static Drive(c)

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.

(b) Field Supplied Fan Sheave AK51x3/4" required. Field Supplied Belt may be necessary.

(c) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.

58 WSHP-PRC021-EN

Performance Data

Table 58. Belt drive evaporator fan performance - GER036 horizontal airflow (3 phase units only)

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Field Supplied Low Static

Drive(a) 1-hp Standard Motor & Drive(b)

960 — — 560 0.13 641 0.17 711 0.22 770 0.27 822 0.32 868 0.37 911 0.41 952 0.46 991 0.52

1080 — — 589 0.16 665 0.21 735 0.26 796 0.31 850 0.37 899 0.42 942 0.48 983 0.53 1021 0.58

1200 551 0.15 622 0.19 691 0.24 758 0.30 820 0.36 875 0.42 925 0.48 971 0.54 1012 0.60 1052 0.66

1320 592 0.19 657 0.24 720 0.29 783 0.35 843 0.41 899 0.47 950 0.54 997 0.60 1041 0.67 1081 0.74

1440 634 0.24 695 0.29 753 0.34 810 0.40 867 0.46 922 0.53 974 0.60 1022 0.67 1066 0.75 1108 0.82

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Drive(b)

960 1028 0.57 1064 0.62 1099 0.67 1133 0.73 1165 0.78

1080 1057 0.64 1093 0.70 1127 0.75 1160 0.81 1192 0.87

1200 1087 0.72 1123 0.78 1156 0.84 1189 0.90 1221 0.97

1320 1118 0.80 1153 0.87 1187 0.94 1218 1.00 — —

1440 1146 0.89 1182 0.97 1217 1.04 — — — —

1-hp Standard Motor & Field

Supplied High Static Drive(c)

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.

(b) Field Supplied Fan Sheave AK51x3/4" required. Field Supplied Belt may be necessary.

(c) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.

WSHP-PRC021-EN 59

Performance Data

Table 59. Belt drive evaporator fan performance - GER048 downflow airflow (3 phase units only)

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Field Supplied Low Static Drive(a) 1-hp Standard Motor & Drive(b)

1280 — — 619 0.20 680 0.24 735 0.29 789 0.34 843 0.39 894 0.45 940 0.51 983 0.56 1025 0.63

1440 597 0.20 664 0.25 724 0.30 775 0.35 823 0.40 872 0.46 921 0.52 968 0.58 1012 0.65 1052 0.71

1600 648 0.26 710 0.32 768 0.37 818 0.43 864 0.49 908 0.54 950 0.60 995 0.67 1039 0.74 1081 0.81

1760 700 0.34 758 0.39 812 0.46 862 0.52 907 0.58 948 0.64 988 0.71 1027 0.77 1068 0.84 1108 0.91

1920 753 0.43 807 0.49 858 0.55 906 0.62 952 0.70 992 0.76 1029 0.83 1066 0.89 1102 0.96 1138 1.03

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Drive(b)

1280 1063 0.69 1101 0.75 1138 0.81 1175 0.88 1208 0.94

1440 1091 0.78 1128 0.85 1164 0.91 1198 0.98 1233 1.05

1600 1120 0.88 1157 0.95 1193 1.02 1227 1.10 1259 1.17

1760 1147 0.99 1185 1.07 1220 1.14 1256 1.23 — —

1920 1174 1.11 1212 1.19 1247 1.27 ————

1-hp Standard Motor & Field Supplied High Static Drive(c)

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.

(b) Field Supplied Fan Sheave AK49x3/4" required. Field Supplied Belt may be necessary.

(c) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.

60 WSHP-PRC021-EN

Performance Data

Table 60. Belt drive evaporator fan performance - GER048 horizontal airflow (3 phase units only)

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Field Supplied Low Static Drive(a) 1-hp Standard Motor & Drive(b)

1280 — — 633 0.20 704 0.26 767 0.31 822 0.37 871 0.42 915 0.48 957 0.54 997 0.60 1035 0.66

1440 604 0.20 676 0.26 744 0.32 805 0.38 859 0.44 909 0.50 954 0.57 996 0.63 1035 0.69 1073 0.76

1600 656 0.27 721 0.32 785 0.39 843 0.45 897 0.52 946 0.59 991 0.66 1034 0.73 1075 0.80 1110 0.87

1760 709 0.34 768 0.40 827 0.47 883 0.54 936 0.61 984 0.69 1030 0.77 1072 0.84 1113 0.92 1149 1.00

1920 762 0.43 817 0.50 872 0.57 925 0.64 975 0.72 1023 0.80 1067 0.88 1109 0.97 1150 1.05 1188 1.14

1-hp Standard Motor & Field Supplied High Static Drive( c)

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Drive(b)

1280 1072 0.71 1107 0.77 1142 0.84 1176 0.90 1210 0.97

1440 1108 0.83 1143 0.89 1176 0.96 1209 1.02 1239 1.09

1600 1146 0.95 1180 1.02 1212 1.09 1243 1.16 — —

1760 1185 1.08 1219 1.16 1251 1.24 ————

1920 1223 1.22 1258 1.31 — — ————

1-hp Standard Motor & Field Supplied High Static Drive(c)

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.

(b) Field Supplied Fan Sheave AK49x3/4" required. Field Supplied Belt may be necessary.

(c) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.

WSHP-PRC021-EN 61

Performance Data

Table 61. Belt drive evaporator fan performance - GER060 downflow airflow (3 phase units only)

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Field Supplied Low Static Drive(a) 1-hp Standard Motor & Drive(b)

1600 — — — — 623 0.26 681 0.31 734 0.36 783 0.41 831 0.46 878 0.52 923 0.58 965 0.64

1800 — — 594 0.27 656 0.32 712 0.38 763 0.43 810 0.49 855 0.54 899 0.60 941 0.67 983 0.73

2000 571 0.28 633 0.34 690 0.40 744 0.46 794 0.52 840 0.58 883 0.64 924 0.71 964 0.77 1003 0.84

2200 615 0.36 674 0.42 727 0.49 778 0.55 826 0.62 871 0.69 913 0.76 953 0.82 991 0.89 1030 0.96

2400 660 0.45 715 0.52 766 0.59 814 0.66 859 0.74 903 0.81 945 0.88 984 0.96 1021 1.03 1057 1.11

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Drive(b)

1600 1005 0.71 1045 0.78 1083 0.84 1120 0.91 1155 0.98

1800 1023 0.8 1062 0.87 1098 0.94 1134 1.01 1170 1.09

2000 1041 0.91 1079 0.98 1116 1.06 1152 1.13 1186 1.21

2200 1065 1.03 1100 1.11 1135 1.18 1169 1.26 1203 1.34

2400 1092 1.18 1125 1.26 1159 1.34 1191 1.41 1223 1.50

1-hp Standard Motor & Field Supplied High Static Drive(c)

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.

(b) Field Supplied Fan Sheave AK49x3/4" required. Field Supplied Belt may be necessary.

(c) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.

62 WSHP-PRC021-EN

Performance Data

Table 62. Belt drive evaporator fan performance - GER060 horizontal airflow (3 phase units only)

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Field Supplied Low Static Drive(a) 1-hp Standard Motor & Drive(b)

1600 — — 585 0.23 659 0.29 724 0.35 787 0.42 846 0.49 901 0.56 950 0.64 995 0.71 1038 0.78

1800 — — 622 0.29 690 0.36 753 0.43 811 0.49 866 0.57 922 0.65 973 0.73 1020 0.81 1064 0.90

2000 598 0.31 661 0.37 724 0.44 784 0.52 840 0.59 893 0.66 943 0.74 993 0.83 1041 0.92 1085 1.01

2200 647 0.40 703 0.46 761 0.54 817 0.62 870 0.70 921 0.78 970 0.86 1016 0.95 1061 1.04 1106 1.13

2400 696 0.50 746 0.57 799 0.65 853 0.74 903 0.82 952 0.91 998 1.00 1043 1.09 1086 1.18 1127 1.27

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Drive(b)

1600 1078 0.86 1115 0.93 1150 1.01 1183 1.08 1214 1.16

1800 1105 0.98 1143 1.06 1180 1.15 1215 1.23 — —

2000 1128 1.10 1169 1.20 1207 1.29 ————

2200 1150 1.24 1190 1.34 — —————

2400 1170 1.38 1211 1.48 — —————

1-hp Standard Motor & Field Supplied High Static Drive(c)

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.

(b) Field Supplied Fan Sheave AK49x3/4" required. Field Supplied Belt may be necessary.

(c) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.

WSHP-PRC021-EN 63

Performance Data

Table 63. Belt drive evaporator fan performance - GER072 downflow airflow

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Field Supplied Low Static Drive(a) 1-hp Standard Motor & Drive

1920 — — 581 0.28 636 0.34 685 0.39 732 0.45 775 0.50 815 0.55 854 0.60 892 0.66 927 0.71

2160 — — 626 0.37 677 0.43 725 0.49 769 0.55 810 0.61 849 0.67 887 0.73 922 0.79 956 0.84

2400 620 0.42 672 0.49 720 0.55 766 0.61 807 0.68 847 0.75 885 0.81 921 0.88 956 0.95 989 1.01

2640 672 0.55 719 0.62 765 0.69 808 0.76 848 0.83 886 0.90 923 0.98 957 1.05 991 1.12 1024 1.20

2880 725 0.70 768 0.77 811 0.85 852 0.92 890 1.00 927 1.08 962 1.16 995 1.24 1028 1.32 1059 1.40

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Drive 2-hp Oversized Motor & Drive

1920 962 0.77 995 0.83 1026 0.89 1057 0.95 1087 1.01 1115 1.07 1143 1.13 1171 1.19 1196 1.24 1222 1.30

2160 990 0.91 1023 0.97 1054 1.04 1085 1.11 1114 1.17 1142 1.24 1170 1.30 1197 1.37 1222 1.43 1249 1.50

2400 1022 1.07 1051 1.13 1082 1.20 1112 1.28 1141 1.35 1170 1.42 1198 1.50 1224 1.57 1249 1.64 1276 1.72

2640 1055 1.27 1085 1.34 1114 1.41 1142 1.47 1169 1.54 1198 1.62 1226 1.70 1252 1.78 1278 1.86 1304 1.95

2880 1089 1.48 1119 1.56 1149 1.64 1176 1.72 1203 1.79 1229 1.87 1255 1.94 1280 2.01 1306 2.10 1331 2.19

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. 1-HP Fan Motor Heat (MBH) = 2.829 x Fan BHP + 0.4024. 2-HP Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.5000.

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

(a) Field Supplied Fan Sheave AK79 and Belt AX38 required.

64 WSHP-PRC021-EN

Performance Data

Table 64. Belt drive evaporator fan performance - GER072 horizontal airflow

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Field Supplied Low Static Drive(a) 1-hp Standard Motor & Drive

1920 581 0.31 627 0.36 679 0.43 731 0.49 781 0.56 829 0.64 873 0.71 916 0.79 956 0.87 997 0.96

2160 631 0.42 679 0.48 728 0.56 773 0.62 820 0.70 865 0.78 907 0.85 948 0.94 987 1.02 1025 1.11

2400 690 0.56 735 0.63 778 0.70 821 0.78 862 0.86 904 0.94 944 1.03 983 1.11 1021 1.21 1058 1.30

2640 749 0.73 791 0.81 830 0.87 871 0.97 909 1.05 946 1.13 984 1.22 1022 1.32 1058 1.42 1093 1.51

2880 809 0.92 849 1.02 886 1.09 922 1.17 959 1.29 993 1.37 1027 1.46 1062 1.56 1097 1.66 1131 1.77

2-hp Oversized Motor & Drive

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Drive 2-hp Oversized Motor & Drive

1920 1034 1.05 1070 1.14 1105 1.24 1139 1.33 1171 1.42 1204 1.52 1234 1.62 1264 1.71 1292 1.81 1320 1.91

2160 1062 1.21 1098 1.30 1133 1.41 1166 1.51 1199 1.61 1229 1.71 1261 1.82 1290 1.93 1318 2.03 1346 2.14

2400 1093 1.40 1128 1.50 1161 1.60 1194 1.70 1227 1.81 1258 1.93 1288 2.04 1316 2.15 1346 2.27 — —

2640 1127 1.62 1161 1.72 1193 1.82 1225 1.93 1255 2.04 1287 2.16 1315 2.27 1345 — — — — —

2880 1163 1.87 1196 1.98 1227 2.09 1257 2.20 — — ——————————

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. 1-HP Fan Motor Heat (MBH) = 2.829 x Fan BHP + 0.4024. 2-HP Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.5000.

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

(a) Field Supplied Fan Sheave AK79 and Belt AX38 required.

WSHP-PRC021-EN 65

Performance Data

Table 65. Belt drive evaporator fan performance - GER090 downflow airflow

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Low Static Accessory Kit(a) 1-hp Standard Motor & Drive

2400 421 0.22 472 0.31 518 0.38 562 0.46 606 0.54 649 0.63 690 0.72 728 0.81 763 0.90 798 0.99

2700 461 0.28 508 0.38 551 0.48 590 0.56 629 0.65 667 0.74 708 0.84 745 0.94 781 1.04 815 1.14

3000 501 0.35 545 0.47 586 0.58 623 0.68 658 0.78 693 0.88 727 0.97 763 1.08 799 1.19 832 1.30

3300 542 0.44 583 0.58 621 0.70 657 0.82 690 0.93 723 1.03 755 1.14 786 1.24 817 1.35 851 1.48

3600 584 0.54 623 0.70 658 0.84 692 0.97 724 1.09 755 1.21 784 1.32 814 1.44 842 1.55 871 1.67

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Drive

2400 830 1.09 860 1.17 890 1.27 918 1.36 945 1.45 971 1.55 997 1.64 1022 1.74 1047 1.83 1071 1.93

2700 846 1.24 876 1.34 907 1.45 936 1.55 963 1.65 989 1.76 1014 1.86 1039 1.97 1063 2.07 1087 2.18

3000 865 1.42 895 1.53 923 1.64 952 1.75 980 1.87 1006 1.98 1031 2.09 1056 2.21 1081 2.32 1104 2.44

3300 882 1.60 912 1.72 942 1.85 969 1.96 998 2.09 1024 2.22 1049 2.34 1073 2.46 1098 2.59 1121 2.71

3600 901 1.80 931 1.93 960 2.06 988 2.19 1015 2.33 1041 2.47 1067 2.60 1092 2.74 1116 2.87 1140 3.01

3-hp Oversized Motor & Drive 3-hp Oversized Motor & Field Supplied High Static Drive (b)

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. 1-HP Fan Motor Heat (MBH) = 2.829 x Fan BHP + 0.4024. 3-HP Fan Motor Heat (MBH) = 2.9000 x Fan BHP + 0.4750.

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

(a) BAYLSDR009AA

(b) Field Supplied Fan Sheave AK59 and Belt AX35

66 WSHP-PRC021-EN

Performance Data

Table 66. Belt drive evaporator fan performance - GER090 horizontal airflow

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Low Static Accessory Kit(a) 1-hp Standard Motor & Drive

2400 484 0.32 531 0.40 587 0.51 642 0.62 688 0.72 728 0.82 762 0.92 794 1.01 825 1.11 853 1.20

2700 533 0.44 574 0.52 620 0.63 671 0.75 719 0.87 762 0.99 799 1.11 832 1.22 862 1.32 890 1.43

3000 582 0.58 621 0.67 659 0.78 702 0.90 748 1.04 792 1.17 832 1.31 867 1.44 898 1.56 927 1.68

3300 632 0.74 669 0.85 703 0.96 739 1.08 779 1.22 821 1.37 861 1.52 898 1.67 932 1.82 963 1.96

3600 683 0.94 718 1.07 749 1.18 780 1.30 815 1.44 852 1.59 890 1.75 928 1.92 963 2.09 995 2.25

3-hp Oversized Motor & Drive

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-hp Standard Motor & Drive 3-hp Oversized Motor & Drive

2400 881 1.30 907 1.39 932 1.49 957 1.59 981 1.69 1004 1.78 1026 1.88 1048 1.98 1070 2.08 1090 2.18

2700 917 1.53 943 1.64 969 1.75 993 1.86 1016 1.96 1039 2.07 1061 2.18 1083 2.29 1104 2.40 1125 2.52

3000 954 1.80 980 1.92 1005 2.04 1030 2.16 1052 2.27 1075 2.39 1097 2.51 1118 2.63 1139 2.75 1159 2.87

3300 991 2.09 1018 2.23 1043 2.36 1067 2.49 1090 2.62 1112 2.75 1133 2.87 1154 3.01 1175 3.13 1195 3.27

3600 1026 2.41 1054 2.56 1080 2.71 1103 2.85 1127 2.99 1149 3.14 1170 3.27 1191 3.41 — — — —

3-hp Oversized Motor & Field Supplied High Static Drive (b)

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. 1-HP Fan Motor Heat (MBH) = 2.829 x Fan BHP + 0.4024. 3-HP Fan Motor Heat (MBH) = 2.9000 x Fan BHP + 0.4750.

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

(a) BAYLSDR009AA

(b) Field Supplied Fan Sheave AK59 and Belt AX35

WSHP-PRC021-EN 67

Performance Data

Table 67. Direct drive evaporator fan performance - GER120 downflow airflow

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3200 1024 0.65 1056 0.73 1087 0.81 1118 0.89 1146 0.98 1172 1.06 1199 1.15 1226 1.24 1255 1.35 1280 1.44

3600 1144 0.90 1173 0.99 1201 1.08 1229 1.18 1256 1.27 1282 1.36 1305 1.45 1328 1.55 1352 1.65 1377 1.76

4000 1264 1.21 1291 1.31 1317 1.41 1342 1.51 1367 1.62 1392 1.72 1414 1.82 1437 1.93 1458 2.03 1478 2.14

4400 1385 1.58 1410 1.70 1434 1.81 1457 1.92 1480 2.03 1503 2.15 1525 2.26 1546 2.37 1567 2.49 1586 2.60

4800 1507 2.03 1530 2.16 1552 2.28 1574 2.40 1595 2.52 1616 2.65 1636 2.77 1657 2.89 1677 3.02 1696 3.14

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3200 1303 1.53 1326 1.62 1349 1.72 1374 1.82 1401 1.93 1425 2.04 1450 2.15 1474 2.27 1498 2.38 1521 2.50

3600 1401 1.87 1426 1.99 1448 2.09 1467 2.19 1487 2.29 1508 2.39 1530 2.51 1552 2.62 1576 2.75 1598 2.87

4000 1500 2.25 1522 2.37 1544 2.49 1567 2.62 1588 2.75 1608 2.86 1625 2.97 1643 3.08 1661 3.19 1681 3.31

4400 1605 2.72 1624 2.84 1643 2.96 1664 3.09 1684 3.22 — —————————

4800 ————————————————————

Notes:

1. For Direct Drive Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

68 WSHP-PRC021-EN

Performance Data

Table 68. Direct drive evaporator fan performance - GER120 horizontal airflow

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3200 1038 0.69 1080 0.80 1120 0.91 1161 1.04 1200 1.16 1235 1.29 1269 1.41 1303 1.54 1336 1.67 1368 1.81

3600 1158 0.95 1195 1.07 1231 1.20 1267 1.33 1304 1.47 1339 1.61 1371 1.75 1402 1.89 1432 2.03 1462 2.17

4000 1278 1.27 1313 1.41 1346 1.55 1378 1.69 1411 1.83 1443 1.98 1475 2.14 1506 2.30 1534 2.45 1561 2.61

4400 1399 1.66 1431 1.81 1462 1.96 1491 2.12 1520 2.27 1550 2.43 1580 2.60 1610 2.77 1638 2.94 1665 3.12

4800 1520 2.12 1550 2.29 1579 2.45 1606 2.62 1633 2.79 1659 2.96 1687 3.13 ------

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3200 1400 1.95 1432 2.09 1464 2.23 1495 2.39 1525 2.54 1556 2.69 1586 2.85 1616 3.02 1645 3.18 1675 3.34

3600 1491 2.32 1520 2.47 1549 2.62 1578 2.78 1606 2.94 1634 3.10 1662 3.28 1689 3.44 — — — —

4000 1588 2.76 1615 2.92 1642 3.09 1668 3.25 1694 3.43 ——————————

4400 1690 3.29 — —————————————————

4800 — — — —————————————————

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

WSHP-PRC021-EN 69

Performance Data

Table 69. Belt drive evaporator fan performance - GER150 downflow or horizontal airflow

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3-hp Standard Motor & Low Static Drive 3-hp Standard Motor & Drive

4000 — — 382 0.56 420 0.66 459 0.79 496 0.91 531 1.05 564 1.19 595 1.34 625 1.50 654 1.67

4500 — — 410 0.73 446 0.85 479 0.97 514 1.11 548 1.26 578 1.40 610 1.56 639 1.72 666 1.89

5000 400 0.80 440 0.95 473 1.07 504 1.20 534 1.34 566 1.50 597 1.66 625 1.81 653 1.98 681 2.16

5500 431 1.03 470 1.19 502 1.34 531 1.48 559 1.62 586 1.77 615 1.95 643 2.12 670 2.30 695 2.47

6000 463 1.30 500 1.48 531 1.65 559 1.80 585 1.95 611 2.11 636 2.28 662 2.46 689 2.66 714 2.85

3-hp Standard Motor & High Static Drive

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3-hp Standard Motor & Low Static

Drive 3-hp Standard Motor & High Static Drive

4000 682 1.83 708 1.99 734 2.16 758 2.32 782 2.49 804 2.66 826 2.83 847 3.01 867 3.19 886 3.38

4500 693 2.07 719 2.25 745 2.44 769 2.62 793 2.80 815 2.99 838 3.17 859 3.36 880 3.55 900 3.74

5000 707 2.34 732 2.53 757 2.72 780 2.92 804 3.13 826 3.33 848 3.54 870 3.74 891 3.95 911 4.15

5500 721 2.66 747 2.86 771 3.05 794 3.26 816 3.46 838 3.68 860 3.90 881 4.13 902 4.36 922 4.58

6000 738 3.04 760 3.22 784 3.43 808 3.65 831 3.86 852 4.08 873 4.30 893 4.53 913 4.77 933 5.01

5-hp Oversized Motor & Drive

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. Fan Motor Heat (MBH) = 3.15 x Fan BHP

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

70 WSHP-PRC021-EN

Performance Data

Table 70. Belt drive evaporator fan performance - GER180 downflow or horizontal airflow

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3-hp Standard Motor & Low Static Drive 3-hp Standard Motor & Drive

4800 397 0.75 435 0.88 469 1.00 501 1.13 533 1.28 566 1.43 596 1.59 625 1.74 655 1.92 682 2.09

5400 435 1.02 473 1.18 504 1.32 533 1.46 562 1.60 590 1.76 620 1.94 648 2.11 674 2.28 700 2.46

6000 475 1.36 510 1.53 541 1.70 568 1.85 594 2.01 620 2.17 645 2.34 672 2.53 698 2.73 723 2.92

6600 514 1.76 549 1.96 578 2.15 604 2.33 629 2.49 653 2.66 676 2.84 699 3.02 722 3.23 747 3.44

7200 555 2.25 588 2.46 616 2.68 641 2.89 665 3.06 687 3.24 709 3.43 730 3.62 751 3.82 772 4.02

3-hp Standard Motor & High Static Drive 5-hp Oversized Motor & Drive

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3-hp Standard Motor & High Static Drive 5-hp Oversized Motor & Drive

4800 708 2.27 734 2.46 758 2.66 782 2.86 806 3.06 829 3.25 850 3.45 872 3.65 893 3.85 913 4.04

5400 727 2.65 752 2.85 776 3.05 799 3.25 821 3.47 843 3.69 865 3.91 886 4.13 907 4.36 927 4.58

6000 747 3.11 770 3.30 794 3.51 817 3.73 839 3.95 861 4.17 881 4.40 902 4.63 922 4.87 942 5.12

6600 770 3.66 793 3.87 815 4.08 835 4.28 857 4.51 879 4.74 900 4.98 920 5.22 940 5.46 959 5.71

7200 794 4.25 817 4.49 839 4.73 860 4.96 880 5.19 899 5.41 918 5.64 — — — — — —

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. Fan Motor Heat (MBH) = 3.15 x Fan BHP

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

WSHP-PRC021-EN 71

Performance Data

Table 71. Belt drive evaporator fan performance - GER240 downflow or horizontal airflow

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

5-hp Standard Motor & Drive

6400 — — — — 507 1.72 535 1.88 560 2.07 584 2.27 607 2.46 631 2.66 654 2.86 677 3.07

7200 — — 519 2.10 549 2.30 576 2.48 600 2.67 623 2.88 644 3.10 665 3.32 686 3.54 707 3.76

8000 531 2.50 563 2.77 592 3.00 617 3.21 641 3.41 663 3.62 684 3.86 704 4.10 723 4.34 742 4.58

8800 578 3.26 607 3.56 634 3.83 659 4.08 683 4.31 704 4.54 724 4.77 744 5.01 762 5.27 779 5.54

9600 626 4.19 653 4.51 679 4.81 703 5.10 725 5.36 746 5.62 765 5.85 784 6.11 802 6.36 819 6.64

5-hp Standard Motor & High Static Drive 7.5-hp Oversized Motor & Low Static Drive

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

5-hp Standard Motor & High Static Drive

6400 699 3.30 721 3.52 742 3.75 762 3.98 780 4.20 798 4.42 815 4.66 832 4.89 849 5.12 866 5.36

7200 727 3.98 748 4.22 768 4.46 789 4.71 808 4.97 827 5.22 845 5.48 861 5.73 878 5.98 893 6.24

8000 760 4.82 779 5.07 798 5.32 816 5.57 834 5.83 853 6.11 871 6.38 889 6.67 906 6.95 923 7.23

8800 797 5.81 814 6.07 831 6.34 848 6.60 865 6.88 882 7.15 898 7.42 915 7.72 932 8.02 — —

9600 836 6.93 852 7.22 868 7.51 884 7.81 — — — — — — — — — — — —

7.5-hp Oversized Motor & Low Static

Drive 7.5-hp Oversized Motor & Drive

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. Fan Motor Heat (MBH) = 3.15 x Fan BHP

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

72 WSHP-PRC021-EN

Performance Data

Table 72. Belt drive evaporator fan performance - GER300 downflow or horizontal airflow

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

7.5-hp Standard Motor & Low Static Drive 7.5-hp Standard Motor & Drive

7000 ————6032.50 629 2.69 653 2.87 675 3.04 698 3.22 720 3.41 741 3.61 763 3.82

7500 — — 607 2.74 635 2.97 660 3.18 683 3.38 704 3.57 726 3.76 747 3.95 767 4.16 787 4.36

8000 610 3.03 639 3.26 667 3.50 691 3.74 714 3.97 735 4.17 755 4.37 775 4.57 795 4.78 814 4.99

8500 644 3.61 673 3.86 699 4.09 723 4.36 745 4.61 765 4.83 785 5.04 804 5.26 823 5.48 841 5.69

9000 677 4.22 705 4.50 731 4.77 755 5.05 776 5.31 796 5.57 816 5.81 834 6.03 852 6.25 870 6.48

9500 714 4.98 739 5.25 764 5.53 787 5.81 807 6.08 828 6.37 846 6.63 864 6.87 882 7.10 899 7.34

10000 747 5.73 773 6.07 797 6.35 818 6.62 839 6.93 859 7.24 878 7.52 896 7.81 912 8.04 929 8.30

10500 785 6.68 806 6.93 829 7.25 851 7.54 872 7.86 891 8.18 908 8.48 — —————

11000 816 7.53 840 7.90 864 8.27 885 8.58 ————————————

7.5-hp Standard Motor & Drive 7.5-hp Standard Motor & High Static Drive

Continued

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

7.5-hp Standard Motor & Drive

7000 786 4.05 809 4.28 831 4.51 852 4.73 872 4.94

7500 808 4.59 829 4.82 850 5.07 871 5.31 892 5.56

8000 833 5.21 852 5.44 871 5.69 891 5.94 911 6.21

8500 860 5.92 877 6.15 895 6.39 913 6.64 932 6.91

9000 887 6.71 904 6.95 921 7.19 938 7.44 955 7.70

9500 915 7.58 932 7.83 949 8.08 965 8.33 981 8.60

10000 945 8.55 ————————

10500 ——————————

11000 ——————————

7.5-hp Standard Motor & High Static Drive

Notes:

1. For Standard Evaporator Fan Speed (rpm), reference Table 74, p. 73.

2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.

3. Refer to Table 79, p. 74 to determine additional static pressure drop due to other options/accessories.

4. Fan Motor Heat (MBH) = 3.15 x Fan BHP

5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the

full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s

warranty will not be affected.

WSHP-PRC021-EN 73

Performance Data

Table 73. Potentiometer setting standard motor & drive/fan speed (rpm) GER120 only

MIN RPM 1000 MIN RPM 1000

MAX RPM 1700 MAX RPM 1700

Potentiometer Voltage Motor RPM Potentiometer Voltage Motor RPM

1.00 1000 5.50 1394

1.50 1044 6.00 1438

2.00 1088 6.50 1481

2.50 1131 7.00 1525

3.00 1175 7.50 1569

3.50 1219 8.00 1613

4.00 1263 8.50 1656

4.50 1306 9.00 1700

5.00 1350

Table 74. Standard motor & drive/fan speed (rpm)

Tons

Unit Model

Number

Fan

Sheave

6 Turns

Open

5 Turns

Open

4 Turns

Open

3 Turns

Open

2 Turns

Open

1 Turns

Open Closed

3 GER036 AK51x3/4 N/A 761 835 909 982 1057 1125

4 GER048 AK49x3/4 N/A 801 874 946 1019 1091 1164

5 GER060 AK49X3/4 N/A 798 868 939 1010 1081 1152

6 GER072 AK59x1 N/A 805 865 925 985 1045 1105

7.5 GER090 AK64x1 N/A 695 751 807 863 919 975

12½ GER150 500 537 574 611 648 685 N/A

15 GER180 500 537 574 611 648 685 N/A

20 GER240 506 544 581 619 656 694 N/A

25 GER300 694 731 768 805 842 881 N/A

Table 75. Standard motor & low static drive/fan speed (rpm)

Tons

Unit Model

Number

Fan

Sheave

6 Turns

Open

5 Turns

Open

4 Turns

Open

3 Turns

Open

2 Turns

Open

1 Turns

Open Closed

3 GER036 AK71x3/4 N/A 549 600 650 701 751 802

4 GER048 AK69x3/4 N/A 567 619 671 723 775 828

5 GER060 AK69x3/4 N/A 566 617 668 719 770 821

6 GER072 AK79x1 N/A 581 626 671 716 761 805

7.5 GER090 AK79x1 N/A 581 626 671 716 761 805

7.5 GER090 AK99x1 N/A 462 497 533 569 604 640

12½ GER150 379 407 435 463 491 519 N/A

15 GER180 379 407 435 463 491 519 N/A

25 GER300 581 619 657 695 733 769 N/A

74 WSHP-PRC021-EN

Performance Data

Table 76. Standard motor & high static drive/fan speed (rpm)

Tons

Unit Model

Number

Fan

Sheave

6 Turns

Open

5 Turns

Open

4 Turns

Open

3 Turns

Open

2 Turns

Open

1 Turns

Open "Closed

3 GER036 AK41x3/4 N/A 966 1041 1115 1190 1227 N/A

4 GER048 AK41x3/4 N/A 958 1034 1110 1186 1261 N/A

5 GER060 AK41x3/4 N/A 970 1034 1097 1161 1224 N/A

12½ GER150 685 722 759 796 833 870 N/A

15 GER180 685 722 759 796 833 870 N/A

20 GER240 694 739 784 829 874 919 N/A

25 GER300 806 844 882 920 958 994 N/A

Table 77. Oversized motor & drive/fan speed (rpm)

Tons

Unit Model

Number

Fan

Sheave

6 Turns

Open

5 Turns

Open

4 Turns

Open

3 Turns

Open

2 Turns

Open

1 Turns

Open Closed

7.5 GER090 AK64x1 N/A 835 891 946 1002 1057 1113

12½ GER150 751 807 863 919 975 1029 N/A

15 GER180 751 807 863 919 975 1029 N/A

20 GER240 829 874 919 964 1009 1053 N/A

Table 78. Oversized motor & high static drive/fan speed (rpm)

Tons

Unit Model

Number

Fan

Sheave

6 Turns

Open

5 Turns

Open

4 Turns

Open

3 Turns

Open

2 Turns

Open

1 Turns

Open Closed

7.5 GER090 AK59x1 N/A 908 968 1029 1090 1150 1211

Table 79. Static pressure drop through accessories (inches water column)

Tons

Unit

Model

Number cfm

Standard

2”

Filters(a)

MERV 7

Filter(b)

MERV 13

Filter(b)

Economizer with OA/RA Dampers(c) Electric Heater Access (kW)(d),(e)

100% OA

Downflow

100%

RA

100% OA

Horiz.

100%

RA 5-12 14-23 23-36 54 72

3 GER036

960 0.02 0.03 0.03 0.05 0.01 0.05 0.01 0.01 0.02 0.02 — —

1200 0.03 0.05 0.04 0.07 0.02 0.07 0.01 0.02 0.03 0.03 — —

1440 0.03 0.06 0.04 0.10 0.03 0.10 0.01 0.03 0.04 0.04 — —

4 GER048

1280 0.03 0.05 0.06 0.09 0.02 0.09 0.01 0.02 0.03 0.03 — —

1600 0.04 0.07 0.07 0.13 0.04 0.13 0.02 0.04 0.05 0.05 — —

1920 0.06 0.10 0.08 0.17 0.06 0.17 0.02 0.05 0.06 0.08 — —

5 GER060

1600 0.03 0.06 0.05 0.09 0.01 0.05 0.01 0.01 0.01 0.02 — —

2000 0.05 0.08 0.07 0.11 0.01 0.07 0.02 0.02 0.01 0.03 — —

2400 0.07 0.10 0.10 0.12 0.03 0.09 0.03 0.03 0.02 0.04 — —

6 GER072

1920 0.04 0.07 0.10 0.10 0.01 0.06 0.02 — 0.01 0.02 — —

2400 0.06 0.09 0.13 0.11 0.02 0.08 0.02 — 0.02 0.03 — —

2880 0.09 0.12 0.15 0.13 0.04 0.10 0.04 — 0.03 0.05 — —

7.5 GER090

2400 0.04 0.06 0.12 0.11 0.02 0.08 0.02 — 0.02 0.02 — —

3000 0.06 0.09 0.13 0.14 0.05 0.12 0.05 — 0.03 0.03 — —

3600 0.09 0.13 0.15 0.21 0.07 0.25 0.08 — 0.04 0.05 — —

WSHP-PRC021-EN 75

Performance Data

10 GER120

3200 0.07 0.10 0.14 0.17 0.05 0.14 0.05 — 0.02 0.03 0.05 —

4000 0.11 0.15 0.16 0.26 0.07 0.30 0.08 — 0.02 0.03 0.05 —

4800 0.16 0.20 0.18 0.34 0.09 0.35 0.10 — 0.03 0.04 0.06 —

12½ GER150

4000 0.02 0.04 0.08 0.20 0.02 0.20 0.02 — 0.03 0.03 0.04 —

5000 0.03 0.05 0.11 0.26 0.03 0.26 0.03 — 0.04 0.05 0.06 —

6000 0.05 0.07 0.14 0.35 0.04 0.35 0.04 — 0.06 0.07 0.09 —

15 GER180

4800 0.03 0.05 0.10 0.24 0.03 0.24 0.03 — 0.04 0.04 0.05 —

6000 0.05 0.07 0.14 0.35 0.04 0.35 0.04 — 0.06 0.07 0.08 —

7200 0.07 0.09 0.17 0.42 0.05 0.42 0.05 — 0.09 0.10 0.12 —

20 GER240

6400 0.05 0.08 0.12 0.22 0.04 0.22 0.04 — — 0.06 0.08 0.09

8000 0.08 0.10 0.15 0.31 0.05 0.31 0.05 — — 0.10 0.12 0.14

9600 0.11 0.14 0.19 0.44 0.07 0.44 0.07 — — 0.14 0.17 0.20

25

7000 0.09 0.13 0.17 0.26 0.04 0.26 0.04 — — 0.08 0.10 0.11

GER300 9000 0.14 0.18 0.23 0.40 0.07 0.40 0.07 — — 0.13 0.15 0.18

11000 0.21 0.25 0.32 0.57 0.10 0.57 0.10 — — 0.18 0.22 0.26

(a) Tested with 2" filters

(b) Tested with standard filters. Difference in pressure drop should be considered when utilizing 2” MERV 7 and MERV 13 filters.

(c) OA = Outside Air and RA = Return Air

(d) Nominal kW ratings at 240, 480, 600V.

(e) Electric heaters restricted on applications below 320 cfm/Ton.

Table 79. Static pressure drop through accessories (inches water column) (continued)

Tons

Unit

Model

Number cfm

Standard

2”

Filters(a)

MERV 7

Filter(b)

MERV 13

Filter(b)

Economizer with OA/RA Dampers(c) Electric Heater Access (kW)(d),(e)

100% OA

Downflow

100%

RA

100% OA

Horiz.

100%

RA 5-12 14-23 23-36 54 72

Table 80. Air temperature rise across electric heaters (°F)3-5ton

kW Stages

GER036(a)

3 ton

1200 CFM

(a) The minimum allowable airflow for a GER036 with a 17.4 kW heater is 1080 CFM

GER048

4 ton

1600 CFM

GER060(b)

5 ton

2000 CFM

(b) The minimum allowable airflow for a GER060 with a 23.0 kW heater is 1900 CFM

Single

Phase

Three

Phase

Single

Phase

Three

Phase

Single

Phase

Three

Phase

5.00 1 13.8 — 10.5 — 8.5 —

6.00 1 — 18.5 — 10.5 — 11.4

10.00 2 26.8 — 20.3 — 16.3 —

12.00 2 — 36.2 — 22.3 — 21.5

13.80 2 36.9 — 27.8 — 22.3 —

17.40 2 — 48.2 — 33.0 — 30.0

17.60 2 — — 35.5 — 28.3 —

23.00 2 — — — — — 38.8

Notes:

1. For minimum design airflow, see airflow performance table for each unit.

2. To calculate temp rise at different airflow, use the following formula: Temp rise across

Electric Heater = kW x 0.3414/1.08 x CFM

76 WSHP-PRC021-EN

Performance Data

Table 81. Air temperature rise across electric heaters (°F)6-25ton

kW Stages

GER072 (a)

6 ton

3000 CFM

GER090

7.5 ton

3400 CFM

GER120(b)

10 ton

4000 CFM

GER150

12.5 ton

5000 CFM

GER180

15 ton

6000 CFM

GER240

20 ton

8000 CFM

GER300 (c)

25 ton

9000 CFM

9.0 1 14.2 9.5 — — — — —

18.0 1 28.5 19.0 14.2 11.4 9.5 — —

27.0 2 42.7 28.5 21.3 — — — 9.5

36.0 2 56.9 37.9 28.5 23.0 19.0 14.2 12.6

54.0 2 — — 42.7 34.1 28.4 21.3 19.0

72.0 2 — ————28.5 25.3

Notes:

1. For minimum design airflow, see airflow performance table for each unit.

2. To calculate temp rise at different airflow, use the following formula: Temp rise across Electric Heater = kW x 0.3414/1.08 x CFM

(a) The minimum allowable airflow for a GER072 with a 36.0 kW heater is 2400 CFM

(b) The minimum allowable airflow for a GER120 with a 54.0 kW heater is 4000 CFM

(c) 27 kW heater can not be used in the GER300 with an oversized motor.

Table 82. Electric heater temperature rise correction factors

% Variation from Nominal CFM -20 -15 -10 — +5 +10 +15 +20

Temperature Rise Multiplier 1.25 1.17 1.11 1.00 0.95 0.91 0.87 0.83

Table 83. Water volume

Unit Size

Water Side

Volume

Cubic In.

Water Side

Volume

Cubic In.

Water Side

Volume

Gallons

036 105 0.061 0.455

048 171 0.099 0.740

060 171 0.099 0.740

072 259 0.150 1.121

090 210 0.122 0.909

120 342 0.198 1.481

150 508 0.294 2.199

180 508 0.294 2.199

240 779 0.451 3.372

300 1057 0.612 4.576

WSHP-PRC021-EN 77

Performance Data

Example 1 (Ethylene Glycol):

The antifreeze solution is 20% by volume of Ethylene Glycol. Determine the corrected cooling

capacity and waterside pressure drop for a GERA036 when the EWT is 86°F and the GPM is 9.0.

From the catalog data, the cooling capacity at these conditions with 100% water is 39.6 MBTUH,

and the waterside pressure drop is 11.5 feet of head. At 20% Ethylene Glycol, the correction factor

for cool capacity is 0.9912 and the pressure drop is 1.068.

The corrected cooling capacity (MBTUH) = 36.9 * 0.9912 = 36.58.The corrected water side pressure

drop (Ft. head) = 11.5 * 1.068 = 12.23.

Example 2 (Propylene Glycol):

The antifreeze solution is 30% by volume of Propylene Glycol. Determine the corrected heating

capacity and waterside pressure drop for a GERA048 when the EWT is 45°F and the GPM is 12.0.

From the catalog data, the heating capacity at these conditions with 100% water is 49.1 MBTUH,

and the waterside pressure drop is 11.0 feet of head. At 30% Propylene Glycol, the correction factor

for heat capacity is 0.9603 and the pressure drop is 1.174.

The corrected cooling capacity (MBTUH) = 49.1 * 0.9603 = 47.15.The corrected water side pressure

drop (Ft. head) = 11.0 * 1.174 = 12.91.

Table 84. Correction factors for antifreeze solutions

Item

Concentration by Volume

10% 20% 30% 40% 50%

Methanol

Cool

Capacity 0.9980 0.9965 0.9949 0.9932 0.9915

Heat

Capacity 0.9950 0.9898 0.9846 0.9794 0.9742

Pressure

Drop 1.023 1.057 1.091 1.122 1.160

Ethylene Glycol

Cool

Capacity 0.9955 0.9912 0.9870 0.9830 0.9790

Heat

Capacity 0.9925 0.9848 0.9770 0.9690 0.9610

Pressure

Drop 1.024 1.068 1.124 1.188 1.263

Propylene Glycol

Cool

Capacity 0.9934 0.9869 0.9804 0.9739 0.9681

Heat

Capacity 0.9863 0.9732 0.9603 0.9477 0.9350

Pressure

Drop 1.040 1.098 1.174 1.273 1.405

78 WSHP-PRC021-EN

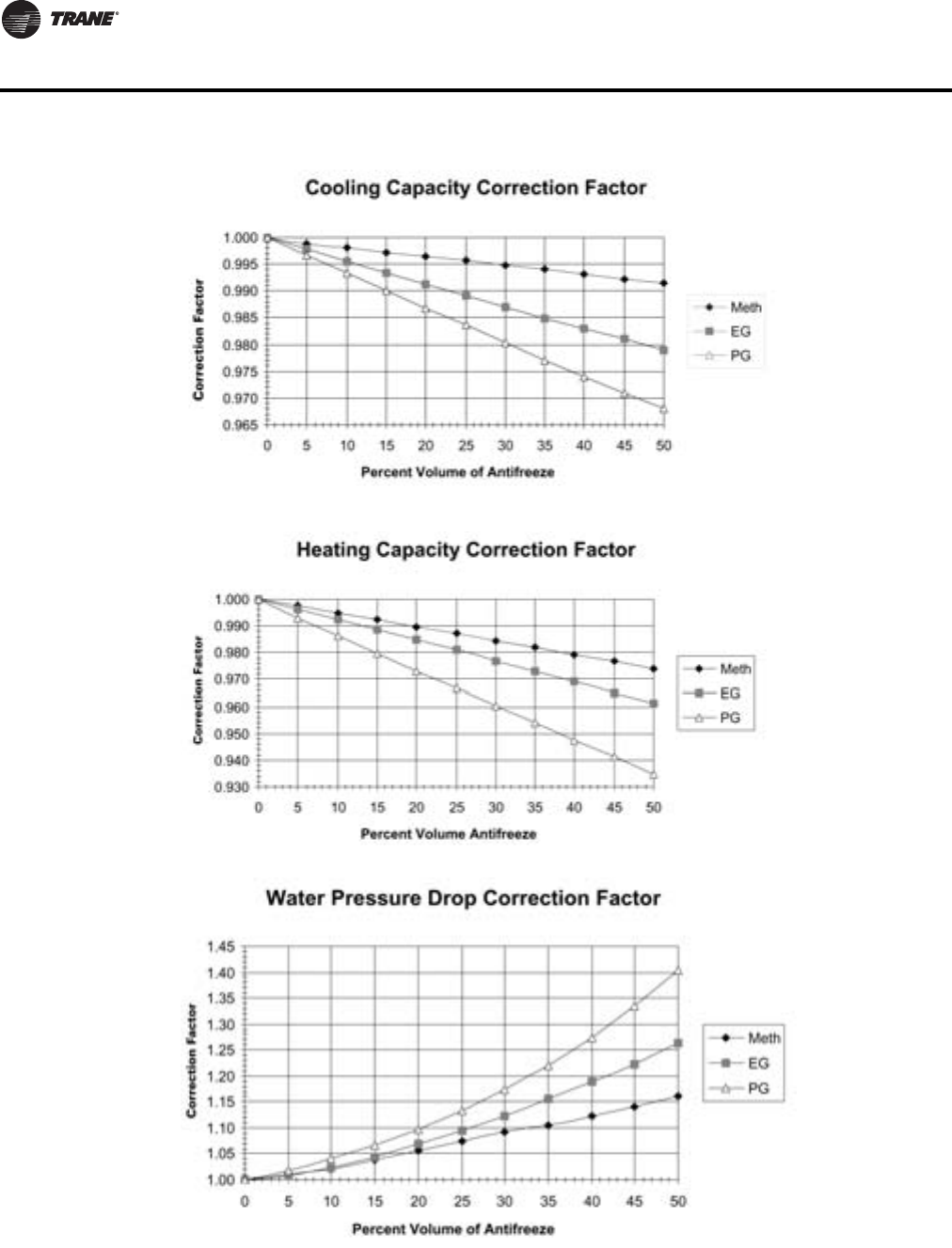

Performance Data

WSHP-PRC021-EN 79

Electrical Data

Table 85. Electrical performance

Model No. Unit Volts

Total Unit

FLA

Comp

RLA (ea)

Comp LRA

(ea)

No. of

Compres.

Blower

Motor

FLA

Blower

Motor

HP

Fan Motor

Num

Minimum

Circuit

Ampacity

Maximum

Overcurrent

Protective

Device

GER036

208/60/1 24.6 18.6 105.0 1 6.00 0.75 1 29.3 45

230/60/1 24.6 18.6 105.0 1 6.00 0.75 1 29.3 45

208/60/3 18.5 13.5 88.0 1 5.00 1 1 21.9 35

230/60/3 18.5 13.5 88.0 1 5.00 1 1 21.9 35

460/60/3 8.9 6.4 39.0 1 2.50 1 1 10.5 15

575/60/3 6.8 5.1 34.0 1 1.70 1 1 8.1 15

GER048

208/60/1 30.7 23.1 134.0 1 7.60 1 1 36.5 50

230/60/1 30.7 23.1 134.0 1 7.60 1 1 36.5 50

208/60/3 21.0 16.0 91.0 1 5.00 1 1 25.0 40

230/60/3 21.0 16.0 91.0 1 5.00 1 1 25.0 40

460/60/3 9.6 7.1 46.0 1 2.50 1 1 11.4 15

575/60/3 7.3 5.6 37.0 1 1.70 1 1 8.7 15

GER060

208/60/1 35.2 27.6 158.0 1 7.60 1 1 42.1 60

230/60/1 35.2 27.6 158.0 1 7.60 1 1 42.1 60

208/60/3 23.1 18.1 137.0 1 5.00 1 1 27.6 45

230/60/3 23.1 18.1 137.0 1 5.00 1 1 27.6 45

460/60/3 11.5 9.0 62.0 1 2.50 1 1 13.8 20

575/60/3 8.5 6.8 50.0 1 1.70 1 1 10.2 15

GER072

208/60/3 27.4 22.4 149.0 1 5.00 1 1 33.0 50

230/60/3 27.4 22.4 149.0 1 5.00 1 1 33.0 50

460/60/3 13.1 10.6 75.0 1 2.50 1 1 15.8 25

575/60/3 9.2 7.7 54.0 1 1.50 1 1 11.1 15

208/60/3 28.7 22.4 149.0 1 6.30 2 1 34.3 50

230/60/3 28.7 22.4 149.0 1 6.30 2 1 34.3 50

460/60/3 13.7 10.6 75.0 1 3.10 2 1 16.4 25

575/60/3 10.1 7.7 54.0 1 2.40 2 1 12.0 15

GER090

208/60/3 28.6 25.0 164.0 1 3.60 1 1 34.9 50

230/60/3 28.6 25.0 164.0 1 3.60 1 1 34.9 50

460/60/3 13.9 12.2 100.0 1 1.70 1 1 17.0 25

575/60/3 10.4 9.0 78.0 1 1.40 1 1 12.7 20

208/60/3 34.4 25.0 164.0 1 9.40 3 1 40.7 60

230/60/3 34.4 25.0 164.0 1 9.40 3 1 40.7 60

460/60/3 16.8 12.2 100.0 1 4.60 3 1 19.9 30

575/60/3 12.4 9.0 78.0 1 3.40 3 1 14.7 20

GER120

208/60/3 26.6 18.1 137.0 2 8.50 3.6 1 49.2 60

230/60/3 26.6 18.1 137.0 2 8.50 3.6 1 49.2 60

460/60/3 13.3 9.0 62.0 2 4.30 3.6 1 24.6 30

575/60/3 11.1 6.8 50.0 2 4.30 3.6 1 19.6 25

80 WSHP-PRC021-EN

Electrical Data

GER150

208/60/3 33.0 22.4 149.0 2 10.60 3 1 61.0 80

230/60/3 33.0 22.4 149.0 2 10.60 3 1 61.0 80

460/60/3 15.4 10.6 75.0 2 4.80 3 1 28.7 35

575/60/3 11.8 7.9 54.0 2 3.90 3 1 21.7 25

208/60/3 39.1 22.4 149.0 2 16.70 5 1 67.1 80

230/60/3 39.1 22.4 149.0 2 16.70 5 1 67.1 80

460/60/3 18.2 10.6 75.0 2 7.60 5 1 31.5 40

575/60/3 14.0 7.9 54.0 2 6.10 5 1 23.9 30

GER180

208/60/3 35.6 25.0 164.0 2 10.60 3 1 66.9 90

230/60/3 35.6 25.0 164.0 2 10.60 3 1 66.9 90

460/60/3 17.3 12.5 100.0 2 4.80 3 1 32.9 45

575/60/3 14.2 10.3 78.0 2 3.90 3 1 27.1 35

208/60/3 41.7 25.0 164.0 2 16.70 5 1 73.0 90

230/60/3 41.7 25.0 164.0 2 16.70 5 1 73.0 90

460/60/3 20.1 12.5 100.0 2 7.60 5 1 35.7 45

575/60/3 16.4 10.3 78.0 2 6.10 5 1 29.3 35

GER240

208/60/3 55.8 39.1 267.0 2 16.70 5 1 104.7 125

230/60/3 55.8 39.1 267.0 2 16.70 5 1 104.7 125

460/60/3 24.9 17.3 142.0 2 7.60 5 1 46.5 60

575/60/3 21.5 15.4 103.0 2 6.10 5 1 40.8 50

208/60/3 56.7 39.1 267.0 2 17.60 7.5 1 105.6 125

230/60/3 56.7 39.1 267.0 2 17.60 7.5 1 105.6 125

460/60/3 25.9 17.3 142.0 2 8.60 7.5 1 47.5 60

575/60/3 22.4 15.4 103.0 2 7.00 7.5 1 41.7 50

GER300

208/60/3 63.3 39.1 267.0 2 24.20 7.5 1 112.2 150

230/60/3 63.3 39.1 267.0 2 24.20 7.5 1 112.2 150

460/60/3 29.6 18.6 103.0 2 11.00 7.5 1 52.9 70

575/60/3 24.4 15.4 160.0 2 9.00 7.5 1 43.7 50

Table 85. Electrical performance

Model No. Unit Volts

Total Unit

FLA

Comp

RLA (ea)

Comp LRA

(ea)

No. of

Compres.

Blower

Motor

FLA

Blower

Motor

HP

Fan Motor

Num

Minimum

Circuit

Ampacity

Maximum

Overcurrent

Protective

Device

WSHP-PRC021-EN 81

Electrical Data

Table 86. Electrical performance for units with electric heat (single point connection)

Standard Indoor Motor Oversized Indoor Motor

Unit Model

Number

Heater Model

Number

Electric Heat

Amps

Electric Heat

kW

Control

Stages

Minimum

Circuit

Ampacity

Max Over

current

Protection

Minimum

Circuit

Ampacity

Max Over

current

Protection

208 Volt Single Phase ——

GER036

BAYHTRE105* 18.3 3.8 1 52.1 60 — —

BAYHTRE110* 36.1 7.5 2 74.4 80 — —

BAYHTRE114* 50.0 10.4 2 91.8 100 — —

GER048

BAYHTRE105* 18.3 3.8 1 59.4 70 — —

BAYHTRE110* 36.1 7.5 2 81.6 90 — —

BAYHTRE114* 50.0 10.4 2 99.0 100 — —

BAYHTRE118* 63.5 13.2 2 115.9 125 — —

GER060

BAYHTRE105* 18.3 3.8 1 65.0 80 — —

BAYHTRE110* 36.1 7.5 2 87.2 100 — —

BAYHTRE114* 50.0 10.4 2 104.6 110 — —

BAYHTRE118* 63.5 13.2 2 121.5 125 — —

230 Volt Single Phase

GER036

BAYHTRE105* 20.8 5.0 1 55.3 60 — —

BAYHTRE110* 41.7 10.0 2 81.4 90 — —

BAYHTRE114* 57.5 13.8 2 101.1 110 — —

GER048

BAYHTRE105* 20.8 5.0 1 62.5 80 — —

BAYHTRE110* 41.7 10.0 2 88.6 100 — —

BAYHTRE114* 57.5 13.8 2 108.4 110 — —

BAYHTRE118* 73.3 17.6 2 128.1 150 — —

GER060

BAYHTRE105* 20.8 5.0 1 68.1 90 — —

BAYHTRE110* 41.7 10.0 2 94.2 110 — —

BAYHTRE114* 57.5 13.8 2 114.0 125 — —

BAYHTRE118* 73.3 17.6 2 133.7 150 — —

208 Volt Three Phase

GER036

BAYHTRE306* 12.5 4.5 1 37.5 45 — —

BAYHTRE312* 25.0 9.0 2 53.1 60 — —

BAYHTRE318* 36.4 13.1 2 67.4 70 — —

GER048

BAYHTRE306* 12.5 4.5 1 40.6 50 — —

BAYHTRE312* 25.0 9.0 2 56.3 60 — —

BAYHTRE318* 36.4 13.1 2 70.5 80 — —

GER060

BAYHTRE306* 12.5 4.5 1 43.3 50 — —

BAYHTRE312* 25.0 9.0 2 58.9 70 — —

BAYHTRE318* 36.4 13.1 2 73.1 80 — —

BAYHTRX323* 48.0 17.3 2 87.6 90 — —

GER072

BAYHTRW309A 18.9 6.8 1 56.6 70 57.9 70

BAYHTRW318A 37.5 13.5 1 79.9 90 81.2 90

BAYHTRW327A 56.3 20.3 2 103.4 110 104.7 110

BAYHTRW336A 74.9 27.0 2 126.6 150 127.9 150

82 WSHP-PRC021-EN

Electrical Data

GER090

BAYHTRU309A 18.9 6.8 1 58.4 70 64.2 80

BAYHTRU318A 37.5 13.5 1 81.7 90 87.5 100

BAYHTRU327A 56.3 20.3 2 105.3 110 111.1 125

BAYHTRU336A 74.9 27.0 2 128.5 150 134.3 150

GER120

BAYHTRB318A 37.5 13.5 1 96.1 100 — —

BAYHTRB327A 56.3 20.3 2 119.7 125 — —

BAYHTRB336A 74.9 27.0 2 142.9 150 — —

BAYHTRB354A 112.7 40.6 2 190.1 200 — —

GER150 AYDHTRK318/

AYHHTRM318 37.5 13.5 1 107.9 110 114.0 125

GER150 AYDHTRK336/

AYHHTRM336 74.9 27.0 2 154.6 175 160.7 175

GER150 AYDHTRK354/

AYHHTRM354 112.4 40.5 2 201.5 225 207.6 225

GER180 AYDHTRK318/

AYHHTRM318 37.5 13.5 1 113.7 125 119.8 125

GER180 AYDHTRK336/

AYHHTRM336 74.9 27.0 2 160.5 175 166.6 175

GER180 AYDHTRK354/

AYHHTRM354 112.4 40.5 2 207.4 225 213.5 225

GER240 AYDHTRL336/

AYHHTRN336 74.9 27.0 2 198.3 200 199.2 200

GER240 AYDHTRL354/

AYHHTRN354 112.4 40.5 2 245.2 250 246.1 250

GER240 AYDHTRK372/

AYHHTRN372 149.9 54.0 2 292.1 300 293.0 300

GER300 AYDHTRL336/

AYHHTRN336 74.9 27.0 2 205.8 225 — —

GER300 AYDHTRL354/

AYHHTRN354 112.4 40.5 2 252.7 300 — —

GER300 AYDHTRK372/

AYHHTRN372 149.9 54.0 2 299.6 300 — —

230 Volt Three Phase

GER036

BAYHTRE306* 14.4 6.0 1 39.9 45 — —

BAYHTRE312* 28.9 12.0 2 58.0 60 — —

BAYHTRE318* 41.9 17.4 2 74.3 80 — —

GER048

BAYHTRE306* 14.4 6.0 1 43.0 50 — —

BAYHTRE312* 28.9 12.0 2 61.1 70 — —

BAYHTRE318* 41.9 17.4 2 77.4 80 — —

GER060

BAYHTRE306* 14.4 6.0 1 45.6 60 — —

BAYHTRE312* 28.9 12.0 2 63.8 70 — —

BAYHTRE318* 41.9 17.4 2 80.0 80 — —

BAYHTRX323* 55.3 23.0 2 96.8 100 — —

Table 86. Electrical performance for units with electric heat (single point connection)

Standard Indoor Motor Oversized Indoor Motor

Unit Model

Number

Heater Model

Number

Electric Heat

Amps

Electric Heat

kW

Control

Stages

Minimum

Circuit

Ampacity

Max Over

current

Protection

Minimum

Circuit

Ampacity

Max Over

current

Protection

WSHP-PRC021-EN 83

Electrical Data

GER072

BAYHTRW309A 21.7 9.0 1 60.1 70 61.4 70

BAYHTRW318A 43.3 18.0 1 87.1 90 88.4 100

BAYHTRW327A 65.0 27.0 2 114.2 125 115.5 125

BAYHTRW336A 86.6 86.6 2 141.3 150 142.6 150

GER090

BAYHTRU309A 21.7 9.0 1 61.9 80 67.7 80

BAYHTRU318A 43.3 18.0 1 89.0 100 94.8 100

BAYHTRU327A 65.0 27.0 2 116.0 125 121.8 125

BAYHTRU336A 86.6 36.0 2 143.1 150 148.9 150

GER120

BAYHTRB318A 43.3 18.0 1 103.4 110 — —

BAYHTRB327A 65.0 27.0 2 130.4 150 — —

BAYHTRB336A 86.6 36.0 2 157.5 175 — —

BAYHTRB354A 129.9 54.0 2 211.6 225 — —

GER150

AYDHTRK318/

AYHHTRM318 43.3 18.0 1 115.1 125 121.2 125

AYDHTRK336/

AYHHTRM336 86.6 36.0 2 169.3 175 175.4 200

AYDHTRK354/

AYHHTRM354 129.9 54.0 2 223.4 225 229.5 250

GER180

AYDHTRK318/

AYHHTRM318 43.3 18.0 1 121.0 125 127.1 150

AYDHTRK336/

AYHHTRM336 86.6 36.0 2 175.1 200 181.2 200

AYDHTRK354/

AYHHTRM354 129.9 54.0 2 229.2 250 235.3 250

GER240

AYDHTRL336/

AYHHTRN336 86.6 36.0 2 212.9 225 213.8 225

AYDHTRL354/

AYHHTRN354 129.9 54.0 2 267.1 300 268.0 300

AYDHTRK372/

AYHHTRN372 173.2 72.0 2 321.2 300 322.1 300

GER300

AYDHTRL336/

AYHHTRN336 86.6 36.0 2 220.4 225 — —

AYDHTRL354/

AYHHTRN354 129.9 54.0 2 274.6 300 — —

AYDHTRK372/

AYHHTRN372 173.2 72.0 2 328.7 300 — —

460 Volt Three Phase

GER036

BAYHTRE406* 7.2 6.0 1 19.5 20 — —

BAYHTRE412* 14.4 12.0 2 28.5 30 — —

BAYHTRE418* 20.9 17.4 2 36.6 40 — —

GER048

BAYHTRE406* 7.2 6.0 1 20.4 25 — —

BAYHTRE412* 14.4 12.0 2 29.4 30 — —

BAYHTRE418* 20.9 17.4 2 37.5 40 — —

Table 86. Electrical performance for units with electric heat (single point connection)

Standard Indoor Motor Oversized Indoor Motor

Unit Model

Number

Heater Model

Number

Electric Heat

Amps

Electric Heat

kW

Control

Stages

Minimum

Circuit

Ampacity

Max Over

current

Protection

Minimum

Circuit

Ampacity

Max Over

current

Protection

84 WSHP-PRC021-EN

Electrical Data

GER060

BAYHTRE406* 7.2 6.0 1 22.8 25 — —

BAYHTRE412* 14.4 12.0 2 31.8 35 — —

BAYHTRE418* 20.9 17.4 2 39.9 40 — —

BAYHTRX423* 27.7 23.0 2 48.4 50 — —

GER072

BAYHTRW409A 9.0 10.8 1 29.3 35 29.9 35

BAYHTRW418A 18.0 21.7 1 42.8 45 43.4 45

BAYHTRW427A 27.0 32.5 2 56.3 60 56.9 60

BAYHTRW436A 36.0 43.3 2 69.9 70 70.5 80

GER090

BAYHTRU409A 9.0 10.8 1 30.5 35 33.4 40

BAYHTRU418A 18.0 21.7 1 44.0 50 46.9 50

BAYHTRU427A 27.0 32.5 2 57.5 60 60.4 70

BAYHTRU436A 36.0 43.3 2 71.1 80 74.0 80

GER120

BAYHTRB418A 18.0 21.7 1 51.6 60 — —

BAYHTRB427A 27.0 32.5 2 65.1 70 — —

BAYHTRB436A 36.0 43.3 2 78.7 80 — —

BAYHTRB454A 54.0 65.0 2 105.7 110 — —

GER150

AYDHTRK418/

AYHHTRM418 21.7 18.0 1 55.8 60 58.6 60

AYDHTRK436/

AYHHTRP436 43.3 36.0 2 82.8 90 85.6 90

AYDHTRK454/

AYHHTRM454 65.0 54.0 2 109.9 110 112.7 125

GER180

AYDHTRK418/

AYHHTRM418 21.7 18.0 1 60.1 70 62.9 70

AYDHTRK436/

AYHHTRP436 43.3 36.0 2 87.1 90 89.9 90

AYDHTRK454/

AYHHTRM454 65.0 54.0 2 114.2 125 117.0 125

GER240

AYDHTRL436/

AYHHTRN436 43.3 36.0 2 100.7 110 101.7 110

AYDHTRL454/

AYHHTRN454 65.0 54.0 2 127.8 150 128.8 150

AYDHTRK472/

AYHHTRN472 86.6 72.0 2 154.8 175 155.8 175

GER300

AYDHTRL436/

AYHHTRN436 43.3 36.0 2 107.0 110 — —

AYDHTRL454/

AYHHTRN454 65.0 54.0 2 134.1 150 — —

AYDHTRK472/

AYHHTRN472 86.6 72.0 2 161.1 175 — —

575 Volt Three Phase

GER036

BAYHTREW06* 5.8 6.0 1 15.3 20 — —

BAYHTREW12* 11.5 12.0 2 22.5 25 — —

BAYHTREW18* 16.7 17.4 2 29.0 30 — —

Table 86. Electrical performance for units with electric heat (single point connection)

Standard Indoor Motor Oversized Indoor Motor

Unit Model

Number

Heater Model

Number

Electric Heat

Amps

Electric Heat

kW

Control

Stages

Minimum

Circuit

Ampacity

Max Over

current

Protection

Minimum

Circuit

Ampacity

Max Over

current

Protection

WSHP-PRC021-EN 85

Electrical Data

GER048

BAYHTREW06* 5.8 6.0 1 16.0 20 — —

BAYHTREW12* 11.5 12.0 2 23.1 25 — —

BAYHTREW18* 16.7 17.4 2 29.6 30 — —

GER060

BAYHTREW06* 5.8 6.0 1 17.5 20 — —

BAYHTREW12* 11.5 12.0 2 24.6 25 — —

BAYHTREW18* 16.7 17.4 2 31.1 35 — —

BAYHTRXW23* 22.1 23.0 2 37.8 40 — —

GER072

BAYHTRWW18A 18.0 17.3 1 32.8 35 33.7 35

BAYHTRWW27A 27.0 26.0 2 43.6 45 44.5 45

BAYHTRWW36A 36.0 34.6 2 54.4 60 55.3 60

GER090

BAYHTRUW18A 18.0 17.3 1 34.3 35 36.3 40

BAYHTRUW27A 27.0 26.0 2 45.1 50 47.1 50

BAYHTRUW36A 36.0 34.6 2 56.0 60 58.0 60

GER120

BAYHTRBW18A 18.0 17.3 1 41.2 45 — —

BAYHTRBW36A 36.0 34.6 2 62.9 70 — —

BAYHTRBW54A 54.0 52.0 2 84.6 90 — —

GER150

AYDHTRKW18/

AYHHTRMW18 17.3 18.0 1 43.3 45 45.5 50

AYDHTRKW36/

AYHHTRMW36 34.6 36.0 2 64.9 70 67.1 70

AYDHTRKW54/

AYHHTRMW54 52.0 54.0 2 86.7 90 88.9 90

GER180

AYDHTRKW18/

AYHHTRMW18 17.3 18.0 1 48.7 50 50.9 60

AYDHTRKW36/

AYHHTRMW36 34.6 36.0 2 70.3 80 72.5 80

AYDHTRKW54/

AYHHTRMW54 52.0 54.0 2 92.1 100 94.3 100

GER240

AYDHTRLW36/

AYHHTRNW36 34.6 36.0 2 84.0 90 84.9 90

AYDHTRLW54/

AYHHTRNW54 52.0 54.0 2 105.8 110 106.7 110

AYDHTRKW72/

AYHHTRNW72 69.3 72.0 2 127.4 150 128.3 150

GER300

AYDHTRMW36/

AYHHTRMW36 34.6 36.0 2 86.9 90 — —

AYDHTRLW54/

AYHHTRNW54 52.0 54.0 2 108.7 110 — —

AYDHTRKW72/

AYHHTRNW72 69.3 72.0 2 130.3 150 — —

Table 86. Electrical performance for units with electric heat (single point connection)

Standard Indoor Motor Oversized Indoor Motor

Unit Model

Number

Heater Model

Number

Electric Heat

Amps

Electric Heat

kW

Control

Stages

Minimum

Circuit

Ampacity

Max Over

current

Protection

Minimum

Circuit

Ampacity

Max Over

current

Protection

86 WSHP-PRC021-EN

Dimensional Data

Figure 1. 3 to 4 ton unit clearance and roof opening

CLEARANCE

HORIZONTAL FLOW - 36" (914 MM)

DOWNFLOW 36" (914 MM)

TYPICAL ROOF OPENING

CLEARANCE 36" (914 MM)

44 1/2"

1130 MM

37"

940 MM

CLEARANCE FROM

TOP OF UNIT 72" (1829 MM)

68 1/4"

1732 MM

40"

1016 MM

CLEARANCE 48" (1219 MM)

CLEARANCE 36" (914 MM)

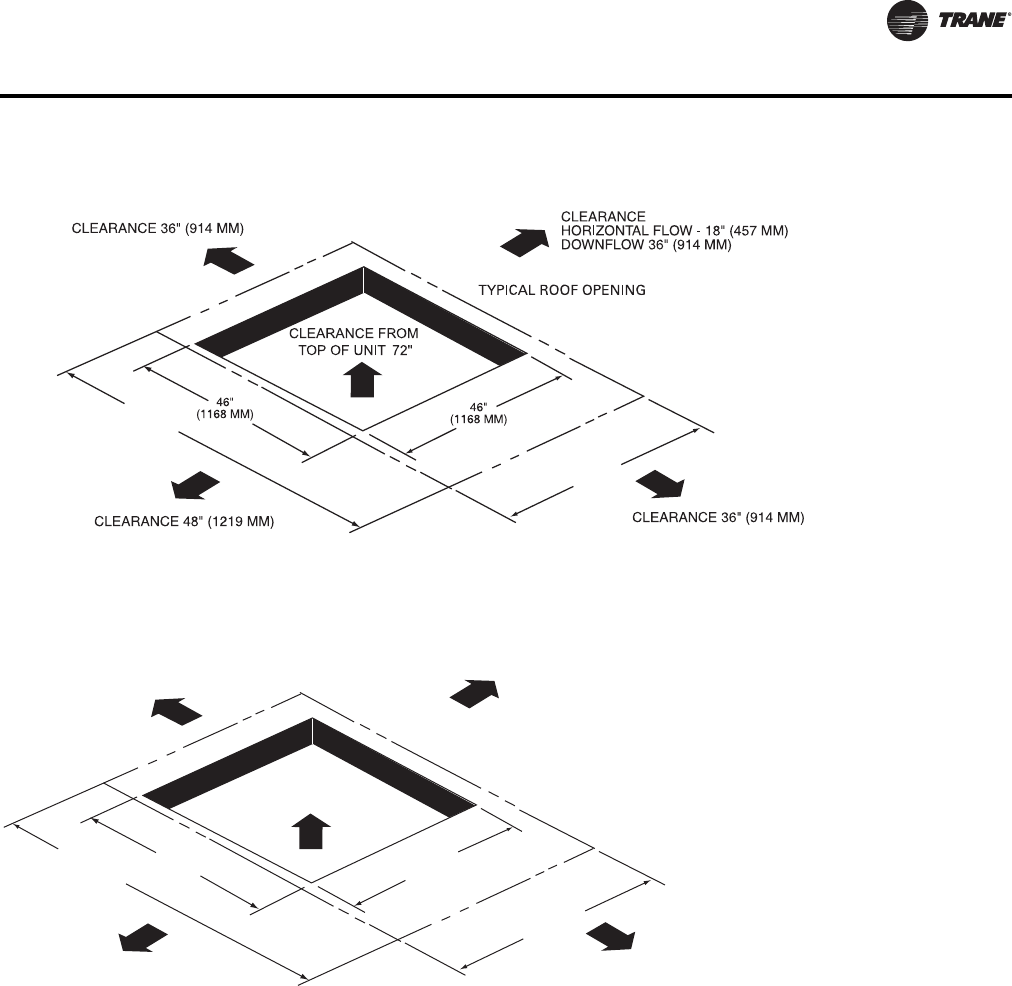

Figure 2. 5 to 7-1/2 ton unit clearance and roof opening

CLEARANCE

HORIZONTAL FLOW - 18" (457 MM)

DOWNFLOW 36" (914 MM)

TYPICAL ROOF OPENING

CLEARANCE 36" (914 MM)

53 1/4"

1352 MM

46"

1168 MM

CLEARANCE FROM

TOP OF UNIT 72" (1829 MM)

88 5/8"

2251 MM

46"

1168 MM

CLEARANCE 48" (1219 MM)

CLEARANCE 36" (914 MM)

WSHP-PRC021-EN 87

Dimensional Data

Figure 3. 10 ton unit clearance and roof opening

99 11/16”

(2532 MM)

63 3/16”

(1605 MM)

Figure 4. 12½ and 15 tons unit clearance and roof opening

CLEARANCE

DOWNFLOW 36" (914 MM)

HORIZONTAL 60" (1524 MM)

TYPICAL ROOF OPENING

CLEARANCE

DOWNFLOW 48" (1219 MM)

HORIZONTAL 38" (965MM)

84 3/16"

2138 MM

76 1/2"

1943 MM

CLEARANCE FROM

TOP OF UNIT 72" (1829 MM)

121 11/16"

3091 MM

81"

2057 MM

CLEARANCE

DOWNFLOW 60" (1524 MM)

HORIZONTAL 18" (457 MM)

CLEARANCE

DOWNFLOW 68" (1727 MM)

HORIZONTAL 48" (1219 MM)

88 WSHP-PRC021-EN

Dimensional Data

Figure 5. 20 and 25 tons unit clearance and roof opening

CLEARANCE

DOWNFLOW 36" (914 MM)

HORIZONTAL 60" (1524 MM)

TYPICAL ROOF OPENING

CLEARANCE

DOWNFLOW 48" (1219 MM)

HORIZONTAL 38" (965 MM)

84 3/16"

2138 MM

76 1/2"

1943 MM

CLEARANCE FROM

TOP OF UNIT 72" (1829 MM)

121 11/16"

3091 MM

81"

2057 MM

CLEARANCE

DOWNFLOW 60" (1524 MM)

HORIZONTAL 18" (457 MM)

CLEARANCE

DOWNFLOW 68" (1727 MM)

HORIZONTAL 48" (1219 MM)

WSHP-PRC021-EN 89

Dimensional Data

Figure 6. 3 to 4 ton unit(a)

(a) See tables in chapter “General Data,” p. 13, for water connection sizes.

90 WSHP-PRC021-EN

Dimensional Data

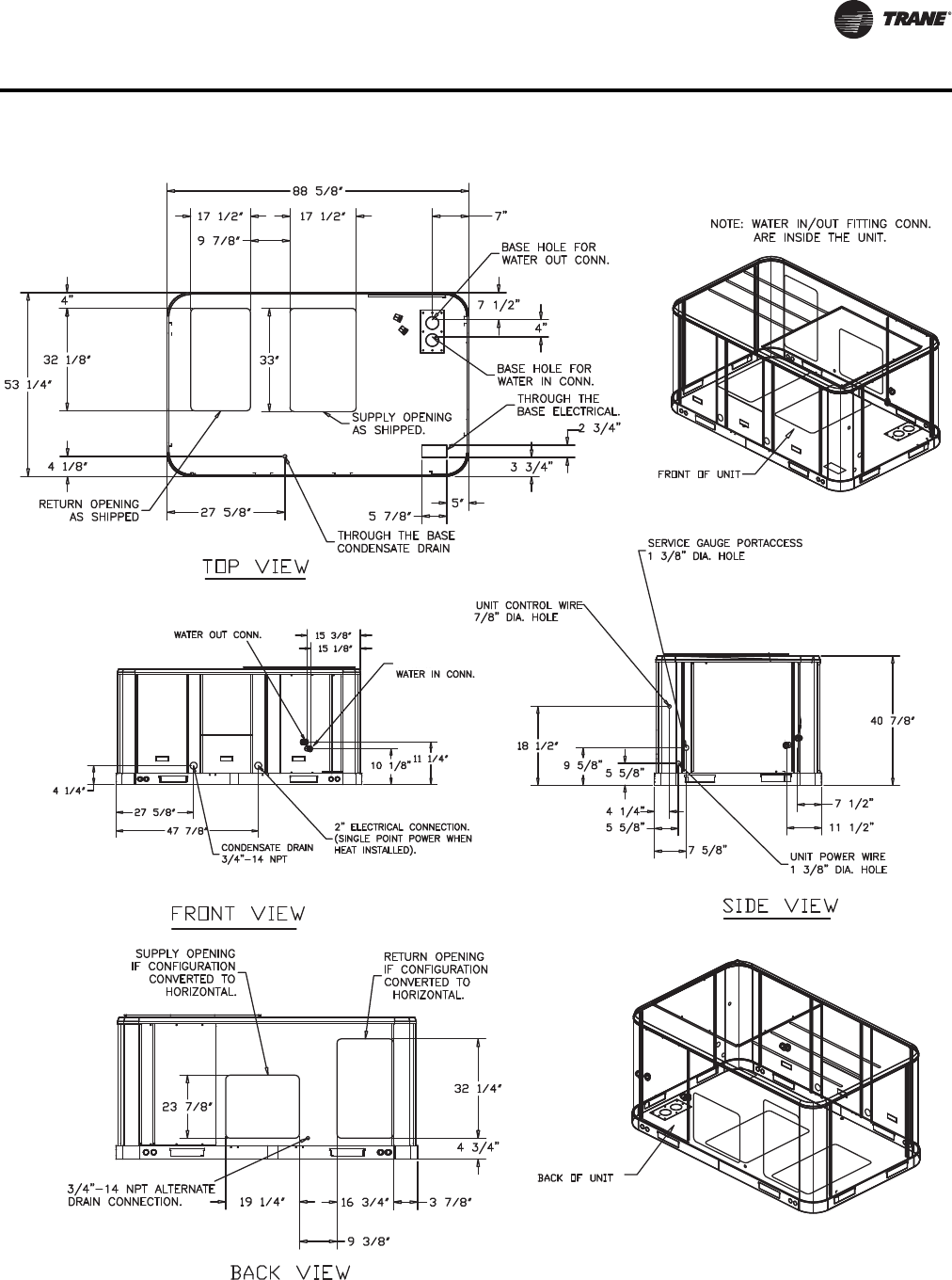

Figure 7. 5 ton unit(a)

(a) See tables in chapter “General Data,” p. 13, for water connection sizes.

WSHP-PRC021-EN 91

Dimensional Data

Figure 8. 6 ton unit(a)

(a) See tables in chapter “General Data,” p. 13, for water connection sizes.

92 WSHP-PRC021-EN

Dimensional Data

Figure 9. 7½ ton unit(a)

(a) See tables in chapter “General Data,” p. 13, for water connection sizes.

WSHP-PRC021-EN 93

Dimensional Data

Figure 10. 10 ton unit (a)

(a) See tables in chapter “General Data,” p. 13, for water connection sizes.

63

7/8”

7/8”

1/4”

94 WSHP-PRC021-EN

Dimensional Data

Figure 11. 12½ and 15 ton unit(a)

(a) See tables in chapter “General Data,” p. 13, for water connection sizes.

(a) See tables in chapter “General Data,” p. 13, for water connection sizes.

12 5/16"

313mm

20 13/16"

529mm

26 7/8"

684mm

54"

1372mm

23"

584mm

WSHP-PRC021-EN 95

Dimensional Data

Figure 12. 20 ton unit(a)

(a) See tables in chapter “General Data,” p. 13, for water connection sizes.

20 7/8"

530mm

12 1/2"

317mm

24 1/4"

616mm

96 WSHP-PRC021-EN

Dimensional Data

Figure 13. 25 ton unit(a)

(a) See tables in chapter “General Data,” p. 13, for water connection sizes.

(a) See tables in chapter “General Data,” p. 13, for water connection sizes.

64”

1626 mm

20 13/16"

529mm

12 5/16"

313mm

85 5/16"

2167mm

54"

1372mm

26 7/8"

264mm

WSHP-PRC021-EN 97

Dimensional Data

Figure 14. 3 to 4 ton roofcurb

7

44

44

MM

MM

44

44

MM

MM

1038

1038

MM

MM

1053

1053

MM

MM

Figure 15. 3 to 4 ton roofcurb - downflow duct connections

7

(433 MM)

98 WSHP-PRC021-EN

Dimensional Data

Figure 16. 5, 6 and 7½ ton roofcurb

(2130 MM)

(356 MM)

Figure 17. 5, 6 and 7½ ton roofcurb - downflow duct connections

SUPPLY

RETURN

ALL FLANGES 1 1/4" (31 MM)

857

857

WSHP-PRC021-EN 99

Dimensional Data

Figure 18. 10 ton roofcurb

Figure 19. 10 ton roofcurb - downflow duct connections

13/4”

(

44 MM

)

2”

(

51 MM

)

84 1/2”

(2146 MM)

83 7/8”

(2130 MM)

60 3/8”

(1534 MM)

59 7/8”

(

1521 MM

)

14”

(

356 MM

)

2”

(

51 MM

)

56 3/8”

(1432 MM)

34 3/8”

(873 MM)

34 3/8”

(873 MM)

18 1/2”

(470 MM)

18 1/2”

(470 MM)

1”

(

25 MM

)

1”

(

25 MM

)

1”

(

25 MM

)

65/8”

(

168 MM

)

80 1/2”

(2045 MM)

CLEARANCE 18” (457 MM)FORHORIZONTAL

CLEARANCE36”(914 MM) FORDOWNFLOW

SUPPLY

RETURN

ALL FLANGES 1 1/4" (31 MM)

857

857

100 WSHP-PRC021-EN

Dimensional Data

Figure 20. 12½ to 25 ton roofcurb

Figure 21. 12½ to 25 ton roofcurb - duct connections

9

1”

25.4 MM

CURB FLANGE

LONG SIDES

SHORT SIDES

WSHP-PRC021-EN 101

Dimensional Data

Figure 22. 12½ to 25 ton roofcurb

102 WSHP-PRC021-EN

Dimensional Data

Figure 23. 3 to 5 ton accessories

WSHP-PRC021-EN 103

Dimensional Data

Figure 24. Fresh air hood (horizontal units) Figure 25. Fresh air hood (downflow units)

Figure 26. Power exhaust - downflow

economizers Figure 27. Power exhaust - downflow economizers - side view

C

POWER EXHAUST with DOWNFLOW

ECONOMIZERS only, SIDE VIEW

Figure 28. Economizer - horizontal units Figure 29. Economizer - downflow units

Note: When applying economizer to horizontal

units, connected ductwork must be run full

size to allow proper operation of economizer

damper.

Table 87. Power exhaust dimensions

Unit Model # A B(a)

(a) Horizontal dimension only. Downflow economizer is width of

end panel.

C(b)

(b) Power exhaust is applied on downflow economizer only.

GER 150-240 19½ 64¾ 39

104 WSHP-PRC021-EN

Weights and Center of Gravity

Table 88. Accessory weights

Option/Accessory

Description

Net

Weight

036-060

Net

Weight

072-120

Net

Weight

150-300

Option/Accessory

Description

Net

Weight

036-060

Net

Weight

072-120

Net

Weight

150-180

Net

Weight

240-300

Electric Heat 15 30 * Smoke Detector, Return 7 7 7 7

Economizer 26 36 65/80 Smoke Detector, Supply/Return 5 5 5 5

Motorized Damper 20 30 75 Clogged Filter Switch 1 1 1 1

Manual Damper 16 26 32 Fan Fail Switch 1 1 1 1

Barometric Relief 7 10 — Discharge Air Tube 3 3 3 3

Power Exhaust N/A 80 95 Roof curb 61 89 235 —

Oversized Motor 5 8 5 Zone Sensors 1 1 1 1

Belt Drive Motor (3-phase only) 31 Standard 10/15

Hinged Access 10 12 27

Hail Guard 12 20 —

Unit Size

23-36

kW 54 kW 72 kW

Through the base electrical 8 13 23

Unit Disconnect Switch 5 5 5/10 GER 150-300 33/27 40/32 43/34

Unit Circuit Breaker 5 5 5/10

TCI, LCI 1 1 1

Frostat 1 1 1

Crankcase Heater 1 1 1

* Note 1: Net weights for electric heat are as follows

Figure 30. Corner weight locations and center of gravity

Table 89. Typical unit weights and point loading data

Net

Weight

Corner Weights Center of Gravity

Model A B C D Length Width

GER 036 487 132 121 112 121 33.0 19.0

GER 048 538 146 134 124 134 33.0 19.0

GER 060 678 188 164 154 173 40.5 23.0

GER 072 700 194 169 159 179 40.5 23.0

GER 090 794 218 194 182 201 41.0 23.0

GER 120 941 235 251 234 221 52.0 28.0

GER 150 1800 491 481 410 418 60.0 32.0

GER 180 1848 505 493 421 429 60.0 32.0

GER 240 2008 548 536 458 466 60.0 32.0

GERE300 1906 520 509 435 442 30.0 32.0

Center

of Gravity

Length

Center of Gravity

Width

AB

C

D

Center of Gravity

WSHP-PRC021-EN 105

Accessories

System balancing hose kit

For automatic system balancing of a water source heat pump, the Mesurflo® self-balancing hose

kit provides a constant flow rate over the pressure differential rage of 2 to 80 psid. As system

pressure changes (through further addition of heat pumps, for example) each individual flow

control valve will automatically adjust to the new system conditions. In variable water volume

applications, a self-balancing hose kit can provide continuous balancing because of its ability to

automatically adjust to the varying system conditions.

Note: At low differential pressure the flow area required to achieve higher flow can exceed the

flow area available for the respective series.Therefore, the minimum pressure differential

requirement is increased for the higher flow ranges of each series Mesurflo valve.

Thermostat/Sensor Location

Location of thermostat or zone sensor is an important element of effective room control and

comfort.The best location is typically on a wall, remote from HVAC unit’s supply/return-air grille.

Readings at this location assure the desired setpoint is achieved across the space, not just near the

unit. It may be necessary to subdivide the zone to ensure adequate control and comfort is

accomplished. Figure 32 indicates areas where thermostat or zone sensor should not be mounted.

These include:

• Near drafts or dead spots (e.g. behind doors or corners)

• Near hot or cold air ducts

• Near radiant heat (e.g. heat emitted from appliances or the sun)

• Near concealed pipes or chimneys

• On outside walls or other non conditioned surfaces

• In air flows from adjacent zones or other units

Figure 31. Ball valve kit (manual)/MeasurfloVac kit (automatic)

Flex Hose

Mesurmeter w/PT’s

Optional Yball Strainer

w/Blowdown Valve &

Hose Connector

PT

FLOW

Ball Valve

Optional Isolation Valve

2-Position Valve

AUTOMATIC

TEMPERATURE

CONTROL

VALVE

Flex Hose

Optional Yball Strainer

w/Blowdown Valve &

Hose Connector

PT

FLOW

Ball Valve

Optional Isolation Valve

2-Position Valve

2510 Mesurflo w/PT’s

AUTOMATIC

TEMPERATURE

CONTROL

VALVE

Figure 32. Thermostat/sensor location

106 WSHP-PRC021-EN

Accessories

Zone Sensors

Manual/Automatic

Changeover

Manual/Automatic

Changeover

Programmable Night

Setback

Auto, Heat, Cool or Off System

Switch. Fan Auto or Off Switch.

Two temperature setpoint

levers. Status Indication LED

lights, System On, Heat, Cool, or

Service.

Auto, Heat, Cool or Off

System Switch. Fan Auto or

Off Switch.Two temperature

setpoint levers.

Auto or manual changeover

with seven-day programming.

Keyboard selection of Heat,

Cool, Fan, Auto, or On. All

programmable sensors have

System On, Heat, Cool, Service

LED/indicators as standard.

Night Setback Sensors have

one (1) Occupied, one (1) Un-

occupied, and one (1) Override

program per day.

Room Sensor withTimed

Override Button

Integrated Comfort™

System

Sensor(s) available with

optional temperature

adjustment and override

buttons to provide central

control through aTrane

Integrated Comfort™system.

WSHP-PRC021-EN 107

Wiring

Figure 33. 3-5 ton 1ph control diagram

108 WSHP-PRC021-EN

Wiring

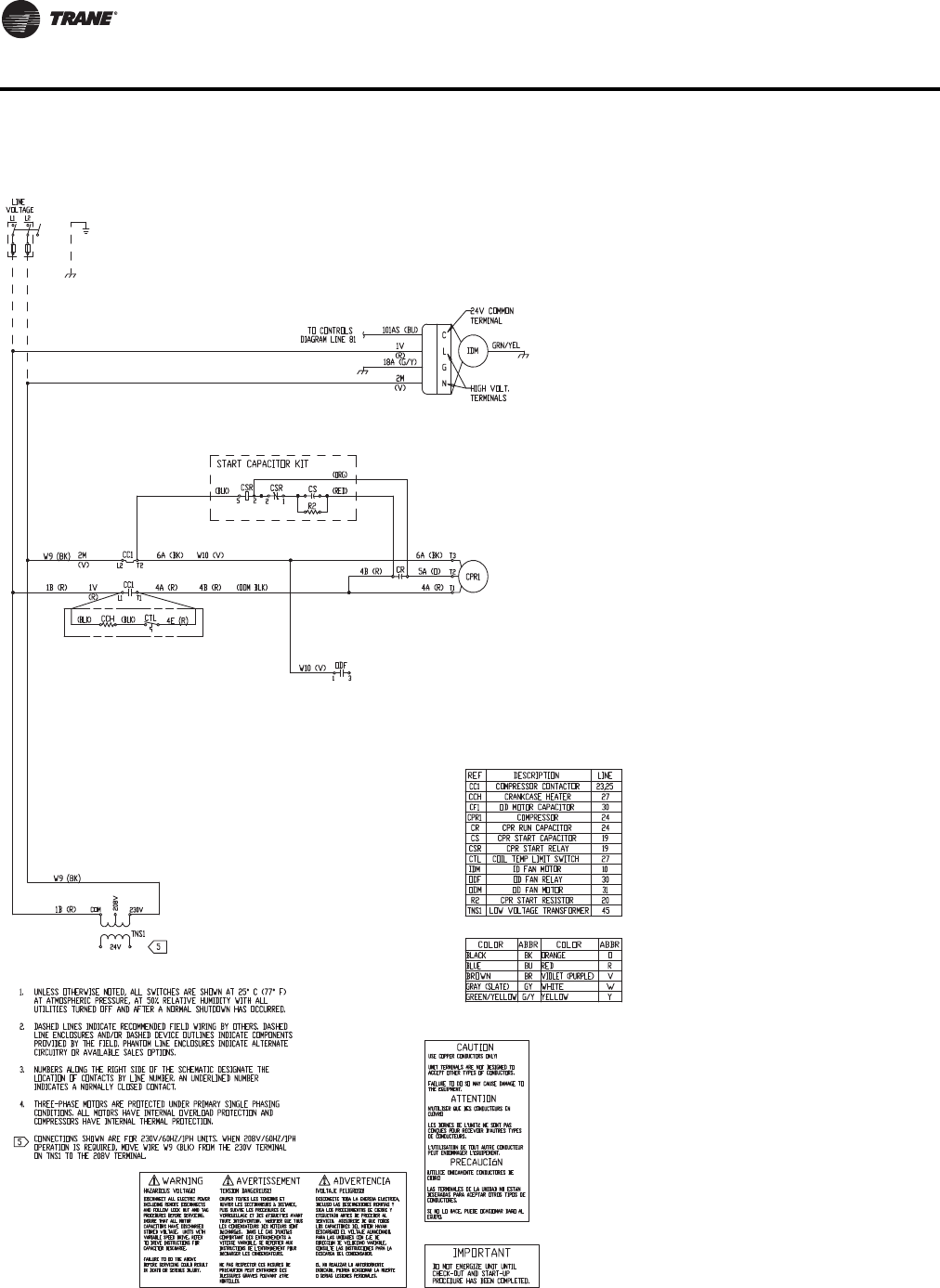

Figure 34. 3-5 ton 1ph power connection

WSHP-PRC021-EN 109

Wiring

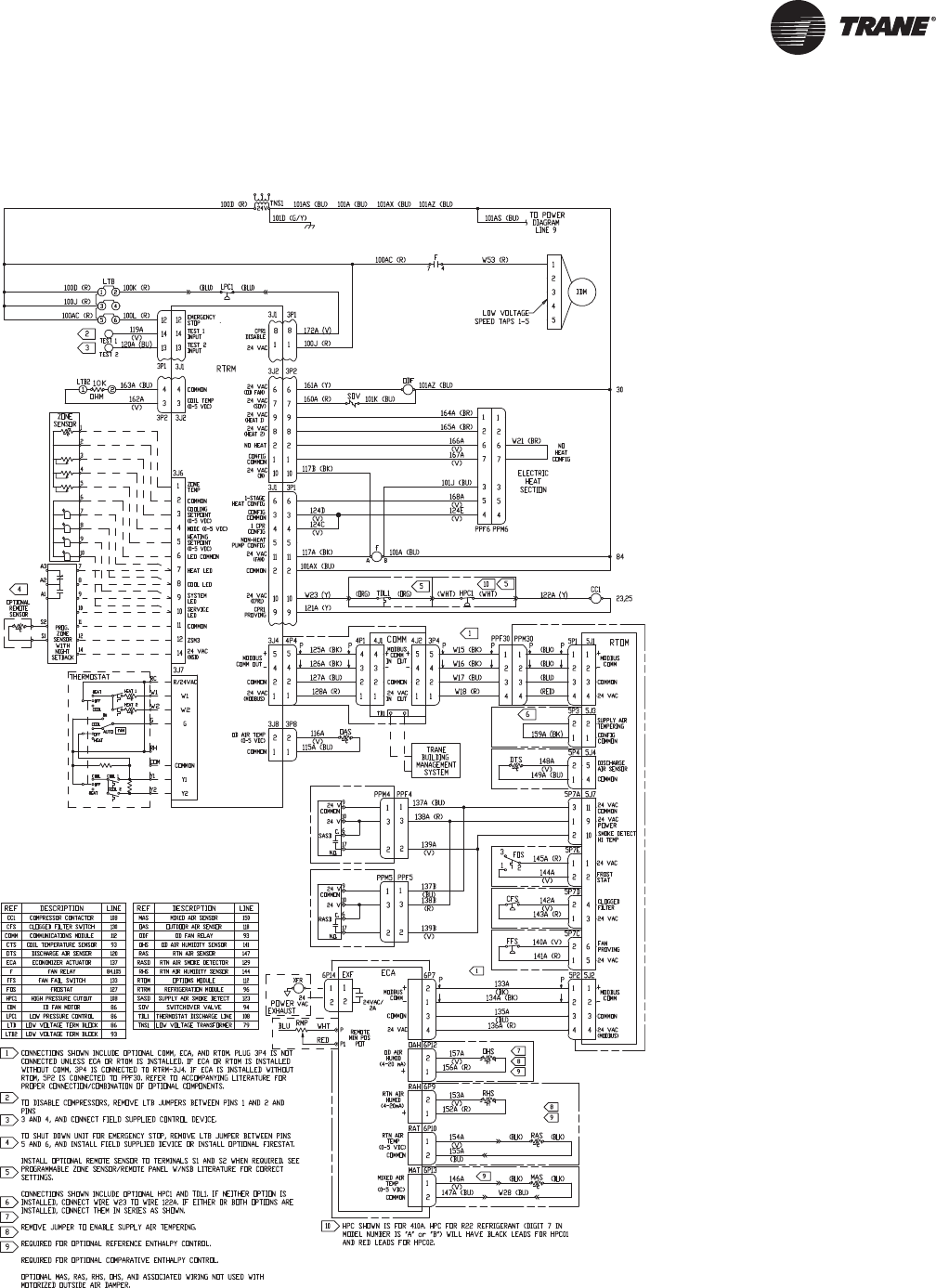

Figure 35. 3-7.5 ton 3ph control diagram

110 WSHP-PRC021-EN

Wiring

Figure 36. 3-7.5 ton 3ph power connection

WSHP-PRC021-EN 111

Wiring

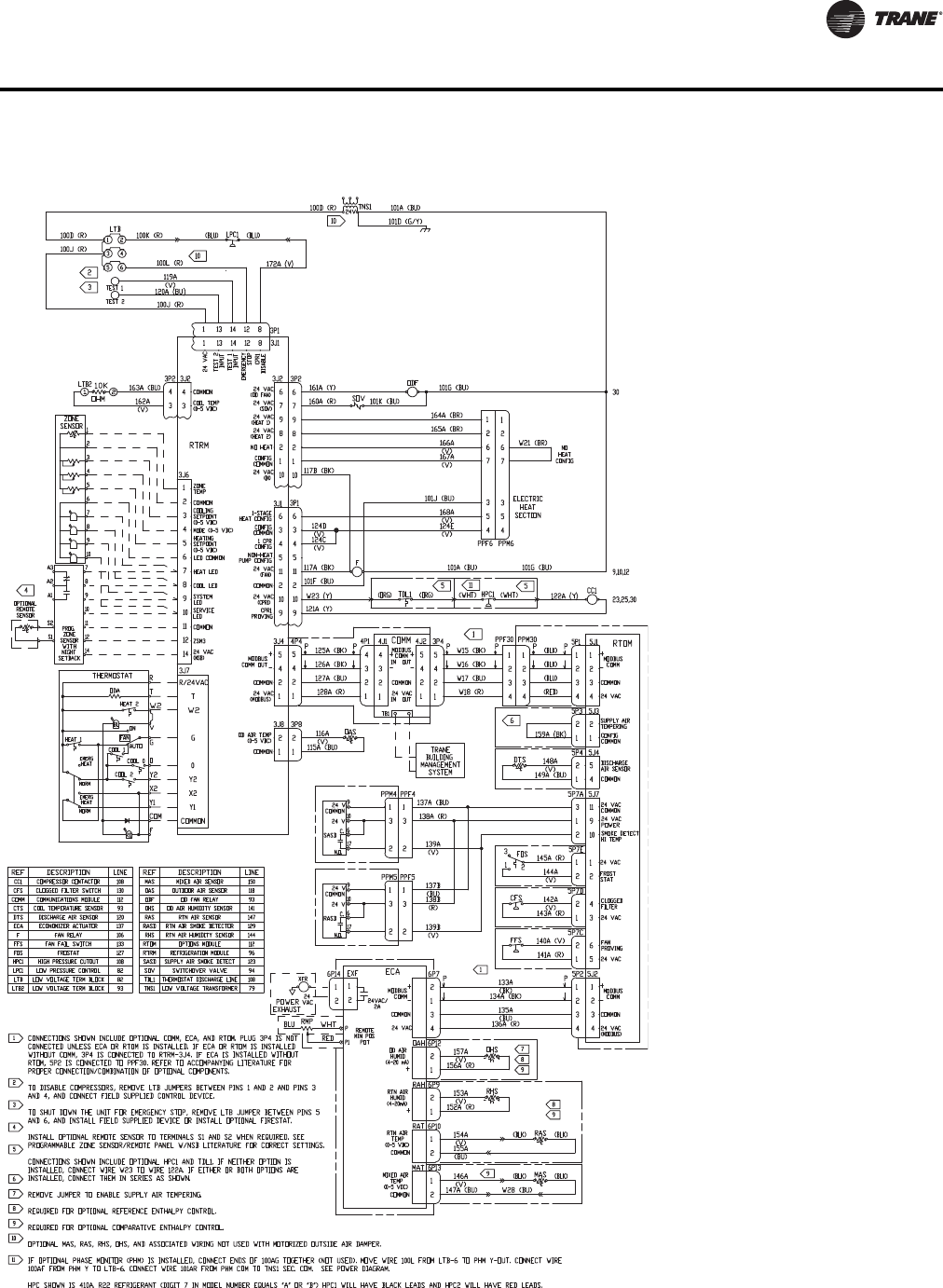

Figure 37. 10 ton control diagram

11 2 WSHP-PRC021-EN

Wiring

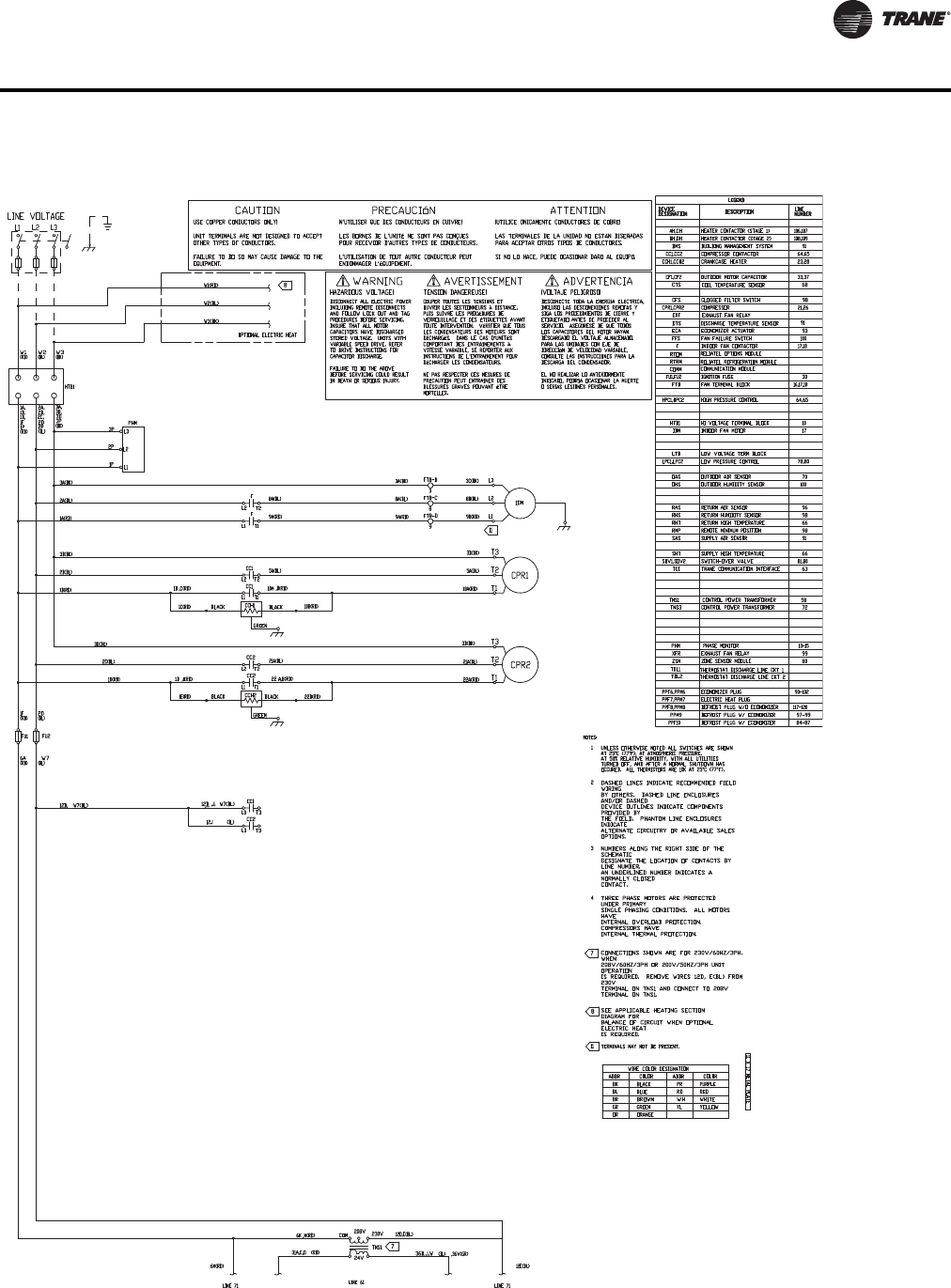

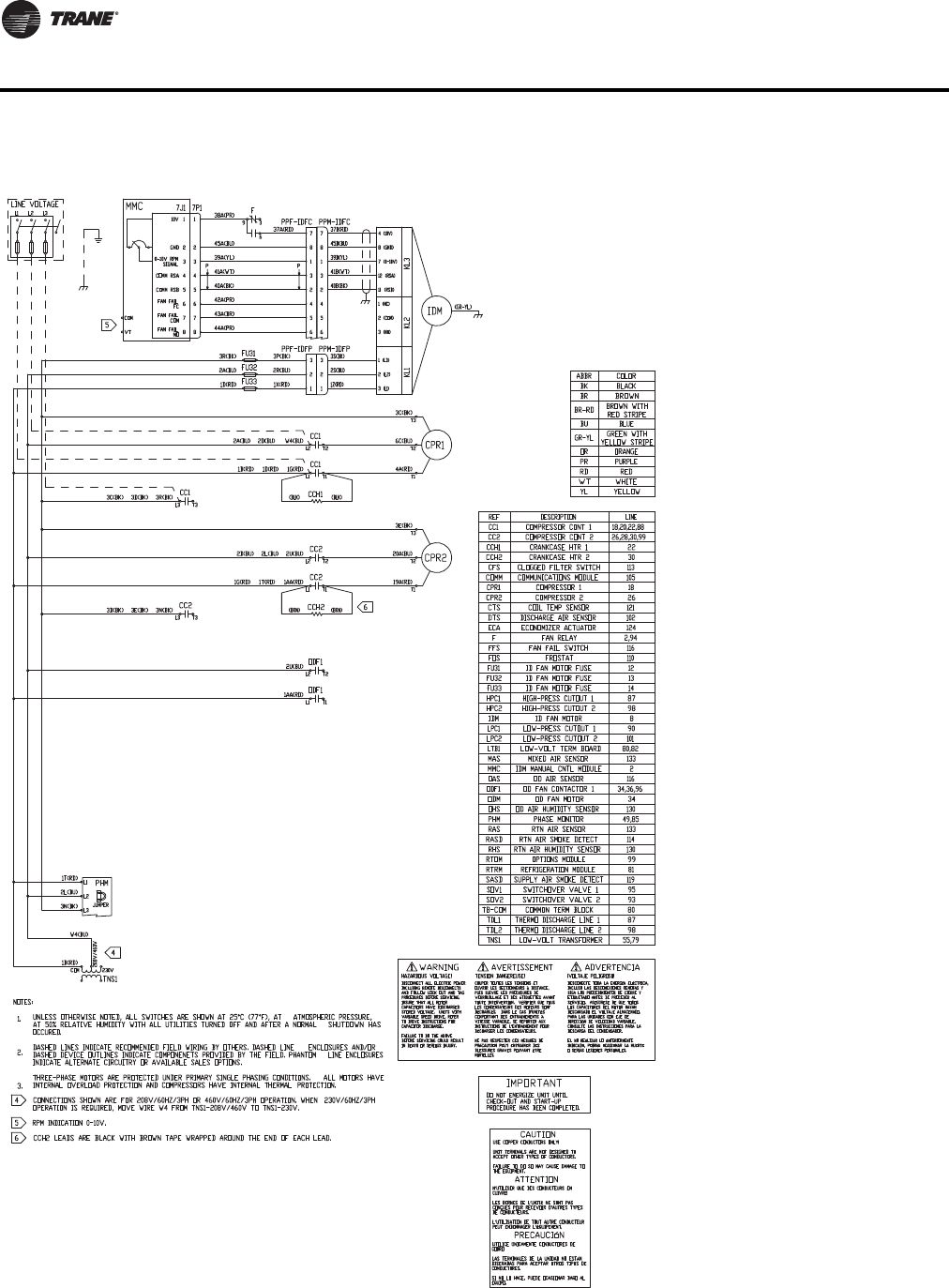

Figure 38. 10 ton power connection

WSHP-PRC021-EN 11 3

Wiring

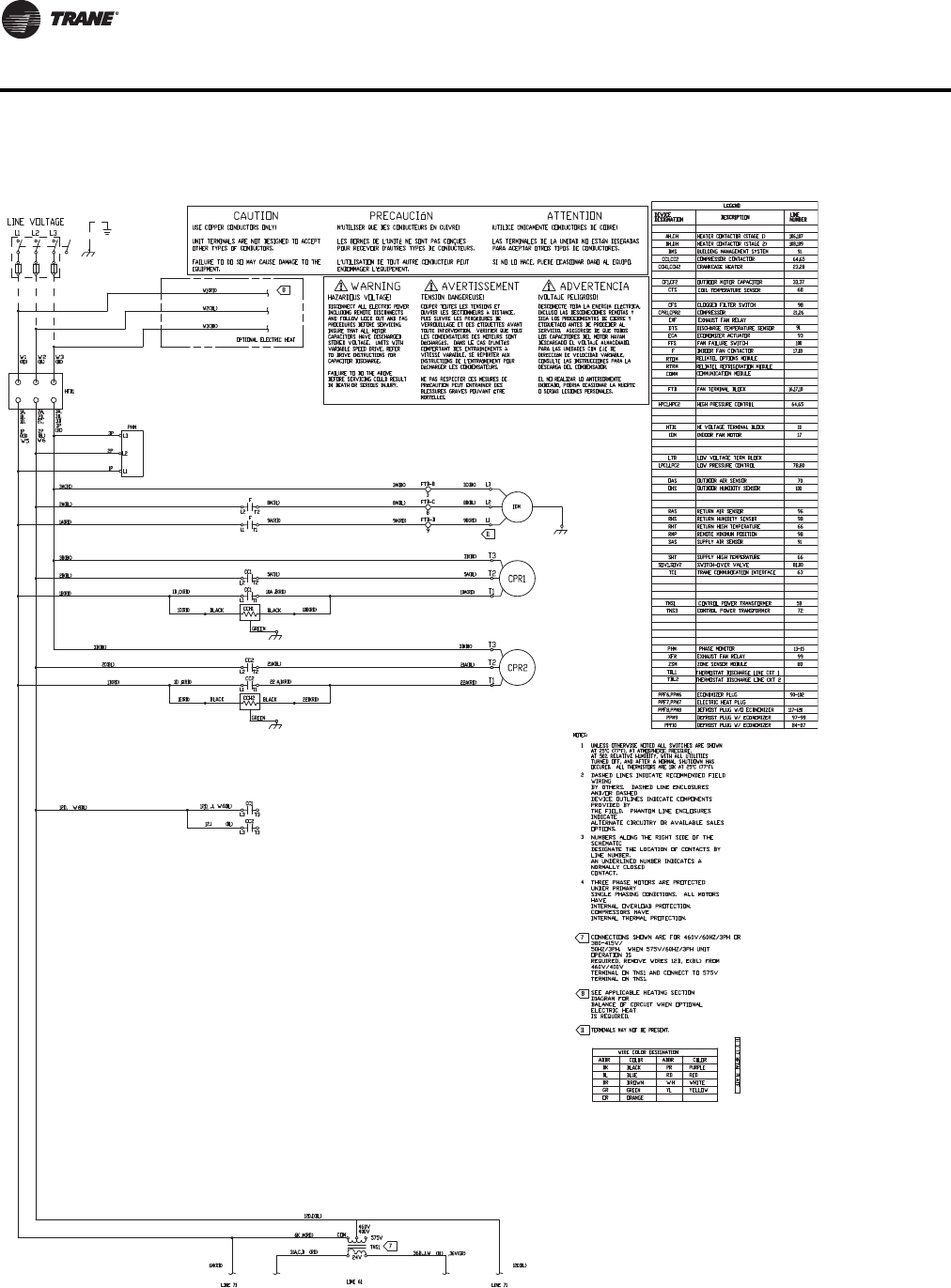

Figure 39. 12.5-20 ton 208-230V power connection

114 WSHP-PRC021-EN

Wiring

Figure 40. 12.5-20 ton 460-575V power connection

WSHP-PRC021-EN 11 5

Wiring

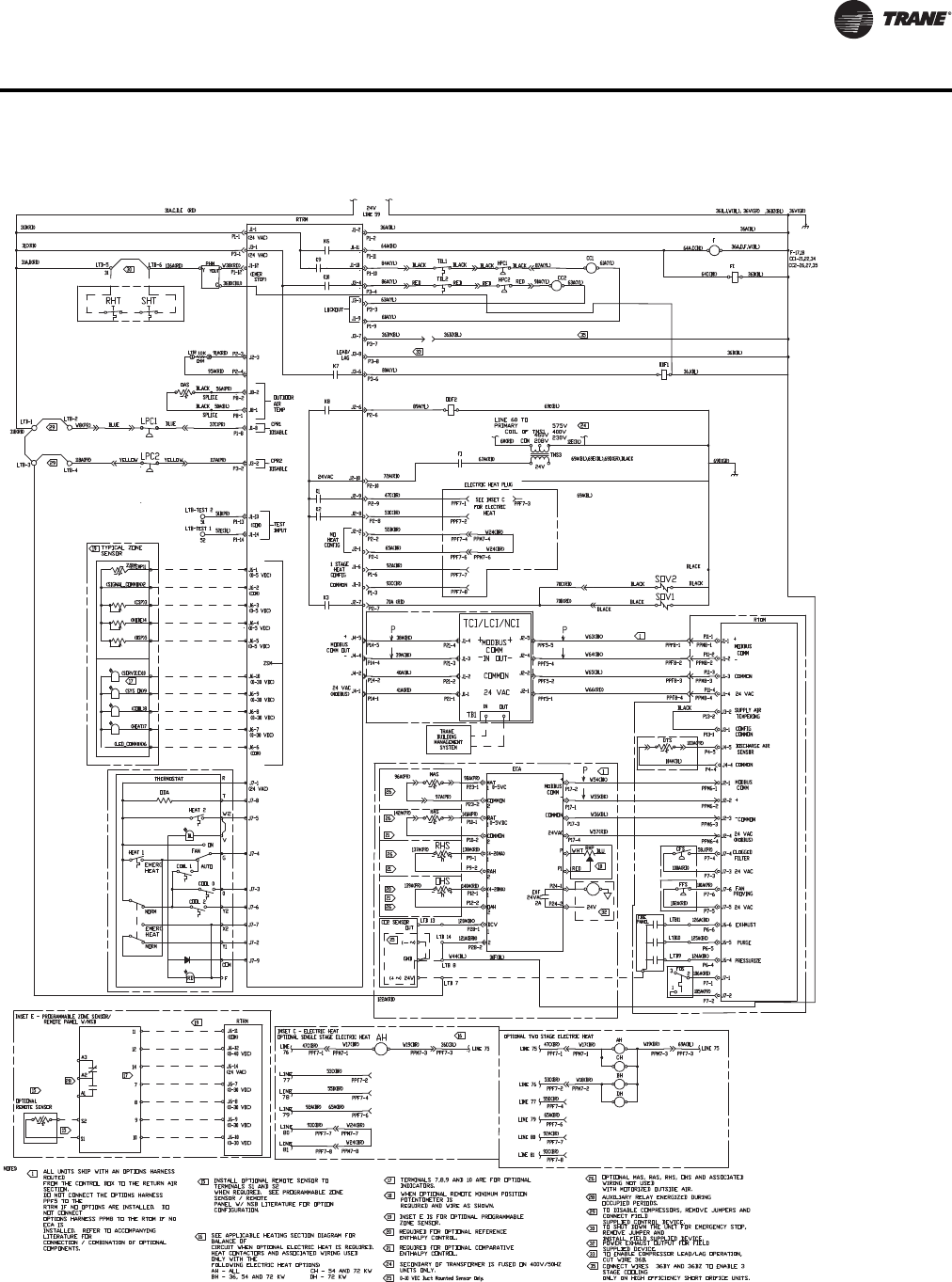

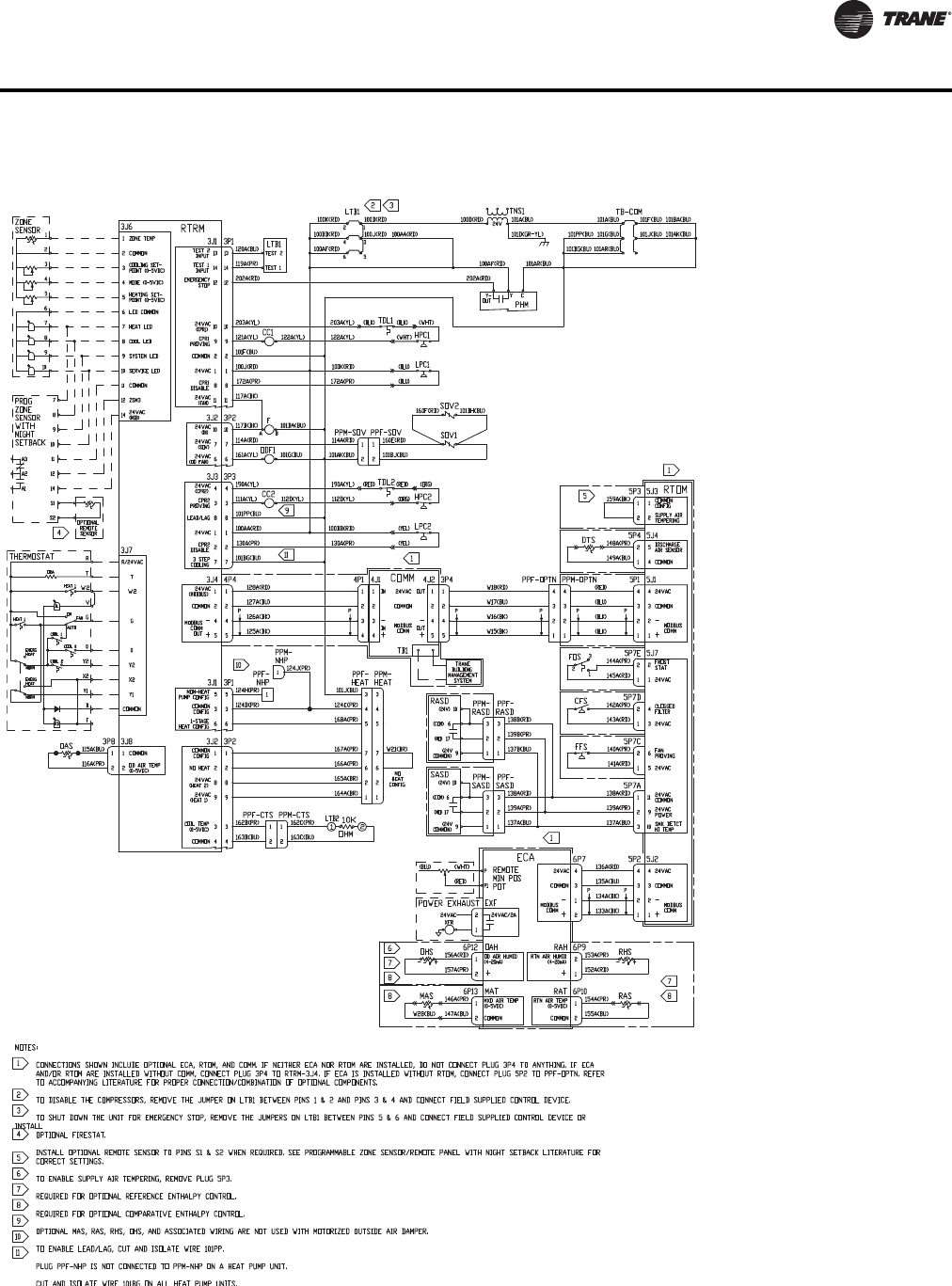

Figure 41. 12.5-20 ton control diagram

11 6 WSHP-PRC021-EN

Wiring

Figure 42. 25 ton 208-230V power connection

WSHP-PRC021-EN 11 7

Wiring

Figure 43. 25 ton 460-575V power connection

11 8 WSHP-PRC021-EN

Wiring

Figure 44. 25 ton control diagram

WSHP-PRC021-EN 119

Mechanical Specifications

General

Equipment shall be completely assembled, piped, internally wired and test operated at the factory.

A field convertible airflow shall be provided.

The equipment shall contain both ETL and ISO-AHRI 13256-1 listings and labels prior to leaving the

factory. Canadian units shall be CETL certified. Service and caution area labels shall also be placed

on the unit in their appropriate locations.

Air-to-Refrigerant Coil

Internally finned, 3/8-inch copper tubes mechanically bonded to a configured aluminum plate fin

shall be standard. Coils shall be leak tested at the factory to ensure the pressure integrity.The coil

shall be leak tested to 200 psig and pressure tested to 450 psig.

Casing

Unit casing shall be constructed of zinc coated, heavy gauge, galvanized steel. Exterior surfaces

shall be cleaned, phosphatized, and finished with a weather-resistant baked enamel finish. Unit’s

surface shall be tested 100-hours in a salt spray test in compliance with ASTM B117. Cabinet

construction shall allow for all maintenance on one side of the unit. Service panels shall have lifting

handles and be removed and reinstalled by removing only a single fastener while providing a water

and air tight seal.

All exposed vertical panels and top covers in the indoor air section shall be insulated with cleanable

foil faced, fire-retardant permanent, odorless glass fiber material.The base of the unit shall be

insulated with 1/2-inch, 1-pound density foil-faced, closed-cell material. All insulation edges shall

be either captured or sealed.The units base pan shall have no penetrations within the perimeter

of the curb other than the raised 1 1/8-inch high down flow supply/return openings to provide an

added water integrity precaution, if the condensate drain backs up.The base of the unit shall have

provisions for forklift and crane lifting, with forklift capabilities on three sides of the unit.

Clogged Filter/Fan Failure Switch (Option)

A factory or field-installed dedicated differential pressure switch is available to achieve active fan

failure indication and/ or clogged filter indication.These indications will be registered with either

a zone sensor with status indication lights or an Integrated Comfort™ System.

Compressors

All units shall have direct-drive, hermetic, scroll type compressors with centrifugal type oil pumps.

The motor shall be suction gas-cooled and shall have a voltage utilization range of plus or minus

10 percent of unit nameplate voltage. Internal overloads shall be provided with the scroll

compressors.The compressor(s) shall have internal spring isolation and sound muffling to

minimize vibration transmission and noise. External high and low pressure switches shall be

standard. For the 25-ton equipment, external discharge temperature limit, winding temperature

limit and compressor overload shall be provided.

Controls

Unit shall be completely factory wired with necessary controls and contactor pressure lugs or

terminal block for power wiring. Unit shall provide an external location for mounting a fused

disconnect device. Microprocessor controls shall be provided for all 24-volt control functions.The

resident control algorithms shall make all heating, cooling and/or ventilating decisions in response

to electronic signals from sensors measuring indoor and outdoor temperatures.The control

algorithm maintains accurate temperature control, minimizes drift from set point, and provides

better building comfort. A centralized microprocessor shall provide anti-short cycle timing and time

delay between compressors to enhance machine protection.

120 WSHP-PRC021-EN

Mechanical Specifications

Drain Pan

The drain pan shall be constructed of non ferrous or stainless steel, corrosive resistant material and

shall be reversible, removable, double sloped with provisions for through the base condensate

drain.

Differential Enthalpy (Option)

The differential enthalpy controller shall replace the standard dry bulb controller with two enthalpy

sensors that compare total heat content of the indoor air and outdoor air to determine the most

efficient air source.This control option shall offer the highest level of comfort control, plus energy

efficiency available.This option shall be capable of field or factory installation when the factory-

installed economizer is selected.

Differential Pressure Switches (Option)

These factory or field-installed options shall allow for individual fan failure and dirty filter

indication.The fan failure switch shall disable all unit functions and "flash" the Service LED on the

zone sensor.The dirty filter switch shall light the Service LED on the zone sensor and shall allow

continued unit operation.

Discharge Air Sensing Kit (Option)

This factory or field-installed option provides true discharge air sensing in heating models.This

sensor is a status indicator readable throughTracer® orTracker®.

Discharge Line Thermostat

A bi-metal element discharge line thermostats installed as a standard option on the discharge line

of each system. This standard option provides extra protection to the compressors against high

discharge temperatures in case of loss of charge, extremely high ambient and other conditions

which could drive the discharge temperature higher.

Economizer (Option)

The economizer may be field installed for 12-25T horizontal airflow units. For all other

configurations, economizer is factory-installed. It shall be available with or without barometric

relief.The assembly shall include a fully modulating 0-100 percent motor and damper, relief,

minimum position setting, preset linkage, wiring harness with fixed dry bulb.The barometric relief

damper shall provide a pressure operated damper that shall be gravity closing and shall prohibit

entrance of outside air during the equipment OFF cycle. Solid state enthalpy and differential

enthalpy control shall be factory or field-installed options.The factory-installed economizer shall

arrive in the shipping position and shall be moved to the operating position by the installing

contractor.

Electric Heaters

Electric heat modules shall be available for installation within the basic unit.The electric heat

elements shall be constructed of heavy-duty nickel chromium elements internally delta connected

for 240 volt, wye connected for 480 and 600 volt. Staging shall be achieved through the unit control

processor (UCP). Each heater package shall have automatically reset high limit control operating

through the heating element contactors. All heaters shall be individually fused from the factory,

where required, and shall meet all NEC and CEC requirements when properly installed. Power

assemblies shall provide a single-point connection. Electric heat modules shall be UL listed or CSA

certified.

Enthalpy Control (Option)

The enthalpy controller shall replace the dry bulb control with a wet bulb changeover controller

(which has a fully adjustable set point).The enthalpy controller shall offer a higher level of comfort

control, along with energy savings potential than the standard dry bulb controller due to the

WSHP-PRC021-EN 121

Mechanical Specifications

additional wet bulb sensing capability.This option shall be capable of field or factory installation

when the factory-installed economizer is selected.

Filters

One inch, throwaway filters shall be standard. Filter rack shall be capable of converting to a two-

inch filter.

High Pressure Cutout

All units have high pressure cutout as standard.

Hinged Access Doors (Option)

Sheet metal hinges are available factory-installed on the indoor fan section, supply fan, and the

compressor control access doors.

Hoses (option)

Hoses shall consist of a stainless steel outer braid with an inner core of tube made of a nontoxic

synthetic polymar material.The hoses shall be suitable for water temperatures ranging between

33°F and 211°F without the use of glycol.

Automatic Flow Devices (option)

The automatic self-balancing device shall automatically limit the rate of flow to within 10-percent

of the specified amount, over a 40 to 1 differential pressure operating range of 2 to 80 PSID.The

operational temperature shall be rated from fluid freezing, to 225°F.

The valve body shall be suited for working pressures of 400 PSIG.The valve internal core shall

consist of one or more high temperature elastomeric diaphragms and precision orifice with

sculptured orifice seat.

Dual pressure/temperature test ports shall be standard for verifying the pressure differential and

system temperature.

Indoor Fan

Three-phase units shall offer a choice of a direct-drive, FC, centrifugal fan, or a belt driven, FC,

centrifugal fan with adjustable motor sheaves. Single-phase units shall offer a direct drive motor

only. Units utilizing the belt-driven option shall contain an idler-arm assembly for quick-adjustment

of fan belts and motor sheaves. All motors shall be thermally protected. Oversized motors shall be

available for high static applications. All indoor fan motors shall meet the U.S. Energy Policy Act

of 1992 (EPACT).

LonTalk™Communications Interface

The LonTalk communication interface allows the equipment to communicate as aTracer LCI-V

device or generally with a LonTalk Network Building Automation System.

Manual Outside Air Damper (Option)

Factory or field-installed rain hood and screen shall provide up to 50-percent outside air.

Motorized Outside Air Dampers (Option)

Factory or field-installed manually set outdoor air dampers shall provide up to 50-percent outside

air. Once set, outdoor air dampers shall open set position when indoor fan starts.The damper shall

close to the full closed position when indoor fan shuts down.

Motorized Water Valve (Option)

When extreme fluid temperature conditions do not exist with an open loop system, a motorized

water valve shall be applied to vary water flow in the system.The motorized valve shall aid in

maintaining pressure in the loop during equipment cycling.

122 WSHP-PRC021-EN

Mechanical Specifications

Oversized Motors (Option)

Factory or field installed direct drive oversized motors shall be available for high static applications.

Pump Module

The pump module shall consist of either a single or dual 1/6 hp bronze pump and a brass 3-way

shut-off valve. Cast iron pumps are also acceptable.The pump module kits shall contain the

necessary components for the installation, operation and maintenance of the water circuit of a

closed-loop distributed pumping application.

Reference or Comparative Enthalpy (Option)

Reference or Comparative Enthalpy option shall be available when a factory installed economizer

is ordered.

Refrigerant Circuits

The refrigerant circuit shall contained a thermal expansion device, service pressure ports, and

refrigerant line filter driers factory-installed as standard. An area shall be provided for replacement

suction line driers.

Remote Potentiometer (Option)

The minimum position setting of the economizer shall be adjusted with this field-installed

accessory.

Roof Curb (Option)

The roof curb shall be designed to mate with the down flow supply and return openings and

provide support and a water tight installation when installed properly.The roof curb design shall

allow field-fabricated rectangular supply/return ductwork to be connected directly to the curb.The

curb design shall comply with NRCA requirements.The curb shall be shipped, knocked down for

field assembly and shall include wood nailer strips.

Supply and/or Return-Air Smoke Detector (Option)

With this option factory installed, if smoke is detected, all unit operation will be shut down. Reset

will be manual at the unit. Return-air smoke detectors require minimum allowable airflow when

used with certain models. See the installation, operation, and maintenance (IOM) manual for the

models affected and the minimum allowable airflow required.

Through the Base Electrical with Circuit Breaker (Option)

This option is a factory-installed thermal magnetic, molded case, HACR Circuit Breaker with

provisions for through the base electrical connections.The circuit breaker will be installed in a

water tight enclosure in the unit with access through a swinging door. Factory wiring will be

provided from the switch to the unit high voltage terminal block.The circuit breaker will provide

over current protection, be sized per NEC and UL guidelines, and be agency recognized by UL/CSA.

Through the Base Electrical with Disconnect Switch (Option)

Factory installed 3-pole, molded case, disconnect switch with provisions for through the base

electrical connections are available.This disconnect switch will be installed in the unit in a water

tight enclosure with access through a swinging door. Factory wiring will be provided from the

switch to the high voltage terminal block.The switch will be UL/CSA agency recognized. Note:The

disconnect switch will be sized per NEC and UL guidelines but will not be used in place of unit over

current protection.

Through the Base Utilities Access (Option)

A factory-installed electrical service entrance shall be provided allowing electrical access for both

control and main power connections inside the curb and through the base of the unit. Option will

allow for field installation of liquid-tight conduit and an external field-installed disconnect switch.

WSHP-PRC021-EN 123

Mechanical Specifications

Trane™Communications Interface

An option for a factory or field-installedTrane Communication Interface shall be available to allow

a twisted wire pair communication with aTrane Integrated Comfort™ system.

Unit Top

The top cover shall be one piece, or where seams exist, double hemmed and gasket sealed to

prevent water leakage.The ribbed top adds extra strength and prevents water from pooling on the

unit top.

Water-to-Refrigerant Heat Exchanger

The water-to-refrigerant heat exchanger shall be of a high quality co-axial coil for maximum heat

transfer.The copper or optional cupro-nickel coil shall be deeply fluted to enhance heat transfer and

minimize fouling and scaling.The coil shall have a working pressure of 400 psig on the refrigerant

and 650 psig on the watersides.

Zone Sensors (Option)

This field installed option shall be provided to interface with the micro-equipped rooftop

equipment, and shall be available in either manual, automatic, programmable with night setback,

with system malfunction lights or remote sensor options.

Warranty

The unit shall be warranted by the manufacturer against defects in material and factory

workmanship for one year.The refrigerant circuit including motor-compressor, expansion device,

all heat exchangers in contact with refrigerants, and reversing valve (less solenoid coil) shall be

warranted for that year (parts only). Optional extended warranties shall be made available.

Trane optimizes the performance of homes and buildings around the world. A business of Ingersoll Rand, the leader in

creating and sustaining safe, comfortable and energy efficient environments,Trane offers a broad portfolio of advanced

controls and HVAC systems, comprehensive building services, and parts. For more information, visit www.Trane.com.

Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.

We are committed to using environmentally

conscious print practices that reduce waste.

© 2013Trane All rights reserved

WSHP-PRC021-EN 01 Aug 2013

Supersedes WSHP-PRC021-EN (10 May 2012)
