Packaged Rooftop

Air Conditioners

IntelliPak® Rooftops

20 - 130 Tons — 60 Hz

RT-PRC010-EN

October 2001

20 - 75 Tons

90 - 130 Tons

©American Standard Inc. 2001 RT-PRC010-EN

Introduction

IntelliPak®

Designed For Today and Beyond

Innovative technology and an

impressive line-up of features make the

the Trane IntelliPak® Rooftop line the

number one choice for today and the

future.

Trane’s rooftop Unit Control Module

(UCM), an innovative, modular

microprocessor control design,

coordinates the actions of the IntelliPak

rooftop in an efficient manner and allows

for stand-alone operation of the unit.

Access to the unit controls, via a Human

Interface Panel, provides a high degree

of control, superior monitoring

capability, and unmatched diagnostic

information.

Optionally, for centralized building

control on-site, or from a remote

location, IntelliPak can be configured for

direct communication with a Tracer®

building management system using a

twisted pair of wires. With Tracer, the

IntelliPak status data and control

adjustment features can be conveniently

monitored from a central location.

IntelliPak has the technology

and

flexibility

to bring total comfort to

every building space.

3

Contents

RT-PRC010-EN

Introduction

Features and Benefits

Application Considerations

Selection Procedure

Model Number Description

General Data

Performance Data

Performance Adjustment Factors

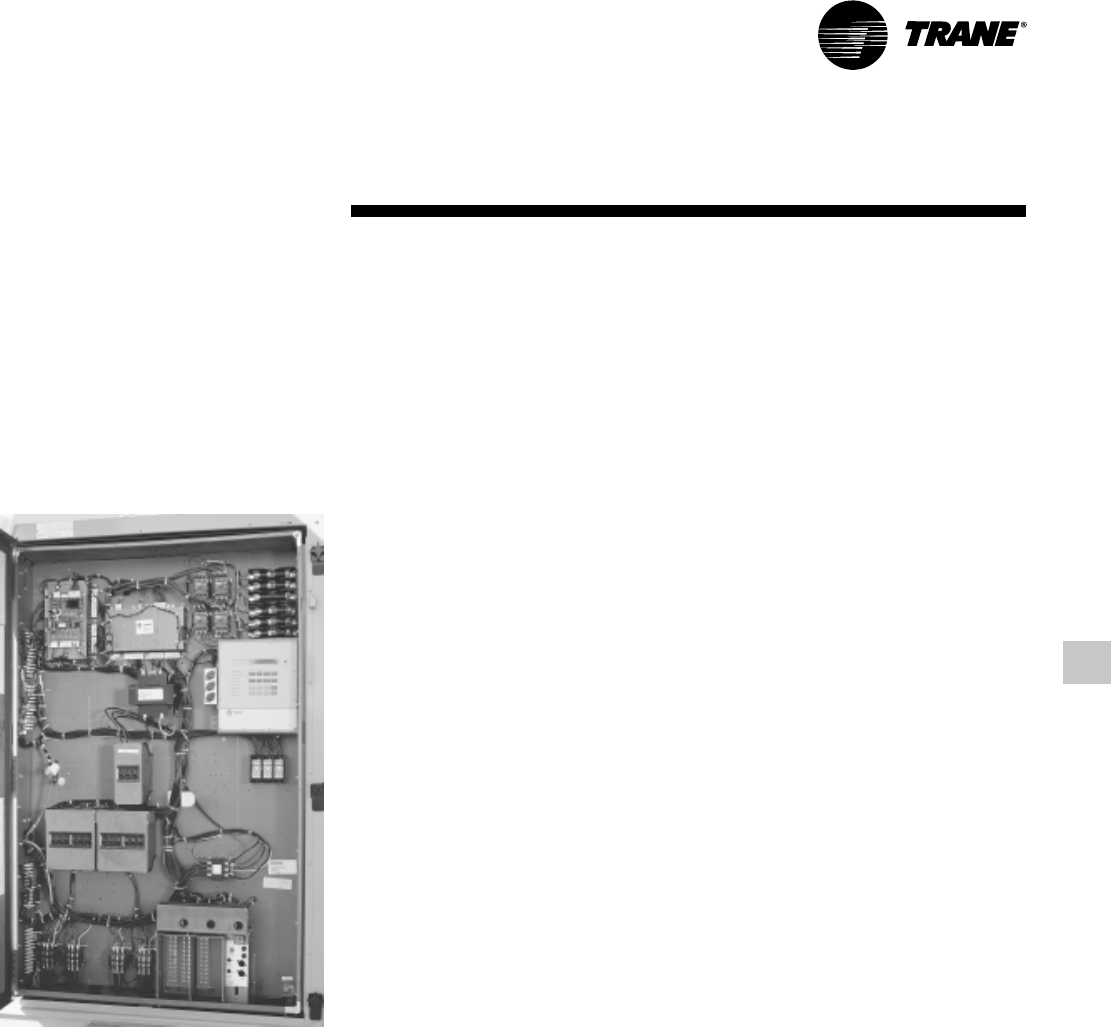

Controls

Electric Power

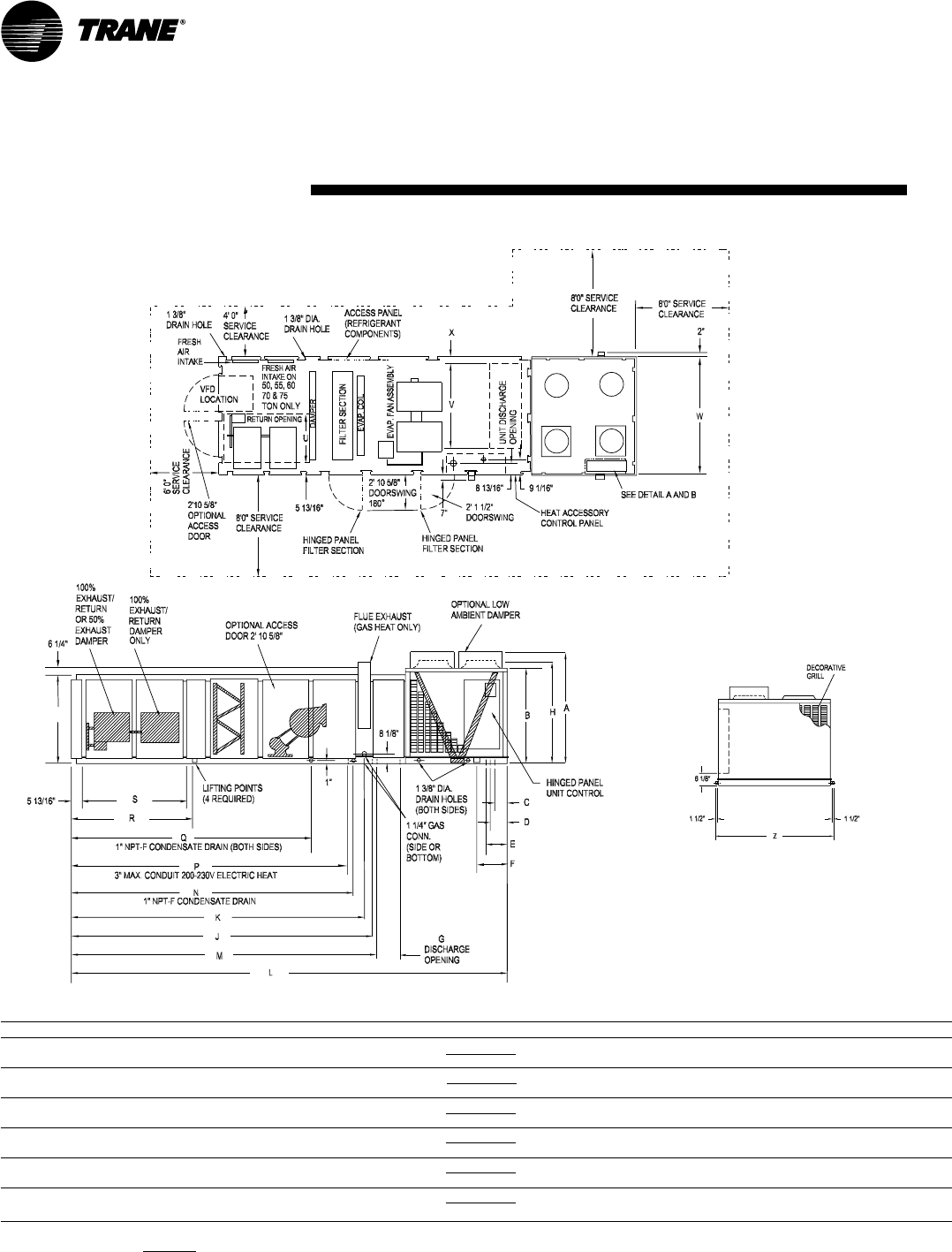

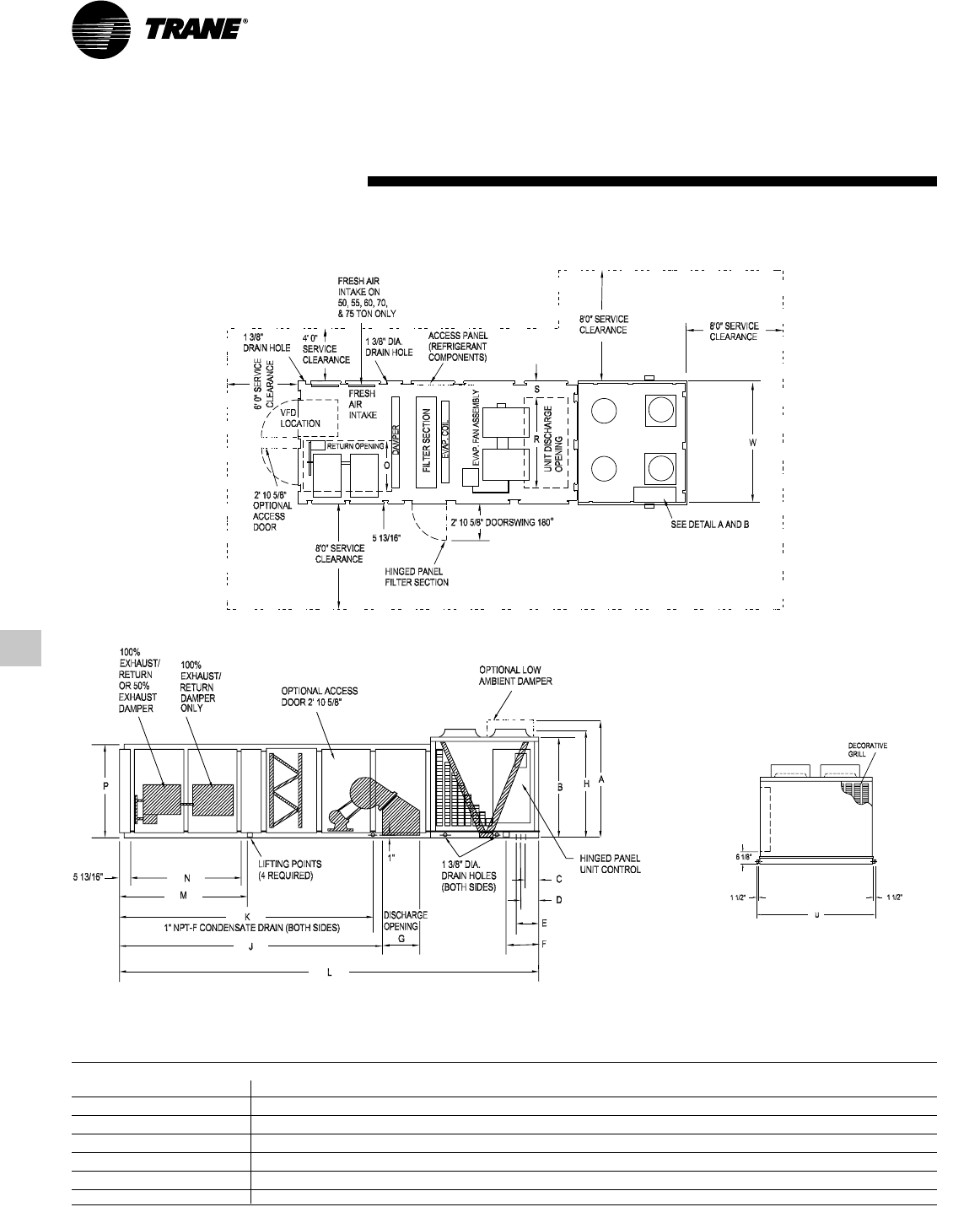

Dimension and Weights

Mechanical Specifications

Options

2

4

9

16

20

22

29

28

75

83

86

99

96

RT-PRC010-EN4

Features and

Benefits

Standard Features

•20 to 130 ton industrial/ commercial

rooftops

•Fully integrated, factory-installed/

commissioned microelectronic

controls

•Unit mounted Human Interface Panel

with a 2 line x 40 character English

display and a 16 function key-pad that

includes Custom, Diagnostics, and

Service Test mode menu keys.

•Trane 3-D® Scroll compressors

(20 to 130 Tons)

•Compressor or circuit lead/lag

depending on unit

•Horizontal discharge/return duct

connections (SX, SL, SS models)

•CV or VAV control

•Low ambient compressor lockout

control on units with economizers

•FROSTAT™ coil frost protection on

all units

•Daytime Warm-up (Occupied mode)

on VAV models and Morning Warm-up

operation on all units with heating

options

•Supply air static overpressurization

protection on units with inlet guide

vanes and VFD’s.

•Supply airflow proofing

•Exhaust airflow proofing on units with

exhaust option

•Supply air tempering control

•Supply air heating control on VAV

modulating hot water or steam heat

units

•Emergency stop input

•Liquid and Discharge Service Valves

•Mappable sensors and setpoint

sources

•Occupied/Unoccupied switching

•Timed override activation

•Forward-curved supply fans

•Pitched roof over air handler section

•Stainless steel flue stack on gas heat

units

•14-gauge, single-piece construction

base rails

•UL and CSA approval on standard

options

•Two-inch spring fan isolation

(90 to 130 tons)

•Meets 672 hours of salt spray testing in

accordance to ASTM B117 Standard

•Two inch standard efficiency

throwaway filters on 20 to 90 ton units

and two inch high efficiency

throwaway filters on 105 to 130 ton

units.

Optional Features

•Trane Communication Interface

Module: ICS interface control module

•Remote Human Interface Panel

(controls up to 4 units)

•Five ventilation override sequences

•Heating options: natural gas, electric,

hot water or steam

•Generic BAS interface

•Choose from three economizer control

options: comparative enthalpy,

reference enthalpy, dry bulb control

•Variable frequency drive control of

supply/exhaust fan motor

•Inlet guide vanes on FC supply fans

(VAV only)

•Outside air CFM compensation on VAV

units with IGV (or VFD) and economizer

•Hot gas bypass to the evaporator inlet

•Copper evaporator/condenser coils

•Suction service valves

•Replaceable core filter driers

•Phenolic coated evaporator/condenser

coils

•High capacity evaporator coils

(20 to 105 tons)

•Special paint colors

•Extended casing (SX models)

•Double wall access doors

•Double wall construction/perforated

double wall

•Stainless steel drain pan in evaporator

section

•Pitch evaporator drain pan

•Filter rack only (no filters)

•High efficiency throwaway filters

•90-95 percent bag filters

•90-95 percent cartridge filters

•Final filters

•Barometric relief

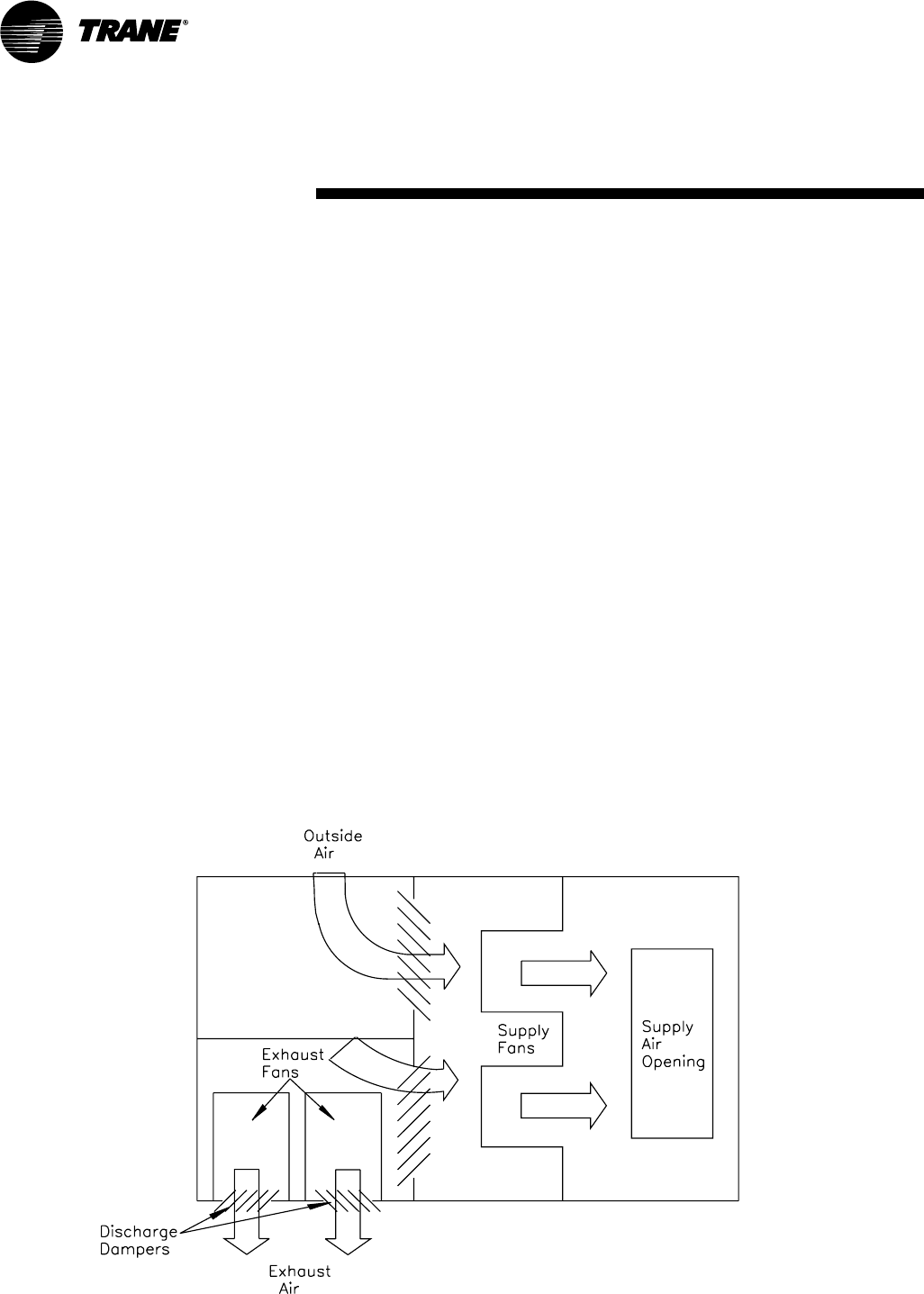

•50 percent modulating exhaust with

forward-curved fans

•Trane’s air quality (Traq™) sensor

•Modulating Gas Heat

•10 year limited warranty on Full

Modulation Gas Heat

•100 percent modulating exhaust with

forward-curved fans

•100 percent modulating exhaust with

FC fans and Statitrac™ direct space

sensing building pressurization control

•High duct temperature thermostats

•0 F low ambient control

•0-100 percent modulating fresh air

economizer

•Ultra low leak dampers for 0-100

percent modulating fresh air

economizers

•Dual electrical power connection

•Two-inch spring fan isolation

(20 to 75 tons)

•High efficiency motors

•U-frame motors

•Oversized motors

•Thru the door non-fused disconnect

with external handle

•Electrical convenience outlet

•Power supply monitoring

•Correction capacitors

•Horizontal or Roof discharge w/gas

heat (20-75 tons “F” style units only)

Field Installed Accessories

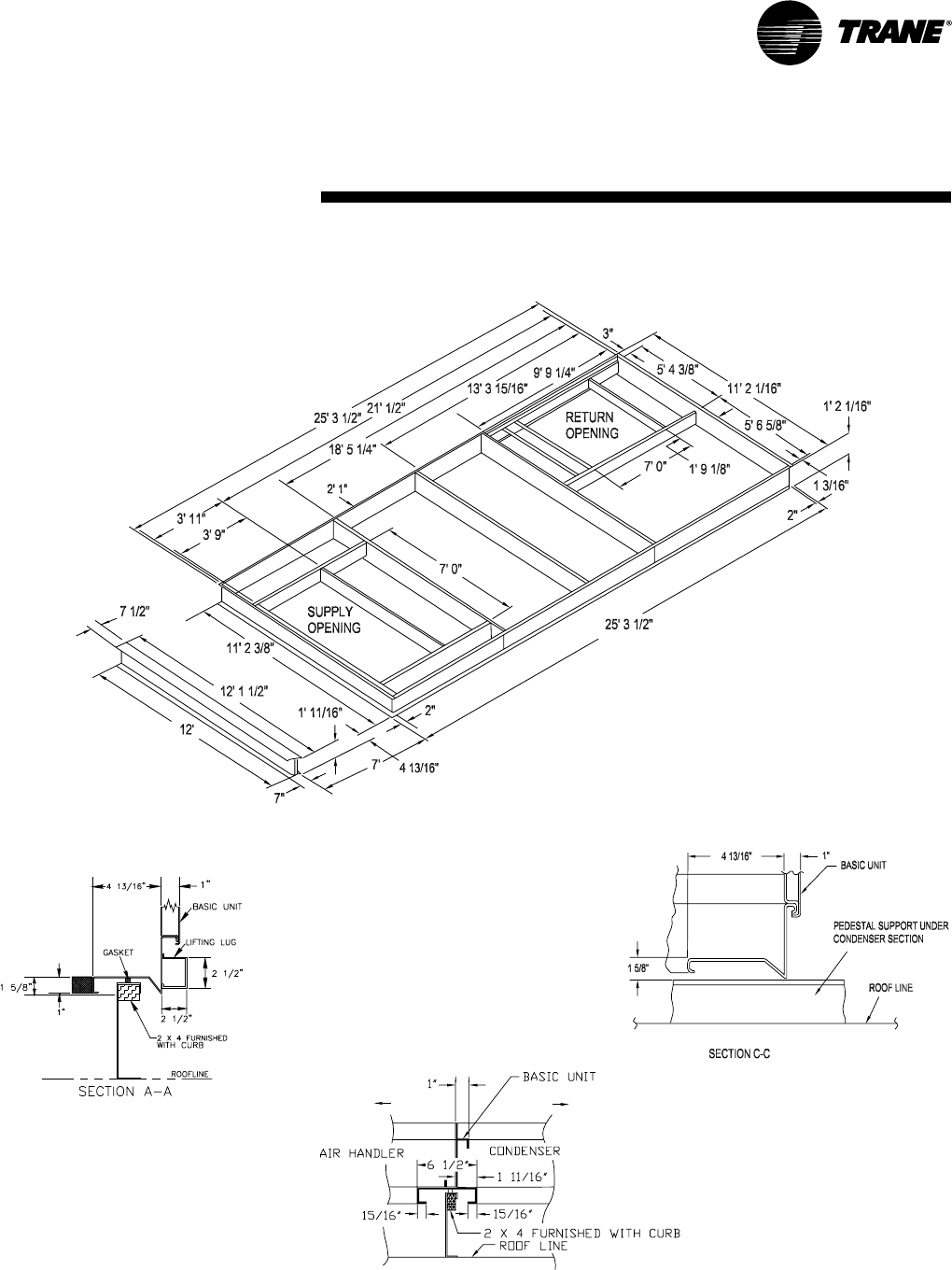

•Roof curbs

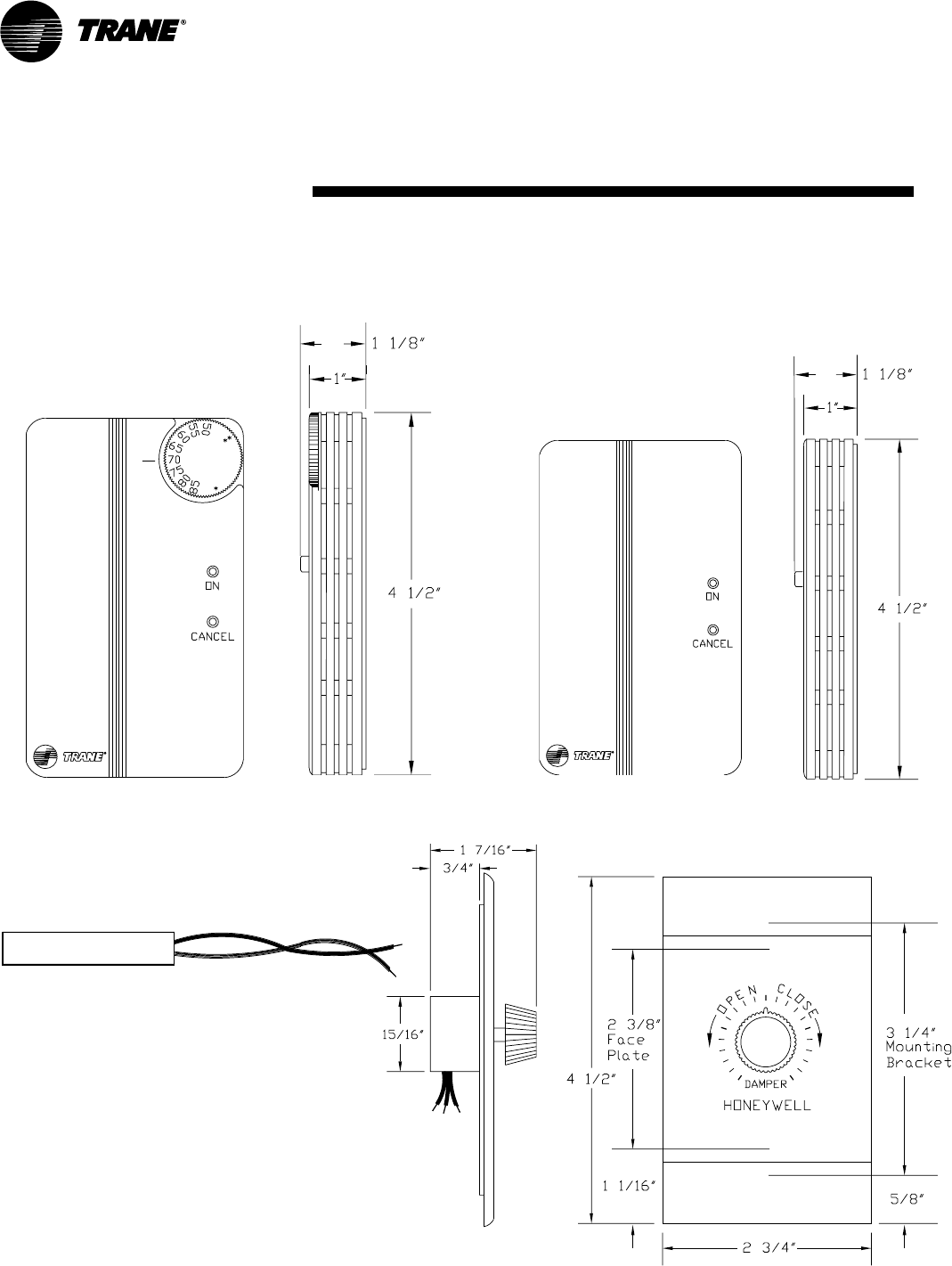

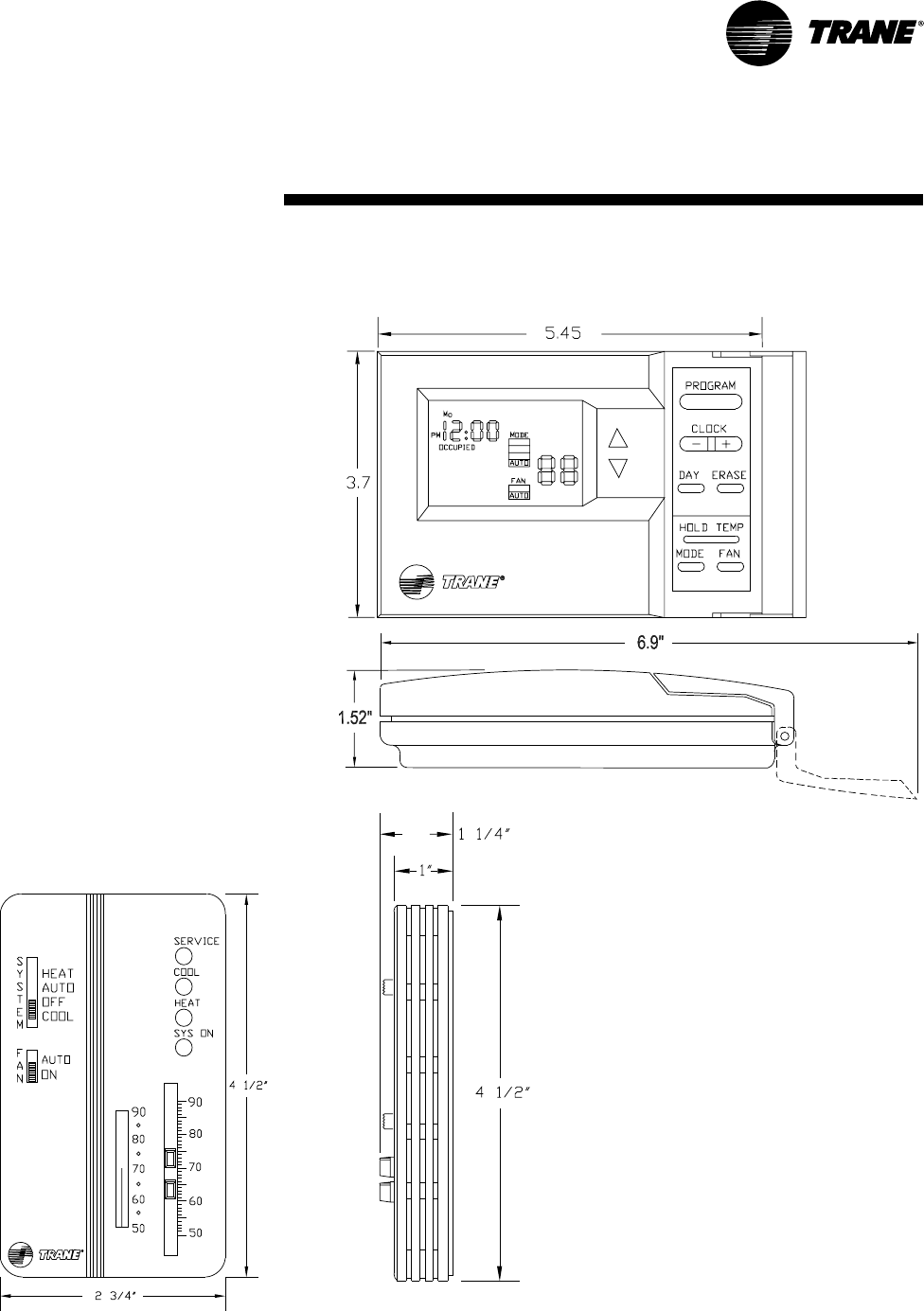

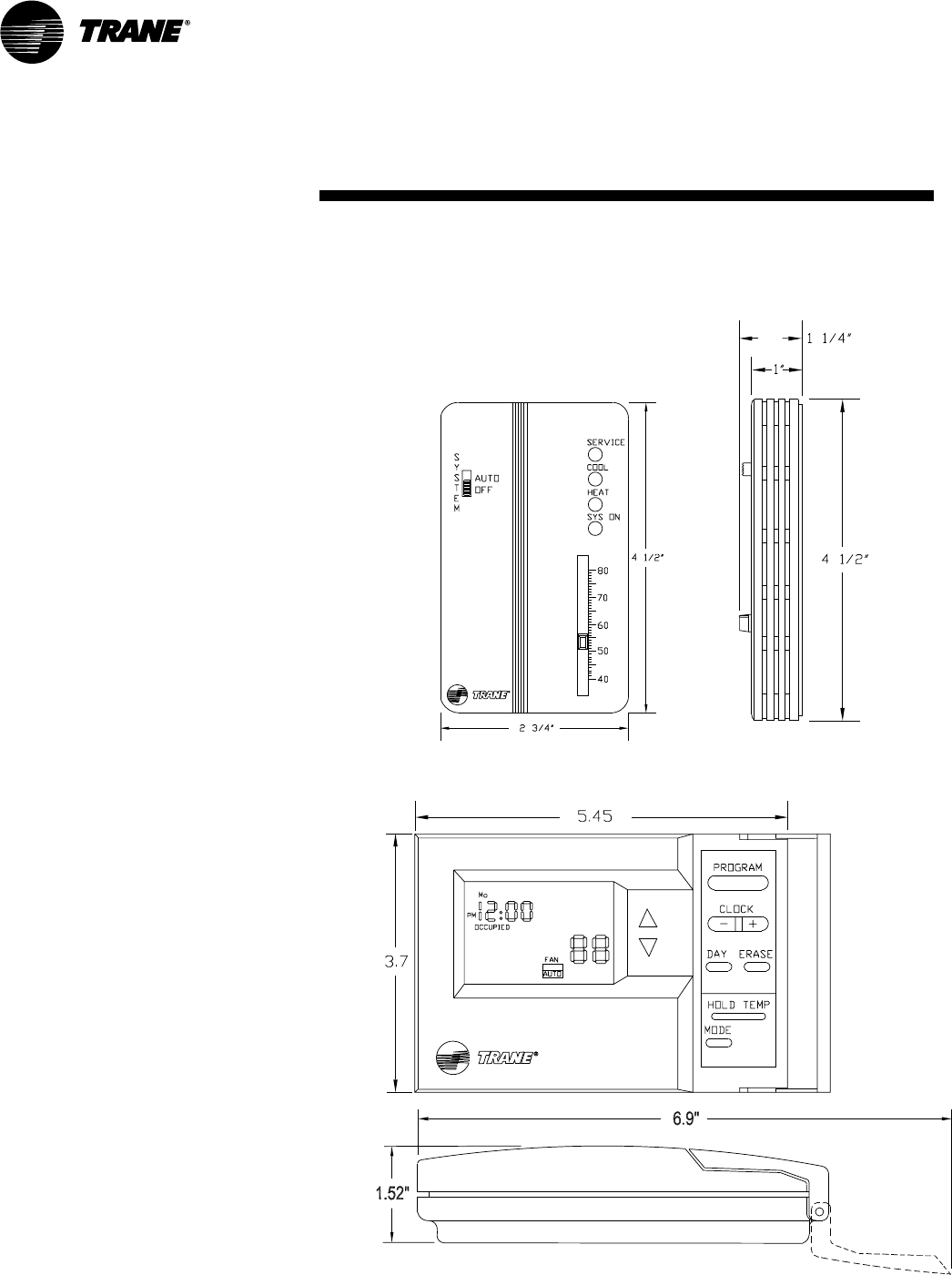

•Programmable sensors with night set

back — CV and VAV

•Sensors without night set back — CV

and VAV

•Remote zone sensors — used for

remote sensing with remote panels.

•ICS zone sensors used with Tracer®

system for zone control

•Outdoor temperature sensor for units

without economizers

•Remote minimum position control for

economizer

•Field installed module kits available for

field upgrade of controls

5RT-PRC010-EN

Features Summary

IntelliPak® rooftop features make

installation and servicing easy and

reliable operation a reality.

Installation Ease

•Factory-installed/commissioned

controls

—ease of start up

—single twisted wire pair

—communication for ICS interface

—full unit points access, no field wir-

ing of required points

•Unit mounted Human Interface Panel

standard

—user friendly keypad — edit

parameters

—thru the access door interface

—start up adjustments

—unit mounted and remote in-

terface panel key pads are

identical

•Unit mounted lifting lugs facilitate

installation and can be used as unit

tiedown points.

Easy to Service

•The microprocessor unit controls

coordinates the operation of the

rooftop with quality, industry-accepted

components for service ease.

•Unit mounted Human Interface Panel

standard

—user friendly keypad — edit pa-

rameters

— thru the access door interface

— start up adjustments

— unit mounted and remote interface

panel key pads are identical

•Modularity of unit control design

—individual replaceable functional

boards

•Advanced diagnostics

Reliability

•Advanced diagnostics

•Microprocessor controls

•Built-in safeties

•Modular control design

•UL approval as standard

•Forward-curved supply and exhaust

fans are Trane designed and factory

balanced.

•Fully insulated and gasketed panels

reduce ambient air infiltration.

•Fixed-speed evaporator fan and

exhaust drive for smooth fan operation

and belt durability.

•200,000 average life fan bearings

enhance unit durability.

•Gas heater with free-floating stainless

steel heat exchanger relieves the

stresses of expansion and contraction.

Stainless steel provides corrosion

resistance through the entire material

thickness.

•Integral condenser subcooler improves

efficiency while helping avoid liquid

flashing.

•Factory-wired and commissioned

controls assure efficient and reliable

rooftop operation.

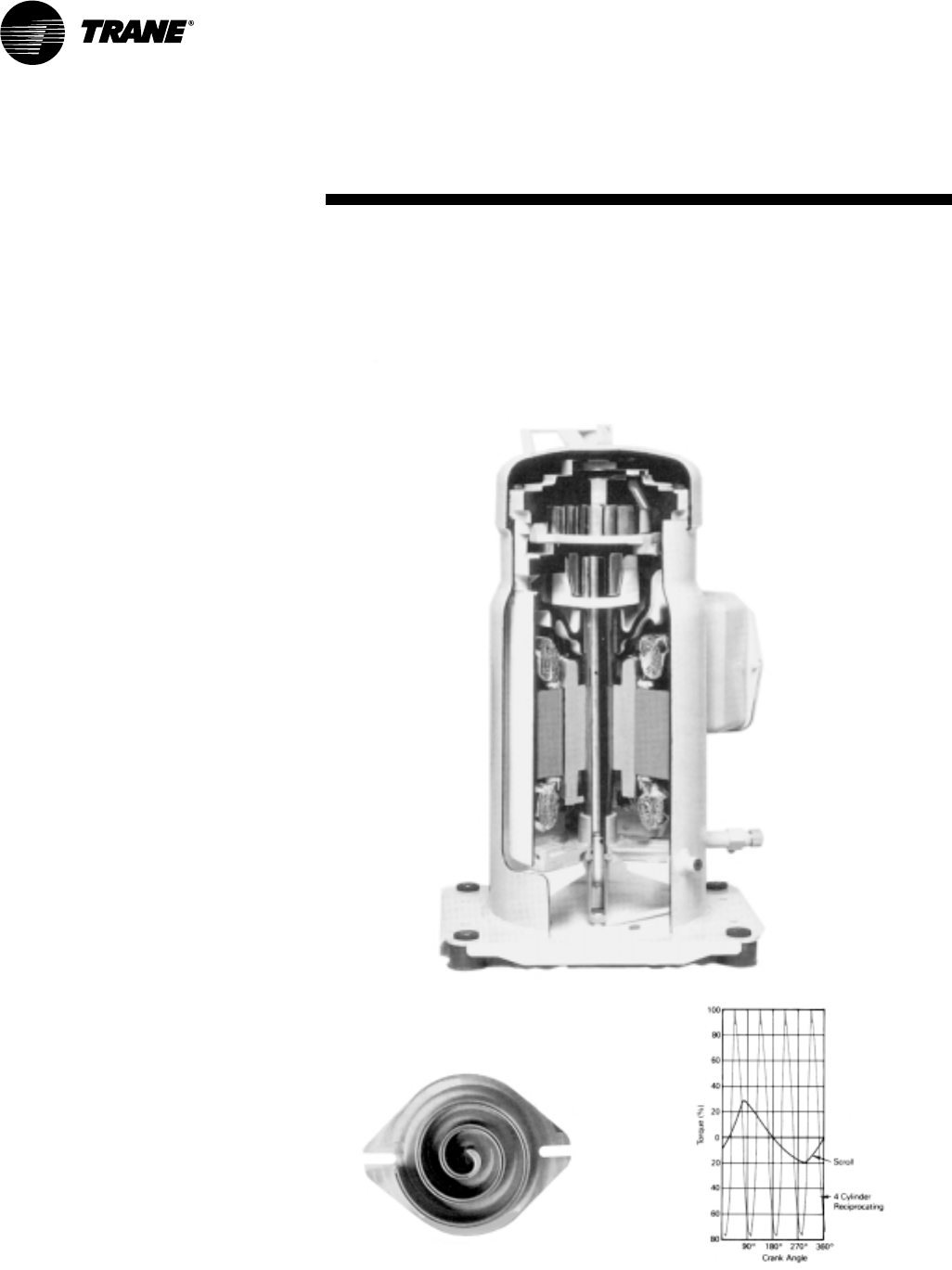

•Trane Scroll compressors are used on

20 to 130 ton units. They are designed

for tough industrial operation and

meet demanding operating conditions

both in efficiency and reliability.

•Roll-formed construction enhances

cabinet integrity and assures a

leakproof casing.

•Three-phase, direct-drive condenser

fan motors enhance dependability and

increase rooftop life.

•Trane industrial quality evaporator

and condensing coils help increase

rooftop life.

Application Flexibility

•Modularity in design

•Increased offering of standard options

•Generic BAS interface

•Five factory preset/re-definable in the

field ventilation override sequences

•Superior Tracer® interface for ICS

applications

— factory-installed Trane

Communication Interface

•Unit mounted or Remote Human

Interface panels

— all parameter are editable from the

Human Interface Panel

•Comparative enthalpy, Reference

enthalpy, or Dry bulb control for

economizers

•Statitrac™ direct space building

pressure control

•Compensated outdoor air control —

IAQ

•Factory-installed filter rack includes

two-inch throwaway filters.

•CV controls stage both compressors

and heat based on space

requirements.

•Variable Frequency Drives (VFD)

Included With or Without Bypass

Control for Supply and Exhaust Fans.

•An array of heating options are

available, including Steam, Hot Water,

Electric and Natural Gas heat. The Gas

Heating option provides a choice of

two-stage gas heat, as well as full and

limited modulating gas heat.

Features and

Benefits

RT-PRC010-EN6

Features and

Benefits

Integrated

Rooftop

Systems:

Profitable,

Simple

Integrated Comfort™

System (ICS)

Trane integrated rooftop systems make

design and installation of rooftop

comfort systems profitable and easy. The

Integrated Comfort™ system (ICS)

improves job profit and increases job

control by combining Trane rooftop units

and a Tracer® building management

system. This integrated system provides

total building comfort and control. The

primary motivation for building owners/

managers in making the purchasing

decision of HVAC controls system is no

longer just saving energy; it is having the

ability to automate their facilities and the

convenience of interface to control

systems.

Simplifying The Comfort System

At Trane, we think new technology and

innovation should bring you more

capabilities, more flexibility and at the

same time be able to give you

equipment and systems that are easier

to use, easier to install, commission and

service. The Rooftop Integrated Comfort

system saves you time and money by

simplifying system design and system

installation. When used with Trane’s DDC/

VAV boxes (or VariTrane™), system

balancing almost goes away because

each VAV box is commission and tested

before it leaves the factory. All the status

information and editing data from the

rooftop units, VAV boxes, lighting,

exhaust and other auxiliary equipment is

available from Tracer for control,

monitoring and service support of your

facility. Tracer, a family of building

automation products from Trane, is

designed with robust, application

specific software packages to minimize

custom programming requirements and

enable system setup and control

through simple editing of parameters in

the standard applications software.

Should you select an Integrated Comfort

system for your facility, the

accountability for equipment,

automation and controls is Trane’s,

Trane’s, and Trane’s!

The IntelliPak® rooftop, as a part of an

Integrated Comfort system, provides

powerful maintenance monitoring,

control and reporting capabilities. The

Tracer places the rooftop in the

appropriate operating mode for

operation for: system on/off, night

setback, demand limiting , setpoint

adjustment based on outside

parameters and much more. Up to 48

different unit diagnostic conditions can

be monitored through Tracer to let you

know about things like: sensor failures,

loss of supply airflow, and a compressor

trip out. Further, the addition of Building

Management Network software offers

remote scanning, automatic receipt of

alarms, and easy dial-up access to over

100 various Tracer sites across town or

across the country.

Typical points available through Tracer:

IntelliPak Rooftops monitoring points

available through Tracer

•all active Rooftop diagnostics

•history of last 20 unit diagnostics

•all system setpoints

•system sensor inputs

•supply fan mode and status

•inlet guide vane position/VFD speed

•unit heat/cool mode

•exhaust fan status

•exhaust damper position

•economizer position, minimum

position setpoint, economizing

setpoint

•on/off status of each compressor

•refrigerant evaporator and saturated

condenser temperatures

•hydronic heat valve position

•electric heat stage status

•ventilation override mode status

Tracer control points for IntelliPak®

Rooftops

•cooling and heating setpoints

•zone setpoint offsets for use with

demand limiting

•VAV discharge air setpoints

•supply air pressure setpoint

•space pressure setpoint

•zone and outdoor temperature values

•cooling and heating enable/disable

•economizer enable/disable

•economizer setpoint

•economizer minimum position

•activation of ventilation override

modes

•diagnostics reset

•unit priority shutdown

IntelliPak Rooftops set-up and

configuration information through Tracer

•supply fan mode

•configuration of supply air reset

•ventilation override mode

configuration

•default system setpoint values

•sensor calibration offsets

7RT-PRC010-EN

Features and

Benefits

The modular control design of the UCM

allows for greater application flexibility.

Customers can order exactly the options

required for the job, instead of one large

control package. Unit features are

distributed among multiple field

replaceable printed circuit boards. The

Trane UCM can be set up to operate

under one of three control applications:

1) stand-alone

2) interface with Trane’s Tracer® building

management system

3) interface with a generic (non-Trane)

building management system. All set-up

parameters are preset from the factory,

requiring less start-up time during

installation.

The unit mounted Human Interface and

the Remote Human Interface Panels’

functions are identical, except for the

Service mode is not available on the

Remote Human Interface Panel. This

common interface feature requires less

time for building maintenance personnel

to learn to interact with the unit. All of the

rooftop’s control parameters are

adjustable and can be set up through the

Remote Human Interface Panel such as,

but not limited to: system on/off,

demand limiting type, night setback

setpoints, and many other setpoints. No

potentiometers are required for setpoint

adjustment, all adjustments are done

through the Remote Human Interface

key-pad. Also up to 48 different rooftop

diagnostic points can be monitored

through the human interfaces such as:

sensor failures, loss of supply airflow,

and compressor trip. No special tools are

required for servicing of the unit. All

diagnostic displays are available in clear

English at the Remote Human Interface

and will be held in memory, so that the

operator/servicer can diagnose the root

cause of failures.

Statitrac™ Direct Space

Building Pressurization Control

Trane’s Statitrac™ control is a highly

accurate and efficient method of

maintaining building pressure control

with a large rooftop air conditioner.

The efficiency is achieved with a 100

percent modulating exhaust system with

two forward-curved fans with

modulating discharge dampers that

operate only when needed, compared to

some systems that operate continually.

And most of the operating hours of the

100 percent modulating exhaust system

are at part load, saving more energy.

Trane’s Statitrac, with the 100 percent

modulating exhaust system, provides

comfort and economy for buildings with

large rooftop air conditioning systems.

Statitrac control is simple! The space

pressure control turns the exhaust fans

on and off as required and modulates

exhaust dampers to maintain space

pressure within the space pressure dead

band. Using the unit mounted Human

Interface Panel you can

1) adjust space pressure setpoint

2) adjust space pressure dead band

3) measure and read building space

pressure. The modulating exhaust

system maintains the desired building

pressure, saving energy while keeping

the building at the right pressure. Proper

building pressurization eliminates

annoying door whistling, doors standing

open, and odors from other zones.

The Statitrac™ direct space building

control sequence will be maintained

when a variable frequency drive is used.

Fans With Inlet Guide Vanes

Trane’s forward curved fans (20 through

75 tons) and air foil fans (90 through 130

tons) with inlet guide vanes pre-rotate

the air in the direction of the fan wheel,

decreasing static pressure and

horsepower, essentially unloading the

fan wheel. The unloading characteristics

of a Trane FC fan with inlet guide vanes

result in superior part load performance.

Variable Frequency Drives

(VFD)

Variable Frequency Drives are factory

installed and tested to provide supply/

exhaust fan motor speed modulation.

VFD’s, as compared to inlet guide vanes

or discharge dampers, are quieter, more

efficient, and are eligible for utility

rebates. The VFD’s are available with or

without a bypass option. Bypass control

will simply provide full nominal airflow

in the event of drive failure.

Optimum

Building

Comfort Control

RT-PRC010-EN8

Features and

Benefits

Trane 3-D® Scroll Compressor

Simple Design with 70% Fewer Parts

Fewer parts than an equal capacity

reciprocating compressor means

significant reliability and efficiency

benefits. The single orbiting scroll

eliminates the need for pistons,

connecting rods, wrist pins and valves.

Fewer parts lead to increased reliability.

Fewer moving parts, less rotating mass

and less internal friction means greater

efficiency than reciprocating

compressors.

The Trane 3-D Scroll provides important

reliability and efficiency benefits. The 3-D

Scroll allows the orbiting scrolls to touch

in all three dimensions, forming a

completely enclosed compression

chamber which leads to increased

efficiency. In addition, the orbiting scrolls

only touch with enough force to create a

seal; there is no wear between the scroll

plates. The fixed and orbiting scrolls are

made of high strength cast iron which

results in less thermal distortion, less

leakage, and higher efficiencies. The

most outstanding feature of the 3-D

Scroll compressor is that slugging will

not cause failure. In a reciprocating

compressor, however, the liquid or dirt

can cause serious damage.

Low Torque Variation

The 3-D Scroll compressor has a very

smooth compression cycle; torque

variations are only 30 percent of that

produced by a reciprocating compressor.

This means that the scroll compressor

imposes very little stress on the motor

resulting in greater reliability. Low torque

variation reduces noise and vibration.

Suction Gas Cooled Motor

Compressor motor efficiency and

reliability is further optimized with the

latest scroll design. Cool suction gas

keeps the motor cooler for longer life and

better efficiency.

One of two matched scroll plates — the

distinguishing feature of the scroll

compressor.

Chart illustrates low torque variation of

3-D Scroll compressor vs reciprocating

compressor.

Proven Design Through Testing and

Research

With over twenty years of development

and testing, Trane 3-D Scroll

compressors have undergone more

than 400,000 hours of laboratory testing

and field operation. This work combined

with over 25 patents makes Trane the

worldwide leader in air conditioning

scroll compressor technology.

9RT-PRC010-EN

Application

Considerations

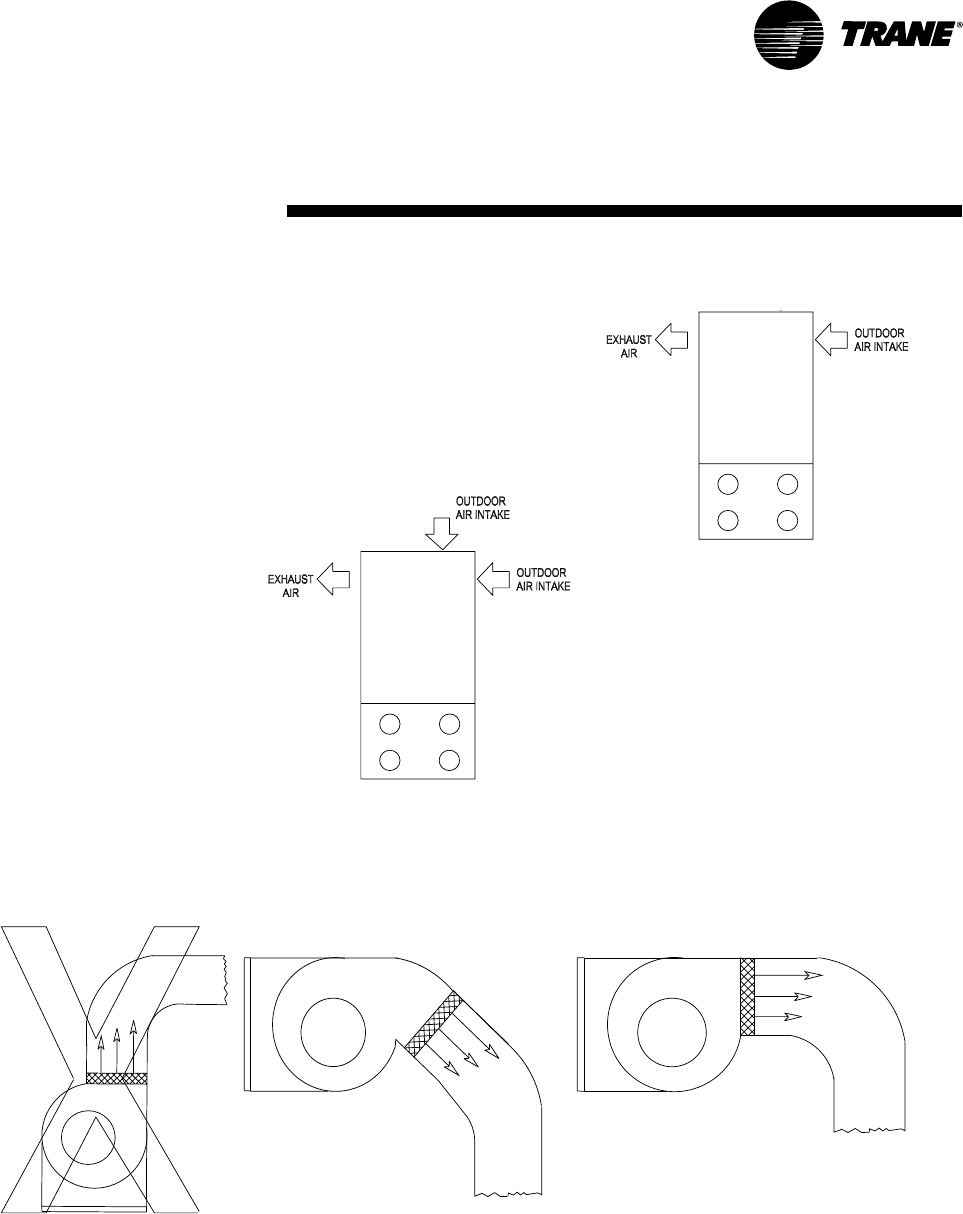

EXHAUST AIR OPTIONS

When is it necessary to provide building

exhaust? Whenever an outdoor air

economizer is used, a building generally

requires an exhaust system. The purpose

of the exhaust system is to exhaust the

proper amount of air to prevent over or

underpressurization of the building. The

goal is to exhaust approximately 10

percent less air than the amount of

outside air going into the building. This

maintains a slightly positive building

pressure.

A building may have all or part of its

exhaust system in the rooftop unit. Often,

a building provides exhaust external to

the air conditioning equipment. This

external exhaust must be considered

when selecting the rooftop exhaust

system.

IntelliPak® Rooftop units offer four types

of exhaust systems:

1

100 percent modulating exhaust with

Statitrac™ direct space sensing building

pressurization control (with or without

variable frequency drives).

2

100 percent modulating exhaust without

Statitrac.

3

50 percent power exhaust.

4

Barometric relief dampers.

Application Recommendations

1

100 percent modulating exhaust with

Statitrac™ control

For both CV and VAV rooftops, the 100

percent modulating exhaust discharge

dampers (or VFD) are modulated in

response to building pressure. A

differential pressure control system,

called Statitrac™, uses a differential

pressure transducer to compare indoor

building pressure to atmospheric

pressure. The FC exhaust fan is turned on

when required to lower building static

pressure to setpoint. The Statitrac control

system then modulates the discharge

dampers (or VFD) to control the building

pressure to within the adjustable,

specified dead band that is set at the

Human Interface Panel.

Advantages of the Statitrac™

100 percent modulating exhaust

system are:

a

The exhaust fan runs only when needed

to lower building static pressure.

b

Statitrac compensates for pressure

variations within the building from

remote exhaust fans and makeup

air units.

c

The exhaust fan discharges in a single

direction resulting in more efficient fan

operation compared to return fan

systems.

d

Because discharge dampers modulate

the airflow, the exhaust fan may be

running unloaded whenever the

economizer dampers are less than 100

percent open.

With an exhaust fan system, the supply

fan must be sized to pull the return air

back to the unit through the return

system during non-economizer

operation. However, a supply fan can

typically overcome return duct losses

more efficiently than a return air fan

system. Essentially, one large fan by itself

is normally more efficient than two fans

in series because of only one drive loss

not two as with return air systems.

The reason for either a return air fan or

an exhaust fan is to control building

pressure. The Trane 10 0 percent

modulating exhaust system with

Statitrac does a better job controlling

building pressure than return fans simply

because 100 percent modulating exhaust

discharge dampers (or VFD) are

controlled directly from building

pressure, rather than from an indirect

indicator of building pressure such as

outdoor air damper position.

The 100 percent modulating exhaust

system with Statitrac may be used on

any rooftop application that has an

outdoor air economizer. However, when

most exhaust is handled external to the

rooftop or when building pressure is not

critical, one of the other less expensive

methods of exhaust may be used.

RT-PRC010-EN10

Application

Considerations

Figure AC-1 — Plan View of Modulating 100 Percent Exhaust System

2

100 Percent Exhaust System

Competitive rooftops use a return air fan

system for controlling the amount of

exhaust air during economizer

operation. The return fan is in series with

the supply fan and must operate

whenever the supply fan is operating.

During economizer operation, the

economizer outdoor air dampers control

the position of the return and exhaust air

dampers, to exhaust the proper amount

of air. The disadvantage of a return air

fan is that it runs continuously, versus an

exhaust fan system which runs only

when needed to lower or maintain

building static pressure. Also, the return

fan must discharge air in two directions,

through the return air dampers and/or

exhaust air dampers, resulting in less

efficient operation compared to an

exhaust fan.

The IntelliPak® Rooftop unit offers

modulating 100 percent exhaust system.

This fan system has performance

capabilities equal to the supply fan. The

FC exhaust fans are started by the

economizer’s outdoor air damper

position and the exhaust dampers track

the economizer outdoor air damper

position. The amount of air exhausted by

this fan is controlled by modulating

discharge dampers at the fan outlet. The

discharge damper position is controlled

by a signal that varies with the position

of the economizer dampers. When the

exhaust fans start, the modulating

discharge dampers are fully closed, and

exhaust airflow is 15 to 20 percent of

total exhaust capabilities.

3

50 Percent Exhaust System

The 50 percent exhaust system is a

single FC exhaust fan with half the air-

moving capabilities of the supply fan

system. The experience of The Trane

Company is that a non-modulating

exhaust system selected for 40 to 50

percent of nominal supply CFM can be

applied successfully.

The 50 percent exhaust system generally

should not be selected for more than 40

to 50 percent of design supply airflow.

Since it is an on/off nonmodulating

system, it does not vary exhaust CFM

with the amount of outside air entering

the building. Therefore, if selected for

more than 40 to 50 percent of supply

airflow, the building may become under-

pressurized when economizer operation

is allowing lesser amounts of outdoor air

into the building. If, however, building

pressure is not of a critical nature, the

non-modulating exhaust system may be

sized for more than 50 percent of design

supply airflow.

4

Barometric Relief Dampers

Barometric relief dampers consist of

gravity dampers which open with

increased building pressure. As the

building pressure increases, the pressure

in the unit return section also increases,

opening the dampers and relieving air.

Barometric relief may be used to provide

relief for single story buildings with no

return ductwork and exhaust

requirements less than 25 percent.

11RT-PRC010-EN

Table AC-1 — SXHF, SFHF, SSHF, SLHF —

Panel A and B Dimensions

Total Area (H X W)

Model H (in.) W (in.) (in.2) (ft2)

S*HF C20 40.7 25.5 1038 7.2

S*HF C25 40.7 25.5 1038 7.2

S*HF C30 52.7 25.5 1344 9.3

S*HF C40 64.5 34.5 2225 15.5

S*HF C50 76.7 34.5 2646 18.4

S*HF C55 76.7 34.5 2646 18.4

S*HF C60 64.6 34.5 2229 15.5

S*HF C70 64.6 34.5 2229 15.5

S*HF C75 64.6 34.5 2229 15.5

Table AC-2 — SXHF, SFHF, SSHF, SLHF —

Panel C Dimensions

Total Area (H X W)

Model H (in.) W (in.) (in.2) (ft2)

S*HF C20 40.7 34.5 1404 9.8

S*HF C25 40.7 34.5 1404 9.8

S*HF C30 52.7 34.5 1818 12.6

S*HF C40 64.5 34.5 2225 15.5

S*HF C50 76.7 34.5 2646 18.4

S*HF C55 76.7 34.5 2646 18.4

S*HF C60 64.6 34.5 2229 15.5

S*HF C70 64.6 34.5 2229 15.5

S*HF C75 64.6 34.5 2229 15.5

* = X, F , L, or S

Table AC-3 — SXHF, SFHF, SSHF, SLHF —

X, Y and Z Dimensions

Model X (in.) Y (in.) Z (in.)

S*HF C20 35.5 44.0 201.5

S*HF C25 35.5 44.0 201.5

S*HF C30 35.5 56.0 201.5

S*HF C40 44.5 67.8 237.0

S*HF C50 44.5 80.0 237.0

S*HF C55 44.5 80.0 237.0

S*HF C60 44.5 68.0 237.5

S*HF C70 44.5 68.0 237.5

S*HF C75 44.5 68.0 237.5

Notes:

1. Add an extra 0.20-inches pressure drop to the supply external static to account for the extra turn the air is making.

2. The openings all have a 1.25-inch lip around the perimeter to facilitate ductwork attachment.

3. If exhaust fans are being used, provisions should be made for access to the exhaust components, since the access door is now being used as a return.

4. Use the dimensions provided and the supply Cfm to calculate the velocity (ft/min) through the openings to be sure they are acceptable.

Horizontal Discharge

The typical rooftop installation has both

the supply and return air paths routed

through the roof curb and building roof.

However, many rooftop installations

require horizontal supply and/or return

from the rooftop because of a building’s

unique design or for acoustic

considerations.

Trane has two ways to accomplish

horizontal supply and/or return. The first

applies to all IntelliPak® Rooftop units.

Special field supplied curbs are installed

that use the unit’s standard discharge

and return openings. The supply and

return air is routed through the curb to

horizontal openings on the sides of the

curb. The second method available for

horizontal supply and return applies to

20 - 75 tons SXHF, SFHF, SLHF, SSHF, and

90 - 130 tons SXHG, SLHG and SSHG

design units ONLY. With this method the

standard discharge and return openings

are blocked in the field. Access panels

are removed as indicated in Figures AC-1

and AC-2. These openings are used for

the discharge and return. No special

curb is needed.

SXHF, SFHF, SLHF, SSHF Units

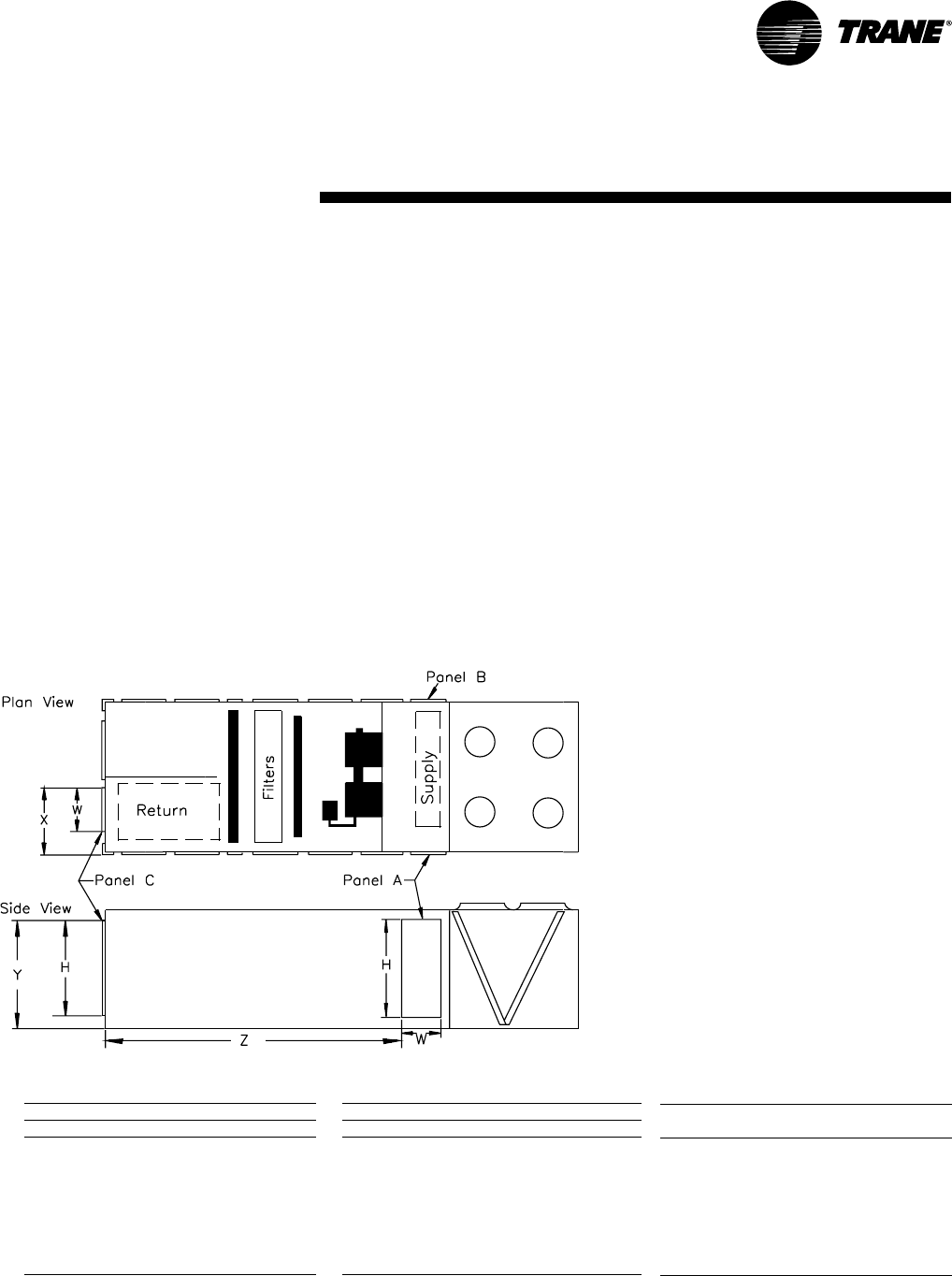

Figure AC-1 is a simplified sketch of the

rooftop showing which panels can be

used for horizontal supply and/or return.

To supply air horizontally, the panels that

normally house the heat accessory

controls (Panel A) and the gas heat

barometric dampers (Panel B) can be

removed and either of the openings

used as a unit discharge (see note 1). To

return air horizontally, the exhaust fan

access door (Panel C) can be removed

and used as a return opening. Tables AC-

1, 2 and 3 show dimensions for those

panels.

Horizontal Discharge on SXHF, SFHF,

SLHF and SSHF Rooftops (20 to 75 tons)

The SXHF (extended casing cooling

only), SFHF (gas heat), SSHF (steam

heat) and SLHF (hot water heat) rooftops

can be field modified to supply and

return air horizontally without the use of

a horizontal supply/return curb.

To supply air horizontally on SXHF only,

the panels that normally house the heat

accessory controls (Panel A) and the gas

heat barometric dampers (Panel B) can

be removed and either of the openings

used as a unit discharge. To return air

horizontally, the exhaust fan access door

(Panel C) can be removed and used as a

return opening.

1. For horizontal discharge on SFHF, SLHF and SSHF

units, only the Panel B can be removed. Panel A

cannot be used due to the location of the heating

coils.

2. For horizontal discharge on SFHF (gas heat) models,

the block off under the heater must be removed.

After removal, a support must be added for the drain

tube.

3. Supply and Return Base openings must be covered

when converting to a horizontal configuration.

Note: Cannot remove Panel A

for horizontal discharge on

SFHF, SLHF, SSHF Units.

Figure AC-2 Horizontal Discharge Panel Dimensions — 20 - 75 Tons SXHF, SFHF, SLHF, SSHF Units

Application

Considerations

RT-PRC010-EN12

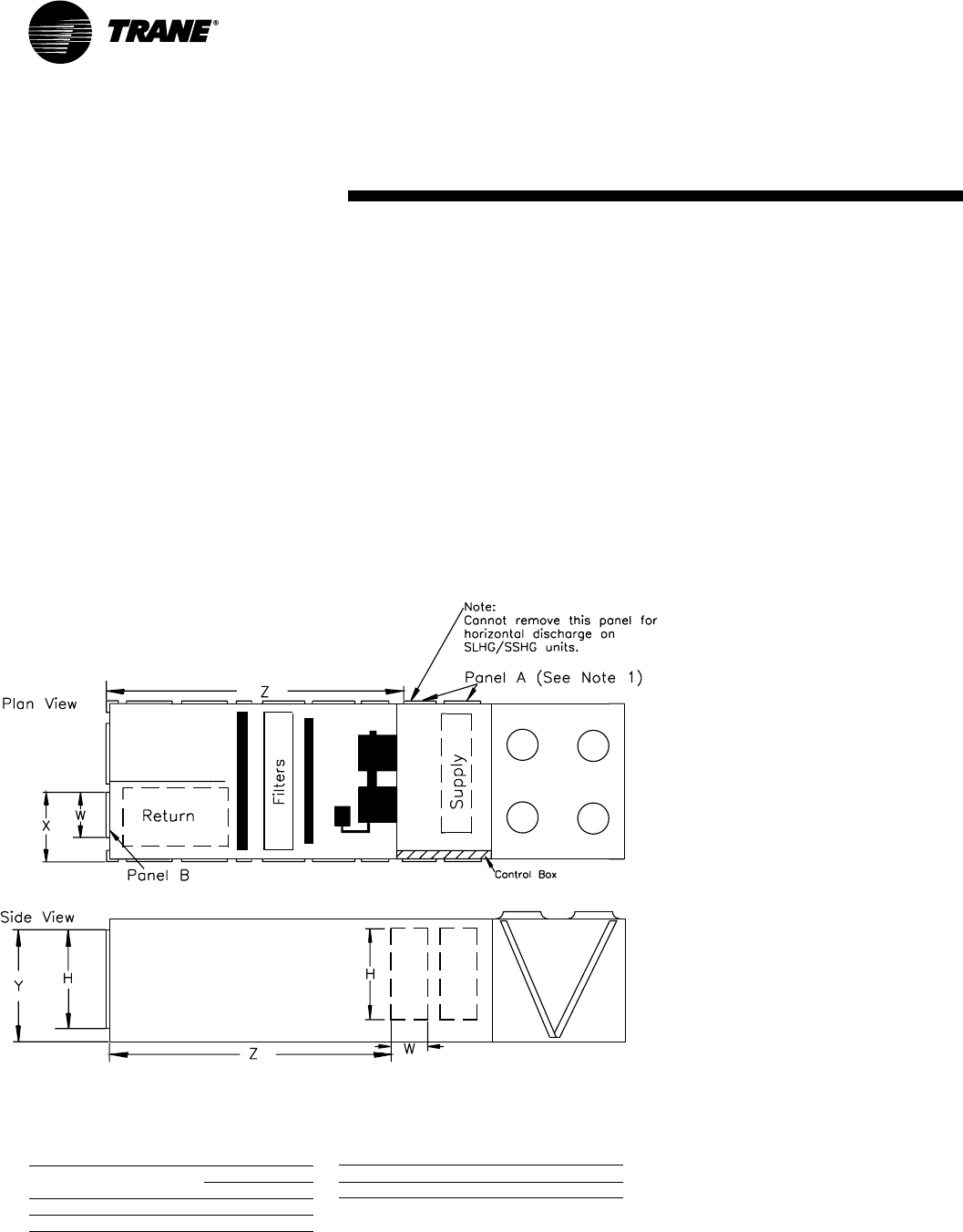

Figure AC-3 is a simplified sketch

showing which panels can be used for

horizontal supply and/or return. On 90 to

130 ton units, only one side of the

extended casing may be used for

horizontal supply because of the

location of the unit control panel. There

are, however, on SXHF models two

panels (Panels A) on the side opposite

the control box which can be removed

along with the vertical support which

separates the two. Removal of the

vertical support is optional, but will

ensure maximum airflow. On SLHG,

SSHG models only one of the Panel A’s

may be used for horizontal supply

because of the location of the heating

coil. Horizontal return is accomplished in

much the same way as on S*HFs by

removing the exhaust fan access door

(Panel B). See Tables AC-4 and 5 for

S*HG panel dimensions.

When using an IntelliPak® Rooftop for

horizontal supply and return, an

additional pressure drop must be added

to the supply external static to account

for the 90 degree turn the air is making.

This additional pressure drop depends

on airflow and rooftop size, but a range

of 0.10 inches to 0.30 inches can be

expected. The openings on the rooftop

all have a one inch lip around the

perimeter to facilitate ductwork

attachment. If exhaust fans are being

used on an IntelliPak Rooftop unit with

horizontal return, provisions should be

made for access to the exhaust

components, since the access door

opening is now being used as a return.

Perhaps the return ductwork attachment

to the rooftop can include a section of

removable duct. Use the dimensions

provided and the supply and exhaust

CFM to calculate the velocity (ft/min)

through the openings.

Horizontal Discharge SXHG, SLHG,

SSHG Rooftops (90 to 130 tons)

The SXHG, SLHG, SSHG rooftops can be

field modified to supply and return air

horizontally without the use of a

horizontal supply/return curb.

To supply air horizontally, use Panel A

only. The Panel on the opposite side

cannot be used due to the location of the

unit control Panel. SXHG rooftop air

conditioners do not have a panel

configuration like the 20 to 75 ton

rooftops. To achieve maximum airflow,

vertical support can be removed after the

unit has been placed on the roof curb. It

is secured by four screws. (See Note 1)

For horizontal discharge on SLHG and

SSHG units, only the Panel A next to the

condenser fan section can be removed.

The other Panel A next to the supply fan

cannot be used due to the location of the

heating coils.

To return air horizontally, the exhaust fan

access door (Panel B) can be removed

and used as a return opening.

Table AC-4 — SXHG, SLHG, SSHG —

Panel A and B Dimensions

Total Area (H X W)

Panel H (in.) W (in.) (in.2) (ft2)

A 72.7 27.5 1999 13.9

B 72.7 34.5 2508 17.4

Notes:

1. Add an extra 0.20-inches pressure drop to the

supply external static to account for the extra turn

the air is making.

2. The openings all have a 1.25-inch lip around the

perimeter to facilitate ductwork attachment.

Table AC-5 — SXHG, SLHG, SSHG —

X, Y and Z Dimensions

Model X (in.) Y (in.) Z (in.)

S*HG 90-130 69.0 77.8 244.7

* = X, L, or S

Note:

1. SXHG units have two Panel A’s that can be removed. Once unit is installed, panel(s) and the 61/2” vertical

support channel in between may be removed.

3. If exhaust fans are being used, provisions should

be made for access to the exhaust components,

since the access door is now being used as a

return.

4. Use the dimensions provided and the supply Cfm

to calculate the velocity (ft/min) through the

openings to be sure they are acceptable.

Figure AC-3 — Horizontal Discharge Panel Dimensions — 90 - 130 Tonss SXHG, SLHG, SSHG Units

Application

Considerations

13RT-PRC010-EN

High Capacity Evaporator Coil

Rooftops are popular because of their

“packaged” nature. Everything needed

is contained in one box; mix-matching is

neither necessary nor available. With this

convenience comes some

disadvantages; one is the rooftop’s

cooling capacity may not exactly match

the building load. It is conceivable that a

50 ton rooftop would need to be used on

an application that is 41 tons, simply

because the 40 ton rooftop does not

meet capacity.

In order to avoid such occurrences, and

to more closely match the rooftop’s

capacity to the building load, a high

capacity evaporator coil option is

available on all IntelliPak® Rooftops 20 to

105 tons. These high capacity coils have

an increased number of evaporator coil

rows as compared to standard and

enhanced evaporator tube surfaces,

resulting in a higher capacity. Capacity

tables for both standard and high

capacity coils are available in the cooling

data section of this catalog. See Table

PD-43 for the pressure drops associated

with the high capacity coil option. This

pressure drop should be added to the

total static pressure used to size the

supply fan motor.

Low Ambient Operation — Human

Interface Recommendations

Who wants to be on a roof at sub-zero

temperatures? We can understand a

service technician’s reluctance to do this;

that’s why we recommend using a

remote mounted Human Interface Panel.

The service technician can troubleshoot

and diagnose in the comfort of a

mechanical room.

Corrosive Atmospheres

Trane’s IntelliPak® Rooftops are

designed and built to industrial

standards and will perform to those

standards for an extended period

depending on the hours of use, the

quality of maintenance performed, and

the regularity of that maintenance. One

factor that can have an adverse effect on

unit life is its operation in a corrosive

environment.

When rooftops are operated in corrosive

environments, Trane recommends that

copper fins be utilized on the condenser

and/or evaporator coil. Because copper

is more resistant to corrosion than

aluminum, coil life expectancy is greatly

increased. Some industry applications

expose equipment to corrosive agents

that even copper cannot fully resist. For

those special applications, a baked

phenolic resin coating (i.e. Heresite) is

highly desirable. Baked phenolic

coatings or copper fins on the condenser

and/or evaporator coils are available on

Trane’s IntelliPak Rooftops.

Ventilation Override Sequences

One of the benefits of using an exhaust

fan rather than a return fan, in addition

to the benefits of lower energy usage

and improved building pressurization

control, is that the rooftop can be used

as part of a ventilation override system.

Several types of sequences can be easily

done when exhaust fans are a part of the

rooftop system.

What would initiate the ventilation

override control sequence? Typically, a

manual switch is used and located near

the fire protection control panel. This

enables the fire department access to the

control for use during or after a fire. It is

also possible to initiate the sequence

from a field-installed automatic smoke

detector. In either case, a contact closure

begins the ventilation override control

sequence. CAUTION!: The ventilation

override system should not be used to

signal the presence of smoke caused by

a fire.

Trane can provide five (5) different

ventilation override sequences on both

CV and VAV IntelliPak® Rooftops. For

your convenience the sequences can be

factory preset or fully field editable from

the Human Interface Panel or Tracer®.

Any or all five sequences may be

“locked” in by the user at the Human

Interface Panel.

The user can customize up to five (5)

different override sequences for

purposes such as smoke control. The

following parameters within the unit can

be defined for each of the five

sequences:

•Supply Fan — on/off

•Inlet Guide Vanes — open/closed/

controlling

•Variable Frequency Drives — on (60

Hz)/off (0 Hz)/controlling

•Exhaust Fan — on/off

•Exhaust Dampers — open/closed

•Economizer dampers — open/closed

•Heat — off/controlling (output for) VAV

Boxes — open/controlling

Compressors and condenser fans are

shut down for any Ventilation Override

sequence. Factory preset sequences

include unit Off, Exhaust, Purge, Purge

with duct pressure control, and

Pressurization. Any of the user-defined

Ventilation Override sequences can be

initiated by closing a field supplied

switch or contacts connected to an input

on the Ventilation Override Module. If

more than one ventilation override

sequence is being requested, the

sequence with the highest priority is

initiated. Refer to the Sequence of

Operation provided in the Control

section of this catalog for more details

on each override sequence.

Natural Gas Heating Considerations

The IntelliPak standard, or limited

modulation, gas heat exchangers are not

recommended for applications with

mixed air conditions entering the heat

exchanger below 50°F. Mixed air

temperatures below 50°F can cause

condensation to form on the heat

Application

Considerations

RT-PRC010-EN14

exchanger, leading to premature failure.

For increased reliability, the

recommendation in these applications is

full modulation gas heat. For airflow

limitations and temperature rise across

the heat exchanger information, see

Table PD-24, 25 and RT-EB-104.

Acoustical Considerations

The ideal time to make provisions to

reduce sound transmission to the space

is during the project design phase.

Proper placement of rooftop equipment

is critical to reducing transmitted sound

levels to the building. The most

economical means of avoiding an

acoustical problem is to place any

rooftop equipment away from

acoustically critical area. If possible,

rooftop equipment should not be located

directly above areas such as: offices,

conference rooms, executive office areas

and classrooms. Ideal locations are

above corridors, utility rooms, toilet

facilities, or other areas where higher

sound levels are acceptable.

Several basic guidelines for unit

placement should be followed to

minimize sound transmission through

the building structure:

1

Never cantilever the condensing section

of the unit. A structural cross member

must support this end of the unit.

2

Locate the unit’s center of gravity close

to or over a column or main support

beam to minimize roof deflection and

vibratory noise.

3

If the roof structure is very light, roof

joists should be replaced by a structural

shape in the critical areas described

above.

4

If several units are to be placed on one

span, they should be staggered to

reduce deflection over that span.

It is impossible to totally quantify the

effect of building structure on sound

transmission, since this depends on the

response of the roof and building

members to the sound and vibration of

the unit components. However, the

guidelines listed above are experience

proven guidelines which will help reduce

sound transmission.

There are several other sources of unit

sound, i.e., supply fan, compressors,

exhaust fans, condenser fans and

aerodynamic noise generated at the duct

fittings. Refer to the ASHRAE

Applications Handbook, Chapter 42, 1991

edition for guidelines for minimizing the

generation of aerodynamic noise

associated with duct fittings.

Trane’s Engineering Bulletin RT-EB-80

describes various duct installation

considerations specifically addressing

indoor sound level concerns. This

bulletin includes sound power data on

Trane’s IntelliPak Rooftops 20 to 130 tons.

Ask your local Trane representative for

this informative engineering bulletin.

The VariTrane® Computerized Duct

Design Program can be used to analyze

the truck duct, run-out duct, VAV control

unit and terminal unit noise attenuation.

This program quantifies the airborne

sound generation that can be expected

in each terminal so that the designer can

identify potential sound problems and

make design alterations before

equipment installation.

The Trane Acoustics Program (TAP)

allows modeling of rooftop installation

parameters. The output of this program

shows the resulting indoor NC level for

the modeled installation. This program is

available from Trane’s Customer Direct

Service Network™ (C.D.S.), ask your

local Trane representative for additional

information on this program.

Clearance Requirements

The recommended clearances identified

with unit dimensions should be

maintained to assure adequate

serviceability, maximum capacity and

peak operating efficiency. A reduction in

unit clearance could result in condenser

coil starvation or warm condenser air

recirculation. If the clearances shown are

not possible on a particular job, consider

the following:

•Do the clearances available allow for

major service work such as changing

compressors or coils?

•Do the clearances available allow for

proper outside air intake, exhaust air

removal and condenser airflow?

•If screening around the unit is being

used, is there a possibility of air

recirculation from the exhaust to the

outside air intake or from condenser

exhaust to condenser intake?

Actual clearances which appear

inadequate should be reviewed with a

local Trane sales engineer.

When two or more units are to be placed

side by side, the distance between the

units should be increased to 150 percent

of the recommended single unit

clearance. The units should also be

staggered as shown in Figure AC-4 for

two reasons:

1

To reduce span deflection if more than

one unit is placed on a single span.

Reducing deflection discourages sound

transmission.

2

To assure proper diffusion of exhaust air

before contact with the outside air intake

of adjacent unit.

Application

Considerations

15RT-PRC010-EN

Duct Design

It is important to note that the rated

capacities of the rooftop can be met only

if the rooftop is properly installed in the

field. A well-designed duct system is

essential in meeting these capacities.

The satisfactory distribution of air

throughout the system requires that

there be an unrestricted and uniform

airflow from the rooftop discharge duct.

This discharge section should be straight

for at least several duct diameters to

allow the conversion of fan energy from

velocity pressure to static pressure.

However, when job conditions dictate

elbows be installed near the rooftop

outlet, the loss of capacity and static

pressure may be reduced through the

use of guide vanes and proper direction

of the bend in the elbow. The high

velocity side of the rooftop outlet should

be directed at the outside radius of the

elbow rather than the inside as

illustrated in Figure AC-5.

Figure AC-4 — Unit Placement

Figure AC-5 — Duct Design

1. 20-40 ton models have only one outdoor air intake.

50 - 75 ton models have two outdoor air intakes.

2. 90-130 ton models have two outdoor air intakes on

the backside of the unit and one small air intake at

the end of the unit.

Proper

Improper

1

2

Application

Considerations

RT-PRC010-EN16

Selection

Procedure

This section outlines a step-by-step

procedure that may be used to select a

Trane single-zone air conditioner. The

sample selection is based on the

following conditions:

• Summer outdoor design conditions —

95 DB/76 WB ambient temperature

• Summer room design conditions —78

DB/65 WB

• Total cooling load — 430 MBh (35.8

tons)

• Sensible cooling load — 345 MBh (28.8

tons)

• Outdoor air ventilation load — 66.9

MBh

• Return air temperature — 80 DB/65 WB

Winter Design:

• Winter outdoor design conditions —0 F

• Return air temperature — 70 F

• Total heating load — 475 MBh

• Winter outdoor air ventilation load —

133 MBh

Air Delivery Data:

• Supply fan cfm — 17,500 cfm

• External static pressure — 1.2 in wg

• Minimum outdoor air ventilation —

1,750 cfm

• Exhaust fan cfm — 12,000 cfm

• Return air duct negative static pressure

— 0.65 in wg

Electrical Characteristics:

• Voltage/cycle/phase — 460/60/3 Unit

Accessories:

• Gas fired heat exchanger — high heat

module

• Throwaway filters

• Economizer

• Modulating 100 percent exhaust/

return fan

COOLING CAPACITY SELECTION

Step 1 — Nominal Unit Size Selection

A summation of the peak cooling load

and the outside air ventilation load

shows: 430 MBh + 66.9 MBh = 496.9

MBh required unit capacity. From

Table PD-9, a 50 ton unit capacity with

standard capacity evaporator coil at

80 DB/65 WB, 95 F outdoor air

temperature and 17,500 total supply cfm

is 551 MBh total and 422 MBh sensible.

Thus, a nominal 50 ton unit with

standard capacity evaporator coil

is selected.

Step 2 — Evaporator Coil Entering

Conditions

Mixed air dry bulb temperature

determination:

Using the minimum percent of OA (1,750

cfm ÷ 17,500 cfm = 10 percent),

determine the mixture dry bulb to the

evaporator.

RADB + % OA (OADB - RADB) = 80 +

(0.10) (95 - 80) = 80 + 1.5 = 81.5 F

Approximate wet bulb mixture

temperature:

RAWB + % OA (OAWB - RAWB) = 65 +

(0.10) (76 - 65) = 65 + 1.1 = 66.1 F

Step 3 — Determine Supply Fan Motor

Heat Gain

Having selected a nominal 50 ton unit,

the supply fan bhp can be calculated. The

supply fan motor heat gain must be

considered in final determination of unit

capacity.

Supply Air Fan

Determine unit total static pressure at

design supply cfm:

External Static Pressure 1.2 inches

Evaporator Coil 0.25 inches

(Table PD-43)

Return Duct Negative 0.65 inches

Static Pressure

Heat Exchanger 0.31 inches

(Table PD-43)

Throwaway Filter 0.10 inches

(Table PD-43)

Economizer w/Exhaust Fan 0.12 inches

(Table PD-43)

Trane Roof Curb 0.13 inches

(Table PD-43)

Unit Total Static Pressure 2.76 inches

Using total of 17,500 cfm and total

static pressure of 2.76 inches, enter Table

PD-36. Table PD-36 shows 15.3 bhp with

924 rpm.

From Chart SP-1 supply fan motor heat

gain = 46.0 MBh.

Step 4 — Determine Total Required

Cooling Capacity

Required capacity = Total peak load + OA

load + supply air fan motor heat.

Required capacity = 430 + 66.9 +

46.0 = 543 MBh (45.2 tons)

Step 5 — Determine Unit Capacity

From Table PD-9, unit capacity at 81.5 DB/

66.1 WB entering the evaporator, 17,500

supply air cfm, 95 F outdoor ambient, is

561 MBh (45.8 tons) with 426 MBh

sensible.

Step 6 — Determine Leaving Air

Temperature

Unit sensible heat capacity corrected for

supply air fan motor heat = 426 MBh - 46

MBh = 380 MBh.

Supply air dry bulb temperature

difference =

Sensible Btu =

1.085 x Supply cfm

380 MBh ÷ (1.085 x 17,500 cfm)

= 20.0 F

Supply air dry bulb = 81.5 DB - 20.0

= 61.5 F

Unit enthalpy difference =

Total Btu =

4.5 x Supply cfm

561 MBh ÷ (4.5 x 17,500 cfm) =

7.12 Btu/lb

Leaving enthalpy = h(ent WB) -

h(diff). From Table 21-1 h(ent WB) =

30.9 Btu/lb

Leaving enthalpy = 30.9 Btu/lb - 7.12

Btu/lb = 23.78 Btu/lb

Supply air wet bulb = 55.9

Leaving air temperature = 61.5

DB/55.9 WB

17RT-PRC010-EN

Selection

Procedure

ITD = 190 F - 65.4 F = 125 F. Divide the

winter heating load by ITD = 563 MBh ÷

125 F = 4.50 Q/ITD.

From Table PD-31, select the low heat

module. By interpolation, a Q/ITD of 4.50

can be obtained at a gpm at 25.7.

Water pressure drop at 25.7 gpm is 0.57

ft. of water. Heat module temperature

rise is determined by:

Total Btu = ∆T

1.085 x Supply cfm

563,000 = 29.7 F

(1.085 x 17,500)

Unit supply air temperature = mixed air

temperature + air temperature rise = 65.4

+ 29.7 = 95 F.

Steam Heating System

Assume a 15 psig steam supply.

From Table PD-27, the saturated

temperature steam is 250 F. Subtract

mixed air temperature from the steam

HEATING CAPACITY SELECTION

Step 1 — Determine Air Temperature

Entering Heating Module

Mixed air temperature = RADB + % OA

(OADB - RADB) = 70 + (0.10) (0 - 70) = 63

F

Supply air fan motor heat temperature

rise = 46,000 Btu ÷ (1.085 x 17,500 cfm) =

2.42 F

Air temperature entering heating

module = 63.0 + 2.42 = 65.4 F

Step 2 — Determine Total Winter Heating

Load

Total winter heating load = peak heating

load + ventilation load - supply fan

motor heat = 475 + 133 - 46.0 = 562 MBh

Electric Heating System

Unit operating on 460/60/3 power supply.

From Table PD-30, kw may be selected

for a nominal 50 ton unit operating

460-volt power. The 170 kw heat module

(580.1 MBh) will satisfy the winter

heating load of 563 MBh.

Table PD-28 shows an air temperature

rise of 30.6 F for 17,500 cfm through

the 170 kw heat module.

Unit supply temperature at design

heating conditions = mixed air

temperature + air temperature rise = 65.4

F + 30.6 F = 96.0 F.

Gas Heating System (Natural Gas)

From Table PD-24 select the high heat

module (697 MBh output) to satisfy

winter heating load of 563 MBh at unit

cfm.

Table PD-26 also shows an air

temperature rise of 36.0 F for 17,500 cfm

through the heating module.

Unit supply temperature at design

heating conditions = mixed air

temperature + air temperature rise = 65.4

F + 36.0 F = 101.4 F.

Hot Water Heating

Assume a hot water supply temperature

of 190 F. Subtract the mixed air

temperature from the hot water

temperature to determine the ITD (initial

temperature difference).

temperature to determine ITD. ITD = 250

F - 65.4 F = 185 F.

Divide winter heating load by ITD =

563 MBh ÷ 185 F = 3.04 Q/ITD.

From Table PD-26, select the high heat

module. The high heat module at 17,500

cfm has a Q/ITD = 5.11.

Heat module capacity, Q = ITD x Q/ITD =

185 F x 5.11 Q/ITD = 945 MBh

Heat module air temperature rise

= Total Btu

1.085 x Supply cfm

945 Btu ÷ (1.085 x 17,500 cfm) = 49.8 F.

Unit supply temperature at design

conditions = mixed air temperature + air

temperature rise = 65.4 F + 49.8 F = 115 F.

Chart SP-1 — Fan Motor Heat

0 5 10 15 20 25 30 35 40

0

10

20

30

40

50

60

70

80

90

100

110

120

STANDARD MOTOR

HIGH EFFICIENCY MOTOR

FAN MOTOR HEAT - MBH

MOTOR BRAKE HORSE POWER

RT-PRC010-EN18

AIR DELIVERY PROCEDURE

Supply fan performance tables include

internal resistance of rooftop. For total

static pressure determination, system

external static must be added to

appropriate component static pressure

drop (evaporator coil, filters, optional

economizer, optional exhaust fan,

optional heating system, optional

cooling only extended casing, optional

roof curb).

Supply Fan Motor Sizing

The supply fan motor selected in the

cooling capacity determination was 15.3

bhp and 924 rpm. Thus, a 20 hp supply

fan motor is selected. Enter Table PD-45

to select the proper drive. For a 50 ton

rooftop with 20 hp motor, a drive

number 9 — 900 rpm is selected.

Exhaust Fan Motor Sizing

The exhaust fan is selected based on

total return system negative static

pressure and exhaust fan cfm. Return

system negative static include return

duct static and roof curb static pressure

drop.

Return duct static pressure = 0.65 inches

Trane roof curb (Table PD-43) = 0.12

inches

Total return system negative static

pressure = 0.77 inches

Exhaust fan cfm = 12,000 cfm

From Table PD-47, the required bhp is

3.45 hp at 574 rpm. Thus, the exhaust fan

motor selected is 5 hp.

To select a drive, enter Table PD-49 for a 5

hp motor for a 50 ton unit. Drive

selection number 6 — 600 rpm.

Where altitudes are significantly above

sea level, use Tables PAF-2 and PAF-3 and

Figure PAF-1 for applicable correction

factors.

UNIT ELECTRICAL REQUIREMENTS

Selection procedures for electrical

requirements for wire sizing amps,

maximum fuse sizing, and dual element

fuses are given in the electrical service

section of this catalog.

Altitude Corrections

The rooftop performance tables and

curves of this catalog are based on

standard air (.075 lbs/ft). If the rooftop

airflow requirements are at other than

standard conditions (sea level), an air

density correction is needed to project

accurate unit performance.

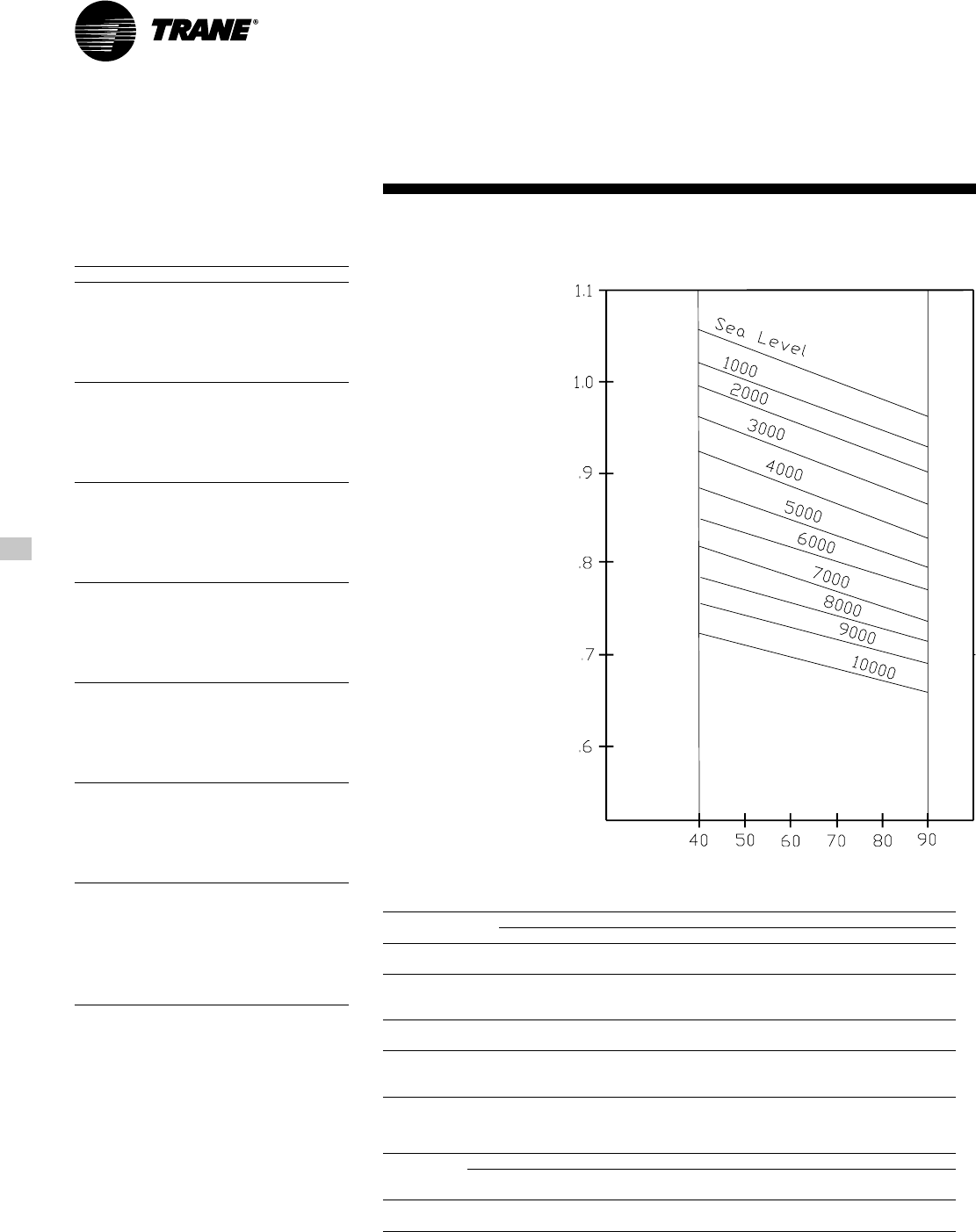

Figure PAF-1 shows the air density ratio

at various temperatures and elevations.

Trane rooftops are designed to operate

between 40 and 90 degrees Fahrenheit

leaving air temperature.

The procedure to use when selecting a

supply or exhaust fan on a rooftop for

elevations and temperatures other than

standard is as follows:

1

First, determine the air density ratio

using Figure PAF-1.

2

Divide the static pressure at the

nonstandard condition by the air

density ratio to obtain the corrected

static pressure.

3

Use the actual cfm and the corrected

static pressure to determine the fan rpm

and bhp from the rooftop performance

tables or curves.

4

The fan rpm is correct as selected.

5

Bhp must be multiplied by the air

density ratio to obtain the actual

operating bhp.

Selection

Procedure

19RT-PRC010-EN

Selection

Procedure

In order to better illustrate this

procedure, the following example is

used:

Consider a 60 ton rooftop unit that is to

deliver 18,000 actual cfm at 3-inches total

static pressure (tsp), 55 F leaving air

temperature, at an elevation of 5,000 ft.

1

From Figure PAF-1, the air density ratio is

0.86.

2

Tsp = 3.0-inches / 0.86 = 3.49 inches tsp.

3

From the performance tables: a 60 ton

rooftop (without inlet vanes) will deliver

18,000 cfm at 3.49-inches tsp at 906 rpm

and 21.25 bhp.

4

The rpm is correct as selected - 906 rpm.

5

Bhp = 21.25 x 0.86 = 18.3 bhp actual.

Compressor MBh, SHR, and kw should

be calculated at standard and then

converted to actual using the correction

factors in Table PAF-2. Apply these factors

to the capacities selected at standard cfm

so as to correct for the reduced mass

flow rate across the condenser.

Heat selections other than gas heat will

not be affected by altitude. Nominal gas

capacity (output) should be multiplied by

the factors given in Table PAF-3 before

calculating the heating supply air

temperature.

HEATING CAPACITY SELECTION

Step 1 — Determine Air Temperature

Entering Heating Module

Mixed air temperature = RADB + % OA

(OADB - RADB) = 70 + (0.10) (0 - 70) = 63

F

Supply air fan motor heat temperature

rise = 46,000 Btu ÷ (1.085 x 17,500 cfm) =

2.42 F

Air temperature entering heating

module = 63.0 + 2.42 = 65.4 F

RT-PRC010-EN20

Model

Number

Description

DIGIT 1 — UNIT TYPE

S = Self-Contained (Packaged Rooftop)

DIGIT 2 — UNIT FUNCTION

A = DX Cooling, No Heat

E = DX Cooling, Electric Heat

F = DX Cooling, Natural Gas Heat

L = DX Cooling, Hot Water Heat

S = DX Cooling, Steam Heat

X = DX Cooling, No Heat, Extended Casing

DIGIT 3 — UNIT AIRFLOW

H = Single Zone

DIGIT 4 — DEVELOPMENT SEQUENCE

F = Sixth

DIGITS 5,6,7 — NOMINAL CAPACITY

C20 = 20 Tons C55 = 55 Tons

C25 = 25 Tons C60 = 60 Tons

C30 = 30 Tons C70 = 70 Tons

C40 = 40 Tons C75 = 75 Tons

C50 = 50 Tons

DIGIT 8 — POWER SUPPLY (See Notes)

4 = 460/60/3 XL E = 200/60/3 XL

5 = 575/60/3 XL F = 230/60/3 XL

Note: SEHF units (units with electric heat)

utilizing 208V or 230V require dual power

source.

DIGIT 9 — HEATING CAPACITY

Note: When the second digit calls for “F”

(Gas Heat), the following values apply:

Additionally, please note G and M available

ONLY on 50 Ton models and above.

H = High Heat-2-Stage P = High Heat-Full

L = Low Heat-2-Stage Modulation

0 = No Heat M = Low Heat-Full

J = High Heat-Limited Modulation

Modulation

G = Low Heat-Limited

Modulation

Note: When the second digit calls for “E”

(electric heat), the following values apply:

D = 30 KW R = 130 KW

H = 50 KW U = 150 KW

L = 70 KW V = 170 KW

N = 90 KW W = 190 KW

Q = 110 KW

Note: When the second digit calls for ‘’L’’

(Hot Water) or ‘’S’’(Steam) Heat, one of the

following valve size values must be in Digit

9:

High Heat Coil: 1 = .50”, 2 = .75”, 3 = 1”,

4 = 1.25”, 5 = 1.5”, 6 = 2”.

Low Heat Coil: A = .50”, B = .75”, C = 1”,

D = 1.25”, E = 1.5”, F = 2”.

DIGIT 10 — DESIGN SEQUENCE

A = First (Factory Assigned)

DIGIT 11 — EXHAUST OPTION

0 = None

1 = Barometric

2 = 100%, 1.5 HP W/Statitrac

3 = 100%, 3 HP W/Statitrac

4 = 100%, 5 HP W/Statitrac

5 = 100%, 7.5 HP W/Statitrac

6 = 100%, 10 HP W/Statitrac

7 = 100%, 15 HP W/Statitrac

8 = 100%, 20 HP W/Statitrac

A = 50%, 1.5 HP

B = 50%, 3 HP

C = 50%, 5 HP

D = 50%, 7.5 HP

E = 100%, 1.5 HP W/O Statitrac (CV Only)

F = 100%, 3 HP W/O Statitrac (CV Only)

G = 100%, 5 HP W/O Statitrac (CV Only)

H = 100%, 7.5 HP W/O Statitrac (CV Only)

J = 100%, 10 HP W/O Statitrac (CV Only)

K = 100%, 15 HP W/O Statitrac (CV Only)

L = 100%, 20 HP W/O Statitrac (CV Only)

DIGIT 12 — EXHAUST AIR FAN DRIVE

0 = None 8 = 800 RPM

4 = 400 RPM 9 = 900 RPM

5 = 500 RPM A = 1000 RPM

6 = 600 RPM B = 1100 RPM

7 = 700 RPM

DIGIT 13 — FILTER

A = Throwaway

B = Cleanable Wire Mesh

C = High-Efficiency Throwaway

D = Bag With Prefilter

E = Cartridge With Prefilter

F = Throwaway Filter Rack Less Filter

Media

G = Bag Filter Rack Less Filter Media

DIGIT 14 — SUPPLY AIR FAN HP

1 = 3 HP 4 = 10 HP 7 = 25 HP

2 = 5 HP 5 = 15 HP 8 = 30 HP

3 = 7.5 HP 6 = 20 HP 9 = 40 HP3

DIGIT 15 — SUPPLY AIR FAN DRIVE

5 = 500 RPM B = 1100 RPM

6 = 600 RPM C = 1200 RPM

7 = 700 RPM D = 1300 RPM

8 = 800 RPM E = 1400 RPM

9 = 900 RPM F = 1500 RPM

A= 1000 RPM G = 1600 RPM

DIGIT 16 — FRESH AIR

A = No Fresh Air

B = 0-25% Manual

D = 0-100% Economizer

DIGIT 17 — SYSTEM CONTROL

1 = Constant Volume Control

2 = VAV Supply Air Temperature Control

w/o Inlet Guide Vanes

3 = VAV Supply Air Temperature Control

w/ Inlet Guide Vanes

4 = Space Pressure Control with Exhaust

VFD w/o Bypass

5 = Space Pressure Control with Exhaust

VFD and Bypass

6 = VAV Supply Air Temperature Control

with VFD w/o Bypass

7 = VAV Supply Air Temperature Control

with VFD and Bypass

8 = Supply and Exhaust Fan with VFD

w/o Bypass

9 = Supply and Exhaust Fan with VFD

and Bypass

DIGIT 18 — ACCESSORY PANEL

0 = None

A = BAYSENS008*

B = BAYSENS010*

C = BAYSENS013*

D = BAYSENS014*

E = BAYSENS019*

F = BAYSENS020*

G = BAYSENS021*

DIGIT 19 — AMBIENT CONTROL

0 = Standard

1 = 0° Fahrenheit

DIGIT 20 — AGENCY APPROVAL

0 = None (UL Gas Heater, see note)

1 = UL

2 = CSA

Note: Includes UL classified gas heating

section only when second digit of Model

No. is a “F.”

DIGITS 21 - 38 — MISCELLANEOUS

21 A = Unit Disconnect Switch

22 B = Hot Gas Bypass

23 D = Economizer Control w/

Comparative Enthalpy

23 R = Economizer Control w/

Reference Enthalpy

23 T = Economizer Control w/Dry Bulb

24 E = Low Leak Fresh Air Dampers

25 F = High Duct Temperature

Thermostat

26 G = High Capacity Evap. Coil

27 H = Copper Fins (Cond. Only)

28 K = Generic B.A.S. Module

29 L = High-Efficiency Motors (Supply

and Exhaust)

30 M = Remote Human Interface

31 N = Ventilation Override Module

32 R = Extended Grease Lines

33 T = Access Doors

34 V = Inter-Processor Communica

tion Bridge

35 Y = Trane Communication

Interface Module

36 8 = Spring Isolators

37 6 = Factory-Powered 15A GFI

Convenience Outlet

38 5 = VFD Line Reactor

S F H F C 5 5 F H A 5 5 C 6 9 D 3 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 01

1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627 28 29 30 31 32 33 34 35 36 37 38

Note: Sequence may be any letter A thru Z,

or any digit 1 thru 9.

21RT-PRC010-EN

1. EXAMPLE: Model numbers: SFHFC55FHA55C69D3001N describes a unit with the following characteristics: DX

cooling with natural gas heating, 55 ton nominal cooling capacity, 230/60/3 power supply, high heat model. 100

percent exhaust with Statitrac, 7.5 HP exhaust fan motor with drive selection No. 5 (500 RPM), high-efficiency

throwaway filters, 20 HP supply fan motor with drive selection No. 9 (900 RPM), 0-100% economizer, VAV supply air

temperature control with inlet guide vanes, no remote panel, standard ambient control, U.L. agency approval. The

service digit for each model number contains 38 digits; all 38 digits must be referenced.

2. EXAMPLE: Model numbers: SXHGD1140AH7CF8D3001 describes a unit with the following characteristics: DX

cooling with extended casing, no heat, 105 ton nominal cooling capacity, 460/60/3 power supply, no heat, 100

percent exhaust with Statitrac, 30 h.p. exhaust fan motor with drive selection No. 7 — (700 RPM), high-efficiency

throwaway filters, 60 hp supply fan motor with drive selection No. 8 — (900 RPM), economizer, VAV supply air

temperature control with inlet guide vanes, no remote panel, standard ambient, UL agency approval. The service

digit for each model number contains 36 digits; all 36 digits must be referenced.

3. Available as standard 460 volt only for 70 and 75 ton models.

Model

Number

Description

S X H G D 1 1 4 O A H 7 C F 9 D 3 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 02

1 2 3 4 567 8 9 10111213141516171819 2021222324252627 282930313233343536

DIGIT 1 — UNIT TYPE

S = Self-Contained (Packaged Rooftop)

DIGIT 2 — UNIT FUNCTION

E = DX Cooling, Electric Heat

F = DX Cooling, Natural Gas Heat

L = DX Cooling, Hot Water Heat

S = DX Cooling, Steam Heat

X = DX Cooling, No Heat, Extended Casing

DIGIT 3 — UNIT AIRFLOW

H = Single Zone

DIGIT 4 — DEVELOPMENT SEQUENCE

G = Seventh

DIGITS 5,6,7 — NOMINAL CAPACITY

C90 = 90 Tons

D11 = 105 Tons

D12 = 115 Tons

D13 = 130 Tons

DIGIT 8 — POWER SUPPLY

4 = 460/60/3 XL

5 = 575/60/3 XL

E = 200/60/3 XL

F = 230/60/3 XL

DIGIT 9 — HEATING CAPACITY

0 = No Heat

H = High Heat - 2-Stage

J = High Heat - Limited Modulation

P = High Heat - Full Modulation

Note:

When the second digit calls for “E”

(electric heat), the following values apply

in the ninth digit:

W = 190 KW

When the second digit calls for ‘’L’’ or

‘’S’’, one of the following valve size

values must be in Digit 9:

High Heat Coil: 3 = 1.0”, 4 = 1.25”, 5 =

1.50”, 6 = 2.0”, 7 = 2.5”

Low Heat Coil: C = 1.0”, D = 1.25”, E =

1.50”, F = 2.0”, G = 2.5”

DIGIT 10 — DESIGN SEQUENCE

A = First (Factory Assigned)

Note: Sequence may be any letter A thru

Z, or any digit 1 thru 9.

DIGIT 11 — EXHAUST OPTION

0 = None

7 = 100%, 15 HP W/Statitrac

4 = Space Pressure Control with Exhaust

VFD w/o Bypass

5 = Space Pressure Control with Exhaust

VFD and Bypass

6 = VAV Supply Air Temperature Control

with VFD w/o Bypass

7 = VAV Supply Air Temperature Control

with VFD and Bypass

8 = Supply and Exhaust Fan with VFD

w/o Bypass

9 = Supply and Exhaust Fan with VFD

and Bypass

DIGIT 18 — ACCESSORY PANEL

0 = None

A = BAYSENS008*

B = BAYSENS010*

C = BAYSENS013*

D = BAYSENS014*

E = BAYSENS019*

F = BAYSENS020*

G = BAYSENS021*

DIGIT 19 — AMBIENT CONTROL

0 = Standard

DIGIT 20 — AGENCY APPROVAL

0 = None (UL Gas Heater, see note)

1=UL

2 = CSA

Note: Includes UL classified gas heating

section only, when second digit of Model

No. is a “F.”

DIGITS 21 - 36 — MISCELLANEOUS

21 A = Unit Disconnect Switch

22 B = Hot Gas Bypass (CV Only)

23 D = Economizer Control w/

Comparative Enthalpy

23 R = Economizer Control w/

Reference Enthalpy

23 T = Economizer Control w/Dry Bulb

24 E = Low Leak Fresh Air Dampers

25 F = High Duct Temperature

Thermostat

26 G = High Capacity Evaporator

Coil (90-105 Only)

27 K = Generic B.A.S. Module

28 L = High-Efficiency Motors

(Supply and Exhaust)

29 M = Remote Human Interface

30 N = Ventilation Override Module

31 R = Extended Grease Lines

32 T = Access Doors

33 V = Inter-Processor

Communication Bridge

34 Y = Trane Communication

Interface Module

35 5 = VFD Line Reactor

36 6 = Factory-Powered 15A GFI

Convenience Outlet

8 = 100%, 20 HP W/Statitrac

9 = 100%, 25 HP W/Statitrac

F = 50%, 15 HP

H = 100%, 30 HP W/Statitrac

J = 100%, 40 HP W/Statitrac

K = 100%, 15 HP W/O Statitrac (CV Only)

L = 100%, 20 HP W/O Statitrac (CV Only)

M = 100%, 25 HP W/O Statitrac (CV Only)

N = 100%, 30 HP W/O Statitrac (CV Only)

P = 100%, 40 HP W/O Statitrac (CV Only)

DIGIT 12 — EXHAUST AIR FAN DRIVE

0 = None

5 = 500 RPM

6 = 600 RPM

7 = 700 RPM

8 = 800 RPM

DIGIT 13 — FILTER

A = Throwaway

C = High-Efficiency Throwaway

D = Bag With Prefilter

E = Cartridge With Prefilter

F = Throwaway Filter Rack Less Filter

Media

G = Bag Filter Rack Less Filter Media

DIGIT 14 — SUPPLY AIR FAN HP

C = 30 HP (2-15 HP)

D = 40 HP (2-20 HP)

E = 50 HP (2-25 HP)

F = 60 HP (2-30 HP)

G = 80 HP (2-40 HP)

DIGIT 15 — SUPPLY AIR FAN DRIVE

9 = 900 RPM

A = 1000 RPM

B= 1100 RPM

C= 1200 RPM

D= 1300 RPM

E= 1400 RPM

F = 1500 RPM

G= 1600 RPM

DIGIT 16 — FRESH AIR

D = 0-100% Economizer (Std.)

DIGIT 17 — SYSTEM CONTROL

1 = Constant Volume Control

2 = VAV Supply Air Temperature Control

w/o Inlet Guide Vanes

3 = VAV Supply Air Temperature Control

w/ Inlet Guide Vanes

RT-PRC010-EN22

General Data

Table GD-1— General Data — 20-40 Tons

20 Ton 25 Ton 30 To n 40 Ton

Compressor Data3

Number/Size (Nominal) 2/10 Ton 1/10 Ton, 1/15 Ton 2/15 Ton 4/10 Ton

Model Scroll Scroll Scroll Scroll

Unit Capacity Steps (%) 100/50 100/40 100/50 100/75/50/25

RPM 3450 3450 3450 3450

Evaporator Fans

Number/Size/Type 2/15”/FC 2/15”/FC 2/18”/FC 2/20”/FC

Number of Motors 1111

Hp Range 3-15 3-15 5-20 71/2-30

Cfm Range14000-9000 5000-11000 6000-13500 8000-18000

ESP Range — (In. WG) 0.25-4.0 0.25-4.0 0.25-4.0 0.25-4.0

Exhaust Fans 50% 100% 50% 100% 50% 100% 50% 100%

Number/Size/Type 1/15”/FC 2/15”/FC 1/15”/FC 2/15”/FC 1/15”/FC 2/15”/FC 1/18”/FC 2/18”/FC

Hp Range 1.5-3 1.5-3 1.5-3 3-5 3-5 3-7.5 5-7.5 5-10

Cfm Range 2000-6000 4000-10000 2000-6000 4000-12000 2000-7000 4000-14000 3000-11000 7500-16000

ESP Range — (In. WG) 0.25-1.4 0.2-2.0 0.25-1.4 0.2-2.0 0.25-1.4 0.2-2.0 0.25-1.4 0.2-2.0

Condenser Fans

Number/Size/Type 2/26”/Prop. 3/26”/Prop. 3/26”/Prop. 4/26”/Prop.

Hp (Each) 1.0 1.0 1.0 1.0

Cfm 14000 18300 20900 28200

Cycle/Phase 60/3 60/3 60/3 60/3

Evaporator Coil — Standard

Size (Ft2) 20.3 20.3 24.4 32.5

Rows/Fin Series 2/148 2/148 3/148 2/148

Tube Diameter/Surface 1/2/Enhanced 1/2/Enhanced 1/2/Enhanced 1/2/Enhanced

Evaporator Coil — High Capacity

Size (Ft2) 20.3 20.3 24.4 32.5

Rows/Fin Series 4/148 4/148 4/148 4/148

Tube Diameter/Surface 1/2/Enhanced 1/2/Enhanced 1/2/Enhanced 1/2/Enhanced

Condenser Coil (Aluminum Fins)

Size (Ft2) 35.0 35.0 46.3 63.2

Rows/Fin Series/Tube Diameter 3/144/ 3/83/144/ 3/83/144/ 3/83/144/ 3/8

Copper Condenser Fins (Optional) 3/144/

3

/

8

3/144/

3

/

8

3/144/

3

/

8

3/144/

3

/

8

Electric Heat

KW Range230-110 30-130 30-150 50-170

Capacity Steps: 3333

Natural Gas Heat

Standard Gas Heat

Low Heat Input 235 235 350 350

High Heat Input 500 500 500 850

Standard Heating Capacity Steps: 2222

Modulating Gas Heat (Not Available on 20-40 Ton Models with Low Heat)

High Heat - Limited Modulation433% 33% 33% 33%

Heat Exchanger Type Standard Standard Standard Standard

High Heat - Full Modulation5100% 100% 100% 100%

Heat Exchanger Type High Grade, High Grade, High Grade, High Grade,

Stainless Steel Stainless Steel Stainless Steel Stainless Steel

Hot Water Coil

Size (Inches) 30x66x2 Row 30x66x2 Row 30x66x2 Row 42x66x2 Row

Type Type W, Prima Flo Type W, Prima Flo Type W, Prima Flo Type W, Prima Flo

High Heat (Fins/Ft) 110 110 110 110

Low Heat (Fins/Ft) 80 80 80 80

Steam Coil

Size (Inches) 30x66x1 Row 30x66x1 Row 30x66x1 Row 30x66x1 Row & 12x66x1 Row

Type Type NS Type NS Type NS Type NS

High Heat (Fins/Ft) 96 96 96 96

Low Heat (Fins/Ft) 42 42 42 42

23RT-PRC010-EN

Table GD-1— General Data — 20-40 Tons Continued

General Data

20 Ton 25 Ton 30 Ton 40 Ton

Filters

Panel Filters

Number/Size (Inches) 12 — 20x20x2 12 — 20x20x2 16 — 20x20x2 16 — 20x25x2

Face Area (Ft2) 33.3 33.3 44.4 55.5

Bag Filters

Number/Size (Inches) 4 — 12x24x19 4 — 12x24x19 2 — 12x24x19 5 — 12x24x19

3 — 24x24x19 3 — 24x24x19 6 — 24x24x19 6 — 24x24x19

Cartridge Filters 4 — 12x24x12 4 — 12x24x12 2 — 12x24x12 5 — 12x24x12

3 — 24x24x12 3 — 24x24x12 6 — 24x24x12 6 — 24x24x12

Prefilters (For Bag & Cartridge) 4 — 12x24x2 4 — 12x24x2 2 — 12x24x2 5 — 12x24x2

3 — 24x24x2 3 — 24x24x2 6 — 24x24x2 6 — 24x24x2

Face Area (Ft2) 20.0 20.0 28.0 34.0

Standard Unit Minimum Outside Air Temperature For Mechanical Cooling

Without Hot Gas Option 55 F 50 F 50 F 55 F

With Hot Gas Option 55 F 50 F 50 F 55 F

Low Ambient Option Minimum Outside Air Temperature

Without Hot Gas Option 0 F 0 F 0 F 0 F

With Hot Gas Option 10 F 10 F 10 F 10 F

Notes:

1. For cfm values outside these ranges, refer to RT-EB-104.

2. Refer to Table PD-30 for availability of electric heat kw ranges by voltage.

3. 20-30 Ton models are single circuit, 40 Ton models are dual circuit.

4. The firing rate of the unit can vary from 33% of the Heater Mbh up to the nameplate rating of the unit.

5. The firing rate of the unit can vary from pilot rate of 125,000 Btuh up to the nameplate rating of the unit.

RT-PRC010-EN24

General Data

Table GD-2 — General Data — 50-75 Tons

50 Ton 55 Ton 60 Ton 70 Ton 75 Ton

Compressor Data3 Standard High Capacity

Number/Size (Nominal) 2/10, 2/15 Ton 4/15 Ton 4/15 Ton 4/10, 2/15 Ton 4/10, 2/15 Ton 4/10, 2/15 Ton

Model Scroll Scroll Scroll Scroll Scroll

Unit Capacity Steps (%) 100/80/60/30 100/75/50/25 100/75/50/25 100/72/44/22 100/72/44/22

RPM 3450 3450 3450 3450 3450

Evaporator Fans

Number/Size/Type 2/20”/FC 2/20”/FC 2/22”/FC 2/22”/FC 2/22”/FC

Number of Motors 1 1 1 1 1

Hp Range 7

1

/

2

-30 7

1

/

2

-30 10-40 10-40

6

10-40

6

Cfm Range

1

10000-22500 12000-24000 14000-27000 16000-27000 16000-27000

ESP Range — (In. WG) 0.25-4.0 0.25-4.0 0.25-4.0 0.25-4.0 0.25-4.0

Exhaust Fans 50% 100% 50% 100% 50% 100% 50% 100% 50% 100%

Number/Size/Type 1/18”/FC 2/18”/FC 1/18”/FC 2/18”/FC 1/20”/FC 2/20”/FC 1/20”/FC 2/20”/FC 1/20”/FC 2/20”/FC

Hp Range 5-7.5 5-15 5-7.5 5-15 5-7.5 5-20 5-7.5 5-20 5-7.5 5-20

Cfm Range 3000-11000 9000-20000 3000-11000 10000-21500 4000-13000 12000-27000 4000-13000 12000-27000 4000-13000 12000-27000

ESP Range — (In. WG) 0.25-1.4 0.2-2.0 0.25-1.4 0.2-2.0 0.25-1.4 0.2-2.0 0.25-1.4 0.2-2.0 0.25-1.4 0.2-2.0

Condenser Fans

Number/Size/Type 6/26”/Prop 6/26”/Prop 6/26”/Prop 6/26”/Prop 6/26”/Prop

Hp (Each) 1.0 1.0 1.0 1.0 1.0

Cfm 36600 36600 40800 40800 40800

Cycle/Phase 60/3 60/3 60/3 60/3 60/3

Evaporator Coil — Standard

Size (Ft.

2

) 37.9 37.9 43.1 43.1 43.1

Rows/Fin Series 3/148 3/148 2/164 3/180 4/148

Tube Diameter/Surface

1

/

2

/Enhanced

1

/

2

/Enhanced

1

/

2

/Enhanced

1

/

2

/Enhanced

1

/

2

/Enhanced

Evaporator Coil — High Capacity

Size (Ft

2

) 37.9 37.9 43.1 43.1

Rows/Fin Series 4/148 4/148 4/148 NA 5/148

Tube Diameter/Surface

1

/

2

/Enhanced

1

/

2

/Enhanced

1

/

2

/Enhanced

1

/

2

/Enhanced

Condenser Coil (Aluminum Fins)

Size (Ft.

2

) 70.0 70.0 88.0 88.0 88.0

Rows/Fin Series/Tube Diameter 3/144/

3

/

8

4/144/

3

/

8

4/144/

3

/

8

4/144/

3

/

8

3/144/

3

/

8

Copper Condenser Fins (Optional) 3/144/

3

/

8

3/144/

3

/

8

3/144/

3

/

8

3/144/

3

/

8

3/144/

3

/

8

Electric Heat

KW Range

2

70-190 70-190 90-190 90-190 90-190

Capacity Steps: 3 3 3 3 3

Natural Gas Heat

Standard Gas Heat

Low Heat Input 500 500 500 500 500

High Heat Input 850 850 850 850 850

Standard Heating Capacity Steps: 2 2 2 2 2

Modulating Gas Heat

High/Low Heat - Limited Modulation433% 33% 33% 33% 33%

Heat Exchanger Type Standard Standard Standard Standard Standard

High/Low Heat - Full Modulation5100% 100% 100% 100% 100%

Heat Exchanger Type High Grade, High Grade, High Grade, High Grade, High Grade,

Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel

Hot Water Coil

Size (Inches) 42x66x2 Row 42x66x2 Row 42x90x2 Row 42x90x2 Row 42x90x2 Row

Type Type W, Prima Flo Type W, Prima Flo Type W, Prima Flo Type W, Prima Flo Type W, Prima Flo

High Heat (Fins/Ft) 110 110 110 110 110

Low Heat (Fins/Ft) 80 80 80 80 80

Steam Coil

Size (Inches) 30x66x1 Row 30x66x1 Row 30x90x1 Row 30x90x1 Row 30x90x1 Row

12x66x1 Row 12x66x1 Row 12x90x1 Row 12x90x1 Row 12x90x1 Row

Type Type NS Type NS Type NS Type NS Type NS

High Heat (Fins/Ft) 96 96 72 72 72

Low Heat (Fins/Ft) 42 42 42 42 42

25RT-PRC010-EN

Table GD-2 — General Data — 50-75 Tons Continued

50 Ton 55 Ton 60 Ton 70 Ton 75 Ton

Filters

Panel Filters

Number/Size (Inches) 20 — 20x25x2 20 — 20x25x2 35 — 16x20x2 35 — 16x20x2 35 — 16x20x2

Face Area (Ft

2

) 69.4 69.4 77.8 77.8 77.8

Bag Filters

Number/Size (Inches) 3 — 12x24x19 3 —12x24x19 6 — 12x24x19 6 — 12x24x19 6 — 12x24x19

9 — 24x24x19 9 — 24x24x19 8 — 24x24x19 8 — 24x24x19 8 — 24x24x19

Cartridge Filters 3 — 12x24x12 3 — 12x24x12 6 — 12x24x12 6 — 12x24x12 6 — 12x24x12

9 — 24x24x12 9 — 24x24x12 8 — 24x24x12 8 — 24x24x12 8 — 24x24x12

Prefilters (For Bag & 3 — 12x24x2 3 — 12x24x2 6 — 12x24x2 6 — 12x24x2 6 — 12x24x2

Cartridge) 9 — 24x24x2 9 — 24x24x2 8 — 24x24x2 8 — 24x24x2 8 — 24x24x2

Face Area (Ft

2

) 42.0 42.0 44.0 44.0 44.0

Standard Unit Min. Outside Air Temperature For Mechanical Cooling

Without Hot Gas Option 35 F 40 F 30 F 45 F 45 F

With Hot Gas Option 35 F 40 F 30 F 45 F 45 F

Low Ambient Option Min. Outside Air Temp

Without Hot Gas Option 0 F 0 F 0 F 0 F 0 F

With Hot Gas Option 10 F 10 F 10 F 10 F 10 F

Notes:

1. For cfm values outside these ranges, refer to RT-EB-104.

2. Refer to Table PD-30 for availability of electric heat kw ranges by voltage.

3. 50 - 75 Tons models are dual circuit.

4. The firing rate of the unit can vary from 33% of the Heater Mbh up to the nameplate rating of the unit.

5. The firing rate of the unit can vary from pilot rate of 125,000 Btuh up to the nameplate rating of the unit.

6. 40 Hp available as standard in 460 volt only.

General Data

RT-PRC010-EN26

Table GD-3 — General Data — 90-130 Tons

90 Ton 105 Ton 115 Ton 130 Ton

Compressor Data3

Number/Size (Nominal) 2/10, 4/15 Ton 6/15 Ton 4/10, 4/15 Ton 8/15 Ton

Model Scroll Scroll Scroll Scroll

Unit Capacity Steps (%) 100/69/38/19 100/67/33/17 100/70/40/20 100/75/50/25

RPM 3450 3450 3450 3450

Evaporator Fans

Number/Size/Type 2/28”/AF 2/28”/AF 2/28”/AF 2/28”/AF

Number of Motors 2 2 2 2

Hp Range 30-80 30-80 30-80 30-80

Cfm Range127,000-45,000 31,000-46,000431,000-46,000 31,000-46,000

ESP Range — (In. WG) 1.0-4.75 1.0-4.70 1.0-4.70 1.0-4.70

Exhaust Fans 50% 100% 50% 100% 50% 100% 50% 100%

Number/Size/Type 1/22”/FC 2/22”/FC 1/22”/FC 2/22”/FC 1/22”/FC 2/22”/FC 1/22”/FC 2/22”/FC

Hp Range 15 15-40 15 15-40 15 15-40 15 15-40

Cfm Range 12,000-20,000 28,000-40,000 12,000-20,000 28,000-40,000 12,000-20,000 28,000-40,000 12,000-20,000 28,000-40,000

ESP Range — (In. WG) .25-2.5 .25-2.5 .25-2.5 .25-2.5 .25-2.5 .25-2.5 .25-2.5 .25-2.5

Condenser Fans

Number/Size/Type 8/26”/Prop. 10/26”/Prop. 10/26”/Prop. 12/26”/Prop.

Hp (Each) 1.0 1.0 1.0 1.0

Cfm 56,400 57,000 60,000 63,200

Cycle/Phase 60/3 60/3 60/3 60/3

Evaporator Coil — Standard

Dimensions 122.0 x 70.0 122.0 x 71.25 122.0 x 71.25 122.0 x 71.25

Size (Ft2) 59.3 59.3 59.3 59.3

Rows/Fin Series 3/148 3/180 5/148 5/148

Tube Diameter/Surface 1/2/Enhanced 1/2/Enhanced 1/2/Enhanced 1/2/Enhanced

Evaporator Coil — High Capacity

Dimensions 122.0 x 70.0 122.0 x 71.25 NA NA

Size (Ft2) 59.3 59.3 NA NA

Hi-Capacity Rows/Fin Series 5/148 5/148 NA NA

Tube Diameter/Surface 1/2/Enhanced 1/2/Enhanced NA NA

Condenser Coil

Size (Ft2) 152 152 152 152

Rows/Fin Series/Tube Diameter 3/144/ 3/84/144/ 3/84/144/ 3/84/144/ 3/8

Electric Heat

KW 190 190 190 190

Capacity Steps: 3 3 3 3

Natural Gas Heat

Standard Heating -- MBh Input 1000 1000 1000 1000

Capacity Steps: 2 2 2 2

Modulating Gas Heat

High Heat - Limited Modulation533% 33% 33% 33%

Heat Exchanger Type Standard Standard Standard Standard

High Heat - Full Modulation6100% 100% 100% 100%

Heat Exchanger Type High Grade, High Grade, High Grade, High Grade,

Stainless Steel Stainless Steel Stainless Steel Stainless Steel

Hot Water Coil

Size (Inches) (2) 30x84x2 Row (2) 30x84x2 Row (2) 30x84x2 Row (2) 30x84x2 Row

Type Type W, Prima Flo Type W, Prima Flo Type W, Prima Flo Type W, Prima Flo

High Heat (Fins/Ft) 110 110 110 110

Low Heat (Fins/Ft) 80 80 80 80

Steam Coil

Size (Inches) (2) 30x84x1 Row (2) 30x84x1 Row (2) 30x84x1 Row (2) 30x84x1 Row

Type Type NS Type NS Type NS Type NS

High Heat (Fins/Ft) 96 96 96 96

Low Heat (Fins/Ft) 52 52 52 52

General Data

27RT-PRC010-EN

Table GD-3 — General Data — 90-130 Tons Continued

90 Ton 105 Ton 115 Ton 130 Ton

Filters

Panel Filters

Number/Size (Inches) 25-24x24x2 25-24x24x2 25-24x24x2 25-24x24x2

Face Area (Ft2) 100.0 100.0 100.0 100.0

Bag Filters 3-12x24x19 3-12x24x19 3-12x24x19 3-12x24x19

Number/Size (Inches) 15-24x24x19 15-24x24x19 15-24x24x19 15-24x24x19

Cartridge Filters 3-12x24x12 3-12x24x12 3-12x24x12 3-12x24x12

15-24x24x12 15-24x24x12 15-24x24x12 15-24x24x12

Prefilters (For Bag & Cartridge) 3-20x24x2 3-20x24x2 3-20x24x2 3-20x24x2

15-24x24x2 15-24x24x2 15-24x24x2 15-24x24x2

Face Area (Ft2) 66.0 66.0 66.0 66.0

Standard Unit Min. Outside Air Temperature For Mechanical Cooling

Without Hot Gas Bypass 45 F 45 F 45 F 45 F

With Hot Gas Bypass 45 F 45 F 45 F 45 F

Notes:

1. For cfm values outside these ranges, refer to RT-EB-104.

2 Refer to Table PD-30 for availability of electric heat kw ranges by voltage.

3. 90-130 Ton models are dual circuit.

4. Max cfm for 105 Ton std is 44,000.

5 The firing rate of the unit can vary from 33% of the Heater Mbh up to the nameplate rating of the unit.

6. The firing rate of the unit can vary from pilot rate of 125,000 Btuh up to the nameplate rating of the unit.

Table GD-4 — ARI Performance Data

1

ARI Performance Data1

Capacity

Tons Model3(MBh) EER IPLV2

SAHFC2040A**A**A***** 220 9.5 12.8

SXHFC2040A**A**A***** 220 9.5 12.8

20 SFHFC204LA**A**A***** 220 9.4 12.7

SEHFC204*A**A**A***** 220 9.4 12.7

SLHFC204LA**A**A***** 220 9.4 12.6

SSHFC204LA**A**A***** 220 9.4 12.7

Notes:

1. This information is rated and tested in accordance with ARI Standard 360-93

for large unitary equipment up to 25 tons. These Trane products can be

found in the current ARI Directory.

2. IPLV — Integrated Part Load Value

3. This information applies to units whose design sequence (Digit 10) is “A” or

later.

Table GD-5 — ARI Correction Multipliers

Model Multipliers (%)

Option Description Digit Designator Capacity EER IPLV2

High Heat — Gas 9 H,J,P 100 100 100

High Heat — Steam 9 H 100 99 98

High Heat — Hot Water 9 H 100 99 99

Wire Mesh Filter 13 B 100 101 101

95% Bag filter 13 D 99 95 91

95% Cartridge Filter 13 E 99 95 92

100% Economizer 16 D 100 99 98

High Capacity Coil 21 G 114 109 107

High Efficiency Motor 21 L 100 101 101

Inlet Guide Vanes 17 3 100 99 99

VFD (60 Hz) 17 6-9 99 98 98

Table GD-6 — Economizer Outdoor Air Damper Leakage (Of Rated Airflow)

∆P Across Dampers (In. WC)

0.5 (In.) 1.0 (In.)

Standard “Low Leak” 1.5 % 2.5 %

Optional “Ultra Low Leak” 0.5 % 1.0 %

Note:

1. Above data based on tests completed in accordance with AMCA Standard 575 at AMCA

Laboratories.

General Data

RT-PRC010-EN28

Performance

Adjustment

Factors

Wet Bulb Temperature Btu Per Lb.

40 15.23

41 15.70

42 16.17

43 16.66

44 17.15

45 17.65

46 18.16

47 18.68

48 19.21

49 19.75

50 20.30

51 20.86

52 21.44

53 22.02

54 22.62

55 23.22

56 23.84

57 24.48

58 25.12

59 25.78

60 26.46

61 27.15

62 27.85

63 28.57

64 29.31

65 30.06

66 30.83

67 31.62

68 32.42

69 33.25

70 34.09

71 34.95

72 35.83

73 36.74

74 37.66

75 38.61

Table PAF-2 — Cooling Capacity Altitude Correction Factors

Altitude (Ft.)

Sea Level 1000 2000 3000 4000 5000 6000 7000

Cooling Capacity

Multiplier 1.00 0.99 0.99 0.98 0.97 0.96 0.95 0.94

KW Correction

Multiplier

(Compressors) 1.00 1.01 1.02 1.03 1.04 1.05 1.06 1.07

SHR Correction

Multiplier 1.00 .98 .95 .93 .91 .89 .87 .85

Maximum

Condenser

Ambient 115 F 114 F 113 F 112 F 111 F 110 F 109 F 108 F

Note:

SHR = Sensible Heat Ratio

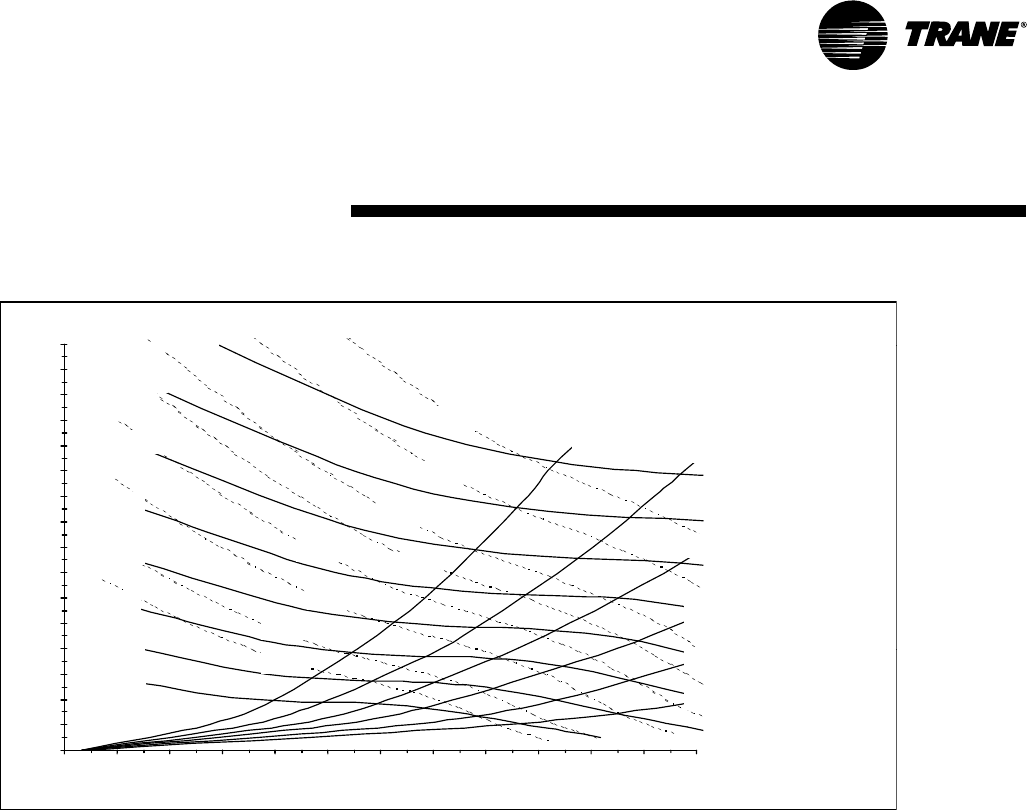

Figure PAF-1 — Air Density Ratios Altitude/Temperature Correction

Air Density

Ratio (Density

at New

Air Density)

Condition/Std.

Rooftop Leaving Air Temperature (degrees F)

Table PAF-3 — Gas Heating Capacity Altitude Correction Factors

Altitude (Ft.)

Sea Level 2001 2501 3501 4501 5501 6501

To 2000 To 2500 To 3500 To 4500 To 5500 To 6500 To 7500

Capacity

Multiplier 1.00 .92 .88 .84 .80 .76 .72

Note:

Correction factors are per AGA Std 221.30 — 1964, Part VI, 6.12. Local codes may supersede.

Table PAF-1 — Enthalpy of Saturated AIR

29RT-PRC010-EN

Performance

Data

Table PD-1 — 20 Ton Gross Cooling Capacities (MBh) — STANDARD CAPACITY Evaporator Coil With Scroll Compressor

Table PD-2 — 20 Ton Gross Cooling Capacities (Mbh) — HIGH CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 216 158 240 129 265 100 208 153 231 125 256 96 200 149 222 121 245 91 191 144 212 116 234 87

4000 80 217 180 240 152 265 123 209 176 231 148 256 118 201 171 222 143 245 114 192 166 212 139 234 110

85 218 203 240 174 266 145 211 198 232 170 256 141 202 194 222 166 246 137 194 189 213 161 235 132

90 222 222 241 196 266 167 216 216 232 192 256 163 209 209 223 187 246 159 201 201 213 183 235 154

75 238 190 262 150 288 106 228 186 251 145 277 102 219 181 241 141 264 97 208 176 229 136 252 93

6000 80 240 223 262 182 289 140 231 219 252 177 277 136 221 214 241 172 265 131 211 209 229 167 252 127

85 247 247 263 214 289 172 239 239 253 209 278 168 231 231 242 204 265 163 222 222 231 199 253 158

90 260 260 266 247 289 204 251 251 256 242 278 200 243 243 245 237 266 195 233 233 235 232 253 190

75 245 205 268 158 295 109 235 200 258 154 283 104 225 196 246 149 270 100 214 190 234 144 257 95

7000 80 248 244 269 195 296 148 238 238 258 190 284 144 229 229 247 186 271 139 220 220 235 180 257 134

85 260 260 271 233 296 185 251 251 260 228 284 180 242 242 249 223 271 175 232 232 238 218 258 170

90 273 273 275 271 297 221 264 264 264 264 285 217 254 254 254 254 273 212 244 244 244 244 259 207

75 250 220 274 168 301 111 240 215 262 164 288 107 230 210 251 159 274 102 219 205 238 154 260 98

8000 80 256 256 275 208 301 156 247 247 264 203 289 152 238 238 252 198 275 147 228 228 239 193 261 142

85 270 270 278 251 302 197 261 261 267 246 289 192 251 251 255 241 276 187 241 241 243 236 262 182

90 284 284 284 284 303 238 275 275 275 275 291 233 265 265 264 264 278 228 254 254 253 253 264 223

75 255 234 278 175 305 114 245 229 266 171 292 109 234 224 254 166 278 105 223 219 241 161 264 100

9000 80 264 264 279 221 306 164 255 255 268 216 293 159 245 245 256 211 279 155 235 235 243 206 265 150

85 279 279 283 269 306 208 269 269 272 264 293 203 259 259 260 259 280 198 248 248 248 248 266 193

90 294 294 294 294 308 254 284 284 284 284 296 249 273 273 273 273 283 244 261 261 261 261 269 239

Notes:

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total gross cooling capacity (MBH).

3. SHC = Sensible heat capacity (MBH).

(20 Ton)

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 194 140 215 116 239 89 187 136 208 112 231 86 180 133 200 109 222 82 173 128 192 105 213 79

4000 80 194 159 216 135 239 111 188 155 208 132 231 108 181 151 201 128 222 103 173 147 192 124 213 99

85 195 178 216 154 239 130 189 174 209 151 231 126 182 170 201 147 222 122 175 166 192 143 213 118

90 196 196 216 173 239 149 191 191 209 169 231 145 185 185 201 165 223 141 179 179 193 161 213 137

75 214 166 236 133 261 96 206 162 228 129 251 93 198 158 218 125 241 89 189 154 208 121 230 85

6000 80 215 193 236 160 261 125 207 190 228 156 251 121 199 185 219 152 241 117 190 181 209 147 230 113

85 218 218 237 186 261 152 212 212 228 182 252 148 205 205 219 178 241 144 197 197 210 173 231 140

90 229 229 238 213 262 178 223 223 230 209 252 175 215 215 221 205 242 170 208 208 212 201 231 166

75 220 178 243 140 268 99 212 174 234 136 257 95 203 169 224 132 247 92 194 165 214 127 235 88

7000 80 222 209 243 170 268 131 214 205 234 166 258 127 206 201 224 162 247 123 197 197 214 157 235 119

85 229 229 244 200 268 162 222 222 235 196 258 158 215 215 225 192 247 154 207 207 215 188 236 149

90 241 241 246 231 269 192 234 234 238 228 259 188 226 226 229 223 248 183 218 218 219 219 237 179

75 225 189 248 146 273 101 216 185 239 142 262 98 207 180 228 138 251 94 198 176 217 134 239 90

8000 80 228 224 249 180 273 136 220 220 239 176 263 133 211 211 229 172 251 129 203 203 218 167 240 124

85 239 239 250 214 273 171 231 231 240 210 263 167 223 223 231 206 252 162 215 215 220 201 240 158

90 251 251 253 249 274 204 243 243 243 243 264 200 235 235 235 235 253 196 226 226 226 226 241 191

75 229 199 252 152 277 104 221 195 242 148 266 100 211 190 232 144 255 96 202 186 221 139 242 92

9000 80 234 234 253 189 277 142 226 226 243 185 266 138 218 218 233 181 255 134 209 209 222 176 243 130

85 246 246 254 227 278 179 239 239 245 223 267 175 230 230 235 218 256 171 221 221 224 214 244 166

90 259 259 259 259 279 216 251 251 251 251 268 212 242 242 242 242 256 207 233 233 233 233 244 203

RT-PRC010-EN30

(25 Ton)

Table PD-4 — 25 Ton Gross Cooling Capacity — HIGH CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 273 273 303 163 334 125 263 194 291 158 322 120 253 188 280 153 309 115 242 182 267 147 296 110

5000 80 274 226 303 191 334 155 264 221 292 186 322 150 254 215 280 180 310 145 243 209 268 174 296 139

85 277 255 304 219 334 184 267 249 292 214 323 179 257 244 281 209 310 174 246 238 268 202 296 168

90 283 283 305 246 334 210 275 275 294 241 323 205 266 266 282 235 310 200 257 257 270 229 297 194

75 295 235 325 185 355 131 283 230 312 179 342 126 271 223 299 173 328 121 259 217 285 168 313 115

7000 80 298 275 325 226 355 171 287 270 313 220 342 167 275 264 299 214 328 161 263 257 285 208 313 156

85 307 307 327 264 355 212 297 297 315 258 342 207 286 286 302 252 328 202 275 275 288 246 313 196

90 322 322 330 304 355 247 312 312 318 298 343 245 301 301 306 292 329 240 290 290 292 286 314 234

75 308 262 336 200 365 135 296 256 323 195 351 130 283 250 309 189 337 125 269 244 294 184 321 119

8750 80 314 313 337 248 365 185 302 302 324 243 352 180 290 290 310 237 337 175 279 279 296 231 321 170

85 329 329 340 297 365 236 318 318 327 292 352 230 307 307 314 286 337 223 294 294 300 280 322 217

90 344 344 344 344 367 281 333 333 333 333 353 275 322 322 322 322 339 270 309 309 309 309 324 264

75 315 281 342 211 370 137 302 275 328 206 356 133 289 269 314 200 341 127 276 262 299 193 325 122

10000 80 324 324 343 265 370 195 313 313 330 260 357 190 301 301 316 254 342 185 288 288 301 247 326 180

85 340 340 347 321 371 248 329 329 334 315 357 243 317 317 321 309 342 237 304 304 306 303 326 231

90 356 356 356 356 372 303 345 345 345 345 359 297 332 332 332 332 344 291 319 319 319 319 329 285

75 320 296 345 220 374 140 307 290 332 215 360 135 294 283 317 207 344 130 280 277 302 201 328 124

11000 80 331 331 347 278 374 203 320 320 334 273 360 198 308 308 320 267 345 193 295 295 305 260 328 187

85 348 348 352 339 375 259 337 337 339 333 360 254 324 324 324 324 345 249 311 311 311 311 329 243

90 364 364 364 364 376 318 352 352 352 352 362 313 339 339 339 339 348 308 326 326 326 326 332 302

Notes

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total gross cooling capacity.

3. SHC = Sensible heat capacity.

Table PD-3 — 25 Ton Gross Cooling Capacity — STANDARD CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 245 179 272 148 301 112 237 175 263 143 290 107 228 170 253 139 279 103 219 165 242 134 267 98

5000 80 246 205 272 173 301 141 238 200 263 169 290 137 229 195 253 164 279 130 220 190 243 159 267 125

85 248 230 273 198 301 165 240 226 263 194 290 161 231 221 254 189 279 156 223 216 243 184 267 151

90 253 253 273 223 301 190 246 246 264 218 291 186 238 238 254 214 279 181 230 230 244 209 267 176

75 265 207 292 164 320 118 255 202 281 160 308 114 245 197 270 155 295 109 234 192 258 150 281 104

7000 80 267 241 293 198 320 154 258 237 282 194 308 149 248 232 270 188 295 144 237 226 258 183 281 139

85 272 272 293 232 321 188 264 264 282 227 309 183 255 255 271 221 296 178 246 246 259 216 282 173

90 285 285 295 266 321 221 277 277 285 261 309 216 268 268 274 255 296 211 258 258 262 250 282 205

75 276 228 303 177 331 122 266 223 291 172 318 118 255 218 279 167 304 113 243 213 266 162 289 108

8750 80 280 271 303 218 331 164 270 266 292 212 318 160 258 258 279 207 304 155 248 248 266 201 289 149

85 291 291 305 258 331 205 282 282 293 253 318 200 272 272 281 247 304 195 261 261 268 242 289 189

90 305 305 309 299 331 245 295 295 298 294 318 240 285 285 285 285 305 234 274 274 273 273 290 228

75 282 243 308 186 336 125 271 237 296 180 322 121 260 232 283 175 308 116 248 226 270 169 293 110

10000 80 286 286 309 230 336 171 277 277 297 225 322 167 267 267 284 219 308 162 256 256 271 214 293 156

85 301 301 311 275 336 216 291 291 299 270 323 211 281 281 287 265 308 206 269 269 274 259 293 200

90 316 316 315 315 337 260 305 305 305 305 323 255 294 294 294 294 309 250 282 282 282 282 294 244

75 286 253 312 192 339 128 275 248 299 186 325 123 264 243 286 181 311 117 252 237 272 175 295 112

11000 80 293 293 313 240 339 177 283 283 300 234 326 172 273 273 287 229 311 167 261 261 273 223 295 161

85 308 308 315 289 340 225 298 298 303 284 326 220 287 287 291 278 311 214 275 275 277 272 296 208

90 323 323 323 323 340 273 312 312 312 312 327 267 300 300 300 300 312 262 288 288 287 287 297 256

Performance

Data

31RT-PRC010-EN

Performance

Data

Table PD-6 — 30 Ton Gross Cooling Capacity — HIGH CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 324 237 358 194 395 148 312 230 345 188 381 142 299 224 331 181 365 136 285 219 316 174 349 129

6000 80 325 269 359 229 395 183 313 263 345 223 381 177 300 260 331 216 365 171 287 253 316 210 349 164

85 328 304 360 261 395 218 316 297 346 254 381 212 304 296 332 248 366 206 291 289 317 240 350 199

90 337 337 361 294 396 250 327 327 348 287 381 244 316 316 334 280 366 237 304 304 319 273 350 230

75 354 289 388 225 423 156 340 284 373 218 407 150 325 277 357 211 389 144 310 267 339 204

9000 80 359 341 389 275 423 208 345 334 374 268 407 202 331 327 358 261 390 196 315 315 341 254

85 372 372 391 325 424 260 360 360 376 319 408 254 347 347 361 312 390 247 333 333 344 304

90 390 390 396 377 424 308 378 378 381 370 409 302 364 364 366 363 391 295 350 350 350 350

75 364 312 397 239 431 159 349 305 381 231 414 153 334 297 365 224 396 147 318 290 347 217

10500 80 370 370 398 295 431 220 357 357 382 289 415 214 344 344 366 282 397 207 329 329 349 274

85 389 389 401 354 432 278 376 376 386 347 415 271 362 362 370 340 397 264 348 348 353 333

90 408 408 408 408 433 334 394 394 394 394 417 328 380 380 380 380 399 321

75 373 335 403 253 437 162 357 332 387 246 420 157 342 325 370 240 402 150 325 312 352 233

12000 80 384 384 405 315 437 232 370 370 389 309 420 226 356 356 372 301 402 219 341 341 355 294

85 403 403 410 382 438 299 389 389 394 375 421 292 375 375 378 368 403 286 359 359 361 361

90 422 422 422 422 440 360 408 408 408 408 424 353 392 392 392 392 406 346

75 380 357 408 266 442 166 364 349 392 257 425 160 348 342 375 248 406 154 330 330 356 241

13500 80 394 394 411 335 442 243 380 380 395 328 425 237 366 366 378 321 406 231 350 350 360 313

85 414 414 417 409 443 312 400 400 400 400 426 306 384 384 384 384 407 299

90 433 433 433 433 446 385 418 418 418 418 429 378 403 403 403 403 411 371

Notes:

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total gross cooling capacity.

3. SHC = Sensible heat capacity.

Table PD-5 — 30 Ton Gross Cooling Capacity — STANDARD CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 312 230 346 188 382 142 301 224 333 182 368 137 289 218 320 176 353 131 276 211 306 170 337 125

6000 80 313 264 346 222 382 178 302 257 334 216 368 172 290 251 320 210 353 166 278 244 306 203 337 160

85 316 298 347 255 382 211 305 292 334 249 368 205 294 285 321 242 353 199 282 279 307 236 338 193

90 324 324 348 288 382 245 315 315 336 282 368 239 305 305 323 275 354 233 294 294 309 269 338 226

75 341 277 375 216 410 151 328 270 360 210 394 145 314 263 345 204 376 139 299 256 329 197 358 133

9000 80 345 326 376 264 410 201 333 320 361 257 394 195 319 313 346 250 377 189 304 304 329 243 359 182

85 357 357 378 311 411 250 346 346 363 305 394 243 334 334 348 298 377 236 321 321 332 291 359 229

90 375 375 382 360 411 296 363 363 368 354 395 289 350 350 353 347 378 283 336 336 336 336 361 276

75 351 298 384 229 418 155 337 291 368 222 401 149 322 284 352 215 383 143 307 277 335 208

10500 80 357 355 384 282 418 212 343 343 369 276 402 206 330 330 353 269 384 199 317 317 336 262

85 374 374 387 338 419 266 361 361 372 331 402 260 348 348 357 324 385 253 334 334 340 317

90 392 392 392 392 420 320 379 379 379 379 404 313 365 365 365 365 386 306 350 350 350 350

75 359 318 390 240 424 158 344 311 374 233 407 152 329 304 358 226 389 146 314 297 340 219

12000 80 368 368 391 300 425 222 355 355 376 294 408 216 342 342 359 287 390 209 327 327 342 279

85 387 387 395 363 425 282 374 374 380 356 408 276 359 359 364 349 390 269 345 345 347 342

90 406 406 406 406 427 342 392 392 392 392 410 336 377 377 377 377 392 329 362 362 361 361

75 365 338 395 250 429 162 351 331 379 244 412 156 336 323 362 237 393 150 320 316 344 229

13500 80 378 378 397 318 430 232 365 365 381 311 412 225 351 351 364 304 394 218 336 336 347 296

85 398 398 403 387 431 297 384 384 387 380 413 291 369 369 369 369 394 284 353 353 353 353

90 417 417 417 417 433 365 402 402 402 402 416 358 387 387 387 387 397 351

(30 Ton)

RT-PRC010-EN32

Performance

Data

Table PD-7 — 40 Ton Gross Cooling Capacity — STANDARD CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 395 289 438 237 483 179 382 282 423 230 467 173 367 274 407 223 448 166 352 265 389 215 429 158

8000 80 396 329 438 278 483 226 383 322 423 271 466 220 368 314 407 264 448 210 353 306 390 256 429 202

85 399 371 439 319 483 265 386 364 424 312 467 258 372 356 408 304 449 251 358 348 390 295 429 243

90 406 406 439 359 484 306 395 395 425 352 467 299 383 383 409 344 449 291 370 370 392 335 430 283

75 425 331 468 263 514 189 409 323 451 255 495 182 393 315 432 247 474 175 375 306 413 239 452 167

11000 80 428 385 469 317 514 246 413 377 451 309 495 239 397 369 433 301 474 231 380 360 413 292 452 222

85 435 435 470 370 515 300 422 422 453 362 496 293 408 408 434 353 475 285 393 393 415 344 453 276

90 456 456 473 423 515 353 443 443 457 415 496 345 428 428 439 407 476 337 412 412 420 398 454 328

75 443 367 487 285 533 197 427 359 468 277 512 190 410 351 448 269 490 183 391 342 427 260 466 174

14000 80 450 435 488 350 533 265 434 428 469 342 512 257 415 415 449 333 490 249 399 399 428 324 467 241

85 468 468 490 415 533 331 453 453 472 407 513 323 437 437 452 398 491 314 420 420 431 389 468 305

90 490 490 497 482 535 395 475 475 479 474 514 386 458 458 458 458 492 378 440 440 440 440 469 369

75 453 390 496 299 542 203 436 382 476 290 521 195 418 373 455 282 498 187 399 364 434 272 473 178

16000 80 460 460 497 370 542 277 445 445 478 362 521 269 429 429 457 353 498 261 412 412 435 344 474 252

85 484 484 500 443 543 349 469 469 482 435 522 341 452 452 462 426 499 332 433 433 440 417 475 323

90 508 508 508 508 544 420 492 492 491 491 523 412 474 474 474 474 501 403 455 455 455 455 477 394

75 462 412 503 311 549 207 444 403 483 302 527 200 425 394 462 293 504 192 406 385 439 284 479 181

18000 80 473 473 504 389 549 288 458 458 484 381 528 280 441 441 463 372 504 272 422 422 441 363 479 263

85 498 498 509 470 550 367 482 482 490 462 529 358 464 464 470 453 505 350 445 445 448 444 480 340

90 523 523 523 523 552 445 506 506 505 505 531 437 487 487 487 487 508 428 467 467 467 467 483 419

Table PD-8 — 40 Ton Gross Cooling Capacity — HIGH CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 436 321 483 261 533 199 420 313 465 253 514 192 403 304 446 244 493 183 385 294 426 235 471 174

8000 80 438 367 484 309 533 247 422 359 466 300 514 239 405 350 447 291 493 230 387 340 427 282 471 222

85 442 415 485 351 534 294 426 406 467 347 515 286 410 397 448 338 494 277 392 388 427 328 472 268

90 453 453 486 401 534 341 439 439 469 393 515 333 425 425 450 383 494 319 409 409 430 374 472 314

75 469 372 517 293 566 208 451 365 497 284 544 200 432 355 475 275 521 192 411 345 452 265 496 183

11000 80 474 436 518 357 566 273 456 427 498 349 544 264 437 417 476 340 521 256 418 407 453 328 497 247

85 487 487 520 420 567 337 471 471 500 408 545 328 454 454 479 399 522 320 436 436 457 388 498 310

90 511 511 525 480 567 400 495 495 506 471 546 391 478 478 485 462 523 382 459 459 464 452 499 369

75 491 419 536 320 585 216 472 409 515 311 561 207 451 399 493 302 537 199 429 389 468 292 511 190

14000 80 501 501 538 397 585 297 482 482 517 388 562 289 463 463 495 378 538 280 444 444 471 368 512 271

85 525 525 542 475 586 374 507 507 522 466 563 365 489 489 500 456 538 355 469 469 477 446 512 346

90 550 550 550 550 588 450 532 532 532 532 566 441 513 513 513 513 541 432 492 492 492 492 516 422

75 503 449 545 337 594 220 483 440 524 329 570 212 461 429 500 320 544 203 439 419 476 310 518 194

16000 80 517 517 548 424 594 313 499 499 526 415 571 304 480 480 504 405 545 296 459 459 479 395 519 286

85 544 544 555 513 595 397 525 525 533 503 571 389 506 506 511 494 546 379 485 485 487 484 520 369

90 570 570 570 570 599 484 551 551 551 551 575 475 531 531 531 531 551 466 509 509 509 509 524 456

75 512 478 553 355 601 225 492 469 531 346 576 216 470 458 507 337 550 208 445 445 481 327 523 199

18000 80 532 532 556 450 601 328 513 513 534 441 577 320 494 494 511 431 551 311 472 472 486 420 524 302

85 560 560 565 549 602 421 540 540 544 540 579 412 520 520 519 519 553 402 498 498 497 497 526 392

90 587 587 587 587 607 517 567 567 567 567 584 508 545 545 545 545 559 499 522 522 522 522 532 489

Notes:

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total gross cooling capacity.

3. SHC = Sensible heat capacity.

(40 Ton)

33RT-PRC010-EN

Table PD-10 — 50 Ton Gross Cooling Capacity — HIGH CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 540 397 598 324 660 247 520 387 577 314 637 237 500 376 554 303 612 227 478 365 529 292 585 217

10000 80 542 455 599 382 660 306 522 444 577 372 637 296 502 433 554 361 612 286 480 422 530 350 586 276

85 547 514 600 440 660 365 528 503 578 429 637 355 508 492 555 419 613 344 487 481 531 407 586 333

90 560 560 602 497 661 421 544 544 581 486 638 411 526 526 558 475 613 401 508 508 534 463 587 390

75 582 463 642 366 701 258 560 452 617 356 675 248 537 440 591 345 647 238 512 428 564 333 618 228

14000 80 589 544 643 443 701 340 567 532 619 433 675 330 544 521 592 420 648 320 520 509 565 408 618 309

85 605 605 645 520 702 417 586 586 622 509 676 407 565 565 596 498 648 396 544 544 569 486 619 385

90 635 635 651 599 703 495 616 616 628 588 677 484 595 595 604 577 649 473 572 572 578 565 621 461

75 608 517 663 395 722 266 584 505 638 385 695 257 559 493 611 374 665 246 533 480 582 362 634 236

17500 80 620 617 665 489 723 368 595 595 639 479 695 358 573 573 613 467 666 348 550 550 584 455 635 333

85 648 648 670 585 723 460 627 627 646 574 696 450 604 604 619 563 666 439 581 581 592 551 636 427

90 678 678 678 678 725 553 657 657 657 657 699 543 634 634 634 634 670 532 609 609 609 609 639 520

75 620 547 673 419 731 271 595 535 647 408 703 262 570 522 619 397 673 251 543 510 590 385 642 241

20000 80 634 634 675 516 731 384 613 613 649 505 704 372 590 590 622 494 674 359 566 566 593 481 643 348

85 667 667 682 622 732 484 645 645 657 611 704 474 621 621 631 600 675 462 597 597 603 587 643 451

90 698 698 698 698 732 858 676 676 676 676 708 576 651 651 651 651 679 565 626 626 626 626 648 553

75 634 588 683 435 741 278 609 576 656 424 712 268 582 563 628 412 682 258 555 551 598 400 649 247

22500 80 656 656 687 553 742 399 633 633 660 541 713 389 610 610 632 530 683 379 585 585 603 517 650 368

85 689 689 697 673 743 516 666 666 671 662 714 506 641 641 641 641 684 495 615 615 615 615 652 483

90 721 721 721 721 747 633 698 698 698 698 719 623 672 672 672 672 690 612 645 645 645 645 658 600

Notes:

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total gross cooling capacity.

3. SHC = Sensible heat capacity.

Table PD-9 — 50 Ton Gross Cooling Capacity — STANDARD CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 521 382 578 313 638 238 502 372 557 304 615 229 483 362 536 294 591 219 462 351 513 283 566 209

10000 80 523 437 579 369 638 297 504 427 558 359 615 288 485 416 536 349 591 278 465 406 514 338 566 268

85 527 493 579 423 639 352 509 483 559 413 616 342 491 473 537 403 592 332 471 462 515 392 566 322

90 539 539 581 477 639 407 524 524 561 467 617 397 507 507 540 457 593 387 490 490 517 446 567 376

75 562 443 620 352 680 250 541 433 597 341 654 241 519 422 572 331 626 231 496 410 546 320 597 221

14000 80 568 519 621 425 680 328 547 508 598 414 654 318 525 497 573 403 627 307 503 486 547 391 598 297

85 581 581 623 497 681 402 563 563 600 487 655 392 544 544 576 475 628 382 524 524 550 464 598 370

90 610 610 628 572 681 474 591 591 606 561 656 464 571 571 582 550 629 452 550 550 557 538 600 441

75 586 492 642 391 701 259 563 481 617 381 674 250 540 469 590 369 645 240 515 457 563 358 614 229

17500 80 596 585 644 467 702 352 575 574 619 456 674 342 551 551 592 445 645 331 529 529 565 433 615 320

85 622 622 648 556 702 441 602 602 623 545 675 430 580 580 597 534 646 419 557 557 570 522 616 407

90 652 652 658 648 704 527 631 631 631 631 677 517 609 609 608 608 648 505 585 585 585 585 618 494

75 599 524 654 398 712 265 576 513 627 387 684 256 552 501 600 375 654 246 527 489 572 363 622 235

20000 80 612 612 656 496 713 368 592 592 630 485 685 358 570 570 602 473 655 347 547 547 574 461 623 336

85 644 644 661 596 714 466 622 622 636 585 686 455 599 599 609 573 656 444 575 575 582 561 624 432

90 675 675 675 675 716 564 653 653 653 653 688 553 629 629 629 629 658 541 604 604 604 604 627 529

75 610 554 663 415 721 271 587 543 636 403 692 262 562 531 608 392 661 251 536 519 579 380 629 240

22500 80 629 629 665 523 722 383 608 608 639 512 693 373 585 585 611 500 662 363 561 561 582 488 630 350

85 662 662 673 634 722 490 640 640 647 623 694 479 616 616 620 612 663 468 590 590 590 590 631 456

90 694 694 694 694 723 598 671 671 671 671 697 587 646 646 646 646 667 576 619 619 619 619 635 564

Performance

Data (50 Ton)

RT-PRC010-EN34

Table PD-12 — 55 Ton Gross Cooling Capacity — HIGH CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 655 472 724 394 796 296 631 460 697 381 768 285 606 446 669 368 737 273 579 432 639 355 704 260

12000 80 658 538 725 457 796 370 634 525 698 441 768 359 609 512 670 428 737 346 583 497 640 414 704 334

85 665 606 726 520 797 435 642 593 699 507 768 422 618 580 672 494 738 410 593 566 642 479 705 404

90 683 683 729 585 797 497 663 663 703 572 769 485 642 642 676 558 738 472 619 619 647 544 706 458

75 697 552 767 434 837 308 670 538 737 424 805 296 642 524 706 411 771 284 613 510 673 394 735 271

16000 80 705 647 768 527 837 405 679 633 738 514 805 393 652 619 707 501 771 381 623 605 674 486 736 367

85 722 722 771 619 837 496 699 699 743 606 806 483 675 675 712 592 772 470 649 649 680 577 736 457

90 758 758 779 681 838 588 735 735 751 699 807 576 709 709 721 685 773 561 682 682 690 671 738 547

75 722 603 788 463 857 316 693 589 758 450 824 304 664 574 725 437 788 291 633 560 691 423

19250 80 735 716 789 572 857 432 707 703 759 558 824 420 676 676 727 544 789 407 649 649 693 530

85 765 765 796 681 858 537 739 739 766 667 825 525 713 713 734 653 790 512 684 684 701 639

90 800 800 808 792 860 644 774 774 779 779 828 631 747 747 746 746 793 617 717 717 717 717

75 738 644 802 487 870 322 709 630 770 473 836 310 679 615 737 460 799 298 647 600 701 446

22000 80 753 753 804 608 870 454 728 728 773 594 836 435 700 700 740 580 800 422 671 671 705 566

85 791 791 813 731 871 575 765 765 782 717 837 557 737 737 750 703 800 543 707 707 716 689

90 828 828 828 828 873 595 801 801 801 801 842 677 771 771 771 771 806 663 740 740 740 740

75 749 672 809 503 878 328 719 658 778 490 843 315 688 643 743 476 806 302 656 628 707 461

24000 80 770 770 813 633 878 462 743 743 781 620 843 449 715 715 748 606 806 436 685 685 712 591

85 808 808 823 767 879 594 780 780 792 753 844 580 751 751 759 739 807 566 720 720 725 724

90 845 845 845 845 885 723 817 817 817 817 850 709 787 787 786 786 814 695

Notes:

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total gross cooling capacity.

3. SHC = Sensible heat capacity.

Table PD-11 — 55 Ton Gross Cooling Capacity — STANDARD CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 637 470 706 384 782 291 614 457 681 372 753 279 590 445 654 360 724 268 565 431 626 347 692 256

12000 80 639 537 707 453 782 365 617 525 682 441 753 354 593 512 655 428 723 342 568 499 627 415 692 327

85 646 608 708 520 782 432 624 596 683 508 754 420 601 583 656 495 724 408 577 570 628 481 693 395

90 662 662 710 587 783 501 643 643 686 575 755 489 623 623 659 562 726 476 601 601 632 549 694 463

75 679 532 750 423 827 305 654 519 722 411 795 293 627 505 692 398 762 281 599 491 660 385 726 268

16000 80 685 621 751 510 827 396 660 608 723 497 795 384 634 594 693 484 762 371 607 580 662 469 727 358

85 699 699 754 596 828 485 678 678 726 583 797 472 655 655 696 569 764 460 631 631 666 555 729 447

90 735 735 760 684 829 570 712 712 733 671 798 557 689 689 704 658 765 544 663 663 674 644 731 530

75 703 577 774 452 851 314 676 564 744 439 817 302 648 550 712 426 782 290 619 536 679 411

19250 80 713 683 776 551 852 420 688 670 746 538 818 408 661 656 714 524 783 395 631 631 681 510

85 741 741 780 653 852 523 717 717 750 639 819 510 692 692 720 626 784 496 665 665 687 611

90 779 779 791 757 855 622 754 754 762 744 822 609 728 728 733 730 787 595 700 700 700 700

75 719 614 790 472 866 321 691 600 757 458 831 309 662 586 724 445 795 297 632 571 690 430

22000 80 734 733 792 584 867 439 705 705 760 570 833 426 680 680 728 556 796 413 653 653 693 541

85 769 769 798 698 869 552 744 744 767 684 834 539 717 717 735 670 798 525 689 689 702 656

90 809 809 808 808 871 663 782 782 782 782 837 650 755 755 754 754 802 636 725 725 725 725

75 729 639 798 486 876 327 701 625 766 473 840 315 671 611 732 458 803 302 641 596 697 444

24000 80 746 746 801 606 877 452 721 721 769 593 841 439 694 694 736 578 804 426 666 666 701 564

85 787 787 809 730 879 573 760 760 778 716 843 559 733 733 746 702 806 545 703 703 712 687

90 827 827 827 827 882 693 800 800 800 800 847 679 771 771 771 771 811 665

Performance

Data (55 Ton)

35RT-PRC010-EN

Table PD-13 — 60 Ton Gross Cooling Capacity — STANDARD CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 617 467 683 379 754 279 596 456 659 367 726 268 573 444 633 355 696 257 549 431 605 343 664 245

14000 80 621 540 684 450 755 361 600 528 660 439 727 345 578 516 634 426 697 334 554 504 606 413 665 321

85 631 616 687 521 756 430 611 604 663 509 728 419 587 587 636 497 698 407 566 566 608 483 665 393

90 655 655 691 593 757 500 637 637 667 581 730 488 617 617 641 569 700 475 595 595 614 555 668 462

75 651 522 718 413 789 292 627 510 690 401 758 281 603 498 661 388 725 269 576 484 630 374 689 256

18000 80 659 614 721 500 790 386 636 603 693 488 759 374 612 590 664 475 726 362 586 577 633 461 690 349

85 680 680 723 588 792 475 659 659 697 576 761 463 637 637 668 563 727 449 612 612 637 549 692 435

90 715 715 732 680 794 562 693 693 705 667 763 549 669 669 678 654 729 535 643 643 648 640 693 521

75 670 560 736 434 807 300 645 548 708 422 775 288 619 535 677 409 739 276 591 521 645 395 702 263

21000 80 682 666 739 534 809 406 658 654 710 521 776 394 630 630 680 508 741 381 605 605 647 494 703 368

85 712 712 744 635 811 505 689 689 715 623 778 493 664 664 685 609 743 479 638 638 654 595 705 464

90 748 748 756 740 813 604 724 724 729 728 780 591 698 698 698 698 745 577 669 669 669 669 707 562

75 685 596 751 454 821 307 660 583 721 442 787 296 632 570 689 428 751 284 603 556 655 414 711 270

24000 80 699 699 754 566 823 424 676 676 724 553 789 412 651 651 692 539 751 398 625 625 658 524 712 383

85 737 737 760 680 825 534 713 713 731 667 791 521 687 687 700 653 754 507 658 658 667 638 715 492

90 775 775 775 775 827 645 749 749 749 749 793 631 721 721 721 721 757 617 690 690 690 690 718 602

75 698 629 762 473 832 314 672 616 731 460 797 301 643 603 699 446 759 288 613 588 664 432 719 275

27000 80 720 720 765 596 833 440 695 695 735 583 798 427 669 669 702 569 761 413 641 641 667 554 720 398

85 758 758 774 722 836 561 733 733 744 708 801 547 705 705 712 694 763 533 674 674 674 674 722 517

90 797 797 797 797 839 683 770 770 769 769 804 669 739 739 739 739 767 655 706 706 706 706 733 641

Table PD-14 — 60 Ton Gross Cooling Capacity — HIGH CAPACITY Evaporator Coil With Scroll Compressor

Ambient Temperature

85 95 105 115

ENT Entering Wet Bulb

DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 676 514 749 413 822 305 651 503 721 400 792 293 625 488 691 387 758 280 597 474 660 374 724 267

14000 80 682 596 750 495 823 387 657 583 722 483 792 375 631 569 693 470 759 362 604 555 661 456 725 349

85 692 680 752 574 823 469 668 667 724 561 793 457 643 643 695 547 760 444 620 620 664 532 726 430

90 721 721 757 654 824 551 699 699 730 641 794 535 676 676 701 627 761 522 652 652 670 612 726 508

75 714 579 784 453 856 315 686 571 753 440 823 303 658 552 721 427 787 290 628 537 687 413 750 277

18000 80 724 684 785 556 856 420 697 670 755 543 823 408 669 656 723 529 788 395 638 638 689 514 751 381

85 750 750 790 653 857 524 725 725 760 639 824 512 700 700 729 625 789 499 672 672 695 610 751 484

90 786 786 799 755 859 625 761 761 770 742 826 606 734 734 740 728 792 592 706 706 705 705 754 578

75 735 626 802 481 872 322 706 612 770 468 838 310 676 597 737 455 802 297 645 582 701 441 763 284

21000 80 749 747 804 593 873 444 721 721 772 579 839 432 694 694 739 565 803 419 666 666 705 550 764 405

85 784 784 811 709 874 565 758 758 780 696 839 550 730 730 747 681 803 530 701 701 713 666 765 516

90 822 822 822 822 878 671 795 795 795 795 843 657 767 767 766 766 807 643 735 735 735 735 769 629

75 752 670 815 505 885 330 722 656 782 489 850 317 691 641 748 475 813 304 659 626 712 460 773 290

24000 80 772 772 819 632 887 467 746 746 787 619 851 455 718 718 752 604 813 442 688 688 717 589 774 428

85 812 812 828 765 888 492 785 785 797 751 851 579 755 755 764 736 814 565 724 724 728 721 775 550

90 851 851 850 850 892 721 822 822 822 822 856 707 792 792 792 792 819 693 759 759 758 758 780 678

75 765 713 826 527 895 336 736 699 792 520 859 323 704 684 757 498 821 310 671 668 720 490 780 297

27000 80 794 794 831 671 896 491 766 766 798 657 860 478 737 737 763 642 822 465 706 706 726 627 781 452

85 835 835 843 818 897 627 806 806 812 805 861 613 775 775 775 775 823 599 742 742 742 742 783 584

90 876 876 876 876 922 776 844 844 844 844 876 759 811 811 811 811 830 742 777 777 777 777 790 727

Notes:

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total gross cooling capacity.

3. SHC = Sensible heat capacity.

(60 Ton)Performance

Data

RT-PRC010-EN36

Table PD-15 — 70 Ton Gross Cooling Capacity — STANDARD CAPACITY Evaporator Coil

Ambient Temperature (F)

85 95 105 115

AIR- ENT Entering Wet Bulb (F)

FLOW DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 742 558 824 449 913 327 708 538 786 430 872 308 672 517 747 410 829 289 635 495 707 390 785 269

16000 80 749 650 826 537 914 424 716 630 789 518 873 405 681 609 750 497 831 385 644 587 710 476 787 364

85 763 746 830 628 916 513 730 725 793 607 876 493 693 693 754 586 834 473 661 661 714 565 790 453

90 792 792 837 719 919 603 762 762 801 698 879 584 731 731 763 677 836 563 698 698 724 656 792 543

75 781 622 862 492 952 341 744 601 822 473 908 322 706 580 780 452 863 302 667 557 736 430 815 282

20000 80 793 736 864 596 954 460 757 715 824 575 910 435 719 693 783 554 865 415 681 671 740 532 818 394

85 815 815 872 706 957 567 783 783 832 685 913 547 749 749 792 664 868 526 714 714 749 642 821 505

90 859 859 884 819 960 676 826 826 846 798 917 655 792 792 806 776 872 634 755 755 764 754 826 612

75 796 652 877 503 967 347 758 631 835 482 922 328 720 609 793 462 875 308 679 587 748 440 827 288

22000 80 810 777 879 623 969 471 774 756 839 602 924 451 736 734 796 580 878 430 693 693 752 558 829 409

85 841 841 889 743 972 592 808 808 848 722 927 572 772 772 806 701 881 551 736 736 763 678 832 529

90 887 887 904 866 976 710 852 852 864 845 932 689 816 816 816 816 886 668 779 779 778 778 839 646

75 809 682 889 520 980 353 771 660 847 500 934 334 731 638 803 479 886 314 690 615 757 457 836 293

24000 80 826 817 893 649 982 486 783 783 851 628 936 466 748 748 808 606 889 445 711 711 763 584 839 424

85 864 864 903 780 985 617 829 829 862 758 939 596 793 793 820 736 891 574 755 755 775 714 842 552

90 911 911 922 913 991 743 875 875 875 875 946 722 838 838 838 838 899 701 799 799 799 799 851 679

75 821 710 899 537 990 359 782 688 856 517 944 339 742 666 812 495 895 319 700 643 765 472 844 298

26000 80 835 835 904 675 993 501 801 801 862 653 946 480 765 765 818 631 898 459 727 727 772 609 848 438

85 884 884 917 815 995 640 848 848 875 794 949 618 811 811 831 772 901 597 772 772 787 749 851 574

90 933 933 932 932 1003 776 896 896 895 895 958 755 857 857 857 857 910 733 817 817 817 817 861 711

75 826 724 904 546 995 361 787 702 861 525 948 342 747 680 816 503 899 322 705 657 768 480 848 301

27000 80 844 844 909 688 998 508 809 809 867 666 951 487 772 772 822 644 902 467 734 734 777 621 851 445

85 893 893 923 833 1000 651 857 857 881 811 954 630 819 819 837 789 905 608 779 779 792 766 855 585

90 943 943 942 942 1009 792 905 905 905 905 963 771 866 866 866 866 915 749 825 825 825 825 866 726

Notes:

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total Gross Cooling Capacity

3. SHC = Sensible Heat Capacity

(70 Ton)Performance

Data

37RT-PRC010-EN

Performance

Data (75 Ton)

Table PD-17 — 75 Ton Gross Cooling Capacity — HIGH CAPACITY Configuration

Ambient Temperature

85 95 105 115

AIR- ENT Entering Wet Bulb

FLOW DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 828 613 921 492 1021 369 790 591 878 470 974 347 750 568 834 448 926 325 708 544 788 425

16000 80 835 711 923 591 1023 467 797 688 881 569 976 445 757 664 837 545 928 423 716 640 791 522

85 846 810 926 687 1025 565 809 788 885 664 979 543 771 765 841 641 931 520 732 732 796 617

90 877 877 933 783 1028 661 844 844 892 760 982 639 809 809 849 737 934 616 772 772 804 712

75 873 684 965 537 1067 383 831 660 920 514 1016 361 789 636 872 491 964 338 744 611 823 467

20000 80 884 805 968 659 1069 505 843 781 922 635 1019 482 801 757 875 608 967 459 757 732 827 583

85 908 908 975 773 1072 626 871 871 930 750 1023 603 833 833 883 726 971 580 794 794 835 701

90 956 956 986 893 1075 741 919 919 942 869 1026 718 880 880 896 845 975 694 839 839 849 820

75 890 717 982 558 1083 389 848 693 935 535 1032 367 804 669 886 511 978 344 758 644 836 487

22000 80 904 851 985 690 1086 522 862 827 939 666 1035 500 819 802 891 638 982 477 773 773 840 613

85 938 938 994 815 1089 655 900 900 948 791 1038 632 861 861 900 767 985 609 819 819 851 741

90 989 989 1009 947 1093 779 950 950 963 923 1043 755 909 909 917 898 991 731

75 906 750 997 578 1097 395 862 726 948 555 1045 372 817 701 898 532 990 350 771 676 847 508

24000 80 923 895 1001 721 1100 540 880 871 953 697 1048 517 835 835 904 667 994 494 793 793 853 642

85 965 965 1011 856 1103 684 926 926 964 832 1052 661 885 885 915 807 997 636 842 842

90 1018 1018 1029 999 1109 815 977 977 983 975 1058 792 935 935 934 934 1005 768

75 919 782 1009 599 1109 400 875 758 960 575 1056 378 829 733 909 552 1000 355 782 707 856 527

26000 80 936 936 1014 751 1112 557 896 896 965 727 1059 534 855 855 915 695 1004 511 812 812

85 990 990 1027 896 1116 713 949 949 978 871 1062 687 906 906 928 846 1008 663 862 862

90 1044 1044 1044 1044 1123 852 1002 1002 1002 1002 1070 828 958 958 958 958 1016 804

75 926 798 1015 609 1114 403 881 783 965 585 1061 380 834 757 913 561 1005 357 787 732

27000 80 946 946 1021 767 1118 565 906 906 971 742 1064 543 864 864 920 709 1009 520 821 821

85 1001 1001 1034 916 1121 724 959 959 985 891 1068 700 916 916 935 866 1013 676

90 1056 1056 1056 1056 1129 870 1013 1013 1013 1013 1076 846 968 968 968 968 1022 822

Notes:

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total Gross Cooling Capacity

3. SHC = Sensible Heat Capacity

Table PD-16 — 75 Ton Gross Cooling Capacity — STANDARD CAPACITY Evaporator Coil

Ambient Temperature (F)

85 95 105 115

AIR- ENT Entering Wet Bulb (F)

FLOW DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 767 576 853 462 946 340 731 555 814 441 903 320 694 533 773 421 858 300 656 511 731 399 811 279

16000 80 774 670 856 555 947 437 739 649 817 534 904 417 702 627 776 513 860 396 664 605 733 491 813 375

85 787 768 859 648 950 533 753 747 820 627 907 509 717 717 780 605 862 488 683 683 738 582 816 467

90 820 820 867 741 952 623 789 789 828 720 910 602 756 756 788 698 865 581 722 722 747 676 819 560

75 807 642 892 505 986 353 769 620 850 484 939 333 729 598 806 462 891 312 688 575 761 441 841 291

20000 80 819 760 895 616 988 473 781 738 853 594 942 453 742 715 809 572 894 432 702 692 764 549 844 410

85 846 846 902 729 991 592 812 812 861 707 945 565 776 776 818 685 897 543 739 739 773 662 848 521

90 891 891 914 845 994 698 856 856 874 823 949 676 820 820 832 801 902 654 782 782 788 778 853 631

75 823 674 907 525 1000 359 783 652 863 504 953 339 743 629 818 483 904 318 701 606 772 461 853 297

22000 80 837 802 910 644 1003 490 799 780 867 622 956 470 760 758 823 599 907 449 718 718 777 576 856 427

85 872 872 919 768 1006 612 837 837 877 746 959 591 800 800 833 723 910 570 762 762 787 700 859 546

90 920 920 934 895 1010 733 884 884 893 873 964 712 846 846 845 845 916 689 806 806 806 806 866 666

75 837 704 919 545 1013 365 796 682 875 523 965 344 755 659 829 495 914 323 712 635 782 473

24000 80 854 844 923 671 1015 507 812 812 880 649 967 487 775 775 834 626 918 466 737 737 787 603

85 896 896 934 806 1019 638 860 860 891 784 970 615 822 822 846 761 921 593 782 782 800 737

90 946 946 953 944 1024 768 908 908 908 908 977 746 868 868 868 868 928 724 827 827 827 827

75 849 734 930 556 1023 370 808 712 885 535 974 350 766 688 838 512 923 329 722 665 789 488

26000 80 867 867 935 698 1026 524 831 831 891 676 977 503 793 793 845 653 927 482 753 753 797 629

85 918 918 948 843 1029 661 880 880 904 821 980 639 840 840 858 798 930 616 799 799 811 774

90 968 968 968 968 1036 802 929 929 929 929 989 780 889 889 889 889 939 757 846 846 846 846

75 854 749 935 575 1028 373 813 726 889 554 979 352 771 703 841 529 927 331 727 679 793 506

27000 80 877 877 941 711 1031 532 839 839 895 689 982 504 801 801 849 666 931 483 760 760 801 642

85 928 928 954 862 1034 673 889 889 910 839 985 651 849 849 864 816 934 628 807 807 817 792

90 979 979 979 979 1042 819 939 939 939 939 994 797 898 898 898 898 944 774 855 855 855 855

RT-PRC010-EN38

Performance

Data (90 Ton)

Table PD-19 — 90 Ton Gross Cooling Capacity — HIGH CAPACITY Evaporator Coil

Ambient Temperature

85 95 105 115

AIR- ENT Entering Wet Bulb

FLOW DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 1028 842 1134 652 1253 449 978 814 1079 626 1193 423 927 786 1023 599 1130 396 875 757 965 571 1065 369

27000 80 1045 1002 1138 805 1256 611 997 975 1084 777 1196 585 948 947 1028 749 1134 557 897 897 971 720 1070 530

85 1089 1089 1149 960 1261 765 1045 1045 1095 932 1201 738 999 999 1040 903 1139 710 951 951 983 875 1074 682

90 1149 1149 1167 1118 1265 917 1104 1104 1115 1090 1207 890 1056 1056 1056 1056 1145 861 1007 1007 1007 1007 1082 832

75 1061 920 1165 703 1283 463 1010 892 1107 676 1220 437 957 863 1049 649 1155 410 902 834 988 621 1088 383

32000 80 1086 1086 1171 875 1286 654 1040 1040 1114 847 1225 627 992 992 1056 818 1160 600 942 942 997 789 1093 572

85 1150 1150 1186 1058 1290 830 1102 1102 1130 1029 1229 802 1052 1052 1073 1000 1165 773 1001 1001 1014 971 1098 744

90 1214 1214 1214 1214 1298 1006 1165 1165 1164 1164 1240 979 1113 1113 1113 1113 1176 951 1059 1059 1059 1059 1110 921

75 1088 995 1188 752 1305 476 1035 967 1128 725 1241 450 981 938 1068 697 1174 423 926 908 1006 669 1105 395

37000 80 1130 1130 1197 943 1308 695 1081 1081 1139 915 1246 669 1031 1031 1078 885 1180 641 979 979 1017 856 1111 613

85 1198 1198 1218 1153 1312 889 1147 1147 1161 1124 1252 862 1094 1094 1102 1094 1186 833 1039 1039 1039 1039 1118 804

90 1265 1265 1264 1264 1323 1091 1213 1213 1213 1213 1264 1065 1158 1158 1158 1158 1201 1037 1101 1101 1101 1101 1134 1007

75 1111 1068 1206 801 1321 488 1058 1039 1144 751 1257 462 998 998 1082 721 1189 435 945 945 1019 691 1118 407

42000 80 1167 1167 1218 1009 1324 736 1116 1116 1158 980 1263 711 1063 1063 1097 950 1195 682 1008 1008 1034 920 1123 651

85 1237 1237 1245 1244 1330 947 1184 1184 1184 1184 1269 920 1129 1129 1129 1129 1203 892 1071 1071 1071 1071 1134 862

90 1304 1304 1304 1304 1344 1174 1252 1252 1252 1252 1284 1148 1196 1196 1195 1195 1222 1120 1136 1136 1136 1136

75 1124 1110 1214 823 1329 495 1065 1065 1153 794 1265 470 1013 1013 1089 764 1196 442 959 959 1026 734 1125 415

45000 80 1186 1186 1229 1047 1333 743 1134 1134 1169 1018 1271 718 1079 1079 1107 988 1201 687 1024 1024 1043 957 1131 657

85 1258 1258 1257 1257 1339 981 1203 1203 1203 1203 1278 954 1147 1147 1146 1146 1212 926 1088 1088 1088 1088

90 1324 1324 1324 1324 1355 1222 1271 1271 1271 1271 1295 1196 1215 1215 1215 1215 1233 1169

Notes:

1.All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total Gross Cooling Capacity

3. SHC = Sensible Heat Capacity

Table PD-18 — 90 Ton Gross Cooling Capacity — STANDARD CAPACITY Evaporator Coil

Ambient Temperature

85 95 105 115

AIR- ENT Entering Wet Bulb

FLOW DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 929 749 1029 583 1137 408 885 723 981 559 1084 385 840 697 930 534 1029 362 792 670 878 508 971 338

27000 80 944 888 1033 719 1139 548 901 863 984 693 1087 524 857 837 934 667 1032 499 811 810 882 640 975 474

85 978 978 1039 852 1143 685 939 939 991 827 1091 660 898 898 942 801 1036 635 855 855 891 774 978 608

90 1031 1031 1054 990 1147 817 991 991 1008 964 1095 791 949 949 960 938 1040 765 905 905 904 904 984 739

75 959 812 1057 622 1166 423 914 786 1007 597 1110 399 866 759 954 571 1053 375 817 732 899 543 994 351

32000 80 980 974 1061 775 1169 581 932 932 1011 749 1114 557 890 890 959 722 1057 531 846 846 905 695 998 506

85 1029 1029 1071 930 1172 737 988 988 1022 904 1118 711 944 944 971 878 1061 685 898 898 918 851 1002 658

90 1086 1086 1094 1091 1178 888 1043 1043 1042 1042 1124 863 998 998 997 997 1068 837 951 951 950 950 1010 810

75 983 871 1078 657 1187 436 936 844 1025 630 1131 413 887 817 971 603 1071 388 837 789 915 575 1010 363

37000 80 1011 1011 1083 828 1191 612 969 969 1031 801 1135 587 924 924 978 775 1076 562 878 878 923 747 1015 536

85 1070 1070 1098 1004 1196 785 1026 1026 1047 978 1139 759 980 980 995 951 1081 732 932 932 942 923 1020 705

90 1130 1130 1129 1129 1203 956 1085 1085 1084 1084 1147 930 1037 1037 1037 1037 1090 904 988 988 987 987 1030 876

75 1003 926 1094 687 1205 449 955 899 1041 661 1146 425 905 872 986 633 1086 399 854 844 929 605 1023 374

42000 80 1043 1043 1101 878 1209 641 998 998 1049 851 1151 615 952 952 994 824 1091 590 903 903 938 796 1029 564

85 1104 1104 1121 1073 1214 830 1058 1058 1069 1047 1156 804 1010 1010 1009 1009 1096 777 960 960 960 960 1034 749

90 1166 1166 1166 1166 1223 1020 1119 1119 1119 1119 1167 994 1070 1070 1069 1069 1108 967 1018 1018 1018 1018 1048 939

75 1013 957 1103 705 1213 450 965 930 1049 678 1154 425 915 903 993 651 1093 400 859 859 935 622 1029 373

45000 80 1059 1059 1111 906 1218 657 1013 1013 1058 879 1159 632 966 966 1003 852 1098 606 917 917 946 824 1034 577

85 1122 1122 1133 1113 1223 856 1075 1075 1074 1074 1165 829 1026 1026 1025 1025 1104 802 975 975 974 974 1041 774

90 1185 1185 1185 1185 1234 1057 1137 1137 1137 1137 1177 1030 1087 1087 1086 1086 1118 1003 1034 1034 1034 1034 1057 976

39RT-PRC010-EN

Table PD-21 — 105 Ton Gross Cooling Capacity — HIGH CAPACITY Evaporator Coil

Ambient Temperature

85 95 105 115

AIR- ENT Entering Wet Bulb

FLOW DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 1151 953 1269 733 1395 503 1097 923 1209 711 1331 476 1041 893 1148 682 1264 449 983 861 1084 652 1195 420

31000 80 1173 1136 1273 910 1398 688 1121 1107 1215 881 1334 661 1063 1063 1154 851 1268 633 1012 1012 1090 820 1199 600

85 1226 1226 1285 1086 1402 861 1177 1177 1228 1057 1339 834 1127 1127 1168 1027 1273 805 1074 1074 1106 996 1203 776

90 1291 1291 1307 1267 1408 1035 1242 1242 1252 1238 1346 1007 1190 1190 1190 1190 1280 977 1136 1136 1136 1136 1212 947

75 1178 1015 1292 770 1418 514 1122 985 1231 750 1352 487 1065 954 1168 712 1284 459 1006 922 1102 681 1213 431

35000 80 1202 1202 1298 965 1421 722 1153 1153 1238 936 1356 694 1102 1102 1176 905 1288 666 1048 1048 1111 874 1217 630

85 1271 1271 1314 1163 1426 913 1221 1221 1255 1134 1360 885 1168 1168 1194 1103 1292 854 1113 1113 1130 1072 1221 824

90 1339 1339 1339 1339 1435 1105 1288 1288 1287 1287 1370 1076 1233 1233 1233 1233 1304 1047 1176 1176 1176 1176 1234 1016

75 1201 1075 1310 804 1436 524 1144 1044 1249 776 1369 497 1086 1013 1184 746 1299 469 1025 981 1115 713 1227 441

39000 80 1239 1239 1318 1018 1440 755 1188 1188 1257 989 1373 727 1134 1134 1194 958 1304 699 1078 1078 1128 927 1232 660

85 1310 1310 1338 1237 1444 960 1257 1257 1279 1208 1378 931 1202 1202 1217 1177 1309 902 1145 1145 1153 1146 1237 871

90 1380 1380 1380 1380 1457 1174 1326 1326 1326 1326 1391 1145 1269 1269 1269 1269 1323 1115 1210 1210 1210 1210 1253 1084

75 1221 1133 1326 838 1452 534 1163 1102 1262 807 1383 507 1104 1070 1196 776 1312 479 1043 1038 1128 744 1238 450

43000 80 1270 1270 1336 1070 1456 787 1218 1218 1274 1041 1388 746 1162 1162 1210 1010 1317 718 1104 1104 1143 978 1244 689

85 1343 1343 1361 1310 1461 1007 1288 1288 1300 1280 1393 978 1231 1231 1231 1231 1323 948 1172 1172 1171 1171 1251 917

90 1415 1415 1415 1415 1477 1240 1359 1359 1359 1359 1410 1211 1300 1300 1300 1300 1341 1181 1239 1239 1239 1239 1269 1150

75 1225 1147 1328 845 1455 537 1168 1116 1265 815 1386 509 1108 1084 1199 784 1315 481 1041 1041 1131 752 1241 453

44000 80 1277 1277 1340 1083 1459 781 1224 1224 1278 1053 1391 753 1168 1168 1213 1023 1320 725 1110 1110 1146 991 1246 696

85 1350 1350 1366 1328 1465 1019 1295 1295 1305 1298 1397 989 1238 1238 1238 1238 1327 959 1178 1178 1177 1177 1254 928

90 1424 1424 1423 1423 1481 1257 1367 1367 1366 1366 1414 1227 1308 1308 1307 1307 1345 1197 1245 1245 1245 1245 1273 1166

75 1234 1175 1335 860 1461 541 1176 1144 1271 830 1392 514 1116 1112 1205 799 1320 486 1051 1051 1136 767 1246 458

46000 80 1290 1290 1348 1108 1466 796 1237 1237 1284 1078 1397 768 1180 1180 1220 1048 1325 739 1121 1121 1153 1016 1251 710

85 1364 1364 1376 1363 1472 1041 1309 1309 1308 1308 1404 1012 1251 1251 1250 1250 1333 982 1189 1189 1189 1189 1260 951

90 1439 1439 1439 1439 1490 1289 1381 1381 1381 1381 1422 1259 1321 1321 1321 1321 1352 1229 1258 1258 1257 1257 1280 1198

Notes:

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total Gross Cooling Capacity.

3. SHC = Sensible Heat Capacity.

Table PD-20 — 105 Ton Gross Cooling Capacity — STANDARD CAPACITY Evaporator Coil

Ambient Temperature

85 95 105 115

AIR- ENT Entering Wet Bulb

FLOW DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 1085 885 1198 689 1320 477 1035 857 1143 660 1260 452 983 828 1085 632 1197 426 929 798 1025 627 1131 399

31000 80 1102 1051 1202 848 1323 644 1053 1023 1148 820 1263 617 1003 995 1090 790 1201 590 946 946 1030 761 1135 562

85 1143 1143 1212 1008 1327 807 1099 1099 1158 980 1268 780 1052 1052 1101 951 1204 750 1004 1004 1042 921 1139 721

90 1205 1205 1230 1172 1332 963 1160 1160 1177 1144 1273 935 1111 1111 1123 1115 1211 907 1061 1061 1060 1060 1146 877

75 1109 939 1222 720 1344 489 1058 910 1165 692 1282 463 1005 881 1105 664 1217 437 949 850 1042 633 1149 410

35000 80 1132 1124 1226 896 1347 671 1075 1075 1170 867 1285 645 1028 1028 1111 838 1221 617 979 979 1050 808 1154 589

85 1186 1186 1239 1074 1351 850 1139 1139 1183 1046 1289 822 1090 1090 1125 1016 1225 793 1039 1039 1065 986 1158 763

90 1250 1250 1262 1258 1358 1024 1202 1202 1201 1201 1297 996 1152 1152 1151 1151 1233 967 1099 1099 1098 1098 1167 937

75 1130 990 1241 750 1363 500 1078 961 1181 721 1299 474 1023 931 1120 691 1233 448 967 900 1057 661 1164 420

39000 80 1154 1154 1246 941 1367 698 1108 1108 1189 913 1303 671 1059 1059 1128 883 1237 643 1007 1007 1066 852 1168 614

85 1222 1222 1261 1138 1371 891 1173 1173 1205 1109 1308 863 1122 1122 1146 1079 1242 834 1068 1068 1085 1049 1173 804

90 1288 1288 1288 1288 1379 1082 1238 1238 1238 1238 1317 1054 1186 1186 1185 1185 1252 1025 1130 1130 1130 1130 1184 995

75 1144 1026 1251 770 1375 508 1091 997 1192 742 1310 479 1036 967 1131 712 1243 452 979 937 1066 681 1172 423

42000 80 1177 1177 1259 975 1379 717 1129 1129 1201 946 1314 690 1078 1078 1140 916 1247 662 1025 1025 1076 885 1178 633

85 1245 1245 1277 1184 1383 921 1195 1195 1219 1155 1319 893 1143 1143 1160 1125 1252 863 1088 1088 1098 1094 1183 833

90 1313 1313 1313 1313 1393 1125 1262 1262 1261 1261 1330 1096 1208 1208 1207 1207 1264 1067 1151 1151 1150 1150 1196 1037

75 1153 1050 1259 784 1382 513 1099 1021 1199 755 1317 483 1043 991 1137 725 1249 454 986 960 1072 694 1178 426

44000 80 1190 1190 1267 996 1386 729 1142 1142 1208 967 1321 702 1090 1090 1146 937 1254 674 1036 1036 1083 906 1183 645

85 1259 1259 1286 1214 1391 941 1209 1209 1228 1185 1326 912 1155 1155 1169 1155 1259 882 1100 1100 1099 1099 1189 852

90 1329 1329 1328 1328 1401 1152 1276 1276 1276 1276 1338 1124 1221 1221 1221 1221 1272 1094 1163 1163 1163 1163 1203 1064

Performance

Data (105 Ton)

RT-PRC010-EN40

Table PD-23 — 130 Ton Gross Cooling Capacity With 5-Row I-F Evaporator Coil — 100% Load

Ambient Temperature

85 95 105 115

AIR- ENT Entering Wet Bulb

FLOW DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 1356 1064 1497 839 1646 594 1295 1030 1430 806 1574 562 1232 995 1360 773 1498 530 1165 958 1287 739 1418 497

31000 80 1375 1252 1502 1018 1649 784 1315 1218 1435 985 1576 752 1253 1182 1365 951 1500 720 1188 1146 1293 917 1421 687

85 1409 1409 1511 1201 1653 964 1356 1356 1446 1167 1580 932 1300 1300 1377 1132 1505 898 1241 1241 1305 1096 1425 864

90 1482 1482 1530 1386 1658 1146 1428 1428 1466 1352 1586 1114 1370 1370 1398 1317 1511 1081 1309 1309 1328 1281 1432 1044

75 1390 1129 1528 880 1678 605 1327 1094 1459 848 1602 574 1261 1059 1387 814 1524 541 1193 1022 1311 779 1442 508

35000 80 1415 1340 1533 1078 1680 820 1353 1305 1464 1043 1605 787 1289 1270 1392 1008 1527 755 1217 1217 1318 972 1445 721

85 1466 1466 1547 1280 1684 1017 1410 1410 1479 1246 1610 985 1351 1351 1409 1211 1531 951 1289 1289 1335 1175 1450 917

90 1542 1542 1571 1488 1690 1219 1484 1484 1505 1454 1617 1186 1423 1423 1437 1419 1540 1151 1359 1359 1359 1359 1459 1115

75 1419 1191 1553 920 1703 616 1354 1156 1482 887 1625 585 1287 1120 1408 841 1545 552 1217 1083 1331 806

39000 80 1450 1425 1559 1133 1705 854 1377 1377 1489 1099 1628 822 1318 1318 1416 1063 1548 789 1255 1255 1340 1027

85 1514 1514 1577 1357 1710 1069 1456 1456 1508 1323 1633 1036 1394 1394 1436 1287 1553 1003 1329 1329 1361 1251

90 1592 1592 1608 1587 1719 1290 1532 1532 1531 1531 1643 1256 1468 1468 1468 1468 1564 1221 1401 1401 1401 1401

75 1444 1252 1574 944 1723 627 1378 1216 1501 910 1644 595 1309 1180 1426 876 1562 562 1238 1142 1347 840

43000 80 1474 1474 1581 1187 1726 888 1415 1415 1510 1152 1647 855 1353 1353 1436 1116 1565 822 1288 1288 1358 1080

85 1555 1555 1603 1432 1731 1119 1494 1494 1533 1397 1652 1086 1430 1430 1460 1362 1570 1051 1363 1363 1384 1325

90 1636 1636 1635 1635 1744 1358 1573 1573 1573 1573 1666 1324 1507 1507 1507 1507 1586 1289 1437 1437 1437 1437

75 1449 1267 1578 954 1728 629 1383 1231 1505 919 1648 597 1314 1194 1429 884 1566 565 1243 1157 1350 849

44000 80 1483 1483 1587 1200 1731 896 1423 1423 1515 1165 1652 850 1361 1361 1440 1130 1570 816 1295 1295 1362 1093

85 1564 1564 1610 1450 1736 1132 1503 1503 1539 1416 1657 1099 1439 1439 1466 1380 1574 1062 1371 1371 1389 1343

90 1646 1646 1645 1645 1749 1375 1583 1583 1582 1582 1672 1341 1516 1516 1516 1516 1591 1306 1446 1446 1445 1445

75 1460 1296 1587 969 1737 634 1393 1260 1514 936 1656 602 1324 1223 1437 901 1573 570 1252 1185 1357 866

46000 80 1500 1500 1596 1226 1740 913 1439 1439 1524 1191 1660 864 1376 1376 1449 1155 1577 831 1309 1309 1371 1118

85 1582 1582 1621 1487 1745 1156 1520 1520 1550 1452 1664 1121 1454 1454 1476 1416 1582 1086 1385 1385 1399 1379

90 1665 1665 1665 1665 1760 1409 1601 1601 1599 1599 1682 1374 1533 1533 1533 1533 1600 1339 1461 1461 1461 1461

Notes:

1. All capacities shown are gross and have not considered indoor fan heat.

2. CAP = Total Gross Cooling Capacity

3. SHC = Sensible Heat Capacity

Table PD-22 — 115 Ton Gross Cooling Capacity With 5-Row I-F Evaporator Coil — 100% Load

Ambient Temperature

85 95 105 115

AIR- ENT Entering Wet Bulb

FLOW DB 61 67 73 61 67 73 61 67 73 61 67 73

CFM (F) CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC CAP SHC

75 1234 993 1361 776 1496 539 1177 962 1298 746 1429 510 1118 929 1233 715 1358 480 1056 895 1165 684 1284 450

31000 80 1254 1176 1365 950 1499 724 1198 1145 1303 920 1431 695 1140 1112 1238 886 1361 665 1074 1074 1170 853 1287 634

85 1297 1297 1376 1126 1503 898 1247 1247 1315 1095 1435 869 1194 1194 1251 1063 1365 838 1139 1139 1185 1030 1292 807

90 1366 1366 1396 1307 1507 1074 1314 1314 1336 1276 1441 1044 1260 1260 1274 1244 1372 1012 1203 1203 1203 1203 1299 980

75 1263 1056 1387 816 1523 550 1205 1024 1323 786 1453 521 1144 991 1256 755 1380 491 1080 957 1186 713 1304 460

35000 80 1289 1262 1392 1005 1525 758 1232 1230 1329 974 1456 729 1170 1170 1262 942 1383 699 1114 1114 1193 908 1308 668

85 1348 1348 1407 1203 1530 950 1295 1295 1345 1172 1460 920 1240 1240 1279 1139 1388 890 1181 1181 1211 1106 1312 858

90 1419 1419 1433 1406 1537 1145 1364 1364 1364 1364 1469 1114 1307 1307 1307 1307 1397 1082 1247 1247 1247 1247 1323 1049

75 1288 1116 1408 855 1544 560 1228 1084 1343 812 1472 531 1166 1050 1274 781 1397 501 1101 1016 1203 748 1320 470

39000 80 1316 1316 1415 1059 1547 791 1262 1262 1350 1028 1475 762 1206 1206 1283 995 1401 732 1147 1147 1212 961 1324 701

85 1390 1390 1434 1278 1551 1000 1335 1335 1370 1246 1480 970 1277 1277 1304 1214 1405 937 1217 1217 1234 1180 1329 904

90 1464 1464 1463 1463 1562 1213 1407 1407 1406 1406 1492 1182 1347 1347 1347 1347 1419 1150 1284 1284 1284 1284 1343 1117

75 1310 1174 1426 877 1561 570 1249 1141 1359 846 1488 541 1186 1108 1289 814 1412 511 1120 1073 1215 779 1333 480

43000 80 1351 1351 1435 1111 1564 824 1295 1295 1369 1080 1492 795 1237 1237 1300 1047 1416 751 1176 1176 1229 1013 1338 719

85 1426 1426 1457 1351 1568 1047 1369 1369 1393 1319 1496 1016 1309 1309 1325 1286 1422 983 1246 1246 1256 1252 1344 950

90 1502 1502 1502 1502 1583 1280 1443 1443 1443 1443 1512 1248 1381 1381 1381 1381 1438 1216 1316 1316 1316 1316 1361 1183

75 1315 1189 1430 885 1565 573 1254 1156 1362 854 1491 543 1190 1122 1292 823 1415 513 1124 1087 1218 787 1335 483

44000 80 1359 1359 1439 1124 1569 818 1303 1303 1373 1092 1496 788 1244 1244 1304 1059 1420 758 1183 1183 1232 1025 1341 726

85 1435 1435 1463 1369 1573 1058 1377 1377 1398 1337 1500 1027 1317 1317 1330 1304 1425 995 1253 1253 1253 1253 1347 962

90 1511 1511 1511 1511 1588 1296 1451 1451 1451 1451 1516 1265 1389 1389 1389 1389 1442 1232 1323 1323 1323 1323 1365 1199

75 1325 1217 1437 902 1572 578 1263 1184 1369 871 1498 548 1199 1150 1297 836 1421 518 1133 1115 1224 802 1341 487

46000 80 1373 1373 1448 1150 1576 833 1317 1317 1379 1118 1502 803 1257 1257 1312 1084 1426 772 1195 1195 1239 1050 1346 740

85 1450 1450 1474 1404 1581 1081 1392 1392 1408 1372 1508 1050 1331 1331 1330 1330 1432 1017 1266 1266 1266 1266 1354 984

90 1528 1528 1527 1527 1598 1329 1467 1467 1467 1467 1525 1297 1404 1404 1404 1404 1451 1265 1337 1337 1337 1337 1373 1231

Performance

Data (115, 130 Tons)

41RT-PRC010-EN

Table PD-25— Natural Gas Heating Capacities

Gas Heat Heat Air Temperature Rise Vs Unit Cfm

Nominal Heat Input Output CFM

Tons Module (MBh) (MBh) 28,350 30,250 32,550 34,750 37,000 39,250 41,500 43,000 46,000

90 High 1000 820 27 25 23 22 20 19 18 18

105 High 1000 820 23 22 20 19 18 18 16

115 High 1000 820 23 22 20 19 18 18 16

130 High 1000 820 23 22 20 19 18 18 16

Notes:

1. All heaters are 82% efficient.

2. Cfm values below the minimums and above the maximums shown in this table are not UL/CSA approved.

3. Air Temperature Rise = Heat Output (Btu) ÷ (Cfm x 1.085).

Table PD-26 — Steam Heating Capacities (Q/ITD)

1

20 Nominal Ton Unit

Steam Unit Standard Air Volume (Cfm)

Module 4000 6000 8000 10000

Low Heat 0.95 1.18 1.37 1.52

High Heat 1.94 2.47 2.95 3.31

40 Nominal Ton Unit

Steam Unit Standard Air Volume (Cfm)

Module 8000 12000 16000 20000

Low Heat 1.61 2.01 2.29 2.60

High Heat 3.36 4.28 4.93 5.43

60 Nominal Ton Unit

Steam Unit Standard Air Volume (Cfm)

Module 12000 18000 24000 30000

Low Heat 2.32 2.81 3.33 3.71

High Heat 3.85 4.84 5.62 6.18

30 Nominal Ton Unit

Steam Unit Standard Air Volume (Cfm)

Module 6000 9000 12000 15000

Low Heat 1.18 1.64 1.69 2.00

High Heat 2.47 3.12 3.59 3.95

55 Nominal Ton Unit

Steam Unit Standard Air Volume (Cfm

Module 11000 16500 22000 27500

Low Heat 1.91 2.38 2.72 2.92

High Heat 4.09 5.01 5.64 6.41

90, 105, 115, 130 Nominal Ton Units

Steam Unit Standard Air Volume (Cfm)

Module 27000 33000 40000 46000

Low Heat 5.17 5.70 6.19 6.53

High Heat 8.83 8.80 9.04 9.26

Note:

1. Capacities expressed as MBH (Q) per initial

temperature difference (ITD) between the entering

air temperature to the steam module and the

entering steam temperature. Maximum

recommended operating pressure is 35 PSIG.

25 Nominal Ton Unit

Steam Unit Standard Air Volume (Cfm)

Module 5000 7500 10000 12500

Low Heat 1.06 1.33 1.52 1.74

High Heat 2.20 2.85 3.31 3.65

50 Nominal Ton Unit

Steam Unit Standard Air Volume (Cfm)

Module 10000 15000 20000 25000

Low Heat 1.82 2.21 2.60 2.85

High Heat 3.86 4.79 5.43 5.97

70 & 75 Nominal Ton Unit

Steam Unit Standard Air Volume (Cfm)

Module 16000 20000 24000 30000

Low Heat 2.65 2.98 3.33 3.71

High Heat 4.50 5.10 5.62 6.18

Table PD-27 — Properties of Steam

Steam Pressure (Psig) 2 5 10 15 20 25 30 40 50

Temperature Of Steam (F) 219 227 239 250 259 267 274 287 298

Table PD-24 — Natural Gas Heating Capacities

Gas Heat Heat

Air Temperature Rise Vs Unit Cfm

Nom. Heat Input Output CFM

Tons Module (MBh) (MBh) 4

000 5000 5760 6000 6284 7000 8000 9000 9792 10000 10682 10830 11200 11750 12000 13500 15000 16129 18000 20000 22500 23040 25000 27000 29377 30000

20 Low 235 192.7 44 36 31 30 28 25 22 20

High 500 410.0 66 63 60 54 47 42

25 Low 235 192.7 36 31 30 28 25 22 20 18 18 17 16

High 500 410.0 66 63 60 54 47 42 39 38 35 35 34

30 Low 350 287.0 44 42 38 33 29 27 26 25 24 24 23 22 20

High 500 410.0 60 54 47 42 39 38 35 35 34 32 31 28

40 Low 350 287.0 33 29 27 26 25 24 24 23 22 20 18 16

High 850 697.0 66 64 60 59 57 55 54 48 43 40 36

50 Low 500 410.0 38 35 35 34 32 31 28 25 23 21 19 17

High 850 697.0 60 59 57 55 54 48 43 40 36 32 29

55 Low 500 410.0 38 35 35 34 32 31 28 25 23 21 19 17 16

High 850 697.0 55 54 48 43 40 36 32 29 28 26

60 Low 500 410.0 31 28 25 23 21 19 17 16 15 14

High 850 697.0 54 48 43 40 36 32 29 28 26 24

70 Low 500 410.0 31 28 25 23 21 19 17 16 15 14 13 13

High 850 697.0 54 48 43 40 36 32 29 28 26 24 22

75 Low 500 410.0 31 28 25 23 21 19 17 16 15 14 13 13

High 850 697.0 54 48 43 40 36 32 29 28 26 24 22

Notes:

1. All heaters are 82% efficient.

2. Cfm values below the minimums and above the maximums shown in this table are not UL/CSA approved, see RT-EB-104 for further details.

3. Air Temperature Rise = Heat Output (Btu) ÷ (Cfm x 1.085).

Performance

Data

RT-PRC010-EN42

Table PD-29— 90 To 130-Ton Electric Heat Air Temperature Rise

KW Total Cfm

Input MBh 24000 27000 30000 33000 36000 40000

190 648.3 24.9 22.1 19.9 18.1 16.5 15.3

Notes:

1. Air Temperature = kw x 3413 ÷ (scfm x 1.085)

2. Only available in 460/60/3 and 575/60/3 voltages.

Table PD-30— Electric Heat KW Ranges

Nominal Voltage

Nominal

Tons 200 230 460 575

20 30-90 30-110 30-110 30-110

25 30-90 30-110 30-130 30-130

30 30-110 30-110 30-150 30-150

40 50-110 50-110 50-170 50-170

50 70-110 70-110 70-190 70-190

55 70-110 70-110 70-190 70-190

60 90-110 90-110 90-190 90-190

70 90-110 90-110 90-190 90-190

75 90-110 90-110 90-190 90-190

90 NA NA 190 190

105 NA NA 190 190

115 NA NA 190 190

130 NA NA 190 190

Table PD-28 — 20 to 75-Tons Electric Heat Air Temperature Rise

KW Total Cfm

Input MBh 4000 6000 8000 10000 12000 14000 16000 18000 20000 22000 24000 26000

30 102.4 23.6 15.7 11.8 9.4 7.9 6.7 5.9 5.2 4.7 4.3 3.9 3.6

50 170.6 39.3 26.2 19.7 15.7 13.1 11.2 9.8 8.7 7.9 7.1 6.6 6.0

70 238.8 55.0 36.7 27.5 22.0 18.3 15.7 13.8 12.2 11.0 10.0 9.2 8.5

90 307.1 47.2 35.4 28.3 23.6 20.2 17.7 15.7 14.2 12.9 11.8 10.9

110 375.3 57.7 43.2 34.6 28.8 24.7 21.6 19.2 17.3 15.7 14.4 13.3

130 443.6 51.1 40.9 34.1 29.2 25.6 22.7 20.4 18.6 17.0 15.7

150 511.8 59.0 47.2 39.3 33.7 29.5 26.2 23.6 21.4 19.7 18.1

170 580.1 53.5 44.6 38.2 33.4 29.7 26.7 24.3 22.3 20.6

190 648.3 59.8 49.8 42.7 37.3 33.2 29.9 27.2 24.9 23.0

Notes:

1. Maximum permitted air temperature rise; 20-30 tons (UL — 50 F) (CSA — 60 F), 40 — 60 ton (UL/CSA — 50 F).

2. Air temperature rise = kw x 3413 ÷ (scfm x 1.085)

3. All heaters on units provide 3 increments of capacity.

4. 200 and 230 volt electric heat rooftops require dual power supplies to the control box. All other rooftops have single power connections. See Electrical Data Section for

electrical sizing information.

Performance

Data

43RT-PRC010-EN

Performance

Data

Table PD-31— Hot Water Heating Capacities (Q/ITD)

1

20, 25, 30 Nominal Tons

Hot Water Water Unit Standard Air Volume (Cfm)

Module Gpm PD (Ft) 4000 6000 8000 10000 12000 14000

Low 10 0.54 1.65 1.99 2.21 2.37 2.48 2.56

High 20 0.91 2.23 2.78 3.16 3.44 3.67 3.85

Low 20 0.91 1.88 2.35 2.69 2.94 3.12 3.27

High 30 1.49 2.36 3.00 3.46 3.81 4.09 4.31

Low 30 1.49 1.97 2.51 2.90 3.19 3.42 3.60

High 40 2.25 2.43 3.12 3.63 4.02 4.34 4.60

Low 40 2.25 2.02 2.60 3.02 3.34 3.60 3.79

High 50 3.2 2.48 3.20 3.74 4.17 4.51 4.80

Low 60 4.31 2.08 2.69 3.16 3.51 3.79 4.02

High 70 5.65 2.54 3.30 3.88 4.35 4.73 5.04

40, 50, 55 Nominal Tons

Hot Water Water Unit Standard Air Volume (Cfm)

Module Gpm PD (Ft) 8000 11000 14000 17000 20000 23000

Low 20 0.70 3.00 3.44 3.75 3.98 4.14 4.29

High 30 1.05 3.85 4.46 4.91 5.26 5.54 5.76

Low 40 1.51 3.40 4.00 4.43 4.76 5.02 5.21

High 50 2.10 4.20 4.95 5.52 5.97 6.34 6.64

Low 60 2.78 3.56 4.23 4.73 5.11 5.40 5.63

High 75 4.04 4.39 5.24 5.89 6.41 6.85 7.21

Low 80 4.50 3.65 4.36 4.89 5.31 5.63 5.88

High 90 5.54 4.46 5.34 6.03 6.58 7.04 7.42

Low 100 6.66 3.71 4.44 5.00 5.43 5.77 6.04

High 125 9.99 4.56 5.50 6.23 6.83 7.33 7.75

60, 70, 75 Nominal Tons

Hot Water Water Unit Standard Air Volume (Cfm)

Module Gpm PD (Ft) 12000 16000 20000 24000 28000 31500

Low 25 0.98 4.28 4.82 5.20 5.48 5.69 5.83

High 30 1.22 5.24 5.91 6.40 6.77 7.06 7.27

Low 50 2.48 4.90 5.63 6.18 6.60 6.92 7.15

High 60 3.33 6.01 6.94 7.66 8.22 8.69 9.03

Low 75 4.83 5.14 5.97 6.60 7.09 7.46 7.73

High 90 6.65 6.32 7.38 8.20 8.87 9.42 9.83

Low 100 8.0 5.28 6.16 6.84 7.36 7.78 8.07

High 120 11.15 6.49 7.62 8.51 9.23 9.84 10.30

Low 125 11.99 5.37 6.29 6.99 7.54 7.98 8.29

High 150 16.8 6.60 7.77 8.71 9.47 10.11 10.60

90, 105, 115, 130 Nominal Tons

Hot Water Water Unit Standard Air Volume (Cfm)

Module Gpm PD (Ft) 27000 30000 33000 36000 39000 42000

Low 30 0.77 6.68 6.87 7.04 7.18 7.30 7.41

High 40 1.02 8.51 8.80 9.04 9.26 9.45 9.62

Low 60 1.69 8.07 8.38 8.64 8.87 9.07 9.25

High 80 2.6 10.21 10.64 11.03 11.38 11.69 11.98

Low 100 3.71 8.82 9.19 9.52 9.80 10.05 10.26

High 120 5.07 10.95 11.46 11.92 12.33 12.71 13.05

Low 140 6.59 9.19 9.60 9.96 10.27 10.55 10.79

High 160 8.37 11.37 11.93 12.43 12.88 13.30 13.67

Low 175 9.8 9.39 9.82 10.20 10.53 10.82 11.07

High 200 12.52 11.64 12.23 12.76 13.24 13.68 14.08

Note:

1. Capacities expressed as MBh per initial temperature difference (ITD) between the entering air temperature to

the hot water coil and the entering water temperature. Ethylene glycol or other capacities can be determined

from the Trane heating coil computer program. Capacity and pressure drop of ethylene glycol varies greatly

with temperature and concentration.

RT-PRC010-EN44

Performance

Data

Notes:

1. Fan performance for 20 and 25 ton rooftops is identical. However, note maximum motor hp size for each size. Contact your local Trane representative for

information on oversized motors.

2. Shaded areas at table extremes note non-standard Bhp or Rpm selection. Contact your local Trane representative for more information.

3. Supply fan performance table includes internal resistance of rooftop. For total static pressure determination, system external static must be added to appropriate

component static pressure drops (evaporator coil, filters, optional economizer, optional exhaust fan, optional heating system, optional cooling only extended

casing, optional roof curb).

4. Maximum Cfm (for UL approval) as follows: 20 Ton — 9,000 Cfm, 25 Ton — 11,000 Cfm

5. Minimum motor horsepower is 3 hp.

6. Maximum motor horsepower as follows: 20 Ton — 15 hp, 25 Ton — 15 hp

7. Maximum 3 hp and 5 hp motor Rpm is 1,100, maximum 7.5 hp to 15 hp motor Rpm is 1655.

8. See RT-EB-104 for further details

Table PD-32 — Supply Fan Performance With VARIABLE FREQUENCY DRIVE or WITHOUT INLET VANES — 20 and 25 Ton

Cfm Total Static Pressure

Std .250 .500 .750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4000 370 .34 504 .62 614 .96 707 1.35 788 1.77 859 2.20 922 2.65 980 3.11

5000 390 .48 514 .80 618 1.16 710 1.57 793 2.02 867 2.51 934 3.02 996 3.54

6000 419 .67 529 1.03 628 1.43 715 1.85 795 2.32 869 2.83 938 3.37 1002 3.95

7000 451 .92 550 1.32 642 1.76 726 2.23 802 2.71 873 3.24 940 3.80 1004 4.39

8000 485 1.23 579 1.68 659 2.15 741 2.67 814 3.20 882 3.75 946 4.32 1008 4.93

9000 520 1.60 609 2.13 685 2.63 757 3.17 829 3.77 895 4.36 957 4.97 1015 5.59

10000 556 2.05 641 2.65 715 3.22 780 3.78 845 4.39 910 5.05 971 5.71 1028 6.38

11000 593 2.58 675 3.25 745 3.89 809 4.51 867 5.13 926 5.80 986 6.53 1043 7.26

Cfm Total Static Pressure

Std 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4000 1034 3.58 1085 4.06 1132 4.56 1177 5.07 1220 5.58 1261 6.11 1301 6.65 1339 7.20

5000 1053 4.09 1106 4.64 1156 5.20 1203 5.78 1247 6.36 1290 6.95 1331 7.55 1370 8.16

6000 1061 4.54 1117 5.16 1169 5.79 1219 6.43 1265 7.08 1310 7.74 1353 8.42 1393 9.09

7000 1064 5.01 1121 5.67 1175 6.34 1226 7.04 1274 7.75 1321 8.47 1365 9.21 1408 9.96

8000 1067 5.57 1123 6.24 1177 6.94 1228 7.66 1278 8.41 1325 9.18 1371 9.96 1415 10.77

9000 1072 6.25 1127 6.93 1180 7.64 1231 8.38 1280 9.15 1327 9.94 1373 10.75 1418 11.59

10000 1082 7.05 1135 7.76 1186 8.48 1235 9.24 1284 10.02 1330 10.82 1376 11.65 1420 12.50

11000 1096 7.99 1147 8.72 1196 9.47 1243 10.24 1290 11.04 1336 11.86 1380 12.70 1423 13.57

Cfm Total Static Pressure

Std 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4000 1376 7.76 1412 8.33 1446 8.90 1480 9.49 1513 10.08 1545 10.69 1576 11.30 1606 11.92

5000 1408 8.78 1445 9.41 1480 10.05 1515 10.70 1548 11.35 1581 12.02 1613 12.69 1644 13.37

6000 1433 9.78 1470 10.48 1507 11.18 1542 11.89 1577 12.61 1610 13.34 1643 14.07

7000 1449 10.71 1488 11.48 1526 12.25 1563 13.03 1599 13.82 1633 14.62

8000 1457 11.58 1498 12.41 1538 13.24 1576 14.09 1613 14.95 1649 15.81

9000 1461 12.44 1503 13.31 1543 14.20 1582 15.10 1620 16.01

10000 1463 13.38 1505 14.27 1545 15.19 1585 16.12 1624 17.08

11000 1466 14.46 1507 15.37 1547 16.30 1587 17.25 1626 18.22

(20, 25 Tons)

45RT-PRC010-EN

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

Performance

Data (20, 25 Tons)

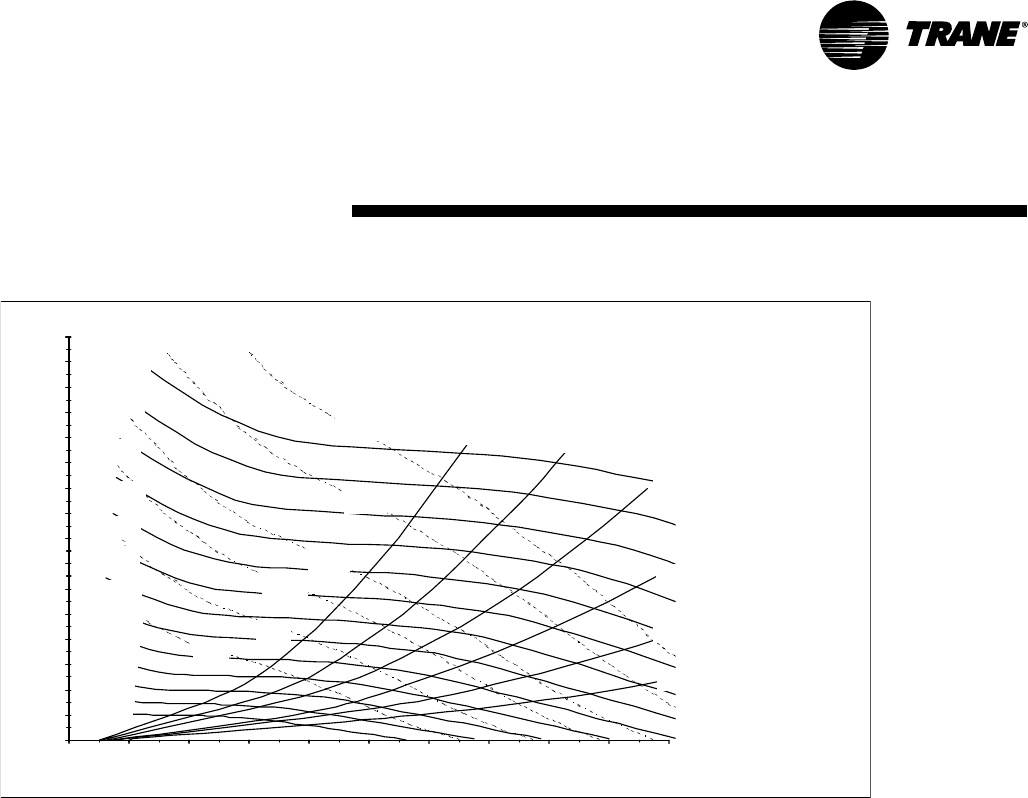

Figure PD-1— Supply Fan Performance With VARIABLE FREQUENCY DRIVE or WITHOUT INLET VANES — 20 and 25 Tons

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

0 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000

CFM

STATIC PRESSURE, Inches w.c.

40% wocfm

50%

60%

S_HFC20 & 25 Ton

Dual 15 X 15 Fans

Entrance Losses

- w ithout Inlet Guide Vanes

- w ithout Evap Coil

- w ithout Filters

- w ithout Return Air Dampers

- w ithout Exhaust Fan

Fan Curve Limits

- Minimum Motor HP = 3

- Max imum Motor HP

C20 = 10 HP

C25 = 15 HP

- Max imum RPM

3 HP - 5 HP = 1100

7.5 HP - 15 HP = 1655

- Max imum CFM

C20 = 9,000

C25 = 11,000

- Max imum Static Pr es s ur e

Leaving the Unit = 4.0" w .c.

90%

80%

70%

1700 RPM

1600 RPM

1500 RPM

1400 RPM

1300 RPM

1200 RPM

1100 RPM

1000 RPM

900 RPM

800 RPM

700 RPM

600 RPM

500 RPM

15 HP

10 HP

7.5 HP

5 HP

3 HP

20 HP

RT-PRC010-EN46

Performance

Data

Table PD-33 — Supply Fan Performance WITH INLET VANES — 20 and 25 Tons

Cfm Total Static Pressure

Std ,250 ,500 ,750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4000 387 .37 514 .65 621 .99 712 1.37 791 1.78 861 2.22 925 2.67 983 3.13

5000 420 .55 530 .85 631 1.22 721 1.62 800 2.06 872 2.54 939 3.05 1000 3.57

6000 469 .82 557 1.13 646 1.51 730 1.95 810 2.43 881 2.92 947 3.45 1009 4.01

7000 526 1.21 591 1.50 673 1.92 748 2.36 819 2.85 892 3.40 958 3.96 1018 4.54

8000 586 1.72 638 2.02 702 2.41 775 2.90 841 3.41 903 3.94 967 4.54 1029 5.17

9000 647 2.37 692 2.68 742 3.05 803 3.53 868 4.10 928 4.67 983 5.24 1038 5.87

10000 708 3.15 750 3.51 792 3.88 840 4.33 895 4.88 954 5.50 1010 6.14 1060 6.77

11000 769 4.10 809 4.51 846 4.90 886 5.33 931 5.85 982 6.46 1036 7.14 1088 7.85

Cfm Total Static Pressure

Std 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4000 1037 3.61 1087 4.09 1135 4.59 1180 5.11 1224 5.63 1265 6.16 1305 6.70 1343 7.26

5000 1056 4.12 1109 4.67 1159 5.24 1206 5.82 1251 6.40 1293 7.00 1334 7.61 1374 8.23

6000 1067 4.60 1122 5.21 1174 5.84 1223 6.48 1269 7.14 1314 7.80 1356 8.48 1397 9.16

7000 1076 5.14 1131 5.78 1183 6.45 1233 7.13 1281 7.84 1327 8.56 1371 9.29 1413 10.04

8000 1086 5.82 1140 6.47 1192 7.14 1241 7.85 1289 8.58 1335 9.34 1380 10.11 1423 10.90

9000 1095 6.56 1151 7.27 1203 8.00 1252 8.72 1299 9.47 1344 10.23 1388 11.02 1431 11.84

10000 1109 7.43 1160 8.14 1211 8.90 1262 9.70 1310 10.50 1355 11.30 1399 12.12 1441 12.94

11000 1136 8.54 1181 9.24 1225 9.97 1271 10.75 1318 11.58 1364 12.45 1409 13.33 1452 14.21

Cfm Total Static Pressure

Std 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4000 1380 7.82 1416 8.39 1450 8.97 1484 9.56 1517 10.16 1549 10.77 1580 11.38 1611 12.01

5000 1412 8.85 1449 9.49 1484 10.13 1519 10.78 1552 11.44 1585 12.11 1617 12.79 1648 13.47

6000 1436 9.85 1474 10.55 1511 11.26 1547 11.98 1581 12.70 1615 13.44 1647 14.18

7000 1453 10.80 1493 11.57 1531 12.34 1567 13.13 1603 13.92 1638 14.72

8000 1465 11.71 1505 12.54 1544 13.37 1582 14.22 1618 15.07 1654 15.94

9000 1473 12.68 1514 13.53 1553 14.41 1591 15.30 1629 16.20

10000 1482 13.79 1522 14.66 1561 15.55 1600 16.46 1637 17.40

11000 1493 15.10 1533 15.99 1572 16.89 1609 17.82 1646 18.76

Notes:

1. Fan performance for 20 and 25 ton rooftops is identical. However, note maximum motor hp size for each size. Contact your local Trane representative for information on

oversized motors.

2. Shaded areas at table extremes note non-standard Bhp or Rpm selection. Contact your local Trane representative for more information.

3. Supply fan performance table includes internal resistance of rooftop. For total static pressure determination, system external static must be added to appropriate component

static pressure drops (evaporator coil, filters, optional economizer, optional exhaust fan, optional heating system, optional cooling only extended casing, optional roof curb).

4. Maximum Cfm (for UL approval) as follows: 20 Ton — 9,000, Cfm 25 Ton — 11,000 Cfm.

5. Minimum motor horsepower is 3 hp.

6. Maximum motor horsepower as follows: 20 Ton — 10 hp, 25 Ton — 15 hp.

7. Maximum 3 hp and 5 hp motor Rpm is 1,100, maximum 7.5 hp to 15 hp motor Rpm is 1655.

8. See RT-EB-104 for further details

(20, 25 Tons)

47RT-PRC010-EN

Performance

Data

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

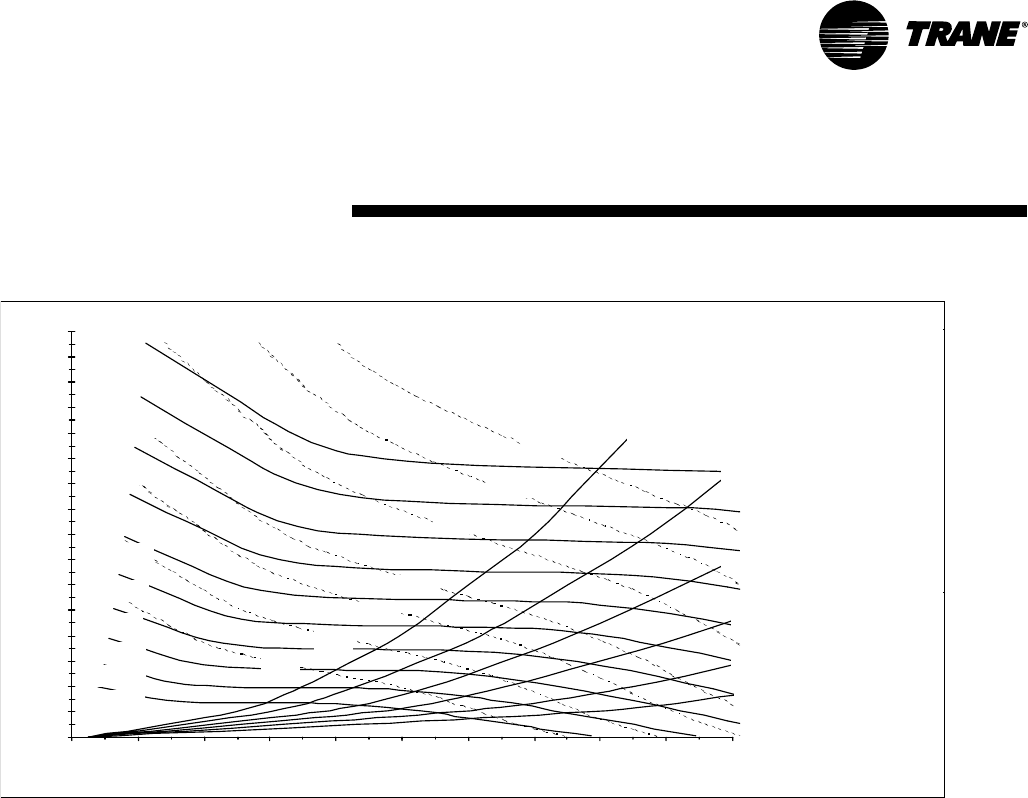

Figure PD-2 — Supply Fan Performance WITH INLET VANES — 20 and 25 Tons

(20, 25 Tons)

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

0 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000

CFM

STATIC PRESSURE, Inches w.c

.

50%

60%

70%

40%wocfm

90%

20 HP

1500 RPM

15 HP

1400 RPM

1300 RPM

7.5 HP

10 HP

1200 RPM

5 HP

1100 RPM

1000 RPM

3 HP

900 RPM

800 RPM

700 RPM

600 RPM

500 RPM

1600 RPM

1700 RPM S_HFC20 & 25 Ton

Entrance Losses

- w ith Inlet Guide Vanes

- w ithout Evap Coil

- w ithout Filterts

- w ithout Return Air damper

s

- w ithout Exhaust Fan

Fan Curve Limits

- Minimum Motor HP = 3

- Maximum Motor HP

C20 = 10 HP

C25 = 15 HP

- Maximum RPM

3 HP - 5 HP = 1100

7.5 HP - 15 HP = 1655

- Maximum CFM

C20 = 9,000

C25 = 11,000

- Maximum Static Press ure

Leaving the Unit = 4.0" w .

c

80%

RT-PRC010-EN48

Performance (30 Ton)

Data

Table PD-34 — Supply Fan Performance With VARIABLE FREQUENCY DRIVE or WITHOUT INLET VANES — 30 Ton

Cfm Total Static Pressure

Std .250 .500 .750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

6000 316 .50 426 .89 519 1.36 598 1.88 666 2.42 728 2.99 784 3.59 835 4.22

7000 334 .65 430 1.05 521 1.56 600 2.12 669 2.71 731 3.32 788 3.97 841 4.64

8000 354 .85 440 1.27 523 1.78 602 2.37 671 3.01 733 3.67 791 4.36 844 5.08

9000 376 1.09 456 1.54 530 2.06 603 2.66 673 3.33 736 4.04 793 4.78 846 5.54

10000 399 1.38 474 1.87 542 2.40 609 3.00 674 3.69 737 4.43 795 5.22 849 6.02

11000 424 1.73 493 2.25 558 2.82 619 3.43 679 4.11 739 4.86 797 5.68 851 6.53

12000 450 2.13 515 2.70 576 3.30 633 3.93 688 4.62 744 5.37 798 6.19 852 7.07

13000 475 2.59 537 3.21 595 3.85 649 4.52 701 5.22 753 5.98 804 6.79 854 7.67

13500 488 2.85 549 3.50 605 4.15 658 4.83 709 5.55 758 6.32 808 7.13 856 8.01

Cfm Total Static Pressure

Std 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

6000 883 4.86 927 5.51 968 6.18 1007 6.86 1043 7.54 1078 8.24 1111 8.94 1143 9.65

7000 890 5.33 936 6.04 979 6.78 1020 7.52 1059 8.28 1095 9.05 1130 9.83 1164 10.62

8000 894 5.82 941 6.57 985 7.35 1027 8.15 1067 8.97 1105 9.80 1142 10.65 1177 11.51

9000 896 6.32 944 7.13 989 7.95 1031 8.79 1072 9.66 1111 10.54 1149 11.43 1185 12.35

10000 899 6.85 946 7.70 991 8.57 1034 9.46 1075 10.37 1115 11.29 1153 12.24 1189 13.20

11000 901 7.41 949 8.30 994 9.22 1037 10.15 1078 11.11 1118 12.08 1156 13.07 1193 14.07

12000 903 7.99 951 8.94 996 9.90 1039 10.88 1080 11.88 1120 12.89 1158 13.93 1195 14.98

13000 904 8.61 952 9.60 998 10.61 1041 11.63 1083 12.68 1122 13.74 1161 14.82 1198 15.91

13500 905 8.95 953 9.94 998 10.97 1042 12.02 1084 13.09 1123 14.18 1162 15.28 1199 16.40

Cfm Total Static Pressure

Std 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

6000 1174 10.37 1203 11.10 1231 11.83 1259 12.57 1285 13.32 1311 14.08 1336 14.85 1361 15.62

7000 1196 11.41 1227 12.22 1256 13.03 1285 13.85 1313 14.68 1340 15.51 1366 16.35

8000 1210 12.38 1243 13.26 1274 14.14 1304 15.04 1333 15.94 1361 16.85

9000 1219 13.28 1253 14.22 1285 15.18 1316 16.14 1347 17.11 1376 18.10

10000 1225 14.17 1259 15.16 1292 16.17 1324 17.19 1355 18.23

11000 1228 15.09 1263 16.13 1297 17.18 1329 18.25 1361 19.33

12000 1231 16.04 1266 17.13 1300 18.22 1333 19.33 1365 20.46

13000 1234 17.03 1268 18.15 1302 19.30 1335 20.45 1368 21.62

13500 1235 17.53 1270 18.68 1303 19.85 1337 21.03 1369 22.22

Notes:

1. Shaded areas at table extremes note non-standard Bhp or Rpm selection. Contact your local Trane representative for more information.

2. Supply fan performance table includes internal resistance of rooftop. For total static pressure determination, system external static must be added to appropriate component

static pressure drops (evaporator coil, filters, optional economizer, optional exhaust fan, optional heating system, optional cooling only extended casing, optional roof curb).

3. Minimum motor horsepower is 5 hp, maximum motor horsepower is 20 hp. Maximum RPM is 1379.

4. Max Cfm (for UL approval) as follows: 30 Ton-13,500 Cfm.

5. See RT-EB-104 for further details.

49RT-PRC010-EN

Performance

Data

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

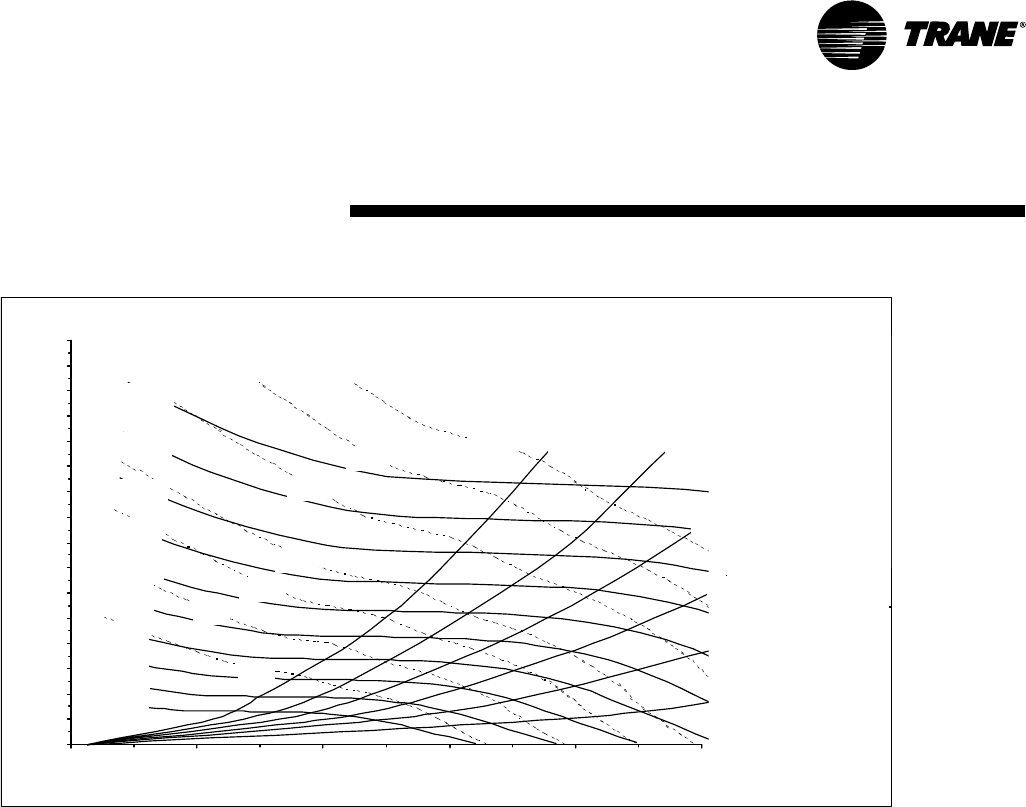

Figure PD-3— Supply Fan Performance With VARIABLE FREQUENCY DRIVE or WITHOUT INLET VANES — 30 Ton

(30 Ton)

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

0 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000

CFM

STATIC PRESSURE, Inches w.c

.

1400 RPM

800 RPM

900 RPM

1000 RPM

1100 RPM

1200 RPM

1300 RPM

600 RPM

700 RPM

500 RPM

S_HFC30

Dual 18 X 18 Fans

Entrance Losses

- w ithout Inlet Guide Vanes

- w ithout Evap Coil

- w ithout Filters

- w ithout Return Air Dampers

- w ithout Exhaust

Fan Curve Limits

- Minimum Motor HP = 5

- Maximum Motor HP = 20

- Maximum RPM = 1379

- Maximum CFM = 13,500

- Maximum Static Pressure

Leaving the Unit = 4.0" w .c.

5 HP

7.5 HP

10 HP

25 HP

15 HP

20 HP

3 HP

40% wocfm

50%

60%

80%

90% w ocfm

70%

RT-PRC010-EN50

Performance

Data

Table PD-35 — Supply Fan Performance WITH INLET VANES — 30 Ton

Cfm Total Static Pressure

Std .250 .500 .750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

6000 327 .53 433 .93 526 1.34 607 1.83 677 2.43 739 3.08 794 3.73 844 4.37

7000 349 .70 440 1.10 529 1.61 608 2.09 679 2.62 743 3.28 801 4.00 853 4.76

8000 376 .94 453 1.34 534 1.85 611 2.45 680 3.00 744 3.57 803 4.24 857 5.02

9000 406 1.25 472 1.64 543 2.15 615 2.77 683 3.45 746 4.06 804 4.68 858 5.36

10000 438 1.63 496 2.02 559 2.54 623 3.13 687 3.85 749 4.60 806 5.30 860 5.97

11000 471 2.09 523 2.49 578 3.00 636 3.60 695 4.29 753 5.08 809 5.91 863 6.70

12000 505 2.62 552 3.05 601 3.56 653 4.17 707 4.84 760 5.60 814 6.46 866 7.37

13000 538 3.24 583 3.72 627 4.22 674 4.82 723 5.51 772 6.26 822 7.09 871 8.01

13500 555 3.59 599 4.08 641 4.59 685 5.19 732 5.89 779 6.64 827 7.45 875 8.35

Cfm Total Static Pressure

Std 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

6000 890 5.01 933 5.66 974 6.32 1012 6.99 1049 7.67 1084 8.36 1118 9.08 1151 9.80

7000 902 5.52 947 6.27 989 7.02 1029 7.77 1066 8.52 1102 9.28 1137 10.05 1170 10.83

8000 908 5.85 955 6.71 999 7.58 1041 8.45 1080 9.30 1117 10.16 1152 11.01 1186 11.87

9000 910 6.15 959 7.03 1004 7.96 1048 8.92 1088 9.89 1127 10.87 1164 11.84 1199 12.81

10000 911 6.68 960 7.46 1006 8.34 1050 9.30 1092 10.31 1133 11.36 1171 12.43 1208 13.52

11000 913 7.44 961 8.19 1007 8.97 1051 9.83 1094 10.78 1135 11.81 1174 12.90 1212 14.03

12000 916 8.26 964 9.09 1009 9.90 1053 10.71 1095 11.57 1136 12.49 1175 13.50 1213 14.58

13000 920 8.98 967 9.96 1012 10.90 1055 11.79 1097 12.66 1137 13.54 1176 14.46 1214 15.44

13500 922 9.34 969 10.36 1014 11.37 1057 12.33 1098 13.25 1138 14.16 1177 15.07 1215 16.02

Cfm Total Static Pressure

Std 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

6000 1183 10.54 1213 11.30 1243 12.07 1272 12.86 1300 13.66 1328 14.47 1355 15.30

7000 1202 11.62 1233 12.42 1263 13.23 1293 14.06 1321 14.90 1349 15.75 1376 16.62

8000 1219 12.73 1251 13.60 1282 14.47 1311 15.36 1340 16.25 1368 17.15

9000 1233 13.77 1266 14.73 1297 15.69 1327 16.66 1357 17.62

10000 1243 14.60 1276 15.68 1309 16.76 1340 17.83 1370 18.90

11000 1248 15.19 1283 16.37 1317 17.56 1349 18.75

12000 1250 15.73 1286 16.93 1321 18.16 1354 19.42

13000 1251 16.49 1287 17.61 1322 18.81 1356 20.06

13500 1252 17.02 1288 18.09 1323 19.23 1357 20.45

Notes:

1. Shaded areas at table extremes note non-standard Bhp or Rpm selection. Contact your local Trane representative for more information.

2. Supply fan performance table includes internal resistance of rooftop. For total static pressure determination, system external static must be added to appropriate component

static pressure drops (evaporator coil, filters, optional economizer, optional exhaust fan, optional heating system, optional cooling only extended casing, optional roof curb).

3. Minimum motor horsepower is 5 hp, maximum motor horsepower is 20 hp. Maximum RPM is 1379.

4. See RT-EB-104 for further details.

(30 Ton)

51RT-PRC010-EN

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

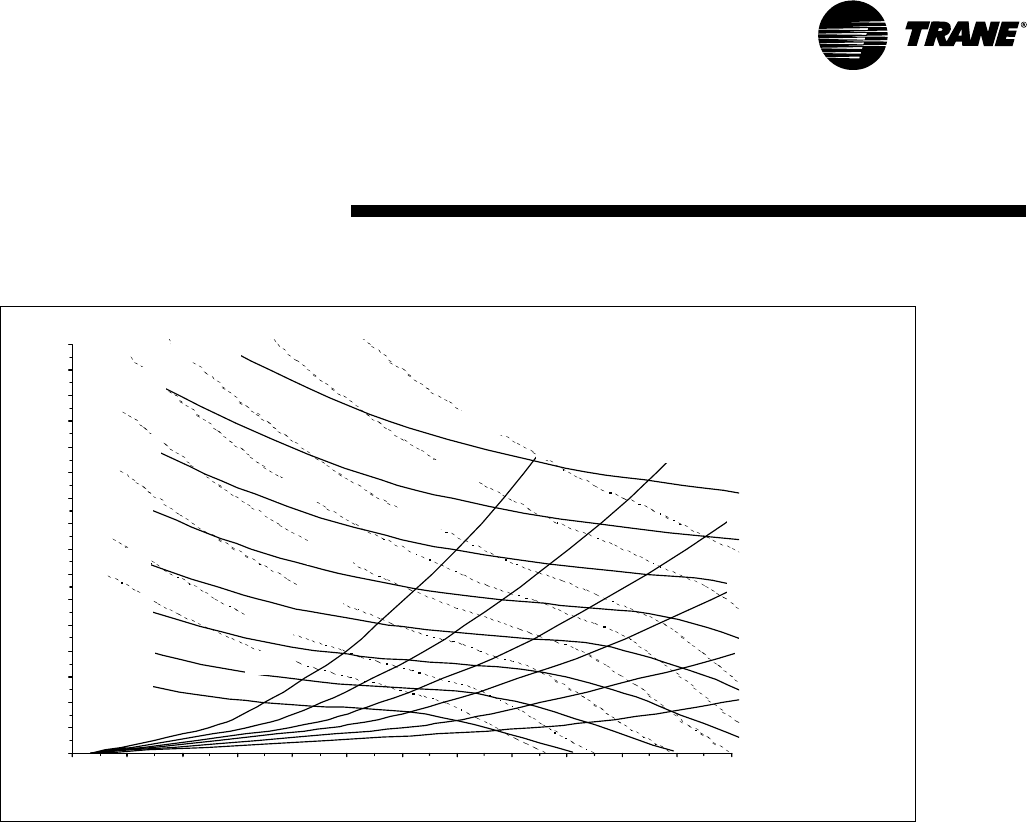

Figure PD-4 — Supply Fan Performance WITH INLET VANES — 30 Ton

(30 Ton)

Performance

Data

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

0 4000 8000 12000 16000 20000

CFM

STATIC PRESSURE, Inches w.c

25 HP

3 HP

5 HP

7.5 HP

10 HP

15 HP

20 HP

S_HFC30

Dual 18 X 18 Fans

Entrance Losses

- w ith Inlet Guide Vanes

- w ithout Evap Coil

- w ithout Filters

- w ithout Return Air Damper

s

- w ithout Exhaust

Fan Curve Limits

- Minimum Motor HP = 5

- Max imu m Motor HP = 20

- Max imu m RPM = 1379

- Max imu m CFM = 13,500

- Maximum Static Pressure

Leaving the Unit = 4.0" w .c.

700 RPM

800 RPM

900 RPM

1000 RPM

1100 RPM

1200 RPM

1300 RPM

1400 RPM

500 RPM

600 RPM

40% wocfm

50%

60%

70%

80%

90% w ocfm

RT-PRC010-EN52

Cfm Total Static Pressure

Std 4.250 4.500 4.750 5.000

Air RPM BHP RPM BHP RPM BHP RPM BHP

8000 1081 14.75 1108 15.78 1134 16.83 1160 17.88

9000 1097 15.80 1125 16.94 1152 18.08

10000 1109 16.73 1138 17.95 1166 19.18

11000 1118 17.64 1148 18.91

12000 1124 18.61 1155 19.91

13000 1128 19.65 1159 20.99

14000 1130 20.73 1162 22.12

15000 1132 21.80 1164 23.26

16000 1134 22.86 1166 24.39

17000 1136 23.94 1168 25.52

18000 1138 25.03 1170 26.66

19000 1141 26.15

20000 1144 27.30

21000 1147 28.50

22000 1150 29.74

22500 1152 30.38

23000 1153 31.03

24000 1157 32.36

Table PD-36 — Supply Fan Performance With VARIABLE FREQUENCY DRIVE or WITHOUT INLET VANES — 40, 50 and 55 Tons

Cfm Total Static Pressure

Std .250 .500 .750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

8000 290 .66 396 1.27 479 1.95 550 2.67 613 3.44 671 4.23 723 5.05 770 5.90

9000 298 .77 400 1.44 482 2.16 553 2.93 616 3.75 673 4.61 725 5.49 774 6.39

10000 311 .94 404 1.61 486 2.38 556 3.20 618 4.07 675 4.99 727 5.93 776 6.89

11000 329 1.16 409 1.79 490 2.63 559 3.50 621 4.41 677 5.37 729 6.37 778 7.40

12000 349 1.43 414 2.00 494 2.89 563 3.81 624 4.77 680 5.78 731 6.82 780 7.90

13000 370 1.75 424 2.26 499 3.16 567 4.15 628 5.16 683 6.21 734 7.30 782 8.43

14000 391 2.12 438 2.60 504 3.44 571 4.49 632 5.57 687 6.67 737 7.80 785 8.97

15000 413 2.54 455 3.01 510 3.77 576 4.86 636 5.99 690 7.15 741 8.33 789 9.55

16000 435 3.02 474 3.50 520 4.18 581 5.24 640 6.43 695 7.65 745 8.89 792 10.16

17000 457 3.54 494 4.06 534 4.68 586 5.65 645 6.89 699 8.17 749 9.47 796 10.79

18000 479 4.13 515 4.68 550 5.29 595 6.15 650 7.37 703 8.71 753 10.07 800 11.46

19000 501 4.78 536 5.38 569 5.98 607 6.76 656 7.89 708 9.27 758 10.70 804 12.14

20000 524 5.49 558 6.15 588 6.75 622 7.49 664 8.50 713 9.85 762 11.34 809 12.84

21000 546 6.28 580 7.00 608 7.61 639 8.32 676 9.25 719 10.49 767 12.00 813 13.57

22000 569 7.14 602 7.92 629 8.55 658 9.26 690 10.12 728 11.25 773 12.70 818 14.32

22500 580 7.60 613 8.40 640 9.05 667 9.76 698 10.60 734 11.68 776 13.07 820 14.70

23000 591 8.08 624 8.90 651 9.58 677 10.29 706 11.11 740 12.15 780 13.48 823 15.09

24000 614 9.10 646 9.97 672 10.70 697 11.41 724 12.22 754 13.19 789 14.41 829 15.93

Cfm Total Static Pressure

Std 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

8000 814 6.80 854 7.73 892 8.69 927 9.67 961 10.66 993 11.67 1023 12.69 1053 13.71

9000 819 7.32 861 8.28 901 9.27 938 10.31 972 11.37 1006 12.45 1037 13.55 1068 14.67

10000 822 7.88 865 8.89 906 9.92 944 10.98 980 12.07 1015 13.20 1048 14.35 1079 15.53

11000 824 8.45 867 9.52 908 10.61 948 11.72 985 12.85 1021 14.00 1055 15.18 1087 16.40

12000 826 9.01 869 10.15 910 11.30 950 12.47 988 13.66 1024 14.87 1059 16.09 1092 17.34

13000 828 9.59 871 10.78 912 11.99 952 13.23 989 14.48 1026 15.75 1061 17.04 1095 18.34

14000 830 10.18 873 11.42 914 12.69 954 13.98 991 15.30 1028 16.63 1063 17.98 1097 19.35

15000 833 10.80 876 12.09 917 13.40 956 14.75 994 16.12 1030 17.51 1065 18.92 1099 20.35

16000 837 11.46 879 12.78 920 14.14 958 15.54 996 16.96 1032 18.40 1067 19.87 1101 21.36

17000 840 12.14 882 13.52 923 14.92 961 16.36 999 17.82 1035 19.32 1069 20.83 1103 22.38

18000 844 12.86 886 14.28 926 15.73 964 17.21 1002 18.72 1037 20.26 1072 21.82 1106 23.41

19000 848 13.60 890 15.08 930 16.58 968 18.11 1005 19.66 1040 21.24 1075 22.85 1108 24.48

20000 852 14.36 894 15.90 934 17.46 972 19.04 1008 20.64 1044 22.27 1078 23.92 1111 25.60

21000 857 15.15 898 16.75 938 18.37 976 20.00 1012 21.66 1047 23.33 1081 25.03 1114 26.75

22000 861 15.96 902 17.63 942 19.30 980 20.99 1016 22.70 1051 24.43 1085 26.18 1118 27.95

22500 864 16.38 905 18.07 944 19.78 982 21.50 1018 23.24 1053 25.00 1087 26.77 1120 28.57

23000 866 16.80 907 18.52 946 20.26 984 22.01 1020 23.78 1055 25.57 1089 27.37 1122 29.19

24000 871 17.66 912 19.45 951 21.25 988 23.06 1024 24.89 1059 26.73 1093 28.59 1125 30.47

Notes:

1. Fan performance for 40, 50, and 55 ton rooftops is

identical. However, note maximum motor hp size for

each size. Contact your local Trane representative for

information on oversized motors.

2. Shaded areas at table extremes note non-standard

Bhp or Rpm selection. Contact your local Trane

representative for more information.

3. Supply fan performance table includes internal

resistance of rooftop. For total static pressure

determination, system external static must be added

to appropriate component static pressure drops

(evaporator coil, filters, optional economizer, optional

exhaust fan, optional heating system, optional

cooling only extended casing, optional roof curb).

4. Maximum Cfm (for UL approval) as follows:

40 Ton — 18,000 Cfm

50 Ton — 22,500 Cfm

55 Ton — 24,000 Cfm

5. Minimum motor horsepower is 7.5 hp.

6. Maximum motor horsepower as follows:

40 Ton — 30 hp

50 Ton — 30 hp

55 Ton — 30 hp

7. Maximum 7.5 hp to 15 hp motor Rpm is 1,141 Rpm,

maximum 20 hp to 30 hp motor Rpm is 1,170 Rpm.

8. See RT-EB-104 for further details.

Performance

Data (40, 50, 55 Tons)

53RT-PRC010-EN

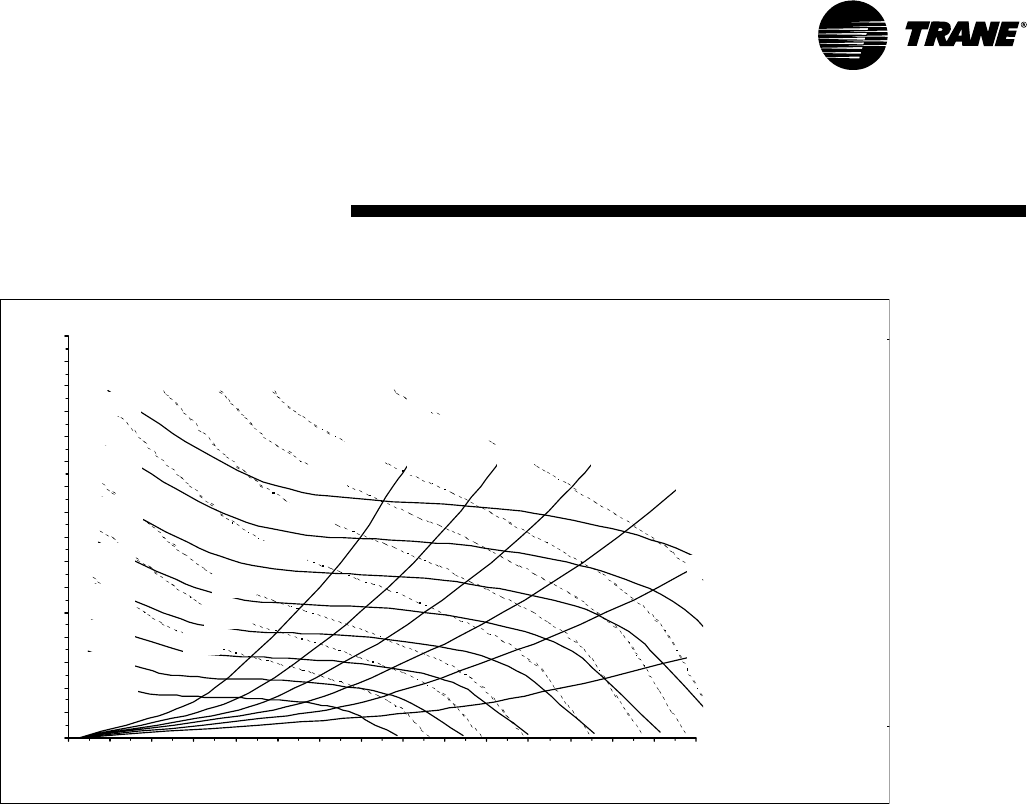

Figure PD-5 — Supply Fan Performance With VARIABLE FREQUENCY DRIVE or WITHOUT INLET VANES — 40, 50 and 55 Tons

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

Performance

Data (40, 50, 55 Tons)

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

0 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 22000 24000 26000 28000 30000

CFM

STATIC PRESSURE, Inches w.c.

40 HP

7.5 HP

10 HP

15 HP

20 HP

25 HP 30 HP

1200 RPM

600 RPM

700 RPM

800 RPM

900 RPM

1000 RPM

1100 RPM

500 RPM

5 HP

40% wocfm

50%

60%

70%

SQHFC40, C50, C55

Dual 20 X 20 Fans

Entrance Losses

- w ithout Inlet Guide Vanes

- w ithout Evap Coil

- w ithout Filters

- w ithout Return Air Dampers

- w ithout Exhaust

Fan Curve Limits

- Minimum Motor HP = 7.5

- Max imum Motor HP

C40 = 25 HP

C50 & C55 = 30 HP

- Max imum RPM

7.5 - 15 HP = 1141

20 - 30 HP = 1170

- Max imum CFM

C40 = 18,000

C50 = 22,500

C55 = 24,000

- Max imum Static Press ure

Leaving the Unit = 4.0" w .c.

90%

80%

RT-PRC010-EN54

Cfm Total Static Pressure

Std 4.250 4.500 4.750 5.000

Air RPM BHP RPM BHP RPM BHP RPM BHP

8000 1087 14.97 1114 16.01 1141 17.07 1166 18.13

9000 1102 16.10 1131 17.24 1158 18.39

10000 1114 17.13 1143 18.36

11000 1123 18.11 1153 19.40

12000 1129 19.08 1160 20.43

13000 1134 20.08 1165 21.48

14000 1137 21.08 1169 22.54

15000 1140 22.09

16000 1143 23.13

17000 1146 24.21

18000 1149 25.35

19000 1153 26.59

20000 1159 27.94

21000 1165 29.43

22000

22500

23000

24000

Table PD-37 — Supply Fan Performance WITH INLET VANES — 40, 50 and 55 Ton

Cfm Total Static Pressure

Std .250 .500 .750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

8000 318 .79 406 1.35 485 1.98 555 2.70 618 3.49 675 4.31 726 5.17 773 6.06

9000 339 1.01 416 1.56 491 2.24 558 2.97 621 3.79 678 4.67 730 5.58 778 6.52

10000 364 1.28 428 1.81 499 2.53 564 3.30 624 4.13 680 5.04 733 6.00 781 7.00

11000 391 1.63 444 2.13 509 2.85 571 3.68 629 4.53 684 5.45 735 6.44 784 7.48

12000 419 2.04 463 2.51 521 3.22 580 4.08 636 4.99 689 5.92 739 6.93 787 8.00

13000 448 2.53 486 2.97 536 3.66 591 4.52 645 5.49 696 6.47 744 7.49 791 8.57

14000 478 3.09 511 3.53 553 4.19 604 5.03 655 6.02 704 7.07 751 8.12 796 9.22

15000 507 3.74 537 4.18 574 4.80 619 5.63 667 6.60 714 7.69 760 8.82 803 9.95

16000 537 4.46 565 4.93 597 5.52 636 6.32 680 7.28 725 8.36 769 9.54 812 10.74

17000 567 5.28 593 5.78 622 6.35 656 7.11 695 8.05 738 9.12 780 10.30 821 11.56

18000 597 6.20 622 6.74 648 7.30 678 8.02 713 8.93 752 9.99 792 11.16 832 12.43

19000 627 7.22 652 7.80 675 8.37 702 9.05 733 9.92 768 10.97 806 12.12 844 13.38

20000 657 8.35 681 8.98 703 9.55 727 10.22 755 11.05 786 12.06 821 13.21 857 14.45

21000 687 9.60 711 10.27 732 10.87 754 11.53 779 12.32 807 13.28 838 14.41 871 15.64

22000 718 10.96 741 11.67 761 12.31 781 12.97 804 13.74 829 14.66 857 15.74 888 16.97

22500 733 11.69 756 12.42 776 13.08 795 13.74 817 14.50 841 15.40 868 16.46 897 17.68

23000 748 12.45 770 13.20 790 13.88 810 14.55 830 15.31 853 16.19 878 17.23 906 18.42

24000 779 14.08 800 14.86 820 15.59 838 16.28 857 17.03 878 17.88 901 18.87 926 20.02

Cfm Total Static Pressure

Std 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

8000 817 6.98 858 7.92 896 8.89 932 9.88 966 10.88 998 11.89 1029 12.90 1058 13.93

9000 823 7.50 865 8.50 904 9.52 942 10.58 977 11.65 1010 12.74 1042 13.85 1073 14.97

10000 827 8.02 870 9.08 910 10.16 948 11.26 985 12.39 1019 13.55 1052 14.73 1084 15.92

11000 830 8.56 873 9.67 914 10.81 953 11.96 990 13.15 1026 14.35 1059 15.58 1092 16.83

12000 833 9.11 876 10.27 917 11.46 956 12.67 994 13.91 1030 15.17 1064 16.46 1098 17.76

13000 836 9.71 879 10.90 920 12.13 959 13.39 997 14.69 1033 16.00 1068 17.34 1102 18.70

14000 840 10.37 882 11.58 923 12.84 962 14.14 999 15.47 1036 16.84 1071 18.23 1105 19.65

15000 846 11.11 887 12.33 926 13.61 965 14.93 1002 16.30 1038 17.71 1073 19.14 1107 20.61

16000 853 11.95 893 13.18 931 14.47 969 15.81 1006 17.19 1042 18.62 1076 20.09 1110 21.60

17000 861 12.84 900 14.13 938 15.43 975 16.77 1010 18.17 1046 19.62 1080 21.11 1113 22.64

18000 871 13.77 909 15.12 945 16.48 981 17.85 1016 19.26 1051 20.71 1084 22.22 1117 23.76

19000 881 14.74 918 16.15 954 17.58 989 19.01 1023 20.46 1057 21.92 1090 23.43 1122 24.99

20000 893 15.80 929 17.23 964 18.72 998 20.22 1031 21.73 1064 23.24 1096 24.77 1128 26.34

21000 906 16.98 940 18.40 974 19.91 1008 21.46 1040 23.05 1072 24.63 1104 26.21 1135 27.81

22000 920 18.28 953 19.69 986 21.19 1018 22.77 1050 24.40 1082 26.05 1112 27.71 1143 29.37

22500 928 18.99 960 20.39 992 21.88 1024 23.46 1055 25.10 1086 26.78 1117 28.47 1147 30.17

23000 936 19.73 967 21.13 998 22.61 1030 24.18 1061 25.82 1092 27.52 1122 29.24 1151 30.98

24000 954 21.31 983 22.70 1012 24.17 1043 25.73 1073 27.36 1102 29.07 1132 30.83 1161 32.63

Notes:

1. Fan performance for 40, 50, and 55 ton rooftops is

identical. However, note maximum motor hp size for

each size. Contact your local Trane representative for

information on non-standard motors.

2. Shaded areas at table extremes note non-standard

Bhp or Rpm selection. Contact your local Trane

representative for more information.

3. Supply fan performance table includes internal

resistance of rooftop. For total static pressure

determination, system external static must be added

to appropriate component static pressure drops

(evaporator coil, filters, optional economizer,

optional exhaust fan, optional heating system,

optional cooling only extended casing, optional roof

curb).

4. Maximum Cfm (for UL approval) as follows: 40 Ton

— 18,000 Cfm, 50 Ton — 22,500 Cfm, 55 Ton —

24,000 Cfm

5. Minimum motor horsepower is 7.5 hp.

6. Maximum motor horsepower as follows: 40 Ton —

30 hp, 50 Ton — 30 hp, 55 Ton — 30 hp

7. Maximum 7.5 hp through 15 hp motor Rpm is 1,141

Rpm, maximum 20 hp through 30 hp motor Rpm is

1,170 Rpm.

8. See RT-EB-104 for further details.

(40, 50, 55 Tons)

Performance

Data

55RT-PRC010-EN

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

Figure PD-6 — Supply Fan Performance WITH INLET VANES — 40, 50 and 55 Ton

(40, 50, 55 Tons)

Performance

Data

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

0 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 22000 24000 26000 28000 30000

CFM

STATIC PRESSURE, Inches w.c.

40% wocfm

50% 60%

70%

1200 RPM

500 RPM

600 RPM

700 RPM

800 RPM

900 RPM

1000 RPM

1100 RPM

5 HP

7.5 HP

10 HP

15 HP

20 HP

25 HP

30 HP

40 HP

S_HFC40, C50, C55

Dual 20 X 20 Fans

Entrance Losses

- w ith Inlet Guide Vanes

- w ithout Evap Coil

- w ithout Filters

- w ithout Return Air Dampers

- w ithout Exhaust

Fan Curve Limits

- Minimum Motor HP = 7.5

- Max imum Motor HP

C40 = 25 HP

C50 & C55 = 30 HP

- Max imum RPM

7.5 - 15 HP = 1141

20 - 30 HP = 1170

- Max imum CFM

C40 = 18,000

C50 = 22,500

C55 = 24,000

- Maximum Static Pressure

Leaving the Unit = 4.0" w .c.

90%

80%

RT-PRC010-EN56

Table PD-38— Supply Fan Performance With VARIABLE FREQUENCY DRIVE or WITHOUT INLET VANES — 60, 70 and 75 Tons

Cfm Total Static Pressure

Std .250 .500 .750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

14000 295 1.55 366 2.32 441 3.34 505 4.44 559 5.65 606 6.89 648 8.15 687 9.41

15000 305 1.80 373 2.59 442 3.60 508 4.74 563 5.98 611 7.29 654 8.63 693 9.97

16000 316 2.08 380 2.90 444 3.88 509 5.08 566 6.33 615 7.69 659 9.10 699 10.52

17000 327 2.38 389 3.24 448 4.20 510 5.43 568 6.72 619 8.09 663 9.55 704 11.06

18000 338 2.72 399 3.62 454 4.60 512 5.78 569 7.15 621 8.53 667 10.02 708 11.58

19000 349 3.09 408 4.03 461 5.04 515 6.18 570 7.59 623 9.02 670 10.51 712 12.11

20000 361 3.48 419 4.48 469 5.52 519 6.65 572 8.03 624 9.55 672 11.06 715 12.66

21000 372 3.91 429 4.97 478 6.04 525 7.19 575 8.51 625 10.07 673 11.66 718 13.27

22000 384 4.37 440 5.51 488 6.61 533 7.79 579 9.07 627 10.60 674 12.27 719 13.93

23000 395 4.87 450 6.08 497 7.22 541 8.43 584 9.72 629 11.18 675 12.88 720 14.63

24000 407 5.41 461 6.70 508 7.88 550 9.12 591 10.43 633 11.85 677 13.51 721 15.33

25000 419 5.98 473 7.37 518 8.59 559 9.86 599 11.20 639 12.61 680 14.20 723 16.03

26000 431 6.60 484 8.08 528 9.35 569 10.66 607 12.03 645 13.45 685 14.99 725 16.76

27000 443 7.26 495 8.83 539 10.16 579 11.50 616 12.90 653 14.36 690 15.89 728 17.58

Cfm Total Static Pressure

Std 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

14000 723 10.67 757 11.95 788 13.24 818 14.55 846 15.89 873 17.25 898 18.63 923 20.04

15000 730 11.32 764 12.68 796 14.04 826 15.41 855 16.81 882 18.22 908 19.65 933 21.11

16000 736 11.96 771 13.39 803 14.84 834 16.28 863 17.74 891 19.22 917 20.71 943 22.22

17000 741 12.57 777 14.10 810 15.62 841 17.15 870 18.69 899 20.23 926 21.79 951 23.36

18000 746 13.17 782 14.78 815 16.39 847 18.01 877 19.63 906 21.25 933 22.88 959 24.52

19000 751 13.76 787 15.44 821 17.14 853 18.84 883 20.54 912 22.25 940 23.96 967 25.68

20000 755 14.36 791 16.10 826 17.87 858 19.65 889 21.44 918 23.23 946 25.03 973 26.83

21000 758 14.97 795 16.76 830 18.59 863 20.45 894 22.32 924 24.19 952 26.08 979 27.96

22000 761 15.64 799 17.44 834 19.32 867 21.23 899 23.18 929 25.13 958 27.10 985 29.07

23000 762 16.37 801 18.17 838 20.06 871 22.03 903 24.03 933 26.06 962 28.10 990 30.15

24000 764 17.14 803 18.96 840 20.86 875 22.84 907 24.89 938 26.98 967 29.09 995 31.22

25000 765 17.94 805 19.82 842 21.72 878 23.70 910 25.77 942 27.90 971 30.07 1000 32.27

26000 766 18.72 806 20.70 844 22.65 880 24.64 913 26.71 945 28.86 975 31.07 1004 33.32

27000 768 19.51 807 21.57 845 23.62 881 25.65 915 27.72 948 29.87 978 32.09 1008 34.38

Cfm Total Static Pressure

Std 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

14000 947 21.47 970 22.92 993 24.39 1015 25.89 1036 27.40 1057 28.93 1077 30.49 1097 32.06

15000 957 22.59 981 24.09 1003 25.61 1025 27.16 1047 28.72 1068 30.30 1088 31.91 1108 33.53

16000 967 23.75 991 25.30 1014 26.87 1036 28.46 1057 30.08 1078 31.71 1099 33.36 1119 35.03

17000 976 24.94 1000 26.55 1023 28.17 1046 29.81 1067 31.48 1089 33.16 1109 34.86 1129 36.58

18000 985 26.17 1009 27.83 1032 29.51 1055 31.20 1077 32.92 1098 34.65 1119 36.40

19000 992 27.40 1017 29.13 1041 30.87 1064 32.63 1086 34.40 1108 36.19 1129 37.99

20000 999 28.63 1024 30.44 1048 32.25 1072 34.08 1094 35.91 1116 37.76

21000 1006 29.85 1031 31.74 1055 33.63 1079 35.53 1102 37.44 1124 39.35

22000 1012 31.04 1037 33.02 1062 35.00 1086 36.98 1109 38.96

23000 1017 32.21 1043 34.27 1068 36.34 1092 38.41 1116 40.47

24000 1022 33.35 1048 35.50 1074 37.65 1098 39.80 1122 41.96

25000 1027 34.48 1053 36.70 1079 38.93 1104 41.17 1127 43.41

26000 1031 35.60 1058 37.89 1084 40.20 1109 42.52

27000 1036 36.71 1062 39.07 1088 41.45 1113 43.85

Notes:

1. Fan performance for 60, 70 and 75 ton rooftops are identical. However, note maximum motor hp size for each size. Contact your local Trane representative for information on

non-standard motors.

2. Shaded areas at table extremes note non-standard Bhp or Rpm selection. Contact your local Trane representative for more information.

3. Supply fan performance table includes internal resistance of rooftop. For total static pressure determination, system external static must be added to appropriate component

static pressure drops (evaporator coil, filters, optional economizer, optional exhaust fan, optional heating system, optional cooling only extended casing, optional roof curb).

4. Maximum Cfm (for UL approval) as follows: 60 Ton — 27,000 Cfm , 70 & 75 Ton — 30,000 Cfm

5. Minimum motor horsepower is 10 hp.

6. Maximum motor horsepower is 40 hp.

7. Maximum motor Rpm is 1,130.

8. See RT-EB-104 for further details.

(60, 70, 75 Tons)Performance

Data

57RT-PRC010-EN

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

Figure PD-7 — Supply Fan Performance With VARIABLE FREQUENCY DRIVE or WITHOUT INLET VANES — 60, 70 and 75 Tons

(60, 70, 75 Tons)Performance

Data

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

0 3000 6000 9000 12000 15000 18000 21000 24000 27000 30000 33000 36000

CFM

STATIC PRESSURE, Inches w.c

.

S_HFC60, C70, C75

Dual 22 X 22 Fans

Entrance Losses

- w ithout Inlet Guide Vanes

- w ithout Evap Coil

- w ithout Filters

- w ithout Return Air Dampers

- w ithout Exhaust

Fan Curve Limits

- Minimum Motor HP = 10

- Max imum Motor HP = 40

- Max imum RPM = 1130

- Max imum CFM

C60 = 27,000

C70 & C75 = 30,000

- Max imum Static Pres s ur e

Leaving the Unit = 4.0" w .c.

600 RPM

40% wocfm

7.5 HP

700 RPM

800 RPM

900 RPM

1000 RPM

1100 RPM

1200 RPM

50%

70%

80%

90% w ocfm

10 HP

15 HP

20 HP 25 HP

30 HP

40 HP

50 HP

500 RPM

60%

RT-PRC010-EN58

Table PD-39 — Supply Fan Performance WITH INLET VANES — 60, 70 and 75 Tons

Cfm Total Static Pressure

Std .250 .500 .750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

14000 316 1.77 382 2.48 454 3.51 514 4.62 567 5.84 613 7.03 655 8.22 693 9.47

15000 330 2.07 390 2.79 458 3.83 518 4.95 572 6.22 619 7.52 661 8.78 700 10.07

16000 344 2.41 401 3.17 462 4.15 523 5.34 576 6.60 624 7.98 667 9.36 707 10.71

17000 359 2.80 413 3.59 466 4.50 528 5.76 580 7.02 629 8.43 673 9.91 713 11.36

18000 374 3.24 425 4.05 474 4.94 532 6.18 585 7.51 633 8.90 677 10.43 718 12.00

19000 390 3.72 437 4.55 485 5.47 535 6.61 590 8.04 638 9.44 682 10.96 723 12.59

20000 405 4.24 450 5.10 496 6.06 541 7.12 594 8.57 643 10.05 686 11.55 727 13.19

21000 420 4.81 464 5.70 508 6.71 550 7.74 597 9.10 647 10.69 691 12.23 732 13.84

22000 436 5.44 478 6.37 520 7.40 560 8.46 602 9.70 651 11.32 696 12.96 737 14.58

23000 452 6.11 492 7.10 532 8.14 572 9.25 610 10.43 654 11.96 700 13.71 742 15.39

24000 468 6.85 507 7.89 545 8.94 583 10.10 620 11.27 659 12.67 704 14.44 746 16.25

25000 484 7.64 522 8.74 558 9.81 595 11.01 631 12.21 667 13.53 707 15.19 750 17.10

26000 500 8.49 538 9.66 572 10.74 608 11.97 642 13.22 676 14.51 713 16.04 754 17.93

27000 516 9.41 553 10.64 586 11.75 620 12.99 654 14.30 687 15.60 720 17.04 758 18.81

Cfm Total Static Pressure

Std 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

14000 729 10.76 762 12.09 794 13.45 824 14.83 853 16.22 880 17.62 906 19.03 932 20.46

15000 736 11.39 770 12.77 802 14.18 832 15.62 861 17.09 889 18.57 915 20.06 941 21.56

16000 743 12.07 777 13.48 809 14.93 840 16.43 869 17.95 897 19.50 924 21.07 950 22.65

17000 750 12.80 784 14.25 817 15.73 848 17.26 877 18.83 905 20.43 932 22.06 958 23.71

18000 756 13.53 791 15.05 824 16.58 855 18.14 884 19.75 913 21.39 940 23.07 966 24.78

19000 761 14.25 797 15.87 830 17.48 862 19.09 891 20.72 920 22.40 948 24.11 974 25.86

20000 766 14.93 802 16.67 836 18.37 868 20.06 898 21.76 927 23.47 955 25.21 981 27.00

21000 771 15.60 807 17.42 842 19.25 874 21.04 905 22.82 934 24.59 962 26.38 988 28.20

22000 775 16.31 812 18.16 847 20.08 880 21.99 911 23.88 940 25.74 968 27.60 995 29.46

23000 780 17.11 816 18.94 851 20.89 884 22.89 916 24.90 946 26.87 974 28.82 1002 30.77

24000 785 18.00 821 19.81 855 21.74 889 23.78 921 25.87 951 27.96 980 30.03 1008 32.07

25000 789 18.94 826 20.77 860 22.68 893 24.71 925 26.84 956 29.01 985 31.19 1013 33.35

26000 794 19.91 830 21.81 865 23.72 898 25.72 930 27.84 960 30.05 990 32.31 1019 34.58

27000 797 20.85 835 22.88 870 24.85 902 26.85 934 28.93 965 31.13 994 33.43 1023 35.77

Cfm Total Static Pressure

Std 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

14000 956 21.90 980 23.36 1003 24.83 1025 26.32 1047 27.83 1068 29.35 1088 30.90 1108 32.46

15000 966 23.07 989 24.60 1013 26.14 1035 27.69 1057 29.26 1078 30.84 1099 32.44 1119 34.05

16000 975 24.24 999 25.84 1022 27.45 1045 29.07 1067 30.70 1088 32.35 1109 34.01 1130 35.68

17000 983 25.38 1008 27.06 1031 28.75 1054 30.44 1076 32.15 1098 33.87 1119 35.60

18000 992 26.51 1016 28.26 1040 30.02 1063 31.80 1085 33.58 1107 35.38 1128 37.18

19000 1000 27.64 1024 29.45 1048 31.28 1071 33.13 1094 34.99 1116 36.86

20000 1007 28.82 1032 30.67 1056 32.55 1079 34.46 1102 36.38 1124 38.32

21000 1014 30.05 1039 31.93 1064 33.86 1087 35.81 1110 37.79

22000 1021 31.35 1046 33.27 1071 35.22 1095 37.21 1118 39.23

23000 1028 32.71 1053 34.67 1078 36.66 1102 38.67 1125 40.72

24000 1034 34.10 1060 36.13 1085 38.17 1109 40.22

25000 1040 35.49 1066 37.60 1091 39.71 1115 41.83

26000 1046 36.83 1072 39.06 1097 41.27 1122 43.46

27000 1051 38.12 1077 40.47 1103 42.80 1128 45.09

Notes:

1. Fan performance for 60, 70 and 75 ton rooftops are identical. Contact your local Trane representative for information on non-standard motors.

2. Shaded areas at table extremes note non-standard Bhp or Rpm selection. Contact your local Trane representative for more information.

3. Supply fan performance table includes internal resistance of rooftop. For total static pressure determination, system external static must be added to appropriate component

static pressure drops (evaporator coil, filters, optional economizer, optional exhaust fan, optional heating system, optional cooling only extended casing, optional roof curb).

4. Maximum Cfm (for UL approval) as follows: 60 Ton — 27,000 Cfm, 70 & 75 Ton — 30,000 Cfm

5. Minimum motor horsepower is 10 hp.

6. Maximum motor horsepower is 40 hp.

7. Maximum motor Rpm is 1,130.

8. See RT-EB-104 for further details.

(60, 70, 75 Tons)Performance

Data

59RT-PRC010-EN

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

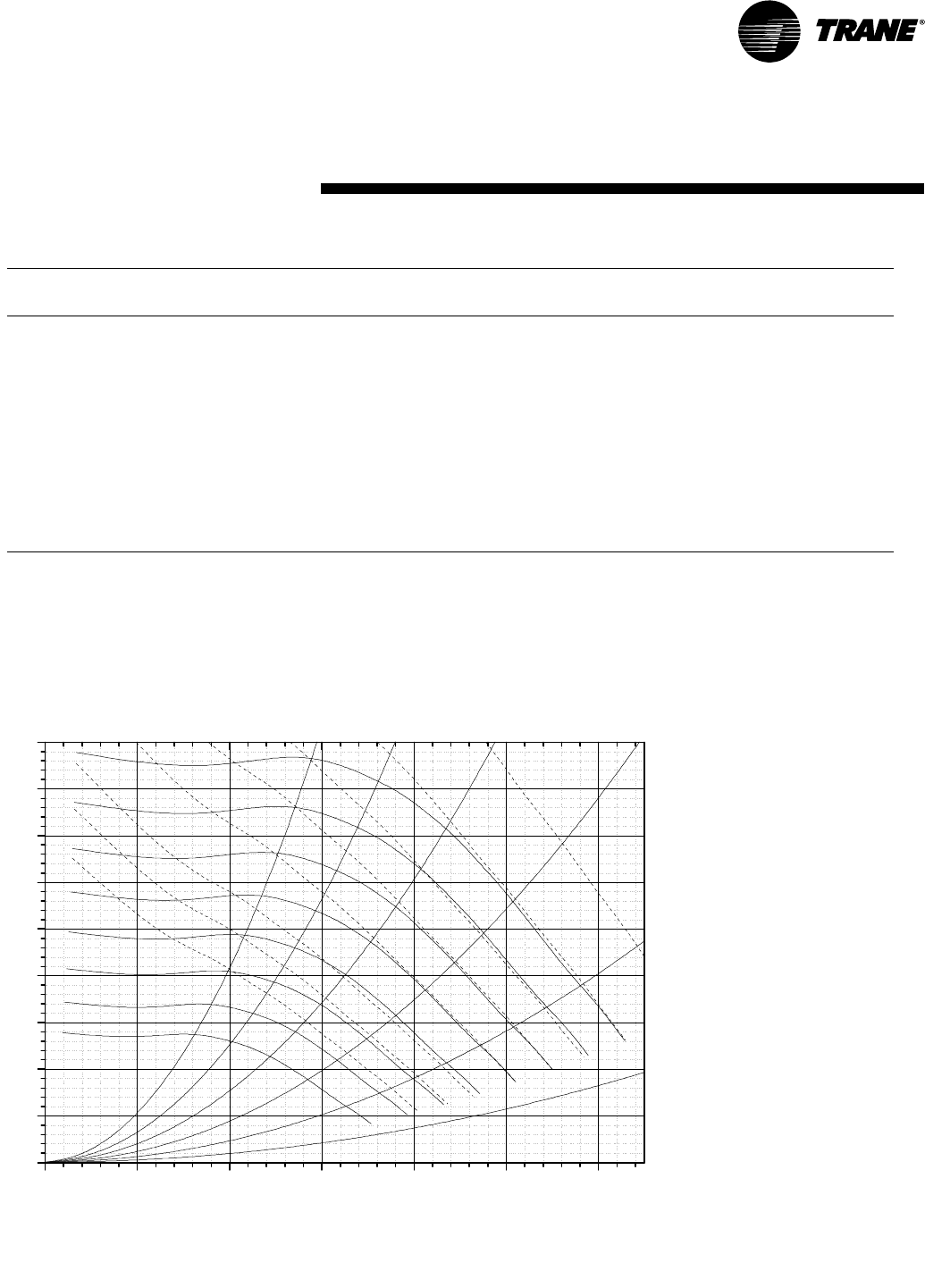

Figure PD-8 — Supply Fan Performance WITH INLET VANES — 60, 70 and 75 Tons

(60, 70, 75 Tons)Performance

Data

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

0 3000 6000 9000 12000 15000 18000 21000 24000 27000 30000 33000 36000

CFM

STATIC PRESSURE, Inches w.c.

S_HFC60, C70, C75

Dual 22 X 22 Fans

Entrance Losses

- w ith Inlet Guide Van

e

- w ithout Evap Coil

- w ithout Filters

- w ithout Return Air D

a

- w ithout Exhaust

Fan Curve Limits

- Minimum Motor HP =

1

- Maximum Motor HP =

- Maximum RPM = 113

0

- Maximum CFM

C60 = 27,000

C70 & C75 = 30,

- Maximum Static Pres

s

Leaving the Unit = 4.

0

1000 RPM

900 RPM

800 RPM

700 RPM

600 RPM

500 RPM

1100 RPM

1200 RPM

7.5 HP

10 HP

15 HP

20 HP

25 HP

30 HP

40 HP

50 HP

90% w ocfm

80%

50%

40% wocfm

70%

60%

RT-PRC010-EN60

(90 Ton)

Table PD-40 — Supply Fan Performance WITH VARIABLE FREQUENCY DRIVE or WITHOUT INLET GUIDE VANES — 90 Ton

Cfm Total Static Pressure

Std. 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

27000 646 4.62 690 6.01 732 7.13 773 8.31 808 9.53 840 10.71 872 11.97 904 13.34

28000 667 5.03 710 6.51 750 7.70 791 8.86 826 10.15 857 11.37 888 12.63 920 14.04

29000 687 5.46 730 7.03 768 8.31 809 9.45 843 10.81 875 12.09 905 13.38 935 14.74

30000 708 5.92 749 7.58 787 8.93 826 10.13 861 11.49 893 12.84 922 14.16 951 15.50

31000 729 6.40 769 8.14 806 9.60 842 10.84 879 12.17 910 13.61 939 14.94 968 16.34

32000 749 6.92 789 8.73 825 10.29 860 11.59 897 12.88 928 14.40 957 15.80 985 17.22

33000 770 7.46 809 9.36 844 10.99 878 12.39 914 13.69 946 15.20 975 16.72 1002 18.14

34000 791 8.02 829 10.01 864 11.73 896 13.21 931 14.55 963 16.02 993 17.63 1019 19.10

35000 812 8.62 849 10.69 884 12.51 915 14.06 948 15.46 981 16.88 1010 18.54 1037 20.11

36000 833 9.25 869 11.41 903 13.29 934 14.95 965 16.41 998 17.83 1028 19.49 1054 21.14

37000 854 9.90 890 12.14 923 14.12 954 15.87 983 17.40 1015 18.87 1046 20.48 1073 22.22

38000 875 10.60 910 12.91 942 14.98 973 16.81 1002 18.44 1032 19.93 1063 21.48 1090 23.30

39000 896 11.32 930 13.72 962 15.88 992 17.79 1021 19.52 1050 21.08 1080 22.60 1108 24.38

40000 918 12.08 951 14.56 982 16.80 1012 18.82 1040 20.62 1067 22.24 1097 23.80 1126 25.51

41000 939 12.86 971 15.43 1003 17.77 1032 19.86 1059 21.76 1086 23.48 1114 25.08 1143 26.70

42000 960 13.70 992 16.33 1023 18.76 1051 20.94 1078 22.91 1105 24.73 1131 26.37 1160 28.05

43000 981 14.57 1013 17.28 1043 19.78 1071 22.05 1098 24.12 1124 26.03 1149 27.75 1177 29.44

44000 1003 15.47 1034 18.27 1063 20.85 1091 23.20 1117 25.37 1143 27.34 1168 29.16 1194 30.90

45000 1024 16.41 1054 19.29 1083 21.96 1111 24.39 1137 26.63 1162 28.72 1186 30.62 1211 32.38

Cfm Total Static Pressure

Std. 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

27000 935 14.69 963 15.96 992 17.34 1022 18.73 1051 20.17 1079 21.61 1106 23.09 1133 24.58

28000 950 15.45 978 16.82 1005 18.12 1034 19.60 1062 21.03 1090 22.49 1116 23.99 1144 25.57

29000 965 16.20 993 17.66 1019 19.02 1046 20.44 1075 21.97 1102 23.47 1128 24.99 1154 26.53

30000 980 16.97 1008 18.50 1035 19.98 1061 21.43 1087 22.88 1114 24.43 1140 25.98 1166 27.60

31000 995 17.77 1023 19.30 1051 20.93 1076 22.44 1101 23.90 1127 25.46 1153 27.07 1178 28.67

32000 1011 18.66 1038 20.19 1065 21.81 1091 23.42 1116 25.00 1140 26.52 1165 28.13 1190 29.77

33000 1028 19.59 1054 21.12 1081 22.78 1107 24.46 1132 26.14 1155 27.66 1178 29.28 1201 30.85

34000 1045 20.61 1070 22.10 1096 23.75 1122 25.47 1147 27.24 1170 28.84 1193 30.52 1216 32.16

35000 1062 21.64 1087 23.18 1112 24.78 1137 26.48 1162 28.28 1186 30.12 1208 31.73 1230 33.43

36000 1080 22.76 1105 24.31 1128 25.91 1152 27.60 1177 29.38 1200 31.19 1224 33.06 1246 34.83

37000 1097 23.86 1122 25.46 1145 27.10 1169 28.78 1192 30.55 1215 32.39 1239 34.32 1261 36.21

38000 1115 25.02 1139 26.67 1163 28.37 1185 30.03 1208 31.78 1230 33.59 1254 35.56 1276 37.52

39000 1133 26.18 1157 27.94 1180 29.64 1202 31.36 1224 33.08 1247 34.94 1268 36.79 1291 38.78

40000 1151 27.40 1175 29.24 1197 30.98 1220 32.75 1242 34.53 1263 36.29 1284 38.18 1306 40.22

41000 1168 28.62 1192 30.54 1215 32.40 1237 34.16 1259 35.99 1280 37.80 1301 39.66 1322 41.65

42000 1186 29.90 1211 31.91 1233 33.78 1255 35.66 1276 37.46 1297 39.32 1317 41.23 1338 43.18

43000 1204 31.18 1228 33.28 1251 35.23 1272 37.15 1293 39.02 1314 40.93 1334 42.81 1354 44.71

44000 1221 32.65 1246 34.66 1268 36.69 1290 38.68 1311 40.68 1331 42.56 1351 44.48 1371 46.43

45000 1239 34.19 1263 36.03 1286 38.23 1308 40.30 1328 42.32 1349 44.29 1369 46.26 1387 48.17

Cfm Total Static Pressure

Std. 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

27000 1160 26.16 1186 27.74 1211 29.37 1239 31.13 1264 32.84 1288 34.49 1315 36.34 1339 38.10

28000 1170 27.15 1195 28.67 1220 30.31 1246 32.08 1271 33.81 1296 35.56 1322 37.43 1345 39.11

29000 1180 28.14 1205 29.73 1230 31.38 1255 33.08 1280 34.82 1304 36.58 1328 38.37 1352 40.26

30000 1192 29.23 1216 30.78 1240 32.44 1266 34.22 1290 35.98 1312 37.66 1335 39.46 1360 41.36

31000 1202 30.25 1227 31.96 1252 33.64 1274 35.28 1298 37.03 1323 38.91 1345 40.72 1368 42.53

32000 1214 31.39 1239 33.12 1263 34.83 1286 36.57 1308 38.25 1332 40.14 1355 41.95 1377 43.77

33000 1227 32.65 1250 34.28 1274 36.08 1298 37.84 1321 39.64 1342 41.36 1364 43.18 1387 45.10

34000 1239 33.81 1262 35.56 1285 37.32 1309 39.20 1332 41.01 1353 42.75 1375 44.60 1398 46.55

35000 1252 35.08 1275 36.89 1297 38.62 1321 40.53 1343 42.38 1365 44.23 1387 46.10 1408 47.97

36000 1268 36.54 1289 38.26 1310 40.05 1332 41.84 1354 43.72 1377 45.70 1398 47.59 1420 49.59

37000 1283 37.98 1303 39.67 1323 41.44 1345 43.29 1367 45.22 1388 47.15 1411 49.18 1431 51.09

38000 1297 39.39 1318 41.23 1339 43.07 1359 44.90 1379 46.70 1401 48.78 1422 50.74 1443 52.69

39000 1314 40.92 1334 42.77 1354 44.67 1373 46.46 1393 48.32 1413 50.26 1434 52.27 1455 54.37

40000 1328 42.21 1349 44.35 1370 46.35 1389 48.20 1408 50.13 1427 52.02 1447 53.99 1467 56.03

41000 1343 43.69 1365 45.87 1385 47.98 1404 49.91 1424 51.90 1442 53.86 1462 55.90 1481 57.89

42000 1358 45.16 1380 47.38 1400 49.53 1419 51.58 1438 53.65 1458 55.79 1476 57.77 1494 59.70

43000 1375 46.83 1394 48.88 1415 51.07 1435 53.27 1455 55.61 1473 57.58 1491 59.62 1509 61.73

44000 1391 48.51 1410 50.50 1430 52.72 1450 54.96 1469 57.20 1489 59.58 1507 61.69 1524 63.73

45000 1407 50.19 1426 52.33 1445 54.36 1464 56.64 1485 59.05 1502 61.19 1523 63.73 1540 65.85

Performance

Data

(Continued on the following page)

61RT-PRC010-EN

Table PD-40 — Supply Fan Performance WITH VARIABLE FREQUENCY DRIVE or WITHOUT INLET GUIDE VANES — 90 Ton (Cont.)

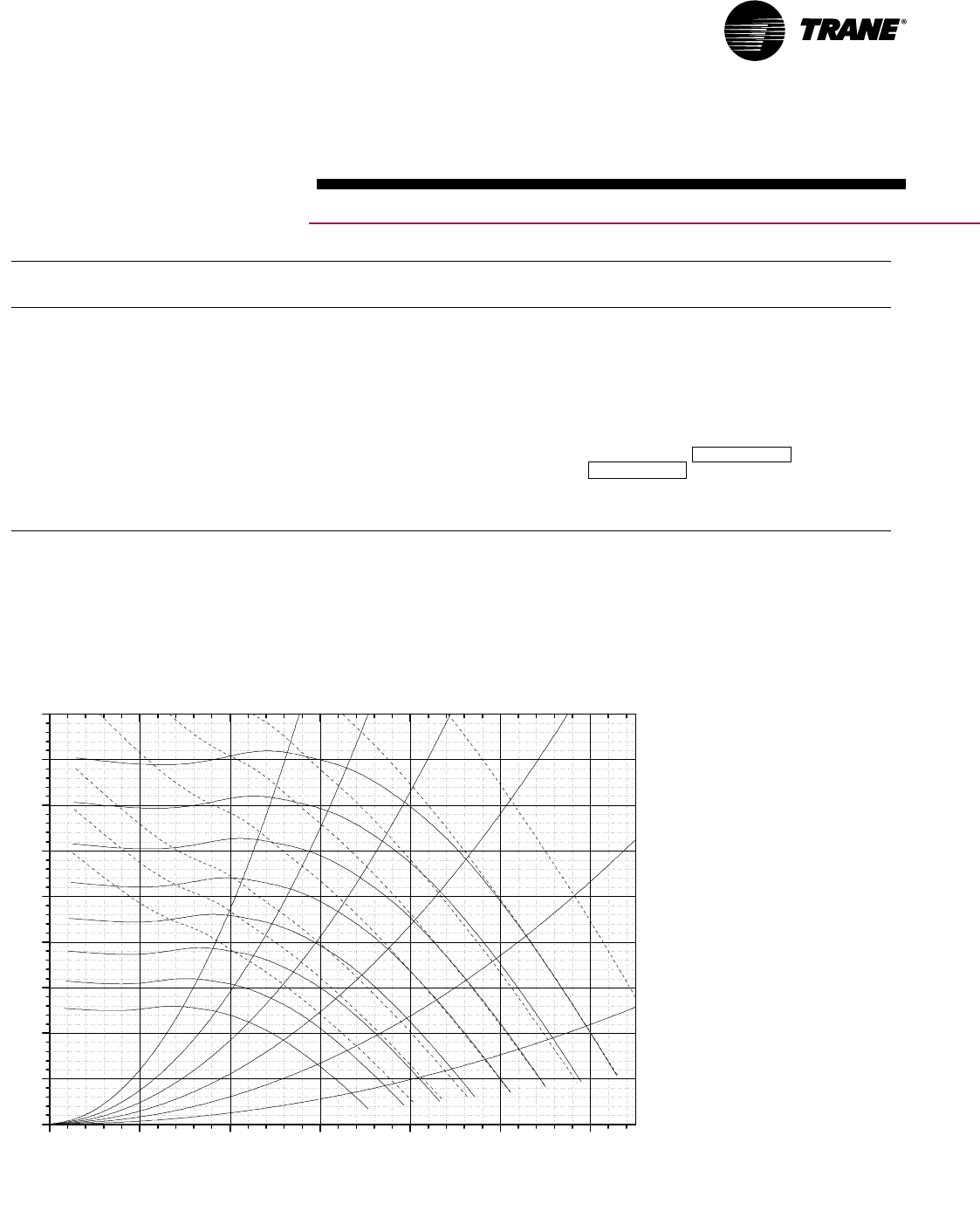

Figure PD-9— Supply Fan Performance WITH VARIABLE FREQUENCY DRIVE or WITHOUT INLET GUIDE VANES — 90 Ton

Cfm Total Static Pressure

Std. 6.250 6.500 6.750 7.000 7.250 7.500 7.750

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

27000 1363 39.85 1388 41.68 1414 43.54 1437 45.26 1461 47.06 1486 48.96 1508 50.67

28000 1371 41.10 1393 42.85 1417 44.70 1441 46.61 1466 48.56 1489 50.33 1512 52.19

29000 1375 42.04 1398 43.93 1423 45.91 1445 47.74 1469 49.80 1491 51.64 1515 53.66

30000 1382 43.16 1406 45.18 1428 47.06 1453 49.17 1475 51.11 1498 53.15 1518 54.98

31000 1391 44.45 1413 46.37 1437 48.39 1458 50.25 1479 52.20 1501 54.25 1524 56.40

32000 1400 45.71 1422 47.64 1444 49.67 1465 51.55 1486 53.51 1508 55.58 1530 57.74

33000 1408 46.93 1430 48.87 1452 50.91 1473 52.93 1496 55.05 1517 57.14 1537 59.16

34000 1418 48.38 1440 50.32 1462 52.37 1481 54.27 1503 56.40 1524 58.50 1544 60.53

35000 1430 49.93 1449 51.76 1471 53.81 1490 55.72 1512 57.86 1532 59.96 1552 62.01

36000 1441 51.47 1461 53.44 1481 55.39 1502 57.43 1521 59.43 1542 61.55 1562 63.77

37000 1452 53.10 1473 55.10 1492 57.07 1513 59.13 1532 61.15 1552 63.26 1571 65.33

38000 1464 54.72 1484 56.74 1505 58.86 1523 60.81 1542 62.85 1562 64.98 1582 67.21

39000 1474 56.33 1494 58.37 1515 60.51 1535 62.61 1555 64.83 1573 66.83 1592 68.92

40000 1487 58.15 1507 60.24 1528 62.42 1546 64.40 1566 66.63 1584 68.66 1603 70.93

41000 1500 59.94 1519 62.08 1538 64.16 1558 66.32 1576 68.43 1595 70.62 1615 72.92

42000 1512 61.69 1531 63.88 1551 66.15 1569 68.21 1588 70.35 1607 72.58 1626 74.89

43000 1527 63.79 1545 65.91 1563 67.95 1582 70.21 1600 72.40 1619 74.67 1637 76.85

44000 1542 65.85 1559 67.89 1576 70.00 1594 72.18 1612 74.41 1631 76.72 1650 79.12

45000 1558 68.03 1575 70.14 1592 72.31 1610 74.56 1625 76.54 1643 78.91

Notes:

1. Shaded areas indicate non-standard BHP or RPM selections. Contact your local Trane representive for more information.

2. Supply fan performance table includes internal resistance of rooftop. For total static pressure determination, system external static must be added to appropriate component

static pressure drops, (evaporator coil, filters, optional economizer, optional heating system, optional roof curb).

3. Maximum static pressure leaving the rooftop is 4.0’’ H20 positive. The static pressure drops from the supply fan to the space cannot exceed 4.0’’ H20.

4. Minimum motor horsepower is 30 hp.

5. See RT-EB-104 for further details.

(90 Ton)

Performance

Data

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

0 10000 20000 30000 40000 50000 60000

0

1

2

3

4

5

6

7

8

9

40% WOCFM

50% WOCFM

60% WOCFM

90% WOCFM

80% WOCFM

70% WOCFM

100 HP

75 HP

60 HP

50 HP

40 HP

30 HP

25 HP

20 HP

1600 RPM

1500 RPM

1400 RPM

1300 RPM

1200 RPM

1100 RPM

1000 RPM

900 RPM

CFM

Static Presure, Inches w.c.

RT-PRC010-EN62

Table PD-41 — Supply Fan Performance WITH INLET GUIDE VANES — 90 Ton

Cfm Total Static Pressure

Std. 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

27000 695 6.14 734 7.25 770 8.39 805 9.55 840 10.81 873 12.11 904 13.44 935 14.77

28000 718 6.76 756 7.92 791 9.07 825 10.28 858 11.56 891 12.90 922 14.26 952 15.65

29000 741 7.42 778 8.62 812 9.81 845 11.05 878 12.35 909 13.73 940 15.12 969 16.53

30000 764 8.13 800 9.37 833 10.61 866 11.88 897 13.19 928 14.59 958 16.05 987 17.50

31000 787 8.88 822 10.17 854 11.44 886 12.74 916 14.08 947 15.51 976 16.99 1004 18.47

32000 810 9.68 844 11.01 876 12.32 906 13.66 936 15.03 966 16.48 995 17.97 1023 19.52

33000 833 10.53 866 11.90 897 13.25 927 14.63 957 16.04 985 17.50 1014 19.02 1041 20.57

34000 857 11.42 889 12.84 919 14.24 948 15.65 977 17.09 1005 18.57 1032 20.09 1059 21.71

35000 880 12.37 911 13.83 941 15.28 969 16.71 998 18.21 1025 19.70 1051 21.25 1078 22.86

36000 903 13.38 934 14.88 963 16.37 991 17.85 1018 19.35 1045 20.89 1071 22.48 1097 24.11

37000 927 14.44 957 15.98 985 17.52 1012 19.03 1039 20.58 1065 22.14 1091 23.77 1116 25.42

38000 950 15.55 979 17.14 1007 18.71 1034 20.27 1060 21.85 1086 23.46 1111 25.08 1135 26.76

39000 973 16.72 1002 18.36 1030 19.98 1056 21.59 1081 23.19 1106 24.81 1131 26.51 1155 28.18

40000 997 17.95 1025 19.64 1052 21.29 1077 22.94 1102 24.57 1127 26.27 1151 27.98 1175 29.67

41000 1020 19.24 1048 20.97 1074 22.68 1099 24.36 1124 26.04 1148 27.75 1171 29.47 1195 31.24

42000 1044 20.60 1071 22.37 1097 24.12 1122 25.86 1145 27.55 1169 29.31 1192 31.09 1215 32.89

43000 1067 22.02 1094 23.84 1119 25.63 1144 27.41 1167 29.18 1190 30.93 1213 32.75 1236 34.58

44000 1091 23.50 1117 25.35 1142 27.19 1166 29.02 1189 30.82 1212 32.65 1234 34.44 1256 36.36

45000 1114 25.05 1140 26.95 1165 28.85 1188 30.69 1211 32.56 1233 34.40 1255 36.26 1277 38.17

Cfm Total Static Pressure

Std. 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

27000 964 16.12 993 17.48 1024 18.97 1053 20.45 1081 21.97 1110 23.54 1139 25.13 1166 26.75

28000 980 17.00 1009 18.42 1038 19.90 1066 21.38 1093 22.90 1122 24.51 1149 26.14 1177 27.79

29000 998 17.97 1026 19.42 1053 20.88 1080 22.38 1108 24.00 1134 25.55 1162 27.23 1188 28.85

30000 1015 18.95 1042 20.42 1069 21.94 1095 23.50 1122 25.08 1148 26.68 1173 28.29 1200 30.01

31000 1032 19.99 1058 21.49 1085 23.07 1111 24.59 1136 26.19 1162 27.84 1188 29.56 1212 31.21

32000 1050 21.08 1076 22.64 1102 24.20 1127 25.78 1151 27.38 1177 29.10 1201 30.75 1226 32.51

33000 1068 22.20 1094 23.79 1119 25.42 1144 27.07 1169 28.73 1193 30.40 1216 32.05 1240 33.79

34000 1086 23.37 1112 25.04 1137 26.68 1161 28.35 1185 30.02 1208 31.68 1231 33.45 1254 35.19

35000 1104 24.55 1130 26.28 1154 27.95 1178 29.68 1202 31.41 1225 33.14 1248 34.90 1270 36.71

36000 1122 25.82 1148 27.58 1172 29.32 1195 31.07 1219 32.87 1241 34.59 1264 36.42 1286 38.21

37000 1141 27.16 1165 28.89 1189 30.70 1213 32.52 1236 34.32 1258 36.10 1281 38.00 1303 39.85

38000 1160 28.52 1184 30.31 1208 32.13 1231 34.03 1254 35.91 1276 37.76 1297 39.57 1319 41.49

39000 1179 29.94 1203 31.81 1226 33.64 1249 35.54 1272 37.50 1293 39.35 1315 41.30 1335 43.12

40000 1199 31.49 1222 33.32 1245 35.22 1267 37.13 1289 39.08 1311 41.08 1333 43.03 1353 44.91

41000 1218 33.03 1241 34.91 1263 36.82 1286 38.79 1308 40.82 1328 42.74 1350 44.76 1371 46.79

42000 1238 34.70 1260 36.59 1282 38.50 1304 40.55 1326 42.58 1347 44.56 1368 46.66 1388 48.67

43000 1257 36.41 1279 38.30 1301 40.27 1323 42.32 1344 44.34 1365 46.39 1386 48.55 1406 50.65

44000 1278 38.21 1299 40.11 1320 42.07 1341 44.11 1363 46.28 1383 48.31 1404 50.46 1424 52.62

45000 1298 40.11 1319 42.02 1340 44.05 1361 46.07 1381 48.15 1402 50.34 1422 52.47 1442 54.70

Cfm Total Static Pressure

Std. 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

27000 1194 28.37 1222 30.11 1249 31.85 1278 33.71 1307 35.64 1334 37.52 1361 39.44 1390 41.50

28000 1203 29.43 1231 31.21 1258 32.97 1284 34.70 1313 36.71 1338 38.51 1367 40.63 1392 42.47

29000 1215 30.60 1240 32.27 1266 34.05 1293 35.96 1320 37.83 1344 39.65 1371 41.67 1397 43.62

30000 1225 31.73 1250 33.43 1276 35.25 1303 37.19 1326 38.91 1353 40.92 1378 42.87 1404 44.94

31000 1238 32.97 1262 34.71 1288 36.57 1312 38.38 1337 40.30 1361 42.16 1385 44.13 1411 46.21

32000 1250 34.26 1275 36.04 1299 37.86 1322 39.70 1347 41.66 1370 43.55 1395 45.54 1417 47.44

33000 1265 35.66 1287 37.41 1311 39.27 1335 41.16 1358 43.07 1382 45.09 1404 46.91 1428 49.05

34000 1277 36.96 1301 38.84 1323 40.66 1347 42.59 1371 44.63 1393 46.60 1415 48.46 1439 50.63

35000 1293 38.54 1315 40.32 1337 42.19 1360 44.17 1382 46.07 1404 48.07 1427 50.18 1449 52.17

36000 1309 40.11 1330 41.94 1352 43.87 1373 45.72 1395 47.66 1417 49.71 1440 51.86 1461 53.90

37000 1324 41.65 1345 43.54 1367 45.54 1388 47.44 1409 49.43 1431 51.53 1452 53.51 1473 55.59

38000 1340 43.35 1361 45.30 1381 47.17 1402 49.13 1423 51.18 1445 53.33 1465 55.36 1486 57.49

39000 1357 45.12 1377 47.05 1397 48.97 1418 50.99 1439 53.11 1458 55.10 1478 57.18 1499 59.35

40000 1373 46.89 1394 48.88 1415 50.96 1433 52.84 1454 55.02 1473 57.07 1493 59.20 1513 61.31

41000 1390 48.74 1411 50.79 1430 52.84 1450 54.88 1469 56.90 1488 59.01 1508 61.21 1526 63.24

42000 1408 50.69 1428 52.81 1447 54.82 1466 56.92 1485 59.00 1505 61.17 1523 63.30 1543 65.53

43000 1426 52.74 1445 54.82 1464 56.89 1484 59.06 1501 61.08 1521 63.31 1539 65.51 1557 67.66

44000 1444 54.79 1462 56.83 1482 59.08 1500 61.20 1519 63.40 1537 65.57 1556 67.83 1574 70.04

45000 1462 56.94 1480 59.06 1499 61.27 1518 63.45 1536 65.72 1554 67.82 1571 70.01 1589 72.27

(90 Ton)Performance

Data

(Continued on the following page)

63RT-PRC010-EN

Table PD-41 — Supply Fan Performance WITH INLET GUIDE VANES — 90 Ton (Cont.)

Cfm Total Static Pressure

Std. 6.250 6.500 6.750 7.000 7.250 7.500 7.750

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

27000 1416 43.47 1440 45.34 1467 47.44 1492 49.40 1516 51.32 1540 53.35 1562 55.17

28000 1420 44.66 1444 46.52 1472 48.74 1497 50.83 1520 52.76 1544 54.79 1568 56.92

29000 1424 45.81 1450 47.90 1474 49.87 1499 51.95 1524 54.15 1547 56.17 1573 58.46

30000 1428 46.91 1453 49.00 1479 51.22 1503 53.30 1528 55.49 1552 57.66 1577 59.94

31000 1434 48.20 1459 50.30 1484 52.52 1508 54.60 1532 56.79 1557 59.10 1579 61.23

32000 1442 49.55 1464 51.55 1489 53.77 1512 55.85 1538 58.33 1559 60.35 1584 62.78

33000 1451 51.09 1473 53.11 1496 55.23 1518 57.33 1541 59.53 1565 61.85 1589 64.28

34000 1461 52.70 1482 54.63 1506 56.90 1527 59.03 1550 61.26 1570 63.29 1594 65.73

35000 1471 54.27 1491 56.22 1515 58.53 1536 60.68 1558 62.93 1578 64.99 1601 67.45

36000 1482 55.91 1503 58.03 1523 60.10 1544 62.28 1566 64.55 1589 66.93 1609 69.11

37000 1494 57.77 1514 59.79 1534 61.91 1555 64.11 1576 66.42 1597 68.68 1618 71.04

38000 1505 59.46 1527 61.78 1547 63.94 1568 66.19 1586 68.24 1608 70.69 1627 72.92

39000 1518 61.37 1540 63.74 1560 65.94 1579 68.09 1598 70.33 1617 72.50 1638 74.92

40000 1533 63.50 1552 65.66 1572 67.90 1592 70.24 1610 72.37 1629 74.58 1649 77.03

41000 1547 65.62 1566 67.82 1585 69.97 1603 72.20 1624 74.68 1642 76.94 1661 79.28

42000 1561 67.70 1580 69.96 1598 72.15 1617 74.44 1635 76.65 1654 79.10

43000 1576 69.89 1593 72.06 1613 74.46 1630 76.64 1650 79.22

44000 1591 72.20 1609 74.43 1628 76.89 1645 79.12

45000 1607 74.63 1625 76.92 1643 79.30

Notes:

1. Shaded areas indicate non-standard BHP or RPM selections. Contact your local Trane representive for more information.

2. Supply fan performance table includes internal resistance of rooftop. For total static pressure determination, system external static must be added to appropriate component

static pressure drops, (evaporator coil, filters, optional economizer, optional heating system, optional roof curb).

3. Maximum static pressure leaving the rooftop is 4.0’’ H20 positive. The static pressure drops from the supply fan to the space cannot exceed 4.0’’ H20.

4. Minimum motor horsepower is 30 hp.

5. See RT-EB-104 for further details.

Figure PD-10— Supply Fan Performance WITH INLET GUIDE VANES — 90 Ton

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

(90 Ton)Performance

Data

0 10000 20000 30000 40000 50000 60000

0

1

2

3

4

5

6

7

8

9

40% WOCFM

50% WOCFM

60% WOCFM

90% WOCFM

80% WOCFM

70% WOCFM

100 HP

75 HP

60 HP

50 HP

40 HP

30 HP

25 HP

20 HP

1600 RPM

1500 RPM

1400 RPM

1300 RPM

1200 RPM

1100 RPM

1000 RPM

900 RPM

CFM

Static Presure, Inches w.c.

RT-PRC010-EN64

Table PD-42 — Supply Fan Performance WITH VARIABLE FREQUENCY DRIVE or WITHOUT INLET GUIDE VANES — 105, 115, 130 Ton

Cfm Total Static Pressure

Std. 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

31000 729 6.40 769 8.14 806 9.60 842 10.84 879 12.17 910 13.61 939 14.94 968 16.34

32000 749 6.92 789 8.73 825 10.29 860 11.59 897 12.88 928 14.40 957 15.80 985 17.22

33000 770 7.46 809 9.36 844 10.99 878 12.39 914 13.69 946 15.20 975 16.72 1002 18.14

34000 791 8.02 829 10.01 864 11.73 896 13.21 931 14.55 963 16.02 993 17.63 1019 19.10

35000 812 8.62 849 10.69 884 12.51 915 14.06 948 15.46 981 16.88 1010 18.54 1037 20.11

36000 833 9.25 869 11.41 903 13.29 934 14.95 965 16.41 998 17.83 1028 19.49 1054 21.14

37000 854 9.90 890 12.14 923 14.12 954 15.87 983 17.40 1015 18.87 1046 20.48 1073 22.22

38000 875 10.60 910 12.91 942 14.98 973 16.81 1002 18.44 1032 19.93 1063 21.48 1090 23.30

39000 896 11.32 930 13.72 962 15.88 992 17.79 1021 19.52 1050 21.08 1080 22.60 1108 24.38

40000 918 12.08 951 14.56 982 16.80 1012 18.82 1040 20.62 1067 22.24 1097 23.80 1126 25.51

41000 939 12.86 971 15.43 1003 17.77 1032 19.86 1059 21.76 1086 23.48 1114 25.08 1143 26.70

42000 960 13.70 992 16.33 1023 18.76 1051 20.94 1078 22.91 1105 24.73 1131 26.37 1160 28.05

43000 981 14.57 1013 17.28 1043 19.78 1071 22.05 1098 24.12 1124 26.03 1149 27.75 1177 29.44

44000 1003 15.47 1034 18.27 1063 20.85 1091 23.20 1117 25.37 1143 27.34 1168 29.16 1194 30.90

45000 1024 16.41 1054 19.29 1083 21.96 1111 24.39 1137 26.63 1162 28.72 1186 30.62 1211 32.38

46000 1045 17.38 1075 20.36 1104 23.10 1131 25.63 1156 27.96 1181 30.10 1205 32.09 1229 33.93

Cfm Total Static Pressure

Std. 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

31000 995 17.77 1023 19.30 1051 20.93 1076 22.44 1101 23.90 1127 25.46 1153 27.07 1178 28.67

32000 1011 18.66 1038 20.19 1065 21.81 1091 23.42 1116 25.00 1140 26.52 1165 28.13 1190 29.77

33000 1028 19.59 1054 21.12 1081 22.78 1107 24.46 1132 26.14 1155 27.66 1178 29.28 1201 30.85

34000 1045 20.61 1070 22.10 1096 23.75 1122 25.47 1147 27.24 1170 28.84 1193 30.52 1216 32.16

35000 1062 21.64 1087 23.18 1112 24.78 1137 26.48 1162 28.28 1186 30.12 1208 31.73 1230 33.43

36000 1080 22.76 1105 24.31 1128 25.91 1152 27.60 1177 29.38 1200 31.19 1224 33.06 1246 34.83

37000 1097 23.86 1122 25.46 1145 27.10 1169 28.78 1192 30.55 1215 32.39 1239 34.32 1261 36.21

38000 1115 25.02 1139 26.67 1163 28.37 1185 30.03 1208 31.78 1230 33.59 1254 35.56 1276 37.52

39000 1133 26.18 1157 27.94 1180 29.64 1202 31.36 1224 33.08 1247 34.94 1268 36.79 1291 38.78

40000 1151 27.40 1175 29.24 1197 30.98 1220 32.75 1242 34.53 1263 36.29 1284 38.18 1306 40.22

41000 1168 28.62 1192 30.54 1215 32.40 1237 34.16 1259 35.99 1280 37.80 1301 39.66 1322 41.65

42000 1186 29.90 1211 31.91 1233 33.78 1255 35.66 1276 37.46 1297 39.32 1317 41.23 1338 43.18

43000 1204 31.18 1228 33.28 1251 35.23 1272 37.15 1293 39.02 1314 40.93 1334 42.81 1354 44.71

44000 1221 32.65 1246 34.66 1268 36.69 1290 38.68 1311 40.68 1331 42.56 1351 44.48 1371 46.43

45000 1239 34.19 1263 36.03 1286 38.23 1308 40.30 1328 42.32 1349 44.29 1369 46.26 1387 48.17

46000 1255 35.78 1281 37.60 1304 39.76 1326 41.92 1347 44.02 1366 46.03 1386 48.06 1405 50.01

Cfm Total Static Pressure

Std. 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

31000 1202 30.25 1227 31.96 1252 33.64 1274 35.28 1298 37.03 1323 38.91 1345 40.72 1368 42.53

32000 1214 31.39 1239 33.12 1263 34.83 1286 36.57 1308 38.25 1332 40.14 1355 41.95 1377 43.77

33000 1227 32.65 1250 34.28 1274 36.08 1298 37.84 1321 39.64 1342 41.36 1364 43.18 1387 45.10

34000 1239 33.81 1262 35.56 1285 37.32 1309 39.20 1332 41.01 1353 42.75 1375 44.60 1398 46.55

35000 1252 35.08 1275 36.89 1297 38.62 1321 40.53 1343 42.38 1365 44.23 1387 46.10 1408 47.97

36000 1268 36.54 1289 38.26 1310 40.05 1332 41.84 1354 43.72 1377 45.70 1398 47.59 1420 49.59

37000 1283 37.98 1303 39.67 1323 41.44 1345 43.29 1367 45.22 1388 47.15 1411 49.18 1431 51.09

38000 1297 39.39 1318 41.23 1339 43.07 1359 44.90 1379 46.70 1401 48.78 1422 50.74 1443 52.69

39000 1314 40.92 1334 42.77 1354 44.67 1373 46.46 1393 48.32 1413 50.26 1434 52.27 1455 54.37

40000 1328 42.21 1349 44.35 1370 46.35 1389 48.20 1408 50.13 1427 52.02 1447 53.99 1467 56.03

41000 1343 43.69 1365 45.87 1385 47.98 1404 49.91 1424 51.90 1442 53.86 1462 55.90 1481 57.89

42000 1358 45.16 1380 47.38 1400 49.53 1419 51.58 1438 53.65 1458 55.79 1476 57.77 1494 59.70

43000 1375 46.83 1394 48.88 1415 51.07 1435 53.27 1455 55.61 1473 57.58 1491 59.62 1509 61.73

44000 1391 48.51 1410 50.50 1430 52.72 1450 54.96 1469 57.20 1489 59.58 1507 61.69 1524 63.73

45000 1407 50.19 1426 52.33 1445 54.36 1464 56.64 1485 59.05 1502 61.19 1523 63.73 1540 65.85

46000 1424 52.08 1443 54.17 1461 56.25 1480 58.44 1499 60.76 1518 63.07 1537 65.51 1555 67.92

(105,115,130 Tons)Performance

Data

(Continued on the following page)

65RT-PRC010-EN

Performance

Data (105,115,130 Tons)

Table PD-42 — Supply Fan Performance WITH VARIABLE FREQUENCY DRIVE or WITHOUT INLET GUIDE VANES — 105, 115, 130 Tons (Cont.)

Cfm Total Static Pressure

Std. 6.250 6.500 6.750 7.000 7.250 7.500 7.750

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

31000 1391 44.45 1413 46.37 1437 48.39 1458 50.25 1479 52.20 1501 54.25 1524 56.40

32000 1400 45.71 1422 47.64 1444 49.67 1465 51.55 1486 53.51 1508 55.58 1530 57.74

33000 1408 46.93 1430 48.87 1452 50.91 1473 52.93 1496 55.05 1517 57.14 1537 59.16

34000 1418 48.38 1440 50.32 1462 52.37 1481 54.27 1503 56.40 1524 58.50 1544 60.53

35000 1430 49.93 1449 51.76 1471 53.81 1490 55.72 1512 57.86 1532 59.96 1552 62.01

36000 1441 51.47 1461 53.44 1481 55.39 1502 57.43 1521 59.43 1542 61.55 1562 63.77

37000 1452 53.10 1473 55.10 1492 57.07 1513 59.13 1532 61.15 1552 63.26 1571 65.33

38000 1464 54.72 1484 56.74 1505 58.86 1523 60.81 1542 62.85 1562 64.98 1582 67.21

39000 1474 56.33 1494 58.37 1515 60.51 1535 62.61 1555 64.83 1573 66.83 1592 68.92

40000 1487 58.15 1507 60.24 1528 62.42 1546 64.40 1566 66.63 1584 68.66 1603 70.93

41000 1500 59.94 1519 62.08 1538 64.16 1558 66.32 1576 68.43 1595 70.62 1615 72.92

42000 1512 61.69 1531 63.88 1551 66.15 1569 68.21 1588 70.35 1607 72.58 1626 74.89

43000 1527 63.79 1545 65.91 1563 67.95 1582 70.21 1600 72.40 1619 74.67 1637 76.85

44000 1542 65.85 1559 67.89 1576 70.00 1594 72.18 1612 74.41 1631 76.72 1650 79.12

45000 1558 68.03 1575 70.14 1592 72.31 1610 74.56 1625 76.54 1643 78.91

46000 1573 70.18 1590 72.35 1607 74.59 1623 76.74 1640 78.95

Notes:

1. Shaded areas indicate non-standard BHP or RPM selections. Contact your local Trane representive for more information.

2. Supply fan performance table includes internal resistance of rooftop. For total static pressure determination, system external static must be added to appropriate

component static pressure drops, (evaporator coil, filters, optional economizer, optional heating system, optional roof curb).

3. Maximum static pressure leaving the rooftop is 4.0’’ H20 positive. The static pressure drops from the supply fan to the space cannot exceed 4.0’’ H20.

4. Maximum Cfm as follows: 105 Ton Std. — 44,000 Cfm, 105 Hi-Cap., 115, 130 Ton — 46,000 Cfm

5. Minimum motor horsepower is 30 hp.

6. See RT-EB-104 for further details.

Figure PD-11— Supply Fan Performance WITH VARIABLE FREQUENCY DRIVE or WITHOUT INLET GUIDE VANES — 105, 115, 130 Tons

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

0 10000 20000 30000 40000 50000 60000

0

1

2

3

4

5

6

7

8

9

40% WOCFM

50% WOCFM

60% WOCFM

90% WOCFM

80% WOCFM

70% WOCFM

100 HP

75 HP

60 HP

50 HP

40 HP

30 HP

25 HP

20 HP

1600 RPM

1500 RPM

1400 RPM

1300 RPM

1200 RPM

1100 RPM

1000 RPM

900 RPM

CFM

Static Presure, Inches w.c.

RT-PRC010-EN66

Cfm Total Static Pressure

Std. 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

31000 787 8.88 822 10.17 854 11.44 886 12.74 916 14.08 947 15.51 976 16.99 1004 18.47

32000 810 9.68 844 11.01 876 12.32 906 13.66 936 15.03 966 16.48 995 17.97 1023 19.52

33000 833 10.53 866 11.90 897 13.25 927 14.63 957 16.04 985 17.50 1014 19.02 1041 20.57

34000 857 11.42 889 12.84 919 14.24 948 15.65 977 17.09 1005 18.57 1032 20.09 1059 21.71

35000 880 12.37 911 13.83 941 15.28 969 16.71 998 18.21 1025 19.70 1051 21.25 1078 22.86

36000 903 13.38 934 14.88 963 16.37 991 17.85 1018 19.35 1045 20.89 1071 22.48 1097 24.11

37000 927 14.44 957 15.98 985 17.52 1012 19.03 1039 20.58 1065 22.14 1091 23.77 1116 25.42

38000 950 15.55 979 17.14 1007 18.71 1034 20.27 1060 21.85 1086 23.46 1111 25.08 1135 26.76

39000 973 16.72 1002 18.36 1030 19.98 1056 21.59 1081 23.19 1106 24.81 1131 26.51 1155 28.18

40000 997 17.95 1025 19.64 1052 21.29 1077 22.94 1102 24.57 1127 26.27 1151 27.98 1175 29.67

41000 1020 19.24 1048 20.97 1074 22.68 1099 24.36 1124 26.04 1148 27.75 1171 29.47 1195 31.24

42000 1044 20.60 1071 22.37 1097 24.12 1122 25.86 1145 27.55 1169 29.31 1192 31.09 1215 32.89

43000 1067 22.02 1094 23.84 1119 25.63 1144 27.41 1167 29.18 1190 30.93 1213 32.75 1236 34.58

44000 1091 23.50 1117 25.35 1142 27.19 1166 29.02 1189 30.82 1212 32.65 1234 34.44 1256 36.36

45000 1114 25.05 1140 26.95 1165 28.85 1188 30.69 1211 32.56 1233 34.40 1255 36.26 1277 38.17

46000 1138 26.67 1163 28.62 1187 30.53 1210 32.46 1233 34.34 1254 36.20 1276 38.12 1297 40.06

Cfm Total Static Pressure

Std. 2.250 2.500 2.750 3.000 3.250 3.500 3.750 4.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

31000 1032 19.99 1058 21.49 1085 23.07 1111 24.59 1136 26.19 1162 27.84 1188 29.56 1212 31.21

32000 1050 21.08 1076 22.64 1102 24.20 1127 25.78 1151 27.38 1177 29.10 1201 30.75 1226 32.51

33000 1068 22.20 1094 23.79 1119 25.42 1144 27.07 1169 28.73 1193 30.40 1216 32.05 1240 33.79

34000 1086 23.37 1112 25.04 1137 26.68 1161 28.35 1185 30.02 1208 31.68 1231 33.45 1254 35.19

35000 1104 24.55 1130 26.28 1154 27.95 1178 29.68 1202 31.41 1225 33.14 1248 34.90 1270 36.71

36000 1122 25.82 1148 27.58 1172 29.32 1195 31.07 1219 32.87 1241 34.59 1264 36.42 1286 38.21

37000 1141 27.16 1165 28.89 1189 30.70 1213 32.52 1236 34.32 1258 36.10 1281 38.00 1303 39.85

38000 1160 28.52 1184 30.31 1208 32.13 1231 34.03 1254 35.91 1276 37.76 1297 39.57 1319 41.49

39000 1179 29.94 1203 31.81 1226 33.64 1249 35.54 1272 37.50 1293 39.35 1315 41.30 1335 43.12

40000 1199 31.49 1222 33.32 1245 35.22 1267 37.13 1289 39.08 1311 41.08 1333 43.03 1353 44.91

41000 1218 33.03 1241 34.91 1263 36.82 1286 38.79 1308 40.82 1328 42.74 1350 44.76 1371 46.79

42000 1238 34.70 1260 36.59 1282 38.50 1304 40.55 1326 42.58 1347 44.56 1368 46.66 1388 48.67

43000 1257 36.41 1279 38.30 1301 40.27 1323 42.32 1344 44.34 1365 46.39 1386 48.55 1406 50.65

44000 1278 38.21 1299 40.11 1320 42.07 1341 44.11 1363 46.28 1383 48.31 1404 50.46 1424 52.62

45000 1298 40.11 1319 42.02 1340 44.05 1361 46.07 1381 48.15 1402 50.34 1422 52.47 1442 54.70

46000 1319 42.04 1339 43.96 1360 45.99 1380 48.07 1401 50.21 1421 52.39 1440 54.58 1460 56.79

Cfm Total Static Pressure

Std. 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

31000 1238 32.97 1262 34.71 1288 36.57 1312 38.38 1337 40.30 1361 42.16 1385 44.13 1411 46.21

32000 1250 34.26 1275 36.04 1299 37.86 1322 39.70 1347 41.66 1370 43.55 1395 45.54 1417 47.44

33000 1265 35.66 1287 37.41 1311 39.27 1335 41.16 1358 43.07 1382 45.09 1404 46.91 1428 49.05

34000 1277 36.96 1301 38.84 1323 40.66 1347 42.59 1371 44.63 1393 46.60 1415 48.46 1439 50.63

35000 1293 38.54 1315 40.32 1337 42.19 1360 44.17 1382 46.07 1404 48.07 1427 50.18 1449 52.17

36000 1309 40.11 1330 41.94 1352 43.87 1373 45.72 1395 47.66 1417 49.71 1440 51.86 1461 53.90

37000 1324 41.65 1345 43.54 1367 45.54 1388 47.44 1409 49.43 1431 51.53 1452 53.51 1473 55.59

38000 1340 43.35 1361 45.30 1381 47.17 1402 49.13 1423 51.18 1445 53.33 1465 55.36 1486 57.49

39000 1357 45.12 1377 47.05 1397 48.97 1418 50.99 1439 53.11 1458 55.10 1478 57.18 1499 59.35

40000 1373 46.89 1394 48.88 1415 50.96 1433 52.84 1454 55.02 1473 57.07 1493 59.20 1513 61.31

41000 1390 48.74 1411 50.79 1430 52.84 1450 54.88 1469 56.90 1488 59.01 1508 61.21 1526 63.24

42000 1408 50.69 1428 52.81 1447 54.82 1466 56.92 1485 59.00 1505 61.17 1523 63.30 1543 65.53

43000 1426 52.74 1445 54.82 1464 56.89 1484 59.06 1501 61.08 1521 63.31 1539 65.51 1557 67.66

44000 1444 54.79 1462 56.83 1482 59.08 1500 61.20 1519 63.40 1537 65.57 1556 67.83 1574 70.04

45000 1462 56.94 1480 59.06 1499 61.27 1518 63.45 1536 65.72 1554 67.82 1571 70.01 1589 72.27

46000 1479 58.99 1498 61.30 1516 63.45 1535 65.70 1553 68.04 1571 70.20 1588 72.45 1606 74.78

Table PD-43— Supply Fan Performance WITH INLET GUIDE VANES — 105,115,130 Tons

(105,115,130 Tons)Performance

Data

67RT-PRC010-EN

Note:

1. Important: Maximum static pressure leaving the rooftop is 4.0” H2O positive. The static pressure drops from the supply fan to the space cannot exceed 4.0” H2O.

Cfm Total Static Pressure

Std. 6.250 6.500 6.750 7.000 7.250 7.500

Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

31000 1434 48.20 1459 50.30 1484 52.52 1508 54.60 1532 56.79 1557 59.10 1579 61.23

32000 1442 49.55 1464 51.55 1489 53.77 1512 55.85 1538 58.33 1559 60.35 1584 62.78

33000 1451 51.09 1473 53.11 1496 55.23 1518 57.33 1541 59.53 1565 61.85 1589 64.28

34000 1461 52.70 1482 54.63 1506 56.90 1527 59.03 1550 61.26 1570 63.29 1594 65.73

35000 1471 54.27 1491 56.22 1515 58.53 1536 60.68 1558 62.93 1578 64.99 1601 67.45

36000 1482 55.91 1503 58.03 1523 60.10 1544 62.28 1566 64.55 1589 66.93 1609 69.11

37000 1494 57.77 1514 59.79 1534 61.91 1555 64.11 1576 66.42 1597 68.68 1618 71.04

38000 1505 59.46 1527 61.78 1547 63.94 1568 66.19 1586 68.24 1608 70.69 1627 72.92

39000 1518 61.37 1540 63.74 1560 65.94 1579 68.09 1598 70.33 1617 72.50 1638 74.92

40000 1533 63.50 1552 65.66 1572 67.90 1592 70.24 1610 72.37 1629 74.58 1649 77.03

41000 1547 65.62 1566 67.82 1585 69.97 1603 72.20 1624 74.68 1642 76.94 1661 79.28

42000 1561 67.70 1580 69.96 1598 72.15 1617 74.44 1635 76.65 1654 79.10

43000 1576 69.89 1593 72.06 1613 74.46 1630 76.64 1650 79.22

44000 1591 72.20 1609 74.43 1628 76.89 1645 79.12

45000 1607 74.63 1625 76.92 1643 79.30

46000 1624 77.20 1641 79.40

Notes:

1. Shaded areas indicate non-standard BHP or RPM selections. Contact your local Trane representive for more information.

2. Supply fan performance table includes internal resistance of rooftop. For total static pressure determination, system external static must be added to appropriate component

static pressure drops, (evaporator coil, filters, optional economizer, optional heating system, optional roof curb).

3. Maximum static pressure leaving the rooftop is 4.0’’ H20 positive. The static pressure drops from the supply fan to the space cannot exceed 4.0’’ H20.

4. Maximum Cfm as follows: 105 Ton Std. — 44,000 Cfm, 105 Hi-Cap., 115, 130 Tons — 46,000 Cfm

5. Minimum motor horsepower is 30 hp.

6. See RT-EB-104 for further details.

Table PD-43 — Supply Fan Performance WITH INLET GUIDE VANES — 105,115,130 Tons (Cont.)

Figure PD-12 — Supply Fan Performance WITH INLET GUIDE VANES — 105,115,130 Tons

(105,115,130 Tons)Performance

Data

0 10000 20000 30000 40000 50000 60000

0

1

2

3

4

5

6

7

8

9

40% WOCFM

50% WOCFM

60% WOCFM

90% WOCFM

80% WOCFM

70% WOCFM

100 HP

75 HP

60 HP

50 HP

40 HP

30 HP

25 HP

20 HP

1600 RPM

1500 RPM

1400 RPM

1300 RPM

1200 RPM

1100 RPM

1000 RPM

900 RPM

CFM

Static Presure, Inches w.c.

RT-PRC010-EN68

Evaporator Coil Heating System Filters Economizer

Cfm Throwaway Perm Bag Cartridge Std With Or

Nominal Std Standard High Capacity SFHF/G SEHF/G SLHF/G SSHF/G Std. High Wire And And Roof Without

Tons Air Wet Dry Wet Dry Low High All KW’s Low High Low High Fiber Effic. Mesh Prefilter Prefilter Curb Exhaust Fan

4000 .07 .05 .14 .10 .02 N/A .02 .05 .06 .02 .06 .03 .03 .01 .3 .24 .01 .03

6000 .13 .10 .27 .20 .05 .05 .04 .09 .12 .05 .12 .06 .06 .02 .5 .44 .02 .06

20 8000 .21 .16 .43 .32 .09 .09 .07 .15 .19 .10 .20 .09 .09 .03 .71 .68 .05 .12

9000 .26 .20 .52 .39 .12 .12 .09 .19 .24 .12 .22 .11 .11 .04 .83 .81 .07 .15

10000 .31 .23 .61 .46 .14 .15 .11 .23 .28 .15 .29 .13 .13 .05 .95 .95 .10 .19

12000 .41 .31 .82 .63 .20 .22 .17 .33 .40 .22 .42 .15 .15 .06 1.19 1.26 .14 .27

5000 .10 .07 .20 .15 .03 N/A .03 .07 .09 .04 .09 .05 .05 .02 .40 .34 .01 .03

6000 .13 .10 .27 .20 — .05 — — — — — — — — .50 .44 — —

7500 .19 .15 .39 .29 .08 .08 .06 .14 .17 .09 .18 .09 .09 .03 .66 .62 .04 .10

25 10000 .31 .23 .61 .46 .14 .15 .11 .23 .28 .15 .29 .13 .13 .05 .95 .95 .10 .19

11000 .36 .27 .71 .54 .17 .18 .13 .29 .33 .19 .35 .15 .15 .06 1.06 1.11 .12 .23

12500 .44 .34 .87 .67 .22 .23 .18 .33 .42 .24 .42 .19 .19 .08 1.29 1.34 .19 .30

14000 .52 .40 1.05 .81 .28 .29 .21 .41 .53 .30 .53 .24 .24 .10 — — .24 .39

6000 .15 .11 .20 .15 .05 .05 .04 .09 .12 .05 .12 .04 .04 .01 .34 .26 .02 .06

9000 .29 .22 .39 .29 .11 .12 .09 .19 .24 .12 .22 .07 .07 .02 .54 .48 .07 .15

30 12000 .46 .35 .61 .46 .20 .21 .16 .31 .39 .22 .41 .11 .11 .04 .75 .75 .16 .27

14000 .59 .45 .78 .60 .26 .29 .22 .40 .51 .30 .50 .14 .14 .06 .95 .95 .25 .39

15000 .65 .50 .87 .67 .30 .33 .25 .45 .57 .33 .52 .16 .16 .07 1.03 1.06 .30 .43

17000 .80 .62 1.06 .82 .39 .42 .35 .58 .73 .42 .67 .21 .21 .09 1.20 1.30 .39 .59

8000 .10 .07 .20 .15 N/A .07 .09 .11 .05 .11 .04 .04 .02 .37 .31 .01 .03

10000 .14 .11 .29 .21 — .11 — — — — — — — — .49 .43 — —

12000 .19 .14 .39 .29 .20 .15 .16 .17 .22 .11 .21 .08 .08 .03 .61 .56 .04 .07

40 16000 .31 .23 .61 .46 .34 .26 .29 .28 .36 .20 .36 .12 .12 .05 .88 .87 .10 .09

17000 .34 .26 .67 .51 N/A .29 .32 .31 .39 .22 .41 .13 .13 .06 .95 .95 .12 .11

20000 44 .34 .87 .67 N/A .41 .44 .42 .52 .30 .51 .17 .17 .08 1.17 1.22 .19 .17

22000 51 .39 1.02 .79 N/A .50 .53 .51 .63 .36 .62 .21 .21 .10 — — .23 .20

10000 .17 .13 .23 .17 .12 .10 .11 .13 .16 .07 .15 .04 .04 .01 .37 .30 .03 .05

14000 .29 .22 .39 .29 .26 .20 .22 .22 .28 .15 .28 .07 .07 .03 .56 .50 .07 .08

50/55 17000 .39 .30 .53 .40 .39 .29 .32 .31 .40 .22 .41 .10 .10 .04 .72 .68 .12 .11

20000 .51 .39 .68 .52 .58 .41 .44 .42 .52 .30 .51 .12 .12 .05 .88 .88 .19 .17

24000 .69 .53 .91 .70 .73 .58 .62 .48 .72 .45 .75 .16 .16 .07 1.11 1.17 .30 .23

28000 .88 .68 1.17 .91 .99 .79 .84 .62 .98 .61 .99 .20 .20 .10 — — .39 .30

12000 .13 .10 .25 .18 .10 .08 .16 .10 .13 .06 .11 .05 .05 .01 .44 .37 .02 .07

16000 .20 .16 .39 .29 .18 .14 .29 .17 .21 .11 .19 .07 .07 .02 .63 .58 .05 .10

60 20000 .29 .23 .55 .42 .27 .21 .44 .24 .31 .16 .27 .10 .10 .03 .84 .82 .10 .16

24000 .39 .31 .74 .57 .30 .62 .33 .42 .22 .39 .11 .11 .04 1.06 1.08 .16 .23

28000 .50 .39 .95 .73 .48 .33 .85 .44 .55 .32 .50 .17 .17 .06 — — .30 .30

30000 .56 .44 1.06 .82 .62 .38 .98 .51 .63 .37 .57 .20 .20 .07 — — .34 .34

12000 .20 .16 N/A N/A .10 .08 .16 .10 .13 .06 .11 .05 .05 .01 .44 .37 .02 .07

16000 .32 .26 N/A N/A .18 .14 .29 .17 .21 .11 .19 .07 .07 .02 .63 .58 .05 .10

20000 .46 .37 N/A N/A .27 .21 .44 .24 .31 .16 .27 .10 .10 .03 .84 .82 .10 .16

22000 .54 .43 N/A N/A .33 .25 .53 .29 .37 .19 .33 .12 .12 .04 .95 .95 .13 .20

70 24000 .62 .50 N/A N/A .40 .30 .62 .33 .42 .22 .39 .14 .14 .04 1.06 1.08 .16 .23

26000 .70 .56 N/A N/A .47 .32 .73 .39 .49 .27 .45 .16 .16 .05 1.17 1.23 .23 .26

28000 .79 .64 N/A N/A .54 .33 .85 .44 .55 .32 .50 .17 .17 .06 1.22 1.29 .30 .30

31000 .93 .75 N/A N/A .60 .40 1.04 .49 .61 .39 .55 .21 .21 .07 — — .37 .36

33000 1.03 .83 N/A N/A .65 .46 1.18 .52 .67 .44 .60 .24 .24 .08 — — .42 .40

12000 .25 .18 .31 .23 .10 .08 .16 .10 .13 .06 .11 .05 .05 .01 .44 .37 .02 .07

16000 .39 .29 .49 .37 .18 .14 .29 .17 .21 .11 .19 .07 .07 .02 .63 .58 .05 .10

20000 .55 .42 .69 .53 .27 .21 .44 .24 .31 .16 .27 .10 .10 .03 .84 .82 .10 .16

22000 .65 .49 .81 .62 .33 .25 .53 .29 .37 .19 .33 .12 .12 .04 .95 .95 .13 .20

75 24000 .74 .57 .93 .71 .40 .30 .62 .33 .42 .22 .39 .14 .14 .04 1.06 1.08 .16 .23

26000 .84 .65 1.05 .81 .47 .32 .73 .39 .49 .27 .45 .16 .16 .05 1.17 1.23 .23 .26

28000 .95 .73 .92 .54 .33 .85 .44 .55 .32 .50 .17 .17 .06 1.22 1.29 .30 .30

31000 1.12 .87 1.40 1.08 .60 .40 1.04 .49 .61 .39 .55 .21 .21 .07 — — .37 .36

33000 1.24 .96 1.55 1.20 .65 .46 1.18 .52 .67 .44 .60 .24 .24 .08 — — .42 .40

Table PD-44 — Component Static Pressure Drops (in. W.G.)

(20 -75 Tons)

Performance

Data

Please see notes on the following page.

69RT-PRC010-EN

27000 .40 .31 .67 .51 N/A .25 .13 .26 .31 .22 .32 .11 .13 N/A .68 .65 — .20

32000 .53 .41 .89 .68 N/A .31 .16 .35 .41 .30 .43 .14 .16 N/A .84 .84 .31

90 37000 .67 .52 1.12 .86 N/A .39 .23 .45 .52 .40 .55 .17 .19 N/A 1.02 1.04 .41

42000 .82 .63 1.36 1.06 N/A .46 .29 .56 .65 .50 .68 .21 .22 N/A 1.19 1.06 .52

45000 .92 .71 1.53 1.19 N/A .52 .32 .63 .73 .58 .76 .24 .24 N/A — — .63

31000 .56 .45 .84 .64 N/A .28 .17 .33 .39 .29 .40 N/A .13 N/A .82 .80 — .22

35000 .68 .54 1.02 .78 N/A .36 .21 .41 .48 .36 .50 N/A .16 N/A .96 .96 .32

105 39000 .81 .65 1.21 .94 N/A .42 .26 .49 .57 .44 .60 N/A .19 N/A 1.09 1.12 .44

43000 .94 .76 1.42 1.10 N/A .45 .30 .57 .66 .53 .71 N/A .22 N/A 1.22 1.30 .54

46000 1.05 .84 1.58 1.23 N/A .55 .34 .65 .75 .61 .79 N/A .24 N/A — — .64

31000 .84 .64 N/A N/A N/A .28 .17 .33 .39 .29 .40 N/A .13 N/A .82 .80 — .22

35000 1.03 .79 N/A N/A N/A .36 .21 .41 .48 .36 .50 N/A .16 N/A .96 .96 .32

115/130 39000 1.21 .94 N/A N/A N/A .42 .26 .49 .57 .44 .60 N/A .19 N/A 1.09 1.12 .44

43000 1.42 1.10 N/A N/A N/A .45 .30 .57 .66 .53 .71 N/A .22 N/A 1.22 1.30 .54

46000 1.58 1.23 N/A N/A N/A .55 .34 .65 .75 .61 .79 N/A .24 N/A — — .64

Notes:

1. Static pressure drops of accessory components must be added to external static pressure to enter fan selection tables.

2. Gas heat section maximum temperature rise of 60 F.

3. Throwaway filter option limited to 300 ft/min face velocity.

4. Bag filter option limited to 740 ft/min face velocity.

5. Horizontal roof curbs assume 0.50” static pressure drop or double the standard roof curb pressure drop, whichever is greater.

6. No additional pressure loss for model SXHF.

7. 90-130 ton roofcurbs adds no pressure drop.

Evaporator Coil Heating System Filters Economizer

Cfm Throwaway Perm Bag Cartridge Std With Or

Nominal Std Standard High Capacity SFHF/G SEHF/G SLHF/G SSHF/G Std. High Wire And And Roof Without

Tons Air Wet Dry Wet Dry Low High All KW’s Low High Low High Fiber Effic. Mesh Prefilter Prefilter Curb Exhaust Fan

Table PD-45 — Component Static Pressure Drops (in. W.G.)

(90-130 Tons)Performance

Data

RT-PRC010-EN70

Table PD-46 — 20-75 — Tons Supply Air Fan Drive Selections

3 Hp 5 Hp 7½ Hp 10 Hp 15 Hp 20 Hp 25 Hp 30 Hp 40 Hp

Nominal Drive Drive Drive Drive Drive Drive Drive Drive Drive

Tons RPM No RPM No RPM No RPM No RPM No RPM No RPM No RPM No RPM No

600 6 700 7 900 9 1100 B 1200 C

700 7 800 8 1000 A 1200 C 1300 D

20 800 8 900 9 1100 B 1300 D 1400 E

900 9 1000 A 1200 C 1400 E 1500 F

1100 B 1300 D

600 6 700 7 800 8 1000 A 1200 C

700 7 800 8 900 9 1100 B 1300 D

25 800 8 900 9 1000 A 1200 C 1400 E

900 9 1000 A 1100 B 1300 D 1500 F

1100 B 1200 C 1400 E

1300 D

600 6 700 7 800 8 900 9 1100 B

30 700 7 800 8 900 9 1000 A 1200 C

800 8 900 9 1000 A 1100 B 1300 D

900 9 1000 A 1100 B 1200 C

500 5 700 7 800 8 900 9 1000 A 1000 A

40 600 6 800 8 900 9 1000 A 1100 B 1100 B

700 7 900 9 1000 A 1100 B

800 8

500 5 600 6 700 7 800 8 900 9 1000 A

50/55 600 6 700 7 800 8 900 9 1000 A 1100 B

700 7 800 8 900 9 1000 A 1100 B

800 8 900 9 1000 A 1100 B

500 3 600 6 700 7 800 8 900 A 900 9

60 600 6 700 7 800 8 900 9 1000 B 1000 B

700 7 800 8 900 9 1000 A 1100 B

500 5 600 6 700 7 800 8 900 A 900 9

70/75 600 6 700 7 800 8 900 9 1000 B 1000 A

7007 8008 90091000 A 1100B

Performance

Data

Table PD-47 — 90-130 — Tons Supply Air Fan Drive Selections

15 Hp 20 Hp 25 Hp 30 Hp 40 Hp

RPM Drive No. Drive No. Drive No. Drive No. Drive No.

900 9

1000 A A

1100 B B B

1200 C C C C

1300 D D D D

1400 E E E

1500 F F F

1600 G G

71RT-PRC010-EN

Cfm Negative Static Pressure

Nominal Std 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.250 2.500

Tons Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

90-130 28000 516 11.42 551 12.41 586 13.70 622 15.25 657 16.71 690 18.16 723 19.90 754 21.74 785 23.60 815 25.45

30000 550 13.94 579 14.86 614 16.25 646 17.72 680 19.45 712 20.93 743 22.54 773 24.41 803 26.38 832 28.36

32000 583 16.82 609 17.68 642 19.12 672 20.58 704 22.34 735 24.12 764 25.67 793 27.42 822 29.41 850 31.50

34000 617 20.09 640 20.92 670 22.30 700 23.87 728 25.53 759 27.51 788 29.30 815 30.96 842 32.82 869 34.93

36000 650 23.76 672 24.58 699 25.86 728 27.55 755 29.19 782 31.11 811 33.21 838 35.05 864 36.81 889 38.77

38000 684 27.86 704 28.68 728 29.87 757 31.60 783 33.33 808 35.14 834 37.30 861 39.48 887 41.38 911 43.23

40000 718 32.41 737 33.24 758 34.36 785 36.02 811 37.91 835 39.71 859 41.74 885 44.08 910 46.33 934 48.32

Notes:

1. Shaded areas indicate non-standard drive selections. These drive selections must be manually factory selected.

2. Refer to General Data Table for minimum and maximum hp’s.

Table PD-48 — 20-75 Tons — Modulating 100% Exhaust Fan Performance

Cfm Negative Static Pressure

Nominal Std 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000

Tons Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4000 399 0.38 538 0.75 640 1.08 730 1.45 811 1.87 882 2.34 947 2.88

20 6000 453 0.74 570 1.17 675 1.65 765 2.22 845 2.78

8000 547 1.59 619 1.81 711 2.48 797 3.01

10000 640 2.79

4000 399 0.38 538 0.75 640 1.08 730 1.45 811 1.87 822 2.34 947 2.88 1017 3.55

25 6000 453 0.74 570 1.17 675 1.65 765 2.22 845 2.78 912 3.27 975 3.77 1036 4.30

8000 547 1.59 619 1.81 711 2.48 797 3.01 876 3.66 947 4.40

10000 640 2.79 712 3.25 767 3.48 837 4.26 911 5.04

12000 737 4.44

4000 399 0.38 538 0.75 640 1.08 730 1.45 811 1.87 882 2.34 947 2.88 1017 3.55

30 6000 453 0.74 570 1.17 675 1.65 765 2.22 845 2.78 912 3.27 975 3.77 1036 4.30

8000 547 1.59 619 1.81 711 2.48 797 3.01 876 3.66 947 4.40 1013 5.18 1075 5.94

10000 640 2.79 712 3.25 767 3.48 837 4.26 911 5.04 980 5.70 1045 6.46 1106 7.31

12000 737 4.44 806 5.22 860 5.64 905 5.89 956 6.49

14000 837 6.67

7500 334 0.75 438 1.21 535 1.77 616 2.35 686 2.98 750 3.64 809 4.34 864 5.06

40 9000 362 1.09 449 1.57 536 2.16 618 2.84 689 3.52 753 4.24 812 4.99 867 5.77

12000 435 2.19 496 2.70 563 3.35 628 4.04 693 4.83 757 5.71 817 6.63 873 8.53

14000 486 3.22 542 3.86 594 4.47 653 5.25 707 6.04 763 6.91 819 7.86 874 8.89

16000 537 4.55 592 5.35 636 6.00 683 6.74 735 7.64 783 8.53 831 9.47 880 10.48

9000 362 1.09 449 1.57 536 2.16 618 2.84 689 3.52 753 4.24 812 4.99 867 5.77

50 12000 435 2.19 496 2.70 563 3.35 628 4.04 693 4.83 757 5.71 817 6.63 873 7.53

15000 511 3.85 567 4.56 614 5.18 667 5.96 720 6.80 771 7.66 824 8.60 876 9.63

18000 590 6.21 642 7.16 685 7.97 724 8.69 766 9.54 812 10.54 856 11.55 898 12.56

20000 644 8.26 692 9.35 735 10.33 772 11.17 807 11.97 844 12.91 885 14.00 926 15.13

10000 386 1.40 463 1.90 540 2.48 618 3.18 691 3.94 755 4.70 814 5.48 869 6.30

55 13000 461 2.67 518 3.23 578 3.88 639 4.61 698 5.39 759 6.26 818 8.22 874 8.21

16000 537 4.55 592 5.35 636 6.00 683 6.74 735 7.64 783 8.53 831 9.47 880 10.48

19000 617 7.19 667 8.21 710 9.10 747 9.87 785 10.68 827 11.66 870 12.73 911 31.80

21500 685 10.08 731 11.26 772 12.36 809 13.33 842 14.20 874 15.08 910 16.10 948 17.28

12000 351 1.49 423 2.09 502 3.00 572 4.02 634 5.07 690 6.09 740 7.04 784 7.91

60 15000 412 2.68 460 3.15 521 3.96 585 5.02 646 6.24 702 7.53 754 8.83 801 10.14

18000 478 4.41 516 4.88 557 5.54 607 6.49 662 7.66 715 9.01 766 10.48 814 12.01

21000 547 6.75 578 7.36 612 7.92 647 8.71 688 9.77 735 11.03 781 12.46 827 14.03

24000 617 9.83 644 10.59 672 11.22 702 11.88 732 12.77 766 13.89 805 15.22 846 16.72

27000 688 15.11 711 15.09 736 15.45 761 16.18 788 17.02 815 17.92 844 18.99 876 20.31

12000 351 1.49 423 2.09 502 3.00 572 4.02 634 5.07 690 6.09 740 7.04 784 7.91

70/75 15000 412 2.68 460 3.15 521 3.96 585 5.02 646 6.24 702 7.53 754 8.83 801 10.14

18000 478 4.41 516 4.88 557 5.54 607 6.49 662 7.66 715 9.01 766 10.48 814 12.01

21000 547 6.75 578 7.36 612 7.92 647 8.71 688 9.77 735 11.03 781 12.46 827 14.03

24000 617 9.83 644 10.59 672 11.22 702 11.88 732 12.77 766 13.89 805 15.22 846 16.72

27000 688 15.11 711 15.09 736 15.45 761 16.18 788 17.02 815 17.92 844 18.99 876 20.31

Table PD-49 — 90-130 Tons Modulating 100% Exhaust Fan Performance

Performance

Data

RT-PRC010-EN72

Table PD-50 — 20-75 Tons — 100% Exhaust Fan Drive Selections

Nominal 11/2 Hp 3 Hp 5 Hp 71/2 Hp 10 Hp 15 Hp 20 Hp

Tons RPM Drive No RPM Drive No RPM Drive No RPM Drive No RPM Drive No RPM Drive No RPM Drive No

500 5 600 6

20 600 6 700 7

700 7 800 8

900 9

500 5 700 7

600 6 800 8

25 700 7 900 9

800 8 1000 A

900 9

500 5 700 7 800 8

600 6 800 8 900 9

30 700 7 900 9 1000 A

800 8 1000 A 1100 B

900 9

500 5 600 6 700 7

40 600 6 700 7 800 8

7007 8008

800 8

400 4 600 6 700 7 700 7

50/55 500 5 700 7 800 8 800 8

6006 8008 900 9

700 7

400 4 600 6 600 6 700 7 800 8

60 500 5 700 7 700 7 800 8

600 6

400 4 600 6 600 6 700 7 800 8

70/75 500 5 700 7 700 7 800 8

600 6

Table PD-51 — 90-130 Tons —100% Exhaust Fan Drive Selections

15 HP 20 HP 25 HP 30 HP 40 HP

Nominal Drive Drive Drive Drive Drive

Tons RPM No RPM No RPM No RPM No RPM No

90 500 5 600 6 700 7 700 7 800 8

600 6 700 7 800 8 800 8

105-130 500 5 600 6 700 7 700 7 800 8

600 6 700 7 800 8 800 8

Performance

Data

73RT-PRC010-EN

Table PD-52 — 20-75 Tons — 50% Exhaust Fan Performance

Cfm Negative Static Pressure (In. W.G.)

Nominal Std 0.200 0.400 0.600 0.800 1.000 1.200 1.400

Tons Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2000 364 0.17 487 0.30 582 0.45 658 0.58 731 0.73 797 0.90 856 1.08

20/25 3000 435 0.36 522 0.51 614 0.67 694 0.88 765 1.11 830 1.34 886 1.54

4000 529 0.76 592 0.86 654 1.03 728 1.29 797 1.51 861 1.77 919 2.05

5000 623 1.32 687 1.56 735 1.67 778 1.79 836 2.13 896 2.45 953 2.72

6000 722 2.13 779 2.47 830 2.72 870 2.86 905 2.96

2000 364 0.17 487 0.30 582 0.45 658 0.58 731 0.73 797 0.90 856 1.08

3000 435 0.36 522 0.51 614 0.67 694 0.88 765 1.11 830 1.34 886 1.54

30 4000 529 0.76 592 0.86 654 1.03 728 1.29 797 1.51 861 1.77 919 2.05

5000 623 1.32 687 1.56 735 1.67 778 1.79 836 2.13 896 2.45 953 2.72

6000 722 2.13 779 2.47 830 2.72 870 2.86 905 2.96 944 3.16 994 3.59

7000 824 3.23 874 3.64 922 4.02 965 4.30 1000 4.48 1032 4.59 1062 4.72

3000 288 0.22 393 0.38 477 0.55 547 0.74 611 0.94 668 1.16 721 1.39

5000 372 0.66 430 0.83 495 1.05 557 1.29 621 1.57 680 1.87 732 2.16

40 7000 472 1.55 522 1.82 563 2.04 606 2.29 653 2.59 698 2.91 742 3.24

9000 578 3.06 621 3.41 661 3.76 695 4.06 725 4.34 758 4.65 794 5.01

11000 688 5.36 725 5.80 760 6.24 793 6.66 823 7.06 850 7.42 875 7.76

3000 288 0.22 393 0.38 477 0.55 547 0.74 611 0.94 668 1.16 721 1.39

50/55 5000 372 0.66 430 0.83 495 1.05 557 1.29 621 1.57 680 1.87 732 2.16

7000 472 1.55 522 1.82 563 2.04 606 2.29 653 2.59 698 2.91 742 3.24

9000 578 3.06 621 3.41 661 3.76 695 4.06 725 4.34 758 4.65 794 5.01

11000 688 5.36 725 5.80 760 6.24 793 6.66 823 7.06 850 7.42 875 7.76

4000 271 0.29 364 0.54 438 0.82 499 1.07 550 1.30 601 1.56 651 1.87

6000 339 0.71 391 0.90 456 1.22 517 1.60 572 2.01 622 2.43 668 2.85

60 8000 425 1.55 460 1.73 497 1.96 542 2.30 591 2.72 639 3.20 684 3.73

10000 517 2.88 543 3.13 571 3.34 600 3.59 632 3.94 668 4.37 707 4.87

12000 612 4.84 633 5.15 655 5.43 678 5.68 702 5.95 726 6.29 752 6.71

13000 659 6.09 679 6.44 699 6.76 720 7.04 741 7.31

4000 271 0.29 364 0.54 438 0.82 499 1.07 550 1.30 601 1.56 651 1.87

70/75 6000 339 0.71 391 0.90 456 1.22 517 1.60 572 2.01 622 2.43 668 2.85

8000 425 1.55 460 1.73 497 1.96 542 2.30 591 2.72 639 3.20 684 3.73

10000 517 2.88 543 3.13 571 3.34 600 3.59 632 3.94 668 4.37 707 4.87

12000 612 4.84 633 5.15 655 5.43 678 5.68 702 5.95 726 6.29 752 6.71

13000 659 6.09 679 6.44 699 6.76 720 7.04 741 7.31

Cfm Negative Static Pressure (In. W.G.)

Nominal Std 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.250 2.500

Tons Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

12000 452 3.68 495 4.21 536 4.85 576 5.46 614 6.17 651 6.95 687 7.73 722 8.55 759 9.46 797 10.45

14000 516 5.71 551 6.21 586 6.85 622 7.63 657 8.36 690 9.09 723 9.96 754 10.88 785 11.79 815 12.72

90-130 16000 583 8.41 609 8.85 643 9.57 672 10.29 704 11.18 735 12.07 764 12.84 793 13.72 822 14.72 850 15.76

18000 650 11.88 672 12.29 699 12.94 729 13.79 755 14.59 782 15.56 811 16.62 838 17.53 864 18.41 889 19.39

20000 718 16.20 737 16.62 758 17.18 785 18.03 811 18.97 835 19.86 859 20.87 885 22.05 910 23.18 934 24.17

Note:

1. Shaded areas indicate non-standard drive selections. These drive selections must be manually factory selected.

Table PD-53 — 90-130 Tons — 50% Exhaust Fan Performance

Performance

Data

RT-PRC010-EN74

Table PD-54— 50% Exhaust Fan Drive Selections

Nominal 1½ HP 3 HP 5 HP 7½ HP 15 HP

Unit Size RPM Drive No RPM Drive No RPM Drive No RPM Drive No RPM Drive No

500 5 700 7

20 600 6 800 8

700 7 900 9

800 8

500 5 700 7

25 600 6 800 8

700 7 900 9

800 8 600 6 800 8

30 700 7 900 9

800 8 1000 A

900 9 500 5 700 7

40 6006 8008

700 7

500 5 700 7

50/55 600 6 800 8

700 7

400 4 700 7

60 500 5

600 6

400 4 700 7

70/75 500 5

600 6 500 5

90 600 6

700 7

800 8

500 5

105/115/130 600 6

700 7

800 8

Performance

Data

75RT-PRC010-EN

Controls

VAV Units Only

Sequence Of Operation

NOTE: When noted in this sequence

“Human Interface Panel,” the reference is

to both the unit mounted and remote

mounted Human Interface Panel. All

setpoint adjustments can be

accomplished at the unit or Remote

Human Interface Panel.

1

Supply Air Pressure Control

Inlet Guide Vanes Control

Inlet guide vanes are driven by a

modulating 0-10 vdc signal from the

Rooftop Module (RTM). A pressure

transducer measures duct static

pressure, and the inlet guide vanes are

modulated to maintain the supply air

static pressure within an adjustable user-

defined range. The range is determined

by the supply air pressure setpoint and

supply air pressure deadband, which are

set through the Human Interface Panel.

Inlet guide vane assemblies installed on

the supply fan inlets regulate fan

capacity and limit horsepower at lower

system air requirements. When in any

position other than full open, the vanes

pre-spin intake air in the same direction

as supply fan rotation. As the vanes

approach the full-closed position, the

amount of “spin” induced by the vanes

increases at the same time that intake

airflow and fan horsepower diminish.

The inlet guide vanes will close when the

supply fan is shut down, except during

night setback.

Variable Frequency Drive (VFD) Control

Variable frequency drives are driven by a

modulating 0-10 vdc signal from the

Rooftop Module (RTM). A pressure

transducer measures duct static

pressure, and the VFD is modulated to

maintain the supply air static pressure

within an adjustable user-defined range.

The range is determined by the supply

air pressure setpoint and supply air

pressure deadband, which are set

through the Human Interface Panel.

Variable frequency drives provide supply

fan motor speed modulation. The drive

will accelerate or decelerate as required

to maintain the supply static pressure

setpoint. When subjected to high

ambient return conditions the VFD shall

reduce its output frequency to maintain

operation. Bypass control is offered to

provide full nominal airflow in the event

of drive failure.

Supply Air Static Pressure Limit

The opening of the inlet guide vanes and

VAV boxes are coordinated during unit

start up and transition to/from Occupied/

Unoccupied modes to prevent

overpressurization of the supply air

ductwork. However, if for any reason the

supply air pressure exceeds the user-

defined supply air static pressure limit

that was set at the Human Interface

Panel, the supply fan/VFD is shut down

and the inlet guide vanes (if included) are

closed. The unit is then allowed to restart

three times. If the overpressurization

condition occurs on the third time, the

unit is shut down and a manual reset

diagnostic is set and displayed at the

Human Interface Panel.

2

Supply Air Temperature Controls

Cooling/Economizer

During Occupied cooling mode of

operation, the economizer (if available)

and mechanical cooling are used to

control the supply air temperature. The

supply air temperature setpoint and

deadband are user-defined at the Human

Interface Panel. If the enthalpy of the

outside air is appropriate to use “free

cooling,” the economizer will be used

first to attempt to satisfy the supply air

setpoint; then if required the mechanical

cooling will be staged on to maintain

supply air temperature setpoint.

Minimum On/Off timing of

the mechanical cooling prevents

rapid cycling.

On units with economizer, a call for

cooling will modulate the fresh air

dampers open. The rate of economizer

modulation is based on deviation of the

discharge temperature from setpoint,

i.e., the further away from setpoint, the

faster the fresh air damper will open.

First stage of cooling will be allowed to

start after the economizer reaches

full open.

Note that the economizer is only allowed

to function freely if one of the following

conditions is met. For dry bulb

economizer control the ambient

temperature must be below the dry bulb

temperature control setting. For

reference enthalpy economizer control,

outdoor air enthalpy must be below the

enthalpy control setting. For comparative

enthalpy economizer control, outdoor air

enthalpy must be below the enthalpy of

the return air.

At outdoor air conditions above the

enthalpy control setting, mechanical

cooling only is used and the fresh air

dampers remain at minimum position.

If the unit does not include an

economizer, mechanical cooling only is

used to satisfy cooling requirements.

Outdoor air dampers may be set

manually for a maximum of 25 percent

outdoor air, if rooftop is equipped with 0

to 25 percent manual fresh air damper.

(VAV Units)

RT-PRC010-EN76

Controls

temperature deadband low end, the

heating valve is modulated open to

maintain the set minimum supply air

temperature.

3

Zone Temperature Control

Unoccupied Zone Heating and Cooling

During Unoccupied mode, the unit is

operated as a CV unit. Inlet guide vanes

and VAV boxes are driven full open. The

unit controls zone temperature within

the Unoccupied zone cooling and

heating (heating units only) deadbands.

Daytime warm-up

This feature is available on all types of

heating units. During Occupied mode, if

the zone temperature falls to a preset,

user-defined zone low limit temperature

setpoint the unit is put into Unoccupied

mode and Daytime Warm-up is initiated.

The system changes over to CV heating

(full unit airflow), the VAV boxes are fully

opened and full heating capacity is

provided until the Daytime Warm-up

setpoint is reached. The unit is then

returned to normal Occupied mode.

4

Outdoor Air CFM Compensation

The purpose of this feature is to

modulate the minimum position of the

economizer to compensate for varying

unit airflows in VAV units, thereby

minimizing the large variation of outdoor

air CFM that can occur. The feature

allows the user to set (calibrate) the

economizer minimum position with inlet

guide vanes (or VFD) at 0 percent and at

100 percent. On units with inlet guide

vanes (or VFD) and economizer, the

minimum position of the economizer is

modulated based on inlet guide vane

position (or VFD speed).

Heating: Hot Water or Steam

On units with hot water or steam

heating, the supply air temperature can

be controlled to a heating set point

during the Occupied mode. The supply

air temperature heating set point and

deadband are user-defined at the Human

Interface Panel. VAV Occupied heating on

hot water and steam heat units is

enabled by closing a field-supplied

switch or contacts connected to an

changeover input on the RTM.

Heating: Modulating Gas

Upon a call for heating, the UCM closes

the heating contacts, beginning the firing

sequence. First, the heat exchanger

combustion blower begins operation.

Upon positive proving of combustion

airflow, a pre-purge cycle is executed.

Then the ignition sequence takes place.

If ignition is not proven, the ignition

transformer is de-energized. After a time

delay, another pre-purge cycle takes

place, followed by another attempt to

ignite. If ignition fails a second time, the

heating section will be shut down and

locked out until manually reset at the

unit mounted Human Interface Panel.

As additional heat is required, the air

damper opens, increasing the firing rate.

During heating operation, an electronic

flame safety control provides continuous

flame supervision. If combustion should

become unstable for any reason, heating

will automatically shut down. After one

minute, another 60 second pre-purge

and ignition cycle begins.

As the heating requirement is satisfied,

the UCM will reduce the combustion air

and the firing rate will lower to maintain

the desired outlet temperature. When

the requirement is fully satisfied, the

heating contacts are opened, de-

energizing the heat. The specific

sequence of operation of the gas heat

will depend on the size of the heat

exchanger.

Supply Air Setpoint Reset

Supply air reset can be used to adjust

the supply air temperature setpoint on

the basis of a zone temperature or on

outdoor air temperature. Supply air reset

adjustment is available from the Human

Interface Panel for supply air heating and

supply air cooling control.

A

reset based on outdoor air temperature

Outdoor air cooling reset is sometimes

used in applications where the outdoor

temperature has a large effect on

building load. When the outside air

temperature is low and the building

cooling load is low, the supply air

setpoint can be raised, thereby

preventing subcooling of critical zones.

This reset can lower usage of

mechanical cooling, thus savings in

compressor KW, but a increase in supply

fan KW may occur.

Outdoor air heating reset is the inverse

of cooling, with the same principles

applied.

For both outdoor air cooling reset and

heating reset, there are three user

defined parameters that are adjustable

through the Human Interface Panel.

- beginning reset temperature

- ending reset temperature

- maximum amount of temperature reset

B

reset based on zone temperature

Zone reset is applied to the zone(s) in a

building that tend to overcool or

overheat. The supply air temperature

setpoint is adjusted based on the

temperature of the critical zone(s). This

can have the effect of improving comfort

and/or lowering energy usage. The user-

defined parameters are the same as for

outdoor air reset.

Supply Air Tempering

Hot water, steam, and modulating gas

units only — When supply air

temperature falls below the supply air

(VAV Units)

77RT-PRC010-EN

Controls

CV Units Only

Sequence Of Operation

1

Occupied Zone Temperature Control

Cooling/Economizer

During Occupied cooling mode, the

economizer (if provided) and mechanical

cooling are used to control zone

temperature. If the enthalpy of outside

air is appropriate to use “free cooling”,

the economizer will be used first to

attempt to satisfy the cooling zone

temperature setpoint; then the

compressors will be staged up as

necessary. Minimum on/off timing of

compressors prevents rapid cycling.

On units with economizer, a call for

cooling will modulate the fresh air

dampers open. The rate of economizer

modulation is based on deviation of the

zone temperature from setpoint, i.e., the

further away from setpoint, the faster the

fresh air damper will open. First stage of

cooling will be allowed to start after the

economizer reaches full open.

Note that the economizer is only allowed

to function freely if one of the following

conditions is met: For dry bulb

economizer control, the ambient

temperature must be below the dry bulb

temperature control setting. For

reference enthalpy economizer control,

outdoor air enthalpy must be below the

enthalpy control setting. For comparative

enthalpy economizer control, outdoor air

enthalpy must be below the enthalpy of

the return air.

At outdoor air temperatures above the

enthalpy control setting, mechanical

cooling only is used and the outdoor air

dampers remain at minimum position.

If the unit does not include an

economizer, mechanical cooling only is

used to satisfy cooling requirements.

Outdoor air dampers may be set

manually for a maximum of 25 percent

outdoor air, if rooftop is equipped with 0

to 25 percent manual fresh air damper.

A

Heating

Gas Heating - Two-Stage

Upon a call for heating, the UCM closes

the first stage heating contacts

beginning the firing sequence. First, the

heat exchanger combustion blower

begins operation. Upon positive proving

of combustion airflow, a pre-purge cycle

is executed. Then the ignition sequence

takes place.

If ignition is not proven, the ignition

transformer is de-energized. After a time

delay another pre-purge cycle takes

place followed by another attempt to

ignite. If ignition fails a second time, the

cycle repeats on 235 and 350 MBh

modules. 500, 850 and 1000 MBh

modules, the heating section will be

shut down and locked out until manually

reset at the unit mounted Human

Interface Panel.

As additional heat is required, the UCM

will close the second stage heating

contacts and depending on heat module

size, will open either the second stage of

the gas valve, or a second stage gas

valve.

During heating operation, an electronic

flame safety control provides continuous

flame supervision. If combustion should

become unstable for any reason, heating

will automatically shut down. After one

minute, another 60 second pre-purge

and ignition cycle begins.

As the heating requirement is satisfied,

the UCM will open the second stage

heating relay, de-energizing the second

stage of heat. When the requirement is

fully satisfied, the first stage contacts are

opened, de-energizing the first stage of

heat. The specific sequence of operation

of the gas heat will depend on the size of

the heat exchanger.

(CV Units)

RT-PRC010-EN78

Gas Heating: Modulating Gas

Upon a call for heating, the UCM closes

the heating contacts, beginning the firing

sequence. First, the heat exchanger

combustion blower begins operation.

Upon positive proving of combustion

airflow, a pre-purge cycle is executed.

Then the ignition sequence takes place.

If ignition is not proven, the ignition

transformer is de-energized. After a time

delay, another pre-purge cycle takes

place, followed by another attempt to

ignite. If ignition fails a second time, the

heating section will be shut down and

locked out until manually reset at the

unit mounted Human Interface Panel.

As additional heat is required, the air

damper opens, increasing the firing rate.

During heating operation, an electronic

flame safety control provides continuous

flame supervision. If combustion should

become unstable for any reason, heating

will automatically shut down. After one

minute, another 60 second pre-purge

and ignition cycle begins.

As the heating requirement is satisfied,

the UCM will reduce the combustion air,

and the firing rate will lower to maintain

the desired outlet temperature. When

the requirement is fully satisfied, the

heating contacts are opened, de-

energizing the heat. The specific

sequence of operation of the gas heat

will depend on the size of the heat

exchanger.

Electric Heating

The three stages of electric heat will be

sequenced on the zone demand signal

from the zone sensor. The signal is sent

to the UCM and the stages are

sequenced based on load demand.

Hot Water or Steam Heating

Upon a call for heat, the UCM will send a

varying voltage signal to the valve

actuator. The valve will modulate to meet

building demand as indicated by the

voltage signal. When heating is satisfied,

the valve will modulate closed.

A temperature sensor is located on the

coldest section of the coil. When it

senses an impending freeze condition, a

signal is sent to the hydronic valve to

drive it full open. If the supply fan is on,

or if the outside air damper is open

when this freezing condition is sensed,

the supply fan is turned off and the

outside air damper is closed.

B

Supply Air Tempering

For gas and electric heat units in the Heat

mode but not actively heating, if the

supply air temperature drops to 10 F

below the Occupied zone heating

temperature setpoint, one stage of heat

will be brought on to maintain a

minimum supply air temperature. The

heat stage is dropped if the supply air

temperature rises to 10 F above the

Occupied zone heating temperature

setpoint.

C

Auto Changeover

When the System Mode is “Auto,” the

mode will change to cooling or heating

as necessary to satisfy the zone cooling

and heating setpoints. The zone cooling

and heating setpoints can be as close as

2 F apart.

2

Unoccupied Zone Temperature Control

Cooling and Heating

Both cooling or heating modes can be

selected to maintain Unoccupied zone

temperature deadbands. For

Unoccupied periods, heating,

economizer operation or compressor

operation can be selectively locked out at

the Human Interface Panels.

Controls (CV Units)

79RT-PRC010-EN

Controls

Control Sequences of

Operation Common to Both

VAV and CV Units

1

Space Pressure Control — Statitrac™

A pressure transducer is used to

measure and report direct space

(building) static pressure. The user-

defined control parameters used in this

control scheme are space static pressure

setpoint and deadband. As

the economizer opens, the building

pressure rises and enables the

exhaust fan and dampers or exhaust

VFD. The exhaust dampers or VFD then

modulate to maintain space pressure

within the deadband.

2

Morning Warm-up

This feature is available on all types of

factory-installed heat units and on units

with no heat, this function may still be

selected to support systems with heat

sources not provided by the rooftop unit.

At the conclusion of Unoccupied mode,

while the economizer (if supplied) is kept

closed, the selected zone is heated to the

user-defined Morning Warm-up setpoint.

The unit is then released to Occupied

mode. There are two types of Morning

Warm-up: full capacity or cycling

capacity.

A

Full Capacity Morning Warm-up (MWU)

Full capacity Morning Warm-up uses full

heating capacity, and heats the zone up

as quickly as possible. Full heating

capacity is provided until the Morning

Warm-up setpoint is met. At this point,

the unit is released to Daytime mode.

B

Cycling Capacity Morning Warm-up

(MWU)

Cycling capacity Morning Warm-up

provides a more gradual heating of the

zone. Normal zone temperature control

with varying capacity is used to raise the

zone temperature to the MWU zone

temperature setpoint. This method of

warm-up is used to overcome the

“building sink” effect. Cycling capacity

MWU will operate until MWU setpoint is

reached or for 60 minutes, then the unit

switches to Occupied mode.

Note: When using the Morning Warmup

option in a VAV heating/cooling rooftop,

airflow must be maintained through the

rooftop unit. This can be accomplished

by electrically tying the VAV boxes to the

unoccupied output relay contacts on the

Rooftop Module (RTM) or by using

changeover thermostats. Either of these

methods will assure adequate airflow

through the unit and satisfactory heating

of the building.

3

Ventilation Override (VOM)

The user can customize up to five (5)

different override sequences for

purposes of ventilation override control.

If more than one VOM sequence is being

requested, the sequence with the highest

priority is initiated first. Priority schedule

is that sequence “A” (unit off) is first, with

sequence “E” (purge with duct pressure

control) last.

UNIT OFF sequence “A”

When complete system shut down is

required the following sequence could

be used.

- Supply fan - Off.

- Supply fan VFD - Off (0 Hz) (if

equipped)

- Inlet guide vanes - Closed

(if equipped).

- Exhaust fan - Off, exhaust dampers -

Closed (if equipped).

- Exhaust fan VFD - Off (0 Hz) (if

equipped)

- Outside air dampers - Closed.

- Heat - all stages - Off, Modulating heat

output at 0 vdc.

- Occupied/Unoccupied output -

Deenergized

- VO relay - Energized

PRESSURIZE sequence “B”

Perhaps a positively pressurized space is

desired instead of a negatively

pressurized space. In this case, the

supply fan should be turned on with inlet

(VAV/CV Units)

RT-PRC010-EN80

guide vanes open and the exhaust fan

should be turned off.

- Supply fan - On.

- Supply fan VFD - On (60 Hz) (if

equipped)

- Inlet guide vanes/VAV boxes - Open

(if equipped).

- Exhaust fan - Off, exhaust dampers -

Closed (if equipped).

- Exhaust fan VFD - Off (0 Hz) (if

equipped)

- Outside air dampers - Open.

- Heat - all stages - Off, Modulating heat

output at 0 vdc.

- Occupied/Unoccupied output -

Energized

- VO relay - Energized

EXHAUST sequence “C”

With only the exhaust fans running

(supply fan off), the space that is

conditioned by that rooftop would

become negatively pressurized. This is

desirable for clearing the area of smoke

from the now-extinguished fire, possibly

keeping smoke out of areas that were

not damaged.

- Supply fan - Off.

- Supply fan VFD - Off (0 Hz) (if

equipped)

- Inlet guide vanes - Closed

(if equipped).

- Exhaust fan - On, exhaust dampers -

Open (if equipped).

- Exhaust fan VFD - On (60 Hz) (if

equipped)

- Outside air dampers - Closed.

- Heat - all stages - Off, Modulating heat

output at 0 vdc.

- Occupied/Unoccupied output -

Deenergized

- VO relay - Energized

PURGE sequence “D”

Possibly this sequence could be used for

purging the air out of a building before

coming out of Unoccupied mode of

operation on VAV units or when the

purging of smoke or stale air is required

after a fire.

- Supply fan - On.

- Supply fan VFD - On (60 Hz) (if

equipped)

- Inlet guide vanes/VAV boxes - Open

(if equipped).

- Exhaust fan - On, exhaust dampers -

Open (if equipped).

- Exhaust fan VFD - On (60 Hz) (if

equipped)

- Outside air dampers - Open.

- Heat - all stages - Off, Modulating heat

output at 0 vdc.

- Occupied/Unoccupied output -

Energized

- VO relay - Energized

PURGE with duct pressure control “E”

This sequence can be used when supply

air control is required for smoke control.

- Supply fan - On.

- Supply fan VFD - On (if equipped)

- Inlet guide vanes/VFD controlled by

supply air pressure control function

with supply air pressure high limit

disabled.

- Exhaust fan - On, exhaust dampers -

Open (if equipped).

- Exhaust fan VFD - On (60 Hz) (if

equipped)

- Outside air dampers - Open.

- Heat - all stages - Off, Modulating heat

output at 0 vdc.

- Occupied/Unoccupied output -

Energized

- VO relay - Energized

Note: Each system (cooling, exhaust,

supply air, etc.) within the unit can be

redefined in the field for each of the five

sequences, if required. Also the

definitions of any or all of the (5) five

sequences may be locked into the

software by simple key strokes at the

Human Interface Panel.

4

Human Interface Panel (H.I.)

The Human Interface (HI) Panel provides

a 2 line X 40 character clear English

liquid crystal display and a 16 button

keypad for monitoring, setting, editing

and controlling. The Human Interface

Panel is mounted in the unit’s main

control panel and is accessible through a

hatch built into the unit’s control panel

door.

The optional remote-mount version of

the Human Interface (RHI) Panel has all

the functions of the unit-mount version

except Service Mode. To use a RHI the

Controls (VAV/CV Units)

81RT-PRC010-EN

unit must be equipped with an optional

InterProcessor Communications Bridge

(IPCB). The RHI can be located up to

1,000 feet from the unit. A single RHI can

be used to monitor and control up to 4

rooftops, each containing an IPCB.

Human Interface Panel Main Menu

• STATUS — used to monitor all

temperatures, pressures, humidities,

setpoints, input and output status. The

• CUSTOM key allows the user to

customize a status report—consisting

of up to (4) screens of the data

available in the main Status menu.

• SET POINTS — used to edit all factory

preset Default setpoints

• DIAGNOSTICS — used to review active

and historical lists of diagnostic

conditions. A total of 49 different

diagnostics can be read at the Human

Interface Panel and the last 20

diagnostics can be held in a active

history buffer log at the Human

Interface Panel.

• SETUP — Control parameters, sensor

selections, setpoint source selections,

output definitions, and numerous

other points can be edited in this

menu. All points have factory preset

values so unnecessary editing is kept

to a minimum.

• CONFIGURATION — Preset with the

proper configuration for the unit as it

ships from the factory, this information

would be edited only if certain features

were physically added or deleted from

the unit. For example, if a field supplied

Trane Communication Interface (TCI)

module or Ventilation Override Module

was added to the unLitorder it in the

field, the unit configuration would need

to be edited to reflect that feature.

• SERVICE — used to selectively control

outputs (for compressors, fans,

damper position, etc.) for servicing or

troubleshooting the unit. This menu is

accessible only at the unit-mounted

Human Interface Panel.

5

Generic Building Automation System

odule (GBAS)

The Generic Building Automation

System Module (GBAS) is used to

provide broad control capabilities for

building automation systems other than

the Trane’s Tracer® system. A field

provided potentiometer or a 0-5 vdc

signal can be applied to any of the inputs

of the GBAS to provide:

a

Analog Inputs — 4 Analog inputs that

can be configured to be any of the

following:

(1) Occupied Zone Cooling

(2) Unoccupied Zone Cooling

(3) Occupied Zone Heating

(4) Unoccupied Zone Heating

(5) SA Cooling Setpoint

(6) SA Heating Setpoint

(7) Space Static Pressure Setpoint

(8) SA Static Pressure Setpoint

b

Binary Outputs — each of the five (5)

relay outputs can be mapped to any/all

of the available diagnostics.

c

Demand Limiting Binary Input — This

function is operational on units with a

GBAS and is used to reduce electrical

consumption at peak load times. There

are two types of demand limiting, 50%

and 100%. When demand limiting is

needed, mechanical cooling and heating

operation are either partially (50%), or

completely disabled (100%), in order to

save energy. The definition of Demand

Limit is user definable at the Human

Interface Panel. Demand Limit binary

input accepts a field supplied switch or

contact closure. When the need for

demand limiting has been discontinued,

the unit’s cooling/heating functions will

again become fully enabled.

6

Evaporator Coil Frost Protection —

FROSTAT™

A temperature sensor on the evaporator

is used to determine if the coil is getting

close to a freezing condition. Mechanical

cooling capacity is shed as necessary to

prevent icing.

The FROSTAT™ system eliminates the

need for hot gas bypass and adds a

suction line surface temperature sensor

Controls (VAV/CV Units)

RT-PRC010-EN82

near the TXV bulb location to shut the

cooling off when coil frosting conditions

occur. The supply fans are not shut off

and will de-ice the coil. Timers prevent

the compressors from rapid cycling.

7

Occupied/Unoccupied Switching

a

Description — 3 ways to switch

Occupied/Unoccupied:

(1) NSB Panel

(2) Field-supplied contact closure

(hardwired binary input to RTM)

(3) TRACER

Night Setback Sensors

Trane’s night setback sensors are

programmable with a time clock function

that provides communication to the

rooftop unit through a 2-wire

communications link. The desired

transition times are programmed at the

night setback sensor and communicated

to the rooftop.

Night setback (unoccupied mode) is

operated through the time clock

provided in the sensors with night

setback. When the time clock switches to

night setback operation, the outdoor air

dampers close and heating/cooling can

be enabled or disabled depending on

set-up parameters. As the building load

changes, the night setback sensor

energizes the rooftop heating/cooling (if

enabled) function and the evaporator

fan. The rooftop unit will cycle through

the evening as heating/cooling (if

enabled) is required in the space. When

the time clock switches from night

setback to occupied mode, all heating/

cooling functions begin normal

operation.

When using the night setback options

with a VAV heating/cooling rooftop,

airflow must be maintained through the

rooftop unit. This can be accomplished

by electrically tying the VAV boxes to the

Unoccupied output relay contacts on the

Rooftop Module (RTM) or by using

changeover thermostats. Either of these

methods will assure adequate airflow

through the unit and satisfactory

temperature control of the building.

Occupied/Unoccupied input on the RTM

This input accepts a field supplied switch

or contacts closure such as a time clock.

Trane Tracer® System

The Trane Tracer System can control the

Occupied/Unoccupied status of

the rooftop.

8

Timed Override Activation — ICS

This function is operational when the

RTM is the zone temperature sensor

source, which was set up at the Human

Interface Panel. When this function is

initiated by the push of a override button

on the ICS sensor, the Tracer will switch

the unit to the Occupied mode. Unit

operation (Occupied mode) during timed

override is terminated by a signal from

Tracer.

Timed Override Activation — Non-ICS

This function is active whenever the

RTM is selected as the Zone Temperature

Sensor source, which was set up at the

Human Interface Panel. When this

function is initiated by the push of an

override button on the zone sensor, the

unit will switch to the Occupied mode.

Automatic Cancellation of the Timed

Override Mode occurs after three hours

of operation.

9

Low Ambient Compressor Lockout

This function will lock out the

compressor if the outdoor air

temperature is below the low ambient

compressor lock out temperature set

point. The factory setpoint is 50 F on

standard units and 0 F on low ambient

units. This setpoint is adjustable at the

Human Interface Panel. Compressors

will be locked out when outdoor air

temperatures falls below that selected

temperature and will be allowed to start

again when the temperature rises 5 F

above the setpoint.

10

Comparative Enthalpy Control of

Economizer

An optional Comparative Enthalpy

system is used to control the operation

of the economizer, and measures the

temperature and humidity of both return

air and outside air to determine which

source has lower enthalpy. This system

allows true comparison of outdoor air

and return air enthalpy by measurement

of outdoor air and return air

temperatures and humidities.

Reference Enthalpy Control of

Economizer

The optional reference enthalpy

compares ambient temperature and

humidity to the economizer enthalpy

control setpoint. If ambient temperature

and humidity are below the economizer

enthalpy control setpoint the economizer

will operate freely. This system provides

more sophisticated control where

outdoor air humidity levels may not be

acceptable for building comfort and

indoor air quality.

Dry Bulb Temperature Control of

Economizer

The optional dry bulb system measures

ambient temperature comparing it to the

economizer control temperature

setpoint. If the ambient temperature is

below the economizer dry bulb

temperature control setpoint, the

economizer will operate freely. This

system is best suited for arid regions

where the humidity levels of fresh air

would not be detrimental to building

comfort and indoor air quality.

11

Compressor Lead/Lag

Compressor lead/lag is a user-selectable

feature through the Human Interface

Panel available on all units. After each

request for compressor operation, the

lead refrigeration circuit or compressor

on 20-30 tons units switches, thereby

causing a more equitable or balanced

run time among compressors.

12

Emergency Stop Input

A binary input is provided on the

Rooftop Module (RTM) for installation

of field provided switch or contacts for

immediate shutdown of all unit

functions.

(VAV/CV Units)Controls

83RT-PRC010-EN

Electrical

Data

Electrical Service Sizing

To correctly size electrical service

wiring for your unit, find the

appropriate calculations listed below.

Each type of unit has its own set of

calculations for MCA (Minimum Circuit

Ampacity), MOP (Maximum

Overcurrent Protection), and RDE

(Recommended Dual Element fuse

size). Read the load definitions that

follow and then find the appropriate

set of calculations based on your unit

type.

Set 1 is for cooling only and cooling

with gas heat units, and set 2 is for

cooling with electric heat units.

Load Definitions: (To determine load

values, see the Electrical Service Sizing

Data Tables on the following page.)

LOAD1 = CURRENT OF THE LARGEST

MOTOR (COMPRESSOR OR FAN

MOTOR)

LOAD2 = SUM OF THE CURRENTS OF

ALL REMAINING MOTORS

LOAD3 = CURRENT OF ELECTRIC

HEATERS

LOAD4 = ANY OTHER LOAD RATED AT

1 AMP OR MORE

Set 1. Cooling Only Rooftop Units and

Cooling with Gas Heat Rooftop Units

MCA = (1.25 x LOAD1) + LOAD2 +

LOAD4

MOP = (2.25 x LOAD1) + LOAD2 +

LOAD4

Select a fuse rating equal to the MOP

value. If the MOP value does not equal

a standard fuse size as listed in NEC

240-6, select the next lower standard

fuse rating. NOTE: If selected MOP is

less than the MCA, then reselect the

lowest standard maximum fuse size

which is equal to or larger than the

MCA, provided the reselected fuse size

does not exceed 800 amps.

RDE = (1.5 x LOAD1) + LOAD2 + LOAD4

Select a fuse rating equal to the RDE

value. If the RDE value does not equal

a standard fuse size as listed in NEC

240-6, select the next higher standard

fuse rating. NOTE: If the selected RDE

is greater than the selected MOP value,

then reselect the RDE value to equal the

MOP value.

Set 2. Rooftop units with Electric Heat

a. Single Source Power (380V, 415V, 460V,

and 575V)

To arrive at the correct MCA, MOP, and

RDE values for these units, you must

perform two sets of calculations. First

calculate the MCA, MOP, and RDE values

as if the unit was in cooling mode (use

the equations given in Set 1). Then

calculate the MCA, MOP, and RDE values

as if the unit were in the heating mode as

follows.

(Keep in mind when determining LOADS

that the compressors don’t run while the

unit is in the heating mode).

For units using heaters less than 50 kw.

MCA = 1.25 x (LOAD1 + LOAD2 + LOAD4)

+ (1.25 x LOAD3)

For units using heaters equal to or

greater than 50 kw.

MCA = 1.25 x (LOAD1 + LOAD2 + LOAD4)

+ LOAD3

The nameplate MCA value will be the

larger of the cooling mode MCA value or

the heating mode MCA value calculated

above.

MOP = (2.25 x LOAD1) + LOAD2 + LOAD3

+ LOAD4

The selection MOP value will be the

larger of the cooling mode MOP value or

the heating mode MOP value calculated

above.

Select a fuse rating equal to the MOP

value. If the MOP value does not equal a

standard fuse size as listed in NEC 240-6,

select the next lower standard fuse

rating. NOTE: If selected MOP is less than

the MCA, then reselect the lowest

standard maximum fuse size which is

equal to or larger than the MCA,

provided the reselected fuse size does

not exceed 800 amps.

RDE = (1.5 x LOAD1) + LOAD2 + LOAD3 +

LOAD4

The selection RDE value will be the larger

of the cooling mode RDE value or the

heating mode RDE value calculated

above.

Select a fuse rating equal to the RDE

value. If the RDE value does not equal a

standard fuse size as listed in NEC 240-6,

select the next higher standard fuse

rating. NOTE: If the selected RDE is

greater than the selected MOP value,

then reselect the RDE value to equal the

MOP value.

b. Dual Source Power units (200V and

230V)

These units will have two circuit values

shown on the nameplate. The first circuit

value will be the refrigeration (cooling

mode) values calculated per Set 1. The

second set of circuit values shown on the

nameplate will be for the electric heating

circuit as follows.

MCA = (1.25 x LOAD3)

MOP = (1.25 x LOAD3)

Select a fuse rating for the electric

heating circuit that’s equal to the MOP

value obtained in the equation above. If

the MOP value does not equal a

standard fuse size as listed in NEC 240-6,

select the next lower standard fuse rating

(see note below for exception).

NOTE: If selected MOP is less than the

MCA obtained in the equation above,

then reselect the lowest standard

maximum fuse size which is equal to or

larger than the MCA, provided the

reselected fuse size does not exceed 800

amps.

RDE = LOAD3

Select a fuse rating for the electric

heating circuit that’s equal to the RDE

value. If the RDE value does not equal a

standard fuse size as listed in NEC 240-6,

select the next higher standard fuse

rating. NOTE: If the selected RDE is

greater than the selected MOP value,

then reselect the RDE value to equal the

MOP value.

GENERAL NOTES:

On 20 to 130 ton rooftops, the selected

MOP value is stamped in the MOP field

on the nameplate.

RT-PRC010-EN84

Electrical

Data

Table ED-1 — 20-130 Tons Electrical Service Sizing Data

1

— Compressor

Compressor Nominal Voltage

Number Standard High 200 230 460 575

Nominal Per Capacity Capacity RLA1LRA RLA1LRA RLA1LRA RLA1LRA

Tons Coil Type Unit KW (ea) KW (ea) (ea) (ea) (ea) (ea) (ea) (ea) (ea) (ea)

Compressor

20 Std and Hi-Cap 2 9.8 10.2 41.9 269 41.9 251 18.2 117 14.6 94

25 Std and Hi-Cap 1 15.0 15.5 62.8 409 62.8 376 27.3 178 21.8 143

1 9.6 9.9 41.9 269 41.9 251 18.2 117 14.6 94

30 Std and Hi-Cap 2 15.7 15.7 62.8 409 62.8 376 27.3 178 21.8 143

40 Std and Hi-Cap 4 9.8 10.1 41.9 269 41.9 251 18.2 117 14.6 94

50 Std and Hi-Cap 2 15.3 15.4 62.8 409 62.8 376 27.3 178 21.8 143

2 9.8 9.9 41.9 269 41.9 251 18.2 117 14.6 94

55 Std and Hi-Cap 4 15.3 15.6 62.8 409 62.8 376 27.3 178 21.8 143

60 Std and Hi-Cap 4 14.4 15.0 62.8 409 62.8 376 27.3 178 21.8 143

70 Std 2 15.6 — 62.8 409 62.8 376 27.3 178 21.8 143

4 9.9 — 41.9 269 41.9 251 18.2 117 14.6 94

75 Std 2 15.8 — 62.8 409 62.8 376 27.3 178 21.8 143

4 10.1 — 41.9 269 41.9 251 18.2 117 14.6 94

75 Hi-Cap 2 — 16.9 62.8 409 62.8 376 27.3 178 21.8 143

4 — 11.2 41.9 269 41.9 251 18.2 117 14.6 94

90 Std and Hi-Cap 4 15.7 16.3 62.8 409 62.8 376 27.3 178 21.8 143

2 10.5 10.9 41.9 269 41.9 251 18.2 117 14.6 94

105 Std and Hi-Cap 6 15.6 15.9 62.8 409 62.8 376 27.3 178 21.8 143

115 Std 4 16.4 — 62.8 409 62.8 376 27.3 178 21.8 143

4 10.9 — 41.9 269 41.9 251 18.2 117 14.6 94

130Std 815.5—————27.317821.8143

Note:

1. Use this table only for sizing electrical service. DO NOT USE FOR CALCULATING EER.

85RT-PRC010-EN

Table ED-2— 20-130 Tons Electrical Service Sizing Data — Motors

Nominal Voltage

200 230 460 575

FLA FLA FLA FLA

Nominal Tons Condenser Fan Motors

20 8.2 8.2 3.6 2.8

25 12.3 12.3 5.4 4.2

30 12.3 12.3 5.4 4.2

40 16.4 16.4 7.2 5.6

50 24.6 24.6 10.8 8.4

55 24.6 24.6 10.8 8.4

60 24.6 24.6 10.8 8.4

70 24.6 24.6 10.8 8.4

75 24.6 24.6 10.8 8.4

90 32.8 32.8 14.4 11.2

105 41.0 41.0 18.0 14.0

115 41.0 41.0 18.0 14.0

130 49.2 49.2 21.6 16.8

Motor Horsepower Supply Fan Motors

3 11.2 8.8 4.4 3.8

5 15.2 13.4 6.6 5.3

71/2 22.3 19.6 9.8 7.8

10 29.7 26.4 13.2 10.3

15 44.4 38.6 19.3 15.4

20 58.7 51.0 25.5 20.4

25 70.5 61.0 30.5 24.5

30 86.5 75.0 37.5 30.0

40 112.0 97.0 48.5 39.0

Motor Hp Exhaust Fan Motor

11/2 5.0 4.4 2.2 1.8

3 11.2 8.8 4.4 3.8

5 15.2 13.4 6.6 5.3

71/2 22.3 19.6 9.8 7.8

10 29.7 26.4 13.2 10.3

15 44.4 38.6 19.3 15.4

20 58.7 51.0 25.5 20.4

25 70.5 61.0 30.5 24.5

30 86.5 75.0 37.5 30.0

40 112.0 97.0 48.5 39.0

Table ED-3 — 20-130 Tons Electrical Service Sizing Data — Electric Heat

Module (Electric Heat Units Only)

Voltage

200 230 460 575

Module KW FLA FLA FLA FLA

30 83.3 72.2 36.1 28.9

50 138.8 120.3 60.1 48.1

70 194.3 168.4 84.2 67.4

90 249.8 216.5 108.3 86.6

110 305.3 264.6 132.3 105.9

130 156.4 125.1

150 180.4 144.3

170 204.5 163.6

190 228.5 182.8

Note: Electric heat FLA are determined at 208, 240, 480 and 600 volts.

Table ED-6 — Voltage Utilization Range

Voltage

Unit Voltage Utilization Range

200/60/3 180-220

230/60/3 207-253

380/50/3 342-418

415/50/3 373-457

460/60/3 414-506

575/60/3 517-633

Table ED-4 — 20-130 Tons Electrical Service

Sizing Data — Control Power Transformer —

Heating and Cooling Modes

Nominal Tons (Add) FLA

20-40 3

50-75 6

90-130 8

Electrical

Data

Nominal Tons (Add) FLA

20-30 1

40-60 2

70-105 3

115-130 4

Table ED-5 — 20-130 Tons — Electrical Service

Sizing Data —Crankcase Heaters — (Heating

Mode on 460/575 Volt Only)

RT-PRC010-EN86

Dimensional

Data

Figure DD-1 — 20-75 Ton Cooling Only Unit Dimensions — SAHF

Table DD-1 — Cooling Only Unit Dimensions (Ft. In.) — SAHF

Nominal

Tons H L W A B C D E F G J K M N P Q R S U

20 & 25 5-815/16 21-93/47-61/26-43/16 5-31/80-91/21-35/81-79/16 1-31/22-21/214-01/412-6 7-0 6-615/16 3-95/16 3-43/85-7 0-113/47-91/2

30 6-27/16 21-93/47-61/26-911/16 5-85/80-91/21-35/81-79/16 1-31/22-21/214-01/412-6 7-0 6-615/16 4-95/16 3-43/85-7 0-113/47-91/2

40 6-73/827-0 7-61/27-25/86-15/80-97/81-57/81-101/82-5 2-5 16-713/16 15-111/88-0 7-83/16 5-95/16 3-43/85-7 0-113/47-91/2

50 & 55 5-87/829-8 7-61/26-41/85-31/80-91/21-35/81-79/16 2-5 2-5 16-713/16 15-111/88-0 7-83/16 6-93/83-43/85-7 0-113/47-91/2

60 6-73/827-0 9-8 7-25/86-15/80-97/81-57/81-101/82-5 2-5 16-713/16 15-111/88-0 7-83/16 5-95/16 4-53/86-107/81-49/16 9-11

70 & 75 6-73/827-0 9-8 7-25/86-15/80-97/81-57/81-101/81-4 2-5 16-713/16 15-111/88-0 7-83/16 5-95/16 4-53/86-107/81-49/16 9-11

(20 - 75 Tons)

87RT-PRC010-EN

DETAIL “B” COVERS 40, 60, 70 AND 75 TON UNITS

DETAIL “A” COVERS 20, 25, 30, 50 AND 55 TON UNITS

Dimensional

Data (20 - 75 Tons)

Figure DD-1 — 20-75 Ton Cooling Only Unit Dimensions — SAHF Continued

RT-PRC010-EN88

Dimensional

Data

Figure DD-2 — 20-75 Ton Heating/Cooling Unit Dimensions

(20 - 75 Tons)

Page 70

T

Nom. Tons H L W A B C D E F G J

1

K

1

M N P QRSTUVXZ

16-9¾ 16-6

20 & 25 5-8

15

/

16

24-1

3

/

8

7-6

1

/

2

6-4

3

/

16

5-3

1

/

8

0-9

1

/

2

1-3

5

/

8

1-7

9

/

16

1-3

1

/

2

2-2

1

/

2

16-3

13

/

16

16-7 15-5

5

/

16

13-3 7-0 6-6

15

/

16

3-9

5

/

16

3-4

3

/

8

5-7 0-5

13

/

16

7-9

1

/

2

16-9¾ 16-6

16-9¾ 16-6

30 6-2

3

/

8

24-1

3

/

8

7-6

1

/

2

6-9

5

/

8

5-8

5

/

8

0-9

1

/

2

1-3

5

/

8

1-7

9

/

16

1-3

1

/

2

2-2

1

/

2

16-3

13

/

16

16-7 15-5

5

/

16

13-3 7-0 6-6

15

/

16

4-9

5

/

16

3-4

3

/

8

5-7 0-5

13

/

16

7-9

1

/

2

16-9¾ 16-6

20-1¾ 19-6

40 6-7

3

/

8

30-2

1

/

2

7-6

1

/

2

7-2

5

/

8

6-1

5

/

8

0-9

7

/

8

1-5

7

/

8

1-10

1

/

8

2-5 2-5 19-10

5

/

16

19-7 18-11

11

/

16

15-11

1

/

8

8-0 7-8

3

/

16

5-9

5

/

16

3-4

3

/

8

5-7 0-5

13

/

16

7-9

1

/

2

20-6¾ 20-3

20-1¾ 19-6

50 & 55 5-8

7

/

8

32-10

1

/

2

7-6

1

/

2

6-4

1

/

8

5-3

1

/

8

0-9

1

/

2

1-3

5

/

8

1-7

9

/

16

2-5 2-5 19-10

5

/

16

19-7 18-11

11

/

16

15-11

1

/

8

8-0 7-8

3

/

16

6-9

3

/

8

3-4

3

/

8

5-7 0-5

13

/

16

7-9

1

/

2

20-6¾ 20-3

20-1¾ 19-6

60 6-7

3

/

8

30-2

1

/

2

9-8 7-2

5

/

8

6-1

5

/

8

0-9

7

/

8

1-5

7

/

8

1-10

1

/

8

2-5 2-5 19-10

5

/

16

19-7 18-11

11

/

16

15-11

1

/

8

8-0 7-8

3

/

16

5-9

5

/

16

4-5

3

/

8

7-8

1

/

2

0-5

13

/

16

9-11

20-6¾ 20-3

20-1¾ 19-6

70 & 75 6-7

3

/

8

30-2

1

/

2

9-8 7-2

5

/

8

6-1

5

/

8

0-9

7

/

8

1-5

7

/

8

1-10

1

/

8

1-4 2-5 19-10

5

/

16

19-7 18-11

11

/

16

15-11

1

/

8

8-0 7-8

3

/

16

5-9

5

/

16

4-5

3

/

8

7-8

1

/

2

0-5

13

/

16

9-11

20-6¾ 20-3

Note:

High Heat

1. Dimensions shown are for gas heat units.

Low Heat

Table DD-2 — Heating/Cooling Unit Dimensions (Ft. In.) — SEHF, SFHF, SSHF, SLHF, SXHF

89RT-PRC010-EN

Tons Model A B C D E F G H J K L M N P Q R S

20,25,30

SAHF

16’-3

7

/

8

” 2’-10

1

/

16

” 7’-10

7

/

16

” 7’-0

13

/

16

” 16’-3

9

/

16

” 7’-0

1

/

2

” 13’-6

15

/

16

” 7’-11

15

/

16

” 5’-8

13

/

16

” 2’-0” 2’-5

5

/

16

” 2’-11

5

/

16

” 1’-10

5

/

8

” 5’-9

1

/

2

” 0’-5

11

/

16

”0’-5

11

/

16

” 2’-3

5

/

16

”

S*HF

18’-7

1

/

2

” 2’-10

1

/

16

” 7’-10

7

/

16

” 7’-0

13

/

16

” 18’-7

3

/

16

” 7’-0

1

/

2

” 15’-10

9

/

16

” 7’-11

15

/

16

” 5’-8

13

/

16

” 2’-0” 2’-5

5

/

16

” 2’-11

5

/

16

” 1’-10

5

/

8

” 5’-7

3

/

8

” 1’-0

7

/

16

” 0’-1” 2’-3

5

/

16

”

40

SAHF

19’-1

15

/

16

” 5’-2

1

/

16

” 7’-10

7

/

16

” 7’-0

13

/

16

” 19’-1

5

/

8

” 7’-0

1

/

2

” 16’-2

9

/

16

” 7’-11

15

/

16

” 5’-8

13

/

16

” 2’-0” 3’-6” 4’-0” 1’-10

5

/

8

” 5’-9

1

/

2

” 0’-5

11

/

16

”0’-5

11

/

16

” 2’-5

15

/

16

”

S*HF

22’-4

1

/

2

” 5’-2

1

/

16

” 7’-10

7

/

16

” 7’-0

13

/

16

” 22’-4

1

/

8

” 7’-0

1

/

2

” 19’-5” 7’-11

15

/

16

” 5’-8

13

/

16

” 2’-0” 3’-6” 4’-0” 1’-10

5

/

8

” 5’-7

3

/

8

” 0’-11

3

/

16

” 0’-2

1

/

4

” 2’-5

15

/

16

”

50,55

SAHF

19’-1

15

/

16

” 7’-10

1

/

16

” 7’-10

7

/

16

” 7’-0

13

/

16

” 19’-1

5

/

8

” 7’-0

1

/

2

” 16’-2

9

/

16

” 7’-11

15

/

16

” 5’-8

13

/

16

” 2’-0” 3’-6” 4’-0” 1’-10

5

/

8

” 5’-9

1

/

2

” 0’-5

11

/

16

”0’-5

11

/

16

” 2’-5

15

/

16

”

S*HF

22’-4

1

/

2

” 7’-10

1

/

16

” 7’-10

7

/

16

” 7’-0

13

/

16

” 22’-4

1

/

8

” 7’-0

1

/

2

” 19’-5” 7’-11

15

/

16

” 5’-8

13

/

16

” 2’-0” 3’-6” 4’-0” 1’-10

5

/

8

” 5’-7

3

/

8

” 0’-11

3

/

16

” 0’-2

1

/

4

” 2’-5

15

/

16

”

60,70,75

SAHF

19’-1

15

/

16

” 5’-2

1

/

16

” 9’-11

15

/

16

” 9’-2

5

/

16

” 19’-1

5

/

8

” 9’-2” 16’-2

9

/

16

” 10’-1

7

/

16

” 7’-10

5

/

16

” 2’-0” 3’-6” 4’-0” 1’-10

5

/

8

” 6’-11

7

/

8

” 0’-11

3

/

16

” 0’-11

3

/

16

” 2’-5

15

/

16

”

S*HF

22’-4

1

/

2

” 5’-2

1

/

16

” 9’-11

15

/

16

” 9’-2

5

/

16

” 22’-4

1

/

8

” 9’-2” 19’-5” 10’-1

7

/

16

” 7’-10

15

/

16

” 2’-0” 3’-6” 4’-0” 1’-10

5

/

8

”*7’-8

3

/

4

” 0’-11

3

/

16

”**0’-2

3

/

8

” 2’-5

15

/

16

”

Note:

1. The return opening of the roof curb is provided with an adjustable filler panel six inches wide. This panel allows adjustment of the return air opening in order to clear roof members of all

standard roof constructions with both the supply and return openings. The return air opening of the curb is at a 90 degree angle as compared to the rooftop return air opening to allow

this placement flexibility. The curb acts as a plenum between the ductwork and the unit return opening. A retainer clip is used to secure the adjustable filler piece to the roof curb.

*“P” dimension is 5’ 6” on 60, 70, 75 Tons SEHF (Units with electric heat).

**“R” dimension is 2’ 51/8” on 60, 70, 75 Tons SEHF (Units with electric heat).

Table DD-3 — 20 - 75 Ton Downflow Roof Curb Dimensions (Ft. In.)

Figure DD-3 — 20 - 75 Ton Optional Roof Curb Dimensions (Downflow)

Note: The pedestal was purposely designed

13/8” shorter than the curb because the unit’s

base rails rest on the pedestal at one point

and on the curb at a different point.

Dimensional

Data (20 - 75 Tons)

RT-PRC010-EN90

Notes:

1. Provide unrestricted clearance over the condenser fans.

2. A minimum clearance of 2’ 4-1/2” is required to open the hinged control panel

doors. Both doors swing outward in a 180-degree arc.

3. A minimum clearance of 2’ 10-3’4” is required to open the access doors on the unit’s

supply fan, evaporator, filter and exhaust fan sections. All hinged doors swing

outward in a 180-degree arc.

4. 90-130 ton models have two outdoor air intakes located at the back

of the unit and one small outdoor air intake located at

the end of the unit.

Dimensional

Data

Note The pedestal was purposely designed

Figure DD-4 — 90, 105, 115, 130 Ton Heating/Cooling and Cooling Only Rooftops

Figure DD-5 — 90 - 130 Tons — Service Clearance

(90 - 130 Tons)

(SEE NOTE 4)

91RT-PRC010-EN

Figure DD-6 — 90 - 130 Ton Roof Curb Dimensions

Cross Section Thru

Roof Curb and base pan

Dimensional

Data (90 - 130 Tons)

SECTION B-B

RT-PRC010-EN92

Note:

1. Remote sensors are available for use with all zone sensors to provide remote sensing capabilities.

SINGLE SETPOINT SENSOR WITH SYSTEM FUNCTION LIGHTS (BAYSENS021*)

PROGRAMMABLE NIGHT-SETBACK SENSOR (BAYSENS020*)

Dimensional

Data

Field Installed Sensors

(Variable Air

Volume VAV)

93RT-PRC010-EN

Dimensional

Data (Constant

Volume CV)

Field Installed Sensors

DUAL SETPOINT, MANUAL/AUTOMATIC

CHANGEOVER SENSOR WITH SYSTEM

FUNCTION LIGHTS (BAYSENS010*)

WITHOUT LED STATUS INDICATORS

(BAYSENS008*)

SINGLE SETPOINT WITHOUT

LED STATUS INDICATORS (BAYSENS006*)

Note:

1. Remote sensors are available for use with all zone sensors to provide remote sensing capabilities.

PROGRAMMABLE NIGHT-SETBACK SENSOR (BAYSENS019*)

RT-PRC010-EN94

Dimensional (CV and VAV)

Data

Note:

1. Remote sensors are available for use with all zone sensors to provide remote sensing capabilities.

REMOTE MINIMUM POSITION POTENTIOMETER CONTROL (BAYSTAT023*)

TEMPERATURE SENSOR (BAYSENS016*)

ZONE TEMPERATURE SENSOR W/TIMED OVERRIDE BUTTON

AND LOCAL SETPOINT ADJUSTMENT (BAYSENS014)

1

ZONE TEMPERATURE SENSOR W/TIMED OVERRIDE BUTTONS

(BAYSENS013*) ALSO AVAILABLE SENSOR ONLY (BAYSENS017*)

Integrated Comfort™ System Sensors

95RT-PRC010-EN

Weights

Table W-1 — Approximate Operating Weights (Lbs./Kg)

Rooftops Without Exhaust Fans Rooftops With Exhaust Fans Roof Curb

Nominal All Heating

Tons SA SX SE SF SL/SS SA SX SE SF SL/SS SA Units & SXHF/G

20 Lb. 4000 4220 4330 4620 4330 4360 4580 4690 4970 4690 490 510

Kg 1814 1914 1964 2096 1964 1978 2077 2127 2254 2127 222 231

25 Lb. 4160 4370 4500 4770 4500 4520 4750 4860 5130 4860 490 510

Kg 1887 1982 2041 2164 2041 2050 2155 2204 2327 2204 222 231

30 Lb. 4800 5040 5160 5430 5160 5220 5460 5590 5840 5590 490 510

Kg 2177 2286 2341 2463 2341 2368 2477 2536 2649 2536 222 231

40 Lb. 6270 6650 6810 7290 6810 6890 7240 7400 7880 7400 515 550

Kg 2844 3016 3089 3307 3089 3125 3284 3357 3574 3357 234 249

50 Lb. 7250 7630 7800 8260 7800 7890 8290 8450 8900 8450 515 550

Kg 3289 3461 3538 3747 3538 3579 3760 3833 4037 3833 234 249

55 Lb. 7500 7890 8050 8530 8050 8140 8540 8690 9170 8690 515 550

Kg 3402 3579 3651 3869 3651 3692 3874 3942 4159 3942 234 249

60 Lb. 8450 8610 8770 9230 8770 9320 9480 9650 10120 9650 610 640

Kg 3833 3905 3978 4187 3978 4227 4300 4377 4590 4377 277 290

70/75Lb. 8970 9150 9300 9780 9300 9860 10040 10160 10640 10160 610 640

Kg 4069 4150 4218 4436 4218 4472 4554 4608 4826 4608 277 290

90 Lb. N/A 13240 13390 14030 13390 N/A 14580 14730 15400 14730 N/A 770

Kg N/A 6006 6074 6364 6074 N/A 6613 6681 6985 6681 N/A 349

105 Lb. N/A 13810 13950 14600 13950 N/A 15160 15310 15940 15310 N/A 770

Kg N/A 6264 6328 6622 6328 N/A 6876 6944 7230 6944 N/A 349

115 Lb. N/A 14200 14380 15020 14380 N/A 15560 15730 16370 15730 N/A 770

Kg N/A 6441 6523 6813 6523 N/A 7058 7135 7425 7135 N/A 349

130 Lb. N/A 14580 14740 15380 14740 N/A 15930 16080 16710 16080 N/A 770

Kg N/A 6613 6686 6976 6686 N/A 7226 7294 7580 7294 N/A 349

Notes:

1. Weights shown include the following features: standard coils, 100% economizer, throwaway filters, maximum motor sizes (high efficiency), inlet guide vanes, 460V XL,

High Heat.

2. Weights shown represent approximate operating weights and have a ±5% accuracy. ACTUAL WEIGHTS ARE STAMPED ON THE UNIT NAMEPLATE.

3. If unit is not as specified in note 1, you must reference RT-EB-103 for more details, as well as for point loading and center of gravity.

RT-PRC010-EN96

Options

A full range of factory-installed modular

options are available on standard ship

cycles, allowing your rooftop design to

best suit each individual application.

Cooling Only/Heating Casings

• Cooling Only — Two casing choices are

available, one designed for high airside

efficiency and one for sound sensitive

applications. The 90 to 130 tons are

extended casing only.

• Electric Heat — Nickel-chromium

electric heating elements in

individually fused circuits of 48 amps

or less and with all necessary safeties.

A full range of sizing options is

available.

• Natural Gas Heat -- Two Stage and

Limited Modulation — Two-pass

stainless steel tubular free floating heat

exchanger has industrial type burner

and combustion blower. Available with

high or low fire and UL or CSA

approval.

• Natural Gas Heat - Full Modulation —

The heat exchanger drum, tubes and

front and rear headers are constructed

of the most corrosion resistant

austenitic stainless steel alloys

available.

• Steam Heat — ARI certified type NS

coil with non-freeze steam distribution.

Coils are pitched for drainage and are

provided with steam modulating valve

with actuator. High and low heat

options are available.

• Hot Water Heat — ARI certified type W

coil mounted for drainage and

provided with hot water modulating

valve with actuator. High and low heat

options are available.

Power Supplies

Rooftops are available with 200, 230, 460

and 575 voltage power supplies.

Exhaust

• No Exhaust — Rooftops can be built

for makeup air applications with no

exhaust. Relief opening is sealed

watertight.

• Barometric Relief — Gravity dampers

are provided that open to relieve

positive pressure.

• 50 Percent Exhaust Fan — One double

inlet forward-curved fan can exhaust

up to 50 percent of supply air. Control

is on/off based on economizer damper

position. Barometric dampers at fan

outlet prevent air backdraft.

• 100 Percent Modulating Exhaust Fan —

Two double inlet forward-curved fans

can exhaust up to 100 percent supply

air. Fans operate when economizer

damper is open greater than minimum

position. Discharge dampers at fan

outlet modulate in response to

economizer damper position on

CV rooftops.

• 100 Percent Modulating Exhaust with

Statitrac™ Control — For both CV and

VAV rooftops, the 100 percent

modulating exhaust discharge

dampers are modulated in response to

building pressure. A differential

pressure control system, called

Statitrac™, uses a differential pressure

transducer to compare indoor building

pressure to atmospheric pressure. The

FC exhaust fan is turned on when

required to lower building static

pressure to setpoint. The Statitrac

control system then modulates the

discharge dampers to control the

building pressure to within the

adjustable, specified dead band that is

set at the Human Interface Panel.

Filters

• No Filters (two inch throwaway filter

rack only) — complete set of two-inch

thick filter racks, without the filter

media to accommodate applications

which require field supplied filters.

• No Filters (bag/cartridge with prefilter

filter rack) — long-lasting galvanized

steel frame without the filter media to

accommodate applications which

require field supplied filters.

• Throwaway — Two-inch, 30 percent

efficient throwaway filters, includes

rack as standard.

• Cleanable Wire Mesh — Two-inch

permanent washable wire mesh filters

are provided with metal frame.

• High-Efficiency Throwaway — Two inch

throwaway filters include rack and

have an average arrestance in excess

of 90 percent when tested in

accordance with ASHRAE 52-76.

• 90-95 Percent Bag Filter (with prefilter)

— Glass fiber extended media bag

filter is mounted in a galvanized steel

frame. 90-95 percent dust spot

efficiency. Two-inch throwaway

prefilters are included with this option.

• 90-95 Percent Cartridge Filter (with

prefilter) — These twelve-inch deep

cartridge filters are mounted in a

galvanized steel frame. They are Class 1

listed by Underwriters Laboratories

and have a 90-95 percent dust spot

efficiency per ASHRAE 52-76. To ensure

maximum cartridge filter life, two-inch

prefilters are included.

Fresh Air

• 0 To 25 Percent Manual Outside Air —

Includes outside air opening with

moisture eliminator and manually

positioned damper for drawing up to

25 percent outside air. (20-75 tons only)

• Economizer — Includes the primary

temperature controls necessary to

automatically use outdoor air for free

cooling. Option includes modulating

return and outside air dampers, high

ambient temperature lockout,

minimum position control and spring

return motor. Standard low leak

outside air dampers are provided with

a leakage rate of 2.5 percent of

nominal airflow at one inch W.C. static

pressure. The 0 to 100% fresh air

economizer has three optional

economizer controls available:

comparative enthalpy, reference

enthalpy, or dry bulb control.

System Control

• Constant Volume — Provided with all

the necessary controls to operate

rooftop from a zone sensor, including

CV microprocessor unit control

module, a microprocessor compressor

controller and a unit mounted Human

Interface Panel.

• VAV Supply Air Temperature control

without inlet guide vanes — Provided

with all the necessary controls to

operate a VAV rooftop from the

discharge air temperature, including

discharge air microprocessor controller

and discharge air sensor. The

microprocessor controller coordinates

the economizer control and the stages

of cooling with zone or outdoor air

reset capabilities and an adjustable

control band to fine-tune the control to

specific applications.

Options

97RT-PRC010-EN

• VAV Supply Air Temperature control

with inlet guide vanes — Provided with

all the necessary controls to control/

operate a VAV rooftop from the

discharge air temperature, including a

discharge air microprocessor

controller, a discharge air sensor,

pressure sensor and inlet guide vanes.

The microprocessor controller

coordinates the economizer control

and the stages of cooling with zone or

outdoor air reset capabilities and an

adjustable control band to fine-tune the

control to specific applications. The

inlet guide vanes are used with VAV

rooftops to control duct static pressure.

Option includes vanes and static

pressure controls. Forward-curved fans

with inlet vanes are the most efficient

way to mechanically modulate airflow.

• Exhaust Fan Variable Frequency Drives

w/o Bypass (with Statitrac Only) —

Provided with all the necessary

controls to control/maintain building

space pressure through a CV or VAV

rooftop. The Variable Frequency Drive

(VFD) modulates the speed of the

exhaust fan motor in response to

building pressure. A differential

pressure control system, called

Statitrac, uses a differential pressure

transducer to compare indoor building

pressure to atmospheric pressure. The

VFD receives a 0-10vdc signal from the

unit microprocessor based upon the

space static pressure and causes the

drive to accelerate or decelerate as

required to maintain the space

pressure within the deadband.

• Exhaust Fan Variable Frequency Drives

and Bypass (with Statitrac Only) —

Bypass control provides full nominal

airflow in the event of drive failure.

• VAV Supply Air Temperature Control

with Variable Frequency Drives w/o

Bypass — Provided with all necessary

controls to operate a VAV rooftop from

the discharge air temperature,

including discharge air microprocessor

controller and discharge air sensor. The

microprocessor controller coordinates

the economizer control and the stages

of cooling with discharge air

temperature reset capabilities. Includes

factory installed and tested variable

frequency drives (VFD) to provide

supply fan motor speed modulation.

VFD receives 0-10vdc from the unit

microprocessor based upon supply

static pressure and causes the drive to

accelerate or decelerate as required to

maintain the supply static pressure

setpoint.

• VAV Supply Air Temperature Control

with Variable Frequency Drives and

Bypass — Bypass control provides full

nominal airflow in the event of drive

failure.

Ambient Control

• Low Ambient Dampers are provided

on condenser fan to allow the unit to

operate down to 0 F. (20-75 tons only)

Agency Approval

• Rooftops can be provided with either

Underwriter’s Laboratories (UL) or

Canadian Standards Association

(CSA) approval.

Miscellaneous Options

• Non-Fused Disconnect Switch with

External Handle — External handle

enables the operator to disconnect unit

power with the control box door closed

for safety.

• Hot Gas Bypass — Valves, piping and

controls are all included to allow

operation at low airflow, avoiding coil

frosting and damage to compressor.

When suction pressure falls below

valve adjustable setpoint, the valves

modulate hot gas to the inlet of the

evaporator.

• Economizer Control with Comparative

Enthalpy — used with the fresh air

economizer, two enthalpy sensors are

provided to compare total heat content

of the indoor air and outdoor air to

determine the most efficient air source

when economizing.

• Economizer Control with Reference

Enthalpy — used with the fresh air

economizer, an outdoor enthalpy

sensor is provided to compare the total

heat content of outdoor air to a locally

adjustable setpoint. The setpoint is

programmed at the human interface,

or remote human interface, to

determine if the outdoor enthalpy

condition is suitable for economizer

operation.

• Economizer Control with Dry Bulb —

used with the fresh air economizer, an

outdoor temperature sensor is

included for comparing the outdoor

dry bulb temperature to a locally

adjustable temperature setpoint. The

setpoint is programmed either at the

human interface, or remote human

interface, to determine if outdoor air

temperature is suitable for economizer

operation.

• Ultra Low Leak Fresh Air Dampers —

Dampers have chlorinated polyvinyl

chloride gasketing to seal to a leakage

rate of 1 percent of nominal airflow at

one-inch W.C. static pressure.

• High Duct Temperature Thermostats —

Two manual reset thermostats, one

located in the discharge section of the

unit set at 240 F and the other in the

return section set at 135 F. The

rooftop will shut down if the

thermostats are tripped.

• High Capacity Evaporator Coil —

Additional rows of coil and enhanced

evaporator tube surfaces provide

increased capacity compared to

standard coils.

• Copper Fins On Condenser Coil —

Copper fins offer extra corrosion

resistance as compared to standard

aluminum fins.

• Generic Building Automation System

(GBAS) Module — Provided for those

cases where the customer uses a

nonTracer building management

systems. The GBAS module provides a

binary input for Demand Limiting, four

(4) analog inputs for setpoint

adjustment and five (5) relay outputs

for diagnostic reporting. Inputs can use

a potentiometer or 0-5 vdc signal.

• High Efficiency Motors — Supply and

exhaust fans are provided with high

efficiency motors.

• Remote Human Interface Panel (RHI)

— Remote Human Interface Panel can

perform all the same functions as unit

mounted Human Interface Panel,

except for the Service Mode. Up to 4

rooftop units can be monitored and

controlled with a single Remote

Human Interface Panel. This panel uses

the same attractive enclosure as our

Tracker® building control panel. With

features such as a 2 line X 40 character

clear English display, a red LED light to

indicate an alarm condition (alarm also

shown on the two line display), a

simple 16 key keypad that is used in

conjunction with the display, to prompt

Options

RT-PRC010-EN98

the infrequent user when making

desired changes and an attractive

hinged door makes the RHI very

suitable for mounting on any wall. The

RHI can be mounted inside a building,

up to 5,000 feet from the unit. The RHI

is wired to the IPCB mounted in the

rooftop with twisted wire pair

communication wiring and 24V

control wiring.

• Ventilation Override Module (VOM) —

With the Ventilation Override Module

installed, the unit can be programmed

to transition to up to 5 different

programmed sequences for Smoke

Purge, Evacuation, Pressurization,

Purge, Purge with duct control

sequence and Unit off. The transition

occurs when a binary input on the

VOM is closed (shorted); this would

typically be a hard wired relay output

from a smoke detector or fire control

panel.

• Extended Grease Lines — Lines allow

greasing of supply and exhaust fan

bearings through the filter access door.

• Access Doors — Hinged access doors

provide easy access to supply fan,

filters, exhaust fan, and the heating

section. These access doors feature

double wall construction with dual

density insulation sandwiched

between 18 gauge and 20 gauge

galvanized steel panels for strength

and durability.

• Inter-Processor Communication Bridge

(IPCB) — This module provides an

amplified and filtered version of the

IPC link for connection to a Remote

Human Interface Panel. Each rooftop

that is tied into a Remote Human

Interface Panel must have a IPCB

installed into it.

• Trane Communication Interface

Module — provides interface to Trane’s

Integrated Comfort system (ICS), which

allows control and monitoring of the

rooftop by a Tracer building

management system.

• GFI Convenience Outlet (Factory

Powered) — A 15A, 115V Ground Fault

Interrupter convenience outlet shall be

factory installed. It shall be wired and

powered from a factory mounted

transformer. Unit mounted non-fused

disconnect with external handle shall

be furnished with factory powered

outlet.

• Two-Inch Spring Isolators — Supply

and exhaust fan (if applicable)

assemblies are isolated with two-inch

nominal deflection to reduce

transmission of vibrations. (Standard

feature on 90 to 130 tons.)

• VFD Line Reactors — available on all

units with Variable Frequency Drives

(VFD).

• Special Unit Paint Colors — allows

matching of HVAC equipment to

building color and sometimes

eliminates the need for expensive

barrier walls.

Field Installed Accessories

Electronic Zone Sensors

• Zone Sensors — two temperature set

point levers, heat, auto, off, or cool

system switch, fan auto or fan on

switch. Optional status indication LED

lights, System On, Heat, Cool, and

Service are available. These sensors

are used with CV units.

• Programmable Night Setback Sensors

— electronic programmable sensors

with auto or manual changeover with

seven day programming. Keyboard

selection of heat, cool, fan auto or on.

All programmable sensors have

System On, Heat, Cool, Service LED/

indicators as standard. Night setback

sensors have (1) Occupied, (1)

Unoccupied and (2) Override programs

per day. Models are available for CV

zone temperature control and VAV

supply air temperature control.

• Zone Sensor — sensor with supply air

single temperatures setpoint and

AUTO/OFF system switch. Status

indication LED lights; System On, Heat,

Cool, and Service are provided.

Sensors are available to be used with

VAV units.

• Remote Sensor — can be used for

remote zone temperature sensing

capabilities when zone sensors are

used as remote panels.

• Full Warm-Up Sensor — Morning

warm-up sensor for use with VAV

units.

• Integrated Comfort™ System sensors

— used for zone temperature sensing

when Tracer® is communicating with

the rooftop. The sensors are available

with options such as sensor only,

sensor with timed override button, and

a sensor with local temperature

adjustment control, with timed

override button.

• Remote Minimum Position

Potentiometer — Minimum position

setting of economizer can be remotely

adjusted with this accessory.

• Temperature Sensor — bullet or pencil

type sensor that could be used for

temperature input such as return air

duct temperature.

• Trane Communication Interface/

Interprocessor Communication Bridge

kit and Remote Human Interface kit —

For future sales opportunities and

flexibility of field upgrades on new

IntelliPak® rooftops after they have

been installed, two factory provided

hardware kits are available. The first kit

is an Trane Communication Interface

(TCI) module, which is required for

communication with Tracer®. Also in

this kit is an Interprocessor

Communicating Bridge (IPCB) module

which is required for communication

with an Remote Human Interface

Panel. The second kit is the Remote

Human Interface Panel, which can

control up to four rooftops. The Remote

Human Interface Panel has all the

features of the Unit Mounted Human

Interface Panel, except no service

mode interface is allowed remotely for

safety reasons. All other modules and

their required hardware are available

through our service parts organization

for field upgrades and future sales

opportunities.

Roof Curb

• Roof Curb — Curb supports the rooftop

and allows for smooth transition of

airflow from the rooftop to the

ductwork. Curb ships from stock and

ductwork can be attached directly. Two-

inch by two-inch nailer strip is also

provided, as well as gasketing to seal

supply and return openings. Curb is 14

inches high and is approved by the

National Roofing Contractors

Association.

Options

99RT-PRC010-EN

General

Units shall be specifically designed for

outdoor rooftop installation on a roof

curb and be completely factory

assembled and tested, piped, internally

wired, fully charged with R-22,

compressor oil and shipped in one piece.

Units shall be available for direct

expansion cooling only, or direct

expansion cooling with natural gas,

electric, hot water or steam heating.

Filters, outside air system, exhaust air

system, optional non-fused disconnect

switches and all operating and safety

controls shall be furnished

factoryinstalled. All units shall be UL

approved and factory run tested. Cooling

capacity shall be rated in accordance

with ARI Standard 360. All units shall

have decals and tags to aid in service

and indicate caution areas. Electrical

diagrams shall be printed on long life

water resistant material and shall ship

attached to control panel doors.

Casing

Exterior panels shall have a minimum of

1.25-ounce zinc coating per square foot

of steel, phosphatized and painted with a

slate grey finish which meets a 672 hour

salt spray test based on the ASTM B117

standard for salt spray resistance.

Screws shall be coated with zinc-plus-

zinc chromate. Eighteen gauge steel

hinged access panels with tiebacks to

secure door in open position shall

provide access to filters and heating

sections. Refrigeration components,

supply air fan and compressor shall be

accessible through removable panels as

standard. Unit control panel shall be

accessible through hinged access panel

with quick release latches. Double Wall

Construction hinged access doors shall

provide access to filters, return/exhaust

air, heating and supply fan section. All

access doors and panels shall have

neoprene gaskets. Interior surfaces or

exterior casing members shall have 1/2-

inch Tuf-Skin fiberglass insulation. Unit

base shall be watertight with 14-gauge

formed load bearing members, formed

recess and curb overhang. Unit lifting

lugs shall accept chains or cables for

rigging. Lifting lugs shall also serve as

unit tiedown points.

Mechanical

Specifications

REFRIGERATION SYSTEM

Compressors

20 to 130 Ton Units

Trane 3-D® Scroll compressors have a

simple mechanical design with only

three major moving parts. Scroll type

compression provides inherently low

vibration. The 3-D Scroll provides a

completely enclosed compression

chamber which leads to increased

efficiency. Exhaustive testing on the 3-D

Scroll, including start up with the shell

full of liquid, has proven that slugging

does not fail involutes. Direct-drive, 3600

rpm, suction gas-cooled hermetic motor.

Trane 3-D Scroll compressor includes

centrifugal oil pump, oil level sightglass

and oil charging valve. Each compressor

shall have crankcase heaters installed,

properly sized to minimize the amount of

liquid refrigerant present in the oil sump

during off cycles. Discharge and liquid

line service valves are standard on each

refrigerant circuit.

Evaporator Coil

Internally enhanced copper tubing of ½-

inch O.D. shall be mechanically bonded

to heavy-duty aluminum fins of

configurated design. All coils shall be

equipped with thermal expansion valves

and factory pressure and leak tested at

300 psi.

Condenser Coil

Configurated aluminum fin or

configurated copper fin secondary

surface shall be mechanically bonded to

primary surface of 3/8-inch O.D. copper

tubing for extra corrosion resistance.

Subcooling circuit(s) shall be provided as

standard. All coils shall be factory

tested at 450 psig air pressure and

vacuum dehydrated.

Condenser Fans and Motors

All condenser fans shall be vertical

discharge, direct drive fans, statically

balanced, with steel blades and zinc

plated steel hubs. Condenser fan motors

shall be three-phase motors with

permanently lubricated ball bearings,

built-in current and thermal overload

protection and weathertight slingers

over motor bearings.

RT-PRC010-EN100

Direct field wiring to the I/O boards is not

acceptable.

The microprocessor’s memory shall be

non-volatile EEPROM type requiring no

battery or capacitive backup, while

maintaining all data.

2

Zone sensors shall be available in

several combinations with selectable

features depending on sensor.

3

The Human Interface Panel’s keypad

display character format shall be 40

characters x 2 lines. The character font

shall be 5 x 7 dot matrix plus cursor. The

display shall be Supertwist Liquid Crystal

Display (LCD) with blue characters on a

gray/green background which provides

high visibility and ease of interface. The

display format shall be in clear English.

Two or three digit coded displays are not

acceptable.

4

The keypad shall be equipped with

16 individual touch-sensitive membrane

key switches. The switches shall be

divided into four separate sections and

be password protected from change

by unauthorized personnel. The six main

menus shall be STATUS, SETPOINTS,

DIAGNOSTICS,

SETUP, CONFIGURATION and SERVICE

MODE.

Filters

General

Filter options shall mount integral within

unit and be accessible by hinged access

panels.

No Filters (two inch throwaway filter

rack only) option

Shall provide a complete set of two-inch

thick filter racks, without the filter media

to accommodate applications which

require field supplied filters.

No filters (bag/cartridge with prefilter

filter rack option)

Shall provide a long-lasting galvanized

steel frame without the filter media to

accommodate applications which

require field supplied filters.

Mechanical

Specifications

AIR HANDLING SYSTEM

Supply Fan

20 - 75 Ton Units

All supply fans shall have two double-

inlet, forward-curved fans mounted on a

common shaft with fixed sheave drive

and shall be dynamically balanced and

tested in factory. Supply fan shall be test

run in unit as part of unit test and unit

shall reach rated rpm before the fan shaft

passes through first critical speed. Fan

shaft shall be mounted on two grease

lubricated ball bearings designed for

200,000 hours average life. Optional

extended grease lines shall allow

greasing of bearings from unit filter

section. Fan motor and fan assembly

shall be mounted on common base to

allow consistent belt tension with no

relative motion between fan and motor

shafts. Entire assembly shall be

completely isolated from unit and fan

board by double deflection rubber-in-

shear isolators or by two-inch deflection

spring isolation on motor sizes larger

than five hp. All supply fan motors meet

the U.S. Energy Policy Act of 1992

(EPACT).

90 - 130 Ton Units

All supply fans shall have two

independent fan assemblies with double

inlet, air foil fan, motor and fixed pitch

sheave drive. All fans shall be statically

and dynamically balanced and tested in

factory. Supply fans shall be test run in

unit as part of unit test. Unit shall reach

rated rpm before fan shaft passes

through first critical speed. Fan shafts

shall be mounted on two grease

lubricated ball bearings designed for

200,000 hours average life. Optional

extended grease lines shall allow

greasing of bearings from unit filter

section. Fan motor and fan assembly

shall be mounted on common base to

allow consistent belt tension with no

relative motion between fan and motor

shafts. Entire assemblies shall be

completely isolated from unit and

fan board by two-inch deflection

spring isolators. All supply fan motors

meet the U.S. Energy Policy Act of 1992

(EPACT).

Controls

Unit shall be completely factory wired

with necessary control and contactor

pressure lugs or terminal block for

power wiring. Units shall provide an

internal location for a non-fused

disconnect with external handle for

safety. Unit mounted microprocessor

controls shall provide anti-short cycle

timing for compressors to provide a high

level of machine protection.

Unit Controller

DDC microprocessor controls shall be

provided to control all unit functions. The

control system shall be suitable to

control CV or VAV applications. The

controls shall be factory-installed and

mounted in the main control panel. All

factory-installed controls shall be fully

commissioned (run tested) at the factory.

The unit shall have a Human Interface

Panel with a 16 key keypad, a 2 line X 40

character clear English display as

standard to provide the operator with full

adjustment and display of control data

functions. The unit controls shall be used

as a stand-alone controller, or as part of a

building management system involving

multiple units.

1

The unit shall be equipped with a

complete microprocessor control

system. This system shall consist of

temperature and pressure (thermistor

and transducer) sensors, printed circuit

boards (modules), and a unit mounted

Human Interface Panel. Modules

(boards) shall be individually replaceable

for ease of service. All microprocessors,

boards and sensors shall be factory

mounted, wired and tested.

The microprocessor boards shall be

stand-alone DDC controls not dependent

on communications with an on-site PC

or a Building Management Network. The

microprocessors shall be equipped with

on-board diagnostics, indicating that all

hardware, software and interconnecting

wiring are in proper operating condition.

The modules (boards) shall be protected

to prevent RFI and voltage transients

from affecting the board’s circuits. All

field wiring shall be terminated at

separate, clearly marked terminal strip.

101RT-PRC010-EN

Mechanical

Specifications

Standard filters provided shall be two-

inch thick throwaway glass fiber filter,

30 percent efficient mounted in a metal

rack.

Permanent cleanable wire mesh option

Shall be washable permanent wire mesh

with metal frame.

High efficiency throwaway option

Shall be two-inch high efficiency media

filters with average dust spot efficiency

of 25-35 percent and an average

arrestance in excess of 90 percent when

tested in accordance with ASHRAE 52-

76.

90-95 percent bag filter option

Shall have glass fiber media mounted in

a galvanized steel frame. These Class 1

single piece disposable bag filters shall

have a 90-95% dust spot efficiency rating

per ASHRAE 52-76. To ensure maximum

bag filter life two-inch prefilters shall be

included with the bag filters.

90-95 percent cartridge filter option

Twelve-inch deep cartridge filters shall

be mounted in a galvanized steel frame.

Filters shall be Class 1 listed by

Underwriters Laboratories and have a

90-95% dust spot efficiency per ASHRAE

52-76. To ensure maximum cartridge

filter life, two-inch prefilters shall be

provided.

Exhaust Air

General

Return air options shall include no relief,

barometric relief, 50 percent exhaust fan,

100 percent modulating exhaust fan and

100 percent modulating exhaust fan with

direct space building pressurization

control.

No Relief (standard)

Relief air opening shall be sealed with

panel and made watertight.

Barometric relief option

Gravity dampers shall open to relieve

positive pressure in the return air section

of the rooftop. Barometric relief dampers

shall relieve building overpressurization,

when that overpressurization is great

enough to overcome the return duct

pressure drops.

50 percent exhaust air fan option

One, double inlet, forward-curved fan

shall be mounted rigidly to base with

fixed sheave drive. Fan shall be

dynamically balanced and tested in

factory. Unit shall reach rated rpm before

fan shaft passes through first critical

speed. Fan shaft shall be mounted on

two grease lubricated ball bearings

designed for 200,000 hours average life.

Optional extended grease lines shall

allow greasing of bearings from unit

filter section. Barometric dampers at fan

outlet shall prevent air backdraft. Fifty

percent exhaust fan shall be an on/off

control based on economizer OA

damper position. All exhaust fan motors

meet the U.S. Energy Policy Act of 1992

(EPACT).

Modulating 100 percent exhaust air fan

option

Two, double-inlet, forward-curved fans

shall be mounted on a common shaft

with fixed sheave drive. All fans shall be

dynamically balanced and tested in

factory before being installed in unit.

Exhaust fan shall be test run in unit as

part of unit test. Unit shall reach rated

rpm before fan shaft passes through first

critical speed. Fan shaft shall be

mounted on two grease lubricated ball

bearings designed for 200,000-hour

average life. Optional extended grease

lines shall be provided to allow

greasing of bearings from unit filter

section. Fan motor and assembly shall

be mounted on common base to allow

consistent belt tension with no relative

motion between fan and motor shafts.

On motor sizes larger than five hp

entire assembly shall be completely

isolated from unit and fan board by

double deflection, rubber in shear

isolators or spring isolation. Discharge

dampers at unit outlet shall modulate

exhaust airflow in response to OA

damper position. All exhaust fan motors

meet the U.S. Energy Policy Act of 1992

(EPACT).

Modulating 100 Percent Exhaust Fan

with Statitrac™ Control Option

Two, double-inlet, forward-curved fans

shall be mounted on a common shaft

with fixed sheave drive. All fans shall be

dynamically balanced and tested in

factory before being installed in unit.

Exhaust fan shall be test run as part of

unit final run test. Unit shall reach rated

rpm before fan shaft passes through first

critical speed. Fan shaft shall be

mounted on two grease lubricated ball

bearings designed for 200,000-hour

average life. Optional extended grease

lines shall be provided to allow greasing

of bearings from unit filter section. Fan

motor and assembly shall be mounted

on common base to allow consistent

belt tension with no relative motion

between fan and motor shafts. Entire

assembly shall be completely isolated

from unit and fan board by double

deflection, rubber in shear isolators or

spring isolation on motor sizes larger

than five hp. For both CV and VAV

rooftops, the 100 percent modulating

exhaust discharge dampers (or VFD)

shall be modulated in response to

building pressure. A differential pressure

control system, (Statitrac™), shall use a

differential pressure transducer to

compare indoor building pressure to

outdoor ambient atmospheric pressure.

The FC exhaust fan shall be turned on

when required to lower building static

pressure setpoint. The (Statitrac™)

control system shall then modulate the

discharge dampers (or VFD) to control

the building pressure to within the

adjustable, specified dead band that

shall be adjustable at the Human

Interface Panel. All exhaust fan motors

meet the U.S. Energy Policy Act of 1992

(EPACT).

RT-PRC010-EN102

Mechanical

Specifications

Outside Air

General

Three outside air options: 100 percent

return air, 0 to 25 percent manually

controlled outside air, and 0-100 percent

fully modulating economizer.

Manual outside air option

Manually controlled outside air damper

shall provide up to 25 percent outside air.

Manual outside air damper shall be set

at desired position at unit start-up.

0-100 percent modulating economizer

option

Operated through the primary

temperature controls to automatically

utilize OA for “free” cooling.

Automatically modulated return and OA

dampers shall maintain proper

temperature in the conditioned space.

Economizer shall be equipped with an

automatic lockout when the outdoor

high ambient temperature is too high for

proper cooling. Minimum position

control shall be standard and adjustable

at the Human Interface Panel or with a

remote potentiometer or through the

building management system. A spring

return motor shall ensure closure of OA

dampers during unit shutdown or power

interruption. Mechanical cooling shall be

available to aid the economizer mode at

any ambient. Low leak economizer

dampers shall be standard with a

leakage rate of 2.5 percent of nominal

airflow (400 CFM/ton) at 1 inch wg. static

pressure.

Ultra low-leak economizer dampers

option

Standard low leak dampers shall be

provided with chlorinated polyvinyl

chloride gasketing added to the damper

blades and rolled stainless steel jamb

seals to the sides of the damper

assembly. Ultra low-leak economizer

dampers shall have a leakage rate of one

percent based on testing data completed

in accordance with AMCA Standard 575

at AMCA Laboratories.

Economizer Control with Comparative

Enthalpy

Used with the fresh air economizer, two

enthalpy sensors are provided to

compare total heat content of the indoor

air and outdoor air to determine the

most efficient air source when

economizing.

Economizer Control with Reference

Enthalpy

Used with the fresh air economizer, an

outdoor enthalpy sensor is provided to

compare the total heat content of

outdoor air to a locally adjustable

setpoint. The setpoint is programmed at

the human interface , or remote human

interface, to determine if the outdoor

enthalpy condition is suitable for

economizer operation.

Economizer Control with Dry Bulb

Used with the fresh air economizer, an

outdoor temperature sensor is included

for comparing the outdoor dry bulb

temperature to a locally adjustable

temperature setpoint. The setpoint is

programmed at the human interface, or

remote human interface, to determine if

outdoor air temperature is suitable for

economizer operation.

103RT-PRC010-EN

Mechanical

Specifications

Heating System

Electric heating option

All electric heat models shall be

completely assembled and have wired

electric heating system integral within

the rooftop unit. Heavy duty nickel

chromium elements internally wired

with a maximum density of 40 watts per

square inch shall be provided. Heater

circuits shall be 48 amps or less, each

individually fused. Automatic reset high

limit control shall operate through heater

backup contactors. The 460 and 575 volt

electric units shall have optional factory

mounted non-fused disconnect switch

located in the main control panel to

serve the entire unit. The 200 and 230

volt SEHF models shall have separate

power supply to heating section. All

voltages of the SEHG models shall have

single power supply to serve the entire

unit.

Steam heating option

Steam coils shall be Type NS, with non-

freeze steam distribution circuits.

Distributor tubes shall be located

concentrically within condensing tubes

to assure even steam distribution. Coils

shall be pitched to provide complete

drainage. Steam modulating valve with

actuator shall be provided.

Hot water heating option

Hot water coils shall be Type W and

factory mounted in the rooftop unit to

provide complete drainage of coil. Hot

water modulating valve with actuator

shall be provided.

Gas-fired heating option

All gas-fired units shall be completely

assembled and have a wired gas fired

heating system integral within unit. Units

shall be UL or CSA approved specifically

for outdoor applications downstream

from refrigerant cooling coils. All gas

piping shall be threaded connection with

a pipe cap provided. Gas supply

connection shall be provided through

the side or bottom of unit. All units shall

be fire tested prior to shipment.

• Heat Exchanger shall be tubular two

pass design with 16-gauge stainless

steel primary and 18-gauge stainless

steel secondary heat exchanger

surfaces. Free floating design shall

eliminate expansion and contraction

stresses and noises. Gasketed cleanout

plate shall be provided for cleaning of

tubes/turbulators. Heat exchanger shall

be factory pressure and leak tested.

• Burner shall be industrial type burner

with a air proving switch to prevent

burner operation if burner is open for

maintenance or inspection. Ceramic

cone shall be provided to shape the

flame to prevent impingement on

sides of heat exchanger drum. Burner

assembly shall house ignition and

monitoring electrode.

• Combustion Blower shall be

centrifugal type fan to provide air

required for combustion. Fan motor

shall have built-in thermal overload

protection.

• Gas Safety Controls shall include

electronic flame safety controls to

require proving of combustion air prior

to ignition sequence which shall

include a 60 second pre-purge cycle.

Direct spark ignition shall be provided

on 235 and 350 MBh heat exchangers

and pilot ignition shall be provided on

500, 850 and 1000 MBh heat

exchanger units. Sixty second delay

shall be provided between first and

second stage gas valve operation on

two-stage heaters. Continuous

electronic flame supervision shall be

provided as standard.

• Full Modulation Gas Heaters shall be

made from grades of stainless steel

suitable for condensing situations. The

heater shall have a turn down ratio of

at least 4 to 1.

• Limited Modulation Gas Heaters shall

have a minimum turn down ratio of at

least 3 to 1.

Accessories

Roof Mounting Curb

Roof mounting curb shall be fourteen

gauge zinc coated steel with nominal

two-inch by four-inch nailer setup.

Supply/return air opening gasketing

shall be provided. Curb shall ship

knocked down for easy assembly.

Channel shall be provided to allow for

adjustment of return air opening

location. Curb shall be manufactured to

National Roofing Contractors

Association guidelines.

Electronic Zone Sensors

• Zone Sensors shall provide two

temperature setpoint levers, Heat,

Auto, Off, or Cool system switch, Fan

Auto or Fan On switch. Optional status

indication LED lights, System On,

Heat, Cool, and Service shall be

available. These sensors shall be

used with CV units.

• Programmable Night Setback Sensors

shall be electronic programmable

sensors with auto or manual

changeover with 7 day programming.

Keyboard shall provide selection of

Heat, Cool, Fan Auto or On. All

programmable sensors shall have

System On, Heat, Cool, Service LED/

indicators as standard. Night setback

sensors shall have (1) Occupied,

(1) Unoccupied and (2) Override

programs per day. Sensors shall be

available for CV zone temperature

control and VAV Supply Air

temperature control.

• VAV zone sensor shall be provided

with supply air single temperature

setpoint and AUTO/OFF system switch.

Status indication LED lights shall

include: System On, Heat, Cool and

Service. Sensor shall be provided for

zone temperature control with VAV

units.

• Remote Sensor shall be available to be

used for remote zone temperature

sensing capabilities when zone

sensors are used as Remote panels.

• Fast Warm-Up Sensor shall be used

as Morning warm-up sensor with

VAVunits.

• Integrated Comfort™ System sensors

shall be available with sensor only,

sensor with timed override, and sensor

with local temperature setpoint

adjustment with timed override.

• Remote Minimum Position

Potentiometer shall be available to

remotely adjust the minimum position

setting of the unit’s economizer.

The Trane Company

An American Standard Company

www.trane.com

For more information contact your

local district office, or e-mail us at

comfort@trane.com Since The Trane Company has a policy of continuous product and product data improvement, it reserves the

right to change design and specifications without notice.

Literature Order Number RT-PRC010-EN

File Number PL-RT-S*HF/S*HG-20-130TONS-PRC0010-EN-10-2001

Supersedes RT-DS-8 05/98

Stocking Location Inland-LaCrosse
