Table of Contents Trango

Trango Broadband Wireless — M2400S User Manual Rev. A page ii

Table of Contents

Preface ................................................................................................................................................................................................iii

FCC Information..............................................................................................................................................................................iii

Warranty Information.......................................................................................................................................................................iii

Firmware Notifications.....................................................................................................................................................................iii

Section 1 Introduction.......................................................................................................................................................................... 1

Overview ......................................................................................................................................................................................... 1

SmartPolling™ & Bandwidth Throttling........................................................................................................................................... 2

Auto-retransmit Feature (ARQ)....................................................................................................................................................... 2

Section 2 Hardware Overview............................................................................................................................................................. 3

M900S AP and SU Hardware Components.................................................................................................................................... 3

Section 3 Getting Started..................................................................................................................................................................... 4

Connections and Power.................................................................................................................................................................. 4

Radio Management Concepts......................................................................................................................................................... 5

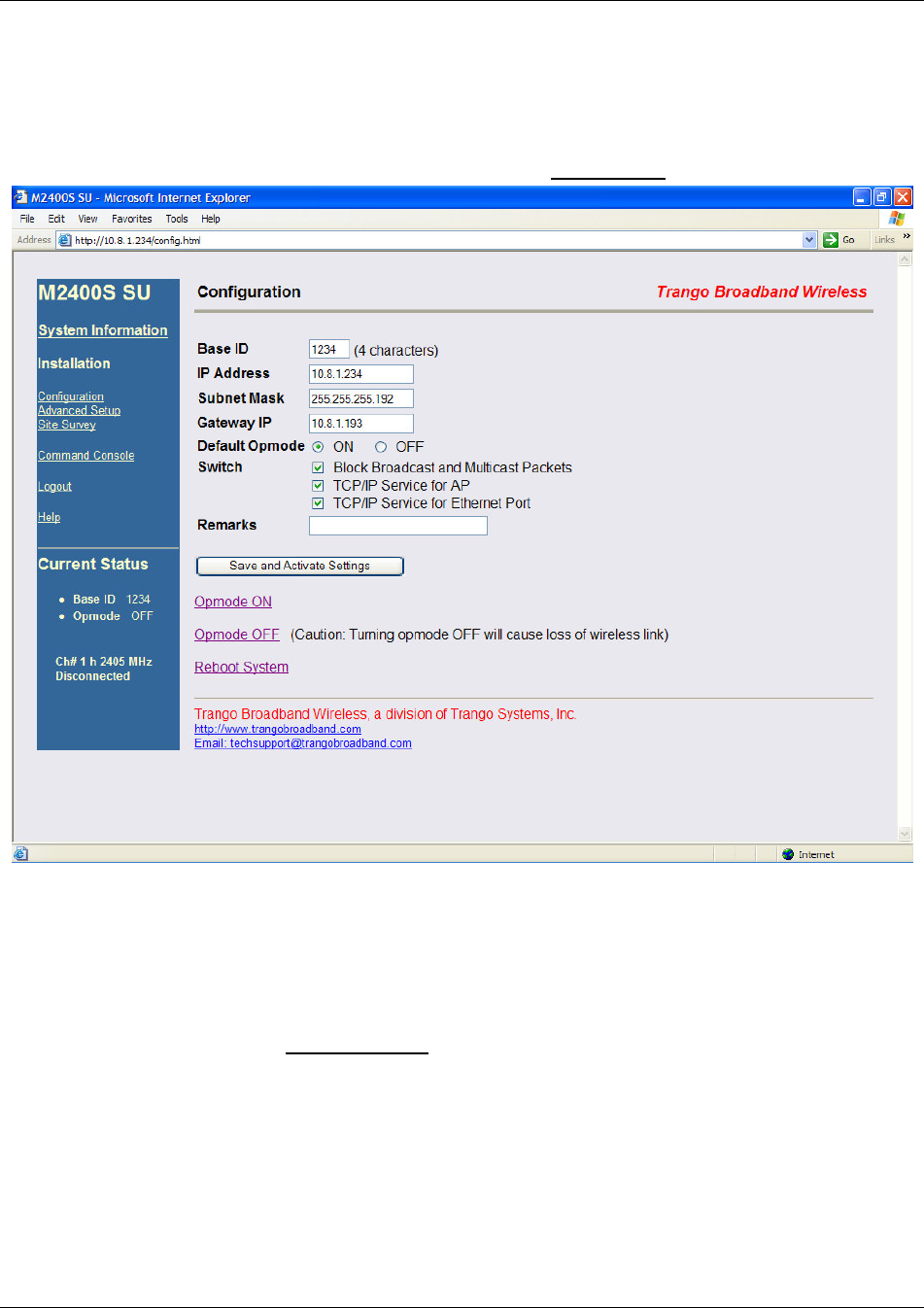

Browser Interface............................................................................................................................................................................ 6

Command Line Interface................................................................................................................................................................. 9

Telnet.......................................................................................................................................................................................... 9

Troubleshooting........................................................................................................................................................................ 10

Section 4 Basic Configuration via Browser Interface......................................................................................................................... 11

Configuring AP Subscriber Unit Database.................................................................................................................................... 11

Configure Other Basic AP Parameters ......................................................................................................................................... 13

Configure Basic SU Parameters................................................................................................................................................... 15

LED Summary............................................................................................................................................................................... 16

Link Control Page.......................................................................................................................................................................... 16

RF Link Loopback Test ................................................................................................................................................................. 17

SU Ranging Test........................................................................................................................................................................... 18

Advanced Setup Page .................................................................................................................................................................. 18

Other Key Parameters .................................................................................................................................................................. 19

Site Survey Page .......................................................................................................................................................................... 20

Section 5 Basic Configuration via CLI ............................................................................................................................................... 21

Access Point Basic Settings.......................................................................................................................................................... 21

Subscriber Unit Database Settings...............................................................................................................................................23

Subscriber Unit Basic Settings...................................................................................................................................................... 25

Section 6 Mounting Hardware ........................................................................................................................................................... 28

Cabling and Grounding Considerations........................................................................................................................................ 29

Section 7 Deployment........................................................................................................................................................................ 30

Site Selection ................................................................................................................................................................................ 30

Site Survey.................................................................................................................................................................................... 30

AP Search and SU Antenna Alignment......................................................................................................................................... 31

Link Management Commands......................................................................................................................................................34

ARQ with Selected Repeat and Multirate Feature........................................................................................................................ 36

Section 8 Management...................................................................................................................................................................... 37

Radio Management Access Via TCP/IP ....................................................................................................................................... 37

SU Management from AP ............................................................................................................................................................. 37

Loading Multiple SUs into SUDB using DLOAD Command.......................................................................................................... 38

SNMP............................................................................................................................................................................................ 38

Objects for Monitoring and Control ............................................................................................................................................... 39

SNMP Setup ................................................................................................................................................................................. 39

Appendix A Command Set Reference............................................................................................................................................... 41

Appendix B Specifications.................................................................................................................................................................45

Preface

Trango Broadband Wireless — M2400S User Manual Rev A page iii

Preface

This manual covers basic configuration and installation of the M2400S Wireless Broadband System and

applies to the following radio part numbers:

M2400S-AP 2.4 GHz Access Point

M2400S-SU 2.4 GHz Subscriber Unit

FCC Information

This device complies with Part 15 of FCC Rules and Regulations. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio-

frequency energy and, if not installed and used in accordance with these instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in

any particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to

correct the interference by one or more of the following measures:

1) Reorient the antenna

2) Increase the separation between the affected equipment and the unit

3) Connect the affected equipment to a power outlet on a different circuit from the one the receiver is

connected to

4) Consult the dealer and/or experienced radio/TV technician for help

FCC ID: NCYM2400S

Canada:

IMPORTANT NOTE: Intentional or unintentional changes or modifications must not be made unless

under the express consent of the party responsible for compliance. Any such modifications could void

the user’s authority to operate the equipment and will void the manufacturer’s warranty. To comply with

FCC RF exposure requirements, the following antenna installation and device operating configurations

must be satisfied. The antenna for this unit must be fixed and mounted on an outdoor permanent

structure with a minimum separation distance of two meters from any persons. Furthermore, it must not

be co-located or operating in conjunction with any other antenna or transmitter.

Warranty Information

Radios from Trango Broadband Wireless are warranted for one year from date of purchase. Please see

www.trangobroadband.com for complete description of warranty coverage and limitations.

Firmware Notifications

To receive email notifications regarding firmware upgrades and product announcements, register at

http://www.trangobroadband.com/mailinglist/mailingListAdd.aspx

Introduction

Trango Broadband Wireless — User Manual M2400S Rev. A

Page

Section 1 Introduction

Your Trango Broadband M2400S radio system provides a reliable and robust means to deliver

broadband access and wireless Ethernet connectivity to a wide geographic region. This section will

familiarize you with basic operational concepts as well as an overview of the hardware and the various

components of the M2400S system.

Overview

The M2400S is a highly versatile and cost effective outdoor point-to-multipoint solution for wireless

broadband service providers’ enterprise connectivity applications. The M2400S delivers 5 Mbps over the

air, and operates in the 2.4 GHz license free ISM band. Each radio includes an integrated dual polarized

(horizontal and vertical) antenna as well as a connector for the attachment of an external antenna such

as a yagi or an omni style antenna. Note: If you are going to install an external antenna, refer to

the M2400S Professional Installation Guide. Contact technical Support for access to the

Professional Installation Guide.

The M2400S system consists of two types of radios: Access Points (AP) and Subscriber Units (SU). Up

to 126 subscriber units can be supported by a single AP, which acts as a hub in a star configuration. The

AP delivers wireless broadband service (Ethernet connectivity) to one or more SUs according to a

proprietary adaptive dynamic polling algorithm called SMARTPolling™. Network operators can co-locate

multiple APs at a single cell site, thus increasing the aggregate throughput available at each wireless

point of presence (POP).

Typical Deployment

The AP typically resides at the center of the point-to-multipoint (PMP) network and performs all

management functions including the allocation of bandwidth for all associated SUs. The M2400S AP

provides a host of comprehensive tools and functions.

The M2400S system is classified as a Layer 2 multi-point bridge thus all forms of Ethernet traffic and

unlimited IP addresses will pass seamlessly over the system. There is no limitation on the number of IP

addresses or hardware devices to which an individual subscriber unit may be connected.

Authentication of subscriber units is performed using a secure, proprietary method which is based on the

MAC address of the subscriber units. In order to establish a wireless link the MAC address of the SU

must be present in the Access Point’s SU database.

Both APs and SUs are IP addressable and can be managed remotely across the network. Users can

manage the radios using the telnet command line interface or the graphical HTTP browser interface.

The M2400S also provides remote firmware upgrade capability utilizing TFTP. APs include a full

featured SNMP agent for monitoring and control of both APs and SUs via SNMP.

Introduction

Trango Broadband Wireless — User Manual M2400S Rev. A

Page

The M2400S radios are powered using "Power over Ethernet" for ease and low-cost installation. A

single Cat-5 cable carries both Ethernet and DC power to the radio.

Both APs and SUs feature a handy "site survey" tool to check for interference as well as RSSI tools for

optimizing antenna positioning. The M2400S also feature variable receiver threshold, full power control,

dual polarized antennas, and various link diagnostic tools

SmartPolling™ & Bandwidth Throttling

One of the major advantages of the M2400S system is the ability of the AP to handle multiple SU

connections and share the 5 Mbps data throughput efficiently. Bandwidth allocation is managed

by the AP’s SMART Polling™ algorithm according to provisioning rules set up by the system

administrator. The AP polls each SU in a round robin format to determine if the SU has data to

transfer. The SU only transmits the data “upstream” to the AP when the AP gives authorization

via a “transmit grant”. The SU passes every “downstream” data packet from the AP and

identifies packets intended for it. In order for an SU to communicate with an AP, the system

administrator must first add the MAC address and ID number of the SU to the user database in

the AP. The SMART Polling™ algorithm will poll active SUs more often, thus making the most

efficient use of the 5 Mbps bandwidth. Several other parameters are considered in the Smart

Polling™ algorithm including upstream/downstream committed information rate (CIR),

upstream/downstream maximum information rate (MIR), and Priority Setting.

Each of the above parameters is set in the AP by the system administrator and cannot be

controlled at the SU. These parameters will be covered in greater detail later in this text.

When power is first applied to a properly installed SU, it will scan all available channels, listening

for a grant from an AP with matching Base ID and the SU’s MAC in the AP’s SU Database. The

SU will then stop on that channel and respond to the AP using maximum RF power. Before the

AP can add the SU to the polling list, it must authenticate the SU by verifying the MAC address,

and performing a ranging operation to the SU. Upon successfully locating and ranging the SU,

the AP will then add the SU to the normal polling list. Once the SU is regularly being polled by

the AP, the SU is said to be “associated” to the AP.

Once associated, the AP will send a command to the SU to adjust the SU’s RF transmit power based on

the Target RSSI parameter in the AP. This process is referred to as “power leveling”.

System operators may limit allowable bandwidth to specific customers utilizing the built-in CIR and MIR

settings (measured in kbps) for each SU.

Auto-retransmit Feature (ARQ)

The M2400S features ARQ or “Automatic Request for Re-transmission”, which is the ability to correct for

missing or errored packets of data by requesting the sending radio to re-transmit the data. Both the AP

and SU units implement a form of ARQ known as 'ARQ with Selected Repeat’. The use of ARQ is

especially important in areas of high interference. The ARQ feature can be turned on or off.

Hardware Overview

Trango Broadband Wireless — User Manual M2400S Rev. A

Page

Section 2 Hardware Overview

This section provides detail about each radio in the M2400S family. Each radio in the M2400S family

includes built-in, electronically switchable, dual-polarized antenna as well as a reverse polarity SMA

connector for the attachment of an external antenna. For ease of installation all units are designed for

outdoor installation and powered by Power-over-Ethernet (POE). The M2400S Access Point and

subscriber units provide channels of operation within the 2400 MHz ISM band which spans from 2400

MHz to 2483 MHz. Default channel spacing is 10 MHz, allowing for 8 non-overlapping channels.

M2400S AP and SU Hardware Components

Each radio comes equipped with the radio itself, a power-over-Ethernet (PoE) J-Box, an AC adapter, and

mounting hardware.

Basic Components of an M2400S Radio

Bottom of Radio

At the bottom of the M2400S are two access ports: a twist-on weatherproof cable port for RJ-45 Ethernet

(and PoE), and a translucent access cover plug over the unit’s diagnostic LEDs and reset button. The

LEDs will be discussed later in this text.

Getting Started

Trango Broadband Wireless — User Manual M2400S Rev. A

Page

The radio’s model number, FCC ID, MAC ID, and Serial # are located on the back side of the radio.

Back of Radio

Side of Radio & Location of Reverse Polarity SMA Connector

6.300

.600

Section 3 Getting Started

This section explains how to power your radios, establish TCP/IP connectivity to the radios, as well as

how to access the HTTP browser and the command line interfaces.

Connections and Power

Connection and powering of radios is the same for APs and SUs.

• Connect a Cat-5 (straight through) Ethernet cable (we recommend shielded twisted pair)

between the Radio port of the J-box and the RJ-45 connector on the radio. Note: this cable will

carry Power over Ethernet (PoE).

Trango Broadband Wireless

M24000S-AP Rev. A

S/N: 00000XXXX

MAC: 00 01 DE 00 02 F3

FCC ID: NCYM2400SAP

Canada: XXXXXXXXXX

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

Getting Started

Trango Broadband Wireless — User Manual M2400S Rev. A

Page

• NETWORK port connection is as follows:

If connecting to a COMPUTER, use a Cross-Over Ethernet cable from the NETWORK port of

the J-box to the computer’s Ethernet port.

If connecting to a HUB, SWITCH, or ROUTER, use a Straight-Thru cable.

• Plug the AC adapter into an AC outlet.

• Use Ground Lug to ground PoE device and shielded CAT5

• Use voltmeter contacts to check line voltage (can be done with or without load)

Wiring Diagram

Both green LEDs on the J-box should be lit, indicating power is present at the J-box as well as the radio.

You are now ready to configure the radio via the Ethernet port.

Radio Management Concepts

Proper connections to the radios and careful IP/routing & planning will enable the network administrator

to access and manage the radios remotely over the network via TCP/IP. Radio management over

TCP/IP can be performed from computers connected to the Ethernet side of each radio. Computers

connected to the AP can manage the SU over their wireless connection; and, computers connected to

the SU can manage the AP, provided that switch 7 (TCP/IP access to AP from SU) is enabled at the AP.

Switches will be covered later in this text.

Opmode

To fully understand radio management for the M2400S system, it is important to be familiar with the

concept of operation mode or “opmode”.

APs and SUs can be in one of two opmodes; “OFF” opmode, or “ON” opmode. When in “OFF” opmode,

the AP is not transmitting and it is not attempting to associate with SUs. Alternatively, when opmode is

“ON”, the radio is transmitting and attempting to become associated.

Getting Started

Trango Broadband Wireless — User Manual M2400S Rev. A

Page

Several functions, such as the site survey function and the SU RSSI function can only be performed

while the radio is in a particular opmode. See Appendix D (Command Set Reference) for a complete

listing of commands, and the appropriate opmode for each command.

Switch Settings

M2400S firmware includes several “switches” which are used to set certain operational parameters of the

radios. Switch settings can be changed via the HTTP browser interface or the Command Line Interface.

For purposes of radio TCP/IP management, the following four switches are important:

Switch 2 (SU) - TCP/IP access to SU from the AP’s side of network requires that the SU’s switch 2

(SW 2 – TCP/IP for AP) be “ON”. Default setting for SW 2 (from factory) is “ON”.

Switch 5 (AP and SU) – In order to utilize the radio’s HTTP Browser interface, switch 5 (SW 5 –

Enable HTTP) must be “ON”. Default setting for SW 5 (from factory) is “ON”.

Switch 6 (SU) - TCP/IP access from Ethernet port of SU while opmode is on, requires that switch 6

(SW 6 – TCP/IP Service for Ethernet Port) be “ON”. Default setting for SW 6 (from factory) is “ON”. If

SW 6 is off, TCP/IP access to SU from it’s Ethernet port is possible only if SU’s opmode is OFF.

Switch 7 (AP) – TCP/IP access to AP from SU’s side of network requires that the AP’s switch 7 (SW 7

– TCP/IP for SU) be “ON”. Default setting for SW 7 (from factory) is “ON”.

Passwords

In order to logon to an M2400S radio (either through telnet or through the web browser interface), the

user must know the IP address and password. Both AP’s and SU’s feature two levels of passwords;

Read Write (RW) and Read Only (RO). Be sure to change both passwords (RW and RO) prior to

deployment of your radios on a live network. Passwords can be changed using the “password ro and

password rw command in either the CLI interface or in the command console of the browser interface.

Reset Button

Pressing the reset button will reset the radio’s IP address and password back to factory defaults.

Default IP (192.168.100.100) Default Password (trango)

Browser Interface

The M2400S (both AP and SU) features a convenient and easy-to-use web based configuration and

management tool. No additional software is needed on your computer other than a web browser. Most

functions can be performed using the browser interface, although several functions can only be

performed using command line interface (CLI). The browser interface also includes a “command

console” page which allows the user to enter most CLI commands without leaving the browser interface.

To use the browser interface – the following must be present:

• An Ethernet connection between a PC and the radio

• Ethernet PC connection with IP/subnet that is routable to the radio

• SW 5 On (default)

• A web browser on the PC (i.e. Microsoft Internet Explorer)

In order to use the browser interface – simply connect the radio to a PC, and type the radio’s IP address

(default IP address=192.168.100.100) into the web browser (i.e. Microsoft Internet Explorer). This will

bring up a login page.

NOTE: Login pages for AP and SU are similar.

Getting Started

Trango Broadband Wireless — User Manual M2400S Rev. A

Page

Browser Interface Login Page

Type the password (default trango) and continue. This will bring up the radio’s system information

page.

Getting Started

Trango Broadband Wireless — User Manual M2400S Rev. A

Page

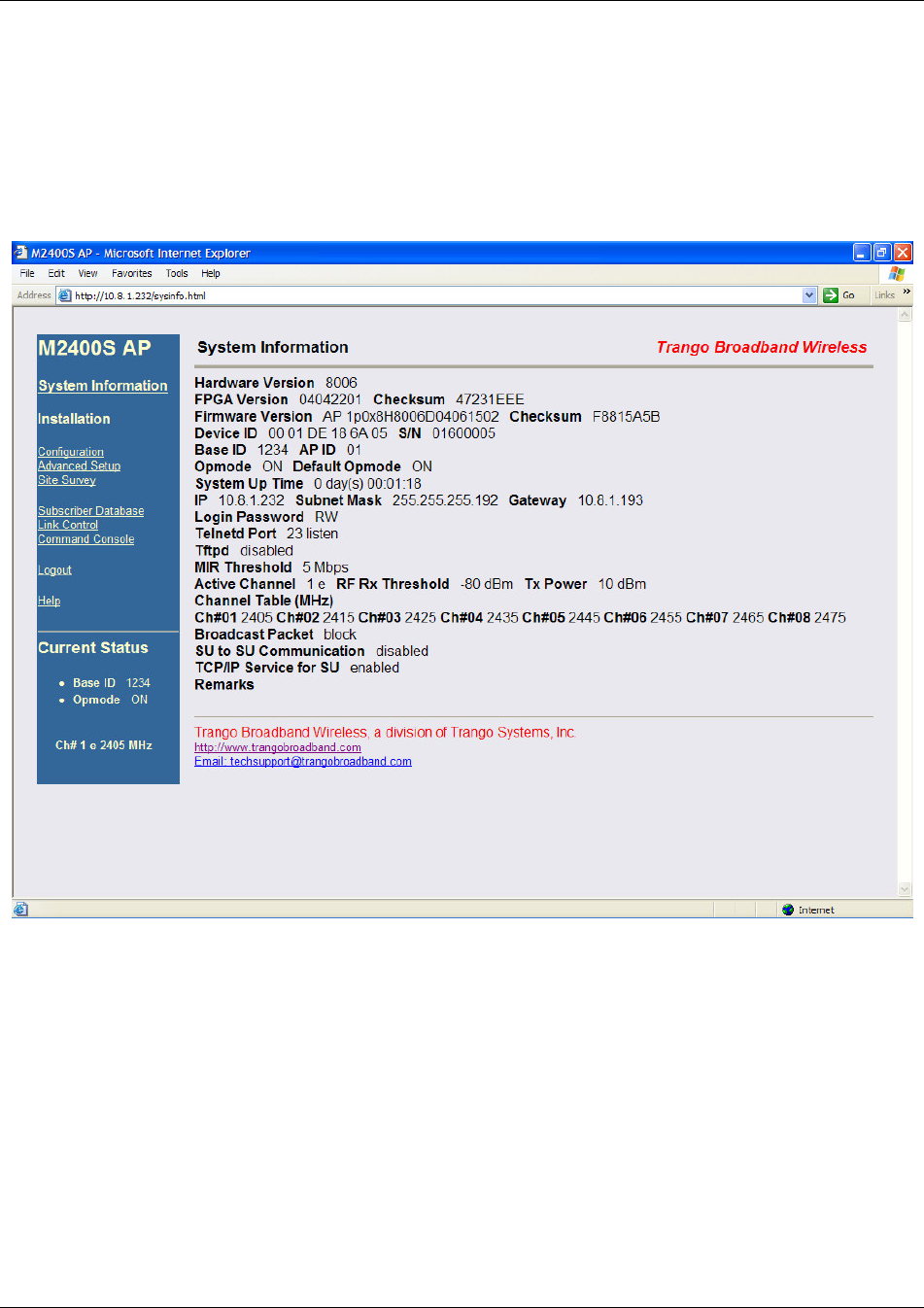

Web Browser System Information Page



Note: System Information screen for subscriber unit is similar and is covered in detail later in this text.

Primary Features and Pages of the Browser Interface:

Navigation Column: Each page features a navigation column which runs along the left-hand side of the

page. The model number of the radio is listed at the top of the navigation column. On the bottom of the

navigation column is the Current Status of the radio including its Base ID, current Opmode, channel,

antenna selection, and frequency.

The navigation column also features links to each of the following pages:

System Information: This page shows most of the basic configuration parameters of the radio. It is the

first page shown after login.

Configuration: The essential parameters, such as Base ID, IP, Subnet, gateway, channel, and antenna

polarization are set here.

Advanced Setup: The advanced RF parameters, such as transmit power, receiver threshold control,

and channel center frequencies are set here.

Site Survey: With Opmode Off, the user can conduct a spectrum analysis using this page.

Subscriber Database: This is the page for defining which SUs can associate to the AP.

Getting Started

Trango Broadband Wireless — User Manual M2400S Rev. A

Page

Link Control: This page shows which SUs are associated. This page also provides several tools for

evaluating the quality of the wireless link.

Command Console: From this page, the user can run any console command which is not interactive

(i.e. ipconfig). or time sensitive (su linktest). For a complete list of console commands, type "help" or

“?” in the entry field.

Logout: This link will end the current browser session with the radio.

Help: The Browser Interface features useful Help pages which explain all listed parameters. To

access the help pages click on the Help link.



NOTE:

For a complete description on use of the Browser Interface, see Appendix A.

Command Line Interface

Although most radio functions can be managed via the browser interface, the command line interface

(CLI) provides slightly more functionality and is usually the management tool of choice for experienced

users. The CLI can be accessed through Telnet.

Telnet

Open a command prompt (DOS) session on your PC. Open a Telnet session by typing:

telnet [ip address of radio]

All Trango radios are pre-configured at the factory with a default IP address of 192.168.100.100. The

factory default password is trango. Once you connect to the radio you will be greeted with current

hardware and firmware information and prompted for a password. Type in the read-write (RW) password

and press enter.

Example:

C:>telnet 192.168.100.100

Welcome to Trango Broadband Wireless M900S-AP 1p0H8005D04030101

Password:

To terminate a CLI session (Telnet or Serial) type the command logout.

 Note: Type help, or ? for a listing of all CLI commands. Type help <command> for the syntax of a particular command.

Example (to view a list of all commands which start with SU)

#> ? su

su [all | <suid, 1..126>]

su info <suid, 1..126>

su linktest <suid, 1..126>

su password <suid|all> <rw|ro> <new password> <new password>

su ping <suid, 1..126>

su reboot <suid|all>

su sw <suid|all> <sw#, 0..7> <on | off>

su testrflink <suid, 1..126> <r>

su testrflink <all> <r>

sudb add <suid, 1..126> <pr|re> <device id,hex>

sudb cirmir <<suid>|all> <cir dn> <cir up> <mir dn> <mir up>

sudb defaultcirmir [<cir dn> <cir up> <mir dn> <mir up>]

sudb delete <<suid>|all>

sudb dload

sudb gid <<suid>|all> <0..15>

sudb view

Getting Started

Trango Broadband Wireless — User Manual M2400S Rev. A

Page

survey <time, 1..10 sec> <antenna, h|v|e>



NOTE:

The majority of the CLI commands will be covered throughout this text as well as in Appendix

A, Command Set Reference.

Troubleshooting

If you cannot telnet into the radio or open a browser session, check cable connections, ensure proper

use of cross-over vs. straight-through cable and ensure PC’s subnet is routable to radio’s IP address. If

you still cannot access the radio’s management interfaces, consult the troubleshooting guide which is

available at www.trangobroadband.com in the Technical Support area of the website.

Basic Configuration via Browser Interface

Trango Broadband Wireless — User Manual M2400S Rev A Page

Section 4 Basic Configuration via Browser

Interface

This section describes a few more basic concepts and how to establish a basic wireless link between AP

and SU using the Browser (HTTP) Interface. This section is written to address only the most basic steps

in establishing a link in the lab, or a bench-top environment. It is highly recommended to read the other

sections of this manual to gain an understanding of all important configuration parameters and

procedures prior to deploying any wireless equipment.

In this section you will:

• Learn about AP and SU Basic Configuration Screens and Parameters

• Populate AP’s Subscriber Unit Data Base (SUDB) with at least one SU

• Configure Other Basic AP Parameters

• Configure Basic SU Parameters

• Establish a Wireless Link

• Evaluate Link Quality

The M2400S uses the concept of “association” to indicate that the AP and SU’s are communicating. If all

parameters are properly set, the AP will begin actively searching for the SU’s in its SU database (SUDB).

Once an active SU is detected, the authentication and association process will begin.

Essentials to Establish a Wireless Link with M2400S Series Radios

• Base ID in AP and SU must match

• MAC Address of SU must be entered into the AP(SUDB)

• SU must be set to either “autoscan” all channels, or it’s channel must be fixed on same channel

as AP.

• AP must be in Opmode “on”

• SU must be in Opmode “on”

• Adequate signal strength must be received at each radio

If all of these parameters are met, the wireless link will automatically establish itself and Ethernet traffic

will begin to pass between the radios.

 Note: This section utilizes the Browser Interface as the configuration tool. For the equivalent

procedure using CLI commands, see Section 5.

Configuring the AP Subscriber Unit Database

Prior to establishing a wireless link, the user must configure the subscriber unit database (SUDB) in the

AP with each SU’s MAC address and related settings. The SUDB includes information about each SU.

Click on the Subscriber Database page to add, modify, or delete SUs. The key information for each SU

includes the following:

SU ID: User Definable subscriber unit ID (1…126)

TYPE: PR Priority or REG Regular. Priority SUs are polled much more frequently than

regular SUs. Priority SUs in general will respond to the AP with less latency than

regular SUs.

Group: SU to SU Group # (1..F in hex) for SU to SU communications within the same sector.

Note: This SU to SU feature allows interconnectivity between multiple SUs in the

same sector, without the need for a router. Only SUs with same SU to SU group #

may communicate with each another. If you do not want the SUs to communicate

with each other, choose N/A for SU to SU group. In order to use SU to SU

communication, AP switch #3 must be ON. Default setting for switch #3 is OFF.

Basic Configuration via Browser Interface

Trango Broadband Wireless — User Manual M2400S Rev A Page

 Note: SUs using SU to SU communication must be on the same subnet.

CIR UP: Committed Information Rate from SU to AP. Minimum upstream rate (measured in

Kbps) at which the SU will attempt to deliver bandwidth to the AP. Maximum setting

is 5200.

CIR DOWN: Committed Information Rate from AP to SU. Minimum downstream rate (measured in

Kbps) at which the AP will attempt to deliver bandwidth to that SU. Maximum setting

is 5200.

MIR UP: Maximum Information Rate from SU to AP. Maximum upstream rate (measured in

Kbps) at which the SU will attempt to deliver bandwidth to the AP. Maximum setting

is 5200.

MIR DOWN: Maximum Information Rate from AP to SU. Maximum rate (measured in Kbps) at

which the AP will attempt to deliver bandwidth to that SU. Maximum setting is 5200.

DEVICE ID: MAC address of the SU. The MAC address and the AP’s BASE ID are the basis for

authentication with the AP.

Creating an SU in the SU Database.

1. Connect to the AP (see Getting Started) and open the Subscriber Database page.

2. Enter the SU ID (range 1 – 126)

3. Select either PRIORITY or REGULAR.

4. If the SU will be part of an SU to SU group, enter the SU to SU group number.

Basic Configuration via Browser Interface

Trango Broadband Wireless — User Manual M2400S Rev A Page

5. CIR up (SU to AP Committed Information Rate) is the minimum upstream bandwidth for the SU

in Kbps.

6. CIR dn (AP to SU Committed Information Rate) is the minimum downstream bandwidth for the

SU in Kbps.

7. MIR up (SU to AP Maximum Information Rate) is the maximum upstream bandwidth for the SU

in Kbps.

8. MIR dn (AP to SU Maximum Information Rate) is the maximum downstream bandwidth for the

SU in Kbps.

9. Enter the Device ID (MAC Address of the SU)

10. Save and Activate changes

Important! Always remember to Save and Activate changes or the SUDB will revert back to its

previous state after a power cycle or reboot.

Important! SUs using SU to SU communication must be on the same subnet.

Configure Other Basic AP Parameters

In addition to setting up the SU in the SU Database, the following settings from the AP’s Configuration

page must be set (or left at default).

Base ID: Four characters, alphanumeric, user definable base station ID. Input of BASEID shall be in

the format of xxxx. Where x is any character from the set : { 0..9; a..z; A..Z;

'!@#$%^&*()_+[]\<>,./?' } . The Base ID is typically assigned to a single AP or a group of

APs at a particular cell site. The Base ID in the AP must match the Base ID in the SU in

order for a link to be established. This parameter can only be changed while opmode is

"OFF".

AP ID: User definable AP ID (00-FF). Default is last two digits of MAC ID. Once authenticated,

the AP will automatically assign its AP ID to the SU. This parameter can only be changed

while opmode is “OFF”.

IP Address, Subnet Mask, Gateway:

The IP address used on the radio is for management purposes only. Since this is a layer-

II device, these parameters do not play a role in establishing the wireless link.

Default Opmode:

Will initiate Operation Mode of the radio after a power cycle or reboot. When the radio

enters "ON" mode, it will be transmitting. When the radio enters "OFF" mode, it will not be

transmitting. The radio can be put into opmode "OFF" regardless of its default opmode by

telnetting into the radio within the first 30 seconds after a power cycle or reboot.

Active Channel/Polarization:

Is the current channel and antenna polarization of the unit when Opmode = "ON".

To configure the AP’s other basic settings, complete the following steps:

1. Connect to the AP (see Getting Started) and open the Configuration page.

Basic Configuration via Browser Interface

Trango Broadband Wireless — User Manual M2400S Rev A Page

2. Set Base ID or choose default base ID of 0000 (Must match the SU)

3. Set AP ID (00-FF HEX)

4. Set IP, Subnet, and Gateway, or leave at default settings. Keep in mind if you change the IP

Settings of the radio you will loose your HTTP session when you save and activate.

5. Choose Active Channel (1-8)

6. Choose Antenna Polarization (H or V) or choose E for external antenna

7. Ensure default Opmode is "ON"

8. Save and Activate Settings

9. If this is the first SU to be added to the SUDB, reboot the AP.

After reboot, the AP will automatically enter its default opmode, (ON) after approximately 40 seconds. At this time it will begin

actively searching for all SUs in its SUDB. Once an active SU is detected, the authentication and association process will

begin.

Basic Configuration via Browser Interface

Trango Broadband Wireless — User Manual M2400S Rev A Page

Configure Basic SU Parameters

In order to establish a working link, the Base ID in the SU must match the Base ID of the AP.

SU Basic Setup:

Connect to the SU (see Getting Started) and open the Configuration page.

2. Set Base ID (Must match the AP)

3. Set IP, Subnet, and Gateway, or leave at default settings. Keep in mind if you change the IP

Settings of the radio you will loose your HTTP session when you save and activate.

4. Ensure default Opmode is "ON"

5. Save and Activate Settings

6. If opmode is OFF, click activate opmode

At this point, if all parameters have been set correctly and the radios are within range, a wireless link

between the AP and SU will automatically become established. Once this occurs the SU will be in

“associated” status.

Allow approximately 60 seconds for the radios to complete the boot-up cycle and to associate. If the AP

is busy servicing many SUs, the association process may take slightly longer.

Basic Configuration via Browser Interface

Trango Broadband Wireless — User Manual M2400S Rev A Page

LED Summary

At this point it is useful to learn about the various LEDs which can be found on the bottom of the radio.

These LEDs can assist the user in determining radio and link status.

Link Control Page

The radio’s firmware includes several useful tools to assist in determining which SUs are associated, and

the quality of each link. One method for verifying link quality is by using the Link Control page.

LED / RESET BUTTON WINDOW

Basic Configuration via Browser Interface

Trango Broadband Wireless — User Manual M2400S Rev A Page

On this page the user can immediately see which SUs are currently associated. In the page shown, SU

ID# 1 is associated, and SU ID# 17 is not. Consider "Power Off" status synonymous with "not

associated."

RF Link

Loopback Test

The RF Link Loopback

Test is one of the built-in

tools for evaluating the

quality of the wireless

link. Specify an SU ID

and time in minutes to

conduct the test. The

test is prioritized, so it

will take precedence

over all other traffic.

1600 byte packets are

sent and received

between the SU and AP

at 50 millisecond

intervals over the time

specified.

Basic Configuration via Browser Interface

Trango Broadband Wireless — User Manual M2400S Rev A Page

SU Ranging Test

This test reports the SUs

distance from AP in miles,

received signal strength for

uplink and downlink, and SU Tx Power. Use a link budget calculator to analyze results. Significant

differences between calculated and actual values could indicate alignment or LOS issues!

Advanced Setup Page

The advanced set up page includes several important parameters including RF TX Power, RF Rx

Threshold, target RSSI from SU (AP only), and Channel Table.

RF Tx Power: Sets the conducted RF power output of the radio. Highest allowable setting is

+23 dBm. Lowest setting is +10 dBm. This value does not include antenna gain.

RF Rx Threshold: Sets the receive threshold of the radio. The radio will not process signals

received below this level, so it is very useful for interference mitigation. For

smaller radius of operation use a higher threshold (-75 is higher than -80).

Target RSSI from SU: Used by the powerleveling process to automatically adjust the RF output power

level of all SUs in a sector so the signal strength from each SU as measured at

the AP will be roughly equal.

Basic Configuration via Browser Interface

Trango Broadband Wireless — User Manual M2400S Rev A Page

Channel Table: Assigns channel numbers to actual frequencies of operation. Default settings

allow the largest number of channels (8) within the band, while still maintaining

10 MHz channel spacing.

Other Key Parameters

This section describes the remainder of the parameters listed on the System Information page. Most of

these parameters are the same for both APs and SUs.

Hardware Version: Hardware version is factory-set and can not be changed by the user.

FPGA Version: Low level field programmable gate array firmware currently loaded on the radio.

Normally the FPGA firmware will not require upgrading.

Firmware Version: Main firmware. In this example, the version part of the string is 1p0 (v1.0), the

hardware code is H8006, and the remainder of the string is a date code.

Device ID: MAC address of the radio.

S/N: Serial number of the radio.

Telnetd Port: User changeable telnet port of radio.

TFTPd: Current status of TFTP daemon. Used for uploading firmware.

MIR Threshold: Shown in Mbps (0..5) Maximum Information Rate (MIR) Threshold. The MIR Threshold

is the aggregate throughput on the AP at which the AP will start to enforce CIR rules for the SUs.

Basic Configuration via Browser Interface

Trango Broadband Wireless — User Manual M2400S Rev A Page

Active Channel: The channel currently being used by the radio.

RFRx Threshold: Sets the receive threshold of the radio. The radio will not process signals received

below this level, so it is very useful for interference mitigation. For a smaller radius of operation use a

higher threshold (-65 is higher than -70).

Broadcast Packet: This software switch (0) enables/disables the blocking of Ethernet control packet

except ICMP and ARP to reduce the amount of unnecessary overhead introduced to the wireless link.

SU to SU Communication: If enabled (switch 3=on), SUs with matching SU to SU groups (except

group 0) can communicate in peer-to-peer mode through the AP without the need of a router behind the

AP. SUs using SU to SU communication must be on the same subnet.

TCP/IP Service for SU: If enabled, the AP can be accessed via TCP/IP (Telnet or HTTP) from the SU side of

the network via the wireless link.

Remarks: User definable radio information (i.e. customer name, address of installation, etc). A maximum of

28 characters can be stored.

Site Survey Page

The Site Survey page provides a useful tool for detecting and measuring interference. The radio must be

in Opmode OFF in order to use this feature.

Enter the number of minutes desired for the survey, and select the polarization H, V, or E for external

antenna. Click "Start Survey". A survey of the default 8 channels will be performed. Results are

reported in dBm per channel as average and peak. A channel is reported to be "Clear" if the peak and

average are below the RF Rx Threshold by more than 8 dB.

Basic Configuration via CLI

Trango Broadband Wireless — User Manual M2400S Rev A Page

Basic Configuration via CLI

This section covers how to utilize the radio’s CLI interface to establish a working wireless link.

In this section, the most common settings are discussed using the CLI. Topics include:

• Access Point Basic Settings

• Subscriber Unit Database Settings

• Subscriber Unit Basic Settings

See Appendix A Command Set Reference for a complete listing of CLI commands.

See “Getting Started” section for a description of how to access the radio using Telnet or Serial Interface.

Access Point Basic Settings

After logging onto an AP or SU, it is good practice to type the sysinfo command to see the radio’s basic

system information. Example (Access Point):

#> sysinfo

[Hardware Version] 8006

[FPGA Version] 04042201 [Checksum] 47231EEE

[Firmware Version] AP 1p0x8H8006D04061502 [Checksum] F8815A5B

[Device ID] 00 01 DE 18 6A 05 [S/N] 01600005

[Base ID] 1234 [AP ID] 01

[System Up Time] 0 day(s) 01:37:29

[Opmode] on [Default Opmode] on

[IP] 10.8.1.232 [Subnet Mask] 255.255.255.192 [Gateway] 10.8.1.193

[Login Password] RW

[Httpd Port] 80 [Httpd Status] listen

[Telnetd Port] 23 [Telnetd Status] connected (10.8.0.60,1454)

[Tftpd] disabled

[RF Tx Power] 10 dBm

[RF Rx Threshold] -80 dBm

[MIR Threshold] 5 Mbps

[Ch#01] 2405 Mhz [Ch#02] 2415 Mhz [Ch#03] 2425 Mhz [Ch#04] 2435 Mhz

[Ch#05] 2445 Mhz [Ch#06] 2455 Mhz [Ch#07] 2465 Mhz [Ch#08] 2475 Mhz

[Default Channel] 1 e [Active Channel] 1 e

[Broadcast Packet] block [SU to SU] off [TCP/IP for SU] on

[Remarks]

[RF Rx] 0 kbps [RF Tx] 0 kbps [Eth Rx] 3 kbps [Eth Tx] 5 kbps

Many of these parameters can be changed by the user. A description of each of these changeable

parameters, along with the related command is shown in the table below.

Important! When changing settings, it is usually necessary to type the save ss command in order

to update the radio’s flash memory. If you do not type the save ss command, the setting will be lost

the next time the radio is rebooted.

AP SYSTEM INFORMATION PARAMETERS AND RELATED COMMANDS

AP Parameter Description Related CLI Command

Device ID MAC Address of AP N/A

Base ID Specifies the cell or cluster

to which the AP belongs.

Base ID must match in AP

and SU in order to establish

a wireless link.

set baseid <baseid>

Example:

#>set baseid aa12

Basic Configuration via CLI

Trango Broadband Wireless — User Manual M2400S Rev A Page

AP SYSTEM INFORMATION PARAMETERS AND RELATED COMMANDS

AP Parameter Description Related CLI Command

AP ID This parameter provides a

unique number for each AP.

If a Target AP is specified on

the SU, the SU can only

authenticate with that

specified AP ID. The Default

AP ID is last two bytes of

MAC address.

set apid <apid> 00-FF HEX

Example:

#>set apid 01

Opmode Current Opmode of radio. opmode on y.

This sets radio in Opmode ON. If the radio is

accessed via the Ethernet port within first 30

seconds after a reboot, opmode will default to

OFF.

opmode off

(note: “y” is necessary if default opmode is

OFF).

Default Opmode Determines the Opmode

(“ON” or “OFF”) of the radio

after a power cycle. When

the parameter is set to “ON”,

the radio will progress into

“ON” Opmode automatically

after a reboot/power cycle.

set defaultopmode <on or off>

Example:

#>set defaultopmode on

Opmode Start Determines the amount of

time the radio will remain in

Opmode OFF after a reboot

before progressing to the

default Opmode.

set defaultopmode on [<time (sec)>]

Example:

#>set defaultopmode on 60

Subnet

Gateway

IP, Subnet, and Gateway

address of radio. ipconfig [<new ip> <new subnet mask>

<new gateway>]

Example:

#>ipconfig 10.1.1.2 255.0.0.0 10.1.1.1

Tftpd Status Tftpd status (on or off).

Tftpd should be turned on to

import a file into the radio

(such as new firmware).

Default is off. TFTPD will

revert to Off after rebooting.

tftpd <on|off>

Example:

#>tftpd on

MIR Threshold Mbps Use MIR Threshold

(maximum information rate)

to specify total throughput

level at which the AP will

only serve CIR (committed

information rate) to

associated SUs.

mirth [<Mbps,0..5>]

Example:

#> mirth 5

5 Mbps

681574 Bytes/sec

Active Channel Current RF channel freq [<ch#>]

Example:

#>freq 3

This command will change the channel of the

AP to 3.

antenna Current antenna selection:

(h)horizontal, (v)vertical,

(e)external

antenna [<v|h|e>]

Basic Configuration via CLI

Trango Broadband Wireless — User Manual M2400S Rev A Page

AP SYSTEM INFORMATION PARAMETERS AND RELATED COMMANDS

AP Parameter Description Related CLI Command

RF Rx Threshold Specifies the receiver

sensitivity of the AP. It is a

powerful tool when the radio

is in a noisy environment.

AP will block out any signal

received which is below the

RF Rx threshold.

rfrxth <-90..-55>

example:

#>rfrxth –70

RF Tx Power Current transmit power of

the AP not including antenna

gain.

power <set> <min|max|<dBm>>

Example:

#>power set 10

Channel Table Assigned frequencies to

channels. All channels may

be re-assigned as desired by

the administrator.

freq writechannel [<ch#> <freq>]

Example:

#>freg writechannel 3 2475

This command will change channel 3 to 2475

Mhz.

Broadcast Packet

Filter This software switch (switch

0) enables/disables the

blocking of Ethernet control

packets except ICMP and

ARP to reduce the amount of

unnecessary overhead

introduced into the wireless

link

sw 0 [on|off] (default is on)

Example:

#>sw 0 on

note: All switch settings (0-7) are set using the

sw on/off command.

SU to SU This software switch (switch

3) enables/disables the SU

to SU feature. When SU to

SU is turned on, multiple

SUs within the same sector

(meaning associated to the

same AP) can communicate

with each other. SUs using

SU to SU communication

must be on the same subnet.

sw 3 [on|off] (default is off)

Example:

#>sw 3 on

TCP/IP for SU This software switch (switch

7) when on, allows users at

the SU side of the network to

telnet or HTTP into the AP.

sw 7 [on|off] (default is on)

Example:

#>sw 7 off

Remarks User definable radio

information (i.e. customer

name, address of

installation, and so on). A

maximum of 28 characters

can be stored.

remarks [remarks]

Example:

#>remarks 123 Elm Street

Subscriber Unit Database Settings

Once you are familiar with the basic system information presented above, you are ready to add one or

more SUs to the SU database. There are five basic commands related to the SU database: sudb add,

sudb cirmir, sudb defaultcirmir, sudb view, and save sudb.

Adding an SU

You will need to know the following information to add an SU to the database:

Basic Configuration via CLI

Trango Broadband Wireless — User Manual M2400S Rev A Page

1. MAC ID of SU (printed on the back of the SU)

2. Polling priority; either PRIORITY or REGULAR.

 Note: SUs designated as PRIORITY will get polled more often by the AP.

To add an SU to the database, use the following command and syntax:

sudb add <suid> <pr|reg> <device id>

suid: SU ID

pr: priority user

reg: regular user

<device id>: xx xx xx xx xx xx in hexadecimal (this is the MAC address of the SU)

Example:

#>sudb add 5 pr F3 3C 50 67 89 D4

In this example an SU ID 5 was added as a Priority SU. The MAC ID of this SU is F3 3C 50 67

89 D4.

 Note: You can add up to 126 entries in the SU database

CIR / MIR Commands

The default CIR/MIR setting is 5000 kbps for upstream and downstream values.

To change SU’s CIR/MIR settings, use the following command:

sudb cirmir <<suid>|all> <cir dn> <cir up> <mir dn> <mir up>

Example:

#>sudb cirmir 5 128 256 5000 5000

In this example, SU #5’s CIR downstream is set to 128, CIR upstream is changed to 256. MIR upstream

and downstream is set to 5000.

To change the default CIR/MIR values, use the following command:

sudb defaultcirmir <default cir dn> <default cir up> <default mir dn> <default mir up>

Example:

#>sudb defaultcirmir 256 256 512 512

To view the entries in the SU database, type the command sudb view.

To save the changes you have made to the SU database, type save sudb

Other important SU database related commands are sudb delete, sudb gid, and sudb modify. See

Appendix A for descriptions of these commands.

Important! After updating the SU database, type the command save sudb to save the SU

database. If you do not save the sudb file will revert back to its previous state after power cycle or

reboot.

Important! SUs using SU to SU communication must be on the same subnet.

Basic Configuration via CLI

Trango Broadband Wireless — User Manual M2400S Rev A Page

Subscriber Unit Basic Settings

Once logged on to the SU you can receive a comprehensive snapshot of the system’s configuration info

and status, by typing the command sysinfo.

#> sysinfo

[Hardware Version] 0006

[FPGA Version] 04042201 [Checksum] 47231EEE

[Firmware Version] SU 1p0x8H0006D04061502 [Checksum] 6DDF232C

[Device ID] 00 01 DE 19 F0 A4 [S/N] 01700004

[Base ID] 1234 [AP ID] 01 [SU ID] 1

[System Up Time] 0 day(s) 05:14:51

[Opmode] on [Default Opmode] on

[IP] 10.8.1.234 [Subnet Mask] 255.255.255.192 [Gateway] 10.8.1.193

[Login Password] RW

[Httpd Port] 80 [Httpd Status] listen

[Telnetd Port] 23 [Telnetd Status] connected (10.8.0.60,1738)

[Tftpd] disabled

'[RF Tx Power] 22 dBm

[RF Rx Threshold] -98 dBm

[Ch#01] 2405 Mhz [Ch#02] 2415 Mhz [Ch#03] 2425 Mhz [Ch#04] 2435 Mhz

[Ch#05] 2445 Mhz [Ch#06] 2455 Mhz [Ch#07] 2465 Mhz [Ch#08] 2475 Mhz

[Default Channel] 1 h [Active Channel] 1 v [Associated] Y

[Broadcast Packet] block [Auto Scan AP] on [TCP/IP for AP] on [TCP/IP for Local

Eth] on

[Remarks]

[RF Rx] 3 kbps [RF Tx] 2 kbps [Eth Rx] 0 kbps [Eth Tx] 0 kbps

[ARQ RF Tx Retry] 0 [ARQ RF Tx Retry Maxed Out] 0

Many of these parameters can be changed by the user. A description of each of these changeable

parameters, along with the related command is shown in the table below.

Important! When changing settings, it is usually necessary to type the save ss command in order

to update the radio’s flash memory. If you do not type the save ss command, the setting will be lost

the next time the radio is rebooted.

SU SYSTEM INFORMATION PARAMETERS AND RELATED COMMANDS

SU Parameter Description Related CLI Command

Device ID MAC Address of the SU N/A

Base ID Specifies the cell or cluster

to which the SU belongs. set baseid <baseid>

Example:

#>Set baseid aa12

Target AP If a unique AP ID is

selected, the SU will only

associate with specified

target AP. If ALL is

selected, SU can

associate with any AP with

a matching BASE ID.

targetap <apid>

Examples:

#>targetap 33

#>targetap all

Basic Configuration via CLI

Trango Broadband Wireless — User Manual M2400S Rev A Page

SU SYSTEM INFORMATION PARAMETERS AND RELATED COMMANDS

SU Parameter Description Related CLI Command

Opmode Current Opmode of radio. opmode on y - set opmode to ON. (note:

“y” is necessary if default opmode is OFF.

opmode off – set opmode to OFF.

Default Opmode Determines the Opmode

(“ON” or “OFF”) of the

radio after power cycle.

When the parameter is set

to “ON”, the radio will

progress into “ON”

Opmode automatically

after reboot/power cycle.

set defaultopmode <on or off>

Example:

#>set defaultopmode on

Subnet

Gateway

IP, Subnet, and Gateway

address of radio. ipconfig [<new ip> <new subnet mask>

<new gateway>]

Example:

#>ipconfig 10.1.1.3 255.0.0.0 10.1.1.1

Tftpd Tftpd status (on or off).

Tftpd should be turned on

to import file into radio

(such as new firmware).

Default is off. TFTPD will

revert to Off after

rebooting.

tftpd <on|off>

Example:

#>tftpd on

RF Tx Power Current transmit power of

the SU not including

antenna gain. This is

controlled by the AP.

Informational Parameter only – can not be

manually changed by user.

Active Channel Shows the channel used

in the current association,

and "Associated" or

"Disconnected" depending

on the association status.

If Autoscan AP (SW 1) is on, the active

channel (and antenna selection) will be set

once the SU scans and begins the association

process with an AP.

If Autoscan AP is off, active channel is set by

user using the freq and antenna commands.

freq [<ch#>]

Use this command to change the channel.

antenna [h | v |e]

Use the antenna command to select active antenna

Broadcast Packet Filter The software switch (0)

enables/disables the

blocking of Ethernet

control packets except

ICMP and ARP to reduce

the amount of

unnecessary overhead

introduced to the wireless

link. Default setting is ON.

sw <sw#>=0..7 [on|off]

Example:

#>sw 0 on

AP Autoscan This software switch

(switch 1) is to turn AP

autoscan on or off.

sw 1 [on|off] (default is on)

(for SUs only)

TCP/IP for AP The software switch (2)

when on, allows users at

the AP side of the network

sw 2 [on|off] (default is on)

Example:

Basic Configuration via CLI

Trango Broadband Wireless — User Manual M2400S Rev A Page

SU SYSTEM INFORMATION PARAMETERS AND RELATED COMMANDS

SU Parameter Description Related CLI Command

to telnet or HTTP into the

SU.

#>sw 2 off

TCP/IP for Local

Ethernet Port The software switch (6)

when on, allows users on

the wired side of the SU to

telnet or HTTP into the SU

regardless of opmode.

sw 6 [on|off] (default is on)

Remarks User definable radio

information (i.e. customer

name, address of

installation, and so on).

Maximum of 28 characters

can be stored.

remarks [remarks]

Example:

#>remarks 678 Oak Ave

Counters:

RF Tx RF Rx

Eth Tx Eth Rx

This is an average of

wired and wireless,

transmit and received

traffic in kilobits per

second.

Informational Parameter

Mounting Hardware

Trango Broadband Wireless — User Manual M2400S Rev A Page

Section 5 Mounting Hardware

M2400S Mounting Hardware Assembly

Articulation for M2400S with Mono Pod Mount (not supplied)

Up/Down Tilt

4X Must Be loosened for

Up/Down Tilt

5Not Supplied

ITEM

NO.

PART NUMBER

QTY.

Radio

25/16 x 3" Threaded Rod

35/16 Keps Nut

4"V" Bracket

5Mono Pod Mount (Not Supplied)

Mounting Hardware

Trango Broadband Wireless — User Manual M2400S Rev A Page

Cabling and Grounding Considerations

Grounding Example

Installation Notes

Access to the radio RJ-45 Port and LED status lights are purposely

located at the bottom of the radio to minimize the risk of water intrusion.

Do not mount the radio upside down.

The J-Box is not a weatherized device and must be located either indoors or in a weather-protected

cabinet.

Shielded twisted pair Cat-5 cable is recommended for all installations unless cable is placed in metal

conduit. The shield within the Cat-5 cable does not need to be grounded if the radio itself is grounded.

It is important to consider that most Cat-5 cable will deteriorate over time if exposed to the weather (especially

direct sunlight). Conduit (metal or PVC) is recommended to protect the cable.

Important! The Ethernet port compression washer should be loosely tightened around the

cat-5 cable to allow pressure equalization within the radio enclosure. Leave approximately 1

mm around the cat-5.

It is important to provide strain relief and drip loop for STP Cat-5 cables. Do not mount the radio

upside down.

Proper mounting of the radio includes

consideration for groundin

g. Please note that if

the radio is attached to a metal pole which is

earth-grounded, no other grounding is

necessary. If the radio is not earth-grounded

via the mounting bracket, you must attach a

grounding wire to the grounding stud on the

back of the radio per the adjacent diagram.

Deployment

Trango Broadband Wireless — User Manual M2400S Rev A Page

Section 6 Deployment

Once you are familiar with the basic operation of the radios you are ready for deployment in the field. The

deployment process consists of the following steps:

• Site Selection

• Site Survey

• Channel Planning

• SU Antenna Alignment

•

Link Management Commands

Site Selection

Proper site selection for your AP will help ensure a successful deployment. Site selection will depend on a

wide variety of factors, but from the radio’s performance standpoint consider the following:

• Path from AP to SU should provide as few obstructions as possible. It is advisable to place the AP as

high as possible on a tall building or tower.

• Ethernet cable is limited to 300 feet from Ethernet device (router, switch) to radio

• Radios require grounding for optimal performance

• AP provides sector coverage of 60 degrees azimuth and 18 degrees elevation

• Consider nearby sources of interference which could degrade performance of radio. Mount radios as

far from sources of interference as possible

• Perform a site survey to determine noise levels and the relative clarity of channels at the chosen

installation location.

Site Survey

Both the AP and SU provide a powerful on-board site survey tool. This tool will tell you if there is interference

present in the 2.4 GHz ISM band.

Command: survey <time> <antenna>

In order to use the survey command, the radio must be in Opmode “OFF”. The survey can be performed for

up to 10 seconds per channel (incrementing by 5 MHz). The test can be run for either the (h) horizontal

polarization, (v) vertical polarization, or (e) external antenna.

Prior to performing the site survey, place the radio in the installation spot, and aim the radio in the desired

direction.

The results of this test will provide you with a listing of each channel in the band, the average signal received,

and the maximum signal received during the survey period.

In general you will be looking for frequencies with interference signal strength of –85 dBm or lower. If

interference is present on various channels, it is recommended that you chose clean channels or alternate

polarizations for your deployment. If it is not possible to use a clean channel/polarization combination, there

are various methods available to mitigate the affects of interference. These methods include the use of the

RFRX THRESHOLD settings, the use of external shields, and or external narrower beam antennas.

Deployment

Trango Broadband Wireless — User Manual M2400S Rev A Page

Site Survey Example:

#> survey 2 v

Press [space] then [enter] to stop

2350 MHz peak -94 dBm avg -99 dBm

2355 MHz peak -94 dBm avg -99 dBm

2360 MHz peak -94 dBm avg -99 dBm

2365 MHz peak -94 dBm avg -99 dBm

2370 MHz peak -94 dBm avg -99 dBm

2375 MHz peak -94 dBm avg -99 dBm

2380 MHz peak -94 dBm avg -99 dBm

2385 MHz peak -94 dBm avg -99 dBm

2390 MHz peak -94 dBm avg -99 dBm

2395 MHz peak -94 dBm avg -99 dBm

2400 MHz peak -94 dBm avg -99 dBm

2405 MHz Ch 1 peak -91 dBm avg -92 dBm

2410 MHz peak -69 dBm avg -75 dBm **

2415 MHz Ch 2 peak -61 dBm avg -66 dBm ***

2420 MHz peak -70 dBm avg -76 dBm *

2425 MHz Ch 3 peak -90 dBm avg -92 dBm

2430 MHz peak -94 dBm avg -99 dBm

2435 MHz Ch 4 peak -94 dBm avg -99 dBm

2440 MHz peak -94 dBm avg -99 dBm

2445 MHz Ch 5 peak -94 dBm avg -99 dBm

2450 MHz peak -94 dBm avg -99 dBm

2455 MHz Ch 6 peak -94 dBm avg -99 dBm

2460 MHz peak -94 dBm avg -99 dBm

2465 MHz Ch 7 peak -94 dBm avg -99 dBm

2470 MHz peak -94 dBm avg -99 dBm

2475 MHz Ch 8 peak -94 dBm avg -99 dBm

2480 MHz peak -94 dBm avg -99 dBm

2485 MHz peak -94 dBm avg -99 dBm

2490 MHz peak -94 dBm avg -99 dBm

2495 MHz peak -94 dBm avg -99 dBm

2500 MHz peak -94 dBm avg -99 dBm

2505 MHz peak -94 dBm avg -99 dBm

2510 MHz peak -94 dBm avg -99 dBm

2515 MHz peak -94 dBm avg -99 dBm

2520 MHz peak -94 dBm avg -99 dBm

2525 MHz peak -94 dBm avg -99 dBm

2530 MHz peak -94 dBm avg -99 dBm

2535 MHz peak -94 dBm avg -99 dBm

2540 MHz peak -94 dBm avg -99 dBm

2545 MHz peak -94 dBm avg -99 dBm

2550 MHz peak -94 dBm avg -99 dBm

Once the site survey is completed you are ready to install your radios. It is recommended that APs be

installed first. The reason for this is that the SU has a built-in RSSI tool that will help you properly aim the SU

toward the AP to achieve the maximum signal strength.

AP Search and SU Antenna Alignment

Once the AP is installed and aligned in the correct general direction, it is time to install the SU. The hardware

installation of the SU is identical to the AP, including considerations for line-of-sight; cable distances; cable

type; weather sealing; and grounding.

In this example of a survey

on the vertical polarization

for 2 seconds for each 5

MHz portion of spectrum.

The largest amount of

energy is detected at

frequency 2415 MHz.

The asterisks (****) indicate

the highest avg amount of

energy detected and

corresponds to the number

of amber colored LEDs lit.

Note: the survey also

covers spectrum outside of

the operational range of the

radio.

Deployment

Trango Broadband Wireless — User Manual M2400S Rev A Page

Once the SU is installed and aimed in the general direction of the AP it is time to perform an RSSI (relative

signal strength indicator) test to determine the signal strength from the AP. Now you can precisely align the SU

antenna for maximum signal strength.

Although it is possible to rely upon the subscriber unit’s LEDs for alignment, more precise RSSI readings are

available from the command RSSI.

In conjunction with the RSSI command, it is also useful to perform the APSEARCH command. This command

will tell you which AP is providing an adequate signal at the location of the SU.

AP Search

1. Ensure AP is in opmode “On”

2. Run the apsearch command to verify which AP is providing the strongest signal strength.

#> apsearch

Press [space] then [enter] to stop

1 2405 Hz 1234 DE 18 6A 05 [H: -55 dBm] [V: -75 dBm] [E: -99 dBm]

2 2415 Hz ---- FF FF FF FF [H: -98 dBm] [V: -98 dBm] [E: -99 dBm]

3 2425 Hz ---- FF FF FF FF [H: -99 dBm] [V: -99 dBm] [E: -99 dBm]

4 2435 Hz ---- FF FF FF FF [H: -99 dBm] [V: -98 dBm] [E: -99 dBm]

5 2445 Hz ---- FF FF FF FF [H: -99 dBm] [V: -98 dBm] [E: -98 dBm]

6 2455 Hz ---- FF FF FF FF [H: -99 dBm] [V: -99 dBm] [E: -99 dBm]

7 2465 Hz ---- FF FF FF FF [H: -99 dBm] [V: -99 dBm] [E: -99 dBm]

8 2475 Hz ---- FF FF FF FF [H: -99 dBm] [V: -99 dBm] [E: -99 dBm]

RSSI Command for Antenna Alignment

Step 1 Telnet into the SU (while in Opmode “OFF”). Use the freq and antenna command to note current

radio settings.

Step 2 Run the rssi command. The telnet session screen will begin a continuous readout of the received

signal strength. As you read the RSSI reading, move the antenna in the horizontal and vertical planes until the

maximum RSSI reading is achieved. To allow for plenty of fade margin we recommend a continuous RSSI

reading of -78 dBm or better. An RSSI of –88 dBm will allow you to establish a wireless link, but there may not

be sufficient fade margin for reliable and continuous operation.

Example 1 has the wrong freq and antenna settings:

#> rssi

[ 1] peak -99 dBm avg -99 dBm

[ 2] peak -99 dBm avg -99 dBm

[ 3] peak -99 dBm avg -99 dBm

Example 2 has the correct freq and antenna settings:

#> rssi

[ 1] peak -38 dBm avg -80 dBm *

[ 2] peak -38 dBm avg -75 dBm **

[ 3] peak -37 dBm avg -75 dBm **

Step 3 If it is not possible to receive an adequate RSSI reading it may be necessary to reorient the AP

(up/down, left/right) to increase the output power. Or move the SU to a location with better line-of-sight to the

AP. Alternatively consider using external antennas on either the AP or SU or both.

Once you are satisfied with the RSSI reading, tighten down the SU in the optimum position. To stop the RSSI

continuous readout hit SPACE ENTER.

In this example, an AP is detected on channel 1,

polarization horizontal. Further, the Base ID is 1234, and

the MAC address is 00 01 DE 18 6A 05.

Deployment

Trango Broadband Wireless — User Manual M2400S Rev A Page

SU Alignment Using LEDs

The LED RSSI indicators on the bottom of the radio provide a handy alignment tool. If all four LEDs are lit,

the unit is receiving –64 dBm or stronger. If no LEDs are lit, there is not sufficient signal strength to establish a

wireless link.

Lit LEDs Signal Strength

0 LED -80 dBm

1 LED -75 to -79 dBm

2 LED -70 to -74 dBm

3 LED -65 to -69 dBm

4 LED -64 dBm and stronger

Collocation and Channel Planning (temporary example from 900 manual)

With proper channel planning and adherence to installation guidelines, multiple M900S access points may co-

exist and operate interference-free on the same tower or building. The main consideration when collocating

access points is to ensure at least 10 ft. of vertical separation. Please see the diagram below for collocation

spacing and suggested channel plan.

Note: RSSI tool (telnet or LEDs) will show all RF

energy on a given freq. i.e. – a nearby SU on the same

freq. passing traffic may give the appearance of a

strong signal from your AP when in fact it is not and

cause a misalignment.













































 !" #"$# 

%#&&"' (!)*! !++!

'"'&' #'"#" !*+!*!"!









Deployment

Trango Broadband Wireless — User Manual M2400S Rev A Page

Link Management Commands

Once the radios are properly aligned for maximum RSSI, ensure the SU’s default Opmode is “ON” and that all

configuration parameters are correct.

Reboot the SU. Once the SU enters Opmode “ON” the authentication process will begin, and the two radios

will begin to associate. From the AP side, there are several basic diagnostics commands such as su ping, su

info, and su testrflink to ensure that a reliable RF link has been established. It may take one minute or more

for the association process to complete. This process may take longer if there are many SUs in the sector.

If all tests show favorable results, the wireless link will automatically begin passing Ethernet traffic

between the radios.

In establishing and diagnosing the quality of the link between AP and SU(s), there are a few commands that

are especially useful. All of these commands are performed at the AP. A summary of these commands

follows:

Displays the status of all SUs in the APs database. SUs in the SU database will appear by SU ID, classified

into one of the following status categories: Associated, Associating, or OFF. All associated SUs will be

indicated

Example:

#> su

[Priority] 1

[0] 1

[1]

[2]

[3]

[4]

[5]

[Associating]

[Power Off] 17

Success.

su ping <su#>

AP will send 10 RF pings to the designated SU ID. The response from each ping will indicate latency (in

micro-seconds) and the received signal strength (RSSI) from the SU for each of the 10 pings. Note this

command will also tell you the distance from the AP to the SU.

Example:

#> su ping 1

[#Begin]

[001]

Ping #0 -> -52 dB 220 us 0.0 mi

Ping #1 -> -53 dB 219 us 0.0 mi

Ping #2 -> -53 dB 220 us 0.0 mi

Ping #3 -> -52 dB 220 us 0.0 mi

Ping #4 -> -53 dB 219 us 0.0 mi

Ping #5 -> -52 dB 220 us 0.0 mi

Ping #6 -> -50 dB 220 us 0.0 mi

Ping #7 -> -52 dB 220 us 0.0 mi

Ping #8 -> -52 dB 220 us 0.0 mi

Ping #9 -> -52 dB 220 us 0.0 mi

Deployment

Trango Broadband Wireless — User Manual M2400S Rev A Page

[#End]

Avg = -51 dB

Success.

su <su #>

AP will poll the SU for SU’s current status and will provide information such as SU range from AP, signal

strength received at SU from AP, SU temperature, etc.

Example:

#> su 1

[ 1] pr [as] y [d] 0.0 [rssi at ap] -50 dBm [rssi at su] -60 dBm

[ip] 10.8.1.234 [subnet] 255.255.255.192 [gateway] 10.8.1.193

[mac] 00 01 DE 19 F0 A4

[hw ver] 0006 [fpga ver] 04042201 [fpga chksum] 47231EEE

[fw ver] 1p0x8 [fw chksum] 6DDF232C [fw datecode] 04061502

[default channel and antenna] 1 h [active channel and antenna] 1 h

[tx power] 23 dBm

[ch#1] 2405 [ch#2] 2415 [ch#3] 2425 [ch#4] 2435 [ch#5] 2445 [ch#6] 2455

[ch#7] 2465 [ch#8] 2475

[remarks]

[RF Tx Retry at AP] 0 [RF Tx Retry Maxed Out at AP] 0

[RF Tx Retry at SU] 0 [RF Tx Retry Maxed Out at SU] 0

Success.

su linktest <su#>

This command checks the integrity of the wireless link from the standpoint of performance (throughput) and

over-the-air packet loss. The AP will send 100 1600 byte packets to the SU and the SU will return the packets

it receives to the AP. A perfect link (without dropped packets) will yield average throughput of 5,000 kbps. If

heavy packet loss occurs it may be caused by interference or multi-path.

Example:

#> su linktest 1

[suid] 1 [pkt len] 1600 bytes [# of pkts per cycle] 100 [cycle] 10

0 [AP Tx] 100 [AP Rx] 100 [AP RxErr] 0 [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0 5

00 ms 5120 kbps

1 [AP Tx] 100 [AP Rx] 100 [AP RxErr] 0 [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0 5

00 ms 5120 kbps

2 [AP Tx] 100 [AP Rx] 100 [AP RxErr] 0 [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0 5

00 ms 5120 kbps

3 [AP Tx] 100 [AP Rx] 100 [AP RxErr] 0 [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0 5

00 ms 5120 kbps

4 [AP Tx] 100 [AP Rx] 100 [AP RxErr] 0 [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0 5

00 ms 5120 kbps

5 [AP Tx] 100 [AP Rx] 100 [AP RxErr] 0 [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0 5

00 ms 5120 kbps

6 [AP Tx] 100 [AP Rx] 100 [AP RxErr] 0 [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0 5

00 ms 5120 kbps

7 [AP Tx] 100 [AP Rx] 100 [AP RxErr] 0 [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0 5

00 ms 5120 kbps

8 [AP Tx] 100 [AP Rx] 100 [AP RxErr] 0 [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0 5

00 ms 5120 kbps

9 [AP Tx] 100 [AP Rx] 100 [AP RxErr] 0 [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0 5

00 ms 5120 kbps

[AP Total nTx] 1000 pkts

Deployment

Trango Broadband Wireless — User Manual M2400S Rev A Page

[AP Total nRx] 1000 pkts

[AP Total nRxErr] 0 pkts

[SU Total nTx] 1000 pkts

[SU Total nRx] 1000 pkts

[SU Total nRxErr] 0 pkts

[AP to SU Error Rate] 0.00 %

[SU to AP Error Rate] 0.00 %

[Avg of Throughput] 5120 kbps

#> Success.

su testrflink <su#>

This command also checks the integrity of the wireless link from the standpoint of over-the-air packet loss. In

this test, the AP will send 20 large (1512 byte) packets to the SU and the SU will in turn send the same 20

packets back to the AP. The expected result of an error free link is 20..20..20, indicating (in the following

sequence) 20 packets sent from AP, 20 packets received back at AP, 20 packets received at the SU. Any

results other than 20..20..20 indicate a performance problem, most likely due to interference or inadequate

signal to noise ratio. For thorough results it is recommended you run the command repeatedly for at least 1

minute or more to determine if packets are passing without error consistently over time. This command will

give results without the help from ARQ. Note: This test does not provide as much detail as linktest

The “r” is used in this command to repeat the rf link test repeatedly until the user terminates the test by hitting

SPACE ENTER.

Example:

#> su testrflink 1 r

Press [space] then [enter] to stop

[len] 1512

[suid] 1

[ 0] ...........[AP Tx] 20 [AP Rx] 20 [SU Rx] 20

[ 1] ...........[AP Tx] 20 [AP Rx] 20 [SU Rx] 20

[ 2] ...........[AP Tx] 20 [AP Rx] 20 [SU Rx] 20

[ 3] ...........[AP Tx] 20 [AP Rx] 20 [SU Rx] 20

[ 4] ...........[AP Tx] 20 [AP Rx] 20 [SU Rx] 20

[ 5] ...........[AP Tx] 20 [AP Rx] 20 [SU Rx] 20

Success.

As another example, a result of 20..10..18 would indicate 20 packets sent from the AP, 18 packets received at

the SU, 10 packets received back to the AP. These types of results may be caused by Fresnel zone

infringements, interference or multi-path.

ARQ with Selected Repeat and Multirate Feature

The M900S features ARQ or “Automatic Request for Re-transmission” which provides the ability to correct for

missing or erred packets of data by asking the sender to re-transmit the data.

Both the AP and SU units implement a form of ARQ known as Selective Repeat.

The units make a first attempt at transmitting a data frame using the 5.5 Mbps rate. Then, if a re-try is

required, that 2nd attempt shall be at 5.5 Mbps rate as well. e 3rd and 4th attempts will be at a rate of 2.75

Mbps. After the 4th attempt there will be no more re-tries. A counter describing “maximum retries reached”

will be incremented.

• A minimum of 100ms is placed between re-transmission requests.

Management

Trango Broadband Wireless — User Manual M2400S Rev A Page

• The units buffer up to 1200 frames or 4 seconds worth of RF TX Data frames to support the ARQ

algorithm.

• The AP unit maintains counters concerning the ARQ algorithm on a per SU basis. The counters shall

include the following data:

Total Transmitted Frames

Total Retransmission Attempts

Total “Maximum Attempts Reached”

The SU also maintains a counter concerning its use of the ARQ algorithm. Counters include the following data:

Total Transmitted Frames

Total Retransmission Attempts

Total “Maximum Attempts Reached”

Section 7 Management

Section Topics:

• Radio Management Access via TCP/IP

• SU Management from AP’s command set

• SNMP

Radio Management Access Via TCP/IP

The IP Address of an M2400S radio is for management purposes only. The IP address is not used for routing

purposes or passing traffic. Users should take care to set appropriate IP schemes for all management

activities including upgrading the radio’s firmware. It is not uncommon for users to assign public IP addresses

to radios so that they can be accessed from anywhere on the internet. In order to gain TCP/IP access to the

SU (from either side of the wireless network) ensure that the SU Switches 2 and 6 are turned on. In order to

gain TCP/IP access to the AP from the SU side of the wireless network ensure that AP Switch 7 is turned on.

SU Management from AP

The AP provides several commands which permit the management of associated SUs. In fact, most system

management functions are performed by issuing commands from the AP. Presented below are a few

examples of these commands:

su [all | <suid, 1..126>]

su info <suid, 1..126>

su linktest <suid, 1..126>

su password <suid|all> <rw|ro> <new password> <new password>

su ping <suid, 1..126>

su reboot <suid|all>

su sw <suid|all> <sw#, 0..7> <on | off>

su testrflink <suid, 1..126> <r>

su testrflink <all> <r>

Note: SU commands issued from the AP will automatically update the SU’s flash memory. No save ss

command is necessary.

You can remotely change the SUs password for a single SU or all SUs in a sector using the syntax below:

su password <suid | all> <rw | ro> <new password> <new password>

Example: su password all rw hello hello

to remotely change the read write password on all SUs to “hello”

You can change the SUs IP, subnet, and gateway using th syntax below:

su ipconfig <suid> <new ip> <new subnet> <new gateway>

Management

Trango Broadband Wireless — User Manual M2400S Rev A Page

Example: su ipconfig 7 192.168.10.10 255.255.255.0 192.168.10.1

In this example SU ID #7’s IP address is changed to 192.168.10.10, the subnet mask is changed to

255.255.255.0, and the gateway is changed to 192.168.10.1.

A complete description of these commands and many others can be found in Appendix A Command Set

Summary.

Loading Multiple SU’s into SUDB using DLOAD Command

To load a full database of SU entries into the AP database, you will need to create a subscriber database in

ASCII text file format. As shown below, each row represents all information for one SU. Each column is an

information field, which includes: SU ID, SU to SU group, service level, CIR, MIR, and MAC address.

005 re a 1 3000 3000 3000 3000 0000 00 01 de 16 e3 60 --- Subscriber 1

007 re a 1 3000 3000 3000 3000 0000 00 01 de 16 e3 7c --- Subscriber 2

009 re a 1 3000 3000 3000 3000 0000 00 01 de 16 e3 7b --- Subscriber 3

000 --- End of file indicator

--- -- - - ---- ---- ---- ---- ---- -----------------

| | | | | | | | | |

| | | | | | | | | ------------ MAC Address

| | | | | | | | |

| | | | | | | | ----------------------- Reserved (should be 0000)

| | | | | | | |

| | | | | | | ---------------------------- mir uplink

| | | | | | |

| | | | | | --------------------------------- mir downlink

| | | | | |

| | | | | -------------------------------------- cir uplink

| | | | |

| | | | ------------------------------------------- cir downlink

| | | |

| | | ---------------------------------------------- su2su group id

| | |

| | ------------------------------------------------- rate (currently not supported,

| | value should be a)

| |

| ---------------------------------------------------- pr priority user

| re regular user

------------------------------------------------------- su id (1..127)

1. telnet into the AP, run command tftpd on to enable tftp process

2. tftp the file to the AP from your DOS prompt example: tftp <IP of AP> put mySUs.txt

3. From the AP telnet session run command sudb dload to load and activate the database

4. Run command sudb view to verify the database entries

Run command save sudb to write the database to non-volatile memory.

SNMP

The M2400S supports Simple Network Management Protocol (SNMP) for network management. Network

management consists of the following 5 categories: configuration, accounting, alarm, monitoring, and control.

These capabilities allow the network operator to provide superior services through higher network availability

Management

Trango Broadband Wireless — User Manual M2400S Rev A Page

and an integrated accounting system. For more information on SNMP and its uses you can visit

http://www.faqs.org/faqs/snmp-faq/.

The Trango SNMP solution supports MIB-II (system only) and the Trango proprietary Management Information

Base (MIB). The SNMP agent resides on the AP ONLY. It gathers health, status and performance statistics

from all SUs locally, the agent then responds back to the SNMP manager upon request.

Users interested in using the SNMP functionality should review the entire M2400S MIB for a complete

understanding of its features. The M2400S MIB is available for download at:

http://www.trangobroadband.com/support/downloads.htm

The following is an overview of a few of the more commonly used SNMP objects in the M900S system.

Objects for Monitoring and Control

SU Bandwidth Monitoring

• suRfInOctets – Number of octets of payload transmitted from AP’s RF port.

• suRfOutOctets – Number of octets of payload received from AP’s RF port.

AP Bandwidth Monitoring

• aptrafficEthInOctets – Number of octets of payload received on the Ethernet port

• aptrafficEthOutOctets – Number of octets of payload transmitted on the Ethernet port

• aptrafficRfInOctets – Number of octets of payload received on the RF port

• aptrafficRfOutOctets – Number of octets of payload transmitted on the RF port

Link Status Monitoring –Various traps are defined as follows:

• SU Link Up – When SU associates to the AP

• SU Link Down – When SU disassociates from the AP

AP and SU Control – SNMP also provides several control capabilities. The majority of the features available

on the CLI are also available in SNMP. Here are a few of these features:

• Add/delete subscriber

• Change channel

• Set power

• Set radio sensitivity

Review the Trango M2400S MIB for the complete listing of MIB Objects.

SNMP Setup

Trango Broadband provides only the MIB portion of the SNMP Management system. The radios act as

individual agents, and it is up the user to provide an SNMP Manager software from a third party vendor.

Below is an example of the setup process for SNMPc from Castle Rock™.

1. Unzip trangopkg.zip file to a local temporary directory.

2. Go to your local temporary directory. You will find 4 files as shown below.

a. trango_m2400sap_1p0.mib – M2400S AP MIB file

b. trango.ico – M900S AP icon

c. autoico.txt – instruction file (Selects Trango icon automatically during initial set-up.)

d. readme.pdf

3. Copy trango_m2400sap_1p0.mib file to C:\Program Files\SNMPc Network Manager\mibfiles

4. Copy autoico.txt file to C:\Program Files\SNMPc Network Manager\mibfiles

5. Copy trango.ico file to C:\Program Files\SNMPc Network Manager\bitmaps

6. The MIB needs to be compiled into the SNMPc database

Management

Trango Broadband Wireless — User Manual M2400S Rev A Page

By default, the Read Community is set to “public”, and the Write Community is set to “private” in the AP. The

Trap Community is “SNMP_trap”. The manager needs to have the same settings in order to communicate

with the AP successfully.

To send traps from the AP set the following:

• trap destination IP (Trango MIB object trapconfig–trapconfigInfo)

• trap community string (Trango MIB object trapconfig–aptrpTable-AptrpEntry)

• enable each trap (Trango MIB object traponfig–aptrpTable-AptrpEntry)

Trango Broadband Wireless — User Manual M2400S Rev. A Page

Appendix A Command Set Reference

(ro = read only access, rw = read write access)

Command Radio Description Access

? AP/SU

Display complete list of commands and syntax ro/rw

? <command> AP/SU Display specific command syntax ro/rw

antenna AP/SU Display current antenna setting

(h=horizontal, v=vertical, e=external ) ro/rw

antenna <e | h | v> AP/SU Select antenna mode

(h=horizontal, v=vertical, e=external) rw

aprssi <ch#> <antenna, h | v | e> AP/SU Scan two strongest APs

(opmode OFF only) ro/rw

apsearch AP/SU Scan all channels to look for APs

(opmode OFF only) ro/rw

arq AP/SU Display current ARQ settings ro/rw

arq <on|off> AP/SU Enable/disable ARQ rw

bye AP/SU Same as “logout” ro/rw

eth link AP/SU Display current Ethernet setting ro/rw

eth link

<100fdx|100hdx|10fdx|10hdx|aneg> AP/SU Change Ethernet duplex setting rw

exit AP/SU Same as “logout” ro/rw

freq AP/SU Display current channel ro/rw

freq <ch#> AP/SU Change current channel rw

freq channeltable AP/SU Display channel table ro/rw

freq writechannel [<ch #> <freq>]… AP/SU Modify center frequency of channel.

<ch #> = 1..4

<freq> = 906..924

note this command automatically writes to flash memory.

help AP/SU Display complete list of commands and syntax ro/rw

help <command> AP/SU Display specific command syntax ro/rw

ipconfig [<new ip> <new subnet mask>

<new gateway>] AP/SU Assign radio’s ip, subnet mask and gateway ip rw

linktest <txrx|rxtx> <suid> [<pkt len, bytes>

[<# of pkts> [<# of cycle>]]]

AP/SU Loopback test to check quality of the wireless link. Variable

parameters include:

pktlen = 64..1760,

# 0 pkts = 1..500

# of cycles = 1..100000

ro/rw

logout AP/SU Log out of radio ro/rw

maclist AP/SU Display current mac table (mac addresses of attached

devices) ro/rw

maclist reset AP/SU Display or reset current mac table ro/rw

mirth AP Display MIR (Maximum Information Rate) Threshold ro/rw

mirth <0..3, Mbps> AP Assign MIR Threshold

default = 3 Mbps

mirth 0 = Always On

mirth 3 = Disable MIR Threshold

opmode AP/SU Display current opmode ro/rw

opmode on [y] AP/SU Set opmode to be ON and use “y” if opmode is not as same as

default opmode ro/rw

password <rw|ro> <new pwd> <new pwd> AP/SU Specify new password (max 15 octs)

rw=read/write password, ro=read only password rw

ping <ip address> AP/SU Ping local Ethernet device

Note: this command only works for local Ethernet devices, not

SU or any device behind SU.

ro/rw

power AP/SU Display current tx power level

default = max. power value ro/rw

power set <min|max|<dBm>> AP/SU Specify tx power for both band rw

Trango Broadband Wireless — User Manual M2400S Rev. A Page

Command Radio Description Access

Note: SU’s power will be adjusted by AP during association

process (power levelling)

pppoeonly SU Display current PPPoE filter setting ro/rw

pppoeonly <on | off> SU Change PPPoE filter setting

With PPPoE filter set to ON, only PPPoE packets will pass

Default: off – Pass All Packets

reboot AP/SU Reboot unit ro/rw

remarks AP/SU Display remarks ro/rw

remarks <str,31 octs> AP/SU Overwrite remarks rw

reset AP/SU Reset radio’s system settings back to factory defaults, then

reboot rw

rfrxth AP/SU Display current RF Rx Threshold ro/rw

rfrxth <-98..-55> AP/SU Change current RF Rx Threshold

default = -98 dBm rw

rssi AP/SU Display current Rx rssi

Opmode OFF only on AP ro/rw

save <mainimage | fpgaimage> <<current

chscksum>> <<new checksum>> AP/SU Save new firmware. This command gets new firmware image

from tftp buffer, verifies checksum and writes to flash memory

at main or fpga image section.

save <sudb> AP Save SU dbase into flash memory rw

save <systemsetting | ss> AP/SU Save current configuration into flash memory rw

set apid <ap-id> AP Set AP ID, <ap-id> = 1..255 rw

set baseid <base-id, 4 oct> AP/SU Set base station id Baseid = XXXX where X = any

alphanumeric character except “/” rw

set defaultopmode <on | off> AP/SU Set default opmode to ON or OFF.

Factory set default opmode is OFF. rw

set httpport [<port #>] AP/SU Set or display HTTPD port number

port # = 1..65534

default port = 80

set snmpcomm <read | write | trap id# |trap

all> AP/SU Set SNMP read or write or trap community string rw

set telnetport [<port #>] AP/SU Specify telnet port, <port #> = 1..65534

Default port = 23

snmpsample <min, 1..60> AP/SU Set SNMP sample period rw

su password <suid | all> <rw | ro> <new

password> <new password> AP Change read/write or read-only password of all or a specific

subscriber rw

su <all | suid> AP Display all or specific su information in dbase ro/rw

su info <suid> AP Command issued from the AP to gather information about

specific SUs.

1. distance

2. rssi at ap

3. rssi at su

4. IP address

5. Subnet address

6. Gateway address

7. Device ID

8. Hardware version

9. FPGA version

10. FPGA checksum

11. Firmware version

12. Firmware checksum

13. Firmware datecode

14. broadcast/multicast packet filter on/off

15. auto scan ap on/off

16. tcpip for ap on/off

17. httpd on/off

ro/rw

Trango Broadband Wireless — User Manual M2400S Rev. A Page

Command Radio Description Access

18. tcp ip service for Ethernet port on/off

19. default channel and antenna

20. active channel and antenna

21. tx power

22. remarks

23. RF tx retry at AP, RF tx retry maxed out at AP

RF tx retry at SU, RF tx retry maxed out at SU

su ipconfig <suid> <new IP> <new

subnet> <new gateway>

AP Change IP, subnet, gateway for specified SU rw

su linktest <suid> AP Sends 100 1600 byte packets 10 times and reports back the

average throughput. ro/rw

su ping <suid> AP Request SU’s ranging and rssi information ro/rw

su reboot <all | suid> AP Reboot a specific SU or all SUs rw

su testrflink <suid> [r] AP Sends 20 1512 byte packets to <suid> and listens for the

response back

r: will repeat until user presses space bar

Ro/rw

sudb add <suid> <pr|re> <mac> AP Add new SU to sudb rw

sudb cirmir <<suid>|all> <cir dn> <cir up>

<mir dn> <mir up> AP Change SU’s CIR/MIR settings rw

sudb defaultcirmir AP Display default CIR and MIR in sudb ro/rw

sudb defaultcirmir <cir_dn, 0..3000>

<cir_up, 0..3000> <mir_dn, 0..3000>

<mir_up, 0..3000>

AP Change default CIR and MIR rw

sudb defaultcirmir <default cir dn> <default

cir up> <default mir dn> <default mir up> AP Set MIR/CIR values to default values rw

sudb delete <<suid>|all> AP Delete SU in sudb rw

sudb dload AP Download SU database file from TFTP buffer and write to

flash memory, This command is used to load a text file which

contains the SU database into the AP. This command can be

useful if there are large numbers of SUs in the sector.

sudb gid <suid>|all> <0..15> AP Change su’s gid rw

sudb view AP Display all sudb ro/rw

survey <search time, sec> <antenna, h | v |

e> AP/SU Spectrum analysis of the entire band (and near band)

<search time> = 1..10 sec per channel

Opmode OFF only

ro/rw

sw AP/SU Display current sw setting ro/rw

sw 0 [on | off] AP/SU set sw #0 – enable or disable packet filter for broadcast/

multicast packets

on = filtering

default = on

sw 1 [on | off] SU Enable or disable SU’s autoscan AP feature

If on, SU will automatically scan each channel and antenna

port searching for AP.

default=on

sw 2 [on | off] SU Enable or disable SU’s TCP/IP service for ap

Allows TCP/IP access to SU from AP side of network via

wireless link.

default = on

sw 3 [on | off] AP Enable or disable SU to SU (peer to peer) service

default = off rw

sw 5 [on | off] AP/SU Enable or disable httpd (browser interface)

default = on rw

sw 6 [on | off] SU Enable or disable tcp/ip service for Ethernet port while SU is in

opmode ON.

default = on

sw 7 [on | off] AP Enable or disable tcp/ip service for SU. Allows TCP/IP access

to AP from SU side of network via wireless link.

default = on

sysinfo AP/SU Display system configuration ro/rw

Trango Broadband Wireless — User Manual M2400S Rev. A Page

Command Radio Description Access

targetap SU Display the SU current setting for target AP ro/rw

targetap all SU SU will associate with any AP with the same BaseID

“all” is the default setting. rw

targetap only <mac1, hex> [<mac2, hex>] SU SU will only associate with AP with specified MAC addresses. rw

targetrssi AP Display SU target rssi in dBm. This setting is used in the SU

powerlevelling process. ro/rw

targetrssi <dBm, -90..-50> AP Change target rssi. Note: target rssi must be +5 dB more than

rfrxth (RFRX Threshold).

default = -60

tftpd AP/SU display current tftpd status (status is either on or off) This

command will also list any contents of the TFTP buffer. ro/rw

tftpd <on | off> AP/SU enable or disable tftpd service. TFTPD must be on in order to

upload new firmware or new sudb file. rw

updateflash <systemsetting | ss> AP/SU Save current settings. This command can be issued in

several ways:

save ss, updateflash systemsetting, save systemsetting, and

updateflash ss

updateflash <mainimage | fpgaimage>

<current chscksum> <new checksum> AP/SU Retrieve uploaded firmware from tftp buffer, verify checksum

and write to flash memory at main or fpga image section.

updateflash sudb AP Save su dbase into flash memory rw

ver AP/SU display firmware and date codes

1. version number and date code

2. firmware and fpga version code

3. firmware and fpga image checksum

ro/rw

Trango Broadband Wireless — User Manual M2400S Rev. A Page

Appendix B Specifications

All specifications apply to M2400S-AP and M2400S-SU unless otherwise noted.

Radio Transmit Specifications

Storable Channels: 8 memory locations

Agility: 2405 to 2475 MHz in 1 MHz increments

Default channels-

Channel 1: 2405 MHz

Channel 2: 2415 MHz

Channel 3: 2425 MHz

Channel 4: 2435 MHz

Channel 5: 2445 MHz

Channel 6: 2455 MHz

Channel 7: 2465 MHz

Channel 8: 2475 MHz

Power Control Range: Max: +23 dBm +/- 1

Min: +10 dBm +/- 2 Step: 1 dB

Pout: +23 dBm max

Ant. Gain: 13 dBi (AP), +15dbi (SU)

EIRP: +36 dBm (4 Watt) (AP), 38.5 dbm (SU w internal antenna)

Freq. Stability: +/- 2.5 ppm PLL stabilized over temperature

Freq. Plan: Upconversion from BB to 426 MHz IF to 2400 MHz

Modulated BW: 10 MHz (null to null, 40 dB down)

Harmonic atten: Per CFR47 part 15.247

LO Supression: Per CFR47 part 15.247

Receiver Specifications

Storable Channels: 8 memory locations

Agility: 2405 to 2475 MHz in 1 MHz increments

Default channels-

Channel 1: 2405 MHz

Channel 2: 2415 MHz

Channel 3: 2425 MHz

Channel 4: 2435 MHz

Channel 5: 2445 MHz

Channel 6: 2455 MHz

Channel 7: 2465 MHz

Channel 8: 2475 MHz

Cascade Noise Figure: < 5 dB

Receiver Sensitivity:

5.5 MBPS Rate: - 88 dBm typical-1600 byte packet

(1x10

-6

BER) - 88 dBm typical-64 byte packet

2.25 MBPS Rate: - 91 dBm typical-1600 byte packet

(1x10

-6

BER) - 91 dBm typical-64 byte packet

Image Rejection: > 90 dB

Frequency Plan: Down conversion from 2400 MHz to 426 MHz IF to BB

Trango Broadband Wireless — User Manual M2400S Rev. A Page

LO stability: +/- 2.5 ppm PLL stabilized over temperature

Ethernet I/O Specifications

Data Input/Output:

Connector: Shielded RJ-45 Jack

Signaling Format: IEEE802.3i (10baseT) and IEEE802.3u (100baseT) compliant

Filtering: PPPoE per RFC 2516 (SU only)

Auto-Negotiation: Fully supports IEEE802.3-2002 Sect. 2 Clause 28

Bridging Frame Size: 60 to 1600 bytes

Mngmt Frames: 60 to 1472 bytes. (includes PING, TELNET, TFTP, HTTP )

Protection: Bi-directional transient voltage protection diodes on all data lines

compliance with:

IEC61000-4-2 (ESD)

IEC61000-4-4 (EFT)

IEC61000-4-5 (Lightning)

Power Specifications

Input Voltage: Input voltage range at unit is 10.5 VDC to 24 VDC max

Power is supplied via unused pins of the RJ-45 Jack. Power is

injected into Ethernet cable using a junction box provided.

Current Cons.: 500 mA in transmit and receive modes at max power using 20 V

standard adapter (10 W) and 10 ft cable from J-BOX to unit.

Protection: 28 volt Transient Voltage Suppression (TVS) diode on power input.

Note: Voltages above 28 volts will cause damage to unit.

Mechanical and Environmental Specifications

General

Material: High Temp Polycarbonate radome and diecast metal enclosure.

Size: 12.5” x 8” x 2.75” including mounting studs

Weight: 4 lb

Mounting: 2 U-Brackets, all-thread rod, nuts and washers

Connectors/Indicators

RF Output: Integral internal patch antenna per Part 15C, 15.203.

External RP-SMA-f connector for external antenna.

FCC Compliance: The transceiver shall comply with the following:

FCC Part 15.247

FCC Part 15.207(a)

Environmental

Operating Temp: -40 to 60 deg C

Storage: -40 to 85 deg C

Humidity: 100 % When sealed properly

NEMA Rating: NEMA 4

Shock: Sustain 3 axis drop from 5 feet

Standard External Power Supply

20 Volt DC Power adapter and J-Box supplied with product.

Trango Broadband Wireless — User Manual M2400S Rev. A Page

Type: Linear wallmount transformer

Input: 120 VAC

Output: 20 VDC +/- 1 V

Max current: 600 mA

Connector: 5mm DC Barrel-type Plug.

Standard External Power-over-Ethernet Junction Box

Type: In-line female-to-female RJ-45 adapter for CAT-5 Ethernet cable

Connectors:

Eth. In: Shielded RJ-45 Jack

DC Input: 5mm DC Barrel-type Jack.

Eth. Out & DC Out: Shielded RJ-45 Jack

Pinout for Eth. Out: Power (+) on pins 7+8, ground (-) on pins 4+5 and eth. data on

pins 1,2,3 & 6

Indicators: 2 LEDs to indicate power and a connection to radio.

Protection: Resettable fuse for DC input.

Integrated Antenna AP

Type: Air-loaded Patch Antenna

Polarization: Vertical or Horizontal Polarization, electrically selectable

Frequency: 2405 to 2475 MHz

Gain: +13 +/- 1 dBiL

Az Beamwidth: 60 degrees (3 dB pts)

El Beamwidth: 18 degrees (3 dB pts)

Cross Pol: >15 dB

Front/Back Ratio: 12 dB

VSWR: < 2.0:1 over Bandwidth

Integrated Antenna SU

Type: Air-loaded Patch Antenna

Polarization: Vertical or Horizontal Polarization, electrically selectable

Frequency: 2405 to 2475 MHz

Gain: +15 +/- 1 dBiL

Az Beamwidth: 32 degrees (3 dB pts)

El Beamwidth: 18 degrees (3 dB pts)

Cross Pol: >15 dB

Front/Back Ratio: 12 dB

VSWR: < 2.0:1 over Bandwidth

Trango Systems M2400S 2.4 GHz Wireless Broadband System User Manual M2400S UserManual

Trango Systems Inc 2.4 GHz Wireless Broadband System M2400S UserManual

Contents

user

Navigation menu

Namespaces

Views

Navigation
